Juki LH-3568 Parts Book PDF — View & Download

Parts index — Juki LH-3568tap a row to open its page

Page 7

Juki LH-3568 parts on page 7
Ref	Part number	Part name
1	SM-4051055-SP	SCREW
2	400-28766	REAR_PLATE
3	D2112-555-B00	CORD HOLDER, LARGE
4	SM-4050855-SP	SCREW
5	236-01057	EARTH CORD ASM.
6	SM-4050855-SP	SCREW
7	WT-0530002-KS	TOOTHED WASHER D=5.3
8	226-19100	CAP
9	TA-0800504-RO	RUBBER PLUG D=8 L=4.5
10	TA-1250406-RO	RUBBER PLUG D=12.5 L=4
11	TA-1250406-RO	RUBBER PLUG D=12.5 L=4
12	SM-6060800-SP	SCREW M6 L=8
13	400-28245	THREAD_TAKE_UP_LEVER_COVER
14	400-30299	ASSY_FACE_COVER_68
15	TA-1600406-RO	PLUG
16	400-29972	FACE_COVER_68
17	TA-1250705-RO	RUBBER PLUG
18	229-20706	TWO EYEL ET
19	SM-8050412-TP	SCREW M5 L=4
20	400-29078	THREAD_GUIDE_UPPER
21	SM-1040750-TP	SCREW M4 L=7
22	400-29347	THREAD_GUIDE_WIRE
23	SM-8040402-TP	SCREW M4X0.7 L=4
24	400-28707	THREAD_GUIDE_LOWER
25	SM-1040750-TP	SCREW M4 L=7
26	B1104-051-000	THROAT PLATE PIN
27	400-28731	PLATE
28	SM-9040603-SC	SCREW M4 L=6
29	229-01805	GROUND MARK
30	SM-1040750-TP	SCREW M4 L=7
31	SM-6040655-TP	SCREW M4 L=6
32	SM-2040750-TP	SCREW M4 L=7.4
33	226-01058	BED SLIDE LEFT, ASM., A
34	400-25247	ASSY_SLIDE_PLATE-L-A
35	226-25503	THROAT PLATE 1/4
36	400-25492	THROAT_PLATE_TRIM-1/4
37	226-00555	BED SLIDE RIGHT, ASM., A
38	400-25235	ASSY_SLIDE_PLATE-R-A
39	400-42880	ASSY_SLIDE_PLATE_F
40	400-42874	ASSY_SLIDE_PLATE_F_STANDARD
41	400-28555	STUD
42	400-34675	THREAD_GUIDE_ASM_E
43	400-32896	THREAD_GUIDE_FELT
44	226-03708	FELT
45	400-28706	AUXILIARY_COVER
46	226-57803	RUBBER PLUG
47	400-34053	RESISTANCE PACK AA ASM.
48	SM-4041055-SP	SCREW
49	CM-3002001-A1	SAFETY LABEL.,3 (SMALL).
50	WP-0430800-SD	WASHER M4
51	400-35180	BED_SCREW_STUD_B
52	CM-2002002-01	LABEL_02_C
53	CM-2002002-02	LABEL_02
54	CM-1001000-01	OIL INJECTION PROHIBITION LABE
55	CM-3011001-02	LABEL_03
56	CM-3011001-01	LABEL_03_C
57	TA-1470704-RO	RUBBER PLUG
58	TA-0950806-RO	RUBBER PLUG
59	TA-1650406-RO	PRUG
60	400-26811	THREADING_DIAGRAM
61	400-36690	WASHER
62	EA-9502B02-00	CABLE CLIP C
63	SM-6040552-TP	SCREW M4 L=4.5
64	236-01305	AIR-DISCHARGING CAP
65	236-29900	AIR-DISCHARGING
66	RO-0801502-00	RUBBER RING
67	SM-4051055-SP	SCREW
68	CM-2001001-02	LABEL_01
69	CM-2001001-01	LABEL_01_C
70	CM-3002000-01	ATTENTION SEAL
71	TA-1030402-RO	RUBBER PLUG D=10.3 L=4
72	TA-0750704-RO	RUBBER PLUG
73	TA-1250406-RO	RUBBER PLUG D=12.5 L=4
74	400-06323	JUKI GREASE A TUBE
75	400-22407	CORD HOLDER

Page 9

Juki LH-3568 parts on page 9
Ref	Part number	Part name	Qty
1	TA-0750404-R0	PLUG D=7.5 L=3.5	1
2	226-05307	THREAD TAKE-UP LEVER PIN	1
3	CQ-2020000-00	OIL WICK	0.15
4	400-24093	THREAD TAKE_UP_LEVER_C	1
5	CQ-2020000-00	OIL WICK	0.04
6	400-22678	TAKE_UP_LEVER_THRUST_PIN	1
7	CQ-2520000-00	OIL WICK	0.02
8	228-10907	RUBBER PLUG	1
9	SM-8060612-TP	SCREW M6 L=6	2
10	226-22401	SYNCRO FRNGE	1
11	400-29964	NEEDLE_BAR_CRANK_PIN	1
12	CQ-3030000-00	OIL WICK	0.02
13	400-31864	ASSY_COUNTER_WEIGHT	1
14	SM-8060552-TP	SCREW M6 L=5	(1)
15	SM-8060612-TP	SCREW M6 L=6	(1)
16	400-04171	COUNTER_WEIGHT_SCREW	(1)
17	SM-8081652-TP	SCREW M8 L=16	(1)
18	400-24436	MAINSHAFT	1
19	400-28117	LOWER_SPROCKET	1
20	SM-6061010-TP	SCREW M6 L=10	2
21	400-32987	HAND_WHEEL	1
22	SM-8061550-TP	SCREW M6 L=15	2
23	400-32993	COMP_HAND_WHEEL_TRIM	1
24	400-32994	ASSY_HAND_WHEEL_TRIM	(1)
25	400-27099	HAND_WHEEL	(1)
26	M4002-110-000	GENERATOR ROTOR	(1)
27	400-17624	MAGNET FITTING BASE A ASM.	(1)
28	400-17625	MAGNET FITTING BASE B ASM.	(1)
29	SM-8061550-TP	SCREW M6 L=15	(2)
30	SS-6111210-SP	SCREW 11/64-40 L=12	(2)
31	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
32	229-37965	DYNAMO STATOR	1
33	SL-4051001-MZ	SCREW M5 L=9.6	2
34	400-32142	SENSOR_SUPPORT_SHAFT_ASM	1
35	400-29048	ASSY_MAINSHAFT_BEARING_2	1
36	400-28116	MAIN_SHAFT_SPROCKET	(1)
37	SB-1200025-00	BEARING	(1)
38	SM-8060612-TP	SCREW M6 L=6	(2)
39	400-29047	ASSY_MAINSHAFT_BEARING	1
40	SM-8060612-TP	SCREW M6 L=6	(2)
41	400-28652	TIMING_BELT	1
42	TA-0490601-R0	PLUG D=4.9X5.5 L=6	1
43	400-29049	ASSY_MAINSHAFT_BEARING_3	1
44	400-33667	BEARING_BUSH_C_ASM	(1)
45	SM-8060812-TP	SCREW M6 L=8	(2)
46	SB-1200020-00	BEARING	(1)
47	400-26920	SYNCHRONIZER ASM	1
48	TA-0500301-R0	PLUG 5X5.8 L=3	1
49	TA-0370301-R0	PLUG D=3.7X4.4 L=3	1

Page 11

Juki LH-3568 parts on page 11
Ref	Part number	Part name	Qty
1	229-03702	ROLLER FELT	2
2	226-81209	FELT COVER	1
3	400-26402	NEEDLE BAR ROCKING BASE ASM	1
4	400-26401	NEEDLE ROD ROCKING BASE	(1)
5	400-25329	NEEDLE BAR SHAFT	(1)
6	PT-0502700-SO	TAPERED PIN	(1)
7	226-82702	NEEDLE BAR SWIVEL STOPPER	1
8	226-81712	STOPPER SCREW	2
9	400-35629	FELT	1
10	226-81951	SLIDER BLOCK ASM. A	1
11	226-82058	SLIDER BLOCK ASM. B	1
12	226-82157	SLIDE BLOCK	1
13	226-82256	SLIDER BLOCK ASM. D	1
14	226-82355	SLIDER BLOCK ASM. E	1
15	226-81803	SLIDE BLOCK GUIDE PLATE	1
16	SS-4090715-SP	SCREW 9/64-40 L=7	2
17	226-85503	FELT GUIDE	1
18	WP-0450000-SD	WASHER 4.5X8X0.5	1
19	SS-7110710-SP	SCREW 11/64-40 L=7	1
20	226-86000	NEEDLE BAR OIL SEAL FELT, A	1
21	226-85804	NEEDLE BAR OIL SEAL PLATE	1
22	SS-6060510-TP	SCREW 3/32-56 L=4.5	1
23	226-86109	NEEDLE BAR OIL SEAL FELT, B	2
24	226-81407	NEEDLE BAR STOPPER	2
25	226-81506	SPRING	2
26	226-81310	STOPPER SPRING COVER	1
27	SS-6080410-SP	SCREW 1/8-44 L=4	1
28	SS-4090415-SP	SCREW 9/64-40 L=4	1
29	400-26983	NEEDLE BAR ASM. LEFT	(1)
30	400-26982	NEEDLE BAR LEFT	(1)
31	226-85200	SEESAW PLATE	(1)
32	226-85408	NEEDLE BAR PIN	(1)
33	131-02702	THROAT PLATE COVER	2
34	B1425-526-000	SCREW 1/8-44 L=6	4
35	400-39561	ASSY NEEDLE CLAMP L(1/4)	1
36	400-28668	RING A	4
37	SS-4090715-SP	SCREW 9/64-40 L=7	2
38	400-26984	NEEDLE BAR ASM. RIGHT	(1)
39	400-26981	NEEDLE BAR RIGHT	(1)
40	226-85200	SEESAW PLATE	(1)
41	226-85408	NEEDLE BAR PIN	2
42	226-82504	SPRING BEARING	1
43	B1402-528-FAR-A	NEEDLE CLAMP ASM. 1/4	1
44	232-04506	ROCKING ROD SQUARE BLOCK A	1
45	232-04605	ROCKING ROD SQUARE BLOCK B	1
46	232-04704	ROCKING ROD SQUARE BLOCK C	1
47	226-06206	SPACER X	1
48	226-06305	SPACER Y	1
49	226-07600	SPACER A	1
50	226-07709	SPACER B	1
51	B1438-512-B00	WASHER 17.1X28X1.5	1
52	226-07808	SPACER D	1
53	226-07907	SPACER E	1
54	226-06404	SPACER F	1
55	400-32147	NEEDLE BAR CONNECTION ASM	(1)
56	226-83205	RELEASE PIN COVER	(1)
57	226-83304	SPRING	(1)
58	400-24473	RELEASE PIN	(2)
59	226-83809	SPRING	(1)
60	400-28679	NEEDLE BAR CONNECTION	(2)
61	226-83403	NEEDLE BAR CONNECTION PIN	(1)
62	226-84104	SPRING	(2)
63	SS-8080340-SP	SCREW 1/8-44 L=2.9	(2)
64	226-84203	SPRING BRACKET	(1)
65	226-83908	CLUTCH STOPPER, LEFT	(1)
66	226-84005	CLUTCH STOPPER, RIGHT	(1)
67	400-24064	NEEDLE BAR CLUTCH	(2)
68	B1795-850-000	STOPPER PIN	(2)
69	226-83601	CLUTCH LEVER	(2)
70	CQ-2520000-00	OIL WICK	(0.03)
71	400-15144	NEEDLE BAR CONNECTION PIN	(1)
72	SS-7060310-SP	SCREW 3/32-56 L=3	(1)
73	400-23568	BUSHING	1
74	400-23569	BUSHING	1
75	400-33669	ASSY REAR ARM	1
76	SM-6062502-TP	SCREW M6 L=25	(1)
77	226-85705	OIL GUARD RUBBER	2
78	400-26482	SHOULDER SCREW	1
79	400-32124	DRIVING ROD ASM	1
80	400-28853	ASSY DRIVING ARM	(1)
81	SM-6051600-SP	SCREW M5 L=16	(1)
82	400-28200	NEEDLE BAR CRANK ROD	1
83	MDP-50081400	NEEDLE DPX5 #14	2
84	MDP-17082100	NEEDLE DPX17 #21	2

Page 13

Juki LH-3568 parts on page 13
Ref	Part number	Part name	Qty
1	400-32710	COMP. THREAD TENSION 68S	1
2	400-32711	COMP. THREAD TENSION 68G	1
3	400-28250	ASSY. TENSION BASE PLATE	(1)
4	400-52366	ASSY. THREAD TENSION	(2)
5	110-72402	THREAD TENSION NUT	(1)
6	229-45505	THREAD TENSION SPRING	(1)
7	B3214-047-000	BOBBIN WINDER TENSION DISC	(2)
8	225-29473	BOBBIN WINDER TENSION ROD ASM.	(1)
9	236-26054	THREAD TENSION ASM.	(2)
10	236-26062	THREAD TENSION ASM., H	(2)
11	229-45907	THREAD TENSION POST BASE	(1)
12	229-21209	THREAD TENSION POST	(1)
13	236-26003	THREAD TENSION NUT	(1)
14	229-21407	ROTATION STOPPER	(1)
15	229-21506	THREAD TENSION DISK	(2)
16	229-21505	THREAD TAKE-UP SPRING	(1)
17	229-21704	THREAD TENSION SPRING, A	(1)
18	229-62005	THREAD TENSION SPRING	(1)
19	229-21803	DISK STOPPER	(1)
20	SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
21	B1118-512-000-A	THREAD GUIDE, A	(2)
22	228-11301	THREAD GUIDE(UPPER), RIGHT	(1)
23	232-03201	TAKE-UP THREAD GUIDE	(2)
24	400-34660	DISK RELEASE PLATE	(1)
25	232-03300	THREAD GUIDE COLLAR	(2)
26	B3118-552-D00	TENSION RELEASE PIN, NO.2	(1)
27	B3118-416-000	TENSION RELEASE PIN	(1)
28	SD-0470318-TP	SHOULDER SCREW D=4.7 H=3.1	(3)
29	SM-8050612-TP	SCREW M5X6	(2)
30	SS-5091020-SP	SCREW 9/64-40 L= 9.5	(2)
31	NS-6080210-SP	NUT 1/8-44	(3)
32	NS-6110310-SP	NUT 11/64-40	(2)
33	400-34840	RELEASE LEVER	(1)
34	SS-6090520-SP	SCREW 9/64-40 L= 5.0	(1)
35	400-09222	PRESSER PLATE ADJUSTING SPRING	(1)
36	WP-0350516-SD	WASHER 3.5X6X0.5	(1)
37	400-15699	SPRING GUIDE	(1)
38	400-28258	REPOSITIONING LEVER BASE	(1)
39	SM-7050850-TP	SCREW M5 L=8	(2)
40	400-28262	REPOSITIONING RELEASE LEVER	(1)
41	SD-0601171-SP	HINGE SCREW D=6 H=11.7	(1)
42	B1449-526-000	REPOSITIONING LEVER SPRING	(1)
43	WP-0450801-SP	WASHER	(1)
44	400-35441	LABEL	(1)
45	400-28843	LEVER PIN SCREW	1
46	NM-6050001-SP	NUT M5	1
47	SM-4050855-SP	SCREW	2
48	400-28259	ASSY. REPOSITIONING LEVER	1
49	SM-6050450-TP	SCREW M5 L=4	1
50	SM-4040855-SP	SCREW	1
51	SM-8040412-TP	SET SCREW M4 L=4	1
52	400-28844	REPOSITIONING LEVER SHAFT	1
53	400-32327	ASSY. REPOSITIONING ARM	1
54	SM-6051202-TP	SCREW M5X0.8 L=12	(1)
55	CM-3004009-02	LABEL 02	1
56	SD-0640752-TP	HINGE SCREW D= 6.35 H= 7.5	1
57	226-87503	SPRING	2
58	226-87701	SPRING SHAFT	1
59	RE-0700000-K0	E-RING 7	2
60	226-87602	SPRING BASE	1
61	SM-4050855-SP	SCREW	2
62	226-87107	REPOSITIONING PLATE	1
63	SD-0640247-TP	SHOULDER SCREW D=6.35 H=2.4	2
64	226-87008	LEAF SPRING	1
65	SS-9110460-CP	SCREW 11/64-40 L=4	1
66	400-28641	ADJUSTING SPRING	1
67	226-15702	OIL ADJUSTING BALL	1
68	SM-8061212-TP	SCREW M6X12	1
69	NM-6060001-CP	NUT M6	1
70	CM-3004009-01	LABEL 01	1

Page 15

Juki LH-3568 parts on page 15
Part number	Part name	Qty
400-42121	HOOK_UPPER_BUSH	2
400-28491	HOOK_LOWER_BUSH	2
400-36684	ASSY-CAP HOOK	2
400-36685	ASSY-CAP HOOK TRIM	2
400-36687	OUTER HOOK TRIM	(1)
226-12709	BOBBIN BASKET	(1)
400-39391	CAP_INNERHOOK	(1)
226-12204	HOOK GIB	(1)
400-36689	HOOK_GIB_TRIM	(1)
226-12303	NEEDLE POSITIONER	(1)
101-12803	SCREW	(2)
400-12085	OIL PLUG	(1)
101-12902	SCREW	(2)
110-15906	OIL WICK	(1)
226-88105	BOBBIN CASE	(1)
226-88402	TENSION ADJUSTING SPRING	(1)
226-88204	SPRING	(1)
101-10500	TENSION SPRING INSTALLING SCRE	(1)
226-12907	TENSION ADJUSTING SCREW	(1)
SS-6560150-SH	SCREW 3/32-80 L=1.3	(1)
TA-0290301-MO	PLUG	(1)
226-14001	THRUST WASHER, A	2
226-14101	THRUST WASHER, B	2
226-14200	SPACER, C	2
101-12905	THRUST WASHER 1.7	2
101-12704	THRUST WASHER 1.8	2
B1822-051-000	OPENING LEVER CRANK	2
B1820-563-000	BOBBIN CASE OPENING LEVER LINK	2
B1821-051-000	CRANK SCREW STUD	2
226-13509	BOBBIN CASE OPENING LEVER	2
SS-6090810-TP	SCREW 9/64-40 L=7.5	2
WP-0371016-SD	WASHER 3.7X8X1	2
CQ-2020000-00	OIL WICK	0.3
CQ-2020000-00	OIL WICK	0.3
NS-6110420-SP	NUT 11/64-40	2
B1823-051-000	OPENING LEVER CRANK PIN	2
B9117-051-000	BOBBIN	2
102-10805	HARD ALUMITE BOBBIN	2
226-53802	SHEET	2
101-11508	SPRING	2
400-28560	HOOK SHAFT GEAR-A	2
400-28561	HOOK SHAFT GEAR-B	2
400-28562	HOOK SHAFT GEAR-C	2
400-28563	HOOK SHAFT GEAR-D	2
400-40549	HOOK SHAFT GEAR-E	2
400-40550	HOOK SHAFT GEAR-F	2
SM-8060550-TP	SCREW M6 L=4.5	6

Page 16 — 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2)

Juki LH-3568 parts on page 16
Ref	Part number	Part name	Qty
	21	21
	22	22
	26~29	26~29
	37	37
	36	36
	37	37
	2	2
	20	20
	23	23
	39	39
	19	19
	12	12
	14	14
	15	15
	13	13
	25	25
	24	24
	15	15
	18	18
	32	32
	33	33
	34	34
	34	34
	37	37
	36	36
	30	30
	16	16
	17	17
	25	25
	31	31
	6	6
	4	4
	5	5
	5	5
	3	3
	38	38
	1	1
	41-2	41-2
	41	41
	40	40
	42	42
	43	43
	45	45
	44	44
	43	43
	35	35
	7	7
	42	42

Page 17

Juki LH-3568 parts on page 17
Ref	Part number	Part name	Qty
	400-28271	LOWER SHAFT	1
	400-28851	LOWER SHAFT BUSH-F	1
	400-30915	LOWER SHAFT BUSH-M	1
	400-31351	ASSY-LOWER SHAFT COLLAR	1
	SM-8060612-TP	SCREW MG L=6	(2)
	400-13061	THRUST WASHER	1
	236-18804	OIL SEAL	1
01	400-28485	HOOK SHAFT BASE-L
02	400-28487	HOOK SHAFT BASE-L-TRIM
03	400-34969	HOOK SHAFT BASE L
04	400-34971	HOOK SHAFT BASE L-TRIM
	400-22589	BOTTOM COVER	2
	400-22590	BOTTOM COVER GASKET	2
	SM-4050855-SP	SCREW M5 L=8	8
	SQ-2050453-MZ	CONNECTING SCREW	4
	400-42141	OIL ADJUSTING SCREW	2
	RO-0442401-00	RUBBER RING	2
	400-29570	OIL ADJUSTING SPRING	2
	TA-0290301-MO	PLUG	6
	SM-8051002-TP	SCREW M5 L=10	2
	101-09908	SADDLE INSTALLING BLOCK, UPPER	2
	101-12407	SADDLE INSTALLING BLOCK, LOWER	2
	SS-6153040-SP	SCREW 15/64-28 L=30	2
	SM-6063502-SP	SCREW M6 L=35	2
	WP-0621016-SD	WASHER 6.2X13X1	2
01	400-28486	HOOK SHAFT BASE-R
02	400-28488	HOOK SHAFT BASE-R-TRIM
03	400-34970	HOOK SHAFT BASE R
04	400-34972	HOOK SHAFT BASE R-TRIM
	TA-0290301-MO	PLUG	6
	SM-6062502-TP	SCREW M6 L=25	1
	400-28495	GEAR GUIDE-L	1
	400-28496	GEAR GUIDE-R	1
	SM-4050655-SP	SCREW M5 L=6	4
	SQ-2060451-MZ	CONNECTING SCREW	2
	400-28489	LOWER SHAFT GEAR	2
	SM-8060610-TP	SCREW M6 L=6	4
	SM-8060612-TP	SCREW M6 L=6	1
	SM-8060612-TP	SCREW M6 L=6	1
	400-28656	ASSY-LOWER SHAFT BEARING	1
	SM-8060612-TP	SCREW M6 L=6	(2)
	RO-2573501-00	O-RING	1
	228-88507	OIL SEAL	2
	400-11947	LOWER PLUNGER BUSH	1
	SQ-2050453-MZ	CONNECTING SCREW	2

Page 18 — 7. FEED MECHANISM COMPONENTS

Juki LH-3568 parts on page 18
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90
	91	91

Page 19

Juki LH-3568 parts on page 19
Part number	Part name	Qty
SM-6050800-SP	SCREW M5 L=8	2
400-28293	FEED REGULATOR ROD PIN
400-28284	FEED REGULATOR ROD
SD-0900426-TP	SHOULDER SCREW D=9 H=4.2
400-28894	ASSY FEED REGULATOR
SM-6051800-SP	SCREW M5 L=16	(1)
400-11935	VERTICAL FEED LINK
226-10307	FEED REGULATOR SPRING
400-28286	REVERSE FEED SHAFT
400-32269	THRUST COLLAR
SM-6050412-TP	SCREW M5 L=16	(2)
400-26673	VERTICAL F_LINK_SHAFT_M
RE-0900000-KO	E-RING 9
SM-6051000-SP	SCREW L=10
400-32995	REVERSE FEED LEVER
235-34566	FEED DIAL SPRING
235-34506	FEED DIAL
400-36433	SCREW 3/16-28 L=18
SS-6121860-SP	SPRING PIN 3X12
400-29079	BRACKET
SM-6050800-SP	SCREW M5 L=8	2
400-32293	ASSY FEED ROCKER ROD
SM-6040112-TP	SCREW M4 L=6	(1)
B1653-470-000	PIN
SM-6750690-TP	SCREW M3.5 L=6	(1)
400-31318	ASSY FEED ECCENTRIC CAM
SM-6051255-SP	SCREW M5 L=12	(1)
SM-6050001-SP	NUT M5	(1)
SM-6051150-SP	SCREW M6 L=11	(2)
FS-0300122-KM	SPRING PIN 3X12
SM-4040655-SP	SCREW M4 L=6	2
400-11906	FD CAM LID
B1636-681-500	NEEDLE BEARING B
SM-6030672-TP	SCREW M3 L=6
400-11946	FEED BASE
400-11931	FEED BASE
400-11932	FEED BASE SHAFT
SM-8040612-TP	SCREW M4 L=6
400-28279	FEED ROCKER SHAFT
400-31349	ASSY FEED BASE ARM
SM-6051400-SP	SCREW
235-33805	FEED ADJUSTING SHAFT
400-11939	FEED SHAFT BUSH F
SM-8060612-TP	SCREW M5 L=6
400-32268	THRUST COLLAR
SM-8050112-TP	SCREW M5 L=4	(2)
235-34019	FEED ADJUSTING BASE
SM-7050850-TP	SCREW M5 L=8	4
400-28277	FEED ADJUSTING PLATE
400-35704	FEED ADJUSTING BLOCK
400-29852	ASSY FEED ROCKER ARM	(1)
SM-6051600-SP	SCREW M5 L=16
SM-2040750-TP	SCREW M4 L=4	2
229-52501	NUT M6
SM-6060001-CP	NUT M6
SD-0900706-TP	SHOULDER SCREW D=9 R=7
400-28274	FEED ROCKER ARM RUD
400-28275	ASSY FEED ADJUSTING
400-28276	FEED ADJUSTING
SM-7050850-TP	FEED ADJUSTING ARM	(1)
SM-6050800-SP	SCREW M5 L=8
400-28281	FEED ADJUSTING STOPPER
400-23280	FEED SHAFT OIL SEAL A
400-13352	FEED SHAFT OIL SEAL A
400-25316	FEED ADJUSTING OIL SEAL
400-28291	FEED ADJUSTING CAP
400-28294	SPRING HOOK
400-11926	SPRING HOOK B
NR-6040001-SP	NUT M4X0.7
400-28287	REVERSE FEED SHAFT BUSH
SM-6050550-TP	SCREW M5 L=6	(1)
400-28855	ASSY REVERSE FEED ARM	(1)
133-19405	MAIN FEED SHAFT
SM-6051600-SP	SCREW M5 L=16
400-31350	ASSY FEED BASE SHAFT COLLAR
SM-8040412-TP	SET SCREW M4X0.7
SM-8031512-TP	SET SCREW
WP-1751616-SD	WASHER 17.5X24X1.6	2
WP-6030001-SD	NUT
400-33689	ASSY VERTICAL FEED CAM
SM-8060552-TP	SCREW M5 L=5
400-29295	FEED REGULATOR SHAFT
SM-6051850-TP	SCREW M5 L=18
229-52501	BACK LEVER STOPPER
SM-4050655-SP	SCREW M5 L=6
226-56003	SPRING SUSPENSION
400-40924	SPRING HOOK_B
400-29257	NUT M5
NM-6050001-SP	WASHER 5.2X9.5X0.6	0.09
BT-0500300-EA	OIL TUBE

Page 20 — 8. PRESSER BAR & TENSION RELEASE COMPONENTS

Juki LH-3568 parts on page 20
Ref	Part number	Part name
1	1	PRESSER BAR & TENSION RELEASE COMPONENTS
2	2	SCREW
3	3	WASHER
4	4	PIN
5	5	BRACKET
6	6	BRACKET
7	7	SPRING
8	8	SPRING
9	9	LEVER
10	10	SPRING
11	11	SHAFT
12	12	SPRING
13	13	SPRING
14	14	SCREW
15	15	SCREW
16	16	BRACKET
17	17	ROD
18	18	PIN
19	19	SPRING
20	20	PIN
21	21	BRACKET
22	22	WIRE
23	23	BRACKET
24	24	WIRE
25	25	WIRE
26	26	WIRE
27	27	NUT
28	28	SCREW
29	29	SCREW
30	30	BRACKET
31	31	SCREW
32	32	ROD
33	33	SCREW
34	34	NUT
35	35	PIN
36	36	SPRING
37	37	BRACKET
38	38	SCREW
39	39	SCREW
40	40	PIN
41	41	ROD
42	42	BRACKET
43	43	SCREW
44	44	SCREW
45	45	BRACKET
46	46	BRACKET

Page 21

Juki LH-3568 parts on page 21
Ref	Part number	Part name	Qty
	229-07802	HAND LIFTER
	B1521-555-000	SCREW
	RO-0371801-00	RUBBER RING
	400-35394	HAND LIFTER CAM ASM.
	400-28868	ASSY_LIFTING_CONNECT ROD
	236-09605	PLATE
	SM-6040602-TP	SCREW M4 L=6
	400-28264	ASSY HAND LIFTER LINK
	229-08008	LIFTING PLATE
	RE-0500000-KO	E-RING
	400-35151	LIFTING CONNECTING ROD
	400-28545	LINK SHAFT
	RE-0500000-KO	E-RING
	SD-0640357-TP	SHOULDER SCREW D=9 H=3.5
	SD-0900356-TP	SHOULDER SCREW D=9 H=3.5
	400-35181	LIFTING LEVER LINK
	400-28268	CONNECTING ROD-A
	SM-8050612-TP	SCREW M5X6
	229-20201	RETURN SPRING
	400-28546	TENSION RELEASE SHAFT
	400-35298	TENSION RELEASE PLATE
	400-35828	ASSY_TENSION_RELEASE_PLATE
	400-35298	TENSION RELEASE PLATE
	400-33434	THREAD_TENSION_RELEASE_WIRE
	400-33435	WIRE TUBE
	229-44904	SET SCREW
	NS-6620310-SP	NUT 3/16-32
	SM-4040855-SP	SCREW
	SS-4110715-SP	SCREW 11/64-40 L=7
	SS-4111215-SP	SCREW 11/64-40 L=12
	400-34974	TENSION RELEASE SHAFT
	236-09209	PRESSER SPRING REGULATOR
	229-07604	PRESSER SPRING REGULATOR NUT
	229-07703	PRESSER GUIDE BAR
	229-07406	PRESSER SPRING
	B1501-581-000	PRESSER BAR
	400-32272	ASSY_PRESSER BAR HOLDER
	SM-6060800-SP	SCREW M6 L=8
	400-28269	LIFTER ADJUSTING PIN
	236-09001	BUSHING
	226-40551	PRESSER FOOT ASM.
	SS-7090910-TP	SCREW 9/64-40 L=8.5
	SM-4040655-SP	SCREW M4 L=6
	D3164-555-B00	OUTER PRESSER PLATE
	400-50314	OUTER_HOLDER_BASE

Page 22 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7)

Juki LH-3568 parts on page 22
Ref	Part number	Part name	Qty
	1	BASE
	2	SHAFT
	3	WASHER
	4	BRACKET
	5	SCREW
	6	SCREW
	7	WASHER
	8	SHAFT
	9	BRACKET
	10	ARM
	11	WASHER
	12	SPRING
	13	LEVER
	14	PIN
	15	PIN
	16	COLLAR
	17	WASHER
	18	NUT
	19	ARM
	20	SHAFT
	21	SCREW
	22	WASHER
	23	SPRING
	24	BRACKET
	25	ARM
	26	SCREW
	27	SPRING
	28	SCREW
	29	SHAFT
	30	SHAFT
	31	SCREW
	32	WASHER
	33	BRACKET
	34	SCREW
	35	PIN
	36	BRACKET
	37	SCREW
	38	SHAFT
	39	BRACKET
	40	BRACKET
	41	SCREW
	42	BRACKET
	43	BRACKET
	44	SCREW
	45	BASE
	46	BASE
	47	SCREW
	48	SCREW
	49	ARM
	50	SCREW
	51	ARM
	52	ARM
	53	SCREW
	54	SCREW
	55	ARM
	56	SCREW
	57	SCREW
	58	BRACKET
	59	ROD
	60	COVER
	61	SCREW
	62	SCREW
	63	BRACKET
	64	SCREW
	65	SCREW
	66	WASHER

Page 23

Juki LH-3568 parts on page 23
Part number	Part name	Qty
400-17353	ASSY_BASE_PLATE	1
400-17394	ASSY_TRM_PUSH_LINK	1
RC-0650811-KP	RETAINING RING	1
400-36359	THREAD_TRIMMER_SOLENOID	1
SM-4040601-SC	SCREW M4X0.7 L=6	4
235-42418	CLUTCH LINK PIN	1
NH-6030001-SC	NUT M3	2
400-17399	ASSY_TRM_ROLLER_ARM	1
400-10434	THRUST_COLLAR_ASM	1
110-40854	KNIFE_DRIVING_ARM ASM.	1
RE-0600000-KO	E-RING 6	1
400-17400	ROLLER_ARM_SPRING	1
400-17361	TRM_DRIVING_ARM_STOPPER	1
SM-4050855-SP	SCREW	2
400-17401	TRM_DRIVING_LINK_PIN	1
400-17402	TRM_DRIVING_LINK_BUSH	1
WP-0621046-SP	WASHER	1
NH-6060003-SC	NUT M6	1
400-12505	CONNECTING_ROD_B	1
400-12506	CONNECTING_ROD_C	1
SM-9050850-SP	SCREW	2
WP-0531000-SD	WASHER M5	2
400-17403	TRM_DRIVING_ARM_SPRING	1
400-15669	ASSY_THREAD_RELEASE_ARM	1
400-17362	RELEASE_ARM_STOPPER	1
SM-4050855-SP	SCREW	2
113-05901	SPRING	1
SM-6061200-SP	SCREW	2
400-12504	CONNECTING_ROD_A	1
400-12505	CONNECTING_ROD_B	1
SM-9050850-SP	SCREW	2
WP-0531000-SD	WASHER M5	2
400-31352	ASSY_KNIFE_DRIVING_ARM_R	1
SM-6051202-TP	SCREW M5X0.8 L=12	(1)
400-12503	KNIFE_DRIVING_ARM_PIN	2
400-36446	ASSY_KNIFE_DRIVING_ARM_L	1
SM-6051202-TP	SCREW M5X0.8 L=12	(1)
400-12497	ASSY_KNIFE_BASE_SHAFT	2
400-12492	D_KNIFE_BASE_GUIDE_R	1
400-21883	D_KNIFE_BASE_GUIDE_L	1
SM-1030501-SN	SCREW M3 L=5	4
400-21899	D_KNIFE_SUPPORT_R	1
400-21898	D_KNIFE_SUPPORT_L	1
SM-1030501-SN	SCREW M3 L=5	4
400-12488	DRIVING_KNIFE_BASE_R	1
400-12487	DRIVING_KNIFE_BASE_L	1
SS-1090520-TP	SCREW 9/64-40 L=5	6
SS-6090580-TP	SCREW 9/64-40 L=4.5	2
400-12403	DRIVING_KNIFE	2
400-12495	CLAMP_SPRING_BASE	2
400-44393	CLAMP	2
400-33160	CLAMP_SPRING	2
SM-6850400-SP	SCREW M2.5 L=4	6
SM-8030312-TP	SCREW M3 L=3	2
400-12489	FIXED_KNIFE_BASE	2
400-12496	FIXED_KNIFE_BASE_ADJUST	2
SM-9051263-CP	SCREW M5 L=12	2
400-12404	FIXED_KNIFE	2
EA-9500B01-00	CABLE BAND	2
400-13316	THREAD_TRIMMER_CAM	1
SM-8061010-TP	SCREW M6 L=10	2
SM-6052502-TP	SCREW	1
B3538-112-000	OIL RETURN_TUBE HOLDER	1
SM-6040552-TP	SCREW M4 L=4.5	1
SD-0700346-TP	SHOULDER_SCREW D=7 H=3.4	3
WP-0531000-SD	WASHER M5	2

Page 24 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7)

Juki LH-3568 parts on page 24
Ref	Part number	Part name	Qty
	1	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS
	2	COVER
	3	SCREW
	4	BRACKET
	5	SHAFT
	6	SPRING
	7	SCREW
	8	ROD
	9	ROD
	10	SWITCH
	11	BRACKET
	12	LEVER
	13	TERMINAL
	14	SCREW
	15	SCREW
	16	WASHER
	17	COVER
	18	BRACKET
	19	TERMINAL
	20	SCREW
	21	WASHER
	22	PIN
	23	CLIP
	24	SCREW
	25	WASHER
	26	WASHER
	27	ROLLER
	28	BRACKET
	29	SCREW
	30	WASHER
	31	WASHER
	32	BRACKET
	33	LEVER
	34	SPRING
	35	SCREW
	36	BRACKET
	37	NUT
	38	CONNECTOR

Page 25

Juki LH-3568 parts on page 25
Part number	Part name	Qty
400-35167	ASSY. REVERSE_FEED_SWITCH_68	1
229-54606	REVERSE FEED SWITCH COVER	(1)
SS-4110615-SP	SCREW 11/64-40 L=6	(1)
226-56508	REVERSE FEED SWITCH BASE	(1)
229-54200	REVERSE FEED SWITCH SHAFT	(1)
229-54309	REVERSE FEED SWITCH SPRING	(1)
SM-4041655-SP	SCREW M4 L=16	(1)
SM-4031501-SC	SCREW M3 L=15	(2)
HW-5000700-00	2-CORE CABTYRE CORD	(1.2)
HA-00190000-00	MICROSWITCH	(1)
229-54408	STOPPER PLATE	(1)
400-35168	REVERSE_FEED_SWITCH_LEVER_68	(1)
HK-0346400-0B	PIN CONTACT	(2)
SM-4050855-SP	SCREW	(2)
SS-7110710-SP	SCREW 11/64-40 L=7	4
WP-0501016-SD	WASHER 5X10.5X1	4
101-61305	SOLENOID COVER	1
400-36360	REVERSE_FEED_SOLENOID	1
HK-0346400-0B	PIN CONTACT	(2)
WP-0501016-SD	WASHER 5X10.5X1	4
SS-9111010-SP	SCREW 11/64-40 L=9.5	4
D2464-555-B00	LINK DRIVING MAGNET PIN	1
RE-0400000-KO	E-RING 4	2
SM-6061002-TP	SCREW M6 L=10	2
WS-0631510-KP	SPRING WASHER	2
WP-0621016-SD	WASHER 6.2X13X1	2
400-30856	LINK FULCULUM	1
400-29350	REVERSE_FEED_LINK_L	1
SM-6063002-TP	SCREW M6 L=30	1
WS-0610002-KP	SPRING WASHER	1
WP-0612056-SD	WASHER 6.1X18.5X2	1
400-35278	REVERSE_FEED_LINK_B	1
400-35277	REVERSE_FEED_LINK_A	1
SD-0700328-TP	SHOULDER SCREW D=7 H=3.2	2
SM-6050650-TP	SCREW M5 L=6	1
101-19204	SOLENOID INSTALLING PLATE	1
NM-6050001-SP	NUT M5	2
HK-0346101-40	HOUSING 14P	1

Page 26 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7)

Juki LH-3568 parts on page 26
Ref	Part number	Part name	Qty
	1	BRACKET
	2	COVER
	3	SCREW
	4	SCREW
	5	BRACKET
	6	SCREW
	7	BUSH
	8	SPRING
	9	NUT
	10	WASHER
	11	BUSH
	12	MOTOR
	13	SHAFT
	14	BRACKET
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	SCREW
	19	BUSH
	20	HARNESS
	21	SCREW
	22	NUT
	23	BRACKET
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	BRACKET
	28	BRACKET
	29	SCREW
	30	WASHER
	31	WASHER
	32	WASHER
	33	WASHER
	34	WASHER
	35	NUT
	36	NUT

Page 27

Juki LH-3568 parts on page 27
Part number	Part name	Qty
400-33437	WIPER SOLENOID ASM	1
229-55504	WIPER COVER	(1)
SL-4030631-SC	SCREW M3X6	(1)
SD-0650321-TP	HINGE SCREW D=6.5 H=3.2	(1)
226-57209	WIPER LINK, A	(1)
400-09196	SUSPENSION SCREW	(1)
229-56205	WIPER HINGE SCREW COLLAR	(1)
226-57308	WIPER SPRING	(1)
NS-6110310-SP	NUT 11/64-40	(1)
229-55900	WIPER RUBBER A	(1)
229-56007	WIPER RUBBER B	(1)
400-30956	WIPER SOLENOID	(1)
229-57104	WIPER SOLENOID SHAFT	(1)
HW-0005900-00	POWER SWITCH	(1)
HW-2003000-00	ELECTRIC WIRE	(0.04)
HW-5000700-00	2-CORE CABTYRE CORD	(1.04)
400-42151	WIPER SOLENOID BASE	(1)
SL-4030641-SE	SCREW	(3)
229-57203	WIPER LINK COLLAR	(1)
HK-0346400-0B	PIN CONTACT	(2)
SM-4050855-SP	SCREW	2
NS-6090310-SP	NUT 9/64-40	1
SD-0500301-SP	HINGE SCREW D=5 H=3	1
400-28797	ASSY WIPER LINK 2	1
400-28799	ASSY WIPER BASE	1
SM-6050802-TP	SCREW M5X0.8 L=8	2
RE-0300000-KO	E-RING 3	2
102-08700	WIPER LINK SHAFT	1
SS-7090610-SP	SCREW 9/64-40 L=6	2
WP-0371016-SD	WASHER 3.7X8X1	2
102-09203	WIPER	1
102-09500	WIPER	1
102-09807	WIPER	1
102-09906	WIPER	1
WP-0531000-SD	WASHER M5	2
WS-0410002-KP	SPRING WASHER	2

Page 28 — 12. LUBRICATION COMPONENTS

Juki LH-3568 parts on page 28
Ref	Part number	Part name	Qty
	13
	14
	15
	16
	47
	46
	83
	48
	63
	43-9
	18
	17
	19
	20
	22
	23
	24
	79
	80
	8
	42
	72
	41
	51
	34
	50
	70
	66
	71
	12
	51
	50
	45
	69
	76
	78
	77
	56
	57
	55
	12
	67
	12
	68
	67
	64
	64
	54
	37
	36
	34
	35
	34
	33
	30
	29
	31
	27
	28
	26
	12
	25
	52
	53
	81
	12
	58
	59
	60
	59
	61
	62
	12
	49
	12
	11
	12
	A
	2
	3
	B
	4
	10
	12
	A
	B

Page 29

Juki LH-3568 parts on page 29
Part number	Part name	Qty
400-28689	SCREW	l
4M-3492U	O!L_TANK_ASij_	l
400-34649	O!L_TANK_PLATE	l
SL-5040892- Hi	ROLT	2
R0-0982401-00	RUBBER RING	l
RU-2HI2titil-00	RUBB'£R RING	l
400-28705	ASSYJLOATER	l
41J0-361S7	OIL GMlE	I
S!o!-6D5Hl02-1P	SCREW M5X0.8 L"IO	2
WP-0550800-SP	WASHER 5.5X10X0.8	2
236-293tl6	PIP£ STOPPER A	!5
2.36-283-33	PLUNGER	2
236-289[12	PLUNGER SPRING	2
400-135{}9	PtUNG£R,.SCR£W	2
R0-u48!901 OD	R-	l
4-G0-28773	BOX COVE.R	l
400-28774	BOX=COVER_PACK.lNG	l
SM.-!051255-SP	SCRI:.l'i'. ,MS L"l2	8
236-30106	lUBE B	0,2
400-·29075	LUBRICATING INLET	l
400-00344	LtiBRICATING-INLETCAP	1
R0-0481901-00	RUBBER RING	1
400-42287	ASSY OIL FILTER R	l
236-30601	OtL fILlER JOINt	(ll
236-29405	PIPE STO-PPER B	(2)
23£--30106	TUBE B	(0 ,(}35)
23G-30G50	OIL FILTER JOINT ASM"	( l)
236-29306	PIPE STOPPER A	l
400-42286	ASSY OIL FILTER L	l
236-30601	OIL fiLTER JOJNf	{ l)
236-30106	PIPE. STOPPE.R B	(2)
236-30106	TUBE B	(iL042)
236-29306	PIPE STOPPER A	i
40fi·l6-749	TUBE HOLDER	l
40lJ-3424ll	OIL SIGHT WJNnOw	l
RO·l9S24!H·OO	RusBr:R RING	1
B35l:1-009-000	OIL F'E.LT Rf.AR	l
EA · 9500B!'Jl-00	CABLE BAND	3
SIHW4.0650-TP	SCREW	t
2.35··4tt30S	fLOATER CASE CAP	l
2J6w30007	TUBE	0.23
236<H!007	TUBE	O,Z
236 • 30001	TUBE	0.38
236-30007	TUBE	0,07
SCREW 1!4 L"G	SCREW 1!4 L"G	2
DISTRIBUTOR	DISTRIBUTOR	4
RUBBERJ'LATE	RUBBERJ'LATE	2
OlL_SHIELD_PLATE	OlL_SHIELD_PLATE	4

Page 30 — BELT COVER & BOBBIN WINDER COMPONENTS

Juki LH-3568 parts on page 30
Part number	Part name	Qty
400-33109	ASS¥ BELT COVER	1
400-29905	BEL1'=Covr.R_A	(l)
Slf-40fi200l·SC	SCREW MG Loo2C	(2)
SM·4051601·SC	SCRLW MSXO.B L"lS	(l)
SPRIXGWASIIER	5,2X8.2:Xl	(l)
WAS!!ER	6.4ll2.5Xl.6	(2)
4(10-342:67	ASSY BELT COVER B	1
SELT-COVERII- cowPL,	SELT-COVERII- cowPL,	(!)
229-33158	BELT COVE.R B LID ASli,	(I)
229-33600	B!.tl CO
SK-3412000-SC	WOOD SCREW D"4.l L-,20	(2)
WP-050Hllfi-SD	WASHER 5Xl0.5X.i	(2)
229·27354	BOBBIN WIKDER COMPL.	1
SCREW	11/64·40 Lo:5	(l)
229-29004	THREAD TENSION SPRING	(I)
22.9-28808	AUT	( l)
SS·71Hl350·SP	SCREW ll/64-40 1."3.5	{I)
229-28402.	RUBBER BOLDL'iG- PLATE	(I)
229-28!.05	l!OBBI!\ PRESS£R	{1)
SD-0490251-SP	lflXGE SCREW 0"'4.9 H"'2.6	{l)
SS·10!il310·SP	SCREW bl2..5	('0
SS-8110510-SP	SCRE\" 11/64-40 l.-.,5	(1)
22Il-2850l	IRR£AIJ
22G-2J155	THR£?.D\Yl1\D£RASM.	1
BAR BAS£	BAR BAS£	(l)
SCR£11'	\1/£4-40 V"7.8	{l)
229-2$907	THREAD TENS:loti OJSR	(·i)
- t.90d4	lHRr.AD I£S11 SPRh:t
22!1-23308	li'VT	{2)
SS·4ll0515-SP	SCR£W ll/64-40 L"'S	(l)
229· 28402	COHROL R!JBBER HOLDll'iG PLATE	(I)
229--28303	COl'iTROL Rl'I!BER	(!!)
SD-O-l.9026H>P	Hll\G£ SCREW fi,·L9 Hz2.5	(l)
WP·041HlS5! SP	WASHER 4.8X3AX0.8	(I)
S'H10405D2·H'	SCREW MHL1.7 L"'5	(l)
SCREW	l/8"-1-1 L=-12.5	(l)

Page 31 — 14. BOTTOM COVER COMPONENTS

Juki LH-3568 parts on page 31
Ref	Part number	Part name	Qty
1	400-32107	ASSY_BOTTOM_COVER_A	1
2	400-28778	BOTTOM_COVER	(!)
3	400-34853	CONNECTING_ROD_ASM	(!)
4	229-32107	KNEE LIFTING ROTATING ARM	(!)
5	NM-6060001-SE	NUT M6	(2)
6	SM-8063012-TR	SCREW M6 L-30	(2)
7	400-25191	KNEE]RESS_ROD	(!)
8	229-32206	SPRING	(!)
9	101-62600	RUBBER GUSH I ON	( 4)
10	229-32453	BRACKET ASM.	(!)
11	229-32404	BRACKET	(!)
12	229-34707	SCREW	( 2)
13	RE-1000000-KO	E-RING 10	(!)
14	SM-9061853-SR	SCREW M6 L= 17. 5	(!)
15	229-34251	KNEE PAD PLATE AS!!.	I
16	229-34301	KNEE PAD PLATE SUPPORT	(!)
17	229-34400	KNEE PAD PLATE RUBBER	(!)
18	229-34509	KNEE PAD PLATE COVER	(!)
19	229-34608	KNEE PAD UPRIGHT SHAFT	(!)
20	SM-9061203-SE	SCREW M6 L-12	( I)
21	229-34202	KNEE PAD PLATE	(!)

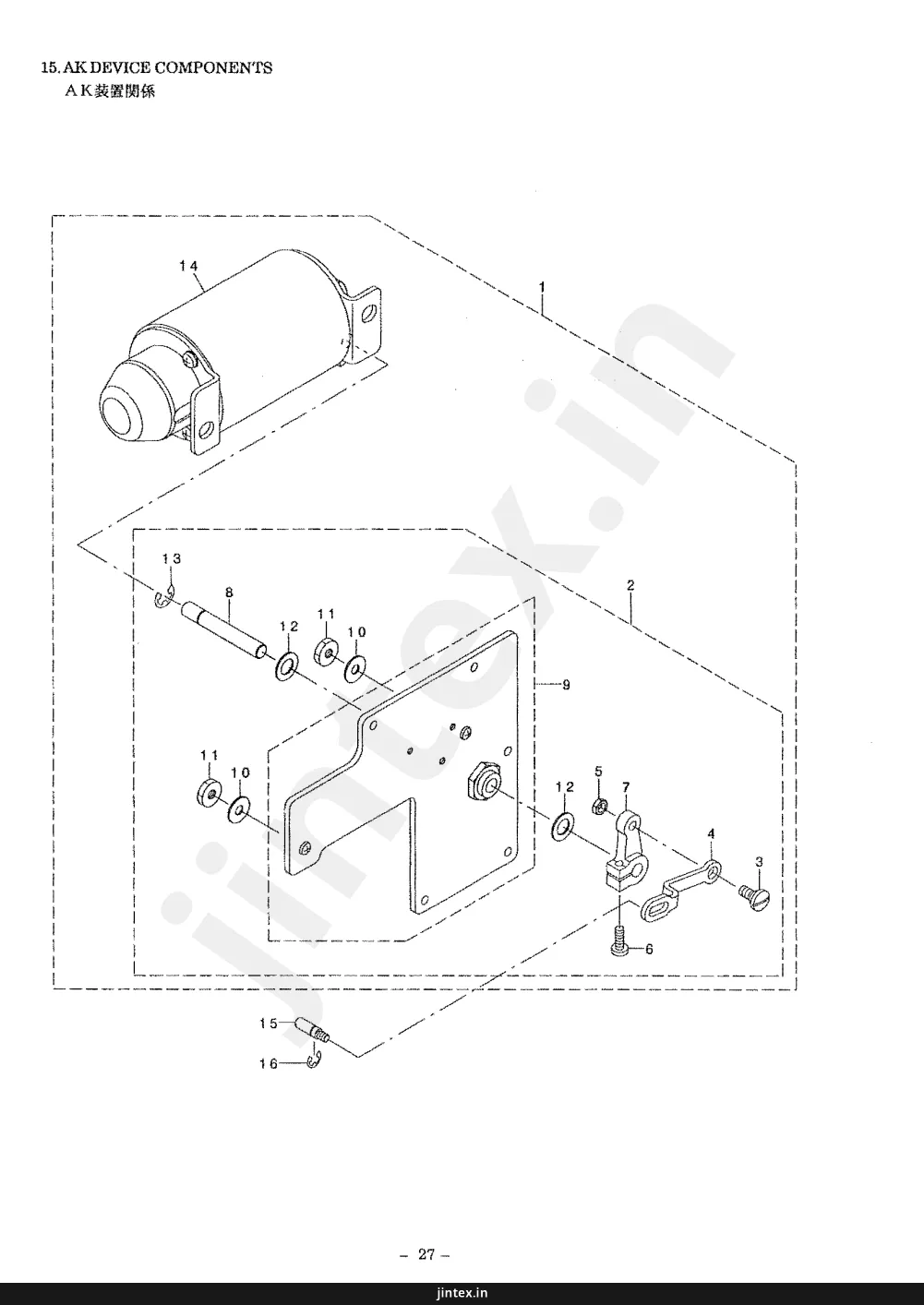

Page 32 — 15. AK DEVICE COMPONENTS

Juki LH-3568 parts on page 32
Ref	Part number	Part name	Qty
	14	AK DEVICE COMPONENTS
	13	CIRCLIP
	8	PIN
	12	WASHER
	11	WASHER
	10	NUT
	9	BRACKET
	5	SPRING WASHER
	7	LEVER
	6	BOLT
	4	LINK
	3	SCREW
	15	TERMINAL
	16	CIRCLIP

Page 33

Juki LH-3568 parts on page 33
Ref	Part number	Part name	Qty
	400-36221	ASSY_AK_DEVICE	I
	400-36222	COMP_REAR_PLATE	I
3	SD-0800352-SP	HINGE SCREW	8
	400-30962	SOLENOID_LINK	I
	NS-6150310-SP	NUT 15/64·28	I
	SS-7121410-TP	SCREW 3/16-28	I
	GA.K-33027000	SOLENOID ARM	I
	229-91400	SOLENOID SHAFT	I
	400-36223	ASSY_REAR_?J,ATE	I
	WP-0621036-SP	WASHER	2
	NS-6150440--SP	NUT 15I 6,f-28	2
	WP-1021016-SD	WASHER	2
	RE-0700000-KO	E·RlNG 7	I
	GAK-A18300BO	AK SOLENOID ASM. ,B	I
	400-30954	SHAFT PIN	I
	RE-0500000-KO	E-RlNG	I

Page 34 — 16. THREAD STAND COMPONENTS

Juki LH-3568 parts on page 34
Ref	Part number	Part name
1	1	THREAD STAND COMPONENTS
4	4	CLAMP
5	5	COLLAR
6	6	COLLAR
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	ARM
11	11	BASE
12	12	POST
13	13	POST
14	14	POST
15	15	WASHER
16	16	WASHER
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	NUT
25	25	WASHER
26	26	WASHER
27	27	WASHER
28	28	NUT
29	29	WASHER
2	2	BRACKET
3	3	BRACKET

Page 35

Juki LH-3568 parts on page 35
Part number	Part name	Qty
131-67556	'fHREAD STANDING DEVICE AS!!.	(I)
229-30556	SPOOL REST ARM ASM.	(2)
229-30507	SPOOL REST ARM	(2)
229-30705	THREAD GUIDE ARM JOINT	(4)
229-31406	THREAD STAND l NG ROD RUBBER CAl'	(l)
229-30408	THREAD STANDING ROD, UPPER	(I)
229-313()7	THREAD STANDING ROD JOINT	(l)
131-67903	THREAD STANDING THREAD GUIDE	(l)
131-68000	THREAD STAND1NG GUIDE BASE	( I)
131-68109	THREAD STANDING GUIDE ARM	(l)
131-68208	THREAD STANDING GUIDE ARM BASt	(I)
229-30309	THREAD STAND l NG ROD, LOWER	(I)
229-31109	SPOOL RETA!NER	(4)
229-31000	SPOOL PIN	(4)
229-30903	SPOOL REST CUSHION	(4)
229 30804	SPOOL REST	( 4)
SM-6061610-SC	SCRE\' M6	(4)
SM-4051405-SE	SCREW MS L= 14	( 2)
N!!-6050001-SE	NUT M5	(2)
SM-4041001-SC	SCREW M4X0.7 L=IO	(2)
NM-6040002 SE	NUT M4X0.7	( 2)
Sli-4041201-SC	SCREW M4	(I)
SM-4042001-SC	SCREW 114 X 20	(l)
NM-6040002-SE	NUT M4XO. 7	(2)
\YP-1612616-SE	WASHER 16X30X2.6	(2)
WS-1643202 KR	SPRING WASHER	(l)
NM-61605ll-SE	NUT li16Xl. 5	(1)
NM-6050001-SE	NUT 1!5	(4)
WS-0510002-KN	SPRING WASHER	(4)

Page 36 — 17. ACCESSORIE PARTS COMPONENTS

Juki LH-3568 parts on page 36
Ref	Part number	Part name
1	1	ACCESSORIE PARTS COMPONENTS
5	5	ACCESSORIE PARTS COMPONENTS
6	6	ACCESSORIE PARTS COMPONENTS
7	7	ACCESSORIE PARTS COMPONENTS
8	8	ACCESSORIE PARTS COMPONENTS
9	9	ACCESSORIE PARTS COMPONENTS
10	10	ACCESSORIE PARTS COMPONENTS
11	11	ACCESSORIE PARTS COMPONENTS
12	12	ACCESSORIE PARTS COMPONENTS
13	13	ACCESSORIE PARTS COMPONENTS
14	14	ACCESSORIE PARTS COMPONENTS
15	15	ACCESSORIE PARTS COMPONENTS
16	16	ACCESSORIE PARTS COMPONENTS
17-20	17-20	ACCESSORIE PARTS COMPONENTS
21	21	ACCESSORIE PARTS COMPONENTS
22	22	ACCESSORIE PARTS COMPONENTS
23	23	ACCESSORIE PARTS COMPONENTS
24	24	ACCESSORIE PARTS COMPONENTS
25	25	ACCESSORIE PARTS COMPONENTS
26	26	ACCESSORIE PARTS COMPONENTS
27	27	ACCESSORIE PARTS COMPONENTS
28	28	ACCESSORIE PARTS COMPONENTS
29	29	ACCESSORIE PARTS COMPONENTS
30	30	ACCESSORIE PARTS COMPONENTS
31	31	ACCESSORIE PARTS COMPONENTS
32	32	ACCESSORIE PARTS COMPONENTS
33	33	ACCESSORIE PARTS COMPONENTS
34	34	ACCESSORIE PARTS COMPONENTS
35	35	ACCESSORIE PARTS COMPONENTS
36	36	ACCESSORIE PARTS COMPONENTS
37-41	37-41	ACCESSORIE PARTS COMPONENTS
38	38	ACCESSORIE PARTS COMPONENTS
39	39	ACCESSORIE PARTS COMPONENTS
40	40	ACCESSORIE PARTS COMPONENTS
2	2	ACCESSORIE PARTS COMPONENTS
3	3	ACCESSORIE PARTS COMPONENTS
4	4	ACCESSORIE PARTS COMPONENTS

Page 37 — ACCESSORI E_BAGASM

Juki LH-3568 parts on page 37
Part number	Part name	Qty
SK-3482501-SE	WOOD SCREW D=4.8 1=25	(2)
229-31604	FRAME SUPPORT BAR	( I)
236-39701	KNEE LIFTER PRESSER ROD	(I)
229-32800	ACCESSORIE BAG	(!)
229-33105	SCREW DRIVER,!!!DIJLE	(!)
229-33204	SCREW DRIVER,SMALL	(l)
B9101-490-000	DRIVER	(!)
124-55507	HEXAGONAL WRENCH, I. 5	(l)
124-55705	FIEXAGONAL WRENCH, 2. 5	(I)
B9141-372-000	HEXAGONAL WRENCH, LARGE	(l)
131-60106	SPANNER (5X6)	(!)
260-34801	(7X8)	(l)
262·33700	WRENCH (1 OX II )	(l)
260-34702	WRENCH (14Xll)	(!)
WP-0501016-SC	WASHER 5Xl0.5Xl	(2)
MDP-500111002	NEEDLE DPX5 #10-2	I
!lDP·500Bl402	NEEDLE DPX5.14-2	2
MDP-500B2102	DPX5i121·2	l
l!DP• 500B0902	NEEDLE llPX5#9·2	1
226-53802	SHEET	1
101-11508	SPRING	1
102-10805	HARD ALUMITE BOBBIN	2
B9tl7-051-000	BOBBIN	2
229-33006	SCREW DRIVER,LARGE	I
229-33303	VINYL COVER	1
B9121-0!2-0AO	OILER ASM.	l
MML-007600CA	JUJU MACHINE OIL 7	l
400-35873	FILTER_B	l
229-26059	RUBBER HINGE ASM.	I
229-26000	RUBBER CUSHION	(2)
229-26109	FRAME RUBBER CUSHION	(2)
229-26208	NAIL	(8)
229-26505	WASHER	(2)
229-26356	lll NGE COMPL.	(2)
Cl!-6001002-01	IVEEE INFORMATION SHEET	2
400-37488	SHEET	1
400-30768	OlL_FILTER	I
400-36428	ASSY_FILTER_A	l
400-36125	FILTER	(I)
236-40006	SHEET	I

Page 38 — 18. TABLE Qh' EXCHANGING GAUGE PARTS (FOR LH -3568}

Juki LH-3568 parts on page 38
Ref	Part number	Part name	Qty
1	228-25101	tie	1
1	400-35611	Nq,	l"l>'t
1	40-Q--3S878	l'f<'r.	1
1	400·26084	_._	1
1	226-25206	. 400-35762	1
1	41}0-35763	--	1
1	400·260&3	I	400·2:6086
1	226-25404	400-35HH	. .
1	400-35174	'	400-261}67
1	400-26088	I	1
1	226-25503	400-29561	400·29562
1	400-26069	I	1
1	226-25602	400-35765	400· 3$175
1	400-26070	'	400-26091
1	226-25	400-3577£>	400-26072
1	400-26093	1	1
1	226-25800	400-35Hi7	400-35777
1	400-2$QH	400-26095	1
1	226-26006	. 400-357G8	400-35718
1	400-2601B	·-	400-2$091
1	226-26!05	4(Hl<35769	Hlll-35719
1	4!}0-2:£091}	1	1
1	226-26204	400-35770	eo.!llmun
1	400-35780	Spec.	CO.IlHIIQrl
1	400-26(l81J	on	400·26l01
1	Spec.	CQII!il!On	1
1	400-nsaJ	1	400·35895
1	400-257lH	!	1
1	400-zsH5	4GO·i!!J786	BHi13-51"2-00H
1	226-40452	--	228·185!1
1	22S-Cl0S8	Z26- 005$5	1
1	400·42874	1	1
1	22fi-01157	22()- 00654	1

Page 39 — 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7)

Juki LH-3568 parts on page 39
Ref	Part number	Part name
8	35881	40o-isus
8	400·35761	400-351
8	400-3581	400 ·35878
4	400·35762	400-35763
4	400-26063	400-26065
4	400. ""'	400.26086
4	<00·25ui'.	400·25492
4	400 _,.""	400·29561
4	400-2956i	·····""''
4	400·260$9	400-26088
4	.. 400-26090	400- 357ss
5	400-25495	400·35707
5	400·35:75	400·351
5	400-26070	-,00-26072
5	400-26074	400.26091
5	400-26093	400-26095
15	<Oo-25ua	.,,,_2""
15	400.351$8	400·JS709
15	400·35: 78	400-26076
15	i00·26076	400·260>1
15	400· 28099	400· 25502
15	400·2··;.,	400:as11il
15	4oo:35780	''"""' 79
15	400-20080	400·26\0\
3	400·35890	400:05817
3	.oo·2061s	400·35896
5	400·3S89	400•35592
5A	228-4055	225·1 """
V,	400·25822	400-25824
V,	228· 7050	226·4 252
V,	-,,,.,4135	)-3394:
8.4	4()-0-25241	400-Z5235
8.4	400-42880	400-25248
15.9	400.25236	400-25?39

Page 40

Juki LH-3568 parts on page 40
Ref	Part number	Part name	Qty
39	400-42880
40	400-42874
67	SM-4051055-SP
71	TA-1030402-RO
20	SM-8080612-TP
20	SM-6061010-TP
29	SM-8080615-0
46	SB-1200002-00
47	226-06206
48	226-06305
50	226-07709
48	84138-512-BOO
49	226-07600
52	226-07808
5	226-06404
71	St-60.6.180.2.TP
76	SM-6062502-TP
4	400-22427
4	400-52366
26	83118-552-AOO
26	83118-552-000
27	831-c18.5.52
8	118-415-000
1	400-28271
24	400-2885-1
3	400-30915
4	400-31351
Sj	400-36687
2	226-12709
71	400-39391
B	226-12204
10	11101-12803
12	400-12045
13	101-12902
14	110-15906

Page 41

Juki LH-3568 parts on page 41
Ref	Part number	Part name
15	226-88105	226-88105
16	226-88402	226-88402
17	226-88204	226-88204
18	101-10500	101-10500
19	226-12907	226-12907
20	SS-6560150-SH	SS-6560150-SH
21	TA-0290301-MO	TA-0290301-MO
5	SM-8060612-TP	SM-8060612-TP
6	400-13061	400-13061
7	236-18804	236-18804
8	400-28485	400-28485
9	400-28487	400-28487
10	400-34969	400-34969
11	400-34971	400-34971
16	SQ-2050453-MZ	SQ-2050453-MZ
22	400-22589	400-22589
23	400-22590	400-22590
24	SM-4050855-SP	SM-4050855-SP
25	SQ-2050453-MZ	SQ-2050453-MZ
26	400-16748	400-16748
27	RO-0442401-00	RO-0442401-00
28	400-29570	400-29570
29	TA-0290301-MO	TA-0290301-MO
30	400-28494	400-28494
39	SM-8061002-TP	SM-8061002-TP
40	101-09908	101-09908
41	101-12407	101-12407
42	SS-6153040-SP	SS-6153040-SP
43	SM-6063502-TP	SM-6063502-TP
44	WP-0621016-SD	WP-0621016-SD
45	400-28486	400-28486
46	400-28488	400-28488
47	400-34970	400-34970
48	400-34972	400-34972
49	TA-0290301-MO	TA-0290301-MO
50	SM-6062502-TP	SM-6062502-TP
51	400-28495	400-28495
52	400-28496	400-28496
53	SM-4050655-SP	SM-4050655-SP
60	RO-2060451-MZ	RO-2060451-MZ
61	400-28489	400-28489
62	SM-8060612-TP	SM-8060612-TP
69	SM-8060612-TP	SM-8060612-TP
70	SM-8060612-TP	SM-8060612-TP
71	400-28656	400-28656
72	SM-8060612-TP	SM-8060612-TP
73	RO-2573501-00	RO-2573501-00

Page 42

Juki LH-3568 parts on page 42
Ref	Part number	Part name	Qty
74	228-88507
76	400-11947
60	SM-4051055-SP
28	229-44508
36	B1505-227-T00-A
44	SM-6040552-TP
46	400-50314
51	400-17033
57	SM-9051003-SD
61	SM-8060612-TP
66	WP-0531000-SD
17	226-57100
27	RE-0320000-KO
29	SS-3090520-SP
36	WS-0410002-KP
25	400-22449
32	400-22450
63	D2112-655-B00
64	137-65607
82	400-41578
83	400-41579
13	WP-0501016-SC
11	400-36707
11	B9141-372-000
41	236-40006
12	ALL PARTS-全部
14	SM-7050850-TP
91	BT-0500300-EA
28	SM-4040855-SP
36	229-07406
44	SM-4040655-SP
51	400-44393
57	SM-9051203-CP
61	SM-8061010-TP
17	400-42151
27	RE-0300000-KO
29	SS-7090610-SP
25	400-42287
32	400-42286
63	SM-6040655-TP
64	236-29504

Juki LH-3568 — parts catalog

Page 1 — PARTS LIST

JUKI 2-Needle, Needle-feed, Lockstitch Machine with Organized Split Needle Bar and an Autmatic Thread Trimmer (without Thread Trimmer) 二本針本縫針送り角縫い付き自動糸切りミシン LH-3568-7 LH-3568 (糸切り無) PARTS LIST 40036443 No.1447-02 jintex.in

Page 2

jintex.in

Page 3 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark................means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01"......................refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column - Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. 5. As to the parts with marks of "☆"(consumable parts) and "◎" (optional parts) on the respective parts, it is recommended to prepare spares. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*" 印 ............前回のパーツブックに比較して今回変更された部品を意味します。変更内容は"変更情報リスト" を参照してください。 2) "01" ............ページ下の"注記" の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの---- ---- ----枠は、組構成であることを意味します。 5. リストページの"☆" (消耗部品)、"◎" (オプション部品) の印が付いた部品は、予備を準備しておくことをお奨めします。 jintex.in

Page 4 — CONTENTS

CONTENTS 目次 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 1 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS 上軸・天秤関係 3 3. NEEDLE BAR COMPONENTS 針棒関係 5 4. TENSION POST COMPONENTS 糸調子関係 7 5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1) 釜・下軸関係 (1) 9 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2) 釜・下軸関係 (2) 11 7. FEED MECHANISM COMPONENTS 送り関係 13 8. PRESSER BAR & TENSION RELEASE COMPONENTS 押さえ棒・糸ゆるめ関係 15 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7) 糸切り装置関係 (LH-3568-7用) 17 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7) 自動送り関係 (LH-3568-7用) 19 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7) ワイパー装置関係 (LH-3568-7用) 21 12. LUBRICATION COMPONENTS 給油関係 23 13. BELT COVER & BOBBIN WINDER COMPONENTS ベルトカバー・糸巻き装置関係 25 14. BOTTOM COVER COMPONENTS ボトムカバー関係 26 15. AK DEVICE COMPONENTS A K装置関係 27 16. THREAD STAND COMPONENTS 糸立装置関係 29 17. ACCESSORIE PARTS COMPONENTS 付属品関係 31 jintex.in

Page 5

18. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568) 交換ゲージ部品一覧表(LH-3568用) 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7) 交換ゲージ部品一覧表(LH-3568-7用) 20. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 33 34 35 38

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 1 2 48 50 47 62 63 10 72 10 11 13 74 12 58 68 69 10 11 10 11 72 57 72 14 16 67 15 26 20 60 23 21 55 56 73 27 28 51 44 42 43 70 30 73 73 33 34 19 19 71 22 24 25 45 31 32 35 36 37 38 39 40 9 59 18 18 17 6 46 29 49 52 53 54 66 65 64 49 61 41 - 1 - jintex.in

Page 7

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 * SM-4051055-SP SCREW 6 2 400-28766 REAR_PLATE 1 3 02 D2112-555-B00 CORD HOLDER, LARGE 3 4 02 SM-4050855-SP SCREW 4 5 02 236-01057 EARTH CORD ASM. 1 6 02 SM-4050855-SP SCREW 1 7 02 WT-0530002-KS TOOTHED WASHER D=5.3 1 8 01 226-19100 CAP 1 9 01 TA-0800504-RO RUBBER PLUG D=8 L=4.5 2 10 08 TA-1250406-RO RUBBER PLUG D=12.5 L=4 6 11 07 TA-1250406-RO RUBBER PLUG D=12.5 L=4 5 12 SM-6060800-SP SCREW M6 L=8 2 13 400-28245 THREAD_TAKE_UP_LEVER_COVER 1 14 400-30299 ASSY_FACE_COVER_68 1 15 TA-1600406-RO PLUG (2) 16 400-29972 FACE_COVER_68 (1) 17 TA-1250705-RO RUBBER PLUG 1 18 229-20706 TWO EYEL ET 2 19 SM-8050412-TP SCREW M5 L=4 2 20 400-29078 THREAD_GUIDE_UPPER 1 21 SM-1040750-TP SCREW M4 L=7 1 22 400-29347 THREAD_GUIDE_WIRE 1 23 SM-8040402-TP SCREW M4X0.7 L=4 1 24 400-28707 THREAD_GUIDE_LOWER 1 25 SM-1040750-TP SCREW M4 L=7 1 26 B1104-051-000 THROAT PLATE PIN 1 27 400-28731 PLATE 1 28 SM-9040603-SC SCREW M4 L=6 2 29 229-01805 GROUND MARK 1 30 02 SM-1040750-TP SCREW M4 L=7 2 31 SM-6040655-TP SCREW M4 L=6 1 32 SM-2040750-TP SCREW M4 L=7.4 1 33 03 226-01058 BED SLIDE LEFT, ASM., A 1 34 04 400-25247 ASSY_SLIDE_PLATE-L-A 1 35 03 226-25503 THROAT PLATE 1/4 1 36 04 400-25492 THROAT_PLATE_TRIM-1/4 1 37 03 226-00555 BED SLIDE RIGHT, ASM., A 1 38 04 400-25235 ASSY_SLIDE_PLATE-R-A 1 39 *02 400-42880 ASSY_SLIDE_PLATE_F 1 40 *01 400-42874 ASSY_SLIDE_PLATE_F_STANDARD 1 41 400-28555 STUD 3 42 05 400-34675 THREAD_GUIDE_ASM_E 1 43 06 400-32896 THREAD_GUIDE_FELT 1 44 06 226-03708 FELT 1 45 02 400-28706 AUXILIARY_COVER 1 46 02 226-57803 RUBBER PLUG 1 47 02 400-34053 RESISTANCE PACK AA ASM. 1 48 02 SM-4041055-SP SCREW 1 49 02 CM-3002001-A1 SAFETY LABEL.,3 (SMALL). 2 50 02 WP-0430800-SD WASHER M4 1 51 400-35180 BED_SCREW_STUD_B 1 52 07 CM-2002002-01 LABEL_02_C 1 53 08 CM-2002002-02 LABEL_02 1 54 08 CM-1001000-01 OIL INJECTION PROHIBITION LABE 1 55 08 CM-3011001-02 LABEL_03 1 56 07 CM-3011001-01 LABEL_03_C 1 57 TA-1470704-RO RUBBER PLUG 1 58 TA-0950806-RO RUBBER PLUG 1 59 TA-1650406-RO PRUG 1 60 400-26811 THREADING_DIAGRAM 1 61 400-36690 WASHER 1 62 EA-9502B02-00 CABLE CLIP C 2 63 SM-6040552-TP SCREW M4 L=4.5 2 64 236-01305 AIR-DISCHARGING CAP 1 65 236-29900 AIR-DISCHARGING 1 66 RO-0801502-00 RUBBER RING 1 67 * SM-4051055-SP SCREW 3 68 08 CM-2001001-02 LABEL_01 1 69 07 CM-2001001-01 LABEL_01_C 1 70 CM-3002000-01 ATTENTION SEAL 1 71 * TA-1030402-RO RUBBER PLUG D=10.3 L=4 1 72 TA-0750704-RO RUBBER PLUG 2 73 TA-1250406-RO RUBBER PLUG D=12.5 L=4 3 74 400-06323 JUKI GREASE A TUBE 1 75 400-22407 CORD HOLDER 1 NOTE (注記) 01....FOR LH-3568 02....FOR LH-3568-7 03....EXCHANGING GAUGE PARTS FOR LH-3568(SEE P.33) 04....EXCHANGING GAUGE PARTS FOR LH-3568-7(SEE P.34) 05....OPTIONAL PARTS 06....TYPE A(ACCESSORIE PARTS) 07....FOR CHINA 08....EXCEPT CHINA - 2 - jintex.in

Page 8 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS

2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS 上軸・天秤関係 9 4 5 2 3 6 8 49 35 38 36 37 39 18 13 40 16 17 40 15 14 20 42 11 12 48 19 20 10 47 34 23 33 28 27 32 - 3 - jintex.in 21 22 41 43 46 44 45 30 31 29 26 25 24

Page 9

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 TA-0750404-R0 PLUG D=7.5 L=3.5 1 2 226-05307 THREAD TAKE-UP LEVER PIN 1 3 CQ-2020000-00 OIL WICK 0.15 4 400-24093 THREAD TAKE_UP_LEVER_C 1 5 CQ-2020000-00 OIL WICK 0.04 6 400-22678 TAKE_UP_LEVER_THRUST_PIN 1 7 CQ-2520000-00 OIL WICK 0.02 8 228-10907 RUBBER PLUG 1 9 SM-8060612-TP SCREW M6 L=6 2 10 03 226-22401 SYNCRO FRNGE 1 11 400-29964 NEEDLE_BAR_CRANK_PIN 1 12 CQ-3030000-00 OIL WICK 0.02 13 400-31864 ASSY_COUNTER_WEIGHT 1 14 SM-8060552-TP SCREW M6 L=5 (1) 15 SM-8060612-TP SCREW M6 L=6 (1) 16 400-04171 COUNTER_WEIGHT_SCREW (1) 17 SM-8081652-TP SCREW M8 L=16 (1) 18 400-24436 MAINSHAFT 1 19 400-28117 LOWER_SPROCKET 1 20 * SM-6061010-TP SCREW M6 L=10 2 21 01 400-32987 HAND_WHEEL 1 22 01 SM-8061550-TP SCREW M6 L=15 2 23 02 400-32993 COMP_HAND_WHEEL_TRIM 1 24 400-32994 ASSY_HAND_WHEEL_TRIM (1) 25 400-27099 HAND_WHEEL (1) 26 M4002-110-000 GENERATOR ROTOR (1) 27 400-17624 MAGNET FITTING BASE A ASM. (1) 28 400-17625 MAGNET FITTING BASE B ASM. (1) 29 * SM-8061550-TP SCREW M6 L=15 (2) 30 SS-6111210-SP SCREW 11/64-40 L=12 (2) 31 WP-0450801-SD WASHER 4.5X10X0.8 (2) 32 229-37965 DYNAMO STATOR 1 33 SL-4051001-MZ SCREW M5 L=9.6 2 34 03 400-32142 SENSOR_SUPPORT_SHAFT_ASM 1 35 400-29048 ASSY_MAINSHAFT_BEARING_2 1 36 400-28116 MAIN_SHAFT_SPROCKET (1) 37 SB-1200025-00 BEARING (1) 38 SM-8060612-TP SCREW M6 L=6 (2) 39 400-29047 ASSY_MAINSHAFT_BEARING 1 40 SM-8060612-TP SCREW M6 L=6 (2) 41 400-28652 TIMING_BELT 1 42 TA-0490601-R0 PLUG D=4.9X5.5 L=6 1 43 400-29049 ASSY_MAINSHAFT_BEARING_3 1 44 400-33667 BEARING_BUSH_C_ASM (1) 45 SM-8060812-TP SCREW M6 L=8 (2) 46 * SB-1200020-00 BEARING (1) 47 03 400-26920 SYNCHRONIZER ASM 1 48 TA-0500301-R0 PLUG 5X5.8 L=3 1 49 TA-0370301-R0 PLUG D=3.7X4.4 L=3 1 NOTE (注記) 01....FOR LH-3568 LH-3568用 02....FOR LH-3568-7 LH-3568-7用 03....OPTIONAL PARTS(FOR LH-3568) オプション部品(LH-3568用) - 4 - jintex.in

Page 10 — 3. NEEDLE BAR COMPONENTS

3. NEEDLE BAR COMPONENTS 針棒関係 9 28 37 8 2 1 10~14 15 16 18 17 19 20 21 22 23 36 30 32 31 29 38 34 42 35 34 43 42 34 34 77 83 84 3 5 6 24 25 26 27 39 41 40 47~54 73 74 76 75 78 33 78 33 79 80 81 82 44~46 55 72 56 57 59 58 70 60 61 62 71 63 65 64 66 67 68 69 - 5 - jintex.in

Page 11

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 229-03702 ROLLER FELT 2 2 226-81209 FELT COVER 1 3 400-26402 NEEDLE BAR ROCKING BASE ASM 1 4 400-26401 NEEDLE ROD ROCKING BASE (1) 5 400-25329 NEEDLE BAR SHAFT (1) 6 PT-0502700-SO TAPERED PIN (1) 7 226-82702 NEEDLE BAR SWIVEL STOPPER 1 8 226-81712 STOPPER SCREW 2 9 400-35629 FELT 1 10 01 226-81951 SLIDER BLOCK ASM. A 1 11 01 226-82058 SLIDER BLOCK ASM. B 1 12 01 226-82157 SLIDE BLOCK 1 13 01 226-82256 SLIDER BLOCK ASM. D 1 14 01 226-82355 SLIDER BLOCK ASM. E 1 15 226-81803 SLIDE BLOCK GUIDE PLATE 1 16 SS-4090715-SP SCREW 9/64-40 L=7 2 17 226-85503 FELT GUIDE 1 18 WP-0450000-SD WASHER 4.5X8X0.5 1 19 SS-7110710-SP SCREW 11/64-40 L=7 1 20 226-86000 NEEDLE BAR OIL SEAL FELT, A 1 21 226-85804 NEEDLE BAR OIL SEAL PLATE 1 22 SS-6060510-TP SCREW 3/32-56 L=4.5 1 23 226-86109 NEEDLE BAR OIL SEAL FELT, B 2 24 226-81407 NEEDLE BAR STOPPER 2 25 226-81506 SPRING 2 26 226-81310 STOPPER SPRING COVER 1 27 SS-6080410-SP SCREW 1/8-44 L=4 1 28 SS-4090415-SP SCREW 9/64-40 L=4 1 29 400-26983 NEEDLE BAR ASM. LEFT (1) 30 400-26982 NEEDLE BAR LEFT (1) 31 226-85200 SEESAW PLATE (1) 32 226-85408 NEEDLE BAR PIN (1) 33 131-02702 THROAT PLATE COVER 2 34 B1425-526-000 SCREW 1/8-44 L=6 4 35 02 400-39561 ASSY NEEDLE CLAMP L(1/4) 1 36 400-28668 RING A 4 37 SS-4090715-SP SCREW 9/64-40 L=7 2 38 400-26984 NEEDLE BAR ASM. RIGHT (1) 39 400-26981 NEEDLE BAR RIGHT (1) 40 226-85200 SEESAW PLATE (1) 41 226-85408 NEEDLE BAR PIN 2 42 226-82504 SPRING BEARING 1 43 02 B1402-528-FAR-A NEEDLE CLAMP ASM. 1/4 1 44 01 232-04506 ROCKING ROD SQUARE BLOCK A 1 45 01 232-04605 ROCKING ROD SQUARE BLOCK B 1 46 01 232-04704 ROCKING ROD SQUARE BLOCK C 1 47 *01 226-06206 SPACER X 1 48 *01 226-06305 SPACER Y 1 49 *01 226-07600 SPACER A 1 50 *01 226-07709 SPACER B 1 51 *01 B1438-512-B00 WASHER 17.1X28X1.5 1 52 *01 226-07808 SPACER D 1 53 *01 226-07907 SPACER E 1 54 *01 226-06404 SPACER F 1 55 400-32147 NEEDLE BAR CONNECTION ASM (1) 56 226-83205 RELEASE PIN COVER (1) 57 226-83304 SPRING (1) 58 400-24473 RELEASE PIN (2) 59 226-83809 SPRING (1) 60 400-28679 NEEDLE BAR CONNECTION (2) 61 226-83403 NEEDLE BAR CONNECTION PIN (1) 62 226-84104 SPRING (2) 63 SS-8080340-SP SCREW 1/8-44 L=2.9 (2) 64 226-84203 SPRING BRACKET (1) 65 226-83908 CLUTCH STOPPER, LEFT (1) 66 226-84005 CLUTCH STOPPER, RIGHT (1) 67 400-24064 NEEDLE BAR CLUTCH (2) 68 B1795-850-000 STOPPER PIN (2) 69 226-83601 CLUTCH LEVER (2) 70 CQ-2520000-00 OIL WICK (0.03) 71 400-15144 NEEDLE BAR CONNECTION PIN (1) 72 SS-7060310-SP SCREW 3/32-56 L=3 (1) 73 400-23568 BUSHING 1 74 400-23569 BUSHING 1 75 400-33669 ASSY REAR ARM 1 76 * SM-6062502-TP SCREW M6 L=25 (1) 77 226-85705 OIL GUARD RUBBER 2 78 400-26482 SHOULDER SCREW 1 79 400-32124 DRIVING ROD ASM 1 80 400-28853 ASSY DRIVING ARM (1) 81 SM-6051600-SP SCREW M5 L=16 (1) 82 400-28200 NEEDLE BAR CRANK ROD 1 83 * 01 MDP-50081400 NEEDLE DPX5 #14 2 84 * 01 MDP-17082100 NEEDLE DPX17 #21 2 NOTE (注記) 01....SELECTIVE PARTS 02....EXCHANGING GAUGE PARTS (SEE.P.33,34) 選択部品交換ゲージ部品 (33,34ページを参照下さい。) - 6 - jintex.in

Page 12 — 4. TENSION POST COMPONENTS

4. TENSION POST COMPONENTS 糸調子関係 68 69 66 67 54 53 56 62 63 65 64 57 59 61 60 47 52 59 58 50 51 48 49 55 70 28 33 28 24 46 45 41 37 36 35 31 42 43 40 31 3 29 31 32 21 27 39 25 38 23 30 21 23 22 34 44 1 2 4 8 7 6 5 20 11 16 12 15 19 17 18 14 13 9 10 26 20 11 16 12 15 19 17 18 14 13 9 10 - 7 - jintex.in

Page 13

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 01 400-32710 COMP. THREAD TENSION 68S 1 2 02 400-32711 COMP. THREAD TENSION 68G 1 3 400-28250 ASSY. TENSION BASE PLATE (1) 4 * 400-52366 ASSY. THREAD TENSION (2) 5 * 110-72402 THREAD TENSION NUT (1) 6 229-45505 THREAD TENSION SPRING (1) 7 B3214-047-000 BOBBIN WINDER TENSION DISC (2) 8 225-29473 BOBBIN WINDER TENSION ROD ASM. (1) 9 01 236-26054 THREAD TENSION ASM. (2) 10 02 236-26062 THREAD TENSION ASM., H (2) 11 229-45907 THREAD TENSION POST BASE (1) 12 229-21209 THREAD TENSION POST (1) 13 236-26003 THREAD TENSION NUT (1) 14 229-21407 ROTATION STOPPER (1) 15 229-21506 THREAD TENSION DISK (2) 16 229-21505 THREAD TAKE-UP SPRING (1) 17 01 229-21704 THREAD TENSION SPRING, A (1) 18 02 229-62005 THREAD TENSION SPRING (1) 19 229-21803 DISK STOPPER (1) 20 SS-8090670-SP SCREW 9/64-40 L= 5.5 (1) 21 B1118-512-000-A THREAD GUIDE, A (2) 22 228-11301 THREAD GUIDE(UPPER), RIGHT (1) 23 232-03201 TAKE-UP THREAD GUIDE (2) 24 400-34660 DISK RELEASE PLATE (1) 25 232-03300 THREAD GUIDE COLLAR (2) 26 * B3118-552-D00 TENSION RELEASE PIN, NO.2 (1) 27 * B3118-416-000 TENSION RELEASE PIN (1) 28 SD-0470318-TP SHOULDER SCREW D=4.7 H=3.1 (3) 29 SM-8050612-TP SCREW M5X6 (2) 30 SS-5091020-SP SCREW 9/64-40 L= 9.5 (2) 31 NS-6080210-SP NUT 1/8-44 (3) 32 NS-6110310-SP NUT 11/64-40 (2) 33 400-34840 RELEASE LEVER (1) 34 SS-6090520-SP SCREW 9/64-40 L= 5.0 (1) 35 400-09222 PRESSER PLATE ADJUSTING SPRING (1) 36 WP-0350516-SD WASHER 3.5X6X0.5 (1) 37 400-15699 SPRING GUIDE (1) 38 400-28258 REPOSITIONING LEVER BASE (1) 39 SM-7050850-TP SCREW M5 L=8 (2) 40 400-28262 REPOSITIONING RELEASE LEVER (1) 41 SD-0601171-SP HINGE SCREW D=6 H=11.7 (1) 42 B1449-526-000 REPOSITIONING LEVER SPRING (1) 43 WP-0450801-SP WASHER (1) 44 400-35441 LABEL (1) 45 400-28843 LEVER PIN SCREW (1) 46 NM-6050001-SP NUT M5 (1) 47 SM-4050855-SP SCREW (2) 48 400-28259 ASSY. REPOSITIONING LEVER (1) 49 SM-6050450-TP SCREW M5 L=4 (1) 50 SM-4040855-SP SCREW (1) 51 SM-8040412-TP SET SCREW M4 L=4 (1) 52 400-28844 REPOSITIONING LEVER SHAFT (1) 53 400-32327 ASSY. REPOSITIONING ARM (1) 54 SM-6051202-TP SCREW M5X0.8 L=12 (1) 55 04 CM-3004009-02 LABEL 02 (1) 56 SD-0640752-TP HINGE SCREW D= 6.35 H= 7.5 (1) 57 226-87503 SPRING (2) 58 226-87701 SPRING SHAFT (1) 59 RE-0700000-K0 E-RING 7 (2) 60 226-87602 SPRING BASE (1) 61 SM-4050855-SP SCREW (2) 62 226-87107 REPOSITIONING PLATE (1) 63 SD-0640247-TP SHOULDER SCREW D=6.35 H=2.4 (2) 64 226-87008 LEAF SPRING (1) 65 SS-9110460-CP SCREW 11/64-40 L=4 (1) 66 400-28641 ADJUSTING SPRING (1) 67 226-15702 OIL ADJUSTING BALL (1) 68 SM-8061212-TP SCREW M6X12 (1) 69 NM-6060001-CP NUT M6 (1) 70 03 CM-3004009-01 LABEL 01 (1) NOTE (注記) 01....TYPE S 02....TYPE G 03....FOR CHINA 04....EXCEPT CHINA - 8 - jintex.in

Page 14 — 5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1)

5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1) 釜・下軸関係 (1) 3 4 19 16 18 15 17 20 6 7 11 8 9 12 14 5 33 29 10 31 28 13 32 21 30 34 36 22~26 27 1 35 41~46 47 2 37 38 39 40 33 29 31 28 32 30 34 36 22~26 27 1 41~46 35 47 2 - 9 - jintex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-42121 HOOK_UPPER_BUSH カマシクウリメタル 2 2 400-28491 HOOK_LOWER_BUSH カマシクシタメタル 2 3 02 400-36684 ASSY-CAP HOOK カタハリツカマ (クミ) 2 4 03 400-36685 ASSY-CAP HOOK TRIM イトキリタカマ (クミ) 2 5 * 400-36687 OUTER HOOK TRIM イトキリツカマ (1) 6 *02 226-12709 BOBBIN BASKET キャップナカマ (1) 7 *03 400-39391 CAP_INNERHOOK CAP_INNERHOOK (1) 8 *02 226-12204 HOOK GIB ナカママオサエ (1) 9 *03 400-36689 HOOK_GIB_TRIM ナカマオサエ (イトキリ) (1) 10 * 226-12303 NEEDLE POSITIONER ハリウツク (1) 11 * 101-12803 SCREW オサエトメネジ (2) 12 * 400-12085 OIL PLUG オイルプラグ (1) 13 * 101-12902 SCREW ハリウツクトメネジ (2) 14 * 110-15906 OIL WICK シモジクマエトメネジユシン (1) 15 * 226-88105 BOBBIN CASE ボビンケース (カタハリリヨウ) (1) 16 * 226-88402 TENSION ADJUSTING SPRING シタイトチョウセツネ (0.3) (1) 17 * 226-88204 SPRING シタイトキュウシュウバネ (1) 18 * 101-10500 TENSION SPRING INSTALLING SCRE Tシタイトチョウセツバネトメネジ (1) 19 * 226-12907 TENSION ADJUSTING SCREW シタイトチョウセツクミセネジ (1) 20 * SS-6560150-SH SCREW 3/32-80 L=1.3 ヒラネジ 3/32-80 L=13.2 (1) 21 * TA-0290301-MO PLUG トメネジ D=2.9X3.2 L=3 (1) 22 01 226-14001 THRUST WASHER, A カマシクシヨウメタルスペーサ A 2 23 01 226-14101 THRUST WASHER, B カマシクシヨウメタルスペーサ B 2 24 01 226-14200 SPACER, C カマシクシヨウメタルスペーサ C 2 25 01 101-12905 THRUST WASHER 1.7 カマシクウリメタルスラストライタ 1.7 2 26 01 101-12704 THRUST WASHER 1.8 カマシクウリメタルスラストライタ 1.8 2 27 B1822-051-000 OPENING LEVER CRANK ナカガマアンナイテヅク 2 28 B1820-563-000 BOBBIN CASE OPENING LEVER LINK ナカガマアンナイリンク 2 29 B1821-051-000 CRANK SCREW STUD ナカガマアンナイクランクピン 2 30 226-13509 BOBBIN CASE OPENING LEVER ナカガマアンナイ (ユカマ) 2 31 SS-6090810-TP SCREW 9/64-40 L=7.5 ヒラネジ 9/64-40 L=7.5 2 32 WP-0371016-SD WASHER 3.7X8X1 ヒラダネ 3.7X8X1 2 33 CQ-2020000-00 OIL WICK ユシン 0.3 34 CQ-2020000-00 OIL WICK ユシン 0.3 35 NS-6110420-SP NUT 11/64-40 ロツカクナツト 11/64-40 2 36 B1823-051-000 OPENING LEVER CRANK PIN ナカガマアンナイテヅク 2 37 * 02 B9117-051-000 BOBBIN ボビン 2 38 * 03 102-10805 HARD ALUMITE BOBBIN コウシグアルマイトボビン 2 39 * 03 226-53802 SHEET クウテンボウシヤト 2 40 * 03 101-11508 SPRING クーテンボシヤネ 2 41 01 400-28560 HOOK SHAFT GEAR-A カマシクネシハグルマA 2 42 01 400-28561 HOOK SHAFT GEAR-B カマシクネシハグルマB 2 43 01 400-28562 HOOK SHAFT GEAR-C カマシクネシハグルマC 2 44 01 400-28563 HOOK SHAFT GEAR-D カマシクネシハグルマD 2 45 01 400-40549 HOOK SHAFT GEAR-E カマシクネシハグルマE 2 46 01 400-40550 HOOK SHAFT GEAR-F カマシクネシハグルマF 2 47 SM-8060550-TP SCREW M6 L=4.5 トメネジ M6 L=4.5 6 NOTE (注記) 01...SELECTIVE PARTS 選択部品 02...FOR LH-3568 LH-3568用 03...FOR LH-3568-7 LH-3568-7用 - 10 - jintex.in

Page 16 — 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2)

6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2) 釜・下軸関係 (2) 21 22 26~29 37 36 37 2 20 23 39 19 12 14 15 13 25 24 15 18 32 33 34 34 37 36 30 16 17 25 31 6 4 5 5 3 38 1 41-2 41 40 42 43 45 44 43 35 7 42 - 11 - jintex.in

Page 17

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 400-28271 LOWER SHAFT シモジク 1 2 400-28851 LOWER SHAFT BUSH-F シモジククメメタル 1 3 400-30915 LOWER SHAFT BUSH-M シモジククナメメタル 1 4 400-31351 ASSY-LOWER SHAFT COLLAR シモジククラスラトカラー (クミ) 1 5 SM-8060612-TP SCREW MG L=6 トメネジ M6 L=6 (2) 6 400-13061 THRUST WASHER スラストワッシャー 1 7 236-18804 OIL SEAL ショウゲオクリシ・クウシロオイルシール 1 8 01 400-28485 HOOK SHAFT BASE-L カマシクタダイ (ヒダリ) 1 9 02 400-28487 HOOK SHAFT BASE-L-TRIM イトキリ・カマシクタダイ (ヒダリ) 1 10 03 400-34969 HOOK SHAFT BASE L カマシクタダイ (ヒダリ) コカマ 1 11 04 400-34971 HOOK SHAFT BASE L-TRIM イトキリ・カマシクタダイ (ヒダリ) コカマ 1 12 400-22589 BOTTOM COVER カマシクタダイフタ 2 13 400-22590 BOTTOM COVER GASKET カマシクタダイパッキン 2 14 SM-4050855-SP SCREW M5 L=8 トメネジ M5 L=8 8 15 SQ-2050453-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 4 16 400-42141 OIL ADJUSTING SCREW オイルチョウセツ・ネジ 2 17 RO-0442401-00 RUBBER RING Oリング 2 18 400-29570 OIL ADJUSTING SPRING ユリコウチョウ・スプリング 2 19 TA-0290301-MO PLUG トメセン D=2.9X3.2 L=3 6 20 SM-8051002-TP SCREW M5 L=10 トメネジ 2 21 101-09908 SADDLE INSTALLING BLOCK, UPPER カマシクタダイ・メウエ 2 22 101-12407 SADDLE INSTALLING BLOCK, LOWER カマシクタダイ・メシタ 2 23 SS-6153040-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 2 24 SM-6063502-SP SCREW M6 L=35 ヒラネジ M6 L=35 2 25 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 2 26 01 400-28486 HOOK SHAFT BASE-R カマシクタダイ (ミギ) 1 27 02 400-28488 HOOK SHAFT BASE-R-TRIM イトキリ・カマシクタダイ (ミギ) 1 28 03 400-34970 HOOK SHAFT BASE R カマシクタダイ (ミギ) コカマ 1 29 04 400-34972 HOOK SHAFT BASE R-TRIM イトキリ・カマシクタダイ (ミギ) コカマ 1 30 TA-0290301-MO PLUG トメセン D=2.9X3.2 L=3 6 31 SM-6062502-TP SCREW M6 L=25 ロツカクアナボルト M6 L=25 1 32 400-28495 GEAR GUIDE-L ギヤ・ガイド (ヒダリ) 1 33 400-28496 GEAR GUIDE-R ギヤ・ガイド (ミギ) 1 34 SM-4050655-SP SCREW M5 L=6 ナベ・コネジ M5 L=6 4 35 SQ-2060451-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 2 36 400-28489 LOWER SHAFT GEAR シモジククミ・ギヤ 2 37 SM-8060610-TP SCREW M6 L=6 トメネジ M6 L=6 4 38 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 1 39 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 1 40 400-28656 ASSY-LOWER SHAFT BEARING シモジククベア・リング (クミ) 1 41 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 (2) 42 RO-2573501-00 O-RING Oリング 1 43 228-88507 OIL SEAL オクリレバ・クウシロオイルシール 2 44 400-11947 LOWER PLUNGER BUSH シモジクプランジャー・メタル 1 45 SQ-2050453-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 2 NOTE (注記) 01....FOR LH-3568(EXCEPT CHINA) LH-3568 (中国を除く) 用 02....FOR LH-3568-7(EXCEPT CHINA) LH-3568-7 (中国を除く) 用 03....FOR LH-3568(CHINA) LH-3568 (中国) 用 04....FOR LH-3568-7(CHINA) LH-3568-7 (中国) 用 - 12 jinte.in

Page 18 — 7. FEED MECHANISM COMPONENTS

7. FEED MECHANISM COMPONENTS 送り関係 13 14 15 10 70 11 10 70 71 85 9 86 87 86 90 2 B 68 5 82 89 69 8 83 1 84 B 3 A 20 21 91 26 27 28 29 22 33 32 47 17 18 19 31 50 23 58 63 65 75 76 50 54 64 51 52 45 43 45 46 44 39 57 60 59 66 48 49 62 61 80 81 7 34 25 77 79 35 36 12 37 41 40 67 58 - 13 - jintex.in

Page 19

REF. NO NOTE PART NO. DESCRIPTION E Qty 1 SM-6050800-SP SCREW M5 L=8 2 2 400-28293 FEED REGULATOR ROD PIN 1 3 400-28284 FEED REGULATOR ROD 1 4 SD-0900426-TP SHOULDER SCREW D=9 H=4.2 1 5 400-28894 ASSY FEED REGULATOR 1 6 SM-6051800-SP SCREW M5 L=16 (1) 7 400-11935 VERTICAL FEED LINK 1 8 226-10307 FEED REGULATOR SPRING 1 9 400-28286 REVERSE FEED SHAFT 1 10 400-32269 THRUST COLLAR 1 11 SM-6050412-TP SCREW M5 L=16 (2) 12 400-26673 VERTICAL F_LINK_SHAFT_M 1 13 RE-0900000-KO E-RING 9 1 14 02 D1 SM-6051000-SP SCREW L=10 1 15 400-32995 REVERSE FEED LEVER 1 16 235-34566 FEED DIAL SPRING 1 17 235-34506 FEED DIAL 1 18 400-36433 SCREW 3/16-28 L=18 1 19 SS-6121860-SP SPRING PIN 3X12 1 20 400-29079 BRACKET 1 21 SM-6050800-SP SCREW M5 L=8 2 22 400-32293 ASSY FEED ROCKER ROD 1 23 SM-6040112-TP SCREW M4 L=6 (1) 24 B1653-470-000 PIN 1 25 SM-6750690-TP SCREW M3.5 L=6 (1) 26 400-31318 ASSY FEED ECCENTRIC CAM 1 27 SM-6051255-SP SCREW M5 L=12 (1) 28 SM-6050001-SP NUT M5 (1) 29 SM-6051150-SP SCREW M6 L=11 (2) 30 FS-0300122-KM SPRING PIN 3X12 1 31 SM-4040655-SP SCREW M4 L=6 2 32 400-11906 FD CAM LID 1 33 B1636-681-500 NEEDLE BEARING B 1 34 SM-6030672-TP SCREW M3 L=6 1 35 400-11946 FEED BASE 1 36 01 02 400-11931 FEED BASE 1 37 400-11932 FEED BASE SHAFT 1 38 SM-8040612-TP SCREW M4 L=6 1 39 400-28279 FEED ROCKER SHAFT 1 40 400-31349 ASSY FEED BASE ARM 1 41 SM-6051400-SP SCREW 1 42 235-33805 FEED ADJUSTING SHAFT 1 43 400-11939 FEED SHAFT BUSH F 1 44 SM-8060612-TP SCREW M5 L=6 1 45 400-32268 THRUST COLLAR 1 46 SM-8050112-TP SCREW M5 L=4 (2) 47 235-34019 FEED ADJUSTING BASE 1 48 SM-7050850-TP SCREW M5 L=8 4 49 400-28277 FEED ADJUSTING PLATE 2 50 400-35704 FEED ADJUSTING BLOCK 2 51 400-29852 ASSY FEED ROCKER ARM (1) 52 SM-6051600-SP SCREW M5 L=16 1 53 SM-2040750-TP SCREW M4 L=4 2 54 229-52501 NUT M6 1 55 SM-6060001-CP NUT M6 1 56 SD-0900706-TP SHOULDER SCREW D=9 R=7 1 57 400-28274 FEED ROCKER ARM RUD 1 58 400-28275 ASSY FEED ADJUSTING 1 59 400-28276 FEED ADJUSTING 1 60 SM-7050850-TP FEED ADJUSTING ARM (1) 61 SM-6050800-SP SCREW M5 L=8 1 62 400-28281 FEED ADJUSTING STOPPER 1 63 400-23280 FEED SHAFT OIL SEAL A 1 64 400-13352 FEED SHAFT OIL SEAL A 1 65 400-25316 FEED ADJUSTING OIL SEAL 1 66 400-28291 FEED ADJUSTING CAP 1 67 400-28294 SPRING HOOK 1 68 400-11926 SPRING HOOK B 1 69 NR-6040001-SP NUT M4X0.7 1 70 400-28287 REVERSE FEED SHAFT BUSH 1 71 SM-6050550-TP SCREW M5 L=6 (1) 72 400-28855 ASSY REVERSE FEED ARM (1) 73 133-19405 MAIN FEED SHAFT 1 74 SM-6051600-SP SCREW M5 L=16 1 75 400-31350 ASSY FEED BASE SHAFT COLLAR 1 76 SM-8040412-TP SET SCREW M4X0.7 1 77 SM-8031512-TP SET SCREW 1 78 WP-1751616-SD WASHER 17.5X24X1.6 2 79 WP-6030001-SD NUT 1 80 400-33689 ASSY VERTICAL FEED CAM 1 81 SM-8060552-TP SCREW M5 L=5 1 82 400-29295 FEED REGULATOR SHAFT 1 83 SM-6051850-TP SCREW M5 L=18 1 84 229-52501 BACK LEVER STOPPER 1 85 SM-4050655-SP SCREW M5 L=6 1 86 226-56003 SPRING SUSPENSION 1 87 400-40924 SPRING HOOK_B 1 88 400-29257 NUT M5 1 89 NM-6050001-SP WASHER 5.2X9.5X0.6 0.09 90 BT-0500300-EA OIL TUBE 1 NOTE (注記) 01...FOR LN-3568 02...FOR LN-3568-7 - 14 - jintex.in

Page 20 — 8. PRESSER BAR & TENSION RELEASE COMPONENTS

8. PRESSER BAR & TENSION RELEASE COMPONENTS 押さえ棒・糸ゆるめ関係 1 2 3 4 12 5 40 18 33 34 35 36 38 39 41 42 43 7 8 9 10 11 13 13 20 13 13 13 19 32 21 13 14 15 16 17 22 23 24 25 26 27 29 30 31 45 46 28 44 - 15 - jintex.in

Page 21

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-07802 HAND LIFTER オエアクレバー 1 2 B1521-555-000 SCREW オエアクレバートメネジ 1 3 RO-0371801-00 RUBBER RING Oリング 1 4 400-35394 HAND LIFTER CAM ASM. オエアクカムクミ 1 5 400-28868 ASSY_LIFTING_CONNECT ROD ヒキアゲヨコホウウクミ 1 6 236-09605 PLATE イトエルメキリカエタ 1 7 SM-6040602-TP SCREW M4 L=6 ロツカクアナツキ M4X0.7 L=6 (1) 8 400-28264 ASSY HAND LIFTER LINK ヒキアゲリンククミ (1) 9 229-08008 LIFTING PLATE ヒキアゲイタ (1) 10 RE-0500000-KO E-RING Eガタタトメツ (2) 11 400-35151 LIFTING CONNECTING ROD ヒキアゲコネクテイングロツド (1) 12 400-28545 LINK SHAFT ヒキアゲリンクシヤフト (1) 13 RE-0500000-KO E-RING Eガタタトメツ 2 14 SD-0640357-TP SHOULDER SCREW D=9 H=3.5 ダンネジ D=9 H=3.5 1 15 SD-0900356-TP SHOULDER SCREW D=9 H=3.5 ダンネジ D=9 H=3.5 1 16 400-35181 LIFTING LEVER LINK ヒキアゲレバーリンク 1 17 400-28268 CONNECTING ROD-A ヒキアゲレングホウ (1) 18 SM-8050612-TP SCREW M5X6 トメネジ M5X0.8 L=6 (1) 19 229-20201 RETURN SPRING イトエルメイタモトシヤネ 1 20 400-28546 TENSION RELEASE SHAFT イトエルメイタクミ 1 21 01 400-35298 TENSION RELEASE PLATE イトエルメイタクミ 1 22 400-35828 ASSY_TENSION_RELEASE_PLATE イトエルメイタクミ (1) 23 400-35298 TENSION RELEASE PLATE イトエルメイタクミ (1) 24 400-33434 THREAD_TENSION_RELEASE_WIRE ワイヤーケープルクツヨウク (1) 25 400-33435 WIRE TUBE ワイヤーチューブ (1) 26 229-44904 SET SCREW ワイヤーセツトネジ (1) 27 02 NS-6620310-SP NUT 3/16-32 ロツカクアナツト 3/16-32 2 28 *02 SM-4040855-SP SCREW ナベネジ 1 29 02 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 30 02 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 2 31 02 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 1 32 400-34974 TENSION RELEASE SHAFT サラウカンオシ 1 33 236-09209 PRESSER SPRING REGULATOR オサエチヨウセツメネジナブト 1 34 229-07604 PRESSER SPRING REGULATOR NUT オサエチヨウセツメネジナブト 1 35 229-07703 PRESSER GUIDE BAR オサエアンナイウ 1 36 * 229-07406 PRESSER SPRING オサエチヨウセツバネ 1 37 B1501-581-000 PRESSER BAR オサエバー 1 38 400-32272 ASSY_PRESSER BAR HOLDER オサエバホルダークミ (1) 39 SM-6060800-SP SCREW M6 L=8 ヒラネジ M6 L=8 (1) 40 400-28269 LIFTER ADJUSTING PIN ピンリヨウオサエチヨウセツピン 1 41 236-09001 BUSHING オサエボウクスタル 1 42 03 226-40551 PRESSER FOOT ASM. サキフレシユウオサエ(タミ) 1/4"(6.4 1 43 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 44 *02 SM-4040655-SP SCREW M4 L=6 ナベネジ M4 L=6 2 45 02 D3164-555-B00 OUTER PRESSER PLATE アウターオサエドタイ 1 46 *02 400-50314 OUTER_HOLDER_BASE アウターオサエドタイ 1 NOTE (注記) 01... FOR LH-3568 LH-3568用 02... FOR LH-3568-7 LH-3568-7用 03... EXCHANGING GAUGE PARTS 交換ゲージ部品 (SEE.P.33,34) (33,34ページをご参照下さい。) - 16 - jintex.in

Page 22 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7)

9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7) 糸切り装置関係 (LH-3568-7用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 - 17 - jintex.in

Page 23

REF. NO NOTE PART NO. DESCRIPTION QTY. 1 400-17353 ASSY_BASE_PLATE 1 2 400-17394 ASSY_TRM_PUSH_LINK 1 3 RC-0650811-KP RETAINING RING 1 4 400-36359 THREAD_TRIMMER_SOLENOID 1 5 SM-4040601-SC SCREW M4X0.7 L=6 4 6 235-42418 CLUTCH LINK PIN 1 7 NH-6030001-SC NUT M3 2 8 400-17399 ASSY_TRM_ROLLER_ARM 1 9 400-10434 THRUST_COLLAR_ASM 1 10 110-40854 KNIFE_DRIVING_ARM ASM. 1 11 RE-0600000-KO E-RING 6 1 12 400-17400 ROLLER_ARM_SPRING 1 13 400-17361 TRM_DRIVING_ARM_STOPPER 1 14 SM-4050855-SP SCREW 2 15 400-17401 TRM_DRIVING_LINK_PIN 1 16 400-17402 TRM_DRIVING_LINK_BUSH 1 17 WP-0621046-SP WASHER 1 18 NH-6060003-SC NUT M6 1 19 400-12505 CONNECTING_ROD_B 1 20 400-12506 CONNECTING_ROD_C 1 21 SM-9050850-SP SCREW 2 22 WP-0531000-SD WASHER M5 2 23 400-17403 TRM_DRIVING_ARM_SPRING 1 24 400-15669 ASSY_THREAD_RELEASE_ARM 1 25 400-17362 RELEASE_ARM_STOPPER 1 26 SM-4050855-SP SCREW 2 27 113-05901 SPRING 1 28 SM-6061200-SP SCREW 2 29 400-12504 CONNECTING_ROD_A 1 30 400-12505 CONNECTING_ROD_B 1 31 SM-9050850-SP SCREW 2 32 WP-0531000-SD WASHER M5 2 33 400-31352 ASSY_KNIFE_DRIVING_ARM_R 1 34 SM-6051202-TP SCREW M5X0.8 L=12 (1) 35 400-12503 KNIFE_DRIVING_ARM_PIN 2 36 400-36446 ASSY_KNIFE_DRIVING_ARM_L 1 37 SM-6051202-TP SCREW M5X0.8 L=12 (1) 38 400-12497 ASSY_KNIFE_BASE_SHAFT 2 39 400-12492 D_KNIFE_BASE_GUIDE_R 1 40 400-21883 D_KNIFE_BASE_GUIDE_L 1 41 SM-1030501-SN SCREW M3 L=5 4 42 400-21899 D_KNIFE_SUPPORT_R 1 43 400-21898 D_KNIFE_SUPPORT_L 1 44 SM-1030501-SN SCREW M3 L=5 4 45 400-12488 DRIVING_KNIFE_BASE_R 1 46 400-12487 DRIVING_KNIFE_BASE_L 1 47 SS-1090520-TP SCREW 9/64-40 L=5 6 48 SS-6090580-TP SCREW 9/64-40 L=4.5 2 49 400-12403 DRIVING_KNIFE 2 50 400-12495 CLAMP_SPRING_BASE 2 51☆ * 400-44393 CLAMP 2 52☆ * 400-33160 CLAMP_SPRING 2 53 SM-6850400-SP SCREW M2.5 L=4 6 54 SM-8030312-TP SCREW M3 L=3 2 55 400-12489 FIXED_KNIFE_BASE 2 56 400-12496 FIXED_KNIFE_BASE_ADJUST 2 57☆ * SM-9051263-CP SCREW M5 L=12 2 58☆ 400-12404 FIXED_KNIFE 2 59 EA-9500B01-00 CABLE BAND 2 60 400-13316 THREAD_TRIMMER_CAM 1 61☆ * SM-8061010-TP SCREW M6 L=10 2 62 SM-6052502-TP SCREW 1 63 B3538-112-000 OIL RETURN_TUBE HOLDER 1 64 SM-6040552-TP SCREW M4 L=4.5 1 65 SD-0700346-TP SHOULDER_SCREW D=7 H=3.4 3 66 * WP-0531000-SD WASHER M5 2 - 18 - jintex.in

Page 24 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7)

10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7) 自動逆送り関係 (LH-3568-7用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 36 20 21 22 23 24 25 26 27 28 30 29 31 32 33 34 35 37 37 19 38 - 19 - jintex.in

Page 25

REF. NO. NOTE PART NO. DESCRIPTION QTY. 1 400-35167 ASSY. REVERSE_FEED_SWITCH_68 1 2 229-54606 REVERSE FEED SWITCH COVER (1) 3 SS-4110615-SP SCREW 11/64-40 L=6 (1) 4 226-56508 REVERSE FEED SWITCH BASE (1) 5 229-54200 REVERSE FEED SWITCH SHAFT (1) 6 229-54309 REVERSE FEED SWITCH SPRING (1) 7 SM-4041655-SP SCREW M4 L=16 (1) 8 SM-4031501-SC SCREW M3 L=15 (2) 9 HW-5000700-00 2-CORE CABTYRE CORD (1.2) 10 HA-00190000-00 MICROSWITCH (1) 11 229-54408 STOPPER PLATE (1) 12 400-35168 REVERSE_FEED_SWITCH_LEVER_68 (1) 13 HK-0346400-0B PIN CONTACT (2) 14 SM-4050855-SP SCREW (2) 15 SS-7110710-SP SCREW 11/64-40 L=7 4 16 WP-0501016-SD WASHER 5X10.5X1 4 17 101-61305 SOLENOID COVER 1 18 400-36360 REVERSE_FEED_SOLENOID 1 19 HK-0346400-0B PIN CONTACT (2) 20 WP-0501016-SD WASHER 5X10.5X1 4 21 SS-9111010-SP SCREW 11/64-40 L=9.5 4 22 D2464-555-B00 LINK DRIVING MAGNET PIN 1 23 RE-0400000-KO E-RING 4 2 24 SM-6061002-TP SCREW M6 L=10 2 25 WS-0631510-KP SPRING WASHER 2 26 WP-0621016-SD WASHER 6.2X13X1 2 27 400-30856 LINK FULCULUM 1 28 400-29350 REVERSE_FEED_LINK_L 1 29 SM-6063002-TP SCREW M6 L=30 1 30 WS-0610002-KP SPRING WASHER 1 31 WP-0612056-SD WASHER 6.1X18.5X2 1 32 400-35278 REVERSE_FEED_LINK_B 1 33 400-35277 REVERSE_FEED_LINK_A 1 34 SD-0700328-TP SHOULDER SCREW D=7 H=3.2 2 35 SM-6050650-TP SCREW M5 L=6 1 36 101-19204 SOLENOID INSTALLING PLATE 1 37 NM-6050001-SP NUT M5 2 38 HK-0346101-40 HOUSING 14P 1 - 20 - jintex.in

Page 26 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7)

11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7) ワイパー装置関係 (LH-3568-7用) 1 2 3 21 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 24 25 26 27 28 29 30 31 32 33 34 35 36 - 21 - jintex.in

Page 27

REF. NO. NOTE PART NO. DESCRIPTION E. E. E. Qty. 1 400-33437 WIPER SOLENOID ASM ワイパーソルノイドクミ 1 2 229-55504 WIPER COVER ワイパーカバー (1) 3 SL-4030631-SC SCREW M3X6 ザガネツキ M3 L=6 (1) 4 SD-0650321-TP HINGE SCREW D=6.5 H=3.2 ダツネツキ D=6.5 H=3.2 (1) 5 226-57209 WIPER LINK, A ワイパーリンク A (1) 6 400-09196 SUSPENSION SCREW ウツイトキリネツカケ (1) 7 229-56205 WIPER HINGE SCREW COLLAR ワイパーダーツネツキカラー (1) 8 226-57308 WIPER SPRING ワイパーバネ (1) 9 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 10 229-55900 WIPER RUBBER A ワイパーゴム AA (1) 11 229-56007 WIPER RUBBER B ワイパーゴム AB (1) 12 400-30956 WIPER SOLENOID ワイパーソルノイド (1) 13 229-57104 WIPER SOLENOID SHAFT ワイパーソルノイドシヤフト (1) 14 HW-0005900-00 POWER SWITCH ボツクススイツチ (1) 15 HW-2003000-00 ELECTRIC WIRE ビニールコードシン 17-0.16 シロ (0.04) 16 HW-5000700-00 2-CORE CABTYRE CORD 2ツヨリキヤブタイヤコード (1.04) 17 * 400-42151 WIPER SOLENOID BASE ワイパーソルノイドベース (1) 18 SL-4030641-SE SCREW ザガネツキネツキ (3) 19 229-57203 WIPER LINK COLLAR ワイパーリンクカラー (1) 20 HK-0346400-0B PIN CONTACT ピンコンタクト (2) 21 SM-4050855-SP SCREW ナベネジ M5 L=8 2 22 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 23 SD-0500301-SP HINGE SCREW D=5 H=3 ダンネツキ D=5 H=3 1 24 400-28797 ASSY WIPER LINK 2 ワイパーリンククミ2 1 25 400-28799 ASSY WIPER BASE ワイパーベースクミ 1 26 SM-6050802-TP SCREW M5X0.8 L=8 ロツカクアナボルト M5X0.7 L=8 2 27 * RE-0300000-KO E-RING 3 Eカトメツキ 3 2 28 102-08700 WIPER LINK SHAFT ワイパーリンクシヤフト 1 29 * SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 2 30 WP-0371016-SD WASHER 3.7X8X1 ヒラザガネ 3.7X8X1 2 31 01 102-09203 WIPER ワイパー - 1 32 01 102-09500 WIPER ワイパー - 1 33 01 102-09807 WIPER ワイパー - 1 34 01 102-09906 WIPER ワイパー - 1 35 WP-0531000-SD WASHER M5 ヒラザガネコガタM5 2 36 * WS-0410002-KP SPRING WASHER ハネツキ M4 2 NOTE (注記) 01...SELECTIVE PARTS 選択部品 - 22 - jintex.in

Page 28 — 12. LUBRICATION COMPONENTS

12. LUBRICATION COMPONENTS 給油関係 13 47 46 14 83 15 48 16 63 43-9 18 20 24 23 22 79 80 8 19 17 42 72 41 51 34 50 70 66 71 12 51 50 45 69 76 78 77 56 57 55 12 67 68 67 64 64 37 36 34 35 34 33 30 29 31 27 28 26 12 25 52 53 81 12 58 59 60 59 61 62 12 49 12 11 12 A 2 3 B 4 10 A B - 23 - jintex.in

Page 29

___ __ Y__ _. {_ •••• ___ Q}L l 400-28689 SCREW w l 2 4M-3492U O!L_TANK_ASij_ l 3 400-34649 O!L_TANK_PLATE l 4 SL-5040892- Hi ROLT I';· ;Y\01,;7/fl' H 2 5 R0-0982401-00 RUBBER RING 09}:)' l 6 RU-2HI2titil-00 RUBB'£R RING Oh?' 7 400-28705 ASSYJLOATER /D--)1;1',; l 8 41J0-361S7 OIL GMlE i1H' -7· I 9 S!o!-6D5Hl02-1P SCREW M5X0.8 L"IO M1J?iti.' .q. MSX0.8 L"lO 2 !0 WP-0550800-SP WASHER 5.5X10X0.8 t?f' b':). 5.SX10Xfi.S 2 'T _4 12 236-293tl6 PIP£ STOPPER A !>' fT }:iA !5 13 2.36-283-33 PLUNGER T t- 2 l4 15 236-289[12 400-135{}9 PLUNGER SPRING PtUNG£R,.SCR£W 7' '1'1'' 'r-1\' 7' 7;.-,· * 2 2 16 R0-u48!901 OD R- '1 . 11 4-G0-28773 BOX COVE.R 'J'JJ.7'J l 18 400-28774 BOX=COVER_PACK.lNG i' "}IJJ,.7'JI'>' ;\':.- l 19 SM.-!051255-SP SCRI:.l'i'. ,MS L"l2 f"'' ;f7' M5 Lo:12 8 20 236-30106 lUBE B h-7' B 0,2 ·-n--->,'ii,6<c-->2Tic9,IT•oi<s---p IPE Stoi'PEirE'___ 11· {J" 22 400-·29075 LUBRICATING INLET l 23 400-00344 LtiBRICATING-INLETCAP 1 24 R0-0481901-00 RUBBER RING 1 25 + 400-42287 ASSY OIL FILTER R A'fA7tH-?$.4;.\:' l --;nr· 236-30601 OtL fILlER JOINt i-(/f11H-·/" (ll 27 236-29405 PIPE STO-PPER B J\\'fJ' (2) 28 23£--30106 TUBE B B (0 ,(}35) 29 23G-30G50 OIL FILTER JOINT ASM", ( l) 3D 236-29306 PIPE STOPPER A NiT };lA l 1 E :J.-7 32 t 400-42286 ASSY OIL FILTER L ifk11M-?J.t9' !1 l 33 236-30601 OIL fiLTER JOJNf il-t-7-f.\-$'-7' ;;{)} 34 PIPE. STOPPE.R B r<' {7' }1.8 (2) 35 236-30106 TUBE B f.t-J' B (iL042) 37 236-29306 PIPE STOPPER A A' 17' j>JA i 38 TUBE. f.J.··-r O.OG 39 40fi·l6-749 TUBE HOLDER A' 1J' ;U-:r l 40 SCREW M4 Lc=O !11M7ti' ,\} M4X(L 1 L"6 l 40lJ-3424ll OIL SIGHT WJNnOw 1T7!5'<ftl" ' 42 RO·l9S24!H·OO RusBr:R RING 1 43 B35l:1-009-000 OIL F'E.LT Rf.AR ::t-T IT 79· I< 7-d} 44 BAS£ 71' 11' ';A'"{{!.' 1 l 45 EA · 9500B!'Jl-00 CABLE BAND Y:7t!ft;' lV 3 -;nr-··--- ... .. 41 SIHW4.0650-TP SCREW t7-?.)'' M4 L"6 t 48 LtrnRfCAJING FELT -1.'/T b;l:tlt-H J 49 2.35··4tt30S fLOATER CASE CAP !/l:t:Y-A'l\<7/' l 50 2J6w30007 TUBE 0.23 -is<T,---1,7io'i-r 52 236<H!007 TUBE fJ-7' O,Z &3 236 • 30001 TUBE 0.38 236-30007 TUBE 0,07 57 2 58 l 59 r.'J\Y 2 60 f4-T VJ:\'",-1:.-· l J -1· f 62 RUBBER RrNG I 63 64 •• SCREW 1!4 L"G DISTRIBUTOR 1:.7::1*-3>' M4 L"6 TYNHA 2 4 77 78 10 82 33 •• RUBBERJ'LATE OlL_SHIELD_PLATE J.:i' 9J' Mtx-f' :t"*•oj:J'}. - 24

Page 30 — BELT COVER & BOBBIN WINDER COMPONENTS

13. BELT COVER & BOBBIN WINDER COMPONENTS X.JH · I i I I 216 -, N I 18 I 17 16 21-c.:::o 1 400-33109 ASS¥ BELT COVER .;,: A\--?!'•' -Yo; 1 2 400-29905 BEL1'=Covr.R_A -A (l) J Slf-40fi200l·SC SCREW MG Loo2C Mfi b<20 (2) 4 SM·4051601·SC SCRLW MSXO.B L"lS N5X0.8 1."16 (l) 5 SPRIXGWASIIER 5,2X8.2:Xl r-'.H':tl'_f5,2X8.2Xl (l} WAS!!ER 7 !IASHEW 6.4ll2.5Xl.6 t:H' 11' !- (2) 6 4(10-342:67 ASSY BELT COVER B lHIJ\ -.BJ;;. 1 9 SELT-COVERII- cowPL, ,. t-}))!1' ?) (!) 10 229-33158 BELT COVE.R B LID ASli, ,_. t':-bA' (I) 229-33600 B!.tl CO ·--rrr- 12 SK-3412000-SC WOOD SCREW D"4.l L-,20 D"4.l L"20 (2} 13 :f WP-050Hllfi-SD WASHER 5Xl0.5X.i \:7¥' '!t f 5XH1.5XJ (2) 14 229·27354 BOBBIN WIKDER COMPL. HH'I?f{J;:r ?) 1 15 SCREW 11/64·40 Lo:5 1t.."i'Y tl/64·40 LeoS (l) DISK..---··---··---.. ?H3Ht-.-7---""--ro- 17 229-29004 THREAD TENSION SPRING .i (I) 18 22.9-28808 :\UT ( l) 19 SS·71Hl350·SP SCREW ll/64-40 1."3.5 111t713'' 11/64-40 L..- 3.5 {I) 20 229-28402. RUBBER BOLDL'iG- PLATE Ht· Mft.{9 (I) zz 229-28!.05 l!OBBI!\ PRESS£R i' t" Jtti- {1) 2.3 SD-0490251-SP lflXGE SCREW 0"'4.9 H"'2.6 ;·:-t.;'l' Il*4.9 {l) 24 SS·10!il310·SP SCREW bl2..5 14t71;;' 1/8·44 5 ('0 25 SS-8110510-SP SCRE\" 11/64-40 l.-.,5 11/64-40 (1) 22Il-2850l IRR£AIJ .. 27 OJ 22G-2J155 THR£?.D\Yl1\D£RASM. 1 2S BAR BAS£ {}1';--f?{3?5-i' ?9' 1(-71:1' 9) (l) 29 SCR£11' \1/£4-40 V"7.8 L.-oJ.S {l) 30 229-2$907 THREAD TENS:loti OJSR f}-f39lJ' 7 (·i) - t.90d4 lHRr.AD I£S11 SPRh:t fpf;Jij)'r< 32 22!1-23308 li'VT {2) 33 SS·4ll0515-SP SCR£W ll/64-40 L"'S !l/ti-I·40 1"5 (l) 3-l 229· 28402 COHROL R!JBBER HOLDll'iG PLATE l.:H' ;L1' l.:t1IH (I) 35 229--28303 COl'iTROL Rl'I!BER ::J:J' A (!! .-:26 2Lti6 R --;:lT'" 31 SD-O-l.9026H>P Hll\G£ SCREW fi,·L9 Hz2.5 9'Y1S' D"'4.9 !1"2.6 (l) 38 WP·041HlS5! SP WASHER 4.8X3AX0.8 t:W If t 4.8X3,4X0.8 (I) 39 S'H10405D2·H' SCREW MHL1.7 L"'5 M;X0,7 L-,5 (l) 40 SCREW l/8"-1-1 L=-12.5 l/!!·44 L"l2.5 (l) I) I ... roR J: JH; - 25-

Page 31 — 14. BOTTOM COVER COMPONENTS

14. BOTTOM COVER COMPONENTS ;:Jf t-An ___NQT!: ___ ___ n_E_ _r_P_ T _!_Q ___ __, __ _1_ ___ Q!:.:_ 1 400-32107 ASSY_BOTTOM_COVER_A t· 1-A:IW 1 2 400-28778 BOTTOM_COVER t· 1-A:IJA" (!) 3 400-34853 CONNECTING_ROD_ASM tY' 7'J' M7Wi' (!) 4 229-32107 KNEE LIFTING ROTATING ARM u· 77· M7Y'J7' (!) 5 NM-6060001-SE NUT M6 O'M:I-'1- M6 (2) 6 SM-8063012-TR SCREW M6 L-30 1-nY (2) 7 400-25191 KNEE]RESS_ROD t'' 773JJ' !I (!) 8 229-32206 SPRING t''7'J'I!17Y'J7' t (!) 9 101-62600 RUBBER GUSH I ON !-'JT HIJ' A ( 4) 10 229-32453 BRACKET ASM. t'' !ll-9,'J'Jj' (!) 11 229-32404 BRACKET t'' !II- 9''J'Jj' (!) 12 229-34707 SCREW ( 2) 13 RE-1000000-KO E-RING 10 10 (!) 14 SM-9061853-SR SCREW M6 L= 17. 5 01Mi' (!) 15 01 229-34251 KNEE PAD PLATE AS!!. I 16 229-34301 KNEE PAD PLATE SUPPORT (!) 17 229-34400 KNEE PAD PLATE RUBBER tY'771'iJ' A (!) 18 229-34509 KNEE PAD PLATE COVER (!) 19 229-34608 KNEE PAD UPRIGHT SHAFT tt' 77'i7Y' !I (!) 20 SM-9061203-SE SCREW M6 L-12 D'b9i' 1\- M6 L=12 ( I) 21 229-34202 KNEE PAD PLATE tt'771'J (!) NOTE ClUe) 01 ... ACCESSORIE PARTS {ili!i.ll, - 26-

Page 32 — 15. AK DEVICE COMPONENTS

15. AK DEVICE COMPONENTS AK装置関係 14 13 8 12 11 10 9 12 5 7 6 4 3 15 16 - 27 - jintex.in

Page 33

__Ncrf!: ___ ___ _ _nE _!_P_ T}_<( - - --- -- - _';I_ - !: -- '( - - -Q_tY_ I 400-36221 ASSY_AK_DEVICE I 2 400-36222 COMP_REAR_PLATE (l) 3 SD-0800352-SP HINGE SCREW 8 3.5 ;,· Y:i-7' 5 (1) 4 400-30962 SOLENOID_LINK ( 1) 5 NS-6150310-SP NUT 15/64·28 I5/64-zs (I) 6 SS-7121410-TP SCREW 3/16-28 3/16-28. (!) 7 GA.K-33027000 SOLENOID ARM 95'' B (l) 8 229-91400 SOLENOID SHAFT YvJ1V Y" ( l) 9 400-36223 ASSY_REAR_?J,ATE '1V ( 1) 10 WP-0621036-SP WASHER tH"II" t ( 2) II NS-6150440--SP NUT 15I 6,f-28 1s;s4:zs ( 2) 12 WP-1021016-SD WASHER tH' tl';!. 10.2XI8XI ( 2) 13 RE-0700000-KO E·RlNG 7 E:IJ' 7 ( 1) 14 GAK-A18300BO AK SOLENOID ASM. ,B (I) 15 400-30954 SHAFT PIN 3Jt' ?t' 'I I 16 RE-0500000-KO E-RlNG Eh. 5 I - 28-

Page 34 — 16. THREAD STAND COMPONENTS

16. THREAD STAND COMPONENTS 糸立装置関係 1 17 4 5 2 17 4 19 6 7 18 22 24 11 24 10 21 9 8 12 13 14 15 16 4 17 1 29 28 3 29 28 29 28 25 25 26 27 - 29 - jintex.in

Page 35

1 131-67556 'fHREAD STANDING DEVICE AS!!. I 2 229-30556 SPOOL REST ARM ASM. U"l (2) 3 229-30507 SPOOL REST ARM 1H797' (2) 4 229-30705 THREAD GUIDE ARM JOINT 1HN' IJ'J)JJt'J' (4) 5 229-31406 THREAD STAND l NG ROD RUBBER CAl' 1'H7t'9tJ'J' A (l) 6 229-30408 THREAD STANDING ROD, UPPER {}!J7*' g(fJI) (I) 7 229-313()7 THREAD STANDING ROD JOINT (l) 8 131-67903 THREAD STANDING THREAD GUIDE HIJ71i·YYN (l) 9 131-68000 THREAD STAND1NG GUIDE BASE n:r-1< 1 ( I) 10 131-68109 THREAD STANDING GUIDE ARM 1HNr7Yt1W (l) 11 131-68208 THREAD STANDING GUIDE ARM BASt 1r971r7Y71>77'9'1 (I) 12 229-30309 THREAD STAND l NG ROD, LOWER :l(lt:l!) (I) 13 229-31109 SPOOL RETA!NER 11•'<'\'71-V (4) 14 229-31000 SPOOL PIN ir'l'\'>7?-t·'J (4) 15 229-30903 SPOOL REST CUSHION 1r,'t'l?'lf'711'!3Y (4) 16 229 30804 SPOOL REST 1H'I'!IH' 7 ( 4) 17 SM-6061610-SC SCRE\' M6 t7Jl'7' 116 1=15 (4) 18 SM-4051405-SE SCREW MS L= 14 t'' J.i;';' l!5 L= 14 ( 2) 19 N!!-6050001-SE NUT M5 P1Mf1r 115 (2) 20 SM-4041001-SC SCREW M4X0.7 L=IO t''Jjt';' li4X0.7 1=10 (2) 21 NM-6040002 SE NUT M4X0.7 U1bo7nr M4XO. 7 ( 2) 22 Sli-4041201-SC SCREW M4 t,· JtJ' 114 L=12 (I) 23 SM-4042001-SC SCREW 114 X 20 }''Jjt]' M4X0.7 L"20 (l) 24 NM-6040002-SE NUT M4XO. 7 M4X0. 7 (2) 25 \YP-1612616-SE WASHER 16X30X2.6 toW itt (2) 26 WS-1643202 KR SPRING WASHER A'*Y'i·t 16.4X26:6X3.2 (l) 27 NM-61605ll-SE NUT li16Xl. 5 M16Xl.5 1)':1 (1) 28 NM-6050001-SE NUT 1!5 D1h?t1o ll5 (4) 29 WS-0510002-KN SPRING WASHER 5,lX9.2X1.3 (4) - 30-

Page 36 — 17. ACCESSORIE PARTS COMPONENTS

17. ACCESSORIE PARTS COMPONENTS 付属品関係 1 5 6 7 8 9 10 17-20 26 30 35 31 33 27 28 23 24 22 21 11 12 13 14 15 25 39 40 32 34 37-41 36 38 Remove the red cap (for air vent) before operating your sewing machine. - 31 - jintex.in

Page 37 — ACCESSORI E_BAGASM

!<EF' - _N{)11:- - - NQ ·- - - _D-E_ LC _I_ P_ T I_ o_ L - - - _>_ - L -{_ - - - ___ 400-33439 ACCESSORI E_BAGASM I 2 SK-3482501-SE WOOD SCREW D=4.8 1=25 1tHW 1!=4.8 1=25 (2) 3 229-31604 FRAME SUPPORT BAR ( I) 4 5 236-39701 KNEE LIFTER PRESSER ROD t¥' 7}' 229-32800 ACCESSORIE BAG TJ' JtY"1?' *'*'!I (I) (!) 6 229-33105 SCREW DRIVER,!!!DIJLE v 7111' -(f2';) (!) 7 229-33204 SCREW DRIVER,SMALL V 7-W (l) g B9101-490-000 DRIVER (!) 9 124-55507 HEXAGONAL WRENCH, I. 5 I. 5) (l) 10 124-55705 FIEXAGONAL WRENCH, 2. 5 n11!·7v>fC 2. s) (I) II B9141-372-000 HEXAGONAL WRENCH, LARGE U1ilH'- f W 1) (l) 12 * 131-60106 SPANNER (5X6) (!) 13 260-34801 (7X8) 931J?'fAh'j(}3?) 7*8 (l) 14 262·33700 WRENCH (1 OX II ) h??' f7.11' fOB?) 10*11 (l) 15 260-34702 WRENCH (14Xll) 9s?!l' 14*11 (!) 16 WP-0501016-SC WASHER 5Xl0.5Xl t71' IJ' # 5Xl0.5XI (2) l71:r 04 MDP-500111002 NEEDLE DPX5 #10-2 n9 DPX5 #10-2 I 18"}\- 03 !lDP·500Bl402 NEEDLE DPX5.14-2 DPX51114-2 2 19"}\- 05 MDP-500B2102 DPX5i121·2 n9DPX542l-2 l 20"}\- 06 l!DP• 500B0902 NEEDLE llPX5#9·2 1 21"}\- OJ 226-53802 SHEET !I!))'Yj' 1)77·· 1 22"}\- 01 101-11508 SPRING 1 23"}\- OJ 102-10805 HARD ALUMITE BOBBIN JIJ71H<1} ;!;' t· 'I 2 24"}\- 25 02 B9tl7-051-000 BOBBIN *' t' y 229-33006 SCREW DRIVER,LARGE -(9'1) 2 I 26 229-33303 VINYL COVER l-97' t' =-&bi''- 1 27 B9121-0!2-0AO OILER ASM. 77' l 28"}\- MML-007600CA JUJU MACHINE OIL 7 >-'\'i'7Yt1!17 l 29"}\- 400-35873 FILTER_B 71M-B l 30 229-26059 RUBBER HINGE ASM. 'W -tY7' ( I 31 229-26000 RUBBER CUSHION J' AtYY t' (2) 32 229-26109 FRAME RUBBER CUSHION 1>!17' nx:r· At' (2) 33 229-26208 NAIL :r· AtY}' t• (8) 34 229-26505 WASHER J-!)7' (2) 35 229-26356 lll NGE COMPL. tY}' 'JJJ' fJ (2) 36 07 Cl!-6001002-01 IVEEE INFORMATION SHEET WEEE 7-J. 2 37 08 400-37488 SHEET 1 38 400-30768 OlL_FILTER I 39 400-36428 ASSY_FILTER_A l 40"}\- 400-36125 FILTER (I) 41 +09 236-40006 SHEET I NOTE Ci:titl) 01 ...• FOR LH-3568-7 Lli-3568-7Jll 02 ..•• FOR Lll-3568 LH-3568Jll 03 ... TYPES S!:l:tll< 04 ..•• TYPE F Ff:ttll< 05 •••• TYPE G G1±1i1< 06 •.•. TYPE A M:I:W 07 ... FOR JE JEJ!l 08 ... FOR CHINA tf:l!EJ!l 09 •••. EXCEPT CH l NA tf:l!E>S::I\lt< - 32-

Page 38 — 18. TABLE Qh' EXCHANGING GAUGE PARTS (FOR LH -3568}

18. TABLE Qh' EXCHANGING GAUGE PARTS (FOR LH -3568} :il::W!?'-Y'llll.Pc.-Ji;;l!< (LH -3568 fll) i'teedle galJge sl ze ff I Throat ff plate l Needle (for fr I UPS} I N!!e(dJ rc H I '!fpf7)s .. , Needle c!ae} asm. Needle clamP. (Left (IUsht} tr tun 11 !l H l(>ll # l(;i)l # iHSJI ' .£ Code i ;;1- j.' ..w... '--· j ··--'·= (0"''"' CtJ' $-$;1' 1---Ct?'.. .:..= (Option t/a 3, 2 l'•ft 228-25101 tie - - l'ltt No. -- ..--+.- 1 ··---·--- 400-35611 Nq, l"l>'t ---··--- 4Q-Q--3S878 l'f<'r. 5_,;32 4.0 400·26084 _._ r--'f-- _g._ . 3/16 4.8 226-25206 . 400-35762 . 41}0-35763 -- 400·260&3 I 400·2:6086 ···--- E 5.6 226-25404 400-35HH . . . 400-35174 ' 400-261}67 I 400-26088 1/4 i 6. 4 226-25503 400-29561 400·29562 400-26069 I G s/32 1. 1 226-25602 400-35765 400· 3$175 --- ---·· 400-26070 ' 400-26091 -- 7,9 ---2 2 6- 25 400-3577£> 400-26072 400-26093 K 3/a 9 5 226-25800 400-35Hi7 400-35777 400-2$QH 400-26095 L 1/z T2,7 226-26006 . 400-357G8 400-35718 400-2601B ·- 400-2$091 M 5/e 15.9 226-26!05 4(Hl<35769 Hlll-35719 4!}0-2:£091} • Stitch 3/, 19' 1 HH!C, 226-26204 Spec. 400-35770 eo.!llmun 400-35780 Spec. CO.IlHIIQrl Spec, 400-26(l81J on 400·26l01 Spec. CQII!il!On .__a_.LI!_l..G..J... • G ft • .. 1t a rt • u rt fr i! fr 1 '·- (Tip-divided) (Tip-diVide-d) L1 ( Ur<t:fti!Jtt) J:l., 1. 7 \ inch 111m a l/a 3.2 ! 4oo-nsaJ 1 400·35895 L c l 400-257lH ! :a ' n E ··3/js 4 V32 5.6 4oo-zsH5 4GO·i!!J786 BHi13-51"2-00H 226-40452 -- 228·185!1 N 3/4 19,1 StitCh itl8 (G * * 1< It gauqe srze 5!idlog {Laft) pl•a t9!(1i) a "'· I SlidinG (Rightj plot> nn. LdinQ (Front) ll'll&( llll plot• a Ul. .. ... I ' Coo:h I ::-!-. i..w...i <:> 0 <)> I I .. ... j ' .. B c 0 inch ; '/s-- 5/;12 3/16 7 /32 3.' ' •0 4.S 5.6 ''" .0. - Part P,.rt '• . I r 1/4 22S-Cl0S8 Z26- 005$5 9/H 7 1 400·42874 5/HI J/e s.' i L l/2 12.1 22fi-01157 22()- 00654 1chspe£ Spec. ?Offii"Ofl Sp1c. coiH<.On Spec. CiH'">')t, I g fr R G • a ir ll ·'· • - 33-

Page 39 — 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7)

19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7) 3(':lf}!Jf-;:/JlllJil, (LH -3568-7.fll) 9111.1ge size ff Throat pla.t$ It 'i * '@ "''"Hf L;;':\f.""' "''Nfm...i "'Nm...I"'Nfm"'· Cod6 _"j- II ... j''" ,, U7' 8 1/;;- J:2'. ·····35881 40o-isus 400·35761 400-351 400-3581 400 ·35878 "' ---" •• 3/, 4. i . <Oa=2suo 400·35762 400-35763 "''""' '66; 3 5173 400-26063 400-26065 400. ""' 400.26086 1/, <00·25ui'. 400·25492 400 _,."" 400·29561 400-2956i ·····""'' 400·260$9 400-26088 .. 400-26090 400- 357ss " li' I '"· 5/.'. • 400·35707 ioo-""' 400-25495 i51iiil 400·35:75 400·351 400-26070 -,00-26072 400-26074 400.26091 400-26093 400-26095 -. n;;· 1N "· ,/, iS. <Oo-25ua .,,,_2"" 400.351$8 400·JS709 400·35: 78 400-26076 i00·26076 400·260>1 400· 28099 H' p a I "· is. 400· 25502 400·2··;., ·-·- 400:as11il 4oo:35780 ''"''"' 79 400-20080 400·26\0\ ;-:;:;; '8 ;-:;:;; "''zsso< IS1i "+ ·:·;·· ··:· ·:·:" ··:·;.·;·;" ·;·;·· ·;·;·· . "ai:<& f ·;(·.;". (Tip-divided) Tip-divided) II! ';;' OlttH'It') (51J'i\Jt!IU"i) Cad"G II l V1M • ioc ... .. ' ,.,, ,, 1.7 "' "· ... "' ,, ,.,, .. "' " v, 3 s;;;- 4 400·35890 400:05817 .oo·2061s 400·35896 ,,..- -<oc''"' ,. , ... "' ' .. 400·3S89 "' s. .. t;; 5 19 " F H' 5;;;- 5A ..,... 400 "'.-, ,. 4oo•3ss92 "''""" 228-4055 225·1 """ K v, •• 400·25822 228· 7050 v, 400-25824 226·4 252 " -,,.,4135 ,,

Page 40

20. LIST FOR INFORMATION OF CHANGE As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts) are not interchangeable with each other: In this case, even obsoleted parts(D.)can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. Rev. No. 1447-@]. . .Rev. No. 40036443 •A:Added Rev. P a g e f. Parts No. . .c.·_ Ji No.. Part··· No D 01 2 A 02 2 D 01 2 , A 02 i 2 39 400·42880 .___j D 01 I 2 4$00-34931 A 02 2 40 400·42874 __j D 01 I 2 67jSM-4051.::2..:.5 ...5...__S_P---ltl..:.A:.. 02 2 67 SM-4051055-SP i 2 71lTA·1050504·RO I A, 02 2 71 TA-1030402-RO W!-..1-QJ_.. 2 72 T A - 1 0 50 5 0 4 · R0 j---t--+ [ D 01 4 20 SM-8080612-TP i['A 02 4 20 SM-6061010-TP I--D+_0_1-t---4+--'-2-'-9+'"S"M_·__c8c...:Oc...;6:_1:_6:._1:_2::__· ...P:...---i f--.=.-0+-0: ...1:...+---'4 4 6 S B - 1 2 0 0 0 0 2 • 0 O___ *-'A-'-+--'0:..:2"---+---'4+__4:...:6'-1-S:.B:_· .:...1::.2::.0.::..0_.:0..::2.:0_·.::...: 0 0 01 6 47 B4138-512·AOO t A 02 6 47, 226·06206 1 A 02 6 48 226·06305 [---f-:--+- -+--1---···---tf-'-'-+·=+--·-=+..:..: A 02 6 50 226· 07709 ...---i 0 01 6 48 84138·512·800 A 1 02 6 51 84138·512-BOO 0 01 6 4 9 B 4 1 3 8 - 5 1 2_·__:G:.:O:.:O:...__--Jt' ..:.A-+...:0:.:2"l-·--6 49 226 · 07600 A 02 6 52 226-07808 t---t---;'---J---J---·--- --il- A 02 __ 0 7 9_(}_"1__ ___ _ --t'---i·--1---+--· ---· ..+--=6+-5' 4 2 2 6- 0 6 4 0 4 D 01 6 7 1 S t.l - 6 0.::6.:..1.::8.:0..:2_-..:.T.:..P __ 7 6 , S M- 6 0 6 2 5 0 2 - T P 0 01 8 4 400·22427 A 02 8 4 400·52366 ___ D 01 8 26 83118-552-AOO 'A 02 I 13 26 83118-552·000 -0+--'-0-1-t--..:..8+---'2'-7+8'-'3·-1-c1..::8_·..::5:..;5:.2:__· :cF..:..O..:..O_-lf--'A-lf--0'-2t:...jl--8-lf-_::2_.:7+8:..;3 I 1 1 8 · 4 1 5-0 0 0 0 01 10 1 400·28271 i o_ ...:14 _...:.1_o:_

Page 41

* Rev. Page Ref. Parts No. No. 頁 No. * Rev. Page Ref. Parts No. No. 頁 No. A 02 10 15 226-88105 A 02 10 16 226-88402 A 02 10 17 226-88204 A 02 10 18 101-10500 A 02 10 19 226-12907 A 02 10 20 SS-6560150-SH A 02 10 21 TA-0290301-MO D 01 10 5 SM-8060612-TP D 01 10 6 400-13061 D 01 10 7 236-18804 D 01 10 8 400-28485 D 01 10 9 400-28487 D 01 10 10 400-34969 D 01 10 11 400-34971 D 01 10 16 SQ-2050453-MZ D 01 10 22 400-22589 D 01 10 23 400-22590 D 01 10 24 SM-4050855-SP D 01 10 25 SQ-2050453-MZ D 01 10 26 400-16748 D 01 10 27 RO-0442401-00 D 01 10 28 400-29570 D 01 10 29 TA-0290301-MO D 01 10 30 400-28494 D 01 10 39 SM-8061002-TP D 01 10 40 101-09908 D 01 10 41 101-12407 D 01 10 42 SS-6153040-SP D 01 10 43 SM-6063502-TP D 01 10 44 WP-0621016-SD D 01 10 45 400-28486 D 01 10 46 400-28488 D 01 10 47 400-34970 D 01 10 48 400-34972 D 01 10 49 TA-0290301-MO D 01 10 50 SM-6062502-TP D 01 10 51 400-28495 D 01 10 52 400-28496 D 01 10 53 SM-4050655-SP D 01 10 60 RO-2060451-MZ D 01 10 61 400-28489 D 01 10 62 SM-8060612-TP D 01 10 69 SM-8060612-TP D 01 10 70 SM-8060612-TP D 01 10 71 400-28656 D 01 10 72 SM-8060612-TP D 01 10 73 RO-2573501-00 - 36 - jintexin.in

Page 42

Rev. Page Ref. No. No. No. Parts No. 品番 Rev. Page Ref. No. No. No. Parts No. 品番 * D 01 10 74 228-88507 A 02 12 ALL PARTS-全部 D 01 10 76 400-11947 A 02 14 60 SM-7050850-TP D 01 12 60 SM-4051055-SP A 02 14 91 BT-0500300-EA D 01 14 28 229-44508 A 02 16 28 SM-4040855-SP D 01 14 36 B1505-227-T00-A A 02 16 36 229-07406 D 01 14 44 SM-6040552-TP A 02 16 44 SM-4040655-SP A 02 16 46 400-50314 D 01 16 51 400-17033 A 02 18 51 400-44393 D 01 16 57 SM-9051003-SD A 02 18 57 SM-9051203-CP D 01 16 61 SM-8060612-TP A 02 18 61 SM-8061010-TP A 02 18 66 WP-0531000-SD D 01 20 17 226-57100 A 02 22 17 400-42151 D 01 20 27 RE-0320000-KO A 02 22 27 RE-0300000-KO D 01 20 29 SS-3090520-SP A 02 22 29 SS-7090610-SP A 02 22 36 WS-0410002-KP D 01 22 25 400-22449 A 02 24 25 400-42287 D 01 22 32 400-22450 A 02 24 32 400-42286 D 01 22 63 D2112-655-B00 A 02 24 63 SM-6040655-TP D 01 22 64 137-65607 A 02 24 64 236-29504 A 02 24 82 400-41578 A 02 24 83 400-41579 D 01 23 13 WP-0501016-SC A 02 25 13 WP-0501016-SD D 01 30 11 400-36707 A 02 32 11 B9141-372-000 A 02 32 41 236-40006 -- 37 -- jintex.in

Page 43 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF P A R T S "' PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF J{ NO J{ h'O ti"cy{i 1'1 NO !Mil __ NO BT-0500300-EA 14 91 MDP-500B!402 32 18 SL-4030641-SE 22 18 SM-6061610-SC "30 17 Bll04-051-000 2 26 MDP-500B2102 32 19 SL-4051001-MZ 4 33 SM-6062502-TP 6 76 11118-512-000-A 8 21 Ml!L-007600CA 32 28 SL-6040892-TN 24 4 SM-6062502-TP 12 31 ' Bl402-528-FAR-A 6 43 M4002-ll0-000 4 26 SM-1030501-SN 18 41 SM-6063002-TP 20 29 B1425 526-000 6 34 Sll-1030501-SN IS 44 Sli-6063502-TP 12 24 Bl4,38-512-BOO 6 51 NM-6030001-SC 18 7 SM-1040750-TP 2 21 SM-6750690-TP 14 25 l\1449-526-000 8 42 NM-6030001-SN 14 79 SM-1040750-TP 2 25 SM-6850400-SP 18 53 BJ501-581-000 16 37 Nli-6040001-SP 14 69 SM-1040750 TP 2 30 SM-7050850-TP 8 39 B1521-555-000 16 2 NM-6040002-SE 30 21 SM- 2040750-TP 2 32 Sl!-7050850-TP 14 48 BJ636-581··BOO 14 33 Nli-6040002-SE 30 24 Sli-2040750-TP 14 53 Sli-7050850-TP 14 60 B1653·470··000 14 24 Nlt-605000h'>E 30 19 SM-4031501-SC 20 8 Sli-8030312-TP 18 54 B1705-850-000 6 68 NM-6050001-SE 30 28 S!I-4040601-SC 18 5 Sli-8031612-TP 14 77 B1820·563-000 10 28 NM-6050001-SP 8 46 SM-4040655-SP 14 31 SM-8040402-TP 2 23 B1821-051-000 10 29 NM-6050001-SP 14 28 SM-4040655-SP 16 44 SM-8040412-TP 8 51 BI822-051-000 1G 27 NM-6050001-SP 14 89 SM-4040855-SP 8 50 SM-8040412··TP 14 23 B1823-051-000 10 36 NM-6050001-SP 20 37 , SM-4040855-SP 16 28 S!I-8040412-TP ]4 76 B1834-512-000 24 n 8 69 SM-4041001-SC 30 20 SM-8040502-TP 25 39 B3118-415-000 8 27 NII-6060001-CP 14 54 Sll-404I 055 -SP 2 48 SM-8040612-TP 14 38 B3118-552-DOO 8 26 Nll-6060001-SE 26 5 SM-4041201-SC 30 22 Sli-8050412-TP 2 19 B32H-047-000 8 7 NM-6060003-SC 18 18 SM-404l655SP 20 7 SM-8050412-TP 14 ll 83517-009-000 24 43 NM-6160511-SE 30 27 SM-4042001-SC 30 23 SM-8050412-TP 14 46 83525-357-000 24 58 NS-6080210·SP 8 31 SM-4050655-SP 12 34 8 29 B3534012-000 24 59 NS-6090310-SP 22 22 14 85 SM-8050612-TP 16 18 B3538-l12-000 18 63 NS-6110310-SP 8 32 SM-4050655-SP 24 57 SII-8051002-TP 12 20 89101-490-000 32 8 NS-6 I 10310-SP 22 9 SII-4050655-SP 24 77 SM-8060550-TP lO 47 B9117-051-000 10 37 NS-6110310-SP 24 73 SII-4050855-SP 2 4 SII-8060552-TP 4 14 B9117-051-000 32 24 NS-61 10420-SP 10 35 2 6 14 81 B9121-012,0AO 32 NS-61503!0-SP 28 5 SII-8060610-TP 12 37 I B9141-3'12-000 32 NS-6150440-SP 28 11 Sl! 8060612-TP 4 9 NS-6620310-SP 16 27 Sl!-8060612-Tl' 4 15 C!l-1001000,01 2 54 Sl!-4050855-SP 18 14 S!!-8060612-Tl' 4 38 CM-2001001-0l 2 69 PS-0300122-KH 14 30 SM-4050855-SP 18 26 SM-8060612-TP 4 40 C!l 200 l 001-02 2 68 PT-0502700-SO 6 6 SM-4050855-SP 20 14 SM-8060612-TP 12 5 C!!-2002002-01 2 52 S!I-4050855-SP 22 21 12 38 Cl!,2002002-02 2 53 RC-06508JJ-KP 18 3 Sli-4051055-SP 2 I SM-8060612-TP 12 39 Cll-3002000-01 2 70 RE-0320000-KO 22 27 SM-4051055-SP 2 67 Sli-8060612-TP 12 41 C!l-3002001-AI 2 49 RE-0400000-KO 20 23 SM-4051255-SP 14 27 Sli-8060812-TP 4 45 CM-3004009-01 8 70 RE-0500000-KO 16 10 SM-4051255-SP 24 19 SM-8061010·TP 18 61 CM-3004009-02 8 55 Rr:-0500000-KO 16 13 30 18 S!!-8061212-TP 8 68 CM-3011001,OJ 2 56 RE-0500000-KO 28 16 SM-4051601-SC 25 4 SM-8061550-TP 4 22 Clf-3011001-02 2 55 RE-0600000-KO 18 11 SM-4055001-SF 24 79 SM-8061550-TP 4 29 CM-6001002-01 32 36 RE-0700000-KO 8 59 sM-4062001 25 3 SM-8063012·TR 26 6 CQ-2020000-00 4 3 RE-0700000-KO 28 13 SM-6030672-TP 14 34 SM-8081652-TP 4 17 CQ- 4 5 RE-0900000-KO 14 13 SM-6040552-TP 2 63 SM-9040603-SC 2 28 CQ-2020000-00 10 33 RE- 1000000-KO 26 13 SM-6040552-TP 18 64 SM-9050850-SP 18 21 CQ-2020000-00 10 34 R0-0371801-00 16 3 SM-6040602-TP 16 7 SM-9050850-SP 18 31 CQ-2520000-00 4 7 R0-0371801-00 24 62 SM-6040602-TP 24 40 SM-9051203-CP 18 57 CQ-2520000-00 6 70 R0-0442401-00 12 17 SM-6040650-TP 24 47 SM-9061203-SE 26 20 CQ-3030000-00 4 12 R0-0481901-00 24 16 SM-6040655-TP 2 31 SI!-9061853-SR 26 14 R0-0481901-00 24 24 SM-6040655-TP 24 63 SQ-0000401-MZ 24 60 92112-555-BOO 2 3 R0-0801502-00 2 66 SM-6041602-TP 24 71 SQ,2050453-MZ 12 15 92464-555-BOO 20 22 R0-0982401-00 24 5 S!l-6050450-TP 8 49 SQ-2050453-MZ 12 45 03163-555-BOO-A 16 30 R0-1952401-00 24 42 SM-6050650-TP 14 71 SQ-2060451-MZ 12 35 03164-555-BOO 16 45 R0-2192001-00 24 6 SM-6050650-TP 20 35 SS- 18 47 R0-2573501-00 12 42 SM-6050800-SP 14 I SS-40904!5-SP 6 28 EA-9500B01-00 18 59 Sll-6050800-SP 14 21 SS-4090715-SP 6 16 EA-9500B01-00 24 45 SB-1200020-00 4 46 SM-6050800-SP 14 61 SS-4090715-SP 6 37 EA-9502802-00 2 62 SB-1200025-00 4 37 SM-6050802-TP 22 26 SS-41105!5-SP 25 15 SD-0470316-TP 8 28 SM-6051000-SP 14 14 SS-41105!5-81' 25 33 GAK-A18300BO 28 14 SD-0490261-SP 25 23 SM-605!002-TP 24 9 SS-41105!5-SP 20 3 GAK-33027000 28 7 25 37 8 54 SS-4110715-SP 16 29 SD -0500301-SP 22 23 SM-6051202-TP 1834 SS-4111215-SP 16 31 HA-0005900-00 22 14 SD-060li71-SP 8 41 S!I-6051202-TP 1837 SS-5091020-SP 8 30 20 10 SD-0640247-TP 8 63 SM-6051400-SP 1441 SS-6080340SP 6 63 HK-0346101-40 20 38 SD-0640357-TP 16 14 SM-6051600-SP 6 81 6 27 HK-0346400-0B 20 13 SD-0640752-TP 8 56 SM-6051600-SP 14 6 SS-60804!0-SP 6 34 HK-0346400-0B 20 19 SD-0650321-TP 22 4 SM-6051600-SP 14 52 SS-6090580-TP 18 48 HK-0346400-0B 22 20 S0-0700328-TP 20 34 SM-6051600-SP 14 74 8 34 Hll·2003900·00 22 15 18 65 SM-6051850-TP 14 83 SS-6090810-TP 10 31 HW-5000700-00 20 9 SD-0800352-SP 28 3 SM-6052502-TP 18 62 SS-611 1210-SP 4 30 llW-5000700-00 22 16 S0-0900356-TP 16 15 SM-6060800-SP 2 12 SS-6121860-SP 14 19 SD-0900426-TI' 14 4 SM-6060800-SP 16 3'',; SS-6153040-SP 12 23 MOP-17062!00 6 84 SD-0900706-TP 14 55 Sl!-6061002-TP 20 24 SS-6560150-Sll 10 20 MDP-500B0902 32 20 SK-3412000-SC 25 12 Sli-6061010-TP 1 20 SS-7G603!0-SP 6 '12 MDP-500BI002 32 17 SK-3482501-S!: 32 2 SM-6061150-TP 14 29 SS-7081310-SP 25 24 MDP-500B1400 6 83 SL-403063!-SC 22 3 SM-6061200-SP 18 28 SS-7081310-SP 25 24 ·- --··---···

Page 44 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF PART NO PAGE REF PART PAGE REF PART NO PAGE REF ,!l,jf NO Jih4 )'! NO )'! NO 1\-11 )'! h'O " SS-7081310-SP 25 40 101 12605 10 25 226-82355 6 14 229-31406 30 5 SS-7090610-SP 22 29 101-12704 10 26 226-82504 6 42 229-31604 32 3 SS-7090910cTP 16 43 101-12803 10 ll 226-82702 6 1 229-32107 26 4 SS-7110350-SP 25 19 101 12902 10 13 226-83205 6 56 229-32206 26 8 SS 7110710-SP 6 19 101-19204 20 36 226-83304 6 57 229-32404 26 ll SS-71107!0-SP 20 15 101-26803 24 51 226-83403 6 61 229-32453 26 10 SS-7110840-SP 25 29 101-61305 20 17 226-83601 6 69 229-32800 32 5 SS-7121410-TP 28 6 lOI-62600 26 9 226-83809 6 59 229-33006 32 25 sooo670-SP 8 20 102-08700 22 28 226-83908 6 65 229-33105 32 6 25 25 102-09203 22 31 226-84005 6 66 229-33204 32 7 SS-9110460-CP 8 65 102-09500 22 32 226-84104 6 62 229-33303 32 26 SS-91ll010-SP 20 21 102-09807 22 33 226-84203 6 64 229-33600 25 ll 22 34 226-85200 6 31 229-33659 25 9 TA-0290301-MO 10 21 102-10805 10 38 226-85200 6 40 229-33758 25 10 TA-0290301-MO 12 19 W2-10805 32 23 226-85408 6 32 I 229-34202 26 21 TA-0290301-!!0 12 30 110-15906 lO 14 6 41 229-34251 26 15 TA-0370301-RO 4 49 ll0-40854 18 10 6 77 229-34301 26 16 TA-0490601-RO 4 42 ll0-72402 8 5 226-85804 6 21 229--34400 26 l7 TA-0500301-RO 4 48 18 27 226-85903 6 17 229-34509 26 18 TA-0750404-RO 4 l 124-55507 32 9 226-86000 6 20 229-34608 26 19 TA0750704-RO 2 72 124-55705 32 10 226-86109 6 23 229-34707 26 12 TA-0800504-RO 2 9 131-02702 6 33 226-87008 8 64 229-37965 4 32 TA-0950806-RO 2 58 131-60106 3Z 12 226-87107 8 62 229-44904 16 26 TA-1030402-RO 2 71 131-67556 30 1 226-87503 8 57 229-45307 8 11 TA-1250406-RO 2 10 131-67903 30 8 226-87602 8 60 229-45505 8 6 TA-1250406-RO 2 11 131-68000 30 9 226-87701 8 58 229-52501 14 84 TA-1250406-RO 2 73 131-68109 30 10 226-88105 10 15 229-54200 20 5 TA-1250705-RO 2 17 131-68208 30 11 10 17 229-543011 20 6 TA-1470704-RO 2 57 133-19405 14 73 226-88402 10 16 229-54408 20 11 TA-1600406-RO 2 15 228-10907 4 8 229-54606 20 2 TA-1650406-RO 2 59 225-29473 8 8 228-]1301 8 22 229-55504 22 2 226-00555 2 37 228-88507 12 43 229-55900 22 10 WP-0350516-SD 8 36 226-01058 2 33 229-01805 2 29 229-56007 22 11 l'iP··0371016-SD 10 32 2 44 229-03702 6 1 229-56205 22 1 WP-0371016-SD 22 30 226-05307 4 2 16 36 229··57104 22 13 1'11'-0430800-SD 2 50 226-06206 6 47 16 34 229-57203 22 19 WP-0430800-SD 24 70 226-06305 6 48 229-07703 16 35 229-62005 8 18 WP-0450000-SD 6 18 226-06404 6 54 229-07802 16 1 229·91400 28 8 WP-0450801-SD 4 31 226-07600 6 49 229-08008 16 9 232-03201 8 23 \'IP-0450801-SP 8 43 226-07709 6 50 229-20201 16 19 232-03300 8 25 WP-0480856-SP 25 38 226-07808 6 52 229-20706 2 18 232-04506 6 44 WP-0501016-SC 32 16 226-07907 6 53 229-21209 8 12 232-04605 6 45 20 16 226-10307 14 8 229-21407 8 14 z:J2-04704 6 46 WP-0501016-SD 20 20 226-12204 10 8 229-21506 8 15 232-04803 24 46 WP-0501016-SD 25 13 226-12303 10 10 229-21605 8 16 235-33805 14 42 WP-0520656-SA 14 90 226-12709 10 6 229-21704 8 17 235-33904 14 16 WP-0520656-SA 24 78 226-12907 10 19 229-21803 8 19 235-340!9 14 47 WP-0531000-SD 18 22 226-13509 10 30 229-26000 32 31 235-34506 14 17 WP-0531000-SD 18 32 226-14002 10 22 229-26059 32 30 235-40305 24 49 WP-0531 18 66 226-14101 10 23 229-26!09 32 32 235-42418 18 6 22 35 226-14200 10 24 229-26208 32 33 236-01057 2 5 l'iP-0531000-SD 24 80 226-15702 8 67 229-26356 32 35 236-01305 2 64 WP-0531001-SC 25 6 226-19100 2 8 229-26505 32 34 236-09001 16 41 I'IP-0550800-SP 24 10 226-21056 25 28 229-27354 25 14 236-09209 16 33 20 31 226-21106 25 36 229-28105 25 22 236-09605 16 6 WP-0621016-SD 12 25 226-21155 25 27 229-28303 25 21 236-18804 12 7 \'IP-0621016-SD 20 26 226-22401 4 10 229-28303 25 35 236-26005 8 13 WP-062!036·SP 28 10 226-25503 2 35 229-28402 25 20 236-26054 8 9 I'IP-0621046-SP 18 17 226-40551 16 42 229-28402 25 34 236-26062 8 10 WP-0641600-SG 25 7 226-53802 10 39 229-28501 25 26 236-28803 24 13 l'iP-1021016-SD 28 12 226-53802 3Z 21 229-28808 25 18 236-28902 24 14 WP-1612616-S!: 30 25 226-56003 14 86 229-28808 25 32 236-29306 24 12 WP-1751616-SD 14 78 226-56508 20 4 229-28907 25 16 236-29306 24 30 WS-0410002-KP 22 36 226-57209 22 5 229-28907 25 30 236-29306 24 37 WS-0510002-KN 30 29 226-57308 22 8 229-29004 25 17 236-29405 24 21 WS-0521010-KN 25 5 226-57803 2 46 229-29004 25 31 236-29405 24 27 1'S-0610002-KP 20 30 226-81209 6 2 229-30309 30 12 236-29405 24 34 \'S-0631510-KP 20 25 226-81316 6 26 229-30408 30 6 236-29504 24 64 WS-1643202-KR 30 26 226-81407 6 24 229-30507 30 3 236-29900 2 65 WT-0530002-KS 2 7 22S-81506 6 25 229-30556 30 2 236-30007 24 11 I 226-81712 6 8 229-30705 30 4 236-30007 24 31 101 12 21 226-81803 6 15 229-30804 30 1£ 236-30007 24 38 101-10500 10 18 226-81951 6 10 229-30903 30 !5 236-30007 . 2•i 52 101 11508 lO 40 226 -820[>8 6 l I 226-31000 30 14 236-30007 . 2•i 52 101 11508 32 22 226-82157 6 12 229-31109 30 13 24 53 101 12407 12 22 6 13 229-31307 30 7 236-30007 24 54 .L -·· - 39-

Page 45

NUMERICAL INDEX OF PARTS ; PART NO PAGE REF PART NO PAGE REF PART ll5F PART NO PAGE REF Jt$ NO ;;o !l,lil' !II;! NO 236-30007 24 65 400-24064 6 67 400-28797 22 24 400-34971 12 ll 236-30007 24 66 400,24093 4 4 400-28799 22 25 400-34972 12 29 236-30007 24 67 400-24436 4 18 400-28843 8 45 400-34974 16 32 236-30007 24 68 400·24473 6 58 400·28844 8 52 400-35151 16 ll 236-30106 24 20 400-25191 26 7 400-28851 12 2 400-35167 20 I 236-30106 24 28 400-25235 2 38 400-28852 14 51 400-35168 20 12 236-30106 24 35 400-25247 2 34 400-28853 6 80 400-35180 2 51 236-30106 24 75 400-25316 14 65 400·28854 14 5 400-35181 16 16 236-30601 24 26 400·25329 6 5 400-28855 14 72 400-35264 24 76 236 30601 24 33 400 25492 2 36 400-28868 16 5 400·35277 20 33 236-30650 24 29 6 ' 400-29047 4 39 400-35278 20 32 236-30650 24 36 400-26402 6 400-29048 4 35 40035298 16 21 236-39701 32 4 400-26482 6 78 400-29049 4 43 400-35298 16 23 1 236-4ooos 32 41 400·26673 14 12 400-29075 24 22 400-35394 16 4 260-34702 32 15 400,26811 2 60 400-29078 2 20 400"35441 8 44 260-34801 32 13 400-26920 4 47 400-29079 14 20 400-35704 14 50 262<l0409 24 69 400-26981 6 39 400-29257 14 88 400-35828 16 22 262-33700 32 14 400·26982 6 30 400-29347 2 22 400-35873 32 29 400-26983 6 29 400-29350 20 28 400·36125 32 40 24 23 400-26984 6 38 ' 400-29561 6 35 400-36167 24 8 400-04171 4 16 400-2'/099 4 25 400-29570 12 18 400-36221 28 I 400-06323 2 74 400-28116 4 36 400-29905 25 2 400-36222 28 2 400-09196 22 6 400·28117 4 19 400-29964 4 II 28 9 400-09222 8 35 400-28200 6 82 400-29972 2 16 400-36333 24 61 400-10434 18 9 400·28245 2 13 400-30299 2 14 400-36359 18 4 400·11906 14 32 400·28250 8 3 400-30768 32 38 400-36360 20 18 400-1!926 14 68 400-28258 8 38 400-30856 20 27 400-36428 32 39 ' 400-11932 14 37 400-28259 8 48 400-30915 12 3 400-36433 14 18 400-!1934 14 36 400-28262 8 40 400-30954 28 15 400-36446 18 36 400-11935 14 7 400-28264 16 8 400-30956 22 12 400-36679 14 56 400-!1939 14 43 400-28268 16 17 400-30962 28 4 400·36684 10 3 400-11946 14 35 400-28269 16 40 400-31348 14 26 400-36685 10 4 400 11947 12 44 400-28271 12 I 400-31349 14 40 400-36687 10 5 400-12085 10 12 400·28274 14 57 400-31350 14 75 400·36689 10 9 400-12403 18 49 400-28275 14 58 400-3!351 12 4 400-36690 2 61 400-12·104 18 58 400-28276 14 59 400-31352 18 33 400-37488 32 37 400·12487 18 46 400-282'17 14 49 400-31864 4 13 400-39391 10 1 400-12488 18 45 400-28279 14 39 400-32107 26 1 400-39625 24 48 400·12489 18 55 400-28280 14 63 400-32124 6 79 400-39629 6 9 18 39 400·28281 14 62 400-32142 4 34 400·40549 10 45 400-12495 18 50 14 3 400-32147 6 55 400·40550 !0 46 400-12496 18 56 400-28285 14 82 400-32268 14 45 40040809 24 74 400-12497 18 38 400-28286 14 9 400·32269 14 10 400-40924 14 87 400-12503 18 35 400-28287 14 70 400 32272 16 38 400·41578 24 82 400-12504 18 29 400-28291 14 66 400-32293 14 22 400-41579 24 83 400-12505 18 19 400·28293 14 2 400-32327 8 53 400-42086 24 81 400-12505 18 30 400-28294 14 87 400-32405 24 55 400-42121 10 I 400-12506 18 20 400-28485 12 8 400 32406 24 56 400·42141 12 16 400-13061 12 6 400-28486 12 26 400-32710 8 I 400-42151 22 17 400-13316 18 60 400-28487 12 9 400-327!1 8 2 400-42286 24 32 400-13362 14 64 400-28488 12 27 24 44 400-42287 24 25 400·13509 24 15 400-28489 12 36 400-32896 2 43 400-42874 2 40 15144 6 71 400-28491 10 2 400-32987 4 21 400-42880 2 39 400-15669 18 24 400-28495 12 32 400-32993 4 23 400-44393 18 51 400-15699 8 37 400-28496 12 33 400-32994 4 24 400-50314 16 46 400-16749 24 39 400-28545 16 12 400,33160 18 52 400-52366 8 4 400-17353 18 1 ' 400-28546 16 20 400"33409 25 I 400-17361 IS 13 400-28555 2 4! 400-3:3434 16 24 400-17362 18 25 400-28560 10 41 400<33435 16 25 400-17394 18 2 400-28561 10 42 400-3343'1 22 I 400-17399 18 8 400-28562 10 43 400-33439 32 I 400-17400 18 12 10 44 400-33667 4 44 400-17401 18 15 400·28641 8 66 400-33668 14 80 1 400-17402 18 16 400-28652 4 41 400-33669 6 75 ' 400·17403 18 23 400·28656 12 40 400·33995 14 15 4 27 400-28668 6 36 400-34053 2 47 400-17625 4 28 400-28679 6 60 400-34246 24 41 400-21883 18 40 400-28689 24 1 400-34267 25 8 400-21898 18 43 400-28705 24 7 400-34649 24 3 400-21899 18 42 400-28706 2 45 400·34660 8 24 400-22407 2 75 400-28707 2 24 400-34675 2 42 400·22589 12 12 400-28731 2 27 400-34840 8 33 400-22590 12 13 400·28766 2 2 400·34853 26 3 400-22678 4 6 400-287'13 24 17 400·34926 24 2 400-23568 6 73 400-28

Page 46 — ME MO

ME MO - 41 - jintex.in

Page 47

jinttex.in jintex.in

Page 48

JUKI JUKI CORPORATION Copyright © 2005-2006 JUKI CORP. 本書の小品を無断で転載、使用することを禁止します。 All rights reserved throughout the world. JUKI株式会社お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは改良のため予告なく変更する事があります。 The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2006年8月現在の製品仕様で編集したものです。 This parts list is edited in accordance with the product specifications as of August 2006. Printed in Japan

Page 7

Page 9

Page 11

Page 13

Page 15

Page 16 — 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2)

Page 17

Page 18 — 7. FEED MECHANISM COMPONENTS

Page 19

Page 20 — 8. PRESSER BAR & TENSION RELEASE COMPONENTS

Page 21

Page 22 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7)

Page 23

Page 24 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7)

Page 25

Page 26 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7)

Page 27

Page 28 — 12. LUBRICATION COMPONENTS

Page 29

Page 30 — BELT COVER & BOBBIN WINDER COMPONENTS

Page 31 — 14. BOTTOM COVER COMPONENTS

Page 32 — 15. AK DEVICE COMPONENTS

Page 33

Page 34 — 16. THREAD STAND COMPONENTS

Page 35

Page 36 — 17. ACCESSORIE PARTS COMPONENTS

Page 37 — ACCESSORI E_BAGASM

Page 38 — 18. TABLE Qh' EXCHANGING GAUGE PARTS (FOR LH -3568}

Page 39 — 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7)

Page 40

Page 41

Page 42

Part Books

Search

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90
	91	91

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90
	91	91

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	76	76
	77	77
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	84	84
	85	85
	86	86
	87	87
	88	88
	89	89
	90	90
	91	91
