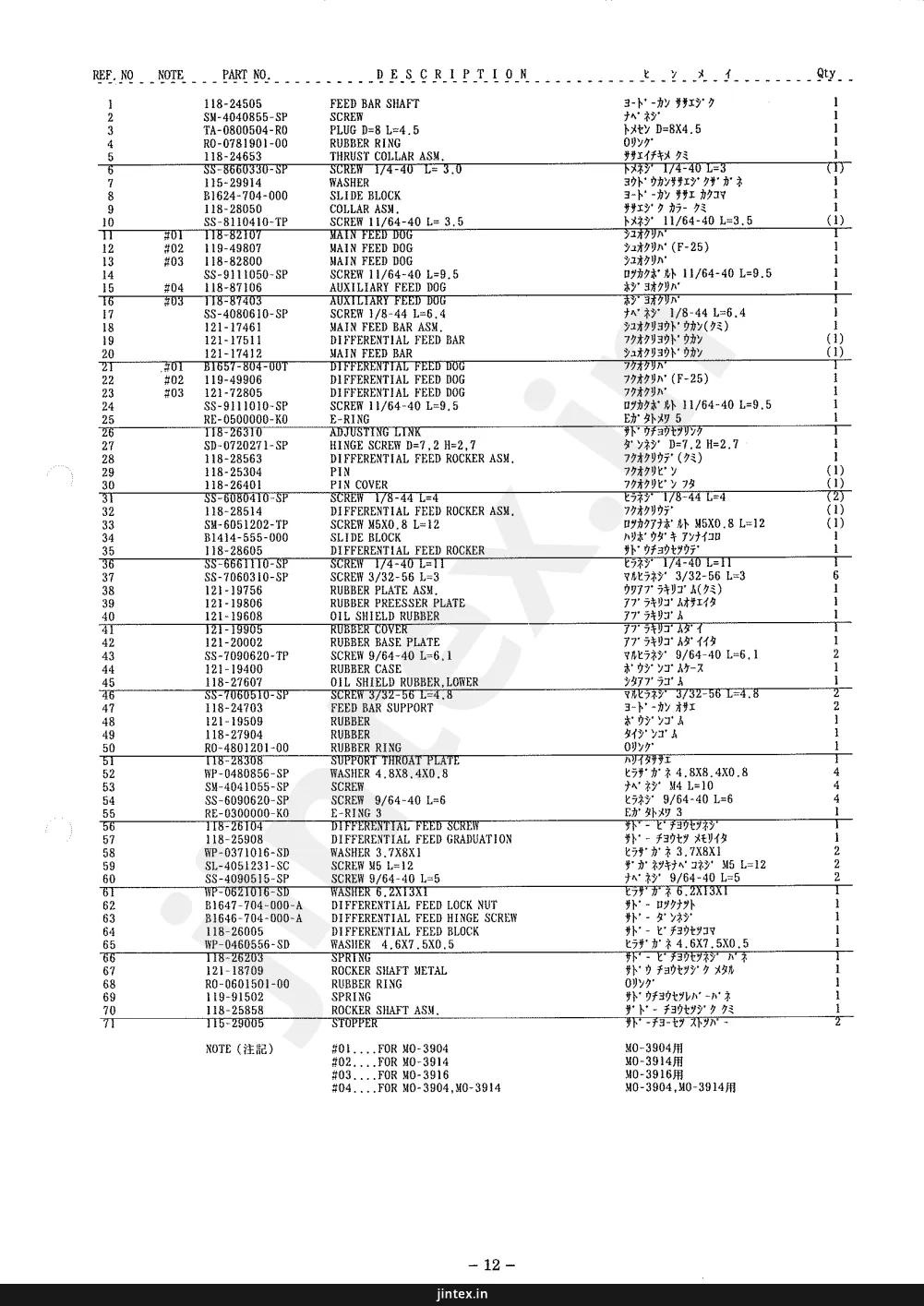

- Page 15 (parts_list): This page contains a parts list for the FEED BAR SHAFT, including part numbers, descriptions, quantities, and notes.
- Page 16 (diagram): This page displays a diagram of upper and lower looper components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes notes and references for specific parts.
- Page 18 (diagram): This page displays a diagram of chain looper components for model MO-3916, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 19 (parts_list): This page lists components for the presser foot, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays diagrammatic representations of presser foot components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and remarks. It covers items from reference number 1 to 64.
- Page 22 (diagram): This page displays a diagram of thread tension components, including part numbers and reference numbers for various parts.
- Page 23 (parts_list): This page lists parts for the sewing machine, including screws, brackets, guides, springs, and knobs, with their corresponding part numbers and descriptions. It also includes notes indicating which models specific parts are for.
- Page 24 (diagram): This page displays a diagram of lower knife components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for sewing machine models MO-3904, MO-3914, and MO-3916, including screws, plates, brackets, and holders, with their corresponding part numbers and descriptions.
- Page 26 (parts_list): This page lists upper knife components with part numbers, descriptions, and quantities, including notes on part selection and usage.
- Page 27 (diagram): This page displays a diagram of needle cooling mechanism components, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
- Page 29 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as cartridge filters, filter guides, rubber rings, screws, oil tubes, and various pump components.
- Page 30 (diagram): This page displays a diagram of semi-sunken type table components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page lists components for the fully-sunken type table, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of thread stand components for models MO-3904 and MO-3914, with numbered parts for identification.
- Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details items such as thread standing devices, spool rest rods, screws, nuts, and washers.
- Page 34 (diagram): This page displays a diagram of thread stand components for the MO-3916 model, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as thread standing devices, screws, spool rest arms, and thread guides.
- Page 36 (parts_list): This page lists special order parts components for JUKI sewing machines, including part numbers, descriptions, and usage notes.
- Page 40 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 41 (text): This page contains the heading "MEMO" and is otherwise blank, intended for notes. It also includes a page number and website address at the bottom.
- Page 42 (text): This page contains the heading "MEMO" and is otherwise blank with horizontal lines for writing notes. It also includes a page number and website at the bottom.
- Page 43 (unknown): This page contains a watermark and a website address at the bottom.
- Page 44 (cover): This is the cover page for a JUKI CORPORATION parts list. It includes contact information for orders and inquiries, and notes that the parts list is subject to change without notice and was edited according to specifications as of September 1995. The page also indicates it was Printed in Japan.
Page 1 — PARTS LIST
JUKI
1-Needle, Overedging Industrial Sewing Machine
超高速一本オーバーロックミシン
MO-3904-OE4
2-Needle, Overedging Industrial Sewing Machine
超高速二本オーバーロックミシン
MO-3914-BE6
Safety Stitch Industrial Sewing Machine
超高速安全縫ミシン
MO-3916-DE4
PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST
1. As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages.
2. Codes on the "Qty" column
Each numeral indicates the number of parts required.
"0.1" and "2.5" indicate the length (in meters) of the respective parts.
3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part.
4. Dotted lines on the Figures indicate assembly parts.
パーツリストご利用に際して
1. リストページの#01、#02等の印は、ページ下の"注記"の説明をご参照下さい。
2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。
3. 数量欄の( )は、組部品を構成している子部品であることを意味します。
4. イラストページのーーー棒は、組構成である.ことを意味します。
29128402
No.0845-03
jintex.in
Page 2 — CONTENTS
CONTENTS
目
次
1. FRAME COMPONENTS(1)
1
フレーム関係 (1)
2. FRAME COMPONENTS(2)
3
フレーム関係 (2)
3. CRANKSHAFT COMPONENTS
5
主軸関係
4. NEEDLE DRIVING SHAFT COMPONENTS
7
針駆動軸関係
5. FEED MECHANISM COMPONENTS(1)
9
送り関係 (1)
6. FEED MECHANISM COMPONENTS(2)
11
送り関係 (2)
7. UPPER & LOWER LOOPER COMPONENTS
13
ルーパ、下ルーパ関係
8. CHAIN LOOPER COMPONENTS(FOR MO-3916)
15
二重環ルーパ関係(MO-3916用)
9. PRESSER FOOT COMPONENTS(1)
16
押さえ関係 (1)
10. PRESSER FOOT COMPONENTS(2)
17
押さえ関係 (2)
11. THREAD TENSION COMPONENTS
19
糸調子関係
12. LOWER KNIFE COMPONENTS
21
下メス関係
13. UPPER KNIFE COMPONENTS
23
上メス関係
14. NEEDLE COOLING MECHANISM COMPONENTS
24
針冷却装置関係
15. LUBRICATION MECHANISM COMPONENTS
25
給油装置関係
16. SEMI-SUNKEN TYPE TABLE COMPONENTS
27
卓上式テーブル関係
17. FULLY-SUNKEN TYPE TABLE COMPONENTS
28
全沈式テーブル関係
Page 3
18. THREAD STAND COMPONENTS(FOR MO-3904,MO-3914) ...*The user has provided an image and requested that I transcribe and structure all visible text on the page according to a specific JSON schema. The page appears to be a table of contents from a parts catalog. I need to identify the page type, extract the title (if any), create a summary, transcribe all text, and identify any parts listed. Since this is a table of contents, there are no individual parts to extract in the `parts` array. The `page_type` should be
Page 4 — 1. FRAME COMPONENTS(1)
1. FRAME COMPONENTS(1)
フレーム関係 ( 1 )
13
12
11
10
9
8
7
6
5
4
3
2
1
13
16
19
18
17
20
21
22
14
15
54
28
23
24
27
26
25
29
32
30
31
40
39
36
38
47
48
49
50
55
44
35
33
37
41
42
43
45
46
53
52
51
-1-
jintex.in
Page 5
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 121-05359 CLOTH PLATE ASM. ヌノダ イケヅコ ウ (1)
2 121-02752 CLOTH PLATE ASM. ヌノダ イクミ (1)
3 115-01301 ECCENTRIC BUSHING ヌノダ イヘンシンアツ シュ (1)
4 WZ-0420350-KP DISC SPRING サラバネ (1)
5 CS-0400671-SD THRUST HOLDER スラストウケ (1)
6 SM-8040302-TP SETSCREW トメネジ (1)
7 #03 121-05458 CLOTH PLATE ASM. ヌノダ イケヅコ ウ 1
8 121-04550 CLOTH PLATE ASM. ヌノダ イクミ (1)
9 115-01301 ECCENTRIC BUSHING ヌノダ イヘンシンアツ シュ (1)
10 WZ-0420350-KP DISC SPRING サラバネ (1)
11 CS-0400671-SD THRUST HOLDER スラストウケ (1)
12 SM-8040302-TP SETSCREW トメネジ (1)
13 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 (1)
14 119-49005 CLOTH BASE COVER ヌノダ イカバ (1)
15 #03 119-49104 CLOTH BASE COVER ヌノダ イカバ (1)
16 118-02204 RUBBER PLUG ヌノタイカバ・ホージンゴム 1
17 118-02402 SPRING ヌノダイカイハイパネ 1
18 NS-6110420-SP NUT 11/64-40 ロツカクナツト 11/64-40 (1)
19 SS-6111440-SP SCREW 11/64-40 L=14.0 ヒラネジ 11/64-40 L=14 (1)
20 121-03305 STOPPER ヌノダイカイヘストツパ (1)
21 SS-7110710-SP SCREW 11/64-40 L=7 マルネジ 11/64-40 L=7 2
22 SS-4091015-SP SCREW 9/64-40 L=10 ナベネジ 9/64-40 L=10 2
23 121-01655 CLOTH PLATE SIDE COVER ASM. ヌノダイヨコカバ・クミ (1)
24 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 2
25 122-50510 FEED MECHANISM COVER オクリフタ (1)
26 SM-1040801-SC SCREW M4X0.7 L=8 サラコネジ M4X0.7 L=8 1
27 SM-4040855-SP SCREW ナベネジ 4
28 SS-7091410-SP SCREW 9/64-40 L=13.5 マルネジ 9/64-40 L=13.5 (1)
29 122-50601 GASKET オクリフタ・パツキン (1)
30 119-51100 COVER チョウセツアナフタ (1)
31 118-04309 GASKET チョウセツアナフタ パツキン (1)
32 SM-4040855-SP SCREW ナベネジ 4
33 #01 121-02307 CHIP GUARD COVER, LEFT ヌノクス カバ・ヒダリ (1)
34 #02 121-02406 CHIP GUARD COVER, LEFT ヌノクス カバ・ヒダリ (1)
35 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 2
36 #01 121-47203 CLOTH WASTE COVER ヌノクス カバ (1)
37 #02 121-47807 CLOTH WASTE COVER ヌノクス カバ (1)
38 SS-2090520-SL SCREW 9/64-40 L=5 マルサラネジ 9/64-40 L=5 (1)
39 121-01515 CROTH WASTE COVER STOPPER ヌノクス カバ・ストツパ (1)
40 NS-6090310-SN NUT 9/64-40 ロツカクナツト 9/64-40 (1)
41 SS-3090610-SP SCREW 9/64-40 L=6 マルネジ 9/64-40 L=6 2
42 121-01309 LOOPER COVER ルーバ カバ (1)
43 118-03004 LOOPER COVER HINGE PIN ルーパ カバ・ヒンジ・ジク (1)
44 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 (1)
45 121-01200 LOOPER COVER BRACKET ルーパ カバ・ウケダイ (1)
46 SM-4041055-SP SCREW ナベネジ M4 L=10 3
47 121-03404 LOOPER COVER PRESSER SPRING ルーパ カバ・オサエ パネ (1)
48 SM-4040655-SP SCREW ナベネジ M4 L=6 (1)
49 SS-7090530-SP SCREW 9/64-40 L= 4.5 マルヒラネジ 9/64-40 L=4.5 (1)
50 121-03206 LOOPER COVER PRESSER PLATE ルーパ カバ・オサエ イタ (1)
51 121-01408 GUIDE PLATE ルーパ カバ・ガイド・バン (1)
52 SS-7090610-SP SCREW 9/64-40 L=6 (1)
53 B1140-716-000 SPRING ヌノダイ イサエイツ (1)
54 121-03511 CROTH PLATE SUPPORTER ユビケケチュウイシール(16) (1)
55 #04 CM-3002000-01 ATTENTION SEAL
NOTE (注記)
#01...FOR MO-3904,MO-3914 MO-3904,MO-3914用
#02...FOR MO-3916 MO-3916用
#03...FOR JHK(MO-3916) JHK(MO-3916)用
#04...FOR JE JE用
-2-
jintex.in
Page 6 — 2. FRAME COMPONENTS(2)
2. FRAME COMPONENTS(2)
フレーム関係 (2)
3
7.8
9
10.11
12.13
14
1
2
51.52
4
5
49
48
15
26
46
53
19
20
25
23
21
22
24
30
31
32
33
34
35
47
40
41
42
43
44
27
28
29
45
-3-
jintex.in
Page 7
REF. NO NOTE PART NO. DESCRIPTION Qty
1 121-00418 UPPER COVER ウワカバー 1
2 115-00808 GASKET チユ
ユアアナ パツキン 1
3 121-00608 OIL CAP チユウエフア フタ 1
4 SM-4051255-SP SCREW.,M5 L=12. ナベネジ M5 L=12 6
5 121-00806 OIL DRAIN SCREW フイルターシツク ハイユウネシ 1
6 RO-0781901-00 RUBBER RING Oリング 1
7 #04 121-01952 BELT COVER ASM. ペルトカバー-(クミ) 1
8 #05 121-01960 BELT COVER ASM. ペルトカバー-(クミ)A 1
9 #04 CM-3002000-A1 CAUTION LABEL(16) マキコミチユウイシール(16) (1)
10 #04 121-01903 BELT COVER ペルトカバー (1)
11 #05 121-01903 BELT COVER ペルトカバー (1)
12 #04 CM-5002000-01 DIRECTION LABEL. カイテンホウコウラベル (1)
13 #05 CM-5002000-01 DIRECTION LABEL. カイテンホウコウラベル (1)
14 SS-4151215-SP SCREW 15/64-28 L=12 ナベネジ 15/64-28 L=12 3
15 121-01804 COOLING FAN PLATE レイキヤクフアン イタ 1
16 SM-1040801-SC SCREW M4X0.7 L=8 サラコネジ M4X0.7 L=8 1
17 SM-4040855-SP SCREW ナベネジ 2
18 121-00517 UPPER COVER GASKET ウエカバ-パツキン 1
19 122-50205 SIDE COVER ソクメンカバ- 1
20 121-00301 SIDE COVER GASKET ソクメンカバ-パツキン 1
21 122-58000 BUSH メホコカバ-アツシユ 1
22 SM-4040855-SP SCREW ナベネジ 3
23 SM-1040801-SC SCREW M4X0.7 L=8 サラコネジ M4X0.7 L=8 1
24 121-02661 BRAND LABEL ASM. アブラントラベル(クミ) 1
25 SM-4040601-SC SCREW M4X0.7 L=6 ナベコネジ M4X0.7 L=6 2
26 TA-2050805-RO RUBBER PLUG トメセン D=20.5 L=8 1
27 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 1
28 118-05207 THREAD GUIDE, LARGE イトミチ タイ 2
29 #01 TA-1871602-RO RUBBER PLUG トメセン D=18.7 L=16 1
30 SS-5110710-SP SCREW 11/64-40 L=7 トラスネジ 11/64-40 L=7 1
31 WZ-0850302-KO WAVED WASHER 8.5X12.5X0.3 ナミガタワシエ 8.5X12.5X0.3 1
32 B3013-141-HOA WASHER Lエイタツト オサエネザカネ 1
33 121-02000 SAFETY PLATE BRACKET メホコカバ-ダイ 1
34 SS-7090611-SL SCREW 9/64-40 L=6.1 マルヒラネシ 9/64-40 L=6.1 2
35 #02 121-02109 SAFETY PLATE メホコカバ- 1
36 115-03703 SCREW STUD シチユーボルト 4
37 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサカネ 7.5X19X1.5 4
38 WS-0822010-KP SPRING WASHER 8.2X15X2 ハネザカネ 8.2X15X2 4
39 NS-6680410-SP NUT 9/32-28 ロツカクナット 9/32-28 4
40 115-03910 OIL RESERVOIR GASKET アブラタマリ パツキン 1
41 115-03885 OIL RESERVOIR ASM. アブラタマリ クミ 1
42 RO-0742401-00 RUBBER RING Oリング (1)
43 SM-0081001-SD SCREW トラスネジ M8 L=10 (1)
44 115-03810 OIL RESERVOIR アブラタマリ (1)
45 TA-0750704-RO RUBBER PLUG トメセン (1)
46 TA-1701107-RO RUBBER PLUG トメセン 1
47 #01 121-04907 SAFETY PLATE メホコカバ- 1
48 #03 121-05201 BELT COVER (B) ペルトカバー-(B) 1
49 SK-3412000-SC WOOD SCREW D=4.1 L=20 マルモクネジ D=4.1 L=20 3
50 PS-0300132-KH SPRING PIN 3X13 スプリングピン 1
51 #04 CM-3002001-01 SAFETY LABEL, 1 (SMALL). アンセンラベル 1 (シヨウ) 1
52 #06 CM-3002001-A1 SAFETY LABEL., 3 (SMALL). アンセンラベル 3 (シヨウ) 1
53 100-04109 GROUND MARK グランドマーク 1
NOTE (注記)
#01...FOR MO-3904,MO-3914 MO-3904,MO-3914用
#02...FOR MO-3916 MO-3916用
#03...FOR JE JE用
#04...FOR DOMESTIC USE 国内用
#05...FOR EXPORT 输出用
#06...FOR EXPORT(EXCEPT JE) 输出用(JEは除く)
-4-
jintex.in
Page 8 — 3. CRANKSHAFT COMPONENTS
3. CRANKSHAFT COMPONENTS
主軸関係
1
2
15
16
17
18
14
13
11
53
54
19
20
21
22
27
28
29
23
24
25
26
9
10
55
27
34
30
31
32
33
36
35
38
37
45
46
43
42
41
40
39
47
51
49
50
48
56
52
- 5 -
jintex.in
Page 9
REF. NO. NOTE PART NO. DESCRIPTION ヒン メイ Qty
1 #01 121-08213 CRANKSHAFT BUSHING D Dメタル 1
2 #01 SM-4040855-SP SCREW ナベネジ 3
3 #02 SM-4040855-SP SCREW ナベネジ 3
4 #02 121-08304 CRANKSHAFT BUSHING D Dメタル 1
5 121-08403 GASKET Dメタル パッキン 1
6 #01 B1215-804-000 BALL BEARING D シュウジク ボールベアリング D 1
7 #02 SB-1100003-00 BALL BEARING ボールベアリング 1
8 121-08007 CRANKSHAFT BUSHING C Cメタル 1
9 121-24509 STOPPER (R) ルーパーロッド フレト メミギ 2
10 121-07108 CRANKSHAFT シュウジク 1
11 121-32155 KNIFE DRIVING ROD ASM. ウエ メスロッド クミ 1
12 121-32106 KNIFE DRIVING ROD ウエ メスロッド (1)
13 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2)
14 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1
15 121-09153 CONNECTING ROD ASM. ハリクトウ ロッド クミ 1
16 121-09104 CONNECTING ROD ハリクトウ ロッド (1)
17 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2)
18 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1
19 B1212-704-000 BEARING RETAINER ボールベアリング トメワ 1
20 B1211-804-000 BALL BEARING B シュウジク ボールベアリング B 1
21 121-22362 UPPER LOOPER ROD ASM. ウワルーパ タマウテ (クミ) 1
22 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2)
23 121-22107 LOOPER DRIVING ROD ルーパロッド (1)
24 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2)
25 121-22313 UPPER LOOPER ARM ウワルーパアーム (1)
26 SM-6061202-TP SCREW M6 L=12 ロッカアナボルト M6 L=12 (1)
27 121-24400 STOPPER (L) ルーパロッド フレト メヒタリ 2
28 #01 121-23360 LOWER LOOPER ROD ASM., A シタルーパ タマウテ A (クミ) 1
29 SM-6061202-TP SCREW M6 L=12 ロッカアナボルト M6 L=12 (2)
30 121-22107 LOOPER DRIVING ROD ルーパロッド (1)
31 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2)
32 121-23311 LOWER LOOPER ARM A シタルーパ キユウウデ B (1)
33 SM-6061202-TP SCREW M6 L=12 ロッカアナボルト M6 L=12 (1)
34 #02 121-20150 LOWER LOOPER ROD ASM., B シタルーパ タマウテ B クミ 1
35 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2)
36 121-22107 LOOPER DRIVING ROD ルーパロッド (1)
37 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2)
38 121-20101 LOWER LOOPER ARM B シタルーパ キユウウデ B (1)
39 B1211-804-000 BALL BEARING B シュウジク ボールベアリング B 1
40 115-10609 WASHER ベアリング ウケイタ 1
41 WZ-2640310-KH WAVED WASHER 26.4X33.9X3.5 ナミカサガネ 26.4X33.9X3.5 1
42 RO-3473501-00 RUBBER RING Oリング 1
43 121-07702 THRUST HOLDER スラストウケ 1
44 SM-4050855-SP SCREW ナベネジ M5 L=8 3
45 121-07801 OIL SHIELD シュウジク クアフラキリ 1
46 118-11619 COOLING FAN レイキャクファン 1
47 121-07611 FLYWHEEL A ハズミクルマ(A) 1
48 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2
49 WP-0764016-SP WASHER ヒラガネ 76X20X4 1
50 SS-9681610-TP SCREW 9/32-28 L=16 ロッカクボルト 9/32-28 L=16 1
51 119-56505 HANDWHEEL C ハズミクルマ(C) 1
52 SS-7111810-SP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 3
53 121-07900 BALANCER ハランサー 1
54 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 2
55 121-08106 OIL ADJUSTING BAR ユリョウチョウセツボウ 1
56 SS-5080212-TP SCREW 1/8-44 L=2 ハインドネジ 5
NOTE (注記) MO-3904,MO-3914用 MO-3904,MO-3914用
#01...FOR MO-3904,MO-3914 MO-3916用
#02...FOR MO-3916 MO-3916用
-6-
jintex.in
Page 10 — 4. NEEDLE DRIVING SHAFT COMPONENTS
4. NEEDLE DRIVING SHAFT COMPONENTS
針駆動軸関係
1
2
3
6
10
9
10
14
13
10
8
9
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
35
36
55
54
56
53
52
4
37
38
39
40
41
42
43
31
32
33
34
44
45
46
47
59
58
60
50
50
48
49
51
7
57
-7-
jintex.in
Page 11
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 121-09666 NEEDLE DRIVING ARM ASM. ハリクト ウデ (クミ) (1)
2 121-09617 NEEDLE DRIVING ARM ハリクト ウデ (1)
3 SM-6061402-TP SCREW M6 L=14 ロクカクアナネジ M6 L=14 (1)
4 SS-8090530-TP SCREW 9/64-40 L= 5.0 トメネジ 9/64-40 L=5 2
5 121-09302 NEEDLE DRIVING SHAFT ハリクト ウジク 1
6 123-5805 BUSHING, REAR ハリクト ウデ クマエメタル 1
7 #09 MC-0336007-50 NEEDLE B-27 NM75 ハリ B-27 75 2
8 121-09500 BUSHING, REAR ハリクト ウジク 1
9 CS-1201010-SH THRUST COLLAR ASM, D=12 W=10 スラストウケ D=12 W=10 クミ 2
10 SS-860610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (4)
11 #01 J18-23804 CRANK PIN C. オクリサゲタマ クランクピン C 1
12 121-09211 FEED FORKED CRANK ASM. ハリクト ウフタマクランク(クミ) (1)
13 121-09211 NEEDLE DRIVING FORKED CRANK ハリクト ウフタマクランク (1)
14 SM-6061202-TP SCREW M6 L=12 ロクカクアナボルト M6 L=12 (1)
15 #01 121-09555 LINK PIN C ASM. ハリクト ウリンクピン C(クミ) 1
16 CQ-2520000-00 OIL WICK コシン (0.1)
17 121-09006 LINK PIN C ハリクト ウリンクピン C (1)
18 #01 121-09555 LINK PIN C ASM. ハリクト ウリンクピン C(クミ) 1
19 CQ-2520000-00 OIL WICK コシン (0.1)
20 121-09006 LINK PIN C ハリクト ウリンクピン C (1)
21 122-52904 NEEDLE DRIVING LINK ハリクト ウリンク 1
22 122-53050 NEEDLE HOLDER ASM. ハリボ ウミ 1
23 121-10219 NEEDLE HOLDER ハリボ ウ (1)
24 122-53100 NEEDLE HOLDER BUSHING ハリボ ウメタル (1)
25 RO-1082401-00 RUBBER RING Oリング 1
26 SS-8110710-SP SCREW 11/64-40 L=6.5 トメネジ 11/64-40 L=6.5 1
27 #05 121-11209 NEEDLE THREAD GUIDE ハリトアンナイ 1
28 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1
29 #03 121-11308 THREAD GUIDE, 2-NEEDLE ニホンバリ ハリトアンナイ 1
30 #04 121-11407 THREAD GUIDE, CHAIN LOOPER ニジユウカン ハリトアンナイ 1
31 #05 121-11803 TAKE-UP LEVER GUIDE ハリト テンピン ガイド 1
32 SM-4040855-SP SCREW ナベネジ 1
33 #03 121-11902 TAKE-UP LEVER GUIDE, 2-NEEDLE ニホンバリ ハリテンピン ガイド 1
34 #04 121-12009 TAKE-UP LEVER GUIDE, CHAIN LOOP ニジユウカン イトテンピン ガイド 1
35 121-12108 NEEDLE THREAD GUIDE STAND ハリト アンナイダイ 2
36 SM-4040855-SP SCREW ナベネジ 1
37 SS-8080310-TP SCREW 1/8-44 L=7 ヒラネジ 1/8-44 L=7 1
38 122-80608 NEEDLE CAAMP. ハリト メタ 1
39 #06 121-10607 NEEDLE THREAD PRESSER GUIDE, A ハリトオサエイトアンナイ A 1
40 121-10904 NEEDLE THREAD PRESSER PLATE ハリトオサエイトア A 1
41 121-10805 NEEDLE THREAD PRESSER SPRING ハリトオサエ バネ 2
42 SD-0280401-SL HINGE SCREW D=2.8 H=4 ダンネジ D=2.8 H=4 1
43 #04 121-10706 NEEDLE THREAD PRESSER GUIDE, B ハリトオサエイトアンナイ B 1
44 #02 121-11506 NEEDLE THREAD TAKE-UP LEVER ハリト テンピン 1
45 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 2
46 #03 121-11605 TAKE-UP LEVER, 2-NEEDLE ニホンバリ ハリテンピン 1
47 #04 121-11704 TAKE-UP LEVER, CHAIN LOOPER ニジユウカン イトテンピン 1
48 #02 SS-8080310-TP SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 1
49 #02 MDC-270B1100 NEEDLE DCX27 #11 ハリ DCX27 #11 1
50 #07 SS-8080310-TP SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 2
51 #07 MDC-270B1100 NEEDLE DCX27 #11 ハリ DCX27 #11 2
52 121-12207 COVER ハリ カンリユウカバー 1
53 121-12306 FELT A ハリ カンリユウフエルト A 1
54 121-12405 FELT B ハリ カンリユウフエルト B 1
55 BT-0600402-EA OIL TUBE チューブ 0.2
56 TA-0951301-RO RUBBER PLUG トメセン 1
57 #08 MC-0336007-50 NEEDLE B-27 NM75 ハリ B-27 75 1
58 #02 121-48607 NEEDLE CLAMP ボンバリ ハリトメ 1
59 #03 121-48706 NEEDLE CLAMP, 2-NEEDLE ニジユウカン ハリトメ 1
60 #04 121-49803 NEEDLE CLAMP, CHAIN LOOPER ニジユウカン ハリトメ 1
NOTE (注記) #01...SELECTING PART FOR FIT TOLERANCE 選択かん合部品
#02...FOR MO-3904 MO-3904用
#03...FOR MO-3914 MO-3914用
#04...FOR MO-3916 MO-3916用
#05...FOR MO-3904, MO-3916 MO-3904, MO-3916用
#06...FOR MO-3904, MO-3914 MO-3904, MO-3914用
#07...FOR MO-3914, MO-3916 MO-3914, MO-3916用
#08...FOR JE(MO-3904) JE(MO-3904)用
#09...FOR JE(MO-3914, MO-3916) JE(MO-3914, MO-3916)用
-8-
jintex.in
Page 12 — 5. FEED MECHANISM COMPONENTS(1)
5. FEED MECHANISM COMPONENTS(1)
送り関係 (1)
1
4
6
5
3
2
8
9
11
10
12
15
16
13
14
19
18
20
21
22
37
38
39
33
30
36
31
29
32
34
41
24 23
27
26
25
28
42
40
43
44
-9-
jintex.in
Page 13
REF. NO. NOTE PART NO. DESCRIPTION Qty
1 118-24067 MAIN FEED ROCKER ASM. シュオクリウテ (クミ) 1
2 115-30110 MAIN FEED ROCKER シュオクリウテ (1)
3 SM-6051202-TP SCREW M5X0.8 L=12 ロツカクアナボルト M5X0.8 L=12 (1)
4 118-24018 PIN シュオクリウテ・ピン (1)
5 NS-6620320-SP NUT 3/16-32 ロツカクアナツト 3/16-32 (1)
6 119-48601 WASHER B シュオクリウテ・ザ・カニ (B) (1)
7 TA-1030402-RO RUBBER PLUG D=10.3 L=4 トメセン D=10.3 L=4 1
8 118-24109 MAIN FEED LINK シュオクリリンク 1
9 B1620-804-000 COLLAR シュオクリ・ピンカラー 1
10 B2107-816-000 WASHER ロツト・ザ・カネ 1
11 SS-6121220-TP SCREW 3/16-28 L=11.5 ヒラネジ 3/16-28 L=11.5 1
12 #01 118-23804 CRANK PIN C オクリフタマタクランクピン C 1
13 121-17206 FEED ROCKER SHAFT BUSHING, FRO オクリシ・ク マエメタル 1
14 TA-2050416-RO RUBBER PLUG トメセン 1
15 B1611-804-0AO-A FORKED LINK ASM. オクリフタマタクランク (クミ) (1)
16 B1611-804-000-A FORKED CRANK オクリフタマタクランク (1)
17 SM-6061202-TP SCREW M6 L=12 ロツカクアナボルト M6 L=12 (1)
18 CS-095081A-SH THRUST COLLAR ASM. D=9.53 W=8 スラストウケ D=9.53 W=8 クミ 2
19 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 (4)
20 121-17305 FEED ROCKER SHAFT BUSHING, REA オクリシ・ク ウシロメタル 1
21 121-18907 FEED SHAFT オクリシ・ク 1
22 121-16174 FEED ECCENTRIC BODY ASM. オクリカムシ・タ・イ (クミ) (1)
23 121-18808 RATCHET GEAR ラチエツトギヤ (1)
24 SS-8110750-SP SCREW 11/64-40 L= 6.5 トメネジ 11/64-40 L=6.5 (1)
25 SS-6110710-TP SCREW 11/64-40 L= 6.5 ヒラネジ 11/64-40 L=6.5 (1)
26 SD-0260271-SP HINGE SCREW D= 2.60 H= 2.7 ダンネジ D=2.6 H=2.7 (1)
27 B1604-704-000 RATCHET PAWL ラチエツト (1)
28 PS-0300132-KH SPRING PIN 3X13 スプリンク・ピン (2)
29 121-16117 FEED ECCENTRIC BODY オクリカムシ・タ・イ (1)
30 SS-7110810-SP SCREW 11/64-40 L= 8.0 マルヒラネジ 11/64-40 L=8 (2)
31 121-16307 FEED CAM BLOCK オクリカム カクコマ (1)
32 121-16216 FEED CAM オクリカム (1)
33 SS-6080320-SP SCREW 1/8-44 L= 2.5 ヒラネジ 1/8-44 L=2.5 (1)
34 121-16406 FEED ADJUSTING CAM オクリチョウセツ カム (1)
35 B1606-704-000 RATCHET PAWL SPRING ラチエツト オサエ・バネ (1)
36 121-17107 RATCHET GEAR SPRING ラチエツトギヤ・バネ (1)
37 #01 121-16703 NEEDLE BEARING B オクリベアリング B 1
38 121-16505 CRANK ROD オクリ クランク ロツト 1
39 118-28704 SLIDE BLOCK シヨウケ オクリカクコマ 1
40 121-18600 OIL SHEET オシボ タンシク オイルシート 1
41 SS-7110910-TP SCREW 11/64-40 L= 8.5 マルヒラネジ 11/64-40 L=8.5 1
42 B1652-704-000 SPRING オシボ タン・ハネ 1
43 121-18501 PUSH BUTTON STUD オシボ タンシク 1
44 SM-4041455-SN SCREW M4 L=14 ナベネジ M4 L=14 1
NOTE (注記) #01...SELECTING PART FOR FIT TOLERANCE 選択かん合部品
- 10 -
jintex.in
Page 14 — 6. FEED MECHANISM COMPONENTS(2)
6. FEED MECHANISM COMPONENTS(2)
送り関係 (2)
- 11 -
jintex.in
Page 15
REF. NO NOTE PART NO. DESCRIPTION Qty.
1 118-24505 FEED BAR SHAFT 1
2 SM-4040855-SP SCREW 1
3 TA-0800504-R0 PLUG D=8 L=4.5 1
4 R0-0781901-00 RUBBER RING 1
5 118-24653 THRUST COLLAR ASM. 1
6 SS-8660330-SP SCREW 1/4-40 L=3.0 (1)
7 115-29914 WASHER 1
8 B1624-704-000 SLIDE BLOCK 1
9 118-28050 COLLAR ASM. 1
10 SS-8110410-TP SCREW 11/64-40 L=3.5 (1)
11 #01 118-82107 MAIN FEED DOG 1
12 #02 118-82800 MAIN FEED DOG 1
13 #03 118-82800 MAIN FEED DOG 1
14 SS-9111050-SP SCREW 11/64-40 L=9.5 1
15 #04 118-87106 AUXILIARY FEED DOG 1
16 #03 118-87403 AUXILIARY FEED DOG 1
17 SS-4080610-SP SCREW 1/8-44 L=6.4 1
18 121-17461 MAIN FEED BAR ASM. 1
19 121-17511 DIFFERENTIAL FEED BAR 1
20 121-17412 MAIN FEED BAR (1)
21 #01 B1657-804-00T DIFFERENTIAL FEED DOG 1
22 #02 119-49906 DIFFERENTIAL FEED DOG 1
23 #03 121-72805 DIFFERENTIAL FEED DOG 1
24 SS-9111010-SP SCREW 11/64-40 L=9.5 1
25 RE-0500000-KO E-RING 1
26 118-26310 ADJUSTING LINK 1
27 SD-0720271-SP HINGE SCREW D=7.2 H=2.7 1
28 118-28563 DIFFERENTIAL FEED ROCKER ASM. 1
29 118-25304 PIN (1)
30 118-26401 PIN COVER (1)
31 SS-6080410-SP SCREW 1/8-44 L=4 1
32 118-28514 DIFFERENTIAL FEED ROCKER ASM. (1)
33 SM-6051202-TP SCREW M5X0.8 L=12 (1)
34 B1414-555-000 SLIDE BLOCK 1
35 118-28605 DIFFERENTIAL FEED ROCKER 1
36 SS-6661110-SP SCREW 1/4-40 L=11 6
37 SS-7660310-SP SCREW 3/32-56 L=3 1
38 121-19756 RUBBER PLATE ASM. 1
39 121-19806 RUBBER PREESSER PLATE 1
40 121-19608 OIL SHIELD RUBBER 1
41 121-19905 RUBBER COVER 1
42 121-20002 RUBBER BASE PLATE 1
43 SS-7090620-TP SCREW 9/64-40 L=6.1 2
44 121-19400 RUBBER CASE 1
45 118-27607 OIL SHIELD RUBBER,LOWER 1
46 SS-7060510-SP SCREW 3/32-56 L=4.8 2
47 118-24703 FEED BAR SUPPORT 1
48 121-19509 RUBBER 1
49 118-27904 RUBBER 1
50 R0-4801201-00 RUBBER RING 1
51 118-28308 SUPPORT THROAT PLATE 1
52 WP-0480856-SP WASHER 4.8X8.4X0.8 4
53 SM-4041055-SP SCREW 1
54 SS-6090620-SP SCREW 9/64-40 L=6 4
55 RE-0300000-KO E-RING 3 1
56 118-26104 DIFFERENTIAL FEED SCREW 1
57 118-25908 DIFFERENTIAL FEED GRADUATION 1
58 WP-0371016-SD WASHER 3.7X8X1 2
59 SL-4051231-SC SCREW M5 L=12 2
60 SS-4090515-SP SCREW 9/64-40 L=5 2
61 WP-0621016-SD WASHER 6.2X13X1 1
62 B1647-704-000-A DIFFERENTIAL FEED LOCK NUT 1
63 B1646-704-000-A DIFFERENTIAL FEED HINGE SCREW 1
64 118-26005 DIFFERENTIAL FEED BLOCK 1
65 WP-0460556-SD WASHER 4.6X7.5X0.5 1
66 118-26203 SPRING 1
67 121-18709 ROCKER SHAFT METAL 1
68 R0-0601501-00 SPRING 1
69 119-91502 1
70 118-25858 2
71 115-29005 STOPPER
NOTE (注記) #01...FOR MO-3904 MO-3904用
#02...FOR MO-3914 MO-3914用
#03...FOR MO-3916 MO-3916用
#04...FOR MO-3904,MO-3914 MO-3904,MO-3914用
- 12 -
jintex.in
Page 16 — 7. UPPER & LOWER LOOPER COMPONENTS
7. UPPER & LOWER LOOPER COMPONENTS
上ルーパ、下ルーパ関係
6
8
12
15
9
13
10
14
7
11
32
33
1
2
3
4
5
16
17
18
19
20
21
23
22
24
25
26
27
28
36
35
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
68
69
70
71
- 13 -
jintex.in
Page 17
REF. NO NOTE PART NO. DESCRIPTION Qty. 1 121-22610 LOOPER SHAFT REAR METAL 2 CS-1031210-SH THRUST COLLAR ASM. D=10.32 W=12 2 SS-8660610-TP SCREW 1/4-40 L=6 (4) 121-22511 LOOPER SHAFT FLONT METAL 2 121-22404 UPPER LOOPER SHAFT 1 SM-6061200-SP SCREW 2 121-23055 UPPER LOOPER GUIDE ASM. 1 121-23006 UPPER LOOPER GUIDE SUPPORT (1) 121-23204 UPPER LOOPER GUIDE (1) 121-22909 UPPER LOOPER HOLDER (1) #01 121-23154 UPPER LOOPER GUIDE ASM., B (1) 121-23105 UPPER LOOPER GUIDE SUPPORT, B 1 121-23204 UPPER LOOPER GUIDE (1) 121-22909 UPPER LOOPER HOLDER (1) SS-9090410-TP SCREW 1 118-33704 UPPER LOOPER GUIDE COVER 1 B2515-704-00B UPPER LOOPER GUIDE COVER B 2 SS-7060610-SP SCREW 3/32-56 L= 5.5 1 118-33308 UPPER LOOPER THREAD GUIDE 1 SS-4090615-SP SCREW 9/64-40 L=6 1 118-31757 PIN ASM. 1 115-17000 PIN C (1) 118-31708 OIL WICK STOPPER BALL (1) CQ-2020000-00 OIL WICK (0.1) CQ-2000000-00 OIL WICK (0.1) 121-22750 UPPER LOOPER ARM A ASM. 1 121-22701 UPPER LOOPER ARM A (1) SS-9151210-TP SCREW 15/64-28 L=11,8 (1) 121-22859 UPPER LOOPER ARM B ASM. 1 121-22800 UPPER LOOPER ARM B (1) SS-9151210-TP SCREW 15/64-28 L=11,8 (1) 121-76004 UPPER LOOPER 1 118-88104 UPPER LOOPER 1 119-99208 UPPER LOOPER 1 118-33506 LOWER LOOPER THREAD TAKE-UP 1 121-24004 THREAD TAKE-UP, RIGHT 1 SS-7110840-SP SCREW 11/64-40 L=7,8 1 SS-6080410-SP SCREW 1/8-44 L=4 1 118-31906 PIN 1 118-31807 GAUGE 1 119-91809 GAUGE 1 RO-0371801-00 RUBBER RING 1 121-23907 THREAD GUIDE, RIGHT 1 SS-3090610-SP SCREW 9/64-40 L=6 1 121-23808 LOOPER THREAD TAKE-UP COVER 2 SM-4040655-SP SCREW 1 118-33407 LOWER LOOPER THREAD GUIDE 1 SS-3090610-SP SCREW 9/64-40 L=8 1 121-23667 TRAVELING NEEDLE GUARD 1 SS-9090610-TP SCREW 3/32-56 L= 3.5 1 B2530-704-000 LOWER LOOPER 1 SS-6090630-SP SCREW 1 118-33100 LOOPER THREAD TAKE-UP, LEFT 1 SS-7090850-SP SCREW 11/64-40 L=7.8 1 118-90001 LOWER LOOPER SUPPORT ARM ASM. 1 SS-6060440-TP LOWER LOOPER SUPPORT ARM 1 119-99307 SPRING PIN 3X6 1 SS-6090620-TP WASHER 1 121-24103 SCREW 15/64-28 L=11.8 1 SS-7110840-SP OIL SEAL 1 121-23550 LOWER LOOPER SHAFT 1 121-23501 THRUST COLLAR ASM. D=10.32 W=1 2 PS-0300062-KH SCREW 1/4-40 L=6 (2) B2531-704-000 SCREW 9/64-40 L=6 1 SS-9151210-TP COLLAR 1 B2503-704-000 SCREW 9/64-40 L=5.5 1 121-23410 #06...FOR MO-3904,MO-3916 1 CS-1031210-SH 1 SS-8660610-TP 1 SS-6090630-TP 1 121-24608 1 SS-9090610-TP NOTE (注記) - 14 - jintex.in
Page 18 — 8. CHAIN LOOPER COMPONENTS(FOR MO-3916)
8. CHAIN LOOPER COMPONENTS(FOR MO-3916)
二重環ルーパ関係(MO-3916用)
REF. NO. NOTE
PART NO.
DESCRIPTION
Qty.
1
118-29900
CHAIN LOOPER SLIDE ARM
*** マチガ イインバン ***
1
2
SS-7111120-TP
SCREW
1
3
118-29751
CHAIN LOOPER SLIDE BLOCK PIN
ニジ ユウカンクコ マビレクミ
1
4
B2105-816-000
CHAIN LOOPER SLIDE BLOCK
ニジ ユウカンクコ マタキ
(1)
5
WP-0612066-SP
WASHER 6.1X11X2
ヒラガネ 6.1X11X2
1
6
WP-0450846-SP
WASHER
ヒラガネ
1
7
B2102-816-000-A
CHAIN LOOPER ROD (25MM)
ニジ ユウカン ロッド
1
8
SD-0720803-TH
STEP SCREW D= 7.24 H=8
ダンネジ
1
9
B2119-816-000
BEARING B
ニジ ユウカン ロツド ベアリング B
1
10
121-20466
BRACKET ASM.
ニジ ユウカンクコ マタキ クミ
1
11
121-20416
BRACKET
ニジ ユウカンクコ マタキ
(1)
12
SM-6051202-TP
SCREW M5X0.8 L=12
ロクカクアナボルト M5X0.8 L=12
(1)
13
B2111-716-000
BUSHING, REAR
ニジ ユウカンクシ ウシロメタル
1
14
121-20507
CHAIN LOOPER SHAFT
ニジ ユウカン シャフト
1
15
115-39061
CHAIN LOOPER SHAFT DRIVING ARM
ニジ ユウカン シャフト ドライブアーム
1
16
115-39012
CHAIN LOOPER SHAFT DRIVING ARM
ニジ ユウカン シャフト ドライブアーム
(1)
17
SM-6051202-TP
SCREW M5X0.8 L=12
ロクカクアナボルト M5X0.8 L=12
(1)
18
SS-4080610-SP
SCREW 1/8-44 L=6.4
ナベネジ 1/8-44 L=6.4
2
19
SD-0720332-SP
HINGE SCREW D= 7.24 H= 3.3
ダンネジ D= 7.24 H=3.3
1
20
118-29801
CHAIN LOOPER SHAFT DRIV. LINK
ニジ ユウカン シャフト ドライブリンク
1
21
SS-6090920-SP
SCREW
ヒラネジ
1
22
121-21612
DRIVING BALL ARM BRACKET
シタボール・タマダキ
1
23
SS-6110710-TP
SCREW 11/64-40 L=6.5
ニジ ユウカンクコ クマエメタル
3
24
121-22008
BUSHING, FRONT
ニジ ユウカンクコ マエ
1
25
B2525-352-000
OIL SEAL RING
ルースジク オイルシール
1
26
121-20705
CHAIN LOOPER
ニジ ユウカン ルーパ
1
27
SS-6090620-TP
SCREW
ヒラネジ
1
28
121-21554
CHAIN LOOPER DRIVING ARM ASM.
ニジ ユウカン シャフト ドライブアーム ウデ クミ
1
29
121-21513
CHAIN LOOPER DRIVING ARM
ニジ ユウカン シャフト ドライブアーム
(1)
30
SS-9151210-TP
SCREW 15/64-28 L=11.8
ロクカクアナボルト 15/64-28
(1)
31
B2531-704-000
WASHER
シジ ウデ ワッシャー
(1)
32
PS-0250062-KH
SPRING PIN 2.5X6
スプリング ピン 2.5X6
(1)
33
#01
122-58208
PIN, LONG
ニジ ユウカンヨウド ウピン (チョウ)
1
34
#01
122-58307
PIN, LONG
ニジ ユウカンヨウド ウピン (チョウ)
1
35
#01
122-58406
PIN, LONG
ニジ ユウカンヨウド ウピン (チョウ)
1
36
#01
122-58505
PIN, LONG
ニジ ユウカンヨウド ウピン (チョウ)
1
37
#01
122-58604
PIN, LONG
ニジ ユウカンヨウド ウピン (チョウ)
1
38
#01
122-58703
PIN, SHORT
ニジ ユウカンヨウド ウピン (タン)
1
39
#01
122-58802
PIN, SHORT
ニジ ユウカンヨウド ウピン (タン)
1
40
#01
122-59008
PIN, SHORT
ニジ ユウカンヨウド ウピン (タン)
1
41
#01
122-59107
PIN, SHORT
ニジ ユウカンヨウド ウピン (タン)
1
42
#01
122-59107
PIN, SHORT
ニジ ユウカンヨウド ウピン (タン)
1
NOTE (注記)
#01..., SELECTING PART FOR FIT TOLERANCE
選択かん合部品
- 15 -
jintex.in
Page 19 — 9. PRESSER FOOT COMPONENTS(1)
9. PRESSER FOOT COMPONENTS(1)
押さえ関係(1)
REF. NO NOTE PART NO. DESCRIPTION Qty
1 121-15069 PRESSER LIFTING LEVER BASE ASM (1)
2 121-15002 FOOT LIFTING LEVER STAND (1)
3 121-15119 PRESSER FOOT LIFTING LEVER (1)
4 121-15200 STOPPER (1)
5 SS-7110510-SP SCREW 11/64-40 L=5 (2)
6 SD-0640241-SP HINGE SCREW D= 6.35 H= 2.4 (1)
7 PS-0300142-KH SPRING PIN 0.3 X 14 (1)
8 121-15309 SPRING (1)
9 SS-6080340-SP SCREW 1/8-44 L=2.9 (1)
10 SS-4110715-SP SCREW 11/64-40 L=7 2
11 121-14716 PRESSER REGULATOR SCREW
12 121-15903 PRESSER SPRING
13 121-14807 PRESSER REGULATOR NUT
14 121-14609 PRESSER REGULATOR SCREW WASHER
15 SM-8040402-TP SCREW M4X0.7 L=4
16 RO-1100901-00 RUBBER RING
17 121-14906 PRESSER BAR COVER
18 RO-1100901-00 RUBBER RING
19 121-14302 PRESSER BAR BUSHING
20 121-14468 PRESSER BAR ASM.
21 SS-8110520-TP SCREW 11/64-40 L=4.5
22 B1534-804-000 PRESSER FOOT ARM HINGE SHAFT
23 121-13205 PRESSER FOOT SHAFT
24 121-13304 BUSHING
25 SS-4121215-SP SCREW 3/16-28 L=12
26 118-19414 LIFTING HOOK
27 SM-6061200-SP SCREW
28 NM-6060003-SC NUT M6
29 118-19703 PRESSER FOOT ARM SPRING
30 121-13502 LIFTING ARM
31 SS-6110710-TP SCREW 11/64-40 L=6.5
32 121-13858 PRESSER FOOT SHAFT THRUST ASM.
33 121-13403 LIFTING ARM
34 SS-9151210-TP SCREW 1/4-24 L=9.5
35 SS-7161040-SP SCREW 1/4-24 L=9.5
36 118-19315 LIFTING LEVER
37 118-19109 LIFTING LEVER SCREW
38 118-19208 LIFTING LEVER SPRING
39 NS-6110420-SP NUT 11/64-40
40 SS-7111410-SP SCREW 11/64-40 L=14
41 B1529-804-000 PRESSER FOOT LIFTING LEVER STO
- 16 -
jintex.in
Page 20 — 10. PRESSER FOOT COMPONENTS(2)
10. PRESSER FOOT COMPONENTS(2)
押さえ関係 (2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
- 17 -
jintex.in
Page 21
REF. NO. NOTE PART NO. D E S C R I P T I O N ヒン メイ Qty
1 122-53811 PRESSER FOOT ARM オサエウデ 1
2 B1528-804-000-A THREAD TRIMMER イトキリバ 1
3 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネシ 3/32-56 L=4.8 1
4 #01 118-76166 PRESSER FOOT ASM. オサエ クミ 1
5 118-72009 PRESSER FOOT HINGE オサエヒンジ 1
6 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネシ 9/64-40 L=6 (1)
7 B1530-804-000 STOPPER オサエ ストツパー (1)
8 WP-0250516-SD WASHER 2.5X6X0.5 ヒラガネ 2.5X6X0.5 (1)
9 SS-7060510-SP SCREW 3/32-56 L=5.5 マルヒラネシ 3/32-56 L=5.5 (1)
10 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネシ 3/32-56 L=1.9 (1)
11 B1511-814-000 REAR PRESSER FOOT カラカンドメ (1)
12 B1507-804-C00 PRESSER FOOT オサエ (1)
13 SS-7080520-SP SCREW 1/8-44 L=4.9 マルヒラネシ 1/8-44 L=4.9 (1)
14 B1508-804-00B SPRING オサエ トリツケバネ (1)
15 B1509-804-C00 STITCH TONGUE イトスペリダイ (1)
16 SS-6060440-TP SCREW 3/32-56 L=3.5 ヒラネシ (1)
17 B1510-814-000 CURL GUARD カラードメ (1)
18 118-20701 FINGER GUARD ユビガード (1)
19 #02 121-52468 PRESSER FOOT.,(FINGER GUARD). オサエユビガードツキ 1
20 118-72009 PRESSER FOOT HINGE オサエヒンジ (1)
21 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネシ 9/64-40 L=6 (1)
22 B1530-804-000 STOPPER オサエ ストツパー (1)
23 WP-0250516-SD WASHER 2.5X6X0.5 ヒラガネ 2.5X6X0.5 (1)
24 SS-7060510-SP SCREW 3/32-56 L=5.5 マルヒラネシ 3/32-56 L=5.5 (1)
25 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネシ 3/32-56 L=1.9 (1)
26 B1511-814-000 REAR PRESSER FOOT カラカンドメ (1)
27 B1507-814-00P PRESSER FOOT オサエ (1)
28 SS-7080520-SP SCREW 1/8-44 L=4.9 マルヒラネシ 1/8-44 L=4.9 (1)
29 B1508-804-00B SPRING オサエ トリツケバネ (1)
30 121-60008 STITCH TONGUE イトスペリダイ (1)
31 SS-6060440-TP SCREW 3/32-56 L=3.5 ヒラネシ (1)
32 B1510-814-000 CURL GUARD カラードメ (1)
33 118-20701 FINGER GUARD ユビガード (1)
34 #04 121-53763 PRESSER FOOT ASM. オサエ (1)
35 121-56907 PRESSER FOOT HINGE (1)
36 SS-6090650-SP SCREW 9/64-40 L=6 (1)
37 121-64802 REAR PRESSER FOOT (1)
38 121-67805 SPRING, FOR REAR PRESSER FOOT (1)
39 B1513-816-000 NUT, FOR REAR PRESSER FOOT (1)
40 121-67409 HINGE PIN (1)
41 121-62202 PRESSER FOOT (1)
42 121-67607 PRESSER FOOT ARM SPRING (1)
43 121-67508 HINGE SCREW (1)
44 SS-6060340-SP SCREW 3/32-56 L=2.5 ヒラネシ 3/32-56 L=2.5 (1)
45 B1514-816-000 SCREW (1)
46 121-67706 PRESSER FOOT オサエユビガードツキ (1)
47 121-15408 FINGER GUARD スノオサエ (1)
48 #05 B1539-804-000 PRESSER FOOT FIXING PLATE ユビガード (1)
49 #05 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラガネ ユビテイタ (1)
50 #03 118-76869 PRESSER FOOT ASM. オサエクミ 1
51 118-72009 PRESSER FOOT HINGE オサエヒンジ (1)
52 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネシ 9/64-40 L=6 (1)
53 B1530-804-000 STOPPER オサエ ストツパー (1)
54 WP-0250516-SD WASHER 2.5X6X0.5 ヒラガネ 2.5X6X0.5 (1)
55 SS-7060510-SP SCREW 3/32-56 L=5.5 マルヒラネシ 3/32-56 L=5.5 (1)
56 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネシ 3/32-56 L=1.9 (1)
57 B1511-814-000 REAR PRESSER FOOT カラカンドメ (1)
58 B1507-814-00P PRESSER FOOT オサエ (1)
59 SS-7080520-SP SCREW 1/8-44 L=4.9 マルヒラネシ 1/8-44 L=4.9 (1)
60 B1508-804-00B SPRING オサエ トリツケバネ (1)
61 B1509-814-00P STITCH TONGUE イトスペリダイ (1)
62 SS-6060440-TP SCREW 3/32-56 L=3.5 ヒラネシ (1)
63 B1510-814-000 CURL GUARD カラードメ (1)
64 118-20701 FINGER GUARD ユビガード (1)
NOTE (注記) #01...FOR MO-3904 MO-3904国内用
#02...FOR MO-3914(FOR EXPORT) MO-3914輸出用
#03...FOR MO-3916 MO-3916
#04...SPECIAL ORDER PART(FOR MO-3904, 特別注文部品(MO-3904,
MO-3914) MO-3914用)
- 18 -
jintex.in
Page 22 — 11. THREAD TENSION COMPONENTS
11. THREAD TENSION COMPONENTS
糸調子関係
MO-3914
76
32
50
41
MO-3904
29
32
41
50
MO-3916
30
32
41
50
1
2
3
5
4
13
12
6
11
10
9
8
7
75
16
17
19
15
27
74
22
21
23
18
24
25
26
28
70
64
59
61
60
62 63
39 48 57
37 46 55
40 49 58
35 44 53
33 42 51
38 47 56
36 45 54
34 43 52
31
66
69
68
71
65
32 41 50
72
- 19 -
jintex.in
Page 23
REF. NO NOTE PART NO. DESCRIPTION HIN MEI Qty
1 #01 SM-4050855-SP SCREW 1
2 #01 B3113-352-000 MOUNTING BRACKET 1
3 #01 B2401-816-000 LOOPER THREAD GUIDE TUBE 1
4 #01 B2402-716-000 LOOPER THREAD GUIDE TUBE GUIDE 1
5 #01 SS-5150510-SP SCREW 15/64-28 L=5 1
6 #01 115-50852 TENSION CONTROLLER ASM. 1
7 B2314-019-000 TENSION POST NUT (1)
8 B3120-125-000 ROTATING STOPPER (1)
9 B2017-372-000 TENSION SPRING NO.I (1)
10 B3126-012-000 THREAD TENSION DISK (2)
11 B3120-352-000 THREAD TENSION SPRING FELT (1)
12 115-50803 THREAD TENSION POST (1)
13 115-50308 THREAD GUIDE (1)
14 #01 121-20903 THREAD GUIDE A (1)
15 #01 SS-4090415-SP SCREW 9/64-40 L=4 3
16 #01 121-21000 THREAD GUIDE B 1
17 #01 121-20804 THREAD GUIDE BASE 1
18 121-21109 THREAD GUIDE HOOK 1
19 SD-0600341-TP HINGE SCREW D=6.0 H=3.4 1
20 PS-0200052-KH SPRING PIN 2.3X5 1
21 #01 B2201-816-000 THREAD CAM 1
22 #01 B2202-816-000 SHAFT 1
23 #01 SS-8110410-TP SCREW 11/64-40 L= 3.5 2
24 #01 121-21208 THREAD GUIDE 1
25 #01 SS-4110515-SP SCREW 11/64-40 L=5 1
26 #01 121-21307 THREAD GUIDE SPRING 1
27 WZ-0640312-KO WAVED WASHER 1
28 SS-4090415-SP SCREW 9/64-40 L=4 1
29 #01 121-80162 THREAD GUIDE PLATE ASM. 1
30 #01 121-80261 THREAD GUIDE PLATE ASM. 1
31 121-26207 THREAD GUIDE PLATE (2)
32 121-26967 KNOB ASM., YELLOW (1)
33 121-26918 KNOB, YELLOW (1)
34 B3112-704-000 TENSION SPRING BUSHING (1)
35 B3101-804-000 TENSION SPRING, RED (1)
36 121-26702 TENSION DISK PRESSER (1)
37 B3112-704-000 THREAD TENSION SPRING FELT (1)
38 B3126-012-000 THREAD TENSION DISK (2)
39 B3120-352-000 THREAD TENSION SPRING FELT (1)
40 121-26405 THREAD TENSION BAR (1)
41 121-26868 KNOB ASM., BLUE (1)
42 121-27064 KNOB, BLUE (1)
43 B3112-704-000 TENSION SPRING BUSHING (1)
44 B3101-804-000 TENSION SPRING, BLUE (1)
45 121-26702 TENSION DISK PRESSER (1)
46 B3112-704-000 THREAD TENSION SPRING FELT (1)
47 B3126-012-000 THREAD TENSION DISK (2)
48 B3120-352-000 THREAD TENSION SPRING FELT (1)
49 121-26405 THREAD TENSION BAR (1)
50 121-27064 KNOB ASM., RED (1)
51 121-27015 KNOB, RED (1)
52 B3112-704-000 TENSION SPRING BUSHING (1)
53 B3103-804-000 TENSION SPRING, BLUE (1)
54 121-26702 TENSION DISK PRESSER (1)
55 B3112-704-000 THREAD TENSION SPRING FELT (1)
56 B3126-012-000 THREAD TENSION DISK (2)
57 B3120-352-000 THREAD TENSION SPRING FELT (1)
58 121-26405 THREAD TENSION BAR (1)
59 121-27403 SCALE SHAFT (1)
60 121-27502 SCALE SHAFT PIN (1)
61 121-27601 GEAR (1)
62 121-27700 SCALE GEAR (1)
63 121-27809 GEAR SHAFT (1)
64 121-27957 SCALE CASE ASM. (1)
65 121-26504 NEEDLE THREAD GUIDE (1)
66 121-28202 SCALE SIDE PLATE (1)
67 121-28302 THREAD LOOPER GUIDE (1)
68 #02 TA-0620504-RO CAP (1)
69 SS-2090830-SL SCREW (1)
70 NS-6090310-SP NUT 9/64-40 (1)
71 SS-7110740-TL SCREW 11/64-40 L= 7.0 (1)
72 SM-4041455-SN SCREW M4 L=14 2
73 PS-0300132-KH SPRING PIN 3X13 1
74 SS-7110910-TP SCREW 11/64-40 L= 8.5 1
75 121-26108 CENTER THREAD GUIDE (1)
76 #03 121-80659 THREAD GUIDE PLATE ASM. 1
NOTE (注記)
#01...FOR MO-3916 MO-3916用
#02...FOR MO-3904 MO-3904用
#03...FOR MO-3914 MO-3914用
- 20 -
jintex.in
Page 24 — 12. LOWER KNIFE COMPONENTS
12. LOWER KNIFE COMPONENTS
下メス関係
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
- 21 -
jintex.in
Page 25
REF. NO NOTE PART NO. D E S C R I P T I O N Qty.
1 SS-2110910-SL SCREW 11/64-40 L=9 マルサラネジ 11/64-40 L=8.5 2
2 #01 R4200-JOE-DAO THROAT PLATE ASM. ハリイタ(クミ) 1
3 R4200-JOE-DOO THROAT PLATE ハリイタ (1)
4 118-06304 PLUG ハリイタフタ (2)
5 #02 R4305-JOE-EAO THROAT PLATE ASM. ハリイタ(クミ) 1
6 R4305-JOE-EOO THROAT PLATE ハリイタ 1
7 118-06304 PLUG ハリイタフタ (2)
8 #03 R4508-JOE-DAO THROAT PLATE ASM. ハリイタ(クミ) 1
9 R4508-JOE-DOO THROAT PLATE ハリイタ 1
10 118-06304 PLUG ハリイタフタ (2)
11 118-04408 THROAT PLATE BASE B RETAINER ハリイタダイB サエ 1
12 SM-4051055-SP SCREW ナベネジ 2
13 #04 121-33658 LOWER KNIFE BRACKET ASM. シタメストリツクタイ(クミ) 1
14 #03 121-33666 LOWER KNIFE BRACKET ASM. シタメストリツクタイ(クミ) 1
15 121-33211 SPRING STOPPER シタメス・ストツプ・タイ (1)
16 118-06304 PLUG ハリイタフタ (1)
17 SS-7110720-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1)
18 118-46607 SPRING シタメス・スライド・ジク・ハネ (1)
19 121-32619 LOWER KNIFE BRACKET シタメストリツクタイ (1)
20 121-02208 THROAT PLATE BASE A ハリイタダイ A (1)
21 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 (2)
22 121-03701 RUBBER PLUG B ヌノダイ・ボウシンゴム A B (1)
23 121-03602 RUBBER PLUG A ヌノダイ・ボウシンゴム A A (1)
24 #04 121-32700 LOWER KNIFE SLIDE STUD シタメス・スライド・ジク (1)
25 SS-9111010-SP SCREW 11/64-40 L=9.5 ロツカクボルト 11/64-40 L=9.5 (1)
26 121-33104 LEVER SHAFT ASM. シタメス オサエ (1)
27 121-02810 LEVER SHAFT ヌノダイ・カイヘイレー・クミ (1)
28 #04 121-32908 ROTATING STOPPER シタメス・スライド・ジク・マサリド・メ (1)
29 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 (2)
30 #03 121-32809 LOWER KNIFE SLIDE STUD シタメス・スライド・ジク (1)
31 #03 121-33005 ROTATING STOPPER シタメス・スライド・ジク・マサリド・メ (1)
32 121-33708 HOLDER PIN ハリウケサエピン (3)
33 121-03107 RUBBER PLUG カイヘイレー・ボウシン・アツシユ (1)
34 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 (1)
35 121-02950 LEVER ASM. ヌノダイ・カイヘイレー・クミ (1)
36 118-02006 LEVER SPRING ヌノダイ・カイヘイレー・ハネ (1)
37 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 2
38 118-47902 THROAT PLATE BASE B ハリイタダイ B 1
39 118-46003 LOWER KNIFE シタメス 1
40 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 2
41 118-47100 NEEDLE GUARD HOLDER ハリウケサエ 1
42 #01 118-90100 NEEDLE GUARD ハリウケ 1
43 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1
44 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 1
45 #02 118-90308 NEEDLE GUARD ハリウケ 1
46 #03 120-15301 NEEDLE HOLDER ハリウケ 1
47 #03 120-15400 NEEDLE HOLDER ハリウケ 1
48 #03 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネジ 3/32-56 L=4.8 2
49 #03 121-77903 NEEDLE HOLDER ハリウケ 1
50 #03 SS-7090510-SP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 1
NOTE (注記) #01...FOR MO-3904 MO-3904用
#02...FOR MO-3914 MO-3914用
#03...FOR MO-3916 MO-3916用
#04...FOR MO-3904,MO-3914 MO-3904,MO-3914用
- 22 -
jintex.in
Page 26 — 13. UPPER KNIFE COMPONENTS
13. UPPER KNIFE COMPONENTS
上メス関係
REF. NO.
NOTE
PART NO.
DESCRIPTION
Qty
1
#01
118-23804
CRANK PIN C
1
2
121-32262
FEED FORKED ARM ASM.
1
3
121-32213
UPPER KNIFE DRIVING ARM
1
4
SM-6061202-TP
SCREW M6 L=12
(1)
5
121-32502
BUSHING, REAR
(1)
6
CS-111101K-SH
COLLAR ASM. B=11.11 W=10
1
7
SS-8660330-SP
SCREW 1/4-40 L=3.0
(1)
8
121-32304
KNIFE DRIVING ARM SHAFT
1
9
#06
SS-4060310-SP
SCREW 3/32-56 L=2.5
1
10
115-65801
UPPER KNIFE GUIDE SHAFT
1
11
115-66809
OIL SEAL
1
12
121-32403
BUSHING, FRONT
1
13
#02
SS-6111040-SP
SCREW 11/64-40 L=9.5
1
14
#02
121-33302
UPPER KNIFE SUPPORT A
1
15
#02
118-45609
KNIFE
1
16
#07
SS-9090813-TP
SCREW 9/64-40 L=8
1
17
#07
WP-0370316-SD
WASHER 3.7X8X0.3
1
18
#03
118-45708
KNIFE
1
19
#03
121-33401
UPPER KNIFE SUPPORT
1
20
#03
SS-6111610-SP
SCREW 11/64-40 L=16
1
21
#04
115-98000
UPPER KNIFE SUPPORT
1
22
#04
118-45807
KNIFE
1
23
#06
115-65702
WASHER
1
24
#06
SS-4060310-SP
SCREW 3/32-56 L=2.5
1
25
#06
115-65504
UPPER KNIFE PRESSER PLATE
1
26
#06
118-48405
UPPER KNIFE COVER
1
27
#04
SS-9111610-SP
SCREW 11/64-40 L=16
1
28
#05
118-45500
UPPER KNIFE SUPPORT
1
29
#05
118-45906
UPPER KNIFE
1
30
#05
SS-9112310-SP
SCREW 11/64-40 L=23
1
NOTE (注記)
#01...SELECTING PART FOR FIT TOLERANCE
#02...MO-3914 (FOR DOMESTIC USE)
#03...MO-3904,MO-3914 (FOR EXPORT)
#04...MO-3904,MO-3914 (FOR EXPORT)
#05...FOR EXPORT
#06...FOR DOMESTIC USE
選択かん合部品
MO-3914国内用
MO-3904, 3914輸出用
MO-3904, 3914輸出用
輸出用
国内用
- 23 -
jintex.in
Page 27 — 14. NEEDLE COOLING MECHANISM COMPONENTS
14. NEEDLE COOLING MECHANISM COMPONENTS
針冷却装置関係
1
2
5
4
3
10
12
7
13
9
8
28
27
29
30
31
14
15
20
22
16
17
24
19
23
25
26
REF. NO
NOTE
PART NO.
DESCRIPTION
Qty.
1
#01
118-55954
NEEDLE COOLER UNIT ASM. (OVER)
1
2
118-55970
NEEDLE COOLER UNIT ASM. (OVER)
(1)
3
118-55905
NEEDLE COOLER (OVER)
(1)
4
118-56101
NEEDLE COOLER PIN
(1)
5
118-56200
NEEDLE COOLER FELT
(1)
6
BT-0700500-EA
TUBE
(0.1)
7
118-56507
TANK COVER
(1)
8
SS-4091015-SP
SCREW 9/64-40 L=10
(1)
9
WP-0371026-SD
WASHER 3.7X7X1
(1)
10
118-56309
SUPPORT
(1)
11
SS-7090610-SP
SCREW 9/64-40 L=6
(1)
12
SS-7110840-SP
SCREW 11/64-40 L=7.8
(1)
13
118-56408
TANK
(1)
14
#02
118-56051
NEEDLE COOLER UNIT ASM. (INTER)
1
15
118-56077
NEEDLE COOLER ASM. (INTER)
(1)
16
118-56002
NEEDLE COOLER (INTER)
(1)
17
118-56101
NEEDLE COOLER PIN
(1)
18
118-56200
NEEDLE COOLER FELT
(1)
19
BT-0700500-EA
TUBE
(0.1)
20
118-56309
SUPPORT
(1)
21
SS-7090610-SP
SCREW 9/64-40 L=6
(1)
22
SS-7110840-SP
SCREW 11/64-40 L=7.8
(1)
23
118-56408
TANK
(1)
24
118-56507
TANK COVER
(1)
25
SS-4091015-SP
SCREW 9/64-40 L=10
(1)
26
WP-0371026-SD
WASHER 3.7X7X1
(1)
27
SM-4040855-SP
SCREW
1
28
121-38400
PRESSER
1
29
121-38152
SILICON TANK ASM.
1
30
121-38301
FELT
1
31
TA-0950806-R0
RUBBER PLUG
1
NOTE (注記)
#01...FOR MO-3904, MO-3914
MO-3904, MO-3914用
#02...FOR MO-3916
MO-3916用
- 24 -
jintex.in
Page 28 — 15. LUBRICATION MECHANISM COMPONENTS
15. LUBRICATION MECHANISM COMPONENTS
給油装置関係
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
- 25 -
jintex.in
Page 29
REF. NO
NOTE
PART NO.
D E S C R I P T I O N
Qty.
1
118-43208
CARTRIDGE FILTER
カートリツシ・フイルター
1
2
121-29706
FILTER GUIDE
フイルターガイド
1
3
RO-2182401-00
RUBBER RING
Oリング
1
4
TA-0290301-MO
PLUG 2.9X3.2X3
トメセン D=2.9X3.2 L=3
2
5
SM-4051601-SC
SCREW M5X0.8 L=16
ナベコネジ M5X0.8 L=16
1
6
SQ-1110451-MZ
CONNECTING SCREW
パイプレンケツネシ
2
7
SQ-1150451-MZ
CONNECTING SCREW
チユーフレンケツネシ
1
8
BT-0500300-EG
OIL TUBE
チユーブ
0.2
9
101-26803
OIL TUBE HOLDER
パイプドメ
2
10
BT-0500300-EA
OIL TUBE
ウレタンチユーブ
0.3
11
BT-0500300-EA
OIL TUBE
ウレタンチユーブ
0.16
12
SQ-0000451-MZ
CONNECTING SCREW
パイプレンケツネシ
1
13
SQ-1150441-SD
CONNECTING SCREW
パイプレンケツネシ
1
14
SQ-1150454-SD
CONNECTING SCREW
パイプレンケツネシ
2
15
121-29458
OIL PIPE ASM.
キユウユパイプ クミ
1
16
121-29102
WORM
ウオーム
1
17
121-29250
OIL PUMP ASM.
キユウユポンプ タイケザゴウ
1
18
SQ-1110451-MZ
CONNECTING SCREW
パイプレンケツネシ
(1)
19
SS-4110615-SP
SCREW 11/64-40 L=6
ナベコネジ 11/64-40 L=6
(2)
20
NS-6110310-SP
NUT 11/64-40
ロツカクアナツト 11/64-40
(1)
21
121-29318
CONNECTING SCREW BRACKET
ウオームトシユツクチサエ
(1)
22
118-41707
WORM GEAR
ウオームハク・ルマ
(1)
23
SS-8110410-TP
SCREW 11/64-40 L= 3.5
トメネジ 11/64-40 L=3.5
(2)
24
118-41896
GEAR PUMP SHAFT, LARGE
ギヤポンプシク・タイ
(1)
25
118-40303
OIL PUMP PINION
ポンプ ヨウ ピニオン
(2)
26
118-40402
GEAR PUMP SHAFT
ギヤポンプシヤフトシヨー
(1)
27
121-29201
OIL PUMP
キユウユポンプ タイ
(1)
28
118-43406
COVER
ポンプ シフタ
(1)
29
SS-6090650-SP
SCREW 9/64-40 L=6
ヒラネシ・9/64-40 L=6
(3)
30
SM-6061802-TP
SCREW M6 L=18
ロツカクアナボルト
2
31
WP-0651056-SD
WASHER 6.5X11X1
ヒラザガネ 6.5X11X1
2
32
121-30100
OIL GAUGE
オイルゲージ
1
33
121-30209
RUBBER PACKING
オイルゲージ・パツキン
1
34
SM-4050855-SP
SCREW
ナベネジ M5 L=8
1
35
122-55907
OILING EXIT SUPPORT
トシユツクチサエ
1
36
NS-6110310-SP
NUT 11/64-40
ロツカクアナツト 11/64-40
1
37
SQ-1110451-MZ
CONNECTING SCREW
パイプレンケツネシ
1
38
121-29854
FLOAT ASM.
ウキヨ クミ
1
39
121-29904
OIL GAUGE BAR
ユリヨウシジ・ボウ
(1)
40
121-30001
FLOAT SUPPORT
ウキヨサエ
(1)
41
121-29805
FLOAT
ウキヨ
(1)
42
SM-4060801-SE
SCREW
ナベネジ
1
43
121-30803
OIL FELT
ウエルーバー・キユウユフエルト
1
44
121-30704
FELT HOLDER
ウエルーバー・キユウユフエルト オサエ
1
45
SS-7060310-SP
SCREW 3/32-56 L=3
マルヒラネシ・3/32-56 L=3
1
46
CQ-2020000-00
OIL WICK
ユシン
0.1
47
SM-8050402-TP
SCREW
トメネジ
1
48
121-30308
OILING PIN
ハリ キユウユコピン
1
49
121-30407
OIL FELT
ハリ キユウユコピン フエルト
1
50
TA-0400301-MO
PLUG D=4X4.5 L=3
トメセン D=4X4.5 L=3
1
51
121-30506
OILING PIN
ウエルーバー・キユウユコピン
1
52
121-30605
OIL FELT
ウエルーバー・キユウユコピン フエルト
1
53
TA-0400301-MO
PLUG D=4X4.5 L=3
トメセン D=4X4.5 L=3
1
54
SS-6121020-SP
SCREW 3/16-28 L= 9.5
ヒラネシ・3/16-28 L=9.5
1
- 26 -
jintex.in
Page 30 — 16. SEMI-SUNKEN TYPE TABLE COMPONENTS
16. SEMI-SUNKEN TYPE TABLE COMPONENTS
卓上式テーブル関係
2.3
REF. NO
NOTE
PART NO.
DESCRIPTION
Qty.
1
119-59400
TABLE (SEMI-SUNKEN)
1
2
119-66702
BOLT A
4
3
115-71601
BOLT A
4
4
119-60150
CLOTH WASTE CHUTE ASM. (BENCH)
(1)
5
119-60101
CLOTH WASTE CHUTE, UPPER (BENCH)
(1)
6
119-60002
CLOTH WASTE CHUTE, LOWER (BENCH)
3
7
SK-2351600-SC
WOOD SCREW D=3.5 L=16
5
8
SS-6090630-SP
SCREW 9/64-40 L=6
2
9
#03
SS-5110710-SP
SCREW 11/64-40 L=7
3
10
#03
SK-2351600-SC
WOOD SCREW D=3.5 L=16
1
11
118-50815
CASE SPONGE
1
12
118-49411
COOLING FAN CASE
4
13
115-71403
RUBBER CUSHION
4
14
118-49601
SPACER
1
15
118-49361
FRAME SUPPORT PLATE ASM.
4
16
WP-1102016-SC
WASHER 11X21X2
4
17
WS-1002560-KR
SPRING WASHER 10X18X2.5
4
18
NS-6240630-SN
NUT 3/8-18
1
19
111-55108
DRAWER
2
20
111-55207
DRAWER SUPPORT
6
21
SK-3311500-SC
WOOD SCREW D=3.1 L=15
1
22
D8204-555-D00
DRAWER STOPPER
(1)
23
#03
121-35554
CLOTH WASTE CHUTE ASM.
(1)
24
121-35505
CLOTH WASTE CHUTE SUPPORT
(3)
25
119-62800
CLOTH WASTE CHUTE INLET
(1)
26
119-62909
CLOTH WASTE CHUTE, UPPER
(1)
27
SS-5090610-SP
SCREW 9/64-40 L=6
(3)
28
NS-6090310-SP
NUT 9/64-40
1
29
119-60002
CLOTH WASTE CHUTE, LOWER(BENCH)
NOTE (注記)
#01...FOR DOMESTIC USE
#02...FOR EXPORT
#03...FOR JE
国内用
輸出用
JE用
- 27 -
jintex.in
Page 31 — 17. FULLY-SUNKEN TYPE TABLE COMPONENTS
17. FULLY-SUNKEN TYPE TABLE COMPONENTS
全沈式テーブル関係
REF. NO. NOTE
PART NO.
D E S C R I P T I O N
Qty.
1
119-59558
TABLE ASM.
2
115-71809
BOLT C
3
115-71908
BOLT D
4
WP-1102016-SC
WASHER 11X21X2
5
WS-1002560-KR
SPRING WASHER 10X18X2.5
6
NS-6240630-SR
NUT 3/8-18
7
115-71403
RUBBER CUSHION
8
118-49379
FRAME SUPPORT PLATE ASM.
9
118-49361
FRAME SUPPORT PLATE ASM.
10
118-50906
FRAME SUPPORT AUXILIARY PLATE
11
SM-9082513-CF
SCREW M8 L=25
12
NM-6080600-SM
NUT M8
13
WP-0850002-SC
WASHER 8.5X18X1.6
14
119-60259
CLOTH CHUTE ASM.
15
119-60200
CLOTH WASTE CHUTE
16
ST-6030821-OA
SCREW D=3-24 L=8
17
118-50401
CLOTH WASTE CHUTE INLET LEVER
18
119-60309
CLOTH WASTE CHUTE HOLE
19
SS-6090420-SP
SCREW 9/64-40 L=4.0
20
118-50609
RUBBER
21
118-50500
SPRING
22
WP-0370316-SD
WASHER 3.7X8X0.3
23
ST-6030821-OA
SCREW D=3-24 L=8
24
SS-5110710-SP
SCREW 11/64-40 L=7
25
118-49411
COOLING FAN CASE
26
118-50815
CASE SPONGE
27
201
SS-5110710-SP
SCREW 11/64-40 L=7
28
201
SK-2351600-SC
WOOD SCREW D=3.5 L=16
29
SS-6090630-SP
SCREW 9/64-40 L=6
30
111-55108
DRAWER
31
111-55207
DRAWER SUPPORT
32
SK-3311500-SC
WOOD SCREW D=3.1 L=15
33
D8204-555-D00
CLOTH WASTE CHUTE ASM.
34
121-35554
CLOTH WASTE CHUTE SUPPORT
35
121-35505
CLOTH WASTE CHUTE, UPPER
36
119-62800
CLOTH WASTE CHUTE, UPPER
37
SS-5090610-SP
SCREW 9/64-40 L=6
38
NS-6090310-SP
NUT 9/64-40
39
201
119-60002
CLOTH WASTE CHUTE, LOWER(BENCH)
40
NOTE (注記)
201...FOR JE
- 28 -
jintex.in
Page 32 — 18. THREAD STAND COMPONENTS (FOR MO-3904,MO-3914)
18. THREAD STAND COMPONENTS (FOR MO-3904,MO-3914)
糸立装置関係(MO-3904,MO-3914用)
1
2
3
4
5
26
26
3
4
6
15
10
16
14
11
13
12
21
22
24
23
25
27
29
30
32
33
35
34
36
37
45
43
42
38
39
40
41
31
32
33
35
34
36
37
45
43
42
38
39
40
41
30
29
55
53
56
28
54
46
47
48
49
50
51
52
57-11
- 29 -
jintex.in
Page 33
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 119-69458 THREAD STANDING DEVICE ASM. 1
2 111-85352 THREAD GUIDE ASM. (2)
3 111-85402 THREAD GUIDE ARM JOINT (4)
4 NM-6050001-SE NUT M5 (4)
5 B3311-704-000 SPOOL REST ROD CAP (1)
6 111-85204 SPOOL REST ROD,UPPER (1)
7 B3305-704-000-A SPOOL REST ROD JOINT (1)
8 SM-4051405-SE SCREW M5 L=14 (2)
9 NM-6050001-SE NUT M5 (2)
10 B3309-704-000 THREAD GUIDE ARM ASM. (1)
11 B3311-804-000 LOWER THREAD GUIDE (1)
12 SS-7110540-SP SCREW 11/64-40 L=5 (1)
13 B3309-704-000 THREAD GUIDE ARM (1)
14 B3304-704-000-A THREAD GUIDE ARM HOLDER (1)
15 SM-6053000-SE SCREW M5X0.8 L=30 (1)
16 NM-6050001-SE NUT M5 (2)
17 111-85105 SPOOL REST ROD, LOWER (1)
18 111-85501 SPOOL RETAINER (4)
19 B3320-704-L00-A SPOOL PIN (4)
20 B3311-012-000 SPOOL REST CUSHION (4)
21 111-85006 SPOOL REST (2)
22 NM-6050001-SE NUT M5 (4)
23 B3317-704-000 NUT (1)
24 WP-1612616-SE WASHER 16X30X2.6 (2)
25 MAO-11532000 CORD STAPLE (3)
26 SM-4051405-SE SCREW M5 L=14 (4)
27 #01 119-69953 THREAD STANDING DEVICE ASM. 1
28 SK-3382001-SE SCREW D=3.8 L=20 (2)
29 B3318-704-L00-A THREAD GUIDE ARM JOINT (4)
30 SM-6061610-SC SCREW M6 L=16 (4)
31 B3311-704-000 SPOOL REST ROD CAP (1)
32 119-69573 SPOOL REST ARM A ASM. (2)
33 B3319-704-L00 THREAD GUIDE (4)
34 111-85204 SPOOL REST ROD, UPPER (1)
35 B3305-704-000-A SPOOL REST ROD JOINT (1)
36 NM-6050001-SE NUT M5 (2)
37 SM-4051405-SE SCREW M5 L=14 (2)
38 B3309-704-0AO THREAD GUIDE ARM ASM. (1)
39 B3311-804-000 LOWER THREAD GUIDE (1)
40 SS-7110540-SP SCREW 11/64-40 L=5 (1)
41 B3309-704-000 THREAD GUIDE ARM (1)
42 B3304-704-000-A THREAD GUIDE ARM HOLDER (1)
43 SM-6053000-SE SCREW M5X0.8 L=30 (1)
44 NM-6050001-SE NUT M5 (2)
45 111-85105 SPOOL REST ROD, LOWER (1)
46 111-85501 SPOOL RETAINER (4)
47 B3320-704-L00-A SPOOL PIN (4)
48 B3311-012-000 SPOOL REST CUSHION (4)
49 119-66504 SPOOL REST (4)
50 NM-6050001-SE NUT M5 (4)
51 119-69508 SPOOL REST ARM A (2)
52 B3317-704-000 NUT (1)
53 WP-1612616-SE WASHER 16X30X2.6 (2)
54 B3321-704-L00 SPOOL REST ARM SUPPORT, A (1)
55 SM-4061201-SE SCREW M6 L=12 (2)
56 NM-6060001-SE NUT M6 (2)
57 MAO-11532000 CORD STAPLE (3)
58 B3321-704-L0B SPOOL REST ARM SUPPORT, B (1)
NOTE (注記) #01...SPECIAL ORDER PART FOR LARGE
SP00L THREAD STAND (FOR JE) 太巻用特別注文部品(JE用)
- 30 -
jintex.in
Page 34 — 19. THREAD STAND COMPONENTS (FOR MO-3916)
19. THREAD STAND COMPONENTS (FOR MO-3916)
糸立装置関係(MO-3916用)
1
7
8
9
3
6
5
4
22
23
10
11
12
13
24
14
19
21
20
25
18
17
15
26
16
27
28
30
29
32
31
33
2
34
35
43
44
42
36
37
38
39
45
46
47
48
49
53
54
55
56
50
52
51
40
43
42
41
66
61
67
63
69
64
62
68
43
42
57
58
59
60
65
61
41
- 31 -
jintex.in
Page 35
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 119-69557 THREAD STANDING DEVICE ASM. 1
2 SK-3382001-SE SCREW D=3.8 L=20 (1)
3 119-69565 SPOOL REST ARM A ASM. (1)
4 B3319-704-L00 THREAD GUIDE (3)
5 B3318-704-L00-A THREAD GUIDE ARM JOINT (4)
6 SM-6061610-SC SCREW M6 L=15 (4)
7 B3311-704-000 SPOOL REST ROD CAP (1)
8 119-69466 THREAD GUIDE ARM B ASM. (1)
9 B3319-704-L00 THREAD GUIDE (2)
10 111-85204 SPOOL REST ROD, UPPER (1)
11 B3305-704-000-A SPOOL REST ROD JOINT (1)
12 NM-6050001-SE NUT M5 (1)
13 SM-4051405-SE SCREW M5 L=14 (2)
14 B3309-704-0AO THREAD GUIDE ARM ASM. (2)
15 B3311-804-000 LOWER THREAD GUIDE (1)
16 SS-7110540-SP SCREW 11/64-40 L=5 (1)
17 B3309-704-000 THREAD GUIDE ARM (1)
18 B3304-704-000-A THREAD GUIDE ARM HOLDER (1)
19 SM-6053000-SE SCREW M5X0.8 L=30 (1)
20 NM-6050001-SE NUT M5 (1)
21 111-85105 SPOOL REST ROD, LOWER (5)
22 111-85501 SPOOL RETAINER (5)
23 B3320-704-L00-A SPOOL PIN (5)
24 B3311-012-000 SPOOL REST CUSHION (5)
25 119-66504 SPOOL REST (5)
26 119-69409 THREAD GUIDE ARM B (1)
27 NM-6050001-SE NUT M5 (5)
28 119-69508 SPOOL REST ARM A (1)
29 B3317-704-000 NUT (1)
30 WP-1612616-SE WASHER 16X30X2.6 (2)
31 B3321-704-L00 SPOOL REST ARM SUPPORT, A (1)
32 SM-4061201-SE SCREW M6 L=12 (2)
33 NM-6060001-SE NUT M6 (1)
34 MA0-11532000 CORD STAPLE (3)
35 119-70050 THREAD STANDING DEVICE ASM. 1
36 119-69474 THREAD GUIDE ARM B ASM. (1)
37 B3319-704-L00 THREAD GUIDE (1)
38 119-69573 SPOOL REST ARM A ASM. (2)
39 B3319-704-L00 THREAD GUIDE (4)
40 119-69409 THREAD GUIDE ARM B (1)
41 119-69508 SPOOL REST ARM A (2)
42 B3318-704-L00-A THREAD GUIDE ARM JOINT (6)
43 SM-6061610-SC SCREW M6 L=15 (6)
44 B3311-704-000 SPOOL REST ROD CAP (1)
45 111-85204 SPOOL REST ROD, UPPER (1)
46 B3305-704-000-A SPOOL REST ROD JOINT (1)
47 NM-6050001-SE NUT M5 (2)
48 SM-4051405-SE SCREW M5 L=14 (2)
49 B3309-704-0AO THREAD GUIDE ARM ASM. (1)
50 B3311-804-000 LOWER THREAD GUIDE (1)
51 SS-7110540-SP SCREW 11/64-40 L=5 (1)
52 B3309-704-000 THREAD GUIDE ARM (1)
53 B3304-704-000-A THREAD GUIDE ARM HOLDER (2)
54 SM-6053000-SE SCREW M5X0.8 L=30 (1)
55 NM-6050001-SE NUT M5 (1)
56 111-85105 SPOOL REST ROD, LOWER (5)
57 111-85501 SPOOL RETAINER (5)
58 B3320-704-L00-A SPOOL PIN (5)
59 B3311-012-000 SPOOL REST CUSHION (5)
60 119-66504 SPOOL REST (5)
61 NM-6050001-SE NUT M5 (1)
62 B3317-704-000 NUT (2)
63 WP-1612616-SE WASHER 16X30X2.6 (1)
64 B3321-704-L00 SPOOL REST ARM SUPPORT, A (2)
65 SM-4061201-SE SCREW M6 L=12 (1)
66 NM-6060001-SE NUT M6 L=12 (2)
67 MA0-11532000 CORD STAPLE (2)
68 119-70050 THREAD STANDING DEVICE ASM. (3)
69 SK-3382001-SE SCREW D=3.8 L=20 (2)
NOTE (注記) #01...SPECIAL ORDER PART FOR LARGE
太巻用特別注文部品(JE用)
SPOOL THREAD STAND (FOR JE)
- 32 -
jintex.in
Page 36 — 20. SPECIAL ORDER PARTS COMPONENTS
20. SPECIAL ORDER PARTS COMPONENTS
特別注文部品関係
REF. NO. NOTE
PART NO.
DESCRIPTION
Qty
1
119-64509
CERAMIC LOWER KNIFE
セラミック シタメス
1
2
#01
SS-8080322-TP
SCREW 1/8-44 L=3.2
トメネジ 1/8-44 L=3.2
1
3
#04
SS-8080322-TP
SCREW 1/8-44 L=3.2
トメネジ 1/8-44 L=3.2
2
4
B9112-804-000
SPANNER
ハリ トメネジ スパナ
1
5
#05
B2519-804-000
UPPER LOOPER
ウワルーパ
1
6
#02
B2519-814-000
UPPER LOOPER
ウワルーパ
1
7
115-44756
UPPER LOOPER SUPPORT ARM ASM.
ウワルーパ シジ ウデ クミ
1
8
SS-6080410-SP
SCREW 1/8-44 L=4
ヒラネジ 1/8-44 L=4
(1)
9
#03
118-98103
PRESSER FOOT AUXILIARY PLATE
オサエホジ ヨイタ
1
10
#03
SS-4080620-TP
SCREW 1/8-44 L=6
ナベネジ 1/8-44 L=6
(1)
11
B2521-804-000
LOWER LOOPER
シタルーパ
1
12
118-47605
LOWER KNIFE
チョウコウ シタメス
1
13
119-92005
LOWER KNIFE
シタメス
1
14
119-96907
LOWER KNIFE GAUGE
シタメスケンケージ
1
15
B9135-123-0BO
SILICON OIL LUBRICANT ASM. (30
エ ス レ ヨウ キ (30CC)
1
16
121-23758
LOWER LOOPER SUPPORT ARM ASM.
シタルーパ シジ ウデ (クミ)
(1)
17
121-23709
LOWER LOOPER SUPPORT ARM
シタルーパ シジ ウデ
(1)
18
PS-0300062-KH
SPRING PIN 3X6
スプ リング ピン 3X6
(1)
19
B2531-704-000
WASHER
シジ ウデ シメワッシャー
(1)
20
SS-9151210-TP
SCREW 15/64-28 L=11.8
ロツカボルト 15/64-28
(1)
NOTE (注記)
#01... FOR MO-3904
MO-3904用
#02... FOR MO-3904
MO-3904用
#03... FOR MO-3904,MO-3914
MO-3904,MO-3914用
#04... FOR MO-3904,MO-3914
MO-3904,MO-3914用
#05... FOR MO-3904,MO-3916
MO-3904,MO-3916用
Ref. NO
Usage
用途
1,11
For wide width
広幅用
2~4
For needle set
針止め用
5~10,12,13
For adjustment type
調節式用
- 33 -
jintex.in
Page 40 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS
索引
PART NO
PAGE REF
PART NO
PAGE REF
PART NO
PAGE REF
品番
頁
NO
品番
頁
NO
品番
頁
NO
121-24509
6
9
121-56907
18
35
121-80659
20
76
121-24608
14
71
121-60008
18
30
122-50205
4
19
121-26108
20
75
121-62202
18
41
122-50510
2
25
121-26207
20
31
121-64802
18
37
122-50601
2
29
121-26405
20
40
121-67409
18
40
122-52805
8
6
121-26405
20
49
121-67508
18
43
122-52904
8
21
121-26405
20
58
121-67607
18
42
122-53050
8
22
121-26702
20
36
121-67706
18
46
122-53100
8
24
121-26702
20
45
121-67805
18
38
122-53811
18
1
121-26702
20
54
121-72805
12
23
122-55907
26
35
121-26819
20
42
121-76004
14
32
122-58000
4
21
121-26868
20
41
121-80162
20
29
122-58208
15
33
121-26918
20
33
121-80261
20
30
122-58307
15
34
121-26967
20
32
122-50659
20
76
122-58406
15
35
121-27015
20
51
122-50205
4
19
122-58505
15
36
121-27064
20
50
122-50510
2
25
122-58604
15
37
121-27403
20
59
122-50601
2
29
122-58703
15
38
121-27502
20
60
122-52805
8
6
122-58802
15
39
121-27700
20
61
122-52904
8
21
122-58901
15
40
121-27706
20
62
122-53050
8
22
122-59008
15
41
121-27809
20
63
122-53100
8
24
122-59107
15
42
121-27957
20
64
122-53811
18
1
122-80608
8
38
121-28203
20
66
122-55907
26
35
121-28302
20
67
122-58000
4
21
121-29102
26
16
122-58208
15
33
121-29201
26
27
122-58307
15
34
121-29201
26
28
122-58406
15
35
121-29250
26
17
122-58505
15
36
121-29318
26
21
122-58604
15
37
121-29458
26
15
122-58703
15
38
121-29706
26
2
122-58802
15
39
121-29805
26
41
122-58901
15
40
121-29854
26
38
122-59008
15
41
121-29904
26
39
122-59107
15
42
121-30001
26
40
122-80608
8
38
121-30100
26
32
121-30209
26
33
121-30308
26
48
121-30407
26
49
121-30506
26
51
121-30605
26
52
121-30704
26
44
121-30803
26
43
121-32106
6
12
121-32155
6
11
121-32213
23
3
121-32262
23
2
121-32304
23
8
121-32403
23
12
121-32502
23
5
121-32619
22
19
121-32700
22
24
121-32809
22
30
121-32908
22
28
121-33005
22
31
121-33104
22
26
121-33211
22
15
121-33302
23
14
121-33401
23
19
121-33658
22
13
121-33666
22
14
121-33708
22
32
121-35505
27
24
121-35505
28
35
121-35554
27
23
121-35554
28
34
121-38152
24
29
121-38301
24
30
121-38400
24
28
121-47203
2
36
121-47807
2
37
121-48607
8
58
121-48706
8
59
121-49803
8
60
121-52468
18
19
121-53763
18
34
- 37 -
jintex.in
Page 41
MEMO
- 38 -
jintex.in
Page 42
MEMO
- 39 -
jintex.in
Page 43
jinte.in
jintex.in
Page 44
JUKI
JUKI CORPORATION
JUKI株式会社
お買い求め、ご相談は
To order or for further
information,
please contact :
※このパーツリストは商品改良のため予告なく変更する事があります。
*The description covered in this parts list is subject to change for improvement of the commodity without notice.
※このパーツリストは、1995年9月 現在の商品仕様で編集したものです。
*This parts list is edited in accordance with the product specifications as of September 1995.
Printed in Japan
jintex.in
