Jack JK-2030G — Part Book | Jintex

Jack JK-2030G — parts catalog

Page 16 — E 剪线部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 16
RefPart numberPart nameQty
14212024连杆杠杆连接板
417S30306螺钉带垫 M5x15
13628003切线凸轮螺钉垫圈
N01001螺母 M4
14205005电磁铁连杆
14226008电磁铁连杆销
402S11003电磁铁连杆销螺钉
125S15003电磁铁连杆销紧固
N01004电磁铁连杆销螺母
1423000500切刀电磁铁组件
14212027电磁铁固定架
W02004电磁铁固定架弹簧
401S13001电磁铁固定架螺钉
W01001垫圈
W02018弹簧垫圈

E 剪线部件/Thread Trimmer Mechanism 序号 公司件号 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q E-47 14212024 连杆杠杆连接板 Base Plate 1 1 E-48 417S30306 螺钉带垫 M5x15 Screw(M5) 3 3 E-49 13628003 切线凸轮螺钉垫圈 Washer For E-39 2 2 E-50 N01001 螺母 M4 Nut(M4) 2 2 E-51 14205005 电磁铁连杆 Solenoid Connecting Link 1 1 E-52 14226008 电磁铁连杆销 Solenoid Pin 1 1 E-53 402S11003 电磁铁连杆销螺钉 Screw(11/64" n=40) 1 1 E-54 125S15003 电磁铁连杆销紧固 Screw(11/64" n=40) 1 1 E-55 N01004 电磁铁连杆销螺母 Nut(M5) 1 1 E-56 1423000500 切刀电磁铁组件 Thread Trimming Solenoid 1 1 E-57 14212027 电磁铁固定架 Base for E-51 1 1 E-58 W02004 电磁铁固定架弹簧 Washer 2 2 E-59 401S13001 电磁铁固定架螺钉 Screw(15/64" n=28) 2 2 E-60 W01001 垫圈 Washer 2 2 E-61 W02018 弹簧垫圈 Spring Washer 2 2 第16页 jintex.in

Page 17 — F Thread Trimmer Mechanism

Jack JK-2030G parts on page 17
RefPart numberPart nameQty
F-57Gear
F-61Screw
F-64Washer
F-62Pin
F-26Screw
F-22Pin
F-25Bush
F-24Bush
F-23Lever
F-11Fork
F-9Collar
F-6Washer
D-33Collar
F-5Washer
F-4Screw
F-10Shaft
F-12Pin
F-13Link
F-20Lever
F-18Lever
F-17Screw
F-19Pin
F-21Screw
F-14Housing
F-15Screw
F-4Screw
F-3Roller
F-1Shaft
F-8Screw
F-60Bolt
F-63Pin
F-62Pin
F-61Screw
F-59Gear
F-64Washer
F-37Shaft
F-44Bracket
F-94Bracket
F-45Screw
F-30Screw
F-27Link
F-31Lever
F-28Screw
F-29Screw
F-32Pin
F-33Spring
F-85Screw
F-84Screw
F-40Lever
F-41Screw
F-38Shaft
F-34Lever
F-35Shaft
F-36Screw
F-39Screw
F-65Lever
F-80Screw
F-81Nut
F-51Shaft
F-53Bush
F-66Screw
F-71Spring
F-68Lever
F-69Washer
F-87Spring
F-88Rod
F-89Screw
F-90Bracket
F-91Screw
F-72Lever
F-73Shaft
F-74Screw
F-70Block
F-76Link
F-77Screw
F-79Screw
F-78Bracket
F-75Shaft
F-56Ring
F-55Screw
F-54Bush
F-47Lever
F-48Screw
F-49Screw
F-46Rod
F-92Clip
F-93Foot
F-43Bracket

F 上送料部件/Thread Trimmer Mechanism F-57 F-61 F-64 F-62 F-61 F-26 F-22 F-25 F-24 F-23 F-11 F-9 F-6 D-33 F-5 F-4 F-10 F-12 F-13 F-20 F-18 F-17 F-19 F-21 F-14 F-15 F-4 F-3 F-1 F-8 F-60 F-63 F-62 F-61 F-59 F-64 F-37 F-44 F-94 F-45 F-30 F-27 F-31 F-28 F-29 F-32 F-33 F-85 F-84 F-40 F-41 F-38 F-34 F-35 F-36 F-39 F-65 F-80 F-81 F-51 F-53 F-66 F-71 F-68 F-69 F-87 F-88 F-89 F-90 F-91 F-72 F-73 F-74 F-70 F-76 F-77 F-79 F-78 F-75 F-56 F-55 F-54 F-47 F-48 F-49 F-46 F-92 F-93 F-43 第 17 页 jintex.in

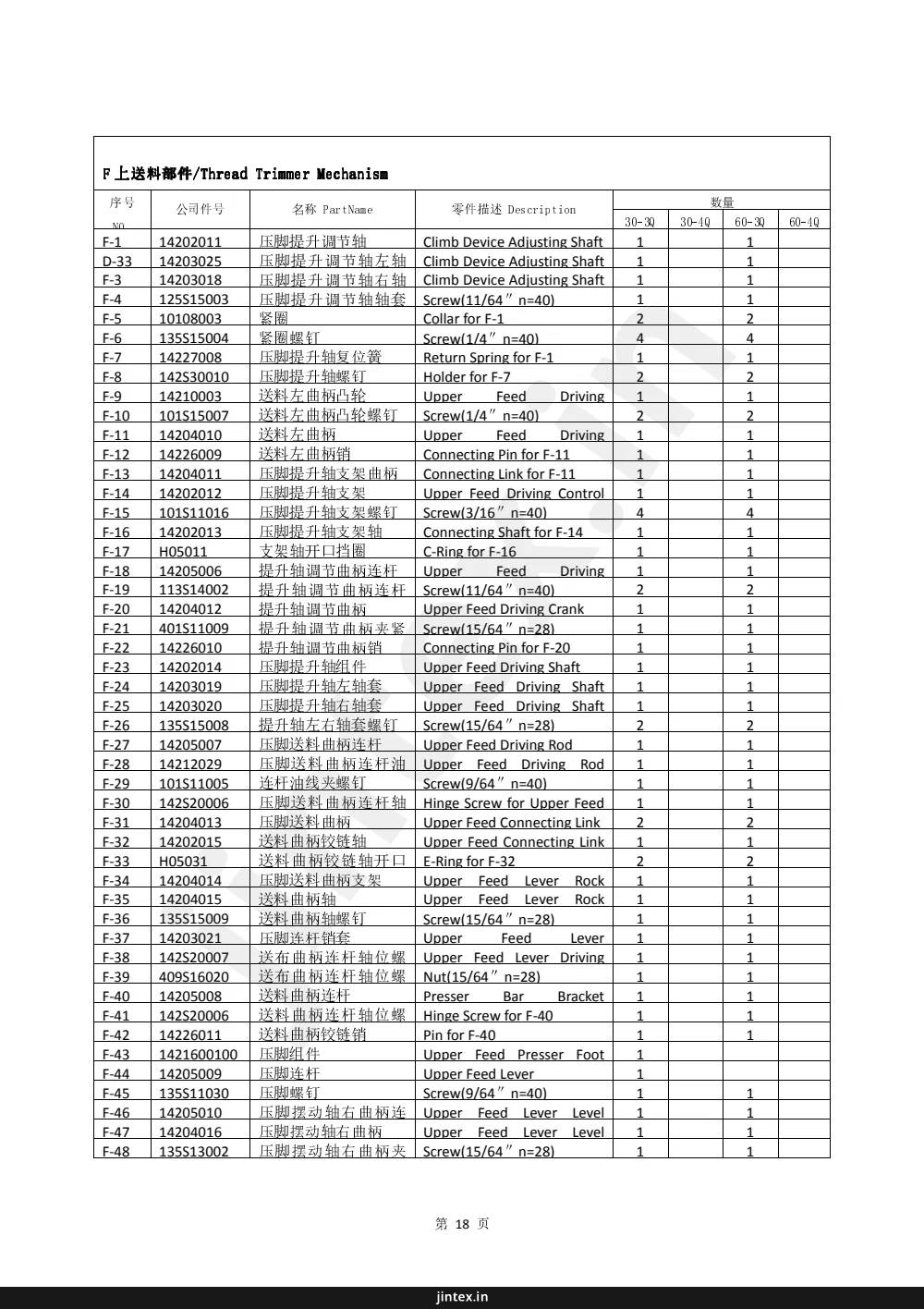

Page 18 — F Upper Feed/Thread Trimmer Mechanism

Jack JK-2030G parts on page 18
RefPart numberPart nameQty
14202011压脚提升调节轴
14203025压脚提升调节轴左轴
14203018压脚提升调节轴右轴
125S15003压脚提升轴轴套
10108003紧固圈
135S15004紧固螺钉
14227008压脚提升复位簧
142S30010压脚提升轴销
14210003送料左曲柄凸轮
101S15007送料左曲柄凸轮螺钉
14204010送料左曲柄
14226009送料左曲柄销
14204011压脚提升支架曲柄
14202012压脚提升轴支架
101S11016压脚提升轴支架螺钉
14202013压脚提升轴支架轴
H05011支架开口挡圈
14205006压脚曲柄连杆
113S14002提升轴调节柄连杆
14204012提升轴调节曲柄
401S11009提升轴调节曲柄夹紧
14226010提升轴调节曲柄销
14202014压脚提升轴组件
14203019压脚提升轴左轴套
14203020压脚提升轴右轴套
135S15008提升轴左曲柄套螺钉
14205007压脚送料曲柄连杆
14202029压脚送料曲柄连杆油
101S11005连杆油线夹紧螺钉
142S20006压脚送料曲柄连杆
14204013压脚送料曲柄
14202015送料曲柄铰链轴
H05031送料曲柄铰链开口
14204014压脚送料曲柄支架
14204015压脚曲柄轴
135S15009送料曲柄轴螺钉
14203021压脚连杆销套
142S20007送布曲柄连杆轴位
409S15020送布曲柄连杆轴位螺
14205008送料曲柄连杆
142S20006送料曲柄连杆轴位螺
14226011送布曲柄铰链销
142160100压脚组件
14205009压脚连杆
135S11030压脚螺钉
14205010压脚摆动轴右曲柄连
14204016压脚摆动轴右曲柄
135S13002压脚摆动轴右曲柄夹

F 上送料部件/Thread Trimmer Mechanism 序号 公司件号 名称 PartName 零件描述 Description 数量 NO 30-3Q 30-4Q 60-3Q 60-4Q F-1 14202011 压脚提升调节轴 Climb Device Adjusting Shaft 1 1 D-33 14203025 压脚提升调节轴左轴 Climb Device Adjusting Shaft 1 1 F-3 14203018 压脚提升调节轴右轴 Climb Device Adjusting Shaft 1 1 F-4 125S15003 压脚提升轴轴套 Screw(11/64 " n=40) 1 1 F-5 10108003 紧固圈 Collar for F-1 2 2 F-6 135S15004 紧固螺钉 Screw(1/4 " n=40) 4 4 F-7 14227008 压脚提升复位簧 Return Spring for F-1 1 1 F-8 142S30010 压脚提升轴销 Holder for F-7 2 2 F-9 14210003 送料左曲柄凸轮 Upper Feed Driving 1 1 F-10 101S15007 送料左曲柄凸轮螺钉 Screw(1/4 " n=40) 2 2 F-11 14204010 送料左曲柄 Upper Feed Driving 1 1 F-12 14226009 送料左曲柄销 Connecting Pin for F-11 1 1 F-13 14204011 压脚提升支架曲柄 Connecting Link for F-11 1 1 F-14 14202012 压脚提升轴支架 Upper Feed Driving Control 1 1 F-15 101S11016 压脚提升轴支架螺钉 Screw(3/16 " n=40) 4 4 F-16 14202013 压脚提升轴支架轴 Connecting Shaft for F-14 1 1 F-17 H05011 支架开口挡圈 C-Ring for F-16 1 1 F-18 14205006 压脚曲柄连杆 Upper Feed Driving 1 1 F-19 113S14002 提升轴调节柄连杆 Screw(11/64 " n=40) 2 2 F-20 14204012 提升轴调节曲柄 Upper Feed Driving Crank 1 1 F-21 401S11009 提升轴调节曲柄夹紧 Screw(15/64 " n=28) 1 1 F-22 14226010 提升轴调节曲柄销 Connecting Pin for F-20 1 1 F-23 14202014 压脚提升轴组件 Upper Feed Driving Shaft 1 1 F-24 14203019 压脚提升轴左轴套 Upper Feed Driving Shaft 1 1 F-25 14203020 压脚提升轴右轴套 Upper Feed Driving Shaft 1 1 F-26 135S15008 提升轴左曲柄套螺钉 Screw(15/64 " n=28) 2 2 F-27 14205007 压脚送料曲柄连杆 Upper Feed Driving Rod 1 1 F-28 14202029 压脚送料曲柄连杆油 Upper Feed Driving Rod 1 1 F-29 101S11005 连杆油线夹紧螺钉 Screw(9/64 " n=40) 1 1 F-30 142S20006 压脚送料曲柄连杆 Hinge Screw for Upper Feed 1 1 F-31 14204013 压脚送料曲柄 Upper Feed Connecting Link 2 2 F-32 14202015 送料曲柄铰链轴 Upper Feed Connecting Link 1 1 F-33 H05031 送料曲柄铰链开口 E-Ring for F-32 2 2 F-34 14204014 压脚送料曲柄支架 Upper Feed Lever Rock 1 1 F-35 14204015 压脚曲柄轴 Upper Feed Lever Rock 2 2 F-36 135S15009 送料曲柄轴螺钉 Screw(15/64 " n=28) 1 1 F-37 14203021 压脚连杆销套 Upper Feed Lever 1 1 F-38 142S20007 送布曲柄连杆轴位 Upper Feed Lever Driving 1 1 F-39 409S15020 送布曲柄连杆轴位螺 Nut(15/64 " n=28) 1 1 F-40 14205008 送料曲柄连杆 Presser Bar Bracket 1 1 F-41 142S20006 送料曲柄连杆轴位螺 Hinge Screw for F-40 1 1 F-42 14226011 送布曲柄铰链销 Pin for F-40 1 1 F-43 142160100 压脚组件 Upper Feed Presser Foot 1 1 F-44 14205009 压脚连杆 Upper Feed Lever 1 1 F-45 135S11030 压脚螺钉 Screw(9/64 " n=40) 1 1 F-46 14205010 压脚摆动轴右曲柄连 Upper Feed Lever Level 1 1 F-47 14204016 压脚摆动轴右曲柄 Upper Feed Lever Level 1 1 F-48 135S13002 压脚摆动轴右曲柄夹 Screw(15/64 " n=28) 1 1 第 18 页 jintex.in

Page 19 — F 上送料部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 19
RefPart numberPart nameQty
F-57F-57
F-61F-61
F-64F-64
F-62F-62
F-21F-21
F-22F-22
F-20F-20
F-26F-26
F-18F-18
F-17F-17
F-19F-19
F-14F-14
F-15F-15
F-4F-4
F-25F-25
F-13F-13
F-16F-16
F-3F-3
F-24F-24
F-23F-23
F-1F-1
F-8F-8
F-11F-11
F-10F-10
F-9F-9
F-6F-6
F-5F-5
D-33D-33
F-7F-7
F-60F-60
F-63F-63
F-61F-61
F-62F-62
F-64F-64
F-59F-59
F-37F-37
F-44F-44
F-94F-94
F-93F-93
F-45F-45
F-33F-33
F-32F-32
F-31F-31
F-27F-27
F-28F-28
F-29F-29
F-30F-30
F-42F-42
F-41F-41
F-40F-40
F-83F-83
F-84F-84
F-85F-85
F-87F-87
F-38F-38
F-34F-34
F-35F-35
F-36F-36
F-39F-39
F-95F-95
F-80F-80
F-81F-81
F-51F-51
F-82F-82
F-88F-88
F-89F-89
F-90F-90
F-91F-91
F-56F-56
F-55F-55
F-54F-54
F-50F-50
F-47F-47
F-48F-48
F-46F-46
F-49F-49
F-75F-75
F-73F-73
F-72F-72
F-74F-74
F-76F-76
F-70F-70
F-67F-67
F-71F-71
F-65F-65
F-66F-66
F-68F-68
F-69F-69
F-77F-77
F-78F-78
F-79F-79
F-53F-53
F-92F-92

F 上送料部件/Thread Trimmer Mechanism 第 19 页 jintex.in

Page 20 — F 上送料部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 20
RefPart numberPart nameQty
142S20009右曲柄连杆轴位螺
135S16006右曲柄连杆轴位螺
14202016压脚摆动轴
14203014拾牙送布轴右轴套
135S15008压脚摆动轴左轴套
14203023压脚摆动轴右轴套
409S15004压脚摆动轴右轴套
001046压脚摆动轴 O型圈
1421100200压脚调节上盖标盘
14210004上盖标盘调节凸轮
1421100300压脚调节机头标盘
101S15010机头标盘调节凸轮
15215005调节凸轮支架螺钉
14226012标盘止动销
14227009标盘止动销
14212031调节凸轮垫片
13504008压脚摆动轴左曲柄
135S11032压脚摆动轴左曲柄
1420900400摆动轴左曲柄调节
142S30011摆动轴左曲柄调节
11628005曲柄调节柱滑块
413S16005曲柄调节柱开口挡
14209004曲柄调节柱滑块
H05029曲柄调节柱开口挡
14204018提升压脚摆动曲柄
14202017提升压脚摆动曲柄
142S11044提升压脚摆动曲柄
135S15008曲柄支点轴螺钉
14205011摆动曲柄连杆
142S20006摆动曲柄连杆轴位
14204019摆动曲柄连杆座
101S11005摆动曲柄连杆座螺
14212034压脚连杆导板
14209005压脚连杆导板垫块
116S11005压脚连杆导板螺钉
14209006提升压脚调节架
201S11020提升压脚调节架螺
135S30007提升压脚调节螺钉
135S16006提升压脚调节螺钉
14227010提升压脚簧
1350202100压脚簧柱
14208017压脚簧柱头
14209009压脚簧柱导向块
135S11036压脚簧柱导向块
14227011护指簧
14216005内压脚(三同步)
14205015压脚连杆(三同步)
14212062压脚连杆导板(三同

F 上送料部件/Thread Trimmer Mechanism 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q F-49 142S20009 右曲柄连杆轴位螺 Screw(9/32" n=28) 1 1 F-50 135S16006 右曲柄连杆轴位螺 Nut(9/32" n=28) 1 1 F-51 14202016 压脚摆动轴 Upper Feed Lever Level 1 1 D-92 14203014 拾牙送布轴右轴套 Upper Feed Lever Level 1 1 F-53 135S15008 压脚摆动轴左轴套 Screw(15/64" n=28) 1 1 F-54 14203023 压脚摆动轴右轴套 Upper Feed Lever Level 1 1 F-55 409S15004 压脚摆动轴右轴套 Screw(15/64" n=28) 1 1 F-56 001046 压脚摆动轴 O型圈 O-Ring for F-51 1 1 F-57 1421100200 压脚调节上盖标盘 Climb Device Dial Ass' y(Top 1 1 F-58 14210004 上盖标盘调节凸轮 Climb Device Eccentric 1 1 F-59 1421100300 压脚调节机头标盘 Climb Device Dial Ass' y(Arm) 1 1 F-60 101S15010 机头标盘调节凸轮 Climb Device Eccentric 1 1 F-61 15215005 调节凸轮支架螺钉 Screw(15/64" n=28) 4 4 F-62 14226012 标盘止动销 Pin for F-57, F-59 2 2 F-63 14227009 标盘止动销 Spring for F-62 2 2 F-64 14212031 调节凸轮垫片 Climb Device Dial Support 2 2 F-65 13504008 压脚摆动轴左曲柄 Upper Feed Lever Level 1 1 F-66 135S11032 压脚摆动轴左曲柄 Screw(15/64" n=28) 1 1 F-67 1420900400 摆动轴左曲柄调节 Upper Feed Level Adjusting 1 1 F-67 142S30011 摆动轴左曲柄调节 Upper Feed Level Adjusting 1 1 F-68 11628005 曲柄调节柱滑块 Block for F-67 1 1 F-69 413S16005 曲柄调节柱开口挡 E-Ring for F-67 1 1 F-70 14209004 曲柄调节柱滑块 Block for F-67 1 1 F-71 H05029 曲柄调节柱开口挡 E-Ring for F-67 1 1 F-72 14204018 提升压脚摆动曲柄 Upper Feed Level Driving Link 1 1 F-73 14202017 提升压脚摆动曲柄 Hinge Shaft for F-72 1 1 F-74 142S11044 提升压脚摆动曲柄 Set Screw for F-72 1 1 F-75 135S15008 曲柄支点轴螺钉 Screw(15/64" n=28) 1 1 F-76 14205011 摆动曲柄连杆 Upper Feed Level Driving Rod 1 1 F-77 142S20006 摆动曲柄连杆轴位 Hinge Screw for F-76 2 2 F-78 14204019 摆动曲柄连杆座 Upper Feed Level Holder 1 1 F-79 101S11005 摆动曲柄连杆座螺 Screw(9/64" n=40) 2 2 F-80 14212034 压脚连杆导板 Upper Feed Lever Support 1 1 F-81 14209005 压脚连杆导板垫块 Upper Feed Lever Support 2 2 F-82 116S11005 压脚连杆导板螺钉 Screw(11/64" n=40) 1 1 F-83 14209006 提升压脚调节架 Frame for Upper Feed 2 2 F-84 201S11020 提升压脚调节架螺 Screw(11/64" n=40) 2 2 F-85 135S30007 提升压脚调节螺钉 Screw(9/32" n=28) 1 1 F-86 135S16006 提升压脚调节螺钉 Nut(9/32" n=28) 1 1 F-87 14227010 提升压脚簧 Upper Feed Pressure 1 1 F-88 1350202100 压脚簧柱 Upper Feed Pressure 1 1 F-89 14208017 压脚簧柱头 Fulcrum for F-87 1 1 F-90 14209009 压脚簧柱导向块 Fulcrum for F-88 1 1 F-91 135S11036 压脚簧柱导向块 Hinge Screw for F-90 1 1 F-92 14227011 护指簧 Needle Bar Safety Guide 1 1 F-93 14216005 内压脚(三同步) Internal pressure foot (triple 1 1 F-94 14205015 压脚连杆(三同步) Pin Rod (triple sync) 1 1 F-95 14212062 压脚连杆导板(三同 Pin-Lever guide plate (triple 1 1 第 20 页 jintex.in

Page 21 — G 压脚调节部件/Presser Foot & Tension Release Mechanism

Jack JK-2030G parts on page 21
RefPart numberPart nameQty
G-5G-5
G-7G-7
G-3G-3
G-4G-4
G-6G-6
G-36-2G-36-2
G-10G-10
G-12G-12
G-13G-13
G-11G-11
G-1G-1
G-2G-2
G-25G-25
G-27G-27
G-8G-8
G-9G-9
G-35G-35
G-36-1G-36-1
G-41G-41
G-39G-39
G-38G-38
G-40G-40
G-37G-37
G-43G-43
G-21G-21
G-20G-20
G-42G-42
G-19G-19
G-18G-18
G-16G-16
G-17G-17
G-14G-14
G-15G-15
G-44G-44
G-22G-22
G-23G-23
G-24G-24
G-28G-28
G-30G-30
G-32G-32
G-29G-29
G-33G-33
G-31G-31
G-34G-34
G-53G-53
G-55G-55
G-54G-54
G-51G-51
G-48G-48
G-49G-49
G-50G-50
G-52G-52

G 压脚调节部件/Presser Foot & Tension Release Mechanism G-5 G-7 G-3 G-4 G-6 G-36-2 G-10 G-12 G-13 G-11 G-1 G-2 G-25 G-27 G-8 G-9 G-35 G-36-1 G-41 G-39 G-38 G-40 G-37 G-43 G-21 G-20 G-42 G-19 G-18 G-16 G-17 G-14 G-15 G-44 G-22 G-23 G-24 G-28 G-30 G-32 G-29 G-33 G-31 G-34 G-53 G-55 G-54 G-51 G-48 G-49 G-50 G-52 第 21 页 jintex.in

Page 22 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 22
RefPart numberPart nameQty
14202018压紧杆
14203024压紧杆轴套
135S30004调压螺钉
135S16003调压螺钉锁紧螺母
135S30005小压脚调节螺钉
14227012调压簧
13527012小压脚调节螺钉簧
14216002小压脚
135S11030小压脚螺钉
14209010压紧杆导架
135S11001压紧杆导架螺钉
14213009大线勾
401S11031大线勾螺钉
14216003压脚扳手
409S15004压脚扳手螺钉
14202019压脚扳手轴
14222018压脚扳手轴 O型圈
H05013压脚扳手轴开口挡圈
14227014压脚扳手轴扭簧
14209011压脚扳手凸轮
135S15004压脚扳手凸轮螺钉
14212036膝控提升杠杆(左)
14212037膝控提升杠杆(右)
14214003松线凸轮板
402S11003膝控提升杠杆左螺钉
14212039松线板组件
14212069松线板底板
14202031松线板连接轴
14226013支点销轴
H05013支点销轴开口挡圈
125S15003支点销轴螺钉
H05033钢绳上开口挡圈
14227015钢绳上挡圈
14202020膝控提升杠杆(左)支
41728005支点轴垫圈
H05006支点轴开口挡圈
14212044膝控提升杠杆
135S11027膝控提升杠杆轴位螺钉
142S11052膝控提升杠杆轴位螺钉
14212045膝控提升杠杆(右)
142S11053膝控提升杠杆(右)螺钉
14227016膝控提升杠杆(右)拉簧
14226014拉簧下勾销
13526005拉簧上勾销
14226016限位销

G 压脚调节部件/Presser Foot&Tension Release Mechanism 序号 NO 公司件号 Part Number 名称 Part Name 零件描述 Description 数量 Quantity 30-30 30-40 60-30 60-40 G-1 14202018 压紧杆 Presser bar 1 1 G-2 14203024 压紧杆轴套 Presser bar bushing 1 1 G-3 135S30004 调压螺钉 Pressure Adjusting Screw 1 1 G-4 135S16003 调压螺钉锁紧螺母 Nut for Pressure Adjusting 1 1 G-5 135S30005 小压脚调节螺钉 Sub Pressure Adjusting 1 1 G-6 14227012 调压簧 Pressure Adjusting Spring 1 1 G-7 13527012 小压脚调节螺钉簧 Sub Pressure Adjusting 1 1 G-8 14216002 小压脚 Sub Press Foot 1 1 G-9 135S11030 小压脚螺钉 Screw(9/64 " n=40) 1 1 G-10 14209010 压紧杆导架 Presser Bar Bracket 1 1 G-11 135S11001 压紧杆导架螺钉 Screw(15/64 " n=28) 1 1 G-12 14213009 大线勾 Thread Guide Plate 1 1 G-13 401S11031 大线勾螺钉 Screw(11/64 " n=40) 1 1 G-14 14216003 压脚扳手 Presser Bar Lifter 1 1 G-15 409S15004 压脚扳手螺钉 Screw 2 2 G-16 14202019 压脚扳手轴 Presser Bar Lifter Shaft 1 1 G-17 14222018 压脚扳手轴 O型圈 O-Ring for G-16 1 1 G-18 H05013 压脚扳手轴开口挡圈 E-Ring for G-16 1 1 G-19 14227014 压脚扳手轴扭簧 Torsion Spring for G-14 1 1 G-20 14209011 压脚扳手凸轮 Presser Lifter Cam 1 1 G-21 135S15004 压脚扳手凸轮螺钉 Screw(1/4 " n=40) 1 1 G-22 14212036 膝控提升杠杆(左) Knee control lifting Lever 1 1 G-23 14212037 膝控提升杠杆(右) Knee Control lifting Lever 1 1 G-24 14214003 松线凸轮板 Loose Wire CAM Plate 1 1 1 G-25 402S11003 膝控提升杠杆左螺钉 Screw(11/64 " n=40) 1 1 1 G-26 14212039 松线板组件 Pine Board components 1 1 G-26- 14212069 松线板底板 Pine Board floor 1 1 G-26 14202031 松线板连接轴 Loose wire connection sha 1 1 G-27 14226013 支点销轴 Pivot PIN SHAFT 1 1 G-28 H05013 支点销轴开口挡圈 1 1 G-29 125S15003 支点销轴螺钉 Screw(11/64 " n=40) 1 1 G-30 H05033 钢绳上开口挡圈 1 1 G-31 14227015 钢绳上挡圈 Spring for G-26 1 1 G-32 14202020 膝控提升杠杆(左)支 Shaft for G-26 1 1 G-33 41728005 支点轴垫圈 Washer for G-32 1 1 G-34 H05006 支点轴开口挡圈 1 1 G-35 14212044 膝控提升杠杆 Presser Bar Lifting Link 1 1 G-36 135S11027 膝控提升杠杆轴位螺钉 Hinge Screw for Presser 1 1 G-36- 142S11052 膝控提升杠杆轴位螺钉 Hinge Screw for Presser 1 1 G-37 14212045 膝控提升杠杆(右) Knee Lifting Link 1 1 G-38 142S11053 膝控提升杠杆(右)螺钉 Hinge Screw for G-37 1 1 G-39 14227016 膝控提升杠杆(右)拉簧 Spring for G-37 1 1 G-40 14226014 拉簧下勾销 Connecting Screw for G-39 1 1 G-41 13526005 拉簧上勾销 Holder for G-39 1 1 G-42 14226016 限位销 Stopper Pin for G-20 1 1 第 22 页 jintex.in

Page 23 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 23
RefPart numberPart nameQty
G-5G-5
G-7G-7
G-3G-3
G-4G-4
G-6G-6
G-36-2G-36-2
G-10G-10
G-12G-12
G-13G-13
G-11G-11
G-1G-1
G-2G-2
G-25G-25
G-27G-27
G-22G-22
G-23G-23
G-24G-24
G-28G-28
G-29G-29
G-32G-32
G-30G-30
G-31G-31
G-34G-34
G-36-1G-36-1
G-35G-35
G-42G-42
G-20G-20
G-21G-21
G-19G-19
G-46G-46
G-47G-47
G-44G-44
G-43G-43
G-37G-37
G-38G-38
G-40G-40
G-41G-41
G-39G-39
G-14G-14
G-15G-15
G-16G-16
G-17G-17
G-18G-18
G-53G-53
G-55G-55
G-54G-54
G-51G-51
G-48G-48
G-49G-49
G-50G-50
G-52G-52
G-9G-9
G-8G-8

G 压脚调节部件/Presser Foot&Tension Release Mechanism G-5 G-7 G-3 G-4 G-6 G-36-2 G-10 G-12 G-13 G-11 G-1 G-2 G-25 G-27 G-22 G-23 G-24 G-28 G-29 G-32 G-30 G-31 G-34 G-36-1 G-35 G-42 G-20 G-21 G-19 G-46 G-47 G-44 G-43 G-37 G-38 G-40 G-41 G-39 G-14 G-15 G-16 G-17 G-18 G-53 G-55 G-54 G-51 G-48 G-49 G-50 G-52 G-9 G-8 第 23 页 jintex.in

Page 24 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 24
RefPart numberPart nameQty
14212046抬压脚顶杆
14213010松线钢绳组件
14212047钢绳上固定架
101S11005钢绳上固定架螺钉
14226017钢绳松紧调节柱
N01004调节柱左锁紧螺母
142S16017调节柱右锁紧螺母
14212048钢绳下固定架
402S11003钢绳下固定架螺钉
14212049松线钢绳下固定架
421S10012钢绳下固定架螺钉
40928021钢绳固定架螺钉垫圈
14216004外压脚(三同步)

G 压脚调节部件/Presser Foot&Tension Release Mechanism 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q G-43 14212046 抬压脚顶杆 Knee Lifting Bar Stick 1 1 G-44 14213010 松线钢绳组件 Tension Release Cable Ass' y 1 1 G-46 14212047 钢绳上固定架 Tension Release Cable 1 1 G-47 101S11005 钢绳上固定架螺钉 Screw 1 1 G-48 14226017 钢绳松紧调节柱 Connecting Bolt for G-44 1 1 G-49 N01004 调节柱左锁紧螺母 Nut A for G-44 1 1 G-50 142S16017 调节柱右锁紧螺母 Nut B for G-44 1 1 G-51 14212048 钢绳下固定架 Tension Release Cable 1 1 G-52 402S11003 钢绳下固定架螺钉 Screw 1 1 G-53 14212049 松线钢绳下固定架 Bracket for G-51 1 1 G-54 421S10012 钢绳下固定架螺钉 Screw for G-53 2 2 G-55 40928021 钢绳固定架螺钉垫圈 Washer for G-53 2 2 G-57 14216004 外压脚(三同步) External pressure foot 1 第 24 页 jintex.in

Page 25 — H 电控电机部件/Electronic Control Unit

Jack JK-2030G parts on page 25
RefPart numberPart nameQty
H-1Electronic Control Unit
H-2Motor
H-3Fasteners

H 电控电机部件/Electronic Control Unit H-1 H-2 H-3 第 25 页 jintex.in

Page 26 — H 电控电机部件/Electronic Control Unit

Jack JK-2030G parts on page 26
RefPart numberPart nameQty
1142330032030G 琦星电控(中
114S13001电机安装螺钉
W02001弹簧垫圈
13628013电机垫圈
136S13001电机安装螺钉

H 电控电机部件/Electronic Control Unit 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q H-1 114233003 2030G 琦星电控(中 Electronic control asm 1 1 H-2 114S13001 电机安装螺钉 Screw(M5) 4 4 W02001 弹簧垫圈 Spring Washer 3 3 13628013 电机垫圈 Washer 3 3 H-3 136S13001 电机安装螺钉 Screw(M5) 3 3 第 26 页 jintex.in

Page 27 — I 供油部件/Lubrication

Jack JK-2030G parts on page 27
RefPart numberPart nameQty
I-1I-1
I-2I-2
I-3-1I-3-1
I-3-2I-3-2
I-4I-4
I-5I-5
I-6I-6
I-7I-7
I-8I-8
I-9I-9
I-10I-10
I-11I-11
I-12I-12
I-13I-13
I-14I-14
I-15I-15
I-7-1I-7-1
I-7-2I-7-2
I-7-3I-7-3
I-7-4I-7-4
I-7-5I-7-5
I-7-6I-7-6
I-7-7I-7-7
I-7-8I-7-8
I-7-9I-7-9
I-7-10I-7-10
I-7-11I-7-11
I-7-12I-7-12
I-7-13I-7-13
I-7-14I-7-14

I 供油部件/Lubrication I-1 I-2 I-3-1 I-3-2 I-4 I-5 I-6 I-7 I-8 I-9 I-7-2 I-7-1 I-7-13 I-7-14 I-7-5 I-7-6 I-7-3 I-7-4 I-7-7 I-7-8 I-7-9 I-7-10 I-7-11 I-7-12 I-10 I-11 I-15 第 27 页 jintex.in

Page 28 — I 供油部件/Lubrication

Jack JK-2030G parts on page 28
RefPart numberPart nameQty
10111004油窗
10122019油窗密封垫 O 型圈
12921002上回油管
13523003上回油管吸油毡
14227018上回油管吸油毡压
1422100200上输油管组件
14221003下输油管
1422000100油泵组件
14220002油泵体
14221004下输油嘴
14221005上输油嘴
14220003油泵叶轮
14220004柱塞
14227019柱塞弹簧
14226019柱塞弹簧销
14211061柱塞弹簧螺钉
14212055油泵体盖板
14212056油泵过滤网
14212057油泵磁铁夹
402S11010油泵体盖板螺钉
14208014油泵体上盖
413S14006油泵体上盖紧圈
14202030油泵叶轮安装轴
206S11002油泵体连接螺钉
W02002油泵体连接螺钉垫
14212059油泵体连接支架
409S11003油泵体连接支架螺
14227020竖轴弹簧
14208012竖轴紧圈
125S15003竖轴紧圈螺钉
40111005油管定位扎带

I 供油部件/Lubrication 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q I-1 10111004 油窗 Oil Gauge Window 1 1 I-2 10122019 油窗密封垫 O 型圈 O-Ring 1 1 I-3-1 12921002 上回油管 Oil Return Tube 1 1 I-3-2 13523003 上回油管吸油毡 Oil Return Felter 1 1 I-4 14227018 上回油管吸油毡压 Oil Return Felter Holder 1 1 I-5 1422100200 上输油管组件 Oil pipe complete for upper 1 1 I-6 14221003 下输油管 Oil pipe for shaft 1 1 I-7 1422000100 油泵组件 Oil pump asm 1 1 I-7-1 14220002 油泵体 Oil pump body 1 1 I-7-2 14221004 下输油嘴 Nipple for Oil Return Tube 1 1 I-7-3 14221005 上输油嘴 Nipple for Lower Shaft Oil 1 1 I-7-4 14220003 油泵叶轮 Impeller 1 1 I-7-5 14220004 柱塞 Piston 1 1 I-7-6 14227019 柱塞弹簧 Piston Spring 1 1 I-7-7 14226019 柱塞弹簧销 Piston Spring Pin 1 1 I-7-8 14211061 柱塞弹簧螺钉 Piston Spring Pin Screw 1 1 I-7-9 14212055 油泵体盖板 Oil Pump Cover 1 1 I-7-10 14212056 油泵过滤网 Oil Pump Cap 1 1 I-7-11 14212057 油泵磁铁夹 Magnetic Holder 1 1 I-7-12 402S11010 油泵体盖板螺钉 Screw(9/64 " n=40) 4 4 I-7-13 14208014 油泵体上盖 Collar for Impeller Shaft 1 1 I-7-14 413S14006 油泵体上盖紧圈 Screw(M4) 2 2 I-7-15 14202030 油泵叶轮安装轴 Impeller Axis 1 1 I-8 206S11002 油泵体连接螺钉 Screw(9/64 " n=40) 3 3 I-9 W02002 油泵体连接螺钉垫 Oil Pump Body Washer 3 3 I-10 14212059 油泵体连接支架 Oil Pump Bracket 1 1 I-11 409S11003 油泵体连接支架螺 Screw(3/16 " n=28) 1 1 I-12 14227020 竖轴弹簧 Oil Pump Connecting Spring 1 1 I-13 14208012 竖轴紧圈 Oil Pump Connecting Collar 1 1 I-14 125S15003 竖轴紧圈螺钉 Screw(11/64 " n=40) 2 2 I-15 40111005 油管定位扎带 Nylon Clib 2 2 第 28 页 jintex.in

Page 29 — K 自动抬压脚部件/Automatic presser Foot Parts

Jack JK-2030G parts on page 29
RefPart numberPart nameQty
K-1K-1
K-2K-2
K-3K-3
K-4K-4
K-5K-5

K 自动抬压脚部件/Automatic presser Foot Parts K-1 K-2 K-3 K-4 K-5 第 29 页 jintex.in

Page 30 — K 自动抬压脚部件/Automatic presser Foot Parts

Jack JK-2030G parts on page 30
RefPart numberPart nameQty
207S11026螺钉 M6×16
14204024抬压脚曲柄
1423103600拉杆组件
1423001200抬压脚带电磁铁组件
101S30014绕线器木螺钉 M4×20

K 自动抬压脚部件/Automatic presser Foot Parts 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q K-1 207S11026 螺钉 M6×16 Screw M6x16 1 1 K-2 14204024 抬压脚曲柄 Presser Foot Crank 1 1 K-3 1423103600 拉杆组件 Lever Assembly 1 1 K-4 1423001200 抬压脚带电磁铁组件 Pressure-carryingfoot 1 1 K-5 101S30014 绕线器木螺钉 M4×20 Screw M4x20 8 8 第 30 页 jintex.in
