Page 1 (cover): This is the cover page for the CONSEW Operating Instructions & Parts List for models CM793, CM794, and CM795. It includes the company logo, address, and contact information.
Page 2 (unknown): This page contains a watermark and no other discernible content.
Page 3 (text): This page contains an introduction to the 2000 Series sewing machine and important safety precautions to observe before operating the machine, including notes on power supply and pedal usage.
Page 4 (toc): This page contains the table of contents for the manual, detailing sections such as 'BEFORE OPERATING', 'TEST SEWING', and 'MAINTENANCE DURING USE', along with their corresponding page numbers.
Page 5 (diagram): This page contains a schematic diagram of a machine table with various dimensions and labels, including standard dimensions for sections A-A and B-B.
Page 6 (text): This page provides instructions for installing the machine head and details the machine speed and turning direction, including a table of model numbers and their corresponding maximum sewing speeds.
Page 7 (text): This page describes lubrication procedures for the sewing machine, including oil level checks and manual oil application for initial use or after periods of disuse.
Page 8 (text): This page contains instructions for filling the HR device with silicon oil and threading the machine, along with diagrams illustrating these steps.
Page 9 (text): This page contains instructions for threading the machine, including needle thread and looper thread, and adjusting the presser foot pressure. It also includes a diagram illustrating the threading process and a diagram for adjusting presser foot pressure.
Page 10 (text): This page describes how to adjust the differential feed ratio and stitch length on a sewing machine, with accompanying diagrams illustrating the relevant parts.
Page 11 (text): This page provides instructions on adjusting thread tension and cleaning the machine, with diagrams illustrating the process.
Page 12 (text): This page contains instructions for replacing the needle and checking oil circulation on a sewing machine, along with diagrams illustrating these procedures.
Page 13 (text): This page contains maintenance instructions for replacing the oil and the lower knife, including diagrams and specific angles for resharpening.
Page 14 (diagram): This page illustrates the process of replacing the lower knife on an industrial sewing machine, including diagrams and step-by-step instructions.
Page 15 (text): This page contains tables detailing adjustment dimensions for various sewing machine models, including 2000-5L, 2000-5, 2000-5(5x5), 2000-5H, 2000-3, 2000-3B, 2000-3E, 2000-4, and 2000-4H, along with a table for "2000 Standard needle" specifications.
Page 16 (diagram): This page displays a diagram of machine components, with numbered parts and associated part numbers and descriptions.
Page 17 (parts_list): This page lists machine arm parts with their corresponding retention numbers, descriptions, and quantities for different models.
Page 18 (diagram): This page displays a diagram of various machine components, including covers, brackets, and fasteners, with reference numbers and some part numbers indicated.
Page 19 (parts_list): This page lists parts for the machine arm, including screws, covers, oil seals, and decorative brands, with quantities specified for different models.
Page 20 (diagram): This page displays a diagram of various sewing machine components, including screws, plates, covers, and other mechanical parts, with reference numbers for identification.
Page 21 (parts_list): This page lists parts for Machine Arm Part (3), including part numbers, descriptions, and quantities for different models.
Page 22 (diagram): This page displays a diagram of various components, including screws, shafts, pulleys, and housings, with corresponding reference numbers for identification.
Page 23 (parts_list): This page lists parts for the Needle Bar Drive, including part numbers, descriptions, and quantities for different machine models.
Page 24 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 38, and sub-assemblies identified as 2000-3, 2000-4, and 2000-5 (5x5).
Page 25 (parts_list): This page lists parts for the needle bar drive, including retaining rings, washers, screws, set collars, upper shaft components, needle bars, and oil seals, with quantities specified for different machine models.
Page 26 (diagram): This page displays diagrams of parts for models 2000-5 (5x5), 2000-3, and 2000-4, with numbered references for each component.
Page 27 (parts_list): This page lists needle bar drive parts, including needle plates, screws, rubber plugs, and brackets, with their corresponding part numbers and quantities for different machine models.
Page 28 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
Page 29 (parts_list): This page lists parts for the upper and lower looper drive, including part numbers, descriptions, and quantities for different models.
Page 30 (diagram): This page displays a diagram of various machine components, including screws, washers, and other mechanical parts, with reference numbers and some part numbers like 2000-5, 2000-3, and 2000-4.
Page 31 (parts_list): This page lists parts for the upper and lower looper drive, including screws, washers, bushings, oil seals, and pins, with quantities specified for different machine models.
Page 32 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 45, illustrating their assembly and placement within the machine.
Page 33 (parts_list): This page lists parts for the Feed Dog Lift (1) with part numbers, descriptions, and quantities for different models.
Page 34 (diagram): This page displays a diagram of various machine components, with parts numbered from 1 to 39, illustrating their assembly and placement within the machine structure.
Page 35 (parts_list): This page lists parts for the Feed Dog Lift, including part numbers, descriptions, and quantities for different models.
Page 36 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 39, illustrating their assembly and placement within the machine.
Page 37 (parts_list): This page lists parts for the feed dog lift, including screws, washers, links, rollers, and differential feed dogs, with quantities specified for different machine models.
Page 38 (diagram): This page displays a diagram of various machine parts, including screws, washers, shafts, and brackets, with corresponding reference numbers and part numbers.
Page 39 (parts_list): This page lists parts for the cutter drive, including pins, screws, washers, bushes, knives, and needle guards, with quantities specified for different models.
Page 40 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and a housing unit, with reference numbers for each part.
Page 41 (parts_list): This page lists parts for the presser foot lift, including part numbers, descriptions, and quantities for different models.
Page 42 (diagram): This page displays diagrams of sewing machine parts for models 2000-5 (5x5), 2000-5H, and 2000-3,4, with numbered components indicated.
Page 43 (parts_list): This page lists parts for the presser foot lift, including screws, springs, brackets, and pins, with quantities specified for different machine models.
Page 44 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding references.
Page 45 (parts_list): This page lists parts for the front looper, including part numbers, descriptions, and quantities for different machine models.

Page 1 — OPERATING INSTRUCTIONS & PARTS LIST

CONSEW Since 1898 CONSOLIDATED SEWING MACHINE CORP. INDUSTRIAL SEWING & CUTTING EQUIPMENT OPERATING INSTRUCTIONS & PARTS LIST CM793 CM794 CM795 CONSEW Since 1898 CONSOLIDATED SEWING MACHINE CORP. INDUSTRIAL SEWING & CUTTING EQUIPMENT 400 VETERANS BLVD, CARLSTADT, NJ 07072 jintex.in

Page 2

jintex.in

Page 3 — INTRODUCTION

INTRODUCTION Thank you very much for purchasing 2000 Series sewing machine. This instruction manual describes daily routine maintenance and safety precautions to keep the machine in the best possible conditions. Please study this manual very carefully before operating the machine. OBSERVE THESE SAFETY PRECAUTIONS Though 2000 series takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safety rules. To prevent accidents, do not remove safety devices or parts while operating the machine. Do not leave tools or other unnecessary objects on the machine table while operating the machine. Before maintenance, adjusting, cleaning, threading or replacing the needle, and to prevent accidents, be sure the power is turned off. Check that the machine will not operate when the pedal is pressed. Note In case a clutch type motor is used, it will keep on rotating by inertia after turning off power supply ①. If the machine pedal ② is stepped on inadvertently, it is dangerous because the machine will move unexpect ed- ly. Keep on stepping on the machine pedal ② until the machine comes to a stop after turning off the power supply ① . Turn the power off before leaving the machine table. In the event of a power failure, be sure to turn the machine off. Check that the machine is securely grounded. 1 jintex.in

Page 4 — CONTENTS

Typical GN2000-3 parts on page 4
Ref	Part number	Part name	Qty
	3	Schematic diagram of the machine table
	4	Installing the machine head
	4	The machine speed and the turning direction
	5	Lubrication
	5	Manual lubrication
	6	Filling the HR device with silicon oil
	6	Threading
	7	Adjusting the presser foot pressure
	8	Adjusting the diff. feed ratio
	8	Adjusting the stitch length
	9	Adjusting the thread tension
	9	Cleaning the machine
	10	Replacing the needle
	10	Checking the oil circulation
	11	Replacing the oil
	11-12	Replacing the lower knife
	13	Adjustment dimensions
	13	Standard needle

CONTENTS BEFORE OPERATING Schematic diagram of the machine table 3 Installing the machine head 4 The machine speed and the turning direction 4 Lubrication 5 Manual lubrication 5 Filling the HR device with silicon oil 6 Threading 6 TEST SEWING Adjusting the presser foot pressure 7 Adjusting the diff. feed ratio 8 Adjusting the stitch length 8 Adjusting the thread tension 9 MAINTENANCE DURING USE Cleaning the machine 9 Replacing the needle 10 Checking the oil circulation 10 Replacing the oil 11 Replacing the lower knife 11-12 Adjustment dimensions 13 Standard needle 13 2 jintex.in

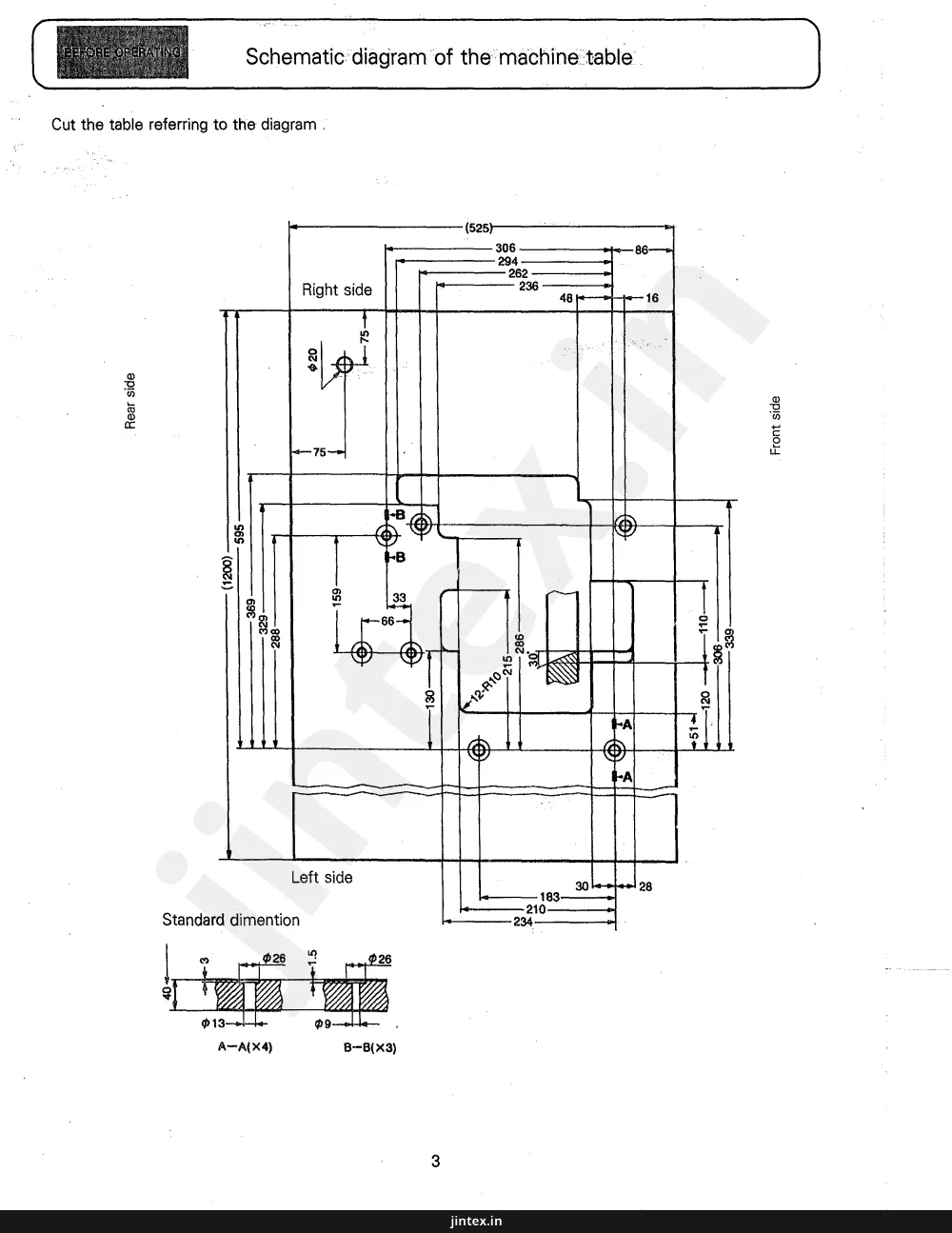

Page 5 — Schematic diagram of the machine table

BEFORE OPERATING Schematic diagram of the machine table Cut the table referring to the diagram (525) 306 294 262 236 48 16 Right side 86 $20 75 75 (1200) 595 369 329 288 159 133 66 130 12-R10 215 285 30 183 210 234 28 Left side Standard dimention $26 15 40 $13 3 B-B(X3) A-A(X4) Front side 110 306 339 120 51 3

Page 6

Typical GN2000-3 parts on page 6
Ref	Part number	Part name	Qty
	2000-3	7000
	2000-3B	7000
	2000-3E	7000
	2000-4	6500
	2000-4M	6500
	2000-4H	6000
	2000-5L	6500
	2000-5	6500
	2000-5(5x5)	6500
	2000-5H	5500

BEFORE OPERATING Instaling the machine head 1. Mount the machine head on the mahcine rest board. 2. Adjust the tension of the belt so that it can be about 2cm bent inward when you press the middle of it. Adjust the height of the motor to do this. 3. Install the belt cover referring to the Figure. BEFORE OPERATING The machine speed and turning direction The machine rotates clockwise when seen from the machine pully side. Make sure your machine type and run it not exceeding the maximum speed as listed in the table Modle (r. p. m) Sewing speed (max) 2000-3 2000-3B 7000 2000-3E 2000-4 2000-4M 6500 2000-4H 6000 2000-5L 2000-5 2000-5(5x5) 6500 2000-5H 5500 4 jintex.in

Page 7 — Lubrication

BEFORE OPERATING Lubrication After filling the oil pan, the top of oil indicator should lie between (H) and (L) lines. Add oil, when it reaches or goes below (L). Note: Use our company recommended oil BEFORE OPERATING Manual lubrication Apply 2 or 3 drops of oil by hand when the machine is used for the first time or has been left unused for some time. Note: Use our company recommended oil 5 jintex.in

Page 8 — Filling the HR device with silicon oil

BEFORE OPERATING Filling the HR device with silicon oil Fill the HR device with oil before it is too low in order to prevent needle thread breakage and fabric damage. BEFORE OPERATING Threading Open three covers. Swing the presser foot aside. 6 jintex.in

Page 9 — Threading

BEFORE OPERATING Threading Knot the preset thread and the thread being used together to thread the machine. Needle thread Trim the knots off neatly before passing through the eye of the needle to rethread. ② Be sure to thread the machine correctly by referring to the threading diagram. Looper thread Trim the knots off neatly af- ter passing through the eye of the looper. Threading diagram TEST SEWING Adjusting the presser foot pressure Turn adjusting screw to adjust the presser foot pressure. It should be as light as possible, yet be sufficient to obtain the proper stitch formation. Light Heavy 7 jintex.in

Page 10 — Adjusting the diff. feed ratio

TEST SEWING Adjusting the diff. feed ratio Loosen the nut and move the lever up and down to obtain the correct differential feed ratio. Tighten the nut after positioning the lever as desired. To stretch To shrink TEST SEWING Adjusting the stitch rength 1. While pressing the push button, turn the hand- wheel to seek the position at which the push button goes further into the depth. 2. Then, keeping the push button pressed, turn the handwheel and set the desired scale to the aligning mark. Note: Stitch length adjustment must only be made after the differential feed ratio has been changed. Aligning Mark Coarse Fine Handwheel Handweel Push Button 8 jintez.in

Page 11 — Adjusting the thread tension

TEST SEWING Adjusting the thread tension Make tension adjustments with the nee- dle thread knot ①, the upper looper knob ②, and the lower looper knob ③. To loosen To tighten MAINTENANCE DURING USE Cleaning the machine Mainly the slots of the needle plate and the feed rows should be cleaned. 9 jintex.in

Page 12

MAINTENANCE DURING USE Replacing the needle Check the needle carefully to see that the scarf is turned to the rear of the machine. Insert the needle to the proper depth, and fasten securely. Be sure to use standard nee- dle. Refer to ADJUSTMENT DI- MENSIONS on the end of in- structions. OKI NOI scarf Be sure to use the blue-handled hex driver packaged in the accessory box. Note: Do not remove the screw. MAINTENANCE DURING USE Checking the oil circulation Operating 10 jintex.in

Page 13

Typical GN2000-3 parts on page 13
Ref	Part number	Part name	Qty
	2000-5	2000-5H
	2000-3	2000-4

MAINTENANCE DURING USE Replacing the oil Replace the oil one month after the first use and every six months thereafter. MAINTENANCE DURING USE Replacing the lower knife To remove the lower knife Temporarily screw ① after sliding the lower knife holder to the left. Correct angles to resharpen the lower knife. 2000-5 2000-5H 45° 75° 2000-3 2000-4 62° 75° 1 Loosen the screw 4 Remove the lower knife 3 Loosen the screw 11 jintex.in

Page 14 — Replacing the lower knife

Typical GN2000-3 parts on page 14
Ref	Part number	Part name
5	⑤	screw
4	④	handwheel
3	③	drawing
2	②	screw
1	①	lower knife

MAINTENANCE DURING USE Replacing the lower knife To replace the lower knife Loosening the screw ⑤ makes the lower knife holder slide to the right. Turn the handwheel as the drawing on the right figure. Tighten the screw. Insert the lower knife. (See the below figure) Upper knife Cutting edge of the lower knife Top surface of the needle plate Lower knife Level of A = Level of B Check cutting action of knives. 12 jintex.in

Page 15

Typical GN2000-3 parts on page 15
Ref	Part number	Part name	Qty
	2000-5L	10.6 3.9 5.1 0.9~1.1 5.5 1.5
	2000-5	10.6 3.9 3.3 0.9~1.1 5.5 1.5
	2000-5(5x5)	10.6 3.9 5.1 0.9~1.1 5.5 1.5
	2000-5H	12.0 3.6 5.1 0.9~1.1 6 1.5
	2000-3	10.1 4.2 5.1 0.9~1.1 5.5
	2000-3B	10.1 4.2 5.1 0.9~1.1 5.5
	2000-3E	10.1 4.2 5.1 0.9~1.1 5.5
	2000-4	10.1 4.6 5.8 0.9~1.1 5.5
	2000-4H	11.1 4.6 5.8 0.9~1.1 6
	2000-3	11
	2000-4H	14
	2000-3B	9
	2000-5L	11
	2000-3E	9
	2000-5	14
	2000-4	11
	2000-5(5x5)	14
	2000-5H	21

Adjustment dimentions 2000-5 (mm) 2000-5L 10.6 3.9 5.1 0.9~1.1 5.5 1.5 2000-5 10.6 3.9 3.3 0.9~1.1 5.5 1.5 2000-5(5x5) 10.6 3.9 5.1 0.9~1.1 5.5 1.5 2000-5H 12.0 3.6 5.1 0.9~1.1 6 1.5 Adjustment dimentions 2000-3, 2000-4 (mm) 2000-3 10.1 4.2 5.1 0.9~1.1 5.5 2000-3B 10.1 4.2 5.1 0.9~1.1 5.5 2000-3E 10.1 4.2 5.1 0.9~1.1 5.5 2000-4 10.1 4.6 5.8 0.9~1.1 5.5 2000-4H 11.1 4.6 5.8 0.9~1.1 6 2000 Standard needle Organ Organ DC x 27 DC x 27 2000-3 11 2000-4H 14 2000-3B 9 2000-5L 11 2000-3E 9 2000-5 14 2000-4 11 2000-5(5x5) 14 2000-5H 21 13 jintex.in

Page 16

Typical GN2000-3 parts on page 16
Ref	Part number	Part name	Qty
14	2000-3,-4	2000-3,-4
13	2000-5	2000-5

1 2 3 4 6 7 8 9 10 11 12 13 14 15 2000-3,-4 2000-5 14 jintex.in

Page 17 — 1. MACHINE ARM PARTS (1)

Typical GN2000-3 parts on page 17
Part number	Part name	Qty
S150220005	Screw	4
155100001	Frame side cover	1
S150215011	Screw(L)	1
S150215009	Screw(S)	3
S8A3104007	Spring pin	2
155100002	Thread guide pipe	2
022120003	Rivet	2
160100001	Model plate	1
159100007	Model plate	1
155100037	Model plate	1
155100038	Model plate	1
S8A3104007	Spring pin	1
S150220016	Screw	2
S8A3104007	Spring pin	1
159100001	Needle plate support bracket	1
155100003	Needle plate support bracket	1
155100005	Screw	4

1. MACHINE ARM PARTS (1) No. Ret. No. Description Qt 3 4/4H 5 5H 1 S150220005 Screw 4 4 4 4 2 155100001 Frame side cover 1 1 1 1 3 S150215011 Screw (L) 1 1 1 1 4 S150215009 Screw (S) 3 3 3 3 6 S8A3104007 Spring pin 2 2 2 2 7 155100002 Thread guide pipe 2 2 2 2 8 022120003 Rivet 2 2 2 2 10 160100001 Model plate 1 159100007 Model plate 1 155100037 Model plate 1 155100038 Model plate 1 11 S8A3104007 Spring pin 1 1 1 1 12 S150220016 Screw 2 2 2 2 13 S8A3104007 Spring pin 1 1 1 1 14 159100001 Needle plate support bracket 1 1 155100003 Needle plate support bracket 1 15 155100005 Screw 4 4 4 4 15 jintex.in

Page 18

Typical GN2000-3 parts on page 18
Ref	Part number	Part name
17	2000-3,-4	BRACKET
17	2000-5	BRACKET
20	2000-5	COVER
20	2000-3,-4	COVER

2000-3,-4 2000-5 2000-5 2000-3,-4 16 jintex.in

Page 19 — 2. MACHINE ARM PART(2)

Typical GN2000-3 parts on page 19
Part number	Part name	Qty
155100010	Oil guide plate	1
S150215008	Screw	1
155100031	Packing	1
155100030	Oil monitor	1
S150215011	Screw	4
155100008	Top cover	1
155100009	Oil gasket	1
155100016	Belt cover	1
S150215014	Screw	3
S150215001	Screw	2
155100015	Cooling fan guard	1
155100013	Plate spring	1
S150215008	Screw	1
155100014	Cover	1
S150215001	Screw	3
155100034	Screw	1
159140000	Cloth guide	1
155150000	Cloth guide	1
155100033	Screw	1
S150215001	Screw	2
159120001	Front cover	1
155120004	Front cover	1
S150215008	Screw	2
155120007	Front cover hinge stopper	1
S150215008	Screw	1
155120005	Stopper plate	1
S120202007	Screw	1
155120002	Front cover hinge shaft	1
B12400432	Screw	2
155120001	Front cover(L)	1
155120003	Spring	1
155120006	Front cover hinge	1
S150215010	Screw	3
155100012	Oil seal	1
160DQZ005	Decorative brand	1
160DHZ001	Decorative brand	1

2. MACHINE ARM PART(2) No. Ret. No. Description Qt 3 4/4H 5 5H 1 155100010 Oil guide plate 1 1 1 1 2 S150215008 Screw 1 1 1 1 3 155100031 Packing 1 1 1 1 4 155100030 Oil monitor 1 1 1 1 5 S150215011 Screw 4 4 4 4 6 155100008 Top cover 1 1 1 1 7 155100009 Oil gasket 1 1 1 1 8 155100016 Belt cover 1 1 1 1 9 S150215014 Screw 3 3 3 3 10 S150215001 Screw 2 2 2 2 11 155100015 Cooling fan guard 1 1 1 1 12 155100013 Plate spring 1 1 1 1 13 S150215008 Screw 1 1 1 1 14 155100014 Cover 1 1 1 1 15 S150215001 Screw 3 3 3 3 16 155100034 Screw 1 1 1 1 17 159140000 Cloth guide 1 1 155150000 Cloth guide 1 1 18 155100033 Screw 1 1 1 1 19 S150215001 Screw 2 2 2 2 20 159120001 Front cover 1 1 155120004 Front cover 1 1 21 S150215008 Screw 2 2 2 2 23 155120007 Front cover hinge stopper 1 1 1 1 24 S150215008 Screw 1 1 1 1 25 155120005 Stopper plate 1 1 1 1 26 S120202007 Screw 1 1 1 1 27 155120002 Front cover hinge shaft 1 1 1 1 28 B12400432 Screw 2 2 2 2 29 155120001 Front cover(L) 1 1 1 1 30 155120003 Spring 1 1 1 1 31 155120006 Front cover hinge 1 1 1 1 32 S150215010 Screw 3 3 3 3 33 155100012 Oil seal 1 1 1 1 34 160DQZ005 Decorative brand 1 1 1 1 35 160DHZ001 Decorative brand 1 1 1 1 17 jintex.in

Page 20

Typical GN2000-3 parts on page 20
Ref	Part number	Part name
1	2000-5	SCREW
2	2000-5	PLATE
3	2000-5	COVER
4	2000-5	SCREW
5	2000-5	SCREW
6	2000-5	SCREW
7	2000-5	WASHER
8	2000-5	ROD
9	2000-5	COVER
10	2000-5	COVER
11	2000-5	SCREW
12	2000-5	WASHER
13	2000-5	SCREW
14	2000-5	SCREW
15	2000-5	WASHER
16	2000-5	SCREW
17	2000-5	SCREW
18	2000-5	PLATE
19	2000-5	SCREW
20	2000-5	SCREW
21	2000-5	SCREW
22	2000-5	SCREW
23	2000-5	SCREW
24	2000-5	PLATE
25	2000-5	SCREW
26	2000-5	SCREW
27	2000-5	SCREW
28	2000-5	COVER
29	2000-5	SCREW
30	2000-5	COVER
31	2000-5	COVER
32	2000-5	WASHER
33	2000-5	WASHER
34	2000-5	SCREW
35	2000-5	SPRING
36	2000-5	LEVER
37	2000-5	SCREW
38	2000-5	WASHER
39	2000-5	COVER
40	2000-5	SCREW
41	2000-5	SCREW
42	2000-5	WASHER
43	2000-5	SCREW
44	2000-5	SCREW
45	2000-5	SCREW
29	2000-3,-4	COVER
30	2000-3,-4	COVER
31	2000-3,-4	COVER
32	2000-3,-4	COVER
33	2000-3,-4	COVER
34	2000-3,-4	COVER
35	2000-3,-4	COVER
36	2000-3,-4	COVER
37	2000-3,-4	COVER
38	2000-3,-4	COVER
39	2000-3,-4	COVER
40	2000-3,-4	COVER
41	2000-3,-4	COVER
42	2000-3,-4	COVER
43	2000-3,-4	COVER
44	2000-3,-4	COVER
45	2000-3,-4	COVER

2000-5 2000-5 2000-3,-4 18 jintex.in

Page 21 — 3. MACHINE ARM PART (3)

Typical GN2000-3 parts on page 21
Part number	Part name	Qty
S150215009	Screw	4
155100017	Back cover for feed mechanism	1
155100033	Screw	4
155100018	Feed bar cover	1
B12400432	Screw	1
S150215008	Screw	1
155100021	Plate spring	1
155100020	Shaft for needle thread cover	1
155100019	Needle thread cover	1
160DQ002	Trade mark plate	1
155100004	Screw	1
155100025	Wave spring	2
155100023	Eye guard support plate	1
159100004	Eye guard	1
155100026	Eye guard	1
S8A3103002	Washer	2
S120202007	Screw	2
155100027	Rubber plug	1
155100029	Needle bar seal cover	1
155100022	Screw	1
155100034	Screw	1
S150215005	Screw	1
S150559002	Nut	1
S150218005	Screw	2
155140001	Direction guide plate	1
155140002	Plate spring	1
S150217008	Screw	1
155100027	Rubber plug	3
155130006	Nut	1
159131001	Cloth plate	1
155131001	Cloth plate	1
B12400432	Screw	1
155130001	Cloth plate shaft bush	1
155100025	Wave spring	1
155100024	Screw	1
155130005	Screw	1
155130004	Spring	1
155130003	Latch lever for cloth plate	1
S150215008	Screw	2
155130008	Washer	2
155130007	Side cover	1
155100027	Rubber plug	1
155130009	Plate spring	1
S120202004	Screw	1
S4B3000010	Spring washer	1
S150215015	Screw (L)	1
116400008	Screw	1

3. MACHINE ARM PART (3) No. Ret. No. Description Qt 3 4/4H 5 5H 1 S150215009 Screw 4 4 4 4 2 155100017 Back cover for feed mechanism 1 1 1 1 3 155100033 Screw 4 4 4 4 4 155100018 Feed bar cover 1 1 1 1 5 B12400432 Screw 1 1 1 1 6 S150215008 Screw 1 1 1 1 7 155100021 Plate spring 1 1 1 1 8 155100020 Shaft for needle thread cover 1 1 1 1 9 155100019 Needle thread cover 1 1 1 1 10 160DQ002 Trade mark plate 1 1 1 1 11 155100004 Screw 1 1 1 1 12 155100025 Wave spring 2 2 2 2 13 155100023 Eye guard support plate 1 1 1 1 14 159100004 Eye guard 1 1 1 1 155100026 Eye guard 1 1 1 1 15 S8A3103002 Washer 2 2 2 2 16 S120202007 Screw 2 2 2 2 17 155100027 Rubber plug 1 1 1 1 18 155100029 Needle bar seal cover 1 1 1 1 19 155100022 Screw 1 1 1 1 20 155100034 Screw 1 1 1 1 21 S150215005 Screw 1 1 1 1 22 S150559002 Nut 1 1 1 1 23 S150218005 Screw 2 2 2 2 24 155140001 Direction guide plate 1 1 1 1 25 155140002 Plate spring 1 1 1 1 26 S150217008 Screw 1 1 1 1 27 155100027 Rubber plug 3 3 3 3 28 155130006 Nut 1 1 1 1 29 159131001 Cloth plate 1 1 1 1 155131001 Cloth plate 1 1 1 1 30 B12400432 Screw 1 1 1 1 31 155130001 Cloth plate shaft bush 1 1 1 1 32 155100025 Wave spring 1 1 1 1 33 155100024 Screw 1 1 1 1 34 155130005 Screw 1 1 1 1 35 155130004 Spring 1 1 1 1 36 155130003 Latch lever for cloth plate 1 1 1 1 37 S150215008 Screw 2 2 2 2 38 155130008 Washer 2 2 2 2 39 155130007 Side cover 1 1 1 1 40 155100027 Rubber plug 1 1 1 1 41 155130009 Plate spring 1 1 1 1 42 S120202004 Screw 1 1 1 1 43 S4B3000010 Spring washer 1 1 1 1 44 S150215015 Screw (L) 1 1 1 1 45 116400008 Screw 1 1 1 1 19 jintex.in

Page 22

Typical GN2000-3 parts on page 22
Ref	Part number	Part name
1	2000-5	SCREW
2	2000-3,-4	SHAFT
3	2000-3,-4	SHAFT
4	2000-5	SCREW
5	2000-5	SCREW
6	2000-5	SCREW
7	2000-5	SCREW
8	2000-5	SCREW
9	2000-5	SCREW
10	2000-5	SCREW
11	2000-5	SCREW
12	2000-5	SCREW
13	2000-5	SCREW
14	2000-5	SCREW
15	2000-5	SCREW
16	2000-5	SCREW
17	2000-5	SCREW
18	2000-5	SCREW
19	2000-5	SCREW
20	2000-5	SCREW
21	2000-5	SCREW
22	2000-5	SCREW
23	2000-5	SCREW
24	2000-5	SCREW
25	2000-5	SCREW
26	2000-5	SCREW
27	2000-5	SCREW
28	2000-5	SCREW
29	2000-5	SCREW
30	2000-5	SCREW
31	2000-5	SCREW
32	2000-5	SCREW
33	2000-5	SCREW
34	2000-5	SCREW
35	2000-5	SCREW
36	2000-5	SCREW

2000-5 2000-3,-4 2000-5 2000-3,-4 20 jintex.in

Page 23 — 4. NEEDLE BAR DRIVE PARTS (1)

Typical GN2000-3 parts on page 23
Part number	Part name	Qty
155200001	Crank shaft extension	1
S150224007	Screw	2
159200001	Bearing cap	1
155200002	Bearing cap	1
S150215009	Screw	3
S150215009	Screw	1
S120205003	Screw	2
155200004	Rubber ring	1
B12500532	Screw	1
155220000	Ball bearing (L), assy	1
S15024006	Screw	1
155200005	Crank shaftbush (M)	1
SFB0201004	Screw	2
155230001	Stopper bush	1
155200006	Screw	1
155210001	Crank shaft	1
006301008	Screw	2
028260003	Screw	1
S150215009	Screw	3
155200011	Bearing presser	1
155200018	O-type ring	1
155200010	Packing	1
052200036	Ball bearing (right)	1
155200009	Collar	1
155200008	Spring washer	4
S150866046	Ball bearing (middle)	1
B12500532	Screw	1
155200007	Worm	1
155200012	Crank shaft oil reject	1
S150656004	O-type ring	1
155200013	Cooling fan	1
S150225003	Screw	1
S150224003	Screw	1
155200014	Belt wheel	1
155200016	Washer	1
S150220005	Screw	1
155200017	Machine pulley	1
S150215012	Screw	3

4. NEEDLE BAR DRIVE PARTS (1) No. Ret. No. Description Qt 3 4/4H 5 5H 1 155200001 Crank shaft extension 1 2 S150224007 Screw 2 2 159200001 Bearing cap 1 1 155200002 Bearing cap 1 1 4 S150215009 Screw 3 3 S150215009 Screw 1 1 5 S120205003 Screw 2 2 6 155200004 Rubber ring 1 1 7 B12500532 Screw 1 1 8 155220000 Ball bearing (L), assy 1 1 S15024006 Screw 1 1 9 155200005 Crank shaftbush (M) 1 1 10 SFB0201004 Screw 2 2 11 155230001 Stopper bush 1 1 12 155200006 Screw 1 1 13 155210001 Crank shaft 1 1 14 006301008 Screw 2 2 15 028260003 Screw 1 1 16 S150215009 Screw 3 3 17 155200011 Bearing presser 1 1 18 155200018 O-type ring 1 1 19 155200010 Packing 1 1 20 052200036 Ball bearing (right) 1 1 21 155200009 Collar 1 1 22 155200008 Spring washer 4 4 23 S150866046 Ball bearing (middle) 1 1 24 B12500532 Screw 1 1 25 155200007 Worm 1 1 26 155200012 Crank shaft oil reject 1 1 27 S150656004 O-type ring 1 1 28 155200013 Cooling fan 1 1 29 S150225003 Screw 1 1 30 S150224003 Screw 1 1 31 155200014 Belt wheel 1 1 32 155200016 Washer 1 1 33 S150220005 Screw 1 1 34 155200017 Machine pulley 1 1 35 S150215012 Screw 3 3 21 jintex.in

Page 24

Typical GN2000-3 parts on page 24
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	2000-3	2000-3
	2000-4	2000-4
	2000-5 (5x5)	2000-5 (5x5)
	35	35
	36	36
	37	37
	38	38

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 2000-3 32 33 34 2000-4 32 33 34 2000-5 (5x5) 35 36 37 38 22 jintex.in

Page 25 — 5. NEEDLE BAR DRIVE PARTS (2)

Typical GN2000-3 parts on page 25
Part number	Part name	Qty
060410014	Retaining ring	1
155300006	Washer	1
155300005	Bush	1
B12400432	Screw	2
155300004	Set collar	1
155310000	Upper shaft crank complete	1
155370000	Upper shaft crank complete	1
155300017	Screw	1
155330000	Needle drive crank rod assy	1
B62401612	Screw	2
155300023	Pin	1
S150225008	Screw	1
155300002	Bush	1
155300003	Oil seal	1
155300001	Upper shaft	1
155300007	Needle bar crank	1
155400010	Screw	1
S150225005	Screw	1
155320000	Pin	2
155300008	Link for needle bar	1
155300012	Oil wick pin	1
S150653005	O - type ring	1
15530014	Upper bush needle bar	1
B12400432	Screw	1
155300013	Bush	1
155300010	Needle connector	1
155300030	Screw	1
S150225005	Screw	1
155300015	Bush	1
155300016	Needle bar oil ervoir	1
S150215008	Screw	1
155350001	Needle bar	1
160320001	Needle holder	1
159320001	Needle holder	1
155350002	Needle holder	1
182610010	Screw	1
159300007	Needle	1
159300007	Needle	2
028280109	Needle	2
077200401	Needle	2
155300021	Screw	2
155300020	Set plate for oil felt	1
155300019	Oil felt	1
155300022	Oil reservoir	1

5. NEEDLE BAR DRIVE PARTS (2) No. Ret. No. Description Qt 3 4 4H 5 5H 1 060410014 Retaining ring 1 1 1 1 1 2 155300006 Washer 1 1 1 1 1 3 155300005 Bush 1 1 1 1 1 4 B12400432 Screw 2 2 2 2 2 5 155300004 Set collar 1 1 1 1 1 6 155310000 Upper shaft crank complete 1 1 1 7 155370000 Upper shaft crank complete 1 1 1 8 155300017 Screw 1 1 1 1 1 9 155330000 Needle drive crank rod assy 1 1 1 1 1 10 B62401612 Screw 2 2 2 2 2 11 155300023 Pin 1 1 1 1 1 12 S150225008 Screw 1 1 1 1 1 13 155300002 Bush 1 1 1 1 1 14 155300003 Oil seal 1 1 1 1 1 15 155300001 Upper shaft 1 1 1 1 1 16 155300007 Needle bar crank 1 1 1 1 1 17 155400010 Screw 1 1 1 1 1 18 S150225005 Screw 1 1 1 1 1 19 155320000 Pin 2 2 2 2 2 20 155300008 Link for needle bar 1 1 1 1 1 21 155300012 Oil wick pin 1 1 1 1 1 22 S150653005 O - type ring 1 1 1 1 1 23 15530014 Upper bush needle bar 1 1 1 1 1 24 B12400432 Screw 1 1 1 1 1 25 155300013 Bush 1 1 1 1 1 26 155300010 Needle connector 1 1 1 1 1 27 155300030 Screw 1 1 1 1 1 28 S150225005 Screw 1 1 1 1 1 29 155300015 Bush 1 1 1 1 1 30 155300016 Needle bar oil ervoir 1 1 1 1 1 31 S150215008 Screw 1 1 1 1 1 32 155350001 Needle bar 1 1 1 1 1 160320001 Needle holder 1 159320001 Needle holder 1 1 155350002 Needle holder 1 33 182610010 Screw 1 2 2 2 2 34 159300007 Needle 1 159300007 Needle 2 2 028280109 Needle 2 077200401 Needle 2 35 155300021 Screw 2 2 2 2 2 36 155300020 Set plate for oil felt 1 1 1 1 1 37 155300019 Oil felt 1 1 1 1 1 38 155300022 Oil reservoir 1 1 1 1 1 23 jintex.in

Page 26

Typical GN2000-3 parts on page 26
Ref	Part number	Part name
1	1	Base Plate
2	2	Screw
3	3	Screw
4	4	Presser Foot Bar Guide
5	5	Base Plate
6	6	Screw
7	7	Presser Foot Bar Guide
8	8	Screw
9	9	Base Plate
10	10	Screw
11	11	Presser Foot Bar Guide
12	12	Screw
13	13	Presser Foot Bar Guide
14	14	Screw
15	15	Presser Foot Bar
16	16	Screw
17	17	Washer
18	18	Presser Foot Bar
19	19	Screw
20	20	Base Plate
21	21	Presser Foot Bar Guide
22	22	Screw
23	23	Presser Foot Bar Guide
24	24	Screw
25	25	Presser Foot Bar

2000-5 (5x5) 3 4 1 2 2000-3,-4 6 7 5 8 9 11 10 13 12 14 15 16 17 18 25 21 22 20 19 23 24 2000-4 1 4 2 24 jintex.in

Page 27 — 6. NEEDLE BAR DRIVE PARTS (3)

Typical GN2000-3 parts on page 27
Part number	Part name	Qty
160300001	Needle plate	1
160300003	Needle plate	1
159310001	Needle plate	1
155340001	Needle plate	1
155380001	Needle plate	1
159310003	Screw	1
039230003	Screw	1
159300006	Screw	2
028200050	Screw	2
159310002	Needle plate fitting(S)	1
155340002	Needle plate fitting	1
155380002	Needle plate fitting	1
155100027	Rubber plug	1
B62400812	Screw	1
B62400812	Screw	1
159330000	Needle plate bracket(rear)	1
155300029	Needle plate bracket(rear)	1
B62401012	Scrw	2
B62401012	Scrw	2
159300004	Needle plate bracket(front)	1
155300028	Needle plate bracket(front)	1
155300027	Chain stitch needle guard (front)	1
S150217002	Screw	1
S120202001	Screw	2
155300026	Chain stitch needle guard (rear)	2
S150217002	Screw	1
155300025	Needle guard	1
028200054	Screw	1
Q58600008	Washer	1
155300024	Movable needle guard	1
110550005	Screw	1
159300002	Needle guard bracket	1
159300001	Needle guard	1
SFB0201003	Screw	1
159300005	Needle plate guide plate	1
SFB0201004	Screw	1
S8A3103002	Washer	1

6. NEEDLE BAR DRIVE PARTS (3) No. Ret. No. Description Qt 3 4/4H 5 5H 1 160300001 Needle plate 160300003 Needle plate 159310001 Needle plate 155340001 Needle plate 155380001 Needle plate 2 159310003 Screw 039230003 Screw 3 159300006 Screw 028200050 Screw 4 159310002 Needle plate fitting(S) 155340002 Needle plate fitting 155380002 Needle plate fitting 5 155100027 Rubber plug 6 B62400812 Screw B62400812 Screw 7 159330000 Needle plate bracket(rear) 155300029 Needle plate bracket(rear) 8 B62401012 Scrw B62401012 Scrw 9 159300004 Needle plate bracket(front) 155300028 Needle plate bracket(front) 10 155300027 Chain stitch needle guard (front) 11 S150217002 Screw 12 S120202001 Screw 13 155300026 Chain stitch needle guard (rear) 14 S150217002 Screw 15 155300025 Needle guard 16 028200054 Screw 17 Q58600008 Washer 18 155300024 Movable needle guard 19 110550005 Screw 20 159300002 Needle guard bracket 21 159300001 Needle guard 22 SFB0201003 Screw 23 159300005 Needle plate guide plate 24 SFB0201004 Screw 25 S8A3103002 Washer 25 jintex.in

Page 28

Typical GN2000-3 parts on page 28
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

26 jintex.in

Page 29 — 7. UPPER AND LOWER LOOPER DRIVE PART(1)

Typical GN2000-3 parts on page 29
Part number	Part name	Qty
155400006	Rubber plug	1
S150204002	Screw	2
S8A3103012	Spring washer	2
155400005	Washer	1
155400004	Bush	1
155400001	Washer	2
155410000	looper ball link complete	1
B62401612	Screw	4
155420000	Upper looper ball crank complete	1
159400002	Upper looper ball crank complete	1
155400021	Screw	2
155400003	Bushing	1
028330001	Oil seal	1
155400002	Upper/lower looper shaft	1
155400009	Upper looper crank	1
155400010	Screw	1
S150225005	Screw	1
155430000	Pin complete	1
S150215008	Screw	1
155400014	Oil reservoir	1
B12400432	Screw	1
155440000	Pin complete	1
S8A3105006	Small ball plug	1
160400001	Upper looper	1
159400001	Upper looper	1
155400015	Upper looper	1
155400025	Upper looper	1
028100007	Screw	1
155400011/12	Upper looper tension shaft and guide	1
155400013	Oil felt	1
S150218001	Screw	1
S150217011	Screw	1
155400016	Over looper guide cover	1
S150220005	Screw	2
155400007	Over looper mechanism	1
155400008	Oil felt	1

7. UPPER AND LOWER LOOPER DRIVE PART(1) No. Ret. No. Description Qt 3 4 4H 5 5H 1 155400006 Rubber plug 1 1 1 1 1 2 S150204002 Screw 2 2 2 2 2 3 S8A3103012 Spring washer 2 2 2 2 2 4 155400005 Washer 1 1 1 1 1 5 155400004 Bush 1 1 1 1 1 6 155400001 Washer 2 2 2 2 2 7 155410000 looper ball link complete 1 1 1 1 1 8 B62401612 Screw 4 4 4 4 4 10 155420000 Upper looper ball crank complete 1 1 1 1 159400002 Upper looper ball crank complete 1 1 1 1 11 155400021 Screw 2 2 2 2 2 12 155400003 Bushing 1 1 1 1 1 13 028330001 Oil seal 1 1 1 1 1 14 155400002 Upper/lower looper shaft 1 1 1 1 1 15 155400009 Upper looper crank 1 1 1 1 1 16 155400010 Screw 1 1 1 1 1 17 S150225005 Screw 1 1 1 1 1 18 155430000 Pin complete 1 1 1 1 1 19 S150215008 Screw 1 1 1 1 1 20 155400014 Oil reservoir 1 1 1 1 1 21 B12400432 Screw 1 1 1 1 1 22 155440000 Pin complete 1 1 1 1 1 23 S8A3105006 Small ball plug 1 1 1 1 1 24 160400001 Upper looper 1 1 1 1 1 159400001 Upper looper 1 1 155400015 Upper looper 1 155400025 Upper looper 1 25 028100007 Screw 1 1 1 1 1 26 155400011/12 Upper looper tension shaft and guide 1 1 1 1 1 27 155400013 Oil felt 1 1 1 1 1 28 S150218001 Screw 1 1 1 1 1 29 S150217011 Screw 1 1 1 1 1 30 155400016 Over looper guide cover 1 1 1 1 1 31 S150220005 Screw 2 2 2 2 2 32 155400007 Over looper mechanism 1 1 1 1 1 33 155400008 Oil felt 1 1 1 1 1 27 jintex.in

Page 30

Typical GN2000-3 parts on page 30
Ref	Part number	Part name
9	2000-5	2000-5
9	2000-3	2000-3
9	2000-4	2000-4

1 2 3 4 2000-5 9 10 5 6 6 8 11 12 13 14 15 16 17 18 19 2000-3 9 10 2000-4 28 jintex.in

Page 31 — 8. UPPER AND LOWER LOOPER DRIVE PART(2)

Typical GN2000-3 parts on page 31
Part number	Part name	Qty
S150204002	Screw	1
S8A3103012	Spring washer	1
155400005	Washer	1
155400020	Bush	1
155410000	Looper ball link complete	1
B62401612	Screw	4
155400001	Washer	2
159400002	Lower looper ball crank	1
155400019	Lower looper ball crank	1
155420000	Lower looper ball crank	1
155400021	Screw	2
155400002	Upper/lower looper shaft	1
155400003	Bush	1
028330001	Oil seal	1
155451000	Lower looper holder complete	1
028300043	Pin	1
155400010	Screw	1
028300046	Pin	1
155450002	Lower looper	1
028100027	Screw	1

8. UPPER AND LOWER LOOPER DRIVE PART(2) No. Ret. No. Description Qt 3 4/4H 5 5H 1 S150204002 Screw 1 1 1 1 2 S8A3103012 Spring washer 1 1 1 1 3 155400005 Washer 1 1 1 1 4 155400020 Bush 1 1 1 1 5 155410000 Looper ball link complete 1 1 1 1 6 B62401612 Screw 4 4 4 4 8 155400001 Washer 2 2 2 2 9 159400002 Lower looper ball crank 1 155400019 Lower looper ball crank 1 155420000 Lower looper ball crank 1 10 155400021 Screw 2 2 2 2 11 155400002 Upper/lower looper shaft 1 1 1 1 12 155400003 Bush 1 1 1 1 13 028330001 Oil seal 1 1 1 1 14 155451000 Lower looper holder complete 1 1 1 1 15 028300043 Pin 1 1 1 1 16 155400010 Screw 1 1 1 1 17 028300046 Pin 1 1 1 1 18 155450002 Lower looper 1 1 1 1 19 028100027 Screw 1 1 1 1 29 jintex.in

Page 32

Typical GN2000-3 parts on page 32
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 30 jintex.in

Page 33 — 9. FEED DOG LIFT PART(1)

Typical GN2000-3 parts on page 33
Part number	Part name	Qty
155530000	Feed drive cam holder complete	1
B12500532	Screw	2
028400082	Pin	1
028400080	Roller	1
S150224015	Screw	2
155500026	Feed drive cam	1
155500027	Plate spring	1
155500028	Link for feed drive	1
S150225008	Screw	1
155540000	Needle bearing	1
155300023	Pin	1
155500029	Crank for feed drive	1
155300017	Screw	1
155500030	Stitch length adjust stopper	1
155500032	Screw	1
155500031	Spring	1
155550000	Stitch length cam complete	1
S150446010	Spring pin	1
S8A3103018	Retaining ring	1
S4A0604005	O-type ring	2
155500035	Washer	2
155500034	Spring	1
155500033	Push	1
155560000	Diff. Feed crank complete	1
155560002	Differential feed dog holder	1
155560001	Diff. feed crank	1
155300017	Screw	1
155560003	Cover for differential feed dog holder	1
S150217012	Screw	2
155500037	Screw	2
155500036	Diff. Feed regulating link	1
155500038	Differential feed adjust link crank	1
155300017	Screw	1
155500040	Bush	1
S4A0604005	O-type ring	1
155500039	Diff. feed regulating shaft	1
155500041	Diff. Feed regulating	1
155500042	Spring	1
155500043	Screw	1
155500044	Stopper plate	2
155500045	Differential stitch control	1
S150215010	Screw	2
028400044	Washer	1
155500046	Nut	1
155500047	Screw	1

9. FEED DOG LIFT PART(1) No. Ret. No. Description Qt 3 4/4H 5 5H 1 155530000 Feed drive cam holder complete 1 1 1 1 2 B12500532 Screw 2 2 2 2 3 028400082 Pin 1 1 1 1 4 028400080 Roller 1 1 1 1 5 S150224015 Screw 2 2 2 2 6 155500026 Feed drive cam 1 1 1 1 7 155500027 Plate spring 1 1 1 1 8 155500028 Link for feed drive 1 1 1 1 9 S150225008 Screw 1 1 1 1 10 155540000 Needle bearing 1 1 1 1 11 155300023 Pin 1 1 1 1 12 155500029 Crank for feed drive 1 1 1 1 13 155300017 Screw 1 1 1 1 14 155500030 Stitch length adjust stopper 1 1 1 1 15 155500032 Screw 1 1 1 1 16 155500031 Spring 1 1 1 1 17 155550000 Stitch length cam complete 1 1 1 1 18 S150446010 Spring pin 1 1 1 1 19 S8A3103018 Retaining ring 1 1 1 1 20 S4A0604005 O-type ring 2 2 2 2 21 155500035 Washer 2 2 2 2 22 155500034 Spring 1 1 1 1 23 155500033 Push 1 1 1 1 24 155560000 Diff. Feed crank complete 1 1 1 1 25 155560002 Differential feed dog holder 1 1 1 1 26 155560001 Diff. feed crank 1 1 1 1 27 155300017 Screw 1 1 1 1 28 155560003 Cover for differential feed dog holder 1 1 1 1 29 S150217012 Screw 2 2 2 2 30 155500037 Screw 2 2 2 2 31 155500036 Diff. Feed regulating link 1 1 1 1 32 155500038 Differential feed adjust link crank 1 1 1 1 33 155300017 Screw 1 1 1 1 34 155500040 Bush 1 1 1 1 35 S4A0604005 O-type ring 1 1 1 1 36 155500039 Diff. feed regulating shaft 1 1 1 1 37 155500041 Diff. Feed regulating 1 1 1 1 38 155500042 Spring 1 1 1 1 39 155500043 Screw 1 1 1 1 40 155500044 Stopper plate 2 2 2 2 41 155500045 Differential stitch control 1 1 1 1 42 S150215010 Screw 2 2 2 2 43 028400044 Washer 1 1 1 1 44 155500046 Nut 1 1 1 1 45 155500047 Screw 1 1 1 1 31 jintex.in

Page 34

Typical GN2000-3 parts on page 34
Ref	Part number	Part name	Qty
	1	CAP
	2	E-RING
	3	SHAFT
	4	WASHER
	5	CYLINDER
	6	BRACKET
	7	SPRING
	8	PIN
	9	WASHER
	10	NUT
	11	SLEEVE
	12	BOLT
	13	WASHER
	14	COLLAR
	15	LINK
	16	BRACKET
	17	CYLINDER
	18	PIN
	19	ROD
	20	BLOCK
	21	BRACKET
	22	SHAFT
	23	BRACKET
	24	WASHER
	25	CAP
	26	BOLT
	27	WASHER
	28	LINK
	29	BRACKET
	30	BOLT
	31	BRACKET
	32	BRACKET
	33	BRACKET
	34	WASHER
	35	BOLT
	36	BRACKET
	37	SCREW
	38	BRACKET
	39	BRACKET

Page 35 — 10. FEED DOG LIFT PART(2)

Typical GN2000-3 parts on page 35
Part number	Part name	Qty
028310001	Oil seal	1
060410014	Retaining ring	1
155500001	Feed shaft	1
155300006	Washer	2
155500003	Left bush for feed shaft	1
155500005	Feed crank	1
155300017	Screw	1
155500006	Pin	1
155500010	Washer	1
S120503010	Nut	1
155500004	Right bush for feed shaft	1
028400023	Screw	1
155500010	Washer	1
028400021	Roller for feed dog holder link	1
155500008	Link for feed dog holder	1
155500019	Slide block for feed dog	1
155500014	Eccentric shaft bush	1
B12400432	Screw	2
028400055	Eccentric shaft	1
155500012	Slide block	1
155510001	Feed dog holder	1
155510002	Differential feed dog holder	1
028400058	Washer	1
028400059	Screw	1
155500017	Oil seal	1

10. FEED DOG LIFT PART(2) No. Ret. No. Description Qt 3 4/4H 5 5H 1 028310001 Oil seal 1 1 1 1 2 060410014 Retaining ring 1 1 1 1 3 155500001 Feed shaft 1 1 1 1 4 155300006 Washer 2 2 2 2 5 155500003 Left bush for feed shaft 1 1 1 1 6 155500005 Feed crank 1 1 1 1 7 155300017 Screw 1 1 1 1 8 155500006 Pin 1 1 1 1 9 155500010 Washer 1 1 1 1 10 S120503010 Nut 1 1 1 1 11 155500004 Right bush for feed shaft 1 1 1 1 12 028400023 Screw 1 1 1 1 13 155500010 Washer 1 1 1 1 14 028400021 Roller for feed dog holder link 1 1 1 1 15 155500008 Link for feed dog holder 1 1 1 1 16 155500019 Slide block for feed dog 1 1 1 1 17 155500014 Eccentric shaft bush 1 1 1 1 18 B12400432 Screw 2 2 2 2 19 028400055 Eccentric shaft 1 1 1 1 20 155500012 Slide block 1 1 1 1 21 155510001 Feed dog holder 1 1 1 1 22 155510002 Differential feed dog holder 1 1 1 1 23 028400058 Washer 1 1 1 1 24 028400059 Screw 1 1 1 1 25 155500017 Oil seal 1 1 1 1 33 jintex.in

Page 36

Typical GN2000-3 parts on page 36
Ref	Part number	Part name
1	1	CAP
2	2	CLIP
3	3	SHAFT
4	4	COLLAR
5	5	SLEEVE
6	6	BRACKET
7	7	SCREW
8	8	BRACKET
9	9	WASHER
10	10	NUT
11	11	SLEEVE
12	12	SCREW
13	13	WASHER
14	14	LINK
15	15	PIN
16	16	BLOCK
17	17	SLEEVE
18	18	CLIP
19	19	SHAFT
20	20	BLOCK
21	21	BASE
22	22	BRACKET
23	23	SHAFT
24	24	BRACKET
25	25	CAP
26	26	SCREW
27	27	WASHER
28	28	SHAFT
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	PIN
33	33	BRACKET
34	34	BRACKET
35	35	SCREW
36	36	BRACKET
37	37	SCREW
38	38	BRACKET
39	39	BRACKET

34 jintex.in

Page 37 — 10. FEED DOG LIFT PART (2)

Typical GN2000-3 parts on page 37
Part number	Part name	Qty
028400023	Screw	1
155500010	Washer	1
155500018	Link for differential feed dog holder.	1
028400021	Roller for feed dog holder link	1
028200056	Screw	1
028100027	Screw	1
155500021	Differential feed dog	1
155500050	Differential feed dog	1
160500001	Differential feed dog	1
159500001	Differential feed dog	1
159500001	Differential feed dog	1
155580000	Main feed dog complete	1
155580001	Main feed dog	1
155520002	Auxible feed dog	1
155520000	Main feed dog complete	1
155520001	Main feed dog	1
155520002	Auxible feed dog	1
159510000	Main feed dog complete	1
159510001	Main feed dog	1
159510002	Auxible feed dog	1
160510000	Main feed dog complete	1
160510001	Mian feed dog	1
159510000	Main feed dog complete	1
028400004	Screw	1
028100027	Screw	1
S150215001	Screw	4
155500023	Differential feed guide bracket	1
S120202007	Screw	4
155500024	Differential feed seal guide plate	1
155500025	Differential feed seal plate	2

10. FEED DOG LIFT PART (2) No. Ret. No. Description. Qt 3 4/4H 5 5H 26 028400023 Screw 1 1 1 1 27 155500010 Washer 1 1 1 1 28 155500018 Link for differential feed dog holder. 1 1 1 1 29 028400021 Roller for feed dog holder link 1 1 1 1 30 028200056 Screw 1 1 028100027 Screw 1 1 1 1 31 155500021 Differential feed dog 1 1 155500050 Differential feed dog 1 160500001 Differential feed dog 1 159500001 Differential feed dog 1 159500001 Differential feed dog 1 1 32 155580000 Main feed dog complete 1 155580001 Main feed dog 1 155520002 Auxible feed dog 1 32 155520000 Main feed dog complete 1 155520001 Main feed dog 1 155520002 Auxible feed dog 1 32 159510000 Main feed dog complete 1 159510001 Main feed dog 1 159510002 Auxible feed dog 1 32 160510000 Main feed dog complete 1 160510001 Mian feed dog 1 159510000 Main feed dog complete 1 33 028400004 Screw 1 1 1 1 34 028100027 Screw 1 1 1 1 35 S150215001 Screw 4 4 4 4 36 155500023 Differential feed guide bracket 1 1 1 1 37 S120202007 Screw 4 4 4 4 38 155500024 Differential feed seal guide plate 1 1 1 1 39 155500025 Differential feed seal plate 2 2 2 2 35 jintex.in

Page 38

Typical GN2000-3 parts on page 38
Ref	Part number	Part name
1	2000-3,-4	SHAFT
2	2000-3,-4	COLLAR
3	2000-3,-4	SCREW
4	2000-3,-4	WASHER
5	2000-3,-4	COLLAR
6	2000-3,-4	SHAFT
7	2000-3,-4	SHAFT
8	2000-3,-4	PIN
9	2000-3,-4	SCREW
10	2000-3,-4	PLATE
11	2000-3,-4	BRACKET
11	2000-5	SCREW
12	2000-3,-4	SCREW
13	2000-3,-4	PIN
14	2000-3,-4	SHAFT
15	2000-3,-4	BRACKET
16	2000-3,-4	SCREW
17	2000-3,-4	BRACKET
18	2000-3,-4	PLATE
19	2000-3,-4	SCREW
20	2000-5	SHAFT
20	2000-3,-4	SHAFT
21	2000-3,-4	BRACKET
22	2000-3,-4	SCREW
23	2000-3,-4	BRACKET

1 2 3 4 5 6 7 8 9 10 11 2000-5 11 2000-3,-4 12 13 14 15 16 17 18 19 20 2000-5 21 22 23 2000-3,-4 20 2000-3,-4 36 jintex.in

Page 39 — 11. CUTTER DRIVE PARTS

Typical GN2000-3 parts on page 39
Part number	Part name	Qty
158300023	Pin	1
155600001	Crank for upper cutter drive	1
155300017	Screw	1
155600002	Washer	1
155600005	Right bush for upper cutter bar	1
155600004	Left bush for upper cutter bar	1
155600003	Upper knife bar	1
155600006	Pin	1
159600001	Pin	1
155600013	Screw	1
155600008	Upper knife	1
159600002	Upper knife holder	1
155600007	Upper knife holder	1
B60350812	Screw	2
155610000	Link for upper knife drive complete	1
B62401612	Screw	2
S150225008	Screw	1
028300027	Screw	1
028500013	Clamp for lower cutter	1
159600004	Lower knife	1
155600011	Lower knife	1
S150215001	Screw	1
159600003	Lower knife holder	1
155600009	Lower knife holder	1
155600010	Spring	1
S150215010	Screw	2
155600012	Needle guard holder	1
159600005	Needle guard holder	1

11. CUTTER DRIVE PARTS No. Ret. No. Description Qt 3 4/4H 5 5H 1 158300023 Pin 1 1 1 1 2 155600001 Crank for upper cutter drive 1 1 1 1 3 155300017 Screw 1 1 1 1 4 155600002 Washer 1 1 1 1 5 155600005 Right bush for upper cutter bar 1 1 1 1 6 155600004 Left bush for upper cutter bar 1 1 1 1 7 155600003 Upper knife bar 1 1 1 1 8 155600006 Pin 1 1 1 9 159600001 Pin 1 1 1 155600013 Screw 1 1 1 1 10 155600008 Upper knife 1 1 1 1 11 159600002 Upper knife holder 1 1 1 155600007 Upper knife holder 1 12 B60350812 Screw 2 2 2 2 13 155610000 Link for upper knife drive complete 1 1 1 1 14 B62401612 Screw 2 2 2 2 15 S150225008 Screw 1 1 1 1 16 028300027 Screw 1 1 1 1 17 028500013 Clamp for lower cutter 1 1 1 1 18 159600004 Lower knife 1 1 155600011 Lower knife 1 19 S150215001 Screw 1 1 1 1 20 159600003 Lower knife holder 1 1 155600009 Lower knife holder 1 1 21 155600010 Spring 1 1 1 1 22 S150215010 Screw 2 2 2 2 23 155600012 Needle guard holder 1 1 159600005 Needle guard holder 1 1 37 jintex.in

Page 40

Typical GN2000-3 parts on page 40
Ref	Part number	Part name	Qty
	1	Lever
	2	Shaft
	3	Lever
	4	Spring
	5	Screw
	6	Screw
	7	Lever
	8	Spring
	9	Shaft
	10	Screw
	11	Lever
	12	Screw
	13	Screw
	14	Screw
	15	Lever
	16	Spring
	17	Lever
	18	Pin
	19	Screw
	20	Screw
	21	Lever
	22	Bracket
	23	Screw
	24	Washer
	25	Lever
	26	Spring
	27	Spring
	28	Bracket
	29	Screw
	30	Screw
	31	Screw
	32	Shaft

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 38 jintex.in

Page 41 — 12. PRESSER FOOT LIFT PARTS (1)

Typical GN2000-3 parts on page 41
Part number	Part name	Qty
155800011	Link for foot lift lever	1
155800010	Screw	1
155800008	Foot lift lever	1
155800009	Spring	1
155800007	Set collar for foot lift shaft	1
155300017	Screw	1
155800005	Lever	1
155800006	Spring	1
155800004	Bush for presser foot lift	1
B12400432	Screw	1
155800012	Stopper plate	1
S150215009	Screw	2
S150215013	Screw	1
S120503010	Nut	1
S120210015	Screw	1
155800003	Press arm shaft	1
155800001	Press arm	1
155800002	Press arm pin	1
S120202004	Screw	1
S120202007	Screw	1
155800020	Knife	1
159700001	Finger guard	1
155800019	Finger guard	1
160710000	Presser foot complete	1
160730000	Presser foot complete	1
159710000	Presser foot complete	1
039720000	Presser foot complete	1
77T7-001A	Presser foot complete	1
155800018	Screw	1
155800017	Spring	1
155800016	Press bar lift	1
155800013	Screw	1
155800014	Spring	1
155800015	Press arm stopper	1
S150215008	Screw	1
155810000	Presser bar complete	1
155810002	Cushion	1
S150446011	Spring pin	1

12. PRESSER FOOT LIFT PARTS (1) No. Ret. No. Description Qt 3 4/4H 5 5H 1 155800011 Link for foot lift lever 1 1 1 1 2 155800010 Screw 1 1 1 1 3 155800008 Foot lift lever 1 1 1 1 4 155800009 Spring 1 1 1 1 5 155800007 Set collar for foot lift shaft 1 1 1 1 6 155300017 Screw 1 1 1 1 7 155800005 Lever 1 1 1 1 8 155800006 Spring 1 1 1 1 9 155800004 Bush for presser foot lift 1 1 1 1 10 B12400432 Screw 1 1 1 1 11 155800012 Stopper plate 1 1 1 1 12 S150215009 Screw 2 2 2 2 13 S150215013 Screw 1 1 1 1 14 S120503010 Nut 1 1 1 1 15 S120210015 Screw 1 1 1 1 16 155800003 Press arm shaft 1 1 1 1 17 155800001 Press arm 1 1 1 1 18 155800002 Press arm pin 1 1 1 1 S120202004 Screw 1 1 1 1 19 S120202007 Screw 1 1 1 1 20 155800020 Knife 1 1 1 1 21 159700001 Finger guard 1 1 155800019 Finger guard 1 160710000 Presser foot complete 1 160730000 Presser foot complete 1 159710000 Presser foot complete 1 039720000 Presser foot complete 1 77T7-001A Presser foot complete 1 23 155800018 Screw 1 1 1 1 24 155800017 Spring 1 1 1 1 25 155800016 Press bar lift 1 1 1 1 26 155800013 Screw 1 1 1 1 27 155800014 Spring 1 1 1 1 28 155800015 Press arm stopper 1 1 1 1 29 S150215008 Screw 1 1 1 1 30 155810000 Presser bar complete 1 1 1 1 31 155810002 Cushion 1 1 1 1 32 S150446011 Spring pin 1 1 1 1 39 jintex.in

Page 42

Typical GN2000-3 parts on page 42
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	10	10
	1	1
	2	2
	3	3
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21

2000-5 (5x5) 2000-5H 2000-3,-4 40 jintex.in

Page 43 — 13. PRESSER FOOT LIFT PARTS (2)

Typical GN2000-3 parts on page 43
Part number	Part name	Qty
S120202004	Screw	1
155800021	Spring	1
039720000	Presser foot complete	1
39T7-003B2	Main presser foot	1
39T7-003B3	Auxible presser foot	1
39T7-003B1	Bracket for presser foot	1
39T7-001A3	Screw	1
39T7-001A6	Screw	1
28T1-007	Screw	1
39T7-001A5	Fabric guard	1
39T7-001A4	Screw	1
39T7-001A10	Spring	1
77T7-001A4	Pin	1
155A20006	Screw	1
155800025	Spring	1
77T7-001A	Presser foot complete	1
77T7-001A1	Main presser foot	1
77T7-001A2	Auxible presser foot	1
77T7-001A3	Bracket for presser foot	1
77T7-001A5	Link for presser foot	1
6A2-14	Screw	1
28T1-007	Screw	1
77T7-001A6	Fabric guard	1
77T7-001A4	Pin	3
S120202004	Screw	1
159700002	Stopper	1
159710000	Presser foot complete	1
159710007	Bracket for presser foot	1
028100007	Screw	1
39T7-001A6	Screw	1
28T6-019A1	Presser foot fitting piece	1
GB97-76	Washer	1
159710002	Presser foot fitting piece	1
159710001	Main presser foot	1
159710006	Guide	1
159710005	Set presser foot	1
28T1-041	Screw	1
160710000	Presser foot complete	1
160730000	Presser foot complete	1

13. PRESSER FOOT LIFT PARTS (2) No. Ret. No. Description Qt 3 4/4H 5 5H 1 S120202004 Screw 1 2 155800021 Spring 1 3 039720000 Presser foot complete 1 39T7-003B2 Main presser foot 1 39T7-003B3 Auxible presser foot 1 39T7-003B1 Bracket for presser foot 1 4 39T7-001A3 Screw 1 5 39T7-001A6 Screw 1 6 28T1-007 Screw 1 7 39T7-001A5 Fabric guard 1 8 39T7-001A4 Screw 1 9 39T7-001A10 Spring 1 10 77T7-001A4 Pin 1 1 155A20006 Screw 1 2 155800025 Spring 1 3 77T7-001A Presser foot complete 1 77T7-001A1 Main presser foot 1 77T7-001A2 Auxible presser foot 1 77T7-001A3 Bracket for presser foot 1 77T7-001A5 Link for presser foot 1 5 6A2-14 Screw 1 6 28T1-007 Screw 1 7 77T7-001A6 Fabric guard 1 10 77T7-001A4 Pin 3 1 S120202004 Screw 1 1 2 159700002 Stopper 1 1 3 159710000 Presser foot complete 1 12 159710007 Bracket for presser foot 1 1 13 028100007 Screw 1 1 14 39T7-001A6 Screw 1 1 15 28T6-019A1 Presser foot fitting piece 1 16 GB97-76 Washer 1 17 159710002 Presser foot fitting piece 1 18 159710001 Main presser foot 1 19 159710006 Guide 1 20 159710005 Set presser foot 1 1 21 28T1-041 Screw 1 1 3 160710000 Presser foot complete 1 160730000 Presser foot complete 1 41 jintex.in

Page 44

Typical GN2000-3 parts on page 44
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

2000-5 42 jintex.in

Page 45 — 14. FRONT LOOPER PARTS (1)

Typical GN2000-3 parts on page 45
Part number	Part name	Qty
155500017	Rubber cap	1
155700003	Pin shaft	1
B12500532	Screw	1
155700002	Sliding bush	1
155700001	Fork	1
B12500532	Screw	1
155700004	Connector	1
155700005	Pin	1
155700006	Slide block holder	1
B12500532	Screw	1
155700008	Bush	1
155700010	Crank for front looper	1
155300017	Screw	1
039400009	Link for front looper	1
039400010	Pin	1
S150237030	Screw	2
155700007	Shaft for looper drive	1
155700008	Bush	1
028330001	Oil seal	1
155710000	Front looper holder complete	1
155730000	Front looper holder complete	1
155400010	Screw	1
006300018	Screw	1
155710002	Front looper	1
155730001	Front looper	1

14. FRONT LOOPER PARTS (1) No. Ret. No. Description Qt 3 4/4H 5 5H 1 155500017 Rubber cap 1 1 2 155700003 Pin shaft 1 1 3 B12500532 Screw 1 1 4 155700002 Sliding bush 1 1 5 155700001 Fork 1 1 6 B12500532 Screw 1 1 7 155700004 Connector 1 1 8 155700005 Pin 1 1 9 155700006 Slide block holder 1 1 10 B12500532 Screw 1 1 11 155700008 Bush 1 1 12 155700010 Crank for front looper 1 1 13 155300017 Screw 1 1 14 039400009 Link for front looper 1 1 15 039400010 Pin 1 1 16 S150237030 Screw 2 2 17 155700007 Shaft for looper drive 1 1 18 155700008 Bush 1 1 19 028330001 Oil seal 1 1 20 155710000 Front looper holder complete 1 1 155730000 Front looper holder complete 1 21 155400010 Screw 1 1 22 006300018 Screw 1 1 23 155710002 Front looper 1 1 155730001 Front looper 1 43 jintex.in

Part Books

Search

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	10	10
	1	1
	2	2
	3	3
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	10	10
	1	1
	2	2
	3	3
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	10	10
	1	1
	2	2
	3	3
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
