Page 5 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-50705 | FACE PLATE | 1 |
| 2 | 110-00403 | PLATE | 1 |
| 3 | 129-21003 | FACE PLATE GASKET | 1 |
| 4 | 129-50804 | FACE PLATE SIDE PLATE | 1 |
| 5 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 6 | SS-4120915-SP | SCREW 3/16-28 L=9 | 3 |
| 7 | TA-1250406-RO | RUBBER PLUG | 3 |
| 8 | B1162-026-0A0 | TENSION RELEASE ARM ASM. | 1 |
| 9 | SS-4091010-SP | SCREW 9/64-40 L=10 | 1 |
| 10 | B1161-026-000 | CONNECTING LINK | 1 |
| SS-7090710-SP | SCREW 9/64-40 L=6.5 | ||
| 129-23207 | TENSION COVER | ||
| SS-4110815-SP | SCREW 11/64-40 L=8 | ||
| 129-66800 | UPPER THREAD GUIDE | ||
| 129-51000 | SPROCKET WHEEL COVER | ||
| 129-67501 | LOWER THREAD TUBE (A) | ||
| 129-21508 | WHEEL COVER GASKET | ||
| 129-21409 | SPROCKET WHEEL COVER | ||
| B1219-019-000 | TIMING BELT | ||
| SS-7151210-SP | SCREW 15/64-28 L=12 | ||
| B1128-804-000 | THREAD GUIDE | ||
| 129-21607 | RUBBER PLUG | ||
| B1130-026-000 | CHAIN CUTTER BLADE (A) | ||
| B1131-026-000 | CHAIN CUTTER BLADE (B) | ||
| 129-52552 | LEFT GATE LOOPER COVER ASM. | ||
| 129-52255 | RIGHT GATE LOOPER COVER ASM. | ||
| B1157-019-000 | LOOPER THREAD TUBE (C) | ||
| 129-50507 | THREAD INDICATION LABEL | ||
| 129-55803 | THREAD TENSION DISC HOLDER | ||
| SS-7090910-SP | SCREW 9/64-40 L=8.5 | ||
| B1135-850-000 | TENSION SPRING (A) | ||
| SD-0380551-SL | HINGE SCREW D=3.80 H=5.5 | ||
| B1130-051-000 | FRAME THREAD GUIDE, MIDDLE | ||
| SS-3090610-SP | SCREW 9/64-40 L=6 | ||
| 129-65703 | THREAD TAKE-UP TENSION LEVER | ||
| WP-0450801-SD | WASHER 4.5X10.0X0.8 | ||
| SS-5091020-SP | SCREW 9/64-40 L=9.5 | ||
| 129-66909 | TENSION RELEASE LEVER SHAFT | ||
| 129-67006 | TENSION RELEASE LEVER | ||
| 129-67105 | NEEDLE THREAD TENSION GUIDE | ||
| B1805-019-000 | FRONT BUSHING COVER | ||
| B1806-019-000 | GASKET | ||
| SS-7740740-SP | SCREW 3/8-28 L=6.5 | ||
| 129-22605 | GASKET | ||
| 107-04203 | OIL POT WINDOW | ||
| B1633-191-000 | CAP RETAINER | ||
| B1634-191-000 | GASKET | ||
| B1630-191-000 | PUSH BUTTON GUIDE | ||
| B1632-191-000 | SPRING | ||
| B1631-191-000 | FEED ECCENTRIC ADJUSTING KNOB | ||
| B1156-019-000 | RUBBER CUSHION, C | ||
| 110-18603 | ARM THREAD GUIDE B | ||
| SS-7110710-SP | SCREW 11/64-40 L=7 | ||
| 129-40102 | LOOPER THREAD GUIDE PLATE | ||
| B1104-191-0A0 | BELT COVER ASM. | ||
| B1104-191-00A | BELT COVER | ||
| B1104-191-00B | TOP COVER | ||
| B1104-191-00C | BELT COVER PLATE | ||
| B1106-191-000 | CUSHION | ||
| 129-43700 | BELT GUARD INSTALLING BASE | ||
| SS-9284043-CP | SCREW 7/16-16 L=40 | ||
| 129-51950 | BED COVER ASM. | ||
| 129-52008 | BED COVER GASKET | ||
| SS-5110810-SP | SCREW 11/64-40 L=8 | ||
| SS-5820540-SP | SCREW 1/2-28 L=5.0 | ||
| B1140-019-000 | GASKET | ||
| 129-70406 | FELT A | ||
| B3513-261-000 | FELT, B | ||
| B3526-226-000 | FELT, C | ||
| 129-43205 | MAGNET SUPPORT PLATE | ||
| B8228-125-000 | OIL RESERVOIR MAGNET |
Page 7 — 2. LOOPER THREAD GUIDE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 115-50308 | THREAD GUIDE | 3 |
| 2 | B2310-019-000 | TENSION RELEASING PIN | (3) |
| 3 | 129-38205 | TENSION POST | 3 |
| 4 | B3126-012-000 | THREAD TENSION DISK | (6) |
| 5 | B3107-804-000 | THREAD TENSION DISK PRESSER | 3 |
| 6 | 129-38304 | TENSION SPRING | 3 |
| 7 | B3112-704-000 | TENSION SPRING BUSHING | 3 |
| 8 | 119-57008 | THREAD TENSION KNOB | 3 |
| 9 | 129-66602 | TENSION RELEASING SHAFT | 1 |
| 10 | SS-8111160-SP | SCREW 11/64-40 L=11.0 | 1 |
| 11 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 12 | B2301-261-00A | THREAD TENSION ROD BASE | 1 |
| 13 | 129-66701 | LOWER THREAD GUIDE (LEFT) | 1 |
| 14 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 1 |
| 15 | 129-67600 | THREAD GUIDE MOUNTING BRACKET | 1 |
| 16 | B2402-019-000 | THREAD GUIDE | 6 |
| 17 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 4 |
| 18 | SS-4622340-SP | SCREW 3/16-32 L=23 | 1 |
| 19 | B2421-019-000 | THREAD EYELET | 1 |
| 20 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 1 |
| 21 | 129-67303 | THREAD GUIDE FITTING PLATE | 2 |
| 22 | SS-2060510-SP | SCREW 3/32-56 L=4.5 | 8 |
| 23 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | 4 |
| 24 | 129-67204 | THREAD GUIDE BRACKET | 1 |
| 25 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 26 | 129-67402 | THREAD GUIDE BRACKET SUPPORT | 1 |
| 27 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 28 | SS-4091010-SP | SCREW 9/64-40 L=10 | 1 |
| 29 | 129-36803 | LOOPER THREAD TAKE-UP COVER | 1 |
| 30 | B2208-019-000 | LOOPER THREAD TAKE-UP COVER SP | 1 |
| 31 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | 1 |
| 32 | PS-0500202-KP | SPRING PIN 5X20 | 1 |
| 33 | 129-36902 | LOOPER THREAD TAKE-UP PIN | 1 |
| 34 | 129-35516 | TENSION TAKE-UP STRIPPER PLATE | 1 |
| 35 | 129-66305 | LOOPER THREAD GUIDE (C) | 1 |
| 36 | WP-0371016-SD | WASHER 3.7X8X1 | 3 |
| 37 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 3 |
| 38 | 129-66206 | LOOPER THREAD GUIDE (B) | 1 |
| 39 | 129-66107 | LOOPER THREAD GUIDE (A) | 1 |
| 40 | 129-66008 | LOOPER THREAD CAM PRESSER | 1 |
| 41 | 129-35607 | CAM HOLDER BRACKET | 1 |
| 42 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 43 | SS-7090850-SP | SCREW 9/64-40 L=8 | 1 |
| 44 | 129-36217 | FELT | 1 |
| 45 | SS-5090420-SP | SCREW 9/64-40 L=3.5 | 1 |
| 46 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 47 | 129-35805 | LOOPER THREAD GUIDE | 1 |
| 48 | SS-7111410-SP | SCREW 11/64-40 L=14 | 1 |
| 49 | 129-36506 | STRIPPER PLATE BRACKET | 1 |
| 50 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 51 | 129-22803 | COVER SPRING | 1 |
| 52 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 53 | 129-67758 | LOOPER THREAD TENSION ASM. | 1 |
| 54 | 129-39500 | TENSION BASE PLATE | (1) |
| 55 | 129-39609 | TENSION POST | (3) |
| 56 | 129-39708 | TENSION DISC | (6) |
| 57 | 129-67709 | LOOPER THREAD TENSION SPRING | (3) |
| 58 | 129-39906 | TENSION NUT | (3) |
| 59 | NS-6110350-SP | NUT 11/64-40 | (3) |
| 60 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 61 | 129-51505 | LOOPER THREAD TUBE COVER | 1 |
| 62 | 129-21904 | LOOPER THREAD TUBE COVER HING | 1 |
| 63 | 129-22001 | LOOPER THREAD TUBE COVER HING | 1 |
| 64 | B1534-816-000 | HINGE SCREW | 2 |
| 65 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 66 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 67 | 115-03604 | VIBRATION-PROOF PLUG B | 2 |
| 68 | 129-35904 | LOOPER THREAD GUIDE | 1 |
| 69 | WP-0371016-SD | WASHER 3.7X8X1 | 1 |
| 70 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
Page 9 — 3. NEEDLE BAR & MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1207-026-0AO | COUNTERWEIGHT ASM. | 1 |
| 2 | B1209-019-0AO | NEEDLE BAR CRANK PIN ASM. | (1) |
| 3 | B1236-125-BAO | NEEDLE BUSHING ASM. | (1) |
| 4 | B1408-038-000 | NEEDLE BAR CRANK ROD, B | (1) |
| 5 | B1208-019-000 | WASHER | (1) |
| 6 | B1207-026-000 | COUNTERWEIGHT | (1) |
| 7 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 8 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | (2) |
| 9 | B1202-512-000 | MAIN SHAFT BUSHING, FRONT | 1 |
| 10 | B3510-019-000 | OIL FELT | 1 |
| 11 | B3541-012-000 | OIL WICK | 1 |
| 12 | B1412-038-000 | SLIDE BLOCK GUIDE | 1 |
| 13 | B1411-019-000 | SLIDE BLOCK GUIDE | 1 |
| 14 | SS-7120910-SP | SCREW 3/16-28 L=9 | 2 |
| 15 | 129-43106 | OIL WICK PRESSER | 1 |
| 16 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 17 | SS-7740740-SP | SCREW 3/8-28 L= 6.5 | 1 |
| 18 | B1222-019-000 | PACKING | 1 |
| 19 | 129-24502 | MAIN SHAFT | 1 |
| 20 | 129-24809 | METAL PRESSER | 3 |
| 21 | SS-6111610-SP | SCREW 11/64-40 L=16 | 3 |
| 22 | 129-24759 | BUSHING REAR ASM. | 1 |
| 23 | B1203-512-000 | MAIN SHAFT BUSHING, REAR | (1) |
| 24 | 129-24700 | BUSHING | (1) |
| 25 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 26 | B1214-019-000 | SPROCKET RING | 2 |
| 27 | B1211-019-000 | SPROCKET WHEEL (A) | 1 |
| 28 | SS-8660522-TP | SCREW 1/4-40 L=4.5 | 2 |
| 29 | 129-25004 | PULLEY PLATE | 1 |
| 30 | SS-1090510-SP | SCREW 9/64-40 L=5 | 3 |
| 31 | 129-55209 | HAND WHEEL | 1 |
| 32 | SS-8152030-SP | SCREW 15/64-28 L=20 | 2 |
| 33 | 129-55308 | HAND WHEEL SCALE PLATE | 1 |
| 34 | B1161-227-000 | RIVET | 2 |
| 35 | RO-0982401-00 | RUBBER RING | 1 |
| 36 | B3501-019-0AO | OIL CUP BODY ASM. | 1 |
| 37 | B3504-019-000 | OIL CUP BODY CAP RETAINER | (1) |
| 38 | B3502-019-000 | OIL CUP BODY CAP | (1) |
| 39 | B3503-019-000 | OIL CUP BODY CAP GASKET | (1) |
| 40 | B3508-019-000 | WASHER | (1) |
| 41 | SS-5660440-SP | SCREW 1/4-40 L= 4.0 | (1) |
| 42 | B3501-019-000 | OIL CUP BODY | (1) |
| 43 | SS-6092120-SP | SCREW 9/64-40 L=21.2 | (4) |
| 44 | CQ-2520000-00 | OIL WICK | 1 |
| 45 | B1402-026-BOG | NEEDLE BAR BUSHING, UPPER | 1 |
| 46 | SS-8150310-SP | SCREW 15/64-28 L= 3.4 | 2 |
| 47 | CQ-3000000-00 | OIL WICK | 0.1 |
| 48 | B1901-026-000 | THREAD TAKE-UP | 1 |
| 49 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | 1 |
| 50 | B1409-019-0BO | NEEDLE BAR CLAMP ASM. | 1 |
| 51 | B1418-019-000 | FELT | (1) |
| 52 | SS-7090910-SP | SCREW 9/64-40 L= 8.5 | (1) |
| 53 | B1404-026-BOG | NEEDLE BAR BUSHING, LOWER | 1 |
| 54 | B1401-026-000 | NEEDLE BAR | 1 |
| 55 | 129-56256 | NEEDLE CLAMP (1/4") ASM. | 1 |
| 56 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | (2) |
| 57 | SS-8080610-SP | SCREW 1/8-44 L=5.5 | (1) |
| 58 | MC-3800013-00 | NEEDLE UY128GAS NM130 | 3 |
| 59 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 3 |
| 60 | 129-53204 | NEEDLE PLATE XH (1/4") | 1 |
| 61 | 129-25954 | NEEDLE CLAMP 3/16 ASM. | 1 |
| 62 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | (2) |
| 63 | MC-3800012-00 | NEEDLE UY128GAS NM120 | 2 |
| 64 | 129-77906 | NEEDLE PLATE MH (3/16") | 1 |
Page 11 — 4. PRESSER BAR & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-68103 | FITTING SHAFT | 1 |
| 2 | SS-7091410-SP | SCREW 9/64-40 L=13.5 | 1 |
| 3 | 129-68202 | LOOPER THREAD EYELET | 1 |
| 4 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 5 | WP-0450000-SD | WASHER 4.5X8X0.5 | 1 |
| 6 | R0-0481901-00 | RUBBER RING | 1 |
| 7 | B1127-026-000 | LOOPER GATE RETAINING SPRING | 2 |
| 8 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 9 | B1502-019-000 | PRESSER BAR UPPER BUSHING | 1 |
| 10 | SS-8150310-SP | SCREW 15/64-28 L= 3.4 | 2 |
| 11 | B1411-552-0A0 | NEEDLE ROD HOLDER ASM. | 1 |
| 12 | B1411-552-000 | NEEDLE BAR CLAMP | (1) |
| 13 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 14 | B1504-019-0A0 | PRESSER BAR GUIDE BRACKET ASM. | 1 |
| 15 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 16 | 129-58609 | BUSHING,LOWER | 1 |
| 17 | 129-58559 | PRESSER BAR ASM. | 1 |
| 18 | 129-58500 | PRESSER BAR | (1) |
| 19 | B1506-019-000 | PRESSER BAR STEEL BALL | (1) |
| 20 | 129-58807 | PRESSER LIFTER SPRING | 1 |
| 21 | 129-59052 | UPPER SPRING ASM. | 1 |
| 22 | 129-59003 | PRESSER LIFTER UPPER SPRING | (1) |
| 23 | 129-59102 | PRESSER LIFTER SETSCREW | (1) |
| 24 | A1161-001-00B | RIVET | (1) |
| 25 | B2326-019-000 | PRESSER REGULATING SCREW NUT ( | 1 |
| 26 | B2324-261-000 | PRESSER REGULATING SCREW | 1 |
| 27 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 28 | B2328-019-000 | PRESSER BAR SPRING PIN | 1 |
| 29 | MAM-2990BBBA | HOLDER 1/4XH ASM. | 1 |
| 30 | MAM-2970CCBA | HOLDER 3/16 MH | 1 |
| 31 | 129-59300 | PRESSER FOOT GUIDE (A) | 1 |
| 32 | 129-59409 | PRESSER FOOT GUIDE (B) | 1 |
| 33 | SM-6061202-TP | SCREW M6 L=12 | 2 |
| 34 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 2 |
| 35 | 129-60050 | PRESSER 1/4" ASM. | 1 |
| 36 | 129-60803 | PRESSER FOOT (7/32",1/4") | (1) |
| 37 | 129-60001 | PRESSER (1/4") | (1) |
| 38 | 129-62007 | ADJUSTING PRESSER XH | (1) |
| 39 | 129-62106 | PRESSER ADJUSTING PLATE (A) | (1) |
| 40 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (2) |
| 41 | B1534-816-000 | HINGE SCREW | (2) |
| 42 | 129-62205 | PRESSER SPRING | (1) |
| 43 | SS-6060410-TP | SCREW 3/32-56 L= 3.5 | (1) |
| 44 | SS-6150810-SP | SCREW 15/64-28 L=8 | (1) |
| 45 | 129-60068 | PRESSER 1/4" (ASM) EXPORT | 1 |
| 46 | 129-62304 | NEEDLE GUARD | (1) |
| 47 | 129-78250 | PRESSER MH (3/16") ASM. | 1 |
| 48 | 129-78409 | PRESSER FOOT (3/16") | (1) |
| 49 | 129-78201 | PRESSER MH (3/16") | (1) |
| 50 | 129-78508 | ADJUSTING PRESSER MH | (1) |
| 51 | 129-73608 | PRESSER ADJUSTING PLATE (C) | (1) |
| 52 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (2) |
| 53 | B1534-816-000 | HINGE SCREW | (2) |
| 54 | 129-62205 | PRESSER SPRING | (1) |
| 55 | SS-6060410-TP | SCREW 3/32-56 L= 3.5 | (1) |
| 56 | SS-6150810-SP | SCREW 15/64-28 L=8 | (1) |
| 57 | 129-78268 | PRESSER MH (3/16") ASM. EXPORT | 1 |
| 58 | 129-62304 | NEEDLE GUARD | (1) |
| 59 | SS-7110830-SP | SCREW 11/64-40 L= 7.5 | 1 |
| 60 | B1802-019-000 | BALL BEARING, FRONT | 1 |
| 61 | B1803-019-000 | BALL BEARING, INTERMEDIATE | 1 |
| 62 | B1808-019-0A0 | SLEEVE ASM. | 1 |
| 63 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | 2 |
| 64 | 129-66552 | LOOPER THREAD CAM ASM. | 1 |
| 65 | 129-66503 | LOOPER THREAD CAM | (1) |
| 66 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | 2 |
| 67 | 129-24759 | BUSHING REAR ASM. | 1 |
| 68 | B1203-512-000 | MAIN SHAFT BUSHING, REAR | (1) |
| 69 | 129-24700 | BUSHING | (1) |
| 70 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 71 | 129-65505 | LOWER SHAFT | 1 |
| 72 | RC-1200001-KP | C-SHAPED SNAP RING | 1 |
| 73 | B1214-019-000 | SPROCKET RING | 1 |
| 74 | B1212-019-B00 | SPROCKET WHEEL B | 1 |
| 75 | SS-9151440-CP | SCREW 15/64-28 L=14 | 2 |
| 76 | 129-24809 | METAL PRESSER | 3 |
| 77 | SS-6111610-SP | SCREW 11/64-40 L=16 | 3 |
Page 13 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-68558 | LOOPER L (1) ASM. | 1 |
| 2 | 129-68855 | LOOPER R (1) ASM. | 1 |
| 3 | 129-69150 | LOOPER C (1) ASM. | 1 |
| 4 | 129-63351 | FEED DOG XH(1/4") ASM. | 1 |
| 5 | 129-79258 | LOOPER L (3) ASM. | 1 |
| 6 | 129-79357 | LOOPER R (2) ASM. | 1 |
| 7 | 129-78755 | FEED DOG MH(3/16") ASM. | 1 |
| 8 | B2502-019-000 | BUSHING, FRONT | 1 |
| 9 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 10 | 129-68004 | LOOPER SHAFT | 1 |
| 11 | B2123-026-0AO | FEED ROCKER ASM. | 1 |
| 12 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 13 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 14 | B2505-019-0AO | CONNECTION CRANK ASM. | 1 |
| 15 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 16 | B2115-191-000 | FEED ROCKER CONNECTING LINK | 1 |
| 17 | B2116-019-00A | FEED CONNECTING LINK PIN | 2 |
| 18 | B2116-019-00B | FEED CONNECTING LINK PIN | 2 |
| 19 | CQ-2020000-00 | OIL WICK | 0.1 |
| 20 | B2102-026-0AO | FEED ROCKER ASM. | 1 |
| 21 | SS-7090920-SP | SCREW 9/64-40 L= 8.5 | (4) |
| 22 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 2 |
| 23 | B2107-019-000 | FEED ROCKER SHAFT | 1 |
| 24 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 25 | B2122-019-000 | WASHER | 1 |
| 26 | SS-7110830-SP | SCREW 11/64-40 L= 7.5 | 1 |
| 27 | B2002-026-000-A | LOOPER AVOIDING SHAFT BRACKET | 1 |
| 28 | B2503-019-000 | LOOPER ROCKER SHAFT BUSHING, R | 1 |
| 29 | SS-8150310-SP | SCREW 15/64-28 L= 3.4 | 1 |
| 30 | B2003-026-000 | LOOPER AVOIDING SHAFT BUSHING | 1 |
| 31 | SS-8150410-SP | SCREW 15/64-28 L=4 | 1 |
| 32 | B2006-019-0AO | LOOPER AVOIDING ECCENTRIC CAM | 1 |
| 33 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 34 | B1635-191-000 | SLIDE BLOCK | 1 |
| 35 | B2001-261-0AO | LOOPER AVOIDING SHAFT ASM. | 1 |
| 36 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 37 | SS-7621040-SP | SCREW 3/16-32 L= 9.5 | 1 |
| 38 | B1601-026-000 | FEED BAR | 1 |
| 39 | B1610-019-000 | SLIDE BLOCK | (1) |
| 40 | 129-62809 | ADJUSTING SHAFT | 1 |
| 41 | RO-0611801-00 | RUBBER RING | 1 |
| 42 | SS-8110422-TP | SCREW 11/64-40 L=4 | 1 |
| 43 | B2108-026-000 | SLIDE BLOCK STOPPER | 1 |
| 44 | SS-8110510-SP | SCREW 11/64-40 L=5 | 1 |
| 45 | B2105-019-000 | FEED ROCKER SLIDE BLOCK | (1) |
| 46 | B2105-019-00A | FEED ROCKER SLIDE BLOCK | (1) |
| 47 | B2101-261-000-A | FEED ROCKER DRIVING LEVER | 1 |
| 48 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 2 |
| 49 | B2103-261-0AO | FEED ECCENTRIC CAM | 1 |
| 50 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | 2 |
| 51 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | 1 |
| 52 | 129-31903 | BODY CAP | 1 |
| 53 | 129-63062 | FEED ECCENTRIC BASE ASM. | 1 |
| 54 | B1624-191-000 | RATCHET PAWL | (1) |
| 55 | PS-0250081-K0 | SPRING PIN 2.5X8 | (1) |
| 56 | B1626-191-000 | SCREW | (1) |
| 57 | B1625-191-000 | RATCHET PAWL SPRING | (1) |
| 58 | B1623-191-000 | RATCHET GEAR | (1) |
| 59 | 129-63005 | FEED ECCENTRIC | (1) |
| 60 | 129-31606 | SCREW | (1) |
| 61 | 129-31507 | FEED ECCENTRIC BODY | (1) |
| 62 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 63 | B1621-261-000-A | FEED ECCENTRIC GUIDE | (1) |
| 64 | 129-31705 | SCREW | (1) |
| 65 | B1606-191-000 | FEED ECCENTRIC SLIDE BLOCK | 2 |
| 66 | B1602-019-000 | FEED LIFTING FORKED CONNECTION | 1 |
| 67 | 129-62601 | FEED ECCENTRIC CAM | 1 |
| 68 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | 2 |
| 69 | B2106-026-000 | SLIDE BLOCK PIN | 1 |
| 70 | RO-0952001-00 | RUBBER RING | 1 |
| 71 | SS-6122030-SP | SCREW 3/16-28 L=20 | 2 |

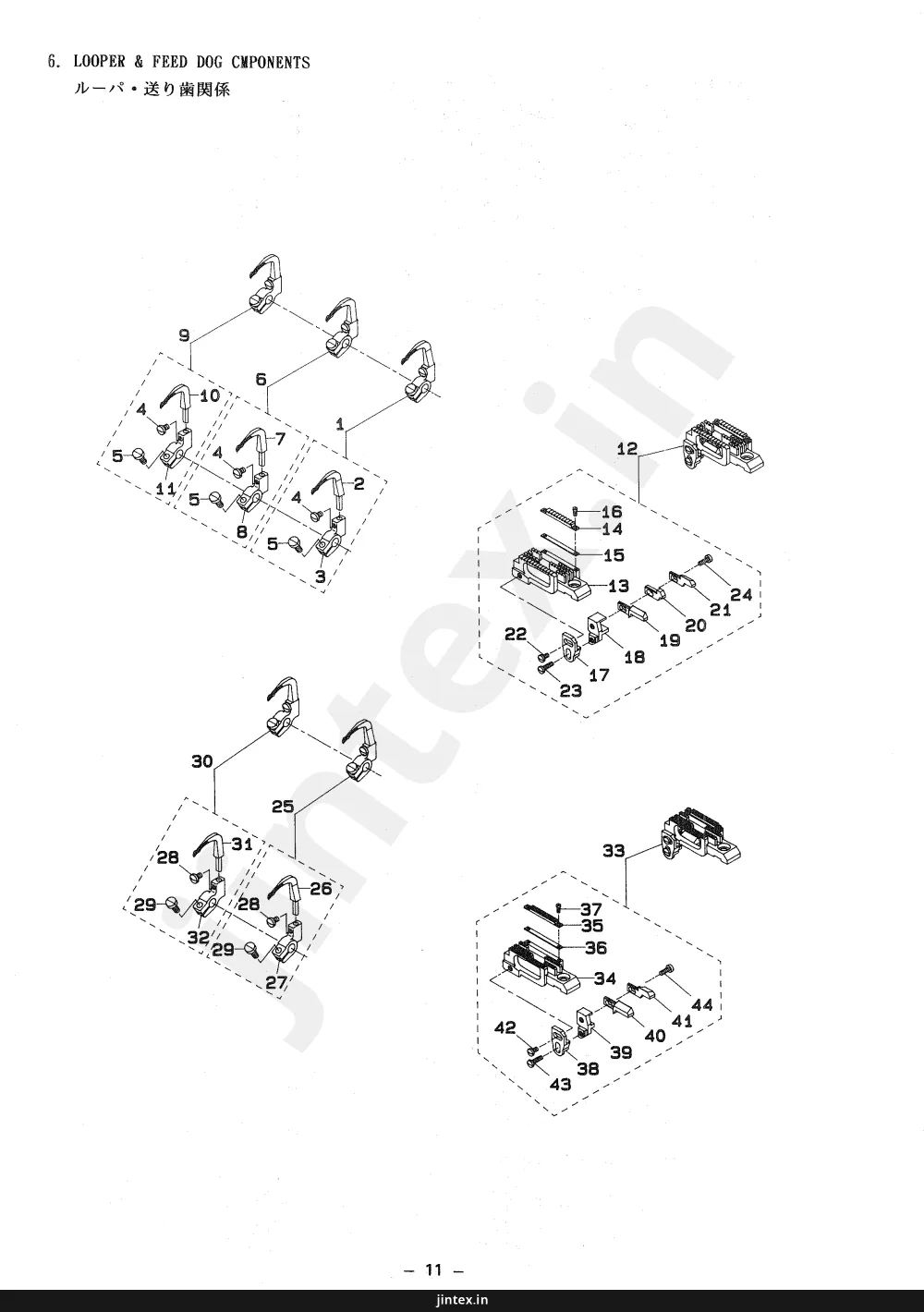

Page 15 — 6. LOOPER & FEED DOG COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-68558 | LOOPER L (1) ASM. | 1 |
| 2 | 129-68509 | LOOPER L (1) | (1) |
| 3 | 129-42009 | LOOPER HOLDER,2 | (1) |
| 4 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | (3) |
| 5 | SS-6090910-TP | SCREW 9/64-40 L=9 | (3) |
| 6 | 129-68855 | LOOPER R (1) ASM. | 1 |
| 7 | 129-68806 | LOOPER R (1) | (1) |
| 8 | 129-69309 | LOOPER HOLDER (3) | (1) |
| 9 | 129-69150 | LOOPER C (1) ASM. | 1 |
| 10 | 129-69101 | LOOPER C (1) | (1) |
| 11 | 129-41100 | LOOPER HOLDER,1 | (1) |
| 12 | 129-63351 | FEED DOG XH(1/4") ASM. | 1 |
| 13 | 129-63302 | FEED DOG XH(1/4") | (1) |
| 14 | 129-64201 | ADJUSTING FEED DOG XH | (1) |
| 15 | 129-64102 | FEED DOG ADJUSTING PLATE (A) | (1) |
| 16 | 129-64300 | ADJUSTING FEED DOG SETSCREW | (2) |
| 17 | 129-64409 | NEEDLE HOLDER ADJUSTING BASE | (1) |
| 18 | 129-64805 | NEEDLE HOLDER (A) | (1) |
| 19 | 129-64508 | NEEDLE HOLDER (LEFT) | (1) |
| 20 | 129-64607 | NEEDLE HOLDER (INSIDE) | (1) |
| 21 | 129-64706 | NEEDLE HOLDER (RIGHT) | (1) |
| 22 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | (1) |
| 23 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | (1) |
| 24 | SS-6090910-TP | SCREW 9/64-40 L=9 | (1) |
| 25 | 129-79258 | LOOPER L (3) ASM. | 1 |
| 26 | 129-79209 | LOOPER L (3) | (1) |
| 27 | 129-42009 | LOOPER HOLDER,2 | (1) |
| 28 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | (2) |
| 29 | SS-6090910-TP | SCREW 9/64-40 L=9 | (2) |
| 30 | 129-79357 | LOOPER R (2) ASM. | 1 |
| 31 | 129-79308 | LOOPER C (2) | (1) |
| 32 | 129-41100 | LOOPER HOLDER,1 | (1) |
| 33 | 129-78755 | FEED DOG MH(3/16") ASM. | 1 |
| 34 | 129-78706 | FEED DOG MH(3/16") | (1) |
| 35 | 129-75504 | ADJUSTING FEED DOG MH | (1) |
| 36 | 129-64102 | FEED DOG ADJUSTING PLATE (A) | (1) |
| 37 | 129-64300 | ADJUSTING FEED DOG SETSCREW | (2) |
| 38 | 129-64409 | NEEDLE HOLDER ADJUSTING BASE | (1) |
| 39 | 129-79001 | NEEDLE HOLDER (B) | (1) |
| 40 | 129-78805 | NEEDLE HOLDER (LEFT) | (1) |
| 41 | 129-78904 | NEEDLE HOLDER (RIGHT) | (1) |
| 42 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | (1) |
| 43 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | (1) |
| 44 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
Page 17 — 7. KNEE LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2322-019-000 | PRESSER BAR LIFTING BRACKET LI | 1 |
| 2 | SD-0790431-SP | HINGE SCREW D= 7.94 H= 4.3 | 1 |
| 3 | B3701-019-000 | HINGE SCREW | 1 |
| 4 | B2319-191-00A | PRESSER BAR LIFTING LEVER | 1 |
| 5 | B2315-019-000 | TENSION RELEASING CONNECTING L | 1 |
| 6 | SD-0450211-SP | HINGE SCREW D= 4.50 H= 2.1 | 2 |
| 7 | B2317-019-000 | TENSION RELEASING SHAFT CRANK | 1 |
| 8 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 9 | B2321-019-000 | PRESSER BAR LIFTING LEVER SPRI | 1 |
| 10 | B8101-191-0A0 | KNEE LIFTER ASM. | 1 |
| 11 | B8102-191-0A0 | KNEE LIFTER LEVER ASM. | (1) |
| 12 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 13 | B8101-191-000 | KNEE DRIVING SHAFT MOUNTING | (1) |
| 14 | B8511-180-000 | SPRING | (1) |
| 15 | B3426-122-000 | KNEE PRESS ROD THRUST BLOCK | (1) |
| 16 | SS-9182010-SN | SCREW 9/32-20 L=20 | (2) |
| 17 | B8514-180-000 | STOP BLOCK | (1) |
| 18 | SS-9661120-CP | SCREW 1/4-40 L=10.5 | (1) |
| 19 | B3427-122-000 | KNEE PRESS ROD MOUNTING BRACKE | (1) |
| 20 | SS-9182010-SN | SCREW 9/32-20 L=20 | (2) |
| 21 | B3421-012-000 | KNEE PRESS ROD | (1) |
| 22 | SK-3482500-SC | WOOD SCREW D=4.8 L=25 | 4 |
| 23 | B3419-552-0A0-A | KNEE LIFTER PLATE ROD ASM. | 1 |
| 24 | B3430-552-0A0 | KNEE PRESS PLATE ASM. | (1) |
| 25 | B3431-552-000-A | KNEE PRESS PLATE COVER | (1) |
| 26 | SS-9661120-CP | SCREW 1/4-40 L=10.5 | (1) |
| 27 | B3419-122-000 | KNEE LIFTER PLATE ROD | (1) |
Page 19 — 8. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3301-026-LAA | THREAD STAND ASM. | 1 |
| 2 | 119-57602 | THREAD GUIDE ARM, A | (2) |
| 3 | B3318-704-L00 | THREAD GUIDE ARM JOINT | (4) |
| 4 | SM-6061200-SE | SCREW M6 L=12 | (4) |
| 5 | 111-84108 | SPOOL REST ROD RUBBER CAP | (1) |
| 6 | 119-57503 | SPOOL REST ROD, UPPER | (1) |
| 7 | 111-84207 | SPOOL REST ROD JOINT | (1) |
| 8 | SM-4051405-SE | SCREW M5X0.8 L=14 | (2) |
| 9 | NM-6050001-SE | NUT M5X0.8 | (2) |
| 10 | 119-57404 | SPOOL REST ROD, LOWER | (1) |
| 11 | 111-84009 | SPOOL RETAINER | (6) |
| 12 | B3320-704-L00 | SPOOL PIN | (6) |
| 13 | B3311-012-000 | SPOOL REST CUSHION | (6) |
| 14 | 111-83902 | SPOOL REST | (6) |
| 15 | 119-57602 | THREAD GUIDE ARM, A | (2) |
| 16 | SM-4061201-SE | SCREW M6 L=12 | (2) |
| 17 | B3321-704-L0B | SPOOL REST ARM SUPPORT, B | (1) |
| 18 | SK-3382001-SE | SCREW D=3.8 L=20 | (2) |
| 19 | NM-6060001-SE | NUT M6 | (2) |
| 20 | B3321-704-L00 | SPOOL REST ARM SUPPORT, A | (1) |
| 21 | B3317-704-000 | NUT C15 | (2) |
| 22 | WS-1643202-KR | SPRING WASHER | (1) |
| 23 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
| 24 | MA0-11532000 | CORD STAPLE | (3) |
| 25 | WS-0510002-KN | SPRING WASHER | (6) |
| 26 | NM-6050001-SE | NUT M5X0.8 | (6) |
| 27 | B3319-704-L00 | THREAD GUIDE | (6) |
Page 20 — 9. FRAME & COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAV-04501000 | MAIN BASE | 1 |
| 2 | MAV-04502000 | CLUTCH BASE | 1 |
| 3 | SM-6062002-TP | SCREW M6 L=20 | 2 |
| 4 | WP-0641600-SC | WASHEW 6.4X12.5X1.6 | 2 |
| 5 | SM-9061850-SC | SCREW M6 L=18 | 4 |
| 6 | WP-0641600-SC | WASHEW 6.4X12.5X1.6 | 4 |
| 7 | MAV-04503000 | ROLLER COVER | 1 |
| 8 | SM-5030355-SE | SCREW | 2 |
| 9 | MAV-04504000 | INTERMEDIATE PULLEY COVER | 1 |
| 10 | SM-5040655-SN | SCREW | 3 |
| 11 | PS-0300242-KO | SPRING PIN 3.0X24 | 1 |
| 12 | PS-0300102-KO | SPRING PIN 3.0X10 | 1 |
| 13 | SM-6031202-TP | SCREW M3X0.5 L=12 | 1 |
| 14 | NM-6030003-SC | NUT | 1 |
| 15 | MAV-04505000 | CLUTCH COVER A | 1 |
| 16 | MAV-04506000 | CLUTCH COVER B | 1 |
| 17 | SM-5040655-SN | SCREW | 5 |
| 18 | MAV-04507000 | MODEL PLATE | 1 |
Page 21 — 10. DRIVE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAV-04515000 | ROCKING SHAFT | 1 |
| 2 | SB-2120001-00 | BEARING | 1 |
| 3 | CS-1201010-SH | THRUST COLLAR ASM. D=12 W=10 | 2 |
| 4 | SB-1120005-00 | BEARING | 2 |
| 5 | RC-1200001-KP | C-SHAPED SNAP RING | 1 |
| 6 | WP-1221016-SP | WASHER | 1 |
| 7 | MAV-04516000 | ROCKING CRANK | 1 |
| 8 | SM-6051002-TP | SCREW M5X0.8 L=10 | 1 |
| 9 | MAV-045170A0 | ECCENTRIC SHAFT ASM. | 1 |
| 10 | MAV-04517000 | ECCENTRIC SHAFT | (1) |
| 11 | SB-1350003-00 | BEARING | (1) |
| 12 | SM-8060602-TP | SCREW M6X6 | 2 |
| 13 | WP-0841601-SC | WASHER 8.4X17.4X1.6 | 1 |
| 14 | MAV-045180A0 | ROCKING CRANK HOUSING ASM. | 1 |
| 15 | MAV-04518000 | ROCKING CRANK HOUSING | (1) |
| 16 | SB-1080006-00 | BEARING | (2) |
| 17 | NM-6080003-SC | NUT M8 | 2 |
| 18 | SM-8082502-TP | SCREW | 1 |
| 19 | MAV-04519000 | ROCKING ROD | 1 |
| 20 | SM-6061602-TP | SCREW M6 L=16 | 1 |
| 21 | SD-0801606-SH | STEP-SCREW | 1 |
| 22 | NM-6060003-SC | NUT M6 | 1 |
| 23 | MAV-04520000 | ADJUSTING ROD | 1 |
| 24 | SM-6061602-TP | SCREW M6 L=16 | 1 |
| 25 | MAV-045210A0 | JOINT ROD ASM. | 1 |
| 26 | MAV-04521000 | JOINT ROD | (1) |
| 27 | SB-1060002-00 | BEARING 6X17 | (2) |
| 28 | SD-0600756-TP | STEP-SCREW | 1 |
| 29 | WP-0641600-SC | WASHEW 6.4X12.5X1.6 | 1 |
| 30 | MAV-04522000 | ADJUSTING PIN | 1 |
| 31 | WZ-1200200-KP | WAVED WASHER | 1 |
Page 22 — 11 CLUTCH COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAV-045250A0 | CLUTCH CASE ASM. | 1 |
| 2 | MAV-04525000 | CLUTCH CASE | (1) |
| 3 | SB-3200003-00 | BALL BEARING | (1) |
| 4 | SB-3200004-00 | BALL BEARING | (1) |
| 5 | MAV-04534000 | CLUTCH OIL SHIEL | (2) |
| 6 | MAV-04526000 | CLUTCH ROCKING SHAFT | (1) |
| 7 | SB-3100003-00 | BALL BEARING | (2) |
| 8 | SB-3100007-00 | BALL BEARING | (1) |
| 9 | RC-1851217-KP | C-RING | (3) |
| 10 | SD-0600596-SH | STEP-SCREW | 1 |
| 11 | NM-6040003-SC | NUT M4 | 1 |
| 12 | MAV-04527000 | CLUTCH SHAFT | 1 |
| 13 | SM-8050602-TP | SCREW M5 L=6 | 2 |
| 14 | MAV-04528000 | BRAKE PLATE | 2 |
| 15 | MAV-04529000 | BRAKE WASHER | 2 |
| 16 | MAV-04530000 | BRAKE SPRING | 1 |
| 17 | MAV-04531000 | CLUTCH BRAKE COLLER | 1 |
| 18 | SM-8040602-TP | SCREW M4X0.7 L=6 | 2 |
| 19 | MAV-04532000 | CLUTCH PULLEY | 1 |
| 20 | SM-8040302-TP | SETSCREW | 2 |
| 21 | MAV-04533000 | CLUTCH TIMING BELT | 1 |
Page 23 — ROLLER DRIVE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAV-045350A0 | ROLLER BASE ASM. | 1 |
| 2 | MAV-04535000 | ROLLER BASE | (1) |
| 3 | SB-3070005-00 | BEARING | (1) |
| 4 | SB-3070004-00 | BEARING | (1) |
| 5 | MAV-04546000 | ROLLER SHAFT OIL SHIEL | (2) |
| 6 | MAV-045360A0 | ECCENTRIC COLLER ASM. | 1 |
| 7 | MAV-04536000 | ROLLER BASE ECCENTRIC COLLER | (1) |
| 8 | SB-3070004-00 | BEARING | (1) |
| 9 | SM-8040402-TP | SCREW M4X0.7 L=4 | 1 |
| 10 | MAV-045470A0 | ROLLER SHAFT PLATE ASM. | 1 |
| 11 | MAV-04547000 | ROLLER SHAFT PLATE | (1) |
| 12 | SB-1070001-00 | BEARING | (1) |
| 13 | SM-6040802-TP | SCREW M4X0.7 L=8 | 2 |
| 14 | MAV-04537000 | PULLEY SHAFT | 1 |
| 15 | SM-8050502-TP | SCREW M5 L=5 | 2 |
| 16 | RC-0650811-KP | RETAINING RING | 1 |
| 17 | MAV-045380B0 | INTERMEDIATE PULLEY ASM. | 1 |
| 18 | MAV-045380A0 | INTERMEDIATE PULLEY ASM. | (1) |
| 19 | SB-3070004-00 | BEARING | (2) |
| 20 | MAV-04541000 | ROLLER TIMING BELT | 1 |
| 21 | MAV-04542000 | SUPPORT PLATE | 1 |
| 22 | SM-6040802-TP | SCREW M4X0.7 L=8 | 2 |
| 23 | MAV-04543000 | ROLLER SHAFT | 1 |
| 24 | MAV-04544000 | ROLLER PULLEY | 1 |
| 25 | SM-8040602-TP | SCREW M4X0.7 L=6 | 2 |
| 26 | MAV-04545000 | STEEL ROLLER | 1 |
| 27 | MAV-045500A0 | URETHANE ROLLER ASM. | 1 |
| 28 | SM-8040402-TP | SCREW M4X0.7 L=4 | 2 |
| 29 | SM-6062002-TP | SCREW M6 L=20 | 1 |
| 30 | NM-6060003-SC | NUT M6 | 1 |
Page 25 — 13. PRESSER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAV-04555000 | PRESSER LIFTING LEVER | 1 |
| 2 | MAV-04556000 | PRESSER LIFTING LEVER COLLER | 1 |
| 3 | MAV-04557000 | PRESSER LIFTING SHAFT | 1 |
| 4 | SM-8060602-TP | SCREW M6X6 | 2 |
| 5 | MAV-04558000 | PRESSER LIFTING CAM PLATE | 1 |
| 6 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 7 | D2587-L8W-B00 | ROLLER | 1 |
| 8 | SD-0550451-SP | HINGE SCREW | 1 |
| 9 | SM-6041002-TP | SCREW M4 L=10 | 2 |
| 10 | MAV-04559000 | PRESSER LIFTING PLATE | 1 |
| 11 | SD-0640325-SP | HINGE SCREW | 1 |
| 12 | SD-0600361-SP | HINGE SCREW | 1 |
| 13 | MAV-04560000 | PRESSER LIFTING JOINT PLATE | 1 |
| 14 | SD-0640321-TP | HINGE SCREW | 1 |
| 15 | SD-0640751-SP | HINGE SCREW D= 6.35 H= 7.5 | 1 |
| 16 | B2056-781-000 | BLOCKING ARM SPRING | 1 |
| 17 | WP-0651056-SH | WASHER 6.5X11X1 | 1 |
| 18 | MAV-04561000 | PRESSER LIFTING ROD | 1 |
| 19 | MAV-04616000 | PRESSER LIFTING LINK | 1 |
| 20 | SD-0600402-TP | HINGE SCREW D= 6 H= 4 | 2 |
| 21 | NS-6620310-SP | NUT 3/16-32 | 2 |
| 22 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 |
| 23 | MAV-04562000 | KNEE LIFTER LEVER COLLER | 1 |
| 24 | SD-0600271-SP | HINGE SCREW D= 6 H= 2.7 | 1 |
| 25 | NS-6110430-SP | NUT 11/64-40 | 1 |
| 26 | MAV-04564000 | PRESSER LIFTING BASE | 1 |
| 27 | SM-6061002-TP | SCREW M6 L=10 | 2 |
| 28 | MAV-04565000 | SPRING PLATE COVER | 2 |
| 29 | B1506-352-000 | TENSION SPRING RACK B | 2 |
| 30 | MAV-04566000 | SPRING PLATE | 1 |
| 31 | MAV-04567000 | PRESSER ADJUSTING SCREW | 1 |
| 32 | NM-6080001-SC | NUT M8X1.25 | 1 |
| 33 | MAV-04568000 | PRESSER ADJUSTING KNOB | 1 |
| 34 | MAV-04569000 | PRESSER SPRING | 2 |
| 35 | MAV-04563000 | PRESSER LIFTING LEVER SPRING | 1 |
| 36 | 135-15606 | SPRING | 1 |
| 37 | SM-6031402-TP | SCREW | 1 |
| 38 | NM-6030003-SC | NUT | 1 |
Page 26 — 14. TABLE OF EXCHANGING GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12953352 | Gauge set | ||
| 12953253 | Gauge set | ||
| 12953451 | Gauge set | ||
| 12953550 | Gauge set | ||
| 12953659 | Gauge set | ||
| 12953360 | Gauge set (with finger guard) | ||
| 12953261 | Gauge set (with finger guard) | ||
| 12953469 | Gauge set (with finger guard) | ||
| 12953568 | Gauge set (with finger guard) | ||
| 12953667 | Gauge set (with finger guard) | ||
| 12953303 | Throat plate | ||
| 12953204 | Throat plate | ||
| 12953402 | Throat plate | ||
| 12953501 | Throat plate | ||
| 12953600 | Throat plate | ||
| 12956355 | Needle clamp asm. | ||
| 12956256 | Needle clamp asm. | ||
| 12956454 | Needle clamp asm. | ||
| 12956553 | Needle clamp asm. | ||
| 12956652 | Needle clamp asm. | ||
| 12960159 | Presser foot asm. | ||
| 12960050 | Presser foot asm. | ||
| 12960258 | Presser foot asm. | ||
| 12960357 | Presser foot asm. | ||
| 12960456 | Presser foot asm. | ||
| 12960167 | Presser foot asm. (with finger guard) | ||
| 12960068 | Presser foot asm. (with finger guard) | ||
| 12960266 | Presser foot asm. (with finger guard) | ||
| 12960365 | Presser foot asm. (with finger guard) | ||
| 12960464 | Presser foot asm. (with finger guard) | ||
| 12963450 | Feed dog asm. | ||
| 12963351 | Feed dog asm. | ||
| 12963559 | Feed dog asm. | ||
| 12963658 | Feed dog asm. | ||
| 12963757 | Feed dog asm. | ||
| 1 | 12968558 | Looper asm. (L) | |
| 2 | 12968657 | Looper asm. (L) | |
| 1 | 12968855 | Looper asm. (R) | |
| 2 | 12968954 | Looper asm. (R) | |
| 1 | 12969150 | Looper asm. (C) | |
| 12972253 | Gauge set | ||
| 12972154 | Gauge set | ||
| 12972352 | Gauge set | ||
| 12972451 | Gauge set | ||
| 12972550 | Gauge set | ||
| 12972204 | Throat plate | ||
| 12972105 | Throat plate | ||
| 12972303 | Throat plate | ||
| 12972402 | Throat plate | ||
| 12972501 | Throat plate | ||
| 12974259 | Feed dog asm. | ||
| 12974150 | Feed dog asm. | ||
| 12974358 | Feed dog asm. | ||
| 12974457 | Feed dog asm. | ||
| 12974556 | Feed dog asm. |
Page 27 — MS-1260·1261/V045 (For Medium-weight) — Option / MS-1260·1261/V045 (中厚物用) — オプション
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12977955 | Gauge set | |
| 2 | 12977963 | Gauge set (with finger guard) | |
| 3 | 12977906 | Throat plate | |
| 4 | 12925954 | Needle clamp asm. | |
| 5 | 12978250 | Presser foot asm. | |
| 6 | 12978268 | Presser foot asm. (with finger guard) | |
| 1 | 12972956 | Gauge set | |
| 1 | 12972857 | Gauge set | |
| 1 | 12973053 | Gauge set | |
| 1 | 12973152 | Gauge set | |
| 1 | 12973251 | Gauge set | |
| 3 | 12972907 | Throat plate | |
| 3 | 12972808 | Throat plate | |
| 3 | 12973004 | Throat plate | |
| 3 | 12973103 | Throat plate | |
| 3 | 12973202 | Throat plate | |
| 7 | 12978755 | Feed dog asm. | |
| 8 | 12979258 | Looper asm. (L) | 3 |
| 9 | 12979357 | Looper asm. (R) | 2 |
| 11 | B1130051000 | Thread guide | |
| 7 | 12975058 | Feed dog asm. | |
| 7 | 12974952 | Feed dog asm. | |
| 7 | 12975157 | Feed dog asm. | |
| 7 | 12975256 | Feed dog asm. | |
| 7 | 12975355 | Feed dog asm. | |
| ① | 12973509 | Adjusting plate B | 2 |
| ② | 12973608 | Adjusting plate C | 2 |
| ③ | 12973707 | Adjusting plate D | |
| ④ | 12973806 | Adjusting plate E | |
| ① | 12975702 | Adjusting plate B | |
| ② | 12975801 | Adjusting plate C | |
| ③ | 12975900 | Adjusting plate D | |
| SS5060310SP | Adjusting plate B 押さえ調節板 B | 2 |
Page 28 — Folder asm. / Roller asm.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D | MAM2970CCBA | Folder asm. 14 | |
| E | MAM2970DDBA | Folder asm. 14 | |
| E | MAM2980AABA | Folder asm. 15 | |
| E | MAM2990AABA | Folder asm. 16 | |
| F | MAM2970EEBA | Folder asm. 14 | |
| F | MAM2980BBBA | Folder asm. 15 | |
| F | MAM2990BBBA | Folder asm. 16 | |
| G | MAM2970FFBA | Folder asm. 14 | |
| G | MAM2980CCBA | Folder asm. 15 | |
| G | MAM2990CCBA | Folder asm. 16 | |
| H | MAM2970GGBA | Folder asm. 14 | |
| H | MAM2980DDBA | Folder asm. 15 | |
| H | MAM2990DDBA | Folder asm. 16 | |
| K | MAM2970HHBA | Folder asm. 14 | |
| K | MAM2980EEBA | Folder asm. 15 | |
| K | MAM2990EEBA | Folder asm. 16 | |
| D | MAV045450A0 | Steel roller (asm. 17) | |
| D | MAV045500B0 | Urethane roller (asm. 18) | |
| MAM2970GGBBA | H |
Page 31 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 129-79258 | ||
| 25 | 129-79258 | ||
| 31 | 129-79308 | ||
| 6 | 129-79357 | ||
| 30 | 129-79357 | ||
| 36 | 135-15606 |
Juki MS-1261 (32 pages) — parts catalog
- Page 1 (cover): This is the cover page for a JUKI parts list for the MS-1260/V045 and MS-1261/V045 models of 2-needle and 3-needle feed-off-the-arm double chainstitchers/cloth pullers.
- Page 2 (text): This page provides instructions on how to use the parts list, including explanations for symbols and codes used in the catalog, followed by Japanese instructions for using the parts list.
- Page 3 (toc): This page is a table of contents for a sewing machine parts catalog, listing sections like "SEWING MACHINE COMPILATION" and "V045 COMPILATION" with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of sewing machine frame and miscellaneous cover components, with numbered parts and their corresponding details.
- Page 5 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and Japanese descriptions. It covers items from reference number 1 to 85.
- Page 6 (diagram): This page displays a diagram of looper thread guide components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for an industrial sewing machine, including thread guides, tension components, screws, and covers, with their corresponding part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of needle bar and main shaft components, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like counterweights, screws, bushings, and oil cups.
- Page 10 (diagram): This page displays a diagram of presser bar and lower shaft components, with numbered parts for identification.
- Page 11 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 77.
- Page 12 (diagram): This page displays a diagram of feed mechanism components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It also includes references to other pages for specific models and selective parts.
- Page 14 (diagram): This page displays a diagram of looper and feed dog components, with numbered parts for identification.
- Page 15 (parts_list): This page lists parts for MS-1261 and MS-1260 sewing machines, including various loopers, holders, feed dogs, and screws, with their corresponding part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of knee lifter components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items like brackets, screws, levers, and plates.
- Page 18 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as thread stand assemblies, guide arms, screws, nuts, retainers, and washers.
- Page 20 (diagram): This page displays a diagram of frame and cover components for the V045 compilation, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of drive components, including various shafts, bearings, screws, and washers, along with a corresponding parts list detailing part numbers and descriptions.
- Page 22 (diagram): This page displays a diagram of clutch components with a corresponding parts list, detailing part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page lists roller drive components with part numbers, descriptions, and quantities. It includes a diagram of the components and a table detailing each part.
- Page 24 (diagram): This page displays a diagram of presser components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as levers, screws, washers, and springs.
- Page 26 (parts_list): This page lists parts for the MS-1261/V045 (For Extra heavy-weight) and MS-1261/V045 (For Heavy-weight) models, detailing gauge sets, throat plates, needle clamps, presser feet, feed dogs, and looper assemblies with their corresponding part numbers and sizes.
- Page 27 (parts_list): This page lists various parts for MS-1260/V045 and MS-1261/V045 sewing machines, including gauge sets, throat plates, needle clamps, presser feet, feed dogs, loopers, and thread guides, along with their corresponding part numbers and descriptions. It also details spacers for presser feet and feed dogs.
- Page 28 (parts_list): This page lists folder assemblies and roller assemblies with their corresponding part numbers and descriptions, including different types of rollers for various weight materials.
- Page 31 (parts_list): This page contains a numerical index of parts with part numbers, page references, and reference numbers.
- Page 32 (cover): This is the cover page of a JUKI CORPORATION parts catalog, indicating that the parts list is subject to change without notice and was edited and printed in accordance with product specifications as of November 1993.
