Pegasus EXT5100 Parts Book (PDF)
Text index — Pegasus EXT5100
Page 5 — TOP FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2765340 | LINK | 1 |
| 2 | 2405420 | BUSHING | 1 |
| 3 | 2400390 | WASHER | 1 |
| 4 | 0070560 | BOLT | 1 |
| 5 | 2765350 | BUSHING | 1 |
| 6 | 0072330 | BOLT | 1 |
| 7 | 2765260 | NUT | 1 |
| 8 | 2765330 | CRANK | 1 |
| 9 | 0072060 | BOLT | 1 |
| 10 | 0072070 | NUT | 1 |
| 11 | 276536-920 | COLLAR | 1 |
| 12 | 0045330 | BOLT | 1 |
| 13 | 2765380 | FLAT SPRING | 1 |
| 14 | 276527A0 | CRANKSHAFT | 1 |
| 15 | 2403680 | PIN | 1 |
| 16 | 2021760 | OIL WICK | 1 |
| 17 | 2073580 | FELT | 5 |
| 18 | 179320-050 | FELT | 1 |
| 19 | 2401480 | BALL | 1 |
| 20 | 276528-910 | TOP FEED BAR ASSY. | 1 |
| 21 | 2765390 | OIL SEAL | 1 |
| 22 | 2765400 | GUIDE/FEED BAR SEAL | 1 |
| 23 | 0070070 | SCREW | 1 |
| 24 | 2402940 | WASHER | 1 |
| 25 | 0070440 | SCREW | 1 |
| 26 | 2405420 | BUSHING | 1 |
| 27 | 2400390 | WASHER | 1 |
| 28 | 0070560 | BOLT | 1 |
| 29 | 2765310 | GUIDE/TOP FEED BAR | 1 |
| 30 | 0045430 | SCREW | 1 |
| 31 | 2765320 | GUIDE/TOP FEED BAR | 1 |
| 32 | 0045430 | SCREW | 1 |
| 33 | XXXXXXX | TOP FEED DOG | 1 |
| 34 | 0070140 | SCREW | 1 |
| 35 | 276520-920 | COLLAR | 1 |
| 36 | 0045340 | BOLT | 1 |
| 37 | 2082350 | WASHER | 1 |
| 38 | 2740350 | PRESSER BAR | 1 |
| 39 | 2402910 | SPRING | 1 |
| 40 | 2740370 | NUT | 1 |
| 41 | 2740360 | SCREW | 1 |
Page 7 — TOP FEED MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 276501A920 | CONNECTION | 1 |
| 2 | 007024A0 | SCREW | 2 |
| 3 | 276566-920 | ECCENTRIC | 1 |
| 4 | 0045140 | SCREW | 2 |
| 5 | 2765670 | WASHER | 1 |
| 6 | 276572-920 | CRANK | 1 |
| 7 | 0045330 | BOLT | 1 |
| 8 | 271003C0 | SHAFT | 1 |
| 9 | 2082350 | WASHER | 1 |
| 10 | 2025770 | RING | 1 |
| 11 | 276504-910 | CRANK ASSY. | 1 |
| 12 | 0045330 | BOLT | 1 |
| 13 | 2082350 | WASHER | 1 |
| 14 | 2765070 | PIN | 1 |
| 15 | 2016290 | RING | 1 |
| 16 | 2765080 | BLOCK | 1 |
| 17 | 2765090 | LINK | 1 |
| 18 | 0045430 | SCREW | 2 |
| 19 | 2765100 | PIN | 1 |
| 20 | 0045430 | SCREW | 2 |
| 21 | 276511-920 | CRANK | 1 |
| 22 | 0045330 | BOLT | 1 |
| 23 | 2765120 | CRANKSHAFT | 1 |
| 24 | 2073580 | FELT | 2 |
| 25 | 2403510 | FELT | 2 |
| 26 | 2401480 | BALL | 3 |
| 27 | 276537-920 | COLLAR | 1 |
| 28 | 0045140 | SCREW | 1 |
Page 9 — TOP FEED MECHANISM(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 276513-920 | LEVER | 1 |
| 2 | 0045340 | BOLT | 1 |
| 3 | 276514A0 | SHAFT | 1 |
| 4 | 2010220 | O RING | 1 |
| 5 | 2402960 | COLLAR | 1 |
| 6 | 0045210 | SCREW | 1 |
| 7 | 2765730 | SPRING | 1 |
| 8 | 2765170 | LEVER | 1 |
| 9 | 0070770 | SCREW | 1 |
| 10 | 0070440 | SCREW | 1 |
| 11 | 2765180 | BLADE GUIDE | 1 |
| 12 | 0070260 | SCREW | 3 |
| 13 | 2403320 | SPACER | 3 |
| 14 | 272538A0 | ADJUSTING BAR | 1 |
| 15 | 2403220 | SEAL | 1 |
| 16 | 2005550 | RING | 1 |
| 17 | 2405590 | SPRING | 1 |
| 18 | 272539A0 | PIN | 1 |
| 19 | 179201-050 | NUT | 2 |
| 20 | 0045000 | BOLT | 2 |
| 21 | 2400420 | WASHER | 1 |
| 22 | 2765240 | STOPPER | 1 |
| 23 | 2765190 | NUT | 1 |
| 24 | 0070590 | SCREW | 1 |
| 25 | 2113010 | SPRING | 1 |
Page 11 — MACHINE BED FRAME, COVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270083A9U0 | SIDE COVER ASSY. | 1 |
| 2 | 274011-910 | PRESSER BAR | 1 |
| 3 | 2701680 | FABRIC GUIDE | 1 |
| 4 | 2700810 | COVER | 1 |
| 5 | 2109300 | SPRING | 1 |
| 6 | 0071430 | SCREW | 1 |
| 7 | 2700790 | COVER | 1 |
| 8 | 0070660 | SCREW | 1 |
| 9 | 2700670 | COVER | 1 |
| 10 | 0071540 | SCREW | 3 |
Page 13 — NEEDLE DRIVE, KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271015-920 | LEVER | 1 |
| 2 | 0071500 | BOLT | 1 |
| 3 | 271023-910 | SHAFT ASSY. | 1 |
| 4 | 2021760 | OIL WICK | 2 |
| 5 | 271018C91Y0 | BUSHING ASSY. | 1 |
| 6 | 179009-050 | FELT | 1 |
| 7 | 0045820 | SCREW | 1 |
| 8 | 2710160 | LINK | 1 |
| 9 | 0045450 | SCREW | 1 |
| 10 | 2710170 | PIN | 2 |
| 11 | 0071850 | SCREW | 2 |
| 12 | 273001A920 | CRANK | 1 |
| 13 | 0045330 | BOLT | 1 |
Page 15 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2740440 | BUSHING | 1 |
| 2 | 274043A0 | SPRING | 1 |
| 3 | 274042-920 | COLLAR | 1 |
| 4 | 0045010 | BOLT | 1 |
| 5 | 2740550 | SPRING | 1 |
| 6 | 274045-910 | LEVER | 1 |
| 7 | 213218A920 | LEVER | 1 |
| 8 | 0045310 | BOLT | 1 |
| 9 | 274048-910 | LEVER | 1 |
| 10 | 2740540 | STOPPER | 1 |
| 11 | 2109300 | SPRING | 1 |
| 12 | 007018A0 | SCREW | 1 |
| 13 | 2740390 | LEVER | 1 |
| 14 | 2740410 | LINK | 1 |
| 15 | 0071931 | SCREW | 2 |
| 16 | 2740400 | STOPPER | 1 |
| 17 | XXXXXX | PRESSER FOOT ASSY. | 1 |
Page 17 — LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 274551A910 | JOINT ASSY. | 1 |
| 2 | 274552A910 | JOINT | 1 |
| 3 | 2041850 | O RING | 1 |
| 4 | 2745560 | FELT | 1 |
| 5 | 0045430 | SCREW | 1 |
| 6 | 2745500 | COVER | 1 |
| 7 | 2745590 | SPACER | 1 |
| 8 | 007018A0 | SCREW | 2 |
| 9 | 2745490 | FELT | 1 |
| 10 | 2103200 | EXHAUST OIL DISTRIBUTOR | 1 |
| 11 | 2403710 | TUBE | 1 |
| 12 | 2745920 | JOINT | 1 |
| 13 | 2745290 | FELT | 1 |
| 14 | 2745300 | COVER | 1 |
| 15 | 0071920 | SCREW | 2 |
| 16 | 2021760 | OIL WICK | 1 |
| 17 | 2401520 | OIL WICK | 1 |
| 18 | 274517B910 | PIPE ASSY. | 1 |
| 19 | 2400970 | BALL | 1 |
| 20 | 0045430 | SCREW | 1 |
| 21 | 274593B910 | PIPE ASSY. | 1 |
Page 19 — SPECIFIC PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 2 | 0070130 | SCREW | 1 |
| 3 | 2740510 | SPRING | 1 |
| 4 | 0070100 | SCREW | 1 |
| 5 | 2741060 | FINGER GUARD | 1 |
| 6 | 0070090 | SCREW | 1 |
| 7 | 212059-B0 | SCREW | 1 |
| 8 | 2126680 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 9 | 0050300 | SCREW | 1 |
| 10 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 11 | 0070130 | SCREW | 1 |
| 12 | 2740510 | SPRING | 1 |
| 13 | 0070100 | SCREW | 1 |
| 14 | 2741060 | FINGER GUARD | 1 |
| 15 | 0070090 | SCREW | 1 |
| 16 | 212059-B0 | SCREW | 1 |
| 17 | 2126680 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 18 | 0050300 | SCREW | 1 |
| 19 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 20 | 0070130 | SCREW | 1 |
| 21 | 2740510 | SPRING | 1 |
| 22 | 0070100 | SCREW | 1 |
| 23 | 2741060 | FINGER GUARD | 1 |
| 24 | 0070090 | SCREW | 1 |
| 25 | 212059-B0 | SCREW | 1 |
| 26 | 2126680 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 27 | 0050300 | SCREW | 1 |
Page 21 — SPECIFIC PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213062B0 | SIDE COVER | 1 |
| 2 | 3065270 | PIN | 1 |
| 3 | 0045540 | SCREW | 1 |
| 4 | 2402830 | PIN | 1 |
| 5 | 270522C0 | CRANKSHAFT | 1 |
| 6 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 7 | 0070130 | SCREW | 1 |
| 8 | 2740510 | SPRING | 1 |
| 9 | 0070100 | SCREW | 1 |
| 10 | 2741060 | FINGER GUARD | 1 |
| 11 | 0070090 | SCREW | 1 |
| 12 | 212059-B0 | SCREW | 1 |
| 13 | 271544-91Y0 | UPPER LOOPER HOLDER ASSY. | 1 |
| 14 | 271542-920 | LEVER | 1 |
| 15 | 0071500 | BOLT | 1 |
| 16 | 2715460 | PIN ASSY. | 1 |
| 17 | 2021760 | OIL WICK | 1 |
| 18 | 0045450 | SCREW | 1 |
| 19 | 271533B910 | UPPER LOOPER HOLDER ASSY. | 1 |
| 20 | 179130-050 | FELT | 1 |
| 21 | 0070541 | SCREW | 1 |
| 22 | 2330350 | FELT | 1 |

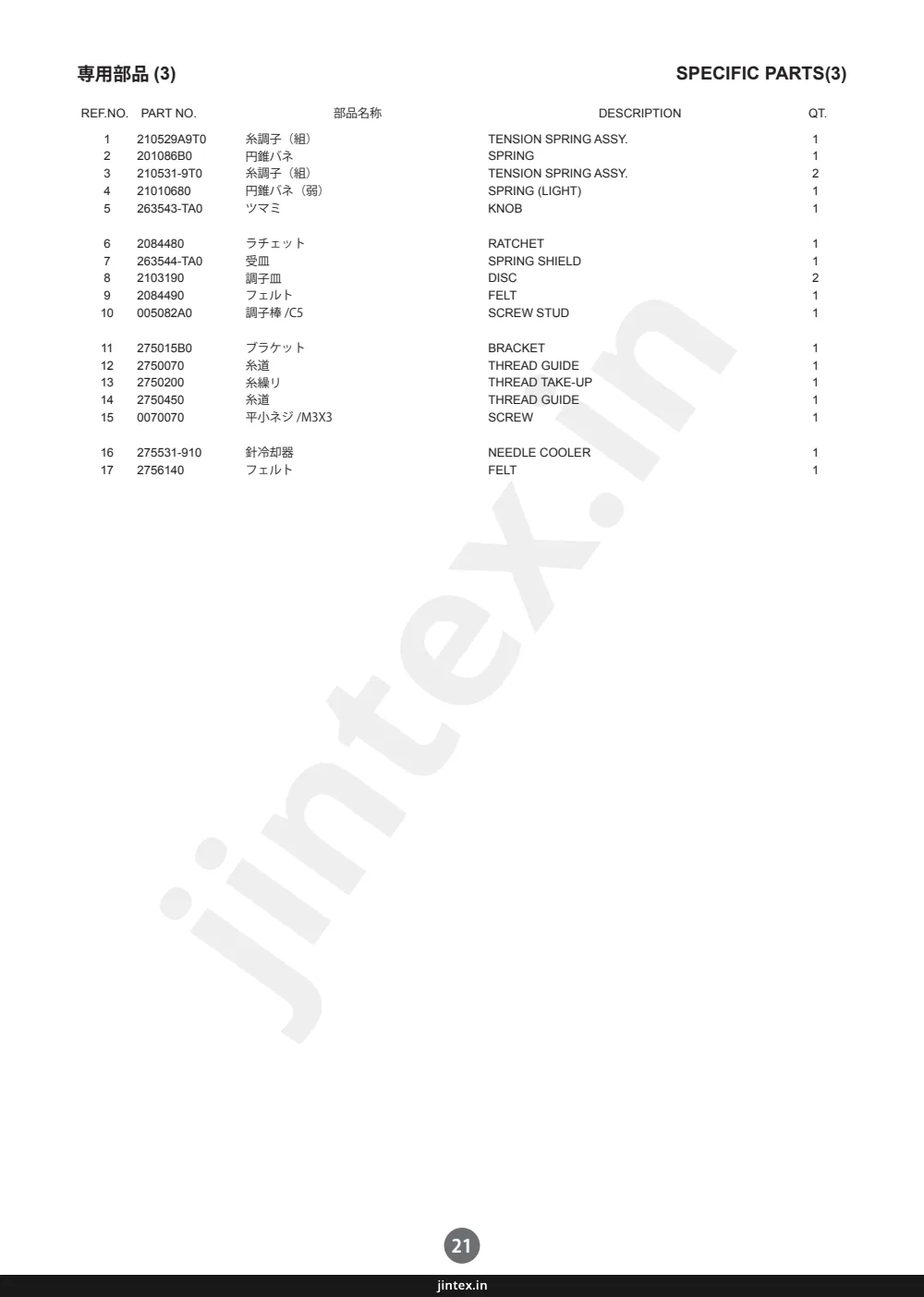

Page 23 — SPECIFIC PARTS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529A9T0 | TENSION SPRING ASSY. | 1 |
| 2 | 201086B0 | SPRING | 1 |
| 3 | 210531-9T0 | TENSION SPRING ASSY. | 2 |
| 4 | 21010680 | SPRING (LIGHT) | 1 |
| 5 | 263543-TA0 | KNOB | 1 |
| 6 | 2084480 | RATCHET | 1 |
| 7 | 263544-TA0 | SPRING SHIELD | 1 |
| 8 | 2103190 | DISC | 2 |
| 9 | 2084490 | FELT | 1 |
| 10 | 005082A0 | SCREW STUD | 1 |
| 11 | 275015B0 | BRACKET | 1 |
| 12 | 2750070 | THREAD GUIDE | 1 |
| 13 | 2750200 | THREAD TAKE-UP | 1 |
| 14 | 2750450 | THREAD GUIDE | 1 |
| 15 | 0070070 | SCREW | 1 |
| 16 | 275531-910 | NEEDLE COOLER | 1 |
| 17 | 2756140 | FELT | 1 |
Page 25 — ATTACHMENT FOR BLINDSTITCH HEMMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2106850 | BRACKET ASSY. | 1 |
| 2 | 2106800 | BRACKET | 1 |
| 3 | 2106810 | HINGE | 1 |
| 4 | 0051840 | SCREW | 1 |
| 5 | 2011910 | SPRING | 1 |
| 6 | 0030440 | NUT | 1 |
| 7 | 2106820 | WASHER | 1 |
| 8 | 0050530 | SCREW | 1 |
| 9 | 2106830 | PIN | 1 |
| 10 | 2106840 | FLAT SPRING | 1 |
| 11 | 0029060 | SCREW | 1 |
| 12 | 0070200 | SCREW | 1 |
| 13 | 2012520 | WASHER | 1 |
| 14 | 210691A910 | CLOTH GUIDE ASSY. | 1 |
| 15 | 205361A0 | CLOTH GUIDE | 1 |
| 16 | 0050570 | SCREW | 1 |
| 17 | 2106890 | BRACKET | 1 |
| 18 | 0051570 | SCREW | 2 |
| 19 | 0024300 | SCREW | 1 |
| 20 | 2106900 | BRACKET | 1 |
| 21 | 0050880 | BOLT | 2 |
| 22 | 1670660 | WASHER | 2 |
| 23 | 0029050 | SCREW | 1 |
| 24 | 1371420 | WASHER | 1 |
| 25 | 2106920 | STOPPER | 1 |
| 26 | 0012060 | SCREW | 1 |
| 27 | 2130950 | AUXILIARY PLATE | 1 |
| 28 | 0012290 | SCREW | 2 |
| 29 | 0050570 | SCREW | 1 |
| 30 | 201211C910 | GUIDE ASSY. (40mm) | 1 |
| 31 | 2058350 | GUIDE | 1 |
| 32 | 0052990 | SCREW | 1 |
| 33 | 303312A0 | STOPPER | 1 |
| 34 | 3033130 | CLAMP | 1 |
Page 26 — EXT5100 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 213110-300 | NEEDLE PLATE | ||
| 213110-400 | NEEDLE PLATE | ||
| 213110-500 | NEEDLE PLATE | ||
| 213112-300 | NEEDLE PLATE | ||
| 213112-400 | NEEDLE PLATE | ||
| 213112-500 | NEEDLE PLATE | ||
| 213111-300 | NEEDLE PLATE | ||
| 213111-400 | NEEDLE PLATE | ||
| 213111-500 | NEEDLE PLATE | ||
| 213110-300 | NEEDLE PLATE | ||
| 213110-400 | NEEDLE PLATE | ||
| 213110-500 | NEEDLE PLATE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 277408-16F0 | MAIN FEED DOG ASSY. | ||
| (277403-16F0) | MAIN FEED DOG | ||
| (213103-160) | AUX. FEED DOG | ||
| 277404-16F0 | DIFF. FEED DOG | ||
| 2773440 | TOP FEED DOG | ||
| 277286A300 | PRESSER FOOT ASSY. | ||
| 277286A400 | PRESSER FOOT ASSY. | ||
| 277062A0 | UPPER LOOPER | ||
| 2770600 | LOWER LOOPER | ||
| 277286A500 | PRESSER FOOT ASSY. | ||
| 277287A300 | PRESSER FOOT ASSY. | ||
| 277287A400 | PRESSER FOOT ASSY. | ||
| 277062B0 | UPPER LOOPER | ||
| 2770010 | LOWER LOOPER | ||
| 277287A500 | PRESSER FOOT ASSY. | ||
| 277409-16F0 | MAIN FEED DOG ASSY. | ||
| (213117-160) | AUX. FEED DOG | ||
| 2770630 | UPPER LOOPER | ||
| 213108A0 | LOWER KNIFE | ||
| 2131080 | LOWER KNIFE | ||
| 2131070 | NEEDLE GUARD FRONT | ||
| 2770610 | NEEDLE GUARD REAR | ||
| 179630-920 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE | ||
| 277022-920 | NEEDLE HOLDER | ||
| DCX27 #11 | NEEDLE |
Page 27 — EXT5100 GAUGE PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 213113-300 | NEEDLE PLATE (other cells: MAIN FEED DOG ASSY 277409-16F0; MAIN FEED DOG (277403-16F0); AUX.FEED DOG (213117-160); DIFF.FEED DOG 277404-16F0; TOP FEED DOG 2773440; PRESSER FOOT 277287A300; UPPER LOOPER 2770630 #19; LOWER LOOPER 2770600) | ||
| 213113-400 | NEEDLE PLATE (other cells: same row set as above) | ||
| 213113-500 | NEEDLE PLATE (other cells: same row set as above) | ||
| 213112-300 | NEEDLE PLATE (other cells: MAIN FEED DOG ASSY 277408-16F0; MAIN FEED DOG (277403-16F0); AUX.FEED DOG (213103-160); DIFF.FEED DOG 277404-16F0; TOP FEED DOG 2773440; PRESSER FOOT 277287A300; UPPER LOOPER 2770630 #19; LOWER LOOPER 2770600) | ||
| 213112-400 | NEEDLE PLATE (other cells: same row set as above) | ||
| 213112-500 | NEEDLE PLATE (other cells: same row set as above) | ||
| 213100-400 | NEEDLE PLATE (other cells: MAIN FEED DOG ASSY 277407-16F1; MAIN FEED DOG (277401-16F0); AUX.FEED DOG (213103-160); DIFF.FEED DOG 277402-16F0; TOP FEED DOG 2773580; PRESSER FOOT 277181-400; UPPER LOOPER 2770620 #15; LOWER LOOPER 2770600) | ||
| 277588-300 | NEEDLE PLATE (other cells: MAIN FEED DOG ASSY 277408-16F0; MAIN FEED DOG (277403-16F0); AUX.FEED DOG (213103-160); DIFF.FEED DOG 277404-16F0; TOP FEED DOG 2773440; PRESSER FOOT 278011-300; UPPER LOOPER 2770200 #21; LOWER LOOPER 2770210) | ||
| 201121A0 | UPPER KNIFE (other cells: LOWER KNIFE 2131080; NEEDLE GUARD FRONT 2131070; REAR 2770610; NEEDLE HOLDER 277022-920; NEEDLE DCX27 #11) | ||
| 201121A0 | UPPER KNIFE (other cells: LOWER KNIFE 2131080; NEEDLE GUARD FRONT 2131070; REAR 2770610; NEEDLE HOLDER 277022-920; NEEDLE DCX27 #11) | ||
| 201121A0 | UPPER KNIFE (other cells: LOWER KNIFE 2131080; NEEDLE GUARD FRONT 2131070; REAR 2770610; NEEDLE HOLDER 179630-920; NEEDLE DCX27 #9) | ||
| 201121A0 | UPPER KNIFE (other cells: LOWER KNIFE 213108A0; NEEDLE GUARD FRONT 2131070; REAR 2770610; NEEDLE HOLDER 179630-920; NEEDLE DCX27 #9) | ||
| 277409-16F0 | MAIN FEED DOG ASSY. | ||
| (277403-16F0) | MAIN FEED DOG | ||
| (213117-16F0) | AUX.FEED DOG | ||
| 277404-16F0 | DIFF.FEED DOG | ||
| 2773440 | TOP FEED DOG | ||
| 277287A300 | PRESSER FOOT | ||
| 277287A400 | PRESSER FOOT | ||
| 2770630 #19 | UPPER LOOPER | ||
| 2770600 | LOWER LOOPER | ||
| 277287A500 | PRESSER FOOT | ||
| 277408-16F0 | MAIN FEED DOG ASSY. | ||
| (213103-16F0) | AUX.FEED DOG | ||
| 277407-16F1 | MAIN FEED DOG ASSY. | ||
| (277401-16F0) | MAIN FEED DOG | ||
| 277402-16F0 | DIFF.FEED DOG | ||
| 2773580 | TOP FEED DOG | ||
| 277181-400 | PRESSER FOOT | ||
| 2770620 #15 | UPPER LOOPER | ||
| 278011-300 | PRESSER FOOT | ||
| 2770200 #21 | UPPER LOOPER | ||
| 2770210 | LOWER LOOPER | ||
| 2131080 | LOWER KNIFE | ||
| 2131070 | NEEDLE GUARD FRONT | ||
| 2770610 | NEEDLE GUARD REAR | ||
| 277022-920 | NEEDLE HOLDER | ||
| DCX27 #11 | NEEDLE | ||
| 179630-920 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE | ||
| 213108A0 | LOWER KNIFE |
Page 28 — THREADING DIAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 9A01150 | ||
| 1 | 9A01160 |
Page 29 — インデックス
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26 | 0012060 | ||
| 28 | 0012290 | ||
| 19 | 0024300 | ||
| 23 | 0029050 | ||
| 11 | 0029060 | ||
| 6 | 0030440 | ||
| 20 | 0045000 | ||
| 4 | 0045010 | ||
| 4 | 0045140 | ||
| 28 | 0045140 | ||
| 6 | 0045210 | ||
| 8 | 0045310 | ||
| 12 | 0045330 | ||
| 7 | 0045330 | ||
| 12 | 0045330 | ||
| 22 | 0045330 | ||
| 13 | 0045330 | ||
| 36 | 0045340 | ||
| 2 | 0045340 | ||
| 30 | 0045430 | ||
| 32 | 0045430 | ||
| 18 | 0045430 | ||
| 20 | 0045430 | ||
| 5 | 0045430 | ||
| 20 | 0045430 | ||
| 9 | 0045450 | ||
| 18 | 0045450 | ||
| 3 | 0045540 | ||
| 7 | 0045820 | ||
| 9 | 0050300 | ||
| 18 | 0050300 | ||
| 27 | 0050300 | ||
| 8 | 0050530 | ||
| 16 | 0050570 | ||
| 29 | 0050570 | ||
| 10 | 005082A0 | ||
| 21 | 0050880 | ||
| 18 | 0051570 | ||
| 4 | 0051840 | ||
| 32 | 0052990 | ||
| 23 | 0070070 | ||
| 15 | 0070070 | ||
| 6 | 0070090 | ||
| 15 | 0070090 | ||
| 24 | 0070090 | ||
| 11 | 0070090 | ||
| 4 | 0070100 | ||
| 13 | 0070100 | ||
| 22 | 0070100 | ||
| 9 | 0070100 | ||
| 2 | 0070130 | ||
| 11 | 0070130 | ||
| 20 | 0070130 | ||
| 7 | 0070130 | ||
| 34 | 0070140 | ||
| 12 | 007018A0 | ||
| 8 | 007018A0 | ||
| 12 | 0070200 | ||
| 2 | 007024A0 | ||
| 12 | 0070260 | ||
| 25 | 0070440 | ||
| 10 | 0070440 | ||
| 21 | 0070541 | ||
| 4 | 0070560 | ||
| 28 | 0070560 | ||
| 24 | 0070590 | ||
| 8 | 0070660 | ||
| 9 | 0070770 | ||
| 6 | 0071430 | ||
| 2 | 0071500 | ||
| 15 | 0071500 | ||
| 10 | 0071540 | ||
| 11 | 0071850 | ||
| 15 | 0071920 | ||
| 15 | 0071931 | ||
| 9 | 0072060 | ||
| 10 | 0072070 | ||
| 6 | 0072330 | ||
| 24 | 1371420 | ||
| 22 | 1670660 | ||
| 6 | 179009-050 | ||
| 20 | 179130-050 | ||
| 19 | 179201-050 | ||
| 18 | 179320-050 | ||
| 16 | 2005550 | ||
| 4 | 2010220 | ||
| 2 | 201086B0 | ||
| 5 | 2011910 | ||
| 30 | 201211C910 | ||
| 13 | 2012520 | ||
| 15 | 2016290 | ||
| 16 | 2021760 | ||
| 4 | 2021760 | ||
| 16 | 2021760 | ||
| 17 | 2021760 | ||
| 10 | 2025770 | ||
| 23 | 2041850 | ||
| 15 | 205361A0 | ||
| 31 | 2058350 | ||
| 17 | 2073580 | ||
| 24 | 2073580 | ||
| 37 | 2082350 | ||
| 9 | 2082350 | ||
| 13 | 2082350 | ||
| 6 | 2084480 | ||
| 9 | 2084490 | ||
| 4 | 21010680 | ||
| 8 | 2103190 | ||
| 10 | 2103200 | ||
| 1 | 210529A910 | ||
| 3 | 210531-9T0 | ||
| 2 | 2106800 | ||
| 7 | 2106810 | ||
| 9 | 2106820 | ||
| 10 | 2106830 | ||
| 1 | 2106840 | ||
| 17 | 2106850 | ||
| 20 | 2106890 | ||
| 14 | 2106900 | ||
| 25 | 210691A910 | ||
| 5 | 2106920 | ||
| 5 | 2109300 | ||
| 11 | 2109300 | ||
| 25 | 2113010 | ||
| 7 | 212059-B0 | ||
| 16 | 212059-B0 | ||
| 25 | 212059-B0 | ||
| 12 | 212059-B0 | ||
| 8 | 2126680 | ||
| 17 | 2126680 | ||
| 26 | 2126680 | ||
| 1 | 213062B0 | ||
| 27 | 2130950 | ||
| 7 | 213218A920 | ||
| 22 | 2330350 | ||
| 3 | 2400390 | ||
| 27 | 2400390 | ||
| 21 | 2400420 | ||
| 19 | 2400970 | ||
| 19 | 2401480 | ||
| 26 | 2401480 | ||
| 17 | 2401520 | ||
| 4 | 2402830 | ||
| 39 | 2402910 | ||
| 24 | 2402940 | ||
| 5 | 2402960 | ||
| 15 | 2403220 | ||
| 13 | 2403320 | ||
| 25 | 2403510 | ||
| 15 | 2403680 | ||
| 11 | 2403710 | ||
| 2 | 2405420 | ||
| 26 | 2405420 | ||
| 17 | 2405590 | ||
| 5 | 263543-TA0 | ||
| 7 | 263544-TA0 | ||
| 9 | 2700670 | ||
| 7 | 2700790 | ||
| 4 | 2700810 | ||
| 1 | 270083A9U0 | ||
| 3 | 2701680 | ||
| 5 | 270522C0 | ||
| 8 | 271003C0 | ||
| 1 | 271015-920 | ||
| 8 | 2710160 | ||
| 10 | 2710170 | ||
| 5 | 271018C91Y0 | ||
| 3 | 271023-910 | ||
| 19 | 271533B910 | ||
| 14 | 271542-920 | ||
| 13 | 271544-91Y0 | ||
| 16 | 2715460 | ||
| 14 | 272538A0 | ||
| 18 | 272539A0 | ||
| 12 | 273001A920 | ||
| 2 | 274011-910 | ||
| 38 | 2740350 | ||
| 41 | 2740360 | ||
| 40 | 2740370 | ||
| 13 | 2740390 | ||
| 16 | 2740400 | ||
| 14 | 2740410 | ||
| 3 | 274042-920 | ||
| 2 | 274043A0 | ||
| 1 | 2740440 | ||
| 6 | 274045-910 | ||
| 9 | 274048-910 | ||
| 3 | 2740510 | ||
| 12 | 2740510 | ||
| 21 | 2740510 | ||
| 8 | 2740510 | ||
| 10 | 2740540 | ||
| 5 | 2740550 | ||
| 5 | 2741060 | ||
| 14 | 2741060 | ||
| 23 | 2741060 | ||
| 10 | 2741060 | ||
| 18 | 274517B910 | ||
| 13 | 2745290 | ||
| 14 | 2745300 | ||
| 9 | 2745490 | ||
| 6 | 2745500 | ||
| 1 | 274551A910 | ||
| 2 | 274552A910 | ||
| 4 | 2745560 | ||
| 7 | 2745590 | ||
| 12 | 2745920 | ||
| 21 | 274593B910 | ||
| 12 | 2750070 | ||
| 11 | 275015B0 | ||
| 13 | 2750200 | ||
| 14 | 2750450 | ||
| 16 | 275531-910 | ||
| 17 | 2756140 | ||
| 1 | 276501A920 | ||
| 11 | 276504-910 | ||
| 14 | 2765070 | ||
| 16 | 2765080 | ||
| 17 | 2765090 | ||
| 19 | 2765100 | ||
| 21 | 276511-920 | ||
| 23 | 2765120 | ||
| 1 | 276513-920 | ||
| 3 | 276514A0 | ||
| 8 | 2765170 | ||
| 11 | 2765180 | ||
| 23 | 2765190 | ||
| 35 | 276520-920 | ||
| 22 | 2765240 | ||
| 7 | 2765260 | ||
| 14 | 276527A0 | ||
| 20 | 276528-910 | ||
| 29 | 2765310 | ||
| 31 | 2765320 | ||
| 8 | 2765330 | ||
| 1 | 2765340 | ||
| 5 | 2765350 | ||
| 11 | 276536-920 | ||
| 27 | 276537-920 | ||
| 13 | 2765380 | ||
| 21 | 2765390 | ||
| 22 | 2765400 | ||
| 3 | 276566-920 | ||
| 5 | 2765670 | ||
| 6 | 276572-920 | ||
| 7 | 2765730 | ||
| 33 | 303312A0 | ||
| 34 | 3033130 | ||
| 2 | 3065270 |
Pegasus EXT5100 — parts catalog
- Page 1 (cover): This is the cover page for the EXT5100 Series Special Parts Catalog for Variable top feed cylinder bed overedgers.
- Page 2 (toc): This page provides an introduction to the parts catalog for the EXT5100 Series, explaining how parts are organized, how to interpret part numbers, and lists the models covered by this catalog.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and parts with their corresponding page ranges.
- Page 4 (diagram): This page displays an exploded view diagram of various components, likely for a sewing machine, with parts numbered from 1 to 41.
- Page 5 (parts_list): This page lists parts for the Top Feed Mechanism (1), including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays an exploded view diagram of various components, including shafts, levers, and associated hardware, with reference numbers for each part.
- Page 7 (parts_list): This page lists parts for the top feed mechanism, including cranks, screws, washers, shafts, pins, blocks, links, and felt.
- Page 8 (diagram): This page displays an exploded view diagram of various components, including levers, springs, screws, and other small parts, with each component labeled with a reference number.
- Page 9 (parts_list): This page lists parts for the Top Feed Mechanism (3), including levers, bolts, shafts, O-rings, collars, screws, springs, spacers, adjusting bars, seals, rings, pins, nuts, washers, and stoppers.
- Page 10 (diagram): This page displays an exploded view diagram of various components, including a main machine body and several attached parts, with reference numbers indicating individual items.
- Page 11 (parts_list): This page lists parts for the machine bed frame and cover, including side cover assembly, presser bar, fabric guide, various covers, springs, and screws.
- Page 12 (diagram): This page displays an exploded view diagram of various components, including levers, shafts, and screws, with reference numbers indicating individual parts.
- Page 13 (parts_list): This page lists parts for the needle drive and knife drive mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 14 (diagram): This page illustrates various components of a sewing machine mechanism with numbered references.
- Page 15 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 16 (diagram): This page displays a diagram of various components, including parts for EXT5100 Series and EXT5104T-02 models, with numbered references for each part.
- Page 17 (parts_list): This page lists parts for the lubrication mechanism, including various joints, O-rings, felts, screws, covers, spacers, tubes, oil wicks, and pipe assemblies.
- Page 18 (diagram): This page displays three diagrams of different components, labeled EXT5104-02,04, EXT5114-03,04, and EXT5105-12, with various parts numbered for identification.
- Page 19 (parts_list): This page lists specific parts for an industrial sewing machine, including screws, springs, finger guards, and presser foot assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays an exploded view diagram of various components, including a shaft assembly, a foot pedal mechanism, and a linkage assembly, with reference numbers for each part.
- Page 21 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 22 (diagram): This page contains a diagram of parts for an industrial sewing machine, identified as EXT5104T-02, showing various components such as tension posts, springs, and levers.
- Page 23 (parts_list): This page lists specific parts for an industrial sewing machine, including tension springs, ratchets, thread guides, and a needle cooler, with their part numbers, descriptions, and quantities.
- Page 24 (diagram): This page illustrates the components for blindstitch hemming, specifically for model EXT5105-12, showing various parts with their corresponding reference numbers.
- Page 25 (parts_list): This page lists parts for the attachment for blindstitch hemming, including brackets, screws, washers, and other components, with their part numbers, descriptions, and quantities.
- Page 26 (parts_list): This page lists gauge parts for EXT5100 series sewing machines, including needle plates, feed dogs, presser feet, loopers, knives, needle guards, needle holders, and needles, with specific part numbers for different machine types and gauge settings.
- Page 27 (parts_list): This page lists gauge parts for EXT5100 series sewing machines, including needle plates, feed dogs, presser feet, loopers, knives, needle guards, needle holders, and needles, with part numbers corresponding to different machine types and gauge specifications.
- Page 28 (diagram): This page displays a threading diagram for a sewing machine, along with a table listing part numbers and applicable machine models.
- Page 29 (index): This page is an index listing part numbers, their corresponding page numbers, and reference numbers.
- Page 30 (unknown): This page is blank except for a watermark and a footer.
- Page 31 (unknown): This page contains a watermark and a website address at the bottom.
- Page 32 (cover): This is the cover page for the Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, catalog number 97300, dated February 2004. It includes company contact information and a notice about potential changes to the catalog contents.
