Brother 814 / 816 Parts Book (PDF)

Text index — Brother 814 / 816

Page 9 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine

Brother 814 / 816 parts on page 9
Ref	Part number	Part name	Qty
2	142743009	OIL CAP	2
4	141243109	TOP COVER	1
5	141244100	TOP COVER PACKING	1
6	S31808001	SCREW, PAN M4.37-40X25	8
12	141248001	SPRING HOLDER	1
13	105234003	NUT 4.37	1
16	141249109	SUB SHAFT COVER (U)	1
17	062762012	SCREW, PAN M5.95-28X20	4
19	144946000	SUB SHAFT COVER	1
20	143984009	SUB SHAFT COVER (D)	1
21	062762012	SCREW, PAN M5.95-28X20	3
22	S31808001	SCREW, PAN M4.37-40X25	1
23	141252000	PACKING (LARGE)	1
24	141254000	PACKING (LARGE)	1
25	143985101	ADJUST WINDOW COVER	1
26	107321003	STUD SCREW 4.76	1
27	107017002	WAVE SPRING WASHER	1
28	142269000	PACKING (SMALL)	1
29	141257001	DOWEL PIN	2
30	141258009	BED CUSHION	2
31	141259009	BED BASE	1
32	S32977009	FACE PLATE	1
33	062681412	SCREW, PAN M4.37-40X14	2
34	062681012	SCREW, PAN M4.37-40X10	1
35	S32979009	FRAME SIDE COVER	1
36	141262001	STUD	3
37	062681412	SCREW, PAN M4.37-40X14	3
38	025680132	WASHER, PLAIN S 4.37	3
40	107321003	STUD SCREW 4.76	1
41	107017002	WAVE SPRING WASHER	1
42	129986001	SCREW 3.57	1
43	S32984009	CAM COVER	1
44	062681212	SCREW, PAN M4.37-40X12	1
45	025680132	WASHER, PLAIN S 4.37	2
46	S31808001	SCREW, PAN M4.37-40X25	2
47	116662003	WASHER	1
48	141267001	STUD	1
49	S33001009	THREAD TAKE-UP COVER	1
50	062670512	SCREW, PAN M3.57-40X5	1
52	062670612	SCREW, PAN M3.57-40X6	2
53	141718001	THREADTRIMMING CONNECTING ROD (L) PIPE	1
54	014760622	SET SCREW, SOCKET (CP) M5.95	1
55	114747001	OIL PAN PACKING	2
61	142312001	HEAD HOOK PLATE	2
62	062680712	SCREW, PAN M4.37-40X7	4
70	013760712	SET SCREW, (CP) M5.95	2
72	117934009	OIL CAP	1
74	062710616	SCREW, PAN M4.76-32X6	1
76	183852009	BELT COVER ASSY	1
76-1	S32978009	BELT COVER	1
76-2	141246001	PLATE SPRING	1
76-3	062680512	SCREW, PAN M4.37-40X5	2
76-4	141247001	BELT COVER STOPPER	1
76-5	062680512	SCREW, PAN M4.37-40X5	1
76-6	107372001	BELT COVER HINGE ASSY	2
76-7	107231002	SCREW, FLAT M4.76	4
85	S32982001	LABEL	1

Page 11 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother 814 / 816 parts on page 11
Ref	Part number	Part name	Qty
39-1	141263104	GEAR CASE COVER	1
51-1	141269001	GEAR SEPARATION PLATE	1
86	S33004001	COVER	1
87	062670412	SCREW, PAN M3.57X4	2
39-2	147202104	GEAR CASE COVER	1
51-2	145345001	GEAR SEPARATION PLATE	1
71	145342009	OIL CAP	1
65	143742001	BED COVER (L)	1
66	143741001	BED COVER (R)	1
67	107407003	SCREW 4.37	4

Page 13 — B. 針棒関係/Needle bar mechanism/Nadelstangenvorrichtung/Mécanisme de la barre à aiguille et releveur de fil/Mecanismo de la barra

Brother 814 / 816 parts on page 13
Ref	Part number	Part name	Qty
1	141290000	COUNTER WEIGHT	1
2	100250001	SCREW 7.14	1
3	014770622	SET SCREW, SOCKET (CP) M6.35	1
4	110367001	WASHER	1
6	014770622	SET SCREW, SOCKET (CP) M6.35	2
7	014770622	SET SCREW, SOCKET (CP) M6.35	1
10	140553102	SET SCREW 3.18	1
11	142736001	NEEDLE BAR BRACKET ASSY	1
12	141295001	NEEDLE BAR BRACKET SUPPORT STUD	1
13	014770622	SET SCREW, SOCKET (CP) M6.35	1
14	141296001	NEEDLE BAR BRACKET GUIDE	1
15	107407003	SCREW 4.37	2
18	140326009	OIL CAP	1
5-1	S32986001	THREAD TAKE-UP LEVER ASSY	1
5-1-1	145465001	SCREW 3.57 (L)	1
5-1-2	S01143001	NEEDLE BAR CRANK ROD	1
5-1-3	111237001	NEEDLE BAR CLAMP	1
5-1-4	140004001	SCREW 3.57	1
5-1-5	S32987001	THREAD TAKE-UP ASSY	1
5-1-6	111468001	THREAD TAKE-UP LEVER SUPPORT STUD	1
5-1-7	116735000	NEEDLE BEARING	2
5-1-8	140430001	WICK (L=40)	1
8-1	S32989001	NEEDLE BAR ASSY	1
8-1-1	S32990001	NEEDLE BAR (817)	1
8-1-2	S33000001	NEEDLE BAR THREAD GUIDE	1
5-2	145719101	THREAD TAKE-UP LEVER ASSY	1
5-2-1	145465001	SCREW 3.57 (L)	1
5-2-2	S01143001	NEEDLE BAR CRANK ROD	1
5-2-3	111237001	NEEDLE BAR CLAMP	1
5-2-4	140004001	SCREW 3.57	1
5-2-5	111468001	THREAD TAKE-UP LEVER SUPPORT STUD	1
5-2-6	116735000	NEEDLE BEARING	2
5-2-7	140430001	WICK (L=40)	1
8-2	146075001	NEEDLE BAR	1
9-1	107415011	NEEDLE DPX5 (#11)	1
9-2	107415014	NEEDLE DPX5 (#14)	1
	141290001		1
	532986001		1
	532987001		1
	532989001		1
	532990001		1
	533000001		1

Page 15 — C. 上軸関係/Upper Shaft Mechanism/Obere Welle/Mécanisme de lárbresuperieur/ Mecanismo del eje superior

Brother 814 / 816 parts on page 15
Ref	Part number	Part name	Qty
1	141271001	UPPER SHAFT	1
2	141272001	UPPER SHAFT BUSH (F)	1
3	141273000	UPPER SHAFT BUSH (M)	1
4	141274000	BALL BEARING CASE	1
5	062681212	SCREW, PAN M4.37-40X12	3
6	072620260	BALL BEARING 6202VVC2	2
7	141275001	COLLAR	1
8	141276001	BALL BEARING CAP (S)	1
9	102843004	SCREW, FLAT M3.57	3
10	141277000	OIL REJECTOR	1
11	141278001	IDLE PULLEY	1
12	072600560	BALL BEARING 6005VV	1
13	141279001	BALL BEARING CAP (L)	1
14	102843004	SCREW, FLAT M3.57	4
15	048250142	RETAINING RING, C25	1
16	048150142	RETAINING RING, C15	1
17	141280001	PULLEY	1
18	141281001	PULLEY SLIDE BLOCK	1
19	141282001	SHAFT	1
20	013670712	SET SCREW, (CP) M3.57	1
21	141283001	SPRING	1
22	141284000	SPRING HOLDER	1
23	141285001	PULLEY STOP CAM SLIDE BLOCK	1
24	141286001	STOP CAM ASSY	1
25	141289001	CAP FOR STOP CAM	1
26	117348001	SCREW, FLAT M3.57	3
27	142297001	PIN, TAPER	1
28	014770622	SET SCREW, SOCKET (CP) M6.35	1
29	101706001	SET SCREW, M6.35	1
30	142751001	SPRING COVER	1

Page 17 — D. 針振関係/Zigzag mechanism/Zickzackvorrichtung/Mécanisme de zigzag Mecanismo del zigzag

Brother 814 / 816 parts on page 17
Ref	Part number	Part name	Qty
1	183702001	SPEED REDUCTION GEAR	1
1-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
3	141310001	SUB SHAFT	1
4	141311000	SUB SHAFT BUSH (F)	1
6	141312000	SUB SHAFT BUSH (B)	1
8	183703001	SUB SHAFT GEAR UNIT	1
8-1	141313101	SUB SHAFT GEAR ASSY	1
8-2	014770622	SET SCREW, SOCKET (CP) M6.35	2
10	181994001	UPPER SHAFT SET COLLAR ASSY	1
10-1	014760622	SET SCREW, SOCKET (CP) M5.95	2
11	147901001	ZIG ZAG ADJUST CAM ASSY	1
11-1	104908002	SET SCREW	1
11-2	141326001	ROD PIN	1
14	141328000	REGURATOR LINK SHAFT	1
15	062680712	SCREW, PAN M4.37-40X7	2
16	141329001	ZIGZAG REGURATOR LINK ASSY	1
17	102707002	WASHER	1
18	062670612	SCREW, PAN M3.57-40X6	1
19	141332001	PIN	1
20	106588003	NUT 5.95	1
21	141333001	SPRING,EXTENSION	1
22	141334001	SPRING HOOK	1
23	141335000	ZIGZAG ADJUST LEVER	1
24	141336001	ADJUST SCREW	2
25	141337001	PIN	2
26	141338001	SPRING,COMPRESSION	2
27	141339001	ADJUST LEVER STOPPER	1
28	106588003	NUT 5.95	1
29	141340001	ZIGZAG ADJUST LEVER SHAFT	1
30	013760612	SET SCREW, (CP) M5.95	1
31	141341001	ZIGZAG ECCENTRIC SHAFT	1
32	141342000	ZIGZAG ECCENTRIC SHAFT LINK	1
33	149095001	WASHER	1
34	062761212	SCREW, PAN M5.95-28X12	1
35	141344001	STUD SCREW 7.94	1
36	141345001	STUD SCREW 7.94	1
37	403388002	NUT 7.94	2
38	141346001	ZIGZAG CONNECTING ROD	1
39	100511003	SCREW 4.76	1
40	183746001	ZIGZAG CONNECTING LEVER (A) ASSY	1
40-1	141347001	ZIGZAG CONNECTING LEVER (A)	1
40-2	062711412	SCREW, PAN M4.76-32X14	1
42	141348001	ZIGZAG CONNECTING LEVER (B) ASSY	1
43	141354000	ZIGZAG POSITION CHANGING LEVER	1
44	141355001	ADJUST SCREW	1
45	105812003	NUT 7.94	1
46	141356001	ADJUST SCREW	1
47	105812002	NUT 7.94	1
48	158449001	WASHER	1
49	141357000	CHANGING LEVER STOPPER	1
50	014760622	SET SCREW, SOCKET (CP) M5.95	2
51	141358001	SPRING,EXTENSION	1
52	141334001	SPRING HOOK	1
54	141351001	SET COLLAR	1
55	014770622	SET SCREW, SOCKET (CP) M6.35	1
56	141659001	BAR TACK CONNECTING SHAFT	1
57	141363001	SPRING,COMPRESSION	1
58	048110142	RETAINING RING, C11	1
64	147155000	ZIGZAG CONNECTING LEVER SHAFT BUSH	1

Page 19 — D. 針振関係/Zigzag mechanism/Zickzackvorrichtung/Mécanisme de zigzag/ Mecanismo del zigzag

Brother 814 / 816 parts on page 19
Ref	Part number	Part name	Qty
53	141359001	ZIGZAG CONNECTING SHAFT	1
59	145344001	STUD SHAFT	1
60	141716000	ZIGZAG CONNECTING SHAFT BUSH (R)	2
61	141365000	ZIGZAG CONNECTING SHAFT BUSH (L)	2
62	141366001	COLLAR	2
53	141359001	ZIGZAG CONNECTING SHAFT	2
60	141716000	ZIGZAG CONNECTING SHAFT BUSH (R)	3
61	141365000	ZIGZAG CONNECTING SHAFT BUSH (L)	3
62	141366001	COLLAR	3

Page 21 — E. 停止関係/Clutch mechanism/Kupplungsvorrichtung/Mécanisme de l embrayage

Brother 814 / 816 parts on page 21
Ref	Part number	Part name	Qty
1	141546001	STOP LEVER	1
2	142372000	(DU) BUSH	1
3-1	141547001	STOP CAM SEGMENT (B)<-2,-3,-5>	1
3-2	145442001	STOP CAM SEGMENT (B)<-4>	1
4	017761412	BOLT, M5.95X14	1
5	141548001	CLUTCH CLAW (A)	1
6	118735002	WASHER	1
7	017781412	BOLT, M6.35X14	1
8	141618001	EMERGENCY STOP LEVER SHAFT	1
9	141549001	SPRING,EXTENSION	1
10	141550001	SPRING HOOK	2
11	146041002	CLUTCH LEVER	1
12	141553001	CLUTCH CLAW (B)	1
13	118735002	WASHER	1
14	017782512	BOLT, M6.35X25	1
15	142667101	CLUTCH STOPPER SUPPORT	1
16	025100132	WASHER, PLAIN S 10	1
17	048100142	RETAINING RING, C10	1
18	115544001	CLUTCH STOPPER SUPPORT SHAFT	1
19	115545001	CLUTCH STOPPER	1
20	115546001	CLUTCH STOPPER STUD	1
21	028050240	WASHER, SPRING 2-5	1
22	021710202	NUT, 2 M4.76	1
23	141554001	SPRING SHAFT	1
24	147639001	SPRING,COMPRESSION (C)	1
25	115550001	FELT	1
26	115551001	SPRING,COMPRESSION (B)	1
27	025100132	WASHER, PLAIN S 10	1
28	021860202	NUT, 2 M9.52	1
29	115552001	SHAFT CLAMP	1
30	025100132	WASHER, PLAIN S 10	1
31	048100142	RETAINING RING, C10	1
32	141555001	PIN	1
33	141556101	BELT SHIFTER (U)	1
34	062761012	SCREW, PAN M5.95-28X10	2
35	141557002	CLUTCH LEVER BRACKET	1
36	018082522	BOLT, SOCKET M8X25	3
37	141558001	CLUTCH LEVER SHAFT	1
38	014770622	SET SCREW, SOCKET (CP) M6.35	1
39	141559001	SPRING,EXTENSION	1
40	115558002	ADJUST PLATE	1
41	115559002	STUD SCREW 4.76	1
42	062761012	SCREW, PAN M5.95-28X10	1
43	141334001	SPRING HOOK	1
44	146955004	CLUTCH STARTING LEVER	1
45	115585001	BOLT, M7.94	1
46	152997001	NUT 7.94	1
48	062711412	SCREW, PAN M4.76-32X14	2
50	141562101	SPRING	1
51	150538009	STARTING LIFT LEVER ASSY	1
51-1	014770622	SET SCREW, SOCKET (CP) M6.35	1
53	141564001	STARTING LEVER STOPPER	1
54	062761212	SCREW, PAN M5.95-28X12	2
55	142373000	(DU) BUSH	1
56	142755001	BRAKE LEVER ASSY	1
58	141953001	STUD SCREW 7.14	1
59	142214001	BRAKE LEVER PIN	1
60	014760622	SET SCREW, SOCKET (CP) M5.95	1
61	107153002	WASHER	1
62	048070342	RETAINING RING, E7	1
63	142771001	SPRING,EXTENSION	1
64	141334001	SPRING HOOK	1
65	100075004	NUT 9.52	1

Page 23 — F. 減速関係/Power transmitter/Kraftübertagungsvorrichtung/ Mécanisme du transmetteur/Mecanismo del transmisor de potencia

Brother 814 / 816 parts on page 23
Ref	Part number	Part name	Qty
1	147222109	TRANSMITTER BASE	1
2	018082522	BOLT, SOCKET M8X25	3
3	141566001	TRANSMITTER ASSY	1
3-1	S01695001	SCREW, FLAT M3.18X8	4
3-2	062711412	SCREW, PAN M4.76-32X14	2
3-3	S01695001	SCREW, FLAT M3.18X8	8
3-4	048200142	RETAINING RING, C20	1
4	013781012	SET SCREW, (CP) M6.35	2
5	111937009	OIL CAP	1
1	141574001	BELT SHIFT BAR	1
2	141575001	BELT SHIFT LEVER	1
4	142373000	(DU) BUSH	2
5	115585001	BOLT, M7.94	1
6	152997001	NUT 7.94	1
7	141576001	BELT SHIFT ROLLER ASSY	1
8	021750102	NUT, 1 M556-32	1
9	141579001	BELT SHIFT LEVER STUD	1
10	014770622	SET SCREW, SOCKET (CP) M6.35	1
11	141580001	BELT SHIFT LEVER STOPPER	1
12	062680812	SCREW, PAN M4.37-40X8	2
13	141581001	SPRING,EXTENSION	1
14	141472002	SPRING HOOK	1
15	141582001	BELT SHIFT CAM	1
16	141583001	STUD SCREW 6.35	1
17	141584001	BELT SHIFT BRACKET ASSY	1
17-1	141586001	BELT SHIFT SLIDE BLOCK ASSY	1
18	141588001	BELT SHIFT GUIDE	2
19	062680812	SCREW, PAN M4.37-40X8	4
20	141589001	BELT SHIFTER (D)	1
21	062711012	SCREW, PAN M4.76-32X10	2
22	048070342	RETAINING RING, E7	1
23	145931001	SPRING,PLATE	1

Page 25 — H. 非常停止関係/Emergency stop mechanism/Abschaltvorrichtung/ Mécanisme de larrêt de secours/Mecanismo de parada de emergencia J. テンションプーリ関係/Tension pulley mechanism/Spannrolle/ Mécanisme de la poulie de tension/Mecanismo de la polea de tensión

Brother 814 / 816 parts on page 25
Ref	Part number	Part name	Qty
1	141698001	EMERGENCY STOP LEVER	1
2	107407003	SCREW 4.37	2
3	141699001	SPRING,COMPRESSION	1
4	141700001	EMERGENCY STOP LEVER	1
5	141701001	WASHER	1
6	141702001	STOP LEVER PRESSER SCREW	1
7	141703001	HOLDING PLATE	1
8	017681012	BOLT, M4.37X10	2
9	141704001	EMERGENCY STOP JOINT	1
10	025680232	WASHER, PLAIN M 4.37	2
1	141621001	TENSION PULLEY ASSY	1
1-1	141622000	TENSION PULLEY	1
1-2	072600040	BALL BEARING 6000DD	2
1-3	142342000	WASHER	1
1-4	141316001	WASHER	1
1-5	110185002	SCREW, FLAT M3.18	4
1-6	141623001	TENSION PULLEY SHAFT	1
1-7	048090342	RETAINING RING, E9	1
1-8	141624001	TENSION PULLEY ARM	1
1-9	141625001	TENSHON PULLEY INDICATOR	1
1-10	062670612	SCREW, PAN M3.57-40X6	2
1-11	143917001	TENSION PULLEY LEVER	1
1-12	141627001	WASHER	1
1-13	062671212	SCREW, PAN M3.57-40X12	2
1-14	141628001	TENSION PULLEY CLAW	1
1-15	141629001	TENSION PULLEY CLAW STUD	1
1-16	141630001	SPRING	1
1-17	141631001	COLLAR	1
1-18	048030342	RETAINING RING, E3	2
1-19	047250842	PIN, SPRING ROLL AW2.5	2
1-20	143914001	TENSION LEVER (S)	1
2	141632101	STUD SCREW 7.94	1
3	141633001	TENSION PULLEY RATCHET ASSY	1
4	062680812	SCREW, PAN M4.37-40X8	3

Page 27 — K. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme de pied presseur/Mecanismo de la prensa tela L. 糸切り感知関係/Thread breakage detector mechanism/Fadenbruchfühler/ Mécanisme du détecteur de casse fil/Mecanismo del sensor de cortes en el hilo

Brother 814 / 816 parts on page 27
Ref	Part number	Part name	Qty
1	141449001	PRESSER BAR	1
2	141450001	PRESSER BAR CLAMP	1
3	014770622	SET SCREW, SOCKET (CP) M6.35	1
4	141451001	SPRING (L)	1
5	100281001	WASHER	1
6	141454009	ADJUST SCREW	1
8	062681012	SCREW, PAN M4.37-40X10	1
7-1	141455001	PRESSER BAR ROLLER ASSY	1
7-1-1	156879001	ROLLER 7X17	1
7-1-2	048060342	RETAINING RING, E6	1
7-1-3	100366002	SET SCREW 4.37X5	1
7-1-4	025350332	WASHER, PLAIN L 3.5	1
7-1-5	060670512	SCREW, BIND M3.57-40X5	1
7-2	145377001	PRESSER BAR ROLLER ASSY	1
7-2-1	156880001	ROLLER 7X14	1
7-2-2	048060342	RETAINING RING, E6	1
7-2-3	100366002	SET SCREW 4.37X5	1
7-2-4	025350332	WASHER, PLAIN L 3.5	1
7-2-5	060670512	SCREW, BIND M3.57-40X5	1
1	141614001	THREAD BREAKAGE PERCEIVING WIRE	1
3	141616001	THREAD BREAKAGE PERCEIVING WIRE BAR	1
4	141617001	COLLAR	1
5	060670612	SCREW, BIND M3.57-40X6	1
6	141619001	CUTTER BAR FIXED PLATE	1
7	013760612	SET SCREW, (CP) M5.95	1
8	141620001	BALANCE	1
9	101671002	SCREW 4.37	1
10	146253000	OIL TUBE (L = 5)	1
11	025350332	WASHER, PLAIN L 3.5	1

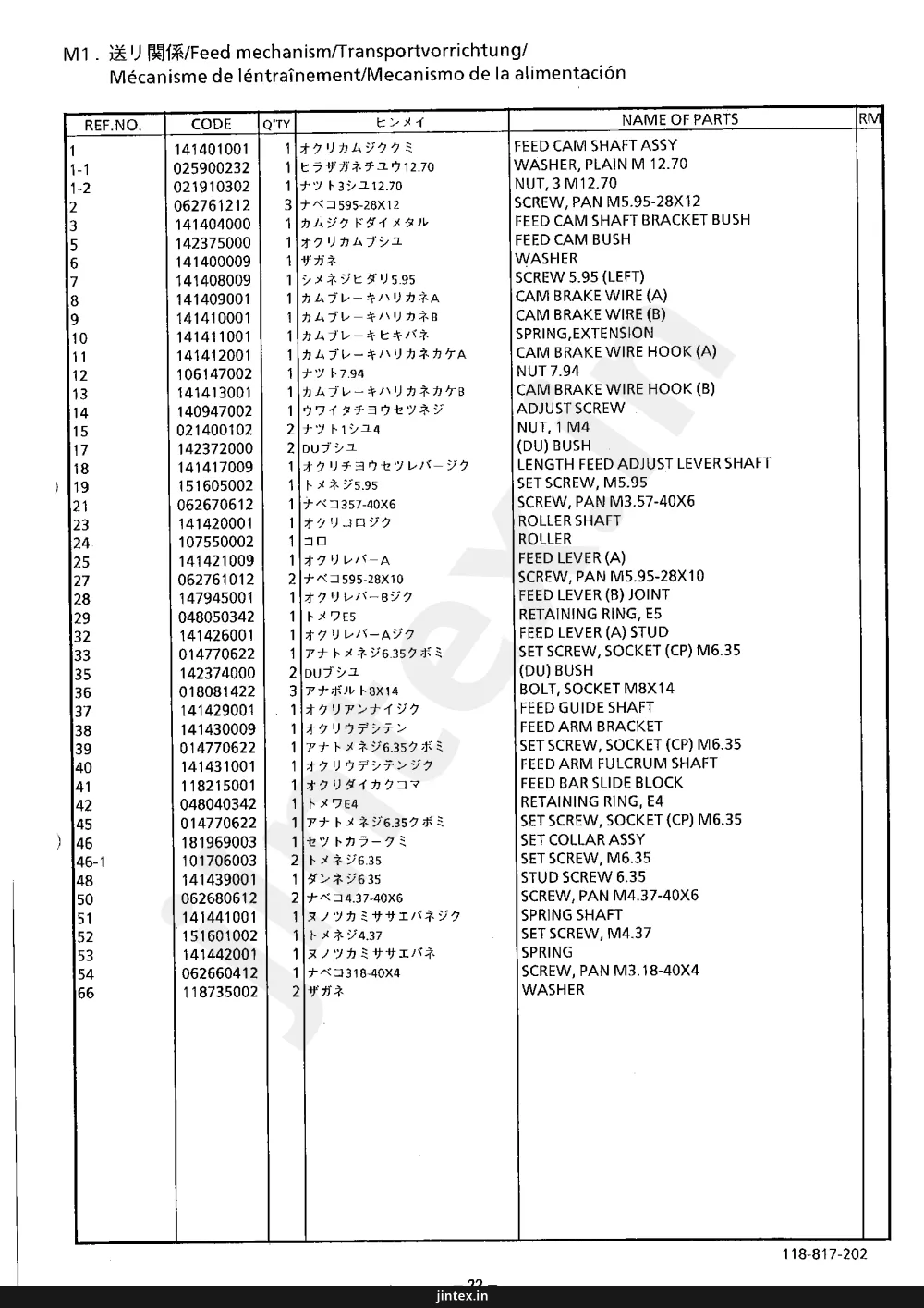

Page 29 — M1 . 送リ関係/Feed mechanism/Transportvorrichtung/Mécanisme de lêntraînement/Mecanismo de la alimentación

Brother 814 / 816 parts on page 29
Ref	Part number	Part name	Qty
1	141401001	FEED CAM SHAFT ASSY	1
1-1	025900232	WASHER, PLAIN M 12.70	1
1-2	021910302	NUT, 3 M12.70	1
2	062761212	SCREW, PAN M5.95-28X12	3
3	141404000	FEED CAM SHAFT BRACKET BUSH	1
5	142375000	FEED CAM BUSH	1
6	141400009	WASHER	1
7	141408009	SCREW 5.95 (LEFT)	1
8	141409001	CAM BRAKE WIRE (A)	1
9	141410001	CAM BRAKE WIRE (B)	1
10	141411001	SPRING,EXTENSION	1
11	141412001	CAM BRAKE WIRE HOOK (A)	1
12	106147002	NUT 7.94	1
13	141413001	CAM BRAKE WIRE HOOK (B)	1
14	140947002	ADJUST SCREW	1
15	021400102	NUT, 1 M4	2
17	142372000	(DU) BUSH	2
18	141417009	LENGTH FEED ADJUST LEVER SHAFT	1
19	151605002	SET SCREW, M5.95	1
21	062670612	SCREW, PAN M3.57-40X6	1
23	141420001	ROLLER SHAFT	1
24	107550002	ROLLER	1
25	141421009	FEED LEVER (A)	1
27	062761012	SCREW, PAN M5.95-28X10	2
28	147945001	FEED LEVER (B) JOINT	1
29	048050342	RETAINING RING, E5	1
32	141426001	FEED LEVER (A) STUD	1
33	014770622	SET SCREW, SOCKET (CP) M6.35	1
35	142374000	(DU) BUSH	2
36	018081422	BOLT, SOCKET M8X14	3
37	141429001	FEED GUIDE SHAFT	1
38	141430009	FEED ARM BRACKET	1
39	014770622	SET SCREW, SOCKET (CP) M6.35	1
40	141431001	FEED ARM FULCRUM SHAFT	1
41	118215001	FEED BAR SLIDE BLOCK	1
42	048040342	RETAINING RING, E4	1
45	014770622	SET SCREW, SOCKET (CP) M6.35	1
46	181969003	SET COLLAR ASSY	1
46-1	101706003	SET SCREW, M6.35	2
48	141439001	STUD SCREW 6.35	1
50	062680612	SCREW, PAN M4.37-40X6	2
51	141441001	SPRING SHAFT	1
52	151601002	SET SCREW, M4.37	1
53	141442001	SPRING	1
54	062660412	SCREW, PAN M3.18-40X4	1
66	118735002	WASHER	2

Page 31 — M1. 送リ関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Brother 814 / 816 parts on page 31
Ref	Part number	Part name	Qty
4-1	143942101	FEED CAM ASSY	1
4-1-1	143943001	TENSION RELEASE CAM SEGMENT (F)	1
4-1-2	062681012	SCREW, PAN M4.37-40X10	2
4-1-3	143944001	TENSION RELEASE CAM SEGMENT (B)	1
4-1-4	062681212	SCREW, PAN M4.37-40X12	2
4-1-5	141445001	BAR TACK CAM SEGMENT	2
4-1-6	062681212	SCREW, PAN M4.37-40X12	4
4-1-7	141446001	STOP CAM SEGMENT (A)	1
4-1-8	062681012	SCREW, PAN M4.37-40X10	2
4-1-9	141448001	CUTTER CAM SEGMENT	1
4-1-10	062681012	SCREW, PAN M4.37-40X10	2
44-1	141434001	FEED ARM SHAFT	1
20-1	143740001	STITCH LENGTH CONTROL PLATE	1
26-1	141422001	FEED LEVER (B) ASSY	1
34-1	141427009	FEED GUIDE SHAFT BRACKET	1
43-1	141433009	LENGTH FEED ARM	1
64-1	143743001	LENGTH FEED GUIDE PLATE	2
70-1	150562000	FINGER GUARD (M)	1
16-1	143739009	LENGTH FEED ADJUST LEVER	1
22-1	141419001	LENGTH FEED INDICATOR	1
31-1	118262002	NUT 5.95	1
49-1	141440001	GUIDE PLATE	1
55	144541001	LENGTH CONTROL PLATE STOPPER	1
59	143738009	LOWER FEED ARM	1
60	062682012	SCREW, PAN M4.37-40X20	2
62	017681012	BOLT, M4.37X10	2
63	100645003	WASHER	2
65	106568003	SCREW 3.57	4
67	100645003	WASHER	2
61-1	145248001	LENGTH FEED PLATE	1

Page 33 — M2. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Brother 814 / 816 parts on page 33
Ref	Part number	Part name	Qty
61-2	144627001	LENGTH FEED PLATE	1
4-2	146336001	FEED CAM ASSY	1
4-2-1	145348001	PUSH CAM	2
4-2-2	062681212	SCREW, PAN M4.37-40X12	4
4-2-3	146338001	ZIGZAG CAM SEGMENT (B)	2
4-2-4	062681212	SCREW, PAN M4.37-40X12	4
4-2-5	145350001	ZIGZAG CAM SEGMENT (F)	1
4-2-6	062681012	SCREW, PAN M4.37-40X10	4
4-2-7	145351001	BAR TACK CAM SEGMENT	2
4-2-8	062680812	SCREW, PAN M4.37-40X8	4
4-2-9	145352001	STOP CAM SEGMENT	1
4-2-10	062680812	SCREW, PAN M4.37-40X8	2
4-2-11	145353001	CUTTER CAM SEGMENT	1
4-2-12	062681012	SCREW, PAN M4.37-40X10	2
4-2-13	146130001	ZIGZAG CAM SEGMENT (FB)	1
20-2	145359001	STITCH LENGTH CONTROL PLATE	1
26-2	145445001	FEED LEVER (B) ASSY	1
26-3	047400842	PIN, SPRING ROLL AW4X8	1
34-2	145354009	FEED GUIDE SHAFT BRACKET	1
43-2	145356009	LENGTH FEED ARM	1
44-2	145355001	FEED ARM SHAFT	1
61-3	145357001	LENGTH FEED PLATE	1
64-2	145358001	LENGTH FEED PLATE GUIDE	2
69	115120001	PIN	1
70-2	150566000	FINGER GUARD (M)	1
16-2	147229009	LENGTH FEED ADJUST LEVER	1
22-2	025060332	WASHER, PLAIN L 6	1
26-4	147939001	FEED LEVER (B) ASSY	1
31-2	106588003	NUT 5.95	1
34-3	151583009	FEED GUIDE SHAFT BRACKET	1
43-3	147228009	LENGTH FEED ARM	1
49-2	147232001	GUIDE PLATE	1
70-3	150564000	FINGER GUARD (LL)	1

Page 34 — M3. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Brother 814 / 816 parts on page 34
Ref	Part number	Part name	Qty
	47-1-4
	47-1-3
	47-1-2
	47-1-1
	47-2-4
	47-2-3
	47-2-2
	47-2-1
	47-3-6
	47-3-7
	47-3-2
	47-3-5
	47-3-3
	47-3-12
	47-3-8
	47-3-11
	47-3-4
	47-3-10
	47-3-14
	47-3-9
	47-3-13
	47-3-1
	47-4-4
	47-4-3
	47-4-2
	47-4-1

Page 35 — M3. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Brother 814 / 816 parts on page 35
Ref	Part number	Part name	Qty
47-1	150764001	UPPER CLAMPING FOOT ASSY (25MM)	1
47-1-1	144498001	UPPER CLAMPING FOOT RUBBER	1
47-1-2	144496001	PIN	2
47-1-3	107401001	SPRING,PLATE	2
47-1-4	107404001	SCREW 1.98	2
47-2	150768001	UPPER CLAMPING FOOT ASSY (25MM-3)	1
47-2-1	144630001	UPPER CLAMPING FOOT	1
47-2-2	144496001	PIN	2
47-2-3	144707001	SPRING,PLATE	2
47-2-4	107404001	SCREW 1.98	2
47-3	150770001	UPPER CLAMPING FOOT ASSY (25MM-4)	1
47-3-1	145362001	UPPER CLAMPING FOOT (25MM-4)	1
47-3-2	144496001	PIN	1
47-3-3	107401001	SPRING,PLATE	1
47-3-4	145365001	SPRING,PLATE	1
47-3-5	145366001	THREAD PRESSER	1
47-3-6	111105001	SCREW 2.38	2
47-3-7	107404001	SCREW 1.98	1
47-3-8	146034001	PIN	1
47-3-9	145367001	GIMP TRIMMING FIXED KNIFE	1
47-3-10	145731001	GIMP TRIMMING MOVABLE KNIFE ASSY	1
47-3-11	145369001	GIMP TRIMMING CRANK	1
47-3-12	145370001	STUD SCREW 3.57	1
47-3-13	145373001	GIMP DETACH LEVER	1
47-3-14	145371001	STUD SCREW 2.38	1
47-4	150766001	UPPER CLAMPING FOOT ASSY (50MM)	1
47-4-1	147230001	UPPER CLAMPING FOOT (50MM)	1
47-4-2	144496001	PIN	2
47-4-3	107401001	SPRING,PLATE	2
47-4-4	107404001	SCREW 1.98	2

Page 37 — N. カム伝導関係/Feed cam mechanism/Transporteurkurve/ Mécanisme de la came déntraînement/Mecanismo de la leva de alimentación

Brother 814 / 816 parts on page 37
Ref	Part number	Part name	Qty
1	183704001	WORM ASSY	1
1-1	141367001	WORM	1
1-2	014770622	SET SCREW, SOCKET (CP) M6.35	2
3	183705001	WORM GEAR ASSY	1
3-1	141368000	WORM GEAR	1
3-2	014770622	SET SCREW, SOCKET (CP) M6.35	2
5	141369101	WORM GEAR SHAFT ASSY	1
6	141714001	CHANGE GEAR SHAFT ASSY	1
8	141389001	FREE WHEEL CAM ASSY	1
8-1	141392001	SPRING,COMPRESSION	6
8-2	141393001	NEEDLE ROLLER	3
8-3	014760622	SET SCREW, SOCKET (CP) M5.95	2
9	141394001	WASHER	1
11	141396001	CLUTCH PIN	1
12	141397001	SPRING,COMPRESSION	1
13	141398009	HANDLE	1
14	141399001	HANDLE SHAFT	1
15	150556001	NUT 6.35	1
16	141400009	WASHER	1
17	142702001	STUD SCREW 5.56	1
18	142272001	GEAR INDICATOR (R)	1
19	142273001	GEAR INDICATOR (L)	1
20	147317001	SPRING,PLATE	1
21	062680512	SCREW, PAN M4.37-40X5	1
10-1	S32997009	HANDLE LEVER	1
10-2	S32998009	HANDLE LEVER 5	1
7-1	141378000	CHANGE GEAR 34	1
7-2	141382000	CHANGE GEAR 42	1
7-1	141374000	CHANGE GEAR 26	1
7-2	141386000	CHANGE GEAR 50	1
7-1	141377000	CHANGE GEAR 32	1
7-2	141383000	CHANGE GEAR 44	1

Page 39 — P. カッター関係/Cutter mechanism/Abscheidevorrichtung/Mécanisme de la coupe/Mecanismo de la corta

Brother 814 / 816 parts on page 39
Ref	Part number	Part name	Qty
1	181250001	CUTTER CAM WITH SCREW	1
1-1	014770622	SET SCREW, SOCKET (CP) M6.35	1
2	141717001	CUTTER CAM SET SCREW	1
4	141462001	CUTTER CONNECTING LEVER	1
5	141463001	LEVER SHAFT	1
6	149095001	WASHER	1
7	062761212	SCREW, PAN M5.95-28X12	1
8	141464101	ROLLER	1
9	141465001	ROLLER SHAFT	1
10	106588003	NUT 5.95	1
11	141466001	CUTTER CONNECTING SLIDE BLOCK	1
12	109893002	WASHER	1
13	017772012	BOLT, M6.35X20	1
14	141467001	CUTTER LEVER	1
15	S32999001	CUTTER STOP LEVER	1
16	062680812	SCREW, PAN M4.37-40X8	2
17	141469001	STUD SCREW	1
18	110744002	NUT 6.35	1
19	143945001	CUTTER LEVER SUPPORT PLATE ASSY	1
20	107453001	WASHER	1
21	017751412	BOLT, M5.56X14	1
22	141471001	SPRING,EXTENSION	1
23	141472002	SPRING HOOK	1
24	141473009	CUTTER BASE LIFTER LEVER	1
25	142376000	CUTTER LEVER BUSH	1
26	141417009	LENGTH FEED ADJUST LEVER SHAFT	1
27	014780622	SET SCREW, SOCKET (CP) M6.35	1
28	143927001	WASHER	1
29	141481001	CUTTER BASE LIFTER STOPPER WITH RUBBER	1
30	152998001	NUT 9.52	1
31	141474001	CUTTER DRIVING LINK STUD (A)	1
32	014770622	SET SCREW, SOCKET (CP) M6.35	1
33	141475001	CUTTER BASE CONNECTING LINK	1
34	141476001	CUTTER DRIVING LINK STUD (B)	1
35	150553003	NUT 5.95	1
36	141478001	CUTTER BASE GUIDE (U)	1
37	062680712	SCREW, PAN M4.37-40X7	2
38	141479001	CUTTER BASE GUIDE (D)	1
39	062681412	SCREW, PAN M4.37-40X14	2
40-1	107200001	CUTTER 1/2" <-2>	1
40-2	107204001	CUTTER 7/16" <-3>	1
40-3	107205001	CUTTER 5/8" <-4>	1
40-4	147941001	CUTTER 48" <-5>	1
41	115503001	SCREW 4.37	1
42	141484001	CUTTER CLUTCH BAR	1
43	141485001	SPRING,COMPRESSION (A)	1
44	047301842	PIN, SPRING 3X18	1
45	141486001	CUTTER CLUTCH BAR GUIDE	1
46	062670812	SCREW, PAN M3.57-40X8	2
47	141487001	CUTTER CLUTCH	1
48	141488001	SPRING,COMPRESSION (B)	1
49	048080342	RETAINING RING, E8	1
50	142724001	CUTTER BRACKET ASSY	1
50-1	141480001	CUTTER HOLDER	1
50-2	107407003	SCREW 4.37	2
51	142779001	CUTTER SLIDE BLOCK CLUTCH	1
52	112144001	STUD SCREW 3.57	2
53	107126001	SPRING HOOK	1
54	120790001	SPRING,EXTENSION	1

Page 41 — Q. ヒモ案内関係/Gimp guide mechanism/Schnurführung/ Mécanisme de guide-fil/Mecanismo guía del hilo

Brother 814 / 816 parts on page 41
Ref	Part number	Part name	Qty
1	145380001	GIMP GUIDE PIPE	1
2	111443003	SET SCREW 3.57	1
3	145381001	GIMP GUIDE BAR	1
4	100366002	SET SCREW 4.37X5	2
5	145382001	GIMP GUIDE BAR SUPPORT	1
6	107407003	SCREW 4.37	2
7	145383101	GIMP GUIDE CHANGING PLATE ASSY	1
7-1	147758001	GIMP GUIDE CHANGING PLATE	1
7-2	141504001	THREAD TRIMMING LEVER SUPPORT STUD	1
7-3	110161004	NUT 4.76	1
8	107407003	SCREW 4.37	2
9	145384001	GIMP GUIDE CONNECTING ROD	1
10	145385001	GIMP GUIDE HINGE	1
11	145386001	HINGE ROLLER	1
12	145387001	HINGE WASHER	1
13	062711212	SCREW, PAN M4.76-32X12	1
14	145692001	SPRING,EXTENSION	1
15	145388001	SPRING HOOK	1
16	025680232	WASHER, PLAIN M 4.37	2
17	146316001	ADJUST SCREW (L)	1
18	145392001	GIMP GUIDE PUSHING PLATE	1
19	107407003	SCREW 4.37	2
20	146951001	SPRING,EXTENSION	1
21	107640001	SPRING HOOK (D)	1
23	145394001	GIMP GUIDE PUSHING LEVER (A)	1
24	014770622	SET SCREW, SOCKET (CP) M6.35	1
25	145395001	PUSHING LEVER SHAFT	1
26	151018001	GIMP GUIDE PUSHING LEVER (B)	1
27	018401222	BOLT, SOCKET M4X12	1
28	145397001	GIMP GUIDE ZIGZAG LEVER (A)	1
29	145398101	GIMP GUIDE ZIGZAG LEVER (B)	1
30	018400832	BOLT, SOCKET M4X8	1
31	145399001	SHAFT	1
32	145400009	GIMP GUIDE TRANSFER LEVER	1
33	115493002	STUD SCREW 5.95	1
34	145401001	GIMP GUIDE ZIGZAG LEVER STOPPER	1
35	062680812	SCREW, PAN M4.37-40X8	2
36	145402009	GIMP GUIDE POSITION BRACKET	1
37	145403001	GIMP GUIDE POSITIONER	1
38	060670612	SCREW, BIND M3.57-40X6	2
39	145404001	ADJUST SCREW SUPPORT	2
40	102850002	SCREW 3.57	2
41	145405001	ADJUST SCREW	1
42	145406001	LEVER SUPPORT	1
43	062670812	SCREW, PAN M3.57-40X8	1

Page 43 — R . タテ軸·下軸関係/Vertical shaft and lower shaft mechanism/ArmwellenUndGreifermechanismus/Mécanisme de l'axe de bras et de l'axe du crochet rotar

Brother 814 / 816 parts on page 43
Ref	Part number	Part name	Qty
1	181092001	BEVEL GEAR (U) ASSY	1
1-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
1-2	014770622	SET SCREW, SOCKET (CP) M6.35	2
2	141297101	VERTICAL SHAFT	1
3	141298000	VERTICAL SHAFT BUSH (U)	1
4	109208001	VERTICAL SHAFT BUSH (D)	1
5	013761410	SET SCREW, (CP) M5.95	2
6	183827001	SET COLLAR ASSY	1
6-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
7	181093101	BEVEL GEAR (D) ASSY	1
7-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
7-2	014770622	SET SCREW, SOCKET (CP) M6.35	2
8	141303000	LOWER SHAFT BUSH (B)	1
9	146355001	LOWER SHAFT BUSH (F)	1
10	141304001	LOWER SHAFT SET COLLAR (F)	1
11	014770622	SET SCREW, SOCKET (CP) M6.35	4
12	141305000	LOWER SHAFT BUSH (M)	1
13	013771410	SET SCREW, (CP) M6.35	1
14	118759001	SET COLLAR ASSY	1
14-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
15	141308101	ROTARY HOOK HOLDER	1
16	062680512	SCREW, PAN M4.37-40X5	2
18	143933001	LOWER SHAFT ASSY	1
18-1	143793001	SET SCREW 6.35	4
18-2	142744001	FELT	1
18-3	109173101	OIL CAP SCREW	1
18-4	147985001	FELT	1
20	146025001	BOBBIN	1
21	148054001	SPRING,PLATE	1
19	S33031001	ROTARY HOOK AND BOBBIN CASE ASSY (B)	1
19-1	S33032001	ROTARY HOOK ASSY (B)	1
19-1-1	183880001	INNER ROTARY HOOK PRESSER	1
19-1-2	183038001	INNER ROTARY HOOK PRESSER SCREW	3
19-2	107097101	BOBBIN CASE ASSY	1
19-2-1	180720001	TENSION SPRING,PLATE	1
19-2-2	180721001	SCREW	1
19-2-3	183507001	ADJUST SCREW	1
19	143986101	ROTARY HOOK AND BOBBIN CASE ASSY (A)	1
19-1	141307001	ROTARY HOOK ASSY	1
19-1-1	183039001	INNER ROTARY HOOK PRESSER	1
19-1-2	183038001	INNER ROTARY HOOK PRESSER SCREW	3
19-2	107097101	BOBBIN CASE ASSY	1
19-2-1	180720001	TENSION SPRING,PLATE	1
19-2-2	180721001	SCREW	1
19-2-3	183507001	ADJUST SCREW	1

Page 45 — S . 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Brother 814 / 816 parts on page 45
Ref	Part number	Part name	Qty
1	141636000	BELT, V	1
2	141637000	OIL PUMP PULLEY	1
3	100251001	SET SCREW, M6.35	2
4	143982001	PUMP PULLEY SHAFT	1
5	142766001	PUMP PULLEY SHAFT BUSH	1
6	014760622	SET SCREW, SOCKET (CP) M5.95	1
15	107153001	WASHER	1
17	143915001	BEVEL GEAR (D) ASSY	1
17-1	143916001	PUMP SHAFT GEAR ASSY	1
17-1-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
17-2	180515001	BEVEL GEAR (D) ASSY	1
17-2-1	014770622	SET SCREW, SOCKET (CP) M6.35	2
18	143983001	PUMP BUSH (F)	1
20	142359001	OIL FEEDING PIPE	2
21	141647000	OIL TUBE (L = 190)	2
22	142750001	NUT	1
23	112744001	WICK SUPPORT	1
24	062670512	SCREW, PAN M3.57-40X5	2
25	142748001	OIL TUBE JOINT	1
26	142351101	OIL TUBE ASSY	1
28	141651001	OIL FEEDING PIPE SCREW	1
29	141652001	OIL ADJUST BRACKET	1
30	104564001	O RING	1
31	141653001	CAP PLATE	1
32	062670812	SCREW, PAN M3.57-40X8	3
33	141654001	COVER	1
34	062670612	SCREW, PAN M3.57-40X6	2
35	141655000	ROTARY HOOK OIL PIPE	1
36	141656001	OIL PIPE HOLDER	1
37	062670612	SCREW, PAN M3.57-40X6	2
38	142352101	OIL TUBE ASSY	1
40	109183001	RING HOLDER	1
41	013670712	SET SCREW, (CP) M3.57	2
42	142407001	OIL ADJUST RING	1
43	109862001	SPRING,PLATE	1
44	062670512	SCREW, PAN M3.57-40X5	2
45	104833009	OIL CAP	1
47	142353101	OIL TUBE ASSY	1
49	142359001	OIL FEEDING PIPE	1
50	141661001	WICK BASE ASSY	1
50-1	110104000	OIL CAP	2
50-2	141663001	OIL TUBE (A)	1
50-3	141664001	OIL TUBE (B)	1
50-4	141665001	OIL TUBE (C)	1
50-5	116968001	OIL TUBE	1
50-6	141666001	OIL TUBE (E)	1
50-7	141667001	OIL TUBE (F)	1
50-8	141668001	OIL TUBE (G)	1
50-9	141669000	WICK	1
50-10	150396001	OIL TUBE (H)	1
51	062670812	SCREW, PAN M3.57-40X8	2
52	142359001	OIL FEEDING PIPE	1
53	141670000	OIL TUBE (L = 230)	1
54	141671001	VINYL TUBE HOLDER	1
55	062670812	SCREW, PAN M3.57-40X8	2
56	141672000	FELT	1
57	142359001	OIL FEEDING PIPE	2
58	142413001	WICK BASE ASSY (2)	1
58-1	141674001	WICK BASE CAP	1

Page 47 — S . 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Brother 814 / 816 parts on page 47
Ref	Part number	Part name	Qty
59	062670812	SCREW, PAN M3.57-40X8	2
60	047161042	PIN, SPRING ROLL AW1.6	1
61	112359001	OIL FEEDING PIPE JOINT SCREW	2
62	142354101	OIL TUBE ASSY	2
64	142355101	OIL TUBE ASSY	1
66	141679001	VINYL TUBE (B)	2
68	141680001	OIL FEEDING PIPE (B)	1
69	141681000	WICK	1
70	141682001	WICK HOLDER	1
71	062660412	SCREW, PAN M3.18-40X4	1
72	141683000	OIL TUBE (L = 420)	1
73	116975001	OIL TUBE SUPPORT	1
74	062670512	SCREW, PAN M3.57-40X5	1
75	141685001	WICK HOLDER (A)	1
76	062680612	SCREW, PAN M4.37-40X6	1
77	141686001	WICK HOLDER (B)	1
78	062680612	SCREW, PAN M4.37-40X6	1
79	141687000	WICK	2
80	141688001	WICH HOLDER (C)	1
81	S01297001	SCREW 3.57X3.5	2
82	141689101	WICK HOLDER (D)	1
83	107419002	SCREW 4.37	1
86	141692001	TUBE SUPPORT (C)	1
88	062670512	SCREW, PAN M3.57-40X5	1
89	062680712	SCREW, PAN M4.37-40X7	3
90	151074009	OIL GAUGE COVER	1
91	100257010	SCREW 3.57	4
92	141696001	OIL GAUGE WINDOW	1
93	081014670	O RING,PW11	1
94	110641002	STUD SCREW 9.52	1
95	109203001	O RING	1
96	104449009	OIL CAP	3
99	104821009	OIL CAP	2
102	104450109	OIL CAP	2
104	116725009	OIL CAP	1
105	141697000	O RING	1
107	142268001	CORD HOLDER (L)	1
108	062670512	SCREW, PAN M3.57-40X5	1
110	142298000	WICK (L = 70)	1
111	062670512	SCREW, PAN M3.57-40X5	1
112	142408001	OIL ADJUST STUD	1
113	183706001	OIL ADJUST GEAR ASSY	1
113-1	142582001	OIL ADJUST GEAR	1
113-2	151602002	SET SCREW, M4.37	2
115	117598001	FELT	1
116	116795000	CLIP	1
117	114294001	O RING	1
118	142742000	OIL TUBE (L = 190)	1
119	120774001	OIL TUBE (L = 20)	2
120	143713101	OIL CAP	1
121	143714001	OIL GAUGE WINDOW PIPE ASSY	1
121-1	143715001	PIPE FOR OIL GAUGE WINDOW	1
121-2	143716001	GAUGE PIPE SCREW	1
122	112743001	WICK SUPPORT	1
124	116975001	OIL TUBE STOPPER	1
125	060670616	SCREW, BIND M3.57-40X6	1
126	108520009	OIL CAP	1
127	146209101	OIL FILTER ASSY	1
128	147226001	OIL PLATE	1

Page 49 — S. 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Brother 814 / 816 parts on page 49
Ref	Part number	Part name	Qty
129	147223001	PUMP BELT TENSION LEVER ASSY	1
129-1	048060342	RETAINING RING, E6	1
130	062761212	SCREW, PAN M5.95-28X12	1
131	025060232	WASHER, PLAIN M 6	1
133	148761001	PUMP ASSY	1
133-1	141642000	OIL PUMP OUTER ROTOR	1
133-2	141643000	OIL PUMP INNER ROTOR	1
133-3	148469001	PUMP SHAFT	1
133-4	148470001	PUMP CAP PLATE	1
133-5	145465001	SCREW 3.57 (L)	1
133-6	148471001	PLUNGER	1
133-7	144876001	PLUNGER SPRING	1
133-8	112467002	SCREW 6.35	1
134	S07876001	TUBE CLIP	1
141	062711412	SCREW, PAN M4.76-32X14	3
143	148472001	OIL TUBE ASSY	1
144	142750002	NUT	1
145	142748002	OIL TUBE JOINT	1
146	148745000	FELT	1
147	148746001	FELT SUPPORT	1
148	062680612	SCREW, PAN M4.37-40X6	1
149	141697000	O RING	1
150	183120000	WICK	1
151	158437009	OIL CAP	2
152	140647001	CORD HOLDER	1

Page 51 — T. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de lénfilage/Mecanismo del enhebrado

Brother 814 / 816 parts on page 51
Ref	Part number	Part name	Qty
2	150553003	NUT 5.95	1
3	107602001	TENSION STUD	1
4	145446001	TENSION DISC	2
5	159805001	TENSION DISC PRESSER	1
7	100136001	TENSION NUT	1
8	107612001	PIN	1
9	145673001	UPPER THREAD RELEASE PLATE	1
10	141592001	UPPER THREAD GUIDE SHAFT	1
11	062680812	SCREW, PAN M4.37-40X8	2
12	025680232	WASHER, PLAIN M 4.37	2
13	141593001	UPPER THREAD GUIDE	1
14	100644005	SCREW 4.37	1
15	025680232	WASHER, PLAIN M 4.37	1
16	145961001	THREAD RETAINER	1
17	151602002	SET SCREW, M4.37	1
18	144741001	THREAD TENSION BRACKET	1
19	103950003	SET SCREW, M5.95	1
21	100399001	SPRING	1
22	145446001	TENSION DISC	2
28	100402004	SET SCREW, M3.57	1
29	142733001	TENSION THREAD GUIDE	1
30	013711010	SET SCREW, (CP) M4.76	1
31	142735001	ARM THREAD GUIDE (UPPER)	2
32	112751003	SCREW 3.57	2
33	141594001	ARM THREAD GUIDE	1
35	060670512	SCREW, BIND M3.57-40X5	1
41	062681012	SCREW, PAN M4.37-40X10	2
42	142258001	PLATE SPRING	1
43	062670512	SCREW, PAN M3.57-40X5	1

Page 53 — T. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de lénfilage/Mecanismo del enhebrado

Brother 814 / 816 parts on page 53
Ref	Part number	Part name	Qty
1	141590001	THREADING BAR (U)	1
6-1	115188001	TENSION SPRING	1
20	100398001	TENSION STUD	1
23	100400000	PIN	1
24	159805001	TENSION DISC PRESSER	1
25	107606001	TENSION SPRING	1
26-1	S11182009	THREAD TENSION NUT ASSY	1
26-1-1	S11183009	CONTROL DIAL	1
26-1-2	S11184009	TENSION ADJUST SCALE PLATE	1
27	S02624001	WASHER	1
34-2	S33002001	ARM THREAD GUIDE LOWER	1
36	141596009	UPPER THREAD RELEASE LEVER	1
37	141597001	UPPER THREAD RELEASE SHAFT	1
38	014760622	SET SCREW, SOCKET (CP) M5.95	1
39	141598001	STUD SCREW 4.76	1
40	141599009	UPPER THREAD RELEASE LEVER BRACKET	1
6-2	117215001	TENSION SPRING	1
26-2	100136001	TENSION NUT	1
34-1	148831001	SUB TENSION ASSY	1
34-1-1	105161004	WASHER	1
34-1-2	062670612	SCREW, PAN M3.57-40X6	1
34-1-3	148058001	SPRING	1
34-1-4	062670412	SCREW, PAN M3.57-40X4	1
34-1-5	400806003	WASHER	1
34-1-6	025350132	WASHER, PLAIN S 3.5	1
51	145437001	TENSION STUD	1
52	115958001	TENSION SPRING (UL)	1
53	110813001	NEEDLE THREAD GUIDE	1
54	145438009	GIMP TENSION BRACKET	1
55	145439001	PIN	1
56	151601002	SET SCREW, M4.37	1
57	145440001	TENSION STUD	1
58	105423001	PIN	1
59	145446001	TENSION DISC	2
60	159805001	TENSION DISC PRESSER	1
61	115958001	TENSION SPRING (UL)	1
62	100136001	TENSION NUT	1
63	145723001	PRE-TENSION ASSY	1
63-1	145724001	PRE-TENSION BODY	1
63-2	145725001	PRE-TENSION SHAFT	1
63-3	144504001	THREAD GUIDE DISC	2
63-4	144505000	SPRING	1
63-5	102716003	SET SCREW	1
63-6	060660516	SCREW, BIND M3.18-40X5	1
64	145991001	GIMP STOPPER	1
65	511091001	SPRING, EXTENSION	1
66	122771002	SCREW 2.38	2
67	062660412	SCREW, PAN M3.18-40X4	1

Page 55 — U. 糸巻関係/Bobbin winder/Spuler/Mécanisme du bobineur/ Mecanismo del devanador de la canilla

Brother 814 / 816 parts on page 55
Ref	Part number	Part name	Qty
1	141600001	BOBBIN WINDER THREAD GUIDE	1
2	107407003	SCREW 4.37	1
3	107678101	TENSION STUD	1
4	107680001	TENSION DISC	2
5	107681001	TENSION SPRING	1
6	107682001	BOBBIN WINDER TENSION NUT	1
7	141601009	BOBBIN WINDER ASSY	1
7-1	141602009	BOBBIN WINDER WHEEL BRACKET	1
7-2	141603009	BOBBIN WINDER WHEEL ARM	1
7-3	141604001	STUD SCREW 6.35	1
7-4	142259001	SPRING	1
7-5	141605001	BOBBIN WINDER LINK STUD	1
7-6	013679412	SET SCREW, (CP) M3.57	1
7-7	141606001	BOBBIN WINDER LINK (A)	1
7-8	141607001	BOBBIN WINDER LINK (B)	1
7-9	100661001	PIN	1
7-10	100659001	STUD SCREW 3.18	1
7-11	141608001	BOBBIN PRESSER	1
7-12	507142002	SCREW	1
7-13	141609009	BOBBIN WINDER WHEEL	1
7-14	141610001	BOBBIN WINDER SHAFT	1
7-15	141611001	BOBBIN WINDER BRAKE RUBBER ASSY	1
7-16	151601002	SET SCREW, M4.37	1
7-17	062680712	SCREW, PAN M4.37-40X7	2
7-18	142711001	WASHER	2
8	062761212	SCREW, PAN M5.95-28X12	2
9	118764002	STUD SCREW 4.37	1
10	146198001	THREAD CLAMP KNIFE	1
11	146199001	THREAD CLAMP DISC	1
12	144505000	SPRING	1
13	146200001	RETAINING RING, CS4	1
14	141620001	BALANCE	1
15	101671002	SCREW 4.37	1

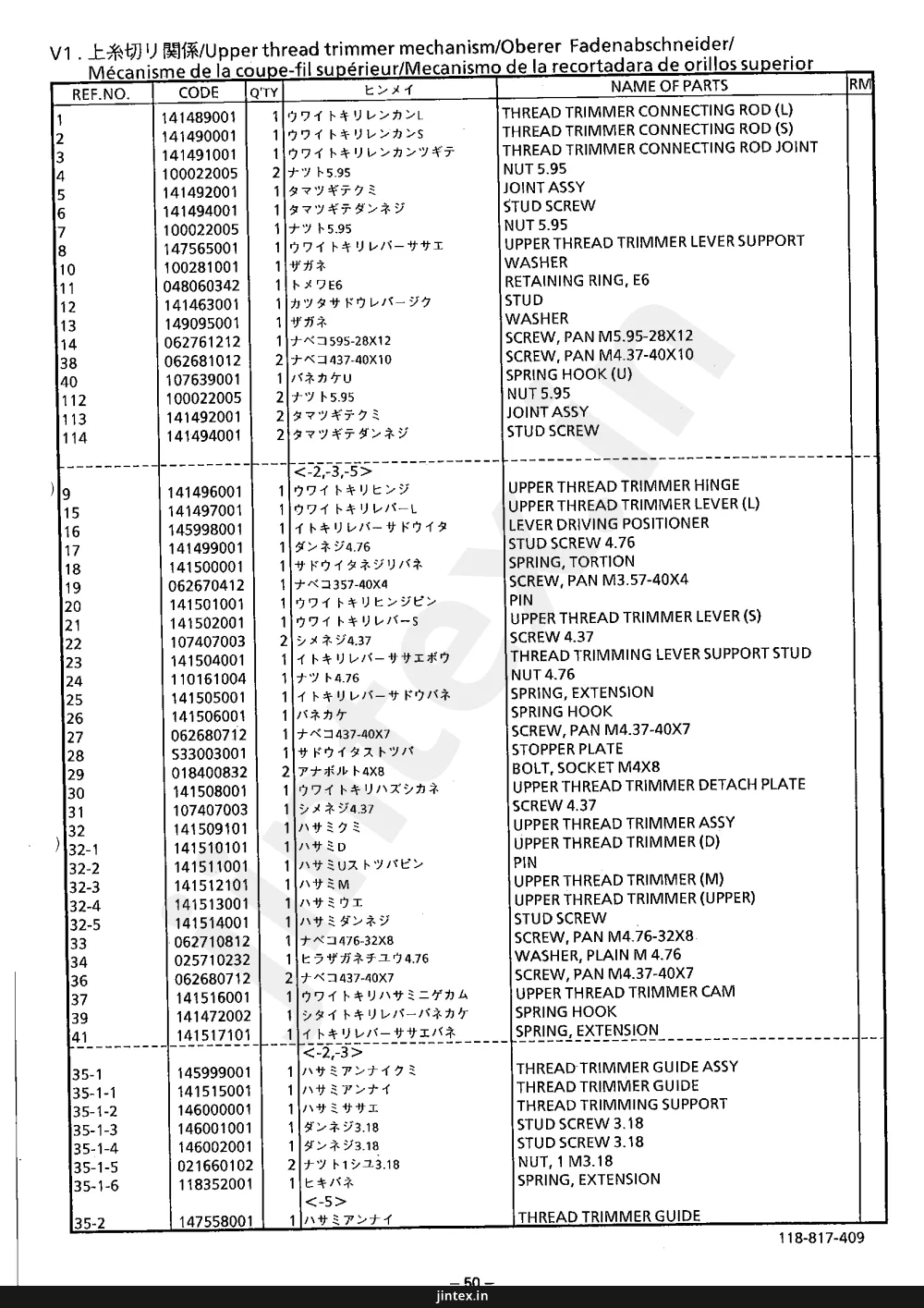

Page 57 — V1. 上糸切り関係/Upper thread trimmer mechanism/Oberer Fadenschneider/ Mécanisme de la coupe-fil supérieur/Mecanismo de la recortadora de orillos superior

Brother 814 / 816 parts on page 57
Ref	Part number	Part name	Qty
1	141489001	THREAD TRIMMER CONNECTING ROD (L)	1
2	141490001	THREAD TRIMMER CONNECTING ROD (S)	1
3	141491001	THREAD TRIMMER CONNECTING ROD JOINT	1
4	100022005	NUT 5.95	2
5	141492001	JOINT ASSY	1
6	141494001	STUD SCREW	1
7	100022005	NUT 5.95	1
8	147565001	UPPER THREAD TRIMMER LEVER SUPPORT	1
10	100281001	WASHER	1
11	048060342	RETAINING RING, E6	1
12	141463001	STUD	1
13	149095001	WASHER	1
14	062761212	SCREW, PAN M5.95-28X12	1
38	062681012	SCREW, PAN M4.37-40X10	2
40	107639001	SPRING HOOK (U)	1
112	100022005	NUT 5.95	2
113	141492001	JOINT ASSY	2
114	141494001	STUD SCREW	2
9	141496001	UPPER THREAD TRIMMER HINGE	1
15	141497001	UPPER THREAD TRIMMER LEVER (L)	1
16	145998001	LEVER DRIVING POSITIONER	1
17	141499001	STUD SCREW 4.76	1
18	141500001	SPRING, TORTION	1
19	062670412	SCREW, PAN M3.57-40X4	1
20	141501001	PIN	1
21	141502001	UPPER THREAD TRIMMER LEVER (S)	1
22	107407003	SCREW 4.37	2
23	141504001	THREAD TRIMMING LEVER SUPPORT STUD	1
24	110161004	NUT 4.76	1
25	141505001	SPRING, EXTENSION	1
26	141506001	SPRING HOOK	1
27	062680712	SCREW, PAN M4.37-40X7	1
28	S33003001	STOPPER PLATE	1
29	018400832	BOLT, SOCKET M4X8	2
30	141508001	UPPER THREAD TRIMMER DETACH PLATE	1
31	107407003	SCREW 4.37	1
32	141509101	UPPER THREAD TRIMMER ASSY	1
32-1	141510101	UPPER THREAD TRIMMER (D)	1
32-2	141511001	PIN	1
32-3	141512101	UPPER THREAD TRIMMER (M)	1
32-4	141513001	UPPER THREAD TRIMMER (UPPER)	1
32-5	141514001	STUD SCREW	1
33	062710812	SCREW, PAN M4.76-32X8	1
34	025710232	WASHER, PLAIN M 4.76	1
36	062680712	SCREW, PAN M4.37-40X7	2
37	141516001	UPPER THREAD TRIMMER CAM	1
39	141472002	SPRING HOOK	1
41	141517101	SPRING, EXTENSION	1
35-1	145999001	THREAD TRIMMER GUIDE ASSY	1
35-1-1	141515001	THREAD TRIMMER GUIDE	1
35-1-2	146000001	THREAD TRIMMING SUPPORT	1
35-1-3	146001001	STUD SCREW 3.18	1
35-1-4	146002001	STUD SCREW 3.18	1
35-1-5	021660102	NUT, 1 M3.18	2
35-1-6	118352001	SPRING, EXTENSION	1
35-2	147558001	THREAD TRIMMER GUIDE	1

Page 59 — V2. 上糸切り関係/Upper thread trimmer mechanism/Oberer Fadenschneider/Mécanisme de la coupe-fil supérieur/Mecanismo de la recortadora de orillos superior

Brother 814 / 816 parts on page 59
Ref	Part number	Part name	Qty
61	145407001	GIMP TRIMMING CONNECTOR ASSY	1
62	118244001	STUD SCREW 5.95	2
63	116755001	STUD SCREW 4.37	1
64	145411001	SPRING HOOK	1
65	062680512	SCREW, PAN M4.37-40X5	1
66	145412001	SPRING, EXTENSION	1
67	145413001	SPRING, PLATE	1
68	060660512	SCREW, BIND M3.18-40X5	2
69	145415001	GIMP KNIFE SET PLATE	1
70	145416001	GIMP KNIFE SET PLATE STUD	1
71	100197002	WASHER	1
72	048060342	RETAINING RING, E6	1
73	151601002	SET SCREW, M4.37	1
74	145417001	GIMP TRIMMING ARM	1
75	143788001	STUD	1
76	014770622	SET SCREW, SOCKET (CP) M6.35	1
77	145418009	GIMP TRIMMER PULLING BRACKET	1
78	018401622	BOLT, SOCKET M4X16	2
79	145419001	GIMP TRIMMING LINK	1
80	143788001	STUD	1
81	151601002	SET SCREW, M4.37	1
82	145420001	LOWER THREAD TRIMMER DRIVING ROD	1
83	145421001	GIMP PULLING PLATE	1
84	107407003	SCREW 4.37	2
85	145732001	GIMP TRIMMING BRACKET ASSY	1
86	145426009	CLAMPING FOOT LIFTER LEVER	1
87	145427001	BOLT, M7.94	1
88	145428001	LOWER THREAD TRIMMER LEVER STOPPER	1
89	062680612	SCREW, PAN M4.37-40X6	2
90	145429001	UPPER CLAMPING FOOT LIFTER LEVER STOPPER	1
91	116755001	STUD SCREW 4.37	1
92	145430001	SPRING	1
93	062680612	SCREW, PAN M4.37-40X6	1
94	145431001	SPRING, EXTENSION	1
95	017681012	BOLT, M4.37X10	1
96	145433001	THREAD TRIMMER DETACH LEVER	1
97	145434001	THREAD TRIMMING DETACH LEVER BUSH	1
98	145435001	DETACH LEVER HOLDER	1
99	018400832	BOLT, SOCKET M4X8	1
100	145414001	GIMP TRIMMING DETACH LEVER	1
101	100644005	SCREW 4.37	2
102	145436001	STOPPER	1
103	060670812	SCREW, BIND M3.57-40X8	2
104	113897001	SPRING, EXTENSION	1
106	107657001	SPRING HOOK	1
108	100645003	WASHER	2
109	113897001	SPRING, EXTENSION	1
110	145983001	GIMP TRIMMING SAFETY PLATE	1
111	025080132	WASHER, PLAIN S 8	2

Page 61 — W. 下糸切リ関係/Lower thread trimmer mechanism/Unterer Fadenabschneider/ Mécanisme de la coupe-fil inférieur/Mecanismo de la recortadara de orillo

Brother 814 / 816 parts on page 61
Ref	Part number	Part name	Qty
2	142372000	(DU) BUSH	1
3	107744001	ROLLER	1
4	048030342	RETAINING RING, E3	1
5	141519001	ROLLER SHAFT	1
8	141520001	LOWER THREAD TRIMMER LEVER SHAFT	1
9	149095001	WASHER	1
10	062761012	SCREW, PAN M5.95-28X10	1
12	141472002	SPRING HOOK	2
13	141522001	LOWER THREAD TRIMMER LEVER STOPPER	1
14	143788001	STUD	1
15	014760622	SET SCREW, SOCKET (CP) M5.95	1
16	115493002	STUD SCREW 5.95	1
17	141523001	LOWER THREAD TRIMMER DRIVING CAM ASSY	1
18	141526001	LOWER THREAD TRIMMER DRIVING CAM STUD	1
19	025050232	WASHER, PLAIN M 5	1
20	106629002	SCREW 4.37	1
22	141528001	STUD SCREW 6.35	2
23	150556001	NUT 6.35	2
24	141529000	LOWER THREAD TRIMMER SHAFT ARM (A)	1
25	062681212	SCREW, PAN M4.37-40X12	1
26	141530001	LOWER THREAD TRIMMER SHAFT	1
27	104847001	FEED SHAFT CENTER (L)	1
28	104848001	FEED SHAFT CENTER (R)	1
29	014760622	SET SCREW, SOCKET (CP) M5.95	2
30	141531001	SPRING	1
31	141532001	SET COLLAR	1
32	014770622	SET SCREW, SOCKET (CP) M6.35	2
33	141533001	LOWER THREAD TRIMMER SHAFT ARM (B)	1
34	062751612	SCREW, PAN M5.56-32X16	1
35	141534001	LOWER THREAD TRIMMER LINK	1
36	141535001	STUD SCREW 4.76	2
43	142416001	LOWER THREAD RELEASE LEVER ASSY	1
44	141541001	MOVABLE KNIFE	1
45	141542001	SCREW, FLAT M3.18	2
46	141543001	FIXED KNIFE	1
47	141544001	SCREW 3.18	1
48	141545001	LOWER THREAD TRIMMER SHAFT PLATE	1
49	062670612	SCREW, PAN M3.57-40X6	2
50	062761212	SCREW, PAN M5.95-28X12	1
51	142419001	LOWER THREAD RELEASER	1
52	142373000	(DU) BUSH	1
53	142420001	STUD SCREW 3.18	1
54	110161004	NUT 4.76	1
57	100032004	SCREW, FLAT M4.37	2
72	149288003	SCREW, FLAT M3.18	1

Page 63 — W. 下糸切り関係/Lower thread trimmer mechanism/Unterer Fadenabschneider/Mécanisme de la coupe-fil inférieur/Mecanismo de la recortadora de orillos inferior

Brother 814 / 816 parts on page 63
Ref	Part number	Part name	Qty
1	141518009	LOWER THREAD TRIMMER LEVER	1
6	115585001	BOLT, M7.94	1
7	152997001	NUT 7.94	1
11	141521001	SPRING, EXTENSION	1
21	141527001	LOWER THREAD TRIMMER DRIVING ROD	1
38-1	141537001	LOWER THREAD TRIMMER SET ARM	1
39	141538001	BUSH (A)	1
40	141539001	BUSH (B)	1
41	512769001	WASHER	1
42	105451001	SCREW 3.57	1
56-1	145244001	NEEDLE PLATE ASSY	1
56-1-1	145245001	BASE PLATE (U)	1
56-1-2	145246001	NEEDLE PLATE (O)	1
56-1-3	145247001	SCREW, FLAT M2.38	2
56-2	144633001	NEEDLE PLATE 1.2 ASSY	1
56-2-1	144634001	BASE PLATE	1
56-2-2	144635001	NEEDLE PLATE 1.2	1
56-2-3	111073001	SCREW, FLAT M2.38	2
38-2	147235001	LOWER THREAD TRIMMER SET ARM	1
56-3	147234001	NEEDLE PLATE 50	1
59	105955002	SCREW 4.37	1
60	147236001	KNIFE SET ARM ROLLER	1
61	140025002	WASHER	1
62	102571003	NUT 4.37	1
65	143394001	LEVER STOPPER	1
66	140649001	SET SCREW, M7.94	1
67	140650001	ADJUST NUT	1
68	140651001	SPRING, COMPRESSION	1
69	146011001	CUSHION	1
70	025080132	WASHER, PLAIN S 8	1
71	111920000	WASHER	1

Page 65 — X1. 付属装置関係(エアー式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Brother 814 / 816 parts on page 65
Ref	Part number	Part name	Qty
1	S34196009	AIR TYPE ONE PEDAL DEVICE	1
1-1	S01517109	SWITCH BOX ASSY	1
1-1-1	S01518009	SWITCH BOX	1
1-1-2	S01519001	SWITCH LEVER	1
1-1-3	145486001	STUD SCREW 7.14	1
1-1-4	100090004	NUT 7.14	1
1-1-5	S01520001	SPRING, EXTENSION	1
1-1-6	018503022	BOLT, SOCKET M5X30	2
1-1-7	021500103	NUT, 1 M5	2
1-1-8	S01521000	AIR OPERATE VALVE (S)	1
1-1-9	S01522000	HALF UNION	3
1-1-10	153268001	THROTTLE VALVE	2
1-1-11	153269001	SILENCER	1
1-1-12	002400803	SCREW, PAN M4X8	2
1-1-13	S01523000	AIR OPERATE VALVE (W)	1
1-1-14	158658000	UNIVERSAL ELBOW	1
1-1-15	S01524000	UNIVERSAL T-JOINT	1
1-1-16	158660000	NIPPLE	5
1-1-17	S01525000	PLUG	2
1-1-18	002400803	SCREW, PAN M4X8	2
1-1-19	S01526000	MICRO VALVE (S)	2
1-1-20	002301603	SCREW, PAN M3X16	4
1-1-21	S01527000	RUBBER BUSH (L)	1
1-1-22	S01528000	AIR TUBE (A) (L = 160)	2
1-1-23	S01529100	AIR TUBE (B) (L = 700)	1
1-1-24	S01531000	AIR TUBE (D) (L = 600)	1
1-1-25	S01532000	AIR TUBE (E) (L = 1700)	1
1-1-26	S01533000	AIR TUBE (F) (L = 1700)	1
1-1-27	S01534000	AIR TUBE (G) (L = 200)	1
1-1-28	S01535000	AIR TUBE (H) (L = 600)	1
1-1-29	S01536000	AIR TUBE (I) (L = 600)	1
1-1-30	S04909000	ELBOW UNION	1
1-1-31	S01540000	REGULATOR	1
1-1-32	S24514000	T-JOINT	1
1-1-33	S24518000	AIR TUBE 0604N120W (L = 1200)	1
1-1-34	018061222	BOLT, SOCKET M6X12	2
1-1-35	021060206	NUT, 2 M6	2
1-1-36	S01543009	SWITCH COVER	1
1-1-37	002400803	SCREW, PAN M4X8	4
1-1-38	S01539000	AIR TUBE (K) (L = 45)	1
1-1-39	140678001	HOSE JOINT	1
1-2	S29858009	PRESSER CYLINDER 4 ASSY	1
1-2-1	S31804000	AIR CYLINDER 25-50A	1
1-2-2	S31803009	CYLINDER BRACKET (P)	1
1-2-3	S01547001	JOINT	1
1-2-4	S01574000	17P CHAIN	1
1-2-5	149488001	ROD NUT	1
1-2-6	S01548000	MICRO VALVE (SR)	1
1-2-7	S01537000	AIR TUBE (J) (L = 500)	1
1-2-8	002301603	SCREW, PAN M3X16	2
1-2-9	S24575001	SWITCH PLATE	1
1-2-10	002400803	SCREW, PAN M4X8	2
1-2-11	025040233	WASHER, PLAIN M 4	2
1-2-12	S01522000	HALF UNION	2
1-2-13	021300103	NUT, 1 M3	1
1-2-14	025030335	WASHER, PLAIN L 3	1

Page 67 — X1. 付属装置関係(エアー式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Brother 814 / 816 parts on page 67
Ref	Part number	Part name	Qty
1-3	S29859009	STARTING CYLINDER ASSY	1
1-3-1	S01551000	AIR CYLINDER 25-50T	1
1-3-2	S04910000	HALF UNION	1
1-3-3	149488001	ROD NUT	1
1-3-4	S01547001	JOINT	1
1-3-5	S00780000	9P-CHAIN	1
1-3-6	S29860009	CYLINDER BRACKET (S)	1
1-12	031553202	WOOD SCREW, ROUND M5.5X32	2
1-17	S24515000	AIR TYPE ONE PEDAL DEVICE SWITCH ASSY	1
1-17-1	S24516000	MECHANICAL VALVE	1
1-17-2	S14145000	HALF UNION 06-M5	1
1-17-3	S04905000	HALF UNION	1
1-17-4	S24517000	AIR DEVICE SWITCH PANEL	1
1-17-5	S01530000	AIR TUBE (C) (L=1700)	1
1-18	200190001	STAPLE	5
1-19	S24519000	CROSS JOINT ASSY	1
1-19-1	S24520000	CROSS JOINT 04-Q	1
1-19-2	S01530000	AIR TUBE (C) (L=1700)	2
1-20	101118001	WOOD SCREW, ROUND M4.5X20	2
1-21	119755001	BOLT, M6X60	4
1-22	025060336	WASHER, PLAIN L6	4
1-23	021060106	NUT, 1 M6	4
1-24	028060242	WASHER, SPRING 2-6	4

Page 69 — X2. 付属装置関係(エア一式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Brother 814 / 816 parts on page 69
Ref	Part number	Part name	Qty
1-4	S33014009	SENSOR SWITCH 7 ASSY	1
1-4-1	S33011009	SENSOR BASE 7	1
1-4-2	S33012001	RESET LEVER	1
1-4-3	113730001	STUD SCREW 4.37	1
1-4-4	S01577001	SPRING, PLATE 4	1
1-4-5	110215002	SCREW 3.57	2
1-4-6	S01557000	MICRO VALVE (D)	1
1-4-7	002301603	SCREW, PAN M3X16	2
1-4-8	021300103	NUT, 1 M3	2
1-5	S01580001	HOME POSITION SWITCH ASSY	1
1-5-1	S01581001	HOME POSITION PLATE	1
1-5-2	S01548000	MICRO VALVE (SR)	1
1-5-3	062301405	SCREW, PAN M3X14	2
1-6	S01578001	COLLAR (A)	2
1-7	062681612	SCREW, PAN M4.37-40X16	2
1-8	062670612	SCREW, PAN M3.57-40X6	2
1-9	S01582001	DOG	1
1-10	062680712	SCREW, PAN M4.37-40X7	1
1-12	525664000	CORD HOLDER (6N)	2
1-13	031411304	WOOD SCREW, ROUND M4.1X13	2
1-14	105161003	WASHER	2
1-15	100645003	WASHER	1

Page 71 — Y. 特別注文部品/Option parts/Sonderzubehör/ Pièces en option/Piezas opcionales

Brother 814 / 816 parts on page 71
Ref	Part number	Part name	Qty
96	S25672009	TAPE GUARD WINDER ASSY	1
96-1	S25671001	TAPE GUARD ASSY	1
96-1-1	144998001	TAPE GUARD (B)	1
96-1-2	105288002	SCREW 2.38	2
96-1-3	144997001	TAPE GUARD (A)	1
96-1-4	122771002	SCREW 2.38	2
96-1-5	144999001	TAPE GUIDE (C)	1
96-1-6	144628001	TAPE GUARD (F)	1
96-1-7	122771002	SCREW 2.38	1
96-1-8	105970001	SCREW 2.38	1
96-1-9	110067001	COLLAR	1
96-1-10	143749001	TAPE GUIDE (LOWER)	1
96-1-11	143748001	TAPE GUIDE (UPPER)	2
96-1-12	062660412	SCREW, PAN M3.18-40X4	6
96-1-13	145441001	TAPE GUIDE	1
96-2	143767009	TAPE WINDER BRACKET ASSY	1
96-2-1	143980001	SCREW	1
96-2-2	108494001	WASHER	1
96-2-3	108495001	SPRING, COMPRESSION	1
96-2-4	100136001	TENSION NUT	1
96-3	107407003	SCREW 4.37	2
97	S31893001	RULLER ASSY	1
97-1	141705001	RULLER	1
97-2	062680512	SCREW, PAN M4.37-40X5	2
97-3	147156001	RULLER	1
97-4	062680512	SCREW, PAN M4.37-40X5	2
97-5	116662003	WASHER	2
97-6	025680232	WASHER, PLAIN M 4.37	2

Page 73 — Z1 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother 814 / 816 parts on page 73
Ref	Part number	Part name	Qty
1	122991001	ACCESSORY BAG	1
3-1	142443001	SCREW DRIVER 1.9X52	1
3-2	118837001	SCREW DRIVER 3.4X70	1
3-3	101572101	SCREW DRIVER 5.5X190	1
4-1	100887001	SPANNER 8X9	1
4-2	143949001	BOX SPANNER 12	1
6	142721001	HEXAGONAL WRENCH 3	1
7	※	NEEDLE DPX5	4
9	146025001	BOBBIN	3
10	117466000	PINCETTE	1
16	※	CUTTER	1
17	142745002	CHANGE GEAR CASE	1
18	※	CHANGE GEAR	※
22	154702001	OIL TANK	1
23	S06701000	POLY OILER ASSY	1
25	※	MOTOR PULLEY	1
26	105073001	SET SCREW 5.95	2
27	141711100	BELT	1
28	※	BELT, VM WHITE	※
29	116185209	PEDAL ASSY	2
29-1	117437109	FOOT PEDAL	2
29-2	116016001	PEDAL STOPPER	4
29-3	021400106	NUT, 1 M4	4
29-4	062401416	SCREW, PAN M4X14	4
33	149247001	CHAIN ASSY	2
34	S16080009	HEAD REST	1
37	146254001	COLLAR	4
38	101125000	WOOD SCREW, ROUND M6.2X32	4
39	141256001	HEAD HINGE	2
40	144226001	HEAD COVER	1
92	143971001	PLASTIC EYE GUARD ASSY	1
92-1	S01700001	SCREW, FLAT M3.18X7	2
92-2	025030232	WASHER, PLAIN M 3	2
92-3	021660102	NUT, 1 M3.18	2
68	142734001	STOP CAM SEGMENT (AS)	1
91-1	150561000	FINGER GUARD (S)	1
91-2	150563000	FINGER GUARD (L)	1
123	S32993001	GAUGE 817-2	1
123	S32994001	GAUGE 817-3	1
123	S32995001	GAUGE 817-4	1
123	S32996001	GAUGE 817-5	1
	506701000	POLY OILER ASSY	1
	14171100	BELT	1
	516080009	HEAD REST	1
	501700001	SCREW, FLAT M3.18X7	2

Page 75 — Z1 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother 814 / 816 parts on page 75
Ref	Part number	Part name	Qty
19	141509101	UPPER THREAD TRIMMER ASSY	1
19-1	141510101	UPPER THREAD TRIMMER (D)	1
19-2	141511000	PIN	1
19-3	141512101	UPPER THREAD TRIMMER (M)	1
19-4	141513001	UPPER THREAD TRIMMER (UPPER)	1
19-5	141514001	STUD SCREW	1
70-1	S02761109	COTTON STAND ASSY (2)	1
70-1-1	150189109	BRACKET	1
70-1-2	S02773001	COTTON STAND BRACKET SCREW SET	1
70-1-2-1	062060806	SCREW, PAN M6X8	2
70-1-2-2	031452206	WOOD SCREW, ROUND M4.5X22	3
70-1-3	150172003	COLUMN PIPE	2
70-1-4	150106003	COLUMN JOINT ASSY	1
70-1-4-1	150173003	COLUMN JOINT	1
70-1-4-2	062501406	SCREW, PAN M5X14	2
70-1-4-3	021500106	NUT, 1 M5	2
70-1-5	150174000	COLUMN CAP	1
70-1-6	S02778002	SPOOL HOLDER 2	1
70-1-7	S02780001	SPOOL SCREW SET 2	1
70-1-7-1	150179002	SPOOL SHAFT (B)	2
70-1-7-2	028050246	WASHER, SPRING 2-5	2
70-1-7-3	021500106	NUT, 1 M5	4
70-1-7-4	050503006	SCREW, PAN (P WASHER) M5X30	1
70-1-7-5	050501406	SCREW, PAN (P WASHER) M5X14	1
70-1-8	150180001	SPOOL STAND BASE	2
70-1-9	150182000	SPOOL MAT	2
70-1-10	126863001	SPOOL CUSHION	2
70-1-11	S02786002	THREAD HANGER ASSY 2	1

Page 76 — Z2.付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother 814 / 816 parts on page 76
Ref	Part number	Part name
-2	50-1-4	Screw
-2	50-1-3	Spring
-2	50-1-2	Washer
-2	50-1-1	Base
-2	50-2-4	Screw
-2	50-2-3	Spring
-2	50-2-2	Washer
-2	50-2-1	Base
-2	50-3-4	Screw
-2	50-3-3	Spring
-2	50-3-2	Washer
-2	50-3-1	Base
-3	50-4-4	Screw
-3	50-4-3	Spring
-3	50-4-2	Washer
-3	50-4-1	Base
-4	50-5-4	Screw
-4	50-5-3	Spring
-4	50-5-2	Washer
-4	50-5-1	Base
-4	50-6-7	Screw
-4	50-6-6	Bracket
-4	50-6-5	Plate
-4	50-6-12	Screw
-4	50-6-2	Screw
-4	50-6-11	Lever
-4	50-6-14	Screw
-4	50-6-3	Spring
-4	50-6-10	Arm
-4	50-6-8	Washer
-4	50-6-4	Base
-4	50-6-9	Lever
-4	50-6-1	Base
-4	56	Plate
-4	54	Screw
-4	55	Washer
-4	52	Spring
-4	53	Lever
-4	62	Screw
-4	15	Screw
-4	59	Lever
-4	58	Plate
-4	57	Spring
-4	71	Lever
-4	91-3	Wire
-4	70-2-5	Collar
-4	70-2-7-5	Screw
-4	70-2-12	Shaft
-4	70-2-3	Shaft
-4	70-2-4-2	Screw
-4	70-2-4-3	Spring
-4	70-2-4-1	Collar
-4	65	Screw
-4	64	Washer
-4	63	Bracket
-4	66	Screw
-4	70-2-7-1	Shaft
-4	70-2-7-4	Base
-4	70-2-10	Shaft
-4	70-2-9	Disc
-4	70-2-8	Disc
-4	70-2-11-3	Screw
-4	70-2-2-2	Screw
-4	70-2-6	Bracket
-4	70-2-11-1	Shaft
-4	70-2-11-2	Washer
-4	70-2-11-4	Screw
-4	70-2-7-2	Nut
-4	70-2-7-3	Nut
-4	70-2-2-1	Screw
-4	70-2-1	Base

Page 77 — Z2. 付属関係/Accessories/Zubehör/Accessoires/Accesorios

Brother 814 / 816 parts on page 77
Ref	Part number	Part name	Qty
50-1	150763001	UPPER CLAMPING FOOT ASSY (16MM)	1
50-1-1	145146001	UPPER CLAMPING FOOT (S)	1
50-1-2	144496001	PIN	2
50-1-3	107401001	SPRING,PLATE	2
50-1-4	107404001	SCREW 1.98	2
50-2	150764001	UPPER CLAMPING FOOT ASSY (25MM)	1
50-2-1	144498001	UPPER CLAMPING FOOT RUBBER	1
50-2-2	144496001	PIN	2
50-2-3	107401001	SPRING,PLATE	2
50-2-4	107404001	SCREW 1.98	2
50-3	150765001	UPPER CLAMPING FOOT ASSY (32MM)	1
50-3-1	144575001	UPPER CLAMPING FOOT (32MM)	1
50-3-2	144496001	PIN	2
50-3-3	107401001	SPRING,PLATE	2
50-3-4	107404001	SCREW 1.98	2
50-4	150767001	UPPER CLAMPING FOOT ASSY (16MM-3)	1
50-4-1	145136001	UPPER CLAMPING FOOT (S)	1
50-4-2	144496001	PIN	2
50-4-3	144707001	SPRING,PLATE	2
50-4-4	107404001	SCREW 1.98	2
50-5	150769001	UPPER CLAMPING FOOT ASSY (32MM-3)	1
50-5-1	144632001	UPPER CLAMPING FOOT (L)	1
50-5-2	144496001	PIN	2
50-5-3	144707001	SPRING,PLATE	2
50-5-4	107404001	SCREW 1.98	2
50-6	150771001	UPPER CLAMPING FOOT ASSY (32-4)	1
50-6-1	145375001	UPPER CLAMPING FOOT (32-4)	1
50-6-2	144496001	PIN	1
50-6-3	107401001	SPRING,PLATE	1
50-6-4	145365001	SPRING,PLATE	1
50-6-5	145366001	THREAD PRESSER	1
50-6-6	111105001	SCREW 2.38	2
50-6-7	107404001	SCREW 1.98	1
50-6-8	146034001	PIN	1
50-6-9	145367001	GIMP TRIMMING FIXED KNIFE	1
50-6-10	145731001	GIMP TRIMMING MOVABLE KNIFE ASSY	1
50-6-11	145369001	GIMP TRIMMING CRANK	1
50-6-12	145370001	STUD SCREW 3.57	1
50-6-13	145373001	GIMP DETACH LEVER	1
50-6-14	145371001	STUD SCREW 2.38	1

Page 79 — Z2 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother 814 / 816 parts on page 79
Ref	Part number	Part name	Qty
15	111507000	THREADER	1
52	145352001	STOP CAM SEGMENT	1
53	062680812	SCREW, PAN M4.37-40X8	2
54	145353001	CUTTER CAM SEGMENT	1
55	062681012	SCREW, PAN M4.37-40X10	2
56	145366001	THREAD PRESSER	1
57	145367001	GIMP TRIMMING FIXED KNIFE	1
58	145731001	GIMP TRIMMING MOVABLE KNIFE ASSY	1
59	145373001	GIMP DETACH LEVER	1
62	145350001	ZIGZAG CAM SEGMENT (F)	1
63	145991001	GIMP STOPPER	1
64	511091001	SPRING, EXTENSION	1
65	122771002	SCREW 2.38	2
66	062660412	SCREW, PAN M3.18-40X4	1
70-2	S02765109	COTTON STAND ASSY 3	1
70-2-1	150189109	BRACKET	1
70-2-2	S02773001	COTTON STAND BRACKET SCREW SET	1
70-2-2-1	062060806	SCREW, PAN M6X8	2
70-2-2-2	031452206	WOOD SCREW, ROUND M4.5X22	3
70-2-3	150172003	COLUMN PIPE	2
70-2-4	150106003	COLUMN JOINT ASSY	1
70-2-4-1	150173003	COLUMN JOINT	1
70-2-4-2	062501406	SCREW, PAN M5X14	2
70-2-4-3	021500106	NUT, 1 M5	2
70-2-5	150174000	COLUMN CAP	1
70-2-6	S02779009	SPOOL HOLDER 3	1
70-2-7	S02782001	SPOOL SCREW SET 3	1
70-2-7-1	150179002	SPOOL SHAFT (B)	3
70-2-7-2	028050246	WASHER, SPRING 2-5	3
70-2-7-3	021500106	NUT, 1 M5	5
70-2-7-4	050503006	SCREW, PAN (P WASHER) M5X30	1
70-2-7-5	050501406	SCREW, PAN (P WASHER) M5X14	1
70-2-8	150180001	SPOOL STAND BASE	3
70-2-9	150182000	SPOOL MAT	3
70-2-10	126863001	SPOOL CUSHION	3
70-2-11	S02784009	HOLDER SUPPORT (A) SET	1
70-2-11-1	150188009	SPOOL HOLDER SUPPORT (A)	1
70-2-11-2	062501006	SCREW, PAN M5X10	1
70-2-11-3	021500106	NUT, 1 M5	1
70-2-11-4	031452206	WOOD SCREW, ROUND M4.5X22	1
70-2-12	S02788009	THREAD HANGER ASSY 3	1
71	145380001	GIMP GUIDE PIPE	1
91-3	150567000	FINGER GUARD (L)	1

Page 80 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/ LISTE DES PIECES ACCESSORIES/LISTA DE PIEZAS ACCESSORIAS

Brother 814 / 816 parts on page 80
Ref	Part number	Part name	Qty
Z1-7	107415014	NEEDLE DPX5
Z1-16	107205001	CUTTER 5/8
Z1-16	109837001	CUTTER 3/8
Z1-16	107207001	CUTTER 3/4
Z1-16	107210001	CUTTER 1
Z1-16	147941001	CUTTER 48
Z1-18	141375000	CHANGE GEAR 28 (Q'TY:1)	1
Z1-18	141376000	CHANGE GEAR 30 (Q'TY:1)	1
Z1-18	141377000	CHANGE GEAR 32 (Q'TY:1)	1
Z1-18	141378000	CHANGE GEAR 34 (Q'TY:1)	1
Z1-18	141379000	CHANGE GEAR 36 (Q'TY:1)	1
Z1-18	141380000	CHANGE GEAR 38 (Q'TY:2)	2
Z1-18	141381000	CHANGE GEAR 40 (Q'TY:1)	1
Z1-18	141382000	CHANGE GEAR 42 (Q'TY:1)	1
Z1-18	141383000	CHANGE GEAR 44 (Q'TY:1)	1
Z1-18	141384000	CHANGE GEAR 46 (Q'TY:1)	1
Z1-18	141385000	CHANGE GEAR 48 (Q'TY:1)	1
Z1-7	107415011	ミシンハリ DPX5 NEEDLE DPX5

Page 81 — Motor pulley and V-belt selection

Brother 814 / 816 parts on page 81
Ref	Part number	Part name	Qty
	S33007-009	S18707-144(M44)
	S33008-009	S18707-144(M44)
	S31131-009	S18707-142(M42)
	S33009-009	S18707-142(M42)
	S33010-009	S18707-143(M43)
	141707-009	S18707-143(M43)
	145781-009	S18707-143(M43)
	141709-009	S18707-141(M41)
	145780-009	S18707-141(M41)
	159830-009	S18707-141(M41)
	S33254-009	S18707-140(M40)
	S33255-009	S18707-140(M40)
	S33256-009	S18707-140(M40)
	141709-009	S18707-141(M41)
	145780-009	S18707-141(M41)
	143890-009	S18707-141(M41)
	145782-009	S18707-141(M41)
	159831-009	S18707-141(M41)
	360
	319
	283
	252
	226
	203
	182
	164
	147
	133
	119
	107
	96
	86
	77
	68
	60

Page 82 — カッター / Cutter

Brother 814 / 816 parts on page 82
Ref	Part number	Part name	Qty
	109837-001
	107204-001
	107200-001
	S03278-001
	107205-001
	S25641-001
	107207-001
	S25642-001
	109838-001
	107210-001
	151837-001
	151838-001
	151839-001
	S03279-001
	151840-001
	151841-001
	153340-001
	159722-001
	S30294-001
	143780-001
	147987-001
	147941-001
	147233-001

Page 83 — ヌノツカミクミ / Upper clamping foot assy; ヌノツカミ / Upper clamping foot

Brother 814 / 816 parts on page 83
Ref	Part number	Part name	Qty
	150763-001	16mm <-2>
	144493-001	25mm <-2>
	150764-001	25mm <-2>
	145146-001
	144494-001
	144498-001
	150765-001	32mm <-2>
	150767-001	16mm <-3>
	147112-001	16mm <-3>
	144575-001
	145136-001
	147113-001
	150768-001	25mm <-3>
	150769-001	32mm <-3>
	147721-001	16mm <-4>
	144630-001
	144632-001
	147722-001
	150770-001	25mm <-4>
	147719-001	25mm <-4>
	150771-001	32mm <-4>
	145632-001
	147720-001
	145375-001
	151610-001	16mm <-4>
	150766-001	50mm <-5>
	151611-001	Thin materials
	147230-001

Page 84 — ハリイタクミ / Needle plate assy

Brother 814 / 816 parts on page 84
Ref	Part number	Part name	Qty
	147312-001
	147313-001
	151612-001
	151613-001
	145244-001
	145246-001
	147314-001
	147315-001
	151842-001	ハリイタ O/ Needle plate (O)
	145245-001	ベースハリイタ U / Base plate (U)
	151843-001	カッターウケ / Plastic plate
	144633-001
	144635-001
	144636-001
	144637-001
	144638-001
	144639-001
	156611-001	Needle plate
	156612-001	Plastic plate
	144634-001	Base plate
	141536-001	Needle plate
	147234-001	Needle plate

Page 85 — INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 85
Ref	Part number	Part name	Qty
	002301603	X1 - 1-1-20
	002301603	X1 - 1-2-8
	002301603	X2 - 1-4-7
	002400803	X1 - 1-1-12
	002400803	X1 - 1-1-18
	002400803	X1 - 1-1-37
	002400803	X1 - 1-2-10
	013670712	C - 20
	013670712	S - 41
	013679412	U - 7-6
	013711010	T - 30
	013760612	D - 30
	013760612	L - 7
	013760712	A - 70
	013761410	R - 5
	013771410	R - 13
	013781012	F - 4
	014760622	A - 54
	014760622	D - 10-1
	014760622	D - 50
	014760622	E - 60
	014760622	N - 8-3
	014760622	S - 6
	014760622	T - 38
	014760622	W - 15
	014760622	W - 29
	014760622	B - 3
	014760622	B - 6
	014760622	B - 7
	014760622	B - 13
	014760622	C - 28
	014760622	D - 1-1
	014760622	D - 8-2
	014760622	D - 55
	014760622	E - 38
	014760622	E - 51-1
	014760622	G - 10
	014760622	K - 3
	014760622	N - 1-2
	014760622	N - 3-2
	014760622	P - 1x1
	014760622	P - 32
	014760622	Q - 24
	014760622	R - 1-1
	014760622	R - 1-2
	014760622	R - 6-1
	014760622	R - 7-1
	014760622	R - 7-2
	014760622	R - 11
	014760622	R - 14-1
	014760622	S - 17-1-1
	014760622	S - 17-2-1
	014760622	M1 - 33
	014760622	M1 - 39
	014760622	M1 - 45
	014760622	V2 - 76
	014780622	P - 27
	017681012	H - 8
	017681012	M1 - 62
	017681012	V2 - 95
	017751412	P - 21
	017761412	E - 4
	017772012	P - 13
	017781412	E - 7
	017782512	E - 14
	018061222	X1 - 1-1-34
	018081422	M1 - 36
	018082522	F - 36
	018082522	Q - 30
	018400832	V2 - 29
	018400832	V2 - 99
	018400832	Q - 27
	018401222	V2 - 78
	018503022	X1 - 1-1-6
	021060106	X1 - 1-23
	021060206	X1 - 1-1-35
	021300103	X1 - 1-2-13
	021300103	X2 - 1-4-8
	021400102	M1 - 15
	021400106	Z1 - 29-3
	021500103	X1 - 1-1-7
	021500106	Z1 - 70-1-4-3
	021500106	Z1 - 70-1-7-3
	021500106	Z2 - 70-2-4-3
	021500106	Z2 - 70-2-7-3
	021500106	Z2 - 70-2-11-3
	021660102	V1 - 35-1-5
	021660102	Z1 - 92-3
	021710202	E - 22
	021750102	G - 8
	021860202	C - 28
	021910302	M1 - 1-2
	025030232	Z1 - 92-14
	025030335	X1 - 1-2-14
	025040233	X1 - 1-2-11
	025050232	W - 19
	025060232	S - 131
	025060332	M2 - 22-2
	025060336	X1 - 1-22
	025080132	W - 70
	025080132	V2 - 111
	025100132	E - 16
	025100132	E - 27
	025100132	E - 30
	025100132	T - 34-1-6
	025350132	K - 7-1-4
	025350332	K - 7-2-4
	025350332	L - 11
	025680132	A - 38
	025680132	A - 45
	025680132	Q - 16
	025680132	Q - 16
	025680132	T - 12
	025680132	T - 15
	025680132	Y - 97-6
	025710232	M1 - 34
	025900232	V1 - 34
	028050240	E - 21
	028050246	Z1 - 70-1-7-2
	028050246	Z2 - 70-2-7-2
	028060242	X1 - 1-24
	031411304	X2 - 1-13

Page 86 — 索引/INDEX/VERZEICHNIS/INDEX/INDICE

Brother 814 / 816 parts on page 86
Ref	Part number	Part name	Qty
	031452206	Z1 - 70-1-2-2
	031452206	Z2 - 70-2-2-2
	031452206	Z2 - 70-2-11-4
	031553202	X1 - 1-12
	047161042	S -60
	047250842	J - 1-19
	047301842	P -44
	047400842	M2 - 26-3
	048030342	J - 1-18
	048040342	W -4
	048050342	M1 - 29
	048060342	K - 7-1-2
	048060342	K - 7-2-2
	048060342	S - 129-1
	048060342	V1 - 11
	048070342	V2 - 72
	048070342	E - 62
	048080342	G - 22
	048090342	P -49
	048100142	J - 1-7
	048110142	E - 17
	048150142	E - 31
	048200142	D - 58
	048250142	C - 16
	0501406	F - 3-4
	0501406	C - 15
	050503006	Z1 - 70-1-7-5
	050503006	Z2 - 70-2-7-5
	050503006	Z1 - 70-1-7-4
	050503006	Z2 - 70-2-7-4
	060660512	V2 - 68
	060660516	T - 63-6
	060670512	K - 7-1-5
	060670512	K - 7-2-5
	060670512	T - 35
	060670612	L - 5
	060670612	Q - 38
	060670616	S - 125
	060670812	V2 - 103
	062060806	Z1 - 70-1-2-1
	062060806	Z2 - 70-2-2-1
	062301405	X2 - 1-5-3
	062401416	Z1 - 29-4
	062501006	Z2 - 70-2-11-2
	062501406	Z1 - 70-1-4-2
	062501406	Z2 - 70-2-4-2
	062660412	S - 71
	062660412	T - 67
	062670412	Y - 96-1-12
	062670412	M1 - 54
	062670412	Z2 - 66
	062670412	A - 87
	062670412	T - 34-1-4
	062670412	V1 - 19
	062670512	A - 50
	062670512	S - 24
	062670512	S - 44
	062670512	S - 74
	062670512	S - 88
	062670512	S - 108
	062670512	S - 111
	062670512	T - 43
	062670612	A -52
	062670612	D - 18
	062670612	J - 1-10
	062670612	S -34
	062670612	S -37
	062670612	T - 34-1-2
	062670612	W -49
	062670812	M1 - 21
	062670812	X2 - 1-8
	062670812	P -46
	062670812	Q -43
	062670812	S -32
	062670812	S -51
	062670812	S -55
	062670812	S -59
	062671212	J - 1-13
	062680512	A -76-3
	062680512	A -76-5
	062680512	N -21
	062680512	R -16
	062680512	Y -97-2
	062680512	Y -97-4
	062680512	V2 - 65
	062680512	S -76
	062680512	S -78
	062680512	S - 148
	062680512	M1 - 50
	062680512	V2 -89
	062680512	V2 -93
	062680712	A -62
	062680712	D -15
	062680712	P -37
	062680712	S -89
	062680712	U -7-17
	062680712	V1 - 27
	062680712	V1 -36
	062680712	X2 - 1-10
	062680712	G -12
	062680712	G -19
	062680712	J -4
	062680712	P -16
	062680712	Q -35
	062680712	T -11
	062680712	M2 - 4-2-8
	062680712	M2 - 4-2-10
	062681012	Z2 -53
	062681012	A -34
	062681012	K -8
	062681012	T -41
	062681012	M1 - 4-1-2
	062681012	M1 - 4-1-8
	062681012	M1 - 4-1-10
	062681012	M2 - 4-2-6
	062681012	M2 - 4-2-12
	062681012	V1 -38
	062681012	Z2 -55
	062681012	A -44
	062681012	C -5
	062681012	W -25
	062681012	M1 - 4-1-4
	062681012	M1 - 4-1-6
	062681012	M2 - 4-2-2
	062681012	M2 - 4-2-4

Page 87 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 87
Ref	Part number	Part name
2	062681612	A - 33
2	062681612	A - 37
32	062681612	P - 39
62	062682012	X2 - 1-7
24	062710616	M1 - 60
2	062710812	A - 74
50	062711012	V1 - 33
16	062711012	G - 21
34	062711412	Q - 13
10	062711412	E - 48
14	062711412	D - 40-2
16	062751612	F - 3-2
42	062751612	E - 34
54	062761012	W - 34
14	062761012	E - 34
14	062761012	E - 42
54	062761012	W - 10
22	062761012	M1 - 27
10	062761212	D - 34
14	062761212	E - 54
32	062761212	P - 7
48	062761212	S - 130
50	062761212	U - 8
2	062761212	W - 50
66	062761212	M1 - 2
2	062762012	V1 - 14
2	062762012	A - 17
18	072600040	A - 21
8	072600560	J - 1-2
40	072620260	C - 6
50	081014670	S - 93
50	100022005	V1 - 4
50	100022005	V1 - 7
54	100022005	V1 - 112
14	100032004	W - 57
58	100075004	E - 65
44	100090004	X1 - 1-1-4
46	100136001	T - 7
46	100136001	T - 26-2
64	100136001	T - 62
52	100197002	Y - 96-2-4
6	100250001	V2 - 71
38	100250001	B - 2
40	100251001	S - 3
20	100257010	S - 91
50	100281001	K - 5
20	100281001	V1 - 10
20	100366002	K - 7-1-3
34	100366002	Q - 4
46	100398001	T - 20
44	100399001	T - 21
46	100400000	T - 23
44	100402004	T - 28
10	100511003	D - 39
44	100644005	T - 14
52	100644005	V2 - 101
24	100645003	M1 - 63
24	100645003	M1 - 67
52	100645003	V2 - 108
62	100645003	X2 - 1-15
48	100659001	U - 7-10
48	100661001	U -7-9
66	100887001	X1 - 4-1
60	101118001	X1 - 1-20
66	101125000	Z1 - 38
66	101572101	Z1 - 3-3
20	101671002	L - 9
48	101671002	U - 15
8	101706001	C - 29
22	101706003	M1 - 46-1
56	102571003	W - 62
10	102707002	D - 17
46	102716003	T - 63-5
8	102843004	C - 9
8	102843004	C - 14
34	103950003	Q - 40
44	104449009	T - 19
40	104450109	S - 96
40	104564001	S - 102
38	104821009	S - 30
40	104833009	S - 99
38	104847001	S - 45
54	104848001	W - 27
54	104908002	W - 28
10	105073001	Z1 - 26
62	105161003	X2 - 1-14
46	105161004	T - 34-1-1
2	105234003	A - 13
64	105288002	Y - 96-1-2
46	105451001	T - 58
56	105812002	W - 42
10	105812003	D - 47
10	105812003	D - 45
56	105955002	W - 59
64	105970001	Y - 96-1-8
22	106147002	M1 - 12
24	106568003	M1 - 65
10	106588003	D - 20
10	106588003	D - 28
32	106588003	P - 10
26	106629002	M2 - 31-2
54	107017002	W - 20
2	107017002	A - 27
2	107017002	A - 41
36	107097101	R - 19-2
36	107097101	R - 19-2
32	107126001	P - 53
38	107153001	S - 15
14	107153002	E - 61
32	107200001	P - 40-1
32	107204001	P - 40-2
32	107205001	P - 40-3
66	107205001	Z1 - 16
66	107207001	Z1 - 16
66	107210001	Z1 - 16
2	107231002	A - 76-7
2	10731003	A - 26
2	107372001	A - 40
28	107401001	M3 - 47-1-3
28	107401001	M3 - 47-3-3
28	107401001	M3 - 47-4-3
70	107401001	Z2 - 50-1-3

Page 88 — 索引/INDEX/VERZEICHIS/ INDEX/INDICE

Brother 814 / 816 parts on page 88
Ref	Part number	Part name	Qty
	107401001	Z2 - 50-2-3
	107404001	Z2 - 50-3-3
	107404001	Z2 - 50-6-3
	107404001	M3 - 47-1-4
	107404001	M3 - 47-2-4
	107404001	M3 - 47-3-7
	107404001	M3 - 47-4-4
	107404001	Z2 - 50-1-4
	107404001	Z2 - 50-2-4
	107404001	Z2 - 50-3-4
	107404001	Z2 - 50-4-4
	107407003	Z2 - 50-5-4
	107407003	Z2 - 50-6-7
	107407003	A - 67
	107407003	B - 15
	107407003	H - 2
	107407003	P - 50-2
	107407003	Q - 6
	107407003	Q - 8
	107407003	Q - 19
	107407003	U - 2
	107407003	Y - 96-3
	107407003	V1 - 22
	107407003	V1 - 31
	107407003	V2 - 84
	107415011	B - 9-1
	107415011	Z1 - 7
	107415014	B - 9-2
	107415014	Z1 - 7
	107453001	P - 20
	107550002	M1 - 24
	107602001	T - 3
	107606001	T - 25
	107612001	T - 8
	107639001	V1 - 40
	107640001	Q - 21
	107657001	V2 - 106
	107678101	U - 3
	107680001	U - 4
	107681001	U - 5
	107682001	U - 6
	107744001	W - 3
	108494001	Y - 96-2-2
	108495001	Y - 96-2-3
	108520009	S - 126
	109173101	R - 18-3
	109183001	S - 40
	109203001	S - 95
	109208001	R - 4
	109837001	Z1 - 16
	109862001	S - 43
	109893002	P - 12
	110067001	Y - 96-1-9
	110104000	S - 50-1
	110161004	Q - 7-3
	110161004	W - 54
	110161004	V1 - 24
	110185002	J - 1-5
	110215002	X2 - 1-4-5
	110367001	B - 4
	110641002	S - 94
	110744002	P - 18
	110813001	W - 53
	111073001	W - 56-2-3
	111105001	M3 - 47-3-6
	111237001	Z2 - 50-6-6
	111237001	B - 5-1-3
	111237001	B - 5-2-3
	111443003	Q - 2
	111468001	B - 5-1-6
	111468001	B - 5-2-5
	111507000	Z2 - 15
	111920000	W - 71
	111937009	F - 5
	112144001	P - 52
	112359001	S - 61
	112467002	S - 133-8
	112743001	S - 122
	112744001	S - 23
	112751003	T - 32
	113240001	X2 - 1-4-3
	113897001	V2 - 104
	113897001	V2 - 109
	114294001	S - 117
	114747001	A - 55
	115120001	M2 - 69
	115188001	T - 6-1
	115493002	Q - 33
	115493002	W - 16
	115503001	P - 41
	115544001	E - 18
	115546001	E - 19
	115546001	E - 20
	115550001	E - 25
	115551001	E - 26
	115552001	E - 29
	115553001	E - 40
	115559002	E - 41
	115585001	E - 45
	115585001	G - 5
	115958001	W - 6
	115958001	T - 52
	116016001	Z1 - 61
	116185209	Z1 - 29-2
	116662003	Z1 - 29
	116662003	A - 47
	116725009	Y - 97-5
	116735000	S - 104
	116735000	B - 5-1-7
	116735000	B - 5-2-6
	116755001	V2 - 63
	116755001	V2 - 91
	116795000	S - 116
	116968001	S - 50-5
	116975001	S - 73
	116975001	S - 124
	117215001	T - 6-2
	117348001	C - 26
	117437109	Z1 - 29-1
	117466000	Z1 - 10
	117598001	S - 115
	117934009	A - 72
	118215001	M1 - 41
	118244001	V2 - 62
	118262002	M1 - 31-1

Page 89 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 89
Ref	Part number	Part name	Qty
	118352001	V1 - 35-1-6
	118735002	E - 6
	118735002	E - 13
	118735002	M1 - 66
	118759001	R - 14
	118764002	U - 9
	118837001	Z1 - 3-2
	119755001	X1 - 1-21
	120774001	S - 119
	120790001	P - 54
	122771002	T - 66
	122771002	Y - 96-1-4
	122771002	Y - 96-1-7
	122771002	Z2 - 65
	122921001	Z1 - 1
	126863001	Z1 - 70-1-10
	126863001	Z2 - 70-2-10
	129986001	A - 2
	140004001	A - 42
	140004001	B - 5-1-4
	140025002	W - 61
	140326009	B - 18
	140430001	B - 5-1-8
	140430001	B - 5-2-7
	140553102	B - 10
	140647001	S - 152
	140649001	W - 66
	140650001	W - 67
	140651001	W - 68
	140678001	X1 - 1-39
	140947002	M1 - 14
	141243109	A - 4
	141244100	A - 5
	141246001	A - 76-2
	141247001	A - 76-4
	141248001	A - 12
	141249109	A - 16
	141252000	A - 23
	141254000	A - 24
	141256001	Z1 - 39
	141257001	A - 29
	141258009	A - 30
	141259009	A - 31
	141262001	A - 36
	141263104	A - 39-1
	141267001	A - 48
	141269001	A - 51-1
	141271001	C - 1
	141272001	C - 2
	141273000	C - 3
	141274000	C - 4
	141275001	C - 7
	141276001	C - 8
	141277000	C - 10
	141278001	C - 11
	141279001	C - 13
	141280001	C - 17
	141281001	C - 18
	141282001	C - 19
	141283001	C - 21
	141284000	C - 22
	141285001	C - 23
	141286001	C - 24
	141289001	C - 25
	141290000	B - 1
	141295001	B - 12
	141296001	B - 14
	141297101	R - 2
	141298000	R - 3
	141303000	R - 8
	141304001	R - 10
	141305000	R - 12
	141307001	R - 19-1
	141308101	R - 15
	141310001	D - 3
	141311000	D - 4
	141312000	D - 6
	141313101	D - 8-1
	141316001	J - 1-4
	141326001	D - 11-2
	141328000	D - 14
	141329001	D - 16
	141332001	D - 19
	141333001	D - 21
	141334001	D - 22
	141334001	D - 52
	141335000	E - 43
	141335000	E - 64
	141336001	D - 24
	141337001	D - 25
	141338001	D - 26
	141339001	D - 27
	141340001	D - 29
	141341001	D - 31
	141342000	D - 32
	141344001	D - 35
	141345001	D - 36
	141346001	D - 38
	141347001	D - 40-1
	141348001	D - 42
	141351001	D - 54
	141354000	D - 43
	141355001	D - 44
	141356001	D - 46
	141357000	D - 49
	141358001	D - 51
	141359001	D - 53
	141363001	D - 53
	141365000	D - 57
	141366001	D - 61
	141366001	D - 62
	141367001	N - 1-1
	141368000	N - 3-1
	141369101	N - 5
	141374000	Z1 - 18
	141375000	N - 7-1
	141376000	Z1 - 18
	141377000	N - 7-1
	141378000	Z1 - 18
	141379000	Z1 - 18

Page 90 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 90
Ref	Part number	Part name	Qty
	141380000	Z1 - 18
	141381000	Z1 - 18
	141382000	N - 7-2
	141383000	Z1 - 18
	141383000	N - 7-2
	141384000	Z1 - 18
	141386000	N - 7-2
	141389001	N - 8
	141392001	N - 8-1
	141393001	N - 8-2
	141394001	N - 9
	141396001	N - 11
	141397001	N - 12
	141398009	N - 13
	141399001	N - 14
	141400009	N - 16
	141401001	M1 - 6
	141404000	M1 - 3
	141408009	M1 - 7
	141409001	M1 - 8
	141410001	M1 - 9
	141411001	M1 - 10
	141412001	M1 - 11
	141413001	M1 - 13
	141417009	P - 26
	141419001	M1 - 22-1
	141420001	M1 - 23
	141421009	M1 - 25
	141422001	M1 - 26-1
	141426001	M1 - 32
	141427009	M1 - 34-1
	141429001	M1 - 37
	141430009	M1 - 38
	141431001	M1 - 40
	141433009	M1 - 43-1
	141434001	M1 - 44-1
	141439001	M1 - 48
	141440001	M1 - 49-1
	141441001	M1 - 51
	141442001	M1 - 53
	141445001	M1 - 4-1-5
	141446001	M1 - 4-1-7
	141448001	M1 - 4-1-9
	141449001	K - 1
	141450001	K - 2
	141451001	K - 4
	141454009	K - 6
	141455001	K - 7-1
	141462001	P - 4
	141463001	P - 5
	141464101	P - 8
	141465001	P - 9
	141466001	P - 11
	141467001	P - 14
	141469001	P - 17
	141471001	P - 22
	141472002	G - 14
	141472002	P - 23
	141472002	W - 12
	141472002	V1 - 39
	141473009	P - 24
	141474001	P - 31
	141475001	P - 33
	141476001	P - 34
	141478001	P - 36
	141479001	P - 38
	141480001	P - 50-1
	141481001	P - 29
	141484001	P - 42
	141485001	P - 43
	141486001	P - 45
	141487001	P - 47
	141488001	P - 48
	141489001	V1 - 1
	141490001	V1 - 2
	141491001	V1 - 3
	141492001	V1 - 5
	141494001	V1 - 113
	141496001	V1 - 6
	141497001	V1 - 114
	141499001	V1 - 9
	141500001	V1 - 15
	141501001	V1 - 17
	141502001	V1 - 18
	141504001	Q - 7-2
	141504001	V1 - 23
	141505001	V1 - 25
	141506001	V1 - 26
	141508001	V1 - 30
	141509101	Z1 - 19
	141509101	V1 - 32-1
	141510101	Z1 - 19-1
	141510101	V1 - 19-2
	141511000	Z1 - 19-2
	141511001	V1 - 32-2
	141512101	Z1 - 19-3
	141512101	V1 - 32-3
	141513001	Z1 - 19-3
	141513001	V1 - 32-4
	141514001	Z1 - 19-4
	141514001	V1 - 32-5
	141515001	Z1 - 19-5
	141516001	V1 - 35-1-1
	141517101	V1 - 37
	141518009	W - 1
	141519001	W - 5
	141520001	W - 8
	141521001	W - 11
	141522001	W - 13
	141523001	W - 17
	141526001	W - 18
	141527001	W - 21
	141528001	W - 22
	141529000	W - 24
	141530001	W - 26
	141531001	W - 30
	141533001	W - 31
	141534001	W - 33

Page 91 — 索引/INDEX/VERZEICHIS/INDEX/INDICE

Brother 814 / 816 parts on page 91
Ref	Part number	Part name	Qty
	141535001	W - 36
	141537001	W - 38-1
	141538001	W - 39
	141539001	W - 40
	141541001	W - 44
	141542001	W - 45
	141543001	W - 46
	141544001	W - 47
	141545001	W - 48
	141546001	E - 1
	141547001	E - 3-1
	141548001	E - 5
	141549001	E - 9
	141550001	E - 10
	141553001	E - 12
	141554001	E - 23
	141555001	E - 32
	141556101	E - 33
	141557002	E - 35
	141558001	E - 37
	141559001	E - 39
	141562101	E - 50
	141564001	F - 53
	141566001	F - 3
	141574001	G - 1
	141575001	G - 2
	141576001	G - 7
	141579001	G - 9
	141580001	G - 11
	141581001	G - 13
	141582001	G - 15
	141583001	G - 16
	141584001	G - 17
	141586001	G - 17-1
	141588001	G - 18
	141589001	G - 20
	141590001	T - 1
	141592001	T - 10
	141593001	T - 13
	141594001	T - 33
	141596009	T - 36
	141597001	T - 37
	141598001	T - 39
	141599009	T - 40
	141600001	U - 1
	141601009	U - 7
	141602009	U - 7-1
	141603009	U - 7-2
	141604001	U - 7-3
	141605001	U - 7-5
	141606001	U - 7-7
	141607001	U - 7-8
	141608001	U - 7-11
	141609009	U - 7-13
	141610001	U - 7-14
	141611001	U - 7-15
	141614001	L - 1
	141616001	L - 3
	141617001	L - 4
	141618001	E - 8
	141619001	L - 6
	141620001	U - 14
	141621001	J - 1
	141622000	J - 1-1
	141623001	J - 1-6
	141624001	J - 1-8
	141625001	J - 1-9
	141627001	J - 1-12
	141628001	J - 1-14
	141629001	J - 1-15
	141630001	J - 1-16
	141631001	J - 1-17
	141632101	J - 2
	141633001	J - 3
	141636000	S - 1
	141637000	S - 2
	141642000	S - 133-1
	141643000	S - 133-2
	141647000	S - 21
	141651001	S - 28
	141652001	S - 29
	141653001	S - 31
	141654001	S - 33
	141655000	S - 35
	141656001	S - 36
	141659001	S - 50
	141661001	S - 50-2
	141663001	S - 50-3
	141664001	S - 50-4
	141665001	S - 50-6
	141666001	S - 50-7
	141667001	S - 50-8
	141668001	S - 50-9
	141669000	S - 53
	141670000	S - 56
	141671001	S - 58-1
	141672000	S - 66
	141674001	S - 68
	141679001	S - 69
	141680001	S - 70
	141681000	S - 72
	141682001	S - 75
	141683000	S - 77
	141685001	S - 79
	141686001	S - 80
	141687000	S - 82
	141688001	S - 86
	141689101	S - 92
	141692001	S - 105
	141696001	S - 149
	141697000	H - 1
	141698001	H - 3
	141699001	H - 4
	141700001	H - 5
	141701001	H - 6
	141702001	H - 7
	141703001	H - 9
	141704001	Z1 - 25
	141705001	Z1 - 27
	141707009	N - 6
	141711100	D - 60
	141714001	D - 60
	141716000	P - 2
	141717001	P - 2

Page 92 — INDEX/VERZEICHNIS/INDEX/INDICE

Brother 814 / 816 parts on page 92
Ref	Part number	Part name
2	141718001	A - 53
14	141953001	E - 58
14	142214001	E - 59
44	142258001	T - 42
48	142259001	U - 7-4
40	142268001	S - 107
2	142269000	A - 28
30	142272001	N - 18
8	142273001	N - 19
40	142297001	C - 27
40	142298000	S - 110
2	142312001	A - 61
18	142342000	J - 1-3
38	142351101	S - 26
38	142352101	S - 38
38	142353101	S - 47
40	142354101	S - 62
40	142355101	S - 64
38	142359001	S - 20
38	142359001	S - 49
38	142359001	S - 52
38	142359001	S - 57
14	142372000	E - 2
22	142372000	W - 2
14	142372000	M1 - 17
14	142373000	E - 55
16	142373000	G - 4
54	142373000	W - 52
22	142374000	M1 - 35
22	142375000	P - 25
32	142376000	S - 42
40	142407001	S - 58
38	142408001	W - 43
54	142413001	S - 58
54	142416001	W - 51
54	142419001	W - 53
66	142420001	W - 53
40	142443001	Z1 - 3-1
14	142582001	S - 113-1
30	142667101	E - 15
48	142702001	N - 17
66	142711001	U - 7-18
32	142721001	Z1 - 6
44	142724001	P - 50
66	142733001	T - 29
44	142734001	Z1 - 68
6	142735001	T - 31
40	142736001	B - 11
40	142742000	S - 118
2	142743009	A - 2
36	142744001	R - 18-2
66	142745002	Z1 - 17
38	142748001	S - 25
42	142749002	S - 145
38	142750001	S - 22
42	142750002	S - 144
8	142751001	C - 30
14	142755001	E - 56
32	142766001	S - 5
14	142771001	E - 63
32	142779001	P - 51
56	143394001	V - 65
40	143713101	S - 120
40	143714001	S - 121
40	143715001	S - 121-1
40	143716001	S - 121-2
24	143738009	M1 - 59
24	143739009	M1 - 16-1
24	143740001	M1 - 20-1
4	143741001	A - 66
4	143742001	A - 65
64	143743001	Y - 96-1-11
64	143749001	Y - 96-1-10
64	143767009	Y - 96-2
54	143788001	W - 14
52	143788001	V2 - 75
52	143788001	V2 - 80
36	143793001	R - 18-1
66	143890009	Z1 -25
18	143914001	J - 1-20
38	143915001	S - 17
38	143916001	S - 17-1
18	143917001	J - 1-11
32	143927001	P - 28
36	143933001	R - 18
24	143942101	M1 - 4-1
24	143943001	M1 - 4-1-1
24	143944001	M1 - 4-1-3
32	143945001	P - 19
66	143949001	Z1 - 4-2
66	143971001	Z1 - 92
64	143980001	Y - 96-2-1
38	143982001	S - 4
38	143983001	S - 18
2	143984009	A - 20
2	143985101	A - 25
36	143986101	R - 19
66	144226001	Z1 - 40
28	144496001	M3 - 47-1-2
28	144496001	M3 - 47-2-2
28	144496001	M3 - 47-3-2
28	144496001	M3 - 47-4-2
70	144498001	Z2 - 50-1-2
70	144498001	Z2 - 50-2-2
70	144498001	Z2 - 50-3-2
70	144498001	Z2 - 50-4-2
70	144498001	Z2 - 50-5-2
70	144498001	Z2 - 50-6-2
28	144498001	M3 - 47-1-1
70	144505000	Z2 - 50-2-1
46	144505000	T - 63-4
48	144505000	U - 12
24	144541001	M1 - 55
70	144575001	Z2 - 50-3-1
26	144627001	M2 - 61-2
64	144628001	Y - 96-1-6
28	144630001	M3 - 47-2-1
70	144632001	Z2 - 50-5-1
56	144633001	W - 56-2
56	144634001	W - 56-2-1
56	144635001	W - 56-2-2
28	144707001	M3 - 47-2-3
70	144707001	Z2 - 50-4-3
70	144707001	Z2 - 50-5-3
44	144741001	T - 18

Page 93 — 索引|INDEX/VERZEICHIS/ INDEX/INDICE

Brother 814 / 816 parts on page 93
Ref	Part number	Part name
S	144876001	S - 133-7
A	144946000	A - 19
Y	144997001	Y - 96-1-3
Y	144998001	Y - 96-1-1
Y	144999001	Y - 96-1-5
Z2	145136001	Z2 - 50-4-1
Z2	145146001	Z2 - 50-1-1
W	145244001	W - 56-1
W	145245001	W - 56-1-1
W	145246001	W - 56-1-2
W	145247001	W - 56-1-3
M1	145248001	M1 - 61-1
A	145342009	A - 71
D	145344001	D - 59
A	145345001	A - 51-2
M2	145348001	M2 - 4-2-1
M2	145350001	M2 - 4-2-5
M2	145351001	M2 - 4-2-7
M2	145352001	M2 - 4-2-9
M2	145353001	M2 - 4-2-11
M2	145354009	M2 - 34-2
M2	145355001	M2 - 44-2
M2	145356009	M2 - 43-2
M2	145357001	M2 - 61-3
M2	145358001	M2 - 64-2
M2	145359001	M2 - 20-2
M3	145362001	M3 - 47-3-1
M3	145365001	M3 - 47-3-4
M3	145366001	M3 - 47-3-5
M3	145367001	M3 - 47-3-9
M3	145369001	M3 - 47-3-11
M3	145370001	M3 - 47-3-12
M3	145371001	M3 - 47-3-14
M3	145373001	M3 - 47-3-13
Z2	145375001	Z2 - 50-6-1
K	145377001	K - 7-2
Q	145380001	Q - 1
Q	145381001	Q - 3
Q	145382001	Q - 5
Q	145383101	Q - 7
Q	145384001	Q - 9
Q	145385001	Q - 10
Q	145386001	Q - 11
Q	145387001	Q - 12
Q	145388001	Q - 15
Q	145392001	Q - 18
Q	145394001	Q - 23
Q	145395001	Q - 25
Q	145397001	Q - 28
Q	145398101	Q - 29
Q	145399001	Q - 31
Q	145400009	Q - 32
Q	145401001	Q - 34
Q	145402009	Q - 36
Q	145403001	Q - 37
Q	145404001	Q - 39
Q	145405001	Q - 41
Q	145406001	Q - 42
V2	145407001	V2 - 61
V2	145411001	V2 - 64
V2	145412001	V2 - 66
V2	145413001	V2 - 67
V2	145414001	V2 - 100
V2	145415001	V2 - 69
V2	145416001	V2 - 70
V2	145417001	V2 - 74
V2	145418009	V2 - 77
V2	145419001	V2 - 79
V2	145420001	V2 - 82
V2	145421001	V2 - 83
V2	145426009	V2 - 86
V2	145427001	V2 - 87
V2	145428001	V2 - 88
V2	145429001	V2 - 90
V2	145430001	V2 - 92
V2	145431001	V2 - 94
V2	145433001	V2 - 96
V2	145434001	V2 - 97
V2	145435001	V2 - 98
V2	145436001	V2 - 102
T	145437001	T - 51
T	145438009	T - 54
T	145439001	T - 55
Y	145440001	Y - 96-1-13
E	145441001	E - 3-2
M2	145442001	M2 - 26-2
T	145446001	T - 4
B	145465001	B - 5-1-1
S	145486001	S - 133-5
X1	145673001	X1 - 1-1-3
Q	145692001	Q - 14
B	145719101	B - 5-2
T	145723001	T - 63
T	145724001	T - 63-1
T	145725001	T - 63-2
M3	145731001	M3 - 47-3-10
V2	145732001	V2 - 85
Z1	145780009	Z1 - 25
Z1	145781009	Z1 - 25
Z1	145782009	Z1 - 25
G	145931001	G - 23
T	145961001	T - 16
V2	145983001	V2 - 110
T	145991001	T - 64
V1	145998001	V1 - 16
V1	145999001	V1 - 35-1
V1	146000001	V1 - 35-1-2

Page 94 — INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 94
Ref	Part number	Part name	Qty
	146001001	V1 - 35-1-3
	146002001	V1 - 35-1-4
	146011001	W - 69
	146025001	R - 20
	146025001	Z1 - 9
	146034001	M3 - 47-3-8
	146034001	Z2 - 50-6-8
	146041002	E - 11
	146075001	B - 8-2
	146130001	M2 - 4-2-13
	146198001	U - 10
	146199001	U - 11
	146200001	U - 13
	146209101	S - 127
	146253000	L - 10
	146316001	Q - 17
	146336001	M2 - 4-2
	146338001	M2 - 4-2-3
	146355001	R - 9
	146951004	Q - 20
	146955004	D - 44
	147155000	D - 64
	147156001	Y - 97-3
	147202104	A - 39-2
	147221009	F - 1
	147223001	S - 129
	147226001	S - 128
	147228009	M2 - 16-2
	147229009	M2 - 16-3
	147230001	M3 - 47-4-1
	147232001	M2 - 49-2
	147234001	W - 56-3
	147235001	W - 56-2
	147236001	W - 60
	147317001	N - 20
	147558001	V1 - 35-2
	147565001	V1 - 8
	147639001	E - 24
	147758001	Q - 7-1
	147901001	D - 11
	147939001	M2 - 26-4
	147941001	P - 40-4
	147941001	Z1 - 16
	147945001	M1 - 28
	147985001	R - 18-4
	148054001	R - 21
	148058001	T - 34-1-3
	148469001	S - 133-4
	148470001	S - 133-6
	148471001	S - 143-4
	148745000	S - 146
	148746001	S - 147
	148761001	S - 133
	148831001	T - 34-1
	149095001	D - 33
	149095001	P - 6
	149095001	W - 9
	149247001	V1 - 13
	149288003	Z1 - 33
	149488001	W - 72
	149488001	X1 - 1-2-5
	149488001	X1 - 1-3-3
	150106003	Z1 - 70-1-4
	150106003	Z2 - 70-2-4
	150172003	Z1 - 70-1-3
	150172003	Z2 - 70-2-3
	150173003	Z1 - 70-1-4-1
	150173003	Z2 - 70-2-4-1
	150174000	Z1 - 70-1-5
	150174000	Z2 - 70-2-5
	150179002	Z1 - 70-1-7-1
	150179002	Z2 - 70-2-7-1
	150180001	Z1 - 70-1-8
	150180001	Z2 - 70-2-8
	150182000	Z1 - 70-1-9
	150182000	Z2 - 70-2-9
	150188009	Z2 - 70-2-11-1
	150189109	Z1 - 70-1-1
	150189109	Z2 - 70-2-1
	150396001	S - 50-10
	150538009	E - 51
	150553003	P - 35
	150556001	T - 2
	150556001	N - 15
	150556001	W - 23
	150561000	Z1 - 91-1
	150562000	M1 - 70-1
	150563000	Z1 - 91-2
	150564000	M2 - 70-3
	150565000	M2 - 70-2
	150566000	Z2 - 91-3
	150763001	Z2 - 50-1
	150764001	M3 - 47-1
	150764001	Z2 - 50-2
	150765001	Z2 - 50-3
	150766001	M3 - 47-4
	150767001	Z2 - 50-4
	150768001	M3 - 47-2
	150769001	Z2 - 50-5
	150770001	M3 - 47-3
	150771001	Z2 - 50-6
	151010001	Q - 26
	151074009	S - 90
	151583009	M2 - 34-3
	151601002	T - 56
	151601002	U - 7-16
	151601002	M1 - 52
	151601002	V1 - 73
	151601002	V2 - 81
	151602002	S - 113-2
	151605002	M1 - 19
	152997001	E - 46
	152997001	G - 6
	152997001	W - 7
	152998001	P - 30
	153268001	X1 - 1-1-10
	153269001	X1 - 1-1-11
	154702001	Z1 - 22
	156879001	K - 7-1-1
	156880001	K - 7-2-1
	158437009	S - 151
	158449001	D - 48
	158658000	X1 - 1-1-14

Page 95 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Brother 814 / 816 parts on page 95
Ref	Part number	Part name	Qty
	158660000	X1 - 1-1-16
	159805001	T - 5
	159805001	T - 24
	159805001	T - 60
	159830009	Z1 -25
	159831009	Z1 -25
	180515001	S - 17-2
	180720001	R - 19-2-1
	180720001	R - 19-2-1
	180721001	R - 19-2-2
	180721001	R - 19-2-2
	181092001	R - 1
	181093101	R - 7
	181250001	P - 1
	181969003	M1 - 46
	181994001	D - 10
	183038001	R - 19-1-2
	183038001	R - 19-1-2
	183039001	R - 19-1-1
	183120000	S - 150
	183507001	R - 19-2-3
	183507001	R - 19-2-3
	183702001	D - 1
	183703001	D - 8
	183704001	N - 1
	183705001	N - 3
	183706001	S - 113
	183746001	D - 40
	183827001	R - 6
	183852009	A - 76
	183880001	R - 19-1-1
	200190001	X1 - 1-18
	400806003	T - 34-1-5
	403388002	D - 37
	507142002	U - 7-12
	511091001	T - 65
	511091001	Z2 - 64
	512769001	W - 41
	525664000	X2 - 1-12
	500780000	X1 - 1-3-5
	501143001	B - 5-1-2
	501143001	B - 5-2-2
	501297001	S - 81
	501517109	X1 - 1-1
	501518009	X1 - 1-1-1
	501519001	X1 - 1-1-2
	501520001	X1 - 1-1-5
	501521000	X1 - 1-1-8
	501522000	X1 - 1-1-9
	501522000	X1 - 1-2-12
	501523000	X1 - 1-1-13
	501524000	X1 - 1-1-15
	501525000	X1 - 1-1-17
	501526000	X1 - 1-1-19
	501527000	X1 - 1-21
	501528000	X1 - 1-1-22
	501529100	X1 - 1-1-23
	501530000	X1 - 1-17-5
	501530000	X1 - 1-19-2
	501531000	X1 - 1-1-24
	501532000	X1 - 1-1-25
	501533000	X1 - 1-1-26
	501534000	X1 - 1-1-27
	501535000	X1 - 1-1-28
	501536000	X1 - 1-1-29
	501537000	X1 - 1-2-7
	501539000	X1 - 1-1-38
	501540000	X1 - 1-1-31
	501543009	X1 - 1-1-36
	501547001	X1 - 1-2-3
	501548000	X1 - 1-2-6
	501548000	X1 - 1-2-6
	501551000	X2 - 1-5-2
	501557000	X1 - 1-3-1
	501574000	X2 - 1-4-4
	501577001	X2 - 1-6
	501578001	X2 - 1-6
	501580001	X2 - 1-5
	501581001	X2 - 1-5-1
	501582001	X2 - 1-9
	501695001	F - 3-1
	501695001	F - 3-3
	501700001	Z1 - 92-1
	502624001	T - 27
	502761109	Z1 - 70-1
	502765109	Z2 - 70-2
	502773001	Z1 - 70-1-2
	502773001	Z2 - 70-2-2
	502778002	Z1 - 70-1-6
	502779009	Z2 - 70-2-6
	502780001	Z1 - 70-1-7
	502782001	Z2 - 70-2-7
	502784009	Z2 - 70-2-11
	502786002	Z1 - 70-1-11
	502788009	Z2 - 70-2-12
	504905000	X1 - 1-17-3
	504909000	X1 - 1-1-30
	504910000	X1 - 1-3-2
	506701000	Z1 - 23
	507876001	S - 134
	511182009	T - 26-1
	511183009	T - 26-1-1
	511184009	T - 26-1-2
	514145000	X1 - 1-17-2
	516080009	Z1 - 34
	518707140	Z1 - 28
	518707141	Z1 - 28
	518707142	Z1 - 28
	518707143	Z1 - 28
	524514000	X1 - 1-1-32
	524515000	X1 - 1-17
	524516000	X1 - 1-17-1
	524517000	X1 - 1-17-4
	524518000	X1 - 1-1-33
	524519000	X1 - 1-19
	524520000	X1 - 1-19-1
	525671001	Y - 96-1
	525672009	Y - 96
	529858009	X1 - 1-2
	529859009	X1 - 1-3
	529860009	X1 - 1-3-6
	531131009	Z1 - 25
	531803009	X1 - 1-2-2
	531804000	X1 - 1-2-1
	531808001	A - 6

Page 96

Brother 814 / 816 parts on page 96
Ref	Part number	Part name	Qty
	S31808001	A -22
	S31893001	A -46
	S32977009	A -32
	S32978009	A -76-1
	S32979009	A -35
	S32982001	A -85
	S32984001	A -43
	S32986001	B -5-1
	S32987001	B -5-1-5
	S32988001	B -8-1
	S32990001	B -8-1-1
	S32993001	Z1 -123
	S32994001	Z1 -123
	S32995001	Z1 -123
	S32996001	Z1 -123
	S32997009	N -10-1
	S32998009	N -10-2
	S32999001	P -15
	S33000001	B -8-1-2
	S33001009	A -49
	S33002001	T -34-2
	S33003001	V1 -28
	S33004001	A -86
	S33007009	Z1 -25
	S33008009	Z1 -25
	S33009009	Z1 -25
	S33010009	Z1 -25
	S33011009	X2 -1-4-1
	S33012001	X2 -1-4-2
	S33014009	X2 -1-4
	S33031001	R -19
	S33032001	R -19-1
	S33254009	Z1 -25
	S33255009	Z1 -25
	S33256009	Z1 -25
	S34196009	X1 -1

Page 9 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine

Page 11 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Page 13 — B. 針棒関係/Needle bar mechanism/Nadelstangenvorrichtung/Mécanisme de la barre à aiguille et releveur de fil/Mecanismo de la barra

Page 15 — C. 上軸関係/Upper Shaft Mechanism/Obere Welle/Mécanisme de lárbresuperieur/ Mecanismo del eje superior

Page 17 — D. 針振関係/Zigzag mechanism/Zickzackvorrichtung/Mécanisme de zigzag Mecanismo del zigzag

Page 19 — D. 針振関係/Zigzag mechanism/Zickzackvorrichtung/Mécanisme de zigzag/ Mecanismo del zigzag

Page 21 — E. 停止関係/Clutch mechanism/Kupplungsvorrichtung/Mécanisme de l embrayage

Page 23 — F. 減速関係/Power transmitter/Kraftübertagungsvorrichtung/ Mécanisme du transmetteur/Mecanismo del transmisor de potencia

Page 25 — H. 非常停止関係/Emergency stop mechanism/Abschaltvorrichtung/ Mécanisme de larrêt de secours/Mecanismo de parada de emergencia J. テンションプーリ関係/Tension pulley mechanism/Spannrolle/ Mécanisme de la poulie de tension/Mecanismo de la polea de tensión

Page 27 — K. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme de pied presseur/Mecanismo de la prensa tela L. 糸切り感知関係/Thread breakage detector mechanism/Fadenbruchfühler/ Mécanisme du détecteur de casse fil/Mecanismo del sensor de cortes en el hilo

Page 29 — M1 . 送リ 関係/Feed mechanism/Transportvorrichtung/Mécanisme de lêntraînement/Mecanismo de la alimentación

Page 31 — M1. 送リ関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Page 33 — M2. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Page 34 — M3. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Page 35 — M3. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de léntraînement/Mecanismo de la alimentación

Page 37 — N. カム伝導関係/Feed cam mechanism/Transporteurkurve/ Mécanisme de la came déntraînement/Mecanismo de la leva de alimentación

Page 39 — P. カッター関係/Cutter mechanism/Abscheidevorrichtung/Mécanisme de la coupe/Mecanismo de la corta

Page 41 — Q. ヒモ案内関係/Gimp guide mechanism/Schnurführung/ Mécanisme de guide-fil/Mecanismo guía del hilo

Page 43 — R . タテ軸·下軸関係/Vertical shaft and lower shaft mechanism/ArmwellenUndGreifermechanismus/Mécanisme de l'axe de bras et de l'axe du crochet rotar

Page 45 — S . 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Page 47 — S . 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Page 49 — S. 給油潤滑関係/Lubrication/Schmierung/Lubrification/Lubricación

Page 51 — T. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de lénfilage/Mecanismo del enhebrado

Page 53 — T. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de lénfilage/Mecanismo del enhebrado

Page 55 — U. 糸巻関係/Bobbin winder/Spuler/Mécanisme du bobineur/ Mecanismo del devanador de la canilla

Page 57 — V1. 上糸切り 関係/Upper thread trimmer mechanism/Oberer Fadenschneider/ Mécanisme de la coupe-fil supérieur/Mecanismo de la recortadora de orillos superior

Page 59 — V2. 上糸切り関係/Upper thread trimmer mechanism/Oberer Fadenschneider/Mécanisme de la coupe-fil supérieur/Mecanismo de la recortadora de orillos superior

Page 61 — W. 下糸切リ関係/Lower thread trimmer mechanism/Unterer Fadenabschneider/ Mécanisme de la coupe-fil inférieur/Mecanismo de la recortadara de orillo

Page 63 — W. 下糸切り関係/Lower thread trimmer mechanism/Unterer Fadenabschneider/Mécanisme de la coupe-fil inférieur/Mecanismo de la recortadora de orillos inferior

Page 65 — X1. 付属装置関係(エアー式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Page 67 — X1. 付属装置関係(エアー式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Page 69 — X2. 付属装置関係(エア一式ワンペダル装置)/Attachment set(Pneumatic one-pedal device) / Anbausatz(Pneumatische einpedalbedienung)/Jeu d'accessoires(Pedale uniq

Page 71 — Y. 特別注文部品/Option parts/Sonderzubehör/ Pièces en option/Piezas opcionales

Page 73 — Z1 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 75 — Z1 .付属 品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 76 — Z2.付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 77 — Z2. 付属関係/Accessories/Zubehör/Accessoires/Accesorios

Page 79 — Z2 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 80 — 仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/ LISTE DES PIECES ACCESSORIES/LISTA DE PIEZAS ACCESSORIAS

Page 81 — Motor pulley and V-belt selection

Page 82 — カッター / Cutter

Page 83 — ヌノツカミクミ / Upper clamping foot assy; ヌノツカミ / Upper clamping foot

Page 84 — ハリイタクミ / Needle plate assy

Page 85 — INDEX/VERZEICHNIS/ INDEX/INDICE

Page 86 — 索引/INDEX/VERZEICHNIS/INDEX/INDICE

Page 87 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 88 — 索引/INDEX/VERZEICHIS/ INDEX/INDICE

Page 89 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 90 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 91 — 索引/INDEX/VERZEICHIS/INDEX/INDICE

Page 92 — INDEX/VERZEICHNIS/INDEX/INDICE

Page 93 — 索引|INDEX/VERZEICHIS/ INDEX/INDICE

Page 94 — INDEX/VERZEICHNIS/ INDEX/INDICE

Page 95 — 索引/INDEX/VERZEICHNIS/ INDEX/INDICE

Page 96

Brother 814 / 816 — parts catalog

Page 29 — M1 . 送リ関係/Feed mechanism/Transportvorrichtung/Mécanisme de lêntraînement/Mecanismo de la alimentación

Page 57 — V1. 上糸切り関係/Upper thread trimmer mechanism/Oberer Fadenschneider/ Mécanisme de la coupe-fil supérieur/Mecanismo de la recortadora de orillos superior

Page 75 — Z1 .付属品関係/Accessories/Zubehör/Accessoires/Accesorios
