Brother KE-430HX / BE-438HX Parts Book (PDF)

Bartack, Button Attach · also listed as KE430HX, 430HX, BE438HX, 438HXDownload PDF

Text index — Brother KE-430HX / BE-438HX

Page 7 — A. 主体関係 / Machine body

Brother KE-430HX / BE-438HX parts on page 7
Ref	Part number	Part name	Qty
1	SB0788001	RUBBER CAP 23	1
2	117934001	RUBBER CAP, 13.5	2
3+	S32263001	RUBBER CAP, 8.5	3
4	SB7739001	RUBBER CAP 8.5	1
3+	S32263001	RUBBER CAP, 8.5	4
5	SB6811001	RUBBER CAP 8.9	1
6	S20878000	RUBBER CAP, 5.3	6
7	S32263001	RUBBER CAP, 8.5	2
8	S23337001	RUBBER CAP, 18.5	1
9	SB6697001	FACE PLATE	1
10	SB6698001	FACE PLATE PACKING	1
11	062500816	SCREW PAN M5X8	3
12	SB1277001	THREAD TAKE-UP LEVER COVER	1
13	062401016	SCREW PAN M4X10	1
14	SB6699001	SIDE COVER	1
15	062501216	SCREW PAN M5X12	4
16	SA3262202	SHUTTLE RACE COVER	1
17	SA3263101	SHUTTLE RACE COVER HOOK D	1
18	004300513	SCREW, FLAT M3X5	2
19	SA3264101	NUT PLATE	1
20	SA3265101	SHOULDER SCREW 8-2	2
21	109239002	WASHER, WAVE SPRING	2
22	SA3266201	SHUTTLE RACE COVER HOOK U	1
23	062300416	SCREW PAN M3X4	2
24	SB3847001	WASHER_PLAIN_M_3	2
25	SB4504001	RUBBER CUSHION H	3
26	SA8680101	SPACER	3
27	062402016	SCREW PAN M4X20	3
28	025040136	WASHER PLAIN S 4	3
29	SB1169101	CUSHION PLATE	1
30	S25310101	SCREW, FLAT M4	2
31	SB7918001	HEAD REST	1
32	SB0984101	COLLAR	2
33	018062036	BOLT SOCKET M6X20	2
34	025060236	WASHER PLAIN M 6	2
35	SA9957001	INJURY MARK	1
36	SA9957002	INJURY MARK	2
37	SB3421001	MARK ATTENTION 23	2
38	SA9826001	LABEL CAUTION	1
39	S37060001	LABEL GROUNDING	2
40	118550001	PIN DOWEL	2
41+	SB7911001	MARK ATTENTION 15X15	2
41+	SB7911001	MARK ATTENTION 15X15	1

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430HX / BE-438HX parts on page 9
Ref	Part number	Part name	Qty
1	SB7621001	CRANK ROD SET	1
2	SB7466001	JOINT ASSY	1
3	S23651001	SET SCREW SOCKET (FT) M6X6	4
4	SB7463001	OIL SEAL SC15-47-7	1
5	018501636	BOLT SOCKET M5X16	2
6	SB6832001	BALL BEARING BUSH M ASSY	1
7	S23651001	SET SCREW SOCKET (FT) M6X6	2
8	SB7464001	OIL SEAL SC15-42-7	1
9	SB7135001	PULLEY GEAR R	1
10	012500536	SET SCREW SOCKET (FT) M5X5	2
11	SB7484001	PULLEY SHAFT ASSY	1
12	SB1037101	PULLEY SHAFT	1
13	SB1038001	PULLEY BUSH	1
14	SB1041001	PULLEY SPRING	1
15	SB1040002	SCREW	1
16	047402042	PIN SPRING ROLL AW4	1
17	SB7134001	PULLEY GEAR L	1
18	012500536	SET SCREW SOCKET (FT) M5X5	2
19	SB0910201	PULLEY	1
20	048280142	RETAINING RING EXTERNAL C28	1
21+	SB6713001	THREAD TAKE-UP CRANK ASSY	1
22+	SB6718001	NEEDLE BAR CRANK	1
23+	SB6721001	THREAD TAKE-UP LEVER ASSY	1
21+	SB6711001	THREAD TAKE-UP CRANK U ASSY	1
22+	SB6717001	NEEDLE BAR CRANK U	1
23+	SB6720001	THREAD TAKE-UP LEVER U ASSY	1
21+	SB6715001	THREAD TAKE-UP CRANK B ASSY	1
22+	SB1018301	NEEDLE BAR CRANK B	1
23+	SB6722001	THREAD TAKE-UP LEVER B ASSY	1
24	S25235001	SCREW M8	1
25	S23651001	SET SCREW SOCKET (FT) M6X6	4
26	110367001	WASHER, PLAIN SPECIAL 8	1
27+	SB6729101	THREAD TAKE-UP S-SHAFT D ASSY	1
28	SB6730001	THREAD TAKE-UP SUPPORT SHAFT D	1
29	062500616	SCREW PAN M5X6	1
30	028050246	WASHER SPRING 2-5	1
31	SB6734001	THRUST WASHER 9	1
32	048090142	RETAINING RING EXTERNAL C9	1
33	012500536	SET SCREW SOCKET (FT) M5X5	1
34+	SA9650101	NEEDLE BAR CLAMP	1
35+	SB6736001	SLIDE BLOCK	1
27+	SB6732001	THREAD TAKE-UP S-SHAFT S ASSY	1
34+	SB4789001	NEEDLE BAR CLAMP ASSY	1
35+	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
36	SB6735001	SET SCREW COLLAR	1
37	012500536	SET SCREW SOCKET (FT) M5X5	2
38	012060636	SET SCREW SOCKET (FT) M6X6	2
39+	SB6726001	NEEDLE BAR CONNECTING ROD ASSY	1
39+	SB1034101	NEEDLE BAR CONNECTING ROD ASSY	1
40	SA2422001	SCREW, SM3.57L	1
41	140004001	SCREW, SM3.57-40X7	1

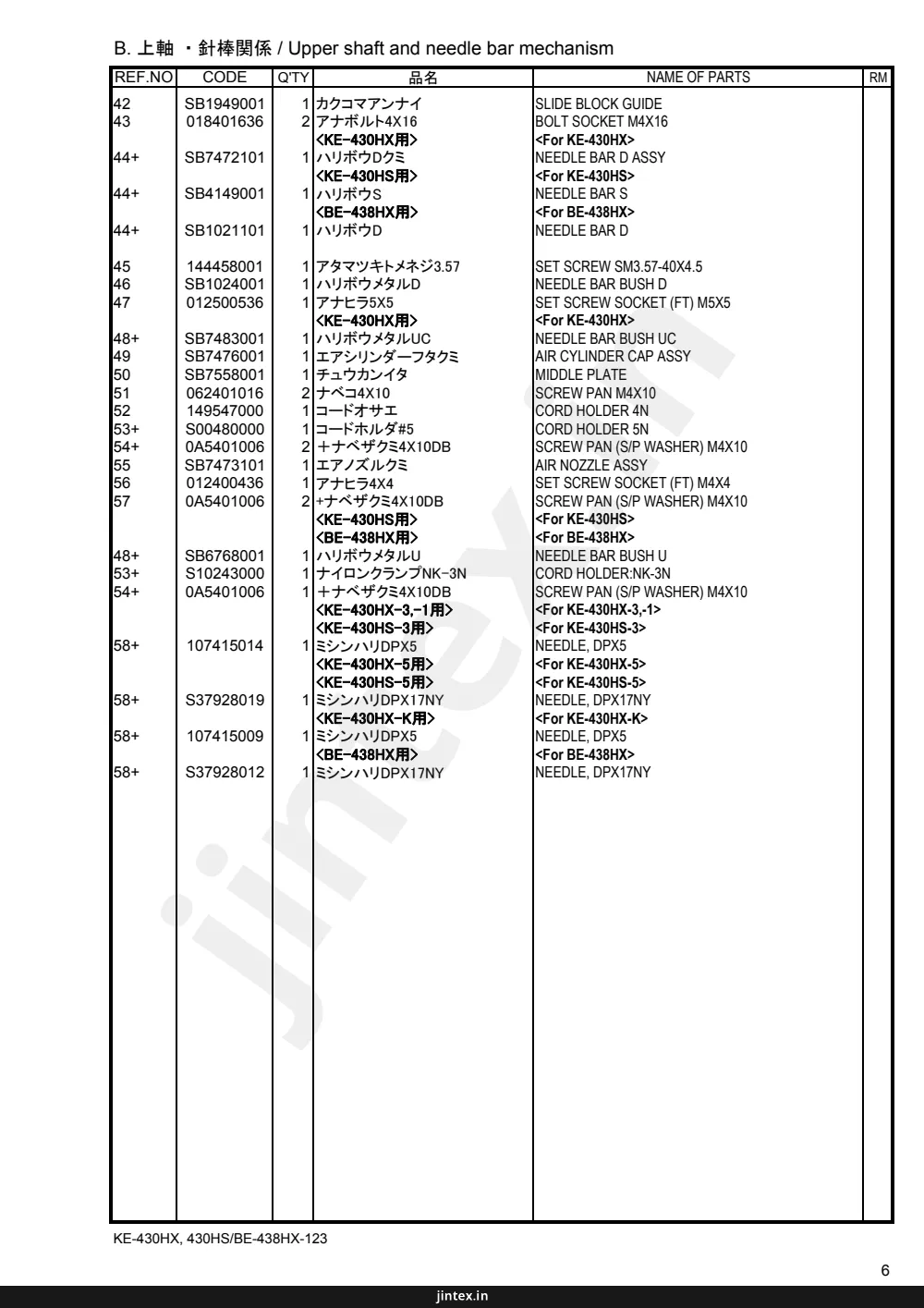

Page 11 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430HX / BE-438HX parts on page 11
Ref	Part number	Part name	Qty
42	SB1949001	SLIDE BLOCK GUIDE	1
43	018401636	BOLT SOCKET M4X16	2
44+	SB7472101	NEEDLE BAR D ASSY	1
44+	SB4149001	NEEDLE BAR S	1
44+	SB1021101	NEEDLE BAR D	1
45	144458001	SET SCREW SM3.57-40X4.5	1
46	SB1024001	NEEDLE BAR BUSH D	1
47	012500536	SET SCREW SOCKET (FT) M5X5	1
48+	SB7483001	NEEDLE BAR BUSH UC	1
49	SB7476001	AIR CYLINDER CAP ASSY	1
50	SB7558001	MIDDLE PLATE	1
51	062401016	SCREW PAN M4X10	2
52	149547000	CORD HOLDER 4N	1
53+	S00480000	CORD HOLDER 5N	1
54+	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
55	SB7473101	AIR NOZZLE ASSY	1
56	012400436	SET SCREW SOCKET (FT) M4X4	1
57	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
48+	SB6768001	NEEDLE BAR BUSH U	1
53+	S10243000	CORD HOLDER:NK-3N	1
54+	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
58+	107415014	NEEDLE, DPX5	1
58+	S37928019	NEEDLE, DPX17NY	1
58+	107415009	NEEDLE, DPX5	1
58+	S37928012	NEEDLE, DPX17NY	1

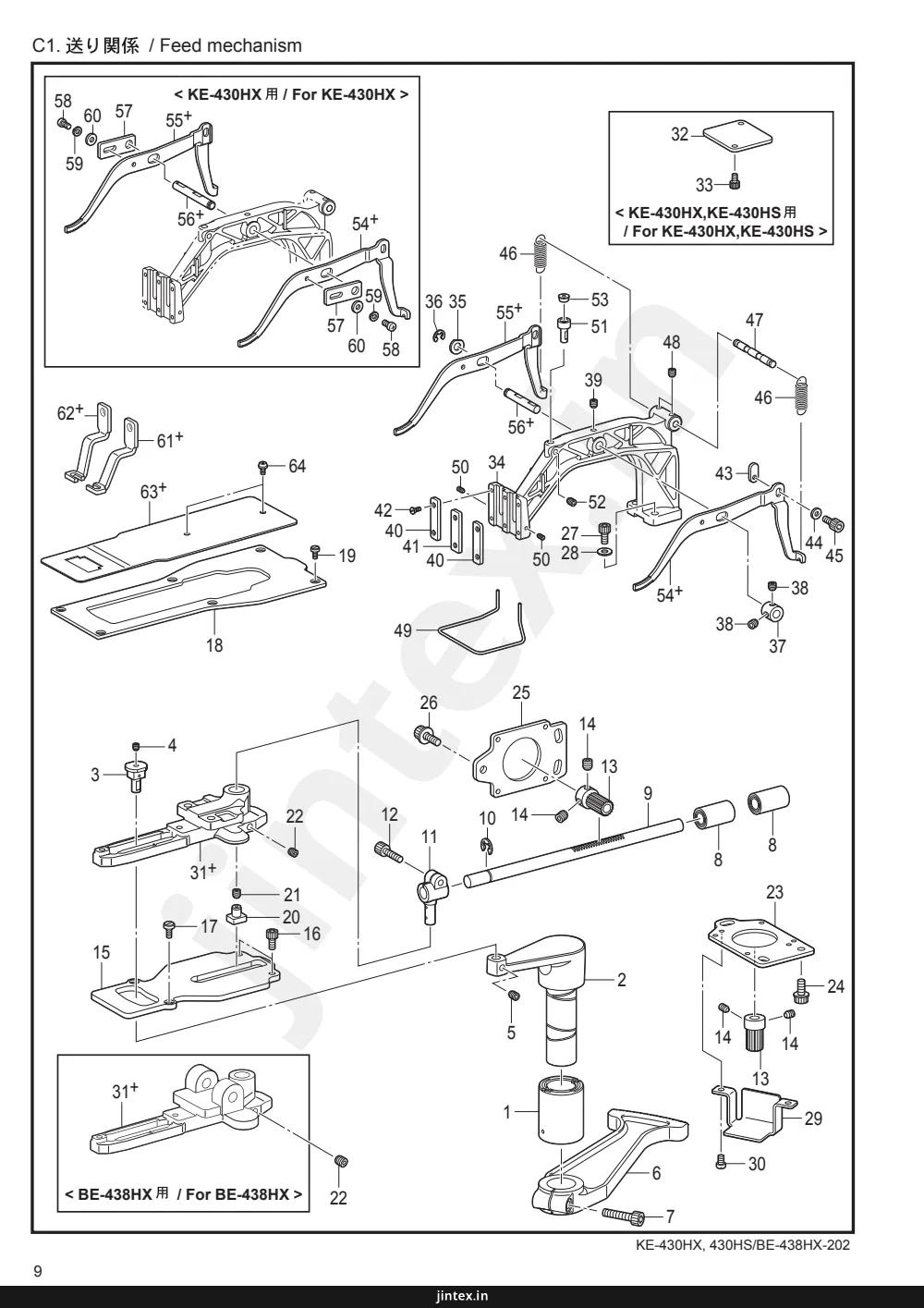

Page 13 — C1. 送り関係 / Feed mechanism

Brother KE-430HX / BE-438HX parts on page 13
Ref	Part number	Part name	Qty
1	SB7485001	X-FEED LEVER BUSH	1
2	SB6737001	X-FEED LEVER	1
3	SB0800101	T-LENGTH REGURATOR BLOCK ASSY	1
4	012300336	SET SCREW SOCKET (FT) M3X3	1
5	012500536	SET SCREW SOCKET (FT) M5X5	1
6	SB7465101	X-FEED GEAR	1
7	018063036	BOLT SOCKET M6X30	1
8	SB4483001	Y-FEED RACK SHAFY BUSH	2
9	SB6738101	Y-FEED RACK SHAFT	1
10	048080342	RETAINING RING E8	1
11	SB0917101	Y-FEED RACK SHAFT CLAMP	1
12	018501436	BOLT SOCKET M5X14	1
13	SB4161001	FEED GEAR S	2
14	012060536	SET SCREW, SOCKET (FT) M6X5	4
15	SB6739001	FEED BAR SUPPORT PLATE	1
16	018401036	BOLT SOCKET M4X10	2
17	SA3538001	SCREW,M4X8	2
18	SB6740001	FEED BAR COVER	1
19	SA3538001	SCREW,M4X8	6
20	SB0803001	T-WIDTH REGURATOR BLOCK ASSY	1
21	012400436	SET SCREW SOCKET (FT) M4X4	1
22	012500536	SET SCREW SOCKET (FT) M5X5	1
23	SB0919101	X-MOTOR SETTING PLATE	1
24	S42446001	BOLT SOCKET (S/P WASHER)M6X14	3
25	SB0920101	Y-MOTOR SETTING PLATE	1
26	S42446001	BOLT SOCKET (S/P WASHER)M6X14	3
27	018061636	BOLT SOCKET M6X16	2
28	025060236	WASHER PLAIN M 6	2
29	SB0924101	X-FEED GEAR COVER	1
30	062400416	SCREW, PAN M4X4	2
31+	SB6741001	FEED BAR SUB ASSY A	1
32	SB6749001	WORK CLAMP ARM SUPPORT PLATE	1
33	018400836	BOLT SOCKET M4X8	2
31+	SB6743001	FEED BAR SUB ASSY B	1
34	SB6748001	WORK CLAMP ARM	1
35	110367001	WASHER, PLAIN SPECIAL 8	1
36	048060346	RETAINING RING E6	1
37	SA3231002	SET SCREW COLLAR,B	1
38	012060536	SET SCREW, SOCKET (FT) M6X5	2
39	012500536	SET SCREW SOCKET (FT) M5X5	1
40	SA3424101	WORK CLAMP GUIDE BRACKET,A	2
41	SA3425101	WORK CLAMP GUIDE BRACKET,B	1
42	SA3426001	SCREW,FLAT M3.5	6
43	SA3208301	WORK CLAMP ARM LEVER PLATE	2
44	146354002	WASHER, PLAIN 5	2
45	018500836	BOLT SOCKET M5X8	2
46	SB6823001	WORK CLAMP SPRING	2
47	SB6824001	SPRING HOLDER	1
48	012500536	SET SCREW SOCKET (FT) M5X5	2
49	SA4130001	FINGER GUARD	1
50	SA2626001	SET SCREW (CP) M3.5	2
51	SA3428101	SUPPORT SHAFT W-CLAMP	1
52	012500536	SET SCREW SOCKET (FT) M5X5	1
53	SB1172001	SLIDER	1

Page 15 — C1. 送り関係 / Feed mechanism

Brother KE-430HX / BE-438HX parts on page 15
Ref	Part number	Part name	Qty
54+	SB6819001	WORK CLAMP ARM LEVER R	1
55+	SB6820001	WORK CLAMP ARM LEVER L	1
56+	SB4692001	WORK CLAMP ARM LEVER SHAFT	1
57	SA3423101	WORK CLAMP LEVER SUPPORT	2
58	062500816	SCREW PAN M5X8	2
59	028050246	WASHER SPRING 2-5	2
60	026050136	WASHER PLAIN S 5	2
54+	SB6821001	WORK CLAMP ARM LEVER R	1
55+	SB6822001	WORK CLAMP ARM LEVER L	1
56+	SB0929101	WORK CLAMP ARM LEVER SHAFT	1
64	153057101	SCREW, ROUND W/SOCKET SM4.37	2
	P.52-54	オサエアシ゛ンR	1
	P.52-55		1

Page 17 — C2. 送り関係 (オプション部品) / Feed mechanism (Option parts)

Brother KE-430HX / BE-438HX parts on page 17
Ref	Part number	Part name	Qty
1+	SB7777001	50X40 SEWING AREA SET	1
1+	SB77770E1	50X40 SEWING AREA SET	1
2	SB7776001	FEED BAR COVER W ASSY	1
3	SB7761001	FEED BAR COVER W	1
4	SB7762001	SLIDE COVER	1
5	SB7763001	COVER GUIDE	1
6	026040236	WASHER PLAIN M 4	4
7	062400416	SCREW, PAN M4X4	4
8	SB7764001	SPRING HOOK	2
9	021300306	NUT 3 M3	2
10	SB7765001	SPRING	2
11	SB7897001	HOME POSITION SENSOR ASSY	1
12	SB7896001	HOME POSITION SENSOR SET	1
13	SB7893001	X SENSOR SETTING PLATE	1
14	SB7894001	Y SENSOR SETTING PLATE	1
15	062300616	SCREW PAN M3X6	2
16	SB7895001	X SENSOR BASE	1
17	026040236	WASHER PLAIN M 4	2
18	017400802	BOLT M4X8	2
19	0A5401006	SCREW PAN (S/P WASHER) M4X10	4
20	SB7772001	FINGER GUARD W	1
21	SB7773001	NEEDLE PLATE AUXILIARY PLATE	1
22	SB7774001	AUXILIARY PLATE SUPPORT	4
23	SB7775001	COLLAR	4
24	SB3849001	WASHER_PLAIN_M_5	4
25	062501216	SCREW PAN M5X12	4
26	SA3538001	SCREW,M4X8	4
27	S59909001	WORK CLAMP WIDE	2
28	S59892001	BOLT, SOCKET SM4.37-40X5	2

Page 19 — D. 押え上げ関係 / Work clamp lifter mechanism

Brother KE-430HX / BE-438HX parts on page 19
Ref	Part number	Part name	Qty
1	SB6803001	WORK CLAMP LIFTER PLATE ASSY	1
2	SB1080101	LIFTER LEVER ASSY	1
3	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
4	SB0962101	LEVER SHAFT	1
5	S20356001	WASHER, PLAIN 10	1
6	048080342	RETAINING RING E8	1
7	012060536	SET SCREW, SOCKET (FT) M6X5	1
8	SB0961001	W-CLAMP LIFTER LEVER BUSH	1
9	SB0963101	LINK	1
10	SB0705101	LINK SHOULDER SCREW	2
11	SB6806101	W-CLAMP DRIVING LEVER	1
12	SB0965101	SPRING HOLDER M5	1
13	SB4435001	W-CLAMP LIFTER ROLLER	1
14	SA3441101	W-CLAMP LIFTER ROLLER SHAFT	1
15	012500536	SET SCREW SOCKET (FT) M5X5	1
16	SB6807001	W-CLAMP CAM LEVER SHAFT	1
17	012500536	SET SCREW SOCKET (FT) M5X5	2
18	S20356001	WASHER, PLAIN 10	2
19	048080342	RETAINING RING E8	1
20	SB4164001	CAM GEAR S	1
21	012060536	SET SCREW, SOCKET (FT) M6X5	2
22	SB6808001	W-CLAMP CAM SHAFT	1
23	048060346	RETAINING RING E6	1
24	SA3231002	SET SCREW COLLAR,B	1
25	012060536	SET SCREW, SOCKET (FT) M6X5	2
26	SB6809001	MOTOR BRACKET ASSY	1
27	018062036	BOLT SOCKET M6X20	3
28	SB0964001	SPRING	1
29	SB0968101	SPRING HOOK	1
30	018400836	BOLT SOCKET M4X8	2
31	SB4160001	GEAR 16S	1
32	012060536	SET SCREW, SOCKET (FT) M6X5	2
33	SA3628001	BUTTON CLAMP ROD	1
34	SA3629001	BUTTON CLAMP ROLLER SHAFT	1
35	107744001	ROLLER	1
36	SB3848001	WASHER_PLAIN_M_4	1
37	021400216	NUT 2 M4	2
38	SB1078001	BUTTON CLAMP LEVER HOLDER	1
39	018061636	BOLT SOCKET M6X16	1
40	SA3631001	BUTTON CLAMP LEVER	1
41	SB1079001	BUTTON CLAMP LEVER SHAFT	1
42	110367001	WASHER, PLAIN SPECIAL 8	1
43	048060346	RETAINING RING E6	1
44	012060636	SET SCREW SOCKET (FT) M6X6	1

Page 21 — E. ボタンつかみ / Button clamp mechanism

Brother KE-430HX / BE-438HX parts on page 21
Ref	Part number	Part name	Qty
1	153830100	BUTTON CLAMP HOLDER	1
2	153827001	BUTTON CLAMP HOLDER SHAFT	1
3	014680632	SET SCREW SOCKET SM4.37-40X6	2
4	151968001	BUTTON CLAMP HOLDER HOOK ASSY	1
5	151969001	B-CLAMP HOLDER HOOK	1
6	107744001	ROLLER	2
7	SB2330001	WASHER PLAIN S SM4.76	1
8	105234003	NUT SM4.37	2
9	014760632	SET SCREW SOCKET SM5.95-28X6	1
10	017711412	BOLT SM4.76-32X14	2
11	146354001	WASHER, PLAIN 5	2
12	146994001	NUT, ROUND SM6.35-40	2
13	115148201	ADJUSTING SCREW SM6.35-40	1
14	115147001	COMPRESSION SPRING	1
15	S49998001	FINGER GUARD	1
16	011679312	SET SCREW, (FT) SM3.57	2
17	SA9287201	BUTTON CLAMP ASSY S	1
18	SA9288001	BUTTON CLAMP BASE	1
19	SB7748001	BUTTON CLAMP L-S	1
20	SB7749001	BUTTON CLAMP R-S	1
21	SA9291001	BUTTON CLAMP GUIDE PIN	2
22	047250642	PIN SPRING ROLL AW2.5	2
23	SB7750001	BUTTON CLAMP L PLATE SPRING S	1
24	SB7751001	BUTTON CLAMP R PLATE SPRING S	1
25	062400416	SCREW, PAN M4X4	2
26	SA9294001	SHOULDER SCREW 4	2
27	SB6951001	BUTTON CLAMP M	1
28	SA9302001	BUTTON CLAMP PLATE CAM	1
29	062400816	SCREW PAN M4X8	2
30	SA9296001	SCREW 4	1
31	SA9297001	NUT ROUND 4	1
32	SB7752001	BUTTON CLAMP SPRING S	1
33	SA9298001	BUTTON CLAMP ADJUSTING PLATE	1
34	SA9299001	SHOULDER SCREW 4	1
35	SA9300001	SHOULDER SCREW 4	1
36	SB7755001	BUTTON CLAMP SPACER BL	1
37	SB7756001	BUTTON CLAMP SPACER BR	1
38	S01694101	SCREW FLAT SM2.38X4	2
39	SB7753001	BUTTON CLAMP SPACER AL	1
40	SB7754001	BUTTON CLAMP SPACER AR	1
41	SB7757001	BUTTON CLAMP SPACER CL	1
42	SB7758001	BUTTON CLAMP SPACER CR	1
43	SB7759001	BUTTON CLAMP SPACER DL	1
44	SB7760001	BUTTON CLAMP SPACER DR	1
45	S59321001	SPRING	1
46	SB7247001	SPRING N SET	1
47	SB7058001	NEEDLE HOLE PLATE 1.6	1
48	SB7061001	SPRING N	1
49	012300336	SET SCREW SOCKET (FT) M3X3	1
50	SA9303201	BUTTON CLAMP ASSY L	1
51	SA9304001	BUTTON CLAMP L-L	1
52	SA9305001	BUTTON CLAMP R-L	1
53	SA9306001	BUTTON CLAMP L PLATE SPRING L	1
54	SA9307001	BUTTON CLAMP R PLATE SPRING L	1
55	SA9308001	BUTTON CLAMP ADJUSTING PLATE	1

Page 23 — F. 下軸関係 / Lower shaft mechanism

Brother KE-430HX / BE-438HX parts on page 23
Ref	Part number	Part name	Qty
1	SB1652201	SHUTTLE RACE BASE SET	1
2	SB1285001	SHUTTLE RACE THREAD GUIDE	1
3	SA4199001	SCREW M3X4	2
4	SB4158001	S-RACE BASE SETTING CLAW S	2
5	152684101	COMPRESSION SPRING	2
6	026030136	WASHER PLAIN S 3	2
7	062300616	SCREW PAN M3X6	2
8	SA9396001	FELT	2
9	SB1044001	FELT	2
10	SB1050001	OIL FEEDING PIPE S	2
11	SB1048101	OIL FEEDING PIPE M	1
12	SA9397001	RUBBER CAP 5.5	2
13	SB1047001	FELT HOLDER	1
14	SA9191001	SCREW M3X5.5	2
15	SA3274101	FELT HOLDER	1
16	S47307001	SCREW, M3X4	2
17	SB1049001	FELT ASSY	1
18	SB1054001	OIL TUBE L=340	2
19	SB1055001	OIL TUBE L=430	1
20	012060636	SET SCREW SOCKET (FT) M6X6	1
21	SA6448301	DRIVER E	1
22	018501036	BOLT SOCKET M5X10	1
27	SB7487001	BEARING BUSH ASSY	1
28	S23651001	SET SCREW SOCKET (FT) M6X6	2
29	SB7497001	OIL SEAL SC8-24-7	1
30	SB4742001	BEARING BUSH ASSY	2
31	S23651001	SET SCREW SOCKET (FT) M6X6	4
32	SB1258001	OIL SEAL	1
33	SB7009101	LOWER SHAFT SET	1
34	S23651001	SET SCREW SOCKET (FT) M6X6	2
35	012400436	SET SCREW SOCKET (FT) M4X4	1
36	SB8587001	ROCK GEAR COLLAR N	1
37	SB8588001	RUBBER CAP 43.2	1
38	081040070	O RING P40	1
39	SB7496001	OIL SEAL SC20-37-7	1
40	012060636	SET SCREW SOCKET (FT) M6X6	4
41	SB4163001	ROCK GEAR S	1
42	S23651001	SET SCREW SOCKET (FT) M6X6	2
43	SB7901001	ROCK GEAR SHAFT F ASSY	1
44	S23651001	SET SCREW SOCKET (FT) M6X6	2
45	SB7902101	ROCK GEAR SHAFT R ASSY	1
46	SB7909001	WASHER PLAIN 20	1
47	048200142	RETAINING RING EXTERNAL C20	1
48	SB7494001	SPLASH PLATE	1
49	S55481001	BOLT SOCKET (S/P WASHER)M4X12	2
50	017061006	BOLT M6X10	1
51	SB1051001	WASHER CRANK LID	1
52	SA3238401	ADJUSTING STUD	1
53	081003670	O RING PW3	1

Page 25 — G. 給油潤滑関係 / Lubrication

Brother KE-430HX / BE-438HX parts on page 25
Ref	Part number	Part name	Qty
1	SB6777101	OIL TANK ASSY	1
2	SB1053101	OIL TANK NUT	1
3	SB1056101	OIL TANK PLATE	1
4	017401015	BOLT M4X10	2
5	SB3848001	WASHER_PLAIN_M_4	2
6	018400836	BOLT SOCKET M4X8	2
7	SB0911001	JOINT	1
8	SA9917001	OIL FEEDING POCKET COVER	1
9	SB1276001	OIL TUBE SUPPORT	1
10	062400616	SCREW PAN M4X6	1
11	SA1394101	CORD HOLDER U3	1
12	062400616	SCREW PAN M4X6	1
13	SB6752001	WICK HOLDER ASSY	1
14	062500816	SCREW PAN M5X8	1
15	SB7907001	NEEDLE BAR FELT	1
16	140647101	CORD HOLDER	1
17	062400616	SCREW PAN M4X6	1
18	SB7906001	CRANK COVER ASSY	1
19	062401016	SCREW PAN M4X10	10
20	SB6759001	CRANK LUB ASSY	1
21	062400616	SCREW PAN M4X6	2
22	018400636	BOLT SOCKET M4X6	2
23	SB6764101	TUBE HOLDER	1
24	062400616	SCREW PAN M4X6	1
25	SB6757201	BED BOTTOM COVER ASSY	1
26	SB7557101	BOTTOM COVER PACKING	1
27	062501216	SCREW PAN M5X12	10
28	SB7498001	L SHAFT FELT ASSY	1
29	SB7490001	L SHAFT FELT CLAMPER	1
30	SB7491001	L SHAFT FELT	1
31	062400616	SCREW PAN M4X6	2
32	SA1303101	SCREW M8	1
33	081008070	O RING P8	1

Page 27 — H. 糸通し関係 / Threading mechanism

Brother KE-430HX / BE-438HX parts on page 27
Ref	Part number	Part name	Qty
1	SA3250001	ARM THREAD GUIDE,A	1
2	062500616	SCREW PAN M5X6	4
3	SA4333001	ARM THREAD GUIDE,B	1
4	SA6391001	ARM THREAD GUIDE C	1
5	SB1086001	ARM THREAD GUIDE D	1
7	SB1084001	DT TENSION STUD	1
8	SB1088101	SET COLLAR DT	1
9	SB1180201	SHAFT	1
10	SB1181001	DT CUSHION	1
11	SA6190001	DISC DT	1
12	SB1267001	COIL SPRING	1
13	145446001	DISC TENSION	1
14	SB1281001	TAPER DISC PRESSER	1
15	018301036	BOLT SOCKET M3X10	1
16	SB1182101	TENSION BRACKET ASSY	1
17	012400436	SET SCREW SOCKET (FT) M4X4	1
18	021500316	NUT 3 M5	1
19	SB2330001	WASHER PLAIN S SM4.76	1
20+	SA4143001	SET SCREW, (FT) M6X6	1
20+	SA1229101	SET SCREW (FT) M6X6	1
21	SA3256001	TENSION STUD A	1
22	100136001	TENSION NUT	1
23	SA4146101	SUB TENSION SPRING	1
24	145446001	DISC TENSION	2
25	SB1087001	THREAD GUIDE ARM	1
26	021400306	NUT 3 M4	1
27	SB1058001	N-BAR BUSH THREAD GUIDE D	1
28	S50384101	TENSION RELEASE PIN	1
30	SB1600001	THREAD TENSION BRACKET	1
31	100402004	SET SCREW SM3.57	1
32	116922201	TENSION STUD	1
33	145446021	DISC TENSION	2
34	159805001	TENSION DISC PRESSER	1
35	SB4216001	WASHER	1
36	SB4038001	TENSION NUT	1
37+	SB4442101	THREAD TENSION BRACKET ASSY	1
38+	104525103	TENSION SPRING H	1
37+	SB4443101	THREAD TENSION BRACKET ASSY	1
38+	107606101	TENSION SPRING	1
39	152881101	NEEDLE COOLER ASSY	1
40	012060636	SET SCREW SOCKET (FT) M6X6	1
41	152883000	FELT, 8X15.5	1
42	152884001	NEEDLE COOLER THREAD GUIDE	1
43	062670412	SCREW PAN SM3.57-40X4	1

Page 29 — J. 糸巻関係 / Bobbin winder mechanism

Brother KE-430HX / BE-438HX parts on page 29
Ref	Part number	Part name	Qty
1	SB7495101	TOP COVER	1
2	SA3299001	KNIFE	1
3	062500616	SCREW PAN M5X6	1
4	SB3571101	BOBBIN WINDER TENSION ASSY	1
5	062500816	SCREW PAN M5X8	4
6	SB4589001	BOBBIN WINDER UNIT	1
7	SB3543001	RUBBER RING	1
8	062401016	SCREW PAN M4X10	2
9	SB3848001	WASHER_PLAIN_M_4	2

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

Brother KE-430HX / BE-438HX parts on page 31
Ref	Part number	Part name	Qty
1	SB6785001	THREAD TRIMMER CAM	1
2	012060636	SET SCREW SOCKET (FT) M6X6	2
3	SB6786001	THREAD TRIMMER CAM LEVER	1
4	SB6787001	COLLAR TR-TRIMMER H	1
5	SB6788001	COLLAR SHAFT	1
6	012400436	SET SCREW SOCKET (FT) M4X4	2
7	SB6789001	THREAD TRIMMER LEVER	1
8	SB6790001	THREAD TRIMMER CAM LEVER SHAFT	1
9	110367001	WASHER, PLAIN SPECIAL 8	2
10	048060342	RETAINING RING E6	1
11	012060636	SET SCREW SOCKET (FT) M6X6	2
12	S42446001	BOLT SOCKET (S/P WASHER)M6X14	1
13	SB6791101	MOTOR BRACKET REAR ASSY	1
14	SB7556001	MOTOR BRACKET REAR COVER	1
15	062400616	SCREW PAN M4X6	2
16	018061236	BOLT SOCKET M6X12	3
17	SB0705101	LINK SHOULDER SCREW	1
18	021060306	NUT 3 M6	1
19	SB6382001	THREAD TRIMMER LINK	1
20	018400636	BOLT SOCKET M4X6	2
21	SB6383001	THREAD TRIMMER ROD	1
22	SA3324101	MOVING KNIFE LEVER	1
23	SB6793001	SHOULDER SCREW 6.5-3	1
24	SA3326101	SHAFT M-KNIFE LEVER	1
25	012060636	SET SCREW SOCKET (FT) M6X6	1
26	SA3327501	M-KNIFE CONNECTING PLATE	1
27	SA4354001	SHOULDER SCREW,6-1.8	1
28+	SB0714201	NEEDLE PLATE	1
28+	SB4595201	NEEDLE PLATE	1
29	SB6952001	MOVABLE KNIFE SET H	1
30	SA4518001	MOVABLE KNIFE SHOULDER SCREW	1
31	SA4519001	THRUST WASHER	1
32	S00705001	MOVABLE KNIFE COLLAR	1
33+	SA6397001	M-KNIFE SPACER T0.2	1
33+	SB3049001	M-KNIFE SPACER T0.25	1
33+	SA3334001	M-KNIFE SPACER T0.3	1
33+	SB0955001	M-KNIFE SPACER T0.35	1
34	SB6953001	FIXED KNIFE SET H	1
35	062300416	SCREW PAN M3X4	2
36	SB3847001	WASHER_PLAIN_M_3	2
38	100360003	SCREW	2
39	S25310101	SCREW, FLAT M4	2
40	SA3538001	SCREW,M4X8	2
41	SB0713001	BOBBIN THREAD CLAMP SPRING	1
42	SB3847001	WASHER_PLAIN_M_3	2
43	062300416	SCREW PAN M3X4	2
44	028030246	WASHER SPRING 2-3	2
	P.51,55		1

Page 33 — L. 糸払い関係 / Thread wiper mechanism

Brother KE-430HX / BE-438HX parts on page 33
Ref	Part number	Part name	Qty
1	SB6816001	THREAD WIPER CAM ASSY	1
2	012060536	SET SCREW, SOCKET (FT) M6X5	2
3	SB6813001	T-WIPER DRIVING LEVER	1
4	SB0965101	SPRING HOLDER M5	1
5	SA3449101	THREAD WIPER ROLLER	1
6	SA3441101	W-CLAMP LIFTER ROLLER SHAFT	1
7	012500536	SET SCREW SOCKET (FT) M5X5	1
8	SB0964001	SPRING	1
9	SB0972101	THREAD WIPER ROD SHAFT	1
10	S20356001	WASHER, PLAIN 10	2
11	048080342	RETAINING RING E8	2
12	012500536	SET SCREW SOCKET (FT) M5X5	1
13	SB6815001	CAM STOPPER	1
14	018400836	BOLT SOCKET M4X8	2
15	SB6812001	THREAD WIPER ROD ASSY	1
16	SB0977001	WIPER SHAFT	1
17	012500536	SET SCREW SOCKET (FT) M5X5	1
18	155559021	WASHER PLAIN	1
19	048040342	RETAINING RING E4	1
20	SA3458101	CONNECTING PLATE	1
21	SB2255001	WASHER PLAIN S 5	1
22	048040342	RETAINING RING E4	1
23	081005070	O RING P5	2
24	SA3459101	THREAD WIPER ARM ASSY	1
25	062401016	SCREW PAN M4X10	2
26	SB3848001	WASHER_PLAIN_M_4	2
27	048040342	RETAINING RING E4	1
28	SA3464001	OIL CAP	1

Page 35 — M. 糸ゆるめ関係 / Tension release mechanism

Brother KE-430HX / BE-438HX parts on page 35
Ref	Part number	Part name	Qty
1	SB1090101	DT SOLENOID SETTING PLATE	1
2	062500816	SCREW PAN M5X8	2
3	SB1179001	SOLENOID CUSHION	1
4	017401015	BOLT M4X10	1
5	021400306	NUT 3 M4	1
6	SB7244001	WASHER_PLAIN_L_4	1
7	SB0787101	SOLENOID COVER	1
8	060400516	SCREW BIND M4X5	2
9	SB1192001	TENSION RELEASE BAR BUSH	2
10+	SB1089001	TENSION RELEASE BAR	1
10+	SB4487001	TENSION RELEASE BAR	1
11	SB4486001	TENSION RELEASE SPRING	1

Page 37 — N. 糸つかみ関係 (KE-430HX-3,-K,-1用) / Thread nipper mechanism (For KE-430HX-3,-K,-1)

Brother KE-430HX / BE-438HX parts on page 37
Ref	Part number	Part name	Qty
1	SB0709001	THREAD NIPPER D ASSY	1
2	SA3333001	THREAD NIPPER SHOULDER SCREW	1
3	SA4329001	COLLAR,THREAD NIPPER	1
4	SA4330001	SPACER,THREAD NIPPER	1
5	SB0954001	THREAD NIPPER U	1
6	SA3342101	SHOULDER SCREW,6-0.9	1
7	SA3343101	PLATE,SPRING HOOK	1
8	062300416	SCREW PAN M3X4	2
9	SB3847001	WASHER_PLAIN_M_3	2
10	SA4465001	SPRING EXTENSION	1
11	SB6798001	TN-DRIVING LEVER	1
12	SB6787001	COLLAR TR-TRIMMER H	1
13	SB6788001	COLLAR SHAFT	1
14	012400436	SET SCREW SOCKET (FT) M4X4	1
15	110367001	WASHER, PLAIN SPECIAL 8	1
16	SB6799101	TN-CONNECTING PLATE R	1
17	SB0705101	LINK SHOULDER SCREW	1
18	109239002	WASHER, WAVE SPRING	1
19	SB6800001	TN-DRIVING LEVER SPRING	1
20	018400636	BOLT SOCKET M4X6	2
21	SB6801001	TN-CONNECTING PLATE ASSY F	1

Page 39 — P1. コントロールボックス関係 / Control box

Brother KE-430HX / BE-438HX parts on page 39
Ref	Part number	Part name	Qty
1	SB6703001	FRONT BOX COVER	1
2	SA9547001	SCREW PAN(S/P WASHER)M4X20	4
3	SB6704001	REAR BOX COVER	1
4	SB8096001	LABEL ELECTRICAL SHOCK 36X150	1
5	SA9547001	SCREW PAN(S/P WASHER)M4X20	4
6	SB6770101	MAIN PCB ASSY	1
7	0A4400806	SCREW PAN (S/P WASHER) M4X8	4
8	0A4402006	SCREW PAN (S/P WASHER) M4X20	5
9	SB6780101	POWER SUPPLY MOTOR PCB ASSY	1
10	SB3275001	GLASS FUSE 10A-50T100H	2
11	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
12	0A4402006	SCREW PAN (S/P WASHER) M4X20	7
13	SB4587301	TREADLE UNIT-US	1
14	0A5501206	SCREW PAN (S/P WASHER) M5X12	4
15	S37060001	LABEL GROUNDING	1
16	SA9914001	LABEL ELECTRICAL SHOCK 25 X 28	1
17	SA9893001	BOLT M8X65	4
18	021080206	NUT 2 M8	8
19	025080336	WASHER PLAIN L 8	4
20	028080246	WASHER SPRING 2-8	4
21	SB7077001	CE FILTER UNIT TYPE5	1
22	SB7074001	CE FILTER CASE	1
23	SB7065001	CE FILTER PCB ASSY TYPE3	1

Page 41 — P2. コントロールボックス関係 / Control box

Brother KE-430HX / BE-438HX parts on page 41
Ref	Part number	Part name	Qty
1+	SA9616001	POWER SWITCH ASSY SJT	1
1+	SA9831001	POWER SWITCH ASSY SJT#2	1
2+	SA9535001	POWER SUPPLY SWITCH ASSY CCC	1
2+	BMP3010-0000001-3S00	POWER SWITCH 220V	1
3	S03816001	WOOD SCREW M4.5X16	2
4	200190001	STAPLE 10X20	2
5+	SB1229001	TRANS BOX 100V SUPPLY	1
5+	BMP3010-0000000-2ST1	TRANSFORMER BOX	1
6+	BMP3010-0000000-3ST4	TRANSFORMER BOX	1
6+	BMP3010-0000001-3ST4	TRANSFORMER BOX	1
6+	BMP3010-0000000-4ST4	TRANSFORMER BOX	1
7	SA9914001	LABEL ELECTRICAL SHOCK 25 X 28	1

Page 43 — Q. 電装品・モーター関係 / Power supply equipment and motor mechanism

Brother KE-430HX / BE-438HX parts on page 43
Ref	Part number	Part name	Qty
1	SB7170001	PULSE MOTOR STP-X	1
2	018401036	BOLT SOCKET M4X10	4
3	SB7171001	PULSE MOTOR STP-Y	1
4	018400836	BOLT SOCKET M4X8	4
5	SB7172001	PULSE MOTOR STP-P	1
6	018401036	BOLT SOCKET M4X10	4
7	SB4276101	PULSE MOTOR ASSY Y	1
8	018401036	BOLT SOCKET M4X10	4
9+	SB4499001	TENSION RELEASE SOLENOID	1
9+	SB0794101	DT TENSION SOLENOID	1
10	017400802	BOLT M4X8	2
11	028040246	WASHER SPRING 2-4	2
12	SB3848001	WASHER_PLAIN_M_4	2
13	SB1650101	SWITCH ASSY MACHINE HEAD	1
14	0A5301605	SCREW PAN (S/P WASHER) M3X16	2
15	SB6818101	SWITCH MACHINE HEAD PLATE	1
16	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
17	SB6750001	H-DETECTOR SUPPLY ASSY 430H	1
18	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
19	S10243000	CORD HOLDER:NK-3N	1
20	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
21	SB4261001	GROUND WIRE HEAD-BOX	1
22	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
23	SB4637101	CORD HOLDER	2
24	062400616	SCREW PAN M4X6	2
25	SA1394101	CORD HOLDER U3	1
26	062500816	SCREW PAN M5X8	1
27	S11817000	CLAMP, NK-18N	2
28	552907000	CORD HOLDER #10	1
29	0A5401006	SCREW PAN (S/P WASHER) M4X10	3
30	SB4155001	BAND	3
31	SB6825201	LED ASSY	1
32	SB6826001	LED SETTING PLATE	1
33	SB6829001	LED COVER	1
34	062300416	SCREW PAN M3X4	1
35	018400836	BOLT SOCKET M4X8	1
36	SB6830001	MOTOR 430 ASSY	1
37	SB0827001	HIGH TEMP LABEL	1
38	018402036	BOLT SOCKET M4X20	4

Page 45 — R. 操作パネル関係 / Operation panel

Brother KE-430HX / BE-438HX parts on page 45
Ref	Part number	Part name	Qty
1+	SB6767101	OPERATION PANEL ASSY	1
1+	SB6767102	OPERATION PANEL ASSY	1

Page 47 — S. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430HX / BE-438HX parts on page 47
Ref	Part number	Part name	Qty
1	SB7552001	2-PEDAL FOOT SW ASSY	1

Page 49 — T. 補助装置関係 (BE-438H用オプション部品) / Auxiliary device (Option parts for BE-438H)

Brother KE-430HX / BE-438HX parts on page 49
Ref	Part number	Part name	Qty
1	SB7900001	SHANK DEVICE SET 438H	1
2	142689409	SHANK BUTTON CLAMP BRAC. ASSY	1
3	154684009	SHANK BUTTON CLAMP BRACKET	1
4	142677101	BUTTON CLAMP, A	1
5	142678201	BUTTON CLAMP B	1
6	062670812	SCREW PAN SM3.57-40X8	1
7	102707002	WASHER	1
8	142681001	BUTTON CLAMP STUD	1
9	154685001	SPRING	1
10	142706001	SET SCREW COLLAR	2
11	062670712	SCREW PAN SM3.57-40X7	2
12	154686001	BUTTON CLAMP ARM	1
13	013719412	SET SCREW, (CP) SM4.76	1
14	142680001	BUTTON CLAMP	1
15	120990001	SET SCREW, (CP) SM4.37-40X8	1
16	154695001	CLAMP OPENER	1
17	SB1564001	STUD	1
18	014680432	SET SCREW SOCKET SM4.37-40X4	1
19	SB7899001	SHANK FEED PLATE BASE	1
20	156336101	SHANK BUTTON FEED PLATE	1
21	154713001	SCREW, SM4.76	2
22	021710212	NUT 2 SM4.76-32	2
23	SB3329001	WASHER 5	2
24	142686101	CLOTH RECEIVER, S	1
25	060670512	SCREW BIND SM3.57-40X5	1
26	S03641101	BOTTON CLAMP, D	1
27	SB0715001	NEEDLE HOLE PLATE 1.6GM	1
28	SB1645101	NEEDLE BAR SD	1
29	062500616	SCREW PAN M5X6	1

Page 51 — Z. 付属部品関係 / Accessories

Brother KE-430HX / BE-438HX parts on page 51
Ref	Part number	Part name	Qty
1	SB6278001	DUST OILER SUPPORT	1
2	032461606	WOOD SCREW ROUND 2 M4.5X16	2
3	SB3849001	WASHER_PLAIN_M_5	2
4	114486002	OILER	1
5	SA3384101	PIN	2
6	012060636	SET SCREW SOCKET (FT) M6X6	2
7	SA3385001	HINGE HOLDER	2
8	SA3395001	RUBBER CUSHION	2
9	SA3392101	SPACER	2
10	018066036	BOLT SOCKET M6X60	4
11	025060336	WASHER PLAIN L 6	4
12	028060246	WASHER SPRING 2-6	4
13	021060106	NUT 1 M6	4
15	SA8239301	OIL TANK ASSY	1
16	SB1270001	OIL WARNING LABEL EN	1
17	SB1271101	OIL WARNING LABEL JP	1
18	SB3928101	COTTON STAND ASSY 2DR	1
19	S51283001	SPOOL STAND BASE	2
20	SB4114001	SPOOL MAT	2
21	S51282101	SPOOL CUSHION	2
22	150179002	SPOOL SHAFT B	2
23	SB4117001	WASHER SPRING 2-5	2
24	SB4119001	NUT 2 M5	2
25	S02778022	SPOOL HOLDER 2	1
26	S37037002	SCREW PAN (S/P WASHER) M5X32	1
27	SB4118001	NUT 1 M5	1
28	S02787002	THREAD HANGER 2	1
29	150183000	THREAD HANGER BASE	2
30	142990001	THREAD BUSH	2
31	SB4120001	SCREW PAN(S/P WASHER) M5X14	1
32	SB4118001	NUT 1 M5	1
33	144226001	HEAD COVER	1
34	SB1069301	EYE GUARD SET	1
35	SB4169001	EYE GUARD	1
36	SB1067101	EYE GUARD HOLDER	1
37	026030233	WASHER PLAIN M 3	2
38	018300636	BOLT SOCKET M3X6	2
39	018401036	BOLT SOCKET M4X10	2
40	SB7693101	REAR COVER ASSY	1
41	062500816	SCREW PAN M5X8	4

Page 53 — Z. 付属部品関係 / Accessories

Brother KE-430HX / BE-438HX parts on page 53
Ref	Part number	Part name	Qty
43	S18641109	BUTTON TRAY WITH BAG	1
44	153843009	BUTTON TRAY HOLDER	1
45	014760632	SET SCREW SOCKET SM5.95-28X6	1
46	0B1351606	WOOD SCREW FLAT M3.5X16	2
47	SB1272001	SPRING A	1
48	110215002	SCREW SM3.57	1
49	026350132	WASHER PLAIN S M3.5	1
50	SB1273001	SPRING SUPPORT	1
51	146360002	BOLT, SM4.76X7	1
52	SB0713001	BOBBIN THREAD CLAMP SPRING	1
53	SB3847001	WASHER_PLAIN_M_3	2
54	062300416	SCREW PAN M3X4	2
55	028030246	WASHER SPRING 2-3	2

Page 54 — Wa. 警告ラベル / Warning labels

Brother KE-430HX / BE-438HX parts on page 54
Ref	Part number	Part name	Qty
	SB8096-001	Label electrical shock 36 X 150
	SA9914-001	Label electrical shock 25 X 28
	SA9826-001	Label caution
	SA9957-001	Injury mark
	SA9957-002	Injury mark
	SB0827-001	High temp label
	S37060-001	Label, grounding

Page 55 — Wa. 警告ラベル / Warning labels

Brother KE-430HX / BE-438HX parts on page 55
Ref	Part number	Part name	Qty
	SB7911-001	Mark attention 15 X 15
	SB1271-101	Oil warning label JP
	SB1270-001	Oil warning label EN

Page 56 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Brother KE-430HX / BE-438HX parts on page 56
Ref	Part number	Part name
K-37	SB7057-001	Needle hole plate
K-37	SB7056-001	Needle hole plate
K-37	SB7058-001	Needle hole plate
K-37	SB7056-001	Needle hole plate
K-37	SB7062-001	Needle hole plate
F-25	152690-501	Bobbin case assy
F-25	S59221-301	Bobbin case assy
F-25	159610-401	Bobbin case assy
F-25	159610-401	Bobbin case assy
F-26, Z-14	159613-051	Bobbin
F-26, Z-14	S15665-001	Bobbin
F-24	SA1882-001	Shuttle hook assy, w/box
F-24	SA8197-101	Shuttle hook assy, w/box
F-24	SA1881-001	Shuttle hook assy, w/box
F-24	SA1881-001	Shuttle hook assy, w/box
F-23	152686-201	Shuttle race base
F-23	152682-201	Shuttle race base
F-23	152682-201	Shuttle race base
H-6	SA6193-301	Thread take-up spring
H-6	SA9058-001	Thread take-up spring
H-6	SA9058-001	Thread take-up spring
	154340-101	ボビンケース調子ばね Tension spring
	154339-101	ボビンケース調子ばね Tension spring
	154341-001	ボビンケースばねねじ Screw
	S16492-101	ボビンケースばねねじ Screw
	SA4315-001	空転防止ばね Anti-spin spring
	S15667-001	空転防止ばね Anti-spin spring

Page 57 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Brother KE-430HX / BE-438HX parts on page 57
Ref	Part number	Part name
H-29	SB1059-001 < A >	Needle bar thread guide
H-29	SB1060-001 < B >	Needle bar thread guide
H-29	SB1060-001 < B >	Needle bar thread guide
B-58	S37928-019	Needle
B-58	107415-014	Needle
B-58	107415-009	Needle
B-58	107415-014	Needle
B-58	S37928-012	Needle
C1-61, 62	153608-101	Work clamp
C1-61, 62	154527-001	Work clamp
C1-61, 62	152777-001	Work clamp
C1-61, 62	152778-001	Work clamp
C1-61, 62	S49695-001	Work clamp
C1-61, 62	S49694-001	Work clamp
C1-61, 62	152777-001	Work clamp
C1-61, 62	152778-001	Work clamp
C1-63	SB7742-001	Feed plate
C1-63	SB7743-001	Feed plate
C1-63	SB7744-001	Feed plate
C1-63	SB7743-001	Feed plate
C1-63	SB7745-001	Feed plate
C1-61, 62	152781-001	Work clamp
C1-61, 62	152782-001	Work clamp
C1-61, 62	153201-001	Work clamp
C1-61, 62	153202-001	Work clamp
C1-63	SB7746-001	Feed plate
C1-63	SB7747-001	Feed plate

Page 58 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Brother KE-430HX / BE-438HX parts on page 58
Ref	Part number	Part name
1	153201-001	Work clamp R
1	153202-001	Work clamp L
2	152777-001	Work clamp R
2	152778-001	Work clamp L
3	153203-001	Work clamp R
3	153204-001	Work clamp L
4	S33747-001	Work clamp R
4	S33748-001	Work clamp L
1	SA3612-101	Feed plate
2	SA3612-101	Feed plate
3	SA3613-101	Feed plate
4	SA3615-101	Feed plate
5	S33747-001	Work clamp R
5	S33748-001	Work clamp L
6	S00906-001	1 inch
6	S00907-001	1 inch
7	152779-001	Work clamp R
7	152780-001	Work clamp L
5	SA3618-101	Feed plate
6	SA3614-101	1 inch
7	SA3608-101	Feed plate

Page 59 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Brother KE-430HX / BE-438HX parts on page 59
Ref	Part number	Part name	Qty
	S46774-001
	S46773-001
	S46774-001
	S46773-001
	SA2230-001
	SA2229-001
	SA2233-001
	SA2232-001
	SA3619-101
	SA3621-101
	SA3620-101
	SA3622-101
	156006-001
	S59892-001
	156006-001
	S59892-001
	S59909-001
	S59892-001
	S59909-001
	S59892-001
	S46777-001
	S46776-001
	S46780-001
	S46779-001
	SA2236-001
	SA2235-001
	SA4195-001
	SA4196-001
	SA3623-101
	SA3624-101
	SA3625-101
	156006-001
	S59892-001
	156006-001
	S59892-001
	S59909-001
	S59892-001
	S59909-001
	S59892-001

Page 60 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS, BE-438HX) / Gauge parts list (KE-430HX, KE-430HS, BE-438HX)

Brother KE-430HX / BE-438HX parts on page 60
Ref	Part number	Part name	Qty
	SA3626-101	With lozenge
	SA3627-101	With lozenge
	SA3817-101	Without lozenge
	SB6957-001	Other needle hole plate
	SB7243-001	Other needle hole plate
	SB7753-001	Button clamp spacer
	SB7754-001	Button clamp spacer
	SB7755-001	Button clamp spacer
	SB7756-001	Button clamp spacer
	SB7757-001	Button clamp spacer
	SB7758-001	Button clamp spacer
	SB7759-001	Button clamp spacer
	SB7760-001	Button clamp spacer

Page 61 — 索引 / Index

Brother KE-430HX / BE-438HX parts on page 61
Ref	Part number	Part name
-18	004300513	A
-16	011679312	E
-14	012060536	C1
-38	012060536	C1
-7	012060536	D
-21	012060536	D
-25	012060536	D
-32	012060536	D
-2	012060536	L
-38	012060636	B
-44	012060636	D
-20	012060636	F
-40	012060636	F
-22	012060636	H
-11	012060636	K
-25	012060636	K
-4	012300336	C1
-49	012300336	E
-56	012400436	B
-21	012400436	C1
-35	012400436	F
-17	012400436	H
-6	012400436	K
-14	012500536	N
-10	012500536	B
-18	012500536	B
-33	012500536	B
-47	012500536	B
-5	012500536	C1
-22	012500536	C1
-39	012500536	C1
-48	012500536	C1
-52	012500536	C1
-15	012500536	D
-17	012500536	D
-7	012500536	L
-12	012500536	L
-17	012500536	L
-13	013719412	T
-18	014680432	T
-3	014680632	E
-9	014760632	E
-45	014760632	Z
-50	017061006	F
-18	017400802	C2
-10	017400802	Q
-4	017401015	G
-4	017401015	M
-10	017711412	E
-16	018061236	K
-27	018061636	C1
-39	018061636	D
-33	018062036	A
-27	018062036	D
-7	018063036	C1
-10	018066036	Z
-38	018300636	Z
-15	018301036	H
-22	018400636	G
-20	018400636	K
-33	018400836	C1
-30	018400836	D
-6	018400836	G
-14	018400836	L
-4	018400836	Q
-35	018400836	Q
-16	018401036	C1
-2	018401036	Q
-6	018401036	Q
-8	018401036	Q
-43	018401636	B
-38	018401636	Q
-45	018501036	C1
-12	018501436	C1
-5	018501636	B
-13	018501636	Z
-18	021060306	P1
-4	021060306	C1
-19	021300306	D
-37	021400216	D
-9	021400306	C2
-5	021400306	M
-18	021500316	H
-22	021710212	T
-28	025040236	C1
-34	025060236	A
-28	025060236	C1
-11	025080336	P1
-6	026030136	F
-37	026030233	Z
-6	026040236	C2
-60	026050136	C1
-49	026350132	Z
-11	028004036	Q
-41	028004036	Z
-10	028040246	C1
-59	028050246	C1
-12	028060246	Z
-20	028060246	P1
-2	028080246	Z
-10	032461606	Q
-22	047250642	E
-16	047402042	B
-19	048004036	L
-27	048004036	L
-10	048060342	K
-36	048060346	C1
-10	048080342	C1
-6	048080342	D
-19	048080342	D
-11	048080342	L
-8	049001036	M
-17	048200142	L
-20	048280142	B
-47	048280142	B
-8	050600516	M
-25	060670512	T
-23	062300416	A
-35	062300416	K
-8	062300416	N
-34	062300416	Q
-54	062300416	Z
-15	062300616	C2
-7	062300616	F
-30	062400416	C1
-7	062400416	C2
-25	062400416	E
-10	062400616	G
-12	062400616	G
-17	062400616	G
-2	062400616	K
-11	062400616	K
-25	062400616	K
-6	062400616	Z
-29	062400816	E
-13	062401016	A
-51	062401016	B
-19	062401016	G
-8	062401016	J
-25	062401016	L
-27	062500616	A
-29	062500616	B
-2	062500616	C2
-11	062500816	A
-51	062500816	B
-58	062500816	C1
-14	062501216	G
-5	062501216	J
-26	062501216	L
-2	062501216	M
-26	062501216	Q
-41	062501216	Z
-15	062501216	A
-25	062501216	C2
-43	062670412	H
-11	062670712	T
-6	062670812	T
-23	081005070	L
-33	081007070	G
-38	081008070	F
-7	081010070	P1
-7	0A4400806	P1
-11	0A4400806	P1
-8	0A4400806	P1
-12	0A4400806	P1
-14	0A5301605	Q
-57	0A5401006	B
-54+	0A5401006	Bp
-46	0B1351606	Z
-14	0A5501206	P1
-46	0B1351606	Z
-22	100136001	H
-38	100360003	K
-31	100402004	H
-35+	102630001	B
-7	102707002	T
-38+	104525103	H
-8	105234003	E
-58+	107415009	B
-58+	107415014	Bp
-38+	107606101	B
-35	107744001	D
-6	109239002	E
-18	110215002	N
-26	110367001	B
-35	110367001	C1
-42	110367001	D
-9	110367001	K
-15	110367001	N
-4	114486002	Z
-14	115147001	E
-13	115147001	E
-13	115148201	E
-32	116922201	H
-2	116922201	H
-2	117934001	A
-40	118550001	A
-15	120990001	T
-41	140004001	B
-16	140647101	G
-4	142677101	T
-5	142678201	T
-14	142680001	T
-8	142681001	T
-24	142686101	T
-2	142689409	T
-10	142706001	T
-30	142990001	Z
-33	144226001	Z
-45	144458001	B
-13	145446001	H
-24	145446001	H
-33	145446021	E
-11	146354001	E
-44	146354002	C1
-51	146360002	Z
-12	146994001	E
-52	149547000	B
-22	150179002	Z
-29	150183000	Z
-4	151968001	E
-5	151969001	E
	152682201	Sp
-5	152684101	F
	152686201	Sp
	152690501	Sp
	152777001	Sp
	152778001	Ga
	152779001	Sp
	152779001	Ga
	152779001	Ga

Page 62

Brother KE-430HX / BE-438HX parts on page 62
Ref	Part number	Part name
53	152780001	Ga
52	152781001	Sp
52	152782001	Sp
- 39	152881101	H
- 41	152883000	H
- 42	152884001	H
- 64	153057101	C1
52	153201001	Sp
53	153201001	Ga
52	153202001	Sp
53	153202001	Ga
53	153203001	Ga
53	153204001	Ga
52	153608101	Sp
- 2	153608101	E
- 1	153827001	E
- 1	153830100	E
- 44	153843009	Z
51	154339101	Sp
51	154340101	Sp
51	154341001	Sp
52	154527001	Sp
- 3	154685001	T
- 9	154685001	T
- 12	154686001	T
- 16	154695001	T
- 21	154713001	T
- 18	155559021	L
54	156006001	Ga
- 20	156336101	T
- 34	159805001	H
- 4	200190001	P2
- 28	552907000	Q
- 5+	BMP3010-0000000-2ST1	P2
- 6+	BMP3010-0000000-3ST4	P2
- 6+	BMP3010-0000000-4ST4	P2
- 2+	BMP3010-0000001-3S00	P2
- 6+	BMP3010-0000001-3ST4	P2
- 53+	S00480000	B
- 32	S00705001	K
53	S00906001	Ga
53	S00907001	Ga
- 38	S01694101	E
- 25	S02778022	Z
- 28	S02787002	Z
- 26	S03641101	T
- 3	S03816001	P2
- 53+	S10243000	B
- 19	S11817000	Q
51	S15665001	Sp
51	S15667001	Sp
51	S16492101	Sp
- 43	S18641109	Z
- 5	S20356001	D
- 18	S20356001	D
- 10	S20356001	L
- 6	S20878000	A
- 8	S23337001	A
- 7	S23651001	B
- 25	S25235001	B
- 30	S25310101	A
- 7	S33747001	A
- 46	S33748001	A
- 26	S37037002	Z
- 39	S37060001	A
- 58+	S37928012	B
- 58+	S37928019	B
- 24	S42446001	C1
54	S46773001	Ga
54	S46774001	Ga
54	S46776001	Ga
- 43	SA3208301	C1
- 37	SA3231002	C1
- 24	SA3238401	D
- 1	SA3250001	H
- 21	SA3256001	H
- 16	SA3262202	A
- 17	SA3263101	A
- 19	SA3265101	A
- 20	SA3266201	A
- 15	SA3274101	F
- 2	SA3299001	J
- 22	SA3324101	K
- 24	SA3326101	K
- 26	SA3327501	K
- 2	SA3330001	N
- 33+	SA3334001	K
- 6	SA3342101	N
- 7	SA3343101	N
- 5	SA3384101	Z
- 7	SA3385001	Z
- 9	SA3392101	Z
- 8	SA3395001	Z
- 57	SA3423101	C1
- 40	SA3424101	C1
- 41	SA3425101	C1
- 42	SA3426001	C1
- 51	SA3428101	C1
- 14	SA3441101	D
- 5	SA3449101	L
- 20	SA3458101	L
- 24	SA3459101	L
- 28	SA3464001	L
- 17	SA3538001	C1
- 19	SA3538001	C1
- 26	SA3538001	C2
- 40	SA3538001	K
54	SA3608101	Ga
54	SA3612101	Ga
54	SA3613101	Ga
54	SA3614101	Ga
54	SA3615101	Ga
54	SA3618101	Ga
54	SA3619101	Ga
54	SA3620101	Ga
54	SA3621101	Ga
54	SA3622101	Ga
54	SA3623101	Ga
54	SA3624101	Ga
54	SA3625101	Ga
54	SA3626101	Ga
54	SA3627101	Ga
- 33	SA3628001	D
- 34	SA3629001	D
- 40	SA3631001	D
54	SA3817101	Ga
- 49	SA4130001	C1
- 20+	SA4143001	H
- 23	SA4146101	H
54	SA4195001	Ga
54	SA4196001	Ga
- 3	SA4199001	F
51	SA4315001	Sp
- 3	SA4329001	N
- 4	SA4330001	N
- 3	SA4333001	H
- 27	SA4354001	K
- 10	SA4465001	N
- 30	SA4518001	K
- 31	SA4519001	K
- 11	SA6190001	H
51	SA6193301	Sp
- 4	SA6391001	H
- 33+	SA6397001	K
- 21	SA6448301	F
51	SA8197101	Sp
- 15	SA8239301	Z
- 26	SA8680101	A
51	SA9058001	Sp
- 14	SA9191001	F
- 17	SA9287201	E
- 18	SA9288001	E
- 21	SA9291001	E
- 26	SA9294001	E
- 30	SA9297001	E
- 31	SA9298001	E
- 33	SA9300001	E
- 35	SA9302001	E
- 28	SA9303201	E
- 50	SA9304001	E
- 51	SA9305001	E
- 52	SA9306001	E
- 53	SA9307001	E
- 54	SA9308001	E
- 8	SA9396001	F
- 12	SA9397001	F
- 2+	SA9535001	P2
- 2	SA9547001	P1
- 5	SA9547001	P1
- 1+	SA9616001	P2
- 34+	SA9650101	B
- 38	SA9826001	A
- 1+	SA9831001	P2
- 17	SA9893001	P1
- 16	SA9914001	P1
- 8	SA9917001	G
- 35	SA9957001	A
- 36	SA9957002	A
49	SA9957002	Wa
- 10	SB0705101	D
- 1	SB0709001	N
- 41	SB0713001	K
- 28+	SB0714201	K
- 27	SB0715001	T
- 7	SB0787101	M

Page 63 — 索引 / Index

Brother KE-430HX / BE-438HX parts on page 63
Ref	Part number	Part name	Qty
	SB0788001	A -1
	SB0794101	Q -9+
	SB0800101	C1 -3
	SB0803001	C1 -20
	SB0827001	Q -37
	Wa	Wa
	SB0910201	B -19
	SB0911001	G -7
	SB0917101	C1 -11
	SB0919101	C1 -23
	SB0920101	C1 -25
	SB0924101	C1 -29
	SB0929101	C1 -56+
	SB0954001	N -5
	SB0955001	K -33+
	SB0961001	D -8
	SB0962101	D -4
	SB0963101	D -9
	SB0964001	D -28
	L	L -8
	SB0965101	D -12
	L	L -4
	SB0968101	D -29
	SB0972101	L -9
	SB0977001	L -16
	SB0984101	A -32
	SB1018301	B -22+
	SB1021101	B -44+
	SB1024001	B -46
	SB1034101	B -39+
	SB1037101	B -12
	SB1038001	B -13
	SB1040002	B -15
	SB1041001	B -14
	SB1044001	F -9
	SB1047001	F -13
	SB1048101	F -11
	SB1049001	F -17
	SB1050001	F -10
	SB1051001	F -51
	SB1053101	G -2
	SB1054001	F -18
	SB1055001	F -19
	SB1056101	G -3
	SB1057001	H -27
	SB1059001	Sp
	SB1060001	Sp
	SB1067101	Z -36
	SB1069301	Z -34
	SB1078001	D -38
	SB1079001	D -41
	SB1080101	D -2
	SB1084001	H -7
	SB1086001	H -5
	SB1087001	H -25
	SB1088101	H -8
	SB1089001	M -10+
	SB1090101	M -1
	SB1169101	A -29
	SB1172001	C1 -53
	SB1179001	M -3
	SB1180201	H -9
	SB1181001	H -10
	SB1182101	H -16
	SB1192001	M -9
	SB1229001	P2 -5+
	SB1258001	F -32
	SB1267001	H -12
	SB1270001	Z -16
	Wa	Wa
	SB1271101	Z -17
	Wa	Wa
	SB1272001	Z -47
	SB1273001	Z -50
	SB1276001	G -9
	SB1277001	A -12
	SB1281001	H -14
	SB1285001	F -2
	SB1564001	T -17
	SB1600001	H -30
	SB1645101	Q -28
	SB1650101	F -13
	SB1652201	F -1
	SB1949001	B -42
	SB2255001	L -21
	SB2330001	E -7
	H	H -19
	SB3049001	K -33+
	SB3275001	P1 -10
	SB3329001	T -23
	SB3421001	A -37
	SB3543001	J -7
	SB3571101	J -4
	SB3847001	A -24
	SB3848001	K -36
	K	K -42
	N	N -9
	Z	Z -53
	SB3848001	D -36
	G	G -5
	J	J -9
	L	L -26
	Q	Q -12
	SB3849001	C2 -24
	Z	Z -3
	SB3928101	Z -18
	SB4038001	H -36
	SB4114001	Z -20
	SB4117001	Z -23
	SB4118001	Z -27
	Z	Z -32
	SB4119001	Z -24
	SB4120001	Z -31
	SB4149001	B -44+
	SB4155001	Q -30
	SB4158001	F -4
	SB4160001	D -31
	SB4161001	C1 -13
	SB4163001	F -41
	SB4164001	D -20
	SB4169001	Z -35
	SB4216001	H -35
	SB4261001	Q -21
	SB4276101	Q -7
	SB4435001	D -13
	SB4442101	H -37+
	SB4443101	H -37+
	SB4483001	C1 -8
	SB4486001	M -11
	SB4487001	M -10+
	SB4490001	Q -9+
	SB4504001	A -25
	SB4587301	P1 -13
	SB4589001	J -6
	SB4595201	K -28+
	SB4637101	Q -23
	SB4692001	C1 -56+
	SB4742001	F -30
	SB4789001	B -34+
	SB6791101	K -13
	SB6793001	K -23
	SB6798001	N -11
	SB6799101	N -16
	SB6800001	N -19
	SB6801001	N -21
	SB6803001	D -1
	SB6806101	D -11
	SB6807001	D -16
	SB6808001	D -22
	SB6809001	D -26
	SB6810001	A -5
	SB6811001	L -15
	SB6813001	L -3
	SB6815001	L -13
	SB6816001	L -1
	SB6818101	Q -15
	SB6819001	C1 -54+
	SB6820001	C1 -55+
	SB6821001	C1 -54+
	SB6822001	C1 -55+
	SB6823001	C1 -46
	SB6824001	C1 -47
	SB6825201	Q -31
	SB6826001	Q -32
	SB6829001	Q -33
	SB6830001	Q -36
	SB6832001	B -6
	SB6951001	E -27
	SB6952001	K -29
	SB6953001	K -34
	SB6957001	Ga
	SB7009101	F -33
	SB7056001	Sp
	SB7057001	Sp
	SB7058001	E -47
	Sp	Sp
	SB7061001	E -48
	SB7062001	Sp
	SB7065001	P1 -23
	SB7074001	P1 -22
	SB7077001	P1 -21
	SB7134001	B -17
	SB7135001	B -9
	SB7170001	Q -1
	SB7171001	Q -3
	SB7172001	Q -5
	SB7243001	Ga
	SB7244001	M -6
	SB7247001	E -46
	SB7463001	B -4
	SB7464001	B -8
	SB7465101	C1 -6
	SB7472101	B -44+
	SB7473101	B -55
	SB7476001	B -49
	SB7483001	B -48+
	SB7484001	B -11
	SB7485001	C1 -1
	SB7487001	F -27
	SB7490001	G -29
	SB7491001	G -30

Page 64

Brother KE-430HX / BE-438HX parts on page 64
Ref	Part number	Part name
- 48	SB7494001	F
- 1	SB7495101	J
- 39	SB7496001	F
- 29	SB7497001	F
- 28	SB7498001	G
- 1	SB7552001	S
- 14	SB7556001	K
- 26	SB7557101	G
- 50	SB7558001	B
- 1	SB7621001	B
- 40	SB7693101	Z
- 4	SB7739001	A
	SB7742001	Sp
	SB7743001	Sp
	SB7744001	Sp
	SB7745001	Sp
	SB7746001	Sp
	SB7747001	Sp
- 19	SB7748001	E
- 20	SB7749001	E
- 23	SB7750001	E
- 24	SB7751001	E
- 32	SB7752001	E
- 39	SB7753001	E
- 40	SB7754001	E
- 36	SB7755001	E
- 37	SB7756001	E
- 41	SB7757001	E
- 42	SB7758001	E
- 43	SB7759001	E
- 44	SB7760001	E
- 3	SB7761001	C2
- 4	SB7762001	C2
- 5	SB7763001	C2
- 8	SB7764001	C2
- 10	SB7765001	C2
- 20	SB7772001	C2
- 21	SB7773001	C2
- 22	SB7774001	C2
- 23	SB7775001	C2
- 2	SB7776001	C2
- 1+	SB7777001	C2
- 1+	SB77770E1	C2
- 13	SB7893001	C2
- 14	SB7894001	C2
- 16	SB7895001	C2
- 12	SB7896001	C2
- 11	SB7897001	C2
- 19	SB7898001	T
- 1	SB7900001	T
- 43	SB7901001	F
- 45	SB7902101	F
- 18	SB7906001	G
- 15	SB7907001	G
- 46	SB7909001	F
- 41+	SB7911001	A
- 31	SB7918001	A
- 4	SB8096001	P1
- 36	SB8587001	F
- 37	SB8588001	F

Brother KE-430HX / BE-438HX Parts Book (PDF)

Page 7 — A. 主体関係 / Machine body

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 11 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 13 — C1. 送り関係 / Feed mechanism

Page 15 — C1. 送り関係 / Feed mechanism

Page 17 — C2. 送り関係 (オプション部品) / Feed mechanism (Option parts)

Page 19 — D. 押え上げ関係 / Work clamp lifter mechanism

Page 21 — E. ボタンつかみ / Button clamp mechanism

Page 23 — F. 下軸関係 / Lower shaft mechanism

Page 25 — G. 給油潤滑関係 / Lubrication

Page 27 — H. 糸通し関係 / Threading mechanism

Page 29 — J. 糸巻関係 / Bobbin winder mechanism

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

Page 33 — L. 糸払い関係 / Thread wiper mechanism

Page 35 — M. 糸ゆるめ関係 / Tension release mechanism

Page 37 — N. 糸つかみ関係 (KE-430HX-3,-K,-1用) / Thread nipper mechanism (For KE-430HX-3,-K,-1)

Page 39 — P1. コントロールボックス関係 / Control box

Page 41 — P2. コントロールボックス関係 / Control box

Page 43 — Q. 電装品・モーター関係 / Power supply equipment and motor mechanism

Page 45 — R. 操作パネル関係 / Operation panel

Page 47 — S. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Page 49 — T. 補助装置関係 (BE-438H用オプション部品) / Auxiliary device (Option parts for BE-438H)

Page 51 — Z. 付属部品関係 / Accessories

Page 53 — Z. 付属部品関係 / Accessories

Page 54 — Wa. 警告ラベル / Warning labels

Page 55 — Wa. 警告ラベル / Warning labels

Page 56 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Page 57 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Page 58 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Page 59 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Page 60 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS, BE-438HX) / Gauge parts list (KE-430HX, KE-430HS, BE-438HX)

Page 61 — 索引 / Index

Page 62

Page 63 — 索引 / Index

Page 64

Part Books

Search

Parts on page 1

Parts on page 1

Page 7 — A. 主体関係 / Machine body

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 11 — B. 上軸 ・針棒関係 / Upper shaft and needle bar mechanism

Page 13 — C1. 送り関係 / Feed mechanism

Page 15 — C1. 送り関係 / Feed mechanism

Page 17 — C2. 送り関係 (オプション部品) / Feed mechanism (Option parts)

Page 19 — D. 押え上げ関係 / Work clamp lifter mechanism

Page 21 — E. ボタンつかみ / Button clamp mechanism

Page 23 — F. 下軸関係 / Lower shaft mechanism

Page 25 — G. 給油潤滑関係 / Lubrication

Page 27 — H. 糸通し関係 / Threading mechanism

Page 29 — J. 糸巻関係 / Bobbin winder mechanism

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

Page 33 — L. 糸払い関係 / Thread wiper mechanism

Page 35 — M. 糸ゆるめ関係 / Tension release mechanism

Page 37 — N. 糸つかみ関係 (KE-430HX-3,-K,-1用) / Thread nipper mechanism (For KE-430HX-3,-K,-1)

Page 39 — P1. コントロールボックス関係 / Control box

Page 41 — P2. コントロールボックス関係 / Control box

Page 43 — Q. 電装品・モーター関係 / Power supply equipment and motor mechanism

Page 45 — R. 操作パネル関係 / Operation panel

Page 47 — S. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Page 49 — T. 補助装置関係 (BE-438H用オプション部品) / Auxiliary device (Option parts for BE-438H)

Page 51 — Z. 付属部品関係 / Accessories

Page 53 — Z. 付属部品関係 / Accessories

Page 54 — Wa. 警告ラベル / Warning labels

Page 55 — Wa. 警告ラベル / Warning labels

Page 56 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Page 57 — Sp. 仕様別部品一覧表(KE-430HX, KE-430HS, BE-438HX) / Different parts list (KE-430HX, KE-430HS, BE-438HX)

Page 58 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Page 59 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS) / Gauge parts list (KE-430HX, KE-430HS)

Page 60 — Ga. ゲージ部品一覧表 (KE-430HX, KE-430HS, BE-438HX) / Gauge parts list (KE-430HX, KE-430HS, BE-438HX)

Page 61 — 索 引 / Index

Page 62

Page 63 — 索 引 / Index

Page 64

Brother KE-430HX / BE-438HX — parts catalog

Page 11 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Page 61 — 索引 / Index

Page 63 — 索引 / Index
