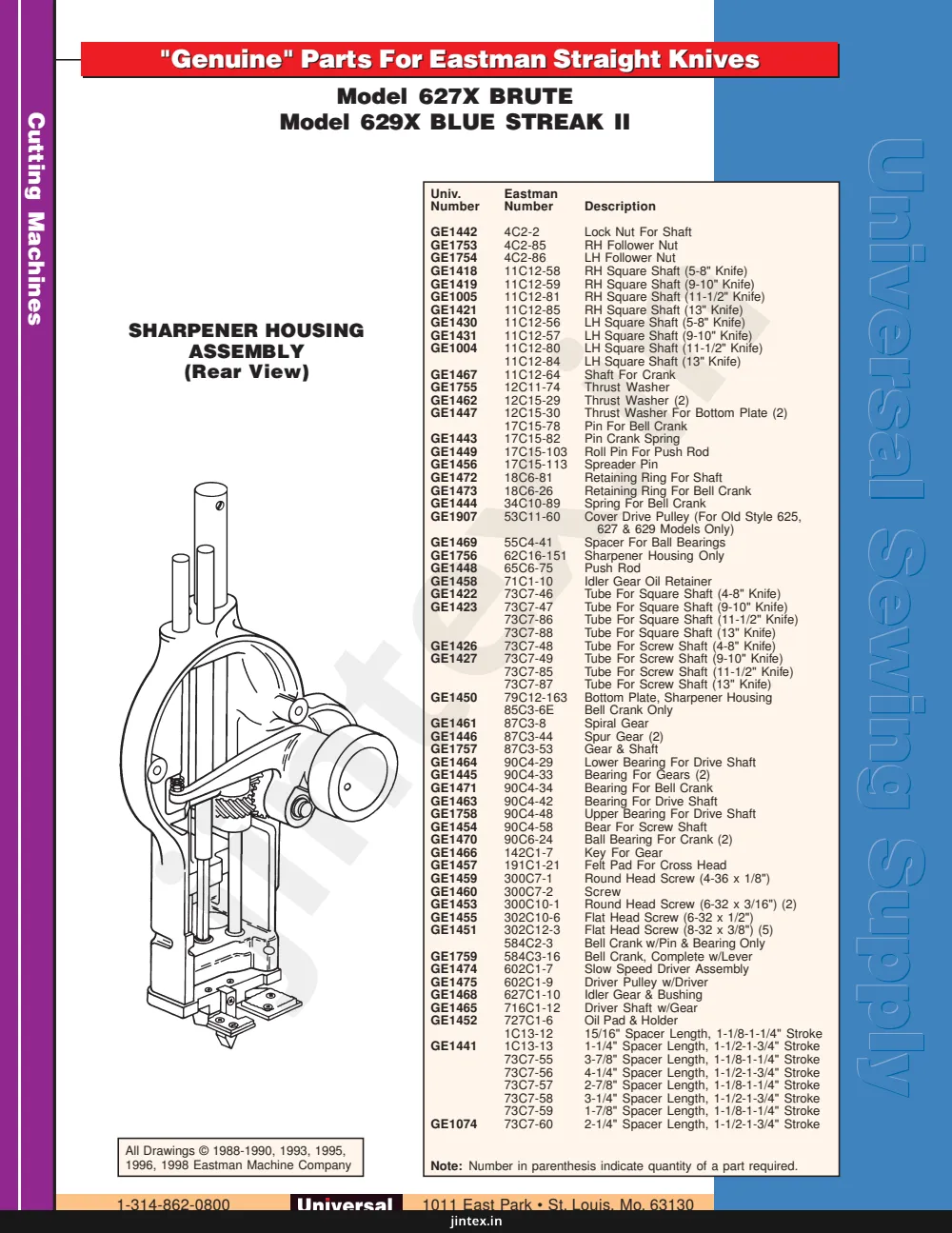

Page 1 — Model 627X BRUTE Model 629X BLUE STREAK II
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4C1-99 | Sharpener Hold Down Nut (3) | ||
| 4C1-150 | Sharpener Hold Down Nut | ||
| 4C1-179 | Front to Rear Bearing Nut (4) | ||
| 4C2-2 | Plate Bolt Nut | ||
| 20C3-38 | Front to Rear Bearing Screw (4) | ||
| 20C3-39 | Front to Rear Bearing Screw (4) | ||
| 20C13-96 | Standard to Bearing Screw (4) | ||
| 24C4 | Plate Bolt | ||
| 20C3-3 | 20C3-3 |
Page 2 — Bevel Bloc Shoe Assembly
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GE1696 | Socket Set Screw | ||
| GE1561 | Nut (L.H.) (2) | ||
| GE1115 | Conversion Kit (R.H. & L.H. Shoes) | ||
| GE1654 | Washer Shoe (4) | ||
| GE1495 | Adjusting Screw | ||
| GE1657 | Screw For Sharpener Shoe (2) | ||
| GE1697 | Shoe Bushing (2) | ||
| GE1698 | Spring Shoe (L.H.) | ||
| GE1699 | Spring Shoe (R.H.) | ||
| GE1700 | Sharpener Shoe (R.H.) | ||
| GE1701 | Sharpener Shoe (L.H.) | ||
| GE1119 | Conversion Kit (includes * parts above) | ||
| 20C13-63 | Socket Set Screw | ||
| 766C1-1 | Bevel Bloc Assembly (L.H.) | ||
| 308C10-1 | Socket Set Screw | ||
| 4C2-63 | REF. | ||
| 715C1-16 | Lower Gear Bracket (5"-10" Knife, Complete) | ||
| 715C1-18 | Lwr. Gear Brkt. (11-1/2"-13" Knife, Complete) | ||
| 820C1-40 | Conversion Kit (R.H. & L.H. Shoes) | ||
| 12C15-93 | Washer Shoe | (4) | |
| 20C6-25 | Adjusting Screw | ||
| 20C12-153 | Screw For Sharpener Shoe | (2) | |
| 21C14-7 | Shoe Bushing | (2) | |
| 34C10-145 | Shoe (R.H.) | ||
| 34C10-146 | Spring Shoe (R.H.) | ||
| 95C5-5 | Allen Wrench | ||
| 103C2-35 | Sharpener Shoe (R.H.) | ||
| 103C2-36 | Sharpener Shoe (L.H.) | ||
| 820C1-39 | Conversion Kit (includes * parts above) |
Page 3 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1C4-8 **** | Cutout Sleeve | ||
| 4C1-145 | Shaft Lock Nut | ||
| 4C2-87 | Clutch Nut | ||
| 8C5-10 *** | Automatic Switch Insulation | ||
| 8C12-4 *** | Lead Wire Insulation (2) | ||
| 10C1-41 | Rotor Fan | ||
| 12C1-12 | Loading Spring Washer | ||
| 12C1-32 | Lock Washer | ||
| 13C1-9 | Turning Knob | ||
| 18C6-16 | Retaining Ring | ||
| 22C1-24 ** | Carrying Handle | ||
| 30C1-8 | Dust Cap | ||
| 34C1-51 | Clutch Spring | ||
| 47C4-79 *** | Terminal | ||
| 47C4-80 *** | Terminal | ||
| 53C7-35 | Fan Cover | ||
| 67C1-10 **** | Cutout Mount | ||
| 73C7-121 | Terminal Wire Tubing | ||
| 79C2-26 **** | Direction Arrow Plate | ||
| 90C1-146 | Rear Bearing Housing | ||
| 90C6-46 | Rear Ball Bearing | ||
| 199C1-23 **** | Wire Lug (3) | ||
| 254C1 | Cable Tie (4") | ||
| 300C12-3 **** | Round Head Screw (8-32 x 3/8") (2) | ||
| 300C12-6 | Round Head Screw (4) | ||
| 301C8-1 | Fillister Head Screw (4-40 x 1/2") (3) | ||
| 301C12-3 *** | Fillister Head Screw (8-32 x 3/8") (2) | ||
| 305C8-1 | Binding Head Screw (10) | ||
| 305C10-1 | Binding Head Screw | ||
| 513C3-206 ** | Rotor w/Shaft | ||
| 513C3-225 * | Rotor w/Shaft | ||
| 514C5-109 *&*** | Stator w/Band (110V, 60Hz, 3600RPM) | ||
| 514C5-114 *&*** | Stator w/Band (110V, 60Hz, 1800/3600RPM) | ||
| 514C5-127 **&*** | Stator w/Band (110V, 60Hz, 3600RPM) | ||
| 514C5-129 **&*** | Stator w/Band (110V, 60Hz, 1500/3000RPM) | ||
| 514C5-146 **&**** | Stator w/Band (220V, 60Hz, 3600RPM) | ||
| 514C5-148 **&**** | Stator w/Band (220V, 60Hz, 1800/3600RPM) | ||
| 514C5-155 *&**** | Stator w/Band (220V, 60Hz, 3600RPM) | ||
| 514C5-158 *&**** | Stator w/Band (220V, 60Hz, 1800/3600RPM) | ||
| 580C1-191 *** | Cutout Switch (Dual Speed) | ||
| 580C1-192 *** | Cutout Switch (Single Speed) | ||
| 597C2-14 *** | Cutout Assembly (60C, 3600RPM) | ||
| 597C2-25 *** | Cutout Assembly (60C, 1500/3000RPM) | ||
| 783C1-3 | Grounding Wire Assembly |
Page 4 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 514C5-109 | STATOR WITH BAND SINGLE-PHASE SINGLE-SPEED | ||
| 514C5-127 | STATOR WITH BAND SINGLE-PHASE SINGLE-SPEED | ||
| 514C5-114 | STATOR WITH BAND SINGLE-PHASE DUAL-SPEED | ||
| 514C5-129 | STATOR WITH BAND SINGLE-PHASE DUAL-SPEED | ||
| 514C5-146 | STATOR WITH BAND THREE-PHASE SINGLE-SPEED | ||
| 514C5-155 | STATOR WITH BAND THREE-PHASE SINGLE-SPEED | ||
| 514C5-148 | STATOR WITH BAND THREE-PHASE DUAL-SPEED | ||
| 514C5-158 | STATOR WITH BAND THREE-PHASE DUAL-SPEED | ||
| 580C1-192 | CUTOUT SWITCH (1-Phase) Single Speed | ||
| 580C1-191 | CUTOUT SWITCH (1-Phase) Dual Speed | ||
| 597C2-14 | CUTOUT ASSY. (1-Phase) SINGLE SPEED 60Hz. 3600 R.P.M. | ||
| 597C2-25 | CUTOUT ASSY. (1-Phase) DUAL SPEED 60CY. 1800/3600R.P.M. | ||
| 300C12-6 | |||
| 22C1-24 | |||
| 783C1-3. | |||
| 12C1-32 | |||
| 305C10-1. | |||
| 73C7-121 | |||
| 73C7-121 | |||
| 8C12-4 | |||
| 67C1-10 | |||
| 8C5-10 | |||
| 300C12-3 | |||
| 301C12-3 | |||
| 1C4-8 | |||
| 90C1-146 | |||
| 12C1-12 | |||
| 90C6-46 | |||
| 513C3-240 | |||
| 513C3-241 | |||
| 73C7-121 | |||
| 79C2-26 | |||
| 199C1-23 | |||
| 47C4-80 | |||
| 254C1 | |||
| 47C4-79 | |||
| 301C8-1 | |||
| 13C1-9 | |||
| 34C1-51 | |||
| 18C6-16 | |||
| 305C8-1 | |||
| 4C2-87 | |||
| 4C1-145 | |||
| 53C7-35 | |||
| 10C1-41 | |||
| 30C1-8 |
Page 5 — FRONT BEARING HOUSING (90C2-162) with Oiler Assembly
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4C1-111 | Operating Handle Lock Nut | ||
| 4C1-132 | Crank Ball Bearing Lock Nut | ||
| 4C1-190 | Lock Nut For Shaft | ||
| 4C2-91 | Nut For Guide Screw | ||
| 4C2-110 | Stop Nut | ||
| 11C12-92 | Guide Adjustment Nut (3) | ||
| 12C1-21 | Shaft For Ball Bearing | ||
| 12C1-24 | Knife Lock Washer | ||
| 12C10-2 | Washer (3) | ||
| 12C15-14 | Connecting Rod Washer | ||
| 12C15-53 | Upper Stud (2) | ||
| 15C13-23 | Lower LH Mounting Stud | ||
| 15C13-34 | Lower RH Mounting Stud | ||
| 15C13-39 | Wrist Pin | ||
| 17C4-6 | Lock Ring | ||
| 18C6-79 | O-Ring | ||
| 18C6-80 | Connecting Rod Clamp Screw (2) | ||
| 20C5-17 | Front Housing Plug Screw | ||
| 20C12-62 | Screw For Handle Bracket | ||
| 20C12-79 | Guide Hold Down Screw | ||
| 20C12-122 | Knife Lock Bolt | ||
| 24C1-3 | Spring For Capacitor | ||
| 52C5-235 | Switch Plate (Dual Speed, 1 Ph.) | ||
| 52C5-236 | Switch Cover | ||
| 53C2-111 | Oil Tube Cover | ||
| 53C6-2 | Capacitor Cover | ||
| 53C11-91 | Wrist Pin Plug | ||
| 54C4-32 | Handle Bracket | ||
| 62C1-140 | Front Bearing Retainer | ||
| 71C3-18 | Oil Hole Cover | ||
| 72C4-28 | Oil Tube, Clear | ||
| 73C7-203 | Oiler Tube | ||
| 73C7-204 | Crank (1-3/4" Stroke) | ||
| 85C1-44 | Crank (1-1/2" Stroke) | ||
| 85C1-45 | Crank (1-1/4" Stroke) | ||
| 85C1-46 | Crank (1-1/8" Stroke) | ||
| 85C1-52 | Front Bearing Housing | ||
| 90C6-38 | Sealed Crank Ball Bearing | ||
| 90C6-46 | Rivet Crosshead (2) | ||
| 91C4-25 | Gauge, Clear | ||
| 141C1-46 | Crosshead Felt Pad | ||
| 191C1-21 | Wrist Pin Felt Pad | ||
| 191C1-38 | Oil Felt Wicking, Long | ||
| 191C1-42 | Oil Felt Wicking, Short | ||
| 191C1-43 | Oil Felt Wicking (.187" x .44") | ||
| 191C1-45 | Eyelet | ||
| 201C1-11 | TV Sealer | ||
| 222C1-7 | Round Head Screw (2-56 x 1/8") (4) | ||
| 300C3-2 | Round Head Screw (6-32 x 3/8") (2) | ||
| 302C8-2 | Binding Head Screw (4-40 x 1/4") (7) | ||
| 305C8-1 | Screw | ||
| 308C14-1 | Guide Hold Down Screw (4) | ||
| 309C15-5 | Guide Adjustment Screw (3) | ||
| 525C1-4 | LH & RH Guides (1-3/4" Stroke) | ||
| 525C1-5 | LH & RH Guides (1-1/2" Stroke) | ||
| 525C1-1 | LH & RH Guides (1-1/2" Stroke) | ||
| 525C1-6 | LH & RH Guides (1-1/2" Stroke) | ||
| 525C1-7 | LH & RH Guides (1-1/8" Stroke) | ||
| 531C1-53 | Operating Handle | ||
| 531C1-76 | Cushion Grip Handle | ||
| 579C2-17 | Crosshead W/Lock Washer & Bolt | ||
| 580C1-100 | Switch, Dual Speed (3 Phase) | ||
| 580C1-198 | Switch, Single Speed (1 & 3 Phase) | ||
| 580C1-199 | Switch, Dual Speed (1 Phase) | ||
| 607C1-31 | Oiling Device | ||
| 664C1-3 | Connecting Rod (1-3/4" Stroke) | ||
| 664C1-4 | Connecting Rod (1-1/2" Stroke) | ||
| 664C1-5 | Connecting Rod (1-1/4" Stroke) | ||
| 664C1-6 | Connecting Rod (1-1/8" Stroke) | ||
| 706C1-4 | Capacitor (220 Volt) | ||
| 706C1-5 | Capacitor (110 Volt) | ||
| 706C1-13 | Capacitor (220 Volt) | ||
| 706C1-18 | Capacitor (220 Volt) |
Page 6 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 706C1-4 | |||
| 706C1-5 | |||
| 706C1-13 | |||
| 706C1-18 | |||
| 308C12-1 | |||
| 305C8-1 | |||
| 34C10-142 | |||
| 53C11-91 | |||
| 305C8-1 | |||
| 4C2-110 | |||
| 90C2-162 | |||
| 72C4-28 | |||
| 62C1-140 | |||
| 307C18-1 | |||
| 20C12-79 | |||
| 580C1-100 | |||
| 305C8-1 | |||
| 52C5-194 | |||
| 300C10-4 | |||
| 53C2-111 | |||
| 20C12-62 | |||
| 12C10-2 | |||
| 90C6-38 | |||
| 4C2-91 | |||
| 309C15-5 | |||
| 302C10-4 | |||
| 71C3-18 | |||
| 18C6-80 | |||
| 85C1-52 | |||
| 85C1-46 | |||
| 85C1-45 | |||
| 85C1-44 | |||
| 531C1-53 | |||
| 531C1-76 | |||
| 531C1-87 | |||
| 531C1-88 | |||
| 4C1-111 | |||
| 18C6-79 | |||
| 141C1-46 | |||
| 308C12-1 | |||
| 15C13-23 | |||
| 15C13-34 | |||
| 15C13-39 | |||
| 4C3-8 | |||
| 52C5-235 | |||
| 305C8-1 | |||
| 580C1-198 | |||
| 607C1-31 | |||
| 300C3-2 | |||
| 53C6-2 | |||
| 191C1-42 | |||
| 191C1-43 | |||
| 201C1-11 | |||
| 302C8-2 | |||
| 222C1-7 | |||
| 73C7-203 | |||
| 73C7-204 | |||
| 191C1-45 | |||
| 607C1-35 | |||
| 52C5-236 | |||
| 580C1-199 | |||
| 664C1-6 | |||
| 664C1-5 | |||
| 664C1-4 | |||
| 664C1-3 | |||
| 11C12-92 | |||
| 4C1-132 | |||
| 90C6-46 | |||
| 4C1-190 | |||
| 20C12-122 | |||
| 308C14-1 | |||
| 12C15-14 | |||
| 579C2-17 | |||
| 191C1-21 | |||
| 17C4-6 | |||
| 191C1-38 | |||
| 24C1-3 | |||
| 12C1-24 | |||
| 12C1-21 | |||
| 54C4-32 | |||
| 91C4-25 | |||
| 12C15-53 | |||
| 20C5-17 | |||
| 525C1-7 | |||
| 525C1-6 | |||
| 525C1-5 | |||
| 525C1-1 | |||
| 525C1-4 |
Page 7 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4C1-149 | Nut, Elastic | ||
| 4C1-161 | Nut, Self Locking | ||
| 4C2-112 | R.H. Nut For Screw Shaft | ||
| 4C2-113 | L.H. Nut For Screw Shaft | ||
| 5C5-16 | Collar, Lower | ||
| 11C12-54 | Shaft For Cam | ||
| 12C15-57 | Spring Washer For Release Lever | ||
| 12C15-69 | Washer For Lock Bracket | ||
| 12C15-74 | Washer, Flat (4) | ||
| 12C15-91 | Thrust Washer, Upper Nut (2) | ||
| 17C15-106 | Roll Pin For Collar | ||
| 20C4-17 | Pressure Foot Lever Screw | ||
| 20C12-13 | Cam Shaft Spring Screw | ||
| 20C12-113 | Screw For Latch | ||
| 20C12-117 | Screw For Pressure Foot Shoe (2) | ||
| 20C12-156 | Screw For Release Lever | ||
| 20C12-137 | Screw For Knife Guard Lock | ||
| 22C3-2 | Lift Handle For Knife Guard Lock | ||
| 34C1-20 | Tension Spring | ||
| 34C8-12 | Spring For Pressure Foot Lock | ||
| 34C10-179 | Spring For Pressure Foot Lever | ||
| 34C10-107 | Spring For Latch | ||
| 53C11-72 | Cover For Cam | ||
| 55C4-49 | Spacer For Knife Guard Lock Bracket | ||
| 68C1-192 | Pressure Foot Shoe (All Strokes) | ||
| 71C3-15 | Thrust Ball Bearing (3) | ||
| 86C7-34 | Cap For Tube | ||
| 90C4-47 | Bearing For Cam Shaft | ||
| 97C3-35 | Latch For Cam | ||
| 147C1-26 | Extension For Screw Shaft | ||
| 171C1-16 | Lock (Only) For Pressure Foot | ||
| 300C10-1 | Round Head Screw (6-32 x 3/16") (2) | ||
| 300C10-4 | Round Head Screw (6-32 x 3/8") (4) | ||
| 302C10-4 | Flat Head Screw (6-32 x 5/16") | ||
| 302C10-8 | Flat Head Screw (6-32 x 3/4") | ||
| 553C1-7 | Pressure Foot Lock Bracket, Complete | ||
| 553C1-8 | Knife Guard Lock Bracket Only | ||
| 605C1-36 | Knife Guard Rod (7-8" Knife) | ||
| 605C1-37 | Knife Guard Rod (9-10" Knife) | ||
| 605C1-33 | Knife Guard Rod (11-1/2" Knife) | ||
| 605C1-34 | Knife Guard Rod (13" Knife) | ||
| 621C1-7 | Release Lever w/Cam | ||
| 683C1-17 | Pressure Foot Lever | ||
| 713C4-4 | Screw Shaft w/Extension | ||
| 713C4-5 | Screw Shaft w/Extension | ||
| 713C4-6 | Screw Shaft w/Extension | ||
| 732C1-11 | Sharpener Housing w/Bushings & Tubes Only (5-8" Knife) | ||
| 732C1-12 | Sharpener Housing | ||
| 53C11-103 | Vinyl Cover For Handle | ||
| 309C15-7 | Set Screw For Cam | ||
| 713C4-7 | Screw Shaft w/Extension (R & L Hand Nuts (13" Knife)) | ||
| 732C1-17 | Sharpening Housing w/Bushings & Tubes Only (13" Knife) |
Page 8 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 86C7-34 | |||
| 4C1-149 | |||
| 12C15-91 | |||
| 71C3-15- | |||
| 12C15-91 | |||
| *4C2-113- | |||
| 12C15-74 | |||
| 71C3-15- | |||
| 12C15-74 | |||
| *4C2-112- | |||
| 12C15-74 | |||
| 71C3-15- | |||
| 12C15-74 | |||
| 300C10-1 | |||
| 22C3-2 | |||
| 605C1-36 | |||
| 605C1-37 | |||
| 605C1-33 | |||
| 605C1-34 | |||
| 713C4-4 | Screw Shaft with Extension, R. & L. Hand Nuts 5"-8" | ||
| 713C4-5 | Screw Shaft with Extension, R. & L. Hand Nuts 9"-10" | ||
| 713C4-6 | Screw Shaft with Extension, R. & L. Hand Nuts 11-1/2" | ||
| 713C4-7 | Screw Shaft with Extension, R. & L. Hand Nuts 13" | ||
| 147C1-26 | |||
| 5C5-16 | |||
| 17C15-106 | |||
| 732C1-11 | |||
| 732C1-12 | |||
| 732C1-17 | |||
| 12C15-57 | |||
| 20C12-156 | |||
| 621C1-7 | |||
| 309C15-7 | |||
| 97C3-35 | |||
| 34C10-107 | |||
| 20C12-113 | |||
| 34C1-20 | |||
| 11C12-54 | |||
| 90C4-47 | |||
| 53C11-103 | |||
| 683C1-17 | |||
| 34C10-179 | |||
| 20C4-17 | |||
| 20C12-13 | |||
| 55C4-49 | |||
| 68C1-192 | |||
| 20C12-117 | |||
| 53C11-72 | |||
| 302C10-8 | |||
| 302C10-4 | |||
| 300C10-4 | |||
| 553C1-7- | |||
| 34C8-12- | |||
| 171C1-16 | |||
| 12C15-69 | |||
| 553C1-8 | |||
| 4C1-161 | |||
| 20C12-137- |
Page 9 — SHARPENER HOUSING ASSEMBLY (Rear View)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4C2-2 | Lock Nut For Shaft | ||
| 4C2-85 | RH Follower Nut | ||
| 4C2-86 | LH Follower Nut | ||
| 11C12-58 | RH Square Shaft (5-8" Knife) | ||
| 11C12-59 | RH Square Shaft (9-10" Knife) | ||
| 11C12-81 | RH Square Shaft (11-1/2" Knife) | ||
| 11C12-85 | RH Square Shaft (13" Knife) | ||
| 11C12-56 | LH Square Shaft (5-8" Knife) | ||
| 11C12-57 | LH Square Shaft (9-10" Knife) | ||
| 11C12-80 | LH Square Shaft (11-1/2" Knife) | ||
| 11C12-64 | Shaft For Crank | ||
| 12C11-74 | Thrust Washer | ||
| 12C15-29 | Thrust Washer (2) | ||
| 12C15-30 | Thrust Washer For Bottom Plate (2) | ||
| 17C15-82 | Pin Crank Spring | ||
| 17C15-103 | Roll Pin For Push Rod | ||
| 17C15-113 | Spreader Pin | ||
| 18C6-81 | Retaining Ring For Shaft | ||
| 18C6-26 | Retaining Ring For Bell Crank | ||
| 34C10-89 | Spring For Bell Crank | ||
| 53C11-60 | Cover Drive Pulley (For Old Style 625, 627 & 629 Models Only) | ||
| 55C4-41 | Spacer For Ball Bearings | ||
| 62C16-151 | Sharpener Housing Only | ||
| 65C6-75 | Push Rod | ||
| 71C1-10 | Idler Gear Oil Retainer | ||
| 73C7-46 | Tube For Square Shaft (4-8" Knife) | ||
| 73C7-47 | Tube For Square Shaft (9-10" Knife) | ||
| 73C7-48 | Tube For Screw Shaft (4-8" Knife) | ||
| 73C7-49 | Tube For Screw Shaft (9-10" Knife) | ||
| 79C12-163 | Bottom Plate, Sharpener Housing | ||
| 87C3-8 | Spiral Gear | ||
| 87C3-44 | Spur Gear (2) | ||
| 87C3-53 | Gear & Shaft | ||
| 90C4-29 | Lower Bearing For Drive Shaft | ||
| 90C4-33 | Bearing For Gears (2) | ||
| 90C4-34 | Bearing For Bell Crank | ||
| 90C4-42 | Bearing For Drive Shaft | ||
| 90C4-48 | Upper Bearing For Drive Shaft | ||
| 90C4-58 | Bear For Screw Shaft | ||
| 90C6-24 | Ball Bearing For Crank (2) | ||
| 142C1-7 | Key For Gear | ||
| 191C1-21 | Felt Pad For Cross Head | ||
| 300C7-1 | Round Head Screw (4-36 x 1/8") | ||
| 300C7-2 | Screw | ||
| 300C10-1 | Round Head Screw (6-32 x 3/16") (2) | ||
| 302C10-6 | Flat Head Screw (6-32 x 1/2") | ||
| 302C12-3 | Flat Head Screw (8-32 x 3/8") (5) | ||
| 584C3-16 | Bell Crank, Complete w/Lever | ||
| 602C1-7 | Slow Speed Driver Assembly | ||
| 602C1-9 | Driver Pulley w/Driver | ||
| 627C1-10 | Idler Gear & Bushing | ||
| 716C1-12 | Driver Shaft w/Gear | ||
| 727C1-6 | Oil Pad & Holder | ||
| 1C13-13 | 1-1/4" Spacer Length, 1-1/2-1-3/4" Stroke | ||
| 73C7-60 | 2-1/4" Spacer Length, 1-1/2-1-3/4" Stroke | ||
| 11C12-84 | LH Square Shaft (13" Knife) | ||
| 17C15-78 | Pin For Bell Crank | ||
| 73C7-86 | Tube For Square Shaft (11-1/2" Knife) | ||
| 73C7-88 | Tube For Square Shaft (13" Knife) | ||
| 73C7-87 | Tube For Screw Shaft (11-1/2" Knife) | ||
| 73C7-59 | Tube For Screw Shaft (13" Knife) | ||
| 85C3-6E | Bell Crank Only | ||
| 1C13-12 | 15/16" Spacer Length, 1-1/8-1-1/4" Stroke | ||
| 73C7-55 | 3-7/8" Spacer Length, 1-1/8-1-1/4" Stroke | ||
| 73C7-56 | 4-1/4" Spacer Length, 1-1/8-1-1/4" Stroke | ||
| 73C7-57 | 2-7/8" Spacer Length, 1-1/8-1-1/4" Stroke | ||
| 73C7-58 | 3-1/4" Spacer Length, 1-1/8-1-1/4" Stroke |
Page 10 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11C12-58 | 5"-8" Knife | ||
| 11C12-59 | 9"-10" Knife | ||
| 11C12-81 | 11-1/2" Knife | ||
| 11C12-85 | 13" Knife | ||
| 73C7-46 | 5"-8" Knife | ||
| 73C7-47 | 9"-10" Knife | ||
| 73C7-86 | 11-1/2" Knife | ||
| 73C7-88 | 13" Knife | ||
| 73C7-48 | 5"-8" Knife | ||
| 73C7-49 | 9"-10" Knife | ||
| 73C7-85 | 11-1/2" Knife | ||
| 73C7-87 | 13" Knife | ||
| 11C12-56 | 5"-8" Knife | ||
| 11C12-57 | 9"-10" Knife | ||
| 11C12-80 | 11-1/2" Knife | ||
| 11C12-84 | 13" Knife | ||
| 4C2-86 | |||
| 4C2-85 | |||
| 62C16-151 | |||
| 53C11-60 | |||
| 191C1-21 | |||
| 71C1-10 | |||
| 300C7-2 | |||
| 300C7-1 | |||
| 11C12-64 | |||
| 627C1-10 | |||
| 87C3-53 | |||
| 584C3-16 | Bell Crank Complete | ||
| 584C2-3 | Bell Crank with Pin & Brg. Only | ||
| 85C3-6 | Bell Crank Only | ||
| 55C4-41 | |||
| 90C6-24 | |||
| 90C6-24 | |||
| 18C6-26 | |||
| 602C1-7 | |||
| 602C1-9 | |||
| 18C6-81 | |||
| 90C4-34 | |||
| 17C15-78 | |||
| 716C1-12 | |||
| 142C1-7 | |||
| 12C11-74 | |||
| 90C4-48 | |||
| 12C15-29 | |||
| 87C3-8 | |||
| 12C15-29 | |||
| 90C4-42 | |||
| 90C4-29 | |||
| 90C4-33 | |||
| 87C3-44 | |||
| 12C15-30 | |||
| 90C4-33 | |||
| 87C3-44 | |||
| 12C15-30 | |||
| 65C6-75 | |||
| 17C15-103 | |||
| 90C4-58 | |||
| 79C12-163 | |||
| 302C12-3 | |||
| 302C10-6 | |||
| 727C1-6 | |||
| 17C15-113 | |||
| 300C10-1 | |||
| 34C10-89 | |||
| 17C15-82 | |||
| 73C7-55 | |||
| 73C7-56 | |||
| 73C7-57 | |||
| 73C7-58 | |||
| 73C7-59 | |||
| 73C7-60 | |||
| 1C13-12 | |||
| 1C13-13 | |||
| GE1474 | 87C3-12 | ||
| GE1470 | 90C6-24 | ||
| GE1469 | 4C1-14 |
Page 11 — LOWER GEAR BRACKET ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4C1-189 | Jam Nut (8-32) | ||
| 4C2-63 | Nut For Sharpener Shoe Screw (2) | ||
| 12C15-93 | Washer, Shoe (4) | ||
| 17C15-106 | Roll Pin (For Pulley #152C1-19) (2) | ||
| 20C6-25 | Adjusting Screw | ||
| 20C12-143 | Screw For Clamping Arm | ||
| 20C12-153 | Screw For Sharpener Shoe (2) | ||
| 21C14-14 | Bushing For Sharpener Shoe (2) | ||
| 34C10-45 | Spring For Pulley Slide (2) | ||
| 34C10-47 | Spring For LH Shoe (Wave Knife Only) | ||
| 34C10-57 | Spring For RH Shoe (Wave Knife Only) | ||
| 34C10-123 | Spring For Arm | ||
| 34C10-148 | Spring For LH Sharpener Shoe | ||
| 34C10-149 | Spring For RH Sharpener Shoe | ||
| 35C7-28 | Clamping Arm For Shoe | ||
| 53C4-78 | Gear Cover | ||
| 54C4-35 | Oil Hole Plug | ||
| 62C6-31 | Bracket, Lower Gear | ||
| 70C4-32 | Guide Back Of Standard | ||
| 79C12-219 | Wear Plate (2) | ||
| 87C3-50 | Gear On Screw Shaft | ||
| 87C5-13 | Intermediate Gear | ||
| 90C4-47 | Bearing For Intermediate Gear | ||
| 90C4-51 | Bearing For Screw Shaft | ||
| 90C4-59 | Bearing For Shaft Extension (2) | ||
| 147C1-28 | RH Shaft Extension | ||
| 147C1-29 | LH Shaft Extension | ||
| 152C1-19 | Front Pulley For Belt (2) | ||
| 209C1 | Neoprene Band For Pulley (2) | ||
| 300C7-3 | Round Head Screw (4-36 x 1/4") (4) | ||
| 300C10-2 | Round Head Screw (6-32 x 1/4") (2) | ||
| 300C10-6 | Round Head Screw (6-32 x 1/2") (3) | ||
| 301C7-2 | Fillister Head Screw (4-36 x 3/16") (2) | ||
| 301C10-3 | Fillister Head Screw (6-32 x 3/8") | ||
| 712C1 | RH Slide w/Pulley | ||
| 712C1-1 | LH Slide w/Pulley | ||
| 715C1-19 | Lower Gear Bracket w/Cover, Bearings, Screws & Wear Plate (5"—13" Knives) | ||
| 715C1-23 | Lower Gear Bracket, Complete | ||
| 728C1-5 | Stabilizer Assembly (2) | ||
| 743C1-26 | RH Shoe (Wave Knife Only) | ||
| 743C1-27 | LH Shoe (Wave Knife Only) | ||
| 743C1-28 | RH Pre-Set Sharpener Shoe Only | ||
| 743C1-29 | LH Pre-Set Sharpener Shoe Only | ||
| 820C1-7 | LH Complete Shoe Assembly | ||
| 820C1-8 | RH Complete Shoe Assembly |
Page 12 — "Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 715C1-23 | 715C1-23 | Lower Gear Bracket Assembly Complete | |
| 147C1-29 | |||
| 300C10-2 | |||
| 70C4-32 | |||
| 147C1-28 | |||
| 20C6-25 | |||
| 300C10-6 | |||
| 301C10-3 | |||
| 53C4-78 | |||
| 34C10-123 | |||
| 35C7-28 | |||
| 20C12-143 | |||
| 300C7-3 | |||
| 300C7-3 | |||
| 728C1-5 | |||
| 728C1-5 | |||
| 87C5-13 | |||
| 4C2-63 | |||
| 301C7-2 | |||
| 34C10-45 | |||
| 712C1-1 | |||
| 712C1 | |||
| 34C10-45 | |||
| 79C12-219 | |||
| 301C7-2 | |||
| 87C3-50 | |||
| 54C4-35 | |||
| 62C6-31 | |||
| 715C1-19 | |||
| 90C4-51 | |||
| 90C4-47 | |||
| 90C4-59 | |||
| 152C1-19 | |||
| 17C15-106 | |||
| 17C15-106 | |||
| 209C1 | |||
| 209C1 | |||
| 309C12-2 | |||
| 12C15-93 | |||
| 743C1-28 | |||
| 21C14-14 | |||
| 12C15-93 | |||
| 34C10-149 | |||
| 20C12-153 | |||
| 820C1-8 | |||
| 12C15-93 | |||
| 743C1-29 | |||
| 21C14-14 | |||
| 12C15-93 | |||
| 34C10-148 | |||
| 20C12-153 | |||
| 4C1-189 | |||
| 820C1-7 | |||
| GE1507 | 743C1-27 | L.H. Shoe | |
| GE1508 | 34C10-47 | L.H. Spring |
Page 13 — STANDARD & BASE PLATE ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12C1-35 | Lock Washer (4) | ||
| GE1531 | Washer | ||
| 17C1-4 | Taper Pin (#0 x 3/4") (2) | ||
| 17C6-9 | Hinge Pin (2) | ||
| 20C5-12 | Clamp Screw For Rollers (8) | ||
| 20C12-19 | Knife Slide Screw | ||
| 20C13-51 | Hinge Pin Clamp Screw (4) | ||
| 34C1-57 | Plate Wing Tension Spring (2) | ||
| 60C1-55 | Plate Wing (For Small Plates) | ||
| 60C1-56 | Plate Wing (For Large Plates) | ||
| 79C4-12 | Throat Plates w/Screws & Pins | ||
| GE1770 | Tapered & Relieved Throat Plates Assembly | ||
| 213C1-1 | Fibre Shim (6) | ||
| 302C12-3 | Flat Head Screw (8-32 x 3/8") (3) | ||
| 505C3-223 | Small Plate Base, Complete (5"—8" Knives) | ||
| 505C3-224 | Large Plate Base, Complete (9"—13" Knives) | ||
| 505C3-226 | Small Plate Base, Complete (5"—8" Knives) | ||
| 505C3-227 | Large Plate Base, Complete (9"—13" Knives) | ||
| 505C3-243 | Small Plate Base, Complete (5"—8" Knives) Used with Swivel Roller Assembly Only | ||
| 505C3-244 | Large Plate Base, Complete (9"—13" Knives) Used with Swivel Roller Assembly Only | ||
| 528C1-112 | Micro Fog Standard (Complete w/Slides & Throat Plates) (6" Knife) | ||
| GE1509 | Standard (Complete w/Slides & Throat Plates) (5" Knife) | ||
| GE1510 | Standard (Complete | ||
| GE1511 | Standard (Complete | ||
| GE1512 | Standard (Complete | ||
| GE1183 | Standard (Complete | ||
| GE1514 | Standard (Complete | ||
| GE1184 | Standard (Complete | ||
| GE1185 | Standard (Complete w/Slides & Throat Plates) (13" Knife) | ||
| GE1533 | Rubber Mounted Roller, Complete (4) | ||
| GE1534 | Rubber Mounted Roller, Complete (4) | ||
| GE1918 | Rubber Mounted Roller, Complete (4) | ||
| GE1777 | Roller Shell, Complete (4) | ||
| GE1518 | Knife Slides, Complete w/Screws (5" Knife) | ||
| GE1519 | Knife Slides, Complete w/Screws (6" Knife) | ||
| GE1229 | Knife Slides, Complete w/Screws (7" Knife) | ||
| GE1229 | Knife Slides, Complete w/Screws (8" Knife) | ||
| GE1522 | Knife Slides, Complete w/Screws (9" Knife) | ||
| GE1523 | Knife Slides, Complete w/Screws (10" Knife) | ||
| GE1524 | Knife Slides, Complete w/Screws (11-1/2" Knife) | ||
| GE1525 | Knife Slides, Complete w/Screws (13" Knife) | ||
| GE1525 | Knife Slides, Complete w/Screws (6" Micro Fog) | ||
| GE1778 | Swivel Roller Assembly |
Page 14 — Genuine" Parts For Eastman Straight Knives
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 505C3-223 | Small Plate For 5"-8" Knives | ||
| 505C3-224 | Large Plate For 9"-13" Knives | ||
| 505C3-226 | Small Plate For 5"-8" Knives | ||
| 505C3-227 | Large Plate For 9"-13" Knives | ||
| 505C3-223 | Small Plate For 5"-8" Knives | ||
| 505C3-224 | Large Plate For 9"-13" Knives | ||
| 619C1-32 | Swivel Roller Assembly | ||
| 532C2-3 | Rubber Mounted Wide Roller | ||
| 532C2-5 | Rubber Mounted Roller | ||
| 532C2-7 | Rubber Mounted Roller | ||
| 528C1-123 | 5" Standard | 1 | |
| 528C1-120 | 6" Standard | 1 | |
| 528C1-122 | 7" Standard | 1 | |
| 528C1-121 | 8" Standard | 1 | |
| 528C1-115 | 9" Standard | 1 | |
| 528C1-116 | 10" Standard | 1 | |
| 528C1-124 | 11-1/2" Standard | 1 | |
| 528C1-125 | 13" Standard | 1 | |
| 643C1-44 | 5" Knife | 1 | |
| 643C1-41 | 6" Knife | 1 | |
| 643C1-42 | 7" Knife | 1 | |
| 643C1-43 | 8" Knife | 1 | |
| 643C1-46 | 9" Knife | 1 | |
| 643C1-47 | 10" Knife | 1 | |
| 643C1-53 | 11-1/2" Knife | 1 | |
| 643C1-45 | 13" Knife | 1 | |
| 643C1-51 | 6" Micro Fog | 1 | |
| 528C1-112 | Micro Fog | 1 | |
| 12C15-77 | 12C15-77 | 1 | |
| 20C12-19 | 20C12-19 | 1 | |
| 79C4-12 | 79C4-12 | 1 | |
| 79C4-24 | 79C4-24 | 1 | |
| 302C12-3 | 302C12-3 | 1 | |
| 17C1-4 | 17C1-4 | 1 | |
| 213C1-1 | 213C1-1 | 2 | |
| 34C1-57 | 34C1-57 | 1 | |
| 60C1-55 | For Small Plates | 1 | |
| 60C1-56 | For Large Plate | 1 | |
| 12C1-35 | 12C1-35 | 1 | |
| 20C13-51 | 20C13-51 | 1 | |
| 20C5-12 | 20C5-12 | 1 | |
| 619C1-31 | 619C1-31 | 1 |
Eastman 629X — parts catalog
- Page 1 (diagram): This page displays a diagram of the Model 627X BRUTE and Model 629X BLUE STREAK II Eastman Straight Knives, along with a parts list detailing various components and their corresponding numbers.
- Page 2 (parts_list): This page lists parts for the Bevel Bloc Shoe Assembly for Model 627X BRUTE and Model 629X BLUE STREAK II Sharpening Assembly. It includes a diagram and a detailed parts list with Eastman numbers and descriptions.
- Page 3 (parts_list): This page lists single and three phase motor assemblies for Eastman Straight Knives models 627X BRUTE and 629X BLUE STREAK II, including part numbers, descriptions, and notes.
- Page 4 (diagram): This page displays a diagram of Eastman Straight Knives cutting machine parts, including stators, cutout switches, and various other components with their corresponding part numbers and descriptions.
- Page 5 (parts_list): This page lists parts for the Eastman Straight Knives Model 627X BRUTE and Model 629X BLUE STREAK II, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of parts for Eastman Straight Knives, including various crank assemblies, switches, and other components with their corresponding part numbers and descriptions.
- Page 7 (parts_list): This page lists parts for the Eastman Straight Knives Model 627X BRUTE and Model 629X BLUE STREAK II, including universal and Eastman part numbers, and descriptions.
- Page 8 (diagram): This page displays a diagram of Eastman Straight Knives for Cutting Machines, detailing various parts with their corresponding numbers and descriptions.
- Page 9 (parts_list): This page lists parts for the Eastman Straight Knives Model 627X BRUTE and Model 629X BLUE STREAK II, including a diagram of the sharpener housing assembly.
- Page 10 (diagram): This page contains a diagram of Eastman straight knives and a spacer gauge chart for automatic sharpeners, along with a list of parts including gear shafts, bell cranks, and ball bearings.
- Page 11 (parts_list): This page lists parts for the Eastman Model 627X BRUTE and Model 629X BLUE STREAK II straight knives, specifically for the lower gear bracket assembly, with part numbers, descriptions, and quantities based on machine stroke and height.
- Page 12 (diagram): This page displays a diagram of genuine parts for Eastman straight knives, including a detailed illustration of the lower gear bracket assembly and a list of special shoes and related parts.
- Page 13 (parts_list): This page lists parts for Eastman Straight Knives models 627X BRUTE and 629X BLUE STREAK II, including standard and base plate assemblies.
- Page 14 (diagram): This page displays a diagram of Eastman Straight Knives components, including standards, knife slides, and optional parts with their corresponding part numbers and descriptions.
