Jack JK-798 Spares Parts Book (PDF)
Text index — Jack JK-798 Spares
Page 4 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | P03010 | Pin | 1/1/1 |
| 2 | P03017 | Pin | 1/1/1 |
| 3 | 20711001 | Indicator guide | 2/2/2 |
| 4 | 20713027 | Pipe | 2/2/2 |
| 5 | P03018 | Pin | 1/1/1 |
| 6 | 20628023 | Plug | 1/1/0 |
| 7 | 20701002 | Bracket Assembly | 1/1/1 |
| 8 | 207S13003 | Screw | 2/2/2 |
| 9 | 206S30001 | Bed pin | 4/4/4 |
| 10 | P03019 | Pin | 1/1/1 |
| 11 | 20126001 | Pin | 1/1/1 |
| 12 | 20726009 | Pin | 0/0/1(厚料) |
| 13 | 20701001 | Machine Bed Complete | 1/1/1 |
| 14 | 20703001 | Sleeve | 1/1/1 |
| 15 | 20703002 | Sleeve | 1/1/1 |
| 16 | 20703003 | Sleeve | 1/1/1 |
| 17 | 20703004 | Sleeve | 1/1/1 |
| 18 | 20703009 | Sleeve | 1/1/1 |
| 19 | 20703006 | Sleeve | 1/1/1 |
| 20 | 20703007 | Sleeve | 1/1/1 |
| 21 | 20703008 | Sleeve | 1/1/1 |
| 22 | 20703009 | Sleeve | 4/4/6 |
Page 6 — 二、机壳机罩部件(1)/Cover (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270020-SD | Top Cover | 1 / 1 / 1 |
| 2 | 7020 | Screw | 4 / 4 / 4 |
| 3 | 270021 | Gasket | 1 / 1 / 1 |
| 4 | 240305 | Cushion Rubber | 3 / 3 / 3 |
| 5 | 179107-05 | Oil sight window | 1 / 1 / 1 |
| 6 | 240110 | Plug | 1 / 1 / 1 |
| 7 | 270010-UD | Side Cover | 1 / 1 / 1 |
| 8 | 7020 | Screw | 2 / 2 / 2 |
| 9 | 7021 | Screw | 2 / 2 / 2 |
| 10 | 274011-91 | Presser Bar | 1 / 1 / 1 |
| 11 | 270013 | Front Cover(left) | 0 / 0 / 1 |
| 12 | 7044 | Screw | 4 / 4 / 4 |
| 13 | 270024-9U | Belt Cover Assembly | 1 / 1 / 1 |
| 14 | 2403050 | Rubber Cute | 1 / 1 / 1 |
| 15 | 7176 | Screw | 3 / 3 / 3 |
| 16 | 270025 | Fan Cover | 1 / 1 / 1 |
| 17 | 7019 | Screw | 1 / 1 / 1 |
| 18 | 270011-UD | Front Cover(right) | 1 / 1 / 1 |
| 19 | 270014 | Hinge | 1 / 1 / 1 |
| 20 | 7021 | Screw | 3 / 3 / 3 |
| 21 | 240043 | Pin | 1 / 1 / 1 |
| 22 | 4543 | Screw | 2 / 2 / 2 |
| 23 | 240301 | Spring | 1 / 1 / 1 |
| 24 | 270018 | Latch | 1 / 1 / 1 |
| 25 | 7009 | Screw | 1 / 1 / 1 |
| 26 | 4574 | Screw | 1 / 1 / 1 |
| 27 | 4535 | Screw | 1 / 1 / 1 |
| 28 | 270017 | Latch | 1 / 1 / 1 |
| 29 | 7017 | Screw | 1 / 1 / 1 |
| 30 | 210044 | Flat Spring | 1 / 1 / 1 |
| 31 | 7017 | Screw | 1 / 1 / 1 |
| 32 | 270012 | Front Cover(left) | 1 / 1 / 0 |
| 33 | 7018 | Screw | 2 / 2 / 2 |
| 34 | 270028 | Side Cover | 1 / 1 / 1 |
| 35 | ---- | Threading diagram | 1 / 1 / 1 |
| 36 | ---- | Threading diagram | 0 / 0 / 1 |
| 37 | 270079 | Cover | 1 / 1 / 1 |
| 38 | 7066 | Screw | 1 / 1 / 1 |
| 39 | 270081 | Cover | 1 / 1 / 1 |
| 40 | 7018 | Screw | 1 / 1 / 1 |
Page 8 — 三、机壳机罩部件(2)/Cover (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2071204400 | |||
| 2071200600 | |||
| 20603016 | |||
| 207S14007 | 螺钉M4×4 | ||
| W02004 | |||
| 30228008 | |||
| 207S11011 | 螺钉M4×5 | ||
| 20622003 | |||
| 20711018 | |||
| 20711004 | |||
| 207S11013 | 螺钉M4×17.5 | ||
| W02002 | |||
| S01002 | 螺钉M4×5 | ||
| 20528017 | |||
| 20622003 | |||
| 20612016 | |||
| 207S11014 | 螺钉M3.5×4.5 | ||
| 20712008 | |||
| 207S17003 | 螺钉M4×7.5 | ||
| 20627002 | |||
| 206S20006 | 螺钉M4 | ||
| 20627003 | |||
| 20612009 | |||
| 20812012 | |||
| 207S11007 | 螺钉M4×7.5 | ||
| 20711005 | |||
| 20711019 | |||
| 207S11015 | 螺钉M3×6 | ||
| W01011 | |||
| 20712011 | |||
| 207S20002 | 螺钉M4 | ||
| 20128015 | |||
| 20701084 | |||
| 207S12001 | 螺钉M4×8 | ||
| 20722003 | |||
| 207120200 | |||
| S01005 | 螺钉M4×10 | ||
| 207S11016 | 螺钉M4×16 | ||
| N01001 | 螺母M4 | ||
| 10122020 | |||
| 207S13003 | 螺钉M6×25 | ||
| 301265 | |||
| 20812010 | |||
| 201S11005 |
Page 10 — 四、主轴部件/Crankshaft Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400046 | |||
| 400045 | |||
| 20712066 | |||
| 20701008 | |||
| 207S11017 | 螺钉M3×8 | ||
| 20726002 | |||
| S10009 | 螺钉M6×8 | ||
| 20712013 | |||
| 207S11007 | 螺钉M4×7.5 | ||
| 001024 | |||
| B04004 | 轴承6202LB | ||
| 207S11018 | 螺钉M5×10 | ||
| 207S14012 | 螺钉M5×5 | ||
| 20729001 | |||
| B04005 | 轴承6203LLU | ||
| B04005 | 轴承6203LLU | ||
| W03003 | |||
| 20103002 | |||
| 001025 | |||
| 001028 | |||
| 20708015 | |||
| 207S11012 | 螺钉M4×10 | ||
| 2071100600 | |||
| 300167 | |||
| S10009 | 螺钉M6×8 | ||
| 207S13004 | 螺钉M6×35 | ||
| W02004 | |||
| 20602002 | |||
| 20712046 | |||
| 207S17001 | 螺钉M4×10 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20708003 | |||
| 20701009 | |||
| 001037 | |||
| 20725001 |
Page 12 — 五、夹线部件/Thread Tension Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400662 | Tension Spring Assembly (Red) | 1 / 1 / 1 |
| 2 | 301S16006 | Knob | 1 / 1 / 1 |
| 3 | 30111006 | Rachet | 1 / 1 / 1 |
| 4 | 30111005 | Cup | 1 / 1 / 1 |
| 5 | 400161 | Tension Disc | 2 / 2 / 2 |
| 6 | 20623008 | Felt | 1 / 1 / 1 |
| 7 | 201S30016 | Screw Stud | 1 / 1 / 1 |
| 8 | 20727011 | Spring | 1 / 1 / 1 |
| 9 | 400663 | Tension Spring Assembly(Bule) | 1 / 1 / 1 |
| 10 | 30127013 | Spring | 1 / 1 / 1 |
| 11 | 20713001 | Thread Guide | 1 / 1 / 1 |
| 12 | 207S11007 | Screw | 2 / 2 / 2 |
| 13 | 20712015 | Thread Guide | 1 / 1 / 1 |
| 14 | 20612052 | Tension Guide | 3 / 4 / 4 |
| 15 | 206S11005 | Screw | 1 / 0 / 0 |
| 16 | 400661 | Tension Spring Assembly(Yellow) | 0 / 1 / 1 |
| 17 | 400668 | Tension Spring Assembly(Green) | 1 / 1 / 1 |
Page 14 — 六、过线机构(1)/Thread Guide and Thread Takeup(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20701029 | Bracket | 0 0 1 |
| 2 | 207S11019 | Screw | 0 0 2 |
| 3 | 20713020 | Thread Guide | 0 0 1 |
| 5 | 207S14001 | Screw | 0 0 1 |
| 6 | 20701030 | Bracket | 0 0 1 |
| 7 | S01031 | Screw | 0 0 1 |
| 8 | 20713021 | Thread Guide | 0 0 1 |
| 9 | 207S14001 | Screw | 0 0 1 |
| 10 | 20802014 | Upper Knife Lever | 1 1 1 |
| 11 | 207S11015 | Screw | 0 0 2 |
| 12 | 20713022 | Thread Guide | 0 0 1 |
| 13 | S01031 | Screw | 0 0 1 |
| 14 | 20713023 | Thread Guide | 0 0 1 |
| 15 | 20713051 | Thread Guide | 0 0 1 |
| 16 | S01031 | Screw | 0 0 1 |
| 17 | 20713006 | Bracket | 0 0 1 |
| 18 | 20713007 | Thread Retainer | 0 0 1 |
| 19 | 207S20003 | Screw | 0 0 1 |
| 20 | 20727002 | Spring | 0 0 1 |
| 21 | 20813007 | Thread Takeup | 0 0 1 |
| 22 | 20813035 | Thread Takeup | 0 0 1(六线) |
| 23 | S02007 | Screw | 1 1 1 |
| 24 | 20813037 | Thread Takeup | 0 0 1(六线) |
| 25 | 20813033 | Thread Takeup | 0 1 0 |
| 26 | 20813036 | Thread Guide | 0 0 1(六线) |
Page 16 — 七、过线机构(2)/Thread Guide and Thread Takeup (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 275013A | Thread Guide | 1 / 0 / 0 |
| 2 | 275013 | Thread Guide | 0 / 1 / 0 |
| 3 | 4543 | Screw | 1 / 1 / 0 |
| 4 | 275015 | Bracket | 1 / 1 / 0 |
| 5 | 7082 | Screw | 1 / 1 / 0 |
| 6 | 275051 | Thread Guide | 1 / 0 / 0 |
| 7 | 275051A | Thread Guide | 0 / 1 / 0 |
| 8 | 7062 | Screw | 2 / 2 / 0 |
| 9 | 7082 | Screw | 1 / 1 / 0 |
| 10 | 275011 | Bracket | 1 / 1 / 0 |
| 11 | 275012 | Thread Retainer | 1 / 1 / 0 |
| 12 | 7163 | Screw | 1 / 1 / 0 |
| 13 | 240326 | Spring | 1 / 1 / 0 |
| 14 | 275016A | Thread Takeup | 1 / 0 / 0 |
| 15 | 275017A | Thread Takeup | 0 / 1 / 0 |
| 16 | 7041 | Screw | 1 / 1 / 0 |
Page 18 — 八、过线机构(3)/Thread Guide and Thread Takeup (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20712016 | Bracket | 1 / 1 / 1 |
| 2 | 20113015 | Thread Guide | 2 / 2 / 2 |
| 3 | 201S11006 | Screw | 2 / 2 / 2 |
| 4 | W01011 | Washer | 2 / 2 / 2 |
| 5 | 20713010 | Thread Takeup | 1 / 1 / 1 |
| 6 | 207S11007 | Screw | 1 / 1 / 1 |
| 7 | 20713011 | Thread Guide | 1 / 1 / 1 |
| 8 | 207S11020 | Screw | 1 / 1 / 1 |
| 9 | 20713012 | Thread Guide | 1 / 1 / 0 |
| 10 | 20713053 | Thread Guide | 0 / 0 / 1 |
| 11 | 20713054 | Thread Guide | 0 / 0 / 1 |
| 12 | 20713015 | Thread Takeup | 1 / 1 / 0 |
| 13 | 20713055 | Thread Takeup | 0 / 0 / 1 |
| 14 | 207S11021 | Screw | 1 / 1 / 1 |
| 15 | 20713013 | Thread Guide | 1 / 1 / 1 |
Page 20 — 九、针杆部件(1)/Needle Drive Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400039 | Connection | three-thread 1; four-thread 1; |
| 2 | 207S11016 | Screw | three-thread 2; four-thread 2; |
| 3 | 20626003 | Pin | three-thread 1; four-thread 1; |
| 4 | 207S14007 | Screw | three-thread 1; four-thread 1; |
| 5 | 20704001 | Crank | three-thread 1; four-thread 1; |
| 6 | S05018 | Screw | three-thread 1; four-thread 1; |
| 7 | 20802009 | Shaft | three-thread 1; four-thread 1; |
| 8 | 20808006 | Collar | three-thread 1; four-thread 1; |
| 9 | 207S14001 | Screw | three-thread 2; four-thread 2; |
| 10 | 20628014 | Washer | three-thread 1; four-thread 1; |
| 11 | H05008 | Ring | three-thread 1; four-thread 1; |
| 12 | 20804008 | Lever | three-thread 1; four-thread 1; |
| 13 | 207S12002 | Screw | three-thread 1; four-thread 1; |
| 14 | 2072600300 | Shaft Assembly | three-thread 1; four-thread 1; |
| 15 | 20826006 | Shaft | three-thread 1; four-thread 1; |
| 16 | 20523005 | Oil wick | three-thread 1; four-thread 1; |
| 17 | 20804016 | Crank | three-thread 1; four-thread 1; |
| 18 | 20802017 | Needle Bar | three-thread 1; four-thread 1; |
| 19 | 20803004 | Bushing | three-thread 1; four-thread 1; |
| 20 | 207S14008 | Screw | three-thread 1; four-thread 1; |
| 21 | 001026 | O Ring | three-thread 1; four-thread 1; |
| 22 | 20723003 | Oil Felt | three-thread 1; four-thread 1; |
| 23 | 20708005 | Ring | three-thread 1; four-thread 1; |
| 24 | 207S11023 | Screw | three-thread 1; four-thread 1; |
| 25 | 20722004 | Plug | three-thread 1; four-thread 1; |
| 26 | 207S14010 | Screw | three-thread 1; four-thread 1; |
| 27 | 208S11002 | Screw | three-thread 2; four-thread 2; |
| 28 | 20803007 | Sleeve | three-thread 1; four-thread 1; |
| 29 | 2080201800 | Bushing Assy | three-thread 1; four-thread 1; |
Page 22 — 十一、针杆部件(3)/Needle Drive Mechanism (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | xxxxxxxx | Needle Holder Assembly | 0/0/1 |
| 2 | 207S14014 | Screw | 0/0/2 |
| 3 | 20713017 | Thread Guide | 0/0/1 |
| 4 | 207S11024 | Screw | 0/0/1 |
| 5 | xxxxxxxx | Needle | 0/0/2 |
| 6 | xxxxxxxx | Needle | 0/2/0 |
| 7 | xxxxxxxx | Needle Holder | 0/1/0 |
| 8 | 207S14014 | Screw | 0/2/0 |
| 9 | 20713018 | Thread Guide | 0/1/0 |
| 10 | 207S11024 | Screw | 0/1/0 |
| 11 | xxxxxxxx | Needle Holder Assembly | 1/0/0 |
| 12 | 207S14014 | Screw | 1/0/0 |
| 13 | 20713038 | Thread Guide | 1/0/0 |
| 14 | 207S11024 | Screw | 1/0/0 |
| 15 | xxxxxxxx | Needle | 1/0/0 |
Page 24 — 十二、针杆部件(4)/Needle Drive Mechanism (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXXXX | Needle Plate | 3线:0 4线:0 5线:1 |
| 2 | 207S17006 | Screw | 3线:0 4线:0 5线:2 |
| 3 | 20709002 | Bracket | 3线:0 4线:0 5线:1 |
| 4 | 207S11007 | Screw | 3线:0 4线:0 5线:2 |
| 5 | 20622003 | Cushion Rubber | 3线:0 4线:0 5线:2 |
| 6 | 20709003 | Bracket | 3线:0 4线:0 5线:1 |
| 7 | 207S11007 | Screw | 3线:0 4线:0 5线:2 |
| 8 | XXXXXXXX | Needle Guard | 3线:0 4线:0 5线:1 |
| 9 | S01027 | Screw | 3线:0 4线:0 5线:2 |
| 10 | XXXXXXXX | Needle Guard | 3线:0 4线:0 5线:1 |
| 11 | 207S12005 | Screw | 3线:0 4线:0 5线:1 |
| 12 | W03004 | Spring | 3线:0 4线:0 5线:1 |
| 13 | 207S11002 | Screw | 3线:0 4线:0 5线:1 |
| 14 | XXXXXXXX | Needle Guard | 3线:0 4线:0 5线:1 |
| 15 | 207S11007 | Screw | 3线:0 4线:0 5线:1 |
| 16 | XXXXXXXX | Needle Guard | 3线:0 4线:0 5线:1 |
| 17 | S01027 | Screw | 3线:0 4线:0 5线:2 |
| 18 | 20701033 | Bracket | 3线:0 4线:0 5线:1 |
| 19 | 207S11003 | Screw | 3线:0 4线:0 5线:2 |
| 20 | XXXXXXXX | Needle Plate | 3线:0 4线:1 5线:0 |
| 21 | 207S17006 | Screw | 3线:2 4线:2 5线:0 |
| 22 | 20709002 | Bracket | 3线:1 4线:1 5线:0 |
| 23 | 207S11007 | Screw | 3线:2 4线:2 5线:0 |
| 24 | 20622003 | Cushion Rubber | 3线:2 4线:2 5线:0 |
| 25 | 20709003 | Bracket | 3线:1 4线:1 5线:0 |
| 26 | 207S11007 | Screw | 3线:2 4线:2 5线:0 |
| 27 | XXXXXXXX | Needle Guard | 3线:1 4线:1 5线:0 |
| 28 | 207S11007 | Screw | 3线:1 4线:1 5线:0 |
| 29 | XXXXXXXX | Needle Guard | 3线:1 4线:1 5线:0 |
| 30 | 207S12005 | Screw | 3线:1 4线:1 5线:0 |
| 31 | W03004 | Spring | 3线:1 4线:1 5线:0 |
| 32 | 207S11002 | Screw | 3线:1 4线:1 5线:0 |
Page 26 — 十三、上弯针部件/Upper Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400043 | Connection | 3:1 4:1 5:1 |
| 2 | 207S11016 | Screw | 3:2 4:2 5:2 |
| 3 | 207S11005 | Screw | 3:2 4:2 5:2 |
| 4 | 20704003 | Crank | 3:1 4:0 5:0 |
| 5 | 400037 | Crank | 3:0 4:1 5:1 |
| 6 | S05018 | Screw | 3:1 4:1 5:1 |
| 7 | 20702004 | Shaft | 3:1 4:1 5:1 |
| 8 | 20628006 | Washer | 3:1 4:1 5:1 |
| 9 | 207S11004 | Screw | 3:1 4:1 5:1 |
| 10 | W02001 | Spring Washer | 3:1 4:1 5:1 |
| 11 | 20708006 | Spacer | 3:0 4:1 5:0 |
| 12 | 20622019 | Oil Seal | 3:1 4:1 5:1 |
| 13 | 20708007 | Spacer | 3:1 4:0 5:1 |
| 14 | 20705003 | Lever | 3:1 4:1 5:1 |
| 15 | 207S12002 | Screw | 3:1 4:1 5:1 |
| 16 | 20726004 | Pin Assy. | 3:1 4:1 5:1 |
| 20523005 | Oil Weak | 3:1 4:1 5:1 | |
| 18 | 207S14010 | Screw | 3:1 4:1 5:1 |
| 19 | 2070403400 | Upper Looper Holder Assy. | 3:1 4:1 5:1 |
| 20 | 20623005 | Felt | 3:1 4:1 5:1 |
| 21 | 207S11025 | Screw | 3:1 4:1 5:1 |
| 22 | xxxxxxxx | Upper Looper | 3:1 4:1 5:1 |
| ---- | ---- | ||
| ---- | ---- | ||
| 25 | 207S11026 | Screw | 3:2 4:2 5:2 |
| 26 | 400040 | Cover | 3:1 4:1 5:1 |
| 27 | 207S17004 | Screw | 3:1 4:1 5:1 |
| 28 | 207S11027 | Screw | 3:1 4:1 5:1 |
| 20123021 | Oil Wick | 3:1 4:1 5:1 | |
| 30 | 20723005 | Felt | 3:1 4:1 5:1 |
| 31 | 20712017 | Bracket | 3:1 4:1 5:1 |
| 32 | 207S11020 | Screw | 3:1 4:1 5:1 |
| 33 | 20701051 | Upper Looper Bracket | 3:1 4:1 5:1 |
| XXXXXXXXX |
Page 28 — 十五、下弯针部件/Lower Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400043 | Connection | 1 / 1 / 1 |
| 2 | 207S11016 | Screw | 2 / 2 / 2 |
| 3 | 207S11005 | Screw | 2 / 2 / 2 |
| 4 | 400329 | Crank | 1 / 1 / 0 |
| 5 | S05018 | Screw | 1 / 1 / 0 |
| 6 | 20702004 | Shaft | 1 / 1 / 1 |
| 7 | 20628006 | Washer | 1 / 1 / 1 |
| 8 | 207S11004 | Screw | 1 / 1 / 1 |
| 9 | W02001 | Spring Washer | 1 / 1 / 1 |
| 10 | 20622019 | Oil Seal | 1 / 1 / 1 |
| 11 | xxxxxxxx | Lower Looper | 1 / 1 / 1 |
| 12 | 207S14006 | Screw | 0 / 0 / 1 |
| 13 | 207S11028 | Screw | 1 / 1 / 1 |
| 14 | 20704007 | Lower Looper Holder | 1 / 1 / 1 |
| 15 | 207S20004 | Screw | 1 / 1 / 1 |
| 16 | 207S15001 | Screw | 1 / 1 / 1 |
| 17 | 400388 | Crank | 0 / 0 / 1 |
| 18 | S05018 | Screw | 0 / 0 / 1 |
Page 30 — 十六、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20705006 | Connection | 0/0/1 |
| 2 | B08002 | Needle Bearing | 0/0/1 |
| 3 | 20704014 | Crank | 0/0/1 |
| 4 | 20703016 | Bushing | 0/0/1 |
| 5 | 207S12003 | Screw | 0/0/1 |
| 6 | 30228008 | Washer | 0/0/1 |
| 7 | 20709017 | Slider | 0/0/1 |
| 8 | 207S13009 | Screw | 0/0/1 |
| 9 | 20628010 | Washer | 0/0/1 |
| 10 | W02001 | Spring Washer | 0/0/1 |
| 11 | 20710008 | Pin | 0/0/1 |
| 12 | 001027 | O Ring | 0/0/1 |
| 13 | 20626017 | Shaft | 0/0/1 |
| 14 | 20701034 | Holder | 0/0/1 |
| 15 | S05018 | Screw | 0/0/1 |
| 16 | 20704015 | Crank | 0/0/1 |
| 17 | S05018 | Screw | 0/0/1 |
| 18 | 20705008 | Link | 0/0/1 |
| 19 | 20703016 | Bushing | 0/0/1 |
| 20 | 207S12003 | Screw | 0/0/1 |
| 21 | 30228008 | Washer | 0/0/1 |
| 22 | 20702018 | Shaft | 0/0/1 |
| 23 | 3052201700 | Oil Seal | 0/0/1 |
| 24 | XXXXXXXX | Double Chainstith Looper | 0/0/1 |
| 25 | 207S11028 | Screw | 0/0/1 |
| 26 | 20701035 | Looper Holder | 0/0/1 |
| 27 | 207S20004 | Screw | 0/0/1 |
| 28 | 20728002 | Spacer | 0/0/1 |
| 29 | 207S15001 | Screw | 0/0/1 |

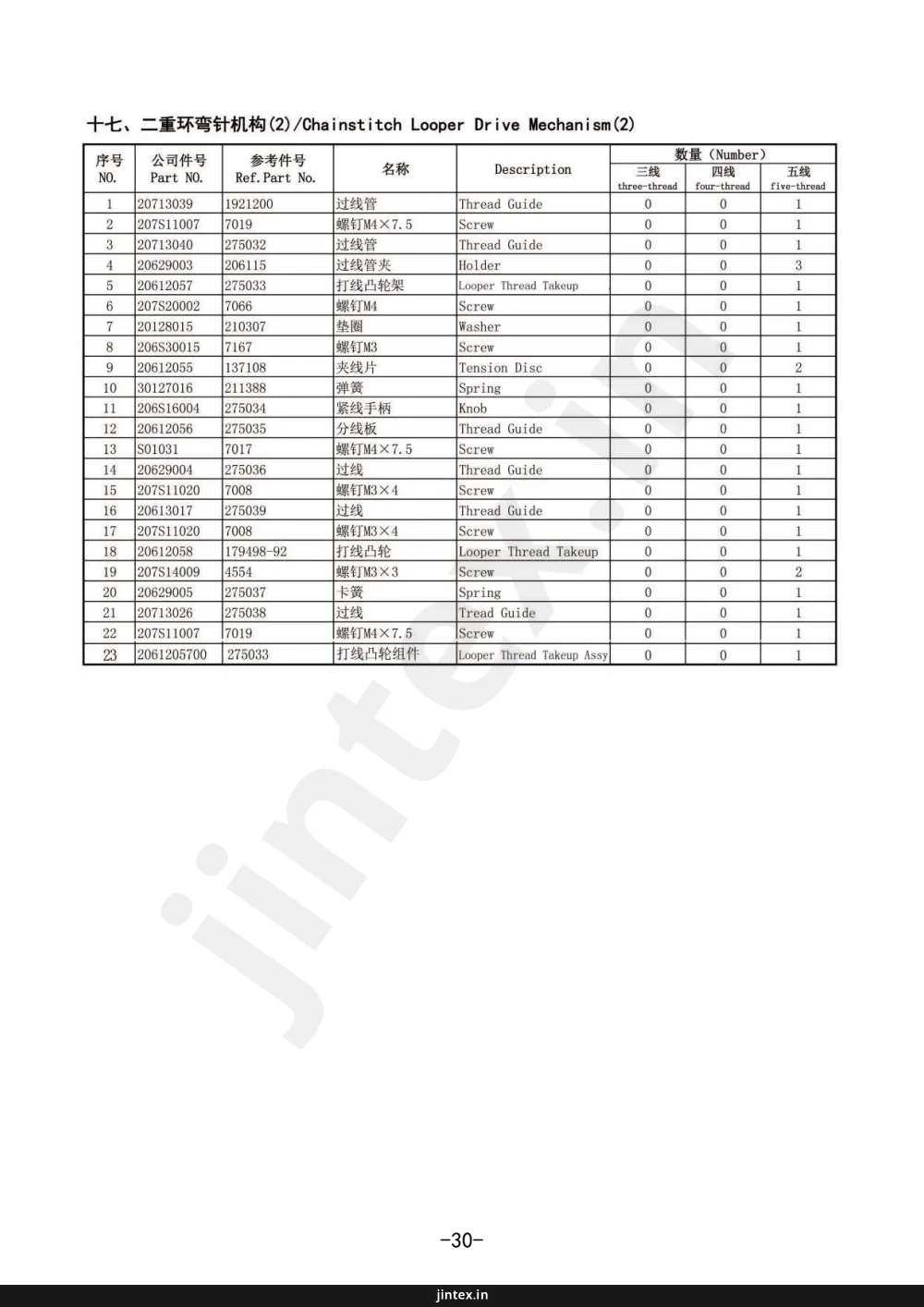

Page 32 — 十七、二重环弯针机构(2)/Chainstitch Looper Drive Mechanism (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20713039 | Thread Guide | 0/0/1 |
| 2 | 207S11007 | Screw | 0/0/1 |
| 3 | 20713040 | Thread Guide | 0/0/1 |
| 4 | 20629003 | Holder | 0/0/3 |
| 5 | 20612057 | Looper Thread Takeup | 0/0/1 |
| 6 | 207S20002 | Screw | 0/0/1 |
| 7 | 20128015 | Washer | 0/0/1 |
| 8 | 206S30015 | Screw | 0/0/1 |
| 9 | 20612055 | Tension Disc | 0/0/2 |
| 10 | 30127016 | Spring | 0/0/1 |
| 11 | 206S16004 | Knob | 0/0/1 |
| 12 | 20612056 | Thread Guide | 0/0/1 |
| 13 | S01031 | Screw | 0/0/1 |
| 14 | 20629004 | Thread Guide | 0/0/1 |
| 15 | 207S11020 | Screw | 0/0/1 |
| 16 | 20613017 | Thread Guide | 0/0/1 |
| 17 | 207S11020 | Screw | 0/0/1 |
| 18 | 20612058 | Looper Thread Takeup | 0/0/1 |
| 19 | 207S14009 | Screw | 0/0/2 |
| 20 | 20629005 | Spring | 0/0/1 |
| 21 | 20713026 | Tread Guide | 0/0/1 |
| 22 | 207S11007 | Screw | 0/0/1 |
| 23 | 2061205700 | Looper Thread Takeup Assy | 0/0/1 |
Page 34 — 十八、差动调节机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20705004 | Connection | 1/1/1 |
| 2 | 20626003 | Pin | 1/1/1 |
| 3 | 207S14007 | Screw | 1/1/1 |
| 4 | B08001 | Needle Bearing | 1/1/1 |
| 5 | 20710001 | Eccent | 1/1/1 |
| 6 | 20710002 | Feed Eccent | 1/1/1 |
| 7 | 20712018 | Flat Spring | 1/1/1 |
| 8 | 207S14003 | Screw | 2/2/2 |
| 9 | 20710003 | Regulator | 1/1/1 |
| 10 | 207S14012 | Screw | 2/2/2 |
| 11 | 20710004 | Eccent Assembly | 1/1/1 |
| 12 | 20727003 | Spring | 1/1/1 |
| 13 | 207S20005 | Screw | 1/1/1 |
| 14 | 20709006 | Ratchet | 1/1/1 |
| 15 | 20702005 | Push Button | 1/1/1 |
| 16 | 20722005 | Gaket | 1/1/1 |
| 17 | 001027 | O Ring | 1/1/1 |
| 18 | 20728001 | Washer | 1/1/1 |
| 19 | 20727004 | Spring | 1/1/1 |
| 20 | H05018 | Ring | 1/1/1 |
| 21 | 20705005 | Link | 1/1/1 |
| 22 | 207S20006 | Screw | 1/1/1 |
| 23 | 20629006 | Ring | 1/1/1 |
| 24 | 20704008 | Lever | 1/1/1 |
| 25 | S05018 | Screw | 1/1/1 |
| 26 | 20712019 | Lever | 1/1/1 |
| 27 | 207S20007 | Screw | 1/1/1 |
| 28 | 20702006 | Shaft | 1/1/1 |
| 29 | 20622010 | O Ring | 1/1/1 |
| 30 | 20627006 | Spring | 1/1/1 |
| 31 | 20712020 | Regulator Plate | 1/1/1 |
| 32 | 207S11008 | Screw | 2/2/2 |
| 33 | 20711007 | Spacer | 2/2/2 |
| 34 | 2071600100 | Nut | 1/1/1 |
| 35 | 207S30001 | Screw | 1/1/1 |
| 36 | 20728003 | Spring Washer | 1/1/1 |
| 37 | 207S16002 | Stopper | 2/2/2 |
| 38 | 207S11011 | Screw | 2/2/2 |
| 39 | 30228009 | Washer | 2/2/2 |
| 40 | 20702007 | Adjusting Bar | 1/1/1 |
| 42 | H05018 | Ring | 1/1/1 |
| 43 | 20727005 | Spring | 1/1/1 |
| 44 | 20709007 | Pin | 1/1/1 |
| 45 | 2070500400 | Connection | 1/1/1 |
Page 36 — 十九、送布机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20702008 | Shaft | 1/1/1 |
| 2 | H05009 | Ring | 1/1/1 |
| 3 | 20628023 | Plug | 1/1/1 |
| 4 | 20628011 | Washer | 2/2/2 |
| 5 | 2070400900 | Crank | 1/1/1 |
| 6 | 207S13005 | Screw | 1/1/1 |
| 7 | 207S11029 | Screw | 2/2/2 |
| 8 | 20709010 | Block | 1/1/1 |
| 9 | 20704011 | Crank | 1/1/1 |
| 10 | S05018 | Screw | 1/1/1 |
| 11 | 20710005 | Pin | 1/1/1 |
| 12 | N01004 | Nut | 1/1/1 |
| 13 | 20628010 | Washer | 1/1/1 |
| 14 | 20710006 | Pin | 1/1/1 |
| 15 | 207S13001 | Screw | 1/1/1 |
| 16 | 20722006 | Gsket | 1/1/1 |
| 17 | 20729002 | Ring | 1/1/1 |
| 18 | 001026 | O Ring | 1/1/1 |
| 19 | 20709011 | Block | 1/1/1 |
| 20 | 20708008 | Collar | 2/2/2 |
| 21 | 207S14001 | Screw | 2/2/2 |
| 22 | 20705008 | Link | 1/1/1 |
| 23 | 20703016 | Bushing | 1/1/1 |
| 24 | 207S12003 | Screw | 1/1/1 |
| 25 | 30228008 | Washer | 1/1/1 |
| 26 | 20706001 | Main Feed Bar | 1/1/1 |
| 27 | xxxxxxxx | Main Feed Dog Complete | 1/1/1 |
| 28 | xxxxxxxx | Main Feed Dog | 1/1/1 |
| 29 | xxxxxxxx | Auxiliary | 1/1/1 |
| 30 | 207S11029 | Screw | 1/1/1 |
| 31 | S01029 | Screw | 1/1/1 |
| 32 | 20706002 | Differentrial Feed Bar | 1/1/1 |
| 33 | xxxxxxxx | Differentrial Feed Dog | 1/1/1 |
| 34 | S01029 | Screw | 1/1/1 |
| 35 | 20709012 | Block | 1/1/1 |
| 36 | 20701011 | Feed Bar | 1/1/1 |
| 37 | 207S13006 | Screw | 2/2/2 |
| 38 | 20701012 | Feed Bar | 1/1/1 |
| 39 | 207S13006 | Screw | 2/2/2 |
| 40 | 20701013 | Feed Bar Oil Seal | 1/1/1 |
| 41 | 20722007 | Oil Seal | 2/2/2 |
| 42 | 207S13007 | Screw | 2/2/2 |
| 43 | 20721009 | Tube | 1/1/1 |
| 44 | 20712055 | Clamp | 1/1/0 |
| 44 | 20712062 | Clamp | 0/0/1 |
| 45 | 207S11011 | Screw | 1/1/1 |
| 46 | 400044 | Feed Bar Assy. | 1/1/1 |
Page 38 — 二十、剪布机构/Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400041 | Connection | three:1 four:1 five:1 |
| 2 | 207S11016 | Screw | three:2 four:2 five:2 |
| 3 | 20704012 | Crank | three:1 four:1 five:0 |
| 4 | 20704030 | Crank | three:0 four:0 five:1 |
| 5 | S05018 | Screw | three:1 four:1 five:1 |
| 6 | 20626003 | Pin | three:1 four:1 five:1 |
| 7 | 207S14007 | Screw | three:1 four:1 five:1 |
| 8 | 30208001 | Collar | three:2 four:2 five:2 |
| 9 | S10003 | Screw | three:2 four:2 five:2 |
| 10 | 20702009 | Upper Knife Lever | three:1 four:1 five:1 |
| 11 | ---- | three:---- four:---- five:---- | |
| 12 | ---- | three:---- four:---- five:---- | |
| 13 | 20726005 | Pin | three:1 four:1 five:1 |
| 14 | 20701014 | Upper Knife Clamp | three:1 four:1 five:0 |
| 15 | 20701036 | Upper Knife Clamp | three:0 four:0 five:1 |
| 16 | 207S11012 | Screw | three:1 four:1 five:1 |
| 17 | XXXXXXXX | Upper Knife | three:1 four:1 five:1 |
| 18 | S01029 | Screw | three:1 four:1 five:1 |
| 20 | 2070150 | Angled Upper Knife Clamp | three:0 four:0 five:1 |
| 21 | XXXXXXXX | Angled Upper | three:0 four:0 five:1 |
| 22 | 207S11020 | Screw | three:0 four:0 five:1 |
| 23 | 20712053 | Angled Upper Knife Gib | three:0 four:0 five:1 |
| 24 | 20712051 | Waste Guard | three:0 four:0 five:1 |
| 25 | ---- | three:---- four:---- five:---- | |
| 26 | S11025 | Screw | three:0 four:0 five:1 |
| 27 | W01011 | Washer | three:0 four:0 five:1 |
| 28 | 20701015 | Lower Knife Holder | three:1 four:1 five:0 |
| 29 | 20701037 | Lower Knife Holder | three:0 four:0 five:1 |
| 30 | S01010 | Screw | three:1 four:1 five:1 |
| 31 | 20712021 | Lower Knife Holder Guard | three:1 four:1 five:1 |
| 32 | 207S11019 | Screw | three:2 four:2 five:2 |
| 33 | 20727006 | Spring | three:1 four:1 five:1 |
| 34 | 20712022 | Plate | three:1 four:1 five:1 |
| 35 | 207S11007 | Screw | three:1 four:1 five:1 |
| 36 | XXXXXXXX | Lower Knife | three:1 four:1 five:1 |
| 37 | 20709013 | Lower Knife Clamp | three:1 four:1 five:1 |
| 38 | 207S12004 | Screw | three:1 four:1 five:1 |
| 39 | 20701052 | Upper Knife Clamp (H) | three:0 four:0 five:1 |
Page 40 — 二十一、抬压脚机构/Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20712023 | ||
| 2 | 207S20008 | 抬压脚螺钉M10 | |
| 3 | 20727007 | ||
| 4 | 20712024 | ||
| 5 | 207S11012 | 螺钉M4×10 | |
| 6 | 207S11031 | 螺钉M4×24 | |
| 7 | N01004 | ||
| 8 | 20616001 | ||
| 9 | 20612030 | ||
| 10 | 20608004 | ||
| 11 | S05017 | 螺钉M6×0.75×13.5 | |
| 12 | 20827004 | ||
| 13 | 20803015 | ||
| 14 | 207S11016 | 螺钉M4×16 | |
| 15 | 20802013 | ||
| 16 | 20701016 | ||
| 17 | 20626016 | ||
| 18 | S10011 | 螺钉M4×0.5×4 | |
| 19 | 20808007 | ||
| 20 | 207S13009 | 螺钉M5×12 | |
| 21 | 20827005 | ||
| 22 | 208120100 | ||
| 23 | 20812016 | ||
| 24 | 208S11011 | 螺钉M4×6 | |
| 25 | 20804006 | ||
| 26 | 207S11032 | 螺钉M5×12 | |
| 27 | 20719054 | ||
| 28 | 20702012 | ||
| 29 | 207S16003 | ||
| 30 | 20812032 | ||
| 31 | 207S20009 | ||
| 32 | 20627010 | ||
| 33 | 20812033 | ||
| 34 | 207S11007 | 螺钉M4×7.5 | |
| 35 | 20619005 | ||
| 36 | 207S11020 | 螺钉M3×4 | |
| 37 | 20804007 | ||
| 38 | 20812018 | ||
| 39 | 208S20001 |
Page 42 — 二十二、供油机构(1)/Lubrication Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20820001 | Pump | 1 / 1 / 1 |
| 2 | 20725002 | Worm Wheel | 1 / 1 / 1 |
| 3 | 207S15002 | Screw | 2 / 2 / 2 |
| 4 | 2071100900 | Oil Distributor Complete | 1 / 1 / 1 |
| 5 | 20709014 | Plug | 2 / 2 / 2 |
| 6 | 207S30002 | Screw | 1 / 1 / 1 |
| 7 | 206S30009 | Joint Screw | 1 / 1 / 1 |
| 8 | 206S30009 | Joint Screw | 3 / 3 / 3 |
| 9 | 207S13008 | Screw | 2 / 2 / 2 |
| 10 | 2082100200 | Oil Distributor | 1 / 1 / 1 |
| 11 | 20622010 | O Ring | 1 / 1 / 1 |
| 12 | 20136001 | Filter Element | 1 / 1 / 1 |
| 13 | 20836001 | Joint | 1 / 1 / 1 |
| 14 | o01010 | O Ring | 1 / 1 / 1 |
| 15 | 300140 | Oil Filter Cap | 1 / 1 / 1 |
| 16 | 207S11008 | Screw | 3 / 3 / 3 |
| 17 | 20136001 | Filter Element | 1 / 1 / 1 |
| 18 | 20729005 | Clamp | 2 / 2 / 2 |
| 19 | 12921003 | Tube | 1 / 1 / 1 |
| 20 | 20636001 | Joint | 2 / 2 / 2 |
| 21 | 20811005 | Oil Slight Gauge | 1 / 1 / 1 |
Page 44 — 二十三、供油机构(2)/Lubrication Mechanism (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20725003 | worm | 1 / 1 / 1 |
| 2 | 20823006 | Felt | 1 / 1 / 1 |
| 3 | 20823006 | Cover | 1 / 1 / 1 |
| 4 | 20812020 | Spacer | 1 / 1 / 1 |
| 5 | 207S11011 | Screw | 2 / 2 / 2 |
| 6 | 20721008 | Tube | 1 / 1 / 1 |
| 7 | 2083600200 | Joint | 1 / 1 / 1 |
| 8 | 20723007 | Felt | 1 / 1 / 1 |
| 9 | 20622010 | O Ring | 1 / 1 / 1 |
| 10 | 20721008 | Tube | 1 / 1 / 1 |
| 11 | 20521009 | Joint | 2 / 2 / 2 |
| 12 | 20621001 | Exhause Oil Distributor | 1 / 1 / 1 |
| 13 | 20823008 | Felt | 1 / 1 / 1 |
| 14 | 20812034 | Cover | 1 / 1 / 1 |
| 15 | 208S11004 | Screw | 2 / 2 / 2 |
| 16 | 20701026 | Oil Reservoir | 1 / 1 / 1 |
| 17 | 207S13002 | Screw | 1 / 1 / 1 |
| 18 | 20622014 | Washer | 1 / 1 / 1 |
| 19 | 207S13009 | Bolt | 4 / 4 / 4 |
| 20 | 20628018 | Washer | 4 / 4 / 4 |
| 21 | 20722008 | Gasket | 1 / 1 / 1 |
| 22 | 20626007 | Pipe Assy. | 1 / 1 / 1 |
| 23 | 20709015 | Ball | 1 / 1 / 1 |
| 24 | 207S14001 | Screw | 1 / 1 / 1 |
| 25 | 20123021 | Oil Wick | 1 / 1 / 1 |
Page 46 — 二十四、HR装置机构部件/H. R. Device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20711014 | Silicone Oil Reservoir | 1 / 1 / 1 |
| 2 | 20711015 | Cover | 1 / 1 / 1 |
| 3 | 20723008 | Felt | 1 / 1 / 0 |
| 4 | 20719051 | Felt | 0 / 0 / 1 |
| 5 | 20712040 | Thread Guide | 1 / 1 / 0 |
| 6 | 20713019 | Thread Guide | 0 / 0 / 1 |
| 7 | 207S11012 | Screw | 1 / 1 / 1 |
| 8 | 20712042 | Cover | 1 / 1 / 1 |
| 9 | 20723009 | Oil Felt | 0 / 0 / 1 |
| 10 | 20726010 | Pin | 0 / 0 / 1 |
| 11 | 20711016 | Silicone Oil Reservoir | 1 / 1 / 1 |
| 12 | 20711017 | Cover | 1 / 1 / 1 |
| 13 | 207S30003 | Screw | 1 / 1 / 1 |
| 14 | 40123013 | Oil Wick | 1 / 1 / 1 |
| 15 | 40121002 | Tube | 1 / 1 / 1 |
| 16 | 20712041 | Clamp | 2 / 2 / 2 |
| 17 | 20701027 | Needle Thread Lubricator | 1 / 1 / 0 |
| 18 | 207S11008 | Screw | 2 / 2 / 0 |
| 19 | 20709014 | Plug | 1 / 1 / 0 |
| 20 | 20723009 | Oil Felt | 1 / 1 / 0 |
| 21 | 20726010 | Pin | 1 / 1 / 0 |
| 22 | 20701038 | Needle Thread Lubricator | 0 / 0 / 1 |
| 23 | 207S11007 | Screw | 0 / 0 / 2 |
| 24 | 20709014 | Plug | 0 / 0 / 1 |
| 25 | 2071101600 | Silicone Oil Reservoir | 1 / 1 / 0 |
| 26 | 2070103000 | Silicone Oil Reservoir | 0 / 0 / 1 |
Page 48 — 二十五、上送机构 (1) / Top Feed Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20805001 | Link | 1/1/1 |
| 2 | 20803002 | Bushing | 1/1/1 |
| 3 | 207S12003 | Screw | 1/1/1 |
| 4 | 30228008 | Washer | 1/1/1 |
| 5 | 20803005 | Bushing | 1/1/1 |
| 6 | 208S12003 | Bolt | 1/1/1 |
| 7 | 208S16005 | Nut | 1/1/1 |
| 8 | 20804002 | Crank | 1/1/1 |
| 9 | 208S12001 | Bolt | 1/1/1 |
| 10 | 208N12001 | Nut | 1/1/1 |
| 11 | 400288 | Collar | 1/1/1 |
| 12 | S05018 | Screw | 1/1/1 |
| 13 | 20829006 | Flat Spring | 1/1/1 |
| 14 | 400690 | Collar | 1/1/1 |
| 15 | S05018 | Screw | 1/1/1 |
| 16 | 20628011 | Washer | 1/1/1 |
| 17 | 400650 | Crankshaft | 1/1/1 |
| 18 | 20523005 | Oil Wick | 1/1/1 |
| 19 | 20523005 | Oil Wick | 1/1/1 |
| 20 | 30223009 | Oil Felt | 2/2/2 |
| 21 | 20812001 | Guide | 1/1/1 |
| 22 | 20822004 | Oil Seal | 1/1/1 |
| 23 | 208S11007 | Screw | 1/1/1 |
| 24 | 20808003 | Top Feed Bar | 1/1/1 |
| 25 | 20809001 | Guide | 1/1/1 |
| 26 | 207S17001 | Screw | 1/1/1 |
| 27 | 20828001 | Washer | 1/1/1 |
| 28 | 20703016 | Bushing | 1/1/1 |
| 29 | 207S12003 | Screw | 1/1/1 |
| 30 | 30228008 | Washer | 1/1/1 |
| 31 | 20809002 | Guide | 1/1/1 |
| 32 | 207S14001 | Screw | 1/1/1 |
| 33 | 20814001 | Top Feed Dog | 1/1/1 |
| 33 | 20814014 | Top Feed Dog | 1/1/1 |
| 33 | 20814015 | Top Feed Dog | 1/1/1 |
| 33 | 20814019 | Top Feed Dog | 1/1/1 |
| 34 | S01029 | Screw | 1/1/1 |
| 35 | 20802003 | Presser Bar | 1/1/1 |
| 36 | 20827001 | Spring | 1/1/1 |
| 37 | 208S30002 | Screw | 1/1/1 |
| 38 | 208S16006 | Nut | 1/1/1 |
| 39 | 20804015 | Crank | 0/1/0 |
| 40 | 20804003 | Crank | 0/0/1 |
| 41 | 20803006 | Sleeve | 1/1/1 |
| 42 | 20803007 | Sleeve | 1/1/1 |
| 43 | S05018 | Screw | 1/1/1 |
| 44 | 20809003 | Guide | 1/1/1 |
Page 50 — 二十六、上送机构 (2) /TOP Feed mechanism (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400318 | Eccentric | 1 / 1 / 1 |
| 2 | 207S14006 | Screw | 2 / 2 / 2 |
| 3 | 20828002 | Washer | 1 / 1 / 1 |
| 4 | 400319 | Connection | 1 / 1 / 1 |
| 5 | 20804004 | Crank | 1 / 1 / 1 |
| 6 | S05018 | Screw | 1 / 1 / 1 |
| 7 | 20802004 | Rod | 1 / 1 / 1 |
| 8 | H05008 | Ring | 1 / 1 / 1 |
| 9 | 20822002 | Plug | 1 / 1 / 1 |
| 10 | 20628014 | Washer | 1 / 1 / 1 |
| 11 | 20628014 | Washer | 1 / 1 / 1 |
| 12 | 20828004 | Crank Assembly | 1 / 1 / 1 |
| 13 | S05018 | Screw | 1 / 1 / 1 |
| 14 | 20826002 | pin | 1 / 1 / 1 |
| 15 | H05012 | Ring | 1 / 1 / 1 |
| 16 | 20829005 | Block | 1 / 1 / 1 |
| 17 | 20805005 | Link | 1 / 1 / 1 |
| 18 | 207S14001 | Screw | 2 / 2 / 2 |
| 19 | 20826003 | pin | 1 / 1 / 1 |
| 20 | 207S14001 | Screw | 2 / 2 / 2 |
| 21 | 20804005 | Crank | 1 / 1 / 1 |
| 22 | S05018 | Screw | 1 / 1 / 1 |
| 23 | 20803008 | Crank | 1 / 1 / 1 |
| 24 | 207S14006 | Screw | 1 / 1 / 1 |
| 25 | 400607 | Crankshaft | 1 / 1 / 1 |
| 26 | 30223009 | oil Felt | 3 / 3 / 3 |
| 27 | 20523005 | oil Felt | 1 / 1 / 1 |
| 28 | 20523005 | oil Felt | 1 / 1 / 1 |
| 29 | 20803009 | Sleeve | 1 / 1 / 1 |
| 30 | 20803010 | Sleeve | 1 / 1 / 1 |
| 31 | 20703001 | Sleeve | 1 / 1 / 1 |
| 32 | 20803007 | Sleeve | 1 / 1 / 1 |
Page 52 — 二十七、上送机构 (3) /Top Feed Mechanism (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 276513-92 | Lever | 1 / 1 / 1 |
| 2 | 4534 | Screw | 1 / 1 / 1 |
| 3 | 240296 | Collar | 1 / 1 / 1 |
| 4 | 4521 | Screw | 1 / 1 / 1 |
| 5 | 276515 | Latch | 1 / 1 / 1 |
| 6 | 276503 | Spring | 1 / 1 / 1 |
| 7 | 276516 | Latch | 1 / 1 / 1 |
| 8 | 7019 | Screw | 1 / 1 / 1 |
| 9 | 276514 | Rod | 1 / 1 / 1 |
| 10 | 201022 | O Ring | 1 / 1 / 1 |
| 11 | 276517 | Lever | 1 / 1 / 1 |
| 12 | 7077 | Screw | 2 / 2 / 2 |
| 13 | 276519 | Nut | 1 / 1 / 1 |
| 14 | 7059 | Screw | 1 / 1 / 1 |
| 15 | 211301 | Spring Washer | 1 / 1 / 1 |
| 16 | 276518 | Blade guide | 1 / 1 / 1 |
| 17 | 7026 | Screw | 3 / 3 / 3 |
| 18 | 240332 | Spacer | 3 / 3 / 3 |
| 19 | 276524 | Stopper | 1 / 1 / 1 |
| 20 | 4531 | Screw | 2 / 2 / 2 |
| 21 | 179201-15 | Nut | 2 / 2 / 2 |
| 22 | 240339 | Washer | 1 / 1 / 1 |
| 23 | 303448 | Adgusting Bar | 1 / 1 / 1 |
| 24 | 272538A | Seal | 1 / 1 / 1 |
| 25 | 210533 | Spring | 1 / 1 / 1 |
| 26 | 272539A | Pin | 1 / 1 / 1 |
| 27 | 240322 | ping | 1 / 1 / 1 |
| 28 | 577606 | Sleeve | 1 / 1 / 1 |
| 29 | 577608 | Sleeve | 1 / 1 / 1 |
Page 54 — 二十八、线架部件/Thread Stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 206S16007 | |||
| 30113019 | |||
| 20631019 | |||
| 20631018 | |||
| 206S16008 | |||
| N01004 | 螺母M5 | ||
| 20631029 | |||
| 20631026 | |||
| 206S30025 | |||
| 20631032 | |||
| 206S30024 | |||
| 20631023 | |||
| 20631031 | |||
| 206S16006 | |||
| 20631025 | |||
| 20631024 | |||
| 20631021 | |||
| 20631015 | |||
| 206S30027 | |||
| 206S16006 | |||
| 20631022 | |||
| 206S30023 | |||
| 206S16006 | |||
| 20631017 | |||
| 206S30023 | |||
| 206S16006 | |||
| 20631012 | |||
| 20631027 | |||
| 20631016 | |||
| 206S30023 | |||
| 206S16006 | |||
| 20631013 | |||
| 20631014 | |||
| 206S16008 | |||
| N01004 | 螺母M5 | ||
| 20631030 | |||
| 20631011 | |||
| 20631028 | |||
| 2063101400 | |||
| 2053102900 | |||
| 3013102700 |
Page 56 — 二十九、托盘部件/Part For Semi-Submerged Installation
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20711054 | Rest Board | 1 / 1 / 1 |
| 2 | 20722009 | Cushion Rubber | 4 / 4 / 4 |
| 3 | 20131028 | Nut | 4 / 4 / 4 |
| 4 | 20131029 | Spacer | 16 / 16 / 16 |
| 5 | 20131027 | Screw | 4 / 4 / 4 |
| 6 | 20131030 | Washer | 4 / 4 / 4 |
| 7 | 20131032 | Waste Chute | 1 / 1 / 1 |
| 8 | 20131033 | Waste Chute | 1 / 1 / 1 |
| 9 | 20131034 | Screw | 3 / 3 / 3 |
| 10 | 20131031 | Screw | 1 / 1 / 1 |
| 11 | 20131035 | Washer | 4 / 4 / 4 |
| 12 | 30122031 | Spring Washer | 8 / 8 / 8 |
| 13 | 20131058 | Waste Chute Assy. | 1 / 1 / 1 |
| 14 | 20711052 | oil pan | 1 / 1 / 1 |
Page 58 — 三十、专用零件 Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | xxxxxxxx | Presser Foot Assy. | 0/1/0 |
| 2 | 20816004 | Presser Foot Crank | 0/1/0 |
| 3 | 207S11038 | Screw | 0/1/0 |
| 4 | 20827013 | Spring | 0/1/0 |
| 5 | 207S11009 | Screw | 0/1/0 |
| 6 | 208S11001 | Screw | 0/1/0 |
| 7 | 20714051 | Fabric Guard | 0/1/0 |
| 8 | 207S11034 | Screw | 0/1/0 |
| 9 | xxxxxxxx | Presser Foot Assy. | 0/0/1 |
| 10 | 20801016 | Presser Foot Crank | 0/0/1 |
| 12 | S01029 | Screw | 0/0/1 |
| 13 | 20827006 | Spring | 0/0/1 |
| 14 | 207S11019 | Screw | 0/0/1 |
| 15 | 208S11001 | Screw | 0/0/1 |
| 16 | 208S11003 | Screw | 0/0/1 |
| 17 | 20829003 | Latch | 0/0/1 |
| 18 | 20827007 | Spring | 0/0/1 |
| 19 | 208N16002 | Nut | 0/0/1 |
| 20 | 20812022 | Finger Guard | 0/0/1 |
| 21 | xxxxxxxx | Presser Foot Assy. | 0/0/1 |
| 22 | 20801047 | Presser Foot Crank | 0/0/1 |
| 23 | S01029 | Screw | 0/0/1 |
| 24 | 208S20002 | Screw | 0/0/3 |
| 25 | 20719053 | Spring | 0/0/1 |
| 26 | 207S11020 | Screw | 0/0/1 |
Page 60 — 三十一、专用零件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2071205400 | Cloth Plate | 0 / 1 / 1 |
| 2 | 20521002 | Bracket | 0 / 1 / 1 |
| 3 | S01007 | Screw | 0 / 1 / 1 |
| 4 | 20528004 | Spacer | 0 / 1 / 1 |
| 5 | 205S30018 | Screw | 0 / 1 / 1 |
| 6 | 20501012 | Flat Spring | 0 / 1 / 1 |
| 7 | 205S30019 | Screw | 0 / 2 / 2 |
| 8 | 20521004 | Bracket | 0 / 1 / 1 |
| 9 | 205S30017 | Screw | 0 / 1 / 1 |
| 10 | 20528003 | Spring | 0 / 2 / 2 |
| 11 | 205S30021 | Nut | 0 / 1 / 1 |
| 12 | 20521003 | Bracket | 0 / 1 / 1 |
| 13 | 205S30020 | Screw | 0 / 2 / 2 |
| 14 | 20527005 | Flat Spring | 0 / 1 / 1 |
| 15 | 205S30019 | Screw | 0 / 1 / 1 |
| 16 | 20501013 | Spring Guide | 0 / 1 / 1 |
| 17 | 205S30024 | Screw | 0 / 1 / 1 |
| 18 | 301S16006 | Nut | 0 / 1 / 1 |
| 19 | 30111006 | Ratchet | 0 / 1 / 1 |
| 20 | 20529003 | Spring | 0 / 1 / 1 |
| 21 | 20528008 | Washer | 0 / 1 / 1 |
| 22 | 207S30016 | Screw Stud | 0 / 1 / 1 |
| 23 | 20503001 | Washer | 0 / 1 / 1 |
| 24 | 20511008 | Lever | 0 / 1 / 1 |
| 25 | 205S30021 | Nut | 0 / 1 / 1 |
| 26 | 20511007 | Bracket | 0 / 1 / 1 |
| 27 | 20527006 | Spring | 0 / 1 / 1 |
| 28 | 20502001 | Shaft | 0 / 1 / 1 |
| 29 | 20529001 | Ring | 0 / 1 / 1 |
| 30 | 20528006 | Washer | 0 / 1 / 1 |
| 31 | 20527007 | Spring | 0 / 1 / 1 |
| 32 | 20529002 | Collar | 0 / 1 / 1 |
| 33 | 205S30022 | Screw | 0 / 2 / 2 |
| 34 | 20521005 | Washer | 0 / 1 / 1 |
| 35 | 205S30023 | Screw | 0 / 2 / 2 |
| 36 | 2051200900 | Cable | 0 / 1 / 1 |
| 37 | 205S30013 | Cable Support | 0 / 2 / 2 |
| 38 | 205S30011 | Screw | 0 / 1 / 1 |
| 39 | 20528008 | Washer | 0 / 1 / 1 |
| 40 | 205S30021 | Nut | 0 / 1 / 1 |
| 41 | 20512008 | Latch | 0 / 1 / 1 |
| 42 | 205S16003 | Nut | 0 / 1 / 1 |
| 43 | 205S30012 | Screw | 0 / 1 / 1 |
| 44 | 20728006 | Washer | 0 / 1 / 1 |
| 45 | 20713044 | Bracket | 0 / 1 / 1 |
| 46 | 207S11005 | Screw | 0 / 2 / 2 |
| 47 | 20512011 | Fabric Guide | 0 / 1 / 1 |
| 48 | 205S30025 | Screw | 0 / 2 / 2 |
| 49 | 20528007 | Washer | 0 / 2 / 2 |
| 50 | 20713045 | Blade | 0 / 1 / 1 |
| 51 | 20521006 | Blade | 0 / 1 / 1 |
| 52 | 20528005 | Washer | 0 / 1 / 1 |
Page 62 — 三十二、专用零件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20712026 | Finger Guard | 0/1/0 (three/four/five-thread) |
| 2 | 20112051 | Cloth Plate Bracket | 1/0/0 |
| 3 | 20112052 | Hinge Guide Bracket | 1/0/0 |
| 4 | 201S20002 | Screw | 1/0/0 |
| 5 | 20128027 | Spring | 1/0/0 |
| 6 | 201S16003 | Nut | 1/0/0 |
| 9 | 20126020 | Pin | 1/0/0 |
| 10 | 20112053 | Flat Spring | 1/0/0 |
| 11 | 201S11011 | Screw | 1/0/0 |
| 12 | S01010 | Screw | 1/0/0 |
| 13 | W02002 | Spring Washer | 1/0/0 |
| 14 | xxxxxxxx | Presser Foot | 1/0/0 |
| 15 | 20612043 | Bracket | 1/0/0 |
| 16 | 201S12001 | Bolt | 2/0/0 |
| 17 | 20128020 | Washer | 2/0/0 |
| 18 | 20612041 | Bracket | 1/0/0 |
| 19 | 206S11018 | Screw | 1/0/0 |
| 20 | 20612042 | Adjusting Plate | 1/0/0 |
| 21 | 206S11011 | Screw | 2/0/0 |
| 22 | 206S11012 | Screw | 1/0/0 |
| 23 | 206S11010 | Screw | 1/0/0 |
| 24 | 20628016 | Washer | 1/0/0 |
| 25 | 20612044 | Stopper | 1/0/0 |
| 26 | 206S11013 | Screw | 1/0/0 |
| 27 | 20612040 | Folder Assy. | 1/0/0 |
| 28 | 20612048 | Auxiliary Plate | 1/0/0 |
| 29 | 20628020 | Screw | 1/0/0 |
| 30 | 20612050 | Stopper | 1/0/0 |
| 31 | 20612049 | Clamp | 1/0/0 |
| 32 | xxxxxxxx | Presser Foot | 1/0/0 |
| 33 | xxxxxxxx | Presser Foot Finger | 1/0/0 |
| 34 | 20712068 | Uncurler | 1/0/0 |
| 35 | 207S11034 | Screw | 1/0/0 |
| 36 | 20728004 | Washer | 1/0/0 |
| 37 | 20728005 | Washer | 0/1/0 |
| 38 | 2070103900 | Hem Guide Assembly | 1/0/0 |
| XXXXXXXXXX |
Page 64 — 三十三、专用零件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 275542-91 | Tape Guide Assy. | three-thread 0; four-thread 1; |
| 2 | 245510 | Tape Guide | three-thread 0; four-thread 1; |
| 3 | 7066 | Screw | three-thread 0; four-thread 1; |
| 4 | 210307 | Washer | three-thread 0; four-thread 2; |
| 5 | 275511 | Tape Guide | three-thread 0; four-thread 1; |
| 6 | 211267 | Tape Take-up | three-thread 0; four-thread 1; |
| 7 | 208735 | Tape Guide | three-thread 0; four-thread 1; |
| 8 | 1216 | Screw | three-thread 0; four-thread 1; |
| 9 | xxxxxxxx | Presser Foot | three-thread 0; four-thread 1; |
| 10 | xxxxxxxx | Presser Foot Finger | three-thread 0; four-thread 1; |
| 11 | 211600 | Uncurler | three-thread 0; four-thread 1; |
| 12 | 5030 | Screw | three-thread 0; four-thread 1; |
| 13 | 240302 | Spacer | three-thread 0; four-thread 1; |
| 14 | 275054 | Thread Take-up | three-thread 0; four-thread 1; |
Page 66 — 三十四、公司件号/零件号/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 275512 | Tape Guide | 0/0/1 |
| 2 | 7180 | Screw | 0/0/2 |
| 3 | 209200 | Binder(10) | 0/0/1 |
| 4 | 208994 | Binder(8) | 0/0/1 |
| 5 | 1216 | Screw | 0/0/1 |
| 6 | 208997 | Binder Guide | 0/0/1 |
| 7 | 270013A | Front Cover(left) | 0/0/1 |
| 8 | XXXXXXXX | Presser Foot Assy. | 0/0/1 |
| 9 | 7013 | Screw | 0/0/1 |
| 10 | 208958-B | Pin | 0/0/1 |
| 11 | 212499-B | Pin | 0/0/1 |
| 12 | 5409 | Nut | 0/0/1 |
| 13 | 212498 | Latch | 0/0/1 |
| 14 | 274028 | Spring | 0/0/1 |
| 15 | 3153 | Nut | 0/0/1 |
| 16 | 208531 | Fabric Guide | 0/0/1 |
| 17 | 5030 | Screw | 0/0/1 |
| 18 | 274022 | Spring | 0/0/1 |
| 19 | 7009 | Screw | 0/0/1 |
| 20 | 274026 | Finger Guard | 0/0/1 |
| 21 | 7008 | Screw | 0/0/1 |
| 22 | 337 | Tape Disc Assy. | 0/0/1 |
| 23 | 344 | Bracket | 0/0/1 |
| 24 | 4911 | Screw | 0/0/2 |
| 25 | 341 | Rod | 0/0/1 |
| 26 | 189 | Washer | 0/0/1 |
| 27 | 303067 | Spring Washer | 0/0/1 |
| 28 | 4805 | Nut | 0/0/1 |
| 29 | 338 | Tape Reel Stand | 0/0/1 |
| 30 | 339 | Screw | 0/0/1 |
| 31 | 340 | Tape Reel Stand Cover | 0/0/1 |
| 32 | 467 | Spring Seat | 0/0/1 |
| 33 | 343 | Spring | 0/0/1 |
| 34 | 468 | Collar | 0/0/1 |
| 35 | 339 | Screw | 0/0/1 |
Page 68 — 三十五、专用零件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXXXX | Fabric Guard | 1 / 0 / 0 |
| 2 | 20112051 | Cloth Plate Bracket | 1 / 1 / 1 |
| 3 | 20112052 | Hinge Guide Bracket | 1 / 1 / 1 |
| 4 | 201S20002 | Screw | 1 / 1 / 1 |
| 5 | 20128027 | Spring | 1 / 1 / 1 |
| 6 | 201S16003 | Nut | 1 / 1 / 1 |
| 7 | ---- | Spring | 1 / 1 / 1 |
| 8 | ---- | Screw | 1 / 1 / 1 |
| 9 | 20126020 | Pin | 1 / 1 / 1 |
| 10 | 20112053 | Flat Spring | 1 / 1 / 1 |
| 11 | 201S11011 | Screw | 1 / 1 / 1 |
| 12 | S01010 | Screw | 1 / 1 / 1 |
| 13 | W02002 | Spring Washer | 1 / 1 / 1 |
| 14 | XXXXXXXX | Presser Foot | 1 / 0 / 0 |
| 15 | 20112056 | Edge Guide Bracket | 1 / 1 / 1 |
| 16 | 201S12001 | Bolt | 2 / 2 / 2 |
| 17 | 20128020 | Washer | 2 / 2 / 2 |
| 18 | 201S11010 | Screw | 1 / 1 / 1 |
| 19 | 20128020 | Washer | 1 / 1 / 1 |
| 20 | 20112054 | Edge Guide | 1 / 1 / 0 |
| 21 | 20112055 | Edge Guide | 0 / 0 / 1 |
| 22 | 207S11033 | Screw | 1 / 0 / 0 |
| 23 | 20712031 | Unclurler | 1 / 0 / 0 |
| 24 | 207S11034 | Screw | 1 / 0 / 0 |
| 25 | XXXXXXXX | Presser Foot Finger | 1 / 0 / 0 |
Page 70 — 三十六、798TD丨直驱部件/798TD丨Direct Drive Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301779 | machine frame | 1 / 1 / 1 |
| 2 | S01011 | Screw | 3 / 3 / 3 |
| 3 | 2073300300 | Direct Drive motor | 1 / 1 / 1 |
| 4 | 20711028 | Cover | 1 / 1 / 1 |
| 5 | S01084 | Screw | 3 / 3 / 3 |
Page 72 — 三十七、随机附件部分 Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10131005 | Machine head cover | 1 / 1 / 1 |
| 2 | 20131037 | Oil can/100cc | 1 / 1 / 1 |
| 3 | 20131038 | Notes oil | 1 / 1 / 1 |
| 4 | 20131039 | Tundish | 1 / 1 / 1 |
| 5 | 20131040 | Oil can/50cc | 1 / 1 / 1 |
| 6 | 20131041 | Spanner | 1 / 1 / 1 |
| 7 | 20131042 | Spanner | 1 / 1 / 1 |
| 8 | 20131043 | Spanner | 1 / 1 / 1 |
| 9 | 20131044 | Inner-hexagon screw driver | 1 / 1 / 1 |
| 10 | 30131012 | Inner-hexagon screw driver | 1 / 1 / 1 |
| 11 | 20131046 | Inner-hexagon screw driver | 1 / 1 / 1 |
| 12 | 20131047 | Inner-hexagon screw driver | 1 / 1 / 1 |
| 13 | 10131004 | screw driver | 1 / 1 / 1 |
| 14 | 10131003 | screw driver | 1 / 1 / 1 |
| 15 | 20117011 | Needle9# | 1 / 0 / 0 |
| 15 | 20117051 | Needle11# | 1 / 2 / 0 |
| 15 | 20117056 | Needle14# | 0 / 0 / 2 |
| 15 | 20117014 | Needle19# | 0 / 0 / 2 |
| 16 | 20131051 | Tweezer | 1 / 1 / 1 |
| 17 | 30131026 | Inner-hexagon screw driver | 0 / 0 / 1 |
| 18 | 20131053 | Presser foot base | 1 / 1 / 1 |
| 19 | 20131054 | Presser foot base chain | 1 / 1 / 1 |
| 20 | 20131055 | Attachment box | 1 / 1 / 1 |
| 21 | S10005 | screw | 4 / 4 / 4 |
| 22 | 20136001 | Oil filter | 1 / 1 / 1 |
| 23 | 10131002 | screw driver | 1 / 1 / 1 |
| 24 | 2073000500 | DI Special Parts | 1 / 1 / 1 |
Page 73 — JK798T-4 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20715002 | NEEDLE PLATE | ||
| 2071400100 | MAIN FEED DOG ASSM. | ||
| 2081600500 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717005 | LOWER LOOPER | ||
| 20814014 | TOP FEED DOG | ||
| 20715002 | NEEDLE PLATE | ||
| 2071400100 | MAIN FEED DOG ASSM. | ||
| 2081600500 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717005 | LOWER LOOPER | ||
| 20814014 | TOP FEED DOG | ||
| 20619002 | FLAT NIFE | ||
| 20619003 | LOWER KNIFE | ||
| 20717001 | FRONT | ||
| 20717002 | READ | ||
| 20734002 | NEEDLE HOLDER | ||
| DCX27 | NEEDLE | ||
| 20619002 | FLAT NIFE | ||
| 20619003 | LOWER KNIFE | ||
| 20717001 | FRONT | ||
| 20717002 | READ | ||
| 20734002 | NEEDLE HOLDER | ||
| DCX27 | NEEDLE |
Page 74 — JK798T-5 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 20619002 | UPPER KNIFE FLAT NIFE | 4 |
| 5 | 20719050 | UPPER KNIFE ANGLED KNIFE | 6 |
| 20715008 | NEEDLE PLATE | ||
| 2071400400 | MAIN FEED DOG ASSM. | ||
| 20801014 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20712047 | CHAIN STITCH LOOPER | ||
| 20814001 | TOP FEED DOG | ||
| 20715050 | NEEDLE PLATE | ||
| 2071405200 | MAIN FEED DOG ASSM. | ||
| 2081600600 | PRESSER FOOT ASSM. | ||
| 20717050 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20717051 | CHAIN STITCH LOOPER | ||
| 20814019 | TOP FEED DOG | ||
| 20715016 | NEEDLE PLATE | ||
| 2071401700 | MAIN FEED DOG ASSM. | ||
| 2081600700 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20712047 | CHAIN STITCH LOOPER | ||
| 20814015 | TOP FEED DOG | ||
| 20715016 | NEEDLE PLATE | ||
| 2071401700 | MAIN FEED DOG ASSM. | ||
| 2081600700 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20712047 | CHAIN STITCH LOOPER | ||
| 20814015 | TOP FEED DOG | ||
| 20619003 | LOWER KNIFE | ||
| 20717008 | OVERLOCK FRONT | ||
| 20717002 | NEEDLE GUARD READ | ||
| 20712045 | CHAIN STITCH GUARD FRONT | ||
| 20701032 | NEEDLE GUARD READ | ||
| 20734003 | NEEDLE HOLDER | ||
| DCX27 # 14 | NEEDLE | ||
| 20701053 | LOWER KNIFE | ||
| 20719056 | NEEDLE HOLDER | ||
| DCX27 # 19 | NEEDLE | ||
| 20734004 | NEEDLE HOLDER |
Page 75 — JK798T-5 标准度量零件表 / JK798T-5 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20715008 | NEEDLE PLATE | ||
| 2071400400 | MAIN FEED DOG ASSM. | ||
| 20801014 | PRESSER FOOT ASSM. | ||
| 20717004 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20712047 | CHAIN STITCH LOOPER | ||
| 20814001 | TOP FEED DOG | ||
| 20715050 | NEEDLE PLATE | ||
| 2071405200 | MAIN FEED DOG ASSM. | ||
| 2081600600 | PRESSER FOOT ASSM. | ||
| 20717050 | UPPER LOOPER | ||
| 20717006 | LOWER LOOPER | ||
| 20717051 | CHAIN STITCH LOOPER | ||
| 20814019 | TOP FEED DOG | ||
| 20619002 | FLAT NIFE | ||
| 20619003 | LOWER KNIFE | ||
| 20717008 | OVERLOCK NEEDLE GUARD FRONT | ||
| 20717002 | OVERLOCK NEEDLE GUARD READ | ||
| 20712045 | CHAIN STITCH GUARD NEEDLE FRONT | ||
| 20701032 | CHAIN STITCH GUARD NEEDLE READ | ||
| 20734003 | DCX27 # 14 | ||
| DCX27 | NEEDLE | ||
| 20719050 | ANGLED KNIFE | ||
| 20701053 | LOWER KNIFE | ||
| 20717008 | OVERLOCK NEEDLE GUARD FRONT | ||
| 20717002 | OVERLOCK NEEDLE GUARD READ | ||
| 20712045 | CHAIN STITCH GUARD NEEDLE FRONT | ||
| 20701032 | CHAIN STITCH GUARD NEEDLE READ | ||
| 20719056 | DCX27 # 19 | ||
| DCX27 | NEEDLE |
Jack JK-798 Spares — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-798T Parts Manual, featuring an image of the sewing machine and the manufacturer's logo.
- Page 2 (toc): This page contains the table of contents for the sewing machine parts catalog, listing sections and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of machine components with numbered references, including part numbers and model series information for specific parts.
- Page 4 (parts_list): This page lists parts for the Machine Bed Frame, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations. It also includes a note about a specific part substitution for the 798TD I model.
- Page 5 (diagram): This page displays a diagram of sewing machine components, with numbered parts and associated part numbers and series information for JK798T-5-516(H) and JK798T-4-514 series.
- Page 6 (parts_list): This page lists parts for the machine cover, including part numbers, descriptions, and quantities for different thread types.
- Page 7 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, and covers, with reference numbers and model applicability indicated for some parts.
- Page 8 (parts_list): This page lists parts for the machine cover, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 9 (diagram): This page displays a diagram of various sewing machine components, including screws, plates, shafts, bearings, and other mechanical parts, with reference numbers and some model series information.
- Page 10 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities for different machine thread types.
- Page 11 (diagram): This page displays diagrams of parts for 1-needle and 2-needle sewing machines, with numbered components and their corresponding references.
- Page 12 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 13 (diagram): This page displays diagrams of components for the JK798T-5-516 (H) Series sewing machine, including various parts with reference numbers and some part names.
- Page 14 (parts_list): Parts table for the thread guide and thread takeup mechanism (1), listing part numbers, reference numbers, names, and quantities for three-, four-, and five-thread models.
- Page 15 (diagram): This page displays a diagram of sewing machine parts for the JK798T-4-514 (H) Series, detailing components for 1-needle and 2-needle configurations.
- Page 16 (parts_list): This page contains a parts list for the Thread Guide and Thread Takeup components, detailing part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 17 (diagram): This page contains a diagram illustrating various sewing machine lift components, with numbered callouts for different parts and their associated part numbers and descriptions.
- Page 18 (parts_list): This page contains a parts list for the Thread Guide and Thread Takeup components, detailing part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 19 (diagram): This page displays a diagram of sewing machine parts for the JK798T-5-516 (H) Series and JK798T-4-514 Series, with numbered components and their corresponding part numbers and descriptions.
- Page 20 (parts_list): This page lists parts for the Needle Drive Mechanism (1), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 21 (diagram): This page contains diagrams and parts lists for the JK798T-5-516 (H) Series and JK798T-4-514 Series sewing machines.
- Page 22 (parts_list): This page lists parts for the Needle Drive Mechanism (3), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 23 (diagram): This page displays diagrams of parts for the JK798T-5-516 (H) Series and JK798T-4-514 Series sewing machines, with numbered parts indicated.
- Page 24 (parts_list): This page lists parts for the Needle Drive Mechanism (4) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 25 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, and other components, with reference numbers and part numbers indicated.
- Page 26 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 27 (diagram): This page displays a diagram of sewing machine parts, with numbered components and associated part numbers and series information.
- Page 28 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 29 (diagram): This page displays a diagram of various sewing machine parts, identified by reference numbers, for the JK798T-5-516 (H) Series.
- Page 30 (parts_list): This page lists parts for the Double Chainstitch Looper Drive Mechanism (1), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 31 (diagram): This page displays a diagram of various sewing machine parts, including a frame, levers, screws, and a spool holder, with reference numbers for each component.
- Page 32 (parts_list): This page lists parts for the Chainstitch Looper Drive Mechanism (2) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 33 (diagram): This page displays a diagram of various sewing machine components, including a crank assembly, connecting rod, gears, levers, springs, and fasteners, each identified by a reference number.
- Page 34 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 35 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification.
- Page 36 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 37 (diagram): This page displays a diagram of various sewing machine parts, with numbered callouts indicating specific components and their corresponding part numbers and series.
- Page 38 (parts_list): This page lists parts for the Knife Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 39 (diagram): This page displays a diagram of various sewing machine components, with numbered references for each part.
- Page 40 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 41 (diagram): This page displays a diagram of various sewing machine components, including shafts, bearings, screws, and other hardware, with reference numbers for each part.
- Page 42 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 43 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated for reference. The diagram includes various mechanical parts and fasteners, such as shafts, brackets, screws, and a base assembly.
- Page 44 (parts_list): This page lists parts for the lubrication mechanism (2) with part numbers, descriptions, and quantities for different thread types.
- Page 45 (diagram): This page displays diagrams of sewing machine parts for the JK798T-4-514 Series and JK798T-5-516(H) Series, with numbered components and associated part numbers.
- Page 46 (parts_list): This page lists parts for HR Device, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 47 (diagram): This page displays a diagram of sewing machine parts, with numbered components and specific part numbers listed for JK798T-4-514 (H) Series and JK798T-5-516 (H) Series machines.
- Page 48 (parts_list): This page lists parts for the Top Feed Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 49 (diagram): This page displays a diagram of various sewing machine components, with numbered references for each part.
- Page 50 (parts_list): This page lists parts for the TOP Feed mechanism (2) of an industrial sewing machine, including part numbers, descriptions, and quantities for different thread types.
- Page 51 (diagram): This page contains a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes parts numbered 1 through 32, illustrating mechanical components and their assembly.
- Page 52 (parts_list): This page lists parts for the Top Feed Mechanism (3) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 53 (diagram): This page displays a diagram of sewing machine parts, including various components like spools, stands, and fasteners, each identified by a reference number.
- Page 54 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 55 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicating their location and relationships. It includes references to parts like screws, brackets, and plates.
- Page 56 (parts_list): This page contains a parts list for semi-submerged installation, detailing parts such as Rest Board, Cushion Rubber, Nut, Spacer, Screw, Washer, Waste Chute, and oil pan, along with their respective company part numbers, reference part numbers, and quantities for different machine types.
- Page 57 (diagram): This page displays diagrams of sewing machine parts for the JK798T-4-514 (H) Series and JK798T-5-516 (H) Series, detailing various components with their respective part numbers and reference indicators.
- Page 58 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 59 (diagram): This page displays a diagram of the shimming components for a sewing machine, with numbered parts and their corresponding part numbers and descriptions.
- Page 60 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities for different thread configurations.
- Page 61 (diagram): This page displays a diagram of blind hemming components for sewing machine models JK798T-3-505-12 and JK798T-4-514-43P2, with numbered parts indicated.
- Page 62 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for different thread types.
- Page 63 (diagram): This page displays diagrams of various sewing machine parts, including components for JK798T-4-514-M53 and JK798T-4-514-M53,54. It also includes a reference to the library of Superior Sewing Machine & Supply LLC.
- Page 64 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for different thread configurations.
- Page 65 (diagram): This page displays a diagram of components related to attaching U-shaped tape, with part numbers and reference numbers indicated for various parts.
- Page 66 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 67 (diagram): This page contains a diagram of the JK798T-3-504-32R2 turn down hemming mechanism, with parts numbered from 1 to 25.
- Page 68 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 69 (diagram): This page displays a diagram of sewing machine components, with numbered parts and associated details.
- Page 70 (parts_list): Parts table for the 798TD direct drive assemblies listing machine frame, screws, direct drive motor and motor cover with quantities for three, four and five-thread versions.
- Page 71 (diagram): This page displays a diagram of various sewing machine parts and accessories, including tools, oil, and machine components, with reference numbers for identification.
- Page 72 (parts_list): This page lists accessories and assemblies for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 73 (parts_list): This page lists parts for the JK798T-4 GAUGE sewing machine, including machine type, gauge specifications, and various components like needles, loopers, and feed dogs with their corresponding part numbers.
- Page 74 (parts_list): This page lists gauge parts for the JK798T-5 sewing machine, including part numbers, descriptions, and specifications for various components like needles, feed dogs, and loopers.
- Page 75 (parts_list): Gauge parts list for the JK798T-5 machine, giving part numbers by machine type and gauge (NG/SW) for needle plate, feed dogs, presser foot, loopers, knives, needle guards, needle holder and needle.
- Page 76 (cover): This is the cover page for the Zhejiang New Jack Sewing Machine Co., Ltd. parts catalog, featuring the company logo, contact information, and the standard code for the products: QB/T1515-2005.
