Juki 1190 Parts Book (PDF)
Text index — Juki 1190

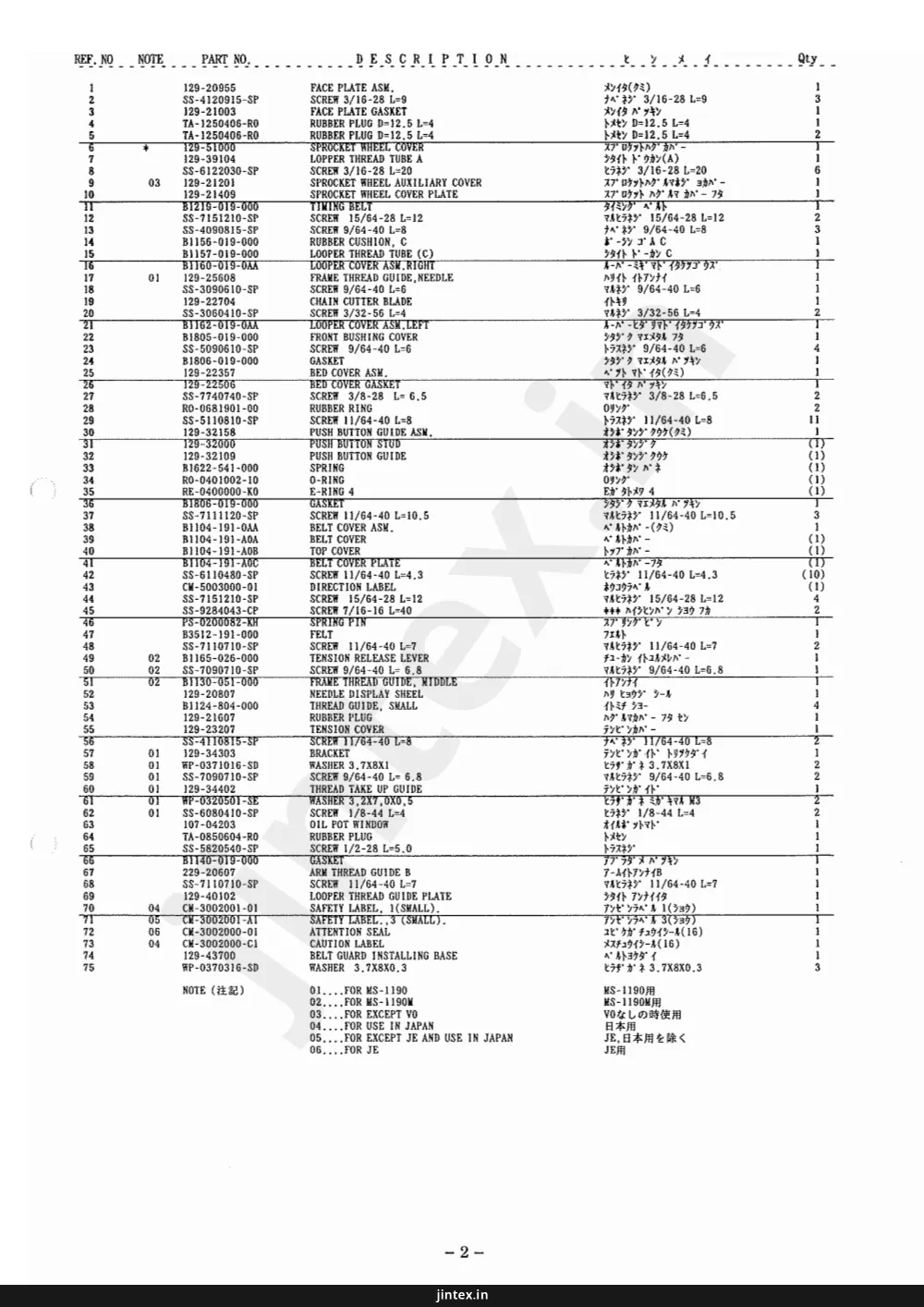

Page 5 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-20955 | FACE PLATE ASM. | 1 |
| 2 | SS-4120915-SP | SCREW 3/16-28 L=9 | 3 |
| 3 | 129-21003 | FACE PLATE GASKET | 1 |
| 4 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 1 |
| 5 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 2 |
| 6 | 129-51000 | SPROCKET WHEEL COVER | 1 |
| 7 | 129-39104 | LOPPER THREAD TUBE A | 1 |
| 8 | SS-6122030-SP | SCREW 3/16-28 L=20 | 6 |
| 9 | 129-21201 | SPROCKET WHEEL AUXILIARY COVER | 1 |
| 10 | 129-21409 | SPROCKET WHEEL COVER PLATE | 1 |
| 11 | B1219-019-000 | TIMING BELT | 1 |
| 12 | SS-7151210-SP | SCREW 15/64-28 L=12 | 2 |
| 13 | SS-4090815-SP | SCREW 9/64-40 L=8 | 3 |
| 14 | B1156-019-000 | RUBBER CUSHION, C | 1 |
| 15 | B1157-019-000 | LOOPER THREAD TUBE (C) | 1 |
| 16 | B1160-019-0AA | LOOPER COVER ASM.RIGHT | 1 |
| 17 | 129-25608 | FRAME THREAD GUIDE,NEEDLE | 1 |
| 18 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 19 | 129-22704 | CHAIN CUTTER BLADE | 1 |
| 20 | SS-3060410-SP | SCREW 3/32-56 L=4 | 2 |
| 21 | B1162-019-0AA | LOOPER COVER ASM.LEFT | 1 |
| 22 | B1805-019-000 | FRONT BUSHING COVER | 1 |
| 23 | SS-5090610-SP | SCREW 9/64-40 L=6 | 4 |
| 24 | B1806-019-000 | GASKET | 1 |
| 25 | 129-22357 | BED COVER ASM. | 1 |
| 26 | 129-22506 | BED COVER GASKET | 1 |
| 27 | SS-7740740-SP | SCREW 3/8-28 L= 6.5 | 2 |
| 28 | RO-0681901-00 | RUBBER RING | 2 |
| 29 | SS-5110810-SP | SCREW 11/64-40 L=8 | 11 |
| 30 | 129-32158 | PUSH BUTTON GUIDE ASM. | 1 |
| 31 | 129-32000 | PUSH BUTTON STUD | (1) |
| 32 | 129-32109 | PUSH BUTTON GUIDE | (1) |
| 33 | B1622-541-000 | SPRING | (1) |
| 34 | RO-0401002-10 | O-RING | (1) |
| 35 | RE-0400000-KO | E-RING 4 | (1) |
| 36 | B1806-019-000 | GASKET | 1 |
| 37 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | 3 |
| 38 | B1104-191-0AA | BELT COVER ASM. | 1 |
| 39 | B1104-191-A0A | BELT COVER | (1) |
| 40 | B1104-191-A0B | TOP COVER | (1) |
| 41 | B1104-191-A0C | BELT COVER PLATE | (1) |
| 42 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | (10) |
| 43 | CM-5003000-01 | DIRECTION LABEL | (1) |
| 44 | SS-7151210-SP | SCREW 15/64-28 L=12 | 4 |
| 45 | SS-9284043-CP | SCREW 7/16-16 L=40 | 2 |
| 46 | PS-0200082-KH | SPRING PIN | 1 |
| 47 | B3512-191-000 | FELT | 1 |
| 48 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 49 | B1165-026-000 | TENSION RELEASE LEVER | 1 |
| 50 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 51 | B1130-051-000 | FRAME THREAD GUIDE, MIDDLE | 1 |
| 52 | 129-20807 | NEEDLE DISPLAY SHEEL | 1 |
| 53 | B1124-804-000 | THREAD GUIDE, SMALL | 4 |
| 54 | 129-21607 | RUBBER PLUG | 1 |
| 55 | 129-23207 | TENSION COVER | 1 |
| 56 | SS-4110815-SP | SCREW 11/64-40 L=8 | 2 |
| 57 | 129-34303 | BRACKET | 1 |
| 58 | WP-0371016-SD | WASHER 3.7X8X1 | 2 |
| 59 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 60 | 129-34402 | THREAD TAKE UP GUIDE | 1 |
| 61 | WP-0320501-SE | WASHER 3.2X7.0X0.5 | 2 |
| 62 | SS-6080410-SP | SCREW 1/8-44 L=4 | 2 |
| 63 | 107-04203 | OIL POT WINDOW | 1 |
| 64 | TA-0850604-RO | RUBBER PLUG | 1 |
| 65 | SS-5820540-SP | SCREW 1/2-28 L=5.0 | 1 |
| 66 | B1140-019-000 | GASKET | 1 |
| 67 | 229-20607 | ARM THREAD GUIDE B | 1 |
| 68 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 69 | 129-40102 | LOOPER THREAD GUIDE PLATE | 1 |
| 70 | CM-3002001-01 | SAFETY LABEL, 1(SMALL). | 1 |
| 71 | CM-3002001-A1 | SAFETY LABEL,,3 (SMALL). | 1 |
| 72 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 73 | CM-3002000-C1 | CAUTION LABEL | 1 |
| 74 | 129-43700 | BELT GUARD INSTALLING BASE | 1 |
| 75 | WP-0370316-SD | WASHER 3.7X8X0.3 | 3 |
| SS-410815-SP | SCREW 11/64-40 L=8 | 2 | |
| 10T-04203 | OIL POT WINDOW | 1 | |
| CM-3002001-AT | SAFETY LABEL, 3 (SMALL). | 1 |
Page 7 — 2. LOOPER THREAD GUIDE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-38007 | TENSION THREAD GUIDE A | 1 |
| 2 | 129-38106 | TENSION THREAD GUIDE B | 1 |
| 3 | B2310-019-000 | TENSION RELEASING PIN | 2 |
| 4 | 129-38205 | TENSION POST | 2 |
| 5 | B3126-012-000 | THREAD TENSION DISK | 4 |
| 6 | 119-57305 | TENSION DISC PRESSER | 2 |
| 7 | 129-38304 | TENSION SPRING | 2 |
| 8 | B3112-704-000 | TENSION SPRING BUSHING | 2 |
| 9 | 119-56703 | THREAD TENSION KNOB, RED | 2 |
| 10 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 11 | SS-8111160-SP | SCREW 11/64-40 L=11.0 | 1 |
| 12 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 13 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | 8 |
| 14 | SS-6122510-SP | SCREW 3/16-28 L=25 | 1 |
| 15 | 129-39302 | THREAD EYELET | 1 |
| 16 | 129-37801 | TENSION STUD BUSHING | 1 |
| 17 | 129-37900 | TENSION RELEASE SHAFT | 1 |
| 18 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | 2 |
| 19 | B2402-019-000 | THREAD GUIDE | 4 |
| 20 | 129-39203 | THREAD GUIDE MOUNTING BRACKET | 1 |
| 21 | 129-38908 | THREAD GUIDE BRACKET | 1 |
| 22 | SS-4090815-SP | SCREW 9/64-40 L=8 | 1 |
| 23 | 129-36803 | LOOPER THREAD TAKE-UP COVER | 1 |
| 24 | B2208-019-000 | LOOPER THREAD TAKE-UP COVER SP | 1 |
| 25 | SS-6060220-SP | SCREW 3/32-56 L= 2.0 | 1 |
| 26 | PS-0500202-KP | SPRING PIN 5X20 | 1 |
| 27 | 129-36902 | LOOPER THREAD TAKE-UP PIN | 1 |
| 28 | 129-36506 | STRIPPER PLATE BRACKET | 1 |
| 29 | SS-7111410-SP | SCREW 11/64-40 L=14 | 1 |
| 30 | 129-35706 | CAM HOLDER | 1 |
| 31 | 129-35607 | CAM HOLDER BRACKET | 1 |
| 32 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 33 | SS-7090850-SP | SCREW 9/64-40 L=8 | 1 |
| 34 | 129-35516 | TENSION TAKE-UP STRIPPER PLATE | 1 |
| 35 | 129-35904 | LOOPER THREAD GUIDE | 1 |
| 36 | WP-0371016-SD | WASHER 3.7X8X1 | 3 |
| 37 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 3 |
| 38 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 39 | 129-36100 | LOOPER THREAD GUIDE A | 1 |
| 40 | 129-36217 | FELT | 1 |
| 41 | SS-5090420-SP | SCREW 9/64-40 L=3.5 | 1 |
| 42 | 129-22803 | COVER SPRING | 1 |
| 43 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 44 | 129-39559 | TENSION POST ASM. | 1 |
| 45 | 129-39500 | TENSION BASE PLATE | (1) |
| 46 | 129-39609 | TENSION POST | (2) |
| 47 | 129-39708 | TENSION DISC | (4) |
| 48 | 129-39807 | TENSION SPRING | (2) |
| 49 | 129-39906 | TENSION NUT | (2) |
| 50 | NS-6110350-SP | NUT 11/64-40 | (2) |
| 51 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 52 | 129-21805 | LOOPER THREAD TUBE COVER | 1 |
| 53 | 129-21904 | LOOPER THREAD TUBE COVER HING | 1 |
| 54 | 129-22001 | LOOPER THREAD TUBE COVER HING | 1 |
| 55 | B1534-816-000 | HINGE SCREW | 2 |
| 56 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 57 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 58 | 400-38331 | VIBRATION-PROOF RUBBER | 2 |
| 59 | 129-39005 | THREAD GUIDE BRACKET SUPPORT | 1 |
| 60 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 61 | 129-36001 | LOOPER THREAD GUIDE | 1 |
| 62 | 129-35805 | LOOPER THREAD GUIDE | 1 |
| 63 | 129-22100 | COVER HOOK | 1 |
Page 9 — 3. NEEDLE BAR & MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1207-191-ABO | COUNTERWEIGHT ASM. | 1 |
| 2 | B1209-019-0AO | NEEDLE BAR CRANK PIN ASM. | (1) |
| 3 | B1236-125-BAO | NEEDLE BUSHING ASM. | (1) |
| 4 | B1408-038-000 | NEEDLE BAR CRANK ROD, B | (1) |
| 5 | B1208-019-000 | WASHER | (1) |
| 6 | B1207-191-A00 | COUNTERWEIGHT | (1) |
| 7 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 8 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | (2) |
| 9 | B1202-512-000 | MAIN SHAFT BUSHING, FRONT | 1 |
| 10 | 129-23306 | THROAT PLATE 1/8 | 1 |
| 11 | 129-80900 | THROAT PLATE 1/8 | 1 |
| 12 | B3510-019-000 | OIL FELT | 1 |
| 13 | B1412-038-000 | SLIDE BLOCK GUIDE | 1 |
| 14 | B1411-019-000 | SLIDE BLOCK GUIDE | 1 |
| 15 | SS-7120910-SP | SCREW 3/16-28 L=9 | 2 |
| 16 | SS-7740740-SP | SCREW 3/8-28 L= 6.5 | 1 |
| 17 | B1222-019-000 | PACKING | 1 |
| 18 | 129-24502 | MAIN SHAFT | 1 |
| 19 | 129-43106 | OIL WICK PRESSER | 1 |
| 20 | MC-2630008-00 | NEEDLE B-64 80 | 2 |
| 21 | 129-24916 | SPROCKET WHEEL A | 1 |
| 22 | SS-8660522-TP | SCREW 1/4-40 L=4.5 | 2 |
| 23 | 129-25202 | HAND WHEEL | 1 |
| 24 | SS-8152030-SP | SCREW 15/64-28 L=20 | 2 |
| 25 | 400-26875 | OIL CUP BODY ASM. | 1 |
| 26 | B3504-019-000 | OIL CUP BODY CAP RETAINER | (1) |
| 27 | B3502-019-000 | OIL CUP BODY CAP | (1) |
| 28 | B3503-019-000 | OIL CUP BODY CAP GASKET | (1) |
| 29 | RO-0691801-00 | RUBBER RING | (1) |
| 30 | SS-5660440-SP | SCREW 1/4-40 L= 4.0 | (1) |
| 31 | 400-26874 | OIL CUP BODY | (1) |
| 32 | SS-6092120-SP | SCREW 9/64-40 L=21.2 | (4) |
| 33 | RO-0982401-00 | RUBBER RING | 1 |
| 34 | 129-24767 | BUSHING REAR ASM. | 1 |
| 35 | B1203-512-000 | BUSHING, REAR | (1) |
| 36 | 129-24718 | BUSHING | (1) |
| 37 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 38 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 39 | B1402-019-000 | NEEDLE BAR BUSHING, UPPER | 1 |
| 40 | CQ-3030000-00 | OIL WICK | 0.23 |
| 41 | 129-25004 | PULLEY PLATE | 1 |
| 42 | SS-1090510-SP | SCREW 9/64-40 L=5 | 3 |
| 43 | B3541-012-000 | OIL WICK | 1 |
| 44 | 129-34014 | TAKE UP TENSION | 1 |
| 45 | SM-5041055-SN | SCREW M4X10 | 1 |
| 46 | 129-34105 | TAKE UP THREAD EYELET | 1 |
| 47 | SS-3060410-SP | SCREW 3/32-56 L=4 | 1 |
| 48 | CQ-2520000-00 | OIL WICK | 1 |
| 49 | B1409-019-0BO | NEEDLE BAR CLAMP ASM. | 1 |
| 50 | B1418-019-000 | FELT | (1) |
| 51 | SS-7090910-SP | SCREW 9/64-40 L= 8.5 | (1) |
| 52 | B1404-026-000 | NEEDLE BAR BUSHING, LOWER | 1 |
| 53 | B1401-019-000 | NEEDLE BAR | 1 |
| 54 | 129-25954 | NEEDLE CLAMP 3/16 ASM. | 1 |
| 55 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | (2) |
| 56 | MTV-640N1200 | NEEDLE TVX64-NY#12 | 2 |
| 57 | 129-23405 | THROAT PLATE(3/16) | 1 |
| 58 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 3 |
| 59 | 129-81502 | HAND WHEEL | 1 |
| 60 | 129-25301 | SCALE PLATE | 1 |
| 61 | 129-81601 | SCALE PLATE | 1 |
| 62 | B1161-227-000 | RIVET | 2 |
Page 11 — 4. PRESSER BAR & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1509-191-000 | PRESSER SPRING REGULATOR | 1 |
| 2 | B1510-191-000 | PRESSER GUIDE BAR | 1 |
| 3 | B1505-191-000 | PRESSER SPRING | 1 |
| 4 | B1501-191-000-A | PRESSER BAR | 1 |
| 5 | 229-07208 | PRESSER BAR GUIDE BRACKET | 1 |
| 6 | SS-8660610-TP | SCREW 1/4-40 L=6 | 1 |
| 7 | 229-07109 | PRESSER BAR BUSHING, LOWER | 1 |
| 8 | SS-8150310-SP | SCREW 15/64-28 L= 3.4 | 1 |
| 9 | 129-42801 | NEEDLE GUARD HOLDER | 1 |
| 10 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | 1 |
| 11 | 129-27760 | PRESSER FOOT ASM. 3/16 | 1 |
| 12 | 129-29600 | NEEDLE GUARD | (1) |
| 13 | B1166-019-000 | LOOPER COVER SPRING | 1 |
| 14 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 15 | 129-42900 | LOOPER THREAD EYELET | 1 |
| 16 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 17 | 129-42355 | NEEDLE GUARD ASM. | 1 |
| 18 | 129-42306 | REAR NEEDLE HOLDER,R | (1) |
| 19 | 129-42603 | FRONT NEEDLE HOLDER,L | (1) |
| 20 | SS-7090910-SP | SCREW 9/64-40 L= 8.5 | (1) |
| 21 | 129-42504 | REAR NEEDLE HOLDER,L | (1) |
| 22 | 129-42405 | NEEDLE GUARD, RIGHT | (1) |
| 23 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | (1) |
| 24 | 129-40557 | LOOPER,R 3/16 ASM. | 1 |
| 25 | 129-40508 | LOOPER,R 3/16 | (1) |
| 26 | SS-4080620-TP | SCREW 1/8-44 L=6 | (1) |
| 27 | 129-41100 | LOOPER HOLDER,1 | (1) |
| 28 | SS-6090910-TP | SCREW 9/64-40 L=9 | (1) |
| 29 | 129-41456 | LOOPER,L3/16 ASM. | 1 |
| 30 | 129-41407 | LOOPER,L 3/16 | (1) |
| 31 | SS-4080620-TP | SCREW 1/8-44 L=6 | (1) |
| 32 | 129-42009 | LOOPER HOLDER,2 | (1) |
| 33 | SS-6090910-TP | SCREW 9/64-40 L=9 | (1) |
| 34 | SS-7110830-SP | SCREW 11/64-40 L= 7.5 | 1 |
| 35 | B1802-019-000 | BALL BEARING, FRONT | 1 |
| 36 | B1803-019-000 | BALL BEARING, INTERMEDIATE | 1 |
| 37 | B1808-019-0A0 | SLEEVE ASM. | 1 |
| 38 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | (2) |
| 39 | 129-37256 | LOOPER THREAD CAM ASM. | 1 |
| 40 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | (2) |
| 41 | SS-6091210-TP | SCREW 9/64-40 L=12 | 1 |
| 42 | 129-33610 | HOOK DRIVING SHAFT | 1 |
| 43 | 129-24767 | BUSHING REAR ASM. | 1 |
| 44 | B1203-512-000 | BUSHING, REAR | (1) |
| 45 | 129-24718 | BUSHING | (1) |
| 46 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 47 | RE-1200000-KO | E-RING 12 | 1 |
| 48 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 49 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 50 | 129-33719 | SPROCKET WHEEL B | 1 |
| 51 | WP-0550800-SP | WASHER 5.5X10X0.8 | 1 |
| 52 | MAM-2950CCAA | HOLDER 3/16A | 1 |
| 53 | 129-24809 | METAL PRESSER | 3 |
| 54 | SS-6111610-SP | SCREW 11/64-40 L=16 | 3 |
| B1808-019-0AD | SLEEVE ASM. | 1 |
Page 13 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2502-019-000 | BUSHING, FRONT | 1 |
| 2 | SS-8080660-TP | SCREW 1/8-44 L=5.5 | 2 |
| 3 | B2501-019-000 | LOOPER ROCKER SHAFT | 1 |
| 4 | B2505-019-0A0 | CONNECTION CRANK ASM. | 1 |
| 5 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 6 | B2109-019-0A0 | FEED ROCKER CONNECTING ROD ASM | 1 |
| 7 | SS-7090920-SP | SCREW 9/64-40 L= 8.5 | (4) |
| 8 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 9 | B2116-191-00A | FEED CONNECTING LINK PIN | 2 |
| 10 | B2116-191-00B | FEED CONNECTING LINK PIN | 2 |
| 11 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 2 |
| 12 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 13 | B2107-019-000 | FEED ROCKER SHAFT | 1 |
| 14 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 15 | 129-35011 | FEED ROCKER | 1 |
| 16 | B2122-019-000 | WASHER | 1 |
| 17 | SS-7110830-SP | SCREW 11/64-40 L= 7.5 | 1 |
| 18 | B2006-019-0A0 | LOOPER AVOIDING ECCENTRIC CAM | 1 |
| 19 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 20 | B1635-191-000 | SLIDE BLOCK | 1 |
| 21 | B2004-191-0A0 | LOOPER AVOIDING SHAFT ASM. | 1 |
| 22 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 23 | SS-8150410-SP | SCREW 15/64-28 L=4 | 1 |
| 24 | B2001-019-000 | LOOPER AVOIDING SHAFT | 1 |
| 25 | B2503-019-000 | LOOPER ROCKER SHAFT BUSHING, R | 1 |
| 26 | SS-8120410-SP | SCREW 3/16-28 L=3.8 | 1 |
| 27 | 129-32307 | FEED DOG | 1 |
| 28 | SS-7621040-SP | SCREW 3/16-32 L= 9.5 | 1 |
| 29 | B1610-019-000 | SLIDE BLOCK | 1 |
| 30 | SS-8110422-TP | SCREW 11/64-40 L=4 | 1 |
| 31 | RO-0611801-00 | RUBBER RING | 1 |
| 32 | B1608-019-000-A | FEED BAR ECCENTRIC HINGE PIN | 1 |
| 33 | B2108-019-000 | FEED ROCKER SLIDE BLOCK STOPPE | 1 |
| 34 | SS-8110510-SP | SCREW 11/64-40 L=5 | 2 |
| 35 | B2105-019-000 | FEED ROCKER SLIDE BLOCK | 1 |
| 36 | B2106-019-000 | FEED ROCKER SLIDE BLOCK PIN | 1 |
| 37 | RO-0952001-00 | RUBBER RING | 1 |
| 38 | B2101-191-000-A | LOOPER AVOID LEVER | 1 |
| 39 | 129-35102 | FEED ROCKER ECCENTRIC | 1 |
| 40 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 41 | B1635-191-000 | SLIDE BLOCK | 1 |
| 42 | B1602-019-000 | FEED LIFTING FORKED CONNECTION | 1 |
| 43 | B1606-191-000 | FEED ECCENTRIC SLIDE BLOCK | 1 |
| 44 | B1601-019-000 | FEED BAR | 1 |
| 45 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | 2 |
| 46 | 129-31903 | BODY CAP | 1 |
| 47 | 129-31465 | FEED ECCENTRIC BASE ASM. | 1 |
| 48 | B1624-191-000 | RATCHET PAWL | (1) |
| 49 | PS-0250081-KO | SPRING PIN 2.5X8 | (1) |
| 50 | B1626-191-000 | SCREW | (1) |
| 51 | B1625-191-000 | RATCHET PAWL SPRING | (1) |
| 52 | B1623-191-000 | RATCHET GEAR | (1) |
| 53 | 129-31408 | FEED ECCENTRIC | (1) |
| 54 | 129-31606 | SCREW | (1) |
| 55 | 129-31507 | FEED ECCENTRIC BODY | (1) |
| 56 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 57 | B1621-261-000-A | FEED ECCENTRIC GUIDE | (1) |
| 58 | 129-31705 | SCREW | (1) |
| 59 | 129-31002 | VERTICAL FEED CAM | 1 |
| 60 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 2 |
| 61 | 129-32208 | FEED DOG 1/8 | 1 |
| 62 | SS-6121840-SP | SCREW 3/16-28 L=18 | 1 |
Page 15 — 6. KNEE LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2322-019-000 | PRESSER BAR LIFTING BRACKET LI | 1 |
| 2 | SD-0790431-SP | HINGE SCREW D= 7.94 H= 4.3 | 1 |
| 3 | B3701-019-000 | HINGE SCREW | 1 |
| 4 | B2319-191-00A | PRESSER BAR LIFTING LEVER | 1 |
| 5 | 129-38502 | LEVER | 1 |
| 6 | SD-0450211-SP | HINGE SCREW D= 4.50 H= 2.1 | 2 |
| 7 | B2317-019-000 | TENSION RELEASING SHAFT CRANK | 1 |
| 8 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 9 | B2321-019-000 | PRESSER BAR LIFTING LEVER SPRI | 1 |
| 10 | B8101-191-0A0 | KNEE LIFTER ASM. | 1 |
| 11 | B8102-191-000 | KNEE LIFTER LEVER | (1) |
| 12 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 13 | B8101-191-000 | KNEE DRIVING SHAFT MOUNTING | (1) |
| 14 | B8511-180-000 | SPRING | (1) |
| 15 | 129-44906 | SPRING HOOK | (1) |
| 16 | SS-9182010-TE | BOLT 9/32-20 L=20 | (2) |
| 17 | 129-44906 | SPRING HOOK | (1) |
| 18 | 229-32453 | BRACKET ASM. | (1) |
| 19 | B3421-012-000 | KNEE PRESS ROD | (1) |
| 20 | SK-3482500-SC | WOOD SCREW D=4.8 L=25 | 4 |
| 21 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 22 | 229-34202 | KNEE PAD PLATE | (1) |
| 23 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 24 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 25 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 26 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 27 | SM-9061203-SE | SCREW M6 L=12 | (1) |
Page 16 — 7. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67556 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 229-30556 | SPOOL REST ARM ASM. | (2) |
| 3 | 229-30507 | SPOOL REST ARM | (2) |
| 4 | 229-30705 | THREAD GUIDE ARM JOINT | (4) |
| 5 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 6 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 7 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 8 | 131-67903 | THREAD STANDING THREAD GUIDE | (1) |
| 9 | 131-68000 | THREAD STANDING GUIDE BASE | (1) |
| 10 | 131-68109 | THREAD STANDING GUIDE ARM | (1) |
| 11 | 131-68208 | THREAD STANDING GUIDE ARM BASE | (1) |
| 12 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 13 | 229-31109 | SPOOL RETAINER | (4) |
| 14 | 229-31000 | SPOOL PIN | (4) |
| 15 | 229-30903 | SPOOL REST CUSHION | (4) |
| 16 | 229-30804 | SPOOL REST | (4) |
| 17 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 18 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 19 | NM-6050001-SE | NUT M5 | (2) |
| 20 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 21 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 22 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 23 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 24 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 25 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 26 | WS-1643202-KR | SPRING WASHER | (1) |
| 27 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 28 | NM-6050001-SE | NUT M5 | (4) |
| 29 | WS-0510002-KN | SPRING WASHER | (4) |
Page 17 — 8. OPTIONAL PARTS COMPONENTS (FOR MS-1190)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-32653 | FEED DOG ASM. | 1 |
| 2 | 129-32752 | FEED DOG ASM.,1/4. | 1 |
| 3 | 129-32604 | FEED DOG | (1) |
| 4 | 129-32703 | FEED DOG 1/4 | (1) |
| 5 | 129-64409 | NEEDLE HOLDER ADJUSTING BASE | (1) |
| 6 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | (1) |
| 7 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | (1) |
| 8 | 129-78805 | NEEDLE HOLDER (LEFT) | (1) |
| 9 | 129-78904 | NEEDLE HOLDER (RIGHT) | (1) |
| 10 | 129-79001 | NEEDLE HOLDER (B) | (1) |
| 11 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 12 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
Page 18 — 9. TABLE OF EXCHANGING GAUGE (FOR MS-1190) / 交換ゲージ一覧表 (MS-1190用)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12923561 | Gauge set (with finger guard) | |
| 2 | 12923660 | Gauge set (with finger guard) | |
| 3 | 12923462 | Gauge set (with finger guard) | |
| 4 | 12923769 | Gauge set (with finger guard) | |
| 5 | 12923868 | Gauge set (with finger guard) |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-23561 | GAUGE PARTS SET 1/8 | 1 |
| 2 | 129-23660 | GAUGE PARTS SET 5/32 | 1 |
| 3 | 129-23462 | GAUGE PARTS SET 3/16 | 1 |
| 4 | 129-23769 | GAUGE PARTS SET 7/32 | 1 |
| 5 | 129-23868 | GAUGE PARTS SET 1/4 | 1 |
| 6 | 129-23504 | THROAT PLATE 1/8 | 1 |
| 7 | 129-23603 | THROAT PLATE 5/32 | 1 |
| 8 | 129-23405 | THROAT PLATE(3/16) | 1 |
| 9 | 129-23702 | THROAT PLATE 7/32 | 1 |
| 10 | 129-23801 | THROAT PLATE 1/4 | 1 |
| 11 | 129-24007 | THROAT PLATE 5/16 | 1 |
| 12 | 129-26051 | NEEDLE CLAMP 1/8 ASM. | 1 |
| 13 | 129-26150 | NEEDLE CLAMP 5/32 ASM. | 1 |
| 14 | 129-25954 | NEEDLE CLAMP 3/16 ASM. | 1 |
| 15 | 129-26259 | NEEDLE CLAMP 7/32 ASM. | 1 |
| 16 | 129-26358 | NEEDLE CLAMP 1/4 ASM. | 1 |
| 17 | 129-26457 | NEEDLE CLAMP ASM. 5/16 | 1 |
| 18 | 129-27869 | PRESSER FOOT ASM. 1/8 | 1 |
| 19 | 129-27968 | PRESSER FOOT ASM. 5/32 | 1 |
| 20 | 129-27760 | PRESSER FOOT ASM. 3/16 | 1 |
| 21 | 129-28065 | PRESSER FOOT ASM. 7/32 | 1 |
| 22 | 129-28164 | PRESSER FOOT ASM. 1/4 | 1 |
| 23 | 129-28354 | PRESSER ASM., 5/16 | 1 |
| 24 | 129-32307 | FEED DOG | 1 |
| 25 | 129-32307 | FEED DOG | 1 |
| 26 | 129-32307 | FEED DOG | 1 |
| 27 | 129-32307 | FEED DOG | 1 |
| 28 | 129-32406 | FEED DOG 1/4 | 1 |
| 29 | 129-32802 | FEED DOG 5/16 | 1 |
| 30 | 129-41555 | LOOPER,L 1/8 ASM. | 1 |
| 31 | 129-41654 | LOOPER,L 5/32 ASM. | 1 |
| 32 | 129-41456 | LOOPER,L3/16 ASM. | 1 |
| 33 | 129-41753 | LOOPER,L 7/32 ASM. | 1 |
| 34 | 129-41852 | LOOPER,L 1/4 ASM. | 1 |
| 35 | 129-41951 | LOOPER (L) ASM. 5/16 | 1 |
| 36 | 129-40656 | LOOPER,R 1/8 ASM. | 1 |
| 37 | 129-40755 | LOOPER,R 5/32 ASM. | 1 |
| 38 | 129-40557 | LOOPER,R 3/16 ASM. | 1 |
| 39 | 129-40854 | LOOPER,R 7/32 ASM. | 1 |
| 40 | 129-40953 | LOOPER,R 1/4 ASM. | 1 |
| 41 | 129-41050 | LOOPER (R) ASM. 5/16 | 1 |
| 42 | MAM-2950AAAA | HOLDER 1/8A | 1 |
| 43 | MAM-2950BBAA | HOLDER 5/32A | 1 |
| 44 | MAM-2950CCAA | HOLDER 3/16A | 1 |
| 45 | MAM-2950DDAA | HOLDER 7/32A | 1 |
| 46 | MAM-2950EEAA | HOLDER 1/4A | 1 |
| 47 | MAM-2960AAAA | HOLDER 1/8M | 1 |
| 48 | MAM-2960BBAA | HOLDER 5/32M | 1 |
| 49 | MAM-2960CCAA | HOLDER 3/16M | 1 |
| 50 | MAM-2960DDAA | HOLDER 7/32M | 1 |
| 51 | MAM-2960EEAA | HOLDER 1/4M | 1 |
| 52 | MAM-2970AAAA | HOLDER 1/8MH | 1 |
| 53 | MAM-2970BBAA | HOLDER 5/32MH | 1 |
| 54 | MAM-2970CCAA | HOLDER 3/16MH | 1 |
| 55 | MAM-2970DDAA | HOLDER 7/32MH | 1 |
| 56 | MAM-2970EEAA | HOLDER 1/4MH | 1 |
| 57 | MAM-2970GGAA | HOLDER ASM. 5/16MH | 1 |
| 58 | 129-32653 | FEED DOG ASM. | 1 |
| 59 | 129-32653 | FEED DOG ASM. | 1 |
| 60 | 129-32653 | FEED DOG ASM. | 1 |
| 61 | 129-32653 | FEED DOG ASM. | 1 |
| 62 | 129-32752 | FEED DOG ASM.,1/4. | 1 |
| 63 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
| 64 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
| 65 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
| 66 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
| 67 | 129-43007 | LOOPER THREAD GUIDE. | 1 |
| 68 | 129-23306 | THROAT PLATE 1/8 | 1 |
| 69 | 129-32208 | FEED DOG 1/8 | 1 |
Page 20 — 10. TABLE OF EXCHANGING GAUGE (FOR MS-1190M) / 交換ゲージ一覧表 (MS-1190M用)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12980561 | Gauge set (with finger guard) | |
| 2 | 12980660 | Gauge set (with finger guard) | |
| 3 | 12980462 | Gauge set (with finger guard) | |
| 4 | 12980769 | Gauge set (with finger guard) | |
| 5 | 12980868 | Gauge set (with finger guard) | |
| 6 | 12980504 | Throat plate | |
| 7 | 12980603 | Throat plate | |
| 8 | 12980405 | Throat plate | |
| 9 | 12980702 | Throat plate | |
| 10 | 12980801 | Throat plate | |
| 11 | 12926051 | Needle clamp asm. | |
| 12 | 12926150 | Needle clamp asm. | |
| 13 | 12925954 | Needle clamp asm. | |
| 14 | 12926259 | Needle clamp asm. | |
| 15 | 12926358 | Needle clamp asm. | |
| 16 | 12982666 | Presser foot asm. (with finger guard) | |
| 17 | 12982765 | Presser foot asm. (with finger guard) | |
| 18 | 12982567 | Presser foot asm. (with finger guard) | |
| 19 | 12982864 | Presser foot asm. (with finger guard) | |
| 20 | 12982963 | Presser foot asm. (with finger guard) | |
| 21 | 12983508 | Feed dog | |
| 22 | 12983508 | Feed dog | |
| 23 | 12983508 | Feed dog | |
| 24 | 12983508 | Feed dog | |
| 25 | 12983607 | Feed dog | |
| 26 | 12941555 | Looper asm. (L) | |
| 27 | 12941654 | Looper asm. (L) | |
| 28 | 12941456 | Looper asm. (L) | |
| 29 | 12941753 | Looper asm. (L) | |
| 30 | 12941852 | Looper asm. (L) | |
| 31 | 12940656 | Looper asm. (R) | |
| 32 | 12940755 | Looper asm. (R) | |
| 33 | 12940557 | Looper asm. (R) | |
| 34 | 12940854 | Looper asm. (R) | |
| 35 | 12940953 | Looper asm. (R) | |
| 36 | MAM2960AAAA | Lap seam folder asm. | |
| 37 | MAM2960BBAA | Lap seam folder asm. | |
| 38 | MAM2960CCAA | Lap seam folder asm. | |
| 39 | MAM2960DDAA | Lap seam folder asm. | |
| 40 | MAM2960EEAA | Lap seam folder asm. | |
| 41 | MAM2970AAAA | Lap seam folder asm. | |
| 42 | MAM2970BBAA | Lap seam folder asm. | |
| 43 | MAM2970CCAA | Lap seam folder asm. | |
| 44 | MAM2970DDAA | Lap seam folder asm. | |
| 45 | MAM2970EEAA | Lap seam folder asm. | |
| 46 | 12980900 | Throat plate (For chain off thread) | |
| 47 | 12983706 | Feed dog (For chain off thread) |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 129-80561 | GAUGE PARTS SET 1/8 | 1 |
| 2 | 129-80660 | GAUGE PARTS SET 5/32 | 1 |
| 3 | 129-80462 | GAUGE PARTS SET 3/16 | 1 |
| 4 | 129-80769 | GAUGE PARTS SET 7/32 | 1 |
| 5 | 129-80868 | GAUGE PARTS SET 1/4 | 1 |
| 6 | 129-80504 | THROAT PLATE 1/8M | 1 |
| 7 | 129-80603 | THROAT PLATE 5/32M | 1 |
| 8 | 129-80405 | THROAT PLATE 3/16M | 1 |
| 9 | 129-80702 | THROAT PLATE (7/32M) | 1 |
| 10 | 129-80801 | THROAT PLATE 1/4M | 1 |
| 11 | 129-26051 | NEEDLE CLAMP 1/8 ASM. | 1 |
| 12 | 129-26150 | NEEDLE CLAMP 5/32 ASM. | 1 |
| 13 | 129-25954 | NEEDLE CLAMP 3/16 ASM. | 1 |
| 14 | 129-26259 | NEEDLE CLAMP 7/32 ASM. | 1 |
| 15 | 129-26358 | NEEDLE CLAMP 1/4 ASM. | 1 |
| 16 | 129-82666 | PRESSER FOOT ASM. 1/8M | 1 |
| 17 | 129-82765 | PRESSER 5/32M ASM. (EXPORT) | 1 |
| 18 | 129-82567 | PRESSER FOOT ASM. 3/16M | 1 |
| 19 | 129-82864 | PRESSER 7/32H ASM. | 1 |
| 20 | 129-82963 | PRESSER FOOT ASM. 1/4M | 1 |
| 21 | 129-83508 | FEED DOG M | 1 |
| 22 | 129-83508 | FEED DOG M | 1 |
| 23 | 129-83508 | FEED DOG M | 1 |
| 24 | 129-83508 | FEED DOG M | 1 |
| 25 | 129-83607 | FEED DOG 1/4M | 1 |
| 26 | 129-41555 | LOOPER,L 1/8 ASM. | 1 |
| 27 | 129-41654 | LOOPER,L 5/32 ASM. | 1 |
| 28 | 129-41456 | LOOPER,L3/16 ASM. | 1 |
| 29 | 129-41753 | LOOPER,L 7/32 ASM. | 1 |
| 30 | 129-41852 | LOOPER,L 1/4 ASM. | 1 |
| 31 | 129-40656 | LOOPER,R 1/8 ASM. | 1 |
| 32 | 129-40755 | LOOPER,R 5/32 ASM. | 1 |
| 33 | 129-40557 | LOOPER,R 3/16 ASM. | 1 |
| 34 | 129-40854 | LOOPER,R 7/32 ASM. | 1 |
| 35 | 129-40953 | LOOPER,R 1/4 ASM. | 1 |
| 36 | MAM-2960AAAA | HOLDER 1/8M | 1 |
| 37 | MAM-2960BBAA | HOLDER 5/32M | 1 |
| 38 | MAM-2960CCAA | HOLDER 3/16M | 1 |
| 39 | MAM-2960DDAA | HOLDER 7/32M | 1 |
| 40 | MAM-2960EEAA | HOLDER 1/4M | 1 |
| 41 | MAM-2970AAAA | HOLDER 1/8MH | 1 |
| 42 | MAM-2970BBAA | HOLDER 5/32MH | 1 |
| 43 | MAM-2970CCAA | HOLDER 3/16MH | 1 |
| 44 | MAM-2970DDAA | HOLDER 7/32MH | 1 |
| 45 | MAM-2970EEAA | HOLDER 1/4MH | 1 |
| 46 | 129-80900 | THROAT PLATE 1/8M | 1 |
| 47 | 129-83706 | FEED DOG 1/8M | 1 |
Page 22 — 11. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 129-21300 | ||
| 10 | 119-56901 | ||
| 58 | 115-03604 | ||
| 25 | B3501-019-0A0 | B3501-019-0A0 | |
| 29 | B3508-019-000 | B3508-019-000 | |
| 31 | B3501-019-000 | B3501-019-000 | |
| 5 | 110-06004 | ||
| 1 | 119-69458 | ||
| 6 | 129-51000 | ||
| 58 | 400-38331 | ||
| 25 | 400-26875 | ||
| 29 | R0-0691801-00 | R0-0691801-00 | |
| 31 | 400-26874 | ||
| 5 | 229-07208 | ||
| 1 | 131-67556 |
Page 24 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 129-23801 | 16 | |
| 5 | 129-23868 | 16 | |
| 11 | 129-24007 | 16 | |
| 18 | 129-24502 | 6 | |
| 36 | 129-24718 | 6 | |
| 45 | 129-24718 | 8 | |
| 34 | 129-24767 | 6 | |
| 43 | 129-24767 | 8 | |
| 53 | 129-24809 | 8 | |
| 21 | 129-24916 | 6 | |
| 41 | 129-25004 | 6 | |
| 23 | 129-25202 | 6 | |
| 60 | 129-25301 | 6 | |
| 17 | 129-25608 | 2 | |
| 54 | 129-25954 | 6 | |
| 14 | 129-25954 | 16 | |
| 12 | 129-26051 | 16 | |
| 11 | 129-26051 | 18 | |
| 13 | 129-26150 | 16 | |
| 12 | 129-26150 | 18 | |
| 15 | 129-26259 | 16 | |
| 14 | 129-26259 | 18 | |
| 16 | 129-26358 | 16 | |
| 15 | 129-26358 | 18 | |
| 17 | 129-26457 | 16 | |
| 11 | 129-27760 | 8 | |
| 20 | 129-27760 | 16 | |
| 18 | 129-27869 | 16 | |
| 19 | 129-27968 | 16 | |
| 21 | 129-28065 | 16 | |
| 22 | 129-28164 | 16 | |
| 23 | 129-28354 | 8 | |
| 12 | 129-29600 | 8 | |
| 59 | 129-31002 | 10 | |
| 53 | 129-31408 | 10 | |
| 47 | 129-31465 | 10 | |
| 55 | 129-31507 | 10 | |
| 54 | 129-31606 | 10 | |
| 58 | 129-31705 | 10 | |
| 31 | 129-31903 | 2 | |
| 31 | 129-32000 | 2 | |
| 32 | 129-32109 | 2 | |
| 30 | 129-32158 | 2 | |
| 69 | 129-32208 | 16 | |
| 27 | 129-32307 | 10 | |
| 24 | 129-32307 | 16 | |
| 25 | 129-32307 | 16 | |
| 26 | 129-32307 | 16 | |
| 27 | 129-32307 | 16 | |
| 28 | 129-32406 | 16 | |
| 3 | 129-32604 | 14 | |
| 1 | 129-32653 | 14 | |
| 58 | 129-32653 | 16 | |
| 59 | 129-32653 | 16 | |
| 60 | 129-32653 | 16 | |
| 61 | 129-32653 | 16 | |
| 4 | 129-32703 | 14 | |
| 2 | 129-32752 | 14 | |
| 62 | 129-32752 | 16 | |
| 29 | 129-32802 | 16 | |
| 42 | 129-33610 | 8 | |
| 50 | 129-33719 | 8 | |
| 44 | 129-34014 | 6 | |
| 57 | 129-34105 | 2 | |
| 60 | 129-34303 | 2 | |
| 39 | 129-34402 | 10 | |
| 15 | 129-35011 | 10 | |
| 34 | 129-35102 | 4 | |
| 34 | 129-35516 | 4 | |
| 31 | 129-35607 | 4 | |
| 30 | 129-35706 | 4 | |
| 62 | 129-35805 | 4 | |
| 35 | 129-35904 | 4 | |
| 61 | 129-36001 | 4 | |
| 39 | 129-36100 | 4 | |
| 40 | 129-36217 | 4 | |
| 28 | 129-36506 | 4 | |
| 23 | 129-36803 | 4 | |
| 27 | 129-36902 | 4 | |
| 39 | 129-37256 | 8 | |
| 16 | 129-37801 | 4 | |
| 17 | 129-37900 | 4 | |
| 2 | 129-38106 | 4 | |
| 4 | 129-38205 | 4 | |
| 7 | 129-38304 | 4 | |
| 5 | 129-38502 | 12 | |
| 21 | 129-38908 | 4 | |
| 59 | 129-39005 | 4 | |
| 7 | 129-39104 | 2 | |
| 20 | 129-39203 | 4 | |
| 15 | 129-39302 | 4 | |
| 45 | 129-39500 | 4 | |
| 44 | 129-39559 | 4 | |
| 46 | 129-39609 | 4 | |
| 47 | 129-39708 | 4 | |
| 48 | 129-39807 | 4 | |
| 49 | 129-39906 | 4 | |
| 69 | 129-40102 | 2 | |
| 25 | 129-40508 | 8 | |
| 38 | 129-40557 | 16 | |
| 33 | 129-40557 | 18 | |
| 36 | 129-40556 | 16 | |
| 31 | 129-40656 | 18 | |
| 37 | 129-40755 | 16 | |
| 32 | 129-40755 | 18 | |
| 39 | 129-40854 | 16 | |
| 34 | 129-40854 | 18 | |
| 40 | 129-40953 | 16 | |
| 35 | 129-40953 | 18 | |
| 41 | 129-41050 | 16 | |
| 27 | 129-41100 | 8 | |
| 30 | 129-41407 | 8 | |
| 29 | 129-41456 | 8 | |
| 32 | 129-41456 | 16 | |
| 30 | 129-41555 | 16 | |
| 26 | 129-41555 | 18 | |
| 31 | 129-41654 | 16 | |
| 27 | 129-41654 | 18 | |
| 33 | 129-41753 | 16 | |
| 29 | 129-41753 | 18 | |
| 34 | 129-41852 | 16 | |
| 30 | 129-41852 | 18 | |
| 35 | 129-41951 | 16 | |
| 32 | 129-42009 | 8 | |
| 18 | 129-42306 | 8 | |
| 17 | 129-42355 | 8 | |
| 22 | 129-42405 | 8 | |
| 21 | 129-42504 | 8 | |
| 19 | 129-42603 | 8 | |
| 9 | 129-42801 | 8 | |
| 15 | 129-42900 | 14 | |
| 64 | 129-43007 | 16 | |
| 65 | 129-43007 | 16 | |
| 66 | 129-43007 | 16 | |
| 67 | 129-43007 | 16 | |
| 19 | 129-43106 | 6 | |
| 74 | 129-43700 | 2 | |
| 15 | 129-44906 | 12 | |
| 17 | 129-44906 | 12 | |
| 6 | 129-51000 | 2 | |
| 5 | 129-64409 | 14 | |
| 8 | 129-78805 | 14 | |
| 9 | 129-78904 | 14 | |
| 10 | 129-79001 | 14 | |
| 8 | 129-80405 | 18 | |
| 3 | 129-80462 | 18 | |
| 6 | 129-80604 | 18 | |
| 7 | 129-80605 | 18 | |
| 7 | 129-80603 | 18 | |
| 8 | 129-80702 | 18 | |
| 9 | 129-80701 | 18 | |
| 10 | 129-80801 | 18 | |
| 5 | 129-80868 | 18 | |
| 11 | 129-80900 | 6 | |
| 59 | 129-81502 | 6 | |
| 61 | 129-81601 | 6 | |
| 18 | 129-82567 | 18 | |
| 16 | 129-82666 | 18 | |
| 17 | 129-82765 | 18 | |
| 19 | 129-82864 | 18 | |
| 20 | 129-82963 | 18 | |
| 21 | 129-83508 | 18 | |
| 22 | 129-83508 | 18 | |
| 23 | 129-83508 | 18 | |
| 24 | 129-83508 | 18 | |
| 25 | 129-83607 | 18 | |
| 47 | 129-83706 | 18 | |
| 1 | 131-67556 | 13 | |
| 8 | 131-67903 | 13 | |
| 9 | 131-68000 | 13 | |
| 10 | 131-68109 | 13 | |
| 11 | 131-68208 | 13 | |
| 7 | 229-07109 | 8 | |
| 5 | 229-07208 | 8 | |
| 67 | 229-20607 | 2 | |
| 12 | 229-30309 | 13 | |
| 6 | 229-30408 | 13 | |
| 3 | 229-30507 | 13 | |
| 2 | 229-30556 | 13 | |
| 4 | 229-30705 | 13 | |
| 4 | 229-30709 | 13 | |
| 15 | 229-30804 | 13 | |
| 15 | 229-30903 | 13 | |
| 14 | 229-31000 | 13 | |
| 13 | 229-31109 | 13 | |
| 7 | 229-31307 | 13 | |
| 5 | 229-31406 | 13 | |
| 22 | 229-34202 | 12 | |
| 21 | 229-34251 | 12 | |
| 23 | 229-34301 | 12 | |
| 24 | 229-34400 | 12 | |
| 25 | 229-34509 | 12 | |
| 26 | 229-34608 | 12 | |
| 31 | 400-26874 | 6 | |
| 25 | 400-26875 | 6 | |
| 58 | 400-38331 | 4 |
Juki 1190 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI 2-Needle, Feed-off-the-arm Double Chainstitcher, models MS-1190 and MS-1190M. It includes the title "PARTS LIST" and a document number.
- Page 2 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including explanations for asterisks, '01' codes, and numerical values in the quantity column.
- Page 3 (toc): Table of contents for the parts catalog, listing sections from Frame & Miscellaneous Cover Components to Numerical Index of Parts with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 5 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It details components like screws, gaskets, covers, and belts, with specific notes for different machine models (e.g., MS-1190, MS-1190M).
- Page 6 (diagram): This page displays a diagram of looper thread guide components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for a sewing machine, including tension thread guides, pins, posts, screws, nuts, and covers, with their corresponding part numbers and quantities.
- Page 8 (diagram): This page displays a diagram of needle bar and main shaft components, with various parts numbered for identification.
- Page 9 (parts_list): This page lists parts for the MS-1190 and MS-1190M sewing machines, including screws, bushings, plates, and other components, with their corresponding part numbers and descriptions.
- Page 10 (diagram): This page displays a diagram of presser bar and lower shaft components, with numbered parts and their corresponding references.
- Page 11 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It also includes a reference to another page for exchanging parts.
- Page 12 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for a sewing machine, including screws, shafts, and various components, with their part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of knee lifter components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like hinge screws, levers, springs, and knee pads.
- Page 16 (parts_list): This page lists the components for the thread stand, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of optional parts components for the MS-1190 sewing machine, along with a detailed parts list.
- Page 18 (parts_list): Exchanging gauge table for MS-1190 listing gauge sets, throat plates, needle clamps, presser feet, feed dogs, loopers, lap seam folders and feed dog assemblies by needle gauge size with reference and part numbers.
- Page 19 (parts_list): This page lists parts for industrial sewing machines, including gauge parts, throat plates, needle clamps, presser feet, feed dogs, loopers, and holders, with their corresponding part numbers, descriptions, and quantities.
- Page 20 (parts_list): Table of exchanging gauge parts for the MS-1190M, listing gauge set, throat plate, needle clamp, presser foot, feed dog, loopers, lap seam folder, and chain-off-thread plates and feed dog by reference number and part number.
- Page 21 (parts_list): This page lists parts for industrial sewing machines, including gauge parts, throat plates, needle clamps, presser feet, feed dogs, and loopers, with their corresponding part numbers and descriptions.
- Page 22 (parts_list): This page contains a list of parts for information of change, including added and obsolete parts with their respective part numbers and descriptions.
- Page 24 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 25 (text): This page is a memo page with horizontal lines for writing notes. It includes the title 'MEMO' at the top left and page number information at the bottom.
- Page 26 (text): This page contains the heading "MEMO" and is otherwise blank with horizontal lines for writing, suggesting it's a memo or notes page.
- Page 27 (unknown): This page contains a watermark and some scattered text, but no discernible parts list or diagrams.
