Juki MB-372 Parts Book (PDF)
Text index — Juki MB-372
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2547-372-0B0 | FLAT BUTTON CLAMP ASM. | 1 |
| 2 | B2547-372-0BA | FLAT BUTTON CLAMP ASM. | 1 |
| 3 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 4 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 5 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 6 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 7 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 8 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 9 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 10 | B2547-372-0CO | JAW LEVER HOLDER ASM. | (1) |
| 11 | SD-0550181-SP | HINGE SCREW D= 5.50 H= 1.8 | (1) |
| 12 | B2549-372-000 | CLAMP SCREW A | (1) |
| 13 | B2548-372-000 | SNAP FASTENER CLAMP STOP LEVER | (1) |
| 14 | SD-0550301-SP | HINGE SCREW D=5.5 H=3 | (1) |
| 15 | B2547-372-000 | JAW LEVER HOLDER | (1) |
| 16 | B2555-372-0A0 | BUTTON CLAMP LEVER JAW, LEFT A | (1) |
| 17 | B2555-372-000 | BUTTON CLAMP LEVER JAW (LEFT) | (1) |
| 18 | B2556-372-000 | BUTTON HOLDING SPRING, LEFT | (1) |
| 19 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 20 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 21 | B2557-372-0AO | BUTTON CLAMP LEVER JAW, RIGHT | (1) |
| 22 | B2557-372-000 | BUTTON CLAMP LEVER JAW RIGHT | (1) |
| 23 | B2558-372-000 | BUTTON HOLDING SPRING, RIGHT | (1) |
| 24 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 25 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 26 | B2560-372-000 | BUTTON CLAMP STOP PIN | (2) |
| 27 | SD-0640391-TP | HINGE SCREW D= 6.35 H= 3.9 | (2) |
| 28 | B2561-372-000 | BUTTON CLAMP SPRING | (1) |
| 29 | B2552-372-000 | BUTTON CLAMP SLIDE | (1) |
| 30 | B2553-372-000 | NUT | (1) |
| 31 | B2540-372-000 | HINGE PIN | 1 |
| 32 | B2541-372-000 | SNAP RING | 1 |
| 33 | NS-6160520-SP | NUT 1/4-24 | 1 |
| 34 | B2543-372-000 | BUTTON CLAMP STOPPER PIN | 1 |
| 35 | B2544-372-000 | BUTTON CLAMP PRESSURE ADJUSTIN | 1 |
| 36 | B2545-372-000 | PRESSURE ADJUSTING SPRING | 1 |
| 37 | B3125-012-000 | THREAD TENSION NUT | 2 |
| 38 | B3130-372-000-A | FINGER GUARD | 1 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3101-372-0A0 | FRONT COVER ASM. | 1 |
| 2 | SS-4110815-SP | SCREW 11/64-40 L=8 | 3 |
| 3 | B3149-123-A00 | TENSION SPRING | 1 |
| 4 | B3103-372-000 | NIPPER RELEASING PLUNGER THUMB | 1 |
| 5 | B3109-372-0A0 | THREAD TENSION GUIDE NO. 3 ASM | 1 |
| 6 | B3148-123-000 | TENSION DISC | (2) |
| 7 | B3110-372-000 | TENSION SPRING | (1) |
| 8 | RE-0300000-KO | E-SHAPED SNAP RING (3MM) | (1) |
| 9 | SS-7110340-SP | SCREW 11/64-40 L= 3.2 | 1 |
| 10 | B3108-372-000 | THREAD GUIDE NO. 4 | 1 |
| 11 | B3107-373-000 | THREAD GUIDE NO.3 | 1 |
| 12 | SS-5110810-SP | SCREW 11/64-40 L=8 | 1 |
| 13 | B3104-372-000 | NIPPER RELEASING PLUNGER | 1 |
| 14 | B3120-372-0A0 | SAFETY PLATE ASM. | 1 |
| 15 | B3120-372-000 | SAFETY PLATE | (1) |
| 16 | SS-4110715-SP | SCREW 11/64-40 L=7 | (2) |
| 17 | WP-0450801-SD | WASHER 4.5X10.0X0.8 | (2) |
| 18 | B3121-372-000 | SAFETY PLATE INSTALLING PLATE | (1) |
| 19 | SD-0600401-SD | HINGE SCREW D= 6 H= 4 | (1) |
| 20 | B3125-155-000 | DISC SPRING | (1) |
| 21 | WP-0650876-SD | WASHER 6.5X13X0.8 | (1) |
| 22 | B3122-372-000 | SAFETY PLATE MOUNTING BASE | (1) |
| 23 | PS-0200062-KH | SPRING PIN 2X6 | (1) |
| 24 | SS-4110815-SP | SCREW 11/64-40 L=8 | 8 |
| 25 | B1113-372-000 | SIDE COVER, LEFT | 1 |
| 26 | B1113-372-00A | SIDE COVER, LEFT | 1 |
| 27 | B1112-372-000 | SIDE COVER, RIGHT | 1 |
| 28 | 178-10904 | SIDE COVER, RIGHT | 1 |
| 29 | SM-6083042-CH | SCREW M8 L=30 | 2 |
| 30 | SM-6083542-CH | SCREW M8 L=35 | 2 |
| 31 | B1105-372-000 | GUIDE PIN | 2 |
| 32 | B1106-372-0A0 | SET SCREW ASM. | 1 |
| 33 | B3501-372-0BO | OIL FELT ASM., LARGE | 1 |
| 34 | CQ-2020000-00 | OIL WICK | (0.1) |
| 35 | B3502-372-0BO | OIL FELT ASM., SMALL | 1 |
| 36 | CQ-2020000-00 | OIL WICK | (0.2) |
| 37 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 38 | B3503-372-000 | OIL SUPPLY FELT | 1 |
| 39 | B1111-372-000 | SIDE COVER SPRING | 2 |
| 40 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | 2 |
| 41 | B1120-372-000 | SCREW STUD | 2 |
| 42 | B1104-372-A00 | OIL DRIP FELT (A) 5MM | 1 |
| 43 | B1109-372-000 | SIDE COVER, RIGHT | 1 |
| 44 | B1109-372-00A | SIDE COVER, RIGHT | 1 |
| 45 | B1110-372-000 | SIDE COVER HINGE SHAFT | 2 |
| 46 | SS-8150410-SP | SCREW 15/64-28 L=4 | 1 |
| 47 | B1103-372-000 | MACHINE SUB-BASE | 1 |
| 48 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 49 | B1108-372-000 | COVER, LEFT | 1 |
| 50 | B1108-373-N00 | SIDE COVER, LEFT | 1 |
| 51 | B1118-372-000 | LOOPER COVER | 1 |
| 52 | B1118-373-N00 | LOOPER COVER | 1 |
| 53 | WS-0650389-KP | SPRING WASHER 6.5X14.0X17 | 1 |
| 54 | SD-0600271-SP | HINGE SCREW D= 6 H= 2.7 | 1 |
| 55 | B2504-372-000 | CAM INDICATING PIN | 2 |
| 56 | B8210-372-0A0 | BUTTON TRAY ASM. | 1 |
| 57 | 178-48458 | BUTTON TRAY ASM. | 1 |
| 58 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 59 | B1119-373-000 | BED OIL SHIELD | 1 |
| 60 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 4 |
| 2 | B1241-372-000 | THROAT PLATE | 1 |
| 3 | B1240-372-000 | SPACER PLATE | 1 |
| 4 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 5 | B1242-372-000 | NEEDLE GUARD | 1 |
| 6 | B1236-372-000 | POSITIONING FINGER YOKE SLIDE | 1 |
| 7 | SS-1110710-SP | SCREW 11/64-40 L=7 | 2 |
| 8 | B1235-372-000 | YOKE SLIDE INSERT | 1 |
| 9 | B1237-372-000 | YOKE SLIDE | 1 |
| 10 | B1230-372-0A0 | LOOP POSITIONING FINGER LEVER | 1 |
| 11 | SD-0640241-SP | HINGE SCREW D= 6.35 H= 2.4 | 1 |
| 12 | B1232-372-000 | LOOP POSITIONING FINGER LEVER | 1 |
| 13 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 3 |
| 14 | B1241-373-000 | THROAT PLATE | 1 |
| 15 | B2406-373-0A0 | MOVING KNIFE ASM. | 1 |
| 16 | SD-0600095-TH | HINGE SCREW D= 6 H= 0.85 | 1 |
| 17 | B2410-373-000 | COUNTER KNIFE | 1 |
| 18 | SS-7080310-SP | SCREW 1/8-44 L= 3.0 | 2 |
| 19 | B1242-373-000 | NEEDLE GUARD | 1 |
| 20 | B1237-373-000 | YOKE SLIDE | 1 |
| 21 | B1236-373-000 | POSITIONING FINGER YOKE SLIDE | 1 |
| 22 | B1235-373-000 | YOKE SLIDE INSERT | 1 |
| 23 | B2414-373-000 | GAUGE | 1 |
| 24 | B1241-372-B00 | THROAT PLATE | 1 |
| 25 | B1239-372-000 | LOOPER | 1 |
| 26 | CS-079072A-TH | THRUST COLLAR ASM. | 1 |
| 27 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | (1) |
| 28 | B1234-372-0A0 | LOOP POSITIONING FINGER CAM AS | 1 |
| 29 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 30 | B1233-372-0A0 | LOOPER & CAM SLEEVE | 1 |
| 31 | SS-8150410-TP | SCREW 15/64-28 L= 4.0 | (2) |
| 32 | B1228-372-0A0 | LOOP POSITIONING FINGER ASM. | 1 |
| 33 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | (2) |
| 34 | B1227-372-000 | LOOPER SHAFT BUSHING, FRONT | 1 |
| 35 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 36 | B1219-372-000 | LOOPER SHAFT | 1 |
| 37 | CS-111101B-SH | THRUST COLLAR ASM. D=11.11 W=1 | 1 |
| 38 | SS-8660512-TP | SCREW 1/4-40 L=5 | (1) |
| 39 | SS-8660330-SP | SCREW 1/4-40 L= 3.0 | (1) |
| 40 | B1224-372-0A0 | LOOPER SHAFT DRIVEN GEAR ASM. | 1 |
| 41 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (2) |
| 42 | B1215-372-A00 | THRUST BALL BEARING | 1 |
| 43 | B1222-372-000 | LOOPER SHAFT BUSHING, REAR | 1 |
| 44 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 45 | B1221-372-0A0 | DRIVEN WORM ASM. | 1 |
| 46 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | (2) |
| 47 | B1220-372-0A0 | CAM SHAFT DRIVEN GEAR ASM. | 1 |
| 48 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (2) |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-7151210-SP | SCREW 15/64-28 L=12 | 1 |
| 2 | B2038-372-000 | THREAD GUIDE NO. 2 | 1 |
| 3 | SD-0791271-SP | HINGE SCREW D= 7.94 H=12.7 | 1 |
| 4 | NS-6080210-SP | NUT 1/8-44 | 2 |
| 5 | B2035-372-000 | NUT | 1 |
| 6 | B2031-372-0A0 | THREAD NIPPER ASM. | 1 |
| 7 | B2034-372-000 | THREAD RELEASING SCREW STUD | 1 |
| 8 | B2037-372-000 | NIPPER BAR BLOCK SPRING | 1 |
| 9 | B2036-372-000 | NIPPER BAR BLOCK SPRING SCREW | 1 |
| 10 | SD-0402001-TP | SCREW D=4 H=20 | 1 |
| 11 | B2029-372-000 | NIPPER BLOCK SPRING | 1 |
| 12 | B2028-372-000 | NIPPER BLOCK | 1 |
| 13 | SD-0791501-SP | HINGE SCREW D= 7.94 H=15.0 | 1 |
| 14 | B2025-372-0B0 | THREAD PULL-OFF LEVER ASM. | 1 |
| 15 | B2040-373-000 | THREAD GUIDE | 1 |
| 16 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 1 |
| 17 | B2024-372-000 | L-SHAPED THREAD GUIDE | 2 |
| 18 | B2012-372-000 | NIPPER BAR BLOCK SPRING PIN | 1 |
| 19 | SS-6120930-TP | SCREW 3/16-28 L=9.0 | 1 |
| 20 | WP-0501016-SD | WASHER 5X10.5X1 | 2 |
| 21 | B2011-372-000 | NIPPER BAR BLOCK | 1 |
| 22 | B2010-372-000 | NIPPER BAR BLOCK REAR | 1 |
| 23 | B2004-372-000 | NIPPER BAR | 1 |
| 24 | SS-6120930-TP | SCREW 3/16-28 L=9.0 | 1 |
| 25 | B2019-372-0A0 | TENSION POST ASM. | 1 |
| 26 | B3116-125-000 | TENSION NUT | (1) |
| 27 | B3120-125-000 | ROTATING STOPPER | (1) |
| 28 | B3114-232-000 | THREAD TENSION SPRING | (1) |
| 29 | B3132-012-000 | TENSION DISC HOLDER | (1) |
| 30 | B2016-372-000 | TENSION DISC | (2) |
| 31 | B2019-372-000 | TENSION POST NO.2 | (1) |
| 32 | B2020-372-000 | TENSION RELEASE PIN | (1) |
| 33 | NS-6160520-SP | NUT 1/4-24 | (1) |
| 34 | PS-0200162-KH | SPRING PIN | 1 |
| 35 | SS-6120930-TP | SCREW 3/16-28 L=9.0 | 1 |
| 36 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 37 | B2009-372-000 | THREAD TENSION RELEASING LEVER | 1 |
| 38 | B2015-372-0AO | THREAD TENSION ASM. (NO.1) | 1 |
| 39 | B3125-012-000 | THREAD TENSION NUT | (1) |
| 40 | B2017-372-000 | TENSION SPRING NO.1 | (1) |
| 41 | B2016-372-000 | TENSION DISC | (2) |
| 42 | B2015-372-000 | THREAD TENSION STAFF NO. 1 | (1) |
| 43 | B2014-372-000 | THREAD BUIDE | 1 |
| 44 | B1111-232-000 | THREAD GUIDE PLATE | 1 |
| 45 | B2006-372-000 | THREAD GUIDE NO.1 | 1 |
| 46 | SS-4151215-SP | SCREW | 1 |
| 47 | B2005-372-000 | NIPPER BAR BEARING BLOCK | 1 |
| 48 | B2006-372-000 | ADJUSTING SCREW | 1 |
| 49 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 |
| 50 | SS-6121610-TP | SCREW 3/16-28 L=15.5 | 1 |
| 51 | SS-6121050-SP | SCREW 3/16-28 L= 9.5 | 1 |
| 52 | B2008-372-000 | THREAD TENSION SPRING | 1 |
| 53 | B2007-372-000 | NIPPER BAR SPRING SCREW | 1 |
| 54 | WP-0371016-SD | WASHER 3.7X8X1 | 1 |
| 55 | NS-6080340-SP | NUT 1/8-44 | 1 |
| 56 | SD-0790802-SP | HINGE SCREW D= 7.94 H= 8.0 | 1 |
| 57 | B2001-372-0AO | NIPPER BAR ACTUATING LEVER ASM | 1 |
| 58 | B1421-372-000 | NEEDLE BAR GUARD | 1 |
| 59 | B2005-373-000 | NIPPER BAR BEARING BLOCK | 1 |
| 60 | SS-6121610-TP | SCREW 3/16-28 L=15.5 | 1 |
| 61 | SS-9151420-TP | BOLT 15/64-28 L=14 | 1 |
| 62 | NS-6150310-SP | NUT 15/64-28 | 1 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2529-372-000 | FEED PLATE, SMALL BUTTON | 1 |
| 2 | B2529-373-000 | FEED PLATE, SMALL BUTTON | 1 |
| 3 | B2529-372-C00 | FEED PLATE, SMALL BUTTON | 1 |
| 4 | SS-9120643-TP | SCREW 3/16-28 L=6 | 2 |
| 5 | B2524-372-000 | LNDICATOR PIN BEARING BLOCK | 1 |
| 6 | B2525-372-000 | CROSSWISE FEED INDICATOR | 1 |
| 7 | B2526-372-000 | CROSSWISE FEED INDICATOR PIN | 1 |
| 8 | NS-6160520-SP | NUT 1/4-24 | 1 |
| 9 | B2518-372-000-A | SLIDE PLATE CONNECTING LINK A | 1 |
| 10 | SD-0640481-SP | HINGE SCREW D= 6.35 H= 4.8 | 1 |
| 11 | B2521-372-000 | STUD | 1 |
| 12 | B2519-372-000 | INTERMEDI CONNECTING LINK | 1 |
| 13 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 14 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 15 | B2513-372-000 | INDICATOR SPRING CONNECTING LI | 1 |
| 16 | SD-0640961-SP | HINGE SCREW D= 6.35 H= 9.6 | 1 |
| 17 | B2515-372-000 | HANDLE & INDICATOR SPRING | 1 |
| 18 | SS-4090610-SP | SCREW 9/64-40 L=6 | 2 |
| 19 | B2507-372-000 | CAM ROLL | 2 |
| 20 | B2511-372-0A0 | LENGTHWISE FEED LEVER ASM. | 1 |
| 21 | B2512-372-000 | LENGTHWISE FEED LEVER SLIDE BL | (1) |
| 22 | B2508-372-000 | CAM ROLL SCREW STUD | 2 |
| 23 | B2509-372-000-A | FEED STUD | 2 |
| 24 | B2563-372-0A0 | LENGTHWISE FEED SCALE ASM. | 1 |
| 25 | B2563-372-000 | LENGTHWISE FEED GRADUATE PLATE | (1) |
| 26 | B2564-372-000 | PLATE BASE | (1) |
| 27 | B2565-372-000 | FEED REGULATOR LEVER STOPPER | (1) |
| 28 | SS-4120615-SP | SCREW 3/16-28 L=6 | 2 |
| 29 | NS-6150540-SP | NUT 15/64-28 | 1 |
| 30 | B2531-372-000 | SET SCREW | 1 |
| 31 | SD-0640481-SP | HINGE SCREW D= 6.35 H= 4.8 | 2 |
| 32 | B2519-372-000 | INTERMEDI CONNECTING LINK | 1 |
| 33 | SS-8152030-SP | SCREW 15/64-28 L=20 | 1 |
| 34 | B2510-372-000 | CROSSWISE FEED LEVER | 1 |
| 35 | B2501-372-000 | CAM SHAFT | 1 |
| 36 | B2530-372-0A0 | CAM BOSS | 2 |
| 37 | SS-8680810-TP | SCREW 9/32-28 L=8.0 | (4) |
| 38 | B2502-372-000 | CAM SHAFT BUSHING, RIGHT | 1 |
| 39 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 40 | B2505-372-000 | CROSSWISE FEED CAM | 1 |
| 41 | B2505-373-000 | CROSSUISE FEED CAM | 1 |
| 42 | SS-8681412-TP | SCREW 9/32-28 L=13.5 | 5 |
| 43 | B2506-372-000 | LENGTHWISE FEED CAM | 1 |
| 44 | B2506-373-000 | LENGTHWISE FEED CAM | 1 |
| 45 | B2503-372-000 | CAM SHAFT BUSHING, LEFT | 1 |
| 46 | SS-7060810-SP | SCREW 3/32-56 L= 8.0 | 1 |
| 47 | B2527-372-000 | CROSSWISE FEED GRADUATED PLATE | 2 |
| 48 | B2528-372-000 | CROSSWISE FEED GRADUATED PLATE | 1 |
| 49 | B2523-372-000 | HINGE SCREW FOR CROSSWISE FEED | 1 |
| 50 | B2522-373-000-A | FEED PLATE | 1 |
| 51 | WP-0501016-SD | WASHER 5X10.5X1 | 2 |
Page 17 — 引き上げ関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4412-372-000 | BUTTON CLAMP LIFTING LEVER | 1 |
| 2 | B1407-372-000 | BUSHING | 1 |
| 3 | B1408-372-000 | BUTTON CLAMP LIFTING LEVER SHA | 1 |
| 4 | SS-7150740-SP | SCREW 15/64-28 L=7 | 1 |
| 5 | B4415-372-000 | BUTTON CLAMP LIFTING LEVER STO | 1 |
| 6 | B4419-372-000 | NIPPER BAR ACTUATING LEVER SPR | 1 |
| 7 | B4418-372-000 | WASHER | 1 |
| 8 | SD-0641001-SP | HINGE SCREW D= 6.35 H=10.0 | 1 |
| 9 | B4411-372-000-A | BUTTON CLAMP LIFTING LINK | 1 |
| 10 | B4410-372-OAO | SLIDING ROLLER ASM. | 1 |
| 11 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (1) |
| 12 | B4405-372-0A0 | ECCENTRIC CAM ASM. | 1 |
| 13 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (2) |
| 14 | B4401-372-OAO | BUTTON CLAMP LIFTING LINK ASM. | 1 |
| 15 | CS-0950810-SH | THRUST COLLAR ASM. D=9.5 W=8 | 2 |
| 16 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (4) |
| 17 | B4404-372-000 | LEVER SHAFT | 1 |
| 18 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 19 | B4408-372-000 | LIFTING LINK CONNECTING LINK | 1 |
| 20 | B4406-372-OAO-A | LIFTING LINK LEVER ASM. | 1 |
| 21 | SS-6121610-TP | SCREW 3/16-28 L=15.5 | (1) |
| 22 | SD-0640471-SP | HINGE SCREW D= 6.35 H= 4.7 | 1 |
| 23 | SD-0640211-SP | HINGE SCREW D= 6.35 H= 2.1 | 1 |
| 24 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 25 | WP-0371026-SD | WASHER 3.7X7X1 | 1 |
| 26 | B4417-372-000 | BUTTON CLAMP LIFTING ROD ROLL | 1 |
| 27 | B4416-372-000 | BUTTON CLAMP LIFTING ROD | 1 |
| 28 | SS-9151120-CP | SCREW 15/64-28 L=11 | 1 |
| 29 | B2404-373-R00 | CONNECTING LINK, FRONT | 1 |
| 30 | B2413-373-000 | JOINT STUD | 1 |
| 31 | B1632-180-000 | FEED ADJUSTING JOINT | 1 |
| 32 | WP-0510516-SD | WASHER 5.1X7.5X0.5 | 1 |
| 33 | NM-6050001-SP | NUT M5 | 2 |
| 34 | B2412-373-000 | CONNECTING SCREW | 1 |
| 35 | NS-6680320-SP | NUT 9/32-28 | 2 |
| 36 | B2403-373-000-A | CONNECTING LINK, REAR | 1 |
| 37 | SD-0640323-TP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 38 | SD-0790402-TP | HINGE SCREW D= 7.94 H= 4 | 1 |
| 39 | NS-6620310-SP | NUT 3/16-32 | 1 |
| 40 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 41 | B2402-373-000-A | THREAD TRIMMING LEVER | 1 |
| 42 | SD-0790311-TP | HINGE SCREW D= 7.94 H= 3.1 | 1 |
| 43 | NS-6110530-SP | NUT 11/64-40 | 1 |
| 44 | B2405-373-000 | THREAD TRIM LEVER BASE | 1 |
| 45 | SS-7111410-TP | SCREW 11/64-40 L=14 | 2 |
| 46 | B2401-373-000 | THREAD TRIMMING LINK | 1 |
| 47 | SD-0641322-TP | HINGE SCREW D=6.35 H=13.2 | 1 |
| 48 | B4411-373-000 | BUTTON CLAMP LIFTING LINK | 1 |
| 49 | B4412-373-000 | BUTTON CLAMP LIFTING LEVER | 1 |
| 50 | WP-0751576-SD | WASHER 7.5X19X1.5 | 2 |
| 51 | B4420-373-000 | CUSHION | 1 |
| 52 | D9219-555-BOO | SAFETY MAGNET | 1 |
| 53 | B4416-373-AAO | BUTTON CLAMP LIFTING ROD ASM. | 1 |
| 54 | WP-0704516-SP | WASHER 7X20X4.5 | 1 |
| 55 | WP-0703516-SP | WASHER 7X20X3.5 | 1 |
| 56 | WP-0704016-SP | WASHER 7X20X4 | 1 |
| 57 | B4420-373-000 | CUSHION | 1 |
| 58 | WP-0751576-SD | WASHER 7.5X19X1.5 | 2 |
| 59 | WP-0851846-SC | WASHER 8.5X22.0X1.8 | 2 |
| WASHER | WASHER |

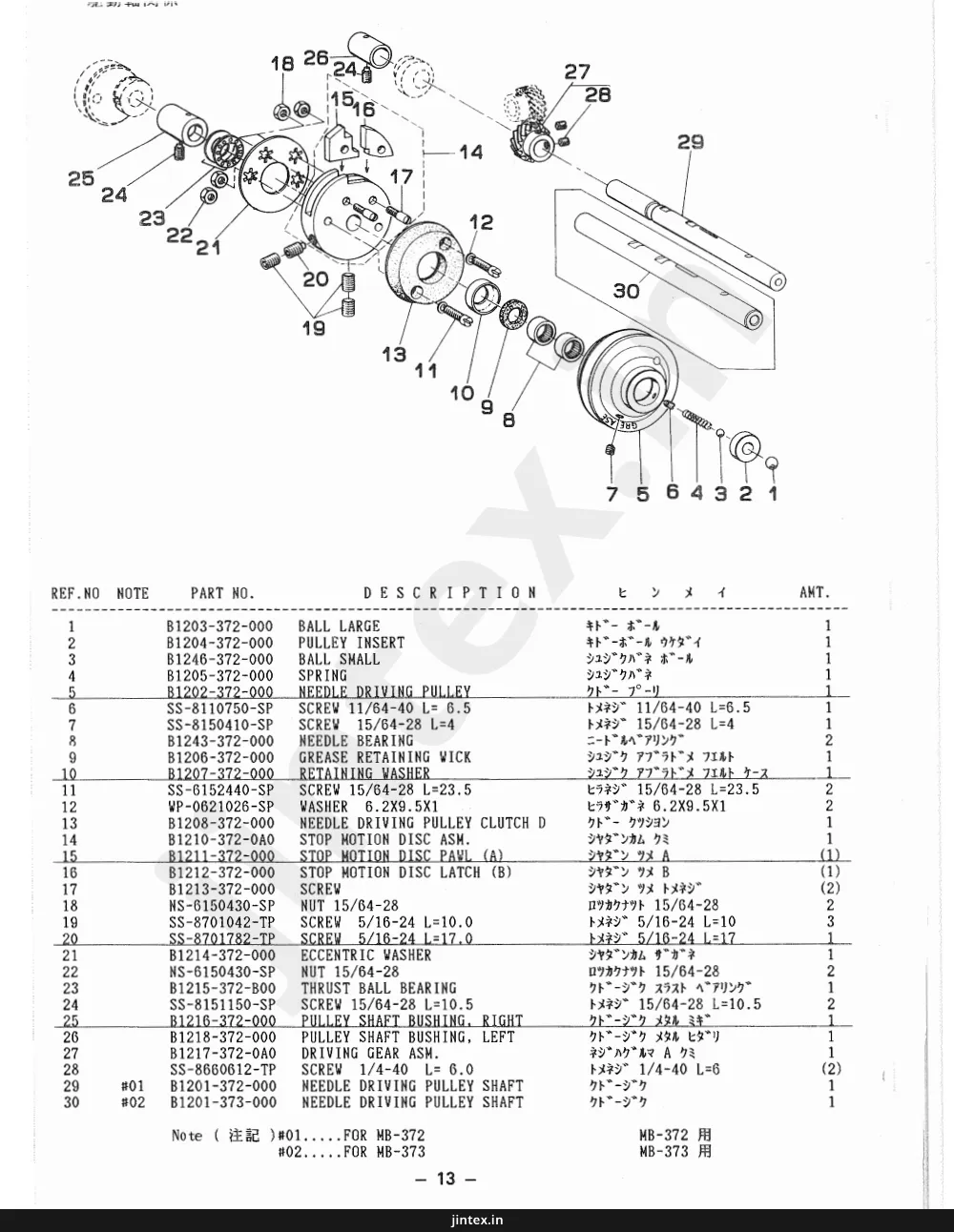

Page 18 — NEEDLE DRIVING PULLEY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1203-372-000 | BALL LARGE | 1 |
| 2 | B1204-372-000 | PULLEY INSERT | 1 |
| 3 | B1246-372-000 | BALL SMALL | 1 |
| 4 | B1205-372-000 | SPRING | 1 |
| 5 | B1202-372-000 | NEEDLE DRIVING PULLEY | 1 |
| 6 | SS-8110750-SP | SCREW 11/64-40 L= 6.5 | 1 |
| 7 | SS-8150410-SP | SCREW 15/64-28 L=4 | 1 |
| 8 | B1243-372-000 | NEEDLE BEARING | 2 |
| 9 | B1206-372-000 | GREASE RETAINING WICK | 1 |
| 10 | B1207-372-000 | RETAINING WASHER | 1 |
| 11 | SS-6152440-SP | SCREW 15/64-28 L=23.5 | 2 |
| 12 | WP-0621026-SP | WASHER 6.2X9.5X1 | 2 |
| 13 | B1208-372-000 | NEEDLE DRIVING PULLEY CLUTCH D | 1 |
| 14 | B1210-372-0A0 | STOP MOTION DISC ASM. | 1 |
| 15 | B1211-372-000 | STOP MOTION DISC PAWL (A) | (1) |
| 16 | B1212-372-000 | STOP MOTION DISC LATCH (B) | (1) |
| 17 | B1213-372-000 | SCREW | (2) |
| 18 | NS-6150430-SP | NUT 15/64-28 | 2 |
| 19 | SS-8701042-TP | SCREW 5/16-24 L=10.0 | 3 |
| 20 | SS-8701782-TP | SCREW 5/16-24 L=17.0 | 1 |
| 21 | B1214-372-000 | ECCENTRIC WASHER | 1 |
| 22 | NS-6150430-SP | NUT 15/64-28 | 2 |
| 23 | B1215-372-B00 | THRUST BALL BEARING | 1 |
| 24 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 25 | B1216-372-000 | PULLEY SHAFT BUSHING, RIGHT | 1 |
| 26 | B1218-372-000 | PULLEY SHAFT BUSHING, LEFT | 1 |
| 27 | B1217-372-0A0 | DRIVING GEAR ASM. | 1 |
| 28 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (2) |
| 29 | B1201-372-000 | NEEDLE DRIVING PULLEY SHAFT | 1 |
| 30 | B1201-373-000 | NEEDLE DRIVING PULLEY SHAFT | 1 |
Page 19 — NEEDLE BAR DRIVING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MTQ-700B1600 | NEEDLE TQX7 #16 | 1 |
| 2 | MTQ-700B2000 | NEEDLE TQX7 #20 | 1 |
| 3 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 4 | B1401-372-000-A | NEEDLE BAR | 1 |
| 5 | B1403-372-000-A | NEEDLE BAR BUSHING LOWER | 1 |
| 6 | B3112-372-000 | NEEDLE BAR BALANCE | 1 |
| 7 | B3113-372-000 | NEEDLE BAR CLAMP | 1 |
| 8 | SS-6091210-TP | SCREW 9/64-40 L=12 | 1 |
| 9 | B1402-372-000 | NEEDLE BAR BUSHING, UPPER | 1 |
| 10 | B1406-372-000 | NEEDLE BAR BEARING BLOCK | 1 |
| 11 | B1409-372-000 | NEEDLE BAR LEVER | 1 |
| 12 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | 2 |
| 13 | NS-6150440-SP | NUT 15/64-28 | 1 |
| 14 | B1411-372-A00 | WASHER | 1 |
| 15 | B1412-372-0A0 | BALL JOINT UPPER ASM. | 1 |
| 16 | B1413-372-000 | CLAMP SCREW | (2) |
| 17 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 18 | B1414-372-0A0 | CONNECTING ROD ASM. | 1 |
| 19 | CQ-2000000-00 | OIL WICK | (0.3) |
| 20 | NS-6680480-SP | NUT 9/32-28 | 1 |
| 21 | B1416-372-0A0 | BALL JOINT ECCENTRIC ASM. | 1 |
| 22 | SS-8660612-TP | SCREW 1/4-40 L= 6.0 | (1) |
| 23 | SS-8660942-TP | SCREW 1/4-40 L= 8.5 | (1) |
| 24 | B1418-372-000 | CLAMP SCREW LOWER | (2) |
| 25 | B3541-012-000 | OIL WICK | (0.1) |
Page 20 — STOP MOTION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2605-372-000 | STOP MOTION PLUNGER ROD | 1 |
| 2 | PD-0201000-0D | SPLIT PIN 1.8X10 | 1 |
| 3 | B2604-372-000 | STOP MOTION PLUNGER | 1 |
| 4 | SS-6151040-SP | SCREW 15/64-28 L=10 | 1 |
| 5 | B2602-372-000 | STOP MOTION PLUNGER LEVER | 1 |
| 6 | B2606-372-000 | STOP MOTION DISC SPRING | 30 |
| 7 | B2608-280-000 | RUBBER CUSHION | 4 |
| 8 | B8220-804-000 | WASHER | 1 |
| 9 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 10 | B2601-372-000 | STOP MOTION LEVER SHAFT | 1 |
| 11 | B2611-372-000 | STOP MOTION DISC PRESSURE LEVE | 1 |
| 12 | B2603-372-000 | SCREW | 1 |
| 13 | SS-8151570-SP | SCREW 15/64-28 L=15.0 | 1 |
| 14 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 15 | SD-0680271-SP | HINGE SCREW D= 6.80 H= 2.7 | 1 |
| 16 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 17 | B2615-372-000 | STOP SCREW | 1 |
| 18 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 19 | SS-9151160-CP | SCREW 15/64-28 L=10.5 | 1 |
| 20 | B2614-372-000 | STOP MOTION TRIP LEVER | 1 |
| 21 | B2612-372-000 | STOP MOTION TRIP LEVER BRACKET | 1 |
| 22 | SS-9150860-SP | SCREW 15/64-28 L=8 | 2 |
| 23 | B2616-372-000 | SPRING | 1 |
| 24 | B8133-019-000 | S SHAPED HOOK | 1 |
| 25 | B2608-372-000 | STOP MOTION LEVER SPRING PIN | 1 |
| 26 | B2609-372-000 | STOP MOTION LEVER SPRING | 1 |
| 27 | B2610-372-000 | SCREW STUD | 1 |
| 28 | NS-6150310-SP | NUT 15/64-28 | 1 |
Page 21 — 10. STITCH SELECTING PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SD-1127321-SP | HINGE SCREW D=12.70 H= 3.2 | 1 |
| 2 | B2643-372-000 | SPRING FOR FRICTION PLATE | 1 |
| 3 | B2638-372-000 | FRICTION PLATE ROTATING STUD | 1 |
| 4 | B2637-372-000 | SLIDE BLOCK | 1 |
| 5 | B2636-372-000 | SPEED SLOWING LEVER | 1 |
| 6 | SD-0791331-SP | HINGE SCREW D= 7.94 H=13.3 | 1 |
| 7 | B2639-372-0A0 | FRICTION PLATE HOLDER ASM. | 1 |
| 8 | B2639-372-000 | FRICTION PLATE HOLDER | (1) |
| 9 | B2640-372-000 | SPEED SLOWING FRICTION PLATE | (1) |
| 10 | B3211-232-000 | POSITIONING PIN | (2) |
| 11 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 12 | B2619-372-000 | STOP MOTION TRIPPING LEVER CAM | 1 |
| 13 | B2618-372-0A0 | STOP MOTION TRIPPING LEVER ASM | 1 |
| 14 | SS-9202443-CP | SCREW 5/16-18 L=24 | (1) |
| 15 | B2621-372-0B0 | STOP MOTION CAN ASM. | 1 |
| 16 | B2621-372-0B0 | STOP MOTION CAN ASM. | (1) |
| 17 | B2623-372-000 | STOP MOTION CAM SHOE | (1) |
| 18 | B2624-372-000 | SCREW FOR STOP MOTION CAM SHOE | (1) |
| 19 | B2625-372-000 | STOP MOTION CAM KNOB | (1) |
| 20 | B2626-372-000 | SPRING | (1) |
| 21 | SD-0481451-SP | HINGE SCREW D= 4.80 H=14.5 | (1) |
| 22 | SS-6151142-TP | SCREW 15/64-28 L=10.5 | (2) |
| 23 | B2629-372-000 | STITCH SELECTING SPUR GEAR, MI | 1 |
| 24 | B2628-372-000 | SCREW STUD | 1 |
| 25 | B2633-372-000 | STITCH SELECTING LEVER | 1 |
| 26 | B2630-372-000-A | GEAR,LARGE | 1 |
| 27 | B2631-372-000 | SCREW | 1 |
| 28 | B2632-372-000-A | ROLL | 1 |
| 29 | B2634-372-000 | STITCH SELECTING LATCH | 1 |
| 30 | SD-0640961-SP | HINGE SCREW D= 6.35 H= 9.6 | 1 |
| 31 | B2635-372-000-A | SPEED SLOWING FRICTION WHEEL | 1 |
| 32 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | 2 |
| 33 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 1 |
Page 23 — MB-372 サブクラス関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 2 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHES | 1 |
| 3 | D2505-372-D00 | CROSSWISE FEED CAM, 6 STITCHES | 1 |
| 4 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 5 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHES | 1 |
| 6 | D2505-372-DOA | CROSSWISE FEED CAM, Z-SHAPE | 1 |
| 7 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 8 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHES | 1 |
| 9 | D2506-372-F00 | LENGTH WISE FEED CAM | 1 |
| 10 | B2506-372-000 | LENGTHWISE FEED CAM | 1 |
| 11 | B2505-372-C00 | CROSSWISE FEED CAM | 1 |
| 12 | D2506-372-L00 | LENGTHWISE FEED CAM FOR X-SHAP | 1 |
| 13 | D2506-372-M00 | LENGTH WISE FEED CAM | 1 |
| 14 | B2506-372-000 | LENGTHWISE FEED CAM | 1 |
| 15 | D2505-372-P00 | CROSSWISE FEED CAM | 1 |
| 16 | D2506-372-M00 | LENGTH WISE FEED CAM | 1 |
| 17 | D2528-372-P00 | CROSS FEED SCALE | 1 |
| 18 | D1241-372-Q00 | THROAT PLATE | 1 |
| 19 | D1250-372-Q00 | NEEDLE HOLE GUIDE | 1 |
| 20 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 21 | D2505-372-Q00 | CROSS WISE FEED CAM | 1 |
| 22 | D2506-372-Q00 | LENGTH WISE FEED CAM | 1 |
| 23 | D2505-372-R00 | CROSSWISE FEED CAM | 1 |
| 24 | D2528-372-R00 | CROSSFEED SCALE | 1 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 2 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHE | 1 |
| 3 | D2505-373-D00 | FEED CAM | 1 |
| 4 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 5 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHE | 1 |
| 6 | D2505-373-E00 | CROSS WISE FEED CAM | 1 |
| 7 | D1220-372-D00 | CAM SHAFT DRIVEN GEAR, 6 STITC | 1 |
| 8 | D1221-372-D00 | DRIVEN WORM GEAR FOR 6 STITCHE | 1 |
| 9 | D2506-373-F00 | LENGTH WISE FEED CAM | 1 |
| 10 | B2506-373-000 | LENGTHWISE FEED CAM | 1 |
| 11 | B2505-373-C00 | CROSS WISE FEED CAM | 1 |
| 12 | D2506-373-L00 | LENGTH WISE FEED CAM | 1 |
| 13 | D2506-373-M00 | LENGTH WISE FEED CAM | 1 |
| 14 | B2506-373-000 | LENGTHWISE FEED CAM | 1 |
| 15 | D2505-372-P00 | CROSSWISE FEED CAM | 1 |
| 16 | D2506-373-M00 | LENGTH WISE FEED CAM | 1 |
| 17 | D2528-372-P00 | CROSS FEED SCALE | 1 |
| 18 | D1241-373-Q00 | THROAT PLATE | 1 |
| 19 | D1250-372-Q00 | NEEDLE HOLE GUIDE | 1 |
| 20 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 21 | D2505-372-Q00 | CROSS WISE FEED CAM | 1 |
| 22 | D2506-372-Q00 | LENGTH WISE FEED CAM | 1 |
| 23 | B4416-373-0A0 | MOVING KNIFE PUSH-BACK SPRING | 1 |
| 24 | B4416-373-000 | SPRING GUIDE SHAFT | (1) |
| 25 | D9317-762-T00 | GIMP GUIDE SHAFT SPRING | (1) |
| 26 | WP-0751576-SD | WASHER 7.5X19X1.5 | (2) |
| 27 | B4420-373-000 | CUSHION | (1) |
| 28 | D2505-373-R00 | CROSSWISE FEED CAM | 1 |
| 29 | D2528-372-R00 | CROSSFEED SCALE | 1 |
Page 26 — MD-3 attachment assembly (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2547-372-0B0 | SMALL BUTTON | ||
| D2547-372-CBO | LARGE BUTTON | ||
| B2529-372-000 | SMALL BUTTON | ||
| D2529-372-B00 | MIDDLE BUTTON | ||
| D2529-372-C00 | LARGE BUTTON |
Page 27 — Z001 Attachment for Large Buttons, Z002 Attachment for Middle Buttons, Z003 Attachment for Shank Buttons, Z004 Attachment for First Process
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAZ-001000A0 | LARGE BUTTON CLAMP ASM. | 1 |
| 2 | MAZ-001000AA | LARGE BUTTON CLAMP ASM. | 1 |
| 3 | D2547-372-CB0 | LARGE BUTTON CLAMP ASM. | (1) |
| 4 | D2547-372-CBA | LARGE BUTTON CLAMP ASM. | (1) |
| 5 | D2555-372-CAO | WORK CLAMP FOOT ASM. (LEFT & L | (1) |
| 6 | D2555-372-COO | WORK CLAMP FOOT ASM. (LEFT) | (1) |
| 7 | D2556-372-COO | BUTTON HOLDING SPRING, LEFT | (1) |
| 8 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 9 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 10 | D2557-372-CAO | BUTTON CLAMP LEVER JAW, RIGHT | (1) |
| 11 | D2557-372-COO | BUTTON HOLDING SPRING , RIGHT | (1) |
| 12 | D2558-372-COO | BUTTON HOLDING SPRING, RIGHT | (1) |
| 13 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 14 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 15 | D2529-372-COO | FEED PLATE, LARGE BUTTON | (1) |
| 16 | D2529-372-B00 | FEED FOR MEDIUM SIZE BUTTON | 1 |
| 17 | B2401-372-OBO | SHANK BUTTON CLAMP ASM. | 1 |
| 18 | B2401-372-OBA | SHANK BUTTON CLAMP ASM. | 1 |
| 19 | SS-8120740-SP | SCREW 3/16-28 L=7 | (1) |
| 20 | B2411-372-000 | BUTTON CLAMP STUD | (1) |
| 21 | B2412-372-000 | BUTTON CLAMP BLOCK | (1) |
| 22 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 23 | B2405-372-000 | BUTTON CLAMP LEVER | (1) |
| 24 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 25 | B2406-372-000 | SHANK BUTTON HOLDING CLAMP | (1) |
| 26 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 27 | B2402-372-000 | BUTTON CLAMP LEVER HOLDING SHA | (1) |
| 28 | B2401-372-000 | BUTTON CLAMP BRACKET | (1) |
| 29 | B2401-372-00B | SHANK BUTTON CLAMP BRACKET | (1) |
| 30 | CS-072081A-SP | THRUST COLLAR ASM. D=7.24 W=8 | (1) |
| 31 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (1) |
| 32 | B2404-372-000 | SPRING FOR LEVER HOLDING SHAFT | (1) |
| 33 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 34 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 35 | B2408-372-POO | SHANK BUTTON GUARD(P) | (1) |
| 36 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 37 | B2419-372-BOO | SHANK BUTTON ADAPTER (B) | (1) |
| 38 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | (1) |
| 39 | B2410-372-000 | BUTTON CLAMP WORK SUPPORT PLAT | (1) |
| 40 | B2409-372-000 | BUTTON CLAMP FEED PLATE | (1) |
| 41 | SS-9120910-TP | SCREW 3/16-28 L=9 | (2) |
| 42 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 43 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 44 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 45 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 46 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 47 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 48 | B2410-372-00A | WORK SUPPORT PLATE A | 1 |
| 49 | B2410-372-00B | WORK SUPPORT PLATE B | 1 |
| 50 | B2410-372-00C | WORK SUPPORT PLATE C | 1 |
| 51 | B2410-372-00D | WORK SUPPORT PLATE D | 1 |
| 52 | B2447-372-0AO | WRAPPED AROUND BUTTON CLAMP, F | 1 |
| 53 | B2447-372-000 | SHANKING FOOT | (1) |
| 54 | WP-0501016-SD | WASHER 5X10.5X1 | (1) |
| 55 | SS-9120910-TP | SCREW 3/16-28 L=9 | (1) |
| 56 | B2446-372-000 | GUIDE PIN | (1) |
| 57 | B2440-372-0AO | BUTTON NECKING ATTACHMENT ASM. | 1 |
| 58 | B2440-372-000 | FEED PLATE | (1) |
| 59 | B2441-372-000 | WRAPPED GUIDE, LARGE | (1) |
| 60 | B2442-372-0AO | WRAPPED GUIDE (MIDDLE) ASM. | (1) |
| 61 | B2442-372-000 | WRAPPED GUIDE, MIDDLE | (1) |
| 62 | B2448-372-000 | SPRING | (1) |
| 63 | SS-6060220-SP | SCREW 3/32-56 L= 2.0 | (2) |
| 64 | SS-9110513-TP | SCREW 11/64-40 L=5 | (1) |
Page 29 — ATTACHMENT FOR SNAPS; ATTACHMENT FOR METAL BUTTONS; ATTACHMENT FOR REINFORCING-STAY BUTTONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2552-372-BAO | SNAP FASTENER CLAMP COMPLETE | 1 |
| 2 | B2552-372-BAA | SNAP CLAMP ASM. | 1 |
| 3 | B3107-372-BOO | THREAD GUIDE NO. 3, SNAP FASTE | (1) |
| 4 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 5 | SD-0550181-SP | HINGE SCREW D= 5.50 H= 1.8 | (1) |
| 6 | B2549-372-000 | CLAMP SCREW A | (1) |
| 7 | B2548-372-000 | SNAP FASTENER CLAMP STOP LEVER | (1) |
| 8 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 9 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 10 | SD-0550301-SP | HINGE SCREW D=5.5 H=3 | (1) |
| 11 | B2547-372-000 | JAW LEVER HOLDER | (1) |
| 12 | B2555-372-BOO | SNAP FASTENER CLAMP JAW LEVER, | (1) |
| 13 | B2557-372-BOO | CLAMP JAW LEVER, RIGHT | (1) |
| 14 | B2560-372-000 | BUTTON CLAMP STOP PIN | (2) |
| 15 | B2552-372-B00 | CLAMP JAW LEVER, RIGHT | (1) |
| 16 | B2553-372-000 | NUT | (1) |
| 17 | B2529-372-BOO | SLIDE SUPPORT PLATE | (1) |
| 18 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 19 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 20 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 21 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 22 | SD-0640391-TP | HINGE SCREW D= 6.35 H= 3.9 | (2) |
| 23 | B2561-372-000 | BUTTON CLAMP SPRING | (1) |
| 24 | B2420-372-0A0 | METAL SHANK BUTTON CLAMP COMPL | 1 |
| 25 | B2420-372-0AA | BUTTON CLAMP BRACKET | 1 |
| 26 | SS-8120740-SP | SCREW 3/16-28 L=7 | (1) |
| 27 | B2411-372-000 | BUTTON CLAMP STUD | (1) |
| 28 | B2412-372-000 | BUTTON CLAMP BLOCK | (1) |
| 29 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 30 | B2405-372-000 | BUTTON CLAMP LEVER | (1) |
| 31 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 32 | B2406-372-000 | SHANK BUTTON HOLDING CLAMP | (1) |
| 33 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 34 | B2402-372-000 | BUTTON CLAMP LEVER HOLDING SHA | (1) |
| 35 | B2401-372-000 | BUTTON CLAMP BRACKET | (1) |
| 36 | B2401-372-00B | SHANK BUTTON CLAMP BRACKET | (1) |
| 37 | CS-072081A-SP | THRUST COLLAR ASM. D=7.24 W=8 | (1) |
| 38 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (1) |
| 39 | B2404-372-000 | SPRING FOR LEVER HOLDING SHAFT | (1) |
| 40 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 41 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 42 | B2422-372-000 | METAL SHANK BUTTON GUARD | (1) |
| 43 | B2421-372-000 | METAL SHANK BUTTON ADAPTER | (1) |
| 44 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | (1) |
| 45 | B2423-372-000 | METAL SHANK BUTTON SUPPORT PLA | (1) |
| 46 | B2409-372-000 | BUTTON CLAMP FEED PLATE | (1) |
| 47 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 48 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 49 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 50 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 51 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 52 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 53 | SS-9120910-TP | SCREW 3/16-28 L=9 | (2) |
| 54 | MAT-60901ZAO | FEED PLATE ASM. | 1 |
| 55 | MAT-60905Z00-A | HOLDER (B) | (1) |
| 56 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (1) |
| 57 | MAT-60903Z00-A | GUIDE (B) | (1) |
| 58 | MAT-60902Z00 | GUIDE (A) | (1) |
| 59 | SS-6080410-SP | SCREW 1/8-44 L=4 | (4) |
| 60 | MAZ-00906000 | PRESSER SPRING | (1) |
| 61 | MAT-60904Z00-A | HOLDER (A) | (1) |
| 62 | MAT-60901Z00 | FEED PLATE | (1) |
Page 31 — (9) Z010 ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS / (10) Z010-B ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAZ-010000AO | SHANK BUTTON CLAMP ASM. | 1 |
| 2 | MAZ-010000AA | SHANK BUTTON CLAMP ASM. | 1 |
| 3 | B2401-372-LAO | SHANK BUTTON CLAMP (L) ASM. | 1 |
| 4 | B2401-372-LAA | SHANK BUTTON CLAMP ASM., L | 1 |
| 5 | B2542-372-L00 | BUTTON CLAMP HOLDER ASM. | (1) |
| 6 | B2542-372-L0A | BUTTON CLAMP HOLDER, L | (1) |
| 7 | B2401-372-L00-A | BUTTON CLAMP BRACKET L | (1) |
| 8 | B2401-372-L0A | SHANK BUTTON CLAMP BRACKET, L | (1) |
| 9 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 10 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 11 | B2402-372-L00 | ROLLER STUD, FOR TRIPPING LEVE | (1) |
| 12 | B2404-372-L00 | SPRING FOR HOLPING SHAFT | (1) |
| 13 | B2426-372-L00-A | THRUST RING L | (2) |
| 14 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | (2) |
| 15 | B2405-372-L00 | BUTTON CLAMP LEVER | (1) |
| 16 | B2429-372-L00 | SET SCREW | (1) |
| 17 | B2406-372-L00-A | SHANK BUTTON HOLDING CLAMP L | (1) |
| 18 | SS-7110730-SP | SCREW 11/64-40 L= 6.5 | (1) |
| 19 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 20 | B2546-372-L00 | BUTTON CLAMP LIFTING ROD (L) | (1) |
| 21 | B2431-372-L00 | SET SCREW | (1) |
| 22 | B2419-372-L00 | SHANK BUTTON ADAPTER | 1 |
| 23 | B2408-372-L00 | SHANK BUTTON GUARD | 1 |
| 24 | B2412-372-L00 | BUTTON CLAMP BLOCK | 1 |
| 25 | B2411-372-L00 | BUTTON CLAMP STUD | 1 |
| 26 | SS-8120740-SP | SCREW 3/16-28 L=7 | 1 |
| 27 | B2433-372-L00 | SET SCREW | 1 |
| 28 | B2409-372-LA0 | BUTTON CLAMP FEED PLATE ASM. | 1 |
| 29 | B2409-372-L00 | BUTTON CLAMP FEED PLATE (L) | (1) |
| 30 | B2410-372-L0A | WORK SUPPORT PLATE (L) | (1) |
| 31 | B2410-372-L0B | WORK SUPPORT PLATE (L) | (1) |
| 32 | B2410-372-L0C | WORK SUPPORT PLATE (L) | (1) |
| 33 | B2434-372-L00 | SET SCREW | (1) |
| 34 | B2544-372-L00-A | PRESSURE ADJUSTING BAR L | 1 |
| 35 | B2435-372-L00-A | NUT L | 2 |
| 36 | B2543-372-L00 | BUTTON CLAMP STOPPER PIN (L) | 1 |
| 37 | MAZ-010001A0 | Z010B ASM. | 1 |
| 38 | MAZ-010001AA | SHANK BUTTON CLAMP ASM. B | 1 |
| 39 | B2401-372-BAO | BRACKET INSTALLING BASE ASM. | 1 |
| 40 | B2401-372-BAA | SHANK BUTTON CLAMP ASM., B | 1 |
| 41 | B2542-372-L00 | BUTTON CLAMP HOLDER ASM. | (1) |
| 42 | B2542-372-L0A | BUTTON CLAMP HOLDER, L | (1) |
| 43 | B2401-372-L00-A | BUTTON CLAMP BRACKET L | (1) |
| 44 | B2401-372-L0A | SHANK BUTTON CLAMP BRACKET, L | (1) |
| 45 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 46 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 47 | B2402-372-L00 | ROLLER STUD, FOR TRIPPING LEVE | (1) |
| 48 | B2404-372-L00 | SPRING FOR HOLPING SHAFT | (1) |
| 49 | B2426-372-L00-A | THRUST RING L | (2) |
| 50 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | (2) |
| 51 | B2405-372-L00 | BUTTON CLAMP LEVER | (1) |
| 52 | B2429-372-L00 | SET SCREW | (1) |
| 53 | B2406-372-B00 | SHANK BUTTON HOLDING CLAMP (B) | (1) |
| 54 | SS-7110720-SP | SCREW 11/64-40 L=7 | (1) |
| 55 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 56 | B2546-372-L00 | BUTTON CLAMP LIFTING ROD (L) | (1) |
| 57 | B2431-372-L00 | SET SCREW | (1) |
| 58 | B2419-372-C00 | SHANK BUTTON ADAPTER | 1 |
| 59 | B2408-372-B00 | SHANK BUTTON GUARD | 1 |
| 60 | B2412-372-L00 | BUTTON CLAMP BLOCK | 1 |
| 61 | B2411-372-L00 | BUTTON CLAMP STUD | 1 |
| 62 | SS-8120740-SP | SCREW 3/16-28 L=7 | 1 |
| 63 | B2433-372-L00 | SET SCREW | 1 |
| 64 | B2409-372-BA0 | BUTTON CLAMP FEED PLATE ASM. | 1 |
| 65 | B2409-372-L00 | BUTTON CLAMP FEED PLATE (L) | (1) |
| 66 | B2410-372-B00 | BUTTON CLAMP SUPPORT PLATE 6MM | (1) |
| 67 | B2434-372-L00 | SET SCREW | (1) |
| 68 | B2544-372-L00-A | PRESSURE ADJUSTING BAR L | 1 |
| 69 | B2435-372-L00-A | NUT L | 2 |
| 70 | B2543-372-L00 | BUTTON CLAMP STOPPER PIN (L) | 1 |
Page 32 — ATTACHMENT FOR LABELS / ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS / ATTACHMENT FOR FIRST PROCESS OF WRAPPED-AROUND BUTTONS SLI
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAT-61401ZB0 | LABEL SEWER ATTACHMENT ASM. | 1 |
| 2 | MAT-61401ZBA | LABEL SEWER ATTACHMENT ASM. | 1 |
| 3 | MAT-61401ZA0 | CLAMP ASM. FOR LABEL | (1) |
| 4 | MAT-61401Z00 | CLAMP FOR LABEL | (1) |
| 5 | MAT-61402Z00 | SPRING | (1) |
| 6 | SS-5060310-SP | SCREW 3/32-56 L=2.8 | (2) |
| 7 | MAT-61403Z00 | STOPPER | (1) |
| 8 | MAZ-01404000 | FEED PLATE | (1) |
| 9 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 10 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 11 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 12 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 13 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 14 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 15 | MAT-61601ZA0 | FEED PLATE ASM. | 1 |
| 16 | MAT-61601Z00 | FEED PLATE | (1) |
| 17 | MAT-61603Z00 | CLOTH PLATE | (1) |
| 18 | MAT-61602Z00 | PLATE | (1) |
| 19 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 20 | B2449-372-000 | WRAPPED FOOT | 1 |
| 21 | B2450-372-000 | WRAPPED FOOT BASE | 1 |
| 22 | B2547-372-00A | JAW LEVER HOLDER A | 1 |
| 23 | B2446-372-000 | GUIDE PIN | 1 |
| 24 | B2549-372-000 | CLAMP SCREW A | 1 |
| 25 | SS-9120910-TP | SCREW 3/16-28 L=9 | 1 |
| 26 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
Page 33 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAZ-031000A0 | LARGE BUTTON CLAMP ASM. | 1 |
| 2 | MAZ-031000AA | LARGE BUTTON CLAMP ASM. | 1 |
| 3 | D2547-372-CBO | LARGE BUTTON CLAMP ASM. | (1) |
| 4 | D2547-372-CBA | LARGE BUTTON CLAMP ASM. | 1 |
| 5 | D2555-372-CA0 | WORK CLAMP FOOT ASM. (LEFT & L | (1) |
| 6 | D2555-372-C00 | WORK CLAMP FOOT ASM. (LEFT) | (1) |
| 7 | D2556-372-C00 | BUTTON HOLDING SPRING, LEFT | (1) |
| 8 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 9 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 10 | D2557-372-CA0 | BUTTON CLAMP LEVER JAW, RIGHT | (1) |
| 11 | D2557-372-C00 | BUTTON HOLDING SPRING , RIGHT | (1) |
| 12 | D2558-372-C00 | BUTTON HOLDING SPRING, RIGHT | (1) |
| 13 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | (1) |
| 14 | B2559-372-000 | BUTTON CLAMP LOCATING PIN | (1) |
| 15 | D2529-373-C00 | FEED PLATE. LARGE BUTTON | (1) |
| 16 | D2529-373-B00 | FEED PLATE (SMALL BUTTON) | 1 |
| 17 | B2401-373-0B0 | SHANK BUTTON CLAMP ASH. | 1 |
| 18 | B2401-373-0BA | SHANK BUTTON CLAMP ASH. | 1 |
| 19 | SS-8120740-SP | SCREW 3/16-28 L=7 | (1) |
| 20 | B2411-372-000 | BUTTON CLAMP STUD | (1) |
| 21 | B2412-372-000 | BUTTON CLAMP BLOCK | (1) |
| 22 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 23 | B2405-372-000 | BUTTON CLAMP LEVER | (1) |
| 24 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 25 | B2406-372-000 | SHANK BUTTON HOLDING CLAMP | (1) |
| 26 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 27 | B2402-372-000 | BUTTON CLAMP LEVER HOLDING SHA | (1) |
| 28 | B2401-372-000 | BUTTON CLAMP BRACKET | (1) |
| 29 | B2401-372-00B | SHANK BUTTON CLAMP BRACKET | (1) |
| 30 | CS-072081A-SP | THRUST COLLAR ASM. D=7.24 W=8 | (1) |
| 31 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (1) |
| 32 | B2404-372-000 | SPRING FOR LEVER HOLDING SHAFT | (1) |
| 33 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 34 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 35 | B2408-372-P00 | SHANK BUTTON GUARD(P) | (1) |
| 36 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 37 | B2419-372-B00 | SHANK BUTTON ADAPTER (B) | (1) |
| 38 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | (1) |
| 39 | B2410-372-000 | BUTTON CLAMP WORK SUPPORT PLAT | (1) |
| 40 | B2470-373-000 | BUTTON CLAMP FEED PLATE | (1) |
| 41 | SS-9120910-TP | SCREW 3/16-28 L=9 | (2) |
| 42 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 43 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 44 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 45 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| D2557-372-000 | BUTTON HOLDING SPRING, RIGHT | ||
| D2558-372-000 | BUTTON HOLDING SPRING, RIGHT | ||
| 02529-373-B00 | FEED PLATE (SMALL BUTTON) | ||
| SS-9120910-SD | SCREW 3/16-28 L=9 |
Page 35 — ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2440-373-0A0 | WRAPPED-AROUND BUTTON CLAMP AS | 1 |
| 2 | B2440-373-000 | FEED PLATE | (1) |
| 3 | B2441-372-000 | WRAPPED GUIDE, LARGE | (1) |
| 4 | B2442-372-0A0 | WRAPPED GUIDE (MIDDLE) ASM. | (1) |
| 5 | B2442-372-000 | WRAPPED GUIDE, MIDDLE | (1) |
| 6 | B2448-372-000 | SPRING | (2) |
| 7 | SS-9110513-TP | SCREW 11/64-40 L=5 | (1) |
| 8 | SS-9110513-TP | SCREW 11/64-40 L=5 | (1) |
| 9 | B4416-373-0A0 | MOVING KNIFE PUSH-BACK SPRING | (1) |
| 10 | B4416-373-000 | SPRING GUIDE SHAFT | (1) |
| 11 | D9317-762-T00 | GIMP GUIDE SHAFT SPRING | (1) |
| 12 | WP-0751576-SD | WASHER 7.5X19X1.5 | (2) |
| 13 | B4420-373-000 | CUSHION | (1) |
| 14 | B2552-373-BA0 | SNAP CLAMP ASM. | 1 |
| 15 | B2552-373-BAA | SNAP CLAMP ASM. | 1 |
| 16 | B3107-372-B00 | THREAD GUIDE NO. 3, SNAP FASTE | (1) |
| 17 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 18 | SD-0550181-SP | HINGE SCREW D= 5.50 H= 1.8 | (1) |
| 19 | B2549-372-000 | CLAMP SCREW A | (1) |
| 20 | B2548-372-000 | SNAP FASTENER CLAMP STOP LEVER | (1) |
| 21 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 22 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 23 | SD-0550301-SP | HINGE SCREW D=5.5 H=3 | (1) |
| 24 | B2547-372-000 | JAW LEVER HOLDER | (1) |
| 25 | B2555-372-B00 | SNAP FASTENER CLAMP JAW LEVER. | (1) |
| 26 | B2557-372-B00 | CLAMP JAW LEVER, RIGHT | (1) |
| 27 | B2560-372-000 | BUTTON CLAMP STOP PIN | (2) |
| 28 | B2552-372-B00 | CLAMP JAW LEVER, RIGHT | (1) |
| 29 | B2553-372-000 | NUT | (1) |
| 30 | B2529-373-B00 | FEED PLATE (MEDIUM SIZE BUTTON | (1) |
| 31 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 32 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 33 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 34 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 35 | SD-0640391-TP | HINGE SCREW D= 6.35 H= 3.9 | (2) |
| 36 | B2561-372-000 | BUTTON CLAMP SPRING | (1) |
| 37 | B2420-373-0A0 | METAL BUTTON CLAMP ASM. | 1 |
| 38 | B2420-373-0AA | METAL BUTTON CLAMP ASM. | 1 |
| 39 | SS-8120740-SP | SCREW 3/16-28 L=7 | (1) |
| 40 | B2411-372-000 | BUTTON CLAMP STUD | (1) |
| 41 | B2412-372-000 | BUTTON CLAMP BLOCK | (1) |
| 42 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 43 | B2405-372-000 | BUTTON CLAMP LEVER | (1) |
| 44 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 45 | B2406-372-000 | SHANK BUTTON HOLDING CLAMP | (1) |
| 46 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 47 | B2402-372-000 | BUTTON CLAMP LEVER HOLDING SHA | (1) |
| 48 | B2401-372-000 | BUTTON CLAMP BRACKET | (1) |
| 49 | B2401-372-00B | SHANK BUTTON CLAMP BRACKET | (1) |
| 50 | CS-072081A-SP | THRUST COLLAR ASM. D=7.24 W=8 | (1) |
| 51 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (1) |
| 52 | B2404-372-000 | SPRING FOR LEVER HOLDING SHAFT | (1) |
| 53 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 54 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 55 | B2422-372-000 | METAL SHANK BUTTON GUARD | (1) |
| 56 | B2421-372-000 | METAL SHANK BUTTON ADAPTER | (1) |
| 57 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | (1) |
| 58 | B2423-373-000 | METAL BUTTON WORK SUPPORT PLAT | (1) |
| 59 | B2470-373-000 | BUTTON CLAMP FEED PLATE | (1) |
| 60 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 61 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 62 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 63 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 64 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 65 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 66 | SS-9120910-TP | SCREW 3/16-28 L=9 | (2) |
| 67 | MAZ-039010A0 | REINFORCING-STAY BUTTON ATCHMT | 1 |
| 68 | MAT-60905Z00-A | HOLDER (B) | (1) |
| 69 | SS-6080340-SP | SCREW 1/8-44 L=3.0 | (1) |
| 70 | MAT-60903Z00-A | GUIDE (B) | (1) |
| 71 | MAT-60902Z00 | GUIDE (A) | (1) |
| 72 | SS-6080340-SP | SCREW 1/8-44 L=3.0 | (4) |
| 73 | MAZ-00906000 | PRESSER SPRING | (1) |
| 74 | MAT-60904Z00-A | HOLDER (A) | (1) |
| 75 | MAZ-03901000 | FEED PLATE | (1) |
Page 37 — (8) Z040 ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS / ルイスタイプパールボタン用アタッチメント
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAZ-040000AO | SHANK BUTTON CLAMP ASM. (L) | 1 |
| 2 | MAZ-040000AA | SHANK BUTTON CLAMP ASM. | 1 |
| 3 | B2401-372-LA0 | SHANK BUTTON CLAMP (L) ASM. | 1 |
| 4 | B2401-372-LAA | SHANK BUTTON CLAMP ASM., L | 1 |
| 5 | B2542-372-LOO | BUTTON CLAMP HOLDER ASM. | (1) |
| 6 | B2542-372-LOA | BUTTON CLAMP HOLDER, L | (1) |
| 7 | B2401-372-LOO-A | BUTTON CLAMP BRACKET L | (1) |
| 8 | B2401-372-LOA | SHANK BUTTON CLAMP BRACKET, L | (2) |
| 9 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 10 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 11 | B2402-372-LOO | ROLLER STUD, FOR TRIPPING LEVE | (1) |
| 12 | B2404-372-LOO | SPRING FOR HOLPING SHAFT | (1) |
| 13 | B2426-372-L00-A | THRUST RING L | (2) |
| 14 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | (2) |
| 15 | B2405-372-LOO | BUTTON CLAMP LEVER | (1) |
| 16 | B2429-372-LOO | SET SCREW | (1) |
| 17 | B2406-372-LOO-A | SHANK BUTTON HOLDING CLAMP L | (1) |
| 18 | SS-7110730-SP | SCREW 11/64-40 L= 6.5 | (1) |
| 19 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 20 | B2546-372-LOO | BUTTON CLAMP LIFTING ROD (L) | (1) |
| 21 | B2431-372-LOO | SET SCREW | (1) |
| 22 | B2419-372-LOO | SHANK BUTTON ADAPTER | 1 |
| 23 | B2408-372-LOO | SHANK BUTTON GUARD | 1 |
| 24 | B2412-372-LOO | BUTTON CLAMP BLOCK | 1 |
| 25 | B2411-372-LOO | BUTTON CLAMP STUD | 1 |
| 26 | SS-8120740-SP | SCREW 3/16-28 L=7 | 1 |
| 27 | B2433-372-LOO | SET SCREW | 1 |
| 28 | B2409-373-LAO | BUTTON CLAMP FEED PLATE ASM. ( | 1 |
| 29 | B2409-373-LOO | BUTTON CLAMP FEED PLATE (L) | (1) |
| 30 | B2410-372-L0A | WORK SUPPORT PLATE (L) | (1) |
| 31 | B2410-372-L0B | WORK SUPPORT PLATE (L) | (1) |
| 32 | B2410-372-L0C | WORK SUPPORT PLATE (L) | (1) |
| 33 | B2434-372-LOO | SET SCREW | (1) |
| 34 | B2544-372-L00-A | PRESSURE ADJUSTING BAR L | 1 |
| 35 | B2435-372-L00-A | NUT L | 2 |
| 36 | B2543-372-L00 | BUTTON CLAMP STOPPER PIN (L) | 1 |
| 37 | MAZ-04000BAO | Z040-B ASM. | 1 |
| 38 | MAZ-04000BAA | SHANK BUTTON CLAMP ASM. | 1 |
| 39 | B2401-372-BA0 | BRACKET INSTALLING BASE ASM. | 1 |
| 40 | B2401-372-BAA | SHANK BUTTON CLAMP ASM., B | 1 |
| 41 | B2542-372-LOO | BUTTON CLAMP HOLDER ASM. | (1) |
| 42 | B2542-372-LOA | BUTTON CLAMP HOLDER, L | (1) |
| 43 | B2401-372-L00 | BUTTON CLAMP BRACKET (L) | (1) |
| 44 | B2401-372-LOA | SHANK BUTTON CLAMP BRACKET, L | (1) |
| 45 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 46 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 47 | B2402-372-LOO | ROLLER STUD, FOR TRIPPING LEVE | (1) |
| 48 | B2404-372-LOO | SPRING FOR HOLPING SHAFT | (1) |
| 49 | B2426-372-LOO | THRUST RING | (2) |
| 50 | B2427-372-L00 | SET SCREW | (2) |
| 51 | B2405-372-LOO | BUTTON CLAMP LEVER | (1) |
| 52 | B2429-372-LOO | SET SCREW | (1) |
| 53 | B2406-372-B00 | SHANK BUTTON HOLDING CLAMP (B) | (1) |
| 54 | SS-7110720-SP | SCREW 11/64-40 L=7 | (1) |
| 55 | B2430-372-L00 | SCREW | (1) |
| 56 | B2546-372-LOO | BUTTON CLAMP LIFTING ROD (L) | (1) |
| 57 | B2431-372-LOO | SET SCREW | (1) |
| 58 | B2419-372-C00 | SHANK BUTTON ADAPTER | 1 |
| 59 | B2408-372-B00 | SHANK BUTTON GUARD | 1 |
| 60 | B2412-372-LOO | BUTTON CLAMP BLOCK | 1 |
| 61 | B2411-372-LOO | BUTTON CLAMP STUD | 1 |
| 62 | SS-8120740-SP | SCREW 3/16-28 L=7 | 1 |
| 63 | B2433-372-LOO | SET SCREW | 1 |
| 64 | B2409-373-BAO | FEED PLATE ASM. | 1 |
| 65 | B2409-373-LOO | BUTTON CLAMP FEED PLATE (L) | (1) |
| 66 | B2410-372-BOO | BUTTON CLAMP SUPPORT PLATE 6MM | (1) |
| 67 | B2434-372-LOO | SET SCREW | (1) |
| 68 | B2544-372-LOO | PRESSURE ADJUSTING BAR (L) | 1 |
| 69 | B2435-372-LOO | NUT | 2 |
| 70 | B2543-372-L00 | BUTTON CLAMP STOPPER PIN (L) | 1 |
Page 39 — ATTACHMENT FOR FIRST PROCESS OF WRAPPED-AROUND BUTTONS; ATTACHMENT FOR LABELS; ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAZ-041010A0 | WRAPPED AROUND BUTTON CLAMP AS | 1 |
| 2 | MAZ-04101000 | ADJUSTING BASE | (1) |
| 3 | MAZ-04102000 | GUIDE BAR | (1) |
| 4 | SD-0630301-SP | HINGE SCREW D=6.35 H=3 | (1) |
| 5 | MAZ-04103000 | GUIDE BAR (SHANK BUTTON WIDTH) | (1) |
| 6 | SS-5080710-SP | SCREW 1/8-44 L= 6.5 | (1) |
| 7 | B2549-372-000 | CLAMP SCREW A | (1) |
| 8 | MAT-64401ZBO | ATTACHMENT ASM. FOR LABELS | 1 |
| 9 | MAT-64401ZBA | LABEL SEWER ATTACHMENT ASM. | 1 |
| 10 | MAT-64401ZA0 | CLAMP ASM. FOR LABEL | (1) |
| 11 | MAT-61401Z00 | CLAMP FOR LABEL | (1) |
| 12 | MAT-61402Z00 | SPRING | (1) |
| 13 | SS-5060310-SP | SCREW 3/32-56 L=2.8 | (2) |
| 14 | MAT-61403Z00 | STOPPER | (1) |
| 15 | MAZ-04404000 | FEED PLATE | (1) |
| 16 | B2542-372-000 | BUTTON CLAMP HOLDER | (1) |
| 17 | B2542-372-00A | BUTTON CLAMP HOLDER | (1) |
| 18 | SS-9621413-SP | SCREW 3/16-32 L=13.5 | (2) |
| 19 | B2546-372-000 | BUTTON CLAMP LIFTING ROD | (1) |
| 20 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 21 | SS-7150940-SP | SCREW 15/64-28 L=9 | (1) |
| 22 | MAZ-046010A0 | FEED PLATE ASM. | 1 |
| 23 | MAZ-04601000 | PAJAMAS FITTING PLATE | (1) |
| 24 | MAT-61603Z00 | CLOTH PLATE | (1) |
| 25 | MAT-61602Z00 | PLATE | (1) |
| 26 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2419372D00 | パールボタン用つまみ足 (D) | |
| 1 | B2408372000 | ||
| 1 | B2408372M00 | つまみ足板ばね (M) | |
| 2 | B2419372F00 | パールボタン用つまみ足 (F) | |
| 2 | B2408372C00 | つまみ足板ばね (C) | |
| 3 | B2419372M00 | パールボタン用つまみ足 (M) | |
| 4 | B2419372N00 | パールボタン用つまみ足 (N) | |
| 5 | B2419372A00 | パールボタン用つまみ足 (A) | |
| 5 | B2408372000 | ||
| 5 | B2408372M00 | つまみ足板ばね (M) | |
| 6 | B2419372E00 | パールボタン用つまみ足 (E) | |
| 6 | B2408372A00 | つまみ足板ばね (A) | |
| 6 | B2408372U00 | つまみ足板ばね (U) | |
| 7 | B2419372G00 | パールボタン用つまみ足 (G) | |
| 7 | B2408372E00 | つまみ足板ばね (E) | |
| 8 | B2419372H00 | パールボタン用つまみ足 (H) | |
| 8 | B2408372F00 | つまみ足板ばね (F) | |
| 9 | B2419372R00 | パールボタン用つまみ足 (R) | |
| 9 | B2408372H00 | つまみ足板ばね (H) | |
| 10 | B2419372W00 | パールボタン用つまみ足 (W) | |
| 10 | B2408372N00 | つまみ足板ばね (N) | |
| 11 | B2419372S00 | パールボタン用つまみ足 (S) | |
| 11 | B2408372000 | ||
| 11 | B2408372M00 | つまみ足板ばね (M) |
Page 41 — 22. BARTER PARTS (Z008,Z038)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B242137200B | 金ボタン用つまみ足 (B) | |
| 1 | B242237200B | つまみ足板ばね (B) | |
| 2 | B242137200P | 金ボタン用つまみ足 (P) | |
| 2 | B240837200B | つまみ足板ばね (B) | |
| 3 | B242137200Q | 金ボタン用つまみ足 (Q) | |
| 3 | B240837200C | つまみ足板ばね (C) | |
| 4 | B242137200J | 金ボタン用つまみ足 (J) | |
| 4 | B242237200C | 金ボタン板ばね (C) | |
| 5 | B242137200T | 金ボタン用つまみ足 (T) | |
| 5 | B242237200I | 金ボタン板ばね (I) | |
| 6 | B242137200V | 金ボタン用つまみ足 (V) | |
| 6 | B2408372J00 | 金ボタン板ばね (J) | |
| B242137200C | つまみ足ばね (C) | 4 | |
| B242137200H | 金ボタン用つまみ足 (H) | ||
| B242137200D | つまみ足ばね (D) | 10 | |
| B242137200F | 金ボタン用つまみ足 (F) | ||
| B240837200D | つまみ足ばね (D) |
Page 45 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 54 | WP-0501016-SD | WP-0501016-SD | |
| 9 | WP-0501016-SD | WP-0501016-SD | |
| 48 | WP-0501016-SD | WP-0501016-SD | |
| 10 | WP-0501016-SD | WP-0501016-SD | |
| 46 | WP-0501016-SD | WP-0501016-SD | |
| 26 | WP-0501016-SD | WP-0501016-SD | |
| 44 | WP-0501016-SD | WP-0501016-SD | |
| 22 | WP-0501016-SD | WP-0501016-SD | |
| 61 | WP-0501016-SD | WP-0501016-SD | |
| 10 | WP-0501016-SD | WP-0501016-SD | |
| 46 | WP-0501016-SD | WP-0501016-SD | |
| 32 | WP-0510516-SD | WP-0510516-SD | |
| 12 | WP-0621026-SP | WP-0621026-SP | |
| 21 | WP-0650876-SD | WP-0650876-SD | |
| 55 | WP-0703516-SP | WP-0703516-SP | |
| 56 | WP-0704016-SP | WP-0704016-SP | |
| 54 | WP-0704516-SP | WP-0704516-SP | |
| 50 | WP-0751576-SD | WP-0751576-SD | |
| 58 | WP-0751576-SD | WP-0751576-SD | |
| 26 | WP-0751576-SD | WP-0751576-SD | |
| 12 | WP-0751576-SD | WP-0751576-SD | |
| 59 | WP-0851846-SC | WP-0851846-SC | |
| 53 | WS-0650389-KP | WS-0650389-KP | |
| 28 | 178-10904 | ||
| 57 | 178-48458 |
Juki MB-372 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI MB-372 and MB-373 Series Single Thread, Chainstitch Button Attaching Machines with Automatic Thread Trimmer parts list. It features illustrations of the machines.
- Page 2 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 3 (text): This page lists other parts related to the model, including electric magnetic starting units and electric wiper units for button attaching machines, as well as single thread, chainstitch button sewing machines with thread trimmers and automatic button feeders.
- Page 5 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers. It includes sections like "BUTTON CLAMP MECHANISM COMPONENTS", "ARM & MISCELLANEOUS COVERS COMPONENTS", and "ATTACHMENT COMPONENTS FOR MODEL MB-372/MB-373".
- Page 6 (diagram): This page contains a diagram of sewing machine parts with reference numbers, part numbers, and descriptions. It includes parts labeled from 3 to 38.
- Page 7 (parts_list): This page lists parts for MB-372 and MB-373, including various clamps, screws, washers, and springs, with Japanese descriptions and quantities.
- Page 8 (diagram): This page displays a diagram of sewing machine components, including various parts labeled with reference numbers and some part numbers.
- Page 9 (parts_list): This page lists parts for MB-372 and MB-373, including screws, springs, covers, and other components, with their respective part numbers and descriptions.
- Page 10 (diagram): This page displays a diagram of various machine parts, including screws, plates, levers, shafts, and gears, with reference numbers for each component.
- Page 11 (parts_list): This page lists parts for MB-372 and MB-373, including screws, plates, slides, and bearings, with their corresponding part numbers and descriptions.
- Page 12 (diagram): This page displays a diagram of various sewing machine parts, including tension discs, presser foot components, and mounting brackets, with reference numbers and some part numbers indicated.
- Page 13 (parts_list): This page lists parts for the MB-372 and MB-373 models, including screws, nuts, springs, and various assembly components, with their corresponding part numbers and descriptions.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers, part numbers, and descriptions. It also includes a page number and website information at the bottom.
- Page 15 (parts_list): This page lists parts for MB-372 and MB-373, including feed plates, screws, indicators, nuts, links, studs, washers, levers, cams, and cam shafts.
- Page 16 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, springs, and fasteners, with corresponding reference numbers.
- Page 17 (parts_list): This page lists parts for MB-372 and MB-373, including various screws, washers, levers, and connecting links, with their corresponding part numbers and quantities.
- Page 18 (parts_list): This page contains a parts list for various components of the sewing machine, including pulleys, screws, bearings, and shafts, with corresponding part numbers and descriptions.
- Page 19 (diagram): This page displays a diagram of needle bar driving mechanism components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 20 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities, with reference numbers from 1 to 28.
- Page 21 (parts_list): This page lists parts for stitch selecting components, including hinge screws, springs, friction plates, and levers, with their corresponding part numbers and quantities.
- Page 22 (diagram): This page displays diagrams of various parts for the MB-372 series sewing machines, including gears, spools, and mounting plates, with reference numbers and part numbers clearly indicated.
- Page 23 (parts_list): This page lists parts for MB-372-4, MB-372-5, MB-372-6, MB-372-10, MB-372-11, MB-372-12, MB-372-14, MB-372-15, and MB-372-16, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including gears, spools, and assemblies, with corresponding reference numbers and part numbers.
- Page 25 (parts_list): This page lists parts for MB-373-4 through MB-373-16, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays diagrams and part information for various components of an industrial sewing machine, including parts labeled (1)Z001 through (5)Z005, with detailed illustrations and associated part numbers and descriptions.
- Page 27 (parts_list): This page lists parts for attachments Z001, Z002, Z003, Z004, and Z005, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page contains diagrams of various sewing machine components, including parts labeled with reference numbers and some part numbers with descriptions.
- Page 29 (parts_list): This page lists parts for Z007 and Z008 attachments for sewing machines, including snap fasteners, buttons, and related hardware, with part numbers, descriptions, and quantities.
- Page 30 (diagram): This page contains diagrams of sewing machine parts for models (9)Z010 and (10)Z010-B, with numbered components indicated for reference.
- Page 31 (parts_list): This page lists parts for Z010 Attachment for Louis Type Shank Buttons and Z010-B Attachment for Louis Type Shank Buttons, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page lists parts for the (11) Z014 Attachment for Labels, (12) Z016 Attachment for Second Process of Wrapped-around Buttons, and (13) Z172 Attachment for First Process of Wrapped-around Buttons.
- Page 33 (parts_list): This page lists attachment components for model MB-373, including parts for large buttons, middle buttons, and shank buttons, with their respective part numbers and descriptions.
- Page 34 (diagram): This page displays diagrams of various sewing machine components, including parts labeled (4)Z035, (6)Z038, (5)Z037, and (7)Z039, with associated reference numbers and some part numbers listed.
- Page 35 (parts_list): This page lists parts for Z035 ATTACHMENT FOR SNAPS, Z038 ATTACHMENT FOR METAL BUTTONS, and Z039 ATTACHMENT FOR REINFORCING-STAY BUTTONS.
- Page 36 (diagram): This page displays diagrams of parts for models (8)Z040 and (8)Z040-B, with numbered components and associated part numbers.
- Page 37 (parts_list): This page lists parts for Z040 attachment for Louis type shank buttons and Z040-B attachment for Louis type shank buttons, including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays diagrams of sewing machine parts, including components labeled (10)Z041, (11)Z044, and (12)Z046, with associated part numbers and descriptions.
- Page 39 (parts_list): This page lists parts for attachments for wrapped-around buttons and labels, including part numbers, descriptions, quantities, and remarks.
- Page 40 (parts_list): This page contains a parts list for button components, including part numbers, descriptions, and applicable button sizes.
- Page 41 (parts_list): This page lists and describes various parts for BARTER PARTS (Z008,Z038) with their corresponding part numbers, descriptions, and applicable button sizes.
- Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 46 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 47 (unknown): This page contains a watermark and a website address at the bottom. There is no discernible part information or other structured content.
- Page 48 (cover): This is the cover page of the JUKI CORPORATION parts catalog, featuring the JUKI logo and contact information for orders and inquiries. It also includes notes about the catalog's content and printing date.
