Pegasus W500 (10 pages) Parts Book (PDF)
Text index — Pegasus W500 (10 pages)
Page 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 192120 | Pipe | ||
| 250257A | Eye Guard Asm. | ||
| 252502-91 | Diff. Feed Bar | ||
| 252536 | Spring | ||
| 253004 | Presser Bar | ||
| 253508A | Thread Guide | ||
| 253515 | Thread Guide | ||
| 253517 | Spring | ||
| 253545 | Holder | ||
| 253547 | Thread Guide | ||
| 253548 | Thread Guide | ||
| 255510 | Lower Knife Clamp | ||
| 257015B32 | Throat Plate 232 | ||
| 257015B40 | Throat Plate 240 | ||
| 257018B56 | Throat Plate 356 | ||
| 257029B32 | Throat Plate 232 |
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257050B40 | Throat Plate 240 | ||
| 257095B64 | Throat Plate 364 | ||
| 257097B56 | Throat Plate 356 | ||
| 257206-16F | Main Feed Dog | ||
| 257214-16F | Main Feed Dog | ||
| 257220-16F | Main Feed Dog | ||
| 257260-16F | Diff. Feed Dog | ||
| 257266-16F | Diff. Feed Dog | ||
| 257301A56 | Presser Foot 356 | ||
| 257317A32 | Presser Foot 232 | ||
| 257468-56 | Presser Foot 356 | ||
| 257472-56 | Presser Foot 356 | ||
| 257501-56 | Needle Clamp 356 | ||
| 257517-32 | Needle clamp 232 | ||
| 350024 | Lower Fixed Knife | ||
| 350215 | Flat Spring |

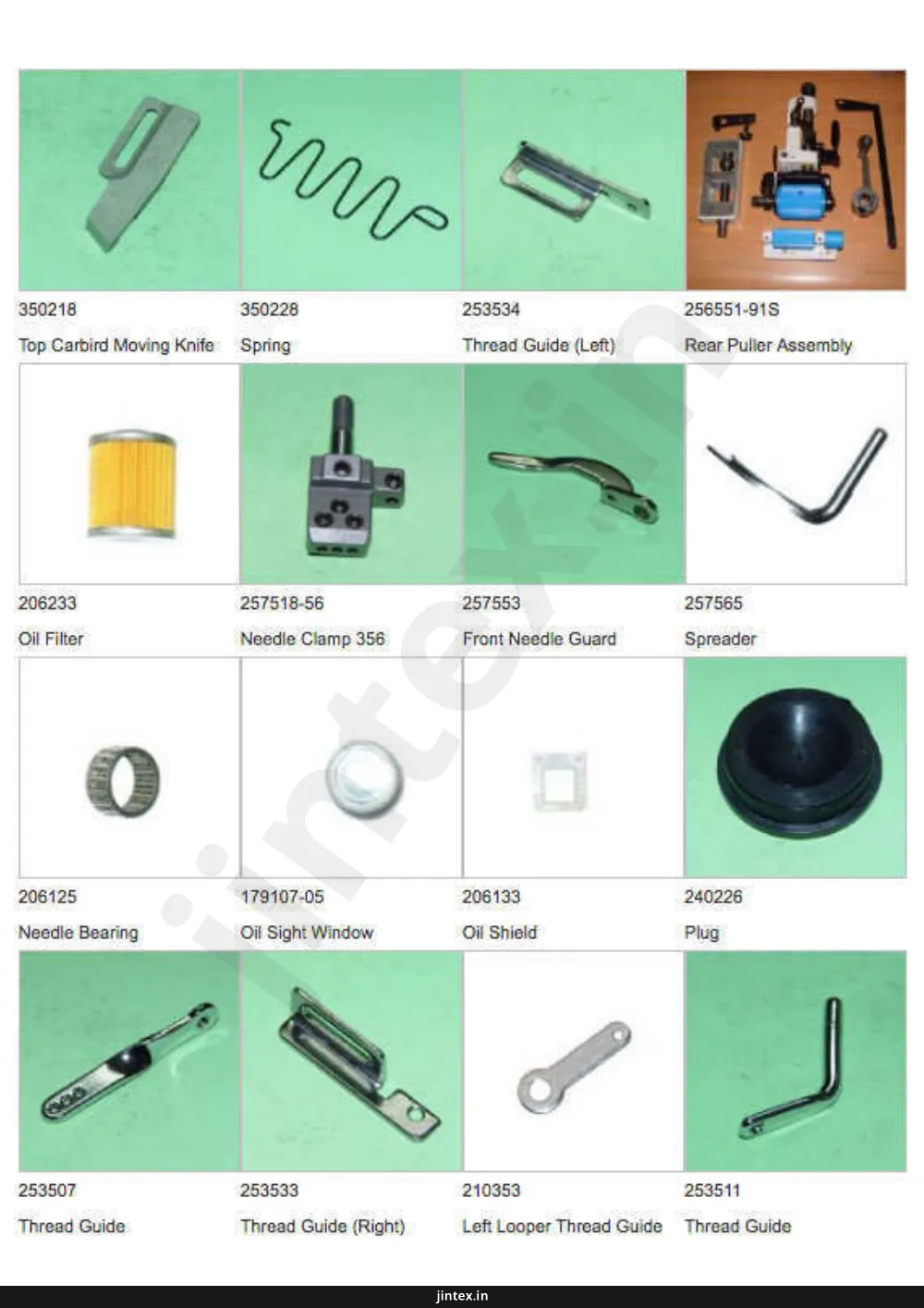

Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 350218 | Top Carbird Moving Knife | ||
| 350228 | Spring | ||
| 253534 | Thread Guide (Left) | ||
| 256551-91S | Rear Puller Assembly | ||
| 206233 | Oil Filter | ||
| 257518-56 | Needle Clamp 356 | ||
| 257553 | Front Needle Guard | ||
| 257565 | Spreader | ||
| 206125 | Needle Bearing | ||
| 179107-05 | Oil Sight Window | ||
| 206133 | Oil Shield | ||
| 240226 | Plug | ||
| 253507 | Thread Guide | ||
| 253533 | Thread Guide (Right) | ||
| 210353 | Left Looper Thread Guide | ||
| 253511 | Thread Guide |
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 253615 | Thread Guide | ||
| 253506 | Thread Take-Up | ||
| 250051 | Flat Spring | ||
| 206023 | Flat Spring | ||
| 253010 | Spring | ||
| 206439 | Auxi. Plate/Front Cover | ||
| 252508A | Thread Guide | ||
| 253505A | Thread Take-Up | ||
| 252507 | Guide/Left | ||
| 253514 | Thread Guide | ||
| 254010A91 | Tension Nut Ass'y (H) | ||
| 253584B/ASM | Thread Guide Ass'y |

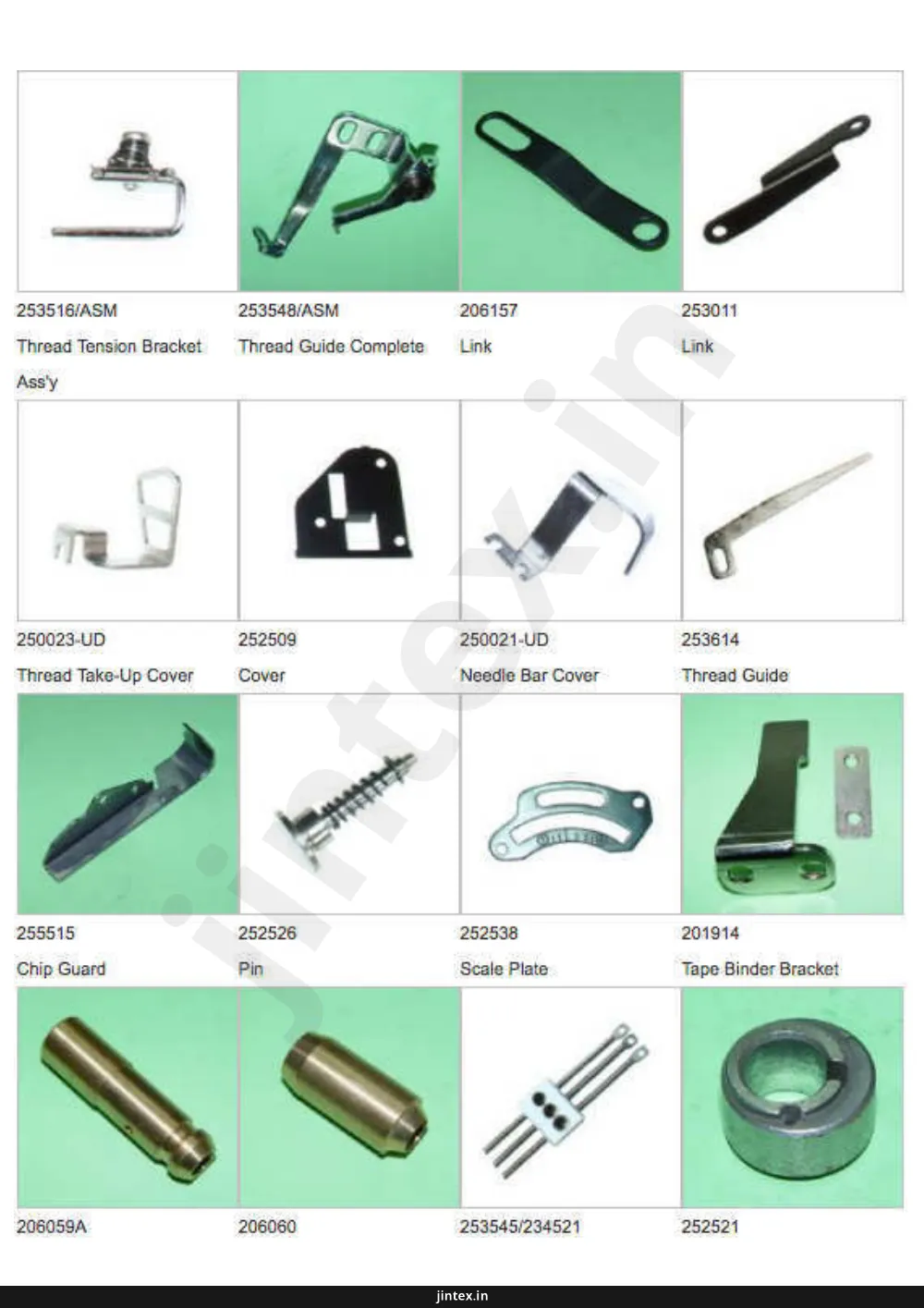

Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 253516/ASM | Thread Tension Bracket Ass'y | ||
| 253548/ASM | Thread Guide Complete | ||
| 206157 | Link | ||
| 253011 | Link | ||
| 250023-UD | Thread Take-Up Cover | ||
| 252509 | Cover | ||
| 250021-UD | Needle Bar Cover | ||
| 253614 | Thread Guide | ||
| 255515 | Chip Guard | ||
| 252526 | Pin | ||
| 252538 | Scale Plate | ||
| 201914 | Tape Binder Bracket | ||
| 206059A | |||
| 206060 | |||
| 253545/234521 | |||
| 252521 |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 252522 | Regulator | ||
| 250050-SD | Front Cover (Small) | ||
| 252508 | Guide/Lower | ||
| 253005-91 | Guide | ||
| 206148 | Bell Crank (Lower) | ||
| 252519 | Block | ||
| 201074A | Guide | ||
| 206563 | Guide Block | ||
| 206053 | Pin | ||
| 179399-05 | Screw Pin | ||
| 251518 | Shaft | ||
| 254504 | Screw Pin | ||
| 240114A | Spring | ||
| 306500 | Clutch Roller | ||
| 256012 | Clutch | ||
| 253608-91 | Thread Take-Up |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 252504 | Guide/Right | ||
| 252000-92 | Eccentric Ass'y | ||
| 253544 | Thread Guide | ||
| 207065-9U | Silicone oil Reservoir Ass'y | ||
| 255015 | Silicone oil Reservoir/Lower | ||
| 255006 | Oil Guard | ||
| 206062 | Guide Block/Needle Bar | ||
| 255509 | Lower Knife Holder |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 255507-91 | Upper Knife Lever Ass'y | ||
| 254508 | Crank Shaft | ||
| 206061 | Needle Bar Clamp | ||
| 206139 | Presser Bar Clamp | ||
| 252532 | Guide/Block | ||
| 254516-92 | Spreader Holder Lever "F" | ||
| 256039 | Lace Guide | ||
| 254506B | Crank | ||
| 206052 | Needle Bar Drive Link | ||
| 206564 | Diff. Feed Link | ||
| 253504-92 | Lever Ass'y | ||
| 254503-92 | Crank | ||
| 255019 | Worm Wheel | ||
| 250543A91 | Bushing | ||
| 306093 | Crank | ||
| 252009-92 | Connection Ass'y |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 254511 | Connection | ||
| 255501-92 | Connection Ass'y | ||
| 252008-92 | Crank Ass'y | ||
| 253501A92 | Crank Ass'y | ||
| 251519-92 | Lever Ass'y | ||
| 252533-92 | Lever | ||
| 252007-92 | Looper Holder Ass'y | ||
| 206562 | Link/Main Feed | ||
| 252527-91 | Crank | ||
| 250016-AUD | Arm Cover Left | ||
| 252002 | Crank | ||
| 250511-91 | Gear/Lower | ||
| 250523AUD | Hand Wheel | ||
| 255040-91 | Pump Ass'y | ||
| 252500-91 | Main Feed Bar | ||
| 252502-91 | Diff. Feed Bar |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 253000-91/2530031 | Adjusting Bar W/Nut | ||
| 254000-91 | Lever | ||
| 250071-91 | Slide Plate | ||
| 254023E9T | Tension Control Mechanism (3-N) | ||
| 250022-UB | Pulley Cover | ||
| 250150-PD | Arm Cover Top | ||
| 250032-SD | Front Cover Ass'y | ||
| 253611/ASM | Thread Guide Ass'y |
Pegasus W500 (10 pages) — parts catalog
- Page 1 (parts_list): This page displays a variety of sewing machine parts, including pipes, thread guides, springs, holders, and throat plates, each with its corresponding part number and name.
- Page 2 (parts_list): This page displays various sewing machine parts including throat plates, feed dogs, presser feet, needle clamps, a lower fixed knife, and a flat spring, each with its corresponding part number and description.
- Page 3 (parts_list): This page displays a variety of sewing machine parts, including thread guides, oil filters, needle clamps, and assemblies, each with a part number and description.
- Page 4 (parts_list): This page displays a parts list for sewing machine components, including various guides, springs, and assemblies with their corresponding part numbers.
- Page 5 (parts_list): This page displays a variety of sewing machine parts with their corresponding part numbers and descriptions, including tension brackets, guides, covers, pins, and more.
- Page 6 (parts_list): This page displays a list of sewing machine parts with their corresponding part numbers and names, including Regulator, Front Cover, Guide/Lower, Guide, Bell Crank, Block, Guide Block, Pin, Screw Pin, Shaft, Spring, Clutch Roller, Clutch, and Thread Take-Up.
- Page 7 (parts_list): This page displays a parts list for various sewing machine components, including guides, reservoirs, and holders, each with a part number and description.
- Page 8 (parts_list): This page displays a list of various sewing machine parts, including levers, clamps, cranks, and wheels, each with its corresponding part number and name.
- Page 9 (parts_list): This page displays a parts list for various sewing machine components, including connection parts, levers, cranks, and feed bars, each with a part number and description.
- Page 10 (parts_list): This page displays a parts list for various sewing machine components, including adjusting bars, levers, slide plates, tension control mechanisms, pulley covers, arm covers, front covers, and thread guides, each with their corresponding part numbers.
