Siruba F007K / F007KD Parts Book (PDF)
Text index — Siruba F007K / F007KD
Page 1 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5240 | NEEDLE CLAMP | 240 | |
| M5246 | NEEDLE CLAMP | 248 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E1534 | NEEDLE PLATE | 240 | |
| E1535 | NEEDLE PLATE | 248 | |
| E1836 | NEEDLE PLATE | 356 | |
| E1837 | NEEDLE PLATE | 364 | |
| D1206P | MAIN FEED DOG | 240 | |
| H1258 | DIFF. FEED DOG | 240 | |
| P2544A-A | PRESSER FOOT | 240 | |
| P2545A-A | PRESSER FOOT | 240 | |
| P2445-A | PRESSER FOOT | 240 | |
| P2445-A1 | PRESSER FOOT | 240 | |
| ME28 | LOOPER | 240 | |
| MH41 | SPREADER | 240 | |
| UYX128GAS#10 | NEEDLE | 240 | |
| M5240 | NEEDLE CLAMP | 240 | |
| M5248 | NEEDLE CLAMP | 248 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E1524 | NEEDLE PLATE | 240 | |
| E1525 | NEEDLE PLATE | 248 | |
| E1826 | NEEDLE PLATE | 356 | |
| E1827 | NEEDLE PLATE | 364 | |
| D1206P | MAIN FEED DOG | 240 | |
| H1258 | DIFF. FEED DOG | 240 | |
| P2544A-A | PRESSER FOOT | 240 | |
| P2545A-A | PRESSER FOOT | 240 | |
| P2445-A | PRESSER FOOT | 240 | |
| P2445-A1 | PRESSER FOOT | 240 | |
| ME28 | LOOPER | 240 | |
| MH41 | SPREADER | 240 | |
| UYX128GAS#10 | NEEDLE | 240 | |
| M5240 | NEEDLE CLAMP | 240 | |
| M5248 | NEEDLE CLAMP | 248 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E1524 | NEEDLE PLATE | 240 | |
| E1525 | NEEDLE PLATE | 248 | |
| E1826 | NEEDLE PLATE | 356 | |
| E1827 | NEEDLE PLATE | 364 | |
| D1206P | MAIN FEED DOG | 240 | |
| H1258 | DIFF. FEED DOG | 240 | |
| P2544A-A | PRESSER FOOT | 240 | |
| P2545A-A | PRESSER FOOT | 240 | |
| P2445-A | PRESSER FOOT | 240 | |
| P2445-A1 | PRESSER FOOT | 240 | |
| ME28 | LOOPER | 240 | |
| MH41 | SPREADER | 240 | |
| UYX128GAS#10 | NEEDLE | 240 | |
| M5232 | NEEDLE CLAMP | 232 | |
| E1623 | NEEDLE PLATE | 232 | |
| D1206P | MAIN FEED DOG | 232 | |
| H1257 | DIFF. FEED DOG | 232 | |
| P4011-A | PRESSER FOOT | 232 | |
| ME28 | LOOPER | 232 | |
| TVX5#14 | NEEDLE | 232 | |
| M5240 | NEEDLE CLAMP | 240 | |
| M5248 | NEEDLE CLAMP | 248 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E1514 | NEEDLE PLATE | 240 | |
| E1515 | NEEDLE PLATE | 248 | |
| E1816 | NEEDLE PLATE | 356 | |
| E1817 | NEEDLE PLATE | 364 | |
| D1207P | MAIN FEED DOG | 240 | |
| H1259 | DIFF. FEED DOG | 240 | |
| P2544A-A | PRESSER FOOT | 240 | |
| P2545A-A | PRESSER FOOT | 240 | |
| P2445-A | PRESSER FOOT | 240 | |
| P2445-A1 | PRESSER FOOT | 240 | |
| ME28 | LOOPER | 240 | |
| MH41 | SPREADER | 240 | |
| UYX128GAS#10 | NEEDLE | 240 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E1846 | NEEDLE PLATE | 356 | |
| E1847 | NEEDLE PLATE | 364 | |
| D1207P | MAIN FEED DOG | 356 | |
| H1259 | DIFF. FEED DOG | 356 | |
| P2445-A | PRESSER FOOT | 356 | |
| P2445-A1 | PRESSER FOOT | 356 | |
| ME28A | LOOPER | 356 | |
| MH41 | SPREADER | 356 | |
| TV*5#14~16 | NEEDLE | 356 | |
| M5232 | NEEDLE CLAMP | 232 | |
| M5240 | NEEDLE CLAMP | 240 | |
| M5248 | NEEDLE CLAMP | 248 | |
| M5356 | NEEDLE CLAMP | 356 | |
| M5364 | NEEDLE CLAMP | 364 | |
| E3023 | NEEDLE PLATE | 232 | |
| E3024 | NEEDLE PLATE | 240 | |
| E3025 | NEEDLE PLATE | 248 | |
| E3326 | NEEDLE PLATE | 356 | |
| E3327 | NEEDLE PLATE | 364 | |
| D1215 | MAIN FEED DOG | 232 | |
| D1215 | MAIN FEED DOG | 240 | |
| D1215 | MAIN FEED DOG | 248 | |
| D1216 | MAIN FEED DOG | 356 | |
| D1216 | MAIN FEED DOG | 364 | |
| H1261 | DIFF. FEED DOG | 232 | |
| H1261 | DIFF. FEED DOG | 240 | |
| H1261 | DIFF. FEED DOG | 248 | |
| H1262 | DIFF. FEED DOG | 356 | |
| H1262 | DIFF. FEED DOG | 364 | |
| P1813K-A | PRESSER FOOT | 232 | |
| P1814K-A | PRESSER FOOT | 240 | |
| P1815K-A | PRESSER FOOT | 248 | |
| P2116K-A | PRESSER FOOT | 356 | |
| P2117K-A | PRESSER FOOT | 364 | |
| ME28 | LOOPER | 232 | |
| MH41 | SPREADER | 232 | |
| UYX128GAS#10 | NEEDLE | 232 |
Page 2 — MODEL COMPARE LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 356 M5356 E3326 D1216 H1262 P2 | U222/FQ | 240 M5240 E3024 D1215 H1261 P2314K-A | 248 M5248 E3025 D1216 H1261 P2 |
| 356 M5356 E3326 D1216 H1262 P2 | W222/FFD(FFP) | 240 M5240 E3024 D1215 H1261 P1814K-A | 248 M5248 E3025 D1216 H1261 P1 |
| 364-4 M5364P E3727 P2717-A | W222/FSM | 240-4 M5240P E3724 D1516 H1262 P2714-A | 248-4 M5248P E3725 P2715-A |
| W322/FDC | 356 M5356 E4826K D1207P H1359K P2445-A | 364 M5364 E4827K P2445-A1 | |
| W322/FDE | 356 M5356 E4836K D1207P H1459-E P2445-A | 364 M5364 E4837K P2445-A1 | |
| 356 M5356 E1826 D1207P H1259 P | W512/FFC(FE) | 240 M5240 E1524 D1206P H1256 P2914-A | 248 M5248 E1525 D1207P H1258 P |
| 356 M5356 E1826 D1207P H1259 P | U512/FFC(FE) | 240 M5240 E1524 D1206P H1258 P3414-A | 248 M5248 E1525 D1207P H1258 P |
Page 3 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W522/FR | SUB-CLASS 232/240/248/356/364 | ||
| W522/FR/FQS | SUB-CLASS 232/240/248 | ||
| U613/FBP | SUB-CLASS 256/264 | ||
| U712 | SUB-CLASS 264 | ||
| U712/FSP | SUB-CLASS 264 | ||
| U712/FSR | SUB-CLASS 264 | ||
| U712/FSS | SUB-CLASS 496/4111 | ||
| U712A/FSP | SUB-CLASS 264 | ||
| W722/FY | SUB-CLASS 388 | ||
| W922/FW(FWP)-5 | SUB-CLASS 456/460/464 | ||
| W922/FW(FWP)-4 | SUB-CLASS 452/456/460/464 | ||
| M5232 | E6023 | ||
| M5240 | E6024 | ||
| M5248 | E6025 | ||
| M5356 | E6326 | ||
| M5364 | E6327 | ||
| M5264 | E5827 | ||
| M5496 | E5496 | ||
| M5411 | E5411 | ||
| M4388 | E6828 | ||
| M5456K | E1828Q | ||
| M5460K | E1838Q | ||
| M5464K | E1848Q | ||
| M5452 | E1818 | ||
| M5456 | E1828 | ||
| M5460 | E1838 | ||
| M5464 | E1848 |
Page 4 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1206P | |||
| D1207P | |||
| H1258 | |||
| H1259 | |||
| F7240N | |||
| F7356N | |||
| P7240N-A | |||
| ME28 | |||
| MH41 | |||
| UYX128GAS#10 | |||
| 針 座 | M5240 | NEEDLE CLAMP | 240 |
| 針 座 | M5248 | NEEDLE CLAMP | 248 |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E1534 | NEEDLE PLATE | 240 |
| 針 板 | E1535 | NEEDLE PLATE | 248 |
| 針 板 | E1837 | NEEDLE PLATE | 364 |
| 壓 具 | P7248N-A | PRESSER FOOT | 240 |
| 壓 具 | P7356N-A | PRESSER FOOT | 356 |
| 壓 具 | P7364N-A | PRESSER FOOT | 356 |
| 針 板 | E1524 | NEEDLE PLATE | 240 |
| 針 板 | E1525 | NEEDLEPLATE | 248 |
| 針 板 | E1827 | NEEDLEPLATE | 364 |
Page 5 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5240 | E7240FL | ||
| M5248 | E7248FL | ||
| M5356 | E7356FL | ||
| M5364 | E7364FL | ||
| M5240 | E7240FL | ||
| M5248 | E7248FL | ||
| M5356 | E7356FL | ||
| M5364 | E7364FL | ||
| M5240 | E7240FM | ||
| M5248 | E7248FM | ||
| M5356 | E7356FM | ||
| M5364 | E7364FM | ||
| M5240 | E7240FM | ||
| M5248 | E7248FM | ||
| M5356 | E7356FM | ||
| M5364 | E7364FM | ||
| M5248 | E7248FL | ||
| M5356 | E7356FL | ||
| M5364 | E7364FL | ||
| M5248 | E7248FL | ||
| M5356 | E7356FL | ||
| M5364 | E7364FL |
Page 6 — MA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MA110-A | |||
| KC67 | |||
| KC58 | |||
| MA110 | |||
| SM438 | 7 | ||
| SM132 | 2 | ||
| MA109 | |||
| MA09H | |||
| MA07D | |||
| MA89 | |||
| #SM4054 | |||
| #SM4401 | 4 | ||
| #MA105 | |||
| MA08KF | |||
| MA12K | |||
| MA04K | |||
| SM439 | 4 | ||
| PP2092 | |||
| SM404 | |||
| PM413 | |||
| MA03 | |||
| MA51K | |||
| MA16K | |||
| SM444 | 3 | ||
| MA11K-1 | 4 | ||
| MA11K-1 | 3 | ||
| SM134 | 2 | ||
| MA11K-E1 | |||
| △MA11K-E | |||
| MA11K | |||
| △SM330 | 3 | ||
| MA10K-E | |||
| MA10K-A1 | |||
| △MA10K-A | |||
| SM432 | |||
| SM432 | |||
| MA86K-A | |||
| MA86K-A1 | |||
| NM410 | |||
| MG21K | |||
| MB33 | |||
| WM641 | 2 | ||
| SM497 | |||
| MA86K | |||
| MA14 | 4 | ||
| MA13K-1 | |||
| MA13K | |||
| SM235 | 4 | ||
| SM460 | 2 | ||
| MA13K-E |
Page 7 — MA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM033 | 2 | ||
| MA47K | |||
| SM480 | |||
| MA46K | |||
| SM438 | 2 | ||
| MA44K | |||
| SM412 | |||
| SM410 | |||
| MA41K | |||
| SM438 | 2 | ||
| WM641 | |||
| WM601 | |||
| NM410 | |||
| SM460 | |||
| SM538 | |||
| MA56K | |||
| SM402 | 2 | ||
| KP46 | 2 | ||
| NM410 | |||
| SM438 | |||
| MA19 | |||
| SM132 | |||
| PP3052 | |||
| SM488 | |||
| SM438 | |||
| SM438 | |||
| PM506 | |||
| MA55K | |||
| SM432 | |||
| WM400 | |||
| MA104 | |||
| PM305 | |||
| PP3052 | 2 | ||
| MA21K | |||
| SM132 | |||
| MA19K | |||
| SM4402 | |||
| KP46 | 2 | ||
| SM402 | 2 | ||
| MA23K | |||
| SM476 | |||
| MA100K | |||
| WM504 | 2 | ||
| SM539 | 2 | ||
| SM4105 | 2 | ||
| MA44K-A | MA44K-A | ||
| SM438*2 | SM438*2 | ||
| MA55K-A | MA55K-A | ||
| SM402*2 | SM402*2 | ||
| KP46*2 | KP46*2 | ||
| PP3052*2 | PP3052*2 | ||
| SM539*2 | SM539*2 | ||
| WM504*2 | WM504*2 | ||
| MA21K-A1 | MA21K-A1 | ||
| SM4105*2 | SM4105*2 |
Page 8 — MB-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM432 | 4 | ||
| MC86K | |||
| MC87K | |||
| MB01K | |||
| OR050 | |||
| WM504 | |||
| EM030 | |||
| MB01K-A | |||
| MB02K | |||
| SM432 | 2 | ||
| MB04 | |||
| SM4550 | 2 | ||
| MB05D | |||
| PP6190 | |||
| PP2076 | |||
| PP2076 | |||
| OS3150 | |||
| MB34 | |||
| PP2076 | |||
| SM513 | 4 | ||
| WM510 | 4 | ||
| WM600 | 4 | ||
| WM60H | 4 | ||
| #T501HEF | |||
| #MS63H-E | |||
| #MS63H-A | |||
| #MS63H | |||
| SM603B | 2 | ||
| MB08K | |||
| KA33*2 | 2 | ||
| OS3150 | |||
| PP6190 | |||
| PM510 | 2 | ||
| SM910 | 4 | ||
| KA33 | 2 | ||
| MB10K | |||
| MB91K | |||
| KA33 | 2 | ||
| MB07K | |||
| MB108K | |||
| EM164 | |||
| MB45 | |||
| KA40 | |||
| KC40 | |||
| KA40 | |||
| EM164 | |||
| MB45 | |||
| OS1190 | |||
| MZ02K-1 | |||
| MZ02K-2 | |||
| SM881 | 2 | ||
| SM887 | 2 | ||
| WK23 | 2 | ||
| SM812 | 2 | ||
| SM611 | 2 | ||
| MB27K | |||
| SM432 | 2 | ||
| A | SM432*4 | SCREW | |
| A | SM432*2 | SCREW | |
| A | SM4550*2 | SCREW | |
| A | #SM513*4 | SCREW | |
| A | #WM510*4 | WASHER | |
| A | #WM600*4 | WASHER | |
| A | #WM60H*4 | WASHER | |
| A | #SM603B*2 | SCREW | |
| C | PM510*2 | PIN | |
| C | SM910*4 | SCREW | |
| E | SM881*2 | SCREW | |
| E | SM887*2 | SCREW | |
| E | WK23*2 | WASHER | |
| E | SM812*2 | SCREW | |
| E | SM611*2 | SCREW |
Page 9 — MC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MC04K-A | |||
| MC06-C | |||
| MC12K-A | |||
| MC17K-E | |||
| MC06 | |||
| MC101 | |||
| SM516 | |||
| MC04K | |||
| MC105 | |||
| MC13K | |||
| SM134 | 2 | ||
| MC17K | |||
| MC10K | |||
| SM492 | |||
| MC12K | |||
| PP3160 | |||
| OR080 | |||
| SM450 | 2 | ||
| SM432 | 3 | ||
| KP43 | 2 | ||
| MC24K | 2 | ||
| SM438 | 2 | ||
| SK250 | 2 | ||
| MC18K | |||
| MC22K | |||
| KP60 | |||
| KP39 | |||
| WM402 | 2 | ||
| SK399 | |||
| SM134*2 | SM134*2 | ||
| SM450*2 | SM450*2 | ||
| SM432*3 | SM432*3 | ||
| MC24K*2 | MC24K*2 | ||
| KP43*2 | KP43*2 | ||
| SM438*2 | SM438*2 | ||
| SK250*2 | SK250*2 | ||
| WM402*2 | WM402*2 |
Page 10 — MC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MC193K-1 | |||
| SM402 | |||
| SM350 | 2 | ||
| MC93K-2 | |||
| SM034 | |||
| MC93K-3 | |||
| MC193K-4 | |||
| SM533 | 2 | ||
| MC99K | |||
| MC100K | |||
| MC86K | |||
| MC97K | |||
| MC64K | |||
| MC87K | |||
| PM207 | |||
| SM502 | |||
| MC95K | |||
| MC83K | |||
| MC81K | |||
| EM075 | |||
| OR050 | |||
| WM504 | |||
| EM030 | |||
| MC68 | |||
| BR4170B | |||
| MC66K | |||
| MC167 | |||
| MC169 | |||
| SM373 | |||
| WK01 | |||
| NK26 | |||
| MC71K | 5 | ||
| SM502B | |||
| MC72K | |||
| MC73K | |||
| MC103K | |||
| SM402 | |||
| MC104K | |||
| SM502 | |||
| SM502 | |||
| MC51 | |||
| SK509 | |||
| SK510 | |||
| PM200 | |||
| MC54K | |||
| DXXXX | |||
| SK576 | |||
| MC41 | |||
| MC44K | |||
| PM200 | |||
| KQ17 | |||
| SM353 | |||
| MC76 | |||
| MC77 | |||
| WK01 | |||
| NK26 | |||
| BR4120 | |||
| MC63 | |||
| HXXXX | |||
| SK576 | |||
| SM435 | 2 | ||
| MC60 | |||
| SM432 | 2 | ||
| MC56K | |||
| SM350*2 | SM350*2 | ||
| MC193K-C | MC193K-C | ||
| MC93K-4 | MC93K-4 | ||
| SM533*2 | SM533*2 | ||
| MC64K-A | MC64K-A | ||
| MC81K-E | MC81K-E | ||
| MC71K*5 | MC71K*5 | ||
| MC66K-C1 | MC66K-C1 | ||
| MC104K-A | MC104K-A | ||
| MC41/44K-E | MC41/44K-E | ||
| SM432*2 | SM432*2 | ||
| SM435*2 | SM435*2 | ||
| MC80 | MC80 |
Page 11 — MD-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MD11K | |||
| MD10K | |||
| PM111 | |||
| MD102 | |||
| KJ06B | |||
| SM110 | |||
| MD04 | |||
| SM139 | 4 | ||
| MD08K | |||
| SM612 | |||
| SM101 | |||
| #MS63H-E | |||
| SM601 | |||
| #MS66K | |||
| MD30J | |||
| SM6000 | 3 | ||
| SM6000 | 2 | ||
| SM6000 | 2 | ||
| MD27K | |||
| MD28K | |||
| OR430 | 2 | ||
| MD26K-3 | |||
| #SM602 | 2 | ||
| MD23-3 | |||
| OR150 | |||
| OR390 | 2 | ||
| #SM604 | |||
| MD41 | |||
| SM502 | 2 | ||
| MD22K | |||
| OR150 | |||
| SM502 | 2 | ||
| OR390 | 2 | ||
| MD15K-3 | |||
| #SM602 | 3 | ||
| SM432 | 2 | ||
| MD34 | |||
| MD36K | |||
| MD37 | |||
| #SM604 | |||
| MD37 | |||
| SM603 | |||
| MD31K-2 | |||
| EM498 | |||
| #SM602 | 2 | ||
| MD102-E | MD102-E | ||
| MD08K-E | MD08K-E | ||
| MD22K-E | MD22K-E | ||
| SM502*2 | SM502*2 | ||
| MD15K-A | MD15K-A | ||
| MD04-E | MD04-E | ||
| SM139*4 | SM139*4 | ||
| SM6000*2 | SM6000*2 | ||
| SM602*2 | SM602*2 | ||
| OR390*2 | OR390*2 | ||
| SM602*3 | SM602*3 | ||
| MD31K-A | MD31K-A | ||
| SM6000*3 | SM6000*3 | ||
| MD26K | MD26K | ||
| OR150*2 | OR150*2 | ||
| MD26K-A | MD26K-A | ||
| MD37-E | MD37-E | ||
| SM432*2 | SM432*2 |
Page 12 — ME-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| ME04 | |||
| WMA07 | |||
| EM070 | |||
| ME16 | |||
| SM137 | 2 | ||
| ME01K | |||
| ME05K | |||
| EM050 | |||
| ME14K | |||
| SM502 | 2 | ||
| ME89 | |||
| ME18K | |||
| ME85K | |||
| WM504 | |||
| NM511 | |||
| SM502 | |||
| ME11K | |||
| SM139 | 2 | ||
| ME84K | |||
| ME87K | |||
| ME87K | |||
| SM031 | |||
| ME29 | |||
| ME28 | |||
| PM10E | |||
| PM200 | |||
| SM511 | |||
| SM136 | |||
| WM510 | |||
| ME30 | |||
| SM631 | |||
| ME67 | |||
| ME70K | |||
| SM418 | |||
| SM510 | |||
| EM050 | |||
| WK04 | |||
| ME75K | |||
| OR060 | |||
| PP2072 | |||
| ME76K | |||
| ME79K | |||
| SM502 | |||
| SM432 | 3 | ||
| ME77K | |||
| ME78K | 2 | ||
| SM137*2 | SM137*2 | ||
| SM502*2 | SM502*2 | ||
| ME14K-E | ME14K-E | ||
| SM139*2 | SM139*2 | ||
| ME11K-E | ME11K-E | ||
| ME28-E | ME28-E | ||
| ME30-E | ME30-E | ||
| ME67K-A | ME67K-A | ||
| ME67K | ME67K | ||
| OS1190 | OS1190 | ||
| ME70K-E | ME70K-E | ||
| ME78K*2 | ME78K*2 | ||
| ME76K-A | ME76K-A | ||
| ME79K-E | ME79K-E | ||
| SM432*3 | SM432*3 |
Page 13 — MF-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM502 | 2 | ||
| MF 15 | |||
| MF107-E | |||
| MF107 | |||
| MF37K | |||
| SM448 | |||
| SM605B | |||
| MF09 | |||
| SM612 | |||
| MF 13 | |||
| SM139 | 4 | ||
| BRB170 | |||
| SM542 | 2 | ||
| SM801 | 2 | ||
| PM213 | |||
| MF101-1 | |||
| MF101-E | |||
| MF101-A | |||
| SM602 | 4 | ||
| MF30 | |||
| #MF130 | |||
| MF21K-A1 | |||
| OR430 | 2 | ||
| MF21K-2 | |||
| SM602 | 2 | ||
| MF 23J | |||
| SM604 | |||
| MD41 | |||
| SM602 | 3 | ||
| SM604 | |||
| MF129K | |||
| #MF131K | |||
| SM603 | |||
| SM604 | |||
| MF21K-2 | |||
| OR430 | 2 | ||
| SM602 | |||
| MF21K-A | |||
| #MF35K | |||
| #UT817-2 | 2 | ||
| SM602 | 2 | ||
| #MF35K-E | |||
| MF23K-A | |||
| #MF130K-A | |||
| SM502*2 | SM502*2 | ||
| SM542*2 | SM542*2 | ||
| SM801*2 | SM801*2 | ||
| SM139*4 | SM139*4 | ||
| SM602*4 | SM602*4 | ||
| OR430*2 | OR430*2 | ||
| SM602*2 | SM602*2 | ||
| SM602*3 | SM602*3 | ||
| #UT817-2*2 | #UT817-2*2 |
Page 14 — MG-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MG10 | |||
| MG58 | |||
| KL15 | |||
| MG57 | |||
| OS1190 | |||
| MG31 | |||
| SM132 | 2 | ||
| MG33 | |||
| SM132 | 2 | ||
| SM435 | 2 | ||
| WM400 | 2 | ||
| MG35K | |||
| MG37 | |||
| KN40 | |||
| KN42 | 2 | ||
| KN43 | |||
| KN44 | |||
| MG05K | |||
| SM511 | |||
| MG28K | |||
| MG01K | |||
| SM435 | 2 | ||
| MG53K | |||
| MG51K | |||
| MG60K | |||
| SM332 | 2 | ||
| MG54K | |||
| OT626 | |||
| OP215 | |||
| MG47K | |||
| SM432 | |||
| MG59 | |||
| SM432 | |||
| SM132*2 | SM132*2 | ||
| WM400*2 | WM400*2 | ||
| SM135*2 | SM135*2 | ||
| MG05K-A | MG05K-A | ||
| KN42*2 | KN42*2 | ||
| MG51K-A | MG51K-A | ||
| MG05K-E | MG05K-E | ||
| SM435*2 | SM435*2 | ||
| SM332*2 | SM332*2 |

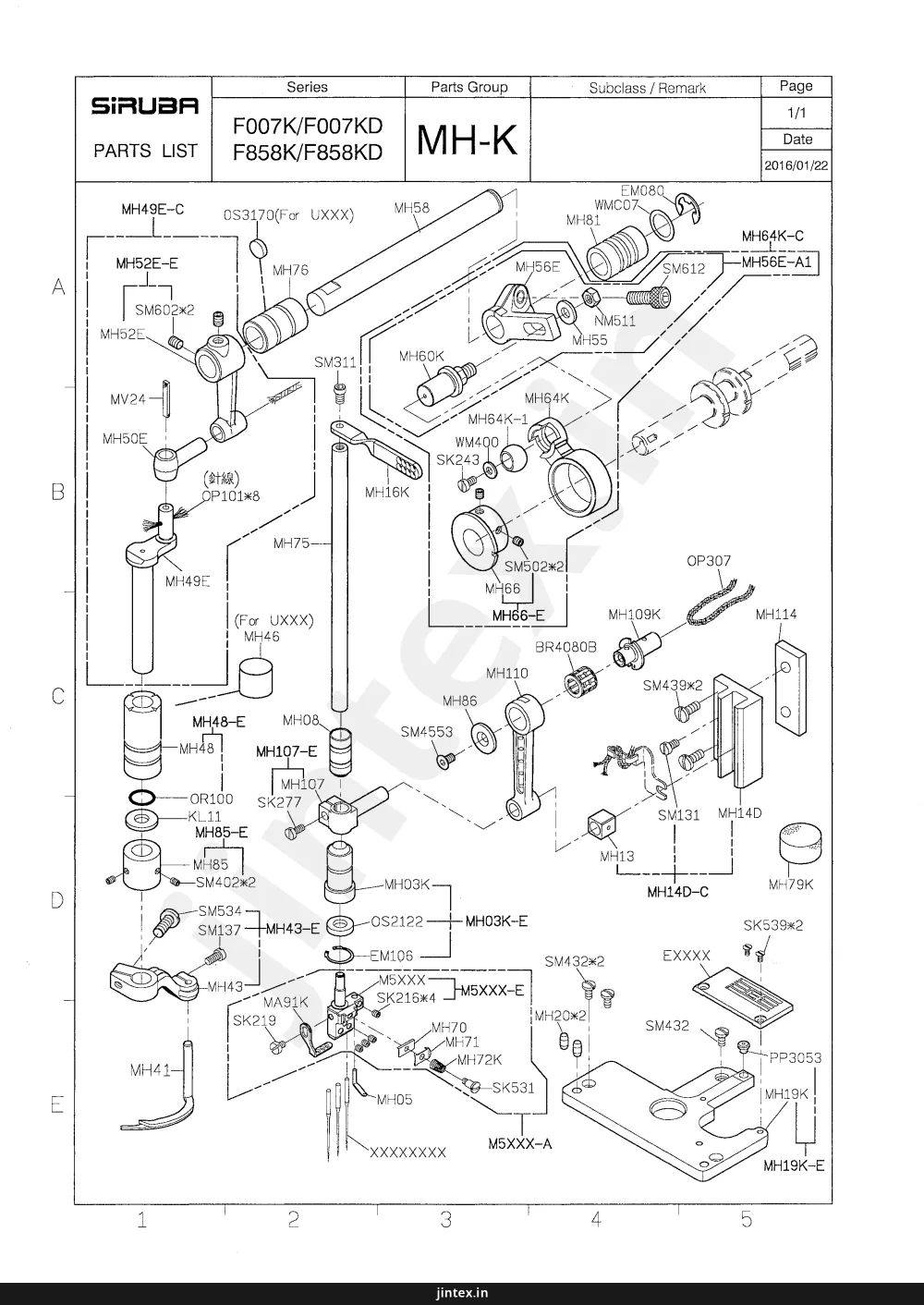

Page 15 — MH-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MH49E-C | |||
| MH52E-E | |||
| SM602 | 2 | ||
| MH52E | |||
| MV24 | |||
| MH50E | |||
| OP101 | 8 | ||
| MH49E | |||
| OS3170 | |||
| MH76 | |||
| MH58 | |||
| MH46 | |||
| MH48-E | |||
| MH48 | |||
| OR100 | |||
| KL11 | |||
| MH85-E | |||
| MH85 | |||
| SM402 | 2 | ||
| SM534 | |||
| SM137 | |||
| MH43-E | |||
| MH43 | |||
| MH41 | |||
| MH16K | |||
| MH75 | |||
| MH08 | |||
| MH107-E | |||
| MH107 | |||
| SK277 | |||
| MH03K | |||
| OS2122 | |||
| MH03K-E | |||
| EM106 | |||
| M5XXX | |||
| SK216 | 4 | ||
| M5XXX-E | |||
| MA91K | |||
| SK219 | |||
| MH70 | |||
| MH71 | |||
| MH72K | |||
| SK531 | |||
| MH05 | |||
| XXXXXXXXX | |||
| M5XXX-A | |||
| MH20 | 2 | ||
| SM432 | 2 | ||
| EXXXX | |||
| SM432 | |||
| PP3053 | |||
| MH19K | |||
| MH19K-E | |||
| SK539 | 2 | ||
| MH14D | |||
| MH14D-C | |||
| SM131 | |||
| SM439 | 2 | ||
| MH13 | |||
| SM4553 | |||
| MH86 | |||
| MH110 | |||
| BR4080B | |||
| MH109K | |||
| OP307 | |||
| MH114 | |||
| MH79K | |||
| MH81 | |||
| WMC07 | |||
| EM08Q | |||
| MH56E | |||
| MH56E-A1 | |||
| MH64K-C | |||
| SM612 | |||
| NM511 | |||
| MH55 | |||
| MH60K | |||
| MH64K | |||
| MH64K-1 | |||
| WM400 | |||
| SK243 | |||
| SM502 | 2 | ||
| MH66 | |||
| MH66-E | |||
| MH164K-C | MH164K-C | ||
| SM602*2 | SM602*2 | ||
| SM311 | SM311 | ||
| OP101*8 | (針線) OP101*8 | ||
| SM502*2 | SM502*2 | ||
| SM439*2 | SM439*2 | ||
| MH07 | MH07 | ||
| SK539*2 | SK539*2 | ||
| SM432*2 | SM432*2 | ||
| SK216*4 | SK216*4 | ||
| MH20*2 | MH20*2 | ||
| XXXXXXXXXX | XXXXXXXXXX |
Page 16 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| #MJ105 | |||
| MJ05 | |||
| MJ01 | |||
| MJ02H | |||
| SM415 | 2 | ||
| MJ03 | |||
| MJ08 | |||
| PM310 | |||
| MJ04 | |||
| SK265 | |||
| SK518 | |||
| SK518 | |||
| MJ06 | |||
| MJ12 | |||
| MJ13 | |||
| MJ14 | |||
| OS2141 | |||
| MJ15D | |||
| MJ56 | |||
| SM332 | |||
| MJ18 | |||
| PXXXX-A | |||
| MJ27K | |||
| MJ28 | |||
| MJ43 | |||
| MJ29K | |||
| SM612 | |||
| KS22 | |||
| SM540 | |||
| NM511 | |||
| SM520 | |||
| NM511 | |||
| MJ37K | |||
| SM6104 | 2 | ||
| WM600 | 2 | ||
| SM6104 | |||
| KP60 | |||
| MJ34K | |||
| MJ35K | |||
| MJ53 | |||
| MJ54K | |||
| SM492 | |||
| OS2141 | |||
| MJ39 | |||
| SK216 | 2 | ||
| MJ01-A | MJ01-A | ||
| SM415*2 | SM415*2 | ||
| MJ08-E | MJ08-E | ||
| MJ14-E | MJ14-E | ||
| MJ04-A | MJ04-A | ||
| PXXXXX-A | PXXXXX-A | ||
| KS22-E | KS22-E | ||
| MJ37K-E | MJ37K-E | ||
| SK216*2 | SK216*2 | ||
| P2436-2C | P2436-2C | ||
| P2466K-8 | P2466K-8 | ||
| P2436-2D | P2436-2D | ||
| SM6104*2 | SM6104*2 | ||
| WM600*2 | WM600*2 |
Page 17 — MK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MK95 | |||
| SM432 | |||
| KN44 | |||
| KN43 | |||
| KN42 | 2 | ||
| KN40 | |||
| SM034 | 2 | ||
| WM002 | 2 | ||
| MK08K | 2 | ||
| SM450 | 2 | ||
| MK12K | |||
| SM330 | |||
| MK04K | |||
| MK01K | |||
| NK26 | |||
| EM030 | |||
| MK14K | |||
| EM030 | |||
| MK15K | |||
| MK13K | |||
| SM301 | |||
| WM400 | |||
| SM432 | |||
| OR050 | 2 | ||
| MK16K | |||
| MK17K | |||
| SM4105 | |||
| SM410 | |||
| SM381 | |||
| MK20K | |||
| MK21K | |||
| MK19K | |||
| SM301 | 2 | ||
| SM495 | |||
| MK131 | |||
| MK15K-A | MK15K-A | ||
| KN42*2 | KN42*2 | ||
| SM450*2 | SM450*2 | ||
| SM034*2 | SM034*2 | ||
| WM002*2 | WM002*2 | ||
| MK01K-A | MK01K-A | ||
| MK08K*2 | MK08K*2 | ||
| OR050*2 | OR050*2 | ||
| SM301*2 | SM301*2 |
Page 18 — MK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MK35J | |||
| MK37H | *2 | ||
| MK94 | *2 | ||
| SM432 | *2 | ||
| SM430 | *2 | ||
| MK35J-A | |||
| SM511 | |||
| MK41K | |||
| MK41K-E | |||
| MK39K | |||
| MK38H-E | |||
| MK38H | |||
| VJ01-3 | |||
| SM4105 | |||
| MK40 | |||
| SM4803 | |||
| SM432 | *2 | ||
| MK28H | |||
| MK28J-A | |||
| MK27H | |||
| VK02J | *5 | ||
| VK10 | *5 | ||
| VK09-R1 | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| VK09-G1 | |||
| VK09-B1 | |||
| VK05 | |||
| KG07K | *2 | ||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG68 | |||
| KG05 | |||
| KG04F | |||
| VK05 | |||
| KG07K | *2 | ||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG97 | |||
| KG05 | |||
| KG04F | |||
| MK37H*2 | MK37H*2 | ||
| SM432*2 | SM432*2 | ||
| MK94*2 | MK94*2 | ||
| SM430*2 | SM430*2 | ||
| VK02J*5 | VK02J*5 | ||
| VK10*5 | VK10*5 | ||
| KG07K*2 | KG07K*2 |
Page 19 — ML-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM432*2 | SCREW | |
| 1 | SM432*3 | SCREW | |
| 1 | ML49-E | BRACKET | |
| 1 | SK304*2 | SCREW | |
| 1 | ML83-A | BRACKET | |
| 1 | SG105*2 | CLAMP | |
| 1 | KT24*5 | SCREW | |
| 1 | SM401*2 | GEAR | |
| 1 | ALT087S | BRACKET | |
| 1 | SM413*2 | SCREW | |
| 1 | SM414*2 | SCREW | |
| SM432 | 2 | ||
| NM615 | |||
| WM601 | |||
| ML88 | |||
| OT624 | |||
| SG105 | |||
| WM601 | |||
| ML43K | |||
| SG105 | |||
| ML66 | |||
| OR030 | |||
| MB37 | |||
| SM432 | 3 | ||
| ML186K | |||
| OR30A | |||
| KT14-A | |||
| KT15 | |||
| SM404 | |||
| PP3071 | |||
| ML49 | |||
| ML30-E | |||
| OP233 | |||
| ML30 | |||
| SM432 | |||
| ML83 | |||
| OT534 | |||
| ML32J | |||
| ML39K-A | |||
| ML39 | |||
| OT618 | |||
| OT621-A | |||
| OT621 | |||
| JA201 | |||
| SG103 | |||
| SG105 | 2 | ||
| OT627 | |||
| SG105 | |||
| KT24 | 5 | ||
| SK304 | 2 | ||
| SK312 | |||
| ML162K | |||
| ML59K-A | |||
| ML59K | |||
| SM812 | |||
| SK310 | |||
| OS4140 | |||
| SM432 | |||
| KT58 | |||
| KT57 | |||
| ML02 | |||
| ML04 | |||
| SM401 | 2 | ||
| ML16 | |||
| NA03 | |||
| ML11K | |||
| ML05D | |||
| ML12 | |||
| ML74 | |||
| ML75 | |||
| SM413 | 2 | ||
| SM414 | 2 | ||
| ML06 | |||
| ML07 | |||
| ML06 | |||
| ML07 | |||
| ML08 | |||
| SM6104*2 | 2 | ||
| ML05D-A |
Page 20 — MN-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KX05 | 4 | ||
| MN17 | 4 | ||
| MN14-A | |||
| MN12-E | 4 | ||
| MN02K-E | |||
| MN02K | 2 | ||
| MN09. | |||
| MN12 | |||
| MN15 | |||
| SM531 | 2 | ||
| KX08 | 4 | ||
| MN13 | 4 | ||
| MN16 | 4 | ||
| KX08 | 4 | ||
| MN14 | 4 | ||
| KX206 | 3 | ||
| TXXXXXX-A- | POWER CONTROL BOX COMB | ||
| KX05*4 | KX05*4 | SCREW | |
| MN02K*2 | MN02K*2 | BRACKET | |
| SM531*2 | SM531*2 | SCREW | |
| MN12-Ex4 | MN12-Ex4 | BRACKET | |
| MN17*4 | MN17*4 | SCREW | |
| KX08*4 | KX08*4 | SCREW | |
| MN13*4 | MN13*4 | SCREW | |
| MN16*4 | MN16*4 | SCREW | |
| MN14*4 | MN14*4 | SCREW | |
| KX206*3 | KX206*3 | SCREW |
Page 21 — MN-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F007K-T3-1 | |||
| F007K-T3 | |||
| MN10 | |||
| MN11 | 8 | ||
| F007K-T3-3 | |||
| F007K-T3-2 | |||
| KX05 | 4 | ||
| KX05 | 5 | ||
| KX08 | 5 | ||
| WM810 | 5 | ||
| NM810 | 5 | ||
| SM892 | 5 | ||
| NM810 | 5 | ||
| WM810 | 5 | ||
| KX08 | 5 | ||
| KX08 | 5 | ||
| WM810 | 5 | ||
| NM810 | 5 | ||
| SM892-A1 | |||
| SM531 | 2 | ||
| MN09 | |||
| MN02K | 2 | ||
| MN02K-E | |||
| MN12 | |||
| MN15 | |||
| MN12-E | 4 | ||
| MN17 | 4 | ||
| KX08 | 4 | ||
| MN13 | 4 | ||
| MN16 | 4 | ||
| KX08 | 4 | ||
| MN14 | 4 | ||
| MN14-A | |||
| MN11*8 | F007K-T3 | 8 | |
| KX05*5 | F007K-T3-1 | 5 | |
| KX08*5 | F007K-T3-1 | 5 | |
| WM810*5 | F007K-T3-1 | 5 | |
| NM810*5 | F007K-T3-1 | 5 | |
| SM892*5 | F007K-T3-1 | 5 | |
| KX05*4 | F007K-T3-1 | 4 | |
| SM531*2 | F007K-T3-1 | 2 | |
| MN02K*2 | MN02K-E | 2 | |
| MN17*4 | MN12-E*4 | 4 | |
| KX08*4 | MN14-A | 4 | |
| MN13*4 | MN14-A | 4 | |
| MN16*4 | MN14-A | 4 | |
| MN14*4 | MN14-A | 4 |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY01 | |||
| KY03 | |||
| KY04 | |||
| KY05-A | |||
| KY23-A | |||
| KY23(6/7mm) | |||
| KY09 | |||
| MY10-A | |||
| MY09 | |||
| KY10 | |||
| MY10 | |||
| MY11 | |||
| MY12 | |||
| KY11 | |||
| KY14 | |||
| LY33-A | |||
| LY33 | |||
| LY34 | |||
| MY21-E | |||
| KY21-1 | 2 | ||
| MY21 | |||
| KY18 | |||
| KY20D-A | |||
| KY201 | |||
| KZ03 | |||
| KT14-A | |||
| UYX128GAS#10 | 5 | ||
| FR40K | 加装FR時用 | ||
| MY42K | Instruction book | ||
| MY43K | Parts list | ||
| MY44K (UT973K) | Special mechanism | ||
| KY21-1x2 | KY21-1x2 | ||
| UYX128GAS#10x5 | UYX128GAS#10x5 | ||
| MY44K | MY44K | ||
| Basic mechanism | Basic mechanism | ||
| Special mechanism | Special mechanism | ||
| UTK/UTH | UTK/UTH | ||
| UTG/UTJ | UTG/UTJ | ||
| UT973K | UT973K | ||
| Special mechanism + UTK/UTH UTG/UTJ | Special mechanism + UTK/UTH UTG/UTJ |
Page 23 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MZ15K | MZ15K | ||
| MZ27 | MZ27 | ||
| MZ14K-1 | MZ14K-1 | ||
| KY02F-A | KY02F-A | ||
| MZ13K | MZ13K | ||
| MZ14K-2 | MZ14K-2 | ||
| MZ17K | MZ17K | ||
| MZ22K | MZ22K | ||
| MZ80K | MZ80K |
Page 25 — F007K SERIES TABLE CUT-OUT SEMI-SUBMERGED
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F007K-T1 | SIRUBA TABLE CUT-OUT |
Page 28 — SIRUBA TABLE CUT - OUT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F007K-T3-3 | TABLE CUT - OUT |
Siruba F007K / F007KD — parts catalog
- Page 1 (parts_list): This page lists parts for Siruba sewing machines, specifically models F007K/F858K and F007KD/F858KD. It includes part numbers, descriptions, and associated model numbers.
- Page 2 (parts_list): This page is a model compare list for SIRUBA sewing machines, specifically for the F007K/F858K and F007KD/F858KD series. It lists various parts including needle clamp, needle plate, feed dog, presser foot, and spreader, along with their corresponding part numbers and remarks for different machine models.
- Page 3 (parts_list): This page lists parts for Siruba sewing machines, specifically models F007K/F858K and F007KD/F858KD, detailing part numbers and descriptions for various components like needle clamps, feed dogs, and presser feet.
- Page 4 (parts_list): This page lists parts for the SIRUBA F007KD sewing machine series, specifically for models W121/FFT/FHA and W122/FFT/FHA, detailing various components like needle clamps, plates, feed dogs, and presser feet with their corresponding part numbers and remarks.
- Page 5 (parts_list): This page lists parts for the SIRUBA F007KD sewing machine, specifically for models W131/FFT/FHA, W131/FFT/FHA/UTG(UTJ), W132/FFT/FHA, W132/FFT/FHA/UTG(UTJ), U131/FFT/FHK, and U132/FFT/FHK. It details various components like needle clamp, needle plate, feed dogs, presser foot, looper, spreader, and needle, along with their corresponding part numbers and remarks.
- Page 6 (diagram): This page displays a diagram of the MA-K parts group for Siruba sewing machines, specifically for models F007KD/F858KD and FW/FWP/FSM. It includes various part numbers and their corresponding labels within the diagram.
- Page 7 (diagram): This page displays a diagram of the MA-K parts list for the F007K/F007KD and F858K/F858KD series, showing various components and their assembly.
- Page 8 (diagram): This page displays a diagram of MB-K series parts for F007K/F858KD sewing machines, including various components like screws, plates, and motors, with their corresponding part numbers and references.
- Page 9 (diagram): This page displays a diagram of machine parts for the Siruba MC-K series, specifically for models F007K/F007KD and F858K/F858KD. It includes part numbers and references for various components.
- Page 10 (diagram): This page displays a diagram of various machine parts for the MC-K series, including components like MC193K-C, MC100K, MC64K-A, and others, with their corresponding part numbers and visual representations.
- Page 11 (diagram): This page displays a diagram of parts for the SIRUBA MD-K series sewing machines, specifically for models F007KD and F858KD. It includes various components like gears, shafts, and fasteners, with their corresponding part numbers and references.
- Page 12 (diagram): This page displays a diagram of the ME-K parts group for Siruba sewing machines, specifically models F007K/F007KD and F858K/F858KD. It includes various part numbers and their corresponding visual representations.
- Page 13 (diagram): This page displays a diagram of sewing machine parts for the SIRUBA F007K/F007KD F858K/F858KD MF-K series, with part numbers and descriptions indicated.
- Page 14 (diagram): This page displays a diagram of parts for the Siruba F007K/F007KD, F858K/F858KD sewing machine, specifically for the MG-K parts group.
- Page 15 (diagram): This page displays a diagram of the MH-K parts group for Siruba sewing machines, specifically for models F007K/F007KD and F858K/F858KD. It includes various components with their respective part numbers and references.
- Page 16 (diagram): This page displays a diagram of MJ-K parts for the F007K/F007KD and F858K/F858KD sewing machines, with part numbers and descriptions.
- Page 17 (diagram): This page displays a diagram of parts for the MK-K series, including components like MK15K-A, MK01K-A, and various screws and washers.
- Page 18 (diagram): This page displays a diagram of various machine parts for the SIRUBA MK-K series, including components like MK35J, MK41K-E, MK40, MK28H, and VK09-R1, along with their associated part numbers and quantities.
- Page 19 (diagram): This page displays a diagram of the ML-K parts list for Siruba sewing machines, specifically models F007K/F007KD and F858K/F858KD. It details various components with their respective part numbers and references.
- Page 20 (diagram): This page displays a diagram of the MN-K parts group, including various screws, bolts, and components like the power control box comb.
- Page 21 (diagram): This page displays a diagram of parts for the SIRUBA MN-K series, specifically for models F007K/F007KD and F858K/F858KD. It includes part numbers, quantities, and references for various components.
- Page 22 (parts_list): This page contains a parts list for the SIRUBA MY-K series sewing machines, specifically models F007K/F007KD and F858K/F858KD. It includes diagrams and part numbers for various components.
- Page 23 (diagram): This page displays a diagram of various parts for the Siruba F007K/F858K/F858KD sewing machine models, specifically for the MZ-K parts group. It includes part numbers and their corresponding visual representations within the diagram.
- Page 24 (diagram): This page displays a diagram of the F007K/KD F858K/KD series table cut-out semi-submerged, with dimensions and part information.
- Page 25 (diagram): This page displays a diagram of the F007K Series Table Cut-Out Semi-Submerged sewing machine, including dimensions and specifications.
- Page 26 (diagram): This page contains a diagram of the F007K Series Table Cut-Out Submerged sewing machine, detailing dimensions and part references.
- Page 27 (diagram): This page displays a diagram of the F007K Series Table Cut-Out Submerged, with dimensions and part information.
- Page 28 (diagram): This page contains a diagram of a table cut-out for Siruba sewing machines, specifically for the F007K/F007KD and F858K/F858KD series, with dimensions and mounting information.
