Yamato AZF8000G Series Parts Book (PDF)

also listed as 8000GDownload PDF

Text index — Yamato AZF8000G Series

Page 5 — MISCELLANEOUS COVERS(1)

Yamato AZF8000G Series parts on page 5
Ref	Part number	Part name	Qty
1	2100006	Cloth Plate	1
2	2150210	Cloth Plate(Lower)	1
3	2100014	Rubber Cushion	1
4	001123	Washer	5
5	000644	Spring Washer	3
6	110045	Screw(M4-0.7 × 12)	3
7	2100011	Cloth Plate Eccentric Bushing	1
8	160001	Screw(M4-0.7 × 4)	1
9	2100012	Collar(4 × 9 × 6mm)	1
10	003637	Screw(1/8-44 × 2.5)	1
11	2150015	Cloth Plate Spring	1
12	110012	Screw(M4-0.7 × 5)	2
13	100001	Lock Nut	1
14	110031	Stop Screw(M4-0.7 × 12)	1
15	0020004	Oil Cap	1
16	0020005	O-ring(P28)	1
17	2100053	Top Cover	1
18	110016	Screw(M4-0.7 × 15)	6
19	2150026	Top Cover Gasket	1
20	2100864	Oil Reservoir Gasket	1
21	2151054	Oil Reservoir	1
22	006816	Screw(1/4-24 × 8)	4
23	0032879	OilReservoirRubberCushion(Black)	3
24	0033627	OilReservoirRubberCushion(Green)	1
26	2100875	Oil Reservoir Positioning Bar	4
27	300004	Washer	4
28	120017	Screw(M5-0.8 × 15)	6
29	0020137	Drain Hole Seal	1
30	005075	Drain Hole Screw(3/8-24 × 8)	1
32	2151056	Wind Guide Plate	1
33	110013	Screw(M4-0.7 × 8)	2
34	300043	Washer	2
35	2049401	Serial Number Plate	1
36	000726	Rivet	2

Page 7 — MISCELLANEOUS COVERS(2)

Yamato AZF8000G Series parts on page 7
Ref	Part number	Part name	Qty
1	2160014	Side Cover	1
2	110013	Screw(M4-0.7 × 8)	5
3	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5.4]	1
4	2150018	Eye Guard Holder	1
5	170032	Screw(M4-0.7 × 5)	1
6	000010	Conical Spring Washer	2
7	2150125	Eye Guard	1
8	110076	Screw(M3-0.5 × 6)	2
9	000444	Washer	2
10	2150023	Needle Bar Oil Defender	1
11	110012	Screw(M4-0.7 × 5)	4
12	2150024	Needle Bar Oil Seal	1
13	190015	Screw(M14-2 × 6)	4
14	2150025	Logo Plate	1
15	110106	Screw(M4-0.7 × 8)	2
16	390170	"AZF-G" Logo Mark	1
17	390165	Brand Name Plate(68mm)(Green)	1
18	390166	Brand Name Plate(83mm)(Green)	1
19	2100538	Front Cover Latch Spring	1
20	0024446	Front Cover Hook	1
21	001203	Screw(9/64-40 × 4.5)	1
22	0020016	Front Cover Hinge Pin	1
23	003637	Screw(1/8-44 × 2.5)	2
24	2100024	Front Cover(Right)	1
25	0024095	Front Cover Hinge Spring	1
26	2151055	Front Cover Hinge	1
27	2100534	Chip Guard(Openable)	1
28	110003	Screw(M3.5-0.6 × 6)	2
29	2129420	Model Plate(Green)	1
30	------	Threading Chart(See the Table)	1
31	2100856	Front Cover Latch	1
32	110054	Screw(M3-0.5 × 3.5)	2
33	2120062	Rear Cover Support	1
34	110045	Screw(M4-0.7 × 12)	1
35	2120055	Top Feed Dog Bar Rear Cover	1
36	001123	Washer	2
37	2120141	Top Feed Dog Bar Oil Receiver, C. Set	1
38	2120053	Top Feed Dog Bar Oil Receiver	1
39	2120138	Oil Receiver Rubber(Large)	1
40	2120139	Oil Receiver Rubber(Small)	1
41	2120098	Oil Receiver Fixing Plate	1
42	110045	Screw(M4-0.7 × 12)(M4-0.7 × 8)	1

Page 9 — MISCELLANEOUS COVERS (3)

Yamato AZF8000G Series parts on page 9
Ref	Part number	Part name	Qty
1	2120063	Feed Mechanism Cover	1
2	2120588	Feed Mechanism Cover Gasket	1
3	110048	Screw(M4-0.7 × 10)	5
4	2100047	Rubber Cushion	1
5	2110027	O-ring(P52)	1
6	2110026	Ball Bearing Holder	1
7	110013	Screw(M4-0.7 × 8)	10
8	2100318	Fan Cover	1
9	110012	Screw(M4-0.7 × 5)	2
10	150004	Screw(M4-0.7 × 6)	1
11	2100961	Seal Plug	2
12	2150022	Pushbutton	1
13	2100861	Oil Seal	1
14	0033024	Retaining Ring	2
15	0068517	Pushbutton Spring	1
16	330008	Seal Plug	1
17	330000	Seal Plug	1
18	2150017	Fabric Guide Plate	1
19	110064	Screw(M4-0.7 × 8)	2
20	2100918	Tail Cover Gasket	1
21	2100037	Tail Cover	1
22	2150069	Seal Plug	1
23	2100873	Ball Bearing Housing	1
24	2100874	Ball Bearing Housing Gasket	1
25	130003	Screw(M4-0.7 × 7.3)	3
26	0020218	Top Feed Shaft End Cap	1
27	0020051	Seal Plaug	1

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato AZF8000G Series parts on page 11
Ref	Part number	Part name	Qty
1	2160122	Thread Guide Plate	1
2	110013	Screw(M4-0.7 × 8)	2
3	0024084	Thread Tension Spring Cap	4
4	0024083	Tension Spring Bushing	4
5	0024157	Lower Looper Thread Tension Spring	1
6	0020118	Thread Tension Spring Retainer	4
7	000178	Felt	4
8	0031111	Tension Disc	8
9	000177	Felt	4
10	190016	Tension Post(Short)	4
11	0032962	Tension Disc Eyelet	3
12	0032952	Upper Looper Thread Tension Spring	1
13	0032971	Needle Thread Tension Spring	1
14	0024156	Needle Thread Tension Spring	1
15	2150116	Tension Disc Eyelet for Needle Thread	1
16	2150030	Oil Container	1
17	2150031	Oil Container Plug	1
18	310105	Felt	1
19	2150032	Felt Holder	1
20	110013	Screw(M4-0.7 × 8)[M4-0.7 × 8]	1
21	2150124	Needle Thread Eyelet Holder	1
22	110001	Screw(M4-0.7 × 5.4)	3
23	2150115	Needle Thread Eyelet(Right)	1
24	006035	Screw(9/64-40 × 7)	1
25	000644	Spring Washer	1
26	000322	Nut	1
27	2150114	Needle Thread Eyelet(Left)	1
28	2160019	Needle Thread Pull-off	1
29	110073	Screw(M4-0.7 × 7.5)	1
30	000653	Knock Pin	1
31	2150111	Thread Retainer Plate Support	1
32	2150112	Thread Retainer Plate	1
33	2150132	Thread Retainer Spring	1
34	170049	Screw(M2-0.4 × 4)[M2-0.4 × 4]	1
35	2150027	Looper Holder Cover	1
36	110009	Screw(M4-0.7 × 8)	1
37	0093303	Looper Driving Shaft Oil Seal	1
38	2100229	Looper Holder Cover Spacer(Rubber)	1
39	2150119	Looper Thread Eyelet(Left)	1
40	110035	Screw(M4-0.7 × 10)	3
41	2150123	Thread Eyelet Support	1
42	2150120	Lower Looper Thread Eyelet	1
43	2150121	Upper Looper Thread Eyelet	1
44	000014	Washer	2
45	110026	Screw(M3-0.5 × 6)	2
46	0022215	Looper Thread Pipe	2

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Yamato AZF8000G Series parts on page 13
Ref	Part number	Part name	Qty
1	2150214	Machine Pulley	1
2	160007	Screw(M6-1 × 6)	5
3	2110181	Oil Cooling Fan	1
4	160001	Screw(M4-0.7 × 4)	5
5	2110184	Wave Washer	1
6	2110183	Mechanical Oil Shield	1
7	3100131	Crankshaft Ball Bearing(Right)	1
8	2120026	Bearing Adapter	1
9	2150096	Oil Pump Driving Worm	1
10	2150038	Crankshaft Bushing	1
11	2150100	Crankshaft	1
12	2100111	Crankshaft Counterweight	1
13	110036	Screw(M3-0.5 × 6.5)	2
14	160027	Screw(M3-0.5 × 3)	5
15	2100872	Crankshaft Ball Bearing(Left)	1
16	2150039	Crankshaft Bushing	1
17	2120076	UpperKnifeDrivingShaftBushing(Right)	1
18	2150043	UpperKnife・FeedBarDrivingShaftBushing	2
19	2100117	Upper Knife Driving Shaft Oil Seal	1
20	2150049	NeedleBarDrivingShaftBushing(Right)	1
21	2150048	Needle Bar Driving Shaft Bushing(Left)	1
22	003636	Cap Screw(5/16-32 × 3.5)	1
23	000526	Gasket	1
24	2150040	Needle Bar Bushing(Upper)	1
25	310109	Oil Wick	1
26	2150041	Needle Bar Bushing(Lower)	1
27	2150046	UpperLooperDrivingShaftBushing(Front)	1
28	2150047	UpperLooperDrivingShaftBushing(Rear)	1
29	2100272	Looper Driving Shaft Oil Seal	1
30	2150044	LowerLooperDrivingShaftBushing(Front)	1
31	2150045	LowerLooperDrivingShaftBushing(Rear)	1
32	2150042	Feed Bar Driving Shaft Bushing(Left)	1
33	2150069	Seal Plug	1
34	2100098	Control Lever Shaft Bushing	1
35	2150050	Needle Bar & Needle Bar Bushing, C. Set	1
36	2100642	Needle Bar	1
37	2120030	Top Feed Driving Connecting Rod Spacer	1
38	2120074	Top Feed Shaft Bushing(Right)	1
39	2120075	Top Feed Shaft Bushing(Left)	1
40	2120071	VerticalMotion&RockerShaftBushing(Right)	2
41	2120073	Vertical Motion Shaft Bushing(Left)	1
42	0093303	Oil Seal	1
43	2120072	Top Feed Rocker Shaft Bushing(Left)	1

Page 15 — NEEDLE BAR DRIVING MECHANISM

Yamato AZF8000G Series parts on page 15
Ref	Part number	Part name	Qty
1	2110252	Needle Bar Driving Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	2
3	2100144	Needle Bar Driving Connecting Rod Pin	1
4	160002	Screw(M4-0.7 × 5)	1
5	2100946	Needle Bar Driving Lever	1
6	120006	Screw(M6-1 × 12)	1
7	2100137	Collar(12 × 20 × 10mm)	1
8	160003	Screw(M5-0.8 × 5)	2
9	2150052	Needle Bar Crank Arm, C. Set	1
10	2150053	Needle Bar Driving Shaft	1
11	2100136	Needle Bar Crank Arm	1
12	300008	Washer	1
13	140003	Screw(M6-1 × 18)	1
14	2100138	Needle Bar Connecting Link	1
15	2100176	Needle Bar Connecting Link Pin	2
16	310089	Oil Wick	2
17	2150059	Needle Bar Connecting Bracket	1
18	110006	Screw(M3.5-0.6 × 10)	1
19	160016	Screw(M4-0.7 × 4.5)	2
20	2100642	Needle Bar	1
21	2169102	Needle Clamp(Y)	1
23	003637	Screw(1/8-44 × 2.5)	2
24	2150057	Stitch Plate Support Stay, C. Set	1
25	2150058	Stitch Plate Support Stay	1
26	000035	Roll Pin	1
27	110009	Screw(M4-0.7 × 8)	6
28	2100502	Stitch Plate Support(Rear)	1
29	110001	Screw(M4-0.7 × 5.4)	1
30-1	2108004	Stitch Plate(Y5)	1
30-2	2108005	Stitch Plate(Y6)	1
31	005345	Screw(11/64-40 × 8.3)	2
32	2100145	Stitch Plate Support(Front)	1
33	110011	Screw(M5-0.8 × 10)	2
34	0032604	Rubber Cushion	1
35	2109200	Needle Guard(Front)	1
36	110002	Screw(M3-0.5 × 5)	1
37	2150035	HR Unit, Complete Set	1
38	3100370	Tube Joint	1
39	2100152	Oil Tube(70mm)	1
40	310005	Oil Wick	1
41	2100533	HR Felt Holder	1
42	310001	HR Felt	1
43	2100535	HR Felt Holder Bracket, C. Set	1
44	2100536	HR Felt Holder Bracket	1
45	000393	Roll Pin	1
46	110013	Screw(M4-0.7 × 8)	1
47	320008	Fitting Stud(Short)	1
48	000567	Seal	1
49	2150150	HR Unit Bracket	1

Page 17 — KNIFE DRIVING MECHANISM / メス機構

Yamato AZF8000G Series parts on page 17
Ref	Part number	Part name	Qty
1	2100160	Upper Knife Driving Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	2
3	2100173	Driving Lever Pin	1
4	160002	Screw(M4-0.7 × 5)	1
5	2100162	Upper Knife Driving Lever	1
6	120006	Screw(M6-1 × 12)	1
7	2100161	Collar(10 × 19 × 9mm)	1
8	160003	Screw(M5-0.8 × 5)	2
9	2150060	Upper Knife Driving Shaft	1
10	2100165	Upper Knife Holder Positioner	1
11	2100164	Upper Knife Holder(Flat Type)	1
12	110035	Screw(M4-0.7 × 10)	1
13	0020496	Upper Knife(Flat Type)	1
15	110062	Screw(M3.5-0.6 × 8)	1
16	0093864	Seal Plug	1
17	2150020	Lower Knife Holder Spring Stop	1
18	110012	Screw(M4-0.7 × 5)	3
19	2100174	Cloth Plate Rubber Cushion	1
20	2150019	Front Cover	1
21	110001	Screw(M4-0.7 × 5.4)	2
22	2100009	Cloth Plate Spring Pin	1
23	2150021	Lower Knife Holder Locking Plate	1
24	0032919	Lower Knife Holder Spring	1
25	2100166	Lower Knife Holder	1
26	110046	Screw(M5-0.8 × 12)	1
27	000688	Guide Pin	1
28	2100167	Lower Knife	1
29	2100168	Lower Knife Clamp	1
30	140014	Screw(M4-0.7 × 8)	1

Page 19 — PRESSER FOOT MECHANISM 押エ機構

Yamato AZF8000G Series parts on page 19
Ref	Part number	Part name	Qty
1	190088	Adjusting Screw(M10-0.75 × 30)	1
2	100073	Lock Nut	1
3	2150709	Presser Spring	1
4	2150145	Presser Bar	1
5	2100580	Presser Arm Positioning Guide Pin	1
6	340050	Spring Pin	1
7	2160057	Presser Arm Stop	1
8	110008	Screw(M4-0.7 × 5)[M4-0.7 × 4.8]	1
9	2160055	Presser Foot Release Lever	1
10	2160058	Presser Foot Release Lever Spring	1
11	170045	Screw(M4-0.7 × 5)	1
13	2150154	Presser Foot Lifter Lever	1
14	000487	Wave Washer	1
15	170047	Screw(M8-1.25 × 10)	1
16	2150142	Presser Foot Lifter Lever Stop	1
17	120010	Screw(M6-1 × 10)	1
18	2100197	Presser Foot Lifter Lever Link	1
19	2100518	Presser Foot Shaft Collar	1
20	120017	Screw(M5-0.8 × 15)	1
21	2160033	Intermediate Lever	1
22	110065	Stop Screw(M4-0.7 × 12)	1
23	100001	Lock Nut	1
24	2150139	Presser Foot Lifter Lever Spring	1
25	2160032	Presser Foot Shaft Bushing	1
26	160007	Screw(M6-1 × 6)	1
27	3100104	O-ring(P16)	1
28	2120045	Top Feed Dog Lifting Lever	1
29	120017	Screw(M5-0.8 × 15)	1
30	2160029	Presser Arm, Complete Set	1
31	2160031	Presser Foot Shaft	1
32	2160030	Presser Arm	1
33	2100199	Presser Arm Hinge Pin	1
34	160001	Screw(M4-0.7 × 4)	1
35-1	2127240	Presser Foot, C. Set(Y5-10)	1
35-2	2127241	Presser Foot, C. Set(Y6-10)	1
36	2127003	Presser Foot Hinge	1
37	004351	Screw(9/64-40 × 7)	1
38	2127000	Presser Foot Spring	1
39	003637	Screw(1/8-44 × 2.5)	1
40-1	2127260	Presser Foot(Lower)(Y5-10)	1
40-2	2127261	Presser Foot(Lower)(Y6-10)	1
41	0026140	Presser Foot Hinge Pin	1
42	0026142	Thread Chain Guide	1
43	004237	Screw(3/32-56 × 2.6)	1
44	0020271	Thread Chain Cutting Knife	1
45	004097	Screw(3/32-56 × 4.2)	1
46	2160059	Presser Foot Release Lever Stop	1
47	2160063	Presser Bar Guide Plate	1
48	110023	Screw(M2-0.4 × 3.5)	1

Page 21 — TOP FEED MECHANISM(1)

Yamato AZF8000G Series parts on page 21
Ref	Part number	Part name	Qty
1	2120027	Top Feed Driving Connecting Rod	1
2	120001	Screw(M4-0.7 × 14)	2
3	2120028	Connecting Rod Pin	1
4	330009	Seal Plug	2
5	160007	Screw(M6-1 × 6)	1
6	2120029	Top Feed Shaft Lever	1
7	120006	Screw(M6-1 × 12)	1
8	0032646	Collar	2
9	009604	Screw(11/64-40 × 5.5)	4
10	2120031	Top Feed Shaft	1
11	000750	Seal Plug	1
12	330008	Seal Plug	1
13	2120002	Top Feed Rocker, Complete Set	1
14	2120003	Top Feed Rocker	1
15	120013	Screw(M6-1 × 15)	2
16	2120004	Top Feed Regulating Slider	1
17	2120005	Slider Pin Adjusting Lever, C. Set	1
18	2120082	Top Feed Regulating Slider Pin	1
19	160001	Screw(M4-0.7 × 14)	3
20	2120007	Top Feed Shaft Lever Link	1
21	0026081	Link Pin	1
22	0026413	Spacer	1
23	0026099	Top Feed Guide Block	1
24	2120083	Spacer	1
25	0033024	Retaining Ring	1
26	2120006	Slider Pin Adjusting Lever	1
27	120011	Screw(M6-1 × 18)	1
28	2120008	Top Feed Rocker Shaft Lever	1
29	0033104	Coller	1
30	005550	Screw(11/64-40 × 13.5)	1
31	2120032	Slider Pin Adjusting Lever Shaft	1
32	2120009	Top Feed Rocker Shaft	1
33	310046	Oil Wick(2.3 × 2.3 × 14mm)	1

Page 23 — TOP FEED MECHANISM(2)

Yamato AZF8000G Series parts on page 23
Ref	Part number	Part name	Qty
1	0093323	Collar(Right)	1
2	0033104	Collar(Left)	1
3	005550	Screw(11/64-40 × 13.5)	2
4	2120020	Vertical Motion Adjusting Lever, C. Set	1
5	2120021	Vertical Motion Adjusting Lever	1
6	120013	Screw(M6-1 × 15)	2
7	004106	Screw(9/64-40 × 6.5)	1
8	000533	Washer	1
9	0026075	Adjusting Lever Pin	1
10	2120022	Vertical Motion Lever Link	1
11	0026081	Vertical Motion Lever Pin	1
12	003637	Screw(1/8-44 × 2.5)	5
13	2120023	Vertical Motion Lever	1
14	2120019	Top Feed Vertical Motion Shaft	1
15	310047	Oil Wick(2.3 × 2.3 × 11.5mm)	2
16	0023234	Positioning Pin	1
17	2120131	Top Feed Dog Bar, C. Set(2)	1
18	2120018	Vertical Motion Link	1
19	310069	Oil Wick(No. 2-210mm)	1
20	000755	Pin	1
21	310068	Oil Wick(No.2-120mm)	1
22	0024302	Oil Wick Stay	1
23	2120067	Oil Wick Holder	1
24	110002	Screw(M3-0.5 × 5)	1
25	2120130	Top Feed Dog Bar, C. Set(1)	1
26	2120093	Top Feed Dog Bar Guide Lever	1
29	2120095	Top Feed Dog Bar Guide Pin	1
30	2120112	Top Feed Dog Bar Guide	1
31	310054	Oil Wick(2.3 × 2.3 × 6mm)	1
32	2120017	Press Bar Receiver	1
33	2120132	Shield Support	1
34	110050	Screw(M3.5-0.6 × 4.5)	2
35	2120014	Top Feed Dog Bar	1
36	2120572	Top Feed Dog Bar Shield	2
37	310046	Oil Wick(2.3 × 2.3 × 14mm)	1
38	0026418	Top Feed Dog Bar Connecting Pin	1
39	2120015	Top Feed Rocker Link	1
40	2120570	Top Feed Dog Bar Cover(Front), C. Set	1

Page 25 — TOP FEED MECHANISM(2)

Yamato AZF8000G Series parts on page 25
Ref	Part number	Part name	Qty
41	2120136	Top Feed Dog Bar Cover(Front)	1
42	2120571	Top Feed Dog Bar Cover Rubber	1
43	110012	Screw(M4-0.7 × 5)	1
44	2160015	Top Feed Dog Bar Support(Right)	1
45	110035	Screw(M4-0.7 × 10)	1
46	2160016	Top Feed Dog Bar Support(Left)	1
47	110004	Screw(M3.5-0.6 × 8)	2
48	000687	Knock Pin	1
49	2129078	Top Feed Dog(O4)(Diacut teeth)	1
50	2120037	Top Feed Dog Press Bar	1
51	2120038	Top Feed Dog Press Spring	1
52	100074	Lock Nut	1
53	190081	Adjusting Screw(M10-0.75 × 44)	1
54	2160028	Top Feed Dog Bar Block	1
55	100001	Nut	1
56	140032	Screw(M4-0.7 × 22)	1
57	2160056	Top Feed Dog Lift Link	1
58	170041	Screw(M5-0.8 × 3.5)	1
59	170048	Screw(M5-0.8 × 5)	1
60	2160026	Top Feed Dog Lift Lever	1
61	2160027	Top Feed Dog Lift Shaft	1
62	009747	Screw(M4-0.7 × 10)	1

Page 27 — TOP FEED MECHANISM(3)

Yamato AZF8000G Series parts on page 27
Ref	Part number	Part name	Qty
1	2120035	Spring Hanger	1
2	000665	Washer	2
3	110013	Screw(M4-0.7 × 8)	2
4	2120036	Top Feed Dog Lever Spring	1
5	2120033	Top Feed Dog Lever	1
6	110009	Screw(M4-0.7 × 8)	3
7	2120034	Top Feed Dog Graduation	1
8	000538	Washer	2
9	110035	Screw(M4-0.7 × 10)	2
10	190039	Screw(M4-0.7, M6-1 × 19)	1
11	100029	Adjusting Nut	1
12	000663	Washer	1
13	100001	Lock Nut	1
14	005049	Screw(M5-0.8 × 8)	1
15	000554	Washer	1
16	0020350	Top Feed Dog Lever Stopper	1
17	0026434	Lever Adjusting Box, C. Set	1
18	0026427	Lever Adjusting Box	1
19	0026430	Lever Adjusting Block	1
20	0026428	Lever Adjusting Screw	1
21	0026438	Coller	1
22	003637	Screw(1/8-44 × 2.5)	3
23	0068206	O-ring(P4)	1
24	0026429	Adjusting Screw Supporting Plate	1
25	004351	Screw(9/64-40 × 7)	2
26	000280	Rubber Cushion	2
27	2020048	Adjusting Knob Spring	1
28	0026431	Adjusting Knob	1
29	110064	Screw(M4-0.7 × 8)	2

Page 29 — UPPER LOOPER DRIVING MECHANISM

Yamato AZF8000G Series parts on page 29
Ref	Part number	Part name	Qty
1	2100900	Looper Driving Lever Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	4
3	2100088	Connecting Rod Swing-proof	2
4	2160050	Upper Looper Driving Lever	1
5	120006	Screw(M6-1 × 12)	1
6	2150070	Looper Driving Shaft	1
7	2160051	Driving Shaft Thrust Ring	1
8	2150075	Driving Shaft Thrust Ring	1
9	2100161	Collar(10 × 19 × 9mm)	1
10	160001	Screw(M4-0.7 × 4)	2
11	2150130	Upper Looper Thread Pull-off	1
12	110009	Screw(M4-0.7 × 8)	2
13	2150086	Upper Looper Bar Crank Arm, C. Set	1
14	2150084	Upper Looper Bar Guide Bushing	1
15	2100227	Upper Looper Bar Guide Cover	1
16	130001	Screw(M2.5-0.45 × 6)	1
17	110071	Screw(M2.5-0.45 × 6)	1
18	2150091	Upper Looper Bar Guide, Complete Set	1
19	2101089	Upper Looper Bar Crank Arm	1
20	300008	Washer	1
21	140004	Screw(M6-1 × 16)	1
22	2100903	Upper Looper Bar Crank Arm Pin	1
23	160002	Screw(M4-0.7 × 5)	1
24	310089	Oil Wick	1
25	2150080	Upper Looper Bar	1
26	000629	Seal Plug	1
27	2100892	Upper Looper Bar Guide	1
28	310065	Oiling Felt	1
29	2129300	Upper Looper(for Needle Size #9~14)	1
30	210009	Screw(1/8-44 × 3.2)	1
31	000779	Standard Pin	1
32	120013	Screw(M6-1 × 15)	2
33	2100854	UpperLooperSupplementaryThreadEyelet	1
34	2150117	Lower Looper Thread Pull-off	1
35	000014	Washer	1
36	110002	Screw(M3-0.5 × 5)	1
37	2150079	Upper Looper Bar, C. Set	1

Page 31 — LOWER LOOPER DRIVING MECHANISM

Yamato AZF8000G Series parts on page 31
Ref	Part number	Part name	Qty
1	2100215	Looper Driving Lever Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	4
3	2100088	Connecting Rod Swing-proof	1
4	2150076	Lower Looper Driving Lever	1
5	120006	Screw(M6-1 × 12)	1
6	2100902	Driving Shaft Thrust Ring	1
7	2100161	Collar(10 × 19 × 9mm)	1
8	160003	Screw(M5-0.8 × 5)	3
9	2100219	Looper Driving Shaft	1
10	2100211	Lower Looper Holder Arm	1
11	300008	Washer	1
12	140002	Screw(M6-1 × 14)	1
13	2150118	Thread Pull-off	1
14	110009	Screw(M4-0.7 × 8)	1
15	2109347	Lower Looper	1
16	2109201	Needle Guard(Rear)	1
17	110036	Screw(M3-0.5 × 6.5)	1
18	180014	Screwed Pin(M3-0.5 × 4.5)	1
19	300106	Conical Spring Washer	1

Page 33 — FEED DRIVING CONTROL MECHANISM / 前送リ調節機構

Yamato AZF8000G Series parts on page 33
Ref	Part number	Part name	Qty
1	2150064	Main Feed Bar Lever	1
2	120006	Screw(M6-1 × 12)	4
3	2100251	Main Feed Bar Lever Pin	1
4	300000	Washer	3
5	100002	Nut	1
6	000669	Washer	2
7	2150075	Thrust Plate	1
8	0095027	Retaining Ring	1
9	2100248	Main Feed Bar Connection	1
10	2100249	Connection Bushing	1
11	140001	Screw(M5-0.5 × 12)	1
12	2100266	Feed Bar, Complete Set	1
13	2100242	Main Feed Bar	1
14	2100241	Differential Feed Bar	1
15	2100243	Differential Feed Bar Connection	1
16	2100244	Connection Bushing	1
17	140000	Screw(M5-0.5 × 15.5)	1
18	2150065	Feed Bar Driving Shaft	1
19	2150066	Feed Bar Driving Shaft Lever	1
20	2100288	Connecting Rod Pin	1
21	160007	Screw(M6-1 × 6)	1
22	2100671	Differential Rocker, Complete Set	1
23	2100672	Differential Rocker	1
24	2100673	Differential Regulating Slider	1
25	2100674	Differential Regulating Slider Cap	1
26	110033	Screw(M3-0.5 × 6)	2
27	2100269	Differential Lever(Right), C. Set	1
28	2100252	Slider Link	1
29	0068202	Retaining Ring	1
30	2100253	Slider Link Pin	1
31	2100262	Differential Lever(Right)	1
32	2100267	Collar(10 × 17 × 8mm)	1
33	160001	Screw(M4-0.7 × 4)	2
34	000690	Spring Pin	1
35	2100256	Differential Lever Spring	1
36	0020538	O-ring(P7)	1
37	2100263	Differential Lever(Left)	1
38	000528	Washer	1
39	000561	Conical Spring Washer	1
40	100000	Adjusting Nut	1
41	190001	Adjusting Screw(M6-1×11.5, M4.5-0.5×4)	1
42	2100271	Differential Feed Graduation	1
43	110016	Screw(M4-0.7 × 15)	2
44	0020350	Differential Lever Stop	2
45	110017	Screw(M5-0.8 × 8)	2
46	2100257	Adjusting Screw	1
47	2100264	Adjusting Block	1
48	2100259	Adjusting Block Spring	1
49	0034293	Retaining Ring	1

Page 35 — FEED DRIVING MECHANISM

Yamato AZF8000G Series parts on page 35
Ref	Part number	Part name	Qty
1	2100865	Feed Bar Guide Support	1
2	110064	Screw(M4-0.7 × 8)	4
3	110004	Screw(M3.5-0.6 × 8)	6
4	2100866	Feed Bar Shield(Front)	1
5	2100867	Feed Bar Shield(Rear)	1
6	2100869	Feed Bar Shield Guide	1
7	2100870	Feed Bar Guide	2
8	2100868	Feed Bar Shield(Upper)	1
9	2150063	Feed Bar Guide Bushing	1
10	160007	Screw(M6-1 × 6)	1
11	2100602	Feed Bar Block(Rear) Shaft	1
12	160001	Screw(M4-0.7 × 4)	1
13	2100283	Feed Bar Block(Rear)	1
14	2100281	Feed Bar Block(Rear) Lid	1
15	130002	Screw(M3-0.5 × 6)	1
16	2100280	Feed Bar Block(Front)	1
17	2100284	Eccentric Pin Holder	1
18	0020401	Feed Dog Eccentric Pin	1
19	2100277	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	2100275	Feed Dog Driving Connecting Rod	1
22	2100276	Feed Dog Regulating Eccentric	1
23	180002	Screw(M3-0.5 × 4)	2
24	110070	Screw(M3-0.5 × 6.3)	1
25	2100289	Feed Dog Regulating Plate Spring	1
26	0023473	Feed Dog Regulating Plate	1
27	2100279	Feed Dog Regulating Gear	1
28	180003	Screw(M5-0.8 × 8)	1
29	160003	Screw(M5-0.8 × 5)	3
30-1	2109005	Differential Feed Dog(Y5)	1
30-2	2109009	Differential Feed Dog(Y6)	1
31	2109006	Main Feed Dog	1
32	2109067	Auxiliary Feed Dog	1
33	110026	Screw(M3-0.5 × 6)	1
34	2150067	Connecting Rod Cover	1
35	130003	Screw(M4-0.7 × 7.3)	2

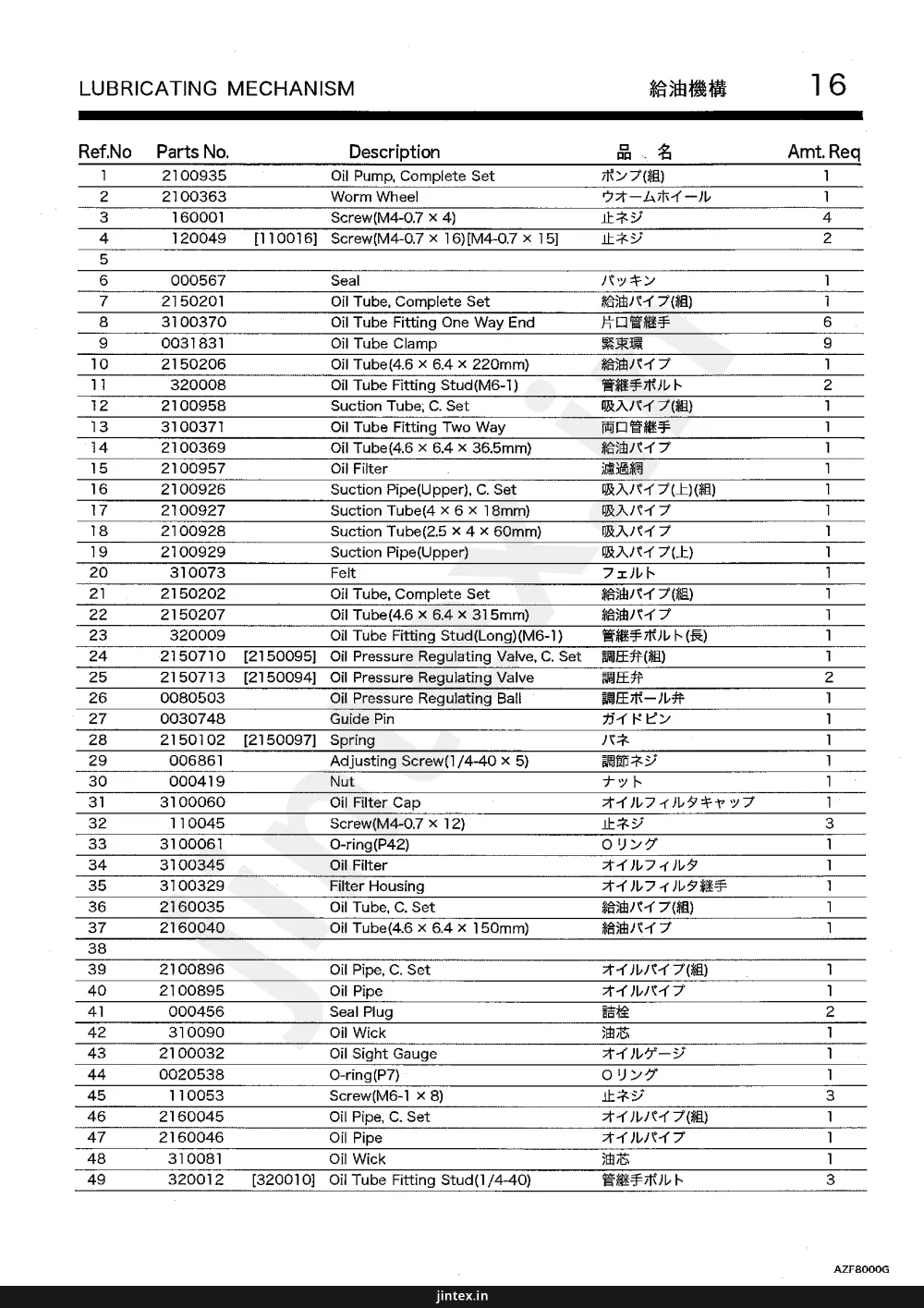

Page 37 — LUBRICATING MECHANISM / 給油機構

Yamato AZF8000G Series parts on page 37
Ref	Part number	Part name	Qty
1	2100935	Oil Pump, Complete Set	1
2	2100363	Worm Wheel	1
3	160001	Screw(M4-0.7 x 4)	4
4	120049	Screw(M4-0.7 x 16)[M4-0.7 x 15]	2
6	000567	Seal	1
7	2150201	Oil Tube, Complete Set	1
8	3100370	Oil Tube Fitting One Way End	6
9	0031831	Oil Tube Clamp	9
10	2150206	Oil Tube(4.6 x 6.4 x 220mm)	1
11	320008	Oil Tube Fitting Stud(M6-1)	2
12	2100958	Suction Tube; C. Set	1
13	3100371	Oil Tube Fitting Two Way	1
14	2100369	Oil Tube(4.6 x 6.4 x 36.5mm)	1
15	2100957	Oil Filter	1
16	2100926	Suction Pipe(Upper), C. Set	1
17	2100927	Suction Tube(4 x 6 x 18mm)	1
18	2100928	Suction Tube(2.5 x 4 x 60mm)	1
19	2100929	Suction Pipe(Upper)	1
20	310073	Felt	1
21	2150202	Oil Tube, Complete Set	1
22	2150207	Oil Tube(4.6 x 6.4 x 315mm)	1
23	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
24	2150710	Oil Pressure Regulating Valve, C. Set	1
25	2150713	Oil Pressure Regulating Valve	2
26	0080503	Oil Pressure Regulating Ball	1
27	0030748	Guide Pin	1
28	2150102	Spring	1
29	006861	Adjusting Screw(1/4-40 x 5)	1
30	000419	Nut	1
31	3100060	Oil Filter Cap	1
32	110045	Screw(M4-0.7 x 12)	3
33	3100061	O-ring(P42)	1
34	3100345	Oil Filter	1
35	3100329	Filter Housing	1
36	2160035	Oil Tube, C. Set	1
37	2160040	Oil Tube(4.6 x 6.4 x 150mm)	1
39	2100896	Oil Pipe, C. Set	1
40	2100895	Oil Pipe	1
41	000456	Seal Plug	2
42	310090	Oil Wick	1
43	2100032	Oil Sight Gauge	1
44	0020538	O-ring(P7)	1
45	110053	Screw(M6-1 x 8)	3
46	2160045	Oil Pipe, C. Set	1
47	2160046	Oil Pipe	1
48	310081	Oil Wick	1
49	320012	Oil Tube Fitting Stud(1/4-40)	3

Page 39 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G

Yamato AZF8000G Series parts on page 39
Ref	Part number	Part name	Qty
1	2100385	Upper Knife Holder	1
2	0020491	Upper Knife	1
3	2101435	Upper Knife Clamp	1
4	2100354	Upper Knife Chip Guard	1
5	140012	Screw(M4-0.7 × 18.5)	1
6	2100349	Upper Knife Clamp Plate	1
7	2100353	Upper Knife Stop	1
8	110038	Screw(M2.5-0.45 × 4.5)	1
9	000665	Washer	1
10	2127099	Presser Foot, Complete Set(O4)	1
11	2127004	Presser Foot Hinge	1
12	004351	Screw(9/64-40 × 7)	1
13	2127001	Presser Foot Spring	1
14	003637	Screw(1/8-44 × 2.5)	1
15	2127069	Presser Foot(Lower)(O4)	1
16	0026140	Presser Foot Hinge Pin	1
17	2100050	Cloth Plate	1
18	2150211	Cloth Plate(Lower)	1
19	2100052	Rubber Cushion	1
20	2108000	Stitch Plate(O4)	1
21	2109000	Differential Feed Dog	1
22	2109001	Main Feed Dog	1
23	2101027	Blind Hemming Guide, C. Set	1
24	2101026	Overhanging Guide Hinge, C. Set	1
25	0034867	Hemming Positioner	1
26	005036	Screw(1/8-44 × 5.6)	2
27	000533	Washer	1
28	007006	Screw(9/64-40 × 4)	1
29	2101021	Blind-Hemming Edge Guide, C. Set	1
30	2101020	Blind-Hemming Edge Guide	1
31	009624	Screw(1/8-44 × 5.3)	1
32	0022445	Swing-out Lever	1
33	004150	Screw(11/64-40 × 5.2)	1
34	000172	Conical Spring Washer	1
35	000334	Nut	1
36	0022446	Overhanging Guide Hinge Stop	1
37	001331	Screw(9/64-40 × 3.8)[9/64-40 × 3.8]	1
38	0022447	Swing-out Lever Holder	1
39	0022448	Swing-out Lever Stop	1
40	0022435	Edge Guide Positioning Pin	2

Page 41 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G / 角メス及びサブモデル専用部品

Yamato AZF8000G Series parts on page 41
Ref	Part number	Part name	Qty
41	0022436	Positioning Pin Holder Spring	2
42	001225	Screw(1/8-44 × 2.8)	1
43	001196	Screw(1/8-44 × 6)	3
44	2101022	Edge Guide Adjusting Holder	1
45	004106	Screw(9/64-40 × 6.5)	2
46	007619	Screw(9/64-40 × 6.3)	1
47	0022443	Adjusting Screw Guide Piece	1
48	006444	Adjusting Screw(1/8-44 × 12.9)	1
49	0022444	Edge Guide Adjusting Holder Cover	1
50	110047	Screw(M4-0.7 × 10)	2
51	0060297	Pin	1
52	2129012	Top Feed Dog(Diacut teeth)	1
53	2129076	Top Feed Dog(for -10)(Diacut teeth)	1

Page 43 — AZF8003G-10 EXCLUSIVE PARTS

Yamato AZF8000G Series parts on page 43
Ref	Part number	Part name	Qty
1	2127245	Presser Foot, C. Set(O4-10)	1
2	2127003	Presser Foot Hinge	1
3	004351	Screw(9/64-40 × 7)	1
4	2127000	Presser Foot Spring	1
5	003637	Screw(1/8-44 × 2.5)	1
6	2127265	Presser Foot(Lower)(O4-10)	1
7	0026140	Presser Foot Hinge Pin	1
8	0026142	Thread Chain Guide	1
9	004237	Screw(3/32-56 × 2.6)	1
10	2108003	Stitch Plate(O4)	1
11	0060297	Pin	1

Page 45 — AZF8025G-10 EXCLUSIVE PARTS

Yamato AZF8000G Series parts on page 45
Ref	Part number	Part name	Qty
1	0024130	Tape Guide(Upper)	1
2	110012	Screw(M4-0.7 × 5)	2
3	2129080	Top Feed Dog(Diacut teeth)	1
4-1	2127230	Presser Foot, C. Set(Y5-10)	1
4-2	2127231	Presser Foot, C. Set(Y6-10)	1
5	2127003	Presser Foot Hinge	1
6	004351	Screw(9/64-40 × 7)	1
7	2127000	Presser Foot Spring	1
8	003637	Screw(1/8-44 × 2.5)	1
9-1	2127280	Presser Foot(Lower)(Y5-10)	1
9-2	2127281	Presser Foot(Lower)(Y6-10)	1
10	0026140	Presser Foot Hinge Pin	1
11	0026366	Presser Foot Tape Guide	1
12	004237	Screw(3/32-56 × 2.6)	2
13	0026142	Thread Chain Guide	1
14	2127232	Presser Foot, C. Set(X4-10)	1
15	2127282	Presser Foot(Lower)(X4-10)	1
16	2169101	Needle Clamp(X)	1
17	2108006	Stitch Plate(X4)	1

Page 47 — AZF8026G EXCLUSIVE PARTS

Yamato AZF8000G Series parts on page 47
Ref	Part number	Part name	Qty
1	0026239	Folder Support, C. Set	1
2	0026242	Vertical Adjusting Plate	1
3	0026243	Folder Supporting Plate	1
4	0026241	Rateral Adjusting Plate	1
5	0026240	Swing-out Lever	1
6	000172	Conical Spring Washer	1
7	004150	Screw(11/64-40 × 5.2)	1
8	000334	Nut	1
9	0022447	Swing-out Lever Holder	1
10	0022448	Swing-out Lever Stop	1
11	005036	Screw(1/8-44 × 5.6)	1
12	0022435	Folder Postitoning Pin	2
13	0022436	Folder Positioning Pin Holder Spring	2
14	001227	Screw(1/8-44 × 3.8)	2
15	001331	Screw(9/64-40 × 3.8)	6
16	110047	Screw(M4-0.7 × 10)	2
17	0022981	Tape Guide Stay Shaft	1
18	110009	Screw(M4-0.7 × 8)	1
19	0022963	Tape Guide Stay	1
20	003638	Screw(11/64-40 × 4)	2
21	0022982	Tape Guide	1
22-1	2127088	Presser Foot, C. Set(Y5)	1
22-2	2127089	Presser Foot, C. Set(Y6)	1
23	2127003	Presser Foot Hinge	1
24	004351	Screw(9/64-40 × 7)	1
25	2127000	Presser Foot Spring	1
26	003637	Screw(1/8-44 × 2.5)	1
27-1	2127058	Presser Foot(Lower)(Y5)	1
27-2	2127059	Presser Foot(Lower)(Y6)	1
28	0026140	Presser Foot Hinge Pin	1
29	0026142	Presser Foot Chain Shield	1
30	004237	Screw(3/32-56 × 2.6)	1
31	2129009	Top Feed Dog(Diacut teeth)	1
32-1	2108020	Stitch Plate(Y5)	1
32-2	2108021	Stitch Plate(Y6)	1
33-1	0026198	Folder(for Light Materials)(16mm)	1
33-2	0026225	Folder(for Light Materials)(18mm)	1
33-3	0026237	Folder(for Light Materials)(20mm)	1
33-4	0026227	Folder(for Light Materials)(22mm)	1
33-5	0026199	Folder(for Heavy Materials)(16mm)	1
33-6	0026226	Folder(for Heavy Materials)(18mm)	1
33-7	0026236	Folder(for Heavy Materials)(20mm)	1
33-8	0026228	Folder(for Heavy Materials)(22mm)	1
34	001331	Screw(9/64-40 × 3.8)	2
35	0026238	Piping Tape Folder, C. Set	1
36	0026246	Piping Tape Folder Support	1
37	0026251	Piping Tape Guide Plate	1
38	0026250	Edge Guide(Upper)	1
39	001331	Screw(9/64-40 × 3.8)	4

Page 49 — AZF8026G-10 EXCLUSIVE PARTS

Yamato AZF8000G Series parts on page 49
Ref	Part number	Part name	Qty
1	0026239	Folder Support, C. Set	1
2	0026242	Vertical Adjusting Plate	1
3	0026243	Folder Supporting Plate	1
4	0026241	Rateral Adjusting Plate	1
5	0026240	Swing-out Lever	1
6	000172	Conical Spring Washer	1
7	004150	Screw(11/64-40 × 5.2)	1
8	000334	Nut	1
9	0022447	Swing-out Lever Holder	1
10	0022448	Swing-out Lever Stop	1
11	005036	Screw(1/8-44 × 5.6)	1
12	0022435	Folder Positioning Pin	2
13	0022436	Folder Positioning Pin Holder Spring	2
14	001227	Screw(1/8-44 × 3.8)	2
15	001331	Screw(9/64-40 × 3.8)	6
16	110047	Screw(M4-0.7 × 10)	2
17	0022981	Tape Guide Stay Shaft	1
18	110009	Screw(M4-0.7 × 8)	1
19	0022963	Tape Guide Stay	1
20	003638	Screw(11/64-40 × 4)	2
21	0022982	Tape Guide	1
22-1	2167005	Presser Foot, C. Set(Y5)	1
22-2	2167006	Presser Foot, C. Set(Y6)	1
23	2127003	Presser Foot Hinge	1
24	004351	Screw(9/64-40 × 7)	1
25	2127000	Presser Foot Spring	1
26	003637	Screw(1/8-44 × 2.5)	1
27-1	2167026	Presser Foot(Lower)(Y5)	1
27-2	2167030	Presser Foot(Lower)(Y6)	1
28	0026140	Presser Foot Hinge Pin	1
29	0026142	Presser Foot Chain Shield	1
30	004237	Screw(3/32-56 × 2.6)	1
32-1	2108020	Stitch Plate(Y5)	1
32-2	2108021	Stitch Plate(Y6)	1
33-1	0026198	Folder(for Light Materials)(16mm)	1
33-2	0026225	Folder(for Light Materials)(18mm)	1
33-3	0026237	Folder(for Light Materials)(20mm)	1
33-4	0026227	Folder(for Light Materials)(22mm)	1
33-5	0026199	Folder(for Heavy Materials)(16mm)	1
33-6	0026226	Folder(for Heavy Materials)(18mm)	1
33-7	0026236	Folder(for Heavy Materials)(20mm)	1
33-8	0026228	Folder(for Heavy Materials)(22mm)	1
34	001331	Screw(9/64-40 × 3.8)	2
35	0026238	Piping Tape Folder, C. Set	1
36	0026246	Piping Tape Folder Support	1
37	0026251	Piping Tape Guide Plate	1
38	0026250	Edge Guide(Upper)	1
39	001331	Screw(9/64-40 × 3.8)	4

Page 51 — K2 DEVICE

Yamato AZF8000G Series parts on page 51
Ref	Part number	Part name	Qty
1	2169900	K2 Device, Complete Set	1
2	2121000	Suction Pipe, Complete Set	1
3	2111051	Suction Pipe	1
4	310017	Oil Wick(No.2-300mm)	1
5	000755	Oil Wick Pin	1
6	2121001	Suction Pipe Cover	1
7	004237	Screw(3/32-56 × 2.6)	1
8	004404	Screw(3/32-56 × 5.1)	2
9	2111055	Upper Trimming Knife	1
10	004131	Screw(1/8-44 × 6)	1
11	004139	Screw(3/32-56 × 3)	2
12	2111059	Lower Trimming Knife Holder Pin	1
13	2111056	Lower Trimming Knife	1
14	004236	Screw(3/32-56 × 4.2)	1
15	2111057	Lower Trimming Knife Driving Plate	1
16	2111062	Spring Sleeve	1
17	2111061	Lower Trimming Knife Pushing Spring	1
18	2111066	Spring Protect Washer	1
19	2111060	Washer	1
20	2111067	Air Shield Rubber	1
21	007623	Screw(9/64-40 × 5.3)	2
22	2111058	Lower Trimming Knife Guide Support	1
23	110068	Screw(M4-0.7 × 8)	1
24	2101011	Lower Trimming Knife Guide	1
25	270001	Screw(1/8-44 × 3)	1
26	0021451	Suction Power Control, C. Set	1
27	0021457	Suction Power Control Tube(Inner)	1
28	0021456	Suction Power Control Tube	1
29	001892	Screw(1/8-44 × 2.9)	1
30	0021450	Nylon Hose	1
31	2101059	Cloth Plate Spacer	1
32	110042	Screw(M3.5-0.6 × 4)	2
33	2151000	Suction Pipe Support	1

Page 53 — C DEVICE / C装置

Yamato AZF8000G Series parts on page 53
Ref	Part number	Part name	Qty
1	2109932	C Device, Complete Set	1
2	0033939	Hose Band(1/4 inch)	1
3	1094011	Hose Nipple(PT1/8 × 8)	1
4	1097000	Regulator(AR2000-01BG)	1
5	009960	Screw(M5-0.8 × 16)	2
6	000669	Washer	4
7	000600	Spring Washer	2
8	000009	Nut	2
9	1097001	Regulator Support	1
10	006905	Wood Screw(ϕ 5.1 × 20)	2
11	0010263	Connector(EC6-PT1/8)	1
12	1096000	Nylon Hose(4 × 6 × 2000mm)	1
13	1298000	Air Valve, Complete Set	1
14	0033938	Collar(6.4 × 13 × 9mm)	1
15	005040	Screw(11/64-40 × 8.5)	5
16	0033937	Return Spring	1
17	0033936	Air Valve Holder	1
18	0033935	Air Valve Stop	1
19	000334	Nut	1
20	005505	Adjusting Screw(11/64-40 × 16)	1
21	1090133	TAC Valve, C. Set	1
22	0010052	TAC Valve	1
23	000623	Gasket	2
24	0010112	Joint(I-4)	2
25	0010290	Connector(EFC6-PT1/8)	1
26	0010310	Venturi Tube	1
27	0033940	Hose Band(3/8 inch)	2
28	1096004	Vinyl Hose(12 × 18 × 1500mm)	1
29	1096005	Vinyl Hose(12 × 18 × 500mm)	1
30	0011987	UL Clamp	3
31	009814	Wood Screw(ϕ 3.1 × 20)	3

Page 55 — B3 DEVICE for AZF8003G-04-10, 8020G-X4-10 / B3装置

Yamato AZF8000G Series parts on page 55
Ref	Part number	Part name	Qty
1	2109907	B3 Device, C. Set	1
2	2101133	Back Tack Cutting Unit	1
3	2101134	Thread Chain Cutting Knife Holder	1
4	0023184	Thread Chain Cutting Knife	1
5	0023169	Thread Chain Cutting Knife Holder Spacer	1
6	003637	Screw(1/8-44 × 2.5)	2
7	004205	Screw(11/64-40 × 18)	1
8	0024308	Thread Chain Holder	1
9-1	0023182	Thread Chain Holder Spring(Standard)	1
9-2	0033711	Thread Chain Holder Spring(with Stronger Pressure)	1
10	000361	Adjusting Nut	2
11	000535	Washer	1
12	110044	Screw(M3.5-0.6 × 14)	1
13	2101050	Cloth Plate	1
14	0036905	Synchronizer Positioning Pin	1
15	110009	Screw(M4-0.7 × 8)	1
16	0081848	Synchronizer Cushion	1
17	2127245	Presser Foot, C. Set(O4-10)	1
18	2127003	Presser Foot Hinge	1
19	004351	Screw(9/64-40 × 7)	1
20	2127000	Presser Foot Spring	1
21	003637	Screw(1/8-44 × 2.5)	1
22	2127265	Presser Foot(Lower)(O4-10)	1
23	0026140	Presser Foot Hinge Pin	1
24	0026142	Thread Chain Guide	1
25	004237	Screw(3/32-56 × 1.7)	1
26	2108008	Stitch Plate(O4)	1
27	2109010	Differential Feed Dog	1
28	2109011	Main Feed Dog	1
29	2127247	Presser Foot, C. Set(X4-10)	1
30	2127267	Presser Foot(Lower)(X4-10)	1
31	0060297	Pin	1
32	2108013	Stitch Plate(X4)	1
33	2109015	Differential Feed Dog	1
34	2109016	Main Feed Dog	1

Page 57 — CH20 DEVICE(1) for AZF8000G-04

Yamato AZF8000G Series parts on page 57
Ref	Part number	Part name	Qty
1	0023714	Device Supporting Plate	1
2	009150	Screw(11/64-40 × 11)	1
3	0023726	Device Holder Base	1
4	0023750	Device Holder Base Fixing Spring Plate	1
5	0023763	Supplementary Fixing Spring Plate	1
6	004353	Screw(9/64-40 × 7)	4
7	0023715	Solenoid Holder Fixing Spring Plate	1
8	0023769	Fixing Spring	1
9	000533	Washer	1
10	001175	Screw(9/64-40 × 8)	1
11	005589	Screw(1/4-40 × 14.5)	1
12	000621	Conical Spring Washer	2
13	0023725	Solenoid Holder	1
14	000613	Washer	1
15	000306	Nut	1
16	001333	Stop Screw(3/32-56 × 3.9)	1
17	0026470	Rotary Solenoid Cover	1
18	005000	Screw(9/64-40 × 5.7)	2
19	0011190	Rotary Solenoid(Large)	1
20	005550	Screw(11/64-40 × 13.5)	1
21	0036111	Hemming Guide Interlocking Lever	1
22	0036132	Retaining Ring	1
23	0094491	Cord Clamp(φ 3.4-2N)	1
24	0023711	Guide Pin	1
25	004358	Screw(9/64-40 × 5.6)	4
26	005585	Adjusting Screw(11/64-40 × 10)	1
27	001049	Sticker	1
28	0023723	Guide Collar	1
29	003638	Screw(11/64-40 × 4)	1
30	0023717	Solenoid Holder Cover	1
31	000322	Lock Nut	3
32	001326	Positioning Screw(9/64-40 × 7.5)	1
33	0063612	Cord Clamp(φ 6.8-4N)	2
34	0023722	Solenoid Supporting Plate	1
35	004406	Screw(11/64-40 × 8)	2
36	0011191	Rotary Solenoid(Small)	1
37	007606	Adjusting Screw(9/64-40 × 20)	2
38	000014	Washer	2
39	000002	Spring Washer	2
40	000012	Nut(M3)	2

Page 59 — CH20 DEVICE(1) for AZF8000G-04

Yamato AZF8000G Series parts on page 59
Ref	Part number	Part name	Qty
41	0023718	Edge Guide Interlocking Lever	1
42	005038	Screw(11/64-40 × 8)	1
43	0023712	Edge Guide Interlocking Plate	1
44	005588	Screw(11/64-40 × 2.1)	1
45	0023713	Edge Guide Holding Shaft	1
46	0023700	Hemming Guide Interlocking Shaft	1
47	009931	Screw(11/64-40 × 26)	2
48	000550	Fiber Cushion	4
49	0023779	Cushion(Vinyl)	2
50	000010	Conical Spring Washer	4
51	0020538	Rubber Cushion	2
52	000334	Nut	2
53	110065	Screw(M4-0.7 × 12)	3
54	280000	Screwed Pin(11/64-40 × 12)	1
55	2110327	Adjusting Lever	1
56	160001	Screw(M4-0.7 × 4)	2
57	2101038	Adjusting Screw Guide	1
58	0060248	Cord Clamp(φ 5.3-3N)	1

Page 61 — CH20 DEVICE(2) for AZF8000G-04

Yamato AZF8000G Series parts on page 61
Ref	Part number	Part name	Qty
1-1	2101391	Blind-Hemming Guide, C. Set(for 25mm)	1
1-2	0023740	Blind-HemmingGuide,C.Set(for35mm)(Extra)	1
2-1	2101390	Blind-Hemming Guide	1
2-2	0023739	Blind-Hemming Guide(Extra)	1
3-1	2101393	Hemming Positioner	1
3-2	0023741	Hemming Positioner(Extra)	1
4	004236	Screw(3/32-56 × 4.2)	1
5	005036	Screw(1/8-44 × 5.6)	2
6	0023744	Hemming Guide Bracket, C. Set	1
7	000335	Lock Nut	1
8	006820	Adjusting Screw(9/64-40 × 12.3)	1
9	0036161	Anti-shock Rubber	1
10	001202	Screw(9/64-40 × 6.6)	1
11	003637	Screw(1/8-44 × 2.5)	3
12	1200182	Side Seam Detector Unit	1
14	005588	Screw(11/64-40 × 2.1)	1
15	0023747	Blind-Hemming Edge Guide, C. Set	1
16	0023724	Blind-Hemming Edge Guide	1
17	0023707	Slide Edge Guide	1
18	0023705	Slide Edge Guide Holder	1
19	007609	Screw(9/64-40 × 9)	2
20	0023708	Sensor	1
21	0023737	Slide Edge Guide Pressing Spring	1
22	005000	Screw(9/64-40 × 5.7)	1
23	0023709	Collar(2 × 5 × 5mm)	1
24	004237	Screw(3/32-56 × 2.6)	2
25	0023710	Sensor Spring	1
26	0023756	Magnet Unit	1
27	001613	Screw(3/32-56 × 4.5)	2
28	2101394	IC Positioner, Complete Set	1
29	2101395	IC Positioner	1
30	005591	Adjusting Screw(1/8-44 × 6.2)	1
32	0023703	Raterally Sliding Plate	1
33	004440	Screw(11/64-40 × 8.3)	2
34	0023767	HemmingPositioner(forLightMaterials)	1
35	0023768	Spacer(for Light Materials)	1

Page 63 — CH20 DEVICE(3) for AZF8000G-O4 / CH20装置(3)

Yamato AZF8000G Series parts on page 63
Ref	Part number	Part name	Qty
1	1200006	Presser Foot Switch Unit	1
2	110013	Screw(M4-0.7 × 8)	3
3	0023734	Magnet for Presser Foot Switch	1
4	004353	Screw(9/64-40 × 7)	2
5	0023720	Switch Plate Spacer	1
6	2121021	Switch Plate	1
7	005587	Screw(9/64-40 × 8.6)	1
8	005512	Guide Screw(11/64-40 × 3)	1
9	2151013	Presser Foot Lifter Lever	1
10	2111011	Oil Cooling Fan Magnet Unit	1
11	1200095	Rotation Detector Unit	1
12	2101124	Cord Bushing	1
13-1	0011943	Power Cord(for 100 Voltage)	1
13-2	0011944	Power Cord(for 200 Voltage)	1
13-3	0011945	Power Cord(for 220 Voltage)	1
13-4	0011946	Power Cord(for 380 Voltage)	1
14	0011709	Control Box Stay	4
15	006905	Wood Screw(ϕ 5.1 × 20)	10
16	0011180	Control Box, Complete Set	1
17	0011182	Control Board	1
18	0011974	Voltage Regulator	1
19	0011183	Power Board	1
20	0011192	Knee Switch, Complete Set	1
21	0092232	Knee Switch Holder	1
22	0011189	Knee Switch	1
23	300031	Washer	4
24	300033	Spring Washer	2
25	100038	Wing Nut	2
26	0035722	Cord Bushing	1
27	2151012	Tension Disc Eyelet Support	1
28	110106	Screw(M4-0.7 × 8)	2
29	004265	Tension Post(Short)	2

Page 65 — SC10 DEVICE

Yamato AZF8000G Series parts on page 65
Ref	Part number	Part name	Qty
1	2151067	Lint Removal Pipe	1
2	2151066	Pipe Clamp	2
3	110094	Screw(M4-0.7 × 6)	2
4	2151059	Blowing Hole Screen	1
5	2151057	Wind Guide Plate(Front)	1
6	110001	Screw(M4-0.7 × 5.4)	2
7	2151058	Air Deflector	1

Page 67 — EXTRA PARTS(1)

Yamato AZF8000G Series parts on page 67
Ref	Part number	Part name	Qty
1-1	2127250	Presser Foot, C. Set(O3)	1
1-2	2127251	Presser Foot, C. Set(O4)	1
1-3	2127252	Presser Foot, C. Set(O5)	1
2	2127291	Presser Foot Hinge	1
3	004351	Screw(9/64-40 × 7)	1
4	2127290	Presser Foot Spring	1
5	003637	Screw(1/8-44 × 2.5)	1
6-1	2127270	Presser Foot(Lower)(O3)	1
6-2	2127271	Presser Foot(Lower)(O4)	1
6-3	2127272	Presser Foot(Lower)(O5)	1
7	0026140	Presser Foot Hinge Pin	1
8	0026142	Presser Foot Chain Shield	1
9	004237	Screw(3/32-56 × 2.6)	1
10	2129094	Top Feed Dog	1
11-1	2127253	Presser Foot, C. Set(Y5)	1
11-2	2127254	Presser Foot, C. Set(Y6)	1
12-1	2127273	Presser Foot(Lower)(Y5)	1
12-2	2127274	Presser Foot(Lower)(Y6)	1
13	2129095	Top Feed Dog	1
14-1	2127255	Presser Foot, C. Set(X4)	1
14-2	2127256	Presser Foor, C. Set(X5)	1
15-1	2127275	Presser Foot(Lower)(X4)	1
15-2	2127276	Presser Foot(Lower)(X5)	1

Page 69 — EXTRA PARTS(2)

Yamato AZF8000G Series parts on page 69
Ref	Part number	Part name	Qty
1	0026367	Presser Foot, C. Set(Y5)	1
2	0026139	Presser Foot Hinge	1
3	004351	Screw(9/64-40 × 7)	1
4	0026141	Presser Foot Spring	1
5	003637	Screw(1/8-44 × 2.5)	1
6	0026365	Presser Foot(Lower)(Y5)	1
7	0026140	Presser Foot Hinge Pin	1
8	0026142	Presser Foot Chain Shield	1
9	004237	Screw(3/32-56 × 2.6)	1
10	0026366	Presser Foot Tape Guide	1
11	004237	Screw(3/32-56 × 2.6)	2
12	0026364	Adjusting Tape Guide	1
13	2129081	Top Feed Dog	1
14	2127258	Presser Foot, C. Set(Y5)	1
15	2127291	Presser Foot Hinge	1
16	2127290	Presser Foot Spring	1
17	2127257	Presser Foot(Lower)(Y5)	1
18	2129095	Top Feed Dog	1
19	2129077	Top Feed Dog(P=1.25)	1
20	2129079	Top Feed Dog(P=1.25)	1

Page 71 — MICCELLANEOUS SUPPORTING BOARD

Yamato AZF8000G Series parts on page 71
Ref	Part number	Part name	Qty
1	2150212	Belt Cover	1
2	110015	Screw(M4-0.7 × 25)	2
3	2150213	Supplementary Belt Cover	1
4	110013	Screw(M4-0.7 × 8)	2
5	2100339	Supporting Board	1
6	000070	Hanging Nut	4
7	009861	Hanging Bolt(Semi-submerged only)	4
8	2101450	Spacer(15mm)	4
9	2101451	Spacer(5mm)(See the below)	4
10	0020064	Supporting Board Rubber Cushion	8
11	000162	Washer(Semi-submerged)	4
11	000162	Washer(Full-submerged)	20
12	000016	Nut(Semi-submerged)	8
12	000016	Nut(Full-submerged)	20
13	2100375	Chute(Upper) Support	1
14	005624	Screw(M4-0.7 × 10)	4
15	2100337	Chute(Upper)	1
16	2100338	Chute(Lower)	1
17	009864	Hanging Bolt(Full-submerged only)	4
18	009871	Bolt(Full-submerged only)	4
19	0020057	Supporting Board Connector(Full-submerged only)	2
20	0020045	Supporting Board Sleeve(Full-submerged only)	2
21	2100336	Supplementary Chute Cover	1
22	000538	Washer	1
23	140011	Wing Bolt(M4-0.7 × 6)	1
24	2100374	Chip Receiver(Semi-submerged only)	1
25	350007	Wood Screw(φ 3.5 × 16)	2
26	0020078	Idler, C. Set(for Left Footing Pedal)	1
27	0020077	Idler Support	1
28	009992	Screw(M4-0.7 × 10)	2
29	0020076	Idler	1
30	009995	Screw(M3-0.5 × 5)	2
31	2160018	Timming Gauge	1

Page 73 — THREAD STAND

Yamato AZF8000G Series parts on page 73
Ref	Part number	Part name	Qty
1-1	9620693	Thread Stand, C. Set(3 Spools Type)	1
1-2	9620694	Thread Stand, C. Set(4 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	5(6)
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut(M16-1.5)	1
15	9620702	Thread Hanger(2 Spools Type)	4
16	9620703	Thread Hanger(3 Spools Type)	2
17	9620700	Thread Eyelet	3(4)
18	9620688	Thread Hanger Holder	2(4)
19	911060	Screw(M6-1 × 15)	2(4)
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620663	Thread Guide(3 Spools Type)	1
23	9620678	Spool Cushion	3(4)
24	9620679	Spool Pin	3(4)
25	9620680	Spool Mat	3(4)
26	9620681	Spool Seat Disc	3(4)
27	930055	Spring Washer	3(4)
28	9620665	Thread Guide(5 Spools Type)	1

Page 74 — WARNING LABEL 警告ラベル

Yamato AZF8000G Series parts on page 74
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 76 — AZF8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato AZF8000G Series parts on page 76
Ref	Part number	Part name	Qty
	2169102	Needle Clamp
	2127240	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127260	Presser Foot (Lower)
	2169102	Needle Clamp
	2127241	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127261	Presser Foot (Lower)
	2169102	Needle Clamp
	2127099	Presser Foot, C. Set
	2127004	Presser Foot Hinge
	2127001	Presser Foot Spring
	2127069	Presser Foot (Lower)
	2169102	Needle Clamp
	2127245	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127265	Presser Foot (Lower)
	2169102	Needle Clamp
	AZF8003G-O4-10/B3	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127265	Presser Foot (Lower)
	2169101	Needle Clamp
	2127247	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127267	Presser Foot (Lower)
	2169102	Needle Clamp
	2127230	Presser Foot, C. Set
	AZF8025G-Y5-10	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127280	Presser Foot (Lower)
	2169102	Needle Clamp
	2127231	Presser Foot, C. Set
	AZF8025G-Y6-10	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127281	Presser Foot (Lower)
	2169101	Needle Clamp
	2127232	Presser Foot, C. Set
	AZF8025G-X4-10	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127282	Presser Foot (Lower)
	2169102	Needle Clamp
	2127088	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127058	Presser Foot (Lower)
	2169102	Needle Clamp
	2167005	Presser Foot, C. Set
	2127003	Presser Foot Hinge
	AZF8026G-Y5-10	Presser Foot Spring
	2167026	Presser Foot (Lower)
	2169102	Needle Clamp
	2127089	Presser Foot, C. Set
	AZF8026G-Y6	Presser Foot Hinge
	2127000	Presser Foot Spring
	2127059	Presser Foot (Lower)

Page 77

Yamato AZF8000G Series parts on page 77
Ref	Part number	Part name	Qty
	2108004	Stitch Plate
	2109005	Differential Feed Dog
	2109006	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129078	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	2108005	Stitch Plate
	2109009	Differential Feed Dog
	〃	Main Feed Dog
	〃	Auxiliary Feed Dog
	〃	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper
	2108000	Stitch Plate
	2109000	Differential Feed Dog
	2109001	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129012	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	2108003	Stitch Plate
	2109005	Differential Feed Dog
	2109006	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129078	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	2108008	Stitch Plate
	2109010	Differential Feed Dog
	2109011	Main Feed Dog
	〃	Auxiliary Feed Dog
	〃	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper
	2108013	Stitch Plate
	2109015	Differential Feed Dog
	2109016	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129078	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	2108004	Stitch Plate
	2109005	Differential Feed Dog
	2109006	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129080	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	2108005	Stitch Plate
	2109009	Differential Feed Dog
	〃	Main Feed Dog
	〃	Auxiliary Feed Dog
	〃	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper
	2108006	Stitch Plate
	2109005	Differential Feed Dog
	〃	Main Feed Dog
	〃	Auxiliary Feed Dog
	〃	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper
	2108020	Stitch Plate
	2109005	Differential Feed Dog
	2109006	Main Feed Dog
	2109067	Auxiliary Feed Dog
	2129009	Top Feed Dog
	2129300	Upper Looper
	2109347	Lower Looper
	〃	Stitch Plate
	〃	Differential Feed Dog
	〃	Main Feed Dog
	〃	Auxiliary Feed Dog
	2129078	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper
	2108021	Stitch Plate
	2109009	Differential Feed Dog
	〃	Main Feed Dog
	〃	Auxiliary Feed Dog
	2129009	Top Feed Dog
	〃	Upper Looper
	〃	Lower Looper

Page 78 — INDEX

Yamato AZF8000G Series parts on page 78
Ref	Part number	Part name	Qty
39	000002	AZF8000G	25
8	000009	AZF8000G	23
6	000010	AZF8000G	2
50	000010	AZF8000G	25
40	000012	AZF8000G	25
44	000014	AZF8000G	4
35	000014	AZF8000G	12
38	000014	AZF8000G	25
12	000016	AZF8000G	31
12	000016	AZF8000G	31
26	000035	AZF8000G	6
6	000070	AZF8000G	31
11	000162	AZF8000G	31
11	000162	AZF8000G	31
34	000172	AZF8000G	17
6	000172	AZF8000G	20
6	000172	AZF8000G	21
9	000177	AZF8000G	4
7	000178	AZF8000G	4
26	000280	AZF8000G	11
15	000306	AZF8000G	25
26	000322	AZF8000G	4
31	000322	AZF8000G	25
35	000334	AZF8000G	17
8	000334	AZF8000G	20
8	000334	AZF8000G	21
19	000334	AZF8000G	23
52	000334	AZF8000G	25
7	000335	AZF8000G	26
10	000361	AZF8000G	24
45	000393	AZF8000G	6
30	000419	AZF8000G	16
9	000444	AZF8000G	2
41	000456	AZF8000G	16
14	000487	AZF8000G	8
23	000526	AZF8000G	5
38	000528	AZF8000G	14
8	000533	AZF8000G	10
27	000533	AZF8000G	17
9	000533	AZF8000G	25
11	000535	AZF8000G	24
8	000538	AZF8000G	11
22	000538	AZF8000G	31
48	000550	AZF8000G	25
15	000554	AZF8000G	11
39	000561	AZF8000G	14
48	000567	AZF8000G	6
6	000567	AZF8000G	16
7	000600	AZF8000G	23
14	000613	AZF8000G	25
12	000621	AZF8000G	25
23	000623	AZF8000G	23
26	000629	AZF8000G	12
5	000644	AZF8000G	1
25	000644	AZF8000G	4
30	000653	AZF8000G	4
12	000663	AZF8000G	11
2	000665	AZF8000G	11
9	000665	AZF8000G	17
6	000669	AZF8000G	14
6	000669	AZF8000G	23
48	000687	AZF8000G	10
27	000688	AZF8000G	7
34	000690	AZF8000G	14
36	000726	AZF8000G	1
11	000750	AZF8000G	9
20	000755	AZF8000G	10
5	000755	AZF8000G	22
31	000779	AZF8000G	12
27	001049	AZF8000G	25
4	001123	AZF8000G	1
36	001123	AZF8000G	2
10	001175	AZF8000G	25
43	001196	AZF8000G	17
10	001202	AZF8000G	26
21	001203	AZF8000G	2
42	001225	AZF8000G	17
14	001227	AZF8000G	20
14	001227	AZF8000G	21
32	001326	AZF8000G	25
37	001331	AZF8000G	17
15	001331	AZF8000G	20
34	001331	AZF8000G	20
39	001331	AZF8000G	20
15	001331	AZF8000G	21
34	001331	AZF8000G	21
39	001331	AZF8000G	21
16	001333	AZF8000G	25
27	001613	AZF8000G	26
29	001892	AZF8000G	22
22	003636	AZF8000G	5
10	003637	AZF8000G	1
23	003637	AZF8000G	2
23	003637	AZF8000G	6
39	003637	AZF8000G	8
12	003637	AZF8000G	10
22	003637	AZF8000G	11
14	003637	AZF8000G	17
5	003637	AZF8000G	18
8	003637	AZF8000G	19
26	003637	AZF8000G	20
26	003637	AZF8000G	21
6	003637	AZF8000G	24
21	003637	AZF8000G	24
11	003637	AZF8000G	26
5	003637	AZF8000G	29
5	003637	AZF8000G	30
20	003638	AZF8000G	20
20	003638	AZF8000G	21
29	003638	AZF8000G	25
45	004097	AZF8000G	8
7	004106	AZF8000G	10
45	004106	AZF8000G	17
10	004131	AZF8000G	22
11	004139	AZF8000G	22
33	004150	AZF8000G	17
7	004150	AZF8000G	20
7	004150	AZF8000G	21
7	004205	AZF8000G	24
14	004236	AZF8000G	22
4	004236	AZF8000G	26
43	004237	AZF8000G	8
9	004237	AZF8000G	18
12	004237	AZF8000G	19
30	004237	AZF8000G	20
30	004237	AZF8000G	21
7	004237	AZF8000G	22
25	004237	AZF8000G	24
24	004237	AZF8000G	26
9	004237	AZF8000G	29
9	004237	AZF8000G	30
11	004237	AZF8000G	30
29	004265	AZF8000G	27
37	004351	AZF8000G	8
25	004351	AZF8000G	11
12	004351	AZF8000G	17
3	004351	AZF8000G	18
6	004351	AZF8000G	19
24	004351	AZF8000G	20
24	004351	AZF8000G	21
19	004351	AZF8000G	24

Page 79 — INDEX

Yamato AZF8000G Series parts on page 79
Ref	Part number	Part name	Qty
3	004351
3	004351
6	004353
4	004353
25	004358
8	004404
35	004406
33	004440
18	005000
22	005000
26	005036
11	005036
11	005036
5	005036
42	005038
15	005040
14	005049
30	005075
31	005345
20	005505
8	005512
30	005550
3	005550
20	005550
26	005585
7	005587
44	005588
14	005588
11	005589
30	005591
14	005624
24	006035
48	006444
22	006816
8	006820
29	006861
10	006905
15	006905
28	007006
37	007606
19	007609
46	007619
21	007623
2	009150
9	009604
31	009624
62	009747
31	009814
7	009861
17	009864
18	009871
47	009931
5	009960
28	009992
30	009995
22	0010052
24	0010112
11	0010263
25	0010290
26	0010310
16	0011180
17	0011182
19	0011183
22	0011189
19	0011190
36	0011191
20	0011192
14	0011709
2713-1	0011943
2713-2	0011944
2713-3	0011945
2713-4	0011946
18	0011974
30	0011987
15	0020004
16	0020005
22	0020016
31	0020045
27	0020051
31	0020057
31	0020064
31	0020076
31	0020077
31	0020078
4	0020118
1	0020137
3	0020218
8	0020271
11	0020350
14	0020350
15	0020401
2	0020491
7	0020496
14	0020538
16	0020538
25	0020538
22	0021450
22	0021451
22	0021456
22	0021457
4	0022215
17	0022435
20	0022435
21	0022435
17	0022436
20	0022436
21	0022436
17	0022443
17	0022444
17	0022445
17	0022446
17	0022447
20	0022447
21	0022447
17	0022448
20	0022448
21	0022448
20	0022963
21	0022963
20	0022981
21	0022981
20	0022982
21	0022982
5	0023169
24	0023182
4	0023184
10	0023234
15	0023473
25	0023700
26	0023703
26	0023705
26	0023707
26	0023708
26	0023709

Page 80 — INDEX

Yamato AZF8000G Series parts on page 80
Ref	Part number	Part name	Qty
25	0023710
24	0023711
43	0023712
45	0023713
1	0023714
7	0023715
30	0023717
41	0023718
5	0023720
34	0023722
28	0023723
16	0023724
13	0023725
3	0023726
3	0023734
21	0023737
2-2	0023739
1-2	0023740
3-2	0023741
6	0023744
15	0023747
4	0023750
26	0023756
5	0023763
34	0023767
35	0023768
8	0023769
49	0023779
4	0024083
3	0024084
25	0024095
1	0024130
14	0024156
5	0024157
22	0024302
8	0024308
20	0024446
9	0026075
21	0026081
11	0026081
23	0026099
2	0026139
41	0026140
16	0026140
7	0026140
10	0026140
28	0026140
23	0026140
7	0026140
7	0026140
4	0026141
42	0026142
8	0026142
13	0026142
29	0026142
29	0026142
24	0026142
8	0026142
8	0026142
33-1	0026198
33-5	0026199
33-5	0026199
33-2	0026225
33-2	0026225
33-6	0026226
33-6	0026226
33-4	0026227
33-4	0026227
33-8	0026228
33-8	0026228
33-7	0026236
33-7	0026236
33-3	0026237
33-3	0026237
35	0026238
35	0026238
1	0026239
1	0026239
5	0026240
5	0026240
4	0026241
4	0026241
2	0026242
2	0026242
3	0026243
3	0026243
36	0026246
36	0026246
38	0026250
38	0026250
37	0026251
37	0026251
12	0026364
6	0026365
11	0026366
10	0026366
1	0026367
22	0026413
38	0026418
18	0026427
20	0026428
24	0026429
19	0026430
28	0026431
17	0026434
21	0026438
17	0026470
27	0030748
8	0031111
9	0031831
34	0032604
8	0032646
23	0032879
24	0032919
12	0032952
11	0032962
13	0032971
14	0033024
25	0033024
29	0033104
2	0033104
24	0033627
9-2	0033711
18	0033935
17	0033936
16	0033937
14	0033938
2	0033939
27	0033940
49	0034293
25	0034867
26	0035722
21	0036111
22	0036132
9	0036161

Page 81 — INDEX

Yamato AZF8000G Series parts on page 81
Ref	Part number	Qty
14	0036905	24
58	0060248	25
51	0060297	17
11	0060297	18
31	0060297	24
33	0063612	25
29	0068202	14
23	0068206	11
15	0068517	3
26	0080503	16
16	0081848	24
21	0092232	27
37	0093303	4
42	0093303	5
1	0093323	10
16	0093864	7
23	0094491	25
8	0095027	14
40	100000	14
13	100001	1
23	100001	8
55	100001	10
13	100001	11
5	100002	14
11	100029	11
25	100038	27
2	100073	8
52	100074	10
22	110001	4
29	110001	6
21	110001	7
6	110001	28
36	110002	6
24	110002	10
36	110002	12
28	110003	2
47	110004	10
3	110004	15
18	110006	6
8	110008	8
36	110009	4
27	110009	6
6	110009	11
12	110009	12
14	110009	13
18	110009	20
18	110009	21
15	110009	24
33	110011	6
12	110012	1
11	110012	2
9	110012	3
18	110012	7
43	110012	10
2	110012	19
33	110013	1
2	110013	2
3	110013	2
7	110013	3
2	110013	4
20	110013	4
46	110013	6
3	110013	11
2	110013	27
4	110013	31
2	110015	31
18	110016	1
43	110016	14
45	110017	14
48	110023	8
45	110026	4
33	110026	15
14	110031	1
26	110033	14
40	110035	4
12	110035	7
45	110035	10
9	110035	11
13	110036	5
17	110036	13
8	110038	17
32	110042	22
12	110044	24
6	110045	1
34	110045	2
42	110045	2
32	110045	16
26	110046	7
50	110047	17
16	110047	20
16	110047	21
3	110048	3
34	110050	10
45	110053	16
32	110054	2
15	110062	7
19	110064	3
29	110064	11
2	110064	15
22	110065	8
53	110065	25
23	110068	22
24	110070	15
17	110071	12
29	110073	4
8	110076	2
3	110094	28
15	110106	2
28	110106	27
2	120001	9
6	120006	6
6	120006	7
7	120006	9
5	120006	12
5	120006	13
2	120006	14
17	120010	8
27	120011	9
15	120013	9
6	120013	10
32	120013	12
28	120017	1
20	120017	8
29	120017	8
2	120049	6
2	120049	7
2	120049	12
2	120049	13
4	120049	16
16	130001	12
15	130002	15

Page 82 — INDEX

Yamato AZF8000G Series parts on page 82
Ref	Part number	Qty
25	130003	3
35	130003	15
17	140000	14
11	140001	14
12	140002	13
13	140003	6
21	140004	12
23	140011	31
5	140012	17
30	140014	7
56	140032	10
10	150004	3
8	160001	1
4	160001	5
34	160001	8
19	160001	9
10	160001	12
33	160001	14
12	160001	15
3	160001	16
56	160001	25
4	160002	6
4	160002	7
23	160002	12
8	160003	6
8	160003	7
8	160003	13
29	160003	15
2	160007	5
26	160007	8
5	160007	9
21	160007	14
10	160007	15
19	160016	6
14	160027	5
5	170032	2
58	170041	10
11	170045	8
15	170047	8
59	170048	10
34	170049	4
23	180002	15
28	180003	15
18	180014	13
41	190001	14
13	190015	2
10	190016	4
10	190039	11
53	190081	10
1	190088	8
30	210009	12
25	270001	22
54	280000	25
4	300000	14
27	300004	1
12	300008	6
20	300008	12
11	300008	13
23	300031	27
24	300033	27
34	300043	1
19	300106	13
42	310001	6
40	310005	6
4	310017	22
33	310046	9
37	310046	10
15	310047	10
31	310054	10
28	310065	12
21	310068	10
19	310069	10
20	310073	16
48	310081	16
16	310089	6
24	310089	12
42	310090	16
18	310105	4
25	310109	5
47	320008	6
11	320008	16
23	320009	16
49	320012	16
17	330000	3
16	330008	3
12	330008	9
4	330009	9
6	340050	8
25	350007	31
17	390165	2
18	390166	2
16	390170	2
10	910000	32
7	910001	32
14	910003	32
6	911001	32
5	911002	32
9	911006	32
19	911060	32
12	930052	32
13	930053	32
27	930055	32
21	1090133	23
3	1094011	23
12	1096000	23
28	1096004	23
29	1096005	23
4	1097000	23
9	1097001	23
1	1200006	27
11	1200095	27
12	1200182	26
13	1298000	23
27	2020048	11
35	2049401	1
1	2100006	1

Page 83 — INDEX

Yamato AZF8000G Series parts on page 83
Ref	Part number	Qty
22	2100009	7
7	2100011	1
9	2100012	1
3	2100014	1
24	2100024	2
43	2100032	16
21	2100037	3
4	2100047	3
17	2100050	17
19	2100052	17
17	2100053	1
3	2100088	12
3	2100088	13
34	2100098	5
12	2100111	5
19	2100117	5
11	2100136	6
7	2100137	6
14	2100138	6
3	2100144	6
32	2100145	6
39	2100152	6
1	2100160	7
7	2100161	7
9	2100161	12
7	2100161	13
5	2100162	7
11	2100164	7
10	2100165	7
25	2100166	7
28	2100167	7
29	2100168	7
3	2100173	7
19	2100174	7
15	2100176	6
18	2100197	8
33	2100199	8
10	2100211	13
1	2100215	13
9	2100219	13
15	2100227	12
38	2100229	4
14	2100241	14
13	2100242	14
15	2100243	14
16	2100244	14
9	2100248	14
10	2100249	14
3	2100251	14
28	2100252	14
30	2100253	14
35	2100256	14
46	2100257	14
48	2100259	14
31	2100262	14
37	2100263	14
47	2100264	14
12	2100266	14
32	2100267	14
27	2100269	14
42	2100271	14
29	2100272	5
21	2100275	15
22	2100276	15
19	2100277	15
20	2100278	15
27	2100279	15
16	2100280	15
14	2100281	15
13	2100283	15
17	2100284	15
20	2100288	14
25	2100289	15
8	2100318	3
21	2100336	31
15	2100337	31
16	2100338	31
5	2100339	31
6	2100349	17
7	2100353	17
4	2100354	17
2	2100363	16
14	2100369	16
24	2100374	31
13	2100375	31
1	2100385	17
28	2100502	6
19	2100518	8
41	2100533	6
27	2100534	2
43	2100535	6
44	2100536	6
19	2100538	2
5	2100580	8
11	2100602	15
36	2100642	5
20	2100642	6
22	2100671	14
23	2100672	14
24	2100673	14
25	2100674	14
33	2100854	12
31	2100856	2
13	2100861	3
20	2100864	1
1	2100865	15
4	2100866	15
5	2100867	15
8	2100868	15
6	2100869	15
7	2100870	15
15	2100872	5
23	2100873	3
24	2100874	3
26	2100875	1
27	2100892	12
40	2100895	16
39	2100896	16
1	2100900	12
6	2100902	13
22	2100903	12
20	2100918	3
16	2100926	16
17	2100927	16
18	2100928	16
19	2100929	16
1	2100935	16
5	2100946	6
15	2100957	16
12	2100958	16
11	2100961	3
24	2101011	22
30	2101020	17
29	2101021	17
44	2101022	17
24	2101026	17
23	2101027	17
57	2101038	25
13	2101050	24
31	2101059	22
19	2101089	12
12	2101124	27
2	2101133	24

Page 84 — INDEX

Yamato AZF8000G Series parts on page 84
Ref	Part number	Qty
3	2101134	24
2-1	2101390	26
1-1	2101391	26
3-1	2101393	26
28	2101394	26
29	2101395	26
3	2101435	17
8	2101450	31
9	2101451	31
20	2108000	17
10	2108003	18
630-1	2108004	630-1
630-2	2108005	630-2
17	2108006	19
26	2108008	24
32	2108013	24
2032-1	2108020	2032-1
32-1	2108020	21
2032-2	2108021	2032-2
32-2	2108021	21
21	2109000	17
22	2109001	17
1530-1	2109005	1530-1
31	2109006	15
1530-2	2109009	1530-2
27	2109010	24
28	2109011	24
33	2109015	24
34	2109016	24
32	2109067	15
35	2109200	6
16	2109201	13
15	2109347	13
1	2109907	24
1	2109932	23
6	2110026	3
5	2110027	3
3	2110181	5
6	2110183	5
5	2110184	5
1	2110252	6
55	2110327	25
10	2111011	27
3	2111051	22
9	2111055	22
13	2111056	22
15	2111057	22
22	2111058	22
12	2111059	22
19	2111060	22
17	2111061	22
16	2111062	22
18	2111066	22
20	2111067	22
13	2120002	9
14	2120003	9
16	2120004	9
17	2120005	9
26	2120006	9
20	2120007	9
28	2120008	9
32	2120009	9
35	2120014	10
39	2120015	10
32	2120017	10
18	2120018	10
14	2120019	10
4	2120020	10
5	2120021	10
10	2120022	10
13	2120023	10
8	2120026	5
1	2120027	9
3	2120028	9
6	2120029	9
37	2120030	5
10	2120031	9
31	2120032	9
5	2120033	11
7	2120034	11
1	2120035	11
4	2120036	11
50	2120037	10
51	2120038	10
28	2120045	8
38	2120053	2
35	2120055	2
33	2120062	2
1	2120063	3
23	2120067	10
40	2120071	5
43	2120072	5
41	2120073	5
38	2120074	5
39	2120075	5
17	2120076	5
18	2120082	9
24	2120083	9
26	2120093	10
29	2120095	10
41	2120098	2
30	2120112	10
25	2120130	10
17	2120131	10
33	2120132	10
41	2120136	10
39	2120138	2
40	2120139	2
37	2120141	2
40	2120570	10
42	2120571	10
36	2120572	10
2	2120588	3
2	2121000	22
6	2121001	22
6	2121021	27
38	2127000	8
4	2127000	18
7	2127000	19
25	2127000	20
25	2127000	21
20	2127000	24
13	2127001	17
36	2127003	8
2	2127003	18
5	2127003	19
23	2127003	20
23	2127003	21
18	2127003	24
11	2127004	17
2027-1	2127058	2027-1
2027-2	2127059	2027-2
15	2127069	17
2022-1	2127088	2022-1
2022-2	2127089	2022-2
10	2127099	17
4-1	2127230	19

Page 85 — INDEX

Yamato AZF8000G Series parts on page 85
Ref	Part number	Qty
4-2	2127231	19
14	2127232	19
835-1	2127240	835-1
835-2	2127241	835-2
1	2127245	18
17	2127245	24
29	2127247	24
1-1	2127250	29
1-2	2127251	29
1-3	2127252	29
11-1	2127253	29
11-2	2127254	29
14-1	2127255	29
14-2	2127256	29
17	2127257	30
14	2127258	30
840-1	2127260	840-1
840-2	2127261	840-2
6	2127265	18
22	2127265	24
30	2127267	24
6-1	2127270	29
6-2	2127271	29
6-3	2127272	29
12-1	2127273	29
12-2	2127274	29
15-1	2127275	29
15-2	2127276	29
9-1	2127280	19
9-2	2127281	19
15	2127282	19
4	2127290	29
16	2127290	30
2	2127291	29
15	2127291	30
31	2129009	20
52	2129012	17
53	2129076	17
19	2129077	30
49	2129078	10
20	2129079	30
3	2129080	19
13	2129081	30
10	2129094	29
13	2129095	29
18	2129095	30
29	2129300	12
29	2129420	2
11	2150015	1
18	2150017	3
4	2150018	2
20	2150019	7
17	2150020	7
23	2150021	7
12	2150022	3
10	2150023	2
12	2150024	2
14	2150025	2
19	2150026	1
35	2150027	4
16	2150030	4
17	2150031	4
19	2150032	4
37	2150035	6
10	2150038	5
16	2150039	5
24	2150040	5
26	2150041	5
32	2150042	5
18	2150043	5
30	2150044	5
31	2150045	5
27	2150046	5
28	2150047	5
21	2150048	5
20	2150049	5
35	2150050	5
9	2150052	6
10	2150053	6
24	2150057	6
25	2150058	6
17	2150059	6
9	2150060	7
9	2150063	15
1	2150064	14
18	2150065	14
19	2150066	14
34	2150067	15
22	2150069	3
33	2150069	5
6	2150070	12
8	2150075	12
7	2150075	14
4	2150076	13
37	2150079	12
25	2150080	12
14	2150084	12
13	2150086	12
18	2150091	12
9	2150096	5
11	2150100	5
28	2150102	16
31	2150111	4
32	2150112	4
27	2150114	4
23	2150115	4
15	2150116	4
34	2150117	12
13	2150118	13
39	2150119	4
42	2150120	4
43	2150121	4
41	2150123	4
21	2150124	4
7	2150125	2
11	2150130	12
33	2150132	4
24	2150139	8
16	2150142	8
4	2150145	8
49	2150150	6
13	2150154	8
7	2150201	16
21	2150202	16
10	2150206	16
22	2150207	16
2	2150210	1
18	2150211	17
1	2150212	31
3	2150213	31
1	2150214	5
3	2150709	8
24	2150710	16
25	2150713	16
33	2151000	22
27	2151012	27
9	2151013	27
21	2151054	1
26	2151055	2
32	2151056	1
5	2151057	28

Page 86

Yamato AZF8000G Series parts on page 86
Ref	Part number	Qty
28	2151058	7
28	2151059	4
28	2151066	2
28	2151067	1
2	2160014	1
10	2160015	44
10	2160016	46
31	2160018	31
4	2160019	28
10	2160026	60
10	2160027	61
10	2160028	54
8	2160029	30
8	2160030	32
8	2160031	31
8	2160032	25
8	2160033	21
16	2160035	36
16	2160040	37
16	2160045	46
16	2160046	47
12	2160050	4
12	2160051	7
8	2160055	9
10	2160056	57
8	2160057	7
8	2160058	10
8	2160059	46
8	2160063	47
4	2160122	1
21	2167005	22-1
21	2167006	22-2
21	2167026	27-1
21	2167030	27-2
19	2169101	16
6	2169102	21
22	2169900	1
16	3100060	31
16	3100061	33
8	3100104	27
5	3100131	7
16	3100329	35
16	3100345	34
6	3100370	38
16	3100370	8
16	3100371	13
32	9620631	2
32	9620663	22
32	9620665	28
32	9620670	3
32	9620673	8
32	9620675	11
32	9620678	23
32	9620679	24
32	9620680	25
32	9620681	26
32	9620688	18
32	9620689	4
32	9620690	21
32	9620691	20
32	9620693	1-1
32	9620694	1-2
32	9620700	17
32	9620702	15
32	9620703	16

Page 5 — MISCELLANEOUS COVERS(1)

Page 7 — MISCELLANEOUS COVERS(2)

Page 9 — MISCELLANEOUS COVERS (3)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Page 15 — NEEDLE BAR DRIVING MECHANISM

Page 17 — KNIFE DRIVING MECHANISM / メス機構

Page 19 — PRESSER FOOT MECHANISM 押エ機構

Page 21 — TOP FEED MECHANISM(1)

Page 23 — TOP FEED MECHANISM(2)

Page 25 — TOP FEED MECHANISM(2)

Page 27 — TOP FEED MECHANISM(3)

Page 29 — UPPER LOOPER DRIVING MECHANISM

Page 31 — LOWER LOOPER DRIVING MECHANISM

Page 33 — FEED DRIVING CONTROL MECHANISM / 前送リ調節機構

Page 35 — FEED DRIVING MECHANISM

Page 37 — LUBRICATING MECHANISM / 給油機構

Page 39 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G

Page 41 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZF8000G / 角メス及びサブモデル専用部品

Page 43 — AZF8003G-10 EXCLUSIVE PARTS

Page 45 — AZF8025G-10 EXCLUSIVE PARTS

Page 47 — AZF8026G EXCLUSIVE PARTS

Page 49 — AZF8026G-10 EXCLUSIVE PARTS

Page 51 — K2 DEVICE

Page 53 — C DEVICE / C装置

Page 55 — B3 DEVICE for AZF8003G-04-10, 8020G-X4-10 / B3装置

Page 57 — CH20 DEVICE(1) for AZF8000G-04

Page 59 — CH20 DEVICE(1) for AZF8000G-04

Page 61 — CH20 DEVICE(2) for AZF8000G-04

Page 63 — CH20 DEVICE(3) for AZF8000G-O4 / CH20装置(3)

Page 65 — SC10 DEVICE

Page 67 — EXTRA PARTS(1)

Page 69 — EXTRA PARTS(2)

Page 71 — MICCELLANEOUS SUPPORTING BOARD

Page 73 — THREAD STAND

Page 74 — WARNING LABEL 警告ラベル

Page 76 — AZF8000G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 77

Page 78 — INDEX

Page 79 — INDEX

Page 80 — INDEX

Page 81 — INDEX

Page 82 — INDEX

Page 83 — INDEX

Page 84 — INDEX

Page 85 — INDEX

Page 86

Yamato AZF8000G Series — parts catalog
