Parts index — Brother B-430tap a row to open its page

Page 9 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother B-430 parts on page 9

Ref	Part number	Part name	Qty
2	152830109	TOP COVER	1
3	062761412	SCREW 595X14	6
4	152831009	FACE PLATE ASSEMBLE	1
4-1	152832109	FACE PLATE	1
4-2	152833001	PACKING	1
5	062711412	SCREW 4.76X14	2
6	062710712	SCREW 4.76X7	1
7	152834009	FRAME SIDE COVER	1
8	062711412	SCREW 4.76X14	4
9	152835009	BED COVER(R)	1
10	100315002	WAVE SPRING	1
11	025770232	PLAIN WASHER 6.35	1
12	145480001	STUD SCREW 6.35	1
13	152836009	BED COVER (L) ASSEMBLY	1
14	152841009	THREAD TAKE-UP COVER	1
15	062670812	SCREW 357X8	1
16	152842009	LARGE SHUTTLE HOOK COVER ASSEMBLY (B)	1
17	115493002	STUD SCREW 5.95	2
18	109239002	SPRING WASHER	2
19	152846009	BELT COVER	1
20	152989001	SPRING PLATE	1
21	152986001	SPRING SUPPORT	1
22	062680812	SCREW 437X8	1
27	117936009	OIL CAP	15
28	140392009	OIL CAP	1
29	117934009	OIL CAP	2
30	108520009	OIL CAP	1
31	104450109	OIL CAP	1
32	159808109	OIL PAN ASSEMBLY	1
32-1	154738109	OIL PAN	1
32-2	152852101	TENSION PULLEY ASSEMBLY	1
32-2-1	048320242	STOP RING C32	1
32-2-2	141860001	SCREW 6.35	1
32-3	018081222	BOLT 8X12	1
32-4	025080232	PLAIN WASHER 8	1
32-5	028080242	SPRING WASHER 2-8	1
32-6	152857001	HEAD SUPPORT LEVER	1
32-7	018700112	HEAD SUPPORT LEVER SHAFT	1
32-8	013719412	SET SCREW 4.76	1
32-9	152859001	SPRING	1
32-10	152860009	BED CUSHION	4
32-11	152861101	MOTOR BASE PLATE	1
32-12	152862001	MOTOR BASE PLATE SHAFT	1
32-13	048100142	STOP RING C10	2
32-14	152865101	(L) BOLT M10	1
32-15	021100202	NUT 10	2
32-16	025100132	PLAIN WASHER 10	2
32-17	028100242	SPRING WASHER 2-10	1
51	152866001	PIN	1
52	013760612	SET SCREW 5.95	1
53	152867000	HINGE SHAFT	2
54	151604002	SET SCREW 5.95	2
55	152868009	HINGE CUSHION	2
56	153100000	EYE GUARD ASSEMBLY	1
56-1	153102001	EYE GUARD HINGE ASSEMBLY	1
56-2	153098000	EYE GUARD	1
56-3	102538007	SCREW 3.57	2
56-4	106129001	NUT 3.57	2
57	062670512	SCREW 357X5	2
58	114985001	SPRING	1
59	062680612	SCREW 437X6	1
60	152838001	DOWEL PIN	1

Page 11 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

Brother B-430 parts on page 11

Ref	Part number	Part name	Qty
61	152839001	BED COVER SHAFT	1
62	*	LABEL	1
63	152848001	SPRING	1
64	062680812	SCREW 437X8	2
65	025080132	WASHER 8	1
66	104450109	OIL CAP	2
70	154465001	DUST OILER SUPPORT ASSEMBLY	1
71	114486002	OILER	1
72	062710612	SCREW 476X6	2
74	154785000	FELT	2
75	047501242	SPRING PIN AW5	2
77	152847009	PACKING	2

Page 13 — Clutch mechanism

Brother B-430 parts on page 13

Ref	Part number	Part name	Qty
1	151886001	CLUTCH LEVER	1
2	151927001	CLUTCH FELT	1
3	151887001	CLUTCH LEVER SHAFT	1
4	048180142	STOP RING C18	1
5	152756001	THRUST WASHER 18	1
6	014821022	SET SCREW 7.94	1
7	151929000	THRUST WASHER 18	1
8	152728001	THRUST WASHER 8	1
9	151163001	BOLT 8X15	1
10	151888101	BALL PRESSER PLATE	1
11	018082522	BOLT 8X25	2
12	028080242	SPRING WASHER 2-8	2
13	115012002	SET SCREW 6.35	1
14	150554002	NUT 6.35	1
15	151889001	CLUTCH STOPPER	1
16	151900000	STOPPER RUBBER	1
17	151891001	SPRING	1
18	151892001	SPRING HOOK	2
19	115018001	CUSHION RUBBER	2
20	025800332	PLAIN WASHER 7.14	1
21	151893001	STOPPER SHAFT	1
22	021800102	NUT 7.14	1
23	104689002	NUT 7.14	1
24	151894101	BRAKE LEVER	1
25	151895000	BRAKE ASSEMBLY	1
26	151898001	BRAKE SHAFT	1
27	048040342	STOP RING E4	2
28	151899001	SPRING	1
29	151900001	BRAKE LEVER SHAFT	1
30	142628001	FEED ROCK CRANK RING	2
31	048110142	STOP RING C11	2
32	013761410	SET SCREW 5.95	1
33	151901001	PIN	1
34	014760622	SET SCREW 5.95	1
35	151902001	SPRING	1
36	151903001	SCREW	1
37	106147002	NUT 7.94	1
38	110251001	SPRING HOOK	1
39	151904101	CLUTCH LEVER ROD ASSEMBLY	1
39-1	151905101	CLUTCH LEVER ROD	1
39-2	107744001	ROLLER	1
39-3	151906101	ROLLER SHAFT	1
39-4	048030342	STOP RING E3	1
39-5	113431002	WASHER	1
39-6	025680132	PLAIN WASHER 4.37	1
39-7	021680202	NUT 4.37	1
40	151907001	STUD SCREW 5.95	1
41	151908001	NUT 5.95	1
42	155501001	SPRING	1
43	151910001	SPRING HOOK	1
44	117363001	BOLT 4.76	2
45	028050242	SPRING WASHER 2-5	2
46	152888101	ADJUST ROD ASSEMBLY	1
46-1	154332001	PRESSER BAR LIFTER ADJUST ROD	1
46-2	154333001	PRESSER BAR LIFTER ADJUST JOINT	1
46-3	150556001	NUT 6.35	1
47	151912001	STUD SCREW 6.35	1
48	150556001	NUT 6.35	1
49	151913001	STUD SCREW 6.35	1
50	151914001	COLLAR 13	1
51	150556001	NUT 6.35	1
52	151915101	CLUTCH ACTUATING LEVER ASSEMBLY	1

Page 15 — B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague

Brother B-430 parts on page 15

Ref	Part number	Part name	Qty
52-1	152980001	WICK 6X6 (L=150)	1
53	150553001	NUT 5.95	1
54	151907001	STUD SCREW 5.95	1
55	151939101	CLUTCH CAM LEVER ASSEMBLY	1
55-1	152914001	ROLLER	1
55-2	048040342	STOP RING E4	1
55-3	018062022	BOLT 6X20	1
57	151919101	STARTING LEVER	1
58	151920001	STARTING SAFETY LEVER	1
59	017711412	BOLT 4.76X14	2
60	028050242	SPRING WASHER 2-5	2
61	113431002	WASHER	2
62	155499001	STARTING LEVER PLATE	1
63	154155101	STOPPER SCREW	1
64	150553001	NUT 5.95	1
65	151922001	CHAIN HOOK COLLAR	1
66	017762202	BOLT 5.95X22	1
67	110251001	SPRING HOOK	1
68	151923001	SPRING	1
69	151924001	SPRING HOOK	1
70	151925001	STARTING LEVER SHAFT	1
71	142628001	FEED ROCK CRANK RING	2
72	110505001	WASHER	1
73	048110142	STOP RING C11	1
74	014760622	SET SCREW 5.95	1
75	111865009	OIL CAP	1
76	155500001	STARTING LEVER STOPPER	1
77	018061622	BOLT 6X16	2
78	025060132	PLAIN WASHER 6	2
79	028060242	SPRING WASHER 2-6	2
80	025060232	PLAIN WASHER 6	1
82	028060242	SPRING WASHER 2-6	1

Page 17 — Upper shaft and needle bar mechanism/Obere Welle und Nadelstangen vorrichtung/Mécanisme de arbre supérieur et barre à aiguille/Mecanismo del eje superior y barra de aguja

Brother B-430 parts on page 17

Ref	Part number	Part name	Qty
1	151995001	UPPER SHAFT	1
2	153040001	CRANK ROD ASSEMBLY	1
2-1	144712002	SCREW 4.76	2
3	048150142	STOP RING C15	1
4	151997000	BALL BEARING CASE	1
5	072630260	BEARING 6302VV	2
6	151998000	BEARING COLLAR	1
7	151999001	BALL BEARING CAP	1
8	102843004	SCREW 3.57	3
9	017761412	BOLT 5.95X14	3
10	025060232	PLAIN WASHER 6	3
11	140726000	UPPER SHAFT BUSH (M)	1
13	152000001	UPPER SHAFT BUSH (F)	1
14	013761412	SET SCREW 5.95	1
15	152231000	COUNTER WEIGHT	1
16	100250001	SCREW 7.14	1
17	014770622	SET SCREW 6.35	1
18	101706001	SET SCREW 6.35	1
19	014770622	SET SCREW 6.35	1
20	152232001	THREAD TAKE-UP LEVER ASSEMBLY	1
20-1	153330001	THREAD TAKE-UP ASSEMBLY	1
20-2	152236001	THREAD TAKE-UP SUPPORT STUD	1
20-3	152237001	NEEDLE BAR CRANK	1
20-4	132051001	SCREW 3.57L	1
20-5	152238001	THREAD TAKE-UP LEVER	1
20-6	152239001	NEEDLE BAR CLAMP	1
20-7	062680812	SCREW 437X8	1
21	013761412	SET SCREW 5.95	1
22	152240001	NEEDLE BAR (A)	1
24	144458001	SET SCREW 3.57	1
25	152242001	NEEDLE BAR BUSH (U)	1
26	152243001	NEEDLE BAR BUSH (D)	1
27	*	NEEDLE DP	1
33	142211001	SLIDE BLOCK	1
34	152244000	NEEDLE BAR GUIDE	1
35	062781412	SCREW 635X14	2
36	116920001	THRUST RING	1

Page 19 — D. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe/ Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora

Brother B-430 parts on page 19

Ref	Part number	Part name	Qty
1	153044001	STOP CAM ASSEMBLY	1
1-1	152693001	BRAKE CAM SEGMENT	1
1-2	152694001	SPRING	1
1-3	115003001	FLANGE CAM SEGMENT	1
1-4	153058001	CAM SEGMENT STUD	2
1-5	048040342	STOP RING E4	2
7	147111001	TAPER PIN 6X35	1
8	014770622	SET SCREW 6.35	1
9	183686001	PULLEY DEVICE SET	1
9-1	152695201	PULLEY DEVICE ASSEMBLY	2
9-2	072600760	BALL BEARING 6007VV	2
9-3	152698001	SLIDE BUSH	1
9-4	048350142	STOP RING C35	2
9-5	152699001	WASHER	1
9-6	048240242	STOP RING C24	1
9-7	152700000	SLIDE BUSH (A)	1
17	151946000	SLIDE BUSH (B)	1
18	152701001	SPRING	1
19	152702001	CLUTCH PLATE	1
20	152703100	SPACER	5
21	S02878000	KEY 3X3X13	1
22	152705101	NUT 10	1
23	152706001	BALL BEARING	1
24	062660712	SCREW 318X7	4
25	071095250	STEEL BALL 3/8"	1
26	S21120001	WASHER	1
1	S01688001	UPPER SHAFT ASSEMBLY B430	1

Page 21 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion

Brother B-430 parts on page 21

Ref	Part number	Part name	Qty
1	152741101	TACK LENGTH LEVER ASSEMBLY	1
1-1	152742001	TACK LENGTH LEVER	1
1-2	153041001	TACK LENGTH SLIDE BLOCK ASSEMBLY	1
1-3	151602002	SET SCREW 4.37	1
1-4	153924001	FELT	1
1-5	153921001	WICK 4X4 (L=150)	1
2	152745001	FEED BUSH	1
3	014760622	SET SCREW 5.95	1
4	153762101	TACK LENGTH REGULATOR LEVER ASSEMBLY	1
4-1	018082022	BOLT 8X20	1
6	153047001	TACK LENGTH REGULATOR ASSEMBLY	1
6-1	153042001	TACK ADJUST SHAFT ASSEMBLY	1
6-2	152751101	SLIDE BLOCK ROLLER STUD ASSEMBLY	1
6-2-1	152752001	TACK LENGTH LEVER	1
6-2-2	153043001	FEED CAM ROLLER SHAFT ASSEMBLY	1
6-2-3	014760622	SET SCREW 5.95	1
6-2-4	152980001	WICK 6X6 (L=150)	1
7	152749001	FEED ADJUST WASHER	1
8	152750001	FEED ADJUST NUT	1
9	153045001	TACK LENGTH LEVER STOPPER	1
10	105451002	SCREW 3.57	1
11	152755001	TACK LENGTH LEVER SHAFT	1
12	S09132001	PINCH SLEEVE ASSEMBLY	1
12-1	018063022	BOLT 6X30	1
14	152756001	THRUST WASHER 18	1
15	048180142	STOP RING C18	1
16	152758001	TACK WIDTH FEED LEVER	1
17	152759001	TACK WIDTH FEED SHAFT	1
18	014760622	SET SCREW 5.95	1
19	152756001	THRUST WASHER 18	1
20	152760001	TACK WIDTH LEVER SHAFT	1
21	152756001	THRUST WASHER 18	1
22	048180142	STOP RING C18	1
23	014760622	SET SCREW 5.95	1
24	153045001	TACK LENGTH LEVER STOPPER	1
25	105451002	SCREW 3.57	1
26	153048001	TACK WIDTH REGULATOR LEVER ASSEMBLY	1
26-1	153042001	TACK ADJUST SHAFT ASSEMBLY	1
26-2	153757001	TACK WIDTH ADJUST ASSEMBLY	1
26-2-1	018082022	BOLT 8X20	1
27	152749001	FEED ADJUST WASHER	1
28	152750001	FEED ADJUST NUT	1
30	152762001	TACK LENGTH CAM LEVER ASSEMBLY	1
30-1	153331001	TACK WIDTH FEED SHAFT ASSEMBLY	1
30-2	153043001	FEED CAM ROLLER SHAFT ASSEMBLY	1
30-3	014760622	SET SCREW 5.95	1
31	152745001	FEED BUSH	1
32	014760622	SET SCREW 5.95	1
33	152766001	FEED BAR GUIDE PLATE	1
34	145318001	SCREW 4.37	8
35	*	PRESSER ARM ASSEMBLY	1
35-1	152768009	PRESSER ARM	1
35-2	152774001	PRESSER ARM LEVER (R)	1
35-3	152775001	PRESSER ARM LEVER (L)	1
35-4	152776001	PRESSER ARM LEVER SHAFT	1
35-5	143591001	THRUST RING	2
35-6	048050342	STOP RING E5	2
35-7	014760622	SET SCREW 5.95	1
35-8	*	WORK CLAMP (R)	1
35-9	*	WORK CLAMP (L)	1
35-10	152783001	WORK CLAMP GUIDE BRACKET (A)	2
35-11	152784001	WORK CLAMP GUIDE BRACKET (B)	1

Page 23 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement/Mecanismo de la alimentacion

Brother B-430 parts on page 23

Ref	Part number	Part name	Qty
35-12	107038003	SCREW 3.57	6
35-13	153571001	PRESSER ARM LEVER PLATE	2
35-14	140407002	WASHER	2
35-15	018500822	BOLT 5X8	2
35-16	153570001	SPRING GUIDE ROD	2
35-17	145478001	STUD SCREW 4.76	2
35-18	*	SPRING	2
35-19	152788000	SPRING COLLAR	2
35-20	153567000	SPRING COLLAR	2
36	152769001	FEED BAR GUIDE ASSEMBLY	1
36-1	152771000	COLLAR	2
36-2	152773000	BUSH	1
36-3	141331001	BUSH	1
37	152772001	WASHER	2
38	071047650	STEEL BALL 3/16"	2
39	025060232	PLAIN WASHER 6	2
40	017761412	BOLT 5.95X14	2
42	153057002	SCREW	2
43	153035000	PRESSER ARM FELT	1
44	*	FEED PLATE	1

Page 25 — G. 押工上げ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo

Brother B-430 parts on page 25

Ref	Part number	Part name	Qty
1	152794001	WORK CLAMP LIFTER PLATE ASSEMBLY	1
2	152797001	WORK CLAMP LIFTER LEVER ASSEMBLY	1
2-1	152798001	WORK CLAMP LIFTER LEVER	1
2-2	152744001	PIN	1
3	152799001	WORK CLAMP LIFTER LEVER SHAFT	1
4	014760622	SET SCREW 5.95	1
5	013760612	SET SCREW 5.95	1
6	152800201	SPRING	1
7	152801001	PIN	1
8	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
9	152802001	WORK CLAMP LIFTER ROD SHAFT (A)	1
10	014760622	SET SCREW 5.95	1
11	107153002	WASHER	1
12	048060342	STOP RING E6	1
13	152803001	WORK CLAMP LIFTER ROD (A)	1
14-1	152805101	CONNECTING LEVER	1
14-2	152806001	CONNECTING LEVER SHAFT (B)	2
15	158686001	LIFTING LEVER SHAFT	1
16	014760622	SET SCREW 5.95	1
18	107153002	WASHER	2
19	048060342	STOP RING E6	2
20	152808101	ADJUST ROD ASSEMBLY	1
20-1	154332001	PRESSER BAR LIFTER ADJUST ROD	1
20-2	154333001	PRESSER BAR LIFTER ADJUST JOINT	1
20-3	150568001	NUT 6.35	1
21	141583001	STUD SCREW 6.35	1
22	150556001	NUT 6.35	1
23	152811001	CONNECTING LEVER ASSEMBLY	1
24	158687001	DRIVING SHAFT	1
26	142628001	FEED ROCK CRANK RING	1
27	048110142	STOP RING C11	1
28	014760622	SET SCREW 5.95	1

Page 27 — H. カム伝導関係/Vertical shaft mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical

Brother B-430 parts on page 27

Ref	Part number	Part name	Qty
1	152707001	WORM	1
2	152718001	SET SCREW 5.95	6
3	147151000	WASHER	1
4	152708000	WORM WHEEL	1
5	152713001	THRUST WASHER	1
6	152709000	SLEEVE	1
7	152710001	WASHER	1
8	018062022	BOLT 6X20	1
9	159977000	VERTICAL SHAFT BUSH (U)	1
10	014760622	SET SCREW 5.95	1
11	159978001	VERTICAL SHAFT BUSH (L)	1
12	159979001	VERTICAL SHAFT ASSEMBLY	1
13	159984001	THRUST WASHER 40	1
15	*	CHANGE GEAR (W)	1
16	*	CHANGE GEAR (C)	1
17	153104001	WASHER	1
18	018062222	BOLT 6X22	3
19	152724001	TACK LENGTH FEED CAM SHAFT	1
20	S09132001	PINCH SLEEVE ASSEMBLY	1
20-1	018063022	BOLT 6X30	1
22	*	FEED CAM	1
23	152728001	THRUST WASHER 8	1
24	151163001	BOLT 8X15	1
25	018062022	BOLT 6X20	3
26	109893002	WASHER	3
27	028060242	SPRING WASHER 2-6	3
28	152729001	CLUTCH CAM	1
29	S09132001	PINCH SLEEVE ASSEMBLY	1
29-1	018063022	BOLT 6X30	1
32	S09132001	PINCH SLEEVE ASSEMBLY	1
32-1	018063022	BOLT 6X30	1
34	152723001	STOP RING	1
35	152731001	ROLLER HOLDER	1
36	152732001	ROLLER SHAFT	1
37	013710712	SET SCREW 4.76	1
38	152914001	ROLLER	1
39	152733001	EMERGENCY STOP LEVER	1
40	013710712	SET SCREW 4.76	1
41	152734001	ROLLER HOLDER LEVER	1
42	018061622	BOLT 6X16	1
43	152735101	ROLLER HOLDER CAM LEVER ASSEMBLY	1
43-1	153332001	ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY	1
43-2	152739001	ROLLER SHAFT	1
43-3	153195001	ROLLER	1
43-4	048040342	STOP RING E4	1
43-5	155337001	SPRING HOOK	1
44	110027001	SET COLLAR	1
45	014760622	SET SCREW 5.95	2
46	155336001	SPRING	1
47	141334001	SPRING HOOK	1
48	153141001	ROLLER HOLDER COVER	1
49	062670412	SCREW 357X4	2
51	S07813001	CLUTCH CAM (SP)	1
52	S07814001	KNIFE CAM (SP)	1

Page 29 — J. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carrera de potencia

Brother B-430 parts on page 29

Ref	Part number	Part name	Qty
1	151928001	POWER PULLEY SHAFT	1
2	048170142	STOP RING C17	2
3	156936101	POWER PULLEY ASSEMBLY	1
3-1	151930201	POWER PULLEY ASSEMBLY	1
3-2	072600360	BALL BEARING 6003VV	1
8	151932001	BEARING COVER	1
9	107231002	SCREW 4.76	1
10	*	POWER CAM SET	1
10-1	*	POWER CAM ASSEMBLY	1
10-1-1	151935000	(DV) BUSH	2
10-2	151940001	POWER CAM STOPPER (A)	1
10-3	018060822	BOLT 6X8	1
10-4	151941101	POWER CAM STOPPER (B) ASSEMBLY	1
11	151936001	SPRING	1
12	151937001	THRUST WASHER 17	1
13	151938001	WASHER	1
19	151944001	CLUTCH ACTUATING LEVER ASSEMBLY	1
19-1	151947101	ROLLER (11)	2
19-2	151948001	ROLLER SHAFT	2
19-3	014760622	SET SCREW 5.95	2
20	151949001	ROLLER SHAFT ASSEMBLY	1
21	014760622	SET SCREW 5.95	1
22	151951001	SPRING	1
23	141472002	SPRING HOOK	2
24	151952001	CLUTCH ACTUATING LEVER SHAFT	1
25	151953001	THRUST WASHER 16	2
26	048160142	STOP RING C16	2
27	107149001	FELT	1
28	151954001	SCREW	1
29	014821022	SET SCREW 7.94	1
30	014760622	SET SCREW 5.95	1

Page 31 — K. 下軸関係/Lower shaft mechanism/Untere Welle/Mécanisme de l'arbre inférieur

Brother B-430 parts on page 31

Ref	Part number	Part name	Qty
1	141786001	CRANK ROD STUD SCREW	1
2	104689002	NUT 7.14	1
3	014680622	SET SCREW 4.37	1
4	152245001	ROCK GEAR	1
5	152246001	ROCK GEAR SHAFT	1
6	014760622	SET SCREW 5.95	1
7	152247001	ROCK SHAFT BUSH	1
8	014760622	SET SCREW 5.95	1
9	152191101	LOWER SHAFT ASSEMBLY	1
10	152250001	LOWER SHAFT BUSH	1
11	014760622	SET SCREW 5.95	1
12	152678001	SHUTTLE HOOK ADJUST STUD	1
13	081003670	O RING PW3	1
14	110495003	SET COLLAR	1
15	014770622	SET SCREW 6.35	2
16	S00327001	SHUTTLE RACE BASE ASSEMBLY	1
16-1	152677001	SHUTTLE RACE BASE	1
16-2	152679001	SHUTTLE RACE THREAD GUIDE (R)	1
16-3	152680001	SHUTTLE RACE THREAD GUIDE (L)	1
16-4	062660412	SCREW 318X4	2
16-5	152683001	LARGE SHUTTLE HOOK SET CLAW	2
16-6	152684001	SPRING	2
16-7	402887001	WASHER 3.2	2
16-8	062660712	SCREW 318X7	2
16-9	153050000	SHUTTLE RACE BASE FELT	2
16-10	155489000	WICK (L=270)	1
16-11	S00400000	WICK 2.5X220	1
17	014760622	SET SCREW 5.95	1
18	152678001	SHUTTLE HOOK ADJUST STUD	1
19	081003670	O RING PW3	1
23	048080342	STOP RING E8	1
24	152681201	DRIVER	1
25	018501422	BOLT 5X14	1
26	*	LARGE SHUTTLE HOOK	1
31	*	INNER ROTARY HOOK	1
34	141808001	PIN	1
35	159610101	BOBBIN CASE ASSEMBLY (A)	1
35-1	154339001	TENSION SPRING	1
35-2	154341001	SCREW	1
35-3	159612001	BOBBIN TENSION SPRING	1
36	159613001	BOBBIN	1

Page 32

Brother B-430 parts on page 32

Ref	Part number	Part name	Qty
	2-7	2-7
	2-6	2-6
	2-3	2-3
	2-4	2-4
	2-2	2-2
	2-1	2-1
	64	64
	49	49
	51	51
	50	50
	52	52
	62	62
	4-1	4-1
	4-3	4-3
	5	5
	4-2	4-2
	1	1
	6	6
	68	68
	59	59
	61	61
	60	60
	23	23
	26	26
	25	25
	21	21
	20	20
	15	15
	14	14
	22	22
	17	17
	19	19
	37	37
	41	41
	42	42
	34	34
	39	39
	43	43
	45	45
	40	40
	70	70
	58	58
	54	54
	53	53
	56	56
	29	29
	31	31
	33	33
	32	32
	28	28
	11	11
	69	69
	36	36
	38	38
	47	47
	65	65
	46	46
	48	48
	63-1	63-1
	63-2	63-2
	13	13
	12-1	12-1
	12-5	12-5
	12-2	12-2
	12-4	12-4
	12-3	12-3
	12-6	12-6
	12-4	12-4
	12-8	12-8
	12-7	12-7

Page 33

Brother B-430 parts on page 33

Ref	Part number	Part name	Qty
	152948001	OIL GAUGE WINDOW	1
	152949001	WICK SUPPORT ASSEMBLY	1
	152950001	WICK SUPPORT	1
	152951001	FELT	1
	152952001	FELT	1
	153918001	WICK 6X6 (L=660)	1
	140423000	OIL TUBE	1
	147745000	OIL TUBE (L)	1
	153919001	WICK 6X6 (L=370)	1
	062680812	SCREW 437X8	2
	152958001	WICK SUPPORT ASSEMBLY	1
	152959001	WICK SUPPORT	1
	152956001	FLAT WICK (L=210)	1
	152956001	WICK 4X4 (L=500)	1
	062680812	SCREW 437X6	1
	144694001	OIL TUBE	1
	152956001	WICK 4X4 (L=500)	1
	152962001	WICK SUPPORT	1
	152960001	FLAT WICK (L=40)	1
	104567001	WICK SUPPORT	1
	152948001	OIL GAUGE WINDOW	1
	152961001	FELT SUPPORT ASSEMBLY	1
	152966001	FELT SUPPORT	1
	152967001	FELT	1
	062670812	SCREW 357X8	2
	025350332	PLAIN WASHER 3.5	3
	152963001	WICK 4X4 (L=600)	1
	141692001	OIL SUPPORT (C)	1
	021670202	NUT 3.57	1
	062671412	SCREW 357X14	1
	062670512	SCREW 357X5	2
	148921000	OIL TUBE	1
	147745000	OIL TUBE (L)	1
	152964001	WICK 6X6 (L=310)	1
	152965001	WICK 4X4 (L=400)	1
	152964001	WICK 6X6 (L=310)	1
	152969001	CORD SUPPORT	1
	062670512	SCREW 357X5	1
	104567001	WICK SUPPORT	1
	146375000	OIL TUBE	1
	152992001	FLAT WICK (L=760)	1
	117150001	CORD SUPPORT	1
	062670512	SCREW 357X5	1
	140423000	OIL TUBE	2
	152971001	WICK 4X4 (L=480)	1
	112669001	OIL TUBE	1
	152969001	CORD SUPPORT	1
	062670512	SCREW 357X5	1
	113006001	FELT	1
	152973001	WICK 4X4 (L=170)	1
	047251640	SPRING PIN AW2.5	2
	117150001	CORD SUPPORT	1
	062670512	SCREW 357X5	1
	104567001	WICK SUPPORT	1
	152974001	WICK 4X4 (L=350)	1
	112669001	OIL TUBE	1
	147745000	OIL TUBE (L)	1
	153922001	WICK 6X6 (L=500)	1
	152953001	WICK 6X6 (L=360)	1
	152985001	WICK 4X4 (L=120)	1
	153763001	WICK SUPPORT	1
	062670512	SCREW 357X5	1

Page 34

Brother B-430 parts on page 34

Ref	Part number	Part name	Qty
	2-7	2-7
	2-6	2-6
	2-3	2-3
	2-4	2-4
	2-5	2-5
	2-2	2-2
	3	3
	62	62
	2-1	2-1
	64	64
	4-1	4-1
	4-3	4-3
	49	49
	51	51
	50	50
	4-2	4-2
	68	68
	59	59
	61	61
	60	60
	23	23
	26	26
	25	25
	37	37
	41	41
	42	42
	21	21
	20	20
	15	15
	14	14
	22	22
	19	19
	58	58
	54	54
	53	53
	56	56
	31	31
	33	33
	32	32
	69	69
	36	36
	38	38
	40	40
	29	29
	34	34
	28	28
	11	11
	39	39
	43	43
	45	45
	70	70
	63-1	63-1
	47	47
	65	65
	46	46
	48	48
	16	16
	63-2	63-2
	13	13
	12-1	12-1
	12-7	12-7
	12-5	12-5
	12-2	12-2
	12-4	12-4
	12-3	12-3
	12-6	12-6
	12-4	12-4
	12-8	12-8

Page 35 — L. 給油潤滑関係/Lubrication/Schmierung/Lubrication/Lubricación

Brother B-430 parts on page 35

Ref	Part number	Part name	Qty
	152976001	ボールキユウユヒモササエ
	062670512	ナベコ357-40X5	2
	028040242	ハネザガネ2-4	2
	152977001	ヒラユヒモ(L=50)
	152978001	チュ-ブオサエ
	062680812	ナベコ437-40X8
	153927001	クミヒモ6X6 (L=180)
	112669001	ビニルチュ-ブ
	153922001	クミヒモ4X4 (L=500)
	107149001	フェルト
	152968001	クミヒモ4X4 (L=100)
	153529101	ホイ-ルキユウスフエルト
	153530001	スイアゲフエルト
	153531001	ヘツドLフエルト
	153562001	ヒラユヒモ(L=150)
	153528001	ウオ-ムキユウスフエルトササエ
	105248003	ザガネ
	152973001	クミヒモ4X4 (L=170)
	153925001	クミヒモ4X4 (L=30)
	153926001	タコヒモ(L=10)
	152980001	クミヒモ6X6 (L=150)

Page 36 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

Brother B-430 parts on page 36

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46

Page 37 — M. 糸通シ関係 /Threading mechanism/Fadenfuhrungsvorrichtung/Mecanisme de l'enfilage/Mecanismo del enhebrado

Brother B-430 parts on page 37

Ref	Part number	Part name	Qty
	152869001	アームイトミチ	1
	062710712	ナベコ476-32X7	1
	152870001	アームイトカク	1
	062670612	ナベコ357-40X6	1
	113316001	アームイトアンナイ	1
	112751003	シメネジ"3.57	1
	153049001	ウフイトアンナイボウ	1
	152872001	イトチョウシダイイ	1
	100398001	イトチョウシボウ	1
	100402004	トメネジ"5.95	1
	*	イトトリハネ	1
	145446001	イトチョウシサラ	2
	159805001	イトチョウシサラオサエ	1
	*	イトチョウシハネ	1
	100136001	イトチョウシナット	1
	152873001	イトユルメピン	1
	114294001	Oリング	1
	103950003	トメネジ"5.95	1
	152877001	フクイトユルメボウ	1
	152875001	フクイトチョウシボウ	1
	152876001	フクイトユルメピン	1
	145446001	イトチョウシサラ	2
	152877001	イトチョウシサラオサエ	1
	152878001	ウフイトオサエハネ	1
	152879101	フクチョウシハネ	1
	152880001	ハネツケ	1
	100136001	イトチョウシナット	1
	014680422	アナトメネジ"4.37クボミ	1
	140208001	ザガネ	1
	048040342	トメワE4	1
	152881001	エキレイトクミ	1
	013760612	トメネジ"5.95クボミ	1
	152886001	イトイトリアンナイシクウケ	1
	014680422	アナトメネジ"4.37クボミ	1
	152887001	イトイトリアンナイシジク	1
	152888101	イトイトリレバー	1
	141528001	ダンネジ"6.35	1
	115077003	ダンネジ"4.76	1
	152889001	ミツメイトカケ	1
	062670612	ナベコ357-40X6	2
	152890001	ハリボウイトアンナイ	1
	152891001	ハリボウメタルDイトアンナイ	1
	152883000	フエルト8X15.5	1
	152884001	エキレイトカク	1
	062670412	ナベコ357-40X4	1
	153138001	ザガネ	1

Page 38 — N. 糸巻キ関係/Bobbin winder mechanism/Spuler/Mécanisme de bobineur/Mecanismo del devanador de la canilla

Brother B-430 parts on page 38

Ref	Part number	Part name	Qty
7	7	screw
3-4	3-4	washer
3-3	3-3	washer
3-2	3-2	bobbin winder
3-1	3-1	base
1-21-2	1-21-2	rubber ring
1-22	1-22	pin
1-21-1	1-21-1	lever
1-18	1-18	screw
1-5	1-5	lever
1-4	1-4	lever
1-2	1-2	screw
1-9	1-9	screw
1-8	1-8	washer
1-7	1-7	plate
1-3	1-3	shaft
2	2	screw
1-17	1-17	clip
1-20	1-20	spring
1-16	1-16	lever
1-14	1-14	spring
1-12	1-12	spring
1-6	1-6	lever
1-13	1-13	screw
1-1	1-1	frame
1-10	1-10	screw
1-11	1-11	screw
1-15	1-15	shaft
1-19	1-19	screw

Page 39 — N. 糸巻関係/Bobbin winder mechanism/Spuler/ M e c a n i s m o de bobineur/Mecanismo del devanador de la canilla

Brother B-430 parts on page 39

Ref	Part number	Part name	Qty
	152982109	イトマキクミ	1
	152983009	イトマキダイ	1
	152984001	イトマキレバー	1
	152933001	イトマキジク	1
	152934001	イトマキレバーシジク	1
	102716004	トメネジ4.37	1
	152935001	ボビンオサエ	1
	152936001	イタバネ	1
	152937001	ザガネ	1
	062670712	ナベコ357-40X7	1
	152938001	メス	1
	062680712	ナベコ437-40X7	1
	152939001	イトマキレバーヒキバネ	1
	115138001	レバーヒキバネカケ	1
	141550001	デイシレバーバネカケ	1
	152940001	イトマキツメジク	1
	142566001	イトマキツメ	1
	048050342	トメワE5	2
	014680422	アナトメネジ4.37クボミ	2
	062670712	ナベコ357-40X7	1
	152941001	イトマキツメネジリバネ	1
	154528001	イトマキクルマ	1
	120448001	ゴムワ	1
	102716004	トメネジ4.37	2
	062761412	ナベコ595-28X14	2
	S01300009	シタイトチョウシンクミ	1
	152945001	シタイトチョウシンダイクミ	1
	145446001	イトチョウサラ	2
	104525001	イトチョウシバネ	1
	108265009	イトチョウシナツト	1
	062680812	ナベコ437-40X8	2

Page 40

Brother B-430 parts on page 40

Ref	Part number	Part name	Qty
6	6	SCREW
43	43	SCREW
16	16	SCREW
17	17	WASHER
44	44	SCREW
9	9	SPRING
10	10	PLATE
50	50	LEVER
53	53	WASHER
54	54	WASHER
52	52	RING
51	51	SCREW
20	20	SHAFT
21	21	PIN
19	19	BRACKET
25	25	SPRING
48	48	PIN
1	1	BLADE
2	2	SPRING
5	5	SPRING
3	3	SCREW
7	7	LEVER
8	8	SCREW
46	46	WASHER
11	11	SPRING
18-3	18-3	SPRING
18-4	18-4	COLLAR
18-2	18-2	PIN
18-5	18-5	SCREW
18-1	18-1	BRACKET
22	22	SHAFT
26	26	SCREW
24	24	RING
23	23	WASHER
30	30	SCREW
18-6	18-6	PIN
31	31	LEVER
32	32	SCREW
29	29	WASHER
33	33	NUT
34	34	LEVER
37	37	WASHER
36	36	WASHER
35	35	SCREW
42	42	SCREW
38	38	SHAFT
39	39	WASHER
40	40	RING
41	41	SCREW
27	27	WASHER
28	28	RING
12	12	PLATE
13	13	SCREW
45	45	WASHER
4	4	LEVER

Page 41 — P. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung/Mécanisme de coupe-fil/Mecanismo de la cortadura de hilos

Brother B-430 parts on page 41

Ref	Part number	Part name	Qty
	152892001	イトキリレンケツト
	152896001	イトキリウデ"Aクミ
	018681022	アホホルト4.37X10
	152893101	イトキリウデ"B
	048050342	トメワE5
	152995001	ハリイタS
	152981001	イトキリウデ"C
	153222001	シメネジ"4.37
	152897201	イトキリレンカンクミ
	152901001	イトウハクミ
	152904001	シメネジ"4.37
	152905001	コテイハ
	111140002	シメネジ"2.38
	100360003	シメネジ"2.38
	*	ハリイタ
	152912001	イトキリカムレバー
	152913001	コロジク
	048050342	トメワE4
	152914001	コロ
	154788001	ハネツカク
	152919001	イトキリロツド"ピン
	152915001	イトキリカムレバーツメ
	062761412	スク595-28X14
	025060132	ヒラサカザガネ6
	152916001	イトキリカムレバーシク
	152917001	サガネ
	048120142	トメワシヨウC12
	154788001	イトキリカムレバーハネ
	014760622	アナトメネジ"5.95
	140208001	サガネ
	048050342	トメワE5
	152920001	イトキリリンクチヨウセツクミ
	014760622	アナトメネジ"5.95
	152921001	イトキリリンク
	151907001	ダンネジ"5.95
	150553001	ナツト5.95
	152922001	イトキリサトドーレバー
	152923001	イトキリサトドーレバーコロ
	112468001	サガネ
	048050002	トメワE5
	153482001	イトキリサトドーレバーシク
	142628001	スイヘイヨウクランクリング
	048110142	トメワシヨウC11
	111865009	オイルメクラセン
	014760622	アナトメネジ"5.95
	100032004	シメネジ"4.37
	153208002	シメネジ"4.37
	153220001	イトキリウデ"Cカラー
	153219001	イトウハカラー
	141334001	ハネツカク
	152906101	シイトサハキA
	153598001	シメネジ"4.37
	081008070	OリングP8
	153597001	シイトサハキカラー
	153596001	サガネ

Page 42

Brother B-430 parts on page 42

Ref	Part number	Part name	Qty
6	6	PIN
9	9	SPRING
11	11	BRACKET
12	12	COVER
14	14	LEVER
15	15	SCREW
17	17	WASHER
2	2	BRACKET
7	7	SHAFT
8	8	SPRING
10	10	PIN
13	13	SCREW
1	1	SHAFT
16	16	SCREW
18	18	WASHER
5	5	LEVER
3	3	SCREW
4	4	WASHER
1	1	SHAFT
6	6	SPRING
8	8	SPRING
9	9	WASHER
5	5	LEVER
10	10	PIN
7	7	PIN

Page 43

Brother B-430 parts on page 43

Ref	Part number	Part name	Qty
	152815001	THREAD WIPER ROD SHAFT	1
	152816001	THREAD WIPER ROD ASSEMBLY	1
	014680622	SET SCREW 4.37	1
	048060342	STOP RING E6	1
	116629001	WASHER	2
	152820001	THREAD WIPER SHAFT	1
	025770232	PLAIN WASHER 6.35	1
	048040342	STOP RING E4	1
	014680622	SET SCREW 4.37	1
	152823001	THREAD WIPER ARM ASSEMBLY	1
	048030342	STOP RING E3	1
	152827009	OIL CAP	1
	013710712	SET SCREW 4.76	1
	156206001	THREAD WIPER (A)	1
	062670512	SCREW 357X5	1
	156495001	FINGER GUARD	1
	025350132	PLAIN WASHER	1
	062671012	SCREW 357X10	2
	152925101	NEEDLE THREAD RELEASE SHAFT	1
	152926001	TENSION RELEASE BAR PLATE	1
	062671012	SCREW 357X10	2
	025350332	PLAIN WASHER 3.5	2
	152988001	NEEDLE THREAD RELEASE LEVER ASSEMBLY	1
	048040342	STOP RING E4	1
	152929001	NEEDLE THREAD RELEASE LEVER SHAFT	1
	048050342	STOP RING E5	1
	025770232	PLAIN WASHER 6.35	1
	014760622	SET SCREW 5.95	1

Page 44

Brother B-430 parts on page 44

Ref	Part number	Part name	Qty
	1-1	SPRING
	1-2	BRACKET
	1-3	SCREW
	1-4	WASHER
	1-5	PLATE
	1-6	PIN
	1-7	WASHER
	1-8	WASHER
	1-9	SCREW
	1-10	PLATE
	1-11	BRACKET
	1-12	CHAIN
	1-13	LEVER
	1-14	SCREW
	1-13-1	SCREW
	1-13-2	WASHER
	1-13-3	PEDAL
	1-13-4	WASHER
	1-1	PLATE
	1-9	SCREW
	1-10	PLATE
	1-4	WASHER
	1-7	BRACKET
	1-5	PLATE
	1-8	WASHER
	1-11	BRACKET
	1-2	BRACKET
	1-13	LEVER
	1-3	SCREW
	1-6	PIN
	1-12	WASHER
	1-16	WASHER
	1-17	WASHER
	1-15	WASHER
	1-14	SCREW

Page 45

Brother B-430 parts on page 45

Ref	Part number	Part name	Qty
	154709002	MECHANISM TWO PEDALS ASSEMBLY	1
	154452001	SPRING DRIVE LEVER PLATE	1
	154448001	DRIVE LEVER PLATE	1
	017762012	BOLT 5.95X20	2
	025060232	PLAIN WASHER 6	2
	150553001	NUT 5.95	2
	154449001	STOPPER	2
	025080232	PLAIN WASHER 8	2
	028080242	SPRING WASHER 2-8	2
	105812003	NUT 7.94	2
	154450001	RELEASE DRIVE LEVER B	1
	154451001	DRIVE STOPPER (B)	1
	149247001	CHAIN ASSEMBLY	1
	116185209	PEDAL ASSEMBLY	1
	117437109	FOOT PEDAL	1
	021400106	NUT 4	2
	062401416	SCREW 4X14	2
	116016001	PEDAL STOPPER	2
	154681001	ROLLER SHAFT ASSEMBLY (B)	1
	S18426001	NEEDLE PLATE (S) ASSEMBLY	1
	152995001	NEEDLE PLATE (S)	1
	152981001	KNIFE ARM (C)	1
	15322001	SCREW 4.37	1
	152897201	KNIFE CONNECTING ROD ASSEMBLY	1
	152901001	MOVABLE KNIFE ASSEMBLY	1
	152904001	SCREW 4.37	1
	152905001	FIXED KNIFE	1
	111140002	SCREW 2.38	2
	100360003	SCREW 2.38	2
	156150001	NEEDLE PLATE (B)	1
	153220001	KNIFE ARM (C) COLLAR	1
	153219001	MOVABLE KNIFE COLLAR	1
	152906101	BOBBIN THREAD RETAINER (A)	1
	153598001	SCREW 4.37	1
	081008070	O RING P8	1
	153597001	BOBBIN THREAD RETAINER COLLAR	1
	153596001	WASHER	1

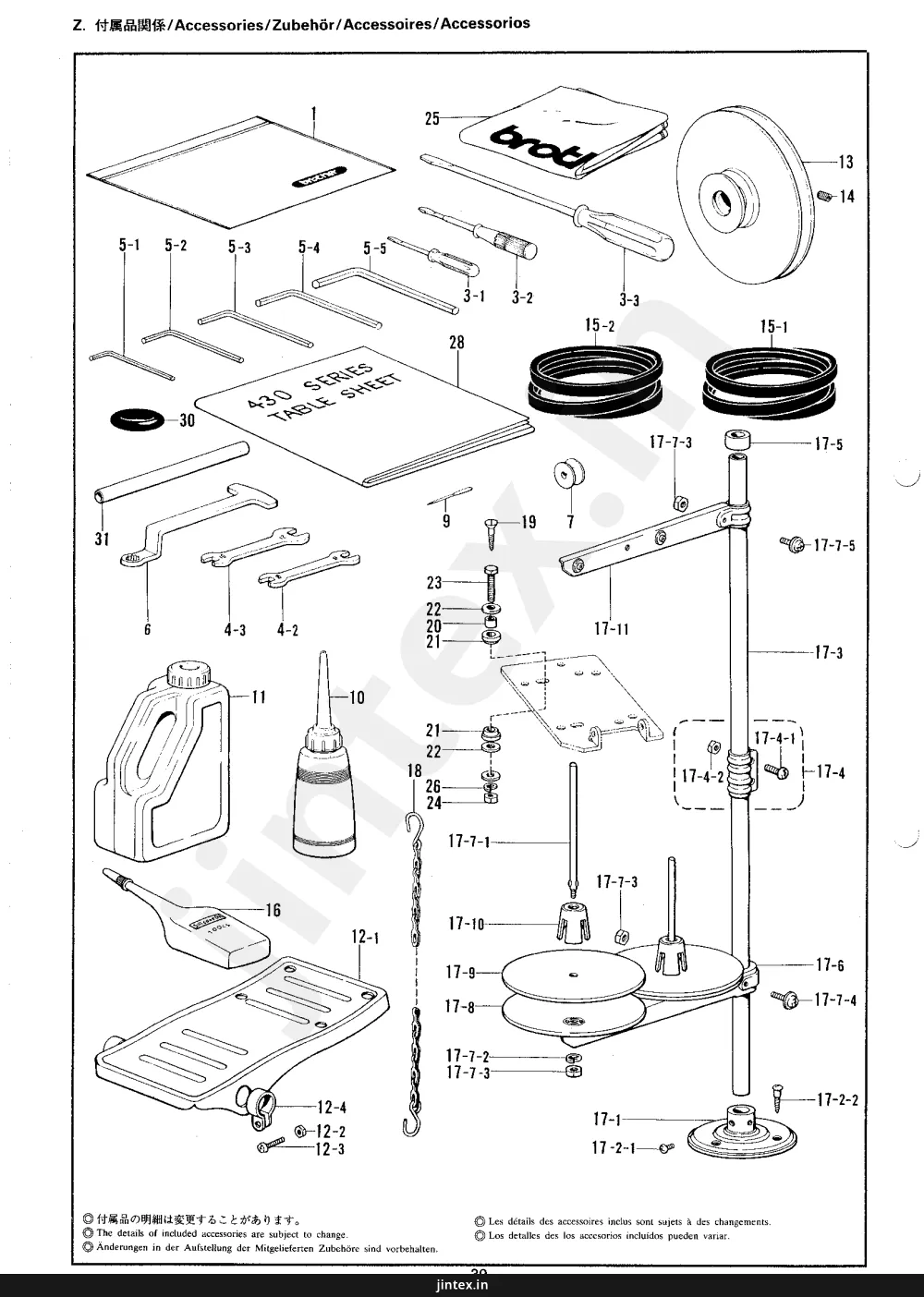

Page 46 — Z. 付属関係/Accessories/Zubehőr/Accessoires/Accesorios

Brother B-430 parts on page 46

Ref	Part number	Part name	Qty
	5-1	5-1
	5-2	5-2
	5-3	5-3
	5-4	5-4
	5-5	5-5
	3-1	3-1
	3-2	3-2
	3-3	3-3
	15-1	15-1
	15-2	15-2
	28	28
	30	30
	17-7-3	17-7-3
	17-5	17-5
	17-7-5	17-7-5
	9	9
	19	19
	7	7
	17-11	17-11
	17-3	17-3
	6	6
	4-3	4-3
	4-2	4-2
	23	23
	22	22
	20	20
	21	21
	17-4-1	17-4-1
	17-4	17-4
	17-4-2	17-4-2
	18	18
	26	26
	24	24
	17-7-1	17-7-1
	17-10	17-10
	17-9	17-9
	17-6	17-6
	17-7-4	17-7-4
	17-8	17-8
	17-7-2	17-7-2
	17-7-3	17-7-3
	17-2-2	17-2-2
	11	11
	10	10
	12-1	12-1
	17-1	17-1
	12-4	12-4
	12-2	12-2
	12-3	12-3
	17-2-1	17-2-1

Page 47

Brother B-430 parts on page 47

Ref	Part number	Part name	Qty
	122991001	ACCESSORY BAG	1
	142443001	SCREW DRIVER 1.9X52	1
	118837001	SCREW DRIVER 3.4X70	1
	101572101	SCREW DRIVER 5.5X190	1
	100887001	SPANNER 8X9	1
	107780001	SPANNER 10X12	1
	142002001	HEXAGONAL WRENCH 2	1
	142721001	HEXAGONAL WRENCH 3	1
	118064001	HEXAGONAL WRENCH 4	1
	150335001	HEXAGONAL WRENCH 5	1
	115157001	HEXAGONAL WRENCH 6	1
	152765001	WRENCH 10	1
	159613001	BOBBIN	3
	KO	NEEDLE DP	4
	114483002	OILER ASSEMBLY	1
	154702001	OIL TANK	1
	116185209	PEDAL ASSEMBLY	1
	417437109	FOOT PEDAL	1
	021400106	NUT 4	2
	062401416	SCREW 4X14	2
	116016001	PEDAL STOPPER	2
	x	MOTOR PULLEY	1
	014760622	SET SCREW 5.95	2
	082104891	V-BELT M48	1
	¥	V-BELTM	1
	x	SILICON OIL	1
	S$02761009	COTTON STAND	1
	150189009	COTTON STAND BASE	1
	$02773001	COTTON STAND BASE SCREW SET	1
	062060806	SCREW 6X8	2
	031452206	SCREW 45X22	3
	150172003	COLUMN PIPE	2
	150106003	COLUMN JOINT ASSEMBLY	1
	062501406	SCREW 5X14	2
	021500106	NUT 5	2
	150174000	COLUMN CAP	1
	$02778002	SPOOL HOLDER 2	1
	$02780001	SPOOL SCREW SET 2	4
	150179002	SPOOL SHAFT (B)	2
	028050246	SPRING WASHER 2-5	2
	021500106	NUT 5	4
	050503006	SCREW 5X30	1
	050501406	SCREW 5X14	1
	150180001	SPOOL STAND BASE	2
	150182000	SPOOL MAT	2
	126863001	SPOOL CUSHION	2
	S02786002	THREAD HANGER ASSEMBLY 2	1
	149247001	CHAIN ASSEMBLY	1
	106030001	SCREW 6.2X32	4
	152863001	CUSHION COLLAR	4
	152864000	CUSHION	8
	025800332	PLAIN WASHER 7.14	12
	017062503	BOLT 6X25	1
	021060102	NUT 6	4
	144226001	HEAD COVER	1
	028060242	SPRING WASHER 2-6	4
	153574201	TABLE SHEET	1
	120448001	RUBBER RING	1
	154760001	PIPE	1

Page 48 — PARTS LIST/ZUBEHORLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Brother B-430 parts on page 48

Ref	Part number	Part name	Qty
1	153056201	ARTS | 1ABEL
1	107415016	NEEDLE DP
1	152767009	PRESSER ARM ASSEMBLY
1	152777001	WORK CLAMP (R)
1	152778001	WORK CLAMP (L)
1	153568001	SPRING
1	153055201	FEED PLATE
2	153056202	ARTS | 1ABEL
2	145646019	NEEDLE DP
2	154526009	PRESSER ARM ASSEMBLY
2	153608101	WORK CLAMP (R)
2	154527001	WORK CLAMP (L)
2	154356001	SPRING
2	153610101	FEED PLATE
3	153056203	ARTS | 1ABEL
4	153056204	ARTS | 1ABEL
4	107415016	NEEDLE DP
4	152767009	PRESSER ARM ASSEMBLY
4	152777001	WORK CLAMP (R)
4	152778001	WORK CLAMP (L)
4	153568001	SPRING
4	153055201	FEED PLATE
5	153056205	ARTS | 1ABEL
5	153033009	NEEDLE DP
5	152779001	PRESSER ARM ASSEMBLY
5	152780001	WORK CLAMP (R)
5	153207201	FEED PLATE
6	153056206	ARTS | 1ABEL
6	145646019	NEEDLE DP
6	154526009	PRESSER ARM ASSEMBLY
6	153608101	WORK CLAMP (R)
6	154527001	WORK CLAMP (L)
6	154356001	SPRING
6	153610101	FEED PLATE
7	453056207	ARTS | 1ABEL
7	107415009	NEEDLE DP
7	153033009	PRESSER ARM ASSEMBLY
7	152779001	WORK CLAMP (R)
7	152780001	WORK CLAMP (L)
7	153568001	SPRING
7	152791201	FEED PLATE
8	153056208	ARTS | 1ABEL
8	107415016	NEEDLE DP
8	153207201	FEED PLATE
9	153056209	ARTS | 1ABEL
9	107415009	NEEDLE DP
9	452791201	FEED PLATE

Page 49

Brother B-430 parts on page 49

Ref	Part number	Part name	Qty
	152721000	CHANGE GEAR (W)
	152722000	CHANGE GEAR (C)
	152727001	FEED CAM
	155523001	POWER CAM SET
	151933001	POWER CAM ASSEMBLY
	152682001	LARGE SHUTTLE HOOK
	152685101	INNER ROTARY HOOK
	153053001	FEED CAM
	13165001	POWER CAM SET
	s13166001	POWER CAM ASSEMBLY
	152686001	LARGE SHUTTLE HOOK
	152687001	INNER ROTARY HOOK
	153312000	CHANGE GEAR (W)
	153313000	CHANGE GEAR (C)
	153314001	FEED CAM
	152719000	CHANGE GEAR (W)
	152720000	CHANGE GEAR (C)
	153054001	FEED CAM
	153343001	FEED CAM
	153321001	FEED CAM
	152726001	FEED CAM
	153344001	FEED CAM
	153315001	FEED CAM

Page 50

Brother B-430 parts on page 50

Ref	Part number	Part name	Qty
1	145519001	SPRING	1
1	104525001	TENSION	1
1	156150001	SPRING	1
1	107415016	NEEDLE	1
2	144588001	SPRING	1
2	107606001	TENSION	1
2	156151001	SPRING	1
2	145646019	NEEDLE	1
3	153109001	MOTOR	1
3	153108001	MOTOR	1
3	082105190	V BELT	1
4	145519001	SPRING	1
4	104525001	TENSION	1
4	156150001	SPRING	1
4	1074158016	NEEDLE	1
6	144588001	SPRING	1
6	107606001	TENSION	1
6	156151001	SPRING	1
6	145646019	NEEDLE	1
6	154540001	MOTOR	1
6	154541001	MOTOR	1
6	082105290	V BELT	1
7	145519001	SPRING	1
7	104525001	TENSION	1
7	156149001	SPRING	1
7	107415009	NEEDLE	1
7	154542001	MOTOR	1
7	154543001	MOTOR	1
8	156150001	SPRING	1
8	107415016	NEEDLE	1
9	156149001	SPRING	1
9	107415009	NEEDLE	1

Page 51

Brother B-430 parts on page 51

Ref	Part number	Part name	Qty
	49267239	V BELT	1
	082105090	SILICON OIL	1
	0670600	SILICON OIL	1
	082105190	SILICON OIL	1
	0670600	SILICON OIL	1

Page 52

Brother B-430 parts on page 52

Ref	Part number	Part name	Qty
	153202001	WORK CLAMP LPL
	153201001	WORK CLAMP RPL
	153205201	FEED PLATE PL
	152782001	WORK CLAMP L DENIM
	152781001	WORK CLAMP R DENIM
	152792001	FEED PLATE DENIM
	156155001	NEEDLE HOLE PLATE G
	153204001	WORK CLAMP LPS
	153203001	WORK CLAMP RPS
	153206201	FEED PLATE PS
	500907001	WORK CLAMP L INCH
	$00906001	WORK CLAMP R1 INCH
	$00908001	FEED PLATE 1 INCH
	156152001	NEEDLE HOLE PLATE D

Page 53

Brother B-430 parts on page 53

Ref	Part number	Part name	Qty
	$00327001	K - 16	24
	014770622	K - 15	24
	$00400000	K - 16-11	24
	014821022	B-6	6
	$01300009	N-3	32
	J - 29	22
	$01688001	E - 1	12
	017062503	Z - 23	40
	$02761009	Z-17	40
	017711412	B - 59	8
	$02773001	Z - 17-2	40
	017761412	Cc -9	10
	$02778002	Z - 17-6	40
	F - 40	16
	$02780001	Z - 17-7	40
	017762012	S - 1-3	38
	$02786002	Z - 17-11	AO
	017762202	B - 66	8
	$02878000	D - 21	12
	018060822	J - 10-3	22
	S$06706001	Z -16	40
	018061622	B - 77	8
	$07813001	H - 51	20
	H - 42	20
	$07814001	H - 52	20
	018062022	B - 55-3	8
	$09132001	F - 12	14
	H - 25	20
	H - 20	20
	H - 8	20
	H - 29	20
	018062222	H - 18	20
	H - 32	20
	018063022	F - 12-1	14
	$13165001	J - 10	22
	H - 20-1	20
	$13166001	J - 10-1	22
	H - 29-1	20
	$18426001	T -1	38
	H - 32-1	20
	$21120001	D - 26	12
	018081222	A - 32-3	2
	013710712	H - 37	20
	018082022	F - 26-2-1	14
	H - 40	20
	F - 4-1	14
	Q - 13	36
	018082522	B - 11	6
	013719412	A - 32-8	2
	018500822	F - 35-15	16
	013760612	A - §2	2
	018501422	K - 25	24
	G-5	18
	018681022	P - 3	34
	M- 32	30
	021060102	Z - 24	40
	013761410	B - 32	6
	021100202	A - 32-15	2
	013761412	Cc - 14	10
	021400106	S - 1-13-2	38
	C - 21	10
	Z - 12-2	40
	014680422	M - 28	30
	021500106	Z - 17-4-2	40
	M - 34	30
	Z - 17-7-3	40
	N - 1-18	32
	021670202	L - 12-7	26
	014680622	K - 3	24
	021680202	B - 39-7	6
	Q - 3	36
	021800102	B - 22	6
	Q-9	36
	025060132	B - 78	8
	014760622	B - 34	6
	P - 21	34
	B - 74	8
	025060232	B - 80	8
	F - 18	14
	Cc - 10	10
	F - 23	14
	F - 39	16
	F - 3	14
	S - 1-4	38
	F - 30-3	14
	025080132	A - 65	4
	F - 32	14
	025080232	A - 32-4	2
	F - 35-7	14
	S - 1-7	38
	F - 6-2-3	14
	025100132	A - 32-16	2
	G - 10	18
	025350132	Q -17	36
	G - 16	18
	025350332	L - 12-4	26
	G - 28	18
	R-4	36
	G - 4	18
	025680132	B - 39-6	6
	H - 10	20
	025770232	A - 11	2
	H - 45	20
	Q-7	36
	J - 19-3	22
	R -9	36
	J - 21	22
	025800332	B - 20	6
	J - 30	22
	Z - 22	40
	K - 11	24
	028040242	L - 51	28
	K - 17	24
	028050242	B - 45	6
	K - 6	24
	B - 60	8
	K - 8	24
	028050246	Z - 17-7-2	40
	P - 26	34
	028060242	B - 79	8
	P - 30	34
	B - 82	g
	P - 42	34
	H - 27	20
	R - 10	36
	Z - 26	40
	Z -14	40
	028080242	A - 32-5	2
	014770622	Cc -17	10
	B - 12	6
	Cc - 19	10
	S - 1-8	38
	D-8	12
	028100242	A - 32-17	2

Page 54

Brother B-430 parts on page 54

Ref	Part number	Part name	Qty
	031452206	Z 1 7-2-2	40
	062680612	A - 59	2
	047251640	{ - 37	26
	062680612	L 5	26
	047501 242	A - 75	4
	062680712	N - 1-11	32
	048030342	B - 39-4	6
	062680812	A - 22	2
	048030342	Q - 11	36
	062680812	A - 64	4
	048040342	B - 27	6
	062680812	C - 20-7	10
	048040342	B - 55-2	8
	062680812	L 3	26
	048040342	D - 1-5	12
	062680812	L 54	28
	048040342	H - 43-4	20
	062680812	N - 7	32
	048040342	M - 30	30
	062710612	A - 72	4
	048040342	P - 18-3	34
	062710712	A - 6	2
	048040342	P - 28	34
	062710712	M - 2	30
	048040342	Q - 8	36
	062711412	A - 5	2
	048040342	R - 6	36
	062711412	A - 8	2
	048050342	F - 35-6	14
	062761412	A - 3	2
	048050342	N - 1-17	32
	062761412	N - 2	32
	048050342	P - 37	34
	062761412	P - 20	34
	048050342	P - 5	34
	062781412	C - 35	10
	048050342	R - 8	36
	071047650	F - 38	16
	048060342	G - 12	18
	071095250	D - 25	12
	048060342	G - 19	18
	072600360	J 3-2	22
	048060342	Q-4	36
	072600760	D - 9-2	12
	048080342	K - 23	24
	072630260	C -5	10
	048100142	A - 32-13	2
	081003670	K - 13	24
	048110742	B - 31	6
	081003670	K - 19	24
	048110742	B - 73	8
	081008070	P - 52	34
	048110742	G - 27	18
	081008070	T 1-15	38
	048110742	P - 40	34
	082104891	Z - 15-1	40
	0481420142	P - 24	34
	082105090	Z 15-2	40
	048150142	C - 3	10
	082105190	Z 15-2	40
	048160142	J 26	22
	082105290	Z 15-2	40
	048170142	J 2	22
	100032004	P - 43	34
	048180142	B - 4	6
	100136001	M - 15	30
	048180142	F 15	14
	100136001	M - 27	30
	048180142	F - 22	14
	400250001	C - 16	10
	048240242	D - 9-6	12
	100315002	A - 10	2
	048320242	A - 32-2-1	2
	100360003	P - 16	34
	0483501 42	D - 9-4	12
	100360003	T 1-9	38
	050501 406	Z 17-7-5	40
	100398001	M- 9	30
	050503006	Z 17-7-4	40
	100402004	M - 10	30
	062060806	z 17-2-1	AQ
	100887001	Z - 4-2	40
	062401416	S 1-13-3	338
	101572101	Z 3-3	40
	062401416	Z 12-3	40
	101706001	C - 18	10
	062501406	Z 17-4-1	40
	102538007	A - 56-3	2
	062660412	K - 16-4	24
	102630001	G - 8	18
	062660712	D - 24	12
	102716004	N - 1-22	32
	062660712	K - 16-8	24
	102716004	N - 1-5	32
	062670412	H - 49	20
	102843004	Cc - 8	10
	062670412	M - 45	30
	103950003	M- 18	30
	062670512	A - 57	2
	104450109	A - 31	2
	062670512	L 21,	26
	104450109	A - 66	4
	062670512	L - 26	26
	104525001	M- 14	30
	062670512	L - 33	26
	104525001	N - 3-3	32
	062670512	L - 39	26
	104567001	L 10	26
	062670512	L - 48	26
	104567001	L 22	26
	062670512	L 50	28
	104567001	L - 40	26
	062670512	Q - 15	36
	104689002	B - 23	6
	062670612	L 13	26
	104689002	K - 2	24
	062670612	M-4	30
	105248003	L - 65	28
	062670612	M - 40	30
	105451002	F - 10	14
	062670712	N.- 1-19	32
	105451002	F - 25	14
	062670712	N - 1-9	32
	105812003	S - 1-9	38
	062670812	A - 15	2
	106030001	Zz 19	40
	062670812	L - 12-3	26
	106129001	A - 56-4	2
	062671012	Q - 18	36
	106147002	B - 37	6
	062671012	R - 3	36
	107038003	F - 35-12	16
	062671412	L 12-8	26
	407749001	J 27	22

Page 55

Brother B-430 parts on page 55

Ref	Part number	Part name	Qty
1	107149001
A	140392009
G	107153002
F	140407002
L	140423000
Jo- 9	107231002
C	140726000
Z-9Q	107415009
F	141331001
C	107415016
H	141334001
J	141472002
M	107606001
M	141528001
B	107744001
N	141550001
Z	107780001
G	141583001
N	108265009
L	141692001
A	108520009
K	141786001
A	109239002
K	141808001
H	109893002
A	141860001
H	110027001
Z	142002001
B	110251001
C	142211001
Z	142443001
K	110495003
N	142566001
B	110505001
B	142628001
P	1117140002
P	141334001
B	111865009
Z	142721001
P	112468001
F	143591001
L	112669001
Z	144226001
C	144458001
M	112751003
M	144588001
i	113006001
i	144694001
M	113316001
C	144712002
B	113431002
F	145318001
M	145446001
M	114294001
F	145478001
Z	114483002
A	145480001
A	114486002
M	145519001
A	114985001
C	145646019
D	115003001
L	146375000
B	115012002
D	147111001
B	115018001
H	147151000
M	115077003
L	147745000
N	115138001
L	147745000
Z	115157001
L	148921000
A	115493002
S	149247001
1S	116016001
Z	150106003
S	116185209
Z	150172003
Q-5	116629001
Z	150174000
C	116920001
Z	150179002
L	117150001
Z	150180001
B	117363001
Z	150182000
S	117437109
Z	150189009
A	117934009
Z	150335001
A	117936009
B	150553001
Z	118064001
B	150554002
Z	118837001
B	150556001
N	120448001
Z	122991001
Z	126863001
C	132051001
M	140208001

Page 56

Brother B-430 parts on page 56

Ref	Part number	Part name	Qty
-9	151163001	B
- 20	152232001	C
- 20-2	152236001	C
1-3	151602002	F
- 20-3	152237001	C
- 54	151604002	A
- 20-5	152238001	C
- 1	151886001	B
- 20-6	152239001	C
- 3	151887001	B
- 22	152240001	C
- 10	151888101	B
- 25	152242001	C
- 15	151889001	B
- 26	152243001	Cc
- 16	151890000	B
- 34	152244000	C
- 17	151891001	B
- 4	152245001	K
- 18	151892001	B
- §	152246001	K
- 21	151893001	B
- 7	152247001	K
- 24	151894101	B
- 10	152250001	K
- 25	151895000	B
- 16-1	152677001	K
- 26	151898001	B
- 12	152678001	K
- 28	151899001	B
- 16-2	152679001	K
- 29	151900001	B
- 16-3	152680001	K
- 33	151901001	B
- 24	152681201	K
- 35	151902001	B
- 26	152682001	K
- 36	151903001	B
- 16-5	152683001	K
- 39	151904101	B
- 16-6	152684001	K
- 39-1	151905101	B
- 31	152685101	K
- 39-3	151906101	B
- 26	152686001	K
- 40	151907001	B
- 31	152687001	K
- 4-1	152693001	D
- 41	151908001	B
- 1-2	152694001	D
- 43	151910001	B
- 9-1	152695201	D
- 47	151912001	B
- 9-3	152698001	D
- 49	151913001	B
- 9-5	152699001	D
- 50	151914001	B
- 9-7	152700000	D
- 52	151915101	B
- 1	152701001	D
- 57	151919101	B
- 19	152702001	DO
- 58	151920001	B
- 20	152703100	D
- 65	151922001	B
- 22	162705101	D
- 68	151923001	B
- 23	152706001	D
- 69	151924001	B
- 1	152707001	H
- 70	151925001	B
-4	152708000	H
- 2	151927001	B
- 6	152709000	H
1	151928001	J
- 7	152710001	H
-7	7151923000	B
- 5	152713001	H
3-1	151930201	J
- 2	152718001	H
8	151932001	J
- 15	152719000	H
10-1	151933001	J
- 16	152720000	H
10-1-1	151935000	J
- 15	152721000	H
114	151936001	J
- 16	152722000	H
12	151937001	J
- 34	152723001	H
13	151938001	J
- 19	152724001	H
- 55	151939101	B
- 22	152726001	H
10-2	151940001	3,
- 22	152727001	H
10-4	151947101	y
-8	152728001	B
19	151944001	J
- 28	152729001	H
- 17	151946000	D
- 35	152731001	H
19-1	151947101	J
- 36	152732001	H
19-2	151948001	J
- 39	152733001	H
20	151949001	J
- 41	152734001	H
22	151951001	J
- 43	152735101	H
24	151952001	J
- 43-2	152739001	H
25	151953001	J
1	152741101	F
28	151954001	J
1-1	152742001	F
- 4	151995001	C
- 2-2	152744001	G
- 4	151997000	Cc
2	152745001	F
- 6	151998000	C
31	152749001	F
-7	151999001	C
28	152750001	F
- 13	152000001	C
- 9	152191101	K
- 15	152231000	C

Page 57

Brother B-430 parts on page 57

Ref	Part number	Part name	Qty
8	152750001	F
32-10	152860009	A
6-2	152751101	F
32-11	152861101	A
6-2-1	152752001	F
32-12	152862001	A
11	152755001	F
20	152863001	Z
5	152756001	B
24	152864000	Z
32-14	152865101	A
51	152866001	A
53	152867000	A
16	152758001	F
55	152868009	A
17	152759001	F
1	152869001	M-
20	152760001	F
3	152870001	M-
30	152762001	F
8	152872001	M-
6	152765001	Z-
16	152873001	M-
33	152766001	F
19	452874001	M-
35	152767009	F
20	152875001	M-
35-1	152768009	F
24	152876001	M-
36	152769001	F
23	152877001	M-
36-1	152771000	F
24	152878001	M-
37	152772001	F
25	152879101	M-
36-2	152773000	F
26	152880001	M-
35-2	152774001	F
31	152881001	M-
35-3	152775001	F
43	152883000	M-
35-4	152776001	F
44	152884001	M-
35-8	152777001	F
33	152886001	M-
35-9	152778001	F
35	152887001	M-
35-8	152779001	F
36	152888101	M-
35-9	152780001	F
39	152889001	M-
35-10	152783001	F
41	152890001	M-
35-11	152784001	F
42	152891001	M-
35-19	152788000	F
4	152892001	Pp.
44	152791201	F
.4	152893101	P
1	152794001	G
-2	152896001	P
2	152797001	G
9	152897201	p
2-1	152798001	G
10	152901001	P
3	152799001	G
11	152904001	Pp
6	152800201	G
12	452905001	Pp
7	152801001	G
50	452906101	P
9	152802001	G
18-1	152912001	P
13	152803001	G
18-2	152913001	P
14-1	152805101	G
55-1	152914001	B
14-2	152806001	G
19	152915001	Pp
46	152808101	B
22	152916001	Pp
23	152811001	G
23	152917001	P
4	152815001	Q
18-6	152919001	P
2	152816001	Q
29	152920001	P
6	152822001	QO
31	152921001	P
10	152823001	Q
34	152922001	Pp
12	152827009	GQ
35	152923001	P
2	152830109	A
1	152925101	R-
4	152831009	A
2	152926001	R-
4-1	152832109	A
7	452929001	R-
4-2	152833001	A
1-3	152933001	N
7	152834009	A
1-4	152934001	N
9	152835009	A
1-6	152935001	N
13	152836009	A
1-7	152936001	N
60	152838001	A
1-8	152937001	N
61	152839001	A
1-10	152938001	N
14	152841009	A
1-12	152939001	N
16	152842009	A
1-15	152940001	N
19	152846009	A
1-20	152941001	N
77	152847009	A
63	152848001	A
32-2	152852101	A
32-6	152857001	A
32-7	152858001	A
32-9	152859001	A

Page 58

Brother B-430 parts on page 58

Ref	Part number	Part name	Qty
	452945001	N - 3-1	32
	153056203	A - 62	4
	152948001	L - 1	26
	153056204	A - 62	4
	153056205	A - 62	4
	152949001	L -2	26
	153056206	A - 62	4
	152950001	L - 2-1	26
	153056207	A - 62	4
	152951001	L - 2-2	26
	153056208	A - 62	4
	152952001	L - 2-3	26
	153056209	A - 62	4
	152953001	L - 45	26
	153057002	F - 42	16
	152955001	L - 4-2	26
	153058001	D - 1-4	12
	152956001	L - 4-3	26
	153098000	A - 56-2	2
	153100000	A - 56	2
	152958001	L -4	26
	153102001	A - 56-1	2
	152959001	L - 4-1	26
	153104001	H - 17	20
	152960001	L -9	26
	153108001	Z - 13	40
	152961001	L - 12	26
	153109001	Z - 13	40
	152962001	L -8	26
	153138001	M - 46	30
	152963001	L - 12-5	26
	453141001	H - 48	20
	152964001	L -17	26
	153195001	H - 43-3	20
	153207201	F - 44	16
	152965001	L - 18	26
	153208002	P - 44	34
	152966001	L - 12-1	26
	153219001	P - 46	34
	152967001	L - 12-2	26
	153220001	P - 45	34
	152968001	L - 60	28
	153222001	P -8	34
	152969001	L - 20	26
	153271001	T - 1-3	38
	152971001	L - 29	26
	153312000	H - 15	20
	152973001	L - 36	26
	153313000	H - 16	20
	152974001	L - 41	26
	153314001	H - 22	20
	152976001	L - 49	28
	153315001	H - 22	20
	152977001	L - 52	28
	153321001	H - 22	20
	152978001	L - 53	28
	153330001	C - 20-1	10
	152980001	B - 52-1	8
	153331001	F - 30-1	14
	153332001	H - 43-4	20
	153343001	H - 22	20
	152981001	P -7	34
	153344001	H - 22	20
	153482001	P - 38	34
	152982109	N - 1	32
	153528001	L - 64	28
	152983009	N - 7-1	32
	153529101	L - 61	28
	152984001	N - 1-2	32
	153530001	L - 62	28
	152985001	L - 46	26
	153531001	L - 63-1	28
	152986001	A . 21	2
	153562001	tL - 63-2	28
	152988001	R- 5)	36
	153567000	F - 35-20	16
	152989001	A - 20	2
	153568001	F - 35-18	16
	152992001	L - 24	26
	153570001	F - 35-16	16
	152995001	P _6	34
	153571001	F - 35-13	16
	153574201	Z - 28	40
	153033009	F - 35	14
	153596001	P - 54	34
	153035000	F - 43	16
	153597001	P - 53	34
	153040001	Cc -2	10
	153598001	P - 51	34
	153041001	Fo. 1-2	14
	153608101	F . 35.8	14
	153042001	F - 26-1	14
	153610101	F - 44	16
	153757001	F - 26-2	14
	153043001	F - 30-2	14
	153762101	F-4	14
	153044001	D- 1	12
	153763001	L - 47	26
	153045001	F - 24	14
	153918001	iL - 2-4	26
	153047001	F -6	14
	153919001	L - 2-7	26
	153048001	F - 26	14
	153921001	F - 1-5	14
	153049001	M-7	30
	153922001	L - 44	26
	153050000	K - 16-9	24
	153923001	L - 58	28
	153053001	H - 22	20
	153924001	F - 1-4	14.
	153054001	H - 22	20
	153925001	iL - 68	28
	153055201	F - 44	16
	153926001	L - 69	28
	153056201	A - 62	4
	153927001	L - 55	28
	153056202	A - 62	4

Page 59

Brother B-430 parts on page 59

Ref	Part number	Part name	Qty
	154155101	B - 63	8
	154332001	B - 46-1	6
	154333001	B - 46-2	6
	154339001	K - 35-1	24
	154341001	K - 35-2	24
	154356001	F - 35-18	16
	154448001	S - 1-2	38
	154449001	S - 1-6	38
	154450001	S - 1-10	38
	154451001	S - 1-11	38
	154452001	S - 1-1	38
	154465001	A - 70	4
	154526009	F - 35	14
	154527001	F - 35-9	14
	154528001	N - 1-21-1	32
	154540001	Z - 13	40
	154541001	Z - 13	40
	154542001	Z- 13	40
	154543001	Z- 13	40
	154681001	S.- 1-14	38
	154702001	Z - 11	40
	154709002	S - 1	38
	154738109	A - 32-1	2
	154760001	Z - 31	40
	154785000	A - 74	4
	454788001	P - 25	34
	154789001	P - 18-5	34
	155336001	H - 46	20
	155337001	H - 43-5	20
	155489000	K - 16-10	24
	155499001	B - 62	8
	155500001	B - 76	8
	155501001	B - 42	6
	455523001	J 10	22
	156149001	P - 17	34
	156150001	P - 17	34
	156151001	P - 17	34
	156206001	Q - 14	36
	156495001	Q - 16	36
	156936101	J 3	22
	158686001	G - 15	18
	158687001	G - 24	18
	159610101	K - 35	24
	159612001	K - 35-3	24
	159613001	K - 36	24
	159805001	M - 13	30
	159808109	A - 32	2
	159977000	H - 9	20
	159978001	H - 11	20
	159979001	H - 12	20
	159984001	H - 13	20
	183686001	D-9	12
	402887001	K - 16-7	24

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother B-430 — parts catalog

• Page 1 (cover): This is the cover page for the Brother LK3-B430 High Speed Bar Tacking Machine parts book, available in multiple languages.
• Page 2 (unknown): This page is blank except for a watermark and a footer.
• Page 3 (toc): This page is the table of contents for the parts book, listing various sections related to machine components and their corresponding page numbers.
• Page 4 (toc): This page provides notes for using the parts book and a table of contents listing various mechanisms and parts with their corresponding page numbers.
• Page 5 (toc): This page provides instructions for using the parts list and presents the table of contents for the document, detailing various sections and their corresponding page numbers.
• Page 6 (toc): This page provides notes on using the parts manual and a table of contents for various machine mechanisms and parts lists.
• Page 7 (toc): This page provides notes on how to use the parts manual and an index of its contents, listing various mechanisms and their corresponding page numbers.
• Page 8 (diagram): This page displays a detailed diagram of the machine body and its components, with various parts labeled with reference numbers.
• Page 9 (parts_list): This page lists parts for the machine body, including covers, screws, plates, springs, and other components, with their corresponding reference numbers, codes, quantities, and names.
• Page 10 (diagram): This page displays a detailed diagram of the machine body and its components, including various covers, screws, and other parts, with reference numbers pointing to specific elements.
• Page 11 (parts_list): This page lists parts for the machine body, including bed cover shaft, label, spring, screws, washer, oil cap, dust oiler support assembly, oiler, felt, spring pin, and packing.
• Page 12 (diagram): This page illustrates the clutch mechanism and related components with reference numbers.
• Page 13 (parts_list): This page lists parts for the clutch mechanism, including levers, shafts, washers, springs, and nuts, with their corresponding part numbers, quantities, and reference numbers.
• Page 14 (diagram): This page illustrates the clutch mechanism and related components for an industrial sewing machine, showing an exploded view with reference numbers for each part.
• Page 15 (parts_list): This page lists parts for the clutch mechanism, including various screws, nuts, levers, washers, and springs.
• Page 16 (diagram): This page illustrates the upper shaft and needle bar mechanism of a sewing machine, showing various components and their assembly.
• Page 17 (parts_list): This page lists parts for the upper shaft and needle bar mechanism, including shafts, bearings, screws, and levers.
• Page 18 (diagram): This page illustrates the drive pulley and idler pulley mechanism, along with supply parts, showing various components with their reference numbers.
• Page 19 (parts_list): This page lists parts for the drive pulley and idler pulley mechanism, as well as supply parts, with part numbers, quantities, and descriptions.
• Page 20 (diagram): This page illustrates the feed mechanism and transport device components with a detailed diagram and corresponding reference numbers.
• Page 21 (parts_list): This page lists parts for the feed mechanism/transportvorrichtung/mecanisme de l'entrainement/mecanismo de la alimentacion, including various levers, screws, bushes, washers, and clamps.
• Page 22 (diagram): This page illustrates the feed mechanism components with a detailed exploded view and corresponding reference numbers.
• Page 23 (parts_list): This page lists parts for the feed mechanism, including screws, washers, springs, collars, and other components, with their respective part numbers, quantities, and reference numbers.
• Page 24 (diagram): This page illustrates the work clamp lifter mechanism for an industrial sewing machine, showing various components and their assembly.
• Page 25 (parts_list): This page lists parts for the work clamp lifter mechanism, including various levers, shafts, screws, and rings, with their corresponding part numbers and quantities.
• Page 26 (diagram): This page displays a diagram of the vertical shaft mechanism, showing various components and their reference numbers.
• Page 27 (parts_list): This page lists parts for the vertical shaft mechanism, including worms, set screws, washers, bolts, and various shafts and levers.
• Page 28 (diagram): This page illustrates the components of the power lift mechanism, including various shafts, bearings, springs, and associated hardware.
• Page 29 (parts_list): This page lists parts for the power lift mechanism, including shafts, bearings, covers, screws, springs, washers, rollers, and other components.
• Page 30 (diagram): This page illustrates the lower shaft mechanism, including various components like the lower shaft, connecting rod, and associated parts, with reference numbers for identification.
• Page 31 (parts_list): This page lists parts for the lower shaft mechanism, including various screws, nuts, gears, shafts, and assemblies, with their corresponding part numbers and descriptions.
• Page 32 (diagram): This page displays a diagram of lubrication and related components for the sewing machine, with numbered parts indicated.
• Page 33 (parts_list): This page lists parts for lubrication and related components, including oil gauges, wick supports, felt, oil tubes, and various screws and washers, with their corresponding part numbers and descriptions.
• Page 34 (diagram): This page displays a diagram of lubrication and related components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 35 (parts_list): This page lists parts for lubrication and related components, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, with various components labeled with reference numbers.
• Page 37 (parts_list): This page lists parts for the threading mechanism/fadenfuhrungsvorrichtung/mecanisme de l'enfilage/mecanismo del enhebrado, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the bobbin winder mechanism and related components, with various parts labeled with reference numbers and part numbers.
• Page 39 (parts_list): This page lists parts for the Bobbin winder mechanism/Spuler/Mecanismo de bobinador/Mecanismo del devanador de la canilla, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with reference numbers for identification.
• Page 41 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 42 (diagram): This page contains diagrams and parts lists for the thread wiper mechanism and the thread nipper mechanism.
• Page 43 (parts_list): This page lists parts for the Thread Wiper Rod Assembly and Thread Nipper Mechanism, including part numbers, descriptions, and quantities.
• Page 44 (diagram): This page displays diagrams and part lists for attachment sets and option parts for sewing machines, including various components like springs, screws, plates, and levers.
• Page 45 (parts_list): This page lists attachment parts and option parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of various sewing machine accessories and parts, including tools, belts, bottles, and mounting hardware, with corresponding reference numbers.
• Page 47 (parts_list): This page lists various accessories and parts for sewing machines, including screwdrivers, wrenches, oilers, and motor pulleys, with their corresponding part numbers and quantities.
• Page 48 (parts_list): This page lists parts for various sewing applications including ordinary clothes and denim, with part numbers and descriptions like NEEDLE DP, PRESSER ARM ASSEMBLY, and FEED PLATE.
• Page 49 (parts_list): This page lists parts for various sewing machine classes and specifications, including feed gears, power cams, and shuttle hooks, with corresponding part numbers and model applicability.
• Page 50 (parts_list): This page lists parts for various sewing machine models including M14, M-14, P-17, Z-9, Z-13, 2-13, and Z-15-2. It details springs, tension plates, needle plates, and motor pulleys for different cloth types like ordinary clothes and denim, with corresponding part numbers and quantities.
• Page 51 (parts_list): This page lists parts for various sewing machine classes and specifications, including V-belts and silicon oil, with part numbers like 49267239 and 082105090.
• Page 52 (parts_list): This page lists optional parts for sewing machines, including various work clamps, feed plates, and needle hole plates with their corresponding part numbers.
• Page 53 (index): This page is an index listing part codes, reference numbers, and corresponding page numbers in the catalog.
• Page 54 (parts_list): This page lists part numbers with their corresponding reference numbers and page references, organized in columns for easy lookup.
• Page 55 (unknown): This page lists part numbers, reference numbers, and page references, likely for a parts catalog. It contains two columns of part information.
• Page 56 (parts_list): This page lists various parts with their corresponding reference numbers and page references. Part numbers include 151163001, 152232001, and others.
• Page 57 (parts_list): This page lists various parts with their corresponding reference numbers and page references, organized into two columns.
• Page 58 (unknown): This page contains a list of part numbers, their corresponding reference numbers, and page numbers, likely serving as an index or cross-reference within a parts catalog.
• Page 59 (unknown): This page lists part numbers, reference numbers, and page numbers, likely serving as an index or cross-reference within a parts catalog.
• Page 60 (cover): This page is the cover of the Brother Industries, Ltd. parts catalog, featuring the Brother logo and company address in Nagoya, Japan. It also includes catalog identifiers and a revision date.

Page 1

brother LK3-B430 高速本縫筒型閂止ミシン HIGH SPEED BAR TACKING MACHINE VERRIEGELUNGSSCHNELLNÄHER MACHINE À COUDRE À POINTS D'ARRÊT À GRANDE VITESSE DU TYPE BRAS LIBRE MÁQUINA PRESILLADORA DE DOBLE PESPUINTE DE ALTA VELOCIDAD CON BARRA DE BRAZO LIBRE パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS P430501 jintex.in

Page 2

jintex.in

Page 3 — 目 次

パーツブックご利用に際して 1. この本は、この本の表紙(正誤表の挿入されている場合は正誤表)に記載さ れているものと同じプレートが取り付けられているミシンのためのものです。 2. 部品コード欄が*となっている場合は、ゲージ部品一覧表(41~44ページ) でお調べ下さい。 3. この本は1991年1月のデータに基づいて作成されたものです。 4. 部品は、予告なしに設計変更される場合があります。 目 次 A. 主体関係 B. クラッチ関係 C. 上軸・針棒関係 D. 動車・遊車関係 E. 補給部品 F. 送り関係 G. 押工上ゲ関係 H. カム伝導関係 J. パワー押工関係 K. 下軸関係 L. 給油潤滑関係 M. 糸通シ関係 N. 糸巻キ関係 P. 糸切り関係 Q. 糸払イ関係 R. 糸締メ関係 S. 付属装置セット T. 特別注文部品 Z. 付属品関係 仕様別部品一覧表 オプションパーツ 索引 2 6 10 12 12 14 18 20 22 24 26 30 32 34 36 36 38 38 40 41~44 45 46~53 jintex.in

Page 4 — Notes for using this parts book

Notes for using this parts book 1. This book is applicable to sewing machines which have the same plate number as shown on the cover of this book (or correction sheet). 2. If the symbol * is found in the “Parts No.” column, refer to the different pats list on page 41~44. 3. This book was prepared based on information available in January 1991. 4. Parts are subject to changes in design without prior notice. CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 5 — Hinweise zur Verwendung dieser Teileiste

Hinweise zur Verwendung dieser Teileiste 1. Dieses Buch bezieht sich auf die Nähmaschinen mit derselben Kennungsnummer wie auf diesem Buchumschlag (oder auf dem Korrekturblatt). 2. Dieses Zeichen * in der Spalte “Parts No. (Teilnummer)” verweist auf Gesonderte Stückliste auf Seite 41~44. 3. Dieses Buch basiert auf den Informationen vom Januar 1991. 4. Modelländerungen sind vorbehalten. INHALTSVERZEICHNIS A. Maschinengehäuse 2 B. Kupplungsvorrichtung 6 C. Obere Welle und Nadelstangenvorrichtung 10 D. Antriebsriemenscheibe und Riemenscheibe 12 E. Lieferteile 12 F. Transportvorrichtung 14 G. Stoffhalterhebevorrichtung 18 H. Vertikale Welle 20 J. Heberbetätigungsvorrichtung 22 K. Untere Welle 24 L. Schmierung 26 M. Fadenführungsvorrichtung 30 N. Spuler 32 P. Fadenabschneidevorrichtung 34 Q. Fadenwischvorrichtung 36 R. Fadenspannvorrichtung 36 S. Anbausatz 38 T. Sonderzubehör 38 Z. Zubehör 40 ZUBEHÖRLISTE 41 ~ 44 SONDERZUBEHÖR 45 VERZEICHNIS 46 ~ 53 jintex.in

Page 6 — Notes sur l'utilisation de ce manuel de pièces détachées

Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel est destiné aux machines à coudre ayant le même numéro de plaque montré sur la couverture de ce manuel (ou sur la feuille de corrections). 2. Si le symbole * se trouve dans la colonne “Parts No. (N° de pièce)”, veuillez vous référer à la liste de pièces annexe page 41~44. 3. Ce manuel a été fait d'après les renseignements valables au mois de Janvier 1991. 4. Les pièces peuvent être sujettes à des modification sans préavis. TABLE DES MATIERES A. Corps de la machine ................................................................... 2 B. Mécanisme de l'embrayage ........................................................ 6 C. Mécanisme de arbre supérieur et barre à aiguille ........................ 10 D. Mécanisme de poulie d'entraînement et poulie folle ................... 12 E. Pièces fournies .......................................................................... 12 F. Mécanisme de l'entraînement .................................................... 14 G. Mécanisme de leveur du pinceur ................................................ 18 H. Mécanisme d'arbre vertical ........................................................ 20 J. Mécanisme de leveur ................................................................ 22 K. Mécanisme de l'arbre inférieur .................................................. 24 L. Lubrification .............................................................................. 26 M. Mécanisme de l'enfilage ............................................................ 30 N. Mécanisme de bobineur ............................................................ 32 P. Mécanisme de coupe-fil ............................................................ 34 Q. Mécanisme de tire-fil ................................................................ 36 R. Mécanisme de pince-fil ............................................................ 36 S. Jeu d'accessoires ...................................................................... 38 T. Pièces en option ........................................................................ 38 Z. Accessoires .............................................................................. 40 LISTE DES PIECES ACCESSOIRES ...................................... 41 ~ 44 PIÈCES EN OPTION ................................................................. 45 INDEX ...................................................................................... 46 ~ 53 jintex.in

Page 7 — Notas para usar este Manual de Piezas

Notas para usar este Manual de Piezas 1. Este libro sirve para todas las máquinas de coser que llevan la misma placa de identi- ficación que la que se puede ver en la tapa de este libro (o en la hoja de erratas). 2. De haber un símbolo * junto al “Parts No. (Número de pieza)”, habrá que mirar la lista de piezas separada de la página 41~44. 3. Este libro ha sido compilado basándose en los datos de que se disponía en enero de 1991. 4. Las piezas quedan sujetas a cambios de diseño sin aviso previo. INDICE A. Cuerpo de la máquina ................................................................. 2 B. Mecanismo de embrague ............................................................ 6 C. Mecanismo del eje superior y barra de aguja .............................. 10 D. Mecanismo de polea impulsora y polea tensora .......................... 12 E. Piezas de suministro ................................................................... 12 F. Mecanismo de la alimentación .................................................... 14 G. Mecanismo del levantador de ménsula de trabajo ........................ 18 H. Mecanismo de eje vertical .......................................................... 20 J. Mecanismo de carrera de potencia .............................................. 22 K. Mecanismo del eje inferior ........................................................ 24 L. Lubricación ................................................................................ 26 M. Mecanismo del enhebrado .......................................................... 30 N. Mecanismo del devanador de la canilla ...................................... 32 P. Mecanismo de la cortadura de hilos ............................................ 34 Q. Mecanismo del limpiador de hilo ................................................ 36 R. Mecanismo de la mordaza para hilo ............................................ 36 S. Juego de fijación ........................................................................ 38 T. Piezas opcionales ........................................................................ 38 Z. Accesorios .................................................................................. 40 LISTA DE PIEZAS ACCESORIAS ............................................ 41 ~ 44 PIEZAS OPCIONALES ................................................................ 45 INDICE ........................................................................................ 46 ~ 53 jintex.in

Page 8 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina 2 74 3 4-2 27 8 7 -75 19 20 22 27 15 29 29 6 4-1 28 14 Brother 27 輸出用 FOR EXPORT 57 56-1 56-4 77 56-3 56-2 66 68 16 27 27 54 63 21 30 62 53 55 12 64 65 10 31 32-10 18 17 9 61 11 60 13 58 59 32-1 32-14 32-3 32-5 32-15 32-4 32-16 51 32-8 52 70 32-11 32-2-1 32-2-2 32-9 32-7 32-6 32-16 32-17 32-15 71 32-2 32-13 32-12 72 jintex.in

Page 9 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 152830109 1 ウワフタ TOP COVER 3 062761412 6 ナベコ595-28X14 SCREW 595X14 4 152831009 1 メンイタクミ FACE PLATE ASSEMBLE 4-1 152832109 1 メンイタ FACE PLATE 4-2 152833001 1 メンイタパツキン PACKING 5 062711412 2 ナベコ4.76-32X14 SCREW 4.76X14 6 062710712 1 ナベコ4.76-32X7 SCREW 4.76X7 7 152834009 1 ソクメンカバー FRAME SIDE COVER 8 062711412 4 ナベコ4.76-32X14 SCREW 4.76X14 9 152835009 1 ベツドカバーR BED COVER(R) 10 100315002 1 ナミバネ WAVE SPRING 11 025770232 1 ヒラザガネチユウ6.35 PLAIN WASHER 6.35 12 145480001 1 ダンネジ6.35 STUD SCREW 6.35 13 152836009 1 ベツドカバーLクミ BED COVER (L) ASSEMBLY 14 152841009 1 テンビンカバー THREAD TAKE-UP COVER 15 062670812 1 ナベコ357-40X8 SCREW 357X8 16 152842009 1 オオカマカバークミ LARGE SHUTTLE HOOK COVER ASSEMBLY (B) 17 115493002 2 ダンネジ5.95 STUD SCREW 5.95 18 109239002 2 ナミバネザガネ SPRING WASHER 19 152846009 1 ベルトカバー BELT COVER 20 152989001 1 ベルトカバーハネウケ SPRING PLATE 21 152986001 1 ベルトカバーハネササエ SPRING SUPPORT 22 062680812 1 ナベコ437-40X8 SCREW 437X8 27 117936009 15 メクラセン OIL CAP 28 140392009 1 オイルフタ OIL CAP 29 117934009 2 メクラセン OIL CAP 30 108520009 1 メクラセン OIL CAP 31 104450109 1 メクラセン OIL CAP 32 159808109 1 オイルパンクミ OIL PAN ASSEMBLY 32-1 154738109 1 オイルパン OIL PAN 32-2 152852101 1 テンションプーリクミ TENSION PULLEY ASSEMBLY 32-2-1 048320242 1 トメワアナヨウC32 STOP RING C32 32-2-2 141860001 1 シメネジ6.35 SCREW 6.35 32-3 018081222 1 アナボルト8X12 BOLT 8X12 32-4 025080232 1 ヒラザガネチユウ8 PLAIN WASHER 8 32-5 028080242 1 バネザガネ2-8 SPRING WASHER 2-8 32-6 152857001 1 トウブササエレバー HEAD SUPPORT LEVER 32-7 018700112 1 トウブササエレバーシク HEAD SUPPORT LEVER SHAFT 32-8 013719412 1 トメネジ4.76クボミ SET SCREW 4.76 32-9 152859001 1 トウブササエレバーバネ SPRING 32-10 152860009 4 ベツドクツシヨン BED CUSHION 32-11 152861101 1 モータダイ MOTOR BASE PLATE 32-12 152862001 1 モータダイジク MOTOR BASE PLATE SHAFT 32-13 048100142 2 トメワジクヨウC10 STOP RING C10 32-14 152865101 1 LガタボルトM10 (L) BOLT M10 32-15 021100202 2 ナツト2シユ10 NUT 10 32-16 025100132 2 ヒラザガネシヨウ10 PLAIN WASHER 10 32-17 028100242 1 バネザガネ2-10 SPRING WASHER 2-10 51 152866001 1 トウブササエピン PIN 52 013760612 1 トメネジ5.95クボミ SET SCREW 5.95 53 152867000 2 ベツドヒンジジク HINGE SHAFT 54 151604002 2 トメネジ5.95 SET SCREW 5.95 55 152868009 2 ベツドヒンジクツシヨン HINGE CUSHION 56 153100000 1 -------- EYE GUARD ASSEMBLY 56-1 153102001 1 -------- EYE GUARD HINGE ASSEMBLY 56-2 153098000 1 -------- EYE GUARD 56-3 102538007 2 -------- SCREW 3.57 56-4 106129001 2 -------- NUT 3.57 57 062670512 2 -------- SCREW 357X5 58 114985001 1 ベツトカバーハネ SPRING 59 062680612 1 ナベコ4.37-40X6 SCREW 437X6 60 152838001 1 ミゾツキピン DOWEL PIN jintex.in

Page 10 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina 2 74 3 4-2 27 8 7 75 19 20 22 27 15 29 5 29 6 4-1 28 14 brother 輸出用 FOR EXPORT 27 57 56-1 56-4 56-3 56-2 66 16 27 30 62 77 66 27 54 63 21 53 55 12 64 18 31 32-10 17 65 10 9 60 61 11 32-1 13 58 59 32-14 32-3 32-5 32-15 32-4 32-16 51 32-8 52 32-11 32-2-1 32-2-2 32-9 32-7 32-6 32-18 32-17 32-15 71 32-2 32-13 32-12 70 72 jintex.in

Page 11 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina

A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Cuerpo de la máquina REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 61 152839001 1 ベッド"カバー"ジク BED COVER SHAFT 62 * 1 ショウラベル LABEL 63 152848001 1 ベルトカバーバネ SPRING 64 062680812 2 ナベ"コ"437-40X8 SCREW 437X8 65 025080132 1 ヒラザガネショウ8 WASHER 8 66 104450109 2 メクラセン OIL CAP 70 154465001 1 ハイユキャップササエグミ DUST OILER SUPPORT ASSEMBLY 71 114486002 1 ホリオイラータイ OILER 72 062710612 2 ナベ"コ"476-32X6 SCREW 476X6 74 154785000 2 フェルト FELT 75 047501242 2 スプリング"ピン"AW5 SPRING PIN AW5 77 152847009 2 ベルトカバーゴムザ PACKING jintex.in

Page 12 — B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/Mécanisme de l'embrayage/Mecanismo de embrague

B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/Mécanisme de l'embrayage/Mecanismo de embrague 39-4 39-5 39-2 39-3 43 45 44 54 39-1 42 41 40 52 39-6 39-7 52-1 29 31 30 53 55-3 24 30 31 32 15 25 55 55-1 38 28 27 26 27 37 36 35 55-2 21 10 33 13 14 2 6 12 11 34 7 8 9 4 3 5 16 19 18 20 22 23 47 17 48 46-2 18 46-3 58 60 61 59 46-1 71 73 80 82 64 67 74 70 71 75 57 72 51 50 49 63 62 65 66 85 86 76 78 79 77 jintex.in

Page 13 — Clutch mechanism

B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/Mécanisme de l'embrayage/Mecanismo de embrague REF.NO. CODE Q'TY NAME OF PARTS RMKS 1 151886001 1 クラッチレバー CLUTCH LEVER 2 151927001 1 クラッチフェルト CLUTCH FELT 3 151887001 1 クラッチレバーシク CLUTCH LEVER SHAFT 4 048180142 1 トメワC18 STOP RING C18 5 152756001 1 スラストザガネ18 THRUST WASHER 18 6 014821022 1 アナトメネジ"7.94クボミ SET SCREW 7.94 7 151929000 1 スラストザガネ18 THRUST WASHER 18 8 152728001 1 スラストザガネ8 THRUST WASHER 8 9 151163001 1 アナボルト8X15 BOLT 8X15 10 151888101 1 ボールオサエイタ BALL PRESSER PLATE 11 018082522 2 アナボルト8X25 BOLT 8X25 12 028080242 2 バネザガネ2-8 SPRING WASHER 2-8 13 115012002 1 トメネジ6.35 SET SCREW 6.35 14 150554002 1 ナット6.35 NUT 6.35 15 151889001 1 ストッパタイ CLUTCH STOPPER 16 151900000 1 ストッパゴム STOPPER RUBBER 17 151891001 1 クラッチバネ SPRING 18 151892001 2 バネウケ SPRING HOOK 19 115018001 2 カンショウゴム CUSHION RUBBER 20 025800332 1 ヒラザガネダイ7.14 PLAIN WASHER 7.14 21 151893001 1 ストッパシク STOPPER SHAFT 22 021800102 1 ナット1シュ7.14 NUT 7.14 23 104689002 1 ナット7.14 NUT 7.14 24 151894101 1 ブレーキレバー BRAKE LEVER 25 151895000 1 ブレーキクミ BRAKE ASSEMBLY 26 151898001 1 ブレーキシク BRAKE SHAFT 27 048040342 2 トメワE4 STOP RING E4 28 151899001 1 ブレーキシューバネ SPRING 29 151900001 1 ブレーキレバーシク BRAKE LEVER SHAFT 30 142628001 2 スイヘイオクリクランクリング FEED ROCK CRANK RING 31 048110142 2 トメワジクウC11 STOP RING C11 32 013761410 1 トメネジ"5.95クボミ SET SCREW 5.95 33 151901001 1 ブレーキサトーピン PIN 34 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 35 151902001 1 ブレーキバネ SPRING 36 151903001 1 ブレーキバネカケネジ SCREW 37 106147002 1 ナット7.94 NUT 7.94 38 110251001 1 ヌノサエウデバネカケ SPRING HOOK 39 151904101 1 クラッチレバーレンカンクミ CLUTCH LEVER ROD ASSEMBLY 39-1 151905101 1 クラッチレバーレンカン CLUTCH LEVER ROD 39-2 107744001 1 コロ ROLLER 39-3 151906101 1 レンカンコロジク ROLLER SHAFT 39-4 048030342 1 トメワE3 STOP RING E3 39-5 113431002 1 ザガネ WASHER 39-6 025680132 1 ヒラザガネショウ4.37 PLAIN WASHER 4.37 39-7 021680202 1 ナット2シュ4.37 NUT 4.37 40 151907001 1 ダンネジ5.95 STUD SCREW 5.95 41 151908001 1 ナット5.95 NUT 5.95 42 155501001 1 クラッチレバーバネ SPRING 43 151910001 1 クラッチレバーバネカケ SPRING HOOK 44 117363001 2 ボルト4.76 BOLT 4.76 45 028050242 2 バネザガネ2-5 SPRING WASHER 2-5 46 152888101 1 チョウセツロッドクミ ADJUST ROD ASSEMBLY 46-1 154332001 1 オサエアゲチョウセツロッド PRESSER BAR LIFTER ADJUST ROD 46-2 154333001 1 オサエアゲチョウセツキテ PRESSER BAR LIFTER ADJUST JOINT 46-3 150556001 1 ナット6.35 NUT 6.35 47 151912001 1 ヘンシンダンネジ"6.35 STUD SCREW 6.35 48 150556001 1 ナット6.35 NUT 6.35 49 151913001 1 ダンネジ"6.35 STUD SCREW 6.35 50 151914001 1 カラー13 COLLAR 13 51 150556001 1 ナット6.35 NUT 6.35 52 151915101 1 クラッチサドーレバークミ CLUTCH ACTUATING LEVER ASSEMBLY jintex.in

Page 14 — クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague

B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague 39-4 39-5 39-2 39-3 54 43 45 44 39-1 42 41 40 52 39-6 39-7 52-1 29 31 30 53 55-3 24 30 31 32 25 55 15 38 28 27 26 27 55-1 37 36 35 55-2 21 10 33 13 14 2 6 12 11 3 5 34 7 8 9 4 16 19 18 20 22 23 47 17 48 46-2 69 68 46-3 18 58 60 61 59 46-1 71 73 80 82 64 67 74 70 71 75 57 72 51 50 49 63 62 65 66 76 78 79 77 jintex.in

Page 15 — B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague

B. クラッチ関係/Clutch mechanism/Kupplungsvorrichtung/ Mécanisme de l'embrayage/Mecanismo de embrague REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 52-1 152980001 1 クミヒモ6X6 (L=150) WICK 6X6 (L=150) 53 150553001 1 ナット5.95 NUT 5.95 54 151907001 1 ダンネジ5.95 STUD SCREW 5.95 55 151939101 1 クラッチカムレバークミ CLUTCH CAM LEVER ASSEMBLY 55-1 152914001 1 コロ ROLLER 55-2 048040342 1 トメワE4 STOP RING E4 55-3 018062022 1 アナボルト6X20 BOLT 6X20 57 151919101 1 キドーレバー STARTING LEVER 58 151920001 1 キドーセイフレバー STARTING SAFETY LEVER 59 017711412 2 ボルト4.76X14 BOLT 4.76X14 60 028050242 2 バネザガネ2-5 SPRING WASHER 2-5 61 113431002 2 ザガネ WASHER 62 155499001 1 Pサドーレバー STARTING LEVER PLATE 63 154155101 1 ストッパネジ STOPPER SCREW 64 150553001 1 ナット5.95 NUT 5.95 65 151922001 1 クサリカケカラー CHAIN HOOK COLLAR 66 017762202 1 ボルト5.95X22 BOLT 5.95X22 67 110251001 1 ヌノサエウデバネカケ SPRING HOOK 68 151923001 1 サドーレバーバネ SPRING 69 151924001 1 キドーレバーバネカケ SPRING HOOK 70 151925001 1 キドーレバージク STARTING LEVER SHAFT 71 142628001 2 スイヘイオクリクランクリング FEED ROCK CRANK RING 72 110505001 1 ザガネ WASHER 73 048110142 1 トメワジヨウC11 STOP RING C11 74 014760622 1 アナトメネジ5.95 SET SCREW 5.95 75 111865009 1 オイルメクラセン OIL CAP 76 155500001 1 キドーストッパ STARTING LEVER STOPPER 77 018061622 2 アナボルト6X16 BOLT 6X16 78 025060132 2 ヒラザガネチユウ6 PLAIN WASHER 6 79 028060242 2 バネザガネ2-6 SPRING WASHER 2-6 80 025060232 1 ヒラザガネチユウ6 PLAIN WASHER 6 82 028060242 1 バネザガネ2-6 SPRING WASHER 2-6 jintex.in

Page 16 — 上軸・針棒関係/Upper shaft and needle bar mechanism/Obere Welle und Nadelstangenrichtung/ Mécanisme de arbre supérieur et barre à aiguille/Mecanismo del eje superior y barra de aguja

C. 上軸・針棒関係/Upper shaft and needle bar mechanism/Obere Welle und Nadelstangenrichtung/ Mécanisme de arbre supérieur et barre à aiguille/Mecanismo del eje superior y barra de aguja 3 36 4 5 6 5 7 8 14 13 1 11 2-1 2 25 22 35 34 20 21 17 19 15 16 20-2 20-1 26 20-4 20-3 24 18 33 27 20-7 20-6 20-5 jintex.in

Page 17 — Upper shaft and needle bar mechanism/Obere Welle und Nadelstangen vorrichtung/Mécanisme de arbre supérieur et barre à aiguille/Mecanismo del eje superior y barra de aguja

C. 上軸・針棒関係/Upper shaft and needle bar mechanism/Obere Welle und Nadelstangen vorrichtung/Mécanisme de arbre supérieur et barre à aiguille/Mecanismo del eje superior y barra de aguja REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 151995001 1 ウワジク UPPER SHAFT 2 153040001 1 クランクロッドクミ CRANK ROD ASSEMBLY 2-1 144712002 2 シメネジ4.76 SCREW 4.76 3 048150142 1 トメワジクC15 STOP RING C15 4 151997000 1 タマシジクウケケース BALL BEARING CASE 5 072630260 2 ベアリング6302VV BEARING 6302VV 6 151998000 1 ベアリングカンザ BEARING COLLAR 7 151999001 1 タマシジクフタ BALL BEARING CAP 8 102843004 3 サラネジ3.57 SCREW 3.57 9 017761412 3 ボルト5.95X14 BOLT 5.95X14 10 025060232 3 ヒラザガネチュウ6 PLAIN WASHER 6 11 140726000 1 ウワジクメタルM UPPER SHAFT BUSH (M) 13 152000001 1 ウワジクメタルF UPPER SHAFT BUSH (F) 14 013761412 1 トメネジ5.95クボミ SET SCREW 5.95 15 152231000 1 ツリアイクランク COUNTER WEIGHT 16 100250001 1 シメネジ7.14 SCREW 7.14 17 014770622 1 アナトメネジ6.35クボミ SET SCREW 6.35 18 101706001 1 トメネジ6.35 SET SCREW 6.35 19 014770622 1 アナトメネジ6.35クボミ SET SCREW 6.35 20 152232001 1 ハリボウレンカンクミ THREAD TAKE-UP LEVER ASSEMBLY 20-1 153330001 1 テンビンクミ THREAD TAKE-UP ASSEMBLY 20-2 152236001 1 テンビンササエジク THREAD TAKE-UP SUPPORT STUD 20-3 152237001 1 ハリボウクランク NEEDLE BAR CRANK 20-4 132051001 1 +サラネジ3.57L SCREW 3.57L 20-5 152238001 1 ハリボウレンカン THREAD TAKE-UP LEVER 20-6 152239001 1 ハリボウダキ NEEDLE BAR CLAMP 20-7 062680812 1 ナベコ437-40X8 SCREW 437X8 21 013761412 1 トメネジ5.95クボミ SET SCREW 5.95 22 152240001 1 ハリボウA NEEDLE BAR (A) 24 144458001 1 アタマツキトメネジ3.57 SET SCREW 3.57 25 152242001 1 ハリボウメタルU NEEDLE BAR BUSH (U) 26 152243001 1 ハリボウメタルD NEEDLE BAR BUSH (D) 27 * 1 ミシンハリDP NEEDLE DP 33 142211001 1 カクコマ SLIDE BLOCK 34 152244000 1 ハリボウアンナイ NEEDLE BAR GUIDE 35 062781412 2 ナベコ635-28X14 SCREW 635X14 36 116920001 1 オクリジクスラストリング THRUST RING jintex.in

Page 18

D. 駆動・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe/ Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora 17 18 9-7 9-3 21 19 26 24 9-6 20 22 23 25 8 7 1 1-2 1-1 1-4 1-5 1-3 9-1 9-4 9-2 9-5 9-2 9-4 9-1 E. 補給部品/Supply parts/Lieferteile/Pièces fournies/Piezas de suministro jintex.in

Page 19 — D. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe/ Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora

D. 動車・遊車関係/Drive pulley and idler pulley mechanism/Antriebsriemenscheibe und Riemenscheibe/ Mécanisme de poulie d'entraînement et poulie folle/Mecanismo de polea impulsora y polea tensora REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 153044001 1 ストップカムクミ STOP CAM ASSEMBLY 1-1 152693001 1 セイトウカムヘン BRAKE CAM SEGMENT 1-2 152694001 1 セイトウカムヘンバネ SPRING 1-3 115003001 1 カンショウカムヘン FLANGE CAM SEGMENT 1-4 153058001 2 カムヘンジク CAM SEGMENT STUD 1-5 048040342 2 トメワE4 STOP RING E4 7 147111001 1 テーパピン6X35 TAPER PIN 6X35 8 014770622 1 アナトメネジ6.35クボミ SET SCREW 6.35 9 183686001 1 プーリオクミ PULLEY DEVICE SET 9-1 152695201 2 プーリクミ PULLEY DEVICE ASSEMBLY 9-2 072600760 2 タマシジウケ6007VV BALL BEARING 6007VV 9-3 152698001 1 スライドメタル SLIDE BUSH 9-4 048350142 2 トメワC35 STOP RING C35 9-5 152699001 1 ナミワツシヤ WASHER 9-6 048240242 1 トメワアナC24 STOP RING C24 9-7 152700000 1 スライドブッシュA SLIDE BUSH (A) 17 151946000 1 スライドブッシュB SLIDE BUSH (B) 18 152701001 1 クラッチハンバネ SPRING 19 152702001 1 クラッチハン CLUTCH PLATE 20 152703100 5 スペーサ SPACER 21 S02878000 1 ヘイコウキ3X3X13 KEY 3X3X13 22 152705101 1 ナット10ヒタツリ NUT 10 23 152706001 1 ボールウケ BALL BEARING 24 062660712 4 ナベコ318-40X7 SCREW 318X7 25 071095250 1 コウキユウ3/8 STEEL BALL 3/8" 26 S21120001 1 ザガネ WASHER E. 補給部品/Supply parts/Lieferteile/Pièces fournies/Piezas de suministro REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 S01688001 1 ウワジククミ430 UPPER SHAFT ASSEMBLY B430 jintex.in

Page 20 — 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement/Mecanismo de la alimentacion

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion 35-8 35-5 35-3 35-4 35-7 35-13 35-1 35-16 35-12 35-17 35-10 35-11 35-10 40 39 35-20 35-14 35-18 35-9 35-15 35-2 35-8 25 35-19 22 24 28 21 27 43 44 42 16 17 18 19 33 20 26-1 34 23 26-2-1 26-2 38 37 36-3 36-2 32 31 36 36-1 1-2 1-5 30-1 1-3 1-4 1-1 10 9 8 4-1 7 4 6-1 6-2-1 6-2-2 6-2-4 6-2-3 3 2 11 12 12-1 14 15 30-2 30-3 jintex.in

Page 21 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion REF.NO. CODE Q'TY ヒンメイ NAME RMKS 1 152741101 1 ヨコオクリレバークミ TACK LENGTH LEVER ASSEMBLY 1-1 152742001 1 ヨコオクリレバー TACK LENGTH LEVER 1-2 153041001 1 ヨコオクリカクゴマクミ TACK LENGTH SLIDE BLOCK ASSEMBLY 1-3 151602002 1 トメネジ4.37 SET SCREW 4.37 1-4 153924001 1 フエルト FELT 1-5 153921001 1 クミヒモ4X4 (L=150) WICK 4X4 (L=150) 2 152745001 1 オクリメタル FEED BUSH 3 014760622 1 アナトメネジ5.95 SET SCREW 5.95 4 153762101 1 ヨコオクリチョウセツレバークミ TACK LENGTH REGULATOR LEVER ASSEMBLY 4-1 018082022 1 アナボルト8X20 BOLT 8X20 6 153047001 1 ヨコオクリチョウセツクミ TACK LENGTH REGULATOR ASSEMBLY 6-1 153042001 1 オクリチョウセツジククミ TACK ADJUST SHAFT ASSEMBLY 6-2 152751101 1 ヨコオクリカムレバークミ SLIDE BLOCK ROLLER STUD ASSEMBLY 6-2-1 152752001 1 ヨコオクリカムレバー TACK LENGTH LEVER 6-2-2 153043001 1 オクリカムコロジククミ FEED CAM ROLLER SHAFT ASSEMBLY 6-2-3 014760622 1 アナトメネジ5.95 SET SCREW 5.95 6-2-4 152980001 1 クミヒモ6X6 (L=150) WICK 6X6 (L=150) 7 152749001 1 オクリチョウセツザガネ FEED ADJUST WASHER 8 152750001 1 オクリチョウセツナット FEED ADJUST NUT 9 153045001 1 オクリレバーストッパ TACK LENGTH LEVER STOPPER 10 105451002 1 シメネジ3.57 SCREW 3.57 11 152755001 1 ヨコオクリレバージク TACK LENGTH LEVER SHAFT 12 S09132001 1 ピンチスリーブクミ PINCH SLEEVE ASSEMBLY 12-1 018063022 1 アナボルト6X30 BOLT 6X30 14 152756001 1 スラストザガネ18 THRUST WASHER 18 15 048180142 1 トメワC18 STOP RING C18 16 152758001 1 タテオクリレバー TACK WIDTH FEED LEVER 17 152759001 1 タテオクリジク TACK WIDTH FEED SHAFT 18 014760622 1 アナトメネジ5.95 SET SCREW 5.95 19 152756001 1 スラストザガネ18 THRUST WASHER 18 20 152760001 1 タテオクリレバージク TACK WIDTH LEVER SHAFT 21 152756001 1 スラストザガネ18 THRUST WASHER 18 22 048180142 1 トメワC18 STOP RING C18 23 014760622 1 アナトメネジ5.95 SET SCREW 5.95 24 153045001 1 オクリレバーストッパ TACK LENGTH LEVER STOPPER 25 105451002 1 シメネジ3.57 SCREW 3.57 26 153048001 1 タテオクリチョウセツクミ TACK WIDTH REGULATOR LEVER ASSEMBLY 26-1 153042001 1 オクリチョウセツジククミ TACK ADJUST SHAFT ASSEMBLY 26-2 153757001 1 タテオクリチョウセツレバークミ TACK WIDTH ADJUST ASSEMBLY 26-2-1 018082022 1 アナボルト8X20 BOLT 8X20 27 152749001 1 オクリチョウセツザガネ FEED ADJUST WASHER 28 152750001 1 オクリチョウセツナット FEED ADJUST NUT 30 152762001 1 タテオクリカムレバークミ TACK LENGTH CAM LEVER ASSEMBLY 30-1 153331001 1 タテオクリカムレバージククミ TACK WIDTH FEED SHAFT ASSEMBLY 30-2 153043001 1 オクリカムコロジククミ FEED CAM ROLLER SHAFT ASSEMBLY 30-3 014760622 1 アナトメネジ5.95 SET SCREW 5.95 31 152745001 1 オクリメタル FEED BUSH 32 014760622 1 アナトメネジ5.95 SET SCREW 5.95 33 152766001 1 オクリバーアンナイイタ FEED BAR GUIDE PLATE 34 145318001 8 シメネジ4.37 SCREW 4.37 35 * 1 オサエウデクミ PRESSER ARM ASSEMBLY 35-1 152768009 1 オサエウデ PRESSER ARM 35-2 152774001 1 オサエウデレバーミギ PRESSER ARM LEVER (R) 35-3 152775001 1 オサエウデレバーヒダリ PRESSER ARM LEVER (L) 35-4 152776001 1 オサエウデレバージク PRESSER ARM LEVER SHAFT 35-5 143591001 2 スラストリング THRUST RING 35-6 048050342 2 トメワE5 STOP RING E5 35-7 014760622 1 アナトメネジ5.95 SET SCREW 5.95 35-8 * 1 オサエアシR WORK CLAMP (R) 35-9 * 1 オサエアシL WORK CLAMP (L) 35-10 152783001 2 オサエアシオサエイタA WORK CLAMP GUIDE BRACKET (A) 35-11 152784001 1 オサエアシオサエイタB WORK CLAMP GUIDE BRACKET (B) jintex.in

Page 22 — F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion

F. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentacion 35-6 35-5 35-3 35-4 35-7 35-13 35-1 35-16 35-12 35-17 35-10 35-11 35-10 40 39 35-14 35-20 35-9 35-15 35-18 35-2 35-8 25 22 24 28 35-19 42 21 27 43 44 17 16 19 33 20 26-1 34 23 26-2-1 26-2 38 37 36-3 36-2 32 31 36 36-1 1-2 1-5 1-3 1-4 1-1 10 9 4-1 8 7 30-1 4 6-1 6-2-1 6-2-2 30-3 30-2 6-2-4 6-2-3 3 2 11 12 12-1 14 15 jintex.in

Page 23 — F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement/Mecanismo de la alimentacion

F. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'entraînement/Mecanismo de la alimentacion REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 35-12 107038003 6 サラネジ3.57 SCREW 3.57 35-13 153571001 2 オサエウデレバーイタ PRESSER ARM LEVER PLATE 35-14 140407002 2 ザガネ WASHER 35-15 018500822 2 アナボルト5X8 BOLT 5X8 35-16 153570001 2 オサエハネアンナイロッド SPRING GUIDE ROD 35-17 145478001 2 ダンネジ4.76 STUD SCREW 4.76 35-18 * 2 オサエバネ SPRING 35-19 152788000 2 オサエバネカンザ SPRING COLLAR 35-20 153567000 2 オサエバネカラー SPRING COLLAR 36 152769001 1 オクリダイクミ FEED BAR GUIDE ASSEMBLY 36-1 152771000 2 オクリダイカンザ COLLAR 36-2 152773000 1 キュウメンブッシュメタル BUSH 36-3 141331001 1 キュウメンブッシュ BUSH 37 152772001 2 カンザ WASHER 38 071047650 2 コウキュウ3/16 STEEL BALL 3/16" 39 025060232 2 ヒラザガネチュウ6 PLAIN WASHER 6 40 017761412 2 ボルト5.95X14 BOLT 5.95X14 42 153057002 2 オクリイタシメネジ SCREW 43 153035000 1 オサエウデフェルト PRESSER ARM FELT 44 * 1 オクリイタ FEED PLATE jintex.in

Page 24 — G. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo

G. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo 16 15 14-1 14-2 12 11 13 9 10 18 19 2-1 2-2 8 7 5 19 18 3 14-2 6 20-1 20-3 20-2 23 21 22 28 24 26 27 jintex.in

Page 25 — G. 押工上げ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo

G. 押工上げ関係/Work clamp lifter mechanism/Stoffhalterhebervorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo REF.NO. CODE Q'TY NAME OF PARTS RMKS 1 152794001 1 WORK CLAMP LIFTER PLATE ASSEMBLY 2 152797001 1 WORK CLAMP LIFTER LEVER ASSEMBLY 2-1 152798001 1 WORK CLAMP LIFTER LEVER 2-2 152744001 1 PIN 3 152799001 1 WORK CLAMP LIFTER LEVER SHAFT 4 014760622 1 SET SCREW 5.95 5 013760612 1 SET SCREW 5.95 6 152800201 1 SPRING 7 152801001 1 PIN 8 102630001 1 NEEDLE BAR GUIDE SLIDE BLOCK 9 152802001 1 WORK CLAMP LIFTER ROD SHAFT (A) 10 014760622 1 SET SCREW 5.95 11 107153002 1 WASHER 12 048060342 1 STOP RING E6 13 152803001 1 WORK CLAMP LIFTER ROD (A) 14-1 152805101 1 CONNECTING LEVER 14-2 152806001 2 CONNECTING LEVER SHAFT (B) 15 158686001 1 LIFTING LEVER SHAFT 16 014760622 1 SET SCREW 5.95 18 107153002 2 WASHER 19 048060342 2 STOP RING E6 20 152808101 1 ADJUST ROD ASSEMBLY 20-1 154332001 1 PRESSER BAR LIFTER ADJUST ROD 20-2 154333001 1 PRESSER BAR LIFTER ADJUST JOINT 20-3 150568001 1 NUT 6.35 21 141583001 1 STUD SCREW 6.35 22 150556001 1 NUT 6.35 23 152811001 1 CONNECTING LEVER ASSEMBLY 24 158687001 1 DRIVING SHAFT 26 142628001 1 FEED ROCK CRANK RING 27 048110142 1 STOP RING C11 28 014760622 1 SET SCREW 5.95 jintex.in

Page 26 — カム伝導関係/Vertical shaft mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical

H. カム伝導関係/Vertical shaft mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical 6 4 7 8 5 3 2 10 9 49 48 39 36 40 37 38 12 28 35 52 29-1 29 20 34 11 13 19 20-1 16 22 15 17 18 輸出用/FOR EXPORT 26 27 23 25 24 51 42 41 44 45 43-1 43-5 47 46 43-2 43-3 43-4 32-1 32 jintex.in

Page 27 — H. カム伝導関係/Vertical shaft mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical

H. カム伝導関係/Vertical shaft mechanism/Vertikale Welle/ Mécanisme d'arbre vertical/Mecanismo de eje vertical REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152707001 1 ウォーム WORM 2 152718001 6 アナトメネジ5.95 SET SCREW 5.95 3 147151000 1 トメザガネ WASHER 4 152708000 1 ウォームホイール WORM WHEEL 5 152713001 1 スラストザガネ THRUST WASHER 6 152709000 1 スリーブ SLEEVE 7 152710001 1 ザガネ WASHER 8 018062022 1 アナボルト6X20 BOLT 6X20 9 159977000 1 タテジクメタルU VERTICAL SHAFT BUSH (U) 10 014760622 1 アナトメネジ5.95 SET SCREW 5.95 11 159978001 1 タテジクメタルL VERTICAL SHAFT BUSH (L) 12 159979001 1 タテジククミ VERTICAL SHAFT ASSEMBLY 13 159984001 1 スラストザガネ40 THRUST WASHER 40 15 * 1 チェンジギヤW CHANGE GEAR (W) 16 * 1 チェンジギヤC CHANGE GEAR (C) 17 153104001 1 チェンジギヤザガネ WASHER 18 018062222 3 アナボルト6X22 BOLT 6X22 19 152724001 1 カムジク TACK LENGTH FEED CAM SHAFT 20 S09132001 1 ピンチスリーブクミ PINCH SLEEVE ASSEMBLY 20-1 018063022 1 アナボルト6X30 BOLT 6X30 22 * 1 オクリカム FEED CAM 23 152728001 1 スラストザガネ8 THRUST WASHER 8 24 151163001 1 アナボルト8X15 BOLT 8X15 25 018062022 3 アナボルト6X20 BOLT 6X20 26 109893002 3 ザガネ WASHER 27 028060242 3 バネザガネ2-6 SPRING WASHER 2-6 28 152729001 1 クラッチカム CLUTCH CAM 29 S09132001 1 ピンチスリーブクミ PINCH SLEEVE ASSEMBLY 29-1 018063022 1 アナボルト6X30 BOLT 6X30 32 S09132001 1 ピンチスリーブクミ PINCH SLEEVE ASSEMBLY 32-1 018063022 1 アナボルト6X30 BOLT 6X30 34 152723001 1 イトキリカムトメリング STOP RING 35 152731001 1 セイギョタイ ROLLER HOLDER 36 152732001 1 セイギョタイコロジク ROLLER SHAFT 37 013710712 1 トメネジ4.76クボミ SET SCREW 4.76 38 152914001 1 コロ ROLLER 39 152733001 1 ヒジョウテイシレバー EMERGENCY STOP LEVER 40 013710712 1 トメネジ4.76クボミ SET SCREW 4.76 41 152734001 1 セイギョレバー ROLLER HOLDER LEVER 42 018061622 1 アナボルト6X16 BOLT 6X16 43 152735101 1 セイギョカムレバークミ ROLLER HOLDER CAM LEVER ASSEMBLY 43-1 153332001 1 セイギョカムレバージククミ ROLLER HOLDER CAM LEVER SHAFT ASSEMBLY 43-2 152739001 1 コロジク ROLLER SHAFT 43-3 153195001 1 コロ ROLLER 43-4 048040342 1 トメワE4 STOP RING E4 43-5 155337001 1 バネカケ SPRING HOOK 44 110027001 1 セットカラー SET COLLAR 45 014760622 2 アナトメネジ5.95 SET SCREW 5.95 46 155336001 1 セイギョバネ SPRING 47 141334001 1 バネカケ SPRING HOOK 48 153141001 1 セイギョタイカバー ROLLER HOLDER COVER 49 062670412 2 ナベコ357-40X4 SCREW 357X4 51 S07813001 1 イトキリカムSP CLUTCH CAM (SP) 52 S07814001 1 イトキリカムSP KNIFE CAM (SP) jintex.in

Page 28 — J. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/Mécanisme de leveur/Mecanismo de carrera de potencia

J. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carrera de potencia 10-3 10-2 10-4 2 12 11 13 10-1-1 30 1 2 10-1 3-1 3-2 8 9 23 22 23 19 27 19-1 19-2 19-3 20 25 26 28 24 29 26 25 21 jintex.in

Page 29 — J. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carrera de potencia

J. パワー押工関係/Power lift mechanism/Heberbetätigungsvorrichtung/ Mécanisme de leveur/Mecanismo de carrera de potencia REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 151928001 1 Pプーリジク POWER PULLEY SHAFT 2 048170142 2 トメワジクC17 STOP RING C17 3 156936101 1 Pプーリクミ POWER PULLEY ASSEMBLY 3-1 151930201 1 Pプーリクミ POWER PULLEY ASSEMBLY 3-2 072600360 1 タマジクウケ6003VV BALL BEARING 6003VV 8 151932001 1 ジクウケフタ BEARING COVER 9 107231002 1 ザラネジ4.76 SCREW 4.76 10 * 1 パワーカムセット POWER CAM SET 10-1 * 1 パワーカムクミ POWER CAM ASSEMBLY 10-1-1 151935000 2 DVブッシュ (DV) BUSH 10-2 151940001 1 パワーカムストッパA POWER CAM STOPPER (A) 10-3 018060822 1 アナボルト6X8 BOLT 6X8 10-4 151941101 1 パワーカムストッパBクミ POWER CAM STOPPER (B) ASSEMBLY 11 151936001 1 Pクラッチバネ SPRING 12 151937001 1 スラストザガネ17 THRUST WASHER 17 13 151938001 1 ザガネ WASHER 19 151944001 1 クドーレバークミ CLUTCH ACTUATING LEVER ASSEMBLY 19-1 151947101 2 コロ11 ROLLER (11) 19-2 151948001 2 クドーレバーコロジク ROLLER SHAFT 19-3 014760622 2 アナトメネジ5.95 SET SCREW 5.95 20 151949001 1 オサエアゲコロジククミ ROLLER SHAFT ASSEMBLY 21 014760622 1 アナトメネジ5.95 SET SCREW 5.95 22 151951001 1 クドーレバーヒキバネ SPRING 23 141472002 2 シタイトキリレバーハネカケ SPRING HOOK 24 151952001 1 クドーレバージク CLUTCH ACTUATING LEVER SHAFT 25 151953001 2 スラストザガネ16 THRUST WASHER 16 26 048160142 2 トメワジクC16 STOP RING C16 27 107149001 1 フエルト FELT 28 151954001 1 アンナイヒンネジ SCREW 29 014821022 1 アナトメネジ7.94クボミ SET SCREW 7.94 30 014760622 1 アナトメネジ5.95 SET SCREW 5.95 jintex.in

Page 30 — 下軸関係/Lower shaft mechanism/Untere Welle/Mécanisme de l'arbre inférieur/Mecanismo del eje inferior

K. 下軸関係/Lower shaft mechanism/Untere Welle/ Mécanisme de l'arbre inférieur/Mecanismo del eje inferior 35 35-2 35-3 16-9 16-3 16-4 16-2 16-1 34 24 25 10 14 15 23 16-7 13 12 11 17 18 19 16-6 16-8 36 26 31 16-5 16-10 16-11 9 3 2 1 7 8 4 5 6 22 jintex.in

Page 31 — K. 下軸関係/Lower shaft mechanism/Untere Welle/Mécanisme de l'arbre inférieur

K. 下軸関係/Lower shaft mechanism/Untere Welle/ Mécanisme de l'arbre inférieur REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 141786001 1 クランクロット"ダンネジ" CRANK ROD STUD SCREW 2 104689002 1 ナット7.14 NUT 7.14 3 014680622 1 アナトメネジ"4.37クボミ SET SCREW 4.37 4 152245001 1 ヨウト"ウキヤ ROCK GEAR 5 152246001 1 ヨウト"ウキヤージジク ROCK GEAR SHAFT 6 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 7 152247001 1 ヨウト"ウジクメタル ROCK SHAFT BUSH 8 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 9 152191101 1 シタジククミ LOWER SHAFT ASSEMBLY 10 152250001 1 シタジクメタル LOWER SHAFT BUSH 11 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 12 152678001 1 カマチョウセツジク SHUTTLE HOOK ADJUST STUD 13 081003670 1 OリングPW3 O RING PW3 14 110495003 1 セットカラー SET COLLAR 15 014770622 2 アナトメネジ"6.35クボミ SET SCREW 6.35 16 S00327001 1 オオカマタイクミ SHUTTLE RACE BASE ASSEMBLY 16-1 152677001 1 オオカマタイ SHUTTLE RACE BASE 16-2 152679001 1 カマイトアンナイR SHUTTLE RACE THREAD GUIDE (R) 16-3 152680001 1 カマイトアンナイL SHUTTLE RACE THREAD GUIDE (L) 16-4 062660412 2 ナベコ318-40X4 SCREW 318X4 16-5 152683001 2 オオカマトツケツメ LARGE SHUTTLE HOOK SET CLAW 16-6 152684001 2 オオカマトツケツハネ SPRING 16-7 402887001 2 ザガネ3.2 WASHER 3.2 16-8 062660712 2 ナベコ318-40X7 SCREW 318X7 16-9 153050000 2 オオカマタイフエルト SHUTTLE RACE BASE FELT 16-10 155489000 1 クミヒモ(L=270) WICK (L=270) 16-11 S00400000 1 クミヒモ2.5X220 WICK 2.5X220 17 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 18 152678001 1 カマチョウセツジク SHUTTLE HOOK ADJUST STUD 19 081003670 1 OリングPW3 O RING PW3 23 048080342 1 トメワE8 STOP RING E8 24 152681201 1 ドライバー DRIVER 25 018501422 1 アナボルト5X14 BOLT 5X14 26 * 1 オオカマ LARGE SHUTTLE HOOK 31 * 1 ナカカマ INNER ROTARY HOOK 34 141808001 1 オオカマアンナイピン PIN 35 159610101 1 ボビンケースクミA BOBBIN CASE ASSEMBLY (A) 35-1 154339001 1 ボビンケーススチョウシハネ TENSION SPRING 35-2 154341001 1 ボビンケースハネネジ SCREW 35-3 159612001 1 クウテンボウシハネ BOBBIN TENSION SPRING 36 159613001 1 ボビン BOBBIN 24 jintex.in

Page 32

L. 給油潤滑関係 / Lubrication/Schmierung/Lubrication/Lubricación 2-7 2-6 2-3 2-4 2-2 2-1 64 49 51 50 52 62 4-1 4-3 5 4-2 1 6 68 59 61 60 23 26 25 21 20 15 14 22 17 19 37 41 42 34 39 43 45 40 70 58 54 53 56 29 31 33 32 28 11 69 36 38 47 65 46 48 63-1 63-2 13 12-1 12-5 12-2 12-4 12-3 12-6 12-4 12-8 jintex.in

Page 33

L. 給油潤滑関係/Lubrication/Schmierung/Lubrication/Lubricación REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152948001 1 オイルポツトマ OIL GAUGE WINDOW 2 152949001 1 ウワジクキュウユササエ WICK SUPPORT ASSEMBLY 2-1 152950001 1 ウワジクキュウユササエ WICK SUPPORT 2-2 152951001 1 ウオームキュウユフエルト FELT 2-3 152952001 1 ロツト"キュウユフエルト FELT 2-4 153918001 1 クミヒモ6X6 (L=660) WICK 6X6 (L=660) 2-5 140423000 1 ビニルチューブ OIL TUBE 2-6 147745000 1 ハイユパイプL OIL TUBE (L) 2-7 153919001 1 クミヒモ6X6 (L=370) WICK 6X6 (L=370) 3 062680812 2 ナベコ3.437-40X8 SCREW 437X8 4 152958001 1 テンビンキュウユササエ WICK SUPPORT ASSEMBLY 4-1 152959001 1 テンビンキュウユササエ WICK SUPPORT 4-2 152956001 1 ヒララクセミモ (L=210) FLAT WICK (L=210) 4-3 152956001 1 クミヒモ4X4 (L=500) WICK 4X4 (L=500) 5 062680812 1 ナベコ3.437-40X6 SCREW 437X6 6 144694001 1 ハイユパイプ OIL TUBE 7 152956001 1 クミヒモ4X4 (L=500) WICK 4X4 (L=500) 8 152962001 1 ハリボウメタルヒモササエ WICK SUPPORT 9 152960001 1 ヒララクセミモ (L=40) FLAT WICK (L=40) 10 104567001 1 クミヒモササエ WICK SUPPORT 11 152948001 1 オイルポツトマ OIL GAUGE WINDOW 12 152961001 1 シタジクキュウユササエ FELT SUPPORT ASSEMBLY 12-1 152966001 1 シタジクキュウユササエ FELT SUPPORT 12-2 152967001 1 シタジクキュウユフエルト FELT 12-3 062670812 2 ナベコ357-40X8 SCREW 357X8 12-4 025350332 3 ヒララツカネダ13.5 PLAIN WASHER 3.5 12-5 152963001 1 クミヒモ4X4 (L=600) WICK 4X4 (L=600) 12-6 141692001 1 ビニルチューブササエC OIL SUPPORT (C) 12-7 021670202 1 ナット3.57 NUT 3.57 12-8 062671412 1 ナベコ357-40X14 SCREW 357X14 13 062670512 2 ナベコ357-40X5 SCREW 357X5 14 148921000 1 ビニルチューブ OIL TUBE 15 147745000 1 ハイユパイプL OIL TUBE (L) 17 152964001 1 クミヒモ6X6 (L=310) WICK 6X6 (L=310) 18 152965001 1 クミヒモ4X4 (L=400) WICK 4X4 (L=400) 19 152964001 1 クミヒモ6X6 (L=310) WICK 6X6 (L=310) 20 152969001 1 コードササエ CORD SUPPORT 21 062670512 1 ナベコ357-40X5 SCREW 357X5 22 104567001 1 クミヒモササエ WICK SUPPORT 23 146375000 1 ビニルチューブ OIL TUBE 24 152992001 1 ヒララクセミモ (L=760) FLAT WICK (L=760) 25 117150001 1 コードササエ CORD SUPPORT 26 062670512 1 ナベコ357-40X5 SCREW 357X5 28 140423000 2 ビニルチューブ OIL TUBE 29 152971001 1 クミヒモ4X4 (L=480) WICK 4X4 (L=480) 31 112669001 1 ビニルチューブ OIL TUBE 32 152969001 1 コードササエ CORD SUPPORT 33 062670512 1 ナベコ357-40X5 SCREW 357X5 34 113006001 1 フエルト FELT 36 152973001 1 クミヒモ4X4 (L=170) WICK 4X4 (L=170) 37 047251640 2 スプリングピンAW2.5 SPRING PIN AW2.5 38 117150001 1 コードササエ CORD SUPPORT 39 062670512 1 ナベコ357-40X5 SCREW 357X5 40 104567001 1 クミヒモササエ WICK SUPPORT 41 152974001 1 クミヒモ4X4 (L=350) WICK 4X4 (L=350) 42 112669001 1 ビニルチューブ OIL TUBE 43 147745000 1 ハイユパイプL OIL TUBE (L) 44 153922001 1 クミヒモ6X6 (L=500) WICK 6X6 (L=500) 45 152953001 1 クミヒモ6X6 (L=360) WICK 6X6 (L=360) 46 152985001 1 クミヒモ4X4 (L=120) WICK 4X4 (L=120) 47 153763001 1 キユウユモササエ WICK SUPPORT 48 062670512 1 ナベコ357-40X5 SCREW 357X5 26 jintex.in

Page 34

L. 給油潤滑関係/Lubrication/Schmierung/Lubrication/Lubricación 2-7 2-6 2-3 2-4 2-5 2-2 3 62 2-1 64 4-1 4-3 49 51 50 4-2 68 59 61 60 23 26 25 37 41 42 21 20 15 14 22 19 58 54 53 56 31 33 32 69 36 38 40 29 34 28 11 39 43 45 70 63-1 47 65 46 48 16 63-2 13 12-1 12-7 12-5 12-2 12-4 12-3 12-6 12-4 12-8 jintex.in

Page 35 — L. 給油潤滑関係/Lubrication/Schmierung/Lubrication/Lubricación

L. 給油潤滑関係/Lubrication/Schmierung/Lubrication/Lubricación REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 49 152976001 1 ボールキユウユヒモササエ WICK SUPPORT 50 062670512 2 ナベコ357-40X5 SCREW 357X5 51 028040242 2 ハネザガネ2-4 SPRING WASHER 2-4 52 152977001 1 ヒラユヒモ(L=50) WICK (L=50) 53 152978001 1 チュ-ブオサエ TUBE SUPPORT 54 062680812 1 ナベコ437-40X8 SCREW 437X8 55 153927001 1 クミヒモ6X6 (L=180) WICK 6X6 (L=180) 56 112669001 1 ビニルチュ-ブ OIL TUBE 58 153922001 1 クミヒモ4X4 (L=500) WICK 4X4 (L=500) 59 107149001 1 フェルト FELT 60 152968001 1 クミヒモ4X4 (L=100) WICK 4X4 (L=100) 61 153529101 1 ホイ-ルキユウスフエルト FELT 62 153530001 1 スイアゲフエルト FELT 63-1 153531001 1 ヘツドLフエルト BED (L) FELT 63-2 153562001 1 ヒラユヒモ(L=150) FLAT WICK (L=150) 64 153528001 1 ウオ-ムキユウスフエルトササエ FELT SUPPORT 65 105248003 1 ザガネ WASHER 67 152973001 1 クミヒモ4X4 (L=170) WICK 4X4 (L=170) 68 153925001 1 クミヒモ4X4 (L=30) WICK 4X4 (L=30) 69 153926001 1 タコヒモ(L=10) WICK (L=10) 70 152980001 1 クミヒモ6X6 (L=150) WICK 6X6 (L=150) jintex.in

Page 36 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de l'enfilage/Mecanismo del enhebrado 19 29 30 32 45 44 43 31 39 40 7 33 34 35 36 21 28 37 38 16 8 17 11 9 12 13 14 15 20 22 46 23 24 25 26 27 10 18 1 2 3 4 5 6 41 42

Page 37 — M. 糸通シ関係 /Threading mechanism/Fadenfuhrungsvorrichtung/Mecanisme de l'enfilage/Mecanismo del enhebrado

M. 糸通シ関係 /Threading mechanism/Fadenfuhrungsvorrichtung/ Mecanisme de l'enfilage/Mecanismo del enhebrado REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152869001 1 アームイトミチ ARM THREAD GUIDE 2 062710712 1 ナベコ476-32X7 SCREW 476X7 3 152870001 1 アームイトカク ARM THREAD GUIDE 4 062670612 1 ナベコ357-40X6 SCREW 357X6 5 113316001 1 アームイトアンナイ ARM THREAD GUIDE 6 112751003 1 シメネジ"3.57 SCREW 3.57 7 153049001 1 ウフイトアンナイボウ NEEDLE THREAD GUIDE BAR 8 152872001 1 イトチョウシダイイ TENSION BRACKET 9 100398001 1 イトチョウシボウ TENSION STUD 10 100402004 1 トメネジ"5.95 SET SCREW 5.95 11 * 1 イトトリハネ SPRING 12 145446001 2 イトチョウシサラ TENSION DISC 13 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 14 * 1 イトチョウシハネ TENSION SPRING 15 100136001 1 イトチョウシナット TENSION NUT 16 152873001 1 イトユルメピン TENSION RELEASE PIN 17 114294001 1 Oリング O RING 18 103950003 1 トメネジ"5.95 SET SCREW 5.95 19 152877001 1 フクイトユルメボウ SUB TENSION RELEASE BAR 20 152875001 1 フクイトチョウシボウ SUB TENSION STUD 21 152876001 1 フクイトユルメピン SUB TENSION RELEASE PIN 22 145446001 2 イトチョウシサラ TENSION DISC 23 152877001 1 イトチョウシサラオサエ TENSION DISC WASHER 24 152878001 1 ウフイトオサエハネ NEEDLE THREAD SPRING 25 152879101 1 フクチョウシハネ SUB TENSION SPRING 26 152880001 1 ハネツケ SPRING HOLDER 27 100136001 1 イトチョウシナット TENSION NUT 28 014680422 1 アナトメネジ"4.37クボミ SET SCREW 4.37 29 140208001 1 ザガネ WASHER 30 048040342 1 トメワE4 STOP RING E4 31 152881001 1 エキレイトクミ NEEDLE COOLER ASSEMBLY 32 013760612 1 トメネジ"5.95クボミ SET SCREW 5.95 33 152886001 1 イトイトリアンナイシクウケ THREAD TAKE-UP GUIDE 34 014680422 1 アナトメネジ"4.37クボミ SET SCREW 4.37 35 152887001 1 イトイトリアンナイシジク THREAD TAKE-UP LEVER GUIDE STUD 36 152888101 1 イトイトリレバー THREAD TAKE-UP LEVER 37 141528001 1 ダンネジ"6.35 STUD SCREW 6.35 38 115077003 1 ダンネジ"4.76 STUD SCREW 4.76 39 152889001 1 ミツメイトカケ THREAD RETAINER 40 062670612 2 ナベコ357-40X6 SCREW 357X6 41 152890001 1 ハリボウイトアンナイ NEEDLE BAR THREAD GUIDE (A) 42 152891001 1 ハリボウメタルDイトアンナイ NEEDLE BAR BUSH (D) THREAD GUIDE 43 152883000 1 フエルト8X15.5 FELT 8X15.5 44 152884001 1 エキレイトカク NEEDLE COOLER THREAD GUIDE 45 062670412 1 ナベコ357-40X4 SCREW 357X4 46 153138001 1 ザガネ WASHER jintex.in

Page 38 — N. 糸巻キ関係/Bobbin winder mechanism/Spuler/Mécanisme de bobineur/Mecanismo del devanador de la canilla

N. 糸巻キ関係/Bobbin winder mechanism/Spuler/ M ecanisme de bobineur/Mecanismo del devanador de la canilla 7 3-4 3-3 3-2 3-1 1-21-2 1-22 1-21-1 1-18 1-5 1-4 1-2 1-9 1-8 1-7 1-3 2 1-17 1-20 1-16 1-14 1-12 1-6 1-13 1-1 1-10 1-11 1-17 1-15 1-19 31 jintex.in

Page 39 — N. 糸巻関係/Bobbin winder mechanism/Spuler/ M e c a n i s m o de bobineur/Mecanismo del devanador de la canilla

N. 糸巻関係/Bobbin winder mechanism/Spuler/ M e c a n i s m o de bobineur/Mecanismo del devanador de la canilla REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152982109 1 イトマキクミ BOBBIN WINDER ASSEMBLY 1-1 152983009 1 イトマキダイ BOBBIN WINDER BRACKET 1-2 152984001 1 イトマキレバー BOBBIN WINDER LEVER 1-3 152933001 1 イトマキジク BOBBIN WINDER SHAFT 1-4 152934001 1 イトマキレバーシジク BOBBIN WINDER LEVER SHAFT 1-5 102716004 1 トメネジ4.37 SET SCREW 4.37 1-6 152935001 1 ボビンオサエ BOBBIN PRESSER 1-7 152936001 1 イタバネ PLATE SPRING 1-8 152937001 1 ザガネ WASHER 1-9 062670712 1 ナベコ357-40X7 SCREW 357X7 1-10 152938001 1 メス KNIFE 1-11 062680712 1 ナベコ437-40X7 SCREW 437X7 1-12 152939001 1 イトマキレバーヒキバネ SPRING 1-13 115138001 1 レバーヒキバネカケ SPRING HOOK 1-14 141550001 1 デイシレバーバネカケ SPRING HOOK 1-15 152940001 1 イトマキツメジク BOBBIN WINDER CLAW STUD 1-16 142566001 1 イトマキツメ BOBBIN WINDER CLAW 1-17 048050342 2 トメワE5 STOP RING E5 1-18 014680422 2 アナトメネジ4.37クボミ SET SCREW 4.37 1-19 062670712 1 ナベコ357-40X7 SCREW 357X7 1-20 152941001 1 イトマキツメネジリバネ TWIST SPRING 1-21-1 154528001 1 イトマキクルマ BOBBIN WINDER WHEEL 1-21-2 120448001 1 ゴムワ RUBBER RING 1-22 102716004 2 トメネジ4.37 SET SCREW 4.37 2 062761412 2 ナベコ595-28X14 SCREW 595X14 3 S01300009 1 シタイトチョウシンクミ LOWER THREAD TENSION ASSEMBLY 3-1 152945001 1 シタイトチョウシンダイクミ LOWER THREAD TENSION BRACKET ASSEMBLY 3-2 145446001 2 イトチョウサラ TENSION DISC 3-3 104525001 1 イトチョウシバネ TENSION SPRING 3-4 108265009 1 イトチョウシナツト TENSION NUT 7 062680812 2 ナベコ437-40X8 SCREW 437X8 jintex.in 22

Page 40

P. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung/ Mécanisme de coupe-fil/Mecanismo de la cortadura de hilos 6 43 16 17 44 9 10 50 53 54 52 51 20 21 19 25 48 1 2 5 3 7 8 46 11 18-3 18-4 18-2 18-5 18-1 22 26 24 23 30 18-6 31 32 29 33 34 37 36 35 42 38 39 40 41 27 28 jintex.in

Page 41 — P. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung/Mécanisme de coupe-fil/Mecanismo de la cortadura de hilos

P. 糸切り関係/Thread trimmer mechanism/Fadenabschneidevorrichtung/ Mécanisme de coupe-fil/Mecanismo de la cortadura de hilos REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152892001 1 イトキリレンケツト THREAD TRIMMER CONNECTING ROD 2 152896001 1 イトキリウデ"Aクミ THREAD TRIMMER ARM ASSEMBLY (A) 3 018681022 1 アホホルト4.37X10 BOLT 4.37X10 4 152893101 1 イトキリウデ"B THREAD TRIMMER ARM (B) 5 048050342 1 トメワE5 STOP RING E5 6 152995001 1 ハリイタS NEEDLE PLATE (S) 7 152981001 1 イトキリウデ"C KNIFE ARM (C) 8 153222001 1 シメネジ"4.37 SCREW 4.37 9 152897201 1 イトキリレンカンクミ THREAD TRIMMER CONNECTING ROD ASSEMBLY 10 152901001 1 イトウハクミ MOVABLE KNIFE ASSEMBLY 11 152904001 1 シメネジ"4.37 SCREW 4.37 12 152905001 1 コテイハ FIXED KNIFE 13 111140002 2 シメネジ"2.38 SCREW 2.38 14 100360003 2 シメネジ"2.38 SCREW 2.38 17 * 1 ハリイタ NEEDLE HOLE PLATE 18-1 152912001 1 イトキリカムレバー THREAD TRIMMER CAM LEVER 18-2 152913001 1 コロジク ROLLER SHAFT 18-3 048050342 1 トメワE4 STOP RING E4 18-4 152914001 1 コロ ROLLER 18-5 154788001 1 ハネツカク SPRING HOOK 18-6 152919001 1 イトキリロツド"ピン THREAD TRIMMER ROD PIN 19 152915001 1 イトキリカムレバーツメ THREAD TRIMMER CAM LEVER CLAW 20 062761412 1 スク595-28X14 SCREW 595X14 21 025060132 1 ヒラサカザガネ6 PLAIN WASHER 6 22 152916001 1 イトキリカムレバーシク THREAD TRIMMER CAM LEVER SHAFT 23 152917001 1 サガネ WASHER 24 048120142 1 トメワシヨウC12 STOP RING C12 25 154788001 1 イトキリカムレバーハネ SPRING 26 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 27 140208001 1 サガネ WASHER 28 048050342 1 トメワE5 STOP RING E5 29 152920001 1 イトキリリンクチヨウセツクミ STUD 30 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 31 152921001 1 イトキリリンク THREAD TRIMMER LINK 32 151907001 1 ダンネジ"5.95 STUD SCREW 5.95 33 150553001 1 ナツト5.95 NUT 5.95 34 152922001 1 イトキリサトドーレバー THREAD TRIMMER LEVER 35 152923001 1 イトキリサトドーレバーコロ THREAD TRIMMER ROLLER 36 112468001 1 サガネ WASHER 37 048050002 1 トメワE5 STOP RING E5 38 153482001 1 イトキリサトドーレバーシク DRIVING SHAFT 39 142628001 1 スイヘイヨウクランクリング FEED ROCK CRANK RING 40 048110142 1 トメワシヨウC11 STOP RING C11 41 111865009 1 オイルメクラセン OIL CAP 42 014760622 1 アナトメネジ"5.95 SET SCREW 5.95 43 100032004 2 シメネジ"4.37 SCREW 4.37 44 153208002 2 シメネジ"4.37 SCREW 4.37 45 153220001 1 イトキリウデ"Cカラー KNIFE ARM (C) COLLAR 46 153219001 1 イトウハカラー MOVABLE KNIFE COLLAR 48 141334001 1 ハネツカク SPRING HOOK 50 152906101 1 シイトサハキA LOWER THREAD RETAINER (A) 51 153598001 1 シメネジ"4.37 SCREW 4.37 52 081008070 1 OリングP8 O RING P8 53 153597001 1 シイトサハキカラー LOWER THREAD RETAINER COLLAR 54 153596001 1 サガネ WASHER jintex.in

Page 42

Q. 糸払イ関係/Thread wiper mechanism/Fadenwischvorrichtung/ Mécanisme de tire-fil/Mecanismo del limpiador de hilo 12 9 6 11 15 17 14 2 7 8 10 13 輸出用/FOR EXPORT 16 18 R. 糸締メ関係/Thread nipper mechanism/Fadenspannvorrichtung/ Mécanisme de pince-fil/Mecanismo de la mordaza para hilo 1 6 8 9 5 10 7 3 4 2 3 4 5 1 2 jintex.in

Page 43

Q. 糸払イ関係/Thread wiper mechanism/Fadenwischvorrichtung/ M ecanisme de tire-fil/Mecanismo del limpiador de hilo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152815001 1 ワイパーロツトシシク THREAD WIPER ROD SHAFT 2 152816001 1 ワイパーロツトクミ THREAD WIPER ROD ASSEMBLY 3 014680622 1 アナトメネジ4.37クボミ SET SCREW 4.37 4 048060342 1 トメワE6 STOP RING E6 5 116629001 2 ザガネ WASHER 6 152820001 1 ワイパーシヤフト THREAD WIPER SHAFT 7 025770232 1 ヒラザガネチユウ6.35 PLAIN WASHER 6.35 8 048040342 1 トメワE4 STOP RING E4 9 014680622 1 アナトメネジ4.37クボミ SET SCREW 4.37 10 152823001 1 ワイパーアームクミ THREAD WIPER ARM ASSEMBLY 11 048030342 1 トメワE3 STOP RING E3 12 152827009 1 オイルキリセン OIL CAP 13 013710712 1 トメネジ4.76クボミ SET SCREW 4.76 14 156206001 1 ワイパーA THREAD WIPER (A) 15 062670512 1 ナベコ357-40X5 SCREW 357X5 16 156495001 1 FINGER GUARD 17 025350132 1 ヒラザガネシヨウ PLAIN WASHER 18 062671012 2 SCREW 357X10 R. 糸締メ関係/Thread nipper mechanism/Fadenspannvorrichtung/ M ecanisme de pince-fil/Mecanismo de la mordaza para hilo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 152925101 1 ウワイトルメルボウ NEEDLE THREAD RELEASE SHAFT 2 152926001 1 ユルメルボウササイタ TENSION RELEASE BAR PLATE 3 062671012 2 ナベコ357-40X10 SCREW 357X10 4 025350332 2 ヒラザガネ3.5 PLAIN WASHER 3.5 5 152988001 1 ウワイトルメルレバークミ NEEDLE THREAD RELEASE LEVER ASSEMBLY 6 048040342 1 トメワE4 STOP RING E4 7 152929001 1 ウワイトルメルレバーシク NEEDLE THREAD RELEASE LEVER SHAFT 8 048050342 1 トメワE5 STOP RING E5 9 025770232 1 ヒラザガネチユウ6.35 PLAIN WASHER 6.35 10 014760622 1 アナトメネジ5.95 SET SCREW 5.95 jintex.in

Page 44

S. 付属装置セット/Attachment set/Anbausatz/Jeu d'accessoires/Juego de fijación 1-1 1-2 1-5 1-4 1-6 1-7 1-8 1-9 1-10 1-11 1-3 1-14 1-12 1-13-1 1-13-2 1-13-4 1-13-3 T. 特別注文部品/Option Parts/Sonderzubehör/Pièces en option/Piezas opcionales 1-1 1-9 1-10 1-4 1-7 1-5 1-8 1-11 1-2 1-13 1-3 1-6 1-12 1-16 1-17 1-15 1-14 jintex.in

Page 45

S. 付属装置セット/Attachment set/Anbausatz/Jeu d'accessoires/Juego de fijación REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 154709002 1 メカ2ペダルソウチクミ MECHANISM TWO PEDALS ASSEMBLY 1-1 154452001 1 クトウウレバーイタヒキハネ SPRING DRIVE LEVER PLATE 1-2 154448001 1 クトウウレバーイタ DRIVE LEVER PLATE 1-3 017762012 2 ボルト5.95X20 BOLT 5.95X20 1-4 025060232 2 ヒラサガネチユウ6 PLAIN WASHER 6 1-5 150553001 2 ナツト5.95 NUT 5.95 1-6 154449001 2 ストツパー STOPPER 1-7 025080232 2 ヒラサガネチユウ8 PLAIN WASHER 8 1-8 028080242 2 ハガネ2-8 SPRING WASHER 2-8 1-9 105812003 2 ナツト7.94 NUT 7.94 1-10 154450001 1 P サトウレバーB RELEASE DRIVE LEVER B 1-11 154451001 1 キトウツトツパ-B DRIVE STOPPER (B) 1-12 149247001 1 クサリクミ CHAIN ASSEMBLY 1-13 116185209 1 ペダルクミ PEDAL ASSEMBLY 1-13-1 117437109 1 オサエアゲフミイタ FOOT PEDAL 1-13-2 021400106 2 シユナツト4 NUT 4 1-13-3 062401416 2 ナベ4X14 SCREW 4X14 1-13-4 116016001 2 ペダルトメ PEDAL STOPPER 1-14 154681001 1 オサエアゲコウシクミB ROLLER SHAFT ASSEMBLY (B) T. 特別注文部品/Option Parts/Sonderzubehör/Pièces en option/Piezas opcionales REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 S18426001 1 ハリイタSクミ NEEDLE PLATE (S) ASSEMBLY 1-1 152995001 1 ハリイタS NEEDLE PLATE (S) 1-2 152981001 1 イトキリウデ"C KNIFE ARM (C) 1-3 15322001 1 シメナツト4.37 SCREW 4.37 1-4 152897201 1 イトキリレンカンクミ KNIFE CONNECTING ROD ASSEMBLY 1-5 152901001 1 イトウハクミ MOVABLE KNIFE ASSEMBLY 1-6 152904001 1 シメナツト4.37 SCREW 4.37 1-7 152905001 1 コテイハ FIXED KNIFE 1-8 111140002 2 シメナツト2.38 SCREW 2.38 1-9 100360003 2 サラナツト2.38 SCREW 2.38 1-10 156150001 1 ハリイタB NEEDLE PLATE (B) 1-11 153220001 1 イトキリウデ"Cカラー KNIFE ARM (C) COLLAR 1-12 153219001 1 イトウハカラー MOVABLE KNIFE COLLAR 1-13 152906101 1 シタイトサバキA BOBBIN THREAD RETAINER (A) 1-14 153598001 1 シメナツト4.37 SCREW 4.37 1-15 081008070 1 OリングP8 O RING P8 1-16 153597001 1 シタイトサバキカラー BOBBIN THREAD RETAINER COLLAR 1-17 153596001 1 サガネ WASHER jintex.in

Page 46 — Z. 付属関係/Accessories/Zubehőr/Accessoires/Accesorios

Z. 付属関係/Accessories/Zubehőr/Accessoires/Accesorios 13 14 5-1 5-2 5-3 5-4 5-5 3-1 3-2 3-3 15-1 28 15-2 430 SERIES TABLE SHEET 30 17-7-3 17-5 17-7-5 9 19 7 17-11 17-3 6 4-3 4-2 23 22 20 21 17-4-1 17-4 17-4-2 18 26 24 17-7-1 17-7-3 17-10 17-9 17-6 17-7-4 17-8 17-7-2 17-7-3 17-2-2 11 10 12-1 17-1 12-4 12-2 12-3 17-2-1 ◎ 付属品の明細は変更することがあります。 The details of included accessories are subject to change. Änderungen in der Aufstellung der Mitgelieferten Zubehöre sind vorbehalten. Les détails des accessoires inclus sont sujets à des changements. Los detalles de los accesorios incluidos pueden variar. 20 jintex.in

Page 47

Z. ft RanhS%/ Accessories/Zubeh6r/ Accessoires/Accessorios REF.NO. CODE Q’'TY buy NAME OF PARTS RMKS 1 122991001 1) py" Serie II0 ACCESSORY BAG 3-1 142443001 1 | @y"VIU1 9X52 SCREW DRIVER 1.9X52 3-2 118837001 1 | #5"2953.4X70 SCREW DRIVER 3.4X70 3-3 101572101 1 | R2"7925.5X190 SCREW DRIVER 5.5X190 4-2 100887001 11 2NFBXI SPANNER 8X9 4-3 107780001 1 | 210X142 SPANNER 10X12 5-1 142002001 1 |6ADH"SANT2 HEXAGONAL WRENCH 2 5-2 142721001 1 | BAVA" DAINI3 HEXAGONAL WRENCH 3 5-3 118064001 1 |6nom 9A ta HEXAGONAL WRENCH 4 5-4 150335001 116now OATS HEXAGONAL WRENCH 5 5-5 115157001 1 |GADA TAINS HEXAGONAL WRENCH 6 6 152765001 1 | *n"2LYF10 WRENCH 10 7 159613001 3 | aA ED BOBBIN 9 KO 4 | =2DAUDP NEEDLE DP 10 114483002 1 | RUATS—5= OILER ASSEMBLY 11 154702001 Tittnery OIL TANK 12 116185209 11 A°9o= PEDAL ASSEMBLY 12-1 417437109 TI ADIPI I=L FOOT PEDAL 12-2 021400106 2(12at+vh NUT 4 12-3 062401416 2 | FA"04X14 SCREW 4X14 12-4 116016001 2) N°oEX PEDAL STOPPER a 13 x 1) E-53°—y MOTOR PULLEY 14 014760622 2 | PthAR"G.95 SET SCREW 5.95 15-1 082104891 TIVA"ILEM48 V-BELT M48 15-2 ¥ 1 IVA°ILEM V-BELTM 16 x 11 puapAat i SILICON OIL 17 S$02761009 11 4haror COTTON STAND 17-1 150189009 {| D"S7b COTTON STAND BASE 17-2 $02773001 P| DSTYRRS "Pb COTTON STAND BASE SCREW SET 47-2-1 062060806 2 | FA"I6X8 SCREW 6X8 17-2-2 031452206 3 | VWEDASX22 SCREW 45X22 17-3 150172003 2) m5L°47° COLUMN PIPE 17-4 150106003 1 |IShbD" Sty b= COLUMN JOINT ASSEMBLY 17-4-1 062501406 21 tA°5X14 SCREW 5X14 17-4-2 021500106 24122995 NUT 5 17-5 150174000 1 | a5A+eyT° COLUMN CAP 17-6 $02778002 1 | 27°" —2 SPOOL HOLDER 2 17-7 $02780001 4 | AP-WRE" eR YEZ SPOOL SCREW SET 2 17-7-1 150179002 2} 27°-W2" 9B SPOOL SHAFT (B) 17-7-2 028050246 2) ARON" R2-5 SPRING WASHER 2-5 — 17-7-3 021500106 4)12atvr5 NUT 5 17-7-4 050503006 1 | FA"IESH"5X30 SCREW 5X30 17-7-5 050501406 1 | FA"abSt"5X14 SCREW 5X14 17-8 150180001 2 | sas SPOOL STAND BASE 17-9 150182000 2) 27°-WVYE SPOOL MAT 17-10 126863001 2{ AP -bovyar SPOOL CUSHION 11 S02786002 1 | ALY" ADA" -2=2 THREAD HANGER ASSEMBLY 2 18 149247001 1 | otuse CHAIN ASSEMBLY 19 106030001 4 | H5EDRU'6.2X32 SCREW 6.2X32 20 152863001 4) 2YyVaALHAs— CUSHION COLLAR 21 152864000 8) ayyary CUSHION 22 025800332| 12}; b5t"n"Ro"417.14 PLAIN WASHER 7.14 23 017062503 AIGADHLEGX25 BOLT 6X25 24 021060102 4| 396M 326 NUT 6 25 144226001 | |--- HEAD COVER 26 028060242 4] AN RON" 2-6 SPRING WASHER 2-6 28 153574201 1 | F-D" bat TABLE SHEET 30 120448001 1) a'L9 RUBBER RING 31 154760001 1 [| RORINSIV AD PIPE

Page 48 — PARTS LIST/ZUBEHORLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

483112 5, —3= / DIFFERENT 8 PARTS LIST/ZUBEHORLISTE/ LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS Fapa9 NIV 4.62 C-27 F-35 F-35-8 F-35-9 F-35-18 F-44 REF.NO. wag | 2222E EYYAUDP | tHIOF"DE 4¥xPIR | sUTPUL AVIN'R 4DU49 ARTS | 1ABEL NEEDLE DP |PRESSER ARM} WORK WORK SPRING | FEED PLATE ASSEMBLY | CLAMP (R) | CLAMP (L) sug | 23? CLASS | SPEC 49° YEIISY = 153056201 | 107415016 | 152767009 | 152777001 | 152778001 | 153568001 | 153055201 ORDINARY (DPX5#16) (A) CLOTHES 5 ILA -2 153056202 | 145646019 | 154526009 | 153608101 | 154527001 | 154356001 } 153610101 DENIM (DPX17#19) (C) FPILa9 ~3 153056203 t t t t t * DENIM T9IVNVEI239 -4 153056204 | 107415016 | 152767009 | 152777001 | 152778001 | 153568001 | 153055201 ORDINARY (DPX5#16) (A) CLOTHES 49 DEIIIP 5 153056205 t 153033009 | 152779001 | 152780001 t 153207201 ORDINARY CLOTHES FILA 6 153056206 | 145646019 | 154526009 | 153608101 | 154527001 | 154356001 | 153610101 DENIM (DPX17#19) (C) AUPRID “7 453056207 | 107415009 | 153033009 | 152779001 | 152780001 | 153568001 | 152791201 KNITTED (DPX5#9) (A) MATERIALS 4Y¥/VNUEIVAI . -8 153056208 | 107415016 t t t t 153207201 ORDINARY (DPX5#16) CLOTHES AURA ~9 153056209 | 107415009 t t t t 452791201 KNITTED (DPX5#9) MATERIALS

Page 49

ys89 NIV 4s H-16 H-22 J-10 J-10-1 K-26 K-31 REF.NO. — FIDE WW | Frye VC FOUHL SIAL Bb | NO-ALDE sanz | FHA ARTS | CHANGE CHANGE FEED CAM |POWER CAM |POWER CAM LARGE INNER GEAR (W) GEAR (C) SET ASSEMBLY} SHUTTLE ROTARY SUB 534 HOOK HOOK CLASS | SPEC TYIVVEIPA 4 152721000 | 152722000 | 152727001 155523001 | 151933001 | 152682001 152685101 ORDINARY (42) (42) (42S) (A) (A) CLOTHES F°2b39 -2 1 t 153053001 $13165001 | s13166001 | 152686001 152687001 DENIM (42D) (B) (B) (B) (B) | FILA — -3 153312000 ; 153313000 | 153314001 t t t t DENIM (35) (35) (35D) AHVIEIZAS —4 152719000 | 152720000 | 153054001 155523001 | 151933001 | 152682001 152685101 ORDINARY (28) (28) (28S) (A) (A) CLOTHES TIN VEIIAD 5 t t 153343001 t t t f ORDINARY (28K) | CLOTHES FI hay -6 t t 153321001 $13165001 | $13166001 | 152686001 152687001 — DENIM (28D) (B) (B) (B) AUPZRY -7 t t 152726001 155523001 | 151933001 | 152682001 152685101 KNITTED (28M) (A) (A) MATERIALS 49 DEIIS9 -8 152721000 | 152722000 } 153344001 t t 7 t ORDINARY (42) (42) (21K) CLOTHES AUCRZAP -3 + t 153315001 t t t t KNITTED (21M) MATERIALS

Page 50

Sy9s9 NID M14 M-14 P-17 Z-9 Z-13 2-13 Z-15-2 REF.NO. moa thre | thtegonna | nuptes eyonuoP | €-s7-y | E-Soe-4 VA"IbE CARTS | SPRING TENSION NEEDLE HOLE] NEEDLE DP {| MOTOR MOTOR V BELT SPRING PLATE PULLEY PULLEY | suB_ | 739 | CLASS | SPEC SOHZ 60HZ 5OHZ TYINTEIZAD -{ 145519001 | 104525001 | 156150001 | 107415016 ORDINARY (B) (DPX5#16) CLOTHES FILA -2 144588001 | 107606001 | 156151001 | 145646019 DENIM (B) (C) (DPX17#19) F239 (ayt1a9) | (394-4139) (399-139) ~3 t 1 1 1 (FOR (FOR (FOR DENIM DOMESTIC) | DOMESTIC) | DOMESTIC) 153109001 | 153108001 | 082105190 Ay VEDIAI (M51) -4 145519001 | 104525001 | 156150001 | 1074158016 ORDINARY (B) (DPX17#19) CLOTHES TY¥IVVEPIAP —5 t T T T ORDINARY CLOTHES FILA (292939) (yaya) (272939) “ 144588001 | 107606001 | 156151001 | 145646019 | (FOR (FOR (FOR DENIM (B) (C) (DPX17#19) | EXPORT) | EXPORT) EXPORT) ed 154540001 | 154541001 | 082105290 AURA (p14) (g14) (M52) -7 145519001 | 104525001 | 156149001 | 107415009 | 154542001 | 154543001 KNITTED (A) (DPX5#9) ($15.88) (915.88) MATERIALS TIN IEDIII -8 1 1 156150001 | 107415016 ORDINARY (B) (DPX5#16) CLOTHES AUYPRAW -9 t 1 156149001 | 107415009 KNITTED (A) (DPX5#9) MATERIALS

Page 51

YVAN ITO 5 15 5 Z-16 REF.NO. -_ VATE SVIYAT CARTS |v BELT SILICON OIL suB. | 739 CLASS | SPEC 60H2Z 49267239 4 ORDINARY CLOTHES Fed Rt —? DENIM FLAY (39F+-439} Le ~3 (FOR ae DENIM DOMESTIC) 082105090 49S VCEDIAG (M50) 4 $0670600 1 ORDINARY CLOTHES AYNNDEDII9 5 t ORDINARY CLOTHES 52439 (2ay39 6 (FOR | -—-=- DENIM EXPORT) 082105190 AUPRAD (M51) 7 _ KNITTED MATERIALS LYNUEIIS9 3 $0670600 1 ORDINARY CLOTHES UV RID -—9 eee KNITTED MATERIALS

Page 52

APY avit—-y /OPTION PARTS/SONDERZUBEHOR/ PIECES EN OPTION/PIEZAS OPCIONALES FLY Y LPL WORK CLAMP LPL 153202001 AIP Y RPL Ss WORK CLAMP RPL 153201001 OYA PL FEED PLATE PL 153205201 FELT LL PSL WORK CLAMP L DENIM 152782001 FHPLPYR FHA WORK CLAMP R DENIM 152781001 APYAYPAL FEED PLATE DENIM 152792001 <> AUTHEAIG AYTHAID oy, NEEDLE HOLE PLATE G NEEDLE HOLE PLATE D (92.5) (02.5 + LSE 8 ) 156155001 $2.5 cross-shaped groove 156152001 AIP Y LPS WORK CLAMP LPS 153204001 AIT Y RPS WORK CLAMP RPS 153203001 TVA PS FEED PLATE PS 153206201 FULT YLIAYS ~ WORK CLAMP L INCH 500907001 AYPLYY RI 4st WORK CLAMP R1 INCH $00906001 tAVAVILAYF FEED PLATE 1 INCH $00908001

Page 53

% 51/INDEX/VERZEICHNIS/INDEX/INDICE CODE REF.NO. PAGE CODE REF.NO. PAGE $00327001 K - 16 24 014770622 K - 15 24 $00400000 K - 16-11 24 014821022 B-6 6 $01300009 N-3 32 J - 29 22 $01688001 E - 1 12 017062503 Z - 23 40 $02761009 Z-17 40 017711412 B - 59 8 $02773001 Z - 17-2 40 017761412 Cc -9 10 $02778002 Z - 17-6 40 F - 40 16 $02780001 Z - 17-7 40 017762012 S - 1-3 38 $02786002 Z - 17-11 AO 017762202 B - 66 8 $02878000 D - 21 12 018060822 J - 10-3 22 S$06706001 Z -16 40 018061622 B - 77 8 $07813001 H - 51 20 H - 42 20 $07814001 H - 52 20 018062022 B - 55-3 8 $09132001 F - 12 14 H - 25 20 H - 20 20 H - 8 20 H - 29 20 018062222 H - 18 20 H - 32 20 018063022 F - 12-1 14 $13165001 J - 10 22 H - 20-1 20 $13166001 J - 10-1 22 H - 29-1 20 $18426001 T -1 38 H - 32-1 20 $21120001 D - 26 12 018081222 A - 32-3 2 013710712 H - 37 20 018082022 F - 26-2-1 14 H - 40 20 F - 4-1 14 Q - 13 36 018082522 B - 11 6 013719412 A - 32-8 2 018500822 F - 35-15 16 013760612 A - §2 2 018501422 K - 25 24 G-5 18 018681022 P - 3 34 M- 32 30 021060102 Z - 24 40 | 013761410 B - 32 6 021100202 A - 32-15 2 013761412 Cc - 14 10 021400106 S - 1-13-2 38 C - 21 10 Z - 12-2 40 014680422 M - 28 30 021500106 Z - 17-4-2 40 M - 34 30 Z - 17-7-3 40 N - 1-18 32 021670202 L - 12-7 26 014680622 K - 3 24 021680202 B - 39-7 6 Q - 3 36 021800102 B - 22 6 Q-9 36 025060132 B - 78 8 014760622 B - 34 6 P - 21 34 B - 74 8 025060232 B - 80 8 F - 18 14 Cc - 10 10 F - 23 14 F - 39 16 F - 3 14 S - 1-4 38 F - 30-3 14 025080132 A - 65 4 F - 32 14 025080232 A - 32-4 2 F - 35-7 14 S - 1-7 38 F - 6-2-3 14 025100132 A - 32-16 2 G - 10 18 025350132 Q -17 36 G - 16 18 025350332 L - 12-4 26 G - 28 18 R-4 36 G - 4 18 025680132 B - 39-6 6 H - 10 20 025770232 A - 11 2 H - 45 20 Q-7 36 J - 19-3 22 R -9 36 J - 21 22 025800332 B - 20 6 J - 30 22 Z - 22 40 K - 11 24 ~ 028040242 L - 51 28 K - 17 24 028050242 B - 45 6 K - 6 24 B - 60 8 K - 8 24 028050246 Z - 17-7-2 40 P - 26 34 028060242 B - 79 8 P - 30 34 B - 82 g P - 42 34 H - 27 20 R - 10 36 Z - 26 40 Z -14 40 028080242 A - 32-5 2 014770622 Cc -17 10 B - 12 6 Cc - 19 10 S - 1-8 38 D-8 12 028100242 A - 32-17 2

Page 54

CODE REF.NO PAGE CODE REF.NO PAGE 031452206 Z 1 7-2-2 40 062680612 A - 59 2 047251640 { - 37 26 L 5 26 047501 242 A - 75 4 062680712 N - 1-11 32 048030342 B - 39-4 6 062680812 A - 22 2 Q - 11 36 A - 64 4 048040342 B - 27 6 C - 20-7 10 B - 55-2 8 L 3 26 D - 1-5 12 L 54 28 H - 43-4 20 N - 7 32 M - 30 30 062710612 A - 72 4 P - 18-3 34 062710712 A - 6 2 P - 28 34 M - 2 30 Q - 8 36 062711412 A - 5 2 R - 6 36 A - 8 2 048050342 F - 35-6 14 062761412 A - 3 2 N - 1-17 32 N - 2 32 P - 37 34 P - 20 34 P - 5 34 062781412 C - 35 10 R - 8 36 071047650 F - 38 16 048060342 G - 12 18 071095250 D - 25 12 G - 19 18 072600360 J 3-2 22 Q-4 36 072600760 D - 9-2 12 048080342 K - 23 24 072630260 C -5 10 048100142 A - 32-13 2 081003670 K - 13 24 048110742 B - 31 6 K - 19 24 B - 73 8 081008070 P - 52 34 G - 27 18 T 1-15 38 P - 40 34 082104891 Z - 15-1 40 0481420142 P - 24 34 082105090 Z 15-2 40 048150142 C - 3 10 082105190 Z 15-2 40 048160142 J 26 22 082105290 Z 15-2 40 048170142 J 2 22 100032004 P - 43 34 048180142 B - 4 6 100136001 M - 15 30 F 15 14 M - 27 30 F - 22 14 400250001 C - 16 10 048240242 D - 9-6 12 100315002 A - 10 2 048320242 A - 32-2-1 2 100360003 P - 16 34 0483501 42 D - 9-4 12 T 1-9 38 050501 406 Z 17-7-5 40 100398001 M- 9 30 050503006 Z 17-7-4 40 100402004 M - 10 30 062060806 z 17-2-1 AQ 100887001 Z - 4-2 40 062401416 S 1-13-3 338 101572101 Z 3-3 40 Z 12-3 40 101706001 C - 18 10 062501406 Z 17-4-1 40 102538007 A - 56-3 2 062660412 K - 16-4 24 | 102630001 G - 8 18 062660712 D - 24 12 102716004 N - 1-22 32 K - 16-8 24 N - 1-5 32 062670412 H - 49 20 102843004 Cc - 8 10 M - 45 30 103950003 M- 18 30 062670512 A - 57 2 104450109 A - 31 2 L 21, 26 A - 66 4 L - 26 26 104525001 M- 14 30 L - 33 26 N - 3-3 32 L - 39 26 104567001 L 10 26 L - 48 26 L 22 26 L 50 28 L - 40 26 Q - 15 36 104689002 B - 23 6 062670612 L 13 26 K - 2 24 M-4 30 105248003 L - 65 28 M - 40 30 105451002 F - 10 14 062670712 N.- 1-19 32 F - 25 14 N - 1-9 32 105812003 S - 1-9 38 062670812 A - 15 2 106030001 Zz 19 40 L - 12-3 26 106129001 A - 56-4 2 062671012 Q - 18 36 106147002 B - 37 6 R - 3 36 107038003 F - 35-12 16 062671412 L 12-8 26 407749001 J 27 22

Page 55

CODE REF.NO. PAGE CODE REF.NO PAGE 107149001 1 - 59 28 140392009 A - 28 2 107153002 G - 11 18 140407002 F - 35-14 16 G - 18 18 140423000 L - 2-5 26 107231002 Jo- 9 22 L ~ 28 26 107415009 C - 27 10 140726000 C - 17 10 Z-9Q 40 141331001 F - 36-3 16 107415016 C - 27 10 141334001 H - 47 20 Z2-9 40 P - 48 34 107606001 M - 14 30 141472002 J - 23 22 107744001 B - 39-2 6 141528001 M - 37 30 141550001 N - 1-14 32 107780001 Z - 4-3 40 141583001 G - 21 18 108265009 N - 3-4 32 141692001 L - 12-6 26 108520009 A - 30 2 141786001 K - 1 24 109239002 A - 18 2 141808001 K - 34 24 109893002 H - 26 20 141860001 A - 32-2-2 2 110027001 H - 44 20 142002001 Z - 5-1 40 110251001 B - 38 6 142211001 C - 33 10 B - 67 8 142443001 Z - 3-1 40 110495003 K - 14 24 142566001 N - 1-16 32 110505001 B - 72 8 142628001 B - 30 6 1117140002 P - 13 34 B-71 8 T - 1-8 38 G - 26 18 111865009 B - 75 8 P - 39 34 P - 41 34 142721001 Z - 5-2 40 112468001 P - 36 34 143591001 F - 35-5 14 112669001 L - 31 26 144226001 Z - 25 40 iL - 42 26 144458001 C - 24 10 L - 56 28 144588001 M- 11 30 112751003 M- 6 30 144694001 i -6 26 113006001 i - 34 26 144712002 C - 2-1 10 113316001 M- 5 30 145318001 F - 34 14 113431002 B - 39-5 6 145446001 M- 12 30 B - 61 8 M - 22 30 114294001 M- 17 30 N - 3-2 32 114483002 Z - 10 40 145478001 F - 35-17 16 114486002 A - 71 4 145480001 A - 12 2 114985001 A - 58 2 145519001 M - 11 30 115003001 D - 1-3 12 145646019 C - 27 10 115012002 B - 13 6 Z-9 AO 115018001 B - 19 6 146375000 L - 23 26 115077003 M- 38 30 147111001 D-7 12 115138001 N - 1-13 32 147151000 H - 3 20 115157001 Z - 5-5 40 147745000 L - 16 26 115493002 A - 17 2 L - 2-6 26 116016001 . 1S - 1-13-4 38 L - 43 26 Z - 12-4 40 148921000 L - 14 26 116185209 S - 1-13 38 149247001 S - 1-12 38 Z- 12 40 Z - 18 40 116629001 Q-5 36 150106003 Z - 17-4 AO 116920001 C - 36 10 150172003 Z - 17-3 40 117150001 L - 25 26 150174000 Z - 17-5 40 L - 38 26 150179002 Z - 17-7-1 40 117363001 B - 44 6 150180001 Z - 17-8 40 117437109 S - 1-13-1 38 150182000 Z - 17-9 40 Z - 12-1 40 150189009 Z - 17-1 40 117934009 A - 29 2 150335001 Z - 5-4 40 117936009 A - 27 2 150553001 B - 53 8 118064001 Z - 5-3 40 B - 64 8 118837001 Z - 3-2 40 P - 33 34 120448001 N - 1-21-2 32 S - 1-5 38 Z - 30 40 150554002 B - 14 6 122991001 Z - 1 40 150556001 B - 46-3 6 126863001 Z - 17-10 40 B - 48 6 132051001 C - 20-4 10 B - 51 6 140208001 M- 29 30 G - 20-3 18 P - 27 34 G - 22 18

Page 56

CODE REF.NO. PAGE CODE REF.NO. PAGE 151163001 B -9 6 152232001 C - 20 10 H - 24 20 152236001 C - 20-2 10 151602002 F 1-3 14 152237001 C - 20-3 10 151604002 A - 54 2 152238001 C - 20-5 10 151886001 B - 1 6 152239001 C - 20-6 10 151887001 B - 3 6 152240001 C - 22 10 151888101 B - 10 6 152242001 C - 25 10 151889001 B - 15 6 152243001 Cc - 26 10 151890000 B - 16 6 152244000 C - 34 10 151891001 B - 17 6 152245001 K - 4 24 151892001 B - 18 6 152246001 K - § 24 151893001 B - 21 6 152247001 K - 7 24 151894101 B - 24 6 152250001 K - 10 24 151895000 B - 25 6 152677001 K - 16-1 24 151898001 B - 26 6 152678001 K - 12 24 151899001 B - 28 6 K - 18 24 151900001 B - 29 6 152679001 K - 16-2 24 151901001 B - 33 6 152680001 K - 16-3 24 151902001 B - 35 6 152681201 K - 24 24 151903001 B - 36 6 152682001 K - 26 24 151904101 B - 39 6 152683001 K - 16-5 24 151905101 B - 39-1 6 152684001 K - 16-6 24 151906101 B - 39-3 6 — 152685101 K - 31 24 151907001 B - 40 6 152686001 K - 26 24 B - 54 8 152687001 . K - 31 24 P - 32 34 152693001 D - 4-1 12 151908001 B - 41 6 152694001 D - 1-2 12 151910001 B - 43 6 152695201 D - 9-1 12 151912001 B - 47 6 152698001 D - 9-3 12 151913001 B - 49 6 152699001 D - 9-5 12 151914001 B - 50 6 152700000 D - 9-7 12 151915101 B - 52 6 152701001 D - 1 12 151919101 B - 57 8 152702001 DO - 19 12 151920001 B - 58 8 152703100 D - 20 12 151922001 B - 65 8 162705101 D - 22 12 151923001 B - 68 8 152706001 D - 23 12 151924001 B - 69 8 152707001 H - 1 20 151925001 B - 70 8 152708000 H -4 20 151927001 B - 2 6 152709000 H - 6 20 151928001 J 1 22 152710001 H - 7 20 7151923000 B-7 6 152713001 H - 5 20 151930201 J 3-1 22 152718001 H - 2 20 151932001 J 8 22 152719000 H - 15 20 151933001 J 10-1 22 152720000 H - 16 20 151935000 J 10-1-1 22 152721000 H - 15 20 151936001 J 114 22 152722000 H - 16 20 151937001 J 12 22 152723001 H - 34 20 151938001 J 13 22 152724001 H - 19 20 151939101 B - 55 8 152726001 H - 22 20 151940001 3, 10-2 22 152727001 H - 22 20 151947101 y 10-4 22 152728001 B -8 6 151944001 J 19 22 H - 23 20 151946000 D - 17 12 152729001 H - 28 20 151947101 J 19-1 22 152731001 H - 35 20 151948001 J 19-2 22 152732001 H - 36 20 151949001 J 20 22 152733001 H - 39 20 151951001 J 22 22 152734001 H - 41 20 151952001 J 24 22 152735101 H - 43 20 151953001 J 25 22 152739001 H - 43-2 20 151954001 J 28 22 152741101 F 1 14 151995001 C - 4 10 152742001 F 1-1 14 151997000 Cc - 4 10 152744001 G - 2-2 13 151998000 C - 6 190 152745001 F 2 14 151999001 C -7 10 F 31 14 152000001 C - 13 10 152749001 F 27 14 152191101 K - 9 24 F 7 14 152231000 C - 15 10 152750001 F 28 14

Page 57

CODE REF.NO PAGE CODE REF.NO PAGE 152750001 F - 8 14 152860009 A - 32-10 2 152751101 F 6-2 14 152861101 A - 32-11 2 152752001 F - 6-2-1 14 152862001 A - 32-12 2 152755001 F 11 14 152863001 Z - 20 40 152756001 B - 5 6 152864000 Z - 24 40 F 14 14 152865101 A - 32-14 2 F - 19 14 152866001 A - 51 2 F - 21 14 152867000 A - 53 2 152758001 F 16 14 152868009 A - 55 2 152759001 F 17 14 152869001 M- 1 30 152760001 F - 20 14 152870001 M- 3 30 152762001 F - 30 14 152872001 M- 8 30 152765001 Z- 6 40 152873001 M - 16 30 152766001 F - 33 14 452874001 M- 19 30 152767009 F - 35 14 152875001 M -'20 30 152768009 F - 35-1 14 152876001 M - 24 30 152769001 F - 36 16 152877001 M - 23 30 152771000 F - 36-1 16 152878001 M - 24 30 152772001 F - 37 16 152879101 M - 25 30 152773000 F - 36-2 16 152880001 M - 26 30 152774001 F - 35-2 14 152881001 M - 31 30 QL 152775001 F - 35-3 14 152883000 M - 43 30 152776001 F - 35-4 14 152884001 M - 44 30 152777001 F - 35-8 14 152886001 M - 33 30 152778001 F - 35-9 14 152887001 M - 35 30 152779001 F - 35-8 14 152888101 M - 36 30 152780001 F - 35-9 14 152889001 M - 39 30 152783001 F 35-10 14 152890001 M - 41 30 152784001 F - 35-11 14 152891001 M - 42 30 152788000 F - 35-19 16 152892001 Pp. 4 34 152791201 F - 44 16 152893101 P .4 34 152794001 G - 1 18 152896001 P -2 34 152797001 G -2 18 152897201 p 9 34 152798001 G - 2-1 18 T - 1-4 38 152799001 G - 3 18 152901001 P - 10 34 152800201 G - 6 18 T - 1-5 38 152801001 G-/7 18 152904001 Pp - 11 34 152802001 G-9 18 T - 1-6 38 152803001 G - 13 18 452905001 Pp . 12 34 152805101 G - 14-1 18 T - 4-7 38 152806001 G - 14-2 18 452906101 P - 50 34 152808101 B - 46 6 T - 1-13 38 G - 20 18 152912001 P - 18-1 34 152811001 G - 23 18 152913001 P - 18-2 34 152815001 Q - 4 36 152914001 B - 55-1 8 152816001 Q - 2 36 H - 38 20 152822001 QO - 6 36 P - 18-4 34 152823001 Q - 10 36 152915001 Pp - 19 34 152827009 GQ - 12 36 152916001 Pp - 22 34 152830109 A - 2 2 152917001 P - 23 34 152831009 A - 4 2 152919001 P - 18-6 34 152832109 A - 4-1 2 152920001 P - 29 34 152833001 A - 4-2 2 152921001 P - 31 34 152834009 A - 7 2 152922001 Pp - 34 34 152835009 A - 9 2 152923001 P . 35 34 152836009 A - 13 2 152925101 R- 1 36 152838001 A - 60 2 152926001 R-2 36 152839001 A - 61 4 452929001 R-7 36 152841009 A - 14 2 152933001 N - 1-3 32 152842009 A - 16 2 152934001 N - 1-4 32 152846009 A - 19 2 152935001 N - 1-6 32 152847009 A - 77 4 152936001 N - 1-7 32 152848001 A - 63 4 152937001 N - 1-8 32 152852101 A - 32-2 2 152938001 N - 1-10 32 152857001 A - 32-6 2 152939001 N - 1-12 32 152858001 A - 32-7 2 152940001 N - 1-15 32 152859001 A - 32-9 2 152941001 N - 1-20 32

Page 58

CODE REF.NO. PAGE CODE REF.NO PAGE 452945001 N - 3-1 32 153056203 A - 62 4 152948001 L - 1 26 153056204 A - 62 4 L - 141 26 153056205 A - 62 4 152949001 L -2 26 153056206 A - 62 4 152950001 L - 2-1 26 153056207 A - 62 4 152951001 L - 2-2 26 153056208 A - 62 4 152952001 L - 2-3 26 153056209 A - 62 4 152953001 L - 45 26 153057002 F - 42 16 152955001 L - 4-2 26 153058001 D - 1-4 12 152956001 L - 4-3 26 153098000 A - 56-2 2 L -7 26 153100000 A - 56 2 152958001 L -4 26 153102001 A - 56-1 2 152959001 L - 4-1 26 153104001 H - 17 20 152960001 L -9 26 153108001 Z - 13 40 152961001 L - 12 26 153109001 Z - 13 40 152962001 L -8 26 153138001 M - 46 30 152963001 L - 12-5 26 453141001 H - 48 20 152964001 L -17 26 153195001 H - 43-3 20 L - 19 26 153207201 F - 44 16 152965001 L - 18 26 153208002 P - 44 34 152966001 L - 12-1 26 153219001 P - 46 34 152967001 L - 12-2 26 T - 1-12 38 152968001 L - 60 28 153220001 P - 45 34 152969001 L - 20 26 T - 1-11 38 L - 32 26 153222001 P -8 34 152971001 L - 29 26 T - 1-3 38 152973001 L - 36 26 153312000 H - 15 20 L - 67 28 153313000 H - 16 20 152974001 L - 41 26 153314001 H - 22 20 152976001 L - 49 28 153315001 H - 22 20 152977001 L - 52 28 153321001 H - 22 20 152978001 L - 53 28 153330001 C - 20-1 10 152980001 B - 52-1 8 153331001 F - 30-1 14 F - 6-2-4 14 153332001 H - 43-4 20 tL - 70 28 153343001 H - 22 20 152981001 P -7 34 153344001 H - 22 20 T - 1-2 38 153482001 P - 38 34 152982109 N - 1 32 153528001 L - 64 28 152983009 N - 7-1 32 153529101 L - 61 28 152984001 N - 1-2 32 153530001 L - 62 28 152985001 L - 46 26 153531001 L - 63-1 28 152986001 A . 21 2 153562001 tL - 63-2 28 152988001 R- 5) 36 153567000 F - 35-20 16 152989001 A - 20 2 153568001 F - 35-18 16 152992001 L - 24 26 153570001 F - 35-16 16 152995001 P _6 34 153571001 F - 35-13 16 T - 1-1 38 153574201 Z - 28 40 153033009 F - 35 14 153596001 P - 54 34 153035000 F - 43 16 T - 1-17 38 153040001 Cc -2 10 153597001 P - 53 34 153041001 Fo. 1-2 14 T - 1-16 153042001 F - 26-1 14 153598001 38 P - 51 34 F - 6-1 14 T - 1-14 153043001 F - 30-2 14 153608101 38 F . 35.8 14 F - 6-2-2 14 153610101 F - 44 153044001 D- 1 12 153757001 16 F - 26-2 14 153045001 F - 24 14 153762101 F-4 14 F -9 14 153763001 L - 47 26 153047001 F -6 14 153918001 iL - 2-4 26 153048001 F - 26 14 153919001 L - 2-7 26 153049001 M-7 30 153921001 F - 1-5 14 153050000 K - 16-9 24 153922001 L - 44 26 153053001 H - 22 20 L - 58 28 153054001 H - 22 20 153924001 F - 1-4 14. 153055201 F - 44 16 153925001 iL - 68 28 153056201 A - 62 4 153926001 L - 69 28 153056202 A - 62 4 153927001 L - 55 28

Page 59

CODE REF.NO. PAGE 154155101 B - 63 8 154332001 B - 46-1 6 G - 20-1 18 154333001 B - 46-2 6 G - 20-2 18 154339001 K - 35-1 24 154341001 K - 35-2 24 154356001 F - 35-18 16 154448001 S - 1-2 38 154449001 S - 1-6 38 154450001 S - 1-10 38 154451001 S - 1-11 38 154452001 S - 1-1 38 154465001 A - 70 4 154526009 F - 35 14 154527001 F - 35-9 14 154528001 N - 1-21-1 32 154540001 Z - 13 40 154541001 Z - 13 40 154542001 Z- 13 40 154543001 Z- 13 40 154681001 S.- 1-14 38 154702001 Z - 11 40 154709002 S - 1 38 154738109 A - 32-1 2 154760001 Z - 31 40 154785000 A - 74 4 454788001 P - 25 34 154789001 P - 18-5 34 155336001 H - 46 20 155337001 H - 43-5 20 155489000 K - 16-10 24 155499001 B - 62 8 155500001 B - 76 8 155501001 B - 42 6 455523001 J 10 22 156149001 P - 17 34 156150001 P - 17 34 T 1-10 38 156151001 P - 17 34 156206001 Q - 14 36 156495001 Q - 16 36 156936101 J 3 22 158686001 G - 15 18 158687001 G - 24 18 159610101 K - 35 24 159612001 K - 35-3 24 159613001 K - 36 24 Z-7 40 159805001 M - 13 30 159808109 A - 32 2 159977000 H - 9 20 159978001 H - 11 20 159979001 H - 12 20 159984001 H - 13 20 183686001 D-9 12 402887001 K - 16-7 24

Page 60

brother ブラザー工業株式会社 〒467 名古屋市瑞穂区河岸一丁目1番1号 TEL (052) 824-2392代 BROTHER INDUSTRIES LTD. NAGOYA JAPAN jintex.in 118-430 195430-501 1993, 02 A
