Brother BAS-311G Parts Book (PDF)

Pattern Sewer · also listed as BAS311G, 311GDownload PDF

Text index — Brother BAS-311G

Page 7 — A. 机体部分 / Machine body

Brother BAS-311G parts on page 7
Ref	Part number	Part name	Qty
1	SA4594001	BUSHING U	1
2	117608001	DOWEL PIN	1
3	SA4596001	RUBBER CAP 20-15	1
4	117934001	RUBBER CAP, 13.5	1
5	104821001	RUBBER CAP, 10.5	3
6	SA4597001	MOTOR COVER R	1
7	062061016	SCREW PAN M6X10	4
8	SA4598001	MOTOR COVER L	1
9	062061016	SCREW PAN M6X10	4
10	SA4600001	FACE PLATE	1
11	104449001	RUBBER CAP, 15.5	1
12	SA4601001	F-PLATE PACKING	1
13	062061016	SCREW PAN M6X10	3
14	SA4603101	SHUTTLE RACE COVER	1
15	SA6272001	SHUTTLE RACE COVER HOOK D	1
16	004300513	SCREW, FLAT M3X5	2
17	SA3264001	NUT PLATE	1
18	SA6207001	HINGE	1
19	021300103	NUT, 1 M3	2
23	SA3200101	THREAD TAKE-UP COVER	1
24	062401006	SCREW PAN M4X10	1
25	SA4604001	STEPPING COVER	1
26	SA3306001	SHOULDER SCREW,7-3	1
27	120265002	SPRING WASHER	1
28	S07350002	WASHER PLAIN	1
29	S36475000	SCREW, M5	1
30	S36924002	MARK, INJURY	1
31	SA0792001	LABEL, CAUTION JPN/ENG	1
31	SA0793001	LABEL, CAUTION CHN/ENG	1
32	S37060001	LABEL, GROUNDING	1
33	S20164001	RUBBER CAP, 13	1
34	S02445001	FINGER GUARD	1
35	025350332	WASHER PLAIN L 3.5	2
36	SA4605001	HEAD REST	1
37	S42446001	BOLT, SOCKET (S/P WASHER)M6X14	4
38	062300506	SCREW PAN M3X5	4
39	SA6194001	RUBBER CAP 26	1
40	S44010001	RUBBER CAP 11.5	2
41	SA6441001	RUBBER CAP	2
42	S20164001	RUBBER CAP 13	1

Page 9 — B. 上轴 · 针杆装置 / Upper shaft and needle bar mechanism

Brother BAS-311G parts on page 9
Ref	Part number	Part name	Qty
1	SA4606001	UPPER SHUFT	1
2	SA3499001	CRANK ROD ASSY	1
3	018501636	BOLT SOCKET M5X16	2
4	SA4172001	NEEDLE BEARING: BLUE	2
4	SA4173001	NEEDLE BEARING: BLACK	2
4	SA4174001	NEEDLE BEARING: GRAY	2
4	SA4175001	NEEDLE BEARING: YELLOW	2
5	SA3206001	BALL BEARING BUSH	1
6	SA4179001	BALL BEARING 6904DDUNR	1
7	SA4180001	BALL BEARING 6904DDU	1
8	S23651001	SET SCREW, SOCKET (FT) M6X6	2
9	SA3206001	BALL BEARING BUSH	1
10	SA4177001	BALL BEARING 6004DDUNR	1
11	S23651001	SET SCREW, SOCKET (FT) M6X6	2
12	SA4608101	JOINT G	1
13	SA4178001	BALL BEARING 6204DDUNR	1
14	S23651001	SET SCREW, SOCKET (FT) M6X6	4
15	S25235001	SCREW, M8	1
16	SA4609101	THREAD TAKE-UP CRANK G	1
17	S23651001	SET SCREW, SOCKET (FT) M6X6	4
18	110367001	WASHER, PLAIN SPECIAL 8	1
19	SA6182001	THREAD TAKE-UP LEVER FK SET	1
20	SA2958001	SCREW FLAT M5X6	1
21	012500536	SET SCREW SOCKET (FT) M5X5	1
22	062400816	SCREW PAN M4X8	1
23	145465001	SCREW, SM3.57-40X6 L	1
24	012060636	SET SCREW SOCKET (FT) M6X6	2
25	142211001	SLIDE BLOCK	1
26	SA3528001	SLIDE BLOCK GUIDE	1
27	018401636	BOLT SOCKET M4X16	2
28	SA4622001	NEEDLE BAR	1
29	144458001	SET SCREW, SM3.57-40X4.5	1
30	SA4666001	NEEDLE BAR BUSH UK	1
30	SA4668001	NEEDLE BAR BUSH UK	1
31	SA3224001	NEEDLE BAR BUSH,D	1
33	S38713100	FAN	1
34	062400816	SCREW PAN M4X8	3
35	SA6108001	PULLEY GEAR R	1
36	012500536	SET SCREW SOCKET (FT) M5X5	2
37	SA4626001	PULLEY SHUFT	1
38	SA4627001	PULLEY BUSH	1
39	SA4628001	PULLEY SPRING	1
40	SA4629001	PULLEY BASE	1
41	047401242	PIN SPRING ROLL AW4	1
42	SA4624001	PULLEY GEAR L	1
43	012500536	SET SCREW SOCKET (FT) M5X5	2
44	S23651001	SET SCREW, SOCKET (FT) M6X6	2
45	SA4630001	PULLEY	1
46	062401006	SCREW PAN M4X10	3
47	SA5158001	WASHER PLAIN L 4	3
48	012060636	SET SCREW SOCKET (FT) M6X6	1
49	018501636	BOLT SOCKET M5X16	4
50	SA5230001	FRIES WHEEL 2	2
51	062401016	SCREW PAN M4X10	3
52	012060536	SET SCREW SOCKET (FT) M6X5	1

Page 11 — C1. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 11
Ref	Part number	Part name	Qty
1	SA5229101	FEED BRACKET ASSY	1
2	SA4637001	X-LM GUIDE	2
3	018301436	BOLT SOCKET M3X14	15
4	SA4635101	FEED BRACKET X	1
5	018300636	BOLT SOCKET M3X6	8
6	061300616	SCREW FLAT M3X6	8
7	SA4636101	X-SENSOR PLATE	1
8	061300616	SCREW FLAT M3X6	2
9	SA4641001	X-BELT HOLDER	1
10	018400836	BOLT SOCKET M4X8	2
11	SA4649001	X-GT BELT	1
12	SA4640001	X-BELT HOLDER PLATE	1
13	018400836	BOLT SOCKET M4X8	2
14	SA4639001	Y-BALL SPLINE	1
15	076000600	BALL BEARING RADIAL 6000VV	1
16	025100132	WASHER PLAIN S 10	1
17	048100142	RETAINING RING EXTERNAL C10	1
18	SA4638001	X-LEFT PULLEY	1
19	012060636	SET SCREW SOCKET (FT) M6X6	1
20	076806606	BALL BEARING 6806VV	2
21	048420242	RETAINING RING INTERNAL C42	2
22	SA4642001	X-PULLEY BRACKET	1
23	018501636	BOLT SOCKET M5X16	2
24	025050236	WASHER PLAIN M 5	2
25	SA4643001	X-RIGHT PULLEY ASSY	1
26	S20356001	WASHER, PLAIN 10	1
27	SA4647001	BALL BEARING 6900ZZNR	2
28	SA4648001	X-PULLEY FULCRUM SHAFT	1
29	012060636	SET SCREW SOCKET (FT) M6X6	2
30	SA4650001	Y-SENSOR PLATE	1
31	018402036	BOLT SOCKET M4X20	2
32	SA4651101	Y-LM GUIDE	2
33	SA4652101	Y-LM SPACER	2
34	061300616	SCREW FLAT M3X6	16
35	018402036	BOLT SOCKET M4X20	8
36	025040236	WASHER PLAIN M 4	8
37	028040246	WASHER SPRING 2-4	8

Page 13 — C2. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 13
Ref	Part number	Part name	Qty
1	018062036	BOLT SOCKET M6X20	4
2	SA4653001	X-FEED GEAR	1
3	012060636	SET SCREW SOCKET (FT) M6X6	2
4	SA4647001	BALL BEARING 6900ZZNR	2
5	SA4654001	Y-FEED GEAR	1
6	012060636	SET SCREW SOCKET (FT) M6X6	2
7	SA4647001	BALL BEARING 6900ZZNR	2
8	048080342	RETAINING RING E8	1
9	SA4655101	Y-PULLEY ASSY	1
10	012060636	SET SCREW SOCKET (FT) M6X6	2
11	SA4658001	Y-PULLEY COLLAR	1
12	SA4659001	Y-PULLEY DRIVING SHAFT	1
13	SA4661001	Y-PULLEY BRACKET	1
14	SA4647001	BALL BEARING 6900ZZNR	2
15	SA4655101	Y-PULLEY ASSY	1
16	012060636	SET SCREW SOCKET (FT) M6X6	2
17	SA4662001	Y-PULLEY FULCRUM SHAFT	1
18	SA4663001	Y-GT BELT	1
19	SA4664001	BELT SUPPORT PLATE Y	1
20	SA4665001	Y-BELT WORK CLAMP PLATE	1
21	018400836	BOLT SOCKET M4X8	4
22	SA2972001	BOLT, SOCKET (S/P WASHER)M6X18	2
23	018402036	BOLT SOCKET M4X20	4
24	SA4667101	COVER RAIL	2
25	SA4671001	FIXATION R	1
26	SA4672001	FIXATION L	1
27	062401016	SCREW PAN M4X10	12
28	062400416	SCREW, PAN M4X4	4
29	SA6359001	INSIDE COVER R ASSY	1
30	SA6360001	INSIDE COVER L ASSY	1
31	SA6361001	OUTSDE COVER ASSY	2
32	SA4673001	BELT COVER Y	1
33	0A5401006	SCREW PAN (S/P WASHER) M4X10	4
34	SA4675201	AUXILIARY PLATE	1
35	SA4677101	AUXILIARY PLATE CUSHION	10
36	S23849001	SCREW,M4X16	10
37	021400216	NUT 2 M4	10
38	SA4676001	AUXILIARY PLATE BRACKET	6
39	S42446001	BOLT, SOCKET (S/P WASHER)M6X14	6
40	SA6434001	SUPPORT PLATE GUIDE U	2
41	SA6435001	SUPPORT PLATE GUIDE D	2
42	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	4
43	S42446001	BOLT, SOCKET (S/P WASHER)M6X14	4
44	SA4679101	BELLOW	1
45	SA4680101	BELLOW PRESSER R	1
46	SA4681001	BELLOW PRESSER F	1
47	SA4682001	BELLOW NUT	2
48	062300416	SCREW PAN M3X4	4
49	062400416	SCREW, PAN M4X4	4
50	SA4820201	PULSE MOTOR ASSY X	1
51	SA4684001	MOTOR BRACKET PLATE	1
52	018401036	BOLT SOCKET M4X10	4
53	SA3707001	GEAR 16	1
54	012060536	SET SCREW SOCKET (FT) M6X5	2
55	SA4823101	PULSE MOTOR ASSY Y	1
56	SA4684001	MOTOR BRACKET PLATE	1
57	018401036	BOLT SOCKET M4X10	4
58	SA3707001	GEAR 16	1
59	012060536	SET SCREW SOCKET (FT) M6X5	2
60	S42446001	BOLT, SOCKET (S/P WASHER)M6X14	6
61	SA6306001	COVER CONNECT PLATE	1

Page 15 — C2. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 15
Ref	Part number	Part name	Qty
62	S23418001	SCREW, M4X5	2
63	118735001	WASHER	4
64	SA4224001	MARK, ATTENTION 30X40	2
65	SA6450101	BEARING HOLDER BASE	1
66	018501036	BOLT SOCKET M5X10	2
67	SA6451101	BEARING HOLDER ASSY	1
68	018401036	BOLT SOCKET M4X10	2

Page 17 — C3. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 17
Ref	Part number	Part name	Qty
1	SA4686101	WORK CLAMP	1
2	SA4687101	SLIDER	1
3	048100142	RETAINING RING EXTERNAL C10	1
4	SA4688001	SUPPORT SLIDER	1
5	SA4689001	SUPPORT SHAFT SLIDER	1
6	048040142	RETAINING RING EXTERNAL C4	2
7	SA4690001	WORK CLAMP LIFTER LEVER R	1
8	SA4691001	WORK CLAMP LIFTER LEVER L	1
9	SA4692001	WORK CLAMP LIFTER SHAFT	1
10	012060636	SET SCREW SOCKET (FT) M6X6	1
11	048080142	RETAINING RING EXTERNAL C8	1
12	110367001	WASHER, PLAIN SPECIAL 8	1
13	SA3231001	SET SCREW COLLAR,B	1
14	012060536	SET SCREW, SOCKET (FT) M6X5	2
15	SA4696001	CONNECTING ROD	2
16	SA4693001	SPRING HOLDER SHAFT A	1
17	SA4697001	SHOULDER SCREW M5	2
18	SA4694001	SPRING HOLDER SHAFT B	1
19	012060636	SET SCREW SOCKET (FT) M6X6	2
20	SA4695001	SPRIHG LIFT	1
21	SA4698001	CONNECTING LINK	2
22	SA4700001	WORK CLAMP SPRING HOLDER	2
23	021500216	NUT 2 M5	2
24	SA4701001	WORK CLAMP SPRING	2
25	SA4702001	WORK CLAMP LIFTER LEVER R	1
26	SA4703001	WORK CLAMP LIFTER LEVER L	1
27	SA4692001	WORK CLAMP LIFTER SHAFT	1
28	012060636	SET SCREW SOCKET (FT) M6X6	1
29	048080142	RETAINING RING EXTERNAL C8	1
30	110367001	WASHER, PLAIN SPECIAL 8	1
31	SA3231001	SET SCREW COLLAR,B	1
32	012060536	SET SCREW, SOCKET (FT) M6X5	2
33	SA4699001	STOPPER	2
34	018500836	BOLT SOCKET M5X8	4
35	025050236	WASHER PLAIN M 5	4
36	028050246	WASHER SPRING 2-5	4
37	SA4863001	WORK CLAMP GUIDE A ASSY	1
38	S23849001	SCREW, M4X16	2
39	SA4864001	WORK CLAMP GUIDE B ASSY	2
40	S55482001	BOLT, SOCKET (S/P WASHER)M4X14	4
41	SA4712001	WORK CLAMP SLIDER ASSY R	1
42	SA4714001	WORK CLAMP SLIDER ASSY L	1
43	SA4706101	WORK CLAMP RETAINER ASSY	4
44	SA4708001	WORK CLAMP	1
45	S55485001	BOLT, SOCKET (S/P WASHER)M5X12	2
46	012501031	SET SCREW SOCKET (FT) M5X10	2
47	021500216	NUT 2 M5	2
48	SA4709001	SHOULDER SCREW	2
49	SA4866101	WORK CLAMP 311 ASSY	1
50	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	2
51	017501616	BOLT M5X16	4
52	025050236	WASHER PLAIN M 5	4
53	028050246	WASHER SPRING 2-5	4
54	SA4715001	FEED PLATE 311G	1
55	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	2

Page 19 — C4. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 19
Ref	Part number	Part name	Qty
1	SA4686101	WORK CLAMP	1
2	SA4717001	CYLINDER SHAFT	1
3	012060636	SET SCREW SOCKET (FT) M6X6	2
5	SA4719001	AIR CYLINDER ASSY	2
6	048050142	RETAINING RING EXTERNAL C5	2
7	SA4720001	CYLINDER JOINT	2
8	SA4721001	CYLINDER JOINT SHAFT	2
9	048060142	RETAINING RING EXTERNAL C6	4
10	SA4722001	WORK CLAMP LIFTER LEVER R AIR	1
11	SA4723001	WORK CLAMP LIFTER LEVER L AIR	1
12	SA4724001	WORK CLAMP LIFTER SHAFT AIR	2
13	S55479001	BOLT, SOCKET (S/P WASHER) M4X8	2
14	SA4692001	WORK CLAMP LIFTER SHAFT	1
15	012060636	SET SCREW SOCKET (FT) M6X6	1
16	048080142	RETAINING RING EXTERNAL C8	1
17	110367001	WASHER, PLAIN SPECIAL 8	1
18	SA3231001	SET SCREW COLLAR,B	1
19	012060536	SET SCREW, SOCKET (FT) M6X5	2
20	SA4863001	WORK CLAMP GUIDE A ASSY	1
21	S23849001	SCREW, M4X16	2
22	SA4864001	WORK CLAMP GUIDE B ASSY	2
23	S55482001	BOLT, SOCKET (S/P WASHER)M4X14	4
24	SA4712001	WORK CLAMP SLIDER ASSY R	1
25	SA4714001	WORK CLAMP SLIDER ASSY L	1
26	SA4706101	WORK CLAMP RETAINER ASSY	4
27	SA4725001	WORK CLAMP R	1
28	S55485001	BOLT, SOCKET (S/P WASHER)M5X12	1
29	012501031	SET SCREW SOCKET (FT) M5X10	2
30	021500216	NUT 2 M5	2
31	SA4709001	SHOULDER SCREW	2
32	SA4726001	WORK CLAMP L	1
33	S55485001	BOLT, SOCKET (S/P WASHER)M5X12	1
34	012501031	SET SCREW SOCKET (FT) M5X10	2
35	021500216	NUT 2 M5	2
36	SA4709001	SHOULDER SCREW	2
37	SA4868101	WORK CLAMP 311R ASSY	1
38	SA4869101	WORK CLAMP 311L ASSY	1
39	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	4
40	017501616	BOLT M5X16	4
41	025050236	WASHER PLAIN M 5	4
42	028050246	WASHER SPRING 2-5	4
43	SA4715001	FEED PLATE 311G	1
44	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	2
45	SA4870101	WORK CLAMP 326R ASSY	1
46	SA4871101	WORK CLAMP 326L ASSY	1
39	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	4
40	017501616	BOLT M5X16	4
41	025050236	WASHER PLAIN M 5	4
42	028050246	WASHER SPRING 2-5	4
44	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	2
47	SA4852001	FEED PLATE 326G	1

Page 21 — D1. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 21
Ref	Part number	Part name	Qty
1	SA4759001	STEPPING CLAMP CAM	1
2	SA4760001	STEPPING CLAMP CON.ROD	1
3	SA4763001	WASHER STEPPING CLAMP CAM	1
4	623033000	BALL BEARING, 6805VV	1
5	S23651001	SET SCREW, SOCKET (FT) M6X6	2
6	062400616	SCREW PAN M4X6	2
7	SA4761001	ROLLER SHAFT STEPPING CLAMP	1
8	SA4762001	ROLLER STEPING CLAMP	1
9	SA4302001	WASHER	2
10	021060106	NUT 1 M6	1
11	SA4764001	STEPPING CLAMP ARM R	1
12	017061216	BOLT M6X12	1
13	SA4765001	STEPPING CLAMP ARM F	1
14	012060636	SET SCREW SOCKET (FT) M6X6	1
15	S23651001	SET SCREW, SOCKET (FT) M6X6	1
16	SA4766001	BUSH STEPPING CLAMP F	1
17	SA4767001	BUSH STEPPING CLAMP R	1
18	SA4768001	BUSH STEPPING CLAMP R	1
19	SA4769001	SHOULDER SCREW 6	4
20	062300416	SCREW, PAN M3X4	4
21	SA4770001	STEPPING CLAMP LINK B	1
22	SA4772001	STEPPING CLAMP LINK	1
23	SA4773001	SHAFT STEPPING CLAMP LINK	1
24	012060636	SET SCREW SOCKET (FT) M6X6	1
25	012400436	SET SCREW SOCKET (FT) M4X4	1
26	SA4777001	STEPPING CLAMP LIFTER LINK	1
27	SA4771001	SHAFT STEPPING CLAMP LIFT LINK	1
28	SA2161001	WASHER	1
29	048080142	RETAINING RING EXTERNAL C8	1
30	012060636	SET SCREW SOCKET (FT) M6X6	1
31	012400436	SET SCREW SOCKET (FT) M4X4	1
32	SA4779001	STEPPING CLAMP LIFTER	1
33	SA4781001	ROLLER STEPPING CLAMP LIFTER	1
34	141362001	ROLLER	1
35	SA4780001	SHAFT STEPPING CLAMP LIFTER	1
36	012060636	SET SCREW SOCKET (FT) M6X6	1
37	S25310101	SCREW, FLAT M4	1
38	SA4775001	STEPPING CLAMP LIFTER ROD	1
39	SA4853001	JOINT STEPPING CLAMP LIFTER	1
40	SA2663001	BALL JOINT ASSY	2
41	021060306	NUT 3 M6	2
42	SA3227001	NUT(FT),M6	1
43	SA4776001	SHOULDER SCREW	1
44	S32462001	SHOULDER SCREW, B ;M6	1
45	017065002	BOLT M6X50	1
46	021060106	NUT 1 M6	1
47	SA4778001	PRESSER BAR CLAMP	1
48	018400836	BOLT SOCKET M4X8	1
49	SA1174001	PESSER ADJUSTING SCREW, M14	1
50	SA1175001	ADJUST SCREW NUT	1
51	SA5300001	PRESSER BAR SPRING	1
52	S10112001	PRESSER BAR SPRING GUIDE	1
53	SA5301001	COLLAR PRESSER BAR SPRING	1
54	SA2195001	PRESSER BAR BUSH	1
55	012060536	SET SCREW SOCKET (FT) M6X5	1
56	111466101	PRESSER BAR	1
58	S13399001	SCREW, SM3.57X12	1
59	151439102	WASHER	1

Page 23 — D2. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 23
Ref	Part number	Part name	Qty
1	SA4729001	SLIDE BUSH	1
2	018401036	BOLT SOCKET M4X10	4
3	SA4731001	WORK CLAMP LIFTER PLATE ASSY	1
4	SA4734001	SEAT E	1
5	062400416	SCREW, PAN M4X4	4
6	SA4736001	WORK CLAMP LIFTER LEVER	1
7	152744001	PIN	1
8	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
9	SA4737001	WORK CLAMP LEVER SHAFT B	1
10	012060636	SET SCREW SOCKET (FT) M6X6	1
11	S20356001	WASHER, PLAIN 10	1
12	048080342	RETAINING RING E8	1
13	012060636	SET SCREW SOCKET (FT) M6X6	2
14	118208001	DOWEL PIN	1
15	SA4738001	WORK CLAMP LIFTER LINK	1
16	SA3438001	LINK SHOULDER SCREW	2
17	SA4739001	WORK CLAMP SPRING	1
18	SA4741101	MOTOR BRACKET	1
19	SA4742001	WORK CLAMP MOTOR PLATE	1
20	018501036	BOLT SOCKET M5X10	2
21	SA4826201	PULSE MOTOR ASSY P	1
22	SA4828001	MOTOR HARNESS P	1
23	018401036	BOLT SOCKET M4X10	4
24	SA4743001	WORK CLAMP DRIVING GEAR	1
25	012060636	SET SCREW SOCKET (FT) M6X6	2
26	SA4744001	WORK CLAMP FULCRUM SHAFT	1
27	SA4647001	BALL BEARING 6900ZZNR	2
28	048100142	RETAINING RING EXTERNAL C10	2
29	062400616	SCREW PAN M4X6	1
30	025040236	WASHER PLAIN M 4	1
31	SA4745001	WORK CLAMP CAM GEAR	1
32	016061031	SET SCREW SOCKET (CN) M6X10	1
33	012060636	SET SCREW SOCKET (FT) M6X6	1
34	SA4746001	WORK CLAMP CAM	1
35	S35079000	NEEDLE ROLLER, 3X11.8	1
36	016061031	SET SCREW SOCKET (CN) M6X10	1
37	012060636	SET SCREW SOCKET (FT) M6X6	1
38	SA4747001	WORK CLAMP H-POSITION DOG	1
39	018400636	BOLT SOCKET M4X6	1
40	SA4748001	WORK CLAMP LEVER SHAFT	1
41	012060636	SET SCREW SOCKET (FT) M6X6	1
42	SA6210001	STEPPING W-CLAMP DRIVING LEVER	1
43	SA3441001	W-CLAMP LIFTER ROLLER SHAFT	1
44	070696800	BALL BEARING RADIAL 696ZZ	1
45	109763001	WASHER	1
46	012500536	SET SCREW SOCKET (FT) M5X5	1
47	SA4750001	WORK CLAMP DRIVING SHAFT	1
48	SA3441001	W-CLAMP LIFTER ROLLER SHAFT	1
49	070696800	BALL BEARING RADIAL 696ZZ	1
50	109763001	WASHER	1
51	012500536	SET SCREW SOCKET (FT) M5X5	1
52	S20356001	WASHER, PLAIN 10	1
53	SA4752001	WORK CLAMP CAM STOPPER	1
54	062400616	SCREW PAN M4X6	2
55	SA4753001	WORK CLAMP SENSOR PLATE	1
56	062400616	SCREW PAN M4X6	2
57	012060636	SET SCREW SOCKET (FT) M6X6	1
58	SA4224001	MARK,ATTENTION 30X40	1
59	018061236	BOLT SOCKET M6X12	2

Page 25 — D3. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 25
Ref	Part number	Part name	Qty
1	SA4741101	MOTOR BRACKET	1
2	SA4742001	WORK CLAMP MOTOR PLATE	1
3	018501036	BOLT SOCKET M5X10	2
4	SA4826201	PULSE MOTOR ASSY P	1
5	SA4828001	MOTOR HARNESS P	1
6	018401036	BOLT SOCKET M4X10	4
7	SA4743001	WORK CLAMP DRIVING GEAR	1
8	012060636	SET SCREW SOCKET (FT) M6X6	2
9	SA4744001	WORK CLAMP FULCRUM SHAFT	1
10	SA4647001	BALL BEARING 6900ZZNR	2
11	048100142	RETAINING RING EXTERNAL C10	2
12	062400616	SCREW PAN M4X6	1
13	025040236	WASHER PLAIN M 4	1
14	SA4745001	WORK CLAMP CAM GEAR	1
15	016061031	SET SCREW SOCKET (CN) M6X10	1
16	012060636	SET SCREW SOCKET (FT) M6X6	1
17	SA4747001	WORK CLAMP H-POSITION DOG	1
18	018400636	BOLT SOCKET M4X6	1
19	SA4748001	WORK CLAMP LEVER SHAFT	1
20	012060636	SET SCREW SOCKET (FT) M6X6	1
21	SA6210001	STEPPING W-CLAMP DRIVING LEVER	1
22	SA3441001	W-CLAMP LIFTER ROLLER SHAFT	1
23	070696800	BALL BEARING RADIAL 696ZZ	1
24	109763001	WASHER	1
25	012500536	SET SCREW SOCKET (FT) M5X5	1
26	SA4753001	WORK CLAMP SENSOR PLATE	1
27	062400616	SCREW PAN M4X6	2
28	SA4224001	MARK,ATTENTION 30X40	1
29	018061236	BOLT SOCKET M6X12	2
30	159163000	RUBBER CAP 29	1
31	104821001	RUBBER CAP, 10.5	2
32	118550001	PIN DOWEL	1
33	SA4757101	SET SCREW COLLAR	1
34	012060636	SET SCREW SOCKET (FT) M6X6	2
35	012060636	SET SCREW SOCKET (FT) M6X6	1

Page 27 — E. 下轴装置 / Lower shaft mechanism

Brother BAS-311G parts on page 27
Ref	Part number	Part name	Qty
1	SA3226001	SHOULDER SCREW	1
2	SA3227001	NUT(FT),M6	1
3	SA3228101	ROCK GEAR	1
4	SA4782001	ROCK GEAR SHAFT	1
5	SA3231001	SET SCREW COLLAR,B	1
6	012060536	SET SCREW, SOCKET (FT) M6X5	2
7	SA3233001	SET SCREW COLLAR	1
8	S23651001	SET SCREW, SOCKET (FT) M6X6	2
9	012060636	SET SCREW SOCKET (FT) M6X6	2
10	SA4783101	LOWER SHAFT ASSY	1
11	012500536	SET SCREW SOCKET (FT) M5X5	1
12	SA6216001	LOWER SHAFT BUSH	1
13	012060636	SET SCREW SOCKET (FT) M6X6	1
14	SA3238101	ADJUSTING STUD	2
15	081003670	O RING PW3	2
16	SA6220001	SHUTTLE RACE BASE ASSY G	1
17	S02429201	SHUTTLE RACE THREAD GUIDE	1
18	SA4199001	SCREW M3X4	2
19	SA3241001	S-RACE BASE SETTING CLAW	2
20	152684101	COMPRESSION SPRING	2
21	026030136	WASHER PLAIN S 3	2
22	062300616	SCREW PAN M3X6	2
23	153050000	S-RACE BASE FELT	2
29	S59886001	FELT, L=360	2
30	012060636	SET SCREW SOCKET (FT) M6X6	1
31	048070342	RETAINING RING E7	1
32	SA3284101	DRIVER,D	1
33	018501232	BOLT SOCKET M5X12	1
40	SA3283101	SET SCREW COLLAR,R	1
41	012500536	SET SCREW SOCKET (FT) M5X5	1
43	S32557000	WICK, 4X4 L=330	1

Page 29 — F. 供油润滑装置 / Lubrication

Brother BAS-311G parts on page 29
Ref	Part number	Part name	Qty
1	SA3244001	SET SCREW	1
2	SA4785001	CRANK COVER	1
3	062061016	SCREW PAN M6X10	3
4	SA4787001	CRANK WICK PLATE	1
5	062400616	SCREW PAN M4X6	2
6	SA5294001	FLAT WICK L=90	1
7	SA4786101	FELT	1
8	SA3503201	LOWER SHAFT WICK SUPPORT	1
9	SA3504201	LOWER SHAFT GEAR FELT	1
10	018400636	BOLT SOCKET M4X6	2
11	SA4788001	WICK SUPPORT	1
12	062400616	SCREW PAN M4X6	1
13	SA6593001	FLAT WICK, L=180	1
14	SA6580001	WICK L=780	1
15	S07459100	OIL TUBE, L=240	1
16	SA6576001	OIL TUBE, L=210	1
17	SA6087001	WICK SUPPORT	1
18	104567101	WICK SUPPORT	1
19	S49992000	OIL GAUGE WINDOW	1
20	152948001	OIL GAUGE WINDOW	1
21	S50529000	OIL TUBE, L=320	1
22	S07459100	OIL TUBE, L=240	1
23	SA5292101	WICK L=680	1
24	S53175000	OIL TUBE, L=450	1
25	SA5072001	OIL TUBE L=120	1
26	SA6578001	WICK 6X6 L=300	1
27	S09043000	FELT	4
28	S49982000	WICK, 4X4 L=400	1
29	S48189000	OIL TUBE, L=280	1
30	SA3246001	GEAR WICK SUPPORT	1
31	SA3280001	GEAR FELT	1
32	SA4789101	LOWER SHAFT WICK SUPPORT B	1
33	062060816	SCREW PAN M6X8	1
34	145547001	TUBE HOLDER	1
35	062400616	SCREW PAN M4X6	1
36	S49957000	WICK, 4X4 L=700	1
37	SA4791101	OIL TUBE L=620	1
38	149547000	CORD HOLDER, 4N	1
39	525567000	CORD HOLDER, #8	1
40	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
41	525664000	CORD HOLDER, #6	1
42	0A5401006	SCREW PAN (S/P WASHER) M4X10	5
43	SA6211001	OIL COVER	1
45	062401016	SCREW PAN M4X10	5
46	S38265000	TERMINAL, L	1
47	142274101	RUBBER CAP, 4.2	1
50	SA6263001	OIL TUBE L=320	1
51	SA6260001	FELT ASSY	1
52	S00400000	WICK, 2.5X200	1
53	SA6579001	OIL TUBE, L=110	1
54	SA5339101	OIL FEEDING PIPE	1
55	525567000	CORD HOLDER, #8	3
56	SA3242001	FELT HOLDER	1
57	S44924001	SCREW, M3X5.5	2
58	SA3274101	FELT HOLDER	1
59	S47307001	SCREW, M3X4	2

Page 31 — F. 供油润滑装置 / Lubrication

Brother BAS-311G parts on page 31
Ref	Part number	Part name	Qty
60	SA6577001	OIL TUBE L=300	1
61	552907000	CORD HOLDER, #10	1
62	SA6572001	WICK L=140	1
63	SA6581001	WICK SUPPORT L	1
64	SA6583001	FELT BED L	1
65	062400616	SCREW PAN M4X6	3
66	028040246	WASHER SPRING 2-4	3
67	SA6582001	WICK SUPPORT R	1
68	SA6584001	FELT BED R	1
69	S25310101	SCREW, FLAT M4	3

Page 33 — G. 穿线装置 / Threading mechanism

Brother BAS-311G parts on page 33
Ref	Part number	Part name	Qty
1	SA3250001	ARM THREAD GUIDE,A	1
2	062500616	SCREW PAN M5X6	1
3	SA4333001	ARM THREAD GUIDE,B	1
4	062500616	SCREW PAN M5X6	1
5	SA6391001	ARM THREAD GUIDE C	1
6	062500616	SCREW PAN M5X6	1
7	153049001	UPPER THREAD GUIDE STUD	1
8	SA3254001	TENSION BRACKET	1
10	SA3255001	TENSION STUD	1
11	S31032001	TENSION NUT	1
12	159805001	TENSION DISC PRESSER	1
13	145446001	DISC, TENSION	1
14	100402004	SET SCREW, SM3.57	1
15	SA4143001	SET SCREW, (FT) M6X6	1
16	S12699000	TENSION RELEASE PIN	1
17	SA3256001	TENSION STUD,A	1
18	145446001	DISC, TENSION	2
19	159224001	THREAD GUIDE, ARM	1
21	SA3258001	N-BAR BUSH THREAD GUIDE,D	1
22	152881001	NEEDLE COOLER ASSY	1
23	012060636	SET SCREW SOCKET (FT) M6X6	1
24	152883000	FELT, 8X15.5	1
25	152884001	NEEDLE COOLER THREAD GUIDE	1
26	062670412	SCREW PAN SM3.57-40X4	1
27	100136001	TENSION NUT	1
28	SA4146001	SUB TENSION SPRING	1
29	S12441001	WASHER	1
	15881001		1
	SA4141001		1

Page 35 — H. 卷线装置 / Bobbin winder mechanism

Brother BAS-311G parts on page 35
Ref	Part number	Part name	Qty
1	SA4795001	TOP COVER	1
2	SA3290001	SHAFT,BW-LEVER	1
3	012500536	SET SCREW SOCKET (FT) M5X5	1
4	SA3291001	BOBBIN WINDER LEVER	1
5	SA4171001	SPRING HOOK	1
6	152936001	PLATE SPRING	1
7	152937001	WASHER	1
8	062350616	SCREW PAN M3.5X6	1
9	159486001	WASHER	1
10	048050342	RETAINING RING E5	1
11	SA3293001	STUD,B-WINDER CLAW	1
12	SA1984001	BOBBIN PRESSER ARM	1
13	062401216	SCREW PAN M4X12	1
14	SA3294001	BOBBIN PRESSER	1
15	S23418002	SCREW, M4X5	1
16	SA3295001	CLAW,B-WINDER	1
17	012400436	SET SCREW SOCKET (FT) M4X4	2
18	S10438001	SPRING, TWIST	1
19	048050342	RETAINING RING E5	2
20	SA4796001	SPACER COLLER	1
21	SA3296001	BOBBIN WINDER SHAFT	1
22	SA3297001	WHEEL,B-WINDER	1
23	120448001	BOBBIN WINDER RUBBER BAND	1
24	012400436	SET SCREW SOCKET (FT) M4X4	2
25	159486001	WASHER	2
26	SA1988001	BOBBIN SUPPORT	1
27	S10268001	SPRING	1
28	SA3298001	STPPER SHAFT,B-WINDER	1
29	SA3299001	KNIFE	1
30	062500616	SCREW PAN M5X6	1
31	SA1994101	BOBBIN WINDER TENSION ASSY	1
32	145446002	DISC, TENSION	2
33	100401022	TENSION SPRING	1
34	S31032001	TENSION NUT	1
35	S12441001	WASHER	1
36	012500536	SET SCREW SOCKET (FT) M5X5	1
37	062061016	SCREW PAN M6X10	6
38	SA4797101	DRIVING WHEEL B-WINDER	1
39	S23651001	SET SCREW, SOCKET (FT) M6X6	2

Page 37 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 37
Ref	Part number	Part name	Qty
1	SA3301101	THREAD TRIMMER CAM	1
2	S23651001	SET SCREW, SOCKET (FT) M6X6	2
3	SA4798001	SETTING PLATE SOLENOID	1
4	SA5135001	THREAD TRIMMER SOLENOID	1
5	017400802	BOLT M4X8	2
6	028040246	WASHER SPRING 2-4	2
7	025040236	WASHER PLAIN M 4	2
8	SA3307001	SOLENOID LEVER	1
9	012400436	SET SCREW SOCKET (FT) M4X4	1
10	154599000	SOLENOID CUSHION	1
11	S02652001	WASHER	1
12	S04159000	BAND, 1M	1
13	S55484002	BOLT, SOCKET (S/P WASHER)M5X10	2
14	SA4799001	PUSHING LEVER D-LEVER	1
15	SA3306001	SHOULDER SCREW,7-3	1
16	SA3309101	TR-DRIVING LEVER	1
17	SA3310001	COLLAR,TR-TRIMMER	1
18	SA3311001	COLLAR SHAFT	1
19	S46903001	SET SCREW, M4X5	1
20	048040342	RETAINING RING E4	1
21	SA3315001	THREAD TRIMMER ROD V	1
22	S32465001	BALL JOINT ASSY	2
23	021060106	NUT 1 M6	2
24	S32462001	SHOULDER SCREW, B ;M6	1
25	021060306	NUT 3 M6	1
26	S23651001	SET SCREW, SOCKET (FT) M6X6	1
27	231071001	BUSH, 8X15	1
28	SA3312001	GUIDE SHAFT	1
29	SA3313101	SPRING,COMPRESSION	1
30	154596000	CUSHION	1
31	S32462001	SHOULDER SCREW, B ;M6	1
32	021060306	NUT 3 M6	1
33	S25475101	SET SCREW, M6X19	1
34	021060106	NUT 1 M6	1
35	SA4546001	THREAD TRIMMER LEVER V	1
36	SA3317001	THREAD TRIMMER LEVER H	1
37	SA4801001	THREAD TRIMMER ROD H	1
38	S32465001	BALL JOINT ASSY	2
39	021060106	NUT 1 M6	2
40	S32462001	SHOULDER SCREW, B ;M6	1
41	021060306	NUT 3 M6	1
42	SA3319101	SHAFT,TR-TRIMMER LEVER	1
43	SA4545001	SPACER	2
44	048080142	RETAINING RING EXTERNAL C8	1
45	012060636	SET SCREW SOCKET (FT) M6X6	2
46	SA3320101	SPRING HOOK	1
47	SA3321001	SPRING,EXTENSION	1
48	018501236	BOLT SOCKET M5X12	1
49	028050246	WASHER SPRING 2-5	1
50	146354002	WASHER, PLAIN 5	1
51	SA3324001	MOVING KNIFE LEVER	1
52	SA3325001	SHOULDER SCREW,6.35-6	1
53	SA4802001	SHAFT MOVABLE KNIFE LEVER	1
54	012060636	SET SCREW SOCKET (FT) M6X6	1
55	SA3327101	M-KNIFE CONNECTING PLATE	1
56	SA4354001	SHOULDER SCREW,6-1.8	1

Page 39 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 39
Ref	Part number	Part name	Qty
57	SA5157001	NEEDLE PLATE A	1
58	SA3330101	MOVABLE KNIFE ASSY F	1
59	SA4518001	MOVABLE KNIFE SHOULDER SCREW	1
60	SA4519001	THRUST WASHER	1
61	S00705001	MOVABLE KNIFE COLLAR	1
62	SA6397001	M-KNIFE SPACER T0.2	1
62	SA3334001	M-KNIFE SPACER T0.3	1
62	SA6398001	M-KNIFE SPACER T0.4	1
63	SA3335001	FIXED KNIFE F	1
64	062300416	SCREW PAN M3X4	2
65	025030236	WASHER PLAIN M 3	2
67	100360003	SCREW	2
68	S25310101	SCREW, FLAT M4	2
69	SA3538001	SCREW,M4X8	2
70	SA6273001	SHUTTLE BASE COVER HOOK U	1
71	028030246	WASHER SPRING 2-3	2
72	025030236	WASHER PLAIN M 3	2
73	062300416	SCREW PAN M3X4	2

Page 41 — K. 扫线装置 / Thread wiper mechanism

Brother BAS-311G parts on page 41
Ref	Part number	Part name	Qty
1	SA5208001	THREAD WIPER SOLENOID ASSY	1
2	S41206001	THREAD WIPER SPRING	1
3	S41205001	WASHER, PLAIN	1
4	S25456001	PLUNGER PIN	3
5	SA5217001	T-WIPER SOLENOID SETTING PLATE	1
6	SA4806001	SOLENOID COVER	1
7	062300616	SCREW PAN M3X6	8
8	SA5218001	THREAD WIPER SHAFT BRACKET	1
9	018400836	BOLT SOCKET M4X8	1
10	025040236	WASHER PLAIN M 4	1
11	SA1967001	THREAD WIPER CRANK ASSY	1
12	048040342	RETAINING RING E4	1
13	S25454001	SET SCREW COLLAR	1
14	S25279001	SET SCREW, (CP) M3.5-5	1
15	SA2287001	SPRING	1
16	149097000	SILENT SHEET	1
17	SA5219001	THREAD WIPER ROD	1
18	110735001	WASHER	1
19	048030342	RETAINING RING E3	1
20	S10470101	WIPER	1
21	060400516	SCREW BIND M4X5	1
22	146288001	THREAD WIPER STUD COLLAR	1
23	S03677001	WASHER	1
24	SA5213001	STOP SWITCH ASSY	1
25	S55485001	BOLT, SOCKET (S/P WASHER)M5X12	2
	140097000		1

Page 43 — L. 松线装置 / Tension release mechanism

Brother BAS-311G parts on page 43
Ref	Part number	Part name	Qty
1	SA4855001	TENSION RELEASE SOLENOID HV	1
2	017400802	BOLT M4X8	2
3	028040246	WASHER SPRING 2-4	2
4	025040236	WASHER PLAIN M 4	2
5	017401415	BOLT M4X14	1
6	021400306	NUT 3 M4	1
7	102707002	WASHER	1
8	154599000	SOLENOID CUSHION	1
9	SA6389001	SETTING PLATE SOLENOID	1
10	S04159000	BAND, 1M	1
11	SA3347001	TENSION RELEASE BAR	1
12	048040342	RETAINING RING E4	1
13	025050236	WASHER PLAIN M 5	1
14	SA3348001	SPRING,COMPRESSION	1
15	SA3349001	SOLENOID COVER	1
16	SA3306001	SHOULDER SCREW,7-3	2
17	081007070	O RING P7	2
18	218859001	BINDER, M150	1
	SA3350001		2

Page 45 — M1. 控制箱装置 / Control box mechanism

Brother BAS-311G parts on page 45
Ref	Part number	Part name	Qty
1	SA6364001	CF CAP ASSY	1
2	SA3720001	TRANSFORMER LOW VOLTAGE	1
3	SA3808001	TRANSFORMER HIGH VOLTAGE	1
4	SA3797001	DC-FAN MOTOR ASSY	1
5	SA4556001	PCB ASSY,MAIN	1
6	SA3739301	PCB ASSY,PMD	1
7	SA3744001	TRANSISTOR, FET:FS10ASJ-2	3
8	SA3722001	TRANSISTOR,FET:FX20KMJ-2	1
9	S49484000	TRANSISTOR, FET:FS10KMJ-2	1
10	SA3806001	HARNESS, MAIN POWER SUPPLY	1
11	J04115001	LABEL, ELEC. SHOCK 6 LANG	1
12	537060001	LABEL, PE	1
13	S37059001	LABEL, GROUNDING	3
14	SA3581001	PCB ASSY,NF	1
15	SA3796001	HARNESS,NF OUT	1
	SA4948000	MOSFET FX10KMJ-2	1

Page 47 — M2. 控制箱装置（电源基板） / Control box (PCB) mechanism

Brother BAS-311G parts on page 47
Ref	Part number	Part name	Qty
1	SA3755201	PCB ASSY,POWER SUPPLY MOTOR	1
2	SA3765001	VARISTOR:V10D101	1
3	SA3766001	VARISTOR:V10D241	1
4	SA3767001	VARISTOR:V14D511	1
5	SA3762001	VARISTOR:V14D911	1
6	SA3768001	VARISTOR:V14D561	1
7	SA3769001	VARISTOR:V5D121	1
8	SA3770001	VARISTOR:V5D330	1
9	SA3771001	VARISTOR:V5D820	1
10	SA3794001	G FUSE S 15A	3
11	SA3795001	G FUSE S 6A	2
12	616167001	G FUSE S 3A	3

Page 49 — N. 开关装置 / Power switch mechanism

Brother BAS-311G parts on page 49
Ref	Part number	Part name	Qty
1	SA3813001	POWER SUPPLY SWITCH ASSY,1P-JP	1
2	SA3822001	VOLTAGE SELECT HARNESS 100V	1
3	SA3819001	POWER SUPPLY SWITCH ASSY,3P-JP	1
4	SA3825001	VOLTAGE SELECT HARNESS 200V	1
5	SA3823001	VOLTAGE SELECT HARNESS 110V	1
6	SA3816001	POWER SUPPLY SWITCH ASSY,3P-L	1
7	SA3812001	VOLTAGE SELECT HARNESS 220V	1
8	SA3809001	POWER SUPPLY SWITCH ASSY,1P	1
7	SA3812001	VOLTAGE SELECT HARNESS 220V	1
9	SA3826001	VOLTAGE SELECT HARNESS 240V	1
7	SA3812001	VOLTAGE SELECT HARNESS 220V	1
10	SA3827001	VOLTAGE SELECT HARNESS 380V	1
11	SA3789101	VOLTAGE SELECT HARNESS H220V	1
12	SA4510001	POWER SUPPLY SWITCH ASSY,3P-H	1
13	SA3828001	VOLTAGE SELECT HARNESS 400V	1
14	SA3824001	VOLTAGE SELECT HARNESS 120V	1

Page 51 — P. 空压装置 / Air pressure mechanism

Brother BAS-311G parts on page 51
Ref	Part number	Part name	Qty
1	SA5281001	SOLENOID VALVE ASSY 2A	1
2	SA5289001	MANIFOLD2	1
3	S39116100	VALVE, VQZ2151S-5	2
4	SA5283001	SILENCER AN103-1	1
5	SA5282001	FILTER REGULATOR AW20-02G	1
6	S09228000	NIPPLE 1/4X1/8	1
7	153252000	PT-JOINT	1
8	S04891000	MIDDLE NIPPLE, 1/4	1
9	SA5285001	MIDDLE NIPPLE, 1/4	1
10	SA6573001	BALL VALVE Vo3 1/4	1
11	153274001	CAP, 1/8	2
12	SA5286001	SETTING PLATE VALVE	1
13	028050246	WASHER SPRING 2-5	2
14	018503036	BOLT SOCKET M5X30	2
15	SA5191001	VALVE HARNESS X2 ASSY	1
16	149796001	AIR HOSE, W/CONNECTOR	1
17	SA6405001	AIR TUBE, R	1
18	SA6406001	AIR TUBE, L	1
28	SA6405002	AIR TUBE, R	1
29	SA6406002	AIR TUBE, L	1
19	SA6407001	SPIRAL, 470S	1
20	032422003	WOOD SCREW, ROUND 2 M4.1X20	2
21	148847001	WASHER, PLAIN 4.76	2
25	525664000	CORD HOLDER, #6	1
26	0A5401005	SCREW PAN (S/P WASHER) M4X10	1
27	228475000	FASTENING BAND, 1.9X80	3
24	SA5288001	SOLENOID VALVE ASSY 5A	1
22	SA5290001	MANIFOLD5	1
23	S53982000	BLANKING PLATE ASSY	3
3	S39116100	VALVE, VQZ2151S-5	2
4	SA5283001	SILENCER AN103-1	1
5	SA5282001	FILTER REGULATOR AW20-02G	1
6	S09228000	NIPPLE 1/4X1/8	1
7	153252000	PT-JOINT	1
8	S04891000	MIDDLE NIPPLE, 1/4	1
9	SA5285001	MIDDLE NIPPLE, 1/4	1
10	SA6573001	BALL VALVE Vo3 1/4	1
11	153274001	CAP, 1/8	2
12	SA5286001	SETTING PLATE VALVE	1
13	028050246	WASHER SPRING 2-5	2
14	018503036	BOLT SOCKET M5X30	2
30	SA5192001	VALVE HARNESS X5 ASSY	1

Page 53 — Q. 电气部件装置 / Power supply equipment mechanism

Brother BAS-311G parts on page 53
Ref	Part number	Part name	Qty
1	525567000	CORD HOLDER, #8	3
2	149547000	CORD HOLDER, 4N	1
3	149287000	CORD HOLDER, 7N	3
4	0A5401006	SCREW PAN (S/P WASHER) M4X10	7
5	SA4830001	H-POSITION SENSOR ASSY	1
6	062300816	SCREW PAN M3X8	3
7	SA3481001	SWITCH ASSY,MACHINE HEAD	1
8	0A5301605	SCREW PAN (S/P WASHER) M3X16	2
9	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
10	SA4824001	HEAD DETECTOR UNIT ASSY	1
11	SA5210001	THREAD WIPER SOLENOID HARNESS	1
12	SA5214001	STOP SWITCH HARNESS	1
13	SA5261001	GROUND WIRE 450	1
14	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
15	554482000	CORD HOLDER, #12	1
16	S00470000	CORD HOLDER, 16N	1
17	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
18	218859001	BINDER, M150	2
19	S04159000	BAND, 1M	1
20	SA6560101	SPIRAL, 140SS	2
21	S04159000	BAND, 1M	2

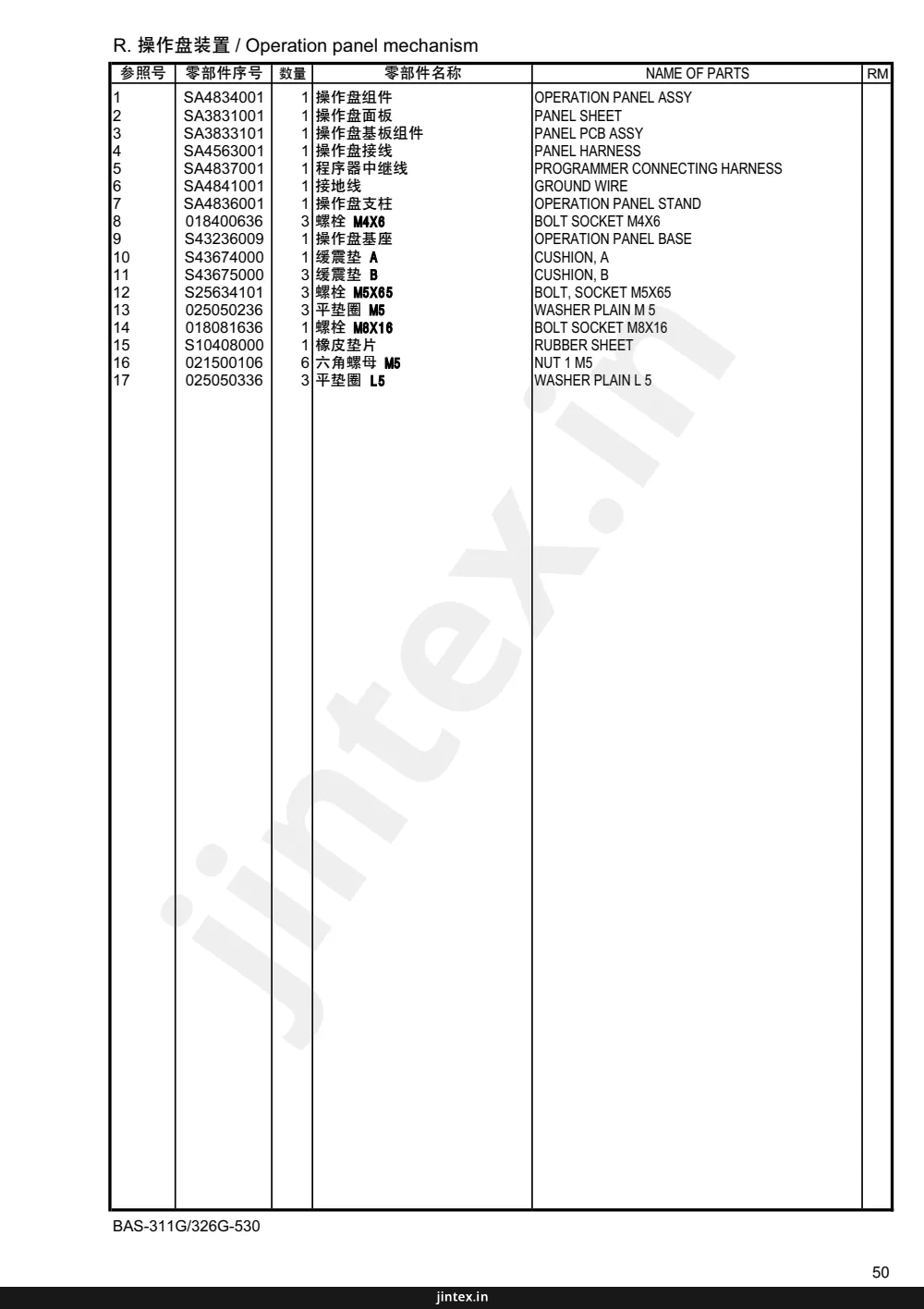

Page 55 — R. ᄨϴᬢ⒮ὃ / Operation panel mechanism

Brother BAS-311G parts on page 55
Ref	Part number	Part name	Qty
1	SA4834001	OPERATION PANEL ASSY	1
2	SA3831001	PANEL SHEET	1
3	SA3833101	PANEL PCB ASSY	1
4	SA4563001	PANEL HARNESS	1
5	SA4837001	PROGRAMMER CONNECTING HARNESS	1
6	SA4841001	GROUND WIRE	1
7	SA4836001	OPERATION PANEL STAND	1
8	018400636	BOLT SOCKET M4X6	3
9	S43236009	OPERATION PANEL BASE	1
10	S43674000	CUSHION, A	1
11	S43675000	CUSHION, B	3
12	S25634101	BOLT, SOCKET M5X65	3
13	025050236	WASHER PLAIN M 5	3
14	018081636	BOLT SOCKET M8X16	1
15	S10408000	RUBBER SHEET	1
16	021500106	NUT 1 M5	6
17	025050336	WASHER PLAIN L 5	3

Page 57 — S. 马达装置 / Motor mechanism

Brother BAS-311G parts on page 57
Ref	Part number	Part name	Qty
1	J80991001	MOTOR ASSY, CDD-430D	1
2	J03955001	DRUM CDD	1
3	014400632	SET SCREW, SOCKET (CP) M4X6	1
4	J03956001	MAGNET 180P36	1
5	J03957001	MR SENSOR ASSY 180P	1
6	0A4300805	SCREW, PAN (S/P WASHER) M3X8	1
7	J03958001	SHIELD PLATE CDD	1
8	0A4261005	SCREW, PAN (S/P WASHE) M2.6X10	3
9	J04488001	ENC PCB ASSY, 430D#2	1
10	0A5300606	SCREW, PAN (S/P WASHER) M3X6	3
11	J04230001	CORD HOLDER, CDD-HT	1
12	0A4401005	SCREW, PAN (S/P WASHE) M4X10	3
13	J04388001	ENCODER COVER, 430D	1
14	0A4300805	SCREW, PAN (S/P WASHER) M3X8	3
15	J04303001	PULLEY HOLDER ASSY, 430D	1
16	014500632	SET SCREW, SOCKET (CP) M5X6	2

Page 59 — Foot switch pedal mechanism

Brother BAS-311G parts on page 59
Ref	Part number	Part name	Qty
1	SA3519101	TREADLE UINT,A ASSY	1
2	SA6038001	2-PEDAL FOOT SWITCH, SW ASSY	1
3	S38168001	SPRING, COMPRESSION 10X30	1
4	S38170001	FOOT PEDAL SPRING	2
5	S36260000	PIN BUTTON MICRO SWITCH, VX	3
6	S38174000	FOOT PEDAL	2
7	S38175001	PROTECTION PLATE, PEDAL	2
8	S38176101	SPRING, PLATE	2

Page 61 — Programmer

Brother BAS-311G parts on page 61
Ref	Part number	Part name	Qty
1	SA5164001	LCD MODULE	1
2	SA5165001	LCD INVERTER	1
3	SA5166001	INVERTER HARNESS	1
4	SA5170001	PROGRAMMER PCB ASSY	1
5	SA5172001	SWITCH PCB ASSY	1
6	SA5168001	FFC:SML2CD	2
7	SA5167001	PROGRAMMER HARNESS	1

Page 63 — V1. 附属装置(选购件)/Attachment set (Option parts)

Brother BAS-311G parts on page 63
Ref	Part number	Part name	Qty
1	SA5193001	TR-BREAKAGE DETECTOR SET F	1
2	SA4816001	FIBER AMP FX311	1
3	SA4817001	AMP CABLE ASSY	1
4	SA4818001	DIN METAL FITTING	1
5	062300616	SCREW PAN M3X6	2
6	SA4819001	FIBER FDFM2	1
7	SA5194001	SENSOR SETTING PLATE	1
8	062500616	SCREW PAN M5X6	1
9	625010000	NYLON CLAMP NK-2N	1
10	0A5401006	SCREW PAN (S/P WASHER) M4X10	1
1	SA51930E1	TR-BREAKAGE DETECTOR SET F	1
2	SA48160E1	FIBER AMP FX311	1
3	SA4817001	AMP CABLE ASSY	1
4	SA4818001	DIN METAL FITTING	1
5	062300616	SCREW PAN M3X6	2
6	SA4819001	FIBER FDFM2	1
7	SA5194001	SENSOR SETTING PLATE	1
8	062500616	SCREW PAN M5X6	1
9	625010000	NYLON CLAMP NK-2N	1
10	0A5401006	SCREW PAN (S/P WASHER) M4X10	1

Page 65 — V2. 附属装置(选购件) / Attachment set (Option parts)

Brother BAS-311G parts on page 65
Ref	Part number	Part name	Qty
1	SA5201001	FDD SET	1
2	SA5202001	FDD UNIT ASSY	1
3	SA6628001	FDD	1
4	S43225000	SPACER, FDD	2
5	SA5203001	FDD BASE PLATE	1
6	0A4300605	SCREW PAN (S/P WASHER) M3X6	4
7	037300816	TAPPING SCREW PAN V M3X8	4
8	SA5204001	FDD COVER	1
9	0A4300805	SCREW PAN (S/P WASHER) M3X8	4
10	SA5205001	FDD HARNESS	1
11	SA5206001	FDD POWER HARNESS	1
12	SA5134001	GROUND WIRE	1
13	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
14	032421302	WOOD SCREW ROUND 2 M4.1X13	4
15	200190001	STAPLE 10X20	2
1	SA52010E1	FDD SET	1
2	SA52020E1	FDD UNIT ASSY	1
3	SA6628001	FDD	1
4	S43225000	SPACER, FDD	2
5	SA5203001	FDD BASE PLATE	1
6	0A4300605	SCREW PAN (S/P WASHER) M3X6	4
7	037300816	TAPPING SCREW PAN V M3X8	4
8	SA5204001	FDD COVER	1
9	0A4300805	SCREW PAN (S/P WASHER) M3X8	4
10	SA5205001	FDD HARNESS	1
11	SA5206001	FDD POWER HARNESS	1
12	SA5134001	GROUND WIRE	1
13	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
14	032421302	WOOD SCREW ROUND 2 M4.1X13	4
15	200190001	STAPLE 10X20	2
16	SA6495001	3-PEDAL FOOT SW ASSY	1
17	S38170001	FOOT PEDAL SPRING	3
18	S38174000	FOOT PEDAL	3
19	S38175101	PROTECTION PLATE PEDAL	3
20	S38176101	SPRING, PLATE	3
21	S36260000	PIN BUTTON MICRO SWITCH, VX	1
16	SA64950E1	3-PEDAL FOOT SW ASSY	1
17	S38170001	FOOT PEDAL SPRING	3
18	S38174000	FOOT PEDAL	3
19	S38175101	PROTECTION PLATE PEDAL	3
20	S38176101	SPRING, PLATE	3
21	S36260000	PIN BUTTON MICRO SWITCH, VX	1

Page 67 — Z. 附件 / Accessories

Brother BAS-311G parts on page 67
Ref	Part number	Part name	Qty
1	SA4842001	MOTOR COVER	1
3	062061016	SCREW PAN M6X10	4
4	SA4844001	OIL PAN	1
5	154467001	DUST OILER	1
6	037301215	TAPPING SCREW PAN V M3X12	2
7	SA3540001	RUBBER CUSHION	3
8	109714000	NAIL	7
9	114486002	OILER	1
10	122991001	ACCESSORY BAG	1
11	S06706001	SILICONE OIL	1
12	S44633001	BOBBIN, LAN	3
15	114483002	OILER ASSY	1
16	S55663001	OIL TANK ASSY	1
17	142443001	SCREW-DRIVER, 1.9X52	1
18	118837001	SCREW-DRIVER, 3.4X70	1
19	101572102	SCREW-DRIVER, 5.5X190	1
20	107779001	WRENCH, 6X7	1
21	100887001	WRENCH, 8X9	1
22	107780001	WRENCH, 10X12	1
23	S07783001	HEXAGONAL WRENCH, 1.5	1
24	142002001	HEXAGONAL WRENCH, 2	1
25	154125001	HEXAGONAL WRENCH, 2.5	1
26	142721001	HEXAGONAL WRENCH, 3	1
27	118064001	HEXAGONAL WRENCH, 4	1
28	150335001	HEXAGONAL WRENCH, 5	1
29	S40574209	COTTON STAND ASSY, 2DTHF	1
30	S51283001	SPOOL STAND BASE	2
31	150182000	SPOOL MAT	2
32	S51282101	SPOOL CUSHION	2
33	150206002	WASHER, PLAIN 16	1
34	S38648001	NUT, U5/8-28	1
35	S04109001	THREAD GUIDE SUPPORT BAR	1
36	142997001	THREAD GUIDE, 3	1
37	150172003	COLUMN PIPE	1
38	150174000	COLUMN CAP	1
39	156112003	COLUMN PIPE, D	1
40	150173003	COLUMN JOINT	1
41	150179002	SPOOL SHAFT, B	2
42	028050246	WASHER SPRING 2-5	2
43	021500106	NUT 1 M5	2
44	S02778002	SPOOL HOLDER, 2	1
45	S02787002	THREAD HANGER, 2	1
46	150183000	THREAD HANGER BASE	2
47	142990001	THREAD BUSH	2
48	150185009	THREAD GUIDE HOLDER	1
49	138843001	JOINT	1
50	021500106	NUT 1 M5	4
51	S37038001	SCREW, PAN(S/P WASHER) M5X14	1
52	S37037001	SCREW, PAN (S/P WASHER) M5X32	1
53	062501406	SCREW PAN M5X14	2
54	014060632	SET SCREW SOCKET (CP) M6X6	2
55	021500106	NUT 1 M5	1
56	S37037001	SCREW, PAN (S/P WASHER) M5X32	1

Page 69 — Z. 附件 / Accessories

Brother BAS-311G parts on page 69
Ref	Part number	Part name	Qty
76	200190001	STAPLE,10X20	7
78	144226001	HEAD COVER	1
79	S36007001	BOLT, M8X55	4
80	021080106	NUT 1 M8	8
81	025080336	WASHER PLAIN L 8	4
82	032461606	WOOD SCREW ROUND 2 M4.5X16	2
83	S44483001	HINGE ASSY	1
84	S44484001	EYE GUARD HINGE	1
88	S44485001	EYE GUARD	1
89	061300816	SCREW FLAT M3X8	2
90	021300106	NUT 1 M3	2
91	026030236	WASHER PLAIN M 3	2
92	SA4104001	EYE GUARD HOLDER, A	1
93	062300506	SCREW PAN M3X5	2
94	062400616	SCREW PAN M4X6	2
95	026040136	WASHER PLAIN S 4	2
97	SA3395001	RUBBER CUSHION	2
98	SA3392001	SPACER	2
99	SA3384001	PIN	2
100	012060636	SET SCREW SOCKET (FT) M6X6	2
101	SA3385001	HINGE HOLDER	2
102	018065036	BOLT SOCKET M6X50	4
103	213650001	WASHER, 2.3X8.5X38ST	4
104	017066002	BOLT M6X60	1
105	021060106	NUT 1 M6	4
106	SA3540001	RUBBER CUSHION	4
107	SA4845001	SHOCK ABSORBER GAS	1
108	SA4846001	HOLDER ABSORBER	2
109	SA5251001	SPACER	1
110	018064031	BOLT SOCKET M6X40	1
111	021060106	NUT 1 M6	1
112	SA4847001	SHAFT U	1
113	012060636	SET SCREW SOCKET (FT) M6X6	1
114	S17974001	SHAFT, D	1
115	S17975100	SHAFT COLLAR, GAS	2
116	025080132	WASHER PLAIN S 8	2
117	048060342	RETAINING RING E6	2
118	SA3387001	BOLT SOCKET M6X75	2
119	025060236	WASHER PLAIN M 6	2
120	213650001	WASHER, 2.3X8.5X38ST	2
121	028060246	WASHER SPRING 2-6	2
122	021060106	NUT 1 M6	2
123	119755001	BOLT, M6X60	3
124	025060236	WASHER PLAIN M 6	3
125	028060246	WASHER SPRING 2-6	3
126	021060106	NUT 1 M6	3
128	SA6261001	HOLDER ABSORBER COVER	1
129	S55479001	BOLT SOCKET (S/P WASHER) M4X8	6
130	025060236	WASHER PLAIN M6	1

Page 70 — Warning labels

Brother BAS-311G parts on page 70
Ref	Part number	Part name	Qty
	J04115-001	Label, elec. shock 6 lang
	SA0792-001	Label, caution Jpn / Eng
	SA0793-001	Label, caution Chn / Eng
	S36924-002	Mark, injury
	S37060-001	Label, grounding
	S37059-001	Label, PE

Page 71 — Different parts list

Brother BAS-311G parts on page 71
Ref	Part number	Part name
(J-66)	SA3336-101	Needle hole plate
(J-66)	SA5221-001	Needle hole plate
(E-35)	S59221-201	Bobbin case assy
(E-36)	S48664-001	Tension spring
(E-37)	S16492-101	Screw
(E-38)	S15667-001	Anti-spin spring
(E-39)	S44633-001	Bobbin
(E-42)	SA1890-201	Shuttle hook assy, w/box
(E-42)	SA2173-201	Shuttle hook assy, w/box
(E-34)	152686-201	Shuttle race base
(E-34)	152682-201	Shuttle race base
(G-30)	107606-101	Spring,tension
(G-30)	104525-101	Spring,tension
(G-9)	144588-201	Thread take-up spring
(G-9)	145519-201	Thread take-up spring

Page 72 — Different parts list

Brother BAS-311G parts on page 72
Ref	Part number	Part name
G-28	SA4146-101	Spring,tension
G-20	SA3257-101	Needle bar thread guide
Z-13	SA1645-019	Needle assy
Z-13	SA1752-016	Needle assy
B-32, Z-14	145646-019	Needle
B-32, Z-14	107415-016	Needle
D-57	SA4811-001	Presser foot
D-57	S42843-001	Presser foot
B-32, Z-14	DP 17	Needle

Page 73 — Gauge parts list

Brother BAS-311G parts on page 73
Ref	Part number	Part name	Qty
	S42843-001
	S42844-001
	S42845-001
	S42846-001
	S42847-001
	157237-001
	158592-001
	S42848-001
	S40214-001
	S49448-001
	S42849-101
	SA4811-001
	SA3336-001
	SA5221-001
	SA5222-001

Page 74 — INDEX

Brother BAS-311G parts on page 74
Ref	Part number	Part name
- 16	004300513	A
- 52	012060536	B
- 54	012060536	C2
- 59	012060536	C2
- 14	012060536	C3
- 32	012060536	C3
- 19	012060536	C4
- 55	012060536	D1
- 6	012060536	E
- 24	012060636	B
- 48	012060636	B
- 19	012060636	C1
- 29	012060636	C1
- 3	012060636	C2
- 6	012060636	C2
- 10	012060636	C2
- 16	012060636	C2
- 10	012060636	C3
- 19	012060636	C3
- 28	012060636	C3
- 3	012060636	C4
- 15	012060636	C4
- 14	012060636	D1
- 24	012060636	D1
- 30	012060636	D1
- 36	012060636	D1
- 10	012060636	D2
- 13	012060636	D2
- 25	012060636	D2
- 33	012060636	D2
- 37	012060636	D2
- 41	012060636	D2
- 57	012060636	D2
- 8	012060636	D3
- 16	012060636	D3
- 20	012060636	D3
- 34	012060636	D3
- 35	012060636	D3
- 9	012060636	E
- 13	012060636	E
- 30	012060636	E
- 23	012060636	G
- 45	012060636	J
- 100	012060636	J
- 113	012060636	Z
- 25	012400436	D1
- 31	012400436	D1
- 17	012400436	H
- 24	012400436	H
- 21	012500536	B
- 36	012500536	B
- 43	012500536	B
- 46	012500536	D2
- 51	012500536	D2
- 25	012500536	D3
- 11	012500536	E
- 41	012500536	E
- 3	012500536	H
- 36	012500536	H
- 46	012501031	C3
- 29	012501031	C4
- 34	012501031	C4
- 54	014060632	Z
- 3	014500632	S
- 16	014500632	S
- 32	016061031	D2
- 36	016061031	D2
- 15	017061216	D1
- 104	017065002	Z
- 5	017066002	J
- 5	017400802	L
- 5	017401415	L
- 51	017501616	C3
- 59	018061236	D2
- 57	018062036	C2
- 110	018064031	Z
- 102	018065036	Z
- 14	018081636	R
- 5	018300636	C1
- 3	018301436	C1
- 39	018400636	D2
- 10	018400836	C1
- 13	018400836	C1
- 21	018400836	C2
- 48	018400836	D1
- 52	018401036	C2
- 57	018401036	C2
- 68	018401036	C2
- 2	018401036	D2
- 23	018401036	D2
- 6	018401036	D3
- 27	018401636	B
- 31	018401636	C1
- 35	018401636	C1
- 23	018402036	C2
- 34	018500836	C3
- 66	018501036	C2
- 3	018501232	D3
- 48	018501236	J
- 3	018501236	B
- 49	018501236	B
- 14	018503036	B
- 41	021060106	D1
- 46	021060306	D1
- 25	021060306	J
- 32	021060306	J
- 80	021080106	Z
- 19	021300103	A
- 90	021300106	Z
- 37	021400216	C2
- 6	021400306	L
- 16	021500106	R
- 43	021500106	Z
- 50	021500106	Z
- 55	021500106	Z
- 23	021500216	C3
- 47	021500216	C3
- 35	021500216	C4
- 65	025030236	J
- 72	025030236	J
- 36	025040236	C1
- 30	025040236	D2
- 13	025040236	D3
- 7	025040236	J
- 10	025040236	K
- 4	025040236	L
- 24	025050236	C1
- 35	025050236	C3
- 52	025050236	C3
- 41	025050236	C4
- 13	025050236	L
- 13	025050236	R
- 17	025050336	R
- 119	025060236	Z
- 124	025060236	Z
- 130	025080132	Z
- 116	025080336	Z
- 16	025100132	A
- 35	025350332	A
- 21	026030136	E
- 91	026030236	Z
- 95	026040136	Z
- 71	028030246	J
- 37	028040246	C1
- 66	028040246	F
- 6	028040246	J
- 3	028040246	L
- 36	028050246	C3
- 53	028050246	C3
- 42	028050246	C4
- 49	028050246	J
- 13	028050246	P
- 14	032421302	V2
- 20	032422003	P
- 7	037300816	V2
- 41	047401242	B
- 19	048030342	K
- 6	048040142	C3
- 12	048040342	L
- 20	048040342	J
- 6	048050142	C4
- 10	048050342	H
- 9	048060142	C4
- 117	048060342	Z
- 31	048070342	E
- 11	048080142	C3
- 29	048080142	C3
- 16	048080142	C4
- 29	048080142	D1
- 44	048080142	J
- 8	048080342	C2
- 17	048100142	C1
- 3	048100142	C3
- 28	048100142	D2
- 11	048100142	D3
- 21	048420242	C1
- 21	060400516	K
- 6	061300616	C1
- 8	061300816	C1
- 89	061300816	Z
- 33	062060816	F
- 7	062061016	A
- 9	062061016	A
- 13	062061016	A
- 3	062061016	F
- 37	062061016	H
- 3	062061016	Z
- 48	062300416	C2
- 20	062300416	D1
- 64	062300416	J
- 73	062300416	J
- 38	062300506	A
- 93	062300506	Z
- 22	062300616	E
- 7	062300616	K
- 5	062300616	V1
- 6	062300816	Q
- 8	062350616	H
- 28	062400416	C2
- 49	062400416	C2
- 5	062400416	D2
- 6	062400616	D1
- 29	062400616	D2
- 54	062400616	D2
- 56	062400616	D2
- 12	062400616	D3

Page 75 — 索引 / INDEX

Brother BAS-311G parts on page 75
Ref	Part number	Part name
-13	062401216	H
-2	062500616	G
-4	062500616	G
-6	062500616	G
-30	062500616	H
-53	062501406	Z
-26	062670412	G
-44	070696800	D2
-49	070696800	D2
-23	070696800	D3
-15	076000600	C1
-20	076806606	C1
-15	081003670	E
-17	081007070	L
-8	0A4261005	S
-6	0A4300605	V2
-6	0A4300805	S
-14	0A4300805	S
-9	0A4300805	V2
-13	0A4300805	V2
-12	0A4401005	S
-10	0A4530606	S
-26	0A5401006	C2
-40	0A5401006	P
-42	0A5401006	F
-4	0A5401006	Q
-9	0A5401006	Q
-14	0A5401006	Q
-17	0A5401006	Q
-27	100136001	G
-67	100360003	J
-33	100401022	H
-14	100402004	G
-21	100887001	Z
-19	101572102	Z
-8	102630001	D2
-7	102707002	L
-11	104449001	A
	104525101	Sp
-18	104567101	F
-5	104821001	A
-31	104821001	D3
	107415016	Sp
	107606101	Sp
-20	107779001	Z
-22	107780001	Z
-8	109714000	Z
-45	109763001	D2
-50	109763001	D2
-24	109763001	D3
-18	110367001	B
-12	110367001	C3
-30	110367001	C3
-17	110367001	C4
-18	110735001	K
-56	111466101	D1
-15	114483002	Z
-9	114486002	Z
-2	117608001	A
-4	117934001	A
-27	118064001	Z
-14	118208001	D2
-32	118550001	D3
-63	118735001	C2
-18	118837001	Z
-123	119755001	Z
-27	120265001	A
-23	120448001	Z
-10	122991001	Z
-49	138430001	Z
-52	142002001	D1
-24	142211001	Z
-17	142443001	Z
-26	142721001	Z
-47	142990001	Z
-36	142997001	Z
-76	144588001	B
-18	145446000	G
	145517001	Sp
-34	145547001	F
-3	149287000	Q
-38	149547000	Z
-27	149798001	P
-37	150172003	Z
-40	150173003	Z
-38	150174000	Z
-41	150179002	Z
-31	150182000	Z
-46	150183000	Z
-48	150185009	Z
-33	150206002	Z
-28	150335001	Z
	152682201	Sp
-7	152744001	D2
-24	152881001	D2
-25	152884001	G
-6	152937001	H
-7	152948001	F
-23	153050000	E
-7	153252000	P
-11	153274001	P
-25	154125001	Z
-5	154467001	Z
-30	154596000	J
-30	154599000	J
-39	156112003	Z
	157237001	Ga
	158592001	Ga
-30	159163000	D3
-19	159224001	G
-9	159486001	H
-12	159805001	G
-15	200190001	V2
-120	213650001	Z
-18	218859001	L
-27	228475000	P
-27	231071001	J
-39	525567000	F
-41	525664000	F
-12	537060001	M1
-61	552907000	F
-15	554482000	Q
-12	616167001	M2
-4	623033000	D1
-9	625010000	V1
-5	J03955001	S
-7	J03958001	S
-11	J04115001	M1
-11	J04230001	S
-15	J04303001	S
-13	J04388001	S
-9	J04488001	S
-1	J80991001	S
-52	S00400000	F
-16	S00470000	Q
-61	S00705001	J
-17	S02429201	E
-34	S02445001	A
-11	S02652001	J
-44	S02778002	Z
-45	S02787002	Z
-23	S03677001	K
-52	S10112001	D1
-27	S10268001	H
-15	S10408000	R
-18	S10438001	H
-20	S10470101	K
-29	S12441001	G
-16	S12699000	G
-58	S13399001	D1
	S15667001	Sp
	S16492101	Sp
-114	S17974001	Z
-115	S17975100	Z
-33	S20164001	A
-26	S20356001	C1
-62	S23418001	C2
-15	S23418002	H
-8	S23651001	B
-11	S23651001	B
-14	S23651001	B
-17	S23651001	B
-38	S23849001	C2
-38	S23849001	C3
-21	S23849001	C4
-15	S25235001	B
-14	S25279001	K
-37	S25310101	D1
-69	S25310101	F
-68	S25454001	J
-13	S25456001	K
-4	S25456001	K
-33	S25475101	J
-12	S25634101	R
-11	S31032001	G
-34	S32462001	H
-44	S32462001	D1
-24	S32462001	J
-31	S32465001	J
-40	S32465001	J
-22	S32465001	J
-43	S32557000	E
-35	S35079000	D2
-79	S36007001	Z
-5	S36260000	T
-21	S36475000	V2
-29	S36924002	A
-52	S37037001	Z
-56	S37038001	Z
-13	S37059001	M1

Page 77 — 索引 / INDEX

Brother BAS-311G parts on page 77
Ref	Part number	Part name
-28	SA4622001	B
-42	SA4624001	B
-37	SA4626001	B
-38	SA4627001	B
-39	SA4628001	B
-40	SA4629001	B
-45	SA4630001	B
-4	SA4635101	C1
-7	SA4636101	C1
-2	SA4637001	C1
-18	SA4638001	C1
-14	SA4639001	C1
-12	SA4640001	C1
-9	SA4641001	C1
-22	SA4642001	C1
-25	SA4643001	C1
-27	SA4647001	C1
-11	SA4648001	C1
-30	SA4650001	C1
-32	SA4651101	C1
-33	SA4652101	C1
-2	SA4653001	C2
-5	SA4654001	C2
-9	SA4655101	C2
-11	SA4658001	C2
-12	SA4659001	C2
-13	SA4661001	C2
-17	SA4662001	C2
-18	SA4663001	C2
-19	SA4664001	C2
-20	SA4665001	C2
-30	SA4666001	B
-24	SA4671001	C2
-25	SA4671001	C2
-26	SA4672001	C2
-32	SA4673001	C2
-34	SA4675201	C2
-38	SA4676001	C2
-35	SA4677101	C2
-44	SA4679101	C2
-45	SA4680101	C2
-46	SA4681001	C2
-47	SA4682001	C2
-51	SA4684001	C2
-1	SA4686101	C3
-2	SA4687101	C3
-4	SA4688001	C3
-5	SA4689001	C3
-7	SA4690001	C3
-8	SA4691001	C3
-9	SA4692001	C3
-16	SA4693001	C3
-18	SA4694001	C3
-20	SA4695001	C3
-15	SA4696001	C3
-17	SA4697001	C3
-21	SA4698001	C3
-33	SA4699001	C3
-22	SA4700001	C3
-24	SA4701001	C3
-25	SA4702001	C3
-26	SA4703001	C3
-43	SA4706101	C3
-44	SA4708001	C3
-31	SA4710001	C4
-24	SA4712001	C4
-42	SA4714001	C3
-54	SA4715001	C3
-41	SA4717001	C3
-5	SA4719001	C4
-7	SA4720001	C4
-8	SA4721001	C4
-10	SA4722001	C4
-11	SA4723001	C4
-12	SA4724001	C4
-27	SA4725001	C4
-32	SA4726001	C4
-1	SA4729001	D2
-3	SA4731001	D2
-4	SA4734001	D2
-6	SA4736001	D2
-9	SA4737001	D2
-15	SA4738001	D2
-17	SA4739001	D2
-18	SA4741101	D2
-19	SA4742001	D2
-24	SA4743001	D2
-26	SA4744001	D2
-31	SA4745001	D2
-34	SA4746001	D2
-38	SA4747001	D2
-40	SA4748001	D2
-47	SA4750001	D2
-53	SA4752001	D2
-55	SA4753001	D2
-33	SA4757101	D3
-1	SA4759001	D1
-2	SA4760001	D1
-7	SA4761001	D1
-8	SA4762001	D1
-3	SA4763001	D1
-11	SA4764001	D1
-13	SA4765001	D1
-16	SA4766001	D1
-17	SA4767001	D1
-18	SA4768001	D1
-19	SA4769101	D1
-21	SA4770001	D1
-27	SA4771001	D1
-22	SA4772001	D1
-23	SA4773001	D1
-38	SA4775001	D1
-43	SA4776001	D1
-26	SA4777001	D1
-47	SA4778001	D1
-32	SA4779001	D1
-35	SA4780001	D1
-33	SA4781001	D1
-4	SA4782001	E
-10	SA4783101	E
-2	SA4785001	F
-7	SA4786101	F
-4	SA4787001	F
-11	SA4788001	F
-32	SA4789101	F
-37	SA4791101	F
-1	SA4795001	H
-20	SA4796001	H
-38	SA4797001	H
-3	SA4798001	J
-14	SA4799001	J
-53	SA4800001	J
-55	SA4802001	J
-6	SA4811001	Sp
-2	SA4816001	V1
-2	SA48160E1	V1
-3	SA4817001	V1
-4	SA4818001	V1
-6	SA4819001	V1
-50	SA4820201	C2
-55	SA4823101	C2
-10	SA4824001	Q
-21	SA4826201	D2
-22	SA4828001	D2
-5	SA4830001	Q
-1	SA4834001	R
-7	SA4836001	R
-5	SA4837001	R
-6	SA4841001	R
-1	SA4842001	Z
-4	SA4844001	Z
-10	SA4845001	Z
-10	SA4846001	Z
-11	SA4847001	Z
-24	SA4852001	P
-24	SA5288001	P
-2	SA5289001	P
-22	SA5290001	P
-23	SA5292101	F
-6	SA5294001	F
-51	SA5300001	D1
-53	SA5301001	D1
-54	SA5339101	F
-2	SA6038001	T
-17	SA6087001	F
-35	SA6108001	B
-19	SA6182001	B
-39	SA6194001	A
-39	SA4864001	C3
-25	SA5072001	F
-12	SA5134001	V2
-4	SA5135001	J
-57	SA5157001	J
-47	SA5158001	B
-1	SA5164001	U
-2	SA5165001	U
-7	SA5167001	U
-6	SA5168001	U
-4	SA5170001	U
-5	SA5172001	U
-15	SA5191001	P
-30	SA5192001	P
-1	SA5193001	V1
-1	SA51930E1	V1
-7	SA5194001	V1
-1	SA5201001	V2
-1	SA52010E1	V2
-2	SA5202001	V2
-2	SA52020E1	V2
-5	SA5203001	V2
-8	SA5204001	V2
-10	SA5205001	V2
-11	SA5206001	V2
-1	SA5208001	K
-24	SA5213001	K
-12	SA5214001	Q
-5	SA5217001	K
-8	SA5218001	K
-17	SA5219001	K
-66	SA5221001	Sp
-68	SA5222001	Ga
-1	SA5229101	C1
-50	SA5230001	B
-109	SA5251001	Z
-13	SA5261001	Q
-1	SA5281001	P
-5	SA5283001	P
-9	SA5285001	P
-12	SA5286001	P

Page 78 — INDEX

Brother BAS-311G parts on page 78
Ref	Part number	Part name
-18	SA6207001	A
-42	SA6210001	D2
-21	SA6210001	D3
-43	SA6211001	F
-12	SA6216001	E
-16	SA6220001	E
-51	SA6260001	F
-128	SA6261001	Z
-50	SA6263001	F
-15	SA6272001	A
-70	SA6273001	J
-61	SA6306001	C2
-29	SA6359001	C2
-30	SA6360001	C2
-31	SA6361001	C2
-1	SA6364001	M1
-9	SA6389001	L
-5	SA6391001	G
-62	SA6397001	J
-62	SA6398001	J
-17	SA6405001	P
-28	SA6405002	P
-18	SA6406001	P
-29	SA6406002	P
-19	SA6407001	P
-40	SA6434001	C2
-41	SA6435001	C2
-41	SA6441001	A
-65	SA6450101	C2
-67	SA6451101	C2
-16	SA6495001	V2
-16	SA64950E1	V2
-20	SA6560101	Q
-62	SA6572001	F
-10	SA6573001	P
-16	SA6576001	F
-60	SA6577001	F
-26	SA6578001	F
-53	SA6579001	F
-14	SA6580001	F
-63	SA6581001	F
-67	SA6582001	F
-64	SA6583001	F
-68	SA6584001	F
-13	SA6593001	F
-3	SA6628001	V2

Page 7 — A. 机体部分 / Machine body

Page 9 — B. 上轴 · 针杆装置 / Upper shaft and needle bar mechanism

Page 11 — C1. 送料装置 / Feed mechanism

Page 13 — C2. 送料装置 / Feed mechanism

Page 15 — C2. 送料装置 / Feed mechanism

Page 17 — C3. 送料装置 / Feed mechanism

Page 19 — C4. 送料装置 / Feed mechanism

Page 21 — D1. 抬压装置 / Work clamp lifter mechanism

Page 23 — D2. 抬压装置 / Work clamp lifter mechanism

Page 25 — D3. 抬压装置 / Work clamp lifter mechanism

Page 27 — E. 下轴装置 / Lower shaft mechanism

Page 29 — F. 供油润滑装置 / Lubrication

Page 31 — F. 供油润滑装置 / Lubrication

Page 33 — G. 穿线装置 / Threading mechanism

Page 35 — H. 卷线装置 / Bobbin winder mechanism

Page 37 — J. 切线装置 / Thread trimmer mechanism

Page 39 — J. 切线装置 / Thread trimmer mechanism

Page 41 — K. 扫线装置 / Thread wiper mechanism

Page 43 — L. 松线装置 / Tension release mechanism

Page 45 — M1. 控制箱装置 / Control box mechanism

Page 47 — M2. 控制箱装置（电源基板） / Control box (PCB) mechanism

Page 49 — N. 开关装置 / Power switch mechanism

Page 51 — P. 空压装置 / Air pressure mechanism

Page 53 — Q. 电气部件装置 / Power supply equipment mechanism

Page 55 — R. ᄨϴᬢ⒮ὃ / Operation panel mechanism

Page 57 — S. 马达装置 / Motor mechanism

Page 59 — Foot switch pedal mechanism

Page 61 — Programmer

Page 63 — V1. 附属装置(选购件)/Attachment set (Option parts)

Page 65 — V2. 附属装置(选购件) / Attachment set (Option parts)

Page 67 — Z. 附件 / Accessories

Page 69 — Z. 附件 / Accessories

Page 70 — Warning labels

Page 71 — Different parts list

Page 72 — Different parts list

Page 73 — Gauge parts list

Page 74 — INDEX

Page 75 — 索引 / INDEX

Page 77 — 索引 / INDEX

Page 78 — INDEX

Brother BAS-311G — parts catalog
