Parts index — Brother BAS-311Gtap a row to open its page

Page 4 — 零件手册的使用说明

Brother BAS-311G parts on page 4

Ref	Part number	Part name	Qty
	A.	机体部分	1
	B.	上轴·针杆装置	3
	C1.	送料装置	5
	C2.	送料装置	7
	C3.	送料装置	11
	C4.	送料装置	13
	D1.	抬压装置	15
	D2.	抬压装置	17
	D3.	抬压装置	19
	E.	下轴装置	21
	F.	供油润滑装置	23
	G.	穿线装置	27
	H.	卷线装置	29
	J.	切线装置	31
	K.	扫线装置	35
	L.	松线装置	37
	M1.	控制箱装置	39
	M2.	控制箱装置(电源基板)	41
	N.	开关装置	43
	P.	空压装置	45
	Q.	电气部品装置	47
	R.	操作盘装置	49
	S.	马达装置	51
	T.	踏板关系	53
	U.	编程装置	55

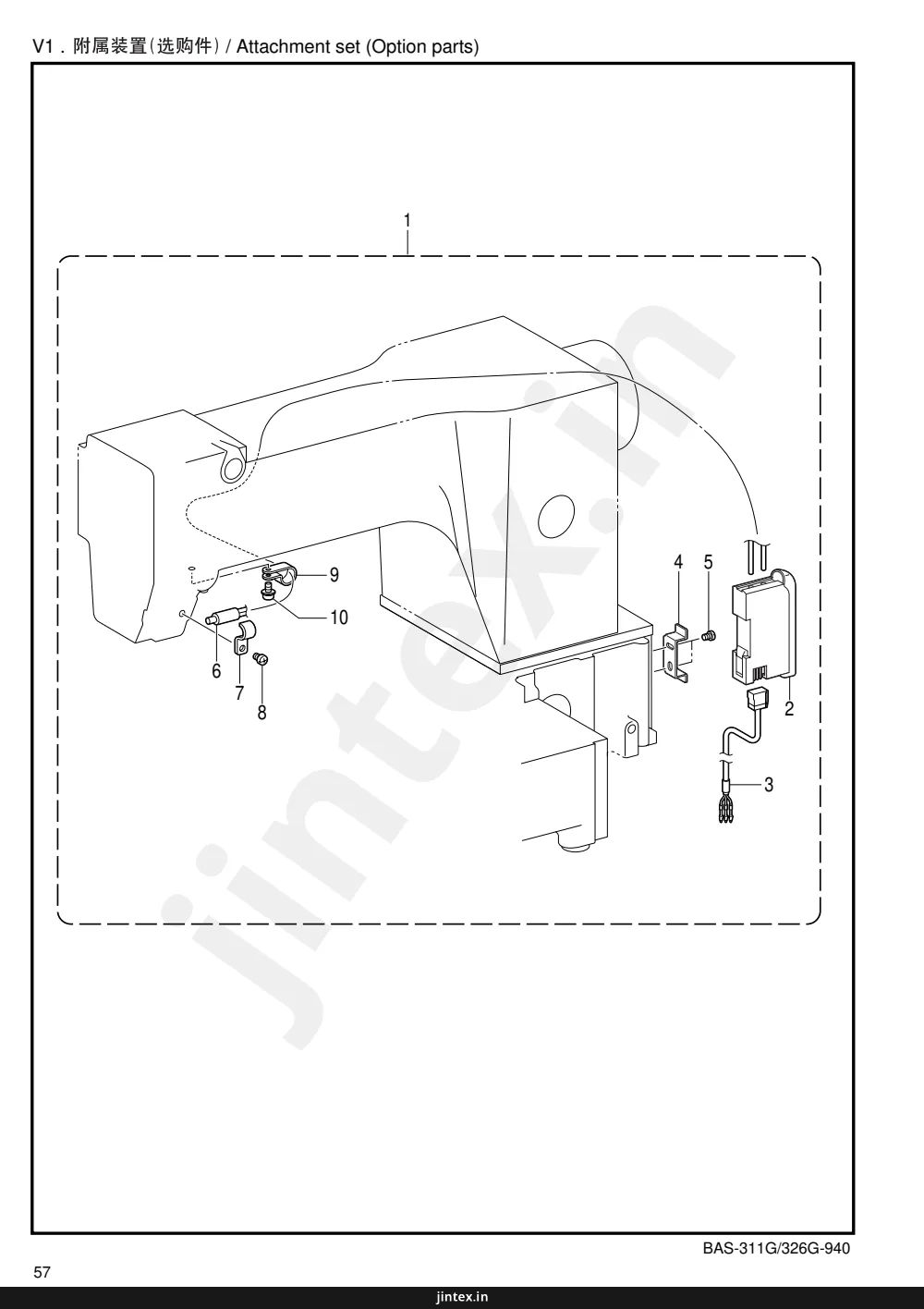

	V1.	附属装置(选购件)	57
	V2.	附属装置(选购件)	59
	Z.	附件	61
	Wa.	警告标签	65
	Sp.	不同规格零部件一览表	66
	Ga.	工模具一览表	68
	索引		69

Page 5 — Notes for using this parts book

Brother BAS-311G parts on page 5

Ref	Part number	Part name	Qty
	A.	Machine body	1
	B.	Upper shaft and needle bar mechanism	3
	C1.	Feed mechanism	5
	C2.	Feed mechanism	7
	C3.	Feed mechanism	11
	C4.	Feed mechanism	13
	D1.	Work clamp lifter mechanism	15
	D2.	Work clamp lifter mechanism	17
	D3.	Work clamp lifter mechanism	19
	E.	Lower shaft mechanism	21
	F.	Lubrication	23
	G.	Threading mechanism	27
	H.	Bobbin winder mechanism	29
	J.	Thread trimmer mechanism	31
	K.	Thread wiper mechanism	35
	L.	Tension release mechanism	37
	M1.	Control box mechanism	39
	M2.	Control box (PCB) mechanism	41
	N.	Power switch mechanism	43
	P.	Air pressure mechanism	45
	Q.	Power supply equipment mechanism	47
	R.	Operation panel mechanism	49
	S.	Motor mechanism	51
	T.	Foot switch pedal mechanism	53
	U.	Programmer	55
	V1.	Attachment set (Option parts)	57
	V2.	Attachment set (Option parts)	59
	Z.	Accessories	61
	Wa.	Warning labels	65
	Sp.	Different parts list	66
	Ga.	Gauge parts list	68
	Index		69

Page 7 — A. 机体部分 / Machine body

Brother BAS-311G parts on page 7

Ref	Part number	Part name	Qty
1	SA4594001	轴套 U	1
2	117608001	开口销	1
3	SA4596001	橡皮塞 20-15	1
4	117934001	橡皮塞 13.5	1
5	104821001	橡皮塞 10.5	3
6	SA4597001	马达盖 R	1
7	06201016	螺钉 M6X10	4
8	SA4598001	马达盖 L	1
9	06201016	螺钉 M6X10	4
10	SA4600001	面板	1
11	104449001	橡皮塞 15.5	1
12	SA4601001	面板垫片	1
13	06201016	螺钉 M6X10	3
14	SA4603101	大旋梭盖	1
15	SA6272001	大旋梭盖挂钩 D	1
16	004300513	螺钉 M3X5	2
17	SA3264001	板螺母	1
18	SA6207001	铰链	1
19	021300103	螺母 M3	2
23	SA3200101	挑线杆防护罩	1
24	062401006	螺钉 M4X10	1
25	SA4604001	间歇盖板	1
26	SA3306001	段螺钉 7-3	1
27	120265002	弹簧垫圈	1
28	S07350002	垫圈	1
29	S36475000	螺钉 M5	1
30	S36924002	警告标记	1
31	SA0792001	操作注意标签(日/英)	1
31	SA0793001	操作注意标签(中/英)	1
32	S37060001	接地标记	1
33	S20164001	橡皮塞 13	1
34	S02445001	护指器	1
35	025350332	平垫圈 L3.5	2
36	SA4605001	机头撑杆	1
37	S42446001	螺栓 M6X14	4
38	062300506	螺钉 M3X5	4
39	SA6194001	橡皮塞 26	1
40	S44010001	橡皮塞 11.5	2
41	SA6441001	橡皮盖	2
42	S20164001	橡皮塞 13	1

Page 9 — B. 上轴 · 针杆装置 / Upper shaft and needle bar mechanism

Brother BAS-311G parts on page 9

Ref	Part number	Part name	Qty
1	SA4606001	UPPER SHUFT	1
2	SA3499001	CRANK ROD ASSY	1
3	018501636	BOLT SOCKET M5X16	2
4	SA4172001	NEEDLE BEARING: BLUE	2
4	SA4173001	NEEDLE BEARING: BLACK	2
4	SA4174001	NEEDLE BEARING: GRAY	2
4	SA4175001	NEEDLE BEARING: YELLOW	2
5	SA3206001	BALL BEARING BUSH	1
6	SA4179001	BALL BEARING 6904DDUNR	1
7	SA4180001	BALL BEARING 6904DDU	1
8	S23651001	SET SCREW, SOCKET (FT) M6X6	2
9	SA3206001	BALL BEARING BUSH	1
10	SA4177001	BALL BEARING 6004DDUNR	1
11	S23651001	SET SCREW, SOCKET (FT) M6X6	2
12	SA4608101	JOINT G	1
13	SA4178001	BALL BEARING 6204DDUNR	1
14	S23651001	SET SCREW, SOCKET (FT) M6X6	4
15	S25235001	SCREW, M8	1
16	SA4609101	THREAD TAKE-UP CRANK G	1
17	S23651001	SET SCREW, SOCKET (FT) M6X6	4
18	110367001	WASHER, PLAIN SPECIAL 8	1
19	SA6182001	THREAD TAKE-UP LEVER FK SET	1
20	SA2958001	SCREW FLAT M5X6	1
21	012500536	SET SCREW SOCKET (FT) M5X5	1
22	062400816	SCREW PAN M4X8	1
23	145465001	SCREW, SM3.57-40X6 L	1
24	012060636	SET SCREW SOCKET (FT) M6X6	2
25	142211001	SLIDE BLOCK	1
26	SA3528001	SLIDE BLOCK GUIDE	1
27	018401636	BOLT SOCKET M4X16	2
28	SA4622001	NEEDLE BAR	1
29	144458001	SET SCREW, SM3.57-40X4.5	1
30	SA4668001	NEEDLE BAR BUSH UK	1
31	SA3224001	NEEDLE BAR BUSH,D	1
32	* P. 67	NEEDLE	1
33	S38713100	FAN	1
34	062400816	SCREW PAN M4X8	3
35	SA6108001	PULLEY GEAR R	1
36	012500536	SET SCREW SOCKET (FT) M5X5	2
37	SA4626001	PULLEY SHUFT	1
38	SA4627001	PULLEY BUSH	1
39	SA4628001	PULLEY SPRING	1
40	SA4629001	PULLEY BASE	1
41	047401242	PIN SPRING ROLL AW4	1
42	SA4624001	PULLEY GEAR L	1
43	012500536	SET SCREW SOCKET (FT) M5X5	2
44	S23651001	SET SCREW, SOCKET (FT) M6X6	2
45	SA4630001	PULLEY	1
46	062401006	SCREW PAN M4X10	3
47	SA5158001	WASHER PLAIN L 4	3
48	012060636	SET SCREW SOCKET (FT) M6X6	1
49	018501636	BOLT SOCKET M5X16	4
50	SA5230001	FRIES WHEEL 2	2
51	062401016	SCREW PAN M4X10	3
52	012060536	SET SCREW SOCKET (FT) M6X5	1

Page 11 — C1. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 11

Ref	Part number	Part name	Qty
1	SA5229101	送布基座组件 FEED BRACKET ASSY	1
2	SA4637001	X-LM导向 X-LM GUIDE	2
3	018301436	螺栓 M3X14 BOLT SOCKET M3X14	15
4	SA4635101	送布台(X) FEED BRACKET X	1
5	018300636	螺栓 M3X6 BOLT SOCKET M3X6	8
6	061300616	螺钉 M3X6 SCREW FLAT M3X6	8
7	SA4636101	传感器板(X) X-SENSOR PLATE	1
8	061300616	螺钉 M3X6 SCREW FLAT M3X6	2
9	SA4641001	皮带支架(X) X-BELT HOLDER	1
10	018400836	螺栓 M4X8 BOLT SOCKET M4X8	2
11	SA4649001	X-GT皮带 X-GT BELT	1
12	SA4640001	皮带支架板(X) X-BELT HOLDER PLATE	1
13	018400836	螺栓 M4X8 BOLT SOCKET M4X8	2
14	SA4639001	花键轴(X) X-BALL SPLINE	1
15	076000600	球轴承 6000VV BALL BEARING RADIAL 6000VV	1
16	025100132	平垫圈 S10 WASHER PLAIN S 10	1
17	048100142	轴用挡圈 C10 RETAINING RING EXTERNAL C10	1
18	SA4638001	X-左轮 X-LEFT PULLEY	1
19	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
20	076806606	球轴承 6806VV BALL BEARING 6806VV	2
21	048420242	孔用挡圈 C42 RETAINING RING INTERNAL C42	2
22	SA4642001	X-轮基座 X-PULLEY BRACKET	1
23	018501636	螺栓 M5X16 BOLT SOCKET M5X16	2
24	025050236	平垫圈 M5 WASHER PLAIN M 5	2
25	SA4643001	X-右轮组件 X-RIGHT PULLEY ASSY	1
26	S20356001	平垫圈 10 WASHER, PLAIN 10	1
27	SA4647001	球轴承 6900ZZNR BALL BEARING 6900ZZNR	2
28	SA4648001	X-轮支点轴 X-PULLEY FULCRUM SHAFT	1
29	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	2
30	SA4650001	Y-传感板 Y-SENSOR PLATE	1
31	018402036	螺栓 M4X20 BOLT SOCKET M4X20	2
32	SA4651101	Y-LM导向 Y-LM GUIDE	2
33	SA4652101	Y-LM垫片 Y-LM SPACER	2
34	061300616	螺钉 M3X6 SCREW FLAT M3X6	16
35	018402036	螺栓 M4X20 BOLT SOCKET M4X20	8
36	025040236	平垫圈 M4 WASHER PLAIN M 4	8
37	028040246	弹簧垫圈 2-4 WASHER SPRING 2-4	8

Page 13 — C2. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 13

Ref	Part number	Part name	Qty
1	018062036	螺栓 M6X20	4
2	SA4653001	X-送布齿轮	1
3	012060636	螺钉 M6X6	2
4	SA4647001	球轴承 6900ZZNR	2
5	SA4654001	Y-送布齿轮	1
6	012060636	螺钉 M6X6	2
7	SA4647001	球轴承 6900ZZNR	2
8	048080342	挡圈 E8	1
9	SA4655101	Y-轮组件	1
10	012060636	螺钉 M6X6	2
11	SA4658001	Y-轮轴套	1
12	SA4659001	Y-驱动轴	1
13	SA4661001	Y-轮基座	1
14	SA4647001	球轴承 6900ZZNR	2
15	SA4655101	Y-轮组件	1
16	012060636	螺钉 M6X6	2
17	SA4662001	Y-轮支点轴	1
18	SA4663001	Y-GT皮带	1
19	SA4664001	Y-皮带支架板	1
20	SA4665001	Y-皮带夹板	1
21	018400836	螺栓 M4X8	4
22	SA2972001	螺栓 M6X18	2
23	018402036	螺栓 M4X20	4
24	SA4667101	盖轨道	2
25	SA4671001	固定盖(R)	1
26	SA4672001	固定盖(L)	1
27	062401016	螺钉 M4X10	12
28	062400416	螺钉 M4X4	4
29	SA6359001	内盖组件 R	1
30	SA6360001	内盖组件 L	1
31	SA6361001	外盖组件	2
32	SA4673001	Y-皮带轮盖	1
33	0A5401006	螺栓(带垫圈) M4X10DB	4
34	SA4675201	补助板	1
35	SA4677101	补助板缓冲	10
36	S23849001	螺钉 M4X16	10
37	021400216	六角螺母 M4	10
38	SA4676001	补助板支架	6
39	SA4646001	螺栓 M6X14	6
40	SA6434001	补助板支架 U	2
41	SA6435001	补助板支架 D	2
42	S55484002	螺栓(带垫圈) M5X10	4
43	S42446001	螺栓 M6X14	4
44	SA4679101	蛇纹管	1
45	SA4680101	蛇纹管支架 R	1
46	SA4681001	蛇纹管支架 F	1
47	SA4682001	螺母	2
48	062300416	螺钉 M3X4	4
49	062400416	螺钉 M4X4	4
50	SA4820201	脉冲马达组件 X	1
51	SA4684001	马达安装板	1
52	018401036	螺栓 M4X10	4
53	SA3707001	驱动齿轮 16	1
54	012060536	螺钉 M6X5	2
55	SA4823101	脉冲马达组件 Y	1
56	SA4684001	马达安装板	1
57	018401036	螺栓 M4X10	4
58	SA3707001	驱动齿轮 16	1
59	012060536	螺钉 M6X5	2
60	S42446001	螺栓 M6X14	6
61	SA6306001	盖连接板	1

Page 15 — C2. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 15

Ref	Part number	Part name	Qty
62	S23418001	SCREW, M4X5	2
63	118735001	WASHER	4
64	SA4224001	MARK, ATTENTION 30X40	2
65	SA6450101	BEARING HOLDER BASE	1
66	018501036	BOLT SOCKET M5X10	2
67	SA6451101	BEARING HOLDER ASSY	1
68	018401036	BOLT SOCKET M4X10	2

Page 17 — C3. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 17

Ref	Part number	Part name	Qty
1	SA4686101	压脚臂 WORK CLAMP	1
2	SA4687101	滑块 SLIDER	1
3	048100142	轴用挡圈 C10 RETAINING RING EXTERNAL C10	1
4	SA4688001	滑块支架 SUPPORT SLIDER	1
5	SA4689001	滑块支架轴 SUPPORT SHAFT SLIDER	1
6	048040142	轴用挡圈 C4 RETAINING RING EXTERNAL C4	2
7	SA4690001	压脚柄 R WORK CLAMP LIFTER LEVER R	1
8	SA4691001	压脚柄 L WORK CLAMP LIFTER LEVER L	1
9	SA4692001	压脚臂杆轴 WORK CLAMP LIFTER SHAFT	1
10	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
11	048080142	轴用挡圈 C8 RETAINING RING EXTERNAL C8	1
12	110367001	垫圈 8 WASHER, PLAIN SPECIAL 8	1
13	SA3231001	紧圈 B SET SCREW COLLAR,B	1
14	012060536	螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5	2
15	SA4696001	连杆 CONNECTING ROD	2
16	SA4693001	弹簧挂钩轴 A SPRING HOLDER SHAFT A	1
17	SA4697001	段螺钉 M5 SHOULDER SCREW M5	2
18	SA4694001	弹簧挂钩轴 B SPRING HOLDER SHAFT B	1
19	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	2
20	SA4695001	弹簧 SPRIHG LIFT	1
21	SA4698001	连接板 CONNECTING LINK	2
22	SA4700001	弹簧挂钩 WORK CLAMP SPRING HOLDER	2
23	021500216	六角螺母 M5 NUT 2 M5	2
24	SA4701001	弹簧 WORK CLAMP SPRING	2
25	SA4702001	压脚臂杆 R WORK CLAMP LIFTER LEVER R	1
26	SA4703001	压脚臂杆 L WORK CLAMP LIFTER LEVER L	1
27	SA4692001	压脚臂杆轴 WORK CLAMP LIFTER SHAFT	1
28	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
29	048080142	轴用挡圈 C8 RETAINING RING EXTERNAL C8	1
30	110367001	垫圈 8 WASHER, PLAIN SPECIAL 8	1
31	SA3231001	紧圈 B SET SCREW COLLAR,B	1
32	012060536	螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5	2
33	SA4699001	定位 STOPPER	2
34	018500836	螺栓 M5X8 BOLT SOCKET M5X8	4
35	025050236	平垫圈 M5 WASHER PLAIN M 5	4
36	028050246	弹簧垫圈 2-5 WASHER SPRING 2-5	4
37	SA4863001	压脚导向组件 A WORK CLAMP GUIDE A ASSY	1
38	S23849001	螺钉 M4X16 SCREW, M4X16	2
39	SA4864001	压脚导向组件 B WORK CLAMP GUIDE B ASSY	1
40	S55482001	螺栓(带垫圈) M4X14 BOLT, SOCKET (S/P WASHER)M4X14	4
41	SA4712001	压脚滑块组件 R WORK CLAMP SLIDER ASSY R	1
42	SA4714001	压脚滑块组件 L WORK CLAMP SLIDER ASSY L	1
43	SA4706101	压脚挡板组件 WORK CLAMP RETAINER ASSY	4
44	SA4708001	压脚 WORK CLAMP	1
45	S55485001	螺栓(带垫圈) M5X12 BOLT, SOCKET (S/P WASHER)M5X12	2
46	012501031	螺钉 M5X10 SET SCREW SOCKET (FT) M5X10	2
47	021500216	六角螺母 M5 NUT 2 M5	2
48	SA4709001	定位段螺钉 SHOULDER SCREW	2
49	SA4866101	压板组件 311 WORK CLAMP 311 ASSY	1
50	S55484002	螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10	2
51	017501616	螺栓 M5X16 BOLT M5X16	4
52	025050236	平垫圈 M5 WASHER PLAIN M 5	4
53	028050246	弹簧垫圈 2-5 WASHER SPRING 2-5	4
54	SA4715001	送料板 311G FEED PLATE 311G	1
55	S55484002	螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10	2

Page 19 — C4. 送料装置 / Feed mechanism

Brother BAS-311G parts on page 19

Ref	Part number	Part name	Qty
1	SA4686101	压脚臂	1
2	SA4717001	气缸轴	1
3	012060636	螺钉 M6X6	2
5	SA4719001	气缸组件 R	2
6	048050142	轴用挡圈 C5	2
7	SA4720001	气缸接头	2
8	SA4721001	气缸接头轴	2
9	048060142	轴用挡圈 C6	4
10	SA4722001	压脚柄 R(气压)	1
11	SA4723001	压脚柄 L(气压)	1
12	SA4724001	压脚臂杆(气压)	2
13	S55479001	螺栓(带垫圈) M4X8	2
14	SA4692001	压脚臂杆轴	1
15	012060636	螺钉 M6X6	1
16	048080142	轴用挡圈 C8	1
17	110367001	垫圈 8	1
18	SA3231001	紧圈 B	1
19	012060536	螺钉 M6X5	2
20	SA4863001	压脚导向组件 A	1
21	S23849001	螺钉 M4X16	2
22	SA4864001	压脚导向组件 B	2
23	S55482001	螺栓(带垫圈) M4X14	4
24	SA4712001	压脚滑块组件 R	1
25	SA4714001	压脚滑块组件 L	1
26	SA4706101	压脚挡板组件	4
27	SA4725001	压脚 R	1
28	S55485001	螺栓(带垫圈)M5X12	1
29	012501031	螺钉 M5X10	2
30	021500216	六角螺母 M5	2
31	SA4709001	定位段螺钉	2
32	SA4726001	压脚 L	1
33	S55485001	螺栓(带垫圈) M5X12	1
34	012501031	螺钉 M5X10	2
35	021500216	六角螺母 M5	2
36	SA4709001	定位段螺钉	2
37	SA4868101	压脚板组件 311R	1
38	SA4869101	压脚板组件 311L	1
39	S55484002	螺栓(带垫圈) M5X10	4
40	017501616	螺栓 M5X16	4
41	025050236	平垫圈 M5	4
42	028050246	弹簧垫圈 2-5	4
43	SA4715001	送料板 311G	1
44	S55484002	螺栓(带垫圈) M5X10	2
45	SA4870101	压脚板组件 326R	1
46	SA4871101	压脚板组件 326L	1
39	S55484002	螺栓(带垫圈) M5X10	4
40	017501616	螺栓 M5X16	4
41	025050236	平垫圈 M5	4
42	028050246	弹簧垫圈 2-5	4
44	S55484002	螺栓(带垫圈) M5X10	2
47	SA4852001	送料板 326G	1

Page 21 — D1. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 21

Ref	Part number	Part name	Qty
1	SA4759001	凸轮	1
2	SA4760001	连杆	1
3	SA4763001	垫圈	1
4	623033000	轴承 6805VV	1
5	S23651001	固定螺钉 M6X6	2
6	062400616	螺钉 M4X6	2
7	SA4761001	滚轮轴	1
8	SA4762001	滚轮	1
9	SA4302001	垫圈	2
10	021060106	螺母 M6	1
11	SA4764001	压臂 R	1
12	017061216	螺栓 M6X12	1
13	SA4765001	压臂 F	1
14	012060636	螺钉 M6X6	1
15	S23651001	固定螺钉 M6X6	1
16	SA4766001	压臂轴套 F	1
17	SA4767001	压臂轴套 R	1
18	SA4768001	间歇连杆 A	1
19	SA4769001	段螺钉 6	4
20	062300416	螺钉 M3X4	4
21	SA4770001	间歇连杆 B	1
22	SA4772001	间歇联杆	1
23	SA4773001	联杆轴	1
24	012060636	螺钉 M6X6	1
25	012400436	螺钉 M4X4	1
26	SA4777001	联接板	1
27	SA4771001	联接板轴	1
28	SA2161001	垫圈	1
29	048080142	轴用挡圈 C8	1
30	012060636	螺钉 M6X6	1
31	012400436	螺钉 M4X4	1
32	SA4779001	间歇提升杆	1
33	SA4781001	提升杆滑轮	1
34	141362001	滚轮	1
35	SA4780001	提升杆轴	1
36	012060636	螺钉 M6X6	1
37	S25310101	螺钉 M4	1
38	SA4775001	提升连杆	1
39	SA4853001	提升连杆接头	1
40	SA2663001	接头组件 R	2
41	021060306	六角螺母 M6	2
42	SA3227001	螺母 M6	1
43	SA4776001	段螺钉	1
44	S32462001	段螺钉 B M6	1
45	017065002	螺栓 M6X50	1
46	021060106	螺母 M6	1
47	SA4778001	压紧杆接头	1
48	018400836	螺栓 M4X8	1
49	SA1174001	调节螺母 M14	1
50	SA1175001	调节螺母 M14	1
51	SA5300001	弹簧	1
52	S10112001	弹簧导向	1
53	SA5301001	弹簧管套	1
54	SA2195001	压紧杆轴套	1
55	012060536	螺钉 M6X5	1
56	111466101	压紧杆	1
57	* P. 67	压脚	1
58	S1339001	螺钉 SM3.57X12	1
59	151439102	垫圈	1

Page 23 — D2. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 23

Ref	Part number	Part name	Qty
1	SA4729001	滑杆轴套 SLIDE BUSH	1
2	018401036	螺栓 M4X10 BOLT SOCKET M4X10	4
3	SA4731001	压脚提升板组件 WORK CLAMP LIFTER PLATE ASSY	1
4	SA4734001	底座板 E SEAT E	1
5	062400416	螺钉 M4X4 SCREW, PAN M4X4	4
6	SA4736001	压脚提升杆 WORK CLAMP LIFTER LEVER	1
7	152744001	销 PIN	1
8	102630001	针杆接头滑块 NEEDLE BAR GUIDE SLIDE BLOCK	1
9	SA4737001	提升杆轴 B WORK CLAMP LEVER SHAFT B	1
10	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
11	S20356001	平垫圈 10 WASHER, PLAIN 10	1
12	048080342	挡圈 E8 RETAINING RING E8	1
13	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	2
14	118208001	带槽销 DOWEL PIN	1
15	SA4738001	压脚提升杆 WORK CLAMP LIFTER LINK	1
16	SA3438001	段螺钉 LINK SHOULDER SCREW	2
17	SA4739001	弹簧 WORK CLAMP SPRING	1
18	SA4741101	马达座 MOTOR BRACKET	1
19	SA4742001	压脚马达板 WORK CLAMP MOTOR PLATE	1
20	018501036	螺栓 M5X10 BOLT SOCKET M5X10	2
21	SA4826201	脉冲马达组件 P PULSE MOTOR ASSY P	1
22	SA4828001	马达端线 P MOTOR HARNESS P	1
23	018401036	螺栓 M4X10 BOLT SOCKET M4X10	4
24	SA4743001	驱动齿轮 WORK CLAMP DRIVING GEAR	1
25	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	2
26	SA4744001	压脚支点轴 WORK CLAMP FULCRUM SHAFT	1
27	SA4647001	球轴承 6900ZZNR BALL BEARING 6900ZZNR	2
28	048100142	轴用挡圈 C10 RETAINING RING EXTERNAL C10	2
29	062400616	螺钉 M4X6 SCREW PAN M4X6	1
30	025040236	平垫圈 M4 WASHER, PLAIN M4	1
31	SA4745001	凸轮齿轮 WORK CLAMP CAM GEAR	1
32	016061031	螺钉 M6X10 SET SCREW SOCKET (CN) M6X10	1
33	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
34	SA4746001	压脚凸轮 WORK CLAMP CAM	1
35	S35079000	滚针 3X11.8 NEEDLE ROLLER, 3X11.8	1
36	016061031	螺钉 M6X10 SET SCREW SOCKET (CN) M6X10	1
37	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
38	SA4747001	压脚原点挡块 WORK CLAMP H-POSITION DOG	1
39	018400636	螺栓 M4X6 BOLT SOCKET M4X6	1
40	SA4748001	压脚柄轴 WORK CLAMP LEVER SHAFT	1
41	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
42	SA6210001	间歇驱动杆 STEPPING W-CLAMP DRIVING LEVER	1
43	SA3441001	抬压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT	1
44	070696800	轴承 R-696ZZ BALL BEARING RADIAL 696ZZ	1
45	109763001	垫圈 WASHER	1
46	012500536	螺钉 M5X5 SET SCREW SOCKET (FT) M5X5	1
47	SA4750001	压脚驱动杆 WORK CLAMP DRIVING SHAFT	1
48	SA3441001	抬压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT	1
49	070696800	轴承 R-696ZZ BALL BEARING RADIAL 696ZZ	1
50	109763001	垫圈 WASHER	1
51	012500536	螺钉 M5X5 SET SCREW SOCKET (FT) M5X5	1
52	S20356001	平垫圈 10 WASHER, PLAIN 10	1
53	SA4752001	凸轮定位 WORK CLAMP CAM STOPPER	1
54	062400616	螺钉 M4X6 SCREW PAN M4X6	2
55	SA4753001	压脚传感器板 WORK CLAMP SENSOR PLATE	1
56	062400616	螺钉 M4X6 SCREW PAN M4X6	2
57	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
58	SA4224001	注意符号 30X40 MARK,ATTENTION 30X40	1
59	018061236	螺栓 M6X12 BOLT SOCKET M6X12	2

Page 25 — D3. 抬压装置 / Work clamp lifter mechanism

Brother BAS-311G parts on page 25

Ref	Part number	Part name	Qty
1	SA4741101	马达座	1
2	SA4742001	压脚马达板	1
3	018501036	螺栓 M5X10	2
4	SA4826201	脉冲马达组件 P	1
5	SA4828001	马达端线 P	1
6	018401036	螺栓 M4X10	4
7	SA4743001	驱动齿轮	1
8	012060636	螺钉 M6X6	2
9	SA4744001	压脚支点轴	1
10	SA4647001	球轴承 6900ZZNR	2
11	048100142	轴用挡圈 C10	2
12	062400616	螺钉 M4X6	1
13	025040236	平垫圈 M4	1
14	SA4745001	凸轮齿轮	1
15	016061031	螺钉 M6X10	1
16	012060636	螺钉 M6X6	1
17	SA4747001	压脚原点挡块	1
18	018400636	螺栓 M4X6	1
19	SA4748001	压脚柄轴	1
20	012060636	螺钉 M6X6	1
21	SA6210001	间歇驱动杆	1
22	SA3441001	抬压滚轮轴	1
23	070696800	轴承 R-696ZZ	1
24	109763001	垫圈	1
25	012500536	螺钉 M5X5	1
26	SA4753001	压脚传感器板	1
27	062400616	螺钉 M4X6	2
28	SA4224001	注意符号 30X40	1
29	018061236	螺栓 M6X12	2
30	159163000	橡皮塞 29	1
31	104821001	橡皮塞 10.5	2
32	118550001	带槽销	1
33	SA4757101	紧圈	1
34	012060636	螺钉 M6X6	2
35	012060636	螺钉 M6X6	1

Page 27 — E. 下轴装置 / Lower shaft mechanism

Brother BAS-311G parts on page 27

Ref	Part number	Part name	Qty
1	SA3226001	段螺钉 SHOULDER SCREW	1
2	SA3227001	螺母 M6 NUT(FT),M6	1
3	SA3228101	摆动齿轮 ROCK GEAR	1
4	SA4782001	摆动齿轮轴 ROCK GEAR SHAFT	1
5	SA3231001	紧圈 B SET SCREW COLLAR,B	1
6	012060536	螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5	2
7	SA3233001	紧圈 SET SCREW COLLAR	1
8	S23651001	固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6	2
9	012060636	螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6	2
10	SA4783101	下轴组件 LOWER SHAFT ASSY	1
11	012500536	螺钉 M5X5 SET SCREW SOCKET (FT) M5X5	1
12	SA6216001	下轴轴套 LOWER SHAFT BUSH	1
13	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
14	SA3238101	旋梭调节轴 ADJUSTING STUD	2
15	081003670	O形圈 PW3 O RING PW3	2
16	SA6220001	大旋梭基座组件 G SHUTTLE RACE BASE ASSY G	1
17	S02429201	旋梭线导向 SHUTTLE RACE THREAD GUIDE	1
18	SA4199001	螺钉 M3X4 SCREW M3X4	2
19	SA3241001	大旋梭固定柄 S-RACE BASE SETTING CLAW	2
20	152684101	弹簧 COMPRESSION SPRING	2
21	026030136	平垫圈 S3 WASHER PLAIN S3	2
22	062300616	螺钉 M3X6 SCREW PAN M3X6	2
23	153050000	油毡 S-RACE BASE FELT	2
29	S59886001	油毡 L=360 FELT, L=360	2
30	012060636	螺钉 M6X6 SET SCREW SOCKET (FT) M6X6	1
31	048070342	挡圈 E7 RETAINING RING E7	1
32	SA3284101	梭托 D DRIVER,D	1
33	018501232	螺栓 M5X12 BOLT SOCKET M5X12	1
34	* P. 66	外旋梭 SHUTTLE RACE BASE	1
35	* P. 66	梭芯套组件 BOBBIN CASE ASSY	1
36	* P. 66	调节弹簧 TENSION SPRING	1
37	* P. 66	螺钉 SCREW	1
38	* P. 66	防空转弹簧 ANTI-SPIN SPRING	1
39	* P. 66	梭芯 BOBBIN	1
40	SA3283101	紧圈 R SET SCREW COLLAR,R	1
41	012500536	螺钉 M5X5 SET SCREW SOCKET (FT) M5X5	1
42	* P. 66	中旋梭 SHUTTLE HOOK	1
43	S32557000	油线 4X4 L=330 WICK, 4X4 L=330	1

Page 29 — F. 供油润滑装置 / Lubrication

Brother BAS-311G parts on page 29

Ref	Part number	Part name	Qty
1	SA3244001	1螺钉	1
2	SA4785001	1曲柄盖	1
3	062061016	3螺钉 M6X10	3
4	SA4787001	1曲柄供油板	1
5	062400616	2螺钉 M4X6	2
6	SA5294001	1毡油线 L=90	1
7	SA4786101	1油毡	1
8	SA3503201	1下轴给油支架	1
9	SA3504201	1下轴齿轮油毡	1
10	018400636	2螺栓 M4X6	2
11	SA4788001	1供油支架	1
12	062400616	1螺钉 M4X6	1
13	SA6593001	1毡油线 L=180	1
14	SA6580001	1油管 L=780	1
15	S07459100	1油管 L=240	1
16	SA6576001	1油管 L=210	1
17	SA6087001	1油线挂钩	1
18	104567101	1油线支架	1
19	S49992000	1油视窗	1
20	152948001	1油视窗	1
21	S0529000	1油管 L=320	1
22	S07459100	1油管 L=240	1
23	SA6592101	1油毡 L=680	1
24	S53175000	1油管 L=450	1
25	SA5072001	1油管 L=120	1
26	SA6578001	1油线 6X6 L=300	1
27	S09043000	4油毡	4
28	S49982000	1油线 4X4 L=400	1
29	S48189000	1油管 L=280	1
30	SA3246001	1齿轮供油支架	1
31	SA3280001	1油毡	1
32	SA4789101	1油线夹 B	1
33	062060816	1螺钉 M6X8	1
34	145547001	1回油管管托	1
35	062400616	1螺钉 M4X6	1
36	S49957000	1油线 4X4 L=700	1
37	SA4791101	1油管 L=620	1
38	149547000	1压线板	1
39	525567000	1电线夹 #8	1
40	0A5401006	2螺栓(带垫圈) M4X10DB	2
41	525664000	1电线夹 #6	1
42	0A5401006	5螺栓(带垫圈) M4X10DB	5
43	SA6211001	1油盖	1
45	062401016	5螺钉 M4X10	5
46	S38265000	1管接头 L	1
47	142274101	1橡皮塞 4.2	1
50	SA6263001	1油管 L=320	1
51	SA6260001	1油毡组件	1
52	S00400000	1油线 2.5X200	1
53	SA6579001	1油管 L=110	1
54	SA5339101	1油嘴管	1
55	525567000	3电线夹 #8	3
56	SA3242001	1油毡支架	1
57	S44924001	2固定螺钉 M3X5.5	2
58	SA3274101	1油毡支架	1
59	S47307001	2螺钉 M3X4	2

Page 31 — F. 供油润滑装置 / Lubrication

Brother BAS-311G parts on page 31

Ref	Part number	Part name	Qty
	SA6577001	油管 L=300	1
	552907000	电线夹 #10	1
	SA6572001	油线 L=140	1
	SA6581001	油毡压板 L	1
	SA6583001	底板油毡 L	1
	062400616	螺钉 M4X6	3
	028040246	弹簧垫圈 2-4	3
	SA6582001	油毡压板 R	1
	SA6584001	底板油毡 R	1
	S25310101	螺钉 M4	3

Page 32 — G . 穿线装置 / Threading mechanism

Brother BAS-311G parts on page 32

Ref	Part number	Part name	Qty
2	2	Screw
1	1	Bracket
7	7	Shaft
4	4	Screw
3	3	Washer
5	5	Clip
6	6	Screw
17	17	Shaft
18	18	Shaft
22	22	Shaft
23	23	Spring
24	24	Pin
25	25	Spring
26	26	Screw
27	27	Nut
28	28	Spring
14	14	Screw
15	15	Screw
8	8	Shaft
9	9	Spring
10	10	Shaft
16	16	Pin
19	19	Lever
20	20	Collar
21	21	Spring
13	13	Shaft
12	12	Spring
30	30	Spring
29	29	Washer
11	11	Shaft

Page 33 — G. 穿线装置 / Threading mechanism

Brother BAS-311G parts on page 33

Ref	Part number	Part name	Qty
	SA3250001	过线导向 A	1
	062500616	螺钉 M5X6	1
	SA4333001	过线导向 B	1
	062500616	螺钉 M5X6	1
	SA6391001	过线器 C	1
	062500616	螺钉 M5X6	1
	153049001	面线导向杆	1
	SA3254001	夹线座	1
	* P. 66	调节弹簧	1
	SA3255001	夹线杆轴	1
	S31032001	压线螺母	1
	159805001	夹线压盘	1
	145446001	夹线盘	1
	100402004	固定螺钉 SM3.57	1
	SA4143001	螺钉 M6X6	1
	S12699000	松线销	1
	SA3256001	夹线杆轴 A	1
	145446001	夹线盘	2
	159224001	线钩	1
	* P. 67	针杆导向	1
	SA3258001	针杆轴套线导向 D	1
	15881001	线冷却器组件	1
	012060636	螺钉 M6X6	1
	152883000	油毡 8X15.5	1
	152884001	过线钩	1
	062670412	螺钉 SM3.57-40X4	1
	100136001	夹线螺母	1
	SA4146001	弹簧	1
	SA4141001	止动垫圈	1
	* P. 66	夹线簧	1

Page 34 — H . 卷线装置 / Bobbin winder mechanism

Brother BAS-311G parts on page 34

Ref	Part number	Part name	Qty
	1	BASE PLATE
	2	SHAFT
	3	SCREW
	4	BRACKET
	5	SCREW
	6	LEVER
	7	PIN
	8	SPRING
	9	WASHER
	10	CIRCLIP
	11	SHAFT
	12	BRACKET
	13	SPRING
	14	BRACKET
	15	SCREW
	16	NUT
	17	SCREW
	18	SPRING
	19	CIRCLIP
	20	COLLAR
	21	SHAFT
	22	BOBBIN
	23	BELT
	24	SCREW
	25	WASHER
	26	COVER
	27	SPRING
	28	SHAFT
	29	BRACKET
	30	SCREW
	31	SHAFT
	32	WASHER
	33	SPRING
	34	CAP
	35	WASHER
	36	SCREW
	37	SCREW
	38	PULLEY
	39	SCREW

Page 35 — H. 卷线装置 / Bobbin winder mechanism

Brother BAS-311G parts on page 35

Ref	Part number	Part name	Qty
	SA4795001	顶盖	1
	SA3290001	卷线手柄	1
	012500536	螺钉 M5X5	1
	SA3291001	卷线手柄	1
	SA4171001	弹簧挂钩	1
	152936001	板弹簧	1
	152937001	垫圈	1
	062350516	螺钉 M3.5X6	1
	159486001	垫圈	1
	048050342	挡圈 E5	1
	SA3293001	卷线卡爪轴	1
	SA1984001	梭芯压臂柄	1
	062401216	螺钉 M4X12	1
	SA3294001	梭芯压	1
	S23418002	螺钉 M4X6	1
	SA3295001	卷线卡爪	1
	012400436	螺钉 M4X4	2
	S10438001	弹簧	1
	048050342	挡圈 E5	2
	SA4796001	垫片	1
	SA3296001	卷线轴	1
	SA3297001	卷线器	1
	120448001	橡胶圈	1
	012400436	螺钉 M4X4	2
	159486001	垫圈	2
	SA1988001	梭芯座	1
	S10268001	拉簧	1
	SA3298001	止动轴	1
	SA3299001	切刀	1
	062500616	螺钉 M5X6	1
	SA1994101	卷线器夹线组件	1
	145446002	夹线盘	2
	100401022	夹线弹簧	1
	S31032001	压线螺母	1
	S12441001	止动垫圈	1
	012500536	螺钉 M5X5	6
	062061016	螺钉 M6X10	1
	SA4797101	卷线驱动轮	1
	S23651001	固定螺钉 M6X6	2

Page 36 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 36

Ref	Part number	Part name	Qty
1	1	WASHER
2	2	WASHER
3	3	BRACKET
4	4	MOTOR
5	5	SCREW
6	6	WASHER
7	7	WASHER
8	8	COLLAR
9	9	PIN
10	10	WASHER
11	11	WASHER
12	12	SPRING
13	13	BOLT
14	14	ARM
15	15	SCREW
16	16	SHAFT
17	17	COLLAR
18	18	PIN
19	19	SCREW
20	20	RING
21	21	ROD
22	22	HOLDER
23	23	NUT
24	24	BOLT
25	25	NUT
26	26	SCREW
27	27	COLLAR
28	28	SHAFT
29	29	SPRING
30	30	WASHER
31	31	BOLT
32	32	NUT
33	33	SCREW
34	34	NUT
35	35	BRACKET
36	36	BRACKET
37	37	SHAFT
38	38	COLLAR
39	39	NUT
40	40	BOLT
41	41	NUT
42	42	SHAFT
43	43	WASHER
44	44	WASHER
45	45	SCREW
46	46	HOLDER
47	47	SPRING
48	48	SCREW
49	49	WASHER
50	50	WASHER
51	51	BRACKET
52	52	BOLT
53	53	BOLT
54	54	WASHER
55	55	LEVER
56	56	SCREW
57	57	BASE
58	58	BRACKET
59	59	RING
60	60	WASHER
61	61	WASHER
62	62	WASHER
63	63	BRACKET
64	64	BOLT
65	65	WASHER
66	66	PLATE
67	67	SCREW
68	68	SCREW
69	69	SCREW
70	70	BRACKET
71	71	WASHER
72	72	WASHER
73	73	BOLT

Page 37 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 37

Ref	Part number	Part name	Qty
	SA3301101	切线凸轮	1
	S23651001	固定螺钉 M6X6	2
	SA4798001	电磁铁安装板	1
	SA5135001	切线电磁铁	1
	017400802	螺栓 M4X8	2
	028040246	弹簧垫圈 2-4	2
	025040236	平垫圈 M4	2
	SA3307001	电磁铁杆	1
	012400436	螺钉 M4X4	1
	154599000	电磁铁缓冲垫圈	1
	S02652001	垫圈	1
	S04159000	线夹 1M	1
	S55484002	螺栓(带垫圈) M5X10	2
	SA4799001	驱动压杆	1
	SA3300001	段螺钉 7-3	1
	SA3309101	切线驱动杆	1
	SA3310001	切线滚轮	1
	SA3311001	切线滚轮轴	1
	SA46903001	螺钉 M4X5	1
	048080142	挡圈 E4	1
	SA3315001	切线杆 V	1
	S32465001	接头组件	2
	021060106	螺母 M6	2
	S32462001	段螺钉 B M6	1
	021060306	六角螺母 M6	1
	S23651001	固定螺钉 M6X6	1
	231071001	轴套 8X15	1
	SA3312001	驱动杆导向轴	1
	SA3313101	弹簧	1
	154596000	减震垫圈	1
	S32462001	段螺钉 B M6	1
	021060306	六角螺母 M6	1
	S25475101	螺钉 M6X19	1
	021060106	螺母 M6	1
	SA4546001	切线杠杆 V	1
	SA3317001	切线杠杆 H	1
	SA4801001	切线杆 H	1
	S32465001	接头组件	2
	021060106	螺母 M6	2
	S32462001	段螺钉 B M6	1
	021060306	六角螺母 M6	1
	SA3319101	切线杠杆轴	1
	SA4545001	垫片	2
	048080142	轴用挡圈 C8	1
	012060636	螺钉 M6X6	2
	SA3320101	弹簧挂钩	1
	SA3321001	切线复位弹簧	1
	018501236	螺钉 M5X12	1
	028050246	弹簧垫圈 2-5	1
	146354002	垫圈 5	1
	SA3324001	动刀面柄	1
	SA3325001	段螺钉 6.35-6	1
	SA4802001	动刀杆轴	1
	012060636	螺钉 M6X6	2
	SA3327101	动刀连杆	1
	SA4354001	段螺钉 6-1.8	1

Page 38 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 38

Ref	Part number	Part name	Qty
	13	Bolt
	12	Spring
	3	Bracket
	4	Motor
	7	Washer
	6	Washer
	5	Screw
	10	Washer
	11	Washer
	9	Pin
	8	Shaft
	15	Screw
	14	Lever
	28	Shaft
	27	Collar
	29	Spring
	2	Washer
	1	Washer
	26	Screw
	33	Screw
	34	Nut
	16	Lever
	19	Screw
	17	Pin
	18	Pin
	30	Washer
	20	Circlip
	25	Nut
	67	Screw
	66	Plate
	65	Washer
	64	Screw
	69	Screw
	68	Screw
	57	Base plate
	62	Washer
	70	Bracket
	71	Washer
	72	Washer
	73	Screw
	53	Shaft
	54	Washer
	56	Screw
	55	Lever
	51	Lever
	59	Nut
	60	Washer
	61	Washer
	58	Bracket
	48	Screw
	49	Washer
	50	Washer
	40	Screw
	39	Nut
	38	Link
	36	Bracket
	41	Nut
	47	Spring
	46	Clip
	35	Lever
	37	Shaft
	44	Washer
	43	Washer
	32	Nut
	31	Screw
	22	Link
	23	Nut
	21	Shaft
	24	Screw
	42	Shaft
	45	Screw

Page 39 — J. 切线装置 / Thread trimmer mechanism

Brother BAS-311G parts on page 39

Ref	Part number	Part name	Qty
	SA5157001	针板 A	1
	SA3330101	动刀组件 F	1
	SA4518001	段螺钉	1
	SA4519001	动刀圈套	1
	S00705001	动刀圈套	1
	SA6397001	垫片 0.2	1
	SA3334001	垫片 0.3	1
	SA6398001	垫片 0.4	1
	SA3335001	定刀 F	1
	062300416	螺钉 M3X4	2
	025030236	平垫圈 M3	2
	*	针孔板	1
	100360003	螺钉 SM2.38	2
	S25310101	螺钉 M4	2
	SA3538001	螺钉 M4X8	2
	SA6273001	大旋梭盖挂钩 U	1
	028030246	弹簧垫圈 2-3	2
	025030236	平垫圈 M3	2
	062300416	螺钉 M3X4	2

Page 40

Brother BAS-311G parts on page 40

Ref	Part number	Part name	Qty
7	7	Screw
25	25	Screw
5	5	Bracket
7	7	Screw
1	1	Housing
4	4	Pin
2	2	Spring
3	3	Washer
24	24	Connector
17	17	Lever
19	19	Circlip
18	18	Washer
11	11	Shaft
12	12	Circlip
20	20	Lever
8	8	Bracket
16	16	Washer
15	15	Spring
14	14	Screw
13	13	Bush
9	9	Screw
10	10	Washer
21	21	Screw
22	22	Washer
23	23	Washer

Page 41 — K. 扫线装置 / Thread wiper mechanism

Brother BAS-311G parts on page 41

Ref	Part number	Part name	Qty
	SA5208001	扫线电磁铁组件	1
	S41206001	挡线弹簧	1
	S41205001	平垫圈	1
	S25456001	柱塞销	3
	SA5217001	扫线电磁铁安装板	1
	SA4806001	电磁铁盖	1
	062300616	螺钉 M3X6	8
	SA5218001	扫线轴托架	1
	018400836	螺栓 M4X8	1
	025040236	平垫圈 M4	1
	SA1967001	扫线曲轴组件	1
	048040342	挡圈 E3	1
	S25454001	螺纹紧固圈	1
	S25279001	螺钉 M3.5-5	1
	SA2287001	弹簧	1
	140097000	消音垫	1
	SA5219001	扫线杆	1
	110735001	垫圈	1
	048030342	挡圈 E3	1
	S10470101	扫线	1
	060400516	螺钉 M4X5	1
	146288001	挡线轴挡圈	1
	S03677001	垫圈	1
	SA5213001	停止开关组件	1
	S55485001	螺栓(带垫圈) M5X12	2

Page 42 — L. Tension release mechanism

Brother BAS-311G parts on page 42

Ref	Part number	Part name	Qty
2	2	SCREW
3	3	WASHER
4	4	WASHER
5	5	SCREW
6	6	NUT
7	7	WASHER
8	8	WASHER
9	9	BRACKET
10	10	SPRING
11	11	SHAFT
12	12	WASHER
13	13	WASHER
14	14	SPRING
15	15	HOUSING
16	16	SCREW
17	17	WASHER
18	18	SPRING

Page 43 — L. 松线装置 / Tension release mechanism

Brother BAS-311G parts on page 43

Ref	Part number	Part name	Qty
	SA4855001	松线电磁铁 HV	1
	017400802	螺栓 M4X8	2
	028040246	弹簧垫圈 2-4	2
	025040236	平垫圈 M4	2
	017401415	螺栓 M4X14	1
	021400306	六角螺母 M4	1
	102707002	垫圈 4	1
	154599000	电磁铁缓冲垫圈	1
	SA6389001	电磁铁安装板	1
	S04159000	线夹 1M	1
	SA3347001	松线杆	1
	048040342	挡圈 E4	1
	025050236	平垫圈 M5	1
	SA3348001	弹簧	1
	SA3349001	电磁铁盖	1
	SA3350001	段螺钉 7-3	2
	081007070	O形圈 P7	2
	218859001	电线夹 M150	1

Page 44 — M1 . 控制箱装置 / Control box mechanism

Brother BAS-311G parts on page 44

Ref	Part number	Part name	Qty
1	1	CONNECTOR
	2	TRANSFORMER
	3	TRANSFORMER
4	4	FAN
5	5	CONTROL BOX
6	6	CIRCUIT BOARD
7	7	TERMINAL
8	8	TERMINAL
9	9	TERMINAL
10	10	WIRE HARNESS
11	11	VENTILATION GRILLE
12	12	BRACKET
13	13	SCREW
14	14	COVER
15	15	CONNECTOR

Page 45 — M1. 控制箱装置 / Control box mechanism

Brother BAS-311G parts on page 45

Ref	Part number	Part name	Qty
	SA6364001	盖组件 CF	1
	SA3720001	变压器 LV	1
	SA3808001	变压器 HV	1
	SA3797001	DC风扇马达组件	1
	SA4556001	主基板组件	1
	SA3739301	基板组件 PMD	1
	SA3744001	FET FS10ASJ-2	3
	SA3722001	MOSFET FX20KMJ-2	1
	SA4948000	MOSFET FX10KMJ-2	1
	SA3806001	电线	1
	J04115001	感电标签(6国)	1
	537060001	标记 PE	1
	S37059001	PE标记	3
	SA3581001	基板组件	1
	SA3796001	电线 NF OUT	1

Page 46 — M2 . 控制箱装置(电源基板) / Control box (PCB) mechanism

Brother BAS-311G parts on page 46

Ref	Part number	Part name	Qty
1	1	1
12	12	12
11	11	11
10	10	10
6	6	6
5	5	5
4	4	4
10	10	10
12	12	12
7	7	7
8	8	8
9	9	9
2	2	2
3	3	3

Page 47 — M2. 控制箱装置（电源基板） / Control box (PCB) mechanism

Brother BAS-311G parts on page 47

Ref	Part number	Part name	Qty
	SA3755201	电源马达基板组件	1
	SA3765001	电阻 V10D101	1
	SA3766001	电阻 V10D241	1
	SA3767001	电阻 V14D511	1
	SA3762001	电阻 V14D911	1
	SA3768001	电阻 V14D561	1
	SA3769001	电阻 V5D121	1
	SA3770001	电阻 V5D330	1
	SA3771001	电阻 V5D820	1
	SA3794001	保险丝 250V-15A	3
	SA3795001	保险丝 250V-6A	2
	616167001	保险丝 250V-3A	3

Page 48 — N. 开关装置 / Power switch mechanism

Brother BAS-311G parts on page 48

Ref	Part number	Part name	Qty
	1	Power switch mechanism for Japan, 1-phase 100V AC.
	2	Power switch mechanism for Japan, 1-phase 100V AC.
	3	Power switch mechanism for Japan, 3-phase 200V AC.
	4	Power switch mechanism for Japan, 3-phase 200V AC.
	5	Power switch mechanism for USA, 1-phase 110V AC.
	6	Power switch mechanism for USA, 3-phase 220V AC.
	7	Power switch mechanism for USA, 3-phase 220V AC.
	8	Power switch mechanism for Asia, 1-phase 220V AC.
	7	Power switch mechanism for China, 1-phase 220V AC.
	9	Power switch mechanism for Asia, 1-phase 240V AC.
	13	Power switch mechanism for China, 3-phase 380V AC.
	12	Power switch mechanism for EU, 3-phase 400V AC.
	10	Power switch mechanism for EU, 3-phase 400V AC.
	11	Power switch mechanism for Canada, 1-phase 120V AC.
	14	Power switch mechanism for Canada, 1-phase 120V AC.

Page 49 — N. 开关装置 / Power switch mechanism

Brother BAS-311G parts on page 49

Ref	Part number	Part name	Qty
	SA3813001	<用于日本 电源开关组件 1P-JP 单相 100V> <For Japan, 1-phase 100V AC.> POWER SUPPLY SWITCH ASSY,1P-JP	1
	SA3822001	V切换电线 100V	1
	SA3819001	<用于日本 电源开关组件 3P-JP 三相 200V> <For Japan,3-phase 200V AC.> POWER SUPPLY SWITCH ASSY,3P-JP	1
	SA3825001	V切换电线 200V	1
	SA3823001	<用于美国 V切换电线 110V 单相 110V> <For USA,1-phase 110V AC.> VOLTAGE SELECT HARNESS 110V	1
	SA3816001	<用于美国 电源开关组件 3P-L 三相 220V> <For USA,3-phase 220V AC.> POWER SUPPLY SWITCH ASSY,3P-L	1
	SA3812001	V切换电线 220V	1
	SA3809001	<用于亚洲 电源开关组件 1P 单相 220V> <For Asia, 1-phase 220V AC.> POWER SUPPLY SWITCH ASSY,1P	1
	SA3812001	V切换电线 220V	1
	SA3826001	<用于亚洲 V切换电线 240V 单相 240V> <For Asia, 1-phase 240V AC.> VOLTAGE SELECT HARNESS 240V	1
	SA3812001	<用于中国 V切换电线 220V 单相 220V> <For China,1-phase 220V AC.> VOLTAGE SELECT HARNESS 220V	1
	SA3827001	<用于中国 V切换电线 380V 三相 380V> <For China,3-phase 380V AC.> VOLTAGE SELECT HARNESS 380V	1
	SA3789101	V切换电线 H220V	1
	SA4510001	电源开关组件 3P-H	1
	SA3828001	<用于欧洲 V切换电线 400V 三相 400V> <For Europe,3-phase 400V AC.> VOLTAGE SELECT HARNESS 400V	1
	SA3824001	<用于加拿大 V切换电线 120V 单相 120V> <For Canada, 1-phase 120V AC.> VOLTAGE SELECT HARNESS 120V	1

Page 50 — P . 空压装置 / Air pressure mechanism

Brother BAS-311G parts on page 50

Ref	Part number	Part name	Qty
1	1	AIR PRESSURE MECHANISM
2	2	MANIFOLD
3	3	VALVE
4	4	VALVE
5	5	REGULATOR
6	6	PRESSURE GAUGE
7	7	ELBOW
8	8	ELBOW
9	9	NIPPLE
10	10	VALVE
11	11	PLUG
12	12	BRACKET
13	13	WASHER
14	14	BOLT
15	15	HARNESS
16	16	TUBE
17	17	TUBE
18	18	TUBE
19	19	TUBE
20	20	WASHER
21	21	BOLT
22	22	MANIFOLD
23	23	VALVE
24	24	BRACKET
25	25	CLAMP
26	26	CLAMP
27	27	TUBE
28	28	TUBE
29	29	TUBE
30	30	CONNECTOR

Page 51 — P. 空压装置 / Air pressure mechanism

Brother BAS-311G parts on page 51

Ref	Part number	Part name	Qty
	SA5281001	电磁阀组件 2A	1
	SA5289001	集合管 2	1
	S39116100	阀 VQZ2151S-5	2
	SA5283001	消音器 AN103-1	1
	SA5282001	调整器 AW20-02G	1
	S09228000	管接头	1
	153252000	接头 PT	1
	S04891000	中间接头 1/4	1
	SA5285001	中间接头 1/4	1
	SA6573001	球阀 Vo3 1/4	1
	153274001	盖 1/8	2
	SA5286001	阀安装板	1
	028050246	弹簧垫圈 2-5	2
	018503036	螺栓 M5X30	2
	SA5191001	阀门接线2连组件	1
	149796001	像皮管接头	1
	SA6405001	空气管 R	1
	SA6406001	空气管	1
	SA6406002	空气管 R	1
	SA6406002	空气管 L	1
	SA6407001	保护用弹性管 470S	1
	032422003	木螺钉 M4.1X20	2
	148847001	垫圈	2
	525664000	电线夹 #6	1
	0A	螺栓(带垫圈) M4X10DB	1
	228475000	电线夹 1.9X80	3
	SA5288001	电磁阀组件 5A	1
	SA5290001	集合管 5	1
	S53982000	隔板	3
	S39116100	阀 VQZ2151S-5	2
	SA5283001	消音器 AN103-1	1
	SA5282001	调整器 AW20-02G	1
	S09228000	管接头	1
	153252000	接头 PT	1
	S04891000	中间接头 1/4	1
	SA5285001	中间接头 1/4	1
	SA6573001	球阀 Vo3 1/4	1
	153274001	盖 1/8	2
	SA5286001	阀安装板	1
	028050246	弹簧垫圈 2-5	2
	018503036	螺栓 M5X30	2
	SA5192001	阀门接线5连组件	1

Page 52 — Q . 电气部品装置 / Power supply equipment mechanism

Brother BAS-311G parts on page 52

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	BRACKET
4	4	SCREW
5	5	BRACKET
6	6	SCREW
7	7	BRACKET
8	8	BRACKET
9	9	SCREW
10	10	BRACKET
11	11	CONNECTOR
12	12	CONNECTOR
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET

Page 53 — Q. 电气部件装置 / Power supply equipment mechanism

Brother BAS-311G parts on page 53

Ref	Part number	Part name	Qty
	525567000	电线夹 #8	3
	149547000	压线板	1
	149287000	压线板	3
	0A5401006	螺栓(带垫圈) M4X10DB	7
	SA4830001	传感器组件	1
	062300816	螺钉 M3X8	3
	SA3481001	机头开关组件	1
	0A5301605	螺栓(带垫圈) M3X16DB	2
	0A5401006	螺栓(带垫圈) M4X10DB	2
	SA4824001	头部检出复合件	1
	SA5210001	电磁铁接线	1
	SA5214001	开关接线	1
	SA5261001	接地线 450	1
	0A5401006	螺栓(带垫圈) M4X10DB	1
	554482000	电线夹 #12	1
	S00470000	电线夹 #16	1
	0A5401006	螺栓(带垫圈) M4X10DB	2
	218859001	电线夹 M150	2
	S04159000	线夹 1M	1
	SA6560101	保护用螺线管 140SS	2
	S04159000	线夹 1M	2

Page 54 — R . 操作盤装置 / Operation panel mechanism

Brother BAS-311G parts on page 54

Ref	Part number	Part name	Qty
3	3	OPERATION PANEL
2	2	OPERATION PANEL
4	4	HARNESS
5	5	HARNESS
6	6	HARNESS
1	1	OPERATION PANEL
7	7	PIPE
8	8	SCREW
9	9	PIPE
10	10	BASE
11	11	WASHER
12	12	BOLT
13	13	WASHER
14	14	SCREW
15	15	WASHER
16	16	NUT
17	17	NUT

Page 55 — R. ᄨϴᬢ⒮ὃ / Operation panel mechanism

Brother BAS-311G parts on page 55

Ref	Part number	Part name	Qty
1	SA4834001	OPERATION PANEL ASSY	1
2	SA3831001	PANEL SHEET	1
3	SA3833101	PANEL PCB ASSY	1
4	SA4563001	PANEL HARNESS	1
5	SA4837001	PROGRAMMER CONNECTING HARNESS	1
6	SA4841001	GROUND WIRE	1
7	SA4836001	OPERATION PANEL STAND	1
8	018400636	BOLT SOCKET M4X6	3
9	S43236009	OPERATION PANEL BASE	1
10	S43674000	CUSHION, A	1
11	S43675000	CUSHION, B	3
12	S25634101	BOLT, SOCKET M5X65	3
13	025050236	WASHER PLAIN M 5	3
14	018081636	BOLT SOCKET M8X16	1
15	S10408000	RUBBER SHEET	1
16	021500106	NUT 1 M5	6
17	025050336	WASHER PLAIN L 5	3

Page 56 — S . 马达装置 / Motor mechanism

Brother BAS-311G parts on page 56

Ref	Part number	Part name	Qty
1	1	MOTOR MECHANISM
2	2	BRACKET
3	3	SCREW
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	BRACKET
8	8	SCREW
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	SCREW

Page 57 — S. 马达装置 / Motor mechanism

Brother BAS-311G parts on page 57

Ref	Part number	Part name	Qty
	J80991001	马达组件 CDD-430D	1
	J03955001	磁鼓 CDD	1
	014400632	螺钉 M4X6	1
	J03956001	磁铁 180P36	1
	J03957001	MR感应组件 180P	1
	0A4300805	螺栓(带垫圈) M3X8DA	1
	J03958001	屏蔽板 CDD	1
	0A4261005	螺栓(带垫圈) M2.6X10DA	3
	J04488001	ENC 基板组件 430D#2	1
	0A5300606	螺栓(带垫圈) M3X6DB	3
	J04230001	电线固定夹 CDD-HT	1
	0A4401005	螺栓(带垫圈) M4X10DA	3
	J04388001	编码器盖 430D	1
	0A4300805	螺栓(带垫圈) M3X8DA	3
	J04303001	同步轮组件 430D	1
	014500632	螺钉 M5X6	2

Page 58 — T . 踏板关系 / Foot switch pedal mechanism

Brother BAS-311G parts on page 58

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Screw
3	3	Screw
4	4	Spring
5	5	Switch
6	6	Pedal
7	7	Shaft
8	8	Bracket

Page 59 — Foot switch pedal mechanism

Brother BAS-311G parts on page 59

Ref	Part number	Part name	Qty
1	SA3519101	TREADLE UINT,A ASSY	1
2	SA6038001	2-PEDAL FOOT SWITCH, SW ASSY	1
3	S38168001	SPRING, COMPRESSION 10X30	1
4	S38170001	FOOT PEDAL SPRING	2
5	S36260000	PIN BUTTON MICRO SWITCH, VX	3
6	S38174000	FOOT PEDAL	2
7	S38175001	PROTECTION PLATE, PEDAL	2
8	S38176101	SPRING, PLATE	2

Page 60 — U. 编程装置 / Programmer

Brother BAS-311G parts on page 60

Ref	Part number	Part name	Qty
1	1	PROGRAMMER
2	2	CIRCUIT BOARD
3	3	CONNECTOR
4	4	BASE
5	5	KEYBOARD
6	6	FLEXIBLE CABLE
7	7	CONNECTOR

Page 61 — Programmer

Brother BAS-311G parts on page 61

Ref	Part number	Part name	Qty
	SA5164001	LCD MODULE	1
	SA5165001	LCD INVERTER	1
	SA5166001	INVERTER HARNESS	1
	SA5170001	PROGRAMMER PCB ASSY	1
	SA5172001	SWITCH PCB ASSY	1
	SA5168001	FFC:SML2CD	2
	SA5167001	PROGRAMMER HARNESS	1

Page 62 — V1 . 附属装置 (选购件) / Attachment set (Option parts)

Brother BAS-311G parts on page 62

Ref	Part number	Part name	Qty
1	1	Attachment set (Option parts)
2	2	Unit
3	3	Cord
4	4	Screw
5	5	Washer
6	6	Screw
7	7	Washer
8	8	Screw
9	9	Bracket
10	10	Screw

Page 63 — V1. 附属装置(选购件)/Attachment set (Option parts)

Brother BAS-311G parts on page 63

Ref	Part number	Part name	Qty
	SA5193001	断线传感器组件 F	1
	SA4816001	信号放大器 FX311	1
	SA4817001	电缆线组件	1
	SA4818001	放大器安装支架	1
	062300616	螺钉 M3X6	2
	SA4819001	光导纤维传感器 FDFM2	1
	SA5194001	传感器安装板	1
	062500616	螺钉 M5X6	1
	625010000	尼龙夹 NK-2N	1
	0A5401006	螺栓(带垫圈) M4X10DB	1
	SA51930E1	断线传感器组件 F	1
	SA48160E1	信号放大器 FX311	1
	SA4817001	电缆线组件	1
	SA4818001	放大器安装支架	1
	062300616	螺钉 M3X6	1
	SA4819001	光导纤维传感器 FDFM2	1
	SA5194001	传感器安装板	1
	062500616	螺钉 M5X6	1
	625010000	尼龙夹 NK-2N	1
	0A5401006	螺栓(带垫圈) M4X10DB	1

Page 64 — V2 . 附属装置(选购件) / Attachment set (Option parts)

Brother BAS-311G parts on page 64

Ref	Part number	Part name	Qty
1	1	CABLE
2	2	BRACKET
3	3	FLOPPY DISK DRIVE
4	4	BRACKET
5	5	BRACKET
6	6	BRACKET
7	7	SCREW
8	8	BRACKET
9	9	SCREW
10	10	CABLE
11	11	CABLE
12	12	CABLE
13	13	CABLE
14	14	BRACKET
15	15	CABLE
16	16	CABLE
17	17	BRACKET
18	18	COVER
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET

Page 65

Brother BAS-311G parts on page 65

Ref	Part number	Part name	Qty
1	SA5201001	FDD SET	1
2	SA5202001	FDD UNIT ASSY	1
3	SA6628001	FDD	1
4	S43225000	SPACER, FDD	2
5	SA5203001	FDD BASE PLATE	1
6	0A4300605	SCREW PAN (S/P WASHER) M3X6	4
7	037300816	TAPPING SCREW PAN V M3X8	4
8	SA5204001	FDD COVER	1
9	0A4300805	SCREW PAN (S/P WASHER) M3X8	4
10	SA5205001	FDD HARNESS	1
11	SA5206001	FDD POWER HARNESS	1
12	SA5134001	GROUND WIRE	1
13	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
14	032421302	WOOD SCREW ROUND 2 M4.1X13	4
15	200190001	STAPLE 10X20	2
1	SA52010E1	FDD SET	1
2	SA52020E1	FDD UNIT ASSY	1
3	SA6628001	FDD	1
4	S43225000	SPACER, FDD	2
5	SA5203001	FDD BASE PLATE	1
6	0A4300605	SCREW PAN (S/P WASHER) M3X6	4
7	037300816	TAPPING SCREW PAN V M3X8	4
8	SA5204001	FDD COVER	1
9	0A4300805	SCREW PAN (S/P WASHER) M3X8	4
10	SA5205001	FDD HARNESS	1
11	SA5206001	FDD POWER HARNESS	1
12	SA5134001	GROUND WIRE	1
13	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
14	032421302	WOOD SCREW ROUND 2 M4.1X13	4
15	200190001	STAPLE 10X20	2
16	SA6495001	3-PEDAL FOOT SW ASSY	1
17	S38170001	FOOT PEDAL SPRING	3
18	S38174000	FOOT PEDAL	3
19	S38175101	PROTECTION PLATE PEDAL	3
20	S38176101	SPRING, PLATE	3
21	S36260000	PIN BUTTON MICRO SWITCH, VX	1
16	SA64950E1	3-PEDAL FOOT SW ASSY	1
17	S38170001	FOOT PEDAL SPRING	3
18	S38174000	FOOT PEDAL	3
19	S38175101	PROTECTION PLATE PEDAL	3
20	S38176101	SPRING, PLATE	3
21	S36260000	PIN BUTTON MICRO SWITCH, VX	1

Page 66

Brother BAS-311G parts on page 66

Ref	Part number	Part name	Qty
	10	Accessory bag
	78	Accessory bag
	23	Wire
	24	Wire
	25	Wire
	26	Wire
	27	Wire
	28	Wire
	19	Screwdriver
	18	Screwdriver
	17	Screwdriver
	16	Oil can
	15	Oil can
	11	Brush
	12	Spool
	20	Wrench
	21	Wrench
	22	Wrench
	93	Screw
	84	Bracket
	83	Bracket
	89	Spring
	88	Cover
	94	Screw
	95	Washer
	91	Screw
	90	Screw
	13	Needle plate
	14	Needle plate
	1	Cover
	3	Screw
	123	Screw
	102	Screw
	97	Screw
	98	Washer
	100	Screw
	99	Washer
	101	Bracket
	81	Washer
	80	Nut
	82	Screw
	124	Screw
	125	Screw
	126	Screw
	8	Screw
	7	Cap
	106	Cap
	4	Base plate
	5	Knob
	6	Screw
	9	Bottle
	79	Screw
	29	Bracket
	38	Screw
	50	Nut
	46	Bracket
	47	Bracket
	37	Screw
	51	Screw
	45	Shaft
	49	Bracket
	54	Spring
	36	Shaft
	50	Nut
	40	Screw
	53	Washer
	55	Screw
	32	Pulley
	41	Shaft
	35	Shaft
	30	Pulley
	31	Pulley
	44	Shaft
	42	Washer
	43	Nut
	33	Washer
	34	Nut
	56	Spring
	39	Screw
	48	Screw
	52	Screw
	128	Cover
	129	Screw
	130	Screw
	104	Screw
	117	Screw
	116	Washer
	114	Screw
	115	Washer
	119	Screw
	108	Shaft
	107	Gas spring
	111	Screw
	110	Screw
	109	Bracket
	118	Bracket
	113	Screw
	112	Bracket
	120	Washer
	121	Screw
	122	Nut

Page 67 — Z. 附件 / Accessories

Brother BAS-311G parts on page 67

Ref	Part number	Part name	Qty
	SA4842001	马达盖	1
	062061016	螺钉 M6X10	4
	SA4844001	油盘	1
	154467001	废油回收壶盖	1
	037301215	螺钉 M3X12	2
	SA3540001	缓冲橡皮垫	3
	109714000	钉	7
	114486002	油壶	1
	122991001	附属品塑料袋	1
	S06706001	硅油	1
	S44633001	梭芯 LAN	3
	* P. 67	机针组件(4支装)	1
	* P. 67	机针	4
	114483002	油壶组件	1
	S55663001	油罐组件	1
	142443001	小起子 1.9X52	1
	118837001	起子 3.4X70	1
	101572102	起子 5.5X190	1
	107779001	扳手 6X7	1
	100887001	双头扳手 8X9	1
	107780001	扳手 10X12	1
	S07783001	内六角扳手 1.5	1
	142002001	内六角扳手 2	1
	154125001	内六角扳手 2.5	1
	142721001	内六角扳手 3	1
	118064001	内六角扳手 4	1
	150335001	内六角扳手 5	1
	S040574209	线架组件 2DTHF	1
	S51283001	垫圈	2
	150182000	线盘软垫	2
	S51282101	线轴缓冲架	2
	150206002	平垫圈 16	1
	S38648001	螺母 U5/8-28	1
	S04109001	过线杆支架	1
	142997001	过线杆 3	1
	150172003	线架支撑管	1
	150174000	线架支撑管套	1
	156112003	线架支撑管 D	1
	150173003	支撑管夹	1
	150179002	线轴 B	2
	028050246	弹簧垫圈 2-5	2
	021500106	六角螺母 M5	2
	S02778002	插线架 2	1
	S02787002	过线架 2	1
	142990001	过线架基座	2
	150183000	过线架上过线管	1
	150185009	过线杆夹头	1
	138843001	连接器	1
	021500106	六角螺母 M5	4
	S37038001	螺钉 M5X14	1
	S37037001	螺钉 M5X32	1
	062501406	螺钉 M5X14	2
	014060632	固定螺钉 M6X6	2
	021500106	六角螺母 M5	1
	S37037001	螺钉 M5X32	1

Page 68 — Z. 附件 / Accessories

Brother BAS-311G parts on page 68

Ref	Part number	Part name	Qty
	10	Accessory
	78	Accessory
	16	Accessory
	79	Screw
	81	Washer
	80	Nut
	23	Accessory
	24	Accessory
	25	Accessory
	26	Accessory
	27	Accessory
	28	Accessory
	19	Accessory
	18	Accessory
	17	Accessory
	15	Accessory
	11	Accessory
	20	Accessory
	21	Accessory
	22	Accessory
	93	Screw
	84	Accessory
	89	Accessory
	88	Accessory
	123	Screw
	124	Washer
	125	Washer
	126	Nut
	83	Accessory
	94	Screw
	95	Washer
	91	Screw
	90	Washer
	92	Accessory
	13	Accessory
	14	Accessory
	100	Accessory
	97	Screw
	98	Washer
	99	Accessory
	102	Accessory
	101	Accessory
	103	Washer
	105	Nut
	8	Screw
	7	Accessory
	4	Accessory
	5	Accessory
	6	Accessory
	9	Accessory
	106	Accessory
	1	Accessory
	3	Screw
	12	Accessory
	29	Accessory
	38	Accessory
	50	Nut
	46	Screw
	37	Accessory
	45	Accessory
	51	Screw
	36	Accessory
	47	Washer
	40	Nut
	53	Washer
	55	Nut
	49	Accessory
	56	Screw
	54	Accessory
	48	Washer
	39	Accessory
	35	Accessory
	32	Accessory
	31	Accessory
	30	Accessory
	42	Washer
	43	Nut
	44	Accessory
	33	Washer
	34	Nut
	128	Accessory
	129	Screw
	119	Screw
	108	Accessory
	130	Washer
	104	Screw
	121	Washer
	122	Nut
	117	Washer
	116	Screw
	114	Washer
	115	Nut
	110	Accessory
	109	Accessory
	107	Accessory
	111	Accessory
	118	Washer
	106	Accessory
	112	Accessory
	113	Screw

Page 69 — Z. 附件 / Accessories

Brother BAS-311G parts on page 69

Ref	Part number	Part name	Qty
	200190001	U形卡钉	7
	144226001	机头罩	1
	S36007001	螺栓 M8X55	4
	021080106	六角螺母 M8	8
	025080336	平垫圈 L8	4
	032461606	木螺钉 M4.5X16	2
	S44483001	铰链组件	1
	S44484001	护眼板铰链	1
	S44485001	护眼板	1
	061300816	螺钉 M3X8	2
	021300106	螺母 M3	2
	026030236	垫圈 M3	2
	SA4104001	护眼板架 A	1
	062300506	螺钉 M3X5	2
	062400616	螺钉 M4X6	2
	026040136	平垫圈 S4	2
	SA3395001	橡胶皮纹链	2
	SA3392001	垫片	2
	SA3384001	机头支承销	2
	012060636	螺钉 M6X6	2
	SA3385001	头部铰链座	2
	018065036	螺栓 M6X50	4
	213650001	垫圈 2.3X8.5X38	4
	017066002	螺钉 M6X60	1
	021060106	螺母 M6	4
	SA3540001	缓冲橡胶垫	4
	SA4845001	缓冲器	1
	SA4846001	缓冲器支架	2
	SA5251001	垫圈	1
	018064031	螺钉 M6X40	1
	021060106	螺母 M6	1
	SA4847001	轴 U	1
	012060636	螺钉 M6X6	1
	S17974001	轴 D	1
	S17975100	轴套 GS	2
	025080132	垫圈 S8	2
	048060342	挡圈 E6	2
	SA3387001	螺栓 M6X75	2
	025060236	平垫圈 M6	2
	213650001	垫圈 2.3X8.5X38	2
	028060246	弹簧垫圈 2-6	2
	021060106	螺母 M6	2
	119755001	螺栓 M6X60	3
	025060236	平垫圈 M6	3
	028060246	弹簧垫圈 2-6	3
	021060106	螺母 M6	3
	SA6261001	支架盖	1
	S55479001	螺栓(带垫圈) M4X8	6
	025060236	平垫圈 M6	1

Page 70 — Warning labels

Brother BAS-311G parts on page 70

Ref	Part number	Part name	Qty
	J04115-001	Label, elec. shock 6 lang	1
	SA0792-001	Label, caution Jpn / Eng	1
	SA0793-001	Label, caution Chn / Eng	1
	S36924-002	Mark, injury	1
	S37060-001	Label, grounding	1
	S37059-001	Label, PE	1

Page 71 — Different parts list

Brother BAS-311G parts on page 71

Ref	Part number	Part name	Qty
	SA3336-101	Needle hole plate	2.4
	SA5221-001	Needle hole plate	2.2
	S59221-201	Bobbin case assy
	S48664-001	Tension spring
	S16492-101	Screw
	S15667-001	Anti-spin spring
	S44633-001	Bobbin
	SA1890-201	Shuttle hook assy, w/box
	SA2173-201	Shuttle hook assy, w/box
	152686-201	Shuttle race base
	152682-201	Shuttle race base
	107606-101	Spring,tension
	104525-101	Spring,tension
	144588-201	Thread take-up spring
	145519-201	Thread take-up spring

Page 72 — Different parts list

Brother BAS-311G parts on page 72

Ref	Part number	Part name	Qty
G-28	SA4146-101	Spring,tension
G-20	SA3257-101	Needle bar thread guide
Z-13	SA1645-019	Needle assy
Z-13	SA1752-016	Needle assy
B-32, Z-14	DP 17	Needle
B-32, Z-14	145646-019	Needle
B-32, Z-14	DP 5	Needle
B-32, Z-14	107415-016	Needle
D-57	SA4811-001	Presser foot
D-57	S42843-001	Presser foot

Page 73 — Gauge parts list

Brother BAS-311G parts on page 73

Ref	Part number	Part name	Qty
A	S42843-001	Presser foot
B	S42844-001	Presser foot
C	S42845-001	Presser foot
D	S42846-001	Presser foot
E	S42847-001	Presser foot
F	157237-001	Presser foot
G	158592-001	Presser foot
J	S42848-001	Presser foot
A-CUT	S40214-001	Presser foot
B-L	S49448-001	Presser foot
XA	S42849-101	Presser foot
H	SA4811-001	Presser foot
2.4 C0.4	SA3336-001	Needle hole plate
2.2	SA5221-001	Needle hole plate
3.0 C1.5	SA5222-001	Needle hole plate

Page 74 — INDEX

Brother BAS-311G parts on page 74

Ref	Part number	Part name	Qty
- 16	004300513	A
- 52	012060536	B
- 54	012060536	C2
- 59	012060536	C2
- 14	012060536	C3
- 32	012060536	C3
- 19	012060536	C4
- 55	012060536	D1
- 6	012060536	E
- 24	012060636	B
- 48	012060636	B
- 19	012060636	C1
- 29	012060636	C1
- 3	012060636	C2
- 6	012060636	C2
- 10	012060636	C2
- 16	012060636	C2
- 10	012060636	C3
- 19	012060636	C3
- 28	012060636	C3
- 3	012060636	C4
- 15	012060636	C4
- 14	012060636	D1
- 24	012060636	D1
- 30	012060636	D1
- 36	012060636	D1
- 10	012060636	D2
- 13	012060636	D2
- 25	012060636	D2
- 33	012060636	D2
- 37	012060636	D2
- 41	012060636	D2
- 57	012060636	D2
- 8	012060636	D3
- 16	012060636	D3
- 20	012060636	D3
- 34	012060636	D3
- 35	012060636	D3
- 9	012060636	E
- 13	012060636	E
- 30	012060636	E
- 23	012060636	G
- 45	012060636	J
- 100	012060636	J
- 113	012060636	Z
- 25	012400436	D1
- 31	012400436	D1
- 17	012400436	H
- 24	012400436	H
- 21	012500536	B
- 36	012500536	B
- 43	012500536	B
- 46	012500536	D2
- 51	012500536	D2
- 25	012500536	D3
- 11	012500536	E
- 41	012500536	E
- 3	012500536	H
- 36	012500536	H
- 46	012501031	C3
- 29	012501031	C4
- 34	012501031	C4
- 54	014060632	Z
- 3	014500632	S
- 16	014500632	S
- 32	016061031	D2
- 36	016061031	D2
- 15	017061216	D1
- 104	017065002	Z
- 5	017066002	J
- 5	017400802	L
- 5	017401415	L
- 51	017501616	C3
- 59	018061236	D2
- 57	018062036	C2
- 110	018064031	Z
- 102	018065036	Z
- 14	018081636	R
- 5	018300636	C1
- 3	018301436	C1
- 39	018400636	D2
- 10	018400836	C1
- 13	018400836	C1
- 21	018400836	C2
- 48	018400836	D1
- 52	018401036	C2
- 57	018401036	C2
- 68	018401036	C2
- 2	018401036	D2
- 23	018401036	D2
- 6	018401036	D3
- 27	018401636	B
- 31	018401636	C1
- 35	018401636	C1
- 23	018402036	C2
- 34	018500836	C3
- 66	018501036	C2
- 3	018501232	D3
- 48	018501236	J
- 3	018501236	B
- 49	018501236	B
- 14	018503036	B
- 41	021060106	D1
- 46	021060306	D1
- 25	021060306	J
- 32	021060306	J
- 80	021080106	Z
- 19	021300103	A
- 90	021300106	Z
- 37	021400216	C2
- 6	021400306	L
- 16	021500106	R
- 43	021500106	Z
- 50	021500106	Z
- 55	021500106	Z
- 23	021500216	C3
- 47	021500216	C3
- 35	021500216	C4
- 65	025030236	J
- 72	025030236	J
- 36	025040236	C1
- 30	025040236	D2
- 13	025040236	D3
- 7	025040236	J
- 10	025040236	K
- 4	025040236	L
- 24	025050236	C1
- 35	025050236	C3
- 52	025050236	C3
- 41	025050236	C4
- 13	025050236	L
- 13	025050236	R
- 17	025050336	R
- 119	025060236	Z
- 124	025060236	Z
- 130	025080132	Z
- 116	025080336	Z
- 16	025100132	A
- 35	025350332	A
- 21	026030136	E
- 91	026030236	Z
- 95	026040136	Z
- 71	028030246	J
- 37	028040246	C1
- 66	028040246	F
- 6	028040246	J
- 3	028040246	L
- 36	028050246	C3
- 53	028050246	C3
- 42	028050246	C4
- 49	028050246	J
- 13	028050246	P
- 14	032421302	V2
- 20	032422003	P
- 7	037300816	V2
- 41	047401242	B
- 19	048030342	K
- 6	048040142	C3
- 12	048040342	L
- 20	048040342	J
- 6	048050142	C4
- 10	048050342	H
- 9	048060142	C4
- 117	048060342	Z
- 31	048070342	E
- 11	048080142	C3
- 29	048080142	C3
- 16	048080142	C4
- 29	048080142	D1
- 44	048080142	J
- 8	048080342	C2
- 17	048100142	C1
- 3	048100142	C3
- 28	048100142	D2
- 11	048100142	D3
- 21	048420242	C1
- 21	060400516	K
- 6	061300616	C1
- 8	061300816	C1
- 89	061300816	Z
- 33	062060816	F
- 7	062061016	A
- 9	062061016	A
- 13	062061016	A
- 3	062061016	F
- 37	062061016	H
- 3	062061016	Z
- 48	062300416	C2
- 20	062300416	D1
- 64	062300416	J
- 73	062300416	J
- 38	062300506	A
- 93	062300506	Z
- 22	062300616	E
- 7	062300616	K
- 5	062300616	V1
- 6	062300816	Q
- 8	062350616	H
- 28	062400416	C2
- 49	062400416	C2
- 5	062400416	D2
- 6	062400616	D1
- 29	062400616	D2
- 54	062400616	D2
- 56	062400616	D2
- 12	062400616	D3

Page 75 — 索引 / INDEX

Brother BAS-311G parts on page 75

Ref	Part number	Part name	Qty
-13	062401216	H
-2	062500616	G
-4	062500616	G
-6	062500616	G
-30	062500616	H
-53	062501406	Z
-26	062670412	G
-44	070696800	D2
-49	070696800	D2
-23	070696800	D3
-15	076000600	C1
-20	076806606	C1
-15	081003670	E
-17	081007070	L
-8	0A4261005	S
-6	0A4300605	V2
-6	0A4300805	S
-14	0A4300805	S
-9	0A4300805	V2
-13	0A4300805	V2
-12	0A4401005	S
-10	0A4530606	S
-26	0A5401006	C2
-40	0A5401006	P
-42	0A5401006	F
-4	0A5401006	Q
-9	0A5401006	Q
-14	0A5401006	Q
-17	0A5401006	Q
-27	100136001	G
-67	100360003	J
-33	100401022	H
-14	100402004	G
-21	100887001	Z
-19	101572102	Z
-8	102630001	D2
-7	102707002	L
-11	104449001	A
	104525101	Sp
-18	104567101	F
-5	104821001	A
-31	104821001	D3
	107415016	Sp
	107606101	Sp
-20	107779001	Z
-22	107780001	Z
-8	109714000	Z
-45	109763001	D2
-50	109763001	D2
-24	109763001	D3
-18	110367001	B
-12	110367001	C3
-30	110367001	C3
-17	110367001	C4
-18	110735001	K
-56	111466101	D1
-15	114483002	Z
-9	114486002	Z
-2	117608001	A
-4	117934001	A
-27	118064001	Z
-14	118208001	D2
-32	118550001	D3
-63	118735001	C2
-18	118837001	Z
-123	119755001	Z
-27	120265001	A
-23	120448001	Z
-10	122991001	Z
-49	138430001	Z
-52	142002001	D1
-24	142211001	Z
-17	142443001	Z
-26	142721001	Z
-47	142990001	Z
-36	142997001	Z
-76	144588001	B
-18	145446000	G
	145517001	Sp
-34	145547001	F
-3	149287000	Q
-38	149547000	Z
-27	149798001	P
-37	150172003	Z
-40	150173003	Z
-38	150174000	Z
-41	150179002	Z
-31	150182000	Z
-46	150183000	Z
-48	150185009	Z
-33	150206002	Z
-28	150335001	Z
	152682201	Sp
-7	152744001	D2
-24	152881001	D2
-25	152884001	G
-6	152937001	H
-7	152948001	F
-23	153050000	E
-7	153252000	P
-11	153274001	P
-25	154125001	Z
-5	154467001	Z
-30	154596000	J
-30	154599000	J
-39	156112003	Z
	157237001	Ga
	158592001	Ga
-30	159163000	D3
-19	159224001	G
-9	159486001	H
-12	159805001	G
-15	200190001	V2
-120	213650001	Z
-18	218859001	L
-27	228475000	P
-27	231071001	J
-39	525567000	F
-41	525664000	F
-12	537060001	M1
-61	552907000	F
-15	554482000	Q
-12	616167001	M2
-4	623033000	D1
-9	625010000	V1
-5	J03955001	S
-7	J03958001	S
-11	J04115001	M1
-11	J04230001	S
-15	J04303001	S
-13	J04388001	S
-9	J04488001	S
-1	J80991001	S
-52	S00400000	F
-16	S00470000	Q
-61	S00705001	J
-17	S02429201	E
-34	S02445001	A
-11	S02652001	J
-44	S02778002	Z
-45	S02787002	Z
-23	S03677001	K
-52	S10112001	D1
-27	S10268001	H
-15	S10408000	R
-18	S10438001	H
-20	S10470101	K
-29	S12441001	G
-16	S12699000	G
-58	S13399001	D1
	S15667001	Sp
	S16492101	Sp
-114	S17974001	Z
-115	S17975100	Z
-33	S20164001	A
-26	S20356001	C1
-62	S23418001	C2
-15	S23418002	H
-8	S23651001	B
-11	S23651001	B
-14	S23651001	B
-17	S23651001	B
-38	S23849001	C2
-38	S23849001	C3
-21	S23849001	C4
-15	S25235001	B
-14	S25279001	K
-37	S25310101	D1
-69	S25310101	F
-68	S25454001	J
-13	S25456001	K
-4	S25456001	K
-33	S25475101	J
-12	S25634101	R
-11	S31032001	G
-34	S32462001	H
-44	S32462001	D1
-24	S32462001	J
-31	S32465001	J
-40	S32465001	J
-22	S32465001	J
-43	S32557000	E
-35	S35079000	D2
-79	S36007001	Z
-5	S36260000	T
-21	S36475000	V2
-29	S36924002	A
-52	S37037001	Z
-56	S37038001	Z
-13	S37059001	M1

Page 77 — 索引 / INDEX

Brother BAS-311G parts on page 77

Ref	Part number	Part name	Qty
-28	SA4622001	B
-42	SA4624001	B
-37	SA4626001	B
-38	SA4627001	B
-39	SA4628001	B
-40	SA4629001	B
-45	SA4630001	B
-4	SA4635101	C1
-7	SA4636101	C1
-2	SA4637001	C1
-18	SA4638001	C1
-14	SA4639001	C1
-12	SA4640001	C1
-9	SA4641001	C1
-22	SA4642001	C1
-25	SA4643001	C1
-27	SA4647001	C1
-11	SA4648001	C1
-30	SA4650001	C1
-32	SA4651101	C1
-33	SA4652101	C1
-2	SA4653001	C2
-5	SA4654001	C2
-9	SA4655101	C2
-11	SA4658001	C2
-12	SA4659001	C2
-13	SA4661001	C2
-17	SA4662001	C2
-18	SA4663001	C2
-19	SA4664001	C2
-20	SA4665001	C2
-30	SA4666001	B
-24	SA4671001	C2
-25	SA4671001	C2
-26	SA4672001	C2
-32	SA4673001	C2
-34	SA4675201	C2
-38	SA4676001	C2
-35	SA4677101	C2
-44	SA4679101	C2
-45	SA4680101	C2
-46	SA4681001	C2
-47	SA4682001	C2
-51	SA4684001	C2
-1	SA4686101	C3
-2	SA4687101	C3
-4	SA4688001	C3
-5	SA4689001	C3
-7	SA4690001	C3
-8	SA4691001	C3
-9	SA4692001	C3
-16	SA4693001	C3
-18	SA4694001	C3
-20	SA4695001	C3
-15	SA4696001	C3
-17	SA4697001	C3
-21	SA4698001	C3
-33	SA4699001	C3
-22	SA4700001	C3
-24	SA4701001	C3
-25	SA4702001	C3
-26	SA4703001	C3
-43	SA4706101	C3
-44	SA4708001	C3
-31	SA4710001	C4
-24	SA4712001	C4
-42	SA4714001	C3
-54	SA4715001	C3
-41	SA4717001	C3
-5	SA4719001	C4
-7	SA4720001	C4
-8	SA4721001	C4
-10	SA4722001	C4
-11	SA4723001	C4
-12	SA4724001	C4
-27	SA4725001	C4
-32	SA4726001	C4
-1	SA4729001	D2
-3	SA4731001	D2
-4	SA4734001	D2
-6	SA4736001	D2
-9	SA4737001	D2
-15	SA4738001	D2
-17	SA4739001	D2
-18	SA4741101	D2
-19	SA4742001	D2
-24	SA4743001	D2
-26	SA4744001	D2
-31	SA4745001	D2
-34	SA4746001	D2
-38	SA4747001	D2
-40	SA4748001	D2
-47	SA4750001	D2
-53	SA4752001	D2
-55	SA4753001	D2
-33	SA4757101	D3
-1	SA4759001	D1
-2	SA4760001	D1
-7	SA4761001	D1
-8	SA4762001	D1
-3	SA4763001	D1
-11	SA4764001	D1
-13	SA4765001	D1
-16	SA4766001	D1
-17	SA4767001	D1
-18	SA4768001	D1
-19	SA4769101	D1
-21	SA4770001	D1
-27	SA4771001	D1
-22	SA4772001	D1
-23	SA4773001	D1
-38	SA4775001	D1
-43	SA4776001	D1
-26	SA4777001	D1
-47	SA4778001	D1
-32	SA4779001	D1
-35	SA4780001	D1
-33	SA4781001	D1
-4	SA4782001	E
-10	SA4783101	E
-2	SA4785001	F
-7	SA4786101	F
-4	SA4787001	F
-11	SA4788001	F
-32	SA4789101	F
-37	SA4791101	F
-1	SA4795001	H
-20	SA4796001	H
-38	SA4797001	H
-3	SA4798001	J
-14	SA4799001	J
-53	SA4800001	J
-55	SA4802001	J
-6	SA4811001	Sp
-2	SA4816001	V1
-2	SA48160E1	V1
-3	SA4817001	V1
-4	SA4818001	V1
-6	SA4819001	V1
-50	SA4820201	C2
-55	SA4823101	C2
-10	SA4824001	Q
-21	SA4826201	D2
-22	SA4828001	D2
-5	SA4830001	Q
-1	SA4834001	R
-7	SA4836001	R
-5	SA4837001	R
-6	SA4841001	R
-1	SA4842001	Z
-4	SA4844001	Z
-10	SA4845001	Z
-10	SA4846001	Z
-11	SA4847001	Z
-24	SA4852001	P
-24	SA5288001	P
-2	SA5289001	P
-22	SA5290001	P
-23	SA5292101	F
-6	SA5294001	F
-51	SA5300001	D1
-53	SA5301001	D1
-54	SA5339101	F
-2	SA6038001	T
-17	SA6087001	F
-35	SA6108001	B
-19	SA6182001	B
-39	SA6194001	A
-39	SA4864001	C3
-25	SA5072001	F
-12	SA5134001	V2
-4	SA5135001	J
-57	SA5157001	J
-47	SA5158001	B
-1	SA5164001	U
-2	SA5165001	U
-7	SA5167001	U
-6	SA5168001	U
-4	SA5170001	U
-5	SA5172001	U
-15	SA5191001	P
-30	SA5192001	P
-1	SA5193001	V1
-1	SA51930E1	V1
-7	SA5194001	V1
-1	SA5201001	V2
-1	SA52010E1	V2
-2	SA5202001	V2
-2	SA52020E1	V2
-5	SA5203001	V2
-8	SA5204001	V2
-10	SA5205001	V2
-11	SA5206001	V2
-1	SA5208001	K
-24	SA5213001	K
-12	SA5214001	Q
-5	SA5217001	K
-8	SA5218001	K
-17	SA5219001	K
-66	SA5221001	Sp
-68	SA5222001	Ga
-1	SA5229101	C1
-50	SA5230001	B
-109	SA5251001	Z
-13	SA5261001	Q
-1	SA5281001	P
-5	SA5283001	P
-9	SA5285001	P
-12	SA5286001	P

Page 78 — INDEX

Brother BAS-311G parts on page 78

Ref	Part number	Part name	Qty
-18	SA6207001	A
-42	SA6210001	D2
-21	SA6210001	D3
-43	SA6211001	F
-12	SA6216001	E
-16	SA6220001	E
-51	SA6260001	F
-128	SA6261001	Z
-50	SA6263001	F
-15	SA6272001	A
-70	SA6273001	J
-61	SA6306001	C2
-29	SA6359001	C2
-30	SA6360001	C2
-31	SA6361001	C2
-1	SA6364001	M1
-9	SA6389001	L
-5	SA6391001	G
-62	SA6397001	J
-62	SA6398001	J
-17	SA6405001	P
-28	SA6405002	P
-18	SA6406001	P
-29	SA6406002	P
-19	SA6407001	P
-40	SA6434001	C2
-41	SA6435001	C2
-41	SA6441001	A
-65	SA6450101	C2
-67	SA6451101	C2
-16	SA6495001	V2
-16	SA64950E1	V2
-20	SA6560101	Q
-62	SA6572001	F
-10	SA6573001	P
-16	SA6576001	F
-60	SA6577001	F
-26	SA6578001	F
-53	SA6579001	F
-14	SA6580001	F
-63	SA6581001	F
-67	SA6582001	F
-64	SA6583001	F
-68	SA6584001	F
-13	SA6593001	F
-3	SA6628001	V2

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother BAS-311G — parts catalog

• Page 1 (cover): This is the cover page for the parts book of Brother BAS-311G and BAS-326G direct drive programmable electronic pattern sewers, providing links for the latest parts information.
• Page 2 (unknown): This page is blank except for a watermark and a footer.
• Page 3 (diagram): This page illustrates two Brother industrial sewing machine models, BAS-311G-0 and BAS-326G-0A, with explanations for material types and work clamp lifter types.
• Page 4 (toc): This page is the table of contents for the parts manual, listing various sections and their corresponding page numbers.
• Page 5 (toc): This page provides notes for using the parts book and a table of contents listing various mechanisms and parts with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body with various components labeled with reference numbers.
• Page 7 (parts_list): This page lists parts for the machine body, including various screws, caps, covers, and labels, with their part numbers, quantities, and descriptions in both Chinese and English.
• Page 8 (diagram): This page illustrates the upper shaft and needle bar mechanism with an exploded view of its components.
• Page 9 (parts_list): This page lists parts for the upper shaft and needle bar mechanism, including various bearings, screws, and other components.
• Page 10 (diagram): This page illustrates the feed mechanism components for an industrial sewing machine, showing an exploded view of various parts including the main frame, rails, rollers, and associated fasteners.
• Page 11 (parts_list): This page lists parts for the C1. Feed mechanism, including part numbers, quantities, and descriptions in both Chinese and English.
• Page 12 (diagram): This page illustrates the feed mechanism of an industrial sewing machine, showing an exploded view of its components with reference numbers.
• Page 13 (parts_list): This page lists parts for the C2 Feed mechanism, including screws, gears, bearings, pulleys, belts, covers, and various plates and brackets.
• Page 14 (diagram): This page illustrates the feed mechanism of the sewing machine with an exploded view diagram and corresponding reference numbers.
• Page 15 (parts_list): This page lists parts for the C2 Feed mechanism, including screws, washers, attention marks, bearing holder bases, and bearing holder assemblies.
• Page 16 (diagram): This page illustrates the feed mechanism for a solenoid type sewing machine, showing various components and their reference numbers.
• Page 17 (parts_list): This page lists parts for the C3. Feed mechanism, including work clamps, sliders, retaining rings, shafts, screws, washers, and various assemblies.
• Page 18 (diagram): This page illustrates the feed mechanism for both Peneumatic type and 311G/326G models, showing various components and their assembly.
• Page 19 (parts_list): This page lists parts for the C4 Feed mechanism, including components for pneumatic type, 311G, and 326G models.
• Page 20 (diagram): This page illustrates the work clamp lifter mechanism with a detailed diagram showing various components and their reference numbers.
• Page 21 (parts_list): This page lists parts for the D1 Work Clamp Lifter Mechanism, including part numbers, quantities, and descriptions in both Chinese and English.
• Page 22 (diagram): This page illustrates the work clamp lifter mechanism for the solenoid type, showing an exploded view of various components and their reference numbers.
• Page 23 (parts_list): This page lists parts for the D2 Work Clamp Lifter Mechanism, including part numbers, quantities, and descriptions in both Chinese and English.
• Page 24 (diagram): This page illustrates the work clamp lifter mechanism for a pneumatic type sewing machine, showing an exploded view of its components with reference numbers.
• Page 25 (parts_list): This page lists parts for the D3. Work clamp lifter mechanism, including part numbers, names, and quantities.
• Page 26 (diagram): This page illustrates the lower shaft mechanism of a sewing machine, showing various components and their assembly.
• Page 27 (parts_list): This page lists parts for the lower shaft mechanism, including part numbers, quantities, and descriptions in both Chinese and English.
• Page 28 (diagram): This page illustrates the lubrication system components for a sewing machine, showing various parts such as tubes, clamps, and oilers with their corresponding reference numbers.
• Page 29 (parts_list): This page lists lubrication device parts, including screws, covers, wicks, oil tubes, and holders, with their part numbers, quantities, and descriptions in both Chinese and English.
• Page 30 (diagram): This page illustrates the lubrication system components for the BAS-311G/326G-350 industrial sewing machine.
• Page 31 (parts_list): This page lists lubrication and oiling device parts, including part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of the threading mechanism for a sewing machine, with numbered parts and their corresponding details.
• Page 33 (parts_list): This page lists parts for the Threading mechanism, including part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts and their corresponding references.
• Page 35 (parts_list): This page lists parts for the Bobbin winder mechanism, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
• Page 37 (parts_list): This page lists parts for the J. Thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
• Page 39 (parts_list): This page lists parts for the J. Cutting line device / Thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of the thread wiper mechanism, illustrating various components with reference numbers.
• Page 41 (parts_list): This page lists parts for the K. Thread wiper mechanism, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts and their corresponding details.
• Page 43 (parts_list): This page lists parts for the L. Tension release mechanism, including part numbers, descriptions, and quantities.
• Page 44 (diagram): This page displays a diagram of the control box mechanism, detailing various components and their connections, including transformers, circuit boards, fans, and connectors, with reference numbers for each part.
• Page 45 (parts_list): This page lists parts for the M1 Control box mechanism, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of the control box (PCB) mechanism, with various components labeled with reference numbers.
• Page 47 (parts_list): This page lists parts for the Control box (PCB) mechanism, including part numbers, descriptions, and quantities.
• Page 48 (diagram): This page displays diagrams of power switch mechanisms for various voltage and phase configurations, including options for Japan, USA, Asia, China, EU, and Canada.
• Page 49 (parts_list): This page lists power switch mechanisms, including part numbers, descriptions, and applicable regions and voltages.
• Page 50 (diagram): This page displays a diagram of the air pressure mechanism, with numbered parts and their corresponding references.
• Page 51 (parts_list): This page lists parts for air pressure mechanisms, including solenoid valve assemblies, manifolds, valves, silencers, regulators, nipples, and various fittings and hardware, with part numbers, descriptions, and quantities.
• Page 52 (diagram): This page displays a diagram of the power supply equipment mechanism, illustrating various components with reference numbers for identification.
• Page 53 (parts_list): This page lists parts for the Q. Electrical Parts / Power Supply Equipment Mechanism, including part numbers, descriptions, and quantities.
• Page 54 (diagram): This page displays a diagram of the operation panel mechanism, illustrating various components with reference numbers.
• Page 55 (parts_list): This page lists parts for the Operation panel mechanism, including part numbers, names, and quantities for items like operation panel assemblies, harnesses, bolts, and washers.
• Page 56 (diagram): This page displays a diagram of the motor mechanism, with numbered parts indicated for reference. It includes part numbers, names, and quantities where available.
• Page 57 (parts_list): This page lists parts for the S. Mazda Device / Motor Mechanism, including part numbers, descriptions, and quantities.
• Page 58 (diagram): This page displays diagrams for foot switch pedal mechanisms, including a solenoid type and a pneumatic type, with numbered parts for identification.
• Page 59 (parts_list): This page lists parts for the Foot switch pedal mechanism, including assemblies, springs, and plates, with part numbers like SA3519101 and SA6038001, applicable to models BAS-311G/326G-651.
• Page 60 (diagram): This page displays a diagram of the programmer unit, showing various components labeled with reference numbers 1 through 7.
• Page 61 (parts_list): This page lists parts for the Programmer unit, including LCD modules, inverters, harnesses, and PCBs, with part numbers, names, and quantities.
• Page 62 (diagram): This page displays a diagram of attachment set (option parts) for the industrial sewing machine, with numbered components indicated.
• Page 63 (parts_list): This page lists attachment parts for the machine, divided into sections for "Except for Europe" and "For Europe only". It includes part numbers, descriptions, and quantities.
• Page 64 (diagram): This page displays a diagram of attachment set (option parts) for the sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 65 (parts_list): This page lists attachment set (option parts) for BAS-311G/326G-940, divided into sections for "Except for Europe" and "For Europe only".
• Page 66 (diagram): This page displays a diagram of various accessories and parts for the sewing machine, including tools, bottles, and mechanical components, with corresponding reference numbers.
• Page 67 (parts_list): This page lists parts for the Z. Accessories section, including part numbers, descriptions, and quantities.
• Page 68 (diagram): This page displays a diagram of accessories and parts for the sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 69 (parts_list): This page lists accessories for the sewing machine, including various screws, nuts, washers, and specialized components like hinge assemblies and eye guards, with their corresponding part numbers and descriptions.
• Page 70 (parts_list): This page lists warning labels and other miscellaneous parts for the BAS-311G/326G-Wa sewing machine, including their sizes, codes, and descriptions.
• Page 71 (parts_list): This page lists standard gauge parts for the BAS-311G/326G sewing machines, categorized by material weight (heavy and medium). It also indicates parts common with other models like KE-430D, BE-438D, and BAS-311F.
• Page 72 (parts_list): This page lists parts for the BAS-311G/326G-Sp sewing machine, including tension springs, needle bar thread guides, needle assemblies, needles, and presser feet, with some parts common to other models like the KE-430D and BE-438D.
• Page 73 (diagram): This page contains a diagram of gauge parts and presser feet for the BAS-311G/326G-Ga sewing machine, with various part numbers and dimensions indicated.
• Page 74 (index): This page contains an index of part numbers and their corresponding reference numbers and page locations, organized into multiple columns.
• Page 75 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 76 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers. It is organized into columns for easy lookup.
• Page 77 (index): This page contains an index of machine parts, listing part numbers, reference numbers, and corresponding page numbers for various components.
• Page 78 (index): This page is an index of parts for a sewing machine, listing part codes, reference numbers, and page numbers where they can be found in the catalog. It includes parts like SA6207001A, SA6210001D2, and SA6211001F.
• Page 79 (cover): This is the cover page for the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and contact information for Brother Industries, Ltd. in Japan.

Page 1

零件手册 PARTS BOOK BAS-311G BAS-326G 直接驱动式 程序电脑花式机 DIRECT DRIVE PROGRAMMABLE ELECTRONIC PATTERN SEWER brother. 最新的零部件情报参考(Parts Navigation)。 The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnavi/chn/ http://partsbook.brother.co.jp/partsnavi/eng/ jintex.in

Page 2

jintex.in

Page 3

BROTHER INDUSTRIES, LTD. • BAS-311G-0 1: 厚布料 / Heavy-weight materials 2: 中厚布料 / Medium-weight materials S: 电磁式抬压脚 / Solenoid-type work clamp lifter A: 空压式抬压脚 / Pneumatic-type work clamp lifter BROTHER INDUSTRIES, LTD. • BAS-326G-0A 1: 厚布料 / Heavy-weight materials 2: 中厚布料 / Medium-weight materials jintex.in

Page 4 — 零件手册的使用说明

零件手册的使用说明 1. 本手册是根据截止至2005年6月的资料为基准而编制的。 2. 零部件设计若有变动,恕不另行通知。 3. 以组件为单位供应的部件用[ ]框出。 目 录 A. 机体部分 .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 5 — Notes for using this parts book

Notes for using this parts book 1. This book was prepared based on information available in June 2005. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................--------------------------------------------------------------------------------------------------------------------------------................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 6 — A. 机体部分 / Machine body

A. 机体部分 / Machine body 1 jintex.in BAS-311G/326G-050

Page 7 — A. 机体部分 / Machine body

A. 机体部分 / Machine body 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4594001 1 轴套 U BUSHING U 2 117608001 1 开口销 DOWEL PIN 3 SA4596001 1 橡皮塞 20-15 RUBBER CAP 20-15 4 117934001 1 橡皮塞 13.5 RUBBER CAP, 13.5 5 104821001 3 橡皮塞 10.5 RUBBER CAP, 10.5 6 SA4597001 1 马达盖 R MOTOR COVER R 7 06201016 4 螺钉 M6X10 SCREW PAN M6X10 8 SA4598001 1 马达盖 L MOTOR COVER L 9 06201016 4 螺钉 M6X10 SCREW PAN M6X10 10 SA4600001 1 面板 FACE PLATE 11 104449001 1 橡皮塞 15.5 RUBBER CAP, 15.5 12 SA4601001 1 面板垫片 F-PLATE PACKING 13 06201016 3 螺钉 M6X10 SCREW PAN M6X10 14 SA4603101 1 大旋梭盖 SHUTTLE RACE COVER 15 SA6272001 1 大旋梭盖挂钩 D SHUTTLE RACE COVER HOOK D 16 004300513 2 螺钉 M3X5 SCREW, FLAT M3X5 17 SA3264001 1 板螺母 NUT PLATE 18 SA6207001 1 铰链 HINGE 19 021300103 2 螺母 M3 NUT, 1 M3 23 SA3200101 1 挑线杆防护罩 THREAD TAKE-UP COVER 24 062401006 1 螺钉 M4X10 SCREW PAN M4X10 25 SA4604001 1 间歇盖板 STEPPING COVER 26 SA3306001 1 段螺钉 7-3 SHOULDER SCREW,7-3 27 120265002 1 弹簧垫圈 SPRING WASHER 28 S07350002 1 垫圈 WASHER PLAIN 29 S36475000 1 螺钉 M5 SCREW, M5 30 S36924002 1 警告标记 MARK, INJURY <用于日本> <For Japan only> 31 SA0792001 1 操作注意标签(日/英) LABEL, CAUTION JPN/ENG <用于日本以外> <For Except Japan> SA0793001 1 操作注意标签(中/英) LABEL, CAUTION CHN/ENG 32 S37060001 1 接地标记 LABEL, GROUNDING 33 S20164001 1 橡皮塞 13 RUBBER CAP 13 34 S02445001 1 护指器 FINGER GUARD 35 025350332 2 平垫圈 L3.5 WASHER PLAIN L3.5 36 SA4605001 1 机头撑杆 HEAD REST 37 S42446001 4 螺栓 M6X14 BOLT, SOCKET (S/P WASHER)M6X14 38 062300506 4 螺钉 M3X5 SCREW PAN M3X5 39 SA6194001 1 橡皮塞 26 RUBBER CAP 26 40 S44010001 2 橡皮塞 11.5 RUBBER CAP 11.5 41 SA6441001 2 橡皮盖 RUBBER CAP 42 S20164001 1 橡皮塞 13 RUBBER CAP 13 BAS-311G/326G-050 jintex.in 2

Page 8 — Upper shaft and needle bar mechanism

B. 上軸・針杆装置 / Upper shaft and needle bar mechanism 48 38 46 45 41 37 43 47 44 42 43 44 36 49 40 39 36 35 51 33 34 50 14 12 14 1 14 14 13 11 8 3 9 11 5 10 8 6 7 4 24 21 20 52 2 30 23 28 29 19 22 18 17 26 17 25 27 16 31 17 15 32 BAS-311G/326G-123 3 jintex.in

Page 9 — B. 上轴 · 针杆装置 / Upper shaft and needle bar mechanism

B. 上轴 · 针杆装置 / Upper shaft and needle bar mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4606001 1 上轴 UPPER SHUFT 2 SA3499001 1 曲柄轴组件 CRANK ROD ASSY 3 018501636 2 螺栓 M5X16 BOLT SOCKET M5X16 4 SA4172001 2 滚针轴承 NEEDLE BEARING: BLUE 4 SA4173001 2 滚针轴承 NEEDLE BEARING: BLACK 4 SA4174001 2 滚针轴承 NEEDLE BEARING: GRAY 4 SA4175001 2 滚针轴承 NEEDLE BEARING: YELLOW 5 SA3206001 1 轴承套 BALL BEARING BUSH 6 SA4179001 1 轴承 6904DDUNR BALL BEARING 6904DDUNR 7 SA4180001 1 轴承 R-6904DDU BALL BEARING 6904DDU 8 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 9 SA3206001 1 轴承套 BALL BEARING BUSH 10 SA4177001 1 轴承 6004DDUNR BALL BEARING 6004DDUNR 11 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 12 SA4608101 1 管接头 G JOINT G 13 SA4178001 1 轴承 6204DDUNR BALL BEARING 6204DDUNR 14 S23651001 4 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 15 S25235001 1 螺钉 M8 SCREW, M8 16 SA4609101 1 曲柄 G THREAD TAKE-UP CRANK G 17 S23651001 4 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 18 110367001 1 垫圈 8 WASHER, PLAIN SPECIAL 8 19 SA6182001 1 针杆连杆组件 FK THREAD TAKE-UP LEVER FK SET 20 SA2958001 1 螺钉 M5X6 SCREW FLAT M5X6 21 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 22 062400816 1 螺钉 M4X8 SCREW PAN M4X8 23 145465001 1 螺钉 SM3.57-40X6L SCREW, SM3.57-40X6 L 24 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 25 142211001 1 滑块 SLIDE BLOCK 26 SA3528001 1 滑块导向 B SLIDE BLOCK GUIDE 27 018401636 2 螺栓 M4X16 BOLT SOCKET M4X16 28 SA4622001 1 针杆 NEEDLE BAR 29 144458001 1 螺钉 SM3.57-40X4.5 SET SCREW, SM3.57-40X4.5 30 SA4668001 1 针杆轴套 UK NEEDLE BAR BUSH UK 31 SA3224001 1 针棒轴套 D NEEDLE BAR BUSH,D 32 * P. 67 1 机针 NEEDLE 33 S38713100 1 叶轮 FAN 34 062400816 3 螺钉 M4X8 SCREW PAN M4X8 35 SA6108001 1 齿轮 R PULLEY GEAR R 36 012500536 2 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 37 SA4626001 1 上轮轴 PULLEY SHUFT 38 SA4627001 1 上轮轴套 PULLEY BUSH 39 SA4628001 1 上轮弹簧 PULLEY SPRING 40 SA4629001 1 上轮基座 PULLEY BASE 41 047401242 1 弹簧销 4X12 PIN SPRING ROLL AW4 42 SA4624001 1 齿轮 PULLEY GEAR L 43 012500536 2 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 44 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 45 SA4630001 1 皮带轮 PULLEY 46 062401006 3 螺钉 M4X10 SCREW PAN M4X10 47 SA5158001 3 垫圈 L4 WASHER PLAIN L 4 48 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 49 018501636 4 螺栓 M5X16 BOLT SOCKET M5X16 50 SA5230001 2 惯性轮 2 FRIES WHEEL 2 51 062401016 3 螺钉 M4X10 SCREW PAN M4X10 52 012060536 1 螺钉 M6X5 SET SCREW SOCKET (FT) M6X5 BAS-311G/326G-123 jintex.in 4

Page 10

C1 . 送料装置 / Feed mechanism 5 jintex.in BAS-311G/326G-202

Page 11 — C1. 送料装置 / Feed mechanism

C1. 送料装置 / Feed mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA5229101 1 送布基座组件 FEED BRACKET ASSY 2 SA4637001 2 X-LM导向 X-LM GUIDE 3 018301436 15 螺栓 M3X14 BOLT SOCKET M3X14 4 SA4635101 1 送布台(X) FEED BRACKET X 5 018300636 8 螺栓 M3X6 BOLT SOCKET M3X6 6 061300616 8 螺钉 M3X6 SCREW FLAT M3X6 7 SA4636101 1 传感器板(X) X-SENSOR PLATE 8 061300616 2 螺钉 M3X6 SCREW FLAT M3X6 9 SA4641001 1 皮带支架(X) X-BELT HOLDER 10 018400836 2 螺栓 M4X8 BOLT SOCKET M4X8 11 SA4649001 1 X-GT皮带 X-GT BELT 12 SA4640001 1 皮带支架板(X) X-BELT HOLDER PLATE 13 018400836 2 螺栓 M4X8 BOLT SOCKET M4X8 14 SA4639001 1 花键轴(X) X-BALL SPLINE 15 076000600 1 球轴承 6000VV BALL BEARING RADIAL 6000VV 16 025100132 1 平垫圈 S10 WASHER PLAIN S 10 17 048100142 1 轴用挡圈 C10 RETAINING RING EXTERNAL C10 18 SA4638001 1 X-左轮 X-LEFT PULLEY 19 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 20 076806606 2 球轴承 6806VV BALL BEARING 6806VV 21 048420242 2 孔用挡圈 C42 RETAINING RING INTERNAL C42 22 SA4642001 1 X-轮基座 X-PULLEY BRACKET 23 018501636 2 螺栓 M5X16 BOLT SOCKET M5X16 24 025050236 2 平垫圈 M5 WASHER PLAIN M 5 25 SA4643001 1 X-右轮组件 X-RIGHT PULLEY ASSY 26 S20356001 1 平垫圈 10 WASHER, PLAIN 10 27 SA4647001 2 球轴承 6900ZZNR BALL BEARING 6900ZZNR 28 SA4648001 1 X-轮支点轴 X-PULLEY FULCRUM SHAFT 29 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 30 SA4650001 1 Y-传感板 Y-SENSOR PLATE 31 018402036 2 螺栓 M4X20 BOLT SOCKET M4X20 32 SA4651101 2 Y-LM导向 Y-LM GUIDE 33 SA4652101 2 Y-LM垫片 Y-LM SPACER 34 061300616 16 螺钉 M3X6 SCREW FLAT M3X6 35 018402036 8 螺栓 M4X20 BOLT SOCKET M4X20 36 025040236 8 平垫圈 M4 WASHER PLAIN M 4 37 028040246 8 弹簧垫圈 2-4 WASHER SPRING 2-4 BAS-311G/326G-202 jintex.in 6

Page 12 — C2 . 送料装置 / Feed mechanism

C2 . 送料装置 / Feed mechanism 7 11 3 3 9 4 8 6 7 5 1 63 10 12 16 14 15 14 22 16 23 19 18 17 20 49 45 48 13 21 28 46 44 27 48 49 24 28 31 47 27 26 28 62 30 25 28 34 62 29 61 31 43 36 42 64 35 52 50 40 35 35 54 38 41 37 40 39 37 68 35 38 43 59 54 53 60 39 37 41 42 67 65 39 35 38 59 58 60 64 37 39 37 35 38 66 35 37 32 39 56 37 33 38 37 33 57 55 39 BAS-311G/326G-202 7 jintex.in

Page 13 — C2. 送料装置 / Feed mechanism

C2. 送料装置 / Feed mechanism 参照号 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 零部件序号 018062036 SA4653001 012060636 SA4647001 SA4654001 012060636 SA4647001 048080342 SA4655101 012060636 SA4658001 SA4659001 SA4661001 SA4647001 SA4655101 012060636 SA4662001 SA4663001 SA4664001 SA4665001 018400836 SA2972001 018402036 SA4667101 SA4671001 SA4672001 062401016 062400416 SA6359001 SA6360001 SA6361001 SA4673001 0A5401006 SA4675201 SA4677101 S23849001 021400216 SA4676001 SA4646001 SA6434001 SA6435001 S55484002 S42446001 SA4679101 SA4680101 SA4681001 SA4682001 062300416 062400416 SA4820201 SA4684001 018401036 SA3707001 012060536 SA4823101 SA4684001 018401036 SA3707001 012060536 S42446001 SA6306001 数量 4 1 2 2 1 2 2 1 1 2 1 1 1 2 1 2 1 1 1 1 4 2 4 2 1 1 12 4 1 1 2 1 4 1 10 10 10 6 6 2 2 4 4 1 1 1 2 4 4 1 1 4 1 2 1 1 4 1 2 6 1 零部件名称 螺栓 M6X20 X-送布齿轮 螺钉 M6X6 球轴承 6900ZZNR Y-送布齿轮 螺钉 M6X6 球轴承 6900ZZNR 挡圈 E8 Y-轮组件 螺钉 M6X6 Y-轮轴套 Y-驱动轴 Y-轮基座 球轴承 6900ZZNR Y-轮组件 螺钉 M6X6 Y-轮支点轴 Y-GT皮带 Y-皮带支架板 Y-皮带夹板 螺栓 M4X8 螺栓 M6X18 螺栓 M4X20 盖轨道 固定盖(R) 固定盖(L) 螺钉 M4X10 螺钉 M4X4 内盖组件 R 内盖组件 L 外盖组件 Y-皮带轮盖 螺栓(带垫圈) M4X10DB 补助板 补助板缓冲 螺钉 M4X16 六角螺母 M4 补助板支架 螺栓 M6X14 补助板支架 U 补助板支架 D 螺栓(带垫圈) M5X10 螺栓 M6X14 蛇纹管 蛇纹管支架 R 蛇纹管支架 F 螺母 螺钉 M3X4 螺钉 M4X4 脉冲马达组件 X 马达安装板 螺栓 M4X10 驱动齿轮 16 螺钉 M6X5 脉冲马达组件 Y 马达安装板 螺栓 M4X10 驱动齿轮 16 螺钉 M6X5 螺栓 M6X14 盖连接板 NAME OF PARTS BOLT SOCKET M6X20 X-FEED GEAR SET SCREW SOCKET (FT) M6X6 BALL BEARING 6900ZZNR Y-FEED GEAR SET SCREW SOCKET (FT) M6X6 BALL BEARING 6900ZZNR RETAINING RING E8 Y-PULLEY ASSY SET SCREW SOCKET (FT) M6X6 Y-PULLEY COLLAR Y-PULLEY DRIVING SHAFT Y-PULLEY BRACKET BALL BEARING 6900ZZNR Y-PULLEY ASSY SET SCREW SOCKET (FT) M6X6 Y-PULLEY FULCRUM SHAFT Y-GT BELT BELT SUPPORT PLATE Y Y-BELT WORK CLAMP PLATE BOLT SOCKET M4X8 BOLT SOCKET (S/P WASHER)M6X18 BOLT SOCKET M4X20 COVER RAIL FIXATION R FIXATION L SCREW PAN M4X10 SCREW PAN M4X4 INSIDE COVER R ASSY INSIDE COVER L ASSY OUTSIDE COVER ASSY BELT COVER Y SCREW PAN (S/P WASHER) M4X10 AUXILIARY PLATE AUXILIARY PLATE CUSHION SCREW,M4X16 NUT 2 M4 AUXILIARY PLATE BRACKET BOLT SOCKET (S/P WASHER)M6X14 SUPPORT PLATE GUIDE U SUPPORT PLATE GUIDE D BOLT SOCKET (S/P WASHER)M5X10 BOLT SOCKET (S/P WASHER)M6X14 BELLOW BELLOW PRESSER R BELLOW PRESSER F BELLOW NUT SCREW PAN M3X4 SCREW PAN M4X4 PULSE MOTOR ASSY X MOTOR BRACKET PLATE BOLT SOCKET M4X10 GEAR 16 SET SCREW SOCKET (FT) M6X5 PULSE MOTOR ASSY Y MOTOR BRACKET PLATE BOLT SOCKET M4X10 GEAR 16 SET SCREW SOCKET (FT) M6X5 BOLT SOCKET (S/P WASHER)M6X14 COVER CONNECT PLATE RM BAS-311G/326G-202 jintex.in 8

Page 14

C2 . 送料装置 / Feed mechanism 16 14 15 14 16 13 31 62 34 43 42 41 35 38 39 37 35 39 37 38 35 38 37 39 9 22 17 28 30 40 35 37 38 39 41 35 38 37 39 35 38 37 39 35 38 37 39 3 4 3 4 2 19 23 18 21 24 20 28 27 61 40 43 42 32 33 33 1 63 7 11 9 8 7 5 6 10 1 63 49 44 46 48 28 24 26 28 25 62 36 35 38 37 39 68 67 59 58 66 65 59 54 53 56 45 47 27 28 29 31 64 54 53 60 51 57 55 48 12 52 50 64 BAS-311G/326G-202 jintex.in

Page 15 — C2. 送料装置 / Feed mechanism

C2. 送料装置 / Feed mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 62 S23418001 2 螺钉 M4X5 SCREW, M4X5 63 118735001 4 垫圈 WASHER 64 SA4224001 2 注意符号 30X40 MARK, ATTENTION 30X40 65 SA6450101 1 轴承支架座 BEARING HOLDER BASE 66 018501036 2 螺栓 M5X10 BOLT SOCKET M5X10 67 SA6451101 1 轴承支架组件 BEARING HOLDER ASSY 68 018401036 2 螺栓 M4X10 BOLT SOCKET M4X10 BAS-311G/326G-202 jintex.in 10

Page 16

C3 . 送料装置 / Feed mechanism < 电磁式 / For Solenoid type > 32 31 24 32 22 17 15 21 14 13 34 33 36 23 6 35 26 40 39 42 41 44 45 48 43 37 50 46 47 38 39 5 4 10 3 6 40 1 49 54 55 8 28 2 16 7 9 12 19 19 20 11 18 23 15 17 27 21 30 22 33 25 35 36 29 34 24 51 53 52 11 BAS-311G/326G-202 jintex.in

Page 17 — C3. 送料装置 / Feed mechanism

C3. 送料装置 / Feed mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM <电磁式> <For Solenoid type> 1 SA4686101 1 压脚臂 WORK CLAMP 2 SA4687101 1 滑块 SLIDER 3 048100142 1 轴用挡圈 C10 RETAINING RING EXTERNAL C10 4 SA4688001 1 滑块支架 SUPPORT SLIDER 5 SA4689001 1 滑块支架轴 SUPPORT SHAFT SLIDER 6 048040142 2 轴用挡圈 C4 RETAINING RING EXTERNAL C4 7 SA4690001 1 压脚柄 R WORK CLAMP LIFTER LEVER R 8 SA4691001 1 压脚柄 L WORK CLAMP LIFTER LEVER L 9 SA4692001 1 压脚臂杆轴 WORK CLAMP LIFTER SHAFT 10 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 11 048080142 1 轴用挡圈 C8 RETAINING RING EXTERNAL C8 12 110367001 1 垫圈 8 WASHER, PLAIN SPECIAL 8 13 SA3231001 1 紧圈 B SET SCREW COLLAR,B 14 012060536 2 螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5 15 SA4696001 2 连杆 CONNECTING ROD 16 SA4693001 1 弹簧挂钩轴 A SPRING HOLDER SHAFT A 17 SA4697001 2 段螺钉 M5 SHOULDER SCREW M5 18 SA4694001 1 弹簧挂钩轴 B SPRING HOLDER SHAFT B 19 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 20 SA4695001 1 弹簧 SPRIHG LIFT 21 SA4698001 2 连接板 CONNECTING LINK 22 SA4700001 2 弹簧挂钩 WORK CLAMP SPRING HOLDER 23 021500216 2 六角螺母 M5 NUT 2 M5 24 SA4701001 2 弹簧 WORK CLAMP SPRING 25 SA4702001 1 压脚臂杆 R WORK CLAMP LIFTER LEVER R 26 SA4703001 1 压脚臂杆 L WORK CLAMP LIFTER LEVER L 27 SA4692001 1 压脚臂杆轴 WORK CLAMP LIFTER SHAFT 28 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 29 048080142 1 轴用挡圈 C8 RETAINING RING EXTERNAL C8 30 110367001 1 垫圈 8 WASHER, PLAIN SPECIAL 8 31 SA3231001 1 紧圈 B SET SCREW COLLAR,B 32 012060536 2 螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5 33 SA4699001 2 定位 STOPPER 34 018500836 4 螺栓 M5X8 BOLT SOCKET M5X8 35 025050236 4 平垫圈 M5 WASHER PLAIN M 5 36 028050246 4 弹簧垫圈 2-5 WASHER SPRING 2-5 37 SA4863001 1 压脚导向组件 A WORK CLAMP GUIDE A ASSY 38 S23849001 2 螺钉 M4X16 SCREW, M4X16 39 SA4864001 1 压脚导向组件 B WORK CLAMP GUIDE B ASSY 40 S55482001 4 螺栓(带垫圈) M4X14 BOLT, SOCKET (S/P WASHER)M4X14 41 SA4712001 1 压脚滑块组件 R WORK CLAMP SLIDER ASSY R 42 SA4714001 1 压脚滑块组件 L WORK CLAMP SLIDER ASSY L 43 SA4706101 4 压脚挡板组件 WORK CLAMP RETAINER ASSY 44 SA4708001 1 压脚 WORK CLAMP 45 S55485001 2 螺栓(带垫圈) M5X12 BOLT, SOCKET (S/P WASHER)M5X12 46 012501031 2 螺钉 M5X10 SET SCREW SOCKET (FT) M5X10 47 021500216 2 六角螺母 M5 NUT 2 M5 48 SA4709001 2 定位段螺钉 SHOULDER SCREW 49 SA4866101 1 压板组件 311 WORK CLAMP 311 ASSY 50 S55484002 2 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 51 017501616 4 螺栓 M5X16 BOLT M5X16 52 025050236 4 平垫圈 M5 WASHER PLAIN M 5 53 028050246 4 弹簧垫圈 2-5 WASHER SPRING 2-5 54 SA4715001 1 送料板 311G FEED PLATE 311G 55 S55484002 2 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 BAS-311G/326G-202 jintex.in 12

Page 18 — C4 . 送料装置 / Feed mechanism

C4 . 送料装置 / Feed mechanism < 空圧式 / For Peneumatic type > 8 7 9 9 19 8 7 18 9 13 10 11 5 14 17 12 15 5 23 12 13 33 16 3 26 25 20 6 22 34 26 2 35 6 32 28 24 23 1 22 36 29 30 21 31 27 < 用于 311G / For 311G > 40 39 38 42 41 39 44 37 43 < 用于 326G / For 326G > 40 39 46 42 41 39 44 45 47 BAS-311G/326G-202 13 jintex.in

Page 19 — C4. 送料装置 / Feed mechanism

C4. 送料装置 / Feed mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4686101 1 压脚臂 <空压式> WORK CLAMP 2 SA4717001 1 气缸轴 CYLINDER SHAFT 3 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 5 SA4719001 2 气缸组件 R AIR CYLINDER ASSY 6 048050142 2 轴用挡圈 C5 RETAINING RING EXTERNAL C5 7 SA4720001 2 气缸接头 CYLINDER JOINT 8 SA4721001 2 气缸接头轴 CYLINDER JOINT SHAFT 9 048060142 4 轴用挡圈 C6 RETAINING RING EXTERNAL C6 10 SA4722001 1 压脚柄 R(气压) WORK CLAMP LIFTER LEVER R AIR 11 SA4723001 1 压脚柄 L(气压) WORK CLAMP LIFTER LEVER L AIR 12 SA4724001 2 压脚臂杆(气压) WORK CLAMP LIFTER SHAFT AIR 13 S55479001 2 螺栓(带垫圈) M4X8 BOLT, SOCKET (S/P WASHER) M4X8 14 SA4692001 1 压脚臂杆轴 WORK CLAMP LIFTER SHAFT 15 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 16 048080142 1 轴用挡圈 C8 RETAINING RING EXTERNAL C8 17 110367001 1 垫圈 8 WASHER, PLAIN SPECIAL 8 18 SA3231001 1 紧圈 B SET SCREW COLLAR,B 19 012060536 2 螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5 20 SA4863001 1 压脚导向组件 A WORK CLAMP GUIDE A ASSY 21 S23849001 2 螺钉 M4X16 SCREW, M4X16 22 SA4864001 2 压脚导向组件 B WORK CLAMP GUIDE B ASSY 23 S55482001 4 螺栓(带垫圈) M4X14 BOLT, SOCKET (S/P WASHER)M4X14 24 SA4712001 1 压脚滑块组件 R WORK CLAMP SLIDER ASSY R 25 SA4714001 1 压脚滑块组件 L WORK CLAMP SLIDER ASSY L 26 SA4706101 4 压脚挡板组件 WORK CLAMP RETAINER ASSY 27 SA4725001 1 压脚 R WORK CLAMP R 28 S55485001 1 螺栓(带垫圈)M5X12 BOLT, SOCKET (S/P WASHER)M5X12 29 012501031 2 螺钉 M5X10 SET SCREW SOCKET (FT) M5X10 30 021500216 2 六角螺母 M5 NUT 2 M5 31 SA4709001 2 定位段螺钉 SHOULDER SCREW 32 SA4726001 1 压脚 L WORK CLAMP L 33 S55485001 1 螺栓(带垫圈) M5X12 BOLT, SOCKET (S/P WASHER)M5X12 34 012501031 2 螺钉 M5X10 SET SCREW SOCKET (FT) M5X10 35 021500216 2 六角螺母 M5 NUT 2 M5 36 SA4709001 2 定位段螺钉 SHOULDER SCREW 37 SA4868101 1 压脚板组件 311R <用于311G> WORK CLAMP 311R ASSY 38 SA4869101 1 压脚板组件 311L WORK CLAMP 311L ASSY 39 S55484002 4 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 40 017501616 4 螺栓 M5X16 BOLT M5X16 41 025050236 4 平垫圈 M5 WASHER PLAIN M 5 42 028050246 4 弹簧垫圈 2-5 WASHER SPRING 2-5 43 SA4715001 1 送料板 311G FEED PLATE 311G 44 S55484002 2 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 45 SA4870101 1 压脚板组件 326R <用于326G> WORK CLAMP 326R ASSY 46 SA4871101 1 压脚板组件 326L WORK CLAMP 326L ASSY 39 S55484002 4 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 40 017501616 4 螺栓 M5X16 BOLT M5X16 41 025050236 4 平垫圈 M5 WASHER PLAIN M 5 42 028050246 4 弹簧垫圈 2-5 WASHER SPRING 2-5 44 S55484002 2 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 47 SA4852001 1 送料板 326G FEED PLATE 326G BAS-311G/326G-202 jintex.in 14

Page 20 — D1 .抬压装置 / Work clamp lifter mechanism

D1 .抬压装置 / Work clamp lifter mechanism 12 11 9 8 2 9 10 5 1 5 7 6 3 4 40 44 41 42 39 15 17 16 14 13 45 59 46 18 19 20 38 49 37 35 21 50 19 20 22 52 36 40 19 20 34 30 29 28 51 32 41 43 33 20 19 31 27 48 23 53 25 26 24 47 54 55 56 58 57 15 BAS-311G/326G-204 jintex.in

Page 21 — D1. 抬压装置 / Work clamp lifter mechanism

D1. 抬压装置 / Work clamp lifter mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4759001 1 凸轮 STEPPING CLAMP CAM 2 SA4760001 1 连杆 STEPPING CLAMP CON.ROD 3 SA4763001 1 垫圈 WASHER STEPPING CLAMP CAM 4 623033000 1 轴承 6805VV BALL BEARING, 6805VV 5 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 6 062400616 2 螺钉 M4X6 SCREW PAN M4X6 7 SA4761001 1 滚轮轴 ROLLER SHAFT STEPPING CLAMP 8 SA4762001 1 滚轮 ROLLER STEPPING CLAMP 9 SA4302001 2 垫圈 WASHER 10 021060106 1 螺母 M6 NUT 1 M6 11 SA4764001 1 压臂 R STEPPING CLAMP ARM R 12 017061216 1 螺栓 M6X12 BOLT M6X12 13 SA4765001 1 压臂 F STEPPING CLAMP ARM F 14 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 15 S23651001 1 固定螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 16 SA4766001 1 压臂轴套 F BUSH STEPPING CLAMP F 17 SA4767001 1 压臂轴套 R BUSH STEPPING CLAMP R 18 SA4768001 1 间歇连杆 A BUSH STEPPING CLAMP R 19 SA4769001 4 段螺钉 6 SHOULDER SCREW 6 20 062300416 4 螺钉 M3X4 SCREW, PAN M3X4 21 SA4770001 1 间歇连杆 B STEPPING CLAMP LINK B 22 SA4772001 1 间歇联杆 STEPPING CLAMP LINK 23 SA4773001 1 联杆轴 SHAFT STEPPING CLAMP LINK 24 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 25 012400436 1 螺钉 M4X4 SET SCREW SOCKET (FT) M4X4 26 SA4777001 1 联接板 STEPPING CLAMP LIFTER LINK 27 SA4771001 1 联接板轴 SHAFT STEPPING CLAMP LIFT LINK 28 SA2161001 1 垫圈 WASHER 29 048080142 1 轴用挡圈 C8 RETAINING RING EXTERNAL C8 30 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 31 012400436 1 螺钉 M4X4 SET SCREW SOCKET (FT) M4X4 32 SA4779001 1 间歇提升杆 STEPPING CLAMP LIFTER 33 SA4781001 1 提升杆滑轮 ROLLER STEPPING CLAMP LIFTER 34 141362001 1 滚轮 ROLLER 35 SA4780001 1 提升杆轴 SHAFT STEPPING CLAMP LIFTER 36 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 37 S25310101 1 螺钉 M4 SCREW, FLAT M4 38 SA4775001 1 提升连杆 STEPPING CLAMP LIFTER ROD 39 SA4853001 1 提升连杆接头 JOINT STEPPING CLAMP LIFTER 40 SA2663001 2 接头组件 R BALL JOINT ASSY 41 021060306 2 六角螺母 M6 NUT 3 M6 42 SA3227001 1 螺母 M6 NUT(FT),M6 43 SA4776001 1 段螺钉 SHOULDER SCREW 44 S32462001 1 段螺钉 B M6 SHOULDER SCREW, B ;M6 45 017065002 1 螺栓 M6X50 BOLT M6X50 46 021060106 1 螺母 M6 NUT 1 M6 47 SA4778001 1 压紧杆接头 PRESSER BAR CLAMP 48 018400836 1 螺栓 M4X8 BOLT SOCKET M4X8 49 SA1174001 1 调节螺母 M14 PRESSER ADJUSTING SCREW, M14 50 SA1175001 1 调节螺母 M14 ADJUST SCREW NUT 51 SA5300001 1 弹簧 PRESSER BAR SPRING 52 S10112001 1 弹簧导向 PRESSER BAR SPRING GUIDE 53 SA5301001 1 弹簧管套 COLLAR PRESSER BAR SPRING 54 SA2195001 1 压紧杆轴套 PRESSER BAR BUSH 55 012060536 1 螺钉 M6X5 SET SCREW SOCKET (FT) M6X5 56 111466101 1 压紧杆 PRESSER BAR 57 * P. 67 1 压脚 WORK CLAMP 58 S1339001 1 螺钉 SM3.57X12 SCREW, SM3.57X12 59 151439102 1 垫圈 WASHER BAS-311G/326G-204 16

Page 22 — D2 .抬压装置 / Work clamp lifter mechanism

D2 .抬压装置 / Work clamp lifter mechanism < 电磁式 / For Solenoid type > 10 6 13 1 17 16 11 12 9 7 15 8 3 32 14 4 5 31 33 25 24 36 35 34 25 37 42 52 47 19 23 58 57 46 59 40 51 28 27 41 21 45 44 43 22 29 30 27 50 49 48 18 26 20 28 39 55 38 53 54 56 17 jintex.in BAS-311G/326G-204

Page 23 — D2. 抬压装置 / Work clamp lifter mechanism

D2. 抬压装置 / Work clamp lifter mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM <电磁式> <For Solenoid type> 1 SA4729001 1 滑杆轴套 SLIDE BUSH 2 018401036 4 螺栓 M4X10 BOLT SOCKET M4X10 3 SA4731001 1 压脚提升板组件 WORK CLAMP LIFTER PLATE ASSY 4 SA4734001 1 底座板 E SEAT E 5 062400416 4 螺钉 M4X4 SCREW, PAN M4X4 6 SA4736001 1 压脚提升杆 WORK CLAMP LIFTER LEVER 7 152744001 1 销 PIN 8 102630001 1 针杆接头滑块 NEEDLE BAR GUIDE SLIDE BLOCK 9 SA4737001 1 提升杆轴 B WORK CLAMP LEVER SHAFT B 10 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 11 S20356001 1 平垫圈 10 WASHER, PLAIN 10 12 048080342 1 挡圈 E8 RETAINING RING E8 13 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 14 118208001 1 带槽销 DOWEL PIN 15 SA4738001 1 压脚提升杆 WORK CLAMP LIFTER LINK 16 SA3438001 2 段螺钉 LINK SHOULDER SCREW 17 SA4739001 1 弹簧 WORK CLAMP SPRING 18 SA4741101 1 马达座 MOTOR BRACKET 19 SA4742001 1 压脚马达板 WORK CLAMP MOTOR PLATE 20 018501036 2 螺栓 M5X10 BOLT SOCKET M5X10 21 SA4826201 1 脉冲马达组件 P PULSE MOTOR ASSY P 22 SA4828001 1 马达端线 P MOTOR HARNESS P 23 018401036 4 螺栓 M4X10 BOLT SOCKET M4X10 24 SA4743001 1 驱动齿轮 WORK CLAMP DRIVING GEAR 25 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 26 SA4744001 1 压脚支点轴 WORK CLAMP FULCRUM SHAFT 27 SA4647001 2 球轴承 6900ZZNR BALL BEARING 6900ZZNR 28 048100142 2 轴用挡圈 C10 RETAINING RING EXTERNAL C10 29 062400616 1 螺钉 M4X6 SCREW PAN M4X6 30 025040236 1 平垫圈 M4 WASHER, PLAIN M4 31 SA4745001 1 凸轮齿轮 WORK CLAMP CAM GEAR 32 016061031 1 螺钉 M6X10 SET SCREW SOCKET (CN) M6X10 33 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 34 SA4746001 1 压脚凸轮 WORK CLAMP CAM 35 S35079000 1 滚针 3X11.8 NEEDLE ROLLER, 3X11.8 36 016061031 1 螺钉 M6X10 SET SCREW SOCKET (CN) M6X10 37 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 38 SA4747001 1 压脚原点挡块 WORK CLAMP H-POSITION DOG 39 018400636 1 螺栓 M4X6 BOLT SOCKET M4X6 40 SA4748001 1 压脚柄轴 WORK CLAMP LEVER SHAFT 41 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 42 SA6210001 1 间歇驱动杆 STEPPING W-CLAMP DRIVING LEVER 43 SA3441001 1 抬压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 44 070696800 1 轴承 R-696ZZ BALL BEARING RADIAL 696ZZ 45 109763001 1 垫圈 WASHER 46 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 47 SA4750001 1 压脚驱动杆 WORK CLAMP DRIVING SHAFT 48 SA3441001 1 抬压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 49 070696800 1 轴承 R-696ZZ BALL BEARING RADIAL 696ZZ 50 109763001 1 垫圈 WASHER 51 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 52 S20356001 1 平垫圈 10 WASHER, PLAIN 10 53 SA4752001 1 凸轮定位 WORK CLAMP CAM STOPPER 54 062400616 2 螺钉 M4X6 SCREW PAN M4X6 55 SA4753001 1 压脚传感器板 WORK CLAMP SENSOR PLATE 56 062400616 2 螺钉 M4X6 SCREW PAN M4X6 57 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 58 SA4224001 1 注意符号 30X40 MARK,ATTENTION 30X40 59 018061236 2 螺栓 M6X12 BOLT SOCKET M6X12 BAS-311G/326G-204 jintex.in 18

Page 24

D3 .抬压装置 / Work clamp lifter mechanism < 空压式 / For Peneumatic type > 15 14 21 35 25 24 23 22 34 33 12 13 1 16 11 10 19 29 20 3 7 8 8 2 10 26 27 32 30 31 31 6 4 9 11 17 18 28 BAS-311G/326G-204 19 jintex.in

Page 25 — D3. 抬压装置 / Work clamp lifter mechanism

D3. 抬压装置 / Work clamp lifter mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4741101 1 <空压式> 马达座 <For Pneumatic type> MOTOR BRACKET 2 SA4742001 1 压脚马达板 WORK CLAMP MOTOR PLATE 3 018501036 2 螺栓 M5X10 BOLT SOCKET M5X10 4 SA4826201 1 脉冲马达组件 P PULSE MOTOR ASSY P 5 SA4828001 1 马达端线 P MOTOR HARNESS P 6 018401036 4 螺栓 M4X10 BOLT SOCKET M4X10 7 SA4743001 1 驱动齿轮 WORK CLAMP DRIVING GEAR 8 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 9 SA4744001 1 压脚支点轴 WORK CLAMP FULCRUM SHAFT 10 SA4647001 2 球轴承 6900ZZNR BALL BEARING 6900ZZNR 11 048100142 2 轴用挡圈 C10 RETAINING RING EXTERNAL C10 12 062400616 1 螺钉 M4X6 SCREW PAN M4X6 13 025040236 1 平垫圈 M4 WASHER PLAIN M4 14 SA4745001 1 凸轮齿轮 WORK CLAMP CAM GEAR 15 016061031 1 螺钉 M6X10 SET SCREW SOCKET (CN) M6X10 16 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 17 SA4747001 1 压脚原点挡块 WORK CLAMP H-POSITION DOG 18 018400636 1 螺栓 M4X6 BOLT SOCKET M4X6 19 SA4748001 1 压脚柄轴 WORK CLAMP LEVER SHAFT 20 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 21 SA6210001 1 间歇驱动杆 STEPPING W-CLAMP DRIVING LEVER 22 SA3441001 1 抬压滚轮轴 W-CLAMP LIFTER ROLLER SHAFT 23 070696800 1 轴承 R-696ZZ BALL BEARING RADIAL 696ZZ 24 109763001 1 垫圈 WASHER 25 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 26 SA4753001 1 压脚传感器板 WORK CLAMP SENSOR PLATE 27 062400616 2 螺钉 M4X6 SCREW PAN M4X6 28 SA4224001 1 注意符号 30X40 MARK,ATTENTION 30X40 29 018061236 2 螺栓 M6X12 BOLT SOCKET M6X12 30 159163000 1 橡皮塞 29 RUBBER CAP 29 31 104821001 2 橡皮塞 10.5 RUBBER CAP, 10.5 32 118550001 1 带槽销 PIN DOWEL 33 SA4757101 1 紧圈 SET SCREW COLLAR 34 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 35 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 BAS-311G/326G-204 20

Page 26 — E. 下轴装置 / Lower shaft mechanism

E. 下轴装置 / Lower shaft mechanism 18 17 23 43 31 32 42 34 35 39 36 38 37 19 22 21 20 29 33 30 14 15 16 12 8 7 8 10 13 14 11 15 41 1 4 2 40 6 9 5 9 3 6 BAS-311G/326G-305 21 jintex.in

Page 27 — E. 下轴装置 / Lower shaft mechanism

E. 下轴装置 / Lower shaft mechanism 参照号 零件序号 数量 零部件名称 NAME OF PARTS RM 1 SA3226001 1 段螺钉 SHOULDER SCREW 2 SA3227001 1 螺母 M6 NUT(FT),M6 3 SA3228101 1 摆动齿轮 ROCK GEAR 4 SA4782001 1 摆动齿轮轴 ROCK GEAR SHAFT 5 SA3231001 1 紧圈 B SET SCREW COLLAR,B 6 012060536 2 螺钉 M6X5 SET SCREW, SOCKET (FT) M6X5 7 SA3233001 1 紧圈 SET SCREW COLLAR 8 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 9 012060636 2 螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 10 SA4783101 1 下轴组件 LOWER SHAFT ASSY 11 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 12 SA6216001 1 下轴轴套 LOWER SHAFT BUSH 13 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 14 SA3238101 2 旋梭调节轴 ADJUSTING STUD 15 081003670 2 O形圈 PW3 O RING PW3 16 SA6220001 1 大旋梭基座组件 G SHUTTLE RACE BASE ASSY G 17 S02429201 1 旋梭线导向 SHUTTLE RACE THREAD GUIDE 18 SA4199001 2 螺钉 M3X4 SCREW M3X4 19 SA3241001 2 大旋梭固定柄 S-RACE BASE SETTING CLAW 20 152684101 2 弹簧 COMPRESSION SPRING 21 026030136 2 平垫圈 S3 WASHER PLAIN S3 22 062300616 2 螺钉 M3X6 SCREW PAN M3X6 23 153050000 2 油毡 S-RACE BASE FELT 29 S59886001 2 油毡 L=360 FELT, L=360 30 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 31 048070342 1 挡圈 E7 RETAINING RING E7 32 SA3284101 1 梭托 D DRIVER,D 33 018501232 1 螺栓 M5X12 BOLT SOCKET M5X12 34 * P. 66 1 外旋梭 SHUTTLE RACE BASE 35 * P. 66 1 梭芯套组件 BOBBIN CASE ASSY 36 * P. 66 1 调节弹簧 TENSION SPRING 37 * P. 66 1 螺钉 SCREW 38 * P. 66 1 防空转弹簧 ANTI-SPIN SPRING 39 * P. 66 1 梭芯 BOBBIN 40 SA3283101 1 紧圈 R SET SCREW COLLAR,R 41 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 42 * P. 66 1 中旋梭 SHUTTLE HOOK 43 S32557000 1 油线 4X4 L=330 WICK, 4X4 L=330 BAS-311G/326G-305 jintex.in 22

Page 28 — F .供油润滑装置 / Lubrication

F .供油润滑装置 / Lubrication 14 3 16 40 47 46 15 39 11 12 18 13 35 34 36 7 1 20 22 60 21 59 58 51 27 26 25 42 55 53 50 45 56 57 42 42 55 42 61 41 43 69 10 5 4 6 2 29 38 40 28 54 19 32 33 31 30 23 24 8 9 62 67 68 64 66 65 66 63 65 23 BAS-311G/326G-350 jintex.in

Page 29 — F. 供油润滑装置 / Lubrication

F. 供油润滑装置 / Lubrication 参照号 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 45 46 47 50 51 52 53 54 55 56 57 58 59 BAS-311G/326G-350 零部件序号 SA3244001 SA4785001 062061016 SA4787001 062400616 SA5294001 SA4786101 SA3503201 SA3504201 018400636 SA4788001 062400616 SA6593001 SA6580001 S07459100 SA6576001 SA6087001 104567101 S49992000 152948001 S0529000 S07459100 SA6592101 S53175000 SA5072001 SA6578001 S09043000 S49982000 S48189000 SA3246001 SA3280001 SA4789101 062060816 145547001 062400616 S49957000 SA4791101 149547000 525567000 0A5401006 525664000 0A5401006 SA6211001 062401016 S38265000 142274101 SA6263001 SA6260001 S00400000 SA6579001 SA5339101 525567000 SA3242001 S44924001 SA3274101 S47307001 数量 1 1 3 1 2 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 1 1 2 1 5 1 5 1 1 1 1 1 1 1 3 1 2 1 2 零部件名称 1螺钉 1曲柄盖 3螺钉 M6X10 1曲柄供油板 2螺钉 M4X6 1毡油线 L=90 1油毡 1下轴给油支架 1下轴齿轮油毡 2螺栓 M4X6 1供油支架 1螺钉 M4X6 1毡油线 L=180 1油管 L=780 1油管 L=240 1油管 L=210 1油线挂钩 1油线支架 1油视窗 1油视窗 1油管 L=320 1油管 L=240 1油毡 L=680 1油管 L=450 1油管 L=120 1油线 6X6 L=300 4油毡 1油线 4X4 L=400 1油管 L=280 1齿轮供油支架 1油毡 1油线夹 B 1螺钉 M6X8 1回油管管托 1螺钉 M4X6 1油线 4X4 L=700 1油管 L=620 1压线板 1电线夹 #8 2螺栓(带垫圈) M4X10DB 1电线夹 #6 5螺栓(带垫圈) M4X10DB 1油盖 5螺钉 M4X10 1管接头 L 1橡皮塞 4.2 1油管 L=320 1油毡组件 1油线 2.5X200 1油管 L=110 1油嘴管 3电线夹 #8 1油毡支架 2固定螺钉 M3X5.5 1油毡支架 2螺钉 M3X4 NAME OF PARTS SET SCREW CRANK COVER SCREW PAN M6X10 CRANK WICK PLATE SCREW PAN M4X6 FLAT WICK L=90 FELT LOWER SHAFT WICK SUPPORT LOWER SHAFT GEAR FELT BOLT SOCKET M4X6 WICK SUPPORT SCREW PAN M4X6 FLAT WICK, L=180 OIL TUBE, L=780 OIL TUBE, L=240 OIL TUBE, L=210 WICK SUPPORT WICK SUPPORT OIL GAUGE WINDOW OIL GAUGE WINDOW OIL TUBE, L=320 OIL TUBE, L=240 WICK L=680 OIL TUBE, L=450 OIL TUBE L=120 WICK 6X6 L=300 FELT WICK, 4X4 L=400 OIL TUBE, L=280 GEAR WICK SUPPORT GEAR FELT LOWER SHAFT WICK SUPPORT B SCREW PAN M6X8 TUBE HOLDER SCREW PAN M4X6 WICK, 4X4 L=700 OIL TUBE L=620 CORD HOLDER, 4N CORD HOLDER, #8 SCREW PAN (S/P WASHER) M4X10 CORD HOLDER, #6 SCREW PAN (S/P WASHER) M4X10 OIL COVER SCREW PAN M4X10 TERMINAL, L RUBBER CAP, 4.2 OIL TUBE L=320 FELT ASSY WICK, 2.5X200 OIL TUBE, L=110 OIL FEEDING PIPE CORD HOLDER, #8 FELT HOLDER SCREW, M3X5.5 FELT HOLDER SCREW, M3X4 RM jintex.in 24

Page 30 — F. 供油润滑装置 / Lubrication

F. 供油润滑装置 / Lubrication 25 BAS-311G/326G-350 jintex.in

Page 31 — F. 供油润滑装置 / Lubrication

F. 供油润滑装置 / Lubrication 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 60 SA6577001 1 油管 L=300 OIL TUBE L=300 61 552907000 1 电线夹 #10 CORD HOLDER, #10 62 SA6572001 1 油线 L=140 WICK L=140 63 SA6581001 1 油毡压板 L WICK SUPPORT L 64 SA6583001 1 底板油毡 L FELT BED L 65 062400616 3 螺钉 M4X6 SCREW PAN M4X6 66 028040246 3 弹簧垫圈 2-4 WASHER SPRING 2-4 67 SA6582001 1 油毡压板 R WICK SUPPORT R 68 SA6584001 1 底板油毡 R FELT BED R 69 S25310101 3 螺钉 M4 SCREW, FLAT M4 BAS-311G/326G-350 26 jintex.in

Page 32 — G . 穿线装置 / Threading mechanism

G . 穿线装置 / Threading mechanism 27 BAS-311G/326G-401 jintex.in

Page 33 — G. 穿线装置 / Threading mechanism

G. 穿线装置 / Threading mechanism 参照号 零件部件序号 数量 零件部件名称 NAME OF PARTS RM 1 SA3250001 1 过线导向 A ARM THREAD GUIDE,A 2 062500616 1 螺钉 M5X6 SCREW PAN M5X6 3 SA4333001 1 过线导向 B ARM THREAD GUIDE,B 4 062500616 1 螺钉 M5X6 SCREW PAN M5X6 5 SA6391001 1 过线器 C ARM THREAD GUIDE C 6 062500616 1 螺钉 M5X6 SCREW PAN M5X6 7 153049001 1 面线导向杆 UPPER THREAD GUIDE STUD 8 SA3254001 1 夹线座 TENSION BRACKET 9 * P. 66 1 调节弹簧 THREAD TAKE-UP SPRING 10 SA3255001 1 夹线杆轴 TENSION STUD 11 S31032001 1 压线螺母 TENSION NUT 12 159805001 1 夹线压盘 TENSION DISC PRESSER 13 145446001 1 夹线盘 DISC, TENSION 14 100402004 1 固定螺钉 SM3.57 SET SCREW, SM3.57 15 SA4143001 1 螺钉 M6X6 SET SCREW, (FT) M6X6 16 S12699000 1 松线销 TENSION RELEASE PIN 17 SA3256001 1 夹线杆轴 A TENSION STUD,A 18 145446001 2 夹线盘 DISC, TENSION 19 159224001 1 线钩 THREAD GUIDE, ARM 20 * P. 67 1 针杆导向 NEEDLE BAR THREAD GUIDE 21 SA3258001 1 针杆轴套线导向 D N-BAR BUSH THREAD GUIDE,D 22 15881001 1 线冷却器组件 NEEDLE COOLER ASSY 23 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 24 152883000 1 油毡 8X15.5 FELT, 8X15.5 25 152884001 1 过线钩 NEEDLE COOLER THREAD GUIDE 26 062670412 1 螺钉 SM3.57-40X4 SCREW PAN SM3.57-40X4 27 100136001 1 夹线螺母 TENSION NUT 28 SA4146001 1 弹簧 SUB TENSION SPRING 29 SA4141001 1 止动垫圈 WASHER 30 * P. 66 1 夹线簧 TENSION SPRING BAS-311G/326G-401 28

Page 34 — H . 卷线装置 / Bobbin winder mechanism

H . 卷线装置 / Bobbin winder mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17 18 19 20 21 22 23 24 25 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 39 BAS-311G/326G-402 jintex.in 29

Page 35 — H. 卷线装置 / Bobbin winder mechanism

H. 卷线装置 / Bobbin winder mechanism 参照号 零件部件号 数量 零件名称 NAME OF PARTS RM 1 SA4795001 1 顶盖 TOP COVER 2 SA3290001 1 卷线手柄 SHAFT,BW-LEVER 3 012500536 1 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 4 SA3291001 1 卷线手柄 BOBBIN WINDER LEVER 5 SA4171001 1 弹簧挂钩 SPRING HOOK 6 152936001 1 板弹簧 PLATE SPRING 7 152937001 1 垫圈 WASHER 8 062350516 1 螺钉 M3.5X6 SCREW PAN M3.5X6 9 159486001 1 垫圈 WASHER 10 048050342 1 挡圈 E5 RETAINING RING E5 11 SA3293001 1 卷线卡爪轴 STUD,B-WINDER CLAW 12 SA1984001 1 梭芯压臂柄 BOBBIN PRESSER ARM 13 062401216 1 螺钉 M4X12 SCREW PAN M4X12 14 SA3294001 1 梭芯压 BOBBIN PRESSER 15 S23418002 1 螺钉 M4X6 SCREW, M4X6 16 SA3295001 1 卷线卡爪 CLAW,B-WINDER 17 012400436 2 螺钉 M4X4 SET SCREW SOCKET (FT) M4X4 18 S10438001 1 弹簧 SPRING, TWIST 19 048050342 2 挡圈 E5 RETAINING RING E5 20 SA4796001 1 垫片 SPACER COLLER 21 SA3296001 1 卷线轴 BOBBIN WINDER SHAFT 22 SA3297001 1 卷线器 WHEEL,B-WINDER 23 120448001 1 橡胶圈 BOBBIN WINDER RUBBER BAND 24 012400436 2 螺钉 M4X4 SET SCREW SOCKET (FT) M4X4 25 159486001 2 垫圈 WASHER 26 SA1988001 1 梭芯座 BOBBIN SUPPORT 27 S10268001 1 拉簧 SPRING 28 SA3298001 1 止动轴 STPPER SHAFT,B-WINDER 29 SA3299001 1 切刀 KNIFE 30 062500616 1 螺钉 M5X6 SCREW PAN M5X6 31 SA1994101 1 卷线器夹线组件 BOBBIN WINDER TENSION ASSY 32 145446002 2 夹线盘 DISC, TENSION 33 100401022 1 夹线弹簧 TENSION SPRING 34 S31032001 1 压线螺母 TENSION NUT 35 S12441001 1 止动垫圈 WASHER 36 012500536 6 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 37 062061016 1 螺钉 M6X10 SCREW PAN M6X10 38 SA4797101 1 卷线驱动轮 DRIVING WHEEL B-WINDER 39 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 BAS-311G/326G-402 30

Page 36 — J. 切线装置 / Thread trimmer mechanism

J. 切线装置 / Thread trimmer mechanism 31 BAS-311G/326G-403 jintex.in

Page 37 — J. 切线装置 / Thread trimmer mechanism

J. 切线装置 / Thread trimmer mechanism 参照号 零件部件号 数量 零件部件名称 NAME OF PARTS RM 1 SA3301101 1 切线凸轮 THREAD TRIMMER CAM 2 S23651001 2 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 3 SA4798001 1 电磁铁安装板 SETTING PLATE SOLENOID 4 SA5135001 1 切线电磁铁 THREAD TRIMMER SOLENOID 5 017400802 2 螺栓 M4X8 BOLT M4X8 6 028040246 2 弹簧垫圈 2-4 WASHER SPRING 2-4 7 025040236 2 平垫圈 M4 WASHER PLAIN M 4 8 SA3307001 1 电磁铁杆 SOLENOID LEVER 9 012400436 1 螺钉 M4X4 SET SCREW SOCKET (FT) M4X4 10 154599000 1 电磁铁缓冲垫圈 SOLENOID CUSHION 11 S02652001 1 垫圈 WASHER 12 S04159000 1 线夹 1M BAND, 1M 13 S55484002 2 螺栓(带垫圈) M5X10 BOLT, SOCKET (S/P WASHER)M5X10 14 SA4799001 1 驱动压杆 PUSHING LEVER,LEVER 15 SA3300001 1 段螺钉 7-3 SHOULDER SCREW, 7-3 16 SA3309101 1 切线驱动杆 TR-DRIVING LEVER 17 SA3310001 1 切线滚轮 COLLAR,TR-TRIMMER 18 SA3311001 1 切线滚轮轴 COLLAR SHAFT 19 SA46903001 1 螺钉 M4X5 SET SCREW, M4X5 20 048080142 1 挡圈 E4 RETAINING RING E4 21 SA3315001 1 切线杆 V THREAD TRIMMER ROD V 22 S32465001 2 接头组件 BALL JOINT ASSY 23 021060106 2 螺母 M6 NUT 1 M6 24 S32462001 1 段螺钉 B M6 SHOULDER SCREW, B ;M6 25 021060306 1 六角螺母 M6 NUT 3 M6 26 S23651001 1 固定螺钉 M6X6 SET SCREW, SOCKET (FT) M6X6 27 231071001 1 轴套 8X15 BUSH, 8X15 28 SA3312001 1 驱动杆导向轴 GUIDE SHAFT 29 SA3313101 1 弹簧 SPRING,COMPRESSION 30 154596000 1 减震垫圈 CUSHION 31 S32462001 1 段螺钉 B M6 SHOULDER SCREW, B ;M6 32 021060306 1 六角螺母 M6 NUT 3 M6 33 S25475101 1 螺钉 M6X19 SET SCREW, M6X19 34 021060106 1 螺母 M6 NUT 1 M6 35 SA4546001 1 切线杠杆 V THREAD TRIMMER LEVER V 36 SA3317001 1 切线杠杆 H THREAD TRIMMER LEVER H 37 SA4801001 1 切线杆 H THREAD TRIMMER ROD H 38 S32465001 2 接头组件 BALL JOINT ASSY 39 021060106 2 螺母 M6 NUT 1 M6 40 S32462001 1 段螺钉 B M6 SHOULDER SCREW, B ;M6 41 021060306 1 六角螺母 M6 NUT 3 M6 42 SA3319101 1 切线杠杆轴 SHAFT,TR-TRIMMER LEVER 43 SA4545001 2 垫片 SPACER 44 048080142 1 轴用挡圈 C8 RETAINING RING EXTERNAL C8 45 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 46 SA3320101 1 弹簧挂钩 SPRING HOOK 47 SA3321001 1 切线复位弹簧 SPRING,EXTENSION 48 018501236 1 螺钉 M5X12 BOLT SOCKET M5X12 49 028050246 1 弹簧垫圈 2-5 WASHER SPRING 2-5 50 146354002 1 垫圈 5 WASHER, PLAIN 5 51 SA3324001 1 动刀面柄 MOVING KNIFE LEVER 52 SA3325001 1 段螺钉 6.35-6 SHOULDER SCREW,6.35-6 53 SA4802001 1 动刀杆轴 SHAFT MOVABLE KNIFE LEVER 54 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 55 SA3327101 1 动刀连杆 M-KNIFE CONNECTING PLATE 56 SA4354001 1 段螺钉 6-1.8 SHOULDER SCREW,6-1.8 BAS-311G/326G-403 32

Page 38 — J. 切线装置 / Thread trimmer mechanism

J. 切线装置 / Thread trimmer mechanism 33 BAS-311G/326G-403

Page 39 — J. 切线装置 / Thread trimmer mechanism

J. 切线装置 / Thread trimmer mechanism 参照号 零件部件号 数量 零件部件名称 NAME OF PARTS RM 57 SA5157001 1 针板 A NEEDLE PLATE A 58 SA3330101 1 动刀组件 F MOVABLE KNIFE ASSY F 59 SA4518001 1 段螺钉 MOVABLE KNIFE SHOULDER SCREW 60 SA4519001 1 动刀圈套 THRUST WASHER 61 S00705001 1 动刀圈套 MOVABLE KNIFE COLLAR 62 SA6397001 1 垫片 0.2 M-KNIFE SPACER T0.2 62 SA3334001 1 垫片 0.3 M-KNIFE SPACER T0.3 62 SA6398001 1 垫片 0.4 M-KNIFE SPACER T0.4 63 SA3335001 1 定刀 F FIXED KNIFE F 64 062300416 2 螺钉 M3X4 SCREW PAN M3X4 65 025030236 2 平垫圈 M3 WASHER PLAIN M 3 66 * 1 针孔板 NEEDLE HOLE PLATE 67 100360003 2 螺钉 SM2.38 SCREW 68 S25310101 2 螺钉 M4 SCREW, FLAT M4 69 SA3538001 2 螺钉 M4X8 SCREW,M4X8 70 SA6273001 1 大旋梭盖挂钩 U SHUTTLE BASE COVER HOOK U 71 028030246 2 弹簧垫圈 2-3 WASHER SPRING 2-3 72 025030236 2 平垫圈 M3 WASHER PLAIN M 3 73 062300416 2 螺钉 M3X4 SCREW PAN M3X4 BAS-311G/326G-403 34

Page 40

K . 扫线装置 / Thread wiper mechanism 35 jintex.in BAS-311G/326G-405

Page 41 — K. 扫线装置 / Thread wiper mechanism

K. 扫线装置 / Thread wiper mechanism 参照号 零件部件号 数量 零件名称 NAME OF PARTS RM 1 SA5208001 1 扫线电磁铁组件 THREAD WIPER SOLENOID ASSY 2 S41206001 1 挡线弹簧 THREAD WIPER SPRING 3 S41205001 1 平垫圈 WASHER, PLAIN 4 S25456001 3 柱塞销 PLUNGER PIN 5 SA5217001 1 扫线电磁铁安装板 T-WIPER SOLENOID SETTING PLATE 6 SA4806001 1 电磁铁盖 SOLENOID COVER 7 062300616 8 螺钉 M3X6 SCREW PAN M3X6 8 SA5218001 1 扫线轴托架 THREAD WIPER SHAFT BRACKET 9 018400836 1 螺栓 M4X8 BOLT SOCKET M4X8 10 025040236 1 平垫圈 M4 WASHER PLAIN M4 11 SA1967001 1 扫线曲轴组件 THREAD WIPER CRANK ASSY 12 048040342 1 挡圈 E3 RETAINING RING E3 13 S25454001 1 螺纹紧固圈 SET SCREW COLLAR 14 S25279001 1 螺钉 M3.5-5 SET SCREW, (CP) M3.5-5 15 SA2287001 1 弹簧 SPRING 16 140097000 1 消音垫 SILENT SHEET 17 SA5219001 1 扫线杆 THREAD WIPER ROD 18 110735001 1 垫圈 WASHER 19 048030342 1 挡圈 E3 RETAINING RING E3 20 S10470101 1 扫线 WIPER 21 060400516 1 螺钉 M4X5 SCREW BIND M4X5 22 146288001 1 挡线轴挡圈 THREAD WIPER STUD COLLAR 23 S03677001 1 垫圈 WASHER 24 SA5213001 1 停止开关组件 STOP SWITCH ASSY 25 S55485001 2 螺栓(带垫圈) M5X12 BOLT, SOCKET (S/P WASHER)M5X12 BAS-311G/326G-405 36

Page 42 — L. Tension release mechanism

L. 松线装置 / Tension release mechanism 37 BAS-311G/326G-406

Page 43 — L. 松线装置 / Tension release mechanism

L. 松线装置 / Tension release mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA4855001 1 松线电磁铁 HV TENSION RELEASE SOLENOID HV 2 017400802 2 螺栓 M4X8 BOLT M4X8 3 028040246 2 弹簧垫圈 2-4 WASHER SPRING 2-4 4 025040236 2 平垫圈 M4 WASHER PLAIN M4 5 017401415 1 螺栓 M4X14 BOLT M4X14 6 021400306 1 六角螺母 M4 NUT 3 M4 7 102707002 1 垫圈 4 WASHER 8 154599000 1 电磁铁缓冲垫圈 SOLENOID CUSHION 9 SA6389001 1 电磁铁安装板 SETTING PLATE SOLENOID 10 S04159000 1 线夹 1M BAND, 1M 11 SA3347001 1 松线杆 TENSION RELEASE BAR 12 048040342 1 挡圈 E4 RETAINING RING E4 13 025050236 1 平垫圈 M5 WASHER PLAIN M5 14 SA3348001 1 弹簧 SPRING 15 SA3349001 1 电磁铁盖 SOLENOID COVER 16 SA3350001 2 段螺钉 7-3 SHOULDER SCREW,7-3 17 081007070 2 O形圈 P7 O RING P7 18 218859001 1 电线夹 M150 BINDER, M150 BAS-311G/326G-406 38

Page 44 — M1 . 控制箱装置 / Control box mechanism

M1 . 控制箱装置 / Control box mechanism < 用于欧洲 三相 400V / For Europe, "3-phase 400V AC" > 14 15 13 12 4 13 1 10 7 6 9 8 < 用于100-220V / For "100-220V AC" > 2 < 用于380-400V / For "380-400V AC" > 3 39 BAS-311G/326G-502 jintex.in

Page 45 — M1. 控制箱装置 / Control box mechanism

M1. 控制箱装置 / Control box mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA6364001 1 盖组件 CF CF CAP ASSY 2 SA3720001 1 <用于100-220V> 变压器 LV <用于380-400V> <For "100-220V AC"> TRANSFORMER LOW VOLTAGE <For "380-400V AC"> 3 SA3808001 1 变压器 HV TRANSFORMER HIGH VOLTAGE 4 SA3797001 1 DC风扇马达组件 DC-FAN MOTOR ASSY 5 SA4556001 1 主基板组件 PCB ASSY,MAIN 6 SA3739301 1 基板组件 PMD PCB ASSY,PMD 7 SA3744001 3 FET FS10ASJ-2 TRANSISTOR,FET,FS10ASJ-2 8 SA3722001 1 MOSFET FX20KMJ-2 TRANSISTOR,FET,FX20KMJ-2 9 SA4948000 1 MOSFET FX10KMJ-2 TRANSISTOR,FET,FX10KMJ-2 10 SA3806001 1 电线 HARNESS, MAIN POWER SUPPLY 11 J04115001 1 感电标签(6国) LABEL, ELEC. SHOCK 6 LANG 12 537060001 1 标记 PE LABEL, PE 13 S37059001 3 PE标记 LABEL, GROUNDING 14 SA3581001 1 <用于欧洲 三相 400V> 基板组件 <For Europe,"3-phase 400V AC"> PCB ASSY,NF 15 SA3796001 1 电线 NF OUT HARNESS,NF OUT BAS-311G/326G-502 40 jintex.in

Page 46 — M2 . 控制箱装置(电源基板) / Control box (PCB) mechanism

M2 . 控制箱装置(电源基板) / Control box (PCB) mechanism 1 12 11 10 6 5 4 10 12 7 8 9 2 3 41 BAS-311G/326G-502 jintex.in

Page 47 — M2. 控制箱装置（电源基板） / Control box (PCB) mechanism

M2. 控制箱装置（电源基板） / Control box (PCB) mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SA3755201 1 电源马达基板组件 PCB ASSY,POWER SUPPLY MOTOR 2 SA3765001 1 电阻 V10D101 VARISTOR:V10D101 3 SA3766001 1 电阻 V10D241 VARISTOR:V10D241 4 SA3767001 1 电阻 V14D511 VARISTOR:V14D511 5 SA3762001 1 电阻 V14D911 VARISTOR:V14D911 6 SA3768001 1 电阻 V14D561 VARISTOR:V14D561 7 SA3769001 1 电阻 V5D121 VARISTOR:V5D121 8 SA3770001 1 电阻 V5D330 VARISTOR:V5D330 9 SA3771001 1 电阻 V5D820 VARISTOR:V5D820 10 SA3794001 3 保险丝 250V-15A G FUSE S 15A 11 SA3795001 2 保险丝 250V-6A G FUSE S 6A 12 616167001 3 保险丝 250V-3A G FUSE S 3A BAS-311G/326G-502 jintex.in 42

Page 48 — N. 开关装置 / Power switch mechanism

N. 开关装置 / Power switch mechanism < 用于日本 单相100V / For Japan, 1-phase 100V AC. > 1 2 < 用于日本 三相 200V / For Japan, 3-phase 200V AC. > 3 4 < 用于美国 单相 110V / For USA, 1-phase 110V AC. > 5 < 用于美国 三相 220V / For USA, 3-phase 220V AC. > 6 7 < 用于亚洲 单相 220V / For Asia, 1-phase 220V AC. > 8 7 < 用于中国 单相 220V / For China, 1-phase 220V AC. > < 用于亚洲 单相 240V / For Asia, 1-phase 240V AC. > 9 < 用于中国 三相 380V / For China, 3-phase 380V AC. > 13 < 用于欧洲 三相 400V / For EU, 3-phase 400V AC. > 12 10 < 用于加拿大 单相120V / For Canada, 1-phase 120V AC. > 11 14 43 BAS-311G/326G-502 jintex.in

Page 49 — N. 开关装置 / Power switch mechanism

N. 开关装置 / Power switch mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 SA3813001 1 <用于日本 电源开关组件 1P-JP 单相 100V> <For Japan, 1-phase 100V AC.> POWER SUPPLY SWITCH ASSY,1P-JP 2 SA3822001 1 V切换电线 100V VOLTAGE SELECT HARNESS 100V 3 SA3819001 1 <用于日本 电源开关组件 3P-JP 三相 200V> <For Japan,3-phase 200V AC.> POWER SUPPLY SWITCH ASSY,3P-JP 4 SA3825001 1 V切换电线 200V VOLTAGE SELECT HARNESS 200V 5 SA3823001 1 <用于美国 V切换电线 110V 单相 110V> <For USA,1-phase 110V AC.> VOLTAGE SELECT HARNESS 110V 6 SA3816001 1 <用于美国 电源开关组件 3P-L 三相 220V> <For USA,3-phase 220V AC.> POWER SUPPLY SWITCH ASSY,3P-L 7 SA3812001 1 V切换电线 220V VOLTAGE SELECT HARNESS 220V 8 SA3809001 1 <用于亚洲 电源开关组件 1P 单相 220V> <For Asia, 1-phase 220V AC.> POWER SUPPLY SWITCH ASSY,1P 7 SA3812001 1 V切换电线 220V VOLTAGE SELECT HARNESS 220V 9 SA3826001 1 <用于亚洲 V切换电线 240V 单相 240V> <For Asia, 1-phase 240V AC.> VOLTAGE SELECT HARNESS 240V 7 SA3812001 1 <用于中国 V切换电线 220V 单相 220V> <For China,1-phase 220V AC.> VOLTAGE SELECT HARNESS 220V 10 SA3827001 1 <用于中国 V切换电线 380V 三相 380V> <For China,3-phase 380V AC.> VOLTAGE SELECT HARNESS 380V 11 SA3789101 1 V切换电线 H220V VOLTAGE SELECT HARNESS H220V 12 SA4510001 1 电源开关组件 3P-H POWER SUPPLY SWITCH ASSY,3P-H 13 SA3828001 1 <用于欧洲 V切换电线 400V 三相 400V> <For Europe,3-phase 400V AC.> VOLTAGE SELECT HARNESS 400V 14 SA3824001 1 <用于加拿大 V切换电线 120V 单相 120V> <For Canada, 1-phase 120V AC.> VOLTAGE SELECT HARNESS 120V BAS-311G/326G-502 44 Jinte.in

Page 50 — P . 空压装置 / Air pressure mechanism

P . 空压装置 / Air pressure mechanism 18 27 19 26 25 17 28 29 12 1 21 20 14 13 11 3 4 2 5 6 9 10 7 8 16 15 12 24 14 13 11 3 23 4 22 6 5 9 10 7 8 30 45 BAS-311G/326G-514 jintex.in

Page 51 — P. 空压装置 / Air pressure mechanism

P. 空压装置 / Air pressure mechanism RM 参照号 零件序号 数量 零部件名称 NAME OF PARTS 1 SA5281001 1 电磁阀组件 2A <For Pneumatic type> SOLENOID VALVE ASSY 2A 2 SA5289001 1 集合管 2 MANIFOLD2 3 S39116100 2 阀 VQZ2151S-5 VALVE, VQZ2151S-5 4 SA5283001 1 消音器 AN103-1 SILENCER AN103-1 5 SA5282001 1 调整器 AW20-02G FILTER REGULATOR AW20-02G 6 S09228000 1 管接头 NIPPLE 1/4X1/8 7 153252000 1 接头 PT PT-JOINT 8 S04891000 1 中间接头 1/4 MIDDLE NIPPLE, 1/4 9 SA5285001 1 中间接头 1/4 MIDDLE NIPPLE, 1/4 10 SA6573001 1 球阀 Vo3 1/4 BALL VALVE Vo3 1/4 11 153274001 2 盖 1/8 CAP, 1/8 12 SA5286001 1 阀安装板 SETTING PLATE VALVE 13 028050246 2 弹簧垫圈 2-5 WASHER SPRING 2-5 14 018503036 2 螺栓 M5X30 BOLT SOCKET M5X30 15 SA5191001 1 阀门接线2连组件 VALVE HARNESS X2 ASSY 16 149796001 1 像皮管接头 AIR HOSE, W/CONNECTOR 17 SA6405001 1 空气管 R AIR TUBE, R 18 SA6406001 1 空气管 AIR TUBE, R 28 SA6406002 1 空气管 R AIR TUBE, R 29 SA6406002 1 空气管 L AIR TUBE, L 19 SA6407001 1 保护用弹性管 470S SPIRAL, 470S 20 032422003 2 木螺钉 M4.1X20 WOOD SCREW, ROUND 2 M4.1X20 21 148847001 2 垫圈 WASHER, PLAIN 4.76 25 525664000 1 电线夹 #6 CORD HOLDER, #6 0A 1 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 26 228475000 3 电线夹 1.9X80 FASTENING BAND, 1.9X80 24 SA5288001 1 电磁阀组件 5A SOLENOID VALVE ASSY 5A 22 SA5290001 1 集合管 5 MANIFOLD5 23 S53982000 3 隔板 BLANKING PLATE ASSY 3 S39116100 2 阀 VQZ2151S-5 VALVE, VQZ2151S-5 4 SA5283001 1 消音器 AN103-1 SILENCER AN103-1 5 SA5282001 1 调整器 AW20-02G FILTER REGULATOR AW20-02G 6 S09228000 1 管接头 NIPPLE 1/4X1/8 7 153252000 1 接头 PT PT-JOINT 8 S04891000 1 中间接头 1/4 MIDDLE NIPPLE, 1/4 9 SA5285001 1 中间接头 1/4 MIDDLE NIPPLE, 1/4 10 SA6573001 1 球阀 Vo3 1/4 BALL VALVE Vo3 1/4 11 153274001 2 盖 1/8 CAP, 1/8 12 SA5286001 1 阀安装板 SETTING PLATE VALVE 13 028050246 2 弹簧垫圈 2-5 WASHER SPRING 2-5 14 018503036 2 螺栓 M5X30 BOLT SOCKET M5X30 30 SA5192001 1 阀门接线5连组件 VALVE HARNESS X5 ASSY BAS-311G/326G-514 46

Page 52 — Q . 电气部品装置 / Power supply equipment mechanism

Q . 电气部品装置 / Power supply equipment mechanism 47 BAS-311G/326G-515 jintex.in

Page 53 — Q. 电气部件装置 / Power supply equipment mechanism

Q. 电气部件装置 / Power supply equipment mechanism 参照号 零件序号 数量 零部件名称 NAME OF PARTS RM 1 525567000 3 电线夹 #8 CORD HOLDER, #8 2 149547000 1 压线板 CORD HOLDER, 4N 3 149287000 3 压线板 CORD HOLDER, 7N 4 0A5401006 7 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 5 SA4830001 1 传感器组件 H-POSITION SENSOR ASSY 6 062300816 3 螺钉 M3X8 SCREW PAN M3X8 7 SA3481001 1 机头开关组件 SWITCH ASSY,MACHINE HEAD 8 0A5301605 2 螺栓(带垫圈) M3X16DB SCREW PAN (S/P WASHER) M3X16 9 0A5401006 2 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 10 SA4824001 1 头部检出复合件 HEAD DETECTOR UNIT ASSY 11 SA5210001 1 电磁铁接线 THREAD WIPER SOLENOID HARNESS 12 SA5214001 1 开关接线 STOP SWITCH HARNESS 13 SA5261001 1 接地线 450 GROUND WIRE 450 14 0A5401006 1 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 15 554482000 1 电线夹 #12 CORD HOLDER, #12 16 S00470000 1 电线夹 #16 CORD HOLDER, 16N 17 0A5401006 2 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 18 218859001 2 电线夹 M150 BINDER, M150 19 S04159000 1 线夹 1M BAND, 1M 20 SA6560101 2 保护用螺线管 140SS SPIRAL, 140SS 21 S04159000 2 线夹 1M BAND, 1M BAS-311G/326G-515 48

Page 54 — R . 操作盤装置 / Operation panel mechanism

R . 操作盤装置 / Operation panel mechanism BAS-311G/326G-530 49 jintex.in

Page 55 — R. ᄨϴᬢ⒮ὃ / Operation panel mechanism

R. ᄨϴᬢ⒮ὃ / Operation panel mechanism ‫ۂ‬ᠺ۲ ⪔⡑Υഛ۲ ᅶ⣍ ⪔⡑Υ‫܈‬᳛ NAME OF PARTS RM 1 SA4834001 1 ᄨϴᬢẳΥ OPERATION PANEL ASSY 2 SA3831001 1 ᄨϴᬢ⫐ዎ PANEL SHEET 3 SA3833101 1 ᄨϴᬢদዎẳΥ PANEL PCB ASSY 4 SA4563001 1 ᄨϴᬢၹẮ PANEL HARNESS 5 SA4837001 1 ᳫഛࣈ˻ỖẮ PROGRAMMER CONNECTING HARNESS 6 SA4841001 1 ၹटẮ GROUND WIRE 7 SA4836001 1 ᄨϴᬢᅂጦ OPERATION PANEL STAND 8 018400636 3 ␻ጼ / : BOLT SOCKET M4X6 9 S43236009 1 ᄨϴᬢদയ OPERATION PANEL BASE 10 S43674000 1 ἂ⪡ॳ # CUSHION, A 11 S43675000 3 ἂ⪡ॳ $ CUSHION, B 12 S25634101 3 ␻ጼ / : BOLT, SOCKET M5X65 13 025050236 3 ೿ॳऌ / WASHER PLAIN M 5 14 018081636 1 ␻ጼ / : BOLT SOCKET M8X16 15 S10408000 1 ᑥᬂॳᢃ RUBBER SHEET 16 021500106 6 Ԑ┖␻ᓑ / NUT 1 M5 17 025050336 3 ೿ॳऌ . WASHER PLAIN L 5 BAS-311G/326G-530 50

Page 56 — S . 马达装置 / Motor mechanism

S . 马达装置 / Motor mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 51 BAS-311G/326G-650 jintex.in

Page 57 — S. 马达装置 / Motor mechanism

S. 马达装置 / Motor mechanism 参照号 零部件序号 数量 零部件名称 NAME OF PARTS RM 1 J80991001 1 马达组件 CDD-430D MOTOR ASSY, CDD-430D 2 J03955001 1 磁鼓 CDD DRUM CDD 3 014400632 1 螺钉 M4X6 SET SCREW, SOCKET (CP) M4X6 4 J03956001 1 磁铁 180P36 MAGNET 180P36 5 J03957001 1 MR感应组件 180P MR SENSOR ASSY 180P 6 0A4300805 1 螺栓(带垫圈) M3X8DA SCREW, PAN (S/P WASHER) M3X8 7 J03958001 1 屏蔽板 CDD SHIELD PLATE CDD 8 0A4261005 3 螺栓(带垫圈) M2.6X10DA SCREW, PAN (S/P WASHER) M2.6X10 9 J04488001 1 ENC 基板组件 430D#2 ENC PCB ASSY, 430D#2 10 0A5300606 3 螺栓(带垫圈) M3X6DB SCREW, PAN (S/P WASHER) M3X6 11 J04230001 1 电线固定夹 CDD-HT CORD HOLDER, CDD 12 0A4401005 3 螺栓(带垫圈) M4X10DA SCREW, PAN (S/P WASHE) M4X10 13 J04388001 1 编码器盖 430D ENCODER COVER, 430D 14 0A4300805 3 螺栓(带垫圈) M3X8DA SCREW, PAN (S/P WASHER) M3X8 15 J04303001 1 同步轮组件 430D PULLEY HOLDER ASSY, 430D 16 014500632 2 螺钉 M5X6 SET SCREW, SOCKET (CP) M5X6 BAS-311G/326G-650 52 Jinte.in

Page 58 — T . 踏板关系 / Foot switch pedal mechanism

T . 踏板关系 / Foot switch pedal mechanism < 电磁式 / For solenoid type > < 空压式 / For Pneumatic type > 53 jintex.in BAS-311G/326G-651

Page 59 — Foot switch pedal mechanism

T. ⚰ዎԖṴ / Foot switch pedal mechanism ‫ۂ‬ᠺ۲ ⪔⡑Υഛ۲ ᅶ⣍ ⪔⡑Υ‫܈‬᳛ NAME OF PARTS RM ⵜ᧿᱊ൠⵞ <For Solenoid type> 1 SA3519101 1 ⚰ዎਚ‫܃‬Υ # TREADLE UINT,A ASSY ⵜᴙ‫ڡ‬ൠⵞ <For Peneumatic type> 2 SA6038001 1 ❶⚰൑ԖẳΥ 2-PEDAL FOOT SWITCH, SW ASSY 3 S38168001 1 ൿḠ SPRING, COMPRESSION 10X30 4 S38170001 2 ൿḠ FOOT PEDAL SPRING 5 S36260000 3 ൑Ԗ 8: PIN BUTTON MICRO SWITCH, VX 6 S38174000 2 ⚰ዎ FOOT PEDAL 7 S38175001 2 ⚰ྵዎ PROTECTION PLATE, PEDAL 8 S38176101 2 ൿḠዎ SPRING, PLATE BAS-311G/326G-651 54

Page 60 — U. 编程装置 / Programmer

U. 编程装置 / Programmer 55 BAS-311G/326G-940 jintex.in

Page 61 — Programmer

U. ἅᳫ⒮ὃ / Programmer ‫ۂ‬ᠺ۲ ⪔⡑Υഛ۲ ᅶ⣍ ⪔⡑Υ‫܈‬᳛ NAME OF PARTS RM 1 SA5164001 1 .%& ᑏᅶ LCD MODULE 2 SA5165001 1 .%& ‫ۓ‬၉ࣈ LCD INVERTER 3 SA5166001 1 ‫ۓ‬၉ࣈၹẮ INVERTER HARNESS 4 SA5170001 1 ἅᳫࣈদዎẳΥ PROGRAMMER PCB ASSY 5 SA5172001 1 ൑ԖদዎẳΥ SWITCH PCB ASSY 6 SA5168001 2 ((% ၹẮ FFC:SML2CD 7 SA5167001 1 ἅᳫࣈၹẮ PROGRAMMER HARNESS BAS-311G/326G-940 56

Page 62 — V1 . 附属装置 (选购件) / Attachment set (Option parts)

V1 . 附属装置 (选购件) / Attachment set (Option parts) 1 9 10 6 7 8 4 5 2 3 57 jintex.in BAS-311G/326G-940

Page 63 — V1. 附属装置(选购件)/Attachment set (Option parts)

V1. 附属装置(选购件)/Attachment set (Option parts) 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SA5193001 1 <用于欧洲以外> 断线传感器组件 F <Except for Europe> TR-BREAKAGE DETECTOR SET F 2 SA4816001 1 信号放大器 FX311 FIBER AMP FX311 3 SA4817001 1 电缆线组件 AMP CABLE ASSY 4 SA4818001 1 放大器安装支架 DIN METAL FITTING 5 062300616 2 螺钉 M3X6 SCREW PAN M3X6 6 SA4819001 1 光导纤维传感器 FDFM2 FIBER FDFM2 7 SA5194001 1 传感器安装板 SENSOR SETTING PLATE 8 062500616 1 螺钉 M5X6 SCREW PAN M5X6 9 625010000 1 尼龙夹 NK-2N NYLON CLAMP NK-2N 10 0A5401006 1 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 1 SA51930E1 <用于欧洲> 断线传感器组件 F <For Europe only> TR-BREAKAGE DETECTOR SET F 2 SA48160E1 1 信号放大器 FX311 FIBER AMP FX311 3 SA4817001 1 电缆线组件 AMP CABLE ASSY 4 SA4818001 1 放大器安装支架 DIN METAL FITTING 5 062300616 1 螺钉 M3X6 SCREW PAN M3X6 6 SA4819001 1 光导纤维传感器 FDFM2 FIBER FDFM2 7 SA5194001 1 传感器安装板 SENSOR SETTING PLATE 8 062500616 1 螺钉 M5X6 SCREW PAN M5X6 9 625010000 1 尼龙夹 NK-2N NYLON CLAMP NK-2N 10 0A5401006 1 螺栓(带垫圈) M4X10DB SCREW PAN (S/P WASHER) M4X10 BAS-311G/326G-940 58 Jinttex.in

Page 64 — V2 . 附属装置(选购件) / Attachment set (Option parts)

V2 . 附属装置(选购件) / Attachment set (Option parts) 10 15 3 4 5 6 7 9 8 11 13 12 2 14 1 18 17 19 21 16 20 59 jintex.in BAS-311G/326G-940

Page 65

/ Attachment set (Option parts) <Except for Europe> 1 SA5201001 1 FDD SET 2 SA5202001 1 FDD UNIT ASSY 3 SA6628001 1 FDD 4 S43225000 2 SPACER, FDD 5 SA5203001 1 FDD BASE PLATE 6 0A4300605 4 SCREW PAN (S/P WASHER) M3X6 7 037300816 4 TAPPING SCREW PAN V M3X8 8 SA5204001 1 FDD COVER 9 0A4300805 4 SCREW PAN (S/P WASHER) M3X8 10 SA5205001 1 FDD HARNESS 11 SA5206001 1 FDD POWER HARNESS 12 SA5134001 1 GROUND WIRE 13 0A4300805 1 SCREW PAN (S/P WASHER) M3X8 14 032421302 4 WOOD SCREW ROUND 2 M4.1X13 15 200190001 2 STAPLE 10X20 <For Europe only> 1 SA52010E1 1 FDD SET 2 SA52020E1 1 FDD UNIT ASSY 3 SA6628001 1 FDD 4 S43225000 2 SPACER, FDD 5 SA5203001 1 FDD BASE PLATE 6 0A4300605 4 SCREW PAN (S/P WASHER) M3X6 7 037300816 4 TAPPING SCREW PAN V M3X8 8 SA5204001 1 FDD COVER 9 0A4300805 4 SCREW PAN (S/P WASHER) M3X8 10 SA5205001 1 FDD HARNESS 11 SA5206001 1 FDD POWER HARNESS 12 SA5134001 1 GROUND WIRE 13 0A4300805 1 SCREW PAN (S/P WASHER) M3X8 14 032421302 4 WOOD SCREW ROUND 2 M4.1X13 15 200190001 2 STAPLE 10X20 <Except for Europe> 16 SA6495001 1 3-PEDAL FOOT SW ASSY 17 S38170001 3 FOOT PEDAL SPRING 18 S38174000 3 FOOT PEDAL 19 S38175101 3 PROTECTION PLATE PEDAL 20 S38176101 3 SPRING, PLATE 21 S36260000 1 PIN BUTTON MICRO SWITCH, VX <For Europe only> 16 SA64950E1 1 3-PEDAL FOOT SW ASSY 17 S38170001 3 FOOT PEDAL SPRING 18 S38174000 3 FOOT PEDAL 19 S38175101 3 PROTECTION PLATE PEDAL 20 S38176101 3 SPRING, PLATE 21 S36260000 1 PIN BUTTON MICRO SWITCH, VX BAS-311G/326G-940 60

Page 66

Z. 附件 / Accessories 10 78 brod 23 24 25 26 27 28 19 18 17 16 15 11 12 20 21 22 93 84 83 89 88 94 95 91 90 13 14 1 3 <电磁式 / / For Solenoid type > 123 102 97 98 100 99 101 81 80 82 124 125 126 8 7 106 4 5 6 9 106 79 29 36 45 46 47 50 38 37 51 49 54 50 40 53 32 55 35 41 30 31 44 42 43 33 34 128 129 129 130 104 117 116 114 115 119 108 106 118 107 111 110 109 113 112 61 jintex.in BAS-311G/326G-910

Page 67 — Z. 附件 / Accessories

Z. 附件 / Accessories 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 SA4842001 1 马达盖 MOTOR COVER 3 062061016 4 螺钉 M6X10 SCREW PAN M6X10 4 SA4844001 1 油盘 OIL PAN 5 154467001 1 废油回收壶盖 DUST OILER 6 037301215 2 螺钉 M3X12 TAPPING SCREW PAN V M3X12 7 SA3540001 3 缓冲橡皮垫 RUBBER CUSHION 8 109714000 7 钉 NAIL 9 114486002 1 油壶 OILER 10 122991001 1 附属品塑料袋 ACCESSORY BAG 11 S06706001 1 硅油 SILICONE OIL 12 S44633001 3 梭芯 LAN BOBBIN, LAN 13 * P. 67 1 机针组件(4支装) NEEDLE 4PIECE ASSY 14 * P. 67 4 机针 NEEDLE 15 114483002 1 油壶组件 OILER ASSY 16 S55663001 1 油罐组件 OIL TANK ASSY 17 142443001 1 小起子 1.9X52 SCREW-DRIVER, 1.9X52 18 118837001 1 起子 3.4X70 SCREW-DRIVER, 3.4X70 19 101572102 1 起子 5.5X190 SCREW-DRIVER, 5.5X190 20 107779001 1 扳手 6X7 WRENCH, 6X7 21 100887001 1 双头扳手 8X9 WRENCH, 8X9 22 107780001 1 扳手 10X12 WRENCH, 10X12 23 S07783001 1 内六角扳手 1.5 HEXAGONAL WRENCH, 1.5 24 142002001 1 内六角扳手 2 HEXAGONAL WRENCH, 2 25 154125001 1 内六角扳手 2.5 HEXAGONAL WRENCH, 2.5 26 142721001 1 内六角扳手 3 HEXAGONAL WRENCH, 3 27 118064001 1 内六角扳手 4 HEXAGONAL WRENCH, 4 28 150335001 1 内六角扳手 5 HEXAGONAL WRENCH, 5 29 S040574209 1 线架组件 2DTHF COTTON STAND ASSY, 2DTHF 30 S51283001 2 垫圈 SPOOL STAND BASE 31 150182000 2 线盘软垫 SPOOL MAT 32 S51282101 2 线轴缓冲架 SPOOL CUSHION 33 150206002 1 平垫圈 16 WASHER, PLAIN 16 34 S38648001 1 螺母 U5/8-28 NUT, U5/8-28 35 S04109001 1 过线杆支架 THREAD GUIDE SUPPORT BAR 36 142997001 1 过线杆 3 THREAD GUIDE, 3 37 150172003 1 线架支撑管 COLUMN PIPE 38 150174000 1 线架支撑管套 COLUMN CAP 39 156112003 1 线架支撑管 D COLUMN PIPE, D 40 150173003 1 支撑管夹 COLUMN JOINT 41 150179002 2 线轴 B SPOOL SHAFT, B 42 028050246 2 弹簧垫圈 2-5 WASHER SPRING 2-5 43 021500106 2 六角螺母 M5 NUT 1 M5 44 S02778002 1 插线架 2 SPOOL HOLDER, 2 45 S02787002 1 过线架 2 THREAD HANGER, 2 46 142990001 2 过线架基座 THREAD HANGER BASE 47 150183000 1 过线架上过线管 THREAD BUSH 48 150185009 1 过线杆夹头 THREAD GUIDE HOLDER 49 138843001 1 连接器 JOINT 50 021500106 4 六角螺母 M5 NUT M5 51 S37038001 1 螺钉 M5X14 SCREW, PAN(S/P WASHER) M5X14 52 S37037001 1 螺钉 M5X32 SCREW, PAN (S/P WASHER) M5X32 53 062501406 2 螺钉 M5X14 SCREW PAN M5X14 54 014060632 2 固定螺钉 M6X6 SET SCREW SOCKET (CP) M6X6 55 021500106 1 六角螺母 M5 NUT M5 56 S37037001 1 螺钉 M5X32 SCREW, PAN (S/P WASHER) M5X32 BAS-311G/326G-910 62 jintex.in

Page 68 — Z. 附件 / Accessories

Z. 附件 / Accessories 10 78 16 79 81 80 23 24 25 26 27 28 19 18 17 15 11 93 84 89 88 < 电磁式 / / For Solenoid type > 123 124 125 126 83 94 95 91 90 13 14 100 97 98 99 102 101 103 105 8 7 4 5 6 9 106 106 106 1 3 12 29 46 38 50 37 45 51 36 49 54 41 32 50 35 39 40 53 56 48 33 34 31 30 42 43 44 128 129 129 119 108 130 104 121 122 117 116 114 115 110 109 107 111 118 106 112 113 63 jintex.in BAS-311G/326G-910

Page 69 — Z. 附件 / Accessories

Z. 附件 / Accessories 参照号 零件 / Accessories 数量 零件名称 NAME OF PARTS RM 76 200190001 7 U形卡钉 STAPLE,10X20 78 144226001 1 机头罩 HEAD COVER 79 S36007001 4 螺栓 M8X55 BOLT, M8X55 80 021080106 8 六角螺母 M8 NUT 1 M8 81 025080336 4 平垫圈 L8 WASHER PLAIN L8 82 032461606 2 木螺钉 M4.5X16 WOOD SCREW ROUND 2 M4.5X16 83 S44483001 1 铰链组件 HINGE ASSY 84 S44484001 1 护眼板铰链 EYE GUARD HINGE 88 S44485001 1 护眼板 EYE GUARD 89 061300816 2 螺钉 M3X8 SCREW FLAT M3X8 90 021300106 2 螺母 M3 NUT 1 M3 91 026030236 2 垫圈 M3 WASHER PLAIN M3 92 SA4104001 1 护眼板架 A EYE GUARD HOLDER, A 93 062300506 2 螺钉 M3X5 SCREW PAN M3X5 94 062400616 2 螺钉 M4X6 SCREW PAN M4X6 95 026040136 2 平垫圈 S4 WASHER PLAIN S4 97 SA3395001 2 橡胶皮纹链 RUBBER CUSHION 98 SA3392001 2 垫片 SPACER 99 SA3384001 2 机头支承销 PIN 100 012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 101 SA3385001 2 头部铰链座 HINGE HOLDER 102 018065036 4 螺栓 M6X50 BOLT SOCKET M6X50 103 213650001 4 垫圈 2.3X8.5X38 WASHER, 2.3X8.5X38ST 104 017066002 1 螺钉 M6X60 BOLT M6X60 105 021060106 4 螺母 M6 NUT 1 M6 106 SA3540001 4 缓冲橡胶垫 RUBBER CUSHION 107 SA4845001 1 缓冲器 SHOCK ABSORBER GAS 108 SA4846001 2 缓冲器支架 HOLDER ABSORBER 109 SA5251001 1 垫圈 SPACER 110 018064031 1 螺钉 M6X40 BOLT SOCKET M6X40 111 021060106 1 螺母 M6 NUT 1 M6 112 SA4847001 1 轴 U SHAFT U 113 012060636 1 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 114 S17974001 1 轴 D SHAFT, D 115 S17975100 1 轴套 GS SHAFT COLLAR, GAS 116 025080132 2 垫圈 S8 WASHER PLAIN S 8 117 048060342 2 挡圈 E6 RETAINING RING E6 118 SA3387001 2 螺栓 M6X75 BOLT SOCKET M6X75 119 025060236 2 平垫圈 M6 WASHER PLAIN M 6 120 213650001 2 垫圈 2.3X8.5X38 WASHER, 2.3X8.5X38ST 121 028060246 2 弹簧垫圈 2-6 WASHER SPRING 2-6 122 021060106 2 螺母 M6 NUT 1 M6 <电磁式> <For Solenoid type> 123 119755001 3 螺栓 M6X60 BOLT, M6X60 124 025060236 3 平垫圈 M6 WASHER PLAIN M 6 125 028060246 3 弹簧垫圈 2-6 WASHER SPRING 2-6 126 021060106 3 螺母 M6 NUT 1 M6 128 SA6261001 1 支架盖 HOLDER ABSORBER COVER 129 S55479001 6 螺栓(带垫圈) M4X8 BOLT SOCKET (S/P WASHER) M4X8 130 025060236 1 平垫圈 M6 WASHER PLAIN M6 BAS-311G/326G-910 64 jintex.in

Page 70 — Warning labels

Wa. / Warning labels / Warning labels / Name of parts Size(mm) Code Hazardous voltage will cause injury. Turn off main switch and wait 5 minutes before opening this cover. Label, elec. shock 6 lang 50 X 118 J04115-001 Moving parts may cause injury.Operate with safe- ty devices.Turn off main switch before threading, changing bobbin and needle, cleaning etc. Label, caution Jpn / Eng 52 X 84 SA0792-001 Moving parts may cause injury.Operate with safe- Label, caution Chn / Eng 52 X 84 SA0793-001 ty devices.Turn off main switch before threading, changing bobbin and needle, cleaning etc. R L=25 S36924-002 Mark, injury R=1.2 L 12 S37060-001 Label, grounding 7.5 X 12.5 S37059-001 Label, PE BAS-311G/326G-Wa 65

Page 71 — Different parts list

Sp . / Different parts list BAS-311G/326G The following are standard gauge parts according to each specification. In the following table, parts marked with are common with the KE-430D (Electronic Lockstitch Tacker) & BE-438D (Electronic Lockstitch Button sewer). In the following table, parts marked with are common with the BAS-311F (Electronic program Lock Stitcher) . Heavy-weight Medium-weight Spec. materials materials Part name (J-66) ( 2.4) ( 2.2) Needle hole plate SA3336-101 SA5221-001 (E-35) Bobbin case assy S59221-201 < LC > (E-36) Tension spring S48664-001 (E-37) Screw S16492-101 (E-38) Anti-spin spring S15667-001 (E-39) Bobbin S44633-001 < LAN > (E-42) Shuttle hook SA1890-201 < LG > SA2173-201 < LF > assy, w/box (E-34) Shuttle race base 152686-201 < B > 152682-201 < A > (G-30) Spring,tension 107606-101 104525-101 (G-9) Thread take-up 144588-201 145519-201 spring BAS-311G/326G-Sp 66

Page 72 — Different parts list

Sp . / Different parts list In the following table, parts marked with are common with the KE-430D (Electronic Lockstitch Tacker) & BE-438D (Electronic Lockstitch Button sewer). In the following table, parts marked with are common with the BAS-311F (Electronic program Lock Stitcher) . Heavy-weight Medium-weight Spec. materials materials Part name (G-28) Spring,tension SA4146-101 (G-20) Needle bar thread guide SA3257-101 < A > (Z-13) Needle assy SA1645-019 SA1752-016 (B-32, Z-14) Needle DP 17 < 19 > DP 5 < 16 > 145646-019 107415-016 (D-57) Presser foot SA4811-001 < H > S42843-001 < A > BAS-311G/326G-Sp 67

Page 73 — Gauge parts list

Ga . / Gauge parts list / Presser foot A / S42843-001 B / S42844-001 C / S42845-001 D / S42846-001 5 5 5 4 5.5 3 6 10 2.5 4 2 3 E / S42847-001 F / 157237-001 G / 158592-001 J / S42848-001 5 10 2.5 2.5 3 4 1.6 2 2 2.5 A-CUT / S40214-001 B-L / S49448-001 XA / S42849-101 H / SA4811-001 B 5 7 4 5 5.5 4 5 5.5 2.5 4 2.5 3 / Needle hole plate 2.4 C0.4 / SA3336-001 2.2 / SA5221-001 3.0 C1.5 / SA5222-001 4 6 2.2 2.4 3 2.9 3.0 2.9 The symbol is for Standard parts. BAS-311G/326G-Ga 68

Page 74 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 004300513 A - 16 2 012501031 C4 - 34 14 021060306 J - 32 32 048040342 L - 12 38 012060536 B - 52 4 014060632 Z - 54 62 021080106 Z - 80 64 048050142 C4 - 6 14 C2 - 54 8 014500632 S - 16 52 021300103 A - 19 2 048050342 H - 10 30 C2 - 59 8 016061031 D2 - 32 18 021300106 Z - 90 64 048060142 C4 - 9 14 C3 - 14 12 D2 - 36 18 021400216 C2 - 37 64 048060342 Z - 117 64 C3 - 32 12 D1 - 12 16 021400306 L - 6 38 048070342 E - 31 22 D1 - 55 16 017061216 D1 - 15 16 021500106 R - 16 50 048080142 C3 - 11 12 E - 6 22 017065002 Z - 104 64 Z - 43 62 C3 - 29 12 012060636 B - 24 4 017066002 J - 5 32 Z - 50 62 C4 - 16 14 B - 48 4 017400802 L - 5 38 Z - 55 62 D1 - 29 16 C1 - 19 6 017401415 L - 5 38 021500216 C3 - 23 12 J - 44 32 C1 - 29 6 C3 - 47 12 048080342 C2 - 8 8 C2 - 3 8 017501616 C3 - 51 12 C4 - 35 14 C2 - 3 8 C2 - 6 8 D2 - 59 20 025030236 J - 65 34 048100142 C1 - 17 6 C2 - 10 8 018061236 D2 - 59 18 J - 72 34 C3 - 3 12 C2 - 16 8 D3 - 15 20 025040236 C1 - 36 6 D2 - 28 18 C3 - 10 12 018062036 C2 - 57 8 D2 - 30 18 D3 - 11 20 C3 - 19 12 018064031 Z - 110 64 D3 - 13 20 048420242 C1 - 21 6 C3 - 28 12 018065036 Z - 102 64 J - 7 32 060400516 K - 21 36 C4 - 3 14 018081636 R - 14 50 K - 10 36 061300616 C1 - 6 6 C4 - 15 14 018300636 C1 - 5 6 K - 10 36 C1 - 8 6 D1 - 14 16 018301436 C1 - 3 6 C1 - 34 64 061300816 Z - 89 64 D1 - 24 16 018400636 D2 - 39 18 025050236 C1 - 24 6 062060816 F - 33 24 D1 - 30 16 D3 - 18 20 C3 - 35 12 062061016 A - 7 2 D1 - 36 16 F - 10 24 C3 - 52 12 A - 9 2 D2 - 10 18 R - 8 50 C4 - 41 14 A - 13 2 D2 - 13 18 018400836 C1 - 10 6 L - 13 38 F - 3 24 D2 - 25 18 C1 - 13 6 R - 13 50 H - 37 30 D2 - 33 18 C2 - 21 8 025050336 R - 17 50 Z - 3 62 D2 - 37 18 D1 - 48 16 025060236 Z - 119 64 D2 - 41 18 C4 - 9 36 Z - 124 64 062300416 C2 - 48 8 D2 - 57 18 018401036 C2 - 52 8 025080132 Z - 130 64 D1 - 20 16 D3 - 8 20 C2 - 57 8 025080336 Z - 116 64 J - 64 34 D3 - 16 20 C2 - 68 10 025100132 A - 16 64 J - 73 34 D3 - 20 20 D2 - 2 18 025350332 A - 35 2 062300506 A - 38 2 D3 - 34 20 D2 - 23 18 026030136 E - 21 22 Z - 93 64 D3 - 35 20 D3 - 6 20 026030236 Z - 91 64 062300616 E - 22 22 E - 9 22 018401636 B - 27 4 026040136 Z - 95 64 K - 7 36 E - 13 22 C1 - 31 6 028030246 J - 71 32 V1 - 5 58 E - 30 22 C1 - 35 6 028040246 C1 - 37 38 062300816 Q - 6 48 G - 23 28 C2 - 23 8 F - 66 24 062350616 H - 8 30 J - 45 32 018500836 C3 - 34 12 J - 6 32 062400416 C2 - 28 8 J - 100 64 018501036 C2 - 66 10 L - 3 38 C2 - 49 8 Z - 113 64 D2 - 20 18 028050246 C3 - 36 12 062400616 D1 - 6 16 012400436 D1 - 25 16 018501232 D3 - 3 20 C3 - 53 12 D2 - 29 18 D1 - 31 16 018501236 J - 48 32 C4 - 42 14 D2 - 54 18 H - 17 30 B - 3 4 P - 13 46 D2 - 56 18 H - 24 30 B - 49 4 D3 - 12 20 012500536 B - 21 4 018503036 B - 14 46 028060246 Z - 121 64 021060106 D1 - 41 16 Z - 125 64 B - 36 4 021060306 D1 - 46 16 032421302 V2 - 14 60 B - 43 4 J - 25 32 032422003 P - 20 46 037300816 V2 - 7 64 D2 - 46 18 037300816 V2 - 7 64 047401242 B - 41 4 D2 - 51 18 048030342 K - 19 36 D3 - 25 20 048040142 C3 - 6 12 E - 11 22 021060306 D1 - 41 16 048040342 J - 20 32 E - 41 22 J - 25 32 K - 12 36 H - 3 30 012501031 C3 - 46 12 021060306 D1 - 41 16 062400816 B - 22 4 H - 36 30 J - 25 32 B - 34 4 062401006 A - 24 2 C4 - 29 14 B - 46 4 B - 51 4 C2 - 27 8 F - 45 24 69 Jinteх.in

Page 75 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 062401216 H -13 30 117934001 A -4 2 154596000 J -30 32 S10112001 D1 -52 16 062500616 G -2 28 118064001 Z -27 154599000 J -30 32 S10268001 H -27 30 G -4 28 118550001 D3 -32 20 156112003 Z -39 62 S10408000 R -15 50 G -6 28 118570001 C3 -63 157237001 Ga -68 157237001 Ga -68 S10470101 K -20 36 H -30 30 118735001 C2 -63 159200001 Ga -68 S10470101 K -20 36 062501406 Z -53 62 119755001 Z -123 64 159163000 D3 -30 20 S10438001 H -18 30 062670412 G -26 28 120265001 A -27 159224001 G -19 28 S10470101 K -20 36 070696800 D2 -44 18 120448001 Z -23 159486001 H -9 30 S10470101 K -20 36 D2 -49 18 122991001 Z -10 62 159805001 G -12 28 S10470101 K -20 36 D3 -23 20 138430001 Z -49 62 159805001 G -12 28 S10470101 K -20 36 076000600 C1 -15 6 142002001 D1 -52 16 200190001 V2 -15 60 S10470101 K -20 36 076806606 C1 -20 6 142002001 D1 -52 16 200190001 V2 -15 60 S10470101 K -20 36 081003670 E -15 22 142211001 Z -24 62 213650001 Z -120 64 S10470101 K -20 36 081007070 L -17 38 142211001 Z -24 62 S10470101 K -20 36 081007070 L -17 38 142211001 Z -24 62 S10470101 K -20 36 0A4261005 S -8 52 142443001 Z -17 62 218859001 L -18 48 S10470101 K -20 36 0A4300605 V2 -6 60 142721001 Z -26 62 S10470101 K -20 36 0A4300805 S -6 52 142990001 Z -47 62 228475000 P -27 46 S10470101 K -20 36 S -14 52 142997001 Z -36 62 231071001 J -27 32 S10470101 K -20 36 V2 -9 60 144588001 B -76 4 525567000 F -39 24 S10470101 K -20 36 V2 -13 60 144588001 B -76 4 525567000 F -39 24 S10470101 K -20 36 0A4401005 S -12 52 144588001 B -76 4 525567000 F -39 24 S10470101 K -20 36 0A4401005 S -12 52 144588001 B -76 4 525567000 F -39 24 S10470101 K -20 36 0A4530606 S -10 52 144588001 B -76 4 525567000 F -39 24 S10470101 K -20 36 0A4530606 S -10 52 145446000 G -18 28 525664000 F -41 24 S10470101 K -20 36 0A5401006 C2 -26 46 145446000 G -18 28 525664000 F -41 24 S10470101 K -20 36 0A5401006 P -40 48 145446000 G -18 28 525664000 F -41 24 S10470101 K -20 36 0A5401006 P -40 48 145446000 G -18 28 525664000 F -41 24 S10470101 K -20 36 F -42 24 145517001 Sp -23 537060001 M1 -12 40 S10470101 K -20 36 Q -4 48 145547001 F -34 24 616167001 M2 -12 42 S10470101 K -20 36 Q -9 48 145547001 F -34 24 616167001 M2 -12 42 S10470101 K -20 36 Q -14 48 145547001 F -34 24 616167001 M2 -12 42 S10470101 K -20 36 Q -17 48 145547001 F -34 24 616167001 M2 -12 42 S10470101 K -20 36 100136001 G -27 28 149287000 Q -3 48 616167001 M2 -12 42 S10470101 K -20 36 100136001 G -27 28 149287000 Q -3 48 616167001 M2 -12 42 S10470101 K -20 36 100360003 J -67 34 149547000 Z -38 4 616167001 M2 -12 42 S10470101 K -20 36 100401022 H -33 30 149547000 Z -38 4 616167001 M2 -12 42 S10470101 K -20 36 100402004 G -14 28 149798001 P -27 46 616167001 M2 -12 42 S10470101 K -20 36 100887001 Z -21 62 150172003 Z -37 62 623033000 D1 -4 48 S10470101 K -20 36 101572102 Z -19 62 150173003 Z -40 62 623033000 D1 -4 48 S10470101 K -20 36 102630001 D2 -8 18 150174000 Z -38 62 623033000 D1 -4 48 S10470101 K -20 36 102707002 L -7 38 150179002 Z -41 62 623033000 D1 -4 48 S10470101 K -20 36 104449001 A -11 2 150182000 Z -31 62 623033000 D1 -4 48 S10470101 K -20 36 104525101 Sp 66 150183000 Z -46 62 623033000 D1 -4 48 S10470101 K -20 36 104567101 F -18 24 150185009 Z -48 62 623033000 D1 -4 48 S10470101 K -20 36 104821001 A -5 2 150206002 Z -33 62 623033000 D1 -4 48 S10470101 K -20 36 D3 -31 20 150335001 Z -28 62 623033000 D1 -4 48 S10470101 K -20 36 107415016 Sp 67 152682201 Sp 66 623033000 D1 -4 48 S10470101 K -20 36 107606101 Sp 66 152682201 Sp 66 623033000 D1 -4 48 S10470101 K -20 36 107779001 Z -20 62 152744001 D2 -7 66 623033000 D1 -4 48 S10470101 K -20 36 107780001 Z -22 62 152744001 D2 -7 66 623033000 D1 -4 48 S10470101 K -20 36 109714000 Z -8 62 152744001 D2 -7 66 623033000 D1 -4 48 S10470101 K -20 36 109763001 D2 -45 18 152881001 D2 -24 28 S04190000 L -10 38 S10470101 K -20 36 D2 -50 18 152881001 D2 -24 28 S04190000 L -10 38 S10470101 K -20 36 D3 -24 20 152884001 G -25 28 S04190000 L -10 38 S10470101 K -20 36 110367001 B -18 4 152937001 H -6 30 S04190000 L -10 38 S10470101 K -20 36 C3 -12 12 152948001 F -7 24 S04190000 L -10 38 S10470101 K -20 36 C3 -30 12 152948001 F -7 24 S04190000 L -10 38 S10470101 K -20 36 C4 -17 14 152948001 F -7 24 S04190000 L -10 38 S10470101 K -20 36 110735001 K -18 36 153050000 E -23 22 S04190000 L -10 38 S10470101 K -20 36 111466101 D1 -56 16 153252000 P -7 46 S04190000 L -10 38 S10470101 K -20 36 114483002 Z -15 62 153274001 P -11 46 S04190000 L -10 38 S10470101 K -20 36 114486002 Z -9 62 153412000 Z -25 62 S04190000 L -10 38 S10470101 K -20 36 117608001 A -2 2 154467001 Z -5 62 S09228000 P -6 46 S10470101 K -20 36 70

Page 76

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S37059001 Wa 65 S55484002 C3 - 55 12 SA3294001 H - 14 30 SA3769001 M2 - 7 42 S37060001 A - 32 2 C4 - 39 14 SA3295001 H - 16 30 SA3770001 M2 - 8 42 Wa 65 C4 - 44 14 SA3296001 H - 21 30 SA3771001 M2 - 9 42 S38168001 T - 3 54 J - 13 32 SA3297001 H - 22 30 SA3789101 N - 11 44 S38170001 T - 4 54 S55485001 C4 - 45 14 SA3298001 H - 28 30 SA3794001 M2 - 10 42 V2 - 17 60 C4 - 28 14 SA3299001 H - 29 30 SA3795001 M2 - 11 42 S38174000 T - 6 54 C4 - 33 14 SA3301101 J - 1 32 SA3796001 M1 - 15 40 V2 - 18 60 K - 25 36 SA3306001 A - 26 32 SA3797001 M1 - 4 40 S38175001 T - 7 54 S55663001 K - 25 36 J - 15 32 SA3800001 M1 - 10 40 S38175101 V2 - 19 60 S59221201 Sp 66 L - 16 32 SA3808001 M1 - 3 40 S38176101 T - 8 54 S59886001 E - 29 22 SA3307001 J - 8 32 SA3809001 N - 8 44 V2 - 20 60 SA0792001 A - 31 2 SA3309101 J - 16 32 SA3812001 N - 7 44 S38265000 F - 46 24 Wa 65 SA3310001 J - 17 32 SA3813001 N - 1 44 S38648001 Z - 34 62 SA0793001 A - 31 2 SA3311001 J - 18 32 SA3819001 N - 6 44 S38713100 B - 33 4 Wa 65 SA3312001 J - 28 32 SA3822001 N - 2 44 S39116100 P - 3 46 SA1174001 D1 - 49 16 SA3313101 J - 29 32 SA3823001 N - 5 44 S40214001 Ga - 68 SA1175001 D1 - 50 16 SA3315001 J - 21 32 SA3824001 N - 14 44 S40574209 Z - 29 62 SA1645019 Sp 67 SA3317001 J - 36 32 SA3825001 N - 4 44 S41205001 K - 3 36 SA1752016 Sp 67 SA3319101 J - 42 32 SA3827001 N - 10 44 S41206001 K - 2 36 SA1890201 Sp 66 SA3320101 J - 46 32 SA3828001 N - 13 44 S42446001 A - 37 2 SA1967001 K - 11 36 SA3321001 J - 47 32 SA3831001 R - 2 50 C2 - 39 8 SA1984001 H - 12 30 SA3325001 J - 51 32 SA3833101 R - 3 50 C2 - 43 8 SA1988001 H - 26 30 SA3327101 J - 55 32 SA4104001 Z - 92 64 C2 - 60 8 SA1994101 H - 31 30 SA3330101 J - 58 34 SA4143001 G - 15 28 S42843001 Sp 67 SA2161001 D1 - 28 16 SA3334001 J - 62 34 SA4146001 G - 28 28 Ga 68 SA2173201 Sp 66 SA3335001 J - 63 34 SA4146101 Sp 67 S42844001 Ga 68 SA2287001 K - 15 36 SA3336001 Ga 68 SA4171001 H - 5 30 S42845001 Ga 68 SA2663001 D1 - 22 8 SA3336101 Sp 66 SA4172001 B - 4 4 S42846001 Ga 68 SA2958001 B - 20 4 SA3347001 L - 11 38 SA4173001 B - 4 4 S42847001 Ga 68 SA2972001 C2 - 22 8 SA3348001 L - 14 38 SA4174001 B - 4 4 S42848001 Ga 68 SA3200101 A - 23 2 SA3349001 Z - 99 64 SA4175001 B - 4 4 S42849101 Ga 68 SA3206001 B - 5 4 SA3385001 Z - 101 64 SA4178001 B - 10 4 S43225000 V2 - 4 60 SA3224001 B - 9 4 SA3387001 Z - 118 64 SA4179001 B - 13 4 S43236009 R - 9 50 SA3226001 E - 1 22 SA3392001 Z - 98 64 SA4180001 B - 6 4 S43674000 R - 10 50 SA3227001 E - 1 22 SA3395001 Z - 97 64 SA4199001 E - 18 22 S43675000 R - 11 50 SA3226001 E - 1 22 SA3438001 D2 - 16 18 SA4224001 C2 - 64 10 S44010001 A - 40 2 SA3227001 E - 1 22 SA3441001 D2 - 43 18 SA4224001 C2 - 64 10 S44483001 Z - 83 64 SA3228101 E - 1 22 SA3441001 D2 - 48 18 SA4224001 C2 - 58 18 S44485001 Z - 84 64 SA3231001 C3 - 13 12 D2 - 58 18 SA4224001 C2 - 58 18 S44485001 Z - 88 64 C3 - 31 12 D3 - 28 20 SA4302001 D1 - 9 16 S44633001 Z - 12 62 C4 - 18 14 SA3481001 Q - 7 48 SA4333001 G - 3 28 Sp 66 C4 - 18 14 SA3499001 B - 2 4 SA4510001 N - 12 44 S44924001 F - 57 24 SA3232001 E - 5 22 SA3503201 F - 8 24 SA4518001 J - 59 34 S46903001 J - 19 32 SA3233001 E - 7 22 SA3504201 F - 9 24 SA4519001 J - 60 34 S47307001 F - 59 24 SA3238101 E - 14 22 SA3519101 T - 1 54 SA4545001 J - 43 32 S48189000 F - 29 24 SA3241001 E - 19 22 SA3528001 J - 26 34 SA4546001 J - 35 32 S48664001 Sp 66 SA3242001 F - 56 24 SA3540001 Z - 7 62 SA4556001 M1 - 5 40 S49448001 Ga 68 SA3244001 F - 1 24 Z - 106 64 SA4563001 R - 4 50 S49982000 F - 9 40 SA3246001 F - 30 24 SA3707001 C2 - 53 8 SA4594001 A - 1 2 S49992000 F - 28 24 SA3250001 G - 1 28 SA3720001 M1 - 2 42 SA4596001 A - 3 2 S50529000 F - 19 24 SA3254001 G - 10 28 SA3722001 M1 - 8 42 SA4597001 A - 6 2 S51282101 Z - 32 62 SA3255001 G - 17 28 SA3739301 M1 - 6 42 SA4600001 A - 10 2 S51283001 Z - 30 62 SA3256001 G - 21 28 SA3744001 M1 - 7 42 SA4601001 A - 12 2 S53175000 F - 24 46 SA3257101 Sp 67 SA3755201 M2 - 1 42 SA4603101 A - 14 2 S53982000 P - 23 46 SA3264001 F - 58 24 SA3762001 M2 - 5 42 SA4604001 A - 25 2 S55479001 C4 - 13 14 SA3274101 F - 31 24 SA3765001 M2 - 2 42 SA4605001 A - 36 2 Z - 129 64 SA3280001 F - 40 22 SA3766001 M2 - 3 42 SA4606001 B - 1 4 S55482001 C3 - 40 12 SA328101 E - 32 22 SA3767001 M2 - 4 42 SA4608101 B - 12 4 C4 - 23 14 SA3283101 E - 2 22 SA3768001 M2 - 6 42 SA4609101 B - 16 4 S55484002 C2 - 42 8 SA3284101 E - 11 22 C3 - 50 12 SA3290001 H - 2 30 71 jintex.in

Page 77 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SA4622001 B -28 4 SA4694001 C3 -18 12 SA4764001 D1 -11 16 SA4864001 C4 -22 14 SA4624001 B -42 4 SA4695001 C3 -20 12 SA4765001 D1 -13 16 SA4866101 C3 -49 12 SA4626001 B -37 4 SA4697001 C3 -17 12 SA4766001 D1 -16 16 SA4868101 C4 -37 14 SA4627001 B -38 4 SA4698001 C3 -21 12 SA4767001 D1 -17 16 SA4869101 C4 -38 14 SA4628001 B -39 4 SA4699001 C3 -33 12 SA4768001 D1 -18 16 SA4870101 C4 -45 14 SA4629001 B -40 4 SA4700001 C3 -22 12 SA4769101 D1 -19 16 SA4871101 C4 -46 14 SA4630001 B -45 4 SA4701001 C3 -24 12 SA4770001 D1 -21 16 SA5072001 F -25 24 SA4635101 C1 -4 6 SA4702001 C3 -25 12 SA4771001 D1 -27 16 SA5134001 V2 -12 60 SA4636101 C1 -7 6 SA4703001 C3 -26 12 SA4772001 D1 -22 16 SA5135001 J -4 32 SA4637001 C1 -2 6 SA4706101 C3 -43 12 SA4773001 D1 -23 16 SA5157001 J -57 34 SA4638001 C1 -18 6 SA4708001 C3 -44 12 SA4775001 D1 -38 16 SA5158001 B -47 4 SA4639001 C1 -14 6 SA4710001 C4 -31 14 SA4776001 D1 -43 16 SA5164001 U -1 56 SA4640001 C1 -12 6 SA4712001 C4 -24 14 SA4777001 D1 -26 16 SA5165001 U -2 56 SA4641001 C1 -9 6 SA4714001 C3 -42 12 SA4778001 D1 -47 16 SA5167001 U -7 56 SA4642001 C1 -22 6 SA4715001 C4 -26 14 SA4779001 D1 -32 16 SA5168001 U -6 56 SA4643001 C1 -25 6 SA4717001 C3 -41 12 SA4780001 D1 -35 16 SA5170001 U -4 56 SA4647001 C1 -27 6 SA4719001 C4 -5 14 SA4781001 D1 -33 16 SA5172001 U -5 56 C2 -4 8 SA4720001 C4 -8 14 SA4782001 E -4 22 SA5191001 P -15 46 C2 -7 8 SA4721001 C4 -10 14 SA4783101 E -10 22 SA5192001 P -30 46 C2 -14 8 SA4722001 C4 -11 14 SA4785001 F -2 24 SA5193001 V1 -1 58 D2 -27 18 SA4723001 C4 -12 14 SA4786101 F -7 24 SA51930E1 V1 -1 58 D3 -10 20 SA4724001 C4 -27 14 SA4787001 F -4 24 SA5194001 V1 -7 58 SA4648001 C1 -11 6 SA4725001 C4 -32 14 SA4788001 F -11 24 SA5201001 V2 -1 60 SA4650001 C1 -30 6 SA4726001 C4 -37 14 SA4789101 F -32 24 SA52010E1 V2 -1 60 SA4651101 C1 -32 6 SA4729001 D2 -1 18 SA4791101 F -37 30 SA5202001 V2 -2 60 SA4652101 C1 -33 6 SA4731001 D2 -3 18 SA4795001 H -1 30 SA52020E1 V2 -2 60 SA4653001 C2 -2 8 SA4734001 D2 -4 18 SA4796001 H -20 30 SA5203001 V2 -5 60 SA4654001 C2 -5 8 SA4736001 D2 -6 18 SA4797001 H -38 30 SA5204001 V2 -8 60 SA4655101 C2 -9 8 SA4737001 D2 -9 18 SA4798001 J -3 32 SA5205001 V2 -10 60 SA4658001 C2 -11 8 SA4738001 D2 -15 18 SA4799001 J -14 32 SA5206001 V2 -11 60 SA4659001 C2 -12 8 SA4741101 D2 -18 18 SA4800001 J -53 32 SA5208001 K -1 60 SA4661001 C2 -13 8 SA4742001 D2 -19 18 SA4811001 Sp - 67 SA5213001 K -24 36 SA4662001 C2 -17 8 SA4743001 D2 -24 18 SA4816001 V1 -2 58 SA5214001 Q -12 48 SA4663001 C2 -18 8 SA4747001 D2 -6 18 SA48160E1 V1 -2 58 SA5217001 K -5 36 SA4664001 C2 -19 8 SA4748001 D2 -50 18 SA4817001 V1 -3 58 SA5218001 K -8 36 SA4665001 C2 -20 8 SA4749001 D2 -55 18 SA4818001 V1 -4 58 SA5219001 K -17 36 SA4666001 B -30 4 SA4741101 D2 -18 18 SA4819001 V1 -6 58 SA5221001 Ga 68 SA4671001 C2 -24 8 SA4743001 D3 -1 20 SA4820201 C2 -50 8 SA5222001 Ga 68 SA4672001 C2 -25 8 SA4744001 D3 -19 20 SA4823101 C2 -55 8 SA5229101 C1 -1 6 SA4676001 C2 -26 8 SA4745001 D3 -2 20 SA4824001 Q -10 48 SA5230001 B -50 4 SA4677001 C2 -32 8 SA4747001 D3 -14 20 SA4826201 D2 -21 18 SA5251001 Z -109 64 SA4678001 C2 -34 8 SA4748001 D3 -31 20 SA4828001 D2 -4 20 SA5261001 Q -13 48 SA4679101 C2 -35 8 SA4750001 D3 -34 20 SA4830001 Q -5 50 SA5281001 P -1 46 SA4680101 C2 -44 8 SA4752001 D3 -38 20 SA4834001 R -1 50 SA5282001 P -5 46 SA4681001 C2 -45 8 SA4757101 D3 -17 20 SA4836001 R -7 50 SA5283001 P -4 46 SA4682001 C2 -46 8 SA4759001 D1 -1 16 SA4837001 R -5 50 SA5285001 P -9 46 SA4684001 C2 -51 8 SA4760001 D1 -2 16 SA4841001 R -6 50 SA5286001 P -12 46 SA4686101 C3 -1 12 SA4761001 D1 -7 16 SA4842001 Z -1 62 SA5290001 P -24 46 C4 -1 14 SA4762001 D1 -8 16 SA4844001 Z -4 62 SA529101 F -23 24 SA4687101 C3 -2 12 SA4763001 D1 -3 16 SA4845001 Z -10 64 SA5292101 F -6 24 SA4688001 C3 -4 12 SA4764001 D1 -11 16 SA4846001 Z -10 64 SA5300001 D1 -51 16 SA4689001 C3 -5 12 SA4765001 D1 -13 16 SA4847001 Z -11 64 SA5301001 D1 -53 16 SA4690001 C3 -7 12 SA4766001 D1 -16 16 SA4850001 C4 -47 14 SA5339101 F -54 24 SA4691001 C3 -8 12 SA4767001 D1 -17 16 SA4853001 D1 -39 16 SA6038001 T -2 54 SA4692001 C3 -9 12 SA4768001 D1 -18 16 SA4855001 L -1 38 SA6087001 F -17 24 C3 -27 12 SA4769001 D1 -19 16 SA4863001 C3 -37 12 SA6108001 B -35 4 C4 -14 14 SA4770001 D1 -21 16 SA4864001 C3 -39 12 SA6182001 B -19 4 SA4693001 C3 -16 12 SA4763001 D1 -3 18 SA4864001 C3 -39 12 SA6194001 A -39 2 72

Page 78 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SA6207001 A -18 2 SA6210001 D2 -42 18 D3 -21 20 SA6211001 F -43 24 SA6216001 E -12 22 SA6220001 E -16 22 SA6260001 F -51 24 SA6261001 Z -128 64 SA6263001 F -50 24 SA6272001 A -15 2 SA6273001 J -70 34 SA6306001 C2 -61 8 SA6359001 C2 -29 8 SA6360001 C2 -30 8 SA6361001 C2 -31 8 SA6364001 M1 -1 40 SA6389001 L -9 38 SA6391001 G -5 28 SA6397001 J -62 34 SA6398001 J -62 34 SA6405001 P -17 46 SA6405002 P -28 46 SA6406001 P -18 46 SA6406002 P -29 46 SA6407001 P -19 46 SA6434001 C2 -40 8 SA6435001 C2 -41 8 SA6441001 A -41 2 SA6450101 C2 -65 10 SA6451101 C2 -67 10 SA6495001 V2 -16 60 SA64950E1 V2 -16 60 SA6560101 Q -20 48 SA6572001 F -62 26 SA6573001 P -10 46 SA6576001 F -16 24 SA6577001 F -60 26 SA6578001 F -26 24 SA6579001 F -53 24 SA6580001 F -14 24 SA6581001 F -63 26 SA6582001 F -67 26 SA6583001 F -64 26 SA6584001 F -68 26 SA6593001 F -13 24 SA6628001 V2 -3 60 73 jintex.in

Page 79

brother. 零件手册 PARTS BOOK 兄弟工业株式会社 http://www.brother.com/ 日本国, 名古屋市瑞穂区苗代町15番1号 邮编: 467-8561 电话: 81-52-824-2177 BROTHER INDUSTRIES, LTD. http://www.brother.com/ 15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, Japan. Phone : 81-52-824-2177 ©2005 Brother Industries, Ltd. All Rights Reserved. BAS-311G, 326G SA6237-101.C/E 2005.06.B(1) jintex.in
