Page 1
TYPICAL
GC6150M/H/B SERIES
HIGH SPEED LOCKSTITCH SEWING MACHINE
INSTRUCTION BOOK
PARTS CATALOGUE
CE
CQC
8. THREADING
9. WINDING INSTALLATION AND ADJUSTMENT
13. ADJUSTMENT OF STITCH LENGTH AND ADJUSTMENT
NOTE
1. OIL FILLING
NOTE: Push the press lever "PUSH" to adjust
the stitch length. It's designed to prevent knob form rotating at GC6-9.
15. ADJUST THE SYNCHRONIZATION OF THE NEEDLE MOTION WITH FEED MOTION
Before putting a new machine into operation,
remove the plugs (A) at the top of the arm and replenish
sufficient amount of oil, then lift the presser foot and run
the machine at a low speed of 2000 rpm to check oil
distributing condition through oil check window. When
lubricating is normal, the machine runs at in at this speed
for 30 minutes, then increase the running speed
gradually. After one month run-in operation, the machine
can be run at the Max speed under normal working
2. ROTATING HOOK OIL AMOUNT ADJUSTMENT
3. OIL PUMP ADJUSTMENT
(1) The oil amount in the oil reservoir is controlled
through the reference marks A and B shown in Fig2. The
max. oil amount level will be under the mark A indicates the max. oil amount level. If the oil level is under
the mark B, replenish the oil reservoir with oil in time.
(2) When filling oil, loosen the oil draining screw (c),
drain off the remaining oil in the oil reservoir completely,
clean the oil reservoir and tighten the oil draining screw (c),
then fill the oil reservoir with fresh oil.
Adjust the oil amount of the rotating hook by
turning the oil amount adjusting screw (A). Turn the
screw(A) clockwise (in the "+" direction) to
increase the oil amount; turn it counter-clockwise
(in the "-" direction) to decrease the oil amount.
Adjusting plate
Standard
clearance
0.5-1.0mm
By-pass oil hole
4. NEEDLE INSTALLATION
Turning the balance wheel to lift the needle bar to
the upper end and of its stroke. Loosen the needle
clamp screw while keeping the long groove of the
needle leftward, fully insert the needle shank up to
the bottom of the needle socket, then tighten the
needle clamp screw.
5. CONNECTION OF THE CLUTCH-LEVER WITH THE PEDAL
(1) The optimum tilt angle of pedal is
approximately 15 deg.
(2) Adjust the clutch so that the clutch lever (c)
align with the draw bar (B) as shown in Fig. 6
(3) The machine pulley should rotate counter
clockwise when viewed from the outside of it. The
rotating direction of motor pulley can be reversed by
turning the plug of the motor at 180 deg.
(4) Adjust the tension of O-Belt (F) by moving
the motor up and down, the proper tension of the
O-belt is a slack of 10-20 mm when the belt is
depressed at the center of the belt by finger.
6. BELT COVER INSTALLATION
7. ADJUST THE OPENING TIME OF THE TENSION DISCS
Install the belt cover for the sake of safety.
Install belt cover (C) to arm with screw(A) and screw (B),
and install belt cover(E) on board with screw(D).
Note: there aren't screw (A) and screw holes on belt
cover in GC6-9.
Within the presser foot lift range of
the tension discs can be adjusted as follows:
(1) Remove the rubber plug (A) from the
arm and Loosen the screw (A) of the knee lift level
(left)
(2) Move the tension releasing lever to the
earlier opening or rightward for later opening. It will
facilitate the adjustment if put a block under the
presser foot lift.
1. ARM BED AND ITS ACCESSORIES
No.
Ref. No.
Description
Qt.
M
H
B
1
124120001
Face plate
1
1
1
2
022160005
Gasket for Face plate
1
1
1
3
022130003
Rubber plate
1
1
1
4
022130004
Rubber plate
1
1
1
5
022130005
Thread guide on face plate
1
1
1
6
022130006
Thread guide on face plate
1
1
1
7
022100004
Face plate screw
1
1
1
8
022140001
Back plate
1
1
1
9
022140002
Gasket for rack plate
1
1
1
10
022100005
Set screw
1
1
1
11
022100007
Washer
1
1
1
12
022180001
Oil check window
1
1
1
13
022100010
Three hole thread guide
1
1
1
14
022100006
Set screw
1
1
1
15
022150001
screw
1
1
1
16
022150001
Spring for pre-tension
disc
1
1
1
17
022150003
Discs for pre-tension
2
2
2
18
022150004
Washer
1
1
1
19
S4A010005
Spring washer
1
1
1
20
022150005
Thread guide for pre-tension
1
1
1
21
124120001
Knob for thread tension stopper
1
1
1
22
022160010
Thumb nut revdution stopper
1
1
1
23
022160001
Thread tension stud
1
1
1
24
124130002
Thread tension spring
1
1
1
25
048110001
Thread tension spring
1
1
1
26
022160004
Thread tension disc
1
1
1
27
022160005
Thread take-up spring
1
1
1
28
048110002
Thread take-up spring
1
1
1
29
022160007
Thread tension regulating bushing
1
1
1
30
022160008
Set screw
1
1
1
31
022160009
Thread tension releasing pin
1
1
1
32
022100013
Set screw
1
1
1
33
022100014
Thread guide for arm center
1
1
1
34
078100005
Thread guide for arm center
1
1
1
35
022100015
Set screw
1
1
1
36
022100015
Rubber plug
2
2
2
37
124100005
Needle plate
1
1
1
38
048100004
Needle plate
1
1
1
39
022170001
Needle plate screw
2
2
2
40
022170001
Slide plate
1
1
1
41
022170002
Spring for slide plate
1
1
1
42
022170003
Screw
2
2
2
43
S4A0400011
Leg
3
3
3
44
057100008
Ruler plate
2
2
2
45
124100004
Ruler screw
2
2
2
46
022100017
Red rubber plug
1
1
1
47
036555005
Screw
2
2
2
48
022900006
Screw
2
2
2
10. ADJUST THE PRESSURE OF PRESSER FOOT
11. THREAD TENSION ADJUSTMENT
12. ADJUST THE SYNCHRONIZATION OF THE NEEDLE WITH ROTATING HOOK
Pressure of the presser foot is adjusted in
accordance with thickness of materials to be sewn.
First loosen the lock nut (A), for heavy materials,
turn the pressure regulating thumb screw as shown
in Fig. 11 (a) to increase the pressure while for light
materials, turn the pressure regulating thumb screw
as shown in Fig. 11(b) to decrease the pressure,
the tighten lock nut (A).
The pressure of the presser foot is recommended
to be less as long as normal feeding is ensured.
Normal stitch form
Needle thread
Bobbin thread
More
tension
Needle thread
tension too weak
Less
tension
Bobbin thread
tension too strong
Strengthen the needle
thread tension
Weaken the bobbin
thread tension
Weaken the needle
thread tension
Strengthen the bobbin
thread tension
Thread tension should be determined in
accordance with the stitch obtained by adjusting the
tension of the bobbin thread and needle tension
(2).
The tension of the bobbin thread: to be
adjusted by turning the tension spring regulating
nut of the bobbin case. After adjusting, insert the
into the bobbin case and hold the end of the
thread from the bobbin case to hang the bobbin
if the bobbin case falls slowly and evenly, the
tension of the bobbin thread is obtained.
The tension of needle thread. To be
adjusted by turning the thumb nut.
6-10 mm
A
B
C
When lifting the needle bar from its lowest posi-
tion of the stroke to the distance A, the hook point
D of the bobbin should align with the center line of
the needle and be 1.0-1.5 mm above upper end of
the needle eye (Fig. 15)
0.05mm
13. ADJUSTMENT OF STITCH LENGTH AND ADJUSTMENT
The stitch length can be adjusted by
figures on the face (B) of the dial shaft
mm. the reverser feed lever must be
while adjusting the stitch length. The reverse
the reverse feed lever (C) is depressed
forward again if the reverse feed lever is
NOTE: Push the press lever "PUSH" to adjust
the stitch length. It's designed to prevent knob form rotating at
GC6-9.
15. ADJUST THE SYNCHRONIZATION OF THE NEEDLE MOTION WITH FEED MOTION
A
B
C
To adjust the feed dog position (C), first release the set screw and turn around the balance wheel by
hand. When the needle (A) point reaches the surface of the throat plate (B), the top of the feed dog (C) should
be flush.
16. STITCHLENGTH ERROR ADJUSTMENT
17. FEED DOG HORILONTALLTY ADJUSTMENT
Mark position on
eccentric shaft
Feed dog
Level
The front up
the max.
Above
The front down
the max.
Under
Heighten the front of feed dog to prevent
fabric from wrinkling, lower the front of feed dog to
prevent fabric from defection, breaking of hook
thread.
1
2
3
4
7
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
35
33
32
31
30
29
28
27
26
25
24
23
22
21
14
15
16
17
18
19
20
13
12
11
10
9
8
7
6
5
4
3
2
1
46
45
44
43
42
47
48
37
36
35
38
39
40
41
37
Page 2

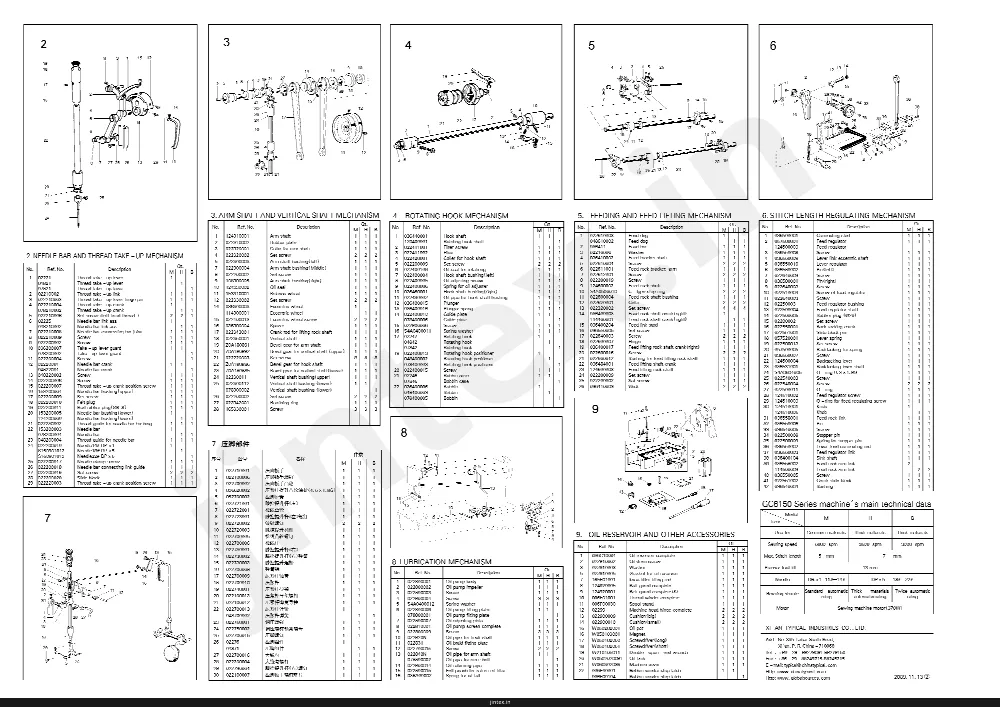

2 NEEDLE BAR AND THREAD TAKE-UP MECHANISM
No. Ref. No. Description Qt. M H B
1 02221 1
Thread take - up lever
1
2 04821 1
Thread take - up lever
1
3 022210002 1
Thread take - up lever hinge pin
1
4 022210003 1
Thread take - up crank
1
5 078210002 1
Thread take - up crank
1
6 022210006 2
Set screw (left hand thread.)
2
7 03625 1
Needle bar link ass
1
8 022210008 1
Needle bar connecting bar joint
1
9 022200002 1
Screw
1
10 036200007 1
Take - up lever guard
1
11 078200002 1
Screw
1
12 022200001 1
Needle bar crank
1
13 048220001 1
Needle bar bushing (upper)
1
14 048220002 1
Screw
1
15 022200007 1
Thread take - up crank position screw
1
16 153200004 1
Needle bar bushing (upper)
1
17 022200009 1
Set screw
1
18 022200010 1
Felt plug
1
19 022200011 1
Red rubber plug (Ø8,8)
1
20 153200005 1
Needle bar bushing (lower)
1
21 124200006 1
Needle bar bushing (lower)
1
22 153200003 1
Needle bar
1
23 078200004 1
Thread guide for needle bar bushing
1
24 022200016 1
Needle bar
1
25 S150901013 1
Needle14# DP x 5
1
S150901013 1
Needle22# DP x 5
1
26 022200017 1
Needle clamp screw
1
27 022200018 1
Needle bar connecting link guide
1
28 022200019 1
Set screw
2
29 022200020 1
Slide block
1
30 022200003 1
Thread take - up crank position screw
1
3. ARM SHAFT AND VERTICAL SHAFT MECHANISM
No. Ref. No. Description
1 124310001 1
Arm shaft
1
2 022310002 1
Rubber plate
1
3 022320001 1
Collar for arm shaft
1
4 07821 2
Set screw
2
5 022300003 1
Arm shaft bushing (left)
1
6 022300004 1
Arm shaft bushing (right)
1
7 022200008 1
Oil seal
1
8 022210009 1
Set screw
1
9 022200002 1
Screw
1
10 022300005 1
Eccentric wheel
1
11 022200001 1
Eccentric wheel
1
12 022200004 2
Eccentric wheel screw
2
13 078200002 1
Spacer
1
14 022200003 1
Crank rod for lifting rock shaft
1
15 153200004 1
Vertical shaft
1
16 022200004 1
Bevel gear for arm shaft
1
17 078300002 1
Bevel gear for vertical shaft (upper)
1
18 022300006 1
Set screw
8
19 022300007 1
Bevel gear for hook shaft
1
20 078400003 1
Bevel gear for vertical shaft (lower)
1
21 022300008 1
Vertical shaft bushing (upper)
1
22 022300009 1
Vertical shaft bushing (lower)
1
23 022300010 1
Vertical shaft bushing (lower)
1
24 022300011 1
Set screw
2
25 022300012 1
Retaining ring
1
4. ROTATING HOOK MECHANISM
No. Ref. No. Description
1 036440001 1
Hook shaft
1
2 120400001 1
Rotating hook shaft
1
3 022411002 1
Filter screw
1
4 022411001 1
Filter screw
1
5 022200009 1
Collar for hook shaft
1
6 022400009 1
Oil seal for rotating
1
7 022400004 1
Hook shaft bushing (left)
1
8 022400005 1
Hook shaft bushing (right)
1
9 022400006 1
Oil adjusting screw
1
10 036460001 1
Spring for oil adjuster
1
11 022430002 1
Oil pipe for hook shaft bush
1
12 036400015 1
Plunger spring
1
13 036400016 1
Plunger
1
14 022400010 1
Guide plate
1
15 022900006 1
Guide plate
1
16 S4A0400011 1
Spring washer
1
17 02247 1
Rotating hook
1
18 07842 1
Rotating hook
1
19 022400013 1
Rotating hook positioner
1
20 048400006 1
Rotating hook positioner
1
21 078400003 1
Rotating hook positioner
1
22 022400015 1
Screw
1
23 07846 1
Bobbin case
1
24 036400006 1
Bobbin
1
25 078400005 1
Bobbin
1
5. FEEDING AND FEED LIFTING MECHANISM
No. Ref. No. Description
1 022610003 1
Feed dog
1
2 048610002 1
Feed dog
1
3 02210006 1
Feed bar
1
4 036411 1
Washer
1
5 022610004 1
Feed bracket shaft
1
6 022611001 1
Feed rock bracket arm
1
7 022612001 1
Screw
1
8 022200019 1
Screw
1
9 124600002 1
Feed rock shaft
1
10 S4A0500010 1
C - type stop ring
1
11 022620001 1
Feed rock shaft bushing
1
12 022620001 1
Collar
1
13 022320002 1
Set screw
4
14 036400003 1
Feed rock shaft crank (right)
1
15 114400001 1
Feed rock shaft crank (right)
1
16 036400204 1
Feed link rod
1
17 036550005 1
Set screw
1
18 022640003 1
Hinge
1
19 036400017 1
Feed lifting rock shaft crank (right)
1
20 022600016 1
Screw
1
21 022600016 1
Bushing for feed lifting rock shaft
1
22 036484001 1
Feed lifting shaft
1
23 124600003 1
Feed lifting rock shaft
1
24 022200009 1
Set screw
1
25 022200002 1
Set screw
1
26 036410003 1
Wick
1
6. STITCH LENGTH REGULATING MECHANISM
No. Ref. No. Description
1 036500001 1
Connecting stud
1
2 057500001 1
Feed regulator
1
3 124500003 1
Screw
1
4 036550008 1
Lever eccentric shaft
1
5 036550010 1
Lever regulator
1
6 036580002 1
Pin (left)
1
7 022640003 1
Screw
1
8 036580001 1
Pin (right)
1
9 022640003 1
Screw
1
10 022510004 1
Screw of feed regulator
1
11 022640003 1
Screw
1
12 022500003 1
Feed regulator bushing
1
13 022500004 1
Feed regulator shaft
1
14 022500005 1
Rubber plug (Ø20)
1
15 022000002 1
Set screw
1
16 022550001 1
Back tacking crank
1
17 022551001 1
Slide block pin
1
18 057520001 1
Lever spring
1
19 022500013 1
Set screw
1
20 057500005 1
Backtacking for spring
1
21 057500007 1
Backtacking lever
1
22 124500004 1
Backtacking lever shaft
1
23 036531001 1
Backtacking lever shaft
1
24 S4A06004005 1
O-ring 6.3 x 1.8G
1
25 022540003 1
Screw
2
26 022540004 1
O-ring
2
27 022500011 1
O-ring
1
28 124510002 1
Feed regulator screw
1
29 124510003 1
O-ring for feed regulating screw
1
30 124510001 1
Knob
1
31 036550001 1
Feed rock link
1
32 036550006 1
Pin
1
33 036540005 1
Screw
1
34 022500008 1
Stopper pin
1
35 022500009 1
Spring for stopper pin
1
36 036550002 1
Lever feed connecting rod
1
37 036550003 1
Feed regulator link
1
38 036400104 1
Sink shaft
1
39 036558002 1
Feed rock arm link
2
40 114500003 1
Feed rock arm link
1
41 022551002 1
Screw
1
42 036540004 1
Bushing
1
7. 压脚部件
序号 图号
名称
M
H
B
1 022710001
压脚板
1
1
1
2 02210006
压脚板手缝轮
1
1
1
3 022100002
压脚板手缝轮
1
1
1
4 036620002
压脚提升杆(左)
1
1
1
5 057700001
压脚提升杆(右)
1
1
1
6 022721001
压脚提升杆(左)
1
1
1
7 022722001
压脚提升杆(左)
1
1
1
8 022723001
压脚提升杆(右)
1
1
1
9 022720002
压脚提升杆(右)
1
1
1
10 022720003
压脚提升杆(右)
1
1
1
11 022700005
压脚提升杆(右)
1
1
1
12 022700006
压脚提升杆(右)
1
1
1
13 022730001
压脚提升杆(右)
1
1
1
14 022730002
压脚提升杆(右)
1
1
1
15 022730003
压脚提升杆(右)
1
1
1
16 022700008
压脚提升杆(左)
1
1
1
17 022700009
压脚提升杆(左)
1
1
1
18 022700010
压脚提升杆(左)
1
1
1
19 022740001
压脚提升杆(左)
1
1
1
20 022100013
压脚提升杆(左)
1
1
1
21 022100012
压脚提升杆(左)
1
1
1
22 022700013
压脚提升杆(左)
1
1
1
23 048700002
压脚提升杆(左)
1
1
1
24 022750001
压脚提升杆(左)
1
1
1
25 022750002
压脚提升杆(左)
1
1
1
26 02276
压脚提升杆(左)
1
1
1
04871
压脚提升杆(左)
1
1
1
27 022700016
压脚提升杆(左)
1
1
1
28 022200004
压脚提升杆(左)
1
1
1
29 022730004
压脚提升杆(左)
1
1
1
30 022100007
压脚提升杆(左)
1
1
1
8. LUBRICATION MECHANISM
No. Ref. No. Description
1 022800001 1
Oil pump body
1
2 022800002 1
Oil pump impeller
1
3 022800003 1
Screw
1
4 022800004 1
Spring washer
1
5 022910001 1
Oil filling plate
1
6 022800006 1
Oil pump filling plate
1
7 078800001 1
Oil adjusting plate
1
8 022800007 1
Oil adjusting plate
1
9 022810001 1
Oil pump screen
1
10 022800009 1
Screw
1
11 022820N 1
Oil pipe for hook shaft
1
12 022831 1
Oil braid fitting plate
1
13 022700015 1
Screw
1
14 078800002 1
Oil pipe for arm shaft
1
15 078800002 1
Oil pipe for arm shaft
1
16 036A00002 1
Felt pouch for return oil fil
1
9. OIL RESERVOIR AND OTHER ACCESSORIES
No. Ref. No. Description
1 036C10001 1
Oil reservoir complete
1
2 022910002 1
Oil drain screw
1
3 022910003 1
Washer
1
5 165F01001 1
Grasket for oil reservoir
1
7 165F01001 1
Knee lifter lifting rod
1
8 022900005 1
Belt guard complete
1
9 124920001 1
Belt guard complete (S)
1
10 006F00030 1
Thinder winder complete
1
11 006F00030 1
Spool stand
1
12 02299 1
Machine head hinge complete
1
13 022900009 1
Cushion (big)
2
14 022900010 1
Cushion (small)
2
15 W050202001 1
Oil pot
1
16 W050103001 1
Magnet
1
17 W050102050 1
Screwdriver (long)
1
18 W050102051 1
Screwdriver (short)
1
19 W210105011 1
Double - open - end wrench
1
20 W0502020091 1
Oil tank
1
21 W060302036 1
Machine cover
1
22 006F10004 1
Bobbin winder stop latch
1
006F00104 1
Bobbin winder stop latch
1
GC6150 Series machine's main technical data
Model
M
H
B
Item
Use for
Common materials
Thick materials
Thick materials
Sewing speed
5000 spm
3500 spm
3000 spm
Max. Stitch length
5
mm
7
mm
Presser foot lift
13 mm
Needle
DB x 1 11#-14#
DP x 5
18#-22#
Rotating shuttle
Standard automatic
oiling
Thick materials
automatic oiling
Twice automatic
oiling
Motor
Sewing machine motor (370W)
XI'AN TYPICAL INDUSTRIES CO., LTD.
Add: No. 335 TaiBai South Road,
Xi'an, P. R. China - 710068
Tel: +86-29-88279091 88279150
Fax: +86-29-88249715 88245215
E-mail: typical@chinatypical.com
Http: www.chinatypical.com
Http: www.globalsources.com
2009. 11.13 (2)
