Brother DA-927A / DA-928A Parts Book (PDF)
Text index — Brother DA-927A / DA-928A
Page 7 — A. 主体関係 / MACHINE BODY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB7784001 | FACE PLATE | 1 |
| 2 | SB7785001 | FACE PLATE PACKING | 1 |
| 3 | 062400816 | SCREW PAN M4X8 | 3 |
| 4 | SA9854001 | THREAD TAKE-UP LEVER COVER | 1 |
| 5 | 062500816 | SCREW PAN M5X8 | 1 |
| 6 | S40306201 | FRONT FEED ARM CAP | 1 |
| 7 | S40307101 | FRONT FEED ARM CAP PACKING | 1 |
| 8 | SA3538001 | SCREW,M4X8 | 11 |
| 9 | SB7843001 | BALL BEARING COVER | 1 |
| 10 | SB7844001 | BALL BEARING COVER PACKING | 1 |
| 11 | SA3538001 | SCREW,M4X8 | 4 |
| 12 | S40319101 | FRONT COVER | 1 |
| 13 | S40320051 | FONT COVER SPRING | 2 |
| 14 | 060670612 | SCREW BIND SM3.57-40X6 | 2 |
| 15 | S40321151 | FRONT COVER HOOK | 2 |
| 16 | 062400616 | SCREW PAN M4X6 | 4 |
| 17 | S40322051 | HINGE | 2 |
| 18 | 062670616 | SCREW PAN SM3.57-40X6 | 2 |
| 19 | 104833001 | RUBBER CAP, 4.3 | 2 |
| 20 | 105257209 | GUIDE COVER HINGE L ASSY | 1 |
| 21 | 105260209 | GUIDE COVER HINGE R ASSY | 1 |
| 22 | 062400816 | SCREW PAN M4X8 | 2 |
| 23 | S40799151 | SPRING | 2 |
| 24 | 062400616 | SCREW PAN M4X6 | 1 |
| 25 | 150697001 | OIL GAUGE WINDOW | 1 |
| 26 | SA1303101 | SCREW M8 | 1 |
| 27 | 081008070 | O RING P8 | 1 |
| 28 | 150697001 | OIL GAUGE WINDOW | 1 |
| 29 | 159150000 | RUBBER CAP, 20.5 | 1 |
| 30 | 104450101 | RUBBER CAP, 8 | 1 |
| 31 | SA7849001 | RUBBER CAP | 1 |
| 32 | SB7613001 | RUBBER CAP 38.1 | 1 |
| 33 | SA1303101 | SCREW M8 | 2 |
| 34 | 081008070 | O RING P8 | 2 |
| 35 | SB4504001 | RUBBER CUSHION H | 2 |
| 36 | SA8680101 | SPACER | 2 |
| 37 | 0A4402006 | SCREW PAN (S/P WASHER) M4X20 | 2 |
| 38 | SA2221001 | SETTING PLATE | 2 |
| 39 | SA2222001 | CUSHION RUBBER | 4 |
| 40 | SA2223001 | COLLAR | 2 |
| 41 | SA2224001 | WASHER | 2 |
| 42 | 062061016 | SCREW PAN M6X10 | 2 |
| 43 | 133180005 | WOOD SCREW ROUND M6.2X38 | 2 |
| 44+ | S40335351 | LOOPER REAR COVER RA | 1 |
| 45+ | S40338051 | LOOPER COVER LA | 1 |
| 46 | 047200842 | PIN SPRING ROLL AW2 | 1 |
| 44+ | S40336051 | LOOPER COVER RB | 1 |
| 45+ | S40339051 | LOOPER COVER LB | 1 |

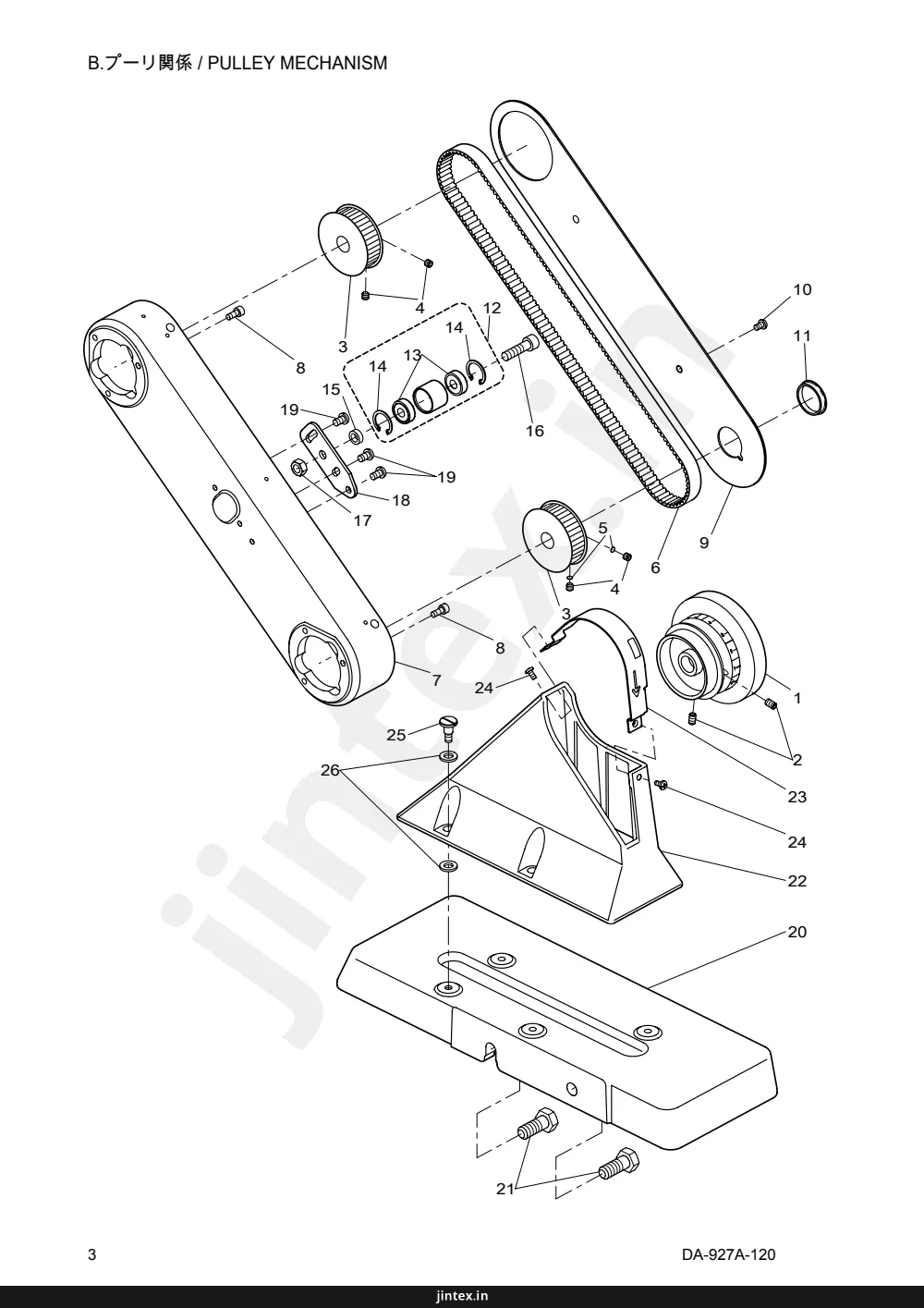

Page 9 — B.プーリー関係 / PULLEY MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB7853001 | PULLEY ASSY | 1 |
| 2 | 014761030 | SET SCREW SOCKET SM5.95-28X10 | 2 |
| 3 | SA2720101 | TIMING PULLEY ASSY,U ST | 2 |
| 4 | SA4214001 | SET SCREW SOCKET (CP) M6X6 | 4 |
| 5 | SA2378001 | SPACER,4.8 | 2 |
| 6 | SB7815001 | TIMING BELT | 1 |
| 7 | SB7789001 | BELT COVER | 1 |
| 8 | 018501232 | BOLT SOCKET M5X12 | 6 |
| 9 | SB7790001 | BELT COVER PLATE | 1 |
| 10 | 062500816 | SCREW PAN M5X8 | 2 |
| 11 | 116577051 | COVER | 1 |
| 12 | SB5317101 | TENSION PULLEY ASSY | 1 |
| 13 | SB3444001 | BALL BEARING 608ZZ | 2 |
| 14 | 048220242 | RETAINING RING INTERNAL C22 | 2 |
| 15 | SB4857001 | COLLAR | 1 |
| 16 | 018083032 | BOLT SOCKET M8X30 | 1 |
| 17 | 021080202 | NUT 2 M8 | 1 |
| 18 | SB7814001 | TENSION PULLEY SETTING PLATE | 1 |
| 19 | 062061016 | SCREW PAN M6X10 | 3 |
| 20 | SB7786001 | PULLEY COVER BASE | 1 |
| 21 | SA6396001 | BOLT12X30 | 2 |
| 22 | SB7787001 | PULLEY COVER A | 1 |
| 23 | SB7788001 | PULLEY COVER B | 1 |
| 24 | 060400816 | SCREW BIND M4X8 | 3 |
| 25 | SB7842001 | SHOULDER SCREW M6 | 4 |
| 26 | S40797000 | PULLEY COVER SHEET | 8 |
Page 11 — C.上軸-針棒関係 / U-SHAFT NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB7791001 | UPPER SHAFT ASSY | 1 |
| 2 | SB7792001 | UPPER SHAFT | 1 |
| 3 | 072630260 | BALL BEARING, THRUST 6302VV | 2 |
| 4 | 048150142 | RETAINING RING EXTERNAL C15 | 1 |
| 5 | 048420242 | RETAINING RING INTERNAL C42 | 1 |
| 6 | S40316151 | BEARING HOLDER | 1 |
| 7 | 062501016 | SCREW PAN M5X10 | 3 |
| 10 | SA7520001 | BALL BEARING 6904ZZNR | 1 |
| 11 | SA7521001 | BALL BEARING 6904ZZ | 1 |
| 12 | S23651001 | SET SCREW SOCKET (FT) M6X6 | 2 |
| 13 | SB7797001 | NEEDLE BAR CONNECTING ROD ASSY | 1 |
| 14 | SA9650101 | NEEDLE BAR CLAMP | 1 |
| 15 | 140004001 | SCREW, SM3.57-40X7 | 1 |
| 16 | SB7798001 | N-VAR CONNECTING ROD SHAFT | 1 |
| 17 | 110367001 | WASHER, PLAIN SPECIAL 8 | 1 |
| 18 | S23651001 | SET SCREW SOCKET (FT) M6X6 | 2 |
| 19 | S25260001 | SET SCREW SOCKET (FT) M6X5 | 1 |
| 20 | 102630001 | NEEDLE BAR GUIDE SLIDE BLOCK | 1 |
| 21 | 145688000 | NEEDLE BAR GUIDE | 1 |
| 22 | 062670616 | SCREW PAN SM3.57-40X6 | 2 |
| 23 | 113605101 | NEEDLE BAR | 1 |
| 24 | SB7799001 | NEEDLE BAR BUSH U | 1 |
| 25 | SB7800001 | NEEDLE BAR BUSH D | 1 |
| 26 | SB7801101 | TUBE ASSY | 1 |
| 27 | SB7840001 | FELT SUPPORT | 1 |
| 28 | SB7805001 | WICK HOLDER | 1 |
| 29 | 060400616 | SCREW BIND M4X6 | 1 |
| 30 | SB7806001 | WICK 3X3 | 1 |
| 31 | SB7811001 | WICK 2X2 | 1 |
| 8+ | SB7793001 | THREAD TAKE-UP CRANK MH ASSY | 1 |
| 9+ | SB7794001 | THREAD TAKE-UP CRANK MH | 1 |
| 8+ | SB7795001 | THREAD TAKE-UP CRANK H ASSY | 1 |
| 9+ | SB7796001 | THREAD TAKE-UP CRANK H | 1 |
Page 13 — D.押さえ棒関係 / PRESSER BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | SB7818001 | PRESSER ADJUSTING SCREW | 1 |
| 3 | SB7819001 | PRESSER BAR BUSH | 1 |
| 4 | SB7811001 | WICK 2X2 | 1 |
| 5 | SB4285001 | PRESSER BAR GUIDE BRACKET | 1 |
| 6 | 014760632 | SET SCREW SOCKET SM5.95-28X6 | 1 |
| 8 | S10112101 | PRESSER BAR SPRING GUIDE | 1 |
| 9 | 140407001 | WASHER | 1 |
| 10 | 105103001 | PRESSER BAR LIFTER | 1 |
| 11 | 105104001 | SHOULDER SCREW SM5.95 | 1 |
| 12 | 105105109 | KNEE LIFTER LEVER | 1 |
| 13 | SB7822001 | SHOULDER SCREW M8 | 1 |
| 14 | 105106001 | SPRING TWIST | 1 |
| 1+ | SB7816001 | PRESSER BAR | 1 |
| 7+ | 141728001 | PRESSER BAR SPRING | 1 |
| 1+ | SB7817001 | PRESSER BAR | 1 |
| 7+ | SB7821001 | PRESSER BAR SPRING | 1 |
| 2 | 047301242 | PIN SPRING ROLL AW3 | 2 |
| 3 | 047301242 | PIN SPRING ROLL AW3 | 1 |
| 4 | S39585001 | SPRING TWIST | 1 |
| 5 | S39586001 | SCREW M3 | 1 |
| 6 | 012060636 | SET SCREW SOCKET (FT) M6X6 | 2 |
| 7 | S40282100 | ECCENTRIC WHEEL SLEEVE | 1 |
| 9 | 014770632 | SET SCREW SOCKET SM6.35-40X6 | 2 |
| 10 | S40285101 | FEED BAR SLIDE BLOCK ASSY | 1 |
| 11 | S40288100 | V-FEEDING CONNECTING ROD | 1 |
| 12 | S40289051 | V-FEEDING SHAFT | 1 |
| 13 | 012060636 | SET SCREW SOCKET (FT) M6X6 | 1 |
| 14 | S41311101 | FEED BAR ECCENTRIC SHAFT | 1 |
| 15 | 081006070 | O RING P6 | 1 |
| 16 | 012060636 | SET SCREW SOCKET (FT) M6X6 | 1 |
| 17 | S40290051 | PUSH BUTTON | 1 |
| 18 | S40800001 | SPRING | 1 |
| 19 | 081005070 | O RING P5 | 1 |
| 20 | SB2330001 | WASHER PLAIN S SM4.76 | 1 |
| 21 | 048040342 | RETAINING RING E4 | 1 |
| 1+ | S40291102 | ECCENTRIC WHEEL ASSY | 1 |
| 8+ | 183949001 | ECCENTRIC WHEEL WITH SCREW M | 1 |
| 1+ | S40291101 | ECCENTRIC WHEEL ASSY | 1 |
| 8+ | 183950001 | ECCENTRIC WHEEL WITH SCREW H | 1 |
Page 15 — F1.ゲージ関係(927A) / GAUGE PARTS(927A)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 100032004 | SCREW FLAT SM4.37-40X8 | 3 |
| 7 | 147871002 | PIN | 4 |
| 8 | S40358101 | SPRING, M | 1 |
| 9 | 111105002 | SCREW SM2.38 | 1 |
| 10 | S40374001 | FINGER GUARD | 1 |
| 11 | 060670812 | SCREW BIND SM3.57-40X8 | 1 |
| 13 | 062710812 | SCREW PAN SM4.76-32X8 | 1 |
| 15 | 148876001 | NEEDLE GUARD BRACKET | 1 |
| 16 | 144458001 | SET SCREW SM3.57-40X4.5 | 1 |
| 17 | 021350106 | NUT 1 M3.5 | 1 |
| 18 | 062350816 | SCREW PAN M3.5X8 | 1 |
| 19 | S40399001 | LAPPER GUIDE PLATE | 1 |
| 20 | 105129001 | LAPPER GUIDE PLATE WASHER | 1 |
| 22 | 105130001 | SCREW SM3.57 | 1 |
| 23 | 105130001 | SCREW SM3.57 | 2 |
| 2+ | 103408002 | SCREW | 2 |
| 14+ | 148973101 | NEEDLE GUARD | 1 |
| 24 | SA0008101 | LOOPER L | 1 |
| 25 | SA0007101 | LOOPER S | 1 |
| 27 | S40380151 | LOOPER HOLDER L | 1 |
| 28 | S40378151 | LOOPER HOLDER S | 1 |
| 30 | 144458001 | SET SCREW SM3.57-40X4.5 | 2 |
| 31 | 154965001 | BOLT, SOCKET SM3.57X8 | 2 |
| 1+ | S16500101 | NEEDLE CLAMP ASSY W/S 1/8X2-1 | 1 |
| 2+ | 146427001 | SET SCREW SOCKET (CP) SM3.18 | 3 |
| 14+ | S16482101 | NEEDLE GUARD 1/8X2-1 | 1 |
| 24 | SA0008101 | LOOPER L | 1 |
| 25 | SA0007101 | LOOPER S | 1 |
| 26 | S40376201 | LOOPER M | 1 |
| 27 | S40380151 | LOOPER HOLDER L | 1 |
| 28 | S40378151 | LOOPER HOLDER S | 1 |
| 29 | S40379151 | LOOPER HOLDER M | 1 |
| 30 | 144458001 | SET SCREW SM3.57-40X4.5 | 3 |
| 31 | 154965001 | BOLT, SOCKET SM3.57X8 | 3 |
| 3+ | S36861012 | NEEDLE TVX64(#12) | 2 |
| 3+ | S36861012 | NEEDLE TVX64(#12) | 3 |
| 3+ | S36861014 | NEEDLE TVX64(#14) | 2 |
| 3+ | S36861016 | NEEDLE TVX64(#16) | 2 |
Page 17 — F2.ゲージ関係(928A) / GAUGE PARTS(928A)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 181716101 | NEEDLE CLAMP ASSY 1/8X2-5 | 1 |
| 2 | 146427001 | SET SCREW SOCKET (CP) SM3.18 | 3 |
| 5 | 100032004 | SCREW FLAT SM4.37-40X8 | 3 |
| 7 | 147871002 | PIN | 6 |
| 8 | 147872001 | SPRING | 1 |
| 9 | 111140002 | SCREW SM2.38 | 1 |
| 10 | 147890001 | SPRING | 1 |
| 11 | 147932001 | SHOULDER SCREW SM2.38 | 1 |
| 12 | 147875001 | SPRING | 1 |
| 13 | 147877002 | NUT SM3.18 | 1 |
| 14 | 147878001 | SPRING | 1 |
| 15 | 062660512 | SCREW PAN SM3.18-40X5 | 1 |
| 16 | 147879001 | SET SCREW SM3.18 | 1 |
| 17 | 111105002 | SCREW SM2.38 | 1 |
| 18 | 151572101 | FINGER GUARD | 1 |
| 19 | 060670812 | SCREW BIND SM3.57-40X8 | 1 |
| 23 | 062710812 | SCREW PAN SM4.76-32X8 | 1 |
| 24 | 148875001 | NEEDLE GUARD 1/8X2-5 | 1 |
| 25 | 148876001 | NEEDLE GUARD BRACKET | 1 |
| 26 | 144458001 | SET SCREW SM3.57-40X4.5 | 1 |
| 27 | 021350106 | NUT 1 M3.5 | 1 |
| 28 | 062350816 | SCREW PAN M3.5X8 | 1 |
| 29 | S40399001 | LAPPER GUIDE PLATE | 1 |
| 30 | 105129001 | LAPPER GUIDE PLATE WASHER | 1 |
| 32 | 122771051 | SCREW, SM2.38 | 2 |
| 33 | 105130001 | SCREW SM3.57 | 2 |
| 34 | SA0008101 | LOOPER L | 1 |
| 35 | SA0007101 | LOOPER S | 1 |
| 36 | S40376201 | LOOPER M | 1 |
| 37 | S40380151 | LOOPER HOLDER L | 1 |
| 38 | S40378151 | LOOPER HOLDER S | 1 |
| 39 | S40379151 | LOOPER HOLDER M | 1 |
| 40 | 144458001 | SET SCREW SM3.57-40X4.5 | 3 |
| 41 | 154965001 | BOLT, SOCKET SM3.57X8 | 3 |
| 3+ | S43401021 | NEEDLE, TVX5(#130) | 3 |
| 20+ | S13045201 | FEED DOG DO 1/8X2-5 | 1 |
| 3+ | S43401022 | NEEDLE, TVX5(#140) | 3 |
| 20+ | 148867201 | FEED DOG ASSY 1/8X2-7 | 1 |
| 21 | 147307001 | SUB FEED DOG | 1 |
| 22 | 147880001 | SCREW SM1.98 | 2 |
Page 19 — G. 下軸関係 / LOWER SHAFT MECHANISM H.ルーバー関係 / LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB7808001 | LOWER SHAFT ASSY | 1 |
| 2 | SB7809001 | LOWER SHAFT | 1 |
| 3 | 072630260 | BALL BEARING, THRUST 6302VV | 1 |
| 4 | 048150142 | RETAINING RING EXTERNAL C15 | 1 |
| 5 | 048420242 | RETAINING RING INTERNAL C42 | 1 |
| 6 | S40316151 | BEARING HOLDER | 1 |
| 7 | 062501016 | SCREW PAN M5X10 | 3 |
| 8 | SB1538001 | BALL BEARING RADIAL 6200ZZ | 1 |
| 9 | SB7810001 | SCREW M6 | 1 |
| 10 | SA6702002 | BALL BEARING 6201ZZ | 1 |
| 11 | 105150000 | BALL BEARING BUSH | 1 |
| 12 | 153675001 | SET SCREW SOCKET SM4.37 | 2 |
| 2 | 153675001 | SET SCREW SOCKET SM4.37 | 2 |
| 3 | S40302100 | ECCENTRIC WHEEL SLEEVE | 1 |
| 4 | 105175201 | LOOPER FEEDING FORK | 1 |
| 5 | S59893001 | BOLT, SOCKET SM4.37-40X10 | 1 |
| 6 | 105177101 | LOOPER FEEDING FORK SHAFT | 1 |
| 7 | SB7828001 | LOOPER F/FORK SHAFT BRACKET | 1 |
| 8 | 018402036 | BOLT SOCKET M4X20 | 1 |
| 9 | S40303101 | LOOPER CONNECTING ROD ASSY | 1 |
| 10 | S25260001 | SET SCREW SOCKET (FT) M6X5 | 1 |
| 11 | 081010870 | O RING S10 | 1 |
| 12 | SB7829001 | LOOPER LEVER SHAFT | 1 |
| 13 | 012060636 | SET SCREW SOCKET (FT) M6X6 | 1 |
| 14 | 081005070 | O RING P5 | 1 |
| 15 | 105189001 | CONNECTING ROD GUIDE PLATE | 1 |
| 16 | 120990001 | SET SCREW, (CP) SM4.37-40X8 | 2 |
| 17 | 183185201 | LOOPER SHAFT LINK ASSY SET | 1 |
| 18 | S35656001 | BOLT, SOCKET M3.5X10 | 4 |
| 19 | S59893001 | BOLT, SOCKET SM4.37-40X10 | 1 |
| 20 | 100022004 | NUT SM5.95 | 1 |
| 21 | 105201000 | LOOPER SHAFT BUSH F | 1 |
| 22 | 148877100 | LOOPER SHAFT BUSH B | 1 |
| 23 | 105209051 | SET SCREW COLLAR | 1 |
| 24 | S59893001 | BOLT, SOCKET SM4.37-40X10 | 1 |
| 25 | S45227101 | LOOPER SHAFT | 1 |
| 1+ | S36862001 | ECCENTRIC WHEEL WITH SCREW | 1 |
| 1+ | 181126101 | ECCENTRIC WHEEL WITH SCREW | 1 |
Page 21 — J.上糸通し関係 / UPPER THREADING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111070209 | UPPER THREAD GUIDE | 1 |
| 4 | 105222001 | THREAD GUIDE | 1 |
| 5 | 060300416 | SCREW BIND M3X4 | 1 |
| 6 | 062501816 | SCREW, PAN M5X18 | 1 |
| 8 | 111075159 | UPPER THREAD TENSION BRACKET | 1 |
| 18 | 111076151 | TENSION RELEASE SHAFT | 1 |
| 19 | 105233002 | SET SCREW SM4.37 | 1 |
| 20 | 105234003 | NUT SM4.37 | 1 |
| 21 | 105235251 | TENSION RELEASE CRANK | 1 |
| 22 | 120990001 | SET SCREW, (CP) SM4.37-40X8 | 1 |
| 23 | 105236001 | CONNECTING ROD ;T-RELEASE | 1 |
| 24 | 105237002 | SHOULDER SCREW SM3.57 | 2 |
| 25 | SB7832001 | THREAD TAKE-UP ASSY | 1 |
| 26 | SB7834001 | THREAD TAKE-UP LEVER | 1 |
| 27 | 105243001 | UPPER THREAD TAKE-UP HOLDER | 1 |
| 28 | 105244000 | SPRING | 1 |
| 29 | 105245001 | SHOULDER SCREW SM2.38 | 1 |
| 30 | 062670616 | SCREW PAN SM3.57-40X6 | 2 |
| 31 | SB7833001 | THREAD TAKE-UP HOLDER | 1 |
| 32 | 140004001 | SCREW, SM3.57-40X7 | 1 |
| 33 | S58043101 | UPPER THREAD GUIDE | 1 |
| 34 | 062400616 | SCREW PAN M4X6 | 1 |
| 35 | 111077101 | TENSION RELEASE LEVER | 1 |
| 36 | 060400616 | SCREW BIND M4X6 | 1 |
| 37 | 111083101 | UPPER THREAD TAKE-UP GUIDE | 1 |
| 38 | SB7835001 | THREAD GUIDE WASHER | 1 |
| 39 | SA5124001 | SCREW, FLAT M4 | 1 |
| 2 | 105221101 | THREAD RETAINER | 2 |
| 3 | 062300416 | SCREW PAN M3X4 | 4 |
| 9 | SB8857001 | TENSION STUD | 2 |
| 10 | 110813001 | THREAD GUIDE ;NEEDLE | 2 |
| 11 | 110832009 | TENSION DISC FELT | 2 |
| 12 | 145446002 | DISC TENSION | 4 |
| 14 | S30564000 | WASHER | 2 |
| 15 | S30565025 | TENSION NUT | 2 |
| 16 | 159805001 | TENSION DISC PRESSER | 2 |
| 17 | 105231000 | TENSION RELEASE PIN | 2 |
| 2 | 105221101 | THREAD RETAINER | 3 |
| 3 | 062300416 | SCREW PAN M3X4 | 6 |
| 9 | SB8857001 | TENSION STUD | 3 |
| 10 | 110813001 | THREAD GUIDE ;NEEDLE | 3 |
| 11 | 110832009 | TENSION DISC FELT | 3 |
| 12 | 145446002 | DISC TENSION | 6 |
| 14 | S30564000 | WASHER | 3 |
| 15 | S30565025 | TENSION NUT | 3 |
| 16 | 159805001 | TENSION DISC PRESSER | 3 |
| 17 | 105231000 | TENSION RELEASE PIN | 3 |
| 40 | 111072209 | THREAD GUIDE SET PLATE | 1 |
| 41 | 062300416 | SCREW PAN M3X4 | 2 |
Page 23 — J.上糸関係 / UPPER THREADING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7+ | S43446109 | UPPER THREAD TENSION ASSY927/2 | 1 |
| 13+ | 144104001 | THREAD TENSION ADJUST SPRING | 2 |
| 7+ | S43448109 | UPPER THREAD TENSION ASSY927/3 | 1 |
| 13+ | 144104001 | THREAD TENSION ADJUST SPRING | 3 |
| 7+ | S41318109 | UPPER THREAD TENSION ASSY928/3 | 1 |
| 13+ | 148851001 | TENSION SPRING | 3 |
Page 25 — K. 下糸通し関係 / LOWER THREADING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111095109 | LOWER THREAD GUIDE RETAINER | 1 |
| 6 | 111096109 | LOWER THREAD GUIDE SUPPORT | 1 |
| 7 | 062300416 | SCREW PAN M3X4 | 1 |
| 8 | 062400616 | SCREW PAN M4X6 | 1 |
| 9 | 062400616 | SCREW PAN M4X6 | 1 |
| 11 | 062400816 | SCREW PAN M4X8 | 3 |
| 12 | S40323101 | LOWER THREAD TENSION BRACKET | 1 |
| 18 | 062400616 | SCREW PAN M4X6 | 2 |
| 19 | S40325101 | LOWER THREAD GUIDE | 1 |
| 20 | 062400616 | SCREW PAN M4X6 | 2 |
| 21 | SA2638001 | THREAD GUIDE, M :ARM | 1 |
| 22 | SA2640001 | SCREW FLAT M5X8 | 1 |
| 23 | S40266351 | L-THREAD TAKE-UP BRACKET ASSY | 1 |
| 24 | 105280109 | L/THREAD TAKE-UP LEVER COVER | 1 |
| 25 | 105281001 | SPRING PLATE | 1 |
| 26 | SA9523001 | SCREW SM2.38 | 1 |
| 27 | 105284201 | L/TR. TAKE-UP LEVER BRACKET | 1 |
| 28 | 105285100 | L/TR. TAKE-UP LEVER COV. SHAFT | 1 |
| 29 | SB7837001 | L/TR TAKE-UP LEVER BRACKET | 1 |
| 30 | 060670612 | SCREW BIND SM3.57-40X6 | 2 |
| 31 | S40327051 | LOWER THREAD GUIDE | 1 |
| 32 | 062300416 | SCREW PAN M3X4 | 1 |
| 33 | 026030136 | WASHER PLAIN S 3 | 1 |
| 34 | S40795101 | THREAD GUIDE | 1 |
| 35 | S58044001 | L-THREAD TAKE-UP THREAD GUIDE | 1 |
| 36 | 060300416 | SCREW BIND M3X4 | 2 |
| 37 | S40328151 | THREAD RELEASE BASE | 1 |
| 38 | 062300416 | SCREW PAN M3X4 | 2 |
| 39 | S40329051 | LOWER THREAD PRESSER | 1 |
| 40 | 062300416 | SCREW PAN M3X4 | 1 |
| 41 | 111112101 | LOWER THREAD GUIDE PLATE | 1 |
| 43 | 153675001 | SET SCREW SOCKET SM4.37 | 2 |
| 44 | 047501242 | PIN SPRING ROLL AW5 | 1 |
| 45 | 100064005 | SCREW, SM3.57X8 | 2 |
| 46 | 105300101 | LOWER THREAD FEED BAR GUIDE | 1 |
| 47 | 147291101 | LOOPER THREAD GUIDE BRACKET | 1 |
| 48 | 012060636 | SET SCREW SOCKET (FT) M6X6 | 1 |
| 49 | S16487251 | LOOPER THREAD GUIDE | 1 |
| 50 | 062301016 | SCREW PAN M3X10 | 1 |
| 53 | SB7838001 | CHAINING OFF KNIFE | 1 |
| 54 | SB7839001 | KNIFE GUIDE | 1 |
| 55 | 062400816 | SCREW PAN M4X8 | 2 |
| 2 | 105221101 | THREAD RETAINER | 2 |
| 3 | 062300416 | SCREW PAN M3X4 | 4 |
| 10+ | 105251309 | LOWER THREAD GUIDE ASSY | 1 |
| 13 | SB7836001 | TENSION STUD | 2 |
| 14 | 021400306 | NUT 3 M4 | 2 |
| 15 | 144504001 | THREAD GUIDE DISC | 4 |
| 16 | 154560101 | PRE-TENSION SPRING A | 2 |
| 17 | 155510001 | TENSION NUT | 2 |
Page 27 — K.下糸通し関係 / LOWER THREADING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 105221101 | THREAD RETAINER | 3 |
| 3 | 062300416 | SCREW PAN M3X4 | 6 |
| 4 | 111072209 | THREAD GUIDE SET PLATE | 1 |
| 5 | 062300416 | SCREW PAN M3X4 | 2 |
| 10+ | 111097209 | LOWER THREAD GUIDE ASSY | 1 |
| 13 | SB7836001 | TENSION STUD | 3 |
| 14 | 021400306 | NUT 3 M4 | 3 |
| 15 | 144504001 | THREAD GUIDE DISC | 6 |
| 16 | 154560101 | PRE-TENSION SPRING A | 3 |
| 17 | 155510001 | TENSION NUT | 3 |
| 42+ | S40330151 | LOWER THREAD TAKE-UP W/S M | 1 |
| 51 | S40341101 | LOOPER THREAD GUIDE | 1 |
| 52 | 062300416 | SCREW PAN M3X4 | 2 |
| 42+ | S40342151 | L-THREAD TAKE-UP W/SCREW H | 1 |
Page 29 — L.付属品関係 / ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 117466100 | PINCETTE | 1 |
| 2 | SA8239301 | OIL TANK ASSY | 1 |
| 3 | 105333101 | CHAIN ASSY A | 1 |
| 4 | S29864609 | COTTON STAND ASSY 6DTHF | 1 |
| 5 | S51283001 | SPOOL STAND BASE | 6 |
| 6 | 150182000 | SPOOL MAT | 6 |
| 7 | S51282101 | SPOOL CUSHION | 6 |
| 8 | 150206002 | WASHER PLAIN 16 | 2 |
| 9 | SA6629001 | NUT M16 | 1 |
| 10 | S04109001 | THREAD GUIDE SUPPORT BAR | 1 |
| 11 | S02783001 | THREAD GUIDE, 6 | 1 |
| 12 | S40639001 | COLUMN PIPE W/CAP | 1 |
| 13 | 150172003 | COLUMN PIPE | 1 |
| 14 | 150174000 | COLUMN CAP | 1 |
| 15 | SB2045001 | COLUMN PIPE W/SCREW | 1 |
| 16 | SA6606001 | COLUMN JOINT | 1 |
| 17 | 150179002 | SPOOL SHAFT B | 6 |
| 18 | 028050243 | WASHER, SPRING 2-5 | 6 |
| 19 | 021500203 | NUT, 2 M5 | 6 |
| 20 | 150188009 | SPOOL HOLDER SUPPORT A | 1 |
| 21 | 150194009 | SPOOL HOLDER SUPPORT B | 1 |
| 22 | SA6610001 | SPOOL HOLDER 3 | 2 |
| 23 | SA6611001 | THREAD HANGER ASSY 3 | 2 |
| 24 | SA6610001 | SPOOL HOLDER 3 | 2 |
| 25 | 150183000 | THREAD HANGER BASE | 6 |
| 26 | 142990001 | THREAD BUSH | 6 |
| 27 | SA6609001 | SPOOL HOLDER SUPPORTER | 4 |
| 28 | SA6615001 | THREAD GUIDE HOLDER | 1 |
| 29 | 138843201 | JOINT | 1 |
| 30 | 021500203 | NUT, 2 M5 | 2 |
| 31 | 062061603 | SCREW PAN M6X16 | 4 |
| 32 | 062501403 | SCREW PAN M5X14 | 2 |
| 33 | 014060632 | SET SCREW SOCKET (CP) M6X6 | 2 |
| 34 | 021500203 | NUT, 2 M5 | 1 |
| 35 | S37037001 | SCREW PAN (S/P WASHER) M5X32 | 1 |
| 36 | 062061003 | SCREW PAN M6X10 | 1 |
| 37 | 021500203 | NUT, 2 M5 | 2 |
| 38 | 031452203 | WOOD SCREW ROUND M4.5X22 | 2 |
| 39 | 062501003 | SCREW PAN M5X10 | 2 |
| 40 | S01943101 | SCREW DRIVER HEX. 1.6 | 1 |
| 41 | 148298001 | SPACER | 1 |
Page 30 — Ga.ゲージ部品一覧 / GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 183954-101 | NEEDLE CLAMP ASSY | ||
| 183978-101 | NEEDLE CLAMP ASSY | ||
| S16500-101 | NEEDLE CLAMP ASSY | ||
| 183954-101 | NEEDLE CLAMP ASSY | ||
| 183978-101 | NEEDLE CLAMP ASSY | ||
| 181716-101 | NEEDLE CLAMP ASSY | ||
| SB7823-001 | NEEDLE PLATE | ||
| S11508-201 | NEEDLE PLATE | ||
| S59615-001 | NEEDLE PLATE | ||
| SB7823-001 | NEEDLE PLATE | ||
| S11508-201 | NEEDLE PLATE | ||
| S13042-001 | NEEDLE PLATE | ||
| 148864-001 | NEEDLE PLATE | ||
| SB7824-101 | PRESSER FOOT ASSY | ||
| S40363-301 | PRESSER FOOT ASSY | ||
| S59616-201 | PRESSER FOOT ASSY | ||
| SB7824-101 | PRESSER FOOT ASSY | ||
| S40363-301 | PRESSER FOOT ASSY | ||
| S40386-101 | PRESSER FOOT ASSY | ||
| 148865-301 | PRESSER FOOT ASSY | ||
| SB7826-101 | FEED DOG | ||
| S51807-101 | FEED DOG | ||
| S59614-201 | FEED DOG | ||
| SB7827-101 | FEED DOG | ||
| S40370-201 | FEED DOG | ||
| S13045-201 | FEED DOG | ||
| 148867-201 | FEED DOG | ||
| 148973-001 | NEEDLE GUARD | ||
| S16482-001 | NEEDLE GUARD | ||
| 148973-001 | NEEDLE GUARD | ||
| 148875-001 | NEEDLE GUARD | ||
| 101494-101 | LAPPER ASSY | ||
| S09679-101 | LAPPER ASSY | ||
| 101497-101 | LAPPER ASSY | ||
| 101561-101 | LAPPER ASSY | ||
| 101564-101 | LAPPER ASSY | ||
| 147302-101 | LAPPER ASSY |
Page 31 — Wa. 警告ラベル / Warning labels
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SA9826-001 | Label caution | ||
| S37060-001 | Label, grounding | ||
| SB1271-101 | Oil warning label(JP) | ||
| SB1270-001 | Oil warning label(EN) |
Page 32 — Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| -6 | 012060636 | E | |
| -13 | 012060636 | E | |
| -16 | 012060636 | E | |
| -13 | 012060636 | H | |
| -48 | 012060636 | K | |
| -33 | 014060632 | D | |
| -2 | 014760632 | B | |
| -2 | 014761030 | B | |
| -9 | 014770632 | E | |
| -16 | 018083036 | B | |
| -8 | 018402036 | H | |
| -8 | 018501232 | B | |
| -17 | 021080202 | B | |
| -17 | 021350106 | F1 | |
| -27 | 021350106 | F2 | |
| -14 | 021400306 | K | |
| -14 | 021400306 | K | |
| -19 | 021500203 | L | |
| -30 | 021500203 | L | |
| -34 | 021500203 | L | |
| -37 | 021500203 | L | |
| -33 | 026030136 | K | |
| -18 | 028050243 | L | |
| -38 | 031452203 | L | |
| -46 | 047200842 | A | |
| -2 | 047301242 | E | |
| -3 | 047301242 | E | |
| -44 | 047501242 | K | |
| -21 | 048040342 | E | |
| -4 | 048150142 | C | |
| -4 | 048150142 | G | |
| -14 | 048220242 | B | |
| -5 | 048420242 | C | |
| -5 | 048420242 | G | |
| -5 | 060300416 | J | |
| -36 | 060400616 | K | |
| -29 | 060400616 | C | |
| -36 | 060400616 | J | |
| -24 | 060400816 | B | |
| -14 | 060670612 | A | |
| -30 | 060670612 | K | |
| -11 | 060670812 | F1 | |
| -19 | 060670812 | F2 | |
| -36 | 062061003 | L | |
| -42 | 062061016 | A | |
| -19 | 062061016 | B | |
| -31 | 062061603 | L | |
| -3 | 062300416 | J | |
| -41 | 062300416 | J | |
| -7 | 062300416 | K | |
| -32 | 062300416 | K | |
| -38 | 062300416 | K | |
| -40 | 062300416 | K | |
| -3 | 062300416 | K | |
| -3 | 062300416 | K | |
| -5 | 062300416 | K | |
| -52 | 062300416 | K | |
| -50 | 062301016 | K | |
| -18 | 062350816 | F1 | |
| -28 | 062350816 | F2 | |
| -16 | 062400616 | A | |
| -24 | 062400616 | A | |
| -34 | 062400616 | J | |
| -3 | 062400816 | A | |
| -22 | 062400816 | A | |
| -5 | 062500816 | A | |
| -39 | 062501003 | L | |
| -7 | 062501016 | G | |
| -7 | 062501016 | G | |
| -32 | 062501403 | L | |
| -15 | 062501616 | F2 | |
| -18 | 062670616 | A | |
| -22 | 062670616 | C | |
| -30 | 062670616 | J | |
| -13 | 062710812 | F1 | |
| -23 | 062710812 | F2 | |
| -3 | 072630260 | C | |
| -3 | 072630260 | G | |
| -19 | 081005070 | E | |
| -14 | 081005070 | H | |
| -15 | 081006070 | E | |
| -27 | 081007070 | A | |
| -11 | 081010870 | H | |
| -11 | 081010870 | H | |
| -37 | 0A4402006 | A | |
| -5 | 100032004 | F1 | |
| -5 | 100032004 | F2 | |
| -45 | 100064005 | K | |
| 101494101 | Ga | ||
| 101497101 | Ga | ||
| 101561101 | Ga | ||
| 101564101 | Ga | ||
| 101564101 | Ga | ||
| -20 | 102630001 | C | |
| -2+ | 103408002 | F1 | |
| -30 | 104450101 | A | |
| -19 | 104833001 | A | |
| -10 | 105103001 | D | |
| -11 | 105104001 | D | |
| -12 | 105105109 | D | |
| -14 | 105106001 | D | |
| -20 | 105129001 | F1 | |
| -30 | 105129001 | F2 | |
| -22 | 105130001 | F1 | |
| -20 | 105234003 | J | |
| -21 | 105235251 | J | |
| -23 | 105236001 | J | |
| -24 | 105237002 | J | |
| -27 | 105243001 | J | |
| -28 | 105244000 | J | |
| -29 | 105245001 | J | |
| -10+ | 105251309 | K | |
| -20 | 105257209 | A | |
| -21 | 105260209 | A | |
| -24 | 105280109 | K | |
| -25 | 105281001 | K | |
| -27 | 105284201 | K | |
| -28 | 105285100 | K | |
| -46 | 105300101 | K | |
| -3 | 105333101 | L | |
| -17 | 110367001 | C | |
| -10 | 110813001 | J | |
| -11 | 110832009 | J | |
| -1 | 111070209 | J | |
| -40 | 111072209 | J | |
| -4 | 111075159 | J | |
| -8 | 111075159 | J | |
| -18 | 111076151 | J | |
| -35 | 111077101 | J | |
| -37 | 111083101 | J | |
| -1 | 111095109 | K | |
| -6 | 111096109 | K | |
| -10+ | 111097209 | K | |
| -9 | 11105002 | F1 | |
| -41 | 111112101 | K | |
| -9 | 111140002 | F2 | |
| -23 | 113605101 | C | |
| -11 | 116577051 | B | |
| -1 | 117466100 | L | |
| -16 | 120990001 | H | |
| -22 | 120990001 | J | |
| -32 | 122771051 | F2 | |
| -43 | 133180005 | A | |
| -29 | 138843201 | L | |
| -15 | 140004001 | C | |
| -32 | 140004001 | J | |
| -9 | 140407001 | D | |
| -7+ | 141728001 | D | |
| -26 | 142990001 | L | |
| -13+ | 14404001 | J | |
| -16 | 144458001 | F1 | |
| -16 | 144458001 | F1 | |
| -15 | 144504001 | K | |
| -15 | 144546002 | K | |
| -21 | 145688000 | C | |
| -2+ | 146427001 | F1 | |
| -2 | 146427001 | F2 | |
| -47 | 147291101 | K | |
| 147302101 | Ga | ||
| -7 | 147871002 | F1 | |
| -7 | 147871002 | F2 | |
| -8 | 147872001 | F2 | |
| -12 | 147875001 | F2 | |
| -13 | 147877002 | F2 | |
| -14 | 147878001 | F2 | |
| -16 | 147879001 | F2 | |
| -22 | 147880001 | F2 | |
| -10 | 147890001 | F2 | |
| -11 | 147932001 | F2 | |
| -41 | 148298001 | L | |
| -13+ | 148851001 | J | |
| 148864001 | Ga | ||
| 148865301 | Ga | ||
| -20+ | 148867201 | F2 | |
| -24 | 148875001 | F2 | |
| -24 | 148877001 | F2 | |
| 148877100 | Ga | ||
| 1488771001 | Ga | ||
| -14+ | 148971001 | F1 | |
| 148973001 | Ga | ||
| 148973001 | Ga | ||
| -14+ | 148973101 | F1 | |
| -13 | 150172003 | L | |
| -14 | 150174000 | L | |
| -17 | 150179002 | L | |
| -6 | 150182000 | L | |
| -25 | 150183000 | L | |
| -20 | 150188009 | L | |
| -21 | 150194009 | L | |
| -8 | 150206002 | L | |
| -25 | 150697001 | A | |
| -18 | 15072101 | F2 | |
| -25 | 15072101 | A | |
| -12 | 153675001 | G | |
| -2 | 153675001 | H | |
| -43 | 153675001 | K | |
| -16 | 154560101 | K | |
| -16 | 154560101 | K | |
| -31 | 154965001 | F1 | |
| -41 | 154965001 | F2 | |
| -17 | 155510001 | K | |
| -17 | 155510001 | K | |
| -29 | 159150000 | A | |
| -16 | 159805001 | J | |
| -1+ | 181126101 | H | |
| -1 | 181716101 | F2 | |
| 181716101 | Ga | ||
| -17 | 183185201 | H | |
| -8+ | 183949001 | E | |
| -8+ | 183950001 | E | |
| 183954101 | Ga | ||
| 183978101 | Ga | ||
| 183978101 | Ga | ||
| 183978101 | Ga | ||
| -40 | S01943101 | L | |
| -11 | S02783001 | L | |
| -10 | S04109001 | L | |
| S09679101 | Ga | ||
| -8 | S10112101 | D | |
| S11508201 | Ga | ||
| S13042001 | Ga | ||
| -20+ | S13045201 | F2 | |
| S16482001 | Ga | ||
| S16482001 | Ga | ||
| -14+ | S16482101 | F1 | |
| -49 | S16487251 | K | |
| -1+ | S16500101 | F1 |
Page 33 — 索 引 / Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| -12 | S23651001 | C | |
| -18 | S23651001 | C | |
| -19 | S25260001 | C | |
| -4 | S29864609 | L | |
| -14 | S30564000 | J | |
| -15 | S30565025 | J | |
| -18 | S35656001 | H | |
| -3+ | S36861012 | F1 | |
| S36861012 | Ga | ||
| -3+ | S36861014 | F1 | |
| S36861014 | Ga | ||
| -3+ | S36861016 | F1 | |
| S36861016 | Ga | ||
| -1+ | S36862001 | L | |
| -35 | S37037001 | L | |
| S37060001 | Wa | ||
| -4 | S39585001 | E | |
| -5 | S39586001 | E | |
| -23 | S40266351 | K | |
| -7 | S40282100 | E | |
| -10 | S40285101 | E | |
| -11 | S40288100 | E | |
| -12 | S40289051 | E | |
| -17 | S40290051 | E | |
| -1+ | S40291101 | E | |
| -1+ | S40291102 | E | |
| -3 | S40302100 | H | |
| -9 | S40303101 | H | |
| -6 | S40306201 | A | |
| -7 | S40307101 | A | |
| -6 | S40316151 | C | |
| -6 | S40316151 | G | |
| -12 | S40319101 | A | |
| -13 | S40320051 | A | |
| -15 | S40321151 | A | |
| -17 | S40322051 | A | |
| -12 | S40323101 | K | |
| -19 | S40325101 | K | |
| -31 | S40327051 | K | |
| -37 | S40328151 | K | |
| -39 | S40329051 | K | |
| -42+ | S40330151 | K | |
| -44+ | S40335351 | A | |
| -44+ | S40336051 | A | |
| -45+ | S40338051 | A | |
| -45+ | S40339051 | A | |
| -51 | S40341101 | K | |
| -42+ | S40342151 | K | |
| -8 | S40358101 | F1 | |
| S40363301 | Ga | ||
| S40370201 | Ga | ||
| -26 | S40376201 | F1 | |
| -36 | S40376201 | F2 | |
| -28 | S40378151 | F1 | |
| -38 | S40378151 | F2 | |
| -29 | S40379151 | F1 | |
| -39 | S40379151 | F2 | |
| -27 | S40380151 | F1 | |
| -37 | S40380151 | F2 | |
| S40386101 | Ga | ||
| -19 | S40399001 | F1 | |
| -29 | S40639001 | F2 | |
| -12 | S40795101 | L | |
| -26 | S40797001 | E | |
| -23 | S40799151 | A | |
| -14 | S41311101 | E | |
| -7+ | S41318109 | J | |
| -3+ | S43401021 | F2 | |
| -3+ | S43401022 | F2 | |
| -7+ | S43446109 | L | |
| -7+ | S4448109 | L | |
| -25 | S45227101 | H | |
| -7 | S51282101 | L | |
| -5 | S51283001 | L | |
| S51807101 | Ga | ||
| -33 | S58043101 | J | |
| -35 | S58044001 | K | |
| S59614201 | Ga | ||
| S59615001 | Ga | ||
| S59616201 | Ga | ||
| -5 | S59893001 | H | |
| -19 | S59893001 | H | |
| -25 | SA0007101 | F1 | |
| -24 | SA0008101 | F1 | |
| -34 | SA0008101 | F2 | |
| -26 | SA1303101 | A | |
| -33 | SA1303101 | A | |
| -38 | SA2221001 | A | |
| -39 | SA2222001 | A | |
| -40 | SA2223001 | A | |
| -41 | SA2224001 | A | |
| -5 | SA2378001 | B | |
| -21 | SA2638001 | K | |
| -22 | SA2640001 | K | |
| -3 | SA2720101 | B | |
| -8 | SA3538001 | A | |
| -11 | SA3538001 | A | |
| -4 | SA4214001 | B | |
| -39 | SA5124001 | J | |
| -21 | SA6396001 | B | |
| -16 | SA6606001 | L | |
| -27 | SA6609001 | L | |
| -22 | SA6610001 | L | |
| -23 | SA6611001 | L | |
| -28 | SA6615001 | L | |
| -9 | SA6629001 | L | |
| -10 | SA6702002 | G | |
| -10 | SA7520001 | C | |
| -11 | SA7521001 | C | |
| -31 | SA7849001 | A | |
| -2 | SA8239301 | L | |
| -36 | SA8680101 | A | |
| -26 | SA9523001 | K | |
| -14 | SA9650101 | C | |
| SA9826001 | Wa | ||
| -4 | SA9854001 | A | |
| SB1270001 | Wa | ||
| 26 | SB1271101 | Wa | |
| -8 | SB1538001 | G | |
| -15 | SB2045001 | L | |
| -20 | SB2330001 | E | |
| -13 | SB3444001 | B | |
| -5 | SB4285001 | D | |
| -35 | SB4504001 | A | |
| -1 | SB7853001 | B | |
| -32 | SB7613001 | A | |
| -9 | SB8857001 | J | |
| -1 | SB7780001 | A | |
| -2 | SB7785001 | A | |
| -20 | SB7786001 | B | |
| -22 | SB7787001 | B | |
| -23 | SB7788001 | B | |
| -7 | SB7789001 | B | |
| -9 | SB7790001 | B | |
| -1 | SB7791001 | C | |
| -2 | SB7792001 | C | |
| -8+ | SB7793001 | C | |
| -9+ | SB7794001 | C | |
| -8+ | SB7795001 | C | |
| -9+ | SB7796001 | C | |
| -13 | SB7797001 | C | |
| -16 | SB7798001 | C | |
| -24 | SB7799001 | C | |
| -25 | SB7800001 | C | |
| -26 | SB7801101 | C | |
| -28 | SB7805001 | C | |
| -30 | SB7806001 | C | |
| -1 | SB7808001 | G | |
| -2 | SB7809001 | G | |
| -9 | SB7810001 | G | |
| -31 | SB7811001 | C | |
| -18 | SB7814001 | D | |
| -6 | SB7815001 | B | |
| -1+ | SB7816001 | D | |
| -1+ | SB7817001 | D | |
| -2 | SB7818001 | D | |
| -3 | SB7819001 | D | |
| -7+ | SB7821001 | D | |
| -13 | SB7822001 | D | |
| SB7823001 | Ga | ||
| SB7824101 | Ga | ||
| SB7826101 | Ga | ||
| SB7827101 | Ga | ||
| -7 | SB7828001 | H | |
| -12 | SB7829001 | H | |
| -25 | SB7832001 | J | |
| -31 | SB7833001 | J | |
| -26 | SB7834001 | J | |
| -38 | SB7835001 | J | |
| -13 | SB7836001 | K | |
| -13 | SB7836001 | K | |
| -29 | SB7837001 | K | |
| -53 | SB7838001 | K | |
| -54 | SB7839001 | K | |
| -27 | SB7840001 | C | |
| -25 | SB7842001 | B | |
| -9 | SB7843001 | A | |
| -10 | SB7844001 | A |
Brother DA-927A / DA-928A — parts catalog
- Page 1 (cover): This is the cover page for the Brother Parts Book for models DA-927A and DA-928A, which are twin needle/three needle feed off the arm double chain stitchers. The page includes the Brother logo and website information.
- Page 2 (diagram): This page shows a diagram illustrating the usage of different plates for various material thicknesses, with part numbers DA-927A and DA-928A.
- Page 3 (text): This page describes the model plates for Brother sewing machines, specifically DA-927A and DA-928A, and lists the types of materials each model is designed to handle.
- Page 4 (toc): This page is a table of contents for a parts manual, listing sections like "Main Body", "Pulley", "Upper Shaft-Needle Bar", "Presser Bar", "Feed Mechanism", "Gauge", "Lower Shaft", "Looper", "Upper Shaft", "Attachment", "Gauge Parts List", "Warning Label", and "Index", along with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of the machine body and related components, with numbered parts and their corresponding labels.
- Page 7 (parts_list): This page lists parts for the MACHINE BODY, including screws, plates, covers, and springs, with part numbers, quantities, and descriptions.
- Page 8 (diagram): This page displays a diagram of the pulley mechanism, illustrating various components with reference numbers for identification.
- Page 9 (parts_list): This page lists parts for the pulley mechanism, including part numbers, quantities, and names, with descriptions such as pulley assy, set screws, timing pulleys, and covers.
- Page 10 (diagram): This page displays a diagram of the U-SHAFT NEEDLE BAR MECHANISM, illustrating various components with reference numbers.
- Page 11 (parts_list): This page lists parts for the U-SHAFT NEEDLE BAR MECHANISM, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays diagrams for the Presser Bar Mechanism and the Feed Mechanism, with numbered parts for each section.
- Page 13 (parts_list): This page lists parts for the Presser Bar Mechanism and the Feed Mechanism, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of gauge parts for twin needle and three needle sewing machines, with numbered components and their corresponding part numbers and descriptions.
- Page 15 (parts_list): This page lists parts for the 927A gauge, including needle plates, screws, pins, guards, and loopers, with part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of gauge parts for model 928A, including various components labeled with reference numbers and some specific part numbers.
- Page 17 (parts_list): This page lists parts for the F2.ゲージ関係(928A) / GAUGE PARTS(928A) section, including part numbers, descriptions, quantities, and model applicability for various components.
- Page 18 (diagram): This page displays diagrams for the Lower Shaft Mechanism and the Looper Mechanism, with numbered parts for identification.
- Page 19 (parts_list): This page contains parts lists for the G. Lower Shaft Mechanism and H. Looper Mechanism, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the upper threading mechanism for J. sewing machines, including parts for twin needle and three needle configurations, with reference numbers and part details.
- Page 21 (parts_list): This page lists parts for the Upper Threading Mechanism, including part numbers, descriptions, and quantities for various components like screws, nuts, and tension parts.
- Page 22 (diagram): This page displays a diagram of the upper threading mechanism for sewing machines, including parts for twin needle and three needle configurations, with numbered components and their corresponding references.
- Page 23 (parts_list): This page lists parts for the upper threading mechanism, including parts for twin and three needle configurations, with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of the lower threading mechanism, including parts for twin needle and three needle configurations, with reference numbers and part details.
- Page 25 (parts_list): This page lists parts for the K. Lower Threading Mechanism, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of the lower threading mechanism for sewing machines, including parts for twin needle and three needle configurations. It lists various components with reference numbers.
- Page 27 (parts_list): This page lists parts for the Lower Threading Mechanism, including part numbers, descriptions, and quantities for various components like thread retainers, screw pans, and guides.
- Page 28 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 29 (parts_list): This page lists accessories and parts for industrial sewing machines, including part numbers, descriptions, quantities, and references.
- Page 30 (parts_list): This page lists gauge parts for sewing machines, including needle clamps, needle plates, presser foot assemblies, feed dogs, needle guards, and lapper assemblies, with corresponding part numbers and applicable material types.
- Page 31 (parts_list): This page lists various warning labels and grounding labels for Brother sewing machines, including their descriptions, sizes, and part codes.
- Page 32 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
- Page 33 (parts_list): This page contains a parts list for various sewing machine components, organized into columns for code, reference number, and page number. It includes part numbers such as S23651001, S40399001, and SB1270001, with corresponding reference numbers and page references.
- Page 34 (cover): This is the cover page for a Brother Parts Book, featuring the Brother logo and an illustration of a screw, along with the text "PARTS BOOK". It also includes company contact information and copyright details.
