Brother DT6-B927 / DT6-B928 Parts Book (PDF)

Text index — Brother DT6-B927 / DT6-B928

Page 4 — B. 上軸関係 / Upper shaft mechanism / Obere Welle / Mécanisme de l'arbre supérieur / Mecanismo del eje superior

Brother DT6-B927 / DT6-B928 parts on page 4
Ref	Part number	Part name	Qty
2	105337001	CUSHION ASSY	2
3	105146001	SCREW, SM6.35	2
4	0B0622502	WOOD SCREW, ROUND M6.2X25	2
5	105341051	BASE CUSHION	2
12	150697001	OIL GAUGE WINDOW	1
13	104449009	RUBBER CAP, 15.5	1
1	S40314001	UPPER SHAFT	1
2	076302850	BALL BEARING, 6302ZZ	1
3	072630260	BALL BEARING, 6302VV	2
4	048420242	RETAINING RING, C42	1
5	S40315051	BEARING SPACER	1
6	S40316051	BEARING PRESSER	1
7	062711012	SCREW, PAN SM4.76-32X10	3
8	S40318051	UPPER SHAFT COLLAR	1
9	S40317001	SCREW, SM9.52	1
10	S40812001	OIL TANK ASSY	1
10-1	S40383001	OIL TANK	1
10-2	104547001	OIL GAUGE WINDOW	1
10-3	081014670	O RING, PW14	1
10-4	151074009	OIL GAUGE COVER	1
10-5	100257010	SCREW, SM3.57	4
10-6	111193001	OIL FEEDING PIPE CAP	1
10-7	105071001	OIL TANK PACKING	1
10-8	111194001	O RING	1
	1074009		1

Page 6 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja D1. 押工棒関係 (B927) / Presser bar mechanism (B927) / Stoffdrückerstange (B927) / Mécanisme du la barra de presser (B927) / M

Brother DT6-B927 / DT6-B928 parts on page 6
Ref	Part number	Part name	Qty
1	S40268001	THREAD TAKE-UP LEVER ASSY	1
1-1	142274009	RUBBER CAP, 4.2	1
1-2	140004001	SCREW, SM3.57	1
2	107153001	WASHER	1
3	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
4	145688000	NEEDLE BAR GUIDE	1
5	062670612	SCREW, PAN SM3.57-40X6	2
6	113605051	NEEDLE BAR	1
7	S18874001	NEEDLE BAR BUSH, U	1
8	111024101	NEEDLE BAR BUSH, D	1
10	014771022	SET SCREW, SOCKET (CP) SM6.35	2
13	111863001	NEEDLE BAR CORK	1
14	140890009	OIL CAP	1
15	151927001	CLUTCH FELT	1
16	109993001	WICK NIPPER	1
9-1	S40271051	THREAD TAKE-UP CRANK, M	1
11-1	100251001	SET SCREW, SM6.35	3
9-2	S40272051	THREAD TAKE-UP CRANK, MH	1
11-1	100251001	SET SCREW, SM6.35	3
9-3	S40273051	THREAD TAKE-UP CRANK, H	1
11-2	100251001	SET SCREW, SM6.35	1
12	123006001	SET SCREW, (CP) SM6.35	2
2	S40299001	ADJUST SCREW	1
4	S40798050	PRESSER BAR CLAMP	1
5	014760622	SET SCREW, SOCKET SM5.95	1
6	S40298051	SPRING	1
7	105103001	PRESSER BAR LIFTER	1
8	105104001	SHOULDER SCREW, SM5.95	1
9	105105009	KNEE LIFTER LEVER	1
10	102921002	SHOULDER SCREW, SM7.94	1
11	105106001	TWIST SPRING	1
12	105333001	PRESSER FOOT LIFTER CHAIN ASSY	1
14	S40301001	PACKING	1
16	S40279001	FRONT LID	1
17	062680512	SCREW, PAN SM4.37-40X5	2
19	117934009	RUBBER CAP, 13.5	1
20	159150009	RUBBER CAP, 20.5	1
21	159150009	RUBBER CAP, 20.5	1
1-1	S06259001	PRESSER BAR	1
3-1	111025001	PRESSER BAR BUSH, D	1
13	S40300001	FACE PLATE	1
15	062681012	SCREW, PAN SM4.37-40X10	3
1-2	S06261001	PRESSER BAR	1
3-2	150665001	PRESSER BAR BUSH, D	1
	11863001		1

Page 8 — D2. 押工棒関係 (B928) / Presser bar mechanism (B928) / Stoffdrückerstange (B928) / Mécanisme du la barra de presser (B928) / Mecanismo de la barra del prensatelas (B928)

Brother DT6-B927 / DT6-B928 parts on page 8
Ref	Part number	Part name	Qty
2	105091001	PRESSER BAR BUSH, U	1
4	S40798050	PRESSER BAR CLAMP	1
5	014760622	SET SCREW, SOCKET SM5.95	1
6	105094009	PRESSER PLATE SPRING	1
7	105095001	PIN	1
8	105096009	PLATE SPRING ASSY	1
9	105100001	WASHER	1
10	148006001	ADJUST SCREW	1
11	021710212	NUT, 2 SM4.76	1
12	148007051	WING NUT, SM4.76	1
13	105103001	PRESSER BAR LIFTER	1
14	105104001	SHOULDER SCREW, SM5.95	1
15	105105009	KNEE LIFTER LEVER	1
16	102921002	SHOULDER SCREW, SM7.94	1
17	105106001	TWIST SPRING	1
18	105333001	PRESSER FOOT LIFTER CHAIN ASSY	1
20	S40301001	PACKING	1
22	S40279001	FRONT LID	1
23	062680512	SCREW, PAN SM4.37-40X5	2
25	117934009	RUBBER CAP, 13.5	1
26	159150009	RUBBER CAP, 20.5	1
27	071063550	BEARING BALL, 1/4	1
28	159150009	RUBBER CAP, 20.5	1
1-3	S06260001	PRESSER BAR	1
3-2	147865001	PRESSER BAR BUSH, D	1
19	S40300001	FACE PLATE	1
21	062681012	SCREW, PAN SM4.37-40X10	3
1-2	S06261001	PRESSER BAR	1
3-3	150665001	PRESSER BAR BUSH, D	1
1-1	S06259001	PRESSER BAR	1
3-1	111025001	PRESSER BAR BUSH, D	1

Page 10 — E . プーリー関係 / Pulley mechanism / Gürtelradmechanismus / Poulie / Polea

Brother DT6-B927 / DT6-B928 parts on page 10
Ref	Part number	Part name	Qty
2	014781032	SET SCREW, SOCKET (CP) SM6.35	2
4	014770622	SET SCREW, SOCKET (CP) SM6.35	2
5	S40818001	TIMING BELT WHEEL ASSY, LOWER	1
6	014770622	SET SCREW, SOCKET (CP) SM6.35	2
7	S40819000	TIMING BELT	1
8	S40258001	BELT COVER	1
9	062711612	SCREW, PAN SM4.76-32X16	6
10	S40259001	BELT COVER PLATE	1
11	116577051	ROTARY HOOK SHAFT COVER	1
12	105141001	PACKING	1
13	062710812	SCREW, PAN SM4.76-32X8	2
14	S40796001	PULLEY COVER BASE	1
15	105144001	BOLT, SM11.11	2
16	142627001	WASHER	2
17	S40261001	PULLEY COVER, A	1
18	S40262001	PULLEY COVER, B	1
19	062680712	SCREW, PAN SM4.37-40X7	3
20	155558001	STUD SCREW, SM6.35	4
21	S40797000	PULLEY COVER SHEET	8
1-1	S40280001	PULLEY ASSY, M	1
1-2	S40281001	PULLEY ASSY, H	1
3-1	S40265001	TIMING BELT WHEEL ASSY, UPPER	1
3-2	S41312001	PULLER TIMING BELT WH. ASSY, U	1
22	150659001	TIMING PULLEY ASSY, B	1
23	014760622	SET SCREW, SOCKET SM5.95	2
24	150661001	PULLER TIMING BELT, A	1
25	S40264001	PULLEY BELT COVER	1
26	062680812	SCREW, PAN SM4.37-40X8	2
	15558001		4
	S40800001	プーリMクミ	1
	S4081001	プーリHクミ	1

Page 12 — F. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Brother DT6-B927 / DT6-B928 parts on page 12
Ref	Part number	Part name	Qty
1-1	S40274001	ECCENTRIC WHEEL ASSY, M	1
1-1-1-1	047301242	PIN, SPRING AW3	2
1-1-2-1	047301242	PIN, SPRING AW3	1
1-1-3	S38309001	RACHTER STOPPER	1
1-1-4	S39585001	TWIST SPRING	1
1-1-5	S39586001	SCREW, M3	1
1-2	S40274002	ECCENTRIC WHEEL ASSY, M	1
1-2-1-1	047301242	PIN, SPRING AW3	2
1-2-2-1	047301242	PIN, SPRING AW3	1
1-2-3	S38309001	RACHTER STOPPER	1
1-2-4	S39585001	TWIST SPRING	1
1-2-5	S39586001	SCREW, M3	1
1-3	S40291001	ECCENTRIC WHEEL ASSY, H	1
1-3-1-1	047301242	PIN, SPRING AW3	2
1-3-2-1	047301242	PIN, SPRING AW3	1
1-3-3	S38309001	RACHTER STOPPER	1
1-3-4	S39585001	TWIST SPRING	1
1-3-5	S39586001	SCREW, M3	1
4-1	183949001	ECCENTRIC WHEEL WITH SCREW, M	1
4-1-1	014770622	SET SCREW, SOCKET (CP) SM6.35	2
4-2	183950001	ECCENTRIC WHEEL WITH SCREW, H	1
4-2-1	014770622	SET SCREW, SOCKET (CP) SM6.35	2
2	012060632	SET SCREW, SOCKET (FT) M6X6	2
3	S40282000	ECCENTRIC WHEEL SLEEVE	1
5	S40285001	FEED BAR SLIDE BLOCK ASSY	1
6	S40288000	FEED LIFTING CONNECTING SHAFT	1
7	S40289051	FEEED LIFTING ROCK SHAFT	1
8	014760622	SET SCREW, SOCKET SM5.95	1
9	S41311051	FEED BAR ECCENTRIC SHAFT	1
9	S41111051		1
10	081006070	O RING, P6	1
11	014761030	SET SCREW, SOCKET (CP) SM5.95	1
12	S40290051	PUSH BUTTON	1
13	S40800001	SPRING	1
14	081005070	O RING, P5	1
15	025710132	WASHER, PLAIN S 4.76	1
16	048040342	RETAINING RING, E4	1

Page 14 — G1.ゲージ関係 (B927 スタンダード) / Gauge parts (B927 Standard) / Lehren (B927 Norm)

Brother DT6-B927 / DT6-B928 parts on page 14
Ref	Part number	Part name	Qty
1	※	NEEDLE CALMP ASSY W/S	1
1-1	103408002	SET SCREW, SM4.37	2
2	※	NEEDLE	2
3	※	NEDDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
6	060670812	SCREW, BIND SM3.57-40X8	1
7	※	FEED DOG	1
8	105173004	SCREW, SM4.76	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
14	105130001	SCREW, SM3.57	2
20-1	※	LOPPER, S	1
20-2	※	LOPPER, L	1
21	062680612	SCREW, PAN SM4.37-40X6	2
22-1	S06315001	LOOPER HOLDER, S	1
22-2	S06314001	LOOPER HOLDER, L	1
23	062681012	SCREW, PAN SM4.37-40X10	2
5-1	101491101	PRESSER FOOT ASSY, 3/16"	1
5-1-1	105118000	SPRING	1
5-1-2	156792001	FINGER GUARD	1
5-2	106160101	PRESSER FOOT ASSY, 1/4"H	1
5-2-1	105118000	SPRING	1
5-2-2	111140001	SCREW, SM2.38	2
5-2-3	156792001	FINGER GUARD	1
5-3	※	PRESSER FOOT ASSY	1
5-3-1	147871001	PIN	4
5-3-2	S40358001	SPRING	1
5-3-3	111105002	SCREW, SM2.38	1
5-3-4	S40360001	SPRING	1
5-3-5	147932001	SHOULDER SCREW, SM2.38	1
5-3-6	S40374001	FINGER GUARD	1
9-1	105303001	SCREW, SM3.57	1
10-1	※	LOOPER THREAD GUIDE ARM	1
9-2	111443003	SET SCREW, SM3.57	1
10-2	※	NEEDLE GUARD	1
17	148876001	NEEDLE GUARD BRACKET	1
18	021670102	NUT, 1 SM3.57	1
19	062671012	SCREW, PAN SM3.57-40X10	1
13-1	※	LAPPER ASSY	1
13-1-1	062670412	SCREW, PAN SM3.57-40X4	1
13-2	※	LAPPER ASSY	1
13-2-1	105130001	SCREW, SM3.57	1
13-3	S09679001	LAPPER ASSY, 1/4" M	1

Page 16 — G2. ゲージ関係 (B927 "-7, -8") / Gauge parts (B927 "-7, -8") / Lehren (B927 "-7, -8") / Pièces du jauge (B927 "-7, -8") / Piezas de calibradores (B927 "-7, -8")

Brother DT6-B927 / DT6-B928 parts on page 16
Ref	Part number	Part name	Qty
3	※	NEEDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
6	014760622	SET SCREW, SOCKET SM5.95	1
7	※	FEED DOG	1
8	105173004	SCREW, SM4.76	1
9	111443003	SET SCREW, SM3.57	1
10	※	NEEDLE GUARD	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
14	105130001	SCREW, SM3.57	2
17	148876001	NEEDLE GUARD BRACKET	1
18	021670102	NUT, 1 SM3.57	1
19	062671012	SCREW, PAN SM3.57-40X10	1
1-1	※	NEEDLE CALMP ASSY W/S	1
1-1-1	103408002	SET SCREW, SM4.37	2
2-1	※	NEEDLE, TVX64NY	2
20-1	※	LOPPER, S	1
20-2	※	LOPPER, L	1
21-1	062680612	SCREW, PAN SM4.37-40X6	2
22-1	S06315001	LOOPER HOLDER, S	1
22-2	S06314001	LOOPER HOLDER, L	1
23-1	062681012	SCREW, PAN SM4.37-40X10	2
1-2	※	NEEDLE CLAMP ASSY W/S	1
1-2-1	146427001	SET SCREW, SOCKET (CP) SM3.18	3
2-2	※	NEEDLE, TVX64NY	3
20-3	S40375001	LOPPER, S 1/8"X2-6	1
20-4	S40376001	LOPPER, M-6	1
20-5	S40377001	LOPPER, L 1/8"X2-6	1
21-2	111443003	SET SCREW, SM3.57	3
22-3	S40378051	LOPPER HOLDER, S	1
22-4	S40379051	LOPPER HOLDER, M	1
22-5	S40380051	LOPPER HOLDER, L	1
23-2	062671012	SCREW, PAN SM3.57-40X10	3
5-1	S06303101	PRESSER FOOT ASSY, 3/16"-7	1
5-1-1	147871001	PIN	4
5-1-2	S06309001	SPRING	1
5-1-3	147932001	SHOULDER SCREW, SM2.38	1
5-1-4	062630612	SCREW, PAN SM2.38-56X6	1
5-1-5	S09180101	FINGER GUARD	1
5-1-6	060660512	SCREW, BIND SM3.18-40X5	1
13-1	101494001	LAPPER ASSY, 3/16" M	1
13-1-1	105130001	SCREW, SM3.57	1
5-2	※	PRESSER FOOT ASSY	1
5-2-1	147871001	PIN	4
5-2-2	S06309001	SPRING	1
5-2-3	147932001	SHOULDER SCREW, SM2.38	1
5-2-4	S09180101	FINGER GUARD	1
5-2-5	060660512	SCREW, BIND SM3.18-40X5	1
13-2	S09679001	LAPPER ASSY, 1/4" M	1

Page 18 — G3. ゲージ関係 (B928 スタンダード) / Gauge parts (B928 Standard) / Lehren (B928 Norm) / Pièces du jauge (B928 Standard) / Piezas de calibradores (B928 Norma)

Brother DT6-B927 / DT6-B928 parts on page 18
Ref	Part number	Part name	Qty
1	※	NEEDLE CLAMP ASSY	1
1-1	146427001	SET SCREW, SOCKET (CP) SM3.18	3
2	S43401021	NEEDLE, TVX5 (#21)	3
3	※	NEEDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
6	060670812	SCREW, BIND SM3.57-40X8	1
7	※	FEED DOG	1
8	105173004	SCREW, SM4.76	1
9	148875001	NEEDLE GUARD, -6	1
10	111443003	SET SCREW, SM3.57	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
13	105130001	SCREW, SM3.57	2
15	148876001	NEEDLE GUARD BRACKET	1
16	021670102	NUT, 1 SM3.57	1
17	062671012	SCREW, PAN SM3.57-40X10	1
18-1	※	LOPPER, S	1
18-2	※	LOPPER, M	1
18-3	※	LOPPER, L	1
19	111443003	SET SCREW, SM3.57	3
20-1	S40378051	LOPPER HOLDER, S	1
20-2	S40379051	LOPPER HOLDER, M	1
20-3	S40380051	LOPPER HOLDER, L	1
21	062671012	SCREW, PAN SM3.57-40X10	3
5-1	※	PRESSER FOOT ASSY	1
5-1-1	147871001	PIN	6
5-1-2	147872001	SPRING	1
5-1-3	S01295001	SCREW, SM2.38X3.5	1
5-1-4	147890001	SPRING	1
5-1-5	147932001	SHOULDER SCREW, SM2.38	1
5-1-6	147875001	SPRING	1
5-1-8	147877001	NUT, SM3.18	1
5-1-9	147878001	SPRING	1
5-1-10	062660512	SCREW, PAN SM3.18-40X5	1
5-1-12	111105002	SCREW, SM2.38	1
5-1-13	151572101	FINGER GUARD	1
5-1-7	S40804001	PRESSER FOOT, BS 5/16"	1
5-1-7	147876001	PRESSER FOOT, BS	1
5-2	S40788001	PRESSER FOOT ASSY, 7/64"X2	1
5-2-1	S09397001	SPRING	1
5-2-2	153787001	SCREW, SM2.38	2
5-2-3	151571001	FINGER GUARD	1
14-1	※	LAPPER ASSY, MH	1
14-1-1	105130001	SCREW, SM3.57	1
14-2	※	LAPPER ASSY, H	1
14-2-1	122771001	SCREW, SM2.38	2
	144875001		1
	11443003		1

Page 20 — G4 . ゲージ関係 (B928 "-5") / Gauge parts (B928 "-5") / Lehren (B928 "-5") / Pièces du jauge (B928 "-5") / Piezas de calibradores (B928 "-5")

Brother DT6-B927 / DT6-B928 parts on page 20
Ref	Part number	Part name	Qty
1	※	NEEDLE CLAMP ASSY W/S	1
1-1	103408002	SET SCREW, SM4.37	2
2	※	NEEDLE, TVX5	3
3	※	NEEDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
5	※	PRESSER FOOT ASSY	1
5-1	147871001	PIN	6
5-2	147872001	SPRING	1
5-3	S01295001	SCREW, SM2.38X3.5	1
5-4	147890001	SPRING	1
5-5	147932001	SHOULDER SCREW, SM2.38	1
5-6	147875001	SPRING	1
5-8	147877001	NUT, SM3.18	1
5-9	147878001	SPRING	1
5-10	062660512	SCREW, PAN SM3.18-40X5	1
5-11	147879001	SET SCREW, SM3.18	1
5-12	111105002	SCREW, SM2.38	1
5-13	151572101	FINGER GUARD	1
6	060670812	SCREW, BIND SM3.57-40X8	1
7-1	14897001	FEED DOG ASSY, 1/4"	1
8	105173004	SCREW, SM4.76	1
9	148973001	NEEDLE GUARD, -5	1
10	111443003	SET SCREW, SM3.57	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
13	105130001	SCREW, SM3.57	2
15	148876001	NEEDLE GUARD BRACKET	1
16	021670102	NUT, 1 SM3.57	1
17	062671012	SCREW, PAN SM3.57-40X10	1
17	021671012	NUT, 1 SM3.57	1
18-1	S40375001	LOPPER, S 1/8"X2-6	1
18-3	S40377001	LOPPER, L 1/8"X2-6	1
19	111443003	SET SCREW, SM3.57	3
20-1	S40378051	LOPPER HOLDER, S	1
20-3	S40380051	LOPPER HOLDER, L	1
21	062671012	SCREW, PAN SM3.57-40X10	2
5-7	147876001	PRESSER FOOT, BS	1
7-1	148971001	FEED DOG ASSY, 1/4"	1
7-1-1	147307001	SUB FEED DOG	1
7-1-2	147880001	SCREW, SM1.98	2
14-1	147302001	LAPPER ASSY, 1/4" XH	1
14-1-1	122771001	SCREW, SM2.38	2
5-7	159587001	PRESSER FOOT, BS 3/18"	1
7-2	159588001	FEED DOG ASSY, 3/16"	1
7-2-1	159590001	SUB FEED DOG	1
7-2-2	147880001	SCREW, SM1.98	2
14-2	159609001	LAPPER ASSY, 3/16" H	1
21	02671012	SCREW, PAN SM3.57-40X10	2

Page 22 — G5 .ゲージ関係(B928 "-6") / Gauge parts (B928 "-6") / Lehren (B928 "-6") / Pièces du jauge (B928 "-6") / Piezas de calibradores (B928 "-6")

Brother DT6-B927 / DT6-B928 parts on page 22
Ref	Part number	Part name	Qty
1	※	NEEDLE CLAMP ASSY	1
1-1	146427001	SET SCREW, SOCKET (CP) SM3.18	3
2	111128022	NEEDLE, TVX5 (#22)	3
3	※	NEEDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
5	※	PRESSER FOOT ASSY	1
5-1	147871001	PIN	6
5-2	147872001	SPRING	1
5-3	S01295001	SCREW, SM2.38X3.5	1
5-4	147890001	SPRING	1
5-5	147932001	SHOULDER SCREW, SM2.38	1
5-6	147875001	SPRING	1
5-7	147876001	PRESSER FOOT, BS	1
5-8	147877001	NUT, SM3.18	1
5-9	147878001	SPRING	1
5-10	062660512	SCREW, PAN SM3.18-40X5	1
5-11	147879001	SET SCREW, SM3.18	1
5-12	111105002	SCREW, SM2.38	1
5-13	151572101	FINGER GUARD	1
6	060670812	SCREW, BIND SM3.57-40X8	1
8	105173004	SCREW, SM4.76	1
9	148875001	NEEDLE GUARD, -6	1
10	111443003	SET SCREW, SM3.57	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
13	105130001	SCREW, SM3.57	2
14	※	LAPPER ASSY	1
14-1	122771001	SCREW, SM2.38	2
15	148876001	NEEDLE GUARD BRACKET	1
16	021670102	NUT, 1 SM3.57	1
17	062671012	SCREW, PAN SM3.57-40X10	1
18-1	S40375001	LOPPER, S 1/8"X2-6	1
18-2	S40376001	LOPPER, M-6	1
18-3	S40377001	LOPPER, L 1/8"X2-6	1
19	111443003	SET SCREW, SM3.57	3
20-1	S40378051	LOPPER HOLDER, S	1
20-2	S40379051	LOPPER HOLDER, M	1
20-3	S40380051	LOPPER HOLDER, L	1
21	062671012	SCREW, PAN SM3.57-40X10	3
7-1	※	FEED DOG ASSY	1
7-1-1	147307001	SUB FEED DOG	1
7-1-2	147880001	SCREW, SM1.98	2
7-2	S18084101	オクリバ1/8X2クミD1	1
7-2-1	S01637001		1
7-2-2	147880001		2
	501637001		1

Page 24 — G6. ゲージ関係 (B928 "-7") / Gauge parts (B928 "-7") / Lehren (B928 "-7") / Pièces du jauge (B928 "-7") / Piezas de calibradores (B928 "-7")

Brother DT6-B927 / DT6-B928 parts on page 24
Ref	Part number	Part name	Qty
	103408002
	103408002
	※	ミシンハリTVX5
	※
	100032004
	※
	150670001
	150671001
	147932001
	156211101
	060660512	バインド318-40X5
	014760622
	105173004
	148973001
	111443003
	S40399001
	105129001
	105130001
	148876001
	021670102
	062671012	ナベコ357-40X10
	S40375001	ルーパS1/8X2-6
	S40377001	ルーパL1/8X2-6
	111443003
	S40378051	ルーパホルダS
	S40380051	ルーパホルダL
	062671012	ナベコ357-40X10
	150673001
	147307001
	147880001
	147303001	ラツパー1/4XHクミ
	122771001
	159616001
	159590001
	147880001
	159609001	ラツパー3/16Hクミ

Page 26 — G7 . ゲージ関係 (B928 "-8") / Gauge parts (B928 "-8") / Lehren (B928 "-8") / Pièces du jauge (B928 "-8") / Piezas de calibradores (B928 "-8")

Brother DT6-B927 / DT6-B928 parts on page 26
Ref	Part number	Part name	Qty
1	※	NEEDLE CLAMP ASSY	1
1-1	146427001	SET SCREW, SOCKET (CP) SM3.18	3
2	※	NEEDLE, TVX5	3
3	※	NEEDLE PLATE	1
4	100032004	SCREW, FLAT SM4.37	3
6	014760622	SET SCREW, SOCKET SM5.95	1
8	105173004	SCREW, SM4.76	1
9	148875001	NEEDLE GUARD, -6	1
10	111443003	SET SCREW, SM3.57	1
11	S40399001	LAPPER GUIDE PLATE	1
12	105129001	LAPPER GUIDE PLATE WASHER	1
13	105130001	SCREW, SM3.57	2
14	※	LAPPER ASSY	1
14-1	122771001	SCREW, SM2.38	2
15	148876001	NEEDLE GUARD BRACKET	1
16	021670102	NUT, 1 SM3.57	1
17	062671012	SCREW, PAN SM3.57-40X10	1
18-1	※	LOPPER, S 1/8"X2-6	1
18-2	※	LOPPER, M 1/8"X2-6	1
18-3	※	LOPPER, L 1/8"X2-6	1
19	111443003	SET SCREW, SM3.57	3
20-1	S40378051	LOPPER HOLDER, S	1
20-2	S40379051	LOPPER HOLDER, M	1
20-3	S40380051	LOPPER HOLDER, L	1
21	062671012	SCREW, PAN SM3.57-40X10	3
5-1	150672101	PRESSER FOOT ASSY, 1/8"X2-8	1
5-1-1	150670001	PIN	2
5-1-2	150671001	SPRING	1
5-1-3	147932001	SHOULDER SCREW, SM2.38	1
5-1-4	156211101	FINGER GUARD	1
5-1-5	060660512	SCREW, BIND SM3.18-40X5	1
5-2	151487101	PRESSER FOOT ASSY, 5/32"X2-8	1
5-2-1	151481001	PIN	2
5-2-2	151482001	SPRING	1
5-2-3	147932001	SHOULDER SCREW, SM2.38	1
5-2-4	156211101	FINGER GUARD	1
5-2-5	060660512	SCREW, BIND SM3.18-40X5	1
5-3	※	PRESSER FOOT ASSY, FT 1/8"X2-8	1
5-3-1	150670001	PIN	2
5-3-2	142747002	SET SCREW, SM4.76	1
5-3-3	150671001	SPRING	1
5-3-4	147932001	SHOULDER SCREW, SM2.38	1
5-3-5	156211101	FINGER GUARD	1
5-3-6	060660512	SCREW, BIND SM3.18-40X5	1
7-1	※	FEED DOG ASSY, 1/4"-7	1
7-1-1	147307001	SUB FEED DOG	1
7-1-2	147880001	SCREW, SM1.98	2
7-2	S01635101	FEED DOG ASSY, 1/8"X2-8	1
7-2-1	S01637001	SUB FEED DOG	1
7-2-2	147880001	SCREW, SM1.98	2
7-3	156182101	FEED DOG, 1/8"X2-8	1

Page 28 — H. プーラ装置関係 (-7, -8) / Puller device mechanism (-7, -8) / Ziehvorrichtung (-7, -8) / Mécanisme due puller (-7, -8) / Mecanismo del dispositiv

Brother DT6-B927 / DT6-B928 parts on page 28
Ref	Part number	Part name	Qty
1-1	150679001	ECCENTRIC WHEEL SHAFT ASSY	1
1-1-1	047201640	PIN, SPRING ROLL AW2	1
1-2	072600040	BALL BEARING, 6000DD	2
1-3	150682000	BEARING COLLAR	1
1-4	150683000	BEARING BUSH	1
1-5	014760622	SET SCREW, SOCKET SM5.95	1
1-6	150684001		1
1-8	062670712	ナベコ357-40X7	3
1-9	150686101		1
1-11	150687000		1
1-12	117934009		1
1-13	150688101		1
1-14	150690101		1
1-18	081025570	OリングP25.5	1
1-19	150693000		1
1-22	150608001		1
1-26	109153001		1
1-27	014680422		1
1-28	150611001		1
1-29	062680712	ナベコ437-40X5	2
1-30	150612001		1
1-31	150613001		1
1-32	150614001		1
1-33	148294001		1
1-34	150695000		1
1-35	150696001		1
1-36	150697001		1
1-38	150699000		1
1-39	062671012	ナベコ357-40X10	8
1-40	150641001		1
1-41	150700001		1
1-42	081003670	OリングPW3	1
1-43	150701001		1
1-44	048040342	トメワE4	1
1-45	105113001		1
1-46	105215001		1
2	017822212	ボルト7.94X22	1
3	017821813	ボルト7.94X18	2
4	025080132		3
5-1	062681012	ナベコ437-40X10	4
5-2	150704001		1
5-4	100279109		1
5-6	106794001		1
5-7	141099001		1
5-8	183128001		1
5-9	112618001		1

Page 30 — H. プーラ装置関係 (-7, -8) / Puller device mechanism (-7, -8) / Ziehvorrichtung (-7, -8) / Mécanisme due puller (-7, -8) / Mecanismo del arrastre (-7, -8)

Brother DT6-B927 / DT6-B928 parts on page 30
Ref	Part number	Part name	Qty
5-10	150705001	SUPPORT STUD	1
5-12	014770622	SET SCREW, SOCKET (CP) SM6.35	1
5-13	150711001	TIMING PULLEY SHAFT	1
5-14	150712001	TIMING PULLEY ASSY, C	1
5-15	014680422	SET SCREW, SOCKET (CP) SM4.37	2
5-16	150715001	FLANGE, B	1
5-17	106568003	SCREW, SM3.57	3
5-18	150716001	PULLER TIMING BELT, B	1
5-19	150717000	TIMING PULLEY, D	1
5-20	014680422	SET SCREW, SOCKET (CP) SM4.37	2
5-21	150718001	PULLER SHAFT	1
5-24	150720001	TIMING BELT COVER, D	1
5-25	150721001	STUD	1
5-26	150722001	TIMING BELT COVER, U	1
5-27	150723001	SHOULDER SCREW, SM3.57	1
5-28	153965001	PULLER PRESSER BAR LIFTER	1
5-29	025060232	WASHER, PLAIN M 6	1
5-30	062761012	SCREW, PAN SM5.95-28X10	1
6	150725001	UNIVERSAL JOINT ASSY	2
7	150726001	UNIVERSAL JOINT SHAFT	1
10	S16488001	PULLER SUPPORT ASSY	1
5-11	150706001	PULLER SUPPORT ASSY	1
5-22-1	S06311201	PULLER	1
5-23	014680622	SET SCREW, SOCKET (CP) SM4.37	2
5-22-2	S41315001	PULLER	1
11	014760622	SET SCREW, SOCKET SM5.95	2
9-1	154344201	PULLER	1
5-23	014680422	SET SCREW, SOCKET (CP) SM4.37	2
9-2	150719001	PULLER	1
11	014760622	SET SCREW, SOCKET SM5.95	2

Page 32 — J. SHEER / Lower shaft mechanism / Untere Welle / Mécanisme de I’arbre inférieur /Mecanismo del eje inferior

Brother DT6-B927 / DT6-B928 parts on page 32
Ref	Part number	Part name	Qty
1	105147101	LOWER SHAFT	1
2	072620070	BALL BEARING, 6200Z	1
3	072620180	BALL BEARING, 6201ZZ	1
4	105150000	BALL BEARING BUSH	1
5	102716004	SET SCREW, SM4.37	2
6	072630260	BALL BEARING, 6302VV	1
7	048420242	RETAINING RING, C42	1
8	S40316051	BEARING PRESSER	1
9	062711012	SCREW, PAN SM4.76-32X10	3
10	105155001	SCREW, SM6.35	1
11	105156002	SCREW, SM4.37	1
	$40316051	BEARING PRESSER	WAP UL Fae r

Page 34 — Looper mechanism / Greifer / Mécanisme des griffes /Mecanismo del presilladora

Brother DT6-B927 / DT6-B928 parts on page 34
Ref	Part number	Part name	Qty
2	S40302000	ECCENTRIC WHEEL SLEEVE	1
3	181993101	LOPPER FEEDING FORK ASSY	1
3-1	105176001	SCREW, SM4.37	1
4	105177001	LOOPER FEEDING FORK SHAFT	1
5	105178100	LOPPER F/FORK SHAFT BRACKET	1
6	105179001	SCREW, SM4.76	1
7	S40303001	LOPPER CONNECTING ROD ASSY	1
7-1	105183001	LOOPER LINK SHAFT	2
7-2	105184000	SCREW, SM2.38	2
7-3	S40792001	LOPPER LEVER	1
8	S40793051	LOPPER LEVER SHAFT	1
9	105191001	SCREW, SM4.37	1
10	081010870	O RING, S10	1
11	100260001	SET SCREW, SM5.95	1
12	181987001	LOOPER CONNECT. ROD GUIDE ASSY	1
12-1	100366001	SET SCREW, (FT) SM4.37	2
13	081003670	O RING, PW3	1
14	014761030	SET SCREW, SOCKET (CP) SM5.95	1
15	105193101	LOOPER SHAFT LINK ASSY SET	1
15-1	183185101	LOOPER SHAFT LINK ASSY SET	1
15-1-1	105176001	SCREW, SM4.37	1
15-2	100022004	NUT, SM5.95	1
15-3	105198000	WASHER .	1
17	105201000	LOOPER SHAFT BUSH, F	1
18	148877100	LOOPER SHAFT BUSH, B	1
19	181971001	LOOPER SHAFT SET COLLAR	1
19-1	062680812	SCREW, PAN SM4.37-40X8	1
20	S40306001	FRONT FEED ARM CAP	1
21	S40307001	PACKING	1
22	105216001	SCREW, SM3.57	11
23	105217059	BALL BEARING	1
24	S40308001	PACKING	1
25	062670512	SCREW, PAN SM3.57-40X5	4
26	140518001	SCREW, SM7.94	1
27	081007070	O RING, P7	1
16-1	105200101	LOPPER SHAFT	1
16-2	S16490101	LOOPER SHAFT	1
1	181126001	ECCENTRIC WHEEL WITH SCREW	1
1-1	153675001	SET SCREW, SOCKET SM4.37	2
29	S36862001	ECCENTRIC WHEEL WITH SCREW	1
29-1	153675001	SET SCREW, SOCKET SM4.37	2

Page 36 — Upper threading mechanism (8927)

Brother DT6-B927 / DT6-B928 parts on page 36
Ref	Part number	Part name	Qty
1	111070109	UPPER THREAD GUIDE	1
3	062630412	SCREW, PAN SM2.38-56X4	4
4	105222001	THREAD GUIDE	1
5	062670512	SCREW, PAN SM3.57-40X5	1
6	062712012	SCREW, PAN SM4.76-32X20	1
8	105235251	TENSION RELEASE CRANK	1
9	151602002	SET SCREW, SM4.37	1
10	105236001	TENSION RELEASE CONNECTING ROD	1
11	105237002	SHOULDER SCREW, SM3.57	2
12	S40310001	UPPER THREAD TAKE-UP ASSY	1
12-1	S40312001	UPPER THREAD GUIDE	1
12-2	062660512	SCREW, PAN SM3.18X5	2
12-3	105243001	UPPER THREAD TAKE-UP HOLDER	1
12-4	105244000	SPRING	1
12-5	105245001	SHOULDER SCREW, SM2.38	1
12-6	100064005	SCREW, SM3.57	1
13	S40313051	UPPER THREAD GUIDE	1
14	062670712	SCREW, PAN SM3.57-40X7	1
15	111077001	TENSION RELEASE LEVER	1
16	060670812	SCREW, BIND SM3.57-40X8	1
20	111083001	UPPER THREAD TAKE-UP GUIDE	1
21	111188001	WASHER	1
22	111084001	SCREW, FLAT SM3.57	1
23	S37186001	THREAD TAKE-UP COVER	1
24	062710812	SCREW, PAN SM4.76-32X8	2
2-1	105221001	THREAD RETAINER	2
7-1	S43446009	UPPER THREAD REGULATOR ASSY	1
7-1-1-1	111075059	UPPER THREAD TENSION BRACKET	1
7-1-1-2	145440001	TENSION STUD	2
7-1-1-3	110813001	NEEDLE THREAD GUIDE	2
7-1-1-4	110832009	TENSION DISC FELT	2
7-1-1-5	145446001	TENSION DISC	4
7-1-1-6	144103009	TENSION DISC PRESSER	2
7-1-1-7	144104001	THREAD TENSION ADJUST SPRING	2
7-1-1-8	S30564000	TENSION SPRING WASHER	2
7-1-1-9	S30565002	TENSION NUT, GREEN	1
7-1-1-10	S30565003	TENSION NUT, RED	1
7-1-1-12	159805001	TENSION DISC PRESSER	2
7-1-2	105231000	PIN	2
7-1-3	111076151	TENSION RELEASE SHAFT	1
7-1-4	105233002	SET SCREW, SM4.37	1
7-1-5	105234003	NUT, SM4.37	1
2-2	105221001	THREAD RETAINER	3
7-2	S43448009	UPPER THREAD REGULATOR ASSY	1
7-2-1-1	111075059	UPPER THREAD TENSION BRACKET	1
7-2-1-2	145440001	TENSION STUD	3
7-2-1-3	110813001	NEEDLE THREAD GUIDE	3
7-2-1-4	110832009	TENSION DISC FELT	3
7-2-1-5	145446001	TENSION DISC	6
7-2-1-6	144103009	TENSION DISC PRESSER	3
7-2-1-7	144104001	THREAD TENSION ADJUST SPRING	3
7-2-1-8	S30564000	TENSION SPRING WASHER	3
7-2-1-9	S30565002	TENSION NUT, GREEN	1
	$40310001	UPPER THREAD TAKE-UP ASSY	TUDTRFVELZS
	$40312001	UPPER THREAD GUIDE	VWODTRFLEVL TRAY
	540313051	UPPER THREAD GUIDE	HWAU LRT RPLTT
	$37186001	THREAD TAKE-UP COVER	WFV eV aAR-
	543446009	UPPER THREAD REGULATOR ASSY	VOD RFBDVIS
	$30564000	TENSION SPRING WASHER	2) SDV ANADLHHR
	$30565002	TENSION NUT, GREEN	Tif RFSDTFY RIEU
	$30565003	TENSION NUT, RED	Tit RFSDLY FY bPDA
	$43448009	UPPER THREAD REGULATOR ASSY	WUD kKFaEUTZE
	530564000	TENSION SPRING WASHER	SIF SUV NADVLYAR

Page 38 — Upper threading mechanism (8927)

Brother DT6-B927 / DT6-B928 parts on page 38
Ref	Part number	Part name	Qty
7-2-1-10	S30565003	TENSION NUT, RED	1
7-2-1-11	S30565004	TENSION NUT, YELLOW	1
7-2-1-12	159805001	TENSION DISC PRESSER	3
7-2-2	105231000	PIN	3
7-2-3	111076151	TENSION RELEASE SHAFT	1
7-2-4	105233002	SET SCREW, SM4.37	1
7-2-5	105234003	NUT, SM4.37	1
17	111072009	THREAD GUIDE SET PLATE	1
18	062630412	SCREW, PAN SM2.38-56X4	2
19	111073001	SCREW, FLAT SM2.38	2

Page 40 — Upper threading mechanism

Brother DT6-B927 / DT6-B928 parts on page 40
Ref	Part number	Part name	Qty
1	111070109	UPPER THREAD GUIDE	1
3	062630412	SCREW, PAN SM2.38-56X4	4
4	105222001	THREAD GUIDE	1
5	062670512	SCREW, PAN SM3.57-40X5	1
6	062712012	SCREW, PAN SM4.76-32X20	1
8	105235251	TENSION RELEASE CRANK	1
9	151602002	SET SCREW, SM4.37	1
10	105236001	TENSION RELEASE CONNECTING ROD	1
11	105237002	SHOULDER SCREW, SM3.57	2
12	S40310001	UPPER THREAD TAKE-UP ASSY	1
12-1	S40312001	UPPER THREAD GUIDE	1
12-2	062660512	SCREW, PAN SM3.18-40X5	2
12-3	105243001	UPPER THREAD TAKE-UP HOLDER	1
12-4	105244000	SPRING	1
12-5	105245001	SHOULDER SCREW, SM2.38	1
12-6	100064005	SCREW, SM3.57	1
13	S40313051	UPPER THREAD GUIDE	1
14	062670712	SCREW, PAN SM3.57-40X7	1
18	111077001	TENSION RELEASE LEVER	1
19	060670612	SCREW, BIND SM3.57-40X6	1
20	111078051	TENSION RELEASE LEVER SHAFT	1
21	111506101	T/RELEASE CONNECTING ROD ASSY	1
21-1	111079001	TENSION RELEASE CONNECTING ROD	1
21-2	100064005	SCREW, SM3.57	1
21-3	149011051	TENSION RELEASE LINK	1
21-4	115132002	SHOULDER SCREW, M4.76	1
21-5	111082051	TENSION RELEASE STUD	1
22	013760610	SET SCREW, (CP) SM5.95	1
23	111083001	UPPER THREAD TAKE-UP GUIDE	1
24	111188001	WASHER	1
25	111084001	SCREW, FLAT SM3.57	1
26	111089001	UPPER THREAD TENSION BRACKET	1
27	105073001	SET SCREW, SOCKET SM5.95	1
28	111189001	UPPER THREAD STUD ASSY	1
29	111093001	SPRING	1
30	105277001	LOWER THREAD TENSION PLATE	4
31	100645003	WASHER	1
32	105234003	NUT, SM4.37	1
33	181060001	UPPER THREAD CAM WITH SCREW	1
33-1	100058003	SET SCREW, SM5.95	2
34	S37186001	THREAD TAKE-UP COVER	1
35	062710812	SCREW, PAN SM4.76-32X8	2
2-1	105221001	THREAD RETAINER	2
7-1	S41316009	UPPER THREAD REGULATOR ASSY	1
7-1-1-1	111075059	UPPER THREAD TENSION BRACKET	1
7-1-1-2	145440001	TENSION STUD	2
7-1-1-3	110813001	NEEDLE THREAD GUIDE	2
7-1-1-4	110832009	TENSION DISC FELT	2
7-1-1-5	145446001	TENSION DISC	4
7-1-1-6	144103009	TENSION DISC PRESSER	2
7-1-1-7	148851001	THREAD TENSION ADJUST SPRING	2
7-1-1-8	S30564000	TENSION SPRING WASHER	2
7-1-1-9	S30565002	TENSION NUT, GREEN	1
7-1-1-10	S30565003	TENSION NUT, RED	1
7-1-1-12	159805001	TENSION DISC PRESSER	2
7-1-2	105231000	PIN	2
	$40310001	UPPER THREAD TAKE-UP ASSY	WoT hFL EL ZS
	$40312001	UPPER THREAD GUIDE	WoTthF Lela kh hasty
	$40313051	UPPER THREAD GUIDE	TAU RT RPL +H
	$37186001	THREAD TAKE-UP COVER	WFrvevaAn~
	$30564000	TENSION SPRING WASHER	2)F BDL NRL HAR
	$30565002	TENSION NUT, GREEN	1]74 KF S9>HYKEKY
	$30565003	TENSION NUT, RED	We hKFAQLFY RPA

Page 42 — Upper threading mechanism

Brother DT6-B927 / DT6-B928 parts on page 42
Ref	Part number	Part name	Qty
7-1-3	111076151	TENSION RELEASE SHAFT	1
7-1-4	105233002	SET SCREW, SM4.37	1
7-1-5	105234003	NUT, SM4.37	1
2-2	105221001	THREAD RETAINER	3
7-2	S41318009	UPPER THREAD REGULATOR ASSY	1
7-2-1-1	111075059	UPPER THREAD TENSION BRACKET	1
7-2-1-2	145440001	TENSION STUD	3
7-2-1-3	110813001	NEEDLE THREAD GUIDE	3
7-2-1-4	110832009	TENSION DISC FELT	3
7-2-1-5	145446001	TENSION DISC	6
7-2-1-6	144103009	TENSION DISC PRESSER	3
7-2-1-7	148851001	THREAD TENSION ADJUST SPRING	3
7-2-1-8	S30564000	TENSION SPRING WASHER	3
7-2-1-9	S30565002	TENSION NUT, GREEN	1
7-2-1-10	S30565003	TENSION NUT, RED	1
7-2-1-11	S30565004	TENSION NUT, YELLOW	1
7-2-1-12	159805001	TENSION DISC PRESSER	3
7-2-2	105231000	PIN	3
7-2-3	111076151	TENSION RELEASE SHAFT	1
7-2-4	105233002	SET SCREW, SM4.37	1
7-2-5	105234003	NUT, SM4.37	1
15	111072009	THREAD GUIDE SET PLATE	1
16	062630412	SCREW, PAN SM2.38-56X4	2
17	111073001	SCREW, FLAT SM2.38	2

Page 44 — Lower threading mechanism (B927)

Brother DT6-B927 / DT6-B928 parts on page 44
Ref	Part number	Part name	Qty
1	111095009	LOWER THREAD GUIDE RETAINER	1
3	111073001	SCREW, FLAT SM2.38	4
4	111096009	LOWER THREAD GUIDE SUPPORT	1
5	062670412	SCREW, PAN SM3.57-40X4	1
6	062670512	SCREW, PAN SM3.57-40X5	1
7	062671012	SCREW, PAN SM3.57-40X10	1
9	062670812	SCREW, PAN SM3.57-40X8	3
10	S40319001	FRONT COVER	1
11	S40320051	FONT COVER SPRING	2
12	060670512	SCREW, BIND SM3.57-40X5	2
13	S40321051	FRONT COVER HOOK	2
14	062670612	SCREW, PAN SM3.57-40X6	4
15	S40322051	HINGE	2
16	062670612	SCREW, PAN SM3.57-40X6	2
17	142274009	RUBBER CAP, 4.2	2
18	105257009	L/THREAD GUIDE HINGE ASSY, L	1
19	105260009	L/THREAD GUIDE HINGE ASSY, R	1
20	062671012	SCREW, PAN SM3.57-40X10	2
21	S40323001	LOWER THREAD TENSION BRACKET	1
27	062670612	SCREW, PAN SM3.57-40X6	2
28	S40325001	LOWER THREAD GUIDE	1
29	062670612	SCREW, PAN SM3.57-40X6	2
30	112658001	ARM THREAD GUIDE, M	1
31	108960002	SCREW, FLAT SM3.57	1
32	S40266051	LOWER THREAD TAKE-UP BRACKET	1
32-1	105280009	L/THREAD TAKE-UP LEVER COVER	1
32-2	105281001	SPRING, PLATE	1
32-3	122771002	SCREW, SM2.38	1
32-4	105284101	L/TR. TAKE-UP LEVER BRACKET	1
32-5	105285000	L/TR. TAKE-UP LEVER COV. SHAFT	1
32-6	S40326051	L/TR. TAKE-UP LEVER BRACKET	1
32-7	062670612	SCREW, PAN SM3.57-40X6	2
32-8	105287001	GUIDE PLATE	1
32-9	105288001	SCREW, SM2.38	2
32-10	S40327051	LOWER THREAD GUIDE	1
32-11	060660416	SCREW, BIND SM3.18-40X4	1
32-12	S40795101	LOWER THREAD GUIDE	2
32-13	060660416	SCREW, BIND SM3.18-40X4	2
32-14	S40328051	THREAD RELEASE BASE	1
32-15	062660412	SCREW, PAN SM3.18-40X4	2
32-16	S40329051	LOWER THREAD PRESSER	1
32-17	062660412	SCREW, PAN SM3.18-40X4	1
32-18	105296001	THREAD GUIDE	1
32-19	111112001	LOWER THREAD GUIDE PLATE	1
32-20	105288001	SCREW, SM2.38	1
32-21	026030136	WASHER, PLAIN S 3	1
33	047501242	PIN, SPRING ROLL AW5	1
34	100064005	SCREW, SM3.57	2
35	S40330051	LOWER THREAD TAKE-UP W/S, M	1
35-1	014680422	SET SCREW, SOCKET (CP) SM4.37	2
36	105300101	LOWER THREAD FEED BAR GUIDE	1
38	013760610	SET SCREW, (CP) SM5.95	1
39	111113101	THREAD TRIMMER GUIDE PLATE	1
40	111114101	THREAD TRIMMER	1
41	062670612	SCREW, PAN SM3.57-40X6	2
42	S40335051	LOOPER COVER, RA	1
43	S40338051	LOOPER COVER, LA	1
44	047200842	PIN, SPRING ROLL AW2	1
45	S40799051	SPRING	2

Page 46 — M1. B38 > Ba (B927) / Lower threading mechanism (B927) / Untererfadens (B927) / Mécanisme de I’enfilage infériur (B927) / Mecanismo de le enhebrado inferior (B927)

Brother DT6-B927 / DT6-B928 parts on page 46
Ref	Part number	Part name	Qty
46	062670712	SCREW, PAN SM3.57-40X7	1
54	S08987001	THREAD TENSION CONTROL STUD	1
55	146354001	WASHER, PLAIN 5	1
56	144504001	THREAD GUIDE DISC	2
57	S40324001	THREAD GUIDE SPRING	1
58	155510001	TENSION NUT	1
2-1	105221001	THREAD RETAINER	2
8-1	105251009	INGLINED GUIDE TUBE ASSY	1
22-1	S08987001	THREAD TENSION CONTROL STUD	2
23-1	021680202	NUT, 2 SM4.37	2
24-1	144504001	THREAD GUIDE DISC	4
25-1	S40324001	THREAD GUIDE SPRING	2
26-1	155510001	TENSION NUT	2
2-2	105221001	THREAD RETAINER	3
8-2	111097009	INGLINED GUIDE TUBE ASSY	1
22-2	S08987001	THREAD TENSION CONTROL STUD	3
23-2	021680202	NUT, 2 SM4.37	3
24-2	144504001	THREAD GUIDE DISC	6
25-2	S40324001	THREAD GUIDE SPRING	3
26-2	155510001	TENSION NUT	3
51	111072009	THREAD GUIDE SET PLATE	1
52	062630412	SCREW, PAN SM2.38-56X4	2
53	111073001	SCREW, FLAT SM2.38	2
37-1	105301001	LOOPER THREAD GUIDE BRACKET	1
47-1	105304001	LOOPER THREAD GUIDE	1
48-1	062660612	SCREW, PAN SM3.18-40X6	1
37-2	147291001	LOOPER THREAD GUIDE BRACKET	1
47-2	S16487151	LOOPER THREAD GUIDE, -8	1
48-2	062671412	SCREW, PAN SM3.57-40X14	1
49	S40341001	LOOPER THREAD GUIDE	1
50	062630412	SCREW, PAN SM2.38-56X4	2

Page 48 — M2 . 下糸通シ関係 (B928) / Lower threading mechanism (B928) / Untererfadens (B928) / Mécanisme de l'enfilage inférieur (B928) / Mecanismo de le en

Brother DT6-B927 / DT6-B928 parts on page 48
Ref	Part number	Part name	Qty
1	111095009	LOWER THREAD GUIDE RETAINER	1
3	111073001	SCREW, FLAT SM2.38	4
4	111096009	LOWER THREAD GUIDE SUPPORT	1
5	062670412	SCREW, PAN SM3.57-40X4	1
6	062670512	SCREW, PAN SM3.57-40X5	1
7	062671012	SCREW, PAN SM3.57-40X10	1
9	062670812	SCREW, PAN SM3.57-40X8	3
10	S40319001	FRONT COVER	1
11	S40320051	FONT COVER SPRING	2
12	060670512	SCREW, BIND SM3.57-40X5	2
13	S40321051	FRONT COVER HOOK	2
14	062670612	SCREW, PAN SM3.57-40X6	4
15	S40322051	HINGE	2
16	062670612	SCREW, PAN SM3.57-40X6	2
17	142274009	RUBBER CAP, 4.2	2
18	105257009	L/THREAD GUIDE HINGE ASSY, L	1
19	105260009	L/THREAD GUIDE HINGE ASSY, R	1
20	062671012	SCREW, PAN SM3.57-40X10	2
21	S40323001	LOWER THREAD TENSION BRACKET	1
27	062670612	SCREW, PAN SM3.57-40X6	2
28	S40325001	LOWER THREAD GUIDE	1
29	062670612	SCREW, PAN SM3.57-40X6	2
30	112658001	ARM THREAD GUIDE, M	1
31	108960002	SCREW, FLAT SM3.57	1
32	S40266051	LOWER THREAD TAKE-UP BRACKET	1
32-1	105280009	L/THREAD TAKE-UP LEVER COVER	1
32-2	105281001	SPRING, PLATE	1
32-3	122771002	SCREW, SM2.38	1
32-4	105284101	L/TR. TAKE-UP LEVER BRACKET	1
32-5	105285000	L/TR. TAKE-UP LEVER COV. SHAFT	1
32-6	S40326051	L/TR. TAKE-UP LEVER BRACKET	1
32-7	062670612	SCREW, PAN SM3.57-40X6	2
32-8	105287001	GUIDE PLATE	1
32-9	105288001	SCREW, SM2.38	2
32-10	S40327051	LOWER THREAD GUIDE	1
32-11	060660416	SCREW, BIND SM3.18-40X4	1
32-12	S40795101	LOWER THREAD GUIDE	2
32-13	060660416	SCREW, BIND SM3.18-40X4	2
32-14	S40328051	THREAD RELEASE BASE	1
32-15	062660412	SCREW, PAN SM3.18-40X4	2
32-16	S40329051	LOWER THREAD PRESSER	1
32-17	062660412	SCREW, PAN SM3.18-40X4	1
32-18	105296001	THREAD GUIDE	1
32-19	111112001	LOWER THREAD GUIDE PLATE	1
32-20	105288001	SCREW, SM2.38	1
32-21	026030136	WASHER, PLAIN S 3	1
33	047501242	PIN, SPRING ROLL AW5	1
34	100064005	SCREW, SM3.57	2
35	S40342051	LOWER THREAD TAKE-UP W/S, H	1
35-1	014680422	SET SCREW, SOCKET (CP) SM4.37	2
36	105300101	LOWER THREAD FEED BAR GUIDE	1
37	147291001	LOOPER THREAD GUIDE BRACKET	1
38	013760610	SET SCREW, (CP) SM5.95	1
39	111113101	THREAD TRIMMER GUIDE PLATE	1
40	111114101	THREAD TRIMMER	1
41	062670612	SCREW, PAN SM3.57-40X6	2
42	S40335051	LOOPER COVER, RA	1
43	S40338051	LOOPER COVER, LA	1
	$40319001	FRONT COVER	TIT LANR
	$40320051	FONT COVER SPRING	2)VLAN-~hxNz
	$40321051	FRONT COVER HOOK	2)7LAN-Dy4
	$40322051	HINGE	2iIVLAN-tvy
	$40323001	LOWER THREAD TENSION BRACKET	WU a4tbhF agra
	$40325001	LOWER THREAD GUIDE	T> ath PL +4
	$40266051	LOWER THREAD TAKE-UP BRACKET	Tj>R2Th
	$40326051	L/TR. TAKE-UP LEVER BRACKET	T]>L at bhFLEL AT
	$40327051	LOWER THREAD GUIDE	TWFVEL
	$40795101	LOWER THREAD GUIDE	2IDLFLELTKPL+T
	$40328051	THREAD RELEASE BASE	Tif KavLRAT
	$40329051	LOWER THREAD PRE-RESSER	VIFvVeEL TRAY
	$40342051	LOWER THREAD TAKE-UP W/S, H	TJD aT RF
	$40335051	LOOPER COVER, RA	T\|JL—/SHHT 7 RA
	$40338051	LOOPER COVER, LA	TpL—-

Page 50 — M2 . 下糸通シ関係 (B928) / Lower threading mechanism (B928) / Untererfadens (B928) / Mécanisme de l'enfilage inférieur (B928) / Mecanismo de le en

Brother DT6-B927 / DT6-B928 parts on page 50
Ref	Part number	Part name	Qty
45	S40799051	SPRING	2
48	062671412	SCREW, PAN SM3.57-40X14	1
8-1	105251009	INGLINED GUIDE TUBE ASSY	1
22-1	S08987001	THREAD TENSION CONTROL STUD	2
23-1	021680202	NUT, 2 SM4.37	2
24-1	144504001	THREAD GUIDE DISC	4
25-1	S40324001	THREAD GUIDE SPRING	2
26-1	155510001	TENSION NUT	2
8-2	111097009	INGLINED GUIDE TUBE ASSY	1
22-2	S08987001	THREAD TENSION CONTROL STUD	3
23-2	021680202	NUT, 2 SM4.37	3
24-2	144504001	THREAD GUIDE DISC	6
25-2	S40324001	THREAD GUIDE SPRING	3
26-2	155510001	TENSION NUT	3
51	111072009	THREAD GUIDE SET PLATE	1
52	062630412	SCREW, PAN SM2.38-56X4	2
53	111073001	SCREW, FLAT SM2.38	2
42-1	S40336051	LOOPER COVER, RB	1
43-1	S40339051	LOOPER COVER, LB	1
42-2	S40337051	LOOPER COVER, RC	1
43-2	S40340051	LOOPER COVER, LC	1
	$40336051	LOOPER COVER, RB	1\|4L—-sSHTISRB
	$40339051	LOOPER COVER, LB	Tb-NATDISLB

Page 52 — Z1 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother DT6-B927 / DT6-B928 parts on page 52
Ref	Part number	Part name	Qty
1	122991001	ACCESSORY BAG	1
2-1	105344001	SCREW DRIVER, 2.6X70	1
2-2	101572101	SCREW DRIVER, 5.5X190	1
3-2	100887001	WRENCH, 8X9	1
5	117466000	PINCETTE	1
6	114483002	OILER ASSY	1
8	144228001	HEAD COVER	1
10	133636009	THREADLE PEDAL	1
11	180827009	THREADLE PEDAL STOPPER ASSY	2
11-1	151604001	SET SCREW, SM5.95	4
12	117437109	FOOT LIFTER PEDAL	1
13	109656009	CONNECTING LEVER, L	1
14	100463001	BOLT, SM7.94	2
15	106062009	THREADLE PEDAL SHAFT	1
16	109657009	THREADLE PEDAL BRACKET	2
17	0B1512502	WOOD SCREW, FLAT M5.1X25	4
18	105359001	CONNECTING ROD	2
19	181225001	CONNECTING ROD CLAMP ASSY	1
20	116016001	PEDAL STOPPER	2
21	021400106	NUT, 1 M4	2
22	062401406	SCREW, PAN M4X14	2
2-3	S01943001	SCREW DRIVER, 1.6	1
3-1	142721001	HEXAGONAL WRENCH, 3	1
23	148298001	SPACER	1
24	S08758009	NEEDLE THREAD COOLER TANK ASSY	1
25	575456001	TAPTITE, PAN P M3X10	2
26	S08761100	FELT	1
27	S08969101	THREAD GUIDE	1
28	060680712	SCREW, BIND SM4.37X7	2
29	S06704001	SILICONE OIL	1
	$01943001	SCREW DRIVER, 1.6	2-3
	$08758009	NEEDLE THREAD COOLER TANK ASSY	24
	$08761100	FELT	26
	$08969101	THREAD GUIDE	27
	$06704001	SILICONE OIL	29

Page 54 — Z2 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother DT6-B927 / DT6-B928 parts on page 54
Ref	Part number	Part name	Qty
9-1	S29854109	COTTON STAND ASSY, 4DTHF	1
9-1-1	150180001	SPOOL STAND BASE	4
9-1-2	150182000	SPOOL MAT	4
9-1-3	126863001	SPOOL CUSHION	4
9-1-4	S02775001	PIPE SCREW SET, A	1
9-1-4-1	150206002	WASHER, PLAIN 16	1
9-1-4-2	S38648001	NUT, U5/8-28	1
9-1-5	S04109001	THREAD GUIDE SUPPORT BAR	1
9-1-6	142998101	THREAD GUIDE, 4	1
9-1-7	S40640001	COLUMN PIPE WITH CAP	1
9-1-7-1	150174000	COLUMN CAP	1
9-1-8	156112003	COLUMN PIPE, D	1
9-1-9	150173003	COLUMN JOINT	1
9-1-10	S21798001	SPOOL SCREW SET	4
9-1-10-1	150179002	SPOOL SHAFT, B	4
9-1-10-2	028050246	WASHER, SPRING 2-5	4
9-1-10-3	021500106	NUT, 1 M5	4
9-1-11	150185009	THREAD GUIDE HOLDER	1
9-1-12	138843001	JOINT	1
9-1-13	S02778002	SPOOL HOLDER, 2	2
9-1-14	S02786002	THREAD HANGER ASSY, 2	2
9-1-15	S40641001	SPOOL SCREW SET, A	1
9-1-15-1	021500106	NUT, 1 M5	4
9-1-15-2	S37038001	SCREW, PAN (P WASHER) M5X14	1
9-1-15-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
9-1-15-4	062501406	SCREW, PAN M5X14	2
9-1-16	S40642001	SPOOL SHAFT SCREW SET, B	1
9-1-16-1	021500106	NUT, 1 M5	2
9-1-16-2	S37038001	SCREW, PAN (P WASHER) M5X14	1
9-1-16-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
9-1-17	S40643001	HOLDER JOINT SCREW SET	1
9-1-17-1	014060632	SET SCREW, SOCKET (CP) M6X6	2
9-1-17-2	021500106	NUT, 1 M5	1
9-1-17-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
	S02750001	PIPE SCREW SET, A	1

Page 56 — Z2 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother DT6-B927 / DT6-B928 parts on page 56
Ref	Part number	Part name	Qty
9-2	S29864109	COTTON STAND ASSY, 6DTHF	1
9-2-1	150180001	SPOOL STAND BASE	6
9-2-2	150182000	SPOOL MAT	6
9-2-3	126863001	SPOOL CUSHION	6
9-2-4	S02775001	PIPE SCREW SET, A	1
9-2-4-1	150206002	WASHER, PLAIN 16	1
9-2-4-2	S38648001	NUT, U5/8-28	1
9-2-5	S04109001	THREAD GUIDE SUPPORT BAR	1
9-2-6	S02783001	THREAD GUIDE, 6	1
9-2-7	S40640001	COLUMN PIPE WITH CAP	1
9-2-7-1	150174000	COLUMN CAP	1
9-2-8	156112003	COLUMN PIPE, D	1
9-2-9	150173003	COLUMN JOINT	1
9-2-10	S21798001	SPOOL SCREW SET	6
9-2-10-1	150179002	SPOOL SHAFT, B	6
9-2-10-2	028050246	WASHER, SPRING 2-5	6
9-2-10-3	021500106	NUT, 1 M5	6
9-2-11	150185009	THREAD GUIDE HOLDER	1
9-2-12	138843001	JOINT	1
9-2-13	150188009	SPOOL HOLDER SUPPORT, A	1
9-2-14	150194009	SPOOL HOLDER SUPPORT, B	1
9-2-15	S02779009	SPOOL HOLDER, 3	2
9-2-16	S02788009	THREAD HANGER ASSY, 3	2
9-2-17	S40641001	SPOOL SCREW SET, A	1
9-2-17-1	021500106	NUT, 1 M5	4
9-2-17-2	S37038001	SCREW, PAN (P WASHER) M5X14	1
9-2-17-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
9-2-17-4	062501406	SCREW, PAN M5X14	2
9-2-18	S40642001	SPOOL SHAFT SCREW SET, B	1
9-2-18-1	021500106	NUT, 1 M5	2
9-2-18-2	S37038001	SCREW, PAN (P WASHER) M5X14	1
9-2-18-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
9-2-19	S40643001	HOLDER JOINT SCREW SET	1
9-2-19-1	014060632	SET SCREW, SOCKET (CP) M6X6	2
9-2-19-2	021500106	NUT, 1 M5	1
9-2-19-3	S37037001	SCREW, PAN (P WASHER) M5X32	1
9-2-20	S40644001	HOLDER JOINT SCREW SET	2
9-2-20-1	021500106	NUT, 1 M5	2
9-2-20-2	031452206	WOOD SCREW, ROUND M4.5X22	2
9-2-20-3	062501006	SCREW, PAN M5X10	2

Page 57 — DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother DT6-B927 / DT6-B928 parts on page 57
Ref	Part number	Part name	Qty
G-1	183954-001	Needle clamp with screw
G-1	483951-001	Needle clamp with screw
G-1	183953-001	Needle clamp with screw
G-1	483951-001	Needle clamp with screw
G-1	183954-001	Needle clamp with screw
G-2	S36861-012	No. of needles	(2)
G-2	S36861-014	No. of needles	(2)
G-3	S05946-101	Needle plate
G-3	S11508-101	Needle plate
G-3	S40371-001	Needle plate
G-3	S40373-001	Needle plate
G-3	S05946-101	Needle plate
G-5	S40355-001	Presser foot assy
G-5	S40363-001	Presser foot assy
G-5	S40367-001	Presser foot assy
G-5	S40365-001	Presser foot assy
G-5	S40355-001	Presser foot assy
G-7	S40369-001	Feed dog
G-7	S40370-001	Feed dog
G-7	S40372-001	Feed dog
G-7	S40369-001	Feed dog
G-10	S06310-001	Needle guard
G-10	148973-001	Needle guard
G-10	S06310-001	Needle guard
G-13	101494-001	Lapper assy
G-13	$09679-001	Lapper assy
G-13	101488-001	Lapper assy
G-13	101949-001	Lapper assy
G-13	$09679-001	Lapper assy
G-20-1	S40391-001	Looper (S)
G-20-1	340391-001	Looper (S)
G-20-1	340391-001	Looper (S)
G-20-1	340391-001	Looper (S)
G-20-2	S40392-001	Looper (L)
G-20-2	$S40394-001	Looper (L)
G-20-2	118-927-231	Looper (L)
G-20-2	S40392-001	Looper (L)
G-1	483978-001	Needle clamp with screw
a3	$40365-001	Presser foot assy
C7	$40370-001	Feed dog
C7	$40372-001	Feed dog
C7	$40369-001	Feed dog
a3	$06310-001	Needle guard
G-20-1	$40391-001	Looper (S$)
G-20-1	$40393-001	Looper (S$)
G-20-1	$40389-001	Looper (S$)
G-20-2	$40392-001	Looper (L}
G-20-2	$40390-001	Looper (L}
G-20-2	9$40392-001	Looper (L}

Page 58 — DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother DT6-B927 / DT6-B928 parts on page 58
Ref	Part number	Part name	Qty
G-1	183954-001	Needle clamp with screw
G-1	183978-001	Needle clamp with screw
G-1	183954-001	Needle clamp with screw
G-1	183978-001	Needle clamp with screw
G-1	S$16500-001	Needle clamp with screw
G-2	$36861-031	Needle, No. of needles (2)	2
G-2	$36861-031	Needle, No. of needles (2)	2
G-2	$36861-031	Needle, No. of needles (2)	2
G-2	$36861-031	Needle, No. of needles (3)	3
G-3	$16475-101	Needle plate
G-3	$16475-101	Needle plate
G-3	$16475-101	Needle plate
G-3	$16475-101	Needle plate
G-3	$16475-101	Needle plate
G-5	101491-101	Presser foot assy
G-5	106 160-101	Presser foot assy
G-5	S06303-101	Presser foot assy
G-5	S09673-101	Presser foot assy
G-5	S16477-101	Presser foot assy
G-7	$40370-001	Feed dog
G-7	$40370-001	Feed dog
G-7	$40370-001	Feed dog
G-7	$40370-001	Feed dog
G-7	S09678-001	Feed dog
G-7	$40370-001	Feed dog
G-10	105302-001	Needle guard
G-10	148973-001	Needle guard
G-10	106170-001	Needle guard
G-10	S06310-001	Needle guard
G-10	148973-001	Needle guard
G-10	$16476-001	Needle guard
G-13	101497-001	Lapper assy
G-13	101561-001	Lapper assy
G-13	101494-001	Lapper assy
G-13	S09679-001	Lapper assy
G-20-1	S40391-001	Looper (S)
G-20-1	S40393-001	Looper (S)
G-20-1	S40391-001	Looper (S)
G-20-1	S40393-001	Looper (S)
G-20-1	S40375-001	Looper (S)
G-20-1	S40376-001	Looper (M)
G-20-2	118-927-231	Looper (L)
G-20-2	S40394-001	Looper (L)
G-20-2	$40392-001	Looper (L)
G-20-2	S40394-001	Looper (L)
G-20-2	S40377-001	Looper (L)
G-2	$36861-014	Needle	(2)
G-2	$36861-016	No. of needles	(2)
G-3	511508-101	Needle
G-7	$05947-001	ADUN
G-10	3$11509-001	Needle
G-10	$06319-101	guard
C-13	$16482-001	assy
G-20-2	$40391-001	Looper (L)
G-20-2	$40393-001	Looper (L)
G-20-2	340393-001	Looper (L)

Page 59 — 仕様別部品一覧表 / DIFFERENT PARTS LIST / ZUBEHÖRLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother DT6-B927 / DT6-B928 parts on page 59
Ref	Part number	Part name	Qty
G-1	183952-001	Needle clamp with screw
G-1	181716-001	Needle clamp with screw
G-1	181723-001	Needle clamp with screw
G-1	181722-001	Needle clamp with screw
G-1	183954-001	Needle clamp with screw
G-2	S43401-021	Needle	3
G-2	S43401-021	Needle	2
G-3	S40790-001	Needle plate
G-3	S13042-001	Needle plate
G-3	S40787-001	Needle plate
G-3	S40783-001	Needle plate
G-3	159583-001	Needle plate
G-5	S40788-001	Presser foot assy
G-5	S40386-001	Presser foot assy
G-5	S40785-001	Presser foot assy
G-5	S40781-001	Presser foot assy
G-5	159584-201	Presser foot assy
G-7	S13045-101	Feed dog
G-7	S40784-001	Feed dog
G-7	159588-001	Feed dog
G-14	111171-001	Lapper assy
G-14	101561-001	Lapper assy
G-14	101564-001	Lapper assy
G-14	111177-001	Lapper assy
G-14	111183-001	Lapper assy
G-14	159609-001	Lapper assy
G-18-1	S40375-001	Looper (S)
G-18-1	S40395-001	Looper (S)
G-18-1	S40375-001	Looper (S)
G-18-2	S40376-001	Looper (M)
G-18-3	S40377-001	Looper (L)
G-18-3	44Q_999_974	Looper (L)
G-18-3	S40377-001	Looper (L)
G-2	S45401-021	st HBR (OE)
G-18-1	111777-001	Lacoer assy
G-18-1	401561-001	Lacoer assy
G-18-1	411177-901	Lacoer assy
G-18-1	141183-001	Lacoer assy
G-18-1	459609-001	Lacoer assy
G-18-1	S40375-901	Looper (S)
G-18-3	S40396-901	Looper (L)

Page 60 — SX / DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother DT6-B927 / DT6-B928 parts on page 60
Ref	Part number	Part name	Qty
G-1	183978-001	Needle clamp with screw
G-1	181716-001	Needle clamp with screw
G-1	181723-001	Needle clamp with screw
G-1	181722-001	Needle clamp with screw
G-1	183954-001	Needle clamp with screw
G-2	S43401-022	Needle	2
G-2	S43401-022	Needle	3
G-2	S43401-021	Needle	2
G-3	147867-001	Needle plate
G-3	S18086-001	Needle plate
G-3	148864-001	Needle plate
G-3	148944-001	Needle plate
G-3	148927-001	Needle plate
G-3	159614-001	Needle plate
G-5	147868-201	Presser foot assy
G-5	S18081-201	Presser foot assy
G-5	148865-201	Presser foot assy
G-5	148945-201	Presser foot assy
G-5	148928-201	Presser foot assy
G-5	159615-101	Presser foot assy
G-7	148971-001	Feed dog
G-7	S18084-101	Feed dog
G-7	148867-101	Feed dog
G-7	148932-101	Feed dog
G-7	159616-001	Feed dog
G-14	147302-001	Lapper assy
G-14	148951-001	Lapper assy
G-14	148936-001	Lapper assy
G-14	159609-001	Lapper assy
G-18-1	S40375-001	Looper (S)
G-18-1	S40395-001	Looper (S)
G-18-1	S40375-001	Looper (S)
G-18-2	S40376-001	Looper (M)
G-18-3	S40377-001	Looper (L)
G-18-3	S40396-001	Looper (L)
G-18-3	S40377-001	Looper (L)
G-18-3	118-928-231	Looper (L)

Page 61 — DIFFEREN T PARTS LIST / ZUBEHORLISTE / RES / LISTA DE PIEZAS ACCESORI LISTE DES PIECES ACCESSOI AS

Brother DT6-B927 / DT6-B928 parts on page 61
Ref	Part number	Part name	Qty
G-1	183978-001	Needle clamp with screw
G-1	181716-001	Needle clamp with screw
G-1	181723-001	Needle clamp with screw
G-1	181722-001	Needle clamp with screw
G-2	S$43401-022	Needle No.of needles	2
G-2	S43401-021	Needle No.of needles	3
G-2	S$43401-022	Needle No.of needles	3
G-3	150666-001	Needle plate
G-3	156175-001	Needle plate
G-3	S01634-001	Needle plate
G-3	150667-001	Needle plate
G-3	151486-001	Needle plate
G-3	151478-001	Needle plate
G-5	150668-101	Presser foot assy
G-5	156179-101	Presser foot assy
G-5	S01632-101	Presser foot assy
G-5	150672-101	Presser foot assy
G-5	151487-101	Presser foot assy
G-5	151479-101	Presser foot assy
G-7	150673-001	Feed dog
G-7	156182-101	Feed dog
G-7	S01635-101	Feed dog
G-7	150675-101	Feed dog
G-7	151483-101	Feed dog
G-14	147302-001	Lapper assy
G-14	101564-001	Lapper assy
G-14	147302-001	Lapper assy
G-14	148951-001	Lapper assy
G-14	148936-001	Lapper assy
G-18-1	S40375-001	Looper (S)
G-18-1	S40395-001	Looper (S)
G-18-2	S40376-001	Looper (M)
G-18-3	S40377-001	Looper (L)
G-18-3	S40396-001	Looper (L)
	TVX5#140	Needle	3
	TVX5#130	Needle	3
	$43401 -021	No.of needles	3
	$43401 -022	No.of needles	3
	450667-001	Needle plate	4
	$40375-001	Looper (S)	7
	$40395-001	Looper (S)	1
	$40376-001	Looper (M)	1
	$40377-001	Looper (L)	1
	$40396-001	Looper (L)	1

Page 62 — OPTION PARTS LIST

Brother DT6-B927 / DT6-B928 parts on page 62
Ref	Part number	Part name	Qty
G-5	S13043-101	Presser foot assy
G-14	111168-001	Lapper assy
G-14	111174-001	Lapper assy
G-14	111180-001	Lapper assy
	$13043-101	Presser foot assy	1

Page 63 — Warnschilder “ BH5A IL/ Warning labels.“ueta s de advertencia Etiquettes d'avertissement/“ Etiq

Brother DT6-B927 / DT6-B928 parts on page 63
Ref	Part number	Part name	Qty
	S38350-001
	S38349-001	Label, operation Eng.
	S37060-001	Mark, grounding
A CAUTION	$38349-001	Label, i ne operation	1

Page 64 — INDEX

Brother DT6-B927 / DT6-B928 parts on page 64
Ref	Part number	Part name
56	4037700	G-20-2
55	11508101	G-3
10	38309001	F - 1-3-3
58	4340102	G-2
61	38349001	G-3
16	S01295001	G3 - 5-1-3
56	11509001	G-7
61	538350001	G-3
18	G4
57	13042001	G-3
52	38648001	Z2 -9-1-4-2
20	G5
60	13043101	G-5
34	Z2
59	01632101	G-5
57	13045101	G-7
10	39585001	JF - 1-1-4
59	01634001	G-3
56	16475101	G-3
10	F
24	01635101	G7 -7-2
56	16476001	G-7
10	Fo
59	G-7
56	16477101	G-5
10	39586001	JF - 1-1-5
20	01637001	G5 -7-2-1
56	16482001	G-10
10	Fo
24	G7
a4	16487151	M1 - 47-2
10	Fo
50	01943001
28	16488001	H -10
8	40258001	jE -8
52	02775001
32	16490101	K - 16-2
8	40259001	E -10
54	Z2
56	16500001	G-1
8	40261001	JE -17
52	02778002	Z2 -9-1-13
58	18018201	G-5
8	40262001	JE -18
54	02779009	Z2 -9-2-15
20	18084101	G5 -7-2
8	40264001
54	02783001	Z2 -9-2-6
58	G-7
8	40265001	JE - 3-1
52	02786002	Z2 -9-1-14
58	18086001	G-3
42	40266051	M1 -32
54	02788009
4	18874001	c -7
46	M2
52	04109001	7Z2 -9-1-5
52	21798001	Z2 -9-1-10
4	40268001	C1
54	Z2
54	Z2
4	S40271051	C -9-1
55	05946101	G-3
26	25125001	JH -1-7
4	40272051	c - 9-2
55	G-3
26	25126001	H_ - 1-20
7 4	40273051	1C -9-3
56	G-3
52	29854109	Z2 -9-1
10	40274001	JF - 1-1
56	05947001	G-7
54	29864109	Z2 -9-2
10	40274002	JF - 1-2
4	06259001	1D1 - 1-1
34	30564000	L1 -7-1-1-8
4	40279001	D1 -16
6	D2
34	L1
6	D2
6	06260001	D2 - 1-3
38	L2
8	40280001	E - 1-1
4	06261001	D1 - 1-2
40	L2
8	40281001	JE - 1-2
6	D2
34	30565002	L1 -7-1-1-9
10	40282000	JF -3
14	06303101	G2 -5-1
34	L1
10	40285001	F -5
56	G-5
38	L2
10	S40288000	F -6
14	06309001	G2 -5-1-2
40	L2
10	40289051	JF -7
14	G2 -5-2-2
34	30565003	L1 -7-1-1-10
10	40290051	F -12
55	S06310001	G-10
36	L1
10	40291001	JF - 1-3
55	G-10
38	L2
4	40298051	1D1 -6
56	G-10
40	L2
4	40299001	D1 -2
28	06311201	1H -5-22-1
36	30565004	JL1 -7-2-1-11
4	40300001	D1 - 13
12	06314001	G1 - 22-2
40	L2
6	D2
14	G2
26	36058001	H -1-15
4	40301001	D1 -14
12	06315001	G1 -22-1
26	536061001	H_ - 1-24
6	D2
14	G2
55	536861012	G-2
32	40302000	K -2
56	06318101	G-3
55	36861014	G-2
32	40303001	j}X -7
56	06319101	G-7
56	G-2
32	40306001	K -20
50	06704001	1Z1 -29
56	536861016	G-2
32	40307001	K-21
50	S08758009	1Z1 -24
56	36861031	G-2
32	40308001	K -24
50	S08761100
56	G-2
34	40310001	L1 -12
50	08969101
32	36862001	K -29
38	L2
4A	08987001	M1 - 22-1
52	37037001	1Z2 -9-1-15-3
34	40312001	L1 - 12-1
44	M1
52	Z2
38	(2
Aa	M1
52	Z2
34	40313051	L1 -13
48	M2
5a	Z2
38	(2
Ag	M2
54	Z2
2	40314001
14	09180101	G2 -5-1-5
54	Z2
2	40315051
14	G2
52	37038001	Z2 -9-1-15-2
2	40316051
16	09397001	1G3 -5-2-1
52	Z2
30	J
56	509672101	G-3
54	Z2
2	40317001	1B -3
56	09673101	G-5
54	Z2
2	40318051
56	09678001	G-7
61	537060001
42	40319001	M1 -10
12	09679001	G1 - 13-3
34	37186001	L1 -23
46	M2
14	G2
38	12
42	40320051	M1 -11
55	G-13
10	38309001	JF - 1-1-3
A6	M2
56	G-13
10	Fo
42	40321051	M1 - 13

Page 65

Brother DT6-B927 / DT6-B928 parts on page 65
Part number	Part name	Qty
$40321051	M2 --15	46
$40377001	G4 - 18-3	18
$40644001		57
$40322051	M1	A2
$40322051	G5 - 18-3	20
$40781001	G-5	57
$40322051	G6 - 18-3	22
$40783001	G-3	57
$40322051	M2 -15	57
$40784001	G-7	57
540323001	M1 - 21	A2
540323001	G-18-3	57
540785001	G-5	57
540323001	M2 -21	AG
540323001	G-18-3	57
540323001	G-18-3	58
$40787001	G-3	57
$40324001	M1 - 25-1	4d
$40324001	G-18-3	53
540788001	G3 -5-2	16
$40324001	M1 - 25-2	59
$40324001	G-5	57
$40324001	M1 -57	4A
$40324001	G-18-3	57
$40378051	G2 -22-3	14
540790001	G-3	57
$40324001	M2 -25-1	4g
$40324001	G3 - 20-1	16
§40792001	K -7-3	32
$40324001	M2 - 25-2	18
$40793051	K -8	32
$40325001	M1 - 28	A2
$40325001	G4 -20-1	42
540795101	M1 - 32-12	57
$40325001	M2 -28	A6
$40325001	G5 -20-1	20
540795101	M2 - 32-12	AG
$40326051	M1 - 32-6	A2
$40326051	G6 -20-1	22
s40796001	E -14	8
$40326051	M2 - 32-6	46
540379051	G2 - 22-4	14
s40797000	E - 21	8
$40327051	M1 - 32-10	16
$40327051	G3 -20-2	46
$40798050	D1 -4	4
$40328051	M1 -32-14	A2
$40328051	G5 -20-2	20
$40328051	D2 -4	6
540799051	M1 - 45	42
540329051	M1 - 32-16	42
540380051	G2 - 22-5	14
540799051	M2 -45	4g
540329051	M2 - 32-16	46
540329051	G3 -20-3	16
sa0gco001	F - 13	10 \| 4
540330051	M1 -35	42 \|
540330051	G4 -20-3	18
540804001	G3 -5-1-7	16 4 -
540335051	M1 - 42	42
540335051	G5 -20-3	20
$40812001	B - 10	2
540335051	M2 - 42	A6
540335051	G6 - 20-3	22
§40818001	E -5	8
540336051	M2 - 42-1	48
540336051	G7 -20-3	24
S40819000	E -7	g
$40337051	M2 - 42-2	48
$40283001	B - 10-1	2
$41311051	F -9	10
$40338051	M1 -43	42
§40386001	G-5	57
§41312001		8
$40338051	M2 - 43	46
540389001	G-20-1	55
$41314000	H -5-3	26
540339051	M2 - 43-1	48
540390001	G-20-2	55
$41315001	H - 5-22-2	28
§40340051	M2 - 43-2	48
$40391001	G-20-1	55
$41316009	L2 -7-1	38
$40341001	M1 -49	AA
$40341001	G-20-1	55
541318009	L2 -7-2	40
540342051	M2 -35	46
540342051	G-20-1	56
§43401021	1G3 -2	16
$40355001	G-5	55
$40355001	G-20-1	56
540342051	G-2	57
540355051	G-5	55
540392001	G-20-2	55
540342051	G-2	57
540358001	G1 - 5-3-2	12
540358001	G-20-2	55
540342051	G-2	58
540360001	G1 -5-3-4	12
540360001	G-20-2	56
540342051	G-2	59
§40363001	G-5	55
§40363001	G-20-2	56
543401022	G-2	58
540365001	1G-5	55
540365001	G-20-1	55
540365001	G-2	59
540367001	G-5	55
540367001	G-20-1	56
540367001	G-2	59
§40363001	G-7	55
§40363001	G-20-1	56
$43446009	L1 -7-1	34
540370001	G-7	55
540370001	G-20-2	55
$43448009	L1 -7-2	34 \|
540371001	G-3	55
540371001	G-20-1	56
0B0622502	A -4	219
$40372001	G-7	55
$40372001	G-18-1	57
0B1512502	Z1 -17	50
$40373001	G-3	55
$40373001	G-18-1	58
012060632	f -2	10
540374001	G1 - 5-3-5	12
540374001	G-13-1	59
013760610	L2 -22	38
540375001	G2 - 20-3	14
540375001	G4 - 18-1	18
540375001	G5 - 13-1	20
540375001	G6 - 18-1	22
540375001	G-18-1	57
540375001	G-18-1	57
540375001	G-18-1	58
540375001	G-18-1	58
540375001	G-18-1	59
540375001	G-20-1	56
014060632	Z2 -9-1-17-1	52
014060632		54
014680422	H_- 1-27	26
014680422	{H -5-15	28
014680422	H -5-20	28
014680422	H -5-23	28
014680422	M1 - 35-1	42
014680422	M2 - 35-1	46
014680622	H -5-23	28
014760622	E -23	8
014760622	r -8	10
014760622	H -1-5	26
014760622	H -1-10	26
014760622	H - 1-16	26
014760622	H -1-17	26
014760622	H - 1-23	26
014760622	H - 1-25	26
$40376001	G2 - 20-4	14
$40376001	G5 - 18-2	20
$40376001	G-18-2	57
$40376001	G-18-2	58
$40376001	G-18-2	59
$40376001	G-20-1	56
$40377001	G2 - 20-5	14
$40377001	G-18-2	57
$40377001	G-18-2	58
$40377001	G-18-2	59
$40377001	G-20-1	56

Page 66

Brother DT6-B927 / DT6-B928 parts on page 66
Ref	Part number	Part name
11	014760622	H mM
a2	060660416	M1 - 32-13
ie	014760622	Mn
M2 - 32-13	Di -5
060660512 \|G2 -5-1-6	D2 -5
G2 -5-2-5	G2 -6
G6 -5-5	G6 -6
G7 -5-1-5	G7 -6
10	014761030	F -11
G7 -5-3-6	K -14
8	014770622	JE -4
8	E
10	Fo
10	F
28	H
-10	014771022	C
-2	014781032	JE
-3	017821813	H
-2	017822212	H
-21	021400106	Z1
52	021500106	Z2 -9-1-10-3
52	Z2
52	Z2
52	Z2
54	Z2
54	22
54	Z2
54	Z2
54	Z2
-18	021670102	G1
14	G2
16	G3
18	G4
20	G5
22	G6
24	G7
- 23-1	021680202	M1
44	M1
48	M2
48	M2
-11	021710212	D2
-5-29	025060232	H
-4	025080132	JH
-15	025710132	JF
- 32-21	026030136	M1
46	M2
52	028050246	Z2 -9-1-10-2
54	Z2
-9-2-20-2	031452206
- 44	047200842	M1
- 1-1-1	047201640	H_
1-1-1-1	047301242	F-
10	Fo
10	Fo
10	F
10	Fo
10	Fo
-33	047501242	M1
46	M2
- 16	048040342	F
26	H
-4	048420242	B
30	}

Page 67

Brother DT6-B927 / DT6-B928 parts on page 67
Part number	Part name	Qty
105113001	fH -1-45	32
105233002		40
100022004	JK - 15-2	12
105233002	L2 - 7-2-4	40
100032004	{G1 -4	12
105118000	\|G1 -5-1-1	26
105233002		34
100032004	GZ -4	14
105118000	G1 -5-2-1	12
105234003	jL1	-7-2-4
100032004	G3 -4	16
105129001	{Gi -12	12
105234003	Li	- 7-2-5
100032004	G4 -4	18
105129001	G2 -12	14
105234003	L2	-7-1-5
100032004	G5 -4	20
105129001	G3 -12	16
105234003	L2	- 7-2-5
100032004	G6 -4	22
105129001	G4 -12	18
105234003	L2	-32
100032004	G7 -4	24
105129001	GS -12	20
105235251	{L1	-8
100058003		38
105129001	G6 -12	22
105235251	L2	-8
100064005	4L1 - 12-6	34
105129001	G7 -12	24
105236001	jL1	-10
100064005	L2 -12-6	38
105130001	\|G1 -13-2-1	12
105236001		-10
100064005	L2 -21-2	38
105130001	Gi -14	12
105237002	§L1	-11
100064005	M1 -34	42
105130001	G2 - 13-1-1	14
105237002	L2	-11
100064005	M2 -34	46
105130001	G2 -14	14
105243001	J L1	- 12-3
100251001	{Cc -11-1	4
105130001	G3 -13	16
105243001	L2	-12-3
100251001	Cc -11-1	4
105130001	G3 -14-1-1	16
105244000		- 12-4
100251001	C -11-2	4
105130001	G4 -13	18
105244000	L2	-12-4
100257010		2
105130001	G5 -13	20
105245001	7L1	- 12-5
100260001	JK -11	32
105130001	G6 -13	22
105245001	L2	-12-5
100279109	JH -5-4	26
105130001	G7 -13	24
105251009	{Mt	- 8-1
100366001	JK - 12-1	32
105141001	jE -12	8
105251009	M2	-8-1
100463001		507
105144001	jE -15	8
105257009	yM1	- 18
100645003		38
105146001	{A -3	2
105257009	M2	- 18
100887001	Zi - 3-2	50
105147101	4s - 1	30
105260009	;M1	-19
101488001	\| G-13	55
105150000	jj -4	30
105260009	M2	-19
101491101	[G1 -5-1	12
105155001	jJ -10	30
105277001	}L2	-30
101491101	G-5	56
105156002	{J - 11	30
105280009	{M1	-32-1
101494001	1G2 - 13-1	14
105173004	{G1 -8	12
105280009	M2	- 32-1
101494001	G-13	55
105173004	G2 -8	14
105281001	\| M1	-32-2
101494001	G-13	56
105173004	G3 -8	16
105281001	M2	- 32-2
101497001	\| G-13	55
105173004	G4 -8	18
105284101	{M1	- 32-4
101497001	G-13	56
105173004	G5 -8	20
105284101	M2	- 32-4
101561001	\|G-13	56
105173004	G6 -8	22
105285000	\| M1	-32-5
101561001	G-14	57
105173004	G7 -8	24
105285000	M2	- 32-5
101564001	1G-14	57
105176001	JK -3-1	32
105287001	{M1	- 32-8
101564001	G-14	59
105176001	K - 15-41-14	32
105287001	M2	- 32-8
101572101	\|2Z1 -2-2	50
105177001	{7K -4	32
105288001	4M1	- 32-9
101949001	\| G-13	55
105178100	7K -5	32
105288001	M1	- 32-20
102630001	7c -3	4
105179001	7K -6	32
105288001	M2	- 32-9
102716004	jj -5	30
105183001	{1K -/7-1	32
105288001	M2	- 32-20
102921002	{D1 -10	4
105184000	\|K - 7-2	32
105296001	{M1	- 32-18
102921002	D2 -16	6
105791001	\|K -9	32
105296001	M2	- 32-18
103408002	{G1 -i-1	12
105193101	1K -15	32
105300101	M1	-36
103408002	G2 - 1-1-1	14
105198000	}K -15-3	32
105300101	M2	- 36
103408002	G4 -i-1	18
105200101	}K - 16-1	32
405301001	7M1	- 37-1
103408002	G6 - 1-1	2
105201000	{K -17	32
105302001	4 G-10	56
104449009	j;A -13	2
105215001	jH - 1-46	26
105303001	{G1	-9-1
104547001	7B - 10-2	2
105216001	{X -22	32
105304001	7 M1	- 47-1
105071001	\|B - 10-7	2
105217059	}K -23	32
105333001	7D1	-12
105073001	{i2 -27	38
105221001	{Lt -2-1	34
105333001	D2	-18
105091001	{D2 -2	6
105221001	Li -2-2	34
105337001	yA	-2
105094009	;D2	-6
105221001	L2 -2-1	38
105341051	7A	-5
405095001	;D2	-7
105221001	L2 -2-2	40
105344001		- 2-1
105096009	;O2	-8
105221001	M1 - 2-4	44
105359001		-18
105100001	\| D2	-9
105221001	M1 - 2-2	4a
106062009		-15
105103001	{D1	-7
105222001	jL1 -4	34
106160101	{Gi	-5-2
105103001	D2	-13
105222001	L2 -4	38
106160101	G-5	56
105104001	7D1i	-8
105231000	jLt - 7-1-2	34
106170001	\| G-10	56
105104001	D2	-14
105231000		36
106568003	jH	-5-17
705105009	{D1	-9
105231000	L2 - 7-1-2	38
106794001	4H	-5-6
705105009	D2	-15
105231000	L2 - 7-2-2	40
107153001	;C	-2
405106001	7D1	-11
105233002	{L1	- 7-1-4
108960002	{Mi	- 31
405106001	D2	-17
105233002	Li	- 7-2-4
108960002	M2	-31

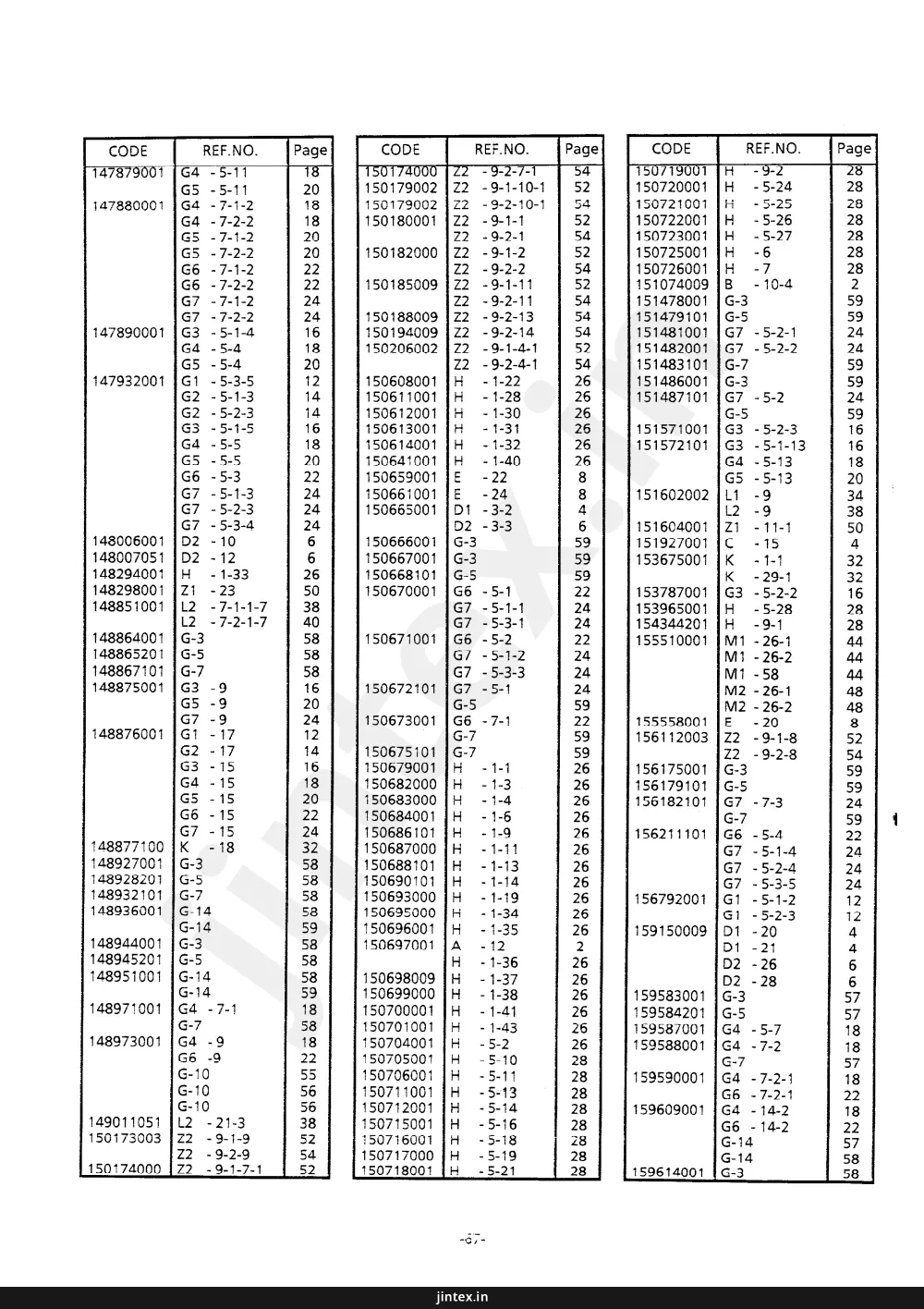

Page 69

Brother DT6-B927 / DT6-B928 parts on page 69
Ref	Part number	Part name
18	147879001	G4 - 5-11
18	147880001	G4 - 7-1-2
20	147880001	G5 - 5-11
18	147880001	G4 - 7-2-2
20	147880001	G5 - 7-1-2
20	147880001	G5 - 7-2-2
22	147880001	G6 - 7-1-2
22	147880001	G6 - 7-2-2
24	147880001	G7 - 7-1-2
24	147880001	G7 - 7-2-2
16	147890001	G5 - 5-1-4
18	147890001	G4 - 5-4
20	147890001	G5 - 5-4
12	147932001	G1 - 5-3-5
14	147932001	G2 - 5-1-3
14	147932001	G2 - 5-2-3
16	147932001	G3 - 5-1-5
18	147932001	G4 - 5-5
20	147932001	G5 - 5-5
22	147932001	G6 - 5-3
24	147932001	G7 - 5-1-3
24	147932001	G7 - 5-2-3
24	147932001	G7 - 5-3-4
6	148006001	D2 - 10
6	148007051	D2 - 12
26	148294001	H - 1-33
50	148298001	Z1 - 23
38	148851001	L2 - 7-1-1-7
40	148851001	L2 - 7-2-1-7
58	148864001	G-3
58	148865201	G-5
58	148867101	G7 - 9
16	148875001	G3 - 9
20	148875001	G5 - 9
24	148875001	G7 - 9
12	148876001	G1 - 17
14	148876001	G2 - 17
16	148876001	G3 - 15
18	148876001	G4 - 15
20	148876001	G5 - 15
22	148876001	G6 - 15
24	148876001	G7 - 15
32	14877100	K - 18
58	148927001	G-3
58	148928201	G-5
58	148931101	G7
58	148936001	G-14
59	148936001	G-14
58	148944001	G-3
58	148945201	G-5
58	148971001	G-14
18	148971001	G4 - 7-1
58	148971001	G-7
18	148973001	G4 - 9
22	148973001	G6 - 9
55	148973001	G-10
56	148973001	G-10
38	149011051	L2 - 21-3
52	150173003	Z2 - 9-1-9
54	150173003	Z2 - 9-2-9
52	150174000	Z2 - 9-1-7-1
54	150174000	Z2 - 9-2-7-1
52	150179002	Z2 - 9-2-10-1
54	150179002	Z2 - 9-2-10-1
52	150180001	Z2 - 9-1-1
54	150180001	Z2 - 9-2-1
52	150182000	Z2 - 9-1-2
54	150182000	Z2 - 9-2-2
52	150185009	Z2 - 9-1-11
54	150185009	Z2 - 9-2-11
54	150188009	Z2 - 9-2-13
54	150194009	Z2 - 9-2-14
52	150206002	Z2 - 9-2-4-1
54	150206002	Z2 - 9-2-4-1
26	150608001	H - 1-22
26	150611001	H - 1-28
26	150612001	H - 1-30
26	150613001	H - 1-31
26	150614001	H - 1-32
8	150639001	E - 22
4	150660001	D1 - 2-2
6	150665001	D2 - 3-3
59	150666001	G-3
59	150667001	G-3
59	150668101	G-5
22	150670001	G6 - 5-1
24	150670001	G7 - 5-1-1
24	150670001	G7 - 5-3-1
22	150671001	G6 - 5-2
24	150671001	G7 - 5-1-2
59	150671001	G-5
24	150672101	G7 - 5-1
59	150672101	G-5
22	150673001	G6 - 7-1
59	150673001	G-7
59	150675101	G7
26	150679001	H - 1-1
26	150682000	H - 1-3
26	150683000	H - 1-4
26	150684001	H - 1-6
26	150686101	H - 1-9
26	150687000	H - 1-11
26	150688101	H - 1-13
26	150690101	H - 1-14
26	150693000	H - 1-19
26	150695000	H - 1-34
26	150696001	H - 1-35
2	150697001	A - 12
26	150697001	H - 1-36
26	150698009	H - 1-37
26	150699000	H - 1-38
26	150700001	H - 1-41
26	150701001	H - 1-43
26	150704001	H - 5-2
28	150705001	H - 5-10
28	150706001	H - 5-11
28	150711001	H - 5-13
28	150712001	H - 5-14
28	150715001	H - 5-16
28	150716001	H - 5-18
28	150717000	H - 5-19
28	150718001	H - 5-21
28	150719001	H - 9-2
28	150720001	H - 5-24
28	150721001	H - 5-25
28	150722001	H - 5-26
28	150723001	H - 5-27
28	150725001	H - 6
28	150726001	H - 7
2	151074009	B - 10-4
59	151478001	G-3
59	151479101	G-5
24	151481001	G7 - 5-2-1
24	151482001	G7 - 5-2-2
59	151483101	G-7
59	151486001	G-3
24	151487101	G7 - 5-2
59	151487101	G-5
16	151571001	G3 - 5-2-3
16	151572101	G3 - 5-1-13
18	151572101	G4 - 5-13
20	151572101	G5 - 5-13
34	151602002	L1 - 9
38	151602002	L2 - 9
50	151604001	Z1 - 11-1
4	151927001	C - 15
32	153675001	K - 1-1
32	153675001	K - 29-1
16	153787001	G3 - 5-2-2
28	153965001	H - 5-28
28	154344201	H - 9-1
44	155510001	M1 - 26-1
44	155510001	M1 - 26-2
48	155510001	M2 - 26-1
48	155510001	M2 - 26-2
8	155558001	E - 20
52	156112003	Z2 - 9-1-8
54	156112003	Z2 - 9-2-8
59	156175001	G-3
59	156179101	G-5
24	156182101	G7 - 7-3
59	156182101	G-7
22	15621101	G6 - 5-4
24	156211101	G7 - 5-1-4
24	156211101	G7 - 5-2-4
24	156211101	G7 - 5-3-5
12	156792001	G1 - 5-1-2
12	156792001	G1 - 5-2-3
4	159150009	D1 - 20
4	159150009	D1 - 21
6	159150009	D2 - 26
6	159150009	D2 - 28
57	159583001	G-3
57	159584201	G-5
18	159587001	G4 - 5-7
18	159588001	G4 - 7-2
18	159590001	G4 - 7-2-1
22	159590001	G6 - 7-2-1
18	159609001	G6 - 14-2
22	159609001	G6 - 14-2
57	159609001	G-14
58	159609001	G-14
58	159614001	G-3

Page 70

Brother DT6-B927 / DT6-B928 parts on page 70
Ref	Part number	Part name	Qty
	159615101	G-5
	159616001	G6 -7-2
	159616001	G-7
	159805001	L1 -7-1-1-12
	159805001	L1 -7-2-1-12
	159805001	L2 -7-1-1-12
	159805001	L2 -7-2-1-12
	180827009	Z1 -11
	181060001	L2 -33
	181126001	K -1
	181225001	Z1 -19
	181716001	G-1
	181716001	G-1
	181716001	G-1
	181722001	G-1
	181722001	G-1
	181722001	G-1
	181723001	G-1
	181723001	G-1
	181723001	G-1
	181971001	K -19
	181987001	K -12
	181993101	K -3
	183128001	H -5-8
	183185101	K -15-1
	183949001	F -4-1
	183950001	F -4-2
	183951001	G-1
	183952001	G-1
	183953001	G-1
	183954001	G-1
	183954001	G-1
	183954001	G-1
	183954001	G-1
	183954001	G-1
	183978-00	G-1
	183978001	G-1
	183978001	G-1
	183978001	G-1
	183978001	G-1
	575456001	Z1 -25

Page 4 — B. 上軸関係 / Upper shaft mechanism / Obere Welle / Mécanisme de l'arbre supérieur / Mecanismo del eje superior

Page 6 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja D1. 押工棒関係 (B927) / Presser bar mechanism (B927) / Stoffdrückerstange (B927) / Mécanisme du la barra de presser (B927) / M

Page 8 — D2. 押工棒関係 (B928) / Presser bar mechanism (B928) / Stoffdrückerstange (B928) / Mécanisme du la barra de presser (B928) / Mecanismo de la barra del prensatelas (B928)

Page 10 — E . プーリー関係 / Pulley mechanism / Gürtelradmechanismus / Poulie / Polea

Page 12 — F. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Page 14 — G1.ゲージ関係 (B927 スタンダード) / Gauge parts (B927 Standard) / Lehren (B927 Norm)

Page 16 — G2. ゲージ関係 (B927 "-7, -8") / Gauge parts (B927 "-7, -8") / Lehren (B927 "-7, -8") / Pièces du jauge (B927 "-7, -8") / Piezas de calibradores (B927 "-7, -8")

Page 18 — G3. ゲージ関係 (B928 スタンダード) / Gauge parts (B928 Standard) / Lehren (B928 Norm) / Pièces du jauge (B928 Standard) / Piezas de calibradores (B928 Norma)

Page 20 — G4 . ゲージ関係 (B928 "-5") / Gauge parts (B928 "-5") / Lehren (B928 "-5") / Pièces du jauge (B928 "-5") / Piezas de calibradores (B928 "-5")

Page 22 — G5 .ゲージ関係(B928 "-6") / Gauge parts (B928 "-6") / Lehren (B928 "-6") / Pièces du jauge (B928 "-6") / Piezas de calibradores (B928 "-6")

Page 24 — G6. ゲージ 関係 (B928 "-7") / Gauge parts (B928 "-7") / Lehren (B928 "-7") / Pièces du jauge (B928 "-7") / Piezas de calibradores (B928 "-7")

Page 26 — G7 . ゲージ関係 (B928 "-8") / Gauge parts (B928 "-8") / Lehren (B928 "-8") / Pièces du jauge (B928 "-8") / Piezas de calibradores (B928 "-8")

Page 28 — H. プーラ装置関係 (-7, -8) / Puller device mechanism (-7, -8) / Ziehvorrichtung (-7, -8) / Mécanisme due puller (-7, -8) / Mecanismo del dispositiv

Page 30 — H. プーラ装置関係 (-7, -8) / Puller device mechanism (-7, -8) / Ziehvorrichtung (-7, -8) / Mécanisme due puller (-7, -8) / Mecanismo del arrastre (-7, -8)

Page 32 — J. SHEER / Lower shaft mechanism / Untere Welle / Mécanisme de I’arbre inférieur /Mecanismo del eje inferior

Page 34 — Looper mechanism / Greifer / Mécanisme des griffes /Mecanismo del presilladora

Page 36 — Upper threading mechanism (8927)

Page 38 — Upper threading mechanism (8927)

Page 40 — Upper threading mechanism

Page 42 — Upper threading mechanism

Page 44 — Lower threading mechanism (B927)

Page 46 — M1. B38 > Ba (B927) / Lower threading mechanism (B927) / Untererfadens (B927) / Mécanisme de I’enfilage infériur (B927) / Mecanismo de le enhebrado inferior (B927)

Page 48 — M2 . 下糸通シ関係 (B928) / Lower threading mechanism (B928) / Untererfadens (B928) / Mécanisme de l'enfilage inférieur (B928) / Mecanismo de le en

Page 50 — M2 . 下糸通シ関係 (B928) / Lower threading mechanism (B928) / Untererfadens (B928) / Mécanisme de l'enfilage inférieur (B928) / Mecanismo de le en

Page 52 — Z1 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 54 — Z2 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 56 — Z2 . 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 57 — DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 58 — DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 59 — 仕様別部品一覧表 / DIFFERENT PARTS LIST / ZUBEHÖRLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 60 — SX / DIFFERENT PARTS LIST / ZUBEHORLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 61 — DIFFEREN T PARTS LIST / ZUBEHORLISTE / RES / LISTA DE PIEZAS ACCESORI LISTE DES PIECES ACCESSOI AS

Page 62 — OPTION PARTS LIST

Page 63 — Warnschilder “ BH5A IL/ Warning labels.“ueta s de advertencia Etiquettes d'avertissement/“ Etiq

Page 64 — INDEX

Page 65

Page 66

Page 67

Page 69

Page 70

Brother DT6-B927 / DT6-B928 — parts catalog

Page 24 — G6. ゲージ関係 (B928 "-7") / Gauge parts (B928 "-7") / Lehren (B928 "-7") / Pièces du jauge (B928 "-7") / Piezas de calibradores (B928 "-7")
