Brother DT6-B927 — parts catalog
- Page 16 (diagram): This page displays gauge parts for the 9270 Standard model, including various feet, needles, and related components with their corresponding reference numbers.
- Page 17 (parts_list): This page lists parts for G1. Gauge related parts (9270 Standard) with reference numbers, codes, quantities, Japanese names, and English names.
- Page 18 (diagram): This page displays a diagram of gauge parts (9270-A) for industrial sewing machines, with various components labeled with reference numbers and some part numbers indicated.
- Page 19 (parts_list): This page lists parts for G2, Gauge (9270-A) / Gauge parts (9270-A), including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays diagrams of various gauge parts for the 9280-5 three-needle sewing machine, including components labeled 1 through 21, and specific sections for medium and heavy materials.
- Page 21 (parts_list): This page lists parts for the G3 Gauge related to the 9280-5 Three needle machine, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of gauge parts for sewing machine models 9280-5 and -7 Twin needle, with various components labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page lists parts for Gauge related components for models 9280-5 and 9280-7 Twin needle. It includes part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of gauge parts for a three-needle sewing machine, model 9280-7, with various components labeled with reference numbers and part numbers.
- Page 25 (parts_list): This page lists parts for G5 Gauge related items (9280-7 Three needle) including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of gauge parts for the 9280-C, -D Twin needle sewing machine, with various components labeled with reference numbers and some parts detailed in sub-diagrams for 1/4" and 3/16" applications.
- Page 27 (parts_list): This page lists gauge parts for the 9280-C, D Twin needle sewing machine, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays diagrams and part numbers for gauge parts (9280-C, -D Three needle) including various feet, needles, and screws.
- Page 29 (parts_list): This page lists parts for gauge components (9280-C, D Three needle) including needle clamp assembly, screws, plates, guards, and feed dogs.
- Page 30 (diagram): This page displays a diagram of the puller device mechanism, detailing various components with their corresponding part numbers and reference indicators.
Page 16 — G1.ゲージ関係 (9270 スタンダード) / Gauge parts (9270 Standard)
Brother DT6-B927 parts on page 16| Ref | Part number | Part name | Qty |
|---|
| 1 | 1-1 | |
| 2 | | |
| 3 | | |
| 4 | | |
| 6 | | |
| 7 | | |
| 8 | | |
| 11 | | |
| 12 | | |
| 14 | | |
| 21 | | |
| 20-2 | 20-1 | |
| 23 | 22-2 | |
| 23 | 22-1 | |
| 5-1-1 | 5-1-2 | |
| 5-1 | | |
| 5-2-1 | 5-2-2 | |
| 5-2-3 | 5-2 | |
| 5-3-3 | 5-3-6 | |
| 5-3-1 | 5-3-2 | |
| 5-3-4 | 5-3-5 | |
| 10-1 | | |
| 13-1-1 | | |
| 13-2-1 | | |
| 13-3 | | |
| 9-1 | | |
| 17 | 18 | |
| 9-2 | 10-2 | |
| 19 | | |
| 13-1 | | |
| 13-2 | | |
G1.ゲージ関係 (9270 スタンダード) / Gauge parts (9270 Standard)
1
1-1
2
3
4
6
7
8
11
12
14
21
20-2
20-1
23
22-2
23
22-1
21
< -2 3/16 固定針受用 >
5-1-1
5-1-2
5-1
5-2-1
5-2-2
5-2-3
5-2
< -3用 >
< -2 3/16 固定針受用, -3用以外 >
5-3-3
5-3-6
5-3-1
5-3-2
5-3-4 5-3-5
< 固定針受用 >
10-1
< 1/8, 5/32 用 >
13-1-1
< 3/16, 1/4 MH用 >
13-2-1
< 1/4M用 >
13-3
< 移動針受用 >
9-1
17
9-2
18
10-2
19
13-1
13-2
11
118-927-231
jintex.in
Page 17 — G1. ゲージ 関係 (9270 スタンダード) / Gauge parts (9270 Standard)
Brother DT6-B927 parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 103408002 | ハリダキネツツキ | 1 |
| 100032004 | サラネジ 4.37 | 3 |
| 060670812 | バインド 357-40X8 | 1 |
| 105173004 | シメネジ 4.76 | 1 |
| S40399001 | ラツパーアンナイイタ | 1 |
| 105129001 | アンナイイタザガネ | 1 |
| 105130001 | シメネジ 3.57 | 2 |
| 062680612 | ナベコ 4.37-40X6 | 2 |
| S06315001 | ルーパホルダ S | 1 |
| S06314001 | ルーパホルダ L | 1 |
| 062681012 | ナベコ 4.37-40X10 | 2 |
| 101491101 | オサエ 3/16 クミ | 1 |
| 105118000 | オシバネ | 1 |
| 156792001 | フィンガーガード | 1 |
| 106160101 | オサエ 1/4H クミ | 1 |
| 105118000 | オシバネ | 1 |
| 111140001 | シメネジ 2.38 | 2 |
| 156792001 | フィンガーガード | 1 |
| 147871001 | オサエ クミ | 1 |
| S40358001 | オサエピン | 4 |
| 111105002 | オサエ M バネ | 1 |
| S40360001 | シメネジ 2.38 | 1 |
| 147932001 | オサエ F バネ | 1 |
| S40374001 | ダンネジ 2.38 | 1 |
| 105303001 | シメネジ 3.57 | 1 |
| 111443003 | マルヒラトメネジ 3.57 | 1 |
| 148876001 | ハリツケトツケダイ | 1 |
| 021670102 | ナツト 1 シユ 3.57 | 1 |
| 062671012 | ナベコ 357-40X10 | 1 |
| 062670412 | ナベコ 357-40X4 | 1 |
| 105130001 | シメネジ 3.57 | 1 |
| S09679001 | ラツパー 1/4M クミ | 1 |
G1 . ゲージ 関係 (9270 スタンダード) / Gauge parts (9270 Standard)
REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM
1 ハリダキネツツキ NEEDLE CALMP ASSY W/S
1-1 X 2 トメネジ 4.37 SET SCREW, SM4.37
2 X 2 ミシンハリ NEEDLE
3 X 1 ハリイタ NEEDDLE PLATE
4 100032004 3 サラネジ 4.37 SCREW, FLAT SM4.37
6 060670812 1 バインド 357-40X8 SCREW, BIND SM3.57-40X8
7 X 1 オクリバ FEED DOG
8 105173004 1 シメネジ 4.76 SCREW, SM4.76
11 S40399001 1 ラツパーアンナイイタ LAPPER GUIDE PLATE
12 105129001 1 アンナイイタザガネ LAPPER GUIDE PLATE WASHER
14 105130001 2 シメネジ 3.57 SCREW, SM3.57
20-1 X 1 ルーパ S LOPPER, S
20-2 X 1 ルーパ L LOPPER, L
21 062680612 2 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6
22-1 S06315001 1 ルーパホルダ S LOOPER HOLDER, S
22-2 S06314001 1 ルーパホルダ L LOOPER HOLDER, L
23 062681012 2 ナベコ 4.37-40X10 SCREW, PAN SM4.37-40X10
< - 2 3/16 固定針受 用 > <FOR -2, 3/16"Fix needle support">
5-1 101491101 1 オサエ 3/16 クミ PRESSER FOOT ASSY, 3/16"
5-1-1 105118000 1 オシバネ SPRING
5-1-2 156792001 1 フィンガーガード FINGER GUARD
< - 3 用 > <FOR -3>
5-2 106160101 1 オサエ 1/4H クミ PRESSER FOOT ASSY, 1/4"H
5-2-1 105118000 1 オシバネ SPRING
5-2-2 111140001 2 シメネジ 2.38 SCREW, SM2.38
5-2-3 156792001 1 フィンガーガード FINGER GUARD
< - 2 3/16 固定針受 用, -3以外用 > <FOR WITHOUT -2, 3/16, 1/4>
5-3 X 1 オサエ クミ PRESSER FOOT ASSY
5-3-1 147871001 4 オサエピン PIN
5-3-2 S40358001 1 オサエ M バネ SPRING
5-3-3 111105002 1 シメネジ 2.38 SCREW, SM2.38
5-3-4 S40360001 1 オサエ F バネ SPRING
5-3-5 147932001 1 ダンネジ 2.38 SHOULDER SCREW, SM2.38
5-3-6 S40374001 1 フィンガーガード FINGER GUARD
< 固定針受 用 > <FOR FIXED NEEDLE GUARD>
9-1 105303001 1 シメネジ 3.57 SCREW, SM3.57
10-1 X 1 ルーパイトアンナイデ LOOPER THREAD GUIDE ARM
< 移動針受 用 > <FOR MOVEABLE NEEDLE GUARD>
9-2 111443003 1 マルヒラトメネジ 3.57 SET SCREW, SM3.57
10-2 X 1 ハリツケ NEEDLE GUARD
17 148876001 1 ハリツケトツケダイ NEEDLE GUARD BRACKET
18 021670102 1 ナツト 1 シユ 3.57 NUT, 1 SM3.57
19 062671012 1 ナベコ 357-40X10 SCREW, PAN SM3.57-40X10
< 1/8, 5/32 用 > <FOR "1/8, 5/32">
13-1 X 1 ラツパー クミ LAPPER ASSY
13-1-1 062670412 1 ナベコ 357-40X4 SCREW, PAN SM3.57-40X4
< 3/16, 1/4MH 用 > <FOR "3/16, 1/4MH">
13-2 X 1 ラツパー クミ LAPPER ASSY
13-2-1 105130001 1 シメネジ 3.57 SCREW, SM3.57
< 1/4M 用 > <FOR "1/4M">
13-3 S09679001 1 ラツパー 1/4M クミ LAPPER ASSY, 1/4" M
118-927-231 12

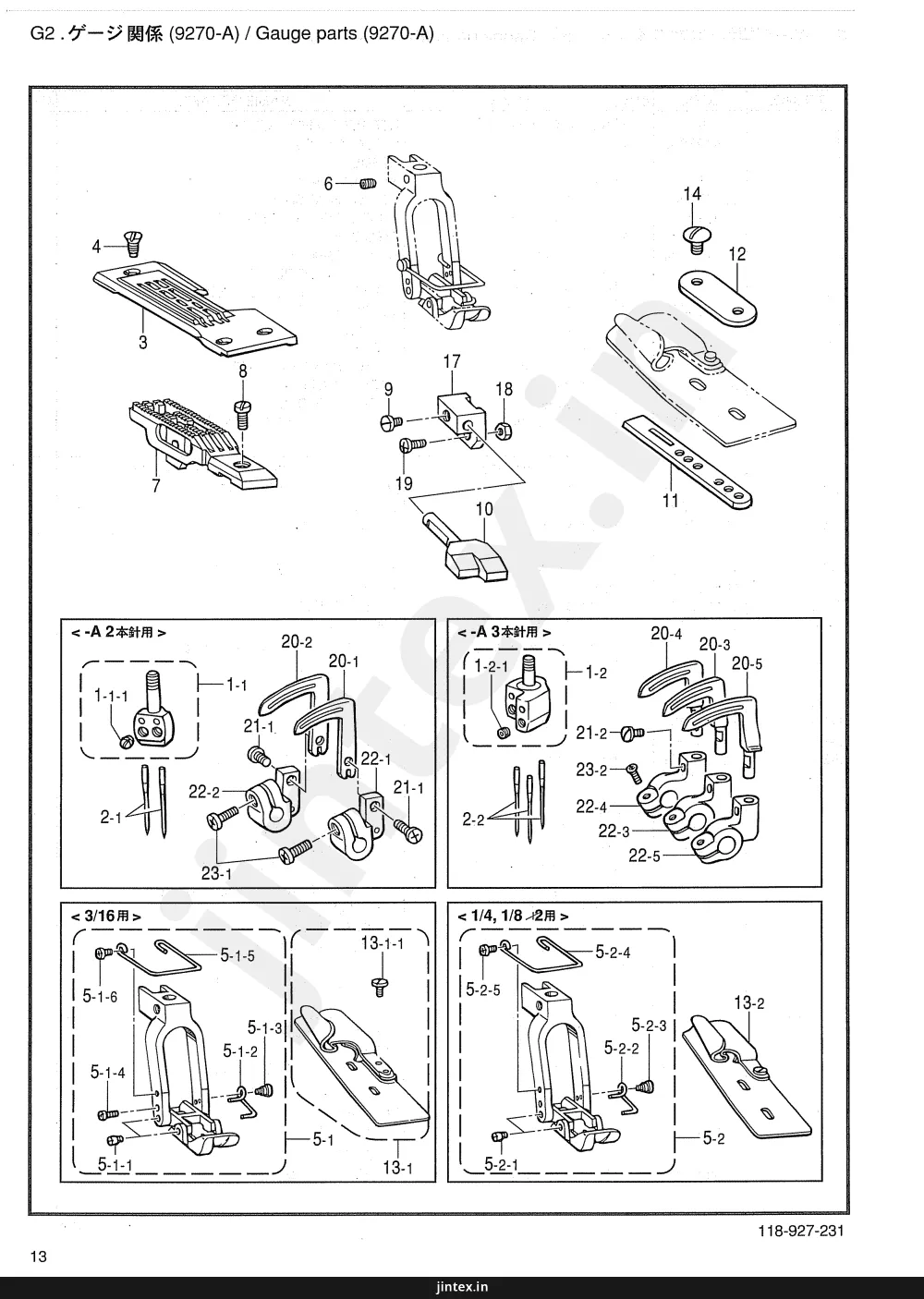

Page 18 — G2 .ゲージ関係 (9270-A) / Gauge parts (9270-A)
Brother DT6-B927 parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 4 | 4 | Screw | |
| 6 | 6 | Spring | |
| 3 | 3 | Base Plate | |
| 8 | 8 | Screw | |
| 7 | 7 | Gauge | |
| 9 | 9 | Screw | |
| 18 | 18 | Nut | |
| 19 | 19 | Screw | |
| 17 | 17 | Bracket | |
| 10 | 10 | Lever | |
| 14 | 14 | Screw | |
| 12 | 12 | Plate | |
| 11 | 11 | Plate | |
| 20-2 | 20-2 | Gauge | |
| 20-1 | 20-1 | Bracket | |
| 1-1-1 | 1-1-1 | Screw | |
| 1-1 | 1-1 | Needle Holder | |
| 21-1 | 21-1 | Screw | |
| 22-1 | 22-1 | Bracket | |
| 21-1 | 21-1 | Screw | |
| 22-2 | 22-2 | Base | |
| 23-1 | 23-1 | Screw | |
| 2-1 | 2-1 | Needle | |
| 20-4 | 20-4 | Gauge | |
| 20-3 | 20-3 | Bracket | |
| 1-2-1 | 1-2-1 | Needle Holder | |
| 1-2 | 1-2 | Needle Holder | |
| 21-2-0 | 21-2-0 | Screw | |
| 23-2 | 23-2 | Screw | |
| 22-4 | 22-4 | Bracket | |
| 22-3 | 22-3 | Base | |
| 22-5 | 22-5 | Base | |
| 2-2 | 2-2 | Needle | |
| 5-1-6 | 5-1-6 | Bracket | |
| 5-1-5 | 5-1-5 | Spring | |
| 13-1-1 | 13-1-1 | Screw | |
| 5-1-3 | 5-1-3 | Spring | |
| 5-1-4 | 5-1-4 | Screw | |
| 5-1-1 | 5-1-1 | Screw | |
| 5-1 | 5-1 | Gauge | |
| 13-1 | 13-1 | Base Plate | |
| 5-2-4 | 5-2-4 | Bracket | |
| 5-2-5 | 5-2-5 | Spring | |
| 5-2-3 | 5-2-3 | Spring | |
| 5-2-2 | 5-2-2 | Screw | |
| 13-2 | 13-2 | Base Plate | |
| 5-2 | 5-2 | Gauge | |
| 5-2-1 | 5-2-1 | Screw | |
G2 .ゲージ関係 (9270-A) / Gauge parts (9270-A)
4
6
3
8
7
19
17
9
18
10
14
12
11
< -A 2本針用 >
20-2
20-1
1-1-1
1-1
21-1
22-1
21-1
2-1
22-2
23-1
< -A 3本針用 >
20-4
20-3
1-2-1
1-2
21-2-0
23-2
22-4
22-3
22-5
2-2
< 3/16用 >
5-1-6
5-1-5
5-1-3
5-1-4
5-1-1
13-1-1
5-1
13-1
< 1/4, 1/8 用 >
5-2-4
5-2-5
5-2-3
5-2-2
13-2
5-2
13
118-927-231
jintex.in
Page 19 — G2 .ゲージ関係 (9270-A) / Gauge parts (9270-A)
Brother DT6-B927 parts on page 19| Ref | Part number | Part name | Qty |
|---|
| ※ | ハリイタ | 1 |
| 100032004 | サラネジ4.37 | 3 |
| 014760622 | アナトメネジ5.95 | 1 |
| ※ | ニクレバニ | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 1 |
| ※ | ハリイタ | 1 |
| S40399001 | ラツパーアンナイイタ | 1 |
| 105129001 | アンナイイタザガネ | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 148876001 | ハリウケトリツケダイ | 1 |
| 021670102 | ナツト1シュ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| ※ | ハリダキネジツキ | 1 |
| 103408002 | トメネジ4.37 | 2 |
| ※ | ミシンハリTVX64NY | 2 |
| ※ | ルーパS | 1 |
| ※ | ルーパL | 1 |
| 062680612 | ナベコ4.37-40X6 | 2 |
| S06315001 | ルーパホルダS | 1 |
| S06314001 | ルーパホルダL | 1 |
| 062681012 | ナベコ4.37-40X10 | 2 |
| ※ | ハリダキネジツキ | 1 |
| 146427001 | アナトメネジ3.18クボミ | 3 |
| ※ | ミシンハリTVX64NY | 1 |
| S40375001 | ルーパS1/8X2-6 | 1 |
| S40376001 | ルーパM-6 | 1 |
| S40377001 | ルーパL1/8X2-6 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 3 |
| S40378051 | ルーパホルダS | 1 |
| S40379051 | ルーパホルダM | 1 |
| S40380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 3 |
| S06303101 | オサエ3/16-7クミ | 1 |
| 147871001 | オサエピン | 4 |
| S06309001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 062630612 | ナベコ238-56X6 | 1 |
| S09180101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| 101494001 | ラツパー3/16Mクミ | 1 |
| 105130001 | シメネジ3.57 | 1 |
| ※ | オサエクミ | 1 |
| 147871001 | オサエピン | 4 |
| S06309001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| S09180101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| S09679001 | ラツパー1/4Mクミ | 1 |
G2 .ゲージ関係 (9270-A) / Gauge parts (9270-A)
REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM
3 ※ 1 ハリイタ NEEDDLE PLATE
4 100032004 3 サラネジ4.37 SCREW, FLAT SM4.37
6 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95
7 ※ 1 ニクレバニ FEED DOG
8 105173004 1 シメネジ4.76 SCREW, SM4.76
9 111443003 1 マルヒラトメネジ3.57 SET SCREW, SM3.57
10 ※ 1 ハリイタ NEEDLE
11 S40399001 1 ラツパーアンナイイタ LAPPER GUIDE PLATE
12 105129001 1 アンナイイタザガネ LAPPER GUIDE PLATE WASHER
14 105130001 2 シメネジ3.57 SCREW, SM3.57
17 148876001 1 ハリウケトリツケダイ NEEDLE GUARD BRACKET
18 021670102 1 ナツト1シュ3.57 NUT, 1 SM3.57
19 062671012 1 ナベコ357-40X10 SCREW, PAN SM3.57-40X10
<A, 2本針用>
<FOR -A, TWIN NEEDLE>
1-1 ※ 1 ハリダキネジツキ NEEDLE CALMP ASSY W/S
1-1-1 103408002 2 トメネジ4.37 SET SCREW, SM4.37
2-1 ※ 2 ミシンハリTVX64NY NEEDLE, TVX64NY
20-1 ※ 1 ルーパS LOPPER, S
20-2 ※ 1 ルーパL LOPPER, L
21-1 062680612 2 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6
22-1 S06315001 1 ルーパホルダS LOPPER HOLDER, S
22-2 S06314001 1 ルーパホルダL LOPPER HOLDER, L
23-1 062681012 2 ナベコ4.37-40X10 SCREW, PAN SM4.37-40X10
<-A, 3本針用>
<FOR -A, THREE NEEDLE>
1-2 ※ 1 ハリダキネジツキ NEEDLE CLAMP ASSY W/S
1-2-1 146427001 3 アナトメネジ3.18クボミ SET SCREW, SOCKET (CP) SM3.18
2-2 ※ 1 ミシンハリTVX64NY NEEDLE, TVX64NY
20-3 S40375001 1 ルーパS1/8X2-6 LOPPER, S 1/8"X2-6
20-4 S40376001 1 ルーパM-6 LOPPER, M-6
20-5 S40377001 1 ルーパL1/8X2-6 LOPPER, L 1/8"X2-6
21-2 111443003 3 マルヒラトメネジ3.57 SET SCREW, SM3.57
22-3 S40378051 1 ルーパホルダS LOPPER HOLDER, S
22-4 S40379051 1 ルーパホルダM LOPPER HOLDER, M
22-5 S40380051 1 ルーパホルダL LOPPER HOLDER, L
23-2 062671012 3 ナベコ357-40X10 SCREW, PAN SM3.57-40X10
<3/16用>
<FOR "3/16">
5-1 S06303101 1 オサエ3/16-7クミ PRESSER FOOT ASSY, 3/16"-7
5-1-1 147871001 4 オサエピン PIN
5-1-2 S06309001 1 オサエFバネ SPRING
5-1-3 147932001 1 ダンネジ2.38 SHOULDER SCREW, SM2.38
5-1-4 062630612 1 ナベコ238-56X6 SCREW, PAN SM2.38-56X6
5-1-5 S09180101 1 フィンガーガード FINGER GUARD
5-1-6 060660512 1 バインド318-40X5 SCREW, BIND SM3.18-40X5
13-1 101494001 1 ラツパー3/16Mクミ LAPPER ASSY, 3/16" M
13-1-1 105130001 1 シメネジ3.57 SCREW, SM3.57
<1/4, 1/8X2用>
<FOR "1/4, 1/8X2">
5-2 ※ 1 オサエクミ PRESSER FOOT ASSY
5-2-1 147871001 4 オサエピン PIN
5-2-2 S06309001 1 オサエFバネ SPRING
5-2-3 147932001 1 ダンネジ2.38 SHOULDER SCREW, SM2.38
5-2-4 S09180101 1 フィンガーガード FINGER GUARD
5-2-5 060660512 1 バインド318-40X5 SCREW, BIND SM3.18-40X5
13-2 S09679001 1 ラツパー1/4Mクミ LAPPER ASSY, 1/4" M
118-927-231 14
Page 20 — G3 . ゲージ 関係 (9280-5 3本針) / Gauge parts (9280-5 Three needle)
Brother DT6-B927 parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 1-1 | 1 | |
| 2 | Needles | |
| 3 | Base Plate | |
| 4 | Screw | |
| 7 | Presser Foot | |
| 8 | Screw | |
| 6 | Screw | |
| 13 | Screw | |
| 12 | Plate | |
| 11 | Guide | |
| 10 | Screw | |
| 17 | Screw | |
| 15 | Block | |
| 16 | Nut | |
| 18-2 | Lever | |
| 18-1 | Lever | |
| 18-3 | Lever | |
| 19 | Screw | |
| 21 | Screw | |
| 20-2 | Guide | |
| 20-1 | Guide | |
| 20-3 | Guide | |
| 9 | Base | |
| 5-1-13 | Screw | |
| 5-1-12 | Spring | |
| 5-1 | Presser Foot Assembly | |
| 5-1-3 | Screw | |
| 5-1-6 | Spring | |
| 5-1-10 | Screw | |
| 5-1-9 | Screw | |
| 5-1-1 | Needle Guard | |
| 5-1-4 | Spring | |
| 5-1-2 | Spring | |
| 5-1-5 | Screw | |
| 5-1-8 | Screw | |
| 5-1-7 | Presser Foot | |
| 14-2-1 | Screw | |
| 14-2 | Presser Foot | |
| 14-1-1 | Screw | |
| 14-1 | Presser Foot | |
| 5-2-3 | Guide | |
| 5-2-1 | Spring | |
| 5-2 | Presser Foot Assembly | |
| 5-2-2 | Screw | |
G3 . ゲージ 関係 (9280-5 3本針) / Gauge parts (9280-5 Three needle)
1-1
1
2
3
4
7
8
< 1/8×2, 5/32×2, 3/16×2 用 >
5-1-13
5-1-12
5-1-3
5-1-6
5-1-10
5-1-9
5-1-1
5-1-4
5-1-2
5-1-5
5-1-8
5-1-7
< 厚物用 (H) >
14-2-1
14-2
6
18-2
18-1
18-3
19
21
20-2
20-1
20-3
10
17
15
16
9
11
13
12
< 中厚物用 (MH) >
14-1-1
14-1
< 7/64×2用 >
5-2-3
5-2-1
5-2
5-2-2
15
118-928-231
jintex.in
Page 21 — G3 . ゲージ 関係 (9280-5 3 本針) / Gauge parts (9280-5 Three needle)
Brother DT6-B927 parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 146427001 | ハリダキクミ | 1 |
| S43401021 | アナトメネジ3.18クボミ | 3 |
| ミシンハリTVX5 | NEEDLE, TVX5 (#21) | 1 |
| ハリイタ | NEEDLE PLATE | 1 |
| 100032004 | サラネジ4.37 | 3 |
| 060670812 | バインド357-40X8 | 1 |
| オークリバ | FEED DOG | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 148875001 | ハリウケー6 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 1 |
| S40399001 | ラッパーアンナイイタ | 1 |
| 105129001 | アンナイイタザガネ | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 148876001 | ハリケツトツケダイ | 1 |
| 021670102 | ナット1シュ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| ルーパS | LOPPER, S | 1 |
| ルーパM | LOPPER, M | 1 |
| ルーパL | LOPPER, L | 1 |
| 111443003 | マルヒラトメネジ3.57 | 3 |
| S40378051 | ルーパホルダS | 1 |
| S40379051 | ルーパホルダM | 1 |
| S40380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 3 |
| オサエコミ | PRESSER FOOT ASSY | 1 |
| 147871001 | オサエピン | 6 |
| 147872001 | オサエMバネ | 1 |
| S01295001 | シメネジ2.38X3.5 | 1 |
| 147890001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 147875001 | オサエBLバネ | 1 |
| 147877001 | ツマミナット3.18 | 1 |
| 147878001 | オサエBSバネ | 1 |
| 062660512 | ナベコネジ318-40X5 | 1 |
| 11105002 | シメネジ2.38 | 1 |
| 151572101 | フィンガーガード | 1 |
| S40804001 | オサエBS5/16 | 1 |
| 147876001 | オサエBS | 1 |
| S40788001 | オサエ7/64X2クミ | 1 |
| S09397001 | シメネジ2.38 | 2 |
| 153780001 | シメネジ2.38 | 2 |
| 151571001 | フィンガーガード | 1 |
| ラツパーMHクミ | LAPPER ASSY, MH | 1 |
| 105130001 | シメネジ3.57 | 1 |
| ラツパーHクミ | LAPPER ASSY, H | 1 |
| 122771001 | シメネジ2.38 | 2 |
G3 . ゲージ 関係 (9280-5 3 本針) / Gauge parts (9280-5 Three needle)
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
146427001
1
ハリダキクミ
NEEDLE CLAMP ASSY
1-1
S43401021
3
アナトメネジ3.18クボミ
SET SCREW, SOCKET (CP) SM3.18
2
ミシンハリTVX5
NEEDLE, TVX5 (#21)
3
ハリイタ
NEEDLE PLATE
4
100032004
3
サラネジ4.37
SCREW, FLAT SM4.37
6
060670812
1
バインド357-40X8
SCREW, BIND SM3.57-40X8
7
オークリバ
FEED DOG
8
105173004
1
シメネジ4.76
SCREW, SM4.76
9
148875001
1
ハリウケー6
NEEDLE GUARD, -6
10
111443003
1
マルヒラトメネジ3.57
SET SCREW, SM3.57
11
S40399001
1
ラッパーアンナイイタ
LAPPER GUIDE PLATE
12
105129001
1
アンナイイタザガネ
LAPPER GUIDE PLATE WASHER
13
105130001
2
シメネジ3.57
SCREW, SM3.57
15
148876001
1
ハリケツトツケダイ
NEEDLE GUARD BRACKET
16
021670102
1
ナット1シュ3.57
NUT, 1 SM3.57
17
062671012
1
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
18-1
※
1
ルーパS
LOPPER, S
18-2
※
1
ルーパM
LOPPER, M
18-3
※
1
ルーパL
LOPPER, L
19
111443003
3
マルヒラトメネジ3.57
SET SCREW, SM3.57
20-1
S40378051
1
ルーパホルダS
LOPPER HOLDER, S
20-2
S40379051
1
ルーパホルダM
LOPPER HOLDER, M
20-3
S40380051
1
ルーパホルダL
LOPPER HOLDER, L
21
062671012
3
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
<1/8X2, 5/32X2, 3/16X2用>
<FOR "1/8X2, 5/32X2, 3/16X2">
5-1
※
1
オサエコミ
PRESSER FOOT ASSY
5-1-1
147871001
6
オサエピン
PIN
5-1-2
147872001
1
オサエMバネ
SPRING
5-1-3
S01295001
1
シメネジ2.38X3.5
SCREW, SM2.38X3.5
5-1-4
147890001
1
オサエFバネ
SPRING
5-1-5
147932001
1
ダンネジ2.38
SHOULDER SCREW, SM2.38
5-1-6
147875001
1
オサエBLバネ
SPRING
5-1-8
147877001
1
ツマミナット3.18
NUT, SM3.18
5-1-9
147878001
1
オサエBSバネ
SPRING
5-1-10
062660512
1
ナベコネジ318-40X5
SCREW, PAN SM3.18-40X5
5-1-12
11105002
1
シメネジ2.38
SCREW, SM2.38
5-1-13
151572101
1
フィンガーガード
FINGER GUARD
<5/32X2, 3/16X2用>
<FOR "5/32X2, 3/16X2">
5-1-7
S40804001
1
オサエBS5/16
PRESSER FOOT, BS 5/16"
<1/8X2用>
<FOR "1/8X2">
5-1-7
147876001
1
オサエBS
PRESSER FOOT, BS
<7/64X2用>
<FOR "7/64X2">
5-2
S40788001
1
オサエ7/64X2クミ
PRESSER FOOT ASSY, 7/64"X2
5-2-1
S09397001
2
シメネジ2.38
SCREW, SM2.38
5-2-2
153780001
2
シメネジ2.38
SCREW, SM2.38
5-2-3
151571001
1
フィンガーガード
FINGER GUARD
<厚物用(MH)>
<FOR MEDIUM MATERIALS "MH">
14-1
※
1
ラツパーMHクミ
LAPPER ASSY, MH
14-1-1
105130001
1
シメネジ3.57
SCREW, SM3.57
<厚物用(H)>
<FOR THICK MATERIALS "H">
14-2
※
1
ラツパーHクミ
LAPPER ASSY, H
14-2-1
122771001
2
シメネジ2.38
SCREW, SM2.38
118-928-231
16
jintex.in
Page 22 — G4.ゲージ関係 (9280-5, -7 2本針) / Gauge parts (9280-5, -7 Twin needle)
Brother DT6-B927 parts on page 22| Ref | Part number | Part name | Qty |
|---|
| 1 | 1-1 | Gauge parts | |
| 2 | 2 | Needle | |
| 3 | 3 | Base Plate | |
| 4 | 4 | Screw | |
| 5-1 | 5-1 | Screw | |
| 5-2 | 5-2 | Lever | |
| 5-3 | 5-3 | Screw | |
| 5-4 | 5-4 | Spring | |
| 5-5 | 5-5 | Lever | |
| 5-6 | 5-6 | Spring | |
| 5-7 | 5-7 | Base | |
| 5-8 | 5-8 | Screw | |
| 5-9 | 5-9 | Screw | |
| 5-10 | 5-10 | Spring | |
| 5-11 | 5-11 | Screw | |
| 5-12 | 5-12 | Screw | |
| 5-13 | 5-13 | Wire | |
| 6 | 6 | Screw | |
| 8 | 8 | Screw | |
| 9 | 9 | Presser Foot | |
| 10 | 10 | Screw | |
| 11 | 11 | Plate | |
| 12 | 12 | Plate | |
| 13 | 13 | Screw | |
| 14-1 | 14-1 | Gauge | |
| 14-1-1 | 14-1-1 | Screw | |
| 14-2 | 14-2 | Gauge | |
| 15 | 15 | Block | |
| 16 | 16 | Screw | |
| 17 | 17 | Screw | |
| 18-1 | 18-1 | Gauge | |
| 18-3 | 18-3 | Gauge | |
| 19 | 19 | Screw | |
| 20-1 | 20-1 | Lever | |
| 20-3 | 20-3 | Lever | |
| 21 | 21 | Screw | |
| 7-1 | 7-1 | Gauge | |
| 7-1-1 | 7-1-1 | Gauge | |
| 7-1-2 | 7-1-2 | Screw | |
| 7-2 | 7-2 | Gauge | |
| 7-2-1 | 7-2-1 | Gauge | |
| 7-2-2 | 7-2-2 | Screw | |
G4.ゲージ関係 (9280-5, -7 2本針) / Gauge parts (9280-5, -7 Twin needle)
1-1
1
2
6
4
3
8
5-11
5-10
5-9
5-3
5-6
5-1
5-12
5-13
5-2
5-4
5-5
5-8
5-7
13
12
11
15
10
16
18-1
18-3
19
21
20-1
20-3
9
< 1/4用>
7-1-1
7-1-2
7-1
14-1
< 3/16用>
7-2-1
7-2-2
7-2
14-2
17
118-928-231
17
jintex.in
Page 23 — G4 . ゲージ関係 (9280-5, -72本針) / Gauge parts (9280-5, -7 Twin needle)
Brother DT6-B927 parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 103408002 | ハリダキネジツキ | 1 |
| 103408002 | トメネジ4.37 | 2 |
| 100032004 | サラネジ4.37 | 3 |
| 147871001 | オサエピン | 1 |
| 147872001 | オサエMバネ | 1 |
| S01295001 | シメネジ2.38X3.5 | 1 |
| 147890001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 147875001 | オサエBLバネ | 1 |
| 147877001 | ツマミナット3.18 | 1 |
| 147878001 | オサエBSバネ | 1 |
| 062660512 | ナベコネジ318-40X5 | 1 |
| 147879001 | トメネジ3.18 | 1 |
| 111105002 | シメネジ2.38 | 1 |
| 151572101 | フィンガーガード | 1 |
| 060670812 | バインド357-40X8 | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 148973001 | ハリケーク-5 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 1 |
| S40399001 | ラッパーアンナイイタ | 1 |
| 105129001 | アンナイイタザガネ | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 148876001 | ハリケツトリツケダイ | 1 |
| 021670102 | ナット1コ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| S40375001 | ルーパL1/8X2-6 | 1 |
| S40377001 | ルーパL1/8X2-6 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 3 |
| S40378051 | ルーパホルダS | 1 |
| S40380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 2 |
| 147876001 | オサエBS | 1 |
| 148971001 | オクリバ1/4クミ | 1 |
| 147070001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| 147302001 | ラツパー1/4XHクミ | 1 |
| 122771001 | シメネジ2.38 | 2 |
| 159587001 | オサエBS3/18 | 1 |
| 159588001 | オクリバ3/16クミ | 1 |
| 159590001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| 159609001 | ラツパー3/16Hクミ | 1 |
G4 . ゲージ関係 (9280-5, -72本針) / Gauge parts (9280-5, -7 Twin needle)
REF.NO.
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
1
※
1
ハリダキネジツキ
NEEDLE CLAMP ASSY, W/S
1-1
103408002
2
トメネジ4.37
SET SCREW, SM4.37
2
※
3
ミシンハリTVX5
NEEDLE, TVX5
3
※
1
ハリイタ
NEEDLE PLATE
4
100032004
3
サラネジ4.37
SCREW, FLAT SM4.37
5
※
1
オサエクミ
PRESSER FOOT ASSY
5-1
147871001
1
オサエピン
PIN
5-2
147872001
6
オサエMバネ
SPRING
5-3
S01295001
1
シメネジ2.38X3.5
SCREW, SM2.38X3.5
5-4
147890001
1
オサエFバネ
SPRING
5-5
147932001
1
ダンネジ2.38
SHOULDER SCREW, SM2.38
5-6
147875001
1
オサエBLバネ
SPRING
5-8
147877001
1
ツマミナット3.18
NUT, SM3.18
5-9
147878001
1
オサエBSバネ
SPRING
5-10
062660512
1
ナベコネジ318-40X5
SCREW, PAN SM3.18-40X5
5-11
147879001
1
トメネジ3.18
SET SCREW, SM3.18
5-12
111105002
1
シメネジ2.38
SCREW, SM2.38
5-13
151572101
1
フィンガーガード
FINGER GUARD
6
060670812
1
バインド357-40X8
SCREW, BIND SM3.57-40X8
8
105173004
1
シメネジ4.76
SCREW, SM4.76
9
148973001
1
ハリケーク-5
NEEDLE GUARD, -5
10
111443003
1
マルヒラトメネジ3.57
SET SCREW, SM3.57
11
S40399001
1
ラッパーアンナイイタ
LAPPER GUIDE PLATE
12
105129001
1
アンナイイタザガネ
LAPPER GUIDE PLATE WASHER
13
105130001
2
シメネジ3.57
SCREW, SM3.57
15
148876001
1
ハリケツトリツケダイ
NEEDLE GUARD BRACKET
16
021670102
1
ナット1コ3.57
NUT, 1 SM3.57
17
062671012
1
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
18-1
S40375001
1
ルーパL1/8X2-6
LOPPER, S 1/8"X2-6
18-3
S40377001
1
ルーパL1/8X2-6
LOPPER, S 1/8"X2-6
19
111443003
3
マルヒラトメネジ3.57
SET SCREW, SM3.57
20-1
S40378051
1
ルーパホルダS
LOPPER HOLDER, S
20-3
S40380051
1
ルーパホルダL
LOPPER HOLDER, L
21
062671012
2
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
<1/4用>
<FOR"1/4">
5-7
147876001
1
オサエBS
PRESSER FOOT, BS
7-1
148971001
1
オクリバ1/4クミ
FEED DOG ASSY, 1/4"
7-1-1
147070001
1
トリツケバ
SUB FEED DOG
7-1-2
147880001
2
シメネジ1.98
SCREW, SM1.98
14-1
147302001
1
ラツパー1/4XHクミ
LAPPER ASSY, 1/4" XH
14-1-1
122771001
2
シメネジ2.38
SCREW, SM2.38
<3/16用>
<FOR"3/16">
5-7
159587001
1
オサエBS3/18
PRESSER FOOT, BS 3/18"
7-2
159588001
1
オクリバ3/16クミ
FEED DOG ASSY, 3/16"
7-2-1
159590001
1
トリツケバ
SUB FEED DOG
7-2-2
147880001
2
シメネジ1.98
SCREW, SM1.98
14-2
159609001
1
ラツパー3/16Hクミ
LAPPER ASSY, 3/16" H
118-928-231
18
Page 24 — G5.ゲージ関係 (9280-7 3本針) / Gauge parts (9280-7 Three needle)
Brother DT6-B927 parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 1 | 1-1 | Gauge | |
| 2 | 2 | Needle | |
| 4 | 4 | Screw | |
| 13 | 13 | Screw | |
| 8 | 8 | Screw | |
| 10 | 10 | Screw | |
| 15 | 15 | Screw | |
| 16 | 16 | Screw | |
| 17 | 17 | Screw | |
| 9 | 9 | Presser Foot | |
| 7-1-1 | 7-1-1 | Gauge | |
| 7-1-2 | 7-1-2 | Screw | |
| 5-11 | 5-11 | Screw | |
| 5-3 | 5-3 | Screw | |
| 5-6 | 5-6 | Screw | |
| 5-10 | 5-10 | Screw | |
| 5-9 | 5-9 | Screw | |
| 5-1 | 5-1 | Screw | |
| 5-8 | 5-8 | Screw | |
| 5-7 | 5-7 | Base | |
| 5-12 | 5-12 | Screw | |
| 5-13 | 5-13 | Wire | |
| 5-2 | 5-2 | Spring | |
| 5-4 | 5-4 | Screw | |
| 5-5 | 5-5 | Screw | |
| 13 | 13 | Screw | |
| 12 | 12 | Plate | |
| 14-1 | 14-1 | Screw | |
| 11 | 11 | Plate | |
| 19 | 19 | Screw | |
| 21 | 21 | Screw | |
| 20-2 | 20-2 | Part | |
| 20-1 | 20-1 | Part | |
| 20-3 | 20-3 | Part | |
| 7-2-1 | 7-2-1 | Gauge | |
| 7-2-2 | 7-2-2 | Screw | |
G5.ゲージ関係 (9280-7 3本針) / Gauge parts (9280-7 Three needle)
1
1-1
2
4
13
10
15
16
17
9
< 1/8×2輸出, 5/32×2, 3/16×2 >
7-1
7-1-1
7-1-2
6
5-11
5-3
5-6
5-10
5-9
5-1
5-8
5-7
19
21
20-2
20-1
20-3
< 1/8×2国内 >
7-2
7-2-1
7-2-2
5-12
5-13
5-2
5-4
5-5
13
12
14
14-1
11
118-928-231
19
jintex.in
Page 25 — G5 . ゲージ関係 (9280-7 3本針) / Gauge parts (9280-7 Three needle)
Brother DT6-B927 parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 146427001 | アナトメネジ3.18クボミ | 3 |
| 111128022 | ミシンハリTVX5 | 3 |
| 100032004 | サラネジ4.37 | 3 |
| 147871001 | オサエピン | 6 |
| 147872001 | オサエMバネ | 1 |
| S01295001 | シメネジ2.38X3.5 | 1 |
| 147890001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 147875001 | オサエBLバネ | 1 |
| 147876001 | オサエBS | 1 |
| 147877001 | ツマミナット3.18 | 1 |
| 147878001 | オサエBSバネ | 1 |
| 062660512 | ナベコネジ318-40X5 | 1 |
| 147879001 | トメネジ3.18 | 1 |
| 111105002 | シメネジ2.38 | 1 |
| 151572101 | フィンガーガード | 1 |
| 060670812 | バインド357-40X8 | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 148875001 | ハリウケー-6 | 1 |
| 111144003 | マルヒラトメネジ3.57 | 1 |
| 540399001 | ラツパーアンナイイタ | 1 |
| 105129001 | アンナイイタザガネ | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 122771001 | シメネジ2.38 | 2 |
| 148876001 | ハリウケトツケダイ | 1 |
| 021671012 | ナツト1シュ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| 540375001 | ルーパS1/8X2-6 | 1 |
| 540376001 | ルーパM-6 | 1 |
| 540377001 | ルーパL1/8X2-6 | 1 |
| 111144003 | マルヒラトメネジ3.57 | 3 |
| 540378051 | ルーパホルダS | 1 |
| 540379051 | ルーパホルダM | 1 |
| 540380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 3 |
| 147307001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| S18084101 | オクリバ1/8X2ミD1 | 1 |
| S01637001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
G5 . ゲージ関係 (9280-7 3本針) / Gauge parts (9280-7 Three needle)
REF.NO.
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
※
1
ハリダキクミ
NEEDLE CLAMP ASSY
1-1
146427001
3
アナトメネジ3.18クボミ
SET SCREW, SOCKET (CP) SM3.18
2
111128022
3
ミシンハリTVX5
NEEDLE, TVX5 (#22)
3
※
1
ハリイタ
NEEDLE PLATE
4
100032004
3
サラネジ4.37
SCREW, FLAT SM4.37
5
※
1
オサエクミ
PRESSER FOOT ASSY
5-1
147871001
6
オサエピン
PIN
5-2
147872001
1
オサエMバネ
SPRING
5-3
S01295001
1
シメネジ2.38X3.5
SCREW, SM2.38X3.5
5-4
147890001
1
オサエFバネ
SPRING
5-5
147932001
1
ダンネジ2.38
SHOULDER SCREW, SM2.38
5-6
147875001
1
オサエBLバネ
SPRING
5-7
147876001
1
オサエBS
PRESSER FOOT, BS
5-8
147877001
1
ツマミナット3.18
NUT, SM3.18
5-9
147878001
1
オサエBSバネ
SPRING
5-10
062660512
1
ナベコネジ318-40X5
SCREW, PAN SM3.18-40X5
5-11
147879001
1
トメネジ3.18
SET SCREW, SM3.18
5-12
111105002
1
シメネジ2.38
SCREW, SM2.38
5-13
151572101
1
フィンガーガード
FINGER GUARD
6
060670812
1
バインド357-40X8
SCREW, BIND SM3.57-40X8
8
105173004
1
シメネジ4.76
SCREW, SM4.76
9
148875001
1
ハリウケー-6
NEEDLE GUARD, -6
10
111144003
1
マルヒラトメネジ3.57
SET SCREW, SM3.57
11
540399001
1
ラツパーアンナイイタ
LAPPER GUIDE PLATE
12
105129001
1
アンナイイタザガネ
LAPPER GUIDE PLATE WASHER
13
105130001
2
シメネジ3.57
SCREW, SM3.57
14
※
1
ラツパークミ
LAPPER ASSY
14-1
122771001
2
シメネジ2.38
SCREW, SM2.38
15
148876001
1
ハリウケトツケダイ
NEEDLE GUARD BRACKET
16
021671012
1
ナツト1シュ3.57
NUT, 1 SM3.57
17
062671012
1
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
18-1
540375001
1
ルーパS1/8X2-6
LOPPER, S 1/8"X2-6
18-2
540376001
1
ルーパM-6
LOPPER, M-6
18-3
540377001
1
ルーパL1/8X2-6
LOPPER, L 1/8"X2-6
19
111144003
3
マルヒラトメネジ3.57
SET SCREW, SM3.57
20-1
540378051
1
ルーパホルダS
LOPPER HOLDER, S
20-2
540379051
1
ルーパホルダM
LOPPER HOLDER, M
20-3
540380051
1
ルーパホルダL
LOPPER HOLDER, L
21
062671012
3
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
<1/8X2輸出用,5/32X2,3/16X2用>
<FOR EXPORT "1/5X2" & 5/32X2,3/16X2>
7-1
※
1
オクリバクミ
FEED DOG ASSY
7-1-1
147307001
1
トリツケバ
SUB FEED DOG
7-1-2
147880001
2
シメネジ1.98
SCREW, SM1.98
<1/8X2国内用>
<FOR JAPAN ONLY>
7-2
S18084101
1
オクリバ1/8X2ミD1
7-2-1
S01637001
1
トリツケバ
7-2-2
147880001
2
シメネジ1.98
jintex.in
118-928-231
20
Page 26 — G6 .ゲージ 関係 (9280-C, -D 2本針) / Gauge parts (9280-C, -D Twin needle)
Brother DT6-B927 parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 1 | 1-1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5-1 | 5-1 | 5-1 | |
| 5-2 | 5-2 | 5-2 | |
| 5-3 | 5-3 | 5-3 | |
| 5-4 | 5-4 | 5-4 | |
| 5-5 | 5-5 | 5-5 | |
| 6 | 6 | 6 | |
| 7-1 | 7-1 | 7-1 | |
| 7-1-1 | 7-1-1 | 7-1-1 | |
| 7-1-2 | 7-1-2 | 7-1-2 | |
| 7-2 | 7-2 | 7-2 | |
| 7-2-1 | 7-2-1 | 7-2-1 | |
| 7-2-2 | 7-2-2 | 7-2-2 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14-1 | 14-1 | 14-1 | |
| 14-1-1 | 14-1-1 | 14-1-1 | |
| 14-2 | 14-2 | 14-2 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18-1 | 18-1 | 18-1 | |
| 18-3 | 18-3 | 18-3 | |
| 19 | 19 | 19 | |
| 20-1 | 20-1 | 20-1 | |
| 20-3 | 20-3 | 20-3 | |
| 21 | 21 | 21 | |
G6 .ゲージ 関係 (9280-C, -D 2本針) / Gauge parts (9280-C, -D Twin needle)
1-1
1
2
6
5-5
5-1
3
8
4
10
15
16
17
9
< 1/4用 >
7-1-1
7-1-2
7-1
14-1
5-4
5-3
5-2
18-1
18-3
21
20-1
20-3
11
13
12
< 3/16用 >
7-2-1
7-2-2
7-2
14-2
14-1-1
21
118-928-231
jintex.in
Page 27 — G6 .ゲージ関係 (9280-C, D本針) / Gauge parts (9280-C, D Twin needle)
Brother DT6-B927 parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 103408002 | ハリダキネジツキ | 1 |
| 103408002 | トメネジ4.37 | 2 |
| 100032004 | サラネジ4.37 | 3 |
| 150670001 | オサエピン | 2 |
| 150671001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 156211101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| 014760622 | アナトメネジ5.95 | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 148973001 | ハリウケ-5 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 1 |
| S40399001 | ラツパーアンナイタ | 1 |
| 105129001 | アンナイタザガネ | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 148876001 | ハリウケトツケダイ | 1 |
| 021670102 | ナット1シ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| S40375001 | ルーパS1/8X2-6 | 1 |
| S40377001 | ルーパL1/8X2-6 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 2 |
| S40378051 | ルーパホルダS | 1 |
| S40380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 2 |
| 150673001 | オク リバ1/4-7クミ | 1 |
| 147307001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| 147302001 | ラツパー1/4XHクミ | 1 |
| 122771001 | シメネジ2.38 | 2 |
| 159616001 | オク リバ3/16-7クミ | 1 |
| 159590001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| 159609001 | ラツパー3/16Hクミ | 1 |
G6 .ゲージ関係 (9280-C, D本針) / Gauge parts (9280-C, D Twin needle)
REF.NO.
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
1
※
1
ハリダキネジツキ
NEEDLE CLAMP ASSY W/S
1-1
103408002
2
トメネジ4.37
SET SCREW, SM4.37
2
※
2
ミシンハリTVX5
NEEDLE, TVX5
3
※
1
ハリイタ
NEEDLE PLATE
4
100032004
3
サラネジ4.37
SCREW, FLAT SM4.37
5
※
1
オサエクミ
PRESSER FOOT ASSY
5-1
150670001
2
オサエピン
PIN
5-2
150671001
1
オサエFバネ
SPRING
5-3
147932001
1
ダンネジ2.38
SHOULDER SCREW, SM2.38
5-4
156211101
1
フィンガーガード
FINGER GUARD
5-5
060660512
1
バインド318-40X5
SCREW, BIND SM3.18-40X5
6
014760622
1
アナトメネジ5.95
SET SCREW, SOCKET SM5.95
8
105173004
1
シメネジ4.76
SCREW, SM4.76
9
148973001
1
ハリウケ-5
NEEDLE GUARD, -5
10
111443003
1
マルヒラトメネジ3.57
SET SCREW, SM3.57
11
S40399001
1
ラツパーアンナイタ
LAPPER GUIDE PLATE
12
105129001
1
アンナイタザガネ
LAPPER GUIDE PLATE WASHER
13
105130001
2
シメネジ3.57
SCREW, SM3.57
15
148876001
1
ハリウケトツケダイ
NEEDLE GUARD BRACKET
16
021670102
1
ナット1シ3.57
NUT, 1 SM3.57
17
062671012
1
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
18-1
S40375001
1
ルーパS1/8X2-6
LOPPER, S 1/8"X2-6
18-3
S40377001
1
ルーパL1/8X2-6
LOPPER, L 1/8"X2-6
19
111443003
2
マルヒラトメネジ3.57
SET SCREW, SM3.57
20-1
S40378051
1
ルーパホルダS
LOPPER HOLDER, S
20-3
S40380051
1
ルーパホルダL
LOPPER HOLDER, L
21
062671012
2
ナベコ357-40X10
SCREW, PAN SM3.57-40X10
<1/4用>
<FOR "1/4">
7-1
150673001
1
オク リバ1/4-7クミ
FEED DOG ASSY, 1/4"-7
7-1-1
147307001
1
トリツケバ
SUB FEED DOG
7-1-2
147880001
2
シメネジ1.98
SCREW, SM1.98
14-1
147302001
1
ラツパー1/4XHクミ
LAPPER ASSY, 1/4" XH
14-1-1
122771001
2
シメネジ2.38
SCREW, SM2.38
<3/16用>
<FOR "3/16">
7-2
159616001
1
オク リバ3/16-7クミ
FEED DOG ASSY, 3/16"-7
7-2-1
159590001
1
トリツケバ
SUB FEED DOG
7-2-2
147880001
2
シメネジ1.98
SCREW, SM1.98
14-2
159609001
1
ラツパー3/16Hクミ
LAPPER ASSY, 3/16" H
118-928-231
22
Page 28 — G7.ゲージ関係 (9280-C, -D 3本針) / Gauge parts (9280-C, -D Three needle)
Brother DT6-B927 parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 1-1 | Gauge parts | |
| 1 | Gauge parts | |
| 2 | Needles | |
| 3 | Needle plate | |
| 4 | Screw | |
| 6 | Presser bar | |
| 8 | Screw | |
| 9 | Presser foot | |
| 10 | Screw | |
| 11 | Presser foot | |
| 12 | Presser foot holder | |
| 13 | Screw | |
| 14 | Presser foot | |
| 14-2 | Screw | |
| 15 | Presser bar | |
| 16 | Nut | |
| 17 | Screw | |
| 18-1 | Presser foot | |
| 18-2 | Presser foot | |
| 18-3 | Presser foot | |
| 19 | Screw | |
| 20-1 | Presser foot holder | |
| 20-2 | Presser foot holder | |
| 20-3 | Presser foot holder | |
| 21 | Screw | |
| 5-1 | Presser foot | |
| 5-1-1 | Screw | |
| 5-1-2 | Spring | |
| 5-1-3 | Presser foot | |
| 5-1-4 | Spring | |
| 5-1-5 | Screw | |
| 5-2 | Presser foot | |
| 5-2-1 | Screw | |
| 5-2-2 | Spring | |
| 5-2-3 | Presser foot | |
| 5-2-4 | Spring | |
| 5-2-5 | Screw | |
| 5-3 | Presser foot | |
| 5-3-1 | Screw | |
| 5-3-2 | Spring | |
| 5-3-3 | Presser foot | |
| 5-3-4 | Presser foot | |
| 5-3-5 | Spring | |
| 5-3-6 | Screw | |
| 7-1 | Presser foot | |
| 7-1-1 | Presser foot | |
| 7-1-2 | Screw | |
| 7-2 | Presser foot | |
| 7-2-1 | Presser foot | |
| 7-2-2 | Screw | |
| 7-3 | Presser foot | |
G7.ゲージ関係 (9280-C, -D 3本針) / Gauge parts (9280-C, -D Three needle)
1-1
1
2
3
4
6
13
12
14
14-2
15
16
17
19
21
18-1
18-2
18-3
20-1
20-2
20-3
11
<デニム用 1/8 X 2 輸出(段差1.9) >
5-1-5
5-1-4
5-1-3
5-1-2
5-1-1
5-1
5-2-5
5-2-4
5-2-3
5-2-2
5-2-1
5-2
<デニム用 5/32 X 2, 3/16 X 2 >
< 厚物用 1/8 X 2, デニム用 1/8 X 2(段差1.0) >
5-3-6
5-3-2
5-3-5
5-3-4
5-3-3
5-3-1
5-3
<デニム用 1/8 X 2 (段差1.9),
5/32 X 2, 3/16 X 2 >
7-1-1
7-1-2
7-1
<デニム用 1/8 X 2 (段差1.0) >
7-2-1
7-2-2
7-2
<厚物用>
7-3
23
118-928-231
jintex.in
Page 29 — G7 . ゲージ関係 (9280-C, D 3本針) / Gauge parts (9280-C, D Three needle)
Brother DT6-B927 parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 146427001 | アナトメネジ3.18クボミ | 3 |
| ※ | ミシンハリTVX5 | 3 |
| ※ | ハリイタ | 1 |
| 100032004 | サラネジ4.37 | 3 |
| 014760622 | アナトメネジ5.95 | 1 |
| 105173004 | シメネジ4.76 | 1 |
| 148875001 | ハリウケ-6 | 1 |
| 111443003 | マルヒラトメネジ3.57 | 1 |
| S40399001 | ラツパーアツナイタ | 1 |
| 105129001 | ラツパーガイドワッシャー | 1 |
| 105130001 | シメネジ3.57 | 2 |
| 122771001 | シメネジ2.38 | 2 |
| 148876001 | ハリウケトツケダイ | 1 |
| 021670102 | ナツト1シュ3.57 | 1 |
| 062671012 | ナベコ357-40X10 | 1 |
| ※ | ルーパS | 1 |
| ※ | ルーパM | 1 |
| ※ | ルーパL | 1 |
| 111443003 | マルヒラトメネジ3.57 | 3 |
| S40378051 | ルーパホルダS | 1 |
| S40379051 | ルーパホルダM | 1 |
| S40380051 | ルーパホルダL | 1 |
| 062671012 | ナベコ357-40X10 | 3 |
| 150672101 | オサエ1/8X2-8クミ | 1 |
| 150670001 | オサエFバネ | 1 |
| 150671001 | ダンネジ2.38 | 2 |
| 147932001 | フィンガーガード | 1 |
| 156211101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| 151487101 | オサエ5/32X2-8クミ | 1 |
| 151481001 | オサエピン | 2 |
| 151482001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 156211101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| ※ | オサエ1/8X2-8クミ | 1 |
| 150670001 | オサエピン | 2 |
| 142747002 | シメネジ4.76 | 1 |
| 150671001 | オサエFバネ | 1 |
| 147932001 | ダンネジ2.38 | 1 |
| 156211101 | フィンガーガード | 1 |
| 060660512 | バインド318-40X5 | 1 |
| ※ | オクリバクミ | 1 |
| 147307001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| S01635101 | オクリバ1/8X2-8クミ | 1 |
| S01637001 | トリツケバ | 1 |
| 147880001 | シメネジ1.98 | 2 |
| 156182101 | オクリバ1/8X2-8 | 1 |
G7 . ゲージ関係 (9280-C, D 3本針) / Gauge parts (9280-C, D Three needle)
REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM
1 ※ 1 ハリダキクミ NEEDLE CLAMP ASSY
1-1 146427001 3 アナトメネジ3.18クボミ SET SCREW, SOCKET (CP) SM3.18
2 ※ 3 ミシンハリTVX5 NEEDLE, TVX5
3 ※ 1 ハリイタ NEEDLE PLATE
4 100032004 3 サラネジ4.37 SCREW, FLAT SM4.37
6 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95
8 105173004 1 シメネジ4.76 SCREW, SM4.76
9 148875001 1 ハリウケ-6 NEEDLE GUARD
10 111443003 1 マルヒラトメネジ3.57 SET SCREW, SM3.57
11 S40399001 1 ラツパーアツナイタ LAPPER GUIDE PLATE
12 105129001 1 ラツパーガイドワッシャー LAPPER GUIDE PLATE WASHER
13 105130001 2 シメネジ3.57 SCREW, SM3.57
14 ※ 1 ラツパークミ LAPPER ASSY
14-1 122771001 2 シメネジ2.38 SCREW, SM2.38
15 148876001 1 ハリウケトツケダイ NEEDLE GUARD BRACKET
16 021670102 1 ナツト1シュ3.57 NUT, 1 SM3.57
17 062671012 1 ナベコ357-40X10 SCREW, PAN SM3.57-40X10
18-1 ※ 1 ルーパS LOPPER, S 1/8"X2-6
18-2 ※ 1 ルーパM LOPPER, M 1/8"X2-6
18-3 ※ 1 ルーパL LOPPER, L 1/8"X2-6
19 111443003 3 マルヒラトメネジ3.57 SET SCREW, SM3.57
20-1 S40378051 1 ルーパホルダS LOPPER HOLDER, S
20-2 S40379051 1 ルーパホルダM LOPPER HOLDER, M
20-3 S40380051 1 ルーパホルダL LOPPER HOLDER, L
21 062671012 3 ナベコ357-40X10 SCREW, PAN SM3.57-40X10
<デ二ム用1/8X2段差出面1.9> <For Export Denim "1/8X2">
5-1 150672101 1 オサエ1/8X2-8クミ PRESSER FOOT ASSY, 1/8"X2-8
5-1-1 150670001 1 オサエFバネ SPRING
5-1-2 150671001 2 ダンネジ2.38 SHOULDER SCREW, SM2.38
5-1-3 147932001 1 フィンガーガード FINGER GUARD
5-1-4 156211101 1 フィンガーガード SCREW, BIND SM3.18-40X5
5-1-5 060660512 1 バインド318-40X5 SCREW, BIND SM3.18-40X5
<デ二ム用5/32X2, 3/16X2> <For Denim 5/32X2, 3/16X2>
5-2 151487101 1 オサエ5/32X2-8クミ PRESSER FOOT ASSY, 5/32"X2-8
5-2-1 151481001 2 オサエピン PIN
5-2-2 151482001 1 オサエFバネ SPRING
5-2-3 147932001 1 ダンネジ2.38 SHOULDER SCREW, SM2.38
5-2-4 156211101 1 フィンガーガード FINGER GUARD
5-2-5 060660512 1 バインド318-40X5 SCREW, BIND SM3.18-40X5
<厚物用1/8X2, デニム1/8X2段差1.0> <For Thick & Denim materials "1/8X2">
5-3 ※ 1 オサエ1/8X2-8クミ PRESSER FOOT ASSY, FT 1/8"X2-8
5-3-1 150670001 2 オサエピン PIN
5-3-2 142747002 1 シメネジ4.76 SET SCREW, SM4.76
5-3-3 150671001 1 オサエFバネ SPRING
5-3-4 147932001 1 ダンネジ2.38 SHOULDER SCREW, SM2.38
5-3-5 156211101 1 フィンガーガード FINGER GUARD
5-3-6 060660512 1 バインド318-40X5 SCREW, BIND SM3.18-40X5
<デ二ム用1/8X2段差1.9, 5/32X2, 3/16X2> <For Denim "1/8X2,5/32X2 &3/16X2">
7-1 ※ 1 オクリバクミ FEED DOG ASSY, 1/4"-7
7-1-1 147307001 1 トリツケバ SUB FEED DOG
7-1-2 147880001 2 シメネジ1.98 SCREW, SM1.98
<デ二ム用1/8X2段差1.0> <For Denim "1.8X2">
7-2 S01635101 1 オクリバ1/8X2-8クミ FEED DOG ASSY, 1/8"X2-8
7-2-1 S01637001 1 トリツケバ SUB FEED DOG
7-2-2 147880001 2 シメネジ1.98 SCREW, SM1.98
<厚物用> <FOR HEAVY MATERIALS>
7-3 156182101 1 オクリバ1/8X2-8 FEED DOG, 1/8"X2-8
118-928-231 24
Page 30 — H.プーラ装置関係 (-A, -C, -D) / Puller device mechanism (-A, -C, -D)
Brother DT6-B927 parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 1-37 | 1-37 | |
| 1-39 | 1-39 | |
| 1-45 | 1-45 | |
| 1-46 | 1-46 | |
| 1-40 | 1-40 | |
| 1-43 | 1-43 | |
| 1-42 | 1-42 | |
| 1-41 | 1-41 | |
| 1-44 | 1-44 | |
| 1-9 | 1-9 | |
| 4 | 4 | |
| 2 | 2 | |
| 1-38 | 1-38 | |
| 1-36 | 1-36 | |
| 1-10 | 1-10 | |
| 1-26 | 1-26 | |
| 1-29 | 1-29 | |
| 1-31 | 1-31 | |
| 1-33 | 1-33 | |
| 1-17 | 1-17 | |
| 1-18 | 1-18 | |
| 1-20 | 1-20 | |
| 1-16 | 1-16 | |
| 1-15 | 1-15 | |
| 1-19 | 1-19 | |
| 1-21 | 1-21 | |
| 1-27 | 1-27 | |
| 1-24 | 1-24 | |
| 1-25 | 1-25 | |
| 1-22 | 1-22 | |
| 1-23 | 1-23 | |
| 1-2 | 1-2 | |
| 1-31-2 | 1-31-2 | |
| 1-8 | 1-8 | |
| 1-12 | 1-12 | |
| 1-11 | 1-11 | |
| 1-13 | 1-13 | |
| 1-35 | 1-35 | |
| 1-34 | 1-34 | |
| 1-6 | 1-6 | |
| 1-5 | 1-5 | |
| 1-4 | 1-4 | |
| 1-30 | 1-30 | |
| 1-28 | 1-28 | |
| 1-1 | 1-1 | |
| 1-1-1 | 1-1-1 | |
| 1-7 | 1-7 | |
| 5-7 | 5-7 | |
| 5-6 | 5-6 | |
| 5-4 | 5-4 | |
| 5-8 | 5-8 | |
| 5-1 | 5-1 | |
| 5-8-1 | 5-8-1 | |
| 5-28 | 5-28 | |
| 5-29 | 5-29 | |
| 7 | 7 | |
| 6 | 6 | |
| 5-10 | 5-10 | |
| 5-3 | 5-3 | |
| 5-2 | 5-2 | |
| 5-26 | 5-26 | |
| 5-17 | 5-17 | |
| 5-16 | 5-16 | |
| 5-18 | 5-18 | |
| 5-15 | 5-15 | |
| 5-14 | 5-14 | |
| 5-24 | 5-24 | |
| 5-12 | 5-12 | |
| 9-1 | 9-1 | |
| 5-13 | 5-13 | |
| 5-23 | 5-23 | |
| 5-23 | 5-23 | |
| 5-21 | 5-21 | |
| 5-22-1 | 5-22-1 | |
| 9-2 | 9-2 | |
| 5-11 | 5-11 | |
| 11 | 11 | |
| 11 | 11 | |
| 5-22-2 | 5-22-2 | |
| 5-19 | 5-19 | |
| 5-20 | 5-20 | |
| 5-25 | 5-25 | |
| 5-27 | 5-27 | |
| 5-9 | 5-9 | |
| 5-30 | 5-30 | |
| 10 | 10 | |
H.プーラ装置関係 (-A, -C, -D) / Puller device mechanism (-A, -C, -D)
1-37
1-39
1-45
1-46
1-40
1-43
1-42
1-41
1-44
1-9
4
2
1-38
1-36
1-10
1-26 1-29
1-31
1-33
1-17 1-18 1-20
1-16 1-15 1-19 1-21
1-27
1-24
1-25
1-22 1-23
1-2
1-31-2
1-8
1-12 1-11
1-13
1-35 1-34
1-6 1-5 1-4
1-30 1-28
1-1
1-1-1
1-7
5-7
5-6
5-4
5-8
5-1
5-8-1
5-28 5-29
7
6
5-10
5-3
5-2
5-26 5-17 5-16 5-18 5-15 5-14 5-24
10
5-12
9-1
5-13
5-23
5-23
5-21
5-22-1
5-19 5-20 5-25
9-2
5-11
11
11
5-22-2
5-27
5-9
118-927-241
25
jintex.in
