Page 1

KE-430D BE-438D Electronic Excellent Economical Series パーツブック PARTS BOOK 本縫ダイレクトドライブ電子閂止ミシン 本縫ダイレクトドライブ電子ボタン付けミシン ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER brother. 最新の部品情報は Parts Navigation でご覧いただけます。 http://partsbook.brother.co.jp/partsnavi/jpn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnavi/eng/ From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2 — 目次

パーツブックご利用に際して 1. この本は、2006年12月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、破線で示してあります。 目次 A. 主体関係 1 B. 上軸・針棒関係 3 C. 送り関係 5 D. 押え上げ関係 9 E. ボタンつかみ・作動関係 11 F. 下軸関係 13 G. 給油潤滑関係 15 H. 糸通し関係 17 J. 糸巻関係 19 K. 糸切り関係 21 L. 糸払い関係 25 M. 糸締め関係 27 N. 糸つかみ関係 29 P1. コントロールボックス関係 31 P2. コントロールボックス(電源基板)関係 33 Q. スイッチ関係 35 R. 電装品関係 37 S. 操作パネル関係 39 T. モータ関係 41 U. 踏板関係 43 V1. 補助装置関係 (BE-438D用オプション部品) 45 V2. 補助装置関係 (BE-438D用オプション部品) 47 Z. 付属品関係 49 Sp. 仕様別部品一覧表 53 Ga. ゲージ部品一覧表 55 Wa. 警告ラベル 58 索引 59 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — Notes for using this parts book

Notes for using this parts book 1. This book was prepared based on information available in December 2006. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line. CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 4 — A. 主体関係 / Machine body

A. 主体関係 / Machine body KE-430D/BE-438D-050 1

Page 5 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 140392009 1 オイルフタ OIL CAP 2 117934001 3 ゴムセン 13.5 RUBBER CAP, 13.5 3 104821001 5 ゴムセン 10.5 RUBBER CAP, 10.5 4 140392009 1 オイルフタ OIL CAP 5 SA3260001 1 ソクメンカバー FRAME SIDE COVER 6 062061016 4 ナベコ6X10 SCREW, PAN M6X10 7 SA3199001 1 メンイタ FACE PLATE 8 104449001 1 ゴムセン 15.5 RUBBER CAP, 15.5 9 062051016 3 ナベコ5X10 SCREW, PAN M5X10 10 SA3262101 1 オオカマカバー SHUTTLE RACE COVER 11 SA3263001 1 オオカマカバーフックD SHUTTLE RACE COVER HOOK D 12 004300513 2 +サラコ3X5 SCREW, FLAT M3X5 13 SA3264001 1 イタナット NUT PLATE 14 SA3265001 2 ダンネジ8-2 SHOULDER SCREW, 8-2 15 109239002 2 ナミバネザガネ WASHER, WAVE SPRING 16 SA3266001 1 オオカマカバーフックU SHUTTLE RACE COVER HOOK U 17 062300416 2 ナベコ3X4 SCREW, PAN M3X4 18 025030236 2 ヒラザガネチュウ3 WASHER, PLAIN M 3 19 SA3200101 1 テンビンカバー THREAD TAKE-UP COVER 20 062401006 1 ナベコ4X10 SCREW, PAN M4X10 <中国国以外> <Except for China> 21 SA2040001 1 ラベルチュウイ.ワイエイ LABEL, CAUTION JPN/ENG <中国国向> <For China Only> 21 SA2041001 1 ラベルチュウイ.チュウエイ LABEL, CAUTION CHN/ENG 22 S37060001 1 アースマーク LABEL, GROUNDING 23 S28044001 1 ゴムセン20.8 RUBBER CAP, 20.8 24 117608001 1 ミゾツキピン DOWEL PIN 25 S20878000 4 ゴムセン5.3 RUBBER CAP, 5.3 26 S20878000 2 ゴムセン5.3 RUBBER CAP, 5.3 KE-430D/BE-438D-050 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — Upper shaft and needle bar mechanism

B. 上軸・針棒関係 / Upper shaft and needle bar mechanism 12 11 10 12 9 7 8 6 9 37 32 30 31 25 41 37 33 34 1 4 2 5 3 26 22 21 24 23 18 27 29 15 14 15 15 13 15 38 40 39 20 17 19 19 19 16 28 36 35 KE-430D/BE-438D-123 3

Page 7 — Upper shaft and needle bar mechanism

B. 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3201101 1 ウワジク UPPER SHUFT 2 SA3499001 1 クランクロッドクミ CRANK ROD ASSY 3 018501636 2 アナボルト5X16 BOLT, SOCKET M5X16 4 SA4172001 1 ニードルベアリング NEEDLE BEARING 4 SA4173001 1 ニードルベアリング NEEDLE BEARING 4 SA4174001 1 ニードルベアリング NEEDLE BEARING 4 SA4175001 1 ニードルベアリング NEEDLE BEARING 5 062300416 1 ナベコ3X4 SCREW, PAN M3X4 6 SA3206001 1 ベアリングブッシュ BALL BEARING BUSH 7 SA4179001 1 タマジクウケ6904DDUNR BALL BEARINH, 6904DDUNR 8 SA4180001 1 Rタマジクウケ6904DDU BALL BEARING, RADIAL 6904DDU 9 S23651001 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 10 SA3206001 1 ベアリングブッシュ BALL BEARING BUSH 11 SA4177001 1 タマジクウケ6004DDUNR BALL BEARING, 6004DDUNR 12 S23651001 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 <KE-430D用> <For KE-430D> 13 SA3210001 1 ツギテA JOINT, A <BE-438D用> <For BE-438D> 13 SA3589001 1 ツギテB JOINT, B 14 SA4178001 1 タマジクウケ6204DDUNR BALL BEARING 6204DDUNR 15 S23651001 4 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 16 S25235001 1 シメネジ8 SCREW, M8 <KE-430D用> <For KE-430D> 17 SA3497001 1 ツリアイクランクC THREAD TAKE-UP CRANK, C 18 SA6563001 1 ハリボウレンカンクミ THREAD TAKE-UP LEVER, A SET <BE-438D用> <For BE-438D> 17 SA3591001 1 ツリアイクランクB THREAD TAKE-UP CRANK, B 18 SA4327001 1 ハリボウレンカンクミ THREAD TAKE-UP REVER, B SET 19 S23651001 4 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 20 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 21 012060336 1 アナヒラ3X3 SET SCREW, SOCKET (FT) M3X3 22 SA2958001 1 サラネジ5X6 SCREW, FLAT M5X6 23 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 24 012060336 1 アナヒラ3X3 SET SCREW, SOCKET (FT) M3X3 25 145465001 1 シメネジ3.57L SCREW, SM3.57-40X6L 26 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 27 SA3488001 1 カクコマ SLIDE BLOCK 28 SA3528001 1 カクコマアンナイB SLIDE BLOCK GUIDE 29 018401636 2 アナボルト4X16 BOLT, SOCKET M4X16 30 SA3222001 1 ハリボウA NEEDLE BAR, A 31 144458001 1 アタマツキメネジ3.57 SET SCREW, SM3.57-40X4.5 32 SA3223001 1 ハリボウメタルU NEEDLE BAR BUSH, U 33 SA3224001 1 ハリボウメタルD NEEDLE BAR BUSH, D 34 * P. 54 1 ミシンハリ NEEDLE 35 SA3225101 1 プーリ PULLEY 36 SA3025001 3 ナベザクミ4X10DA SCREW, PAN (S/P WASHER) M4X10 37 012500536 2 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 38 S38713100 1 ファン FAN 39 062400806 3 ナベコ4X8 SCREW, PAN M4X8 40 018501636 4 アナボルト5X16 BOLT, SOCKET M5X16 41 062400816 1 ナベコ4X8 SCREW, PAN M4X8 KE-430D/BE-438D-123 From the library of: Superior Sewing Machine & Supply LLC 4 jintex.in

Page 8

C. 送り関係 / Feed mechanism <オプション部品 / Option parts > 74 75 76 29 28 22 3 13 13 24 < BE-438D 用 / For BE-438D > 27 26 21 20 < KE-430D 用 / For KE-430D > 25 66 72 48 50 49 43 42 47 53 51 52 51 62 23 36 37 35 10 12 11 12 40 63 38 69 68 63 65 70 71 < KE-430D 用 / For KE-430D > 73 67 64 46 45 4544 59 60 61 54 58 55 56 47 50 49 48 19 15 14 16 17 18 15 9 7 7 8 30 2 32 31 33 32 34 4 1 5 15 15 14 6 KE-430D/BE-438D-202 5

Page 9 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3363001 1 Xオクリレバーメタル X-FEED LEVER BUSH 2 SA3364001 1 Xオクリレバー X-FEED LEVER 3 SA3533001 1 Xオクリカクマクミ T-LENGTH REGURATOR BLOCK ASSY 4 01200536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 5 SA3366001 1 Xオクリギア X-FEED GEAR 6 018063036 1 アナボルト6X30 BOLT, SOCKET M6X30 7 XC5780001 2 リニアブッシュ10 BEARING 10, LINER 8 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 9 SA3367001 1 Yラックジク Y-FEED RACK SHAFT 10 SA3368001 1 Yツナギピン Y-CONNECTING PIN 11 153113001 1 スラストザガネ THRUST WASHER 12 048060342 2 トメワE6 RETAINING RING, E6 13 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 14 SA4197001 2 オクリギア FEED GEAR 15 012060636 4 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 16 SA3370001 1 ヘンシンジク ECCENTRIC SHAFT 17 070608800 2 Rタマジクウケ608ZZ BALL BEARING, ARDIAL 608ZZ 18 048080142 2 トメワジクヨウC8 RETAINING RING, EXTERNAL C8 19 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 20 SA3371001 1 オクリダイウケイタ FEED BAR SUPPORT PLATE 21 018401036 3 アナボルト4X10 BOLT, SOCKET M4X10 22 SA3372001 1 オクリダイカバー FEED BAR COVER 23 SA3538001 6 シメネジ4X8 SCREW, M4X8 24 SA3604001 1 オクリダイクミB <For BE-438D> <BE-438D用> FEED BAR SUB ASSY B 25 SA3373001 1 オクリダイクミA <For KE-430D> <KE-430D用> FEED BAR SUB ASSY A 26 SA3534001 1 Yオクリカクマクミ T-WIDTH REGURATOR BROCK ASSY 27 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 28 *P. 54-56 1 オクリイタ FEED PLATE 29 153057101 2 オクリイタシメネジ SCREW, ROUND W/SOCKET SM4.37 30 SA3381001 1 Xモータートリツケイタ X-MOTOR SETTING PLATE 31 018061236 2 アナボルト6X12 BOLT, SOCKET M6X12 32 025060236 3 ヒラザガネチュウ6 WASHER, PLAIN M 6 33 SA3708001 1 カラー COLLAR 34 018063536 1 アナボルト6X35 BOLT, SOCKET M6X35 35 SA3382001 1 Yモータートリツケイタ Y-MOTOR SETTING PLATE 36 018061236 2 アナボルト6X12 BOLT, SOCKET M6X12 37 025060236 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 38 SA3419101 1 オサエウデ <For KE-430D> <KE-430D用> WORK CLAMP ARM 39 SA3420001 1 QCオサエウデレバーR WORK CLAMP ARM LEVER, R 40 SA3421001 1 QCオサエウデレバーL WORK CLAMP ARM LEVER, L 41 SA3422001 1 QCオサエウデレバージク WORK CLAMP ARM LEVER SHAFT 42 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 43 048060346 1 トメワE6 RETAINING RING, E6 44 SA3231001 1 セットカラーB SET SCREW COLLAR, B 45 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 46 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 47 SA3423001 2 QCレバーシククサエ WORK CLAMP LEVER SUPPORT 48 018500836 2 アナボルト5X8 BOLT, SOCKET M5X8 49 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 50 025050236 2 ヒラザガネチュウ5 WASHER, PLAIN M 5 51 SA3424001 2 オサエアシオサエイタA WORK CLAMP GUIDE BRACKET, A 52 SA3425001 1 オサエアシオサエイタB WORK CLAMP GUIDE BRACKET, B 53 SA3426001 6 オサエアシサラネジ3.5 SCREW, FLAT M3.5 54 SA3208201 2 オサエウデレバーイタ WORK CLAMP ARM LEVER PLATE 55 146354002 2 ザガネ WASHER, PLAIN 5 56 018500836 2 アナボルト5X8 BOLT, SOCKET M5X8 57 SA3427101 2 オサエバネアンナイロッド SPRING GUIDE ROD KE-430D/BE-438D-202 From the library of: Superior Sewing Machine & Supply LLC 6 jintex.in

Page 10

C. 送り関係 / Feed mechanism < KE-430D 用 / For KE-430D > 66 72 48 50 49 43 42 47 40 64 46 63 38 69 53 51 52 51 68 63 65 70 71 62 < オプション部品 / Option parts > 74 75 76 29 28 22 23 36 37 35 15 14 16 17 18 3 13 13 12 10 24 < BE-438D 用 / For BE-438D > 27 11 12 21 26 20 2 4 1 5 6 < KE-430D 用 / For KE-430D > 25 7 73 67 59 60 57 61 58 54 45 4544 55 56 47 50 49 39 48 19 7 8 30 33 32 31 32 34 15 15 14 KE-430D/BE-438D-202 7

Page 11 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM <KE-430D用> 58 SA1179002 2 ダンネジ5 SHOULDER SCREW, M5 59 153568001 2 オサエバネA PRESSER SPRING, A 60 152788000 2 オサエバネカンザ PRESSER SPRING SPACER 61 153567000 2 オサエバネカラー PRESSER SPRING COLLAR 62 SA4130001 1 フィンガーガード FINGER GUARD 63 SA2626001 2 トメネジ3.5 SET SCREW, (CP) M3.5 64 SA3428001 1 オサエウデササエジク SUPPORT SHAFT, W-CLAMP 65 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 66 SA3487001 1 オサエウデササエイタ WORK CLAMP ARM SUPPORT PLATE 67 SA4145001 1 オサエウデカンザ SPACER, W-CLAMP 68 * P. 54-56 1 オサエアシR WORK CLAMP, RIGHT 69 * P. 54-56 1 オサエアシL WORK CLAMP, LEFT 70 018061636 2 アナボルト6X16 BOLT, SOCKET M6X16 71 025060236 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 72 018400836 2 アナボルト4X8 BOLT, SOCKET M4X8 73 071031840 7 コウキュウ1/8 BEARING BALL, 1/8 <オプション部品> 74 SA4198001 1 ゲンテンキジュンイタクミ H-POSITION STSNADARD PLATE, ASSY 75 S42903001 1 ゲンテンキジュンイタ H-POSITION STSNADARD PLATE 76 S49955101 2 オクリイタシメネジ SCREW, W/SOCKET SM4.37 KE-430D/BE-438D-202 From the library of: Superior Sewing Machine & Supply LLC jintex.in 8

Page 12 — D. 押え上げ関係 / Work clamp lifter mechanism

D. 押え上げ関係 / Work clamp lifter mechanism 13 12 14 6 7 9 10 11 8 3 32 31 33 28 26 28 27 35 34 < BE-438D用 / For BE-438D > 5 47 46 42 41 40 39 36 16 15 43 48 44 25 24 23 21 19 18 20 38 22 37 22 50 49 33 29 30 KE-430D/BE-438D-204 9 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — D. 押え上げ関係 / Work clamp lifter mechanism

D. 押え上げ関係 / Work clamp lifter mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM <KE430D用> 3 SA3432001 1 オサエアゲオサエイタ WORK CLAMP LIFTER PLATE 4 047602042 1 スプリングピンAW6 PIN, SPRING ROLL AW6 <BE-438D用> 5 SA3628001 1 ボタンツカミロッド BUTTON CLAMP ROD 6 SA3434001 1 オサエアゲレバー LIFTER LEVER 7 152744001 1 ヨコオクリカクコマピン PIN 8 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 9 SA3435001 1 オサエアゲレバージク LEVER SHAFT 10 S20356001 1 ヒラザガネ10 WASHER, PLAIN 10 11 048080342 1 トメワE8 RETAINING RING, E8 12 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 13 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 14 SA3436001 1 オサエアゲレバーメタル W-CLAMP LIFTER LEVER BUSH 15 SA3437001 1 オサエアゲリンク LINK 16 SA3438001 2 オサエアゲリンクダンネジ LINK SHOULDER SCREW 17 SA3439001 1 オサエアゲドウレバー DRIVE LEVER W-CLAMP LIFTER 18 070696800 1 Rタマジウケ696ZZ BALL BEARING, RADIAL 696ZZ 19 SA3441001 1 オサエアゲコロジク W-CLAMP LIFTER ROLLER SHAFT 20 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 21 SA3442001 1 オサエアゲカムレバージク CAM LEVER SHAFT 22 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 23 S20356001 2 ヒラザガネ10 WASHER, PLAIN 10 24 048080342 1 トメワE8 RETAINING RING, E8 25 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 26 SA3443101 1 オサエアゲカムギャ CAM GEAR 27 047301042 1 スプリングピンAW3 PIN, SPRING ROLL AW3 28 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 29 SA3444001 1 オサエアゲカムジク CAM SHAFT 30 048060346 1 トメワE6 RETAINING RING, E6 31 SA3231001 1 セットカラーB SET SCREW COLLAR, B 32 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 33 070688800 2 Rタマジウケ688ZZ BALL BEARING, RADIAL 688ZZ 34 SA3445001 1 モータブラケット MOTOR BRACKET 35 018061236 2 アナボルト6X12 BOLT, SOCKET M6X12 36 SA3446001 1 オサエアゲバネ SPRING 37 SA3707001 1 クドウギャ16 GEAR 16 38 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 <For BE-438D> 39 SA3629001 1 ボタンツカミコロジク BUTTON CLAMP ROLLER SHAFT 40 107744001 1 コロ ROLLER 41 025040236 1 ヒラザガネチュウ4 WASHER, PLAIN M 4 42 021400216 2 ジュンナット4 NUT, 2 M4 43 SA3630001 1 ボタンツカミレバーホルダ BUTTON CLAMP LEVER HOLDER 44 018061636 2 アナボルト6X16 BOLT, SOCKET M6X16 45 025060236 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 46 SA3631001 1 ボタンツカミレバー BUTTON CLAMP LEVER 47 153838001 1 ボタンツカミレバージク BUTTON CLAMP LEVER SHAFT 48 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 49 SA4072001 1 オサエアゲカムストッパ STOPPER 50 062061016 1 ナベコ6X10 SCREW, PAN M6X10 KE-430D/BE-438D-204 10

Page 14

E. ボタンつかみ・作動関係 / Button clamp mechanism 4 8 7 6 5 13 14 12 10 11 35 30 34 33 3 2 16 1 9 18 16 17 15 20 22 27 25 24 19 38 32 37 23 38 21 26 36 28 29 31 <オプション部品 / Option parts > 40 39 42 41 44 43 46 45 BE-438D-214 11 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15 — E. ボタンつかみ・作動関係 / Button clamp mechanism

E. ボタンつかみ・作動関係 / Button clamp mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM <BE-438D用> 1 153830000 1 ボタンツカミホルダー BUTTON CLAMP HOLDER 2 153827001 1 ボタンツカミホルダーシク BUTTON CLAMP HOLDER SHAFT 3 014680632 2 アナクボミ4.37-40X6 SET SCREW, SOCKET SM4.37-40X6 4 151968001 1 ボタンホルダーフッククミ BUTTON CLAMP HOLDER HOOK ASSY 5 151969001 1 ボタンホルダーフック B-CLAMP HOLDER HOOK 6 107744001 2 コロ ROLLER 7 153484001 1 ザガネ4.76 WASHER, PLAIN 4.76 8 105234003 2 ナット4.37 NUT SM4.37 9 014760632 1 アナクボミ5.95-28X6 SET SCREW, SOCKET SM5.95-28X6 10 017711412 2 ボルト4.76-32X14 BOLT, SM4.76-32X14 11 146354001 2 ザガネ WASHER, PLAIN 5 12 146994001 2 オサエバネチョウシネジ NUT, ROUND SM6.35-40 13 115148201 1 オサエバネチョウシネジ ADJUSTING SCREW, SM6.35-40 14 115147001 1 ボタンツカミオサエオシバネ COMPRESSION SPRING 15 S49998001 1 フィンガーガード FINGER GUARD 16 011679312 2 トメネジ3.57ヒラ SET SCREW, (FT) SM3.57 17 S59315001 1 ボタンツカミ2Aクミ BUTTON CLAMP ASSY, 2A 18 S52093001 1 ボタンツカミタイ BUTTON CLAMP BASE 19 S59316001 1 ボタンツカミ2AL BUTTON CLAMP, 2AL 20 S59317001 1 ボタンツカミ2AR BUTTON CLAMP, 2AR 21 115156001 2 ボタンツカミアンナイピン BUTTON CLAMP GUIDE PIN 22 047250642 2 スプリングピンAW2.5 PIN, SPRING ROLL AW2.5 23 S59318001 1 ボタンツカミ2ALイタバネ BUTTON CLAMP 2AL PLATE SPRING 24 S59319001 1 ボタンツカミ2ARイタバネ BUTTON CLAMP 2AR PLATE SPRING 25 062680512 2 ナベコ4.37-40X5 SCREW, PAN SM4.37-40X5 26 115158001 2 ダンネジ4.76 SHOULDER SCREW, SM4.76 27 S59320001 1 ボタンツカミ2AM BUTTON CLAMP, 2AM 28 S03659001 1 ボタンツカミイタカム BUTTON CLAMP PLATE CAM 29 062680812 2 ナベコ4.37-40X8 SCREW, PAN SM4.37-40X8 30 S03468101 1 シメネジ4.37 SCREW, SM4.37 31 S03657001 1 マルナット4.37 NUT, ROUND SM4.37 32 S59321001 1 ボタンツカミバネ SPRING 33 115164101 1 ボタンツカミチョウセイイタ BUTTON CLAMP ADJUSTING PLATE 34 115165001 1 ダンネジ4.37 SHOULDER SCREW, SM4.37 35 115166001 1 ダンネジ4.37 SHOULDER SCREW, SM4.37 36 S52072001 1 ボタンツカミスペーサBL BUTTON CLAMP SPACER, BL 37 S52076001 1 ボタンツカミスペーサBR BUTTON CLAMP SPACER, BR 38 S01694001 2 サラネジ2.38X4 SCREW, FLAT SM2.38X4 <オプション部品> 39 S52071001 1 ボタンツカミスペーサAL <Option parts> 40 S52075001 1 ボタンツカミスペーサAR BUTTON CLAMP SPACER, AL 41 S52072001 1 ボタンツカミスペーサBL BUTTON CLAMP SPACER, AR 42 S52076001 1 ボタンツカミスペーサBR BUTTON CLAMP SPACER, BL 43 S52073001 1 ボタンツカミスペーサCL BUTTON CLAMP SPACER, BR 44 S52077001 1 ボタンツカミスペーサCR BUTTON CLAMP SPACER, CL 45 S52074001 1 ボタンツカミスペーサDL BUTTON CLAMP SPACER, CR 46 S52078001 1 ボタンツカミスペーサDR BUTTON CLAMP SPACER, DL BUTTON CLAMP SPACER, DR BE-438D-214 From the library of: Superior Sewing Machine & Supply LLC 12 jintex.in

Page 16 — 下軸関係 / Lower shaft mechanism

下軸関係 / Lower shaft mechanism KE-430D/BE-438D-305 3

Page 17 — F. 下軸関係 / Lower shaft mechanism

F. 下軸関係 / Lower shaft mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3226001 1 クランクロッドダンネジ SHOULDER SCREW 2 SA3227001 1 ナット(FT)6 NUT (FT), M6 3 SA3228101 1 ヨウドウギヤ ROCK GEAR 4 SA4068101 1 ヨウドウギヤジクA ROCK GEAR SHAFT, A 5 SA3231001 1 セットカラーB SET SCREW COLLAR, B 6 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 7 SA3233001 1 セットカラー SET SCREW COLLAR 8 S23651001 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 9 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 10 SA3234101 1 シタジククミ LOWER SHAFT ASSY 11 012050536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 12 012400436 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 13 SA3237001 1 シタジクメタル LOWER SHAFT BUSH 14 SA4187001 4 ニードルベアリング NEEDLE BEARING 14 SA4188001 4 ニードルベアリング NEEDLE BEARING 14 SA4189001 4 ニードルベアリング NEEDLE BEARING 14 SA4190001 4 ニードルベアリング NEEDLE BEARING 15 SA3273001 1 シタジクカラー LOWER SHAFT COLLAR 16 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 17 SA3238101 2 カマチョウセツジク ADJUSTING STUD 18 081003670 2 OリングPW3 O RING, PW3 19 SA3239101 1 オオカマタイクミ SHUTTLE RACE BASE ASSY 20 S02429201 1 カマイトアンナイ SHUTTLE RACE THREAD GUIDE 21 SA4199001 2 シメネジ3X4 SCREW, M3X4 22 SA3241001 2 オオカマトリツケツメ S-RACE BASE SETTING CLAW 23 152684101 2 オオカマトリツケバネ COMPRESSION SPRING 24 026030136 2 ヒラザガネコガタ3 WASHER, PLAIN S 3 25 062300616 2 ナベコ3X6 SCREW, PAN M3X6 26 153050000 2 オオカマタイフエルト S-RACE BASE FELT 27 SA3242001 1 フエルトササエ FELT HOLDER 28 SA4492001 2 シメネジ3X5.5 SCREW, M3X5.5 29 SA3274101 1 フエルトオサエ FELT HOLDER 30 S47307001 2 シメネジ3X4 SCREW, M3X4 31 SA3275001 1 ハイユフエルトT FELT, T 32 S59886001 3 フエルト FELT, L=360 33 SA3276001 2 スペーサA SPACER, A 34 SA3277001 2 トメワ RETAINING RING 35 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 36 SA3278001 1 カラー COLLAR 37 048070342 1 トメワE7 RETAINING RING, E7 38 SA3284001 1 ドライバーD DRIVER, D 39 018501232 1 アナボルト5X12 BOLT, SOCKET M5X12 40 * P. 53 1 オオカマ SHUTTLE RACE BASE 41 * P. 53 1 ボビンケースクミ BOBBIN CASE ASSY 42 * P. 53 1 ボビンケースチョウシバネ TENSION SPRING 43 * P. 53 1 クワテンネジ SCREW 44 * P. 53 1 クワテンボウシバネ ANTI-SPIN SPRING 45 * P. 53 1 ボビン BOBBIN 46 SA3283101 1 セットカラーR SET SCREW COLLAR, R 47 012050536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 48 * P. 53 1 ナカガマハコグミ SHUTTLE HOOK ASSY, W/BOX 101 SA6128001 1 オオカマタイセット SHUTTLE RACE BASE SET 102 SA6129001 1 シタジクメタルクミ LOWER SHAFT BUSH ASSY KE-430D/BE-438D-305 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18 — G. 給油潤滑関係 / Lubrication

G. 給油潤滑関係 / Lubrication 30 16 30 3 2 4 1 11 10 29 21 20 23 22 13 15 24 12 26 19 8 25 17 9 27 18 5 7 6 28 14 KE-430D/BE-438D-350 15

Page 19 — G. 給油潤滑関係 / Lubrication

G. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3244001 1 トメネジ SET SCREW 2 SA3245001 1 クランクカバー CRANK COVER 3 062061016 3 ナベコ6X10 SCREW, PAN M6X10 4 SA3279001 1 スイアゲフエルト FELT 5 SA3503201 1 シンタジクキュウユササエ LOWER SHAFT WICK SUPPORT 6 SA3504201 1 シンタジクギヤフエルト LOWER SHAFT GEAR FELT 7 062400616 2 ナベコ4X6 SCREW, PAN M4X6 8 SA3282001 1 コードササエA CORD HOLDER, A 9 062060816 1 ナベコ6X8 SCREW, PAN M6X8 10 SA3249001 1 ビニルチューブササエ OIL TUBE SUPPORT 11 062400616 1 ナベコ4X6 SCREW, PAN M4X6 12 S49992000 1 オイルポットマド OIL GAUGE WINDOW 13 SA3379001 1 タンクフエルト FELT 14 S50529000 2 ビニルチューブ OIL TUBE, L=320 15 S28415000 1 ビニルチューブ OIL TUBE (L=225) 16 S45849000 1 クミヒモ WICK, L=300 17 153922001 1 クミヒモ WICK, L=500 18 SA1302001 1 ビニルチューブ VINYL TUBE 19 S56877000 1 ビニルチューブ OIL TUBE 20 SA8010001 1 フエルト FELT, L=180 21 143671000 1 ビニルチューブ OIL TUBE 22 SA3287001 1 Xオクリレバーフエルト X-FEED LEVER FELT 23 S07333001 1 オイルキュウパイプS OIL FEEDING PIPE, S 24 146080000 1 コードブシュ CORD BUSH 25 SA3246001 1 ギヤキュウユウササエ GEAR WICK SUPPORT 26 SA3280001 1 ギヤフエルト GEAR FELT 27 SA4221001 1 コードササエカネB CORD HOLDER, B 28 062060816 1 ナベコ6X8 SCREW, PAN M6X8 29 SA4222001 1 フエルトシール FELT 30 153050000 4 オオカマタイフエルト S-RACE BASE FELT KE-430D/BE-438D-350 From the library of: Superior Sewing Machine & Supply LLC 16 jintex.in

Page 20 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism 1 2 7 31 30 28 29 27 5 6 19 22 17 21 20 10 8 9 18 11 26 23 16 15 14 13 12 < KE-430D デニム用 / For KE-430D Denim > <KE-430D 被服用, メリヤス用, ファンデーション用 / For KE-430D Ordinary materials, Knitted materials & Foundation garments> < BE-438D用 / For BE-438D > 25 24 KE-430D/BE-438D-401 17 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3250001 1 アームイトミチA ARM THREAD GUIDE, A 2 062500616 1 ナベコ5X6 SCREW, PAN M5X6 3 SA4333001 1 アームイトミチB ARM THREAD GUIDE, B 4 062500616 1 ナベコ5X6 SCREW, PAN M5X6 5 SA3252001 1 アームイトミチC ARM THREAD GUIDE, C 6 062500616 1 ナベコ5X6 SCREW, PAN M5X6 7 153049001 1 ウワイトアンナイボウ UPPER THREAD GUIDE STUD 8 SA3254001 1 イトチョウシダイ TENSION BRACKET 9 * P. 53 1 イトトリバネ THREAD TAKE-UP SPRING 10 S12699000 1 イトユルメピン TENSION RELEASE PIN 11 SA3255001 1 イトチョウシボウ TENSION STUD 12 S31032001 1 イトチョウシナット TENSION NUT 13 S12441001 1 イトチョウシバネウエザガネ WASHER 14 * P. 53 1 イトチョウシバネ TENSION SPRING 15 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 16 145446001 2 イトチョウシサラ DISC, TENSION 17 100402004 1 トメネジ3.57 SET SCREW, SM3.57 18 SA4143001 1 アナトメネジ6X6 SET SCREW, (FT) M6X6 19 SA3256001 1 イトチョウシボウA TENSION STUD, A 20 100136001 1 イトチョウシナット TENSION NUT 21 SA4146001 1 フクチョウシバネ SUB TENSION SPRING 22 145446001 2 イトチョウシサラ DISC, TENSION 23 159224001 1 アームイトカケ THREAD GUIDE, ARM <KE-430D 被服、メリヤス用、 ファンデーション用> <BE-438D用> <For KE-430D Ordinary materials, Knitted materials & Foundation garments> <For BE-438D> 24 SA3635101 1 ハリボウイトアンナイB NEEDLE BAR THREAD GUIDE, B <KE-430D Denim用> <For KE-430D Denim> 25 SA3257101 1 ハリボウイトアンナイA NEEDLE BAR THREAD GUIDE, A 26 SA3258001 1 ハリボウメタルDイトアンナイ N-BAR BUSH THREAD GUIDE, D 27 152881001 1 エキレイタイクミ NEEDLE COOLER ASSY 28 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 29 152883000 1 フエルト8X15.5 FELT, 8X15.5 30 152884001 1 エキレイイトカケ NEEDLE COOLER THREAD GUIDE 31 062670412 1 ナベコ3.57-40X4 SCREW, PAN SM3.57-40X4 KE-430D/BE-438D-401 18

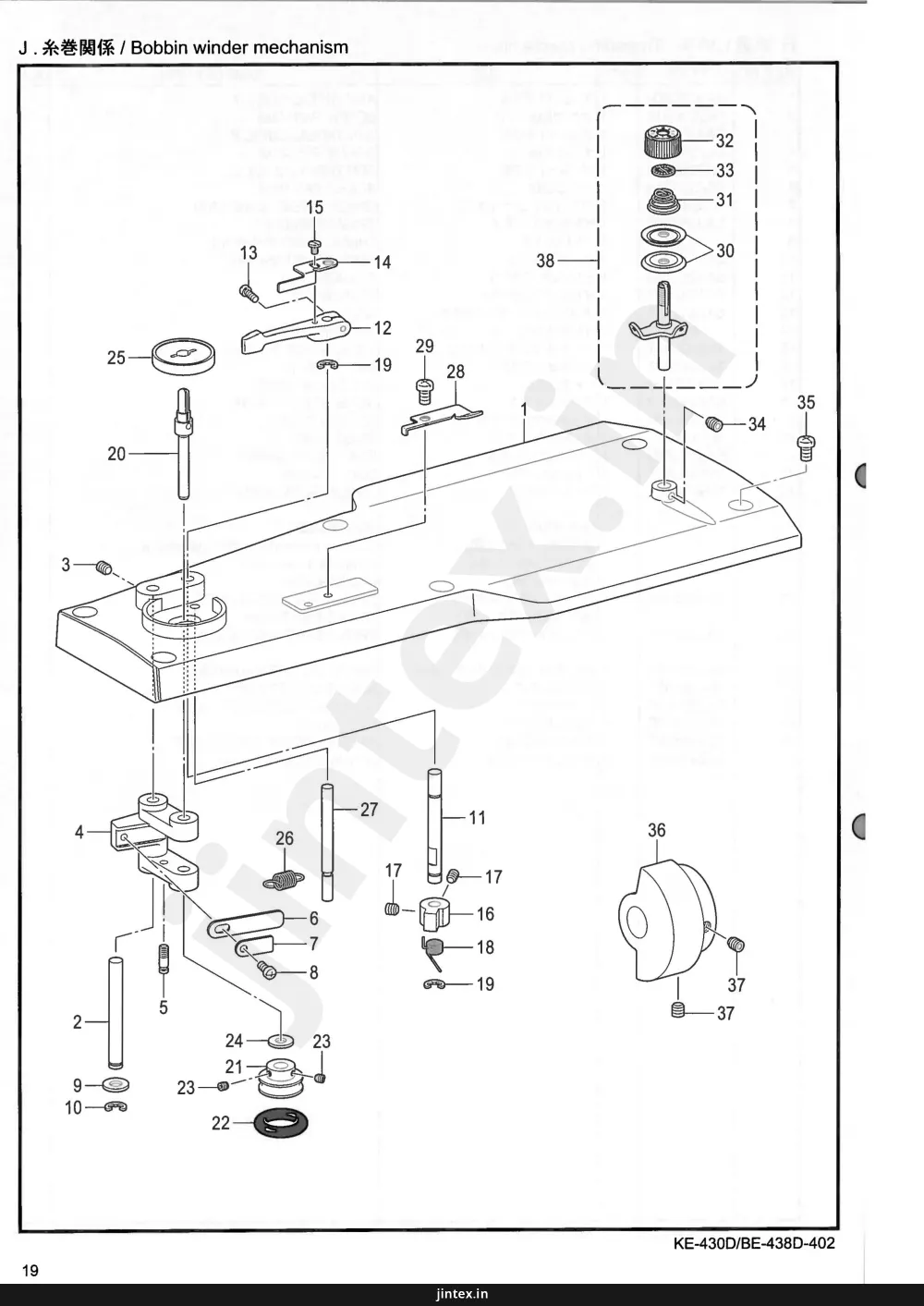

Page 22 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism 32 33 31 30 15 13 14 38 12 29 25 19 28 1 35 34 20 3 26 27 11 36 4 17 17 6 16 7 18 8 19 37 5 37 2 24 23 21 9 23 10 22 KE-430D/BE-438D-402 19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3289101 1 ウワフタ TOP COVER 430D 2 SA3290001 1 イトマキレバジク SHAFT, BW-LEVER 3 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 4 SA3291001 1 イトマキレバー BOBBIN WINDER LEVER 5 SA4171001 1 バネカケ SPRING HOOK 6 152936001 1 イタバネ PLATE SPRING 7 152937001 1 ザガネ WASHER 8 062350616 1 ナベコ35X6 SCREW, PAN M3.5X6 9 159486001 1 ザガネ WASHER 10 048050342 1 トメワE5 RETAINING RING, E5 11 SA3293001 1 イトマキツメジク STUD, B-WINDER CLAW 12 SA1984001 1 ボビンオサエアウデ BOBBIN PRESSER ARM 13 062401216 1 ナベコ4X12 SCREW, PAN M4X12 14 SA3294001 1 ボビンオサエ BOBBIN PRESSER 15 S23418002 1 シメネジ4X5 SCREW, M4X5 16 SA3295001 1 イトマキツメ CLAW, B-WINDER 17 012400436 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 18 S10438001 1 イトマキツメネジリバネ SPRING, TWIST 19 048050342 2 トメワE5 RETAINING RING, E5 20 SA3296001 1 イトマキジク BOBBIN WINDER SHAFT 21 SA3297001 1 イトマキクルマ WHEEL, B-WINDER 22 120448001 1 ゴムワ BOBBIN WINDER RUBBER BAND 23 012400436 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 24 159486001 2 ザガネ WASHER 25 SA1988001 1 ボビンウケ BOBBIN SUPPORT 26 S10268001 1 イトマキレバーヒキバネ SPRING 27 SA3298001 1 ストッパジク STPPER SHAFT, B-WINDER 28 SA3299001 1 メス KNIFE 29 062500616 1 ナベコ5X6 SCREW, PAN M5X6 30 145446001 2 イトチョウシサラ DISC, TENSION 31 100401021 1 イトチョウシバネ TENSION SPRING 32 S31032001 1 イトチョウシナット TENSION NUT 33 S12441001 1 イトチョウシバネウエザガネ WASHER 34 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 35 062601016 6 ナベコ6X10 SCREW, PAN M6X10 36 SA3300001 1 イトマキドウリン DRIVINNG WHEEL, B-WINDER 37 S23651001 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 38 SA1994101 1 イトマキチョウシクミ BOBBIN WINDER TENSION ASSY KE-430D/BE-438D-402 From the library of: Superior Sewing Machine & Supply LLC jintex.in 20

Page 24 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 6 4 3 1312 10 11 29 30 9 7 8 23 18 21 22 20 21 19 14 17 15 16 28 62 61 73 72 57 56 60 59 < KE-430D 被服用、 メリヤス用、ファンデーション用 / For KE-430D Ordinary materials, Knitted materials & Foundation garments > < BE-438D 用 / For BE-438D > 53 55 76 54 58 52 71 68 70 69 66 67 64 65 63 77 27 25 26 24 26 25 27 48 49 51 50 46 40 74 75 44 42 43 41 47 42 43 36 35 28 32 45 39 38 31 35 34 37 KE-430D/BE-438D-403 21 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA4131001 1 イトキリカム THREAD TRIMMER CAM 2 S23651001 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 3 SA3304101 1 ソレノイドトリツケイタ SETTING PLATE, SOLENOID 4 062400816 4 ナベコ4X8 SCREW, PAN M4X8 5 SA3303001 1 ソレノイドカバー TR-SOLENOID COVER 6 060400516 4 バインド4X5 SCREW, BIND M4X5 7 SA3305001 1 クドウレバーオシレバー PUSHING LEVER, DRIVING LEVER 8 SA3306001 1 ダンネジ7-3 SHOULDER SCREW, 7-3 9 S39690021 1 ザガネ WASHER 10 SA3307001 1 ソレノイドレバー SOLENOID LEVER 11 012400436 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 12 154599000 1 ソレノイドクッション SOLENOID CUSHION 13 S02652001 1 ザガネ WASHER 14 SA3309001 1 イトキリクドウレバー TR-DRIVING LEVER 15 SA3310001 1 イトキリコロ COLLAR, TR-TRIMMER 16 SA3311001 1 イトキリロジク COLLAR SHAFT 17 012400436 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 18 048040342 1 トメワE4 RETAINING RING, E4 19 S23651001 1 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 20 231071001 1 メタル8X15 BUSH, 8X15 21 SA3312201 1 クドウレバーアンナイジク GUIDE SHAFT 22 SA3313101 1 クドウジクバネ SPRING, COMPRESSION 23 154596000 1 イトキリカムレバークッション CUSHION 24 SA3315001 1 イトキリロッドV THREAD TRIMMER ROD V 25 S32465001 2 タマツギテグミ BALL JOINT ASSY 26 021060106 2 1シュナット6 NUT, 1 M6 27 S32462001 2 タマツギテダンネジB SHOULDER SCREW, B; M6 28 021060306 2 3シュナット6 NUT, 3 M6 29 S25475001 1 トメネジ6 SET SCREW, M6X19 30 021060106 1 1シュナット6 NUT, 1 M6 31 SA4546001 1 イトキリレバーV THREAD TRIMMER LEVER V 32 SA3317001 1 イトキリレバーH THREAD TRIMMER LEVER H 33 SA3319101 1 イトキリレバージク SHAFT, TR-TRIMMER LEVER 34 SA4545001 2 カンザ SPACER 35 048080142 1 トメワジクヨウC8 RETAINING RING EXTERNAL C8 36 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 37 SA3320101 1 バネカケ SPRING HOOK 38 SA3321001 1 イトキリモドシバネ SPRING, EXTENSION 39 018501232 1 アナボルト5X12 BOLT, SOCKET M5X12 40 028050246 1 バネザガネ2-5 WASHER SPRING 2-5 74 146352002 1 ザガネ WASHER, PLAIN 5 41 SA3323001 1 イトキリロッドH THREAD TRIMMER ROD H 42 S32465001 2 タマツギテグミ BALL JOINT ASSY 43 021060106 2 1シュナット6 NUT, 1 M6 44 S32462001 1 タマツギテダンネジB SHOULDER SCREW, B; M6 45 021060306 1 3シュナット6 NUT, 3 M6 46 SA3324001 1 イドウハレバー MOVING KNIFE LEVER 47 SA3325001 1 ダンネジ6.35-6 SHOULDER SCREW, 6.35-6 48 SA3326001 1 イドウハレバージク SHAFT, M-KNIFE LEVER 49 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 50 SA3327101 1 イドウハレンカン M-KNIFE CONNECTING PLATE 51 SA4354001 1 ダンネジ6-1.8 SHOULDER SCREW, 6-1.8 52 SA3655001 1 ハリイタSC NEEDLE PLATE, SC KE-430D/BE-438D-403 22 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 6 4 3 1312 10 11 29 30 9 7 8 23 18 19 14 17 15 16 21 22 20 21 2 27 25 26 62 61 73 72 24 57 56 52 60 71 68 64 65 63 77 59 < KE-430D 被服用、 メリヤス用、ファンデーション用 / For KE-430D Ordinary materials, Knitted materials & Foundation garments > < BE-438D用 / For BE-438D > 53 55 76 54 58 69 66 67 26 25 27 48 49 51 50 40 74 75 44 42 43 46 32 39 38 45 41 47 42 43 36 35 28 34 31 35 37 KE-430D/BE-438D-403 23 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM <KE-430D 被服川、メリヤス用、 ファンデーション用> <For KE-430D Ordinary materials, Knitted materials & Foundation garments> 53 SA6429001 1 イドウハF-SCセット MOVABLE KNIFE SET F-SC 56 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 56 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 56 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 <KE-430D デニム用> <For KE-430D Denim> 53 SA6596001 1 イドウハFセット MOVABLE KNIFE SET F 56 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 56 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 56 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 <BE-438D用> <For BE-438D> 53 SA6432001 1 イドウハF-SCSセット MOVABLE KNIFE SET F-SCS 56 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 56 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 56 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 54 SA4518001 1 イドウハダンネジ MOVABLE KNIFE SHOULDER SCREW 76 SA4519001 1 スラストザガネ THRUST WASHER 55 S00705001 1 イドウハカラー MOVABLE KNIFE COLLAR <KE-430D 被服川、メリヤス用、 ファンデーション用> <BE-438D用> <For KE-430D Ordinary materials, Knitted materials & Foundation garments> <For BE-438D> 57 SA6431001 1 コテイハF-SCセット FIXED KNIFE SET F-SC 56 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 56 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 56 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 <KE-430D デニム用> <For KE-430D Denim> 57 SA6597001 1 コテイハFセット FIXED KNIFE SET F 56 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 56 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 56 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 58 062300416 2 ナベコ3X4 SCREW, PAN M3X4 <KE-430D 被服川、メリヤス用、 ファンデーション用> <BE-438D用> <For KE-430D Ordinary materials, Knitted materials & Foundation garments> <For BE-438D> 59 028030246 2 バネザガネ2-3 WASHER, SPRING2-3 60 025030236 2 ヒラザガネチュウ3 WASHER, PLAIN M 3 61 * P. 53, 57 1 ハリアナイタ NEEDLE HOLE PLATE 62 100360003 2 サラネジ2.38 SCREW 63 SA3337001 1 イトツカミDクミ THREAD NIPPER ASSY D 64 SA4330001 1 イトツカミカンザ SPACER, THREAD NIPPER 65 SA4329001 1 イトツカミカラー COLLAR, THREAD NIPPER 66 SA3341001 1 イトオサエU THREAD NIPPER U 77 SA3330001 1 イトツカミダンネジ THREAD NIPPER SHOULDER SCREW 67 SA3342001 1 ダンネジ6-0.9 SHOULDER SCREW, 6-0.9 68 SA3343001 1 バネカケタ PLATE, SPRING HOOK 69 062300416 2 ナベコ3X4 SCREW, PAN M3X4 70 025030236 2 ヒラザガネチュウ3 WASHER, PLAIN M 3 71 SA3344001 1 イトツカミバネ SPRING, EXTENSION 72 S25310101 2 サラネジ4 SCREW, FLAT M4 73 SA3538001 2 シメネジ4X8 SCREW, M4X8 KE-430D/BE-438D-403 24 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — L. 糸払い関係 / Thread wiper mechanism

L. 糸払い関係 / Thread wiper mechanism 10 9 8 7 3 8 11 5 4 6 2 2 1 12 18 17 16 15 13 14 21 24 19 22 20 23 KE-430D/BE-438D-405 25 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29 — L. 糸払い関係 / Thread wiper mechanism

L. 糸払い関係 / Thread wiper mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3447001 1 ワイパーカム THREAD WIPER CAM 2 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 3 SA3448001 1 ワイパークドウレバー DRIVING LEVER,; THREAD WIPER 4 SA3449001 1 ワイパーコロ THREAD WIPER ROLLER 5 SA3441001 1 オサエアゲコロジク W-CLAMP LIFTER ROLLER SHAFT 6 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 7 SA3451001 1 ワイパーロッドジク THREAD WIPER ROD SHAFT 8 S20356001 2 ヒラザガネ10 WASHER, PLAIN 10 9 048080342 1 トメワE8 RETAINING RING, E8 10 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 11 SA3446001 1 オサエアゲバネ SPRING 12 SA3452001 1 ワイパーロッドクミ THREAD WIPER ROD ASSY 13 025050134 1 ヒラザガネショウ5 WASHER, PLAIN S 5 14 048040342 1 トメワE4 RETAINING RING, E4 15 081005070 2 OリングP5 O RING, P5 16 SA3441001 1 オサエアゲコロジク W-CLAMP LIFTER ROLLER SHAFT 17 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 18 S38033002 1 カラー13 COLLAR, 13 19 SA3458001 1 ワイパーレンケツイタ CONNECTING PLATE 20 SA3459101 1 ワイパーウデクミ THREAD WIPER ARM ASSY 21 062401006 2 ナベコ4X10 SCREW, PAN M4X10 22 025040236 2 ヒラザガネチュウ4 WASHER, PLAIN M 4 23 048040342 1 トメワE4 RETAINING RING, E4 24 SA3464001 1 オイルキリセン OIL CAP KE-430D/BE-438D-405 From the library of: Superior Sewing Machine & Supply LLC 26 jintex.in

Page 30 — M .糸緩め関係 / Tension release mechanism

M .糸緩め関係 / Tension release mechanism KE-430D/BE-438D-406 27 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — M. 糸緩め関係 / Tension release mechanism

M. 糸緩め関係 / Tension release mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3345001 1 ソレノイドトリツケタ SETTING PLATE,SOLENOID 2 154599000 1 ソレノイドクッション SOLENOID CUSHION 3 017401015 1 ボルト4X10 BOLT, M4X10 4 021400306 1 3シュナット4 NUT, 3 M4 5 102707002 1 ザガネ WASHER 6 SA3347001 1 イトユルメボウ TENSION RELEASE BAR 7 048040342 1 トメワE4 RETAINING RING, E4 8 025050236 2 ヒラザガネチュウ5 WASHER, PLAIN M 5 9 SA3348001 1 コイルバネ SPRING, COMPRESSION 10 SA3349001 1 ソレノイドカバー SOLENOID COVER 11 SA3306001 2 ダンネジ7-3 SHOULDER SCREW, 7-3 12 081007070 2 OリングP7 O RING P7 KE-430D/BE-438D-406 28

Page 32 — N . 糸つかみ関係 / Thread nipper mechanism

N . 糸つかみ関係 / Thread nipper mechanism 15 17 16 23 25 24 14 20 21 22 6 1 10 7 3 2 18 8 5 4 5 9 19 11 12 13 KE-430D/BE-438D-409 29

Page 33 — N. 糸つかみ関係 / Thread nipper mechanism

N. 糸つかみ関係 / Thread nipper mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3351001 1 TNモータトリツケイタ SETTING PLATE, TN-MOTOR 2 018061236 2 アナボルト6X12 BOLT, SOCKET M6X12 3 155559001 2 ヒラザガネチュウ6 WASHER, PLAIN M 6 4 SA3352101 1 イトツカミモ タレバー TN-MOTOR LEVER 5 012400436 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 6 SA3353201 1 イトツカミレバー TN-LEVER 7 SA3354001 1 イトツカミレバーシク TN-LEVER SHAFT 8 153596001 1 ザガネ WASHER 9 048070342 1 トメワE7 RETAINING RING, E7 10 012060636 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 11 SA3355001 1 イトツカミレンケツイタB TN-CONNECTING PLATE B 12 SA4461001 1 ダンネジ6-3.5 SHOULDER SCREW, 6-3.5 13 SA4354001 1 ダンネジ6-1.8 SHOULDER SCREW, 6-1.8 14 SA3357101 1 イトツカミレンケツイタFクミ TN-CONNECTING PLATE ASSY F 23 SA5137001 1 イトツカミセンサードグ TN-SENSOR DOG 24 018300636 2 アナボルト3X6 BOLT SOCKET M3X6 25 025030236 2 ヒラザガネチュウ3 WASHER PLAIN M 3 15 SA5138001 1 TNセンサートリツケイタB SETTING PLATE B, TN-SENSOR 16 018061236 2 アナボルト6X12 BOLT, SOCKET M6X12 17 155559001 2 ヒラザガネ WASHER, PLAIN 18 SA3361001 1 TNセンサートリツケイタF SETTING PLATE F, TN-SENSOR 19 0A4300805 2 +ナベザクミ3X8DA SCREW, PAN (S/P WASHER) M3X8 20 155559001 1 ヒラザガネ WASHER, PLAIN 21 S10202201 1 レンカンレバーシク LEVER SHAFT 22 012400436 1 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 KE-430D/BE-438D-409 30 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 34 — P1.コントロールボックス関係 / Control box mechanism

P1.コントロールボックス関係 / Control box mechanism < 欧州用 三相 400V / For Europe, 3-phase 400V AC > 46 48 22 13 37 29 28 30 31 24 < 100-220V / For 100-220V AC > < 380-400V / For 380-400V AC > 17 18 KE-430D/BE-438D-502 31

Page 35 — P1. コントロールボックス関係 / Control box mechanism

P1. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 13 SA6364001 1 CFキャツプクミ CF CAP ASSY 17 SA3720101 1 <100-220V> トランスLV <For 100-220V AC> TRANSFORMER LOW VOLTAGE 18 SA3808101 1 <380-400V> トランスHV <For 380-400V AC> TRANSFORMER HIGH VOLTAGE 22 SA3797001 1 DCファンモータクミ DC-FAN MOTOR ASSY 24 SA3724101 1 メインキバンクミ PCB ASSY, MAIN 28 SA3739501 1 PMDキバンクミ PCB ASSY, PMD 29 SA3744001 3 FET FS10ASJ-2 TRANSISTOR, FET: FS10ASJ-2 30 SA3722001 1 MOSFET FX20KMJ-2 TRANSISTOR, FET: FX20KMJ-2 31 S49484000 1 MOSFETFS10KMJ-2 TRANSISTOR, FET: FS10KMJ-2 37 SA3806001 1 MAINデンゲンハーネス HARNESS, MAIN POWER SUPPLY 46 SA3581001 1 <欧州用 三相 400V> フィルタキバンクミ <For Europe, 3-phase 400V AC> PCB ASSY, NF 48 SA3796001 1 NF OUTコード HARNESS, NF OUT KE-430D/BE-438D-502 32

Page 36 — P2.コントロールボックス(電源基板)関係 / Control box (PCB) mechanism

P2.コントロールボックス(電源基板)関係 / Control box (PCB) mechanism 1 12 11 10 6 5 4 10 12 7 8 9 2 3 33 KE-430D/BE-438D-502 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 37 — P2. コントロールボックス (電源基板) 関係 / Control box (PCB) mechanism

P2. コントロールボックス (電源基板) 関係 / Control box (PCB) mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3755301 1 デンゲンモータキバンクミ PCB ASSY, POWER SUPPLY MOTOR 2 SA3765001 1 バリスタTND10V101K VARISTOR: V10D101 3 SA3766001 1 バリスタTND10V241K VARISTOR: V10D241 4 SA3767001 1 バリスタTND14V511K VARISTOR: V14D511 5 SA3762001 1 バリスタTND14V911K VARISTOR: V14D911 6 SA3768001 1 バリスタTND14V561K VARISTOR: V14D561 7 SA3769001 1 バリスタTND5V121K VARISTOR: V5D121 8 SA3770001 1 バリスタTND5V330K VARISTOR: V5D330 9 SA3771001 1 バリスタTND5V820K VARISTOR: V5D820 10 SA3794001 3 FGMB 250V-15A G FUSE S 15A 11 SA3795001 2 FGMB 250V-6A G FUSE S 6A 12 616167001 3 GヒューズS 3A G FUSE S 3A KE-430D/BE-438D-502 From the library of: Superior Sewing Machine & Supply LLC 34 jintex.in

Page 38 — Q. スイッチ関係 / Power switch mechanism

Q. スイッチ関係 / Power switch mechanism < 日本用 単相 100V / For Japan, 1-phase 100V AC. > 1 2 < USA 用 単相 110V / For USA, 1-phase 110V AC. > 5 < アジア用単相 220V / For Asia, 1-phase 220V AC. > 8 7 < アジア用 単相 240V / For Asia, 1-phase 240V AC. > 9 < 欧州用 三相 400V / For Europe, 3-phase 400V AC. > 15 13 < カナダ用 単相 120V / For USA, 1-phase 120V AC. > 14 < 日本用 三相 200V / For Japan, 3-phase 200V AC. > 3 4 < USA 用 三相 220V / For USA, 3-phase 220V AC. > 6 7 < 中国用 単相 220V / For China, 1-phase 220V AC. > 7 < 中国用 三相 380V / For China, 3-phase 380V AC. > 12 10 11 KE-430D/BE-438D-502 35

Page 39 — Q. スイッチ関係 / Power switch mechanism

Q. スイッチ関係 / Power switch mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3813101 1 <日本用 単相 100V> <For Japan, 1-phase 100V AC.> 2 SA3822001 1 デンSWクミ1P-JPN POWER SUPPLY SWITCH ASSY 1P-JP 1 Vキリカエハーネス100V VOLTAGE SELECT HARNESS 100V 3 SA3819101 1 <日本用 三相 200V> <For Japan, 3-phase 200V AC.> 4 SA3825001 1 デンSWクミ3P-JPN POWER SUPPLY SWITCH ASSY 3P-JP 1 Vキリカエハーネス200V VOLTAGE SELECT HARNESS 200V 5 SA3823001 1 <USA用 単相 110V> <For USA, 1-phase 110V AC.> 1 Vキリカエハーネス110V VOLTAGE SELECT HARNESS 110V 6 SA3816101 1 <USA用 三相 220V> <For USA, 3-phase 220V AC.> 7 SA3812001 1 デンSWクミ3P-L POWER SUPPLY SWITCH ASSY 3P-L 1 Vキリカエハーネス220V VOLTAGE SELECT HARNESS 220V 8 SA3809101 1 <アジア用 単相 220V> <For Asia, 1-phase 220V AC.> 7 SA3812001 1 デンSWクミ1P POWER SUPPLY SWITCH ASSY 1P 1 Vキリカエハーネス220V VOLTAGE SELECT HARNESS 220V 9 SA3826001 1 <アジア用 単相 240V> <For Asia, 1-phase 240V AC.> 1 Vキリカエハーネス240V VOLTAGE SELECT HARNESS 240V 7 SA3812001 1 <中国用 単相 220V> <For China, 1-phase 220V AC.> 1 Vキリカエハーネス220V VOLTAGE SELECT HARNESS 220V 12 SA4510101 1 <中国用 三相 380V> <For China, 3-phase 380V AC.> 10 SA3827001 1 デンSWクミ3P-H POWER SUPPLY SWITCH ASSY, 3P-H 11 SA3789101 1 Vキリカエハーネス380V VOLTAGE SELECT HARNESS 380V 1 VキリカエハーネスH220V VOLTAGE SELECT HARNESS H220V 15 SA3838101 1 <欧州用 三相 400V> <For Europe, 3-phase 400V AC.> 13 SA3828001 1 ACINコードECクミ HARNESS ASSY AC IN EC 1 Vキリカエハーネス400V VOLTAGE SELECT HARNESS 400V 14 SA3824001 1 <カナダ用 単相 120V> <For Canada, 1-phase 120V AC.> 1 Vキリカエハーネス120V VOLTAGE SELECT HARNESS 120V KE-430D/BE-438D-502 36

Page 40 — R. 電装品関係 / Power supply equipment mechanism

R. 電装品関係 / Power supply equipment mechanism 21 18 19 20 3 4 23 22 6 5 31 32 2 7 9 8 10 11 11 29 17 12 17 16 16 30 32 28 33 26 15 14 27 13 24 25 KE-430D/BE-438D-515 37

Page 41 — R. 電装品関係 / Power supply equipment mechanism

R. 電装品関係 / Power supply equipment mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3465201 1 パルスモータXクミ PULSE MOTOR ASSY X 2 018401036 4 アナボルト4X10 BOLT, SOCKET M4X10 3 SA3469201 1 パルスモータYクミ PULSE MOTOR ASSY Y 4 018400836 4 アナボルト4X8 BOLT, SOCKET M4X8 5 SA3472201 1 パルスモータPクミ PULSE MOTOR ASSY P 6 018401036 4 アナボルト4X10 BOLT, SOCKET M4X10 7 SA4127001 1 イトツカミPMクミ PULSE MOTOR ASSY, THREAD CATCH 8 062300816 4 ナベコ3X8 SCREW, PAN M3X8 9 028030246 4 バネザガネ2-3 WASHER, SPRING 2-3 10 SA3477001 1 イトツカミゲンテンセンサクミ HOME POSITION SENSOR THREAD-C 11 062300816 2 ナベコ3X8 SCREW, PAN M3X8 12 SA4347001 1 イトユルメソレノイドクミ TENSION RELEASE SOLENOID ASSY 13 017400802 2 ボルト4X8 BOLT, M4X8 14 028040246 2 ハネザガネ2-4 WASHER, SPRING 2-4 15 025040236 2 ヒラザガネチュウ4 WASHER, PLAIN M4 16 149547000 2 コードオサエ CORD HOLDER, 4N 17 0A5401006 2 +ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 18 SA4348001 1 イトキリソレノイドクミ THREAD TRIMMER SOLENOID, ASSY 19 017400802 2 ボルト4X8 BOLT, M4X8 20 028040246 2 バネザガネ2-4 WASHER, SPRING 2-4 21 025040236 2 ヒラザガネチュウ4 WASHER, PLAIN M4 22 146202000 1 ナイロンクリップ CORD HOLDER, 6N 23 0A5401006 1 +ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 24 SA3481001 1 トウブSWクミ SWITCH ASSY, MACHINE HEAD 25 0A5301605 2 +ナベザクミ3X16DB SCREW, PAN (S/P WASHE) M3X16 26 SA3523001 1 トウブケンシュツユニットクミ HEAD DETECTOR UNIT, ASSY 33 J04392001 1 LEDカバー LED COVER 27 0A5401006 2 +ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 28 SA3486001 1 アースセン350 GROUND WIRE, 350 29 0A5401006 2 +ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 30 S11817000 1 クランプNK-18N CLAMP, NK-18N 31 554482000 1 コードホルダ#12 CORD HOLDER, #12 32 0A5401006 2 +ナベザクミ4X10DB SCREW, PAN (S/P WASHER) M4X10 KE-430D/BE-438D-515 38 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 42 — S. 操作パネル関係 / Operation panel mechanism

S. 操作パネル関係 / Operation panel mechanism 39 KE-430D/BE-438D-530

Page 43 — S. 操作パネル関係 / Operation panel mechanism

S. 操作パネル関係 / Operation panel mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3829001 1 ソウサパネルクミ OPERATION PANEL ASSY 3 SA3831001 1 ソウサパネルシート PANEL SHEET 7 SA3833101 1 パネルキバンクミ PANEL PCB ASSY 8 SA3839001 1 パネルハーネス PANEL HARNESS 9 0B0452006 4 +マルモク45X20 WOOD SCREW ROUND M4.5X20 KE-430D/BE-438D-530 From the library of: Superior Sewing Machine & Supply LLC 40 jintex.in

Page 44

T. モータ関係 / Motor mechanism 11 10 10 11 5 6 16 18 12 1 9 7 8 14 2 4 15 18 17 3 13 14 41 KE-430D/BE-438D-650 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — T. モータ関係 / Motor mechanism

T. モータ関係 / Motor mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 J80991001 1 モータタクミCDD-430D MOTOR ASSY, CDD-430D 2 J03955001 1 ドラムコテイCDD DRUM CDD 3 014400632 1 アナクボミ4X6 SET SCREW, SOCKET (CP) M4X6 4 J03956001 1 ジシヤク180P36 MAGNET 180P36 5 J03957001 1 MRセンサタクミ180P MR SENSOR ASSY 180P 6 0A4300805 1 +ナベザクミ3X8DA SCREW, PAN (S/P WASHER) M3X8 7 J03958001 1 シヤヘイイタCDD SHIELD PLATE CDD 8 0A4261005 3 +ナベザクミ26X10DA SCREW, PAN (S/P WASHE) M2.6X10 9 J04488001 1 ENCキバンタクミ430D#2 ENC PCB ASSY, 430D#2 10 J03983001 3 ホールICEW-400 HALL ELEMENT: ICEW-400 11 J03984001 2 ホールICEW-450 HALL ELEMENT: ICEW-450 12 0A4300606 3 +ナベザクミ3X6DB SCREW, PAN (S/P WASHER) M3X6 13 J04230001 1 コードオサエCDD-HT CORD HOLDER, CDD-HT 14 0A4401005 3 +ナベザクミ4X10DA SCREW, PAN (S/P WASHE) M4X10 15 J04388001 1 エンコーダカバー430D ENCODER COVER, 430D 16 0A4300805 3 +ナベザクミ3X8DA SCREW, PAN (S/P WASHER) M3X8 17 J04303001 1 プーリダイタクミ430D PULLEY HOLDER ASSY, 430D 18 014500632 2 アナクボミ5X6 SET SCREW, SOCKET (CP) M5X6 KE-430D/BE-438D-650 From the library of: Superior Sewing Machine & Supply LLC jintex.in 42

Page 46

U. 踏板関係 / Foot switch pedal mechanism < オプション部品 / Option parts > 5 4 6 2 1 KE-430D/BE-438D-651 43 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47 — Foot switch pedal mechanism

U. 踏板関係 / Foot switch pedal mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3519101 1 フミユニットAクミ TREADLE UINT, A ASSY 2 0A4501005 3 +ナベザクミ5X10DA SCREW, PAN (S/P WASHE) M5X10 <オプション部品> 5 SA3784001 1 フットSWヘンカンハーネス <Option parts> 4 S49668101 1 2ダンフットSWクミ CONVERSION HARNESS, FOOT SW 6 S51846101 1 2レンフット3SWセット 2-STEP FOOT SWITCH ASSY. 2-PEDAL FOOT SWITCH SET, 3 KE-430D/BE-438D-651 From the library of: Superior Sewing Machine & Supply LLC jintex.in 44

Page 48 — V1.補助装置関係(BE-438D用オプション部品)/Auxiliary device (Option parts for BE-438D)

V1.補助装置関係(BE-438D用オプション部品)/Auxiliary device (Option parts for BE-438D) 1 32 17 18 16 2 15 12 13 14 6 7 4 5 3 26 27 28 25 24 20 21 19 29 30 11 9 10 8 22 23 31 BE-438D-944 45

Page 49 — V1. 補助装置関係(BE-438D用オプション部品) / Auxiliary device (Option parts for BE-438D)

V1. 補助装置関係(BE-438D用オプション部品) / Auxiliary device (Option parts for BE-438D) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA6492001 1 シャンクソウチ438Dクミ SHANK DEVICE SET 438D 2 142689309 1 シャンクボタンツマミタイクミ SHANK BUTTON CLAMP BRAC. ASSY 3 154684009 1 シャンクボタンツマミタイ SHANK BUTTON CLAMP BRACKET 4 142677101 1 ボタンツマミA BUTTON CLAMP, A 5 142678101 1 ボタンツマミB BUTTON CLAMP, B 6 062670812 1 ナベコ357-40X8 SCREW PAN SM3.57-40X8 7 102707002 1 ザガネ WASHER 8 142681001 1 ボタンオサエジク BUTTON CLAMP STUD 9 154685001 1 バネ SPRING 10 142706001 2 セットカラー SET SCREW COLLAR 11 062670712 2 ナベコ357-40X7 SCREW PAN SM3.57-40X7 12 154686001 1 ボタンオサエウデ BUTTON CLAMP ARM 13 013719412 1 トメネジ4.76クボミ SET SCREW, (CP) SM4.76 14 142680001 1 ボタンオサエ BUTTON CLAMP 15 120990001 1 アタマツキトメネジ4.37 SET SCREW, (CP) SM4.37-40X8 16 154695001 1 ボタンオサエヒラキ CLAMP OPENER 17 154696001 1 ボタンオサエヒラキジク STUD 18 014680432 1 アナクボミ437-40X4 SET SCREW SOCKET SM4.37-40X4 19 154697001 1 オクリイタダイ FEED PLATE BASE 20 156336101 1 シャンクボタンオクリイタ SHANK BUTTON FEED PLATE 21 154713001 2 シメネジ4.76 SCREW, SM4.76 22 021710212 2 ニユツト4.76-32 NUT 2 SM4.76-32 23 025710232 2 ヒラザガネチュウ4.76 WASHER PLAIN M SM4.76 24 142686101 1 ヌノウケダイS CLOTH RECEIVER, S 25 060670512 1 バインド357-40X5 SCREW BIND SM3.57-40X5 26 SA6493001 1 イドウハF-SCLクミ MOVABLE KNIFE F-SCL ASSY 27 SA6505014 1 SA6506ハリ10コイリクミ NEEDLE 10PIECE ASSY SA6506 28 SA6506014 10 ミシンハリTQX3 NEEDLE TQX3 29 S03641101 1 ボタンツカミD BOTTON CLAMP, D 30 SA3645201 1 ハリアナイ2.2SC NEEDLE HOLE PLATE 2.2SC 31 SA6504001 1 ハリボウB NEEDLE BAR B 32 062500616 1 ナベコ5X6 SCREW PAN M5X6 BE-438D-944 46 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 50 — V2 . 補助装置関係 (BE-438D用 オプション部品) / Auxiliary device (Option parts for BE-438D)

V2 . 補助装置関係 (BE-438D用 オプション部品) / Auxiliary device (Option parts for BE-438D) 47 BE-438D-944

Page 51 — V2. 補助装置関係(BE-438D用オプション部品) / Auxiliary device (Option parts for BE-438D )

V2. 補助装置関係(BE-438D用オプション部品) / Auxiliary device (Option parts for BE-438D ) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA6156001 1 ボタンスペーサセット438D BUTTON SPACER SET 438D 2 SA6157001 1 ボタンスペーサクミ BUTTON SPACER ASSY 3 SA6158001 1 ドダイ BASE 4 S09658001 1 スケール SCALE 5 S0968001 1 ボルト4.37-40X7 BOLT, SM4.37-40X7 6 S02745001 1 ザガネ WASHER 7 S09659001 1 イチギメイタA POSITIONING PLATE, A 8 S09660001 1 イチギメイタB POSITIONING PLATE, B 9 115166001 1 ダンネジ4.37 SHOULDER SCREW, SM4.37 10 S25310101 2 サラネジ4 SCREW, FLAT M4 11 S13184001 1 スベーサヨウオクリイタ FEED PLATE BE-438D-944 From the library of: Superior Sewing Machine & Supply LLC 48 jintex.in

Page 52

Z.付属品関係 / Accessories 17 61 brother 30 31 32 33 34 35 26 25 24 23 27 28 29 77 60 21 78 63 22 62 95 74 73 68 67 75 76 80 65 64 79 20 70 69 7271 66 100 19 96 97 98 12 1011 8 9 101 36 6 9 16 46 18 12 56 57 12 55 54 4 81 53 45 13 14 15 13 56 14 59 brother 15 48 2 3 13 49 14 13 15 14 56 15 47 5 39 58 93 38 < BE-438D用 / For BE-438D > 37 87 83 52 < KE-430D デニム用 / For KE-430D Denim > 43 90 91 50 40 89 86 85 51 94 41 92 99 84 42 88 KE-430D/BE-438D-910 49 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 53 — Z. 付属品関係 / Accessories

Z. 付属品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3383001 1 オイルパン OIL PAN 2 154467001 1 ハイユキャップ DUST OILER 3 037301215 2 Vナベタツピン3X12 TAPPING SCREW, PAN V M3X12 4 SA3540001 2 クッションゴム RUBBER CUSHION 5 114486002 1 ポリオイラータイ OILER 6 SA3820001 1 トウブスイッチバネ SPRING; HEAD 7 SA3384001 2 トウブササエピン PIN 8 012060636 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 9 SA3385001 2 トウブヒンジウケ HINGE HOLDER 10 SA3395001 2 トウブヒンジゴム RUBBER CUSHION 11 SA3392001 2 スペーサ SPACER 12 SA3387001 7 アナボルト6X75 BOLT, SOCKET M6X75 13 025060336 7 ヒラザガネダイ6 WASHER, PLAIN 6 14 028060246 7 バネザガネ2-6 WASHER, SPRING 2-6 15 021060106 7 1シュナット6 NUT, 1 M6 16 S32264001 2 ゴムセン11.5 RUBBER CAP, 11.5 17 122991001 1 フゾクヒンポリフロクロ ACCESSORY BAG 18 * P. 53 3 ボビン BOBBIN 19 * P. 54 4 ミシンハリ NEEDLE 20 * P. 54 1 ハリ4コイリクミ NEEDLE 4PIECE ASSY 21 SA3800001 1 マクラ HEAD REST 22 114483002 1 ポリオイラークミ OILER ASSY 23 S56630001 1 オイルタンククミ OIL TANK ASSY 24 142443001 1 ネジマワシ1.9X52 SCREW-DRIVER, 1.9X52 25 118837001 1 ネジマワシ3.4X70 SCREW-DRIVER, 3.4X70 26 10772101 1 ネジマワシ5.5X190 SCREW-DRIVER, 5.5X190 27 107779001 1 スパナ6X7 WRENCH, 6X7 28 100887001 1 スパナ8X9 WRENCH, 8X9 29 107780001 1 スパナ10X12 WRENCH, 10X12 30 S07783001 1 6カクボウスパナ1.5 HEXAGONAL WRENCH, 1.5 31 142002001 1 6カクボウスパナ2 HEXAGONAL WRENCH, 2 32 154125001 1 6カクボウスパナ2.5 HEXAGONAL WRENCH, 2.5 33 142721001 1 6カクボウスパナ3 HEXAGONAL WRENCH, 3 34 118064001 1 6カクボウスパナ4 HEXAGONAL WRENCH, 4 35 150335001 1 6カクボウスパナ5 HEXAGONAL WRENCH, 5 36 S02763502 1 イトタテダイクミ2DR COTTON STAND ASSY, 2DR 37 S51283001 2 ウケザラ SPOOL STAND BASE 38 150182000 2 スプールマット SPOOL MAT 39 S51282101 2 スプールクッション SPOOL CUSHION 40 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 41 S38648001 1 6カクナットU5/8 NUT, U5/8-28 42 150174000 1 コラムキャップ COLUMN CAP 43 S01005000 2 イトタテゴム RUBBER WASHER 44 S02747101 1 イトカケバネ SPRING 45 150172003 1 コラムパイプ COLUMN PIPE 46 150174000 1 コラムキャップ COLUMN CAP 47 156112003 1 コラムパイプD COLUMN PIPE, D 48 150173003 1 コラムジョイント COLUMN JOINT 49 150179002 2 スプールジクB SPOOL SHAFT, B 50 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 51 021500106 2 1シュナット5 NUT, 1 M5 52 S02778002 1 スプールホルダー2 SPOOL HOLDER, 2 53 S02787002 1 スレッドハンガー2 THREAD HANGER, 2 54 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 55 142990001 2 スレッドブッシュ THREAD BUSH 56 021500106 4 1シュナット5 NUT, 1 M5 57 S37038001 1 ナベヒラザ5X14 SCREW, PAN(S/P WASHER) M5X14 58 S37037001 1 ナベヒラザ5X32 SCREW, PAN (S/P WASHER) M5X32 59 062501406 2 ナベコ5X14 SCREW, PAN M5X14 60 200190001 7 ステップル10X20 STAPLE, 10X20 KE-430D/BE-438D-910 From the library of: Superior Sewing Machine & Supply LLC 50 jintex.in

Page 54

Z. 付属品関係 / Accessories 17 61 30 31 32 33 34 35 26 25 24 23 27 28 29 60 77 21 78 63 22 62 95 74 73 68 67 75 76 80 65 64 20 70 69 7271 79 66 19 100 11 10 9 101 36 96 97 98 12 1011 8 6 9 46 7 16 56 12 57 18 12 55 53 54 44 81 45 1 4 56 13 14 15 59 13 14 15 48 2 3 13 14 15 49 13 14 15 56 47 5 39 93 38 58 < BE-438D用 / For BE-438D > 87 37 83 52 < KE-430D デニム用 / For KE-430D Denim > 90 91 43 50 40 89 85 51 41 94 92 99 86 84 42 88 KE-430D/BE-438D-910 51 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 55 — Z. 付属品関係 / Accessories

Z. 付属品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 61 144226001 1 トウプカバー HEAD COVER 62 S33006001 4 モタスペーサ <コントロールBox取付用> MOTOR SPACER 63 133740006 4 カクネボルト6X70 BOLT, SQUARE M6X70 64 021060106 8 1シュナット6 NUT, 1 M6 65 025060336 4 ヒラザガネダイ6 WASHER, PLAIN L 6 66 032461606 2 +2マルモク45X16 <電源SW取付用> WOOD SCREW, ROUND 2 M4.5X16 67 S44483001 1 チョウバンクミ HINGE ASSY 68 S44484001 1 アイガードヒンジ EYE GUARD HINGE 69 S44485001 1 アイガード EYE GUARD 70 061300816 2 サラコ3X8 SCREW, FLAT M3X8 71 021300106 2 1シュナット3 NUT, 1 M3 72 026060236 2 ヒラザガネミガキ3 WASHER, PLAIN M 3 73 SA4104001 1 アイガードホルダ-A EYE GUARD HOLDER, A 74 062300506 2 ナベコ3X5 SCREW, PAN M3X5 75 062400616 2 ナベコ4X6 SCREW, PAN M4X6 76 026040136 2 ヒラザガネコガタ4 WASHER, PLAIN S 4 77 SA3388001 1 ウシロカバー BACK COVER 78 062061016 4 ナベコ6X10 SCREW, PAN M6X10 79 SA3489001 1 オクリイタカバー FEED PLATE COVER 80 153057101 1 オクリイタシメネジ SCREW, ROUND W/SOCKET SM4.37 100 148847001 1 ザガネ WASHER, PLAIN 81 SA8771001 1 グリスクミ GREASE UNIT 93 S06706001 1 シリコンオイル SILICONE OIL 83 S18642009 1 ボタンサラ <BE-438D用> BUTTON TRAY 84 153843009 1 ボタンサラアンホルダ BUTTTON TRAY HOLDER 85 014760632 1 アナクボミ595-28X6 SET SCREW, SOCKET SM5.95-28X6 86 0B1351606 2 +2マルモク35X16 WOOD SCREW, FLAT M3.5X16 87 105343001 1 メガネレンチ8X9 DOUBLE WRENCH, 8X9 88 159939001 1 ボタンウシバネA SPRING, A 89 110215002 1 シメネジ3.57 SCREW SM3.57 90 025660132 1 ヒラザガネショウ3.18 WASER PLAIN S 3.18 91 159938001 1 ボタンウシバネササエ SPRING SUPPORT 92 146360002 1 ボルト4.76X7 BOLT, SM4.76X7 99 154179001 1 6カクボウレンチ4(ショートタイプ) HEXAGONAL WRENCH, 4 (Short type) 94 SA3635101 1 ハリボウアンナイB <For KE-430D Denim> NEEDLE BAR THREAD GUIDE, B 95 119755001 3 カクネボルト6X60 <踏込みユニット取付用> BOLT, M6X60 96 025060236 3 ヒラザガネチュウ6 WASHER, PLAIN M 6 97 028060246 3 バネザガネ2-6 WASHER, SPRING 2-6 98 021060106 3 1シュナット6 NUT, 1 M6 101 SA6397001 1 イドウハカンザ0.2 M-KNIFE SPACER T0.2 101 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER T0.3 101 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER T0.4 KE-430D/BE-438D-910 52

Page 56 — Sp. 仕様別部品一覧表 (KE-430D / BE-438D) / Different parts list (KE-430D / BE-438D)

Sp. 仕様別部品一覧表 (KE-430D / BE-438D) / Different parts list (KE-430D / BE-438D) KE-430D, BE-438Dには下記部品が用意されていますので幅広い用途にご活用ください。 ◎表中★の部品は、KE-430C (本縫電子閂止ミシン)、BE-438C (本縫電子ボタン付けミシン) と共通です。 ◎表中☆の部品は、BAS-311F (プログラム式電子ミシン) と共通です。 The following are standard gauge parts according to each specification. ◎In the following table, parts marked with ★ are common with the KE-430C (Electronic Lockstitch Tacker) & BE-438C (Electronic Lockstitch Button sewer). ◎In the following table, parts marked with ☆ are common with the BAS-311F (Electronic program Lock Stitcher). KE-430D BE-438D 品名 Part name 仕様 Spec. -2 -1 -7 -0F (K-61) 針穴板 Needle hole plate (φ2.4) SA3336-101 (φ2.2) SA3653-201 (φ1.6) SA3652-201 (φ1.6) 入口面取(φ2.6) SA3646-201 (φ1.6) SA6133-001 (F-41) ボビンケース組 Bobbin case assy 152690-501 < B > 159610-401 < A > 159610-401 < A > 159610-401 < A > S59221-201 < LC > (F-42) ボビンケース 調子ばね Bobbin case Tension spring 154340-101 154339-101 < A > 154339-101 < A > 154339-101 < A > S48664-001 (F-43) ボビンケース ばねねじ Bobbin case Screw 154341-001 154341-001 154341-001 S16492-101 < LA > (F-44) 空転防止ばね Anti-spin spring SA4315-001 < B > SA4315-001 < A > SA4315-001 < A > SA4315-001 < A > S15667-001 < LA > (F-45, Z-18) ボビン Bobbin 159613-051 159613-051 159613-051 S15665-001 < LA > (F-48) 中がま箱組 Shuttle hook assy, w/box SA1882-001 < B > SA1881-001 < A > SA1881-001 < A > SA1881-001 < A > SA8197-001 < LH > SA2173-201 < LF > (F-40) 大がま Shuttle race base 152686-201 < B > 152682-201 < A > 152682-201 < A > (H-14) 糸調子ばね Spring, tension 107606-101 104525-101 104525-101 (H-9) 糸取りばね Thread take-up spring 144588-301 < B > 145519-301 145519-301 KE-430D/BE-438D-Sp 53 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 57 — Sp . 仕様別部品一覧表 (KE-430D / BE-438D) / Different parts list (KE-430D / BE-438D)

Sp . 仕様別部品一覧表 (KE-430D / BE-438D) / Different parts list (KE-430D / BE-438D) ◎表中の★部品は、KE-430C (本縫電子ボタン付けミシン) と共通です。 ◎In the following table, parts marked with ★ are common with the KE-430C (Electronic Lockstitch Tacker) & BE-438C (Electronic Lockstitch Button sewer). KE-430D BE-438D 品名 Part name 仕様 Spec. -2 -1 -7 -0F (H-25, H-24) 針棒糸案内 Needle bar thread guide SA3257-101 SA3635-101 SA3635-101 (Z-20) ミシン針4個入り組 Needle assy SA1579-019 SA1752-014 SA1737-011 SA1579-012 (B-34, Z-19) 針 Needle DP X 17 NY <#19 > S37928-019 DP X 5 <#14 > 107415-014 DP X 5 <#9 > 107415-009 DP X 5KN <#11 > 154763-011 DP X 17NY <#12 > S37928-012 ◎標準の押え足、送り板のサイズは、次のとおりです。(実際の縫製エリアは、内枠寸法から約1.5mm内側になります。) ◎Standard sizes for work clamps and feed plates are as follows: (The actual sewing area has 1.5 mm margin on every size; inside the lines which the dimensions indicate.) KE-430D BE-438D 仕様 / Spec. -2 -1 -7 -0F R 153608-101 ★ 152777-001 ★ S49695-001 ★ SA6509-001 L 154527-001 ★ 152778-001 ★ S49694-001 ★ SA6510-001 (C-68, 69) 押え足 Work clamp 23 5.6 18 4 12 4 22 5 (C-28) 送り板 Feed plate SA3378-001 (3mm用) (For 3 mm use) 30.2 21.2 1.4 0.6 SA3607-001 (2mm用、沈下式) (For 2 mm use, Submerged-type) 31 12 1 0.2 SA3609-001 (2mm用) (For 2 mm use) 13.4 5.4 1 0.2 SA6511-201 t = 0.3 23 6 SA3606-001 11 11 仕様 / Spec. -2 R 152781-001 ★ L 152782-001 ★ (C-68, 69) 押え足 Work clamp 23 5.6 (C-28) 送り板 Feed plate SA3611-001 (3mm用) (For 3 mm use) 23 6 1.4 0.6 KE-430D/BE-438D-Sp 54 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 58 — Ga.ゲージ部品一覧表 (KE-430D) / Gauge parts list (KE-430D)

Ga.ゲージ部品一覧表 (KE-430D) / Gauge parts list (KE-430D) <ゲージ部品> オプションのゲージ部品には次のものがあります。 押え足(押え)と送り板は、上下の組合わせになります。 (押え足は KE-430C と共通です。) < Gauge parts > The following are provided as optional gauge parts. Each work clamp pair and presser pair are used in combination with the feed plate directly below them. (Work clamp is common with to the KE-430C.) 1 2 3 4 R 152781-001 (デニム / For denim) 153201-001 < PL > 153203-001 < PS > S00906-001 (1 inch) L 152782-001 (デニム / For denim) 153202-001 < PL > 153204-001 < PS > S00907-001 (1 inch) (C-68, 69) 押え足 Work clamp 5.6 23 5 22 5 12 5.6 28.4 SA3611-001 (デニム / For denim) SA3612-001 < PL > SA3613-001 < PS > SA3614-001 (1 inch) (C-28) 送り板 Feed plate 1.4 0.6 23 6 1 0.2 23 6 1 0.2 13 6 1 0.2 32.9 21.2 5 6 7 8 R S33747-001 (30mm) 153201-001 (デニム / For denim) 152777-001 < PM > 152779-001 (メリヤス / For knitted materials) L S33748-001 (30 mm) 153202-001 (デニム / For denim) 152778-001 < PM > 152780-001 (メリヤス / For knitted materials) (C-68, 69) 押え足 Work clamp 5.6 33 5 22 4 18 4 12 SA3615-001 (30 mm) SA3616-001 (デニム / For denim) SA3612-001 (PL) SA3608-001 (メリヤス / For knitted materials) (C-28) 送り板 Feed plate 1 0.2 33 5.6 1 0.2 27 16 1 0.2 23 6 1 0.2 13 5 9 10 11 12 R S46771-001 (線閂止 / For straight bar tacking) S46771-001 (線閂止・沈 / For straight bar tacking/submerged) S46774-001 (縦閂止 / For vertical bar tacking) S46774-001 (縦閂止・沈 / For vertical bar tacking/submerged) L S46770-001 (線閂止 / For straight bar tacking) S46770-001 (線閂止・沈 / For straight bar tacking/submerged) S46773-001 (縦閂止 / For vertical bar tacking) S46773-001 (縦閂止・沈 / For vertical bar tacking/submerged) (C-68, 69) 押え足 Work clamp 5.6 32.4 5.6 32.4 4.4 13 4.4 13 SA3617-001 (線閂止 / For straight bar tacking) SA3618-001 (線閂止・沈 / For straight bar tacking/submerged) SA3619-001 (縦閂止 / For vertical bar tacking) SA3621-001 (縦閂止・沈 / For vertical bar tacking/submerged) (C-28) 送り板 Feed plate 1 0.2 33 3 1 0.2 42 16.5 1 0.2 5 13 1 0.2 15 23 156006-001 S59892-001 156006-001 S59892-001 156006-001 S59892-001 156006-001 S59892-001 押え足 Work clamp ボルト Bolt 55 KE-430D/BE-438D-Ga From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — Gauge parts list (KE-430D)

Ga.ゲージ部品一覧表(KE-430D) / Gauge parts list (KE-430D) 13 14 15 16 R SA2230-001 (縦閂止 / For vertical bar tacking) SA2233-001 (縦閂止 / For vertical bar tacking) 152779-001 (沈下式S / Submerged -type,S) 152779-001 L SA2229-001 (縦閂止 / For vertical bar tacking) SA2232-001 (縦閂止 / For vertical bar tacking) 152780-001 (沈下式S / Submerged -type,S) 152780-001 (C-68, 69) 押え足 Work clamp 26.4 18.4 12 12 5.4 5.4 SA3620-001 (縦閂止 / For vertical bar tacking) SA3622-001 (縦閂止 / For vertical bar tacking) SA3610-001 (沈下式S / Submerged -type,S) SA6346-201 (C-28) 送り板 Feed plate 5.4 18.4 16 13 1 0.2 1 0.2 26.4 24 t = 0.3 5 S59909-001 S59892-001 S59909-001 S59892-001 押え足 Work clamp ボルト Bolt 17 18 19 R S46777-001 (菊穴 / For circular stitching) S46780-001 (半月閂 / For crescent bar tacking) SA2236-001 (半月閂 / For crescent bar tacking) L S46776-001 (菊穴 / For circular stitching) S46779-001 (半月閂 / For crescent bar tacking) SA2235-001 (半月閂 / For crescent bar tacking) (C-68, 69) 押え足 Work clamp φ13 10 14.6 14.6 10 SA3623-001 (菊穴 / For circular stitching) SA3624-001 (半月閂 / For crescent bar tacking) SA3625-001 (半月閂 / For crescent bar tacking) (C-28) 送り板 Feed plate 10 1 0.2 1 0.2 1 0.2 φ13 14.6 14.6 156006-001 S59892-001 156006-001 S59892-001 S59909-001 S59892-001 押え足 Work clamp ボルト Bolt KE-430D/BE-438D-Ga 56

Page 60 — Ga. ゲージ部品一覧表 (KE-430D, BE-438D) / Gauge parts list (KE-430D, BE-438D)

Ga. ゲージ部品一覧表 (KE-430D, BE-438D) / Gauge parts list (KE-430D, BE-438D) SA3626-001 (菱目有り / With lozenge) SA3627-001 (菱目有り / With lozenge) 送り板 ブランク Feed plate blank 1 0.2 1.4 0.6 (K-61) その他の針穴板 / For other needle hole plate KE-430D BE-438D SA3645-201 SA3646-201 SA5221-001 SA3654-201 SA7502-001 φ2.2 φ2.6 φ2.2 φ3.2 φ3.6 φ2.5 φ2.1 φ1.6 φ1.6 1.9 1.9 3 1.2 1.5 1.9 1.9 φ2.0 特注用 (KE-430D) / For specially orderd (KE-430D) -1 R SA4195-001 S59909-001 S59892-001 SA3817-001 (菱目無し / Without lozenge) L SA4196-001 押え足 Work clamp 送り板 ブランク Feed plate blank 押え足 ブランク Work clamp blank 26.4 26.4 51.5 51.5 ボルト Bolt (E) オプション部品 (BE-438D) / Option parts (BE-438D) ボタンつかみスペーサ / Button clamp spacer AL S52071-001 (E-39) BL S52072-001 (E-41) CL S52073-001 (E-43) DL S52074-001 (E-45) AR S52075-001 (E-40) BR S52076-001 (E-42) CR S52077-001 (E-44) DR S52078-001 (E-46) 1.5 2 2.5 3 KE-430D/BE-438D-Ga 57 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61 — 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲危険 ▲GEFAHR ▲DANGER ▲PELIGRO Hazardous voltage will cause injury Turn off main switch and wait 5minutes before opening this cover ラベル感電6ヶ国 Label, elec. shock 6 lang 50 X 118 J04115-001 ▲注意 CAUTION Moving parts may cause injury Operate with safety devices. Turn off main switch before threading, changing bobbin and needle, cleaning etc. ラベル注意・和英 Label, caution Jpn / Eng 64 X 40 SA2040-001 ▲注意 CAUTION Moving parts may cause injury Operate with safety devices. Turn off main switch before threading, changing bobbin and needle, cleaning etc. ラベル注意・中英 Label, caution Chn / Eng 64 X 40 SA2041-001 アースマーク Label, grounding φ12 S37060-001 PE PE マーク Label, PE 7.5 X 12.5 S37059-001 KE-430D/BE-438D-Wa From the library of: Superior Sewing Machine & Supply LLC jintex.in 58

Page 62 — 索引 / Index

索引 / Index CODE REF.NO Page 004300513 A - 12 2 011679312 E - 16 12 012060536 C - 45 6 D - 32 10 D - 38 10 F - 6 14 012060636 B - 26 4 C - 8 6 C - 13 6 C - 15 6 C - 19 6 C - 27 6 D - 13 10 D - 22 10 D - 28 10 D - 48 10 F - 9 14 F - 16 14 F - 35 14 H - 28 18 K - 37 22 K - 49 22 L - 2 26 N - 10 30 Z - 8 50 012300336 B - 21 4 B - 24 4 012400436 F - 12 14 J - 17 20 J - 23 20 K - 11 22 K - 17 22 N - 5 30 N - 22 30 012500536 B - 23 4 B - 37 4 C - 4 6 C - 46 6 C - 65 8 D - 12 10 D - 20 10 D - 25 10 F - 11 14 F - 47 14 J - 3 20 J - 34 20 L - 6 26 L - 10 26 L - 17 26 013719412 V1 - 13 46 014400632 T - 3 42 014500632 T - 18 42 014680432 V1 - 18 46 014680632 E - 3 12 014760632 E - 9 12 Z - 85 52 017400802 R - 13 38 R - 19 38 017401015 M - 3 28 017711412 E - 10 12 018061236 C - 31 6 C - 36 6 D - 35 10 CODE REF.NO Page 018061236 N - 2 30 N - 16 30 018061636 C - 70 8 D - 44 10 018030636 C - 6 6 018030636 C - 34 6 018300636 N - 24 30 018400836 C - 72 8 R - 4 38 018401036 C - 21 6 R - 2 38 R - 6 38 018401636 B - 29 4 018500836 C - 48 6 C - 56 6 018501232 F - 39 14 K - 40 22 018501636 B - 3 4 B - 40 4 021060106 K - 26 22 K - 30 22 K - 43 22 Z - 15 50 Z - 64 52 Z - 98 52 021060306 K - 28 22 K - 45 22 021300106 Z - 71 52 021400216 D - 42 10 021400306 M - 4 28 021500106 Z - 51 50 Z - 56 50 021710212 V1 - 22 46 025030236 A - 18 2 K - 60 24 K - 70 24 N - 25 30 025040236 D - 41 10 L - 22 26 R - 15 38 R - 21 38 025050134 L - 13 26 025050236 C - 50 6 M - 8 28 025060236 C - 32 6 C - 37 6 C - 71 8 D - 45 10 Z - 96 52 025060336 Z - 13 50 Z - 65 52 025660132 Z - 90 52 025710232 V1 - 23 46 026030136 F - 24 14 026030236 Z - 72 52 026040136 Z - 76 52 028030246 K - 59 24 R - 9 38 R - 14 38 R - 20 38 028050246 C - 49 6 K - 74 22 Z - 50 50 CODE REF.NO Page 028060246 Z - 14 50 Z - 97 52 032461606 Z - 66 52 037301215 Z - 3 50 047250642 E - 22 12 047301042 D - 27 10 047602042 D - 4 10 048040342 K - 18 22 L - 14 26 L - 23 26 M - 7 28 048050342 J - 10 20 J - 19 20 048060342 C - 12 6 C - 43 6 D - 30 10 048070342 F - 37 14 N - 9 30 048080142 C - 18 6 K - 36 22 048080342 D - 11 10 D - 24 10 L - 9 26 060400516 K - 6 22 060670512 V1 - 25 46 061300816 Z - 70 52 062060816 G - 9 16 G - 28 16 062061016 A - 6 2 D - 50 10 G - 3 16 J - 35 20 K - 17 22 062300416 A - 17 2 B - 5 4 K - 58 24 K - 69 24 062300506 Z - 74 52 062300616 F - 25 14 062300816 R - 8 38 R - 11 38 062350616 J - 8 20 062400616 G - 7 16 G - 11 16 Z - 75 52 062400806 B - 39 4 062400816 B - 41 4 K - 4 22 062401006 A - 20 2 L - 21 26 062401216 J - 13 20 062500616 H - 2 18 H - 4 18 H - 6 18 J - 29 20 V1 - 32 46 062501016 A - 9 2 062501406 Z - 59 50 062670412 H - 31 18 062670712 V1 - 11 46 062670812 V1 - 6 46 062680512 E - 25 12 062680812 E - 29 12 CODE REF.NO Page 070608800 C - 17 6 070688850 D - 33 10 070696800 D - 18 10 071031840 C - 73 8 081003670 F - 18 14 081005070 L - 15 26 081007070 M - 12 28 0A4261005 T - 8 42 0A4300805 N - 19 30 T - 6 42 T - 16 42 0A4401005 T - 14 42 0A4501005 U - 2 44 0A5300606 T - 12 42 0A5301605 R - 25 38 0A5401006 R - 17 38 R - 23 38 R - 27 38 R - 29 38 R - 32 38 0B0452006 S - 9 40 0B1351606 Z - 86 52 100136001 H - 20 18 100360003 K - 62 24 100401021 J - 31 20 100402004 H - 17 18 100887001 Z - 28 50 101572101 Z - 26 50 102630001 D - 8 10 102707002 M - 5 28 V1 - 7 46 104449001 A - 8 2 104525101 Sp 53 104821001 A - 3 2 105234003 E - 8 12 105343001 Z - 87 52 107415009 Sp 54 107415014 Sp 54 107606101 Sp 53 107744001 D - 40 10 E - 6 12 107779001 Z - 27 50 107780001 Z - 29 50 109239002 A - 15 2 110215002 Z - 89 52 110367001 B - 20 4 C - 42 6 114483002 Z - 22 50 114486002 Z - 5 50 115147001 E - 14 12 115148201 E - 13 12 115158001 E - 21 12 115158001 E - 26 12 115161101 E - 33 12 115165001 E - 34 12 115166001 E - 35 12 V2 - 9 48 117608001 A - 24 2 117934001 A - 2 2 118064001 Z - 34 50 118837001 Z - 25 50 119755001 Z - 95 52 120448001 J - 22 20 59 From the library of: Superior Sewing Machine & Supply LLC jintex.in
