Parts index — Brother KE-430F / BE-438Ftap a row to open its page

Page 2 — 型式板の見方

Brother KE-430F / BE-438F parts on page 2

Ref	Part number	Part name	Qty
	KE-430F-01	BROTHER INDUSTRIES, LTD.
	KE-430F-01	BROTHER INDUSTRIES, LTD.
	KE-430F-01	BROTHER INDUSTRIES, LTD.
	KE-430F-01	BROTHER INDUSTRIES, LTD.
	BE-438F	BROTHER INDUSTRIES, LTD.

Page 3 — Description of model plate

Brother KE-430F / BE-438F parts on page 3

Ref	Part number	Part name	Qty
	KE-430F-0	ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER
	BE-438F	ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER

Page 4 — パーツブックご利用に際して

Brother KE-430F / BE-438F parts on page 4

Ref	Part number	Part name	Qty
	1	A. 主体関係
	3	B. 上軸・針棒関係
	7	C. 送り関係
	11	D. 押上げ関係
	13	E. ボタンつかみ関係 (BE-438F)
	15	F. 下軸関係
	17	G. 給油潤滑関係
	19	H. 糸通し関係
	21	J. 糸巻関係
	23	K. 糸切り関係
	27	L. 糸払い関係
	29	M. 糸緩め関係
	31	N. 糸つかみ関係
	33	P1. コントロールボックス関係
	35	P2. コントロールボックス関係
	37	Q. 電装品関係
	39	R. 操作パネル関係
	41	S. モータ関係

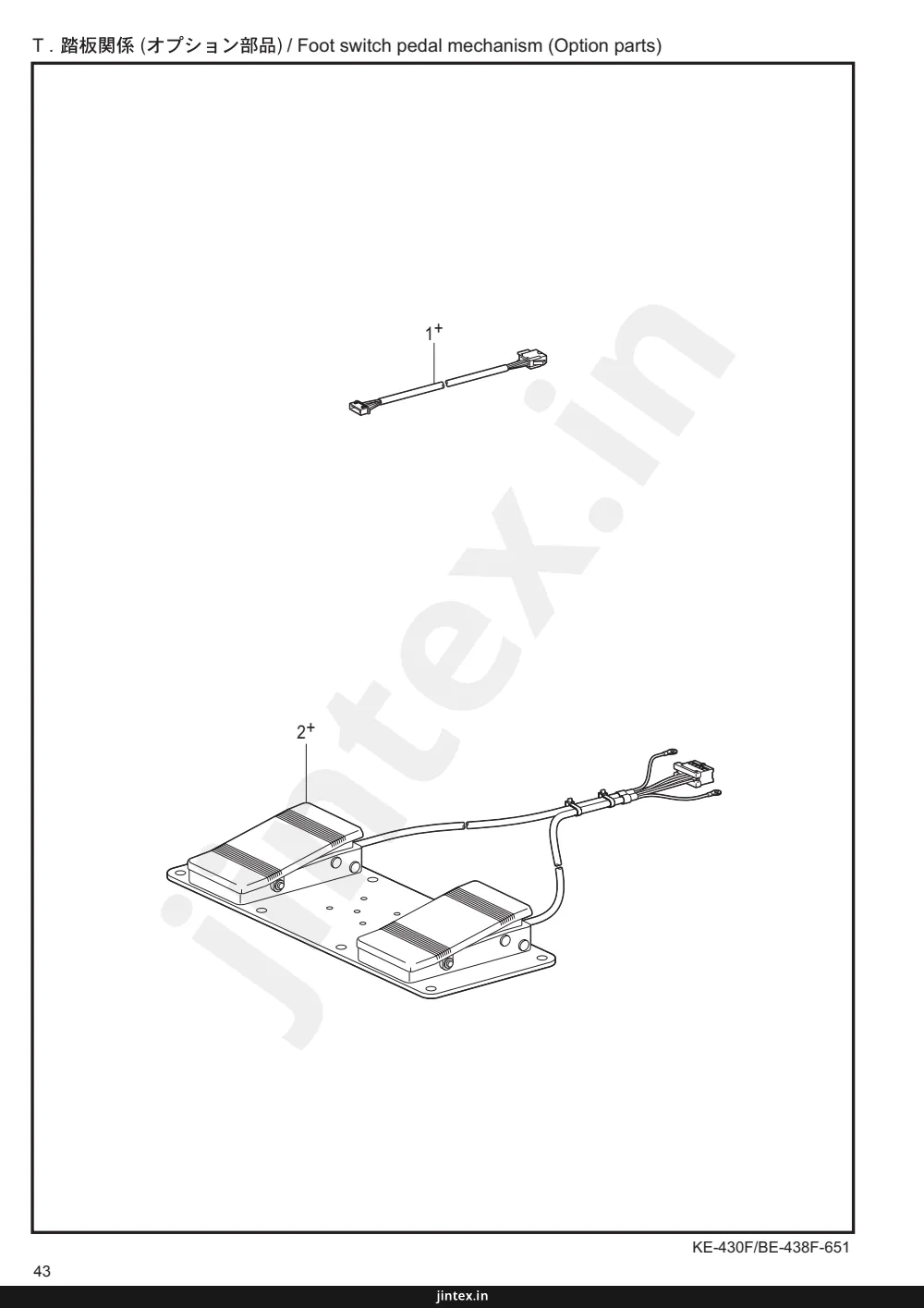

	43	T. 踏板関係 (オプション部品)
	45	U1. 補助装置関係 (BE-438F用オプション部品)
	47	U2. 補助装置関係 (BE-438F用オプション部品)
	49	Z. 付属品関係
	51	Wa. 警告ラベル
	53	Sp. 仕様別部品一覧表
	55	Ga. ゲージ部品一覧表
	59	索引

Page 6 — A. 主体関係 / Machine body

Brother KE-430F / BE-438F parts on page 6

Ref	Part number	Part name	Qty
	1	CAP
	2	CAP
	3	CAP
	4	WASHER
	5	WASHER
	6	WASHER
	7	WASHER
	8	COVER
	9	CAP
	10	COVER
	11	COVER
	12	SCREW
	13	COVER
	14	SCREW
	15	COVER
	16	BRACKET
	17	SCREW
	18	BRACKET
	19	SCREW
	20	WASHER
	21	BRACKET
	22	WASHER
	23	WASHER
	24	CAP
	25	WASHER
	26	SCREW
	27	WASHER
	28	CAP
	29	WASHER
	30	BRACKET
	31	CAP
	32	SCREW
	33	WASHER
	34	LABEL
	35	CAP
	36	LABEL
	37	BRACKET

Page 7 — A. 主体関係 / Machine body

Brother KE-430F / BE-438F parts on page 7

Ref	Part number	Part name	Qty
	SB0788001	ゴムセン23	1
	117934001	ゴムセン13.5	2
	S32263001	ゴムセン8.5	5
	S20878000	ゴムセン5.3	2
	S32263001	ゴムセン8.5	3
	S20878000	ゴムセン5.3	5
	S23337001	ゴムセン18.5	1
	SB1167001	メンイタクミ	1
	117934001	ゴムセン13.5	1
	062500816	ナベコ5X8	3
	SB1277001	テンビンカバー	1
	062401006	ナベコ4X10	1
	SB0786001	サイドカバー	1
	062500816	ナベコ5X8	4
	SA3262202	オオカマカバー	1
	SA3263001	オオカマカバーフックD	1
	004300513	+サラコ3X5	2
	SA3264001	イタナット	1
	SA3265001	ダンネジ8-2	2
	109239002	ナミバネザガネ	2
	SA3266101	オオカマカバーフックU	1
	062300416	ナベコ3X4	2
	025030236	ヒラザガネチュウ3	2
	SB1168001	クッションゴム	3
	SA8680001	カラー	3
	062402016	ナベコ4X20	3
	025040136	ヒラザガネショウ4	3
	SB1169001	クッションケイタ	1
	S25310101	サラネジ4	2
	SB0789001	マクラ	1
	SB0984001	カラー	2
	018062036	アナボルト6X20	2
	025060236	ヒラザガネチュウ6	2
	SA9826001	ソウサチュウイラベル	1
	S37060001	アースマーク	1
	SA9957002	ワーニングマーク	1
	SA9957001	ワーニングマーク	1

Page 8

Brother KE-430F / BE-438F parts on page 8

Ref	Part number	Part name	Qty
67	67	PULLEY
63	63	SCREW
64	64	PIN
62	62	SPRING
60	60	SHAFT
68	68	RING
61	61	COLLAR
66	66	SCREW
65	65	WASHER
59	59	BRACKET
54	54	FAN
55	55	SCREW
56	56	SCREW
26	26	BRACKET
27	27	SCREW
25+	25+	BEARING
11	11	RING
10	10	BEARING
3	3	BRACKET
6	6	SCREW
11	11	RING
12	12	CONNECTING ROD
9	9	BEARING
13	13	RING
14	14	RING
8	8	SHAFT
1	1	SHAFT
16	16	COVER
2	2	BRACKET
7	7	SCREW
4	4	BRACKET
5	5	SCREW
17	17	BRACKET
15	15	SCREW
21	21	SCREW
58	58	SCREW
24	24	SCREW
23	23	BEARING
22	22	COLLAR
57	57	COLLAR
18	18	COLLAR
19	19	BEARING
20	20	BEARING
31	31	BRACKET
28+	28+	BRACKET
32	32	SPRING
43	43	SCREW
41	41	BRACKET
42	42	BRACKET
33	33	RING
30+	30+	BRACKET
44	44	PIN
39	39	SCREW
40	40	WASHER
38	38	SHAFT
29+	29+	SHAFT
34	34	SCREW
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
45	45	COLLAR
46	46	BRACKET
47	47	SCREW
50	50	SHAFT
51	51	COLLAR
53	53	SCREW
48	48	COLLAR
49	49	SPRING
52+	52+	NEEDLE BAR

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430F / BE-438F parts on page 9

Ref	Part number	Part name	Qty
1	SB0993001	ウワジク	1
2	SB1278001	ヘンシンリンクミ	1
3	SB1012001	フタ	1
4	SA5248001	グリスカバー	1
5	017400802	ボルト4X8	3
6	062400816	ナベコ4X8	3
7	S23651001	アナヒラ6X6ホソメ	2
8	SB1679001	クランクロツドクミセット	1
9	SB0697101	クランクロツド	1
10	SB0991001	ニードルベアリング･･･<銀>	1
10	SB0991002	ニードルベアリング･･･<青>	1
11	SB1013001	スペーサ	2
12	SB0992001	ニードルベアリング･･･<銀>	1
13	SB0992002	ニードルベアリング･･･<青>	1
14	SB1070001	スペーサD	2
15	SB1070001	オイルシール	2
16	SB1025001	バランサーイタ	1
17	SB1026101	バランサー	1
18	018061636	アナボルト6X16	2
19	SA7520001	ベアリングブツシユF	1
20	SA7521001	タマシクウケ6904ZZNR	1
21	S23651001	アナヒラ6X6ホソメ	2
22	SB1007001	ベアリングブツシユM	1
23	S38707001	タマシクウケ6004ZZNR	1
24	S23651001	アナヒラ6X6ホソメ	2
25+	SB1009001	ツギテ	1
25+	SB1011001	ツギテB	1
26	S38710001	タマシクウケ6204ZZNR	1
27	S23651001	アナヒラ6X6ホソメ	4
28+	SB0995101	ツリアイクランクU	1
29+	SB1019001	ハリボウクランクU	1
30+	SB1002001	テンビンUクミ	1
28+	SB0994101	ツリアイクランク	1
29+	SB0695001	ハリボウクランク	1
30+	SB0997001	テンビンクミ	1
28+	SB0996101	ツリアイクランクB	1
29+	SB1018001	ハリボウクランクB	1
30+	SB0999001	テンビンBクミ	1
31	S25235001	シメネジ8	1
32	S23651001	アナヒラ6X6ホソメ	4
33	110367001	ザガネ	2
34	140004001	シメネジ3.57	1
35	SA9650001	ハリボウダキ	1
36	SB1034101	ハリボウレンククミ	1
37	SA2422001	シメネジ3.57L	1
38	SB1031001	テンビンササエジクD	1
39	062500616	ナベコ5X6	1
40	026050136	ヒラザガネコガタ5	1
41	012500536	アナヒラ5X5	1
42	SA1125001	セットカラー	1
43	012400436	アナヒラ4X4	2
44	012060636	アナヒラ6X6	2
45	SB1029001	カクコマD	1
46	SB1035101	カクコマアンナイ	1

Page 10 — B. Upper shaft and needle bar mechanism

Brother KE-430F / BE-438F parts on page 10

Ref	Part number	Part name	Qty
63	63	SCREW
67	67	WHEEL
64	64	PIN
60	60	SHAFT
62	62	SPRING
68	68	RING
66	66	SCREW
61	61	COLLAR
65	65	WASHER
59	59	BRACKET
54	54	FAN
55	55	SCREW
56	56	SCREW
26	26	SHAFT
27	27	SPRING
27	27	SPRING
11	11	RING
10	10	BEARING
11	11	RING
3	3	SHAFT
6	6	SCREW
8	8	SHAFT
1	1	SHAFT
16	16	COVER
2	2	COLLAR
7	7	SCREW
4	4	CLAMP
5	5	SCREW
15	15	BRACKET
17	17	SCREW
12	12	BEARING
9	9	COLLAR
13	13	RING
14	14	RING
13	13	RING
19	19	BEARING
20	20	BEARING
18	18	COLLAR
28+	28+	HOLDER
31	31	PIN
32	32	SPRING
21	21	SCREW
58	58	SPRING
22	22	COLLAR
23	23	BEARING
24	24	RING
24	24	RING
21	21	SCREW
58	58	SPRING
44	44	PIN
43	43	SCREW
30+	30+	SHAFT
41	41	SCREW
32	32	SPRING
42	42	BRACKET
43	43	SCREW
33	33	RING
29+	29+	SHAFT
38	38	SHAFT
39	39	SCREW
40	40	WASHER
33	33	RING
50	50	SHAFT
53	53	SCREW
51	51	COLLAR
48	48	COLLAR
49	49	SPRING
52+	52+	NEEDLE BAR
34	34	SCREW
37	37	LINK
36	36	COLLAR
35	35	SHAFT
47	47	SCREW
46	46	BRACKET
45	45	COLLAR

Page 11 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430F / BE-438F parts on page 11

Ref	Part number	Part name	Qty
	018401636	アナボルト4X16	2
	SB1021001	ハリボウD	1
	144458001	アタマツキトメネジ3.57	1
	SB1023001	ハリボウメタルU	1
	SB1024001	ハリボウメタルD	1
	KE-430F-03	ミシンハリ DPX5･･･(#14)
	KE-430F-0K	ミシンハリ DPX5･･･(#9)
	KE-430F-05	ミシンハリ DPX17NY･･･(#19)
	KE-430F-0F	ミシンハリ DPX5KN･･･(#11)
	BE-438F	ミシンハリ DPX17NY･･･(#12)
	012500536	アナヒラ5X5	2
	S38713100	ファン	1
	062400816	ナベコ4X8	3
	018501636	アナボルト5X16	4
	SA9004001	プーリギヤR	1
	012500536	アナヒラ5X5	2
	SB1060001	プーリジククミ	1
	SB1037001	プーリジク	1
	SB1033001	プーリメタル	1
	SB1041001	プーリバネ	1
	SB1040001	プーリネジ	1
	047402042	スプリングピンAW4	1
	SB1038001	プーリギヤL	1
	012500536	アナヒラ5X5	2
	SB0910001	プーリ	1
	048280142	トメワジクヨウC28	1

Page 12 — C. 送り関係 / Feed mechanism

Brother KE-430F / BE-438F parts on page 12

Ref	Part number	Part name	Qty
72	72	SCREW
71	71	COVER
70	70	COVER
66+	66+	BRACKET
65+	65+	BRACKET
31	31	SCREW
30+	30+	COVER
24	24	COVER
4	4	SCREW
26+	26+	FEED DOG
23	23	SCREW
29	29	WASHER
22	22	BASE PLATE
26+	26+	FEED DOG
36	36	BRACKET
61	61	WASHER
39	39	LINK
42	42	SPRING
41	41	WASHER
40	40	PIN
59	59	SHAFT
45	45	SPRING
58	58	BRACKET
37	37	BRACKET
57	57	SPRING
46	46	PLATE
47	47	PLATE
48	48	SCREW
54	54	SPRING
55	55	WASHER
56	56	SLEEVE
52	52	ROD
53	53	BRACKET
50	50	WASHER
51	51	SCREW
49	49	BRACKET
44	44	BRACKET
4443	4443	SHAFT
38	38	BRACKET
62	62	SCREW
63	63	WASHER
60	60	SCREW
35	35	SCREW
34	34	PLATE
17	17	SCREW
21	21	SCREW
64	64	COVER
15	15	SCREW
13	13	HOLDER
12	12	PIN
11	11	SPRING
10	10	SHAFT
17	17	SCREW
19	19	BEARING
20	20	RING
8	8	SLEEVE
9	9	WASHER
32	32	BASE PLATE
33	33	SCREW
16	16	BRACKET
68	68	BRACKET
69	69	SCREW
7	7	SCREW
6	6	BRACKET
5	5	SHAFT
2	2	BASE
1	1	CYLINDER
3	3	SCREW
25	25	SCREW
27	27	SHAFT
28	28	WASHER

Page 13 — C. 送り関係 / Feed mechanism

Brother KE-430F / BE-438F parts on page 13

Ref	Part number	Part name	Qty
	SB0956001	Xオク リレバーメタル
	SB0922001	Xオク リレバー
	SB0800001	Xオク リカクコマクミ
	012300336	アナヒラ3X3
	012500536	アナヒラ5X5
	SA3366101	Xオク リギア
	018063036	アナボルト6X30
	XC5780001	リニアブツシユ10
	012060636	アナヒラ6X6
	SB0918001	Yラックジク
	048080342	トメワE8
	012500536	アナヒラ5X5
	SB0917001	Yラックジクダキ
	012400436	アナヒラ4X4
	018501436	アナボルト5X14
	SA4197101	オク リギア
	012060536	アナヒラ5X5
	SA3370001	ヘンシンジク
	070608800	Rタマジクウケ608ZZ
	048080142	トメワジクヨウC8
	012060636	アナヒラ6X6
	SB0916001	オク リダイウケタイタ
	018401036	アナボルト4X10
	SB0921001	オク リダイカバー
	SA3538001	シメネジ4X8
	SB0799101	オク リダイコムクミA
	SB1076001	オク リダイコムクミB
	SB0803001	Yオク リカクコマクミ
	012400436	アナヒラ4X4
	012500536	アナヒラ5X5
	P.54-58	オク リイタ
	153057101	オク リイタシメネジ
	SB0919001	Xモータートツケイタ
	SA4460001	アナボルトザクミ6X14
	SB0920001	Yモータートツケイタ
	SA4246001	アナボルトザクミ6X14
	SB1171001	オサエウデクミ
	SA3419101	オサエウデ
	SB0925001	オサエウデレバー-R
	SB0926101	オサエウデレバー-L
	SB0929001	QCオサエウデレバーシク
	110367001	ザガネ
	048060346	トメワE6
	SA3231001	セットカラー-B
	012060536	アナヒラ6X6
	012500536	アナヒラ5X5
	SA3424001	オサエアシヨサエイタA
	SA3425001	オサエアシヨサエイタB
	SA3426001	オサエアシサラネジ3.5
	SA3208201	オサエウデレバーイタ
	146354002	ザガネ
	018500836	アナボルト5X8
	SA3427101	オサエアバネアンナイロツド
	SA1179002	ダンネジ5
	153568001	オサエアバネA
	152788000	オサエアバネカンザ
	153567000	オサエアバネカラー
	SA4130001	フィンガーガード
	SA2626001	トメネジ3.5

Page 14 — C. 送り関係 / Feed mechanism

Brother KE-430F / BE-438F parts on page 14

Ref	Part number	Part name	Qty
70	71	Cover
70	72	Screw
66+	66	Bracket
65+	65	Bracket
31	31	Screw
30+	30	Cover
24	24	Base Plate
4	4	Screw
3	3	Screw
26+	26	Feed Dog
23	23	Screw
29	29	Screw
28	28	Screw
27	27	Shaft
22	22	Base Plate
26+	26	Feed Dog
25	25	Screw
36	36	Screw
61	61	Washer
39	39	Lever
42	42	Spring
41	41	Washer
40	40	Pin
59	59	Shaft
45	45	Screw
58	58	Screw
37	37	Bracket
46	46	Plate
47	47	Plate
46	46	Plate
48	48	Screw
57	57	Wire
55	55	Washer
54	54	Spring
56	56	Shaft
53	53	Cover
49	49	Lever
50	50	Screw
51	51	Washer
58	58	Screw
60	60	Screw
62	62	Screw
63	63	Washer
38	38	Lever
44	44	Shaft
4443	4443	Screw
35	35	Screw
34	34	Plate
17	17	Screw
21	21	Screw
64	64	Cover
16	16	Bracket
18	18	Bearing
19	19	Bearing
20	20	Ring
8	8	Bush
17	17	Screw
10	10	Shaft
9	9	Screw
15	15	Screw
13	13	Lever
12	12	Pin
11	11	Clip
14	14	Screw
2	2	Shaft
5	5	Shaft
1	1	Shaft
32	32	Base Plate
33	33	Screw
17	17	Screw
17	17	Screw
16	16	Bracket
68	68	Screw
69	69	Washer
7	7	Screw
6	6	Lever

Page 15 — C. 送り関係 / Feed mechanism

Brother KE-430F / BE-438F parts on page 15

Ref	Part number	Part name	Qty
59	SA3428001	オサエウデササエジク	1
60	012500536	アナヒラ5X5	1
61	SB1172001	スライダー	1
62	018061636	アナボルト6X16	2
63	025060236	ヒラサガネチュウ6	2
64	SB0923001	オサエウデササエジタ	1
65+	P.54-58	オサエアシR	1
66+	P.54-58	オサエアシL	1
67	018400836	アナボルト4X8	2
68	SB0924001	Xオク リギヤカバー	1
69	062400416	ナベコ4X4	2
70	SA4198001	ゲンテンキジュンイタクミ	1
71	S42903001	ゲンテンキジュンイタ	1
72	S49955101	オクリイタシマネジ	2

Page 16 — D . 押え上げ関係 / Work clamp lifter mechanism

Brother KE-430F / BE-438F parts on page 16

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46

Page 17 — D. 押え上げ関係 / Work clamp lifter mechanism

Brother KE-430F / BE-438F parts on page 17

Ref	Part number	Part name	Qty
	SA3432101	オサエアゲオサエエイタ
	047602042	スプリングピンAW6
	SB1080001	オサエアゲレバークミ
	102630001	ハリボウアンナイカクコマ
	SB0962001	オサエアゲレバーシク
	012500536	アナヒラ5X5
	S20356001	ヒラザガネ10
	048080342	トメワE8
	012060536	オサエアゲ6
	SB0961001	オサエアゲレバーメタル
	SB0963001	オサエアゲリンク
	SB0705001	オサエアゲリンクダンネジ
	SB0958001	オサエアゲクドウレバー
	SB0965001	バネカケM5
	070696800	Rタマシクウケ696ZZ
	SA3441001	オサエアゲロジク
	012500536	アナヒラ5X5
	SB0959001	オサエアゲカムレバージク
	012500536	アナヒラ5X5
	S23506001	ヒラザガネ10
	048080342	トメワE8
	SB0966001	オサエアゲカムギヤ
	012060536	アナヒラ6X5
	SB0960001	オサエアゲカムジク
	048060346	トメワE6
	SA3231001	セットカラー-B
	012060536	アナヒラ6X5
	SB1081001	モーターブラケットクミ
	018062036	アナボルト6X20
	SB0964001	オサエアゲバネ
	SB0968001	バネカケ
	018400836	アナボルト4X8
	SA3707101	クドウギヤ16
	012060536	アナヒラ6X5
	SA3628001	ボタンツカミロッド
	SA3629001	ボタンツカミロジク
	10774001	コロ
	025040236	ヒラザガネチュウ4
	021400216	シュナット4
	SB1078001	ボタンツカミレバーホルダ
	018061636	アナボルト6X16
	SA3631001	ボタンツカミレバー
	SB1079001	ボタンツカミレバージク
	110367001	ザガネ
	048060346	トメワE6
	012060636	アナヒラ6X6

Page 18 — E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F)

Brother KE-430F / BE-438F parts on page 18

Ref	Part number	Part name	Qty
1	1	BASE
2	2	PIN
3	3	SPRING
4	4	SCREW
5	5	WASHER
6	6	WASHER
7	7	WASHER
8	8	NUT
9	9	SPRING
10	10	SCREW
11	11	WASHER
12	12	KNOB
13	13	SHAFT
14	14	SPRING
15	15	WIRE
16	16	PIN
17, 45	17	WIRE
18	18	PLATE
19, 50	19	SPRING
20, 51	20	LEVER
21	21	SCREW
22	22	SCREW
23, 46	23	SCREW
24, 47	24	SCREW
25	25	WASHER
26	26	SCREW
27	27	ARM
28	28	BASE
29	29	SPRING
30	30	SCREW
31	31	SPRING
32, 49	32	SPRING
33, 48	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	BLOCK
37	37	BLOCK
38	38	WASHER
39	39	OPTION PART
40	40	OPTION PART
41	41	OPTION PART
42	42	OPTION PART
43	43	OPTION PART
44	44	OPTION PART

Page 19 — E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F)

Brother KE-430F / BE-438F parts on page 19

Ref	Part number	Part name	Qty
	153830100	ボタンツカミホルダー	1
	153827001	ボタンツカミホルダーシジク	1
	014680632	アナクボミ437-40X6	2
	151968001	ボタンホルダー-フッククミ	1
	151969001	ボタンホルダー-フック	1
	107744001	コロ	2
	153484001	ザガネ4.76	1
	105234003	ナット4.37	2
	014760632	アナクボミ595-28X6	1
	017711412	ボルト476-32X14	2
	146354001	ザガネ	2
	146994001	オサエバネチヨウシネジ	2
	115148201	オサエバネチヨウセツネジ	1
	115147001	ボタンツカミオサエバネ	1
	S49998001	フィンガーガード	1
	011679312	トメネジ3.57ヒラ	2
	SA9287001	ボタンツカミクミS	1
	SA9288001	ボタンツカミベ-ス	1
	SA9289001	ボタンツカミL-S	1
	SA9290001	ボタンツカミR-S	1
	SA9291001	ボタンツカミアンナイピン	2
	047250642	スプリングピンAW2.5	2
	SA9292001	ボタンツカミLイタバネ-S	1
	SA9293001	ボタンツカミRイタバネ-S	1
	062400416	ナベコ4X4	2
	SA9294001	ボタンツカミダンネジ4	2
	SA9301001	ボタンツカミM	1
	SA9302001	ボタンツカミイタカム	1
	062400816	ナベコ4X8	2
	SA9296001	シメネジ4	1
	SA9297001	マルナット4	1
	115163001	ボタンツカミイタバネ	1
	SA9298001	ボタンツカミチヨウセツイタ	1
	SA9299001	ダンネジ4	1
	SA9300001	チョウセツイタダンネジ4	1
	S52072101	ボタンツカミスペーサBL	1
	S52076101	ボタンツカミスペーサBR	1
	S01694101	サラネジ2.38X4	2
	S52071101	ボタンツカミスペーサAL	1
	S52075101	ボタンツカミスペーサAR	1
	S52073101	ボタンツカミスペーサCL	1
	S52077101	ボタンツカミスペーサCR	1
	S52074101	ボタンツカミスペーサDL	1
	S52078101	ボタンツカミスペーサDR	1
	SA9303001	ボタンツカミクミL	1
	SA9304001	ボタンツカミLイタバネ-L	1
	SA9307001	ボタンツカミRイタバネ-L	1
	SA9308001	ボタンツカミチヨウセツイタ	1
	S59321001	ボタンツカミバネ	1
	SA9304001	ボタンツカミL-L	1
	SA9305001	ボタンツカミR-L	1

Page 20 — F. 下軸関係 / Lower shaft mechanism

Brother KE-430F / BE-438F parts on page 20

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31+	31+
	32+	32+
	33+	33+
	34+	34+
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59

Page 21 — F. 下軸関係 / Lower shaft mechanism

Brother KE-430F / BE-438F parts on page 21

Ref	Part number	Part name	Qty
	SB1652001	オオカマタイクミセット	1
	SB1173001	オオカマタイオオクミ	1
	SB1072001	オオカマタイ	1
	SB1285001	カマイトアンナイ	1
	SA4199001	シメナジ3X4	2
	SA3241001	オオカマト リツケツメ	2
	152684101	オオカマト リツケバネ	2
	026030136	ヒラザガネコガタ3	2
	062300616	ナベコ3X6	2
	SA9396001	フエルト	2
	SB1044001	フエルト	2
	SB1050001	オイルクチパイプS	2
	SB1048101	オイルクチパイプM	1
	SB1047001	フエルトササエ	1
	SA9191001	シメナジM3X5.5	2
	SA3274101	フエルトオサエ	1
	SA47307001	シメナジ3X4	2
	SB1049001	ハイクフエルトクミ	1
	SA9397001	ゴムセン5.5	2
	SB1054001	ビニルチューブ	2
	SB1055001	ビニルチューブ	1
	SA4187001	ニードルベアリング<青>	2
	SA4188001	ニードルベアリング<黒>	2
	SA4189001	ニードルベアリング<銀>	2
	SA4190001	ニードルベアリング<銅>	2
	SA3276001	スペーサA	2
	SA3277001	トメワ	2
	012060636	アナヒラ6X6	1
	SA3278001	カラー	1
	SB1268001	シタジクミ	1
	S23651001	アナヒラ6X6ホソメ	2
	SA6448201	ドライバーE	1
	018501036	アナボルト5X10	1
	P.53	オオカマ	1
	P.53	オオカマハコウミ	1
	P.53	ボビンケースクミ	1
	P.53	ボビン	1
	SB1175001	ギヤカバー	1
	062400616	ナベコ4X6	5
	0A5400806	+ナベザクミ4X8DB	2
	SB0718001	ヨウドウギヤカラー	1
	081040070	OリングP40	2
	012060636	アナヒラ6X6	4
	SB0717001	ヨウドウギヤ	1
	S23651001	アナヒラ6X6ホソメ	2
	SB1043101	ヨウドウギヤジククミ	1
	S23651001	アナヒラ6X6ホソメ	2
	SB0985001	ヨウドウギヤジクR	1
	SA7520001	タマツクウケ6904ZZNR	2
	SB0909001	ゴムシールR	2
	017061006	ボルト6X10	1
	SB1051001	クランクロツドザガネ	1
	SB0986001	ベアリングブツシユ	2
	SA4647001	タマツクウケ6900ZZNR	2
	S23651001	アナヒラ6X6ホソメ	4
	SB1258001	オイルシール	1
	SB0790001	ゴムシールL	1
	SB1204001	イチギメイタ	1
	062400616	ナベコ4X6	2
	012400436	アナヒラ4X4	1
	SA3238101	カマチョウセツジク	1
	081003670	OリングPW3	1

Page 22

Brother KE-430F / BE-438F parts on page 22

Ref	Part number	Part name	Qty
1	1	OIL LEVEL GAUGE
2	2	BRACKET
3	3	BRACKET
4	4	SCREW
5	5	WASHER
6	6	SCREW
7	7	TUBE
8	8	BRACKET
9	9	BRACKET
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	WASHER
15	15	BRACKET
16	16	BRACKET

Page 23 — G. 給油潤滑関係 / Lubrication

Brother KE-430F / BE-438F parts on page 23

Ref	Part number	Part name	Qty
	SB1052001	オイルタンククミ	1
	SB1053001	オイルタンクナット	1
	SB1056001	オイルタンク トリツケイタ	1
	017401015	ボルト4X10	2
	025040236	ヒラザガネチュウ4	2
	018400836	アナボルト4X8	2
	SB0911001	キュウユツクギテ	1
	SA9917001	キュウユクチフタ	1
	SB1276001	ビニールチューブブササエ	1
	062400616	ナベコ4X6	1
	SA1394101	コードオサエU3	1
	062400616	ナベコ4X6	1
	SB0927001	Yラックジクカバー	1
	SB0928001	フエルト	1
	SB1279101	グリスウケF	1
	SB1488101	フエルト	1

Page 24 — H . 糸通し関係 / Threading mechanism

Brother KE-430F / BE-438F parts on page 24

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	SCREW
4	4	SCREW
5	5	BRACKET
6+	6+	SPRING
7	7	PIN
8	8	SHAFT
9	9	PIN
10	10	WASHER
11	11	WASHER
12	12	PIN
13	13	PULLEY
14	14	PULLEY
15	15	SCREW
16	16	SHAFT
17	17	PIN
18	18	NUT
19	19	WASHER
20	20	PIN
21	21	SCREW
22	22	NUT
23	23	SPRING
24	24	PULLEY
25	25	PIN
26	26	NUT
27	27	SPRING
28	28	PIN
29+	29+	SPRING
30	30	SHAFT
31	31	SPRING
32	32	SPRING
33	33	SPRING
34	34	SCREW

Page 25 — H. 糸通し関係 / Threading mechanism

Brother KE-430F / BE-438F parts on page 25

Ref	Part number	Part name	Qty
	SA3250001	アームイトミチA	1
	062500616	ナベコ5X6	4
	SA4333001	アームイトミチB	1
	SA6391001	アームイトミチC	1
	SB1086001	アームイトミチD	1
	P.53	イトトリバネ	1
	SB1084001	DTイトチョウシボウ	1
	SB1088001	セットカラー-DT	1
	SB1180001	キリワリジク	1
	SB1181001	DTクツシヨン	1
	SA6190001	DTイトチョウシサラ	1
	SB1267001	コイルバネ	1
	145446001	イトチョウシサラ	1
	SB1281001	テーパサラオサエ	1
	018301036	アナボルト3X10	1
	SB1182001	DTイトチョウシダイクミ	1
	012400436	アナヒラ4X4	1
	021500316	3シュナット5	1
	153484001	ザガネ4.76	1
	SA4143001	アナトメネジ6	1
	SA3256001	イトチョウシボウA	1
	100136001	イトチョウシナツト	1
	SA4146101	フクチョウシバネ	1
	145446001	イトチョウシサラ	2
	SB1087001	アームイトカケ	1
	021400306	3シュナット4	1
	SB1088006	ハリボウメタルDイトアンナイ	1
	SB1085001	イトユルメピン	1
	P.54	ハリボウイトアンナイ	1
	152881101	<オプション用>
	012060636	エキレイトクミ	1
	152883000	フエルト8X15.5	1
	152884001	エキレイトカケ	1
	062670412	ナベコ357-40X4	1

Page 26 — J. 糸巻関係 / Bobbin winder mechanism

Brother KE-430F / BE-438F parts on page 26

Ref	Part number	Part name	Qty
28	28	Screw
29	29	Lever
30	30	Screw
27	27	Lever
15	15	Washer
36	36	Screw
37	37	Washer
12	12	Shaft
14	14	Washer
26	26	Washer
22	22	Shaft
24	24	Shaft
25	25	Screw
23	23	Holder
35	35	Spring
15	15	Washer
16	16	Shaft
13	13	Shaft
17	17	Shaft
19	19	Collar
21	21	Washer
20	20	Screw
31	31	Shaft
32	32	Spring
33	33	Spring
34	34	Spring
11	11	Shaft
5	5	Bobbin
7	7	Washer
8	8	Spring
6	6	Washer
4	4	Shaft
1	1	Cover
2	2	Bracket
3	3	Screw
10	10	Screw
9	9	Screw

Page 27 — J. 糸巻関係 / Bobbin winder mechanism

Brother KE-430F / BE-438F parts on page 27

Ref	Part number	Part name	Qty
	SB0785001	ウワフタ
	SA3299001	メス
	062500616	ナベコ5X6
	SB1253001	イトマキチョウシクミ
	S31032002	イトチョウシナツト
	145446002	イトチョウシサラ	2
	S12441001	チョウシバネウエザガネ
	100401022	イトチョウシバネ
	012500536	アナヒラ5X5
	062500816	ナベコ5X8	4
	SB1183001	イトマキユニット
	SB0792001	イトマキダイ
	SB1093001	ボビンオサエウデジク
	012500536	アナヒラ5X5
	048040342	トメワE4	3
	SB1184001	イトマキジクウケクミ
	SB1091001	イトマキジク
	108549001	Oリング
	SA8507001	イトマキクルマ
	012400636	アナヒラ4X6	2
	SA8503001	ゴムリング
	SB1186001	ボビンオサエカムクミ
	SA1982101	ボビンオサエカム
	SB1094001	イトマキウデジク
	012500536	アナヒラ5X5
	025060136	ヒラザガネシヨウ6	2
	SA1984001	ボビンオサエウデ
	018401236	アナボルト4X12
	SA2940001	ボビンオサエ
	S23418002	シメネジ4X5
	SA8510101	ボビンウケ
	SB1098001	イトマキレイバー
	SB1096001	モドシバネ
	SB1095001	イトマキダイバネ
	SB1266001	ネジリバネ
	062401006	ナベコ4X10	2
	025040236	ヒラザガネチユウ4	2

Page 28 — K. 糸切り関係 / Thread trimmer mechanism

Brother KE-430F / BE-438F parts on page 28

Ref	Part number	Part name	Qty
	1	1+
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51+
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71

Page 29 — K. 糸切り関係 / Thread trimmer mechanism

Brother KE-430F / BE-438F parts on page 29

Ref	Part number	Part name	Qty
	SB0935001	イトキリカム
	SB1206001	イトキリカムB
2	S23651001	アナヒラ6X6ホソメ	2
3	SB1187001	イトキリクドウレバーアミ	1
4	SB0936001	イトキリクドウレバー	1
5	SB0834001	イトキリコロ	1
6	SB0711001	イトキリコロジク	1
7	012500536	アナヒラ5X5	2
8	048060142	トメワジクヨウC6	1
9	S23651001	アナヒラ6X6ホソメ	2
10	021060306	3シュナット6	1
11	231071001	メタル8X15	1
12	SB0938001	クドウレバーアンナイジク	1
13	SB0937001	クドウジクバネ	1
14	SB0939001	イトキリロツドVクミ	1
15	S32465101	タマツギテケミ	2
16	S32462001	タマツギテダンネジB	2
17	021060306	3シュナット6	2
18	SB0945001	イトキリレバー-V	1
19	SB0943001	イトキリリンク	1
20	SB0705001	オサエアゲリンクダンネジ	1
21	021060306	3シュナット6	1
22	SB0944001	ソレノイドジク	1
23	012500536	アナヒラ5X5	2
24	SB0946001	イトキリレバー-H	1
25	021060306	3シュナット6	2
26	SB0947001	イトキリレバージク	1
27	SB0948001	カンザ	2
28	048100142	トメワジクヨウC10	1
29	012060636	アナヒラ6X6	2
30	018061236	アナボルト6X12	1
31	15559001	ヒラザガネ	1
32	SB0941001	イトキリロツドHクミ	1
33	S32465101	タマツギテケミ	2
34	S32462001	タマツギテダンネジB	1
35	021060306	3シュナット6	2
36	SA3324001	イドウハレバー	1
37	SA3325101	ダンネジ6.35-6	1
38	SA3326001	イドウハレバージク	1
39	012060636	アナヒラ6X6	1
40	SA3327401	イドウハレンカン	1
41	SA4354001	ダンネジ6-1.8	1
42	SB0714001	ハリイタ	1
43	SB1189001	イドウハFクミ	1
44	SA4518001	イドウハダンネジ	1
45	SA4519001	スラストザガネ	1
46	S00705001	イドウハカラー	1
47	SA3334001	イドウハカンザ0.3	1
47	SB0955001	イドウハカンザ0.35	1
47	SA6398001	イドウハカンザ0.4	1
48	SB1191101	コテイハF	1
49	062300416	ナベコ3X4	2
50	025030236	ヒラザガネチュウ3	2
51+	P.53, 58	ハリイタ	1
52	100360003	サラネジ2.38	2
53	S25310101	サラネジ4	2
54	SA3538001	シメネジ4X8	2
55	SB0932001	イトキリカレバー	1
56	SA3449101	ワイパーコロ	1
57	SA341001	オサエアゲコロジク	1

Page 30 — K. 糸切り関係 / Thread trimmer mechanism

Brother KE-430F / BE-438F parts on page 30

Ref	Part number	Part name	Qty
	67	FRAME
	68	SCREW
	11	SPRING
	13	SPRING
	12	SHAFT
	2	WASHER
	1	SPRING
	16	SCREW
	15	JOINT
	17	NUT
	3	LINK
	4	LINK
	5	PIN
	6	PIN
	7	SPRING
	8	RING
	9	SCREW
	10	NUT
	14	ROD
	64	SPRING
	61	SHAFT
	62	WASHER
	63	RING
	66	SPRING
	55	LEVER
	65	CAM
	58	PIN
	59	PIN
	57	SCREW
	56	SPRING
	60	SCREW
	52	SCREW
	53	SCREW
	54	SPRING
	51	PLATE
	42	BASE
	47	WASHER
	48	LEVER
	50	SCREW
	49	SPRING
	43	PLATE
	46	WASHER
	45	WASHER
	44	SPRING
	38	PIN
	39	SPRING
	41	SCREW
	40	SPRING
	36	LEVER
	34	LINK
	33	JOINT
	35	NUT
	30	SHAFT
	31	WASHER
	24	LEVER
	20	SCREW
	28	RING
	27	SPRING
	29	SPRING
	26	PIN
	25	NUT
	18	LEVER
	19	LEVER
	22	PIN
	23	SPRING
	21	NUT
	37	SCREW
	32	ROD

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

Brother KE-430F / BE-438F parts on page 31

Ref	Part number	Part name	Qty
58	SB0934001	コロ10X10	1
59	SB0933001	コロジック6X20	1
60	012500536	アナヒラ5X5	2
61	SB0931001	イトキリカムレバージク	1
62	110367001	ザガネ	1
63	048060346	トメワE6	1
64	012500536	アナヒラ5X5	2
65	SB0930001	イトキリクドウカム	1
66	012060536	アナヒラ6X5	2
67	SB1082001	モーターブラケットリアクミ	1
68	018061430	アナボルト6X14	3
69	028030246	バネザガネ2-3	2
70	SB0713001	シタイトオサエバネ	1
71	062300416	ナベコ3X4	2
72	025030236	ヒラザガネチュウ3	2

Page 32 — L. 糸払い関係 / Thread wiper mechanism

Brother KE-430F / BE-438F parts on page 32

Ref	Part number	Part name	Qty
1	1	Wiper arm
2	2	Spring
3	3	Wiper lever
4	4	Shaft
5	5	Bushing
6	6	Pin
7	7	Screw
8	8	Spring
9	9	Shaft
10	10	Washer
11	11	Circlip
12	12	Screw
13	13	Rod
14	14	Lever
15	15	Screw
16	16	Washer
17	17	Circlip
18	18	Lever
19	19	Washer
20	20	Circlip
21	21	Washer
22	22	Lever
23	23	Screw
24	24	Washer
25	25	Screw
26	26	Bushing

Page 33 — L. 糸払い関係 / Thread wiper mechanism

Brother KE-430F / BE-438F parts on page 33

Ref	Part number	Part name	Qty
	SB0969001	ワイパーカム	1
	012060536	アナヒラ6X5	2
	SB0970001	ワイパークドウレバー	1
	SB0965001	バネカケM5	1
	SA3449101	ワイパーコロ	1
	SA3441001	オサエアゲロジック	1
	012500536	アナヒラ5X5	1
	SB0964001	オサエアゲバネ	1
	SB0972001	ワイパーロツドジク	1
	S20356001	ヒラザガネ10	2
	048080342	トメワE8	2
	012500536	アナヒラ5X5	1
	SB0973001	ワイパーロツドクミ	1
	SB0977001	ワイパーシク	1
	012500536	アナヒラ5X5	1
	155559001	ヒラザガネ	1
	048040342	トメワE4	1
	SA3458001	ワイパーレンケツイタ	1
	025050134	ヒラザガネシヨウ5	1
	048040342	トメワE4	1
	081005070	OリングP5	2
	SA3459101	ワイパーウデクミ	1
	062401006	ナベコ4X10	2
	025040236	ヒラザガネチユウ4	2
	048040342	トメワE4	1
	SA3464001	オイルキリセン	1

Page 34 — M . 糸緩め関係 / Tension release mechanism

Brother KE-430F / BE-438F parts on page 34

Ref	Part number	Part name	Qty
9	9	Screw
8	8	Housing
3	3	Washer
5	5	Spring
10	10	Nut
4	4	Bolt
2	2	Bolt
1	1	Bracket
6	6	Collar
7	7	Pin

Page 35 — M. 糸緩め関係 / Tension release mechanism

Brother KE-430F / BE-438F parts on page 35

Ref	Part number	Part name	Qty
	SB1090001	DTソレノイドトリツケイタ
	062500816	ナベコ5X8	2
	SB1179001	ソレノイドクツシヨン	1
	017401015	ボルト4X10	1
	024040036	ヒラサガネチユウ4	1
	SB1192001	イトユルメボウヨウブシユ	2
	SB1089001	イトユルメボウ	1
	SB0787001	ソレノイドカバー	1
	060400516	バインド4X5	2
	021400306	3シュナツト4	1

Page 36 — N . 糸つかみ関係 / Thread nipper mechanism

Brother KE-430F / BE-438F parts on page 36

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Page 37 — N. 糸つかみ関係 / Thread nipper mechanism

Brother KE-430F / BE-438F parts on page 37

Ref	Part number	Part name	Qty
	SB0709001	イトツカミDクミ	1
	SA3333001	THREAD NIPPER D ASSY	1
	SA4329001	イトツカミカラー	1
	SA4330001	COLLAR, THREAD NIPPER	1
	SB0954001	イトツカミカンザ	1
	SA3342001	SPACER, THREAD NIPPER	1
	SA3343001	イトオサエU	1
	062300416	THREAD NIPPER U	2
	025030236	ダンネジ6-0.9	2
	SA4465001	SHOULDER SCREW,6-0.9	1
	SB0980001	バネカケイタ	1
	012500536	PLATE, SPRING HOOK	2
	SB0983001	ナベコ3X4	1
	SB0705001	SCREW PAN M3X4	1
	SB0979001	ヒラザガネチュウ3	1
	SB0982001	WASHER PLAIN M 3	1
	110367001	イトツカミバネ	1
	048060346	SPRING EXTENSION	1
	012500536	イトツカミモーターレバー	2
	SB0981001	TR-DRIVING MOTOR LEVER	1
	SB0705001	アナヒラ5X5	1
	109239002	SET SCREW SOCKET (FT) M5X5	1
	SB0750001	イトツカミリンク	1
	017400802	TR-LINK	2
	025040236	オサエアゲリンクダンネジ	2
	SB0709001	LINK SHOULDER SCREW	1
	SA3333001	イトツカミレバー	1
	SA4329001	TR-DRIVING LEVER	1
	SA4330001	イトツカミレバージク	1
	SB0954001	LEVER SHAFT	1
	SA3342001	ザガネ	1
	SA3343001	WASHER, PLAIN SPECIAL 8	1
	062300416	トメワE6	2
	025030236	RETAINING RING E6	2
	SA4465001	アナヒラ5X5	1
	SB0980001	SET SCREW SOCKET (FT) M5X5	1
	012500536	イトツカミコンネクツイタR	2
	SB0983001	TN-CONNECTING PLATE R	1
	SB0705001	オサエアゲリンクダンネジ	1
	SB0979001	LINK SHOULDER SCREW	1
	SB0982001	ナミバネザガネ	1
	110367001	WASHER, WAVE SPRING	1
	048060346	イトツカミコンネクツイタFクミ	1
	017400802	TN-CONNECTING PLATE ASSY F	2
	025040236	ボルト4X8	2
	025040236	BOLT M4X8	2
	025040236	ヒラザガネチュウ4	2
	025040236	WASHER PLAIN M 4	2

Page 38 — P1. コントロールボックス関係 / Control box mechanism

Brother KE-430F / BE-438F parts on page 38

Ref	Part number	Part name	Qty
	1	CIRCUIT BOARD
	2	CIRCUIT BOARD
	3	BRACKET
	4	CIRCUIT BOARD
	5	CONTACTOR
	6	SCREW
	7	BRACKET
	8	BRACKET
	9	SCREW
	10	WASHER
	11	WASHER
	12	NUT
	13	COVER
	14	BOX
	15	BOX
	16	HARNESS

Page 39 — P1. コントロールボックス関係 / Control box mechanism

Brother KE-430F / BE-438F parts on page 39

Ref	Part number	Part name	Qty
	SA9525001	メインキバンクミ	1
	SA8350001	モータキバンクミ	1
	A10193001	GFUSE15A	2
	SA9500001	デンゲンキバンクミ	1
	SA9602001	フミコミユニット-ユ	1
	J00353001	+ナベセット5X14DB	4
	S37060001	アースマーク	1
	S37059001	PEマーク	1
	SA9893001	カクネボルト8X65	4
	025080336	ヒラザガネダイ8	4
	028080246	バネザガネ2-8	4
	021080206	2シュナット8	8
	SA9725001	ラベルカンデン6カコク	1
	SA9559001	CEフィルタ クミ	1
	SA9564001	CEフィルタケース	1
	SA9565001	CEフィルタキバンクミ	1

Page 40 — P2 . コントロールボックス関係 / Control box mechanism

Brother KE-430F / BE-438F parts on page 40

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Clip
7	7	Power supply unit

Page 41 — P2. コントロールボックス関係 / Control box mechanism

Brother KE-430F / BE-438F parts on page 41

Ref	Part number	Part name	Qty
	SA9616001	デンSW クミ SJT	1
	SA9831001	デンSW クミ SJT#2	1
	SA9535001	デンSWクミCCC	1
	BMP3010-0000001-3S00	デンゲンSW 220V	1
	S03816001	+マルモク45X16	2
	200190001	ステツプル 10X20	2
	SB1229001	トランスボックスホキュウクミ	1
	BMP3010-0000000-2ST1	トランスボックス	1
	BMP3010-0000000-3ST4	トランスボックス	1
	BMP3010-0000001-3ST4	トランスボックス	1
	BMP3010-0000000-4ST4	トランスボックス	1
	SA9914001	ラベルカンデン 25 X 28	1

Page 42 — Q .電装品関係 / Power supply equipment mechanism

Brother KE-430F / BE-438F parts on page 42

Ref	Part number	Part name	Qty
1	1	Motor
2	2	Screw
3	3	Motor
4	4	Screw
5	5	Power supply unit
6	6	Screw
7	7	Motor
8	8	Screw
9	9	Washer
10	10	Screw
11	11	Power supply unit
12	12	Motor
13	13	Screw
14	14	Bracket
15	15	Screw
16	16	Screw
17	17	Screw
18	18	Screw
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Clip
23	23	Screw
24	24	Clamp
25	25	Screw
26	26	Cable tie
27	27	Clip
28	28	Control box
29	29	Power supply unit
30	30	Screw

Page 43 — Q. 電装品関係 / Power supply equipment mechanism

Brother KE-430F / BE-438F parts on page 43

Ref	Part number	Part name	Qty
1	SA8349001	パルスモータXクミ	1
2	018401036	アナボルト4X10	4
3	SA9497001	パルスモータYクミ	1
4	018401036	アナボルト4X10	4
5	SA8352001	パルスモータPクミ	1
6	018400836	アナボルト4X10	4
7	SB0794001	テンションソレノイド	1
8	017400802	ボルト4X8	2
9	028040246	バネザガネ2-4	2
10	025040236	ヒラザガネチュウ4	2
11	SB1194001	イトキリソレノイドクミ	1
12	018501636	アナボルト5X16	3
13	SB0915001	ザガネ	3
14	SB1650001	トウブSWクミ	1
15	0A5301605	+ナベザクミ3X16DB	2
16	SB1200001	トウブSWトリツケケイタ	1
17	0A5401006	+ナベザクミ4X10DB	2
18	0A5401006	アースセン350	1
19	0A5401006	+ナベザクミ4X10DB	1
20	SB1201001	コードホルダ	3
21	062400616	ナベコ4X6	3
22	SA1394101	コードオサエU3	2
23	062500816	ナベコ5X8	2
24	S11817000	クランプNK-18N	2
25	0A5401006	+ナベザクミ4X10DB	3
26	218859001	バインダM150	2
27	552907000	コードホルダ#10	1
28	SA4224001	マークチュウイ30X40	2
29	SA8316001	パルスモータTクミ	1
30	018401036	アナボルト4X10	4

Page 44 — R . 操作パネル関係 / Operation panel mechanism

Brother KE-430F / BE-438F parts on page 44

Ref	Part number	Part name	Qty
	1	OPERATION PANEL MECHANISM
	2	OPERATION PANEL
	3	OPERATION PANEL
	4	HARNESS
	5	CABLE TIE
	6	SCREW
	7	SWITCH
	8	SCREW
	9	CONNECTOR

Page 45 — R. 操作パネル関係 / Operation panel mechanism

Brother KE-430F / BE-438F parts on page 45

Ref	Part number	Part name	Qty
1	SB0562001	ソウサパネルクミ	1
2	SB0564001	ソウサパネルシート	1
3	SA9509001	パネルキバンクミ	1
4	SB0553001	パネルハーネス	1
5	220681001	ケツソクバンド2.2X85	1
6	085311016	バインドBタイト3X10	5
7	SB0566001	カードカバー	1
8	0B0452006	+マルモク45X20	4
9	200190001	ステツプル 10X20	3

Page 46 — S. モータ関係 / Motor mechanism

Brother KE-430F / BE-438F parts on page 46

Ref	Part number	Part name	Qty
	1	MOTOR MECHANISM
	2	BRACKET
	3	WASHER
	4	BRACKET
	5	STATOR
	6	BRACKET
	7	BRACKET
	8	SCREW
	9	BRACKET
	10	SCREW
	11	CONNECTOR
	12	BRACKET
	13	BRACKET

Page 47 — S. モータ関係 / Motor mechanism

Brother KE-430F / BE-438F parts on page 47

Ref	Part number	Part name	Qty
	SB0752001	モータ430ホキュウ	1
	018501632	アナボルト5X16	3
	028050247	バネザガネ2-5	3
	SA9436001	ヒラザガネ5	3
	SB0347001	レゾルバステータ430クミ	1
	0A4301206	+ナベザクミ3X12DA	3
	SB0350001	プーリホルダLクミ	1
	012501032	アナヒラ5X10	2
	SB0353001	コードオサエL	1
	0A4401006	+ナベザクミ4X10DA	2
	0A4401006	+ナベザクミ4X10DA	1
	SA9449001	レゾルバカバー	1
	0A4300806	+ナベザクミ3X8DA	1

Page 48 — T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430F / BE-438F parts on page 48

Ref	Part number	Part name	Qty
	1+	Foot switch pedal mechanism (Option parts)
	2+	Foot switch pedal mechanism (Option parts)

Page 49 — T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430F / BE-438F parts on page 49

Ref	Part number	Part name	Qty
1+	SB1565001	フットSWヘンカンハーネス	1
2+	SA6038001	2レンフットSWクミ	1
1+	SB15660E1	フットSWヘンカンハーネス.E	1
2+	SB15670E1	2レンフット3SWセット.E	1

Page 50 — U1 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F)

Brother KE-430F / BE-438F parts on page 50

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Page 51 — U1. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F)

Brother KE-430F / BE-438F parts on page 51

Ref	Part number	Part name	Qty
	SB1563001	シャンクウチ438Fクミ
	142689409	シャンクボタンツマミタイクミ
	154684009	シャンクボタンツマミタイ
	142677101	ボタンツマミA
	142678201	ボタンツマミB
	062670812	ナベコ357-40X8
	102707002	ザガネ
	142681001	ボタンオサエジク
	154685001	ボタンオサエジクバネ
	142706001	セットカラー	2
	062670712	ナベコ357-40X7	2
	154686001	ボタンオサエウデ
	013719412	トメネジ4.76クボミ
	142680001	ボタンオサエ
	120990001	アタマツキトメネジ4.37
	SB1644001	ボタンオサエヒラキ
	SB1564001	ボタンオサエヒラキジク
	014680432	アナクボミ437-40X4
	154697001	オクリイタダイ
	156336101	シャンクボタンオクリイタ
	154713001	シメネジ4.76	2
	021710212	シユナット476-32	2
	025710232	ヒラザガネチュウ4.76	2
	142686101	ヌノウケダイS
	060670512	バインド357-40X5
	SB1643001	イドウハSKクミ
	SA6505014	SA6506ハリ10コイリクミ
	S03641101	ボタンツカミD
	SB0715001	ハリイタ1.6GM
	SB1644001	ハリボウSKD
	062500616	ナベコ5X6

Page 52 — U2 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F)

Brother KE-430F / BE-438F parts on page 52

Ref	Part number	Part name	Qty
1	1	BASE PLATE
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	SCREW
6	6	WASHER
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	SCREW
11	11	BRACKET

Page 53 — U2. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F)

Brother KE-430F / BE-438F parts on page 53

Ref	Part number	Part name	Qty
1	SA6156101	ボタン スペーサ セット 438D	1
2	SA6157101	ボタン スペーサ サクミ	1
3	SA6158101	ドダイ	1
4	S09658001	スケール	1
5	S09686001	ボルト 4.37-40X7	1
6	S02745001	ザガネ	1
7	S09659001	イチギメイタ A	1
8	S09660001	イチギメイタ B	1
9	115166001	ダンネジ 4.37	1
10	S25310101	サラネジ 4	2
11	S13184001	スペーサ サヨウ オクリイタ	1

Page 54 — Z. 付属品関係 / Accessories

Brother KE-430F / BE-438F parts on page 54

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	CAP
	4	SCREW
	5	BOTTLE
	6	SHAFT
	7	SPRING
	8	BRACKET
	9	BRACKET
	10	BRACKET
	11	SCREW
	12	WASHER
	13	WASHER
	14	WASHER
	15+	BOBBIN CASE
	16	OIL BOTTLE
	17	LABEL
	18	LABEL
	19	SUPPORT
	20	PLATE
	21	CAP
	22	SHAFT
	23	SCREW
	24	SHAFT
	25	WASHER
	26	WASHER
	27	PLATE
	28	BRACKET
	29	BRACKET
	30	BRACKET
	31	BRACKET
	32	SCREW
	33	CLOTH
	34	BASE
	35	COVER
	36	BRACKET
	37	BRACKET
	38	BRACKET
	39	SPRING
	40	BASE
	41	SCREW
	42	GREASE
	43	TRAY
	44	BRACKET
	45	BRACKET
	46	SCREW
	47	BRACKET
	48	SCREW
	49	WASHER
	50	BRACKET
	51	BRACKET
	52	ROD

Page 55 — Z. 付属部品関係 / Accessories

Brother KE-430F / BE-438F parts on page 55

Ref	Part number	Part name	Qty
	SB1066001	SETTING PLATE DUST OILER	1
	032461606	WOOD SCREW ROUND 2 M4.5X16	2
	062300816	SCREW PAN M3X8	2
	154467001	DUST OILER	1
	114486002	OILIER	1
	SA3384001	PIN	2
	012060636	SET SCREW SOCKET (FT) M6X6	2
	SA3385001	HINGE HOLDER	2
	SA3395001	RUBBER CUSHION	2
	SA3392001	SPACER	2
	018066036	BOLT SOCKET M6X60	4
	025060336	WASHER PLAIN L 6	4
	028060246	WASHER SPRING 2-6	4
	021060106	NUT 1 M6	4
	159613051	BOBBIN	1
	S15665001	BOBBIN LA	1
	SA8239201	OIL TANK ASSY	1
	SB1271001	OIL WARNING LABEL JP	1
	SB1270001	OIL WARNING LABEL EN	1
	S02763602	COTTON STAND ASSY 2DR	1
	S51283001	SPOOL STAND BASE	2
	150182000	SPOOL MAT	2
	S51282101	SPOOL CUSHION	2
	S02777101	SPRING	1
	150179002	SPOOL SHAFT B	2
	028050244	WASHER SPRING 2-5	2
	021500104	NUT 1 M5	2
	SA6607001	SPOOL HOLDER 2	1
	SA6607001	SPOOL HOLDER 2	1
	150183000	THREAD HANGER BASE	2
	142990001	THREAD BUSH	2
	SA6609001	SPOOL HOLDER SUPPORTER	2
	062061604	SCREW PAN M6X16	2
	144226001	HEAD COVER	1
	SB1069001	EYE GUARD SET	1
	S44485101	EYE GUARD	1
	SB1067001	EYE GUARD HOLDER	1
	026030233	WASHER PLAIN M 3	2
	062300616	SCREW PAN M3X6	2
	062401006	SCREW PAN M4X10	2
	SB0791001	REAR COVER	1
	062500816	SCREW PAN M5X8	4
	SB1275001	GREASE UNIT	1
	S18642009	BUTTON TRAY	1
	153843009	BUTTTON TRAY HOLDER	1
	014760632	SET SCREW SOCKET SM5.95-28X6	1
	0B1351606	WOOD SCREW FLAT M3.5X16	2
	SB1272001	SPRING A	1
	110215002	SCREW SM3.57	1
	025660132	WASHER PLAIN S SM3.18	1
	SB1273001	SPRING SUPPORT	1
	146360002	BOLT, SM4.76X7	1
	154179001	HEXAGONAL WRENCH, 4	1

Page 56 — Wa. 警告ラベル / Warning labels

Brother KE-430F / BE-438F parts on page 56

Ref	Part number	Part name	Qty
	SA9725-001	ラベル感電6ヶ国 Label electrical shock 36 X 150
	SA9914-001	ラベル感電 25 X 28 Label electrical shock 25 X 28
	SA9826-001	操作注意ラベル Label caution
	SA9957-001	ワーニングマーク Injury mark
	SA9957-002	ワーニングマーク Injury mark
	S37060-001	アースマーク Label, grounding
	S37059-001	PE マーク Label, PE
	SA4224-001	マークチュウイ 30 X 40 Mark attention 30 X40

Page 57 — 警告ラベル / Warning labels

Brother KE-430F / BE-438F parts on page 57

Ref	Part number	Part name	Qty
	SB1271-001	オイル警告ラベル和文 Oil warning label JP
	SB1270-001	オイル警告ラベル英文 Oil warning label EN

Page 59 — Sp. 仕様別部品一覧表(KE-430F, BE-438F) / Different parts list (KE-430F, BE-438F)

Brother KE-430F / BE-438F parts on page 59

Ref	Part number	Part name	Qty
A	SB1059-001 < A >	(H-29) 針糸案内 Needle bar thread guide
B	SB1060-001 < B >	(B-52) ミシン針4個入り組 Needle assy
B	SB1060-001 < B >	(B-52) ミシン針4個入り組 Needle assy
	SA1752-014	(B-52) ミシン針4個入り組 Needle assy
	SA1752-009	(B-52) ミシン針4個入り組 Needle assy
	SA1752-009	(B-52) ミシン針4個入り組 Needle assy
	SA1737-011	(B-52) ミシン針4個入り組 Needle assy
	SA1579-012	(B-52) ミシン針4個入り組 Needle assy
	153608-101	(C-65, 66) 押え足 Work clamp	R
	154527-001	(C-65, 66) 押え足 Work clamp	L
	152777-001	(C-65, 66) 押え足 Work clamp	R
	152778-001	(C-65, 66) 押え足 Work clamp	L
	S49695-001	(C-65, 66) 押え足 Work clamp	R
	S49694-001	(C-65, 66) 押え足 Work clamp	L
	SA6509-001	(C-65, 66) 押え足 Work clamp	R
	SA6510-001	(C-65, 66) 押え足 Work clamp	L
	SA3378-001	(C-30) 送り板 Feed plate
	SA3607-001	(C-30) 送り板 Feed plate
	SA3609-001	(C-30) 送り板 Feed plate
	SA6511-201	(C-30) 送り板 Feed plate
	SA3606-101	(C-30) 送り板 Feed plate
	152781-001	(C-65, 66) 押え足 Work clamp	R
	153201-001	(C-65, 66) 押え足 Work clamp	L
	152782-001	(C-30) 送り板 Feed plate	R
	153202-001	(C-30) 送り板 Feed plate	L
	SA3611-001	(C-30) 送り板 Feed plate
	SA3616-001	(C-30) 送り板 Feed plate

Page 60

Brother KE-430F / BE-438F parts on page 60

Ref	Part number	Part name	Qty
1	152781-001	(デニム / For denim)
1	152782-001	(デニム / For denim)
2	153201-001	< PL >
2	153202-001	< PL >
3	153203-001	< PS >
3	153204-001	< PS >
4	S00906-001	(1 inch)
4	S00907-001	(1 inch)
1	SA3611-001
2	SA3612-001	< PL >
3	SA3613-001	< PS >
4	SA3614-001	(1 inch)
5	S33747-001	(30mm)
5	S33748-001	(30 mm)
6	153201-001	(デニム / For denim)
6	153202-001	(デニム / For denim)
7	152777-001
7	152778-001
8	152779-001	(メ リヤス / For knitted materials)
8	152780-001	(メ リヤス / For knitted materials)
5	SA3615-001	(30 mm)
6	SA3616-001	(デニム / For denim)
6	SA3612-001	(PL)
8	SA3608-001	(メ リヤス / For knitted materials)
9	152779-001	(沈下式 S / Submerged -type,S)
9	152780-001	(沈下式 S / Submerged -type,S)
10	152779-001
10	152780-001
9	SA3610-001	(沈下式 S / Submerged -type,S)
10	SA3610-001	(沈下式 S / Submerged -type,S)
10	SA6346-201

Page 61 — Ga . ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F)

Brother KE-430F / BE-438F parts on page 61

Ref	Part number	Part name	Qty
11	S46771-001	< LTA1 > (線間止 / For straight bar tacking)
12	S46771-001	< LTA1 > (線間止 / For straight bar tacking/submerged)
13	S46774-001	< VBTA1 > (線間止 / For vertical bar tacking)
11	S46770-001	< LTA1 > (線間止 ・沈 / For straight bar tacking/submerged)
12	S46773-001	< VBTA1 > (線間止 ・沈 / For vertical bar tacking/submerged)
11	SA3618-001	< LTB1 > (線間止 / For vertical bar tacking)
12	SA3619-001	< VBTA1 > (線間止 / For vertical bar tacking)
11	156006-001	Work clamp
11	S59892-001	Work clamp
12	156006-001	Work clamp
12	S59892-001	Work clamp
13	156006-001	Work clamp
13	S59892-001	Work clamp
14	S46774-001	< VBTA1 > (線間止 / For vertical bar tacking)
15	SA2230-001	< VBTA1 > (線間止 / For vertical bar tacking)
16	SA2232-001	< VBTA1 > (線間止 / For vertical bar tacking)
14	S46773-001	< VBTA1 > (線間止 ・沈 / For vertical bar tacking/submerged)
14	SA3621-001	< VBTB1 > (線間止 ・沈 / For vertical bar tacking/submerged)
15	SA3620-001	< VBTA1 > (線間止 ・沈 / For vertical bar tacking)
16	SA3622-001	< VBTB1 > (線間止 ・沈 / For vertical bar tacking)
14	156006-001	Work clamp
14	S59892-001	Work clamp
15	S59909-001	Work clamp
15	S59892-001	Work clamp
16	S59909-001	Work clamp
16	S59892-001	Work clamp

Page 62 — Ga. ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F)

Brother KE-430F / BE-438F parts on page 62

Ref	Part number	Part name	Qty
R	S46777-001	< K1A1 > (菊穴/For circular stitching)
18	S46780-001	< HMA1 > (半月筒/For crescent bar tacking)
19	SA2236-001	< HMA1 > (半月筒/For crescent bar tacking)
L	S46776-001	< K1A1 > (菊穴/For circular stitching)
18	S46779-001	< HMA1 > (半月筒/For crescent bar tacking)
19	SA2235-001	< HMA1 > (半月筒/For crescent bar tacking)
20	SA3623-001	< K1A1 > (菊穴/For circular stitching)
18	SA3624-001	< HMA1 > (半月筒/For crescent bar tacking)
19	SA3625-001	< HMA1 > (半月筒/For crescent bar tacking)
17	156006-001	Work clamp
18	S59892-001	Work clamp
17	156006-001	Work clamp
18	S59892-001	Work clamp
19	S59909-001	Work clamp
19	S59892-001	Work clamp

Page 63 — Ga . ゲージ部品一覧表 (KE-430F, BE-438F) / Gauge parts list (KE-430F, BE-438F)

Brother KE-430F / BE-438F parts on page 63

Ref	Part number	Part name	Qty
	SA3626-001	(C-30) 送り板 ブランク Feed plate blank
	SA3627-001
	SB0952-001
	SB0712-001
R	SA4195-001
L	SA4196-001
	S59909-001
	S59892-001
	SA3817-001	(C-30) 送り板 ブランク Feed plate blank
AL	S52071-101 (E-39)
AR	S52075-101 (E-40)
BL	S52072-101 (E-36)
BR	S52076-101 (E-37)
CL	S52073-101 (E-41)
CR	S52077-101 (E-42)
DL	S52074-101 (E-43)
DR	S52078-101 (E-44)

Page 64 — 索引 / Index

Brother KE-430F / BE-438F parts on page 64

Ref	Part number	Part name	Qty
-17	004300513	A
-16	011679312	E
-17	012060536	C
-44	012060536	C
-9	012060536	D
-23	012060536	D
-27	012060536	D
-34	012060536	D
-66	012060536	K
-2	012060536	L
-44	012060636	B
-9	012060636	C
-21	012060636	C
-46	012060636	D
-25	012060636	F
-40	012060636	F
-31	012060636	H
-29	012060636	K
-39	012060636	K
-7	012060636	Z
-4	012300336	C
-43	012400436	B
-14	012400436	C
-28	012400436	C
-57	012400436	F
-17	012400436	H
-20	012400636	J
-41	012500536	B
-53	012500536	B
-58	012500536	B
-66	012500536	B
-5	012500536	C
-12	012500536	C
-29	012500536	C
-45	012500536	C
-60	012500536	C
-6	012500536	D
-17	012500536	D
-19	012500536	D
-9	012500536	J
-14	012500536	J
-25	012500536	J
-7	012500536	K
-23	012500536	K
-60	012500536	K
-64	012500536	K
-7	012500536	L
-12	012500536	L
-15	012500536	L
-19	012500536	N
-8	012501032	S
-13	013719412	U1
-18	014680432	U1
-3	014680632	E
-9	014760632	E
-45	014760632	Z
-48	017061006	F
-5	017400802	B
-24	017400802	N
-4	017401015	G
-4	017401015	M
-10	017711412	E
-30	018061236	K
-68	018061430	K
-17	018061636	B
-62	018061636	C
-41	018061636	D
-32	018062036	A
-29	018062036	D
-27	018062036	D
-15	018301036	H
-67	018400836	C
-32	018400836	D
-23	018401036	C
-2	018401036	Q
-30	018401036	Q
-4	018401036	Q
-28	018401236	J
-47	018401236	B
-51	018401236	C
-2	018501032	S
-56	018501636	B
-12	018501636	C
-30	018501636	F
-15	018501636	C
-2	018501636	S
-56	018501636	B
-14	021060106	Z
-10	021060306	K
-17	021060306	K
-21	021060306	K
-12	021080206	P1
-35	021400216	D
-26	021400306	H
-12	021500104	Z
-18	021500316	H
-22	021710212	U1
-23	025030236	A
-50	025030236	K
-72	025030236	K
-27	025040136	A
-38	025040136	D
-5	025040136	G
-37	025040136	J
-24	025040136	L
-38	025040236	D
-5	025040236	G
-37	025040236	J
-24	025040236	L
-23	025050134	L
-39	025060136	J
-26	025060236	A
-63	025060336	C
-12	025060336	Z
-10	025080336	P1
-49	025660132	Z
-23	025710232	U1
-8	026030136	F
-37	026030233	Z
-40	026050136	B
-69	028030246	K
-9	028040246	Q
-25	028050244	Z
-3	028050247	S
-13	028060246	Z
-11	028080246	P1
-2	032461606	Z
-22	047250642	E
-64	047602042	B
-2	047602042	D
-15	048040342	J
-17	048040342	L
-20	048040342	L
-8	048060142	K
-42	048060346	C
-25	048060346	D
-11	048080142	C
-11	048080342	C
-28	048100142	K
-68	048280142	B
-9	060400516	M
-25	060670512	U1
-32	062061604	Z
-22	062300416	A
-9	062300616	F
-38	062300616	Z
-3	062300816	Z
-69	062400416	C
-25	062400416	E
-36	062400616	F
-10	062400616	G
-12	062400616	G
-21	062400616	Q
-6	062400816	B
-55	062400816	B
-29	062400816	E
-12	062401006	A
-36	062401006	J
-11	062670712	U1
-6	062670812	U1
-19	070608800	C
-15	070696800	D
-59	081003670	F
-21	081005070	L
-39	081040070	F
-6	085311016	R
-13	0A4301206	S
-6	0A4301206	S
-10	0A4401006	S
-11	0A4401006	S
-37	0A5400806	F
-17	0A5401006	Q
-19	0A5401006	Q
-25	0A5401006	Q
-8	0B0452006	R
-46	0B1351606	Z
-22	100136001	H
-52	100360003	K
-8	100401022	J
-4	102630001	D
-7	102707002	U1
-8	105234003	E
-37	107744001	D
-6	107744001	E
-18	108549001	J
-20	109239002	A
-22	109239002	N
-33	110367001	B
-41	110367001	C
-44	110367001	D
-62	110367001	K
-17	110367001	N
-5	114486002	Z
-14	115147001	E
-13	115148201	E
-32	115163001	E
-9	115166001	U2
-2	117934001	A
-9	117934001	A
-15	120990001	U1
-34	140004001	B
-4	142677101	U1
-5	142678201	U1
-14	142680001	U1
-8	142681001	U1
-10	142706001	U1
-30	142990001	Z
-33	144226001	Z
-49	144458001	B
-13	145446001	H
-24	145446001	H
-6	145446002	J
-11	146354001	E
-50	146354002	C
-51	146360002	Z
-12	146994001	E
-24	150179002	Z

Page 65 — 索引 / Index

Brother KE-430F / BE-438F parts on page 65

Ref	Part number	Part name	Qty
	150182000	Z
	150183000	Z
	151968001	E
	151969001	E
	152682201	Sp
	152684101	F
	152686201	Sp
	152690501	Sp
	152777001	Sp
	152778001	Ga
	152778001	Sp
	152778001	Ga
	152781001	Sp
	152782001	Sp
	152782001	Ga
	152788000	C
	152881101	H
	152884001	H
	152884001	H
	153057101	C
	153201001	Sp
	153201001	Ga
	153202001	Sp
	153202001	Ga
	153203001	Ga
	153204001	Ga
	153484001	E
	153567000	C
	153568001	C
	153608101	Sp
	153827001	E
	153830100	E
	153843009	Z
	154179001	Z
	154339101	Sp
	154340101	Sp
	154341001	Sp
	154467001	Z
	154527001	Sp
	154684009	U1
	154685001	U1
	154686001	U1
	154697001	U1
	154713001	U1
	155559001	K
	156006001	Ga
	156006001	Ga
	156235101	U1
	159610401	Sp
	159613051	Z
	200190001	P2
	218859001	R
	220681001	R
	231071001	K
	552907000	Q
	A10193001	P1
	BMP3010-0000000-2ST1	36
	BMP3010-0000000-4ST4	36
	BMP3010-0000000-4ST4	36
	BMP3010-0000001-3S00	36
	BMP3010-0000001-3ST4	36
	BMP3010-0000001-3ST4	P2 - 2+
	BMP3010-0000001-3ST4	P2 - 6+
	J00353001	P1
	S00705001	K
	S00906001	Ga
	S00906001	Ga
	S02745001	U2
	S02745001	U2
	S03641101	U1
	S03641101	U1
	S09658001	U2
	S09659001	U2
	S09660001	U2
	S09686001	U2
	S11817000	Q
	S12441001	J
	S13184001	U2
	S15665001	Z
	S15667001	Sp
	S16492101	Sp
	S18642009	Z
	S20356001	D
	S20878000	A
	S23337001	A
	S23418002	J
	S23651001	B
	S23731001	B
	S23731001	B
	S23731001	B
	S23731001	B
	S25235001	B
	S25310101	A
	S31032002	J
	S32263001	A
	S32263001	A
	S32462001	K
	S32465101	K
	S32465101	K
	S33747001	Ga
	S33748001	Ga
	S37059001	P1
	S37060001	Wa
	S37060001	Wa
	S38707001	B
	S38710001	B
	S38713100	B
	S42446001	C
	S42903001	C
	S44485101	Z
	S46770001	Ga
	S46770001	Ga
	S46770001	Ga
	S46770001	Ga
	S46774001	Ga
	S46776001	Ga
	S46777001	Ga
	S46779001	Ga
	S46780001	Ga
	S46794001	Sp
	S46940001	Sp
	S46950001	Sp
	S4955101	C
	S4995101	E
	S51282101	Z
	S51283001	Z
	S52071101	E
	S52072101	E
	S52073101	E
	S52074101	E
	S52075101	E
	S52076101	E
	S52077101	E
	S52078101	E
	S59221301	Sp
	S59321001	E
	S59892001	Ga
	S59909001	Ga
	S59909001	Ga
	SA1125001	B
	SA1179002	C
	SA1394101	G
	SA1579012	Sp
	SA1579019	Sp
	SA1737011	Sp
	SA1752009	Sp
	SA1752014	Sp
	SA1881001	Sp
	SA1882001	Sp
	SA1982101	J
	SA1984001	J
	SA2229001	Ga
	SA2230001	Ga
	SA2232001	Ga
	SA2235001	Ga
	SA2236001	Ga
	SA22626001	C
	SA2626001	C
	SA3208201	C
	SA3231001	C
	SA3238101	F
	SA3241001	F
	SA3250001	H
	SA3256001	H
	SA3262202	A
	SA3263001	A
	SA3264001	A
	SA3265001	A
	SA3266101	A
	SA3274101	F
	SA3277001	F
	SA3278001	F
	SA3294001	J
	SA3299001	J
	SA3324001	K
	SA3325101	K
	SA3326001	K
	SA3327401	K
	SA3330001	N
	SA3334001	K
	SA3342001	N
	SA3343001	N
	SA3366101	C
	SA3370001	C
	SA3378001	Sp
	SA3384001	Z
	SA3385001	Z
	SA3392001	Z
	SA3395001	Z
	SA3419101	C
	SA3424001	C
	SA3425001	C
	SA3426001	C
	SA3427101	C
	SA3428001	C
	SA3432101	D
	SA3441001	D
	SA3449101	K
	SA3458001	L
	SA3459101	L
	SA3464001	L
	SA3486001	Q
	SA3538001	C
	SA3606101	Sp
	SA3607001	Sp

Page 67 — 索 引 / Index

Brother KE-430F / BE-438F parts on page 67

Ref	Part number	Part name	Qty
- 3	SB1012001 B
- 13	SB1013001 B
- 13	SB1014001 B
- 29+	SB1018001 B
- 29+	SB1019001 B
- 50	SB1021001 B
- 50	SB1023001 B
- 51	SB1024001 B
- 15	SB1025001 B
- 16	SB1026101 B
- 45	SB1029001 B
- 38	SB1031001 B
- 36	SB1034101 B
- 46	SB1035101 B
- 59	SB1036001 B
- 60	SB1037001 B
- 61	SB1038001 B
- 65	SB1039001 B
- 63	SB1040001 B
- 62	SB1041001 B
- 43	SB1043101 F
- 11	SB1044001 F
- 14	SB1047001 F
- 13	SB1048101 F
- 18	SB1049001 F
- 12	SB1050001 F
- 49	SB1051001 F
- 1	SB1052001 G
- 2	SB1053001 G
- 20	SB1054001 F
- 21	SB1055001 F
- 3	SB1056001 G
- 27	SB1058001 H
	SB1059001 Sp
	SB1060001 Sp
- 1	SB1066001 Z
- 36	SB1067001 Z
- 34	SB1069001 Z
- 14	SB1070001 B
- 3	SB1072001 F
- 26+	SB1076001 C
- 40	SB1078001 D
- 43	SB1079001 D
- 3	SB1080001 D
- 28	SB1081001 D
- 67	SB1082001 K
- 7	SB1084001 H
- 28	SB1085001 H
- 5	SB1086001 H
- 25	SB1087001 H
- 8	SB1088001 H
- 7	SB1089001 M
- 1	SB1090001 M
- 17	SB1091001 J
- 13	SB1093001 J
- 24	SB1094001 J
- 34	SB1095001 J
- 33	SB1096001 J
- 32	SB1098001 J
- 8	SB1167001 A
- 24	SB1168001 A
- 28	SB1169001 A
- 36	SB1171001 C
- 61	SB1172001 C
- 2	SB1173001 F
- 35	SB1175001 F
- 3	SB1179001 M
- 9	SB1180001 H
- 10	SB1181001 H
- 16	SB1182001 H
- 11	SB1183001 J
- 16	SB1184001 J
- 22	SB1186001 J
- 3	SB1187001 K
- 43	SB1189001 K
- 48	SB1191101 K
- 6	SB1192001 M
- 11	SB1194001 Q
- 16	SB1200001 Q
- 20	SB1201001 Q
- 55	SB1204001 F
- 1+	SB1206001 K
- 5+	SB1229001 P2
- 4	SB1253001 J
- 53	SB1258001 F
- 35	SB1266001 J
- 12	SB1267001 H
- 27	SB1268001 F
- 18	SB1270001 Z
- 17	SB1271001 Z	Wa
- 47	SB1272001 Z
- 50	SB1273001 Z
- 42	SB1274001 Z
- 9	SB1276001 G
- 11	SB1277001 A
- 2	SB1278001 B
- 15	SB1279101 G
- 14	SB1281001 H
- 4	SB1285001 F
- 16	SB1488101 G
- 1	SB1563001 U1
- 17	SB1564001 U1
- 1+	SB1565001 T
- 1+	SB15660E1 T
- 2+	SB15670E1 T
- 26	SB1643001 U1
- 16	SB1644001 U1
- 30	SB1645001 U1
- 14	SB1650001 Q
- 1	SB1652001 F
- 8	SB1679001 B
- 8	XC5780001 C

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother KE-430F / BE-438F — parts catalog

• Page 1 (cover): This is the cover page for the Brother KE-430F and BE-438F Parts Book, which are electronic direct drive lockstitch bar tacker and button sewer machines.
• Page 2 (diagram): This page shows a diagram illustrating how to read the model plates for Brother Industries, Ltd. sewing machines, specifically models KE-430F-01 and BE-438F, with explanations for different material types.
• Page 3 (text): This page describes model plates for two Brother Industries sewing machines: the ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER (model KE-430F-0) and the ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER (model BE-438F). It also lists material types associated with the KE-430F-0 model.
• Page 4 (toc): This page is a table of contents for a parts book, listing sections such as "Main Body", "Upper Shaft", "Feed Mechanism", and "Control Box" with corresponding page numbers.
• Page 5 (toc): This page is a table of contents for the parts book, listing sections such as Machine body, Feed mechanism, and Accessories, along with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body and its related components, with numbered parts for identification.
• Page 7 (parts_list): This page lists machine parts with their corresponding reference numbers, codes, quantities, names, and descriptions. It includes parts like rubber caps, screws, nuts, washers, and labels.
• Page 8 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, illustrating various components with reference numbers.
• Page 9 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, and quantities.
• Page 10 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, with numbered parts and their corresponding details.
• Page 11 (parts_list): This page lists parts for the upper shaft and needle bar mechanism, including bolts, screws, needle bars, and pulleys, with their corresponding part numbers and descriptions.
• Page 12 (diagram): This page displays a diagram of the feed mechanism for sewing machine models KE-430F and BE-438F, with numbered parts and their corresponding part numbers and descriptions.
• Page 13 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
• Page 14 (diagram): This page displays a diagram of the feed mechanism for sewing machine models KE-430F and BE-438F, detailing various components with reference numbers and part numbers.
• Page 15 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 16 (diagram): This page displays a diagram of the work clamp lifter mechanism, with numbered parts and their corresponding references for the BE-438F model.
• Page 17 (parts_list): This page lists parts for the Work clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 18 (diagram): This page displays a diagram of the button clamp mechanism (BE-438F) with numbered parts, including screws, pins, levers, and optional parts.
• Page 19 (parts_list): This page lists parts for the BE-438F Button clamp mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 20 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components with reference numbers for identification.
• Page 21 (parts_list): This page lists parts for the lower shaft mechanism, including part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts indicated.
• Page 23 (parts_list): This page lists lubrication and related parts for industrial sewing machines, including part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of the threading mechanism for a sewing machine, with numbered parts and their corresponding references.
• Page 25 (parts_list): This page lists parts for the threading mechanism, including part numbers, descriptions, and quantities.
• Page 26 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts and their corresponding details.
• Page 27 (parts_list): This page lists parts for the Bobbin winder mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 28 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
• Page 29 (parts_list): This page lists parts for the K. Thread trimmer mechanism, including part numbers, descriptions, and quantities for various components.
• Page 30 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
• Page 31 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of the thread wiper mechanism, with numbered parts and their corresponding references.
• Page 33 (parts_list): This page lists parts for the thread wiper mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 34 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts and their corresponding details.
• Page 35 (parts_list): This page lists parts for the M. 糸緩め関係 / Tension release mechanism, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of the thread nipper mechanism, illustrating various components with reference numbers for identification.
• Page 37 (parts_list): This page lists parts for the thread nipper mechanism, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the control box mechanism for single-phase 230V AC and for Europe, with numbered parts indicated.
• Page 39 (parts_list): This page lists parts for the Control box mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 40 (diagram): This page displays diagrams of the control box mechanism, including components like screws, clips, and the main control box unit, with reference numbers and labels for different parts and their applications.
• Page 41 (parts_list): This page lists parts for the Control Box Mechanism, including part numbers, descriptions, quantities, and applicable models.
• Page 42 (diagram): This page displays a diagram of the power supply equipment mechanism, with numbered parts and their corresponding references.
• Page 43 (parts_list): This page lists parts for the Q. 電装品関係 / Power supply equipment mechanism section, including part numbers, quantities, descriptions, and names of parts.
• Page 44 (diagram): This page displays a diagram of the operation panel mechanism, illustrating various components with reference numbers.
• Page 45 (parts_list): This page lists parts for the operation panel mechanism, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of the motor mechanism, with numbered parts indicated for identification.
• Page 47 (parts_list): This page lists parts for Motor mechanism, including part numbers, descriptions, and quantities.
• Page 48 (diagram): This page displays a diagram of the foot switch pedal mechanism, including two pedals and associated wiring, with reference numbers 1+ and 2+.
• Page 49 (parts_list): This page lists foot switch pedal mechanism option parts, including part numbers, descriptions, and quantities for different regions.
• Page 50 (diagram): This page displays a diagram of auxiliary devices and option parts for the BE-438F sewing machine, with numbered components for easy identification.
• Page 51 (parts_list): This page lists auxiliary device option parts for the BE-438F sewing machine, including part numbers, descriptions, and quantities.
• Page 52 (diagram): This page displays a diagram of auxiliary devices and option parts for the BE-438F sewing machine, with numbered components.
• Page 53 (parts_list): This page lists auxiliary device option parts for the BE-438F sewing machine, including part numbers, descriptions, quantities, and reference numbers.
• Page 54 (diagram): This page displays a diagram of accessories and parts for the KE-430F/BE-438F sewing machine, with numbered components and their corresponding part numbers.
• Page 55 (parts_list): This page lists accessories for the Z. section of the sewing machine, including part numbers, descriptions, and quantities.
• Page 56 (parts_list): This page lists various warning labels for the machine, including their descriptions, sizes, and part numbers.
• Page 57 (parts_list): This page lists two types of warning labels from Brother, including their descriptions, sizes, and codes.
• Page 59 (parts_list): This page contains a parts list for KE-430F and BE-438F sewing machines, detailing parts for different material types and specific applications like work clamps and feed plates.
• Page 60 (parts_list): This page lists gauge parts for the KE-430F sewing machine, including work clamps and feed plates with their respective part numbers, descriptions, and dimensions.
• Page 61 (parts_list): This page lists gauge parts for model KE-430F, including various clamps, feed plates, and bolts with their corresponding part numbers and descriptions.
• Page 62 (parts_list): This page lists gauge parts for the KE-430F model, including part numbers, descriptions, and diagrams for various components like work clamps and feed plates.
• Page 63 (parts_list): This page lists gauge parts for KE-430F and BE-438F models, including feed plates, needle hole plates, and work clamps, along with their respective part numbers and descriptions.
• Page 64 (index): This page contains an index of part numbers and their corresponding reference numbers and page locations, organized alphabetically by part name.
• Page 65 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
• Page 67 (parts_list): This page contains a parts list for industrial sewing machine components, organized into columns for CODE, REF.NO, and Page. It lists various part numbers such as SB1012001 B, SB1172001 C, and SB1679001 B, along with their corresponding reference numbers and page references.
• Page 68 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, an illustration of a screw, and company contact information.

Page 1

KE-430F BE-438F パーツブック PARTS BOOK 本縫ダイレクトドライブ電子閂止ミシン 本縫ダイレクトドライブ電子ボタン付けミシン ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER brother. 最新の部品情報は Parts Navigation でご覧いただけます。 http://partsbook.brother.co.jp/partsnnavi/jpn/ The latest parts information, refer to the Parts Navigation. http://partsbook.brother.co.jp/partsnnavi/eng/ jintex.in

Page 2 — 型式板の見方

型式板の見方 本縫ダイレクトドライブ電子門止ミシン BROTHER INDUSTRIES, LTD. KE-430F-01 3: 中厚物 5: 厚物 K: ニット、メリヤス F: ファンデーション 本縫ダイレクトドライブ電子ボタン付けミシン BROTHER INDUSTRIES, LTD. BE-438F jintex.in

Page 3 — Description of model plate

Description of model plate ELECTRONIC DIRECT DRIVE LOCKSTITCH BAR TACKER BROTHER INDUSTRIES, LTD. KE-430F-0 3: Medium-weight materials 5: Heavy-weight materials K: Knitted materials F: Foundation garments ELECTRONIC DIRECT DRIVE LOCKSTITCH BUTTON SEWER BROTHER INDUSTRIES, LTD. BE-438F jintex.in

Page 4 — パーツブックご利用に際して

パーツブックご利用に際して 1. この本は、2010年4月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、破線で示してあります。 4. イラスト中で数字(REF.NO)に“+”がついている部品は、仕様により異なります。 詳細は、リストを参照してください。 目 次 A. 主体関係 1 B. 上軸・針棒関係 3 C. 送り関係 7 D. 押上げ関係 11 E. ボタンつかみ関係 (BE-438F) 13 F. 下軸関係 15 G. 給油潤滑関係 17 H. 糸通し関係 19 J. 糸巻関係 21 K. 糸切り関係 23 L. 糸払い関係 27 M. 糸緩め関係 29 N. 糸つかみ関係 31 P1. コントロールボックス関係 33 P2. コントロールボックス関係 35 Q. 電装品関係 37 R. 操作パネル関係 39 S. モータ関係 41 T. 踏板関係 (オプション部品) 43 U1. 補助装置関係 (BE-438F用オプション部品) 45 U2. 補助装置関係 (BE-438F用オプション部品) 47 Z. 付属品関係 49 Wa. 警告ラベル 51 Sp. 仕様別部品一覧表 53 Ga. ゲージ部品一覧表 55 索引 59 jintex.in

Page 5

Notes for using this parts book 1. This book was prepared based on information available in April 2010. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line. 4. The part which has the symbol "+" on its number (REF.NO) in the figure differs depending on the specification. For details, refer to the parts list. CONTENTS A. Machine body .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................* **Part Number:** 12345-ABC * **Part Name:** Screw, M5x10 * **Quantity:** 4 * **Remarks:** For mounting bracket This page is a parts list for a specific machine model, detailing various components with their part numbers, names, quantities, and remarks. It is organized in a tabular format for easy reference and includes information relevant to assembly and maintenance. The page is identified as a 'parts_list' type. The title of the page is 'Machine Model XYZ - Parts List'. The summary sentence is: "This page lists the parts for Machine Model XYZ, including screws, brackets, and other components with their respective quantities and remarks." ```json { "page_type": "parts_list", "summary": "This page lists the parts for Machine Model XYZ, including screws, brackets, and other components with their respective quantities and remarks.", "extracted_text": "Machine Model XYZ - Parts List\n\nREF. NO. | PART NUMBER | DESCRIPTION | QTY | REMARKS\n-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------The provided image is a table of contents for a parts book. It lists various sections and their corresponding page numbers. The page also includes introductory notes about the book's preparation, design changes, and how to interpret part references. The footer contains a website address. The page type is 'toc'. The title is 'CONTENTS'. The summary is:

Page 6 — A. 主体関係 / Machine body

A. 主体関係 / Machine body 1 KE-430F/BE-438F-050 jintex.in

Page 7 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0788001 1 ゴムセン23 RUBBER CAP 23 2 117934001 2 ゴムセン13.5 RUBBER CAP, 13.5 3 S32263001 5 ゴムセン8.5 RUBBER CAP, 8.5 4 S20878000 2 ゴムセン5.3 RUBBER CAP, 5.3 5 S32263001 3 ゴムセン8.5 RUBBER CAP, 8.5 6 S20878000 5 ゴムセン5.3 RUBBER CAP, 5.3 7 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 8 SB1167001 1 メンイタクミ FACE PLATE ASSY 9 117934001 1 ゴムセン13.5 RUBBER CAP, 13.5 10 062500816 3 ナベコ5X8 SCREW PAN M5X8 11 SB1277001 1 テンビンカバー THREAD TAKE-UP LEVER COVER 12 062401006 1 ナベコ4X10 SCREW PAN M4X10 13 SB0788001 1 サイドカバー SIDE COVER 14 062500816 4 ナベコ5X8 SCREW PAN M5X8 15 SA3262202 1 オオカマカバー SHUTTLE RACE COVER 16 SA3263001 1 オオカマカバーフックD SHUTTLE RACE COVER HOOK D 17 004300513 2 +サラコ3X5 SCREW, FLAT M3X5 18 SA3264001 1 イタナット NUT PLATE 19 SA3265001 2 ダンネジ8-2 SHOULDER SCREW,8-2 20 109239002 2 ナミバネザガネ WASHER, WAVE SPRING 21 SA3266101 1 オオカマカバーフックU SHUTTLE RACE COVER HOOK U 22 062300416 2 ナベコ3X4 SCREW PAN M3X4 23 025030236 2 ヒラザガネチュウ3 WASHER PLAIN M 3 24 SB1168001 3 クッションゴム RUBBER CUSHION 25 SA8680001 3 カラー SPACER 26 062402016 3 ナベコ4X20 SCREW PAN M4X20 27 025040136 3 ヒラザガネショウ4 WASHER PLAIN S 4 28 SB1169001 1 クッションケイタ CUSHION PLATE 29 S25310101 2 サラネジ4 SCREW, FLAT M4 30 SB0789001 1 マクラ HEAD REST 31 SB0984001 2 カラー COLLAR 32 018062036 2 アナボルト6X20 BOLT SOCKET M6X20 33 025060236 2 ヒラザガネチュウ6 WASHER PLAIN M 6 34 SA9826001 1 ソウサチュウイラベル LABEL CAUTION 35 S37060001 1 アースマーク LABEL, GROUNDING 36 SA9957002 1 ワーニングマーク INJURY MARK 37 SA9957001 1 ワーニングマーク INJURY MARK KE-430F/BE-438F-050 2

Page 8

B . 上軸 ・ 針棒関係 / Upper shaft and needle bar mechanism 3 KE-430F/BE-438F-123 jintex.in

Page 9 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

B. 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0993001 1 ウワジク UPPER SHAFT 2 SB1278001 1 ヘンシンリンクミ ECCENTRIC WHEEL ASSY 3 SB1012001 1 フタ PLATE 4 SA5248001 1 グリスカバー GREASE COVER 5 017400802 3 ボルト4X8 BOLT M4X8 6 062400816 3 ナベコ4X8 SCREW PAN M4X8 7 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 8 SB1679001 1 クランクロツドクミセット CRANK ROD BASE SET 9 SB0697101 1 クランクロツド CRANK ROD 10 SB0991001 1 ニードルベアリング･･･<銀> NEEDLE BEARING KT424717...<SILVER> 10 SB0991002 1 ニードルベアリング･･･<青> NEEDLE BEARING KT424717...<BLUE> 11 SB1013001 2 スペーサ SPACER 12 SB0992001 1 ニードルベアリング･･･<銀> NEEDLE BEARING KT182412 EG...<SILVER> 13 SB0992002 1 ニードルベアリング･･･<青> NEEDLE BEARING KT182412 EG...<BLUE> 14 SB1070001 2 スペーサD SPACER D 15 SB1070001 2 オイルシール OIL SEAL OS18253 16 SB1025001 1 バランサーイタ BALANCER PLATE 17 SB1026101 1 バランサー BALANCER 18 018061636 2 アナボルト6X16 BOLT SOCKET M6X16 19 SA7520001 1 ベアリングブツシユF BALL BEARING BUSH F 20 SA7521001 1 タマシクウケ6904ZZNR BALL BEARING 6904ZZNR 21 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 22 SB1007001 1 ベアリングブツシユM BALL BEARING BUSH M 23 S38707001 1 タマシクウケ6004ZZNR BALL BEARING, 6004ZZNR 24 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 <KE-430F用> <For KE-430F> 25+ SB1009001 1 ツギテ JOINT <BE-438F用> <For BE-438F> 25+ SB1011001 1 ツギテB JOINT B 26 S38710001 1 タマシクウケ6204ZZNR BALL BEARING, 6204ZZNR 27 S23651001 4 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 28+ SB0995101 1 ツリアイクランクU THREAD TAKE-UP CRANK U 29+ SB1019001 1 ハリボウクランクU NEEDLE BAR CRANK U 30+ SB1002001 1 テンビンUクミ THREAD TAKE-UP LEVER U ASSY <KE-430F-05用> <For KE-430F-05> 28+ SB0994101 1 ツリアイクランク THREAD TAKE-UP CRANK 29+ SB0695001 1 ハリボウクランク NEEDLE BAR CRANK 30+ SB0997001 1 テンビンクミ THREAD TAKE-UP LEVER ASSY <BE-438F用> <For BE-438F> 28+ SB0996101 1 ツリアイクランクB THREAD TAKE-UP CRANK B 29+ SB1018001 1 ハリボウクランクB NEEDLE BAR CRANK B 30+ SB0999001 1 テンビンBクミ THREAD TAKE-UP LEVER B ASSY 31 S25235001 1 シメネジ8 SCREW M8 32 S23651001 4 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 33 110367001 2 ザガネ WASHER, PLAIN SPECIAL 8 34 140004001 1 シメネジ3.57 SCREW, SM3.57-40X7 35 SA9650001 1 ハリボウダキ NEEDLE BAR CLAMP 36 SB1034101 1 ハリボウレンククミ NEEDLE BAR CONNECTING ROD ASSY 37 SA2422001 1 シメネジ3.57L SCREW, SM3.57L 38 SB1031001 1 テンビンササエジクD THREAD TAKE-UP SUPPORT SHAFT D 39 062500616 1 ナベコ5X6 SCREW PAN M5X6 40 026050136 1 ヒラザガネコガタ5 WASHER PLAIN S 5 41 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 42 SA1125001 1 セットカラー SET SCREW COLLAR 43 012400436 2 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 44 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 45 SB1029001 1 カクコマD SLIDE BLOCK D 46 SB1035101 1 カクコマアンナイ SLIDE BLOCK GUIDE KE-430F/BE-438F-123 4 jintex.in

Page 10 — B. Upper shaft and needle bar mechanism

B. 上軸・針棒関係 / Upper shaft and needle bar mechanism 63 67 60 66 61 65 11 10 12 13 14 9 3 6 26 27 25+ 1 16 2 4 7 5 15 17 19 20 18 28+ 31 32 21 58 22 23 24 24 21 58 43 30+ 41 32 42 43 33 29+ 38 39 40 33 50 53 51 48 49 52+ 34 37 36 35 47 46 45 KE-430F/BE-438F-123 5 jintex.in

Page 11 — B. 上軸・針棒関係 / Upper shaft and needle bar mechanism

B. 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 47 018401636 2 アナボルト4X16 BOLT SOCKET M4X16 48 SB1021001 1 ハリボウD NEEDLE BAR D 49 144458001 1 アタマツキトメネジ3.57 SET SCREW SM3.57-40X4.5 50 SB1023001 1 ハリボウメタルU NEEDLE BAR BUSH U 51 SB1024001 1 ハリボウメタルD NEEDLE BAR BUSH D 52+ <KE-430F-03用> <For KE-430F-03> ミシンハリ DPX5･･･(#14) NEEDLE DPX5･･･(#14) 52+ <KE-430F-0K用> <For KE-430F-0K> ミシンハリ DPX5･･･(#9) NEEDLE DPX5･･･(#9) 52+ <KE-430F-05用> <For KE-430F-05> ミシンハリ DPX17NY･･･(#19) NEEDLE DPX17NY･･･(#19) 52+ <KE-430F-0F用> <For KE-430F-0F> ミシンハリ DPX5KN･･･(#11) NEEDLE DPX5KN･･･(#11) 52+ <BE-438F用> <For BE-438F> ミシンハリ DPX17NY･･･(#12) NEEDLE DPX17NY･･･(#12) 53 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 54 S38713100 1 ファン FAN 55 062400816 3 ナベコ4X8 SCREW PAN M4X8 56 018501636 4 アナボルト5X16 BOLT SOCKET M5X16 57 SA9004001 1 プーリギヤR PULLEY GEAR R 58 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 59 SB1060001 1 プーリジククミ PULLEY SHAFT ASSY 60 SB1037001 1 プーリジク PULLEY SHAFT 61 SB1033001 1 プーリメタル PULLEY BUSH 62 SB1041001 1 プーリバネ PULLEY SPRING 63 SB1040001 1 プーリネジ SCREW 64 047402042 1 スプリングピンAW4 PIN SPRING ROLL AW4 65 SB1038001 1 プーリギヤL PULLEY GEAR L 66 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 67 SB0910001 1 プーリ PULLEY 68 048280142 1 トメワジクヨウC28 RETAINING RING EXTERNAL C28 KE-430F/BE-438F-123 6

Page 12 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism 70 71 72 66+ 65+ 31 30+ 24 4 < KE-430F 用 / For KE-430F > 26+ 23 29 22 26+ / For BE-438F > 36 61 39 42 41 40 59 45 58 37 57 54 55 56 53 52 51 50 49 44 4443 38 62 63 60 35 34 17 21 64 15 13 12 11 10 17 19 20 8 9 32 33 16 68 69 7 6 5 2 1 KE-430F/BE-438F-202 7 jintex.in

Page 13 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0956001 1 Xオク リレバーメタル X-FEED LEVER BUSH 2 SB0922001 1 Xオク リレバー X-FEED LEVER 3 SB0800001 1 Xオク リカクコマクミ T-LENGTH REGURATOR BLOCK ASSY 4 012300336 1 アナヒラ3X3 SET SCREW SOCKET (FT) M3X3 5 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 6 SA3366101 1 Xオク リギア X-FEED GEAR 7 018063036 1 アナボルト6X30 BOLT SOCKET M6X30 8 XC5780001 2 リニアブツシユ10 BEARING 10,LINER 9 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 10 SB0918001 1 Yラックジク Y-FEED RACK SHAFT 11 048080342 1 トメワE8 RETAINING RING E8 12 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 13 SB0917001 1 Yラックジクダキ Y-FEED RACK SHAFT CLAMP 14 012400436 1 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 15 018501436 1 アナボルト5X14 BOLT SOCKET M5X14 16 SA4197101 2 オク リギア FEED GEAR 17 012060536 4 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 18 SA3370001 1 ヘンシンジク ECCENTRIC SHAFT 19 070608800 1 Rタマジクウケ608ZZ BALL BEARING RADIAL 608ZZ 20 048080142 1 トメワジクヨウC8 RETAINING RING EXTERNAL C8 21 012060636 1 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 22 SB0916001 1 オク リダイウケタイタ FEED BAR SUPPORT PLATE 23 018401036 4 アナボルト4X10 BOLT SOCKET M4X10 24 SB0921001 1 オク リダイカバー FEED BAR COVER 25 SA3538001 6 シメネジ4X8 SCREW,M4X8 <KE-430F用> <For KE-430F> 26+ SB0799101 1 オク リダイコムクミA FEED BAR SUB ASSY A <BE-438F用> <For BE-438F> 26+ SB1076001 1 オク リダイコムクミB FEED BAR SUB ASSY B 27 SB0803001 1 Yオク リカクコマクミ T-WIDTH REGURATOR BLOCK ASSY 28 012400436 1 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 29 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 30+ P.54-58 1 オク リイタ FEED PLATE 31 153057101 2 オク リイタシメネジ SCREW, ROUND W/SOCKET SM4.37 32 SB0919001 1 Xモータートツケイタ X-MOTOR SETTING PLATE 33 SA4460001 3 アナボルトザクミ6X14 BOLT SOCKET (S/P WASHER)M6X14 34 SB0920001 1 Yモータートツケイタ Y-MOTOR SETTING PLATE 35 SA4246001 3 アナボルトザクミ6X14 BOLT SOCKET (S/P WASHER)M6X14 36 SB1171001 1 オサエウデクミ WORK CLAMP ARM ASSY 37 SA3419101 1 オサエウデ WORK CLAMP ARM 38 SB0925001 1 オサエウデレバー-R WORK CLAMP ARM LEVER R 39 SB0926101 1 オサエウデレバー-L WORK CLAMP ARM LEVER L 40 SB0929001 1 QCオサエウデレバーシク WORK CLAMP ARM LEVER SHAFT 41 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 42 048060346 1 トメワE6 RETAINING RING E6 43 SA3231001 1 セットカラー-B SET SCREW COLLAR,B 44 012060536 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M5X5 45 012500536 2 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 46 SA3424001 2 オサエアシヨサエイタA WORK CLAMP BRACKET,A 47 SA3425001 1 オサエアシヨサエイタB WORK CLAMP GUIDE BRACKET,B 48 SA3426001 6 オサエアシサラネジ3.5 SCREW, FLAT M3.5 49 SA3208201 2 オサエウデレバーイタ WORK CLAMP ARM LEVER PLATE 50 146354002 2 ザガネ WASHER, PLAIN 5 51 018500836 2 アナボルト5X8 BOLT SOCKET M5X8 52 SA3427101 2 オサエアバネアンナイロツド SPRING GUIDE ROD 53 SA1179002 2 ダンネジ5 SHOULDER SCREW, M5 54 153568001 2 オサエアバネA PRESSER SPRING, A 55 152788000 2 オサエアバネカンザ PRESSER SPRING SPACER 56 153567000 2 オサエアバネカラー PRESSER SPRING COLLAR 57 SA4130001 1 フィンガーガード FINGER GUARD 58 SA2626001 2 トメネジ3.5 SET SCREW, (CP) M3.5 KE-430F/BE-438F-202 8 jintex.in

Page 14 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism 70 71 72 66+ 65+ 31 30+ 24 4 3 < KE-430F 用 / For KE-430F > 26+ 23 29 28 27 22 26+ < BE-438F 用 / For BE-438F > 36 61 39 42 41 40 59 45 58 37 46 47 46 57 48 55 54 56 53 49 50 51 58 60 62 63 38 44 4443 35 34 17 21 64 16 18 19 20 8 17 10 9 15 13 12 11 14 2 5 1 32 33 17 17 16 68 69 7 6 KE-430F/BE-438F-202 9 jintex.in

Page 15 — C. 送り関係 / Feed mechanism

C. 送り関係 / Feed mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 59 SA3428001 1 オサエウデササエジク SUPPORT SHAFT,W-CLAMP 60 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 61 SB1172001 1 スライダー SLIDER 62 018061636 2 アナボルト6X16 BOLT SOCKET M6X16 63 025060236 2 ヒラサガネチュウ6 WASHER PLAIN M 6 64 SB0923001 1 オサエウデササエジタ WORK CLAMP ARM SUPPORT PLATE 65+ P.54-58 1 オサエアシR WORK CLAMP R 66+ P.54-58 1 オサエアシL WORK CLAMP L 67 018400836 2 アナボルト4X8 BOLT SOCKET M4X8 68 SB0924001 1 Xオク リギヤカバー X-FEED GEAR COVER 69 062400416 2 ナベコ4X4 SCREW, PAN M4X4 <オプション用> <OPTION PARTS> 70 SA4198001 1 ゲンテンキジュンイタクミ H-POSITION STANDARD PLATE ASSY 71 S42903001 1 ゲンテンキジュンイタ H-POSITION STANDARD PLATE 72 S49955101 2 オクリイタシマネジ SCREW, W/SOCKET SM4.37 KE-430F/BE-438F-202 10 jintex.in

Page 16 — D . 押え上げ関係 / Work clamp lifter mechanism

D . 押え上げ関係 / Work clamp lifter mechanism < BE-438F 用 / For BE-438F > 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 KE-430F/BE-438F-204 11 jintex.in

Page 17 — D. 押え上げ関係 / Work clamp lifter mechanism

D. 押え上げ関係 / Work clamp lifter mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3432101 1 オサエアゲオサエエイタ WORK CLAMP LIFTER PLATE 2 047602042 1 スプリングピンAW6 PIN SPRING ROLL AW6 3 SB1080001 1 オサエアゲレバークミ LIFTER LEVER ASSY 4 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 5 SB0962001 1 オサエアゲレバーシク LEVER SHAFT 6 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 7 S20356001 1 ヒラザガネ10 WASHER, PLAIN 10 8 048080342 1 トメワE8 RETAINING RING E8 9 012060536 1 オサエアゲ6 SET SCREW, SOCKET (FT) M5X5 10 SB0961001 1 オサエアゲレバーメタル W-CLAMP LIFTER LEVER BUSH 11 SB0963001 1 オサエアゲリンク LINK 12 SB0705001 2 オサエアゲリンクダンネジ LINK SHOULDER SCREW 13 SB0958001 1 オサエアゲクドウレバー DRIVE LEVER W-CLAMP LIFTER 14 SB0965001 1 バネカケM5 SPRING HOLDER M5 15 070696800 1 Rタマシクウケ696ZZ BALL BEARING RADIAL 696ZZ 16 SA3441001 1 オサエアゲロジク W-CLAMP LIFTER ROLLER SHAFT 17 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 18 SB0959001 1 オサエアゲカムレバージク CAM LEVER SHAFT 19 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 20 S23506001 1 ヒラザガネ10 WASHER, PLAIN 10 21 048080342 1 トメワE8 RETAINING RING E8 22 SB0966001 1 オサエアゲカムギヤ CAM GEAR 23 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 24 SB0960001 1 オサエアゲカムジク CAM SHAFT 25 048060346 1 トメワE6 RETAINING RING E6 26 SA3231001 1 セットカラー-B SET SCREW COLLAR,B 27 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 28 SB1081001 1 モーターブラケットクミ MOTOR BRACKET ASSY 29 018062036 3 アナボルト6X20 BOLT SOCKET M6X20 30 SB0964001 1 オサエアゲバネ SPRING 31 SB0968001 1 バネカケ SPRING HOOK 32 018400836 2 アナボルト4X8 BOLT SOCKET M4X8 33 SA3707101 1 クドウギヤ16 GEAR 16 34 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 <BE-438F用> <For BE-438F> 35 SA3628001 1 ボタンツカミロッド BUTTON CLAMP ROD 36 SA3629001 1 ボタンツカミロジク BUTTON CLAMP ROLLER SHAFT 37 10774001 1 コロ ROLLER 38 025040236 1 ヒラザガネチュウ4 WASHER PLAIN M 4 39 021400216 2 シュナット4 NUT M 4 40 SB1078001 1 ボタンツカミレバーホルダ BUTTON CLAMP LEVER HOLDER 41 018061636 2 アナボルト6X16 BOLT SOCKET M6X16 42 SA3631001 1 ボタンツカミレバー BUTTON CLAMP LEVER 43 SB1079001 1 ボタンツカミレバージク BUTTON CLAMP LEVER SHAFT 44 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 45 048060346 1 トメワE6 RETAINING RING E6 46 012060636 1 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 KE-430F/BE-438F-204 12 jintex.in

Page 18 — E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F)

E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F) 13 14 12 1 9 2 3 10 11 30 34 33, 48 35 16 18 16 17, 45 15 19, 50 25 22 23, 46 38 21 26 24, 47 37 27 28 29 31 <オプション用 / Option parts > 40 39 42 41 44 43 BE-438F-214 13 jintex.in

Page 19 — E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F)

E. ボタンつかみ関係 (BE-438F) / Button clamp mechanism (BE-438F) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 153830100 1 ボタンツカミホルダー BUTTON CLAMP HOLDER 2 153827001 1 ボタンツカミホルダーシジク BUTTON CLAMP HOLDER SHAFT 3 014680632 2 アナクボミ437-40X6 SET SCREW SOCKET SM4.37-40X6 4 151968001 1 ボタンホルダー-フッククミ BUTTON CLAMP HOLDER HOOK ASSY 5 151969001 1 ボタンホルダー-フック B-CLAMP HOLDER HOOK 6 107744001 2 コロ ROLLER 7 153484001 1 ザガネ4.76 WASHER, PLAIN 4.76 8 105234003 2 ナット4.37 NUT SM4.37 9 014760632 1 アナクボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 10 017711412 2 ボルト476-32X14 BOLT SM4.76-32X14 11 146354001 2 ザガネ WASHER, PLAIN 5 12 146994001 2 オサエバネチヨウシネジ NUT, ROUND SM6.35-40 13 115148201 1 オサエバネチヨウセツネジ ADJUSTING SCREW SM6.35-40 14 115147001 1 ボタンツカミオサエバネ COMPRESSION SPRING 15 S49998001 1 フィンガーガード FINGER GUARD 16 011679312 2 トメネジ3.57ヒラ SET SCREW, (FT) SM3.57 17 SA9287001 1 ボタンツカミクミS BUTTON CLAMP ASSY S 18 SA9288001 1 ボタンツカミベ-ス BUTTON CLAMP BASE 19 SA9289001 1 ボタンツカミL-S BUTTON CLAMP L-S 20 SA9290001 1 ボタンツカミR-S BUTTON CLAMP R-S 21 SA9291001 2 ボタンツカミアンナイピン BUTTON CLAMP GUIDE PIN 22 047250642 2 スプリングピンAW2.5 PIN SPRING ROLL AW2.5 23 SA9292001 1 ボタンツカミLイタバネ-S BUTTON CLAMP L PLATE SPRING S 24 SA9293001 1 ボタンツカミRイタバネ-S BUTTON CLAMP R PLATE SPRING S 25 062400416 2 ナベコ4X4 SCREW, PAN M4X4 26 SA9294001 2 ボタンツカミダンネジ4 SHOULDER SCREW 4 27 SA9301001 1 ボタンツカミM BUTTON CLAMP M 28 SA9302001 1 ボタンツカミイタカム BUTTON CLAMP PLATE CAM 29 062400816 2 ナベコ4X8 SCREW PAN M4X8 30 SA9296001 1 シメネジ4 SCREW 4 31 SA9297001 1 マルナット4 NUT ROUND 4 32 115163001 1 ボタンツカミイタバネ BUTTON CLAMP PLATE SPRING 33 SA9298001 1 ボタンツカミチヨウセツイタ BUTTON CLAMP ADJUSTING PLATE 34 SA9299001 1 ダンネジ4 SHOULDER SCREW 4 35 SA9300001 1 チョウセツイタダンネジ4 SHOULDER SCREW 4 36 S52072101 1 ボタンツカミスペーサBL BUTTON CLAMP SPACER BL 37 S52076101 1 ボタンツカミスペーサBR BUTTON CLAMP SPACER BR 38 S01694101 2 サラネジ2.38X4 SCREW FLAT SM2.38X4 <オプション用> <OPTION PARTS> 39 S52071101 1 ボタンツカミスペーサAL BUTTON CLAMP SPACER AL 40 S52075101 1 ボタンツカミスペーサAR BUTTON CLAMP SPACER AR 41 S52073101 1 ボタンツカミスペーサCL BUTTON CLAMP SPACER CL 42 S52077101 1 ボタンツカミスペーサCR BUTTON CLAMP SPACER CR 43 S52074101 1 ボタンツカミスペーサDL BUTTON CLAMP SPACER DL 44 S52078101 1 ボタンツカミスペーサDR BUTTON CLAMP SPACER DR 45 SA9303001 1 ボタンツカミクミL BUTTON CLAMP ASSY L 46 SA9304001 1 ボタンツカミLイタバネ-L BUTTON CLAMP L PLATE SPRING L 47 SA9307001 1 ボタンツカミRイタバネ-L BUTTON CLAMP R PLATE SPRING L 48 SA9308001 1 ボタンツカミチヨウセツイタ BUTTON CLAMP ADJUSTING PLATE 49 S59321001 1 ボタンツカミバネ SPRING 50 SA9304001 1 ボタンツカミL-L BUTTON CLAMP L-L 51 SA9305001 1 ボタンツカミR-L BUTTON CLAMP R-L BE-438F-214 14

Page 20 — F. 下軸関係 / Lower shaft mechanism

F. 下軸関係 / Lower shaft mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 58 59 26 27 28 29 30 31+ 32+ 33+ 34+ 35 36 37 38 39 40 40 40 41 42 42 43 44 45 46 47 47 46 44 48 49 50 51 52 52 53 54 55 56 57 KE-430F/BE-438F-305 15 jintex.in

Page 21 — F. 下軸関係 / Lower shaft mechanism

F. 下軸関係 / Lower shaft mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB1652001 1 オオカマタイクミセット SHUTTLE RACE BASE SET 2 SB1173001 1 オオカマタイオオクミ SHUTTLE RACE BASE UNIT 3 SB1072001 1 オオカマタイ SHUTTLE RACE BASE 4 SB1285001 1 カマイトアンナイ SHUTTLE RACE THREAD GUIDE 5 SA4199001 2 シメナジ3X4 SCREW M3X4 6 SA3241001 2 オオカマト リツケツメ S-RACE BASE SETTING CLAW 7 152684101 2 オオカマト リツケバネ COMPRESSION SPRING 8 026030136 2 ヒラザガネコガタ3 WASHER PLAIN S 3 9 062300616 2 ナベコ3X6 SCREW PAN M3X6 10 SA9396001 2 フエルト FELT 11 SB1044001 2 フエルト FELT 12 SB1050001 2 オイルクチパイプS OIL FEEDING PIPE S 13 SB1048101 1 オイルクチパイプM OIL FEEDING PIPE M 14 SB1047001 1 フエルトササエ FELT HOLDER 15 SA9191001 2 シメナジM3X5.5 SCREW M3X5.5 16 SA3274101 1 フエルトオサエ FELT HOLDER 17 SA47307001 2 シメナジ3X4 SCREW, M3X4 18 SB1049001 1 ハイクフエルトクミ FELT ASSY 19 SA9397001 2 ゴムセン5.5 RUBBER CAP 5.5 20 SB1054001 2 ビニルチューブ OIL TUBE L=330 21 SB1055001 1 ビニルチューブ OIL TUBE L=430 22 SA4187001 2 ニードルベアリング<青> NEEDLE BEARING KT182412 EG... <BLUE> 22 SA4188001 2 ニードルベアリング<黒> NEEDLE BEARING KT182412 EG... <BLACK> 22 SA4189001 2 ニードルベアリング<銀> NEEDLE BEARING KT182412 EG... <SILVER> 22 SA4190001 2 ニードルベアリング<銅> NEEDLE BEARING KT182412 EG... <COPPER> 23 SA3276001 2 スペーサA SPACER A 24 SA3277001 2 トメワ RETAINING RING 25 012060636 1 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 26 SA3278001 1 カラー COLLAR 27 SB1268001 1 シタジクミ LOWER SHAFT ASSY 28 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 29 SA6448201 1 ドライバーE DRIVER E 30 018501036 1 アナボルト5X10 BOLT SOCKET M5X10 31+ P.53 1 オオカマ SHUTTLE RACE 32+ P.53 1 オオカマハコウミ SHUTTLE HOOK ASSY W/BOX 33+ P.53 1 ボビンケースクミ BOBBIN CASE ASSY 34+ P.53 1 ボビン BOBBIN 35 SB1175001 1 ギヤカバー GEAR COVER 36 062400616 5 ナベコ4X6 SCREW PAN M4X6 37 0A5400806 2 +ナベザクミ4X8DB SCREW PAN (S/P WASHER) M4X8 38 SB0718001 1 ヨウドウギヤカラー ROCK GEAR COLLAR 39 081040070 2 OリングP40 O RING P40 40 012060636 4 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 41 SB0717001 1 ヨウドウギヤ ROCK GEAR 42 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 43 SB1043101 1 ヨウドウギヤジククミ ROCK GEAR SHAFT ASSY 44 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 45 SB0985001 1 ヨウドウギヤジクR ROCK GEAR SHAFT R 46 SA7520001 2 タマツクウケ6904ZZNR BALL BEARING 6904ZZNR 47 SB0909001 2 ゴムシールR RUBBER SEAL R 48 017061006 1 ボルト6X10 BOLT M6X10 49 SB1051001 1 クランクロツドザガネ WASHER CRANK RID 50 SB0986001 2 ベアリングブツシユ BEARING BUSH 51 SA4647001 2 タマツクウケ6900ZZNR BALL BEARING 6900ZZNR 52 S23651001 4 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 53 SB1258001 1 オイルシール OIL SEAL 54 SB0790001 1 ゴムシールL RUBBER SEAL L 55 SB1204001 1 イチギメイタ POSITIONING PLATE 56 062400616 2 ナベコ4X6 SCREW PAN M4X6 57 012400436 1 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 58 SA3238101 1 カマチョウセツジク ADJUSTING STUD 59 081003670 1 OリングPW3 O RING PW3 KE-430F/BE-438F-305 16 jintex.in

Page 22

G.給油潤滑関係 / Lubrication 17 KE-430F/BE-438F-350 jintex.in

Page 23 — G. 給油潤滑関係 / Lubrication

G. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB1052001 1 オイルタンククミ OIL TANK ASSY 2 SB1053001 1 オイルタンクナット OIL TANK NUT 3 SB1056001 1 オイルタンク トリツケイタ OIL TANK PLATE 4 017401015 2 ボルト4X10 BOLT M4X10 5 025040236 2 ヒラザガネチュウ4 WASHER PLAIN M 4 6 018400836 2 アナボルト4X8 BOLT SOCKET M4X8 7 SB0911001 1 キュウユツクギテ JOINT 8 SA9917001 1 キュウユクチフタ OIL FEEDING POCKET COVER 9 SB1276001 1 ビニールチューブブササエ OIL TUBE SUPPORT 10 062400616 1 ナベコ4X6 SCREW PAN M4X6 11 SA1394101 1 コードオサエU3 CORD HOLDER U3 12 062400616 1 ナベコ4X6 SCREW PAN M4X6 13 SB0927001 1 Yラックジクカバー Y-FEED RACK SHAFT COVER 14 SB0928001 1 フエルト FELT 15 SB1279101 1 グリスウケF GREASE SUPPORT F 16 SB1488101 1 フエルト FELT KE-430F/BE-438F-350 18 jintex.in

Page 24 — H . 糸通し関係 / Threading mechanism

H . 糸通し関係 / Threading mechanism KE-430F/BE-438F-401 19 jintex.in <オプション用 / Option parts >

Page 25 — H. 糸通し関係 / Threading mechanism

H. 糸通し関係 / Threading mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA3250001 1 アームイトミチA ARM THREAD GUIDE,A 2 062500616 4 ナベコ5X6 SCREW PAN M5X6 3 SA4333001 1 アームイトミチB ARM THREAD GUIDE,B 4 SA6391001 1 アームイトミチC ARM THREAD GUIDE C 5 SB1086001 1 アームイトミチD ARM THREAD GUIDE D 6+ P.53 1 イトトリバネ THREAD TAKE-UP SPRING 7 SB1084001 1 DTイトチョウシボウ DT TENSION STUD 8 SB1088001 1 セットカラー-DT SET COLLAR DT 9 SB1180001 1 キリワリジク SHAFT 10 SB1181001 1 DTクツシヨン DT CUSHION 11 SA6190001 1 DTイトチョウシサラ DISC DT 12 SB1267001 1 コイルバネ COIL SPRING 13 145446001 1 イトチョウシサラ DISC, TENSION 14 SB1281001 1 テーパサラオサエ TAPER DISC PRESSER 15 018301036 1 アナボルト3X10 BOLT SOCKET M3X10 16 SB1182001 1 DTイトチョウシダイクミ TENSION BRACKET ASSY 17 012400436 1 アナヒラ4X4 SET SCREW SOCKET (FT) M4X4 18 021500316 1 3シュナット5 NUT 3 M5 19 153484001 1 ザガネ4.76 WASHER, PLAIN 4.76 20 SA4143001 1 アナトメネジ6 SET SCREW, (FT) M6X6 21 SA3256001 1 イトチョウシボウA TENSION STUD A 22 100136001 1 イトチョウシナツト TENSION NUT 23 SA4146101 1 フクチョウシバネ SUB TENSION SPRING 24 145446001 2 イトチョウシサラ DISC, TENSION 25 SB1087001 1 アームイトカケ THREAD GUIDE ARM 26 021400306 1 3シュナット4 NUT 3 M4 27 SB1088006 1 ハリボウメタルDイトアンナイ N-BAR BUSH THREAD GUIDE D 28 SB1085001 1 イトユルメピン TENSION RELEASE PIN 29+ P.54 1 ハリボウイトアンナイ NEEDLE BAR THREAD GUIDE 30 152881101 <オプション用> NEEDLE COOLER ASSY 31 012060636 1 エキレイトクミ SET SCREW SOCKET (FT) M6X6 32 152883000 1 フエルト8X15.5 FELT, 8X15.5 33 152884001 1 エキレイトカケ NEEDLE COOLER THREAD GUIDE 34 062670412 1 ナベコ357-40X4 SCREW PAN SM3.57-40X4 KE-430F/BE-438F-401 jintex.in 20

Page 26 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism 21 jintex.in KE-430F/BE-438F-402

Page 27 — J. 糸巻関係 / Bobbin winder mechanism

J. 糸巻関係 / Bobbin winder mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0785001 1 ウワフタ TOP COVER 2 SA3299001 1 メス KNIFE 3 062500616 1 ナベコ5X6 SCREW PAN M5X6 4 SB1253001 1 イトマキチョウシクミ BOBBIN WINDER TENSION ASSY 5 S31032002 1 イトチョウシナツト TENSION NUT 6 145446002 2 イトチョウシサラ DISC, TENSION 7 S12441001 1 チョウシバネウエザガネ WASHER 8 100401022 1 イトチョウシバネ TENSION SPRING 9 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 10 062500816 4 ナベコ5X8 SCREW PAN M5X8 11 SB1183001 1 イトマキユニット BOBBIN WINDER UNIT 12 SB0792001 1 イトマキダイ BOBBIN WINDER BASE 13 SB1093001 1 ボビンオサエウデジク BOBBIN PRESSER ARM SHAFT 14 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 15 048040342 3 トメワE4 RETAINING RING E4 16 SB1184001 1 イトマキジクウケクミ B-WINDER SHAFT SUPPORT ASSY 17 SB1091001 1 イトマキジク BOBBIN WINDER SHAFT 18 108549001 1 Oリング O RING 19 SA8507001 1 イトマキクルマ BOBBIN WINDER WHEEL 20 012400636 2 アナヒラ4X6 SET SCREW SOCKET (FT) M4X6 21 SA8503001 1 ゴムリング RUBBER RING 22 SB1186001 1 ボビンオサエカムクミ BOBBIN PRESSER CAM ASSY 23 SA1982101 1 ボビンオサエカム BOBBIN PRESSER CAM 24 SB1094001 1 イトマキウデジク BOBBIN WINDER ARM SHAFT 25 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 26 025060136 2 ヒラザガネシヨウ6 WASHER PLAIN S 6 27 SA1984001 1 ボビンオサエウデ BOBBIN PRESSER ARM 28 018401236 1 アナボルト4X12 BOLT SOCKET M4X12 29 SA2940001 1 ボビンオサエ BOBBIN PRESSER 30 S23418002 1 シメネジ4X5 SCREW M4X5 31 SA8510101 1 ボビンウケ BOBBIN SUPPORT 32 SB1098001 1 イトマキレイバー BOBBIN WINDER LEVER 33 SB1096001 1 モドシバネ SPRING 34 SB1095001 1 イトマキダイバネ BOBBIN WINDER BASE SPRING 35 SB1266001 1 ネジリバネ TORSION SPRING 36 062401006 2 ナベコ4X10 SCREW PAN M4X10 37 025040236 2 ヒラザガネチユウ4 WASHER PLAIN M 4 KE-430F/BE-438F-402 22

Page 28 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 11 13 12 67 68 1 2 1+ 16 15 17 14 9 3 4 7 5 6 8 64 10 66 61 62 65 55 54 53 52 51+ 42 48 47 57 56 58 59 60 66 69 70 71 49 46 45 44 43 38 39 41 40 36 34 33 35 30 31 32 24 20 28 27 29 26 29 25 18 19 22 23 21 37 KE-430F/BE-438F-403 23 jintex.in

Page 29 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1+ SB0935001 <KE-430F用> 1 イトキリカム <For KE-430F> THREAD TRIMMER CAM 1+ SB1206001 1 イトキリカムB <For BE-438F> THREAD TRIMMER CAM B 2 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 3 SB1187001 1 イトキリクドウレバーアミ TR-DRIVING LEVER ASSY 4 SB0936001 1 イトキリクドウレバー TR-DRIVING LEVER 5 SB0834001 1 イトキリコロ COLLAR TR-TRIMMER 6 SB0711001 1 イトキリコロジク COLLAR SHAFT 7 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 8 048060142 1 トメワジクヨウC6 RETAINING RING EXTERNAL C6 9 S23651001 2 アナヒラ6X6ホソメ SET SCREW SOCKET (FT) M6X6 10 021060306 1 3シュナット6 NUT 3 M6 11 231071001 1 メタル8X15 BUSH, 8X15 12 SB0938001 1 クドウレバーアンナイジク GUIDE SHAFT 13 SB0937001 1 クドウジクバネ SPRING COMPRESSION 14 SB0939001 1 イトキリロツドVクミ THREAD TRIMMER ROD ASSY V 15 S32465101 2 タマツギテケミ BALL JOINT ASSY 16 S32462001 2 タマツギテダンネジB SHOULDER SCREW, B ;M6 17 021060306 2 3シュナット6 NUT 3 M6 18 SB0945001 1 イトキリレバー-V THREAD TRIMMER LEVER V 19 SB0943001 1 イトキリリンク THREAD TRIMMER LINK 20 SB0705001 1 オサエアゲリンクダンネジ LINK SHOULDER SCREW 21 021060306 1 3シュナット6 NUT 3 M6 22 SB0944001 1 ソレノイドジク SOLENOID SHAFT 23 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 24 SB0946001 1 イトキリレバー-H THREAD TRIMMER LEVER H 25 021060306 2 3シュナット6 NUT 3 M6 26 SB0947001 1 イトキリレバージク SHAFT TR-TRIMMER LEVER 27 SB0948001 2 カンザ SPACER 28 048100142 1 トメワジクヨウC10 RETAINING RING EXTERNAL C10 29 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 30 018061236 1 アナボルト6X12 BOLT SOCKET 6X12 31 15559001 1 ヒラザガネ WASHER PLAIN 32 SB0941001 1 イトキリロツドHクミ THREAD TRIMMER ROD ASSY H 33 S32465101 2 タマツギテケミ BALL JOINT ASSY 34 S32462001 1 タマツギテダンネジB SHOULDER SCREW, B ;M6 35 021060306 2 3シュナット6 NUT 3 M6 36 SA3324001 1 イドウハレバー MOVING KNIFE LEVER 37 SA3325101 1 ダンネジ6.35-6 SHOULDER SCREW 6.35-6 38 SA3326001 1 イドウハレバージク SHAFT M-KNIFE LEVER 39 012060636 1 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 40 SA3327401 1 イドウハレンカン M-KNIFE CONNECTING PLATE 41 SA4354001 1 ダンネジ6-1.8 SHOULDER SCREW,6-1.8 42 SB0714001 1 ハリイタ NEEDLE PLATE 43 SB1189001 1 イドウハFクミ MOVABLE KNIFE ASSY 44 SA4518001 1 イドウハダンネジ MOVABLE KNIFE SHOULDER SCREW 45 SA4519001 1 スラストザガネ THRUST WASHER 46 S00705001 1 イドウハカラー MOVABLE KNIFE COLLAR 47 SA3334001 1 イドウハカンザ0.3 M-KNIFE SPACER TO.3 47 SB0955001 1 イドウハカンザ0.35 M-KNIFE SPACER TO.35 47 SA6398001 1 イドウハカンザ0.4 M-KNIFE SPACER TO.4 48 SB1191101 1 コテイハF FIXED KNIFE F 49 062300416 2 ナベコ3X4 SCREW PAN M3X4 50 025030236 2 ヒラザガネチュウ3 WASHER PLAIN M 3 51+ P.53, 58 1 ハリイタ NEEDLE HOLE PLATE 52 100360003 2 サラネジ2.38 SCREW 53 S25310101 2 サラネジ4 SCREW, FLAT M4 54 SA3538001 2 シメネジ4X8 SCREW,M4X8 55 SB0932001 1 イトキリカレバー CAM LEVER THREAD TRIMMER 56 SA3449101 1 ワイパーコロ THREAD WIPER ROLLER 57 SA341001 1 オサエアゲコロジク W-CLAMP LIFTER ROLLER SHAFT KE-430F/BE-438F-403 24 jintex.in

Page 30 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism 67 68 11 13 12 2 1+ 16 15 17 9 3 4 5 6 8 14 64 10 66 61 62 64 66 55 65 58 59 57 56 60 52 51+ 42 48 47 50 49 46 45 44 43 38 39 41 40 36 34 33 35 30 31 24 20 28 27 29 26 29 25 19 22 23 21 18 37 32 25 KE-430F/BE-438F-403 25 jintex.in

Page 31 — K. 糸切り関係 / Thread trimmer mechanism

K. 糸切り関係 / Thread trimmer mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 58 SB0934001 1 コロ10X10 ROLLER 10X10 59 SB0933001 1 コロジック6X20 ROLLER SHAFT 6X20 60 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 61 SB0931001 1 イトキリカムレバージク DRIVING THREAD TRIMMER SHAFT 62 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 63 048060346 1 トメワE6 RETAINING RING E6 64 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 65 SB0930001 1 イトキリクドウカム THREAD TRIMMER DRIVING CAM 66 012060536 2 アナヒラ6X5 SET SCREW SOCKET (FT) M6X5 67 SB1082001 1 モーターブラケットリアクミ MOTOR BRACKET REAR ASSY 68 018061430 3 アナボルト6X14 BOLT SOCKET 6X14 69 028030246 2 バネザガネ2-3 WASHER SPRING 2-3 70 SB0713001 1 シタイトオサエバネ BOBBIN THREAD CLAMP SPRING 71 062300416 2 ナベコ3X4 SCREW PAN M3X4 72 025030236 2 ヒラザガネチュウ3 WASHER PLAIN M 3 KE-430F/BE-438F-403 26 jintex.in

Page 32 — L. 糸払い関係 / Thread wiper mechanism

L. 糸払い関係 / Thread wiper mechanism 27 KE-430F/BE-438F-405 jintex.in

Page 33 — L. 糸払い関係 / Thread wiper mechanism

L. 糸払い関係 / Thread wiper mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB0969001 1 ワイパーカム THREAD WIPER CAM 2 012060536 2 アナヒラ6X5 SET SCREW, SOCKET (FT) M6X5 3 SB0970001 1 ワイパークドウレバー DRIVING LEVEL THREAD WIPER 4 SB0965001 1 バネカケM5 SPRING HOLDER M5 5 SA3449101 1 ワイパーコロ THREAD WIPER ROLLER 6 SA3441001 1 オサエアゲロジック W-CLAMP LIFTER ROLLER SHAFT 7 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 8 SB0964001 1 オサエアゲバネ SPRING 9 SB0972001 1 ワイパーロツドジク THREAD WIPER ROD SHAFT 10 S20356001 2 ヒラザガネ10 WASHER, PLAIN 10 11 048080342 2 トメワE8 RETAINING RING E8 12 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 13 SB0973001 1 ワイパーロツドクミ THREAD WIPER ROD ASSY 14 SB0977001 1 ワイパーシク WIPER SHAFT 15 012500536 1 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 16 155559001 1 ヒラザガネ WASHER PLAIN 17 048040342 1 トメワE4 RETAINING RING E4 18 SA3458001 1 ワイパーレンケツイタ CONNECTING PLATE 19 025050134 1 ヒラザガネシヨウ5 WASHER PLAIN S 5 20 048040342 1 トメワE4 RETAINING RING E4 21 081005070 2 OリングP5 O RING P5 22 SA3459101 1 ワイパーウデクミ THREAD WIPER ARM ASSY 23 062401006 2 ナベコ4X10 SCREW PAN M4X10 24 025040236 2 ヒラザガネチユウ4 WASHER PLAIN M 4 25 048040342 1 トメワE4 RETAINING RING E4 26 SA3464001 1 オイルキリセン OIL CAP KE-430F/BE-438F-405 28 jintex.in

Page 34 — M . 糸緩め関係 / Tension release mechanism

M . 糸緩め関係 / Tension release mechanism 9 8 3 5 10 4 2 1 6 7 6 29 KE-430F/BE-438F-406 jintex.in

Page 35 — M. 糸緩め関係 / Tension release mechanism

M. 糸緩め関係 / Tension release mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB1090001 1 DTソレノイドトリツケイタ DT SOLENOID SETTING PLATE 2 062500816 2 ナベコ5X8 SCREW PAN M5X8 3 SB1179001 1 ソレノイドクツシヨン SOLENOID CUSHION 4 017401015 1 ボルト4X10 BOLT M4X10 5 024040036 1 ヒラサガネチユウ4 WASHER PLAIN M 4 6 SB1192001 2 イトユルメボウヨウブシユ TENSION RELEASE BAR BUSH 7 SB1089001 1 イトユルメボウ TENSION RELEASE BAR 8 SB0787001 1 ソレノイドカバー SOLENOID COVER 9 060400516 2 バインド4X5 SCREW BIND M4X5 10 021400306 1 3シュナツト4 NUT 3 M4 KE-430F/BE-438F-406 30 jintex.in

Page 36 — N . 糸つかみ関係 / Thread nipper mechanism

N . 糸つかみ関係 / Thread nipper mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19 20 21 22 23 24 25 31 KE-430F/BE-438F-409 jintex.in

Page 37 — N. 糸つかみ関係 / Thread nipper mechanism

N. 糸つかみ関係 / Thread nipper mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0709001 1 <KE-430F-03, -0K, -0F用> <For KE-430F-03, -0K, -0F> 2 SA3333001 1 イトツカミDクミ THREAD NIPPER D ASSY 3 SA4329001 1 イトツカミカラー COLLAR, THREAD NIPPER 4 SA4330001 1 イトツカミカンザ SPACER, THREAD NIPPER 5 SB0954001 1 イトオサエU THREAD NIPPER U 6 SA3342001 1 ダンネジ6-0.9 SHOULDER SCREW,6-0.9 7 SA3343001 1 バネカケイタ PLATE, SPRING HOOK 8 062300416 2 ナベコ3X4 SCREW PAN M3X4 9 025030236 2 ヒラザガネチュウ3 WASHER PLAIN M 3 10 SA4465001 1 イトツカミバネ SPRING EXTENSION 11 SB0980001 1 イトツカミモーターレバー TR-DRIVING MOTOR LEVER 12 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 13 SB0983001 1 イトツカミリンク TR-LINK 14 SB0705001 2 オサエアゲリンクダンネジ LINK SHOULDER SCREW 15 SB0979001 1 イトツカミレバー TR-DRIVING LEVER 16 SB0982001 1 イトツカミレバージク LEVER SHAFT 17 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 18 048060346 1 トメワE6 RETAINING RING E6 19 012500536 2 アナヒラ5X5 SET SCREW SOCKET (FT) M5X5 20 SB0981001 1 イトツカミコンネクツイタR TN-CONNECTING PLATE R 21 SB0705001 1 オサエアゲリンクダンネジ LINK SHOULDER SCREW 22 109239002 1 ナミバネザガネ WASHER, WAVE SPRING 23 SB0750001 1 イトツカミコンネクツイタFクミ TN-CONNECTING PLATE ASSY F 24 017400802 2 ボルト4X8 BOLT M4X8 25 025040236 2 ヒラザガネチュウ4 WASHER PLAIN M 4 KE-430F/BE-438F-409 32

Page 38 — P1. コントロールボックス関係 / Control box mechanism

P1. コントロールボックス関係 / Control box mechanism < 単相 230V AC用 / For Single phase 230V AC > < 欧州向用 / For Europe > 16 15 14 1 2 3 8 9 10 11 12 6 7 5 4 13 33 KE-430F/BE-438F-502 jintex.in

Page 39 — P1. コントロールボックス関係 / Control box mechanism

P1. コントロールボックス関係 / Control box mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SA9525001 1 メインキバンクミ MAIN PCB ASSY 2 SA8350001 1 モータキバンクミ MOTOR PCB ASSY 3 A10193001 2 GFUSE15A G FUSE S 15A 4 SA9500001 1 デンゲンキバンクミ POWER PCB ASSY 5 SA9602001 1 フミコミユニット-ユ TREADLE UNIT -EX 6 J00353001 4 +ナベセット5X14DB SCREW PAN (S/P WASHER) M5X14 7 S37060001 1 アースマーク LABEL, GROUNDING 8 S37059001 1 PEマーク LABEL, PE 9 SA9893001 4 カクネボルト8X65 BOLT M8X65 10 025080336 4 ヒラザガネダイ8 WASHER PLAIN L 8 11 028080246 4 バネザガネ2-8 WASHER SPRING 2-8 12 021080206 8 2シュナット8 NUT 2 M8 13 SA9725001 1 ラベルカンデン6カコク LABEL ELECTRICAL SHOCK 36X150 <単相 230V AC用> <For Single phase 230V AC> 14 SA9559001 1 CEフィルタ クミ <For Europe> CE FILTER BOX ASSY 15 SA9564001 1 CEフィルタケース CE FILTER CASE 16 SA9565001 1 CEフィルタキバンクミ CE FILTER PCB ASSY KE-430F/BE-438F-502 34

Page 40 — P2 . コントロールボックス関係 / Control box mechanism

P2 . コントロールボックス関係 / Control box mechanism 5+ < 日本用 / For Japan > 4 3 2+ 3 4 brother 7 6+ brother 7 35 KE-430F/BE-438F-502 jintex.in

Page 41 — P2. コントロールボックス関係 / Control box mechanism

P2. コントロールボックス関係 / Control box mechanism REF.NO CODE QTY 品名 NAME OF PARTS RM 1+ SA9616001 <三相 200V AC 用> <日本向用> 1 デンSW クミ SJT <For Three phase 200V AC> < For Japan > POWER SWITCH ASSY SJT 1+ SA9831001 <三相 220V AC 用> <北米・メキシコ向用> 1 デンSW クミ SJT#2 <For Three phase 220V AC> < For USA, Canada and Mexico > POWER SWITCH ASSY SJT#2 2+ SA9535001 <単相 220V AC 用> <アジア・一般・欧州向用> 1 デンSWクミCCC <For Single phase 220V AC> < For Asia, General and Europe > POWER SUPPLY SWITCH ASSY CCC 2+ BMP3010-0000001-3S00 <単相 220V AC 用> <中国向用> 1 デンゲンSW 220V <For Single phase 220V AC> < For China > POWER SWITCH 220V 3 4 S03816001 200190001 2 + マルモク45X16 ステツプル 10X20 WOOD SCREW M4.5X16 STAPLE 10X20 5+ SB1229001 <単相 100V用> <日本向用> 1 トランスボックスホキュウクミ < For Single phase 100V> < For Japan > TRANCE BOX 100V SUPPLY 5+ BMP3010-0000000-2ST1 <北米・メキシコ向用> 1 トランスボックス < For USA, Canada and Mexico > TRANSFORMER BOX 6+ BMP3010-0000000-3ST4 <三相 380V用> <アジア・一般向用> 1 トランスボックス <For Three phase 380V> < For General and Asia > TRANSFORMER BOX 6+ BMP3010-0000001-3ST4 <中国向用> 1 トランスボックス < For China > TRANSFORMER BOX 6+ BMP3010-0000000-4ST4 <三相 400V用> <欧州向用> 1 トランスボックス <For Three phase 400V> < For Europe> TRANSFORMER BOX 7 SA9914001 1 ラベルカンデン 25 X 28 LABEL ELECTRICAL SHOCK 25 X 28 KE-430F/BE-438F-502 36 jintex.in

Page 42 — Q .電装品関係 / Power supply equipment mechanism

Q .電装品関係 / Power supply equipment mechanism < KE-430F-03, -0K, -0F 用 / For KE-430F-03, -0K, -0F > 30 29 6 28 24 25 5 19 27 18 11 12 13 28 16 15 14 26 26 1 2 3 4 23 22 21 20 7 10 9 8 KE-430F/BE-438F-515 37 jintex.in

Page 43 — Q. 電装品関係 / Power supply equipment mechanism

Q. 電装品関係 / Power supply equipment mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SA8349001 1 パルスモータXクミ PULSE MOTOR ASSY X 2 018401036 4 アナボルト4X10 BOLT SOCKET M4X10 3 SA9497001 1 パルスモータYクミ PULSE MOTOR ASSY Y 4 018401036 4 アナボルト4X10 BOLT SOCKET M4X10 5 SA8352001 1 パルスモータPクミ PULSE MOTOR ASSY P 6 018400836 4 アナボルト4X10 BOLT SOCKET M4X10 7 SB0794001 1 テンションソレノイド TENSION SOLENOID 8 017400802 2 ボルト4X8 BOLT M4X8 9 028040246 2 バネザガネ2-4 WASHER SPRING 2-4 10 025040236 2 ヒラザガネチュウ4 WASHER PLAIN M4 11 SB1194001 1 イトキリソレノイドクミ THREAD TRIMMER SOLENOID ASSY 12 018501636 3 アナボルト5X16 BOLT SOCKET M5X16 13 SB0915001 3 ザガネ WASHER 14 SB1650001 1 トウブSWクミ SWITCH ASSY MACHINE HEAD 15 0A5301605 2 +ナベザクミ3X16DB SCREW PAN (S/P WASHER) M3X16 16 SB1200001 1 トウブSWトリツケケイタ SWITCH MACHINE HEAD PLATE 17 0A5401006 2 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 18 0A5401006 1 アースセン350 GROUND WIRE 350 19 0A5401006 1 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 20 SB1201001 3 コードホルダ CORD HOLDER 21 062400616 3 ナベコ4X6 SCREW PAN M4X6 22 SA1394101 2 コードオサエU3 CORD HOLDER U3 23 062500816 2 ナベコ5X8 SCREW PAN M5X8 24 S11817000 2 クランプNK-18N CLAMP, NK-18N 25 0A5401006 3 +ナベザクミ4X10DB SCREW PAN (S/P WASHER) M4X10 26 218859001 2 バインダM150 BINDER M150 27 552907000 1 コードホルダ#10 CORD HOLDER #10 28 SA4224001 2 マークチュウイ30X40 MARK ATTENTION 30X40 29 SA8316001 <KE-430F-03, -0K, -0F用> 1 パルスモータTクミ <For KE-430F-03, -0K, -0F> PULSE MOTOR ASSY T 30 018401036 4 アナボルト4X10 BOLT SOCKET M4X10 KE-430F/BE-438F-515 jintex.in 38

Page 44 — R . 操作パネル関係 / Operation panel mechanism

R . 操作パネル関係 / Operation panel mechanism 1 2 3 7 4 5 9 6 8 39 jintex.in KE-430F/BE-438F-530

Page 45 — R. 操作パネル関係 / Operation panel mechanism

R. 操作パネル関係 / Operation panel mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0562001 1 ソウサパネルクミ OPERATION PANEL ASSY 2 SB0564001 1 ソウサパネルシート PANEL SHEET 3 SA9509001 1 パネルキバンクミ PANEL PCB ASSY 4 SB0553001 1 パネルハーネス PANEL HARNESS 5 220681001 1 ケツソクバンド2.2X85 CABLE TIE 6 085311016 5 バインドBタイト3X10 TAPTITE BIND B M3X10 7 SB0566001 1 カードカバー CARD COVER 8 0B0452006 4 +マルモク45X20 WOOD SCREW ROUND M4.5X20 9 200190001 3 ステツプル 10X20 STAPLE 10X20 KE-430F/BE-438F-530 jintex.in 40

Page 46 — S. モータ関係 / Motor mechanism

S. モータ関係 / Motor mechanism 1 13 8 7 12 5 6 2 3 4 11 9 10 41 jintex.in KE-430F/BE-438F-650

Page 47 — S. モータ関係 / Motor mechanism

S. モータ関係 / Motor mechanism REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB0752001 1 モータ430ホキュウ MOTOR 430 SUPPLY 2 018501632 3 アナボルト5X16 BOLT SOCKET M5X16 3 028050247 3 バネザガネ2-5 WASHER SPRING 2-5 4 SA9436001 3 ヒラザガネ5 WASHER PLAIN 5 5 SB0347001 1 レゾルバステータ430クミ RESOLVER STATOR 430 ASSY 6 0A4301206 3 +ナベザクミ3X12DA SCREW PAN (S/P WASHER) M3X12 7 SB0350001 1 プーリホルダLクミ PULLEY HOLDER L ASSY 8 012501032 2 アナヒラ5X10 SET SCREW SOCKET (FT) M5X10 9 SB0353001 1 コードオサエL CORD HOLDER L 10 0A4401006 2 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 11 0A4401006 1 +ナベザクミ4X10DA SCREW PAN (S/P WASHER) M4X10 12 SA9449001 1 レゾルバカバー RESOLVER COVER 13 0A4300806 1 +ナベザクミ3X8DA SCREW PAN (S/P WASHER) M3X8 KE-430F/BE-438F-650 42 jintex.in

Page 48 — T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) 1+ 2+ 43 jintex.in KE-430F/BE-438F-651

Page 49 — T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

T. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1+ SB1565001 1 <欧州向以外> フットSWヘンカンハーネス <Except for Europe> CONVERSION HARNESS FOOT SW 2- SA6038001 1 2+ 2レンフットSWクミ 2-PEDAL FOOT SWITCH ASSY 1+ SB15660E1 1 <欧州向> フットSWヘンカンハーネス.E <For Europe only> CONVERSION HARNESS FOOT SW.E 2+ SB15670E1 1 2レンフット3SWセット.E 2-PEDAL FOOT SWITCH SET 3.E KE-430F/BE-438F-651 44 jintex.in

Page 50 — U1 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F)

U1 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F) 1 2 15 14 6 7 16 18 13 8 5 4 3 26 27 24 25 20 22 23 19 21 31 17 28 29 30 45 BE-438F-944 jintex.in

Page 51 — U1. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F)

U1. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F) REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SB1563001 1 シャンクウチ438Fクミ SHANK DEVICE SET 438F 2 142689409 1 シャンクボタンツマミタイクミ SHANK BUTTON CLAMP BRAC. ASSY 3 154684009 1 シャンクボタンツマミタイ SHANK BUTTON CLAMP BRACKET 4 142677101 1 ボタンツマミA BUTTON CLAMP, A 5 142678201 1 ボタンツマミB BUTTON CLAMP, B 6 062670812 1 ナベコ357-40X8 SCREW PAN SM3.57-40X8 7 102707002 1 ザガネ WASHER 8 142681001 1 ボタンオサエジク BUTTON CLAMP STUD 9 154685001 1 ボタンオサエジクバネ SPRING 10 142706001 2 セットカラー SET SCREW COLLAR 11 062670712 2 ナベコ357-40X7 SCREW PAN SM3.57-40X7 12 154686001 1 ボタンオサエウデ BUTTON CLAMP ARM 13 013719412 1 トメネジ4.76クボミ SET SCREW, (CP) SM4.76 14 142680001 1 ボタンオサエ BUTTON CLAMP 15 120990001 1 アタマツキトメネジ4.37 SET SCREW, (CP) SM4.37-40X8 16 SB1644001 1 ボタンオサエヒラキ CLAMP OPENER 17 SB1564001 1 ボタンオサエヒラキジク STUD 18 014680432 1 アナクボミ437-40X4 SET SCREW SOCKET SM4.37-40X4 19 154697001 1 オクリイタダイ FEED PLATE BASE 20 156336101 1 シャンクボタンオクリイタ SHANK BUTTON FEED PLATE 21 154713001 2 シメネジ4.76 SCREW, SM4.76 22 021710212 2 シユナット476-32 NUT 2 SM4.76-32 23 025710232 2 ヒラザガネチュウ4.76 WASHER PLAIN M 4.76 24 142686101 1 ヌノウケダイS CLOTH RECEIVER, S 25 060670512 1 バインド357-40X5 SCREW BIND SM3.57-40X5 26 SB1643001 1 イドウハSKクミ MOVABLE KNIFE SK ASSY 27 SA6505014 1 SA6506ハリ10コイリクミ NEEDLE 10PIECE ASSY SA6506 28 S03641101 1 ボタンツカミD BUTTON CLAMP, D 29 SB0715001 1 ハリイタ1.6GM NEEDLE HOLE PLATE 1.6GM 30 SB1644001 1 ハリボウSKD NEEDLE BAR SKD 31 062500616 1 ナベコ5X6 SCREW PAN M5X6 BE-438F-944 46

Page 52 — U2 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F)

U2 . 補助装置関係 (BE-438F用 オプション部品) / Auxiliary device (Option parts for BE-438F) 1 2 3 4 5 6 7 8 9 10 11 BE-438F-944 47 jintex.in

Page 53 — U2. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F)

U2. 補助装置関係 (BE-438F用オプション部品) / Auxiliary device (Option parts for BE-438F) REF.NO CODE QTY 品名 NAME OF PARTS RM 1 SA6156101 1 ボタン スペーサ セット 438D BUTTON SPACER SET 438D 2 SA6157101 1 ボタン スペーサ サクミ BUTTON SPACER ASSY 3 SA6158101 1 ドダイ BASE 4 S09658001 1 スケール SCALE 5 S09686001 1 ボルト 4.37-40X7 BOLT, SM4.37-40X7 6 S02745001 1 ザガネ WASHER 7 S09659001 1 イチギメイタ A POSITIONING PLATE, A 8 S09660001 1 イチギメイタ B POSITIONING PLATE, B 9 115166001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 10 S25310101 2 サラネジ 4 SCREW, FLAT M4 11 S13184001 1 スペーサ サヨウ オクリイタ FEED PLATE BE-438F-944 48 jintex.in

Page 54 — Z. 付属品関係 / Accessories

Z. 付属品関係 / Accessories KE-430F/BE-438F-910 < BE-438F用 / For BE-438F > jintex.in 49

Page 55 — Z. 付属部品関係 / Accessories

Z. 付属部品関係 / Accessories REF.NO CODE Q'TY 品名 NAME OF PARTS RM 1 SB1066001 1 ハイユートリツケイタ SETTING PLATE DUST OILER 2 032461606 2 +2マルモク45X16 WOOD SCREW ROUND 2 M4.5X16 3 062300816 2 ナベコ3X8 SCREW PAN M3X8 4 154467001 1 ハイユキヤツプ DUST OILER 5 114486002 1 ポリオリイラータイ OILIER 6 SA3384001 2 トウブサエピン PIN 7 012060636 2 アナヒラ6X6 SET SCREW SOCKET (FT) M6X6 8 SA3385001 2 トウブヒンジウケ HINGE HOLDER 9 SA3395001 2 トウブヒンジゴム RUBBER CUSHION 10 SA3392001 2 スペーサ SPACER 11 018066036 4 アナボルト6X60 BOLT SOCKET M6X60 12 025060336 4 ヒラザガネダイ6 WASHER PLAIN L 6 13 028060246 4 バネザガネ2-6 WASHER SPRING 2-6 14 021060106 4 1シュナット6 NUT 1 M6 <BE-438F-03, -05, -0K, -0F用> <For KE-430F-03, -05, -0K, -0F> <BE-438F用> <For BE-438F> 15+ 159613051 1 ボビン BOBBIN <KE-430F-05用> <For KE-430F-05> 15+ S15665001 1 ボビンLA <北美・メキシコ用> BOBBIN LA <For USA, Canada and Mexico > 16 SA8239201 1 オイルタンククミ OIL TANK ASSY 17 SB1271001 1 オイルケイコララベル ワブン OIL WARNING LABEL JP 18 SB1270001 1 オイルケイコララベル エイブン OIL WARNING LABEL EN 19 S02763602 1 イトタダイクミ2DR COTTON STAND ASSY 2DR 20 S51283001 2 ウケザラ SPOOL STAND BASE 21 150182000 2 スプールマット SPOOL MAT 22 S51282101 2 スプールクツシヨン SPOOL CUSHION 23 S02777101 1 イトカケバネ SPRING 24 150179002 2 スプールジクB SPOOL SHAFT B 25 028050244 2 バネザガネ2-5 WASHER SPRING 2-5 26 021500104 2 1シュナット5 NUT 1 M5 27 SA6607001 1 スプールホルダー-2 SPOOL HOLDER 2 28 SA6607001 1 スプールホルダー-2 SPOOL HOLDER 2 29 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 30 142990001 2 スレッドブツシユ THREAD BUSH 31 SA6609001 2 スプールホルダーササエ SPOOL HOLDER SUPPORTER 32 062061604 2 ナベコ6X16 SCREW PAN M6X16 33 144226001 1 トウブカバー HEAD COVER 34 SB1069001 1 アイガードセット EYE GUARD SET 35 S44485101 1 アイガード EYE GUARD 36 SB1067001 1 アイガードホルダー EYE GUARD HOLDER 37 026030233 2 ヒラザガネミガキ3 WASHER PLAIN M 3 38 062300616 2 ナベコ3X6 SCREW PAN M3X6 39 062401006 2 ナベコ4X10 SCREW PAN M4X10 40 SB0791001 1 リアカバー REAR COVER 41 062500816 4 ナベコ5X8 SCREW PAN M5X8 42 SB1275001 1 グリスクミ GREASE UNIT <BE-438F用> <For BE-438F> 43 S18642009 1 ボタンサラ BUTTON TRAY 44 153843009 1 ボタンサラアシホルダ BUTTTON TRAY HOLDER 45 014760632 1 アナボミ595-28X6 SET SCREW SOCKET SM5.95-28X6 46 0B1351606 2 +サラモク35X16 WOOD SCREW FLAT M3.5X16 47 SB1272001 1 ボタンウカシバネA SPRING A 48 110215002 1 シメネジ3.57 SCREW SM3.57 49 025660132 1 ヒラザガネシヨウ3.18 WASHER PLAIN S SM3.18 50 SB1273001 1 ボタンウカシバネササエ SPRING SUPPORT 51 146360002 1 ボルト4.76X7 BOLT, SM4.76X7 52 154179001 1 6カクボウスパナ4 HEXAGONAL WRENCH, 4 KE-430F/BE-438F-910 50 jintex.in

Page 56 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 危険 ▲ 危険 ▲ DANGER ▲ GEFAHR ▲ DANGER ▲ PELIGRO ラベル感電6ヶ国 Label electrical shock 36 X 150 36 X 150 SA9725-001 L L ラベル感電 25 X 28 Label electrical shock 25 X 28 L=28.4 SA9914-001 操作注意ラベル Label caution 56 X 43 SA9826-001 ワーニングマーク Injury mark L=16 SA9957-001 ワーニングマーク Injury mark L=25 SA9957-002 アースマーク Label, grounding Φ 12 S37060-001 PE PE マーク Label, PE 7.5 X 12.5 S37059-001 マークチュウイ 30 X 40 Mark attention 30 X40 30 X 40 SA4224-001 51 KE-430F/BE-438F-Wa jintex.in

Page 57 — 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code brother ミシン用潤滑油 ▲注意 目に入ったり皮膚につくと、 炎症を起こすことがある。 保護めがね、手袋を使 うこと。 飲み込むと、下痢、嘔吐する。 飲み込まないこと。 ●子供の手の届かない所に 置いてください。 ●目に入った場合は、清浄な 水で15分間洗浄し、医師の 診断を受けてください。 ●皮膚に触れた場合は、水と 石けんで十分に洗ってください。 ●飲み込んだ場合は、無理に 吐かせずに、直ちに医師の 診断を受けてください。 第4類 危険等級III 第3石油類 火気厳禁 オイル警告ラベル和文 Oil warning label JP 68 X 30 SB1271-001 brother Lubricating Oil for Machining ACAUTION Lubricating oil may cause inflammation to eye and skin. Wear protective glasses and gloves. Swallowing oil can cause diarrhoea and vomiting. Do not swallow. Keep away from children. FIRST AID Eye contact: -Rinse with plenty of cold water. -Seek medical help. Skin contact: -Wash with soap and water. If swallowed: -Seek medical help immediately. オイル警告ラベル英文 Oil warning label EN 68 X 30 SB1270-001 KE-430F/BE-438F-Wa jintex.in 52

Page 59 — Sp. 仕様別部品一覧表(KE-430F, BE-438F) / Different parts list (KE-430F, BE-438F)

Sp. 仕様別部品一覧表(KE-430F, BE-438F) / Different parts list (KE-430F, BE-438F) ◎表中★の部品は、KE-430D(本縫電子ボタン付けミシン)、BE-438D(本縫電子ボタン付けミシン)と共通です。 ◎ In the following table, parts marked with ★ are common with the KE-430D (Electronic Lockstitch Tacker) & BE-438D (Electronic Lockstitch Button sewer). KE-430F BE-438F 仕様 Spec. -05 厚物/Heavy- weight materials -03 中厚物/Medium- weight materials -0K ニット、メリヤス /Knitted materials -0F ファンデーション /Foundation garments 品名 Part name (H-29) 針糸案内 Needle bar thread guide SB1059-001 < A > SB1060-001 < B > SB1060-001 < B > (B-52) ミシン針4個入り組 Needle assy SA1752-014 SA1752-009 SA1737-011 SA1579-012 DP X 17 NY < #19 > DP X 5 < #14 > DP X 5 < #9 > DP X 5KN < #11 > DP X 17NY < #12 > ◎標準の押え足、送り板のサイズは、次のとおりです。(実際の縫製エリアは、内枠寸法から約1.5mm内側になります。) ◎Standard sizes for work clamps and feed plates are as follows: (The actual sewing area has 1.5 mm margin on every size; inside the lines which the dimensions indicate.) KE-430F BE-438F 仕様 Spec. -05 厚物/Heavy- weight materials -03 中厚物/Medium- weight materials -0K ニット、メリヤス /Knitted materials -0F ファンデーション /Foundation garments 品名 Part name R 153608-101 ★ 152777-001 ★ S49695-001 ★ SA6509-001 ★ L 154527-001 ★ 152778-001 ★ S49694-001 ★ SA6510-001 ★ (C-65, 66) 押え足 Work clamp 23 SA3378-001 ★ 18 SA3607-001 ★ 12 SA3609-001 ★ 22 SA6511-201 ★ SA3606-101 ★ (C-30) 送り板 Feed plate 30.2 21.2 (沈下式) (Submerged-type) 31 12 4 13.4 1.4 0.6 1 0.2 t = 0.3 1 0.2 KE-430F/BE-438F-Sp jintex.in 54

Page 60

Ga. ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F) <ゲージ部品> < Gauge parts > オプションのゲージ部品には次のものがあります。 押え足(押え)と送り板は、上下の組合せになります。 (押え足と送り板は KE-430D と共通です。) The following are provided as optional gauge parts. Each work clamp pair and presser pair are used in combination with the feed plate directly below them. (Work clamp and feed plate are common with to the KE-430D.) 1 2 3 4 R 152781-001 (デニム / For denim) 153201-001 < PL > 153203-001 < PS > S00906-001 (1 inch) L 152782-001 (デニム / For denim) 153202-001 < PL > 153204-001 < PS > S00907-001 (1 inch) (C-65, 66) 押え足 Work clamp 23 56 22 12 28.4 SA3611-001 SA3612-001 < PL > SA3613-001 < PS > SA3614-001 (1 inch) (C-30) 送り板 Feed plate 1.4 0.6 23 6 1 0.2 23 13 1 0.2 32.9 21.2 5 5 5 7 8 5 152777-001 152779-001 (メ リヤス / For knitted materials) 152778-001 152780-001 (メ リヤス / For knitted materials) 6 153201-001 < PL > (デニム / For denim) 153202-001 < PL > (デニム / For denim) 7 S33747-001 (30mm) S33748-001 (30 mm) 152777-001 (C-65, 66) 押え足 Work clamp 33 5.6 22 5 18 13 SA3615-001 (30 mm) SA3616-001 SA3608-001 (デニム / For denim) SA3612-001 (PL) (メ リヤス / For knitted materials) (C-30) 送り板 Feed plate 1 0.2 33 5 1 0.2 27 6 1 0.2 23 5 1 0.2 13 5 9 10 R 152779-001 (沈下式 S / Submerged -type,S) 152779-001 L 152780-001 (沈下式 S / Submerged -type,S) 152780-001 (C-65, 66) 押え足 Work clamp 12 4 12 4 SA3610-001 SA3610-001 (沈下式 S / Submerged -type,S) SA6346-201 (C-30) 送り板 Feed plate 1 0.2 24 16 13 5 t = 0.3 55 KE-430F/BE-438F-Ga Jinte x.in

Page 61 — Ga . ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F)

Ga . ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F) 11 12 13 R S46771-001 < LTA1 > (線間止 / For straight bar tacking) S46771-001 < LTA1 > (線間止 / For straight bar tacking/submerged) S46774-001 < VBTA1 > (線間止 / For vertical bar tacking) L S46770-001 < LTA1 > (線間止 ・沈 / For straight bar tacking/submerged) S46773-001 < VBTA1 > (線間止 ・沈 / For vertical bar tacking/submerged) (C-65, 66) 押え足 Work clamp 32.4 3 32.4 4.4 (C-30) 送り板 Feed plate 1 0.2 33 1 0.2 42 16.5 5 (C-65, 66) 押え足 Work clamp 156006-001 S59892-001 156006-001 S59892-001 156006-001 S59892-001 ボルト Bolt 14 15 16 R S46774-001 < VBTA1 > (線間止 / For vertical bar tacking) S46773-001 < VBTA1 > (線間止 ・沈 / For vertical bar tacking/submerged) SA2230-001 < VBTA1 > (線間止 / For vertical bar tacking) SA2232-001 < VBTA1 > (線間止 / For vertical bar tacking) L (C-65, 66) 押え足 Work clamp 5.4 26.4 18.4 5.4 (C-30) 送り板 Feed plate SA3621-001 < VBTB1 > (線間止 ・沈 / For vertical bar tacking/submerged) SA3620-001 < VBTA1 > (線間止 ・沈 / For vertical bar tacking) SA3622-001 < VBTB1 > (線間止 ・沈 / For vertical bar tacking) 1 0.2 15 1 0.2 26.4 5.4 18.4 5.4 (C-65, 66) 押え足 Work clamp 156006-001 S59892-001 S59909-001 S59892-001 S59909-001 S59892-001 ボルト Bolt * マークの部分は、右用と左用にそれぞれ2個ご注文下さい。 As for the parts of part codes marked with *, please order two pieces for each part as a right and left pair. KE-430F/BE-438F-Ga jintex.in 56

Page 62 — Ga. ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F)

Ga. ゲージ部品一覧表 (KE-430F) / Gauge parts list (KE-430F) 17 18 19 R S46777-001 < K1A1 > (菊穴/For circular stitching) S46780-001 < HMA1 > (半月筒/For crescent bar tacking) SA2236-001 < HMA1 > (半月筒/For crescent bar tacking) L S46776-001 < K1A1 > (菊穴/For circular stitching) S46779-001 < HMA1 > (半月筒/For crescent bar tacking) SA2235-001 < HMA1 > (半月筒/For crescent bar tacking) (C-65, 66) 押え足 Work clamp 13 14.6 10 14.6 SA3623-001 < K1A1 > (菊穴/For circular stitching) SA3624-001 < HMA1 > (半月筒/For crescent bar tacking) SA3625-001 < HMA1 > (半月筒/For crescent bar tacking) (C-30) 送り板 Feed plate 1 0.2 13 1 0.2 14.6 1 0.2 10 14.6 (C-65, 66) 押え足 Work clamp ボルト Bolt 156006-001 S59892-001 156006-001 S59892-001 S59909-001 S59892-001 * マーク * マーク * マーク * マーク * マーク * マーク * の部品は、右用と左用にそれぞれ2個ご注文下さい。 As for the parts of part codes marked with *, please order two pieces for each part as a right and left pair. 57 KE-430F/BE-438F-Ga jintex.in

Page 63 — Ga . ゲージ部品一覧表 (KE-430F, BE-438F) / Gauge parts list (KE-430F, BE-438F)

Ga . ゲージ部品一覧表 (KE-430F, BE-438F) / Gauge parts list (KE-430F, BE-438F) SA3626-001 (C-30) 送り板 ブランク Feed plate blank (葵目有り / With lozenge) 1 0.2 SA3627-001 (葵目有り / With lozenge) 1.4 0.6 (K-51) その他の針穴板 / For other needle hole plate KE-430F BE-438F SB0952-001 SB0712-001 $2.2 $3.2 2.5 $2.6 1.5 $2 (C) 特注用 (KE-430F) / For specially orderd (KE-430F) R SA4195-001 S59909-001 S59892-001 L SA4196-001 (C-65, 66) 押え足 ブランク Work clamp blank 51.5 26.4 26.4 51.5 (C-65, 66) 押え金 Work clamp ボルト Bolt SA3817-001 (葵目無し / Without lozenge) (C-30) 送り板 ブランク Feed plate blank * マークの部品は、右用と左用それぞれ2個ご注文下さい。 As for the parts of part codes marked with *, please order two pieces for each part as a right and left pair. (E) オプション部品 (BE-438F) / Option parts (BE-438F) ボタンつかみスペーサ / Button clamp spacer AL S52071-101 (E-39) AR S52075-101 (E-40) BL S52072-101 (E-36) BR S52076-101 (E-37) CL S52073-101 (E-41) CR S52077-101 (E-42) DL S52074-101 (E-43) DR S52078-101 (E-44) 1.5 2 2.5 3 KE-430F/BE-438F-Ga jintex.in 58

Page 64 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 004300513 A -17 2 017711412 E -10 14 028030246 K -69 26 062670712 U1 -11 46 011679312 E -16 14 018061236 K -30 24 028040246 Q -9 38 062670812 U1 -6 46 012060536 C -17 4 018061430 K -68 26 028050244 Z -25 50 070608800 C -19 8 C -44 8 018061636 B -17 4 028050247 S -3 42 070696800 D -15 12 D -9 12 C -62 10 028060246 Z -13 50 081003670 F -59 16 D -23 12 D -41 12 028080246 P1 -11 34 081005070 L -21 28 D -27 12 018062036 A -32 2 032461606 Z -2 50 081040070 F -39 16 D -34 12 D -29 12 047250642 E -22 14 085311016 R -6 40 K -66 26 D -27 12 047602042 B -64 6 0A4301206 S -13 42 L -2 28 01806036 Z -7 50 047602042 D -2 12 0A4301206 S -6 42 012060636 B -44 4 018301036 H -15 20 048040342 J -15 22 0A4401006 S -10 42 C -9 8 018400836 C -67 10 L -17 28 Q -19 38 C -21 8 D -32 12 L -20 28 0AS301605 Q -15 38 D -46 12 K -60 26 G -6 18 K -25 24 0AS400806 F -37 16 F -25 16 K -64 26 Q -6 38 048060142 K -8 26 0A5401006 Q -17 38 F -40 16 018401036 C -23 38 048060346 C -42 38 Q -19 38 H -31 20 Q -2 38 D -25 12 0B0452006 R -8 40 K -29 24 Q -30 38 K -63 26 0B1351606 Z -46 50 K -39 24 Q -4 38 N -18 32 100136001 H -22 20 Z -7 50 018401236 J -28 22 C -20 8 100360003 K -52 24 012300336 C -4 8 B -47 6 048080142 C -11 8 100401022 J -8 22 012400436 B -43 4 C -51 8 048080342 C -11 8 102630001 D -4 12 C -14 8 C -51 8 D -8 12 102707002 U1 -7 46 C -28 8 F -30 16 D -21 12 105234003 E -8 14 F -57 16 018501032 S -2 42 L -11 28 107744001 D -37 12 H -17 20 018501636 B -56 6 048100142 K -28 24 E -6 14 J -20 22 C -12 8 048280142 B -68 6 108549001 J -18 22 012500536 B -41 4 K -10 24 060400516 M -9 30 109239002 A -20 2 B -53 6 K -17 24 060670512 U1 -25 46 N -22 32 B -58 6 K -21 24 062061604 Z -32 50 110367001 B -33 4 B -66 6 062300416 A -22 2 C -41 8 C -5 8 021080206 P1 -12 34 K -49 24 D -44 12 C -12 8 021400216 D -35 12 062300616 F -9 16 K -62 26 C -29 8 021400306 H -26 20 Z -38 50 N -17 32 C -45 8 021500104 Z -12 50 062300816 Z -3 50 114486002 Z -5 50 C -60 10 021500316 H -18 20 062400416 C -69 10 115147001 E -14 14 D -6 12 021710212 U1 -22 10 E -25 14 115148201 E -13 14 D -17 12 025030236 A -23 2 F -36 16 115163001 E -32 14 D -19 12 K -50 24 G -10 10 115166001 U2 -9 48 J -9 22 K -72 26 G -12 18 117934001 A -2 2 J -14 22 N -9 32 Q -21 38 A -9 2 J -25 22 025040136 A -27 2 B -6 6 120990001 U1 -15 46 K -7 24 D -38 12 B -55 6 140004001 B -34 4 K -23 24 G -5 18 E -29 14 142677101 U1 -4 46 K -60 26 J -37 22 062401006 A -12 2 142678201 U1 -5 46 L -7 28 L -24 28 J -36 22 142680001 U1 -14 46 L -12 28 M -5 30 142681001 U1 -8 46 L -15 28 012501032 S -8 42 013719412 U1 -13 46 142706001 U1 -10 46 N -12 32 014680432 U1 -18 46 142990001 Z -30 50 N -19 32 014680632 E -3 14 144226001 Z -33 50 012501032 S -8 42 014760632 E -9 14 144458001 B -49 6 013719412 U1 -13 46 Z -45 50 145446001 H -13 20 014680432 U1 -18 46 017061006 F -48 16 H -24 20 014680632 E -3 14 017400802 B -5 4 145446002 J -6 22 014760632 E -9 14 N -24 32 146354001 E -11 14 Z -45 50 Q -8 38 146354002 C -50 8 017061006 F -48 16 017401015 G -4 18 146360002 Z -51 50 017400802 B -5 4 M -4 30 146994001 E -12 14 N -24 32 150179002 Z -24 50 Q -8 38 017401015 G -4 18 M -4 30 59 jintex.in

Page 65 — 索引 / Index

索引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 150182000 Z - 21 50 BMP3010-0000000-2ST1 36 S37059001 P1 - 8 34 SA1982101 J - 23 22 150183000 Z - 29 50 BMP3010-0000000-2ST1 36 S37060001 Wa - 7 34 SA1984001 J - 27 22 151968001 E - 4 14 BMP3010-0000000-4ST4 36 S37060001 Wa - 35 51 SA2229001 Ga 56 151969001 E - 5 14 BMP3010-0000000-4ST4 36 S38707001 B - 23 4 SA2230001 Ga 56 152682201 Sp 53 BMP3010-0000000-4ST4 36 S38710001 B - 26 4 SA2232001 Ga 56 152684101 F - 7 16 BMP3010-0000000-3S00 36 S38713100 B - 54 6 SA2235001 Ga 57 152686201 Sp 53 BMP3010-0000001-3S00 36 S42446001 C - 33 8 SA2236001 Ga 57 152690501 Sp 53 P2 - 2+ 36 S42903001 C - 35 8 SA22626001 C - 58 8 152777001 Sp 54 BMP3010-0000001-3ST4 36 S44485101 C - 71 8 SA2626001 C - 49 8 152778001 Ga 55 J00353001 P1 - 6 34 S46770001 Ga 10 SA3208201 C - 49 8 152778001 Sp 54 S00705001 K - 46 24 S4677001 Ga 56 SA3231001 C - 43 8 152778001 Ga 55 S00906001 Ga 55 S4677001 Ga 56 SA3238101 F - 58 16 152781001 Sp 54 S00906001 Ga 55 S4677001 Ga 56 SA3241001 F - 6 16 152782001 Sp 54 S02745001 U2 - 6 48 S46774001 Ga 56 SA3250001 H - 1 20 152782001 Ga 55 S02745001 U2 - 6 48 S46776001 Ga 57 SA3256001 H - 21 20 152788000 C - 55 8 S03641101 U1 - 28 46 S46777001 Ga 57 SA3262202 A - 15 2 152881101 H - 30 20 S03641101 U1 - 28 46 S46779001 Ga 57 SA3263001 A - 16 2 152884001 H - 32 20 S09658001 U2 - 4 48 S46780001 Ga 57 SA3264001 A - 18 2 152884001 H - 33 20 S09659001 U2 - 7 48 S46794001 Sp 16 SA3265001 A - 19 2 153057101 C - 31 8 S09660001 U2 - 8 48 S46940001 Sp 53 SA3266101 A - 21 2 153201001 Sp 54 S09686001 U2 - 5 48 S46950001 Sp 54 SA3274101 F - 16 16 153201001 Ga 55 S11817000 Q - 24 38 S4955101 C - 72 10 SA3277001 F - 24 16 153202001 Sp 54 S12441001 J - 7 22 S4995101 E - 15 14 SA3278001 F - 26 16 153202001 Ga 55 S13184001 U2 - 11 48 S51282101 Z - 20 50 SA3294001 J - 29 22 153203001 Ga 55 S15665001 Z - 15+ 50 S51283001 Z - 20 50 SA3299001 J - 2 22 153204001 Ga 55 S15667001 Sp 53 S52071101 E - 39 14 SA3324001 K - 36 24 153484001 E - 7 14 S16492101 Sp 53 S52072101 E - 36 58 SA3326001 K - 38 24 153567000 C - 56 8 S18642009 Z - 43 50 S52073101 E - 41 14 SA3330001 N - 6 32 153568001 C - 54 8 S20356001 D - 7 12 S52074101 E - 43 58 SA3334001 N - 7 32 153608101 Sp 54 S20878000 A - 4 2 S52075101 E - 40 14 SA3334001 N - 6 32 153827001 E - 2 14 S23337001 A - 6 2 S52077101 E - 42 58 SA3366101 C - 6 8 153830100 E - 1 14 S23418002 J - 30 22 S52078101 E - 44 14 SA3370001 C - 18 8 153843009 Z - 44 50 S23651001 B - 7 4 S59221301 Sp 53 SA3378001 Sp 54 154179001 Z - 52 50 S23731001 B - 21 4 S59321001 E - 49 14 SA3384001 Z - 6 50 154339101 Sp 53 S23731001 B - 24 4 S59892001 Ga 58 SA3385001 Z - 8 50 154340101 Sp 53 S23731001 B - 27 4 S59909001 Ga 58 SA3392001 Z - 10 50 154341001 Sp 53 S23731001 B - 32 4 S59909001 Ga 58 SA3395001 Z - 9 50 154467001 Z - 4 50 S25235001 B - 31 4 SA1125001 B - 42 8 SA3419101 C - 37 8 154527001 Sp 54 S25310101 A - 29 2 SA1179002 C - 53 4 SA3424001 C - 46 8 154684009 U1 - 3 46 S31032002 J - 5 22 SA1179002 C - 53 18 SA3425001 C - 47 8 154685001 U1 - 9 46 S32263001 A - 3 2 SA1394101 G - 11 28 SA3426001 C - 48 8 154686001 U1 - 12 46 S32263001 A - 5 2 SA1579012 Sp 24 SA3427101 C - 52 8 154697001 U1 - 19 46 S32462001 K - 16 24 SA1579019 Sp 28 SA3428001 C - 59 10 154713001 U1 - 21 46 S32465101 K - 34 24 SA1579020 Sp 28 SA3432101 D - 1 12 155559001 K - 31 24 S32465101 K - 15 24 SA1737011 Sp 54 SA3441001 D - 16 12 156006001 Ga 56 S33747001 Ga 55 SA1752009 Sp 54 SA3449101 K - 57 24 156006001 Ga 56 S33748001 Ga 55 SA1752014 Sp 54 SA3458001 L - 6 28 156235101 U1 - 20 46 SA1881001 Sp 54 SA3459101 L - 5 28 159610401 Sp 53 SA1882001 Sp 53 SA3464001 L - 18 28 200190001 P2 - 4 36 SA3538001 C - 25 8 218859001 R - 9 40 SA3606101 Sp 54 220681001 R - 26 40 SA3607001 Sp 54 231071001 K - 11 24 552907000 Q - 27 38 A10193001 P1 - 3 34 60

Page 67 — 索 引 / Index

索 引 / Index CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page SB1012001 B - 3 4 SB1172001 C - 61 10 SB1013001 B - 13 4 SB1173001 F - 2 16 SB1014001 B - 13 4 SB1175001 F - 35 16 SB1018001 B - 29+ 4 SB1179001 M - 3 30 SB1019001 B - 29+ 4 SB1180001 H - 9 20 SB1021001 B - 50 6 SB1181001 H - 10 20 SB1023001 B - 50 6 SB1182001 H - 16 20 SB1024001 B - 51 6 SB1183001 J - 11 22 SB1025001 B - 15 4 SB1184001 J - 16 22 SB1026101 B - 16 4 SB1186001 J - 22 22 SB1029001 B - 45 4 SB1187001 K - 3 24 SB1031001 B - 38 4 SB1189001 K - 43 24 SB1034101 B - 36 4 SB1191101 K - 48 24 SB1035101 B - 46 4 SB1192001 M - 6 30 SB1036001 B - 59 6 SB1194001 Q - 11 38 SB1037001 B - 60 6 SB1200001 Q - 16 38 SB1038001 B - 61 6 SB1201001 Q - 20 38 SB1039001 B - 65 6 SB1204001 F - 55 16 SB1040001 B - 63 6 SB1206001 K - 1+ 24 SB1041001 B - 62 6 SB1229001 P2 - 5+ 36 SB1043101 F - 43 16 SB1253001 J - 4 22 SB1044001 F - 11 16 SB1258001 F - 53 16 SB1047001 F - 14 16 SB1266001 J - 35 22 SB1048101 F - 13 16 SB1267001 H - 12 20 SB1049001 F - 18 16 SB1268001 F - 27 16 SB1050001 F - 12 16 SB1270001 Z - 18 50 SB1051001 F - 49 16 Wa 52 SB1052001 G - 1 18 SB1271001 Z - 17 50 SB1053001 G - 2 18 Wa 52 SB1054001 F - 20 16 SB1272001 Z - 47 50 SB1055001 F - 21 16 SB1273001 Z - 50 50 SB1056001 G - 3 18 SB1274001 Z - 42 50 SB1058001 H - 27 20 SB1276001 G - 9 18 SB1059001 Sp 54 SB1277001 A - 11 2 SB1060001 Sp 54 SB1278001 B - 2 4 SB1066001 Z - 1 50 SB1279101 G - 15 18 SB1067001 Z - 36 50 SB1281001 H - 14 20 SB1069001 Z - 34 50 SB1285001 F - 4 16 SB1070001 B - 14 4 SB1488101 G - 16 18 SB1072001 F - 3 16 SB1563001 U1 - 1 46 SB1076001 C - 26+ 8 SB1564001 U1 - 17 46 SB1078001 D - 40 12 SB1565001 T - 1+ 44 SB1079001 D - 43 12 SB15660E1 T - 1+ 44 SB1080001 D - 3 12 SB15670E1 T - 2+ 44 SB1081001 D - 28 12 SB1643001 U1 - 26 46 SB1082001 K - 67 26 SB1644001 U1 - 16 46 SB1084001 H - 7 20 SB1645001 U1 - 30 46 SB1085001 H - 28 20 SB1650001 Q - 14 38 SB1086001 H - 5 20 SB1652001 F - 1 16 SB1087001 H - 25 20 SB1679001 B - 8 4 SB1088001 H - 8 20 XC5780001 C - 8 8 SB1089001 M - 7 30 SB1090001 M - 1 30 SB1091001 J - 17 22 SB1093001 J - 13 22 SB1094001 J - 24 22 SB1095001 J - 34 22 SB1096001 J - 33 22 SB1098001 J - 32 22 SB1167001 A - 8 2 SB1168001 A - 24 2 SB1169001 A - 28 2 SB1171001 C - 36 8 jintex.in 62

Page 68

brother. パーツブック PARTS BOOK ブラザー工業株式会社 http://www.brother.co.jp/ 〒448-0003 刈谷市野田町北地蔵山1番地5 TEL:0120-33-2392 BROTHER INDUSTRIES, LTD. http://www.brother.com/ 1-5, Kitajijoyoma, Noda-cho, Kariya 448-0803, Japan. Phone : 81-566-95-0088 ©2010 Brother Industries, Ltd. All Rights Reserved. KE-430F, BE-438F SB1257-001.J/E 2010.05.B (1) jintex.in
