Brother LT2-B842 / LT2-B847 Parts Book (PDF)

Double Needle LockstitchDownload PDF

Text index — Brother LT2-B842 / LT2-B847

Page 2

Brother LT2-B842 / LT2-B847 parts on page 2
Ref	Part number	Part name
1	LT2-B842-	BROTHER INDUSTRIES, LTD. STANDARD
1	LT2-B842-0	BROTHER INDUSTRIES, LTD.
2	LT2-B847-	BROTHER INDUSTRIES, LTD. THREAD TRIMMER
2	LT2-B847-0	BROTHER INDUSTRIES, LTD.
	1.	Foundation Spec.
	3.	Thin and medium-thick materials
	5.	Thick materials
	1.	Thin materials
	4.	Thread Wiper + Quick Back Switch
	7.	Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Air Type]
	9.	Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type]
	9.	Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type]

Page 9 — A. 主体関係 /Machine body/Machingehäuse/Corps de la machine/Cuerpo de la máquina

Brother LT2-B842 / LT2-B847 parts on page 9
Ref	Part number	Part name	Qty
2	113386000	POSITIONING PIN	1
3	S07316009	FACE PLATE	1
4	S07317001	STUD SCREW 3.57	1
5	146598001	SPRING WASHER	1
6	129984002	SCREW 3.57	1
7	S02499009	REAR COVER	1
8	062680812	SCREW 437X8	7
9	*	NEEDLE DPX5	2
13	*	SLIDE PLATE (L) ASSEMBLY	1
13-1	S07319101	SLIDE PLATE (L)	1
13-2	S07320000	BOBBIN WINDOW	1
14	S07325201	SLIDE PLATE (R) ASSEMBLY	1
14-1	S07326101	SLIDE PLATE (R)	1
14-2	S07320000	BOBBIN WINDOW	1
16	116010001	SET SCREW 5.16	1
17	151602002	SET SCREW 4.37	2
15	112610101	SLIDE PLATE (F) ASSEMBLY	1
15-1	S07328000	OIL CAP	1
15	148599101	SLIDE PLATE (F) ASSEMBLY	1
15-1	S07328000	OIL CAP	1
21	S07327001	CORD HOLDER (L)	2
23	S07327001	CORD HOLDER (L)	1
24	113760001	SCREW 5.16	4

Page 11 — B. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mácanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Brother LT2-B842 / LT2-B847 parts on page 11
Ref	Part number	Part name	Qty
1	159359201	NEEDLE BAR ROCK SHAFT ASSEMBLY	1
1	S07342001	NEEDLE BAR ROCK SHAFT ASSEMBLY	1
1-1	112588101	NEEDLE BAR ROCK SHAFT	1
1-2	107030001	TAPER PIN	1
1-3	112590001	GUIDE PLATE	2
1-4	102731004	SCREW 2.38	4
1-5	159360101	NEEDLE BAR	1
1-5	S07343001	NEEDLE BAR	1
1-6	112592001	NEEDLE BAR CLAMP	1
1-7	062670812	SCREW 357X8	1
1-8	112593001	NEEDLE BAR CRANK ROD	1
1-9	112721001	SLIDE BLOCK	1
2	112594001	NEEDLE BAR ROCK SHAFT BUSH (L)	1
3	112595000	NEEDLE BAR ROCK CONNECTING ROD	1
4	105351002	SCREW 6.35	1
5	112596001	NEEDLE BAR ROCK LINK	1
6	112597001	NEEDLE BAR ROCK LINK STUD	2
7	101268002	NUT 7.94	2
8	112598001	NEEDLE BAR CONNECTING CRANK	1
9	S01304001	SCREW 6.35X18	1
10	112764001	NEEDLE BAR ROCK SHAFT BUSH (R)	1
11	153012101	STOPPER	1
13	S09132001	PINCH SLEEVE ASSEMBLY	1
13-1	018063022	BOLT 6X30	1
14	013780710	SET SCREW 6.35	1
15	S07344101	FINGER GUARD	1
16	146354001	WASHER	1
17	028680242	SPRING WASHER 2-4.37	1
18	117850001	STUD SCREW 3.57	1

Page 13 — C. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mecanisme du pied presseur/Mecanismo del prensatelas

Brother LT2-B842 / LT2-B847 parts on page 13
Ref	Part number	Part name	Qty
1	145472001	PRESSER BAR BUSH	1
2	013781012	SET SCREW 6.35	1
3	141207001	ADJUST SCREW	1
4	147846002	NUT	1
5	141208001	SPRING GUIDE	1
6	S07346101	SPRING	1
7	S07345001	PRESSER BAR	1
8	181919101	PRESSER BAR CLAMP WITH SCREW	1
8-1	147513001	PRESSER BAR GUIDE CLAMP	1
8-2	142403001	BOLT 5.95	1
9	S07347001	PRESSER BAR LIFTER CRANK	1
10	S13103009	PRESSER BAR LIFTER WITH SCREW	1
10-1	014710522	SET SCREW 4.76	2
14	S07356001	SET SCREW 6.35	1
15	150556001	NUT 6.35	1
16	S07348001	PRESSER BAR LIFTER LEVER	1
17	S07349001	PRESSER BAR LIFTER LEVER STUD	1
18	S07350001	WASHER	1
19	139096001	SET COLLAR	1
20	014680422	SET SCREW 4.37	2
22	062671412	SCREW 357X14	1
23	021670102	NUT 3.57	1
26	S07357001	KNEE LIFTER CONNECTING ROD	1
13	S07353001	TENSION RELEASE PLATE ASSEMBLY	1
21	S07355001	SPRING	1
13	S07351001	TENSION RELEASE PLATE ASSEMBLY	1
21	S07355001	SPRING	2
24	S07358001	KNEE LIFTER LEVER	1
25	145480001	STUD SCREW 6.35	1
27	S07359001	KNEE LIFTER BAR	1
28	145478001	STUD SCREW 4.76	3

Page 15 — D. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación

Brother LT2-B842 / LT2-B847 parts on page 15
Ref	Part number	Part name	Qty
1	S07361001	FEED REGULATOR (S) ASSEMBLY	1
1	S07366001	FEED REGULATOR (L) ASSEMBLY	1
1-1	S07363001	SLIDE BLOCK GUIDE PLATE	2
1-2	062681012	SCREW 437X10	4
1-3	S07364001	FEED REGULATOR SLIDE BLOCK ASSEMBLY	1
2	S07379001	FEED REGULATOR STOPPER	1
3	062710612	SCREW 476X6	1
4	143611101	FEED ROCK CONNECTING ROD ASSEMBLY	1
4-1	143612000	FEED ROCK CONNECTING ROD	1
4-2	118954000	NEEDLE BEARING	1
5	148802201	LEVEL FEED ECCENTRIC WHEEL WITH SCREW	1
5-1	014771022	SET SCREW 6.35	2
6	S07378001	BEARING COVER	1
7	062670812	SCREW 357X8	2
8	143613001	FEED ROCK ARM LINK	1
9	143616001	FEED ROCK ARM STUD	1
10	048060342	STOP RING E6	2
11	148495001	FEED ROCK SHAFT ARM	1
12	S01304001	SCREW 6.35X18	1
13	*	STITCH LENGTH CONTROL PLATE ASSEMBLY	1
13-1	159361001	ADJUST SCREW	1
13-2	129500010	STITCH LENGTH CONTROL DIAL	1
13-3	*	STITCH LENGTH CONTROL PLATE	1
13-4	142746002	LENGTH CONTROL PLATE SUPPORT	1
13-5	129458002	SCREW 4.76	1
13-6	108549001	O RING	1
18	145502001	PIN	1
19	100328001	SPRING	1
20	S07368101	FEED REGULATOR	1
21	118853001	SET SCREW 5.95	2
22	S07369001	FEED REGULATOR CONNECTING ROD	1
23	S07370101	STUD SCREW 5.95	1
25	048080342	STOP RING E8	1
26	025100132	PLAIN WASHER 10	1
27	147504001	WASHER	1
28	062670712	SCREW 357X7	3
31	S07375001	SPRING	1
32	S07380001	REVERSE LEVER STOPPER	1
33	062711012	SCREW 476X10	1
34	025710232	PLAIN WASHER 4.76	1
35	S07376001	SPRING	1
36	S07377001	SPRING HOOK	1
37	062710612	SCREW 476X6	2
38	S12698001	FEED REGULATOR ECCENTRIC WHEEL SHAFT	1
39	014710522	SET SCREW 4.76	1
24	S07371001	FEED REGULATOR LEVER SHAFT	1
29	S07373009	REVERSE LEVER	1
30	118853001	SET SCREW 5.95	1
24	S07372001	FEED REGULATOR LEVER SHAFT	1
29	S07374009	REVERSE LEVER	1

Page 17 — E. 上軸関係/Upper shaft mechanism/Obere Welle/M F1. 押土上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/

Brother LT2-B842 / LT2-B847 parts on page 17
Ref	Part number	Part name	Qty
1	112573101	UPPER SHAFT BUSH (L)	1
2	013781012	SET SCREW 6.35	1
3	S07330101	UPPER SHAFT BUSH (M) ASSEMBLY	1
4	013780710	SET SCREW 6.35	1
5	S07329001	UPPER SHAFT	1
6	112574000	THREAD TAKE-UP CRANK	1
7	100250001	SCREW 7.14	1
8	146141001	SET SCREW 7.14	1
9	112577101	NEEDLE BAR CRANK	1
10	113014000	PUSHER	1
11	101706001	SET SCREW 6.35	1
12	100251001	SET SCREW 6.35	1
13	112576001	THREAD TAKE-UP CRANK RING	1
14	180157001	TIMING PULLEY (U) ASSEMBLY	1
15	014771022	SET SCREW 6.35	1
16	016771032	SET SCREW 635X10	1
17	112586001	TIMING BELT	1
18	158115001	BALL BEARING 6204ZZNR	1
19	*	PULLEY	1
20	S09670001	SET SCREW 595X14	2
21	*	THREAD TAKE-UP	1
22	S07334001	THREAD TAKE-UP SHAFT	1
23	013781012	SET SCREW 6.35	3
24	S07338001	THREAD TAKE-UP SLIDE BLOCK	1
25	113024000	PUSHER	1
26	S07339009	THREAD TAKE-UP COVER	1
27	062670512	SCREW 357X5	2
1	S07589001	PRESSER BAR LIFTER CYLINDER ASSEMBLY	1
3	S07590001	CYLINDER SUPPORT	1
4	105173004	SCREW 4.76	2
5	025710132	PLAIN WASHER 4.76	2
6	146153001	PIN	1
7	048040342	STOP RING E4	1
8	140620001	CYLINDER SUPPORT SCREW	2
9	S07591001	KNEE LIFTER LEVER	1
10	141528001	STUD SCREW 6.35	1
17	145478001	STUD SCREW 4.76	2
18	151154000	AIR TUBE	1

Page 18 — F2. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo

Brother LT2-B842 / LT2-B847 parts on page 18
Ref	Part number	Part name	Qty
	14-2
	15
	14-3
	14-1
	13
	11-7
	12
	11-6
	11-5
	11-2
	11-5
	16
	11-4
	11-4-1
	11-4-2
	11-4-3
	11-17
	11-18
	11-1
	11-21
	11-3
	11-8
	11-9
	11-12
	11-10
	11-13
	11-11
	11-19
	11-14
	11-23
	11-14-2
	11-14-1
	11-22
	11-25
	11-15
	11-16
	11-20
	11-26
	11-24
	11-25-1
	11-25-2
	11-25-3
	11-24-1
	11-24-1
	11-24-2

Page 19 — F2. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/M ecanisme de leveur du pinceur/Mecanismo del levantador de m

Brother LT2-B842 / LT2-B847 parts on page 19
Ref	Part number	Part name	Qty
11	S03681109		1
11-1	S02580009		1
11-2	S02581009		1
11-3	062761212	ナヘ"コ595-28X12	4
11-4	S02582001		1
11-4-1	S02584000		1
11-4-2	S02585000		1
11-4-3	149776000		2
11-5	153122000		2
11-6	158677001	ナットM8	1
11-7	S02586001		1
11-8	S02588000		1
11-9	062671012	ナヘ"コ357-40X10	2
11-10	S02589000		1
11-11	062670612	ナヘ"コ357-40X6	1
11-12	S02590000		1
11-13	S02591000		1
11-14	S02593001		1
11-14-1	204569001	アツタンシ4.5X14	1
11-14-2	143549000		3
11-15	S02745001		1
11-16	062680663	ナヘ"コ437-40X6	1
11-17	142268001	コート"オサエL	1
11-18	062670612	ナヘ"コ357-40X6	1
11-19	S02592009		1
11-20	062670612	ナヘ"コ357-40X6	2
11-21	025060232		4
11-22	143522000		1
11-23	220077001		1
11-24	S05981000	Bコート"100クミ2	1
11-24-1	143549000		2
11-24-2	146046000		1
11-25	S05982000	Wコート"100クミ	1
11-25-1	143549000		1
11-25-2	143548000		1
11-25-3	146194000		1
11-26	S07182001		1
12	S02587001		1
13	048060342	トメワE6	1
14	152808101		1
14-1	154332001		1
14-2	154333001		1
14-3	150556001		1
15	141583001		1
16	031553202	マルモク5.5X32	4

Page 21 — G. 送り軸関係/Feed shaft mechanism/Transport welle/ Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación H. ゲージ部品/Gauge parts/Lehren/Pièces du jauge/Piezas calibradoras

Brother LT2-B842 / LT2-B847 parts on page 21
Ref	Part number	Part name	Qty
1	148494001	FEED SHAFT BUSH (L)	1
1-1	116323001	SCREW 3.57	2
2	S07386001	FEED SHAFT BUSH (R)	1
3	013781012	SET SCREW 6.35	2
3	S11244001	SCREW 4.37	1
4	148492101	FEED ROCK SHAFT	1
5	113074001	SET COLLAR	2
6	101706001	SET SCREW 6.35	4
6	113050001	SCREW 3.57	1
8	148491001	FEED BAR SHAFT	1
8	S07494001	SCREW 3.18	2
9	143591001	THRUST RING	2
10	014680622	SET SCREW 4.37	1
11	112656001	FEED BAR FORK	1
12	062761412	SCREW 595X14	1
13	025060132	PLAIN WASHER 6	1
14	062661212	SCREW 318X12	1
15	021660102	NUT 3.18	1
7	S07387001	FEED BAR	1
7	148490001	FEED BAR	1

Page 23 — J1. カマ関係/Rotary hook mechanism/Greifer vorrichtung/M ecanismo de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B842 / LT2-B847 parts on page 23
Ref	Part number	Part name	Qty
3	062782512	SCREW 635X25	2
4	100197002	WASHER	2
5	S07418001	ROTARY HOOK SHAFT BUSH (U)	2
6	S07421001	THRUST RING	2
7	S07420000	NEEDLE BEARING	2
8	S07419001	STOP RING	2
9	S07417001	ROTARY HOOK SHAFT BUSH (D)	2
10	013710512	SET SCREW 4.76	2
11	112692101	OPENER LINK	2
12	148005001	OPENER LINK SHAFT	2
13	110161006	NUT 4.76	2
14	025710232	PLAIN WASHER 4.76	2
15	S07422101	OPENER LEVER	2
16	S13021001	OPENER LEVER SHAFT	2
17	013711012	SET SCREW 4.76	2
19	S07423101	OPENER	2
21	S07424001	SET SCREW 3.18	4
24	S07436001	GEAR GUIDE (L)	1
25	S07437001	GEAR GUIDE (R)	1
26	108960002	SCREW 3.57	4
27	S07658001	PINCH SLEEVE ASSEMBLY	2
27-1	112700001	SCREW 5.95	2
28	S07430001	ADJUST BAR SUPPORT	1
29	062711012	SCREW 476X10	2
30	S07431001	ADJUST BAR	1
31	048040342	STOP RING E4	1
32	159436001	SET COLLAR	1
33	014680622	SET SCREW 4.37	1
34	S07434001	ADJUST SCREW	2
35	025680132	PLAIN WASHER 4.37	2
36	S07435001	ROTARY HOOK BASE ADJUST DIAL	2
37	014680622	SET SCREW 4.37	4
38	S07432001	ADJUST FORKED LEVER (L)	1
39	S07433001	ADJUST FORKED LEVER (R)	1
40	131226001	NEEDLE SET SCREW 3.57	2
41	*	BOBBIN	2
41	S01928101	BOBBIN	2

Page 25 — J2. カマ関係/Rotary hook mechanism/Greifervorrichtung/M ecanisme de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B842 / LT2-B847 parts on page 25
Ref	Part number	Part name	Qty
1-1	S07416201	ROTARY HOOK BASE (L)	1
2-1	S07414201	ROTARY HOOK BASE (R)	1
23-1	*	ROTARY HOOK ASSEMBLY	2
23-1-1	*	OUTER ROTARY HOOK ASSEMBLY	2
23-1-1-1	151027001	INNER ROTARY HOOK SET SCREW	4
23-1-2	*	INNER ROTARY HOOK ASSEMBLY	2
23-1-2-1	151145001	TENSION SPRING	2
23-1-2-1	151146001	TENSION SPRING	2
23-1-2-2	151029001	TENSION ADJUST SCREW	2
23-1-2-3	151030001	SET SCREW	2
23-2	S07428001	ROTARY HOOK ASSEMBLY	2
23-2-1	S07731001	OUTER ROTARY HOOK ASSEMBLY	2
23-2-1-1	151027001	INNER ROTARY HOOK SET SCREW	4
23-2-2	S07738001	INNER ROTARY HOOK ASSEMBLY	2
23-2-3	S07740001	CAP ASSEMBLY	2
23-2-3-1	154518001	TENSION SPRING	2
23-2-3-2	154519001	TENSION ADJUST SCREW	2
23-2-3-4	151030001	SET SCREW	2
1-2	S07415201	ROTARY HOOK BASE (L)	1
2-2	S07413201	ROTARY HOOK BASE (R)	1
22	153243001	SPACER 0.2	4
22	153244001	SPECER 0.3	2
23-3	S07427001	ROTARY HOOK	2
23-3-1	S07733001	OUTER ROTARY HOOK ASSEMBLY	2
23-3-1-1	151027001	INNER ROTARY HOOK SET SCREW	4
23-3-2	S07737001	INNER ROTARY HOOK ASSMBLY	2
23-3-2-1	151145001	TENSION SPRING	2
23-3-2-2	151029001	TENSION ADJUST SCREW	2
23-3-2-3	151030001	SET SCREW	2
23-4	S07429001	ROTARY HOOK ASSEMBLY	2
23-4-1	S07734001	OUTER ROTARY HOOK ASSEMBLY	2
23-4-1-1	151027001	INNER ROTARY HOOK SET SCREW	4
23-4-2	S07739001	INNER ROTARY HOOK ASSEMBLY	2
23-4-3	S07740001	CAP ASSEMBLY	2
23-4-3-1	154518001	TENSION SPRING	2
23-4-3-2	154519001	TENSION ADJUST SCREW	2
23-4-3-3	151030001	SET SCREW	2
42	148602001	BOBBIN TENSION SPRING	2

Page 27 — K. 給油潤滑関係/Lubrication/Schmierung/Lubricación

Brother LT2-B842 / LT2-B847 parts on page 27
Ref	Part number	Part name	Qty
1	S07448001	ROTARY HOOK BASE COVER	2
2	S07449000	ROTARY HOOK BASE PACKING	2
3	062670812	SCREW 357X8	8
4	S07477000	RUBBER RING	2
5	S07478000	RUBBER PRESSER	2
6	S07479101	ADJUST SCREW	2
7	S16114001	SPRING	2
9	150988001	OIL STOPPER PLATE	1
10	112717001	OIL STOPPER PLATE PRESSER	1
11	062711212	SCREW 476X12	1
12	112743001	WICK SUPPORT	1
13	062670512	SCREW 357X5	1
14	112719001	FELT SUPPORT (U)	1
15	112720101	FELT SUPPORT (D)	1
16	112739001	WICK SUPPORT	1
17	062670512	SCREW 357X5	1
18	143673001	WICK SUPPORT	1
19	062660412	SCREW 318X4	2
20	142268001	CORD HOLDER (L)	1
21	062670512	SCREW 357X5	1
22	S07471001	WICK HOLDER	2
23	062670512	SCREW 357X5	2
24	S07450109	OIL TANK ASSEMBLY	1
25	062711012	SCREW 476X10	2
26	025710232	PLAIN WASHER 4.76	2
27	081030070	O RING P30	1
29	148394000	NEEDLE BAR CAP	1
30	140890009	OIL CAP	2
31	*	OIL CAP	*
32	142274009	OIL CAP	2
34	S07474000	FELT	1
35	151927001	CLUTCH FELT	2
36	S07476000	FELT	2
37	148762001	FELT	1
38	112734001	UPPER SHAFT BUSH (L) FELT	1
39	S07571000	FELT	1
40	112753001	FELT	3
41	113362001	ROTARY HOOK BASE BUSH (R) FELT	2
43	112759001	FELT	1
44	100257010	SCREW 3.57	1
45	148743001	FELT	4
46	S07460100	WIRE	1
47	S07453000	OIL TUBE	1
48	S07454000	OIL TUBE	1
49	S07455100	OIL TUBE	1
50	S07456000	OIL TUBE	1
51	S07457100	OIL TUBE	1
52	S07810000	OIL TUBE	1
53	S07458100	OIL TUBE	1
54	S07459100	OIL TUBE	1
55	S07465000	WICK (L=200)	1
56	112728001	WICK (L=50)	1
57	114693001	WICK (L=30)	1
58	112735000	WICK (L=45)	1
59	113653000	WICK (L=130)	1
60	S03289001	WICK 4X4 (L=40)	1
61	112736000	WICK (L=440)	1
62	152974001	WICK 4X4 (L=350)	1
63	S07461000	WICK (L=32)	2
64	108802001	WICK 4X4 (L=250)	2

Page 29 — K. 給油潤滑関係/Lubrication/Schmierung/Lubricación

Brother LT2-B842 / LT2-B847 parts on page 29
Ref	Part number	Part name	Qty
65	108802001	WICK 4X4 (L=250)	1
66	S03289001	WICK 4X4 (L=40)	1
67	111191001	WICK (L=35)	1
68	112750000	WICK (L=110)	1
69	S07462000	WICK (L=25)	1
70	S07463000	WICK (L=70)	2
71	153920001	WICK 4X4 (L=300)	1
72	152974001	WICK 4X4 (L=350)	1
73	S03289001	WICK 4X4 (L=40)	1
74	S07464100	WICK (L=530)	1
75	156070002	SPACER	2
76	S07466001	DUST PROTECTOR	1
77	062670512	SCREW 357X5	2
78	S07467001	TUBE SUPPORT	1
79	062680812	SCREW 437X8	1
80	S07468000	OIL SEAL	1
81	S07469001	TUBE CALKING	1
82	S07470001	WICK SUPPORT	2
83	062670512	SCREW 357X5	2
84	S07472001	INTERRUPT PLATE	1
85	062670512	SCREW 357X5	2
86	S07473000	OIL FILTER	1
87	S07481009	OIL MARK SEAT	1
91	S07876001	TUBE CLAMP	7
92	146253000	OIL TUBE	1
93	S09369000	WICK (L=70)	1
94	S09364000	OIL SEAL	1
95	112758009	OIL CAP	1
96	111191001	WICK (L=35)	1
97	104821009	OIL CAP	1
98	S07876001	TUBE CLAMP	2
99	S07876001	TUBE CLAMP	1
100	S14189000	TERMINAL	1
101	062670612	SCREW 357X6	2
102	146536001	FEED ADJUST SHAFT SUPPORT	1
103	062670612	SCREW 357X6	1
88	145619001	SCREW 6.35	1
89	S07482001	SPRING	1
90	S07478000	RUBBER PRESSER	1

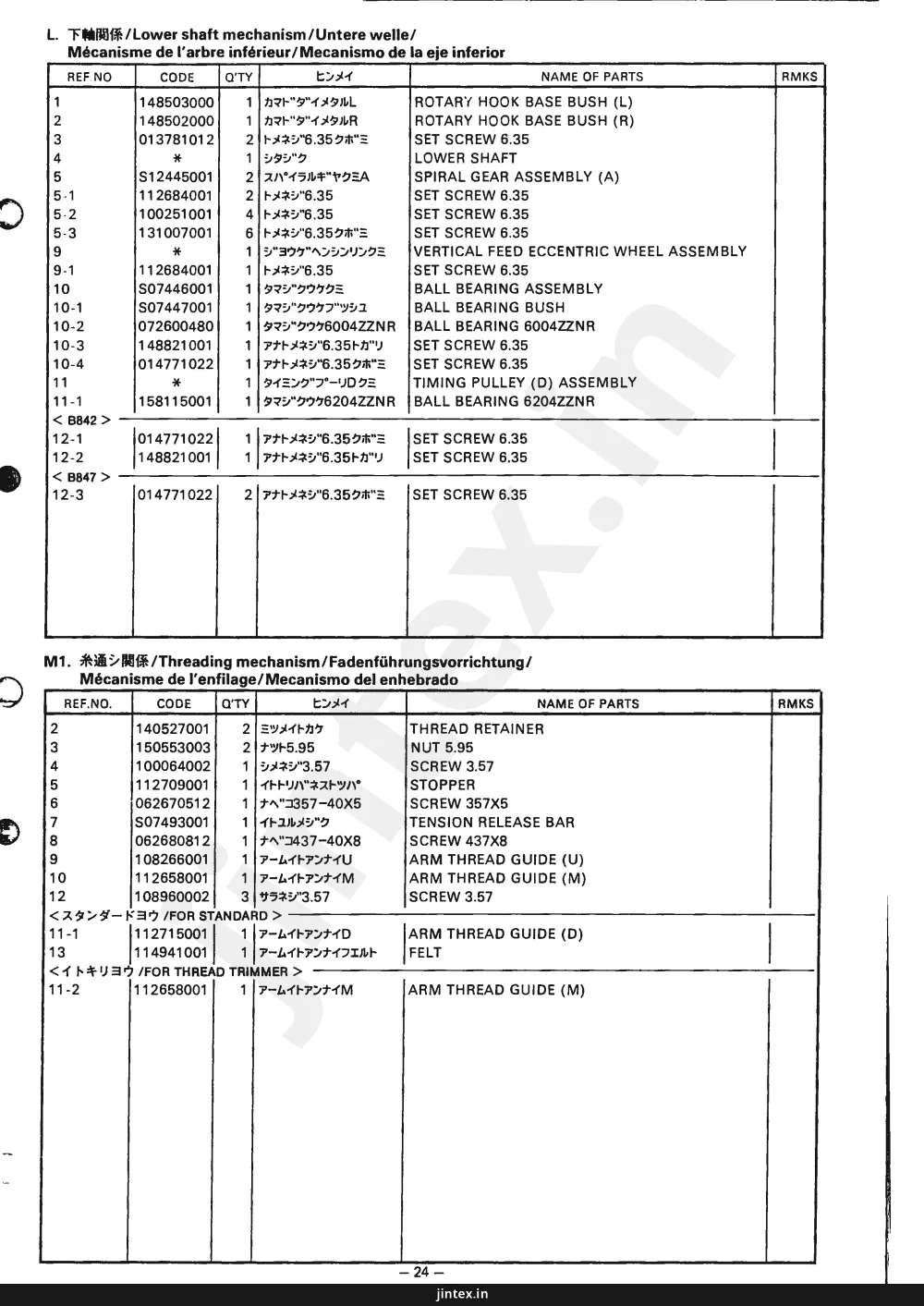

Page 31 — L. Lower shaft mechanism/Untere welle/Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior M1. Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

Brother LT2-B842 / LT2-B847 parts on page 31
Ref	Part number	Part name	Qty
1	148503000	ROTARY HOOK BASE BUSH (L)	1
2	148502000	ROTARY HOOK BASE BUSH (R)	1
3	013781012	SET SCREW 6.35	2
4	*	LOWER SHAFT	1
5	S12445001	SPIRAL GEAR ASSEMBLY (A)	2
5-1	112684001	SET SCREW 6.35	2
5-2	100251001	SET SCREW 6.35	4
5-3	131007001	SET SCREW 6.35	6
9	*	VERTICAL FEED ECCENTRIC WHEEL ASSEMBLY	1
9-1	112684001	SET SCREW 6.35	1
10	S07446001	BALL BEARING ASSEMBLY	1
10-1	S07447001	BALL BEARING BUSH	1
10-2	072600480	BALL BEARING 6004ZZNR	1
10-3	148821001	SET SCREW 6.35	1
10-4	014771022	SET SCREW 6.35	1
11	*	TIMING PULLEY (D) ASSEMBLY	1
11-1	158115001	BALL BEARING 6204ZZNR	1
12-1	014771022	SET SCREW 6.35	1
12-2	148821001	SET SCREW 6.35	1
12-3	014771022	SET SCREW 6.35	2
2	140527001	THREAD RETAINER	2
3	150553003	NUT 5.95	2
4	100064002	SCREW 3.57	1
5	112709001	STOPPER	1
6	062670512	SCREW 357X5	1
7	S07493001	TENSION RELEASE BAR	1
8	062680812	SCREW 437X8	1
9	108266001	ARM THREAD GUIDE (U)	1
10	112658001	ARM THREAD GUIDE (M)	1
12	108960002	SCREW 3.57	3
11-1	112715001	ARM THREAD GUIDE (D)	1
13	114941001	FELT	1
11-2	112658001	ARM THREAD GUIDE (M)	1

Page 33 — M2. 糸通シ関係 /Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

Brother LT2-B842 / LT2-B847 parts on page 33
Ref	Part number	Part name	Qty
1-1	*	UPPER THREAD TENSION ASSEMBLEY	1
1-1-1	144680001	TENSION STUD	1
1-1-2	155491001	SPRING	1
1-1-3	108254001	SPRING GUIDE ASSEMBLY	2
1-1-4	144682001	SCREW 2.38	1
1-1-5	108265009	TENSION NUT	1
1-1-6	S07487001	TENSION RELEASE PLATE	1
1-1-7	118320001	SPRING	1
1-1-8	112712001	STUD SCREW 3.57	2
1-1-9	158769001	PIN (R)	1
1-1-10	S07488001	PIN (L)	1
1-1-11	145446001	TENSION DISC	4
1-1-12	159805001	TENSION DISC PRESSER	2
1-1-13	*	TENSION SPRING	2
1-1-14	149566009	TENSION NUT	2
1-1-15	144105000	TENSION SPRING WASHER	2
1-1-16	144685001	THREAD GUIDE CAP	2
1-1-17	144686001	THREAD GUIDE DISC	2
1-1-18	144687001	THREAD GUIDE BRACKET	2
1-1-19	144688001	SPRING	2
1-1-20	144689101	THREAD GUIDE STUD SCREW	2
1-1-21	021670102	NUT 3.57	2
1-2	*	UPPER THREAD TENSION ASSEMBLEY	1
1-2-1	144680001	TENSION STUD	1
1-2-2	155491001	SPRING	1
1-2-3	108254001	SPRING GUIDE ASSEMBLY	2
1-2-4	144682001	SCREW 2.38	1
1-2-5	108265009	TENSION NUT	1
1-2-6	S07487001	TENSION RELEASE PLATE	1
1-2-7	118320001	SPRING	1
1-2-8	112712001	STUD SCREW 3.57	2
1-2-9	158769001	PIN (R)	1
1-2-10	S07488001	PIN (L)	1
1-2-11	145446001	TENSION DISC	4
1-2-12	159805001	TENSION DISC PRESSER	2
1-2-13	*	TENSION SPRING	2
1-2-14	149566009	TENSION NUT	2
1-2-15	144105000	TENSION SPRING WASHER	2
1-2-16	158771001	THREAD GUIDE SHAFT (L)	1
1-2-17	158770001	THREAD GUIDE SHAFT (R)	1
1-2-18	144504001	THREAD GUIDE DISC	4
1-2-19	154560001	PRE TENSION SPRING (A)	2
1-2-20	155510001	TENSION NUT	2
1-2-21	021670102	NUT 3.57	2

Page 35 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/ Fadenabschneidevorrichtung (Fadenabschneider)/ Mécanisme de coupe-fill (Coupe-fil)/

Brother LT2-B842 / LT2-B847 parts on page 35
Ref	Part number	Part name	Qty
1	*	THREAD TRIMMER SOLENOID	1
2	140647001	CORD HOLDER	1
3	062670512	SCREW 357X5	1
4	S07496001	THREAD TRIMMING SOLENOID BRACKET	1
5	110201001	SCREW 6.35	2
6	S07497001	THREAD TRIMMING SOLENOID JOINT	1
7	118713001	CONNECTING STUD	1
8	014680622	SET SCREW 4.37	2
9	S07498001	THREAD TRIMMING SOLENOID LEVER	1
10	S07499001	THREAD TRIMMING SOLENOID LEVER BRACKET	1
11	062711012	SCREW 476X10	2
12	S07500001	THREAD TRIMMING SOLENOID LEVER STUD	1
13	S07501001	THREAD TRIMMING DRIVING ROD	1
14	148546001	PLUNGER PIN	1
15	S07502001	THREAD TRIMMING DRIVING ROD PLATE	1
16	S07503000	CUSHION RUBBER	1
17	116662003	WASHER	1
18	107321003	STUD SCREW 4.76	1
19	S07504001	KNIFE MAIN LEVER ASSEMBLY	1
20	148559100	RUBBER	1
21	S07508001	KNIFE MAIN LEVER SHAFT	1
22	013781012	SET SCREW 6.35	1
23	S07509001	SPRING	1
24	S07510001	THREAD TRIMMING CAM	1
25-1	148574001	SET SCREW 6.35	1
25-2	014771022	SET SCREW 6.35	1
25-3	014771022	SET SCREW 6.35	2
26	S07511001	LENGTH ADJUST CONNECTING ROD ASSEMBLY	1
26-1	S07512001	ROUND JOINT (R) ASSEMBLY	1
26-2	S07514001	ROUND JOINT (L) ASSEMBLY	1
26-3	S07516001	LENGTH ADJUST CONNECTING ROD	1
26-4	148592001	NUT 5.95	1
26-5	100022005	NUT 5.95	1
27	141494001	STUD SCREW	2
28	S07517001	THREAD TRIMMING LEVER (R)	1
29	S07518001	THREAD TRIMMING LEVER (L)	1
30	062681212	SCREW 437X12	2
31	S07519001	STOPPER SCREW 4.76	2
32	S07520001	SPRING	2
33	062671412	SCREW 357X14	2
34	021670102	NUT 3.57	2
35	S07521001	THREAD TRIMMER CONNECTING ROD (R)	1
36	S07522001	THREAD TRIMMER CONNECTING ROD (L)	1
37	144526001	STUD SCREW 4.37	2
38	146360002	BOLT 4.76X7	2
39	025710232	PLAIN WASHER 4.76	2
40	S07523001	MOVABLE KNIFE LEVER	2
41	120752001	SET COLLAR	2
42	100251001	SET SCREW 6.35	4
43	S07524001	MOVABLE KNIFE BRACKET	2
44	062670812	SCREW 357X8	4
45	S07525000	SPRING	2
46	141544001	SCREW 3.18	4
47	S07526001	MOVABLE KNIFE	2
48	148536001	SCREW 4.37	4
49	S07527001	FIXED KNIFE	2
50	148539101	STUD SCREW 2.38	2
54	S02745001	WASHER	1
55	062680663	SCREW 437X6	1

Page 37 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneidevorrichtung)/Mécanisme de coupe-fill (Coupe-fil)/Mecanismo de la cortadura de hilos (Cortahilos)

Brother LT2-B842 / LT2-B847 parts on page 37
Ref	Part number	Part name	Qty
58	340400001	BEAD BAND	2
51	153969000	NYLON CONNECTOR 12P	1
52	S03815001	CONNECTOR CAP 6	1
53-1	S18889001	EARTH WIRE ASSEMBLY	1
53-1-1	S03328000	TERMINAL PIN (L)(MALE)	1
53-1-2	204569001	TERMINAL 4.5X14	1
56	S11210000	W CORD (S) ASSEMBLY	1
56-1	S11684000	CONNECTER 3191-01R1	1
56-2	143548000	TERMINAL PIN (FEMALE)	1
56-3	143549000	TERMINAL PIN (MALE)	1
57	S11683000	CONNECTER 3191-01P1	1
53-2	S06004001	EARTH WIRE ASSEMBLY	1
53-2-1	204569001	TERMINAL 4.5X14	2

Page 39 — P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/ Spannungsverminderungsvorrichtung (Fadenabschneider)/ Mécanisme de la lâche de te

Brother LT2-B842 / LT2-B847 parts on page 39
Ref	Part number	Part name	Qty
1	S07529001	TENSION RELEASE CONNECTING ROD ASSEMBLY	1
2	048030342	STOP RING E3	2
3	S07528000	TENSION RELEASE WIRE	1
4	110161004	NUT 4.76	2
5	S07533001	WIRE HOLDER BASE	1
6	062670812	SCREW 357X8	2
7	154607001	TENSION RELEASE WIRE HOLDER (D)	2
8	062670512	SCREW 357X5	4
9	S07531001	WIRE HOLDER	1
10	062680812	SCREW 437X8	1
11	S07532001	WIRE GUIDE	1
12	062710612	SCREW 476X6	2
13	S07534001	TENSION RELEASE LEVER ASSEMBLY	1
14	149127001	STUD SCREW 6.35	1
15	S07536001	SPRING	1
16	062661212	SCREW 318X12	1
17	021660102	NUT 3.18	1
1	237950001	SYNCHRONIZER ASSEMBLY #14G2	1
1-1	228475000	BAND 1.9X80	1
2	062711012	SCREW 476X10	1
3	113431002	WASHER	1
4	S06241000	INSULATION SEAT	1
5	S06242001	SPEED COMMAND PLATE	1
6	S06243101	NEEDLE UPPER PLATE	1
7	062681612	SCREW 437X16	2
8	100645003	WASHER	2
9	148825001	SLIP RING JOINT	1
10	062711412	SCREW 476X14	2
11	158775001	SYNCHRONIZER SUPPORT	1
12	062680812	SCREW 437X8	1
13	158776001	SYNCHRONIZER SUPPORT STUD	1

Page 41 — R. 糸払関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos)

Brother LT2-B842 / LT2-B847 parts on page 41
Ref	Part number	Part name	Qty
1	*	THREAD WIPER SOLENOID ASSEMBLY	1
1-1	148511001	PLUNGER	1
1-2	048090342	STOP RING E9	1
1-3	148512000	PLUNGER RUBBER	1
1-4	S02664001	THREAD WIPER SWITCH	1
1-5	S02665000	CONNECTOR	1
1-6	143549000	TERMINAL PIN (MALE)	2
2	062401012	SCREW M4X10	4
3	025040232	PLAIN WASHER 4	4
4	062300612	SCREW 3X6	2
5	146080009	CORD BUSH	1
6	S08469009	SOLENOID BRACKET	1
7	062680812	SCREW 437X8	2
8	148514009	SOLENOID COVER	1
9	062670512	SCREW 357X5	3
10	148546001	PLUNGER PIN	1
11	S07542101	THREAD WIPER SOLENOID ASSEMBLY	1
11-1	S07549101	THREAD WIPER LINK (C)	2
11-2	S07550001	THREAD WIPER LINK STUD	1
11-3	139096001	SET COLLAR	1
11-4	014680422	SET SCREW 4.37	2
11-5	S07551001	STOPPER	1
11-6	062711012	SCREW 476X10	2
11-7	025710232	PLAIN WASHER 4.76	2
11-8	S07552001	THREAD WIPER SUPPORT	2
11-9	062661212	SCREW 318X12	2
12	062711012	SCREW 476X10	2
13	148527101	SPRING	1
14	※	THREAD WIPER	2
15	S07424001	SET SCREW 3.18	2
16	140647001	CORD HOLDER	1
17	062670512	SCREW 357X5	1

Page 43 — S. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr(Fadenabschneider)/ Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de la inversión rápida (Cortahilos)

Brother LT2-B842 / LT2-B847 parts on page 43
Ref	Part number	Part name	Qty
1	S07385009	REVERSE SOLENOID BRACKET	1
2	062781412	SCREW 635X14	2
3	S18885009	QUICK REVERSE SOLENOID ASSEMBLY	1
3	154734009	QUICK REVERSE SOLENOID ASSEMBLY	1
3-1	154730001	STOP RING E15	1
3-2	154731000	RUBBER STOPPER	1
3-3	143549000	TERMINAL PIN (MALE)	2
4	062500812	SCREW 5X8	3
5	153245001	PIN	1
6	048040342	STOP RING E4	1
7	153138001	WASHER	1
8	146105009	SOLENOID COVER	1
9	062500812	SCREW 5X8	1
10	S01327001	REVERSE SOLENOID RUBBER	1
11	S01328001	COLLAR	1
12	S07381001	REVERSE SOLENOID LEVER ASSEMBLY	1
13	149094001	SOLENOID LEVER STUD	1
14	S01304001	SCREW 6.35X18	1
15	149095001	WASHER	1
16	153132000	NYLON TUBE	1
17	100511003	SCREW 4.76	1
1	*	REVERSE ACTUATOR ASSEMBLY	1
1-1	S07556009	SWITCH BRACKET	1
1-2	S02693001	INSUIATOR SEET	1
1-3	S02694010	ACTUATOR	1
1-4	S02696001	SPRING	1
1-5	048030342	STOP RING E3	1
1-6	S02697001	STOPPER	1
1-7	110215002	SCREW 3.57	1
1-8	*	REVERSE SWITCH ASSEMBLY	1
1-8-1	S02699001	MICRO SWITCH	1
1-8-2	143549000	TERMINAL PIN (MALE)	2
1-9	062630812	SCREW 238X8	2
2	062710612	SCREW 476X6	2
3	140647001	CORD HOLDER	1
4	062670512	SCREW 357X5	1

Page 45 — U. 空圧関係/Air pressure mechanism/Luftdruck/Mécanisme de la pression d'air/Mecanismo de la presión de aire

Brother LT2-B842 / LT2-B847 parts on page 45
Ref	Part number	Part name	Qty
1	151126101	AIR UNIT VALVE ASSEMBLY	1
1-1	151153101	AIR UNIT ASSEMBLY	1
1-2	151127100	AIR VALVE	1
1-3	140682001	SILENCER	1
1-4	151147001	1/8" ELBOW ASSEMBLY	1
1-5	142037000	SPEED CONTROLLER CONNECTOR	1
1-6	142038001	SPEED CONTROLLER	1
1-7	140543000	1/8" CONNECTOR	1
1-8	154214001	AIR UNIT HOLDER PLATE	1
1-9	140540000	AIR TUBE	1
1-10	143488001	NYLON CONNECTOR	1
1-11	143489001	CONNECTOR CAP	1
1-12	154215001	INSULATION TUBE	1
1-13	143549000	TERMINAL PIN (MALE)	2
1-14	002501003	SCREW 5X10	2
1-15	028050243	SPRING WASHER 2-5	2
3	101118001	SCREW 4.5X20	2
4	200190001	STAPLE	8
5	S05247101	AIR UNIT CORD ASSEMBLY	1
5-1	154172001	PRESSER FOOT LIFTER CORD ASSEMBLY	1
5-1-1	143499000	NYLON CONNECTOR	1
5-1-2	143489001	CONNECTOR CAP	1
5-1-3	143548000	TERMINAL PIN (FEMALE)	2
5-1-4	143549000	TERMINAL PIN (MALE)	2
5-2	S05981000	B-CORD 100 ASSEMBLY 2	1
5-2-1	143549000	TERMINAL PIN (MALE)	2
5-2-2	146046000	NYLON CONNECTOR	1
5-3	S05982000	W-CORD 100 ASSEMBLY	1
5-3-1	143549000	TERMINAL PIN (MALE)	1
5-3-2	143548000	TERMINAL PIN (FEMALE)	1
5-3-3	146194000	NYLON CONNECTOR	1
5-4	143522000	NYLON CONNECTOR	1
5-5	220077001	PLUG COVER #14	1

Page 47 — V. ヒザスイッチ関係/Knee switch mechanism/Kneeschalter/ Mécanisme de interrupteur de genou/Mecanismo de conmutador de rodilla W. 特別注文部品/Option parts/Sonderzubehör/Pièces en option/Piezas opciona

Brother LT2-B842 / LT2-B847 parts on page 47
Ref	Part number	Part name	Qty
1	S07045-009	KNEE SWITCH ASSEMBLY	1
1-1	142026003	KNEE SWITCH SHAFT	1
1-2	142027001	KNEE SWITCH SHAFT BRACKET	1
1-3	100463001	BOLT 7.94	1
1-4	114967001	KNEE LIFTER PLATE STOPPER	1
1-5	110087001	BOLT 5.95	1
1-6	S07027001	KNEE LIFTER SWITCH PLATE	1
1-7	062401006	SCREW 4X10	4
1-8	025040233	PLAIN WASHER 4	4
1-9	028040243	SPRING WASHER 2-4	4
1-10	021400164	NUT 4	4
1-11	S07030009	SWITCH CORD ASSEMBLY	1
1-11-1	S07031009	FOOT SWITCH ASSEMBLY	1
1-11-1-1	143549000	TERMINAL PIN (MALE)	2
1-11-1-2	143548000	TERMINAL PIN (FEMALE)	1
1-11-2	146046000	NYLON CONNECTOR	2
1-11-3	146194000	NYLON CONNECTOR	1
1-12	149799000	BEAD BAND (S)	1
2	034422-503	SCREW 4.1X25	4
11	S13162009	OIL TANK ASSEMBLY	1
12	*	THREAD TAKE-UP ASSEMBLY	1
12-1	*	THREAD TAKE-UP	1
12-2	S03289001	WICK 4X4 (L=40)	1
12-3	142274009	OIL CAP	1
13	S13160001	THREAD TADE-UP SLIDE BLOCK 2 ASSEMBLY	1
13-1	S07338001	THREAD TAKE-UP SLIDE BLOCK	1
13-2	114693001	WICK (L=30)	1
13-3	113024000	PUSHER	1
14	S14506001	THREAD TAKE-UP SHAFT ASSEMBLY	1
14-1	S07334001	THREAD TAKE-UP SHAFT	1
14-2	113653000	WICK (L=130)	1

Page 49 — X1. 電磁押エ上ゲ関係/Presser foot lifting solenoid set/Solenoidsatz für die Anhebung des Stoffdrückerfußes/Jeu de solénoïde du releveur du pied presseur/Conjunto solenoide del levantador

Brother LT2-B842 / LT2-B847 parts on page 49
Ref	Part number	Part name	Qty
1	*	PRESSER FOOT LIFTING SOLENOID SET	1
1-1	*	PRESSER FOOT LIFTING SOLENOID ASSEMBLY	1
1-1-1	S02580009	SOLENOID BRACKET	1
1-1-2	S02581009	SOLENOID PLATE	1
1-1-3	062761212	SCREW 595X12	4
1-1-4	S02582001	PRESSER BAR LIFTER SOLENOID ASSEMBLY	1
1-1-4-1	S02584000	CUSHION	1
1-1-4-2	S02585000	OIL TUBE	1
1-1-4-3	149776000	ADHESION TERMINAL	2
1-1-5	153122000	RUBBER CUSHION	2
1-1-6	158677001	NUT M8	1
1-1-7	S02586001	LINK JOINT	1
1-1-8	S02588000	TERMINAL BLOCK	1
1-1-9	062671012	SCREW 357X10	2
1-1-10	S06537000	RESISTOR	1
1-1-11	062670612	SCREW 357X6	1
1-1-12	S02590000	DIODE	1
1-1-13	S02591000	LEAD WIRE	1
1-1-14	*	PRESSER BAR LIFTER CORD ASSEMBLY	1
1-1-14-1	204569001	TERMINAL 4.5X14	1
1-1-14-2	143549000	TERMINAL PIN (MALE)	3
1-1-15	S02745001	WASHER	1
1-1-16	062680663	SCREW 437X6	1
1-1-17	142268001	CORD HOLDER (L)	1
1-1-18	062670616	SCREW 357X6	1
1-1-19	S02592009	TERMINAL BLOCK COVER	1
1-1-20	062670612	SCREW 357X6	2
1-1-21	025060232	PLAIN WASHER 6	4
1-1-22	143522000	NYLON CONNECTOR	1
1-1-23	220077001	PLUG COVER #14	1
1-1-24	S05981000	B-CORD 100 ASSEMBLY 2	1
1-1-24-1	143549000	TERMINAL PIN (MALE)	2
1-1-24-2	146046000	NYLON CONNECTOR	1
1-1-25	S05982000	W-CORD 100 ASSEMBLY	1
1-1-25-1	143549000	TERMINAL PIN (MALE)	1
1-1-25-2	143548000	TERMINAL PIN (FEMALE)	1
1-1-25-3	146194000	NYLON CONNECTOR	1
1-1-26	S07182001	LABEL	1
1-2	152808101	ADJUST ROD ASSEMBLY	1
1-2-1	154332001	PRESSER BAR LIFTER ADJUST ROD	1
1-2-2	154333001	PRESSER BAR LIFTER ADJUST JOINT	1
1-2-3	150556001	NUT 6.35	1
1-3	141583001	STUD SCREW 6.35	1
1-4	031553202	SCREW 5.5X32	4
1-5	S02587001	PIN	1
1-6	048060342	STOP RING E6	1

Page 51 — X2. 電磁押上関係(オプション)/Presser foot lifting solenoid set (Option Parts)/Solenoidsatz für die Anhebung des Stoffdrückerfußes/Jeu de solénoïde du releveur du pied presseur (Pièces en option)/Conjunto solenoide del levantador (Piezas opciona)

Brother LT2-B842 / LT2-B847 parts on page 51
Ref	Part number	Part name	Qty
2	183503009		1
2-1	S03681109		1
2-5	S07045009		1
2-5-1	142026003		1
2-5-2	142027001		1
2-5-3	100463001		1
2-5-4	114967001		1
2-5-5	110087001		1
2-5-6	S07027001		1
2-5-7	062401006	ナヘ'コ4X10	4
2-5-8	025040233		4
2-5-9	028040243		4
2-5-10	021400164		4
2-5-11	S07030009		1
2-5-11-1	S07031009		1
2-5-11-1-1	143549000		2
2-5-11-1-2	143548000		1
2-5-11-2	146046000		2
2-5-11-3	146194000		1
2-5-12	149799000	タイラップ'S	1
2-6	034422503	+サラモクネジ'4.1X25	4
2	183517009	デンジ'オサエセット2T	1
2-1	S03681109		1
2	183518009	PRESSER FOOT LIFTING SOLENOID SET 2D	1
2-1	S06538109	PRESSER FOOT LIFTING SOLENOID ASSEMBLY	1
2	183519009	PRESSER FOOT LIFTING SOLENOID SET 2E	1
2-1	S04206109	PRESSER FOOT LIFTING SOLENOID ASSEMBLY	1
2-2	S10550001	PRESSER FOOT LIFTING LINK	1
2-3	146367001	BOLT 5.95	1
2-4	S07729001	TWIST SPRING	1

Page 53 — Z1. 付属部品関係 / Accessories/Zubehör/Accessoires/Accesorios

Brother LT2-B842 / LT2-B847 parts on page 53
Ref	Part number	Part name	Qty
1	122991001	ACCESSORY BAG	1
2	142443001	SCREW DRIVER 1.9X52	1
3	118837001	SCREW DRIVER 3.4X70	1
4	S17774001	SCREW DRIVER 4.7X250	1
7	107780001	SPANNER 10X12	1
8	142002001	HEXAGONAL WRENCH 2	1
10	*	NEEDLE DPX5	8
13	100477009	HEAD REST	1
14	154702001	OIL TANK	1
15	117963109	BOBBIN WINDER ASSEMBLY	1
15-1	145446001	TENSION DISC	2
15-2	100401001	TENSION SPRING	1
15-3	117969001	SPRING	1
15-4	117970001	BOBBIN WINDER SHAFT	1
15-5	S18634009	BOBBIN WINDER WHEEL	1
15-6	100366002	SET SCREW 4.37X5	1
15-7	100657001	SCREW 3.18	1
15-8	100659001	STUD SCREW 3.18	1
15-9	100662001	BOBBIN WINDER WHEEL STOPPER	1
15-10	S01297001	SCREW 3.57X3.5	1
16	100666002	SCREW 5.5X20	2
18	144222001	HEAD COVER	1
26	143882001	HEAD HINGE	2
27	143910009	RUBBER CUSHION	2
28	148890109	HEAD CUSHION	4
29	109714000	NAIL	8
30	S07561009	OIL PAN	1
31	109714000	NAIL	5
33	114486002	OILER	1
34	114483002	OILER ASSEMBLY	1
35	183480009	BELT COVER ASSEMBLY	1
35-1	S08468009	BELT COVER COLLAR ASSEMBLY	1
35-1-1	S07660000	RUBBER COLLAR	4
35-2-1	062712012	SCREW 476X20	4
35-2-2	025050332	PLAIN WASHER 5	4
35-2-3	062680812	SCREW 437X8	1
35-2-4	025680232	PLAIN WASHER 4.37	1
35-2-5	100666002	SCREW 5.5X20	2
35-2-6	025750132	PLAIN WASHER 5.56	2
40	S08188001	SKIRT	1
11	112781101	BOBBIN	4
11	S01928101	BOBBIN	4
12	114941001	FELT	2
5	107779001	SPANNER 6X7	1
6	100887001	SPANNER 8X9	1
9	142721001	HEXAGONAL WRENCH 3	1
11	S01928101	BOBBIN	4
23	S07527001	FIXED KNIFE	1
24	148539101	STUD SCREW 2.38	1
41	S11243001	DRIVER	1
49	S20007001	ヌノ300X300	1
42	233090002	HB SETTING PLATE #3	1
44	062681212	SCREW 437X12	3
20	145573000	KNEE LIFTER COMPLYING BAR	1
22	100666002	SCREW 5.5X20	4

Page 55 — Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother LT2-B842 / LT2-B847 parts on page 55
Ref	Part number	Part name	Qty
36	150756009	OIL CAP	1
21 1	S07559201	KNEE LIFTER ASSEMBLY	1
21-1-1	S07560100	KNEE LIFTER BRACKET	1
21-1-2	146036101	KNEE LIFTER SHAFT	1
21-1-3	146037001	KNEE LIFTER	1
21-1-4	146367001	BOLT 5.95	1
21-1-5	104885101	SET SCREW 5.95	2
21-1-6	100022004	NUT 5.95	2
21-1-7	S15889001	TWIST SPRING	1
21-1-8	146293001	STOP RING E10	1
39	181427001	KNEE LIFTER ASSEMBLY	1
39-1	146039001	KNEE LIFTER JOINT	1
39-2	100463001	BOLT 7.94	1
39-3	017762013	BOLT 5.95X20	1
39-4	104619002	KNEE LIFTER BAR	1
39-5	114966001	KNEE LIFTER PLATE	1
39-6	114967001	KNEE LIFTER PLATE STOPPER	1
39-7	110087001	BOLT 5.95	1
39-8	140503001	KNEE LIFTER PLATE COVER	1
21-2	S07726301	KNEE LIFTER ASSEMBLY	1
21-2-1	S07560100	KNEE LIFTER BRACKET	1
21-2-2	146036101	KNEE LIFTER SHAFT	1
21-2-3	S10550001	PRESSER BAR LIFTER LINK	1
21-2-4	146367001	BOLT 5.95	1
21-2-5	S07729001	TWIST SPRING	1
21-2-6	146293001	STOP RING E10	1

Page 57 — Z2. 付属部品関係 /Accessories/Zubehör/Accesorios

Brother LT2-B842 / LT2-B847 parts on page 57
Ref	Part number	Part name	Qty
17-1	S02766009	COTTON STAND ASSEMBLY (3D)	1
17-1-1	156112003	COLUMN PIPE (D)	1
17-1-2	S02775001	PIPE SCREW SET (A)	1
17-1-2-1	150206002	PLAIN WASHER 16	1
17-1-2-2	150191002	NUT 5/8	1
17-1-3	150172003	COLUMN PIPE	1
17-1-4	150106003	COLUMN JOINT ASSEMBLY	1
17-1-4-1	062501406	SCREW 5X14	2
17-1-4-2	021500106	NUT 5	2
17-1-5	150174000	COLUMN CAP	1
17-1-6	S02779009	SPOOL HOLDER 3	1
17-1-7	S02782001	SPOOL SCREW SET 3	1
17-1-7-1	150179002	SPOOL SHAFT (B)	3
17-1-7-2	028050246	SPRING WASHER 2-5	3
17-1-7-3	021500106	NUT 5	5
17-1-7-4	050503006	WASHER SCREW 5X30	1
17-1-7-5	050501406	WASHER SCREW 5X14	1
17-1-8	150180001	SPOOL STAND BASE	3
17-1-9	150182000	SPOOL MAT	3
17-1-10	126863001	SPOOL CUSHION	3
17-1-11	S02784009	HOLDER SUPPORT (A) SET	1
17-1-11-1	150188009	SPOOL HOLDER SUPPORT (A)	1
17-1-11-2	062501006	SCREW 5X10	1
17-1-11-3	021500106	NUT 5	1
17-1-11-4	031452206	SCREW 45X22	1
17-1-12	S02788009	THREAD HANGER ASSEMBLY 3	1
17-2	S07558009	COTTON STAND ASSEMBLY 3DRTHF	1
17-2-1	156112003	COLUMN PIPE (D)	1
17-2-2	S02777001	PIPE (D) SCREW SET (B)	1
17-2-2-1	150206002	PLAIN WASHER 16	1
17-2-2-2	150191002	NUT 5/8	1
17-2-2-3	S01005000	RUBBER WASHER	2
17-2-2-4	150174000	COLUMN CAP	2
17-2-3	150106003	COLUMN JOINT ASSEMBLY	1
17-2-3-1	062501406	SCREW 5X14	2
17-2-3-2	021500106	NUT 5	2
17-2-4	150172003	COLUMN PIPE	1
17-2-5	S02779009	SPOOL HOLDER 3	1
17-2-6	S02782001	SPOOL SCREW SET 3	1
17-2-6-1	150179002	SPOOL SHAFT (B)	3
17-2-6-2	028050246	SPRING WASHER 2-5	3
17-2-6-3	021500106	NUT 5	5
17-2-6-4	050503006	WASHER SCREW 5X30	1
17-2-6-5	050501406	WASHER SCREW 5X14	1
17-2-7	150180001	SPOOL STAND BASE	3
17-2-8	150182000	SPOOL MAT	3
17-2-9	126863001	SPOOL CUSHION	3
17-2-10	S02784009	HOLDER SUPPORT (A) SET	1
17-2-10-1	150188009	SPOOL HOLDER SUPPORT (A)	1
17-2-10-2	062501006	SCREW 5X10	1
17-2-10-3	021500106	NUT 5	1
17-2-10-4	031452206	SCREW 45X22	1
17-2-11	S02788009	THREAD HANGER ASSEMBLY 3	1
17-2-12	S02747001	SPRING	1
17-2-13	150145009	THREAD GUIDE HOLDERASSEMBLY	1
17-2-13-1	150185009	THREAD GUIDE HOLDER	1
17-2-13-2	050503006	WASHER SCREW 5X30	1
17-2-13-3	021500106	NUT 5	1
17-2-14	142997001	THREAD GUIDE 3	1
17-2-15	S04109001	THREAD GUIDE SUPPORT BAR	1

Page 59 — Z2. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother LT2-B842 / LT2-B847 parts on page 59
Ref	Part number	Part name	Qty
17-2-16	138843001	JOINT	1
17-2-17	014060632	SET SCREW 6X6	2

Page 60 — 仕様別部品一覧表 / DIFFERENT PARTS LIST / ZUBEHÖRLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother LT2-B842 / LT2-B847 parts on page 60
Ref	Part number	Part name
A-9	107415011 (11)	NEEDLE DPX5 (#)
D-13	183609009	STITCH LENGTH CONTROL PLATE ASS.
D-13-3	S07674009	STITCH LENGTH CONTROL PLATE
E-21	S07336001	THREAD TAKE-UP
H-4	117160001	SCREW 4.37
J1-41	112781101	BOBBIN
J2-23-1	S07425001	ROTARY HOOK ASSEMBLY
J2-23-1-1	S07731001	OUTER ROTARY HOOK ASSEMBLY
J2-23-1-2	S07735001	INNER ROTARY HOOK ASSEMBLY
K-31	104821009(5)	OIL CAP (Q'TY)
L-4	S07439001	LOWER SHAFT
L-9	181486001	VERTICAL FEED ECCENTRIC WHEEL
L-11	S07442001	TIMING PULLEY (D) ASSEMBLY
M2-1-1	S07489109	UPPER THREAD TENSION ASSEMBLY
M2-1-1-13	S07490001	TENSION SPRING
W-12	S13156001 (S3)	THREAD TAKE-UP ASSEMBLY
W-12-1	S07336001	THREAD TAKE-UP
Z1-10	107415011 (11)	NEEDLE DPX5 (#)

Page 61

Brother LT2-B842 / LT2-B847 parts on page 61
Ref	Part number	Part name
A-9	107415011(11)	NEEDLE DPX5 (#)
D-13	183609009	STITCH LENGTH CONTROL PLATE ASS.
D-13-3	S07674009	STITCH LENGTH CONTROL PLATE
E-21	S07336001	THREAD TAKE-UP
H-4	117160001	SCREW 4.37
K-31	104821009(5)	OIL CAP (Q'TY)
L-4	S07441001	LOWER SHAFT
L-9	148804101	VERTICAL FEED ECCENTRIC WHEEL
L-11	S07444001	TIMING PULLEY (D) ASSEMBLY
M2-1-2	S07492009	UPPER THREAD TENSION ASSEMBLY
M2-1-2-13	S07490001	TENSION SPRING
W-12	S13156001(S3)	THREAD TAKE-UP ASSEMBLY
W-12-1	S07336001	THREAD TAKE-UP
Z1-10	107415011(11)	NEEDLE DPX5 (#)
A-9	107415014(14)	NEEDLE DPX5 (#)
A-9	107415022(22)	NEEDLE DPX5 (#)
D-13	183610009	STITCH LENGTH CONTROL PLATE ASS.
D-13-3	151507109	STITCH LENGTH CONTROL PLATE
E-21	S07335001	THREAD TAKE-UP
H-4	100032004	SCREW 4.37
K-31	104821009(6)	OIL CAP (Q'TY)
L-4	S07440001	LOWER SHAFT
L-11	S07442001	TIMING PULLEY (D) ASSEMBLY
M21-2	S07491009	UPPER THREAD TENSION ASSEMBLY
M2-1-2-13	148851001	TENSION SPRING

Page 62

Brother LT2-B842 / LT2-B847 parts on page 62
Ref	Part number	Part name
E-19	S07340009	PULLEY
N-1	S18884009	THREAD TRIMMER SOLENOID
R-1	S07537109	THREAD WIPER SOLENOID ASSEMBLY
T-1	S07555009	REVERSE ACTUATOR ASSEMBLY
T-1-8	S18887009	REVERSE SWITCH ASSEMBLY
X1-1	183486009(4)	PRESSER FOOT LIFTING SOLENOID SET
X1-1-1	S18884009	PRESSER FOOT LIFTING SOLENOID ASS.
X1-1-1-14	S02593001	PRESSER BAR LIFTER CORD ASSEMBLY

Page 63 — B847

Brother LT2-B842 / LT2-B847 parts on page 63
Ref	Part number	Part name	Qty
	158794-101	Needle Clamp Assembly
	158791-101	Needle Clamp Assembly
	158792-101	Needle Clamp Assembly
	158793-101	Needle Clamp Assembly
	158798-101	Needle Clamp Assembly
	158797-101	Needle Clamp Assembly
	158806-101	Needle Clamp Assembly
	S00937-001	Needle Clamp Assembly
	158807-101	Needle Clamp Assembly
	158805-101	Needle Clamp Assembly
	158799-101	Needle Clamp Assembly
	S07686-001	Needle Plate (Assembly)
	S07696-001	Feed Dog
	S07393-001	Presser Foot Assembly
	S07553-001	Thread Wiper
	S07401-001	Needle Plate (Assembly)
	S07409-001	Feed Dog
	S07688-001	Needle Plate (Assembly)
	S07698-001	Feed Dog
	S07395-001	Presser Foot Assembly
	S07403-001	Needle Plate (Assembly)
	S07410-001	Feed Dog
	S07689-001	Needle Plate (Assembly)
	S07699-001	Feed Dog
	S07397-001	Presser Foot Assembly
	S07405-001	Needle Plate (Assembly)
	S07411-001	Feed Dog
	S07676-001	Needle Plate (Assembly)
	S07680-001	Feed Dog
	S07682-001	Presser Foot Assembly
	S13621-001	Needle Plate (Assembly)
	S13623-001	Feed Dog
	S13624-001	Presser Foot Assembly
	S07318-201	Slide Plate (L) Assembly
	S07693-001	Needle Plate (Assembly)
	S07703-001	Feed Dog
	S07678-001	Needle Plate (Assembly)
	S07681-001	Feed Dog
	S07684-001	Presser Foot Assembly
	S07996-001	Needle Plate (Assembly)
	S07998-001	Feed Dog
	S07886-001	Needle Plate (Assembly)
	S07888-001	Feed Dog
	S07889-001	Presser Foot Assembly
	S07554-001	Thread Wiper
	S13479-001	Needle Plate (Assembly)
	S13480-001	Presser Foot Assembly
	S07997-001	Needle Plate (Assembly)
	S07999-001	Feed Dog
	S07891-001	Needle Plate (Assembly)
	S07893-001	Feed Dog
	S07894-001	Presser Foot Assembly
	S15088-001	Needle Plate (Assembly)
	S15090-001	Feed Dog
	S15091-001	Presser Foot Assembly
	S20914-001	Needle Plate (Assembly)
	S20916-001	Feed Dog
	S20917-001	Presser Foot Assembly
	S07323-201	Slide Plate (L) Assembly

Page 64 — B842 (スタンダード /Standard)

Brother LT2-B842 / LT2-B847 parts on page 64
Ref	Part number	Part name	Qty
	158801-001	Needle Clamp Assembly
	142111-001	Needle Plate
	142110-001	Feed Dog
	142105-001	Presser Foot Assembly
	158808-001	Needle Clamp Assembly
	142111-001	Needle Plate
	151078-001	Feed Dog
	151076-001	Presser Foot Assembly
	158794-101	Needle Clamp Assembly
	117370-001	Needle Plate
	117366-001	Feed Dog
	114948-001	Presser Foot Assembly
	114950-001	Needle Plate
	S07880-001	Feed Dog
	114951-001	Feed Dog
	117369-001	Needle Plate
	158430-001	Feed Dog
	158796-101	Needle Clamp Assembly
	116503-001	Needle Plate
	150850-001	Needle Plate
	116509-001	Feed Dog
	116502-001	Presser Foot Assembly
	117158-001	Needle Plate
	117134-001	Feed Dog
	158791-101	Needle Clamp Assembly
	112603-001	Needle Plate
	S07878-001	Feed Dog
	112659-001	Feed Dog
	S21149-001	Feed Dog
	S13588-001	Feed Dog
	S19448-001	Feed Dog
	112638-001	Presser Foot Assembly
	117133-001	Needle Plate
	S19449-001	Needle Plate
	158792-101	Needle Clamp Assembly
	117368-001	Needle Plate
	117365-001	Feed Dog
	112604-001	Needle Plate
	S07879-001	Feed Dog
	112660-001	Feed Dog
	S21150-001	Feed Dog
	153882-001	Feed Dog
	S19447-001	Feed Dog
	112642-001	Presser Foot Assembly
	117367-001	Needle Plate
	S19450-001	Needle Plate
	158793-101	Needle Clamp Assembly
	112605-001	Needle Plate
	144882-001	Needle Plate
	112661-001	Feed Dog
	112645-001	Presser Foot Assembly
	158798-101	Needle Clamp Assembly
	116506-101	Needle Plate
	144881-101	Needle Plate
	116510-101	Feed Dog
	153887-001	Feed Dog
	116498-001	Presser Foot Assembly
	158809-101	Needle Clamp Assembly
	151596-001	Needle Plate
	151598-001	Feed Dog
	151597-001	Presser Foot Assembly
	158797-101	Needle Clamp Assembly
	116505-001	Needle Plate
	S09365-001	Needle Plate
	116511-001	Feed Dog
	153892-001	Feed Dog
	116499-001	Presser Foot Assembly
	158795-101	Needle Clamp Assembly
	116507-001	Needle Plate
	159577-001	Needle Plate
	116512-001	Feed Dog
	153897-001	Feed Dog
	116500-001	Presser Foot Assembly
	158805-101	Needle Clamp Assembly
	147176-001	Needle Plate
	147178-001	Feed Dog
	153907-001	Feed Dog
	147177-001	Presser Foot Assembly
	158799-101	Needle Clamp Assembly
	116504-001	Needle Plate
	116508-001	Feed Dog
	116501-001	Presser Foot Assembly
	S07323-201	Slide Plate (L) Assembly
	158800-101	Needle Clamp Assembly
	118945-001	Needle Plate
	118947-001	Feed Dog
	118946-001	Presser Foot Assembly
	158802-101	Needle Clamp Assembly
	144951-001	Needle Plate
	144947-001	Feed Dog
	144949-001	Presser Foot Assembly
	S07325-201	Slide Plate (L) Assembly
	158803-101	Needle Clamp Assembly
	147560-001	Needle Plate
	147561-001	Feed Dog
	147562-001	Presser Foot Assembly

Page 65

Brother LT2-B842 / LT2-B847 parts on page 65
Part number	Part name	Qty
149311-001	Presser Foot Assembly with Guide	1/8"
117281-001	Presser Foot Assembly with Guide	3/16"
149312-001	Presser Foot Assembly with Guide	1/4"
S13735-001	Presser Foot Assembly with Guide Left	5/16"

Page 66 — Thread Trimmer

Brother LT2-B842 / LT2-B847 parts on page 66
Part number	Part name	Qty
S19862-001	Needle Clamp Assembly	-5
S19864-001	Needle Plate Assembly	-5
S19866-001	Feed Dog	-5
S19867-001	Presser Foot Assembly	-5
S19804-101	Needle Clamp Assembly	-5
159398-001	Needle Plate Assembly	-5
148697-001	Feed Dog	-5
148679-001	Presser Foot Assembly	-5
S19905-001	Needle Clamp Assembly	-5
S19907-001	Needle Plate Assembly	-5
S19909-001	Feed Dog	-5
S19910-001	Presser Foot Assembly	-5
158794-101	Needle Clamp Assembly	-3
159400-001	Needle Plate Assembly	-3
148698-001	Feed Dog	-3
148685-001	Presser Foot Assembly	-3
155722-001	Needle Plate Assembly	-5
148699-001	Feed Dog	-5
148681-001	Presser Foot Assembly	-5
158796-101	Needle Clamp Assembly	-3
158785-001	Needle Plate Assembly	-3
148700-001	Feed Dog	-3
148689-001	Presser Foot Assembly	-3
155724-001	Needle Plate Assembly	-5
148701-001	Feed Dog	-5
148683-001	Presser Foot Assembly	-5
158784-001	Needle Plate Assembly	-5
148702-001	Feed Dog	-5
148687-001	Presser Foot Assembly	-5
158791-101	Needle Clamp Assembly	-3
155851-001	Needle Plate Assembly	-3
148703-001	Feed Dog	-3
148691-001	Presser Foot Assembly	-3
S20901-001	Needle Plate Assembly	-5
S07905-001	Feed Dog	-5
S20903-001	Presser Foot Assembly	-5
158783-001	Needle Clamp Assembly	-3
148704-001	Feed Dog	-3
148693-001	Presser Foot Assembly	-3
158792-101	Needle Clamp Assembly	-5
155853-001	Needle Plate Assembly	-5
158756-001	Feed Dog	-5
148695-001	Presser Foot Assembly	-5
S10507-001	Needle Plate Assembly	-5
S10509-001	Feed Dog	-5
S10510-001	Presser Foot Assembly	-5
158793-101	Needle Clamp Assembly	-3
159402-001	Needle Plate Assembly	-3
149692-001	Feed Dog	-3
149689-001	Presser Foot Assembly	-3
155855-001	Needle Plate Assembly	-5
149691-001	Feed Dog	-5
149687-001	Presser Foot Assembly	-5
158798-101	Needle Clamp Assembly	-3
149946-001	Needle Plate Assembly	-3
149939-001	Feed Dog	-3
149942-001	Presser Foot Assembly	-3
155857-001	Needle Plate Assembly	-5
149938-001	Feed Dog	-5
149940-001	Presser Foot Assembly	-5
158797-101	Needle Clamp Assembly	-3
159404-001	Needle Plate Assembly	-3
149676-001	Feed Dog	-3
149673-001	Presser Foot Assembly	-3
149956-001	Needle Plate Assembly	-5
149949-001	Feed Dog	-5
149952-001	Presser Foot Assembly	-5
158795-101	Needle Clamp Assembly	-3
150526-001	Needle Plate Assembly	-5
149948-001	Feed Dog	-5
149950-001	Presser Foot Assembly	-5
158806-101	Needle Clamp Assembly	-5
150526-001	Needle Plate Assembly	-5
150523-001	Feed Dog	-5
150524-001	Presser Foot Assembly	-5
158807-101	Needle Clamp Assembly	-5
S14538-001	Needle Plate Assembly	-5
S14540-001	Feed Dog	-5
S14541-001	Presser Foot Assembly	-5
150534-001	Needle Plate Assembly	-5
150531-001	Feed Dog	-5
150532-001	Presser Foot Assembly	-5
158805-101	Needle Clamp Assembly	-3
S14543-001	Needle Plate Assembly	-3
S14545-001	Feed Dog	-3
S14546-001	Presser Foot Assembly	-3
150534-001	Needle Plate Assembly	-5
149966-001	Feed Dog	-5
149962-001	Presser Foot Assembly	-5
S16102-001	Needle Clamp Assembly	-3
S16104-001	Needle Plate Assembly	-3
S16106-001	Feed Dog	-3
S16107-001	Presser Foot Assembly	-3
158800-101	Needle Clamp Assembly	-5
S07391-001	Needle Plate Assembly	-5
S07390-001	Feed Dog	-5
S07388-001	Presser Foot Assembly	-5
S07553-001	Slide Plate (L) Assembly
S07318-201	Thread Wiper
S07554-001	Thread Wiper
S07323-201	Thread Wiper

Page 67 — B847 (前立て用ゲージ / Gauge Parts for Shirt Fronts)

Brother LT2-B842 / LT2-B847 parts on page 67
Ref	Part number	Part name
H-1	S14352-001	Needle Clamp Assembly
H-2	S14354-001	Needle Plate (Assembly)
H-7	S14357-001	Feed Dog
H-5	S14355-001	Presser Foot Assembly
A-13	S07318-201	Slide Plate (L) Assembly
	S00937-001	Needle Clamp Assembly
	158807-101	Needle Clamp Assembly
	S14370-001	Needle Clamp Assembly
	S14376-001	Needle Clamp Assembly
	S16651-001	Needle Clamp Assembly
	S13479-001	Needle Plate (Assembly)
	S07997-001	Needle Plate (Assembly)
	S14366-001	Needle Plate (Assembly)
	S14372-001	Needle Plate (Assembly)
	S14378-001	Needle Plate (Assembly)
	S16653-001	Needle Plate (Assembly)
	S14360-001	Feed Dog
	S14363-001	Feed Dog
	S14369-001	Feed Dog
	S14375-001	Feed Dog
	S14381-001	Feed Dog
	S14358-001	Presser Foot Assembly
	S14361-001	Presser Foot Assembly
	S14367-001	Presser Foot Assembly
	S14373-001	Presser Foot Assembly
	S14379-001	Presser Foot Assembly

Page 68

Brother LT2-B842 / LT2-B847 parts on page 68
Ref	Part number	Part name	Qty
	S01005000	Z2 - 17-2-3
	S01297001	Z1 - 15-10
	S01304001	B - 9
	S01327001	D - 12
	S01328001	S - 14
	S01928101	S - 10
	S02499009	S - 11
	S02580009	J1 - 41
	S02581009	Z1 - 11
	S02582001	A - 7
	S02584000	F2 - 11-1
	S02585000	X1 - 1-1-1
	S02586001	F2 - 11-2
	S02587001	X1 - 1-1-2
	S02588000	F2 - 11-4
	S02589000	X1 - 1-1-4
	S02590000	F2 - 11-4-1
	S02591000	X1 - 1-1-4-1
	S02592009	F2 - 11-4-2
	S02593001	X1 - 1-1-4-2
	S02664001	F2 - 11-7
	S02665000	X1 - 1-1-7
	S02693001	F2 - 12
	S02694010	X1 - 1-5
	S02696001	F2 - 11-8
	S02697001	X1 - 1-1-8
	S02699001	F2 - 11-10
	S02745001	F2 - 11-12
	S02747001	X1 - 1-1-12
	S02766009	F2 - 11-13
	S02775001	X1 - 1-1-13
	S02777001	F2 - 11-19
	S02779009	X1 - 1-1-19
	S02782001	F2 - 11-14
	S02784009	X1 - 1-1-14
	S02788009	R - 1-4
	S03289001	R - 1-5
	S03328000	T - 1-2
	S03681109	T - 1-3
	S03815001	T - 1-4
	S04109001	T - 1-6
	S04206109	T - 1-8-1
	S04207001	F2 - 11-15
	S04210009	N - 54
	S05247101	X1 - 1-1-15
	S05981000	Z2 - 17-2-12
	S05982000	Z2 - 17-1
	S06004001	Z2 - 17-1-2
	S06241000	Z2 - 17-2-2
	S06242001	Z2 - 17-1-6
	S06243101	Z2 - 17-2-5
	S06537000	Z2 - 17-2-6
	S06538109	Z2 - 17-1-11
	S07027001	Z2 - 17-2-10
	S07030009	Z2 - 17-1-12
	S07031009	Z2 - 17-2-11
	S07045009	K - 60
	S07182001	K - 66
	S07316009	K - 73
	S07317001	W - 12-2
	S07319101	N - 53-1-1
	S07320000	F2 - 11
	S07325201	X2 - 2-1
	S07326101	N - 52
	S07327001	Z2 - 17-2-15
	S07328000	X1 - 1-1
	S07329001	X2 - 2-1
	S07330101	X1 - 1-1-14
	S07334001	T - 1-8
	S07335001	U - 5
	S07336001	F2 - 11-24
	S07337001	U - 5-2
	S07338001	X1 - 1-1-24
	S07339009	F2 - 11-25
	S07340009	U - 5-3
	S07341009	X1 - 1-1-25
	S07342001	N - 53-2
	S07343001	Q - 4
	S07344101	Q - 5
	S07345001	Q - 6
	S07346101	X1 - 1-1-10
	S07347001	X2 - 2-1
	S07348001	V - 1-6
	S07349001	X2 - 2-5-6
	S07350001	V - 1-11
	S07351001	X2 - 2-5-11
	S07353001	V - 1-11-1
	S07355001	X2 - 2-5-11-1
	S07356001	V - 1
	S07357001	X2 - 2-5
	S07358001	F2 - 11-26
	S07359001	X1 - 1-1-26

Page 69

Brother LT2-B842 / LT2-B847 parts on page 69
Ref	Part number	Part name	Qty
	S07361001	D - 1
	S07363001	D - 1-1
	S07364001	D - 1-3
	S07366001	D - 1
	S07368101	D - 20
	S07369001	D - 22
	S07370101	D - 23
	S07371001	D - 24
	S07372001	D - 24
	S07373009	D - 29
	S07374009	D - 29
	S07375001	D - 31
	S07376001	D - 35
	S07377001	D - 36
	S07378001	D - 6
	S07379001	D - 2
	S07380001	D - 32
	S07381001	S - 12
	S07385009	S - 1
	S07386001	G - 2
	S07387001	G - 7
	S07413201	J2 - 2-2
	S07414201	J2 - 2-1
	S07415201	J2 - 1-2
	S07416201	J2 - 1-1
	S07417001	J1 - 9
	S07418001	J1 - 5
	S07419001	J1 - 8
	S07420000	J1 - 7
	S07421001	J1 - 6
	S07422101	J1 - 15
	S07423101	J1 - 19
	S07424001	J1 - 21
	S07425001	J2 - 23-1
	S07426001	J2 - 23-1
	S07427001	J2 - 23-3
	S07428001	J2 - 23-2
	S07429001	J2 - 23-4
	S07430001	J1 - 28
	S07431001	J1 - 30
	S07432001	J1 - 38
	S07433001	J1 - 39
	S07434001	J1 - 34
	S07435001	J1 - 36
	S07436001	J1 - 24
	S07437001	J1 - 25
	S07439001	L - 4
	S07440001	L - 4
	S07441001	L - 4
	S07442001	L - 11
	S07443001	L - 10
	S07444001	L - 10
	S07446001	L - 10-1
	S07447001	K - 1
	S07449000	K - 2
	S07450109	K - 24
	S07453000	K - 47
	S07454000	K - 48
	S07455100	K - 49
	S07456000	K - 50
	S07457100	K - 51
	S07458100	K - 53
	S07459100	K - 54
	S07460100	K - 46
	S07461000	K - 63
	S07462000	K - 69
	S07463000	K - 70
	S07464100	K - 74
	S07465000	K - 55
	S07466001	K - 76
	S07467001	K - 78
	S07468000	K - 80
	S07469001	K - 81
	S07470001	K - 82
	S07471001	K - 22
	S07472001	K - 84
	S07473000	K - 86
	S07474000	K - 34
	S07476000	K - 36
	S07477000	K - 4
	S07478000	K - 5
	S07479101	K - 90
	S07481009	K - 6
	S07482001	K - 87
	S07483109	K - 89
	S07487001	M2- 1-1
	S07488001	M2- 1-1-6
	S07489109	M2- 1-2-6
	S07490001	M2- 1-1-10
	S07491009	M2- 1-2-10
	S07492009	M2- 1-1
	S07493001	M2- 1-1-13
	S07494001	M2- 1-2-13
	S07495001	M2- 1-2
	S07496001	M2- 1-2
	S07497001	M1- 7
	S07498001	H - 8
	S07499001	N - 4
	S07500001	N - 4
	S07501001	N - 9
	S07502001	N - 10
	S07503000	N - 12
	S07504001	N - 13
	S07508001	N - 15
	S07509001	N - 16
	S07510001	N - 19
	S07511001	N - 21
	S07512001	N - 23
	S07514001	N - 24
	S07516001	N - 26
	S07517001	N - 26-1
	S07518001	N - 26-2
	S07519001	N - 26-3
	S07520001	N - 28
	S07521001	N - 29
	S07522001	N - 31
	S07523001	N - 32
	S07524001	N - 35
	S07525000	N - 36
	S07526001	N - 40
	S07527001	N - 43
	S07528000	Z1 - 23
	S07529001	P - 3
	S07531001	P - 1
	S07532001	P - 9
	S07533001	P - 11
	S07534001	P - 5
	S07536001	P - 13
	S07536001	P - 15

Page 70

Brother LT2-B842 / LT2-B847 parts on page 70
Ref	Part number	Part name	Qty
	S07537109	R - 1
	S07540009	R - 1
	S07542101	R - 11
	S07549101	R - 11-1
	S07550001	R - 11-2
	S07551001	R - 11-5
	S07552001	R - 11-8
	S07556009	T - 1
	S07557009	T - 1-1
	S07558009	T - 1
	S07559201	Z2 - 17-2
	S07560100	Z1 - 21-1
	S07561009	Z1 - 21-1-1
	S07571000	Z1 - 30
	S07589001	F1 - 39
	S07590001	F1 - 1
	S07591001	F1 - 3
	S07658001	J1 - 27
	S07660000	Z1 - 35-1-1
	S07674009	D - 13-3
	S07726301	Z1 - 21-2
	S07729001	X2 - 2-4
	S07731001	Z1 - 21-2-5
	S07732001	J2 - 23-1-1
	S07733001	J2 - 23-1-1
	S07734001	J2 - 23-2-1
	S07735001	J2 - 23-4-1
	S07736001	J2 - 23-1-2
	S07737001	J2 - 23-1-2
	S07738001	J2 - 23-3-2
	S07739001	J2 - 23-2-2
	S07740001	J2 - 23-4-2
	S07810000	J2 - 23-2-3
	S07876001	J2 - 23-4-3
	S08188001	K - 52
	S08468009	K - 91
	S08469009	K - 98
	S09132001	K - 99
	S09364000	Z1 - 40
	S09369000	Z1 - 35-1
	S09670001	R - 6
	S10550001	B - 13
	S11210000	K - 94
	S11243001	K - 93
	S11683000	E - 20
	S11684000	X2 - 2-2
	S12445001	Z1 - 21-2-3
	S12698001	N - 56
	S13021001	H - 3
	S13103009	N - 57
	S13155001	N - 56-1
	S13156001	L - 5
	S13157001	D - 38
	S13160001	J1 - 16
	S13162009	C - 10
	S14189000	W - 12
	S14506001	W - 12
	S15889001	W - 12
	S16114001	W - 13
	S17774001	W - 11
	S18634009	K - 100
	S18884009	W - 14
	S18885009	Z1 - 21-1-7
	S18887009	K - 7
	S18889001	Z1 - 4
	S20007001	Z1 - 15-5
	002501003	N - 1
	013710512	X1 - 1-1
	013711012	S - 3
	013780710	T - 1-8
	013781012	N - 53-1
	014060632	Z1 - 49
	014680422	U - 1-14
	014680622	J1 - 10
	014710522	J1 - 17
	014771022	B - 14
	016771032	E - 4
	017762013	C - 2
	018063022	E - 2
	021400164	E - 23
	021500106	G - 3
	021660102	L - 3
	021670102	N - 22
	025040232	Z2 - 17-2-17
	025040233	C - 20
	025050332	R - 11-4
	025060132	G - 10
	025060232	J1 - 33
	025100132	J1 - 37
	025680132	N - 8
	025680232	C - 10-1
	025710132	D - 39
	025710232	D - 5-1
	025710232	E - 15
	025710232	L - 10-4
	025710232	L - 12-1
	025710232	N - 25-2
	025710232	N - 25-3
	025710232	E - 16
	025710232	Z1 - 39-3
	025710232	B - 13-1
	025710232	V - 1-10
	025710232	X2 - 2-5-10
	025710232	Z2 - 17-1-11-3
	025710232	Z2 - 17-1-4-2
	025710232	Z2 - 17-1-7-3
	025710232	Z2 - 17-2-10-3
	025710232	Z2 - 17-2-13-3
	025710232	Z2 - 17-2-3-2
	025710232	Z2 - 17-2-6-3
	025710232	G - 15
	025710232	P - 17
	025710232	C - 23
	025710232	M2 - 1-2-21
	025710232	N - 34
	025710232	R - 3
	025710232	V - 1-8
	025710232	X2 - 2-5-8
	025710232	Z1 - 35-2-2
	025710232	G - 13
	025710232	F2 - 11-21
	025710232	X1 - 1-1-21
	025710232	D - 26
	025710232	J1 - 35
	025710232	Z1 - 35-2-4
	025710232	F1 - 5
	025710232	D - 34
	025710232	J1 - 14

Page 71

Brother LT2-B842 / LT2-B847 parts on page 71
Ref	Part number	Part name	Qty
	025710232	K - 26
	025710232	N - 39
	025750132	R - 11-7
	028040243	Z1 - 35-2-6
	028040243	V - 1-9
	028040243	X2 - 2-5-9
	028050243	U - 1-15
	028050246	Z2 - 17-1-7-2
	028050246	Z2 - 17-2-6-2
	028680242	B - 17
	031452206	Z2 - 17-1-11-4
	031452206	Z2 - 17-2-10-4
	031553202	F2 - 16
	031553202	X1 - 1-4
	034422503	V - 2
	034422503	X2 - 2-6
	048030342	P - 2
	048030342	T - 1-5
	048040342	F1 - 7
	048040342	J1 - 31
	048040342	S - 6
	048060342	D - 10
	048060342	F2 - 13
	048060342	X1 - 1-6
	048080342	D - 25
	048090342	R - 1-2
	050501406	Z2 - 17-1-7-5
	050501406	Z2 - 17-2-6-5
	050503006	Z2 - 17-1-7-4
	050503006	Z2 - 17-2-13-2
	050503006	Z2 - 17-2-6-4
	062300612	R - 4
	062401006	V - 1-7
	062401006	X2 - 2-5-7
	062401012	R - 2
	062500812	S - 4
	062500812	S - 9
	062501006	Z2 - 17-1-11-2
	062501006	Z2 - 17-2-10-2
	062501406	Z2 - 17-1-4-1
	062501406	Z2 - 17-2-3-1
	062630812	T - 1-9
	062660412	K - 19
	062661212	G - 14
	062661212	P - 16
	062661212	R - 11-9
	062670512	E - 27
	062670512	K - 13
	062670512	K - 17
	062670512	K - 21
	062670512	K - 23
	062670512	K - 77
	062670512	K - 83
	062670512	K - 85
	062670512	M1- 6
	062670512	N - 3
	062670512	P - 8
	062670512	R - 17
	062670512	R - 9
	062670512	T - 4
	062670512	F2 - 11-11
	062670512	F2 - 11-18
	062670512	F2 - 11-20
	062670512	K - 101
	062670512	K - 103
	062670512	X1 - 1-11
	062670512	X1 - 1-20
	062670616	X1 - 1-1-18
	062670712	D - 28
	062670812	B - 7
	062670812	D - 7
	062670812	K - 3
	062670812	N - 44
	062670812	P - 6
	062671012	F2 - 11-9
	062671012	X1 - 1-1-9
	062671412	C - 22
	062671412	N - 33
	062680663	F2 - 11-16
	062680663	N - 55
	062680663	X1 - 1-11-16
	062680812	A - 79
	062680812	K - 79
	062680812	M1- 8
	062680812	P - 10
	062680812	Q - 12
	062680812	R - 7
	062680812	Z1 - 35-2-3
	062681012	D - 1-2
	062681012	N - 44
	062681212	Z1 - 44
	062681612	Q - 7
	062710612	D - 3
	062710612	D - 37
	062710612	P - 12
	062710612	T - 2
	062711012	D - 33
	062711012	J1 - 29
	062711012	K - 25
	062711212	N - 11
	062711212	Q - 2
	062711412	R - 11-6
	062711412	R - 12
	062712012	K - 11
	062761212	Q - 10
	062761412	Z1 - 35-2-1
	062781412	F2 - 11-3
	062781412	X1 - 1-1-3
	062782512	G - 12
	072600480	S - 2
	081030070	J1 - 3
	100022004	L - 10-2
	100032005	K - 27
	100064002	Z1 - 21-1-6
	100197002	N - 26-5
	100220001	H - 4
	100251001	M1- 4
	100251001	J1 - 4
	100257010	E - 7
	100328001	E - 12
	100366002	L - 5-2
	100401001	N - 42
	100463001	K - 44
	100477009	D - 19
	100511003	Z1 - 15-6
	100645003	Z1 - 15-2
	100657001	V - 1-3
	100659001	X2 - 2-5-3
	100659001	Z1 - 39-2
	100659001	Z1 - 13
	100659001	S - 17
	100659001	Q - 8
	100659001	Z1 - 15-7
	100659001	Z1 - 15-8

Page 72

Brother LT2-B842 / LT2-B847 parts on page 72
Ref	Part number	Part name	Qty
	100662001	Z1 - 15-9
	100666002	Z1 - 16
	100887001	Z1 - 22
	101118001	Z1 - 35-2-5
	101268002	Z1 - 6
	101706001	U - 3
	102731004	B - 7
	104619002	E - 11
	104821009	G - 6
	104885101	B - 1-4
	105173004	B - 1-4
	105351002	Z1 - 31
	107030001	F1 - 1-1-5
	107321003	F1 - 4
	107415011	B - 4
	107415014	B - 1-2
	107415022	A - 18
	107779001	Z1 - 10
	107780001	A - 9
	108254001	Z1 - 10
	108265009	A - 9
	108549001	Z1 - 10
	108802001	Z1 - 5
	108960002	Z1 - 7
	109714000	M2- 1-1-3
	110087001	M2- 1-2-3
	110161004	M2- 1-1-5
	110161006	M2- 1-2-5
	110201001	M1- 9
	110215002	D - 13-6
	111191001	K - 64
	112573101	K - 65
	112574000	J1 - 26
	112576001	M1- 12
	112577101	Z1 - 29
	112586001	Z1 - 31
	112588101	V - 1-5
	112590001	X2- 2-5-5
	112591001	Z1 - 39-7
	112592001	P - 4
	112593001	J1 - 13
	112594001	N - 5
	112595000	T - 1-7
	112596001	K - 67
	112597001	K - 96
	112598001	E - 1
	112610101	E - 6
	112656001	E - 13
	112658001	E - 9
	112684001	E - 17
	112692101	B - 1-1
	112700001	B - 1-3
	112709001	B - 1-6
	112712001	B - 1-8
	112715001	B - 2
	112717001	B - 3
	112719001	B - 5
	112720101	B - 6
	112721001	B - 8
	112728001	A - 15
	112734001	G - 11
	112735000	M1- 10
	112736000	M1- 11-2
	112739001	L - 5-1
	112743001	L - 9-1
	112750000	J1 - 11
	112753001	J1 - 27-1
	112758009	M1 - 5
	112759001	M2- 1-1-8
	112764001	M2- 1-2-8
	112781101	M1- 11-1
	113014000	K - 10
	113024000	K - 14
	113050001	K - 15
	113074001	B - 1-9
	113362001	K - 56
	113386000	K - 38
	113431002	K - 97
	113653000	K - 61
	113760001	K - 16
	114483002	K - 12
	114486002	K - 68
	114693001	K - 40
	114941001	K - 95
	114966001	K - 43
	114967001	B - 10
	116010001	J1 - 41
	116323001	Z1 - 11
	116662003	E - 10
	117160001	E - 10
	117850001	W - 13-3
	117963109	H - 6
	117969001	G - 5
	117970001	K - 41
	118320001	A - 2
	118713001	Q - 3
	118837001	K - 59
	118853001	W - 14-2
	118954000	A - 24
	120752001	Z1 - 34
	122991001	Z1 - 33
	126863001	K - 57
	129458002	W - 13-2
	129500010	M1- 13
	129984002	Z1 - 12
	131007001	Z1 - 39-5

Page 73

Brother LT2-B842 / LT2-B847 parts on page 73
Ref	Part number	Part name
J1 - 40	131226001
	138843001	Z2 - 17-2-16
	139096001	C - 19
	140503001	Z1 - 39-8
	140527001	M1 - 2
	140540000	U - 1-9
	140543000	U - 1-7
	140620001	F1 - 8
	140647001	N - 2
	140682001	U - 1-3
	140890009	K - 30
	141207001	C - 3
	141208001	C - 5
	141494001	N - 27
	141528001	F1 - 10
	141544001	N - 46
	141583001	F2 - 15
	142002001	Z1 - 8
	142026003	V - 1-1
	142027001	V - 1-2
	142037000	U - 1-5
	142038001	U - 1-6
	142268001	F2 - 11-17
	142274009	W - 12-3
	142403001	C - 8-2
	142443001	Z1 - 2
	142721001	Z1 - 9
	142746002	D - 13-4
	142997001	Z2 - 17-2-14
	143488001	U - 1-10
	143489001	U - 1-11
	143499000	F2 - 11-22
	143522000	U - 5-4
	143548000	F2 - 11-25-2
	143549000	F2 - 11-14-2
	143591001	G - 9
	143611101	D - 4
	143612000	D - 4-1
	143613001	D - 8
	143616001	D - 9
	143673001	K - 18
	143882001	Z1 - 26
	143910009	Z1 - 27
	144105000	M2- 1-1-15
	144222001	Z1 - 18
	144504001	M2- 1-2-18
	144526001	N - 37
	144614109	E - 19
	144680001	M2- 1-1-1
	145472001	Z1 - 15-1
	145478001	C - 1
	145480001	D - 18
	145573000	Z1 - 20
	145619001	K - 88
	146036101	Z1 - 21-1-2
	146037001	F2 - 11-24-2
	146039001	U - 5-2-2
	146080009	R - 5
	146105009	S - 8
	146141001	E - 8
	146153001	F1 - 6
	146194000	F2 - 11-25-3
	146253000	K - 92
	146293001	Z1 - 21-1-8
	146354001	B - 16
	146360002	N - 38
	146367001	X2 - 2-3
	146536001	K - 102
	146598001	A - 5
	147504001	D - 27
	147513001	C - 8-1
	147846002	C - 4
	148005001	J1 - 12
	148394000	K - 29

Page 74

Brother LT2-B842 / LT2-B847 parts on page 74
Ref	Part number	Part name	Qty
	148490001	G - 7
	148491001	G - 8
	148492101	G - 4
	148494001	G - 1
	148495001	D - 11
	148502000	L - 2
	148503000	L - 1
	148511001	R - 1-1
	148512000	R - 1-3
	148514009	R - 8
	148527101	R - 13
	148536001	N - 50
	148539101	N - 50
	148546001	N - 10
	148559100	N - 14
	148574001	N - 25-1
	148592001	N - 26-4
	148599101	A - 15
	148602001	J2 - 42
	148743001	K - 45
	148762001	K - 37
	148802201	D - 5
	148804101	L - 9
	148821001	L - 10-3
	148825001	Q - 9
	148851001	M2- 1-1-13
	148890109	Z1 - 28
	149095001	S - 15
	149127001	P - 14
	149566009	M2- 1-1-14
	149776000	F2 - 11-4-3
	149799000	V - 1-12
	150106003	Z2 - 17-1-4
	150145009	Z2 - 17-2-13
	150172003	Z2 - 17-1-3
	150174000	Z2 - 17-1-5
	150179002	Z2 - 17-1-7-1
	150180001	Z2 - 17-1-8
	150182000	Z2 - 17-1-9
	150185009	Z2 - 17-2-13-1
	150188009	Z2 - 17-1-11
	150191002	Z2 - 17-1-2-2
	150206002	Z2 - 17-1-2-1
	150553003	M1- 3
	150556001	C - 15
	150756009	Z1 - 36
	150988001	K - 9
	151027001	J2 - 23-1-1-1
	151027001	J2 - 23-2-1-1
	151029001	J2 - 23-3-1-1
	151030001	J2 - 23-4-1-1
	151126101	J2 - 23-1-2-2
	151127100	J2 - 23-3-2-2
	151145001	J2 - 23-1-2-3
	151146001	J2 - 23-2-3-4
	151147001	U - 1-4
	151153101	U - 1-1
	151154000	F1 - 18
	151507109	D - 13-3
	151602002	K - 35
	151927001	K - 72
	152808101	F2 - 14
	152974001	X1 - 1-2
	153012101	K - 62
	153122000	K - 71
	153132000	B - 11
	153138001	F2 - 11-5
	153243001	X1 - 1-1-5
	153244001	S - 16
	153920001	S - 7
	153969000	J2 - 22
	15417001	S - 5
	154214001	J2 - 22
	154215001	K - 71
	154332001	N - 51
	154333001	U - 5-1
	154518001	U - 1-8
	154519001	U - 1-12
	154560001	F2 - 14-1
	15467001	X1 - 1-2-1
	154702001	F2 - 14-2
	154730001	X1 - 1-2-2
	154731000	J2 - 23-2-3-1
	154734009	J2 - 23-4-3-1
	155491001	J2 - 23-2-3-2
	155510001	J2 - 23-4-3-2
	156070002	M2- 1-2-19
	156112003	P - 7
	158115001	Z1 - 14
	158677001	S - 3-1
	158769001	S - 3-2
	158770001	S - 3
	158771001	M2- 1-1-2
	158775001	M2- 1-2-9
	158776001	M2- 1-2-17

Page 75

Brother LT2-B842 / LT2-B847 parts on page 75
Ref	Part number	Part name	Qty
	159359201	B - 1
	159360101	B - 1-5
	159361001	D - 13-1
	159436001	J1 - 32
	159805001	M2- 1-1-12
	159805001	M2- 1-2-12
	180157001	E - 14
	181427001	Z1 - 39
	181486001	L - 9
	181919101	C - 8
	183100009	Z1 - 35
	183486009	X1 - 1
	183487009	X1 - 1
	183503009	X2 - 2
	183517009	X2 - 2
	183518009	X2 - 2
	183519009	X2 - 2
	183609009	D - 13
	183610009	D - 13
	200190001	U - 4
	204569001	F2 - 11-14-1
	204569001	N - 53-1-2
	204569001	N - 53-2-1
	204569001	X1 - 1-1-14-1
	220077001	F2 - 11-23
	220077001	U - 5-5
	220077001	X1 - 1-1-23
	228475000	Q - 1-1
	233090002	Z1 - 42
	237950001	Q - 1
	340400001	N - 58

Page 2

Page 9 — A. 主体関係 /Machine body/Machingehäuse/Corps de la machine/Cuerpo de la máquina

Page 11 — B. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mácanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Page 13 — C. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mecanisme du pied presseur/Mecanismo del prensatelas

Page 15 — D. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación

Page 17 — E. 上軸関係/Upper shaft mechanism/Obere Welle/M F1. 押土上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/

Page 18 — F2. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/ Mécanisme de leveur du pinceur/Mecanismo del levantador de ménsula de trabajo

Page 19 — F2. 押工上ゲ関係/Work clamp lifter mechanism/Stoffhalterhebevorrichtung/M ecanisme de leveur du pinceur/Mecanismo del levantador de m

Page 21 — G. 送り軸関係/Feed shaft mechanism/Transport welle/ Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación H. ゲージ部品/Gauge parts/Lehren/Pièces du jauge/Piezas calibradoras

Page 23 — J1. カマ関係/Rotary hook mechanism/Greifer vorrichtung/M ecanismo de crochet rotatif/Mecanismo del cangrejo

Page 25 — J2. カマ関係/Rotary hook mechanism/Greifervorrichtung/M ecanisme de crochet rotatif/Mecanismo del cangrejo

Page 27 — K. 給油潤滑関係/Lubrication/Schmierung/Lubricación

Page 29 — K. 給油潤滑関係/Lubrication/Schmierung/Lubricación

Page 31 — L. Lower shaft mechanism/Untere welle/Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior M1. Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

Page 33 — M2. 糸通シ関係 /Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo del enhebrado

Page 35 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/ Fadenabschneidevorrichtung (Fadenabschneider)/ Mécanisme de coupe-fill (Coupe-fil)/

Page 37 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneidevorrichtung)/Mécanisme de coupe-fill (Coupe-fil)/Mecanismo de la cortadura de hilos (Cortahilos)

Page 39 — P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/ Spannungsverminderungsvorrichtung (Fadenabschneider)/ Mécanisme de la lâche de te

Page 41 — R. 糸払関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos)

Page 43 — S. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr(Fadenabschneider)/ Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de la inversión rápida (Cortahilos)

Page 45 — U. 空圧関係/Air pressure mechanism/Luftdruck/Mécanisme de la pression d'air/Mecanismo de la presión de aire

Page 47 — V. ヒザスイッチ関係/Knee switch mechanism/Kneeschalter/ Mécanisme de interrupteur de genou/Mecanismo de conmutador de rodilla W. 特別注文部品/Option parts/Sonderzubehör/Pièces en option/Piezas opciona

Page 49 — X1. 電磁押エ上ゲ関係/Presser foot lifting solenoid set/Solenoidsatz für die Anhebung des Stoffdrückerfußes/Jeu de solénoïde du releveur du pied presseur/Conjunto solenoide del levantador

Page 51 — X2. 電磁押上関係(オプション)/Presser foot lifting solenoid set (Option Parts)/Solenoidsatz für die Anhebung des Stoffdrückerfußes/Jeu de solénoïde du releveur du pied presseur (Pièces en option)/Conjunto solenoide del levantador (Piezas opciona)

Page 53 — Z1. 付属部品関係 / Accessories/Zubehör/Accessoires/Accesorios

Page 55 — Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 57 — Z2. 付属部品関係 /Accessories/Zubehör/Accesorios

Page 59 — Z2. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 60 — 仕様別部品一覧表 / DIFFERENT PARTS LIST / ZUBEHÖRLISTE / LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 61

Page 62

Page 63 — B847

Page 64 — B842 (スタンダード /Standard)

Page 65

Page 66 — Thread Trimmer

Page 67 — B847 (前立て用ゲージ / Gauge Parts for Shirt Fronts)

Page 68

Page 69

Page 70

Page 71

Page 72

Page 73

Page 74

Page 75

Brother LT2-B842 / LT2-B847 — parts catalog
