Brother LT2-B845 (88 pages) Parts Book PDF — View & Download

Parts index — Brother LT2-B845 (88 pages)tap a row to open its page

Page 2

Brother LT2-B845 (88 pages) parts on page 2
Ref	Part number	Part name	Qty
	LT2-B845-	BROTHER INDUSTRIES, LTD.
	LT2-B845-0S	BROTHER INDUSTRIES, LTD.
	LT2-B8450-0	BROTHER INDUSTRIES, LTD.
	LT2-B848-1	BROTHER INDUSTRIES, LTD.
	LT2-B848-01S	BROTHER INDUSTRIES, LTD.
	LT2-B8480-01	BROTHER INDUSTRIES, LTD.
	4	糸切り+糸払イ+逆転 Thread Trimmer + Thread Wiper + Quick Back Switch
	7	糸切り+糸払イ+逆転+エアー押工上げ (輸出仕様) Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Air Type] (for Export Spec.)
	9	糸切り+糸払イ+逆転+電磁押工上げ Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type]
	7	糸切り+糸払イ+逆転+エアー押工上げ (輸出仕様) Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Air Type] (for Export Spec.)
	9	糸切り+糸払イ+逆転+電磁押工上げ Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type]
	3	薄・中厚物用 Thin and medium-thick materials
	5	厚物用 Thick materials
	7	極厚物用 Heavy materials

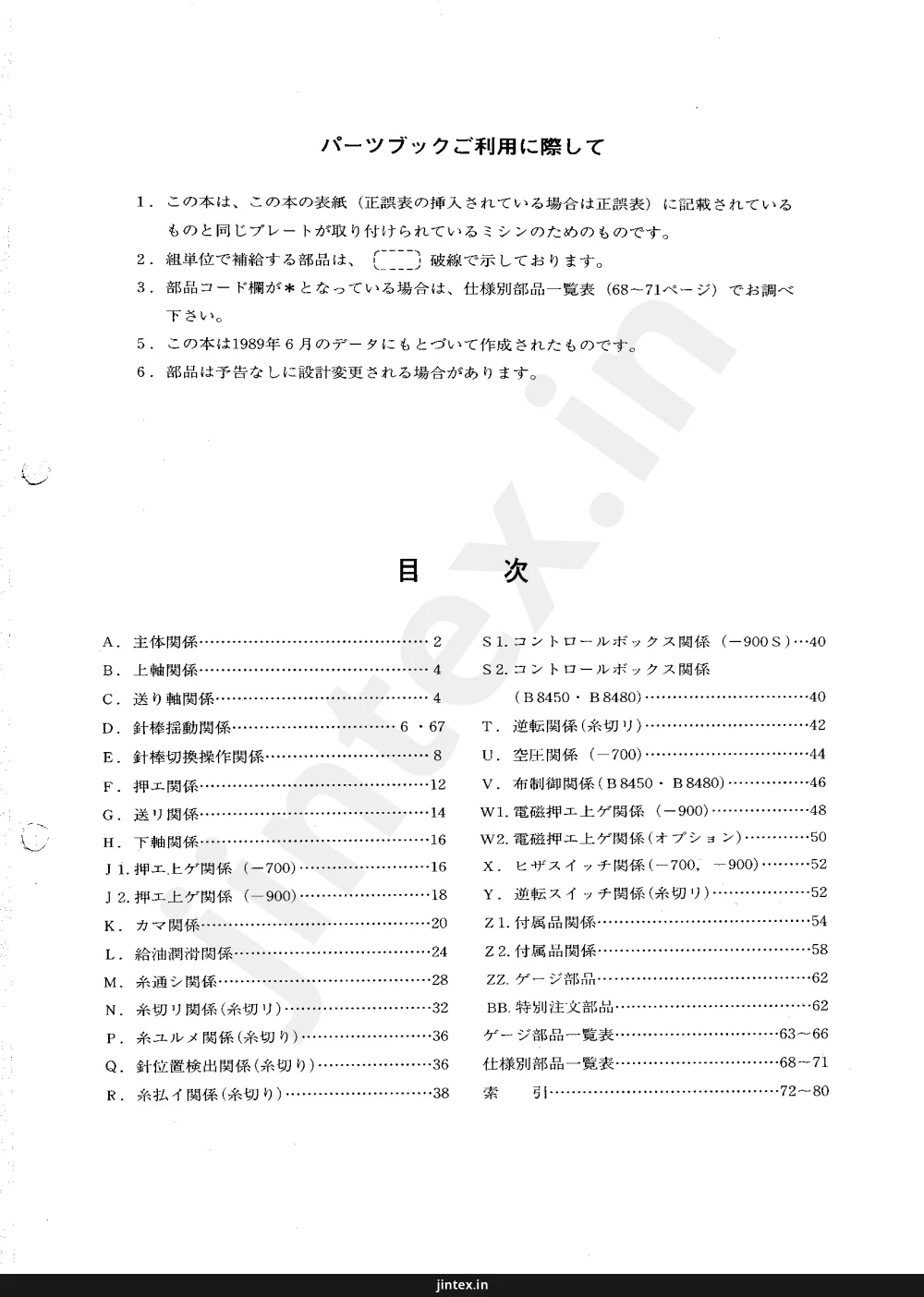

Page 3 — パーツブックご利用に際して

Brother LT2-B845 (88 pages) parts on page 3
Ref	Part number	Part name	Qty
	S1	コントロールボックス関係（-900 S）
	S2	コントロールボックス関係
	B 8450・B 8480	コントロールボックス関係
	T	逆転関係（糸切り）
	U	空気関係（-700）
	V	布制御関係（B 8450・B 8480）
	W1	電磁押工上ゲ関係（-900）
	W2	電磁押工上ゲ関係（オプション）
	X	ヒザスィッチ関係（-700, -900）
	Y	逆転スィッチ関係（糸切り）
	Z1	付属品関係
	Z2	付属品関係
	ZZ	ゲージ部品
	BB	特別注文部品
	ゲージ部品一覧表	ゲージ部品一覧表
	仕様別部品一覧表	仕様別部品一覧表
	索引	索引
	A	主体関係
	B	上軸関係
	C	送り軸関係
	D	針棒揺動関係
	E	針棒切換操作関係
	F	押工関係
	G	送り関係
	H	下軸関係
	J1	押工上ゲ関係（-700）
	J2	押工上ゲ関係（-900）
	K	カマ関係
	L	給油潤滑関係
	M	糸通シ関係
	N	糸切り関係（糸切り）
	P	糸ユルメ関係（糸切り）
	Q	針位置検出関係（糸切り）
	R	糸払イ関係（糸切り）

Page 4 — CONTENTS

Brother LT2-B845 (88 pages) parts on page 4
Ref	Part number	Part name	Qty
	A	Machine body
	B	Upper shaft mechanism
	C	Feed shaft mechanism
	D	Needle bar rocking mechanism
	E	Needle bar flip-up mechanism
	F	Presser foot mechanism
	G	Feed mechanism
	H	Lower shaft mechanism
	J1	Presser foot lifter mechanism (-700)
	J2	Presser foot lifter mechanism (-900)
	K	Rotary hook mechanism
	L	Lubrication
	M	Threading mechanism
	N	Thread trimmer mechanism
	P	Tension release mechanism
	Q	Synchronizer (Thread Trimmer)
	R	Thread wiper mechanism
	S1	Control box mechanism (-900S)
	S2	Control box mechanism (B8450 B8480)
	T	Quick reverse mechanism
	U	Air pressure mechanism (-700)
	V	Cloth control system mechanism
	W1	Presser foot lifting solenoid set
	W2	Presser foot lifting solenoid set
	X	Knee switch mechanism (-700, -900)
	Y	Quick reverse switch mechanism
	Z1	Accessories
	Z2	Accessories
	ZZ	Gauge parts
	BB	Option parts

Page 5 — Anmerkungen zum Gebrauch dieses Stückliste buches

Brother LT2-B845 (88 pages) parts on page 5
Ref	Part number	Part name	Qty
	A	Maschinengehäuse
	B	Obere Welle
	C	Transport welle
	D	Nadelstangenbetätigung
	E	Nadelstangenhochstellung
	F	Stoffdrückerfuß
	G	Transportvorrichtung
	H	Untere welle
	J1	Stoffhalterhebevorrichtung (-700)
	J2	Stoffhalterhebevorrichtung (-900)
	K	Greifervorrichtung
	L	Schmierung
	M	Fadenführungsvorrichtung
	N	Fadenabschneidevorrichtung (Fadenabschneider)
	P	Spannung sverminderung svorrichtung (Fadenabschneider)
	Q	Synchronisator (Fadenabschneider)
	R	Fadenwischvorrichtung (Fadenabschneider)
	S1	Schaltkasten (-900S)
	S2	Schaltkasten (B8450-B8480)
	T	Umkehr (Fadenabschneider)
	U	Luftdruck (-700)
	V	Stoffführungsvorrichtung (B8450)
	W1	Stoffdrückerfuß für die Anhebung des Stoffdrückerfußes (-900)
	W2	Solonoidsatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)
	X	Knieschalter (-700, -900)
	Y	Umkehrschalter (Fadenabschneider)
	Z1	Zubehör
	Z2	Zubehör
	ZZ	Lehren
	BB	Sonderzubehör
	LEHRENLISTE	LEHRENLISTE
	ZUBEHÖRLISTE	ZUBEHÖRLISTE
	VERZEICHNIS	VERZEICHNIS

Page 6 — Notes sur l'utilisation de ce manuel de pièces détachées

Brother LT2-B845 (88 pages) parts on page 6
Ref	Part number	Part name	Qty
	B8450	Mécanisme de boîtier de contrôle
	B8480	Mécanisme de boîtier de contrôle

Page 8 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Denominación del mecanismo

Brother LT2-B845 (88 pages) parts on page 8
Ref	Part number	Part name
4	4	Screw
6	6	Knob
9	9	Needle
29	29	Screw
28	28	Washer
30	30	Screw
31	31	Screw
25	25	Clip
26	26	Clip
27	27	Clip
24	24	Option Parts
3	3	Machine Body
8	8	Screw
21	21	Clip
7	7	Cover
17	17	Cover
2	2	Cover
13-1	13-1	Base Plate
32	32	Pin
16	16	Screw
15	15	Base Plate
14-1	14-1	Cover
14-2	14-2	Cover
13-2	13-2	Cover
13-3	13-3	Cover
14-3	14-3	Cover
13-4	13-4	Screw
14-4	14-4	Screw
15-1	15-1	Screw

Page 9

Brother LT2-B845 (88 pages) parts on page 9
Ref	Part number	Part name
2	113386000	PIN
3	S07566101	FACE PLATE
4	062670812	SCREW 357X8
6	150815001	FACE PLATE CAP
7	S02499001	REAR COVER
8	*	SCREW 437X8
9	*	NEEDLE DP
13	S07318101	SLIDE PLATE (L) ASSEMBLY
13-1	S07319001	SLIDE PLATE (L)
13-2	S07320000	BOBBIN WINDOW
13-3	S07321001	BOBBIN WINDOW HOLDER
13-4	S07322101	SCREW 2.38
14	S07325101	SLIDE PLATE (R) ASSEMBLY
14-1	S07326001	SLIDE PLATE (R)
14-2	S07320000	BOBBIN WINDOW
14-3	S07321001	BOBBIN WINDOW HOLDER
14-4	S07322101	SCREW 2.38
16	116010001	SET SCREW 5.16
17	151602002	SET SCREW 4.37
15	112610101	SLIDE PLATE (F) ASSEMBLY
15-1	S07328000	OIL CAP
15	148599101	SLIDE PLATE (F) ASSEMBLY
15-1	S07328000	OIL CAP
21	S07327001	CORD HOLDER (L)
21	S07327001	CORD HOLDER (L)
25	525567000	CORD HOLDER (#8)
26	552907000	CORD HOLDER (#10)
28	100645003	WASHER
29	062681212	SCREW 437X12
27	554482000	CORD HOLDER (#12)
28	100645003	WASHER
29	062681212	SCREW 437X12
30	062681412	SCREW 437X14
31	154574001	BOLT 4.37
32	047301442	SPRING PIN AW3
24	113760001	SCREW 5.16

Page 10

Brother LT2-B845 (88 pages) parts on page 10
Ref	Part number	Part name
1	1	shaft
2	2	collar
3	3	pin
4	4	screw
5	5	shaft
6	6	screw
7	7	lever
8	8	screw
9	9	pin
10	10	shaft
11	11	lever
12	12	screw
13	13	washer
14	14	shaft
15	15	screw
16	16	pin
17	17	gear
18	18	pulley
19	19	pulley
20	20	spring
21	21	bracket
22	22	screw
23	23	screw
24	24	screw
25	25	screw
26	26	handle
27	27	screw

Page 11 — B. 上軸関係/Upper shaft mechanism/Obere Welle/Mécanisme de l'arbre supérieur/Mecanismo de la eje superior C. 送り軸関係/Feed shaft mechanism/Transport welle/Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación

Brother LT2-B845 (88 pages) parts on page 11
Ref	Part number	Part name	Qty
1	112573101	ウワジクメタルL	1
2	013781012	トメネジ"6.35クボミ	1
3	S07330101	ウワジクメタルMクミ	1
4	013780710	トメネジ"6.35クボミ	1
5	S07329001	ウワジク	1
6	149820000	デンビツクランク	1
7	100250001	シメネジ"7.14	1
8	146141001	アタマツキメネジ"7.14	1
9	149821101	ハリホウクランク	1
11	101706001	トメネジ"6.35	1
12	100251001	トメネジ"6.35	1
13	112576001	デンビツクランクリング	1
14	180157001	タイミングプーリプーリ	1
15	014771022	アナトメネジ"6.35クボミ	1
16	016771032	アナトガリ"635X10	1
17	112586001	タイミングベルト	1
18	158115001	タマツクウ6204ZZNR	1
20	S096700001	トメネジ"595-28X14	2
21	*	デンビツ	1
22	S07334001	デンビツシジク	1
23	013781012	トメネジ"6.35クボミ	3
24	S07567001	テンビンスペーサリコ	1
25	113024000	クミモフタ	1
26	S07339001	デンビツカバー	1
27	062670512	ナベコ"357-40X5	2
19	144614101	プーリー	1
19	*	プーリー	1
1	148494001	オクリジクメタルL	1
2	S07386001	オクリジクメタルR	1
3	013781012	トメネジ"6.35クボミ	2
4	148492101	スイヘイオクリジク	1
5	113074001	セットトカラー	2
6	101706001	トメネジ"6.35	4
8	148491001	オクリジクイトリツケジク	1
9	143591001	スラストリング	2
10	014680622	アナトメネジ"4.37クボミ	1
11	112656001	オクリジクイトフタク	1
12	062761412	ナベコ"595-28X14	1
13	025060132	ヒラザガネヨウ6	1
14	062661212	ナベコ"318-40X12	1
15	021660102	ナット1シュ3.18	1
7	S07387001	オクリジク	1
7	148490001	オクリジク	1

Page 12 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Brother LT2-B845 (88 pages) parts on page 12
Ref	Part number	Part name	Qty
	1-1	Needle bar rocking mechanism
	1-2	Needle bar rocking mechanism
	1-5	Needle bar rocking mechanism
	1-6	Needle bar rocking mechanism
	1-7	Needle bar rocking mechanism
	1-7-2	Needle bar rocking mechanism
	1-7-3	Needle bar rocking mechanism
	1-7-4	Needle bar rocking mechanism
	1-7-5	Needle bar rocking mechanism
	1-7-6	Needle bar rocking mechanism
	1-7-7	Needle bar rocking mechanism
	1-7-8	Needle bar rocking mechanism
	1-7-9	Needle bar rocking mechanism
	1-7-11	Needle bar rocking mechanism
	1-7-12	Needle bar rocking mechanism
	1-7-13	Needle bar rocking mechanism
	1-9	Needle bar rocking mechanism
	1-10	Needle bar rocking mechanism
	1-11	Needle bar rocking mechanism
	1-12	Needle bar rocking mechanism
	1-13	Needle bar rocking mechanism
	1-14	Needle bar rocking mechanism
	1-15	Needle bar rocking mechanism
	1-16	Needle bar rocking mechanism
	1-17	Needle bar rocking mechanism
	1-18	Needle bar rocking mechanism
	2	Needle bar rocking mechanism
	3	Needle bar rocking mechanism
	4	Needle bar rocking mechanism
	5	Needle bar rocking mechanism
	6	Needle bar rocking mechanism
	7	Needle bar rocking mechanism
	8	Needle bar rocking mechanism
	9	Needle bar rocking mechanism
	10	Needle bar rocking mechanism
	11	Needle bar rocking mechanism
	12	Needle bar rocking mechanism
	13	Needle bar rocking mechanism
	14	Needle bar rocking mechanism
	14-1	Needle bar rocking mechanism
	16	Needle bar rocking mechanism
	17	Needle bar rocking mechanism
	18	Needle bar rocking mechanism
	19	Needle bar rocking mechanism
	B845	Needle bar rocking mechanism
	B8450	Needle bar rocking mechanism
	B848	Needle bar rocking mechanism
	B8480	Needle bar rocking mechanism

Page 13 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Brother LT2-B845 (88 pages) parts on page 13
Part number	Part name	Qty
*	NEEDLE BAR ROCK SHAFT ASSEMBLY	1
112588101	NEEDLE BAR ROCK SHAFT	1
107030001	TAPER PIN	1
112590001	GUIDE PLATE	2
102731004	SCREW 2.38	4
*	NEEDLE BAR (L) ASSEMBLY	1
*	NEEDLE BAR (R) ASSEMBLY	1
*	NEEDLE BAR CLAMP ASSEMBLY	1
149604001	PIN 1.5X5.8	2
149605001	CLUTCH LEVER SPRING	2
149827001	PIN 2X15.8	1
149606001	CLUTCH STOPPER (LEFT)	1
149607001	CLUTCH STOPPER (RIGHT)	1
149608001	PIN 2X17.8	1
112609001	BED SLIDE STOPPER SPRING	2
149609001	SPRING HOLDER	1
100105005	SCREW 2.38	2
149610001	RELEASE PIN	1
149611101	RELEASE PIN SPRING	1
149612101	RELEASE PIN COVER	1
114447002	SCREW 2.38	1
149613001	NEEDLE BAR CRANK ROD	1
150816001	NEEDLE BAR GUIDE SLIDE BLOCK	1
S07574001	SLIDE BLOCK GUIDE PLATE	1
062670812	SCREW 357X8	2
*	SLIDE BLOCK ASSEMBLY	1
149621001	NEEDLE BAR STOPPER	2
149622001	NEEDLE BAR STOPPER SPRING	2
149623001	SPRING COVER	1
060660512	SCREW 3.18X5	1
149624001	NEEDLE BAR ROTATE STOPPER	2
112593001	SCREW 3.18	2
112594001	NEEDLE BAR ROCK SHAFT BUSH (LEFT)	1
014821022	SET SCREW 7.94	4
112764001	NEEDLE BAR ROCK SHAFT BUSH (RIGHT)	1
112595000	NEEDLE BAR CONNECTING ROD	1
105351002	SCREW 6.35	1
112596001	NEEDLE BAR ROCK LINK	1
112597001	NEEDLE BAR ROCK LINK STUD	2
101268002	NUT 7.94	2
112598001	NEEDLE BAR CONNECTING CRANK	1
S01304001	SCREW 6.35X18	1
S07344101	FINGER GUARD	1
146354001	WASHER	1
028680242	SPRING WASHER 2-4.37	1
117850001	STUD SCREW 3.57	1
153012101	ROCK SHAFT GRIP	1
013780710	SCREW 6.35	1
S09132001	PINCH SLEEVE ASSEMBL	1
018063022	BOLT 6X30	1

Page 14 — E. 針棒切換操作関係 / Needle bar flip-up mechanism / Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille / Mecanismo del lanzador de barra de aguja

Brother LT2-B845 (88 pages) parts on page 14
Ref	Part number	Part name	Qty
	41	41
	42	42
	43	43
	32	32
	33	33
	34	34
	29	29
	31-3	31-3
	31-2	31-2
	31-1	31-1
	31-4	31-4
	19-2	19-2
	30	30
	31-2	31-2
	31-3	31-3
	36	36
	35	35
	44	44
	22-2	22-2
	21	21
	20	20
	19-1	19-1
	26	26
	25	25
	27	27
	22-1	22-1
	18	18
	8	8
	13	13
	14	14
	15	15
	2	2
	6	6
	3	3
	4	4
	7	7
	1	1
	5	5
	10	10
	11	11
	9	9
	12	12
	17	17
	16	16
	8-1	8-1
	37-5	37-5
	37-4	37-4
	37-8	37-8
	37-3	37-3
	37-7	37-7
	37-6	37-6
	37-2	37-2
	37-1	37-1
	37-1-1	37-1-1
	38-1	38-1
	38-2	38-2
	38-1-1	38-1-1

Page 15 — E. 針棒操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

Brother LT2-B845 (88 pages) parts on page 15
Part number	Part name	Qty
062711012	SCREW 476X10	2
149858001	SLIDE SHAFT SUPPORTER	1
107272002	SCREW 4.37	2
S07586001	SLIDE SHAFT SUPPORTER PLATE	1
149863001	PLATE SPRING	2
149864001	SET COLLAR	3
011679312	SET SCREW 3.57	5
149865001	GUIDE SCREW	1
S07581001	INDICATION PLATE ASSEMBLY	1
S07584001	PUSH LEVER	1
149127001	STUD SCREW 6.35	2
S07585101	PUSH LEVER PLATE	1
062670512	SCREW 357X5	2
149843001	PUSH LEVER SPRING	1
149847002	STOP LEVER SHAFT ASSEMBLY	1
047301842	SPRING PIN AW3	1
149852001	STUD (LONG)	1
149853001	STUD (SHORT)	1
150818001	FLIP-UP HOLDER PLATE	1
062711012	SCREW 476X10	2
S07587101	BALL GUIDE BUSH	1
150820001	COIL SPRING	1
071063550	STEEL BALL 1/4	1
149855001	LEVER SHAFT ARM	1
062711412	SCREW 476X14	1
146597101	STUD SCREW 4.37	1
149857001	LEVER SHAFT ARM SPRING	2
S07588001	SLIDE SHAFT	1
S13528001	SLIDE SHAFT SPRING	2
S13527001	SLIDE SHAFT	1
S13526001	SOLENOID SETTING PLATE	1
110201001	SCREW 6.35	2
S13521001	FLIP-UP SOLENOID ASSEMBLY	1
S13523001	PLUNGER	1
048090342	STOP RING E9	2
S13524100	PLUNGER RUBBER	2
143549000	TERMINAL PIN (MALE)	4
533527001	SCREW 3X8DB	8
S13525001	FLIP-UP LEVER	1
151987001	STUD SCREW 4.37	2
143520000	NYLON CONNECTOR	1
143519001	CONNECTOR CAP	1
S11072001	BUTTON SHAFT SPRING	1
071063550	STEEL BALL 1/4	1
S13525001	BALL GUIDE SCREW	1
159269001	BOBBIN THREAD TRIMMER LINK STUD SCREW	1
S13465101	MANUAL SWITCH ASSEMBLY	1
S13467101	MANUAL SWITCH CIRCUIT BOARD ASSEMBLY	1
002300506	SCREW 3X5	2
S13472001	LR SWITCH CASE (LOWER)	1
008300602	SCREW 3X6	2
S13485001	SWICH CASE (UPPER)	1
S13486001	SWICH CASE (LOWER)	1
002300605	SCREW 3X6	1
028030243	SPRING WASHER 2-3	1
008300602	SCREW 3X6	2

Page 16

Brother LT2-B845 (88 pages) parts on page 16
Ref	Part number	Part name	Qty
	43	43
	32	32
	33	33
	34	34
	41	41
	42	42
	29	29
	31-3	31-3
	31-2	31-2
	31-1	31-1
	31-4	31-4
	30	30
	31-4	31-4
	39	39
	40	40
	19-2	19-2
	35	35
	36	36
	44	44
	22-2	22-2
	21	21
	20	20
	19-1	19-1
	26	26
	25	25
	18	18
	17	17
	22-1	22-1
	8	8
	16	16
	8-1	8-1
	27	27
	23	23
	24	24
	13	13
	14	14
	15	15
	2	2
	6	6
	3	3
	7	7
	4	4
	10	10
	11	11
	12	12
	5	5
	9	9
	12	12
	37-5	37-5
	37-4	37-4
	38-1	38-1
	38-1-1	38-1-1
	37-8	37-8
	37-1-1	37-1-1
	37-3	37-3
	37-7	37-7
	37-6	37-6
	37-2	37-2
	37-1	37-1

Page 17 — E. 針棒切換操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

Brother LT2-B845 (88 pages) parts on page 17
Part number	Part name	Qty
S13470001	LRスイッチクミ	1
S13466001	LRスイッチキバンクミ	1
002300506	ナベネジ3X5	2
008300602	+トラスコ3X6	2

Page 18 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensatelas

Brother LT2-B845 (88 pages) parts on page 18
Ref	Part number	Part name
3	3	3
4	4	4
5	5	5
6	6	6
8-2	8-2	8-2
7	7	7
8-1	8-1	8-1
2	2	2
1	1	1
23	23	23
21	21	21
19	19	19
20	20	20
14	14	14
15	15	15
13-1	13-1	13-1
28	28	28
26	26	26
28	28	28
25	25	25
24	24	24
28	28	28
22	22	22
10-1	10-1	10-1
18	18	18
9	9	9
10	10	10
16-1	16-1	16-1
17	17	17
16-2	16-2	16-2
13-2	13-2	13-2
27	27	27

Page 19 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensatelas

Brother LT2-B845 (88 pages) parts on page 19
Ref	Part number	Part name	Qty
1	145472001	オサエボウ"ウメタル	1
2	013781012	トメネジ"6.35クボミ	1
3	141207001	オサエチョウセツネツジ	1
4	147846001	チョウセツネツジ"ツマミナット	1
5	141208001	オサエバ"アンナイ	1
6	S07346101	オサエバネ	1
7	S07345001	オサエボウ	1
8	181919101	オサエボウ"ダキ"キネツジツキ	1
8-1	147513001	オサエボウ"ダキ"	1
8-2	142403001	ボルト5.95	1
9	S07347001	オサエアゲクランク	1
10	S13103001	オサエアゲ"テコネツジツキ	1
10-1	014710522	アナトメネジ"4.76クボミ	2
10-1	014710522	アナトメネジ"6.35ヒラ	2
15	150556001	ナット 6.35	1
16-1	S07348001	オサエアゲレバー	1
17	S07349001	オサエアゲレバー"ジツク	1
18	S07350001	サガネ	1
19	139096001	セットカラー	1
20	01468022	アナトメネジ"4.37クボミ	2
22	062671412	ナベ"357-40X14	1
23	021670102	ナット1シュ3.57	1
26	S07357001	ヒザアゲレンカン	1
13-1	S07353001	イトユルメタクミ	1
21	S07355001	オサエアゲレバー"ハネ	1
13-1	S07351001	イトユルメタクミ	1
21	S07355001	オサエアゲレバー"ハネ	2
24	S07358001	ヒザアゲレバー	1
25	145480001	ダンネジ"6.35	1
27	S07359001	ヒザアゲボウ	1
28	145478001	ダンネジ"4.76	3
13-2	S10780001	イトユルメタクミ	1
16-2	S10781001	オサエアゲレバー	1

Page 20

Brother LT2-B845 (88 pages) parts on page 20
Ref	Part number	Part name
20	20	Lever
21	21	Screw
24	24	Shaft
25	25	Washer
26	26	Washer
27	27	Flange
28	28	Screw
7	7	Screw
6	6	Washer
4-1	4-1	Shaft
4-2	4-2	Collar
5-1	5-1	Shaft
30	30	Lever
31	31	Pin
5	5	Feed Mechanism
39	39	Screw
35	35	Spring
36	36	Bracket
37	37	Screw
1-4	1-4	Plate
1-2	1-2	Screw
1-1	1-1	Block
1-3	1-3	Block
1	1	Feed Mechanism
38	38	Screw
13-1	13-1	Feed Dog
19	19	Screw
18	18	Pin
22	22	Lever
13-6	13-6	Feed Dog
23	23	Screw
13-2	13-2	Feed Dog
13-3	13-3	Feed Dog
13-4	13-4	Feed Dog
13-5	13-5	Feed Dog
10	10	Screw
9	9	Screw
10	10	Screw
2	2	Bracket
3	3	Screw
29	29	Screw
32	32	Washer
34	34	Washer
33	33	Screw
11	11	Lever
12	12	Screw

Page 21 — G. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'alimentation

Brother LT2-B845 (88 pages) parts on page 21
Part number	Part name	Qty
S07366101	キリカリエキ(L) クミ	1
S07361101	キリカリエキ(S) クミ	1
S07363001	カクコマアンナイタ	2
062681012	ナベコ437-40X10	4
S07364001	キリカリエキクゴマクミ
143613001	スイヘイオクリウデリンク
S07379001	キリカリエキトメ
062710612	ナベコ476-32X6	1
143611101	スイヘイオクリレンカンクミ
143612000	スイヘイオクリレンカン
118954000	ニードルベアリング
148802201	スイヘイヘンシンリンネツキ
014771022	アナトメネジ"35X6 クボミ	2
S07378001	ベアリングフタ
062670812	ナベコ357-40X8	2
143616001	スイヘイオクリウデジク
048060342	トメワE6	2
148495001	スイヘイオクリウデ
S01304001	シメネジ"6.35X18
183610001	オクリリヨウセツケイ
151507101	オクリリヨウイタ(5)
183609001	オクリリヨウセツケイ
S07674001	オクリリヨウイタ(4)
159361001	オクリリヨウセツケイタイ
129500004	オクリリヨウセツケイタイ
142746002	メモリイタオサエ
129458002	シメネジ"4.76
10854900	Oリング
145502001	メモリイチギメピン
100328001	メモリイチギメピンハネ
S07368101	オクリリヨウセツケイ
118853001	アナトメネジ"5.95	2
S07369001	キリカリエキレンカン
S07370101	ダンネジ"5.95
048080342	トメワE8
025100132	ヒラザガネショウ10
1475004001	ワッシャー
062670512	ナベコ357-40X5	3
S07375001	カエシイレバーオサエハネ
S07376001	ハンドルストツパ
062711012	ナベコ476-32X10
025710232	ヒラザガネチユウ4.76
S07376001	キリカリエキハネ
S07377001	ハネカケ
062710612	ナベコ476-32X6	2
S12698001	キリカリヘンシンリンジク
014710522	アナトメネジ"4.76クボミ
S07371001	カエシイレバー
S07373001	カエシイレバー
118853001	アナトメネジ"5.95
S07372001	カエシイレバー
S07374001	カエシイレバー

Page 22

Brother LT2-B845 (88 pages) parts on page 22
Ref	Part number	Part name
5-1	5-1	5-1
5-2	5-2	5-2
5-3	5-3	5-3
9-1	9-1	9-1
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
10-4	10-4	10-4
11-1	11-1	11-1
12-1	12-1	12-1
12-2	12-2	12-2
12-3	12-3	12-3
B848	B848	B848
B8480	B8480	B8480
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
17	17	17
18	18	18

Page 23 — H. 下軸関係 / Lower shaft mechanism / Untere welle / Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior

Brother LT2-B845 (88 pages) parts on page 23
Part number	Part name	Qty
148503000	カマトロ"ダイメタルL	1
148502000	カマトロ"ダイメタルR	1
013781012	トメネジ"6.35クボミ	2
*	シタジク	1
S12445001	スパイラルギヤクミA	2
112684001	トメネジ"6.35	2
100251001	トメネジ"6.35	4
131007001	トメネジ"6.35クボミ	6
*	ジヨウケンリンクミ	1
112684001	トメネジ"6.35	1
S07446001	タマシクウケクミ	1
S07447001	タマシクウケブツシュ	1
072600480	アナトメネジ"6004ZZNR	1
148821001	アナトメネジ"6.35トガリ	1
014771022	アナトメネジ"6.35クボミ	1
*	タイミングプーリDクミ	1
158115001	タマシクウケ6204ZZNR	1
014771022	アナトメネジ"6.35クボミ	1
148821001	アナトメネジ"6.35トガリ	1
014771022	アナトメネジ"6.35クボミ	2
S07589001	PRESSER FOOT CYLINDER ASSEMBLY	1
S07590001	CYLINDER BRACKET	1
105173004	SCREW 4.76	2
025710132	PLAIN WASHER 4.76	2
146153001	LINK PIN	1
048040342	STOP RING E4	1
140620001	CYLINDER SUPPORTING SCREW	2
S07591001	KNEE LIFTER LEVER	1
141528001	STUD SCREW 6.35	1
145478001	STUD SCREW 4.76	2
151154000	AIR TUBE	1

Page 24 — J2. 押工上ゲ関係 (-900)/Presser foot lifter mechanism (-900)/Stoffhalterhebevorrichtung (-900)/Mécanisme de levueur du pied presseur (-900)/Mecanismo de levantador del prensatelas (-900)

Brother LT2-B845 (88 pages) parts on page 24
Ref	Part number	Part name	Qty
	14-1	14-1
	14-2	14-2
	14-3	14-3
	15	15
	11-2	11-2
	11-5	11-5
	11-7	11-7
	11-8	11-8
	11-9	11-9
	11-10	11-10
	11-11	11-11
	11-12	11-12
	11-13	11-13
	11-14	11-14
	11-14-1	11-14-1
	11-14-2	11-14-2
	11-15	11-15
	11-16	11-16
	11-17	11-17
	11-18	11-18
	11-19	11-19
	11-20	11-20
	11-21	11-21
	11-22	11-22
	11-23	11-23
	11-24	11-24
	11-24-1	11-24-1
	11-24-2	11-24-2
	11-25	11-25
	11-25-1	11-25-1
	11-25-2	11-25-2
	11-25-3	11-25-3
	11-26	11-26
	11-4	11-4
	11-4-1	11-4-1
	11-4-2	11-4-2
	11-4-3	11-4-3
	11-1	11-1
	16	16
	13	13
	12	12

Page 25

Brother LT2-B845 (88 pages) parts on page 25
Ref	Part number	Part name	Qty
	SO3681101	デンシ
	SO2580001	ソレノイド"ダイ
	SO2581001	ソレノイド"イタ
	062761212	ナナベコ595-28X12
	SO2582001	オサエアゲ"ソレノイド"クミ
	SO2584000	クツシヨン
	SO2585000	ビニルチュ-ブ
	211131001	ゼツエンアツタシ4X19
	153122000	ゴムクツシヨン
	158677001	ナットM8
	SO2580001	ダンシダイ
	SO2586001	リンクツキテ
	062671012	ナナベコ357-40X10
	SO2580000	セメトテイコウキ
	062670612	ナナベコ357-40X6
	SO2590000	ダイオード"
	SO2591000	リ-ト"セン
	SO2593001	オサエアゲ"コ-ド"クミ
	204569001	アツタシ4.5X14
	143549000	ピンタ-ミナルオス
	SO2745001	サカガネ
	062680663	ナナベコ437-40X6
	142268001	コ-ド"オサエL
	062670612	ナナベコ357-40X6
	SO2592001	タンシダイカバ-
	062670612	ナナベコ357-40X6
	025060232	ヒラサカガネチユウ6
	143522000	ナイロンコネクター
	220077001	プラグカバ- #14
	SO5981000	Bコ-ド"100クミ2
	143549000	ピンタ-ミナルオス
	146046000	ナイロンコネクタ
	SO5982000	Wコ-ド"100クミ
	143549000	ピンタ-ミナルオス
	143548000	ピンタ-ミナルメス
	146194000	ナイロンコネクター
	SO7182001	デツジ"オサエラペル
	SO2587001	ピン
	048060342	トメワE6
	152808101	チョウセツロツト"クミ
	154332001	オサエアゲ"チョウセツロツト"
	154333001	オサエアゲ"チョウセツツキ"テ
	150556001	ナット6.35
	141583001	ダンネジ"6.35
	031553202	マルモク5.5X32

Page 26 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/M uevo de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B845 (88 pages) parts on page 26
Ref	Part number	Part name
27-1	27-1	BOLT
16	16	SHAFT
19	19	SPRING
21	21	COLLAR
12	12	BEARING
11	11	SHAFT
6	6	BEARING
7	7	BEARING
8	8	COLLAR
5	5	COLLAR
15	15	PLATE
14	14	WASHER
13	13	WASHER
17	17	SCREW
3	3	SPRING
4	4	WASHER
9	9	SPRING
10	10	SPRING
24	24	BRACKET
26	26	SCREW
25	25	BRACKET
28	28	SHAFT
31	31	SPRING
29	29	SCREW
30	30	SHAFT
38	38	ARM
37	37	SCREW
40	40	SCREW
34	34	SHAFT
35	35	WASHER
36	36	CAP
37	37	SCREW
39	39	ARM
32	32	COLLAR
33	33	SCREW
23-1-3-3	23-1-3-3	BASE
23-1-3-5	23-1-3-5	SPRING
23-1-3	23-1-3	ROTARY HOOK
23-2-3	23-2-3	ROTARY HOOK
23-1-3-1	23-1-3-1	BASE
23-1-3-2	23-1-3-2	BASE
23-1-3-4	23-1-3-4	BASE
23-2-3-7	23-2-3-7	BASE
23-2-3-2	23-2-3-2	BASE
23-2-3-1	23-2-3-1	BASE
23-2-3-6	23-2-3-6	BASE
23-2-3-3	23-2-3-3	BASE
23-2-3-5	23-2-3-5	SPRING
23-2-3-4	23-2-3-4	BASE
41	41	BOBBIN CASE
42	42	BOBBIN
23-1-1-1-1	23-1-1-1-1	BASE
23-1-1-2	23-1-1-2	BASE
23-2-1-2	23-2-1-2	BASE
23-2-1-1-1	23-2-1-1-1	BASE
1-1	1-1	BASE
2-1	2-1	BASE
1-2	1-2	BASE
2-2	2-2	BASE
23-2-1-1	23-2-1-1	BASE

Page 27 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B845 (88 pages) parts on page 27
Part number	Part name	Qty
062782512	SCREW 635X25	2
100197002	WASHER	2
S07418001	ROTARY HOOK SHAFT BUSH (UPPER)	2
S07421001	THRUST RING	2
S07420000	NEEDLE BEARING	2
S07419001	STOP RING	2
S07417001	ROTARY HOOK SHAFT BUSH (LOWER)	2
013710512	SET SCREW 4.76	2
112692101	OPENER LINK	2
148005001	OPENER LINK SHAFT	2
110161006	NUT 4.76	2
025710232	PLAIN WASHER 4.76	2
S07422101	OPENER LEVER	2
S13021001	OPENER LEVER SHAFT	2
013711012	SET SCREW 4.76	2
S07423101	OPENER	2
S07424001	SET SCREW 3.18	4
S07436001	GEAR GUIDE (LEFT)	1
S07437001	GEAR GUIDE (RIGHT)	1
108960002	SCREW 3.57	4
S07658001	PINCH SLEEVE ASSEMBLY	2
112700001	SCREW 5.95	2
S07430001	ADJUSTING BAR SUPPORTER	1
062711012	SCREW 476X10	2
S07431001	ADJUSTING BAR	1
048040342	STOP RING E4	1
159436001	SET COLLAR	1
014680622	SET SCREW 4.37	1
S07434001	ROTARY HOOK BASE ADJ.SCREW	2
025680132	PLAIN WASHER 4.37	2
S07435001	ROTARY HOOK BASE ADJUSTING DIAL	2
014680622	SET SCREW 4.37	4
S07432001	ADJUSTING FORKED LEVER (LEFT)	1
S07433001	ADJUSTING FORKED LEVER (RIGHT)	1
131226001	NEEDLE SET SCREW 3.57	2
*	BOBBIN	2
S07416201	ROTARY HOOK BASE (LEFT)	1
S07414201	ROTARY HOOK BASE (RIGHT)	1
S07568001	ROTARY HOOK ASSEMBLY	2
S13613001	ROTARY HOOK ASSEMBLY	2
S08005001	OUTER ROTARY HOOK ASSEMBLY	2
151027001	INNER ROTARY HOOK SET SCREW	2
S07738001	INNER ROTARY HOOK ASSEMBLY	2
S07741001	CAP ASSEMBLY	2
151034001	SPRING	2
151035001	SET SCREW	2
151025001	TENSION ADJUSTING SPRING	2
S01567001	TENSION ADJUSTING SCREW	2
S01568001	SET SCREW	2
S07415201	ROTARY HOOK BASE (LEFT)	1
S07413201	ROTARY HOOK BASE (RIGHT)	1
153243001	SPACER 0.2	4
153244001	SPECER 0.3	2
S07569001	ROTARY HOOK ASSEMBLY	2
S13614001	ROTARY HOOK ASSEMBLY	2
S07733001	OUTER ROTARY HOOK ASSEMBLY	2
151027001	INNER ROTARY HOOK SET SCREW	4
S07739001	INNER ROTARY HOOK ASSEMBLY	2
S07742001	CAP ASSEMBLY	2
151034001	SPRING	2

Page 28 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B845 (88 pages) parts on page 28
Ref	Part number	Part name
27-1	27-1	BOLT
16	16	SHAFT
19	19	SPRING
21	21	PIN
12	12	BEARING
11	11	COLLAR
15	15	HOOK DRIVER
14	14	WASHER
13	13	WASHER
17	17	SCREW
3	3	SCREW
4	4	WASHER
23-1-3-3	23-1-3-3	ROTARY HOOK
23-1-3-5	23-1-3-5	HOOK DRIVER
23-1-3-1	23-1-3-1	ROTARY HOOK
23-1-3-2	23-1-3-2	SPRING
23-1-3-4	23-1-3-4	PIN
41	41	BOBBIN CASE
23-1-1-1-1	23-1-1-1-1	ROTARY HOOK
1-1	1-1	BASE
23-1-1-2	23-1-1-2	BOBBIN CASE
2-1	2-1	BASE
24	24	BRACKET
26	26	SCREW
25	25	BRACKET
28	28	SHAFT
31	31	COLLAR
30	30	SHAFT
38	38	HOOK DRIVER
37	37	SCREW
35	35	WASHER
34	34	SPRING
36	36	GEAR
39	39	HOOK DRIVER
23-2-3-6	23-2-3-6	ROTARY HOOK
23-2-3-3	23-2-3-3	HOOK DRIVER
23-2-3-5	23-2-3-5	SPRING
23-2-3-1	23-2-3-1	ROTARY HOOK
23-2-3-4	23-2-3-4	PIN
23-2-3-7	23-2-3-7	HOOK DRIVER
23-2-3-2	23-2-3-2	SPRING
41	41	BOBBIN CASE
42	42	BOBBIN CASE
23-2-1-2	23-2-1-2	BOBBIN CASE
23-2-1-1	23-2-1-1	ROTARY HOOK
22	22	BASE
1-2	1-2	BASE
2-2	2-2	BASE
5	5	COLLAR
6	6	BEARING
7	7	BEARING
8	8	BEARING
9	9	GEAR
10	10	GEAR
29	29	SCREW
32	32	COLLAR
33	33	SCREW
40	40	SCREW
37	37	SCREW

Page 29 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Brother LT2-B845 (88 pages) parts on page 29
Ref	Part number	Part name	Qty
23-2-3-2	151035001	タルミトリバネトメネジ	2
23-2-3-3	151043001	チョウツバネ	2
23-2-3-4	S01567001	チョウツバネ	2
23-2-3-5	S01568001	チョウツバネトメネジ	2
23-2-3-6	159801001	イトオサエワイヤー	2
23-2-3-7	159802001	シメネジ1.59X2	2
42	148602001	クウテンボウツバネ	2

Page 30

Brother LT2-B845 (88 pages) parts on page 30
Ref	Part number	Part name
10	10	BRACKET
37	37	BRACKET
88	88	BRACKET
9	9	SCREW
11	11	SCREW
31	31	BRACKET
76	76	BRACKET
77	77	SCREW
30	30	BRACKET
31	31	BRACKET
71	71	SCREW
47	47	BRACKET
25	25	BRACKET
26	26	BRACKET
79	79	BRACKET
78	78	BRACKET
50	50	TUBE
51	51	TUBE
95	95	PLUG
87	87	WASHER
86	86	PLUG
85	85	SCREW
84	84	BRACKET
34	34	BRACKET
57	57	BRACKET
59	59	BRACKET
69	69	BRACKET
29	29	BRACKET
39	39	BRACKET
98	98	BRACKET
81	81	BRACKET
91	91	SPRING
73	73	BRACKET
80	80	BRACKET
15	15	SCREW
14	14	BRACKET
55	55	BRACKET
32	32	BRACKET
38	38	BRACKET
97	97	BRACKET
94	94	BRACKET
93	93	BRACKET
99	99	BRACKET
48	48	BRACKET
56	56	BRACKET
16	16	BRACKET
17	17	BRACKET
61	61	BRACKET
24	24	BRACKET
98	98	BRACKET
44	44	BRACKET
22	22	BRACKET
23	23	BRACKET
30	30	BRACKET
52	52	BRACKET
27	27	BRACKET
43	43	BRACKET
40	40	BRACKET
31	31	BRACKET
36	36	BRACKET
64	64	BRACKET
62	62	BRACKET
68	68	BRACKET
65	65	BRACKET
40	40	BRACKET
67	67	BRACKET
42	42	BRACKET
41	41	BRACKET
63	63	BRACKET
13	13	BRACKET
45	45	BRACKET
49	49	BRACKET
64	64	BRACKET
82	82	BRACKET
70	70	BRACKET
83	83	BRACKET
91	91	SPRING
75	75	BRACKET
35	35	BRACKET
53	53	BRACKET
4	4	BRACKET
36	36	BRACKET
91	91	SPRING
54	54	BRACKET
91	91	SPRING
92	92	BRACKET
21	21	SCREW
20	20	BRACKET
74	74	BRACKET
91	91	SPRING
5	5	SPRING
7	7	SPRING
6	6	SPRING
101	101	BRACKET
100	100	BRACKET
91	91	SPRING
18	18	BRACKET
19	19	SCREW
2	2	PLATE
1	1	PLATE
3	3	SCREW

Page 31

Brother LT2-B845 (88 pages) parts on page 31
Part number	Part name	Qty
S07448001	ROTARY HOOK BASE COVER	2
S07449000	ROTARY HOOK BASE PACKING	2
062670812	SCREW 357X8	8
S07477000	RUBBER RING	2
S07478000	RUBBER PRESSER	2
S07479101	OIL ADJUSTING SCREW	2
S16114001	SPRING	2
112716101	OIL STOPPER PLATE	1
112717001	OIL STOPPER PLATE PRE	1
062711012	SCREW 476X10	1
112743001	WICK SUPPORTER	1
062670512	SCREW 357X5	1
112739001	WICK SUPPORTER	2
062670512	SCREW 357X5	2
143673001	WICK SUPPORTER	1
062660412	SCREW 318X4	2
142268001	CORD HOLDER (LARGE)	1
062670512	SCREW 357X5	1
S07471001	WICK HOLDER	2
062670512	SCREW 357X5	2
S07450100	OIL TANK ASSEMBLY	1
062711012	SCREW 476X10	2
025710232	PLAIN WASHER 4.76	2
081030070	O RING P30	1
107155001	FELT	2
108800001	OIL CAP	2
104821001	OIL CAP	2
142274001	OIL CAP	2
149834000	FELT	1
151927001	CLUTCH FELT	2
S07476000	FELT	2
148762001	THREAD TAKE-UP FELT	1
112734001	UPPER SHAFT BUSH (LEFT) FELT	1
S07571000	FELT	1
112753001	FELT	3
113362001	ROTARY HOOK BASE BUSH (RIGHT) FELT	2
115249001	FELT	1
112759001	FELT	1
100257010	SCREW 3.57	1
148743001	FELT	4
S07460100	WIRE	1
S07453000	OIL TUBE	1
S07454000	OIL TUBE	1
S07455100	OIL TUBE	1
S07456000	OIL TUBE	1
S07457100	OIL TUBE	1
S07810000	OIL TUBE	1
S07458100	OIL TUBE	1
S07459100	OIL TUBE	1
150374000	WICK (20CM)	1
112728001	WICK (5CM)	1
114693001	WICK (3CM)	1
112735000	WICK (4.5CM)	1
113653000	WICK (13CM)	1
S03289001	WICK 4X4 (4CM)	1
112736000	WICK (44CM)	1
152974001	WICK 4X4 (35CM)	1
S07461000	WICK (3.2CM)	2
108802001	WICK 4X4 (25CM)	2
108802001	WICK 4X4 (25CM)	1
S03289001	WICK 4X4 (4CM)	1
111191001	WICK (3.5CM)	1

Page 32 — L. Lubrication / Schmierung / Lubrication / Lubricación

Brother LT2-B845 (88 pages) parts on page 32
Ref	Part number	Part name	Qty
	10	BRACKET
	37	BRACKET
	88	WASHER
	9	BRACKET
	11	SCREW
	77	SCREW
	76	BRACKET
	31	O-RING
	30	O-RING
	71	SPRING
	47	SPRING
	25	SPRING
	26	SPRING
	79	SPRING
	78	SPRING
	50	TUBE
	51	TUBE
	85	SPRING
	84	SPRING
	34	SPRING
	57	SPRING
	59	SPRING
	69	SPRING
	39	SPRING
	97	SPRING
	98	SPRING
	81	SPRING
	73	SPRING
	80	SPRING
	93	SPRING
	99	SPRING
	46	SPRING
	16	SPRING
	17	SCREW
	48	SPRING
	29	SPRING
	60	SPRING
	32	SPRING
	56	SPRING
	15	SPRING
	14	SPRING
	55	SPRING
	40	SPRING
	22	SPRING
	23	SPRING
	44	SPRING
	43	SPRING
	23	SPRING
	22	SPRING
	64	SPRING
	31	SPRING
	30	SPRING
	52	SPRING
	27	SPRING
	96	SPRING
	72	SPRING
	62	SPRING
	68	SPRING
	65	SPRING
	66	SPRING
	45	SPRING
	49	SPRING
	63	SPRING
	70	SPRING
	82	SPRING
	83	SPRING
	75	SPRING
	35	SPRING
	4	SPRING
	36	SPRING
	91	SPRING
	53	SPRING
	92	SPRING
	21	SPRING
	20	SPRING
	74	SPRING
	5	SPRING
	7	SPRING
	6	SPRING
	101	SPRING
	100	SPRING
	91	SPRING
	18	SPRING
	19	SPRING
	20	SPRING
	21	SPRING
	102	SPRING
	103	SCREW
	3	SPRING
	2	PLATE
	1	SCREW

Page 33 — L. Lubrication / Schmierung / Lubrication / Lubricación

Brother LT2-B845 (88 pages) parts on page 33
Ref	Part number	Part name	Qty
68	112750000	Wick (11CM)	1
69	S07462000	Wick (2.5CM)	1
70	S07463000	Wick (7CM)	2
71	153920001	Wick 4X4 (30CM)	1
72	152974001	Wick 4X4 (35CM)	1
73	S03289001	Wick 4X4 (4CM)	1
74	S07464100	Wick (53CM)	1
75	156070002	Spacer	2
76	S07570001	Dust Protector	1
77	062670512	Screw 357X5	2
78	S07467001	Tube Holder	1
79	062680812	Screw 437X8	1
80	S07468000	Oil Seal	1
81	S07469001	Wick Choke Plate	1
82	S07470001	Wick Holder	2
83	062670512	Screw 357X5	2
84	149626001	Wick Cover	1
85	060660512	Screw 3.18X5	1
86	S07473000	Oil Filter	1
87	S07481000	Oil Seat	1
88	S07469001	Wick Choke Plate	1
89	S07876001	Tube Stopper	1
90	146253000	Tube	1
91	S09369000	Wick (7CM)	1
92	S09364000	Oil Seal	1
93	112758001	Oil Cap	1
94	111191001	Wick (3.5CM)	1
95	104821001	Oil Cap	1
96	S07876001	Tube Stopper	2
97	S07876001	Tube Stopper	1
100	S14189000	Terminal	1
101	062670612	Screw 357X6	2
102	146536001	Feed Adjusting Shaft Supporter	1
103	062670612	Screw 357X6	1
16	112739001	Wick Supporter	1
17	062670512	Screw 357X5	1

Page 34 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Brother LT2-B845 (88 pages) parts on page 34
Ref	Part number	Part name	Qty
	2	2
	3	3
	9	9
	12	12
	10	10
	12	12
	7	7
	11-1	11-1
	12	12
	13	13
	1-1-8	1-1-8
	1-1-21	1-1-21
	1-1-6	1-1-6
	1-1-7	1-1-7
	1-1-10	1-1-10
	1-1	1-1
	1-1-11	1-1-11
	1-1-12	1-1-12
	1-1-13	1-1-13
	1-1-14	1-1-14
	1-1-16	1-1-16
	1-1-17	1-1-17
	1-1-18	1-1-18
	1-1-19	1-1-19
	1-1-15	1-1-15
	5	5
	6-1	6-1
	8	8
	1-1-8	1-1-8
	1-2	1-2
	1-1-2	1-1-2
	1-1-3	1-1-3
	1-1-4	1-1-4
	1-1-5	1-1-5
	1-2-7	1-2-7
	1-2-5	1-2-5
	1-2-6	1-2-6
	1-2-20	1-2-20
	1-2-10	1-2-10
	1-2-15	1-2-15
	1-2-17	1-2-17
	1-2-18	1-2-18
	1-2-19	1-2-19
	1-2-11	1-2-11
	1-2-12	1-2-12
	1-2-13	1-2-13
	1-2-9	1-2-9
	1-2-8	1-2-8
	1-2-1	1-2-1
	1-2-2	1-2-2
	1-2-3	1-2-3
	1-2-4	1-2-4
	B8450 B8480	B8450 B8480
	6-2	6-2
	B848	B848
	B8480	B8480
	1-2-14	1-2-14

Page 35 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enhebrado

Brother LT2-B845 (88 pages) parts on page 35
Ref	Part number	Part name	Qty
	140527001	THREAD RETAINER	2
	150553003	NUT 5.95	2
	100064002	SCREW 3.57	1
	112709001	STOPPER	1
	S07493001	TENSION RELEASE BAR	1
	062680812	SCREW 437X8	1
	108266001	ARM THREAD GUIDE (UPPER)	1
	112658001	ARM THREAD GUIDE (MIDDLE)	1
	108960002	SCREW 3.57	3
1-1	*	NEEDLE THREAD TENSION ASSEMBLY	1
1-1-1	144680001	TENSION STUD	1
1-1-2	155491001	THREAD TAKE-UP SPRING	1
1-1-3	108254001	SPRING GUIDE ASSEMBLY	2
1-1-4	144682001	SCREW 2.38	1
1-1-5	108265001	TENSION NUT	1
1-1-6	S07487001	TENSION RELEASE PLATE	1
1-1-7	118320001	TENSION RELEASE SPRING	1
1-1-8	112712001	STUD SCREW 3.57	2
1-1-9	158769001	TENSION RELEASE PIN (RIGHT)	1
1-1-10	S07488001	TENSION RELEASE PIN (LEFT)	1
1-1-11	145446001	TENSION DISC	4
1-1-12	159805001	TENSION DISC PRESSER	2
1-1-14	149566002	TENSION NUT	2
1-1-16	144685001	THREAD GUIDE CAP	2
1-1-17	144686001	THREAD GUIDE DISC	2
1-1-18	144687001	THREAD GUIDE BRACKET	2
1-1-19	144688001	THREAD GUIDE SPRING	2
1-1-20	144689101	THREAD GUIDE STUD SCREW	2
1-1-21	021670102	NUT 3.57	2
1-1-13	S07490001	TENSION SPRING	2
1-1-13	148851001	TENSION SPRING	2
1-1-15	144105000	TENSION SPRING WASHER	2
11-1	112715001	ARM THREAD GUIDE (LOWER)	1
13	114941001	FELT	1
1-2	*	NEEDLE THREAD TENSION ASSEMBLY	1
1-2-1	144680001	TENSION STUD	1
1-2-2	155491001	THREAD TAKE-UP SPRING	1
1-2-3	108254001	SPRING GUIDE ASSEMBLY	2
1-2-4	144682001	SCREW 2.38	1
1-2-5	S07487001	TENSION RELEASE PLATE	1
1-2-6	118320001	TENSION RELEASE SPRING	1
1-2-7	112712001	STUD SCREW 3.57	2
1-2-8	158769001	TENSION RELEASE PIN (RIGHT)	1
1-2-9	S07488001	TENSION RELEASE PIN (LEFT)	1
1-2-10	145446001	TENSION DISC	4
1-2-11	159805001	TENSION DISC PRESSER	2
1-2-13	149566002	TENSION NUT	2
1-2-15	158771001	THREAD GUIDE SHAFT (LEFT)	1
1-2-16	158770001	THREAD GUIDE SHAFT (RIGHT)	1
1-2-17	144504001	THREAD GUIDE DISC	4
1-2-18	154560001	PRE-TENSION SPRING (A)	2
1-2-19	155510001	TENSION NUT	2
1-2-20	021670102	NUT 3.57	2
1-2-12	S07490001	TENSION SPRING	2

Page 36 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Brother LT2-B845 (88 pages) parts on page 36
Ref	Part number	Part name	Qty
	6-2	SCREW
	2	BRACKET
	3	BRACKET
	4	MACHINE FRAME
	9	SPRING
	12	SCREW
	10	ROD
	7	GUIDE
	11-1	THREAD TRIMMER
	13	SPRING
	12	SCREW
	1-1-8	SHAFT
	1-1-6	SPRING
	1-1-7	SPRING
	1-1-10	BRACKET
	1-1-21	NUT
	1-1	THREAD TRIMMER
	1-1-1	SHAFT
	1-1-11	SHAFT
	1-1-18	WASHER
	1-1-17	SPRING
	1-1-19	SPRING
	1-1-16	SPRING
	1-1-12	SPRING
	1-1-13	SPROCKET
	1-1-20	SPRING
	1-1-9	BRACKET
	5	SPRING
	6-1	BRACKET
	1-1-2	SHAFT
	8	SCREW
	1-1-3	SHAFT
	1-1-4	SPRING
	1-1-5	SPRING
	1-1-14	SPRING
	1-2	THREAD TRIMMER
	1-2-7	SPRING
	1-2-5	BRACKET
	1-1-15	FILTER
	1-2-8	SPRING
	1-2-20	NUT
	1-2-9	BRACKET
	1-2-10	SHAFT
	1-2-15	SHAFT
	1-2-16	SPRING
	1-2-17	SPRING
	1-2-6	SPRING
	1-2-18	SPRING
	1-2-14	FILTER
	1-2-19	SPRING
	1-2-1	SHAFT
	1-2-11	SPRING
	1-2-2	SPRING
	1-2-12	SPRING
	1-2-13	SPRING
	1-2-3	SHAFT
	1-2-4	SHAFT

Page 37 — M. 糸通シ関係/Threading mechanism/Fadenfuhrungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Brother LT2-B845 (88 pages) parts on page 37
Part number	Part name	Qty
148851001	ハリイトチョウシバネ	2
144105000	チョウシバネウエザ"ガネ	2
112658001	アームイトアンナイM	1
062670512	ナベコ357-40X5	1
144075001	ボルト3.57	1

Page 38 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahílos)

Brother LT2-B845 (88 pages) parts on page 38
Ref	Part number	Part name
53-1-1	53-1-1	Thread trimmer mechanism
53-1-2	53-1-2	Thread trimmer mechanism
53-2	53-2	Thread trimmer mechanism
53-2-1	53-2-1	Thread trimmer mechanism
54	54	Thread trimmer mechanism
55	55	Thread trimmer mechanism
56	56	Thread trimmer mechanism
56-1	56-1	Thread trimmer mechanism
56-2	56-2	Thread trimmer mechanism
56-3	56-3	Thread trimmer mechanism
57	57	Thread trimmer mechanism
58	58	Thread trimmer mechanism
51	51	Thread trimmer mechanism
52	52	Thread trimmer mechanism
53-1	53-1	Thread trimmer mechanism
1	1	Thread trimmer mechanism
2-1	2-1	B848 B8480
2-2	2-2	B8450 B8480
3	3	Thread trimmer mechanism
4	4	Thread trimmer mechanism
5	5	Thread trimmer mechanism
6	6	Thread trimmer mechanism
7	7	Thread trimmer mechanism
8	8	Thread trimmer mechanism
9	9	Thread trimmer mechanism
10	10	Thread trimmer mechanism
11	11	Thread trimmer mechanism
12	12	Thread trimmer mechanism
13	13	Thread trimmer mechanism
14	14	Thread trimmer mechanism
15	15	Thread trimmer mechanism
16	16	Thread trimmer mechanism
17	17	Thread trimmer mechanism
18	18	Thread trimmer mechanism
19	19	Thread trimmer mechanism
20	20	Thread trimmer mechanism
21	21	Thread trimmer mechanism
22	22	Thread trimmer mechanism
23	23	Thread trimmer mechanism
24	24	Thread trimmer mechanism
25-1	25-1	Thread trimmer mechanism
25-2	25-2	Thread trimmer mechanism
25-3	25-3	Thread trimmer mechanism
26-1	26-1	Thread trimmer mechanism
26-2	26-2	Thread trimmer mechanism
26-3	26-3	Thread trimmer mechanism
26-4	26-4	Thread trimmer mechanism
26-5	26-5	Thread trimmer mechanism
27	27	Thread trimmer mechanism
28	28	Thread trimmer mechanism
29	29	Thread trimmer mechanism
30	30	Thread trimmer mechanism
31	31	Thread trimmer mechanism
32	32	Thread trimmer mechanism
33	33	Thread trimmer mechanism
34	34	Thread trimmer mechanism
35	35	Thread trimmer mechanism
36	36	Thread trimmer mechanism
37	37	Thread trimmer mechanism
38	38	Thread trimmer mechanism
39	39	Thread trimmer mechanism
40	40	Thread trimmer mechanism
41	41	Thread trimmer mechanism
42	42	Thread trimmer mechanism
43	43	Thread trimmer mechanism
44	44	Thread trimmer mechanism
45	45	Thread trimmer mechanism
46	46	Thread trimmer mechanism
47	47	Thread trimmer mechanism
48	48	Thread trimmer mechanism
49	49	Thread trimmer mechanism
50	50	Thread trimmer mechanism

Page 39 — N. 糸切り関係 (糸切り) /Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mecanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

Brother LT2-B845 (88 pages) parts on page 39
Part number	Part name	Qty
*	THREAD TRIMMER SOLENOID	1
062670512	SCREW 357X5	1
S07496001	THREAD TRIMMING SOLENOID BRACKET	1
110201001	SCREW 6.35	2
S07497001	THREAD TRIMMING SOLENOID JOINT	1
118713001	PIN	1
014680622	SET SCREW 4.37	2
S07498001	THREAD TRIMMING SOLENOID LEVER	1
S07499001	THREAD TRIMMING SOLENOID LEVER BRACKET	1
062711012	SCREW 476X10	2
S07500001	THREAD TRIMMING SOLENOID LEVER STUD	1
S07501001	THREAD TRIMMING DRIVING ROD	1
148546001	PLUNGER PIN	1
S07502001	THREAD TRIMMING DRIVING ROD PLATE	1
S07503000	RUBBER CUSHION	1
116662003	WASHER	1
107321003	STUD SCREW 4.76	1
S07504001	KNIFE MAIN LEVER ASSEMBLY	1
148559100	RUBBER	1
S07508001	KNIFE MAIN LEVER SHAFT	1
013781012	SET SCREW 6.35	1
S07509001	KNIFE MAIN LEVER SPRING	1
S07510001	THREAD TRIMMING CAM	1
S07511001	LENGTH ADJUSTING ROD ASSEMBLY	1
S07512001	ROUND JOINT (L) ASSEMBLY	1
S07514001	ROUND JOINT (R) ASSEMBLY	1
S07516001	LENGTH ADJUSTING ROD	1
148592001	NUT 5.95	1
100022005	NUT 5.95	1
141494001	STUD SCREW	2
S07517001	THREAD TRIMMING LEVER (R)	1
S07518001	THREAD TRIMMING LEVER (L)	1
062681212	SCREW 437X12	2
S07519001	STOPPER SCREW 4.76	2
S07520001	THRAED TRIMMER LEVER SPRING	2
062671412	SCREW 357X14	2
021670102	NUT 3.57	2
S07521001	THRED TRIMMING CONNECTING ROD (R)	1
S07522001	THRED TRIMMING CONNECTING ROD (L)	1
144526001	STUD SCREW 4.37	2
146360002	BOLT 4.76X7	2
025710232	PLAIN WASHER 4.76	2
S07523001	MOVABLE KNIFE LEVER	2
120752001	SET COLLAR	2
100251001	SET SCREW 6.35	4
S07524001	MOVABLE KNIFE BRACKET	2
062670812	SCREW 357X8	4
S07525000	BOBBIN THREAD HOLDING SPRING	2
141544001	SCREW 3.18	2
S07526001	MOVABLE KNIFE	2
148536001	SCREW 4.37	4
S07527001	FIXED KNIFE	2
148539101	STUD SCREW 2.38	2
S02745001	WASHER	1
062680663	SCREW 437X6	1
140647001	CORD HOLDER	1
142268001	CORD HOLDER (LARGE)	1
148574001	SET SCREW 6.35	1
014771022	SET SCREW 6.35	1

Page 40

Brother LT2-B845 (88 pages) parts on page 40
Ref	Part number	Part name	Qty
	53-2-1	53-2-1
	53-1-1	53-1-1
	53-2	53-2
	53-1-2	53-1-2
	57	57
	56	56
	53-1	53-1
	56-3	56-3
	56-1	56-1
	56-2	56-2
	51	51
	52	52
	53-1	53-1
	B8450	B8450
	B8480	B8480
	12	12
	8	8
	10	10
	11	11
	4	4
	2-2	2-2
	2-1	2-1
	B848	B848
	B8480	B8480
	3	3
	5	5
	49	49
	48	48
	47	47
	25-2	25-2
	25-3	25-3
	40	40
	24	24
	25-1	25-1
	45	45
	44	44
	46	46
	43	43
	40	40
	42	42
	41	41
	34	34
	42	42
	32	32
	33	33
	31	31
	30	30
	29	29
	28	28
	30	30
	14	14
	23	23
	27	27
	26-2	26-2
	26-4	26-4
	13	13
	21	21
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	22	22
	26-3	26-3
	26-5	26-5
	26-1	26-1
	35	35
	37	37
	36	36
	39	39
	38	38

Page 41 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

Brother LT2-B845 (88 pages) parts on page 41
Part number	Part name	Qty
014771022	アナトメネジ6.35クボミ	2
153969000	ナイロンコネクタ12P	1
S03815001	コネクタキャップ6	1
S02682001	アースセンクミ	1
S03328000	ピンターミナルオスL	1
204569001	ピンタンシ4.5X14	1
S11210000	Wコード"Sクミ	1
143548000	ピンターミナルメス	1
143549000	ピンターミナルオス	1
154211000	Wコード"S	1
S11683000	コネクタ3191-01P1	1
3404000001	ユニタイバンド"	2
S06004001	------	1
204569001	------	2

Page 42

Brother LT2-B845 (88 pages) parts on page 42
Ref	Part number	Part name
2	2	Clip
1	1	Lever
3	3	Screw
7	7	Bracket
6	6	Screw
8	8	Nut
5	5	Bracket
10	10	Screw
9	9	Spring
11	11	Bracket
12	12	Screw
16	16	Screw
17	17	Nut
14	14	Screw
15	15	Nut
4	4	Washer
13	13	Shaft
1	1	Housing
4	4	Cover
5	5	Ring
6	6	Plate
7	7	Screw
8	8	Washer
13	13	Shaft
11	11	Bracket
12	12	Screw
9	9	Shaft
10	10	Shaft

Page 43 — P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/Spannung sverminderung svorrichtung (Fadenabschneider)/Mecanisme de relâche-tension (Coupe-fil)/Mecanismo de liberador de tensión (Cortahilos) Q. 針位置検出関係(糸切り)/Synchronizer (Threa

Brother LT2-B845 (88 pages) parts on page 43
Part number	Part name	Qty
S07529001	TENSION RELEASING CONNECTOR ASSEMBLY	1
048030342	STOP RING E3	2
S07528000	TENSION RELEASING WIRE	1
110161004	NUT 4.76	2
S07533001	WIRE HOLDER BASE	1
062670812	SCREW 357X8	2
154607001	TENSION RELEASE WIRE PRESSER (LOWER)	2
062670512	SCREW 357X5	4
S07531001	WIRE HOLDER	1
062680812	SCREW 437X8	1
S07532001	WIRE GUIDE	1
062710612	SCREW 476X6	2
S07534001	TENSION RELEASING ASSEMBLY	1
149127001	STUD SCREW 6.35	1
S07536001	SPRING	1
062661212	SCREW 318X12	1
021660102	NUT 3.18	1
230157001	SYNCHRONIZER ASSEMBLY #14-2	1
062711012	SCREW 476X10	1
113431002	WASHER	1
S06241000	INSULATION SEAT	1
S06242001	SPEED COMMAND PLATE	1
S06243101	NEEDLE UPPER PLATE	1
062681612	SCREW 437X16	2
100645003	WASHER	2
148825001	SLIP RING SUPPORT	1
062711412	SCREW 476X14	2
158775001	SYNCHRONIZER HOLDER	1
062680812	SCREW 437X8	1
158776001	SYNCHRONIZER HOLDER STUD	1

Page 44 — R. 糸払イ関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos)

Brother LT2-B845 (88 pages) parts on page 44
Ref	Part number	Part name
9	9	Screw
8	8	Bracket
17	17	Screw
16	16	Clip
4	4	Screw
6	6	Bracket
5	5	Bracket
1-4	1-4	Switch
2	2	Screw
3	3	Washer
7	7	Screw
1-5	1-5	Coil
1-6	1-6	Wire
1-3	1-3	Washer
10	10	Screw
1-2	1-2	Clip
11	11	Lever
12	12	Screw
1	1	Thread wiper mechanism
13	13	Spring
11-6	11-6	Screw
11-7	11-7	Washer
11-5	11-5	Lever
11-4	11-4	Screw
11-9	11-9	Screw
11-8	11-8	Clip
15	15	Screw
11-2	11-2	Lever
11-1	11-1	Lever
11-3	11-3	Lever
14	14	Lever

Page 45

Brother LT2-B845 (88 pages) parts on page 45
Part number	Part name	Qty
*	THREAD WIPER SOLENOID ASSEMBLY	1
148511001	PLUNGER	1
048090342	STOP RING E9	1
148512000	PLUNGER RUBBER	1
S02664001	THREAD WIPER SWITCH	1
S02665000	CONNECTING	1
143549000	TERMINAL PIN (MALE)	2
062401012	SCREW M4X10	4
025040232	PLAIN WASHER 4	4
062300612	SCREW 3X6	2
146080000	CORD BUSH	1
S04846001	THREAD WIPER SOLENOID BRACKET	1
062680812	SCREW 437X8	2
148514006	THREAD WIPER SOLENOID COVER	1
062670512	SCREW 357X5	3
148546001	PLUNGER PIN	1
S07542101	THREAD WIPER SOLENOID ASSEMBLY	1
S07549101	THREAD WIPER LINK C	2
S07550001	THREAD WIPER LINK STUD	1
139096001	SET COLLAR	1
014680422	SET SCREW 4.37	2
S07551001	STOPPER	1
062711012	SCREW 476X10	2
025710232	PLAIN WASHER 4.76	2
S07552001	THREAD WIPER SUPPORTER	1
062661212	SCREW 318X12	2
062711012	SCREW 476X10	2
148527101	THREAD WIPER SPRING	1
S07553001	THREAD WIPER	2
S07424001	SET SCREW 3.18	2
140647001	CORD HOLDER	1
062670512	SCREW 357X5	1

Page 46

Brother LT2-B845 (88 pages) parts on page 46
Ref	Part number	Part name
1-1-8	1-1-8	Screw
1-1-7	1-1-7	Screw
1-1-4	1-1-4	Screw
1-1-6	1-1-6	Cable
1-1-5	1-1-5	Screw
1-1-3	1-1-3	Base
1-1-1	1-1-1	Control Box
1-1-2	1-1-2	Keyboard
3	3	Cover
4	4	Screw
5	5	Washer
6	6	Screw
1-2-7	1-2-7	Clip
1-2-2	1-2-2	Cover
1-2-5	1-2-5	Screw
1-2-6	1-2-6	Bracket
8	8	Nut
7	7	Screw
1-2-4	1-2-4	Screw
1-2-1	1-2-1	Base
1-2-3	1-2-3	Keyboard

Page 47 — S1. コントロールボックス関係(-900S)/Control box mechanism (-900S)/Shaltkasten (-900S)/Mécanisme de boîtier de contrôle (-900S)/Mecanismo de caja de controles (-900S) S2. コントロールボックス関係(B450 B480)/Control box mechanism (B450-B480)/Shaltkasten (B4

Brother LT2-B845 (88 pages) parts on page 47
Ref	Part number	Part name
1-1	234980001	HBOXクミ#580-1
1-1	233063001	HBOXケースフ#100
1-1-1	234981001	HBFPC#580-1
1-1-2	234984001	HBP#100クミ#1
1-1-3	233057001	SCREW 3X10
1-1-4	037301017	Vナベタッピン3X10
1-1-5	233071001	HBケースウシロ
1-1-6	233072001	HBケースキャップ
1-1-7	233090001	HBトリツケイタ#3
1-1-8	061401217	サラ#4X12
1-2	234959001	ソウサパネル8450#1クミ
1-2	234977001	B450パネルワク
1-2-1	234960001	B450パネルウライタ
1-2-2	234963001	B450キーシートクミ#1
1-2-3	234978001	SCREW 3X10 DA
1-2-4	234540001	+ナベセット3X10DA
1-2-5	008400602	+トラスコ4X6
1-2-6	234967001	PキバンクセミB8450
1-2-7	S11308001	Pコードホルダー
3	S13547001	パネルシジイタ
4	002501002	+ナベネジ5X10
5	028050242	バネザガネ2-5
6	025050232	ヒラザガネチュー5
7	152590001	PGMテーブルシメネジ
8	021400103	1シュナット4

Page 48 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

Brother LT2-B845 (88 pages) parts on page 48
Ref	Part number	Part name
1	1	BRACKET
2	2	SCREW
3	3	HOUSING
3-1	3-1	SPRING
3-2	3-2	WASHER
3-3	3-3	SPRING
4	4	SCREW
5	5	PIN
6	6	WASHER
7	7	WASHER
8	8	COVER
9	9	SCREW
10	10	COLLAR
11	11	COLLAR
12	12	BRACKET
13	13	BRACKET
14	14	SCREW
15	15	WASHER
16	16	PIN
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
20-1	20-1	TERMINAL
21	21	SCREW
22	22	WASHER
23	23	BRACKET
24	24	SCREW
25	25	SPRING

Page 49 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

Brother LT2-B845 (88 pages) parts on page 49
Ref	Part number	Part name	Qty
	153245001	レンケツピン
	048040342	トメワE4
	153138001	ザガネ
	149094001	ソレノイドレバーシク
	S01304001	シメネジ6.35X18
	149095001	ザガネ
	153132000	ナイロンチューブ
	100511003	シメネジ4.76
	S07385001	ソレノイド"ド"ダイ
	062781412	ナベコ635-28X14
	*	ギヤデンソレノイドクミ
	154730001	ゴムストッパー
	154731000	ゴムストッパー
	143549000	ピンターミナルオス
	062500812	ナベコ5X8
	146105000	ソレノイドカバー
	062500812	ナベコ5X8
	S01327001	ソレノイドゴム
	S01328001	カラー
	S07381001	ソレノイドレバークミ
	S13494001	ヒレイソレノイドドダイ
	S01304001	シメネジ6.35X18
	S13496001	ヒレイソレノイドクミ
	143549000	ピンターミナルオス
	062501202	ナベコM5X12
	028050242	バネザガネ2-5
	S13487001	ソレノイドレバークミ
	140647001	コードオサエ
	062670512	ナベコ357-40X5

Page 50 — D. C. MOTOR

Brother LT2-B845 (88 pages) parts on page 50
Ref	Part number	Part name	Qty
	5-1-2	5-1-2
	5-1-3	5-1-3
	5-1-1	5-1-1
	5-1	5-1
	1-13	1-13
	1-10	1-10
	1-12	1-12
	1-11	1-11
	5-2	5-2
	5-2-1	5-2-1
	5-2-2	5-2-2
	5-2-1	5-2-1
	1-4	1-4
	1-2	1-2
	5-1-4	5-1-4
	5-3	5-3
	5-3-2	5-3-2
	5-3-1	5-3-1
	5-5	5-5
	5-4	5-4
	3	3
	1-14	1-14
	1-15	1-15
	1-8	1-8
	1-3	1-3
	1-5	1-5
	1-6	1-6
	1-7	1-7
	1-1	1-1
	1-9	1-9

Page 51

Brother LT2-B845 (88 pages) parts on page 51
Ref	Part number	Part name	Qty
1	151126101	AIR UNIT VALVE ASSEMBLY	1
1-1	151153101	AIR UNIT ASSEMBLY	1
1-2	151127100	AIR VALVE	1
1-3	140682001	SILENCER	1
1-4	151147001	1/8" ELBOW ASSEMBLY	1
1-5	142037000	SPEED CONTROLLER CONNECTOR	1
1-6	142036001	SPEED CONTROLLER	1
1-7	140543000	1/8" CONNECTOR	1
1-8	154214001	AIR UNIT HOLDER PLATE	1
1-9	140540000	AIR TUBE	1
1-10	143488001	NYLON CONNECTOR	1
1-11	143489001	CONNECTOR CAP	1
1-12	154215001	INSULATING TUBE	1
1-13	143549000	TERMINAL PIN (MALE)	2
1-14	002501003	SCREW 5X10	2
1-15	028050243	SPRING WASHER 2-5	2
3	101118001	SCREW 4.5X20	2
4	200190001	STEPLE	8
5	S05247101	AIR UNIT CORD ASSEMBLY	1
5-1	154172001	PRESSER FOOT LIFTER CORD ASSEMBLY	1
5-1-1	143489000	NYLON CONNECTOR	1
5-1-2	143489001	CONNECTOR CAP	1
5-1-3	143549000	TERMINAL PIN (FEMALE)	2
5-1-4	143549000	TERMINAL PIN (MALE)	2
5-2	S05981000	B CORD 100 ASSEMBLY 2	1
5-2-1	143549000	TERMINAL PIN (MALE)	2
5-2-2	146046000	NYLON CONNECTOR	1
5-3	S05982000	W CORD 100 ASSEMBLY	1
5-3-1	143549000	TERMINAL PIN (MALE)	1
5-3-2	143548000	TERMINAL PIN (FEMALE)	1
5-3-3	146194000	NYLON CONNECTOR	1
5-4	143522000	NYLON CONNECTOR	1
5-5	220077001	PLUG COVER #14	1

Page 52 — V. 布制御関係 (B8450・B8480)/Cloth control system mechanism (B8450・B8480)/Stofführungsvorrichtung (B8450・B8480)/Mécanisme de la système de contrôle du tissu (B8450・B8480)/Mecanismo de la sistema de control de tera (B8450・B8480)

Brother LT2-B845 (88 pages) parts on page 52
Ref	Part number	Part name	Qty
	14	14
	15	15
	17	17
	16	16
	18	18
	19	19
	20	20
	22	22
	21	21
	1-1	1-1
	13-1	13-1
	1-1-1-	1-1-1-
	13-2	13-2
	1-1-2	1-1-2
	13-2-1	13-2-1
	11	11
	13-3	13-3
	10	10
	13-4	13-4
	24	24
	23	23
	1-1-3	1-1-3
	1-2-1	1-2-1
	1-2	1-2
	2	2
	12	12
	5	5
	4	4
	3	3
	6	6
	7	7
	9	9
	8	8

Page 54 — W1. 電磁押工上ゲ関係(-900)/Presser foot lifting solenoid set (-900)/ Solenoidsatz für die Anhebung des Stoffdrückerfußes (-900)/ Jeu de solénoïde du releveur du pied presseur (-900)/Conjunto solenoide del levantador (-900)

Brother LT2-B845 (88 pages) parts on page 54
Ref	Part number	Part name	Qty
	1-2-2
	1-3
	1-2-3
	1-2-1
	1-1-4
	1-1-4-1
	1-1-4-2
	1-1-4-3
	1-1-22
	1-1-23
	1-1-14
	1-1-14-2
	1-1-24
	1-1-25
	1-1-25-1
	1-1-17
	1-1-18
	1-1-14-1
	1-1-24-1
	1-1-25-2
	1-1-25-3
	1-6
	1-1-7
	1-3
	1-1-5
	1-1-2
	1-1-5
	1-1-21
	1-1-3
	1-1-8
	1-1-9
	1-1-12
	1-1-10
	1-1-11
	1-1-13
	1-1-26
	1-1-20
	1-1-19
	1-1-15
	1-1-16
	1-1-24-2

Page 55

Brother LT2-B845 (88 pages) parts on page 55
Part number	Part name	Qty
*	PRESSER FOOT LIFTING SOLENOID SET	1
*	PRESSER FOOT LIFTING SOLENOID ASSEMBLY	1
S02580001	SOLENOID BRACKET	1
S02581001	SOLENOID PLATE	1
062761212	SCREW 595X12	4
S02582001	PRESSER FOOT LIFTING SOLENOID ASSEMBLY	1
S02584000	CUSHION	1
S02585000	VINYL TUBE	1
211131001	INSULATOR TERMINAL 4X19	2
153122000	RUBBER CUSHION	2
158677001	NUT M8	1
S02586001	LINK JOINT	1
S02588000	TERMINAL BLOCK	1
062671011	SCREW 357X10	2
S06537000	RESISTOR	1
062670612	SCREW 437X6	1
S02590000	DIODE	1
S02591000	LEAD WIRS	1
*	PRESSER FOOT LIFTING CORD ASSEMBLY	1
204569001	TERMINAL 4.5X14	1
143549000	TERMINAL PIN (MALE)	3
S02745001	WASHER	1
062680663	SCREW 437X6	1
142268001	CORD HOLDER (L)	1
062670616	SCREW 357X6	1
S02592001	TERMINAL BASE COVER	1
062670612	SCREW 357X6	2
025060232	WASHER 6	4
143522000	NYLON CONNECTOR	1
220077001	PLUG COVER #14	1
S05981000	(B) CORD 100 ASSEMBLY 2	1
143549000	TERMINAL PIN (MALE)	2
146046000	NYLON CONNECTOR	1
S05982000	(W) CORD 100 ASSEMBLY	1
143549000	TERMINAL PIN (MALE)	1
143548000	TERMINAL PIN (FEMALE)	1
146194000	NYLON CONNECTOR	1
S07182001	LABEL	1
152808101	REGULATING ROD ASSEMBLY	1
154332001	PRESSER FOOT LIFTER REGULATING ROD	1
154333001	PRESSER FOOT LIFTER REGULATING JOINT	1
150556001	NUT 6.35	1
141583001	STUD SCREW 6.35	1
031553202	SCREW 5.5X32	4
S02587001	PIN	1
048060342	STOP RING E6	1

Page 56 — W2. 電磁押工上下関係(オプション)/Presser foot lifting solenoid set (Option Parts)/

Brother LT2-B845 (88 pages) parts on page 56
Ref	Part number	Part name	Qty
	2-1	Presser foot lifting solenoid set (Option Parts)
	2-3	2-3
	2-2	2-2
	2-4	2-4
	2-5-2	2-5-2
	2-5-1	2-5-1
	2-5-3	2-5-3
	2-6	2-6
	2-5-12	2-5-12
	2-5-4	2-5-4
	2-5-5	2-5-5
	2-5-11-1-1	2-5-11-1-1
	2-5-11-1-2	2-5-11-1-2
	2-5-6	2-5-6
	2-5-11-2	2-5-11-2
	2-5-11-1	2-5-11-1
	2-5-9	2-5-9
	2-5-8	2-5-8
	2-5-7	2-5-7
	2-5-10	2-5-10
	2-5-11-3	2-5-11-3

Page 57 — W2. 電磁押工上げ関係 (オプション)/Presser foot lifting solenoid set (Option Parts)/Solenoideatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)/Jeu de solénoide du releveur du pied presseur (Pièces en option)/Conjunto solenoide del levantador (Piez

Brother LT2-B845 (88 pages) parts on page 57
Part number	Part name	Qty
S10550001	オサエアゲリンク	1
146367001	ボルト5.95	1
S0729001	ネジリハネ	1
183503001	デンシオサエセット 2	1
S03681101	デンシアゲクミ	1
183519001	デンシオサエセット 2E	1
S04206101	デンシアゲクミ	1

Page 58

Brother LT2-B845 (88 pages) parts on page 58
Ref	Part number	Part name	Qty
	1-11-3	Knee switch mechanism
	1-2	Knee switch mechanism
	1-11-1-1	Knee switch mechanism
	1-11-1-2	Knee switch mechanism
	1-11-2	Knee switch mechanism
	1-1	Knee switch mechanism
	1-3	Knee switch mechanism
	2	Knee switch mechanism
	1-12	Knee switch mechanism
	1-4	Knee switch mechanism
	1-5	Knee switch mechanism
	1-11-1	Knee switch mechanism
	1-6	Knee switch mechanism
	1-8	Knee switch mechanism
	1-9	Knee switch mechanism
	1-7	Knee switch mechanism
	1-10	Knee switch mechanism
	Y	Quick reverse switch mechanism (Thread Trimmer)
	1-8	Quick reverse switch mechanism
	4	Quick reverse switch mechanism
	3	Quick reverse switch mechanism
	1-9	Quick reverse switch mechanism
	1-7	Quick reverse switch mechanism
	1-6	Quick reverse switch mechanism
	1-2	Quick reverse switch mechanism
	1-8-1	Quick reverse switch mechanism
	1-8-2	Quick reverse switch mechanism
	2	Quick reverse switch mechanism
	1-1	Quick reverse switch mechanism
	1-4	Quick reverse switch mechanism
	1-5	Quick reverse switch mechanism
	1-3	Quick reverse switch mechanism

Page 59 — X. Knee switch mechanism (-700, -900) / Y. Quick reverse switch mechanism (Thread Trimmer)

Brother LT2-B845 (88 pages) parts on page 59
Part number	Part name	Qty
S07045001	KNEE LIFTER SWITCH ASSEMBLY	1
142026003	KNEE LIFTER SWITCH SHAFT	1
142027001	KNEE LIFTER SWITCH SHAFT BRACKET	1
100463001	BOLT 7.94	1
114967001	KNEE LIFTER PLATE STOPPER	1
110087001	BOLT 5.95	1
S07027001	KNEE LIFTER SWITCH PLATE	1
062401006	SCREW 4X10	4
025040233	WASHER 4	4
028040243	SPRING WASHER 2-4	4
021400164	NUT 4	4
S07030000	SWITCH CORD ASSEMBLY	1
S07031000	PRESSER FOOT LIFTER SWITCH ASSEMBLY	1
143549000	TERMINAL PIN (MALE)	2
143548000	TERMINAL PIN (FEMALE)	1
146046000	NYLON CONNECTOR	2
146194000	NYLON CONNECTOR	1
149799000	BEAD BAND (S)	1
034422503	SCREW 4.1X25	4
S07556001	SWITCH BASE	1
S02693001	INSIUIATOR SEET	1
S02694001	ACTUATOR	1
S02696001	ACTUATOR SPRING	1
048030342	STOP RING E3	1
S02697001	STOPPER	1
110215002	SCREW 3.57	1
S02699001	MICRO SWITCH	1
143549000	TERMINAL PIN (MALE)	2
062630812	SCREW 238X8	2
062710612	SCREW 476X6	2
140647001	CORD HOLDER	1
062670512	SCREW 357X5	1

Page 60 — Z1. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother LT2-B845 (88 pages) parts on page 60
Ref	Part number	Part name	Qty
	1	Bag
	2	Screwdriver
	3	Screwdriver
	4	Screwdriver
	5	Wrench
	6	Wrench
	7	Wrench
	8	Allen Wrench
	9	Allen Wrench
	10	Needle
	11	Bobbin Winder
	12	Bobbin Winder
	13	Spool Pin
	14	Oil Can
	15	Parts Group
	15-3	Parts Group
	15-4	Parts Group
	15-5	Parts Group
	15-6	Parts Group
	15-7	Parts Group
	15-8	Parts Group
	15-9	Parts Group
	15-10	Parts Group
	15-215-1	Parts Group
	16	Parts Group
	18	Parts Group
	20	Spool Pin
	21-1-2	Parts Group
	21-1-5	Parts Group
	21-1-6	Parts Group
	21-1-7	Parts Group
	21-1-8	Parts Group
	21-1-421-1-7	Parts Group
	21-2-1	Parts Group
	21-2-2	Parts Group
	21-2-3	Parts Group
	21-2-4	Parts Group
	21-2-5	Parts Group
	21-2-6	Parts Group
	22	Screw
	23	Screw
	24	Washer
	26	Parts Group
	27	Parts Group
	28	Parts Group
	29	Screw
	30	Parts Group
	31	Parts Group
	33	Oil Bottle
	34	Oil Bottle
	35-1	Parts Group
	35-1-1	Parts Group
	35-2-1	Parts Group
	35-2-2	Parts Group
	35-2-3	Parts Group
	35-2-4	Parts Group
	35-2-5	Parts Group
	35-2-6	Parts Group
	36	Cap
	39-1	Parts Group
	39-2	Parts Group
	39-3	Screw
	39-4	Parts Group
	39-5	Parts Group
	39-6	Parts Group
	39-7	Parts Group
	39-8	Parts Group
	40	Parts Group
	41	Parts Group
	42	Parts Group
	44	Screw
	46	Spool Pin
	-700	Parts Group
	-900--900S B8450 B8480	Parts Group

Page 61 — Z1. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LT2-B845 (88 pages) parts on page 61
Part number	Part name	Qty
122991001	フゾクヒンポリプロ
142443001	ネジマワシ1.9X52
118837001	ネジマワシ3.4X70
101572101	ネジマワシ5.5X190
107780001	スパナ10X12
142002001	6カクボウスパナ2
*	ミシンハリDP	8
*	ホビン	4
154702001	オイルタンク
117963001	イトマキキクミ
145446001	イトマキウツサラ	2
100401001	イトマキウツバネ
117969001	イトマキウツクカエリバネ
117970001	イトマキジク
117971001	イトマキクルママキ
100366002	マルヒラトメネジ4.37X5
100657001	シメネジ3.18
100659001	ダンネジ3.18
100662001	イトマキクルマカイテンドメ
S01297001	シメネジ3.57X3.5
100666002	マルモクネジ5.5X20	2
144222001	HEAD COVER
*	ヒザアゲオシボウ	1
*	マルモクネジ5.5X20	4
143882001	トウブヒンジ	2
143910001	ベルトカバーラクセクミ	2
148890101	トウブシヨウゴム	4
109714000	クギ	8
S07561001	オイルパン
109714000	クギ	5
114486002	ポリオイラータイ
114483002	ポリオイラークミ
183480001	ベルトカバーラクセクミ
S08468000	ベルトカバーカラーラクミ
S07660000	ゴムカラー	4
062712012	ナベコ476-32X20	4
025050332	ヒラザガネタ5	4
062680812	ナベコ437-40X8	1
025680232	ヒラザガネ4.37X5	1
100666002	マルモクネジ5.5X20	2
025750132	ヒラザガネ5.56	2
*	スカート	1
114941001	アームイトアンナイフエルト	2
107779001	スパナ6X7
100887001	スパナ8X9
142721001	6カクボウスパナ3
S07527001	コテイハ
148539101	ダンネジ2.38
S11243001	スタビードライバー
S07559201	ヒザアゲクミ
S07560100	ヒザアゲブラケット
146036101	ヒザアゲヨウシク
146037001	ヒザアゲ
146367001	ボルト5.95
104885101	トメネジ5.95	2
100022004	ナット5.95	2
S15889001	ヒザアゲネジリハバネ
146293001	トメワE10

Page 62 — Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Brother LT2-B845 (88 pages) parts on page 62
Ref	Part number	Part name
35-2-5	35-2-5	Screw
35-2-3	35-2-3	Screw
35-2-4	35-2-4	Screw
35-2-6	35-2-6	Washer
35-2-1	35-2-1	Screw
35-2-2	35-2-2	Screw
36	-700	Cap
35-1	35-1	Base
35-1-1	35-1-1	Base
-900	-900	Model
-900S	-900S	Model
-B8450	-B8450	Model
-B8480	-B8480	Model
21-2-1	21-2-1	Bracket
21-2-5	21-2-5	Screw
21-2-6	21-2-6	Washer
21-2-4	21-2-4	Nut
21-2-3	21-2-3	Screw
21-2-2	21-2-2	Shaft
15-5	15-5	Screw
15-4	15-4	Screw
15-6	15-6	Bracket
15-215-1	15-215-1	Pulley
15-10	15-10	Shaft
15-7	15-7	Screw
15-9	15-9	Rod
15-3	15-3	Bracket
15-8	15-8	Bracket
14	14	Oil can
15	15	Oil can
33	33	Oil can
34	34	Oil can
16	16	Oil can
39-1	39-1	Bracket
39-4	39-4	Shaft
39-3	39-3	Screw
39-2	39-2	Screw
39-6	39-6	Bracket
39-7	39-7	Screw
39-8	39-8	Cover
39-5	39-5	Bracket
21-1-2	21-1-2	Shaft
21-1-8	21-1-8	Clip
21-1-421-1-7	21-1-421-1-7	Shaft
21-1-3	21-1-3	Shaft
21-1-5	21-1-5	Screw
22	22	Screw
21-1-1	21-1-1	Bracket
20	20	Screw
40	40	Washer
23	23	Screw
24	24	Screw
29	29	Screw
28	28	Bracket
27	27	Bracket
26	26	Bracket
13	13	Shaft
46	46	Shaft
11	11	Screw
12	12	Screw
10	10	Screw
9	9	Allen wrench
8	8	Allen wrench
7	7	Wrench
6	6	Wrench
5	5	Wrench
4	4	Screwdriver
3	3	Screwdriver
2	2	Screwdriver
1	1	Cover
44	44	Screw
41	41	Screw
42	42	Screw
30	30	Cover
31	31	Screw
35	35	Cover

Page 63 — Z1. 付属関係/Accessories/Zubehor/Accessoires/Accesorios

Brother LT2-B845 (88 pages) parts on page 63
Ref	Part number	Part name	Qty
39	181427001	KNEE LIFTER ASSEMBLY	1
39-1	146039001	KNEE LIFTER JOINT	1
39-2	100463001	BOLT 7.94	1
39-3	017762013	BOLT 5.95X20	1
39-4	104619002	KNEE LIFTER BAR	1
39-5	114966001	KNEE LIFTER PLATE	1
39-6	114967001	KNEE LIFTER PLATE STOPPER	1
39-7	110087001	BOLT 5.95	1
39-8	140503001	KNEE LIFTER PLATE COVER	1
42	233090001	HB SETTING PLATE (#3)	1
44	002681212	SCREW 437X12	3
36	150756000	OIL CAP	1
21-2	S07726301	KNEE LIFTER ASSEMBLY	1
21-2-1	S07560100	KNEE LIFTER BRACKET	1
21-2-2	146036101	KNEE LIFTER SHAFT	1
21-2-3	S10550001	PRESSER FOOT LIFTING LINK	1
21-2-4	146367001	BOLT 5.95	1
21-2-5	S07729001	TWIST SPRING	1
21-2-6	146293001	STOP RING E10	1
13	100477001	HEAD REST	1
46	159384001	HEAD REST	1

Page 64 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LT2-B845 (88 pages) parts on page 64
Ref	Part number	Part name	Qty
	17-1-7-3	17-1-5
	17-1-12	17-1-3
	17-1-4	17-1-4-2
	17-1-4-1	17-1-7-1
	17-1-3	17-1-1
	17-1-10	17-1-9
	17-1-7-4	17-1-8
	17-1-11-3	17-1-6
	17-1-11-1	17-1-11-2
	17-1-7-2	17-1-2-1
	17-1-11-4	17-1-2-2
	17-2-8-3	17-2-2-4
	17-2-6-5	17-2-12
	17-2-4	17-2-11
	17-2-14	17-2-3
	17-2-16	17-2-3-2
	17-2-17	17-2-3-1
	17-2-15	17-2-13-1
	17-2-13-3	17-2-6-1
	17-2-1	17-2-6-3
	17-2-6-4	17-2-9
	17-2-8	17-2-7
	17-2-10-3	17-2-5
	17-2-10-1	17-2-10-2
	17-2-2-3	17-2-6-2
	17-2-10-4	17-2-6-3
	17-2-2-1	17-2-2-2
	17-2-2-4	17-2-2-4

Page 65 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LT2-B845 (88 pages) parts on page 65
Ref	Part number	Part name	Qty
17-1	S02766001	COTTON STAND ASSEMBLY 3D	1
17-1-1	156112002	COLUMN PIPE D	1
17-1-2	S02775001	PIPE SCREW SET (A)	1
17-1-2-1	150206002	PLAIN WASHER 16	1
17-1-2-2	150191002	NUT 5/8	1
17-1-3	150172002	COLUMN PIPE	1
17-1-4	150108002	COLUMN JOINT ASSEMBLY	1
17-1-4-1	062501406	SCREW 5X14	2
17-1-4-2	021500106	NUT 5	2
17-1-5	150174000	COLUMN CAP	1
17-1-6	S02779001	SPOOL HOLDER 3	1
17-1-7	S02782001	SPOOL SCREW SET 3	1
17-1-7-1	150179002	SPOOL SHAFT (B)	3
17-1-7-2	028050246	SPRING WASHER 2-5	3
17-1-7-3	021500106	NUT 5	5
17-1-7-4	050503006	SCREW 5X30	1
17-1-7-5	050501406	SCREW 5X14	1
17-1-8	150180000	SPOOL STAND BASE	3
17-1-9	150182000	SPOOL MAT	3
17-1-10	126863001	SPOOL CUSHION	3
17-1-11	S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
17-1-11-1	150188002	SPOOL HOLDER SUPPORTER (A)	1
17-1-11-2	062501006	SCREW 5X10	1
17-1-11-3	021500106	NUT 5	1
17-1-11-4	031452206	SCREW 45X22	1
17-1-12	S02788001	THREAD HANGER ASSEMBLY 3	1
17-2	S07558001	COTTON STAND ASSEMBLY 3DRTHF	1
17-2-1	156112002	COLUMN PIPE D	1
17-2-2	S02777001	PIPE (D) SET SCREW (B)	1
17-2-2-1	150206002	PLAIN WASHER 16	1
17-2-2-2	150191002	NUT 5/8	1
17-2-2-3	S01005000	RUBBER WASHER	2
17-2-3	150174000	COLUMN CAP	2
17-2-3-1	150108002	COLUMN JOINT ASSEMBLY	1
17-2-3-2	062501406	SCREW 5X14	2
17-2-4	021500106	NUT 5	2
17-2-5	150172002	COLUMN PIPE	1
17-2-6	S02779001	SPOOL HOLDER 3	1
17-2-6-1	S02782001	SPOOL SCREW SET 3	1
17-2-6-2	150179002	SPOOL SHAFT (B)	3
17-2-6-3	028050246	SPRING WASHER 2-5	3
17-2-6-4	021500106	NUT 5	5
17-2-6-5	050503006	SCREW 5X30	1
17-2-6-6	050501406	SCREW 5X14	1
17-2-7	150180000	SPOOL STAND BASE	3
17-2-8	150182000	SPOOL MAT	3
17-2-9	126863000	SPOOL CUSHION	3
17-2-10	S02784001	SPOOL HOLDER SUPPORTER (A) SET	1
17-2-10-1	150188002	SPOOL HOLDER SUPPORTER (A)	1
17-2-10-2	062501006	SCREW 5X10	1
17-2-10-3	021500106	NUT 5	1
17-2-10-4	031452206	SCREW 45X22	1
17-2-11	S02788001	THREAD HANGER ASSEMBLY 3	1
17-2-12	S02747001	THREAD GUIDE SPRING	1
17-2-13	150145002	THREAD GUIDE HOLDER ASSEMBLY	1
17-2-13-1	150185002	THREAD GUIDE HOLDER	1
17-2-13-2	050503006	SCREW 5X30	1
17-2-13-3	021500106	NUT 5	1
17-2-14	142997001	THREAD GUIDE 3	1
17-2-15	S04109001	THREAD GUIDE SUPPORTING BAR	1

Page 66 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LT2-B845 (88 pages) parts on page 66
Ref	Part number	Part name	Qty
	17-1-7-3	Nut
	17-1-5	Cap
	17-1-12	Arm
	17-1-7-5	Screw
	17-1-3	Shaft
	17-1-4	Washer
	17-1-4-2	Washer
	17-1-4-1	Screw
	17-1-7-1	Shaft
	17-1-7-3	Nut
	17-1-1	Shaft
	17-1-10	Cap
	17-1-9	Disc
	17-1-7-4	Screw
	17-1-8	Disc
	17-1-11-3	Screw
	17-1-6	Washer
	17-1-11-2	Washer
	17-2-6-3	Nut
	17-2-2-4	Nut
	17-1-7-2	Washer
	17-1-11-1	Bracket
	17-1-7-3	Nut
	17-1-2-1	Arm
	17-1-11-4	Screw
	17-1-2-2	Washer
	17-2-6-5	Screw
	17-2-12	Shaft
	17-2-4	Shaft
	17-2-11	Screw
	17-2-14	Screw
	17-2-13-2	Washer
	17-2-16	Shaft
	17-2-3	Shaft
	17-2-17	Shaft
	17-2-3-1	Screw
	17-2-15	Shaft
	17-2-13-1	Bracket
	17-2-6-1	Shaft
	17-2-3-2	Nut
	17-2-1	Shaft
	17-2-9	Cap
	17-2-6-4	Screw
	17-2-8	Disc
	17-2-7	Disc
	17-2-10-3	Screw
	17-2-10-1	Bracket
	17-2-5	Screw
	17-2-10-2	Washer
	17-2-10-4	Screw
	17-2-6-2	Washer
	17-2-2-3	Washer
	17-2-6-3	Nut
	17-2-2-1	Washer
	17-2-2-2	Washer
	17-2-2-4	Nut

Page 67 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother LT2-B845 (88 pages) parts on page 67
Ref	Part number	Part name	Qty
17-2-16	138843001	JOINT	1
17-2-17	014060632	SCREW 6X6	2

Page 68 — ZZ. ゲージ部品/Gauge parts/Lehren/Pièces d'écartement/Piezas calibradoras BB. 特別注文部品/Option parts/Sonderzubehör/Pieces en option/Piezas opciona

Brother LT2-B845 (88 pages) parts on page 68
Ref	Part number	Part name
4	4	Screw
20-2	20-2	Screw
21-2	21-2	Screw
20-3	20-3	Screw
21-3	21-3	Screw
20-1	20-1	Screw
21-1	21-1	Screw
7	7	Base
8	8	Screw
1-1	1-1	Gauge
2-1	2-1	Gauge
3	3	Gauge
2	2	Gauge
1	1	Gauge
10	10	Screw
9	9	Presser Foot
12	12	Lever
11	11	Base
14-2	14-2	Spring
14-1	14-1	Shaft
12-1-1	12-1-1	Lever
12-2-1	12-2-1	Lever
12-1-2	12-1-2	Shaft
12-2-2	12-2-2	Shaft
12-1-3	12-1-3	Spring
12-2-3	12-2-3	Spring
13-1	13-1	Thread Trimmer
13-2	13-2	Screw
13-3	13-3	Screw

Page 69

Brother LT2-B845 (88 pages) parts on page 69
Part number	Part name	Qty
013660412	ハリダキL クミ	1
013660412	トメクボミ3.18-40X4	1
S13085001	ハリダキR クミ	1
013660412	トメクボミ3.18-40X4	1
S13085001	トメネジ"3.18	2
149831101	アタマツキトメネジ"3.18	2
S11244001	ハリイタ(クミ)	1
100032004	シメネジ"4.37	1
113050001	サラネジ"4.37	1
S07494001	オサエエミ	1
S07494001	シメネジ"3.57	2
S13085001	オクリバ	1
149831101	トメネジ"3.18	1
149831101	ハリダキLセット	1
S13085001	ハリダキLクミ	1
149831101	アタマツキトメネジ"3.18	1
S13085001	トメネジ"3.18	1
149831101	ハリダキRセット	1
S13085001	ハリダキRクミ	1
149831101	アタマツキトメネジ"3.18	1
S13085001	トメネジ"3.18	1
S13162100	オイルタンククミ	1
S13157001	テンビンS5クミ	1
S07337001	テンビン	1
S03289001	クミヒモ4X4 (4CM)	1
142274001	メクラセン	1
S13156001	テンビンS3クミ	1
S07336001	テンビン	1
S03289001	クミヒモ4X4 (4CM)	1
142274001	メクラセン	1
S13161001	テンビンスベリクミ	1
S07567001	テンビンスベリコ	1
114693001	クミヒモフタ (3CM)	1
113024000	メクラセン	1
S14506001	テンビンジククミ	1
S07334001	テンビンジク	1
113653000	クミヒモ (13CM)	1

Page 70 — B845 (スタンダード/STANDARD)

Brother LT2-B845 (88 pages) parts on page 70
Ref	Part number	Part name	Qty
	(L)S15711-001	Needle Clamp Set
	(R)S15712-001	Needle Clamp Set
	117369-001	Needle Plate
	S07880-001	Feed Dog
	114951-001	Feed Dog
	114948-001	Presser Foot Assembly
	158430-001	Feed Dog
	(L)S15717-001	Needle Clamp Assembly
	(R)S15718-001	Needle Clamp Assembly
	(L)S15719-001	Needle Clamp Assembly
	(R)S15720-001	Needle Clamp Assembly
	150850-001	Needle Plate
	116509-001	Feed Dog
	116502-001	Presser Foot Assembly
	(L)S15723-001	Needle Clamp Assembly
	(R)S15724-001	Needle Clamp Assembly
	(L)S15725-001	Needle Clamp Assembly
	(R)S15726-001	Needle Clamp Assembly
	117133-001	Needle Plate
	S07878-001	Feed Dog
	112659-001	Feed Dog
	112638-001	Presser Foot Assembly
	13588-001	Feed Dog
	(L)S15735-001	Needle Clamp Assembly
	(R)S15736-001	Needle Clamp Assembly
	(L)S15737-001	Needle Clamp Assembly
	(R)S15738-001	Needle Clamp Assembly
	117367-001	Needle Plate
	S07879-001	Feed Dog
	112660-001	Feed Dog
	112642-001	Presser Foot Assembly
	153882-001	Feed Dog
	(L)S15747-001	Needle Clamp Assembly
	(R)S15748-001	Needle Clamp Assembly
	(L)S15749-001	Needle Clamp Assembly
	(R)S15750-001	Needle Clamp Assembly
	144882-001	Needle Plate
	112661-001	Feed Dog
	112645-001	Presser Foot Assembly
	(L)S15753-001	Needle Clamp Assembly
	(R)S15754-001	Needle Clamp Assembly
	(L)S15755-001	Needle Clamp Assembly
	(R)S15756-001	Needle Clamp Assembly
	144881-101	Needle Plate
	116510-101	Feed Dog
	116498-001	Presser Foot Assembly
	153887-001	Feed Dog
	(L)S15759-001	Needle Clamp Assembly
	(R)S15760-001	Needle Clamp Assembly
	(L)S15761-001	Needle Clamp Assembly
	(R)S15762-001	Needle Clamp Assembly
	151596-001	Needle Plate
	151598-001	Feed Dog
	151597-001	Presser Foot Assembly
	(L)S15765-001	Needle Clamp Assembly
	(R)S15766-001	Needle Clamp Assembly
	(L)S15767-001	Needle Clamp Assembly
	(R)S15768-001	Needle Clamp Assembly
	S09365-001	Needle Plate
	116511-001	Feed Dog
	116499-001	Presser Foot Assembly
	153892-001	Feed Dog
	(L)S15771-001	Needle Clamp Assembly
	(R)S15772-001	Needle Clamp Assembly
	(L)S15773-001	Needle Clamp Assembly
	(R)S15774-001	Needle Clamp Assembly
	159577-001	Needle Plate
	116512-001	Feed Dog
	116500-001	Presser Foot Assembly
	153897-001	Feed Dog
	149311-001	Presser Foot Assembly with Guide
	117281-001	Presser Foot Assembly with Guide
	149312-001	Presser Foot Assembly with Guide

Page 71 — B845 (糸切り/THREAD TRIMMER)

Brother LT2-B845 (88 pages) parts on page 71
Ref	Part number	Part name	Qty
	S15705-001	Needle Clamp Set (L)
	S15706-001	Needle Clamp Set (R)
	S15707-001	Needle Clamp Assembly (L)
	S15708-001	Needle Clamp Assembly (R)
	159398-001	Needle Plate Assembly
	148697-001	Feed Dog
	148679-001	Presser Foot Assembly
	S15711-001	Needle Clamp Set (L)
	S15713-001	Needle Clamp Assembly (L)
	148698-001	Feed Dog
	148685-001	Presser Foot Assembly
	S15712-001	Needle Clamp Set (R)
	S15714-001	Needle Clamp Assembly (R)
	148699-001	Feed Dog
	148681-001	Presser Foot Assembly
	S15717-001	Needle Clamp Set (L)
	S15719-001	Needle Clamp Assembly (L)
	148700-001	Feed Dog
	148689-001	Presser Foot Assembly
	S15718-001	Needle Clamp Set (R)
	S15720-001	Needle Clamp Assembly (R)
	155724-001	Needle Plate Assembly
	148701-001	Feed Dog
	148683-001	Presser Foot Assembly
	S15723-001	Needle Clamp Set (L)
	S15725-001	Needle Clamp Assembly (L)
	148702-001	Feed Dog
	148687-001	Presser Foot Assembly
	S15724-001	Needle Clamp Set (R)
	S15726-001	Needle Clamp Assembly (R)
	155851-001	Needle Plate Assembly
	148703-001	Feed Dog
	148691-001	Presser Foot Assembly
	S15729-001	Needle Clamp Set (L)
	S15731-001	Needle Clamp Assembly (L)
	156816-001	Needle Plate Assembly
	148702-001	Feed Dog
	148691-001	Presser Foot Assembly
	S15730-001	Needle Clamp Set (R)
	S15732-001	Needle Clamp Assembly (R)
	155853-001	Needle Plate Assembly
	148704-001	Feed Dog
	148693-001	Presser Foot Assembly
	S15735-001	Needle Clamp Set (L)
	S15737-001	Needle Clamp Assembly (L)
	S10507-001	Feed Dog
	148705-001	Feed Dog
	148695-001	Presser Foot Assembly
	S15736-001	Needle Clamp Set (R)
	S15738-001	Needle Clamp Assembly (R)
	S158756-001	Feed Dog
	S10510-001	Presser Foot Assembly
	S15741-001	Needle Clamp Set (L)
	S15743-001	Needle Clamp Assembly (L)
	S14532-001	Feed Dog
	S14534-001	Presser Foot Assembly
	S15742-001	Needle Clamp Set (R)
	S15744-001	Needle Clamp Assembly (R)
	S14530-001	Needle Plate Assembly
	S14533-001	Feed Dog
	S14536-001	Presser Foot Assembly
	S15747-001	Needle Clamp Set (L)
	S15749-001	Needle Clamp Assembly (L)
	149696-001	Feed Dog
	149689-001	Presser Foot Assembly
	S15748-001	Needle Clamp Set (R)
	S15750-001	Needle Clamp Assembly (R)
	155855-001	Needle Plate Assembly
	149691-001	Feed Dog
	149687-001	Presser Foot Assembly
	S15753-001	Needle Clamp Set (L)
	S15755-001	Needle Clamp Assembly (L)
	149939-001	Feed Dog
	149942-001	Presser Foot Assembly
	S15754-001	Needle Clamp Set (R)
	S15756-001	Needle Clamp Assembly (R)
	155857-001	Needle Plate Assembly
	149938-001	Feed Dog
	149940-001	Presser Foot Assembly
	S15759-001	Needle Clamp Set (L)
	S15761-001	Needle Clamp Assembly (L)
	S01646-001	Feed Dog
	S01641-001	Presser Foot Assembly
	S15760-001	Needle Clamp Set (R)
	S15762-001	Needle Clamp Assembly (R)
	S01644-001	Needle Plate Assembly
	149676-001	Feed Dog
	149673-001	Presser Foot Assembly
	S15765-001	Needle Clamp Set (L)
	S15767-001	Needle Clamp Assembly (L)
	149677-001	Feed Dog
	149671-001	Presser Foot Assembly
	S15766-001	Needle Clamp Set (R)
	S15768-001	Needle Clamp Assembly (R)
	149675-001	Feed Dog
	149952-001	Presser Foot Assembly
	S15771-001	Needle Clamp Set (L)
	S15773-001	Needle Clamp Assembly (L)
	149949-001	Feed Dog
	149950-001	Presser Foot Assembly
	S15772-001	Needle Clamp Set (R)
	S15774-001	Needle Clamp Assembly (R)
	149954-001	Needle Plate Assembly
	149948-001	Feed Dog

Page 72 — B8450

Brother LT2-B845 (88 pages) parts on page 72
Ref	Part number	Part name	Qty
	S15717-001	Needle Clamp Set (L)
	S15718-001	Needle Clamp Set (R)
	S15719-001	Needle Clamp Assembly (L)
	S15720-001	Needle Clamp Assembly (R)
	S13512-101	Needle Plate Assembly
	148700-001	Presser Foot Assembly
	148689-001	Presser Foot Assembly
	148701-001	Feed Dog
	148683-001	Presser Foot Assembly
	148702-001	Feed Dog
	148687-001	Presser Foot Assembly
	S15723-001	Needle Clamp Set (L)
	S15724-001	Needle Clamp Set (R)
	S15725-001	Needle Clamp Assembly (L)
	S15726-001	Needle Clamp Assembly (R)
	S13514-101	Needle Plate Assembly
	148703-001	Feed Dog
	S07905-001	Feed Dog
	148691-001	Presser Foot Assembly
	148704-001	Feed Dog
	148693-001	Presser Foot Assembly
	148705-001	Feed Dog
	148695-001	Presser Foot Assembly
	158756-001	Feed Dog
	149692-001	Feed Dog
	149689-001	Presser Foot Assembly
	149691-001	Feed Dog
	149687-001	Presser Foot Assembly
	149939-001	Feed Dog
	149942-001	Presser Foot Assembly
	149938-001	Feed Dog
	149940-001	Presser Foot Assembly
	S15735-001	Needle Clamp Assembly (L)
	S15736-001	Needle Clamp Assembly (R)
	S15737-001	Needle Clamp Assembly (L)
	S15738-001	Needle Clamp Assembly (R)
	S13510-101	Needle Plate Assembly
	S15747-001	Needle Clamp Assembly (L)
	S15748-001	Needle Clamp Assembly (R)
	S15749-001	Needle Clamp Assembly (L)
	S15750-001	Needle Clamp Assembly (R)
	S13516-101	Needle Plate Assembly
	S15753-001	Needle Clamp Assembly (L)
	S15754-001	Needle Clamp Assembly (R)
	S15755-001	Needle Clamp Assembly (L)
	S15756-001	Needle Clamp Assembly (R)
	S13518-101	Needle Plate Assembly

Page 73

Brother LT2-B845 (88 pages) parts on page 73
Ref	Part number	Part name	Qty
	S15711-001	(L)スタンダード
	S15712-001	(R)糸切り
	S15713-001	(L)スタンダード
	S15714-001	(R)糸切り
	S07686-001	ハリイタ(クミ)
	S07401-001	ハリイタ(クミ)
	S07636-001	オクリバ
	S07409-001	オクリバ
	S07393-001	オサエクミ
	S15723-001	(L)スタンダード
	S15724-001	(R)糸切り
	S15725-001	(L)スタンダード
	S15726-001	(R)糸切り
	S07688-001	ハリイタ(クミ)
	S07403-001	ハリイタ(クミ)
	S07638-001	オクリバ
	S07410-001	オクリバ
	S07395-001	オサエクミ
	S15735-001	(L)スタンダード
	S15736-001	(R)糸切り
	S15737-001	(L)スタンダード
	S15738-001	(R)糸切り
	S07699-001	ハリイタ(クミ)
	S07405-001	ハリイタ(クミ)
	S07411-001	オクリバ
	S07397-001	オサエクミ
	S15747-001	(L)糸切り
	S15748-001	(R)糸切り
	S15749-001	(L)糸切り
	S15750-001	(R)糸切り
	S07676-001	ハリイタ(クミ)
	S07680-001	ハリイタ(クミ)
	S07682-001	オサエクミ
	S15753-001	(L)糸切り
	S15754-001	(R)糸切り
	S15755-001	(L)糸切り
	S15756-001	(R)糸切り
	S13623-001	ハリイタ(クミ)
	S13624-001	オサエクミ
	S15765-001	(L)スタンダード
	S15766-001	(R)イトキリ Thread Trimmer
	S15767-001	(L)スタンダード
	S15768-001	(R)イトキリ Thread Trimmer
	S07693-001	ハリイタ(クミ)
	S07681-001	ハリイタ(クミ)
	S07684-001	オサエクミ
	S16437-001	ハリイタ(クミ)
	S07410-001	オクリバ
	S07395-001	オサエクミ
	S16439-001	ハリイタ(クミ)
	S07411-001	オクリバ
	S07397-001	オサエクミ
	S16441-001	ハリイタ(クミ)
	S07680-001	ハリイタ(クミ)
	S07682-001	オサエクミ
	S16443-001	ハリイタ(クミ)
	S13623-001	オクリバ
	S13624-001	オサエクミ

Page 74

Brother LT2-B845 (88 pages) parts on page 74
Ref	Part number	Part name
	153604101	Needle Bar (L) Assembly
	S09151001	Needle Bar (L) Assembly
	S07804001	Needle Bar (L) Assembly
	153606001	Needle Bar (R) Assembly
	S09149001	Needle Bar (R) Assembly
	153606001	Needle Bar (R) Assembly
A	S00858001	Needle Bar Clamp Assembly
B	S00858002	Needle Bar Clamp Assembly
C	S00858003	Needle Bar Clamp Assembly
2 5	S07575000	Slide Block Assembly
3 0	S07575001	Slide Block Assembly
3 5	S07575002	Slide Block Assembly
4 0	S07575003	Slide Block Assembly
4 5	S07575004	Slide Block Assembly
5 0	S07575005	Slide Block Assembly
5 5	S07575006	Slide Block Assembly
6 0	S07575007	Slide Block Assembly
6 5	S07575008	Slide Block Assembly
7 0	S07575009	Slide Block Assembly
7 5	S07575010	Slide Block Assembly
8 0	S07575011	Slide Block Assembly

Page 75 — DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Brother LT2-B845 (88 pages) parts on page 75
Ref	Part number	Part name
A-9	107415014(14)	ミシンバリ DPX5 (#)
A-9	107415022(22)	ミシンバリ DPX5 (#)
A-9	107415011(11)	ミシンバリ DPX5 (#)
A-9	145646022(22)	NEEDLE DPX17 (#)
C-1	S07572001	バリボウ"ラクト"ラジクミ
C-1	S09162001	バリボウ"ラクト"ラジクミ
C-1	S07578001	バリボウ"ラクト"ラジクミ
Z1-10	107415014(14)	ミシンバリ DPX5 (#)
Z1-10	107415022(22)	ミシンバリ DPX5 (#)
Z1-10	107415011(11)	ミシンバリ DPX5 (#)
Z1-10	145646022(22)	NEEDLE DPX17 (#)

Page 76

Brother LT2-B845 (88 pages) parts on page 76
Ref	Part number	Part name
B-21	S07337001	THREAD TAKE-UP
B-21	S07336001	THREAD TAKE-UP
B-21	S07335001	THREAD TAKE-UP
H-1	S07439001	LOWER SHAFT
H-1	S07441001	LOWER SHAFT
H-1	S07440001	LOWER SHAFT
H-9	181486001	VERTICAL FEED ECCENTRIC WHEEL ASS
H-9	148804001	VERTICAL FEED ECCENTRIC WHEEL ASS
H-11	S07442001	TIMING BELT WHEEL (D) ASSEMBLY
H-11	S07444001	TIMING BELT WHEEL (D) ASSEMBLY
K-41	112781101	BOBBIN
K-41	S01928101	BOBBIN
M-1-1	S07489101	TENSION CONTROL ASSEMBLY
M-1-1	S07483101	TENSION CONTROL ASSEMBLY
M-1-2	S07492001	TENSION CONTROL ASSEMBLY
M-1-2	S07491001	TENSION CONTROL ASSEMBLY
Z1-11	112781101	BOBBIN
Z1-11	S01928101	BOBBIN

Page 77

Brother LT2-B845 (88 pages) parts on page 77
Ref	Part number	Part name
B-19	S07340001	PULLEY
B-19	S07341001	PULLEY
N-1	S05892000	THREAD TRIMMER SOLENOID ASSEMBLY
N-1	S07495000	THREAD TRIMMER SOLENOID ASSEMBLY
R-1	S07337100	THREAD WIPER SOLENOID
R-1	S07540001	THREAD WIPER SOLENOID
T-3	154727001	REVERSE SOLENOID ASSEMBLY
T-3	154734001	REVERSE SOLENOID ASSEMBLY
W1-1	183486001	PRESSER FOOT LIFTING SOLENOID SET
W1-1	183487001	PRESSER FOOT LIFTING SOLENOID SET
W1-1-1	S06538001	PRESSER FOOT LIFTING SOLENOID ASS
W1-1-1	S04206101	PRESSER FOOT LIFTING SOLENOID ASS
W1-1-1-14	S02593001	PRESSER FOOT LIFTING CORD ASSEMBLY
W1-1-1-14	S04207001	PRESSER FOOT LIFTING CORD ASSEMBLY
Y-1	S07555001	REVERSE ACTUATOR ASSEMBLY
Y-1	S07557001	REVERSE ACTUATOR ASSEMBLY
Y-1-8	S02698001	REVERSE SWITCH ASSEMBLY
Y-1-8	S04210001	REVERSE SWITCH ASSEMBLY

Page 78

Brother LT2-B845 (88 pages) parts on page 78
Ref	Part number	Part name
A-8	437-40X8	SCREW 437X8
A-8	062680812	SCREW 437X8
Z1-20	145573000	KNEE LIFTER COMPLYING BAR
Z1-22	100666002	SCREW 5.5X20
Z1-40	S08188001	SKIRT

Page 79 — 91/INDEX/VERZEICHNIS/INDEX/INDICE

Brother LT2-B845 (88 pages) parts on page 79
Ref	Part number	Part name	Qty
	S01005000	Z2 - 17-2-2-3
	S01297001	Z1 - 10
	S01304001	D - 10
	S01304001	G - 12
	S01304001	T - 14
	S01304001	T - 19
	S01327001	T - 10
	S01328001	T - 11
	S01567001	K - 23-1-3-4
	S01567001	K - 23-1-3-5
	S01568001	K - 23-1-3-5
	S01568001	K - 23-2-3-5
	S01928101	K - 41
	S01928101	Z1 - 11
	S02499001	Z1 - 11
	S02580001	J2 - 11-1
	S02580001	W1- 1-1
	S02581001	J2 - 11-2
	S02581001	W1- 1-1-2
	S02582001	J2 - 11-4
	S02582001	W1- 1-1-4
	S02584000	J2 - 11-4-1
	S02584000	W1- 1-1-4-1
	S02585000	J2 - 11-4-2
	S02585000	W1- 1-1-4-2
	S02586001	J2 - 11-7
	S02586001	W1- 1-1-7
	S02587001	J2 - 12
	S02587001	W1- 1-5
	S02588000	J2 - 11-8
	S02588000	W1- 1-1-8
	S02589000	J2 - 11-10
	S02590000	J2 - 11-11
	S02590000	W1- 1-1-11
	S02591000	J2 - 11-13
	S02591000	W1- 1-1-13
	S02592001	J2 - 11-19
	S02592001	W1- 1-1-19
	S02593001	J2 - 11-14
	S02593001	W1- 1-1-14
	S02664001	R - 1-4
	S02665000	R - 1-5
	S02682001	N - 53-1
	S02693001	Y - 1-2
	S02694001	Y - 1-3
	S02696001	Y - 1-4
	S02697001	Y - 1-6
	S02698001	Y - 1-8
	S02699001	Y - 1-8-1
	S02745001	J2 - 11-15
	S02745001	N - 54
	S02747001	W1- 1-1-15
	S02759000	V - 17-2-12
	S02759000	V - 1-2-1
	S02759000	V - 10
	S02760000	V - 10
	S02766001	Z2 - 17-1
	S02775001	Z2 - 17-1-2
	S02777001	Z2 - 17-2-2
	S02779001	Z2 - 17-1-6
	S02779001	Z2 - 17-2-5
	S02782001	Z2 - 17-1-7
	S02782001	Z2 - 17-2-6
	S02784001	Z2 - 17-1-11
	S02784001	Z2 - 17-2-10
	S02788001	Z2 - 17-1-12
	S02788001	Z2 - 17-2-11
	S03289001	BB- 12-1-2
	S03289001	BB- 12-2-2
	S03289001	L - 60
	S03289001	L - 66
	S03289001	L - 73
	S03328000	N - 53-1-1
	S03681101	J2 - 11
	S03681101	W2- 2-1
	S03681101	V - 11
	S03814001	N - 52
	S03815001	Z2 - 17-2-15
	S04109001	W2- 2-1
	S04206101	W2- 2-1
	S04206101	V - 11
	S04207001	W1- 1-14
	S04210001	U - 5
	S05247101	N - 1
	S05892000	J2 - 11-24
	S05892000	U - 5-2
	S05981000	W1- 1-1-24
	S05981000	J2 - 11-25
	S05982000	U - 5-3
	S05982000	W1- 1-1-25
	S06004001	N - 53-2
	S06068000	V - 13-1
	S06069000	V - 13-2
	S06241000	Q - 4
	S06242001	Q - 5
	S06243101	Q - 6
	S06537000	W1- 1-1-10
	S06538001	W1- 1-1
	S06538001	W2- 2-1
	S07027001	W2- 2-5-6
	S07027001	X - 1-6
	S07030000	W2- 2-5-11
	S07030000	X - 1-11
	S07031000	W2- 2-5-11-1
	S07031000	X - 1-11-1
	S07045001	W2- 2-5
	S07045001	X - 1
	S07182001	J2 - 11-26
	S07182001	W1- 1-1-26
	S07318101	A - 13
	S07319001	A - 13-1
	S07320000	A - 13-2
	S07320000	A - 14-2
	S07321001	A - 14-3
	S07321001	A - 13-3
	S07322101	A - 14-3
	S07322101	A - 13-4
	S07325101	A - 14
	S07326001	A - 14-4
	S07327001	A - 15-1
	S07328000	B - 5
	S07330101	B - 3
	S07334001	B - 22
	S07334001	BB- 14-1
	S07335001	B - 21
	S07336001	B - 21
	S07336001	BB- 12-2-1
	S07337001	B - 21
	S07337001	BB- 12-1-1
	S07337100	R - 1
	S07339001	B - 26
	S07340001	B - 19
	S07341001	B - 19

Page 80

Brother LT2-B845 (88 pages) parts on page 80
Ref	Part number	Part name	Qty
	S07344101	D - 6
	S07345001	F - 7
	S07346101	F - 6
	S07347001	F - 9
	S07348001	F - 16-1
	S07349001	F - 17
	S07350001	F - 18
	S07351001	F - 13-1
	S07353001	F - 13-1
	S07355001	F - 14
	S07356001	F - 14
	S07357001	F - 26
	S07358001	F - 27
	S07359001	F - 27
	S07361101	G - 1
	S07363001	G - 1-1
	S07364001	G - 1-3
	S07366101	G - 1
	S07368101	G - 20
	S07369001	G - 22
	S07370101	G - 23
	S07371001	G - 24
	S07372001	G - 24
	S07373001	G - 29
	S07374001	G - 29
	S07375001	G - 31
	S07376001	G - 35
	S07377001	G - 36
	S07378001	G - 6
	S07379001	G - 2
	S07380001	T - 12
	S07385001	T - 12
	S07386001	C - 7
	S07387001	C - 7
	S07413201	K - 2-2
	S07414201	K - 2-1
	S07415201	K - 1-2
	S07416201	K - 1-1
	S07417001	K - 9
	S07418001	K - 5
	S07419001	K - 8
	S07420000	K - 7
	S07421001	K - 6
	S07422101	K - 15
	S07423101	K - 19
	S07424001	K - 21
	S07430001	R - 15
	S07431001	K - 30
	S07432001	K - 30
	S07433001	K - 38
	S07434001	K - 39
	S07435001	K - 34
	S07436001	K - 36
	S07437001	K - 24
	S07439001	K - 25
	S07440001	H - 1
	S07441001	H - 1
	S07442001	H - 1
	S07444001	H - 11
	S07446001	H - 11
	S07447001	H - 10
	S07448001	H - 10-1
	S07449000	L - 1
	S07450100	L - 2
	S07453000	L - 24
	S07454000	L - 48
	S07455100	L - 49
	S07456000	L - 50
	S07457100	L - 51
	S07458100	L - 53
	S07459100	L - 54
	S07460100	L - 46
	S07461000	L - 63
	S07462000	L - 69
	S07463000	L - 70
	S07464100	L - 74
	S07467001	L - 80
	S07469001	L - 81
	S07470001	L - 82
	S07471001	L - 22
	S07473000	L - 86
	S07476000	L - 36
	S07477000	L - 5
	S07478000	L - 6
	S07479101	L - 87
	S07481000	M - 1-1
	S07487001	M - 1-1-6
	S07488001	M - 1-1-10
	S07489101	M - 1-2-9
	S07490001	M - 1-1
	S07491001	M - 1-1-13
	S07492001	M - 1-2-12
	S07493001	M - 1-2
	S07494001	M - 7
	S07495000	ZZ - 12
	S07496001	N - 1
	S07497001	N - 4
	S07498001	N - 6
	S07499001	N - 9
	S07500001	N - 10
	S07501001	N - 12
	S07502001	N - 13
	S07503000	N - 15
	S07504001	N - 16
	S07508001	N - 19
	S07509001	N - 21
	S07510001	N - 23
	S07511001	N - 24
	S07512001	N - 26
	S07514001	N - 26-1
	S07516001	N - 26-2
	S07517001	N - 26-3
	S07518001	N - 28
	S07519001	N - 29
	S07520001	N - 31
	S07521001	N - 32
	S07522001	N - 35
	S07523001	N - 36
	S07524001	N - 40
	S07525000	N - 43
	S07526001	N - 45
	S07527001	N - 47
	S07528000	Z1 - 23
	S07529001	P - 3
	S07531001	P - 1
	S07531001	P - 9

Page 81

Brother LT2-B845 (88 pages) parts on page 81
Ref	Part number	Part name
P - 5	S07532001	P - 5
P - 5	S07533001	P - 5
P - 13	S07534001	P - 13
P - 15	S07536001	P - 15
R - 1	S07540001	R - 1
R - 11	S07542101	R - 11
R - 11-1	S07549101	R - 11-1
R - 11-2	S07550001	R - 11-2
R - 11-5	S07551001	R - 11-5
R - 11-8	S07552001	R - 11-8
R - 14	S07553001	R - 14
Y - 1	S07555001	Y - 1
Y - 1-1	S07556001	Y - 1-1
Y - 2	S07557001	Y - 2
Z2 - 17-2	S07558001	Z2 - 17-2
Z1 - 21-1	S07559201	Z1 - 21-1
Z1 - 21-1-1	S07560100	Z1 - 21-1-1
Z1 - 21-1-2	S07561001	Z1 - 21-1-2
Z1 - 30	S07561001	Z1 - 30
A - 3	S07566101	A - 3
B - 24	S07567001	B - 24
BB- 13-1	S07568001	BB- 13-1
K - 23-1	S07569001	K - 23-1
K - 23-2	S07570001	K - 23-2
L - 76	S07571000	L - 76
L - 39	S07572001	L - 39
C - 1	S07574001	C - 1
C - 10	S07578001	C - 10
E - 1	S07581001	E - 1
E - 3	S07584001	E - 3
E - 5	S07585101	E - 5
E - 23	S07586001	E - 23
E - 13	S07587101	E - 13
E - 22-1	S07588001	E - 22-1
J1 - 1	S07589001	J1 - 1
J1 - 3	S07590001	J1 - 3
J1 - 9	S07591001	J1 - 9
K - 27	S07658001	K - 27
Z1 - 35-1-1	S07660000	Z1 - 35-1-1
G - 13-3	S07674001	G - 13-3
Z1 - 21-2	S07726301	Z1 - 21-2
W2 - 2-4	S07729001	W2 - 2-4
Z1 - 21-2-5	S07733001	Z1 - 21-2-5
K - 23-1-1	S07738001	K - 23-1-1
K - 23-1-2	S07739001	K - 23-1-2
K - 23-1-3	S07741001	K - 23-1-3
K - 23-2-3	S07742001	K - 23-2-3
L - 52	S07810000	L - 52
L - 91	S07876001	L - 91
L - 98	S08005001	L - 98
K - 23-1-1	S08188001	K - 23-1-1
Z1 - 40	S08468000	Z1 - 40
Z1 - 35-1	S08469001	Z1 - 35-1
R - 6	S09132001	R - 6
D - 14	S09162001	D - 14
C - 1	S09364000	C - 1
L - 94	S09369000	L - 94
L - 93	S09670001	L - 93
W2 - 2-2	S10550001	W2 - 2-2
Z1 - 21-2-3	S10780001	Z1 - 21-2-3
F - 13-2	S10781001	F - 13-2
E - 41	S11072001	E - 41
N - 56	S11210000	N - 56
Z1 - 41	S11243001	Z1 - 41
ZZ - 7	S11244001	ZZ - 7
S2 - 1-2-7	S11308001	S2 - 1-2-7
N - 57	S11683000	N - 57
H - 5	S12445001	H - 5
G - 38	S13021001	G - 38
K - 16	S13085001	K - 16
ZZ - 20-3	S13103001	ZZ - 20-3
ZZ - 21-3	S13156001	ZZ - 21-3
ZZ - 3	S13157001	ZZ - 3
F - 10	S13161001	F - 10
BB - 12-1	S13162100	BB - 12-1
E - 37	S13465101	E - 37
E - 37-1	S13466001	E - 37-1
E - 37-1	S13467101	E - 37-1
E - 38	S13470001	E - 38
E - 37-2	S13472001	E - 37-2
E - 37-4	S13485001	E - 37-4
E - 37-5	S13486001	E - 37-5
T - 23	S13487001	T - 23
V - 15	S13490001	V - 15
V - 21	S13491001	V - 21
V - 21	S13492001	V - 21
T - 18	S13494001	T - 18
V - 13	S13495001	V - 13
T - 20	S13496001	T - 20
V - 1-1	S13499001	V - 1-1
V - 1-2	S13503101	V - 1-2
V - 12	S13509001	V - 12
V - 19	S13520001	V - 19
E - 31	S13521001	E - 31
E - 31-1	S13523001	E - 31-1
E - 31-3	S13524100	E - 31-3
E - 35	S13525001	E - 35
E - 29	S13526001	E - 29
E - 22-2	S13527001	E - 22-2
E - 19-2	S13528001	E - 19-2
S2 - 3	S13547001	S2 - 3
K - 23-1-1	S13613001	K - 23-1-1
K - 23-2-1	S13614001	K - 23-2-1
L - 100	S14189000	L - 100
E - 43	S14325001	E - 43
BB- 14	S15889001	BB- 14
Z1 - 21-1-7	S16114001	Z1 - 21-1-7
E - 37-1-1	002300605	E - 37-1-1
E - 37-6	002501002	E - 37-6
S2 - 4	002501003	S2 - 4
U - 1-14	008300602	U - 1-14
E - 37-3	008400602	E - 37-3
E - 37-8	011679312	E - 37-8
E - 38-2	013660412	E - 38-2
S2 - 1-2-5	013710512	S2 - 1-2-5
E - 26	013711012	E - 26
ZZ - 1-1	013780710	ZZ - 1-1
ZZ - 2-1	013781012	ZZ - 2-1
K - 10	013781012	K - 10
K - 17	013781012	K - 17
B - 4	013781012	B - 4
B - 3	013781012	B - 3
B - 2	013781012	B - 2
B - 23	013781012	B - 23

Page 82

Brother LT2-B845 (88 pages) parts on page 82
Ref	Part number	Part name
4	013781012	C - 3
12	013781012	F - 2
16	013781012	H - 3
32	013781012	N - 22
60	014060632	Z2 - 17-2-17
12	014680422	F - 20
38	014680422	V - 11-4
38	014680422	R - 11-4
46	014680422	V - 1-1-2
4	014680622	C - 10
20	014680622	K - 33
20	014680622	N - 8
32	014710522	F - 12
12	014710522	F - 39
16	014710522	B - 15
14	014710522	G - 5-1
14	014710522	H - 10-4
16	014710522	H - 12-3
16	014710522	N - 25-2
32	014710522	N - 25-3
34	014821022	B - 11
6	016771032	D - 11
56	017762013	Z1 - 39-3
6	018063022	V - 1-1
46	018401022	V - 17
40	021400103	S2 - 8
50	021400164	W2 - 2-5-10
52	021500106	X - 1-10
58	021500106	Z2 - 17-1-11-3
58	021500106	Z2 - 17-1-4-2
58	021500106	Z2 - 17-1-7-3
58	021500106	Z2 - 17-2-13-3
58	021500106	Z2 - 17-2-3-2
58	021660102	Z2 - 17-2-6-3
4	021660102	C - 15
36	021670102	P - 17
12	021670102	F - 23
28	021670102	M - 1-1-21
28	021670102	M - 1-2-20
32	025030235	N - 34
8	025040232	E - 34
38	025040233	R - 3
50	025040233	W2- 2-5-8
52	025050232	X - 1-8
40	025050332	S2 - 6
54	025060132	Z1 - 35-2-2
4	025060232	C - 13
18	025100132	J2 - 11-21
48	025100132	W1- 1-1-21
14	025350236	G - 26
46	025680132	V - 4
20	025680232	K - 35
16	025710132	Z1 - 35-2-4
14	025710232	J1 - 5
20	025710232	G - 34
24	025710232	K - 14
24	025710232	N - 39
32	025710232	R - 11-7
54	025750132	Z1 - 35-2-6
8	028030243	E - 33
8	028030243	E - 37-7
50	028040243	W2- 2-5-9
52	028040243	X - 1-9
40	028050242	S2 - 5
42	028050242	T - 22
44	028050243	U - 1-15
58	028050246	Z2 - 17-1-7-2
58	028050246	Z2 - 17-2-6-2
46	028350242	V - 5
46	028350242	V - 7
6	028680242	D - 18
58	031452206	Z2 - 17-1-11-4
58	031452206	Z2 - 17-2-10-4
18	031452206	J2 - 16
48	031452206	W1- 1-4
50	031452206	W2- 2-6
52	031452206	X - 2
52	037301017	A - 51-1-4
2	047301442	A - 32
8	047301842	E - 8-1
36	047301842	P - 2
52	048030342	Y - 1-5
16	048030342	J1 - 7
20	048030342	K - 31
42	048030342	T - 6
14	048040342	G - 10
18	048040342	J2 - 13
48	048040342	W1- 1-6
14	048060342	G - 25
8	048060342	E - 31-2
38	048060342	R - 1-2
58	048090342	Z2 - 17-1-7-5
58	048090342	Z2 - 17-2-6-5
58	050501406	Z2 - 17-1-7-4
58	050501406	Z2 - 17-2-13-2
58	050501406	Z2 - 17-2-6-4
26	050503006	L - 85
40	050503006	S1 - 1-1-8
38	050503006	R - 4
50	050503006	W2- 2-5-7
52	050503006	X - 1-7
38	050503006	R - 2
42	050503006	T - 4
42	050503006	T - 9
58	060660512	Z2 - 17-1-11-2
58	060660512	Z2 - 17-2-10-2
42	061401217	T - 21
58	062300612	Z2 - 17-1-4-1
58	062300612	Z2 - 17-2-3-1
52	062401006	Y - 1-9
24	062401006	L - 19
4	062401012	C - 14
36	062401012	P - 16
38	062500812	R - 11-9
46	062500812	V - 4
20	062501006	K - 35
4	062501202	E - 6
14	062501406	G - 28
24	062501406	L - 13
24	062501406	L - 15
26	062501406	L - 17
24	062501406	L - 21
24	062501406	L - 23
26	062501406	L - 77
26	062501406	L - 83
30	062630812	M - 6-1
32	062660412	N - 3
36	062660412	P - 8
38	062661212	R - 17
38	062661212	R - 9

Page 83

Brother LT2-B845 (88 pages) parts on page 83
Ref	Part number	Part name
42	062670512	T - 25
46	062670512	V - 22
46	062670512	V - 24
46	062670512	V - 9
52	062670512	Y - 4
18	062670612	J2 - 11-11
18	062670612	J2 - 11-18
18	062670612	J2 - 11-20
26	062670612	L - 101
26	062670612	L - 103
48	062670616	W1- 1-1-11
48	062670616	W1- 1-1-20
48	062670616	W1- 1-1-18
46	062670712	V - 1-1-3
2	062670812	A - 4
6	062670812	D - 1-11
14	062670812	G - 7
32	062670812	L - 3
36	062670812	N - 44
18	062671012	P - 6
46	062671012	J2 - 11-9
48	062671012	V - 3
48	062671412	W1- 1-1-9
12	062671412	F - 22
32	062671412	N - 33
18	062680663	J2 - 11-16
32	062680663	N - 55
48	062680663	W1- 1-1-16
2	062680812	A - 8
26	062680812	L - 79
28	062680812	M - 8
36	062680812	P - 10
38	062680812	Q - 12
54	062680812	R - 7
54	062681012	Z1 - 35-2-3
14	062681012	G - 1-2
2	062681012	A - 29
32	062681012	N - 30
56	062681012	Z1 - 44
2	062681412	A - 30
36	062681612	Q - 7
14	062710612	G - 3
38	062710612	G - 37
52	062710612	P - 12
46	062710612	Y - 2
8	062710812	V - 15
8	062711012	E - 12
8	062711012	E - 2
14	062711012	G - 33
20	062711012	K - 29
24	062711012	L - 11
54	062711412	Q - 10
36	062711412	E - 17
54	062712012	Z1 - 35-2-1
18	062761212	J2 - 11-3
48	062761212	W1- 1-1-3
4	062761412	C - 12
42	062781412	T - 2
20	062782512	K - 3
8	071063550	E - 15
16	071063550	E - 42
16	072600480	H - 10-2
24	081030070	L - 27
54	100022004	Z1 - 21-1-6
32	100022005	N - 26-5
62	100032004	ZZ - 8
28	100064002	M - 4
6	100105005	D - 1-7-9
20	100197002	K - 4
4	100250001	B - 7
4	100250001	B - 12
16	100257010	H - 5-2
32	100328001	N - 42
24	100366002	L - 44
14	100401001	G - 19
54	100463001	Z1 - 15-6
54	100477001	Z1 - 15-2
50	100511003	W2- 2-5-3
52	100645003	X - 1-3
56	100657001	Z1 - 39-2
56	100659001	Z1 - 13
42	100662001	T - 17
2	100666002	A - 28
36	100887001	Q - 8
54	101118001	Z1 - 15-7
54	101268002	Z1 - 15-8
54	101572101	Z1 - 15-9
54	101706001	Z1 - 16
54	102731004	Z1 - 22
54	104619002	Z1 - 35-2-5
54	104821001	Z1 - 6
44	104885101	U - 3
6	105173004	D - 8
54	105237002	Z1 - 4
4	107030001	B - 11
4	107155001	C - 6
6	107272002	D - 1-4
56	107321003	Z1 - 39-4
24	107415011	L - 31
26	107415014	L - 97
54	107415022	Z1 - 21-1-5
16	107779001	J1 - 4
46	107780001	V - 20
6	108254001	D - 5
6	108265001	D - 1-2
24	108266001	L - 29
8	108549001	E - 21
46	108802001	V - 2
32	108960002	N - 18
2	109714000	A - 9
54	110087001	Z1 - 10

Page 84

Brother LT2-B845 (88 pages) parts on page 84
Ref	Part number	Part name	Qty
	110087001	X - 1-5
	110087001	Z1 - 39-7
	110161004	P - 4
	110161006	K - 13
	110201001	E - 30
	110201001	N - 5
	110215002	Y - 1-7
	111191001	L - 57
	111191001	L - 96
	112573101	B - 1
	112576001	B - 13
	112586001	B - 17
	112588101	D - 1-1
	112590001	D - 1-3
	112594001	D - 2
	112595000	D - 4
	112596001	D - 6
	112597001	D - 7
	112598001	D - 9
	112609001	D - 1-7-7
	112610101	A - 15
	112656001	C - 11
	112658001	M - 10
	112684001	M - 10
	112684001	H - 11-2
	112692101	H - 5-1
	112700001	K - 27-1
	112709001	M - 5
	112712001	M - 1-1-8
	112712001	M - 1-2-7
	112715001	M - 11-1
	112716101	L - 9
	112717001	L - 10
	112728001	L - 56
	112734001	L - 38
	112735000	L - 58
	112736000	L - 61
	112739001	L - 14
	112739001	L - 16
	112743001	L - 12
	112750000	L - 68
	112753001	L - 40
	112758001	L - 95
	112759001	L - 43
	112764001	D - 3
	112781101	K - 41
	112781101	Z1 - 11
	113024000	B - 25
	113050001	BB- 13-3
	113074001	C - 5
	113362001	L - 41
	113386000	A - 2
	113431002	Q - 3
	113653000	BB- 14-2
	113760001	L - 59
	114447002	D - 1-7-13
	114483002	Z1 - 34
	114486002	Z1 - 33
	114693001	BB- 13-2
	114693001	L - 57
	114941001	M - 13
	114941001	Z1 - 12
	114966001	Z1 - 39-5
	114967001	W2 - 2-5-4
	114967001	X - 1-4
	115249001	Z1 - 39-6
	116010001	L - 42
	116662003	A - 16
	117850001	N - 17
	117963001	D - 19
	117969001	Z1 - 15
	117970001	Z1 - 15-3
	117971001	Z1 - 15-4
	118320001	Z1 - 15-5
	118713001	M - 1-1-7
	118837001	M - 1-2-6
	118853001	N - 7
	118954000	G - 21
	120752001	G - 30
	122991001	G - 4-2
	126863000	N - 41
	126863001	Z1 - 1
	129458002	Z2 - 17-2-9
	129500004	Z2 - 17-1-10
	131007001	G - 13-5
	131226001	G - 13-2
	138843001	H - 5-3
	139096001	K - 40
	140503001	Z2 - 17-2-16
	140527001	F - 19
	140540000	R - 11-3
	140620001	Z1 - 39-8
	140647001	M - 2
	140682001	U - 1-9
	140890001	U - 1-7
	141207001	J1 - 8
	141208001	N - 2-1
	141494001	R - 16
	141528001	T - 24
	141544001	V - 23
	141583001	V - 8
	142002001	Y - 3
	142026003	U - 1-3
	142027001	L - 30
	142037000	F - 3
	142038001	F - 5
	142268001	N - 27
	142274001	J1 - 10
	142403001	N - 46
	142443001	J2 - 15
	142721001	W1 - 1-3
	142746002	Z1 - 8
	142997001	W2 - 2-5-1
	142997001	X - 1-1

Page 85

Brother LT2-B845 (88 pages) parts on page 85
Ref	Part number	Part name	Qty
	143484000	U - 1-10
	143488001	U - 1-11
	143489001	U - 5-1-2
	143499000	U - 5-1-1
	143519001	E - 40
	143520000	E - 39
	143522000	J2 - 11-22
	143522000	U - 5-4
	143522000	W1- 1-1-22
	143548000	J2 - 11-25-2
	143548000	N - 56-1
	143548000	U - 5-1-3
	143549000	U - 5-3-2
	143549000	W1- 1-1-25-2
	143549000	W2- 2-5-11-1-2
	143549000	X - 1-11-1-2
	143549000	E - 31-4
	143549000	J2 - 11-14-2
	143549000	J2 - 11-24-1
	143549000	J2 - 11-25-1
	143549000	N - 56-2
	143549000	R - 1-6
	143549000	T - 20-1
	143549000	U - 3-3
	143549000	U - 5-1-3
	143549000	U - 5-1-4
	143549000	U - 5-2-1
	143549000	V - 13-2-1
	143549000	W1- 1-1-14-2
	143549000	W1- 1-1-24-1
	143591001	G - 4
	143611101	G - 4-1
	143612000	G - 1-4
	143613001	G - 9
	143616001	L - 18
	143673001	Z1 - 26
	143882001	Z1 - 27
	143910001	Z1 - 28
	144075001	M - 6-2
	144105000	M - 1-1-15
	144222001	M - 1-2-14
	144504001	M - 1-2-17
	144526001	N - 37
	144614101	B - 19
	144680001	M - 1-1-1
	144682001	M - 1-1-4
	144682001	M - 1-2-4
	144685001	M - 1-1-16
	144686001	M - 1-1-17
	144687001	M - 1-1-18
	144688001	M - 1-1-19
	144689101	M - 1-1-20
	145446001	M - 1-11
	145446001	M - 1-2-10
	145472001	F - 1
	145478001	F - 28
	145478001	J1 - 17
	145480001	F - 25
	145502001	G - 18
	145573000	Z1 - 20
	145646022	A - 9
	146036101	Z1 - 10
	146037001	Z1 - 21-1-2
	146039001	Z1 - 21-1-3
	146046000	Z1 - 39-1
	146046000	J2 - 11-24-2
	146046000	U - 5-2-2
	146046000	W1- 1-1-24-2
	146046000	W2- 2-5-11-2
	146046000	X - 1-11-2
	146080000	R - 5
	146105000	T - 20-1
	146105000	B - 8
	146141001	J1 - 6
	146153001	J2 - 11-25-3
	146194000	U - 5-3-3
	146194000	W1- 1-1-25-3
	146194000	W2- 2-5-11-3
	146194000	X - 1-11-3
	146194000	L - 92
	146253000	Z1 - 21-1-8
	146293001	Z1 - 21-2-6
	146293001	D - 17
	146354001	N - 38
	146360002	W2- 2-3
	146367001	Z1 - 1-4
	146367001	Z1 - 21-2-4
	146367001	L - 102
	146367001	E - 18
	146536001	G - 27
	146597101	F - 8-1
	147504001	F - 4
	147513001	K - 12
	147846001	C - 7
	148005001	C - 8
	148490001	C - 4
	148491001	C - 1
	148492101	G - 11
	148494001	H - 2
	148495001	H - 1
	148502000	R - 1-1
	148503000	R - 1-3
	148511001	R - 8
	148512000	V - 18
	148514006	R - 13
	148522001	N - 48
	148527101	N - 50
	148536001	Z1 - 24
	148539101	N - 14
	148546001	R - 10
	148559100	N - 20
	148574001	N - 25-1
	148592001	N - 26-4
	148599101	A - 15
	148602001	K - 42
	148743001	L - 45
	148762001	L - 37
	148802201	G - 5
	148804001	H - 9
	148821001	H - 10-3
	148825001	H - 12-2
	148851001	Q - 9
	148851001	M - 1-1-13
	148851001	M - 1-2-12

Page 86

Brother LT2-B845 (88 pages) parts on page 86
Ref	Part number	Part name	Qty
	148890101	Z1 - 28
	149094001	T - 13
	149095001	T - 15
	149127001	E - 4
	149127001	P - 14
	149566002	M - 1-1-14
	149566002	M - 1-2-13
	149604001	D - 1-7-1
	149605001	D - 1-7-2
	149606001	D - 1-7-3
	149607001	D - 1-7-5
	149608001	D - 1-7-6
	149609001	D - 1-7-8
	149610001	D - 1-7-10
	149611101	D - 1-7-11
	149612101	D - 1-7-12
	149613001	D - 1-8
	149621001	D - 1-13
	149622001	D - 1-14
	149623001	D - 1-15
	149624001	D - 1-17
	149625001	D - 1-18
	149626001	L - 84
	149799000	W2 - 2-5-12
	149799000	X - 1-12
	149820000	B - 12
	149821101	B - 6
	149827001	B - 9
	149831101	ZZ - 20-2
	149831101	ZZ - 21-2
	149831101	ZZ - 4
	149834000	L - 34
	149843001	E - 7
	149847002	E - 8
	149852001	E - 9
	149853001	E - 10
	149855001	E - 16
	149857001	E - 19-1
	149858001	E - 20
	149863001	E - 24
	149864001	E - 25
	149865001	E - 27
	150106002	Z2 - 17-1-4
	150106002	Z2 - 17-2-1
	150145002	Z2 - 17-2-13
	150172002	Z2 - 17-1-3
	150172002	Z2 - 17-2-4
	150174000	Z2 - 17-1-5
	150174000	Z2 - 17-2-5
	150179002	Z2 - 17-1-6
	150179002	Z2 - 17-2-6-1
	150180000	Z2 - 17-1-7
	150180000	Z2 - 17-2-7
	150182000	Z2 - 17-1-8
	150182000	Z2 - 17-2-8
	150185002	Z2 - 17-2-13-1
	150188002	Z2 - 17-1-10-1
	150188002	Z2 - 17-2-10-1
	150191002	Z2 - 17-1-2-2
	150191002	Z2 - 17-2-2-2
	150206002	Z2 - 17-1-2-1
	150206002	Z2 - 17-2-2-1
	150374000	L - 55
	150553003	M - 3
	150556001	F - 15
	150556001	J2 - 14-3
	150556001	W1 - 1-2-3
	150756000	Z1 - 36
	150815001	A - 6
	150816001	D - 1-9
	150818001	E - 11
	150820001	E - 14
	151025001	K - 23-1-3-3
	151027001	K - 23-1-1-1-1
	151027001	K - 23-2-1-1-1
	151027001	K - 23-1-3-1
	151027001	K - 23-2-3-1
	151027001	K - 23-1-3-2
	151027001	K - 23-2-3-2
	151043001	K - 23-3-3-3
	151126101	U - 1
	151127100	U - 1-2
	151147001	U - 1-4
	151153101	U - 1-1
	151154000	J1 - 18
	151507101	G - 13-3
	151927001	A - 17
	151987001	L - 35
	152590001	E - 36
	152590001	S2 - 7
	152808101	J2 - 14
	152808101	W1 - 1-2
	152974001	L - 62
	152974001	L - 72
	153012101	D - 12
	153122000	J2 - 11-5
	153122000	W1 - 1-1-5
	153132000	T - 16
	153138001	T - 7
	153243001	K - 22
	153244001	K - 22
	153245001	T - 5
	153920001	L - 71
	153969000	N - 51
	154172001	U - 5-1
	154211000	N - 56-3
	154214001	U - 1-8
	154215001	U - 1-12
	154332001	J2 - 14-1
	154332001	W1 - 1-2-1
	154333001	J2 - 14-2
	154333001	W1 - 1-2-2
	154560001	M - 1-2-18
	154574001	A - 31
	154607001	P - 7
	154702001	Z1 - 14
	154727001	T - 3
	154730001	T - 3-1
	154731000	T - 3-2
	155491001	M - 1-1-2
	155491001	M - 1-2-2
	155491001	M - 1-2-19
	155510001	L - 75
	156070002	Z2 - 17-1-1
	156112002	Z2 - 17-2-1
	158115001	B - 18
	158115001	H - 11-1
	158677001	J2 - 11-6
	158677001	W1 - 1-1-6
	158769001	M - 1-1-9
	158769001	M - 1-2-8
	158770001	M - 1-2-16
	158771001	M - 1-2-15

Page 87

Brother LT2-B845 (88 pages) parts on page 87
Ref	Part number	Part name	Qty
	158775001	Q - 11
	158776001	Q - 13
	159269001	E - 44
	159361001	G - 13-1
	159384001	Z1 - 46
	159436001	K - 32
	159801001	K - 23-2-3-6
	159802001	K - 23-2-3-7
	159805001	M - 1-1-12
	159805001	M - 1-2-11
	180157001	M - 14
	181427001	Z1 - 39
	181486001	H - 9
	181919101	F - 8
	183480001	Z1 - 35
	183486001	W1 - 1
	183487001	W1 - 1
	183500001	W2 - 2
	183517001	W2 - 2
	183518001	W2 - 2
	183519001	W2 - 2
	183550101	V - 1
	183609001	G - 13
	183610001	G - 13
	200190001	U - 4
	204569001	J2 - 11-14-1
	204569001	N - 53-1-2
	204569001	N - 53-2-1
	211131001	W1- 1-1-14-1
	211131001	J2 - 11-4-3
	216248001	W1- 1-1-4-3
	216248001	V - 13-3
	220077001	J2 - 11-23
	220077001	U - 5-5
	230157001	W1- 1-1-23
	233053001	Q - 1
	233057001	S1 - 1-1-1
	233071001	S1 - 1-1-3
	233072001	S1 - 1-1-5
	233090001	S1 - 1-1-6
	233090001	S1 - 1-1-7
	234540001	Z1 - 42
	234540001	S2 - 1-2-4
	234959001	S2 - 1-2
	234960001	S2 - 1-2-1
	234963001	S2 - 1-2-2
	234964001	S2 - 1-2-3
	234967001	S2 - 1-2-6
	234977001	S2 - 1-2
	234978001	S2 - 1-2-3
	234981001	S1 - 1-1
	234981001	S1 - 1-1-2
	234983001	S1 - 1-1
	234984001	S1 - 1-1-2
	340400001	N - 58
	525567000	E - 32
	533527001	A - 25
	552907000	A - 26
	554482000	A - 27

Brother LT2-B845 (88 pages) — parts catalog

Page 1

brother LT2-B845 B8450 B848 B8480 2 本針本縫送り角縫ミシン 2 本針本縫下送り角縫ミシン TWIN NEEDLE NEEDLE FEED CORNER STITCHING MACHINE TWIN NEEDLE DROP FEED CORNER STITCHING MACHINE DOPPELNADELECKNÄHMASCHINE MIT NADELTRANSPORT DOPPELNADELECKNÄHMASCHINE MIT FALLTRANSPORT MACHINE POUR COUTURE DE COIN A DOUBLE AIGUILLE ET ENTRAINEMENT PAR AIGUILLE MACHINE POUR COUTURE DE COIN A DOUBLE AIGUILLE ET ENTRAINEMENT PAR GRIFFE MAQUINA DE COSER PUNTADAS DE ESQUINA CON DOS AGUJAS MAQUINA DE COSER PUNTADAS DE ESQUINA CON TRANSPORTADOR DENTADO パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS P845201

Page 2

針数制御式 Stitch Counting Control System LT2-B845- MADE IN JAPAN BROTHER INDUSTRIES, LTD. LT2-B845-0S MADE IN JAPAN BROTHER INDUSTRIES, LTD. LT2-B8450-0 MADE IN JAPAN BROTHER INDUSTRIES, LTD. BROTHER INDUSTRIES, LTD. LT2-B848-1 MADE IN JAPAN BROTHER INDUSTRIES, LTD. LT2-B848-01S MADE IN JAPAN BROTHER INDUSTRIES, LTD. LT2-B8480-01 MADE IN JAPAN 布厚感知式 Ply Sensor 薄物用 Thin materials 4. 糸切り+糸払イ+逆転 Thread Trimmer + Thread Wiper + Quick Back Switch 7. 糸切り+糸払イ+逆転+エアー押工上げ (輸出仕様) Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Air Type] (for Export Spec.) 9. 糸切り+糸払イ+逆転+電磁押工上げ Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type] 7. 糸切り+糸払イ+逆転+エアー押工上げ (輸出仕様) Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Air Type] (for Export Spec.) 9. 糸切り+糸払イ+逆転+電磁押工上げ Thread Trimmer + Thread Wiper + Quick Back Switch + Automatic Presser Foot Lifter [Solenoid Type] 3. 薄・中厚物用 Thin and medium-thick materials 5. 厚物用 Thick materials 7. 極厚物用 Heavy materials jintex.in

Page 3 — パーツブックご利用に際して

パーツブックご利用に際して 1. この本は、この本の表紙（正誤表の挿入されている場合は正誤表）に記載されているものと同じプレートが取り付けられているミシンのためのものです。 2. 組単位で補給する部品は、破線で示しております。 3. 部品コード欄が＊となっている場合は、仕様別部品一覧表（68～71ページ）でお調べ下さい。 5. この本は1989年6月のデータにもとづいて作成されたものです。 6. 部品は予告なしに設計変更される場合があります。目次 A. 主体関係………………………………………………………2 S 1. コントロールボックス関係（-900 S）……………40 B. 上軸関係………………………………………………………4 S 2. コントロールボックス関係 C. 送り軸関係………………………………………………………4 (B 8450・B 8480)………………………………………………40 D. 針棒揺動関係………………………………………………6・67 T. 逆転関係（糸切り）…………………………………………42 E. 針棒切換操作関係……………………………………………8 U. 空気関係（-700）……………………………………………44 F. 押工関係………………………………………………………12 V. 布制御関係（B 8450・B 8480）……………………………46 G. 送り関係………………………………………………………14 W 1. 電磁押工上ゲ関係（-900）………………………………48 H. 下軸関係………………………………………………………16 W 2. 電磁押工上ゲ関係（オプション）………………………50 J 1. 押工上ゲ関係（-700）…………………………………16 X. ヒザスィッチ関係（-700, -900）………………………52 J 2. 押工上ゲ関係（-900）…………………………………18 Y. 逆転スィッチ関係（糸切り）………………………………52 K. カマ関係………………………………………………………20 Z 1. 付属品関係…………………………………………………54 L. 給油潤滑関係…………………………………………………24 Z 2. 付属品関係…………………………………………………58 M. 糸通シ関係……………………………………………………28 ZZ. ゲージ部品……………………………………………………62 N. 糸切り関係（糸切り）………………………………………32 BB. 特別注文部品…………………………………………………62 P. 糸ユルメ関係（糸切り）……………………………………36 ゲージ部品一覧表…………………………………………63～66 Q. 針位置検出関係（糸切り）…………………………………36 仕様別部品一覧表…………………………………………68～71 R. 糸払イ関係（糸切り）………………………………………38 索引……………………………………………………………72～80 jintex.in

Page 4 — CONTENTS

Notes for using this parts book 1. This book is applicable to sewing machine which have the same plate number as shown on the cover of this book (or correction sheet). 2. Parts supplied as complete assemblies are circled by a dotted line 3. If the symbol * is found in the "Parts No." column, refer to the different parts list on page 68~71. 4. This book was prepared based on information available in June 1989. 5. Parts are subject to changes in design without prior notice. CONTENTS A. Machine body 2 S2. Control box mechanism (B8450 B8480) 40 B. Upper shaft mechanism 4 T. Quick reverse mechanism C. Feed shaft mechanism 4 Thread trimmer 42 D. Needle bar rocking mechanism 6,67 U. Air pressure mechanism (-700) 44 E. Needle bar flip-up mechanism 8 V. Cloth control system mechanism F. Presser foot mechanism 12 (B450 B8480) 46 G. Feed mechanism 14 W1.Presser foot lifting solenoid set H. Lower shaft mechanism 16 (-900) 48 J1. Presser foot lifter mechanism (-700) 16 J2. Presser foot lifter mechanism (-900) 18 K. Rotary hook mechanism 20 L. Lubrication 24 M. Threading mechanism 28 N. Thread trimmer mechanism (Thread Trimmer) 32 P. Tension release mechanism (Thread Trimmer) 36 Q. Synchronizer (Thread Trimmer) 36 R. Thread wiper mechanism (Thread Trimmer) 38 S1. Control box mechanism (-900S) 40 W2.Presser foot lifting solenoid set (Option Parts) 50 X. Knee switch mechanism (-700, -900) 52 Y. Quick reverse switch mechanism (Thread Trimmer) 52 Z1. Accessories 54 Z2. Accessories 58 ZZ. Gauge parts 62 BB.Option parts 62 GAUGE PARTS LIST 63~66 DIFFERENT PARTS LIST 68~71 INDEX 72~80

Page 5 — Anmerkungen zum Gebrauch dieses Stückliste buches

Anmerkungen zum Gebrauch dieses Stückliste buches 1. Dieses Buch bezieht sich auf die Nähmaschinen mit derselben Kennungsnummer wie auf diesem Buchumschlag (oder auf dem Korrekturbatt). 2. Die Teile, die als kompletter Satz geliefert werden, sind mit einer gestrichelten Linie umrandet. 3. Dieses Zeichen * in der Spalte "Parts No. (Teilnummer)" verweist auf die Gesonderte Stückliste auf Seite 68-71. 4. Dieses Buch basiert auf den Informationen vom Juni, 1989. 5. Modelländerungen sind vorbehalten. INHALTSVERZEICHNIS A. Maschinengehäuse B. Obere Welle C. Transport welle D. Nadelstangenbetätigung E. Nadelstangenhochstellung F. Stoffdrückerfuß G. Transportvorrichtung H. Untere welle J1. Stoffhalterhebevorrichtung (-700) J2. Stoffhalterhebevorrichtung (-900) K. Greifervorrichtung L. Schmierung M. Fadenführungsvorrichtung N. Fadenabschneidevorrichtung (Fadenabschneider) P. Spannung sverminderung svorrichtung (Fadenabschneider) Q. Synchronisator (Fadenabschneider) R. Fadenwischvorrichtung (Fadenabschneider) 2 4 4 6,67 8 14 14 16 16 18 20 24 28 32 36 36 38 S1. Schaltkasten (-900S) S2. Schaltkasten (B8450-B8480) T. Umkehr (Fadenabschneider) U. Luftdruck (-700) V. Stoffführungsvorrichtung (B8450) W1. Stoffdrückerfuß für die Anhebung des Stoffdrückerfußes (-900) W2. Solenoidsatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör) X. Knieschalter (-700, -900) Y. Umkehrschalter (Fadenabschneider) Z1. Zubehör Z2. Zubehör ZZ. Lehren BB. Sonderzubehör LEHRENLISTE ZUBEHÖRLISTE VERZEICHNIS 40 40 42 44 46 48 50 52 52 54 58 62 62 63-66 68-71 72-80

Page 6 — Notes sur l'utilisation de ce manuel de pièces détachées

Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel est destiné aux machines à coudre ayant le même numéro de plaque montré sur la couverture de ce manuel (ou sur la feuille de corrections). 2. Les pièces fournies en tant qu'assemblages complets sont encadrées avec un trait pointillé (____). 3. Si le symbole * se trouve dans la colonne "Parts No. (N° de pièce)" veuillez la vous référer à la liste de pièces annexe page 68~71. 4. Ce manuel a été fait d'après les renseignements valables au mois de Juin, 1989. 5. Les pièces peuvent être sujettes à des modifications sans préavis. TABLE DES MATIERES A. Corps de la machine .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................* **The page type is 'toc' because it is a table of contents.** The title

Page 7 — Notas para usar este Libro de Piezas

Notas para usar este Libro de Piezas 1. Este libro sirve para todas las máquinas de coser que llevan la misma placa de identificación que la que se puede ver en la tapa de este libro (o en la hoja de erratas). 2. Las piezas suministradas como conjuntos completos se enmarcan con una línea punteada (------). 3. De haber un símbolo * junto al “Parts No. (Número de Pieza)”, habrá que mirar la lista de piezas separada de la página 68~71. 4. Este libro ha sido compilado basándose en los datos de que se disponía en junio, 1989. 5. Las piezas quedan sujetas a cambios de diseño sin aviso previo. INDICE A. Denominación del mecanismo ........................................ 2 B. Mecanismo de la eje superior ........................................ 4 C. Mecanismo de la eje alimentación ................................. 4 D. Mecanismo de oscilación de la barra de aguja ........................................................................ 6,67 E. Mecanismo del lanzador de barra de aguja ........................................................................ 8 F. Mecanismo del prensatelas .......................................... 12 G. Mecanismo de la alimentación ...................................... 14 H. Mecanismo de la eje inferior ........................................ 16 J1. Mecanismo de levantador del prensatelas (-700) .......................................................................... 16 J2. Mecanismo de levantador del prensatelas (-900) .......................................................................... 18 K. Mecanismo del cangrejo ............................................ 20 L. Lubricación ................................................................... 24 M. Mecanismo de la enhebrado ........................................ 28 N. Mecanismo de recortadora de orillos (Cortahílos) ................................................................... 32 P. Mecanismo de librerador de tensión (Cortahílos) ................................................................... 36 Q. Sincronizador (Cortahílos) ........................................ 36 R. Mecanismo de limpiador de hilos (Cortahílos) ................................................................... 38 S1. Mecanismo de caja de controles (-900S) ......................................................................... 40 S2. Mecanismo de caja de controles (B8450·B8480) .............................................................. 40 T. Mecanismo de inversión rápida (Cortahílos) ................................................................... 42 U. Mecanismo de la presión de aire (-700) ............................................................................ 44 V. Mecanismo de la sistema de control de tera (B8450·B8480) .............................................................. 46 W1.Conjunto solenoide del levantador (-900) .......................................................................... 48 W2.Conjunto solenoide del levantador (Piezas opciona) .......................................................... 50 X. Mecanismo de conmutador de rodilla (-700, -900) ................................................................. 52 Y. Mecanismo de conmutador de inversión rápida (Cortahílos) ...................................................... 52 Z1. Accesorios ................................................................. 54 Z2. Accesorios ................................................................. 58 ZZ. Piezas calibradoras ..................................................... 62 BB. Piezas opciona .......................................................... 62 LISTE DE PIEZAS CALIBRADORAS ............................ 63~66 LISTA DE PIEZAS ACCESORIAS ................................ 68~71 INDICE .......................................................................... 72~80 jintex.in

Page 8 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Denominación del mecanismo

A. 主体関係/Machine body/Maschinengehäuse/ Corps de la machine/Denominación del mecanismo -900S B8450 B8480 31 オプションパーツ/ OPTION PARTS 24 29 30 28 25 26 27 3 8 21 7 6 9 brother 17 2 B8450 B8480 13-1 32 16 15 14-1 14-2 13-2 13-3 14-3 13-4 14-4 15-1 BROTHER INDUSTRIES, LTD. MADE IN JAPAN jintex.in

Page 9

A. 主体関係/Machine body/Maschinenhause/ Corps de la machine/Denominación del mecanismo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 113386000 1 ハリイタイチキメピン PIN 3 S07566101 1 メンイタ FACE PLATE 4 062670812 2 ナベコ357-40X8 SCREW 357X8 6 150815001 2 メンイタキャップ FACE PLATE CAP 7 S02499001 1 ガワイタ REAR COVER 8 * 7 ナベコ437-40X8 SCREW 437X8 9 * 2 ミシンハリDP NEEDLE DP 13 S07318101 1 スペイリタLクミ SLIDE PLATE (L) ASSEMBLY 13-1 S07319001 1 スペイリタL SLIDE PLATE (L) 13-2 S07320000 1 スペイリタマド BOBBIN WINDOW 13-3 S07321001 1 スペイリタマドオサエ BOBBIN WINDOW HOLDER 13-4 S07322101 3 シメネジ2.38 SCREW 2.38 14 S07325101 1 スペイリタR SLIDE PLATE (R) ASSEMBLY 14-1 S07326001 1 スペイリタR SLIDE PLATE (R) 14-2 S07320000 1 スペイリタマド BOBBIN WINDOW 14-3 S07321001 1 スペイリタマドオサエ BOBBIN WINDOW HOLDER 14-4 S07322101 3 シメネジ2.38 SCREW 2.38 16 116010001 1 トメネジ5.16 SET SCREW 5.16 17 151602002 2 トメネジ4.37 SET SCREW 4.37 <スタンダード /STANDARD > 15 112610101 1 スペイリタFクミ SLIDE PLATE (F) ASSEMBLY 15-1 S07328000 1 ゴムセン OIL CAP <イトキリ/THREAD TRIMMER > 15 148599101 1 スペイリタFクミ SLIDE PLATE (F) ASSEMBLY 15-1 S07328000 1 ゴムセン OIL CAP < -400, -700, -900 > 21 S07327001 2 コード"オサエL CORD HOLDER (L) < -400, -700, -900S > 21 S07327001 1 コード"オサエL CORD HOLDER (L) < -900S > 25 525567000 1 コード"ホルダ"#8 CORD HOLDER (#8) 26 552907000 2 コード"ホルダ"#10 CORD HOLDER (#10) 28 100645003 3 ザガネ WASHER 29 062681212 7 ナベコ437-40X12 SCREW 437X12 < B8450, B8480 > 27 554482000 2 コード"ホルダ"#12 CORD HOLDER (#12) 28 100645003 2 ザガネ WASHER 29 062681212 5 ナベコ437-40X12 SCREW 437X12 30 062681412 1 ナベコ437-40X14 SCREW 437X14 31 154574001 1 ボルト4.37 BOLT 4.37 32 047301442 1 スプリングピンAW3 SPRING PIN AW3 < オプションパーツ/OPTION PARTS > 24 113760001 4 シメネジ5.16 SCREW 5.16 jintex.in

Page 10

B. 上軸関係/Upper shaft mechanism/Obere Welle/ Mécanisme de l'arbre superieur/Mecanismo de la eje superior 27 26 8 6 22 23 21 7 24 25 9 11 12 14 20 19 15 16 5 13 17 18 C. 送り軸関係/Feed shaft mechanism/Transport welle/ Mécanisme de l'arbre entrainement/Mecanismo de la eje alimentación 6 11 6 13 12 1 3 5 6 15 14 2 3 4 8 9 10 Jinttex.in

Page 11 — B. 上軸関係/Upper shaft mechanism/Obere Welle/Mécanisme de l'arbre supérieur/Mecanismo de la eje superior C. 送り軸関係/Feed shaft mechanism/Transport welle/Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación

B. 上軸関係/Upper shaft mechanism/Obere Welle/ Mécanisme de l'arbre supérieur/Mecanismo de la eje superior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 112573101 1 ウワジクメタルL UPPER SHAFT BUSHING (L) 2 013781012 1 トメネジ"6.35クボミ SCREW 6.35X10 3 S07330101 1 ウワジクメタルMクミ UPPER SHAFT BUSHING (M) 4 013780710 1 トメネジ"6.35クボミ SCREW 6.35X7 5 S07329001 1 ウワジク UPPER SHAFT 6 149820000 1 デンビツクランク THREAD TAKE-UP CRANK 7 100250001 1 シメネジ"7.14 SCREW 7.14 8 146141001 1 アタマツキメネジ"7.14 SCREW 7.14 9 149821101 1 ハリホウクランク NEEDLE BAR CRANK 11 101706001 1 トメネジ"6.35 SCREW 6.35 12 100251001 1 トメネジ"6.35 SCREW 6.35 13 112576001 1 デンビツクランクリング THRUST RING 14 180157001 1 タイミングプーリプーリ TIMING BELT WHEEL (UPPER) ASSEMBLY 15 014771022 1 アナトメネジ"6.35クボミ SCREW 6.35X10 16 016771032 1 アナトガリ"635X10 SCREW 635X10 17 112586001 1 タイミングベルト TIMING BELT 18 158115001 1 タマツクウ6204ZZNR BEARING 6204 ZZNR 20 S096700001 2 トメネジ"595-28X14 SCREW 5.95X14 21 * 1 デンビツ STUD 22 S07334001 1 デンビツシジク THREAD TAKE-UP 23 013781012 3 トメネジ"6.35クボミ SCREW 6.35X10 24 S07567001 1 テンビンスペーサリコ THREAD TAKE-UP LEVER SLIDE BLOCK 25 113024000 1 クミモフタ PUSHER 26 S07339001 1 デンビツカバー THREAD TAKE-UP COVER 27 062670512 2 ナベコ"357-40X5 SCREW 357X5 <スタンダード / STANDARD > 19 144614101 1 プーリー PULLEY <イトキリ / THREAD TRIMMER > 19 * 1 プーリー PULLEY C. 送り軸関係/Feed shaft mechanism/Transport welle/ Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 148494001 1 オクリジクメタルL FEED ROCK SHAFT BUSHING (LEFT) 2 S07386001 1 オクリジクメタルR FEED ROCK SHAFT BUSHING 3 013781012 2 トメネジ"6.35クボミ SCREW 6.35X10 4 148492101 1 スイヘイオクリジク FEED ROCK SHAFT 5 113074001 2 セットトカラー FEED ROCK SHAFT COLLAR 6 101706001 4 トメネジ"6.35 SCREW 6.35 8 148491001 1 オクリジクイトリツケジク FEED BAR SHAFT 9 143591001 2 スラストリング THRUST RING 10 014680622 1 アナトメネジ"4.37クボミ SCREW 4.37 11 112656001 1 オクリジクイトフタク FEED BAR FORK 12 062761412 1 ナベコ"595-28X14 SCREW 595X14 13 025060132 1 ヒラザガネヨウ6 WASHER 6 14 062661212 1 ナベコ"318-40X12 SCREW 318X12 15 021660102 1 ナット1シュ3.18 NUT 3.18 <スタンダード / STANDARD > 7 S07387001 1 オクリジク FEED BAR <イトキリ / THREAD TRIMMER > 7 148490001 1 オクリジク FEED BAR jintex.in

Page 12 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja 1-1 1-2 1-18 1-17 1-5 1-6 1-12 1-13 1-14 1-10 1-15 1-16 1-7 1-7-11 1-7-12 1-7-13 1-7-2 1-7-3 1-7-6 1-7-9 1-7-8 1-7-4 1-7-5 1-7-7 B845 B8450 19 18 17 16 輸出用/FOR EXPORT jintex.in 1-1 2 3 11 1-18 1-17 1-5 1-6 1-12 1-13 1-14 1-10 1-15 1-16 1-7 1-7-11 1-7-12 1-7-13 1-7-2 1-7-3 1-7-6 1-7-9 1-7-8 1-7-4 1-7-5 1-7-7 B848 B8480 14 14-1 13 12 8 6 7 5 4 8 7 1-9 1-3 1-4 10 9

Page 13 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 * 1 ハリボウヨウトウシクミ NEEDLE BAR ROCK SHAFT ASSEMBLY 1-1 112588101 1 ハリボウヨウトウシク NEEDLE BAR ROCK SHAFT 1-2 107030001 1 テーパピン TAPER PIN 1-3 112590001 2 ハリボウウンナイタ GUIDE PLATE 1-4 102731004 4 サラネジ2.38 SCREW 2.38 1-5 ※ 1 ハリボウヨウLクミ NEEDLE BAR (L) ASSEMBLY 1-6 ※ 1 ハリボウヨウRクミ NEEDLE BAR (R) ASSEMBLY 1-7 ※ 1 ハリボウヨウキクミ NEEDLE BAR CLAMP ASSEMBLY 1-7-1 149604001 2 ピン1.5X5.8 PIN 1.5X5.8 1-7-2 149605001 2 クラッチテコバネ CLUTCH LEVER SPRING 1-7-3 149827001 1 ピン2X15.8 PIN 2X15.8 1-7-4 149606001 1 クラッチトメL CLUTCH STOPPER (LEFT) 1-7-5 149607001 1 クラッチトメR CLUTCH STOPPER (RIGHT) 1-7-6 149608001 1 ピン2X17.8 PIN 2X17.8 1-7-7 112609001 2 スペリイタストツパハネ BED SLIDE STOPPER SPRING 1-7-8 149609001 1 ハネササエ SPRING HOLDER 1-7-9 100105005 2 シメネジ2.38 SCREW 2.38 1-7-10 149610001 1 リリースピン RELEASE PIN 1-7-11 149611101 1 リリースピンハネ RELEASE PIN SPRING 1-7-12 149612101 1 リリースピンフタ RELEASE PIN COVER 1-7-13 114447002 1 シメネジ2.38 SCREW 2.38 1-8 149613001 1 ハリボウウクランクロツド NEEDLE BAR CRANK ROD 1-9 150816001 1 ハリボウウレンカンカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 1-10 S07574001 1 スペリコアンナイイタ SLIDE BLOCK GUIDE PLATE 1-11 062670812 2 ナベコ357-40X8 SCREW 357X8 1-12 ※ 1 スペリコウクミ SLIDE BLOCK ASSEMBLY 1-13 149621001 2 ハリボウヨウストツパー NEEDLE BAR STOPPER 1-14 149622001 2 ハリボウヨウストツパーハネ NEEDLE BAR STOPPER SPRING 1-15 149623001 1 ハネフタ SPRING COVER 1-16 060660512 1 ハインド318-40X5 SCREW 3.18X5 1-17 149624001 2 ハリボウヨウワトメ NEEDLE BAR ROTATE STOPPER 1-18 112593001 2 シメネジ3.18 SCREW 3.18 2 112594001 1 ヨウトウシクメトル NEEDLE BAR ROCK SHAFT BUSH (LEFT) 11 014821022 4 アナトメネジ7.94クボミ SET SCREW 7.94 < B845, B8450 > 3 112764001 1 ヨウトウシクメトルR NEEDLE BAR ROCK SHAFT BUSH (RIGHT) 4 112595000 1 ハリボウヨウトウレンカン NEEDLE BAR CONNECTING ROD 5 105351002 1 シメネジ6.35 SCREW 6.35 6 112596001 1 ハリボウヨウトウリンク NEEDLE BAR ROCK LINK 7 112597001 2 ヨウトウリンクジク NEEDLE BAR ROCK LINK STUD 8 101268002 2 ナット7.94 NUT 7.94 9 112598001 1 ハリボウヨウトウクランク NEEDLE BAR CONNECTING CRANK 10 S01304001 1 シメネジ6.35X18 SCREW 6.35X18 16 S07344101 1 FINGER GUARD 17 146354001 1 WASHER 18 028680242 1 SPRING WASHER 2-4.37 19 117850001 1 STUD SCREW 3.57 < B848, B8480 > 12 153012101 1 ヨウトウシクストツパ ROCK SHAFT GRIP 13 013780710 1 トメネジ6.35クボミ SCREW 6.35 14 S09132001 1 ピンチスリーブクミ PINCH SLEEVE ASSEMBL 14-1 018063022 1 アナボルト6X30 BOLT 6X30 ◎ ※印は67ページを参照して下さい。 Refer to page 67 for items marked with an asterisk (※). Für die mit (*) bezeichneten Gegenstände wird auf die Seite 67 verwiesen. Se reportere à la page 67 pour les articles indiqués par un astérisque (※). Consultar la página 67 para los conjuntos marcados con un asterisco (※). jintex.in

Page 14 — E. 針棒切換操作関係 / Needle bar flip-up mechanism / Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille / Mecanismo del lanzador de barra de aguja

E. 針棒切換操作関係 / Needle bar flip-up mechanism / Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille / Mecanismo del lanzador de barra de aguja -900S B8450 B8480 41 42 29 31-3 31-2 31-1 31-4 19-2 21 20 27 26 25 23 24 19-1 10 11 9 37-5 37-4 37-8 37-3 37-7 37-6 37-2 37-1 37-1-1 -12 B8450 B8480 -12 43 32 33 34 30 31-2 31-3 36 35 44 22-2 26 18 25 22-1 8 13 14 15 2 6 3 4 7 1 17 16 8-1 38-1 38-2 -900S 38-1-1 jintex.in

Page 15 — E. 針棒操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

E. 針棒操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 062711012 2 ナベコ476-32X10 SCREW 476X10 20 149858001 1 スライド"ジクウケ SLIDE SHAFT SUPPORTER 21 107272002 2 サラネジ"4.37 SCREW 4.37 23 S07586001 1 スライド"ジクウケケイタ SLIDE SHAFT SUPPORTER PLATE 24 149863001 2 ジクウケイタハネ PLATE SPRING 25 149864001 3 セットカラー SET COLLAR 26 011679312 5 トメネジ"3.57ヒラ SET SCREW 3.57 27 149865001 1 アナツイネシ" GUIDE SCREW < スタンダード /STANDARD, -400, -700, -900 > 1 S07581001 1 インジケータアセンブリ INDICATION PLATE ASSEMBLY 3 S07584001 1 プッシュレバー PUSH LEVER 4 149127001 2 ダンネジ"6.35 STUD SCREW 6.35 5 S07585101 1 プッシュレバーハネ PUSH LEVER PLATE 6 062670512 2 ナベコ357-40X5 SCREW 357X5 7 149843001 1 プッシュレバーハネ PUSH LEVER SPRING 8 149847002 1 ストップレバーアセンブリ STOP LEVER SHAFT ASSEMBLY 8-1 047301842 1 スプリング"ピンAW3 SPRING PIN AW3 9 149852001 1 スタッド"L STUD (LONG) 10 149853001 1 スタッド"S STUD (SHORT) 11 150818001 1 キリカエシ"イタケミ FLIP-UP HOLDER PLATE 12 062711012 2 ナベコ476-32X10 SCREW 476X10 13 S07587101 1 ボールガイドブッシュ BALL GUIDE BUSH 14 150820001 1 コマアシバネ COIL SPRING 15 071063550 1 コウキュウ1/4 STEEL BALL 1/4 16 149855001 1 レバー"ジクウデ" LEVER SHAFT ARM 17 062711412 1 ナベコ476-32X14 SCREW 476X14 18 146597101 1 ダンネジ"4.37 STUD SCREW 4.37 19-1 149857001 2 レバー"ジクウデ"ハネ LEVER SHAFT ARM SPRING 22-1 S07588001 1 スライド"ジク" SLIDE SHAFT < B800S, B8450, B8480 > 19-2 S13528001 2 スライド"ジクハネ SLIDE SHAFT SPRING 22-2 S13527001 1 スライド"ジク" SLIDE SHAFT 29 S13526001 1 ソレノイド"トリツケケイタ SOLENOID SETTING PLATE 30 110201001 2 シメネジ"6.35 SCREW 6.35 31 S13521001 1 キリカエソレノイド"クミ FLIP-UP SOLENOID ASSEMBLY 31-1 S13523001 1 プランジャー PLUNGER 31-2 048090342 2 トメワE9 STOP RING E9 31-3 S13524100 2 プランジャー"ゴム PLUNGER RUBBER 31-4 143549000 4 ピン"ターミナルオス TERMINAL PIN (MALE) 32 533527001 8 +ナベ"セムス3X8DB SCREW 3X8DB 35 S13525001 1 キリカエレバー FLIP-UP LEVER 36 151987001 2 ダンネジ"4.37 STUD SCREW 4.37 39 143520000 1 ナイロンコネクター NYLON CONNECTOR 40 143519001 1 コネクタキャップ CONNECTOR CAP 41 S11072001 1 ボタン"ジクハネ BUTTON SHAFT SPRING 42 071063550 1 コウキュウ1/4 STEEL BALL 1/4 43 S13525001 1 ボールガイド"ジク" BALL GUIDE SCREW 44 159269001 1 シタト"キリリンク"タツネジ" BOBBIN THREAD TRIMMER LINK STUD SCREW < B8450, B8480 > 37 S13465101 1 マニュアルスイッチクミ MANUAL SWITCH ASSEMBLY 37-1 S13467101 1 マニュアルスイッチ"ハンクミ MANUAL SWITCH CIRCUIT BOARD ASSEMBLY 37-1-1 002300506 2 +ナベ"ネジ"3X5 SCREW 3X5 37-2 S13472001 1 LRスイッチケースD LR SWITCH CASE (LOWER) 37-3 008300602 2 +トラスコ3X6 SCREW 3X6 37-4 S13485001 1 スイッチケースU SWICH CASE (UPPER) 37-5 S13486001 1 スイッチケースD SWICH CASE (LOWER) 37-6 002300605 1 +ナベ"ネジ"3X6 SCREW 3X6 37-7 028030243 1 バネザガネ2-3 SPRING WASHER 2-3 37-8 008300602 2 +トラスコ3X6 SCREW 3X6 jintex.in

Page 16

E. 針棒切換操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja -900S B8450 B8480 43 32 30 41 33 42 34 29 31-2 31-3 31-4 31-4 19-2 36 35 22-2 44 26 18 21 19-1 25 22-1 8 16 17 8-1 27 23 24 13 14 15 2 6 3 7 4 10 11 12 5 9 R 12 B8450 B8480 -900S 37-5 37-4 38-1 38-1-1 37-8 37-1-1 37-3 37-7 37-6 37-2 37-1 jintex.in

Page 17 — E. 針棒切換操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

E. 針棒切換操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS < -900S > 38 S13470001 1 LRスイッチクミ LR SWICH ASSEMBLY 38-1 S13466001 1 LRスイッチキバンクミ LR SWICH CIRCUIT BOARD ASSEMBLY 38-1-1 002300506 2 ナベネジ3X5 SCREW 3X5 38-2 008300602 2 +トラスコ3X6 SCREW 3X6 jintex.in

Page 18 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensatelas

F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensatelas 3 4 5 6 8-2 7 8-1 2 1 23 21 19 20 14 15 13-1 28 26 28 25 24 28 22 10-1 18 9 10 オプションパーツ OPTION PARTS 16-1 17 16-2 13-2 27 jintex.in

Page 19 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensatelas

F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensatelas REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 145472001 1 オサエボウ"ウメタル PRESSER BAR BUSHING 2 013781012 1 トメネジ"6.35クボミ SET SCREW 6.35 3 141207001 1 オサエチョウセツネツジ PRESSER ADJUSTING SCREW 4 147846001 1 チョウセツネツジ"ツマミナット NUT 5 141208001 1 オサエバ"アンナイ PRESSER SPRING GUIDE 6 S07346101 1 オサエバネ PRESSER SPRING 7 S07345001 1 オサエボウ PRESSER BAR 8 181919101 1 オサエボウ"ダキ"キネツジツキ PRESSER BAR CLAMP WITH SCREW 8-1 147513001 1 オサエボウ"ダキ" PRESSER BAR GUIDE CLAMP 8-2 142403001 1 ボルト5.95 BOLT 5.95 9 S07347001 1 オサエアゲクランク PRESSER BAR LIFTER CRANK 10 S13103001 1 オサエアゲ"テコネツジツキ PRESSER BAR LIFTER WITH SCREW 10-1 014710522 2 アナトメネジ"4.76クボミ SET SCREW 4.76 10-1 014710522 2 アナトメネジ"6.35ヒラ SET SCREW 6.35 15 150556001 1 ナット 6.35 NUT 6.35 16-1 S07348001 1 オサエアゲレバー PRESSER LIFTER LEVER 17 S07349001 1 オサエアゲレバー"ジツク PRESSER LIFTER LEVER STUD 18 S07350001 1 サガネ WASHER 19 139096001 1 セットカラー SET COLLAR 20 01468022 2 アナトメネジ"4.37クボミ SET SCREW 4.37 22 062671412 1 ナベ"357-40X14 SCREW 357X14 23 021670102 1 ナット1シュ3.57 NUT 3.57 26 S07357001 1 ヒザアゲレンカン KNEE LIFTER CONNECTOR <スタンダード /STANDARD > 13-1 S07353001 1 イトユルメタクミ TENSION RELEASE PLATE ASSEMBLY 21 S07355001 1 オサエアゲレバー"ハネ PRESSER LIFTER LEVER SPRING <イトキリ/THREAD TRIMMER > 13-1 S07351001 1 イトユルメタクミ TENSION RELEASE PLATE ASSEMBLY 21 S07355001 2 オサエアゲレバー"ハネ PRESSER LIFTER LEVER SPRING <スタンダード /STANDARD, -400, -900, B8450, B8480 > 24 S07358001 1 ヒザアゲレバー KNEE LIFTER LEVER 25 145480001 1 ダンネジ"6.35 STUD SCREW 6.35 27 S07359001 1 ヒザアゲボウ KNEE LIFTER BAR 28 145478001 3 ダンネジ"4.76 STUD SCREW 4.76 <オプションパーツ/OPTION PARTS > 13-2 S10780001 1 イトユルメタクミ TENSION RELEASE PLATE ASSEMBLY 16-2 S10781001 1 オサエアゲレバー PRESSER LIFTER LEVER jintex.in

Page 20

G. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'entraînement/Mecanismo de la alimentación 20 21 24 7 6 4-1 4-2 39 35 36 37 1-4 1-2 1-1 1-3 1 25 26 27 28 5-1 30 31 5 38 13-1 19 18 22 13-6 23 13-2 13-3 13-4 13-5 10 9 10 2 3 11 12 jintex.in

Page 21 — G. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'alimentation

G. 送り関係/Feed mechanism/Transportvorrichtung/ Mécanisme de l'alimentation REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS < B845, B8450 > 1 S07366101 1 キリカリエキ(L) クミ FEED REGULATOR (L) ASSEMBLY < B848, B8480 > 1 S07361101 1 キリカリエキ(S) クミ FEED REGULATOR (S) ASSEMBLY 1-1 S07363001 2 カクコマアンナイタ SLIDE BLOCK GUIDE PLATE 1-2 062681012 4 ナベコ437-40X10 SCREW 437X10 1-3 S07364001 1 キリカリエキクゴマクミ FEED REGULATOR SLIDE BLOCK ASSEMBLY 1-4 143613001 1 スイヘイオクリウデリンク FEED ROCK ARM LINK 2 S07379001 1 キリカリエキトメ FEED REGULATOR STOPPER 3 062710612 1 ナベコ476-32X6 SCREW 476X6 4 143611101 1 スイヘイオクリレンカンクミ FEED ROCK CONNECTING ROD ASSEMBLY 4-1 143612000 1 スイヘイオクリレンカン FEED ROCK CONNECTING ROD 4-2 118954000 1 ニードルベアリング NEEDLE BEARING 5 148802201 1 スイヘイヘンシンリンネツキ LEVEL FEED ECCENTRIC WHEEL WITH SCREW 5-1 014771022 2 アナトメネジ"35X6 クボミ SET SCREW 6.35 6 S07378001 1 ベアリングフタ BEARING COVER 7 062670812 2 ナベコ357-40X8 SCREW 357X8 9 143616001 1 スイヘイオクリウデジク FEED ROCK ARM STUD 10 048060342 2 トメワE6 STOP RING E6 11 148495001 1 スイヘイオクリウデ FEED ROCK SHAFT ARM 12 S01304001 1 シメネジ"6.35X18 SCREW 6.35X18 < B845, B8450 > 13 183610001 1 オクリリヨウセツケイ STITCH LENGTH CONTROL PLATE ASSEMBLY 13-3 151507101 1 オクリリヨウイタ(5) STITCH LENGTH CONTROL PLATE (5) < B848, B8480 > 13 183609001 1 オクリリヨウセツケイ STITCH LENGTH CONTROL PLATE ASSEMBLY 13-3 S07674001 1 オクリリヨウイタ(4) STITCH LENGTH CONTROL PLATE (4) 13-1 159361001 1 オクリリヨウセツケイタイ LENGTH REGULARING SCREW 13-2 129500004 1 オクリリヨウセツケイタイ STITCH LENGTH CONTROL DIAL 13-4 142746002 1 メモリイタオサエ LENGTH CONTROL PLATE SUPPORTER 13-5 129458002 1 シメネジ"4.76 SCREW 4.76 13-6 10854900 1 Oリング O RING 18 145502001 1 メモリイチギメピン PIN 19 100328001 1 メモリイチギメピンハネ SPRING 20 S07368101 1 オクリリヨウセツケイ FEED REGULATOR 21 118853001 2 アナトメネジ"5.95 SET SCREW 5.95 22 S07369001 1 キリカリエキレンカン FEED REGULATOR CONNECT LINK 23 S07370101 1 ダンネジ"5.95 STUD SCREW 5.95 24 048080342 1 トメワE8 STOP RING E8 25 025100132 1 ヒラザガネショウ10 PLAIN WASHER 10 26 1475004001 1 ワッシャー WASHER 27 062670512 3 ナベコ357-40X5 SCREW 357X5 28 S07375001 1 カエシイレバーオサエハネ SPRING 31 S07376001 1 ハンドルストツパ REVERSE LEVER STOPPER 32 062711012 1 ナベコ476-32X10 SCREW 476X10 33 025710232 1 ヒラザガネチユウ4.76 PLAIN WASHER 4.76 34 S07376001 1 キリカリエキハネ FEED REGULATOR SPRING 35 S07377001 1 ハネカケ SPRING HOOK 36 062710612 2 ナベコ476-32X6 SCREW 476X6 37 S12698001 1 キリカリヘンシンリンジク FEED REGULATOR ECCENTRIC WHEEL SHAFT 38 014710522 1 アナトメネジ"4.76クボミ SET SCREW 4.76 < スタンダード / STANDARD > 24 S07371001 1 カエシイレバー FEED REGULATOR LEVER SHAFT 29 S07373001 1 カエシイレバー REVERSE LEVER 30 118853001 1 アナトメネジ"5.95 SET SCREW 5.95 <イトキリ/THREAD TRIMMER > 24 S07372001 1 カエシイレバー FEED REGULATOR LEVER SHAFT 29 S07374001 1 カエシイレバー REVERSE LEVER jintex.in

Page 22

H. 下軸関係/Lower shaft mechanism/Untere welle/ Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior 1 5 5-1 9-1 5-3 10-1 10-3 10-2 10-4 11 5-2 9 5-1 5-3 11-1 12-1 B848 B8480 12-3 12-3 12-2 J1. 押工上ゲ関係(-700)/Presser foot lifter mechanism (-700)/ Stoffhalterhebevorrichtung (-700)/Mécanisme de leveur du pied presseur (-700)/ Mecanismo de levantador del prensatelas (-700) 17 10 9 7 1 6 4 5 3 8 8 18 jintex.in

Page 23 — H. 下軸関係 / Lower shaft mechanism / Untere welle / Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior

H. 下軸関係 / Lower shaft mechanism / Untere welle / Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 148503000 1 カマトロ"ダイメタルL ROTARY HOOK BASE BUSH (LEFT) 2 148502000 1 カマトロ"ダイメタルR ROTARY HOOK BASE BUSH (RIGHT) 3 013781012 2 トメネジ"6.35クボミ SET SCREW 6.35 4 * 1 シタジク LOWER SHAFT 5 S12445001 2 スパイラルギヤクミA SPIRAL GEAR ASSEMBLY (A) 5-1 112684001 2 トメネジ"6.35 SET SCREW 6.35 5-2 100251001 4 トメネジ"6.35 SET SCREW 6.35 5-3 131007001 6 トメネジ"6.35クボミ SET SCREW 6.35 9 * 1 ジヨウケンリンクミ VERTICAL FEED ECCENTRIC CAM WITH SCREW 9-1 112684001 1 トメネジ"6.35 SET SCREW 6.35 10 S07446001 1 タマシクウケクミ BALL BEARING ASSEMBLY 10-1 S07447001 1 タマシクウケブツシュ BALL BEARING BUSH 10-2 072600480 1 アナトメネジ"6004ZZNR BALL BEARING 6004ZZNR 10-3 148821001 1 アナトメネジ"6.35トガリ SET SCREW 6.35 10-4 014771022 1 アナトメネジ"6.35クボミ SET SCREW 6.35 11 * 1 タイミングプーリDクミ TIMING PULLEY (LOWER) ASSEMBLY 11-1 158115001 1 タマシクウケ6204ZZNR BALL BEARING 6204ZZNR < B845, B8450 > 12-1 014771022 1 アナトメネジ"6.35クボミ SET SCREW 6.35 12-2 148821001 1 アナトメネジ"6.35トガリ SET SCREW 6.35 < B848, B8480 > 12-3 014771022 2 アナトメネジ"6.35クボミ SET SCREW 6.35 J1. 押エ上ゲ関係 (-700) / Presser foot lifter mechanism (-700)/ Stoffhalterhebevorrichtung (-700)/Mécanisme de leveur du pied presseur (-700)/ Mecanismo de levantador del prensatelas (-700) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 S07589001 1 PRESSER FOOT CYLINDER ASSEMBLY 3 S07590001 1 CYLINDER BRACKET 4 105173004 2 SCREW 4.76 5 025710132 2 PLAIN WASHER 4.76 6 146153001 1 LINK PIN 7 048040342 1 STOP RING E4 8 140620001 2 CYLINDER SUPPORTING SCREW 9 S07591001 1 KNEE LIFTER LEVER 10 141528001 1 STUD SCREW 6.35 17 145478001 2 STUD SCREW 4.76 18 151154000 1 AIR TUBE jintex.in

Page 24 — J2. 押工上ゲ関係 (-900)/Presser foot lifter mechanism (-900)/Stoffhalterhebevorrichtung (-900)/Mécanisme de levueur du pied presseur (-900)/Mecanismo de levantador del prensatelas (-900)

J2. 押工上ゲ関係 (-900)/Presser foot lifter mechanism (-900)/ Stoffhalterhebevorrichtung (-900)/Mécanisme de levueur du pied presseur (-900)/ Mecanismo de levantador del prensatelas (-900) 14-2 15 14-3 14-1 11-8 11-5 11-2 11-5 13 11-7 12 11-4 11-1 11-4-1 11-21 11-12 11-10 11-3 11-8 11-9 11-11 11-4-2 11-13 11-17 11-19 11-18 11-14 11-14-1 11-22 11-23 11-14-2 11-20 11-26 11-15 11-16 11-25 11-24 11-25-1 11-24-1 11-25-2 11-25-3 11-24-1 11-24-2 jintex.in

Page 25

J2. 押工上げ関係 (-900)/Presser foot lifter mechanism (-900)/ Stoffhalterhebevorrichtung (-900)/Mécanisme de leveur du pied presseur (-900)/ Mecanismo de levantador del prensatelas (-900) REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 11 SO3681101 1 デンシ

Page 26 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/M uevo de crochet rotatif/Mecanismo del cangrejo

K. カマ関係/Rotary hook mechanism/Greifervorrichtung/ Mécanisme de crochet rotatif/Mecanismo del cangrejo 24 26 25 16 19 27 12 21 11 6 7 8 5 15 14 13 17 3 4 9 10 28 31 29 30 38 37 40 34 35 36 37 35 34 23-1-3-3 23-1-3-5 23-1-3 23-2-3 23-1-3-1 23-1-3-2 23-1-3-4 41 23-1-1-1-1 23-1-1-2 23-2-3-7 23-2-3-2 23-2-3-1 23-2-3-6 23-2-3-3 23-2-3-5 23-2-3-4 41 42 23-2-1-2 23-2-1-1-1 23-1-1-1 23-1-1-2 2-1 1-1 1-2 2-2 23-2-1-1 jintex.in

Page 27 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

K. カマ関係/Rotary hook mechanism/Greifervorrichtung/ M ecanisme de crochet rotatif/Mecanismo del cangrejo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 3 062782512 2 ナベ 635-28X25 SCREW 635X25 4 100197002 2 ザガネ WASHER 5 S07418001 2 カマシクメタルU ROTARY HOOK SHAFT BUSH (UPPER) 6 S07421001 2 スラストリング THRUST RING 7 S07420000 2 ニードルベアリング NEEDLE BEARING 8 S07419001 2 ストップリング STOP RING 9 S07417001 2 カマシクメタルD ROTARY HOOK SHAFT BUSH (LOWER) 10 013710512 2 トメネジ4.76クボミ SET SCREW 4.76 11 112692101 2 オープナーリンク OPENER LINK 12 148005001 2 オープナーリンクシク OPENER LINK SHAFT 13 110161006 2 ナット4.76 NUT 4.76 14 025710232 2 ヒラサガネ*4.76 PLAIN WASHER 4.76 15 S07422101 2 オープナーレバー OPENER LEVER 16 S13021001 2 オープナーレバーシク OPENER LEVER SHAFT 17 013711012 2 トメネジ4.76クボミ SET SCREW 4.76 19 S07423101 2 オープナー OPENER 21 S07424001 4 トメネジ3.18 SET SCREW 3.18 24 S07436001 1 ギヤアンナイL GEAR GUIDE (LEFT) 25 S07437001 1 ギヤアンナイR GEAR GUIDE (RIGHT) 26 108960002 4 サラネジ3.57 SCREW 3.57 27 S07658001 2 ピンチスリーブクミ PINCH SLEEVE ASSEMBLY 27-1 112700001 2 シメネジ5.95 SCREW 5.95 28 S07430001 1 ハリスキチョウセツボウサエ ADJUSTING BAR SUPPORTER 29 062711012 2 ナベコ476-32X10 SCREW 476X10 30 S07431001 1 ハリスキチョウセツボウ ADJUSTING BAR 31 048040342 1 トメワE4 STOP RING E4 32 159436001 1 セットカラー SET COLLAR 33 014680622 1 アナトメネジ4.37クボミ SET SCREW 4.37 34 S07434001 2 ハリスキチョウセツセツネジ ROTARY HOOK BASE ADJ.SCREW 35 025680132 2 ヒラサガネ*4.37 PLAIN WASHER 4.37 36 S07435001 2 ハリスキチョウセツナツト ROTARY HOOK BASE ADJUSTING DIAL 37 014680622 4 アナトメネジ4.37クボミ SET SCREW 4.37 38 S07432001 1 ハリスキチョウセツフオードレバ ADJUSTING FORKED LEVER (LEFT) 39 S07433001 1 ハリスキチョウセツフオードレバR ADJUSTING FORKED LEVER (RIGHT) 40 131226001 2 ハリオトメネジ3.57 NEEDLE SET SCREW 3.57 41 * 2 ボビン BOBBIN <スタンダード/STANDARD> 1-1 S07416201 1 カマド"ダイL ROTARY HOOK BASE (LEFT) 23-1 S07414201 1 カマド"ダイR ROTARY HOOK BASE (RIGHT) 23-1 S07568001 2 ニホンハリコマ ROTARY HOOK ASSEMBLY 23-1-1 S13613001 2 カマクミ ROTARY HOOK ASSEMBLY 23-1-1-1 S08005001 2 ソトカマクミ OUTER ROTARY HOOK ASSEMBLY 23-1-1-1-1 151027001 2 ウチカマオサエトメネジ INNER ROTARY HOOK SET SCREW 23-1-1-2 S07738001 2 ウチカマクミ INNER ROTARY HOOK ASSEMBLY 23-1-3 S07741001 2 キャツプクミ CAP ASSEMBLY 23-1-3-1 151034001 2 シタイトルミトリバネ SPRING 23-1-3-2 151035001 2 タルミトリバネトメネジ SET SCREW 23-1-3-3 151025001 2 チョウシバネ TENSION ADJUSTING SPRING 23-1-3-4 S01567001 2 チョウシバネ TENSION ADJUSTING SCREW 23-1-3-5 S01568001 2 チョウシバネトメネジ SET SCREW <イトキリ/THREAD TRIMMER> 1-2 S07415201 1 カマド"ダイL ROTARY HOOK BASE (LEFT) 2-2 S07413201 1 カマド"ダイR ROTARY HOOK BASE (RIGHT) 22 153243001 4 スペーサー0.2 SPACER 0.2 22 153244001 2 スペーサー0.3 SPECER 0.3 23-2 S07569001 2 ニホンハリコマ ROTARY HOOK ASSEMBLY 23-2-1 S13614001 2 カマクミ ROTARY HOOK ASSEMBLY 23-2-1-1 S07733001 2 ソトカマクミ OUTER ROTARY HOOK ASSEMBLY 23-2-1-1-1 151027001 4 ウチカマオサエトメネジ INNER ROTARY HOOK SET SCREW 23-2-1-2 S07739001 2 ウチカマクミ INNER ROTARY HOOK ASSEMBLY 23-2-3 S07742001 2 キャツプクミ CAP ASSEMBLY 23-2-3-1 151034001 2 シタイトルミトリバネ SPRING jintex.in

Page 28 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

K. カマ関係/Rotary hook mechanism/Greifervorrichtung/ Mécanisme de crochet rotatif/Mecanismo del cangrejo 27 16 19 21 12 11 15 14 13 17 3 4 23-1-3-3 23-1-3-5 23-1-3-1 23-1-3-2 41 23-1-1-1-1 1-1 23-1-3 23-1-3-4 23-1-1-2 23-1-1-1 2-1 24 26 25 28 31 30 38 40 37 35 34 36 37 39 34 35 23-2-3 23-2-3-7 23-2-3-2 23-2-3-1 23-2-3-4 41 42 23-2-1-2 23-2-1-1 22 2-2 1-2 23-2-3-6 23-2-3-3 23-2-3-5 23-1-1-1-2 jintex.in

Page 29 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

K. カマ関係/Rotary hook mechanism/Greifervorrichtung/ M ecanisme de crochet rotatif/Mecanismo del cangrejo REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 23-2-3-2 151035001 2 タルミトリバネトメネジ SET SCREW 23-2-3-3 151043001 2 チョウツバネ ADJUSTING SPRING 23-2-3-4 S01567001 2 チョウツバネ TENSION ADJUSTING SCREW 23-2-3-5 S01568001 2 チョウツバネトメネジ SET SCREW 23-2-3-6 159801001 2 イトオサエワイヤー THREAD PRESSER WIRE 23-2-3-7 159802001 2 シメネジ1.59X2 SCREW 1.59X2 42 148602001 2 クウテンボウツバネ BOBBIN TENSION SPRING jintex.in

Page 30

L. 給油潤滑関係/Lubrication/Schmierung/ Lubrification/Lubricación 10 37 88 9 11 31 76 77 31 30 31 71 47 25 26 79 78 50 51 85 84 34 57 59 69 29 39 98 81 91 73 80 15 14 55 32 38 97 93 99 48 56 46 16 17 61 24 98 44 22 23 43 30 52 27 40 31 36 64 62 68 65 42 41 63 13 45 49 64 82 70 91 75 83 53 35 4 36 91 54 91 92 21 20 74 91 5 7 6 101 100 91 18 19 20 21 3 2 1 jintex.in

Page 31

L. 給油潤滑関係/Lubrication/Schmierung/ Lubrication/Lubricación REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 S07448001 2 カマド"ダイフタ ROTARY HOOK BASE COVER 2 S07449000 2 カマド"ダイハツキン ROTARY HOOK BASE PACKING 3 062670812 8 ナベコ357-40X8 SCREW 357X8 4 S07477000 2 ゴムリング RUBBER RING 5 S07478000 2 ゴムオサエ RUBBER PRESSER 6 S07479101 2 オイルチョウセツネジ OIL ADJUSTING SCREW 7 S16114001 2 オイルチョウセバネ SPRING 9 112716101 1 オイルヨケイタ OIL STOPPER PLATE 10 112717001 1 オイルヨケイタオサエカネ OIL STOPPER PLATE PRE 11 062711012 1 ナベコ476-32X10 SCREW 476X10 12 112743001 1 クミヒモサエ WICK SUPPORTER 13 062670512 1 ナベコ357-40X5 SCREW 357X5 14 112739001 2 クミヒモサエ WICK SUPPORTER 15 062670512 2 ナベコ357-40X5 SCREW 357X5 18 143673001 1 キリカエキミヒモサエ WICK SUPPORTER 19 062660412 2 ナベコ318-40X4 SCREW 318X4 20 142268001 1 コード"オサエL CORD HOLDER (LARGE) 21 062670512 1 ナベコ357-40X5 SCREW 357X5 22 S07471001 2 ヒモサエ WICK HOLDER 23 062670512 2 ナベコ357-40X5 SCREW 357X5 24 S07450100 1 オイルタンククミ OIL TANK ASSEMBLY 25 062711012 2 ナベコ476-32X10 SCREW 476X10 26 025710232 2 ヒラザガネチユウ4.76 PLAIN WASHER 4.76 27 081030070 1 OリングP30 O RING P30 29 107155001 2 フエルト FELT 30 108800001 2 オイルカップ OIL CAP 31 104821001 2 メクラセン OIL CAP 32 142274001 2 メクラセン OIL CAP 34 149834000 1 フエルト FELT 35 151927001 2 クラツチフエルト CLUTCH FELT 36 S07476000 2 フエルト FELT 37 148762001 1 テンビンフエルト THREAD TAKE-UP FELT 38 112734001 1 ウワジクメタルLフエルト UPPER SHAFT BUSH (LEFT) FELT 39 S07571000 1 フエルト FELT 40 112753001 3 フエルト FELT 41 113362001 2 カマド"ダイメタルRフエルト ROTARY HOOK BASE BUSH (RIGHT) FELT 42 115249001 1 フエルト FELT 43 112759001 1 オクワリタフタマフエルト FELT 44 100257010 1 シメネジ"3.57 SCREW 3.57 45 148743001 4 フエルト FELT 46 S07460100 1 ワイヤー WIRE 47 S07453000 1 ビニールチユーブ OIL TUBE 48 S07454000 1 ビニールチユーブ OIL TUBE 49 S07455100 1 ビニールチユーブ OIL TUBE 50 S07456000 1 ビニールチユーブ OIL TUBE 51 S07457100 1 ビニールチユーブ OIL TUBE 52 S07810000 1 ビニールチユーブ OIL TUBE 53 S07458100 1 ビニールチユーブ OIL TUBE 54 S07459100 1 ビニールチユーブ OIL TUBE 55 150374000 1 クミヒモ(20CM) WICK (20CM) 56 112728001 1 クミヒモ(5CM) WICK (5CM) 57 114693001 1 クミヒモ(3CM) WICK (3CM) 58 112735000 1 クミヒモ(4.5CM) WICK (4.5CM) 59 113653000 1 クミヒモ(13CM) WICK (13CM) 60 S03289001 1 クミヒモ4X4(4CM) WICK 4X4 (4CM) 61 112736000 1 クミヒモ(44CM) WICK (44CM) 62 152974001 1 クミヒモ4X4(35CM) WICK 4X4 (35CM) 63 S07461000 2 クミヒモ(3.2CM) WICK (3.2CM) 64 108802001 2 クミヒモ4X4(25CM) WICK 4X4 (25CM) 65 108802001 1 クミヒモ4X4(25CM) WICK 4X4 (25CM) 66 S03289001 1 クミヒモ4X4(4CM) WICK 4X4 (4CM) 67 111191001 1 クミヒモ(3.5CM) WICK (3.5CM) jintex.in

Page 32 — L. Lubrication / Schmierung / Lubrication / Lubricación

L. 給油潤滑関係 / Lubrication / Schmierung / Lubrification / Lubricación 10 37 88 9 11 77 76 31 30 31 71 47 25 26 79 78 50 51 85 84 34 57 59 69 39 97 98 81 73 80 93 99 46 16 17 48 29 60 32 56 15 14 55 40 22 23 44 43 23 22 64 31 30 52 27 96 72 62 68 65 66 45 49 63 70 82 83 75 35 4 36 91 53 91 92 21 20 74 5 7 6 101 100 91 18 19 20 21 102 103 3 2 1 jintex.in

Page 33 — L. Lubrication / Schmierung / Lubrication / Lubricación

L. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 68 112750000 1 クミヒモ (11CM) WICK (11CM) 69 S07462000 1 クミヒモ (2.5CM) WICK (2.5CM) 70 S07463000 2 クミヒモ (7CM) WICK (7CM) 71 153920001 1 クミヒモ4X4 (30CM) WICK 4X4 (30CM) 72 152974001 1 クミヒモ4X4 (35CM) WICK 4X4 (35CM) 73 S03289001 1 クミヒモ4X4 (4CM) WICK 4X4 (4CM) 74 S07464100 1 クミヒモ (53CM) WICK (53CM) 75 156070002 2 スペーサー SPACER 76 S07570001 1 ダストプレート DUST PROTECTOR 77 062670512 2 ナベコ357-40X5 SCREW 357X5 78 S07467001 1 チューブ"ササエ TUBE HOLDER 79 062680812 1 ナベコ437-40X8 SCREW 437X8 80 S07468000 1 オイルシール OIL SEAL 81 S07469001 1 チューブ"カシメ WICK CHOKE PLATE 82 S07470001 2 クミヒモササエ WICK HOLDER 83 062670512 2 ナベコ357-40X5 SCREW 357X5 84 149626001 1 クミヒモフタ WICK COVER 85 060660512 1 バインド"318-40X5 SCREW 3.18X5 86 S07473000 1 オイルフィルター OIL FILTER 87 S07481000 1 オイルシート OIL SEAT 88 S07469001 1 チューブ"カシメ WICK CHOKE PLATE 89 S07876001 1 チューブ"ストッパー TUBE STOPPER 90 146253000 1 チューブ TUBE 91 S09369000 1 クミヒモ (7CM) WICK (7CM) 92 S09364000 1 オイルシール OIL SEAL 93 112758001 1 ヘット"オイルフタ OIL CAP 94 111191001 1 クミヒモ (3.5CM) WICK (3.5CM) 95 104821001 1 メクラセン OIL CAP 96 S07876001 2 チューブ"ストッパー TUBE STOPPER 97 S07876001 1 チューブ"ストッパー TUBE STOPPER 100 S14189000 1 ターミナル TERMINAL 101 062670612 2 ナベコ357-40X6 SCREW 357X6 102 146536001 1 オクリホ"タンジク"ササエ FEED ADJUSTING SHAFT SUPPORTER 103 062670612 1 ナベコ357-40X6 SCREW 357X6 < B845, B8450 > 16 112739001 1 クミヒモササエ WICK SUPPORTER 17 062670512 1 ナベコ357-40X5 SCREW 357X5 jintex.in

Page 34 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado 2 3 9 12 10 12 7 11-1 11-1-8 1-1-6 1-1-7 1-1-10 11-1-21 1-1 1-1-11 1-1-12 1-1-13 1-1-14 1-1-16 1-1-17 1-1-18 1-1-19 1-1-15 11-1 12 13 イトキリノ THREAD TRIMMER 5 6-1 8 1-1-8 1-2 1-1-2 1-1-3 1-1-4 1-1-5 1-2-7 1-2-5 1-2-6 1-2-20 1-2-10 1-2-15 1-2-17 1-2-18 1-2-19 1-2-11 1-2-12 1-2-13 1-2-9 1-2-8 1-2-1 1-2-2 1-2-3 1-2-4 B8450 B8480 6-2 B848 B8480 jintex.in

Page 35 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enhebrado

M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enhebrado REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 2 140527001 2 ミツメイトカケ THREAD RETAINER 3 150553003 2 ナット5.95 NUT 5.95 4 100064002 1 シメネジ"3.57 SCREW 3.57 5 112709001 1 イトトリバ・ネストツパ STOPPER 7 S07493001 1 イトユルメジク TENSION RELEASE BAR 8 062680812 1 ナベコ437-40X8 SCREW 437X8 9 108266001 1 アームイトアンナイU ARM THREAD GUIDE (UPPER) 10 112658001 1 アームイトアンナイM ARM THREAD GUIDE (MIDDLE) 12 108960002 3 サラネジ"3.57 SCREW 3.57 < スタンダード /STANDARD > 1-1 * 1 ウワイトチョウシクミ NEEDLE THREAD TENSION ASSEMBLY 1-1-1 144680001 1 チョウシジク TENSION STUD 1-1-2 155491001 1 イトトリバネ THREAD TAKE-UP SPRING 1-1-3 108254001 2 イトトリバネアンナイクミ SPRING GUIDE ASSEMBLY 1-1-4 144682001 1 シメネジ"2.38 SCREW 2.38 1-1-5 108265001 1 イトチョウシナット TENSION NUT 1-1-6 S07487001 1 イトユルメイタ TENSION RELEASE PLATE 1-1-7 118320001 1 イトユルメバネ TENSION RELEASE SPRING 1-1-8 112712001 2 ダンネジ"3.57 STUD SCREW 3.57 1-1-9 158769001 1 イトユルメピンR TENSION RELEASE PIN (RIGHT) 1-1-10 S07488001 1 イトユルメピンL TENSION RELEASE PIN (LEFT) 1-1-11 145446001 4 イトチョウシサラ TENSION DISC 1-1-12 159805001 2 イトチョウシサラオサエ TENSION DISC PRESSER 1-1-14 149566002 2 イトチョウシナット TENSION NUT 1-1-16 144685001 2 イトアンナイフタ THREAD GUIDE CAP 1-1-17 144686001 2 イトアンナイサラ THREAD GUIDE DISC 1-1-18 144687001 2 イトアンナイダイ THREAD GUIDE BRACKET 1-1-19 144688001 2 イトアンナイバネ THREAD GUIDE SPRING 1-1-20 144689101 2 イトアンナイダインネジ THREAD GUIDE STUD SCREW 1-1-21 021670102 2 ナット1シュ3.57 NUT 3.57 < B845 > 1-1-13 S07490001 2 イトチョウシバネ TENSION SPRING < B848 > 1-1-13 148851001 2 ハリイトチョウシバネ TENSION SPRING 1-1-15 144105000 2 チョウシバネノエザガネ TENSION SPRING WASHER 11-1 112715001 1 アームイトアンナイD ARM THREAD GUIDE (LOWER) 13 114941001 1 アームイトアンナイフエルト FELT <イトキリ/THREAD TRIMMER > 1-2 * 1 ウワイトチョウシクミ NEEDLE THREAD TENSION ASSEMBLY 1-2-1 144680001 1 チョウシジク TENSION STUD 1-2-2 155491001 1 イトトリバネ THREAD TAKE-UP SPRING 1-2-3 108254001 2 イトトリバネアンナイクミ SPRING GUIDE ASSEMBLY 1-2-4 144682001 1 シメネジ"2.38 SCREW 2.38 1-2-5 S07487001 1 イトユルメイタ TENSION RELEASE PLATE 1-2-6 118320001 1 イトユルメバネ TENSION RELEASE SPRING 1-2-7 112712001 2 ダンネジ"3.57 STUD SCREW 3.57 1-2-8 158769001 1 イトユルメピンR TENSION RELEASE PIN (RIGHT) 1-2-9 S07488001 1 イトユルメピンL TENSION RELEASE PIN (LEFT) 1-2-10 145446001 4 イトチョウシサラ TENSION DISC 1-2-11 159805001 2 イトチョウシサラオサエ TENSION DISC PRESSER 1-2-13 149566002 2 イトチョウシナット TENSION NUT 1-2-15 158771001 1 イトアンナイチョウシボウL THREAD GUIDE SHAFT (LEFT) 1-2-16 158770001 1 イトアンナイチョウシボウR THREAD GUIDE SHAFT (RIGHT) 1-2-17 144504001 4 イトアンナイサラ THREAD GUIDE DISC 1-2-18 154560001 2 プレテンションハネA PRE-TENSION SPRING (A) 1-2-19 155510001 2 イトチョウシナット TENSION NUT 1-2-20 021670102 2 ナット1シュ3.57 NUT 3.57 < B845, B8450 > 1-2-12 S07490001 2 イトチョウシバネ TENSION SPRING jintex.in

Page 36 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/ Mécanisme de l'enfilage/Mecanismo de la enhebrado B8450 B8480 6-2 4 2 3 9 12 10 7 12 1-1 11-1 13 12 1-1-8 1-1-6 1-1-7 1-1-10 1-1-21 1-1-1 1-1-11 1-1-18 1-1-17 1-1-19 1-1-16 1-1-12 1-1-13 1-1-20 1-1-9 5 6-1 1-1-2 8 1-1-3 1-1-4 1-1-5 1-1-14 B848 1-2 1-2-7 1-2-5 1-1-15 1-2-8 1-2-20 1-2-9 1-2-10 1-2-15 1-2-16 1-2-17 1-2-6 1-2-18 B848 B8480 1-2-19 1-2-1 1-2-11 1-2-2 1-2-12 1-2-13 1-2-14 1-2-3 1-2-4 イトキリ THREAD TRIMMER jintex.in

Page 37 — M. 糸通シ関係/Threading mechanism/Fadenfuhrungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

M. 糸通シ関係/Threading mechanism/Fadenfuhrungsvorrichtung/ M ecanisme de l'enfilage/Mecanismo de la enhebrado REF.NO. CODE Q'TY < B848, B8480 > 1-2-12 148851001 2 1-2-14 144105000 2 11-2 112658001 1 < B845, B848 > 6-1 062670512 1 < B8450, B8480 > 6-2 144075001 1 ヒンメイ NAME OF PARTS RMKS ハリイトチョウシバネ TENSION SPRING チョウシバネウエザ"ガネ TENSION SPRING WASHER アームイトアンナイM ARM THREAD GUIDE (MIDDLE) ナベコ357-40X5 SCREW 357X5 ボルト3.57 BOLT 3.57 jintex.in

Page 38 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahílos)

N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/ Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/ Mecanismo de recortadora de orillos (Cortahílos) 53-2-1 53-2 53-1-1 54 55 56 53-1-2 57 56-3 51 52 53-1 56-1 56-2 B8450 B8480 2-2 2-1 B848 B8480 3 12 8 10 11 4 7 9 6 8 5 25-2 25-1 48 49 50 47 25-3 58 40 46 44 45 43 40 42 41 42 31 42 41 14 23 32 34 33 28 30 29 16 15 21 22 27 26-2 26-4 17 18 19 20 26-1 36 35 37 39 38 26-3 26-5 26-1 jintex.in

Page 39 — N. 糸切り関係 (糸切り) /Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mecanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

N. 糸切り関係 (糸切り) /Thread trimmer mechanism (Thread Trimmer)/ Fadenabschneidevorrichtung (Fadenabschneider)/Mecanisme de coupe-fil (Coupe-fil)/ Mecanismo de recortadora de orillos (Cortahilos) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 * 1 イトキリソレノイド" THREAD TRIMMER SOLENOID 3 062670512 1 ナベコ357-40X5 SCREW 357X5 4 S07496001 1 ソレノイドシジイタ THREAD TRIMMING SOLENOID BRACKET 5 110201001 2 シメネジ"6.35 SCREW 6.35 6 S07497001 1 ソレノイドツキデ THREAD TRIMMING SOLENOID JOINT 7 118713001 1 キリカエシカンジク PIN 8 014680622 2 アナトメネジ"4.37クボミ SET SCREW 4.37 9 S07498001 1 ソレノイドレバー THREAD TRIMMING SOLENOID LEVER 10 S07499001 1 ソレノイドレバーウケ THREAD TRIMMING SOLENOID LEVER BRACKET 11 062711012 2 ナベコ476-32X10 SCREW 476X10 12 S07500001 1 ソレノイドレバーシジク THREAD TRIMMING SOLENOID LEVER STUD 13 S07501001 1 イトキリリジク THREAD TRIMMING DRIVING ROD 14 148546001 1 プランジャーピン PLUNGER PIN 15 S07502001 1 イトキリシイタ THREAD TRIMMING DRIVING ROD PLATE 16 S07503000 1 カンショウゴム RUBBER CUSHION 17 116662003 1 ザガネ WASHER 18 107321003 1 ダンネジ"4.76 STUD SCREW 4.76 19 S07504001 1 シュレバークミ KNIFE MAIN LEVER ASSEMBLY 20 148559100 1 ゴム RUBBER 21 S07508001 1 シュレバーシジク KNIFE MAIN LEVER SHAFT 22 013781012 1 セットネジ"6.35 SET SCREW 6.35 23 S07509001 1 シュレバーハネ KNIFE MAIN LEVER SPRING 24 S07510001 1 イトキリカム THREAD TRIMMING CAM 26 S07511001 1 ナガササチョウセツレンカンクミ LENGTH ADJUSTING ROD ASSEMBLY 26-1 S07512001 1 タマツキテLクミ ROUND JOINT (L) ASSEMBLY 26-2 S07514001 1 タマツキテRクミ ROUND JOINT (R) ASSEMBLY 26-3 S07516001 1 ナガササチョウセツレンカン LENGTH ADJUSTING ROD 26-4 148592001 1 ナット5.95 NUT 5.95 26-5 100022005 1 ナット5.95 NUT 5.95 27 141494001 2 タマツキテダンネジ" STUD SCREW 28 S07517001 1 イトキリレバー-R THREAD TRIMMING LEVER (R) 29 S07518001 1 イトキリレバー-L THREAD TRIMMING LEVER (L) 30 062681212 2 ナベコ437-40X12 SCREW 437X12 31 S07519001 2 ストツパーネジ"4.76 STOPPER SCREW 4.76 32 S07520001 2 イトキリレバーハネ THRAED TRIMMER LEVER SPRING 33 062671412 2 ナベコ357-40X14 SCREW 357X14 34 021670102 2 ナット3シ3.57 NUT 3.57 35 S07521001 1 イトキリレンカン THRED TRIMMING CONNECTING ROD (R) 36 S07522001 1 イトキリレンカンL THRED TRIMMING CONNECTING ROD (L) 37 144526001 2 ダンネジ"4.37 STUD SCREW 4.37 38 146360002 2 ポルト4.76X7 BOLT 4.76X7 39 025710232 2 ヒラサガネチユウ4.76 PLAIN WASHER 4.76 40 S07523001 2 イトウハレバー MOVABLE KNIFE LEVER 41 120752001 2 セットカラー SET COLLAR 42 100251001 4 トメネジ"6.35 SET SCREW 6.35 43 S07524001 2 イトウハケ MOVABLE KNIFE BRACKET 44 062670812 4 ナベコ357-40X8 SCREW 357X8 45 S07525000 2 シタイトホジバネ BOBBIN THREAD HOLDING SPRING 46 141544001 2 シメネジ"3.18 SCREW 3.18 47 S07526001 2 イトウハ MOVABLE KNIFE 48 148536001 4 シメネジ"4.37 SCREW 4.37 49 S07527001 2 コテイハ FIXED KNIFE 50 148539101 2 ダンネジ"2.38 STUD SCREW 2.38 54 S02745001 1 ザガネ WASHER 55 062680663 1 ナベコ437-40X6 SCREW 437X6 B845, B848> 140647001 1 コードオサエ CORD HOLDER 2-1 < B8450, B8480 > 142268001 1 コードオサエL CORD HOLDER (LARGE) 2-2 < B845, B8450 > 25-1 148574001 1 セットネジ"6.35 SET SCREW 6.35 25-2 014771022 1 アナトメネジ"6.35クボミ SET SCREW 6.35 jintex.in

Page 40

N. 糸切り関係 (糸切り) /Thread trimmer mechanism (Thread Trimmer) / Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil) / Mecanismo de recortadora de orillos (Cortahílos) 53-2-1 53-2 53-1-1 53-1-2 57 56 53-1 56-3 56-1 56-2 51 52 53-1 B8450 B8480 12 8 10 11 4 2-2 2-1 B848 B8480 3 5 49 48 47 25-2 25-3 40 24 25-1 45 44 46 43 40 42 41 34 42 32 33 31 30 29 28 30 14 23 27 26-2 26-4 13 21 15 16 17 18 19 20 22 26-3 26-5 26-1 35 37 36 39 38 jintex.in

Page 41 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/ Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/ Mecanismo de recortadora de orillos (Cortahilos) REF.NO. CODE Q'TY < B848, B840 > 25-3 014771022 2 < D. C. モータ / D. C. MOTOR > 51 153969000 1 52 S03815001 1 53-1 S02682001 1 53-1-1 S03328000 1 53-1-2 204569001 1 56 S11210000 1 56-1 143548000 1 56-2 143549000 1 56-3 154211000 1 57 S11683000 1 58 3404000001 2 < EFKA MOTOR > 53-2 S06004001 1 53-2-1 204569001 2 ヒンメイ NAME OF PARTS アナトメネジ6.35クボミ SET SCREW 6.35 ナイロンコネクタ12P CONNECTOR CAP 6 アースセンクミ EARTH WIRE ASSEMBLY ピンターミナルオスL TERMINAL PIN (L) (MALE) ピンタンシ4.5X14 TERMINAL 4.5X14 Wコード"Sクミ W CORD (S) ASSEMBLY ピンターミナルメス TERMINAL PIN (FEMALE) ピンターミナルオス TERMINAL PIN (MALE) Wコード"S W CORD (S) コネクタ3191-01P1 CONNECTER 3191-01P1 ユニタイバンド" BEAD BAND RMKS

Page 42

P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/ Spannung sverminderung svorrichtung (Fadenabschneider)/Mécanisme de relâche-tension (Coupe-fil)/ Mecanismo de librerador de tensión (Cortahilos) Q. 針位置検出関係(糸切り)/Synchronizer (Thread Trimmer)/Synchronisator (Fadenabschneider)/ Synchronisateur (Coupe-fil)/Sincronizador (Cortahilos) D. C. モータ D. C. MOTOR EFKA MOTOR jintex.in

Page 43 — P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/Spannung sverminderung svorrichtung (Fadenabschneider)/Mecanisme de relâche-tension (Coupe-fil)/Mecanismo de liberador de tensión (Cortahilos) Q. 針位置検出関係(糸切り)/Synchronizer (Threa

P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/ Spannung sverminderung svorrichtung (Fadenabschneider)/Mecanisme de relâche-tension (Coupe-fil)/ Mecanismo de liberador de tensión (Cortahilos) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 S07529001 1 イトユルメレンカンクミ TENSION RELEASING CONNECTOR ASSEMBLY 2 048030342 2 トメワE3 STOP RING E3 3 S07528000 1 イトユルメワイヤ TENSION RELEASING WIRE 4 110161004 2 ナツト4.76 NUT 4.76 5 S07533001 1 ワイヤオーサエジイタ WIRE HOLDER BASE 6 062670812 2 ナベコ357-40X8 SCREW 357X8 7 154607001 2 イトユルメワイヤオーサエD TENSION RELEASE WIRE PRESSER (LOWER) 8 062670512 4 ナベコ357-40X5 SCREW 357X5 9 S07531001 1 ワイヤ-ホルダ- WIRE HOLDER 10 062680812 1 ナベコ437-40X8 SCREW 437X8 11 S07532001 1 ワイヤ-アンナイ WIRE GUIDE 12 062710612 2 ナベコ476-32X6 SCREW 476X6 13 S07534001 1 イトユルメレバークミ TENSION RELEASING ASSEMBLY 14 149127001 1 ダンネジ6.35 STUD SCREW 6.35 15 S07536001 1 イトユルメレバーハネ SPRING 16 062661212 1 ナベコ318-40X12 SCREW 318X12 17 021660102 1 ナツト1シ3.18 NUT 3.18 Q. 針位置検出関係(糸切り)/Synchronizer (Thread Trimmer)/Synchronisator (Fadenabschneider)/ Synchronisateur (Coupe-fil)/Sincronizador (Cortahilos) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS < D. C. モータ / D. C. MOTOR > 1 230157001 1 シンクロナイザクミ#14-2 SYNCHRONIZER ASSEMBLY #14-2 2 062711012 1 ナベコ2476-32X10 SCREW 476X10 3 113431002 1 ザガネ WASHER 4 S06241000 1 絶縁シート INSULATION SEAT 5 S06242001 1 スピードコマンドプレート SPEED COMMAND PLATE 6 S06243101 1 ニードルアツパープレート NEEDLE UPPER PLATE 7 062681612 2 ナベコ437-40X16 SCREW 437X16 8 100645003 2 ザガネ WASHER < EFKA MOTOR > 9 148825001 1 --- SLIP RING SUPPORT 10 062711412 2 --- SCREW 476X14 11 158775001 1 --- SYNCHRONIZER HOLDER 12 062680812 1 --- SCREW 437X8 13 158776001 1 --- SYNCHRONIZER HOLDER STUD jintex.in

Page 44 — R. 糸払イ関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos)

R. 糸払イ関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/ Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos) -400 -700 -900 9 8 17 16 4 6 5 1-4 2 3 7 1-5 1-6 1-3 10 1-2 11 12 1 13 11-6 11-7 11-5 11-4 11-9 11-8 15 11-2 11-9 11-8 11-1 11-1 11-3 14 15 Jintex.in

Page 45

R. 糸払イ関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/ M ecanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos) REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 1 * 1 イトハライソレノイドクミ THREAD WIPER SOLENOID ASSEMBLY 1 148511001 1 プランジャ PLUNGER 1-2 048090342 1 ストツプリングE9 STOP RING E9 1-3 148512000 1 プランジャヤゴム PLUNGER RUBBER 1-4 S02664001 1 イトハライスイツチ THREAD WIPER SWITCH 1-5 S02665000 1 ヘイタンセツゾクシ CONNECTING <D.C.モータ/D.C.MOTOR> 1-6 143549000 2 ピンターミナルオス TERMINAL PIN (MALE) 2 062401012 4 ナベコM4X10 SCREW M4X10 3 025040232 4 ヒラサガネチユウ4 PLAIN WASHER 4 4 062300612 2 ナベコ3X6 SCREW 3X6 5 146080000 1 コードブツシユ CORD BUSH 6 S04846001 1 ソレノイドブラケツト THREAD WIPER SOLENOID BRACKET 7 062680812 2 ナベコ437-40X8 SCREW 437X8 8 148514006 1 ソレノイドカパー THREAD WIPER SOLENOID COVER 9 062670512 3 ナベコ357-40X5 SCREW 357X5 10 148546001 1 プランジヤピン PLUNGER PIN 11 S07542101 1 イトハライリンククミ THREAD WIPER SOLENOID ASSEMBLY 11-1 S07549101 2 イトハライリンクC THREAD WIPER LINK C 11-2 S07550001 1 リンクジク THREAD WIPER LINK STUD 11-3 139096001 1 セツトカラー SET COLLAR 11-4 014680422 2 アナトメネジ4.37クボミ SET SCREW 4.37 11-5 S07551001 1 ストツパー STOPPER 11-6 062711012 2 ナベコ476-32X10 SCREW 476X10 11-7 025710232 2 ヒラサガネチユウ4.76 PLAIN WASHER 4.76 11-8 S07552001 1 イトハライワケ THREAD WIPER SUPPORTER 11-9 062661212 2 ナベコ318-40X12 SCREW 318X12 12 062711012 2 ナベコ476-32X10 SCREW 476X10 13 148527101 1 イトハライスプリング THREAD WIPER SPRING 14 S07553001 2 イトハライ THREAD WIPER 15 S07424001 2 トメネジ3.18 SET SCREW 3.18 < -400, -700, -900 > 16 140647001 1 コードオサエ CORD HOLDER 17 062670512 1 ナベコ357-40X5 SCREW 357X5 jintex.in

Page 46

S1. コントロールボックス関係(-900S)/Control box mechanism (-900S)/ Shaltkasten (-900S)/Mécanisme de boîtier de contrôle (-900S)/ Mecanismo de caja de controles (-900S) 1-1-8 1-1-7 1-1-8 1-1-4 1-1-4 1-1-5 brother 1-1-3 1-1-1 1-1-2 S2. コントロールボックス関係(B8450・B8480)/Control box mechanism (B8450-B8480)/ Shaltkasten (B8450-B8480)/Mécanisme de boîtier de contrôle (B8450-B8480)/ Mecanismo de caja de controles (B8450-B8480) 3 4 5 6 1-2-7 1-2-2 1-2-5 1-2-6 8 1-2-4 1-2-1 brother 1-2-3 jintex.in

Page 47 — S1. コントロールボックス関係(-900S)/Control box mechanism (-900S)/Shaltkasten (-900S)/Mécanisme de boîtier de contrôle (-900S)/Mecanismo de caja de controles (-900S) S2. コントロールボックス関係(B450 B480)/Control box mechanism (B450-B480)/Shaltkasten (B4

S1. コントロールボックス関係(-900S)/Control box mechanism (-900S)/ Shaltkasten (-900S)/Mécanisme de boîtier de contrôle (-900S)/ Mecanismo de caja de controles (-900S) REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 1-1 234980001 1 HBOXクミ#580-1 HBOX ASSEMBLY #580-2 1-1 233063001 1 HBOXケースフ#100 HBOX CASE FRONT #100 1-1-1 234981001 1 HBFPC#580-1 HBFPC ASSEMBLY #580-2 1-1-2 234984001 1 HBP#100クミ#1 HBP #100 ASSEMBLY 1 1-1-3 233057001 1 SCREW 3X10 1-1-4 037301017 13 Vナベタッピン3X10 HB CASE BACK 1-1-5 233071001 1 HBケースウシロ HB CASE COVER 1-1-6 233072001 1 HBケースキャップ HB SETTING PLATE (#3) 1-1-7 233090001 1 HBトリツケイタ#3 SCREW 4X12 1-1-8 061401217 3 サラ#4X12 S2. コントロールボックス関係(B450 B480)/Control box mechanism (B450-B480)/ Shaltkasten (B450-B480)/Mécanisme de boîtier de contrôle (B450-B480)/ Mecanismo de caja de controles (B450-B480) REF.NO. CODE Q'TY HINMEI NAME OF PARTS RMKS 1-2 234959001 1 ソウサパネル8450#1クミ OPERATION PANEL #2 ASSEMBLY 1-2 234977001 1 B450 PANEL FRONT PLATE 1-2-1 234960001 1 B450パネルワク B450 PANEL BACK PLATE 1-2-2 234963001 1 B450パネルウライタ 1-2-3 234964001 1 B450キーシートクミ#1 B450 DECORATED PLATE #2 1-2-3 234978001 1 SCREW 3X10 DA 1-2-4 234540001 5 +ナベセット3X10DA SCREW 4X6 1-2-5 008400602 6 +トラスコ4X6 P CIRCUIT BOARD ASSEMBLLY B8450 1-2-6 234967001 1 PキバンクセミB8450 CORD HOLDER 1-2-7 S11308001 1 Pコードホルダー PANEL INDICATING PLATE 3 S13547001 1 パネルシジイタ SCREW 5X10 4 002501002 4 +ナベネジ5X10 SPRING WASHER 2-5 5 028050242 4 バネザガネ2-5 PLAIN WASHER 5 6 025050232 4 ヒラザガネチュー5 PGM TABLE SCREW 7 152590001 1 PGMテーブルシメネジ NUT 4 8 021400103 1 1シュナット4 jintex.in

Page 48 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

Page 49 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/ Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 5 153245001 1 レンケツピン CONNECTING PIN 6 048040342 1 トメワE4 STOP RING E4 7 153138001 1 ザガネ WASHER 13 149094001 1 ソレノイドレバーシク SOLENOID LEVER STUD 14 S01304001 1 シメネジ6.35X18 SCREW 6.35X18 15 149095001 1 ザガネ WASHER 16 153132000 1 ナイロンチューブ NYLON TUBE 17 100511003 1 シメネジ4.76 SCREW 4.76 < -400,-700,-900,-900S > 1 S07385001 1 ソレノイド"ド"ダイ REVERSE SOLENOID BRACKET 2 062781412 2 ナベコ635-28X14 SCREW 635X14 * 1 ギヤデンソレノイドクミ REVERSE SOLENOID ASSEMBLY 3-1 154730001 1 ゴムストッパー STOP RING E15 3-2 154731000 1 ゴムストッパー RUBBER STOPPER < D. C. モータ /D. C. MOTOR > 3-3 143549000 2 ピンターミナルオス TERMINAL PIN (MALE) 4 062500812 3 ナベコ5X8 SCREW 5X8 8 146105000 1 ソレノイドカバー REVERSE SOLENOID COVER 9 062500812 1 ナベコ5X8 SCREW 5X8 10 S01327001 1 ソレノイドゴム REVERSE SOLENOID RUBBER 11 S01328001 1 カラー COLLAR 12 S07381001 1 ソレノイドレバークミ REVERSE SOLENOID LEVER ASSEMBLY < B8450, B8480 > 18 S13494001 1 ヒレイソレノイドドダイ PROPORTIONAL SOLENOID BRACKET 19 S01304001 3 シメネジ6.35X18 SCREW 6.35X18 20 S13496001 1 ヒレイソレノイドクミ PROPORTIONAL SOLENOID ASSEMBLY 20-1 143549000 2 ピンターミナルオス TERMINAL PIN (MALE) 21 062501202 2 ナベコM5X12 SCREW M5X12 22 028050242 2 バネザガネ2-5 SPRING WASHER 2.5 23 S13487001 1 ソレノイドレバークミ SOLENOID LEVER ASSEMBLY 24 140647001 1 コードオサエ CORD HOLDER 25 062670512 1 ナベコ357-40X5 SCREW 357X5 jintex.in

Page 50 — D. C. MOTOR

U. 空圧関係(-700)/Air pressure mechanism (-700)/ Luftdruck (-700)/Mécanisme de la pression d'air (-700)/ Mecanismo de la presión de aire (-700) D. C モータ/D. C. MOTOR 5-1-2 5-1-3 5-1-1 5-1 1-13 1-10 1-12 1-11 5-2 5-2-1 5-2-2 5-2-1 1-4 1-2 5-1-4 5-3 5-3-2 5-3-1 5-5 5-4 3 1-14 1-15 1-8 1-3 1-5 1-6 1-7 1-1 1-9 jintex.in

Page 51

U. 空圧関係(-700)/Air pressure mechanism (-700)/ Luftdruck (-700)/Mécanisme de la pression d'air (-700)/ Mecanismo de la presión de aire (-700) HINMEI NAME OF PARTS RMKS REF.NO. CODE QTY 1 151126101 1 AIR UNIT VALVE ASSEMBLY 1-1 151153101 1 AIR UNIT ASSEMBLY 1-2 151127100 1 AIR VALVE 1-3 140682001 1 SILENCER 1-4 151147001 1 1/8" ELBOW ASSEMBLY 1-5 142037000 1 SPEED CONTROLLER CONNECTOR 1-6 142036001 1 SPEED CONTROLLER 1-7 140543000 1 1/8" CONNECTOR 1-8 154214001 1 AIR UNIT HOLDER PLATE 1-9 140540000 1 AIR TUBE 1-10 143488001 1 NYLON CONNECTOR 1-11 143489001 1 CONNECTOR CAP 1-12 154215001 1 INSULATING TUBE 1-13 143549000 2 TERMINAL PIN (MALE) 1-14 002501003 2 SCREW 5X10 1-15 028050243 2 SPRING WASHER 2-5 3 101118001 2 SCREW 4.5X20 4 200190001 8 STEPLE 5 S05247101 1 AIR UNIT CORD ASSEMBLY 5-1 154172001 1 PRESSER FOOT LIFTER CORD ASSEMBLY 5-1-1 143489000 1 NYLON CONNECTOR 5-1-2 143489001 1 CONNECTOR CAP 5-1-3 143549000 2 TERMINAL PIN (FEMALE) 5-1-4 143549000 2 TERMINAL PIN (MALE) 5-2 S05981000 1 B CORD 100 ASSEMBLY 2 5-2-1 143549000 2 TERMINAL PIN (MALE) 5-2-2 146046000 1 NYLON CONNECTOR 5-3 S05982000 1 W CORD 100 ASSEMBLY 5-3-1 143549000 1 TERMINAL PIN (MALE) 5-3-2 143548000 1 TERMINAL PIN (FEMALE) 5-3-3 146194000 1 NYLON CONNECTOR 5-4 143522000 1 NYLON CONNECTOR 5-5 220077001 1 PLUG COVER #14 jintex.in

Page 52 — V. 布制御関係 (B8450・B8480)/Cloth control system mechanism (B8450・B8480)/Stofführungsvorrichtung (B8450・B8480)/Mécanisme de la système de contrôle du tissu (B8450・B8480)/Mecanismo de la sistema de control de tera (B8450・B8480)

V. 布制御関係 (B8450・B8480)/Cloth control system mechanism (B8450・B8480)/ Stofführungsvorrichtung (B8450・B8480)/ Mécanisme de la système de contrôle du tissu (B8450・B8480)/ Mecanismo de la sistema de control de tera (B8450・B8480) 14 15 17 16 18 19 20 22 21 1-1 13-1 1-1-1- 13-2 1-1-2 13-2-1 11 13-3 10 13-4 24 23 1-1-3 1-2-1 1-2 2 12 5 4 3 6 7 jintex.in

Page 54 — W1. 電磁押工上ゲ関係(-900)/Presser foot lifting solenoid set (-900)/ Solenoidsatz für die Anhebung des Stoffdrückerfußes (-900)/ Jeu de solénoïde du releveur du pied presseur (-900)/Conjunto solenoide del levantador (-900)

W1. 電磁押工上ゲ関係(-900)/Presser foot lifting solenoid set (-900)/ Solenoidsatz für die Anhebung des Stoffdrückerfußes (-900)/ Jeu de solénoïde du releveur du pied presseur (-900)/Conjunto solenoide del levantador (-900) 1-2-2 1-3 1-2-3 1-2-1 1-1-4 1-1-4-1 1-1-4-2 1-1-4-3 1-1-22 1-1-23 1-1-14 1-1-14-2 1-1-24 1-1-25 1-1-25-1 1-1-17 1-1-18 1-1-14-1 1-1-24-1 1-1-25-2 1-1-25-3 1-6 1-1-7 1-3 1-1-5 1-1-2 1-1-5 1-1-1-21 1-1-3 1-1-8 1-1-9 1-1-12 1-1-10 1-1-11 1-1-13 1-1-26 1-1-20 1-1-19 1-1-15 1-1-16 1-1-24-2 jintex.in

Page 55

W1. 電磁押工上ゲ関係(-900)/Presser foot lifting solenoid set (-900)/ Solenoidsatz für die Anhebung des Stoffdrückerfußes (-900)/ Jeu de solénoïde du relèvement du pied presseur (-900)/Conjunto solenoide del levantador (-900) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 * 1 PRESSER FOOT LIFTING SOLENOID SET 1-1 * 1 PRESSER FOOT LIFTING SOLENOID ASSEMBLY 1-1-1 S02580001 1 SOLENOID BRACKET 1-1-2 S02581001 1 SOLENOID PLATE 1-1-3 062761212 4 SCREW 595X12 1-1-4 S02582001 1 PRESSER FOOT LIFTING SOLENOID ASSEMBLY 1-1-4-1 S02584000 1 CUSHION 1-1-4-2 S02585000 1 VINYL TUBE 1-1-4-3 211131001 2 INSULATOR TERMINAL 4X19 1-1-5 153122000 2 RUBBER CUSHION 1-1-6 158677001 1 NUT M8 1-1-7 S02586001 1 LINK JOINT 1-1-8 S02588000 1 TERMINAL BLOCK 1-1-9 062671011 2 SCREW 357X10 1-1-10 S06537000 1 RESISTOR 1-1-11 062670612 1 SCREW 437X6 1-1-12 S02590000 1 DIODE 1-1-13 S02591000 1 LEAD WIRS 1-1-14 * 1 PRESSER FOOT LIFTING CORD ASSEMBLY 1-1-14-1 204569001 1 TERMINAL 4.5X14 < D. C. MOTOR > 1-1-14-2 143549000 3 TERMINAL PIN (MALE) 1-1-15 S02745001 1 WASHER 1-1-16 062680663 1 SCREW 437X6 1-1-17 142268001 1 CORD HOLDER (L) 1-1-18 062670616 1 SCREW 357X6 1-1-19 S02592001 1 TERMINAL BASE COVER 1-1-20 062670612 2 SCREW 357X6 1-1-21 025060232 4 WASHER 6 < D. C. MOTOR > 1-1-22 143522000 1 NYLON CONNECTOR 1-1-23 220077001 1 PLUG COVER #14 1-1-24 S05981000 1 (B) CORD 100 ASSEMBLY 2 1-1-24-1 143549000 2 TERMINAL PIN (MALE) 1-1-24-2 146046000 1 NYLON CONNECTOR 1-1-25 S05982000 1 (W) CORD 100 ASSEMBLY 1-1-25-1 143549000 1 TERMINAL PIN (MALE) 1-1-25-2 143548000 1 TERMINAL PIN (FEMALE) 1-1-25-3 146194000 1 NYLON CONNECTOR 1-1-26 S07182001 1 LABEL 1-2 152808101 1 REGULATING ROD ASSEMBLY 1-2-1 154332001 1 PRESSER FOOT LIFTER REGULATING ROD 1-2-2 154333001 1 PRESSER FOOT LIFTER REGULATING JOINT 1-2-3 150556001 1 NUT 6.35 1-3 141583001 1 STUD SCREW 6.35 1-4 031553202 4 SCREW 5.5X32 1-5 S02587001 1 PIN 1-6 048060342 1 STOP RING E6 jintex.in

Page 56 — W2. 電磁押工上下関係(オプション)/Presser foot lifting solenoid set (Option Parts)/

W2. 電磁押工上下関係(オプション)/Presser foot lifting solenoid set (Option Parts)/ Solenoideinsatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)/ Jeu de solénoide du releveur du pied presseur (Pièces en option)/ Conjunto solenoide del levantador (Piezas opcional) No. 2-1 の部品については、P.47・P.48 を御参照下さい。 See pages 47-48 for No.2-1 assembly parts. Für die Teile Nr.2-1 Siehe Seite 47-48. Voir pages 47-48 pour les pièces de rechange No.2-1. Consultar las páginas 47-48 para las piezas del conjunto No.2-1. 2-1 2-3 2-2 2-4 2-5-2 2-5-1 2-5-3 2-6 2-5-12 2-5-4 2-5-5 2-5-11-1-1 2-5-11-1-2 2-5-6 2-5-11-2 2-5-11-1 2-5-9 2-5-8 2-5-7 2-5-10 ※立ち作業用にはヒザスイッチクミを使用いたしません。 jintex.in

Page 57 — W2. 電磁押工上げ関係 (オプション)/Presser foot lifting solenoid set (Option Parts)/Solenoideatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)/Jeu de solénoide du releveur du pied presseur (Pièces en option)/Conjunto solenoide del levantador (Piez

W2. 電磁押工上げ関係 (オプション)/Presser foot lifting solenoid set (Option Parts)/ Solenoideatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)/ Jeu de solénoide du releveur du pied presseur (Pièces en option)/ Conjunto solenoide del levantador (Piezas opciona) REF. NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 2-2 S10550001 1 オサエアゲリンク PRESSER FOOT LIFTING LINK 2-3 146367001 1 ボルト5.95 BOLT 5.95 2-4 S0729001 1 ネジリハネ TWIST SPRING < D. C. モータ /D. C. MOTOR > 2 183503001 1 デンシオサエセット 2 PRESSER FOOT LIFTING SOLENOID SET 2D 2-1 S03681101 1 デンシアゲクミ PRESSER FOOT LIFTING SOLENOID ASSEMBLY < EFKA MOTOR > 2 183519001 1 デンシオサエセット 2E PRESSER FOOT LIFTING SOLENOID SET 2E 2-1 S04206101 1 デンシアゲクミ PRESSER FOOT LIFTING SOLENOID ASSEMBLY

Page 58

X. ヒザスイッチ関係(-700, -900)/Knee switch mechanism (-700, -900)/ Knieschalter (-700, -900)/Mécanisme de interrupteur de genou (-700, -900)/ Mecanismo de conmutador de rodilla (-700, -900) 1-11-3 1-2 1-11-1-1 1-11-1-2 1-11-2 1-1 1-3 2 1-12 1-4 1-5 1-11-1 1-6 1-8 1-9 1-7 1-10 Y. 逆転スイッチ関係(糸切り)/Quick reverse switch mechanism (Thread Trimmer)/ Umkehrschalter (Fadenabschneider)/Mécanisme de interrupteur de marche arrière rapide (Coupe-fil)/ Mecanismo de conmutador de inversión rápida (Cortahílos) 1-8 4 3 1-9 1-7 1-6 1-2 1-8-1 1-8-2 2 1-1 1-4 1-5 1-3 jintex.in

Page 59 — X. Knee switch mechanism (-700, -900) / Y. Quick reverse switch mechanism (Thread Trimmer)

X. ヒザスイッチ関係(-700, -900)/Knee switch mechanism (-700, -900)/Mécanisme de interrupteur de genou (-700, -900)/Mecanismo de conmutador de rodilla (-700, -900) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 S07045001 1 ヒザスイッチクミ KNEE LIFTER SWITCH ASSEMBLY 1-1 142026003 1 ヒザスイッチタテジク KNEE LIFTER SWITCH SHAFT 1-2 142027001 1 ヒザスイッチタテジクウケ KNEE LIFTER SWITCH SHAFT BRACKET 1-3 100463001 1 4カクボルト7.94 BOLT 7.94 1-4 114967001 1 ヒザスイッチトツパ KNEE LIFTER PLATE STOPPER 1-5 110087001 1 ポルト5.95 BOLT 5.95 1-6 S07027001 1 ヒザスイッチトリツケイタ KNEE LIFTER SWITCH PLATE 1-7 062401006 4 ヘコメ4X10 SCREW 4X10 1-8 025040233 4 サラザガネチユウ4 WASHER 4 1-9 028040243 4 ハネザガネ2-4 SPRING WASHER 2-4 1-10 021400164 4 ナット1シュ4 NUT 4 1-11 S07030000 1 スイツチコードクミ SWITCH CORD ASSEMBLY 1-11-1 S07031000 1 フツトスイツチクミ PRESSER FOOT LIFTER SWITCH ASSEMBLY 1-11-1-1 143549000 2 ピンターミナルオス TERMINAL PIN (MALE) 1-11-1-2 143548000 1 ピンターミナルメス TERMINAL PIN (FEMALE) 1-11-2 146046000 2 ナイロンコネクター NYLON CONNECTOR 1-11-3 146194000 1 ナイロンコネクター NYLON CONNECTOR 1-12 149799000 1 タイラツプS BEAD BAND (S) 2 034422503 4 サラモクネジ4.1X25 SCREW 4.1X25 ◎ The knee lifter switch assembly is an optional part. If you wish to use this part, use the part code indicated below to order it. ◎ Der Knicheberschalter wird separat geliefert. Verwenden Sie zur Bestellung dieses Teils den nachstehenden Teilecode. ◎ La commande au genou est une option. Si vous désirez utiliser cette pièce, veuillez noter le code de pièce indiqué ci-dessous sur votre commande. ◎ El conjunto del interruptor de levantador de rodilla es una pieza opcional. si usted desea utilizar esta pieza, realice el pedido con el código de pieza que aparece a continuación. 1 Knee Lifter Switch Assembly S07045001 2 Screw 4.1 X25 034422503 Y. 逆転スイッチ関係(糸切り)/Quick reverse switch mechanism (Thread Trimmer)/ Umkehrschalter (Fadenabschneider)/Mécanisme de interrupteur de marche arrière rapide (Coupe-fil)/ Mecanismo de conmutador de inversión rápida (Cortahílos) REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 * 1 Rアクチユエータ-クミ REVERSE ACTUATOR ASSEMBLY 1-1 S07556001 1 スイツチダイ SWITCH BASE 1-2 S02693001 1 インシユレータシート INSIUIATOR SEET 1-3 S02694001 1 アクチユエーター ACTUATOR 1-4 S02696001 1 アクチユエータートモシハバネ ACTUATOR SPRING 1-5 048030342 1 トメワE3 STOP RING E3 1-6 S02697001 1 ストツパー STOPPER 1-7 110215002 1 シメネジ3.57 SCREW 3.57 1-8 * 1 Rスイツチクミ REVERSE SWITCH ASSEMBLY 1-8-1 S02699001 1 マイクロスイツチ MICRO SWITCH <D.C. モータ / D.C. MOTOR > 1-8-2 143549000 2 ピンターミナルオス TERMINAL PIN (MALE) 1-9 062630812 2 ナベコ238-56X8 SCREW 238X8 2 062710612 2 ナベコ476-32X6 SCREW 476X6 3 140647001 1 コードオサエ CORD HOLDER 4 062670512 1 ナベコ357-40X5 SCREW 357X5 jintex.in

Page 60 — Z1. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios

Z1. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios 1 4 3 2 7 6 5 8 9 13 46 18 11 12 10 44 41 42 brot 27 26 31 30 22 21-1-1 21-1-6 21-1-5 21-1-3 20 23 24 29 28 21-1-2 21-1-8 39-1 39-4 21-1-421-1-7 39-3 35-2-5 35-2-3 35-2-4 35-2-1 -700 36 39-2 35-2-6 39-5 33 34 39-8 39-6 39-7 -900--900S B8450 B8480 21-2-1 15-5 15-4 15-6 15-215-1 14 15 21-2-5 21-2-6 15-10 15-7 21-2-4 21-2-3 15-9 15-81 21-2-2 15-3 付属部品の明細は変更することがあります。 The details of included accessories are subject to change. Änderungen in der Aufstellung der mitgelieferten Zubehör sind vorbehalten. Les détails des accessoires inclus sont sujets à des changements. Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 61 — Z1. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z1. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 122991001 1 フゾクヒンポリプロ ACCESSORY BAG 2 142443001 1 ネジマワシ1.9X52 SCREW DRIVER 1.9X52 3 118837001 1 ネジマワシ3.4X70 SCREW DRIVER 3.4X70 4 101572101 1 ネジマワシ5.5X190 SCREW DRIVER 5.5X190 7 107780001 1 スパナ10X12 SPANNER 10X12 8 142002001 1 6カクボウスパナ2 HEXAGONAL WRENCH 2 10 * 8 ミシンハリDP NEEDLE DP 11 * 4 ホビン BOBBIN 14 154702001 1 オイルタンク OIL TANK 15 117963001 1 イトマキキクミ BOBBIN WINDER ASSEMBL Y 15-1 145446001 2 イトマキウツサラ TENSION DISC 15-2 100401001 1 イトマキウツバネ TENSION SPRING 15-3 117969001 1 イトマキウツクカエリバネ RETURN SPRING 15-4 117970001 1 イトマキジク BOBBIN WINDER SHAFT 15-5 117971001 1 イトマキクルママキ BOBBIN WINDER WHEEL ASSEMBLY 15-6 100366002 1 マルヒラトメネジ4.37X5 SET SCREW 4.37X5 15-7 100657001 1 シメネジ3.18 SCREW 3.18 15-8 100659001 1 ダンネジ3.18 STUD SCREW 3.18 15-9 100662001 1 イトマキクルマカイテンドメ BOBBIN WINDER WHEEL STOPPER 15-10 S01297001 1 シメネジ3.57X3.5 SCREW 3.57X3.5 16 100666002 2 マルモクネジ5.5X20 SCREW 5.5X20 18 144222001 1 HEAD COVER 20 * 1 ヒザアゲオシボウ KNEE LIFTER COMPLYING BAR 22 * 4 マルモクネジ5.5X20 SCREW 5.5X20 26 143882001 2 トウブヒンジ HEAD HINGE 27 143910001 2 ベルトカバーラクセクミ RUBBER CUSHION 28 148890101 4 トウブシヨウゴム HEAD CUSHION 29 109714000 8 クギ NAIL 30 S07561001 1 オイルパン OIL PAN 31 109714000 5 クギ NAIL 33 114486002 1 ポリオイラータイ OILER 34 114483002 1 ポリオイラークミ OILER ASSEMBLY 35 183480001 1 ベルトカバーラクセクミ BELT COVER ASSEMBLY 35-1 S08468000 1 ベルトカバーカラーラクミ BELT COVER COLLAR ASSEMBLY 35-1-1 S07660000 4 ゴムカラー RUBBER COLLAR 35-2-1 062712012 4 ナベコ476-32X20 SCREW 476X20 35-2-2 025050332 4 ヒラザガネタ5 PLAIN WASHER 5 35-2-3 062680812 1 ナベコ437-40X8 SCREW 437X8 35-2-4 025680232 1 ヒラザガネ4.37X5 PLAIN WASHER 4.37 35-2-5 100666002 2 マルモクネジ5.5X20 SCREW 5.5X20 35-2-6 025750132 2 ヒラザガネ5.56 PLAIN WASHER 5.56 40 * 1 スカート SKIRT <スタンダード /STANDARD> 12 114941001 2 アームイトアンナイフエルト FELT <イトキリ /THREAD TRIMMER> 5 107779001 1 スパナ6X7 SPANNER 6X7 6 100887001 1 スパナ8X9 SPANNER 8X9 9 142721001 1 6カクボウスパナ3 HEXAGONAL WRENCH 3 23 S07527001 1 コテイハ FIXED KNIFE 24 148539101 1 ダンネジ2.38 STUD SCREW 2.38 41 S11243001 1 スタビードライバー DRIVER <スタンダード /STANDARD, -400> 21-1 S07559201 1 ヒザアゲクミ KNEE LIFTER ASSEMBLY 21-1-1 S07560100 1 ヒザアゲブラケット KNEE LIFTER BRACKET 21-1-2 146036101 1 ヒザアゲヨウシク KNEE LIFTER SHAFT 21-1-3 146037001 1 ヒザアゲ KNEE LIFTER 21-1-4 146367001 1 ボルト5.95 BOLT 5.95 21-1-5 104885101 2 トメネジ5.95 SET SCREW 5.95 21-1-6 100022004 2 ナット5.95 NUT 5.95 21-1-7 S15889001 1 ヒザアゲネジリハバネ TWIST SPRING 21-1-8 146293001 1 トメワE10 STOP RING E10 jintex.in

Page 62 — Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios 1 7 6 5 8 9 3 2 13 46 18 11 12 10 44 41 42 27 26 31 22- 21-1-1- 21-1-3 20 23 40 24 29 28 21-1-2 21-1-8 39-1 39-4 35 35-2-5 35-2-3 35-2-4 35-2-1 -700 36 35-2-6 39-3 39-2 39-6 39-7 35-1 35-1-1 39-8 39-5 -900-900S-B8450-B8480 21-2-1 33 34 16 21-2-4 15-5 15-4 15-215-1 14 21-2-3 15-6 15 21-2-6 15-10 15-7 21-2-5 21-2-2 15-9 15-3 15-8 ◎ 付属品の仕様は変更することがあります。 The details of included accessories are subject to change. Änderungen in der Aufstellung der mitgelieferten Zubehöre sind vorbehalten. Les détails des accessoires inclus sont sujets à des changements. Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 63 — Z1. 付属関係/Accessories/Zubehor/Accessoires/Accesorios

Z1. 付属関係/Accessories/Zubehor/Accessoires/Accesorios REF.NO. CODE QTY ヒンメイ NAME OF PARTS RMKS 39 181427001 1 ヒザアテアケミ KNEE LIFTER ASSEMBLY 39-1 146039001 1 ヒザアテツキテ KNEE LIFTER JOINT 39-2 100463001 1 カクボルト 7.94 BOLT 7.94 39-3 017762013 1 ボルト 5.95X20 BOLT 5.95X20 39-4 104619002 1 ヒザアゲタテジク KNEE LIFTER BAR 39-5 114966001 1 ヒザアテ KNEE LIFTER PLATE 39-6 114967001 1 ヒザアゲテトツトツパ KNEE LIFTER PLATE STOPPER 39-7 110087001 1 ボルト 5.95 BOLT 5.95 39-8 140503001 1 ヒザアテカバー KNEE LIFTER PLATE COVER < -400, -700, -900 > 42 233090001 1 HB SETTING PLATE (#3) 44 002681212 3 SCREW 437X12 < -700 > 36 150756000 1 OIL CAP < -900, -B8450, B8480 > 21-2 S07726301 1 ヒザアゲアケミ KNEE LIFTER ASSEMBLY 21-2-1 S07560100 1 ヒザアゲブラケット KNEE LIFTER BRACKET 21-2-2 146036101 1 ヒザアゲヨコジク KNEE LIFTER SHAFT 21-2-3 S10550001 1 オサエアゲリンク PRESSER FOOT LIFTING LINK 21-2-4 146367001 1 ボルト 5.95 BOLT 5.95 21-2-5 S07729001 1 ネジリハネ TWIST SPRING 21-2-6 146293001 1 トメワE10 STOP RING E10 < B845, B848 > 13 100477001 1 マクラ HEAD REST < B8450, B8480 > 46 159384001 1 トウブサエマクラ HEAD REST jintex.in

Page 64 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios 17-1-7-3 17-1-5 17-1-12 17-1-3 17-1-4 17-1-4-2 17-1-4-1 17-1-7-1 17-1-3 17-1-1 17-1-10 17-1-9 17-1-7-4 17-1-8 17-1-11-3 17-1-11-1 17-1-6 17-2-8-3 17-2-2-4 17-1-11-2 17-1-7-2 17-1-2-1 17-1-11-4 17-1-2-2 17-2-6-5 17-2-12 17-2-4 17-2-11 17-2-14 17-2-3 17-2-16 17-2-3-2 17-2-17 17-2-15 17-2-3-1 17-2-13-1 17-2-13-3 17-2-6-1 17-2-1 17-2-6-3 17-2-9 17-2-6-4 17-2-8 17-2-7 17-2-10-3 17-2-10-1 17-2-5 17-2-2-3 17-2-10-2 17-2-10-4 17-2-6-2 17-2-2-1 17-2-6-3 17-2-2-2 17-2-2-4 ◎ 付属部品の詳細は変更することがあります。 The details of included accessories are subject to change. ◎ Les détails des accessoires inclus sont sujets à des changements. Los detalles de los accesorios incluidos pueden variar. Änderungen in der Aufstellung der mitgelieferten Zubehöre sind vorbehalten. jintex.in

Page 65 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE Q'TY NAME OF PARTS RMKS <スタンダード / STANDARD > 17-1 S02766001 1 イトタテダイクミ3D COTTON STAND ASSEMBLY 3D 17-1-1 156112002 1 カラムパイプ'D COLUMN PIPE D 17-1-2 S02775001 1 パイプネシセットA PIPE SCREW SET (A) 17-1-2-1 150206002 1 ヒラザガネ16 PLAIN WASHER 16 17-1-2-2 150191002 1 6カクナット5/8 NUT 5/8 17-1-3 150172002 1 カラムパイプ COLUMN PIPE 17-1-4 150108002 1 カラムジヨイントクミ COLUMN JOINT ASSEMBLY 17-1-4-1 062501406 2 ナベコ5X14 SCREW 5X14 17-1-4-2 021500106 2 シユナット5 NUT 5 17-1-5 150174000 1 カラムキャップ COLUMN CAP 17-1-6 S02779001 1 スプールホルダー-3 SPOOL HOLDER 3 17-1-7 S02782001 1 スプールネシセット3 SPOOL SCREW SET 3 17-1-7-1 150179002 3 スプールシクB SPOOL SHAFT (B) 17-1-7-2 028050246 3 ハネザガネ2-5 SPRING WASHER 2-5 17-1-7-3 021500106 5 シユナット5 NUT 5 17-1-7-4 050503006 1 ナベコヒラサ゛5X30 SCREW 5X30 17-1-7-5 050501406 1 ナベコヒラサ゛5X14 SCREW 5X14 17-1-8 150180000 3 ウケザラ SPOOL STAND BASE 17-1-9 150182000 3 スプールマット SPOOL MAT 17-1-10 126863001 3 スプールクツシヨン SPOOL CUSHION 17-1-11 S02784001 1 ホルダ-ササエAセット SPOOL HOLDER SUPPORTER (A) SET 17-1-11-1 150188002 1 スプールホルダ-ササエA SPOOL HOLDER SUPPORTER (A) 17-1-11-2 062501006 1 ナベコ5X10 SCREW 5X10 17-1-11-3 021500106 1 シユナット5 NUT 5 17-1-11-4 031452206 1 マルモク45X22 SCREW 45X22 17-1-12 S02788001 1 スレツトハンガーケミ3 THREAD HANGER ASSEMBLY 3 <イトキリ / THREAD TRIMMER > 17-2 S07558001 1 イトタテダイクミ3DRTHF COTTON STAND ASSEMBLY 3DRTHF 17-2-1 156112002 1 カラムパイプ'D COLUMN PIPE D 17-2-2 S02777001 1 パイプDネシセットB PIPE (D) SET SCREW (B) 17-2-2-1 150206002 1 ヒラザガネ16 PLAIN WASHER 16 17-2-2-2 150191002 1 6カクナット5/8 NUT 5/8 17-2-2-3 S01005000 2 イトタテゴム RUBBER WASHER 17-2-3 150172002 2 カラムキャップ COLUMN CAP 17-2-3-1 150108002 2 カラムジヨイントクミ COLUMN JOINT ASSEMBLY 17-2-3-2 062501406 2 ナベコ5X14 SCREW 5X14 17-2-4 021500106 2 シユナット5 NUT 5 17-2-5 150172002 1 カラムパイプ COLUMN PIPE 17-2-6 S02779001 1 スプールホルダー-3 SPOOL HOLDER 3 17-2-6-1 S02782001 1 スプールネシセット3 SPOOL SCREW SET 3 17-2-6-2 150179002 3 スプールシクB SPOOL SHAFT (B) 17-2-6-3 028050246 3 ハネザガネ2-5 SPRING WASHER 2-5 17-2-6-4 021500106 5 シユナット5 NUT 5 17-2-6-5 050503006 1 ナベコヒラサ゛5X30 SCREW 5X30 17-2-6-6 050501406 1 ナベコヒラサ゛5X14 SCREW 5X14 17-2-7 150180000 3 ウケザラ SPOOL STAND BASE 17-2-8 150182000 3 スプールマット SPOOL MAT 17-2-9 126863000 3 スプールクツシヨン SPOOL CUSHION 17-2-10 S02784001 1 ホルダ-ササエAセット SPOOL HOLDER SUPPORTER (A) SET 17-2-10-1 150188002 1 スプールホルダ-ササエA SPOOL HOLDER SUPPORTER (A) 17-2-10-2 062501006 1 ナベコ5X10 SCREW 5X10 17-2-10-3 021500106 1 シユナット5 NUT 5 17-2-10-4 031452206 1 マルモク45X22 SCREW 45X22 17-2-11 S02788001 1 スレツトハンガーケミ3 THREAD HANGER ASSEMBLY 3 17-2-12 S02747001 1 イトカケハネ THREAD GUIDE SPRING 17-2-13 150145002 1 イトアンナイホルダ-ケミ THREAD GUIDE HOLDER ASSEMBLY 17-2-13-1 150185002 1 イトアンナイホルダ- THREAD GUIDE HOLDER 17-2-13-2 050503006 1 ナベコヒラサ゛5X30 SCREW 5X30 17-2-13-3 021500106 1 シユナット5 NUT 5 17-2-14 142997001 1 イトアンナイ3 THREAD GUIDE 3 17-2-15 S04109001 1 イトアンナイササエボウ THREAD GUIDE SUPPORTING BAR jintex.in

Page 66 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios 17-1-7-3 17-1-5 17-1-12 17-1-7-5 17-1-3 17-1-4 17-1-4-2 17-1-7-1 17-1-7-3 17-1-1 17-1-10 17-1-9 17-1-7-4 17-1-8 17-1-11-3 17-1-6 17-1-11-2 17-2-6-3 17-2-2-4 17-1-7-2 17-1-11-1 17-1-7-3 17-1-2-1 17-1-11-4 17-1-2-2 17-2-6-5 17-2-12 17-2-4 17-2-11 17-2-14 17-2-13-2 17-2-16 17-2-3 17-2-17 17-2-3-1 17-2-15 17-2-13-1 17-2-6-1 17-2-3-2 17-2-1 17-2-9 17-2-6-4 17-2-8 17-2-7 17-2-10-3 17-2-10-1 17-2-5 17-2-10-2 17-2-10-4 17-2-6-2 17-2-2-3 17-2-6-3 17-2-2-1 17-2-2-2 17-2-2-4 ◎ 付属品の明細は変更することがあります。 ◎ The details of included accessories are subject to change. ◎ Les détails des accessoires inclus sont sujets à des changements. ◎ Änderungen in der Aufstellung der mitgelieferten Zubehöre sind vorbehalten. ◎ Los detalles de los accesorios incluidos pueden variar. jintex.in

Page 67 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 17-2-16 138843001 1 サエボウツキテ JOINT 17-2-17 014060632 2 アナクボミ6X6 SCREW 6X6 jintex.in

Page 68 — ZZ. ゲージ部品/Gauge parts/Lehren/Pièces d'écartement/Piezas calibradoras BB. 特別注文部品/Option parts/Sonderzubehör/Pieces en option/Piezas opciona

ZZ. ゲージ部品/Gauge parts/Lehren/Pièces d'écartement/Piezas calibradoras 4 20-2 21-2 20-3 21-3 20-1 21-1 7 8 1-1 2-1 3 2 1 10 9 12 11 BB. 特別注文部品/Option parts/Sonderzubehör/Pieces en option/Piezas opciona 14-2 14-1 12-1-1 12-2-1 12-1-2 12-2-2 12-1-3 イトキリノ Thread trimmer 13-1 13-2 13-3 11 jintex.in

Page 69

ZZ. ゲージ部品 / Gauge parts/Lehren/Pièces d'écartement/Piezas calibradoras REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 1 1-1 2 2-1 3 4 6 7 8 9 10 11 12 20 20-1 20-2 20-3 21 21-1 21-2 21-3 ※ 013660412 ※ 013660412 S13085001 149831101 ※ S11244001 100032004 ※ 113050001 ※ S07494001 ※ 149831101 S13085001 ※ 149831101 S13085001 1 1 1 1 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ハリダキL クミトメクボミ3.18-40X4 ハリダキR クミトメクボミ3.18-40X4 トメネジ"3.18 アタマツキトメネジ"3.18 ハリイタ(クミ) シメネジ"4.37 サラネジ"4.37 オサエエミシメネジ"3.57 オクリバトメネジ"3.18 ハリダキLセットハリダキLクミアタマツキトメネジ"3.18 トメネジ"3.18 ハリダキRセットハリダキRクミアタマツキトメネジ"3.18 トメネジ"3.18 NEEDLE CLAMP L ASSEMBLY SCREW 3.18X4 NEEDLE CLAMP R ASSEMBLY SCREW 3.18X4 SET SCREW 3.18 SET SCREW 3.18 NEEDLE PLATE (ASSEMBLY) SCREW 4.37 SCREW 4.37 PRESSER FOOT ASSEMBLY SCREW 3.57 FEED DOG SCREW 3.18 NEEDLE CLAMP L SET NEEDLE CLAMP L ASSEMBLY SET SCREW 3.18 SET SCREW 3.18 NEEDLE CLAMP R SET NEEDLE CLAMP R ASSEMBLY SET SCREW 3.18 SET SCREW 3.18 ※印のついている部品の部品コードをお調べの場合は、P. 63~66のゲージ部品一覧表をご覧ください。 If there is a "※" mark refer to the gauge assembly guide on page 63~66. Falls das Zeichen "※" steht, wird auf die Zusammenstellung der Vorrichtungen auf Seite 63~66 verwiesen. Si le signe "※" apparaît se reporter à la page 63~66 du guide de montage de la jauge. Si aparece una marca "※" consultar la guía de armado de galga en la página 63~66. BB. 特別注文部品/Option parts/Sonderzubehör/Pièces en option/Piezas opciona REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RMKS 11 S13162100 1 オイルタンククミ OIL TANK ASSEMBLY <スタンダード /STANDARD> 12-1 S13157001 1 テンビンS5クミ THREAD TAKE-UP (S5) ASSEMBLY 12-1-1 S07337001 1 テンビン THREAD TAKE-UP 12-1-2 S03289001 1 クミヒモ4X4 (4CM) WICK 4X4 (4CM) 12-1-3 142274001 1 メクラセン OIL CAP <イトキリ/THREAD TRIMMER > 12-2 S13156001 1 テンビンS3クミ THREAD TAKE-UP (S3) ASSEMBLY 12-2-1 S07336001 1 テンビン THREAD TAKE-UP 12-2-2 S03289001 1 クミヒモ4X4 (4CM) WICK 4X4 (4CM) 12-2-3 142274001 1 メクラセン OIL CAP 13 S13161001 1 テンビンスベリクミ THREAD TAKE-UP SLIDE BLOCK (5) ASSEMBLY$ 13-1 S07567001 1 テンビンスベリコ THREAD TAKE-UP LEVER SLIDE BLOCK 13-2 114693001 1 クミヒモフタ (3CM) WICK (3CM) 13-3 113024000 1 メクラセン PUSHER 14 S14506001 1 テンビンジククミ THREAD TAKE-UP LEVER SHAFT ASSEMBLY 14-1 S07334001 1 テンビンジク THREAD TAKE-UP LEVER SHAFT 14-2 113653000 1 クミヒモ (13CM) WICK (13CM) jintex.in

Page 70 — B845 (スタンダード/STANDARD)

GAUGE PARTS LIST/LEHRENLISTE/ LISTE DE PIECES D'ECARTEMENT/LISTE DE PIEZAS CALIBRADORAS B845 (スタンダード/STANDARD) 針幅 Needle Gauge 仕様 Sub-Class ZZ-20-21 ハリダキセット Needle Clamp Set ZZ-1-2 ハリダクミ Needle Clamp Assembly ZZ-6 ハリイタ Needle Plate ZZ-11 オクリバ Feed Dog ZZ-9 サエグミ Presser Foot Assembly (L) (R) (L) (R) S07880-001 1/8" (3.2mm) -3 (L)S15711-001 (L)S15713-001 (R)S15712-001 (R)S15714-001 117369-001 114951-001 114948-001 -5 ★158430-001 5/32" (4.0mm) -3 (L)S15717-001 (L)S15719-001 (R)S15718-001 (R)S15720-001 150850-001 116509-001 116502-001 -5 S07878-001 3/16" (4.8mm) -3 (L)S15723-001 (L)S15725-001 (R)S15724-001 (R)S15726-001 117133-001 112659-001 112638-001 -5 ★13588-001 S07879-001 1/4" (6.4mm) -3 (L)S15735-001 (L)S15737-001 (R)S15736-001 (R)S15738-001 117367-001 112660-001 112642-001 -5 ★153882-001 5/16" (7.9mm) -3 (L)S15747-001 (L)S15749-001 (R)S15748-001 (R)S15750-001 144882-001 112661-001 112645-001 -5 3/8" (9.5mm) -3 (L)S15753-001 (L)S15755-001 (R)S15754-001 (R)S15756-001 144881-101 116510-101 116498-001 -5 ★153887-001 7/16" (11.1mm) -3 (L)S15759-001 (L)S15761-001 (R)S15760-001 (R)S15762-001 151596-001 151598-001 151597-001 -5 1/2" (12.7mm) -3 (L)S15765-001 (L)S15767-001 (R)S15766-001 (R)S15768-001 S09365-001 116511-001 116499-001 -5 ★153892-001 5/8" (15.9mm) -3 (L)S15771-001 (L)S15773-001 (R)S15772-001 (R)S15774-001 159577-001 116512-001 116500-001 -5 ★153897-001 ◎は、薄物用です。(針穴径1.2mm) The symbol is for thin materials (needle hole diameter 1.2 mm). Mit dem Zeichen wird dünnes Nähgut bezeichnet (Nadellochdurchmesser 1,2 mm). Le symbole correspond aux tissus fins (diamètre de trou d'aiguille de 1,2 mm). El asterisco es para tejidos finos (diámetro de orificio de aguja de 1,2 mm). ◎は、極厚物用です。針穴寸法は右図の様になっています。 The needle hole dimensions for heavy materials (indicated by ★) are shown in the figure at the right. Die Nadellochabmessungen für dicke Materialien (mit bezeichnet) sind in der nebenstehenden Abbildung angegeben. Les dimensions du trou de l'aiguille pour les tissus épais (indiqué avec ★) sont indiquées dans l'illustration à droite. Las dimensiones para el orificio de aguja cuando se cosen materiales pesados (indicados por un asterisco ★) son las que se indican a la derecha. アンナイツキオサエグミ/Presser Foot Assembly with Guide 1/8" (3.2mm) 149311-001 3/16" (4.8mm) 117281-001 1/4" (6.4mm) 149312-001 jintex.in

Page 71 — B845 (糸切り/THREAD TRIMMER)

B845 (糸切り/THREAD TRIMMER) 針幅仕様 Needle Gauge Sub-Class ZZ-20・21 ハリダキセット Needle Clamp Set ZZ-1・2 ハリダキクミ Needle Clamp Assembly ZZ-6 ハリイタクミ Needle Plate Assembly ZZ-11 オクリバ Feed Dog ZZ-9 オサエクミ Presser Foot Assembly (L) (R) (L) (R) 3/32" (2.4mm) -5 (L)S15705-001 (R)S15706-001 (L)S15707-001 (R)S15708-001 159398-001 148697-001 148679-001 -3 (L)S15711-001 (L)S15713-001 148698-001 148685-001 1/8" (3.2mm) -5 (R)S15712-001 (R)S15714-001 148699-001 148681-001 -3 (L)S15717-001 (L)S15719-001 148700-001 148689-001 5/32" (4.0mm) -5 (R)S15718-001 (R)S15720-001 155724-001 148701-001 148683-001 -3 148702-001 148687-001 3/16" (4.8mm) -5 (L)S15723-001 (R)S15724-001 (L)S15725-001 (R)S15726-001 155851-001 148703-001 148691-001 -7 ★S07905-001 -3 (L)S15729-001 (L)S15731-001 156818-001 156819-001 7/32" (5.6mm) -5 (R)S15730-001 (R)S15732-001 -3 148704-001 148693-001 1/4" (6.4mm) -5 (L)S15735-001 (R)S15736-001 (L)S15737-001 (R)S15738-001 155853-001 148705-001 148695-001 -7 S10507-001 S10510-001 -3 (L)S15741-001 (L)S15743-001 S14532-001 S14534-001 9/32" (7.1mm) -5 (R)S15742-001 (R)S15744-001 S14530-001 S14533-001 S14536-001 -3 (L)S15747-001 (L)S15749-001 149696-001 149689-001 5/16" (7.9mm) -5 (R)S15748-001 (R)S15750-001 155855-001 149691-001 149687-001 -3 (L)S15753-001 (L)S15755-001 149939-001 149942-001 3/8" (9.5mm) -5 (R)S15754-001 (R)S15756-001 155857-001 149938-001 149940-001 -3 (L)S15759-001 (L)S15761-001 S01646-001 S01641-001 7/16" (11.1mm) -5 (R)S15760-001 (R)S15762-001 S01644-001 149676-001 149673-001 -3 (L)S15765-001 (L)S15767-001 149677-001 1/2" (12.7mm) -5 (R)S15766-001 (R)S15768-001 149675-001 149671-001 -3 (L)S15771-001 (L)S15773-001 149949-001 149952-001 5/8" (15.9mm) -5 (R)S15772-001 (R)S15774-001 149954-001 149948-001 149950-001 ★印は、極厚物用です。針穴寸法は右図の様になっています。 Needle hole dimensions for heavy materials (indicated by a ★) are shown in the figure at the right. Die Nadellochabmessungen für dicke Materialien (mit ★ bezeichnet) sind in der nebenstehenden Abbildung angegeben. Les dimensions du trou de l'aiguille pour les tissus épais (indiqué avec ★) sont indiquées dans l'illustration à droite. Las dimensiones para el orificio de aguja cuando se cosen materiales pesados (indicados por un asterisco ★) son las que se indican a la derecha. 3/32"のゲージを使用する場合、DBx1 (#7~#8)の針を使用して下さい。 Use a DBx1 (#7~#8) needle when using a 3/32" gauge. Verwenden Sie eine DBx1-Nadel (#7~#8) für eine 3/32"-Lehre. Utiliser une aiguille DBx1 (#7~#8) lors de l'utilisation d'un colibre 3/32". Usar una aguja DBx1 (No.7-8) con la galga de 3/32 pulg. 図は、空縫い用ゲージ部品です。図をご覧下さい。 The symbol indicates gauge components for sewing without material. See the figure below. Mit dem Symbol図 sind die Teile zum Nähen ohne Nähgut bezeichnet. (Siehe untenstehende Abbildung.) Le symbole図 indique les pièces calibrées pour coudre sans tissu. Voir l'illustration ci-dessous. El símbolo図 indica las piezas de calibrador para la costura de cadeneta. ハリイタ Needle Plate オクリバ Feed Dog Preser Foot Assembly jintex.in

Page 72 — B8450

B8450 針幅 Needle Gauge 仕様 Sub-Class ZZ-20-21 ハリダキセット Needle Clamp Set (L) (R) (L)S15717-001 (R)S15718-001 ZZ-1-2 ハリダクミ Needle Clamp Assembly (L) (R) (L)S15719-001 (R)S15720-001 ZZ-6 ハリイタケミ Needle Plate Assembly ZZ-11 オクリバ Feed Dog ZZ-9 オサエツミ Presser Foot Assembly S13512-101 148700-001 148689-001 148701-001 148683-001 148702-001 148687-001 5/32" (4.0mm) -3 -5 -7 -3 -5 -7 -3 -5 -7 -3 -5 -7 -3 -5 3/16" (4.8mm) (L)S15723-001 (R)S15724-001 (L)S15725-001 (R)S15726-001 S13514-101 148703-001 ★S07905-001 148691-001 1/4" (6.4mm) (L)S15735-001 (R)S15736-001 (L)S15737-001 (R)S15738-001 S13510-101 148704-001 148693-001 148705-001 148695-001 5/16" (7.9mm) (L)S15747-001 (R)S15748-001 (L)S15749-001 (R)S15750-001 S13516-101 ★158756-001 149692-001 149689-001 149691-001 149687-001 3/8" (9.5mm) (L)S15753-001 (R)S15754-001 (L)S15755-001 (R)S15756-001 S13518-101 149939-001 149942-001 149938-001 149940-001 ★印は、極厚物用です。針穴寸法は右図の様になっています。 Needle hole dimensions for heavy materials (indicated by a ★) are shown in the figure at the right. Die Nadellochabmessungen für dicke Materialien (mit ★ bezeichnet) sind in der nebenstehenden Abbildung angegeben. Les dimensions du trou de l'aiguille pour les tissus épais (indiqué avec ★) sont indiquées dans l'illustration à droite. Las dimensiones para el orificio de aguja cuando se cosen materials pesados (indicados por un asterisco ★) son las que se indican a la derecha. 2.4 3 jintex.in

Page 73

B848 針幅 Needle Gauge 仕様 Sub-Class ZZ-20-21 ハリダキセット Needle Clamp Set ZZ-1-2 ハリダキクミ Needle Clamp Assembly ZZ-6 ハリイタ(クミ) Needle Plate (Assembly) ZZ-11 オクリバ Feed Dog ZZ-9 オサエクミ Presser Foot Assembly (L) (R) (L) (R) 1/8" (3.2mm) -1 スタンダード糸切り (L)S15711-001 (R)S15712-001 (L)S15713-001 (R)S15714-001 S07686-001 S07401-001 S07636-001 S07409-001 S07393-001 1/4" (6.4mm) -1 スタンダード糸切り (L)S15723-001 (R)S15724-001 (L)S15725-001 (R)S15726-001 S07688-001 S07403-001 S07638-001 S07410-001 S07395-001 1/2" (12.7mm) -1 スタンダードイトキリ Thread Trimmer (L)S15735-001 (R)S15736-001 (L)S15737-001 (R)S15738-001 S07699-001 S07405-001 S07411-001 S07397-001 3/16" (7.9mm) -1 糸切り (L)S15747-001 (R)S15748-001 (L)S15749-001 (R)S15750-001 S07676-001 S07680-001 S07682-001 3/8" (9.5mm) -1 糸切り (L)S15753-001 (R)S15754-001 (L)S15755-001 (R)S15756-001 S13623-001 S13624-001 B8480 針幅 Needle Gauge 仕様 Sub-Class ZZ-20-21 ハリダキセット Needle Clamp Set ZZ-1-2 ハリダキクミ Needle Clamp Assembly ZZ-6 ハリイタ(クミ) Needle Plate Assembly ZZ-11 オクリバ Feed Dog ZZ-9 オサエクミ Presser Foot Assembly (L) (R) (L) (R) 3/16" (4.8mm) -1 (L)S15723-001 (R)S15724-001 (L)S15725-001 (R)S15726-001 S16437-001 S07410-001 S07395-001 1/4" (6.4mm) -1 (L)S15735-001 (R)S15736-001 (L)S15737-001 (R)S15738-001 S16439-001 S07411-001 S07397-001 5/16" (7.9mm) -1 (L)S15747-001 (R)S15748-001 (L)S15749-001 (R)S15750-001 S16441-001 S07680-001 S07682-001 3/8" (9.5mm) -1 (L)S15753-001 (R)S15754-001 (L)S15755-001 (R)S15756-001 S16443-001 S13623-001 S13624-001 jintex.in

Page 74

参照番号 Ref. No. D-1-5 D-1-6 品名 Name of Parts ハリボウレクミ Needle Bar (L) Assembly ハリボウRクミ Needle Bar (R) Assembly 基線幅 Needle Position Width B 845 B 450 3 153604101 (2.4mm) 153606001 B 84 8 B 84 80 5 7 S09151001 (2.4mm) S09149001 1 S07804001 (2.0mm) 153606001 ◎ 上記部品は補給専用部品です。 (御使用の際、上下方向に多少の遊びが出来ます。) ◎ The above parts are for replacement only. (Use of these parts will result in a slight amount of vertical play.) ◎ Die oben aufgeführten Teile sind nur Austausch. (Durch die Verwendung dieser Teile entsteht ein kleines vertikales spiel.) ◎ Les pièces ci-dessus ne peuvent servir qu'en tant que pièces de rechange. (L'utilisation de ces pièces provoquera un léger jeu vertical.) ◎ Las piezas anteriores sólo se usan para recambio. (El uso de estas piezas produce un ligero juego vertical.) D-1-7 ハリボウダクミ Needle Bar Clamp Assembly 記号 Mark 部品コード Parts. No. A S00858001 B S00858002 記号 Mark C S00858003 D-1-12 スペリコウミ Slide Block Assembly 記号 Mark 部品コード Parts. No. 2 5 S07575000 3 0 S07575001 記号 Mark 3 5 S07575002 4 0 S07575003 4 5 S07575004 5 0 S07575005 5 5 S07575006 6 0 S07575007 6 5 S07575008 7 0 S07575009 7 5 S07575010 8 0 S07575011 ◎ 上記部品は、アーキンを確認した上、御注文下さい。 Check the replacement index for the above parts before ordering. Vor dem Bestellen den Austauschindex obenstehenden Teile kontrollieren. Avant de passer commande, consulter l'index de pièces de rechange pour les pièces ci-dessous. Verificar el codigo de recambio de las piezas anteriores, antes de hacer el pedido. jintex.in

Page 75 — DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

仕様別部品一覧表/DIFFERENT PARTS LIST/ZUBEHÖRLISTE/ LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS サブクラス SUB CLASS B845, B8450 B848, B8480 ヒンメイ PARTS REF. NO. -3 -5 -7 -1 A-9 ミシンバリ DPX5 (#) 107415014(14) 107415022(22) 107415011(11) NEEDLE DPX5 (#) A-9 145646022(22) NEEDLE DPX17 (#) C-1 バリボウ"ラクト"ラジクミ S07572001 S09162001 S07578001 NEEDLE BAR ROCK SHAFT ASSEMBLY Z1-10 ミシンバリ DPX5 (#) 107415014(14) 107415022(22) 107415011(11) NEEDLE DPX5 (#) Z1-10 145646022(22) NEEDLE DPX17 (#) jintex.in

Page 76

SUB CLASS REF. NO. ヒンメイ PARTS テンビン B-21 THREAD TAKE-UP シタジク H-1 LOWER SHAFT ジョウケヘンシンクミ H-9 VERTICAL FEED ECCENTRIC WHEEL ASS タイミングプーDクミ H-11 TIMING BELT WHEEL (D) ASSEMBLY ボビン K-41 BOBBIN ウワイトチョウシクミ M-1-1 TENSION CONTROL ASSEMBLY ウワイトチョウシクミ M-1-2 TENSION CONTROL ASSEMBLY ボビン Z1-11 BOBBIN BB45 スタンダード STANDARD S07337001 S07439001 181486001 S07442001 112781101 S07489101 S07492001 112781101 BB45,B8450 イトキリ THREAD TRIMMER S07336001 S07441001 148804001 S07444001 S01928101 S07483101 S07491001 S01928101 BB48 スタンダード STANDARD S07335001 S07440001 BB48,B8480 イトキリ THREAD TRIMMER jintex.in

Page 77

REF.NO. ヒンメイ PARTS サブクラス SUB CLASS D.C. モータ D.C. MOTOR EFKA MOTOR <B845,B8450> B-19 プーリー PULLEY S07340001 S07341001 N-1 イトキリソレノイドクミ THREAD TRIMMER SOLENOID ASSEMBLY S05892000 S07495000 R-1 イトハライソレノイド THREAD WIPER SOLENOID S07337100 S07540001 T-3 ギャクテンソレノイドクミ REVERSE SOLENOID ASSEMBLY 154727001 154734001 W1-1 PRESSER FOOT LIFTING SOLENOID SET 183486001 183487001 W1-1-1 PRESSER FOOT LIFTING SOLENOID ASS S06538001 S04206101 W1-1-1-14 PRESSER FOOT LIFTING CORD ASSEMBLY S02593001 S04207001 Y-1 Rアクエータクミ REVERSE ACTUATOR ASSEMBLY S07555001 S07557001 Y-1-8 Rスイッチクミ REVERSE SWITCH ASSEMBLY S02698001 S04210001

Page 78

REF. NO. ヒンメイ PARTS サブクラス SUB CLASS スタンダード STANDARD -400 -700 -900 -900S B8450 B8480 A-8 ナベコ 437-40X8 SCREW 437X8 062680812 ← Z1-20 ヒサアゲ"オシボウ KNEE LIFTER COMPLYING BAR 145573000 145573000 ← ← Z1-22 マルモクネジ" 5.5X20 SCREW 5.5X20 100666002 100666002 ← ← Z1-40 スカート SKIRT S08188001 S08188001 ← ← jintex.in

Page 79 — 91/INDEX/VERZEICHNIS/INDEX/INDICE

索 91/INDEX/VERZEICHNIS/INDEX/INDICE CODE REF.NO. PAGE S01005000 Z2 - 17-2-2-3 58 S01297001 Z1 - 10 54 S01304001 D - 10 6 G - 12 14 T - 14 42 T - 19 42 S01327001 T - 10 42 S01328001 T - 11 42 S01567001 K - 23-1-3-4 42 K - 23-1-3-5 20 S01568001 K - 23-1-3-5 22 K - 23-2-3-5 20 S01928101 K - 41 22 Z1 - 11 20 S02499001 Z1 - 11 54 S02580001 J2 - 11-1 18 W1- 1-1 48 S02581001 J2 - 11-2 18 W1- 1-1-2 48 S02582001 J2 - 11-4 18 W1- 1-1-4 48 S02584000 J2 - 11-4-1 18 W1- 1-1-4-1 48 S02585000 J2 - 11-4-2 18 W1- 1-1-4-2 48 S02586001 J2 - 11-7 18 W1- 1-1-7 48 S02587001 J2 - 12 18 W1- 1-5 48 S02588000 J2 - 11-8 18 W1- 1-1-8 48 S02589000 J2 - 11-10 18 S02590000 J2 - 11-11 18 W1- 1-1-11 48 S02591000 J2 - 11-13 18 W1- 1-1-13 48 S02592001 J2 - 11-19 18 W1- 1-1-19 48 S02593001 J2 - 11-14 18 W1- 1-1-14 48 S02664001 R - 1-4 38 S02665000 R - 1-5 38 S02682001 N - 53-1 34 S02693001 Y - 1-2 52 S02694001 Y - 1-3 52 S02696001 Y - 1-4 52 S02697001 Y - 1-6 52 S02698001 Y - 1-8 52 S02699001 Y - 1-8-1 52 S02745001 J2 - 11-15 18 N - 54 32 S02747001 W1- 1-1-15 48 S02759000 V - 17-2-12 46 V - 1-2-1 46 V - 10 46 S02760000 V - 10 46 S02766001 Z2 - 17-1 58 S02775001 Z2 - 17-1-2 58 S02777001 Z2 - 17-2-2 58 S02779001 Z2 - 17-1-6 58 Z2 - 17-2-5 58 S02782001 Z2 - 17-1-7 58 Z2 - 17-2-6 58 S02784001 Z2 - 17-1-11 58 Z2 - 17-2-10 58 S02788001 Z2 - 17-1-12 58 Z2 - 17-2-11 58 CODE REF.NO. PAGE S03289001 BB- 12-1-2 62 BB- 12-2-2 62 L - 60 24 L - 66 24 L - 73 26 S03328000 N - 53-1-1 34 S03681101 J2 - 11 18 W2- 2-1 50 V - 11 46 S03814001 N - 52 34 S03815001 Z2 - 17-2-15 58 S04109001 W2- 2-1 50 S04206101 W2- 2-1 50 V - 11 46 W1- 1-1-14 48 U - 5 44 N - 1 32 J2 - 11-24 18 U - 5-2 44 W1- 1-1-24 48 J2 - 11-25 18 U - 5-3 44 W1- 1-1-25 48 S06004001 N - 53-2 34 S06068000 V - 13-1 46 S06069000 V - 13-2 46 S06241000 Q - 4 36 S06242001 Q - 5 36 S06243101 Q - 6 36 S06537000 W1- 1-1-10 48 S06538001 W1- 1-1 48 W2- 2-1 50 S07027001 W2- 2-5-6 50 X - 1-6 52 S07030000 X - 2-5-11 50 X - 1-11 52 S07031000 W2- 2-5-11-1 50 X - 1-11-1 52 S07045001 W2- 2-5 50 X - 1 52 S07182001 J2 - 11-26 18 W1- 1-1-26 48 S07318101 A - 13 2 S07319001 A - 13-1 2 S07320000 A - 13-2 2 A - 14-2 2 S07321001 A - 14-3 2 A - 13-3 2 S07322101 A - 14-3 2 A - 13-4 2 S07325101 A - 14 2 S07326001 A - 14-4 2 S07327001 A - 15-1 2 S07328000 B - 5 4 S07330101 B - 3 4 S07334001 B - 22 4 BB- 14-1 62 S07335001 B - 21 4 S07336001 B - 21 4 BB- 12-2-1 62 S07337001 B - 21 4 BB- 12-1-1 62 S07337100 R - 1 38 S07339001 B - 26 4 S07340001 B - 19 4 S07341001 B - 19 4 jintex.in

Page 80

CODE REF.NO. PAGE CODE REF.NO. PAGE S07344101 D - 6 6 S07454000 L - 48 24 S07345001 F - 7 12 S07455100 L - 49 24 S07346101 F - 6 12 S07456000 L - 50 24 S07347001 F - 9 12 S07457100 L - 51 24 S07348001 F - 16-1 12 S07458100 L - 53 24 S07349001 F - 17 12 S07459100 L - 54 24 S07350001 F - 18 12 S07460100 L - 46 24 S07351001 F - 13-1 12 S07461000 L - 63 26 S07353001 F - 13-1 12 S07462000 L - 69 26 S07355001 F - 14 12 S07463000 L - 70 26 S07356001 F - 14 12 S07464100 L - 74 26 S07357001 F - 26 12 S07467001 L - 80 26 S07358001 F - 27 12 S07469001 L - 81 26 S07359001 F - 27 12 S07470001 L - 82 26 S07361101 G - 1 14 S07471001 L - 22 26 S07363001 G - 1-1 14 S07473000 L - 86 24 S07364001 G - 1-3 14 S07476000 L - 36 24 S07366101 G - 1 14 S07477000 L - 5 24 S07368101 G - 20 14 S07478000 L - 6 24 S07369001 G - 22 14 S07479101 L - 87 24 S07370101 G - 23 14 S07481000 M - 1-1 28 S07371001 G - 24 14 S07487001 M - 1-1-6 28 S07372001 G - 24 14 S07488001 M - 1-1-10 28 S07373001 G - 29 14 M - 1-2-9 28 S07374001 G - 29 14 S07489101 M - 1-1 28 S07375001 G - 31 14 S07490001 M - 1-1-13 28 S07376001 G - 35 14 M - 1-2-12 28 S07377001 G - 36 14 M - 1-2 28 S07378001 G - 6 14 S07491001 M - 7 28 S07379001 G - 2 14 S07492001 ZZ - 12 62 S07380001 T - 12 42 S07493001 N - 1 32 S07385001 T - 12 42 S07494001 N - 4 32 S07386001 C - 7 4 S07495000 N - 6 32 S07387001 C - 7 4 S07496001 N - 9 32 S07413201 K - 2-2 20 S07497001 N - 10 32 S07414201 K - 2-1 20 S07498001 N - 12 32 S07415201 K - 1-2 20 S07499001 N - 13 32 S07416201 K - 1-1 20 S07500001 N - 15 32 S07417001 K - 9 20 S07501001 N - 16 32 S07418001 K - 5 20 S07502001 N - 19 32 S07419001 K - 8 20 S07503000 N - 21 32 S07420000 K - 7 20 S07504001 N - 23 32 S07421001 K - 6 20 S07508001 N - 24 32 S07422101 K - 15 20 S07509001 N - 26 32 S07423101 K - 19 20 S07510001 N - 26-1 32 S07424001 K - 21 20 S07511001 N - 26-2 32 R - 15 38 S07512001 N - 26-3 32 S07430001 K - 30 20 S07514001 N - 28 32 S07431001 K - 30 20 S07516001 N - 29 32 S07432001 K - 38 20 S07517001 N - 31 32 S07433001 K - 39 20 S07518001 N - 32 32 S07434001 K - 34 20 S07519001 N - 35 32 S07435001 K - 36 16 S07520001 N - 36 32 S07436001 K - 24 16 S07521001 N - 40 32 S07437001 K - 25 16 S07522001 N - 43 32 S07439001 H - 1 16 S07523001 N - 45 32 S07440001 H - 1 16 S07524001 N - 47 32 S07441001 H - 1 16 S07525000 N - 49 32 S07442001 H - 11 16 S07526001 Z1 - 23 54 S07444001 H - 11 16 S07527001 P - 3 36 S07446001 H - 10 16 S07528000 P - 1 36 S07447001 H - 10-1 16 S07529001 P - 9 36 S07448001 L - 1 24 S07531001 S07449000 L - 2 24 S07450100 L - 24 24 S07453000 L - 47 24 jintex.in

Page 81

CODE REF. NO. PAGE CODE REF. NO. PAGE S07532001 P - 5 36 S11210000 N - 56 34 S07533001 P - 5 36 S11243001 Z1 - 41 54 S07534001 P - 13 36 S11244001 ZZ - 7 62 S07536001 P - 15 36 S11308001 S2 - 1-2-7 40 S07540001 R - 1 38 S11683000 N - 57 34 S07542101 R - 11 38 S12445001 H - 5 16 S07549101 R - 11-1 38 S13021001 G - 38 14 S07550001 R - 11-2 38 S13085001 K - 16 20 S07551001 R - 11-5 38 ZZ - 20-3 62 S07552001 R - 11-8 38 ZZ - 21-3 62 S07553001 R - 14 38 ZZ - 3 62 S07555001 Y - 1 52 S13103001 F - 10 12 S07556001 Y - 1-1 52 S13156001 BB - 12-1 62 S07557001 Y - 2 52 S13157001 BB - 12-1 62 S07558001 Z2 - 17-2 58 S13161001 BB - 13 62 S07559201 Z1 - 21-1 54 S13162100 BB - 11 62 S07560100 Z1 - 21-1-1 54 S13465101 E - 37 8 S07561001 Z1 - 21-1-2 54 S13466001 E - 37-1 10 S07561001 Z1 - 30 54 S13467101 E - 37-1 8 S07566101 A - 3 2 S13470001 E - 38 10 S07567001 B - 24 4 S13472001 E - 37-2 8 S07568001 BB- 13-1 62 S13485001 E - 37-4 8 S07569001 K - 23-1 20 S13486001 E - 37-5 8 S07570001 K - 23-2 20 S13487001 T - 23 42 S07571000 L - 76 26 S13490001 V - 15 46 S07572001 L - 39 24 S13491001 V - 21 46 S07574001 C - 1 4 S13492001 V - 21 46 S07578001 C - 10 4 S13494001 T - 18 42 S07581001 E - 1 8 S13495001 V - 13 46 S07584001 E - 3 8 S13496001 T - 20 42 S07585101 E - 5 8 S13499001 V - 1-1 46 S07586001 E - 23 8 S13503101 V - 1-2 46 S07587101 E - 13 8 S13509001 V - 12 46 S07588001 E - 22-1 8 S13520001 V - 19 46 S07589001 J1 - 1 16 S13521001 E - 31 8 S07590001 J1 - 3 16 S13523001 E - 31-1 8 S07591001 J1 - 9 16 S13524100 E - 31-3 8 S07658001 K - 27 20 S13525001 E - 35 8 S07660000 Z1 - 35-1-1 54 S13526001 E - 29 8 S07674001 G - 13-3 14 S13527001 E - 22-2 8 S07726301 Z1 - 21-2 56 S13528001 E - 19-2 8 S07729001 W2 - 2-4 50 S13547001 S2 - 3 40 S07733001 Z1 - 21-2-5 56 S13613001 K - 23-1-1 20 S07738001 K - 23-1-1 20 S13614001 K - 23-2-1 20 S07739001 K - 23-1-2 20 S14189000 L - 100 26 S07741001 K - 23-1-3 20 S14325001 E - 43 8 S07742001 K - 23-2-3 20 S15889001 BB- 14 62 S07810000 L - 52 24 S16114001 Z1 - 21-1-7 54 S07876001 L - 91 26 002300605 E - 37-1-1 10 S08005001 L - 98 26 002501002 E - 37-6 8 S08188001 K - 23-1-1 20 002501003 S2 - 4 40 S08468000 Z1 - 40 54 008300602 U - 1-14 44 S08469001 Z1 - 35-1 54 E - 37-3 8 S09132001 R - 6 38 E - 37-8 8 S09162001 D - 14 6 008400602 E - 38-2 10 S09364000 C - 1 4 011679312 S2 - 1-2-5 40 S09369000 L - 94 26 013660412 E - 26 8 S09670001 L - 93 26 ZZ - 1-1 62 S10550001 W2 - 2-2 50 013710512 ZZ - 2-1 62 S10780001 Z1 - 21-2-3 56 K - 10 20 S10781001 F - 13-2 12 013711012 K - 17 20 S11072001 E - 41 8 013780710 B - 4 4 B - 3 4 013781012 B - 2 4 B - 23 4 jintex.in

Page 82

CODE REF.NO. PAGE CODE REF.NO. PAGE 013781012 C - 3 4 028050242 T - 22 42 F - 2 12 028050243 U - 1-15 44 H - 3 16 028050246 Z2 - 17-1-7-2 58 N - 22 32 Z2 - 17-2-6-2 58 014060632 Z2 - 17-2-17 60 028350242 V - 5 46 014680422 F - 20 12 V - 7 46 V - 11-4 38 028680242 D - 18 6 R - 11-4 38 031452206 Z2 - 17-1-11-4 58 V - 1-1-2 46 Z2 - 17-2-10-4 58 014680622 C - 10 4 J2 - 16 18 K - 33 20 W1- 1-4 48 N - 8 20 W2- 2-6 50 014710522 F - 12 32 X - 2 52 F - 39 12 037301017 A - 51-1-4 52 B - 15 16 047301442 A - 32 2 G - 5-1 14 047301842 E - 8-1 8 H - 10-4 14 P - 2 36 H - 12-3 16 Y - 1-5 52 N - 25-2 16 J1 - 7 16 N - 25-3 32 K - 31 20 014821022 B - 11 34 T - 6 42 016771032 D - 11 6 G - 10 14 017762013 Z1 - 39-3 56 J2 - 13 18 018063022 V - 1-1 6 W1- 1-6 48 018401022 V - 17 46 G - 25 14 021400103 S2 - 8 40 E - 31-2 8 021400164 W2 - 2-5-10 50 R - 1-2 38 X - 1-10 52 048030342 Z2 - 17-1-7-5 58 021500106 Z2 - 17-1-11-3 58 048040342 Z2 - 17-2-6-5 58 Z2 - 17-1-4-2 58 Z2 - 17-1-7-4 58 Z2 - 17-1-7-3 58 Z2 - 17-2-13-2 58 048060342 Z2 - 17-2-6-4 58 021660102 Z2 - 17-2-13-3 58 060660512 L - 85 26 Z2 - 17-2-3-2 58 S1 - 1-1-8 40 021670102 C - 15 4 R - 4 38 P - 17 36 W2- 2-5-7 50 F - 23 12 X - 1-7 52 M - 1-1-21 28 R - 2 38 M - 1-2-20 28 T - 4 42 025030235 N - 34 32 T - 9 42 025040232 E - 34 8 Z2 - 17-1-11-2 58 025040233 R - 3 38 Z2 - 17-2-10-2 58 W2- 2-5-8 50 T - 21 42 025050232 X - 1-8 52 Z2 - 17-1-4-1 58 025050332 S2 - 6 40 Z2 - 17-2-3-1 58 025060132 Z1 - 35-2-2 54 Y - 1-9 52 025060232 C - 13 16 L - 19 24 025100132 J2 - 11-21 18 C - 14 4 W1- 1-1-21 48 K - 35 20 025350236 G - 26 14 R - 11-9 38 025680132 V - 4 46 025680232 K - 35 20 E - 6 4 025710132 Z1 - 35-2-4 16 G - 28 14 025710232 J1 - 5 14 L - 13 24 G - 34 20 L - 15 24 K - 14 24 L - 17 26 N - 39 24 L - 21 24 R - 11-7 32 L - 23 24 025750132 Z1 - 35-2-6 54 L - 77 26 028030243 E - 33 8 L - 83 26 E - 37-7 8 M - 6-1 30 028040243 W2- 2-5-9 50 N - 3 32 X - 1-9 52 P - 8 36 028050242 S2 - 5 40 R - 17 38 R - 9 38 jintex.in 061401217 S1 - 1-1-8 40 062300612 R - 4 38 062401006 W2- 2-5-7 50 X - 1-7 52 062401012 R - 2 38 062500812 T - 4 42 T - 9 42 062501006 Z2 - 17-1-11-2 58 Z2 - 17-2-10-2 58 062501202 T - 21 42 062501406 Z2 - 17-1-4-1 58 Z2 - 17-2-3-1 58 062630812 Y - 1-9 52 062660412 L - 19 24 062661212 C - 14 4 P - 16 36 R - 11-9 38

Page 83

CODE REF.NO. PAGE CODE REF.NO. PAGE 062670512 T - 25 42 081030070 L - 27 24 V - 22 46 100022004 Z1 - 21-1-6 54 V - 24 46 100022005 N - 26-5 32 V - 9 46 100032004 ZZ - 8 62 Y - 4 52 100064002 M - 4 28 062670612 J2 - 11-11 18 100105005 D - 1-7-9 6 J2 - 11-18 18 100197002 K - 4 20 J2 - 11-20 18 100250001 B - 7 4 L - 101 26 B - 12 4 L - 103 26 H - 5-2 16 W1- 1-1-11 48 N - 42 32 W1- 1-1-20 48 L - 44 24 062670616 W1- 1-1-18 48 100257010 G - 19 14 062670712 V - 1-1-3 46 100328001 Z1 - 15-6 54 062670812 A - 4 2 100366002 Z1 - 15-2 54 D - 1-11 6 100401001 W2- 2-5-3 50 G - 7 14 100463001 X - 1-3 52 L - 3 32 Z1 - 39-2 56 N - 44 36 Z1 - 13 56 P - 6 18 100477001 T - 17 42 062671012 J2 - 11-9 46 100511003 A - 28 2 V - 3 48 100645003 Q - 8 36 062671412 W1- 1-1-9 48 100657001 Z1 - 15-7 54 F - 22 12 100659001 Z1 - 15-8 54 N - 33 32 100662001 Z1 - 15-9 54 062680663 J2 - 11-16 18 100666002 Z1 - 16 54 N - 55 32 Z1 - 22 54 W1- 1-1-16 48 Z1 - 35-2-5 54 062680812 A - 8 2 Z1 - 6 54 L - 79 26 U - 3 44 M - 8 28 D - 8 6 P - 10 36 Z1 - 4 54 Q - 12 38 100887001 R - 7 54 101118001 062681012 Z1 - 35-2-3 54 101268002 G - 1-2 14 101572101 A - 29 2 N - 30 32 101706001 Z1 - 44 56 062681412 A - 30 2 102731004 Q - 7 36 104619002 062681612 G - 3 14 104821001 062710612 G - 37 38 P - 12 52 104885101 Y - 2 46 105173004 062710812 V - 15 8 105237002 E - 12 8 107030001 062711012 E - 2 8 107155001 G - 33 14 107272002 K - 29 20 L - 11 24 107321003 062711412 Q - 10 54 107415011 E - 17 36 062712012 Z1 - 35-2-1 54 107415014 J2 - 11-3 18 W1- 1-1-3 48 107415022 062761412 C - 12 4 062781412 T - 2 42 107779001 062782512 K - 3 20 107780001 071063550 E - 15 8 108254001 E - 42 16 072600480 H - 10-2 16 108265001 108266001 108549001 108802001 108960002 109714000 110087001 jintex.in

Page 84

CODE REF. NO. PAGE CODE REF. NO. PAGE 110087001 X - 1-5 52 114967001 X - 1-4 52 Z1 - 39-7 56 115249001 Z1 - 39-6 56 110161004 P - 4 36 116010001 L - 42 24 110161006 K - 13 20 116662003 A - 16 2 110201001 E - 30 8 117850001 N - 17 32 N - 5 32 117963001 D - 19 6 110215002 Y - 1-7 52 117969001 Z1 - 15 54 111191001 L - 57 24 117970001 Z1 - 15-3 54 L - 96 26 117971001 Z1 - 15-4 54 112573101 B - 1 4 118320001 Z1 - 15-5 54 112576001 B - 13 4 M - 1-1-7 28 112586001 B - 17 4 M - 1-2-6 28 112588101 D - 1-1 6 118713001 N - 7 32 112590001 D - 1-3 6 118837001 G - 21 14 112594001 D - 2 6 118853001 G - 30 14 112595000 D - 4 6 G - 4-2 14 112596001 D - 6 6 118954000 N - 41 32 112597001 D - 7 6 120752001 Z1 - 1 54 112598001 D - 9 6 122991001 Z2 - 17-2-9 58 112609001 D - 1-7-7 6 126863000 Z2 - 17-1-10 58 112610101 A - 15 2 129458002 G - 13-5 14 112656001 C - 11 4 129500004 G - 13-2 14 112658001 M - 10 28 131007001 H - 5-3 16 112684001 M - 10 30 131226001 K - 40 20 H - 11-2 16 138843001 Z2 - 17-2-16 60 112692101 H - 5-1 16 139096001 F - 19 12 112700001 K - 27-1 20 R - 11-3 38 112709001 M - 5 28 Z1 - 39-8 56 112712001 M - 1-1-8 28 M - 2 28 M - 1-2-7 28 U - 1-9 44 112715001 M - 11-1 28 U - 1-7 44 112716101 L - 9 24 J1 - 8 16 112717001 L - 10 24 N - 2-1 32 112728001 L - 56 24 R - 16 38 112734001 L - 38 24 T - 24 42 112735000 L - 58 24 V - 23 46 112736000 L - 61 24 V - 8 46 112739001 L - 14 26 Y - 3 52 L - 16 24 U - 1-3 44 112743001 L - 12 24 L - 30 24 112750000 L - 68 24 F - 3 12 112753001 L - 40 24 F - 5 12 112758001 L - 95 26 N - 27 32 112759001 L - 43 24 J1 - 10 16 112764001 D - 3 6 N - 46 32 112781101 K - 41 20 J2 - 15 18 Z1 - 11 54 W1 - 1-3 48 113024000 B - 25 4 ZZ - 10 62 BB- 12-1-3 62 113050001 BB- 13-3 62 BB- 12-2-3 62 113074001 C - 5 4 L - 32 24 113362001 L - 41 24 F - 8-2 12 113386000 A - 2 2 Z1 - 2 54 113431002 Q - 3 36 Z1 - 9 54 113653000 BB- 14-2 62 G - 13-4 14 113760001 L - 59 24 Z2 - 17-2-14 58 114447002 D - 1-7-13 2 114483002 Z1 - 34 54 114486002 Z1 - 33 54 114693001 BB- 13-2 62 L - 57 24 114941001 M - 13 28 Z1 - 12 54 114966001 Z1 - 39-5 56 114967001 W2 - 2-5-4 50 jintex.in

Page 85

CODE REF.NO. PAGE CODE REF.NO. PAGE 143484000 U - 1-10 46 145502001 G - 18 14 143488001 U - 1-11 44 145573000 Z1 - 20 54 143489001 U - 5-1-2 44 145646022 A - 9 2 143499000 U - 5-1-1 44 146036101 Z1 - 10 54 143519001 E - 40 8 146037001 Z1 - 21-1-2 54 143520000 E - 39 8 146039001 Z1 - 21-1-3 56 143522000 J2 - 11-22 18 146046000 Z1 - 39-1 54 U - 5-4 44 J2 - 11-24-2 18 W1- 1-1-22 48 U - 5-2-2 44 143548000 J2 - 11-25-2 18 W1- 1-1-24-2 48 N - 56-1 34 W2- 2-5-11-2 50 U - 5-1-3 44 X - 1-11-2 52 143549000 U - 5-3-2 44 146080000 R - 5 38 W1- 1-1-25-2 48 T - 20-1 42 146105000 B - 8 4 W2- 2-5-11-1-2 50 J1 - 6 16 X - 1-11-1-2 52 J2 - 11-25-3 18 E - 31-4 8 U - 5-3-3 44 J2 - 11-14-2 18 W1- 1-1-25-3 48 J2 - 11-24-1 18 W2- 2-5-11-3 50 J2 - 11-25-1 18 X - 1-11-3 52 N - 56-2 34 L - 92 26 R - 1-6 42 Z1 - 21-1-8 54 T - 20-1 42 Z1 - 21-2-6 56 U - 3-3 42 D - 17 6 U - 5-1-3 44 N - 38 32 U - 5-1-4 44 W2- 2-3 50 U - 5-2-1 44 Z1 - 1-4 54 V - 13-2-1 46 Z1 - 21-2-4 56 W1- 1-1-14-2 48 L - 102 26 W1- 1-1-24-1 48 E - 18 8 143591001 G - 4 14 147504001 G - 27 14 143611101 G - 4-1 14 147513001 F - 8-1 12 143612000 G - 1-4 14 147846001 F - 4 12 143613001 G - 9 14 148005001 K - 12 20 143616001 L - 18 24 148490001 C - 7 4 143673001 Z1 - 26 54 148491001 C - 8 4 143882001 Z1 - 27 54 148492101 C - 4 4 143910001 Z1 - 28 54 148494001 C - 1 4 144075001 M - 6-2 30 148495001 G - 11 14 144105000 M - 1-1-15 28 148502000 H - 2 16 144222001 M - 1-2-14 28 148503000 H - 1 16 144504001 M - 1-2-17 28 148511001 R - 1-1 38 144526001 N - 37 32 148512000 R - 1-3 38 144614101 B - 19 4 148514006 R - 8 38 144680001 M - 1-1-1 28 148522001 V - 18 46 144682001 M - 1-1-4 28 148527101 R - 13 38 M - 1-2-4 28 148536001 N - 48 32 144685001 M - 1-1-16 28 148539101 N - 50 32 144686001 M - 1-1-17 28 148546001 Z1 - 24 54 144687001 M - 1-1-18 28 148559100 N - 14 32 144688001 M - 1-1-19 28 148574001 R - 10 38 144689101 M - 1-1-20 28 148592001 N - 20 32 145446001 M - 1-11 28 148599101 N - 25-1 32 M - 1-2-10 28 148602001 N - 26-4 32 Z1 - 15-1 54 148743001 A - 15 2 145472001 F - 1 12 148762001 K - 42 22 145478001 F - 28 12 148802201 L - 45 24 J1 - 17 16 148804001 L - 37 24 145480001 F - 25 12 148821001 G - 5 14 148825001 H - 9 16 148851001 H - 10-3 16 H - 12-2 16 Q - 9 36 M - 1-1-13 28 M - 1-2-12 30 jintex.in

Page 86

CODE REF.NO. PAGE CODE REF.NO. PAGE 148890101 Z1 - 28 54 150756000 Z1 - 36 56 149094001 T - 13 42 150815001 A - 6 2 149095001 T - 15 42 150816001 D - 1-9 6 149127001 E - 4 36 150818001 E - 11 8 P - 14 36 150820001 E - 14 8 149566002 M - 1-1-14 28 151025001 K - 23-1-3-3 20 M - 1-2-13 28 151027001 K - 23-1-1-1-1 20 149604001 D - 1-7-1 6 K - 23-2-1-1-1 20 149605001 D - 1-7-2 6 K - 23-1-3-1 20 149606001 D - 1-7-3 6 K - 23-2-3-1 20 149607001 D - 1-7-5 6 K - 23-1-3-2 22 149608001 D - 1-7-6 6 K - 23-2-3-2 22 149609001 D - 1-7-8 6 151043001 K - 23-3-3-3 22 149610001 D - 1-7-10 6 151126101 U - 1 44 149611101 D - 1-7-11 6 151127100 U - 1-2 44 149612101 D - 1-7-12 6 151147001 U - 1-4 44 149613001 D - 1-8 6 151153101 U - 1-1 44 149621001 D - 1-13 6 151154000 J1 - 18 16 149622001 D - 1-14 6 151507101 G - 13-3 14 149623001 D - 1-15 6 151927001 A - 17 2 149624001 D - 1-17 6 151987001 L - 35 24 149625001 D - 1-18 6 152590001 E - 36 8 149626001 L - 84 26 S2 - 7 40 149799000 W2 - 2-5-12 50 152808101 J2 - 14 18 B - 12 52 W1 - 1-2 48 149820000 X - 1-12 4 152974001 L - 62 24 149821101 B - 6 4 L - 72 26 149827001 B - 9 4 153012101 D - 12 6 149831101 ZZ - 20-2 62 153122000 J2 - 11-5 18 ZZ - 21-2 62 W1 - 1-1-5 48 ZZ - 4 62 153132000 T - 16 42 149834000 L - 34 24 153138001 T - 7 42 149843001 E - 7 8 153243001 K - 22 20 149847002 E - 8 8 153244001 K - 22 20 149852001 E - 9 8 153245001 T - 5 42 149853001 E - 10 8 153920001 L - 71 26 149855001 E - 16 8 153969000 N - 51 34 149857001 E - 19-1 8 154172001 U - 5-1 44 149858001 E - 20 8 154211000 N - 56-3 34 149863001 E - 24 8 154214001 U - 1-8 44 149864001 E - 25 8 154215001 U - 1-12 44 149865001 E - 27 8 154332001 J2 - 14-1 18 150106002 Z2 - 17-1-4 58 W1 - 1-2-1 48 Z2 - 17-2-1 58 154333001 J2 - 14-2 18 150145002 Z2 - 17-2-13 58 W1 - 1-2-2 48 150172002 Z2 - 17-1-3 58 M - 1-2-18 28 Z2 - 17-2-4 58 154560001 A - 31 2 150174000 Z2 - 17-1-5 58 154574001 P - 7 36 Z2 - 17-2-5 58 154607001 Z1 - 14 54 150179002 Z2 - 17-1-6 58 154702001 T - 3 42 Z2 - 17-2-6-1 58 154727001 T - 3-1 42 150180000 Z2 - 17-1-7 58 154731000 T - 3-2 42 Z2 - 17-2-7 58 M - 1-1-2 28 150182000 Z2 - 17-1-8 58 M - 1-2-2 28 Z2 - 17-2-8 58 M - 1-2-19 28 150185002 Z2 - 17-2-13-1 58 155510001 L - 75 26 150188002 Z2 - 17-1-10-1 58 156070002 Z2 - 17-1-1 58 Z2 - 17-2-10-1 58 156112002 Z2 - 17-2-1 58 150191002 Z2 - 17-1-2-2 58 158115001 B - 18 4 Z2 - 17-2-2-2 58 H - 11-1 16 150206002 Z2 - 17-1-2-1 58 J2 - 11-6 18 Z2 - 17-2-2-1 58 W1 - 1-1-6 48 150374000 L - 55 24 M - 1-1-9 28 150553003 M - 3 28 M - 1-2-8 28 150556001 F - 15 12 M - 1-2-16 28 J2 - 14-3 18 M - 1-2-15 28 W1 - 1-2-3 48 jintex.in

Page 87

CODE REF.NO. PAGE 158775001 Q - 11 36 158776001 Q - 13 36 159269001 E - 44 8 159361001 G - 13-1 14 159384001 Z1 - 46 56 159436001 K - 32 20 159801001 K - 23-2-3-6 22 159802001 K - 23-2-3-7 22 159805001 M - 1-1-12 28 M - 1-2-11 28 180157001 M - 14 4 181427001 Z1 - 39 56 181486001 H - 9 16 181919101 F - 8 12 183480001 Z1 - 35 54 183486001 W1 - 1 48 183487001 W1 - 1 48 183500001 W2 - 2 50 183517001 W2 - 2 50 183518001 W2 - 2 50 183519001 W2 - 2 50 183550101 V - 1 46 183609001 G - 13 14 183610001 G - 13 14 200190001 U - 4 44 204569001 J2 - 11-14-1 18 N - 53-1-2 34 N - 53-2-1 34 W1- 1-1-14-1 48 211131001 J2 - 11-4-3 18 W1- 1-1-4-3 48 216248001 V - 13-3 46 220077001 J2 - 11-23 18 U - 5-5 44 230157001 W1- 1-1-23 48 233053001 Q - 1 36 233057001 S1 - 1-1-1 40 233071001 S1 - 1-1-3 40 233072001 S1 - 1-1-5 40 233090001 S1 - 1-1-6 40 S1 - 1-1-7 40 Z1 - 42 56 234540001 S2 - 1-2-4 40 234959001 S2 - 1-2 40 234960001 S2 - 1-2-1 40 234963001 S2 - 1-2-2 40 234964001 S2 - 1-2-3 40 234967001 S2 - 1-2-6 40 234977001 S2 - 1-2 40 234978001 S2 - 1-2-3 40 234981001 S1 - 1-1 40 234981001 S1 - 1-1-2 40 234983001 S1 - 1-1-1 40 234984001 S1 - 1-1-2 40 340400001 N - 58 34 525567000 E - 32 2 533527001 A - 25 8 552907000 A - 26 2 554482000 A - 27 2 jintex.in

Page 88

brother ブラザー工業株式会社 BROTHER INDUSTRIES, LTD. NAGOYA, JAPAN 118-845-8450-848-8480 195845-201 ① 1989, 09 jintex.in

Page 2

Page 3 — パーツブックご利用に際して

Page 4 — CONTENTS

Page 5 — Anmerkungen zum Gebrauch dieses Stückliste buches

Page 6 — Notes sur l'utilisation de ce manuel de pièces détachées

Page 8 — A. 主体関係/Machine body/Maschinengehäuse/Corps de la machine/Denominación del mecanismo

Page 9

Page 10

Page 11 — B. 上軸関係/Upper shaft mechanism/Obere Welle/Mécanisme de l'arbre supérieur/Mecanismo de la eje superior C. 送り軸関係/Feed shaft mechanism/Transport welle/Mécanisme de l'arbre entraînement/Mecanismo de la eje alimentación

Page 12 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Page 13 — D. 針棒揺動関係/Needle bar rocking mechanism/Nadelstangenbetätigung/ Mécanisme de balancement de la barre à aiguille/Mecanismo de oscilación de la barra de aguja

Page 14 — E. 針棒切換操作関係 / Needle bar flip-up mechanism / Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille / Mecanismo del lanzador de barra de aguja

Page 15 — E. 針棒操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/ Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

Page 16

Page 17 — E. 針棒切換操作関係/Needle bar flip-up mechanism/Nadelstangenhochstellung/Mécanisme de sautée de la barre à aiguille/Mecanismo del lanzador de barra de aguja

Page 18 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/ Mécanisme du pied presseur/Mecanismo del prensatelas

Page 19 — F. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme du pied presseur/Mecanismo del prensatelas

Page 20

Page 21 — G. 送り関係/Feed mechanism/Transportvorrichtung/Mécanisme de l'alimentation

Page 22

Page 23 — H. 下軸関係 / Lower shaft mechanism / Untere welle / Mécanisme de l'arbre inférieur/Mecanismo de la eje inferior

Page 24 — J2. 押工上ゲ関係 (-900)/Presser foot lifter mechanism (-900)/Stoffhalterhebevorrichtung (-900)/Mécanisme de levueur du pied presseur (-900)/Mecanismo de levantador del prensatelas (-900)

Page 25

Page 26 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/M uevo de crochet rotatif/Mecanismo del cangrejo

Page 27 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Page 28 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Page 29 — K. カマ関係/Rotary hook mechanism/Greifervorrichtung/Mécanisme de crochet rotatif/Mecanismo del cangrejo

Page 30

Page 31

Page 32 — L. Lubrication / Schmierung / Lubrication / Lubricación

Page 33 — L. Lubrication / Schmierung / Lubrication / Lubricación

Page 34 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Page 35 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enhebrado

Page 36 — M. 糸通シ関係/Threading mechanism/Fadenführungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Page 37 — M. 糸通シ関係/Threading mechanism/Fadenfuhrungsvorrichtung/Mécanisme de l'enfilage/Mecanismo de la enhebrado

Page 38 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahílos)

Page 39 — N. 糸切り関係 (糸切り) /Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mecanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

Page 40

Page 41 — N. 糸切り関係(糸切り)/Thread trimmer mechanism (Thread Trimmer)/Fadenabschneidevorrichtung (Fadenabschneider)/Mécanisme de coupe-fil (Coupe-fil)/Mecanismo de recortadora de orillos (Cortahilos)

Page 42

Page 43 — P. 糸ユルメ関係(糸切り)/Tension release mechanism (Thread Trimmer)/Spannung sverminderung svorrichtung (Fadenabschneider)/Mecanisme de relâche-tension (Coupe-fil)/Mecanismo de liberador de tensión (Cortahilos) Q. 針位置検出関係(糸切り)/Synchronizer (Threa

Page 44 — R. 糸払イ関係(糸切り)/Thread wiper mechanism (Thread Trimmer)/Fadenwischvorrichtung (Fadenabschneider)/Mécanisme de tire-fil (Coupe-fil)/Mecanismo de limpiador de hilos (Cortahilos)

Page 45

Page 46

Page 47 — S1. コントロールボックス関係(-900S)/Control box mechanism (-900S)/Shaltkasten (-900S)/Mécanisme de boîtier de contrôle (-900S)/Mecanismo de caja de controles (-900S) S2. コントロールボックス関係(B450 B480)/Control box mechanism (B450-B480)/Shaltkasten (B4

Page 48 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

Page 49 — T. 逆転関係(糸切り)/Quick reverse mechanism (Thread Trimmer)/Umkehr (Fadenabschneider)/Mécanisme de marche arrière rapide (Coupe-fil)/Mecanismo de inversión rápida (Cortahílos)

Page 50 — D. C. MOTOR

Page 51

Page 52 — V. 布制御関係 (B8450・B8480)/Cloth control system mechanism (B8450・B8480)/Stofführungsvorrichtung (B8450・B8480)/Mécanisme de la système de contrôle du tissu (B8450・B8480)/Mecanismo de la sistema de control de tera (B8450・B8480)

Page 54 — W1. 電磁押工上ゲ関係(-900)/Presser foot lifting solenoid set (-900)/ Solenoidsatz für die Anhebung des Stoffdrückerfußes (-900)/ Jeu de solénoïde du releveur du pied presseur (-900)/Conjunto solenoide del levantador (-900)

Page 55

Page 56 — W2. 電磁押工上下関係(オプション)/Presser foot lifting solenoid set (Option Parts)/

Page 57 — W2. 電磁押工上げ関係 (オプション)/Presser foot lifting solenoid set (Option Parts)/Solenoideatz für die Anhebung des Stoffdrückerfußes (Sonderzubehör)/Jeu de solénoide du releveur du pied presseur (Pièces en option)/Conjunto solenoide del levantador (Piez

Page 58

Page 59 — X. Knee switch mechanism (-700, -900) / Y. Quick reverse switch mechanism (Thread Trimmer)

Page 60 — Z1. 付属部品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 61 — Z1. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 62 — Z1. 付属品関係/Accessories/Zubehör/Accessoires/Accesorios

Page 63 — Z1. 付属関係/Accessories/Zubehor/Accessoires/Accesorios

Page 64 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 65 — Z2. 付属部品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 66 — Z2. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 67 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Page 68 — ZZ. ゲージ部品/Gauge parts/Lehren/Pièces d'écartement/Piezas calibradoras BB. 特別注文部品/Option parts/Sonderzubehör/Pieces en option/Piezas opciona

Page 69

Page 70 — B845 (スタンダード/STANDARD)

Page 71 — B845 (糸切り/THREAD TRIMMER)

Page 72 — B8450

Page 73

Page 74

Page 75 — DIFFERENT PARTS LIST/ZUBEHÖRLISTE/LISTE DES PIECES ACCESSOIRES/LISTA DE PIEZAS ACCESORIAS

Page 76

Page 77

Page 78

Page 79 — 91/INDEX/VERZEICHNIS/INDEX/INDICE

Page 80

Page 81

Page 82

Page 83

Page 66 — Z2. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios
