Brother LT2-B875 Parts Book (PDF)

Double Needle LockstitchDownload PDF

Text index — Brother LT2-B875

Page 7 — 主体関係 Machine body / Maschinenengehäuse Corps de la machine / Denominación del mecanismo

Brother LT2-B875 parts on page 7
Ref	Part number	Part name	Qty
2	113386-000	Pin	1
3	S07566-001	Face Plate	1
4	062670-812	Screw 3.5X8	2
6	150815-001	Face Plate Cap	1
7	S02499-001	Rear Cover	1
8	062680-812	Screw 4.37X8	7
13	S07318-101	Slide Plate (L) Assembly	1
13-1	S07319-001	Slide Plate	1
13-2	S07320-000	Bobbin Window	1
13-3	S07321-001	Bobbin Window Holder	1
13-4	S07322-101	Screw 2.38	3
14	S07325-101	Slide Plate (R) Assembly	1
14-1	S07326-001	Slide Plate (R)	1
14-2	S07320-000	Bobbin Window	1
14-3	S07321-001	Bobbin Window Holder	1
14-4	S07322-101	Screw 2.38	3
15-4	S07328-000	Cap	1
16	116010-001	Screw 5.16	1
17	151602-002	Screw 4.37	2
21	S07327-001	Cord Holder (L)	2
23	113760-001	Screw 5.16	4
	092670-812	Screw 3.57×8	2
	Name Plate	Name Plate	1
	S07499-001	Rear Cover	1
	Needle DP×5	Needle DP×5	1
	Model Plate	Model Plate	1
	Parts Book Number Plate	Parts Book Number Plate	1

Page 8 — B. 上軸関係

Brother LT2-B875 parts on page 8
Ref	Part number	Part name	Qty
1	112573-101	Upper Shaft Bushing (L)	1
2	013781-012	Screw 6.35	1
3	S07330-101	Upper Shaft Bushing (M)	1
4	013780-710	Screw 6.35	1
5	S07329-001	Upper Shaft	1
6	149820-000	Counter Weight	1
7	100250-001	Screw 7.14	1
8	146141-001	Screw 7.14	1
9	149821-001	Needle Bar Crank	1
11	101706-001	Screw 6.35	1
12	100251-001	Screw 6.35	1
13	112576-001	Thrust Ring	1
14	180157-001	Timing Belt Wheel (U) Assembly	1
14-2	016771-022	Timing Belt Pulley	1
15	014771-022	Screw 6.35X10	1
16	016771-032	Screw 635-40X10	1
17	112586-001	Timing Belt	1
18	158115-001	Bearing 6204ZZNR	1
20	013761-410	Screw 5.35	2
21	S09253-001	Thread Take-up	1
22	S07334-001	Stud	1
23	013781-012	Screw 6.35	3
24	S07567-001	Thread Take-up Lever Slide Block	1
25	113024-000	Cap	1
26	S07339-001	Thread Take-up Cover	1
27	062670-512	Screw 3.5X5	2

Page 9 — C. 針棒揺動関係 / Needle bar rocking mechanism / Nadelstangenbetätigung / Mécanisme de balancement de la barre à aiguille / Mecanismo de oscilació

Brother LT2-B875 parts on page 9
Ref	Part number	Part name	Qty
1-1	112586-101	Needle Bar Rock Shaft	1
1-3	107030-001	Taper Pin	1
1-4	112590-001	Guide Plate	2
1-5	102731-004	Screw 2.3B	4
1-6	※	Needle Bar (L) Assembly	1
1-7	※	Needle Bar (R) Assembly	1
1-8	※	Needle Bar Clamp Assembly	1
1-8-4	149604-001	Pin 1.5X5.8	2
1-8-5	149605-001	Spring	2
1-8-6	149827-001	Pin 2X15.8	1
1-8-7	149606-001	Clutch Stopper (L)	1
1-8-8	149607-001	Clutch Stopper (R)	1
1-8-9	149608-001	Pin2X17.8	1
1-8-10	112609-001	Spring	2
1-8-11	149609-001	Spring Holder	1
1-8-12	100105-005	Screw 2.3B	2
1-8-13	149610-001	Release Pin	1
1-8-14	149611-101	Release Pin Spring	1
1-8-15	149612-101	Release Pin Lid	1
1-8-16	114447-002	Screw 2.3B	1
1-9	149613-001	Needle Bar Crank Rod	1
1-10	150816-001	Needle Bar Guide Slide Block	1
1-11	S07574-001	Slide Block Guide Plate	1
1-12	062670-812	Screw 3.57X8	2
1-13	※	Slide Block Assembly	1
1-14	149621-001	Needle Bar Stopper	2
1-15	149622-001	Needle Bar Stopper Spring	2
1-16	149623-001	Spring Lid	1
1-17	060660-512	Screw 3.18X5	1
1-18	149624-001	Needle Bar Rotary Stopper	2
1-19	149625-001	Screw 3.18	2
2	112594-001	Needle Bar Rock Shaft Bushing (L)	1
3	112764-001	Needle Bar Rock Shaft Bushing (R)	1
4	112595-000	Needle Bar Connecting Rod	1
5	105351-002	Screw 6.35	1
6	112596-001	Needle Bar Rock Link	1
7	112597-001	Needle Bar Rock Link Stud	2
8	101268-002	Nut 7.94	2
9	112598-001	Needle Bar Connecting Crank	1
10	S01304-001	Screw 6.35X18	1
11	014821-022	Screw 7.94	4
16	S07344-001	Finger Guard	1
17	146354-001	Washer	1
18	028680-242	Spring Washer 2-4.37	1
19	117850-001	Stud Screw 3.57	1
	112588-101	Needle Bar Rock Shaft Assembly	1

Page 10 — Needle Bar (L)/(R) Assembly, Needle Bar Clamp Assembly, Slide Block Assembly

Brother LT2-B875 parts on page 10
Ref	Part number	Part name
C-1-6	153604-101	Needle Bar (L) Assembly
C-1-7	153606-001	Needle Bar (R) Assembly
C-1-8	S00858-001	Needle Bar Clamp Assembly
C-1-8	S00858-002	Needle Bar Clamp Assembly
C-1-8	S00858-003	Needle Bar Clamp Assembly
C-1-13	S07575-002	Slide Block Assembly
C-1-13	S07575-003	Slide Block Assembly
C-1-13	S07575-004	Slide Block Assembly
C-1-13	S07575-005	Slide Block Assembly
C-1-13	S07575-006	Slide Block Assembly
C-1-13	S07575-007	Slide Block Assembly
C-1-13	S07575-008	Slide Block Assembly
C-1-13	S07575-009	Slide Block Assembly
C-1-13	S07575-010	Slide Block Assembly
C-1-13	S07575-011	Slide Block Assembly
	S09151-001	ハリボウレクミ Needle Bar (L) Assembly
	S09149-001	ハリボウRクミ Needle Bar (R) Assembly

Page 11 — D. 針棒切換操作関係

Brother LT2-B875 parts on page 11
Ref	Part number	Part name	Qty
1	S07581-001	Indication Plate Assembly	1
2	062711-012	Screw 4.76X10	2
3	S07584-001	Push Lever	1
4	149127-001	Stud Screw 6.35	2
5	S07585-001	Push Lever Plate	1
6	062670-512	Screw 3.57X5	2
7	149843-001	Spring	1
8	149847-002	Stop Lever Shaft Assembly	1
8-3	047301-842	Spring Pin AW3	1
9	149852-001	Stud (L)	1
10	149853-001	Stud (S)	1
11	150818-001	Flip-up Holder Plate Assembly	1
12	062711-012	Screw 4.76X10	2
13	S07587-101	Joint Guide Bushing	1
14	150820-001	Spring	1
15	071063-550	Stell Ball 1/4	1
16	149855-001	Lever Arm Shaft	1
17	062711-412	Screw 4.76X14	1
18	146597-101	Stud Screw 4.37	2
19	149857-001	Spring	2
20	149858-001	Slide Shaft Supporter	1
21	107272-002	Screw 4.37	2
22	S07588-001	Slide Shaft	1
23	S07586-001	Slide Shaft Supporter Plate	1
24	149863-001	Spring	2
25	149864-001	Set Collar	3
26	011679-312	Screw 3.57	5
27	149865-001	Guide Screw	1

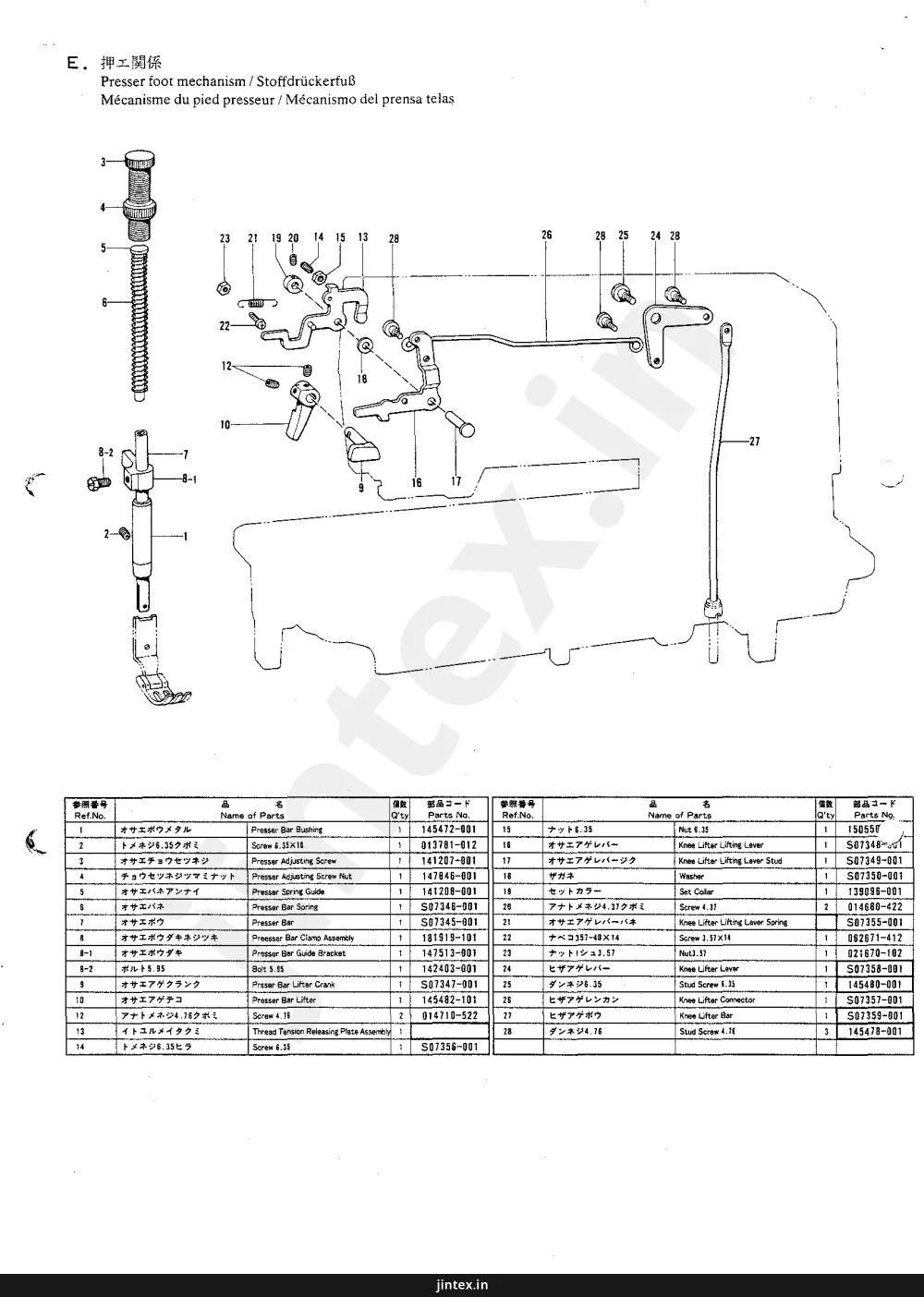

Page 12 — E. 押エ関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme du pied presseur / Mecanismo del prensa telas

Brother LT2-B875 parts on page 12
Ref	Part number	Part name	Qty
1	145472-001	Presser Bar Bushing	1
2	013781-012	Screw 6.35X16	1
3	141207-001	Presser Adjusting Screw	1
4	147846-001	Presser Adjusting Screw Nut	1
5	141208-001	Presser Spring Guide	1
6	S07346-001	Presser Bar Spring	1
7	S07345-001	Presser Bar	1
8	181919-101	Preesser Bar Clamp Assembly	1
8-1	147513-001	Presser Bar Guide Bracket	1
8-2	142403-001	Bolt 5.95	1
9	S07347-001	Presser Bar Lifter Crank	1
10	145482-101	Presser Bar Lifter	1
12	014710-522	Screw 4.76	2
14	S07356-001	Screw 6.35	1
15	150553	Nut 6.35	1
16	S07348-001	Knee Lifter Lifting Lever	1
17	S07349-001	Knee Lifter Lifting Lever Stud	1
18	S07350-001	Washer	1
19	139096-001	Set Collar	1
20	014680-422	Screw 4.37	2
21	S07355-001	Knee Lifter Lifting Lever Spring
22	062671-412	Screw 3.57X14	1
23	021670-102	Nut3.57	1
24	S07358-001	Knee Lifter Lever	1
25	145480-001	Stud Screw 6.35	1
26	S07357-001	Knee Lifter Connector	1
27	S07359-001	Knee Lifter Bar	1
28	145478-001	Stud Screw 4.76	3

Page 13 — F. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de léntraînement / Mecánismo de la alimentación

Brother LT2-B875 parts on page 13
Ref	Part number	Part name	Qty
1	S09314-001	Feed Regulator Assembly	1
1-2	S07363-001	Slide Block Guide Plate	2
1-3	062681-012	Screw 4.37X10	4
1-4	S07364-001	Feed Regulator Slide Block Assembly	1
2	S07379-001	Feed Regulator Stopper	1
3	062670-512	Screw 4.76X6	1
4	143611-101	Level Feed Connection Rod Assembly	1
4-1	143612-000	Level Feed Connecting Rod	1
4-2	118954-000	Needle Bearing	1
5	155451-201	Level Feed Eccentric Wheel Assembly	1
5-2	014771-022	Screw 6.35	2
6	S07378-001	Bearing Cover	1
7	062670-812	Screw 3.57X8	2
8	143613-001	Level Feed Connecting Link	1
9	143616-001	Level Feed Rock Arm Stud	1
10	048060-342	Stop Ring E6	2
11	150930-001	Level Feed Rock Arm	1
12	S01304-001	Screw 6.35X18	1
13	159361-001	Stitch Length Control Screw	1
14	129500-004	Stitch Length Control Dial	1
15	154792-001	Stitch Length Control Scale	1
16	129458-002	Screw 4.76	1
17	142746-002	Length Control Supporter	1
18	145502-001	Pin	1
19	100328-001	Notch Spring	1
20	S09254-001	Feed Regulator	1
21	118853-001	Screw 5.95	2
22	S07369-001	Feed Regulator Connecting Link	1
23	S07370-001	Stud Screw 5.95	2
25	048080-342	Stop Ring E8	1
26	025100-132	Washer 10	1
27	147504-001	Washer	1
28	062670-512	Screw 3.5X5	3
30	118853-001	Screw 5.95	1
31	S07375-001	Spring	1
32	S07380-001	Reverse Lever Stopper	1
33	062711-012	Screw 4.76X10	1
34	025710-232	Washer 4.76	1
35	S07376-001	Spring	1
36	S07377-001	Spring Hook Plate	1
37	062710-612	Screw 4.76X6	2
	S09354-001	Feed Regulator	1

Page 14 — G. 送り軸関係 / Feed shaft mechanism / Transport welle / Mécanisme de l'arbre entraînement / Mecanismo de la eje alimentación

Brother LT2-B875 parts on page 14
Ref	Part number	Part name	Qty
1	148494-001	Feed Rock Shaft Bushing (L)	1
2	S07386-001	Feed Rock Shaft Bushing (R)	1
3	013781-012	Screw 6.35	2
4	148492-101	Feed Rock Shaft	1
5	113074-001	Feed Rock Shaft Collar	2
6	101706-001	Screw 6.35	4
8	148491-001	Feed Bar Shaft	1
9	143591-001	Thrust Ring	2
10	014680-622	Screw 4.37	1
11	150958-001	Feed Bar Fork	1
12	062761-412	Screw 5.35X14	1
13	025060-132	Washer 6	1
14	062661-212	Screw 3.18X12	1
15	021660-102	Nut 3.18	1

Page 15 — H. カマ関係(1) Rotary hook mechanism (1) / Greifervorrichtung (1) / Mécanisme du crochet rotatif (1) / Mecanismo del cangrejo (1)

Brother LT2-B875 parts on page 15
Ref	Part number	Part name	Qty
4	100197-002	Washer	2
5	S09259-001	Rotary Hook Shaft Bushing (U)	2
6	S09260-001	Thrust Ring A (1.2mm)
6	S09261-001	Thrust Ring B (1.4mm)

Page 16 — H. カマ関係(2)(スタンダード) Rotary hook mechanism (2) (Standard) / H. カマ関係(3)(糸切リ) Rotary hook mechanism (3) (Thread Trimmer)

Brother LT2-B875 parts on page 16
Ref	Part number	Part name	Qty
1-1	S09255-001	Rotary Hook Base (L)	1
2-1	S09257-001	Rotary Hook Base (R)	1
23-1	S09265-001	Rotary Hook Assembly	2
23-1-1	S09267-001	Outer Rotary Hook Assembly	2
23-1-1-8	151027-001	Screw	4
23-1-2	S09274-001	Inner Rotary Hook Assembly	2
23-1-3	S09279-001	Cap Assembly	2
23-1-3-2	155478-001	Spring	2
23-1-3-3	151035-001	Screw	2
23-1-3-4	155479-001	Tension Adjusting Spring	2
23-1-3-5	151029-001	Tension Adjusting Screw	2
23-1-3-6	151030-001	Screw	2
41-1	155484-101	Bobbin	2
42-1	156557-001	Bobbin Presser Spring	2
1-2	S09256-001	Rotary Hook Base (L)	1
2-2	S09258-001	Rotary Hook Base (R)	1
23-2	S09266-001	Rotary Hook Assembly	2
23-2-1	S09266-001	Outer Rotary Hook Assembly	2
23-2-1-8	151027-001	Screw	4
23-2-2	S09273-001	Inner Rotary Hook Assembly	2
23-2-3	S09280-001	Cap Assembly	2
23-2-3-2	155478-001	Spring	2
23-2-3-3	151035-001	Screw	2
23-2-3-4	155479-001	Tension Adjusting Spring	2
23-2-3-5	151029-001	Tension Adjusting Screw	2
23-2-3-6	151030-001	Screw	2
23-2-3-7	S09284-001	Holding Plate	2
23-2-3-8	159802-001	Screw 1.59X2	2
41-2	S09285-001	Bobbin	2
42-2	S09286-000	Bobbin Presser Spring	2

Page 17 — J. Lower shaft mechanism / Untere welle

Brother LT2-B875 parts on page 17
Ref	Part number	Part name	Qty
1	S09287-000	Rotary Hook Base Bushing (L)	1
2	S09288-000	Rotary Hook Base Bushing (R)	1
3	013781-012	Screw 6.35	2
5-1	180949-001	Spiral Gear Assembly	2
6	112684-001	Screw 6.35	2
7	100251-001	Screw 6.35	4
8	101706-001	Screw 6.35	6
10	S07446-001	Bearing Holder Assembly	1
10-1	S07447-001	Bushing	1
10-2	072600-480	Bearing 6004ZZNR	1
10-3	148821-001	Screw 6.35	1
11	014771-022	Timing Belt Wheel (O) Assembly	1
11-3	158115-001	Side Ring	1

Page 18 — K. 給油潤滑関係(1) / Lubrication (1) / Schmierung (1) / Lubrification (1) / Lubricación (1)

Brother LT2-B875 parts on page 18
Ref	Part number	Part name	Qty
9	112716-101	Oil Stopper Plate	1
10	112717-001	Oil Stopper Plate Presser	1
11	062711-012	Screw 4.76X10	1
14	112739-001	Wick Supporter	2
15	062670-512	Screw 3.57X5	2
16	112739-001	Wick Supporter	1
17	062670-512	Screw 3.57X5	1
24	S07450-000	Oil Tank	1
25	062711-012	Screw 4.76X10	2
26	025710-232	Washer 4.76	2
27	081030-070	O Ring P30	1
28	108549-001	O Ring	1
30	140890-001	Oil Cap	2
31	104821-001	Oil Cap	6
32	142274-001	Oil Cap	2
32	149834-001		1
34	149834-000	Felt	1
37	148762-001	Felt	1
38	112734-001	Felt	1
39	S07571-000	Felt	1
40	112753-001	Felt	3
47	S07453-000	Oil Tube	1
49	S07454-000	Oil Tube	1
50	S07456-000	Oil Tube	1
51	S07457-100	Oil Tube	1
52	S07810-100	Oil Tube	1
55	150374-000	Wick (20cm)	1
56	112728-001	Wick 4X4(5cm)	1
57	114693-001	Wick 3X3(3cm)	1
58	112735	Wick 6X6(4.5cm)	1
59	113655	Wick 6X6(13cm)	1
60	S03289-001	Wick 4X4(4cm)	1
61	112736-000	Wick 4X4(44cm)	1
69	S07462-000	Wick 3X3(2.5cm)	1
71	153920-001	Wick 4X4(30cm)	1
72	152974-001	Wick 4X4(35cm)	1
73	S03289-001	Wick 4X4(4cm)	2
76	S07570-001	Dust Protector	1
77	062670-512	Screw 3.57X5	2
78	S07467-001	Tube Holder	1
79	062680-812	Screw 4.37X8	1
79	062680-012		1
80	S07468-000	Oil Seal	1
81	S07469-001	Wick Choke Plate	2
84	149626-001	Cap	1
85	060660-512	Screw 3.51X5	2
86	S07473-000	Oil Filter	1
87	S07481-000	Oil Mark Seat	1
91	S07876-001	Tube Clamp	10
93	S09369-000	Wick (7cm)	1
94	S09364-000	Oil Seal	1
95	112758-001	Oil Cap	1

Page 19 — K. 給油潤滑関係(2)

Brother LT2-B875 parts on page 19
Ref	Part number	Part name	Qty
1	S07448-001	Rotary Hook Base Cover	2
2	S07449-000	Rotary Hook Base Packing	2
3	062670-812	Screw 3.57X8	8
4	S07477-000	Rubber Ring	2
5	S07478-000	Rubber Presser	2
6	S07479-001	Oil Adjusting Screw	2
7	S07480-001	Stopper Spring	2
8	062670-512	Screw 357-40X5	2
12	112743-001	Tube Holder	1
12	11743-001	Tube Holder	1
13	062670-512	Screw 3.57X5	1
18	143673-001	Wick Support	1
19	062660-412	Screw 3.18X4	2
20	142268-001	Tube Holder L	2
21	062670-512	Screw 3.57X5	2
22	S07471-001	Wick Holder	2
23	062670-512	Screw 3.57X5	2
33	140327-001	Oil Cap	1
35	151927-001	Felt	2
35	131927-001	Felt	1
36	S07476-000	Felt	2
41	113362-001	Felt	2
42	115249-001	Felt	1
43	112759-001	Felt	1
44	100257-010	Screw 3.57	1
45	148743-001	Felt	4
46	S07460-000	Wire	1
48	S07455-000	Oil Tube	1
53	S07458-000	Oil Tube	1
54	S07459-000	Oil Tube	1
62	152974-001	Wick 4X4(3.5cm)	1
63	S07461-000	Wick 3X3(3.2cm)	2
64	108802-001	Wick 4X4(25cm)	2
65	108802-001	Wick 4X4(25cm)	1
66	S03289-001	Wick 4X4(4cm)	1
67	11191-001	Wick 4X4(3.5cm)	1
68	112750-000	Wick 4X4(11cm)	1
70	S07463-000	Wick 4X4(7cm)	2
74	S07464-000	Wick (71cm)	1
75	156070-002	Spacer	2
82	S07470-001	Wick Holder	2
83	062670-512	Screw 3.57X5	2
92	146253-000	Tube	1

Page 20 — L. 糸通シ関係(1)

Brother LT2-B875 parts on page 20
Ref	Part number	Part name	Qty
2	140527-001	Top Cover Thread Guide	2
3	150553-003	Nut 5.95	2
4	100064-002	Screw 3.57	1
5	112709-001	Stopper	1
6	062670-512	Screw 3.57X5	1
7	S07493-001	Tension Release Bar	1
8	062680-812	Screw 4.37X8	1
9	108266-001	Arm Thread Guide (U)	1
10	112658-001	Arm Thread Guide (M)	1
12	108960-002	Screw 3.57	3

Page 21 — L. 糸通し関係(2)(スタンダード) / Threading mechanism (2) (Standard) / Fadenführungsvorrichtung (2) (Norm) / Mécanisme de Jénfilage (2) (Standard) / Mec

Brother LT2-B875 parts on page 21
Ref	Part number	Part name	Qty
1-1	S07489-001	Tension Control Assembly	1
1-1-2	144680-001	Tension Stud	1
1-1-3	155491-001	Thread Take-up Spring	1
1-1-4	108254-001	Spring Guide Assembly	2
1-1-5	144682-001	Screw 2.3B	1
1-1-6	108265-001	Tension Control Nut	1
1-1-10	S07487-001	Tension Release Plate	1
1-1-11	118320-001	Spring	1
1-1-12	112712-001	Stud Screw 3.5T	2
1-1-13	144704-001	Tension Release Pin	1
1-1-14	S07488-001	Tension Release Pin L	1
1-1-15	145446-001	Tension Disc	4
1-1-16	159805-001	Tension Disc Washer	2
1-1-17	S07490-001	Tension Spring	2
1-1-18	149566-002	Thread Tension Adjusting Nut	2
11-1	112715-001	Arm Thread Guide (D)	1
13	114941-001	Felt	1
	S07492-001	Tension Control Assembly	1
	158771-001	Thread Guide Shaft (L)	1
	158770-001	Thread Guide Shaft (R)	1
	144504-001	Thread Guide Disc	4
	158782-101	Pre-tension Spring	2
	155510-001	Tension Control Nut	2
	021670-102	Nut 3.57	2
	112658-001	Arm Thread Guide (M)	1

Page 22 — M. 糸切り関係(糸切り) Thread trimmer mechanism (Thread Trimmer) / Fadenabschneidevorrichtung (Fadenabschneider) Mécanisme de coupe-fill (Coupe-fil) / Mecanismo de recortadora de orillos (Cortahilos)

Brother LT2-B875 parts on page 22
Ref	Part number	Part name	Qty
2	140647-001	Cord Supporter	1
3	062670-512	Screw 3.57X5	1
	S07496-001	Thread Trimming Solenoid Bracket	1
	110201-001	Screw 6.35	1
	S07497-001	Thread Trimming Solenoid Joint	1
	118713-001	Pin	1
	014680-622	Screw 4.37	2
	S07498-001	Thread Trimming Solenoid Lever	1
	S07499-001	Thread Trimming Solenoid Lever Bracket	1
	062711-012	Screw 4.76×10	2
	S07500-001	Thread Trimming Solenoid Lever Stud	1
	S07501-001	Thread Trimming Driving Rod	1
	148546-001	Plunger Pin	1
	S07502-001	Thread Trimming Driving Rod Plate	1
	S07503-000	Rubber Cushion	1
	116662-003	Washer	1
	107321-003	Stud Screw 4.76	1
	S07504-001	Knife Main Lever Assembly	1
	148559-000	Rubber	1
	S07508-001	Knife Main Lever Shaft	1
	013781-012	Screw 6.35	1
	S07509-001	Knife Main Lever Spring	1
	S07510-001	Thread Trimming Cam	1
	148574-001	Screw 6.35	1
	014771-022	Screw 6.35	1
	S07511-001	Length Adjusting Rod Assembly	1
	S07512-001	Round Joint (R) Assembly	1
	S07514-001	Round Joint (L) Assembly	1
	S07516-001	Length Adjusting Rod	1
	148592-001	Nut 5.95	1
	100022-005	Nut 5.95	2
	141494-001	Round Joint Stud Screw	2
	S07517-001	Thread Trimming Lever (R)	1
	S07518-001	Thread Trimming Lever (L)	1
	062681-212	Screw 4.37×12	2
	S07519-001	Stopper Screw 4.76	2
	S07520-001	Thread Trimming Lever Spring	2
	062671-412	Screw 3.57×14	2
	021670-102	Nut 3.57	2
	S07521-001	Thread Trimming Connecting Rod (R)	1
	S07522-001	Thread Trimming Connecting Rod (L)	1
	144526-001	Stud Screw 4.37	2
	146380-002	Bolt 4.76×7	2
	025732-001	Washer 4.76	2
	S07523-001	Movable Knife Lever	2
	120752-001	Set Collar	2
	100251-001	Screw 6.35	4
	S07524-001	Movable Knife Holder Bracket	2
	062670-812	Screw 3.57×8	4
	S07525-000	Lower Thead Holding Spring	2
	141544-001	Screw 3.18	4
	S07526-001	Movable Knife	2
	148539-001	Screw 4.37	2
	S07527-001	Fixed Knife	2
	153969-000	Nylon Connector 12P	1
	153971-001	Connector Cap 5	1
	S03328-000	Terminal Pin (L) (Main)	1
	294569-001	Terminal 4.5×14	1
	S02745-001	Washer	1
	062680-663	Screw 4.37×6	1
	154210-000	W Cord (S) Assembly	1
	146194-000	Nylon Connector	1
	143548-000	Terminal Pin (Female)	1
	143549-000	Terminal Pin (Male)	1
	146046-000	Nylon Connector	1
	340400-001	Bead Band	1

Page 23 — N. 糸ユルメ関係(糸切り)

Brother LT2-B875 parts on page 23
Ref	Part number	Part name	Qty
1	S07529-001	Tension Releasing Connector Assembly	1
2	048030-342	Stop Ring E3	2
3	S07528-000	Tension Releasing Wire	1
4	110161-004	Nut 4.76	2
5	S07533-001	Wire Holder Base	1
6	062670-812	Screw 3.57X11	2
6	062670-612		1
7	154607-001	Tension Releasing Wire Holder (D)	2
8	062670-512	Screw 3.57X5	4
9	S07531-001	Wire Holder	1
10	062680-812	Screw 4.37X8	1
10	062680-612		1
11	S07532-001	Wire Guide	1
12	062710-612	Screw 4.76X6	2
12	003719-612		1
13	S07534-001	Tension Releasing Lever Assembly	1
14	149127-001	Stud Screw 6.35	1
15	S07536-001	Spring	1
16	062661-212	Screw 3.18X12	1
17	021660-102	Nut 3.18	1

Page 25 — DC モーター / D.C. Motor

Brother LT2-B875 parts on page 25
Ref	Part number	Part name	Qty
1	230157-001	Synchronizer Assembly #14-2	1
2	062711-012	Screw 4.76X10	1
3	113431-002	Washer	1
4	S06241-000	Insulation Seat	1
5	S06242-001	Speed Command Plate	1
6	S06243-001	Needle Upper Plate	1
6	062661-612	Needle Upper Plate	1
7	062681-612	Screw 4.37X16	2
8	100645-003	Washer	2
9	148825-001	Slip Ring Support	1
10	062711-412	Screw 4.76X14	2
11	158775-001	Synchronizer Holder	1
12	062680-812	Screw 4.37X8	1
13	158776-001	Synchronizer Holder Stud	1

Page 26 — R. 逆転関係(糸切り) Quick reverse mechanism (Thread Trimmer) / S. 逆転スイッチ関係(糸切り) Quick reverse switch mechanism (Thread Trimmer)

Brother LT2-B875 parts on page 26
Ref	Part number	Part name	Qty
1	S07385-001	Reverse Solenoid Bracket	1
2	062781-412	Screw 6.35X14	2
3-3	154730-001	Stop Ring E15	1
3-4	154731-000	Rubber Cushion	1
3-5	143549-000	Terminal Pin (Male)	2
4	007500-812	Screw 5X8	3
5	153245-001	Connecting Pin	1
6	048040-342	Stop Ring E4	1
7	153138-001	Washer	1
8	146105-000	Reverse Solenoid Cover	1
9	007500-812	Screw 5X8	1
10	S01327-001	Reverse Solenoid Rubber	1
11	S01328-001	Collar	1
12	S07381-001	Reverse Solenoid Lever Assembly	1
13	149094-001	Reverse Solenoid Lever Stud	1
14	S01304-001	Screw 6.35X18	1
15	149095-001	Washer	1
16	153132-000	Nylon Tube	1
17	100511-003	Screw 4.76	1

Page 27 — T. ヒザスイッチ関係（糸切リ・-700, -900） / Knee switch mechanism (Thread Trimmer · -700, -900) / Knieschalter (Fadenabschneider · -700, -900) / Mécanisme

Brother LT2-B875 parts on page 27
Ref	Part number	Part name	Qty
1	S07045-001	Knee Lifter Switch Assembly	1
1-1	142026-003	Knee Lifter Switch Shaft	1
1-2	142027-001	Knee Lifter Switch Shaft Bracket	1
1-3	100463-001	Bolt 7.94	1
1-4	114967-001	Plate Stopper	1
1-5	110087-001	Bolt 5.95	1
1-6	S07027-001	Knee Lifter Switch Plate	1
1-7	002401-003	Screw 4X10	4
1-8	025040-233	Washer 4	4
1-9	028040-243	Spring Washer 2-4	4
1-10	021400-164	Nut 4	4
1-11	S07030-000	Switch Cord Assembly	1
1-11-1	S07031-000	Presser Foot Lifter Switch Assembly	1
1-11-1-2	143549-000	Terminal Pin (Male)	2
1-11-1-3	143548-000	Terminal Pin (Female)	1
1-11-2	146046-000	Nylon Connector	2
1-11-3	146194-000	Nylon Connector	1
1-12	149799-000	Bead Band S	1
1-3	110067-001	Bolt 7.94	1
2	034422-503	Screw 4.1X25	4

Page 28 — U. 空圧関係(糸切り・-700)

Brother LT2-B875 parts on page 28
Ref	Part number	Part name	Qty
1	151126-101	Air Unit Valve Assembly	1
1-1	151153-101	Air Unit Assembly	1
1-2	151127-100	Air Valve	1
1-3	140682-001	Silencer	1
1-4	151147-001	1/8" Elbow Assembly	1
1-5	142037-000	Speed Control Connector	1
1-6	142038-001	Speed Controller	1
1-7	140543-000	1/8" Connector	1
1-8	154214-001	Air Unit Holder Plate	1
1-9	140540-000	Air Tube	1
1-10	143488-001	Nylon Connector	1
1-11	143489-001	Connector Cap	1
1-12	154215-001	Insulation Tube	1
1-13	143549-000	Terminal Pin (Male)	2
1-14	002501-003	Screw 5X10	2
1-15	028050-243	Spring Washer 2-5	2
3	101118-001	Screw 4.5X20	2
4	200190-001	Staple	8
5	S05247-101	Air Unit Cord Assembly	1
5-1	154172-001	Presser Foot Lifter Cord Assembly	1
5-1-2	143499-000	Nylon Connector	1
5-1-3	143489-001	Connector Cap	1
5-1-4	143548-000	Terminal Pin (Female)	2
5-1-5	143549-000	Terminal Pin (Male)	2
5-2	S05981-000	B Cord 100 Assembly 2	1
5-2-2	143549-000	Terminal Pin (Male)	2
5-2-3	146046-000	Nylon Connector	1
5-3	S05982-000	W Cord 100 Assembly	1
5-3-2	143549-000	Terminal Pin (Male)	1
5-3-3	143548-000	Terminal Pin (Female)	1
5-3-4	146194-000	Nylon Connector	1
5-4	143522-000	Nylon Connector	1
5-5	220077-001	Plug Cover #14	1

Page 29 — V. 押工上ゲ関係(1)(糸切り・-700)

Brother LT2-B875 parts on page 29
Ref	Part number	Part name	Qty
1	S07589-001	Presser Foot Cylinder Assembly	1
3	S07590-001	Cylinder Bracket	1
4	105173-004	Screw 4.76	2
5	025710-132	Washer 4.76	2
6	146153-001	Link Pin	1
7	048040-342	Stop Ring E4	1
8	140620-001	Screw	2
9	S07591-001	Knee Lifter Lever	1
10	141528-001	Stud Screw 6.35	1
17	145478-001	Stud Screw 4.76	2
18	151154-000	Air Tube	1

Page 31 — W. 電磁押エ上ゲセット関係(糸切リ・-900) / Presser foot lifting solenoid set (Thread Trimmer · -900) / Solenoidsatz für die Anhebung des Stoffdrückerfußes (

Brother LT2-B875 parts on page 31
Ref	Part number	Part name	Qty
1-1-1	S02580-001	Solenoid Bracket	1
1-1-2	S02581-001	Solenoid Bracket	1
1-1-3	062761-212	Screw 5.5X12	4
1-1-4	S02582-001	Presser Foot Lifting Solenoid Assembly	1
1-1-4-2	S02584-000	Cushion	1
1-1-4-3	S02585-000	Vinyl Tube	1
1-1-4-4	211131-001	Insulation Terminal 4X18	2
1-1-5	153122-000	Rubber Cushion	2
1-1-6	158677-001	Nut M6	1
1-1-7	S02586-001	Link Joint	1
1-1-10	S02588-000	Terminal Block	1
1-1-11	062671-012	Screw 3.5X10	2
1-1-12	S06537-000	Resistor	1
1-1-13	062670-612	Screw 3.5X6	1
1-1-14	S02590-000	Diode	1
1-1-15	S02591-000	Lead Wire	1
1-1-16-2	204569-001	Terminal 4.5X14	1
1-1-16-3	143549-000	Terminal Pin (Male)	3
1-1-17	S02745-001	Washer	1
1-1-18	062680-663	Screw 4.3X6	1
1-1-19	142268-001	Tube Holder (L)	1
1-1-20	062670-616	Screw 3.5X6	1
1-1-21	S02592-001	Terminal Base Cover	1
1-1-22	062670-612	Screw 3.5X6	2
1-1-23	025060-232	Washer 6	4
1-1-24	143522-000	Nylon Connector	1
1-1-25	220077-001	Plug Cover #14	1
1-1-26	S05981-000	B Cord 100 Assembly 2	1
1-1-26-2	143549-000	Terminal Pin (Male)	2
1-1-26-3	146046-000	Nylon Connector	1
1-1-27	S05982-000	W Cord 100 Assembly	1
1-1-27-2	143549-000	Terminal Pin (Male)	1
1-1-27-3	143548-000	Terminal Pin (Female)	1
1-1-27-4	146194-000	Nylon Connector	1
1-1-29	S07182-001	Lever	1
1-2	152808-101	Connecting Rod Assembly	1
1-2-1	154332-001	Presser Foot Lifter Regulating Rod	1
1-2-2	154333-001	Presser Foot Lifter Regulating Joint	1
1-2-3	150556-001	Nut 6.35	1
1-3	141583-001	Stud Screw 6.35	1
1-8	100666-002	Screw 5.5X20	4
1-9	S02587-001	Pin	1
1-10	048060-342	Stop Ring E6	1
	062761-012	Screw 3.57X12	4

Page 32 — Z. 付属品関係(1) / Accessories (1) / Zubehör (1) / Accessoires (1) / Accesorios (1)

Brother LT2-B875 parts on page 32
Ref	Part number	Part name	Qty
1	122991-001	Accessory Bag	1
2	142443-001	Screw Driver 1.3X52	1
3	118837-001	Screw Driver 3.4X70	1
4	101572-101	Screw Driver 5.5X150	1
5	107779-001	Spanner 6X7	1
6	100887-001	Spanner 8X9	1
7	107780-001	Spanner 10X12	1
8	142002-001	Allen Wrench 2	1
9	142721-001	Allen Wrench 3	1
12	114941-001	Felt	2
13	100477-001	Head Rest	1
14	154702-001	Oil Tank	1
15	117963-001	Bobbin Winder Assembly	1
15-3	145446-001	Tension Disk	2
15-4	100401-001	Tension Spring	1
15-10	117969-001	Spring	1
15-11	117970-001	Bobbin Winder Shaft	1
15-12	117971-001	Bobbin Winder Wheel Assembly	1
15-13	100366-002	Screw 4.37X5	1
15-15	100657-001	Screw 3.18	1
15-17	100659-001	Stud Screw 3.18	1
15-20	100662-001	Bobbin Winder Wheel Stopper	1
15-21	S01297-001	Bobbin Winder Wheel Stopper Holder	1
15-22	S01297-001	Screw 3.57X3.5	1
16	100666	Screw 5.5X20	2
18	144222-001	Head Cover	1
23	S07527-001	Fixed Knife	1
24	148539-001	Stud Screw 2.38	1
26	143882-001	Hinge Assembly	2
27	143910-001	Rubber Cushion	2
28	148890-101	Head Cushion	4
29	109714-000	Nail	6
33	114486-002	Oiler	1
34	114483-002	Oiler	1
35	183480-001	Belt Cover Assembly	1
35-1	S08468-000	Belt Cover Collar Assembly	1
35-1-2	S07660-000	Rubber Collar	4
35-4-2	062712-012	Screw 4.76X20	4
35-4-3	025050-332	Washer 5	4
35-4-4	062680-812	Screw 4.37X8	1
35-4-5	025680-232	Washer 4.37	1
35-4-6	100666-002	Screw 5.5X20	2
35-4-7	025750-132	Washer 5.56	2
	117869-001	Bobbin Winder Guide Assembly	1
	117870-001	Tension Disk	2
	157971-001	Screw 4.37	1
	148890-191	Head Cushion	4
	S08468-001	Belt Cover (U)	1

Page 33 — Thread Trimmer

Brother LT2-B875 parts on page 33
Ref	Part number	Part name	Qty
17-1	S02766-001	Cotton Stand Assembly 3D	1
17-1-1	156112-002	Pipe (D)	1
17-1-2	S02775-001	Pipe (D) Screw Set (A)	1
17-1-2-1	150206-002	Washer 16	1
17-1-2-2	150191-002	Nut 5/8	1
	150172-002	Nut 5/8	1
	150106-002	Column Pipe	1
	150173-002	Column Joint Assembly	1
	062501-406	Screw 5X14	2
	021500-106	Nut 5	2
	150174-000	Column Cap	1
	S02779-001	Spool Holder 3	1
	S02782-001	Spool Screw Set 3	1
	150179-002	Spool Shaft (B)	3
	028050-246	Spring Washer 2-5	3
	062503-006	Screw 5X30	1
	026050-136	Washer 5	2
	150180-000	Spool Stand Base	3
	150182-000	Spool Mat	3
	126863-001	Spool Cushion	1
	S02784-001	Spool Holder Supporter (A) Assembly	1
	150188-002	Spool Holder Supporter (A)	1
	062501-006	Screw 5X10	1
	031452-206	Screw 45X22	1
	S02788-001	Thread Hanger Assembly 3	1
	S02747-001	Thread Spring	1
	150145-002	Thread Guide Holder Assembly	1
	150185-002	Thread Guide Holder	1
	S04109-001	Thread Guide Supporter	1
	138843-001	Thread Guide Holder	1
	014060-632	Screw 4X6	2
	142997-001	Thread Guide 3	1
	S07558-001	Cotton Stand Assembly 3DRTHF	1
	S02777-001	Pipe (D) Screw Set (B)	1
	S01005-000	Rubber Washer	2

Page 34 — 付属品関係(3) / Accessories (3) / Zubehör (3) / Accessoires (3) / Accesorios (3)

Brother LT2-B875 parts on page 34
Ref	Part number	Part name	Qty
20	145573-000	Knee Lifter Complying Bar	1
21-1	S07559-001	Knee Lifter Assembly	1
21-1-1	S07560-000	Knee Lifter Bracket	1
21-1-2	146036-101	Knee Lifter Shaft	1
21-1-3	146037-001	Knee Lifter	1
21-1-4	146367-001	Bolt 5.95	1
21-1-5	104885-001	Screw 5.95	2
21-1-6	100022-004	Nut 5.95	2
21-1-7	146038-001	Spring	1
21-1-8	146293-001	Stop Ring E10	1
21-2	S07726-001	Knee Lifter Assembly	1
21-2-1	S07560-000	Knee Lifter Bracket	1
21-2-2	146069-001	Knee Lifter Shaft	1
21-2-3	S02595-101	Presser Foot Lifting Link	1
21-2-4	146367-001	Bolt 5.95	1
21-2-5	S07729-001	Spring	1
	100666-002	Screw 5.5×20	4
	S07561-001	Oil Pan	1
	109714-000	Nail	5
	150756-000	Oil Cap	1
	181427-001	Knee Lifter Assembly	1
	100463-001	Bolt 7.94	1
	017762-013	Bolt 5.95×20	1
	104619-002	Knee Lifter Plate	1
	114966-001	Knee Lifter Plate Stopper	1
	110087-001	Bolt 5.95	1
	140503-001	Knee Lifter Cover	1
	S08188-001	Skirt	1
	013660-412	Screw 3.18×4	2
	149831-001	Screw 3.18	2
	149833-001	Screw 3.18	2
	149832-001	Thread Guide Plate	2
	107404-001	Screw 1.98	2
	105629-002	Screw 4.37	2
	100032-004	Screw 4.37	1
	113050-001	Screw 3.57	1
	S07494-001	Screw 3.18	2

Page 35 — GAUGE PARTS LIST/LEHREN LISTE LISTE DES PIECES DECARTEMENT/LISTA DE PIEZAS CALIBRADORAS

Brother LT2-B875 parts on page 35
Ref	Part number	Part name	Qty
	150885-001	a-1 Needle Clamp Assembly
	117369-001	a-6 Needle Plate
	114951-001	a-11 Feed Dog
	155463-001	a-9 Presser Foot Assembly
	150843-001	a-1 Needle Clamp Assembly
	150850-001	a-6 Needle Plate
	116509-001	a-11 Feed Dog
	155455-001	a-9 Presser Foot Assembly
	150844-001	a-1 Needle Clamp Assembly
	117133-001	a-6 Needle Plate
	112659-001	a-11 Feed Dog
	155457-001	a-9 Presser Foot Assembly
	150830-001	a-1 Needle Clamp Assembly
	117367-001	a-6 Needle Plate
	112660-001	a-11 Feed Dog
	155453-001	a-9 Presser Foot Assembly
	150845-001	a-1 Needle Clamp Assembly
	144882-001	a-6 Needle Plate
	112661-001	a-11 Feed Dog
	155459-001	a-9 Presser Foot Assembly
	150846-001	a-1 Needle Clamp Assembly
	144881-101	a-6 Needle Plate
	116510-101	a-11 Feed Dog
	155461-001	a-9 Presser Foot Assembly
	S05832-001	a-1 Needle Clamp Assembly
	S09365-001	a-6 Needle Plate
	116511-001	a-11 Feed Dog
	S09367-001	a-9 Presser Foot Assembly
	156530-001	a-1 Needle Clamp Assembly
	S09366-001	a-6 Needle Plate
	116512-001	a-11 Feed Dog
	159557-001	a-9 Presser Foot Assembly
	150885-001	a-1 Needle Clamp Assembly
	155722-001	a-6 Needle Plate
	148698-001	a-11 Feed Dog
	148699-001	a-11 Feed Dog
	155463-001	a-9 Presser Foot Assembly
	150843-001	a-1 Needle Clamp Assembly
	155724-001	a-6 Needle Plate
	148700-001	a-11 Feed Dog
	148701-001	a-11 Feed Dog
	155455-001	a-9 Presser Foot Assembly
	150844-001	a-1 Needle Clamp Assembly
	155851-001	a-6 Needle Plate
	148702-001	a-11 Feed Dog
	148703-001	a-11 Feed Dog
	※S07905-001	a-11 Feed Dog
	155457-001	a-9 Presser Foot Assembly
	150830-001	a-1 Needle Clamp Assembly
	155853-001	a-6 Needle Plate
	148704-001	a-11 Feed Dog
	148705-001	a-11 Feed Dog
	※158756-001	a-11 Feed Dog
	155453-001	a-9 Presser Foot Assembly
	150845-001	a-1 Needle Clamp Assembly
	155855-001	a-6 Needle Plate
	149692-001	a-11 Feed Dog
	149691-001	a-11 Feed Dog
	155459-001	a-9 Presser Foot Assembly
	150846-001	a-1 Needle Clamp Assembly
	155857-001	a-6 Needle Plate
	149939-001	a-11 Feed Dog
	149938-001	a-11 Feed Dog
	155461-001	a-9 Presser Foot Assembly
	S05832-001	a-1 Needle Clamp Assembly
	149677-001	a-6 Needle Plate
	149676-001	a-11 Feed Dog
	149675-001	a-11 Feed Dog
	S09367-001	a-9 Presser Foot Assembly
	156530-001	a-1 Needle Clamp Assembly
	149954-001	a-6 Needle Plate
	149949-001	a-11 Feed Dog
	149948-001	a-11 Feed Dog
	159575-001	a-9 Presser Foot Assembly

Page 36 — 仕様別部品一覧表 DIFFERENT PARTS LIST / ZUBEHÖRLISTE LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Brother LT2-B875 parts on page 36
Ref	Part number	Part name	Qty
M-1	S05892-000	Thread Trimming Solenoid
M-51	153969-000	Nylon Conector 12P
M-52	153971-001	Connector Cap 5
M-53	S02682-001	Earth Wire Assembly
M-53-2	S03328-000	Terminal Pin (L) (Male)
M-53-3	204569-001	Terminal 4.5X14	1 (DC), 2 (EFKA)
M-56	154210-000	W Cord (S) Assembly
M-57	146046-000	Nylon Connector
M-58	340400-001	Bead Band
P-1	S07537-100	Thread Wiper Solenoid Assembly
P-1-8	143549-000	Terminal Pin (Male)
R-3	154727-001	Reverse Solenoid Assembly
R-3-5	143549-000	Terminal Pin (Male)
S-1	S07555-001	Reverse Actuator Assembly
S-1-8	S02698-001	Reverse Switch Assembly
S-1-8-3	143549-000	Terminal Pin (Male)
U-1	151126-101	Air Unit Vaive Assembly
U-3	101118-001	Screw 4.5X20
U-4	200190-001	Staple
U-5	S05247-101	Air Unit Cord Assembly
W-1	183486-001	Presser Foot Lifting Solenoid Set
W-1-1	S06538-001	Presser Foot Lifting Solenoid Assembly
W-1-1-16	S02593-001	Presser Foot Lifting Cord Assembly
W-1-1-16-3	143549-000	Terminal Pin (Male)
W-1-1-24	143522-000	Nylon Connector
W-1-1-25	220077-001	Plug Cover #14
W-1-1-26	S05981-000	B Cord 100 Assembly 2
W-1-1-27	S05982-000	W Cord 100 Assembly
M-1	S07495-000	Thread Trimming Solenoid
M-53	S06004-001	Earth Wire Assembly
P-1	S07540-000	Thread Wiper Solenoid Assembly
R-3	154734-001	Reverse Solenoid Assembly
S-1	S07557-001	Reverse Actuator Assembly
S-1-8	S04210-001	Reverse Switch Assembly
W-1	183487-001	Presser Foot Lifting Solenoid Set
W-1-1	S04206-101	Presser Foot Lifting Solenoid Assembly
W-1-1-16	S04207-001	Presser Foot Lifting Cord Assembly

Page 37

Brother LT2-B875 parts on page 37
Ref	Part number	Part name	Qty
A-9	107415-014	Needle DP×5
A-15	112610-101	Slide Plate (F) Assembly
A-21	S07327-001	Cord Holder (L)
B-19	144614-001	Pulley
C-1	S07572-001	Needle Bar Rock Shaft Assembly
C-13	S07353-001	Thread Tension Releasing Plate Assembly
E-21	S07355-001	Knee Lifter Lifting Lever Spring	1
F-24	S07371-001	Feed Regulator Lever Shaft
F-29	S07373-101	Reverse Lever
F-30	118853-001	Screw 5.95
G-7	S07387-001	Feed Bar
J-4	S07439-001	Lower Shaft
J-9	181486-001	Vertical Feed Eccentric Wheel Assembly
J-11	S07442-001	Timing Belt Wheel (D) Assembly
Z-5	107779-001	Spanner 6X7
Z-6	100887-001	Spanner 8X9
Z-9	142721-001	Allen Wrench 3
Z-10	107415-014	Needle DP×5
Z-11	155484-101	Bobin
Z-12	114941-001	Felt
Z-17-1	S02766-001	Cotton Stand Assembly 3D
Z-17-2	S07558-001	Cotton Stand Assembly 3DRTHF
Z-23	S07527-001	Fixed Knife
Z-24	148539-001	Screw 2.38
Z-35	183480-001	Belt Cover Assembly
	107415-022	Needle DP×5
	145646-022	Needle DP×5
	148599-101	Cord Holder (L)
	S09162-001	Needle Bar Rock Shaft Assembly
	S07351-001	Thread Tension Releasing Plate Assembly
	S07372-001	Feed Regulator Lever Shaft
	S07374-101	Reverse Lever
	148490-001	Feed Bar
	S07441-001	Lower Shaft
	148804-001	Vertical Feed Eccentric Wheel Assembly
	S07444-001	Timing Belt Wheel (D) Assembly
	S09285-001	Bobin

Page 38 — Thread Trimmer

Brother LT2-B875 parts on page 38
Ref	Part number	Part name
E-24	S07358-001	Knee Lifter Lever
E-25	145480-001	Stud Screw 6.35
E-27	S07359-001	Knee Lifter Bar
E-28	145478-001	Stud Screw 4.76
Z-20	145573-000	Knee Lifter Complying Bar
Z-21-1	S07559-001	Knee Lifter Assembly
Z-21-2	S07726-001	Knee Lifter Assembly
Z-22	100666-002	Screw 5.5X20
Z-36	150756-000	Oil Cap
Z-39	181427-001	Knee Lifter Assembly
Z-40	S08188-001	Skirt

Page 40

Brother LT2-B875 parts on page 40
Ref	Part number	Part name
062681-012	048080-342	F-25
062681-212	048090-342	P-1-3
062681-612	060660-512	C-1-17
062761-412	062670-512	B-27
071063-550	062782-512	H-3
100022-004	081030-070	K-27
100105-005	100064-002	L-4
107030-001	062712-012	Z-35-4-2
Z-21-2-5	S07729-001
K-52	S07810-100
K-91	S07876-001
Z-40	S08188-001
Z-35-1	S08468-000
P-6	S08469-001
C-1	S09162-001
B-21	S09253-001
F-20	S09254-001
H-1-1	S09255-001
H-1-2	S09256-001
H-2-1	S09257-001
H-2-2	S09258-001
H-5	S09259-001
H-6	S09260-001
H-6	S09261-001
H-15	S09262-001
H-23-1	S09265-001
H-23-2	S09266-001
H-23-1-1	S09267-001
H-23-2-2	S09273-001
H-23-1-2	S09274-001
H-23-1-3	S09279-001
H-23-2-3	S09280-001
H-23-2-3-7	S09284-001
H-41-2	S09285-001
H-42-2	S09286-000
J-1	S09287-000
J-2	S09288-000
F-1	S09314-001
K-94	S09364-000
K-93	S09369-000
T-1-7	002401-003
U-1-14	002501-003
P-4	007300-612
P-2	007401-012
R-4	007500-812
D-26	011679-312
a-1-2	013660-412
H-10	013710-512
H-17	013711-012
B-20	013761-410
B-4	013780-710
B-2	013781-012
Z-17-2-22	014060-632
E-20	014680-422
G-10	014680-622
E-12	014710-522
B-15	014771-022
C-11	014821-022
R-6	048040-342	H-31
Z-17-1-7-4	062630-812	S-1-9
Z-17-2-13-2	062660-412	K-19
Z-17-2-6-4	062710-612	V-13
F-37	062711-012	N-12
M-18	062711-412	Q-10
V-11-3	062661-212	G-14
W-1-1-3	062761-212	N-16
M-26-5	100022-005	Z-21-1-6
L-4	100032-004	A-8
H-4	100105-005	C-1-8-12
B-7	100197-002	H-4
B-12	100250-001	B-7
J-7	100251-001	B-12
M-42	100257-010	K-44
F-19	100328-001	Z-15-13
Z-15-4	100366-002	Z-15-4
Z-39-2	100401-001	T-1-3
Z-13	100463-001	Z-39-2
R-17	100477-001	Z-13
Q-8	100511-003	R-17
Z-15-15	100645-003	Q-8
Z-15-17	100657-001	Z-15-15
Z-15-20	100659-001	Z-15-17
V-16	100662-001	Z-15-20
W-1-8	100666-002	V-16
U-3	100687-001	Z-6
C-8	101118-001	U-3
Z-4	101268-002	C-8
B-11	101572-101	Z-4
G-6	101706-001	B-11
J-8	102731-004	C-1-5
K-31	104619-002	Z-39-4
Z-21-1-5	104821-001	K-31
V-4	104885-001	Z-21-1-5
C-5	105173-004	V-4
a-7	105351-002	C-5
G-3	106629-002	a-7
M-18	107030-001	G-3
a-5	107321-003	M-18
A-9	107404-001	a-5
Z-10	107415-014	A-9
A-9	107415-022	Z-10
Z-5	107779-001	Z-5
L-1-1-4	107780-001	Z-7
L-1-2-4	108254-001	L-1-1-4
L-1-1-6	108265-001	L-1-2-4
L-1-2-6	108266-001	L-1-1-6
L-9	108549-001	K-28
K-64	108802-001	K-64

Page 41

Brother LT2-B875 parts on page 41
Ref	Part number	Part name
118954-000	110211-001	C-7
120752-001	111271-101	B-17
122991-001	112586-101	B-17
143613-001	112598-001	C-7
143673-001	112609-001	C-9
143882-001	112610-101	C-1-8-10
143910-001	112658-001	A-15
144504-001	112684-001	L-10
144546-001	112696-000	J-6
144680-001	112700-001	J-9-2
144682-001	112709-001	H-18
144704-001	112712-001	L-5
145446-001	112715-001	L-1-2-12
145472-001	112716-101	L-11-1
145478-001	112717-001	K-9
145480-001	112728-001	K-10
145482-101	112734-001	K-56
145502-001	112735-000	K-38
145573-000	112736-000	K-58
145646-022	112739-001	K-61
145666-002	112742-001	K-14
146036-101	112750-000	K-16
146037-001	112753-001	K-12
146038-001	112758-001	K-68
146039-001	112759-001	K-40
146046-000	112764-001	K-95
146069-001	113024-000	C-3
146080-000	113050-001	B-25
146105-000	113074-001	A-10
146141-001	113362-001	G-5
146153-001	113386-000	K-41
146194-000	113431-002	A-2
146194-000	113653-000	Q-3
147504-001	113760-001	K-59
147513-001	114447-002	A-23
147846-001	114483-002	C-1-8-16
148005-001	114486-002	Z-34
148490-001	114693-001	Z-33
148491-001	114941-001	K-57
148492-101	114966-001	L-13
148494-001	114967-001	Z-12
148511-001	115249-001	Z-39-5
148536-001	143548-000	U-5-1-4
148574-001	143549-000	M-56-3
K- 65	108802-001
H- 26	108960-002
L- 12	108960-002
Z- 29	109714-000
Z- 31	109714-000
T- 1-5	110087-001
Z- 39-7	110087-001
N- 4	110161-004
H- 13	110161-006
M- 5	110201-001
S- 1-7	110215-002
K- 67	111191-001
B- 1	112573-101
B- 13	112576-001
B- 17	112586-001
C- 1-1	112588-101
C- 1-4	112590-001
C- 2	112594-001
C- 4	112595-000
C- 6	112596-001
C- 7	112597-001

Page 42

Brother LT2-B875 parts on page 42
Ref	Part number	Part name	Qty
	149833-001	a- 3
	149834-000	K- 34
	149843-001	D- 7
	149847-002	D- 8
	149852-001	D- 9
	149853-001	D- 10
	149855-001	D- 16
	149857-001	D- 19
	149858-001	D- 20
	149863-001	D- 24
	149864-001	D- 25
	149865-001	D- 27
	150106-002	Z- 17-1-4
	150145-002	Z- 17-2-3
	150172-002	Z- 17-2-13
	150173-002	Z- 17-1-3
	150174-000	Z- 17-1-4-1
	150179-002	Z- 17-2-3-1
	150180-000	Z- 17-1-5
	150182-000	Z- 17-2-2-4
	150185-002	Z- 17-1-7-1
	150188-002	Z- 17-2-6-1
	150191-002	Z- 17-1-8
	150206-002	Z- 17-2-7
	150374-000	Z- 17-1-9
	150553-003	Z- 17-2-8
	150556-001	Z- 17-2-13-1
	150756-000	Z- 17-1-11-1
	150815-001	Z- 17-2-10-1
	150816-001	Z- 17-1-2-2
	150818-001	Z- 17-2-2-2
	150820-001	Z- 17-1-2-1
	150930-001	Z- 17-2-2-1
	150958-001	K- 55
	150967-101	L- 3
	150969-001	E- 15
	151027-001	V- 14-3
	151029-001	W- 1-2-3
	151030-001	Z- 36
	151035-001	A- 6
	151126-101	C- 1-10
	151127-100	D- 11
	151147-001	D- 14
	151153-101	F- 11
	151154-000	G- 11
	151602-002	H- 11
	151927-001	H- 16
	152808-101	H- 23-1-1-8
	152974-001	K- 62
	220077-001	U- 5-5
	230157-001	V- 11-25
	340400-001	W- 1-1-25
	154210-000	Q- 1
	154214-001	M- 58
	154215-001	U- 1-8
	154332-001	U- 1-12
	154333-001	V- 14-1
	154607-001	W- 1-2-1
	154702-001	V- 14-2
	154727-001	W- 1-2-2
	154730-001	N- 7
	154731-000	Z- 14
	154734-001	R- 3
	154792-001	R- 3-3
	155451-201	R- 3-4
	155478-001	R- 3
	155484-101	F- 15
	155491-001	F- 5
	155510-001	H- 23-1-3-2
	156070-002	H- 23-2-3-2
	156112-002	H- 23-1-3-4
	156557-001	H- 23-2-3-4
	158115-001	H- 41-1
	158677-001	Z- 11
	158770-001	L- 1-1-3
	158771-001	L- 1-2-3
	158775-001	L- 1-2-24
	158776-001	K- 75
	158782-101	Z- 17-1-1
	159361-001	Z- 17-2-1
	159436-001	H- 42-1
	159805-001	B- 18
	180157-001	J- 11-3
	180949-001	V- 11-6
	181427-001	W- 1-1-6
	181486-001	L- 1-2-21
	181919-101	L- 1-2-20
	183468-001	Q- 11
	183480-001	Q- 13
	183487-001	L- 1-2-23
	200190-001	F- 13
	204569-001	H- 32
	211131-001	H- 23-2-3-8

Brother LT2-B875 Parts Book (PDF)

Page 7 — 主体関係 Machine body / Maschinenengehäuse Corps de la machine / Denominación del mecanismo

Page 8 — B. 上軸関係

Page 9 — C. 針棒揺動関係 / Needle bar rocking mechanism / Nadelstangenbetätigung / Mécanisme de balancement de la barre à aiguille / Mecanismo de oscilació

Page 10 — Needle Bar (L)/(R) Assembly, Needle Bar Clamp Assembly, Slide Block Assembly

Page 11 — D. 針棒切換操作関係

Page 12 — E. 押エ関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme du pied presseur / Mecanismo del prensa telas

Page 13 — F. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de léntraînement / Mecánismo de la alimentación

Page 14 — G. 送り軸関係 / Feed shaft mechanism / Transport welle / Mécanisme de l'arbre entraînement / Mecanismo de la eje alimentación

Page 15 — H. カマ関係(1) Rotary hook mechanism (1) / Greifervorrichtung (1) / Mécanisme du crochet rotatif (1) / Mecanismo del cangrejo (1)

Page 16 — H. カマ関係(2)(スタンダード) Rotary hook mechanism (2) (Standard) / H. カマ関係(3)(糸切リ) Rotary hook mechanism (3) (Thread Trimmer)

Page 17 — J. Lower shaft mechanism / Untere welle

Page 18 — K. 給油潤滑関係(1) / Lubrication (1) / Schmierung (1) / Lubrification (1) / Lubricación (1)

Page 19 — K. 給油潤滑関係(2)

Page 20 — L. 糸通シ関係(1)

Page 21 — L. 糸通し関係(2)(スタンダード) / Threading mechanism (2) (Standard) / Fadenführungsvorrichtung (2) (Norm) / Mécanisme de Jénfilage (2) (Standard) / Mec

Page 22 — M. 糸切り関係(糸切り) Thread trimmer mechanism (Thread Trimmer) / Fadenabschneidevorrichtung (Fadenabschneider) Mécanisme de coupe-fill (Coupe-fil) / Mecanismo de recortadora de orillos (Cortahilos)

Page 23 — N. 糸ユルメ関係(糸切り)

Page 25 — DC モーター / D.C. Motor

Page 26 — R. 逆転関係(糸切り) Quick reverse mechanism (Thread Trimmer) / S. 逆転スイッチ関係(糸切り) Quick reverse switch mechanism (Thread Trimmer)

Page 27 — T. ヒザスイッチ関係（糸切リ・-700, -900） / Knee switch mechanism (Thread Trimmer · -700, -900) / Knieschalter (Fadenabschneider · -700, -900) / Mécanisme

Page 28 — U. 空圧関係(糸切り・-700)

Page 29 — V. 押工上ゲ関係(1)(糸切り・-700)

Page 31 — W. 電磁押エ上ゲセット関係(糸切リ・-900) / Presser foot lifting solenoid set (Thread Trimmer · -900) / Solenoidsatz für die Anhebung des Stoffdrückerfußes (

Page 32 — Z. 付属品関係(1) / Accessories (1) / Zubehör (1) / Accessoires (1) / Accesorios (1)

Page 33 — Thread Trimmer

Page 34 — 付属品関係(3) / Accessories (3) / Zubehör (3) / Accessoires (3) / Accesorios (3)

Page 35 — GAUGE PARTS LIST/LEHREN LISTE LISTE DES PIECES DECARTEMENT/LISTA DE PIEZAS CALIBRADORAS

Page 36 — 仕様別部品一覧表 DIFFERENT PARTS LIST / ZUBEHÖRLISTE LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 37

Page 38 — Thread Trimmer

Page 40

Page 41

Page 42

Part Books

Search

Parts on page 1

Parts on page 1

Page 7 — 主体関係 Machine body / Maschinenengehäuse Corps de la machine / Denominación del mecanismo

Page 8 — B. 上軸関係

Page 9 — C. 針棒揺動関係 / Needle bar rocking mechanism / Nadelstangenbetätigung / Mécanisme de balancement de la barre à aiguille / Mecanismo de oscilació

Page 10 — Needle Bar (L)/(R) Assembly, Needle Bar Clamp Assembly, Slide Block Assembly

Page 11 — D. 針棒切換操作関係

Page 12 — E. 押エ関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme du pied presseur / Mecanismo del prensa telas

Page 13 — F. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de léntraînement / Mecánismo de la alimentación

Page 14 — G. 送り軸関係 / Feed shaft mechanism / Transport welle / Mécanisme de l'arbre entraînement / Mecanismo de la eje alimentación

Page 15 — H. カマ関係(1) Rotary hook mechanism (1) / Greifervorrichtung (1) / Mécanisme du crochet rotatif (1) / Mecanismo del cangrejo (1)

Page 16 — H. カマ関係(2)(スタンダード) Rotary hook mechanism (2) (Standard) / H. カマ関係(3)(糸切リ) Rotary hook mechanism (3) (Thread Trimmer)

Page 17 — J. Lower shaft mechanism / Untere welle

Page 18 — K. 給油潤滑関係(1) / Lubrication (1) / Schmierung (1) / Lubrification (1) / Lubricación (1)

Page 19 — K. 給油潤滑関係(2)

Page 20 — L. 糸通シ関係(1)

Page 21 — L. 糸通し関係(2)(スタンダード) / Threading mechanism (2) (Standard) / Fadenführungsvorrichtung (2) (Norm) / Mécanisme de Jénfilage (2) (Standard) / Mec

Page 22 — M. 糸切り関係(糸切り) Thread trimmer mechanism (Thread Trimmer) / Fadenabschneidevorrichtung (Fadenabschneider) Mécanisme de coupe-fill (Coupe-fil) / Mecanismo de recortadora de orillos (Cortahilos)

Page 23 — N. 糸ユルメ関係(糸切り)

Page 25 — DC モーター / D.C. Motor

Page 26 — R. 逆転関係(糸切り) Quick reverse mechanism (Thread Trimmer) / S. 逆転スイッチ関係(糸切り) Quick reverse switch mechanism (Thread Trimmer)

Page 27 — T. ヒザスイッチ関係（糸切リ・-700, -900） / Knee switch mechanism (Thread Trimmer · -700, -900) / Knieschalter (Fadenabschneider · -700, -900) / Mécanisme

Page 28 — U. 空圧関係(糸切り・-700)

Page 29 — V. 押工上ゲ関係(1)(糸切り・-700)

Page 31 — W. 電磁押エ上ゲセット関係(糸切リ・-900) / Presser foot lifting solenoid set (Thread Trimmer · -900) / Solenoidsatz für die Anhebung des Stoffdrückerfußes (

Page 32 — Z. 付属品関係(1) / Accessories (1) / Zubehör (1) / Accessoires (1) / Accesorios (1)

Page 33 — Thread Trimmer

Page 34 — 付属品関係(3) / Accessories (3) / Zubehör (3) / Accessoires (3) / Accesorios (3)

Page 35 — GAUGE PARTS LIST/LEHREN LISTE LISTE DES PIECES DECARTEMENT/LISTA DE PIEZAS CALIBRADORAS

Page 36 — 仕様別部品一覧表 DIFFERENT PARTS LIST / ZUBEHÖRLISTE LISTE DES PIECES ACCESSOIRES / LISTA DE PIEZAS ACCESORIAS

Page 37

Page 38 — Thread Trimmer

Page 40

Page 41

Page 42

Brother LT2-B875 — parts catalog
