Brother RH-9820 Parts Book (PDF)

Eyelet Buttonhole · also listed as RH9820, 9820Download PDF

Text index — Brother RH-9820

Page 7 — A. 主体関係 / Machine body

Brother RH-9820 parts on page 7
Ref	Part number	Part name	Qty
1	SA5746001	MAIN PLATE	1
2	SA5747001	MAIN PLATE PACKING	1
3	062501216	SCREW PAN M5X12	4
4	SA5749001	REAR COVER	1
5	SA5750001	REAR COVER PACKING	1
6	062501216	SCREW PAN M5X12	5
7	SA5751001	BELT COVER	1
8	0A4401606	SCREW PAN (S/P WASHER) M4X16	4
9	SA5752201	BED BASE	1
10	SA5753001	BED BASE CUSHION	3
11	SA7556001	SPACER 4X6.5	3
12	060401216	SCREW BIND M4X12	3
13	047502242	PIN SPRING ROLL AW5	1
14	158827009	BED BASE CUSHION, A	4
15	S21728001	BOLT M6X80	4
16	159458009	RUBBER SHEET	4
17	115947101	WASHER PLAIN 6.35	4
18	025060336	WASHER PLAIN L 6	4
19	021060106	NUT 1 M6	4
20	SA5754001	GS SPRING	1
21	SA5763001	GS SUPPORT PLATE	1
22	S55477001	BOLT SOCKET (S/P WASHER)M6X16	2
23	S35218101	SUPPORT PIN, F :GS	1
24	048080142	RETAINING RING EXTERNAL C8	2
25	SA5764001	GS SUPPORT SHAFT	1
26	048080142	RETAINING RING EXTERNAL C8	2
27	154465001	DUST OILER SUPPORT ASSY	1
28	114486002	OILER	1
29	062500816	SCREW PAN M5X8	2
30	SA5765101	HINGE LEVER SHAFT	1
31	014060836	SET SCREW SOCKET (CP) M6X8	1
32	SA5766001	HINGE SUPPORT SHAFT	1
33	014060836	SET SCREW SOCKET (CP) M6X8	1
34	SA5791101	HEAD SUPPORT LEVER	1
35	SA5792001	SPRING TWIST A	1
36	SA5802001	HINGE B	2
37	014060836	SET SCREW SOCKET (CP) M6X8	2
38	SA7044001	BED HINGE SHAFT	2
39	014060836	SET SCREW SOCKET (CP) M6X8	2
40	SA5803001	NEEDLE GUIDE COVER	1
41	062400816	SCREW PAN M4X8	4
42	SA5804001	FINGER GUARD	1
43	S35221101	SHOULDER SCREW M4	2
44	021400206	NUT 2 M4	2
45	107017001	WAVE WASHER	2
46	028040246	WASHER SPRING 2-4	2
47	SA5805001	BED COVER	1
48	004401003	SCREW, FLAT M4X10	2
49	S58636001	BOLT SOCKET (S/P WASHER)M8X30	1
50	104833001	RUBBER CAP, 4.3	1
51	104833001	RUBBER CAP, 4.3	2
52	S32263001	RUBBER CAP, 8.5	1
53	S32263001	RUBBER CAP, 8.5	2
54	S32263001	RUBBER CAP, 8.5	1
55	104821001	RUBBER CAP, 10.5	2
56	150756000	RUBBER CAP, 18.5	2
57	150756000	RUBBER CAP, 18.5	1
58	150756000	RUBBER CAP, 18.5	1
59	150756000	RUBBER CAP, 18.5	1
60	158882001	RUBBER CAP, 22	4
61	SA5810001	RUBBER CAP 23.5	1
62	SA5811001	RUBBER CAP 38.5	1

Page 9 — A. 主体関係 / Machine body

Brother RH-9820 parts on page 9
Ref	Part number	Part name	Qty
63	SA5819001	RUBBER CAP	1
64	SA5820001	CORD BUSH	1
65	SA5821001	Z-WINDOW COVER	1
66	S35221101	SHOULDER SCREW M4	1
67	107017001	WAVE WASHER	1
68	SA0793001	LABEL, CAUTION CHN/ENG	1
69	SA0792001	LABEL, CAUTION JPN/ENG	1
70	S36924001	INJURY MARK	6
71	S37060001	LABEL, GROUNDING	4

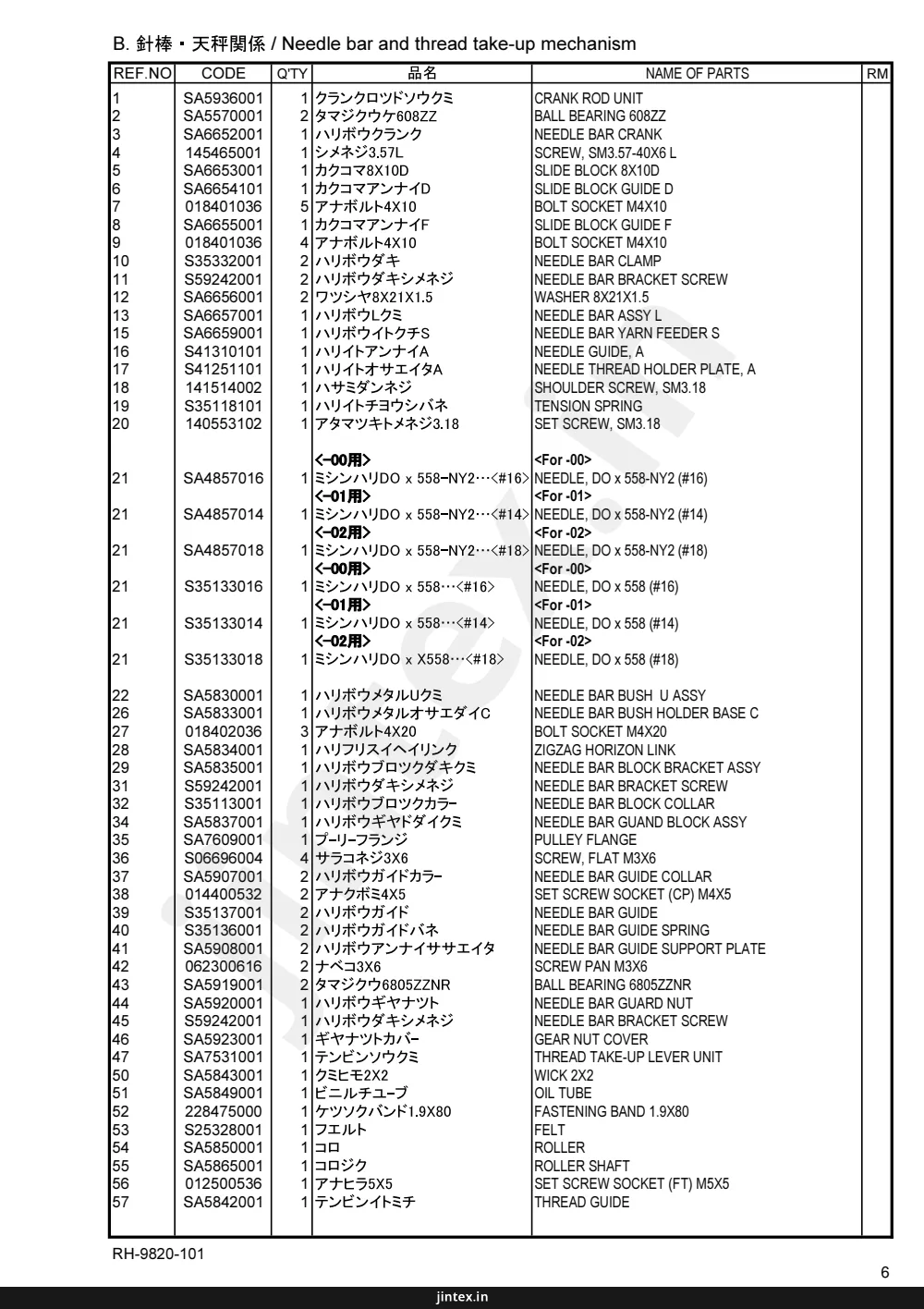

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother RH-9820 parts on page 11
Ref	Part number	Part name	Qty
1	SA5936001	CRANK ROD UNIT	1
2	SA5570001	BALL BEARING 608ZZ	2
3	SA6652001	NEEDLE BAR CRANK	1
4	145465001	SCREW, SM3.57-40X6 L	1
5	SA6653001	SLIDE BLOCK 8X10D	1
6	SA6654101	SLIDE BLOCK GUIDE D	1
7	018401036	BOLT SOCKET M4X10	5
8	SA6655001	SLIDE BLOCK GUIDE F	1
9	018401036	BOLT SOCKET M4X10	4
10	S35332001	NEEDLE BAR CLAMP	2
11	S59242001	NEEDLE BAR BRACKET SCREW	2
12	SA6656001	WASHER 8X21X1.5	2
13	SA6657001	NEEDLE BAR ASSY L	1
15	SA6659001	NEEDLE BAR YARN FEEDER S	1
16	S41310101	NEEDLE GUIDE, A	1
17	S41251101	NEEDLE THREAD HOLDER PLATE, A	1
18	141514002	SHOULDER SCREW, SM3.18	1
19	S35118101	TENSION SPRING	1
20	140553102	SET SCREW, SM3.18	1
21	SA4857016	NEEDLE, DO x 558-NY2 (#16)	1
21	SA4857014	NEEDLE, DO x 558-NY2 (#14)	1
21	SA4857018	NEEDLE, DO x 558-NY2 (#18)	1
21	S35133016	NEEDLE, DO x 558 (#16)	1
21	S35133014	NEEDLE, DO x 558 (#14)	1
21	S35133018	NEEDLE, DO x 558 (#18)	1
22	SA5830001	NEEDLE BAR BUSH U ASSY	1
26	SA5833001	NEEDLE BAR BUSH HOLDER BASE C	1
27	018402036	BOLT SOCKET M4X20	3
28	SA5834001	ZIGZAG HORIZON LINK	1
29	SA5835001	NEEDLE BAR BLOCK BRACKET ASSY	1
31	S59242001	NEEDLE BAR BRACKET SCREW	1
32	S35113001	NEEDLE BAR BLOCK COLLAR	1
34	SA5837001	NEEDLE BAR GUAND BLOCK ASSY	1
35	SA7609001	PULLEY FLANGE	1
36	S06696004	SCREW, FLAT M3X6	4
37	SA5907001	NEEDLE BAR GUIDE COLLAR	2
38	014400532	SET SCREW SOCKET (CP) M4X5	2
39	S35137001	NEEDLE BAR GUIDE	2
40	S35136001	NEEDLE BAR GUIDE SPRING	2
41	SA5908001	NEEDLE BAR GUIDE SUPPORT PLATE	2
42	062300616	SCREW PAN M3X6	2
43	SA5919001	BALL BEARING 6805ZZNR	2
44	SA5920001	NEEDLE BAR GUARD NUT	1
45	S59242001	NEEDLE BAR BRACKET SCREW	1
46	SA5923001	GEAR NUT COVER	1
47	SA7531001	THREAD TAKE-UP LEVER UNIT	1
50	SA5843001	WICK 2X2	1
51	SA5849001	OIL TUBE	1
52	228475000	FASTENING BAND 1.9X80	1
53	S25328001	FELT	1
54	SA5850001	ROLLER	1
55	SA5865001	ROLLER SHAFT	1
56	012500536	SET SCREW SOCKET (FT) M5X5	1
57	SA5842001	THREAD GUIDE	1

Page 13 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother RH-9820 parts on page 13
Ref	Part number	Part name	Qty
58	SA5880001	THREAD TAKE-UP L SUPPORT SHAFT	1
59	014060636	SET SCREW SOCKET (CP) M6X6	1
60	SA5889001	NEEDLE BAR GUARD	1
61	018400636	BOLT SOCKET M4X6	2

Page 15 — C. 上軸関係 / Upper shaft mechanism

Brother RH-9820 parts on page 15
Ref	Part number	Part name	Qty
1	SA5890001	UPPER SHAFT	1
2	SA5893001	UPPER SHAFT CRANK	1
3	SA5571001	BALL BEARING 6004ZZNR	1
4	S23651001	SET SCREW SOCKET (FT) M6X6	4
5	S25235001	SCREW M8	1
6	SA5897001	SPACER 34X42	1
7	SA6661001	BALANCE COLLAR	1
8	SA5572001	BALL BEARING 6004ZZ	1
9	S23651001	SET SCREW SOCKET (FT) M6X6	2
10	SA6662001	HYPOID GEAR ASSY	1
11	S23651001	SET SCREW SOCKET (FT) M6X6	4
12	SA5573001	BALL BEARING 6204ZZNR	1
13	SA5564001	BEARING COLLAR	1
14	S23651001	SET SCREW SOCKET (FT) M6X6	2
15	SA6667001	BALL BEARING 6304ZZ	1
16	SA5564001	BEARING COLLAR	1
17	S23651001	SET SCREW SOCKET (FT) M6X6	2
18	SA5549001	TIMING PULLEY ASSY	1
19	S23651001	SET SCREW SOCKET (FT) M6X6	2
20	048520242	RETAINING RING INTERNAL C52	1
21	SA6668001	ORTHOGONAL SHAFT	1
22	SA6669001	BALL BEARING 6202DDUNR	1
23	SA6671001	CAM ROLLER TAKE-UP	1
24	S23651001	SET SCREW SOCKET (FT) M6X6	2
25	SA6673001	ZIGZAG CAM	1
26	S23651001	SET SCREW SOCKET (FT) M6X6	2
27	SA6674001	BALL BEARING 6002ZZNR	1
28	048150142	RETAINING RING EXTERNAL C15	1
29	SA4629001	PULLEY BASE	1
30	S23651001	SET SCREW SOCKET (FT) M6X6	2
31	SA6676001	PULLEY	1
32	062401016	SCREW PAN M4X10	3
33	SA5158101	WASHER PLAIN L 4	3
	SA6623001		1

Page 17 — D. 針振り関係 / Zigzag mechanism

Brother RH-9820 parts on page 17
Ref	Part number	Part name	Qty
1	SA6677001	ZIGZAG UNIT	1
2	SA6678001	ZIGZAG FORK ASSY	1
7	SA6682001	ZIGZAG CONNECTING ROD ASSY	1
8	SA6684001	SHOULDER SCREW M6	1
9	SA6685001	ZIGZAG CRANK SCREW	1
10	021060106	NUT 1 M6	2
11	SA6686001	ZIGZAG CRANK	1
12	155559001	WASHER PLAIN	1
13	S35251101	NUT M6	1
14	SA6687001	ZIGZAG FORK SUPPORT SHAFT	1
15	012061036	SET SCREW SOCKET (FT) M6X10	1
16	SA6688001	N-POSITION CONTROL PLATE ASSY	1
17	S35252001	Z-ECCENTRIC PIN	1
18	SA6691001	ZIGZAG DRIVING LEVER	1
19	018061636	BOLT SOCKET M6X16	1
20	SA6692001	SPACER	1
21	SA6693001	ZIGZAG COAXIAL ROCK SHAFT	1
22	012500536	SET SCREW SOCKET (FT) M5X5	2
23	156482000	CAP, 4	1
24	SA6694001	ZIGZAG LEVER	1
25	S35332001	NEEDLE BAR CLAMP	1
26	018301236	BOLT SOCKET M3X12	1

Page 19 — E. 針棒揺動関係 / Needle bar rocking mechanism

Brother RH-9820 parts on page 19
Ref	Part number	Part name	Qty
1	SA6542001	PULSE MOTOR ASSY R	1
2	J03663001	LABEL, HIGH TEMP. 13X20	1
3	S55487001	BOLT SOCKET (S/P WASHER)M5X16	4
4	SA6695001	THETA M PULLEY ASSY	1
5	012060636	SET SCREW SOCKET (FT) M6X6	2
7	S35284101	TENSION PULLEY	1
8	SA5574001	BALL BEARING 6000ZZ	1
9	048260242	RETAINING RING INTERNAL C26	2
10	SA5552001	T PULLEY HOLDER ASSY	1
11	048100142	RETAINING RING EXTERNAL C10	1
12	S55481001	BOLT SOCKET (S/P WASHER)M4X12	2
13	SA6699001	DRIVING LOOPER SHAFT ASSY	1
14	SA6702001	BALL BEARING 6201ZZ	1
15	048320242	RETAINING RING INTERNAL C32	1
16	SA6703001	SET SCREW COLLAR	1
17	012060636	SET SCREW SOCKET (FT) M6X6	2
18	SA6704001	MOTOR STOPPER	1
19	018061236	BOLT SOCKET M6X12	2
20	SA6705001	BALL BEARING 6001ZZNR	1
21	SA6707001	V-PULLEY T-PULLEY U ASSY	1
22	018401636	BOLT SOCKET M4X16	1
24	SA6711001	TENSION PULLEY U	1
25	SA5574001	BALL BEARING 6000ZZ	1
26	048260242	RETAINING RING INTERNAL C26	2
27	SA5552001	T PULLEY HOLDER ASSY	1
28	048100142	RETAINING RING EXTERNAL C10	1
29	S55481001	BOLT SOCKET (S/P WASHER)M4X12	2
30	SA6712001	T BELT 580-5GT	1
31	SA6713001	T BELT 810-5GT	1
32	SA6714001	RUBBER CAP 32.5	1
	018401036	アナボルト4X16 BOLT SOCKET M4X16	1

Page 21 — F1. 押え関係 / Presser foot mechanism

Brother RH-9820 parts on page 21
Ref	Part number	Part name	Qty
1	SA5690001	FEED BAR	1
2	SA5677001	OPENING CONNECTING ROD ASSY L	1
3	SA7176001	FULCRUM LEVER PLATE	1
4	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
5	SA5557001	ROCKER LEVER	1
6	SA5579001	OPENING DRIVING LEVER ASSY L	1
7	109763002	WASHER	1
8	048050342	RETAINING RING E5	1
9	SA5678001	OPENING CONNECTING ROD ASSY R	1
10	SA7176001	FULCRUM LEVER PLATE	1
11	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
12	SA5557001	ROCKER LEVER	1
13	SA5578001	OPENING DRIVING LEVER ASSY R	1
14	109763002	WASHER	1
15	048050342	RETAINING RING E5	1
16	SA7527001	SHOULDER SCREW M5	6
17	S35429101	EXTENSION SPRING	1
18	SA5583001	STOPPER PLATE OPENING	2
19	026040236	WASHER PLAIN M 4	2
20	062400816	SCREW PAN M4X8	2
21	062301016	SCREW PAN M3X10	2
22	S34968000	SPEED NUT M3	2
23	S35328001	STOPPER PLATE	2
24	S34969001	ROD PIN, B :CYLINDER	2
25	048030342	RETAINING RING E3	4
26	SA5584001	CYLINDER SCREW	2
27	048050142	RETAINING RING EXTERNAL C5	2
28	S35239101	CLAMP LEVER SHAFT	2
29	S35240001	CLAMP LEVER, B	2
30	018501236	BOLT SOCKET M5X12	2
31	SA5582001	CLAMP DRIVING LEVER	2
32	062501202	SCREW PAN M5X12	2
34	S35350000	CYLINDER 16X10	1
35	S53488000	JOINT	1
36	S13955000	AIR BOLSTER	1
37	SA5558001	CLAMP CYLINDER ROD	1
38	S35457001	SPRING HOOK, L	1
40	S35350000	CYLINDER 16X10	1
41	S53488000	JOINT	1
42	S13955000	AIR BOLSTER	1
43	SA5558001	CLAMP CYLINDER ROD	1
44	S35458001	SPRING HOOK, R	1
45	S35305001	CYLINDER ROD PIN	2
46	048030342	RETAINING RING E3	4
47	S35304001	CLAMP CYLINDER SUPPORT	2
48	014400532	SET SCREW SOCKET (CP) M4X5	2
49	S35456101	SPRING	2
50	SA5675001	GUIDE PLATE A	5
51	SA5676001	GUIDE PLATE B	1
52	S06696004	SCREW, FLAT M3X6	13
53	S35327001	OPENING CYLINDER STOPPER	2
54	017401616	BOLT M4X16	2
55	021400202	NUT 2 M4	2
56	062400816	SCREW PAN M4X8	4
57	028040242	WASHER SPRING 2-4	4
58	S12004000	LINEAR BUSH	4
59	S02460001	RETAINING RING, EXTERNAL C19	8
60	SA5692001	Y BEARING	1
61	S12004000	LINEAR BUSH	1
62	S02460001	RETAINING RING, EXTERNAL C19	2
63	SA5691001	Y GUIDE SHAFT	1
64	012500536	SET SCREW SOCKET (FT) M5X5	2

Page 23 — F1. 押え関係 / Presser foot mechanism

Brother RH-9820 parts on page 23
Ref	Part number	Part name	Qty
65	SA5681001	AIR TUBE 4X2.5-24	1
66	SA5682001	AIR TUBE 4X2.5-23	1
67	SA5683001	AIR TUBE 4X2.5-15	1
68	SA5684001	AIR TUBE 4X2.5-16	1
69	SA7973001	AIR TUBE 4X2.5-21	1
70	SA7974001	AIR TUBE 4X2.5-22	1
71	SA7975001	AIR TUBE 4X2.5-18	1
72	S12104000	UNION Y4	1
73	S04557000	BAND, PLT1M	5
74	SA5688101	SPIRAL L	1
75	SA5435001	GROUND WIRE 550	1
76	052400606	SCREW, PAN (S/P WASHER) M4X6	1
77	SA6727001	PLATE PRESSER	2
78	S35324201	SHOULDER SCREW M4	2
79	S36345000	WASHER, BENDING	2
81	SA7043001	CYLINDER ASSY T 16X15	1
82	SA1828001	JOINT, KQ2T04-M5	2
83	S34970001	CYLINDER ROD OPENING	1
85	SA7050001	CYLINDER ASSY L 16X15	1
86	S11426000	ELBOW UNION 4M5	2
87	S34970001	CYLINDER ROD OPENING	1
89	SA5679001	CYLINDER ASSY B 16X30	1
90	S12150000	TUBE ELBOW, M-5HL-4	2
91	SA6527001	LOWER OFF SENSOR ASSY	1
92	S34914101	T-TRIM. CYLINDER SUPPORT PLATE	1
93	S34913001	THREAD TRIMMER CYLINDER CLAW	1
94	018400836	BOLT SOCKET M4X8	2
95	SA5680001	AIR TUBE 4X2.5-19	1
96	SA5561001	AIR TUBE 4X2.5-20	1
97	SA7053001	G-THREAD TAKE-UP GUIDE COLLER	1
98	SA7054001	G-THREAD TAKE-UP GUIDE SHAFT	1
99	048050142	RETAINING RING EXTERNAL C5	1
100	014400532	SET SCREW SOCKET (CP) M4X5	1
101	SA7555001	FEED BAR PLATE SPRING	1
102	062400816	SCREW PAN M4X8	2
81	SA7043001	CYLINDER ASSY T 16X15	2
82	SA1828001	JOINT, KQ2T04-M5	4
83	S34970001	CYLINDER ROD OPENING	2
103	SA6719001	CYLINDER ASSY 10X15	1
104	S12150000	TUBE ELBOW, M-5HL-4	2
105	SA6720001	AUX CLAMP S HOLDER	1
106	S35351001	CYLINDER ROD	1
107	062400816	SCREW PAN M4X8	2
108	SA6721001	AUX CLAMP CONNECTING ROD ASSY	1
109	025060236	WASHER PLAIN M 6	1
110	048060142	RETAINING RING EXTERNAL C6	1
111	SA6726001	CYLINDER ROD PIN	1
112	048030342	RETAINING RING E3	2
113	SA7131001	AIR TUBE 4X2.5-150	2
114	SA7795001	QUICK EXHAUST	2
115	SA7793001	SPEED CONTROLLER	2
116	SA7976001	AIR TUBE 4X2.5-25	1
117	SA7977001	AIR TUBE 4X2.5-26	1
118	SA7978001	AIR TUBE 4X2.5-27	2

Page 25 — F2. 押え関係 / Presser foot mechanism

Brother RH-9820 parts on page 25
Ref	Part number	Part name	Qty
1	SA7079001	WORK CLAMP PLATE R30 UNIT	1
2	SA7080001	WORK CLAMP PLATE R ASSY	1
4	SA7082101	WORK CLAMP PLATE L30 UNIT	1
5	SA7083001	WORK CLAMP PLATE L ASSY	1
7	SA7149001	PLATE SPRING	1
8	S35326101	SCREW M3.5	1
9	SA7150101	THREAD TRIMMER A	1
10	SA7151101	THREAD TRIMMER B	1
11	S35326101	SCREW M3.5	1
12	SA7055001	WORK CLAMP PLATE RS30 UNIT	1
13	SA7056001	WORK CLAMP PLATE RS ASSY	1
15	S35330001	WORK CLAMP PLATE, R	1
16	SA7060001	WORK CLAMP PLATE LS30 UNIT	1
17	SA7061001	WORK CLAMP PLATE LS ASSY	1
20	S35329001	WORK CLAMP PLATE, L	1
19	S06696004	SCREW, FLAT M3X6	2
21	S35315001	OPENING SLIDE BLOCK	1
22	S35316001	SLIDE BLOCK SUPPORT PLATE	1
23	060020416	SCREW BIND M2X4	2
24	SA5673001	NEEDLE PLATE R-42	1
25	S06696004	SCREW, FLAT M3X6	2
26	S39932101	CLOTH WORK CLAMP, R-30	1
27	S35236000	WASHER, BENDING 3.2	1
28	S35235001	SUPPORT PIN, CLAMP	1
29	021300306	NUT 3 M3	1
30	SA5560001	CLAMP SHAFT HOLDER	1
31	062400816	SCREW PAN M4X8	2
32	SA5674001	CLAMP FULCRUM SHAFT	1
33	048060142	RETAINING RING EXTERNAL C6	2
34	SA5585001	CLAMP LEVER R	1
35	018501236	BOLT SOCKET M5X12	1
36	SA5576001	CLAMP ARM R	1
37	014400532	SET SCREW SOCKET (CP) M4X5	2
38	SA7550001	CROTH GUIDE R	1
39	S35326101	SCREW M3.5	1
40	S35315001	OPENING SLIDE BLOCK	1
41	S35316001	SLIDE BLOCK SUPPORT PLATE	1
42	060020416	SCREW BIND M2X4	2
43	SA5672001	NEEDLE PLATE L-42	1
44	S39931101	CLOTH WORK CLAMP, L-30	1
45	S35236000	WASHER, BENDING 3.2	1
46	S35235001	SUPPORT PIN, CLAMP	1
47	021300306	NUT 3 M3	1
48	SA5560001	CLAMP SHAFT HOLDER	1
49	062400816	SCREW PAN M4X8	2
50	SA5674001	CLAMP FULCRUM SHAFT	1
51	048060142	RETAINING RING EXTERNAL C6	2
52	SA5671001	CLAMP LEVER L	1
53	018501236	BOLT SOCKET M5X12	1
54	SA5577001	CLAMP ARM L	1
55	014400532	SET SCREW SOCKET (CP) M4X5	2
56	SA7551001	CROTH GUIDE L	1
57	S35326101	SCREW M3.5	1

Page 27 — F3. 押え関係 / Presser foot mechanism

Brother RH-9820 parts on page 27
Ref	Part number	Part name	Qty
1	SA6728001	WORK CLAMP PLATE R2230 UNIT	1
2	SA6731001	NEEDLE PLATE L 2230R	1
3	SA6732001	WORK CLAMP R-JL2230	1
4	SA6738001	WORK CLAMP PLATE L2230 UNIT	1
5	SA6739001	WORK CLAMP PLATE JL ASSY	1
6	SA6741001	NEEDLE PLATE L 2230L	1
7	SA6742001	WORK CLAMP L-JL2230	1
8	SA7187001	WORK CLAMP PLATE R1826 ASSY	1
9	SA7105001	NEEDLE PLATE L1826R	1
10	SA7095001	WORK CLAMP R-JL1826	1
11	SA7186001	WORK CLAMP PLATE L1826 ASSY	1
12	SA6739001	WORK CLAMP PLATE JL ASSY	1
13	SA7100001	NEEDLE PLATE L1826L	1
14	SA7090001	WORK CLAMP L-JL1826	1
15	SA6729001	WORK CLAMP PLATE JR UNIT	1
17	S35315001	OPENING SLIDE BLOCK	1
18	S35316001	SLIDE BLOCK SUPPORT PLATE	1
19	060020416	SCREW BIND M2X4	2
20	S06696004	SCREW, FLAT M3X6	2
21	S35236000	WASHER, BENDING 3.2	1
22	S35235001	SUPPORT PIN, CLAMP	1
23	021300306	NUT 3 M3	1
24	SA5560001	CLAMP SHAFT HOLDER	1
25	062400816	SCREW PAN M4X8	2
26	SA6733001	CLAMP FULCRUM SHAFT J	1
27	048060142	RETAINING RING EXTERNAL C6	2
28	SA5585001	CLAMP LEVER R	1
29	018501236	BOLT SOCKET M5X12	1
30	SA6734001	CLAMP ARM R-J	1
31	014400532	SET SCREW SOCKET (CP) M4X5	2
32	SA7550001	CROTH GUIDE R	1
33	S35326101	SCREW M3.5	1
34	SA6735001	AUX CLAMP ARM	1
35	048060142	RETAINING RING EXTERNAL C6	1
36	SA6736001	SUB AUX CLAMP WRIST	1
37	018401036	BOLT SOCKET M4X10	1
38	S05356000	BUTTON CLAMP, A	1
39	SA6737001	AUX CLAMP TSWIST SPRING	1
41	S35315001	OPENING SLIDE BLOCK	1
42	S35316001	SLIDE BLOCK SUPPORT PLATE	1
43	060020416	SCREW BIND M2X4	2
44	S06696004	SCREW, FLAT M3X6	2
45	S35236000	WASHER, BENDING 3.2	1
46	S35235001	SUPPORT PIN, CLAMP	1
47	021300306	NUT 3 M3	1
48	SA5560001	CLAMP SHAFT HOLDER	1
49	062400816	SCREW PAN M4X8	2
50	SA5674001	CLAMP FULCRUM SHAFT	1
51	048060142	RETAINING RING EXTERNAL C6	2
52	SA5671001	CLAMP LEVER L	1
53	018501236	BOLT SOCKET M5X12	1
54	SA6743001	CLAMP ARM L-J	1
55	014400532	SET SCREW SOCKET (CP) M4X5	2
56	SA7551001	CROTH GUIDE L	1
57	S35326101	SCREW M3.5	1
58	SA7152001	SUPPORT WORK CLAMP ARM L	1

Page 29 — G. 送り関係 / Feed mechanism

Brother RH-9820 parts on page 29
Ref	Part number	Part name	Qty
1	SA6744001	FEED BAR COVER L	1
2	SA6745001	FEED BAR COVER R	1
3	SA8121001	FEED BAR COVER U ASSY	1
4	004401003	SCREW, FLAT M4X10	12
5	SA6747001	X FEED SHAFT HOLDER S	1
6	SA6748001	X FEED SHAFT HOLDER N	1
7	SA6749001	X RACK	2
8	018501636	BOLT SOCKET M5X16	4
9	SA6750001	Y FEED GUIDE SHAFT	2
10	012060636	SET SCREW SOCKET (FT) M6X6	4
11	SA6751101	X FEED GUIDE SHAFT A	1
12	SA6752101	X FEED GUIDE SHAFT B	1
13	012060636	SET SCREW SOCKET (FT) M6X6	2
14	018401636	BOLT SOCKET M4X16	4
15	025040136	WASHER PLAIN S 4	4
16	S35183000	LINEAR BUSH, 12	4
17	SA5562001	BALL BEARING STOPPER	4
18	062300416	SCREW PAN M3X4	4
19	SA6753001	Y FEED ASSY	1
20	SA6754001	Y FEED BASE	1
21	SA6521001	PULSE MOTOR ASSY Y	1
22	SA6522001	MOTOR HARNESS Y	1
23	018401436	BOLT SOCKET M4X14	4
24	026040136	WASHER PLAIN S 4	4
25	SA6755001	DRIVING GEAR 20	1
26	012060636	SET SCREW SOCKET (FT) M6X6	2
27	SA6756001	Y PULLEY SUPPORT	1
28	3A6001001	BOLT SOCKET (S/P WASHER) M5X20	2
29	SA6757001	Y TIMING PULLEY ASSY	2
30	012060636	SET SCREW SOCKET (FT) M6X6	4
31	048160242	RETAINING RING INTERNAL C16	2
32	SA6760001	Y PULLEY SHAFT R	1
33	530138001	BALL BEARING MICRO 8	2
34	018502536	BOLT SOCKET M5X25	1
35	048080142	RETAINING RING EXTERNAL C8	2
36	SA6761001	Y PULLEY SHAFT F	1
37	070688850	BALL BEARING RADIAL 688ZZ	2
38	SA6762001	IDLER GEAR 40	1
39	012060636	SET SCREW SOCKET (FT) M6X6	2
40	SA6763001	T BELT 320-5GT	1
41	SA6764001	BELT HOLDER	1
42	018400836	BOLT SOCKET M4X8	2
43	SA6765001	Y DRIVING SHAFT HOLDER	1
44	018501636	BOLT SOCKET M5X16	1
45	018061636	BOLT SOCKET M6X16	3
46	SA6766001	Y SHAFT	1
47	SA6767001	Y SHAFT HOLDER	1
48	018501436	BOLT SOCKET M5X14	1
49	S12004000	LINEAR BUSH	2
50	SA5562001	BALL BEARING STOPPER	2
51	062300416	SCREW PAN M3X4	2
52	S55476001	BOLT SOCKET (S/P WASHER)M6X12	2
53	SA6768001	X FEED ASSY	1
54	SA6517001	PULSE MOTOR ASSY X	1
55	SA6518001	MOTOR HARNESS X	1
56	SA4197001	FEED GEAR	1
57	012060636	SET SCREW SOCKET (FT) M6X6	2
58	018401436	BOLT SOCKET M4X14	4
59	026040136	WASHER PLAIN S 4	4
60	SA6769001	X MOTOR SUPPORT	1
61	SA6770001	IDLER GEAR	2
62	012060636	SET SCREW SOCKET (FT) M6X6	4
63	SA6771001	BALL BEARING 6001ZZ	2

Page 31 — G. 送り関係 / Feed mechanism

Brother RH-9820 parts on page 31
Ref	Part number	Part name	Qty
64	048280242	RETAINING RING INTERNAL C28	2
65	SA6772001	X IDLER GEAR SHAFT	1
66	018061636	BOLT SOCKET M6X16	3
67	J03663001	LABEL, HIGH TEMP. 13X20	2
68	048060342	RETAINING RING E6	1
70	008401204	SCREW TRUSS M4X12	2
69	SA5584001	CYLINDER SCREW	1

Page 33 — H. カッター関係 / Cutter mechanism

Brother RH-9820 parts on page 33
Ref	Part number	Part name	Qty
1	SA6773101	HAMMER BRACKET ASSY	1
6	S35091101	KNOB SCREW M5	1
7	018401036	BOLT SOCKET M4X10	4
8	SA6776301	CUTTER DRIVING SHAFT ASSY	1
9	SA6777001	CUTTER DRIVING SHAFT	1
10	SA6778301	BUSH C-SHAFT ASSY	1
13	SA6781001	GUIDE BLOCK	1
14	018401236	BOLT SOCKET M4X12	2
15	SA6782001	DRIVING SHAFT PRESSER	1
16	SA6783001	SPRINNG HOOK PIN U	1
17	SA6784001	SPRINNG EXTENSION	1
18	SA6785001	SPRINNG HOOK PIN D	1
19	SA6786001	BOLT 4	2
20	021400206	NUT 2 M4	2
21	018061236	BOLT SOCKET M6X12	3
22	081050870	O RING S50	1
23	SA6787001	CUTTER ARM ASSY	1
25	SA6789001	C-SENSOR PIN	1
26	012500536	SET SCREW SOCKET (FT) M5X5	1
27	SA6790001	C-ARM SLIDE BLOCK	1
28	SA5563001	C-ARM PIN	1
29	014060836	SET SCREW SOCKET (CP) M6X8	2
30	SA6791001	C-ARM SHAFT	1
31	012061036	SET SCREW SOCKET (FT) M6X10	2
32	SA6792001	SET SCREW COLLAR ASSY	1
33	SA6793001	SET SCREW COLLAR	1
34	014060836	SET SCREW SOCKET (CP) M6X8	2
35	SA6794001	CUTTER LEVER ASSY	1
36	SA6795001	CUTTER LINK	1
38	SA5563001	C-ARM PIN	1
39	014500836	SET SCREW SOCKET (CP) M5X8	2
40	014060836	SET SCREW SOCKET (CP) M6X8	2
41	SA5563001	C-ARM PIN	1
42	SA6797001	CUTTER REVER SHAFT	1
43	SA6798001	BUSH C-LEVER SHAFT	1
44	012061036	SET SCREW SOCKET (FT) M6X10	1
45	SA6799001	CYLINDER SUPPORT SHAFT	1
46	014060836	SET SCREW SOCKET (CP) M6X8	2
47	SA6800001	HAMMER SPACER	1
48	014400536	SET SCREW SOCKET(CP) M4X5	1
49	SA6801301	KNIFE BRACKET UNIT	1
52	S35097101	KNIFE BLOCK HOLDER	1
53	018501636	BOLT SOCKET M5X16	1
54	S35098000	BLOCK STOPPER PLATE	1
55	062300416	SCREW PAN M3X4	1
56	018501636	BOLT SOCKET M5X16	3
57	SA6804001	ECCENTRIC PIN	1
58	SA6805001	KNIFE GARBAGE JOINT	1
59	SA6985001	TUBE GUIDE	1
60	062400816	SCREW PAN M4X8	1
61	SA6806001	KNIFE 2.8X4.3-42	1
	SA6778001
	01400536	アナクボミ4X5
	* P. 102

Page 35 — J. 下軸関係 / Lower shaft mechanism

Brother RH-9820 parts on page 35
Ref	Part number	Part name	Qty
1	SA6807001	LOWER SHAFT	1
3	SA6809001	LOWER SHAFT TENSION PULLEY A	1
4	SA6810001	LOWER SHAFT TENSION PULLEY B	1
5	SA5571001	BALL BEARING 6004ZZNR	1
6	S23651001	SET SCREW SOCKET (FT) M6X6	2
7	S47270001	BOLT SOCKET (S/P WASHER)M6X30	3
8	SA5573001	BALL BEARING 6204ZZNR	2
9	SA5564001	BEARING COLLAR	2
10	S23651001	SET SCREW SOCKET (FT) M6X6	4
11	SA6812001	T BELT 375-5GT	1
13	SA6814001	LOWER SHAFT CAM	1
14	S23651001	SET SCREW SOCKET (FT) M6X6	2
15	104833001	RUBBER CAP, 4.3	1
16	SA6815001	T BELT 1115-5GT	1
18	SA6817001	IDLER PULLEY ASSY	1
19	SA5570001	BALL BEARING 608ZZ	2
20	048220242	RETAINING RING INTERNAL C22	2
21	S50168001	COLLAR	1
22	SA6819001	IDLER PULLEY SHAFT	1
23	012061036	SET SCREW SOCKET (FT) M6X10	1
25	SA6821001	TENSION PULLEY COLLER	1
26	SA5572001	BALL BEARING 6004ZZ	2
27	048200142	RETAINING RING EXTERNAL C20	1
28	018084036	BOLT SOCKET M8X40	1
29	SA6822001	CAM COVER	1
30	062500816	SCREW PAN M5X8	3
31	SA6823001	LOWER THREADER LABEL	1
32	SA6824001	LOWER SHAFT COVER ASSY	1
33	SA6825001	LOWER SHAFT COVER	1
34	SA6826001	LOWER SHAFT COVER FELT A	2
35	SA6827001	LOWER SHAFT COVER FELT B	1
36	228475000	FASTENING BAND 1.9X80	8
37	062400816	SCREW PAN M4X8	2
38	S10243000	CORD HOLDER, NK-3N	1
39	0A4400806	SCREW PAN (S/P WASHER) M4X8	1

Page 37 — K. ルーパー関係 / Looper mechanism

Brother RH-9820 parts on page 37
Ref	Part number	Part name	Qty
1	SA6828001	LOOPER LEVER SHAFT	1
2	014500836	SET SCREW SOCKET (CP) M5X8	2
4	SA6829001	LOOPER LEVER ASSY	1
5	SA6830001	LOOPER LEVER	1
6	SA6831001	SHAFT 6.35	2
7	012500536	SET SCREW SOCKET (FT) M5X5	2
8	SA6834001	LOOPER DRIVING PLATE	1
9	SA6835001	WICK 2X2	1
10	SA6836001	WICK 2X2	1
11	SA5565001	OIL TUBE	1
12	SA6837001	LOOPER TUBE CLAMP A	1
13	060300816	SCREW BIND M3X8	1
14	SA6838001	WICK 3X3	1
15	SA6839001	OIL TUBE	1
16	SA6840001	LOOPER TUBE CLAMP B	1
17	060300816	SCREW BIND M3X8	1
18	SA6832101	LOWER SHAFT CAM COLLER	1
19	SA6833001	LOOPER CAM ROLLER SHAFT	1
20	S12718000	CHEMICAL FELT	1
21	014060632	SET SCREW SOCKET (CP) M6X6	1

Page 39 — L. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother RH-9820 parts on page 39
Ref	Part number	Part name	Qty
1	SA6841101	LOOPER BASE ASSY	1
2	018400636	BOLT SOCKET M4X6	2
3	SA6844001	INPUT PIN 4	1
4	SA5571001	BALL BEARING 6004ZZNR	2
5	SA6845001	LOOPER PULLEY ASSY	1
6	062351615	SCREW PAN M3.5X16	1
7	SA6848001	LOOPER DRIVING SHAFT	1
8	SA6849001	LOOPER DRIVING SHAFT ASSY	1
10	018301436	BOLT SOCKET M3X14	1
11	SA6851001	SPREADER LINK SHAFT	1
12	SA6852001	LOOPER LINK CLAMP	1
13	060401416	SCREW BIND M4X14	1
14	026040136	WASHER PLAIN S 4	1
15	SA6853001	LS SLIDE GUIDE	1
16	004401003	SCREW, FLAT M4X10	2
17	SA7204101	LOOPER LINK UNIT	1
19	S52832000	FELT	1
20	SA6857001	WICK 2X2	1
21	SA6858001	LOOPER LINK FASTENING SCREW	2
23	SA6859001	SPREADER LINK BASE	1
24	060401016	SCREW BIND M4X10	1
25	SA6860001	SPREADER CAM LINK	1
26	S35018001	CAM LINK COLLOR	1
27	S35014001	SHOULDER SCREW, M4	1
28	S35019001	SHOULDER SCREW, M4	1
29	SA6861001	SPREADER DRIVING CAM	1
31	SA6863001	LS HOLDER BASE	1
32	SA6864001	SPRING GUIDE SCREW	2
33	SA6865001	HOLDER PRESSER SHAFT	1
34	014060836	SET SCREW SOCKET (CP) M6X8	1
35	012500536	SET SCREW SOCKET (FT) M5X5	1
36	SA6866001	THREAD TRIMMER LEVER BRACKET	1
37	062301016	SCREW PAN M3X10	1
38	021300306	NUT 3 M3	1
39	SA6867001	U THREAD TRIMMER SPRING	1
40	SA7064001	UPPER MOVABLE KNIFE	1
41	060300416	SCREW BIND M3X4	1
42	S35029001	UPPER MOVABLE KNIFE, A	1
43	S37723101	UPPER MOVABLE KNIFE, B	1
44	105288001	SCREW SM2.38	1
45	S35410001	LOOPER, R	1
46	SA7547101	EYE LOOPER	1
47	S35412101	SPREADER, R	1
48	S35413101	SPREADER, L	1
49	S35032101	SCREW, M2.6X5.5	2
50	S35034001	SPREADER STOPPER, R	1
51	S35033001	SPREADER STOPPER, L	1
52	S35032101	SCREW, M2.6X5.5	2
53	S37724001	SCREW, SM2.38	1
54	S47932001	NUT, SM2.38-56	1

Page 41 — L. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother RH-9820 parts on page 41
Ref	Part number	Part name	Qty
55	S35035101	SPRING, TWIST :R	1
56	S35036101	SPRING, TWIST :L	1
57	SA6872001	NEEDLE GUARD U	1
58	018300836	BOLT SOCKET M3X8	1
59	025030136	WASHER PLAIN S 3	1
60	SA7063001	GIMP THREAD GUIDE C	1
61	SA7578001	GIMP THREAD GUIDE C ASSY	1
60	SA7063001	GIMP THREAD GUIDE C	1
63	SA7613001	GIMP THREAD CLAMP PLATE	1
64	SA7614001	GIMP THREAD TENSION SPRING	1
65	062300506	SCREW PAN M3X5	1
66	025030236	WASHER PLAIN M 3	1
67	SA7615001	COLLAR 3	1
68	SA6873001	GIMP THREAD GUIDE C-J ASSY	1
62	SA6874001	GIMP THREAD GUIDE C-J	1
63	SA7613001	GIMP THREAD CLAMP PLATE	1
64	SA7614001	GIMP THREAD TENSION SPRING	1
65	062300506	SCREW PAN M3X5	1
66	025030236	WASHER PLAIN M 3	1
67	SA7615001	COLLAR 3	1
69	060400516	SCREW BIND M4X5	1
70	SA7065001	THROAT PLATE 1.6	1
70	S37752001	THROAT PLATE, 1.8-J	1
71	S35326101	SCREW M3.5	1
72	SA6875001	VERTICAL PIN	1
73	014300832	SET SCREW SOCKET (CP) M3X8	1
74	SA6876001	THREAD GUIDE PLATE	1
75	SA6877001	COLLAR	1
76	SA6878001	L TR TAKE-UP SPRING SUPPORT	1
77	062402016	SCREW PAN M4X20	1
78	SA6879001	SPRING GUIDE SHAFT	1
79	021400316	NUT 3 M4	1
80	SA6880001	THREAD TAKE-UP SPRING	1
81	SA6881001	L TR TAKE-UP SPRING SUPPORT	2
82	060300816	SCREW BIND M3X8	1
83	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
84	060300816	SCREW BIND M3X8	1
85	S37725001	COMPRESSIONSPRING	1
91	SA6868101	LOWER THREAD PRESSER J ASSY	1
86	SA7634101	EYE LOOPER, B	1
87	S49078001	LOOPER, L-S	1
88	S35472101	SPREADER, LB	1
89	S49079001	SPREADER, L-S	1
90	SA7546001	THROAT PLATE, 1.1	1

Page 43 — M. スプレダー関係 / Spreader mechanism

Brother RH-9820 parts on page 43
Ref	Part number	Part name	Qty
1	SA6882001	SPREADER LEVER SHAFT	1
2	014500836	SET SCREW SOCKET (CP) M5X8	2
3	SA6883101	SPREADER LEVER A ASSY	1
5	SA6885001	SPREADER LEVER FELT	1
6	SA5565001	OIL TUBE	1
7	SA6886001	WICK 2X2	1
8	SA6887001	SPREADER TUBE CLAMP	1
9	228475000	FASTENING BAND 1.9X80	2
10	060400516	SCREW BIND M4X5	1
11	SA8001001	WICK 2X2	1
12	SA6888001	SPREADER LEVER B ASSY	1
14	SA6890001	SHAFT 6X15.5	2
15	048060142	RETAINING RING EXTERNAL C6	2
16	012500536	SET SCREW SOCKET (FT) M5X5	2
17	062400816	SCREW PAN M4X8	2
18	025040236	WASHER PLAIN M 4	2
19	SA6891001	ECCENTRIC PIN	1
20	S25279101	SET SCREW (CP) M3.5-5	1
21	SA6892001	SLIDE BLOCK 6X8	2

Page 45 — N. 給油潤滑関係 / Lubrication

Brother RH-9820 parts on page 45
Ref	Part number	Part name	Qty
1	SA6893001	OIL PLATE ASSY	1
4	S35001000	NYLON RIVET	8
5	SA6896001	OIL TUBE	1
6	SA6897001	WICK 3X3	1
7	SA6898001	WICK 3X3	1
8	SA6899001	WICK 6X6	1
9	S00480000	CORD HOLDER, 5N	1
10	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
11	062400816	SCREW PAN M4X8	4
12	SA6900001	OIL TUBE	1
13	SA6901101	WICK 3X3	1
14	146202000	CORD HOLDER, 6N	1
15	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
16	S10243000	CORD HOLDER, NK-3N	1
17	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
18	149547000	CORD HOLDER, 4N	1
19	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
20	SA6902001	TUBE SUPPORT	1
21	018400636	BOLT SOCKET M4X6	2
22	S10243000	CORD HOLDER, NK-3N	1
23	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
24	SA6903001	OIL STOPPER	1
25	SA6904001	FELT HOLDER ASSY	1
27	SA6906001	N-BAR YOKE FELT	2
28	SA6907001	SLIDE BLOCK FELT D	1
29	SA6908001	WICK 2X2	1
30	S35001000	NYLON RIVET	1
31	018400636	BOLT SOCKET M4X6	2
32	SA6909001	OIL TUBE	1
33	SA6910001	WICK 2X2	1
34	S56911000	OIL JOINT S	1
35	S51020000	COLLAR	1
36	S10243000	CORD HOLDER, NK-3N	2
37	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
38	SA6911001	OIL PLATE	1
39	062400616	SCREW PAN M4X6	2
40	S49992000	OIL GAUGE WINDOW	1
41	S00480000	CORD HOLDER, 5N	2
42	552907000	CORD HOLDER #10	2
43	0A4400806	SCREW PAN (S/P WASHER) M4X8	4
44	SA6912001	WICK 2X2	2
45	SA6913001	WICK 2X2	1
46	S29700000	FELT	4
47	153050000	S-RACE BASE FELT	1
48	SA6914001	WICK 2X2	1
49	S29700000	FELT	6
50	SA6915001	FELT ASSY	1
51	SA6918001	OIL TUBE	1
52	SA6919001	TUBE GUIDE	1
53	018400836	BOLT SOCKET M4X8	1
54	S25328001	FELT	1
55	SA8279001	OIL TUBE	1
56	SA6920001	SUB-TANK UNIT	1
57	SA3040001	OIL FEEDING PIPE	1
58	SA3060001	VALVE PACKING	1
59	SA6922001	OIL CONNECROR 6.5-3.8	1
60	104450101	RUBBER CAP, 8	1
61	SA6923001	OIL TUBE	1
62	SA6924001	WICK 6X6	1
63	SA6925001	OIL TUBE	1
64	SA6926001	WICK 3X3	1
65	SA6927001	OIL TUBE	1
66	SA6928001	WICK 6X6	1

Page 47 — N. 給油潤滑関係 / Lubrication

Brother RH-9820 parts on page 47
Ref	Part number	Part name	Qty
67	SA6929001	TUBE CLIP SPRING	1
68	S55481001	BOLT SOCKET (S/P WASHER)M4X12	2
69	149287000	CORD HOLDER, 7N	4
70	0A4400806	SCREW PAN (S/P WASHER) M4X8	4
71	SA6930001	TUBE SUPPORT B	1
72	062500816	SCREW PAN M5X8	1
73	S25328001	FELT	1
74	112753001	FELT	1
75	S00480000	CORD HOLDER, 5N	1
76	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
77	SA6886001	WICK 2X2	1
78	SA5567001	WICK 2X2	1
79	SA5566001	WICK 2X2	1
80	SA5567001	WICK 2X2	1
81	107155001	FELT	2
82	SA6932001	LOOPER BASE OIL PLATE ASSY	1
86	060400516	SCREW BIND M4X5	2
87	SA6936001	WICK	1
88	SA6937101	WICK 2X2	1
89	SA6938001	GIMP THREAD WASTE PLATE ASSY	1
90	SA6939001	GIMP THREAD WASTE PLATE	1
91	SA6940001	LOOPER LINK FELT	1
92	228475000	FASTENING BAND 1.9X80	2
93	SA6941001	WICK 2X2	1
94	060400816	SCREW BIND M4X8	1
95	SA7178001	OIL TUBE	1
96	SA6942001	PARTITION	1
97	018400636	BOLT SOCKET M4X6	2
98	SA8009001	WICK	1
99	S02657101	CORD HOLDER	1
100	SA8011001	WICK 6X6	1
101	S56911000	OIL JOINT S	2
102	S51020000	COLLAR	2
103	SA8101001	OIL TUBE	1
	0A44008006	+ナベザクミ4X8DA	4
	SA6933001		1
	SA6934001		1

Page 49 — P1. 糸通し関係 / Threading mechanism

Brother RH-9820 parts on page 49
Ref	Part number	Part name	Qty
2	SA6944001	TOP COVER	1
3	SA6945001	PACKING TOP COVER	1
5	SA6947101	CYLINDER JOINT A	1
6	SA6948101	CYLINDER SETTING PLATE A	1
7	SA6949001	CYLINDER ASSY 10-30	1
8	S11426000	ELBOW UNION 4M5	2
9	SA6950001	AIR TUBE 4X2.5-11	1
10	SA7134001	AIR TUBE 4X2.5-12	1
11	062500816	SCREW PAN M5X8	2
12	SA6951001	T-TAKE-UP LEVER DRIVING PLATE	1
13	SA6952001	THREAD TAKE-UP LEVER PLATE	1
14	060400516	SCREW BIND M4X5	1
15	SA6953001	THREAD TAKE-UP LEVER BASE	1
16	SA6954001	COLLAR A	1
17	SA7494001	WASHER	1
18	018401036	BOLT SOCKET M4X10	1
19	021400206	NUT 2 M4	1
20	062500816	SCREW PAN M5X8	2
21	SA6955001	COLLAR B	1
22	SA7494001	WASHER	1
23	018401036	BOLT SOCKET M4X10	1
24	SA6956101	IMPACT SUPPORT PLATE	1
25	SA6957001	IMPACT SUPPORT SHAFT	1
26	048060142	RETAINING RING EXTERNAL C6	1
27	025060236	WASHER PLAIN M 6	1
28	SA6958001	SPRING COMPRESSION A	1
29	S05356000	BUTTON CLAMP, A	1
30	062500816	SCREW PAN M5X8	2
31	SA6959001	UPPER THREAD GUIDE A	1
32	062500816	SCREW PAN M5X8	1
33	SA6960101	THREAD GUIDE ROD A	1
34	SA6961001	TENSION U ASSY	1
35	SA6962001	TENSION STUD U	1
36	145446001	DISC, TENSION	2
37	159805001	TENSION DISC PRESSER	1
38	144103009	TENSION DISC PRESSER	1
39	159221101	TENSION SPRING	1
40	S20682102	TENSION NUT	1
41	S20681000	WASHER	1
42	152873001	TENSION RELEASE PIN	1
43	012500536	SET SCREW SOCKET (FT) M5X5	1
45	SA3345001	SETTING PLATE,SOLENOID	1
46	154599000	SOLENOID CUSHION	1
47	017401415	BOLT M4X14	1
48	021400306	NUT 3 M4	1
49	102707002	WASHER	1
50	SA6538001	U-TENSION RELEASE SOLENOID	1
51	017400802	BOLT M4X8	2
52	028040246	WASHER SPRING 2-4	2
53	025040236	WASHER PLAIN M 4	2
54	062500816	SCREW PAN M5X8	2
55	S20698221	TENSION STUD	1
56	144504001	THREAD GUIDE DISC	2
57	154562101	PRE-TENSION SPRING B	1
58	155510001	TENSION NUT	1
59	SA6963001	SEWING THREAD RETAINER GUIDE	2
60	062500816	SCREW PAN M5X8	4
61	SA5568001	THREAD SPOOL PIN	1
62	021500216	NUT 1 M5	1
63	149547000	CORD HOLDER, 4N	3
64	0A4400806	SCREW PAN (S/P WASHER) M4X8	3
65	S00480000	CORD HOLDER, 5N	1
66	0A4400806	SCREW PAN (S/P WASHER) M4X8	1

Page 51 — P1. 糸通し関係 / Threading mechanism

Brother RH-9820 parts on page 51
Ref	Part number	Part name	Qty
67	104821001	RUBBER CAP, 10.5	1
68	228475000	FASTENING BAND 1.9X80	1
69	062501216	SCREW PAN M5X12	9
70	SA6965001	2 PEDAL THREAD GUIDE PIPE	1
71	062500816	SCREW PAN M5X8	2
72	SA6966001	PIPE CLAMP PLATE	1
73	062400816	SCREW PAN M4X8	2

Page 53 — P2. 糸通し関係 / Threading mechanism

Brother RH-9820 parts on page 53
Ref	Part number	Part name	Qty
2	SA7067101	L-THREAD RELEASE PLATE	1
4	SA6971001	L-THREAD TAKE-UP GUIDE LENER	1
5	SA6974001	LOWER THREAD GUIDE C	1
6	060400516	SCREW BIND M4X5	2
7	SA6969101	L-THREAD GUIDE ADJUST PLATE	1
8	SA6970001	TWIST SPRING B	1
9	048080142	RETAINING RING EXTERNAL C8	1
10	SA6972001	LOWER THREAD GUIDE A	1
11	062400816	SCREW PAN M4X8	2
12	SA6973001	LOWER THREAD GUIDE B	1
13	060400516	SCREW BIND M4X5	2
14	SA7175201	L-THREAD TENSION SHAFT ASSY	1
15	SA6975101	TENSION STUD D	1
16	SA8094001	TENSION NUT	1
17	145446001	DISC, TENSION	2
18	159805001	TENSION DISC PRESSER	1
19	154562101	PRE-TENSION SPRING B	1
20	SA3227001	NUT(FT),M6	1
21	SA6977001	TENSION RELEASE PIN	1
22	S52431000	U-THREAD TRIMMER STOPPER	1
23	047301042	PIN SPRING ROLL AW3	1
25	SA6979001	LOWER SOLENOID SETTING PLATE	1
26	SA6539001	L-TENSION RELEASE SOLENOID	1
27	017400802	BOLT M4X8	2
28	028040246	WASHER SPRING 2-4	2
29	025040236	WASHER PLAIN M 4	2
30	SA6980001	LOWER SOLENOID SHAFT	1
31	155559001	WASHER PLAIN	1
32	154599000	SOLENOID CUSHION	1
33	S04159000	BAND, 1M	1
34	018400836	BOLT SOCKET M4X8	2
35	026040136	WASHER PLAIN S 4	2
36	018400836	BOLT SOCKET M4X8	3
37	SA8095001	WASHER	1

Page 55 — P3. 糸通し関係 / Threading mechanism

Brother RH-9820 parts on page 55
Ref	Part number	Part name	Qty
1	SA7068001	GIMP THREAD TAKE-UP G-L ASSY	1
2	SA7069001	GIMP THREAD TAKE-UP G-HOLDER	1
3	SA7070001	G-THREAD TAKE-UP GUIDE PLATE	1
4	SA7071001	GIMP THREAD TAKE-UP G-E PLATE	1
5	SA7072001	SHOULDER SCREW M4	1
6	021400306	NUT 3 M4	1
7	158722001	WASHER PLAIN 4.2	1
8	SA7073001	GIMP THREAD GUIDE	1
9	062300416	SCREW PAN M3X4	1
10	SA7074001	SPRING TORSION	2
11	SA6981001	GIMP THREAD GUIDE PIPE	1
12	S20696001	THREAD GUIDE PIPE SUPPORT	1
13	062400816	SCREW PAN M4X8	1
11	SA6981001	GIMP THREAD GUIDE PIPE	1
12	S20696001	THREAD GUIDE PIPE SUPPORT	1
13	062400816	SCREW PAN M4X8	1
17	SA6982001	GIMP THREAD GUIDE J	1
18	018400836	BOLT SOCKET M4X8	2
19	SA6983101	GIMP THREAD CLAMP ASSY	1
20	SA6984001	GIMP THREAD CLAMP PLATE	1
21	SA6537001	GIMP THREAD SOLENOID	1
22	048025346	RETAINING RING E2.5	1
23	081003870	O RING S3	2
24	062260406	SCREW PAN M2.6X4	2
25	145446002	DISC, TENSION	1
26	SA6986101	GIMP THREAD SHAFT	1
27	014300332	SET SCREW SOCKET (CP) M3X3	2
28	SA6987001	GIMP THREAD CLAMP	1
29	062400816	SCREW PAN M4X8	2
30	S04557000	BAND, PLT1M	1
31	018400836	BOLT SOCKET M4X8	2
32	SA6981001	GIMP THREAD GUIDE PIPE	1
33	S20696001	THREAD GUIDE PIPE SUPPORT	1
34	062400816	SCREW PAN M4X8	1

Page 57 — Q1. 糸切り関係 / Thread trimmer mechanism

Brother RH-9820 parts on page 57
Ref	Part number	Part name	Qty
1	SA7526001	THREAD TRIMMER LINK LEVER ASSY	1
2	SA7778001	LINK LEVER ROLLER	1
3	137191051	STOP RING	1
4	SA5693001	SHOULDER SCREW M4	1
5	S34906100	BUSH TR TRIMMER ARM	1
6	062260516	SCREW PAN M2.6X5	2
7	S34905101	THREAD CUTTER LEVER ARM	1
8	018401036	BOLT SOCKET M4X10	1
9	S37858000	NEEDLE PIN, 4X8	1
10	S34903001	SPRING HOOK	1
11	S34883001	SPRING, EXTENSION	1
12	S34902001	SPRING HOOK	1
13	021350106	NUT 1 M3.5	1
14	062260516	SCREW PAN M2.6X5	1
15	S34901001	THREAD TRIMMER ARM	1
16	S34900001	OPENER, ;T-NIPPER	1
17	153219001	COLLAR, ;MOVABLE KNIFE	1
18	S34899001	MOVABLE KNIFE ASSY	1
19	S34898001	PIN, SPRING 1.4	1
20	141542001	SCREW 3.18	3
21	SA7076001	THREAD HANDLER	1
22	S01694001	SCREW, FLAT SM2.38X4	1
23	S34896001	BRACKET, ;FIXED KNIFE	1
24	061300416	SCREW FLAT M3X4	2
25	S34895001	FIXED KNIFE	1
26	018260832	BOLT, SOCKET M2.6X8	2
27	S34894001	THREAD GUIDE PLATE	1
28	S34893001	SETTING BRACKET FIXED KNIFE	1
29	062300512	SCREW PAN M3X5	2
30	S34889101	THREAD NIPPER ASSY	1
31	S34890001	THREAD NIPPER, U	1
32	S34891101	THREAD NIPPER, D	1
33	S34888101	THREAD NIPPER, M	1
34	S34892001	OPENER PIN	1
35	062020416	SCREW PAN M2X4	2
36	021020106	NUT 1 M2	2
37	542515001	SCREW M2.6X3.5	2
38	S34887001	SPRING, PLATE ;F-KNIFE	1
39	S34886001	SPRING, U PLATE ;F-KNIFE	1
40	SA7077001	PRESSER PLATE U	1
41	060400516	SCREW BIND M4X5	2
42	152904001	SCREW, SM4.37	1
43	104336003	SCREW, SM2.38	1
44	S34884000	OPENER SPRING	1
45	060630312	SCREW BIND SM2.38-56X3	2
46	021400306	NUT 3 M4	1
47	062300416	SCREW PAN M3X4	2

Page 59 — Q2. 糸切り関係 / Thread trimmer mechanism

Brother RH-9820 parts on page 59
Ref	Part number	Part name	Qty
1	SA6988001	MOVABLE KNIFE R	1
2	SA6989001	MOVABLE KNIFE L	1
3	SA6990101	THREAD HANDLER	1
4	SA6991001	MOVABLE KNIFE DRIVING PLATE	1
5	SA6992001	THREAD TRIMMER LINK A ASSY	1
6	SA6994001	THREAD TRIMMER LINK B ASSY	1
7	S37660101	SHOULDER SCREW, M4	1
8	021400202	NUT 2 M4	1
9	S37654000	WAVE WASHER	1
10	S37655101	KNIFE SUPPORT WASHER	1
11	141542001	SCREW 3.18	2
12	SA6996001	THREAD TRIMMER L-LEVER J ASSY	1
13	SA7778001	LINK LEVER ROLLER	1
14	137191051	STOP RING	1
15	SA5693001	SHOULDER SCREW M4	1
16	021400306	NUT 3 M4	1
17	SA6998101	SPRING HOOK	1
18	SA6999101	THREAD TRIMMER SPRING	1
19	S34902001	SPRING HOOK	1
20	021350106	NUT 1 M3.5	1
21	062260516	SCREW PAN M2.6X5	1
22	062300416	SCREW PAN M3X4	2
23	SA7001001	BUSH TR TRIMMER ARM	1
24	062260516	SCREW PAN M2.6X5	2
25	SA7002101	THREAD TRIMMER LEVER ARM B	1
26	S21716001	SCREW, BUTTON HEAD M4X10	1
27	S37858000	NEEDLE PIN, 4X8	1
28	SA7003001	WORK CLAMP PLATE JU	1
29	060400516	SCREW BIND M4X5	2
30	153787001	SCREW, SM2.38	2

Page 61 — R. 上糸切り関係 / Upper thread trimmer mechanism

Brother RH-9820 parts on page 61
Ref	Part number	Part name	Qty
2	SA7005001	CYLINDER SETTING PLATE	1
3	SA7006001	HAMMER GUIDE PLATE	1
4	018400636	BOLT SOCKET M4X6	2
5	SA7007001	HAMMER	1
6	S12053000	BOLT, CQ2 M3X25	2
7	SA7008001	CYLINDER ASSY	1
10	SA7011001	JOINT KJH04-M3	2
11	018501236	BOLT SOCKET M5X12	2

Page 63 — S1. コントロールボックス関係 / Control box mechanism

Brother RH-9820 parts on page 63
Ref	Part number	Part name	Qty
1	SA6364001	CF CAP ASSY	1
2	SA3720101	TRANSFORMER LOW VOLTAGE	1
3	SA3808101	TRANSFORMER HIGH VOLTAGE	1
4	SA6554001	PCB ASSY MAIN 982	1
5	SA3739501	PCB ASSY PMD	1
6	SA3744001	TRANSISTOR FET:FS10ASJ-2	3
7	SA3722001	TRANSISTOR FET:FX20KMJ-2	1
8	S49484000	TRANSISTOR FET:FS10KMJ-2	1
9	SA3806001	HARNESS MAIN POWER SUPPLY	1
10	S37059001	LABEL, PE	1
11	S37060001	LABEL, GROUNDING	3
12	J04115001	LABEL, ELEC. SHOCK 6 LANG.	1
13	SA3581101	PCB ASSY NF	1
14	SA3796001	HARNESS NF OUT	1

Page 65 — S2. コントロールボックス関係 (電源モータ基板) / Control box mechanism (Power supply motor PCB)

Brother RH-9820 parts on page 65
Ref	Part number	Part name	Qty
1	SA3755201	PCB ASSY POWER SUPPLY MOTOR	1
2	SA3765001	VARISTOR:V10D101	1
3	SA3766001	VARISTOR:V10D241	1
4	SA3767001	VARISTOR:V14D511	1
5	SA3768001	VARISTOR:V14D561	1
6	SA3762001	VARISTOR:V14D911	1
7	SA3769001	VARISTOR:V5D121	1
8	SA3770001	VARISTOR:V5D330	1
9	SA3771001	VARISTOR:V5D820	1
10	SA3794001	G FUSE S 15A	3
11	SA3795001	G FUSE S 6A	2
12	SA7794001	G FUSE S 3A	3

Page 67 — T. スイッチ関係 / Power switch mechanism

Brother RH-9820 parts on page 67
Ref	Part number	Part name	Qty
1	SA3813001	POWER SUPPLY SWITCH ASSY,1P-JP	1
2	SA3822001	VOLTAGE SELECT HARNESS 100V	1
3	SA3819001	POWER SUPPLY SWITCH ASSY,3P-JP	1
4	SA3825001	VOLTAGE SELECT HARNESS 200V	1
6	SA3816001	POWER SUPPLY SWITCH ASSY,3P-L	1
7	SA3812001	VOLTAGE SELECT HARNESS 220V	1
8	SA3809001	POWER SUPPLY SWITCH ASSY,1P	1
7	SA3812001	VOLTAGE SELECT HARNESS 220V	1
10	SA3827001	VOLTAGE SELECT HARNESS 380V	1
11	SA3789101	VOLTAGE SELECT HARNESS H220V	1
12	SA4510001	POWER SUPPLY SWITCH ASSY,3P-H	1
13	SA3838001	HARNESS ASSY, AC IN EC	1
14	SA3828001	VOLTAGE SELECT HARNESS 400V	1

Page 69 — U1. 空圧関係 / Air pressure mechanism

Brother RH-9820 parts on page 69
Ref	Part number	Part name	Qty
2	S35360000	CYLINDER ASSY, 63X100	1
3	S35426100	ELBOW 10-4	2
4	SA7016001	CYLINDER ROD	1
5	SA7017001	CYLINDER ROD SHAFT	1
6	014060836	SET SCREW SOCKET (CP) M6X8	1
7	SA7018001	AIR TUBE 10X6.5-6A	1
8	SA7019001	AIR TUBE 10X6.5-5A	1
9	SA7020001	AIR TUBE 10X6.5-5	1
10	SA7021001	AIR TUBE 10X6.5-6	1
11	SA7022001	UNION KQ2LE10-5	1
12	SA8040001	UNION KQ2LE10-6	1
13	SA7023001	AIR TUBE 4X2.5-13	1
14	SA7159001	AIR TUBE 4X2.5-14	1
15	S00480000	CORD HOLDER, 5N	1
16	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
17	SA7024001	AIR TUBE 4X2.5-2	1
18	S34569000	VENTURI TUBE	1
19	SA7027001	AIR TUBE 16X12-80	1
20	SA7028001	KNIFE TRASH TUBE	1
21	525567000	CORD HOLDER #8	1
22	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
23	552908000	CORD HOLDER #14	1
24	0A4401206	SCREW PAN (S/P WASHER) M4X12	1
25	554482000	CORD HOLDER #12	2
26	0A4401206	SCREW PAN (S/P WASHER) M4X12	2
27	SA8119001	AIR UNIT SET	1
28	SA7583001	FR UNIT AW30	1
29	SA7584001	T SPACER	1
30	SA7585001	SPACER	2
31	SA7586001	R UNIT AR30	1
32	S59219000	HALF UNION, 08-PT1/4	1
33	SA7587001	ELBOW KQ2L10-02S	1
34	SA7588001	ELBOW PT 1/4	1
35	SA7589001	MIDDLE NIPPLE 1/4	1
36	SA6573001	BALL VALVE V03 1/4	1
37	SA7595001	MIDDLE NIPPLE 1/4	1
38	SA7580001	SETTING PLATE	1
39	031553202	WOOD SCREW ROUND M5.5X32	2
40	SA8003001	AIR CONNECTOR	1
	S00448000		1
	SA7077001	エアーホース16X12-80	1
	SA7590001		1

Page 71 — U2. 空圧関係 / Air pressure mechanism

Brother RH-9820 parts on page 71
Ref	Part number	Part name	Qty
1	SA7085001	SOLENOID VALVE 4 ASSY	1
2	S39116100	VALVE VQZ2151S-5	1
3	S53982000	BLANKING PLATE ASSY	1
4	SA7032001	MANIFOLD 5	1
5	S39115100	VALVE, VQZ2151-5	3
6	S14159000	ELBOW 1/8-8	1
7	SA5283001	SILENCER AN103-1	1
8	153274001	CAP, 1/8	2
9	SA7033001	PLUG 4	1
10	0A4403506	SCREW PAN (S/P WASHER) M4X35	2
11	SA7031001	SOLENOID VALVE 5 ASSY	1
2	S39116100	VALVE VQZ2151S-5	2
4	SA7032001	MANIFOLD 5	1
5	S39115100	VALVE, VQZ2151-5	3
6	S14159000	ELBOW 1/8-8	1
7	SA5283001	SILENCER AN103-1	1
8	153274001	CAP, 1/8	2
9	SA7033001	PLUG 4	1
10	0A4403506	SCREW PAN (S/P WASHER) M4X35	2
12	SA7034001	AIR TUBE 8X5-1	1
13	SA7035001	AIR TUBE 10X6.5-4	1
14	SA6525001	VALVE HARNESS ASSY X5	1
15	SA8120101	CUTTER VALVE SET	1
16	SA7591101	VALVE ASSY	1
17	SA7592101	VALVE VF5120-5G-03	1
18	SA7593001	ELBOW KQ2L10-03S	3
19	SA7594001	SILENCER AN303-03	1
20	SA7598001	SILENCER ASN2-02	1
21	SA7596001	JOINT 3/8X1/4-M5	1
22	SA7597001	ELBOW KJL04-M5	1
23	0A4404006	SCREW PAN (S/P WASHER) M4X40	3
24	SA7581001	VALVE SETTING PLATE	1
25	031553202	WOOD SCREW ROUND M5.5X32	2
26	SA6526101	HAMMER VALVE HARNESS	1
27	S00470000	CORD HOLDER, 16N	2
28	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
29	SA7046001	HOSE JOINT	1
30	SA7047001	OIL TUBE	1
31	228475000	FASTENING BAND 1.9X80	1
32	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 73 — V. 電装品関係 / Power supply equipment mechanism

Brother RH-9820 parts on page 73
Ref	Part number	Part name	Qty
1	SA6530001	Y-POSITION SENSOR	1
2	062300816	SCREW PAN M3X8	1
3	S10243000	CORD HOLDER, NK-3N	1
4	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
5	SA6618001	DC FAN MOTOR ASSY 40	1
6	SA5696001	FAN HOLDER	1
7	0A5302005	SCREW PAN (S/P WASHER) M3X20	4
8	018400836	BOLT SOCKET M4X8	2
10	SA5729001	SAFETY SWITCH PLATE	1
11	SA5730001	SAFETY SWITCH BASE	1
12	SA5731001	SAFETY SWITCH SPRING	1
13	SA5732001	SAFETY SWITCH LEVER	1
14	SA6533001	SWITCH ASSY MACHINE HEAD	1
15	SA7293001	SCREW, PAN (S/P W) M3X12	2
16	S04159000	BAND, 1M	1
17	018400836	BOLT SOCKET M4X8	2
18	025040236	WASHER PLAIN M 4	2
19	525664000	CORD HOLDER #6	1
20	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
21	SA5733001	CORD HOLDER	1
22	062400816	SCREW PAN M4X8	2
23	SA5734101	CUTTER SENSOR ASSY	1
24	062400816	SCREW PAN M4X8	2
25	340400001	BEAD BAND	1
26	SA6531101	STOP SWITCH HARNESS	1
27	SA7488001	SWITCH HW1B-M211B	1
28	SA5737001	SWITCH COVER	1
29	0A4400806	SCREW PAN (S/P WASHER) M4X8	3
30	SA5738001	CORD BUSH	1
31	625010000	NYLON CLAMP NK-2N	1
32	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
33	149547000	CORD HOLDER, 4N	4
34	0A4400806	SCREW PAN (S/P WASHER) M4X8	4
35	S10243000	CORD HOLDER, NK-3N	1
36	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
37	SA5740001	ZIGZAG SENSOR ASSY	1
38	SA5741001	SENSOR SETTING PLATE	1
39	062300816	SCREW PAN M3X8	1
40	062400816	SCREW PAN M4X8	2
41	228475000	FASTENING BAND 1.9X80	5
42	SA6532001	CONNECT HARNESS ASSY	1
43	SA6535001	UP SOLENOID HARNESS	1
44	SA6536001	SOLENOID HARNESS	1
45	SA5434001	GROUND WIRE 700	1
46	SA6636001	QUICK TUBE ASSY 40X800	1
47	SA7119001	HEAD DETECTION UNIT ASSY	1
49	SA5433001	GROUND WIRE 40	1

Page 75 — W. 操作パネル関係 / Operation panel mechanism

Brother RH-9820 parts on page 75
Ref	Part number	Part name	Qty
1	SA6547001	OPERATION PANEL ASSY	1
2	SA6550001	PANEL SHEET	1
3	SA5148001	PCB ASSY PANEL	1
4	SA5360001	LIGHT PLATE ASSY	1
5	SA6546001	PANEL HARNESS	1
6	0B0452006	WOOD SCREW ROUND M4.5X20	4
7	J03974001	LAMP HOLDER	1
8	J04146001	DIFFUSION SHEET 75PBA	1

Page 77 — X. モータ関係 / Motor mechanism

Brother RH-9820 parts on page 77
Ref	Part number	Part name	Qty
1	SA7476001	MOTOR ASSY CDD HATOME	1
2	J03955001	DRUM CDD	1
3	014400632	SET SCREW SOCKET (CP) M4X6	2
4	J03956001	MAGNET 180P36	1
5	J03957001	MR SENSOR ASSY 180P	1
6	0A4300806	SCREW PAN (S/P WASHER) M3X8	2
7	J03958001	SHIELD PLATE CDD	1
8	0A4261006	SCREW PAN (S/P WASHER) M2.6X10	3
9	SA7480001	ENC PCB ASSY HATOME	1
10	0A5300606	SCREW PAN (S/P WASHER) M3X6	3
11	J04230001	CORD HOLDER CDD-HT	1
12	0A4401006	SCREW PAN (S/P WASHER) M4X10	3
13	J04388001	ENCORDER COVER 430D	1
14	0A4300806	SCREW PAN (S/P WASHER) M3X8	3
15	J04303001	PULLEY HOLDER ASSY 430D	1
16	014500632	SET SCREW SOCKET (CP) M5X6	2
17	018501636	BOLT SOCKET M5X16	5
18	SA7012001	MOTOR COVER	1
19	J03663001	LABEL, HIGH TEMP. 13X20	1
20	SA7013001	MOTOR HOLDRER	1
21	S58636001	BOLT SOCKET (S/P WASHER)M8X30	3
22	SA5549001	TIMING PULLEY ASSY	1
23	S23651001	SET SCREW SOCKET (FT) M6X6	2
24	SA7014001	BELT GUIDE	1
25	062400816	SCREW PAN M4X8	2

Page 79 — Y. 踏板関係 / Foot switch pedal mechanism

Brother RH-9820 parts on page 79
Ref	Part number	Part name	Qty
1	SA6567101	TREADLE UNIT B ASSY	1
2	SA7121001	HAND START SWITCH UNIT	1
3	SA7122001	HAND START SWITCH ASSY	1
4	S39914001	SWITCH LEVER SPRING	1
5	SA7123001	HAND START SWITCH	1
6	S02699001	MICRO SWITCH	2
7	S34922101	SHOULDER SCREW M4	1
8	S34966001	SHOULDER SCREW M4	2
9	021400202	NUT 2 M4	3
10	146124001	SCREW, SM2.38	2
11	060300616	SCREW BIND M3X6	2
12	S04557000	BAND, PLT1M	1
13	060400816	SCREW BIND M4X8	2
14	SA7124001	HAND SWITCH SETTING PLATE	1
15	S55485001	BOLT SOCKET (S/P WASHER)M5X12	2
16	S10243000	CORD HOLDER, NK-3N	3
17	0A4400806	SCREW PAN (S/P WASHER) M4X8	3
18	228475000	FASTENING BAND 1.9X80	2
19	S42838301	2-PEDAL FOOT SWITCH 2	1
20	S38170001	FOOT PEDAL SPRING	2
21	S36260000	PIN BUTTON MICRO SWITCH, VX	2
22	S38174000	FOOT PEDAL	2
23	S38175101	PROTECTION PLATE PEDAL	2
24	S38176101	SPRING, PLATE	2
25	SA3784001	CONVERSION HARNESS FOOT SW	1

Page 81 — AA1. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 81
Ref	Part number	Part name	Qty
1	SA7750001	EXCHANGE PARTS SET L1422	1
2	SA7748001	L1422-PLATE R ASSY	1
3	SA7728001	WORK CLAMP PLATE R1422 ASSY	1
4	SA7102001	NEEDLE PLATE L1422R	1
5	SA7092001	WORK CLAMP R-JL1422	1
6	SA7749001	WORK CLAMP PLATE L1422 ASSY	1
7	SA7097001	NEEDLE PLATE L1422L	1
8	SA7087001	WORK CLAMP L-JL1422	1
9	S37704001	HAMMER, S16	1
10	S37706001	HAMMER, S20	1
1	SA7752001	EXCHANGE PARTS SET L2230	1
2	SA7751001	L2230-PLATE R ASSY	1
3	SA6728001	WORK CLAMP PLATE R2230 UNIT	1
4	SA6731001	NEEDLE PLATE L 2230R	1
5	SA6732001	WORK CLAMP R-JL2230	1
6	SA6738001	WORK CLAMP PLATE L2230 UNIT	1
7	SA6741001	NEEDLE PLATE L 2230L	1
8	SA6742001	WORK CLAMP L-JL2230	1
9	S37708001	HAMMER, S24	1
10	S42053001	HAMMER, S28	1
1	SA7756001	EXCHANGE PARTS SET L2634	1
2	SA7754001	L2634-PLATE R ASSY	1
3	SA7753001	WORK CLAMP PLATE R2634 ASSY	1
4	SA7103001	NEEDLE PLATE L2634R	1
5	SA7093001	WORK CLAMP R-JL2634	1
6	SA7755001	WORK CLAMP PLATE L2634 ASSY	1
7	SA7098001	NEEDLE PLATE L2634L	1
8	SA7088001	WORK CLAMP L-JL2634	1
9	S37198001	HAMMER, 28	1
10	S37200001	HAMMER, 32	1
1	SA7764001	EXCHANGE PARTS SET L3442	1
2	SA7758001	L3442-PLATE R ASSY	1
3	SA7757001	WORK CLAMP PLATE R3442 ASSY	1
4	SA7104001	NEEDLE PLATE L3442R	1
5	SA7094001	WORK CLAMP R-JL3442	1
6	SA7762001	WORK CLAMP PLATE L3442 ASSY	1
7	SA7099001	NEEDLE PLATE L3442L	1
8	SA7089001	WORK CLAMP L-JL3442	1
9	S37202001	HAMMER, 36	1
10	SA7106001	HAMMER 42	1
1	SA7771001	EXCHANGE PARTS SET L1826	1
2	SA7768001	L1826-PLATE R ASSY	1
3	SA7187001	WORK CLAMP PLATE R1826 ASSY	1
4	SA7105001	NEEDLE PLATE L1826R	1
5	SA7095001	WORK CLAMP R-JL1826	1
6	SA7186001	WORK CLAMP PLATE L1826 ASSY	1
7	SA7100001	NEEDLE PLATE L1826L	1
8	SA7090001	WORK CLAMP L-JL1826	1
9	S37706001	HAMMER, S20	1
10	S37708001	HAMMER, S24	1

Page 83 — AA1. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 83
Ref	Part number	Part name	Qty
11	SA6729001	WORK CLAMP PLATE JR UNIT	1
12	S35315001	OPENING SLIDE BLOCK	1
13	S35316001	SLIDE BLOCK SUPPORT PLATE	1
14	060020416	SCREW BIND M2X4	2
15	S06696004	SCREW, FLAT M3X6	2
16	S35236000	WASHER, BENDING 3.2	1
17	S35235001	SUPPORT PIN, CLAMP	1
18	021300306	NUT 3 M3	1
19	SA5560001	CLAMP SHAFT HOLDER	1
20	062400816	SCREW PAN M4X8	2
21	SA6733001	CLAMP FULCRUM SHAFT J	1
22	048060142	RETAINING RING EXTERNAL C6	2
23	SA5585001	CLAMP LEVER R	1
24	018501236	BOLT SOCKET M5X12	1
25	SA6734001	CLAMP ARM R-J	1
26	014400536	SET SCREW SOCKET(CP) M4X5	2
27	SA7550001	CROTH GUIDE R	1
28	S35326101	SCREW M3.5	1
29	SA6735001	AUX CLAMP ARM	1
30	048060142	RETAINING RING EXTERNAL C6	1
31	SA6736001	SUB AUX CLAMP WRIST	1
32	018401036	BOLT SOCKET M4X10	1
33	S05356000	BUTTON CLAMP, A	1
34	SA6737001	AUX CLAMP TSWIST SPRING	1
35	SA6988001	MOVABLE KNIFE R	1
36	SA6989001	MOVABLE KNIFE L	1
37	SA6990001	THREAD HANDLER	1
38	153787001	SCREW, SM2.38	2
39	SA6991001	MOVABLE KNIFE DRIVING PLATE	1
40	SA6992001	THREAD TRIMMER LINK A ASSY	1
41	SA6994001	THREAD TRIMMER LINK B ASSY	1
42	S37660101	SHOULDER SCREW, M4	1
43	021400206	NUT 2 M4	1
44	S37654000	WAVE WASHER	1
45	S37655101	KNIFE SUPPORT WASHER	1
46	141542001	SCREW 3.18	2
47	SA6996001	THREAD TRIMMER L-LEVER J ASSY	1
48	SA7778001	LINK LEVER ROLLER	1
49	137191051	STOP RING	1
50	SA5693001	SHOULDER SCREW M4	1
51	021400306	NUT 3 M4	1
52	SA6998001	SPRING HOOK	1
53	SA6999001	THREAD TRIMMER SPRING	1
54	S34902001	SPRING HOOK	1
55	021350106	NUT 1 M3.5	1
56	062260406	SCREW PAN M2.6X4	1
57	062300416	SCREW PAN M3X4	2
58	SA7001001	BUSH TR TRIMMER ARM	1
59	062260516	SCREW PAN M2.6X5	2
60	SA7002001	THREAD TRIMMER LEVER ARM B	1
61	S21716001	SCREW, BUTTON HEAD M4X10	1
62	S37858000	NEEDLE PIN, 4X8	1
63	SA7003001	WORK CLAMP PLATE JU	1
64	060400516	SCREW BIND M4X5	2
65	SA6739001	WORK CLAMP PLATE JL ASSY	1
66	S35315001	OPENING SLIDE BLOCK	1
67	S35316001	SLIDE BLOCK SUPPORT PLATE	1
68	060020416	SCREW BIND M2X4	2
69	S06696004	SCREW, FLAT M3X6	2
70	S35236000	WASHER, BENDING 3.2	1
71	S35235001	SUPPORT PIN, CLAMP	1
72	021300306	NUT 3 M3	1
73	SA5560001	CLAMP SHAFT HOLDER	1
	0213003006		1
	018501036	アナボルト5X12	1

Page 85 — AA1. 付属装置関係 / Attachment set

Brother RH-9820 parts on page 85
Ref	Part number	Part name	Qty
74	062400816	SCREW PAN M4X8	2
75	SA5674001	CLAMP FULCRUM SHAFT	1
76	048060142	RETAINING RING EXTERNAL C6	2
77	SA5671001	CLAMP LEVER L	1
78	018501236	BOLT SOCKET M5X12	1
79	SA6743001	CLAMP ARM L-J	1
80	014400536	SET SCREW SOCKET(CP) M4X5	2
81	SA7551001	CROTH GUIDE L	1
82	S35326101	SCREW M3.5	1

Page 87 — AA2. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 87
Ref	Part number	Part name	Qty
1	SA7773001	EXCHANGE PARTS SET -2	1
2	SA7131001	AIR TUBE 4X2.5-150	2
3	SA6718001	AUX CLAMP C-SUPPORT ASSY	1
4	SA6719001	CYLINDER ASSY 10X15	1
5	S12150000	TUBE ELBOW, M-5HL-4	2
6	SA6720001	AUX CLAMP S HOLDER	1
7	S35351001	CYLINDER ROD	1
8	062400816	SCREW PAN M4X8	2
9	SA6721001	AUX CLAMP CONNECTING ROD ASSY	1
10	048050142	RETAINING RING EXTERNAL C5	1
11	SA6726001	CYLINDER ROD PIN	1
12	048030342	RETAINING RING E3	2
13	SA6800001	HAMMER SPACER	1
14	014400536	SET SCREW SOCKET(CP) M4X5	1
15	SA6868001	LOWER THREAD PRESSER J ASSY	1
16	S37724001	SCREW, SM2.38	1
17	S37725001	COMPRESSIONSPRING	1
18	S47932001	NUT, SM2.38-56	1
19	060300816	SCREW BIND M3X8	1
20	S37723101	UPPER MOVABLE KNIFE, B	1
21	SA6873001	GIMP THREAD GUIDE C-J ASSY	1
22	SA7613001	GIMP THREAD CLAMP PLATE	1
23	SA7614001	GIMP THREAD TENSION SPRING	1
24	062300506	SCREW PAN M3X5	1
25	025030236	WASHER PLAIN M 3	1
26	SA7615001	COLLAR 3	1
27	S37752001	THROAT PLATE, 1.8-J	1
28	SA7067101	L-THREAD RELEASE PLATE	1
29	SA6982001	GIMP THREAD GUIDE J	1
30	SA6983001	GIMP THREAD CLAMP ASSY	1
31	SA6984001	GIMP THREAD CLAMP PLATE	1
32	SA6537001	GIMP THREAD SOLENOID	1
33	048025346	RETAINING RING E2.5	1
34	081003870	O RING S3	2
35	062260406	SCREW PAN M2.6X4	2
36	145446001	DISC, TENSION	1
37	SA6986001	GIMP THREAD SHAFT	1
38	014300332	SET SCREW SOCKET (CP) M3X3	2
39	SA6987001	GIMP THREAD CLAMP	1
40	062400816	SCREW PAN M4X8	2
41	S04557000	BAND PLT1M	1
42	018400836	BOLT SOCKET M4X8	2

Page 89 — AA3. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 89
Ref	Part number	Part name	Qty
1	SA7777001	WORK CLAMP SET L26W	1
2	SA7775001	WORK CLAMP ASSY L-L26W	1
3	S43408001	WORK CLAMP, L-L3W	1
4	SA7726001	CLAMP ARM L-JW	1
5	S35235001	SUPPORT PIN, CLAMP	1
6	S35236000	WASHER, BENDING 3.2	1
7	021300306	NUT 3 M3	1
8	SA7776001	WORK CLAMP ASSY R-L26W	1
9	S43409001	WORK CLAMP, R-L3W	1
10	SA7727001	CLAMP ARM R-JW	1
11	S35235001	SUPPORT PIN, CLAMP	1
12	S35236000	WASHER, BENDING 3.2	1
13	021300306	NUT 3 M3	1
1	SA7781001	WORK CLAMP SET L30W	1
2	SA7779001	WORK CLAMP ASSY L-L30W	1
3	S43410001	WORK CLAMP, L-L4W	1
4	SA7726001	CLAMP ARM L-JW	1
5	S35235001	SUPPORT PIN, CLAMP	1
6	S35236000	WASHER, BENDING 3.2	1
7	021300306	NUT 3 M3	1
8	SA7780001	WORK CLAMP ASSY R-L30W	1
9	S43411001	WORK CLAMP, R-L4W	1
10	SA7727001	CLAMP ARM R-JW	1
11	S35235001	SUPPORT PIN, CLAMP	1
12	S35236000	WASHER, BENDING 3.2	1
13	021300306	NUT 3 M3	1

Page 91 — AA4. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 91
Ref	Part number	Part name	Qty
1	SA7784001	EXCHANGE PARTS SET 01	1
2	SA7782001	PLATE ASSY RS 01	1
3	SA7055001	WORK CLAMP PLATE RS30 UNIT	1
4	SA7056001	WORK CLAMP PLATE RS ASSY	1
6	S35315001	OPENING SLIDE BLOCK	1
7	S35316001	SLIDE BLOCK SUPPORT PLATE	1
8	060020416	SCREW BIND M2X4	2
9	SA5673001	NEEDLE PLATE R-42	1
10	S06696004	SCREW, FLAT M3X6	2
11	S39932101	CLOTH WORK CLAMP, R-30	1
12	S35236000	WASHER, BENDING 3.2	1
13	S35235001	SUPPORT PIN, CLAMP	1
14	021300306	NUT 3 M3	1
15	SA5560001	CLAMP SHAFT HOLDER	1
16	062400816	SCREW PAN M4X8	2
17	SA5674001	CLAMP FULCRUM SHAFT	1
18	048060142	RETAINING RING EXTERNAL C6	2
19	SA5585001	CLAMP LEVER R	1
20	018501236	BOLT SOCKET M5X12	1
21	SA5576001	CLAMP ARM R	1
22	014400536	SET SCREW SOCKET(CP) M4X5	2
23	SA7550001	CROTH GUIDE R	1
24	S35326101	SCREW M3.5	1
25	S35330001	WORK CLAMP PLATE, R	1
26	SA7526001	THREAD TRIMMER LINK LEVER ASSY	1
27	SA7778001	LINK LEVER ROLLER	1
28	137191051	STOP RING	1
29	SA5693001	SHOULDER SCREW M4	1
30	S34906100	BUSH TR TRIMMER ARM	1
31	062260516	SCREW PAN M2.6X5	2
32	S34905101	THREAD CUTTER LEVER ARM	1
33	018401036	BOLT SOCKET M4X10	1
34	S37858000	NEEDLE PIN, 4X8	1
35	S34903001	SPRING HOOK	1
36	S34883001	SPRING, EXTENSION	1
37	S34902001	SPRING HOOK	1
38	021350106	NUT 1 M3.5	1
39	062260406	SCREW PAN M2.6X4	1
40	S34901001	THREAD TRIMMER ARM	1
41	S34900001	OPENER, ;T-NIPPER	1
42	153219001	COLLAR, ;MOVABLE KNIFE	1
43	S34899001	MOVABLE KNIFE ASSY	1
44	S34898001	PIN, SPRING 1.4	1
45	141542001	SCREW 3.18	3
46	SA7076001	THREAD HANDLER	1
47	S01694001	SCREW, FLAT SM2.38X4	1
48	S34896001	BRACKET, ;FIXED KNIFE	1
49	061300416	SCREW FLAT M3X4	2
50	S34895001	FIXED KNIFE	1
51	018260832	BOLT, SOCKET M2.6X8	2
52	S34894001	THREAD GUIDE PLATE	1
53	S34893001	SETTING BRACKET FIXED KNIFE	1
54	062300512	SCREW PAN M3X5	2
55	S34889101	THREAD NIPPER ASSY	1
56	S34890001	THREAD NIPPER, U	1
57	S34891101	THREAD NIPPER, D	1
58	S34888101	THREAD NIPPER, M	1
59	S34892001	OPENER PIN	1
60	062020416	SCREW PAN M2X4	2
61	021020106	NUT 1 M2	2

Page 93 — AA4. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 93
Ref	Part number	Part name	Qty
62	542515001	SCREW M2.6X3.5	2
63	S34887001	SPRING, PLATE ;F-KNIFE	1
64	S34886001	SPRING, U PLATE ;F-KNIFE	1
65	SA7077001	PRESSER PLATE U	1
66	060400516	SCREW BIND M4X5	2
67	152904001	SCREW, SM4.37	1
68	104336003	SCREW, SM2.38	1
69	S34884000	OPENER SPRING	1
70	060630312	SCREW BIND SM2.38-56X3	2
71	021400306	NUT 3 M4	1
72	062300416	SCREW PAN M3X4	2
73	SA7060001	WORK CLAMP PLATE LS30 UNIT	1
74	SA7061001	WORK CLAMP PLATE LS ASSY	1
75	S35315001	OPENING SLIDE BLOCK	1
76	S35316001	SLIDE BLOCK SUPPORT PLATE	1
77	060020416	SCREW BIND M2X4	2
78	SA5672001	NEEDLE PLATE L-42	1
79	S06696004	SCREW, FLAT M3X6	2
80	S39931101	CLOTH WORK CLAMP, L-30	1
81	S35236000	WASHER, BENDING 3.2	1
82	S35235001	SUPPORT PIN, CLAMP	1
83	021300306	NUT 3 M3	1
84	SA5560001	CLAMP SHAFT HOLDER	1
85	062400816	SCREW PAN M4X8	2
86	SA5674001	CLAMP FULCRUM SHAFT	1
87	048060142	RETAINING RING EXTERNAL C6	2
88	SA5671001	CLAMP LEVER L	1
89	018501236	BOLT SOCKET M5X12	1
90	SA5577001	CLAMP ARM L	1
91	014400536	SET SCREW SOCKET(CP) M4X5	2
92	SA7551001	CROTH GUIDE L	1
93	S35326101	SCREW M3.5	1
94	S35329001	WORK CLAMP PLATE, L	1
95	SA7783001	EXCHANGE PARTS SET 01	1
96	SA7578001	GIMP THREAD GUIDE C ASSY	1
97	SA7063001	GIMP THREAD GUIDE C	1
98	SA7613001	GIMP THREAD CLAMP PLATE	1
99	SA7614001	GIMP THREAD TENSION SPRING	1
100	062300506	SCREW PAN M3X5	1
101	025030236	WASHER PLAIN M 3	1
102	SA7615001	COLLAR 3	1
103	SA7064001	UPPER MOVABLE KNIFE	1
104	060300416	SCREW BIND M3X4	1
105	S35029001	UPPER MOVABLE KNIFE, A	1
106	SA7065001	THROAT PLATE 1.6	1
107	SA6971001	L-THREAD TAKE-UP GUIDE LENER	1
108	SA6974001	LOWER THREAD GUIDE C	1
109	SA7068001	GIMP THREAD TAKE-UP G-L ASSY	1
110	SA7069001	GIMP THREAD TAKE-UP G-HOLDER	1
111	SA7070001	G-THREAD TAKE-UP GUIDE PLATE	1
112	SA7071001	GIMP THREAD TAKE-UP G-E PLATE	1
113	SA7072001	SHOULDER SCREW M4	1
114	021400306	NUT 3 M4	1
115	158722001	WASHER PLAIN 4.2	1
116	SA7073001	GIMP THREAD GUIDE	1
117	062300416	SCREW PAN M3X4	1
118	SA7074001	SPRING TORSION	2
120	SA7053001	G-THREAD TAKE-UP GUIDE COLLER	1
121	SA7054001	G-THREAD TAKE-UP GUIDE SHAFT	1
122	048050142	RETAINING RING EXTERNAL C5	1
123	014400536	SET SCREW SOCKET(CP) M4X5	1
	0214003006		1
	15872001		1

Page 95 — AA4. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 95
Ref	Part number	Part name	Qty
124	SA7555001	FEED BAR PLATE SPRING	1
125	062400816	SCREW PAN M4X8	2
126	S37195001	HAMMER, 22	1
127	S37199001	HAMMER, 30	1
128	SA5584001	CYLINDER SCREW	1

Page 97 — AA5. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 97
Ref	Part number	Part name	Qty
1	SA7804001	EXCHANGE PARTS SET D13 00	1
2	SA7802001	WORK CLAMP PLATE ASSY RD13	1
3	SA7080001	WORK CLAMP PLATE R ASSY	1
5	S41340001	NEEDLE PLATE, RD13	1
6	S41337001	WORK CLAMP, D13	1
7	SA7803101	WORK CLAMP PLATE ASSY LD13	1
8	SA7083001	WORK CLAMP PLATE L ASSY	1
10	SA7149001	PLATE SPRING	1
11	S35326101	SCREW M3.5	1
12	SA7150101	THREAD TRIMMER A	1
13	SA7151101	THREAD TRIMMER B	1
14	S35326101	SCREW M3.5	1
15	SA7808001	EXCHANGE PARTS SET SD13 01	1
16	SA7806001	PLATE RSD13 ASSY	1
17	SA7805001	WORK CLAMP PLATE ASSY RSD13	1
18	SA7056001	WORK CLAMP PLATE RS ASSY	1
20	S41340001	NEEDLE PLATE, RD13	1
21	S41337001	WORK CLAMP, D13	1
22	SA7526001	THREAD TRIMMER LINK LEVER ASSY	1
23	SA7778001	LINK LEVER ROLLER	1
24	137191051	STOP RING	1
25	SA5693001	SHOULDER SCREW M4	1
26	S34906100	BUSH TR TRIMMER ARM	1
27	062260516	SCREW PAN M2.6X5	2
28	S34905101	THREAD CUTTER LEVER ARM	1
29	018401036	BOLT SOCKET M4X10	1
30	S37858000	NEEDLE PIN, 4X8	1
31	S34903001	SPRING HOOK	1
32	S34883001	SPRING, EXTENSION	1
33	S34902001	SPRING HOOK	1
34	021350106	NUT 1 M3.5	1
35	062260406	SCREW PAN M2.6X4	1
36	S34901001	THREAD TRIMMER ARM	1
37	S34900001	OPENER, ;T-NIPPER	1
38	153219001	COLLAR, ;MOVABLE KNIFE	1
39	S34899001	MOVABLE KNIFE ASSY	1
40	S34898001	PIN, SPRING 1.4	1
41	141542001	SCREW 3.18	3
42	SA7076001	THREAD HANDLER	1
43	S01694001	SCREW, FLAT SM2.38X4	1
44	S34896001	BRACKET, ;FIXED KNIFE	1
45	061300416	SCREW FLAT M3X4	2
46	S34895001	FIXED KNIFE	1
47	018260832	BOLT, SOCKET M2.6X8	2
48	S34894001	THREAD GUIDE PLATE	1
49	S34893001	SETTING BRACKET FIXED KNIFE	1
50	062300512	SCREW PAN M3X5	2
51	S34889101	THREAD NIPPER ASSY	1
52	S34890001	THREAD NIPPER, U	1
53	S34891101	THREAD NIPPER, D	1
54	S34888101	THREAD NIPPER, M	1
55	S34892001	OPENER PIN	1
56	062020416	SCREW PAN M2X4	2
57	021020106	NUT 1 M2	2
58	542515001	SCREW M2.6X3.5	2
59	S34886001	SPRING, U PLATE ;F-KNIFE	1
60	SA7077001	PRESSER PLATE U	1
61	060400516	SCREW BIND M4X5	2
62	152904001	SCREW, SM4.37	1
63	104336003	SCREW, SM2.38	1
64	S34884000	OPENER SPRING	1

Page 99 — AA5. 付属装置関係/ Attachment set

Brother RH-9820 parts on page 99
Ref	Part number	Part name	Qty
65	060630312	SCREW BIND SM2.38-56X3	2
66	021400306	NUT 3 M4	1
67	062300416	SCREW PAN M3X4	2
68	SA7807001	WORK CLAMP PLATE ASSY LSD13	1
69	SA7061001	WORK CLAMP PLATE LS ASSY	1
71	S34887001	SPRING, PLATE ;F-KNIFE	1
72	S35315001	OPENING SLIDE BLOCK	1
73	S35316001	SLIDE BLOCK SUPPORT PLATE	1
74	060020416	SCREW BIND M2X4	2
75	S06696004	SCREW, FLAT M3X6	2
76	S35236000	WASHER, BENDING 3.2	1
77	S35235001	SUPPORT PIN, CLAMP	1
78	021300306	NUT 3 M3	1
79	SA5560001	CLAMP SHAFT HOLDER	1
80	062400816	SCREW PAN M4X8	2
81	SA5674001	CLAMP FULCRUM SHAFT	1
82	048060142	RETAINING RING EXTERNAL C6	2
83	SA5585001	CLAMP LEVER R	1
84	018501236	BOLT SOCKET M5X12	1
85	SA6734001	CLAMP ARM R-J	1
86	014400536	SET SCREW SOCKET(CP) M4X5	2
87	SA7550001	CROTH GUIDE R	1
88	S35326101	SCREW M3.5	1
89	S35315001	OPENING SLIDE BLOCK	1
90	S35316001	SLIDE BLOCK SUPPORT PLATE	1
91	060020416	SCREW BIND M2X4	2
92	S41341001	NEEDLE PLATE, LD13	1
93	S06696004	SCREW, FLAT M3X6	2
94	S41337001	WORK CLAMP, D13	1
95	S35236000	WASHER, BENDING 3.2	1
96	S35235001	SUPPORT PIN, CLAMP	1
97	021300306	NUT 3 M3	1
98	SA5560001	CLAMP SHAFT HOLDER	1
99	062400816	SCREW PAN M4X8	2
100	SA5674001	CLAMP FULCRUM SHAFT	1
101	048060142	RETAINING RING EXTERNAL C6	2
102	SA5671001	CLAMP LEVER L	1
103	018501236	BOLT SOCKET M5X12	1
104	SA6743001	CLAMP ARM L-J	1
105	014400536	SET SCREW SOCKET(CP) M4X5	2
106	SA7551001	CROTH GUIDE L	1
107	S35326101	SCREW M3.5	1

Page 101 — AA6. 付属装置関係 / Attachment set

Brother RH-9820 parts on page 101
Ref	Part number	Part name	Qty
1	S41337001	WORK CLAMP, D13	1
2	S41340001	NEEDLE PLATE, RD13	1
3	S41341001	NEEDLE PLATE, LD13	1
4	S41344001	CUTTING BLOCK, D3	1
5	S41345001	CUTTING BLOCK, D5	1
6	S41346001	KNIFE, D2	1
7	S41347001	KNIFE, D3	1
8	S41348001	KNIFE, D4	1
9	S41349001	KNIFE, D5	1

Page 103 — Z. 付属品番関係 / Accessories

Brother RH-9820 parts on page 103
Ref	Part number	Part name	Qty
1	SA5568001	THREAD SPOOL PIN	1
2	021500216	NUT 2 M5	1
3	S07558409	COTTON STAND ASSY 3DRTHF	1
4	S51283001	SPOOL STAND BASE	3
5	150182000	SPOOL MAT	3
6	S51282101	SPOOL CUSHION	3
7	S04109001	THREAD GUIDE SUPPORT BAR	1
8	142997001	THREAD GUIDE, 3	1
9	150206002	WASHER PLAIN 16	1
10	SA6629001	NUT M16	1
11	150174000	COLUMN CAP	1
12	S01005000	RUBBER WASHER	2
13	S02747101	SPRING	1
14	150172003	COLUMN PIPE	1
15	150174000	COLUMN CAP	1
16	156112003	COLUMN PIPE D	1
17	150207001	COLUMN PIPE W/SCREW	1
18	150206000	WASHER PLAIN 16	1
19	SA6606001	COLUMN JOINT	1
20	150179002	SPOOL SHAFT B	3
21	028050244	WASHER SPRING 2-5	3
22	021500104	NUT 1 M5	3
23	150188009	SPOOL HOLDER SUPPORT, A	1
24	SA6610001	SPOOL HOLDER 3	1
25	SA6610001	SPOOL HOLDER 3	1
26	150183000	THREAD HANGER BASE	3
27	142990001	THREAD BUSH	3
28	SA6609001	SPOOL HOLDER SUPPORTER	2
29	SA6615001	THREAD GUIDE HOLDER	1
30	138843001	JOINT	1
31	021500104	NUT 1 M5	2
32	062061604	SCREW PAN M6X16	2
33	062501404	SCREW PAN M5X14	2
34	014060632	SET SCREW SOCKET (CP) M6X6	2
35	021500104	NUT 1 M5	1
36	S37037001	SCREW PAN (S/P WASHER) M5X32	1
37	062061004	SCREW PAN M6X10	1
38	021500104	NUT 1 M5	1
39	031452204	WOOD SCREW ROUND M4.5X22	1
40	062501004	SCREW PAN M5X10	1
41	SA7037001	THREADER	1
42	149796001	AIR HOSE, W/CONNECTOR	1
43	SA1741016	NEEDLE 10PIECE ASSY, S35133	1
43	SA1741014	NEEDLE 10PIECE ASSY, S35133	1
43	SA1741018	NEEDLE 10PIECE ASSY, S35133	1
43	SA4858016	NEEDLE 4PIECE ASSY, SA4857	1
43	SA4858014	NEEDLE 4PIECE ASSY, SA4857	1
43	SA4858018	NEEDLE 4PIECE ASSY, SA4857	1

Page 105 — Z. 付属関係 / Accessories

Brother RH-9820 parts on page 105
Ref	Part number	Part name	Qty
44	118837001	SCREW-DRIVER, 3.4X70	1
45	101572102	SCREW-DRIVER 5.5X190	1
46	114483002	OILER ASSY	1
47	117466000	PINCETTE	1
48	S55663001	OIL TANK ASSY	1
49	SA3950001	SOCKET WRENCH	1
50	SA4103001	EYE GUARD SET, D	1
62	062400616	SCREW PAN M4X6	2
63	026040136	WASHER PLAIN S 4	2
64	SA7038001	PIN 4	2
65	158581000	CORD HOLDER, 24N	1
66	S11817000	CLAMP, NK-18N	1
67	032461606	WOOD SCREW ROUND 2 M4.5X16	2
68	S04557000	BAND, PLT1M	1
69	133740006	BOLT SQUARE M6X70	3
70	021060106	NUT 1 M6	3
71	025060236	WASHER PLAIN M 6	3
72	028060246	WASHER SPRING 2-6	3
73	SA7127001	SUBMERGE SET	1
74	SA7128001	ANGLE L	2
75	133740006	BOLT SQUARE M6X70	10
76	025060236	WASHER PLAIN M 6	10
77	028060246	WASHER SPRING 2-6	10
78	021060106	NUT 1 M6	10
79	SA7129001	BED SUPPORT PLATE P	4
80	119755001	BOLT, M6X60	4
81	159458009	RUBBER SHEET	12
82	025060336	WASHER PLAIN L 6	4
83	021060106	NUT 1 M6	4
84	S42445001	BOLT SOCKET (S/P WASHER)M8X25	16
85	SA2929001	RUBBER CAP, 12.5	4
86	S55477001	BOLT SOCKET (S/P WASHER)M6X16	3

Page 106 — Sp.仕様別部品一覧表 / Different parts list

Brother RH-9820 parts on page 106
Ref	Part number	Part name	Qty
	S37679-001
	S37677-101
	SA5245-101
	SA7086-001
	SA7537-001
	S37680-001
	S37678-101
	SA5244-101
	SA7091-001
	SA7536-001
	S35455-201
	S39929-101
	S35197-101
	S39931-101
	S35454-201
	S39930-101
	S35198-101
	S39932-101
	SA7087-001
	SA7090-001
	SA6742-001
	SA7088-001
	SA7089-001
	SA7092-001
	SA7095-001
	SA6732-001
	SA7093-001
	SA7094-001
	S43408-001
	S43410-001
	S43409-001
	S43411-001

Page 107 — Sp. 仕様別部品一覧表 / Different parts list

Brother RH-9820 parts on page 107
Ref	Part number	Part name	Qty
	S37683-101(L-50)	(L)
	S37681-101(SL-50)	(L)
	SA5672-001(L-42)	(L)
	SA7534-001	(L)
	S37684-101(R-50)	(R)
	S37682-101(SR-50)	(R)
	SA5673-001(R-42)	(R)
	SA7535-001	(R)
	SA7097-001	(L)
	SA7100-001	(L)
	SA7102-001	(R)
	SA7105-001	(R)
	SA6741-001	(-02) < 22-30mm >
	SA7098-001	(-02) < 26-34mm >
	SA7099-001	(-02) < 34-42mm >
	SA6731-001	(-02) < 22-30mm >
	SA7103-001	(-02) < 26-34mm >
	SA7104-001	(-02) < 34-42mm >
	S37211-001	Size 10
	S37210-001	Size 12
	S37209-001	Size 14
	S37208-001	Size 16
	S37195-001	Size 22
	S37199-001	Size 30
	S37706-001	S20
	S37708-001	S24
(L)	S37683-101	(L-50)
(R)	S37684-101	(R-50)
(L)	SA5672-001	(L-42)
(R)	SA5673-001	(R-42)
	S37194-001	S37194-001	18
	S35092-001	S35092-001	20
	S37196-001	S37196-001	24
	S37197-001	S37197-001	26
	S37198-001	S37198-001	28
	S37200-001	S37200-001	32
	S37201-001	S37201-001	34
	S37202-001	S37202-001	36
	S35093-001	S35093-001	38
	SA7106-001	SA7106-001	42
	S35479-001	S35479-001	50
	S37701-001	S37701-001	S10
	S37702-001	S37702-001	S12
	S37703-001	S37703-001	S14
	S37704-001	S37704-001	S16
	S37705-001	S37705-001	S18
	S37707-001	S37707-001	S22
	S37709-001	S37709-001	S26
	S42053-001	S42053-001	S28

Page 108 — Sp. 仕様別部品一覧表 / Different parts list

Brother RH-9820 parts on page 108
Ref	Part number	Part name	Qty
	S35438-101
	S35436-101
	S35481-101
	S35483-101
	S35409-101(S)
	SA7107-001
	SA6806-001
	SA7108-001
	SA7109-001
	SA7110-001
	SA7111-001(S)
	SA7546-001
	SA7065-001
	SA7567-001
	S37752-001
	SA7568-001

Page 109 — Wa. 警告ラベル / Warning labels

Brother RH-9820 parts on page 109
Ref	Part number	Part name	Qty
	J04115-001	Label, elec. shock 6 lang
	SA0792-001	Label, caution Jpn / Eng
	SA0793-001	Label, caution Chn / Eng
	S36924-001	Mark, injury
	J03663-001	Label, high temp
	S37060-001	Label, grounding
	S37059-001	Label, PE

Page 110

Brother RH-9820 parts on page 110
Ref	Part number	Part name	Qty
	004401003	A
	004401003	G
	017400802	P1
	018501636	H
	025060236	Z
	008401204	G
	017401415	P1
	018501636	H
	025060236	Z
	012060636	E
	017401616	F1
	018502536	G
	025060336	A
	012060636	E
	018061236	E
	021020106	Q1
	026040136	G
	012060636	G
	018061636	D
	021020106	AA4
	026040136	G
	012060636	G
	018061636	G
	021020106	AA5
	026040136	L
	012060636	G
	018061636	G
	021060106	A
	026040136	P2
	012060636	G
	018084036	J
	021060106	D
	026040242	F1
	012060636	G
	018260832	Q1
	021060106	Z
	028040239	F1
	012060636	G
	018260832	AA4
	021060106	Z
	028040246	A
	012060636	G
	018260832	AA5
	021060106	Z
	028040246	P1
	012061036	D
	018300836	L
	021300302	F2
	028050244	Z
	012061036	H
	018301236	D
	021300302	F2
	028050244	P2
	012061036	H
	018301436	L
	021300302	F3
	028060246	Z
	012061036	J
	018400636	B
	021300302	F3
	028060246	Z
	012500536	B
	018400636	L
	021300306	L
	031452204	Z
	012500536	D
	018400636	N
	021300306	AA1
	031553202	U1
	012500536	F1
	018400636	N
	021300306	AA1
	031553202	U2
	012500536	H
	018400636	N
	021300306	AA3
	032461606	Z
	012500536	K
	018400636	R
	021300306	AA4
	047301042	P2
	012500536	L
	018400636	G
	021300306	AA5
	047502242	A
	012500536	M
	018400636	F1
	021300306	AA5
	048025346	P3
	012500536	P1
	018400636	G
	021300306	AA5
	048025346	AA2
	012500536	U2
	018400636	P2
	021350106	Q1
	048030342	F1
	014060632	Z
	018400636	P2
	021350106	Q2
	048030342	F1
	014060636	K
	018400636	P3
	021350106	AA1
	048030342	AA2
	014060636	B
	018400636	P3
	021350106	AA4
	048050142	F1
	014060636	A
	018400636	V
	021400202	F1
	048050142	F1
	014060636	A
	018400636	AA2
	021400202	Q2
	014060836	A
	018401036	B
	021400206	A
	014060836	H
	018401036	B
	021400206	P1
	014060836	H
	018401036	F3
	021400206	AA1
	014060836	H
	018401036	H
	021400206	P1
	014060836	H
	018401036	P1
	021400206	P3
	014060836	L
	018401036	P1
	021400206	Q1
	014300332	P3
	018401036	Q1
	021400206	Q2
	014300332	AA2
	018401036	AA1
	021400206	AA1
	014300832	L
	018401036	AA4
	021400306	G
	014400532	B
	018401036	AA5
	021400306	G
	014400532	F1
	018401236	G
	021400306	G
	014400532	F1
	018401436	G
	021400306	E
	014400532	F2
	018401636	E
	021400306	G
	014400532	F2
	018401636	G
	021400316	L
	014400532	F3
	018402036	B
	021500104	Z
	014400532	F3
	018501236	F1
	021500104	Z
	014400536	H
	018501236	F2
	021500104	Z
	014400536	AA1
	018501236	F2
	021500106	Z
	014400536	AA1
	018501236	F3
	021500106	Z
	014400536	AA2
	018501236	F3
	021500216	P1
	014400536	AA4
	018501436	G
	025030136	L
	014400536	AA4
	018501636	G
	025030136	L
	014400536	AA4
	018501636	G
	025030236	G
	014400536	AA5
	018501636	G
	025030236	AA2
	014400536	AA5
	018501636	G
	025040136	G
	014500632	K
	018501636	G
	025040136	M
	014500636	X
	018501636	G
	025040236	P1
	014500836	H
	018501636	G
	025040236	P2
	014500836	K
	018501636	G
	025040236	V
	014500836	M
	018501636	G
	025060236	F1
	018501636	G
	025060236	P1
	018501636	G

Page 111 — 索引 / Index

Brother RH-9820 parts on page 111
Ref	Part number	Part name	Qty
	048280242	G - 64
	048320242	E - 15
	052400606	F1 - 76
	060020416	F2 - 23
	060020416	F2 - 42
	060020416	F3 - 19
	060020416	F3 - 43
	060020416	AA1 - 14
	060020416	AA1 - 68
	060020416	AA4 - 8
	060020416	AA4 - 77
	060020416	AA5 - 94
	060020416	AA5 - 91
	060300416	L - 41
	060300416	AA4 - 104
	060300616	Y - 11
	060300816	K - 13
	060300816	K - 17
	060300816	L - 82
	060300816	L - 84
	060300816	AA2 - 19
	060400516	L - 69
	060400516	M - 10
	060400516	N - 86
	060400516	P1 - 14
	060400516	P2 - 13
	060400516	P2 - 13
	060400516	Q1 - 41
	060400516	Q2 - 29
	060400516	AA1 - 64
	060400516	AA5 - 61
	060400816	N - 94
	060400816	Y - 13
	060401016	L - 24
	060401216	A - 12
	060401416	L - 13
	060630312	Q1 - 45
	060630312	AA4 - 70
	060630312	AA5 - 65
	061300416	Q1 - 24
	061300416	AA4 - 49
	061300416	AA5 - 45
	062020416	Q1 - 35
	062020416	AA4 - 60
	062020416	AA5 - 56
	062061004	Z - 37
	062061604	Z - 32
	062260406	P3 - 24
	062260406	AA1 - 56
	062260406	AA2 - 35
	062260406	AA4 - 39
	062260406	AA5 - 35
	062260516	Q1 - 6
	062260516	Q1 - 14
	062260516	Q2 - 21
	062260612	Q2 - 24
	062260612	AA1 - 59
	062260612	AA4 - 31
	062260612	AA5 - 27
	062300416	G - 18
	062300416	G - 51
	062300416	H - 55
	062300416	Q1 - 47
	062300416	Q2 - 22
	062300416	AA1 - 57
	062300416	AA4 - 117
	062300416	AA4 - 117
	062300416	AA5 - 67
	062300506	L - 55
	062300506	AA2 - 24
	062300506	AA4 - 100
	062300512	Q1 - 29
	062300512	AA4 - 54
	062300512	AA5 - 92
	062300616	V - 2
	062300616	V - 39
	062300816	V - 39
	062301016	F1 - 21
	062301016	L - 37
	062351615	L - 6
	062400616	N - 39
	062400616	Z - 62
	062400816	A - 41
	062400816	F1 - 56
	062400816	F1 - 102
	062400816	F1 - 107
	062400816	F2 - 31
	062400816	F2 - 49
	062400816	F3 - 25
	062400816	F3 - 49
	062400816	H - 80
	062400816	J - 37
	062400816	M - 17
	062400816	P1 - 73
	062400816	P1 - 11
	062400816	P2 - 11
	062400816	P3 - 13
	062400816	P3 - 29
	062400816	P3 - 34
	062400816	V - 22
	062400816	V - 24
	062400816	V - 40
	062400816	X - 25
	062400816	AA1 - 20
	062400816	AA1 - 74
	062400816	AA2 - 8
	062400816	AA2 - 40
	062400816	AA4 - 16
	062400816	AA4 - 85
	062400816	AA4 - 125
	062400816	AA5 - 80
	062400816	AA5 - 99
	062401016	C - 32
	062402016	L - 77
	062500816	A - 29
	062500816	J - 30
	062500816	N - 72
	062500816	P1 - 11
	062500816	P1 - 20
	062500816	P1 - 30
	062500816	P1 - 32
	062500816	P1 - 54
	062500816	P1 - 60
	062501004	Z - 40
	062501202	F1 - 32
	062501216	A - 3
	062501216	A - 6
	062501216	P1 - 69
	062501404	Z - 33
	070688850	G - 37
	081003870	P3 - 23
	081003870	AA2 - 34
	081050870	H - 22
	0A4261006	X - 8
	0A4300805	L - 83
	0A4300806	X - 14
	0A4300806	X - 14
	0A4400806	J - 39
	0A4400806	N - 10
	0A4400806	N - 15
	0A4400806	N - 17
	0A4400806	N - 19
	0A4400806	N - 23
	0A4400806	N - 37
	0A4400806	N - 43
	0A4400806	N - 70
	0A4400806	N - 76
	0A4400806	P1 - 64
	0A4400806	P1 - 66
	0A4400806	U1 - 16
	0A4400806	U1 - 22
	0A4400806	V - 4
	0A4400806	V - 20
	0A4400806	V - 29
	0A4400806	V - 32
	0A4400806	V - 34
	0A4400806	V - 36
	0A4400806	Y - 17
	0A4401006	X - 12
	0A4401206	U1 - 24
	0A4401206	U1 - 26
	0A4401606	A - 8
	0A4403506	U2 - 10
	0A4404006	U2 - 23
	0A5300606	X - 10
	0A5302005	V - 7
	0A5401006	U2 - 28
	0B0452006	W - 6
	101572102	Z - 45
	102630001	F1 - 4
	102707002	P1 - 49
	104336003	Q1 - 43
	104336003	AA4 - 68
	104336003	AA5 - 63
	104450101	N - 60
	104821001	A - 55
	104833001	A - 50
	104833001	A - 51
	104833001	J - 15
	105288001	L - 44
	107017001	A - 45
	107017001	A - 67
	107155001	N - 81
	109763002	F1 - 7
	112753001	N - 74
	114483002	Z - 46
	114486002	A - 28
	115947101	A - 17
	117466000	Z - 47
	118837001	Z - 44
	119755001	Z - 80
	133740006	Z - 69
	133740006	Z - 75
	137191051	Q1 - 3
	14053102	B - 20
	141514002	B - 18
	141540001	Q1 - 20
	141540001	Q2 - 11
	141540001	AA1 - 46
	141540001	AA4 - 45
	141540001	AA5 - 41
	142990001	Z - 27
	14297001	Z - 8
	144103009	P1 - 38
	144504001	P1 - 56
	145446001	P1 - 36
	145446001	P2 - 17
	14546002	B - 25
	14565001	B - 4
	146124001	Y - 10
	146202000	N - 14
	149287000	N - 69
	149547000	N - 18
	149796001	Z - 42
	15017000
	150172003	Z - 14
	150174000	Z - 11
	150174000	Z - 11
	150179002	Z - 20
	150182000	Z - 5
	150183000	Z - 26
	150188009	Z - 23
	150206000	Z - 18
	150206002	Z - 9
	150206002	Z - 9
	150756000	A - 56
	150756000	A - 57
	150756000	A - 58
	150756000	A - 59
	152873001	P1 - 42
	152904001	Q1 - 42
	152904001	AA4 - 67
	152904001	AA5 - 62
	153050000	N - 47
	153219001	Q1 - 17
	153219001	AA4 - 42
	153219001	AA5 - 38

Page 112

Brother RH-9820 parts on page 112
Ref	Part number	Part name
- 8	153274001	U2
- 30	153787001	Q2
- 27	154465001	A
- 57	154562101	P1
- 19	154562101	P2
- 46	154599000	P1
- 32	154599000	P2
- 58	155510001	P1
- 12	155510001	D
- 31	156112003	P2
- 23	156482000	D
- 65	156581000	G
- 57	156722001	P1
- 115	156722001	AA4
- 2	15687000	A
- 91	158221001	N
- 39	159221101	P1
- 16	159458009	A
- 81	159458009	Z
- 37	159805001	P1
- 18	159805001	P2
- 52	228475000	B
- 36	228475000	J
- 9	228475000	M
- 92	228475000	N
- 68	228475000	P1
- 31	228475000	U2
- 41	228475000	V
- 18	228475000	Y
- 21	340400001	U1
- 28	3A6001000	G
- 19	525567000	U1
- 19	525664000	V
- 33	530138001	G
- 37	542515001	Q1
- 62	542515001	AA4
- 58	542515001	AA5
- 42	552907000	N
- 23	552908000	U1
- 25	554482000	U1
- 31	625010000	V
- 2	J03663001	E
- 67	J03663001	G
- 19	J03663001	X
	J03663001	Wa
- 2	J03955001	X
- 4	J03956001	X
- 5	J03957001	X
- 7	J03958001	X
- 7	J03974001	W
- 12	J04115001	S1
	J04115001	Wa
- 8	J04146001	W
- 11	J04230001	X
- 15	J04303001	X
- 13	J04388001	X
- 27	S00470000	U2
- 9	S00480000	N
- 41	S00480000	N
- 75	S00480000	N
- 65	S00480000	P1
- 15	S00480000	U1
- 12	S01005000	Z
- 22	S01694001	Q1
- 43	S01694001	AA4
- 43	S01694001	AA5
- 59	S024600001	F1
- 62	S024600001	F1
- 99	S02657101	N
- 6	S02699001	Z
- 13	S02747101	Z
- 7	S04109001	Z
- 7	S04159000	V
- 73	S04557000	F1
- 30	S04557000	P3
- 12	S04557000	Y
- 41	S04557000	AA2
- 38	S05356000	F3
- 36	S05356000	F3
- 36	S06696004	B
- 52	S06696004	F1
- 19	S06696004	F2
- 25	S06696004	F2
- 20	S06696004	F3
- 44	S06696004	F3
- 15	S06696004	AA1
- 69	S06696004	AA1
- 10	S06696004	AA4
- 79	S06696004	AA4
- 75	S06696004	AA5
- 3	S07558409	J
- 38	S10243000	Z
- 16	S10243000	N
- 22	S10243000	N
- 36	S10243000	N
- 3	S10243000	V
- 35	S10243000	V
- 16	S10243000	Y
- 8	S11426000	P1
- 86	S11817000	F1
- 58	S11817000	F1
- 61	S12004000	F1
- 49	S12004000	G
- 6	S12053000	R
- 72	S12104000	F1
- 90	S12150000	F1
- 104	S12150000	F1
- 20	S12718000	K
- 36	S13955000	F1
- 42	S14159000	F1
- 6	S20681000	U2
- 41	S20682102	P1
- 40	S20696001	P1
- 33	S20698221	P3
- 12	S20698221	P1
- 26	S21716001	Q2
- 61	S21716001	AA1
- 15	S21728001	A
- 4	S23651001	C
- 9	S23651001	C
- 11	S23651001	C
- 14	S23651001	C
- 17	S23651001	C
- 19	S23651001	C
- 24	S23651001	C
- 26	S23651001	C
- 30	S23651001	C
- 6	S23651001	J
- 10	S23651001	J
- 14	S23651001	J
- 5	S25235001	C
- 20	S25279101	M
- 53	S25328001	B
- 54	S25328001	N
- 73	S25328001	N
- 46	S29700000	N
- 49	S29700000	N
- 52	S29700000	N
- 52	S32263001	A
- 53	S32263001	A
- 54	S32263001	A
- 18	S34569000	U1
- 11	S34883001	Q1
- 36	S34883001	AA4
- 32	S34883001	AA5
- 44	S34884000	Q1
- 69	S34884000	AA4
- 64	S34884000	AA5
- 39	S34886001	Q1
- 59	S34886001	AA4
- 55	S34886001	AA5
- 38	S34887001	Q1
- 63	S34887001	AA4
- 71	S34887001	AA5
- 33	S34888101	Q1
- 58	S34888101	AA4
- 54	S34888101	AA5
- 30	S34889101	Q1
- 55	S34889101	AA4
- 51	S34889101	AA5
- 31	S34890001	Q1
- 56	S34890001	AA4
- 52	S34890001	AA5
- 32	S34891101	Q1
- 57	S34891101	AA4
- 53	S34891101	AA5
- 34	S34892001	Q1
- 59	S34892001	AA4
- 55	S34892001	AA5
- 28	S34893001	Q1
- 53	S34893001	AA4
- 49	S34893001	AA5
- 27	S34894001	Q1
- 52	S34894001	AA4
- 48	S34894001	AA5
- 25	S34895001	Q1
- 50	S34895001	AA4
- 46	S34895001	AA5
- 23	S34896001	Q1
- 48	S34896001	AA4
- 22	S34968000	F1
- 24	S34969001	F1
- 83	S34970001	F1
- 87	S34970001	F1
- 4	S35001000	N
- 30	S35001000	N
- 27	S35014001	L
- 26	S35018001	L
- 28	S35019001	L
- 42	S35029001	L
- 105	S35029001	AA4
- 49	S35032101	L
- 51	S35033001	L
- 50	S35034001	L
- 55	S35035101	L
- 56	S35036101	L
- 6	S35091101	H
	S35092001	Sp
	S35093001	Sp
- 52	S35097101	H
- 54	S35098000	H
- 32	S35113001	B
- 19	S35118101	B
- 21	S35133014	B
- 21	S35133016	B
- 21	S35133018	B
- 40	S35136001	B
- 39	S35137001	B
- 16	S35183000	G
	S35197101	Sp
	S35198101	Sp

Page 113 — 索引 / Index

Brother RH-9820 parts on page 113
Ref	Part number	Part name
- 23	S35218101	A
- 43	S35221101	A
- 66	S35221101	A
- 28	S35235001	F2
- 46	S35235001	F2
- 22	S35235001	F3
- 46	S35235001	F3
- 17	S35235001	AA1
- 71	S35235001	AA1
- 5	S35235001	AA3
- 11	S35235001	AA3
- 13	S35235001	AA4
- 82	S35235001	AA4
- 27	S35236000	F2
- 27	S35236000	F2
- 45	S35236000	F3
- 45	S35236000	F3
- 16	S35236000	AA1
- 70	S35236000	AA1
- 6	S35236000	AA3
- 12	S35236000	AA3
- 12	S35236000	AA4
- 81	S35236000	AA4
- 76	S35236000	AA5
- 95	S35236000	AA5
- 28	S35239101	F1
- 29	S35240001	F1
- 13	S35251101	D
- 17	S35252001	D
- 7	S35284101	E
- 47	S35304001	F1
- 45	S35305001	F1
- 21	S35315001	F2
- 40	S35315001	F2
- 17	S35315001	F3
- 41	S35315001	F3
- 12	S35315001	AA1
- 66	S35315001	AA1
- 6	S35315001	AA4
- 75	S35315001	AA4
- 72	S35315001	AA5
- 89	S35315001	AA5
- 22	S35316001	F2
- 41	S35316001	F2
- 18	S35316001	F3
- 42	S35316001	F3
- 13	S35316001	AA1
- 67	S35316001	AA1
- 76	S35316001	AA4
- 73	S35316001	AA5
- 90	S35316001	AA5
- 78	S35324201	F1
- 8	S35326101	F2
- 11	S35326101	F2
- 39	S35326101	F2
- 33	S35326101	F3
- 57	S35326101	F3
- 71	S35326101	L
- 28	S35326101	AA1
- 82	S35326101	AA1
- 24	S35326101	AA4
- 93	S35326101	AA4
- 11	S35326101	AA5
- 14	S35326101	AA5
- 88	S35326101	AA5
- 107	S35326101	AA5
- 53	S35327001	F1
- 23	S35328001	F1
- 20	S35329001	F2
- 15	S35330001	F2
- 25	S35330001	AA4
- 34	S35350000	F1
- 106	S35351001	F1
- 7	S35351001	AA2
- 2	S35360000	U1
	S35409101	Sp
- 45	S35410001	L
- 47	S35412101	L
- 48	S35413101	L
- 3	S35426100	U1
- 17	S35429101	F1
	S35436101	Sp
	S35438101	Sp
	S35454201	Sp
	S35455201	Sp
- 49	S35456101	F1
	S37210001	Sp
	S37211001	Sp
- 9	S37654000	Q2
- 44	S37654000	AA1
- 10	S37655101	Q2
- 45	S37655101	AA1
- 7	S37660101	Q2
- 42	S37660101	AA1
	S37677101	Sp
	S37678101	Sp
	S37679001	Sp
	S37680001	Sp
	S37681101	Sp
	S37684101	Sp
	S37703001	Sp
	S37703001	Sp
- 9	S37704001	AA1
	S37705001	Sp
- 9	S37706001	AA1
- 10	S37706001	AA1
	S37707001	Sp
- 9	S37708001	AA1
- 10	S37708001	AA1
	S37709001	Sp
- 43	S37723101	AA2
- 53	S37724001	L
- 16	S37725001	AA2
- 85	S37725001	L
- 17	S37752001	AA2
- 9	S37858000	Q1
- 27	S37858000	Q2
- 62	S37858000	AA1
- 20	S38170001	Y
- 22	S38174000	Y
- 23	S38175101	Y
- 24	S38176101	Y
- 5	S39115100	U2
- 2	S39116100	U2
- 4	S39140001	Y
	S39929101	Sp
	S39930101	Sp
- 44	S39931101	F2
- 80	S39931101	AA4
- 26	S39932101	F2
- 11	S39932101	AA4
- 17	S41251101	B
- 16	S41310101	B
- 94	S41337001	AA5
- 21	S41337001	AA5
- 5	S41340001	AA5
- 20	S41340001	AA5
- 92	S41341001	AA5
- 3	S41341001	AA6
- 4	S41344001	AA6
- 5	S41345001	AA6
- 6	S41346001	AA6
- 7	S41347001	AA6
- 8	S41348001	AA6
- 9	S41349001	AA6
- 10	S42454001	Z
- 19	S42838301	Y
	S43408001	Sp
- 3	S43409001	AA3
	S43410001	Sp
- 9	S43410001	AA3
	S43411001	Sp
- 9	S43411001	AA3
- 7	S47270001	L
- 54	S47932001	L
- 87	S49078001	L
- 89	S49079001	L
- 8	S49480001	S1
- 40	S49992000	N
- 21	S50168001	J
- 35	S51020000	N
- 6	S51282101	Z
- 4	S51283001	Z
- 22	S52431000	P2
- 19	S52832000	L
- 35	S53488000	F1
- 41	S53488000	F1
- 3	S53982000	U2
- 52	S55476001	G
- 22	S55477001	A
- 86	S55481001	Z
- 12	S55481001	E
- 15	S55485001	Y
- 29	S55485001	E
- 3	S55487001	E
- 68	S55487001	N
- 48	S5663001	Z
- 34	S56911000	N
- 49	S58636001	A
- 21	S58636001	X
- 32	S59219000	U1
- 11	S59242001	B
- 31	S59242001	B
- 45	S59242001	B
- 69	SA0792001	A
	SA0792001	Wa
- 68	SA0793001	A
	SA0793001	Wa

Page 116 — 索引 / Index

Brother RH-9820 parts on page 116
Ref	Part number	Part name	Qty
	SA6955001	P1 - 21
	SA6956101	P1 - 24
	SA6957001	P1 - 25
	SA6958001	P1 - 28
	SA6959001	P1 - 31
	SA6960101	P1 - 33
	SA6961001	P1 - 34
	SA6962001	P1 - 35
	SA6963001	P1 - 59
	SA6965001	P1 - 70
	SA6966001	P1 - 72
	SA6969101	P2 - 7
	SA6970001	P2 - 8
	SA6971001	P2 - 4
	SA6972001	P2 - 10
	SA6973001	P2 - 12
	SA6974001	P2 - 5
	SA6975101	P2 - 15
	SA6977001	P2 - 21
	SA6979001	P2 - 25
	SA6980001	P2 - 30
	SA6981001	P3 - 11
	SA6982001	P3 - 32
	SA6983001	AA2 - 30
	SA6983101	P3 - 19
	SA6984001	P3 - 20
	SA6985001	H - 59
	SA6986001	AA2 - 37
	SA6986101	P3 - 26
	SA6987001	P3 - 28
	SA6988001	Q2 - 1
	SA6989001	Q2 - 2
	SA6990001	AA1 - 37
	SA6990101	Q2 - 3
	SA6991001	Q2 - 4
	SA6992001	Q2 - 5
	SA6994001	Q2 - 6
	SA6996001	Q2 - 12
	SA7001001	Q2 - 23
	SA7002001	AA1 - 60
	SA7002101	Q2 - 25
	SA7003001	AA1 - 63
	SA7005001	R - 2
	SA7006001	R - 3
	SA7007001	R - 5
	SA7008001	R - 7
	SA7011001	R - 10
	SA7012001	X - 18
	SA7013001	X - 20
	SA7014001	X - 24
	SA7016001	U1 - 5
	SA7017001	U1 - 5
	SA7018001	U1 - 7
	SA7019001	U1 - 8
	SA7020001	U1 - 9
	SA7021001	U1 - 10
	SA7022001	U1 - 11
	SA7023001	U1 - 13
	SA7024001	U1 - 17
	SA7027001	U1 - 19
	SA7028001	U1 - 20
	SA7031001	U2 - 11
	SA7032001	U2 - 4
	SA7033001	U2 - 9
	SA7034001	U2 - 12
	SA7035001	U2 - 13
	SA7037001	Z - 41
	SA7038001	Z - 64
	SA7043001	F1 - 81
	SA7044001	A - 38
	SA7046001	U2 - 29
	SA7047001	U2 - 30
	SA7050001	F1 - 85
	SA7053001	F1 - 97
	SA7054001	AA4 - 120
	SA7055001	F2 - 12
	SA7056001	AA4 - 3
	SA7058001	AA5 - 12
	SA7060001	F2 - 13
	SA7061001	F2 - 16
	SA7063001	AA4 - 4
	SA7064001	L - 60
	SA7065001	L - 70
	SA7067101	AA4 - 97
	SA7068001	L - 40
	SA7069001	AA4 - 103
	SA7070001	AA4 - 106
	SA7074001	P3 - 10
	SA7076001	Q1 - 21
	SA7077001	Q1 - 40
	SA7079001	F2 - 1
	SA7080001	F2 - 2
	SA7082101	AA5 - 3
	SA7083001	F2 - 5
	SA7085001	U2 - 1
	SA7086001	Sp
	SA7087001	AA1 - 8
	SA7088001	Sp
	SA7089001	AA1 - 8
	SA7090001	F3 - 14
	SA7091001	Sp
	SA7092001	AA1 - 5
	SA7093001	AA1 - 5
	SA7094001	AA1 - 5
	SA7095001	F3 - 10
	SA7097001	AA1 - 7
	SA7098001	AA1 - 7
	SA7099001	AA1 - 7
	SA7100001	F3 - 13
	SA7102001	AA1 - 4
	SA7103001	AA1 - 4
	SA7104001	AA1 - 4
	SA7123001	Y - 5
	SA7124001	Y - 14
	SA7127001	Z - 73
	SA7128001	Z - 74
	SA7129001	Z - 79
	SA7131001	F1 - 113
	SA7134001	P1 - 10
	SA7149001	F2 - 7
	SA7150101	F2 - 9
	SA7151101	F2 - 10
	SA7152001	F3 - 58
	SA7159001	U1 - 14
	SA7175201	P2 - 14
	SA7176001	F1 - 3
	SA7178001	N - 95
	SA7186001	F3 - 11
	SA7187001	F3 - 8
	SA7204101	L - 17
	SA7293001	V - 15
	SA7476001	X - 1
	SA7480001	X - 9
	SA7488001	V - 27
	SA7494001	P1 - 17
	SA7526001	Q1 - 1
	SA7527001	F1 - 16
	SA7531001	B - 47
	SA7534001	Sp
	SA7535001	Sp
	SA7536001	Sp
	SA7537001	Sp
	SA7546001	L - 90
	SA7547101	L - 46
	SA7550001	F2 - 38
	SA7551001	F2 - 56
	SA7555001	F1 - 101
	SA7556001	A - 11
	SA7567001	Sp
	SA7568001	Sp
	SA7580001	U1 - 38
	SA7581001	U2 - 24
	SA7583001	U1 - 28

Page 117 — 索引 / Index

Brother RH-9820 parts on page 117
Ref	Part number	Part name
64	SA7584001	U1 - 29
64	SA7585001	U1 - 30
64	SA7586001	U1 - 31
64	SA7587001	U1 - 33
64	SA7588001	U1 - 34
64	SA7589001	U1 - 35
66	SA7591101	U2 - 16
66	SA7592101	U2 - 17
66	SA7593001	U2 - 18
66	SA7594001	U2 - 19
64	SA7595001	U1 - 37
66	SA7596001	U2 - 21
66	SA7597001	U2 - 22
66	SA7598001	U2 - 20
6	SA7599001	B - 35
36	SA7613001	L - 63
36	SA7614001	L - 64
36	SA7615001	L - 67
36	SA7634101	L - 86
84	SA7726001	AA3 - 4
84	SA7727001	AA3 - 10
76	SA7728001	AA1 - 3
76	SA7748001	AA1 - 2
76	SA7749001	AA1 - 6
76	SA7750001	AA1 - 1
76	SA7751001	AA1 - 2
76	SA7752001	AA1 - 1
76	SA7753001	AA1 - 3
76	SA7754001	AA1 - 2
76	SA7755001	AA1 - 6
76	SA7756001	AA1 - 1
76	SA7757001	AA1 - 3
76	SA7758001	AA1 - 2
76	SA7762001	AA1 - 6
76	SA7764001	AA1 - 1
76	SA7768001	AA1 - 2
76	SA7771001	AA1 - 1
82	SA7773001	AA2 - 1
84	SA7775001	AA3 - 2
84	SA7776001	AA3 - 8
84	SA7778001	AA3 - 1
52	SA7779001	Q1 - 2
54	SA7779001	Q2 - 13
78	SA7779001	AA4 - 48
86	SA7779001	AA4 - 27
92	SA7779001	AA5 - 23
84	SA7780001	AA3 - 8
84	SA7781001	AA3 - 1
86	SA7782001	AA4 - 2
88	SA7783001	AA4 - 95
86	SA7784001	AA4 - 1
18	SA7793001	F1 - 115
60	SA7794001	S2 - 12
18	SA7795001	F1 - 114
92	SA7802001	AA5 - 2
92	SA7803101	AA5 - 7
92	SA7804001	AA5 - 1
92	SA7805001	AA5 - 17
92	SA7806001	AA5 - 16
94	SA7807001	AA5 - 68
92	SA7808001	AA5 - 15
18	SA7973001	F1 - 69
18	SA7974001	F1 - 70
18	SA7975001	F1 - 71
18	SA7976001	F1 - 116
18	SA7977001	F1 - 117
18	SA7978001	F1 - 118
38	SA8001001	U1 - 12
64	SA8003001	U1 - 40
42	SA8009001	N - 98
42	SA8011001	N - 100
64	SA8040001	U1 - 12
48	SA8094001	P2 - 16
48	SA8095001	P2 - 37
42	SA8101001	N - 103
64	SA8119001	U1 - 27
66	SA8120101	U2 - 15
24	SA8121001	G - 3
40	SA8279001	N - 55
82	SA7613001	AA2 - 22
88	SA7613001	AA4 - 98
82	SA7614001	AA2 - 23
88	SA7614001	AA4 - 99
82	SA7615001	AA2 - 26
88	SA7615001	AA4 - 102

Page 7 — A. 主体関係 / Machine body

Page 9 — A. 主体関係 / Machine body

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 13 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 15 — C. 上軸関係 / Upper shaft mechanism

Page 17 — D. 針振り関係 / Zigzag mechanism

Page 19 — E. 針棒揺動関係 / Needle bar rocking mechanism

Page 21 — F1. 押え関係 / Presser foot mechanism

Page 23 — F1. 押え関係 / Presser foot mechanism

Page 25 — F2. 押え関係 / Presser foot mechanism

Page 27 — F3. 押え関係 / Presser foot mechanism

Page 29 — G. 送り関係 / Feed mechanism

Page 31 — G. 送り関係 / Feed mechanism

Page 33 — H. カッター関係 / Cutter mechanism

Page 35 — J. 下軸関係 / Lower shaft mechanism

Page 37 — K. ルーパー関係 / Looper mechanism

Page 39 — L. 二重環ルーパ関係 / Double chain stitch looper mechanism

Page 41 — L. 二重環ルーパ関係 / Double chain stitch looper mechanism

Page 43 — M. スプレダー関係 / Spreader mechanism

Page 45 — N. 給油潤滑関係 / Lubrication

Page 47 — N. 給油潤滑関係 / Lubrication

Page 49 — P1. 糸通し関係 / Threading mechanism

Page 51 — P1. 糸通し関係 / Threading mechanism

Page 53 — P2. 糸通し関係 / Threading mechanism

Page 55 — P3. 糸通し関係 / Threading mechanism

Page 57 — Q1. 糸切り関係 / Thread trimmer mechanism

Page 59 — Q2. 糸切り関係 / Thread trimmer mechanism

Page 61 — R. 上糸切り関係 / Upper thread trimmer mechanism

Page 63 — S1. コントロールボックス関係 / Control box mechanism

Page 65 — S2. コントロールボックス関係 (電源モータ基板) / Control box mechanism (Power supply motor PCB)

Page 67 — T. スイッチ関係 / Power switch mechanism

Page 69 — U1. 空圧関係 / Air pressure mechanism

Page 71 — U2. 空圧関係 / Air pressure mechanism

Page 73 — V. 電装品関係 / Power supply equipment mechanism

Page 75 — W. 操作パネル関係 / Operation panel mechanism

Page 77 — X. モータ関係 / Motor mechanism

Page 79 — Y. 踏板関係 / Foot switch pedal mechanism

Page 81 — AA1. 付属装置関係/ Attachment set

Page 83 — AA1. 付属装置関係/ Attachment set

Page 85 — AA1. 付属装置関係 / Attachment set

Page 87 — AA2. 付属装置関係/ Attachment set

Page 89 — AA3. 付属装置関係/ Attachment set

Page 91 — AA4. 付属装置関係/ Attachment set

Page 93 — AA4. 付属装置関係/ Attachment set

Page 95 — AA4. 付属装置関係/ Attachment set

Page 97 — AA5. 付属装置関係/ Attachment set

Page 99 — AA5. 付属装置関係/ Attachment set

Page 101 — AA6. 付属装置関係 / Attachment set

Page 103 — Z. 付属品番関係 / Accessories

Page 105 — Z. 付属関係 / Accessories

Page 106 — Sp.仕様別部品一覧表 / Different parts list

Page 107 — Sp. 仕様別部品一覧表 / Different parts list

Page 108 — Sp. 仕様別部品一覧表 / Different parts list

Page 109 — Wa. 警告ラベル / Warning labels

Page 110

Page 111 — 索引 / Index

Page 112

Page 113 — 索引 / Index

Page 116 — 索引 / Index

Page 117 — 索引 / Index

Brother RH-9820 — parts catalog
