Brother S-7200C Parts Book (PDF)

Single Needle Lockstitch · also listed as S7200C, 7200CDownload PDF

Text index — Brother S-7200C

Page 7 — A. 主体関係 / Machine body

Brother S-7200C parts on page 7
Ref	Part number	Part name	Qty
1	SA1106001	STAND R	2
2	SA1107001	STAND L	2
3	SA9622101	MOTOR COVER	1
4	062501816	SCREW, PAN M5X18	5
5	028050246	WASHER SPRING 2-5	5
6	026050136	WASHER PLAIN S 5	5
7	SA9623101	SIDE PLATE	1
8	062501216	SCREW PAN M5X12	8
9	104450101	RUBBER CAP, 8	2
10	104450101	RUBBER CAP, 8	1
11	S32263001	RUBBER CAP, 8.5	1
12	104450101	RUBBER CAP, 8	1
13	104449001	RUBBER CAP, 15.5	2
14	117936001	RUBBER CAP, 9.4	1
15	S09621151	RULER PLATE	1
16	062400616	SCREW PAN M4X6	1
17	S37060001	LABEL, GROUNDING	1
18	SA9826001	LABEL CAUTION	1
19	SA9957001	INJURY MARK	1
20	SA9957002	INJURY MARK	1
21	S45050001	MARK, RP	1

Page 9 — B. 針棒・天秤関係 / Need le bar and thread take-up mechanism

Brother S-7200C parts on page 9
Ref	Part number	Part name	Qty
1	SA7209201	UPPER SHAFT ASSY	1
2	S23651001	SET SCREW SOCKET (FT) M6X6	3
3	S25235001	SCREW M8	1
4	S25236001	SET SCREW SOCKET (FT) M6X10	1
5	SA1120001	BOBBIN WINDER DRIVING WHEEL	1
6	S23651001	SET SCREW SOCKET (FT) M6X6	2
7	110367001	WASHER, PLAIN SPECIAL 8	1
8+	SA9646001	NEEDLE BAR CONNECTING ROD UNIT	1
9+	SA7625001	NEEDLE BAR CRANK	1
8+	SA9651001	NEEDLE BAR CONNECTING ROD UNIT	1
9+	SA7626001	NEEDLE BAR CRANK	1
8+	SA9748001	NEEDLE BAR CONNECTING ROD SET	1
9+	SA7625001	NEEDLE BAR CRANK	1
8+	SA9751001	NEEDLE BAR CONNECTING ROD SET	1
9+	SA7627001	NEEDLE BAR CRANK	1
10	SA8061001	SET SCREW SOCKET(CP)M3X4 SEAL	1
11	SA2422001	SCREW, SM3.57L	1
12	012400436	SET SCREW SOCKET (FT) M4X4	2
13	SA2161001	WASHER	1
14	048060342	RETAINING RING E6	1
15	140004001	SCREW, SM3.57-40X7	1
16	SA7239101	STOPPER PIN	1
17	012500536	SET SCREW SOCKET (FT) M5X5	1
18	012061036	SET SCREW SOCKET (FT) M6X10	2
19	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
21	SA2194201	NEEDLE BAR BUSH U	1
22+	SA1138101	NEEDLE BAR BUSH D	1
22+	SA1139101	NEEDLE BAR BUSH D	1
23	012500536	SET SCREW SOCKET (FT) M5X5	1
24	062500616	SCREW PAN M5X6	1
25	140553102	SET SCREW, SM3.18	1
26	S23651001	SET SCREW SOCKET (FT) M6X6	2
27	SA2250101	TIMING PULLEY, U	1
28	S38712001	FLANGE	1
29	SA9377001	FAN	1
30	SA2404001	SCREW, PAN (S WASHER) M4X35	3
31	151594001	NEEDL BAR THREAD GUIDE	1
32	151267001	SCREW, FLAT SM4.37-40X8	2
33	180018151	SLIDE PLATE ASSY	1
34	114561001	SPRING, PLATE	1
35	122771051	SCREW, SM2.38	2
36	SA1143101	LOWER SHAFT ASSY	1
37	SA1144001	LOWER SHAFT	1
38	048120142	RETAINING RING EXTERNAL C12	1
39	S25401100	OIL SEAL	1
40	SA1317101	OIL SEAL	1
41	SA1167001	LOWER SHAFT GEAR	1
42	S23651001	SET SCREW SOCKET (FT) M6X6	2
43	SA2251001	TIMING PULLEY, D	1

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7200C parts on page 11
Ref	Part number	Part name	Qty
44	S23651001	SET SCREW SOCKET (FT) M6X6	2
45	SA2378001	SPACER,4.8	2
46	SA1150101	BEARING BUSH ASSY	1
47	S23651001	SET SCREW SOCKET (FT) M6X6	2
48	SA2252101	TIMING BELT	1
49	S23651001	SET SCREW SOCKET (FT) M6X6	2
50	SA2254101	LOWER SHAFT BUSH	1
51	SA8058301	TENSION PULLEY UNIT	1
52	SA9763001	TENSION PULLEY ASSY	1
53	S50165001	COLLAR	1
54	018102536	BOLT SOCKET M10X25	1
55	021100302	NUT 3 M10	1
56	SA8059101	PULLEY BASE	1
57	SA8060201	TENSION PULLEY PLATE	1
58	018061036	BOLT SOCKET M6X10	2
59	025060136	WASHER PLAIN S 6	2
60	018061236	BOLT SOCKET M6X12	2

Page 13 — C. 押え関係 / Presser foot mechanism

Brother S-7200C parts on page 13
Ref	Part number	Part name	Qty
1+	SA9359001	PRESSER BAR	1
1+	SA1173001	PRESSER BAR	1
2	SA7242001	PRESSER BAR BUSH	1
3	062500616	SCREW PAN M5X6	1
4	026050136	WASHER PLAIN S 5	1
5	SA1174002	PESSER ADJUSTING SCREW, M14	1
6	SA7607101	SPRING GUIDE	1
7+	S13561101	PRESSER BAR SPRING	1
7+	141728001	PRESSER BAR SPRING	1
7+	147514001	PRESSER BAR SPRING	1
7+	S42893001	PRESSER BAR SPRING	1
7+	SA2348001	PRESSER BAR SPRING	1
8	140407001	WASHER	1
11	S13385001	SCREW, SM3.57-40X10	1
12	SA1176101	PRESSER BAR LIFTER LEVER ASSY	1
13	SA1177001	PRESSER BAR LIFTER LEVER	1
14	SA1178101	KNEE LIFTER CONNECTING ROD	1
15	SA1179001	SHOULDER SCREW, M5	1
16	SA3980101	KNEE LIFTER LEVER	1
17	SA1181101	PRESSER BAR LIFTER LEVER SHAFT	1
18	012500536	SET SCREW SOCKET (FT) M5X5	1
19	SA1182201	TENSION RELEASE PLATE ASSY	1
20	SA9154001	TENSION RELEASE PLATE	1
21	SA8069001	T-RELEASE PLATE	1
22	018400532	BOLT SOCKET M4X5	1
23	025040232	WASHER PLAIN M 4	1
24	SA1186001	P-BAR LIFTER LEVER SPRING	1
25	S07350001	WASHER PLAIN	1
26	048050342	RETAINING RING E5	2
27	SA1179001	SHOULDER SCREW, M5	1
28	SA2165001	SHOULDER SCREW, M6	1
29	SA1190001	KNEE LIFTER BAR	1
30	SA1179001	SHOULDER SCREW, M5	1
31	S31006002	LIFTING LEVER	1
32	S39051001	SCREW, PAN (S/P W) M3.5X12	1
33	S45837001	PRESSER BAR LIFTER CRANK	1
34	SA1175002	ADJUST SCREW NUT	1
35	SA9657001	PRESSER BAR GUIDE BRACKET ASSY	1
36	SA8100001	FINGER GUARD	1
37	025350132	WASHER PLAIN S 3.5	1
38	SA8903001	SCREW M4X12	1
39	SA1189101	ADJUSTING SCREW M6	1
40	021060306	NUT 3 M6	1

Page 15 — D. 送り関係 / Feed mechanism

Brother S-7200C parts on page 15
Ref	Part number	Part name	Qty
1	SA7245002	STITCH LENGTH DIAL	1
2	SA7247002	STITCH LENGTH DIAL	1
3	SA4494001	SCREW SM4.76	1
4	SA7244001	FEED REGULATING STUD	1
5	108549001	O RING	1
6	S50098101	POSITIONING PIN	1
7	100328001	NOTCH SPRING	1
8	SA9944001	FEED REGULATOR SMALL ASSY	1
9	SA9817001	F-REGULATOR CONNECTING ROD	1
10	SA9818001	STUD	1
11	012500536	SET SCREW SOCKET (FT) M5X5	1
12	SA1205001	FEED REGULATOR SHAFT	1
13	048080342	RETAINING RING E8	1
14	S20356001	WASHER, PLAIN 10	1
15	012060536	SET SCREW, SOCKET (FT) M6X5	2
16	SA1206001	REVERSE SEWING SHAFT	1
17	S25469100	BUSH DRY :L=12	2
18	025100132	WASHER PLAIN S 10	1
19	048080342	RETAINING RING E8	1
20	SA1207001	SPACER	1
21	062500816	SCREW PAN M5X8	2
22	SA7321002	REVERSE LEVER	1
23	062501416	SCREW PAN M5X14	1
24	SA9712001	SPRING	1
25	153132000	NYLON TUBE, L=13.5	1
26	SA1210101	HANDLE SHAFT ARM ASSY	1
27	SA1211101	HANDLE SHAFT ARM	1
28	156958021	FEED ROCK ARM SHAFT	1
29	012500536	SET SCREW SOCKET (FT) M5X5	1
30	018501636	BOLT SOCKET M5X16	1
31	SA9746001	FEED REGULATOR SHAFT ARM	1
32	SA9747001	FEED REGULATOR SHAFT	1
33	018061636	BOLT SOCKET M6X16	1
34	SA9819001	ECCENTRIC PIN	1
35	012500536	SET SCREW SOCKET (FT) M5X5	1
36	SA7252101	FEED REGULATOR SHAFT BUSH(R)	1
37	SA7253101	FEED REGULATOR SHAFT BUSH(L)	1
38	012060536	SET SCREW, SOCKET (FT) M6X5	1
39	SA1269001	OIL SEAL	1
40	SA9821001	F-REGULATOR CONNECTING ROD S	1
41	SA9858001	FEED REGULATOR SHAFT JOINT	1
42	SA9818001	STUD	1
43	012500536	SET SCREW SOCKET (FT) M5X5	1
44	SA9823001	FEED REGULATOR ASSY	1
45	SA9824001	FEED LINK SHAFT	1
46	SA9825001	FEED LINK SHAFT R	1
47	012500536	SET SCREW SOCKET (FT) M5X5	2
48	SA1223001	LEVEL FEED CONNECTING ROD	1
49	SA7254001	LINK SHAFT	1
50	012500536	SET SCREW SOCKET (FT) M5X5	2
51	S16335001	LEVEL FEED LINK ASSY	1
52	S16337001	FEED ROCKER ARM LINK ASSY	1
53	156958021	FEED ROCK ARM SHAFT	1
54	SA1225001	FEED ROCK ARM	1
55	048040342	RETAINING RING E4	1
56+	SA1263001	ECCENTRIC WHEEL, W/SCREW	1
56+	SA1261001	ECCENTRIC WHEEL, W/SCREW	1

Page 17 — D. 送り関係 / Feed mechanism

Brother S-7200C parts on page 17
Ref	Part number	Part name	Qty
57	S25236001	SET SCREW SOCKET (FT) M6X10	2
58	S12915001	ROLLER BEARING RADIAL 25	1
59	S25321001	HOLDER	1
60	062350616	SCREW PAN M3.5X6	2
61	062501416	SCREW PAN M5X14	1
62	SA1226201	FEED REGULATOR SHAFT, L	1
63	104449001	RUBBER CAP, 15.5	1
64	SA1227301	FEED REGULATOR SUPPORT SHAFT	1
65	SA1228001	RUBBER CAP, 14.5	1
66	012060536	SET SCREW, SOCKET (FT) M6X5	2
67	SA1229101	SET SCREW (FT) M6X6	1
68	S23651001	SET SCREW SOCKET (FT) M6X6	2
69	SA2377001	RUBBER CAP LABEL	1
70	S34352101	RUBBER CAP, 13.5	1
71	SA1230001	FEED ROCK SHAFT ASSY	1
72	SA1231001	FEED ROCK SHAFT	1
73	SA2162001	FELT	1
74	SA7255101	FEED SHAFT BUSH(R)	1
75	SA1237101	OIL SEAL	1
76	SA9357001	FEED SHAFT BUSH L	1
77	012061036	SET SCREW, SOCKET (FT) M6X10	1
78	156243021	THRUST RING	1
79	048150142	RETAINING RING EXTERNAL C15	1
80	SA1234001	SET SCREW COLLAR	1
81	S23651001	SET SCREW SOCKET (FT) M6X6	2
82	014300432	SET SCREW SOCKET (CP) M3X4	1
83	SA1239201	FEED BAR	1
84	SA7330001	FEED ROCK BRACKET ARM	1
85	SA2400101	FEED BAR SHAFT SET	1
86	158722001	WASHER PLAIN 4.2	1
87	SA1242001	SET SCREW 5X7	1
88	SA7257001	SCREW 5X12	2
90+	SA9661001	F-LIFTING ECCENTRIC WHEEL ASSY	1
91+	SA1247101	ECCENTRIC WHEEL, W/SCREW	1
90+	SA9666001	F-LIFTING ECCENTRIC WHEEL ASSY	1
91+	SA1251101	ECCENTRIC WHEEL W/SCREW	1
90+	SA9669001	F-LIFTING ECCENTRIC WHEEL ASSY	1
91+	SA1254101	ECCENTRIC WHEEL W/SCREW	1
92	S25236001	SET SCREW SOCKET (FT) M6X10	2
93	S25339301	FEED BAR ARM PRESSER	1
94	062300616	SCREW PAN M3X6	2
95	100080004	SCREW, SM3.18-44X6.5	2
96	SA2401001	LIFTING FEED SHAFT ASSY	1
97	SA1242001	SET SCREW 5X7	1
98	014300432	SET SCREW SOCKET (CP) M3X4	1
99	S47508101	DIAL LOCK LEVER	1
100	S39830101	SPRING	1
101	SA7422001	ROCK LEVER PIN	1
102	SA9672001	CONDENSED STOPPER	1
103	021060306	NUT 3 M6	1
104	SA9749001	SPRING HOOK ARM ASSY	1
105	S23651001	SET SCREW SOCKET (FT) M6X6	2
106	S25427101	SHOULDER SCREW, M4	1
107	SA3152001	SPRING ASSY	1
108	SA2294101	SPRING	1
109	SA3114001	VINYL TUBE	1
110	SA2293101	SPRING SET PLATE	1
111	062500816	SCREW PAN M5X8	2
112	048100142	RETAINING RING EXTERNAL C10	1

Page 19 — E. 膝上げ関係 / Knee lifter mechanism

Brother S-7200C parts on page 19
Ref	Part number	Part name	Qty
1	SA9674001	KNEE LIFTER BRACKET	1
2	017061413	BOLT M6X14	1
3	017062013	BOLT M6X20	1
4	S38278001	KNEE LIFTER BAR	1
5	S34756021	KNEE LIFTER PLATE	1
6	SA9676001	KNEE LIFTER PLATE STOPPER	1
7	017060813	BOLT M6X8	1
8	S31885001	KNEE LIFTER PLATE COVER	1

Page 21 — F. 逆転関係 / Quick reverse mechanism

Brother S-7200C parts on page 21
Ref	Part number	Part name	Qty
1	SA9677001	QUICK REVERSE SOLENOID ASSY	1
2	SA9680001	SOLENOID BASE	1
3	062500816	SCREW PAN M5X8	3
4	062061016	SCREW PAN M6X10	2
5	SA9813001	SOLENOID LEVER	1
6	SA8083001	SOLENOID LEVER SHAFT	1
7	SA2848001	SET COLLAR ASSY	1
8	012500536	SET SCREW SOCKET (FT) M5X5	2
9	SA2992001	PIN	1
10	153138001	WASHER, PLAIN 6.5	1
11	048060142	RETAINING RING EXTERNAL C6	1
12	012061036	SET SCREW, SOCKET (FT) M6X10	1
13	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 23 — G. かま関係 / Rotary hook mechanism

Brother S-7200C parts on page 23
Ref	Part number	Part name	Qty
1	SA9682101	ROTARY HOOK SHAFT	1
2	SA9945001	SCREW CAP W/HOLE ASSY	1
3	SA8055001	FELT	1
4	SA7263401	PUMP BUSH UNIT	1
5	SA7879101	PUMP BUSH ASSY	1
6	081025870	O RING S25	1
7	SA7320001	OIL SEAL	1
8	142274101	RUBBER CAP, 4.2	1
9	SA9684001	OIL SEAL	1
10	SA1273001	ROTARY HOOK SHAFT	1
11	SA7266201	ROTARY HOOK UNIT	1
12	S23651001	SET SCREW SOCKET (FT) M6X6	2
13	SA7554101	BEARING BUSH ASSY	1
14	S23651001	SET SCREW SOCKET (FT) M6X6	2
15	SA1284101	OIL SEAL	1
16	SA1285001	ROTARY HOOK SHAFT GEAR BUSH	1
17	012061036	SET SCREW, SOCKET (FT) M6X10	1
18	SA1287001	ROTARY HOOK SHAFT GEAR	1
19	S23651001	SET SCREW SOCKET (FT) M6X6	2
20+	S02602001	HOOK STOPPER	1
20+	159324001	HOOK STOPPER	1
21	SA8903001	SCREW M4X12	1
22	S03245001	BOBBIN CASE ASSY	1
23	183388001	TENSION SPRING	1
24	183389001	ADJUSTING SCREW	1
25	183390001	SET SCREW	1
26	S03246001	ANTI-SPIN SPRING	1
27	146290001	BOBBIN	1
28	117132001	BOBBIN	1
30	SA2875001	I-ROTARY HOOK,W/BOX SA2876	1

Page 25 — H. 給油潤滑関係 / Lubrication

Brother S-7200C parts on page 25
Ref	Part number	Part name	Qty
1	SA1292001	WICK HOLDER ASSY	1
2	SA1295001	CORD HOLDER, T2	1
3	062500816	SCREW PAN M5X8	1
4	SA9689001	OIL TUBE ASSY	1
5	S25382001	OIL FEEDING PIPE	1
6+	SA9671001	OIL TANK SET	1
6+	SA9670001	OIL TANK SET	1
7	062500816	SCREW PAN M5X8	1
8	062500616	SCREW PAN M5X6	1
9	S38769000	FELT	1
10	145737001	FELT SUPPORT	1
11	081004070	O RING P4	1
12+	S04630000	NEEDLE BAR CORK	1
12+	111863001	NEEDLE BAR CORK	1
13	144875001	PLUNGER	1
14	SA7636201	PUMP CAP SCREW ASSY	1
15	S25380601	CAP SCREW PUMP	1
16	S52764001	SPRING COMPRESSION	1
17	104821001	RUBBER CAP, 10.5	1
18	SA9792001	ADJUSTING SCREW	1
19	081004870	O RING S4	1
20	140327001	RUBBER CAP, 6.3	1
21	S25382001	OIL FEEDING PIPE	2
22	SA9735001	OIL TANK MIDDLE UNIT	1
23	S25382001	OIL FEEDING PIPE	1
24	S51815001	OIL FEEDING PIPE, 8.6	2
25	SA1303101	SCREW M8	1
26	081008070	O RING P8	1
27	SA8989001	OIL FEEDING PIPE	1
28	081006670	O RING PW6	1
29	SA8987001	FILTER	1
30	SA8991001	RUBBER CAP 35-12	1
31	SA9696001	VINYL TUBE	1
32	SA9793001	VINYL TUBE L=122	1
33	SA9794001	VINYL TUBE L=110	1
34	0A4501206	SCREW PAN (S/P WASHER) M5X12	2
35	SA1306001	SUB TANK ASSY	1
36	SA1307001	SUB TANK	1
37	S51815001	OIL FEEDING PIPE, 8.6	1
38	081022870	O RING S22	1
39	SA9795101	FLOAT ASSY	1
40	S47509001	OIL GAUGE WINDOW	1
41	SA2779002	OIL GAUGE WINDOW	1
42	SA9828101	OIL GAUGE WINDOW	1

Page 27 — H. 給油潤滑関係 / Lubrication

Brother S-7200C parts on page 27
Ref	Part number	Part name	Qty
43	SA9691001	BED BOTTOM COVER UNIT	1
44	S51272100	OIL WINDOW, B-COVER	1
45	081015870	O RING S15	1
46	SA1313101	WINDOW COVER	1
47	062500616	SCREW PAN M5X6	4
48	SA1303101	SCREW M8	1
49	081008070	O RING P8	1
50	SA9639001	BOTTOM COVER FELT	1
51	SA1315301	BOTTOM COVER FELT	1
52	062400616	SCREW PAN M4X6	3
53	025040332	WASHER PLAIN L 4	3
54	SA1314001	BOTTOM COVER PACKING	1
55	062501216	SCREW PAN M5X12	9
56	SA9694001	CORD HOLDER PLATE	1
57	062500616	SCREW PAN M5X6	1
58	081029870	O RING S29	1
59	SA9942001	OIL PAN UNIT	1
60	SA9943001	EARTH CORD	1
61	0A5400806	SCREW PAN (S/P WASHER) M4X8	1
62	SA1321701	OIL PAN ASSY	1
63	SA1322401	OIL PAN	1
64	149578000	BUSH	4
65	SA1323101	KNEE LIFTER SHAFT L	1
66	SA1324001	KNEE LIFTER SHAFT R	1
67	SA1325101	KNEE LIFTER	1
68	SA1326101	KNEE LIFTER, R	1
69	S25344001	BOLT M6	2
70	S25475101	SET SCREW M6X19	2
71	021060306	NUT 3 M6	2
72	SA3508001	TWIST SPRING	1
73	146293001	RETAINING RING, E10	2
74	SA1327101	KNEE LIFTER CONNECTING ROD	1
75	SA1179001	SHOULDER SCREW, M5	2
76	SA9753101	OIL FEEDING POCKET UNIT	1
77	SA9697001	TUBE HOLDER	1
78	062500616	SCREW PAN M5X6	1
79	SA9917001	OIL FEEDING POCKET COVER	1

Page 29 — J. 糸通し関係 / Threading mechanism

Brother S-7200C parts on page 29
Ref	Part number	Part name	Qty
1	SA9699001	THREAD GUIDE	1
2+	SA9698001	PRE-TENSION ASSY B	1
3+	SA2358101	PRE-TENSION SPRING B	1
2+	SA9701001	PRE-TENSION ASSY A	1
3+	SA2356101	PRE-TENSION SPRING A	1
4	SA9700001	THREAD GUIDE TENSION STUD	1
5	144504001	THREAD GUIDE DISC	2
6	SA6167002	THREAD TENSION NUT	1
7	SA1359001	SPOOL PIN	1
8	S01419000	TENSION RELEASE PIN	1
9	SA1229101	SET SCREW (FT) M6X6	1
10	SA1343001	TENSION RELEASE STUD	1
11	SA2417301	THREAD GUIDE P-BAR BRACKET	1
12	060400816	SCREW BIND M4X8	1
13	SA1345001	ARM THREAD GUIDE, R	1
14	060500616	SCREW BIND M5X6	1
15	SA9854001	THREAD TAKE-UP LEVER COVER	1
16	062500816	SCREW PAN M5X8	1
17	SA9702001	FACE PLATE ASSY	1
18	SA9704001	FACE PLATE PACKING	1
19	SA7849001	RUBBER CAP	2
20	SA7271001	FACE PLATE THREAD GUIDE	1
21	060350616	SCREW BIND M3.5X6	1
22	062501216	SCREW PAN M5X12	3
23	SA7272201	THREAD GUIDE D	1
24+	SA7273202	THREAD TENSION BRACKET ASSY	1
25+	SA7275001	TENSION SPRING	1
26+	S02620401	THREAD TAKE-UP SPRING	1
24+	SA9788001	THREAD TENSION BRACKET ASSY	1
25+	S04632101	TENSION SPRING	1
26+	S02620401	THREAD TAKE-UP SPRING	1
24+	SA9789001	THREAD TENSION BRACKET ASSY	1
25+	115188101	TENSION SPRING	1
26+	SA9960001	THREAD TAKE-UP SPRING	1
27	116922001	TENSION STUD	1
28	SA9786001	TENSION BRACKET ASSY	1
29	100402004	SET SCREW, SM3.57	1
30	145446001	DISC, TENSION	2
31	159805001	TENSION DISC PRESSER	1
32	S12441001	WASHER	1
33	S31032002	TENSION NUT	1

Page 31 — K. 糸巻関係 / Bobbin winder mechanism

Brother S-7200C parts on page 31
Ref	Part number	Part name	Qty
1	SA1971402	BOBBIN WINDER UNIT	1
2	048040342	RETAINING RING, E4	1
3	SA8508001	B-WINDER SHAFT SUPPORT ASSY	1
4	SA8511101	BOBBIN WINDER SHAFT	1
5	108549001	O RING	1
6	SA9563001	BOBBIN FIXED SPRING	1
7	SA8507001	BOBBIN WINDER WHEEL	1
8	012400636	SET SCREW SOCKET (FT) M4X6	2
9	SA8503001	RUBBER RING	1
10	SA1981301	BOBBIN PRESSER CAM ASSY	1
11	SA1982101	BOBBIN PRESSER CAM	1
12	SA1983201	BOBBIN WINDER ARM SHAFT	1
13	012500536	SET SCREW SOCKET (FT) M5X5	1
14	048040342	RETAINING RING E4	1
15	025060136	WASHER PLAIN S 6	2
16	SA1984001	BOBBIN PRESSER ARM	1
17	018401236	BOLT SOCKET M4X12	1
18	SA1985001	BOBBIN PRESSER	1
19	S23418002	SCREW M4X5	1
20	SA8510101	BOBBIN SUPPORT	1
21	SA8512101	BOBBIN WINDER LEVER	1
22	SA1990101	SPRING	1
23	SA8509001	BOBBIN WINDER BASE SPRING	1
24	SA2190001	O RING, SS5	1
25	SA1992101	BOBBIN WINDER FIXED SCREW	3
26	SA1360101	KNIFE	1
27	062500616	SCREW, PAN M5X6	1
28	SA9973001	BOBBIN WINDER TENSION ASSY	1
29	145446002	DISC, TENSION	2
30	SA9855001	TENSION SPRING	1
31	S31032002	TENSION NUT	1
32	S12441001	WASHER	1
33	012500536	SET SCREW, SOCKET (FT) M5X5	1
34	SA8982102	BOBBIN WINDER BASE	1
35	SA1359001	SPOOL PIN	1

Page 33 — L. 糸切り関係 / Thread trimmer mechanism

Brother S-7200C parts on page 33
Ref	Part number	Part name	Qty
1	SA7552101	THREAD TRIMMER CAM	1
2	154567000	SPACER, 5.3	2
3	014771032	SET SCREW SOCKET SM6.35-40X10	2
4	S02637101	FIXED KNIFE	1
5	102843004	SCREW, FLAT SM3.57	1
6	S02643001	LOWER THREAD FINGER	1
7	026040236	WASHER PLAIN M 4	1
8	062400616	SCREW PAN M4X6	1
9	SA9643001	HOLDER M-KNIFE	1
10	S25426101	THREAD TRIMMER CONNECTING ROD	1
11	060401016	SCREW BIND M4X10	2
12	SA5329001	COLLAR	2
13	100645003	WASHER	2
14	021400306	NUT 3 M4	2
15	SA9755001	THREAD TRIMMER LEVER	1
16	SA7285101	LEVER STOPPER	1
17	SA7341301	THREAD TRIMMER STOPPER BASE	1
18	062400616	SCREW PAN M4X6	1
19	S02645001	MOVABLE KNIFE	1
20	148537101	SCREW, FLAT (W/SOCKET) SM4.37	2
21	062501416	SCREW PAN M5X14	1
22	SA7287001	KNIFE HOLDER PRESSER PLATE	1
23	004301016	SCREW FLAT M3X10	3
24	S02647021	FORKED SHAFT	1
25	SA9710001	FORKED SHAFT BUGH	1
26	012060536	SET SCREW, SOCKET (FT) M6X5	1
27	SA1362201	THREAD TRIMMER LEVER UNIT	1
28	SA1363001	THREAD TRIMMER LEVER ASSY	1
29	SA2258101	ROLLER SHAFT C ASSY	1
30	105234003	NUT SM4.37	1
31	S23651001	SET SCREW SOCKET (FT) M6X6	1
32	SA9371101	THREAD TRIMMER LEVER SPRING	1
33	154593201	THREAD TRIMMER CAM LEVER SHAFT	1
34	154594000	COLLAR	1
35	S25434000	RUBBER CUSHION	1
36	154595001	SPRING, EXTENSION	1
37	154596000	CUSHION	1
38	110367001	WASHER, PLAIN SPECIAL 8	1
39	048060342	RETAINING RING E6	1
40	SA1366101	CAM LEVER SHAFT BUSH	1
41	012060536	SET SCREW, SOCKET (FT) M6X5	1
42	SA9713001	THREAD TRIMMER SOLENOID ASSY	1
43	SA9798001	THREAD TRIMMER SOLENOID	1
44	S36893150	RUBBER CUSHION	1
45	SA9715001	THREAD TRIMMER SOLENOID BASE	1
46	SA9800001	SOLENOID LEVER	1
47	018062536	BOLT SOCKET M6X25	1
48	SA9801001	COLLAR	1
49	SA9827001	WASHER PLAIN	2
50	021060306	NUT 3 M6	1
51	SA9716001	PIN	1
52	026050136	WASHER PLAIN S 5	1
53	048050142	RETAINING RING EXTERNAL C5	1
54	062400816	SCREW PAN M4X8	4
55	062501216	SCREW PAN M5X12	3
56	S38687000	CONNECTOR 5557-14R	1
57	SA1998001	GROUND WIRE ASSY	1
58	062500816	SCREW PAN M5X8	1
59	S04159000	BAND 1M	3
60	SA1394101	CORD HOLDER U3	1
61	062500816	SCREW PAN M5X8	1
62	S02646001	MOVABLE KNIFE, S	1

Page 35 — M. 糸緩め関係 / Tension release mechanism

Brother S-7200C parts on page 35
Ref	Part number	Part name	Qty
1	SA1371501	TENSION RELEASE WIRE	1
2	SA9718001	WIRE HOLDER U	1
3	062401216	SCREW PAN M4X12	1
4	SA9719001	WIRE HOLDER D	1
5	060400816	SCREW BIND M4X8	1
6	110161004	NUT, SM4.76	2
7	SA9720001	WIRE CORD HOLDER	1
8	062500816	SCREW PAN M5X8	1

Page 37 — N. 糸払い関係 (-4口またはオプション部品) / Thread wiper mechanism (-4□ or Option parts)

Brother S-7200C parts on page 37
Ref	Part number	Part name	Qty
1	SA9777001	THREAD WIPER SET	1
2	SA9769001	THREAD WIPER SOLENOID ASSY	1
3	SA9853001	PLUNGER RUBBER	1
4	SA9771001	THREAD WIPER SPRING	1
5	S41205001	WASHER, PLAIN	1
6	062300616	SCREW PAN M3X6	2
7	026030136	WASHER PLAIN S 3	2
8	S04159000	BAND 1M	1
9	SA9356001	THREAD WIPER BASE	1
10	SA9773001	SOLENOID COVER	1
11	060400516	SCREW BIND M4X5	1
12	SA9774001	THREAD WIPER CRANK ASSY	1
13	048040342	RETAINING RING E4	1
14	SA9352001	WIPER SPRING	1
15	SA9778001	THREAD WIPER ROD	1
16	110735002	WASHER	1
17	048030342	RETAINING RING E3	1
18	S25456001	PLUNGER PIN	1
19	SA9779001	THREAD WIPER	1
20	060400516	SCREW BIND M4X5	1
21	146288001	THREAD WIPER STUD COLLAR	1
22	SA8085001	WASHER	1
23	S25456001	PLUNGER PIN	2
24	SA1394101	CORD HOLDER U3	2
25	062500816	SCREW PAN M5X8	2

Page 39 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Brother S-7200C parts on page 39
Ref	Part number	Part name	Qty
1	SB0100001	SAFETY SWITCH ASSY	1
2	SA7325001	MICRO SWITCH ASSY	1
3	SA7292101	SAFETY SWITCH PLATE	1
4	SA9865001	SAFETY SWITCH BASE	1
5	SA9866001	SAFETY SWITCH LEVER	1
6	SA9867001	SAFETY SWITCH SPRING	1
7	SA7293001	SCREW PAN (S/P W) M3X12	2
8	S04159000	BAND 1M	1
9	062060816	SCREW PAN M6X8	1
10	025060136	WASHER PLAIN S 6	1
11	SA9442001	MOTOR S SUPPLY	1
12	SA9437001	RESOLVER STATOR ASSY	1
13	0A4301206	SCREW PAN (S/P WASHER) M3X12	3
14	SA9443001	PULLEY HOLDER S ASSY	1
15	012501032	SET SCREW SOCKET (FT) M5X10	2
16	SA9447001	CORD HOLDER A	1
17	SA9448001	CORD HOLDER B	1
18	0A4401606	SCREW PAN (S/P WASHER) M4X16	2
19	0A4401006	SCREW PAN (S/P WASHER) M4X10	1
20	SA9449001	RESOLVER COVER	1
21	0A4300806	SCREW PAN (S/P WASHER) M3X8	3
22	SA9856001	SCREW PAN M5X20	3
23	SA9759001	HEAD DETECTOR UNIT #4	1
24	0A4501206	SCREW PAN (S/P WASHER) M5X12	2
25	SA9384001	PULLEY	1
26	SA9452001	PULLEY WASHER	3
27	060501016	SCREW BIND M5X10	3
28	S04159000	BAND 1M	2

Page 41 — P2. コントロールボックス関係 / Control box mechanism

Brother S-7200C parts on page 41
Ref	Part number	Part name
1+	BMP206A-0000000-JG10	G-10-PANEL-JAPAN
1+	BMP206A-0000000-CG10	G-10-PANEL-CHINA
1+	BMP206A-0000000-0G10	G-10-PANEL
2+	BMP206A-0000000-JG50	G-50-PANEL-JAPAN
2+	BMP206A-0000000-CG50	G-50-PANEL-CHINA
2+	BMP206A-0000000-EG50	G-50-PANEL-EU
2+	BMP206A-0000000-0G50	G-50-PANEL

Page 43 — P3. コントロールボックス関係 / Control box mechanism

Brother S-7200C parts on page 43
Ref	Part number	Part name	Qty
1	SA9546001	BOX COVER 7200C	1
2	SA9549001	CEMENT RESISTOR ASSY 60/220	1
3	SA9727001	SW POWER PCB ASSY	1
4	SA9553001	D PCB ASSY	1
5	SA9575001	S PCB ASSY	1
6+	SA9587001	TREADLE UNIT -DM	1
6+	SA9602001	TREADLE UNIT -EX	1
7	SA9564001	CE FILTER CASE	1
8	SA9565001	CE FILTER PCB ASSY	1
9	J04210101	BOLT ASSY SQUARE M8X65	1
10	SA9894001	REPEATE CABLE TIE ASSY	1
11	S37060001	LABEL, GROUNDING	2
12	SA9725001	LABEL ELECTRICAL SHOCK 36 X 150	1

Page 45 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Brother S-7200C parts on page 45
Ref	Part number	Part name	Qty
1	SA9982001	OPTION ACTUATOR SET	1
2	SA9983001	OPTION ACTUATOR ASSY	1
3	SA9723001	REVERSE SWITCH BRACKET	1
4	SA4098201	ACTUATOR	1
5	SA4099001	REVERSE SWITCH SPRING	1
6	SA9984001	OPTION SWITCH SETTING PLATE	1
7	SA9985001	OPTION SWITCH ASSY	1
8	060300606	SCREW BIND M3X6	1
9	S04159000	BAND, 1M	1
10	062500616	SCREW, PAN M5X6	2
11	SA1388101	CORD HOLDER	1
12	SA2390101	CORD HOLDER, U4	1
13	S04159000	BAND, 1M	2
14+	J803800E0	PEDAL STAND OPE DD 3P VARI 40	1
14+	J80380040	PEDAL STAND OPE DD 3P VARI 40	1
15	J04099101	FOOT PLUG ASSY CDD	1

Page 47 — Q. 電装品関係 / Power supply equipment mechanism

Brother S-7200C parts on page 47
Ref	Part number	Part name	Qty
1+	SA9616001	POWER SWITCH ASSY SJT	1
1+	SA9831001	POWER SWITCH ASSY SJT#2	1
2+	SA9535001	POWER SUPPLY SWITCH ASSY CCC	1
2+	BMP3010-0000001-3S00	POWER SUPPLY SWITCH ASSY CCC#2	1
3	SA9923001	TRANSFORMER 100/110/220V	1
4	SA9901001	TRANSFORMER 400/230V	1
5	SA9896001	TR BOX COVER	1
6	SA9914001	LABEL ELECTRICAL SHOCK 25 X 28	1

Page 49 — R. 膝スイッチ関係 (オプション部品) / Knee switch mechanism (Option parts)

Brother S-7200C parts on page 49
Ref	Part number	Part name	Qty
1	S25457101	KNEE SWITCH ASSY	1
2	142026003	KNEE SWITCH SHAFT	1
3	142027001	BRACKET	1
4	100463001	BOLT, SQUARE SM7.94	1
5	114967001	KNEE LIFTER PLATE STOPPER	1
6	110087001	BOLT, SM5.95-28X8	1
7	S07027001	K-LIFTER SWITCH SETTING PLATE	1
8	062401006	SCREW PAN M4X10	4
9	025040233	WASHER, PLAIN M 4	4
10	028040243	WASHER, SPRING 2-4	4
11	021400164	NUT, 1 M4	4
12	S31938001	SWITCH CORD ASSY	1
13	S31939001	FOOT SWITCH ASSY	1
14	143549000	TERMINAL PIN, MALE	2
15	143548000	TERMINAL PIN, FEMALE	1
16	146046000	NYLON CONNECTOR	2
17	146194000	NYLON CONNECTOR	1
18	149799000	BEAD BAND, S	1
19	034422503	WOOD SCREW, FLAT 2 M4.1X25	4

Page 51 — S. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7200C parts on page 51
Ref	Part number	Part name	Qty
1	SA9721101	R-ACTUATOR ASSY	1
2	SA9722101	REVERSE SWITCH BRACKET	1
3	SA9723001	REVERSE SWITCH BRACKET	1
4	SA4098201	ACTUATOR	1
5	SA9724001	REVERSE SWITCH SPRING	1
6	SA1390001	R-SWITCH ASSY	1
7	060300606	SCREW BIND M3X6	1
8	S04159000	BAND 1M	1
9	062500816	SCREW PAN M5X8	2
10	062500816	SCREW PAN M5X8	3
11	SA1388101	CORD HOLDER	1
12	SA1394101	CORD HOLDER U3	2
11	SA1388101	CORD HOLDER	2
13	SA2689101	CORD HOLDER	1

Page 53 — T. 電磁押え上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

Brother S-7200C parts on page 53
Ref	Part number	Part name	Qty
1+	SA96640E1	SOLENOID P-FOOT LIFTER SET B	1
2+	SA96650E1	SOLENOID P-FOOT LIFTER ASSY	1
1+	SA9664001	SOLENOID P-FOOT LIFTER SET B	1
2+	SA9665001	SOLENOID P-FOOT LIFTER ASSY	1
3	SA1942001	P-FOOT LIFTER SOLENOID ASSY	1
4	S16625050	RUBBER STOPPER	1
5	S38803051	B-CORD ASSY 100	1
6	S38804050	W-CORD ASSY 100	1
7	SA2177001	CONNECTOR:5557-6R	1
8	SA1335001	SOLENOID BASE R	1
9	S16629151	SOLENOID STOPPER	1
10	018761832	BOLT, SOCKET SM5.95-28X14	3
11	SA1336001	SOLENOID BASE L	1
12	SA9667001	REAR PLATE ASSY	1
13	SA2296001	NUT M20	1
14	017061216	BOLT M6X12	4
15	021060216	NUT 2 M6	4
16	S16630051	PIN	1
17	048050142	RETAINING RING EXTERNAL C5	2
18	SA1332001	KNEE LIFTER SHAFT	1
19	S20356001	WASHER, PLAIN 10	2
20	048080342	RETAINING RING E8	2
21	SA1338001	PRESSER FOOT LIFTER ARM	1
22	SA9111001	BOLT SOCKET M5X15	1
23	S16643009	COVER	1
24	062670612	SCREW PAN SM3.57-40X6	2
25	SA2165001	SHOULDER SCREW, M6	1

Page 55 — Z. 付属関係 / Accessories

Brother S-7200C parts on page 55
Ref	Part number	Part name	Qty
1	S17774001	SCREW-DRIVER, 4.7X250	1
2+	SA9969011	NEEDLE 2PIECE ASSY 100265......<#11>	1
2+	SA9969014	NEEDLE 2PIECE ASSY 100265......<#14>	1
2+	SA9970014	NEEDLE 2PIECE ASSY 107415......<#14>	1
2+	SA9969022	NEEDLE 2PIECE ASSY 100265......<#22>	1
2+	SA9970022	NEEDLE 2PIECE ASSY 107415......<#22>	1
2+	SA9971010	NEEDLE 2PIECE ASSY S35775......<#10>	1
2+	SA9972010	NEEDLE 2PIECE ASSY S37061......<#10>	1
3	146290001	BOBBIN	1
4	117132001	BOBBIN	1
5	S06055009	HEAD REST, S	1
6	S09634000	KNEE LIFTER COMPLYING BAR	1
7	SA1969001	RUBBER HINGE ASSY	1
8	143882001	HEAD HINGE	2
9	143910009	RUBBER CUSHION	2
10	SA1962001	HEAD CUSHION····	2
11	SA1963001	HEAD CUSHION····	2
12	109714000	NAIL	4
13	SA8239101	OIL TANK ASSY	1
14	144226001	HEAD COVER	1
15	S02763602	COTTON STAND ASSY 2DR	1
16	S51283001	SPOOL STAND BASE	2
17	150182000	SPOOL MAT	2
18	S51282101	SPOOL CUSHION	2
19	150206002	WASHER PLAIN 16	1
20	SA6629001	NUT M16	1
21	150174000	COLUMN CAP	1
22	S01005000	RUBBER WASHER	2
23	S02747101	SPRING	1
24	150172003	COLUMN PIPE	1
25	150174000	COLUMN CAP	1
26	150207001	COLUMN PIPE W/SCREW	1
27	150206000	WASHER PLAIN 16	1
28	SA6606001	COLUMN JOINT	1
29	150179002	SPOOL SHAFT B	2
30	028050244	WASHER SPRING 2-5	2
31	021500104	NUT 1 M5	2
32	SA6607001	SPOOL HOLDER 2	1
33	SA6607001	SPOOL HOLDER 2	1
34	150183000	THREAD HANGER BASE	2
35	142990001	THREAD BUSH	2
36	SA6609001	SPOOL HOLDER SUPPORTER	2
37	021500104	NUT 1 M5	2
38	062061604	SCREW PAN M6X16	2
39	062501404	SCREW PAN M5X14	2
40	142443101	SCREW-DRIVER, 1.9X52	1
41	118837001	SCREW-DRIVER, 3.4X70	1
42	100887001	WRENCH, 8X9	1
43	142002001	HEXAGONAL WRENCH, 2	1
44	142721001	HEXAGONAL WRENCH, 3	1
45	107780001	WRENCH, 10X12	1
46	154125001	HEXAGONAL WRENCH, 2.5	1
47	S07783001	HEXAGONAL WRENCH, 1.5	1

Page 57 — Z. 付属部品関係 / Accessories

Brother S-7200C parts on page 57
Ref	Part number	Part name	Qty
48	S40765001	CONNECTING ROD ASSY	1
49	021060106	NUT 1 M6	2
50	119101001	CONNECTING ROD CLAMP	2
51	017081606	BOLT M8X16	2
52	021080106	NUT 1 M8	2
53	S36119021	NUT 1 M6	2
54	S36121021	WASHER SPRING 2-6	2
55	114859001	COLLAR	1
56	SA8837001	GREASE UNIT	1

Page 58 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Brother S-7200C parts on page 58
Ref	Part number	Part name
B-20	SA9353001	Needle bar
B-62	SA9969011	Needle, w/bag
B-61	145971101	Needle plate
C-7	S13561101	Presser bar spring
C-9	153037201	Presser foot assy
D-89	S02742001	Feed dog
G-20	S02602001	Hook stopper
G-29	SA7686102	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-20	SA9642001	Needle bar
B-62	SA9971010	Needle, w/bag
B-61	S35776101	Needle plate
C-7	147514001	Presser bar spring
C-9	S35777101	Presser foot assy
D-89	S02748001	Feed dog
G-20	S02602001	Hook stopper
G-29	SA7687101	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-20	SA9642001	Needle bar
B-62	SA9971010	Needle, w/bag
B-61	S35776101	Needle plate
C-7	147514001	Presser bar spring
C-9	S35777101	Presser foot assy
D-89	S02748001	Feed dog
G-20	S02602001	Hook stopper
G-29	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

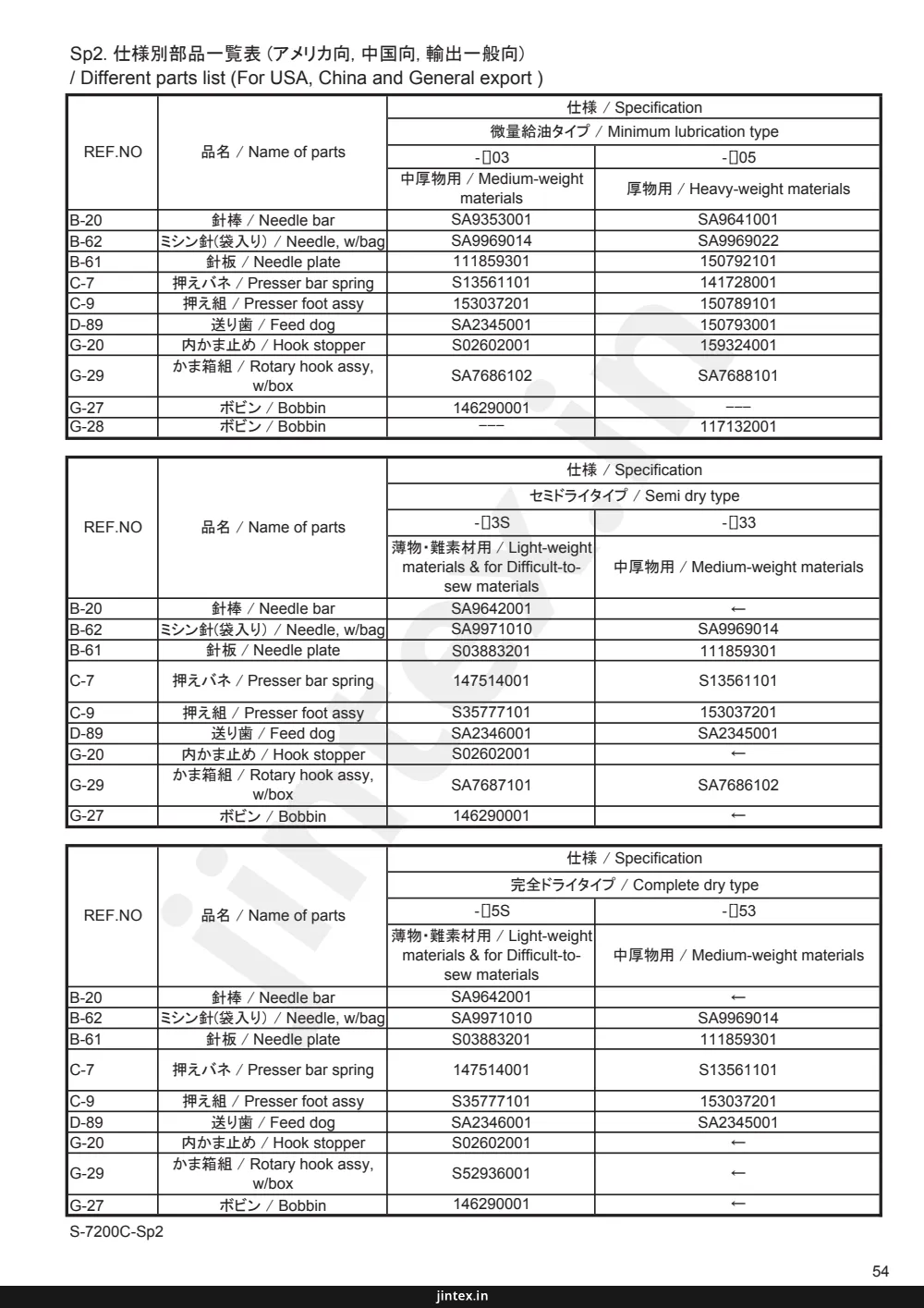

Page 59 — Sp2. 仕様別部品一覧表 (アメリカ向, 中国向, 輸出一般向) / Different parts list (For USA, China and General export )

Brother S-7200C parts on page 59
Ref	Part number	Part name
B-20	SA9353001	Needle bar
B-62	SA9969014	Needle, w/bag
B-61	111859301	Needle plate
C-7	S13561101	Presser bar spring
C-9	153037201	Presser foot assy
D-89	SA2345001	Feed dog
G-20	S02602001	Hook stopper
G-29	SA7686102	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
	SA9969022	ミシン針(袋入り) / Needle, w/bag
	150792101	針板 / Needle plate
	141728001	押えバネ / Presser bar spring
	SA2346001	送り歯 / Feed dog
	150789101	送り歯 / Feed dog
	SA9642001	針棒 / Needle bar
	SA9971010	ミシン針(袋入り) / Needle, w/bag
	S03883201	針板 / Needle plate
	147514001	押えバネ / Presser bar spring
	S35777101	押え組 / Presser foot assy
	SA7687101	かま箱組 / Rotary hook assy, w/box
	S52936001	かま箱組 / Rotary hook assy, w/box

Page 60 — Sp3 . 仕様別部品一覧表 (欧州向) / Different parts list (For Europe)

Brother S-7200C parts on page 60
Ref	Part number	Part name
B-20	SA9731001	Needle bar
B-20	SA9641001	Needle bar
B-62	SA9970014	Needle, w/bag
B-62	SA9970022	Needle, w/bag
B-61	111859301	Needle plate
B-61	150792101	Needle plate
C-7	S13561101	Presser bar spring
C-7	141728001	Presser bar spring
C-9	SA8102001	Presser foot assy
C-9	SA8103001	Presser foot assy
D-89	SA2345001	Feed dog
D-89	150793001	Feed dog
G-20	S02602001	Hook stopper
G-20	159324001	Hook stopper
G-29	SA7686102	Rotary hook assy, w/box
G-29	SA7688101	Rotary hook assy, w/box
G-27	146290001	Bobbin
G-28	117132001	Bobbin
B-20	SA9640001	Needle bar
B-62	SA9972010	Needle, w/bag
B-61	S03883201	Needle plate
C-7	147514001	Presser bar spring
C-9	SA8096001	Presser foot assy
D-89	SA2346001	Feed dog
G-20	S02602001	Hook stopper
G-29	SA7687101	Rotary hook assy, w/box
G-27	146290001	Bobbin
B-20	SA9640001	Needle bar
B-62	SA9972010	Needle, w/bag
B-61	S03883201	Needle plate
C-7	147514001	Presser bar spring
C-9	SA8096001	Presser foot assy
D-89	SA2346001	Feed dog
G-20	S02602001	Hook stopper
G-29	S52936001	Rotary hook assy, w/box
G-27	146290001	Bobbin

Page 61 — Ga1 . ゲージ部品一覧表 (薄・中厚物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Brother S-7200C parts on page 61
Ref	Part number	Part name	Qty
	153147-001
	146233-001
	S29649-001
	S29646-001
	146050-001
	147238-001
	153190-001
	147239-001
	146231-001
	S07649-001
	S02742-001
	SA8102-001
	SA8105-001	面取り大 Chamfering(L)
	SA8108-001	面取り小 Chamfering(S)
	SA8109-001	Slot
	SA8106-001	Chamfering(S)
	SA8107-001	Chamfering(S)
	S01904-101	Teflon

Page 62 — Gauge parts list (Light & medium-weight materials : 3ROW)

Brother S-7200C parts on page 62
Ref	Part number	Part name	Qty
	S29645-001
	S07649-001
	SA8102-001
	145971-101
	S02742-001
	SA8105-001
	S29645-001
	SA8108-001
	100266-101
	SA8109-001
	146232-001
	146231-001
	SA8106-001
	141096-001
	117442-001
	SA8107-001
	S11222-001
	S07649-001
	S01904-101
	S02742-001

Page 63 — Ga3 . ゲージ部品一覧表 (厚物用 : 3枚歯) / Gauge parts list (Heavy-weight materials : 3ROW)

Brother S-7200C parts on page 63
Ref	Part number	Part name	Qty
	100267-001
	111241-001
	147245-101
	111508-001
	147322-201
	S29644-001
	S02743-001
	154742-001
	S02743-001
	SA8104-001
	145157-101
	SA8105-001
	113280-101

Page 64 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Brother S-7200C parts on page 64
Ref	Part number	Part name	Qty
	S38760-001
	S35776-101
	S02748-001
	SA8096-001
	S35777-101

Page 65 — Ga5 .ゲージ部品一覧表 (薄・中厚物用 : 4枚菌)/ Gauge parts list (Light & medium-weight materials : 4ROW

Brother S-7200C parts on page 65
Ref	Part number	Part name	Qty
E12N1	S03882-201
E14N1	S03883-201
E14N1	159859-201
E12	S01107-101
AB14N1	S02999-201
AB16N1	S03000-201
	SA2346-001
	S13684-001
	S02748-001
	S02744-001
	SA8102-001
	SA8105-001
	SA8108-001
	SA8109-001
	SA8106-001
	SA8107-001
	S01904-101

Page 66 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200C parts on page 66
Ref	Part number	Part name
AB16	156115-001
AB18	156116-001
AB18M	S31910-001
E16N1	S03884-301
E16M1	S29648-101
E18N1	111859-301
E18M1	S29647-101
	S13684-001
	SA2346-001
	SA2345-001
	SA8102-001	Slot
	SA8105-001	Chamfering(L)
	SA8108-001	Chamfering(S)
	SA8109-001	Slot
	SA8106-001	Chamfering(S)
	SA8107-001	Chamfering(S)
	S01904-101	Teflon
	531910-001	Needle plate
	503884-301	Needle plate
	529648-101	Needle plate
	529647-101	Needle plate

Page 67 — Ga7.ゲージ部品一覧表 (薄・中厚物用 : 4枚菌)/Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200C parts on page 67
Ref	Part number	Part name	Qty
	155676-001
	156114-001
	S13684-001
	SA8102-001	Slot
	153037-201
	SA8105-001	Chamfering(L)
	113280-101
	SA8108-001	Chamfering(S)
	147531-101
	SA8109-001	Slot
	111856-101
	SA8106-001	Chamfering(S)
	140957-101
	SA8107-001	Chamfering(S)
	143711-101
	S01904-101	Teflon

Page 68 — Ga8. ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Brother S-7200C parts on page 68
Ref	Part number	Part name
	111859-301
	S29647-101
	S30103-001
	S13684-001
	SA2346-001
	SA2345-001
	S25822-001
	SA8102-001
	153037-201
	SA8105-001
	113280-101
	SA8108-001
	147531-101
	SA8109-001
	111856-101
	SA8106-001
	140957-101
	SA8107-001
	143711-101
	S01904-101	テフロン押え Teflon
	E18N1	Needle plate
	E18M1	Needle plate
E18M1	529647-101	Needle plate

Page 69 — Ga9.ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW)

Brother S-7200C parts on page 69
Ref	Part number	Part name	Qty
	150792-101
	150793-001
	SA8103-001
	150789-101
	S25821-001
	S25822-001
	525822-001	Feed dog

Page 70 — Wa. 警告ラベル / Warning labels

Brother S-7200C parts on page 70
Ref	Part number	Part name	Qty
	SA9725-001	Label electrical shock 36 X 150
	SA9914-001	Label electrical shock 25 X 28
	SA9826-001	Label caution
	SA9957-001	Injury mark
	SA9957-002	Injury mark
	S37060-001	Label, grounding

Page 72

Brother S-7200C parts on page 72
Ref	Part number	Part name	Qty
	144504001	J
	144875001	J
	145157101	Sp1
	145446001	J
	145446002	K
	145737001	H
	145971101	Sp1
	146046000	R
	146050001	Ga1
	146194000	R
	146231001	Ga1
	146232001	Ga2
	14628001	Ga1
	146288001	N
	146290001	G
	146290001	Z
	146290001	Sp1
	146290001	Sp2
	146290001	Sp3
	146233001	Ga1
	147238001	Ga1
	147245101	Sp1
	147245101	Ga3
	147322201	Ga3
	147514001	Sp1
	147514001	Sp2
	147514001	Sp3
	147531101	Ga1
	147531101	Ga2
	147531101	Ga5
	147531101	Ga6
	147531101	Ga7
	147531101	Ga8
	148537101	L
	149578000	H
	149799000	R
	150172003	Z
	150174000	Z
	150174000	Z
	150179002	Z
	150182000	Z
	150183000	Z
	150206000	Z
	150207001	Z
	150789101	Sp2
	150789101	Ga9
	150792101	Sp2
	150792101	Sp3
	150792101	Ga9
	150793001	Sp2
	150793001	Sp3
	150793001	Ga9
	151267001	B
	151594001	B
	153037201	Sp1
	153037201	Sp2
	153037201	Ga1
	153037201	Ga5
	153037201	Ga2
	153037201	Ga5
	153037201	Ga6
	153037201	Ga7
	153037201	Ga8
	153132000	D
	153138001	F
	153147001	Ga1
	153190001	G
	154125001	Z
	154567000	L
	154593201	L
	154594000	L
	154595001	L
	154742001	G
	155676001	Ga7
	156114001	Ga7
	156115001	Ga6
	156116001	Ga6
	156958021	D
	156958021	D
	158722001	D
	159324001	G
	159805001	J
	159859201	B
	160018151	B
	163388001	G
	163389001	G
	163390001	G
	BMP206A-000000-0G10	P2
	BMP206A-000000-0G50	P2
	BMP206A-000000-CG10	P2
	BMP206A-000000-CG50	P2
	BMP206A-000000-EG50	P2
	BMP206A-000000-JG10	P2
	BMP206A-000000-JG50	P2
	BMP3010-000001-3S00	P2
	J04099101	Q
	J04210101	P3
	J80380040	P4
	J803800E0	P4
	S01005000	Z
	S01107101	Ga5
	S01419000	J
	S01904101	Ga1
	S02602001	G
	S02602001	Sp1
	S02602001	Sp2
	S02602001	Sp3
	S02620401	J
	S02637101	L
	S02643001	L
	S02645001	L
	S02646001	L
	S02647021	L
	S02742001	Sp1
	S02742001	Ga1
	S02742001	Ga2
	S02743001	Sp1
	S02744001	Ga3
	S02747101	Z
	S02748001	Sp1
	S02763602	Z
	S02999201	Ga5
	S03000201	Ga5
	S03245001	G
	S03246001	G
	S03882201	Ga5
	S03883201	Sp2
	S03884301	Ga6
	S04159000	L
	S04630000	H
	S04632101	J
	S06055009	Z
	S07027001	R
	S07350001	C
	S07649001	Ga1
	S07783001	Z
	S09621151	A
	S09634000	Z
	S11222001	Ga2
	S12441001	J
	S12915001	D
	S13385001	C
	S13561101	C
	S13684001	Ga5
	S16335001	D
	S16337001	D
	S16625050	T
	S16629151	T
	S16630051	T
	S16643009	T
	S17774001	Z
	S20356001	D
	S20356001	T
	S23418002	K
	S23651001	B
	S23651001	B
	S23651001	B
	S23651001	B
	S23651001	B
	S23651001	B
	S23651001	B
	S23651001	D
	S23651001	D
	S23651001	D
	S23651001	G
	S23651001	G
	S23651001	G
	S23651001	L
	S25235001	B
	S25236001	B
	S25236001	D
	S25321001	D
	S25339301	D
	S25344001	H
	S25380601	H
	S25382001	H
	S25382001	H
	S25401100	B
	S25426101	L
	S25427101	D
	S25434000	L
	S25456001	N
	S25456001	N
	S25457101	R
	S25469100	D
	S25475101	H
	S25821001	Ga9
	S25822001	Ga8
	S25822001	Ga9
	S29644001	Ga3
	S29645001	Ga2
	S29646001	Ga1
	S29647101	Ga6
	S29648101	Ga8
	S30103001	Ga8
	S31006002	C
	S31032002	J
	S31032002	K
	S31885001	E
	S31910001	Ga6
	S31938001	R
	S31939001	R
	S32263001	A
	S34352101	D
	S34756021	E
	S35776101	Sp1

Page 73 — 索引 / Index

Brother S-7200C parts on page 73
Ref	Part number	Part name
59	S35776101	Ga4
53	S35777101	Sp1
54	S35777101	Sp2
59	S35777101	Ga4
-53	S36119021	Z
-54	S36121021	Z
-44	S36893150	L
-17	S37060001	A
-11	S37060001	P3
65	S37060001	Wa
-4	S38278001	E
-56	S38687000	L
-28	S38712001	B
59	S38712001	Ga4
-9	S38769000	H
-5	S38803051	T
-6	S38804050	T
-32	S39051001	C
-100	S39830101	D
-48	S40765001	Z
-5	S41205001	N
-7+	S42893001	C
-21	S45050001	A
-33	S45837001	C
-99	S47508101	D
-40	S47509001	H
-53	S50165001	B
-44	S51272100	H
-18	S51281001	Z
-16	S51283001	Z
-24	S51815001	H
-37	S51815001	H
-16	S52764001	H
53	S52936001	Sp1
54	S52936001	Sp2
55	S52936001	Sp3
-1	SA1106001	A
-2	SA1107001	A
-5	SA1120001	B
-22+	SA1138101	B
-22+	SA1139101	B
-36	SA1143101	B
-37	SA1144001	B
-46	SA1150101	B
-41	SA1167001	B
-1+	SA1173001	C
-5	SA1174002	C
-34	SA1175002	C
-12	SA1176101	C
-13	SA1177001	C
-14	SA1178101	C
-15	SA1179001	C
-27	SA1179001	C
-30	SA1179001	C
-17	SA1181101	C
-19	SA1182201	C
-24	SA1186001	C
-39	SA1189101	C
-29	SA1190001	C
-12	SA1205001	D
-16	SA1206001	D
-20	SA1207001	D
-26	SA1210101	D
-27	SA1211101	D
-48	SA1223001	D
-54	SA1225001	D
-62	SA1226201	D
-64	SA1227301	D
-65	SA1228001	D
-67	SA1229101	D
-71	SA1230001	D
-72	SA1231001	D
-80	SA1234001	D
-75	SA1237101	D
-83	SA1239201	D
-87	SA1242001	D
-91+	SA1247101	D
-91+	SA1251101	D
-91+	SA1254101	D
-56+	SA1261001	D
-56+	SA1263001	D
-39	SA1269001	D
-10	SA1273001	G
-15	SA1284101	G
-16	SA1285001	G
-18	SA1287001	G
-1	SA1292001	H
-2	SA1295001	H
-25	SA1303101	H
-35	SA1306001	H
-36	SA1307001	H
-46	SA1310101	H
-54	SA1313101	H
-54	SA1314001	H
-51	SA1315301	H
-40	SA1317101	B
-62	SA1321701	H
-63	SA1322401	H
-65	SA1323101	H
-66	SA1324001	H
-67	SA1325101	H
-68	SA1326101	H
-74	SA1327101	H
-18	SA1332001	T
-8	SA1335001	T
-11	SA1336001	T
-21	SA1338001	T
-10	SA1343001	J
-13	SA1345001	J
-7	SA1359001	J
-35	SA1360101	K
-27	SA1362201	L
-28	SA1363001	L
-40	SA1366101	L
-1	SA1371501	M
-11	SA1388101	P4
-11	SA1390001	S
-6	SA1390001	S
-60	SA1394101	L
-24	SA1394101	N
-12	SA1394101	S
-28	SA6606001	Z
-32	SA6607001	Z
-33	SA6607001	Z
-36	SA6609001	Z
-20	SA6629001	Z
-1	SA7209201	B
-16	SA7239101	B
-2	SA7242001	C
-4	SA7244001	D
-1	SA7245002	D
-2	SA7247002	D
-36	SA7252101	D
-37	SA7253101	D
-49	SA7254001	D
-74	SA7255101	D
-88	SA7257001	D
-4	SA7263401	G
-11	SA7266201	G
-20	SA7271001	J
-23	SA7272201	J
-24+	SA7273202	J
-25+	SA7275001	J
-16	SA7285101	L
-22	SA7287001	L
-3	SA7292101	P1
-7	SA7293001	P1
-7	SA7320001	G
-22	SA7321002	D
-2	SA7325001	P1
-84	SA7330001	D
-17	SA7341301	L
-101	SA7422001	D
-13	SA7554101	G
-6	SA7607101	C
-9+	SA7625001	B
-9+	SA7626001	B
-9+	SA7627001	B
-14	SA7636201	H
53	SA7686102	Sp1
53	SA7687101	Sp1
54	SA7687101	Sp2
55	SA7687101	Sp3
53	SA7688101	Sp1
54	SA7688101	Sp2
55	SA7688101	Sp3
-19	SA7849001	J
-5	SA7879101	G
-3	SA8055001	G
-51	SA8058301	B
-56	SA8059101	B
-57	SA8060201	B
-10	SA8061001	B
-21	SA8069001	C
-6	SA8083001	F
-22	SA8085001	N
55	SA8096001	Sp3
-36	SA8100001	C
55	SA8102001	Sp3
56	SA8102001	Ga1

Page 74 — 索引 / Index

Brother S-7200C parts on page 74
Ref	Part number	Part name
57	SA8102001	Ga2
60	SA8102001	Ga5
61	SA8102001	Ga6
62	SA8102001	Ga7
63	SA8102001	Ga8
55	SA8103001	Sp3
64	SA8104001	Ga3
56	SA8105001	Ga1
57	SA8105001	Ga2
58	SA8105001	Ga3
60	SA8105001	Ga5
61	SA8105001	Ga6
62	SA8105001	Ga7
63	SA8105001	Ga8
56	SA8106001	Ga1
57	SA8106001	Ga2
58	SA8106001	Ga3
60	SA8106001	Ga5
61	SA8106001	Ga6
62	SA8106001	Ga7
63	SA8106001	Ga8
56	SA8107001	Ga1
57	SA8107001	Ga2
60	SA8107001	Ga5
61	SA8107001	Ga6
62	SA8107001	Ga7
63	SA8107001	Ga8
56	SA8108001	Ga1
57	SA8108001	Ga2
60	SA8108001	Ga5
61	SA8108001	Ga6
62	SA8108001	Ga7
63	SA8108001	Ga8
56	SA8109001	Ga1
57	SA8109001	Ga2
60	SA8109001	Ga5
61	SA8109001	Ga6
62	SA8109001	Ga7
63	SA8109001	Ga8
- 13	SA8239101	Z
- 9	SA8503001	K
- 7	SA8507001	K
- 3	SA8508001	K
- 23	SA8509001	K
- 20	SA8510101	K
- 4	SA8511101	K
- 21	SA8512101	K
- 56	SA8837001	Z
- 38	SA8903001	C
- 21	SA8982102	G
- 29	SA8987001	H
- 27	SA8989001	H
- 30	SA8991001	H
- 22	SA9111001	T
- 20	SA9154001	C
- 14	SA9352001	N
53	SA9353001	Sp1
- 9	SA9356001	N
- 76	SA9357001	D
- 1+	SA9359001	C
- 32	SA9371101	L
- 29	SA9377001	B
- 25	SA9384001	P1
- 12	SA9437001	P1
- 11	SA9442001	P1
- 14	SA9443001	P1
- 16	SA9447001	P1
- 17	SA9448001	P1
- 20	SA9452001	P1
- 2+	SA9535001	Q
- 1	SA9535001	P3
- 2	SA9546001	P3
- 4	SA9553001	P3
- 6	SA9565001	P3
- 7	SA9565001	P3
- 8	SA9565001	P3
- 5	SA9575001	P3
- 6+	SA9590001	P3
- 6+	SA9602001	P3
- 1+	SA9622101	Q
- 3	SA9623101	A
- 7	SA9631001	A
- 50	SA9639001	H
55	SA9640001	Sp3
53	SA9641001	Sp1
54	SA9641001	Sp2
55	SA9641001	Sp3
53	SA9642001	Sp1
54	SA9642001	Sp2
- 9+	SA9643001	B
- 8+	SA9646001	B
- 8+	SA9651001	B
- 90+	SA9657001	D
- 90+	SA9661001	D
- 1+	SA96640E1	T
- 1+	SA9665001	T
- 2+	SA96650E1	T
- 2+	SA9666001	D
- 90+	SA9667001	D
- 12	SA9669001	T
- 90+	SA9670001	H
- 6+	SA9671001	D
- 102	SA9672001	D
- 1	SA9674001	E
- 6	SA9676001	E
- 1	SA9677001	F
- 2	SA9680001	F
- 1	SA9682101	G
- 9	SA9684001	G
- 4	SA9690001	H
- 43	SA9691001	H
- 56	SA9694001	H
- 31	SA9696001	H
- 77	SA9697001	H
- 2+	SA9698001	J
- 1	SA9699001	J
- 4	SA9700001	J
- 17	SA9701001	J
- 18	SA9702001	J
- 25	SA9704001	J
- 28	SA9710001	L
- 24	SA9712001	D
- 42	SA9713001	L
- 45	SA9715001	L
- 51	SA9716001	L
- 2	SA9718001	M
- 4	SA9719001	M
- 7	SA9720001	M
- 1	SA9721101	S
- 2	SA9722101	S
- 3	SA9723001	P4
- 3	SA9723001	S
- 5	SA9724001	S
- 12	SA9725001	P3
65	SA9725001	Wa
38	SA9731001	Sp3
- 22	SA9735001	H
- 31	SA9746001	D
- 32	SA9747001	D
- 8+	SA9748001	B
- 104	SA9749001	D
- 8+	SA9751001	B
- 76	SA9753101	H
- 15	SA9755001	L
- 23	SA9759001	P1
- 52	SA9763001	B
- 2	SA9769001	N
- 4	SA9771001	N
- 10	SA9773001	N
- 12	SA9774001	N
- 1	SA9777001	N
- 15	SA9778001	N
- 19	SA9779001	N
- 28	SA9780001	N
- 24+	SA9788001	J
- 24+	SA9789001	J
- 18	SA9792001	H
- 32	SA9793001	H
- 33	SA9794001	H
- 39	SA9795101	H
- 43	SA9798001	L
- 46	SA9800001	L
- 48	SA9801001	L
- 5	SA9813001	F
- 9	SA9817001	D
- 10	SA9818001	D
- 42	SA9819001	D
- 40	SA9821001	D
- 44	SA9823001	D
- 45	SA9824001	D
- 46	SA9825001	D
- 18	SA9826001	A
65	SA9826001	Wa
- 49	SA9827001	L
- 42	SA9828101	H
- 1+	SA9831001	Q
- 3	SA9853001	N
- 15	SA9854001	J
- 30	SA9855001	K
- 22	SA9856001	P1
- 41	SA9858001	D
- 4	SA9865001	P1
- 5	SA9866001	P1
- 6	SA9867001	P1
- 10	SA9894001	P3
- 5	SA9896001	Q
- 4	SA9901001	Q
- 6	SA9914001	Q
65	SA9914001	Wa
- 79	SA9917001	H
- 3	SA9923001	Q
- 60	SA9940001	H
- 60	SA9943001	H
- 8	SA9944001	D
- 2	SA9945001	G
- 19	SA9957001	A
- 20	SA9957002	A
65	SA9957002	Wa
- 26+	SA9960001	J
- 2+	SA9969011	Z
53	SA9969011	Sp1
- 2+	SA9969014	Z
54	SA9969014	Sp2
- 2+	SA9969022	Z
53	SA9969022	Sp1
54	SA9969022	Sp2
- 2+	SA9970014	Z
55	SA9970014	Sp3
- 2+	SA9970022	Z
55	SA9970022	Sp3
- 2+	SA9971010	Z
53	SA9971010	Sp1
54	SA9971010	Sp2
- 2+	SA9972010	Z
55	SA9972010	Sp3
- 28	SA9973001	K
- 1	SA9982001	P4
- 2	SA9983001	P4
- 6	SA9984001	P4
- 7	SA9985001	P4
- 1	SB0100001	P1

Page 7 — A. 主体関係 / Machine body

Page 9 — B. 針棒・天秤関係 / Need le bar and thread take-up mechanism

Page 11 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 13 — C. 押え関係 / Presser foot mechanism

Page 15 — D. 送り関係 / Feed mechanism

Page 17 — D. 送り関係 / Feed mechanism

Page 19 — E. 膝上げ関係 / Knee lifter mechanism

Page 21 — F. 逆転関係 / Quick reverse mechanism

Page 23 — G. かま関係 / Rotary hook mechanism

Page 25 — H. 給油潤滑関係 / Lubrication

Page 27 — H. 給油潤滑関係 / Lubrication

Page 29 — J. 糸通し関係 / Threading mechanism

Page 31 — K. 糸巻関係 / Bobbin winder mechanism

Page 33 — L. 糸切り関係 / Thread trimmer mechanism

Page 35 — M. 糸緩め関係 / Tension release mechanism

Page 37 — N. 糸払い関係 (-4口またはオプション部品) / Thread wiper mechanism (-4□ or Option parts)

Page 39 — P1. コントロールボックス、モータ関係 / Control box and motor mechanism

Page 41 — P2. コントロールボックス関係 / Control box mechanism

Page 43 — P3. コントロールボックス関係 / Control box mechanism

Page 45 — P4. コントロールボックス関係 (オプション部品) / Control box mechanism (Option parts)

Page 47 — Q. 電装品関係 / Power supply equipment mechanism

Page 49 — R. 膝スイッチ関係 (オプション部品) / Knee switch mechanism (Option parts)

Page 51 — S. 逆転スイッチ関係 / Quick reverse switch mechanism

Page 53 — T. 電磁押え上げセット関係 (オプション部品) / Presser foot lifting set mechanism (Option parts)

Page 55 — Z. 付属関係 / Accessories

Page 57 — Z. 付属部品関係 / Accessories

Page 58 — Sp1 . 仕様別部品一覧表 (日本向) / Different parts list (For Japan)

Page 59 — Sp2. 仕様別部品一覧表 (アメリカ向, 中国向, 輸出一般向) / Different parts list (For USA, China and General export )

Page 60 — Sp3 . 仕様別部品一覧表 (欧州向) / Different parts list (For Europe)

Page 61 — Ga1 . ゲージ部品一覧表 (薄・中厚物用 : 3枚菌) / Gauge parts list (Light & medium-weight materials : 3ROW)

Page 62 — Gauge parts list (Light & medium-weight materials : 3ROW)

Page 63 — Ga3 . ゲージ部品一覧表 (厚物用 : 3枚歯) / Gauge parts list (Heavy-weight materials : 3ROW)

Page 64 — Ga4 . ゲージ部品一覧表 (難素材・新素材用 : 4枚菌) / Gauge parts list (Difficult-to-sew materials & Shin-gosen : 4ROW)

Page 65 — Ga5 .ゲージ部品一覧表 (薄・中厚物用 : 4枚菌)/ Gauge parts list (Light & medium-weight materials : 4ROW

Page 66 — Ga6 . ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 67 — Ga7.ゲージ部品一覧表 (薄・中厚物用 : 4枚菌)/Gauge parts list (Light & medium-weight materials : 4ROW)

Page 68 — Ga8. ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts list (Light & medium-weight materials : 4ROW)

Page 69 — Ga9.ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts list (Heavy-weight materials : 4ROW)

Page 70 — Wa. 警告ラベル / Warning labels

Page 72

Page 73 — 索引 / Index

Page 74 — 索引 / Index

Brother S-7200C — parts catalog
