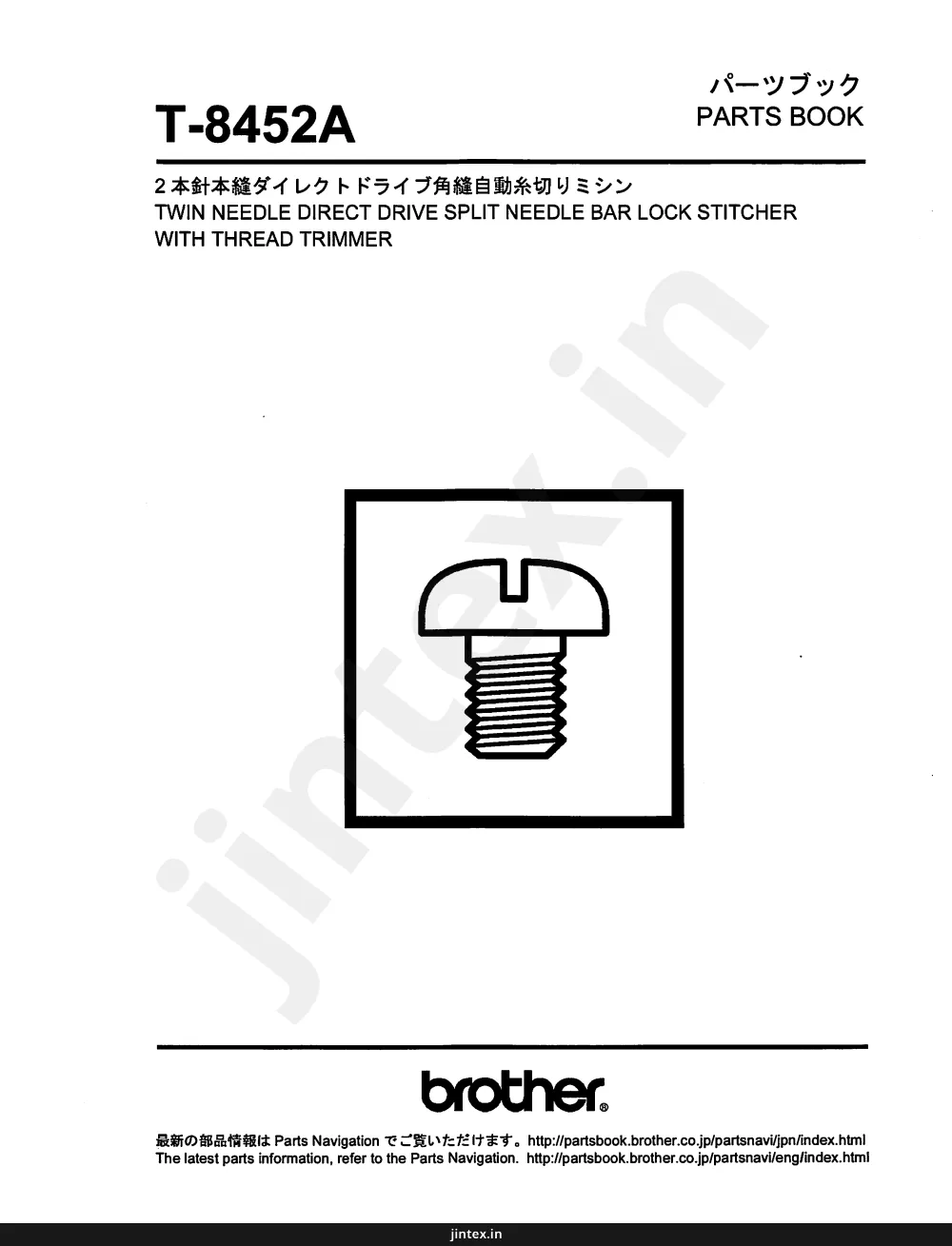

Brother T-8452A Parts Book (PDF)

Double Needle Lockstitch · also listed as T8452A, 8452ADownload PDF

Text index — Brother T-8452A

Page 6 — A. 主体関係 / Machine body

Brother T-8452A parts on page 6
Ref	Part number	Part name	Qty
1	140063001	DOWEL PIN	2
2	SA3924001	POSITIONING PIN	1
3	SA4364001	FACE PLATE	1
4	104449001	RUBBER CAP, 15.5	1
5	062501416	SCREW PAN M5X14	2
6	SA2441001	REAR COVER	1
7	062501216	SCREW, PAN M5X12	7
8	SA2442101	MOTOR COVER	1
9	062501416	SCREW, PAN M5X14	3
10	062501016	SCREW, PAN M5X10	1
11	SA4370101	DUST PROTECTOR	1
12	062500616	SCREW, PAN M5X6	2
13	SA2444101	BED LEG,L	1
14	SA2445101	BED LED,S	1
15	SA2447001	SLIDE PLATE, LA ASSY	1
16	SA2479001	BOBBIN WINDOW	1
17	SA2449001	SLIDE PLATE ASSY, R	1
18	SA2479001	BOBBIN WINDOW	1
19	S36663051	SLIDE PLATE F ASSY	1
20	S34438051	SCREW, FLAT SM3.18-40X4	4
21	116010001	SET SCREW, SM5.16-40X4	1
22	SA2929001	RUBBER CAP, 12.5	2
23	S37060001	LABEL, GROUNDING	1
24	SA2040001	LABEL, CAUTION JPN/ENG	1
24	SA2041001	LABEL, CAUTION CHN/ENG	1
25	062500816	SCREW PAN M5X8	2

Page 8 — B .上軸関係 / Upper shaft mechanism

Brother T-8452A parts on page 8
Ref	Part number	Part name	Qty
1	SA4551001	UPPER SHAFT, DD	1
2	SA4373001	THREAD TAKE-UP CRANK	1
3	S25234001	BALL BEARING, 6004ZZ	1
4	S38707001	BALL BEARING, 6004ZZNR	1
5	SA6166001	CRANKSHAFT	1
6	117006001	WICK, L=60	1
7	113014000	PUSHER	1
8	S25260001	SET SCREW,SOCKET (FT) M6X5	2
9	SA1120001	BOBBIN WINDER DRIVING WHEEL	1
10	S23651001	SET SCREW, SOCKET (FT) M6X6	2
11	S25235001	SCREW, M8	1
12	S25236001	SET SCREW, SOCKET (FT) M6X10	1
13	SA2861101	THREAD TAKE-UP S-SHAFT UNIT	1
14	SA2935101	THREAD TAKE-UP LEVER ASSY,S3-L	1
15	S13160001	T-TAKE-UP SLIDE BLOCK ASSY,2	1
16	SA2460001	PRESSER ADJUSTING UNIT	1
17	S38710001	BALL BEARING, 6204ZZNR	1
18	S23651001	SET SCREW, SOCKET (FT) M6X6	4
19	SA2461001	TIMING PULLEY, U DD	1
20	S38713100	FAN	1
21	062403512	SCREW, PAN M4X35	3
22	028040242	WASHER, SPRING 2-4	3
23	025040232	WASHER, PLAIN M 4	3
24	SA2463001	TIMING BELT	1
25	012061036	SET SCREW, SOCKET (FT) M6X10	2
26	SA2469001	THREAD TAKE-UP LEVER COVER	1
27	062500816	SCREW, PAN M5X8	2
28	SA3057001	DUST COVER	1
29	SA4376101	SHELTER PLATE	1
30	SA3065001	FELT	1
31	SA3059001	HOLDER, SHELTER PLATE	1
32	062500816	SCREW, PAN M5X8	1
33	SA2462001	PULLEY U FLANGE	1

Page 10 — C. 針棒揺動関係 / Needle bar rocking mechanism

Brother T-8452A parts on page 10
Ref	Part number	Part name	Qty
1	SA4377001	NEEDLE BAR ROCKER SHAFT ASSY	1
2	SA4378001	NEEDLE BAR BASE ASSY	1
3	SA2474201	SLIDE BLOCK SLIDER	1
4	018401036	BOLT SOCKET M4X10	2
5	SA4382001	NEEDLE BAR ASSY, L	1
6	SA4385001	NEEDLE BAR ASSY, R	1
7	SA4387001	NEEDLE BAR CLAMP ASSY <mark></mark>	1
7	SA4387002	NEEDLE BAR CLAMP ASSY <mark></mark>	1
7	SA4387003	NEEDLE BAR CLAMP ASSY <mark></mark>	1
8	149604001	PIN, 1.5X5.8	2
9	149605001	SPRING, CLUTCH LEVER	2
10	149827001	PIN, 2X15.8	1
11	S34561001	CLUTCH STOPPER, L	1
12	S34562001	CLUTCH STOPPER, R	1
13	149608001	PIN, 2X17.8	1
14	112609001	SPRING	2
15	SA4391001	SPRING HOLDER	1
16	062260316	SCREW PAN M2.6X3	2
17	149610001	PIN	1
18	149611101	SPRING, RELEASE PIN	1
19	SA4392001	PIN COVER	1
20	062260516	SCREW PAN M2.6X5	1
21	SA4389001	CLUTCH LEVER ASSY	2
22	SA4395001	SLIDE BLOCK GUIDE PLATE	1
23	S07575000	SLIDE BLOCK ASSY, 25 <mark></mark>	1
23	S07575001	SLIDE BLOCK ASSY, 30 <mark></mark>	1
23	S07575002	SLIDE BLOCK ASSY, 35 <mark></mark>	1
23	S07575003	SLIDE BLOCK ASSY, 40 <mark></mark>	1
23	S07575004	SLIDE BLOCK ASSY, 45 <mark></mark>	1
23	S07575005	SLIDE BLOCK ASSY, 50 <mark></mark>	1
23	S07575006	SLIDE BLOCK ASSY, 55 <mark></mark>	1
23	S07575007	SLIDE BLOCK ASSY, 60 <mark></mark>	1
23	S07575008	SLIDE BLOCK ASSY, 65 <mark></mark>	1
23	S07575009	SLIDE BLOCK ASSY, 70 <mark></mark>	1
23	S07575010	SLIDE BLOCK ASSY, 75 <mark></mark>	1
23	S07575011	SLIDE BLOCK ASSY, 80 <mark></mark>	1
24	SA4583001	STOPPER, N-BAR	2
25	149622001	SPRING, N-BAR STOPPER	2
26	SA4396001	SPRING COVER	1
27	060350616	SCREW BIND M3.5X6	1
28	SA4397001	ROTATE STOPPER, N-BAR	2
29	SA4398001	SCREW, SM3.5	2
30	060350616	SCREW BIND M3.5X6	2
31	SA4399001	WASHER, PLANE	2
32	062350816	SCREW PAN M3.5X8	2
33	112728001	WICK, L=50	1
34	SA4393001	CRANK ROD, N-BAR	1
35	SA4394001	SLIDE BLOCK	1
36	SA4401001	FELT SUPPORT, D	1
37	062350516	SCREW PAN M3.5X5	2
38	SA4400001	FELT	1
39	107155001	FELT	2
40	SA5155001	FELT SUPPORT	1

Page 12 — C. 針棒揺動関係 / Needle bar rocking mechanism

Brother T-8452A parts on page 12
Ref	Part number	Part name	Qty
41	SA5237101	FELT	1
42	062350516	SCREW PAN M3.5X5	1
43	014080831	SET SCREW SOCKET (CP) M8X8	4
44	154567000	SPACER, 5.3	2
45	SA2485001	SET SCREW COLLAR	1
46	S25260001	SET SCREW,SOCKET (FT) M6X5	2
47	SA2486101	BUSH, R	1
48	062061616	SCREW PAN M6X16	1
49	SA2489001	NEEDLE BAR ROCKER LEVER ASSY	1
50	018062032	BOLT SOCKET M6X20	1
51	118735002	WASHER	1
52	SA2490101	ROCKER LINK, N-BAR	1
53	S23460001	SCREW, PAN M6X5	2
54	SA4117001	LINK SHAFT, N-BAR ROCKER P	1
55	012060636	SET SCREW SOCKET (FT) M6X6	2
56	SA4118001	ZIGZAG LINK BUSH, P	1
57	018062532	BOLT SOCKET M6X25	1
58	SA2493001	WASHER,PLAIN	2
59	SA2494001	NEEDLE BAR ROCK ARM	1
60	018062032	BOLT SOCKET M6X20	1
61	SA5332001	BUSH, L	1
62	S48204000	WICK, 4X4 L=150	1

Page 14 — D. 針棒切替操作関係 / Needle bar flip-up mechanism

Brother T-8452A parts on page 14
Ref	Part number	Part name	Qty
1	SA4402001	INDICATION PLATE ASSY	1
2	104833001	RUBBER CAP, 4.3	2
3	SA5336001	HOLDER PLATE COVER	1
4	062501016	SCREW PAN M5X10	2
5	SA4404001	PUSH LEVER	1
6	SA4441001	SHOULDER SCREW, M4	2
7	SA4405001	PLATE, PUSH LEVER	1
8	062350516	SCREW PAN M3.5X5	2
9	SA5333001	SPRING	1
10	SA4406001	STOP LEVER SHAFT ASSY	1
11	047301842	PIN SPRING ROLL AW3	1
12	SA4408001	STUD, L	1
13	SA4409001	STUD, S	1
14	SA4411101	FLIP-UP HOLDER PLATE	1
15	S18964001	LABEL	1
15	SA4419001	LABEL	1
16	062500816	SCREW PAN M5X8	2
17	SA4412001	BALL GUIDE BUSH	1
18	150820001	SPRING	1
19	071063550	BEARING BALL, 1/4	1
20	SA4413001	ARM, LEVER SHAFT	1
21	062501416	SCREW PAN M5X14	1
22	SA5588001	SHOULDER SCREW M4	1
23	SA4414001	SPRING	2
24	SA4415001	SLIDE SHAFT BRACKET	1
25	062500816	SCREW PAN M5X8	2
26	S07588101	SLIDE SHAFT	1
27	SA4416001	SUPPORT PLATE, SLIDE SHAFT	1
28	149863001	SPRING, PLATE	2
29	SA4417001	SET SCREW COLLAR	3
30	014400432	SET SCREW SOCKET (CP) M4X4	5
31	SA4418001	GUIDE SCREW	1

Page 16 — E. 押え関係 / Presser foot mechanism

Brother T-8452A parts on page 16
Ref	Part number	Part name	Qty
1	SA2495001	PRESSER BAR BUSH	1
2	062500816	SCREW, PAN M5X8	1
3	SA1174001	PESSER ADJUSTING SCREW, M14	1
4	SA1175001	ADJUST SCREW NUT	1
5	141208001	SPRING GUIDE	1
6	S07346101	PRESSER BAR SPRING, -5	1
7	SA2496001	PRESSER BAR	1
8	SA2498001	GUIDE BRACKET, P-BAR	1
9	S25289001	BOLT, (CP) M6X10	1
10	SA2499001	PRESSER BAR LIFTING CRANK	1
11	S31006001	LIFTING LEVER	1
12	S39051001	SCREW, PAN (S/P W) M3.5X12	1
13	S07351001	TENSION RELEASE PLATE ASSY	1
14	S07529001	T-RELEASE CONNECTING ROD ASSY	1
15	048030342	RETAINING RING, E3	2
16	SA2677001	TENSION RELEASE WIRE	1
17	012061832	SET SCREW, SOCKET (FT) M6X18	1
18	021060306	NUT, 3 M6	1
19	SA2500001	KNEE LIFTER C-ROD ASSY	1
20	SA2501001	PRESSER BAR LIFTING LEVER	1
21	SA2502001	KNEE LIFTER CONNECTING ROD	1
22	SA1179001	SHOULDER SCREW, M5	1
23	S07349001	P-BAR LIFTING LEVER SHAFT	1
24	SA2504001	SET SCREW COLLAR	1
25	012500536	SET SCREW, SOCKET (FT) M5X5	2
26	S07355051	SPRING, EXTENSION	2
27	062501416	SCREW, PAN M5X14	1
28	021500106	NUT, 1 M5	1
29	SA2506001	KNEE LIFTER LEVER	1
30	SA2507001	KNEE LIFTER BAR	1
31	SA1179001	SHOULDER SCREW, M5	1
32	SA2165001	SHOULDER SCREW, M6	1
33	SA1179001	SHOULDER SCREW, M5	1
34	SA4149101	ADJUSTING SCREW 6	1
35	021060306	NUT, 3 M6	1
36	S07350001	WASHER, PLAIN	1
37	S10780001	TENSION RELEASE PLATE ASSY	1
38	S07529001	T-RELEASE CONNECTING ROD ASSY	1
39	048030342	RETAINING RING, E3	2
40	SA2677001	TENSION RELEASE WIRE	1
41	SA2578001	PRESSER BAR LIFTING LEVER	1

Page 18 — F. 送り関係 / Feed mechanism

Brother T-8452A parts on page 18
Ref	Part number	Part name	Qty
1	SA2509001	FEED REGULATOR ASSY	1
2	SA2511001	GUIDE PLATE	2
3	062501016	SCREW, PAN M5X10	4
4	SA2512001	SLIDE BLOCK ASSY	1
5	SA2515001	FELT	3
6	SA2516001	STOPEER	1
7	062060816	SCREW, PAN M6X8	1
8	143611201	F-ROCKER CONNECTING ROD ASSY	1
9	143612100	FEED ROCKER CONNECTING ROD	1
10	118954000	NEEDLE BEARING	1
11	SA2518001	LEVEL FEED ECCENTRIC WHEEL 5	1
12	SA2585001	SET SCREW, SOCKET (FT) M6	1
13	S25236001	SET SCREW, SOCKET (FT) M6X10	1
14	SA2521001	FEED ROCKER ARM 5	1
15	018062032	BOLT, SOCKET M6X20	1
16	143613051	LINK	1
17	143616001	SHAFT	1
18	048060342	RETAINING RING, E6	2
19	S38427001	STITCH LENGTH DIAL, 5	1
20	SA3056001	FEED REGULATING STUD	1
21	142746002	FEED REGULATING SUPPORTER	1
22	129458102	SCREW, SM4.76	1
23	108549001	O RING	1
24	S50098101	POSITIONING PIN	1
25	100328001	NOTCH SPRING	1
26	SA2523001	DIAL LOCK LEVER	1
27	S39830101	SPRING	1
28	SA2525001	FEED REGULATOR 5	1
29	016061031	SET SCREW, SOCKET (CN) M6X10	2
30	SA2526001	CONNECTING ROD	1
31	SA2527001	ECCENTRIC SHAFT	1
32	012060636	SET SCREW, SOCKET (FT) M6X6	1
33	SA2528101	SHOULDER SCREW, M6	1
34	SA2529101	SHAFT, R-LEVER TR	1
35	048080342	RETAINING RING, E8	1
36	025100132	WASHER, PLAIN S 10	1
37	SA2530001	SPACER	1
38	S07374109	REVERSE STITCHING LEVER	1
39	SA2531001	SPRING	1
40	SA2541001	REVERSE STITCHING LEVER PLATE	1
41	062501216	SCREW, PAN M5X12	1
42	025050336	WASHER, PLAIN L 5	1
43	104821001	RUBBER CAP, 10.5	1
44	062500816	SCREW, PAN M5X8	2
45	SA2532001	STOPPER	1
46	062501216	SCREW, PAN M5X12	1
47	025050236	WASHER, PLAIN M 5	1
48	S07376001	FEED REGULATOR SPRING	1
49	SA2533001	SPRING HOOK	1
50	062060816	SCREW, PAN M6X8	1
51	062501216	SCREW, PAN M5X12	1
52	021500106	NUT, 1 M5	1

Page 20 — G . 逆転関係 / Quick reverse mechanism H . 逆転スイッチ関係 / Quick reverse switch mechanism

Brother T-8452A parts on page 20
Ref	Part number	Part name	Qty
1	SA3072001	QUICK REVERSE SOLENOID ASSY	1
2	154729001	PLUNGER	1
3	154730001	RETAINING RING, E15	1
4	154731000	RUBBER STOPPER	1
5	SA2535101	SOLENOID BRACKET	1
6	062500812	SCREW, PAN M5X8	3
7	062061016	SCREW, PAN M6X10	2
8	SA2992001	PIN	1
9	048060142	RETAINING RING, EXTERNAL C6	1
10	153138001	WASHER, PLAIN 6.5	1
11	SA2536001	SOLENOID LEVER ASSY	1
12	SA2540001	QUICK REVERSE LEVER	1
13	016061031	SET SCREW, SOCKET (CN) M6X10	2
14	SA2992001	PIN	1
15	012060636	SET SCREW, SOCKET (FT) M6X6	2
16	SA2539001	SOLENOID LEVER SHAFT	1
17	018062032	BOLT, SOCKET M6X20	1
18	149095001	WASHER, PLAIN 6	1
19	153132000	NYLON TUBE, L=13.5	1
1	SA2688001	REVERSE ACTUATOR ASSY	1
2	SA2270001	REVERSE SWITCH BRACKET	1
3	S34281000	REVERSE SWITCH BRACKET	1
4	S32904000	ACTUATOR	1
5	S32905000	REVERSE SWITCH SPRING	1
6	SA1390001	R-SWITCH ASSY	1
7	S32907000	MICRO SWITCH	1
8	060300606	SCREW, BIND M3X6	1
9	062500616	SCREW, PAN M5X6	2
10	SA2689001	CORD HOLDER	1
11	062500616	SCREW, PAN M5X6	1
12	SA1388001	CORD HOLDER	3
13	062500616	SCREW, PAN M5X6	1

Page 22 — J. 送り軸関係 / Feed shaft mechanism

Brother T-8452A parts on page 22
Ref	Part number	Part name	Qty
1	SA3855001	BUSH,L:F-ROCKER SHAFT	1
2	SA3965001	FELT	1
3	SA4028001	WICK, 4X4 L=220	1
4	SA2543001	FEED ROCKER SHAFT BUSH, R	1
5	108802001	WICK, 4X4 L=250	1
6	SA2544001	SET SCREW M6	1
7	012060636	SET SCREW, SOCKET (FT) M6X6	1
8	SA2546001	SET SCREW COLLAR	2
9	S23651001	SET SCREW, SOCKET (FT) M6X6	4
10	SA3840001	FEED ROCKER SHAFT	1
11	SA6150001	FEED BAR TR FORK ASSY	1
12	SA2927001	SCREW, M6X14	1
13	025060132	WASHER, PLAIN S 6	1
14	SA2566001	SET SCREW, M3.5	1
15	021350106	NUT, 1 M3.5	1
16	SA2553001	FORKED PLATE	1
17	SA2554001	ADJUSTING SCREW ,HIGHT	1
18	062400616	SCREW, PAN M4X6	1
19	SA3990001	FELT	1
20	SA3887001	FELT	1
21	SA3888001	FELT HOLDER	1
22	025030132	WASHER, PLAIN S 3	1
23	062300416	SCREW, PAN M3X4	1
24	SA2550001	FEED BAR SHAFT	1
25	SA2551001	THRUST RING	2
26	012060636	SET SCREW, SOCKET (FT) M6X6	1
27	SA2555001	FEED ROCKER BASE ARM	1
28	SA2928001	SCREW, M5X12	2
29	SA4538001	WICK, 3X3 L=200	1
30	SA2806001	FEED BAR SLIDE BLOCK ASSY	1
31	W01519001	SCREW, FLAT #0 M2X4	4
32	SA4009001	WICK SUPPORT	1
33	062400616	SCREW, PAN M4X6	2
34	SA2724001	WICK, L=400	1
35	SA4011001	OIL TUBE, L=100	1

Page 24 — K1 . かま関係 / Rotary hook mechanism

Brother T-8452A parts on page 24
Ref	Part number	Part name	Qty
1	SA4435101	ROTARY HOOK BASE,845TR(L)	1
2	SA3961001	PIPE	1
3	SA4029001	ROTARY HOOK SHAFT BUSH	1
4	S09260001	THRUST RING, A :1.2MM< t=1.2 >	1
4	SA4038001	THRUST RING< t=1.0 >	1
4	S09261001	THRUST RING, B :1.4MM< t=1.4 >	1
4	SA4444001	THRUST RING, 0.8MM< t=0.8 >	1
5	S07420000	NEEDLE BEARING	1
6	S07419001	RETAINING RING	1
7	SA2557001	ROTARY HOOK SHAFT BUSH	1
8	SA3856001	OPENER LINK	1
9	SA3859001	OPENER LEVER	1
10	SA2560001	SHAFT, O-LINK	1
11	025710132	WASHER PLAIN S SM4.76	1
12	021500316	NUT, 3 M5	1
13	SA3889101	O-LEVER SHAFT	1
14	SA4026001	WICK, 4X4 L=100	1
15	012500536	SET SCREW, SOCKET (FT) M5X5	1
16	S38212001	OPENER	1
17	154965001	BOLT, SOCKET SM3.57X8	1
18	SA2562101	ROTARY HOOK BASE COVER, L	1
19	062300612	SCREW, PAN M3X6	4
20	SA2572001	SPIRAL GEAR SCREW ASSY	1
21	SA2574001	SET SCREW, (FT) M6	2
22	SA2575001	SET SCREW, (FT) M6	1
23	SA6301001	PINION GEAR SCREW ASSY	1
24	SA2574001	SET SCREW, (FT) M6	3
25	SA3054001	THRUST WASHER, L	1
26	SA4042001	FELT UL ASSY	1
27	062400616	SCREW, PAN M4X6	1
28	SA4044001	FELT DL ASSY	1
29	062400616	SCREW, PAN M4X6	1
30	SA4012001	FELT	1
31	SA3894001	FELT SUPPORT	1
32	062400616	SCREW, PAN M4X6	1
33	SA2717001	STOPPER SCREW	2
34	SA2676001	MOVABLE KNIFE BRACKET	1
35	062400812	SCREW PAN M4X8	2
36	S07525000	SPRING, PLATE	1
37	141544001	SCREW, SM3.18-40X3	2
38	SA3912001	MOVABLE KNIFE LEVER	1
39	SA2675001	SET SCREW COLLAR	1
40	S23651001	SET SCREW, SOCKET (FT) M6X6	1
41	SA2671001	THREAD TRIMMER LEVER, L	1
42	062501212	SCREW, PAN M5X12	1
64	SA6294001	THRUST RING	1
65	SA6307001	PINION GEAR SET	1
44	SA4436101	ROTARY HOOK BASE,845TR(R)	1
2	SA3961001	PIPE	1
3	SA4029001	ROTARY HOOK SHAFT BUSH	1
4	S09260001	THRUST RING, A :1.2MM< t=1.2 >	1
4	SA4038001	THRUST RING< t=1.0 >	1
4	S09261001	THRUST RING, B :1.4MM< t=1.4 >	1
4	SA4444001	THRUST RING, 0.8MM< t=0.8 >	1
5	S07420000	NEEDLE BEARING	1
6	S07419001	RETAINING RING	1
7	SA2557001	ROTARY HOOK SHAFT BUSH	1
8	SA3856001	OPENER LINK	1
9	SA3859001	OPENER LEVER	1
10	SA2560001	SHAFT, O-LINK	1
11	025710132	WASHER PLAIN S SM4.76	1
12	021500316	NUT, 3 M5	1

Page 26 — K1 . かま関係 / Rotary hook mechanism

Brother T-8452A parts on page 26
Ref	Part number	Part name	Qty
13	SA3889101	O-LEVER SHAFT	1
14	SA4026001	WICK, 4X4 L=100	1
15	012500536	SET SCREW, SOCKET (FT) M5X5	1
16	S38212001	OPENER	1
17	154965001	BOLT, SOCKET SM3.57X8	1
45	SA2563101	ROTARY HOOK BASE COVER, R	1
19	062300612	SCREW, PAN M3X6	4
20	SA4549001	SPIRAL GEAR SCREW ASSY	1
21	SA2574001	SET SCREW, (FT) M6	2
22	SA2575001	SET SCREW, (FT) M6	1
23	SA6301001	PINION GEAR SCREW ASSY	1
24	SA2574001	SET SCREW, (FT) M6	3
46	SA2579001	SPECER	1
47	SA4043001	FELT UR ASSY	1
27	062400616	SCREW, PAN M4X6	1
48	SA4045001	FELT DR ASSY	1
29	062400616	SCREW, PAN M4X6	1
30	SA4012001	FELT	1
31	SA3894001	FELT SUPPORT	1
32	062400616	SCREW, PAN M4X6	1
33	SA2717001	STOPPER SCREW	2
34	SA2676001	MOVABLE KNIFE BRACKET	1
35	062400812	SCREW PAN M4X8	2
36	S07525000	SPRING, PLATE	1
37	141544001	SCREW, SM3.18-40X3	2
38	SA3912001	MOVABLE KNIFE LEVER	1
39	SA2675001	SET SCREW COLLAR	1
40	S23651001	SET SCREW, SOCKET (FT) M6X6	1
49	SA2670001	THREAD TRIMMER LEVER, R	1
42	062501212	SCREW, PAN M5X12	1
64	SA6294001	THRUST RING	1
65	SA6307001	PINION GEAR SET	1
43	SA2826001	SPRING, EXTENSION	2
43	SA4458001	SPRING, EXTENSION, B	2
50	SA3988001	ROTARY HOOK BASE COVER, FL	1
51	SA3916001	ROTARY HOOK BASE COVER, FR	1
52	SA2825001	SCREW, M3X12	4
53	SA2556001	SCREW, M6X25	2
54	115947001	WASHER, PLAIN 6.35	2
55	SA2722001	PINCH SLEEVE A	2
56	SA2565001	PINCH SLEEVE B	2
57	SA2556001	SCREW, M6X25	2
58	SA2567001	NEEDLE UPPER POSITIONING PLATE	2
59	SA2568001	NEEDLE UPPER POSITIONING SHAFT	2
60	062061016	SCREW, PAN M6X10	4
61	025060136	WASHER, PLAIN S 6	4
62	S01928151	BOBBIN	2
63	148602001	ANTI-SPIN SPRING	2

Page 28 — K2 . かま関係 / Rotary hook mechanism

Brother T-8452A parts on page 28
Ref	Part number	Part name	Qty
1	*	ROTARY HOOK BOX ASSY	1
2	151025001	TENSION SPRING	1
3	S01567001	TENSION ADJUSTING SCREW	1
4	S01568001	SET SCREW	1
5	151035001	SET SCREW	1
6	151034001	TENSION SPRING	1
7	151027001	SET SCREW	2
8	159801001	THREAD PRESSER WIRE	1
9	159802001	SCREW, SM1.59X2	1
1	*	NEEDLE CLAMP ASSY,L	1
2	*	NEEDLE CLAMP ASSY,R	1
3	013660412	SET SCREW (CP) SM3.18-40X4	2
4	S13085001	SET SCREW, SM3.18	2
5	149831101	SET SCREW, SM3.18	2
6	*	NEEDLE PLATE	1
7	S11244001	SCREW, SM4.37	1
8	100032004	SCREW, FLAT SM4.37-40X8	1
9	*	PRESSER FOOT ASSY	1
10	113050001	SCREW, SM3.57	1
11	*	FEED DOG	1
12	S07494001	SCREW, W/SOCKET SM3.18X7	2
13	*	NEEDLE, DPX5	2

Page 30 — M. 下軸関係 / Lower shaft mechanism N. 糸締め関係 / Tension release mechanism

Brother T-8452A parts on page 30
Ref	Part number	Part name	Qty
1	SA3890001	ROTARY HOOK BASE BUSH, L	1
2	SA4585001	FELT	1
3	SA3891001	ROTARY HOOK BASE BUSH, R	1
4	SA4585001	FELT	1
5	SA2571001	LOWER SHAFT	1
6	SA2580101	F-LIFTING ECCENTRIC WHEEL ASSY	1
7	SA4509001	SET SCREW (FT) M6	1
8	SA2584001	BALL BEARING BUSH	1
9	072600480	BALL BEARING, THRUST 6004ZZ	1
10	SA2585001	SET SCREW, SOCKET (FT) M6	1
11	S25236001	SET SCREW, SOCKET (FT) M6X10	1
12	SA2587101	TIMING PULLEY ASSY, D	1
13	158115001	BALL BEARING, 6204ZZNR	1
14	SA2585001	SET SCREW, SOCKET (FT) M6	1
15	SA4213001	SET SCREW, SOCKET (CP) M6X10	1
	110161004	ナツト4.76 NUT, SM4.76	2
	SA2678001	イトユルメワイヤー・オサエ TENSION RELEASE WIRE HOLDER	1
	062060816	ナベコ5X8 SCREW, PAN M5X8	2

Page 32 — P. 給油潤滑関係 / Lubrication

Brother T-8452A parts on page 32
Ref	Part number	Part name	Qty
1	SA2814201	OIL TANK ASSY	1
2	SA3040001	OIL FEEDING PIPE	3
3	SA3946001	OIL TERMINAL	1
4	SA2956001	OIL TUBE, L=135	2
5	SA2957001	FELT	4
6	SA3055101	TUBE CLIP	2
7	SA3055101	TUBE CLIP	2
8	062500816	SCREW PAN M5X8	1
9	SA2929001	RUBBER CAP, 12.5	2
10	S38266000	ROTARY HOOK SHAFT FELT	2
11	SA5224001	FELT ASSY	1
12	SA4033101	FELT SUPPORT	1
13	228475000	FASTENING BAND, 1.9X80	1
14	S49623000	OIL TUBE, L=280	1
15	SA5293001	WICK L=410	1
16	SA5154201	OIL SUPPORT	1
17	062501016	SCREW PAN M5X10	1
18	SA2929001	RUBBER CAP, 12.5	2
19	104450101	RUBBER CAP, 8	1
20	081038070	O RING P38	1
21	SA2723001	OIL TUBE, L=210	1
22	SA2724001	WICK, L=400	1
23	SA3055101	TUBE CLIP	1
24	0A5501006	SCREW PAN (S/P WASHER) M5X10	2
25	SA3896001	OIL BLOCK,L	1
26	SA2599001	OIL ADJUSTING SCREW	1
27	081004070	O RING P4	1
28	SA3147001	OIL FEEDING PIPE 2.5	1
29	SA3898001	OIL BLOCK,R	1
30	SA2599001	OIL ADJUSTING SCREW	1
31	081004070	O RING P4	1
32	SA3147001	OIL FEEDING PIPE 2.5	1
33	SA3061001	RUBBER PACKING	2
34	SA2727101	ROTARY HOOK SHAFT FELT	2
35	S05246000	FELT	2
36	142274101	RUBBER CAP, 4.2	4
37	SA3037001	SUB-TANK ASSY	1
38	SA3040001	OIL FEEDING PIPE	1
39	SA3060001	VALVE PACKING	1
40	SA3147001	OIL FEEDING PIPE 2.5	2
41	SA2596001	OIL TUBE, L=400	1
42	SA2597001	OIL TUBE, L=500	1
43	S07876101	TUBE CLIP	2
44	SA2598101	WICK, L=1250	1
45	104450101	RUBBER CAP, 8	1
46	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
47	SA3045201	SUB-TANK SETTING PLATE, A	1
48	SA3046001	SUB-TANK SETTING PLATE, B	1
49	062060816	SCREW PAN M6X8	2
50	SA3044001	OIL TUBE, L=242	1
51	SA3055101	TUBE CLIP	2
52	SA3047001	TUBE SUPPORT	1
53	SA3923001	ROTARY HOOK BASE D PACKING	2
54	062401616	SCREW PAN M4X16	4
55	SA2604001	FEED REGULATOR FELT	1
56	SA2605001	FELT SUPPORT	1
57	062500616	SCREW PAN M5X6	1
58	108802001	WICK, 4X4 L=250	2
59	108801001	WICK, 4X4 L=350	1
60	SA2606101	OIL COVER	1
61	104450101	RUBBER CAP, 8	1
62	SA3048101	TUBE SUPPORT, A	1
63	SA3049001	TUBE SUPPORT, B	1

Page 34 — P. 給油潤滑関係 / Lubrication

Brother T-8452A parts on page 34
Ref	Part number	Part name	Qty
64	062400616	SCREW PAN M4X6	1
65	SA4014001	TUBE GUIDE	1
66	140890009	OIL CAP	1
67	112753001	FELT	2
68	062061016	SCREW PAN M6X10	3
69	025060236	WASHER PLAIN M 6	1

Page 36 — Q . 糸通し関係 / Threading mechanism

Brother T-8452A parts on page 36
Ref	Part number	Part name	Qty
1	SA3417001	UPPER THREAD TENSION ASSY, -3	1
2	SA3415001	TENSION SPRING, L	2
1	SA2607001	UPPER THREAD TENSION ASSY, -5	1
2	SA3416001	TENSION SPRING, LL	2
3	SA4212001	TENSION PLATE ASSY	1
4	SA2613001	TENSION STUD	1
5	SA2614001	THREAD TAKE-UP SPRING, L	1
6	SA2615001	GUIDE ASSY, T/TAKE-UP SPRING	2
7	SA2619001	SPACER	1
8	SA2623001	THREAD TAKE-UP SPRING, R	1
9	SA2620001	COLLAR	1
10	SA2621001	STOPPER SUPPORT	1
11	021300106	NUT, 1 M3	1
12	SA2626001	SET SCREW, (CP) M3.5	1
13	SA2624001	SPRING GUIDE SET SCREW	1
14	SA2625001	ADJUSTING THUMB	1
15	SA2626001	SET SCREW, (CP) M3.5	1
16	SA2627001	COLLAR	1
17	SA2628001	TENSION NUT	1
18	SA2629001	STOPPER	1
19	061350616	SCREW, FLAT M3.5X6	1
20	SA2824001	NUT, WHIRL-STOP M3.5	1
21	SA2630001	STOPPER	1
22	062350512	SCREW, PAN M3.5X5	1
23	145446001	DISC, TENSION	4
24	159805001	TENSION DISC PRESSER	2
25	S20681000	WASHER	2
26	S20682105	TENSION NUT	2
27	144504001	THREAD GUIDE DISC	4
28	154560001	PRE-TENSION SPRING, A	2
29	155510001	TENSION NUT	2
30	SA2632001	TENSION RELEASE PLATE	1
31	012500536	SET SCREW, SOCKET (FT) M5X5	1
32	S38274001	T-RELEASE SPRING	1
33	SA2633001	SHOULDER SCREW, M3.5	2
34	SA4506001	TENSION RELEASE PIN, L	1
35	SA4507001	TENSION RELEASE PIN, R	1
36	SA2634001	THREAD GUIDE, U :ARM	1
37	061350616	SCREW, FLAT M3.5X6	2
38	SA2635001	THREAD QUANTITY ADJUST	1
39	062300616	SCREW, PAN M3X6	1
40	062500816	SCREW, PAN M5X8	2
41	SA2636001	THREAD RETAINER	2
42	012060636	SET SCREW, SOCKET (FT) M6X6	2
43	SA2637001	BAR, TENSION RELEASE	1
44	SA2638001	THREAD GUIDE, M :ARM	2
45	SA2640001	SCREW, FLAT M5X8	2

Page 38 — R. 糸巻関係 / Bobbin winder mechanism

Brother T-8452A parts on page 38
Ref	Part number	Part name	Qty
1	SA1971101	BOBBIN WINDER UNIT	1
2	048040342	RETAINING RING, E4	1
3	SA1975001	B-WINDER SHAFT SUPPORT ASSY	1
4	SA1978001	BOBBIN WINDER SHAFT	1
5	081009070	O RING, P9	1
6	025060136	WASHER, PLAIN S 6	1
7	SA1980001	BOBBIN WINDER WHEEL	1
8	012500536	SET SCREW, SOCKET (FT) M5X5	2
9	S25789000	RUBBER RING, 29	1
10	SA1981101	BOBBIN PRESSER CAM ASSY	1
11	SA1982101	BOBBIN PRESSER CAM	1
12	SA1983001	BOBBIN WINDER ARM SHAFT	1
13	012500536	SET SCREW, SOCKET (FT) M5X5	1
14	048040342	RETAINING RING, E4	1
15	025060136	WASHER, PLAIN S 6	2
16	SA1984001	BOBBIN PRESSER ARM	1
17	062401216	SCREW, PAN M4X12	1
18	SA1985001	BOBBIN PRESSER	1
19	S23418002	SCREW, M4X5	1
20	SA1988001	BOBBIN SUPPORT	1
21	SA1989001	BOBBIN WINDER LEVER	1
22	SA1990101	SPRING	1
23	SA1991001	BOBBIN WINDER BASE SPRING	1
24	SA2190001	O RING, SS5	1
25	SA1992101	BOBBIN WINDER FIXED SCREW	3
26	SA1360001	KNIFE	1
27	062500616	SCREW, PAN M5X6	1
28	SA1994001	BOBBIN WINDER TENSION ASSY	1
29	145446001	DISC, TENSION	2
30	100401021	TENSION SPRING	1
31	S31032001	TENSION NUT	1
32	S12441001	WASHER	1
33	012500536	SET SCREW, SOCKET (FT) M5X5	1

Page 40 — S. 糸切り関係 / Thread trimmer mechanism

Brother T-8452A parts on page 40
Ref	Part number	Part name	Qty
1	SA2642001	THREAD TRIMMER SOLENOID	1
2	SA2643001	SOLENOID BRACKET	1
3	SA2644001	SOLENOID JOINT	1
4	SA2645001	SHOULDER SCREW, M5	1
5	012500536	SET SCREW, SOCKET (FT) M5X5	1
6	SA2646001	SOLENOID LEVER	1
7	SA2728001	SOLENOID LEVERB RACKET	1
8	062501016	SCREW, PAN M5X10	2
9	SA2647001	SOLENOID LEVER SHAFT	1
10	062061012	SCREW, PAN M6X10	2
11	SA2648001	CORD HOLDER	1
12	062060816	SCREW, PAN M6X8	1
13	SA2651001	DRIVING ROD	1
14	148546001	PLUNGER PIN	1
15	SA2652101	DRIVING ROD PLATE, TR	1
16	SA2860001	WASHER	1
17	SA2859000	SPRING,TENSION RELEASE LEVER	1
18	062501016	SCREW, PAN M5X10	1
19	SA2653001	TENSION RELEASE LEVER ASSY	1
20	SA2655001	SHOULDER SCREW, M4	1
21	062351216	SCREW, PAN M3.5X12	1
22	021350106	NUT, 1 M3.5	1
23	SA2657001	MAIN LEVER SUPPORT SHAFT	1
24	SA2658001	MAIN LEVER SHAFT	1
25	012060636	SET SCREW, SOCKET (FT) M6X6	2
26	SA2659001	MAIN LEVER ASSY, KNIFE	1
27	148559100	RUBBER	1
28	S07509001	MAIN LEVER SPRING	1
29	048070342	RETAINING RING, E7	1
30	062061616	SCREW, PAN M6X16	2
31	SA2661001	THREAD TRIMMER CAM	1
32	SA2378001	SPACER,4.8	4
33	S25236001	SET SCREW, SOCKET (FT) M6X10	4
34	SA2663001	ROUND JOINT ASSY, R	1
35	141331002	BUSH	1
36	SA2665001	ROUND JOINT ASSY, L	1
37	141331002	BUSH	1
38	SA2667001	L-ADJUSTING CONNECTING ROD	1
39	021060306	NUT, 3 M6	1
40	SA2668001	NUT,M6 LEFT	1
41	SA2669001	SHOULDER SCREW, SM5.95-28	2
42	SA2672001	T-TRIMMER CONNECTING ROD, R	1
43	SA2673001	T-TRIMMER CONNECTING ROD, L	1
44	017500812	BOLT, M5X8	2
45	025050236	WASHER, PLAIN M 5	2
46	SA2645001	SHOULDER SCREW, M5	2
47	S07526201	MOVABLE KNIFE	2
48	148536001	SCREW, W/SOCKET SM4.37-40X4.2	4
49	S07527001	FIXED KNIFE	2
50	148539101	SHOULDER SCREW, SM2.38	2
51	S38687000	CONNECTOR, 5557-14R	1
52	SA1998001	GROUND WIRE ASSY	1
53	062500816	SCREW, PAN M5X8	1
54	340400001	BEAD BAND	2

Page 42 — T. 糸払い関係 / Thread wiper mechanism

Brother T-8452A parts on page 42
Ref	Part number	Part name	Qty
1	SA2680001	THREAD WIPER SOLENOID ASSY	1
2	148511001	PLUNGER	1
3	048090342	RETAINING RING, E9	1
4	S38426000	PLUNGER RUBBER	1
5	S02664001	THREAD WIPER SWITCH	1
6	S02665000	TERMINAL CONNECTOR	1
7	S39048001	SCREW, PAN (S/P W) M4X10	4
8	062300616	SCREW, PAN M3X6	2
9	140647101	CORD HOLDER	1
10	062400616	SCREW, PAN M4X6	1
11	SA2732001	SOLENOID HOLDING PLATE	1
12	SA2696001	SOLENOID COVER	1
13	060400516	SCREW, BIND M4X5	1
14	062501016	SCREW, PAN M5X10	2
15	148546001	PLUNGER PIN	1
16	SA2682001	THREAD WIPER SOLENOID ASSY	1
17	SA2683001	SOLENOID LINK	1
18	S07549101	THREAD WIPER LINK, C	2
19	S07550001	LINK STUD	1
20	SA2504001	SET SCREW COLLAR	1
21	012500536	SET SCREW, SOCKET (FT) M5X5	2
22	S38421001	STOPPER	1
23	062500816	SCREW, PAN M5X8	2
24	025050236	WASHER, PLAIN M 5	2
25	S07552001	THREAD WIPER SUPPORT	2
26	062661212	SCREW, PAN SM3.18-40X12	2
27	SA2684001	THREAD WIPER SPRING	1
28	062501016	SCREW, PAN M5X10	2
29	S07553001	THREAD WIPER	2
30	S07424001	SET SCREW, W/SOCKET SM3.18X4	2

Page 44 — U1 . コントロールボックス、モータ関係 / Control box and motor mechanism

Brother T-8452A parts on page 44
Ref	Part number	Part name	Qty
1	SA1385001	MICRO SWITCH ASSY	1
2	S38744101	SWITCH PLATE SPRING	1
3	SA2686001	SWITCH BASE	1
4	062020806	SCREW, PAN M2X8	2
5	140647101	CORD HOLDER	1
6	062400616	SCREW, PAN M4X6	1
7	062401216	SCREW, PAN M4X12	1
8	026040236	WASHER, PLAIN M 4	1
9	154514001	SPACER	1
10	021400106	NUT, 1 M4	1
11	SA4040001	PULLEY,CDD	1
12	SA3175001	GUARD PLATE	1
13	062300616	SCREW, PAN M3X6	3
14	028030246	WASHER, SPRING 2-3	3
15	062060812	SCREW, PAN M6X8	1
16	025060136	WASHER, PLAIN S 6	1
17	SA2712001	CORD HOLDER	1
18	062500816	SCREW, PAN M5X8	1
19	J80990001	MOTOR ASSY, CDD-HT	1
20	018501632	BOLT, SOCKET M5X16	3
21	028050242	WASHER, SPRING 2-5	3
22	J03955001	DRUM CDD	1
23	014400632	SET SCREW, SOCKET (CP) M4X6	2
24	J03956001	MAGNET 180P36	1
25	J03957001	MR SENSOR ASSY 180P	1
26	0A4300805	SCREW, PAN (S/P WASHER) M3X8	2
27	J03958001	SHIELD PLATE CDD	1
28	0A4261005	SCREW, PAN (S/P WASHE) M2.6X10	3
29	0A4401005	SCREW, PAN (S/P WASHE) M4X10	1
30	J80971001	PCB ASSY, CDD-ENC	1
33	0A5300606	SCREW, PAN (S/P WASHER) M3X6	3
34	J04230001	CORD HOLDER, CDD-HT	1
35	0A4401005	SCREW, PAN (S/P WASHE) M4X10	2
36	J04296001	ENCODER COVER, CDD #2	1
37	0A4300805	SCREW, PAN (S/P WASHER) M3X8	3
38	J03964001	PULLEY HOLDER ASSY CDD	1
39	014500632	SET SCREW, SOCKET (CP) M5X6	2
40	SA2354001	SCREW, PAN M5X18	5
41	SA3025001	SCREW,PAN(S/P WASHER)M4X10	3
42	SA2687001	CORD HOLDER	1
43	062500816	SCREW, PAN M5X8	1
44	SA5200001	HEAD DETECTOR UNIT	1
45	062500816	SCREW, PAN M5X8	2
46	028050246	WASHER, SPRING 2-5	2
47	026050136	WASHER, PLAIN S 5	2
48	BMP2060-0000000-CG40	G-40-PANEL-CHINA
48	BMP2060-0000000-0G40	G-40-PANEL
48	BMP2060-0000000-EG40	G-40-PANEL-EU
49	J80973001	G40 PANEL PCB ASSY	1
50	J80974001	G40 SUB PCB ASSY	1
51	J03975001	G40 PANEL SEAT 1	1
52	J03976001	G40 PANEL SEAT 2	1
53	J04195001	PANEL SETTING PLATE#2	1
54	J04273001	SCREW, PAN(S/P WASHER)M4X10	3
55	J03983001	HALL ELEMENT:ICE-400	3
56	J03984001	HALL ELEMENT:ICE-450	2

Page 46 — U2. コントロールボックス関係 / Control box mechanism

Brother T-8452A parts on page 46
Ref	Part number	Part name	Qty
1	J04393001	FRONT BOX COVER CDD GO	1
2	J04438001	KEY TOP	1
3	J04440001	PANEL SHEET CDD GO	1
4	J03733001	SPEED ADJUST KNOB	1
5	062400863	SCREW, PAN M4X8	1
6	028040245	WASHER, SPRING 2-4	1
7	025040173	WASHER, PLAIN S 4	1
8	J04097001	TRANSFORMER, CDD-100V	1
8	J04098001	TRANSFORMER, CDD-200V	1
9	J03939001	TRANSFORMER, 400V	1
10	J04167001	DC FAN ASSY, CDD #2	1
11	J01411001	SCREW, PAN (S/P WASHER) M4X50	2
12	J00494001	SCREW, PAN (S/P WASHER) M4X14	2
13	J03739001	SPRING PLATE, CR	1
14	J04099001	FOOT PLUG ASSY, CDD	1
15	J04100001	CEMENT RESISTOR ASSY, 40/220#6	1
16	J04468001	CORE:SD-SR-120	2
17	J02725001	EARTH INDUCTOR	1
18	J80967001	TREADLE UNIT ASSY, CDD G	1
18	J80968001	TREADLE UNIT ASSY, CDD H	1
19	J80970001	CE FILTER PCB ASSY	1
20	J80964201	CONTROL PCB ASSY CDD#GO	1
21	J80965001	POWER PCB ASSY, CDD 1-110V	1
21	J80966101	POWER PCB ASSY CDD 1-230V	1
22	J04169001	THERMISTOR, CDD #2	1
23	J04168001	SHORT CONNECTOR	1
24	J04210001	BOLT ASSY, SQUARE M8X65	1
25	J04243001	EARTH CORD SCREW TIE ASSY	1

Page 48 — V. 電装品関係 / Power supply equipment mechanism

Brother T-8452A parts on page 48
Ref	Part number	Part name	Qty
1	J04086001	POWER SWITCH ASSY, 1-100V #6	1
3	J04469001	POWER SWITCH ASSY, 1-110V #8	1
5	J04093001	POWER SWITCH ASSY, 1-240V #6	1
6	J04134001	POWER PLUG ASSY, 1-240V #6	1
7	J04096001	POWER SWITCH ASSY, 3-400V #6	1
8	J04149001	POWER SWITCH ASSY, 3-200V #6	1
10	J04470001	POWER SWITCH ASSY, 3-240V #8	1
11	J04251001	POWER SWITCH ASSY, 1-240V #CCC	1
12	J04255001	POWER SWITCH ASSY, 3-400V #CCC	1

Page 50 — W. 電磁押上げセット関係(オプション部品)/ Presser foot lifting solenoid set (Option parts)

Brother T-8452A parts on page 50
Ref	Part number	Part name	Qty
1	SA2707001	P-FOOT LIFTER SOLENOID SET, D2	1
2	S54025001	CUSHION	1
3	S54024001	CUSHION RING	1
4	S42198051	PRESSER FOOT LIFTER ROD ASSY	1
5	S42199051	P-FOOT LIFTER LEVER ASSY	1
6	S41955051	ROD JOINT ASSY	1
7	S42200051	WOOD SCREW	4
8	S38351001	LABEL, HIGH TEMP	1
9	S10550001	PRESSER BAR LIFTER LINK	1
10	146367001	BOLT, SM5.95	1
11	S07729001	SPRING, TWIST	1
12	S07045009	KNEE LIFTER SWITCH ASSY	1
13	142026003	KNEE SWITCH SHAFT	1
14	142027001	BRACKET	1
15	100463001	BOLT, SQUARE SM7.94	1
16	114967001	KNEE LIFTER PLATE STOPPER	1
17	110087001	BOLT, SM5.95-28X8	1
18	S07027001	K-LIFTER SWITCH SETTING PLATE	1
19	062401006	SCREW, PAN M4X10	4
20	025040233	WASHER, PLAIN M 4	4
21	028040243	WASHER, SPRING 2-4	4
22	021400164	NUT, 1 M4	4
23	S07030009	SWITCH & HARNESS ASSY	1
24	S07031009	FOOT SWITCH ASSY	1
25	143549000	TERMINAL PIN, MALE	2
26	143548000	TERMINAL PIN, FEMALE	1
27	146046000	NYLON CONNECTOR	2
28	146194000	NYLON CONNECTOR	1
29	149799000	BEAD BAND, S	1
30	034422503	WOOD SCREW, FLAT 2 M4.1X25	1

Page 52 — Z1 . 付属品関係 / Accessories

Brother T-8452A parts on page 52
Ref	Part number	Part name	Qty
1	122991001	ACCESSORY BAG	1
2	142443001	SCREW-DRIVER, 1.9X52	1
3	118837001	SCREW-DRIVER, 3.4X70	1
4	S17774001	SCREW-DRIVER, 4.7X250	1
5	100887001	WRENCH, 8X9	1
6	142002001	HEXAGONAL WRENCH, 2	1
7	154125001	HEXAGONAL WRENCH, 2.5	1
8	142721001	HEXAGONAL WRENCH, 3	1
9	149570001	HEXAGONAL WRENCH, 5	1
10	SA1752014	NEEDLE 4PIECE ASSY, 107415	1
11	107415014	NEEDLE, DPX5	4
10	SA1752022	NEEDLE 4PIECE ASSY, 107415	1
11	107415022	NEEDLE, DPX5	4
12	S01928151	BOBBIN	2
13	100477009	HEAD REST	1
14	S55663001	OIL TANK ASSY	1
15	144226001	HEAD COVER	1
16	145573000	KNEE LIFTER COMPLYING BAR	1
17	SA2691101	OIL PAN ASSY	1
18	SA2692101	OIL PAN	1
19	149578000	BUSH	2
20	SA2582001	KNEE LIFTER SHAFT	1
21	SA2590001	KNEE LIFTER	1
22	S25344001	BOLT, M6	1
23	S25475001	SET SCREW, M6X19	2
24	021060306	NUT, 3 M6	2
25	S15889001	TWIST SPRING	1
26	146293001	RETAINING RING, E10	1
27	153230101	DRAIN	1
28	S23418002	SCREW, M4X5	2
29	SA1969001	RUBBER HINGE ASSY	1
30	143882001	HEAD HINGE	2
31	143910009	RUBBER CUSHION	2
32	SA1962001	HEAD CUSHION	2
33	SA1963001	HEAD CUSHION	2
34	109714000	NAIL	4
35	114486002	OILER	1
36	114483002	OILER ASSY	1
37	S38300001	KNEE LIFTER ASSY	1
38	146039001	KNEE LIFTER BRACKET	1
39	100463001	BOLT, SQUARE SM7.94	1
40	017762013	BOLT, SM5.95-28X20	1
41	S38278001	KNEE LIFTER BAR	1
42	S34756001	KNEE LIFTER PLATE	1
43	114967001	KNEE LIFTER PLATE STOPPER	1
44	110087001	BOLT, SM5.95-28X8	1
45	S31885001	KNEE LIFTER PLATE COVER	1

Page 54 — Z2. 付属部品関係 / Accessories

Brother T-8452A parts on page 54
Ref	Part number	Part name	Qty
1	S07558309	COTTON STAND ASSY, 3DRTHF	1
2	S51283001	SPOOL STAND BASE	3
3	150182000	SPOOL MAT	3
4	S51282101	SPOOL CUSHION	3
5	S04109001	THREAD GUIDE SUPPORT BAR	1
6	142997001	THREAD GUIDE, 3	1
7	SA2867001	PIPE D SCREW SET, B	1
8	150206002	WASHER, PLAIN 16	1
9	S38648001	NUT, U5/8-28	1
10	150174000	COLUMN CAP	1
11	S01005000	RUBBER WASHER	2
12	S02747101	SPRING	1
13	S40639001	COLUMN PIPE W/CAP	1
14	150174000	COLUMN CAP	1
15	156112003	COLUMN PIPE, D	1
16	150173003	COLUMN JOINT	1
17	S21798001	SPOOL & SCREW SET	3
18	150179002	SPOOL SHAFT, B	3
19	028050246	WASHER, SPRING 2-5	3
20	021500106	NUT, 1 M5	3
21	150188009	SPOOL HOLDER SUPPORT, A	1
22	S02779009	SPOOL HOLDER, 3	1
23	S02788009	THREAD HANGER ASSY, 3	1
24	S02789009	THREAD HANGER, 3	1
25	150183000	THREAD HANGER BASE	3
26	142990001	THREAD BUSH	3
27	150185009	THREAD GUIDE HOLDER	1
28	138843001	JOINT	1
29	021500106	NUT, 1 M5	4
30	S37038001	SCREW, PAN(S/P WASHER) M5X14	1
31	S37037001	SCREW, PAN (S/P WASHER) M5X32	1
32	062501406	SCREW, PAN M5X14	2
33	014060632	SET SCREW, SOCKET (CP) M6X6	2
34	021500106	NUT, 1 M5	1
35	S37037001	SCREW, PAN (S/P WASHER) M5X32	1
36	021500106	NUT, 1 M5	1
37	031452206	WOOD SCREW, ROUND M4.5X22	1
38	062501006	SCREW, PAN M5X10	1

Page 55 — Wa. 警告ラベル / Warning labels

Brother T-8452A parts on page 55
Ref	Part number	Part name	Qty
	J04115-001	Label, elec. shock 6 lang
	SA2040-001	Label, caution Jpn / Eng
	SA2041-001	Label, caution Chn / Eng
	S37060-001	Label, grounding
	S38351-001	Label, high temp

Page 56 — Sp.仕様別部品一覧表 / Different parts list

Brother T-8452A parts on page 56
Ref	Part number	Part name	Qty
	SA1683-111	Rotary hook assy
	S07748-001	Inner rotary hook holder
	151043-001	Tension spring

Page 57 — Ga 1. ゲージ部品一覧表

Brother T-8452A parts on page 57
Ref	Part number	Part name	Qty
	159398-001	Needle plate
	155722-001	Needle plate
	155724-001	Needle plate
	155851-001	Needle plate
	156816-001	Needle plate
	155853-001	Needle plate
	S14530-001	Needle plate
	155855-001	Needle plate
	155857-001	Needle plate
	S01644-001	Needle plate
	149677-001	Needle plate
	149954-001	Needle plate
	S20901-001	Needle plate
	S10507-001	Needle plate
	L:S15705-001	L:S15707-001
	R:S15706-001	R:S15708-001
	148698-001	For medium materials
	148679-001	For heavy materials
	L:S15711-001	L:S15713-001
	R:S15712-001	R:S15714-001
	148699-001	For heavy materials
	S36550-001	For medium materials
	S36522-001	For heavy materials
	L:S15717-001	L:S15719-001
	R:S15718-001	R:S15720-001
	148700-001	For medium materials
	148689-001	For medium materials
	148683-001	For heavy materials
	L:S15723-001	L:S15725-001
	R:S15724-001	R:S15726-001
	148702-001	For medium materials
	148703-001	For medium materials
	S36554-001	For medium materials
	S36556-001	For heavy materials
	L:S15729-001	L:S15731-001
	R:S15730-001	R:S15732-001
	156818-001	For medium materials
	156819-001	For heavy materials
	L:S15735-001	L:S15737-001
	R:S15736-001	R:S15738-001
	148704-001	For medium materials
	148705-001	For medium materials
	SA4051-001	For medium materials
	SA4050-001	For heavy materials
	L:S15741-001	L:S15743-001
	R:S15742-001	R:S15744-001
	S14532-001	For medium materials
	S14533-001	For medium materials
	S14534-001	For medium materials
	S14536-001	For heavy materials
	L:S15747-001	L:S15749-001
	149692-001	For medium materials
	149691-001	For medium materials
	149689-001	For medium materials
	149687-001	For heavy materials
	L:S15753-001	L:S15755-001
	149939-001	For medium materials
	149938-001	For medium materials
	149942-001	For medium materials
	149940-001	For heavy materials
	L:S15759-001	L:S15761-001
	R:S15760-001	R:S15762-001
	S01646-001	For medium materials
	S01641-101	For heavy materials
	L:S15765-001	L:S15767-001
	R:S15766-001	R:S15768-001
	149676-001	For medium materials
	149675-001	For medium materials
	149673-101	For medium materials
	149671-101	For heavy materials
	L:S15771-001	L:S15773-001
	149949-001	For medium materials
	149948-001	For medium materials
	149952-101	For medium materials
	149950-101	For heavy materials
	S20905-001	標準品 / Normal
	S20903-001	For sewing without material
	S10509-101	標準品 / Normal
	S10510-001	For sewing without material

Page 58 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Brother T-8452A parts on page 58
Ref	Part number	Part name	Qty
	N/A	Needle clamp set
	N/A	Needle plate
	N/A	Feed dog
	N/A	Feed dog
	N/A	Presser foot assy
	N/A	Presser foot assy
	N/A	Needle plate
	N/A	Feed dog
	N/A	Presser foot assy

Page 59 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Brother T-8452A parts on page 59
Ref	Part number	Part name	Qty
	S07905-001	Feed dog
	158756-001	Feed dog

Page 60 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Brother T-8452A parts on page 60
Ref	Part number	Part name	Qty
1/8	S07409-001	Needle plate	1
1/8	S38544-001	Feed dog	1
1/4	S07411-001	Needle plate	1
1/4	S38543-001	Feed dog	1
1/2	S07681-001	Needle plate	1
1/2	S07684-101	Feed dog	1
3/16	S07410-001	Needle plate	1
3/16	S38542-001	Feed dog	1
3/8	S13623-101	Needle plate	1
3/8	S13624-001	Feed dog	1
5/16	S07680-001	Needle plate	1
5/16	S37682-001	Feed dog	1
	S07401-001	Needle plate
	S07403-001	Needle plate
	S07405-101	Needle plate
	S07676-001	Needle plate
	S13621-001	Needle plate
	S07678-001	Needle plate

Page 61 — 索引 / INDEX

Brother T-8452A parts on page 61
Ref	Part number	Part name
-55	012060636	C
-32	012060636	F
-15	012060636	G
-7	012060636	J
-26	012060636	J
-42	012060636	Q
-25	012060636	S
-25	012061036	B
-17	012061832	E
-25	012500536	E
-15	012500536	K1
-15	012500536	K1
-31	012500536	Q
-13	012500536	R
-33	012500536	R
-21	012500536	S
-21	013660412	T
-33	014060632	Z2
-30	014090410	D
-23	014400632	U1
-39	014400632	U1
-29	016061031	F
-13	016061031	G
-40	017762013	Z1
-50	018062032	C
-60	018062032	C
-15	018062032	F
-17	018062032	G
-4	018401036	C
-20	018501632	U1
-18	021060306	E
-35	021060306	E
-39	021060306	S
-24	021060306	Z1
-11	021300106	Q
-15	021350106	J
-22	021350106	S
-10	021400106	U1
-22	021400164	W
-28	021500106	E
-52	021500106	F
-20	021500106	Z2
-29	021500106	Z2
-34	021500106	Z2
-12	021500316	K1
-22	025030132	J
-7	025040173	U2
-23	025040232	B
-20	025040233	W
-47	025050236	F
-45	025050236	S
-24	025050236	T
-42	025050336	F
-13	025060132	J
-61	025060136	K1
-6	025060136	R
-15	025060136	R
-18	025060136	U1
-36	025060136	F
-36	025100132	F
-11	025100132	U1
-8	026040246	U1
-47	026050136	U1
-14	028030136	U1
-21	028040243	W
-21	028040243	W
-21	028040243	U1
-46	028050243	U1
-46	028050243	U1
-37	031452206	U1
-30	034422503	W
-15	034720242	E
-39	038030346	E
-39	04040342	E
-2	04080342	E
-2	04080342	E
-14	04080342	R
-9	04080342	G
-18	04080342	F
-35	04080342	F
-8	06030606	H
-8	06030606	H
-27	060350616	C
-13	06040516	T
-30	061350616	C
-4	062010136	U1
-4	062020606	U1
-15	062020612	U1
-7	062060816	F
-50	062060816	F
-5	062060816	N
-49	062060816	P
-12	062060816	S
-7	062061016	G
-60	062061016	K1
-68	062061016	P
-48	062061616	C
-30	062061616	S
-16	06220316	C
-20	06220516	C
-23	062300136	J
-19	062350136	K1
-19	062350136	K1
-39	062360516	S
-27	062400616	K1
-29	062400616	K1
-32	062400616	K1
-64	062400616	P
-10	062400616	T
-35	062400812	B
-35	062400812	K1
-5	062400863	U2
-19	062401006	W
-17	062401216	R
-7	062401216	U1
-21	062500812	B
-21	062500812	B
-12	062500816	A
-9	062500816	H
-11	062500816	H
-13	062500816	H
-57	062500816	P
-27	062500816	R
-6	062500816	G
-25	062500816	A
-27	062500816	B
-32	062500816	B
-16	062500816	D
-25	062500816	D
-2	062500816	E
-44	062500816	F
-3	062500816	N
-8	062500816	P
-40	062500816	Q
-38	062501006	Z2
-10	062501016	A
-4	062501016	D
-3	062501016	F
-17	062501016	P
-8	062501016	S
-18	062501016	S
-14	062501016	T
-28	062501016	T
-42	062501212	K1
-42	062501212	K1
-7	062501216	A
-41	062501216	F
-32	062501406	Z2
-5	062501416	A
-9	062501416	A
-21	062501416	D
-27	062501416	E
-26	062661212	T
-19	071063550	D
-9	072600480	M
-27	081004070	P
-31	081004070	P
-5	081009070	R
-20	081038070	P
-8	100032004	L
-25	100032004	F
-25	100328001	F
-30	100401021	R
-15	100463001	W
-39	100477009	Z1
-13	100477009	Z1
-5	100887001	Z1
-4	104449001	A
-19	104450101	P
-45	104450101	P
-61	104450101	P
-43	104821001	F
-2	104833001	D
-39	107155001	C
-11	107415014	Z1
-11	107415022	Z1
-23	108549001	F
-59	108801001	P
-5	108802001	J
-34	109714000	Z1
-17	110087001	W
-44	110087001	Z1
-1	110161004	N
-14	112609001	C
-33	112728001	C
-67	112753001	P
-7	113014000	B
-10	113050001	L
-36	114483002	Z1
-35	114486002	Z1
-16	114967001	W
-43	114967001	Z1
-54	115947001	K1
-21	116010001	A
-6	117006001	B
-51	118735002	C
-3	118837001	Z1
-10	118954000	F
-1	122991001	Z1
-22	129458102	F
-28	138843001	Z2

Page 62 — 索引 / INDEX

Brother T-8452A parts on page 62
Ref	Part number	Part name	Qty
	142443001	Z1 -2
	142721001	Z1 -8
	142746002	F -21
	142990001	Z2 -26
	142997001	Z2 -6
	143548000	W -26
	143549000	W -25
	143611201	F -8
	143612100	F -9
	143613051	F -16
	143616001	F -17
	143882001	Z1 -30
	143910009	Z1 -31
	144226001	Z1 -15
	144504001	Q -27
	145446001	Q -23
	145573000	Z1 -16
	146039001	Z1 -38
	146046000	W -27
	146194000	W -28
	146293001	Z1 -26
	146367001	W -10
	148511001	T -2
	148536001	S -48
	148539101	S -50
	148546001	S -14
	148559100	T -15
	148560001	K1 -63
	148683001	Ga
	148689001	Ga
	148697001	Ga
	148698001	Ga
	148700001	Ga
	148701001	Ga
	148702001	Ga
	148703001	Ga
	148704001	Ga
	148705001	Ga
	149095001	G -18
	149570001	Z1 -9
	149578000	Z1 -19
	149604001	C -8
	149605001	C -9
	149608001	C -13
	149610001	C -17
	149611101	C -18
	149622001	C -25
	149671101	Ga
	149673101	Ga
	149675001	Ga
	149676001	Ga
	149677001	Ga
	149687001	Ga
	149689001	Ga
	149691001	Ga
	149692001	Ga
	149799000	W -29
	149827001	C -10
	149831101	L -5
	149863001	D -28
	149938001	Ga
	149939001	Ga
	149940001	Ga
	149942001	Ga
	149948001	Ga
	149949001	Ga
	149950101	Ga
	149952101	Ga
	149954001	Ga
	150173003	Z2 -16
	150174000	Z2 -10
	150179002	Z2 -18
	150182000	Z2 -3
	150183000	Z2 -25
	150185009	Z2 -27
	150188009	Z2 -21
	150206002	D -18
	151025001	K2 -2
	151027001	K2 -7
	151034001	K2 -6
	151035001	K2 -5
	151043001	Sp
	153132000	G -19
	153138001	G -10
	153230101	Z1 -27
	154125001	Z1 -7
	154514001	U1 -9
	154567000	C -44
	154729001	G -2
	154730001	G -3
	154731000	G -4
	154965001	K1 -17
	155510001	Q -29
	155722001	Ga
	155724001	Ga
	155851001	Ga
	155853001	Ga
	155855001	Ga
	155857001	Ga
	156112003	Z2 -15
	156816001	Ga
	156818001	Ga
	156819001	Ga
	158115001	M -13
	158756001	Ga
	159398001	Ga
	15980001	K2 -8
	159802001	K2 -9
	159805001	Q -24
	228475000	P -13
	340400001	S -54
	BMP2060-000000-0G40	U1 -48
	BMP2060-000000-CG40	U1 -48
	BMP2060-000000-EG40	U1 -48
	J00494001	U2 -12
	J01411001	U2 -11
	J02725001	U2 -17
	J03733001	U2 -4
	J03739001	U2 -13
	J03939001	U2 -9
	J03955001	U1 -22
	J03956001	U1 -24
	J03957001	U1 -25
	J03958001	U1 -27
	J03964001	U1 -38
	J03975001	U1 -51
	J03976001	U1 -52
	J03983001	U1 -55
	J03984001	U1 -56
	J04086001	V -1
	J04093001	V -5
	J04095001	V -7
	J04097001	U2 -8
	J04098001	U2 -8
	J04099001	U2 -14
	J04100001	U2 -15
	J04115001	Wa
	J04134001	V -6
	J04149001	V -8
	J04167001	U2 -10
	J04169001	U2 -22
	J04195001	U1 -53
	J04210001	U2 -24
	J04230001	U1 -34
	J04250001	U1 -25
	J04251001	V -11
	J04255001	V -12
	J04273001	U1 -54
	J04296001	U1 -36
	J04393001	U1 -2
	J04438001	U2 -2
	J04440001	U2 -3
	J04468001	U2 -16
	J04469001	V -3
	J04470001	V -10
	J080964201	U2 -20
	J080965001	U2 -21
	J080966101	U2 -21
	J080967001	U2 -18
	J080968001	U2 -18
	J080970001	U2 -19
	J080971001	U1 -30
	J080973001	U1 -49
	J080974001	U1 -50
	J080990001	U1 -19
	S01005000	Z2 -11
	S01567001	K2 -3
	S01568001	K2 -4
	S01641101	Ga
	S01644001	Ga
	S01646001	Ga
	S01928151	K1 -62
	S02664001	T -5
	S02665000	T -6
	S02747101	Z2 -12
	S02779009	Z2 -22
	S02788009	Z2 -23
	S02789009	Z2 -24
	S04109001	Z2 -5
	S05246000	P -35
	S07027001	W -18
	S07030009	W -23
	S07031009	W -24
	S07045009	W -12
	S07346101	E -6
	S07349001	E -23
	S07350001	E -36
	S07351001	E -13
	S07355051	E -26
	S07374109	F -38
	S07376001	F -48
	S07401001	Ga
	S07403001	Ga
	S07405101	Ga
	S07409001	Ga
	S07410001	Ga
	S07411001	Ga
	S07419001	K1 -6
	S07420000	K1 -5
	S07494001	L -12
	S07509001	S -28
	S07525000	K1 -36
	S07526201	S -47
	S07527001	S -49
	S07529001	E -14
	S07549101	T -18
	S07550001	T -19
	S07552001	T -25
	S07553001	T -29
	S07558309	Z2 -1
	S07575000	C -23
	S07575001	C -23
	S07575002	C -23
	S07575003	C -23
	S07575005	C -23
	S07575006	C -23
	S07575007	C -23
	S07575008	C -23
	S07575009	C -23
	S07575010	C -23
	S07575011	C -23
	S07588101	D -26
	S07676001	Ga
	S07678001	Ga
	S07680001	Ga
	S07681001	Ga

Page 63 — 索引 / INDEX

Brother T-8452A parts on page 63
Ref	Part number	Part name
56	S07684101	Ga
46	S07729001	W -11
52	S07748001	Sp
28	S07876101	P -43
55	S07905001	Ga
20	S09260001	K1 -4
20	S09261001	K1 -4
53	S10507001	Ga
53	S10509101	Ga
53	S10510001	Ga
46	S10550001	W -9
12	S10780001	E -37
24	S11244001	L -7
34	S12441001	R -32
24	S13085001	L -4
4	S13160001	B -15
56	S13621001	Ga
56	S13623101	Ga
53	S13624001	Ga
53	S14530001	Ga
53	S14532001	Ga
53	S14533001	Ga
53	S14534001	Ga
53	S14536001	Ga
53	S15705001	Ga
53	S15706001	Ga
53	S15707001	Ga
53	S15708001	Ga
53	S15711001	Ga
56	S15712001	Ga
53	S15713001	Ga
56	S15714001	Ga
53	S15717001	Ga
53	S15718001	Ga
53	S15719001	Ga
53	S15720001	Ga
53	S15723001	Ga
56	S15724001	Ga
53	S15725001	Ga
56	S15726001	Ga
53	S15729001	Ga
56	S15730001	Ga
53	S15731001	Ga
53	S15732001	Ga
53	S15735001	Ga
56	S15736001	Ga
53	S15737001	Ga
56	S15738001	Ga
53	S15740001	Ga
53	S15741001	Ga
53	S15742001	Ga
53	S15743001	Ga
53	S15744001	Ga
53	S15747001	Ga
53	S15748001	Ga
53	S15749001	Ga
53	S15750001	Ga
56	S15750001	Ga
53	S15750001	Ga
56	S15750001	Ga
53	S15750001	Ga
53	S15756001	Ga
56	S15756001	Ga
53	S15757001	Ga
56	S15757001	Ga
53	S15758001	Ga
53	S15759001	Ga
56	S15760001	Ga
53	S15761001	Ga
53	S15767001	Ga
56	S15767001	Ga
53	S15768001	Ga
53	S15769001	Ga
53	S15771001	Ga
56	S15772001	Ga
53	S15773001	Ga
53	S15774001	Ga
53	S15777001	Ga
53	S15778001	Ga
32	S20681000	Q -25
53	S20681000	Q -26
53	S20903001	Ga
56	S20903001	Ga
53	S20903001	Ga
53	S21794001	Ga
22	S23410001	R -17
4	S23418001	R -19
4	S23460001	B -10
4	S23650001	B -18
53	S25234001	Ga
56	S25234001	Ga
4	S25235001	B -11
4	S25236001	B -12
14	S25236001	F -13
46	S25260001	C -8
8	S25280001	B -46
12	S25340001	Z1 -22
12	S25470001	E -9
12	S25780001	E -31
12	S31006001	E -11
34	S31032001	R -31
40	S31885001	Z1 -45
16	S32904000	H -4
16	S32905000	H -5
16	S32907000	H -7
16	S34281000	H -3
48	S34438051	A -20
48	S34561001	C -11
48	S34562001	C -12
48	S34756001	Z1 -42
56	S36522001	Ga
53	S36550001	Ga
53	S36554001	Ga
53	S36560001	Ga
50	S3663051	A -19
50	S37037001	Z2 -31
50	S37038001	Z2 -35
53	S37060001	Wa
51	S37682001	Ga
22	S38212001	K1 -16
22	S38266000	P -10
28	S38274001	Q -32
48	S38278001	Z1 -41
48	S38300001	Z1 -37
50	S38351001	W -8
50	S38421001	T -22
53	S38426000	T -4
53	S38542001	Ga
53	S38543001	Ga
53	S38544001	Ga
36	S38687000	S -51
53	S38707001	B -4
53	S38710001	B -17
4	S38713100	B -20
4	S38744101	U1 -2
3	S39048001	T -7
12	S39051001	E -12
1	S39830101	F -27
5	S40639001	Z2 -13
4	S41955051	W -6
4	S41955051	W -4
4	S42198051	W -5
4	S42199051	W -7
8	S42200051	W -62
34	SA1360001	R -26
40	SA1385001	U1 -1
16	SA1388001	H -12
16	SA1390001	H -6
52	SA1683111	Sp
48	SA1752014	Z1 -10
48	SA1752022	Z1 -10
48	SA1962001	Z1 -32
48	SA1963001	Z1 -33
48	SA1969001	Z1 -29
34	SA1971101	R -1
34	SA1975001	R -3
34	SA1978001	R -7
34	SA1980001	R -10
34	SA1981101	R -10
34	SA1982101	R -11
34	SA1983001	R -12
34	SA1984001	R -16
34	SA1985001	R -18
34	SA1986001	R -21
34	SA1987001	R -23
34	SA1990101	R -22
34	SA1991001	R -23
34	SA1992101	R -25
34	SA1994001	R -28
36	SA1998001	S -52
2	SA2040001	A -24
2	SA2041001	A -24
51	SA2041001	Wa
12	SA2165001	E -32
34	SA2190001	R -24
16	SA2270001	H -2
40	SA2354001	U1 -40
36	SA2378001	S -32
2	SA2441001	A -6
2	SA2442101	A -8
2	SA2444101	A -13
2	SA2445101	A -14
2	SA2447001	A -15
2	SA2449001	A -17
4	SA2460001	B -16
4	SA2461001	B -19
4	SA2462001	B -33
4	SA2463001	B -24
4	SA2469001	B -26
6	SA2474201	C -3
2	SA2479001	A -16
2	SA2479001	A -18
8	SA2485001	C -45
8	SA2486101	C -47
8	SA2489001	C -49
8	SA2490101	C -52
8	SA2493001	C -58
8	SA2494001	C -59
12	SA2495001	E -1
12	SA2496001	E -7
12	SA2498001	E -8
12	SA2499001	E -10
12	SA2500001	E -19
12	SA2501001	E -20
12	SA2502001	E -21
12	SA2504001	E -24

Page 64 — 索引 / INDEX

Brother T-8452A parts on page 64
Ref	Part number	Part name
-20	SA2504001	T
-44	SA2598101	P
-1	SA2680001	T
-28	SA3147001	P
-29	SA2506001	E
-26	SA2599001	P
-16	SA268001	T
-32	SA3147001	P
-30	SA2507001	E
-55	SA2604001	P
-17	SA2683001	T
-40	SA3147001	P
-1	SA2509001	F
-56	SA2605001	P
-27	SA2684001	T
-12	SA3175001	U1
-2	SA2511001	F
-60	SA2606101	P
-3	SA2686001	U1
-2	SA3415001	Q
-4	SA2512001	F
-1	SA261001	Q
-1	SA2687001	H
-2	SA3416001	Q
-5	SA2515001	F
-4	SA2611001	Q
-10	SA2688001	H
-1	SA3417001	Q
-6	SA2516001	F
-5	SA2614001	Q
-17	SA2691101	Z1
-1	SA3855001	J
-11	SA2518001	F
-6	SA2615001	Q
-18	SA2692101	Z1
-8	SA3856001	K1
-14	SA2521001	F
-7	SA2619001	Q
-12	SA2696001	T
-20	SA3859001	J
-26	SA2523001	F
-9	SA2620001	Q
-1	SA2707001	W
-20	SA3887001	J
-28	SA2525001	F
-10	SA2621001	Q
-17	SA2712001	U1
-13	SA3889101	K1
-31	SA2527001	F
-8	SA2623001	Q
-33	SA2717001	K1
-1	SA3890001	M
-33	SA2528101	F
-13	SA2624001	Q
-55	SA2722001	K1
-3	SA3891001	M
-34	SA2529101	F
-14	SA2625001	Q
-21	SA2723001	P
-31	SA3894001	K1
-37	SA2530001	F
-12	SA2626001	Q
-34	SA2724001	J
-31	SA3894001	K1
-39	SA2531001	F
-15	SA2627001	Q
-22	SA2727101	P
-25	SA3896001	P
-45	SA2532001	F
-16	SA2628001	Q
-7	SA2728001	S
-29	SA3898001	P
-49	SA2533001	F
-17	SA2629001	Q
-11	SA2732001	T
-38	SA3912001	K1
-5	SA2535101	G
-21	SA2630001	Q
-30	SA2806001	J
-38	SA3912001	K1
-11	SA2536001	G
-30	SA2632001	Q
-1	SA2814201	P
-51	SA3916001	K1
-16	SA2539001	G
-33	SA2633001	Q
-20	SA2824001	Q
-53	SA3923001	P
-12	SA2540001	G
-36	SA2634001	Q
-52	SA2825001	K1
-2	SA3924001	A
-40	SA2541001	F
-38	SA2635001	Q
-43	SA2826001	K1
-3	SA3946001	P
-4	SA2543001	J
-41	SA2636001	Q
-17	SA2859000	S
-2	SA3961001	K1
-6	SA2544001	J
-43	SA2637001	Q
-16	SA2860001	S
-2	SA3965001	J
-8	SA2546001	J
-44	SA2638001	Q
-13	SA2861101	B
-50	SA3988001	K1
-24	SA2550001	J
-2	SA2640001	S
-7	SA2867001	Z2
-19	SA3990001	J
-25	SA2551001	J
-3	SA2641001	S
-12	SA2927001	J
-32	SA4009001	J
-16	SA2553001	J
-2	SA2643001	S
-28	SA2928001	J
-35	SA4011001	J
-17	SA2554001	J
-3	SA2644001	S
-22	SA2929001	A
-30	SA4012001	K1
-27	SA2555001	J
-4	SA2645001	S
-14	SA2935101	B
-30	SA4012001	K1
-53	SA2556001	K1
-6	SA2646001	S
-4	SA2956001	P
-65	SA4014001	P
-57	SA2557001	K1
-9	SA2647001	S
-5	SA2957001	P
-14	SA4026001	K1
-10	SA2560001	K1
-11	SA2648001	S
-8	SA2992001	G
-14	SA4026001	K1
-18	SA2562101	K1
-13	SA2651001	S
-41	SA3025001	U1
-3	SA4028001	J
-45	SA2563101	K1
-15	SA2652101	S
-37	SA3037001	P
-3	SA4029001	K1
-56	SA2565001	K1
-19	SA2653001	S
-2	SA3040001	P
-12	SA4033101	P
-14	SA2566001	J
-20	SA2655001	S
-38	SA3040001	P
-4	SA4038001	K1
-58	SA2567001	K1
-23	SA2657001	S
-50	SA3045201	P
-11	SA4040001	U1
-59	SA2568001	K1
-24	SA2658001	S
-47	SA3046001	P
-26	SA4042001	K1
-5	SA2571001	M
-26	SA2659001	S
-48	SA3047001	P
-47	SA4043001	K1
-20	SA2572001	K1
-31	SA2661001	S
-52	SA3048101	P
-28	SA4044001	K1
-21	SA2574001	K1
-34	SA2663001	S
-63	SA3049001	P
-48	SA4045001	K1
-24	SA2574001	K1
-36	SA2665001	S
-25	SA3054001	K1
-54	SA4050001	Ga
-21	SA2575001	K1
-38	SA2667001	S
-6	SA3055101	P
-54	SA4051001	Ga
-22	SA2575001	K1
-41	SA2669001	S
-20	SA3056001	F
-54	SA4117001	C
-41	SA2578001	E
-49	SA2670001	K1
-28	SA3057001	B
-56	SA4118001	C
-46	SA2579001	K1
-41	SA2671001	K1
-31	SA3059001	B
-34	SA4149101	E
-6	SA2580101	M
-42	SA2672001	S
-39	SA3060001	P
-3	SA4212001	Q
-20	SA2582001	Z1
-43	SA2673001	S
-33	SA3061001	P
-15	SA4213001	M
-8	SA2584001	M
-39	SA2675001	K1
-30	SA3065001	B
-3	SA4364001	A
-12	SA2585001	F
-34	SA2676001	K1
-1	SA3072001	G
-11	SA4370101	A
-10	SA2585001	M
-34	SA2676001	K1
-16	SA2677001	E
-2	SA4373001	B
-14	SA2585001	M
-2	SA2678001	N
-4	SA2679001	N
-29	SA4376101	B
-12	SA2587101	M
-1	SA4377001	C
-21	SA2590001	Z1
-2	SA4378001	C
-41	SA2596001	P
-5	SA4382001	C
-42	SA2597001	P
-6	SA4385001	C
-7	SA4387001	C

Page 65 — 索引 / INDEX

Brother T-8452A parts on page 65
Ref	Part number	Part name
-7	SA4387002	C
-7	SA4387003	C
-21	SA4389001	C
-15	SA4391001	C
-19	SA4392001	C
-34	SA4393001	C
-35	SA4394001	C
-22	SA4395001	C
-26	SA4396001	C
-28	SA4397001	C
-29	SA4398001	C
-31	SA4399001	C
-38	SA4400001	C
-36	SA4401001	C
-1	SA4402001	D
-5	SA4404001	D
-7	SA4405001	D
-10	SA4406001	D
-12	SA4408001	D
-13	SA4409001	D
-14	SA4411101	D
-17	SA4412001	D
-20	SA4413001	D
-23	SA4414001	D
-24	SA4415001	D
-27	SA4416001	D
-29	SA4417001	D
-31	SA4418001	D
-15	SA4419001	D
-1	SA4441001	K1
-4	SA4444001	K1
-43	SA4458001	K1
-34	SA4506001	Q
-35	SA4507001	Q
-7	SA4509001	M
-29	SA4538001	J
-20	SA4549001	K1
-1	SA4551001	B
-24	SA4583001	C
-2	SA4585001	M
	M
-16	SA5154201	P
-40	SA5155001	C
-44	SA5200001	U1
-11	SA5224001	P
-41	SA5237101	C
-15	SA5293001	P
-61	SA5332001	C
-9	SA5333001	D
-3	SA5336001	D
-22	SA5588001	D
-11	SA6150001	J
-5	SA6166001	B
-64	SA6294001	K1
	K1
-23	SA6301001	K1
	K1
-65	SA6307001	K1
	K1
-31	W01519001	J

Page 6 — A. 主体関係 / Machine body

Page 8 — B .上軸関係 / Upper shaft mechanism

Page 10 — C. 針棒揺動関係 / Needle bar rocking mechanism

Page 12 — C. 針棒揺動関係 / Needle bar rocking mechanism

Page 14 — D. 針棒切替操作関係 / Needle bar flip-up mechanism

Page 16 — E. 押え関係 / Presser foot mechanism

Page 18 — F. 送り関係 / Feed mechanism

Page 20 — G . 逆転関係 / Quick reverse mechanism H . 逆転スイッチ関係 / Quick reverse switch mechanism

Page 22 — J. 送り軸関係 / Feed shaft mechanism

Page 24 — K1 . かま関係 / Rotary hook mechanism

Page 26 — K1 . かま関係 / Rotary hook mechanism

Page 28 — K2 . かま関係 / Rotary hook mechanism

Page 30 — M. 下軸関係 / Lower shaft mechanism N. 糸締め関係 / Tension release mechanism

Page 32 — P. 給油潤滑関係 / Lubrication

Page 34 — P. 給油潤滑関係 / Lubrication

Page 36 — Q . 糸通し関係 / Threading mechanism

Page 38 — R. 糸巻関係 / Bobbin winder mechanism

Page 40 — S. 糸切り関係 / Thread trimmer mechanism

Page 42 — T. 糸払い関係 / Thread wiper mechanism

Page 44 — U1 . コントロールボックス、モータ関係 / Control box and motor mechanism

Page 46 — U2. コントロールボックス関係 / Control box mechanism

Page 48 — V. 電装品関係 / Power supply equipment mechanism

Page 50 — W. 電磁押上げセット関係(オプション部品)/ Presser foot lifting solenoid set (Option parts)

Page 52 — Z1 . 付属 品 関係 / Accessories

Page 54 — Z2. 付属部品関係 / Accessories

Page 55 — Wa. 警告ラベル / Warning labels

Page 56 — Sp.仕様別部品一覧表 / Different parts list

Page 57 — Ga 1. ゲージ部品一覧表

Page 58 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Page 59 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Page 60 — Ga 1. ゲージ部品一覧表 / Gauge parts list

Page 61 — 索引 / INDEX

Page 62 — 索引 / INDEX

Page 63 — 索引 / INDEX

Page 64 — 索引 / INDEX

Page 65 — 索引 / INDEX

Brother T-8452A — parts catalog

Page 52 — Z1 . 付属品関係 / Accessories
