Page 1 — 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
JACK 杰克
快速服务 100%
零件手册
Parts Manual
A4F 系列
A4F Series
1
1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
序号 NO
公司件号 Part NO
名称
PartName
零件描述
Description
数量 Number
1
101S11001
螺钉SM3/16"x28 L=9
Screw SM3/16"x28 L=9
14
2
10122003
面版调节孔螺塞
Rubber plug
2
3
115037001
南标牌
Head card
1
4
115001003
面版
Face plate asm
1
5
13813005
左线钩
Thread guide left
1
6
101S11007
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
7
115022002
面版垫
Face plate gasket
1
8
101S11027
螺钉SM1/8"x44 L=3.4
Screw SM1/8"x44 L=3.4
1
9
11412019
面部防油板(填料)
Face oil shield asm (H)
1
10
11503002900
倒缝开关组件(二开关)
Three switch components
1
11
101S11026
螺钉SM15/64"x28 L=9
Screw SM15/64"x28 L=9
3
12
101S11026
螺钉SM15/64"x28 L=9
Screw SM15/64"x28 L=9
3
13
13812018
挑线杆防护罩
Thread take-up lever cover
1
14
10122004
针杆曲柄孔螺塞
Rubber plug
2
15
10122005
挑线杆螺塞
Rubber plug
2
16
13512004
3孔线勾
3-hole thread guide
1
17
114S11015
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
2
18
11419001
割线刀
Knife
1
19
138S05001
操作屏孔塞
Rubber plug
2
20
13822001
操作屏孔塞
Rubber plug
2
21
20722002
油壶
Oil pot
1
22
113811004
尼龙扎带
Cable band
3
23
115022001
后窗板
Side plate gasket
1
24
115412006
后窗板
Side plate
1
25
11503007300
一体机电控组件(Q)
Electronic control asm (Q)
1
26
11543000600
一体机电控组件(25B)
Electronic control asm(25B)
1
27
W01009
垫圈5
Washer 5
2
28
114S30001
螺钉(内六角)M5x25
Screw M5x25
3
29
11503007400
一体机电控组件(Q)
Control panel (Q)
1
30
11543000500
一体机电控组件(25B)
Control panel(25B)
1
31
138S08006
螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
32
13810008
下线夹螺钉
Thread tension post
1
33
14112017
下线夹板
Thread tension guide plate
1
34
11227001
下线夹弹簧
Thread tension spring
2
35
141S16019
下线夹螺母
Thread tension nut
1
36
1411300400
下线夹组件
Thread tension asm
1
37
1411300300
下线夹组件
Thread tension asm
1
38
1411300500
下线夹组件(厚料)
Thread tension asm (H)
1
39
141S16013
下线夹螺母
Thread tension nut
1
40
10127002
下线夹弹簧
Thread tension spring
1
41
11427050
下线夹油盖(厚料)
Thread tension spring A (H)
1
42
14112015
松线板
Disk stopper
1
43
14112015
松线板
Thread tension disk
1
44
10127001
挑线簧
Thread take-up spring
1
45
10127031
挑线簧(厚料)
Thread take-up spring (H)
1
46
10103011
挑线簧调节座
Thread tension base
1
47
10122014
圆型调节座O型圈
Rubber ring
1
48
11326012
松线钉
Tension release pin
1
49
10126002
松线钉
Tension release pin (H)
1
50
207S14007
螺钉M4 L=6
Screw M4 L=6
1
51
1023000200
电子夹线器组件
Nest less e- device
1
52
101S12001
底板支柱
Machine head stud
4
53
101S11019
螺钉SM3/32"x56 L=2
Screw SM3/32"x56 L=2
2
54
10127009
推板簧
Slide plate spring
1
55
10115002
推板
Slide plate
1
56
13815011
针板
Needle plate
1
57
11315001
针板(厚料)
Needle plate (H)
1
58
10815001
针板(-7)
Needle plate (-7)
1
59
104S17002
螺钉SM11/64"x40 L=6.5
Screw SM11/64"x40 L=6.5
2
60
13812019
卷边器座
Ruler stop seat
1
61
101S11002
螺钉SM11/64"x40 L=5.5
Screw SM11/64"x40 L=5.5
1
62
401S16001
右线钩
Thread guide
1
63
101S15010
螺钉SM15/64"x28 L=10.5
Screw SM15/64"x28 L=10.5
1
64
10113004
右线钩
Thread guide right
1
65
10122110
橡胶皮塞(单孔)
Rubber plug
1
jintex.in

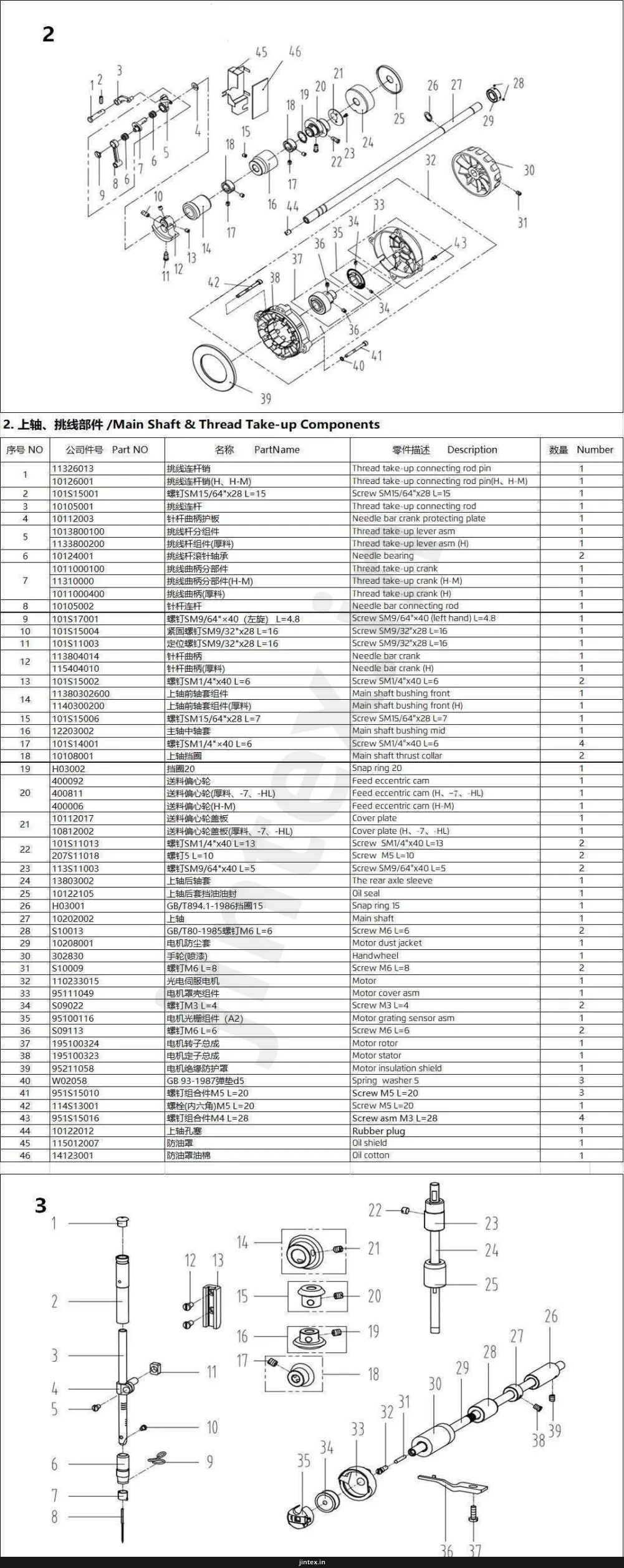

Page 2 — 2.上轴、挑线部件/Main Shaft & Thread Take-up Components
2
39
2.上轴、挑线部件/Main Shaft & Thread Take-up Components
序号 NO
公司件号 Part NO
名称 Name
PartName
零件描述 Description
数量 Number
1
11326013
挑线连杆销
Thread take-up connecting rod pin
1
2
10126001
挑线连杆销(H、H-M)
Thread take-up connecting rod pin(H, H-M)
1
3
10105001
挑线连杆
Thread take-up connecting rod
1
4
10112003
挑线杆曲柄护板
Needle bar crank protecting plate
1
5
1013800100
挑线杆分组件
Thread take-up lever asm
1
6
10105004
挑线杆分组件
Thread take-up lever asm (H)
1
7
1011000100
挑线曲柄
Thread take-up crank
1
11310000
挑线曲柄(厚料)
Thread take-up crank (H-M)
1
1011000400
挑线曲柄(厚料)
Thread take-up crank (H-M)
1
8
10105002
针杆连杆
Needle bar connecting rod
2
9
101S15001
螺钉SM9/64"x28 L=15
Screw SM9/64"x28 L=15
1
10
101S11003
定位螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
11
113804014
针杆曲柄
Needle bar crank
1
12
115404010
针杆曲柄(厚料)
Needle bar crank (H)
1
13
101S15002
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
2
14
113802600
上轴前 the组件(厚料)
Main shaft bushing front (H)
1
15
101S15006
螺钉SM15/64"x28 L=7
Screw SM15/64"x28 L=7
1
16
12203002
主轴中 the
Main shaft bushing mid
1
17
101S14001
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
4
18
H03002
挡圈
Snap ring
2
19
400081
送料偏心轮(厚料、7、-HL)
Feed eccentric cam (H, -7, -HL)
1
20
400811
送料偏心轮(厚料、7、-HL)
Feed eccentric cam (H, -7, -HL)
1
21
10112017
送料偏心轮盖板
Cover plate
1
10812002
送料偏心轮盖板(厚料、7、-HL)
Cover plate (H, -7, -HL)
1
22
101S11013
螺钉SM1/4"x40 L=13
Screw SM1/4"x40 L=13
2
23
207S11018
螺钉M5 L=10
Screw M5 L=10
2
24
113S11003
螺钉SM9/64"x40 L=5
Screw SM9/64"x40 L=5
2
25
10122105
上轴后 the
The rear axle sleeve
1
26
H03001
挡圈
Snap ring
1
27
10202002
上轴
Main shaft
1
28
S10013
螺钉M6 L=6
Screw M6 L=6
2
29
10208001
电机防尘套
Motor dust sleeve
1
30
302830
手轮(喷漆)
Handwheel
1
31
S10009
螺钉M6 L=8
Screw M6 L=8
2
32
110233015
电机同服电机
Motor
1
33
95111049
电机盖壳组件
Motor cover asm
1
34
S09022
螺钉M3 L=4
Screw M3 L=4
2
35
95100116
电机光栅组件(A2)
Motor grating sensor asm
1
36
S09113
螺钉M6 L=6
Screw M6 L=6
2
37
195100324
电机转子总成
Motor rotor
1
38
195100323
电机定子总成
Motor stator
1
39
W02058
电机绝缘防护罩
Motor insulation shield
1
40
951S15010
螺钉组合件M5 L=20
Screw ASM M5 L=20
3
41
951S15010
螺钉组合件M5 L=20
Screw ASM M5 L=20
3
42
114S13001
螺钉(内六角)M5 L=20
Screw (hexagon socket) M5 L=20
1
43
951S15016
螺钉组合件M4 L=28
Screw ASM M4 L=28
4
44
10122012
上轴孔塞
Rubber plug
1
45
115012007
防油罩
Oil shield
1
46
14123001
防油罩油槽
Oil cotton
1
Page 4 — 4. 压料、自动抬压脚部件/Presser Bar & Auto Lifter Components (2)
4. 压料、自动抬压脚部件/Presser Bar & Auto Lifter Components (2)
43 13809030
压料杆导架
Presser bar guide bracket
1
44 101S15007
螺钉SM15/64"x28 L=14.5
Screw SM1/4"x40 L=8
1
45 10122112
压料杆防油套
Pressure bar oil cover
1
46 113803007
压料杆下衬套
Presser bar bushing,lower
1
47 10102004
压料杆
Presser bar
1
48 101S11009
螺钉SM9/64"x40 L=10.5
Screw SM9/64"x40 L=10.5
1
49 1131600600
压脚组件
Presser foot asm
1
1131600300
压脚组件(厚料)
Presser foot asm (H)
1
5
19
15 14 13 10 9 8
3 2
54
55
24
1
19
23 22 18 20
56
36
27
21
17 16
37
31
32 19
35
26
12
38
28
58 29 30
53
44
41
33
19
51 52
42
34
40
50
49
47 46
45
43
42
41
57
48 33
5. 送料部件/Feed Mechanism Components
序号 NO
公司件号 Part NO
名称
PartName
零件描述
Description
数量 Number
1
115033006
步进电机
Stepper motor
1
2
115433002
步进电机(厚料,-7)
Stepper motor (H, -7)
1
3
114922002
步进电机曲轴油封Φ10×Φ16×5
Stepper motor bushing oil seal
1
4
115410001
针距凸轮
Needle pitch cam
1
5
115410003
针距凸轮(-7)
Needle pitch cam (-7)
1
6
S10028
螺钉M5 L=6(进口)
Screw M5 L=6
2
7
114926001
针距柄销
Needl gage crank pin
1
8
115416004
螺母SM11/64"x40
Nut SM11/64"x40
1
9
115405001
针距曲柄连杆
Needle pitch adjusting link
1
10
115430007
弹簧悬置螺钉
Spring mounting screw
1
11
115427001
针距复位弹簧
Pitch reset spring
1
12
115427003
针距复位弹簧(-7)
Pitch reset spring (-7)
1
13
20628023
防油塞
Oil proof plug
1
14
138508006
螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
15
115426003
针距曲柄支撑销
Pitch crank support pin
1
16
136S20003
滚轮
Roller screw
1
17
13609002
滚轮
Roller
1
18
115404003
针距曲柄
Needl gage crank pin
1
19
101S11005
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
4
20
101S11023
送料调节器轴端螺钉
Feed regulator shaft end screw
1
21
136S17005
滚轮螺母
Roller nut
1
22
10126010
送料摆动板座右销
Right pin
1
23
114901001
送料摆动板座
Feed shaking plate
1
24
10126007
短送料摆动板销
Connecting pin
2
25
13809007
送料短摆动板(厚料)
Feed short shaking plate
2
11412022
送料短摆动板(-7)
Feed short shaking plate (H, -7)
2
10109004
送料长摆动板
Feed long shaking plate
2
26
13809008
送料长摆动板(厚料,-7)
Feed long shaking plate (H, -7)
2
27
10126009
送料摆动板座左销
Left pin
1
28
101S15010
螺钉SM15/64"x28 L=10.5
Screw SM15/64"x28 L=10.5
1
29
101S14001
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
1
30
113S14010
螺钉SM15/64"x28 L=12
Screw SM15/64"x28 L=12
1
31
10126011
送料曲柄销
Feed rocker crank pin
1
32
10104002
螺钉SM3/16"x28 L=14
Screw SM3/16"x28 L=14
3
33
115405005
送料连杆
Feed rocker shaft connecting rod
1
34
101S20005
螺钉SM9/32"x28
hinge screw SM9/32"x28
1
35
115405003
连接销
Connecting rod
1
36
115405002
送料连杆(厚料,-7)
Rocker shaft connecting rod (H, -7)
1
37
10126006
连接销
Connecting rod pin
1
38
101S16003
指杆连接螺钉SM9/32"x28
Hinge Screw SM9/32"x28
1
39
10104004
指杆后曲柄
Feed driving shaft crank
1
40
13802001
指牙轴
Feed driving shaft
1
41
10108003
送料曲柄轴颈圈
Feed rocker shaft snap ring
2
42
101S15002
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
4
43
10403015
轴套
Bushing
2
44
H03001
GB/T894.1-1986挡圈15
Snap ring 15
2
45
1138NS30004
螺钉SM11/64"x40 L=10.5
Screw SM11/64"x40 L=10.5
1
46
400672
牙架组件
Feed bar asm
1
47
1138070300
牙架座组件(厚料,-7)
Feed bar asm (H, -7)
1
48
10128003
垫圈
Washer
1
49
10401007
牙架(自制)
Feed bar bed
1
50
10401007
牙架销(自制)
Feed bar pin
1
51
11501025
螺钉SM11/64"x40 L=7
Screw SM11/64"x40 L=7
1
52
13814005
送料牙(送料)
Feed dog
1
11314001
送料牙(厚料)
Feed dog (H)
1
11414001
送料牙(-7)
Feed dog (-7)
1
53
101S11018
螺钉SM1/8"x44 L=6
Screw SM1/8"x44 L=6
2
54
1150NS13002
螺钉SM3/16"x28 L=10
Screw SM3/16"x28 L=10
4
55
10122003
面板调节孔螺塞
Rubber plug
1
56
10102008
送料轴
Feed rocker shaft
1
57
13812081
弹簧固定板
Spring fixing plate
1
58
101S11005
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
2
jintex.in
Page 5 — 6. 切线装置部件/Thread Trimmer Components
7. 润滑部件/Oil Lubrication Components(1)
6
6. 切线装置部件/Thread Trimmer Components
序号NO
公司件号
Part NO
名称
Name
PartName
零件描述
Description
数量
Number
1
113S15002
螺钉SM1/8"x44 L=9.5
Screw SM1/8"x44 L=9.5
1
2
115019001
定刀
Secant knife
1
3
113S17001
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
4
113813029
分线片
Needle guard patch
1
5
201S11009
螺钉SM9/64"x40 L=5.5
Screw SM9/64"x40 L=5.5
1
6
113S11001
螺钉SM11/64"x40 L=12
Screw SM11/64"x40 L=12
2
7
10128003
牙座座螺钉垫圈
Washer
2
8
1381203100
刀架压板组件
Knife bracket press component
1
9
13812031
刀架压板
Knife bracket press
2
10
13803012
短套
Short bushing
1
11
113S17002
螺钉SM11/64"x40 L=4.4
Screw SM11/64"x40 L=4.4
2
12
14019004
活动刀
Motorial knife
1
13
11319003
活动刀(厚料)
Motorial knife (H)
1
14
11307001
剪线刀架
Knife bracket
1
15
11312005
连接杆
Connecting rod
1
16
114S16004
螺母SM11/64"x40
Nut SM11/64"x40
1
17
11304001
曲柄
Crank
1
18
113822014
驱动曲柄止动块
Crank driver stopper block
1
19
S05004
螺钉TM5 L=14
Screw M5 L=14
1
20
11327001
弹簧
Spring
1
21
11230004
插头
Plug
1
22
11230005
电线插针
Pin
1
23
11303003
切线轴套
Thread cutting shaft bushing
1
24
11503005
驱动曲柄轴衬套
Crank drive shaft bushing
1
25
113S14020
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
26
11322002
扭簧端盖
Spring cover
1
27
11327002
弹簧
Spring
1
28
11304002
切线凸轮曲柄轴
Crank shaft
1
29
101S14001
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
1
30
116S14005
螺钉SM1/4"x40 L=10
Screw SM1/4"x40 L=10
2
31
11309030
凸轮顶杆
Push rod
2
32
11310004
凸轮
Cam
1
33
11310011
凸轮(厚料)
Cam (H)
1
34
11324001
滚柱
Rolling pin
1
35
1138NS16007
螺母SM11/64"x40
Nut SM11/64"x40
1
36
1130400500
剪线驱动组件
Thread trimmer drive asm
1
37
11302002
轴
Shaft
1
38
11322001
驱动曲柄止动块
Positioning block
1
39
H05013
GB/T-19896-1996挡圈6
Snap ring 6
1
40
10112003
针杆曲柄护板
Cunter weight protecting
1
41
11322003
电磁铁缓冲垫
Solenoid cushion
1
42
11309001
切线电磁铁顶销
Solenoid pin
1
43
101S11026
螺钉SM15/64"x28 L=9
Screw SM15/64"x28 L=9
1
44
11312006
切线磁铁支架
Solenoid bracket
1
45
W02018
GB/T93-1987弹簧垫圈4
Washer 4
2
46
112S16006
螺母SM1/4"x40
Nut SM1/4"x40
1
47
113822005
垫圈
Washer
1
48
1383003300
剪线电磁铁组件
Thread trimmer solenoid asm.
1
49
11327003
弹簧
Spring
1
50
115012004
线座
Thread release bed
1
51
113S20002
螺钉SM1/4x28 L=13
Screw SM1/4x28 L=13
1
7
7. 润滑部件/Oil Lubrication Components(1)
序号NO
公司件号
Part NO
名称
Name
PartName
零件描述
Description
数量
Number
1
10111004
油窗
Oil sight window
1
2
10122019
油窗O形圈
Rubber ring
1
3
14121001
上轴供油管
Main shaft oil tube
1
4
101S30008
油泵连接螺柱
Oil pump connecting stud
1
5
10121001
供油管
Hook oil tube
1
6
W03002
油泵安装板
Oil pump installing base
1
7
W03002
弹簧垫圈5
Spring washer 5
1
8
209S12001
螺钉SM11/64"x40 L=10.5
Screw SM11/64"x40 L=10.5
1
9
101S30007
柱塞螺钉
Plunger Screw
1
10
10127013
柱塞销
Plunger spring
1
11
10122018
回油柱塞
Plunger
1
12
10120001
油泵体
Oil pump
1
13
S04093
油泵螺钉M3 L=6
Screw M3 L=6
3
14
10111003
油泵叶轮
Oil pump impeller
1
15
10112021
油泵叶轮盖板
Oil pump impeller cover
1
16
10111007
油泵盖
Lubricating oil pump cover
1
17
101S30006
螺钉ST2.9 L=10
Screw ST2.9 L=10
3
jintex.in
Page 6
7. 润滑部件/Oil Lubrication Components(2)
序号 NO
公司件号 Part NO
名称 PartName
零件描述 Description
数量 Number
20
116S30003
螺钉SM15/64"x28 L=14.5
Screw SM15/64"x28 L=14.5
1
21
10136001
供油管接头
Rubber joint
1
22
W020004
GB/T93-1987垫圈M6
Spring Washer M6
1
23
13821015
下轴供油管
Hook oil tube
1
24
11312031
挡油罩
Oil shield cover
1
25
13827014
油量调节螺钉
Spring
1
26
113S30001
螺钉SM11/64"x40 L=19
Screw SM11/64"x40 L=19
1
27
10423005
油线
Oil wick
2
28
10127015
回油毡夹
Oil felt clamp
1
29
10123006
回油毡
Oil felt
1
30
101S11004
螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
31
10112023
油管夹
Oil tube clamp
1
32
11502100100
回油管部件
Oil return tube component
1
33
115021002
油回管
Oil return tube
1
34
10112025
油线固定板
Oil wick fixing plate
1
35
101S11010
螺钉SM9/64"x40 L=11
Screw SM9/64"x40 L=11
2
36
10123010
油线
Oil wick
1
8
12
1
2
3
4
5
11
6
9
10
2
6
8
8. 进步抬压部件/Stepping Auto Lifter Components
序号 NO
公司件号 Part NO
名称 PartName
零件描述 Description
数量 Number
1
1150NS20001
抬压脚顶杆螺钉
Presser foot lifter screw
2
2
136S17005
滚轮螺母
Roller nut
3
3
115412001
自动压脚顶杆
Automatic presser foot lifter
1
4
115404002
抬压脚驱动曲柄
Driving crank of presser foot
1
5
115426002
抬压脚驱动曲柄销
Lifting presser foot to drive crank pin
1
6
S10014
螺钉M5 L=4
Screw M5 L=4
2
7
S10028
螺钉M5 L=6(进口)
Screw M5 L=6
2
8
115410002
抬压脚凸轮
Presser foot cam
1
9
13609002
滚轮
Roller
1
10
136S20003
滚轮螺钉
Roller screw
1
11
115401001
抬压脚曲柄支架
Crank bracket for presser foot lifting
1
12
1150NS13002
螺钉SM3/16"x28 L=10
Screw SM3/16"x28 L=10
3
9
10. 油盘、膝抬压油分离件/Oil Ceservoir & Knee Lifter Components
序号 NO
公司件号 Part NO
名称 PartName
零件描述 Description
数量 Number
1
115022007
油盘座垫
Oil reservoir rubber cushion
2
2
13801020
油盘
Oil Reservoir
1
3
10111005
抬压脚顶杆
Knee lifter push rod
1
4
10122020
油盘垫
Oil Reservoir gasket
1
5
10122021
O型圈
Rubber ring
1
6
101S11028
螺钉SM5/16"x24 L=7
Screw SM5/16"x24 L=7
1
7
10131001
油盘磁铁
Oil reservoir magnet
1
8
115022008
油盘支架
Oil reservoir rubber cushion
2
9
10112027
抬压脚曲柄
Knee lifter crank
1
10
10127016
膝抬压弹簧
Knee lifter spring
1
11
H05010
Snap ring 9
Snap ring 9
1
12
10102011
抬压脚轴
Knee lifter shaft
1
13
101S15012
螺钉M6 L=30
Screw M6 L=30
2
14
101S16004
螺钉M6 L=4
Nut M6 L=4
3
15
101S12002
螺钉M6 L=26
Screw M6 L=26
1
22
10
1
2
3
4
5
6
7
8
9
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
jintex.in
Page 7
10. 绕线部件/ Winding Components
序号 NO
公司件号 Part NO
名称
PartName
零件描述 Description
数量 Number
1
1383103900
线圈绕线器 asm
Bobbin winder asm
1
2
114S11008
螺钉M4 L=6
Screw M4 L=6
1
3
W01142
垫圈4
Washer 4
1
4
10113030
压线控制板
Thread press control plate
1
5
10111120
绕线衬垫
Winding pad
1
6
13831101
线圈器装置主座
Bobbin winder bed
1
7
H05006
开口挡圈4
Snap ring 5
1
8
10127061
复位档位簧
Spring
1
9
13812110
调节板
Regulating plate
1
10
10110030
线圈轮
Bobbin winder cam
1
11
S09045
螺钉M5 L=5
Screw M5 L=5
1
12
1380510600
线圈绕线连杆组件
Bobbin winder connecting rod
1
13
13827103
满线复位簧
Spring
1
14
10127060
弹簧
Spring
1
15
GB/T 896-1986
开口挡圈4
Snap ring 4
1
16
13802111
线圈器主轴
Bobbin winder mian shaft
1
17
13802026
线圈轮凸轮轴
Bobbin winder cam shaft
1
18
S09103
螺钉M4 L=4
Screw M4 L=4
2
19
13831102
线圈轮
Bobbin winder wheel
1
20
001110
O型圈
Ring
1
21
11422062
垫圈
Washer
1
22
114S11003
螺钉SM3/16"x28 L=10
Screw SM3/16"x28 L=10
3
23
1411300600
底线夹线器
Bobbin thread tension asm
1
24
141S16019
夹线螺母
Thread tension nut
1
25
11427006
夹线弹簧
Spring
1
26
14112015
线夹线板
Thread tension disk
1
27
11413022
夹线过线板
Thread tension guide plate
1
28
112S13004
螺钉
Screw
1
29
114S16001
螺母SM11/64"x40
Nut SM11/64"x40
1
30
11435013
绕线器驱动轮
Driving wheel
1
31
S10009
螺钉M6 L=8
Screw M6 L=8
2
11(1)
21
22
19
18
17
16
15
14
13
12
11. 机头附件(1)-线架组件/Machine Head Accessories (1)-Thread Stand Components
序号 NO
公司件号 Part NO
名称
PartName
零件描述 Description
数量 Number
1
20131019
线架杆顶防掉橡皮
Spool rest rod rubber cap
1
2
S04050
螺钉M5 L=16
Screw M5 L=16
3
3
W01047
垫圈M5
Washer M5
2
4
N01034
螺母M5
Nut M5
4
5
13831022
上绕线架杆
Spool rest arm upper
1
6
10113011
过线圈(内)
Thread guide ring
2
7
10113010
过线圈(外)
Thread guide ring
2
8
13831019
线架杆上节
Spool rest rod upper
1
9
13831021
线架杆接头
Spool rest rod joint
1
10
13831020
线架杆下节
Spool rest rod lower
1
11
10122106
橡胶垫圈
Spool rest rod rubber ring
2
12
W01052
垫圈M16
Washer M16
2
13
N02008
螺母M16
Spool rest rod nut M16
1
14
S04051
螺栓M5 L=31.6
Spool rest arm lower screw M5 L=31.6
1
15
N01034
螺母M5
Nut M5
2
16
W03002
弹簧垫圈5
Spring washer 5
2
17
13831023
下线架线杆
Spool rest arm lower
1
18
13831024
线盘
Spool rest
2
19
20131010
线盘垫
Spool rest cushion
2
20
20131006
线盘销
Spool pin
2
21
13831025
线圈防松垫
Spool retainer
2
22
1383100300
线架组件
Thread stand asm.
1
11(2)
1
2
3
5
4
6
7
12
10
11
11. 机头附件(2)/Machine Head Accessories (2)
序号 NO
公司件号 Part NO
名称
PartName
零件描述 Description
数量 Number
1
1011203100
机头连接组件
Hinge component
2
2
10122060
机头连接钩座
Head connecting rubber cushion
2
3
10117001
机针DBx1 #14
Needle DBx1 #14
4
4
101530010
机针DPx5 #21 (厚料)
Needle DPx5 #21 (H)
6
5
10118003
梭心
Bobbin
2
6
115011003
机头支柱
Machine head rest pin
1
7
20731047
螺丝刀(大)
Screw driver (large)
1
8
10131003
螺丝刀(中)
Screw driver (medium)
1
9
10131004
螺丝刀(小)
Screw driver (small)
1
10
113831011
干燥剂(25g)
Drying agent(25g)
1
11
110211011
油袋(400ml)
Oil bag(400ml)
1
jintex.in
Page 8 — 杰克科技股份有限公司
杰克科技股份有限公司
杰克缝纫机
全球销量遥遥领先
公司地址(Address of Company):
中国浙江省台州市椒江区三甲东海大道东段1008号
NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG
邮编(Zip Code): 318000
国内销售部(Domestic Trade Department):
电话(TEL): 0086-0576-88177788 88177789
传真(FAX): 0086-0576-88177758
国贸销售部(International Trade Department):
电话(TEL): 0086-0576-88177782 88177774
传真(FAX): 0086-0576-88177787
服务热线: 400-8876858
http://www.chinajack.com
资料如有更改,恕不另行通知,以实物为准。
You will not be informed if the file has been revised.Please set sample as standard.
jintex.in
