Page 1 — 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
JACK 杰克
快速服务100%
A5E/A5E 系列
A5E/A5E Series
零件手册
Parts Manual
1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
序号 NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
101S11001
螺钉SM3/16"×28 L=9
Screw SM3/16"×28 L=9
15
2
10122003
面板调节孔螺塞
Rubber plug
2
3
115037001
面板商标牌
Head card
1
4
930000262
面板(喷漆)
Face plate asm
1
5
115001003
面板
Face plate asm
1
6
13813005
左线钩
Thread guide left
1
7
115022002
面板垫
Face plate gasket
1
8
113812019
面部防油板
Face oil shield asm
1
9
11412082
面部防油板(厚料)
Face oil shield asm (H)
1
10
1150300600
倒缝开关组件(三开关)(喷星)
Three switch components(Power Max)
1
11
101S11004
螺钉SM3/16"×28 L=7
Screw SM3/16"×28 L=7
2
12
13812018
挑线杆护罩
Thread take-up lever cover
1
13
10122004
针杆曲柄孔螺塞
Rubber plug
1
14
10122005
挑线连杆销孔螺塞
Rubber plug
1
15
101S11004
螺钉SM3/16"×28 L=7
Screw SM3/16"×28 L=7
1
16
13512004
三孔线勾
3-hole thread guide
1
17
10122005
挑线连杆销孔螺塞
Rubber plug
1
18
114S10015
螺钉SM9/64"×40 L=6
Screw SM9/64"×40 L=6
2
19
11419001
割线刀
Knife
1
20
138505001
螺钉M3 L=12
Screw M3 L=12
2
21
21012018
操作屏孔塞
Rubber plug
1
22
114522001
油封垫
Oil sealing washer
1
23
21022007
油封
Rubber plug
1
24
114922003
后盖板垫
Side plate gasket
1
25
114912001
后盖板
Side plate
1
26
930000236
后盖板(喷漆)
Side plate
1
27
13812109
侧盖固定板
Fixed plate
1
28
S04010
螺钉M4 L=5.5
ScrewM4 L=5.5
1
29
H05002
卡簧3
Circlip 3
1
30
138S30007
侧盖螺钉SM3/16"×28
Screw SM3/16"×28
1
31
113811004
尼龙扎带
Cable band
6
32
115026002
电控罩売销
Pin
1
33
1150301400
一体机电控罩売(喷星)
Servo motor box(Power Max)
1
34
11503003100
一体机电控罩売(喷星)(+)
Servo motor box(Power Max(+))
1
35
11503001100
一体机电控组件(喷星)
Electronic components(Power Max)
1
36
114S13001
螺钉(内六角)M5 L=20
Screw M5 L=20
1
37
S05901
内六角圆柱头螺钉M5 L=50(喷星)
Screw M5 L=50(Q)
3
38
W01009
垫圈5
Washer 5
3
39
114130006
无线通信模块(+)
RF wireless data communication module(+)
1
40
10122007
下轴工艺孔塞
Rubber plug
1
41
1150300300
一体机电控面板组件(喷星)
Control panel(Q)
1
42
14322007
橡皮塞(双孔)
Rubber plug
1
43
138508006
螺钉SM3/16"×28 L=7
Screw SM3/16"×28 L=7
1
44
13810008
线器螺柱
Thread tension post
1
45
14112017
夹线板
Thread tension disk
2
46
11227001
夹线弹簧
Thread tension spring
1
47
141S16019
夹线器螺母
Thread tension nut
1
48
1411300400
夹线器组件
Thread tension asm
1
49
141S16013
夹线器螺母
Thread tension nut
1
50
1411300200
夹线器组件(厚料)
Thread tension asm (H)
1
51
11427050
夹线弹簧(厚料)
Thread tension spring A (H)
1
52
10112007
夹线制动板
Thread disk rotating stopper
1
53
10127002
夹线弹簧
Thread tension spring
1
54
11412016
松线板
Disk stopper
1
55
14112015
夹线板
Thread tension disk
2
56
10127001
挑线镍
Thread tension post
1
57
10127031
挑线镍(厚料)
Thread take-up spring (H)
1
58
10103011
挑线调节座
Thread tension base
1
59
10122014
挑线镍调节座O型圈
Rubber ring
1
60
101S15005
螺钉SM9/64"×40 L=5.5
Screw SM9/64"×40 L=5.5
1
61
11326012
松线钩
Tension release pin
1
62
101S11007
螺钉SM11/64"×40 L=6
Screw SM11/64"×40 L=6
2
63
10113004
右线勾
Thread guide right
2
64
101S15010
螺钉SM15/64"×28 L=10.5
Screw SM15/64"×28 L=10.5
1
65
401S16001
螺母SM9/64"×40
Nut SM9/64"×40
1
66
11413011
固定式缠线钩
Thread guide
1
67
101S11002
螺钉SM11/64"×40 L=5.5
Screw SM11/64"×40 L=5.5
1
68
13812019
卷边带座
Ruler stop seat
1
69
207S14007
凹端紧定螺钉M4 L=6
Screw M4 L=6
1
70
114930007
电子夹线器组件
Nest less e-device
1
71
13815011
针板(2.0)
Needle plate
1
72
11315001
针板(厚料)
Needle plate(H)
1
73
10815001
针板(-7)
Needle plate(-7)
1
74
140S12001
底板支柱
Machine head stud
2
75
101S11019
螺钉SM3/32"×56 L=2
Slide plate SM3/32×56 L=2
2
76
10127009
推板簧
Slide plate spring
1
jintex.in
Page 2 — 2. 上、轴、挑线件/Main Shaft & Thread Take-up Components
2. 上、轴、挑线件/Main Shaft & Thread Take-up Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
10126001
挑线连杆销
Thread take-up connecting rod pin
1
2
101515001
螺钉SM15/64"x28 L=15
Screw SM15/64"x28 L=15
1
3
10105001
挑线连杆
Thread take-up connecting rod(H)
1
4
10112003
针杆曲柄护板
Needle bar crank protecting plate
1
5
1133800200
挑线杆组件(厚料)
Thread take-up lever asm(H)
1
6
10124001
挑线杆轴承
Needle bearing
2
7
1011000400
挑线曲柄分部件
Thread take-up crank
1
1011000400
挑线曲柄分部件(厚料)
Thread take-up crank(H)
1
1011000400
挑线曲柄分部件(中厚料)
Thread take-up crank(H-M)
1
8
10105002
针杆连杆
Needle bar connecting rod
1
9
101S17001
螺钉SM9/64"x40(左旋)L=4.8
Screw SM9/64"x40(Left) L=4.8
1
10
101S15003
螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
11
101S11003
螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
12
114040035
针杆曲柄(厚料)
Needle bar crank(H)
1
13
101S15002
螺钉SM11/4"x40 L=6
Screw SM11/4"x40 L=6
2
14
1140300200
上 the 轴前 the 轴套组件
Main shaft bushing front
1
15
101S15006
螺钉SM15/64"x28 L=7
Screw SM15/64"x28 L=7
1
16
12203002
主轴 the 轴套
Main shaft bushing
1
17
101S14001
螺钉SM11/4"x40 L=6
Screw SM11/4"x40 L=6
4
18
10108001
上轴 the 轴 the 圈
Main shaft thrust collar
2
19
H03002
the the 圈
Snap ring 20
2
20
115002002
the the 轮
Feed eccentric cam
1
21
400006
送料 the 轮(中厚料)(H-7)
Feed eccentric cam (H-M)(H-7)
1
22
101S11013
螺钉SM11/4"x40 L=13
Cover plate
1
23
113S11003
螺钉SM9/64"x40 L=5
Screw SM9/64"x40 L=5
2
24
13803002
上 the 轴后 the 轴套
The rear axle sleeve
1
25
10122105
油封
Oil seal
1
26
H03001
GB/T894.1-1986挡 the 圈15
Snap ring 15
1
27
115002002
上 the 轴
Main shaft
1
28
S10026
螺钉M3 L=3
Screw M3 L=3
2
29
115008001
电机防尘套
Motor dust jacket
1
30
S10009
螺钉
Screw
2
31
302830
手 the (喷漆)
Handwheel
1
32
13831015
塑料袋 28x18cm厚0.03mm
Plastic bag 28cmx18cmx0.03mm
1
33
195100073
电机 cover 组 (配 the 星)
Motor cover asm(Q)
1
34
95100172
电机光 the 栅组件(配 the 星)
Motor grating sensor asm(Q)
1
95100116
电机光 the 栅组件(配 the 星)
Motor grating sensor asm(Power Max)
1
35
S09022
内六角 the 端 the 螺钉M3 L=4
Screw M3 L=4
1
36
S09162
内六角 the 端 the 螺钉M6 L=6
Screw M6 L=6
1
37
95100182
电机转子总成
Motor rotor
1
38
95100171
电机定子总成
Motor stator
1
39
13811060
电机绝缘防护罩
Motor insulation shield
1
40
W02058
GB 93-1987弹 the d5
Spring washer 5
3
41
S05901
螺钉M5 L=50
Screw M5 L=50
3
42
S09162
内六角 the 端 the 螺钉M6 L=6
Screw M6 L=6
1
43
S09022
内六角 the 端 the 螺钉M3 L=4
Screw M3 L=4
1
44
951S15011
组 the 件 M3 L=12
Screw Asm M3 L=12
5
45
10122012
上 the 轴 the 塞
Rubber plug
1
46
115033007
光电 the 服电机( the 星)
Motor(Q)
1
11383087
光电 the 服电机( the 星)
Motor(Power Max)
1
47
14112004
油 the 罩
Oil shield
1
48
14123001
油 the 罩 the 油棉
Oil cotton
1
49
141S11002
螺钉SM3/16"x28 L=4.5
Screw SM3/16"x28 L=4.5
1
Page 3 — 3. 压料、自动抬压脚部件(1)/Presser Bar & Auto Lifter Components (1)
3. 压料、自动抬压脚部件(1)/Presser Bar & Auto Lifter Components (1)
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
101S11010
压脚扳手螺钉SM9/64"x40 L=11
Screw SM9/64"x40 L=11
1
2
10128002
压脚扳手螺钉垫圈
Washer
1
3
13811029
压脚扳手
Hand lifter
1
4
0010004
O型圈
Rubber ring
1
5
1411000200
压脚扳手凸轮分部件
Hand lifter cam asm.
1
6
101S20001
前杠杆螺纹销
Screw
2
7
10128015
螺纹销橡胶垫圈
Washer
2
8
1411201100
抬压脚前杠杆分部件
Lift front lever component
1
9
14312012
抬压脚拉杆
Knee lifter pull rod
1
10
H05003
GB/T896-1986挡圈5
Snap ring
2
11
11329020
挡圈5
Snap ring
2
12
14112018
压脚升降板
Lifting plate
1
13
101S20004
抬压脚拉杆螺钉SM3/16"x32
Hinge Screw SM3/16"x32
1
14
1431201200
抬压脚前杠杆组件
Knee lifter lever asm
1
15
101S20003
后杠杆轴位螺钉SM15/64"x28
Hinge screw SM15/64"x28
1
16
11312034
抬压脚后杠杆
Knee lifter back lever
1
17
11326005
销子
Pin
1
18
113829001
R形弹性开口销φ1.5
Cotter pin
1
19
11326006
电磁铁接头
Solenoid connector
1
20
113S16004
法兰螺母M8
Flange nuts M8
1
21
11322008
电磁铁上垫片
washer
1
22
11493000600
压脚电磁铁组件
Solenoid asm.
1
23
101S11001
螺钉SM3/16"x28 L=9
Screw SM3/16"x28 L=9
4
24
114112022
压脚顶杆
Knee lifter connecting rod
1
25
10127003
松线辅打弹簧
Spring
1
26
10128001
松线辅打垫片
Washer
1
27
H05012
挡圈4(日标)
Snap ring
1
28
10126003
松线辅钉
Thread release supporting pin
1
29
114127002
松线顶板复位簧
Spring
1
30
115026001
松线顶板连接销
Pin
1
31
138S08006
螺钉SM3/16 "x28 L=7
Screw SM3/16 "x28 L=7
1
32
14128001
松线顶板垫片
Loose top gasket
1
33
H03054
GB/T894.1-1986挡圈6
Snap ring 6
1
34
14101017
松线顶板
Wire release plate
1
35
138S08006
螺钉SM3/16 " L=7
Screw SM3/16 " L=7
1
36
11503002000
松线电磁铁组件
Solenoid
1
37
12922015
橡皮塞
Spout plug
1
38
114122006
松线油封
Oil seal
1
39
11381101800
调压螺钉组件
Presser regulating screw nut asm
1
40
1138NS30003
调压螺钉(厚料)
Press regulating screw (H)
1
41
1138NS16005
调压螺母(厚料)
Press regulating nut(H)
1
42
10102003
调压导杆
Press regulating guide bar
1
43
113827010
调压簧
Press regulating spring
1
10127024
调压簧(厚料)
Press regulating spring(H)
1
44
13809030
压杆导架
Presser bar guide bracket
1
45
101S15007
螺钉 SM1/4"x40 L=8
Screw SM1/4"x40 L=8
1
46
10122112
压杆防油套
Pressure bar oil cover
1
47
113803007
压杆衬套
Presser bar bushing.lower
1
jintex.in
Page 4 — 3. 压料、自动抬脚部件(2)/Presser Bar & Auto Lifter Components (2)
3. 压料、自动抬脚部件(2)/Presser Bar & Auto Lifter Components (2)
序号NO
公司件
Part NO
名称
PartName
零件描述
Description
数量
Number
48
113802009
压杆
Presser bar
1
49
101S11009
螺钉SM9/64"x40 L=10.5
Screw SM9/64"x40 L=10.5
1
50
1131600600
压脚组件
Presser foot asm
1
1131600300
压脚组件(厚料)
Presser foot asm(H)
1
jintex.in
Page 5 — 4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
4
针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
10122013
针杆上衬套孔塞
Rubber plug
1
2
14103009
针杆上衬套
Needle bar bushing upper
1
10103009
针杆上衬套(厚料)
Needle bar bushing upper(H)
1
3
11402039
针杆
Needle bar
1
10102021
针杆(厚料)
Needle bar (H)
1
4
10138002
针杆连接柱
Needle bar connecting rod
1
5
101S11005
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
6
10103010
针杆下衬套
Needle bar bushing lower
1
11303023
针杆下衬套(厚料)
Needle bar bushing lower(H)
1
7
10113002
针杆线勾
Needle bar thread guide
1
11412063
针杆线勾(厚料)
Needle bar thread guide(H)
1
8
13817001
机针(定位14#)
Needle
1
10117002
机针DP×5#21(厚料)
Needle(H)
1
9
10413001
针杆下衬套线勾
Lower bushing thread guide
1
10113009
针杆下衬套线勾(厚料)
Lower bushing thread guide(H)
1
10
104S11006
螺钉(进口)SM1/8"x44 L=4.5
Screw SM1/8"x44 L=4.5
1
11
10109001
针杆连接柱滑块
Slide block
1
12
101S11008
螺钉SM11/64"x40 L=8
Screw SM11/64"x40 L=8
2
13
10109002
针杆接头滑块导轨
Needle bar guide
1
14
10425004
上轴伞齿轮
Upper shaft bevel gear
1
15
10425003
竖轴上伞齿轮
Upper small bevel gear asm
1
16
10425002
竖轴下伞齿轮
Lower large bevel gear asm
1
17
101S15014
螺钉SM1/4"x40 L=7
Screw SM1/4"x40 L=7
8
18
10425001
下轴伞齿轮
Hook drive shaft bevel gear
1
19
113S11036
螺钉SM15/64"x28 L=4.7
Screw SM15/64"x28 L=4.7
1
20
10403020
竖轴上轴套
Upright shaft bushing upper
1
21
10102007
竖轴
Upright shaft
1
22
113803004
竖轴下轴套
Upright shaft bushing lower
1
23
10403019
下轴后轴套
Hook driving shaft bushing back
1
24
115008002
下轴挡圈
Hook driving shaft snap ring
1
25
14003004
下轴中套
Lower shaft middle bushing
1
26
14402003
下轴
Hook driving shaft
1
27
11522001
油封组件12
Oil seal 12
1
28
11412004
下轴前套油封(大)
Oil seal
1
29
14003001
下轴前套组件
Hook driving shaft bushing front
1
30
1142201600
油封组件
Oil seal
1
31
13823001
下轴限油芯
Oil wick
1
32
101S30005
下轴限油螺钉SM3/16"×32
Set screw SM3/16"x32
1
33
11418003
广濑中厚料旋梭(扩大缝纫范围)
Hook asm (Hirose)
1
11418004
广濑厚料旋梭(新)(有尾巴)(厚料)
Hook asm(Hirose)(H)
1
34
10118003
梭心
Bobbin
1
35
11218504
梭壳
Bobbin case asm.
1
36
10112016
旋梭定位钩
Finger postioner
1
10112032
旋梭定位钩(厚料)
Finger postioner(H)
1
37
116S11005
螺钉SM11/64"x40 L=13
Screw SM11/64"x40 L=13
1
38
101S11012
螺钉TSM11/64"x40 L=4.8
Screw SM11/64"x40 L=4.8
2
jintex.in
Page 6
5

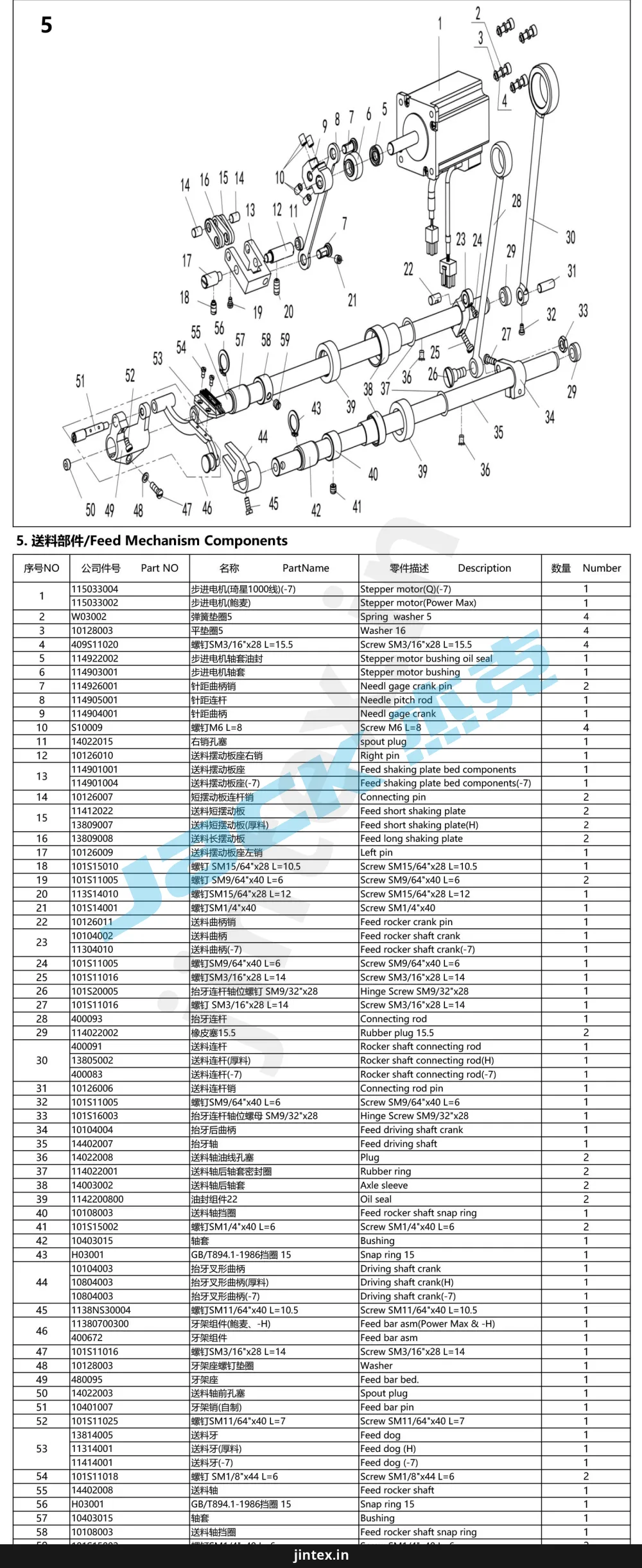

5. 送料部件/Feed Mechanism Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
115033004
步进电机(筒星1000线)(-7)
Stepper motor(Q)(-7)
1
1
115033002
步进电机(鲍麦)
Stepper motor(Power Max)
1
2
W03002
弹簧垫圈5
Spring washer 5
4
3
10128003
平垫圈
Washer 16
4
4
409S11020
螺钉SM3/16"x28 L=15.5
Screw SM3/16"x28 L=15.5
4
5
114903001
步进电机油封
Stepper motor bushing oil seal
1
6
114903001
步进电机轴套
Stepper motor bushing
1
7
114926001
针距曲柄
Needl gage crank pin
2
8
114905001
针距连杆
Needle pitch rod
1
9
114904001
针距曲柄
Needl gage crank
1
10
S10009
螺钉M6 L=8
Screw M6 L=8
4
11
14022015
右销孔塞
spout plug
1
12
10126010
送料摆动板座销
Right pin
1
13
114901001
送料摆动板座
Feed shaking plate bed components
1
114901004
送料摆动板座(-7)
Feed shaking plate bed components(-7)
1
14
10126007
短摆动板连杆销
Connecting pin
2
15
11412022
送料短摆动板
Feed short shaking plate
2
16
13809007
送料短摆动板(厚料)
Feed short shaking plate(H)
2
17
13809008
送料长摆动板
Feed long shaking plate
1
18
10126009
送料摆动座左销
Left pin
1
19
101S15010
螺钉SM15/64"x28 L=10.5
Screw SM15/64"x28 L=10.5
1
20
113S14010
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
2
21
101S14001
螺钉SM15/64"x28 L=12
Screw SM15/64"x28 L=12
1
22
10126011
送料摇臂销
Feed rocker crank pin
1
23
11304010
送料曲柄
Feed rocker shaft crank
1
24
101S11005
送料曲柄(-7)
Feed rocker shaft crank(-7)
1
25
101S11016
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
26
101S20005
螺钉SM3/16"x28 L=14
Hinge Screw SM9/32"x28
1
27
101S11016
螺钉SM3/16"x28 L=14
Screw SM3/16"x28 L=14
1
28
400093
拾牙连杆
Connecting rod
1
29
114022002
橡皮塞 15.5
Rubber plug 15.5
2
30
13805002
送料连杆(厚料)
Rocker shaft connecting rod(H)
1
13805002
送料连杆
Rocker shaft connecting rod
1
31
10126006
送料连杆销
Connecting rod pin
1
32
101S11005
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
33
101S16003
拾牙连杆轴螺母 SM9/32"x28
Hinge Screw SM9/32"x28
1
34
10104004
拾牙后曲柄
Feed driving shaft crank
1
35
14402007
拾牙轴
Feed driving shaft
1
36
14022008
送料轴油线孔塞
Plug
2
37
11422001
送料轴后轴套密封圈
Rubber ring
2
38
14003002
送料轴后轴套
Axle sleeve
2
39
1142200800
油封组件22
Oil seal
1
40
101S15002
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
2
41
10403015
轴套
Bushing
1
42
H03001
GB/T894.1-1986挡圈 15
Snap ring 15
1
43
10104003
拾牙叉形曲柄
Driving shaft crank
1
44
10804003
拾牙叉形曲柄(厚料)
Driving shaft crank(H)
1
10804003
拾牙叉形曲柄(-7)
Driving shaft crank(-7)
1
45
1138NS0004
螺钉SM11/64"x40 L=10.5
Screw SM11/64"x40 L=10.5
1
46
11380700300
牙架组件(鲍麦、-H)
Feed bar asm(Power Max &-H)
1
400672
牙架组件
Feed bar asm
1
47
101S11016
螺钉SM3/16"x28 L=14
Screw SM3/16"x28 L=14
1
48
10128003
平垫圈
Washer
1
49
480095
牙架座
Feed bar bed.
1
50
14022003
送料轴前孔塞
Spout plug
1
51
101S11025
螺钉SM11/64"x40 L=7
Screw SM11/64"x40 L=7
1
52
13814005
送料牙
Feed dog
1
11314001
送料牙(厚料)
Feed dog (H)
1
11414001
送料牙(-7)
Feed dog (-7)
1
53
101S11018
螺钉SM1/8"x44 L=6
Screw SM1/8"x44 L=6
2
54
14402008
送料轴
Feed roller shaft
1
55
10403015
轴套
Bushing
1
56
H03001
GB/T894.1-1986挡圈 15
Snap ring 15
1
57
10108003
送料轴挡圈
Feed rocker shaft snap ring
1
jintex.in
Page 7 — 6. 切线部件/Thread Trimmer Components
6
切线部件/Thread Trimmer Components
序号NO
公司件号/Part NO
名称
PartName
零件描述
Description
数量
Number
1
113S15002
螺钉SM1/8"x44 L=9.5
Screw SM1/8"x44 L=9.5
1
2
115019001
定刀
Secant knife
1
3
113S17001
螺钉SM9/64"x40
Screw SM9/64"x40
1
4
11312003
护针片
Needle guard patch
1
5
201S115009
螺钉SM9/64"x40 L=5.5
Screw SM9/64"x40 L=5.5
1
6
113S11001
螺钉SM11/64"x40 L=12
Screw SM11/64"x40 L=12
2
7
10128003
刀架座螺钉垫圈
Washer
2
8
14012004
刀架压板组件
Knife bracket press component
1
9
11303012
偏心连杆
Eccentric connecting rod
1
10
113S17002
螺钉SM11/64"x40 L=4.4
Screw SM11/64"x40 L=4.4
2
11
14019004
活动刀(薄料短槽)
Motorial knife
1
12
114119002
活动刀(厚料短槽)
Motorial knife(H)
1
13
11307001
剪线刀架
Knife bracket
1
14
113S20001
连杆螺钉SM11/64"x40
Hinge Screw SM11/64"x40
2
15
114112013
连杆
Connecting rod
1
16
114S16004
螺母SM11/64"x40
Nut SM11/64"x40
1
17
14004002
切线曲柄
Crank
1
18
11502003
驱动曲柄挡块
Crank driver stopper block
1
19
S05004
螺钉M5 L=14
Screw M5 L=14
1
20
11327001
弹簧
Spring
1
21
11230004
14孔接线器
Plug
1
22
11303003
切线轴套
Thread cutting shaft bushing
1
23
11503005
驱动曲柄轴衬套
Crank drive shaft bushing
1
24
113S14020
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
25
11327002
弹簧
Spring
1
26
11304002
切线凸轮曲柄轴
Crank shaft
1
27
11304004
切线凸轮轴
Crank shaft
1
28
116S14005
螺钉SM1/4"x40 L=10
Screw SM1/4"x40 L=10
2
29
11309030
凸轮顶柱
Push rod
2
30
11310004
切线凸轮
Cam
1
31
11310011
凸轮(厚料)
Cam(H)
1
32
11324001
滚柱
Rooolling pin
1
33
1138NS16001
螺母SM11/64"x40
Nut SM11/64"x40
1
34
140040100
切线驱动组件
Thread trimmer drive asm.
1
35
14002004
切线驱动轴
Shaft
1
36
H05013
GB/T896-1986挡圈6
Snap ring 6
1
37
10112003
挡杆曲柄护板
Cunter weight protecting
1
38
11322003
电磁铁缓冲片
Solenoid cushion rubber
1
39
11493000500
切线电磁铁组件
Thread trimmer solenoid asm.
1
40
113822005
电磁铁橡胶垫
Washer
1
41
112S16006
螺母SM1/4"x40
Nut SM1/4"x40
1
42
1401200200
切线电磁铁支架组件
Bracket
1
43
11309001
切线电磁铁顶销
Solenoid pin
1
44
W02018
GB/T93-1987弹簧垫圈4
Washer
2
45
N01005
螺钉M4
Nut M4
2
46
S17002
螺钉M6 L=10
Screw M6 L=10
2
47
14127003
切线复位簧
Spring
1
48
14112022
切线红杆
Tangent lever
1
49
10112003
杠杆曲柄护板
Needle bar crank protecting plate
1
50
H03015
GB/T894.1卡簧8
Ring 8
1
51
11230004
12孔接线器
Plug
1
jintex.in
Page 8 — 7. 绕线部件/ Bobbin Components
8. 油盘、膝抬压脚部件/Oil Ceservoir & Knee Lifter Components
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
7. 绕线部件/ Bobbin Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
1413104900
绕线器组件
Bobbin winder asm
1
2
114S11008
螺钉M4 L=6
Screw M4 L=6
1
3
W01142
GB/T 97.1 平垫圈4
Washer 4
1
4
W01142
GB/T 97.1 平垫圈4
Washer 4
1
5
14113002
压线控制板
Pressure line control board
1
6
14112020
垫圈
Washer
1
7
13812110
调节板
Regulating plate
1
8
13827013
复位弹簧
Reset spring
1
9
141000300
绕线凸轮组件
Winding cam asm.
1
10
11329020
开口挡圈5
Ring 5
2
11
1141NS10001
复合槽盘螺钉TSM9/64"×40
Screw SM9/64"×40
1
12
W02865
GB 93弹簧垫圈3
Washer 3
1
13
14111004
绕线轮
Winding wheel
1
14
001110
O型圈25x7
O ring 25x7
1
15
S04090
螺钉M2 L=4
Screw M2 L=4
1
16
14119003
割线刀
Secant cutter
1
17
14111002
绕线衬垫
Winding gasket
1
18
113831002
绕线器主座
The main seat
1
19
10127061
复位拉簧
Drag spring
2
20
14127060
弹簧
Spring
1
21
14102003
绕线器主轴
principal axis
1
22
1410510600
绕线器连杆组件
Bobbin connecting rod asm
1
23
14111006
止动轮
Driven wheel
1
24
N07008
螺母SM9/64"×40
Nut SM9/64"×40
1
25
S09103
螺钉M4 L=4
Screw M4 L=4
2
26
11422062
密封垫
Washer
1
27
114S11003
螺钉SM3/16"×28 L=10
Screw SM3/16"×28 L=10
3
28
S10009
螺钉M6 L=8
Screw M6 L=8
2
29
11435013
绕线器驱动轮
Driving wheel
1
30
1411300600
底线线架螺母
Bobbin thread tension asm.
1
31
141S16019
小夹线器螺母
Thread tension nut
1
32
11427006
夹线弹簧
Spring
1
33
14112015
夹线板
Thread tension disk
1
34
11413022
夹线过线板
Thread tension guide plate
1
35
112S13004
螺钉
Screw
1
36
114S16001
螺母SM11/64"×40
Nut SM11/64"×40
1
8
7
8
6
4
5
3
2
1
19
19
19
19
20
18
21
22
23
8. 油盘、膝抬压脚部件/Oil Ceservoir & Knee Lifter Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
114101010
油盘
Oil reservoir
1
2
14022001
油盘密封垫
Seal
1
3
H05012
开口挡圈4(日标)
Snap ring 4
1
4
40128013
垫圈6.2×13×1
washer 6.2×13×1
2
5
14327002
顶帽弹簧
Knee lifter push rod Spring
1
6
11211005
自锁式尼龙扎带
Cable band
1
7
11411012
顶帽组件
Knee lifter push rod hat
1
8
114122009
顶帽防护帽
Knee lifter push rod
1
9
101S11023
螺钉SM3/16"×28 L=6.5
Screw SM3/16"×28 L=6.5
1
10
10131001
油盘磁铁
Oil reservoir magnet
1
11
1401202700
抬压脚双向曲柄组件
Lifting foot bidirectional crank asm
1
12
14027016
压脚双向曲柄
Knee lifter crank
1
13
H05010
挡圈9
Snap ring 9
1
14
1400200100
抬压脚轴组件
Knee lifter shaft
1
15
S07020
螺钉M6 L=20
Screw M6 L=20
2
16
101S16004
螺母M6
Nut M6
2
17
101S12002
螺钉M6 L=24.5
Screw M6 L=24.5
1
18
S05240
螺钉M6 L=20
Screw M6 L=20
4
19
20528014
油盘放油垫圈
Ring
1
20
301S11015
螺钉SM3/8"×28 L=13
Screw SM3/8"×28 L=13
1
21
113S11004
螺钉M4 L=8
Screw M4 L=8
1
22
114110021
电线压板
Wire clamp
1
jintex.in
Page 9
9
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
44
45
46
47
48
49
50
51
52
53
9. 润滑、油量检测部件/Oil Lubrication & Oil Measuring Components
序号
NO
公司件号
Company Part NO
Part NO
名称
Name
PartName
零件描述
Description
数量
Number
1
11211004
油窗
Oil sight window
1
2
10122019
油圈O形圈
Rubber ring
1
3
14121001
主轴供油管
Main shaft oil tube
1
4
10121001
下轴供油管
Hook driving shaft oil tube
1
5
10112020
油泵安装板
Oil pump installing base
1
6
101530008
油泵连接螺柱
Oil pump connecting stud
1
7
W03002
弹垫
Spring washer
1
8
209S12001
螺钉SM11/64"×40 L=10.5
Screw SM11/64"×40 L=10.5
1
9
10103022
油泵衬套
Oil pump bushing
1
10
101530007
螺钉M7×0.75 L=5
Screw M7X0.75 L=5
1
11
10127013
柱塞簧
Plunger spring
1
12
10122018
油缸柱塞
Plunger
1
13
10120001
油泵体
Oil pump
1
14
S04093
螺钉M3 L=6
Screw M3 L=6
3
15
10111003
油泵叶轮
Oil pump impeller
1
16
10112021
油泵叶轮托板
Oil pump impeller cover
1
17
10111007
油泵盖
Lubricating oil pump cover
1
18
101S30006
螺钉ST2.9 L=10
Screw ST2.9 L=10
3
19
1012000100
油泵组件
Lubricating oil pump component
1
20
10136001
供油接头
Rubber joint
1
21
14112007
过线勾
Thread hook
1
22
W02004
GB/T93-1987弹垫M6
Spring Washer M6
1
23
116S30003
螺钉SM15/64"×28 L=14.5
Screw SM15/64"×28 L=14.5
1
24
14021003
铝油管
Aluminum tubing
0.48m
25
14021001
PVC油管
Tubing
1
26
11381004
尼龙扎带
Cable band
2
27
14036002
油盘油嘴
Oil nozzle
1
28
14036004
油盘油嘴
Oil pipe clamp spring
2
29
20429001
油管卡簧
Oil pipe clamp spring
4
30
10123010
油线
Oil wick
1
31
14036003
油盘油嘴
Oil nozzle
2
32
14022011
O型圈
Rubber ring
1
33
140530001
油量调节螺钉
Oil volume adjusting screw
1
34
10127015
油管夹
Oil felt clamp
1
35
10123006
油毡
Oil felt
1
36
1011S1004
螺钉SM3/16"×28 L=7
Screw SM3/16"×28 L=7
1
37
10112023
油管夹
Oil tube clamp
1
38
10121008
回油油管
Oil return tube
1
39
10121007
回油管组件
Oil return tube component
1
40
10112025
油线固定板
Oil wick fixing plate
1
41
101S11010
螺钉SM9/64"×40 L=11
Screw SM9/64"×40 L=11
2
42
10123010
油线
Oil wick
1
43
13811015
油窗
Oil window
1
44
140516001
油标组件
Oil measuring device
1
45
11493000700
油量检测装置固定板
Pull spring fixing plate
1
46
14011004
油量检测罩壳
Shell
1
47
14002005
导向柱
Guide pillar
1
48
11493000700-02
浮子
Float
1
49
H05040
开口挡圈6
Ring 6
1
50
101S11026
螺钉SM15/64"×28 L=9
Screw SM15/64"×28 L=9
2
51
52
53
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
10. 机头附件/Machine Head Accessories(1)
序号
NO
公司件号
Company Part NO
Part NO
名称
Name
PartName
零件描述
Description
数量
Number
1
1011203100
机头连接部件
Hinge component
2
2
14022022
机头座垫
Die cushion
2
3
101S30010
机头连接座钉P19
Nail P19
2
4
1141NS30001
机头连接座钉P25
Nail P25
4
5
10131004
螺丝刀(小)
Screw driver small
1
jintex.in
Page 10 — 10. 机头附件/Machine Head Accessories(2)
10. 机头附件/Machine Head Accessories(2)
序号 NO
公司件号
Part NO
名称
Name
PartName
零件描述
Description
数量
Number
6
10131003
螺丝刀(中)
Screw driver,medium
1
7
20731047
螺丝刀(大)
Screw driver,large
1
8
10122060
机头连接钩座
Head connecting rubber cushion
2
9
14022023
机头支架
Nose support
2
10
101S30014
螺钉M4 L=20
Wood screw M4 L=20
6
11
115011003
机头支柱
Machine head rest pin
1
12
13817001
机针(定位14#)
Needle
4
13
20131039
机针DP×5#21 (厚料)
Needle(H)
4
14
10118003
漏斗
Funnel
1
15
138101200
梭心
Bobbin
2
16
115011005
油壶组件
Oiler component
1
17
114131001
油盘托盘
Disk tray
1
18
1383100300
防尘罩
Dust cover
1
19
20131019
线架组件
Thread stand asm.
1
20
W01047
线架杆顶防橡胶
Spool rest rod rubber cap
1
21
S04050
平垫圈5
Washer 5
2
22
N01034
螺栓M5 L=16
Screw M5 L=16
1
23
1381022
螺母M5
Nut M5
4
24
13831022
上线架过线杆
Spool rest arm upper
1
25
10113011
过线圈(内)
Thread guide ring
2
26
10113010
过线圈(外)
Thread guide ring
2
27
13831019
线架杆上节
Spool rest rod upper
1
28
13831021
线架杆接头
Spool rest rod joint
1
29
13831020
线架杆下节
Spool rest rod lower
1
30
W01052
橡胶垫圈
Spool rest rod rubber ring
2
31
N02004
平垫圈16
Washer 16
2
32
S04051
螺母M16×1.5
Nut M16×1.5
1
33
N01034
螺栓M5 L=31.5
Screw M5 L=31.5
1
34
W03002
螺母M5
Nut M5
2
35
13831023
弹簧垫圈5
Spring washer 5
2
36
13831024
下线架过线杆
Spool rest arm lower
1
37
20131010
线盘
Spool rest
2
38
20131006
线盘垫
Spool rest cushion
2
39
13831025
线盘托棒
Spool pin
2
线团防松垫
Spool retainer
2
公司地址(Address of Company):
中国浙江省台州市椒江区三甲海大道东段1008号
NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG
邮编(Zip Code): 318000
国内销售部(Domestic Trade Department):
电话(TEL): 0086-0576-88177788 88177789
传真(FAX): 0086-0576-88177758
国贸部(International Trade Department):
电话(TEL): 0086-0576-88177782 88177774
传真(FAX): 0086-0576-88177787
服务热线: 400-8876858
http://www.chinajack.com
资料如有更改,恕不另行通知,以实物为准。
You will not be informed if the file has been revised.Please set sample as standard.
日期: 2020.12
jintex.in
