Page 1 — 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
JACK 杰克
快速服务 100%
A7/A7 系列
A7/A7 Series
零件手册
Parts Manual
1
28 27
26
25
24
23
22
21
20
19
18
16
15
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
47
46
45
44
43
42
41
40
39
37
36
35
34
33
32
31
30
29
1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
101S11001
螺钉 SM3/16"×28 L=9
Screw SM3/16"×28 L=9
14
2
10122003
面板调节孔螺塞
Rubber plug
2
3
115037001
面板商标
Head card
1
4
93000555
面板(喷漆)
Face plate asm
1
5
115201005
面板
Face plate asm
1
6
13813005
左线钩
Thread guide left
1
7
115022002
面板垫
Face plate gasket
1
8
101S11027
螺钉 SM1/8"×44 L=3.4
Screw SM1/8"×44 L=3.4
1
9
113812019
面板防油板
Face oil shield asm
1
11412082
面板防油板(厚料)
Face oil shield asm(H)
1
10
11523000600
倒缝开关组件(三开关)
Three switch components
1
11
101S11004
螺钉 SM3/16"×28 L=7
Screw SM3/16"×28 L=7
2
12
13812018
挑线杆防罩
Thread take-up lever cover
1
13
10122004
针杆曲柄孔螺塞
Rubber plug
1
14
10122005
挑线连杆销孔螺塞
Rubber plug
1
15
10122005
挑线连杆销孔螺塞
Rubber plug
1
16
114S11015
螺钉 SM9/64"×40 L=6
Screw SM9/64"×40 L=6
2
17
11419001
割线刀
Knife
1
18
138S05001
螺钉 M3 L=12
Screw M3 L=12
2
19
13822001
操作屏孔塞
Rubber plug
2
20
21012018
油封垫
Oil sealing washer
1
21
21022007
油封
Rubber plug
1
22
115022001
后窗板垫
Side plate gasket
1
jintex.in
Page 2
23 115012001 后窗板
24 930000263 后窗板(喷漆)
25 13812109 侧盖固定板
26 S04010 螺钉M4 L=5.5
27 H05002 卡簧3
28 138S30007 侧盖螺钉SM3/16"×28
29 113811004 电控罩销
30 115026002 一体机电控组件
31 11433000400 一体机电控组件(众邦)
11523000900 一体机电控组件(众邦)(+)
32 114S13001 螺栓(内六角)M5 L=20
33 114S30001 螺栓(内六角)M5 L=25
34 W01009 垫圈5
35 114130006 无线通信模块(+)
36 10122007 下轴工艺孔塞
37 115026002 一体机电控面组件
11433000500 一体机电控面组件(众邦)
11523001000 一体机电控面组件(众邦)(+)
38 14322007 橡皮塞(双孔)
39 138S08006 螺钉SM3/16"×28 L=7
40 13810008 小夹线器螺柱
41 13812066 过线板
42 14112017 小夹线弹簧
43 11227001 小夹线弹簧螺母
44 141S16019 小夹线器组件
45 1411300400 夹线器组件
11411300200 夹线器组件(厚料)
1411300500 夹线器组件
46 141S16013 夹线螺母
47 10122007 夹线制动板
48 10127002 夹线弹簧
10127002 夹线弹簧(厚料)
49 11427050 松线板
50 14112016 夹线板
51 14112015 夹线螺钉
52 141S30001 挑线簧
10127001 挑线簧
53 10127031 挑线簧(厚料)
54 10103011 挑线簧调节座
55 10122014 挑线簧调节座O型圈
56 101S15005 螺钉SM9/64"×40 L=5.5
57 11326012 松线钉
58 101S11007 螺钉SM11/64"×40 L=6
59 10113004 右线勾
60 101S15010 螺钉SM15/64"×28 L=10.5
61 401S16001 螺母SM9/64"×40
62 11413011 固定式缓线钩
63 101S11002 螺钉SM11/64"×40 L=5.5
64 13812019 卷边器座
65 207S14007 凹端紧定螺钉 M4 L=6
66 11523000800 电子夹线器组件
67 104S17002 针板螺钉SM11/64"×40 L=6.5
13815011 针板(2.0)
68 11315001 针板(厚料)
10815001 针板(-7)
69 143S12002 底板支柱
70 101S11019 螺钉SM3/32"×56 L=2
71 10127009 推板簧
72 10115002 推板
73 101S11026 螺钉SM15/64"×28 L=9
Side plate
Side plate
Fixed plate
Screw M4 L=5.5
Circlip 3
Screw SM3/16"×28
Cable band
Pin
Electronic components(Z)
Electronic components(Z)(+)
Screw M5 L=20
Screw M5 L=25
Washer 5
RF wireless data communication module(+)
Rubber plug
Control panel(Z)
Control panel(Z)(+)
Rubber plug
Screw SM3/16"×28 L=7
Thread tension post
Thread tension guide plate
Thread tension disk
Thread tension spring
Thread tension nut
Thread tension asm
Thread tension asm
Thread tension asm(H)
Thread tension nut
Thread disk rotating stopper
Thread tension spring
Thread tension spring A (H)
Disk stopper
Thread tension disk
Thread tension post
Thread take-up spring
Thread take-up spring (H)
Thread tension base
Rubber ring
Screw SM9/64"×40 L=5.5
Tension release pin
Screw SM11/64"×40 L=6
Thread guide right
Screw SM15/64"×28 L=10.5
Nut SM9/64"×40
Thread guide
Screw SM11/64"×40 L=5.5
Ruler stop seat
Screw M4 L=6
Nest less e-device
Screw SM11/64"×40 L=6.5
Needle plate
Needle plate(H)
Needle plate(-7)
Machine head stud
Slide plate SM3/32"×56 L=2
Slide plate spring
Slide plate
Screw SM15/64"X28 L=9
1
1
1
1
1
1
8
1
1
1
3
1
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
Page 3
2. 上轴、挑线部件/Main Shaft & Thread Take-up Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
10126001
挑线连杆销
Thread take-up connecting rod pin
1
11326013
挑线连杆销(中厚料)
Thread take-up connecting rod pin (H-M)
1
2
101S15001
螺钉SM15/64"x28 L=15
Screw SM15/64"x28 L=15
1
11305010
挑线连杆
Thread take-up connecting rod
1
3
10105001
挑线连杆(厚料)
Thread take-up connecting rod (H)
1
11328010
垫片(中厚料)
washer(H-M)
1
4
H05013
GB/T 896-1986挡圈6(中厚料)
Snap ring 6 (H-M)
1
5
10112003
针杆曲柄护板
Needle bar crank protecting plate
1
6
10112003
针杆曲柄护板
Needle bar crank protecting plate
1
7
1013800100
挑线杆组件
Thread take-up lever asm
1
1133800200
挑线杆组件(厚料)
Thread take-up lever asm(H)
1
8
10124001
挑线杆滚针轴承
Needle bearing
2
9
1011000100
挑线杆曲柄
Thread take-up crank
1
1011000400
挑线杆曲柄(厚料)
Thread take-up crank(H)
1
10
11310010
挑线曲柄分部件(中厚料)
Thread take-up crank(H-M)
1
11
10105002
针杆连杆
Needle bar connecting rod
1
12
101S15004
螺钉SM9/64"x40(左旋)L=4.8
Screw SM9/64"x40(左旋) L=4.8
1
13
101S15004
螺钉SM9/64"x28 L=16
Screw SM9/32"x28 L=16
1
14
101S11003
螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
10404001
针杆曲柄
Needle bar crank
1
11404035
针杆曲柄(厚料)
Needle bar crank(H)
1
15
101S15002
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
2
16
1140300200
上轴前轴套组件
Main shaft bushing front
1
17
101S15006
螺钉SM15/64"x28 L=7
Screw SM15/64"x28 L=7
1
18
12203002
主轴中轴套
Main shaft bushing mid
1
19
101S15006
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
4
20
10108001
上轴挡圈
Main shaft thrust collar
2
21
H03002
挡圈20
Snap ring 20
1
22
14310001
送料偏心轮
Feed eccentric cam
1
115210001
偏心轮(-H)
Feed eccentric cam(-H)
1
23
101S11013
螺钉SM1/4"x40 L=13
Screw SM1/4"x40 L=13
2
24
13803002
上轴后轴套
The rear axle sleeve
1
25
10122105
上轴后套油封
Oil seal
1
jintex.in
Page 4 — 3. 压料、自动抬压脚部件/Presser Bar & Auto Lifter Components (1)
26 H03001 GB/T894.1-1986挡圈15 Snap ring 15 1
27 115202002 上轴 Main shaft 1
28 115008001 电机防尘套 Motor dust jacket 1
29 S10026 螺钉M3 L=3 Screw M3 L=3 2
30 S10009 螺钉 Screw 2
31 302830 手轮(喷漆) Handwheel 1
32 95100172 电机壳组件(配鲍麦) Motor cover asm(Power Max) 1
33 95100116 电机光栅组件(配鲍麦) Motor grating sensor asm(Power Max) 1
34 S09022 内六角平端紧定螺钉M3 L=4 Screw M3 L=4 1
35 S09162 内六角平端紧定螺钉M6 L=6 Screw M6 L=6 1
36 95100182 电机转子总成 Motor rotor 1
37 95100171 电机定子总成 Motor stator 1
38 13811060 电机绝缘防护罩 Motor insulation shield 1
39 W02058 GB 93-1987弹垫d5 Spring washer 5 3
40 S05901 螺钉M5 L=50 Screw M5 L=50 3
41 S09162 内六角平端紧定螺钉M6 L=6 Screw M6 L=8 1
42 S09022 内六角平端紧定螺钉M3 L=4 Screw M3 L=4 1
43 951S15011 螺钉组合件M3 L=12 Screw Asm M3 L=12 5
44 10122012 上轴孔套 Rubber plug 1
45 114333016 光电伺服电机(众邦) Motor(Z) 1
46 14112004 防油罩 Oil shield 1
47 14123001 防油罩油棉 Oil cotton 1
48 141S11002 螺钉SM3/16"×28 L=4.5 Screw SM3/16"×28 L=4.5 1
3
序号NO 公司件号 Part NO 名称 NamePartName 零件描述 Description 数量 Number
1 101S11010 压脚扳手螺钉SM9/64"x40 L=11 Screw SM9/64"x40 L=11 1
2 10128002 压脚扳手螺钉垫圈 Washer 1
3 13811029 压脚扳手 Hand lifter 1
4 001004 O型圈 Rubber ring 1
5 1411000200 压脚扳手凸轮分部件 Hand lifter cam asm. 1
6 101S20001 前杠杆螺纹销 Screw 2
7 10128015 螺纹销橡胶垫圈 Washer 2
8 1411201100 抬压脚前杠杆分部件 Lift front lever component 1
9 10112013 抬压脚拉杆 Knee lifter pull rod 1
10 H05003 GB/T896-1986挡圈5 Snap ring 2
jintex.in
Page 5 — 3. 压料、自动抬压脚部件/Presser Bar & Auto Lifter Components (2)
3. 压料、自动抬压脚部件/Presser Bar & Auto Lifter Components (2)
序号NO
公司件号
Part NO
名称
Name
零件描述
Description
数量
Number
11
11329020
挡圈5
Snap ring
2
12
13712004
压脚升降板
Lifting plate
1
13
101S20004
抬压脚拉杆螺钉SM3/16"x32
Hinge Screw SM3/16"x32
1
14
1411200300
抬压脚前杠杆组件
Knee lifter lever asm
1
15
101S20003
后杠杆轴位螺钉SM15/64"x28
Hinge screw SM15/64"x28
1
16
11312034
抬压脚后杠杆
Knee lifter back lever
1
17
11326005
销子
Pin
1
18
113829001
R形弹性开口销φ1.5
Cotter pin
1
19
11326006
电磁铁接头
Solenoid connector
1
20
113S16004
法兰螺母M8
Flange nuts M8
1
21
11322008
电磁铁上垫片
washer
1
22
1149300600
抬压脚电磁铁组件
Solenoid asm.
1
23
101S11001
螺钉SM3/16"x28 L=9
Screw SM3/16"x28 L=9
4
24
114112022
抬压脚顶杆
Knee lifter connecting rod
1
25
10127003
松线辅钉弹簧
Spring
1
26
10128001
松线辅钉垫片
Washer
1
27
H05012
挡圈4 (日标)
Snap ring
1
28
10126003
松线辅钉
Thread release supporting pin
1
29
114127002
松线顶板复位簧
Spring
1
30
115026001
松线顶板连接销
Pin
1
31
138S08006
螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
32
14128001
松线顶板垫片
Loose top gasket
1
33
H03054
GB/T894.1-1986挡圈6
Snap ring 6
1
34
14101017
松线顶板
Wire release plate
1
35
138S08006
螺钉SM3/16" L=7
Screw SM3/16" L=7
1
36
11413001800
松线电磁铁组件
Solenoid
1
37
12922015
橡皮塞
Spout plug
1
38
114122006
松线油封
Oil seal
1
39
113811018
调压螺钉
Press regulating screw
1
40
1138NS30003
调压螺钉(厚料)
Press regulating screw (H)
1
41
13811018
调压螺钉组件
Presser regulating screw asm.
1
138NS16005
调压螺母
Press regulating nut
1
42
1138NS16005
调压螺母(厚料)
Press regulating nut(H)
1
43
10102003
调压导杆
Press regulating guide bar
1
113827010
调压簧
Press regulating spring
1
10127024
调压簧(厚料)
Press regulating spring(H)
1
44
10409001
压杆导架
Presser bar guide bracket
1
45
101S15007
螺钉SM1/4"x40 L=8
Screw SM1/4"x40 L=8
1
46
11493001000
薄厚检测磁铁组件
Thick and thin detection magnet
1
47
114S11015
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
48
11493001100
薄厚检测装置组件
Thickness measuring device
1
49
101S11007
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
50
14322004
厚薄检测橡胶塞
Rubber plug
2
51
10122112
压杆防油套
Pressure bar oil cover
1
52
113803007
压杆衬套
Presser bar bushing,lower
1
53
113802009
压杆
Presser bar
3
54
101S11009
螺钉SM9/64"x40 L=10.5
Screw SM9/64"x40 L=10.5
1
55
1131600600
压脚组件
Presser foot asm
1
1131600300
压脚组件(厚料)
Presser foot asm(H)
1
Page 6 — 4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
10122013
针杆上衬套孔塞
Rubber plug
1
2
10103009
针杆上衬套
Needle bar bushing upper
1
3
11402039
针杆
Needle bar
1
10102021
针杆(厚料)
Needle bar (H)
1
4
10138002
针杆连接柱
Needle bar connecting rod
1
5
101S11005
螺钉SM9/64"x40 L=6
Screw SM9/64"x40 L=6
1
6
10103010
针杆下衬套
Needle bar bushing lower
1
11303023
针杆下衬套(厚料)
Needle bar bushing lower(H)
1
7
10113002
针杆线勾
Needle bar thread guide
1
11412063
针杆线勾(厚料)
Needle bar thread guide(H)
1
8
13817001
机针(定位14#)
Needle
1
10117001
机针(14#)
Needle
1
10117002
机针DPx5#21(厚料)
Needle(H)
1
9
10413001
针杆下衬套线勾
Lower bushing thread guide
1
10113009
针杆下衬套线勾(厚料)
Lower bushing thread guide(H)
1
10
104S11006
螺钉SM1/8"x44 L=4.5
Screw SM1/8"x44 L=4.5
1
11
10109001
针杆连接柱滑块
Slide block
1
12
101S11008
螺钉SM11/64"x40 L=8
Screw SM11/64"x40 L=8
2
13
10109002
针杆接头滑块
Needle bar guide
1
14
10425004
上轴伞齿轮
Upper shaft bevel gear
1
15
10425003
竖轴上伞齿轮
Upper small bevel gear asm
1
16
10425002
竖轴下伞齿轮
Lower large bevel gear asm
1
17
101S15014
螺钉SM1/4"x40 L=7
Screw SM1/4"x40 L=7
8
18
10425001
下轴伞齿轮
Hook drive shaft bevel gear
1
19
113S11036
螺钉SM15/64"x28 L=4.7
Screw SM15/64"x28 L=4.7
1
20
10402020
竖轴上轴套
Upright shaft bushing upper
1
21
10102007
竖轴
Upright shaft
1
22
113803004
竖轴下轴套
Upright shaft bushing lower
1
23
10403019
下轴后轴套
Hook driving shaft bushing back
1
24
115008002
下轴挡圈
Hook driving shaft snap ring
1
25
14003004
下轴中套
Lower shaft middle bushing
1
26
11304003
下轴
Hook driving shaft
1
27
11522001
油封组件12
Oil seal 12
1
28
114122004
下轴前套油封(大)
Oil seal
1
29
14003001
下轴前套组件
Hook driving shaft bushing front
1
30
1142201600
油封组件
Oil seal
1
31
13823001
下轴限油芯
Oil wick
1
32
101S30005
下轴限油螺钉SM3/16"x32
Set screw SM3/16"x32
1
115018001
薄料旋梭(精品)
Hook asm(-C)
1
33
11418002
德盛有尾巴厚料旋梭(方德款)(-CH)
Hook asm (China Desheng) (-CH)
1
11418004
广濑厚料旋梭(新)(有尾巴)(厚料)
Hook asm(Hirose)(H)
1
34
10118003
梭心
Bobbin
1
35
11218504
梭壳
Bobbin case asm.
1
36
10112016
旋梭定位钩
Finger postioner
1
10112032
旋梭定位钩(厚料)
Finger postioner(H)
1
37
116S11005
螺钉SM11/64"x40 L=13
Screw SM11/64"x40 L=13
1
38
101S11012
螺钉SM11/64"x40 L=4.8
Screw SM11/64"x40 L=4.8
1
39
113S14020
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
jintex.in
Page 7
5
A7零件手册20210511
5. 送料部件/Feed Mechanism Components
序号NO
公司件号
Part NO
名称
Name
零件描述
Description
数量
Number
1
S09019
螺钉M5 L=5
Screw M5 L=5
2
2
14302001
送料轴
Feed rocker shaft
1
3
115224001
推力球轴承
Thrust ball bearing
2
4
11520700100
牙架座组件
Bracket assembly
1
5
101S11025
螺钉SM11/64"x40 L=7
Screw SM11/64"x40 L=7
1
6
101S11002
螺钉SM11/64"x40 L=5.5
Screw SM11/64"x40 L=5.5
1
7
14308002
送料轴挡圈
Feed rocker shaft snap ring
1
8
209S14008
螺钉SM11/64"x40 L=4.5
Screw SM11/64"x40 L=4.5
2
9
14303001
送料轴后挡套
Axle sleeve
1
10
407N01001
自锁螺母M5
Nut M5
1
11
30228008
垫圈
Washer
1
12
115226002
送料传动销
Feed drive pin
1
13
14326001
送料曲柄连接销
Feed crank connecting pin
1
14
14309001
送料挡体
Rocker shaft connecting rod
1
15
B04020
GB/278轴承695ZZ
bearing
4
16
209S14008
螺钉SM11/64"x40 L=4.5
Screw SM11/64"x40 L=4.5
2
17
14304001
送料曲柄
Feed rocker shaft crank
1
18
S09019
螺钉M5 L=5
Screw M5 L=5
2
19
10128003
牙架座螺钉垫圈
Washer
3
20
W03002
弹簧垫圈5
Spring washer 5
3
21
114S13001
螺栓(内六角)M5 L=20
Screw M5 L=20
3
22
115201004
电机安装支架
Motor mounting bracket
1
23
417S30034
螺栓(带垫圈)M4×14
Bolt (with washer)M4x14
4
24
115233004
步进电机
Stepper motor
1
25
400093
拾牙连杆
Connecting rod
1
26
101S16003
拾牙连杆轴位螺母SM9/32"x28
Hinge Screw SM9/32"x28
1
27
101S11016
螺钉SM3/16"x28 L=14
Screw SM3/16"x28 L=14
1
28
101S20005
拾牙连杆轴位螺钉SM9/32"x28
Hinge Screw SM9/32"x28
1
29
114022002
橡胶塞15.5
Rubber plug 15.5
1
30
114010004
拾牙后曲柄
Feed driving shaft crank
1
31
114022001
送料轴后挡套密封圈
Rubber ring
1
jintex.in
Page 8

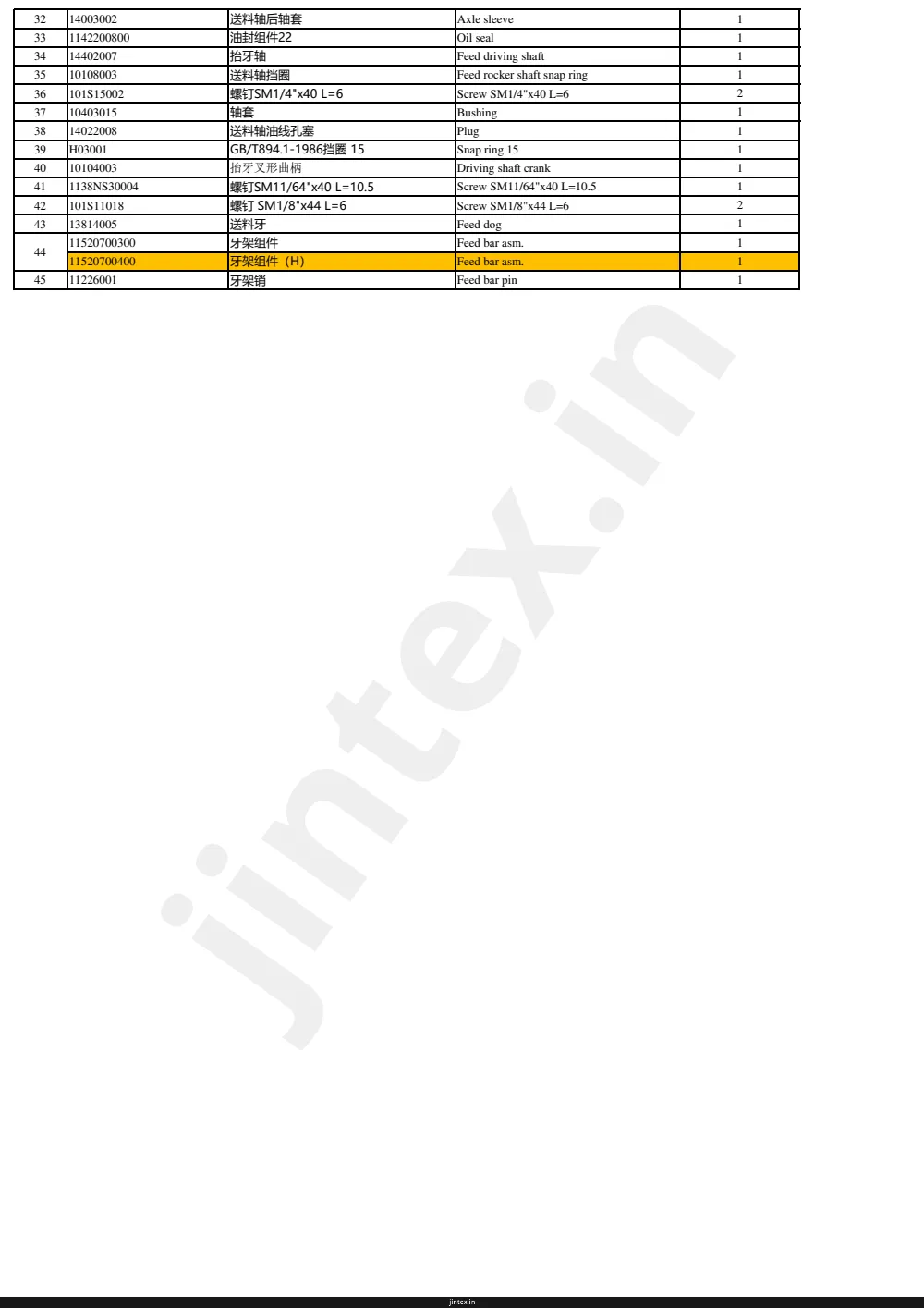

32
14003002
1142200800
14402007
10108003
101S15002
10403015
14022008
H03001
10104003
1138NS30004
101S11018
13814005
1520700300
1520700400
11226001
送料轴后轴套
油封组件22
拾牙轴
送料轴挡圈
螺钉SM1/4"x40 L=6
轴套
送料轴油孔塞
GB/T894.1-1986挡圈 15
拾牙叉形曲柄
螺钉SM11/64"x40 L=10.5
螺钉SM1/8"x44 L=6
送料牙
牙架组件
牙架组件(H)
牙架销
Axle sleeve
Oil seal
Feed driving shaft
Feed rocker shaft snap ring
Screw SM1/4"x40 L=6
Bushing
Plug
Snap ring 15
Driving shaft crank
Screw SM11/64"x40 L=10.5
Screw SM1/8"x44 L=6
Feed dog
Feed bar asm.
Feed bar asm.
Feed bar pin
1
1
1
1
2
1
1
1
1
1
2
1
1
1
1
Page 9 — 6. 切线部件/Thread Trimmer Components
6
6. 切线部件/Thread Trimmer Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
113S15002
螺钉SM1/8"x44 L=9.5
Screw SM1/8"x44 L=9.5
1
2
115019001
定刀
Secant knife
1
3
113S17001
螺钉SM9/64"x40
Screw SM9/64"x40
1
4
11312003
护针片
Needle guard patch
1
5
201S11009
螺钉SM9/64"x40 L=5.5
Screw SM9/64"x40 L=5.5
1
6
113S11001
螺钉SM11/64"x40 L=12
Screw SM11/64"x40 L=12
2
7
10128003
牙架座螺钉垫圈
Washer
2
jintex.in
Page 10
8
115212005
刀架压板组件
Knife bracket press component
1
9
115212001
刀架压板
Eccentric connecting rod
1
10
11303012
短套
Short bushing
2
11
113S17002
螺钉SM11/64"x40 L=4.4
Screw SM11/64"x40 L=4.4
2
12
14019004
114119002
活动刀(薄料短槽)
活动刀(厚料短槽)
Motorial knife(For the No Bird's Nest
Motorial knife(H)
1
1
13
115219001
剪线刀架
Knife bracket
1
14
115226001
剪线连杆偏心销
Eccentric pin of thread cutting link
1
15
113S20001
连杆螺钉SM11/64"x40
Hinge Screw SM11/64"x40
1
16
114112013
连杆
Connecting rod
1
17
114S16004
螺母SM11/64"x40
Nut SM11/64"x40
1
18
S09019
螺钉M5 L=5
Screw M5 L=5
2
19
115222001
驱动曲柄止动块
Crank driver stopper block
1
20
S05004
螺钉M5 L=14
Screw M5 L=14
1
21
115204001
切线曲柄
Crank
1
22
115227002
剪线复位簧
Spring
1
23
11230004
18孔接线器
Plug
1
24
11303003
切线轴套
Thread cutting shaft bushing
1
25
11503005
驱动曲柄衬套
Crank drive shaft bushing
1
26
113S14020
螺钉SM11/64"x40 L=6
Screw SM11/64"x40 L=6
1
27
11322002
扭簧端盖
Spring cover
1
28
11327002
弹簧
Spring
1
29
11304002
切线凸轮曲柄轴
Crank shaft
1
30
1400400100
剪线驱动组件
Thread trimmer drive asm.
1
31
101S14001
螺钉SM11/4"x40 L=6
Screw SM11/4"x40 L=6
1
32
11324001
滚柱
Rolling pin
1
33
1138NS16001
螺母SM11/64"x40
Nut SM11/64"x40
1
34
116S14005
螺钉SM1/4"x40 L=10
Screw SM1/4"x40 L=10
2
35
11309030
凸轮顶柱
Push rod
2
36
114110002
剪线凸轮
Cam
1
11310011
剪线凸轮(厚料)
Cam(H)
1
37
14002004
切线驱动轴
Shaft
1
38
H05013
GB/T896-1986弹簧圈6
Snap ring 6
1
39
10112003
针杆曲柄护板
Counter weight protecting
1
40
11322003
电磁铁缓冲片
Solenoid cushion rubber
1
41
14022013
孔塞8.5
spout plug 8.5
1
42
1413003400
剪线电磁铁组件
Thread trimmer solenoid asm.
1
43
113822005
电磁铁橡胶垫
Washer
1
44
112S16006
螺母SM1/4"x40
Nut SM1/4"x40
1
45
1401200200
切线电磁铁支架组件
Bracket
1
46
11309001
切线电磁铁顶销
Solenoid pin
1
47
W02018
GB/T93-1987弹簧垫圈4
Washer
2
48
N01005
螺母 M4
Nut M4
2
49
S17002
螺钉M6 L=10
Screw M6 L=10
2
50
11327001
弹簧
Spring
1
51
14112022
切线杠杆
Tangent lever
1
52
10112003
针杆曲柄护板
Needle bar crank protecting plate
1
53
H05015
GB/T894.1卡簧8
Ring 8
1
54
11230004
12孔接线器
Plug
1
Page 11 — 7. 绕线部件/ Bobbin Components
7. 绕线部件/ Bobbin Components
序号NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
1383103900
绕线器组件
Bobbin winder asm
1
2
114S11008
螺钉M4 L=6
Screw M4 L=6
1
3
W01142
垫圈4
Washer 4
1
4
10113030
压线控制板
Thread press control plate
1
5
10111120
绕线衬垫
Winding pad
1
6
13831101
绕线器装置主座
Bobbin winder bed
1
7
H05006
开口挡圈5
Snap ring 5
1
8
10127061
复位挡板簧
Spring
1
9
13812110
调节板
Regulating plate
1
10
10110030
绕线凸轮
Bobbin winder cam
1
11
S09045
螺钉M5 L=5
Screw M5 L=5
1
12
1380510600
绕线器连接杆组件
Bobbin winder connecting rod
1
13
13827103
满线复位簧
spring
1
14
10127060
弹簧
Spring
1
15
GB/T 896-1986
开口挡圈4
Snap ring 4
1
16
13802111
绕线器主轴
Bobbin winder mian shaft
1
17
13802026
绕线凸轮轴
Bobbin winder cam shaft
1
18
S09103
螺钉M4 L=4
Screw M4 L=4
2
19
13831102
绕线轮
Bobbin winder wheel
1
20
001110
O型圈
Ring
1
21
11422062
密封垫
Washer
1
22
114S11003
螺钉SM3/16"x28 L=10
Screw SM3/16"x28 L=10
3
23
1411300600
底线夹线器
Bobbin thread tension asm
1
24
141S16019
夹线螺母
Thread tension nut
1
25
11427006
小夹线弹簧
Spring
1
26
14112015
夹线板
Thread tension disk
2
27
11413022
夹线过滤板
Thread tension guide plate
1
jintex.in
Page 12 — 8. 油盘、膝抬压脚部件/Oil Ceservoir & Knee Lifter Components
28 112S13004 夹线螺钉 Screw 1
29 114S16001 螺母SM11/64"×40 Nut SM11/64"×40 1
30 11435013 绕线器驱动轮 Driving wheel 1
31 S10009 螺钉M6 L=8 Screw M6 L=8 2
8
7
6
4
5
4
3
2
1
19
24
23
22
21
19
8. 油盘、膝抬压脚部件/Oil Ceservoir & Knee Lifter Components
序号NO 公司件号 Part NO 名称 Name PartName 零件描述 Description 数量 Number
1 115201007 油盘 Oil reservoir 1
2 14022001 油盘密封垫 Seal 1
3 H05012 开口挡圈4(日标) Snap ring 4 1
4 40128013 垫圈6.2×13×1 washer 6.2×13×1 2
5 14327002 顶帽弹簧 Knee lifter push rod Spring 1
6 113811004 尼龙扎带 Cable band 1
7 114111012 顶帽组件 Knee lifter push rod 1
8 114122009 顶帽防护帽 Knee lifter push rod hat 1
9 101S11023 螺钉SM3/16"×28 L=6.5 Screw SM3/16"×28 L=6.5 1
10 10131001 油盘磁铁 Oil reservoir magnet 1
11 1401202700 抬压脚双向曲柄组件 Lifting foot bidirection crank asm. 1
12 10112027 抬压脚双向曲柄 Knee lifter crank 1
13 14027016 双向曲柄挡簧 Knee lifter spring 1
14 H05010 挡圈9 Snap ring 9 1
15 1400200100 抬压脚轴组件 Knee lifter shaft 2
16 S07020 螺钉M6 L=20 Screw M6 L=20 1
17 101S16004 螺母M6 Nut M6 4
18 101S12002 螺钉M6 L=24.5 Screw M6 L=24.5 1
19 S05240 螺钉M6 L=20 Screw M6 L=20 1
20 20528014 油盘放油垫圈 Ring 1
21 301S11015 螺钉SM3/8"×28 L=13 Screw SM3/8"×28 L=13 1
22 115212002 后电线压板 Wire clamp 1
23 113S11004 螺钉M4 L=8 Screw M4 L=8 2
24 115212003 前电线压板 Wire clamp 1
jintex.in
Page 13 — 9. 润滑、油量检测部件/Oil Lubrication & Oil Measuring Components
9
润滑、油量检测部件/Oil Lubrication & Oil Measuring Components
序号NO
公司件号
Part NO
名称
Name
零件描述
Description
数量
Number
1
11211004
油窗
Oil sight window
1
2
10122019
油窗O形圈
Rubber ring
1
3
14121001
上轴供油管
Main shaft oil tube
1
4
10121001
曲柄供油管
Hook driving shaft oil tube
1
5
10112020
油泵安装板
Oil pump installing base
1
6
101S30008
油泵连接螺柱
Oil pump connecting stud
1
7
W03002
弹垫
Spring washer
1
8
209S12001
螺钉SM11/64"x40 L=10.5
Screw SM11/64"x40 L=10.5
1
9
101S30007
螺钉M7x0.75 L=5
Screw M7x0.75 L=5
1
10
10127013
柱塞簧
Plunger spring
1
11
10122018
回油柱塞
Plunger
1
12
10103022
油泵体衬套
Oil pump bushing
1
13
10120001
油泵体
Oil pump
3
14
S04093
螺钉M3 L=6
Screw M3 L=6
1
15
10111003
油泵叶轮
Oil pump impeller
1
16
10112021
油泵叶轮托板
Oil pump impeller cover
1
17
10111007
油泵盖
Lubricating oil pump cover
1
18
101S30006
螺钉ST2.9 L=10
Screw ST2.9 L=10
3
19
1012000100
油泵组件
Lubricating oil pump component
1
20
10136001
供油管接头
Rubber joint
1
21
14112007
过线勾
Thread hook
1
22
W02004
GB/T93-1987弹垫M6
Spring Washer M6
1
23
116S30003
螺钉SM15/64"x28 L=14.5
Screw SM15/64"x28 L=14.5
1
24
14021003
铝油管
Aluminum tubing
2
25
113811004
尼龙扎带
Cable band
1
26
14021001
PVC油管
Tubing
0.4mm
jintex.in
Page 14
27
30129007
油管卡簧
Oil pipe clamp spring
1
28
14036004
油盘油嘴
Oil nozzle
1
29
14036002
回油嘴
Oil nozzle
2
30
20429001
油管卡簧
Oil pipe clamp spring
4
31
10123010
油线
Oil wick
1.5
32
14036003
供油嘴
Oil nozzle
1
33
14022003
送料轴前孔塞
Spout plug
1
34
14022011
O型圈
Rubber ring
1
35
140S30001
油量调节螺钉
Oil volume adjusting screw
1
36
115221001
铝油管
Aluminum tubing
1
37
115212004
铝油管压板
Aluminum tubing pressing plate
2
38
S04010
螺钉M4 L=5.5
Screw M4 L=5.5
2
39
10127015
回油管夹
Oil felt clamp
1
40
10123006
回油毡
Oil felt felt
1
41
101S11004
螺钉SM3/16"×28 L=7
Screw SM3/16"×28 L=7
1
42
10112023
回油管夹
Oil tube clamp
1
43
10121007
回油管组件
Oil return tube component
1
44
10121008
回油管
Oil return tube
1
45
10112025
油线固定板
Oil wick fixing plate
1
46
101S11010
螺钉SM9/64"×40 L=11
Screw SM9/64"×40 L=11
2
47
10123010
油线
Oil wick
0.5
48
13811015
油窗
Oil window
1
49
11412200200
油窗组件
Buoy
1
50
11523000400
油量检测装置组件
Oil measuring device
1
51
140S16001
螺母
Nut
1
52
14028001
弹性垫圈
Washer
1
53
13812081
拉簧固定板
Spring fixing plate
1
54
14012006
油量检测装置固定板
Pull spring fixing plate
1
55
101S11026
螺钉SM15/64"×28 L=9
Screw SM15/64"×28 L=9
2
56
14011004
油量检测罩壳
Shell
1
57
14002005
导向支柱
Guide pillar
1
58
11493000700-02
浮子
Float
1
59
H05040
开口挡圈6
Ring 6
1
10
1
2
3
4
5
6
7
22
23
24
25
26
27
28
29
30
42
41
25
40
39
25
31
19
18
16
20
32
33
34
35
36
37
38
21
17
15
11
12
13
14
8
9
10
Page 15 — 10. 机头附件/Machine Head Accessories
10. 机头附件/Machine Head Accessories
序号
NO
公司件号
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
1011203100
机头连接钩部件
Hinge component
2
2
14022022
机头座垫
Die cushion
2
3
101S30010
机头连接钩座钉P19
Nail P19
2
4
1141NS30001
机头连接钩座钉P25
Nail P25
4
5
10131004
螺丝刀(小)
Screw driver,small
1
6
10131003
螺丝刀(中)
Screw driver,medium
1
7
20731047
螺丝刀(大)
Screw driver,large
1
8
10122060
机头连接座
Head connecting rubber cushion
2
9
14022023
机头支架
Nose support
2
10
101S30014
螺钉M4 L=20
Wood screw M4 L=20
6
11
11501003
机头支柱
Machine head rest pin
1
12
10117001
机针
Needle
4
10117002
机针(定位14#)
Needle(H)
4
13
20131039
漏斗
Funnel
1
14
10118003
梭芯
Bobbin
1
15
1381101200
油壶组件
Oiler component
1
16
115211001
油盘托盘
Disk tray
1
17
114131001
防尘罩
Dust cover
1
18
11212001
过线柱
Crossing post
1
19
10130044
塑壳调速器(平缝A2)
Moulded case governor (flat seam A2)
1
20
20730335
拉杆
pull rod
1
21
1383100300
线架组件
Thread stand asm.
1
22
20131019
线架杆顶防护橡皮
Spool rest rod rubber cap
1
23
W01047
平垫圈5
Washer 5
2
24
S04050
螺栓M5 L=16
Screw M5 L=16
1
25
N01034
螺母M5
Nut M5
4
26
13831022
上上线架过线杆
Spool rest arm upper
1
27
10113011
过线圈(内)
Thread guide ring
2
28
10113010
过线圈(外)
Thread guide ring
2
29
13831019
线架杆上节
Spool rest rod joint
1
30
13831021
线架杆接头
Spool rest rod joint
1
31
13831020
线架杆下节
Spool rest rod lower
1
32
10122106
橡胶垫圈
Spool rest rod rubber ring
2
33
W01052
平垫圈16
Washer 16
2
34
N02004
螺母M16×1.5
Nut M16×1.5
1
35
S04051
螺栓M5 L=31.5
Screw M5 L=31.5
1
36
N01034
螺母M5
Nut M5
2
37
W03002
弹簧垫圈5
Spring washer 5
2
38
13831023
下线架过线杆
Spool rest arm lower
1
39
13831024
线盘
Spool rest
2
40
20131010
线盘垫
Spool rest cushion
2
41
20131006
线托棒
Spool pin
1
42
13831025
线围防松垫
Spool retainer
2
公司地址(Address of Company):
中国浙江省台州市椒江区三甲东海大道东段1008号
NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG
邮编(Zip Code): 318000
国内销售部(Domestic Trade Department):
电话(TEL): 0086-0576-88177788 88177789
传真(FAX): 0086-0576-88177758
国贸部(International Trade Department):
电话(TEL): 0086-0576-88177782 88177774
传真(FAX): 0086-0576-88177787
服务热线: 400-8876858
http://www.chinajack.com
资料如有更改,恕不另行通知,以实物为准。
You will be not informed if the file has been revised.Please set sample as standard.
jintex.in
