Jack C5 — parts catalog

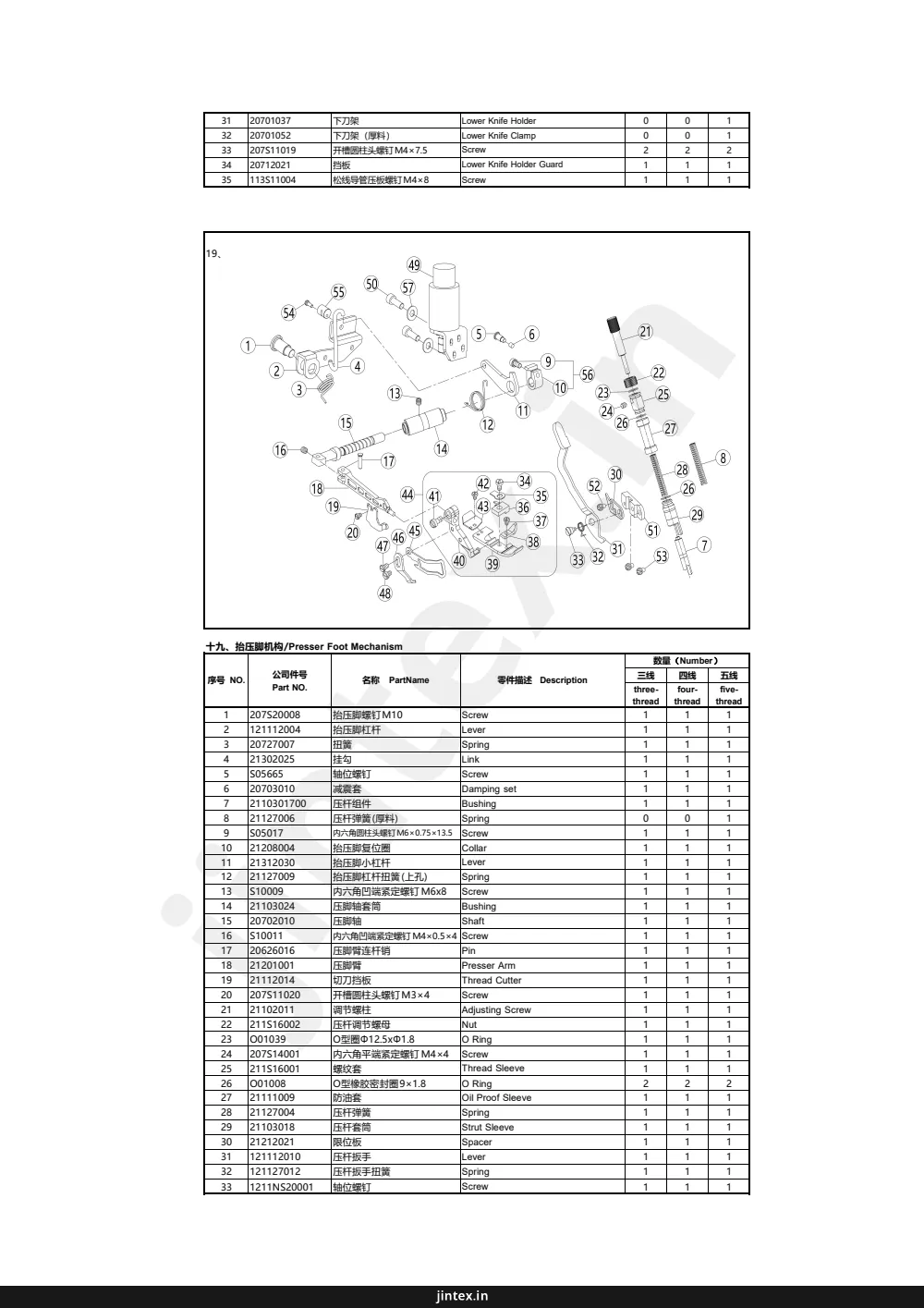

Page 16 — 十九、抬压脚机构/Presser Foot Mechanism

Jack C5 parts on page 16
RefPart numberPart nameQty
20701037下刀架
20701052下刀架 (厚料)
207S11019开槽圆柱头螺钉M4×7.5
20712021挡板
113S11004松线导管压板螺钉M4×8
207S20008抬压脚螺钉 M10
121112004抬压脚杆
20727007扭簧
21302025挂勾
S05665轴位螺钉
20703010减震套
2110301700压杆组件
21127006压杆弹簧(厚料)
S05017内六角圆柱头螺钉M6×0.75×13.5
21208004抬压脚复位圈
21312030抬压脚小杠杆
21127009抬压脚杠杆扭簧(上孔)
S10009内六角凹端紧定螺钉M6×8
21103024压杆轴套筒
20702010压杆轴
S10011内六角凹端紧定螺钉M4×0.5×4
20626016压杆臂
21201001压脚
207S11020切刀挡板
207S11020开槽圆柱头螺钉M3×4
21102011调节螺柱
211S16002O型圈Φ12.5×Φ1.8
001039内六角平端紧定螺钉M4×4
207S14001压杆调节螺母
211S16001O型橡胶密封圈9×1.5
001008螺纹套
21111009防油套
21127004压杆弹簧
21103018压杆套筒
21212021限位板
121112010压杆扳手
121127012压杆扳手弹簧
1211NS20001轴位螺钉

31 20701037 下刀架 Lower Knife Holder 0 0 1 32 20701052 下刀架 (厚料) Lower Knife Clamp 0 0 1 33 207S11019 开槽圆柱头螺钉M4×7.5 Screw 2 2 2 34 20712021 挡板 Lower Knife Holder Guard 1 1 1 35 113S11004 松线导管压板螺钉M4×8 Screw 1 1 1 19、 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 207S20008 抬压脚螺钉 M10 Screw 1 1 1 2 121112004 抬压脚杆 Lever 1 1 1 3 20727007 扭簧 Spring 1 1 1 4 21302025 挂勾 Link 1 1 1 5 S05665 轴位螺钉 Screw 1 1 1 6 20703010 减震套 Damping set 1 1 1 7 2110301700 压杆组件 Bushing 1 1 1 8 21127006 压杆弹簧(厚料) Spring 0 1 1 9 S05017 内六角圆柱头螺钉M6×0.75×13.5 Screw 1 1 1 10 21208004 抬压脚复位圈 Collar 1 1 1 11 21312030 抬压脚小杠杆 Lever 1 1 1 12 21127009 抬压脚杠杆扭簧(上孔) Spring 1 1 1 13 S10009 内六角凹端紧定螺钉M6×8 Screw 1 1 1 14 21103024 压杆轴套筒 Bushing 1 1 1 15 20702010 压杆轴 Shaft 1 1 1 16 S10011 内六角凹端紧定螺钉M4×0.5×4 Screw 1 1 1 17 20626016 压杆臂 Pin 1 1 1 18 21201001 压脚 Presser Arm 1 1 1 19 207S11020 切刀挡板 Thread Cutter 1 1 1 20 207S11020 开槽圆柱头螺钉M3×4 Screw 1 1 1 21 21102011 调节螺柱 Adjusting Screw 1 1 1 22 211S16002 O型圈Φ12.5×Φ1.8 O Ring 1 1 1 23 001039 内六角平端紧定螺钉M4×4 Screw 1 1 1 24 207S14001 压杆调节螺母 Nut 1 1 1 25 211S16001 O型橡胶密封圈9×1.5 O Ring 1 1 1 26 001008 螺纹套 Thread Sleeve 1 1 1 27 21111009 防油套 Oil Proof Sleeve 1 1 1 28 21127004 压杆弹簧 Spring 2 2 2 29 21103018 压杆套筒 Strut Sleeve 1 1 1 30 21212021 限位板 Spacer 1 1 1 31 121112010 压杆扳手 Lever 1 1 1 32 121127012 压杆扳手弹簧 Spring 1 1 1 33 1211NS20001 轴位螺钉 Screw 1 1 1 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 17 — 二十、供油机构(1)/Lubrication Mechanism(1)

Jack C5 parts on page 17
RefPart numberPart nameQty
207S11051开槽圆柱头螺钉SM1/8"X44X5.5
20427010弹簧片
20616004压脚爪
206S10004开槽圆柱头螺钉SM3/32×56×3.4
120716001辅助压脚
20716028压脚底板
20716023压脚架
207S11030开槽圆柱头螺钉M3.5×7.5
207S11034开槽圆柱头螺钉SM3×32×56×2.3
20716029压脚辅助板
xxxxxx压脚组合件
20712026压脚护手
20712048板簧
207S11009开槽圆柱头螺钉M3×4.5
207S11020拾压脚电磁铁
12113000300垫块
207S11026螺钉M6×16
21109025十字槽圆柱头螺钉M4×7.5
207S11007开槽圆柱头螺钉M5×10
S01011内六角圆柱头螺钉M5×12
207S13009拾压脚固定块
121110013复位圈组件
12110800400垫片
121128010垫片
2072000200油泵组件
20725002Worm Wheel
207S11042内/外角圆柱螺钉M5×5
207S11007十字槽圆柱螺钉M4×7.5
21112028油盘
207S11007十字槽圆柱螺钉M4×7.5
20712035滤油器盖
20736004滤油器
21101010油缸
21101010过油螺钉
206S30009垫片
20122033开槽圆柱头螺钉M4×17.5
207S11013上宽油管
21121001油管接头
20736007油管卡簧Φ8.3
20729005油管卡簧Φ8.3

34 207S11051 开槽圆柱头螺钉SM1/8"X44X5.5 Screw 0 1 0 35 20427010 弹簧片 Spring 1 1 0 36 20616004 压脚爪 Paw Pressur 0 1 0 37 206S10004 开槽圆柱头螺钉SM3/32×56×3.4 Screw 1 1 0 38 120716001 辅助压脚 Auxiliary Presser Foot 1 1 0 39 20716028 压脚底板 Baseboard 1 1 0 40 20716023 压脚架 Rack 1 1 0 41 207S11030 开槽圆柱头螺钉M3.5×7.5 Screw 1 1 0 42 207S11034 开槽圆柱头螺钉SM3×32×56×2.3 Screw 1 1 0 43 20716029 压脚辅助板 Auxiliary Plank 1 1 0 44 xxxxxx 压脚组合件 Presser Foot Assy 1 1 0 45 20712026 压脚护手 Finger Guard 1 1 0 46 20712048 板簧 Stopper 1 1 0 47 207S11009 开槽圆柱头螺钉M3×4.5 Screw 1 1 0 48 207S11020 拾压脚电磁铁 electromagnet assembly 1 0 1 49 12113000300 垫块 block 2 2 2 50 207S11026 螺钉M6×16 Screw 1 1 1 51 21109025 十字槽圆柱头螺钉M4×7.5 Screw 1 1 1 52 207S11007 开槽圆柱头螺钉M5×10 Screw 1 1 1 53 S01011 内六角圆柱头螺钉M5×12 Screw 1 1 1 54 207S13009 拾压脚固定块 Bracket 2 2 2 55 121110013 复位圈组件 Collar 1 1 1 56 12110800400 垫片 Washer 1 1 1 57 121128010 垫片 Washer 2 2 2 20. 二十、供油机构(1)/Lubrication Mechanism(1) 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 2072000200 油泵组件 Pump 1 1 1 2 20725002 Worm Wheel 1 1 1 3 207S11042 内/外角圆柱螺钉M5×5 Screw 2 2 2 4 207S11007 十字槽圆柱螺钉M4×7.5 Screw 1 1 1 5 21112028 油盘 Oil guard 1 1 1 6 207S11007 十字槽圆柱螺钉M4×7.5 Screw 3 3 3 7 20712035 滤油器盖 Cover 1 1 1 8 20736004 滤油器 Filter Element 1 1 1 9 21101010 油缸 Tank 1 1 1 10 21101010 过油螺钉 Joint Screw 1 1 1 11 206S30009 垫片 Washer 12 12 12 12 20122033 开槽圆柱头螺钉M4×17.5 Screw 2 2 2 13 207S11013 上宽油管 Upper screem 1 1 1 14 21121001 油管接头 Joint 4 4 4 15 20736007 油管卡簧Φ8.3 Clamp 4 4 4 16 20729005 油管卡簧Φ8.3 Clamp 4 4 4 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 18 — 二十一、供油机构(2)/Lubrication Mechanism (2)

Jack C5 parts on page 18
RefPart numberPart nameQty
2112100200过油管组件
207S14001内六角平端滚花螺钉M4×4
121111004橡胶塞
2110101500回油油管组件
21123001油棉
21211001吸油嘴
207S11019开槽圆柱头螺钉M4×7.5
20721011油管Φ2×Φ4
20622010差动扳手轴O型圈
207S14012内六角平端滚花螺钉M5×5
20709015滚珠
121226003上零件/滑杆/油管
20521009铜油嘴
20722008油盘垫
20701058油盘
20528014油盘放油垫圈
207S13002开槽球形面螺钉
20628018垫片
207S13009内六角圆柱头螺钉M5×12
12921003维尼龙油管(φ5xφ8)
207S13008内六角圆柱头螺钉M4×16
21111095油标
20629003过线管夹
207S11011开槽圆柱头螺钉M4×5

17 12921003 维尼龙油管(φ5xφ8) Tube 0.25m 0.25m 0.25m 18 207S13008 内六角圆柱头螺钉M4×16 Screw 2 2 2 19 12921003 维尼龙油管(φ5xφ8) Tube 2 2 2 20 21111095 油标 Oil sight 1 1 1 21 20629003 过线管夹 Tubing clamps 1 1 1 22 207S11011 开槽圆柱头螺钉M4×5 Screw 1 1 1 21、 二十一、供油机构(2)/Lubrication Mechanism (2) 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 2112100200 过油管组件 Pipe 1 1 1 2 207S14001 内六角平端滚花螺钉M4×4 Screw 2 2 2 3 121111004 橡胶塞 Rubber plug 2 2 2 4 2110101500 回油油管组件 Oil Scraper Rubber 1 1 1 5 21123001 油棉 Felt 1 1 1 6 21211001 吸油嘴 Joint 1 1 1 7 207S11019 开槽圆柱头螺钉M4×7.5 Screw 1 1 1 8 20721011 油管Φ2×Φ4 Tube 0.29 0.29 0.29 9 20622010 差动扳手轴O型圈 O Ring 1 1 1 11 207S14012 内六角平端滚花螺钉M5×5 Screw 1 1 1 12 20709015 滚珠 Rubber plug 1 1 1 14 121226003 上零件/滑杆/油管 Pipe Assy. 1 1 1 16 20521009 铜油嘴 Joint 1 1 1 17 20722008 油盘垫 Gasket 1 1 1 18 20701058 油盘 Oil Reservoir 1 1 1 19 20528014 油盘放油垫圈 Washer 1 1 1 20 207S13002 开槽球形面螺钉 Screw 1 1 1 21 20628018 垫片 Washer 4 4 4 22 207S13009 内六角圆柱头螺钉M5×12 Screw 4 4 4 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 20 — 二十三、线架部件/Thread Stand

Jack C5 parts on page 20
RefPart numberPart nameQty
20111019棒管
121131009上管
21111009导线架(短)
211131011导线环
201S16006导线环螺母
20131020导线环螺钉
20131018过线环
201S16004螺母
21131010导线棒固定块
20131021导架螺钉
20131022导架螺钉
21113007导线棒
21131013导线架固定块
20131014过线棒
21131014套
N01030螺母 M5
S04050十字槽六角头螺栓 M5×16
21131018下管
20131006线托棒
21131015线圈固定套
20128018线盘
20122049橡胶垫圈
121128003下管垫圈
201S16005下管固定螺母
121131007过线架(短)
N01114套螺母
20131050过线棒
2113101700过线棒
2113101800线架组件
2113101900线架组件
2113102700线架组件

23、 二十三、线架部件/Thread Stand 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 三线 (Number) 四线 five- thread three- thread four- thread 1 20111019 棒管 Rod cap 1 1 1 2 121131009 上管 Upper thread column 1 1 1 3 21111009 导线架(短) Thread spool tray bracket 2 2 2 4 211131011 导线环 Thread guide hook 2 2 2 5 201S16006 导线环螺母 Thread guide hook nut 4 4 4 6 20131020 导线环螺钉 Screw 4 4 4 7 20131018 过线环 Thread guide hook 3 4 5 8 201S16004 螺母 Nut 4 4 4 9 21131010 导线棒固定块 Clamp plate 1 1 1 10 20131021 导架螺钉 Screw 3 3 3 11 20131022 导架螺钉 Screw 1 1 1 12 21113007 导线棒 Thread guide bar 1 1 1 13 21131013 导线架固定块 Thread guide joint 1 1 1 14 20131014 过线棒 Thread guide 0 1 0 15 21131014 套 Bushing 1 1 1 16 N01030 螺母 M5 Nut 2 2 2 17 S04050 十字槽六角头螺栓 M5×16 Screw 2 2 2 18 21131018 下管 Lower thread cloumn 1 1 1 19 20131006 线托棒 Spool pin 3 4 5 20 21131015 线圈固定套 Spool Cushion 3 4 5 21 20128018 线盘 Spool tray 2 2 2 22 20122049 橡胶垫圈 Plate dog link washer 2 2 2 23 121128003 下管垫圈 Lower washer 1 1 1 24 201S16005 下管固定螺母 Nut 2 2 2 25 121131007 过线架(短) Thread spool tray bracket 2 2 2 26 N01114 套螺母 Nut 0 0 0 27 20131050 过线棒 Thread guide 1 0 0 28 2113101700 过线棒 Thread guide 1 0 0 29 2113101800 线架组件 Thread stand component 0 1 0 30 2113101900 线架组件 Thread stand component 0 0 1 31 2113102700 线架组件 Thread stand component 0 0 1(六线) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 21 — 二十四、托盘部件/Part For Semi-Submerged Installation

Jack C5 parts on page 21
RefPart numberPart nameQty
20131028托盘固定螺母
20722018托盘防震连接垫
20711058托盘
20712064托架
30122031减震垫圈
20111030防震套
20131029大垫圈
20131027托盘内六角螺钉
2123100400落料斗组件
20131034排料槽座螺钉
21231005排料槽座
20131032排料槽I
21231007排料槽II
421S30004螺钉
207S13006内六角圆柱头螺钉M4×9
20728006垫片
2061604000压脚组件
20616042压脚连接件

24、 二十四、托盘部件/Part For Semi-Submerged Installation 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 20131028 托盘固定螺母 Nut 4 4 4 2 20722018 托盘防震连接垫 Cushion Rubber 4 4 4 3 20711058 托盘 oil pan 1 1 1 4 20712064 托架 Rest Board 2 2 2 5 30122031 减震垫圈 Spring Washer 8 8 8 6 20111030 防震套 Washer 4 4 4 7 20131029 大垫圈 Spacer 8 8 8 8 20131027 托盘内六角螺钉 Screw 4 4 4 9 2123100400 落料斗组件 Waste Chute Assy. 1 1 1 10 20131034 排料槽座螺钉 Screw 7 7 7 11 21231005 排料槽座 Screw 1 1 1 12 20131032 排料槽I Waste Chute 1 1 1 13 21231007 排料槽II Waste Chute 1 1 1 14 421S30004 螺钉 Screw 4 4 4 15 207S13006 内六角圆柱头螺钉M4×9 Screw 4 4 4 16 20728006 垫片 Spacer 4 4 4 25、 5-A04 Series 5-A02 Series 5-03 Series 2503-233 2503-333 2503-233 2503-333 2503-233 2503-333 二十五、专用零件/Specific Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 2061604000 压脚组件 Presser Foot Assy. 0 0 1 2 20616042 压脚连接件 Connection 0 0 1 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 22

Jack C5 parts on page 22
RefPart numberPart nameQty
S01029开槽圆柱头螺钉M3.5×7.5
20616041压脚架
101S11006支针螺钉SM1/8×44
20714051护料压板
20701054压脚底板
20701055小压脚底板
208S20002销
20712052压脚挡片
20719053压脚弹簧
207S11020开槽圆柱头螺钉M3×4
207S20010轴位螺钉
xxxxxxxx压脚组件
207S11038开槽圆柱头螺钉SM9/64"X40X7
20716063压脚架
2071610010.1
207S11034辅肋压脚
20716064压脚底板
20716061压脚底板
20716065销
207S20022螺母
207S16011开槽圆柱头螺钉SM1/8"X44X5
207S20021压脚弹簧
20727011压脚弹簧
20727012小压脚
20716062小压脚
20716066压脚护手
20712026压脚弹簧
20715057开槽圆柱头螺钉M3×4.5
207S11009压脚组件
12121601200压脚架
20716082螺母
207S11051压脚弹簧
20716081压脚底板
20716092压脚爪
207S30005销
P01025压脚底板
20716075压脚底板
207S16012螺母
20716079压脚弹簧
20727014压脚架
20727050压脚底板

3 S01029 开槽圆柱头螺钉M3.5×7.5 Screw 0 0 1 4 20616041 压脚架 Pin 0 0 1 5 101S11006 支针螺钉SM1/8×44 Screw 0 0 1 6 20714051 护料压板 Fabric Guard 0 0 1 7 20701054 压脚底板 Baseboard 0 0 1 8 20701055 小压脚底板 Baseboard 0 0 1 9 208S20002 销 Pin 0 0 1 10 20712052 压脚挡片 Finger Guard 0 0 1 11 20719053 压脚弹簧 Spring 0 0 1 12 207S11020 开槽圆柱头螺钉M3×4 Screw 0 0 1 13 207S20010 轴位螺钉 Screw 0 0 1 14 xxxxxxxx 压脚组件 Presser Foot Assy. 0 0 1 15 207S11038 开槽圆柱头螺钉SM9/64"X40X7 Screw 0 0 1 16 20716063 压脚架 Rack 0 0 1 17 20716100 10.1 0 0 1 18 207S11034 辅肋压脚 Fabric Guard 0 0 1 19 20716064 压脚底板 Baseboard 0 0 1 20 20716061 压脚底板 Baseboard 0 0 1 21 20716065 销 Pin 0 0 1 22 207S20022 螺母 Nut 0 0 1 23 207S16011 开槽圆柱头螺钉SM1/8"X44X5 Screw 0 0 1 24 207S20021 压脚弹簧 Spring 0 0 1 25 20727011 压脚弹簧 Spring 0 0 1 26 20727012 小压脚 Baseboard 0 0 1 27 20716062 小压脚 Baseboard 0 0 1 28 20716066 压脚护手 Finger Guard 0 0 1 29 20712026 压脚弹簧 Spring 0 0 1 30 20715057 开槽圆柱头螺钉M3×4.5 Screw 0 0 1 31 207S11009 压脚组件 Presser Foot Assy. 0 0 1 32 12121601200 压脚架 Screw 0 0 1 33 20716082 螺母 Nut 0 0 1 34 207S11051 压脚弹簧 Spring 0 0 1 35 20716081 压脚底板 Presser Foot 0 0 1 36 20716092 压脚爪 Pin 0 0 1 37 207S30005 销 Pin 0 0 1 38 P01025 Baseboard 0 0 1 39 20716075 压脚底板 Baseboard 0 0 1 40 207S16012 螺母 Nut 0 0 1 41 20716079 压脚弹簧 Spring 0 0 1 42 20727014 压脚架 Spring 0 0 1 43 20727050 压脚底板 Baseboard 0 0 1 26、 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 23 — 二十六、专用零件/Specific Parts

Jack C5 parts on page 23
RefPart numberPart nameQty
2111104900接线盒组件
207S11007十字槽圆柱头螺钉 M4×7.5
30130017螺钉M3×5
12134700100粉电磁铁
207S11026螺钉M6×16
S04060十字槽圆柱头螺钉 M4×10
20726201销
S01027开槽圆柱头螺钉 M3×6
21113003200布片安装组件
2111208200剪线电磁铁
S05048内六角圆柱头螺钉 M4×10
W02004操作面板组件
20704050弹簧垫圈6
21112067螺钉M6×12
101S11011曲柄
21119007刀组固定座
121112043旋转定位沟槽螺钉SM11/64×40×9.5
20709106齿轮挡板
S01034自动剪线固定刀
20629007挡料板
20702070切刀固定块
20719003开槽圆柱头螺钉 M3×5.7
20727020卡簧
21130305上刀轴
20612062自动剪线动力刀
207S11007切刀弹簧
21111008第三感应器
20629003油管螺钉垫圈
12912327十字槽圆柱头螺钉 M4×7.5
21130302磁铁固定块
121112014压线板
21130301开槽圆柱头螺钉 M3×5.4
207S13009十字槽圆柱头螺钉 M4×7.5
136S13001缝台安全开关
20128021缝台安全开关支架
121112054下刀座挡板
403S11051过线管夹
121128007电线固定夹
20722016后接收装置
207S11011锁紧板架
121112006前接收装置
S02007开槽圆柱头螺钉 M4×6.5
21130304内六角圆柱头螺钉 M5×12
12111102300内六角圆柱头螺钉 M5×35
12111206200W12垫圈
过线板压板过线板压板
复合槽圆柱头螺钉 M4×6复合槽圆柱头螺钉 M4×6
垫圈垫圈
支撑垫支撑垫
开槽圆柱头螺钉 M4×5开槽圆柱头螺钉 M4×5
压线片压线片
开槽沉头螺钉 M3×5.4开槽沉头螺钉 M3×5.4
短线感应器短线感应器
感应器组件感应器组件
吸风刀挡板组件吸风刀挡板组件

二十六、专用零件/Specific Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 2111104900 接线盒组件 Interconnecting device 1 1 1 2 207S11007 十字槽圆柱头螺钉 M4×7.5 Screw 4 4 4 3 30130017 螺钉M3×5 Screw 1 1 1 4 12134700100 粉电磁铁 electromagnet assembly 1 1 1 6 207S11026 螺钉M6×16 Screw 2 2 2 7 S04060 十字槽圆柱头螺钉 M4×10 Screw 1 1 1 8 20726201 销 Pin 2 2 2 9 S01027 开槽圆柱头螺钉 M3×6 Screw 1 1 1 10 21113003200 布片安装组件 Cloth plate assembly 1 1 1 11 2111208200 剪线电磁铁 Cutter Assembly 1 1 1 12 S05048 内六角圆柱头螺钉 M4×10 Screw 1 1 1 13 W02004 操作面板组件 Operation Panel 1 1 1 14 20704050 弹簧垫圈6 Washer 2 2 2 15 21112067 螺钉M6×12 Screw 1 1 1 16 101S11011 曲柄 Crank 1 1 1 17 21119007 刀组固定座 The fixed seat 1 1 1 18 121112043 旋转定位沟槽螺钉SM11/64×40×9.5 Screw 1 1 1 19 20709106 齿轮挡板 Gear plate 2 2 2 20 S01034 自动剪线固定刀 Constant seat 1 1 1 21 20629007 挡料板 Gear plate 1 1 1 22 20702070 切刀固定块 Bracket 1 1 1 23 20719003 开槽圆柱头螺钉 M3×5.7 Screw 2 2 2 24 20727020 卡簧 Circlip 1 1 1 25 21130305 上刀轴 Knife shaft 1 1 1 26 20612062 自动剪线动力刀 The knife 1 1 1 27 207S11007 切刀弹簧 Spring 1 1 1 28 21111008 第三感应器 Back emission 1 1 1 29 20629003 油管螺钉垫圈 Washer 1 1 1 30 12912327 十字槽圆柱头螺钉 M4×7.5 Screw 3 3 3 31 21130302 磁铁固定块 Bracket 1 1 1 32 121112014 压线板 Magnetic Iron 1 1 1 33 21130301 开槽圆柱头螺钉 M3×5.4 Screw 2 2 2 34 207S13009 十字槽圆柱头螺钉 M4×7.5 Screw 1 1 1 35 136S13001 缝台安全开关 Cloth plate assembly 1 1 1 36 20128021 缝台安全开关支架 Bracket 1 1 1 37 121112054 下刀座挡板 Bracket 1 1 1 38 403S11051 过线管夹 Tubing clamps 3 3 3 39 121128007 电线固定夹 Tubing clamps 2 2 2 40 20722016 后接收装置 Receiver Attachmnet(back) 1 1 1 41 207S11011 锁紧板架 Bracket 1 1 1 42 121112006 前接收装置 Receiver Attachmnet(front) 1 1 1 43 S02007 开槽圆柱头螺钉 M4×6.5 Screw 1 1 1 44 21130304 内六角圆柱头螺钉 M5×12 Screw 2 2 2 45 12111102300 内六角圆柱头螺钉 M5×35 Screw 1 1 1 46 12111206200 W12垫圈 Washer 4 4 4 47 过线板压板 Tubing clamps 1 1 1 48 复合槽圆柱头螺钉 M4×6 Screw 1 1 1 49 垫圈 Washer 1 1 1 50 支撑垫 Cushion 1 1 1 51 开槽圆柱头螺钉 M4×5 Screw 1 1 1 52 压线片 Tubing clamps 1 1 1 53 开槽沉头螺钉 M3×5.4 Screw 1 1 1 54 短线感应器 emission 1 1 1 55 感应器组件 Induction machine assy 1 1 1 56 吸风刀挡板组件 Baffle assembly of suction and knife 1 1 1 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 25 — 二十八、机架部件/machine stand table assy

Jack C5 parts on page 25
RefPart numberPart nameQty
13832113零件导轨
13832114螺钉
S18002零件盒
1383211500M8*11螺栓垫圈组合件
S15001机架下节左
1383211200机架座套
13832104支座
10132016脚踏板垫(大)
13832110脚踏板(大)
13832106脚踏板
L02075M8x16螺栓垫圈组合件
1383210700脚踏板固定件
13832108机架安装板
13832116脚踏板安装板固定板
21232001脚踏板(小)
20112126脚踏板连接件(小)
N01010螺母
1383210300机架下节右
13832111机架连接板
1383210100机架上节右
S18001螺钉
XXXXXXXXXX台板
XXXXXXXXXX变速器
2011111300拉杆组件
2013105400脚踏板链组件
13832102机架固定板
13832129台板护套
20713055挑线架
20713056过线板
20713017过线
2011701419#机针
121134001针夹头
21213010针夹头(六线)
20708023过线
20713053衬套
20719053压杆弹簧(厚料)
20719053压脚扭簧

二十八、机架部件/machine stand table assy 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 六线 six- thread 1 13832113 零件导轨 Drawer slider 2 2 2 2 2 13832114 螺钉 Screw 6 6 6 3 S18002 零件盒 Plastic drawer 1 1 1 4 1383211500 M8*11螺栓垫圈组合件 Bolt washer assembly M8*11 1 1 1 5 S15001 机架下节左 Lower stand (left) 12 12 12 6 1383211200 机架座套 Rubber cover 1 1 1 7 13832104 支座 Stand height adjusting base 4 4 4 8 10132016 脚踏板垫(大) Large pedal bracket 1 1 1 9 13832110 脚踏板(大) Large pedal bracket 1 1 1 10 13832106 脚踏板 Large pedal pad 1 1 1 11 L02075 M8x16螺栓垫圈组合件 Bolt washer assembly M6*11 2 2 2 12 1383210700 脚踏板固定件 Pedal bracket 4 4 4 13 13832108 机架安装板 Lower bar 1 1 1 14 13832116 脚踏板安装板固定板 Bolt plate 2 2 2 15 21232001 脚踏板(小) Small pedal 1 1 1 16 20112126 脚踏板连接件(小) Small pedal bracket 1 1 1 17 N01010 螺母 Nut 4 4 4 18 1383210300 机架下节右 Lower stand(right) 1 1 1 19 13832111 机架连接板 Front bar 1 1 1 20 1383210100 机架上节右 Upper stand (right) 1 1 1 21 S18001 螺钉 Screw 6 6 6 22 XXXXXXXXXX 台板 Table 1 1 1 23 XXXXXXXXXX 变速器 Transmission 1 1 1 24 2011111300 拉杆组件 Motor connecting rod 1 1 1 25 2013105400 脚踏板链组件 Pedal chain components 1 1 1 26 13832102 机架固定板 Bolt plate 2 2 2 27 13832129 台板护套 Table cover 4 4 4 28, 二十九、电动C5M04专用件/Specific Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 六线 six- thread 1 20713055 挑线架 Thread Takeup 1 1 2 20713056 过线板 Tension Guide 1 0 3 20713017 过线 Thread Guide 0 1 4 20117014 19#机针 Needle 2 3 5 121134001 针夹头 Needle Holder 1 0 6 21213010 针夹头(六线) Needle Holder 0 1 7 20708023 过线 Thread Guide 1 1 8 20713053 衬套 Spacer 1 1 9 20713055 过线 Thread Guide 1 1 10 20719053 压杆弹簧(厚料) Spring 1 1 11 压脚扭簧 Spring 1 1 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 26 — 三十、六线专用部件/Six-thread Specific Parts

Jack C5 parts on page 26
RefPart numberPart nameQty
21115211针板(六线)
12121601300压脚组件(六线3×2)
21213014挑线杆(六线)
21311161压脚(五线厚料)
2071401700牙齿组件
20719057针夹头(六线)
12111300200过线
201S16003NO3螺母
21113013夹线器组件(黄点)
21113012过线片1(六线)
21113014过线片2(六线)
21113012夹线器安装板(六线)
206S11005螺钉SM11/64×40×7.3
20117012DCX27#11针
20712052压脚挡片
207S20010轴位螺钉M3×3.5
2061604100压脚组件(五线厚料)
2111600500压脚组件(五线厚料)
207S11020开槽圆柱头螺钉
2071405600牙齿组件
20704023上辑曲柄(M)
2070402100上弯针滑杆组件
121115003曲轴(适应性)(精密)
20717060链轮导向件
121119001下刀(五线厚料)
20619009上刀(厚料)
121213001针板(5线厚料)
20701052针板(六线)
12111300200过线
21113014过线片2(六线)
201S16003螺母
206S11005螺钉SM11/64×40×7.3
21113015过线架(六线)
21311161夹线片
2111300800夹线器组件(黄点)
21113012夹线器安装板(六线)
21213001过线(六线)
121101002上刀座
21113013过线片1(六线)

30、 三十、六线专用部件/Six-thread Specific Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 四线 four- thread 五线 five- thread 六线 six- thread 1 21115211 针板(六线) Needle Plate / / 1 2 12121601300 压脚组件(六线3×2) Presser Foot Assy / / 1 3 21213014 挑线杆(六线) Thread Takeup / / 1 4 21311161 压脚(五线厚料) Presser Foot Assy / / 0 5 2071401700 牙齿组件 Main Feed Dog Complete / / 1 6 20719057 针夹头(六线) Needle Holder Assembly / / 1 7 12111300200 过线 Thread Guide / / 1 8 201S16003 NO3螺母 Nut / / 2 9 21113013 夹线器组件(黄点) Tension Spring Assembly / / 1 10 21113012 过线片1(六线) Thread Guide / / 1 11 21113014 过线片2(六线) Thread Guide / / 1 12 21113012 夹线器安装板(六线) Clamp mounting plate / / 1 13 206S11005 螺钉SM11/64×40×7.3 Screw / / 1 14 20117012 DCX27#11针 Needle / / 7 11 20712052 压脚挡片 Finger Guard 1 1 12 207S20010 轴位螺钉M3×3.5 Screw 1 1 13 2061604100 压脚组件(五线厚料) Presser Foot Assy 0 1 14 2111600500 压脚组件(五线厚料) Presser Foot Assy 0 1 15 207S11020 开槽圆柱头螺钉 Screw 1 1 16 2071405600 牙齿组件 Main Feed Dog Complete 1 1 17 20704023 上辑曲柄(M) Crank 1 1 18 2070402100 上弯针滑杆组件 Upper Looper Holder Assy 1 1 19 121115003 曲轴(适应性)(精密) Crankshaft 1 1 20 20717060 链轮导向件 Double Chainstith Looper 1 1 21 121119001 下刀(五线厚料) Lower Knife 1 0 22 20619009 上刀(厚料) Upper Knife 1 1 23 121213001 针板(5线厚料) Needle Plate 1 1 24 20701052 针板(六线) Needle Plate 0 1 25 12111300200 过线 Thread Guide 0 1 26 21113014 过线片2(六线) Thread Guide 0 1 27 201S16003 螺母 Stopper 0 1 28 206S11005 螺钉SM11/64×40×7.3 Screw 0 1 29 21113015 过线架(六线) Thread Guide 0 1 30 21311161 夹线片 Tension Disc 0 2 31 2111300800 夹线器组件(黄点) Tension Spring Assembly 0 1 32 21113012 夹线器安装板(六线) Clamp mounting plate 0 1 33 21213001 过线(六线) Thread Guide 0 1 34 121101002 上刀座 Upper Knife Clamp 0 1 35 21113013 过线片1(六线) Thread Guide 0 1 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 27 — 三十一、C5倒缝专用部件/ Specific Parts

Jack C5 parts on page 27
RefPart numberPart nameQty
21213001过线(六线)
21113015过线架(六线)
2113102700线架组件(六线)
2111104900电动接线盒组件
12111201300自动剪线刀组件(委外)
21102026曲轴(四线适应性)(精密)
W02017衬套 10
20703060衬套A
20728010垫圈
21145012气管接头
21145005松线双向气缸
21104009松线接头 M4
N09002非金属嵌件六角锁紧薄螺母 M4
211S20003松线曲线螺钉
21112048下线线板
21112047上线线板
21128005垫圈
21127015松线弹簧
21128004垫圈
2071600200压脚组件
12111500100针板组件(气动BK)
20722024减震垫(气动BK)
121109004针板垫块(前)(BK)
21129001油管卡簧
20717006下弯针(JK)
20717002护针(后)
2071407800送布牙组件(气动BK)
20712118下刀座前垫板(气动BK)
20712141挡板(气动BK)
20701132下刀架(气动BK)
20728018垫片
2070403500上弯针滑杆组件DLC厚料
20717050上弯针
2111104100操作面板组件(BK)
21130031包缝一体式控制器(T19)(BK)
21145011流量调节阀
121145013φ6转φ4气管
121145014φ8转φ6气管
20730043真空发生器
121145016消音器

15 21213001 过线(六线) Thread Guide / / 1 16 21113015 过线架(六线) Thread Guide / / 1 17 2113102700 线架组件(六线) Thread Stand Component / / 1 31、 三十一、C5倒缝专用部件/ Specific Parts 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three- thread 四线 four- thread 五线 five- thread 1 2111104900 电动接线盒组件 Interconnecting device / 1 / 2 12111201300 自动剪线刀组件(委外) Cutter Assembly / 1 / 3 21102026 曲轴(四线适应性)(精密) Crankshaft / 1 / 4 W02017 衬套 10 Spring Washer / 1 / 5 20703060 衬套A Spacer / 1 / 6 20728010 垫圈 Washer / 1 / 7 21145012 气管接头 Joint / 2 / 8 21145005 松线双向气缸 Two-way cylinder with loose thread / 1 / 9 21104009 松线接头 M4 Joint / 1 / 10 N09002 非金属嵌件六角锁紧薄螺母 M4 Nut / 2 / 11 211S20003 松线曲线螺钉 Screw / 1 / 12 21112048 下线线板 Slack wire / 1 / 13 21112047 上线线板 Top loose wyre / 1 / 14 21128005 垫圈 Washer / 1 / 15 21127015 松线弹簧 Spring / 1 / 16 21128004 垫圈 Washer / 1 / 17 2071600200 压脚组件 Presser Foot Assy / 1 / 18 12111500100 针板组件(气动BK) Needle Plate / 1 / 19 20722024 减震垫(气动BK) Cushion Rubber / 2 / 20 121109004 针板垫块(前)(BK) Bracket / 1 / 21 21129001 油管卡簧 Ring / 1 / 22 20717006 下弯针(JK) Lower Looper / 2 / 23 20717002 护针(后) Needle Guard / 1 / 24 2071407800 送布牙组件(气动BK) Main Feed Dog Complete / 1 / 25 20712118 下刀座前垫板(气动BK) Latch / 1 / 26 20712141 挡板(气动BK) Plate / 1 / 27 20701132 下刀架(气动BK) Lower Knife Holder / 1 / 28 20728018 垫片 Washer / 1 / 29 2070403500 上弯针滑杆组件DLC厚料 Upper Looper Holder Assy / 1 / 30 20717050 上弯针 Upper Looper / 1 / 31 2111104100 操作面板组件(BK) Operation Panel / 1 / 32 21130031 包缝一体式控制器(T19)(BK) Controller / 1 / 33 21145011 流量调节阀 Flow control valve / 1 / 34 121145013 φ6转φ4气管 Trachea / 1 / 35 121145014 φ8转φ6气管 Trachea / 1 / 36 20730043 真空发生器 Vacuum generator / 1 / 37 121145016 消音器 Silencer / 1 / From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 28 — C5标准度量零件表

Jack C5 parts on page 28
RefPart numberPart nameQty
30112235Air pressure gauge mounting plate1
20730329Valve
301S10150Screw
121145012Solenoid Valve
C5-02×25021115203NEEDLE PLATE5
C5-02×2502071400100MAIN FEED DOG ASS
C5-02×2502071608600PRESSER FOOT ASS
C5-02×25020717004UPPER LOOPER
C5-02×25020717006LOWER LOOPER
C5-3-02/23321115203NEEDLE PLATE4
C5-3-02/2332071400100MAIN FEED DOG ASS
C5-3-02/2332071608600PRESSER FOOT ASS
C5-3-02/23320717004UPPER LOOPER
C5-3-02/23320717006LOWER LOOPER
C5-3-32R2/22321115209NEEDLE PLATE1.5
C5-3-32R2/22320714007MAIN FEED DOG ASS
C5-3-32R2/22320714008MAIN FEED DOG ASS
C5-3-32R2/22312121600600PRESSER FOOT ASS
C5-3-32R2/22320717004UPPER LOOPER
C5-3-32R2/22320717006LOWER LOOPER
C5-4-M03/333/H/M21115005NEEDLE PLATE2
C5-4-M03/333/H/M2071407400MAIN FEED DOG ASS
C5-4-M03/333/H/M12121601500PRESSER FOOT ASS
C5-4-M03/333/H/M20717004UPPER LOOPER
C5-4-M03/333/H/M20717006LOWER LOOPER
C5-4-M03/333121115005NEEDLE PLATE2
C5-4-M03/3332071407400MAIN FEED DOG ASS
C5-4-M03/33312121601500PRESSER FOOT ASS
C5-4-M03/33320717004UPPER LOOPER
C5-4-M03/33320717006LOWER LOOPER
C5-4-M03/333/KD21115201NEEDLE PLATE2
C5-4-M03/333/KD2071400100MAIN FEED DOG ASS
C5-4-M03/333/KD2071609400PRESSER FOOT ASS
C5-4-M03/333/KD20717050UPPER LOOPER
C5-4-M03/333/KD20717006LOWER LOOPER
C5-5-03/23321115205NEEDLE PLATE5
C5-5-03/2332071400100MAIN FEED DOG ASS
C5-5-03/2332111600100PRESSER FOOT ASS
C5-5-03/23320717004UPPER LOOPER
C5-5-03/23320717006LOWER LOOPER
C5-5-03/33321115204NEEDLE PLATE4
C5-5-03/33312111402000MAIN FEED DOG ASS
C5-5-03/33312121600900PRESSER FOOT ASS
C5-5-03/33320717004UPPER LOOPER
C5-5-03/33320717006LOWER LOOPER
C5-5-03/333/KD20715204NEEDLE PLATE3
C5-5-03/333/KD12111402000MAIN FEED DOG ASS
C5-5-03/333/KD12121600900PRESSER FOOT ASS
C5-5-03/333/KD20717004UPPER LOOPER
C5-5-03/333/KD20717006LOWER LOOPER
C5-5-04/22421115018NEEDLE PLATE5
C5-5-04/22412111401200MAIN FEED DOG ASS
C5-5-04/22412121601000PRESSER FOOT ASS
C5-5-04/22420717004UPPER LOOPER
C5-5-04/22420717006LOWER LOOPER
C5-5-A04/43521115206NEEDLE PLATE5
C5-5-A04/4352071405200MAIN FEED DOG ASS
C5-5-A04/43512121601100PRESSER FOOT ASS
C5-5-A04/43520717050UPPER LOOPER
C5-5-A04/43520717006LOWER LOOPER
C5-5-M04/435121115003NEEDLE PLATE5
C5-5-M04/4352071405600MAIN FEED DOG ASS
C5-5-M04/4352061604100PRESSER FOOT ASS
C5-5-M04/43520717004UPPER LOOPER
C5-5-M04/43520717006LOWER LOOPER
C5-6-03/33321115211NEEDLE PLATE3X2
C5-6-03/33312111402100MAIN FEED DOG ASS
C5-6-03/33312121601300PRESSER FOOT ASS
C5-6-03/33320717004UPPER LOOPER
C5-6-03/33320717006LOWER LOOPER
C5-6-M04/435121115002NEEDLE PLATE5X2.5
C5-6-M04/4352071405600MAIN FEED DOG ASS
C5-6-M04/4352111600500PRESSER FOOT ASS
C5-6-M04/43520717004UPPER LOOPER
C5-6-M04/43520717006LOWER LOOPER
C5-4-M03/333/H/M20719007UPPER KNIFE4
C5-4-M03/333/H/M21317002LOWER KNIFE
C5-4-M03/333/H/M20717025OVERLOCK NEEDLE GUARD FRONT
C5-4-M03/333/H/M20717002OVERLOCK NEEDLE GUARD REAR
C5-4-M03/333/H/M20712045CHAINSTITCH NEEDLE FRONT
C5-4-M03/333/H/M20701032CHAINSTITCH NEEDLE REAR
C5-4-M03/33320719007UPPER KNIFE4
C5-4-M03/33321317002LOWER KNIFE
C5-4-M03/33320717002OVERLOCK NEEDLE GUARD REAR
C5-4-M03/33320712045CHAINSTITCH NEEDLE FRONT
C5-4-M03/33320701032CHAINSTITCH NEEDLE REAR
C5-4-83/323/BK20719007UPPER KNIFE4
C5-4-83/323/BK21317002LOWER KNIFE
C5-4-83/323/BK20717002OVERLOCK NEEDLE GUARD REAR
C5-4-83/323/BK20712045CHAINSTITCH NEEDLE FRONT
C5-4-83/323/BK20701032CHAINSTITCH NEEDLE REAR
C5-4-M03/333/AD20719007UPPER KNIFE4
C5-4-M03/333/AD21317002LOWER KNIFE
C5-4-M03/333/AD20717002OVERLOCK NEEDLE GUARD REAR
C5-4-M03/333/AD20712045CHAINSTITCH NEEDLE FRONT
C5-4-M03/333/AD20701032CHAINSTITCH NEEDLE REAR
C5-4-M03/333/KD20719007UPPER KNIFE4-6
C5-4-M03/333/KD21317002LOWER KNIFE
C5-4-M03/333/KD20717002OVERLOCK NEEDLE GUARD REAR
C5-4-M03/333/KD20712045CHAINSTITCH NEEDLE FRONT
C5-4-M03/333/KD20701032CHAINSTITCH NEEDLE REAR
C5-5-03/23320719007UPPER KNIFE5
C5-5-03/23321317002LOWER KNIFE
C5-5-03/23320717008OVERLOCK NEEDLE GUARD FRONT
C5-5-03/23320717002OVERLOCK NEEDLE GUARD REAR
C5-5-03/23320712045CHAINSTITCH NEEDLE FRONT
C5-5-03/23320701032CHAINSTITCH NEEDLE REAR
C5-5-03/33320719007UPPER KNIFE4
C5-5-03/33321317002LOWER KNIFE
C5-5-03/33320717008OVERLOCK NEEDLE GUARD FRONT
C5-5-03/33320717002OVERLOCK NEEDLE GUARD REAR
C5-5-03/33320712045CHAINSTITCH NEEDLE FRONT
C5-5-03/33320701032CHAINSTITCH NEEDLE REAR
C5-5-03/333/KD20719007UPPER KNIFE3
C5-5-03/333/KD21317002LOWER KNIFE
C5-5-03/333/KD20717008OVERLOCK NEEDLE GUARD FRONT
C5-5-03/333/KD20717002OVERLOCK NEEDLE GUARD REAR
C5-5-03/333/KD20712045CHAINSTITCH NEEDLE FRONT
C5-5-03/333/KD20701032CHAINSTITCH NEEDLE REAR
C5-5-04/22420719007UPPER KNIFE5
C5-5-04/22421317002LOWER KNIFE
C5-5-04/22420717008OVERLOCK NEEDLE GUARD FRONT
C5-5-04/22420717002OVERLOCK NEEDLE GUARD REAR
C5-5-04/22420712045CHAINSTITCH NEEDLE FRONT
C5-5-04/22420701032CHAINSTITCH NEEDLE REAR
C5-5-A04/43520719050UPPER KNIFE5
C5-5-A04/435121119001LOWER KNIFE
C5-5-A04/43520717008OVERLOCK NEEDLE GUARD FRONT
C5-5-A04/43520717002OVERLOCK NEEDLE GUARD REAR
C5-5-A04/43520712045CHAINSTITCH NEEDLE FRONT
C5-5-A04/43520701032CHAINSTITCH NEEDLE REAR
C5-5-M04/43520619009UPPER KNIFE6
C5-5-M04/435121119001LOWER KNIFE
C5-5-M04/43520717008OVERLOCK NEEDLE GUARD FRONT
C5-5-M04/43520717002OVERLOCK NEEDLE GUARD REAR
C5-5-M04/43520712045CHAINSTITCH NEEDLE FRONT
C5-5-M04/43520701032CHAINSTITCH NEEDLE REAR
C5-6-03/33321115211UPPER KNIFE4
C5-6-03/33312111402100LOWER KNIFE
C5-6-03/33312121601300OVERLOCK NEEDLE GUARD FRONT
C5-6-03/33320717004OVERLOCK NEEDLE GUARD REAR
C5-6-03/33320717006CHAINSTITCH NEEDLE FRONT
C5-6-03/33320717006CHAINSTITCH NEEDLE REAR
C5-6-M04/435121115002UPPER KNIFE3.5
C5-6-M04/4352071405600LOWER KNIFE
C5-6-M04/4352111600500OVERLOCK NEEDLE GUARD FRONT
C5-6-M04/43520717004OVERLOCK NEEDLE GUARD REAR
C5-6-M04/43520717006CHAINSTITCH NEEDLE FRONT
C5-6-M04/43520717006CHAINSTITCH NEEDLE REAR

38 30112235 气压表安装板 Air pressure gauge mounting plate / 1 / 39 20730329 过滤减压阀 Valve / 1 / 40 301S10150 螺钉包 Screw / 1 / 41 121145012 电磁阀(两排BK) Solenoid Valve / 1 / C5标准度量零件表 型号 间距 针板 送布牙组件 压脚组件 上弯针 下弯针 MACHINE GAUGE TYPE/SPEC NG SW NEEDLE PLATE MAIN FEED DOG ASS PRESSER FOOT ASS UPPER LOOPER LOWER LOOPER C5-02×250 5 5 21115203 2071400100 2071608600 20717004 20717006 C5-3-02/233 4 21115203 2071400100 2071608600 20717004 20717006 C5-3-32R2/223 1.5 21115209 20714007 20714008 12121600600 20717004 20717006 C5-4-M03/333/H/M 2 4 21115005 2071407400 12121601500 20717004 20717006 C5-4-M03/333 2 4 121115005 2071407400 12121601500 20717004 20717006 C5-4-M03/333/KD 2 4-6 21115201 2071400100 2071609400 20717050 20717006 C5-5-03/233 5 5 21115205 2071400100 2111600100 20717004 20717006 C5-5-03/333 4 21115204 12111402000 12121600900 20717004 20717006 C5-5-03/333/KD 3 4 20715204 12111402000 12121600900 20717004 20717006 C5-5-04/224 5 5 21115018 12111401200 12121601000 20717004 20717006 C5-5-A04/435 5 6 21115206 2071405200 12121601100 20717050 20717006 C5-5-M04/435 5 6 121115003 2071405600 2061604100 20717004 20717006 C5-6-03/333 3X2 4 21115211 12111402100 12121601300 20717004 20717006 C5-6-M04/435 5X2.5 3.5 121115002 2071405600 2111600500 20717004 20717006 型号 间距 上刀 下刀 弯针护针 机针护针 MACHINE GAUGE UPPER KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE FRONT REAR FRONT C5-4-M03/333/H/M 4 20719007 21317002 20717025 20717002 20712045 20701032 C5-4-M03/333 4 20719007 21317002 20717002 20717002 20712045 20701032 C5-4-83/323/BK 4 20719007 21317002 20717002 20717002 20712045 20701032 C5-4-M03/333/AD 4 20719007 21317002 20717002 20717002 20712045 20701032 C5-4-M03/333/KD 4-6 20719007 21317002 20717002 20717002 20712045 20701032 C5-5-03/233 5 20719007 21317002 20717008 20717002 20712045 20701032 C5-5-03/333 4 20719007 21317002 20717008 20717002 20712045 20701032 C5-5-03/333/KD 3 20719007 21317002 20717008 20717002 20712045 20701032 C5-5-04/224 5 20719007 21317002 20717008 20717002 20712045 20701032 C5-5-A04/435 5 20719050 121119001 20717008 20717002 20712045 20701032 C5-5-M04/435 6 20619009 121119001 20717008 20717002 20712045 20701032 C5-6-03/333 4 20719007 21317002 20717008 20717002 20712045 20701032 C5-6-M04/435 3.5 20619009 121119001 20717008 20717002 20712045 20701032 From the library of Superior Sewing Machine & Supply LLC - www.supsew.com jintex.in

Page 29 — 杰克缝纫机 全球销量遥遥领先

杰克科技股份有限公司 杰克缝纫机 全球销量遥遥领先 公司地址(Address of Company): 中国浙江省台州市椒江区三甲 NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT, TAIZHOU CITY, ZHEJIANG 邮编(ZIP Code): 318000 国内销售部(Domestic Trade Department): 电话(TEL): 0086-0576-88177788 88177789 传真(FAX): 0086-0576-88177758 国贸部(International Trade Department): 电话(TEL): 0086-0576-88177782 88177774 传真(FAX): 0086-0576-88177787 免费售后服务电话:400-8876858 http://www.chinajack.com. 资料如有更改,恕不另行通知 You will be not informed if the file has been revised. Please set sample as standard. 2021年12月版
