Jack H5 Parts Book (PDF)
Text index — Jack H5
Page 2 — 1.机壳、外装分组件/Machine frame & cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 304713 | -3:1 -12: XB:1 ZD:1 ST:1 H5+:1 | |
| 930000235 | Panel (12mm) | -12:1 | |
| 2 | 201S11025 | Panel Screw SM11/64"×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 3 | 14713003 | Panel thread guide | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 4 | 10113004 | Panel thread guide (right) | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 5 | 101S11007 | Screw SM11/64×40×6 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 6 | 1411300400 | Small thread tension assy | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 6-1 | 13812066 | Thread tension guide plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 6-2 | 13810008 | Thread tension bolt | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 6-3 | 11212004 | Thread tension disk | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 6-4 | 11227001 | Thread tension spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 6-5 | 138S16019 | Thread tension nut | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 7 | 113S14002 | Set Screw | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 8 | 13512004 | 3-hole thread guide | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9 | 11471300100 | Thread tension assy | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-1 | 1147NS3000 | Thread tension Screw | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-2 | 141S16013 | Thread tension nut | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-3 | 14227024 | Thread tension spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-4 | 10112006 | Tension releasing board | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-5 | 14112015 | Thread tension disk | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 9-6 | 114727001 | Takeup spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-7 | 13513006 | Thread tension retainer | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-8 | 135S15002 | Screw | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-10 | 10112007 | Thread tension nut locking plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9-11 | 001050 | O Ring 14.5x1.5 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 10 | 136S14002 | Screw SM15/64×28 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 11 | 14712018 | Thread tade-up lever cover | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 12 | 101S11004 | Screw SM3/16"X28 X7 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 13 | 10122005 | Take-up link pin screw plug | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 14 | 135S11047 | Panel Screw SM11/64×40 | -3:2 -12:1 XB:2 ZD:2 ST:2 H5+: |
| 15 | 14726002 | Thread release pin | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 16 | 13613002 | Thread release bar | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 17 | 13837002 | A4-0182 trademark | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 18 | 13812111 | Beader pedestal | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 19 | 101S11025 | Screw SM11/64×40×7 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 20 | 1361300800 | Bobbin winder thread tension | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 21 | 101S12001 | Base plate pillar | -3:4 -12:4 XB:4 ZD:4 ST:4 H5+: |
| 22 | 100968 | H5 frame | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 23 | 100767 | Base plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 24-1 | 13515002 | Slide plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 24-2 | 13512007 | Slide plate spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 24-3 | 101S11019 | Screw SM3/32×56 L=2 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 25 | 104S17002 | Screw SM11/64×40 L=5 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 26 | 13515001 | Needle plate | -3:1 -12: XB: ZD:1 ST: H5+:1 |
| 13515004 | Needle plate | ST:1 |
Page 4 — 1.机壳、外装分组件/Machine frame & cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13515005 | Needle plate | XB:1 | |
| 13515003 | Needle plate ( 12mm ) | -12:1 | |
| 27 | 1473100100 | Bobbin winder assy | 1 |
| 28 | 114S11003 | Screw 3/16-28 L=10 | |
| 29 | 11419001 | THREAD CUTTER | 1 |
| 30 | 114S11015 | SCREW SM9/64×40 L=6 | 2 |
| 31 | 13522001 | Rubber plug(φ19) | 1 |
| 32 | 13522002 | Rubber plug(φ11.8) | 1 |
Page 6 — 2.上轴线分组件/Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14702011 | Main shaft | 1,1,1,1,1,1 |
| 2 | 10122012 | Rubber plug | 1,1,1,1,1,1 |
| 3 | 10108003 | Shaft washer | 1,1,1,1,1,1 |
| 4 | 101S15002 | Screw SM1/4×40×6 | 2,2,2,2,2,2 |
| 5 | 13603023 | Main shaft bushing,front | 1,1,1,1,1,1 |
| 6 | 13503017 | Main shaft bushing, middle | 1,1,1,1,1,1 |
| 7 | 135S15006 | Screw SM15/64×28 | 1,1,1,1,1,1 |
| 8 | 13603027 | Main shaft bushing,back | 1,1,1,1,1,1 |
| 9 | 13522010 | bushing,back oil seal assy | 1,1,1,1,1,1 |
| 10 | 304714 | Capstan | 1,1,1,1,1,1 |
| 11 | S10009 | Capstan Screw M6x8 | 2,2,2,2,2,2 |
| 12 | 1353800200 | Thread take-up assy | 1,1,1,1,1,1 |
| 13 | 13502003 | Thread take-up hinge pin | 1,1,1,1,1,1 |
| 14 | 135S15009 | Screw SM15/64×28 | 1,1,1,1,1,1 |
| 15 | 13504001 | Needle bar crank | 1,1,1,1,1,1 |
| 16 | 101S15007 | Screw SM1/4×40×8 | 1,1,1,1,1,1 |
| 17 | 135S12001 | Screw SM1/4×40 | 1,1,1,1,1,1 |
| 18 | 101S15004 | Screw SM9/32×28×16 | 1,1,1,1,1,1 |
| 19 | 135S11002 | Screw SM9/32×28 | 1,1,1,1,1,1 |
| 20 | 14703006 | Needle bar upper bushing | 1,1,1,1,1,1 |
| 21 | 10122013 | Upper bushing rubber plug | 1,1,1,1,1,1 |
| 22 | 13503007 | Needle bar lower bushing | 1,1,1,1,1,1 |
| 23 | 14735001 | BTW-DRIVING-WHEEL | 1,1,1,1,1,1 |
| 24 | 13602002 | Needle bar | 1,1,1,1,1,1 |
| 25 | 13513011 | Needle bar thread ring | 1,1,1,1,1,1 |
| 26 | 13517001 | Needle(DP×17 23#) | 1,1,,1,,1 |
| 13517003 | Needle(DP×17 22#) | ,,1,,, | |
| 11617002 | Needle(DP×5 14#) | ,,,,1, | |
| 27 | 101S11006 | Screw SM1/8×44 L=4.5 | 1,1,1,1,1,1 |
| 28 | 13609001 | Slider trough | 1,1,1,1,1,1 |
| 29 | 11409001 | Connection Slider | 1,1,1,1,1,1 |
| 30 | 101S11008 | Slider guide rail Screw | 2,2,2,2,2,2 |
| 31-1 | 13505002 | Needle bar connection | 1,1,1,1,1,1 |
| 31-2 | 101S11005 | Screw | 1,1,1,1,1,1 |
| 32 | 101S11005 | Screw SM11/64×40×8 | 1,1,1,1,1,1 |
| 33 | 13612001 | Fixed frame | 1,1,1,1,1,1 |
| 34 | 13612002 | Press plate | 1,1,1,1,1,1 |
| 35 | 10112003 | Washer | 1,1,1,1,1,1 |
| 36 | 13523001 | Oil felt for needle bar | 2,2,2,2,2,2 |
| 37 | 101S11010 | Fixed frame Screw | 2,2,2,2,2,2 |
| 38 | 13627002 | Spring | 1,1,1,1,1,1 |
| 39 | 13612003 | Hinge | 1,1,1,1,1,1 |
| 40 | 13626001 | Hinge Pin | 1,1,1,1,1,1 |
| 41 | H05024 | RETAINING RING | 1,1,1,1,1,1 |
| 42 | 136S12001 | Hinge Screw | 1,1,1,1,1,1 |
| 43 | 1363303000 | Motor (zhongbang) | 1,1,1,1,1,1 |
| 44 | W02004 | Spring washer | 4,4,4,4,4,4 |
| 46 | 1473300100 | Machine electric control | 1,1,1,1,1, |
| M5×70 | 螺钉 M5×70 |

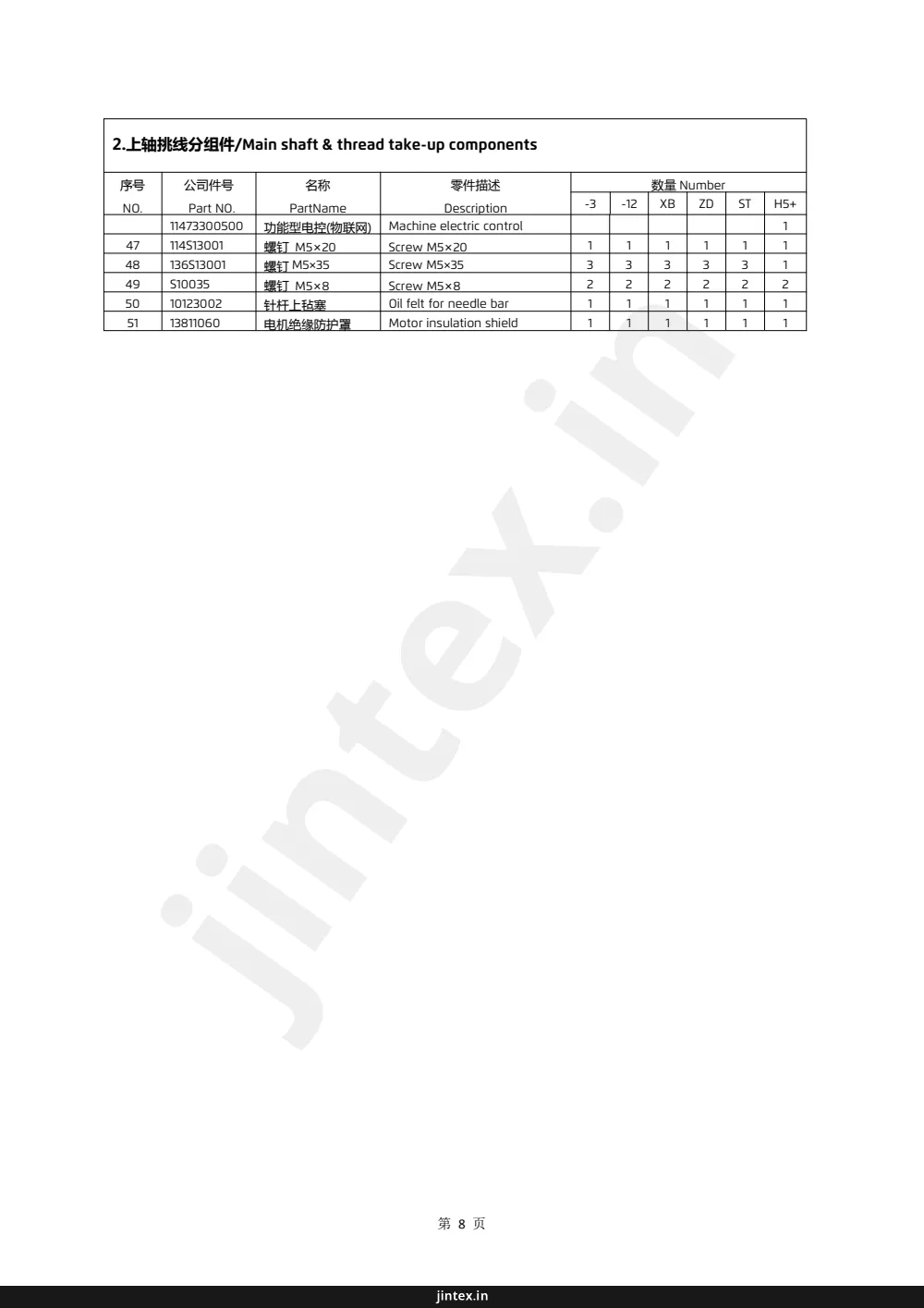

Page 8 — 2.上轴排线分组件/Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11473300500 | Machine electric control | ||
| 47 | 114S13001 | Screw M5×20 | 1 |
| 48 | 136S13001 | Screw M5×35 | 3 |
| 49 | S10035 | Screw M5×8 | 2 |
| 50 | 10123002 | Oil felt for needle bar | 1 |
| 51 | 13811060 | Motor insulation shield | 1 |
Page 10 — 3.压料分组件/Presser components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14711005 | Presser foot wrench | 1 |
| 2 | 101S11008 | screw SM11/64×40×8 | 1 |
| 3 | 13510004 | Presser bar lifting cam | 1 |
| 4 | 001009 | O-ring 4.5X1.8 | 1 |
| 5 | 13512013 | Knee lifter lever (left) | 1 |
| 6 | 13510005 | Tension releasing cam | 1 |
| 7 | 135S11026 | Screw SM11/64×40 | 1 |
| 8 | 135S11027 | screw SM3/16×28 | 1 |
| 9 | 13512014 | Knee lifter rod | 1 |
| 10 | 135S11028 | Screw SM15/64×28 | 1 |
| 11 | 13512015 | Knee lifter lever (right) | 1 |
| 12 | 13527010 | Presser spring | 1 |
| 13 | 13512016 | Knee lifter lever | 1 |
| 14 | 13526005 | Pin for spring | 1 |
| 15 | 135S12002 | Screw SM15/64×28 | 1 |
| 16 | 13503013 | Presser bar bushing | 1 |
| 17 | 13502019 | Presser bar | 1 |
| 18 | 114709001 | Presser bar lifting bracket | XB,ZD,ST,H5+:1 |
| 19 | 135S15003 | Screw SM15/64×28 | 1 |
| 20 | 14727011 | Presser spring | 1 |
| 21 | 135S30004 | screw M15×1 | 1 |
| 22 | 135S16003 | Nut M15×1 | 1 |
| 23 | 13516001 | Presser foot complete | -3,-12,H5+:1 |
| 13516004 | Presser foot complete | XB,ST:1 | |
| 13516005 | Presser foot complete | ZD:1 | |
| 24 | 101S11009 | Screw SM9/64×40×10.5 | 1 |
| 25 | 13513012 | thread guide | 1 |
| 26 | 101S11008 | Screw SM11/64×40×8 | 1 |
| 27 | 14727012 | Presser spring | 1 |
| 28 | 135S30005 | Screw SM5/16×28 | 1 |
| 29 | 13512017 | Defend hook | 1 |
| 30 | 13528007 | Washer | 1 |
| 31 | 1351201200 | Knee lifter lever (left)assy | 1 |
| 32 | 30122022 | Gasket | 1 |
| 33 | 1147NS16001 | Hex nut SM5/16×28 | 1 |
Page 12 — 4.送料分组件/Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13514001 | Feed dog | 1/-/-/1/-/1 |
| 13514002 | Feed dog | -/-/1/-/1/- | |
| 13614003 | Feed dog(12mm) | -/1/-/-/-/- | |
| 2 | 1350700400 | Feed bar assy(12mm) | -/1/-/-/-/- |
| 2-1 | 1350700300 | Feed bar assy | 1/1/1/1/1/1 |
| 2-2 | 13505004 | Feed forked connection | 1/-/1/1/1/1 |
| 13505018 | Feed forked connection(12mm) | -/1/-/-/-/- | |
| 3 | 13528004 | Washer | 1/1/1/1/1/1 |
| 4 | 13502005 | Feed bar shaft | 1/1/1/1/1/1 |
| 5 | 101S11018 | Screw SM1/8×40 L=6 | 2/2/2/2/2/2 |
| 6 | 13504003 | Feed crank assy | 1/1/1/1/1/1 |
| 7 | 101S11016 | Screw SM3/16×28 L=14 | 2/2/2/2/2/2 |
| 8 | 101S11008 | Screw SM11/64×40×8 | 1/1/1/1/1/1 |
| 9 | 13602003 | Feed rocker shaft | 1/1/1/1/1/1 |
| 10 | H03001 | Retaining ring | 2/2/2/2/2/2 |
| 11 | 13603024 | Bushing for feed rock | 1/1/1/1/1/1 |
| 12 | 10108003 | Thrust collar assy | 2/2/2/2/2/2 |
| 13 | 101S15002 | Screw SM1/4×40×6 | 4/4/4/4/4/4 |
| 14 | 13504004 | Feed rocker shaft crank assy | 1/1/1/1/1/1 |
| 15 | 13526001 | Walking foot crank short pin | 1/1/1/1/1/1 |
| 16 | 101S11025 | Screw SM11/64×40×7 | 1/1/1/1/1/1 |
| 17 | 409S11021 | Screw SM11/64×40×14 | 1/1/1/1/1/1 |
| 18 | 13504019 | Feed lifting rock shaft | 1/-/1/1/1/1 |
| 13504017 | Feed lifting rock shaft | -/1/1/1/1/1 | |
| 19 | 13502009 | Hinge pin | 1/1/1/1/1/1 |
| 20 | 13603005 | Bushing for feed rock | 1/1/1/1/1/1 |
| 21 | 13528006 | Washer | 1/1/1/1/1/1 |
| 23 | 13602004 | Feed lifting rock shaft | 1/1/1/1/1/1 |
| 24 | 135S15009 | Screw | 1/1/1/1/1/1 |
| 25 | 409S11021 | Screw | 1/1/1/1/1/1 |
| 26 | 13510002 | Hinge pin | 1/1/1/1/1/1 |
| 27 | 13509003 | Feed regulator | 1/-/1/1/1/1 |
| 113501001 | Feed regulator(12mm) | -/1/-/-/-/- | |
| 28 | 101S11020 | Screw SM11/64×40 L=10.5 | 1/1/1/1/1/1 |
| 29 | 135S11009 | Screw SM15/64×28 | 1/1/1/1/1/1 |
| 30 | 13503026 | Feed regulator bushing | 1/1/1/1/1/1 |
| 31 | 13502011 | Hinge pin for feed regulator | 1/1/1/1/1/1 |
| 32 | 13522014 | Rubber plug(φ19.5) | 1/1/1/1/1/1 |
| 33 | 1350401400 | Slide block pin | 1/1/1/1/1/1 |
| 34 | 13627008 | Spring for feed crank | 1/1/1/1/1/1 |
| 35 | 135S15014 | Screw SM15/64×28 | 1/1/1/1/1/1 |
| 36-1 | 302146 | Reverse feed lever | 1/1/1/1/1/1 |
| 36-2 | 13626002 | Hinge pin | 1/1/1/1/1/1 |
| 37 | 13602005 | Reverse feed lever shaft | 1/1/1/1/1/1 |
| 38 | 001137 | O-ring Φ6.3×1.8 | 1/1/1/1/1/1 |
| 39 | 136S30004 | Feed regulator screw bar | 1/1/1/1/1/1 |
Page 14 — 4.送料分组件/Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40 | 001046 | O-ring Φ9.5×2.5 | 2,2,2,2,2,2 |
| 41 | 1471100200 | Needle pitch Dial | 1,,1,1,1,1 |
| 11471100200 | Dial(12mm) | ,1,,,, | |
| 42 | 114S11004 | Screw SM 11/64×40×18 | 1,1,1,1,1,1 |
| 44 | 101S11022 | Dial screw SM3/16×28×18 | 1,1,1,1,1,1 |
| 45 | 11426022 | Stopper pin | 1,1,1,1,1,1 |
| 46 | 11427034 | Spring for stopper pin | 1,1,1,1,1,1 |
| 48 | 135S15007 | Screw | 3,3,3,3,3,3 |
| 49 | 13510003 | Feed drive eccentric cam. | 1,1,1,1,1,1 |
| 50 | 13505005 | Rocker shaft connecting rod | 1,1,1,1,1,1 |
| 51 | 13505006 | Feed regulator connecting rod | 1,1,1,1,1,1 |
| 52 | 13502014 | Crank connecting pin | 1,1,1,1,1,1 |
| 53 | 13505023 | Crank long link | 2,2,2,2,2,2 |
| 54 | 209S14008 | Screw SM11/64×40×4.5 | 1,1,1,1,1,1 |
| 55 | 13505024 | connecting short link | 2,2,2,2,2,2 |
| 56 | 13526003 | Crank connecting pin | 1,1,1,1,1,1 |
| 57 | 201S11012 | Screw SM9/64X40 | 1,1,1,1,1,1 |
| 58 | 201S11007 | Screw SM9/64X40 | 1,1,1,1,1,1 |
| 59 | 13502015 | Hinge pin | 1,1,1,1,1,1 |
| 60 | 13504007 | Needle pitch adjusting link | 1,1,1,1,1,1 |
| 61 | 13502016 | Adjusting link fulcrum shaft | 1,1,1,1,1,1 |
| 62 | 105S11019 | Screw SM11/64" ×40 L=13 | 2,2,2,2,2,2 |
| 63 | 13502017 | Adjusting link fulcrum shaft pin | 1,1,1,1,1,1 |
| 64 | 14212068 | Feed regulator key-press | 1,1,1,1,1,1 |
| 65 | 13527009 | Dial spring for key-press | 1,1,1,1,1,1 |
| 66 | 13510001 | Feed drive eccentric cam. | 1,1,1,1,1,1 |
| 67 | 135S15007 | Screw SM11/64×40 | 3,3,3,3,3,3 |
| 68 | 13528002 | Thrust collar | 1,1,1,1,1,1 |
| 69 | 13505001 | Connecting rod | 1,1,1,1,1,1 |
| 70 | 13627003 | Spring for feed crank | 1,1,1,1,1,1 |
| 71 | 13626003 | Spring trip hitch | 1,1,1,1,1,1 |
| 72 | 12926001 | pin | 1,1,1,1,1,1 |
| 73 | 13612004 | Reverse feed lever | 1,1,1,1,1,1 |
| 74 | 136S30001 | Screw SM3/16×32 | 1,1,1,1,1,1 |
| 75 | 135S15009 | Screw SM15/64×28 | 1,1,1,1,1,1 |
| 76 | 12921005 | Pin bushing | 1,1,1,1,1,1 |
| 77 | 135S11048 | Screw SM3/16×32 | 2,2,2,2,,2 |
| 409S11015 | Screw SM3/16×28×15.5 | ,,,,2, | |
| 78 | 1350501500 | Rocker shaft connecting rod | 1,1,1,1,1,1 |
| 79 | 11350500200 | Connecting rod assy | 1,1,1,1,1,1 |
Page 16 — 5.上送料部件/Upper feed Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135S16004 | Nut SM1/4×40 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 2 | 13508011 | Shim | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 3 | 135S16005 | Nut SM1/4×24 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 4 | 11628005 | Washer | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 5 | 1147NS3000 | Guide shaft | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 6 | 13508004 | Needle of bearing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 7 | 13516002 | Walking foot | -3:1 -12:1 H5+:1 |
| 13516003 | Walking foot | XB:1 ST:1 | |
| 13516006 | Walking foot | ZD:1 | |
| 8 | 135S11030 | Screw SM9/64×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 9 | 201S11012 | Screw SM9/64X40 | -3:4 -12:4 XB:4 ZD:4 ST:4 H5+: |
| 10 | W02002 | Washer | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 11 | 13601015 | Holder for walking foot bar | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 12 | 13505028 | Link of walking foot | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 13 | 135S20013 | Screw SM1/4×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 14 | 13505030 | Fork lever | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 15 | 13526006 | Pin | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 16 | 1420900400 | Crank shaft complete asm | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 16-1 | 142S30011 | Crank shaft complete | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 16-2 | 14209004 | Slide block | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 16-3 | H05029 | Split ring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 17 | 13504020 | Presser swing shaft | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 18 | 402S13011 | Screw SM15/64×28×18 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 19 | 101S11008 | Screw SM11/64×40×8 | -3:4 -12:4 XB:4 ZD:4 ST:4 H5+: |
| 20 | 13509004 | Lifting presser plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 21 | 135S20012 | Screw SM1/4×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 22 | 1350401500 | Presser lifting crank | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 22-1 | 113602001 | Presser lifting crank | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 22-2 | 13526007 | Taper pin | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 22-3 | 13504009 | Pressure foot lifting shaft | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 24 | N02001 | Hex Nut M6X0.75 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 25 | 135S30007 | Screw SM9/32×28 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 26 | 135S16006 | nut SM9/32×28 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 27 | 13512018 | Lifting presser bracket for spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 28 | 13505027 | Presser feed crank link | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 29 | 1147NS20001 | Screw SM1/4×40×7 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 30 | 114704001 | Presser feed crank | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 31 | 14727013 | Lifting presser spring | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 32 | 1350202100 | Presser spring guide | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 32-1 | 13502026 | Presser spring guide rod | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 32-2 | 13502027 | Presser spring guide bushing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 33 | 1351202000 | Lifting presser guide plate assy | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 33-1 | 13501005 | Lifting presser guide plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 33-2 | 13512020 | Lifting presser guide plate | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 33-3 | 135S11036 | Screw SM1/4×40×3 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 34 | 13501006 | Presser rod guide | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 35 | 116S11005 | Screw SM11/64×40×13 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 36 | 13512019 | Lifting presser sway crank guide | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
Page 18 — 5.上送料部件/Upper feed Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37 | 13504011 | Feed rocker shaft crank middle | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 38 | 101S11025 | Screw SM11/64×40×7 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 39 | 116S11005 | Screw SM11/64×40×13 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 40 | 135S20004 | pin | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 41 | H03061 | Retaining ring 24 | -3:1 -12:1 XB:1 ST:1 H5+:1 |
| 42 | 101S15007 | Screw SM1/4×40×8 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 43 | 11470500300 | Connecting rod widget | -3:1 -12:1 XB:1 ST:1 H5+:1 |
| 11470500800 | Connecting rod widget(4.5mm) | ZD:1 | |
| 44 | 135S20005 | Screw SM9/32×28 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 45 | 13505014 | Presser swing crank(right)rod | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 46 | 135S11035 | Screw SM1/4×24 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 47 | 13504023 | Presser swing crank(right) | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 48 | 13503014 | Presser swing middle shaft bushing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 49 | 135S20006 | Screw M6×0.75 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 50 | 11470500200 | Connecting rod assy | -3:1 -12:1 XB:1 H5+:1 |
| 11470500700 | Connecting rod(4.5mm) | ZD:1 | |
| 11470500500 | Connecting rod(2.5mm) | ST:1 | |
| 51 | 13528008 | Washer | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 52 | 13504013 | Presser lifting shaft | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 54 | 13603014 | Presser lifting shaft back bushing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 55 | 135S15008 | Screw SM15/64×28×6 | -3:3 -12:3 XB:3 ZD:3 ST:3 H5+: |
| 56 | 13508009 | Shaft washer | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 57 | 135S15004 | Screw SM1/4×40×4 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 58 | 13508008 | Presser swing shaft front bushing (left) | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 59 | 13502023 | Presser swing shaft | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 60 | 101S11001 | Screw SM3/16"X28 L=9 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 61 | 11472200200 | Oil seal | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 62 | 114710001 | Eccentric wheel | -3:1 -12:1 XB:1 H5+:1 |
| 114710003 | Eccentric wheel(4.5mm) | ZD:1 | |
| 114710002 | Eccentric wheel(2.5mm) | ST:1 | |
| 63 | P03035 | Spring round pin3X8 | -3:2 -12:2 XB:2 ZD:2 ST:2 H5+: |
| 64 | 10124001 | Needle bearing | -3:4 -12:4 XB:4 ZD:4 ST:4 H5+: |
| 65 | 402S13011 | Screw SM15/64×28×18 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 66 | 135S20014 | Screw SM1/4×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 67 | 13603013 | Presser lifting shaft bushing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 68 | 13603028 | Presser lifting shaft bushing | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
| 69 | 1147NS20002 | Screw SM1/4×40 | -3:1 -12:1 XB:1 ZD:1 ST:1 H5+: |
Page 20 — 6.旋拨部件/Hook components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13502002 | upright shaft | 1/1/1/1/1/1 |
| 2 | 13525001 | Gear asm. | 1/1/1/1/1/1 |
| 3 | 101S15007 | Screw SM1/4×40×8 | 8/8/8/8/8/8 |
| 4 | 13525002 | Gear asm. | 1/1/1/1/1/1 |
| 5 | 13525003 | Pinion asm. | 1/1/1/1/1/1 |
| 6 | 13525004 | Gear asm. | 1/1/1/1/1/1 |
| 7 | 13503018 | Bushing,upper | 1/1/1/1/1/1 |
| 8 | 13503019 | Upring shaft bushing, Lower | 1/1/1/1/1/1 |
| 9 | 135S15008 | Screw SM15/64×28 | 2/2/2/2/2/2 |
| 10 | 13618001 | Hook asm | 1/1/1/1/1/1 |
| 11 | 10818501 | Bobbin | 1/1/1/1/1/1 |
| 12 | 13618003 | Hook asm (without tail) | //1// |
| 13618007 | Hook asm (with tail) | 1/1/1//1/1 | |
| 13 | 13602006 | Hook driving shaft | 1/1/1/1/1/1 |
| 14 | 10123003 | Oil wick | 1/1/1/1/1/1 |
| 15 | 135S20007 | Screw SM3/16×32 | 1/1/1/1/1/1 |
| 16 | 13503009 | Bushing,front | 1/1/1/1/1/1 |
| 17 | 135S20008 | Screw SM15/64×28 | 1/1/1/1/1/1 |
| 18 | 13527005 | Spring | 1/1/1/1/1/1 |
| 19 | 10108002 | Thtust shrink collar asm. | 1/1/1/1/1/1 |
| 20 | 101S11012 | Screw SM11/64×40×4.8 | 2/2/2/2/2/2 |
| 21 | 13603025 | Bushing,rear | 1/1/1/1/1/1 |
| 22 | 135S15009 | Screw SM15/64×28 | 1/1/1/1/1/1 |
| 23 | 13502008 | Plunger | 1/1/1/1/1/1 |
| 24 | 13527006 | Plunger spring | 1/1/1/1/1/1 |
| 25 | 13512009 | Guide plate | 1/1/1/1/1/1 |
| 26 | 135S11019 | Screw SM15/64×28 | 1/1/1/1/1/1 |
| 27 | 13512010 | Rotating hook positioner | 1/1/1/1/1/1 |
| 28 | 101S11011 | Screw SM11/64×40×9.5 | 1/1/1/1/1/1 |
| 29 | 13603026 | Bushing,middle | 1/1/1/1/1/1 |
| 30 | 13628003 | washer | 2/2/2/2/2/2 |
| 31 | W02004 | Washer | 1/1/1/1/1/1 |
| 32 | 13521001 | Oil pipe for hook shaft bushi | 1/1/1/1/1/1 |
| 33 | 11522001 | Plunger | 1/1/1/1/1/1 |
| 34 | 13610003 | Thread trimmer cam | 1/1/1/1/1/1 |
| 35 | 116S14005 | Screw SM1/4×40×10 | 2/2/2/2/2/2 |
Page 22 — 7.润滑组件/Oil lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 1352000200 | Oil pump asm | 1/1/1/1/1/1 |
| 1 | 13520001 | Oil pump | 1/1/1/1/1/1 |
| 2 | 13525005 | Big gear for oil pump | 1/1/1/1/1/1 |
| 3 | 13525006 | Small gear for oil pump | 1/1/1/1/1/1 |
| 4 | 135S11037 | Screw M3×10 | 3/3/3/3/3/3 |
| 5 | 13512021 | Cover for oil pump | 1/1/1/1/1/1 |
| 6 | 13512022 | Adjusting plate for oil pump | 1/1/1/1/1/1 |
| 7 | 13512024 | Oil pump Filter | 1/1/1/1/1/1 |
| 8 | 105S11019 | Screw SM11/64×40×13 | 3/3/3/3/3/3 |
| 8-1 | 114S11004 | Screw SM11/64×40×18 | 1/1/1/1/1/1 |
| 9 | 13502024 | Shaft for oil pump | 1/1/1/1/1/1 |
| 10 | S02032 | Screw M3×6 | 2/2/2/2/2/2 |
| 11 | 1351202400 | Oil wick set plate complete | 1/1/1/1/1/1 |
| 12 | 101S11010 | Screw SM9/64×40×11 | 2/2/2/2/2/2 |
| 13 | 1352100700 | Oil pipe complete for upper shaft | 1/1/1/1/1/1 |
| 14 | 12921002 | Oil return pipe | 1/1/1/1/1/1 |
| 15 | 13523003 | Oil felt | 1/1/1/1/1/1 |
| 16 | 13512025 | Pipe return pipe clamp | 1/1/1/1/1/1 |
| 17 | 201S11014 | Screw SM11/64X40 | 1/1/1/1/1/1 |
| 18 | 1362100100 | Oil pipe for arm lower shaft | 1/1/1/1/1/1 |
| 18-1 | 13621001 | Oil pipe for lower shaft | 1/1/1/1/1/1 |
| 18-2 | 13636001 | lower shaft Hose connector | 1/1/1/1/1/1 |
| 19 | 10423005 | Oil wick | 1/1/1/1/1/1 |
| 20 | 13522001 | Rubber plug(φ19) | 1/1/1/1/1/1 |
| 21 | 13522002 | Rubber plug(φ11.8) | 1/1/1/1/1/1 |
| 22 | 13522003 | Rubber plug(φ8.8) | 1/1/1/1/1/1 |
| 23 | 13522004 | Rubber plug φ27 | 1/1/1/1/1/1 |
| 24 | 13522005 | Rubber plug φ5.7 | 2/2/2/2/2/2 |
| 25 | 10111004 | Oil sight window | 1/1/1/1/1/1 |
| 26 | 304715 | Side plate | 1/1/1/1/1/1 |
| 27 | 13522008 | Rubber plug φ25.5 | 1/1/1/1/1/1 |
| 28 | 14722006 | Gasket | 1/1/1/1/1/1 |
| 29 | 101S11001 | Screw SM3/16X28×9 | 8/8/8/8/8/8 |
| 30 | 12922001 | Rubber plug φ12.5 | 1/1/1/1/1/1 |
| 31 | 305102 | Keep off plate | 1/1/1/1/1/1 |
| 32 | 101S11004 | Screw SM3/16"X28 X7 | 1/1/1/1/1/1 |
| 33 | 14722011 | Keep off plate wool felt | 1/1/1/1/1/1 |
| 34 | 10122019 | O-ring | 1/1/1/1/1/1 |
| 35 | 14022013 | Rubber plug φ8.5 | 1/1/1/1/1/1 |
| 36 | W01006 | Spring washer | 1/1/1/1/1/1 |
| 37 | 13522018 | Rubber gasket | 1/1/1/1/1/1 |
| 38 | 13612023 | Keep off plate | 1/1/1/1/1/1 |
| 39 | 112S11014 | Screw SM11/64×40×5.3 | 2/2/2/2/2/2 |
| 40 | 10122005 | Take-up link pin screw plug | 1/1/1/1/1/1 |
| 41 | 13523005 | Oil felt | 4/4/4/4/4/4 |
Page 24 — 8.切线装置部件/Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13612006 | Thread trimmer driving lever | 1/1/1/1/1/1 |
| 2 | 13612007 | Adapter | 1/1/1/1/1/1 |
| 3 | 136S20001 | Screw SM11/64×40 | 1/1/1/1/1/1 |
| 4 | 13612008 | Adapter | 1/1/1/1/1/1 |
| 5 | 305S12005 | Screw | 2/2/2/2/2/2 |
| 6 | 13602007 | shaft | 1/1/1/1/1/1 |
| 7 | 13627004 | Spring | 1/1/1/1/1/1 |
| 8 | 30108004 | Shrink collar | 1/1/1/1/1/1 |
| 9 | 101S11005 | Screw SM9/64×40×6 | 2/2/2/2/2/2 |
| 10 | 101S11020 | Screw SM11/64×40×10.5 | 1/1/1/1/1/1 |
| 11 | 114S16005 | Nut SM15/64×28 | 1/1/1/1/1/1 |
| 12 | 1363000600 | Thread electromagnet drive | 1/1/1/1/1/1 |
| 13 | 201S11029 | Screw SM15/64X28×11 | 4/4/4/4/4/4 |
| 14 | 101S11025 | Screw SM11/64×40×7 | 1/1/1/1/1/1 |
| 15 | 12312011 | Cable clip | 1/1/1/1/1/1 |
| 17 | 13626005 | Pin | 1/1/1/1/1/1 |
| 18 | H05012 | Ring | 2/2/2/2/2/2 |
| 19 | 1361300300 | Loose wire rope assembly | 1/1/1/1/1/1 |
| 20 | 116S16010 | Nut | 2/2/2/2/2/2 |
| 21 | 13612009 | The mounting plate | 1/1/1/1/1/1 |
| 22 | 136S10004 | Screw SM11/64×40×8.9 | 1/1/1/1/1/1 |
| 23 | 136S16003 | Screw SM9/64×40 | 1/1/1/1/1/1 |
| 24 | 13601007 | Bracket for fixed blade | 1/1/1/1/1/1 |
| 25 | 13612010 | Thread guide | 1/1/1/1/1/1 |
| 26 | 101S11005 | Screw SM9/64×40×6 | 1/1/1/1/1/1 |
| 27 | 136S17001 | Screw SM9/64×40×4 | 1/1/1/1/1/1 |
| 28 | 13619001 | Fixed blade | 1/1/1/1/1/1 |
| 29 | 42209006 | Knife holding bracket saddle | 1/1/1/1/1/1 |
| 30 | 422S16002 | Nut SM11/64×40 | 2/2/2/2/2/2 |
| 31 | 42204008 | Knife base (left) | 1/1/1/1/1/1 |
| 32 | S05005 | Screw M5×12 | 1/1/1/1/1/1 |
| 33 | 13604001 | Knife driving crank | 1/1/1/1/1/1 |
| 34 | 422S20006 | Screw SM11/64×40×5.5 | 2/2/2/2/2/2 |
| 35 | 42205008 | Link | 1/1/1/1/1/1 |
| 36 | 422S17006 | Screw SM1/8×44×5.4 | 3/3/3/3/3/3 |
| 37 | 42212049 | Washer | 1/1/1/1/1/1 |
| 38 | 13619002 | Movable knife (left) | 1/1/1/1/1/1 |
| 39 | 136S17003 | Screw SM11/64×40×4.5 | 2/2/2/2/2/2 |
| 40 | 13602008 | Knife driving shaft | 1/1/1/1/1/1 |
| 41 | 13604002 | Tangential cam right crank | 1/1/1/1/1/1 |
| 42 | 13601010 | Torsion spring end cap | 1/1/1/1/1/1 |
| 43 | 13627005 | Spring | 1/1/1/1/1/1 |
| 44 | 13612011 | Stopper plate | 1/1/1/1/1/1 |
| 45 | 136S14002 | Screw SM15/64X28×6 | 3/3/3/3/3/3 |
| 46 | 13601011 | Stopper | 1/1/1/1/1/1 |
| 47 | 13627006 | Spring | 1/1/1/1/1/1 |
| 48 | 113S14020 | Screw SM11/64×40×6 | 2/2/2/2/2/2 |
| 49 | 20108001 | Thrusr tighten collar asm | 1/1/1/1/1/1 |
| 51 | 13604003 | Tangent cam left crank | 1/1/1/1/1/1 |
Page 26 — 8.切线装置部件/Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | 136S20003 | Screw SM3/16×28×8 | 2 2 2 2 2 2 |
| 53 | 13609002 | Cam follower | 2 2 2 2 2 2 |
| 54 | 136S17005 | Nut SM3/16×28×3 | 2 2 2 2 2 2 |
| 55 | 13612012 | Wire trimming electromagnet | 1 1 1 1 1 1 |
| 56 | 13628005 | Gasket | 1 1 1 1 1 1 |
| 57 | 136S17004 | Screw | 3 3 3 3 3 3 |
| 58 | 13628006 | Washer | 1 1 1 1 1 1 |
| 59 | 13628007 | Washer | 1 1 1 1 1 1 |
| 62 | 101S11025 | Screw SM11/64×40×7 | 4 4 4 4 4 4 |
| 63 | 13628011 | Gasket | 1 1 1 1 1 1 |
| 64 | 13622004 | Wire plug | 1 1 1 1 1 1 |
| 65 | 136S30002 | Screw M6×16 | 1 1 1 1 1 1 |
| 66 | 13628008 | Cushion | 1 1 1 1 1 1 |
| 67 | 1360100800 | Knife holding bracket saddle | 1 1 1 1 1 1 |
| 68 | 205S16002 | Nut M6×3.5 | 1 1 1 1 1 1 |
Page 28 — 9.自动倒料开关组件/Automatic reverse feed components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1363000700 | Backstitch electromagnet | 1 1 1 1 1 1 |
| 1-1 | 1363000500 | Backstitch electromagnet | 1 1 1 1 1 1 |
| 1-2 | 13626007 | Backstitch electromagnet link | 1 1 1 1 1 1 |
| 1-3 | 13605002 | Backstitch solenoid rod | 1 1 1 1 1 1 |
| 2 | 13603011 | Bush | 4 4 4 4 4 4 |
| 3 | 136S15005 | Screw M5×25 | 4 4 4 4 4 4 |
| 4 | 1360400400 | Backstitch electromagnet crank | 1 1 1 1 1 1 |
| 4-1 | 13604004 | Backstitch electromagnet crank | 1 1 1 1 1 1 |
| 4-2 | 136S11012 | Screw SM3/16×32×14 | 1 1 1 1 1 1 |
| 4-3 | 13626006 | link pin | 1 1 1 1 1 1 |
| 5 | 113S14020 | Screw SM11/64×40×6 | 1 1 1 1 1 1 |
| 6 | 302147 | Backstitch solenoid cover | 1 1 1 1 1 1 |
| 7 | 101S11021 | Screw SM3/16×28×12 | 4 4 4 4 4 4 |
| 8 | 13628009 | Seals washer | 1 1 1 1 1 1 |
| 9 | 13627007 | Spring hook | 1 1 1 1 1 1 |
| 10 | 1473000800 | Switch assembly | 1 1 1 1 1 1 |
| 11 | 101S11004 | Screw SM3/16X28 X7 | 2 2 2 2 2 2 |
| 12 | 40511001 | Clamps | 3 3 3 3 3 3 |
| 13 | 101S11005 | Screw SM9/64×40×6 | 2 2 2 2 2 2 |
| 14 | 1363001000 | Nest less e-device | 1 1 1 1 1 1 |
| 15 | 41312003 | oil tube hohder | 1 1 1 1 1 1 |
Page 30 — 10.机头附件/Machine head accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 114131001 | Machine head cover | 1/1/1/1/1/1 |
| 2 | 10131004 | Screw driver(small) | 1/1/1/1/1/1 |
| 3 | 10131003 | Screw driver(middle) | 1/1/1/1/1/1 |
| 4 | 20731047 | Screw driver(large) | 1/1/1/1/1/1 |
| 5 | 13517001 | Needle(DP×17 23#) | 4/4//4//4 |
| 13517003 | Needle(DP×17 22#) | //4/// | |
| 11617002 | Needle(DP×5 14#) | ///4/ | |
| 6 | 10818501 | Bobbin | 5/5/5/5/5/5 |
| 7 | 1351203700 | Knee control limit frame | 1/1/1/1/1/1 |
| 1350100900 | Oil pan assembly | 1/1/1/1/1/1 | |
| 8 | 13501007 | Oil reservoir | 1/1/1/1/1/1 |
| 9 | 101S11028 | Screw SM5/16×24×7 | 1/1/1/1/1/1 |
| 10 | 001047 | Washer | 1/1/1/1/1/1 |
| 11 | 13523006 | Gasket | 1/1/1/1/1/1 |
| 12 | 13511006 | Knee press lifter rod | 1/1/1/1/1/1 |
| 13 | 10131001 | Magnet | 1/1/1/1/1/1 |
| 14 | 20131038 | Oil pot | 1/1/1/1/1/1 |
| 15 | 10122060 | Rubber coat | 2/2/2/2/2/2 |
| 16 | 1011203100 | Hing | 2/2/2/2/2/2 |
| 17 | 113522001 | Cushion(big) | 2/2/2/2/2/2 |
| 18 | 10122022 | Cushion(small) | 2/2/2/2/2/2 |
| 19 | 1011101200 | Oil tank | 1/1/1/1/1/1 |
| 20 | 1383100300 | Spool stand complete | 1/1/1/1/1/1 |
| 21 | 10111011 | Frame support bar | 1/1/1/1/1/1 |
| 22 | 1351203800 | Joystick assembly | 1/1/1/1/1/1 |
| 26 | 13502025 | Hinge pin | 1/1/1/1/1/1 |
| 27 | 13527014 | Spring | 1/1/1/1/1/1 |
| 28 | 13512026 | Knee lifter stop bracket | 1/1/1/1/1/1 |
| 29 | 135S15019 | Screw M6 | 2/2/2/2/2/2 |
| 30 | N01029 | Nut M6 | 2/2/2/2/2/2 |
| 31 | 135S12003 | Screw M6 | 1/1/1/1/1/1 |
| 32 | 10101008 | Connector | 1/1/1/1/1/1 |
| 33 | 101S12003 | Screw M8 | 2/2/2/2/2/2 |
| 34 | 13512038 | Bent rod | 1/1/1/1/1/1 |
| 35 | 10112029 | Bell | 1/1/1/1/1/1 |
| 36 | 10112030 | Bell bracket | 1/1/1/1/1/1 |
| 37 | 101S12004 | Screw M6×11 | 1/1/1/1/1/1 |
| 38 | 10122024 | mat | 1/1/1/1/1/1 |
| 39 | H05010 | Split stop ring | 1/1/1/1/1/1 |
| 40 | 10130044 | Electric control pedal | 1/1/1/1/1/1 |
| 41 | 20730335 | Pedal connecting rod | 1/1/1/1/1/1 |
| 42 | 114712003 | open wrench | 1/1/1/1/1/1 |
Page 32 — 11.自动抬压脚部件/Automatic presser foots parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40712305 | Screw cover plate connection front | 2 / 2 / 2 |
| 2 | 302886 | Electromagnet mounting plate 1 (paint) assembly | 1 / 1 / 1 |
| 3 | 421S10008 | Screw M5×12 | 2 / 2 / 2 |
| 4 | 403S11012 | Screw M4×10 | 6 / 6 / 6 |
| 5 | 13630013 | Lift the piezoelectric magnet | 1 / 1 / 1 |
| 6 | 302887 | Electromagnet mounting plate 2 (paint) | 1 / 1 / 1 |
| 7 | S05038 | Joint screw M5×8 | 1 / 1 / 1 |
| 8 | 11226007 | Electromagnet crank | 1 / 1 / 1 |
| 9 | H05003 | Retaining ring | 2 / 2 / 2 |
| 10 | 11201007 | Electromagnetic iron core shaft coupling | 1 / 1 / 1 |
| 11 | 11203003 | Crank shaft sleeve | 1 / 1 / 1 |
| 12 | 114703002 | Sleeve | 1 / 1 / 1 |
| 13 | 13602012 | The presser foot lifter axis | 1 / 1 / 1 |
| 14 | 13628015 | Seals | 1 / 1 / 1 |
| 15 | H05011 | Retaining ring | 1 / 1 / 1 |
| 16 | 11204005 | Electromagnet crank | 1 / 1 / 1 |
| 17 | S05013 | Screw M5×12 | 1 / 1 / 1 |
| 18 | 13512035 | Knee lifter lever (right) | 1 / 1 / 1 |
| 19 | 13605005 | Rod crank | 1 / 1 / 1 |
| 20 | 409S11014 | Screw SM3/16×28×7.7 | 2 / 2 / 2 |
| 21 | 13612028 | Tie rod | 1 / 1 / 1 |
| 22 | 112S16012 | Rod nut | 1 / 1 / 1 |
| 23 | 112S20008 | Screw M6×12 | 1 / 1 / 1 |
| 24 | S05004 | Screw M5×14 | 1 / 1 / 1 |
| 25 | 11204004 | Automatic presser foot crank | 1 / 1 / 1 |
| 26 | 112S16011 | Sleeve nut M16×1.5 | 1 / 1 / 1 |
| 27 | 13612022 | The trim | 1 / 1 / 1 |
| 28 | 114722004 | Rear window gasket | 1 / 1 / 1 |
| 29 | 302885 | Rear window | 1 / 1 / 1 |
| 30 | 13622006 | Oil seal | 1 / 1 / 1 |
Page 34 — 12.新款自动抬压脚部件/Automatic presser foots parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 114744001 | Electromagnet shield | 1 / 1 / 1 |
| 2 | 11473000400 | Lifting foot electromagnet assembly | 1 / 1 / 1 |
| 3 | S05005 | Screw M5×12 | 3 / 3 / 3 |
| 4 | 114712006 | Electromagnet mount | 1 / 1 / 1 |
| 5 | 207S11026 | Screw M6×16 | 3 / 3 / 3 |
| 6 | W02004 | Spring washer M6 | 3 / 3 / 3 |
| 7 | 114704002 | Automatic lifting foot crank assembly | 1 / 1 / 1 |
| 8 | 207S11026 | ScrewM6×16 | 1 / 1 / 1 |
| 9 | 12929003 | Retaining ring E8 | 2 / 2 / 2 |
| 10 | 12928004 | Axial washer 1.2MM | 1 / 1 / 1 |
| 11 | 30122039 | Oil seal | 1 / 1 / 1 |
| 12 | 114703002 | Sleeve | 1 / 1 / 1 |
| 13 | 114712010 | Rear window | 1 / 1 / 1 |
| 14 | 114722004 | Rear window gasket | 1 / 1 / 1 |
| 15 | 114712007 | Automatic lifting foot crank | 1 / 1 / 1 |
| 16 | N01007 | Nut M6 | 1 / 1 / 1 |
| 17 | 114702003 | Lifting foot shaft | 1 / 1 / 1 |
| 18 | 112S16011 | Sleeve nut M16×1.5 | 1 / 1 / 1 |
| 19 | 421S11008 | Screw M4×10 | 2 / 2 / 2 |
Page 36 — 13.气动抬压脚部件/Automatic presser foots parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11474500200 | Lifting foot cyalinder assembly | 1 |
| 2 | S05007 | Screw M8x20 | 4 |
| 3 | 114712008 | Cylinder mounting plate | 1 |
| 4 | 114712009 | Rear window | 1 |
| 5 | 114722003 | Rear window gasket | 1 |
| 6 | N01007 | Nut M6 | 2 |
| 7 | 114712007 | Automatic lifting foot crank | 1 |
| 8 | 114702003 | Lifting foot shaft | 1 |
| 9 | 112S16011 | Sleeve nut M16x1.5 | 1 |
| 10 | 114703002 | Sleeve | 1 |
| 11 | 30122039 | Oil seal | 1 |
| 12 | 12928004 | Axial washer 1.2MM | 1 |
| 13 | H05001 | Retaining ring E8 | 1 |
| 14 | 207S11026 | Screw | 3 |
| 15 | 114704002 | Automatic lifting foot crank | 1 |
| 19 | 142312006 | Valve mounting plate | 1 |
| 20 | N01013 | Nut M3 | 2 |
| 21 | 114245004 | Gas source processing component | 1 |
| 22 | S05005 | Screw M5x12 | 2 |
| 23 | 407S04053 | Screw M3x25 | 2 |
| 24 | 114245005 | The electromagnetic valve | 1 |
Jack H5 — parts catalog
- Page 1 (diagram): This page displays a diagram of the machine frame and cover components for the JACK H5 Series Parts Manual, with various parts numbered for identification.
- Page 2 (parts_list): This page lists machine frame and cover components, including part numbers, descriptions, and quantities for various models.
- Page 3 (diagram): This page displays a diagram of machine frame and cover components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page lists machine frame and cover components, including part numbers, names, descriptions, and quantities for different models.
- Page 5 (diagram): This page displays a diagram of main shaft and thread take-up components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 6 (parts_list): This page lists components for the Main shaft & thread take-up components section, including part numbers, descriptions, and quantities for various models.
- Page 7 (diagram): This page displays a diagram of main shaft and thread take-up components for an industrial sewing machine, with numbered parts and their corresponding details.
- Page 8 (parts_list): This page lists components for the Main shaft & thread take-up, including part numbers, descriptions, and quantities for various models.
- Page 9 (diagram): This page displays a diagram of presser components, with numbered parts and their corresponding part numbers and descriptions.
- Page 10 (parts_list): This page lists presser components for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, and quantities for various models.
- Page 13 (diagram): This page displays a diagram of feed mechanism components, with numbered parts and their corresponding references.
- Page 14 (parts_list): This page lists feed mechanism components with part numbers, descriptions, and quantities for various models.
- Page 15 (diagram): This page displays a diagram of upper feed parts for an industrial sewing machine, with various components labeled with reference numbers.
- Page 16 (parts_list): This page lists upper feed parts for an industrial sewing machine, including part numbers, descriptions, and quantities for various components like nuts, washers, screws, and shafts.
- Page 17 (diagram): This page displays a diagram of upper feed parts for an industrial sewing machine, with numbered components and their corresponding labels.
- Page 18 (parts_list): This page lists upper feed parts for an industrial sewing machine, including part numbers, descriptions, and quantities for various models.
- Page 19 (diagram): This page displays a diagram of hook components, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page lists hook components with part numbers, descriptions, and quantities for various models.
- Page 21 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts indicated.
- Page 22 (parts_list): This page lists oil lubrication components for industrial sewing machines, including part numbers, descriptions, and quantities for various models.
- Page 23 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 24 (parts_list): This page lists components for thread trimmer components, including part numbers, descriptions, and quantities for various models.
- Page 25 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 26 (parts_list): This page lists components for thread trimmer components, including part numbers, descriptions, and quantities for various models.
- Page 27 (diagram): This page displays a diagram of automatic reverse feed components, with various parts labeled with reference numbers.
- Page 28 (parts_list): This page lists automatic reverse feed components, including part numbers, descriptions, and quantities for various models.
- Page 29 (diagram): This page displays a diagram of machine head accessories, with various parts numbered for identification.
- Page 30 (parts_list): This page lists machine head accessories with part numbers, descriptions, and quantities for different models.
- Page 31 (diagram): This page displays a diagram of automatic presser foot parts, with numbered components and their corresponding references.
- Page 32 (parts_list): This page lists parts for the automatic presser foot, including part numbers, descriptions, and quantities for different models.
- Page 33 (diagram): This page displays a diagram of automatic presser foot parts, with numbered components and their corresponding references.
- Page 34 (parts_list): This page lists parts for the Automatic presser foots, including part numbers, descriptions, and quantities for different models.
- Page 35 (diagram): This page displays a diagram of automatic presser foot parts, with numbered components and their corresponding references.
- Page 36 (parts_list): This page lists automatic presser foot parts with their part numbers, descriptions, and quantities.
