Jack H6 Parts Book (PDF)

Single Needle LockstitchDownload PDF

Text index — Jack H6

Page 2 — 1.机壳、外装分件/Machine frame & cover components

Jack H6 parts on page 2
RefPart numberPart nameQty
1930000500Panel1 / 1 / 1 / 1 / 1
2201S11025Panel screw SM11/64×401 / 1 / 1 / 1 / 1
313813005Panel thread guide1 / 1 / 1 / 1 / 1
410113004Panel thread guide (right)1 / 1 / 1 / 1 / 1
5101S11007Screw SM11/64×40×62 / 2 / 2 / 2 / 2
61411300400Small thread tension assay1 / 1 / 1 / 1 / 1
6-113812066Thread tension guide plate1 / 1 / 1 / 1 / 1
6-213810008Thread tension bolt1 / 1 / 1 / 1 / 1
6-311212004Thread tension disk2 / 2 / 2 / 2 / 2
6-411227001Thread tension spring1 / 1 / 1 / 1 / 1
6-5138S16019Thread tension nut1 / 1 / 1 / 1 / 1
7113S14002Set screw1 / 1 / 1 / 1 / 1
8135120043-hole thread guide1 / 1 / 1 / 1 / 1
911471300100Thread tension assay1 / 1 / 1 / 1 / 1
9-11147NS30001Thread tension Screw1 / 1 / 1 / 1 / 1
9-2141S16013Thread tension nut1 / 1 / 1 / 1 / 1
9-314227024Thread tension spring1 / 1 / 1 / 1 / 1
9-410112006Tension releasing board1 / 1 / 1 / 1 / 1
9-514112015Thread tension disk2 / 2 / 2 / 2 / 2
9-6114727001Take-up spring1 / 1 / 1 / 1 / 1
9-713513006Thread tension retainer1 / 1 / 1 / 1 / 1
9-8135S15002Screw1 / 1 / 1 / 1 / 1
9-9001050O ring 14.5x1.51 / 1 / 1 / 1 / 1
9-1010112007Thread tension nut locking plate1 / 1 / 1 / 1 / 1
10136S14002Screw SM15/64×281 / 1 / 1 / 1 / 1
1114712018Thread tade-up lever cover1 / 1 / 1 / 1 / 1
12101S11004Screw SM3/16X28 X72 / 2 / 2 / 2 / 2
1310122005Take-up link pin screw plug1 / 1 / 1 / 1 / 1
14135S11047Panel screw SM11/64×402 / 2 / 2 / 2 / 2
1514726002Thread release pin1 / 1 / 1 / 1 / 1
1613613002Thread release bar1 / 1 / 1 / 1 / 1
17115037001A5E-0141 trademark1 / 1 / 1 / 1 / 1
181411300600Bobbin winder thread tension1 / 1 / 1 / 1 / 1
18-1114S16001Nut SM11/64×401 / 1 / 1 / 1 / 1
18-211413022Thread tension guide plate1 / 1 / 1 / 1 / 1
18-313601006Screw1 / 1 / 1 / 1 / 1
18-410112005Thread tension disk2 / 2 / 2 / 2 / 2
18-511427006Spring1 / 1 / 1 / 1 / 1
18-6141S16019Thread tension nut1 / 1 / 1 / 1 / 1
19101S12001Base plate pillar4 / 4 / 4 / 4 / 4
20910000165H6 frame1 / 1 / 1 / 1 / 1
21100767Base plate1 / 1 / 1 / 1 / 1
22-113515002Slide plate1 / 1 / 1 / 1 / 1
22-213512007Slide plate spring1 / 1 / 1 / 1 / 1
22-3101S11019Screw SM3/32×56 L=22 / 2 / 2 / 2 / 2
9300000500
201511025面板螺钉 SM11/64×40
101130400
1147100100

Page 4 — 1.机壳、外装件/Machine frame & cover components

Jack H6 parts on page 4
RefPart numberPart nameQty
231361300800Bobbin winder thread tension1 1 1 1 1
24114S11003Screw1 1 1 1 1
2511419001Thread cutter1 1 1 1 1
26114S11015Screw SM9/64×40 L=61 1 1 1 1
2713522001Rubber plug(ϕ19)1 1 1 1 1
2813522002Rubber plug(ϕ11.8)1 1 1 1 1
291363001000Nest less e-device1 1 1 1 1
29-111302025Peg1 1 1 1 1
29-211303035Copper sheathing1 1 1 1 1
29-313813031Hull1 1 1 1 1
29-411327021Spring1 1 1 1 1
29-5113S20006Screw1 1 1 1 1
29-613813030Blind flange1 1 1 1 1
29-711328030Washer1 1 1 1 1
29-811302026Peg1 1 1 1 1
29-91383002700Magnet coil1 1 1 1 1
29-1011303036Copper sheathing1 1 1 1 1
30104S17002Screw SM11/64×40 L=52 2 2 2 2
3113515001Needle plate1 _ 1 _ 1
13515004Needle plateST 1
13515005Needle plateXB 1
32113S14020Screw1 1 1 1 1
33W01009Washer 51 1 1 1 1
34101S11025Screw SM11/64×40×72 2 2 2 2
3513812111Beader pedestal1 1 1 1 1
3613811060Motor insulation shield1 1 1 1 1
37114733011Motor1 1 1 1 1
38W02004Spring washer4 4 4 4 4
4011473301000Machine electric control1 1 1 1 _
11473300500Machine electric controlH6+ 1
41114S13001Screw M5×201 1 1 1 1
42S05901Screw M5×353 3 3 3 1
4311422062Gland1 1 1 1 1
4411473000700Control panel1 1 1 1 1
45138S05001Screw M3 L=122 2 2 2 2
4613822001Rubber plug2 2 2 2 2
47421S11008Screw M4×102 2 2 2 2

Page 6 — 2.上轴挑线分组件/Main shaft & thread take-up components

Jack H6 parts on page 6
RefPart numberPart nameQty
1114702004Main shaft1 / 1 / 1 / 1 / 1
210122012Rubber plug1 / 1 / 1 / 1 / 1
310108003Shaft washer1 / 1 / 1 / 1 / 1
4101S15002Screw SM1/4×40×62 / 2 / 2 / 2 / 2
513603023Main shaft bushing front1 / 1 / 1 / 1 / 1
613503017Main shaft bushing middle1 / 1 / 1 / 1 / 1
7135S15006Screw SM15/64×281 / 1 / 1 / 1 / 1
8114703004Main shaft bushing back1 / 1 / 1 / 1 / 1
913522010Bushing back oil seal assy1 / 1 / 1 / 1 / 1
10304714Capstan1 / 1 / 1 / 1 / 1
11S10009Capstan screw M6x82 / 2 / 2 / 2 / 2
121353800200Thread take-up assy1 / 1 / 1 / 1 / 1
12-1101S11005Screw SM11/64×40×81 / 1 / 1 / 1 / 1
12-213505002Needle bar connection1 / 1 / 1 / 1 / 1
12-3101S17001Screw1 / 1 / 1 / 1 / 1
13505003
10124001
13504002
13538004
13538003
13538002
13502003
135S15009螺钉 SM15/64×28
13504001
101S15007螺钉 SM1/4×40×8
135S12001螺钉 SM1/4×40
101S15004螺钉 SM9/32×28×16
135S11002螺钉 SM9/32×28
14703006
10122013
13503007
14735001
13602002
13513011
13517001机针(DP×17 23#)
13517003机针(DP×17 22#)
11617002机针(DP×5 14#)
101S11006螺钉 SM1/8×44 L=4.5
13609001
11409001
101S11008
13612001
13612002
10112003

Page 8 — 2.上轴挑线分组件/Main shaft & thread take-up components

Jack H6 parts on page 8
RefPart numberPart nameQty
3413523001Oil felt for needle bar2
35101s11010Fixed frame screw2
3613627002Spring1
3713612003Hinge1
3813626001Hinge pin1
39H05024Retaining ring1
40136S12001Hinge screw1
41S10035Screw M5×82
4210123002Oil felt for needle bar1
43114713006Clamps2
44135S15009Screw SM15/64×282
45H03001Washer1

Page 10 — 3.压料分组件/Presser components

Jack H6 parts on page 10
RefPart numberPart nameQty
114711005Presser foot wrench1 1 1 1 1
2101S11008Screw SM11/64×40×81 1 1 1 1
3001009O-ring 4.5X1.81 1 1 1 1
413510004Presser bar lifting cam1 1 1 1 1
51351201200Knee lifter lever (left)assy1 1 1 1 1
5-113512014Knee lifter rod1 1 1 1 1
5-2135S11027screw SM3/16×281 1 1 1 1
5-3135S11026Screw SM11/64×401 1 1 1 1
5-413512013Knee lifter lever (left)1 1 1 1 1
5-513510005Tension releasing cam1 1 1 1 1
6114726007Ension releasing cam melt1 1 1 1 1
713526005Pin for spring1 1 1 1 1
813527010Presser spring1 1 1 1 1
91147NS30003Screw M15×11 1 1 1 1
10114709002Guide bushing1 1 1 1 1
11135S16003Nut M15×11 1 1 1 1
1213512016Knee lifter lever1 1 1 1 1
1313527011Presser spring1 1 1 1 1
14114709001Presser bar lifting bracket1 1 1 1 1
1530122022Gasket1 1 1 1 1
1613502019Presser bar1 1 1 1 1
1713503013Presser bar bushing1 1 1 1 1
18101S15006Screw SM15/64×281 1 1 1 1
19101S11008Screw SM11/64×40×81 1 1 1 1
20114713002Thread guide1 1 1 1 1
21101S11009Screw SM9/64×40×10.51 1 1 1 1
2213528007Washer1 1 1 1 1
2313512017Defend hook1 1 1 1 1
2413516001Presser foot complete1 - - - 1
13516004Presser foot completeST 1
114716006Presser foot completeXB 1
13516005Presser foot completeZD 1
25135S12002Screw SM15/64×281 1 1 1 1
2613512015Knee lifter lever (right)1 1 1 1 1
27135S11027Screw SM3/16×281 1 1 1 1
28113S14020Screw SM11/64×401 1 1 1 1
101S15008螺钉 SM11/64×40×8

Page 12 — 4.送料分组件/Feed mechanism components

Jack H6 parts on page 12
RefPart numberPart nameQty
111470501100Rocker shaft connecting rod assy1 1 1 1 1
1-1135S15007Screw3 3 3 3 3
1-213510003Feed drive eccentric cam1 1 1 1 1
1-313505005Rocker shaft connecting rod1 1 1 1 1
1-413526001Walking foot crank short pin1 1 1 1 1
1-513504018Feed rocker shaft crank assy1 1 1 1 1
1-6101S11025Screw SM11/64x40x71 1 1 1 1
1-7409S11021Screw SM11/64x40x141 1 1 1 1
1-813505008connecting short link1 1 1 1 1
1-913505007Crank long link2 2 2 2 2
1-1013526003Crank connecting pin2 2 2 2 2
1-11201S11012Screw SM9/64X401 1 1 1 1
1-12114704004Needle pitch adjusting link1 1 1 1 1
1-13209S14008Screw SM11/64x40x4.51 1 1 1 1
1-1413502014Crank connecting pin1 1 1 1 1
210128003Washer1 1 1 1 1
313528002Thrust collar1 1 1 1 1
411350500200Connecting rod assy1 1 1 1 1
4-1135S15007Screw SM11/64x401 1 1 1 1
4-213510001Feed drive eccentric cam1 1 1 1 1
4-313505001Connecting rod1 1 1 1 1
513502009Hinge pin3 3 3 3 3
6135S11048Screw SM3/16x321 1 1 1 1
713504019Feed lifting rock shaft crank(right)1 1 1 1 1
8105S11019Screw SM11/64x40 L=131 1 1 1 1
913502016Adjusting link fulcrum shaft2 2 2 2
1013502017Adjusting link fulcrum shaft pin2
11114S11004Screw SM 11/64x40x181 1 1 1
1213602003Feed rocker shaft1
1310108003Thrust collar assy2 2 2 2 2
14101S15002Screw SM1/4x40x61 1 1 1 1
1513603024Bushing for feed rock shaft(right)1 1 1 1 1
16135S15008Screw SM15/64x281 1 1 1 1
17H03001Retaining ring1 1 1 1 1
18101S11018Screw SM1/8x40 L=62 2 2 2 2
1913514001Feed dog4 4 4 4 4
2013504003Feed crank assy1 1 1 1 1
2113502005Feed bar shaft1 1 1 1 1
2213528004Washer2 2 2 2 2
23101S11008Screw SM11/64x40x82 2 2 2 2
24101S11016Screw SM3/16x28 L=141 1 1
251350700300Feed bar assy1 1
25-113502029Bracket connection pin
25-213509007Slider1 1 1 1 1
25-313528009Washer1 1 1 1 1
25-413507001Feed bar assy1 1 1 1 1
26409S11021Screw1 1 1 1 1
2713602004Feed lifting rock shaft2 2 2 2 2
135515007
105S110119螺钉 SM11/64×40 L=13

Page 14 — 4.送料分组件/Feed mechanism components

Jack H6 parts on page 14
RefPart numberPart nameQty
28135S15009Screw SM15/64×281 1 1 1 1
2913528006Washer1 1 1 1 1
3013603005Bushing for feed rock shaft(right)1 1 1 1 1
31201S11012Screw SM9/64X401 1 1 1 1
32S05004Screw M5×141 1 1 1 1
33W03002Sping washer1 1 1 1 1
34114733009Stepper motor1 1 1 1 1
35114922002Stepper motor bushing oil seal1 1 1 1 1
36115003002Stepper motor bushing1 1 1 1 1
37S10035Screw M5×81 1 1 1 1
38S05004Screw M5×141 1 1 1 1
39114704003Needle pitch adjust crnk1 1 1 1 1
40114705009Stitch connecting rod1 1 1 1 1
41114926001Needle pitch crank pin1 1 1 1 1
4213505004Feed forked connection1 1 1 1 1
201511012S022 螺钉 SM9/64×40

Page 16 — 5.上送料部件/Upper feed Parts

Jack H6 parts on page 16
RefPart numberPart nameQty
111470500200Connecting rod assy1 / 1 / - / - / 1
13505026000Connecting rod(4.5mm)ZD: 1
11470500500Connecting rod(2.5mm)ST: 1
1-1101S15007Screw SM1/4×40×82 / 2 / 2 / 2 / 2
1-2114710001Eccentric wheel1 / 1 / - / - / 1
114710003Eccentric wheel(4.5mm)ZD: 1
114710002Eccentric wheel(2.5mm)ST: 1
1-3H03061Retaining ring 241 / 1 / - / 1 / 1
1-411470500300Connecting rod widget1 / 1 / - / 1 / 1
1-4-1114703001Bushing1 / 1 / - / 1 / 1
1-4-2114705001Lifting link1 / 1 / - / 1 / 1
1-5135S20006Screw M6×0.751 / 1 / 1 / 1 / 1
1-613528008Washer1 / 1 / 1 / 1 / 1
1-713504013Presser lifting shaft1 / 1 / 1 / 1 / 1
1-8N02001Hex Nut M6X0.751 / 1 / 1 / 1 / 1
1-9135S11035Screw SM1/4×241 / 1 / 1 / 1 / 1
213603014Presser lifting shaft back bushing1 / 1 / 1 / 1 / 1
3135S15008Screw SM15/64×28×63 / 3 / 3 / 3 / 3
413603028Presser lifting shaft bushing1 / 1 / 1 / 1 / 1
513603013Presser lifting shaft bushing1 / 1 / 1 / 1 / 1
6135S30007Screw SM9/32×281 / 1 / 1 / 1 / 1
7135S16006nut SM9/32×282 / 2 / 2 / 2 / 2
8114712013Lifting presser bracket for spring1 / 1 / 1 / 1 / 1
9101S11008Screw SM11/64×40×84 / 4 / 4 / 4 / 4
1014727013Lifting presser spring1 / 1 / 1 / 1 / 1
111350202100Presser spring guide1 / 1 / 1 / 1 / 1
11-113502026Presser spring guide rod1 / 1 / 1 / 1 / 1
11-213502027Presser spring guide bushing1 / 1 / 1 / 1 / 1
12201S11012Screw SM9/64X404 / 4 / 4 / 4 / 4
13114712012Lifting presser guide plate assy1 / 1 / 1 / 1 / 1
14402S13011Screw SM15/64×28×181 / 1 / 1 / 1 / 1
151420900400Crank shaft complete asm1 / 1 / 1 / 1 / 1
15-1142S30011Crank shaft complete1 / 1 / 1 / 1 / 1
15-214209004Slide block1 / 1 / 1 / 1 / 1
15-3H05029Split ring1 / 1 / 1 / 1 / 1
1613504020Presser swing shaft1 / 1 / 1 / 1 / 1
1711628005Washer1 / 1 / 1 / 1 / 1
18135S16005Nut SM1/4×241 / 1 / 1 / 1 / 1
191350401500Presser lifting crank1 / 1 / 1 / 1 / 1
19-1113602001Presser lifting crank1 / 1 / 1 / 1 / 1
19-213526007Taper pin1 / 1 / 1 / 1 / 1
19-313504009Pressure foot lifting shaft1 / 1 / 1 / 1 / 1
20135S16004Nut SM1/4×402 / 2 / 2 / 2 / 2
2113505027Presser feed crank link1 / 1 / 1 / 1 / 1
22135S20012Screw SM1/4×401 / 1 / 1 / 1 / 1
2310124001Needle bearing4 / 4 / 4 / 4 / 4
2413509004Lifting presser plate1 / 1 / 1 / 1 / 1
135520006螺钉 M6×0.75
135280008
13603015
135020100

Page 18 — 5.上送料部件/Upper feed Parts

Jack H6 parts on page 18
RefPart numberPart nameQty
251147NS30002Guide shaft1 1 1 1 1
2613508004Needle of bearing1 1 1 1 1
27P03035Spring round pin 3X82 2 2 2 2
281147NS20001Screw SM1/4×40×71 1 1 1 1
29101S11001Screw SM3/16X28 L=91 1 1 1 1
3013526006Pin1 1 1 1 1
3113505030Fork lever1 1 1 1 1
32135S20013Screw SM1/4×401 1 1 1 1
33135S20014Screw SM1/4×401 1 1 1 1
3413505028Link of walking foot1 1 1 1 1
35W02002Washer2 2 2 2 2
3613601015Holder for walking foot bar1 1 1 1 1
37116S11005Screw SM11/64×40×132 2 2 2 2
38114712020Lifting presser sway crank guide pin1 1 1 1 1
39114708001Shim2 2 2 2 2
4013501006Presser rod guide1 1 1 1 1
41135S11030Screw SM9/64×401 1 1 1 1
4213516002Walking foot1 - - - 1
13516003Walking footST 1
114716007Walking footXB 1
13516006Walking footZD 1
431147NS20002Screw SM1/4×401 1 1 1 1
44114704001Presser feed crank1 1 1 1 1
4513508008Presser swing shaft front bushing (left)1 1 1 1 1
46135S15004Screw SM1/4×40×42 2 2 2 2
4713508009Shaft washer1 1 1 1 1
4813502023Presser swing shaft1 1 1 1 1
4911472200200Oil seal1 1 1 1 1
5013503014Presser swing middle shaft bushing (right)1 1 1 1 1
5113504023Presser swing crank(right)1 1 1 1 1
52402S13011Screw SM15/64×28×181 1 1 1 1
53135S20005Screw SM9/32×281 1 1 1 1
5413505014Presser swing crank(right)rod1 1 1 1 1
55135S20004Pin1 1 1 1 1
5613504022Feed rocker shaft crank middle1 1 1 1 1
57101S11025Screw SM11/64×40×71 1 1 1 1
58116S11005Screw SM11/64×40×131 1 1 1 1

Page 20 — 6.旋梭部件/Hook components

Jack H6 parts on page 20
RefPart numberPart nameQty
113502002Upright shaft1 / 1 / 1 / 1 / 1
213525001Gear asm1 / 1 / 1 / 1 / 1
3101s15007Screw SM1/4×40×88 / 8 / 8 / 8 / 8
413525002Gear asm1 / 1 / 1 / 1 / 1
513525003Pinion asm1 / 1 / 1 / 1 / 1
613525004Gear asm1 / 1 / 1 / 1 / 1
713503018Bushing upper1 / 1 / 1 / 1 / 1
813503019Upring shaft bushing lower1 / 1 / 1 / 1 / 1
9135S15008Screw SM15/64×282 / 2 / 2 / 2 / 2
1013618001Hook asm1 / 1 / 1 / 1 / 1
1110818501Bobbin1 / 1 / 1 / 1 / 1
1213618003Hook asm (without tail)/ 1 / / 1
13618007Hook asm (with tail)1 / 1 / / 1 / 1
1313602006Hook driving shaft1 / 1 / 1 / 1 / 1
1410123003Oil wick1 / 1 / 1 / 1 / 1
15135S20007Screw SM3/16×321 / 1 / 1 / 1 / 1
1613503009Bushing front1 / 1 / 1 / 1 / 1
17135S20008Screw SM15/64×281 / 1 / 1 / 1 / 1
1813527005Spring1 / 1 / 1 / 1 / 1
1910108002Thtust shrink collar asm1 / 1 / 1 / 1 / 1
20101S11012Screw SM11/64×40×4.82 / 2 / 2 / 2 / 2
2113603025Bushing rear1 / 1 / 1 / 1 / 1
22135S15009Screw SM15/64×281 / 1 / 1 / 1 / 1
2313502008Plunger1 / 1 / 1 / 1 / 1
2413527006Plunger spring1 / 1 / 1 / 1 / 1
2513512009Guide plate1 / 1 / 1 / 1 / 1
26135S11019Screw SM15/64×281 / 1 / 1 / 1 / 1
2713512010Rotating hook positioner1 / 1 / 1 / 1 / 1
28101S11011Screw SM11/64×40×9.51 / 1 / 1 / 1 / 1
2913603026Bushing middle1 / 1 / 1 / 1 / 1
3013628003Washer2 / 2 / 2 / 2 / 2
31W02004Washer1 / 1 / 1 / 1 / 1
3213521001Oil pipe for hook shaft bushing1 / 1 / 1 / 1 / 1
3311522001Plunger1 / 1 / 1 / 1 / 1
3413610003Thread trimmer cam1 / 1 / 1 / 1 / 1
35116S14005Screw SM1/4×40×102 / 2 / 2 / 2 / 2

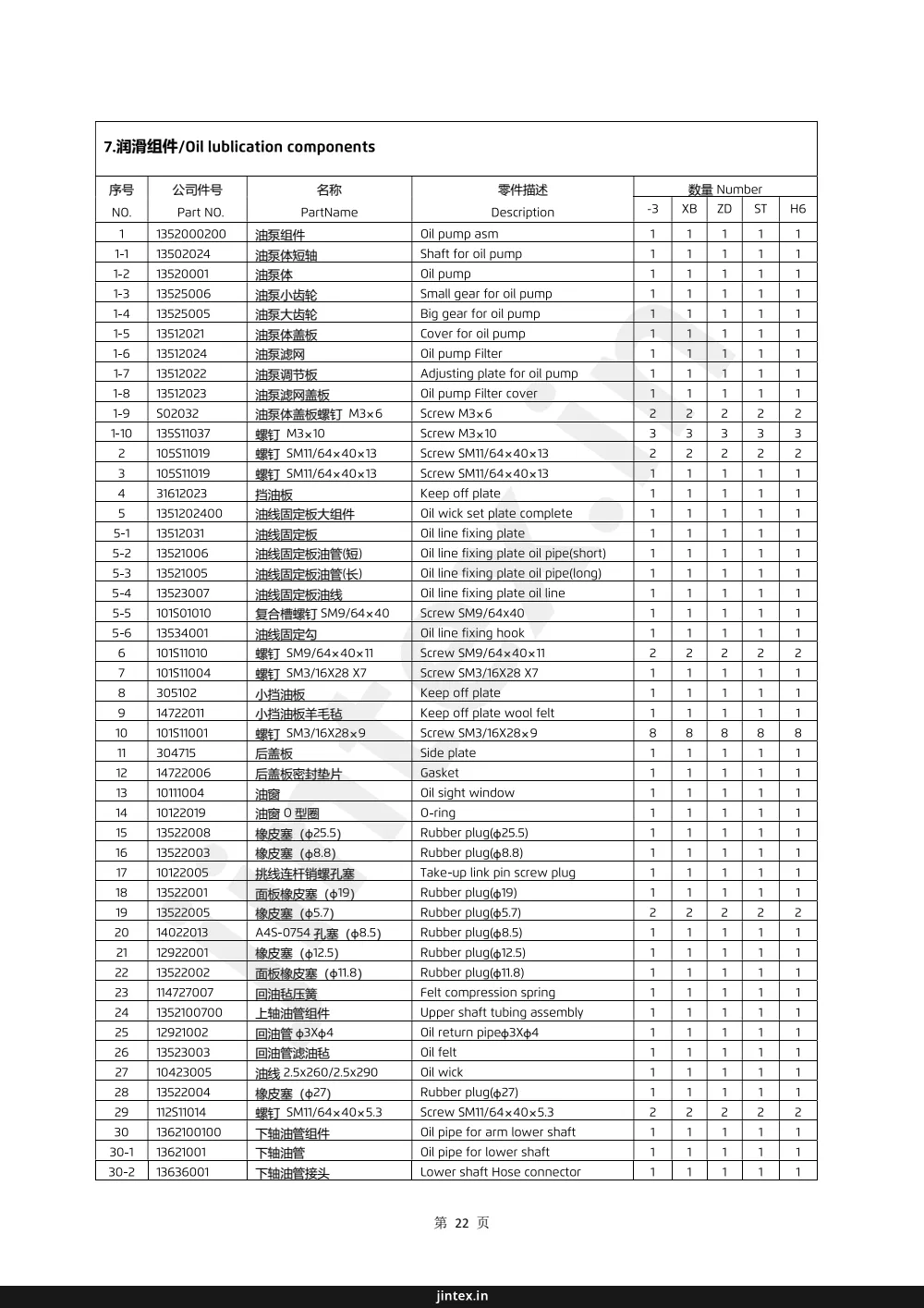

Page 22 — 7.润滑组件/Oil lubrication components

Jack H6 parts on page 22
RefPart numberPart nameQty
11352000200Oil pump asm1 1 1 1 1
1-113502024Shaft for oil pump1 1 1 1 1
1-213520001Oil pump1 1 1 1 1
1-313525006Small gear for oil pump1 1 1 1 1
1-413525005Big gear for oil pump1 1 1 1 1
1-513512021Cover for oil pump1 1 1 1 1
1-613512024Oil pump Filter1 1 1 1 1
1-713512022Adjusting plate for oil pump1 1 1 1 1
1-813512023Oil pump Filter cover1 1 1 1 1
1-9S02032Screw M3x62 2 2 2 2
1-10135S11037Screw M3x103 3 3 3 3
2105S11019Screw SM11/64x40x132 2 2 2 2
3105S11019Screw SM11/64x40x131 1 1 1 1
431612023Keep off plate1 1 1 1 1
51351202400Oil wick set plate complete1 1 1 1 1
5-113512031Oil line fixing plate1 1 1 1 1
5-213521006Oil line fixing plate oil pipe(short)1 1 1 1 1
5-313521005Oil line fixing plate oil pipe(long)1 1 1 1 1
5-413523007Oil line fixing plate oil line1 1 1 1 1
5-5101S01010Screw SM9/64x401 1 1 1 1
5-613534001Oil line fixing hook1 1 1 1 1
6101S11010Screw SM9/64x40x112 2 2 2 2
7101S11004Screw SM3/16X28 X71 1 1 1 1
8305102Keep off plate1 1 1 1 1
914722011Keep off plate wool felt1 1 1 1 1
10101S11001Screw SM3/16X28x98 8 8 8 8
11304715Side plate1 1 1 1 1
1214722006Gasket1 1 1 1 1
1310111004Oil sight window1 1 1 1 1
1410122019O-ring1 1 1 1 1
1513522008Rubber plug(ϕ25.5)1 1 1 1 1
1613522003Rubber plug(ϕ8.8)1 1 1 1 1
1710122005Take-up link pin screw plug1 1 1 1 1
1813522001Rubber plug(ϕ19)1 1 1 1 1
1913522005Rubber plug(ϕ5.7)2 2 2 2 2
2014022013Rubber plug(ϕ8.5)1 1 1 1 1
2112922001Rubber plug(ϕ12.5)1 1 1 1 1
2213522002Rubber plug(ϕ11.8)1 1 1 1 1
23114727007Felt compression spring1 1 1 1 1
241352100700Upper shaft tubing assembly1 1 1 1 1
2512921002Oil return pipeϕ3Xϕ41 1 1 1 1
2613523003Oil felt1 1 1 1 1
2710423005Oil wick1 1 1 1 1
2813522004Rubber plug(ϕ27)1 1 1 1 1
29112S11014Screw SM11/64x40x5.32 2 2 2 2
301362100100Oil pipe for arm lower shaft1 1 1 1 1
30-113621001Oil pipe for lower shaft1 1 1 1 1
30-213636001Lower shaft Hose connector1 1 1 1 1
13520222

Page 24 — 8.切线装置部件/Thread trimmer components

Jack H6 parts on page 24
RefPart numberPart nameQty
11361300300Loose wire rope assembly1/1/1/1/1
21363000600Thread electromagnet drive assembly1/1/1/1/1
2-113612007Adapter1/1/1/1/1
2-213612008Adapter1/1/1/1/1
2-3305S12005Screw2/2/2/2/2
2-4136S20001Screw SM11/64×401/1/1/1/1
2-5114S16005Nut SM15/64×281/1/1/1/1
2-613612012Wire trimming electromagnet mounting bracket1/1/1/1/1
2-713612009The mounting plate1/1/1/1/1
2-8101S11025Screw SM11/64×40×72/2/2/2/2
2-9407S17001Screw M4×103/3/3/3/3
2-1013612006Thread trimmer driving lever1/1/1/1/1
2-1113627004Spring1/1/1/1/1
2-12101S11005Screw SM9/64×40×62/2/2/2/2
2-1330108004Shrink collar1/1/1/1/1
2-1413602007Shaft1/1/1/1/1
2-1513626005Pin1/1/1/1/1
2-16H05012Ring2/2/2/2/2
2-171363000100Wire cutting electromagnet drive assembly1/1/1/1/1
3101S11011Screw SM11/64×40×9.51/1/1/1/1
4201S11029Screw SM15/64X28×114/4/4/4/4
513601007Bracket for fixed blade1/1/1/1/1
6101S11025Screw SM11/64×40×73/3/3/3/3
713612010Thread guide1/1/1/1/1
813628011Gasket1/1/1/1/1
9101S11005Screw SM9/64×40×61/1/1/1/1
1013619001Fixed blade1/1/1/1/1
11136S17001Screw SM9/64×40×41/1/1/1/1
12113S17002Screw SM11/64×40×4.52/2/2/2/2
1313619002Movable knife (left)1/1/1/1/1
141360100800Knife holding bracket saddle asm1/1/1/1/1
14-142209006Knife holding bracket saddle1/1/1/1/1
14-242204008Knife base (left)1/1/1/1/1
14-342212049Washer1/1/1/1/1
14-4422S17006Screw SM1/8×44×5.43/3/3/3/3
14-513604001Knife driving crank1/1/1/1/1
14-6422S20006Screw SM11/64×40×5.52/2/2/2/2
14-7S05005Screw M5×121/1/1/1/1
14-8422S16002Nut SM11/64×402/2/2/2/2
14-942205008Link1/1/1/1/1
1513602008Knife driving shaft1/1/1/1/1
16136S17005Nut SM3/16×282/2/2/2/2
1713609002Cam follower2/2/2/2/2
18136S20003Screw SM3/16×28×82/2/2/2/2
1911360400300Left and right crank assembly1/1/1/1/1
21136S14002Screw SM15/64X28×62/2/2/2/2

Page 26 — 8.切线装置部件/Thread trimmer components

Jack H6 parts on page 26
RefPart numberPart nameQty
2213627005Spring1 1 1 1 1
2313601010Torsion spring end cap1 1 1 1 1
24114728003Cushion1 1 1 1 1
25136S30002Screw M6×161 1 1 1 1
2613612011Stopper plate1 1 1 1 1
27205S16002Nut M6×3.51 1 1 1 1
28114722006Wire plug1 1 1 1 1
2912312011Cable clip1 1 1 1 1
30101S11025Screw SM11/64×40×71 1 1 1 1
3120108001Thrusr tighten collar asm1 1 1 1 1
32113S14020Screw SM11/64×40×62 2 2 2 2
3313627006Spring1 1 1 1 1
3413601011Stopper1 1 1 1 1
35S10018Screw M6×0.75×61 1 1 1 1

Page 28 — 9.自动倒送料开关组件/Automatic reverse feed components

Jack H6 parts on page 28
RefPart numberPart nameQty
113628009Seals washer1 / 1 / 1 / 1 / 1
2302662Backstitch solenoid cover1 / 1 / 1 / 1 / 1
3101S11001Screw SM3/16×28×94 / 4 / 4 / 4 / 4
441312003Oil tube hohder1 / 1 / 1 / 1 / 1
5101S11004Screw SM3/16X28 X72 / 2 / 2 / 2 / 2
611473000500Switch assembly1 / 1 / 1 / 1 / 1

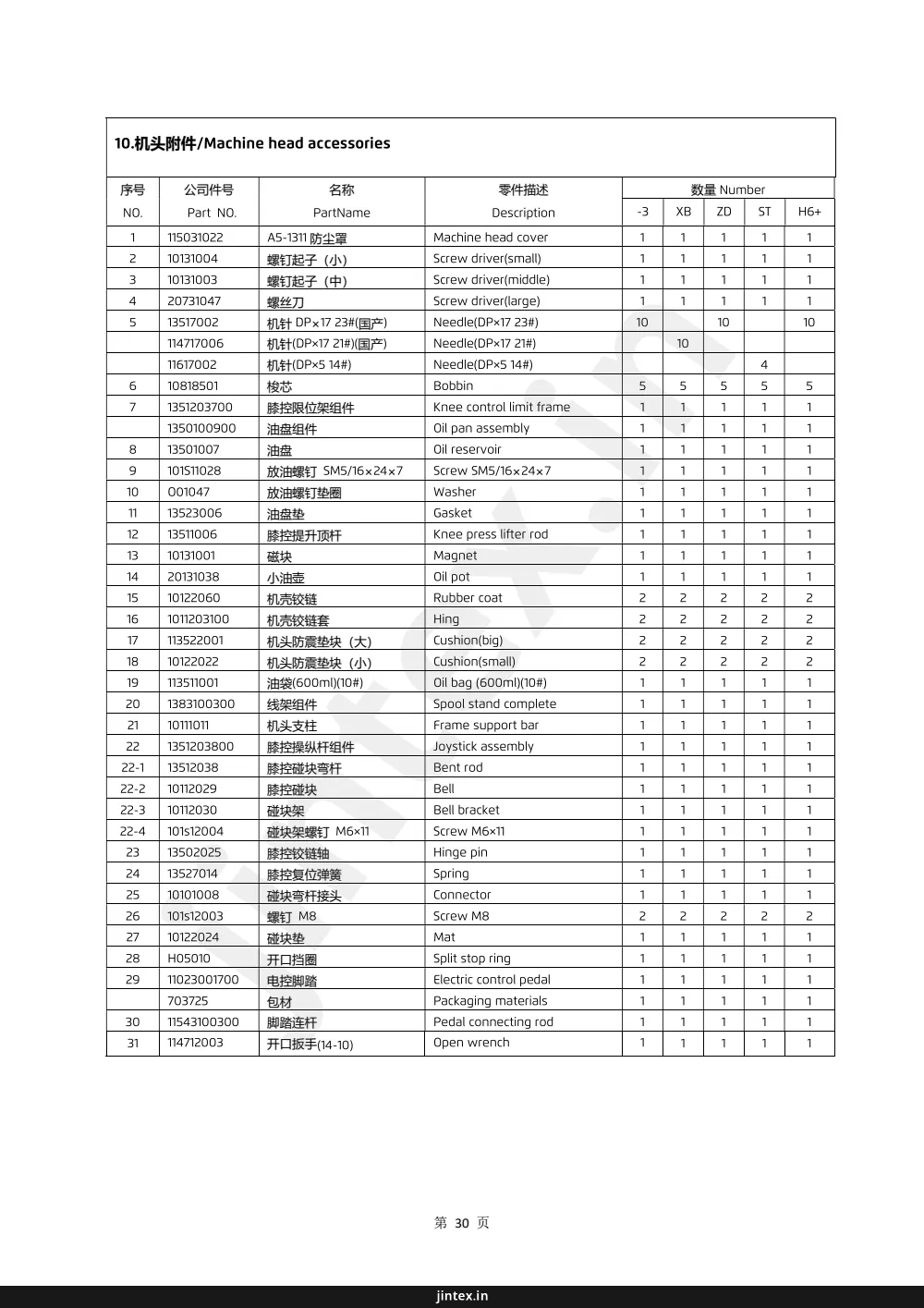

Page 30 — 10.机头附件/Machine head accessories

Jack H6 parts on page 30
RefPart numberPart nameQty
1115031022Machine head cover1 / 1 / 1 / 1 / 1
210131004Screw driver(small)1 / 1 / 1 / 1 / 1
310131003Screw driver(middle)1 / 1 / 1 / 1 / 1
420731047Screw driver(large)1 / 1 / 1 / 1 / 1
513517002Needle(DP×17 23#)10 / – / 10 / – / 10
114717006Needle(DP×17 21#)– / 10 / – / – / –
11617002Needle(DP×5 14#)– / – / – / 4 / –
610818501Bobbin5 / 5 / 5 / 5 / 5
71351203700Knee control limit frame1 / 1 / 1 / 1 / 1
1350100900Oil pan assembly1 / 1 / 1 / 1 / 1
813501007Oil reservoir1 / 1 / 1 / 1 / 1
9101S11028Screw SM5/16×24×71 / 1 / 1 / 1 / 1
10001047Washer1 / 1 / 1 / 1 / 1
1113523006Gasket1 / 1 / 1 / 1 / 1
1213511006Knee press lifter rod1 / 1 / 1 / 1 / 1
1310131001Magnet1 / 1 / 1 / 1 / 1
1420131038Oil pot1 / 1 / 1 / 1 / 1
1510122060Rubber coat2 / 2 / 2 / 2 / 2
161011203100Hing2 / 2 / 2 / 2 / 2
17113522001Cushion(big)2 / 2 / 2 / 2 / 2
1810122022Cushion(small)2 / 2 / 2 / 2 / 2
19113511001Oil bag (600ml)(10#)1 / 1 / 1 / 1 / 1
201383100300Spool stand complete1 / 1 / 1 / 1 / 1
2110111011Frame support bar1 / 1 / 1 / 1 / 1
221351203800Joystick assembly1 / 1 / 1 / 1 / 1
22-113512038Bent rod1 / 1 / 1 / 1 / 1
22-210112029Bell1 / 1 / 1 / 1 / 1
22-310112030Bell bracket1 / 1 / 1 / 1 / 1
22-4101S12004Screw M6×111 / 1 / 1 / 1 / 1
2313502025Hinge pin1 / 1 / 1 / 1 / 1
2413527014Spring1 / 1 / 1 / 1 / 1
2510101008Connector1 / 1 / 1 / 1 / 1
26101S12003Screw M82 / 2 / 2 / 2 / 2
2710122024Mat1 / 1 / 1 / 1 / 1
28H05010Split stop ring1 / 1 / 1 / 1 / 1
2911023001700Electric control pedal1 / 1 / 1 / 1 / 1
703725Packaging materials1 / 1 / 1 / 1 / 1
3011543100300Pedal connecting rod1 / 1 / 1 / 1 / 1
31114712003Open wrench1 / 1 / 1 / 1 / 1

Page 32 — 11.New automatic presser foot parts / Automatic presser foots parts

Jack H6 parts on page 32
RefPart numberPart nameQty
1114744001Electromagnet shield1 / 1 / 1
211473000400Lifting foot electromagnet assembly1 / 1 / 1
3S05005Screw M5×123 / 3 / 3
4114712006Electromagnet mount1 / 1 / 1
5207S11026Screw M6×163 / 3 / 3
6W02004Spring washer M63 / 3 / 3
7114704002Automatic lifting foot crank assembly1 / 1 / 1
8207S11026Screw M6×161 / 1 / 1
9H05001Retaining ring2 / 2 / 2
1012928004Axial washer 1.2MM1 / 1 / 1
1130122039Oil seal1 / 1 / 1
12114703002Sleeve1 / 1 / 1
13114712010Rear window1 / 1 / 1
14114722004Rear window gasket1 / 1 / 1
1511470200300Automatic lifting foot crank1 / 1 / 1
16N01007Nut M61 / 1 / 1
17112S16011Sleeve nut M16×1.51 / 1 / 1
18421S11008Screw M4×102 / 2 / 2

Page 34 — 12.气动抬压脚部件/Automatic presser foots parts

Jack H6 parts on page 34
RefPart numberPart nameQty
111474500200Lifting foot cylinder assembly1
2S05007Screw M8x204
3114712008Cylinder mounting plate1
4114712009Rear window1
5114722003Rear window gasket1
6N01007Nut M62
711470200300Automatic lifting foot crank1
8121444003Lift foot electromagnet connection meaning1
9112S16011Sleeve nut M16x1.51
10114703002Sleeve1
1130122039Oil seal1
1212928004Axial washer 1.2MM1
13H05001Retaining ring3
14207S11026Screw1
15114704002Automatic lifting foot crank2
161147NS14001Screw1
17142312006Valve mounting plate1
18N01013Nut M31
1911424500400Gas source processing component2
20S05005Screw M5x121
21407S04053Screw M3x252
2211424500700The electromagnetic valve2
112516011套筒螺母 M16×1.5

Jack H6 — parts catalog
