Parts index — Jack JK-58420Jtap a row to open its page

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

Jack JK-58420J parts on page 4

Ref	Part number	Part name	Qty
1	58420B	FRAME & MISCELLANEOUS COVER COMPONENTS
0-2	0-2	BASE
3	3	SCREW
4	4	COVER
5	5	COVER
6	6	SCREW
7	7	BRACKET
8	8	SCREW
9	9	SCREW
10	10	BRACKET
11	11	COVER
12	12	SCREW
13	13	SCREW
14	14	SCREW
15	15	NEEDLE BAR
16	16	PRESSER BAR
17	17	BASE PLATE
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	BASE PLATE
22	22	SCREW
23	23	SCREW
24	24	SCREW

Page 5 — A.机体部件/Machine body

Jack JK-58420J parts on page 5

Ref	Part number	Part name	Qty
	12926001	带槽销
	12926001	带槽销
SA3924001	12926002	定位销
SA2929001	12922001	橡皮塞 12.5
	13837002	商标牌
	304030	面板
	304031	面板
062501416	S04032	螺钉 M5×14
062501416	S04032	螺钉 M5×14
062501216	S04029	螺钉 M5×12
	S04021	螺钉 M4×4
	13812007	卡簧
	304032	后窗板
	304258	后窗板
SA2929001	12922001	橡皮塞 12.5
SA2929001	12922001	橡皮塞 12.5
062500816	S04028	螺钉 M5×8
SA2445101	129S30002	脚柱 S
SA2444101	129S30001	脚柱 L
	1231500100	左推板组件
SA2447001	12915005	左推板组件
SA2479001	12911001	推板窗
	1231500200	右推板组件
SA2449001	12915006	右推板组件
SA2479001	12911001	推板窗
	1231500300	前推板组件
S36663051	1291500300	前推板组件
S34438051	129S15001	螺钉SM1/8"×40 L=4
	129S17001	螺钉SM13/64"×32 L=4
	12928008	垫片

Page 7 — B.上轴部件/Upper shaft mechanism

Jack JK-58420J parts on page 7

Ref	Part number	Part name	Qty
	12302001	上轴
SA4089001	12904001	挑线杆曲柄
S25234001	B04022	球轴承 6004ZZ
S38707001	B10002	球轴承 6004ZZNR
SA6166001	12926201	针杆曲柄轴
	12923050	油线 φ2.5 L=60
113014000	11626003	油线盖
S25260001	S10017	固定螺钉 M6×0.75 L=5
	12308001	绕线轮驱动轮
	S10019	固定螺钉 M6×6
S25235001	129S30005	螺钉 M8×6
S25236001	S09017	螺钉 M6×0.75 L=10
	12938003	挑线架销
SA2861001	12938002	挑线杆支撑轴接头
	12921002	维尼龙油管L=190
	12923018	油线 L=400
	20123021	油线 L=30
SA2935101	12938006	挑线杆-3
SA2936101	12938007	挑线杆-5
SA2937101	12938202	挑线杆-7
	12923031	油线 4×4 L=40
	12922015	橡皮塞
S13160001	11626004	挑线杆连接柱
	12923012	油线 L=17
	12926016	油线盖φ4
076023800	B04021	R球轴承 60/22ZZ
SA2748001	12908002	轴承座
S23651001	S10018	紧定螺钉M6×0.75 L=6
SA2720001	12935002	同步轮UST组件
S23651001	S10018	紧定螺钉M6×0.75 L=6
	12303002	上轴后轴承衬套
S23651001	S10018	紧定螺钉M6×0.75 L=6
S38710001	B10009	球轴承 6004ZZNR
	304034	手轮
	S10019	螺钉 M6×6
	13811021	手轮贴条
SA2463001	12935003	同步皮带
012061036	S10024	螺钉 M6×10
SA2469001	12312012	挑线杆防护罩
062500816	S04028	螺钉 M5×8
SA4537001	12912005	防尘盖
SA3058101	1291207900	遮掩板
SA4570001	12912006	遮掩板
	12912006	遮掩板
SA3065001	12912005	油毡
062500816	S04028	螺钉 M5×8

Page 8 — C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720)

Jack JK-58420J parts on page 8

Ref	Part number	Part name	Qty
	1	NEEDLE BAR ROCKING MECHANISM
	2	SCREW
	3	BRACKET
	4	SPRING
	5	NEEDLE BAR
	6	SHAFT
	7	SCREW
	8	SPRING
	9	CONNECTING ROD
	10	BRACKET
	11	BEARING
	12	BEARING
	13	WASHER
	14	BRACKET
	15	SCREW
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BEARING
	21	SCREW
	22	SHAFT
	23	SCREW
	24	SHAFT
	25	BRACKET
	26	CONNECTING ROD
	27	SCREW
	28	WASHER
	29	BRACKET
	30	SCREW
	31	BRACKET
	32	SCREW
	33	BRACKET
	34	BRACKET
	35	WASHER
	36	BRACKET
	37	SCREW

Page 9 — C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720)

Jack JK-58420J parts on page 9

Ref	Part number	Part name	Qty
	1290200200	针杆摆动轴组件
	SA4124301	针杆摆动轴组件
	1290100100	针杆台组件
	SA3854001	针杆台组件
	12909001	角滑块
	SA2474201	角滑块
	S05058	螺钉M4×10	2
	018401036	螺钉M4×10	2
	12902003	针杆
	SA2475101	针杆
	12905002	针杆抱箍
	SA3710001	针杆抱箍
	129530021	螺钉M3.5×8
	062350816	螺钉M3.5×8
	12923023	油线2.5×4.5 L=40
	12905003	曲柄摇杆轴连杆
	SA3711101	曲柄摇杆轴连杆
	12909002	角滑块
	SA3712001	角滑块
	12924001	滚针轴承
	SA2482001	滚针轴承
	12903001	轴承套
	SA2483001	轴承套
	12928015	垫圈
	SA2484001	垫圈
	12923002	针杆塞
	148394000	针杆塞
	12912007	油毡上支架U
	SA4007001	油毡上支架U
	S04030	螺钉M5×6
	062500616	螺钉M5×6
	12912008	油毡下支架D
	SA3848001	油毡下支架D
	12923021	油线L=200
	S07465000	油线L=200
	12923003	油毡
	SA3852001	油毡
	12908003	紧圈	2
	SA2485001	紧圈	2
	S10063	固定螺钉 M6×0.75 L=5	4
	12903002	摆动轴套R
	SA2486101	摆动轴套R
	S04028	螺钉M5×8
	062500816	螺钉M5×8
	S04031	螺钉M6×16
	062061616	螺钉M6×16
	1290501500	针杆摆动组件
	12905004	针杆摆动连杆
	SA2489001	针杆摆动连杆
	S05078	螺钉M6×20
	018062032	螺钉M6×20
	20128033	垫圈
	118735002	垫圈
	12905005	针杆摆动杆
	SA2490101	针杆摆动杆
	S04034	螺钉M6×5	2
	S23460001	螺钉M6×5	2
	12926005	摆动杆轴P
	SA4117001	摆动杆轴P
	S10019	螺钉M6×6	2
	012060636	螺钉M6×6	2
	12903003	摆动杆轴套P
	SA4118001	摆动杆轴套P
	S05016	内六角螺栓M6×25
	018062532	内六角螺栓M6×25
	12928002	垫圈	2
	SA2493001	垫圈	2
	12901010	针杆摆动臂
	SA2494001	针杆摆动臂
	S05078	螺钉M6×20
	018062032	螺钉M6×20

Page 10 — C2.针杆摆动部件/Needle bar rocking mechanism(58450、58750)

Jack JK-58420J parts on page 10

Ref	Part number	Part name	Qty
	43	43
	44	44
	30	30
	31	31
	48	48
	47	47
	33	33
	35	35
	34	34
	2	2
	42	42
	40	40
	41	41
	39	39
	29	29
	28	28
	29	29
	28	28
	23	23
	22	22
	32	32
	5	5
	6	6
	37	37
	38	38
	36	36
	3	3
	4	4
	49	49
	49-1	49-1
	50	50
	51	51
	53	53
	54	54
	55	55
	52	52
	56	56
	57	57
	58	58
	59	59
	60	60
	46	46
	45	45
	61	61
	62	62
	24	24
	25	25
	26	26
	27	27
	7	7
	20	20
	19	19
	18	18
	17	17
	9	9
	9	9
	10	10
	21	21
	8	8
	16	16
	16	16
	15	15
	13	13
	8	8
	11	11
	12	12
	14	14
	14	14
	1	1

Page 12 — D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750)

Jack JK-58420J parts on page 12

Ref	Part number	Part name	Qty
	34	34
	33	33
	32	32
	39	39
	35	35
	38	38
	36	36
	39	39
	38	38
	39	39
	38	38
	40	40
	37	37
	28	28
	27	27
	26	26
	54	54
	53	53
	52	52
	41	41
	42	42
	6	6
	19	19
	20	20
	22	22
	21	21
	25	25
	24	24
	23	23
	45	45
	43	43
	44	44
	46	46
	1	1
	2	2
	3	3
	4	4
	5	5
	9	9
	10	10
	8	8
	11	11
	18	18
	12	12
	13	13
	12	12
	14	14
	15	15
	16	16
	17	17
	51	51
	47	47
	48	48
	49	49
	50	50

Page 13 — D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750)

Jack JK-58420J parts on page 13

Ref	Part number	Part name	Qty
	1233000800	针杆复位电磁铁
	12327005	电磁铁复位弹簧
	H05011	限位挡圈9
	12330009	限位电磁铁铁芯
	120S11010	销
	12347001	感应磁钢
	S04021	固定螺钉M4×4
	12312024	复位连接板
	12312017	指示板盖
062501016	S04032	螺钉M5×14
	12312018	指示板板
	207S11011	固定螺钉M4
	12312019	复位电磁铁安装板
	123S20001	段螺钉M4
	12312021	压板
	12312022	压杆板
062350516	S04041	螺钉M3.5×5
104833001	12922004	橡皮塞4.3
	1231202000	定位杆轴组件
SA4406001	1291206000	定位杆轴组件
047301842	11729011	弹簧销AW3×18
SA4408001	123S30004	螺钉L
SA4409001	123S30005	螺钉S
SA441101	12912061	切换指示板
	S18964001	切换指示标签
062500816	S04028	螺钉M5×8
071063550	11724001	钢珠1/4
150820001	12927022	弹簧
SA4412001	12903016	轴承导向套
SA4413001	12304001	轴臂
062501416	S05004	螺钉M5×14
SA5588001	123S20002	螺钉M4
SA4414001	11727007	弹簧
SA4415001	12312006	滑轴架
062500816	S04028	螺钉M5×8
S07588101	12312007	滑动轴
SA4416001	12312008	支架板
149863001	12927018	弹簧
SA4417001	12303003	紧固圈
014400432	S10007	紧定螺钉M4×4
SA4418001	413S11004	导向螺钉
	413S11009	球面圆柱螺钉M4×5
	12311010	感应磁钢安装板
SA4402001	12312002	指示板组件
104833001	12922004	橡皮塞4.3
SA5336001	12312003	指示板盖
062501016	S04032	螺钉M5×14
SA4404001	12312004	压板
SA4411001	123S20001	段螺钉M4
SA4405001	12912059	压杆板
062350516	S04041	螺钉M3.5×5
SA5333001	12927017	弹簧
	12330010	霍尔传感器
	S04021	固定螺钉M4×4
	12312023	霍尔传感器安装板
	S04035	复合槽螺钉M4×6

Page 14 — D2. 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、 58750J)

Jack JK-58420J parts on page 14

Ref	Part number	Part name	Qty
	1	Pneumatic valve body
	2	Pneumatic tube
	3	Pneumatic tube
	4	Pneumatic tube
	5	Screw
	6	O-ring
	7	Cylinder sleeve
	8	Screw
	9	Lever
	10	Screw
	11	Push button switch
	12	Push button switch
	13	Spring clip
	14	Screw
	15	Spring

Page 15 — D2 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、58750J)

Jack JK-58420J parts on page 15

Ref	Part number	Part name	Qty
	112345003	mini cylinder CUJB16-9DM	1
	185545002	tube connector KQ2S04-M3G	1
	185245106	green tube (φ4 × 1000)	2
	185245107	pink tube (φ4 × 1000)	1
	S05970	Screw pan M4×20	2
	W02004	Spring Washer M6	1
	185505001	needle bar separating cylinder connector	1
SA5588001	123S20002	Shoulder screw,M4
	185512001	needle bar separating switch mounting plate	1
062500816	S04028	Screw pan M5×8
	11233000500	neutral switch assembly	1
	11233000600	left and right switch components	2
	41711017	wire clip	2
	S04035	Screw pan M4×6	2
	12911301	bobbin	0.6

Page 16 — 壓腳部件 叉壓腳壓腳壓腳邊壓腳壓腳

Jack JK-58420J parts on page 16

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38

Page 17

Jack JK-58420J parts on page 17

Ref	Part number	Part name	Qty
	12903004	压杆轴套
	S04028	螺钉M5×8
	123S30002	调节螺栓 M14
	123S16001	调节螺母 M14
	12905006	弹簧导杆
	11627002	压紧弹簧
	12902004	压紧杆
	12905007	压杆抱箍
	129S12001	螺栓M6×10
	12904002	压杆提升曲柄
	12311007	抬压脚扳手
	124S30009	螺钉(带垫圈)M3.5×12
	129130100	松线板组件
	1291330100	松线板组件
	S09018	螺钉M6×18
	N01012	螺母M6
	12912010	抬压脚连杆
	12912090	膝控连杆
	129S20001	段螺钉M5
	11626008	膝抬前拔销
	12908004	紧圈
	S09019	螺钉M5×5
	12927002	弹簧
	S04032	螺钉M5×14
	N01017	六角螺母M5
	12912095	抬压脚后杠杆
	12912600	膝控顶杆
	129S20001	段螺钉M5
	129S20002	段螺钉M6
	129S20001	段螺钉M5
	12928016	垫圈
	1291230100	松线连杆组件
	H05002	挡圈E3
	12930301	松线电线
	116S16006	螺母SM3/16"×32
	12912302	松线电线夹
	S04028	螺钉M5×8
	12912303	松线电线夹
	S04038	螺钉M6×8

Page 18

Jack JK-58420J parts on page 18

Ref	Part number	Part name	Qty
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	16	16
	17	17
	18	18
	14-1	14-1
	14	14
	15	15
	51	51
	54	54
	53	53
	52	52
	50	50
	28	28
	27	27
	26	26
	25	25
	21	21
	24	24
	19	19
	23	23
	1	1
	2	2
	3	3
	4	4
	5	5
	30	30
	33	33
	32	32
	29	29
	31	31
	34	34
	6	6
	7	7
	20	20
	22	22
	46	46
	45	45
	35	35
	36	36
	37	37
	38	38
	41	41
	43	43
	47	47
	49	49
	48	48
	42	42
	39	39
	40	40

Page 19 — 缝布部件与喂布器零件表

Jack JK-58420J parts on page 19

Ref	Part number	Part name	Qty
	1290200500	切换器11组件
	1290200500	切换器11组件
	1290200600	切换器组件
	1290200600	切换器组件
	12909003	滑块导向	2
	S04029	螺钉M5×12	4
	12909004	滑块组件	1
	12923018	油线 4×4 L=150	1
	12912014	切換器定位	1
	S04033	螺钉M6×8	1
	1290500800	送布连接杆组件	1
	12905009	送布大连接杆	1
	11624002	滚针轴承	1
	12910001	送布偏心轮5
	12910201	送布偏心轮7
	S10020	螺钉	1
	S10023	倒送料扳手定位螺钉	1
	1290400800	水平送料臂5组件
	1290400900	水平送料臂7组件
	12904003	水平送料臂5
	12904201	水平送料臂7
	S05078	螺栓M6×20	1
	12905010	送布小连杆	1
	11626010	送布曲柄轴	1
	11629002	挡圈E6	2
	1231100200	针距标盘4
	1231100300	针距标盘5
	1231100300	针距标盘5
	1231100400	针距标盘7
	129S30007	调节螺栓	1
	12912304	倒缝推手板
	101S11022	螺钉SM3/16"×28	1
	10122016	O形圈	1
	11426022	定位销	1
	11427034	止动销弹簧	1
	11412079	标盘锁按键	1
	11427035	弹簧	1
	12909005	送料调节器5
	12909201	送料调节器7
	S10021	紧定螺钉M6×10	2
	12905011	切换器连杆	1
	12910002	偏心轴	1
	S10019	螺钉M6×6	1
	129S20003	段螺钉M6	1
	12902007	倒缝手柄轴 TR	1
	12929003	挡圈E8	1
	11628003	平垫圈S10	1
	12912017	垫片	1
	304033	倒缝推手	1
	12927005	弹簧	1

Page 20 — 缝纫布部件及脚踏板脚踏板电脑机

Jack JK-58420J parts on page 20

Ref	Part number	Part name	Qty
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14-1	14-1
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7

Page 21 — D座布部件及螺钉螺母明细表

Jack JK-58420J parts on page 21

Ref	Part number	Part name	Qty
	12912018	手柄导向
	12922002	导向橡胶
	129S11001	螺钉M5
	40122016	橡胶盖10.5
	S04028	螺钉M5×8
	12912019	定位器
	S04029	螺钉M5×12
	12928018	平垫圈M5
	12927006	调节器弹簧
	12912020	弹簧挂钩
	S04038	螺钉M6×10
	S04029	螺钉M5×12
	N01017	六角螺母M5

Page 22 — Example Parts List

Jack JK-58420J parts on page 22

Ref	Part number	Part name	Qty
A1	12345	Screw	10
A2	67890	Washer	20

Page 23 — 喉缝布部件及脚踏板路轨

Jack JK-58420J parts on page 23

Ref	Part number	Part name	Qty
	12903005	送布轴套L
	12923005	油毡
	12923018	油线4×4 L=120
	12903006	送布轴套R
	12923018	油线4×4 L=250
	S10022	紧定螺钉M6×8
	S10019	紧定螺钉M6×6
	12908005	紧圈
	S10018	紧定螺钉M6×0.75 L=6
	12902008	送布轴
	1290700200	送布台叉组件 ST
	1290720100	送布台叉组件 TR
	207S11006	螺钉M6×14
	11628005	平垫圈S6
	N01016	螺钉M3.5×12
	N01016	螺母M3.5
	12912021	叉板
	129S30010	调整螺栓
	S04035	螺钉M4×6
	12923006	油毡
	12923007	油毡
	12912022	油毡压架
	12928019	平垫圈S3
	S04036	螺钉M3×4
	12910003	送布台安装轴
	12928003	轴向垫圈
	S10019	螺钉M6×6
	12904004	水平送布台臂
	S01059	螺钉M5×13
	12923018	油线4×4 L=180
	1290900600	角滑块组件
	S02018	螺钉M2×4
	12912023	油线支架
	12923018	油线4×4 L=400
	12921002	尼龙油管L=100
	12905012	送布台叉
	12907001	送布ST
	12907202	送布TR

Page 24

Jack JK-58420J parts on page 24

Ref	Part number	Part name	Qty
2	2	2
1	1	1
13	13	13
12	12	12
14	14	14
11	11	11
10	10	10
9	9	9
8	8	8
4	4	4
3	3	3
5	5	5
6	6	6
7	7	7
1	1	1
2	2	2
5	5	5
3	3	3
4	4	4
15	15	15
11	11	11
9	9	9
13	13	13
12	12	12
8	8	8
10	10	10
14	14	14
6	6	6
7	7	7

Page 25 — H.针位部件/Gauge parts

Jack JK-58420J parts on page 25

Ref	Part number	Part name	Qty
	★	针夹组件
	116S11012	螺钉SM9/64"×40 L=4	2
	★	针板
	129S30014	针板螺钉SM11/64"×40 L=7
	104S17002	平头螺钉SM11/64"×40 L=8
	1123NS17001	针板螺钉SM11/64"×40 L=12
	★	压脚组件
	129S11010	螺钉SM9/64×44" L=9
	★	送布牙
	129S13002	螺钉SM1/8×44" L=7	2
	★	针夹组件L
	★	针夹组件R
	129S15005	螺钉SM1/8×40 L=4	2
	129S15007	螺钉SM1/8×40 L=5.5	2
	117S11023	螺钉SM1/8×40 L=7	2
	11617002	机针DP×5 (#14)	2
	10117002	机针DP×5 (#21)	2
	12903011	旋梭基座轴套L	1
	12923023	油毡	1
	12303001	旋梭基座轴套R	1
	12923023	油毡	1
	12902010	下轴	1
	12910005	拾牙凸轮	1
	12910302	拾牙凸轮	1
	S07004	螺钉M6×0.75 L=6	1
	12903013	轴承套	1
	S10020	球轴承 6004ZZNR	1
	S09017	固定螺钉M6×0.75 L=10	1
	12935004	同步轮D组件	1
	B10009	球轴承 6204ZZNR	1
	S10020	固定螺钉M6×0.75 L=10	1
	S10023	固定螺钉M6×0.75 L=10	1

Page 26

Jack JK-58420J parts on page 26

Ref	Part number	Part name	Qty
	9	9
	7	7
	8	8
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25-1	25-1
	25-2	25-2
	26	26
	27-1	27-1
	27-2	27-2
	28	28
	29	29
	30	30
	31	31
	43	43
	44	44
	45	45
	46-1	46-1
	46-2	46-2
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	2	2
	3	3
	4	4
	5	5
	1	1

Page 27

Jack JK-58420J parts on page 27

Ref	Part number	Part name	Qty
	12918008	梭架(左)
	12918201	梭架(左)
	11603011	旋轴上轴套
	11803001	旋轴上轴套
	12928004	轴向垫圈A 1.2MM
	12928005	轴向垫圈1.0MM
	12928006	轴向垫圈B 1.4MM
	12928007	轴向垫圈B 0.8MM
	11624004	滚针轴承
	11624004	梭架上轴挡圈
	12903008	旋梭轴套
	12905013	分线钩连杆
	12905303	分线钩连杆
	12905014	分线钩杆
	12905304	分线钩杆
	12902009	分线钩连杆轴
	12928008	垫圈
	N01017	角螺母M5
	12926009	线钩杆短轴
	12923018	油线4×4 L=100
	S09019	螺钉M5×5
	11612014	线钩
	129S13003	螺钉SM3.75×8
	12912024	旋梭基座盖L
	S04035	螺钉M3×6
	12925003	旋齿轮(小)
	S08007	螺钉M6×0.75 L=5
	S07009	螺钉M6×0.75 L=6
	12925004	旋齿轮(小)
	S10063	螺钉M6×0.75 L=5
	12928009	垫圈L
	12912053	左下油毡架
	12923032	左下齿轮油毡
	S04035	螺钉M4×6
	12912054	油毡架
	12923016	油毡
	S04035	螺钉M4×6
	12923008	油毡
	12912027	油毡架
	S04035	螺钉M4×6
	12918009	梭架(右)
	12918202	梭架(右)
	12912028	旋梭基座盖R
	12928010	垫圈
	12912052	油毡架UR
	12912055	右下油毡
	12923015	右下齿轮油毡

Page 28

Jack JK-58420J parts on page 28

Ref	Part number	Part name	Qty
	59	Spool Pin
	60	Bobbin Winder Spindle
	61	Bobbin Winder Tension Assembly
	9	Screw
	7	Bobbin Winder Base
	13	Thread Guide
	12	Bobbin Winder Shaft
	16	Screw
	15	Bracket
	8	Bobbin Winder Arm
	2	Bobbin Winder Spool
	4	Washer
	5	Spring Washer
	3	Washer
	24	Housing
	17	Bracket
	18	Screw
	10	Washer
	11	Nut
	21	Screw
	19	Gear
	20	Screw
	1	Main Housing
	14	Screw
	29	Block
	30	Spring
	31	Screw
	27-2	Feed Dog Assembly
	27-1	Feed Dog Assembly
	28	Screw
	25-1	Feed Dog Assembly
	25-2	Feed Dog Assembly
	23	Screw
	22	Gear
	6	Bobbin Winder Spool
	55	Bracket
	56	Screw
	57	Screw
	58	Washer
	47	Bracket
	49	Screw
	43	Bracket
	46-1	Needle Bar Assembly
	46-2	Needle Bar Assembly
	26	Screw
	28	Screw
	23	Screw
	22	Gear
	6	Bobbin Winder Spool
	53	Roller
	54	Roller
	51	Screw
	52	Washer
	50	Screw
	48	Cover
	45	Presser Foot Assembly
	23	Screw
	22	Gear
	6	Bobbin Winder Spool
	55	Bracket
	56	Screw
	57	Screw
	58	Washer
	49	Screw
	18	Screw
	21	Screw
	19	Gear
	20	Screw
	42	Housing
	44	Shaft
	20	Screw
	21	Screw
	19	Gear
	20	Screw

Page 29

Jack JK-58420J parts on page 29

Ref	Part number	Part name	Qty
	12912031	旋梭基座盖FL Rotary hook base cover,FL	1
	12912033	旋梭基座盖FR Rotary hook base cover,FR	1
	129S30011	螺钉M4×12 Screw,M4×12	4
	129S11003	螺钉M6×25 Screw,M6×25	2
	129S11003	螺钉M6×25 Screw,M6×25	2
	20628003	主轴右垫片 Washer,plain 6.35	2
	12903009	套管A Pinch sleeve A	2
	12903010	套管B Pinch sleeve B	2
	12912033	调节板 Needle upper positioning plate	2
	12910004	调节轴 Needle upper positioning shaft	2
	S04038	螺钉M6×10 Screw,pan M6×10	4
	12928018	平垫圈S6 Washer,plain S6	4
	11618001	梭芯 Bobbin	2
	11818001	梭芯 Bobbin	2
	129180600	旋梭组件 Rotary hook assy	2
	1181800700	旋梭组件 Rotary hook assy	2
	129180400	旋梭组件(国产) Rotary hook assy(C)	2
	1161800400	旋梭组件 Rotary hook assy	2
	1291802600	旋梭组件(国产) Rotary hook assy(C)	2
	1181800200	旋梭组件 Rotary hook assy	2
	1291802700	旋梭组件(国产) Rotary hook assy(C)	2
	1161800100	旋梭组件 Rotary hook assy	2
	1191800400	旋梭组件(国产) Rotary hook assy(C)	2
	12918029	梭心套(国产) Bobbin case assy(C)	2
	12918030	梭心套(国产) Bobbin case assy(C)	2

Page 30

Jack JK-58420J parts on page 30

Ref	Part number	Part name	Qty
	48	48
	47	47
	49	49
	9	9
	7	7
	16	16
	13	13
	12	12
	15	15
	8	8
	10	10
	11	11
	3	3
	4	4
	2	2
	5	5
	24	24
	18	18
	19	19
	21	21
	20	20
	14	14
	30	30
	29	29
	31	31
	1	1
	32	32
	27-2	27-2
	27-1	27-1
	28	28
	25-1	25-1
	25-2	25-2
	23	23
	22	22
	26	26
	39	39
	41	41
	36	36
	34	34
	33	33
	42	42
	40	40
	35	35
	6	6
	38-1	38-1
	38-2	38-2

Page 32

Jack JK-58420J parts on page 32

Ref	Part number	Part name	Qty
	48	48
	47	47
	49	49
	9	9
	7	7
	16	16
	13	13
	15	15
	8	8
	10	10
	11	11
	3	3
	4	4
	2	2
	5	5
	24	24
	18	18
	19	19
	21	21
	20	20
	30	30
	29	29
	31	31
	14	14
	1	1
	27-2	27-2
	27-1	27-1
	28	28
	25-1	25-1
	25-2	25-2
	23	23
	22	22
	6	6
	39	39
	41	41
	12	12
	36	36
	32	32
	33	33
	42	42
	35	35
	38-2	38-2
	38-1	38-1
	26	26
	40	40
	37	37

Page 33 — J2.旋梭部件/Rotary hook mechanism(58□□0J-E)

Jack JK-58420J parts on page 33

Ref	Part number	Part name	Qty
	12301007	梭架(右)
	12301009	梭架(右)
	12312015	旋梭基座盖R
SA2579001	12928010	垫圈
SA6425101	12912052	油毡架UR
	12912055	右下油毡架
	12923015	右下油毡垫
SA6462001	12912031	旋梭基座盖FL
SA6463001	12912032	旋梭基座盖FR
SA6417001	129S30011	螺钉M4×12
SA2556001	129S11003	螺钉M6×25
SA2556001	129S11003	螺钉M6×25
	20628003	梭架固定垫片
SA2722001	12903009	套管A
SA2565001	12903010	套管B
S01928151	11618001	梭芯
S09285051	11818001	梭芯
148602001	12918022	梭心座簧
S09286000	12918024	梭心座簧
	1291801400	旋梭组件
	1291801500	旋梭组件
	1291801600	旋梭组件
	1291801700	旋梭组件

Page 34

Jack JK-58420J parts on page 34

Ref	Part number	Part name	Qty
	1	Oil pump assembly
	2	Oil pipe joint
	3	Oil pipe clamp
	4	Oil pipe
	5	Oil pipe clamp
	6	Oil pipe joint
	7	Oil pipe clamp
	8	Oil pipe
	9	Oil pipe clamp
	10	Oil pipe clamp
	11-1	Oil pipe
	11-2	Oil pipe
	12	Oil pipe clamp
	13	Oil pump assembly
	14	Oil pipe clamp
	15	Oil pipe clamp
	16	Oil pump assembly
	17	Oil pump assembly
	18	Oil pipe joint
	19	Oil pipe clamp
	20	Oil pipe clamp
	21	Oil pipe clamp
	22	Oil pipe clamp
	23	Oil pipe clamp
	24	Oil pipe clamp
	25	Oil pipe clamp
	26	Oil pipe clamp
	27	Oil pipe clamp
	28	Oil pipe clamp
	29	Oil pipe clamp
	30	Oil pipe clamp
	31	Oil pipe clamp
	32	Oil pipe clamp
	33	Oil pipe clamp
	34	Oil pipe clamp
	35	Oil pipe clamp
	36	Oil pipe clamp
	37	Oil pipe clamp
	38	Oil pipe clamp
	39	Oil pipe clamp
	40	Oil pipe clamp
	41	Oil pipe clamp
	42	Oil pipe clamp
	43	Oil pipe clamp
	44	Oil pipe clamp
	45	Oil pipe clamp
	46	Oil pipe clamp
	47	Oil pipe clamp
	48	Oil pipe clamp
	49	Oil pipe clamp
	50	Oil pipe clamp
	51	Oil pipe clamp
	52	Oil pipe clamp
	53	Oil pipe clamp
	54	Oil pipe clamp
	55	Oil pipe clamp
	56	Oil pipe clamp
	57	Oil pipe clamp
	58	Oil pipe clamp
	59	Oil pipe clamp
	60	Oil pipe clamp
	61	Oil pipe clamp
	62	Oil pipe clamp
	63	Oil pipe clamp
	64	Oil pipe clamp

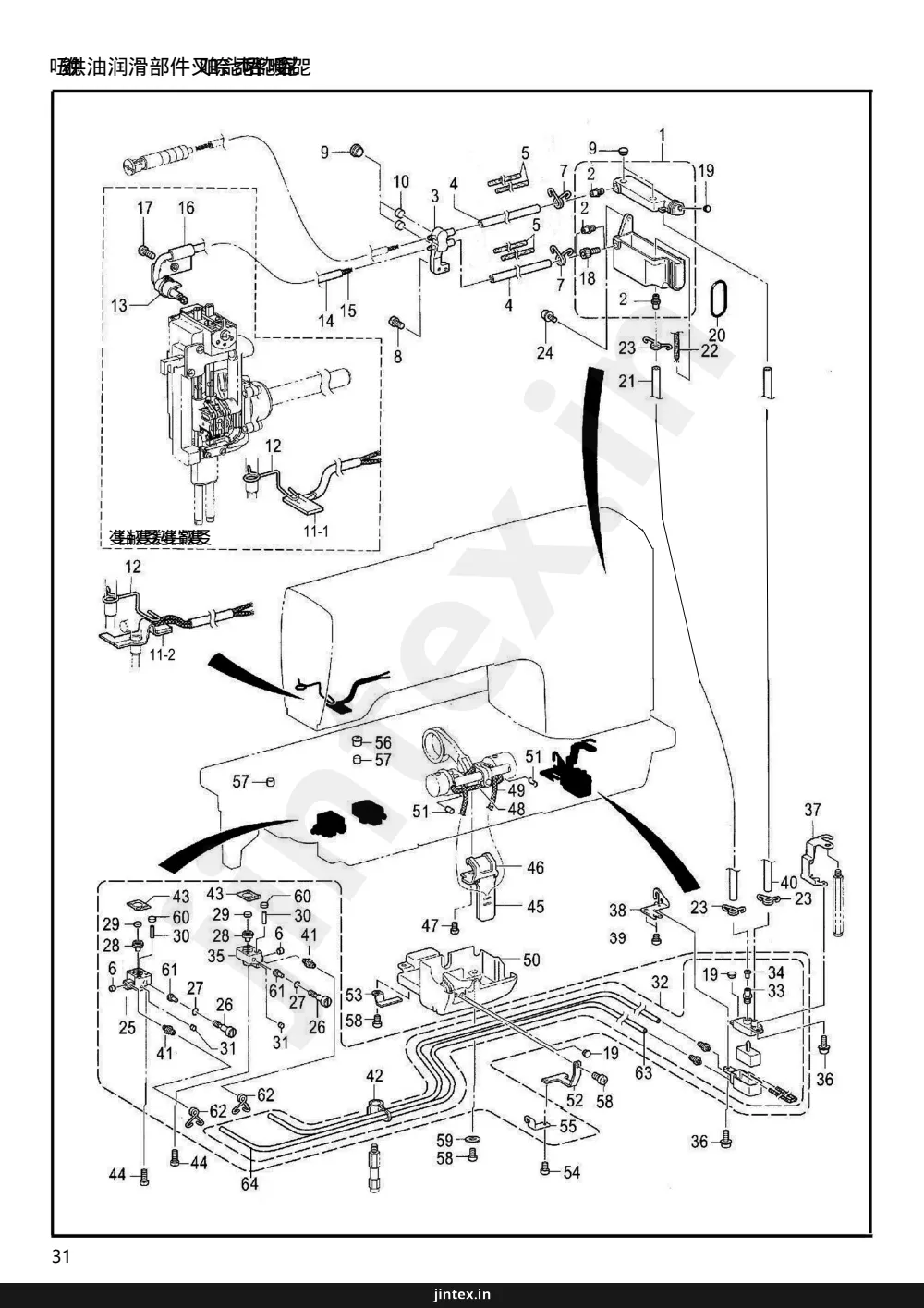

Page 35 — K.供油润滑部件/Lubrication

Jack JK-58420J parts on page 35

Ref	Part number	Part name	Qty
	12911004	油罐组仵
	129530009	供油口 8.6
	129530009	供油口 8.6
	12936002	油管接头
	12921006	维尼龙油管L=135
	12921006	维尼龙油管L=135
	12923018	油线 3.3 L=300
	12923018	油线 3.3 L=300
	12922009	橡皮塞6.3
	20729005	油管夹
	20729005	油管夹
	S04028	螺钉M5×8
	12922001	橡皮塞12.5
	12922001	橡皮塞12.5
	12923010	油毡
	12923010	油毡
	12923035	油毡块
	12923036	油毡块
	12912035	油毡压架
	61910003	尼龙扎带3×80
	12921002	油管L=280
	12923018	油线4×4 L=380
	12912065	油管支架
	S04029	螺钉M5×12
	S05079	螺栓M8×12
	12922006	橡皮塞8
	12922013	O形圈P38
	12921006	维尼龙油管L=210
	12923019	油线 3.3 L=300
	12923009	油线 3.3 L=300
	20729005	油管夹
	129S30016	螺钉(带垫圈)M5
	12901007	集油器L
	129S20004	油量调整螺栓
	001004	O形圈P4
	12922007	橡皮垫片
	12922008	旋棱垫片
	12923021	油线 L=90
	12922016	橡皮塞4.3
	12911005	副油罐组件
	12936004	供油口 8.6
	12922010	油门垫片
	12901008	集油器R
	129S30017	螺钉(带垫圈)M4
	12912036	副油罐安装架A
	12912037	副油罐安装架B
	S04033	螺钉M6×8
	12921006	维尼龙油管L=242
	12936003	油嘴管3.8
	12911006	油管固定夹
	12928011	旋棱台D垫片
	S04039	螺钉M4×16
	12923014	油毡
	12912039	油毡压架
	S04030	螺钉M5×6

Page 36

Jack JK-58420J parts on page 36

Ref	Part number	Part name	Qty
	1	Oil pump body
	2	Oil pump cover
	3	Oil pump shaft
	4	Oil pipe
	5	Oil pipe clamp
	6	Oil pipe joint
	7	Oil pipe clamp
	8	Oil filter screen
	9	Oil pipe joint
	10	Oil pipe joint
	11-1	Oil pipe
	11-2	Oil pipe
	12	Oil pipe joint
	13	Oil pump assembly
	14	Oil pipe
	15	Oil pipe joint
	16	Oil pump body
	17	Oil pump body
	18	Oil pipe joint
	19	Oil pipe joint
	20	Oil pipe joint
	21	Oil pipe joint
	22	Oil pipe joint
	23	Oil pipe joint
	24	Oil pipe
	25	Oil pipe joint
	26	Oil pipe joint
	27	Oil pipe joint
	28	Oil pipe joint
	29	Oil pipe joint
	30	Oil pipe joint
	31	Oil pipe joint
	32	Oil pipe
	33	Oil pipe joint
	34	Oil pipe joint
	35	Oil pipe joint
	36	Oil pipe joint
	37	Oil pipe joint
	38	Oil pipe joint
	39	Oil pipe joint
	40	Oil pipe joint
	41	Oil pipe joint
	42	Oil pipe
	43	Oil pipe joint
	44	Oil pipe joint
	45	Oil pipe joint
	46	Oil pipe joint
	47	Oil pipe joint
	48	Oil pipe joint
	49	Oil pipe joint
	50	Oil pipe joint
	51	Oil pipe joint
	52	Oil pipe joint
	53	Oil pipe joint
	54	Oil pipe joint
	55	Oil pipe joint
	56	Oil pipe joint
	57	Oil pipe joint
	58	Oil pipe joint
	59	Oil pipe joint
	60	Oil pipe joint
	61	Oil pipe joint
	62	Oil pipe joint
	63	Oil pipe joint
	64	Oil pipe joint

Page 37 — 油润滑部件及相关配件

Jack JK-58420J parts on page 37

Ref	Part number	Part name	Qty
	12923018	油线4×4 L=100
	20123021	油线4×4 L=350
	12911007	油盖
	12913012	油毡
	12912040	油管压架A
	12912041	油管压架B
	S04035	螺钉M4×6
	12912042	油管导向
	12922012	油盖
	12923030	油毡
	S04038	螺钉M6×10
	11628005	平垫圈S6
	12923037	旋转轴油毡
	12926013	油量调节销
	30129007	油管夹
	12923050	油毡
	12921005	油管(φ4×φ6)

Page 38

Jack JK-58420J parts on page 38

Ref	Part number	Part name	Qty
4	4	4
5	5	5
11	11	11
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51
52	52	52
2	2	2
3	3	3
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
12	12	12
13	13	13
1	1	1

Page 39 — L.穿线部件/Thread Mechanism

Jack JK-58420J parts on page 39

Ref	Part number	Part name	Qty
	1231300200	面线调节组件3
	12927008	夹线弹簧-3
	1231300300	面线调节组件5
	12927009	夹线弹簧-5
	12912043	调整台组件
	12922020	盖子
	12927010	弹簧L
	1291300500	导向组件
	12928035	垫片
	12927011	弹簧R
	12903014	轴套
	12908006	定位圈
	N01013	螺母M3
	129S15006	螺钉M3.5
	129S11008	固定螺栓
	12913022	调节旋钮
	129S15006	螺钉M3.5
	12903015	轴套
	129S30044	调线螺母
	12912044	弹簧限位板
	129S17004	螺钉M3.5×6
	12912084	定位螺钉M3.5
	12912045	限位板
	129S30026	螺钉M3.5×5
	12913007	夹线盘
	12913008	夹线压盘
	12911008	调节弹簧垫圈
	123S16002	调节螺母
	12928036	小夹线垫片
	12927012	小夹线弹簧A
	129S30012	夹线螺母
	12913009	松线板
	S09019	螺钉M5×5
	12927013	松线弹簧
	129S30020	段螺钉M3.5
	12926011	松线销L
	12926012	松线销R
	12912046	线导向U
	129S17004	螺钉M3.5×6
	12912047	线调整
	129S30027	螺钉M3×6
	S04028	螺钉M5×8
	13822001	三眼线钩固定螺钉孔塞
	S10019	螺钉M6×6
	12313001	三眼线钩
	12902011	松线轴
	112312009	线导向M
	129S17002	螺钉M5×8
	11623022	过线钩油毡
	12926010	调整短轴
	112312007	下过线钩
	112312008	下过线油毡压板
	101S11019	螺钉SM3/32"×56
	12912049	线导向M

Page 40

Jack JK-58420J parts on page 40

Ref	Part number	Part name	Qty
	1	吸塵線部件
	2	夾緊器
	3	壓腳桿
	4	壓腳桿
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33

Page 41

Jack JK-58420J parts on page 41

Ref	Part number	Part name	Qty
	1233100400	卷线器组件
	H05012	挡圈E4
	1231100900	卷线轴基座
	12302002	绕线轴
	001008	O形圈P9
	12928021	平垫圈S6
	12935005	卷线轮
	S09019	螺钉M5×5
	12922014	橡胶垫圈29
	114S16001	螺母
	12910007	卷线夹凸轮
	12302003	卷线夹轴
	S09019	螺钉M5×5
	H05012	挡圈E4
	12328001	平垫圈S6
	12304004	梭芯压臂柄
	S05303	螺钉M4×14
	12312009	梭芯夹
	123S11006	螺钉M4×5
	12911009	梭芯座
	12312013	卷线杠杆
	12907014	弹簧
	12907015	弹簧
	12922030	O形密封圈
	123S11015	卷线器固定螺钉
	11419001	线刀
	114S11015	割线刀螺钉SM9/64"×40 L=6
	1411300600	卷线器夹线组件
	10112005	夹线盘
	11427006	夹线弹簧
	13811004	夹线螺母
	11413022	过线板
	112S13004	夹线器轴

Page 43

Jack JK-58420J parts on page 43

Ref	Part number	Part name	Qty
	12915117	剪线盖板
	S02003	一字沉头螺钉 M4×5
	12319001	定刀
	123S17001	定刀螺钉 SM9-64×40 L=4.5
	12309001	定刀架
	207S13009	圆柱头内六角螺钉 M5×12
	123S30003	定刀调节螺钉 M3
	123S11002	动刀螺钉SM9/64×40 L=4
	12319002	动刀
	201S11001	螺钉SM3/32"×56 L=4.7
	12312001	支撑弹簧片
	12327002	底线保持簧
	S02034	一字沉头螺钉 M3×8
	12309002	动刀托架
	1230400100	动刀轴组件
	12304005	动刀轴
	12329001	动刀驱动销
	12309003	动刀驱动滚柱
	12309004	动刀驱动滑块
	12309005	动刀导向盖板(L)
	12309006	动刀导向架(L)
	S05328	圆柱头内六角螺钉 M3×10
	S02010	一字沉头螺钉 M3×14
	12309007	动刀导向盖板(R)
	12309008	动刀导向架(R)
	S05329	圆柱头内六角螺钉 M3×14
	12304002	切线杠L
	12305001	切线连杆L
	12304003	切线杠R
	129S20302	轴位螺钉M5
	12912313	切线连杆R
	W01004	平垫圈M5
	S04028	螺钉M5×8
	S04029	螺钉M5×12
	12901302	电磁铁杆支撑架
	12912307	切线电磁铁架
	S04038	十字一字盘头螺钉 M6×10
	1233000500	剪线电磁铁组件
	129S20307	长度调节连杆螺钉
	12903308	套管
	12905302	球连接杆组件L
	129S3003	左旋母SM15/64"×28
	123S30001	长度调节连杆
	129S16003	螺母SM15/64"×28
	12905301	球连接杆组件R
	1230500300	长度调节连杆组件
	S04031	螺钉M6×16
	12912312	主杆轴架
	S10019	螺钉M6×6
	12928023	橡胶垫圈
	1290130300	主杆组件
	N01017	六角螺母M5
	W02001	弹簧垫圈2-5

Page 46 — 主機線部件 零配件 總成 附屬 總成

Jack JK-58420J parts on page 46

Ref	Part number	Part name	Qty
13	13	Screw
12	12	Cover
10	10	Screw
9	9	Clip
11	11	Bracket
7	7	Screw
8	8	Screw
14	14	Screw
15	15	Screw
1	1	Switch
5	5	Switch
6	6	Connector
2	2	Washer
4	4	Washer
3	3	Spring
17	17	Lever
22	22	Lever
24	24	Screw
23	23	Screw
19	19	Screw
26	26	Screw
25	25	Lever
30	30	Screw
29	29	Lever
18	18	Shaft
28	28	Screw
27	27	Spring
16	16	Shaft
20	20	Shaft
21	21	Shaft
31	31	Sensor

Page 47

Jack JK-58420J parts on page 47

Ref	Part number	Part name	Qty
	1233000300	扫线电磁铁组件
	12330004	插塞式铁芯
	H05011	挡圈E9
	12022003	橡皮垫
	12030010	扫线开关
	12022004	电线接头
	129S30302	螺钉(带垫片)M4×6
	129S30027	螺钉M3×6
	12912315	电线固定夹
	S13006	螺钉M4×6
	12312014	电磁铁安装板
	12311006	电磁铁盖
	129S13004	螺钉M4×8
	S04028	螺钉M5×8
	120S11010	销
	1291231700	电磁铁连杆组件
	12912318	动作传动板
	12012023	电线连接环
	12926302	销
	12903304	紧圈
	S09019	螺钉M5×5
	12912320	定位板
	S04028	螺钉M5×8
	W01126	平垫圈5
	12004006	扫线器架
	120S13003	螺钉SM3.18-44×12
	12927304	弹簧
	S04028	螺钉M5×8
	12912321	扫线器
	129S11005	螺钉SM3.18-44×4
	1293032300	电子夹线器组件

Page 48 — 胸部缝部件交叉拆卸图解

Jack JK-58420J parts on page 48

Ref	Part number	Part name	Qty
1	1	线盒
2	2	电磁阀
3	3	卡簧
4	4	垫圈
5	5	支架
6	6	螺钉
7	7	螺钉
8	8	螺钉
9	9	螺钉
10	10	垫圈
11	11	支架
12	12	支架
13	13	螺钉
14	14	螺钉
15	15	螺钉
16	16	螺钉
17	17	螺钉
18	18	垫圈
19	19	螺钉

Page 49 — 阀门线圈部件明细表

Jack JK-58420J parts on page 49

Ref	Part number	Part name	Qty
	1233000600	倒缝电磁铁组件
154729001	12930311	铁芯
154730001	H05005	挡圈E15
154731000	12022001	橡胶垫
SA2535101	12912323	电磁铁基座
062500812	129S30016	螺钉(带垫圈)M5×10
062061016	S04038	螺钉M6×10
SA2992001	12926303	连接销
048060142	H03003	挡圈5.6
153138001	12928018	垫圈6.5
SA2536001	129123000	电磁铁曲杆组件
SA2540001	12904303	反转曲柄
016061031	S10021	紧定螺钉 M6×10
SA2992001	12926303	连接销
012060636	S10019	螺钉M6×6
SA2539001	12903305	电磁铁曲杆轴
018062032	S05078	螺钉M6×20
149095009	12928002	垫圈
153132000	11203001	倒送料板手定位套

Page 50 — 电机与电控部件及驱动装置

Jack JK-58420J parts on page 50

Ref	Part number	Part name	Qty
1	1	驱动装置
2	2	固定支架
3	3	固定支架
4	4	固定支架
5	5	固定支架
6	6	固定支架
7	7	固定支架
8	8	固定支架
9	9	固定支架
10	10	固定支架
11	11	固定支架
12	12	固定支架
13	13	固定支架
14	14	固定支架
15	15	固定支架
16	16	固定支架
17	17	固定支架
18	18	固定支架
19	19	固定支架
20	20	固定支架
21	21	固定支架
22	22	固定支架
23	23	固定支架
24	24	固定支架
25	25	固定支架
26	26	固定支架
27	27	电控箱
28	28	驱动装置

Page 51 — R.电机电控部件/Motor and safety switch mechanism

Jack JK-58420J parts on page 51

Ref	Part number	Part name	Qty
	S04028	螺钉M5×8
	12312011	线夹
	12312011	线夹
	12912317	线夹
	95100119	电机罩壳组件(配驰麦克斯)
	1383300900	电机光栅组件(配驰麦)
	S09022	GB/T 77-2000 螺钉M3×4
	S09113	GB/T 77-2000螺钉M6×6
	95100124	电机转子总成
	H03001	GB/T894.1-1986挡圈15
	95100120	电机定子总成(配驰麦克斯)
	13811060	A4-0238电机绝缘防护罩
	W02058	GB 93-1987弹垫d5(镀白锌)
	951S05001	内六角圆柱头螺钉M5×75
	S09113	GB/T 77-2000螺钉M6×6
	S09022	GB/T 77-2000 螺钉M3×4
	1233300200	光电伺服电机(配驰麦编码器)
	1233300600	光电伺服电机(配驰麦编码器)
	951S15011	小盘头组合螺钉M3×12
	1233300100	58420J-一体电控(驰麦)
	12311008	电线盖板
	12311001	58420 驰麦电控罩壳
	1231100100	58420 驰麦电控罩壳组件
	13826009	罩壳台阶销
	12922015	橡皮塞
	114S13001	电控固定螺钉M5×20
	W01004	GB/T 97.1 M5垫片(镀白锌)
	1233300300	操作面板组件
	13833005	双针直驱电控(T19)
	138S30006	罩壳固定螺钉

Page 52 — 缝纫机开关分部件及购买零件说明

Jack JK-58420J parts on page 52

Ref	Part number	Part name	Qty
2	2	螺钉
1-1	1-1	底座
6	6	螺钉
敬	敬	开关
6	6	螺钉
5	5	支架
4	4	螺钉
3	3	支架
2	2	螺钉
1-2	1-2	底座

Page 53 — 倒缝开关分部件及倒缝开关部件图

Jack JK-58420J parts on page 53

Ref	Part number	Part name	Qty
	1233000100	倒缝开关(含LED灯)5V
	1233000200	倒缝开关(含LED灯)5V
SA2689100	S04030	螺钉M5×6
	12312010	线夹
	12312010	线夹
062500616	S04030	螺钉M5×6
	12312011	线夹
062500616	S04030	螺钉M5×6
	41312089	线夹

Page 54 — 自动抬压脚部件又称踏脚器

Jack JK-58420J parts on page 54

Ref	Part number	Part name	Qty
1	1	螺钉
2	2	螺钉
3	3	压脚杆
4	4	压脚座
5	5	垫圈

Page 55 — T.自动抬压脚部件/Auto lifter components

Jack JK-58420J parts on page 55

Ref	Part number	Part name	Qty
	201S12005	电磁铁固定螺钉
	12912210	电磁铁右支架
	12912200	电磁铁左支架
	S04028	螺钉 M5×8(镀锌)
	1233000700	内置抬压脚电磁铁组件
	113S16004	法兰螺母
	W02023	标准型弹簧垫圈φ8
	112309001	六角法兰面螺母M8
	129S30050	抬压脚链接销
	N01028	螺母M8(镀锌)

Page 56

Jack JK-58420J parts on page 56

Ref	Part number	Part name	Qty
1	1	Pneumatic filter
2	2	Pneumatic valve
3	3	Screw
4	4	Bracket
5	5	Connector
6	6	Hose
7	7	Base
8	8	Connector
9	9	Hose
10	10	Connector
11	11	Solenoid valve
12	12	Solenoid coil
13	13	Screw
14	14	Screw

Page 57 — V.气动针杆切换装置附件/ Accessories for pneumatic needle bar switching device

Jack JK-58420J parts on page 57

Ref	Part number	Part name	Qty
	185145121	过滤减压阀 filter pressure reducing valve	1
	42130096	手动开关 Switch	1
	S05912	螺钉 M5X10 Screw	2
	48112066	调压阀连接件 Bracket	1
	40736018	接头 G1/4" Joint	1
	185245109	橙色气管Φ6 Φ6 orange tube	0.7
	112345001	2位汇流板 2-position busbar	1
	407S12002	汇流板密封螺钉 plate seal screw	2
	185245016	接头 PT1/8" Joint	1
	42130092	消音器 Silencer	1
	185545003	2位3通电磁阀 2 position 3 connection solenoid valve	2
	18045011	接头 Joint	2
	701S30002	木螺钉 M4×25 Screw pan M4×25	2
	135S30011	木螺钉 wood screws	2

Page 59 — Z.附件/Accessories

Jack JK-58420J parts on page 59

Ref	Part number	Part name	Qty
	30131029	附属品塑料袋
	10131004	螺丝刀(小)
	10131003	螺丝刀(中)
	10131002	螺丝刀(大)
	20131044	扳手(8mm~10mm)
	20131044	直柄内六角螺丝刀(1.5mm)
	20131046	内六角扳手2
	30131010	内六角扳手3
	30131012	内六角扳手4
	20131056	内六角扳手5
	11617002	机针DP×5(#14)
	11618001	梭芯
	11818001	梭芯
	10111011	机头支柱
	20131037	油壶
	13831038	防尘罩
	12911014	膝控提升顶杆
	40931025	扳手
	12901011	油盘
	11636007	塑料轴套
	12902019	膝控横轴
	12912087	膝控曲柄
	101S12002	螺栓M6
	417S10003	螺钉M6×19
	N01012	六角螺母M6
	11627011	复位弹簧
	H05010	挡圈E10
	12912088	放油口
	207S11011	螺钉M4×5
	1011203100	机头连接钩组件
	10122060	机头连接钩座(6-1)(内销)
	12922017	头部防震垫
	12922018	头部防震垫
	101S30010	机头连接钩座钉
	11631008	油壶
	11631008	油壶组件
	1160101000	脚弓托架组件
	12912417	操纵杆接头
	101S12003	操纵杆接头螺钉
	129S12002	锥头螺钉M6
	12912414	操作杆
	12912415	操作板
	12912416	操作杆接头
	101S12004	螺钉M6
	10122024	操纵板软垫
	1233100600	线架组件 3DRTHF

Page 60

Jack JK-58420J parts on page 60

Ref	Part number	Part name	Qty
	12915306	Needle Plate
	810586	Presser Foot Assembly
	12915306	Needle Plate
	810590	Presser Foot Assembly
	12915307	Needle Plate
	810756	Presser Foot Assembly
	12915307	Needle Plate
	810761	Presser Foot Assembly
	12915206	Needle Plate
	1291632500	Presser Foot Assembly
	12914301	Feed Dog
	12914314	Feed Dog
	12914315	Feed Dog
	11634001	Needle Clamp Assembly
	12915206	Needle Plate
	1291632500	Presser Foot Assembly
	12914301	Feed Dog
	12914314	Feed Dog
	12914315	Feed Dog
	11734002	Needle Clamp Assembly
	11734003	Needle Clamp Assembly
	12915309	Needle Plate
	804008	Presser Foot Assembly
	12915309	Needle Plate
	810800	Presser Foot Assembly
	12915308	Needle Plate
	810587	Presser Foot Assembly
	12915308	Needle Plate
	810591	Presser Foot Assembly
	12915312	Needle Plate
	810588	Presser Foot Assembly
	12915312	Needle Plate
	810592	Presser Foot Assembly
	12915314	Needle Plate
	810589	Presser Foot Assembly
	12915314	Needle Plate
	810593	Presser Foot Assembly
	12915315	Needle Plate
	811002	Feed Dog
	12915315	Needle Plate
	811005	Feed Dog
	12915316	Needle Plate
	811003	Feed Dog
	12915316	Needle Plate
	811006	Feed Dog
	12915317	Needle Plate
	811004	Feed Dog
	12915317	Needle Plate
	811007	Feed Dog

Page 61

Jack JK-58420J parts on page 61

Ref	Part number	Part name	Qty
	800980	Needle Plate	1
	1293407700	Presser Foot Assembly	1
	1293406300	Needle Plate	1
	1293407800	Presser Foot Assembly	1
	800979	Feed Dog	1
	804060	Presser Foot Assembly	1
	12915004	Needle Plate	1
	1291600200	Presser Foot Assembly	1
	12914001	Feed Dog	1
	11634001	Needle Clamp Assembly	1
	12915004	Needle Plate	1
	1291600200	Presser Foot Assembly	1
	12914001	Feed Dog	1
	11734002 (左)	Needle Clamp Assembly	1
	11734003 (右)	Needle Clamp Assembly	1
	804053	Needle Plate	1
	803190	Presser Foot Assembly	1
	804009	Needle Plate	1
	804065	Presser Foot Assembly	1
	1293406700	Needle Plate	1
	1293408200	Presser Foot Assembly	1
	804055	Needle Plate	1
	804056	Presser Foot Assembly	1
	810101	Needle Plate	1
	1293403700	Presser Foot Assembly	1
	1293407000	Needle Plate	1
	1293408300	Presser Foot Assembly	1
	1293407100	Needle Plate	1
	1293408400	Presser Foot Assembly	1
	1293407200	Needle Plate	1
	1293408500	Presser Foot Assembly	1
	1293407300	Needle Plate	1
	1293408600	Presser Foot Assembly	1
	1293407400	Needle Plate	1
	1293408700	Presser Foot Assembly	1
	1293407500	Needle Plate	1
	1293408800	Presser Foot Assembly	1
	1293407600	Needle Plate	1
	1293408900	Presser Foot Assembly	1

Page 62

Jack JK-58420J parts on page 62

Ref	Part number	Part name	Qty
	20731047	螺丝刀(大)	1
	10131003	螺丝刀(中)	1
	10131004	螺丝刀(小)	1
	30131006	扳手(8mm-10mm)	1
	40931025	扳手(9mm-11mm)	1
	20131044	直柄内六角扳手(1.5mm)	1
	20131046	内六角扳手(2mm)	1
	30131010	内六角扳手(2.5mm)	1
	30131012	内六角扳手(3mm)	1
	20131056	内六角扳手(5mm)	1
	20131051	镊子	1
	11617002	机针DP×5 (#14)	4
	10117002	机针DP×5 (#21)	4
	11618001	梭芯	2
	11818001	梭芯	2
	10111011	机头支柱	1
	20131037	油壶	1
	12911014	膝控提升顶杆	1
	20131079	8.5×12袋	2
	12901011	油盘组件	1
	12922017	头部防震垫	2
	12922018	头部防震垫	2
	1011203100	机头连接钩组件	2
	10122060	机头连接钩座(6-1)(内销)	2
	11411029	注射器	1
	20131075	干燥剂	4
	20131077	20×15袋	2
	20131078	32.5×7袋	1
	12931023	塑料袋(600×300×600)	1
	13831018	防尘罩77×51(cm)	1
	11631008	油壶	2
	1160101000	脚弓托架组件	1
	1233100600	线组件3DRTHF	1
	11431038	进口黄油	0.003Kg
	12931009	说明书	1
	S01031	GB/T 165-1985螺钉M4×4.7	2
	20131159	73×130合格证	1
	10131093	标签纸×30	1
	121131010	标签纸80×50	2
	11631025	泡沫箱	1
	12931006	纸箱	1
	12931014	泡沫块	2
	101S30010	鞋钉P19	4
	10130043	众邦调速器(包括拉杆、安装螺钉)	1

Part BooksPartsSearchNotes

Part Books

×

Search

×

Jack JK-58420J — parts catalog

• Page 1 (cover): This is the cover page for the JACK SB450J manual book & parts book. It features an image of the sewing machine and the JACK logo.
• Page 2 (cover): This is the cover page of the parts book, featuring the title in both Chinese and English.
• Page 4 (diagram): This page displays a diagram of sewing machine components, including part numbers and reference numbers for various parts of the machine, such as the frame, covers, and internal mechanisms.
• Page 5 (parts_list): This page lists machine body parts with their corresponding part numbers, descriptions, quantities, and remarks. It includes items like dowel pins, positioning pins, rubber caps, face plates, buckles, rear covers, and various slide plates and screws.
• Page 7 (parts_list): This page lists parts for the Upper shaft mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 8 (diagram): This page displays a diagram of the needle bar rocking mechanism, with numbered parts indicated for reference.
• Page 9 (parts_list): This page lists parts for the needle bar rocking mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 10 (diagram): This page displays a diagram of the needle bar rocking mechanism, with numbered parts and their corresponding references.
• Page 12 (diagram): This page displays a diagram of the needle bar flip-up mechanism (58450, 58750) with numbered parts.
• Page 13 (parts_list): This page lists parts for the Needle bar flip-up mechanism (58450, 58750), including part numbers, descriptions, quantities, and remarks.
• Page 14 (diagram): This page displays a diagram of parts for pneumatic needle bar switching, specifically for models 58450J and 58750J. It includes numbered components and their corresponding references.
• Page 15 (parts_list): This page lists parts for pneumatic needle bar switching, including part numbers, names, quantities, and remarks.
• Page 16 (diagram): This page displays a diagram of presser foot parts, with numbered components and their corresponding references.
• Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It contains 38 items.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and other mechanical parts, each identified by a reference number.
• Page 19 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, quantities, and remarks. It details components like feed regulators, screws, bearings, and levers.
• Page 20 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, gears, and fasteners, with reference numbers for each part.
• Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It covers items from number 41 to 54.
• Page 22 (diagram): This page displays a diagram of various components of an industrial sewing machine, including shafts, gears, brackets, and fasteners, with reference numbers for each part.
• Page 23 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It contains 37 listed parts.
• Page 24 (diagram): This page displays diagrams of sewing machine parts, including the "Dyeing position parts" and "Shaft parts".
• Page 25 (parts_list): This page contains two parts lists: H. 针位部件/Gauge parts and I. 下轴部件/Lower shaft mechanism, detailing part numbers, descriptions, quantities, and remarks for various machine components.
• Page 26 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding references.
• Page 27 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It details components like rotary hook bases, thrust rings, needle bearings, and various screws and felt supports.
• Page 28 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
• Page 29 (parts_list): This page contains a parts list for rotary hook base covers, screws, washers, pinch sleeves, needle upper positioning plates, and bobbins, with part numbers, descriptions, quantities, and remarks.
• Page 30 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification and assembly.
• Page 32 (diagram): This page displays a diagram of various components and sub-assemblies for an industrial sewing machine, including part numbers and reference indicators for identification.
• Page 33 (parts_list): This page lists parts for the J2. Rotary hook mechanism (58□□0J-E), including part numbers, descriptions, quantities, and remarks.
• Page 34 (diagram): This page displays a diagram of lubrication components for a sewing machine, with numbered parts and their corresponding references.
• Page 35 (parts_list): This page lists lubrication and related parts for industrial sewing machines, including part numbers, descriptions, quantities, and remarks.
• Page 36 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 37 (parts_list): This page lists parts for lubrication components, including part numbers, descriptions, quantities, and remarks.
• Page 38 (diagram): This page displays a diagram of sewing machine parts, with reference numbers and labels for various components.
• Page 39 (parts_list): This page lists 52 parts for the L. Thread Mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 40 (diagram): This page displays a diagram of various components of a sewing machine, including part numbers and reference numbers for identification.
• Page 41 (parts_list): This page lists parts for a bobbin winder, including part numbers, descriptions, quantities, and remarks. It contains 33 items.
• Page 43 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, quantities, and remarks for various components.
• Page 46 (diagram): This page displays a diagram of various components and parts for an industrial sewing machine, including covers, switches, levers, and electrical parts, with reference numbers and some part numbers indicated.
• Page 47 (parts_list): This page contains a parts list for thread wiper solenoid assembly components, including part numbers, descriptions, quantities, and remarks.
• Page 48 (diagram): This page displays a diagram of various components of an industrial sewing machine, including part numbers and reference indicators for assembly.
• Page 49 (parts_list): This page contains a parts list for solenoid components, including part numbers, descriptions, quantities, and remarks. It lists 19 different parts with their corresponding details.
• Page 50 (diagram): This page displays a diagram of the drive motor and electrical components, with numbered parts and their corresponding references.
• Page 51 (parts_list): This page lists motor and safety switch mechanism parts, including part numbers, descriptions, quantities, and remarks.
• Page 52 (diagram): This page displays a diagram of switch components, including part numbers and reference numbers for various parts.
• Page 53 (parts_list): This page contains a parts list for reverse actuator assemblies, including part numbers, descriptions, quantities, and remarks.
• Page 54 (diagram): This page displays a diagram of the automatic presser foot parts, including components like the base, shaft, and screws, with reference numbers for identification.
• Page 55 (parts_list): This page lists auto lifter components with part numbers, descriptions, quantities, and remarks.
• Page 56 (diagram): This page displays a diagram of accessories for a pneumatic needle bar switching device, with numbered parts indicated.
• Page 57 (parts_list): This page lists accessories for a pneumatic needle bar switching device, including filter pressure reducing valves, switches, screws, brackets, joints, tubes, busbars, silencers, and solenoid valves, with their respective part numbers and quantities.
• Page 59 (parts_list): This page contains a parts list for accessories, including part numbers, descriptions, quantities, and remarks for various components like screws, wrenches, and oilers.
• Page 60 (parts_list): This page lists parts for computer machines (Auto Thread Trimming) models 58420G/58420J series and 58450G/58450J series, including needle plates, presser foot assemblies, feed dogs, and needle clamp assemblies for various needle gauges.
• Page 61 (parts_list): This page lists parts for the Ordinary machine models 58420/58420B/58720/58720B and 58450/58450B/58750/58750B, detailing needle gauge, needle plate, presser foot assembly, feed dog, and needle clamp assembly.
• Page 62 (parts_list): This page contains a packing list for double needle lockstitch sewing machines, detailing parts with their numbers, names, quantities, and notes.
• Page 63 (cover): This is the cover page for a JACK sewing machine catalog, featuring the company name, slogan "Leading in global sales", contact information including a phone number and website, social media icons, and company address.

Page 1

SB450J JACK 3333 JACK 杰克 jintex.in

Page 2

零件样本 PARTS BOOK jintex.in

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

58420B 1 9 10 11 8 24 7 13 12 6 5 4 3 3 0-2 14 15 16 17 18 19 20 21 22 23 jintex.in

Page 5 — A.机体部件/Machine body

A.机体部件/Machine body 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 部件名称 Name of parts 数量 Amt. □□3 □□5 备注 1 12926001 140063001 带槽销 Dowel pin 2 2 58□□0J 12926001 140063001 带槽销 Dowel pin 1 1 58□□0B 2 12926002 SA3924001 定位销 Positioning pin 1 1 3 12922001 SA2929001 橡皮塞 12.5 Rubber cap,12.5 2 2 4 13837002 商标牌 Plate with trademark 1 1 5 304030 面板 Face plate 1 1 58420/58720 304031 面板 Face plate 1 1 58450/58750 6 S04032 062501416 螺钉 M5×14 Screw,pan M5×14 2 2 7 S04032 062501416 螺钉 M5×14 Screw,pan M5×14 3 3 58□□0J 8 S04029 062501216 螺钉 M5×12 Screw,pan M5×12 3 3 58□□0B 9 S04021 螺钉 M4×4 Screw M4×4 2 2 10 13812007 卡簧 Buckle 1 1 13812007 卡簧 Buckle 1 1 58□□0B 11 304032 后窗板 Rear cover 1 1 58□□0J 304258 后窗板 Rear cover 1 1 58□□0B 12 12922001 SA2929001 橡皮塞 12.5 Rubber cap,12.5 2 2 13 12922001 SA2929001 橡皮塞 12.5 Rubber cap,12.5 1 1 58420/58720 14 S04028 062500816 螺钉 M5×8 Screw,pan M5×8 2 2 58450/58750 15 129S30002 SA2445101 脚柱 S Bed leg,S 1 1 16 129S30001 SA2444101 脚柱 L Bed leg,L 1 1 17 1231500100 左推板组件 Slide plate,L assy 1 1 58□□0J 12915005 SA2447001 左推板组件 Slide plate,L assy 1 1 58□□0B 18 12911001 SA2479001 推板窗 Bobbin window 1 1 19 1231500200 右推板组件 Slide plate,R assy 1 1 58□□0J 12915006 SA2449001 右推板组件 Slide plate,R assy 1 1 58□□0B 20 12911001 SA2479001 推板窗 Bobbin window 1 1 21 1231500300 前推板组件 Slide plate f assy 1 1 58□□0J 1291500300 S36663051 前推板组件 Slide plate f assy 1 1 58□□0B 22 129S15001 S34438051 螺钉SM1/8"×40 L=4 Screw,flat SM1/8"×40 L=4 4 4 23 129S17001 螺钉SM13/64"×32 L=4 Screw,flat SM13/64"×32 L=4 1 1 24 12928008 垫片 Washer,plain 1 1 58□□0B 2 jintex.in

Page 7 — B.上轴部件/Upper shaft mechanism

B.上轴部件/Upper shaft mechanism 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 口3 口5 备注 1 12302001 上轴 Upper shaft 1 1 2 12904001 SA4089001 挑线杆曲柄 Thread takeup crank 1 1 58420/58720 3 B04022 S25234001 球轴承 6004ZZ Ball bearing,6004ZZ 1 1 58450/58750 4 B10002 S38707001 球轴承 6004ZZNR Ball bearing,6004ZZNR 1 1 5 12926201 SA6166001 针杆曲柄轴 Crankshaft,NBAR 1 1 6 12923050 油线 φ2.5 L=60 Wick,φ2.5 L=60 1 1 7 11626003 113014000 油线盖 Wick cap 1 1 8 S10017 S25260001 固定螺钉 M6×0.75 L=5 Set screw M6×0.75 L=5 2 2 9 12308001 绕线轮驱动轮 Bobbin winder driving wheel 1 1 10 S10019 固定螺钉 M6×6 Set screw,socket(ft)M6×6 2 2 11 129S30005 S25235001 螺钉 M8×6 Screw M8×6 1 1 12 S09017 S25236001 螺钉 M6×0.75 L=10 screw M6×0.75 L=10 1 1 13-1 12938003 挑线架销 Hinge Pin For Thread Take Up Lever 1 1 13-2 12938002 SA2861001 挑线杆支撑轴接头 Thread takeup s-shaft unit 1 1 13-3 12921002 维尼龙油管L=190 Oil tube,L=190 0.19 0.19 13-4 12923018 油线 L=400 Wick, L=400 0.4 0.4 13-5 20123021 油线 L=30 Wick, L=30 0.03 0.03 14-1 12938006 SA2935101 挑线杆-3 Thread takeup lever assy,s3 1 1 58420-003 14-1 12938007 SA2936101 挑线杆-5 Thread takeup lever assy,s5 1 1 58420-005/58450 14-1 12938202 SA2937101 挑线杆-7 Thread takeup lever assy,s7 1 1 58720/58750 14-2 12923031 油线 4×4 L=40 Wick,4×4 L=40 1 1 14-3 12922015 橡皮塞 Rubber cap 1 1 15-1 11626004 S13160001 挑线杆连接柱 Ttakeup slide block assy,2 1 1 15-2 12923012 油线 L=17 Wick, L=17 1 1 15-3 12926016 油线盖φ4 Wick capφ4 1 1 16 B04021 076023800 R球轴承 60/22ZZ Ball bearing,radial 60/22ZZ 1 1 17 12908002 SA2748001 轴承座 Ball bearing bush 1 1 18 S10018 S23651001 紧定螺钉M6×0.75 L=6 Screw M6×0.75 L=6 2 2 19 12935002 SA2720001 同步轮UST组件 Timing pulley assy,U ST 1 1 20 S10018 S23651001 紧定螺钉M6×0.75 L=6 screw M6×0.75 L=6 2 2 21 12303002 上轴后轴承衬套 Ball bearing bush 1 1 22 S10018 S23651001 紧定螺钉M6×0.75 L=6 screw M6×0.75 L=6 2 2 23 B10009 S38710001 球轴承 6004ZZNR Ball bearing,6004ZZNR 1 1 24 304034 手轮 Pulley 1 1 25 S10019 螺钉 M6×6 Set screw,socket(ft)M6×6 2 2 26 13811021 手轮贴条 Handwheel lable 1 1 27 12935003 SA2463001 同步皮带 Timing belt 1 1 28 S10024 012061036 螺钉 M6×10 Set screw,socket(ft)M6×10 2 2 29 12312012 SA2469001 挑线杆防护罩 Thread takeup lever cover 1 1 30 S04028 062500816 螺钉 M5×8 Screw,pan M5×8 2 2 31 12912005 SA4537001 防尘盖 Dust cover 1 1 32 1291207900 SA3058101 遮掩板 Shelter plate 1 1 58420/58720 33 12912006 SA4570001 遮掩板 Shelter plate 1 1 58450/58750 34 12912006 SA4570001 遮掩板 Felt 1 1 35 12912005 SA3065001 油毡 Holder,shelter plate 1 1 36 S04028 062500816 螺钉 M5×8 Screw,pan M5×8 1 1 4

Page 8 — C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720)

C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 27 28 29 30 30 31 32 32 33 34 35 35 36 37 5 jintex.in

Page 9 — C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720)

C1.针杆摆动部件/Needle bar rocking mechanism(58420、58720) 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. □3 □5 备注 1 1290200200 SA4124301 针杆摆动轴组件 Needle bar rocker shaft assy 1 1 2 1290100100 SA3854001 针杆台组件 Needle bar base assy 1 1 3 12909001 SA2474201 角滑块 Slide block slider 1 1 4 S05058 018401036 螺钉M4×10 Screw,pan M4×10 2 2 5 12902003 SA2475101 针杆 Needle bar 1 1 6 12905002 SA3710001 针杆抱箍 Needle bar clamp 1 1 7 129530021 062350816 螺钉M3.5×8 Screw,pan M3.5×8 1 1 8 12923023 油线2.5×4.5 L=40 Wick,2.5×4.5 L=40 1 1 9 12905003 SA3711101 曲柄摇杆轴连杆 Crank rod,nbar slide 1 1 10 12909002 SA3712001 角滑块 block Needle bearing 1 1 11 12924001 SA2482001 滚针轴承 Case 1 1 12 12903001 SA2483001 轴承套 Washer,plain Cap,nbar 1 1 13 12928015 SA2484001 垫圈 Flat support,U 1 1 14 12923002 148394000 针杆塞 Screw,pan M5×6 Flat 1 1 15 12912007 SA4007001 油毡上支架U support,D Wick,L=200 1 1 16 S04030 062500616 螺钉M5×6 Screw,pan M5×6 1 1 17 12912008 SA3848001 油毡下支架D 1 1 18 12923021 S07465000 油线L=200 1 1 19 12923003 SA3852001 油毡 Flat 1 1 20 12908003 SA2485001 紧圈 Set screw collar 2 2 21 S10063 固定螺钉 M6×0.75 L=5 Set screw,socket(ft)M6×5 L=5 4 4 22 12903002 SA2486101 摆动轴套R Bush,R 1 1 23 S04028 062500816 螺钉M5×8 Screw,pan M5×8 1 1 24 S04031 062061616 螺钉M6×16 Screw,pan M6×16 1 1 25 1290501500 针杆摆动组件 Needle bar rocker lever assy 1 1 26 12905004 SA2489001 针杆摆动连杆 Needle bar rocker lever 1 1 27 S05078 018062032 螺钉M6×20 Bolt,socket M6×20 1 1 28 20128033 118735002 垫圈 Washer 1 1 29 12905005 SA2490101 针杆摆动杆 Rocker link,NBAR 1 1 30 S04034 S23460001 螺钉M6×5 Screw,pan M6×5 2 2 31 12926005 SA4117001 摆动杆轴P Link shaft,NBAR rocker P 1 1 32 S10019 012060636 螺钉M6×6 Set screw,socket(ft)M6×6 2 2 33 12903003 SA4118001 摆动杆轴套P Zigzag link bush,P 1 1 34 S05016 018062532 内六角螺栓M6×25 Bolt,socket M6×25 1 1 35 12928002 SA2493001 垫圈 Washer,plain 2 2 36 12901010 SA2494001 针杆摆动臂 Needle bar rock arm 1 1 37 S05078 018062032 螺钉M6×20 Bolt,socket M6×20 1 1 6

Page 10 — C2.针杆摆动部件/Needle bar rocking mechanism(58450、58750)

C2.针杆摆动部件/Needle bar rocking mechanism(58450、58750) 43 44 43 43 30 31 48 47 33 35 34 2 42 40 41 39 29 28 29 28 23 22 32 5 6 37 38 36 3 4 49 49-1 50 51 53 54 55 52 56 57 58 59 60 46 45 61 62 24 25 26 27 7 20 19 18 17 9 9 10 21 8 16 16 15 13 8 11 12 14 14 1 7 jintex.in

Page 12 — D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750)

D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750) 29 30 31 34 32 39 35 38 36 39 38 39 38 40 37 28 27 26 54 53 52 41 42 6 19 20 22 21 25 24 23 45 43 44 46 1 2 3 4 5 9 10 8 11 18 12 13 12 14 15 16 17 51 47 48 49 50 |自动切换专用夹除缝纫机零配件 9 jintex.in

Page 13 — D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750)

D1.针杆切换部件/Needle bar flip-up mechanism(58450、58750) 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 003 005 1 1233000800 针杆复位电磁铁 Needle bar reset solenoid 1 1 -010 2 12327005 电磁铁复位弹簧 solenoid reset spring 1 1 -010 3 H05011 限位挡圈9 Retaining ring,9 1 1 -010 4 12330009 限位电磁铁铁芯 Solenoid core 1 1 -010 5 120S11010 销 Pin 1 1 -010 6 12347001 感应磁钢 Magnet 2 2 -010 7 S04021 固定螺钉M4×4 Set screw M4×4 1 1 -010 8 12312024 复位连接板 Reset connector 1 1 -010 9 12312017 指示板盖 Holder plate cover 1 1 -010 10 S04032 062501016 螺钉M5×14 Screw pan M5×14 2 2 -010 11 12312018 指示板板 Indication plate 1 1 -010 12 207S11011 固定螺钉M4 Set screw M4 4 4 -010 13 12312019 复位电磁铁安装板 Solenoid mounting plate 1 1 -010 14 123S20001 段螺钉M4 Shoulder screw,M4 2 2 -010 15 12312021 压板 Push lever 1 1 16 12312022 压杆板 Plate, push lever 1 1 17 S04041 062350516 螺钉M3.5×5 Screw pan M3.5×5 2 2 18 12922004 104833001 橡皮塞4.3 Rubber cap,4.3 2 2 19 1231202000 定位杆轴组件 Stop lever shaft assy 1 1 -010 1291206000 SA4406001 定位杆轴组件 Stop lever shaft assy 1 1 20 11729011 047301842 弹簧销AW3×18 Pin spring roll AW3×18 1 1 21 123S30004 SA4408001 螺钉L Stud,L 1 1 22 123S30005 SA4409001 螺钉S Stud,S 1 1 23 12912061 SA441101 切换指示板 Flipup holder plate 1 1 24 S18964001 切换指示标签 Label 1 1 25 S04028 062500816 螺钉M5×8 Screw pan M5×8 2 2 26 11724001 071063550 钢珠1/4 Bearing ball 1 1 27 12927022 150820001 弹簧 Spring 2 2 28 12903016 SA4412001 轴承导向套 Ball guide bush 1 1 29 12304001 SA4413001 轴臂 Arm,lever shaft 1 1 30 S05004 062501416 螺钉M5×14 Screw pan M5×14 1 1 31 123S20002 SA5588001 螺钉M4 Shoulder screw,M4 1 1 32 11727007 SA4414001 弹簧 Spring 2 2 33 12312006 SA4415001 滑轴架 Slide shaft bracket 1 1 34 S04028 062500816 螺钉M5×8 Screw pan M5×8 2 2 35 12312007 S07588101 滑动轴 Slide shaft 1 1 36 12312008 SA4416001 支架板 Support plate,slide shaft 1 1 37 12927018 149863001 弹簧 Spring,plate 2 2 38 12303003 SA4417001 紧固圈 Set screw collar 3 3 39 S10007 014400432 紧定螺钉M4×4 Set screw,socket(CP)M4×4 5 5 40 413S11004 SA4418001 导向螺钉 Guide screw 1 1 41 413S11009 球面圆柱螺钉M4×5 Set screw M4×5 2 2 42 12311010 感应磁钢安装板 Solenoid mounting plate 1 1 43 12312002 SA4402001 指示板组件 Indication plate assy 1 1 44 12922004 104833001 橡皮塞4.3 Rubber cap,4.3 2 2 45 12312003 SA5336001 指示板盖 Holder plate cover 1 1 46 S04032 062501016 螺钉M5×14 Screw pan M5×14 2 2 47 12312004 SA4404001 压板 Push lever 1 1 48 123S20001 SA4411001 段螺钉M4 Shoulder screw,M4 2 2 49 12912059 SA4405001 压杆板 Plate, push lever 1 1 50 S04041 062350516 螺钉M3.5×5 Screw pan M3.5×5 2 2 51 12927017 SA5333001 弹簧 Spring 1 1 52 12330010 霍尔传感器 Hall sensor 1 1 -010 53 S04021 固定螺钉M4×4 Set screw M4×4 1 1 -010 54 12312023 霍尔传感器安装板 Hall sensor mounting plate 1 1 -010 55 S04035 复合槽螺钉M4×6 Set screw M4×5 2 2 -010 10 jintex.in

Page 14 — D2. 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、 58750J)

D2. 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、 58750J) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 jintex.in 11

Page 15 — D2 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、58750J)

D2 气动针杆切换部件/Parts for pneumatic needle bar switching(58450J、58750J) 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 003 005 1 112345003 小型气缸CUJB16-9DM mini cylinder CUJB16-9DM 1 1 -020 2 185545002 气管接头KQ2S04-M3G tube connector KQ2S04-M3G 1 1 -020 3 185245106 绿色气管(φ4×1000) green tube (φ4 × 1000) 2 2 -020 4 185245107 粉色气管(φ4×1000) pink tube (φ4 × 1000) 1 1 -020 5 S05970 螺钉 M4×20 Screw pan M4×20 2 2 -020 6 W02004 GB/T93-1987弹垫M6 Spring Washer M6 1 1 -020 7 185505001 针杆分离气缸接头 needle bar separating cylinder connector 1 1 -020 8 123S20002 SA5588001 螺钉M4 Shoulder screw,M4 1 1 9 185512001 针杆分离开关安装板 needle bar separating switch mounting plate 1 1 -020 10 S04028 062500816 螺钉 M5×8 Screw pan M5×8 2 2 11 11233000500 中位开关组件 neutral switch assembly 1 1 -020 12 11233000600 左、右开关组件 left and right switch components 2 2 -020 13 41711017 电线夹 wire clip 2 2 14 S04035 螺钉 M4×6 Screw pan M4×6 2 2 15 12911301 绕线管 bobbin 0.6 0.6 12

Page 16 — 壓腳部件 叉壓腳壓腳壓腳邊壓腳壓腳

壓腳部件 叉壓腳壓腳壓腳邊壓腳壓腳 12 11 10 3 4 5 6 8 9 2 1 7 14 15 21 20 13 30 36 35 32 31 33 16 17 18 19 25 26 34 37 38 13 jintex.in

Page 17

序号 No. 件号 Part No. 参考件号 Ref.Part No. 零件名称 Name of parts 数量 Amt. 备注 1 12903004 SA2495001 压杆轴套 Presser bar bush 1 1 2 S04028 062500816 螺钉M5×8 Screw,pan M5×8 1 1 3 123S30002 调节螺栓 M14 Presser adjusting screw M14 1 1 4 123S16001 调节螺母 M14 Presser adjusting nut M14 1 1 5 12905006 SA7607001 弹簧导杆 Spring guide 1 1 6 11627002 S07346101 压紧弹簧 Presser bar spring,5 1 1 7 12902004 SA2496001 压紧杆 Presser bar 1 1 8 12905007 SA2498001 压杆抱箍 Guide bracket,PBAR 1 1 9 129S12001 S25289001 螺栓M6×10 Bolt,socket M6×10 1 1 10 12904002 SA2499001 压杆提升曲柄 Presser bar lifting crank 1 1 11 12311007 S31006001 抬压脚扳手 Lifting lever 1 1 12 124S30009 S39051001 螺钉(带垫圈)M3.5×12 Screw,pan(s/p w) M3.5×12 1 1 58□□OB 13 129130100 S07353001 松线板组件 Tension release plate assy 1 1 1291330100 S07351001 松线板组件 Tension release plate assy 1 1 58□□OJ 14 S09018 012061832 螺钉M6×18 Set screw,socket(ft)M6×18 1 1 15 N01012 012061832 螺母M6 Nut M6 1 1 16 12912010 SA2501001 抬压脚连杆 Presser bar lifting lever 1 1 17 12912090 膝控连杆 Knee lifter connecting rod 1 1 18 129S20001 SA1179001 段螺钉M5 Shoulder screw,M5 1 1 19 11626008 S07349001 膝抬前拔销 Pbar lifting lever shaft 1 1 20 12908004 SA2504001 紧圈 Set screw,collar 1 1 21 S09019 012500536 螺钉M5×5 Set screw,socket(ft)M5×5 2 2 22 12927002 S07355051 弹簧 Spring extension 1 1 23 S04032 062501416 螺钉M5×14 Screw,pan M5×14 1 1 24 N01017 021500106 六角螺母M5 Nut 1 M5 1 1 25 12912095 抬压脚后杠杆 Knee lifter lever 1 1 26 12912600 膝控顶杆 Knee lifter bar 1 1 27 129S20001 SA1179001 段螺钉M5 Shoulder screw,M5 1 1 28 129S20002 SA2165001 段螺钉M6 Shoulder screw,M6 1 1 29 129S20001 SA1179001 段螺钉M5 Shoulder screw,M5 1 1 30 12928016 S07350001 垫圈 Washer,plain 1 1 31 1291230100 S07529001 松线连杆组件 Thread release connecting rod assy 1 1 32 H05002 048030342 挡圈E3 Retaining ring ,E3 1 1 33 12930301 SA2677001 松线电线 Wire holder release wire 1 1 34 116S16006 螺母SM3/16"×32 Nut SMSM3/16"×32 2 2 35 12912302 SA2678001 松线电线夹 Wire holder 1 1 36 S04028 062500816 螺钉M5×8 Screw,pan M5×8 2 2 37 12912303 SA2679001 松线电线夹 Wire holder 1 1 38 S04038 062060816 螺钉M6×8 Screw,pan M6×8 2 2 14

Page 18

缝纫布部件及脚踏板脚踏板电脑机 15 jintex.in

Page 19 — 缝布部件与喂布器零件表

缝布部件与喂布器零件表 序号 No. 零件 Part No. 参考零件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 1 1290200500 SA3062001 切换器11组件 Feed regulator assy,11 1 58420 1290200500 SA3062001 切换器11组件 Feed regulator assy,11 1 58720/58750 1 1290200600 SA2509001 切换器组件 Feed regulator assy 1 1 58420 1290200600 SA2509001 切换器组件 Feed regulator assy 1 1 58450 2 12909003 SA2511001 滑块导向 Guide plate 2 2 3 S04029 062501016 螺钉M5×12 Screw,pan M5×12 4 4 4 12909004 SA2512001 滑块组件 Slide block assy 1 1 5 12923018 SA2515001 油线 4×4 L=150 Wick,4×4 L=150 1 1 6 12912014 SA2516001 切換器定位 Stopeer 1 1 7 S04033 062060816 螺钉M6×8 Screw,pan M6×8 1 1 8 1290500800 143611201 送布连接杆组件 Froccker connecting rod assy 1 1 9 12905009 143612100 送布大连接杆 Feed rocker connecting rod 1 1 10 11624002 118954000 滚针轴承 Needle bearing 1 1 11 12910001 SA2518001 送布偏心轮5 Level feed eccentric wheel 5 1 1 58420/58450 12910201 SA2791001 送布偏心轮7 Level feed eccentric wheel 7 1 1 58720/58750 12 S10020 螺钉 Set scre 1 1 13 S10023 倒送料扳手定位螺钉 Set screw 1 1 14 1290400800 水平送料臂5组件 Feed rocker arm5 assy 1 1 58420/58450 1290400900 水平送料臂7组件 Feed rocker arm7 assy 1 1 58720/58750 14-1 12904003 SA2521001 水平送料臂5 Feed rocker arm5 1 1 58420/58450 12904201 SA2793001 水平送料臂7 Feed rocker arm7 1 1 58720/58750 15 S05078 018062032 螺栓M6×20 Bolt,socket M6×20 1 1 16 12905010 143613051 送布小连杆 Link 1 1 17 11626010 143616001 送布曲柄轴 Shaft 1 1 18 11629002 048060342 挡圈E6 Retaining ring,E6 2 2 19 1231100200 针距标盘4 Stitch length dial,4 1 58420 20 1231100300 针距标盘5 Stitch length dial,5 1 58420 1231100300 针距标盘5 Stitch length dial,5 1 58450 1231100400 针距标盘7 Stitch length dial,7 1 1 58720/58750 21 129S30007 SA3056001 调节螺栓 Feed regulating stud 1 1 22 12912304 SA2541001 倒缝推手板 Reverse stitching lever plate 1 1 58□10J 23 101S11022 螺钉SM3/16"×28 Screw,SMSM3/16"×28 1 1 24 10122016 108549001 O形圈 O Ring 1 1 25 11426022 550098101 定位销 Positioning pin 1 1 26 11427034 100328001 止动销弹簧 Notch spring 1 1 27 11412079 标盘锁按键 Dial lock lever 1 1 28 11427035 弹簧 Spring 1 1 29 12909005 SA2525001 送料调节器5 Feed regulator 5 1 1 58420/58450 12909201 SA2796001 送料调节器7 Feed regulator 7 1 1 58720/58750 30 S10021 016061031 紧定螺钉M6×10 Set screw,socket(cn)M6×10 2 2 31 12905011 SA2526001 切换器连杆 Connecting rod 1 1 32 12910002 SA2527001 偏心轴 Eccentric shaft 1 1 33 S10019 012060636 螺钉M6×6 Set screw,socket(ft)M6×6 1 1 34 129S20003 SA2528101 段螺钉M6 Shoulder screw,M6 1 1 35 12902007 SA2529101 倒缝手柄轴 TR Shaft,Rlever TR 1 1 36 12929003 048080342 挡圈E8 Retaning ring,E8 1 1 37 11628003 025100132 平垫圈S10 Washer,plain S 10 1 1 38 12912017 SA2530001 垫片 Spacer 1 1 39 304033 S07374109 倒缝推手 Reverse stitching lever 1 1 40 12927005 SA2531001 弹簧 Spring 1 1 16

Page 20 — 缝纫布部件及脚踏板脚踏板电脑机

缝纫布部件及脚踏板脚踏板电脑机 13 12 8 9 10 11 14-1 16 17 18 18 15 14 51 54 53 26 25 50 28 27 21 19 24 23 1 2 3 4 5 6 7 30 33 32 29 31 34 20 22 缝纫机 46 35 36 37 38 45 43 47 49 48 41 40 39 42 17 jintex.in

Page 21 — D座布部件及螺钉螺母明细表

D座布部件及螺钉螺母明细表 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. □□3 □□5 备注 41 12912018 SA3067001 手柄导向 Lever guide 1 1 58□□□0B 42 12922002 S48367000 导向橡胶 Rubber 2 2 58□□□0B 43 129S11001 SA6592001 螺钉M5 Screw,pan M5 1 1 45 40122016 104821001 橡胶盖10.5 Rubber cap, 10.5 1 1 46 S04028 062500816 螺钉M5×8 Screw,pan M5×8 2 2 47 12912019 SA2532001 定位器 Stooper 1 1 48 S04029 062501216 螺钉M5×12 Screw,pan M5×12 1 1 49 12928018 025050236 平垫圈M5 Washer,plain M5 1 1 50 12927006 S07376001 调节器弹簧 Feed regulator spring 1 1 51 12912020 SA2533001 弹簧挂钩 Spring hook 1 1 52 S04038 062060816 螺钉M6×10 Screw,pan M6×10 1 1 53 S04029 062501216 螺钉M5×12 Screw,pan M5×12 1 1 54 N01017 021500106 六角螺母M5 Nut 1 M5 1 1 18 jintex.in

Page 22 — Example Parts List

咪缝布部件又呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.A呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼1呼呼.A呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.A呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼.A呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼呼The call is for a user to provide a call to action. The user has provided a prompt that is not a valid JSON object. The prompt is:

Page 23 — 喉缝布部件及脚踏板路轨

喉缝布部件及脚踏板路轨 序号 No 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 1 12903005 SA3855001 送布轴套L Bush,l:froker shaft 1 1 2 12923005 SA3965001 油毡 Felt 1 1 3 12923018 SA4028001 油线4×4 L=120 Wick,4×4 L=120 1 1 4 12903006 SA2543001 送布轴套R Feed rocker shaft bush,R 1 1 5 12923018 108802001 油线4×4 L=250 Wick,4×4 L=250 1 1 6 S10022 SA2544001 紧定螺钉M6×8 Set screw M6×8 1 1 7 S10019 012060636 紧定螺钉M6×6 Set screw,socket M6×6 1 1 8 12908005 SA2546001 紧圈 Set screw collar 2 2 9 S10018 SA23651001 紧定螺钉M6×0.75 L=6 Set screw,socket M6×0.75 L=6 4 4 10 12902008 SA3840001 送布轴 Feed rocker shaft 1 1 11 1290700200 送布台叉组件 ST Feed bar st fork assy 1 1 58□□OB 12 1290720100 SA6150101 送布台叉组件 TR Feed bar tr fork assy 1 1 58□□OJ 13 207S11006 SA2927001 螺钉M6×14 Screw, M6×14 1 1 14 11628005 025060132 平垫圈S6 Washer,plain S 6 1 1 15 N01016 021350106 螺钉M3.5×12 Set screw M3.5×12 1 1 16 N01016 021350106 螺母M3.5 Nut 1 M3.5 1 1 17 12912021 SA2553001 叉板 Forked plate 1 1 18 129S30010 SA2554001 调整螺栓 Adjusting screw,hight 1 1 19 S04035 062400616 螺钉M4×6 Screw,pan M4×6 1 1 20 12923006 SA3990001 油毡 Flat 2 2 21 12923007 SA3887001 油毡 Flat 1 1 22 12912022 SA3888001 油毡压架 Flat holder 1 1 23 12928019 025030132 平垫圈S3 Washer,plain S 3 1 1 24 S04036 062300416 螺钉M3×4 Screw,pan M3×4 1 1 25 12910003 SA2550001 送布台安装轴 Feed bar shaft 1 1 26 12928003 SA2551001 轴向垫圈 Thrust ring 2 2 27 S10019 012060636 螺钉M6×6 Set screw,socket(ft)M6×6 1 1 28 12904004 SA2555001 水平送布台臂 Feed rocker base arm 1 1 29 S01059 SA2928001 螺钉M5×13 Screw,M5×13 2 2 30 12923018 SA4538001 油线4×4 L=180 Wick,4×4 L=180 1 1 31 1290900600 SA2806001 角滑块组件 Feed bar slide block assy 1 1 32 S02018 SA6308001 螺钉M2×4 Screw,flat M2×4 4 4 33 12912023 SA4009001 油线支架 Wick support 1 1 34 12923018 SA2724001 油线4×4 L=400 Wick,4×4 L=400 2 2 35 12923018 SA2724001 油线4×4 L=400 Wick,4×4 L=400 1 1 36 12921002 SA4011001 尼龙油管L=100 Oil tube,L=100 1 1 37 12905012 送布台叉 Feed bar fork 1 1 12907001 送布ST Feed bar, st 1 1 58□□OB 12907202 送布TR Feed bar, tr 1 1 58□□OJ 20 jintex.in

Page 24

Dyeing position parts Dyeing position parts 1 2 2 7 6 14 14 13 12 13 12 11 10 9 8 4 3 5 Dyeing shaft parts Dyeing shaft parts 1 2 5 3 4 15 11 9 13 12 8 10 14 7 6 21 jintex.in

Page 25 — H.针位部件/Gauge parts

H.针位部件/Gauge parts 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 部件 名称 Name of parts 数量 Amt. 备注 □□3 □□5 1 ★ 针夹组件 Needle clamp assy 1 1 58□20□ 2 116S11012 116323001 螺钉SM9/64"×40 L=4 Screw,SMSM9/64"×40 L=4 2 2 58420/58720 3 ★ 针板 Needle plate 1 1 4 129S30014 ST1244001 针板螺钉SM11/64"×40 L=7 Screw,SM11/64"×40 L=7 1 1 5 104S17002 平头螺钉SM11/64"×40 L=8 Screw,flatSM11/64"×40 L=8 1 1 58420B系列 6 1123NS17001 针板螺钉SM11/64"×40 L=12 Screw,SM11/64"×40 L=12 1 1 58420J系列 7 ★ 压脚组件 Presser foot assy 1 1 8 129S11010 113050001 螺钉SM9/64×44" L=9 Screw,SM9/64×44" L=9 1 1 9 ★ 送布牙 Feed dog 1 1 10 129S13002 S07494001 螺钉SM1/8×44" L=7 Screw,w/socket SM1/8×44" L=7 2 2 11 ★ 针夹组件L Needle clamp assy,L 1 1 58□50□ 12 ★ 针夹组件R Needle clamp assy,R 1 1 58□50□ 13 129S15005 013660412 螺钉SM1/8×40 L=4 Screw,SM1/8×40 L=4 2 2 58450/58750 14 129S15007 S13085001 螺钉SM1/8×40 L=5.5 Screw,SM1/8×40 L=5.5 2 2 58450/58750 15 117S11023 149831101 螺钉SM1/8×40 L=7 Screw,SM1/8×40 L=7 2 2 58450/58750 16 11617002 机针DP×5 (#14) Needle,DP×5 2 17 10117002 机针DP×5 (#21) Needle,DP×5 2 ★参考针位组件明细表/★Reference gauge parts list I.下轴部件/Lower shaft mechanism 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 □□3 □□5 1 12903011 SA3890001 旋梭基座轴套L Rotary hook base bush,L 1 1 2 12923023 SA4585001 油毡 Felt 1 1 3 12303001 旋梭基座轴套R Rotary hook base bush,R 1 1 58□□0B 4 12923023 SA4585001 油毡 Felt 1 1 5 12902010 SA2571001 下轴 Lower shaft 1 1 6 12910005 SA2759001 拾牙凸轮 F-lifting eccentric wheel assy 1 1 58□□0B 7 12910302 SA2580101 拾牙凸轮 F-lifting eccentric wheel assy 1 1 58□□0J 8 S07004 SA2575001 螺钉M6×0.75 L=6 Set screw,(ft)M6×0.75 L=6 1 1 9 12903013 SA2584001 轴承套 Ball bearing bush 1 1 10 S10020 SA2585001 球轴承 6004ZZNR Ball bearing,thrust 6004ZZNR 1 1 11 S09017 S23651001 固定螺钉M6×0.75 L=10 Screw,socket(ft)M6×0.75 L=10 1 1 12 12935004 SA2587101 同步轮D组件 Timing pulley assy,D 1 1 13 B10009 158115001 球轴承 6204ZZNR Ball bearing,thrust 6204ZZNR 1 1 14 S10020 SA2585001 固定螺钉M6×0.75 L=10 Screw,socket(ft)M6×0.75 L=10 1 1 15 S10023 SA4213001 固定螺钉M6×0.75 L=10 Screw,socket(CP)M6×0.75 L=10 1 1 22

Page 26

9 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25-1 25-2 26 27-1 27-2 28 29 30 31 43 44 45 46-1 46-2 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 2 3 4 5 1 23 jintex.in

Page 27

暖旋梭部件及相关配件清单 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零件名称 Name of parts 数量 Amt. 备注 Qty3 Qty5 1 12918008 SA2955001 梭架(左) Rotary hook base(L) 1 1 58420B/58450B 12918201 SA2955001 梭架(左) Rotary hook base(L) 1 1 58720B/58750B 2 11603011 SA4029001 旋轴上轴套 Rotary hook shaft bush 2 2 58420B/58450B 11803001 S09259001 旋轴上轴套 Rotary hook shaft bush 2 2 58720B/58750B 3 12928004 S09260001 轴向垫圈A 1.2MM Thrust ring,A:1.2MM<t=1.2> 2 2 12928005 SA4038001 轴向垫圈1.0MM Thrust ring<t=1.0> 2 2 12928006 S09261001 轴向垫圈B 1.4MM Thrust ring,B:1.4MM<t=1.4> 2 2 12928007 SA4444001 轴向垫圈B 0.8MM Thrust ring,0.8MM<t=0.8> 2 2 4 11624004 S07420000 滚针轴承 Needle bearing 2 2 5 11624004 SA4190001 梭架上轴挡圈 Retaining ring 2 2 6 12903008 SA6474001 旋梭轴套 Rotary hook shaft bush 2 2 7 12905013 SA3856001 分线钩连杆 Opener link 2 2 58420B/58450B 12905303 SA3857001 分线钩连杆 Opener link 2 2 58720B/58450B 8 12905014 SA3859001 分线钩杆 Opener lever 2 2 58420B/58450B 12905304 SA3861001 分线钩杆 Opener lever 2 2 58720B/58750B 9 12902009 SA2560001 分线钩连杆轴 Shaft,Olink 2 2 10 12928008 025710132 垫圈 Washer,plain 2 2 11 N01017 021500316 角螺母M5 Nut,M5 2 2 12 12926009 SA3889101 线钩杆短轴 Clever shaft 2 2 13 12923018 SA4026001 油线4×4 L=100 Wick,4×4 L=100 2 2 14 S09019 012501031 螺钉M5×5 Set screw,socket(ft)M5×5 2 2 15 11612014 S38212001 线钩 Opener 2 2 16 129S13003 154965001 螺钉SM3.75×8 Bolt,socket SM3.75×8 2 2 17 12912024 SA2562201 旋梭基座盖L Rotary hook base cover,L 1 1 18 S04035 062300612 螺钉M3×6 Screw,pan M3×6 8 8 19 12925003 SA2572001 旋齿轮(小) Spiral gear 2 2 20 S08007 SA2574001 螺钉M6×0.75 L=5 Set screw,(ft)M6×0.75 L=5 4 4 21 S07009 SA2575001 螺钉M6×0.75 L=6 Set screw,(ft)M6×0.75 L=6 2 2 22 12925004 SA6301001 旋齿轮(小) Spiral gear 2 2 23 S10063 SA2574001 螺钉M6×0.75 L=5 Set screw,(ft)M6×0.75 L=5 6 6 24 12928009 SA3054001 垫圈L Thrust washer,L 1 1 25-1 12912053 左下油毡架 Felt support 1 1 25-2 12923032 SA6424101 左下齿轮油毡 Felt 1 1 26 S04035 062400616 螺钉M4×6 Screw,pan M4×6 2 2 27-1 12912054 油毡架 Felt support 1 1 27-2 12923016 SA4044001 油毡 Felt 2 2 28 S04035 062400616 螺钉M4×6 Screw,pan M4×6 2 2 29 12923008 SA4012001 油毡 Felt 2 2 30 12912027 SA3894001 油毡架 Felt support 2 2 31 S04035 062400616 螺钉M4×6 Screw,pan M4×6 2 2 42 12918009 SA3956001 梭架(右) Rotary hook base(R) 1 1 58420B/58450B 12918202 SA3960001 梭架(右) Rotary hook base(R) 1 1 58720B/58750B 43 12912028 SA2563301 旋梭基座盖R Rotary hook base cover,R 1 1 58420B/58450B 44 12928010 SA2579001 垫圈 Speccer 1 1 45 12912052 SA6425101 油毡架UR Felt support UR 1 1 46-1 12912055 右下油毡 Felt support DR 1 1 46-2 12923015 右下齿轮油毡 Felt 1 1 24 jintex.in

Page 28

缝纫机部件及相关零配件说明书 59 60 61 9 7 13 12 16 15 8 2 4 5 3 24 17 18 10 11 21 19 20 1 14 29 30 31 27-2 27-1 28 25-1 25-2 23 23 22 6 55 56 57 58 47 49 43 46-1 46-2 26 28 23 22 6 53 54 51 52 50 48 45 23 23 22 6 55 56 57 58 49 18 21 19 20 42 44 20 21 19 20 25 jintex.in

Page 29

暖旋梭部件及相关配件表 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 cn3 cn5 47 12912031 SA6462001 旋梭基座盖FL Rotary hook base cover,FL 1 1 48 12912033 SA6463001 旋梭基座盖FR Rotary hook base cover,FR 1 1 49 129S30011 SA6417001 螺钉M4×12 Screw,M4×12 4 4 50 129S11003 SA2556001 螺钉M6×25 Screw,M6×25 2 2 51 129S11003 SA2556001 螺钉M6×25 Screw,M6×25 2 2 52 20628003 115947101 主轴右垫片 Washer,plain 6.35 2 2 53 12903009 SA2722001 套管A Pinch sleeve A 2 2 54 12903010 SA2565001 套管B Pinch sleeve B 2 2 55 12912033 SA2567001 调节板 Needle upper positioning plate 2 2 58□□OB 56 12910004 SA2568001 调节轴 Needle upper positioning shaft 2 2 58□□OB 57 S04038 062061016 螺钉M6×10 Screw,pan M6×10 4 4 58□□OB 58 12928018 平垫圈S6 Washer,plain S6 4 4 58420/58450 59 11618001 S01928151 梭芯 Bobbin 2 2 58420/58750 11818001 S09285051 梭芯 Bobbin 2 2 58420B-003 60 129180600 旋梭组件 Rotary hook assy 2 2 58420B-005 1181800700 旋梭组件 Rotary hook assy 2 2 58420B-C 129180400 旋梭组件(国产) Rotary hook assy(C) 2 2 58450B 1161800400 旋梭组件 Rotary hook assy 2 2 58720B 1291802600 旋梭组件(国产) Rotary hook assy(C) 2 2 58450B-C 1181800200 旋梭组件 Rotary hook assy 2 2 58720B 1291802700 旋梭组件(国产) Rotary hook assy(C) 2 2 58720B-C 1161800100 旋梭组件 Rotary hook assy 2 2 58750B 1191800400 旋梭组件(国产) Rotary hook assy(C) 2 2 58750B-C 61 12918029 梭心套(国产) Bobbin case assy(C) 2 2 58450B-C 12918030 梭心套(国产) Bobbin case assy(C) 2 2 58750B-C ※序号 C表示国产旋梭 26

Page 30

48 47 49 9 7 16 13 12 15 8 10 11 3 4 2 5 24 18 19 21 20 20 14 30 29 31 1 32 27-2 27-1 28 25-1 25-2 23 22 26 23 23 39 41 48 47 49 9 7 13 12 16 15 8 10 11 3 4 5 2 19 21 20 36 34 32 33 42 40 41 35 18 23 23 22 6 23 38-1 38-2 26 27 jintex.in

Page 32

48 47 49 9 7 16 13 15 8 10 11 3 4 2 5 24 18 19 21 20 20 30 29 31 14 1 27-2 27-1 28 25-1 25-2 23 23 22 6 39 41 49 7 9 13 12 16 15 8 10 11 3 4 5 2 19 21 20 36 32 33 42 35 18 23 23 22 6 38-2 38-1 26 40 41 37 28 23 26 29 jintex.in

Page 33 — J2.旋梭部件/Rotary hook mechanism(58□□0J-E)

J2.旋梭部件/Rotary hook mechanism(58□□0J-E) 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 部件 名称 Name of parts 数量 Amt. □3 □5 备注 Remarks 34 12301007 12301009 梭架(右) 梭架(右) Rotary hook base(R) Rotary hook base(R) 1 1 1 1 58420J/58450J-E 58720J/58750J-E 35 12312015 旋梭基座盖R Rotary hook base cover,R 1 1 58□□0J-E 36 12928010 SA2579001 垫圈 Specer 1 1 37 12912052 SA6425101 油毡架UR Felt support UR 1 1 38-1 12912055 右下油毡架 Felt support DR 1 1 38-2 12923015 右下油毡垫 Felt 1 1 39 12912031 SA6462001 旋梭基座盖FL Rotary hook base cover,FL 1 1 40 12912032 SA6463001 旋梭基座盖FR Rotary hook base cover,FR 1 1 41 129S30011 SA6417001 螺钉M4×12 Screw,M4×12 4 4 42 129S11003 SA2556001 螺钉M6×25 Screw,M6×25 2 2 43 129S11003 SA2556001 螺钉M6×25 Screw,M6×25 2 2 44 20628003 梭架固定垫片 Washer,plain 6.35 2 2 45 12903009 SA2722001 套管A Pinch sleeve A 2 2 46 12903010 SA2565001 套管B Pinch sleeve B 2 2 47 11618001 S01928151 梭芯 Bobbin 2 2 58420J/58450J 11818001 S09285051 梭芯 Bobbin 2 2 58720J/58750J-E 48 12918022 148602001 梭心座簧 Bobbin Spring 2 2 58420J/58450J 12918024 S09286000 梭心座簧 Bobbin Spring 2 2 58720J/58750J-E 49 1291801400 旋梭组件 Rotary hook assy 2 2 58420J-E 1291801500 旋梭组件 Rotary hook assy 2 2 58450J-E 1291801600 旋梭组件 Rotary hook assy 2 2 58720J-E 1291801700 旋梭组件 Rotary hook assy 2 2 58750J-E 30 Jinte x.in

Page 34

Drip lubrication parts diagram 31 jintex.in

Page 35 — K.供油润滑部件/Lubrication

K.供油润滑部件/Lubrication 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. □□3 □□5 备注 1 12911004 SA4205101 油罐组仵 Oil tank assy 1 1 58420/58720 2 129530009 SA3040001 供油口 8.6 Oil feeding pipe,8.6 2 2 129530009 SA3040001 供油口 8.6 Oil feeding pipe,8.6 4 4 58450/58750 3 12936002 SA3946001 油管接头 Oil terminal 1 1 4 12921006 SA2956001 维尼龙油管L=135 Oil tube,L=135 1 1 12921006 SA2956001 维尼龙油管L=135 Oil tube,L=135 2 2 58450/58750 5 12923018 油线 3.3 L=300 Wick,4×4 L=300 0.6 0.6 12923018 油线 3.3 L=300 Wick,4×4 L=300 0.6 0.6 58450/58750 6 12922009 140327001 橡皮塞6.3 Rubber cap,6.3 2 2 7 20729005 SA3055101 油管夹 Tube clip 1 1 20729005 SA3055101 油管夹 Tube clip 4 4 58450/58750 8 S04028 062500816 螺钉M5×8 Screw,pan M5×8 1 1 9 12922001 SA2929001 橡皮塞12.5 Rubber cap,12.5 3 3 12922001 SA2929001 橡皮塞12.5 Rubber cap,12.5 4 4 58450/58750 10 12923010 S38266000 油毡 Rotary hook shaft felt 1 1 12923010 S38266000 油毡 Rotary hook shaft felt 2 2 58450/58750 11-1 12923035 油毡块 Felt assy 1 1 11-2 12923036 油毡块 Felt assy 1 1 58420/58720 12 12912035 SA4033101 油毡压架 Felt support 2 2 13 61910003 尼龙扎带3×80 Cable band 3×80 2 2 14 12921002 油管L=280 Tube L=280 1 1 58450/58750 15 12923018 油线4×4 L=380 Wick,4×4 L=380 1 1 16 12912065 SA5154001 油管支架 Tube support 1 1 58450/58750 17 S04029 螺钉M5×12 Screw,pan M5×12 1 1 58450/58750 18 S05079 018081236 螺栓M8×12 Bolt,socket M8×12 1 1 58420/58720 19 12922006 橡皮塞8 Rubber cap,8 1 1 20 12922013 081038070 O形圈P38 O ring P38 1 1 21 12921006 SA2723001 维尼龙油管L=210 Oil tube,L=210 2 2 22 12923019 油线 3.3 L=300 Wick,4×4 L=300 1 1 12923009 油线 3.3 L=300 Wick,4×4 L=300 1 1 23 20729005 SA3055101 油管夹 Tube clip 3 3 24 129S30016 0A5501006 螺钉(带垫圈)M5 Screw,pan(S/P washer)M5×10 2 2 25 12901007 SA3896001 集油器L Oil block,L 1 1 26 129S20004 SA6475001 油量调整螺栓 Oil adjusting screw 2 2 27 001004 081004070 O形圈P4 O ring P4 2 2 28 12922007 SA6468001 橡皮垫片 Rubber packing 2 2 29 12922008 SA6423001 旋棱垫片 Rotary hook shaft felt 2 2 30 12923021 SA6415001 油线 L=90 Wick L=90 0.18 0.18 31 12922016 142274101 橡皮塞4.3 Rubber cap,4.3 2 2 32 12911005 SA3037001 副油罐组件 Subtank assy 1 1 33 12936004 供油口 8.6 Oil feeding pipe 1 1 34 12922010 SA3060001 油门垫片 Valve packing 1 1 35 12901008 SA3898001 集油器R Oil block,R 1 1 36 129S30017 0A4400806 螺钉(带垫圈)M4 Screw,pan(S/P washer)M4×8 2 2 37 12912036 副油罐安装架A Subtank setting plate,A 1 1 38 12912037 SA3046001 副油罐安装架B Subtank setting plate,B 1 1 39 S04033 062060816 螺钉M6×8 Screw,pan M6×8 2 2 40 12921006 SA3044001 维尼龙油管L=242 Oil tube,L=242 1 1 41 12936003 S51815001 油嘴管3.8 Oil feeding pipe,3.8 4 4 42 12911006 SA6472001 油管固定夹 Tube support 1 1 43 12928011 SA3923101 旋棱台D垫片 Rotary hook base D packing 2 2 44 S04039 062401616 螺钉M4×16 Screw,pan M4×16 4 4 45 12923014 SA2604001 油毡 Felt 1 1 46 12912039 SA2605001 油毡压架 Felt support 1 1 47 S04030 062500616 螺钉M5×6 Screw,pan M5×6 1 1 jintex.in 32

Page 36

Drip lubrication parts diagram 1 2 3 4 5 6 7 8 9 10 11-1 11-2 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 33 jintex.in

Page 37 — 油润滑部件及相关配件

油润滑部件及相关配件 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 部件名称 Name of parts 数量 Amt. □3 □□5 备注 48 12923018 109405001 油线4×4 L=100 Wick,4×4 L=100 1 1 49 20123021 108801001 油线4×4 L=350 Wick,4×4 L=350 1 1 50 12911007 SA2606101 油盖 Oil cover 1 1 51 12913012 148743001 油毡 Felt 2 2 52 12912040 SA3048101 油管压架A Tube support,A 1 1 53 12912041 SA3049001 油管压架B Tube support,B 1 1 54 S04035 062400616 螺钉M4×6 Screw,pan M4×6 1 1 55 12912042 SA6473001 油管导向 Tube guide 1 1 56 12922012 140890009 油盖 Oil cap 1 1 57 12923030 112753001 油毡 Felt 2 2 58 S04038 062061016 螺钉M6×10 Screw,pan M6×10 3 3 59 11628005 平垫圈S6 Washer,plain S6 1 1 60 12923037 SA6423001 旋转轴油毡 Rotary hook shaft felt 2 2 61 12926013 SA6416001 油量调节销 Rubber presser 2 2 62 30129007 SA4508001 油管夹 Tube clip 4 4 63 12923050 油毡 Felt 2 2 64 12921005 油管(φ4×φ6) Tube(φ4×φ6) 2 2 34 jintex.in

Page 38

零件部件 1 30 38 39 27 28 29 27 28 29 23 24 2 25 2 26 2 25 26 31 36 33 35 20 34 11 4 5 48 21 3 19 6 7 9 8 15 10 12 13 16 17 18 14 22 40 41 42 43 44 45 46 47 52 46 49 50 51 35 jintex.in

Page 39 — L.穿线部件/Thread Mechanism

L.穿线部件/Thread Mechanism 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. Amt. 备注 Remarks 1 1231300200 SA3417301 面线调节组件3 Upper Thread Tension Assy, 3 003 1 005 1 2 12927008 SA3415001 夹线弹簧-3 Tension Spring, L 2 1 1 1231300300 SA2607301 面线调节组件5 Upper Thread Tension Assy, 5 1 1 2 12927009 SA3416101 夹线弹簧-5 Tension Spring, LL 2 1 3 12912043 SA4212001 调整台组件 Tension Plate Assy 1 1 4 12922020 SA2613001 盖子 Cap 1 1 5 12927010 SA2614201 弹簧L Thread Takeup Spring, L 1 1 6 1291300500 SA2615001 导向组件 Guide Assy,T/Takeup Spring 2 2 7 12928035 SA2619001 垫片 Spacer 1 1 8 12927011 SA2623201 弹簧R Thread Takeup Spring, R 1 1 9 12903014 SA2620001 轴套 Collar 1 1 10 12908006 SA2621001 定位圈 Stopper Support 1 1 11 N01013 D21300106 螺母M3 Nut, 1M3 1 1 12 129S15006 SA2626001 螺钉M3.5 Set screw, (cp)M3.5 1 1 13 129S11008 SA2624001 固定螺栓 Spring guide set screw 1 1 14 12913022 SA2625001 调节旋钮 Adadjusting thumb 1 1 15 129S15006 SA2626001 螺钉M3.5 Set screw, (cp)M3.5 1 1 16 12903015 SA2627001 轴套 Collar 1 1 17 129S30044 SA2628001 调线螺母 Tension nut 1 1 18 12912044 SA2629001 弹簧限位板 Stopper 1 1 19 129S17004 061350616 螺钉M3.5×6 Screw,flat M3.5×6 1 1 20 12912084 SA2824001 定位螺钉M3.5 Nut,whirlstop M3.5 1 1 21 12912045 SA2630001 限位板 Stopper 1 1 22 129S30026 062350512 螺钉M3.5×5 Screw,pan M3.5×5 1 1 23 12913007 145446001 夹线盘 Disc,tension 4 4 24 12913008 159805001 夹线压盘 Tension disc presser 2 2 25 12911008 S20681000 调节弹簧垫圈 Wacher 2 2 26 123S16002 S20682105 调节螺母 Tension nut 2 2 27 12928036 144504001 小夹线垫片 Thread guide disc 2 2 28 12927012 154560101 小夹线弹簧A Pretension spring,A 2 2 29 129S30012 155510001 夹线螺母 Tension nut 2 2 30 12913009 SA2632001 松线板 Tension release plate 1 1 31 S09019 012500536 螺钉M5×5 Set screw,socket(ft)M5×5 1 1 32 12927013 S38274001 松线弹簧 Treleadw spring 1 1 33 129S30020 SA2633001 段螺钉M3.5 Shoulder screw,M3.5 2 2 34 12926011 SA4506001 松线销L Tension release pin,L 1 1 35 12926012 SA4507001 松线销R Tension release pin,R 1 1 36 12912046 SA2634001 线导向U Thread guide,U:arm 1 1 37 129S17004 061350616 螺钉M3.5×6 Screw,flat M3.5×6 2 2 38 12912047 SA2635001 线调整 Thread quantity adjust 1 1 39 129S30027 062300616 螺钉M3×6 Screw,pan M3×6 1 1 40 S04028 062500816 螺钉M5×8 Screw,pan M5×8 2 2 41 13822001 三眼线钩固定螺钉孔塞 Rubber plug 2 2 42 S10019 012060636 螺钉M6 Set screw,socket(ft)M6×6 2 2 43 12313001 三眼线钩 Thread retainer 2 2 44 12902011 SA2637001 松线轴 Bar,tension release 1 1 45 112312009 线导向M Thread guide,M:arm 1 1 46 129S17002 SA2640001 螺钉M5×8 Screw,flat M5×8 2 2 58□□0-□□5 47 11623022 过线钩油毡 Felt 1 1 48 12926010 SA6378001 调整短轴 Tension Stud 1 1 58□□0-□□5 49 112312007 下过线钩 Thread guide,D:arm 1 1 58□□0-□□5 50 112312008 下过线油毡压板 Felt Presser ForThread Oil Supply 1 1 58□□0-□□5 51 101S11019 螺钉SM3/32"×56 Screw SM3/32"×56 2 2 58□□0-□□5 52 12912049 SA2638001 线导向M Thread guide,M:arm 1 1 58□□0-□□3 36

Page 40

吸塵線部件 夾緊器 壓腳桿 壓腳桿 37 1 19 20 5 4 28 31 30 29 32 33 10 18 16 14 15 17 25 24 15 22 21 3 6 8 27 26 13 2 7 9 11 23 jinte.in

Page 41

缝纫线部件 序号 No Part No. 参考件号 Ref.Part No. 零部件名称 零件名称 Name of parts 数量 Amt. 备注 1 1233100400 SA1971101 卷线器组件 Bobbin Winder Unit 1 1 2 H05012 048040342 挡圈E4 Retaining Ring,E4 1 1 3 1231100900 SA1975001 卷线轴基座 B-Winder Shaft Support Assy 1 1 4 12302002 SA1978001 绕线轴 Bobbin Winder Shaft 1 1 5 001008 081009070 O形圈P9 O Ring,P9 1 1 6 12928021 025060136 平垫圈S6 Washer,Plain S6 1 1 7 12935005 SA1980001 卷线轮 Bobbin Winder Wheel 1 1 8 S09019 012500536 Set Screw,Socker(FT)M5×5 螺钉M5×5 2 1 9 12922014 S25789000 橡胶垫圈29 Rubber Ring,29 1 1 10 114S16001 螺母 Nut 1 1 11 12910007 SA1982101 卷线夹凸轮 Bobbin Presser Cam 1 1 12 12302003 SA1983001 卷线夹轴 Bobbin Winder Arm Shaft 1 1 13 S09019 012500536 螺钉M5×5 Set Screw,Socker(FT)M5×5 1 1 14 H05012 048040342 挡圈E4 Retaining Ring,E4 1 1 15 12328001 025060136 平垫圈S6 Washer,Plain S6 1 1 16 12304004 SA1984001 梭芯压臂柄 Bobbin Presser Arm 2 1 17 S05303 螺钉M4×14 Screw, Pan M4×14 1 1 18 12312009 SA1985001 梭芯夹 Bobbin Presser 1 1 19 123S11006 S23418002 螺钉M4×5 Screw,M4×5 1 1 20 12911009 SA1988001 梭芯座 Bobbin Support 1 1 21 12312013 SA1989001 卷线杠杆 Bobbin Winder Lever 1 1 22 12907014 SA1990101 弹簧 Spring 1 1 23 12907015 SA1991001 弹簧 Bobbin Winder Base Spring 1 1 24 12922030 SA2190001 O形密封圈 O Ring 1 1 25 123S11015 SA1992101 卷线器固定螺钉 Bobbin Winder Fixed Screw 3 3 26 11419001 SA1360101 线刀 Knife 1 1 27 114S11015 割线刀螺钉SM9/64"×40 L=6 Screw SM9/64"×40 L=6 2 2 28 1411300600 卷线器夹线组件 Bobbin Winder Tension Assy 1 1 29 10112005 夹线盘 Disc, Tension 2 2 30 11427006 夹线弹簧 Tension Spring 1 1 31 13811004 夹线螺母 Tension Nut 1 1 32 11413022 过线板 Song Line board 1 1 33 112S13004 夹线器轴 Folder spool 1 1 38 jintex.in

Page 43

the parts list 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 1 12915117 剪线盖板 Cover for trimming 1 1 2 S02003 一字沉头螺钉 M4×5 Screw M3×6 2 2 3 12319001 定刀 Fixed knife 2 2 4 123S17001 定刀螺钉 SM9-64×40 L=4.5 Screw SM9/16×40 L=4.5 6 6 5 12309001 定刀架 Fixed knife holder 2 2 6 207S13009 圆柱头内六角螺钉 M5×12 Screw M5×12 4 4 7 123S30003 定刀调节螺钉 M3 Fixed knife adjustable screw 2 2 8 123S11002 动刀螺钉SM9/64×40 L=4 Screw SM9/64×40 L=4 2 2 9 12319002 动刀 Movable knife 2 2 10 201S11001 螺钉SM3/32"×56 L=4.7 Screw SM3/32"×56 L=4.7 8 8 11 12312001 支撑弹簧片 Adjust spring plate 2 2 12 12327002 底线保持簧 The bottom line to keep the spring 2 2 13 S02034 一字沉头螺钉 M3×8 Screw M3×8 4 4 14 12309002 动刀托架 Movable knife holder 2 2 15 1230400100 动刀轴组件 Movable knife bar assy. 2 2 16 12304005 动刀轴 Movable knife bar 2 2 17 12329001 动刀驱动销 Movable knife drive pin 2 2 18 12309003 动刀驱动滚柱 Knife drive roller 2 2 19 12309004 动刀驱动滑块 Knife drive roller 2 2 20 12309005 动刀导向盖板(L) Knife guide frame cover(L) 1 1 21 12309006 动刀导向架(L) Knife guide frame 1 1 22 S05328 圆柱头内六角螺钉 M3×10 Screw M3×10 3 3 23 S02010 一字沉头螺钉 M3×14 Screw M3×14 2 2 24 12309007 动刀导向盖板(R) Knife guide frame cover(R) 1 1 25 12309008 动刀导向架(R) Knife guide frame 1 1 26 S05329 圆柱头内六角螺钉 M3×14 Screw M3×14 1 1 27 12304002 切线杠L Trimming shaft L 1 1 28 12305001 切线连杆L Trimming connector L 1 1 29 12304003 切线杠R Trimming shaft R 1 1 30 129S20302 轴位螺钉M5 Screw M5 3 3 31 12912313 切线连杆R Trimming connector R 1 1 32 W01004 平垫圈M5 Washer 5.3 2 2 33 S04028 螺钉M5×8 Kcrew M5×8 2 2 34 S04029 螺钉M5×12 Kcrew M5×12 2 2 35 12901302 电磁铁杆支撑架 Solenoid lever bracket 1 1 36 12912307 切线电磁铁架 Thread trimmer solenoid bra 1 1 37 S04038 十字一字盘头螺钉 M6×10 Kcrew M6×10 2 2 38 1233000500 剪线电磁铁组件 Thread trimmer solenoid assy. 1 1 39 129S20307 长度调节连杆螺钉 Screw 1 1 40 12903308 套管 Bush 1 1 41 12905302 球连接杆组件L Connector ASM L 1 1 42 129S3003 左旋母SM15/64"×28 Levorotation Nut M6 1 1 43 123S30001 长度调节连杆 Connecting Rod Length Adjustment 1 1 44 129S16003 螺母SM15/64"×28 Nut SM15/64"×28 1 1 45 12905301 球连接杆组件R Connector ASM R 1 1 46 1230500300 长度调节连杆组件 Connecting Rod Adjustment Assy 1 1 47 S04031 螺钉M6×16 Screw,pan M6×16 1 1 48 12912312 主杆轴架 Knife main lever shaft bracket 1 1 49 S10019 螺钉M6×6 Screw M6×6 2 2 50 12928023 橡胶垫圈 Rubber cushion 1 1 51 1290130300 主杆组件 Knife main lever assy 1 1 52 N01017 六角螺母M5 Nut 1 M5 1 1 53 W02001 弹簧垫圈2-5 Washer spring 2-5 1 1 40 jintex.in

Page 46 — 主機線部件 零配件 總成 附屬 總成

主機線部件 零配件 總成 附屬 總成 13 12- 10 9 11 7 8 14 15 17- 22 24 23 19 26 25 30 29 18 18 28 27 1 5 6 2 4 3 16 20 21 25 30 29 31 選配 零配件 總成 附屬 總成 43 jintex.in

Page 47

线圈部件 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 部件名称 003 数量 Amt. 005 备注 1 1233000300 SA2680001 扫线电磁铁组件 Thread wiper solenoid assy 1 1 2 12330004 148510001 插塞式铁芯 Plunger 1 1 3 H05011 048090342 挡圈E9 Retaining ring ,E9 1 1 4 12022003 S38426000 橡皮垫 Rubber cushion 1 1 5 12030010 S02664001 扫线开关 Thread wiper switch 1 1 6 12022004 S02665000 电线接头 Terminal connector 1 1 7 129S30302 螺钉(带垫片)M4×6 screw,pan M4×6 4 4 8 129S30027 062300616 螺钉M3×6 screw,pan M3×6 2 2 9 12912315 140647101 电线固定夹 Cord holder 1 1 10 S13006 062400616 螺钉M4×6 screw,pan M4×6 1 1 11 12312014 SA2732001 电磁铁安装板 Solenoid bracket 1 1 12 12311006 SA2696001 电磁铁盖 Solenoid cover 1 1 13 129S13004 螺钉M4×8 screw,pan M4×8 1 1 14 S04028 062501016 螺钉M5×8 screw,pan M5×8 2 2 15 120S11010 148546001 销 Pin 1 1 16 1291231700 SA2682101 电磁铁连杆组件 Solenoid link assy 1 1 17 12912318 动作传动板 Driver 1 1 18 12012023 S07549101 电线连接环 Link 2 2 19 12926302 销 Pin 1 1 20 12903304 紧圈 Set screw collar 1 1 21 S09019 螺钉M5×5 screw,pan M5×5 1 1 22 12912320 定位板 Stopper 1 1 23 S04028 螺钉M5×8 screw,pan M5×8 2 2 24 W01126 平垫圈5 Plain washer 5 2 2 25 12004006 S07552101 扫线器架 Thread wiper supporter 2 2 26 120S13003 062661212 螺钉SM3.18-44×12 screw, SM3.18-44×12 2 2 27 12927304 SA2684001 弹簧 Spring 1 1 28 S04028 062501016 螺钉M5×8 screw,pan M5×8 2 2 29 12912321 S07553001 扫线器 Thread wiper 2 2 30 129S11005 S07424001 螺钉SM3.18-44×4 Set screw, SM3.18-44×4 2 2 31 1293032300 电子夹线器组件 Nest less e-edvice 1 1 选配/optional 44

Page 48 — 胸部缝部件交叉拆卸图解

胸部缝部件交叉拆卸图解 45 jintex.in

Page 49 — 阀门线圈部件明细表

阀门线圈部件明细表 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. □□3 □□5 备注 1 1233000600 倒缝电磁铁组件 Quick reverse solenoid assy 1 1 2 12930311 154729001 铁芯 Solenoid core 1 1 3 H05005 154730001 挡圈E15 Retaining ring,E15 1 1 4 12022001 154731000 橡胶垫 Rubber cushion 1 1 5 12912323 SA2535101 电磁铁基座 Solenoid base 1 1 6 129S30016 062500812 螺钉(带垫圈)M5×10 screw,pan M5×10 3 3 7 S04038 062061016 螺钉M6×10 screw,pan M6×10 2 2 8 12926303 SA2992001 连接销 Pin 1 1 9 H03003 048060142 挡圈5.6 Retaining ring, 5.6 1 1 10 12928018 153138001 垫圈6.5 Washer,plain 6.5 1 1 11 129123000 SA2536001 电磁铁曲杆组件 Solenoid lever assy 1 1 12 12904303 SA2540001 反转曲柄 Reverse crank 1 1 13 S10021 016061031 紧定螺钉 M6×10 screw,pan M6×10 2 2 14 12926303 SA2992001 连接销 Pin 1 1 15 S10019 012060636 螺钉M6×6 screw,pan M6×6 2 2 16 12903305 SA2539001 电磁铁曲杆轴 Solenoid lever shaft 1 1 17 S05078 018062032 螺钉M6×20 screw,pan M6×20 1 1 18 12928002 149095009 垫圈 Washer 1 1 19 11203001 153132000 倒送料板手定位套 Oil tube 1 1 jintex.in 46

Page 50 — 电机与电控部件及驱动装置

电机与电控部件及驱动装置 24- 23- 20 21 22 26 25 19 27 17 18 16 15 14 13 9 8 7 6 5 10 11 12 简易直驱一体机专用驱动装置及电控箱 24- 23- 28 26 25 27 弹九 47 jintex.in

Page 51 — R.电机电控部件/Motor and safety switch mechanism

R.电机电控部件/Motor and safety switch mechanism 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 003 005 1 S04028 螺钉M5×8 screw,pan M5×8 3 3 58□□0J 2 12312011 线夹 Cord holder 1 1 58□□0J 3 12312011 线夹 Cord holder 1 1 58□□0J 4 12912317 线夹 Cord holder 1 1 58□□0J 5 95100119 电机罩壳组件(配驰麦克斯) Motor cover asm.powermax 1 1 6 1383300900 电机光栅组件(配驰麦) Motor grating sensor asm 1 1 7 S09022 GB/T 77-2000 螺钉M3×4 screw M3×4 1 1 8 S09113 GB/T 77-2000螺钉M6×6 screw M6×6 1 1 9 95100124 电机转子总成 Motor rotor 1 1 10 H03001 GB/T894.1-1986挡圈15 Snap ring 15 1 1 11 95100120 电机定子总成(配驰麦克斯) Motor stator,powermax 1 1 12 13811060 A4-0238电机绝缘防护罩 Protection cover 1 1 13 W02058 GB 93-1987弹垫d5(镀白锌) Spring washer 5 4 4 14 951S05001 内六角圆柱头螺钉M5×75 screw M5×75 4 4 15 S09113 GB/T 77-2000螺钉M6×6 screw M6×6 1 1 16 S09022 GB/T 77-2000 螺钉M3×4 screw M3×4 1 1 17 1233300200 光电伺服电机(配驰麦编码器) Motor cover asm.powermax 1 1 1233300600 光电伺服电机(配驰麦编码器) Motor cover asm.zobow 1 1 18 951S15011 小盘头组合螺钉M3×12 screw M3×12 5 5 19 1233300100 58420J-一体电控(驰麦) Electronic control box 1 1 58□□0J 20 12311008 电线盖板 Wire cover plate 1 1 58□□0J 21 12311001 58420 驰麦电控罩壳 Electronic control casing 1 1 58□□0J 22 1231100100 58420 驰麦电控罩壳组件 Electronic control box 1 1 58□□0J 23 13826009 罩壳台阶销 Pin 1 1 24 12922015 橡皮塞 Rubber plug 1 1 25 114S13001 电控固定螺钉M5×20 screw M5×20 4 4 26 W01004 GB/T 97.1 M5垫片(镀白锌) Spring washer 5 2 2 27 1233300300 操作面板组件 Control panel 1 1 58□□0J 28 13833005 双针直驱电控(T19) Direct drive electronic control 1 1 58□□0B 29 138S30006 罩壳固定螺钉 screw 1 1 58□□0B 48

Page 52 — 缝纫机开关分部件及购买零件说明

缝纫机开关分部件及购买零件说明 2 1-1 6 敬 6 5 4 3 2 1-2 49 jintex.in

Page 53 — 倒缝开关分部件及倒缝开关部件图

倒缝开关分部件及倒缝开关部件图 序号 件号 参考件号 零部件名称 Name of parts 数量 Amt. 备注 No. Part No. Ref.Part No. 1-1 1233000100 倒缝开关(含LED灯)5V Reverse actuator assy 1 1 58□20 1-2 1233000200 倒缝开关(含LED灯)5V Reverse actuator assy 1 1 58□50 2 S04030 SA2689100 螺钉M5×6 screw,pan M5×6 2 2 3 12312010 线夹 Stopper 1 1 58□□OB 12312010 线夹 Stopper 1 1 58□□OJ 4 S04030 062500616 螺钉M5×6 screw,pan M5×6 1 1 5 12312011 线夹 Stopper 1 1 6 S04030 062500616 螺钉M5×6 screw,pan M5×6 1 1 58□□OJ 7 41312089 线夹 Stopper 1 1 58450/58750 50

Page 54 — 自动抬压脚部件又称踏脚器

自动抬压脚部件又称踏脚器 台 趴 1 2 5 趴

Page 55 — T.自动抬压脚部件/Auto lifter components

T.自动抬压脚部件/Auto lifter components 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. □3 □5 备注 1 201S12005 电磁铁固定螺钉 screw 4 4 2 12912210 电磁铁右支架 Right bracket 1 1 3 12912200 电磁铁左支架 Left bracket 1 1 4 S04028 螺钉 M5×8(镀锌) screw,Pan M5×8 3 3 5 1233000700 内置抬压脚电磁铁组件 Solenoid asm. 1 1 6 113S16004 法兰螺母 Flange nuts 1 1 7 W02023 标准型弹簧垫圈φ8 Spring washer 1 1 8 112309001 六角法兰面螺母M8 Flange nuts 1 1 9 129S30050 抬压脚链接销 Link pin 1 1 10 N01028 螺母M8(镀锌) Nut M8 1 1 52

Page 56

V 铣 气动针杆切换装置附件又Accessories for pneumatic needle bar switching device 4 2 3 5 1 12 11 11 13 6 9 7 10 8 53 jintex.in

Page 57 — V.气动针杆切换装置附件/ Accessories for pneumatic needle bar switching device

V.气动针杆切换装置附件/ Accessories for pneumatic needle bar switching device 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 Name of parts 数量 Amt. 备注 Amt. Remarks 1 185145121 过滤减压阀 filter pressure reducing valve 1 1 -020 2 42130096 手动开关 Switch 1 1 -020 3 S05912 螺钉 M5X10 Screw 2 2 4 48112066 调压阀连接件 Bracket 1 1 -020 5 40736018 接头 G1/4" Joint 1 1 -020 6 185245109 橙色气管Φ6 Φ6 orange tube 0.7 0.7 -020 7 112345001 2位汇流板 2-position busbar 1 1 -020 8 407S12002 汇流板密封螺钉 plate seal screw 2 2 -020 9 185245016 接头 PT1/8" Joint 1 1 -020 10 42130092 消音器 Silencer 1 1 -020 11 185545003 2位3通电磁阀 2 position 3 connection solenoid valve 2 2 -020 12 18045011 接头 Joint 2 2 -020 13 701S30002 木螺钉 M4×25 Screw pan M4×25 2 2 -020 14 135S30011 木螺钉 wood screws 2 2 -020 54

Page 59 — Z.附件/Accessories

Z.附件/Accessories 序号 No. 件号 Part No. 参考件号 Ref.Part No. 零部件名称 零 件 名称 Name of parts 数量 Amt. □□3 □□5 备注 1 30131029 122991001 附属品塑料袋 Accessory Bag 1 1 2 10131004 142443001 螺丝刀(小) screwDriver,1.9×52 1 1 3 10131003 118837001 螺丝刀(中) screwDriver,3.4×70 1 1 4 10131002 S17774001 螺丝刀(大) screwDriver,4.7×250 1 1 5 20131044 100887001 扳手(8mm~10mm) Wrench 1 1 6 20131044 直柄内六角螺丝刀(1.5mm) Hexagonal Wrench 1.5 1 1 7 20131046 142002001 内六角扳手2 Hexagonal Wrench,2 1 1 8 30131010 154125001 内六角扳手3 Hexagonal Wrench,2.5 1 1 9 30131012 142721001 内六角扳手4 Hexagonal Wrench,3 1 1 10 20131056 149570001 内六角扳手5 Hexagonal Wrench,5 1 1 11 11617002 107415014 机针DP×5(#14) Needle,DP×5 4 12 11618001 S01928151 梭芯 Bobbin 2 2 58420/58450 11818001 S07741001 梭芯 Bobbin 2 2 58720/58750 13 10111011 机头支柱 Head Rest 1 1 14 20131037 S55663001 油壶 Oil Tank Assy 1 1 15 13831038 144226001 防尘罩 Head Cover 1 1 16 12911014 145573000 膝控提升顶杆 Knee Lifter Complying Bar 1 1 17 40931025 扳手 Wrench 1 1 18 12901011 SA2692101 油盘 Oil Pan 1 1 19 11636007 149578000 塑料轴套 Bush 1 1 20 12902019 SA2582001 膝控横轴 Knee Lifter shaft 1 1 21 12912087 SA2590001 膝控曲柄 Knee Lifter 1 1 22 101S12002 S25344001 螺栓M6 Bolt,M6 1 1 23 417S10003 S25475101 螺钉M6×19 Set screw,M6×19 2 2 24 N01012 021060306 六角螺母M6 Nut,3M6 2 2 25 11627011 S15889001 复位弹簧 Twist Spring 1 1 26 H05010 146293001 挡圈E10 Retaining Ring,E10 1 1 27 12912088 153230101 放油口 Drain 1 1 28 207S11011 S23418002 螺钉M4×5 screw,M4×5 2 2 29 1011203100 143882001 机头连接钩组件 Head Hinge 2 2 30 10122060 143910009 机头连接钩座(6-1)(内销) Rubber Cushion 2 2 31 12922017 SA1962001 头部防震垫 Head Cushion 2 2 32 12922018 SA1963001 头部防震垫 Head Cushion 2 2 33 101S30010 109714000 机头连接钩座钉 Nail 4 4 34 11631008 114486002 油壶 Oiler 1 1 35 11631008 114483002 油壶组件 Oiler Assy 1 1 36 1160101000 S38300001 脚弓托架组件 Knee Lifter Assy 1 1 37 12912417 146039121 操纵杆接头 Knee Lifter Bracket 1 1 38 101S12003 100463021 操纵杆接头螺钉 Knee Lifter Bracket, screw 1 1 39 129S12002 S35820021 锥头螺钉M6 screw,Pan M6 1 1 40 12912414 S38278001 操作杆 Knee Lifter Bar 1 1 41 12912415 S34756021 操作板 Knee Lifter Plate 1 1 42 12912416 114967021 操作杆接头 Knee Lifter Plate Stopper 1 1 43 101S12004 110087021 螺钉M6 screw,Pan M6 1 1 44 10122024 S31885001 操纵板软垫 Knee lifter plate cover 1 1 45 1233100600 线架组件 3DRTHF Cotton Stand Assy,3DRTHF 1 1 56 JIN텍.in

Page 60

机型 Modle 电脑机 (自动剪线)/Computer machine ( Auto Thread Trimming ) 58420G/58420J系列 58450G/58450J系列 针位距离 Needle gauge (mm) 针板 Needle Plate 压脚 Presser Foot Assembly 送布牙 Feed Dog 针夹头 Needle Clamp Assembly 针板 Needle Plate 压脚 Presser Foot Assembly 送布牙 Feed Dog 针夹头 Needle Clamp Assembly 1/8" (3.2mm) 12915306 810586 12915306 810590 3/16" (4.8mm) 12915307 810756 12915307 810761 1/4" (6.4mm) 12915206 1291632500 12914301 (-3) 12914314 (-5) 12914315 (*) 11634001 12915206 1291632500 12914301 (-3) 12914314 (-5) 12914315 (*) 11734002 (左) 11734003 (右) 5/16" (7.9mm) 12915309 804008 12915309 810800 3/8" (9.5mm) 12915308 810587 12915308 810591 1/2" (12.7mm) 12915312 810588 12915312 810592 5/8" (15.9mm) 12915314 810589 12915314 810593 3/4" (19mm) 12915315 811002 12915315 811005 7/8" (22.2mm) 12915316 811003 12915316 811006 1" (25.4mm) 12915317 811004 12915317 811007 备注 Remarks (-3)为薄料送布牙,(-5)为厚料送布牙,*为椭圆形针孔送布牙适用于极厚料。 (-3) thin material feed dog, (-5) Thick material feed dog. 58420G与58420J系列电脑车针板杰克克专用,除针板外其他针位与兄弟款电脑车通用,与重机双针电脑车针位不通用。 jintex.in

Page 61

机型 Modle 普通机/Ordinary machine 58420/58420B/58720/58720B 58450/58450B/58750/58750B 针位距离 Needle gauge (mm) 针板 Needle Plate 压脚 Presser Foot Assembly 送布牙 Feed Dog 针夹头 Needle Clamp Assembly 针板 Needle Plate 压脚 Presser Foot Assembly 针夹头 Needle Clamp Assembly 1/8" (3.2mm) 800980 1293407700 5/32" (4mm) 1293406300 1293407800 3/16" (4.8mm) 800979 804060 1/4" (6.4mm) 12915004 1291600200 12914001 11634001 12915004 1291600200 12914001 11734002 (左) 11734003 (右) 5/16" (7.9mm) 804053 803190 3/8" (9.5mm) 804009 804065 7/16" (11.1mm) 1293406700 1293408200 1/2" (12.7mm) 804055 804056 5/8" (15.9mm) 810101 1293403700 3/4" (19mm) 1293407000 1293408300 7/8" (22.4mm) 1293407100 1293408400 1" (25.4mm) 1293407200 1293408500 1-1/4" (31.8mm) 1293407300 1293408600 1-1/2" (38.1mm) 1293407400 1293408700 1-3/8" (34.9mm) 1293407500 1293408800 1-13/16" (46mm) 1293407600 1293408900 备注 Remarks ★58720B/58750B针位对应的机壳不通用,需要公司定制。 ★58720B/58750B The shell of needle is not common and needs to made by the company. ★此类针位对应的所有机壳不通用,需要公司定制。 ★All the shells corresponding to this kind of needle are not common and needs to made by the company. 58 jintex.in

Page 62

双针系列机型装箱清单 Packing list of series head for double needle lockstitch sewing machine 序号 No. 件号 Part No. 零件名称 Name of parts 数量Amt. 备注 Note 1 机头 Sewing machine head 1 2 装箱清单 Packing list 1 3 20731047 螺丝刀(大) Screw drive L 1 4 10131003 螺丝刀(中) Screw drive M 1 5 10131004 螺丝刀(小) Screw drive S 1 6 30131006 扳手(8mm-10mm) Wrench(8mm-10mm) 1 7 40931025 扳手(9mm-11mm) Wrench(9mm-11mm) 1 8 20131044 直柄内六角扳手(1.5mm) Hexagonal Wrench 1.5 1 58450/58750 9 20131046 内六角扳手(2mm) Hexagonal Wrench 2 1 10 30131010 内六角扳手(2.5mm) Hexagonal Wrench 2.5 1 11 30131012 内六角扳手(3mm) Hexagonal Wrench 3 1 12 20131056 内六角扳手(5mm) Hexagonal Wrench 5 1 13 20131051 镊子 Nipper 1 14 11617002 机针DP×5 (#14) Needle DP×5 (#14) 4 一口3 10117002 机针DP×5 (#21) Needle DP×5 (#21) 4 一口5 15 11618001 梭芯 Bobbin 2 58420/58450 11818001 梭芯 Bobbin 2 58720/58750 16 10111011 机头支柱 Head rest 1 17 20131037 油壶 Oiler 1 18 12911014 膝控提升顶杆 Knee Lifter Complying Bar 1 19 20131079 8.5×12袋 Bag (8.5×12) 2 20 12901011 油盘组件 Oil Pan Assy 1 21 12922017 头部防震垫 Head Cushion 2 22 12922018 头部防震垫 Head Cushion 2 23 1011203100 机头连接钩组件 Head Hinge 6-1 2 24 10122060 机头连接钩座(6-1)(内销) Nail 2 25 11411029 注射器 Injector 1 26 20131075 干燥剂 Desiccant 4 27 20131077 20×15袋 Bag (20×15) 2 28 20131078 32.5×7袋 Bag (32.5×7) 1 29 12931023 塑料袋(600×300×600) Bag (600×300×600) 1 30 13831018 防尘罩77×51(cm) Head Cover 1 31 11631008 油壶 Oiler 2 32 1160101000 脚弓托架组件 Knee Lifter Assy 1 33 1233100600 线组件3DRTHF Cotton Stand Assy,3DRTHF 1 34 11431038 进口黄油 Oil 0.003Kg 35 12931009 说明书 Instruction Book 1 36 S01031 GB/T 165-1985螺钉M4×4.7 Screw 2 37 20131159 73×130合格证 Product Qualified Card 1 38 10131093 标签纸×30 Label 1 39 121131010 标签纸80×50 Label 2 40 11631025 泡沫箱 Foam Box 1 41 12931006 纸箱 Carton Packing 1 42 12931014 泡沫块 Foam Block 2 58420J系列 43 101S30010 鞋钉P19 Shoe Nails 4 44 鲍麦调速器(包括拉杆、安装螺钉) Speed Controller 1 58420J系列 10130043 众邦调速器(包括拉杆、安装螺钉) Speed Controller 1 58420B系列 jintex.in

Page 63

杰克缝纫机 全球销量遥遥领先 Leading in global sales 400-8876-858 www.chinajack.com JACK 8+ Tube f JACK SEWING MACHINE CO.,LTD. 2020年04月, Edition, 2020 April 杰克缝纫机股份有限公司 中国浙江省台州市椒江区三甲街道东海大道东段1008号 电话:0086-576-88177788 88177789 传真:0086-576-88177758 产品标准代号:Q/TK 007-2017 资料如有更改,恕不另行通知,以实样为准 JACK SEWING MACHINE CO.,LTD. NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG TEL: 0086-576-88177782 88177767 FAX: 0086-576-88177787 www.chinajack.com Standard code of the products:Q/TK 007-2017 You will be not informed if the file has been revised. Please set sample as standard. jintex.in
