Jack JK-780 (Kaja) Parts Book (PDF)
Text index — Jack JK-780 (Kaja)
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1508-771-K00 | WORK CLAMP CHECK (K) | 1 |
| 2 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 3 | R1808-761-0AB | HOOK ASM. | 1 |
| 4 | B2952-761-000 | SPUR GEAR (105) | 1 |
| 5 | B2953-761-000 | SPUR GEAR (180) | 1 |
Page 9 — 5. LBH-782-D 6. LBH-782-E
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 82702-047-Q00 | KNIFE 1" | 1 |
| 2 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 3 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 4 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 5 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 6 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 7 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 8 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 9 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 10 | B3126-012-000 | TENSION DISC | (2) |
| 11 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 12 | B3129-012-A00 | TENSION SPRING | (1) |
| 13 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 14 | B3119-771-000 | TENSION NUT | (1) |
| 15 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 16 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 18 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 19 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 20 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 21 | D2905-761-D00 | TENSION RELEASING GEAR NO.3 | 1 |
| 22 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 23 | D2906-761-D00 | TENSION RELEASING GEAR NO.4 | 1 |
| 24 | D2908-761-D00 | TENSION RELEASING GEAR NO.1 | 1 |
| 25 | D2901-772-V00 | FEED CAM V | 1 |
| 26 | D2615-762-V00 | LATCH (C) | 1 |
| 27 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 28 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 29 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 30 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 31 | B1808-761-0AB | HOOK ASM. | 1 |
| 32 | D1508-772-E00 | WORK CLAMP CHECK (2E) | 1 |
| 33 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 34 | D1608-772-E00-A | LENGTH REGULATING SHAFT GUIDE | 1 |
| 35 | B2702-047-000 | KNIFE 1" | 1 |
| 36 | D2402-772-E00 | THROAT PLATE (E) | 1 |
| 37 | D1613-773-E00 | WORK CLAMP CARRIER | 1 |
| 38 | D2903-772-E00 | BAR TRIPPING SEGMENT NO.2 | 1 |
| 39 | D2904-772-E00 | KNIFE TRIPPING SEGMENT (E) | 1 |
| 40 | D2901-772-E00 | FEED CAM (E) | 1 |
| 41 | B1423-761-0A0 | NEEDLE THROW REPOSITIONING SHAFT | 1 |
| 42 | SS-6121210-SP | SCREW 3/16-28 L=12 | (1) |
| B2944-751-000 | SPUR GEAR 252 | 1 | |
| D2702-772-E00 | THROAT PLATE (K) | 1 | |
| D2201-772-V00 | FEED CAM V | 1 | |
| D1601-772-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | (1) | |
| 01508-772-E00 | WORK CLAMP CHECK (2E) | 1 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1113-761-000-A | LEFT SIDE COVER | 1 |
| 2 | MAO-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 3 | D9322-773-T00 | WORK CLAMP ARM | 1 |
| 4 | D9323-773-T00 | SPACER | 3 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| B2039-373-000 | THREAD GUIDE NO.1 | 1 | |
| WP-0480856-SP | WORK CLAMP ARM | 1 | |
| SS-6622112-TP | SCREW 3/16-32 L=21 | 4 | |
| D9319-762-T00 | GIMP GUIDE SHAFT TENSION SPRING | 1 | |
| D9322-772-T00-A | GIMP GUIDE HOLDER | 1 | |
| D9321-772-T00 | SPRING | 1 | |
| SS-6150410-SP | SCREW 15/64-28 L=4 | 2 | |
| SS-8150750-SP | CREW 15/64-28 L=7 | 1 | |
| B2009-761-000 | UNIVERSAL JOINT | 1 | |
| D9311-772-TAQ | GIMP GUIDE SHAFT CRANK ASM. | 1 | |
| SS-8151160-SP | SCREW 15/64-28 L=11.0 | 1 | |
| D9310-772-T00 | GIMP GUIDE SHAFT | 1 | |
| B1511-772-060 | WORK CLAMP CHECK HOLDER ASM. | 1 | |
| D9335-762-TA0 | GIMP TRIMMER BLADE ASM. (B) | (1) | |
| D9336-762-T00 | SPRING B | (1) | |
| WP-0250516-SD | WASHER 2.5X0.5 | (1) | |
| SS-5060410-SP | CREW 3/32-56 L=3.5 | 1 | |
| SS-7060710-SP | CREW 3/32-56 L=3 | 1 | |
| SS-6060410-TP | CREW 3/32-56 L=3.5 | 1 | |
| D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 | |
| D2402-772-K00 | THROAT PLATE (K) | 1 | |
| D9322-772-V00 | GIMP GUIDE SHAFT CRANK PRESSER HOOK | 1 | |
| D9318-762-T00 | GIMP GUIDE SHAFT SPRING | 1 | |
| WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 | |
| D9317-762-T00 | GIMP GUIDE SHAFT SPRING | 2 | |
| D9316-762-T00 | GIMP GUIDE SHAFT COLLAR | 2 | |
| D9303-762-T00 | GIMP REPOSITIONING SCREW, RIGHT | 2 | |
| NS-6110420-SP | NUT 11/64-40 | 1 | |
| D9301-772-TA0 | GIMP GUIDE SHAFT MOUNTING BASE ASM. | 1 | |
| D9302-762-T00 | GIMP GUIDE SHAFT STOP BRACKET | 1 | |
| SS-7110740-SP | SCREW 11/64-40 L=7 | 1 | |
| SD-0640751-SP | HINGE SCREW D=6.35 H=7.5 | 1 | |
| D9308-762-T00 | GIMP GUIDE HOLDER CRANK PIN | 1 | |
| D9309-762-T00 | GIMP GUIDE HOLDER CRANK ROLLER | 1 | |
| D9307-762-T00 | GIMP GUIDE HOLDER CRANK | 1 | |
| D9324-773-T00 | WORK CLAMP ARM RETAINER | 1 | |
| SS-9111010-SP | SCREW 11/64-40 L=9.5 | 2 | |
| D9315-762-T00 | GIMP GUIDE | 1 | |
| SS-6090510-SP | CREW 9/64-40 L=5 | 1 | |
| D9314-762-T00 | GIMP GUIDE HOLDER | 1 | |
| D9313-762-TA0 | GIMP GUIDE SHAFT BRACKET ASM. | 1 | |
| SS-7110710-SP | SCREW 11/64-40 L=7 | (2) | |
| SS-7110910-SP | SCREW 11/64-40 L=8.5 | (1) | |
| NS-6120310-SP | NUT 3/16-28 | 1 | |
| PS-0200102-KH | SPRING PIN 2.0X10 | 2 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2930-761-000 | SPUR GEAR (100) | |
| 2 | B2931-761-000 | SPUR GEAR (190) | |
| 3 | B2413-761-000 | CONNECTING LINK | |
| 4 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 5 | D9332-762-T00 | DRIVING ROD TENSION SPRING | 1 |
| 6 | SS-7090520-SL | SCREW 9/64-40 L= 4.5 | 1 |
| 7 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 8 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 9 | D9334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | 1 |
| 10 | D1129-772-T00 | FRAME SIDE COVER A | 1 |
| 11 | NS-6700420-SP | NUT 5/16-24 | 1 |
| 12 | SS-8661030-SP | SCREW 1/4-40 L=10 | 1 |
| 13 | D9331-762-T00 | SLIDE BLOCK | 1 |
| 14 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 15 | B3117-352-000 | THREAD TENSION POST NUT | 2 |
| 16 | B3118-352-000 | THREAD TENSION SPRING | 1 |
| 17 | B3126-012-000 | TENSION DISC | 2 |
| 18 | B3119-352-000 | THREAD TENSION POST | 1 |
| 19 | B3107-352-000 | NEEDLE THREAD GUIDE | 1 |
| 20 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 1 |
| 21 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 22 | B2702-047-Q00 | KNIFE 1" | 1 |
| 23 | B1808-761-0AB | HOOK ASM. | 1 |
| 24 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 25 | D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 26 | D9328-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | 1 |
| 27 | D2902-762-T00 | BAR TRIPPING SEGMENT 2T | 1 |
| 28 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 29 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 30 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 31 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 32 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 33 | B3126-012-000 | TENSION DISC | (2) |
| 34 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 37 | B3119-771-000 | TENSION NUT | (1) |
| 38 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 39 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 40 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 41 | D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | 2 |
| 42 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 43 | D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | 1 |
| 44 | D2901-772-V00 | FEED CAM V | 1 |
| 45 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 46 | D2615-762-V00 | LATCH (C) | 1 |
| 47 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 48 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 82930-761-000 | SPUR GEAR (100) | ||
| 82931-761-000 | SPUR GEAR (190) | ||
| 001 D2904-762-V00 | BAR TRIPPING SEGMENT 2V | ||
| 001 D2903-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | ||
| 001 D2902-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | ||
| 001 D2901-772-V00 | BAR TRIPPING SEGMENT 2V | ||
| 001 D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | ||
| 001 D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | ||
| 001 D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | ||
| 001 D2615-762-V00 | LATCH (C) | ||
| 001 D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. |

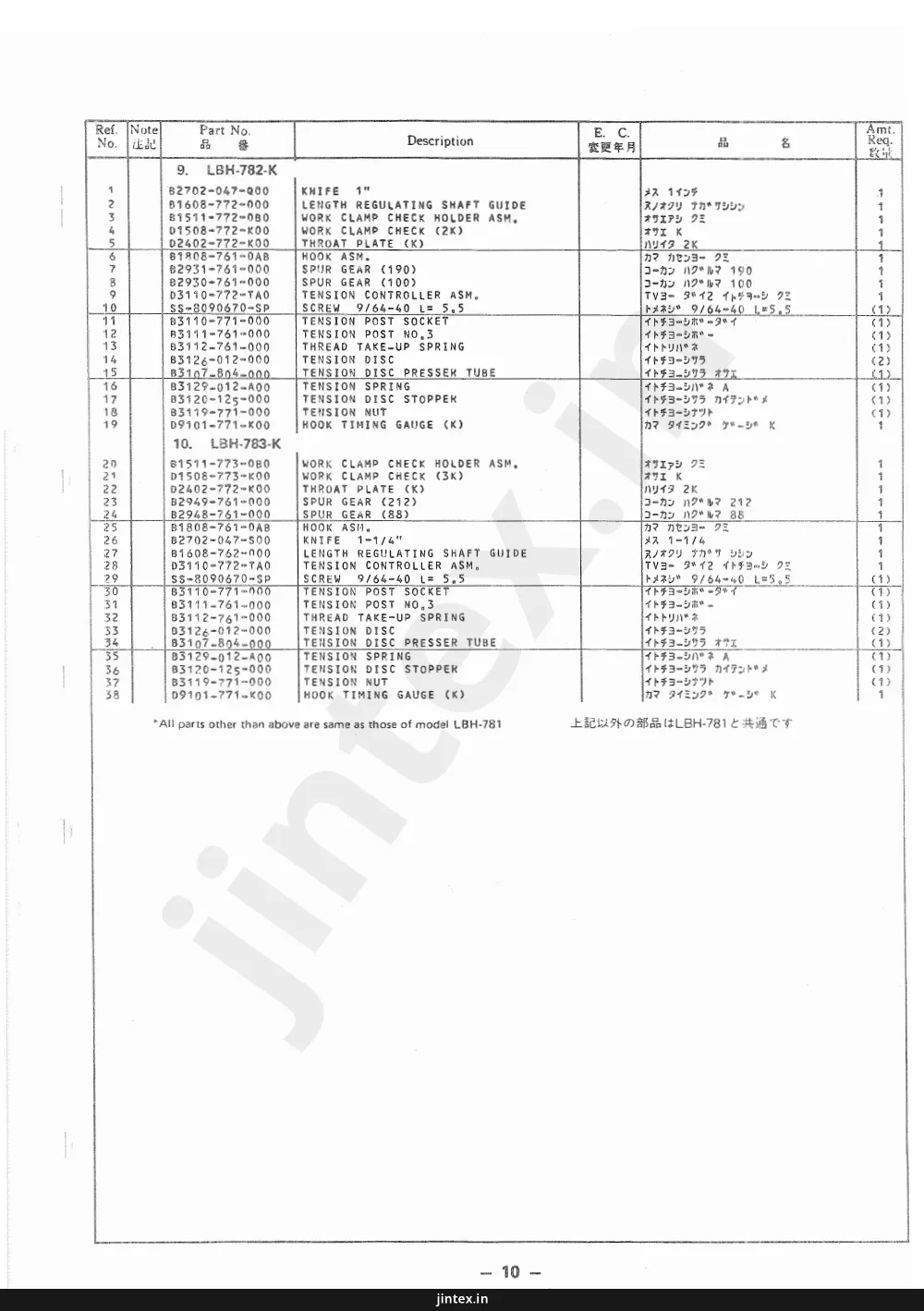

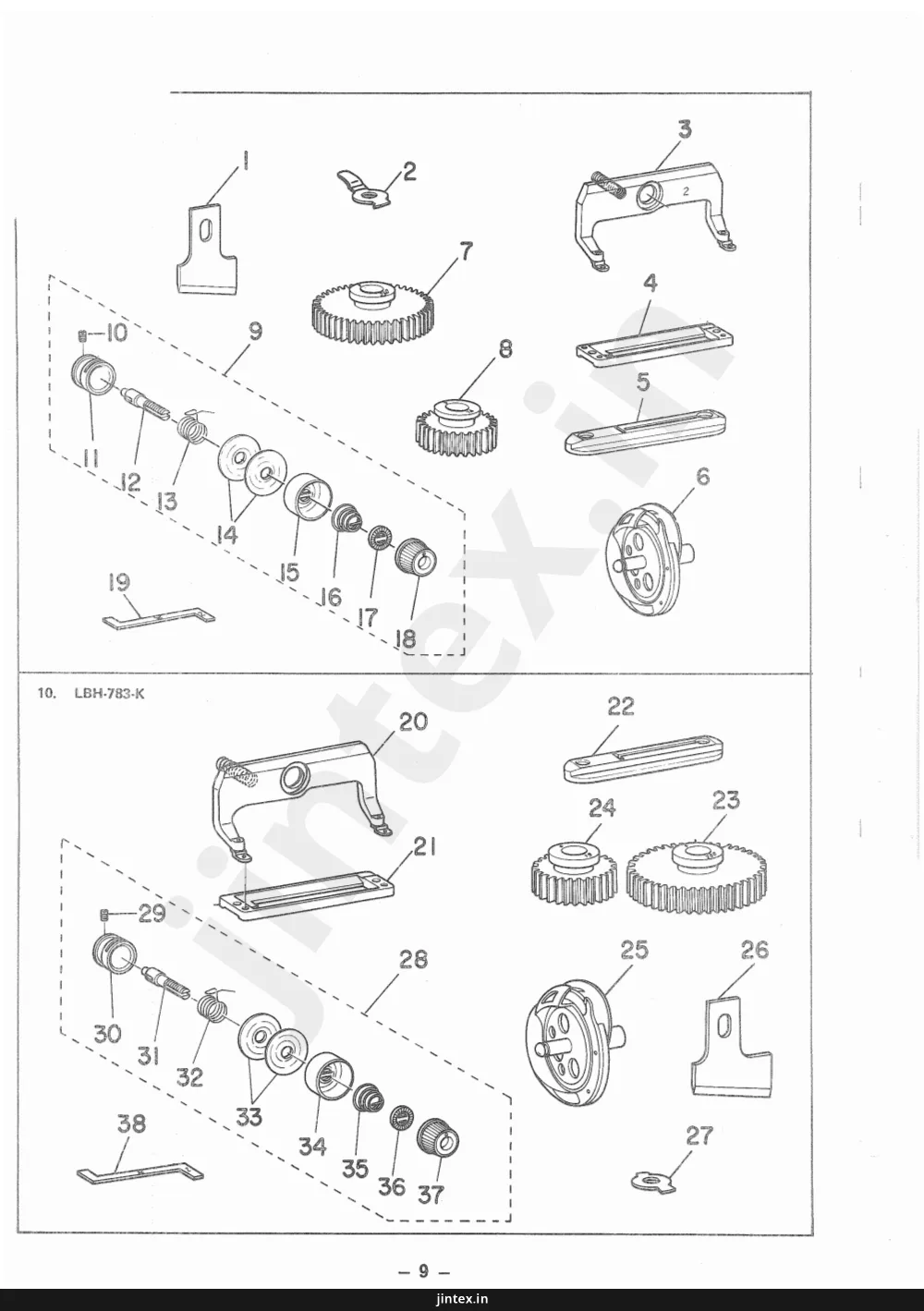

Page 15 — 9. LBH-782-K 10. LBH-783-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-000 | KNIFE 1" | 1 |
| 2 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 3 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 4 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 5 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 6 | B1808-761-0AB | HOOK ASM. | 1 |
| 6 | 02402-772-K00 | THROAT PLATE (K) | |
| 7 | B2931-761-000 | SPUR GEAR (190) | 1 |
| 8 | B2930-761-000 | SPUR GEAR (100) | 1 |
| 9 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 10 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 10 | 03110-772-TA0 | TENSION CONTROLLER ASM. | |
| 11 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 12 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 13 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 14 | B3126-012-000 | TENSION DISC | (2) |
| 15 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 16 | B3129-012-A00 | TENSION SPRING | (1) |
| 17 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 18 | B3119-771-000 | TENSION NUT | (1) |
| 19 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 20 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 21 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 22 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 23 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 24 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 25 | B1808-761-0AB | HOOK ASM. | 1 |
| 26 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 27 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 28 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 29 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 30 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 31 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 32 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 33 | B3126-012-000 | TENSION DISC | (2) |
| 34 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 37 | B3119-771-000 | TENSION NUT | (1) |
| 38 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
Page 17 — 11. LBH-783-D; 12. LBH-783-E
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 2 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 3 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 4 | D2905-761-D00 | TENSION RELEASING GEAR NO.3 | 1 |
| 5 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 6 | D2906-761-D00 | TENSION RELEASING GEAR NO.4 | 1 |
| 7 | D2908-761-D00 | TENSION RELEASING GEAR NO.1 | 1 |
| 8 | D2901-772-V00 | FEED CAM V | 1 |
| 9 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 10 | D2615-762-V00 | LATCH (C) | 1 |
| 11 | B3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 12 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 13 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 14 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 15 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 16 | B3126-012-000 | TENSION DISC | (2) |
| 17 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 18 | B3129-012-A00 | TENSION SPRING | (1) |
| 19 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 20 | B3119-771-000 | TENSION NUT | (1) |
| 21 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 22 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 23 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 24 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 25 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 26 | D9101-772-K00 | HOOK TIMING GAUGE (K) | 1 |
| 27 | B2939-761-000 | SPUR GEAR (300) | 1 |
| 28 | B2938-761-000 | SPUR GEAR (63) | 1 |
| 29 | B1808-761-0AB | HOOK ASM. | 1 |
| 30 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 31 | B1423-761-0A0 | NEEDLE THROW REPOSITIONING SHAFT | 1 |
| 32 | SS-6121210-SP | SCREW 3/16-28 L=12 | (2) |
| 33 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 34 | D1508-773-E00 | WORK CLAMP CHECK | 1 |
| 35 | D2903-773-E00 | BAR TRIPPING SEGMENT NO.2 | 1 |
| 36 | D2904-772-E00 | KNIFE TRIPPING SEGMENT (E) | 1 |
| 37 | D2901-773-E00 | FEED CAM | 1 |
| 38 | D2402-772-E00 | THROAT PLATE (E) | 1 |
| 39 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 40 | D1613-773-E00 | WORK CLAMP CARRIER | 1 |
| 41 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 42 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 43 | D1608-773-E00 | LENGTH REGULATING SHAFT GUIDE | 1 |
| D3110-772-TAO | TENSION 9/64-40 L=5.5 | 1 | |
| B1511-773-080 | WORK CLAMP CHECK HOLDER ASM. | 1 |
Page 19 — LBH-783-T & V (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1113-761-000-A | LEFT SIDE COVER | 1 |
| 2 | MAO-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 3 | D9322-773-T00 | WORK CLAMP ARM | 1 |
| 4 | D9323-773-T00 | SPACER | 1 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| 6 | B2039-373-000 | THREAD GUIDE NO.1 | 1 |
| 7 | D1514-773-T00-A | WORK CLAMP ARM | 1 |
| 8 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 9 | SS-6622112-TP | SCREW 3/16-32 L=21 | 4 |
| 10 | D9319-762-T00 | GIMP GUIDE SHAFT TENSION SPRING | 1 |
| 11 | D9322-772-T00-A | GIMP GUIDE HOLDER | 2 |
| 12 | D9321-772-T00 | SPRING | 1 |
| 13 | SS-8150410-SP | SCREW 15/64-28 L=4 | 2 |
| 14 | SS-8150750-SP | SCREW 15/64-28 L=7 | 1 |
| 15 | SS-8151160-SP | SCREW 15/64-28 L=11.0 | 1 |
| 16 | B2009-761-000 | UNIVERSAL JOINT | 1 |
| 17 | D9310-772-T00 | GIMP GUIDE SHAFT | 1 |
| 18 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 19 | D9335-762-TA0 | GIMP TRIMMER BLADE ASM. (B) | 1 |
| 20 | D9335-762-T00 | GIMP TRIMMER BLADE (B) | (1) |
| 21 | D9336-762-T00 | SPRING B | (1) |
| 22 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 23 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (1) |
| 24 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 25 | SS-6060410-TP | SCREW 3/32-56 L=3.5 | 1 |
| 26 | D1608-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 27 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 28 | D9318-762-T00 | GIMP GUIDE SHAFT THRUST RING | 1 |
| 29 | WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 |
| 30 | D9317-762-T00 | GIMP GUIDE SHAFT SPRING | 2 |
| 31 | D9316-762-T00 | GIMP GUIDE SHAFT COLLAR | 2 |
| 32 | D9311-772-TA0 | GIMP GUIDE SHAFT CRANK ASM. | 1 |
| 33 | D9303-762-T00 | GIMP REPOSITIONING SCREW, RIGHT | 2 |
| 34 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 35 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 36 | D9302-762-T00 | GIMP GUIDE SHAFT STOP BRACKET | 1 |
| 37 | D9301-772-TA0 | GIMP GUIDE SHAFT MOUNTING BASE ASM. | 1 |
| 38 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 2 |
| 39 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 |
| 40 | D9324-773-T00 | WORK CLAMP ARM RETAINER | 1 |
| 41 | SD-0640751-SP | HINGE SCREW D=6.35 H=7.5 | 1 |
| 42 | D9313-762-TA0 | GIMP GUIDE SHAFT BRACKET ASM. | 1 |
| 43 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | (2) |
| 44 | SS-7110910-SP | SCREW 11/64-40 L=8.5 | (1) |
| 45 | D9314-762-T00 | GIMP GUIDE HOLDER | 1 |
| 46 | D9315-762-T00 | GIMP GUIDE | 1 |
| 47 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 48 | B1808-761-0AB | HOOK ASM. | 1 |
| 49 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 50 | D9322-772-V00 | GIMP GUIDE SHAFT CRANK PRESSER HOOK | 1 |
| 51 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 52 | D9307-762-T00 | GIMP GUIDE HOLDER CRANK | 1 |
| 53 | D9309-762-T00 | GIMP GUIDE HOLDER CRANK ROLLER | 1 |
| 54 | D9308-762-T00 | GIMP GUIDE HOLDER CRANK PIN | 1 |
| 55 | B2037-372-000 | NIPPER BAR BLOCK SPRING | 1 |
| 56 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 57 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 58 | PS-0200102-KH | SPRING PIN 2.0X10 | 2 |
| D9525-773-T00 | SPACER | 2 | |
| B2039-773-000 | THREAD GUIDE NO.1 | 1 | |
| SS-8150510-SP | SCREW 15/64-28 L=4 | 2 | |
| B1511-773-080 | WORK CLAMP CHECK HOLDER ASM. | 1 | |
| WP-0250516-SP | WASHER 2.5X6X0.5 | (1) | |
| SS-6060410-SP | SCREW 3/32-56 L=3.5 | 1 | |
| D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
Page 21 — 14. LBH-783-T & V (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 2 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 3 | B2413-761-000 | CONNECTING LINK | 1 |
| 4 | SS-7090520-SL | SCREW 9/64-40 L= 4.5 | 1 |
| 5 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 6 | D9334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | 1 |
| 7 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 8 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 9 | D9332-762-T00 | DRIVING ROD TENSION SPRING | 1 |
| 10 | D9331-762-T00 | SLIDE BLOCK | 1 |
| 11 | SS-8661030-SP | SCREW 1/4-40 L=10 | 1 |
| 12 | D9330-762-T00-A | POSITIONIG SHAFT DRIVING ROD | 1 |
| 13 | NS-6700420-SP | NUT 5/16-24 | 1 |
| 14 | B3117-352-000 | THREAD TENSION POST NUT | 2 |
| 15 | B3118-352-000 | THREAD TENSION SPRING | 1 |
| 16 | R3126-012-000 | TENSION DISC | 2 |
| 17 | B3119-352-000 | THREAD TENSION POST | 1 |
| 18 | B3107-352-000 | NEEDLE THREAD GUIDE | 1 |
| 19 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 1 |
| 20 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 21 | D2902-762-T00 | BAR TRIPPING SEGMENT 2T | 1 |
| 22 | D9328-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | 1 |
| 23 | D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 24 | D1129-772-T00 | FRAME SIDE COVER A | 1 |
| 25 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 26 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 27 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 28 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 29 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 30 | B3126-012-000 | TENSION DISC | (2) |
| 31 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 32 | B3129-012-A00 | TENSION SPRING | (1) |
| 33 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 34 | B3119-771-000 | TENSION NUT | (1) |
| 35 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 36 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 37 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 38 | D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | 2 |
| 39 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 40 | D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | 1 |
| 41 | D2901-772-V00 | FEED CAM V | 1 |
| 42 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 43 | D2615-762-V00 | LATCH (C) | 1 |
| 44 | B2939-761-000 | SPUR GEAR (300) | 1 |
| 45 | B2938-761-000 | SPUR GEAR (63) | 1 |
| 46 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 47 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 09334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | ||
| 09333-762-T00 | GIMP SPOOL REST ROD | ||
| 09331-762-T00 | SLIDE BLOCK | ||
| 09330-762-T00-A | POSITIONIG SHAFT DRIVING ROD | ||
| NS-4700420-SP | NUT 5/16-24 | ||
| 02902-762-T00 | BAR TRIPPING SEGMENT 2T | ||
| 03110-772-TA0 | TENSION CONTROLLER ASM. |
Page 23 — LBH-784-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1513-774-000 | WORK CLAMP BRACKET | 1 |
| 2 | B1551-784-000 | WORK CLAMP ARM | 1 |
| 3 | B1609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 |
| 4 | B1808-761-0AB | HOOK ASM. | 1 |
| 5 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 6 | B1606-774-000 | WORK CLAMP CARRIER PITMAN | 1 |
| 7 | SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 |
| 8 | B1605-774-000 | FEED ADJUSTING SHAFT | 1 |
| 9 | B2745-774-00B | KNIFE 1-1/2" | 1 |
| 10 | B2745-774-00A | KNIFE 1-3/8" | 1 |
| 11 | D1508-774-K00 | WORK CLAMP CHECK | 1 |
| 12 | B1613-774-000 | WORK CLAMP CARRIER | 1 |
| 13 | B1612-774-000 | WORK CLAMP ARM BRACKET GUIDE | 1 |
| 14 | B1516-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 |
| 15 | B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 |
| 16 | SS-6151440-SP | SCREW 15/64-28 L=14 | (1) |
| 17 | B1608-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 18 | B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 |
| 19 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 20 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 21 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 22 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 23 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 24 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 25 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 26 | B3126-012-000 | TENSION DISC | (2) |
| 27 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 28 | B3129-012-A00 | TENSION SPRING | (1) |
| 29 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 30 | B3119-771-000 | TENSION NUT | (1) |
| 31 | D2401-774-KCO | NEEDLE PLATE ASM. | 1 |
| 32 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | (2) |
| 33 | D2402-774-K00 | THROAT PLATE 4K | (1) |
| 34 | B2401-774-0A0 | THROAT PLATE BASE ASM. | (1) |
| 35 | B2406-771-0A0 | BOBBIN THREAD TRIMMER BLADE ASM. | (1) |
| 36 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 37 | B2408-771-000-A | COUNTER KNIFE | (1) |
| 38 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) |
| 39 | B2405-771-000 | BOBBIN THREAD PULLER | (1) |
| 40 | SS-6090440-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 41 | B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 42 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 43 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| B1551-774-000 | WORK CLAMP ARM | 1 | |
| B2765-774-000 | HINGE SCREW D= 8.73 H= 4 | 1 | |
| B1413-774-000 | WORK CLAMP CHECK | 1 | |
| B2409-771-000 | SCREW 9/64-40 L=4 | (1) |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2039-373-000 | THREAD GUIDE NO.1 | 1 |
| 2 | B1513-774-000 | WORK CLAMP BRACKET | 1 |
| 3 | MA0-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 4 | D9323-774-T00 | SPACING PLATE | 2 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| 6 | D1508-774-K00 | WORK CLAMP CHECK | 1 |
| 7 | D1514-774-T00 | WORK CLAMP ARM | 1 |
| 8 | D9322-772-T00-A | GIMP GUIDE HOLDER | 2 |
| 9 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 10 | SS-6622112-TP | SCREW 3/16-32 L=21 | 4 |
| 11 | D9319-762-T00 | GIMP GUIDE SHAFT TENSION SPRING | 1 |
| 12 | SS-8150410-SP | SCREW 15/64-28 L=4 | 2 |
| 13 | SS-8150750-SP | SCREW 15/64-28 L=7 | 1 |
| 14 | SS-8151160-SP | SCREW 15/64-28 L=11.0 | 1 |
| 15 | D9310-772-T00 | GIMP GUIDE SHAFT | 1 |
| 16 | B2009-761-000 | UNIVERSAL JOINT | 1 |
| 17 | D9321-772-T00 | SPRING | 1 |
| 18 | D9322-774-T00 | GIMP GUIDE FEED PLATE | 1 |
| 19 | B1591-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 20 | D9335-762-TA0 | GIMP TRIMMER BLADE ASM. (B) | 1 |
| 21 | D9335-762-T00 | GIMP TRIMMER BLADE (B) | (1) |
| 22 | D9336-762-T00 | SPRING B | (1) |
| 23 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 24 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (1) |
| 25 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 26 | SS-6060410-SP | SCREW 3/32-56 L=3.5 | 1 |
| 27 | D2401-774-KCO | NEEDLE PLATE ASM. | 1 |
| 28 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | (2) |
| 29 | D2402-774-K00 | THROAT PLATE 4K | (1) |
| 30 | B2401-774-0A0 | THROAT PLATE BASE ASM. | (1) |
| 31 | B2406-771-0A0 | BOBBIN THREAD TRIMMER BLADE ASM. | (1) |
| 32 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 33 | B2408-771-000-A | COUNTER KNIFE | (1) |
| 34 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) |
| 35 | B2405-771-000 | BOBBIN THREAD PULLER | (1) |
| 36 | SS-6090440-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 37 | B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 38 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 39 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 40 | D9318-762-T00 | GIMP GUIDE SHAFT THRUST RING | 1 |
| 41 | WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 |
| 42 | D9317-762-T00 | GIMP GUIDE SHAFT SPRING | 2 |
| 43 | D9316-762-T00 | GIMP GUIDE SHAFT COLLAR | 2 |
| 44 | D9311-772-TA0 | GIMP GUIDE SHAFT CRANK ASM. | 1 |
| 45 | D9303-762-T00 | GIMP REPOSITIONING SCREW, RIGHT | 2 |
| 46 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 47 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 48 | D9302-762-T00 | GIMP GUIDE SHAFT STOP BRACKET | 1 |
| 49 | B1113-761-000-A | LEFT SIDE COVER | 1 |
| 50 | D9324-774-T00 | WORK CLAMP ARM RETAINER | 1 |
| 51 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 |
| 52 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 2 |
| 53 | D9315-762-T00 | GIMP GUIDE | 1 |
| 54 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 55 | B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 |
| 56 | B1606-774-000 | WORK CLAMP CARRIER PITMAN | 1 |
| 57 | SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 |
| 58 | B1605-774-000 | FEED ADJUSTING SHAFT | 1 |
| 59 | B1608-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 60 | D9314-762-T00 | GIMP GUIDE HOLDER | 1 |
| 61 | D9307-762-T00 | GIMP GUIDE HOLDER CRANK | 1 |
| 62 | D9309-762-T00 | GIMP GUIDE HOLDER CRANK ROLLER | 1 |
| 63 | D9308-762-T00 | GIMP GUIDE HOLDER CRANK PIN | 1 |
| 64 | D9313-774-TA0 | GIMP GUIDE SHAFT BRACKET ASM. | 1 |
| 65 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 66 | SS-7110910-SP | SCREW 11/64-40 L= 8.5 | (1) |
| 67 | SD-0640751-SP | HINGE SCREW D= 6.35 H= 7.5 | 1 |
| 68 | B2037-372-000 | NIPPER BAR BLOCK SPRING | 1 |
| 69 | B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 |
| 70 | SS-6151440-SP | SCREW 15/64-28 L=14 | (1) |
| 71 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 72 | D9301-772-TA0 | GIMP GUIDE SHAFT MOUNTING BASE ASM. | 1 |
| 73 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 74 | PS-0200102-KH | SPRING PIN 2.0X10 | 2 |
| 75 | B1516-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 |
| 76 | B1609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 |
| 77 | B1613-774-000 | WORK CLAMP CARRIER | 1 |
| SS-6621112-TP | SCREW 3/16-32 L=21 | 4 | |
| B1511-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | 1 | |
| SPRING B | SPRING B | (1) | |
| WP-0250516-SP | WASHER 2.5X6X0.5 | (1) | |
| D2402-774-TA0 | THROAT PLATE 4K | (1) | |
| B2404-774-EA0 | BOBBIN THREAD TRIMMER BLADE ASM. | (1) | |
| B1111-761-000-A | LEFT SIDE COVER | 1 | |
| NUT 3/16-28 | NUT 3/16-28 | 1 | |
| SPRING PIN 2.0X10 | SPRING PIN 2.0X10 | 1 |
Page 27 — LBH-784-T & V (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 2 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 3 | B2413-761-000 | CONNECTING LINK | 1 |
| 4 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 5 | SS-7090520-SL | SCREW 9/64-40 L=4.5 | 1 |
| 09334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | ||
| 09335-762-T00 | GIMP SPOOL REST ROD | ||
| D1129-772-T00 | FRAME SIDE COVER A | ||
| NS-6700420-SP | NUT 5/16-24 | ||
| SS-8601030-SP | SCREW 1/4-40 L=10 | ||
| D9331-762-T00 | SLIDE BLOCK | ||
| D9330-762-T00 | POSITIONIG SHAFT DRIVING ROD | ||
| D9332-762-T00 | DRIVING ROD TENSION SPRING | ||
| D9101-771-K00 | Hook TIMING GAUGE (K) | ||
| B3117-352-000 | THREAD TENSION POST NUT | ||
| B3118-352-000 | THREAD TENSION SPRING | ||
| B3126-012-000 | TENSION DISC | ||
| B3119-352-000 | THREAD TENSION POST | ||
| B3107-352-000 | NEEDLE THREAD GUIDE | ||
| WP-0612516-SD | WASHER 6.1X15.2X2.5 | ||
| NS-6150310-SP | NUT 15/64-28 | ||
| 62745-774-00B | KNIFE 1-1/2" | ||
| 62745-774-00A | KNIFE 1-3/8" | ||
| D2902-762-T00 | BAR TRIPPING SEGMENT 2T | ||
| D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | ||
| D9332-772-V00 | GIMP GUIDE SHAFT CRANK PRESSER HOOK | ||
| B1808-761-0AB | Hook ASM. | ||
| D3110-772-TAO | TENSION CONTROLLER ASM. | ||
| SS-8090670-SP | SCREW 9/64-40 L= 5.5 | ||
| B3110-771-000 | TENSION POST SOCKET | ||
| B3111-761-000 | TENSION POST NO.3 | ||
| B3112-761-000 | THREAD TAKE-UP SPRING | ||
| B3107-804-000 | TENSION DISC PRESSER TUBE | ||
| B3120-125-000 | TENSION DISC STOPPER | ||
| B3119-771-000 | TENSION NUT | ||
| D2901-772-V00 | FEED CAM V | ||
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | ||
| D2902-762-V00 | BAR TRIPPING SEGMENT 2V | ||
| D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | ||
| SS-6111610-SP | SCREW 11/64-40 L=16 | ||
| D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | ||
| D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | ||
| D2903-762-V00 | BAR TRIPPING SEGMENT 2V | ||
| D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | ||
| D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | ||
| D2615-762-V00 | LATCH (C) | ||
| B2957-761-000 | SPUR GEAR (345) | ||
| B2936-761-000 | SPUR GEAR (54) | ||
| D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | ||
| SS-9151630-CP | SCREW 15/64-28 L=15.5 | ||
| D9101-772-B00 | Hook TIMING GAUGE VB |
Page 29 — 18. THREAD STAND COMPONENTS (FOR T & V) (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3301-772-TA0 | THREAD STAND ASM. | 1 |
| 2 | B3311-704-000 | SPOOL REST ROD RUBBER CAP | (2) |
| 3 | NM-6160511-SE | NUT M16X1.5 | (4) |
| 4 | WP-1702600-SO | WASHER 17X30X2.6 | (3) |
| 5 | D3306-555-B00 | THREAD GUIDE STOPPER PLATE | (1) |
| 6 | B3307-704-000 | THREAD GUIDE A | (1) |
| 7 | B3313-704-0AO | SPOOL REST ROD ASM., UPPER | (1) |
| 8 | B3305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 9 | SM-6041410-SC | SCREW M4X0.7 L=14 | (2) |
| 10 | NM-6040000-SN | NUT M4 | (2) |
| 11 | B3301-704-000-A | SPOOL REST ROD, LOWER | (1) |
| 12 | B3312-012-000 | SPOOL RETAINER | (3) |
| 13 | B3305-012-000 | SPOOL PIN | (3) |
| 14 | WP-0560860-SE | WASHER 5.6X12X0.8 | (3) |
| 15 | B3311-012-000 | SPOOL REST CUSHION | (3) |
| 16 | B3303-704-000 | SPOOL REST | (3) |
| 17 | WS-0521010-KN | SPRING WASHER 5.2X8.2X1 | (3) |
| 18 | NS-6120310-SP | NUT 3/16-28 | (3) |
| 19 | SM-9050813-SE | SCREW M5X0.8 L=8 | (3) |
| 20 | WS-0521010-KN | SPRING WASHER 5.2X8.2X1 | (3) |
| 21 | WP-0520656-SA | WASHER 5.2X9.5X0.6 | (3) |
| 22 | D3302-772-T00 | SPOOL REST BRACKET | (1) |
| 23 | SM-9061080-SE | SCREW M6 L=10 | (2) |
| 24 | D3302-555-B00 | BRACKET | (1) |
| 25 | WS-1643202-KN | SPRING WASHER 16.4X26.6X3.2 | (1) |
| 26 | MA0-11532000 | STAPLE | (3) |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3301-772-TA0 | TA0 | 24 |
| 2 | MA0-91003000 | 6 | |
| 3 | NM-6160511-SE | SE | 24 |
| 3 | SM-604141C-SC | SC | 24 |
| 4 | D9324-773-T00 | T00 | 6 |
| 4 | NS-6680410-SP | SP | 8 |
| 4 | SS-6090510-SP | SP | 14 |
| 4 | SS-8090670-SP | SP | 6 |
| 4 | WP-1702600-SO | SO | 24 |
| 5 | D3306-555-B00 | B00 | 24 |
| 5 | D9325-773-T00 | T00 | 24 |
| 5 | SS-6090440-SP | SP | 20 |
| 6 | D9326-773-T00 | T00 | 24 |
| 6 | D9335-762-T00 | T00 | 22 |
| 6 | SS-7110740-TP | TP | 6 |
| 7 | D2908-761-D00 | D00 | 7 |
| 7 | D9334-762-T00 | T00 | 22 |
| 7 | SM-9050813-SE | SE | 24 |
| 8 | WP-0480856-SP | SP | 6 |
| 10 | D9319-762-T00 | T00 | 6 |
| 10 | NM-6040000-SN | SN | 24 |
| 10 | SM-9061080-SE | SE | 24 |
| 11 | D9322-772-T00-A | T00-A | 11 |
| 11 | D9323-772-T00 | T00 | 20 |
| 12 | D9302-762-V00 | V00 | 2 |
| 12 | D9321-772-T00 | T00 | 6 |
| 12 | D9330-762-T00 | T00 | 16 |
| 12 | SS-6060410-TP | TP | 18 |
| 12 | SS-6111110-SP | SP | 20 |
| 12 | SS-8661030-SP | SP | 8 |
| 13 | D9332-762-T00 | T00 | 6 |
| 14 | D9328-762-T00 | T00 | 12 |
| 14 | D9333-762-T00 | T00 | 8 |
| 14 | SS-6622112-TP | TP | 6 |
| 14 | SS-7060310-SP | SP | 20 |
| 14 | SS-7110910-SP | SP | 6 |
| 14 | SS-8150410-SP | SP | 6 |
| 14 | SS-8150750-SP | SP | 14 |
| 14 | WP-0560860-SE | SE | 24 |
| 15 | SS-8151160-SP | SP | 6 |
| 16 | D3110-772-TA0 | TA0 | 2 |
| 16 | D9311-772-TA0 | TA0 | 6 |
| 16 | NS-6700420-SP | SP | 16 |
| 17 | SS-6121210-SP | SP | 4 |
| 17 | WS-0521010-KN | KN | 24 |
| 18 | D9310-772-T00 | T00 | 6 |
| 18 | SM-2090530-SP | SP | 24 |
| 18 | SS-6151440-SP | SP | 17 |
| 19 | SS-2090530-SP | SP | 24 |
| 20 | SS-6060410-SP | SP | 6 |
| 20 | SS-7090520-SL | SL | 14 |
| 20 | SS-7110710-SP | SP | 6 |
| 20 | WP-0612516-SD | SD | 8 |
| 21 | D9336-762-T00 | T00 | 6 |
| 21 | NS-6150310-SP | SP | 8 |
| 21 | WP-0520656-SA | SA | 24 |
| 23 | WP-0250516-SD | SD | 6 |
| 24 | SS-5060410-SP | SP | 6 |
| 25 | D9329-762-T00 | T00 | 6 |
| 25 | WS-1643202-KN | KN | 24 |
| 26 | D9101-771-K00 | K00 | 2 |
| 26 | D9101-772-K00 | K00 | 17 |
| 26 | D9327-762-T00 | T00 | 2 |
| 26 | MA0-11532000 | 24 | |
| 26 | SS-5090320-SP | SP | 6 |
| 30 | D9318-762-T00 | T00 | 6 |
| 31 | WP-1002066-SZ | SZ | 6 |
| 33 | D9316-762-T00 | T00 | 6 |
| 34 | D9303-762-T00 | T00 | 6 |
| 35 | NS-6110420-SP | SP | 6 |
| 36 | D9301-772-TA0 | TA0 | 6 |
| 37 | D9302-762-T00 | T00 | 6 |
| 37 | D9323-773-T00 | T00 | 6 |
| 37 | D9331-762-T00 | T00 | 6 |
| 38 | SS-4080530-SP | SP | 18 |
| 40 | D9308-762-T00 | T00 | 6 |
| 41 | D9301-762-V00 | V00 | 8 |
| 42 | D2907-762-V00 | ||
| 42 | D9307-762-T00 | T00 | 6 |
| 43 | D9317-762-T00 | ||
| 45 | D9303-762-V00 | V00 | 8 |
| 45 | SS-9111010-SP | SP | 14 |
| 46 | D9315-762-T00 | T00 | 6 |
| 47 | D9331-772-TA0 | TA0 | 20 |
| 47 | SS-9151630-CP | CP | 4 |
| 47 | WP-0451016-SP | SP | 18 |
| 48 | D9314-762-T00 | T00 | 6 |
| 49 | D9313-762-TA0 | TA0 | 6 |
| 50 | MTJ-VM004200 | VM004200 | 2 |
| 51 | MTJ-VM004100 | VM004100 | 2 |
| 53 | NS-6120310-SP | SP | 6 |
| 54 | D9101-772-B00 | B00 | 22 |
| 55 | PS-0200102-KH | KH | 6 |
| 56 | SD-0640751-SP | SP | 6 |
| 59 | SD-0870401-SP | SP | 24 |
| 64 | D9313-774-TA0 | TA0 | 20 |
| 65 | D9309-762-T00 | T00 | 6 |
| 74 | D3302-555-B00 | B00 | 24 |
| 77 | D3302-772-T00 | T00 | 24 |
Jack JK-780 (Kaja) — parts catalog
- Page 1 (cover): This is the cover page for the JUKI PARTS BOOK for model LBH-781, LBH-782, LBH-783, and LBH-784, High Speed Single Needle Lockstitch Straight Button-Holing Industrial Sewing Machine. It includes the model number, subclasses, and publication details.
- Page 2 (unknown): This page contains a list of parts with their corresponding part numbers and descriptions. The page also includes a watermark.
- Page 3 (text): This page explains how to use the parts book, including how to interpret codes for part changes and obsolescence, and provides examples of part listings and ordering instructions.
- Page 5 (toc): This page is a table of contents listing part numbers and their corresponding page numbers, along with descriptions for some parts.
- Page 6 (diagram): This page displays diagrams of parts for models LBH-781-D, LBH-781-K, LBH-781-P, and LBH-782-P, with numbered parts for each section.
- Page 7 (parts_list): Parts list page 2 of the LBH-781 series showing work clamp, tension, spur gear, and motor pulley parts for LBH-781-D, LBH-781-K, LBH-781-P and LBH-782-P sections.
- Page 8 (diagram): This page contains diagrams of parts for models LBH-782-D and LBH-782-E, with numbered parts.
- Page 9 (parts_list): This page lists parts for model LBH-782-D and LBH-782-E, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine parts, including brackets, springs, screws, and other components, with reference numbers for identification.
- Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities, with some Japanese text and reference numbers.
- Page 12 (diagram): This page displays a diagram of various sewing machine parts, including gears, springs, screws, and other components, with reference numbers for identification.
- Page 13 (parts_list): This page contains a parts list for the LBH-782-V sewing machine, detailing part numbers, descriptions, and quantities for various components.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including gears, springs, and other components, with reference numbers and a part list entry for LBH-783-K.
- Page 15 (parts_list): This page contains parts lists for models LBH-782-K and LBH-783-K, detailing various components like knives, holders, gears, and screws with their respective part numbers and descriptions.
- Page 16 (diagram): This page displays diagrams of parts for models LBH-783-D and LBH-783-E, with numbered illustrations of various components including gears, brackets, and screws.
- Page 17 (parts_list): This page lists parts for models LBH-783-D and LBH-783-E, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine parts, including screws, springs, brackets, and a bobbin case, with reference numbers for identification.
- Page 19 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks. It covers items from reference number 1 to 58.
- Page 20 (diagram): This page displays a diagram of various machine parts, including gears, screws, and other components, with reference numbers for identification. It also lists the title "14. LBH-783-T & V (2)".
- Page 21 (parts_list): This page contains a parts list for the LBH-781 sewing machine, detailing part numbers, descriptions, and quantities for various components.
- Page 22 (diagram): This page displays a diagram of various sewing machine components, including a bobbin case, arm, and gears, with reference numbers for each part.
- Page 23 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also notes that parts not listed are the same as those for model LBH-781.
- Page 24 (diagram): This page displays a diagram of various machine components, including levers, brackets, springs, and fasteners, with reference numbers for each part.
- Page 25 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, washers, brackets, and shafts, with part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, including gears, screws, springs, and other components, with reference numbers for identification.
- Page 27 (parts_list): This page lists parts for the LBH-784-T and LBH-784-V models, including gears, screws, springs, and various guides, with part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays diagram components for thread stand components (for T & V) with part numbers and descriptions.
- Page 29 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including thread stands, spool rests, nuts, screws, washers, and staples, with their corresponding part numbers and descriptions.
- Page 31 (parts_list): This page lists various parts for industrial sewing machines, including part numbers, page references, and reference numbers. It contains sections for standard parts, screws, and washers.
- Page 32 (cover): This is the cover page of the JUKI industrial sewing machine parts catalog, featuring the JUKI logo and company information.
