Page 1 — JK-798 Parts Manual 零件手册
JK-798 Parts Manual 零件手册 CAAB ISO9001认证 WIT CE 国家高新技术企业 清洁生产 JACK JK-798-4-63323 CE JACK SEWING MACHINE HTTP://WWW.CHINAAJACK.COM jintex.in
Parts index — Jack JK-798D (73 pages)tap a row to open its page
Page 2 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 一、机壳部分 Machine Bed Frame | ||
| 3 | 二、机壳机罩部件(1) Cover(1) | ||
| 5 | 三、机壳机罩部件(2) Cover(2) | ||
| 7 | 四、主轴部件 Crankshaft Drive Mechanism | ||
| 9 | 五、夹线部件 Thread Tension Mechanism | ||
| 11 | 六、过线机构(1) Thread Guide and Thread Takeup(1) | ||
| 13 | 七、过线机构(2) Thread Guide and Thread Takeup(2) | ||
| 15 | 八、过线机构(3) Thread Guide and Thread Takeup(3) | ||
| 17 | 九、针杆部件(1) Needle Drive Mechanism(1) | ||
| 19 | 十一、针杆部件(3) Needle Drive Mechanism(3) | ||
| 21 | 十二、针杆部件(4) Needle Drive Mechanism(4) | ||
| 23 | 十三、上弯针部件 Upper Looper Drive Mechanism | ||
| 25 | 十五、下弯针部件 Lower Looper Drive Mechanism | ||
| 27 | 十六、二重环弯针机构(1) Chainstitch Looper Drive Mechanism(1) | ||
| 29 | 十七、二重环弯针机构(2) Chainstitch Looper Drive Mechanism(2) | ||
| 31 | 十八、差动调节机构 Feed Mechanism | ||
| 33 | 十九、送布机构 Feed Mechanism | ||
| 35 | 二十、剪布机构 Knife Drive Mechanism | ||
| 37 | 二十一、抬压脚机构 Presser Foot Mechanism | ||
| 39 | 二十二、供油机构(1) Lubrication Mechanism(1) | ||
| 41 | 二十三、供油机构(2) Lubrication Mechanism(2) | ||
| 43 | 二十四、HR装置机构部件 H.R.Device | ||
| 45 | 二十五、线架部件 Thread Stand | ||
| 47 | 二十六、托盘部件 Part For Semi-Submerged Installation | ||
| 49 | 二十七、专用零件 Specific Parts | ||
| 51 | 二十八、专用零件 Specific Parts | ||
| 53 | 二十九、专用零件 Specific Parts | ||
| 55 | 三十、专用零件 Specific Parts | ||
| 57 | 三十一、专用零件 Specific Parts | ||
| 59 | 三十二、专用零件 Specific Parts | ||
| 61 | 三十三、倒回缝部件 Back Latch Components | ||
| 63 | 三十四、798D I直驱部件/798D I Direct Drive Assemblies | ||
| 65 | 三十五、随机附件部分 Accessories Assemblies | ||
| 67 | 标准度量零件表Standard measurement part list |
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 |
Page 4 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240333 | P03010 | 销5×16 | |
| 201002 | P03017 | 销5×10 | |
| 210194 | 20711001 | 导向套 | |
| 240325 | 20713027 | 过线管 | |
| 240299 | P03018 | 销4×40 | |
| 208173 | 20628023 | 送布油封 | |
| 270008-91 | 20701002 | 下刀座 | |
| 4511 | 207S13003 | 螺钉M6×25 | |
| 270047 | 206S30001 | 支柱 | |
| 240342 | P03019 | 销5×14 | |
| 20126001 | 工艺孔销 | ||
| 20726009 | 厚料摇杆定位销 | ||
| 270001-9S | 20701001 | 机壳 | |
| 20703001 | 上轴右套 | ||
| 20703002 | 上轴左套 | ||
| 20703003 | 送布右轴套 | ||
| 20703004 | 上刀轴左套 | ||
| 20703009 | 上刀轴右套 | ||
| 20703006 | 上弯针后轴套 | ||
| 20703007 | 主轴轴套 | ||
| 20703008 | 差动轴套 | ||
| 20703009 | 上刀轴右套 |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | SCREW | |
| 3 | 3 | COVER | |
| 4 | 4 | SCREW | |
| 5 | 5 | CAP | |
| 6 | 6 | CAP | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | JK-798-5(H) Series | |
| 12 | 12 | SCREW | |
| 13 | 13 | COVER | |
| 14 | 14 | COVER | |
| 15 | 15 | SCREW | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | COVER | |
| 19 | 19 | SCREW | |
| 20 | 20 | SCREW | |
| 21 | 21 | SHAFT | |
| 22 | 22 | COVER | |
| 23 | 23 | SPRING | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | SPRING | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | SCREW | |
| 30 | 30 | SCREW | |
| 31 | 31 | SCREW | |
| 32 | 32 | JK-798-3,4 Series | |
| 33 | 33 | SCREW | |
| 34 | 34 | SCREW | |
| 35 | 35 | SCREW | |
| 36 | 36 | COVER |
Page 6 — 二、机壳机罩部件(1)/Cover (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 300164 | 上罩 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20722001 | 密封垫 | ||
| 20622003 | 减震垫 | ||
| 30111022 | 油标盖 | ||
| 20722002 | 油塞 | ||
| 300165 | 侧盖 | ||
| 207S11012 | 螺钉M4×10 | ||
| 207S11008 | 螺钉M4×12 | ||
| 2070201100 | 压脚杆组件 | ||
| 20712043 | 左前盖 | ||
| 207S17001 | 螺钉M4×10 | ||
| 20711003 | 皮带罩 | ||
| 20622003 | 防震垫 | ||
| S01013 | 螺钉M6×14 | ||
| 20712001 | 风扇罩 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 300166 | 右前盖 | ||
| 20701006 | 铰链 | ||
| 207S11008 | 螺钉M4×12 | ||
| 20626001 | 铰链销 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20627001 | 锁紧弹簧 | ||
| 20712002 | 锁紧板 | ||
| 207S11009 | 螺钉M3×2.5 | ||
| 207S14002 | 螺钉M3×12 | ||
| 207S14003 | 螺钉M3×4 | ||
| 20712003 | 锁紧板 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20612004 | 前罩板卡簧1 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20712004 | 左前盖 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20712005 | 前盖板 | ||
| XXXXXXXXXX | 穿线图 | ||
| XXXXXXXXXX | 穿线图 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-798-4-514-43P2 | 1 | ||
| JK-798-4-514-43P2 | 1 | ||
| JK-798-5(H) Series | 1 | ||
| JK-798-5-516-42 | 除外 | ||
| JK-798-5-516-42 | 1 | ||
| JK-798-5(H) Series | 1 | ||
| JK-798-3,4 Series | 26 | ||
| JK-798-5(H) Series | 27 | ||
| 9 | 宽(Wide) | ||
| 10 | 窄(Narrow) | ||
| 3 | 1 | ||
| 4 | 2 | ||
| 5 | 3 | ||
| 6 | 4 | ||
| 7 | 5 | ||
| 8 | 6 | ||
| 11 | 7 | ||
| 12 | 8 | ||
| 13 | 9 | ||
| 14 | 10 | ||
| 15 | 11 | ||
| 16 | 12 | ||
| 17 | 13 | ||
| 18 | 14 | ||
| 19 | 15 | ||
| 20 | 16 | ||
| 21 | 17 | ||
| 22 | 18 | ||
| 23 | 19 | ||
| 24 | 20 | ||
| 25 | 21 | ||
| 30 | 22 | ||
| 31 | 23 | ||
| 32 | 24 | ||
| 33 | 25 | ||
| 34 | 26 | ||
| 35 | 27 | ||
| 36 | 28 | ||
| 37 | 29 | ||
| 38 | 30 | ||
| 39 | 31 | ||
| 40 | 32 |
Page 8 — 三、机壳机罩部件(2)/Cover (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2071204400 | 缝台组件(宽) | ||
| 2071200600 | 缝台组件(窄) | ||
| 20603016 | 套筒 | ||
| 207S14007 | 螺钉M4×4 | ||
| W02004 | 止动垫圈6 | ||
| 30228008 | 垫圈 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20622003 | 减震垫 | ||
| 20711018 | 侧盖组件(宽) | ||
| 20711004 | 侧盖(窄) | ||
| 207S11013 | 螺钉M4×17.5 | ||
| W02002 | 弹簧垫 | ||
| S01002 | 螺钉M4×5 | ||
| 20528017 | 垫片 | ||
| 20622003 | 减震垫 | ||
| 20612016 | 下刀座前垫护板 | ||
| 207S11014 | 螺钉M3.5×4.5 | ||
| 20712008 | 挡板 | ||
| 207S17003 | 螺钉M4×7.5 | ||
| 20627002 | 连杆 | ||
| 206520006 | 螺钉M4 | ||
| 20627003 | 扭簧 | ||
| 20612009 | 托架 | ||
| 20712010 | 布料挡板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20711005 | 防护罩 | ||
| 20711019 | 防护罩 | ||
| 207S11015 | 螺钉M3×6 | ||
| W01011 | 垫圈3 | ||
| 20712011 | 托架 | ||
| 207S20002 | 螺钉M4 | ||
| 20128015 | 垫圈 | ||
| 20701084 | 上盖 | ||
| 207S12001 | 螺钉M4×8 | ||
| 20722003 | 密封垫 | ||
| 2071201200 | 后窗板 | ||
| S01005 | 螺钉M4×10 | ||
| 207S11016 | 螺钉M4×16 | ||
| N01001 | 螺母 | ||
| 10122020 | 油盘垫 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Standard lift High lift | ||
| 2 | Extra-high lift | ||
| 3 | JK-798-3,4 Series | ||
| 4 | JK-798-3,4 Series | ||
| 5 | JK-798-3,4 Series | ||
| 6 | JK-798-3,4 Series | ||
| 7 | JK-798-3,4 Series | ||
| 8 | JK-798-5(H) Series | ||
| 9 | JK-798-5(H) Series | ||
| 10 | JK-798-5(H) Series | ||
| 11 | JK-798-5(H) Series | ||
| 12 | JK-798-5(H) Series | ||
| 13 | JK-798-5(H) Series | ||
| 14 | JK-798-5(H) Series | ||
| 15 | JK-798-5(H) Series | ||
| 16 | JK-798-5(H) Series | ||
| 17 | JK-798-5(H) Series | ||
| 18 | JK-798-5(H) Series | ||
| 19 | JK-798-5(H) Series | ||
| 20 | JK-798-5(H) Series | ||
| 21 | JK-798-5(H) Series | ||
| 22 | JK-798-5(H) Series | ||
| 23 | JK-798-5(H) Series | ||
| 24 | JK-798-5(H) Series | ||
| 25 | JK-798-5(H) Series | ||
| 26 | JK-798-5(H) Series | ||
| 27 | JK-798-5(H) Series | ||
| 28 | JK-798-5(H) Series | ||
| 29 | JK-798-5(H) Series | ||
| 30 | JK-798-5(H) Series | ||
| 31 | JK-798-5(H) Series | ||
| 32 | JK-798-5(H) Series | ||
| 33 | JK-798-5(H) Series | ||
| 34 | JK-798-5(H) Series | ||
| 35 | JK-798-5(H) Series |
Page 10 — 四、主轴部件/Crankshaft Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400046 | 主轴 | |
| 2 | 400045 | 主轴 | |
| 3 | 20712066 | 连杆垫片 | |
| 4 | 20701008 | 平衡块 | |
| 5 | 207S11017 | 螺钉M3×8 | |
| 6 | 20726002 | 销 | |
| 7 | S10009 | 螺钉M6×8 | |
| 8 | 20712013 | 前轴承盖 | |
| 9 | 207S11007 | 螺钉M4×7.5 | |
| 10 | 001024 | 0型圈40×1.8 | |
| 11 | B04004 | 轴承6202LB | |
| 12 | 207S11018 | 螺钉M5×10 | |
| 13 | 207S14012 | 螺钉M5×5 | |
| 14 | 20729001 | 卡簧 | |
| 15 | B04005 | 轴承6203LLU | |
| 16 | B04005 | 轴承6203LLU | |
| 17 | W03003 | 垫圈32 | |
| 18 | 20103002 | 主轴中轴套 | |
| 19 | 001025 | 0型圈17×1.8 | |
| 20 | 001028 | 0型圈41×1.8 | |
| 21 | 20708015 | 后轴承盖 | |
| 22 | 207S11012 | 螺钉M4×10 | |
| 23 | 2071100600 | 风扇组合件 | |
| 24 | 300167 | 皮带轮(刻好字) | |
| 25 | S10009 | 螺钉M6×8 | |
| 26 | 207S13004 | 螺钉M6×35 | |
| 27 | W02004 | 垫圈6 | |
| 28 | 20602002 | 主轴接轴 | |
| 29 | 20712046 | 前轴承盖 | |
| 30 | 207S17001 | 螺钉M4×10 | |
| 31 | 207S11012 | 螺钉M4×10 | |
| 32 | 20708003 | 轴套 | |
| 33 | 20701009 | 皮带轮罩 | |
| 34 | 001037 | 0型圈30×1.2 | |
| 35 | 20725001 | 棘轮 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 7 | Screw | |
| 6 | 6 | Washer | |
| 5 | 5 | Roller | |
| 4 | 4 | Roller | |
| 1 | 1 | Shaft | |
| 8 | 8 | Spring | |
| 3 | 3 | Washer | |
| 2 | 2 | Shaft | |
| 9 | 9 | Roller | |
| 10 | 10 | Spring | |
| 12 | 12 | Screw | |
| 11 | 11 | Bracket | |
| 13 | 13 | Base Plate | |
| 14 | 14 | Roller | |
| 15 | 15 | Shaft | |
| 1 | 1 | Shaft | |
| 17 | 17 | Roller | |
| 9 | 9 | Roller | |
| 12 | 12 | Screw | |
| 11 | 11 | Bracket | |
| 13 | 13 | Base Plate | |
| 14 | 14 | Roller | |
| 17 | 17 | Roller | |
| 9 | 9 | Roller | |
| 16 | 16 | Shaft | |
| 1 | 1 | Shaft |
Page 12 — 五、夹线部件/Thread Tension Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400662 | 夹线器组件(红点) | ||
| 301S16006 | 调压螺母 | ||
| 30111006 | 调压止动套 | ||
| 30111005 | 调压止动盖 | ||
| 400161 | 夹线片 | ||
| 20623008 | 夹线片垫 | ||
| 201S30016 | 夹线螺钉 | ||
| 20727011 | 调压簧 | ||
| 400663 | 夹线器组件(蓝点) | ||
| 30127013 | 调压簧(弱) | ||
| 20713001 | 过线板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20712015 | 过线板 | ||
| 20612052 | 前过线板 | ||
| 206S11005 | 螺钉SM11/64×40 | ||
| 400661 | 夹线器组件(黄点) | ||
| 400668 | 夹线器组件(绿点) |
Page 13 — JK-798-5(H) Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | JK-798-5 | 10 | |
| 12 | JK-798-5H | 12 | |
| 14 | JK-798-5 | 14 | |
| 15 | JK-798-5H | 15 | |
| 3 | JK-798-5H | 3 | |
| 21 | JK-798-5 | 21 |
Page 14 — 六、过线机构(1)/Thread Guide and Thread Takeup (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20701029 | 托架 | |
| 2 | 207S11019 | 螺钉M4×7.5 | |
| 3 | 20713020 | 过线 | |
| 4 | 20713052 | 挑线杆 | |
| 5 | 207S14001 | 螺钉M4×4 | |
| 6 | 20701030 | 托架 | |
| 7 | S01031 | 螺钉M4×4.7 | |
| 8 | 20713021 | 过线 | |
| 9 | 207S14001 | 螺钉M4×4 | |
| 10 | 20713022 | 过线 | |
| 11 | 207S11015 | 螺钉M3×6 | |
| 12 | 20713050 | 过线 | |
| 13 | S01031 | 螺钉M4×4.7 | |
| 14 | 20713023 | 过线 | |
| 15 | 20713051 | 过线 | |
| 16 | S01031 | 螺钉M4×4.7 | |
| 17 | 20713006 | 托架 | |
| 18 | 20713007 | 压线板 | |
| 19 | 207S20003 | 螺钉 | |
| 20 | 20727002 | 压簧 | |
| 21 | 20713024 | 挑线杆 | |
| 22 | 207S11015 | 螺钉M3×6 |
Page 15 — JK-798-3,4 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-798-3 | JK-798-3 | |
| 2 | JK-798-4 | JK-798-4 | |
| 6 | JK-798-3 | JK-798-3 | |
| 7 | JK-798-4 | JK-798-4 | |
| 14 | JK-798-3 | JK-798-3 | |
| 15 | JK-798-4 | JK-798-4 |
Page 16 — 七、过线机构(2)/Thread Guide and Thread Takeup (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 275013A | 20713002 | 过线 | |
| 275013 | 20713003 | 过线 | |
| 4543 | 207S14001 | 螺钉M4×4 | |
| 275015 | 20701010 | 托架 | |
| 7082 | 207S11019 | 螺钉M4×4.7 | |
| 275018 | 20713004 | 过线 | |
| 275018A | 20713005 | 过线 | |
| 7062 | 207S11015 | 螺钉M3×6 | |
| 7082 | 207S11019 | 螺钉M4×4.7 | |
| 275011 | 20713006 | 托架 | |
| 275012 | 20713007 | 压线板 | |
| 7163 | 207S20003 | 螺钉 | |
| 240326 | 20727002 | 压簧 | |
| 275016 | 20713008 | 挑线杆 | |
| 275017 | 20713009 | 挑线杆 |

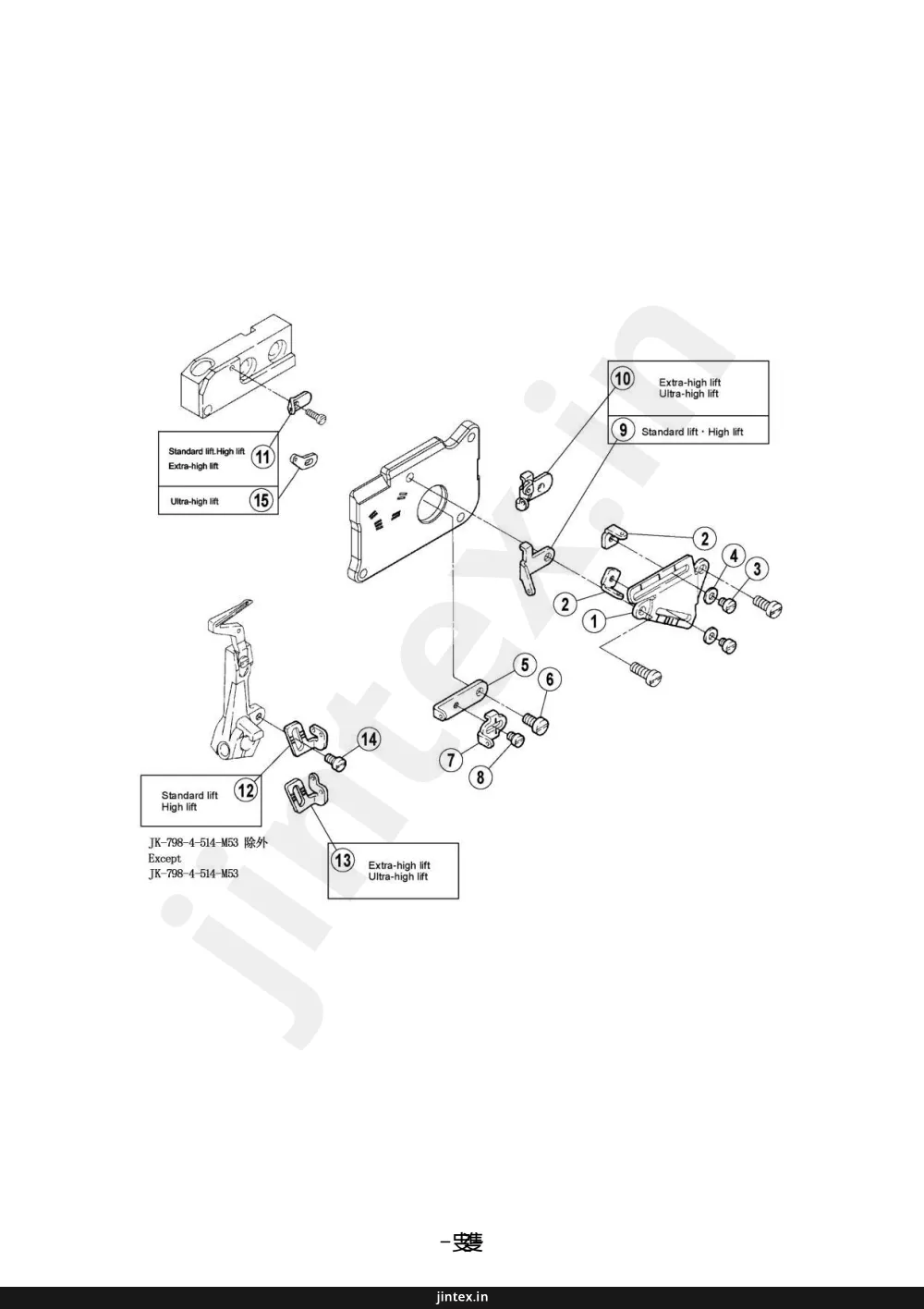

Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | JK-798-4-514-M53 | Standard lift High lift | |
| 13 | JK-798-4-514-M53 | Extra-high lift Ultra-high lift | |
| 9 | Standard lift High lift | Standard lift High lift | |
| 10 | Extra-high lift Ultra-high lift | Extra-high lift Ultra-high lift | |
| 11 | Standard lift High lift Extra-high lift | Standard lift High lift Extra-high lift | |
| 15 | Ultra-high lift | Ultra-high lift | |
| 1 | Screw | ||
| 2 | Lever | ||
| 3 | Screw | ||
| 4 | Washer | ||
| 5 | Lever | ||
| 6 | Screw | ||
| 7 | Lever | ||
| 8 | Screw | ||
| 14 | Lever |
Page 18 — 八、过线机构(3)/Thread Guide and Thread Takeup (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20712016 | 托架 | |
| 2 | 20113015 | 过线 | |
| 3 | W01011006 | 螺钉 | |
| 4 | W01011 | 垫圈 | |
| 5 | 20713010 | 挑线架 | |
| 6 | 207S11007 | 螺钉M4×7.5 | |
| 7 | 20713011 | 过线 | |
| 8 | 207S11020 | 螺钉M3×4 | |
| 9 | 20713012 | 过线 | |
| 10 | 20713053 | 过线 | |
| 11 | 20713054 | 过线 | |
| 12 | 20713015 | 挑线架 | |
| 13 | 20713055 | 挑线架 | |
| 14 | 207S11021 | 螺钉M3.5×6 | |
| 15 | 20713013 | 过线 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | SCREW | |
| 3 | 3 | SHAFT | |
| 4 | 4 | LINK | |
| 5 | 5 | BRACKET | |
| 6 | 6 | SCREW | |
| 7 | 7 | SHAFT | |
| 8 | 8 | COLLAR | |
| 9 | 9 | SCREW | |
| 10 | 10 | WASHER | |
| 11 | 11 | CIRCLIP | |
| 12 | 12 | LINK | |
| 13 | 13 | SCREW | |
| 14 | 14 | SHAFT | |
| 15 | 15 | BEARING | |
| 16 | 16 | BEARING | |
| 18 | 18 | SHAFT | |
| 19 | 19 | LINK | |
| 20 | 20 | SCREW | |
| 21 | 21 | WASHER | |
| 22 | 22 | COLLAR | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | SPRING |
Page 20 — 九、针杆部件(1)/Needle Drive Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 271000-92 | 400039 | 针杆连杆 | |
| 7023 | 207S11016 | 螺钉M4×16 | |
| 271001 | 20626003 | 曲柄销 | |
| 4538 | 207S14007 | 螺钉M4×6 | |
| 271002-92 | 20704001 | 上轴曲柄 | |
| 4533 | S05018 | 螺钉M6×0.75×12 | |
| 271003 | 20702002 | 上轴 | |
| 240308 | 20708004 | 挡圈 | |
| 4543 | 207S14001 | 螺钉M4×4 | |
| 208235 | 20628014 | 上刀架垫片 | |
| 202577 | H05008 | 挡圈8 | |
| 271004-92 | 20704002 | 针杆曲柄组件 | |
| 7150 | 207S12002 | 螺钉 | |
| 271022-91 | 2072600300 | 曲柄销组件 | |
| 271008-T | 20726003 | 曲柄销 | |
| --- | 20523005 | 油线 | |
| 271006-T | 20702003 | 针杆 | |
| 271007 | 20703012 | 针杆套 | |
| 4546 | 207S14008 | 螺钉M4×5 | |
| 201022 | 001026 | 0型圈11.5×1.5 | |
| 179009-05 | 20723003 | 毛毡 | |
| 271009-92 | 20708005 | 挡圈 | |
| 7035 | 207S11023 | 螺钉M3×6 | |
| 240310 | 20722004 | 油塞 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | JK-798-5-516-A04 | Except | |
| 2 | JK-798-5-516-A04 | JK-798-5 | |
| 11 | JK-798-3 | JK-798-3 | |
| 7 | JK-798-4 | JK-798-4 |
Page 22 — 十一、针杆部件(3)/Needle Drive Mechanism (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXXXXX | 针夹头 | |
| 2 | 207S14014 | 螺钉M3×3 | |
| 3 | 20713017 | 过线 | |
| 4 | 207S11024 | 螺钉M2×3 | |
| 5 | XXXXXXXXX | 机针 | |
| 6 | XXXXXXXXX | 机针 | |
| 7 | XXXXXXXXX | (四线)针夹头 | |
| 8 | 207S14014 | 螺钉M3×3 | |
| 9 | 20713018 | 过线 | |
| 10 | 207S11024 | 螺钉M2×3 | |
| 11 | XXXXXXXXX | (三线)针夹头 | |
| 12 | 207S14014 | 螺钉M3×3 | |
| 13 | 20713038 | 过线(一针) | |
| 14 | 207S11024 | 螺钉M2×3 | |
| 15 | XXXXXXXXX | 机针 |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BASE PLATE | |
| 2 | 2 | SCREW | |
| 3 | 3 | BASE PLATE | |
| 4 | 4 | SCREW | |
| 5 | 5 | SCREW | |
| 6 | 6 | BASE PLATE | |
| 7 | 7 | SCREW | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | NEEDLE BAR | |
| 11 | 11 | SCREW | |
| 12 | 12 | NEEDLE BAR | |
| 13 | 13 | SCREW | |
| 14 | 14 | PRESSER BAR | |
| 15 | 15 | SCREW | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 20 | 20 | BASE PLATE | |
| 21 | 21 | SCREW | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BASE PLATE | |
| 24 | 24 | SCREW | |
| 25 | 25 | BASE PLATE | |
| 26 | 26 | SCREW | |
| 27 | 27 | PRESSER BAR | |
| 28 | 28 | SCREW | |
| 29 | 29 | NEEDLE BAR | |
| 30 | 30 | SCREW | |
| 31 | 31 | NEEDLE BAR | |
| 32 | 32 | SCREW |
Page 24 — 十二、针杆部件(4)/Needle Drive Mechanism (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXXXX | 针板 | |
| 2 | 207S17006 | 螺钉M4×7.5 | |
| 3 | 20709002 | 针板垫块(前) | |
| 4 | 207S11007 | 螺钉M4×7.5 | |
| 5 | 20622003 | 防震垫 | |
| 6 | 20709003 | 针板垫块(后) | |
| 7 | 207S11007 | 螺钉M4×7.5 | |
| 8 | XXXXXXXX | 链套针护针 | |
| 9 | S01027 | 螺钉M3×6 | |
| 10 | XXXXXXXX | 护针(后) | |
| 11 | 207S12005 | 螺钉 | |
| 12 | W03004 | 垫圈3 | |
| 13 | 207S11002 | 螺钉M3 | |
| 14 | XXXXXXXX | 机针护针(前) | |
| 15 | 207S11007 | 螺钉M4×7.5 | |
| 16 | XXXXXXXX | 机针护针(后) | |
| 17 | S01027 | 螺钉M3×6 | |
| 18 | 20701033 | 托架 | |
| 19 | 207S11003 | 螺钉M4×10 | |
| 20 | XXXXXXXX | 针板 | |
| 21 | 207S17006 | 螺钉M4×7.5 | |
| 22 | 20709002 | 针板垫块(前) | |
| 23 | 207S11007 | 螺钉M4×7.5 | |
| 24 | 20622003 | 防震垫 | |
| 25 | 20709003 | 针板垫块(后) | |
| 26 | 207S11007 | 螺钉M4×7.5 | |
| 27 | XXXXXXXX | 护针(前) | |
| 28 | 207S11007 | 螺钉M4×7.5 | |
| 29 | XXXXXXXX | 护针(后) | |
| 30 | 207S12005 | 螺钉 | |
| 31 | W03004 | 垫圈3 | |
| 32 | 207S11002 | 螺钉M3 |
Page 25 — JK-700-500 Series JK-700-3,4 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-798-5-516-A04 | JK-798-5-516 | ||
| JK-798-4-514-M03,43P2,M53,M54 | JK-798-4-514-M03,43P2,M53,M54 | ||
| JK-798-5-516 | JK-798-5-516 | ||
| JK-798-4-514-M03,43P2,M53,M54 | JK-798-4-514-M03,43P2,M53,M54 |
Page 26 — 十三、上弯针部件/Upper Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400043 | 弯针连杆 | ||
| 207S11016 | 螺钉M4×16 | ||
| 207S11005 | 螺钉M4×17.5 | ||
| 20704003 | 上弯针球柄 | ||
| 400037 | 上弯针球柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20702004 | 下弯针轴 | ||
| 20628006 | 垫圈 | ||
| 207S11004 | 螺钉M4×10 | ||
| W02001 | 上弯针垫圈 | ||
| 20708006 | 衬套 | ||
| 20622019 | 油封 | ||
| 20708007 | 衬套A | ||
| 20705003 | 连杆 | ||
| 207S12002 | 螺钉 | ||
| 20726004 | 销钉销 | ||
| 20523005 | JK788油线 | ||
| 207S14010 | 螺钉M3×4 | ||
| 2070403400 | 上弯针滑杆组件 | ||
| 20623005 | 上弯针滑杆套油毡 | ||
| 207S11025 | 螺钉M3.5×6.7 | ||
| XXXXXXXX | 上弯针 | ||
| 207S11026 | 螺钉M6×16 | ||
| 400040 | 盖板 | ||
| 207S17004 | 螺钉M2.5×6 | ||
| 207S11027 | 螺钉M2.5×8 | ||
| 20123021 | JK795油线 | ||
| 20723005 | 吸油棉 | ||
| 20712017 | 压板 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20701051 | 上弯针滑块座 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 |
Page 28 — 十五、下弯针部件/Lower Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 271500-92 | 400043 | 弯针连杆 | |
| 7023 | 207S11016 | 螺钉M4×16 | |
| 7022 | 207S11005 | 螺钉M4×17.5 | |
| 27200-92 | 400329 | 下弯针球齿曲柄 | |
| 4533 | S05018 | 螺钉M6×0.75×12 | |
| 271504 | 20702004 | 下弯针轴 | |
| 240338 | 20628006 | 垫圈 | |
| 7174 | 207S11004 | 螺钉M4×10 | |
| 303067 | W02001 | 上弯针垫圈 | |
| 210586A | 20622019 | 油封 | |
| XXXXXXXX | XXXXXXXX | 下弯针 | |
| 4514 | 207S14006 | 螺钉M5×5 | |
| 7168 | 207S11028 | 螺钉M3.5×6.5 | |
| 272001-92 | 20704007 | 下弯针架 | |
| 7055 | 207S20004 | 螺钉M4×13 | |
| 7169 | 207S15001 | 螺钉M4×7 | |
| 273511-92 | 400388 | 下弯针球齿曲柄 | |
| 4533 | S05018 | 螺钉M6×0.75×12 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | CONNECTING ROD | |
| 2 | 2 | GEAR | |
| 3 | 3 | BRACKET | |
| 4 | 4 | BUSHING | |
| 5 | 5 | SCREW | |
| 6 | 6 | WASHER | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | NUT | |
| 11 | 11 | PIN | |
| 12 | 12 | WASHER | |
| 13 | 13 | SHAFT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | BRACKET | |
| 18 | 18 | BRACKET | |
| 19 | 19 | BUSHING | |
| 20 | 20 | SCREW | |
| 21 | 21 | WASHER | |
| 22 | 22 | SHAFT | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | SCREW | |
| 27 | 27 | BRACKET | |
| 28 | 28 | WASHER | |
| 29 | 29 | SCREW |
Page 30 — 十六、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20705006 | 连杆 | ||
| B08002 | 滚针k22×18×8 | ||
| 20704014 | 曲柄 | ||
| 20703016 | 连杆套 | ||
| 207S12003 | 螺钉M5×13 | ||
| 30228008 | 垫圈 | ||
| 20709017 | 滑块座 | ||
| 207S13009 | 螺钉M5×12 | ||
| 20628010 | 送布柄曲柄垫圈 | ||
| W02001 | 上弯针垫圈 | ||
| 20710008 | 偏心销 | ||
| 001027 | O型圈4×1.3 | ||
| 20626017 | 五线销 | ||
| 20701034 | 支架 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20704015 | 链线曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20705008 | 连杆 | ||
| 20703016 | 连杆套 | ||
| 207S12003 | 螺钉M5×13 | ||
| 30228008 | 垫圈 | ||
| 20702018 | 链线轴 | ||
| 3052201700 | 油封 | ||
| XXXXXX | 弯针 | ||
| 207S11028 | 螺钉M3.5×6.5 | ||
| 20701035 | 弯针架 | ||
| 207S20004 | 螺钉M5×13 | ||
| 20728002 | 垫片 | ||
| 207S15001 | 螺钉M4×7 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Screw | |
| 3 | 3 | Shaft | |
| 4 | 4 | Screw | |
| 5 | 5 | Base | |
| 6 | 6 | Screw | |
| 7 | 7 | Washer | |
| 8 | 8 | Spring | |
| 9 | 9 | Washer | |
| 10 | 10 | Gear | |
| 11 | 11 | Nut | |
| 12 | 12 | Screw | |
| 13 | 13 | Washer | |
| 14 | 14 | Lever | |
| 15 | 15 | Screw | |
| 16 | 16 | Lever | |
| 17 | 17 | Screw | |
| 18 | 18 | Shaft | |
| 19 | 19 | Screw | |
| 20 | 20 | Screw | |
| 21 | 21 | Bracket | |
| 22 | 22 | Screw | |
| 23 | 23 | Shaft |
Page 32 — 十七、二重环弯针机构 (2) /Chainstitch Looper Drive Mechanism (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1921200 | 20713039 | 过线管 | |
| 7019 | 207S11007 | 螺钉M4×7.5 | |
| 275032 | 20713040 | 过线管 | |
| 206115 | 20629003 | 过线管夹 | |
| 275033 | 2061205700 | 打线凸轮组件 | |
| 7066 | 207S20002 | 螺钉M4 | |
| 210307 | 20128015 | 垫圈 | |
| 7167 | 206S30015 | 螺钉M3 | |
| 137108 | 20612055 | 夹线片 | |
| 211388 | 30127016 | 弹簧 | |
| 275034 | 206S16004 | 紧线手柄 | |
| 275035 | 20612056 | 分线板 | |
| 7017 | S01031 | 螺钉M4×7.5 | |
| 275036 | 20629004 | 过线 | |
| 7008 | 207S11020 | 螺钉M3×4 | |
| 275039 | 20613017 | 过线 | |
| 7008 | 207S11020 | 螺钉M3×4 | |
| 179498-92 | 20612058 | 打线凸轮 | |
| 4554 | 207S14009 | 螺钉M3×3 | |
| 275037 | 20629005 | 卡簧 | |
| 275038 | 20713026 | 过线 | |
| 7019 | 207S11007 | 螺钉M4×7.5 | |
| 275033 | 2061205700 | 打线凸轮组件 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | CRANKSHAFT | |
| 2 | 2 | CRANKSHAFT PIN | |
| 3 | 3 | CONNECTING ROD | |
| 4 | 4 | CONNECTING ROD BEARING | |
| 5 | 5 | CRANKSHAFT GEAR | |
| 6 | 6 | CRANKSHAFT GEAR PIN | |
| 7 | 7 | CRANKSHAFT GEAR WASHER | |
| 8 | 8 | CRANKSHAFT GEAR BOLT | |
| 9 | 9 | CRANKSHAFT GEAR COVER | |
| 10 | 10 | CRANKSHAFT GEAR COVER BOLT | |
| 11 | 11 | CRANKSHAFT HOUSING | |
| 12 | 12 | CRANKSHAFT HOUSING BOLT | |
| 13 | 13 | CRANKSHAFT HOUSING BOLT | |
| 14 | 14 | CRANKSHAFT HOUSING COVER | |
| 15 | 15 | CRANKSHAFT HOUSING COVER BOLT | |
| 16 | 16 | CRANKSHAFT HOUSING COVER BOLT | |
| 17 | 17 | CRANKSHAFT HOUSING COVER BOLT | |
| 18 | 18 | CRANKSHAFT HOUSING COVER BOLT | |
| 19 | 19 | CRANKSHAFT HOUSING COVER BOLT | |
| 20 | 20 | CRANKSHAFT HOUSING COVER BOLT | |
| 21 | 21 | UPPER ARM SHAFT | |
| 22 | 22 | UPPER ARM SHAFT BOLT | |
| 23 | 23 | UPPER ARM SHAFT BOLT | |
| 24 | 24 | UPPER ARM SHAFT BOLT | |
| 25 | 25 | UPPER ARM SHAFT BOLT | |
| 26 | 26 | SPRING SUPPORT | |
| 27 | 27 | SPRING SUPPORT BOLT | |
| 28 | 28 | SPRING SUPPORT BOLT | |
| 29 | 29 | SPRING SUPPORT BOLT | |
| 30 | 30 | SPRING | |
| 31 | 31 | SPRING SUPPORT | |
| 32 | 32 | SPRING SUPPORT BOLT | |
| 33 | 33 | SPRING SUPPORT BOLT | |
| 34 | 34 | SPRING SUPPORT BOLT | |
| 35 | 35 | SPRING SUPPORT BOLT | |
| 36 | 36 | SPRING SUPPORT BOLT | |
| 37 | 37 | SPRING SUPPORT BOLT | |
| 38 | 38 | SPRING SUPPORT BOLT | |
| 39 | 39 | SPRING SUPPORT BOLT | |
| 40 | 40 | SPRING SUPPORT BOLT | |
| 41 | 41 | SPRING SUPPORT BOLT | |
| 42 | 42 | SPRING SUPPORT BOLT | |
| 43 | 43 | SPRING SUPPORT BOLT | |
| 44 | 44 | SPRING SUPPORT BOLT | |
| 45 | 45 | SPRING SUPPORT BOLT |
Page 34 — 十八、差动调节机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20705004 | 送料连杆 | |
| 2 | 20626003 | 曲柄销 | |
| 3 | 207S14007 | 螺钉M4×6 | |
| 4 | B08001 | 滚针轴承26×22×10 | |
| 5 | 20710001 | 偏心轮 | |
| 6 | 20710002 | 小偏心轮 | |
| 7 | 20712018 | 弹簧板 | |
| 8 | 207S14003 | 螺钉M3×4 | |
| 9 | 20710003 | 送布偏心 | |
| 10 | 207S14012 | 螺钉M5×5 | |
| 11 | 20710004 | 开针偏心凸轮 | |
| 12 | 20727003 | 弹簧 | |
| 13 | 207S20005 | 螺钉M2 | |
| 14 | 20709006 | 滑块 | |
| 15 | 20702005 | 开针掀钮轴 | |
| 16 | 20722005 | 油封 | |
| 17 | 001027 | 0型圈4×1.3 | |
| 18 | 20728001 | 垫片 | |
| 19 | 20727004 | 弹簧 | |
| 20 | H05018 | 卡簧3.5 | |
| 21 | 20705005 | 差动连杆 | |
| 22 | 207S20006 | 螺钉M5×5 | |
| 23 | 20629006 | 卡簧 | |
| 24 | 20704008 | 差动曲柄 | |
| 25 | S05018 | 螺钉M6×0.75×12 | |
| 26 | 20712019 | 差动杆 | |
| 27 | 207S20007 | 螺钉 | |
| 28 | 20702006 | 差动轴 | |
| 29 | 20622010 | 差动轴O型圈 | |
| 30 | 20627004 | 差动扳手定位簧 | |
| 31 | 20712020 | 调节板 | |
| 32 | 207S11008 | 螺钉M4×12 | |
| 33 | 20711007 | 垫圈 | |
| 34 | 2071600100 | 调节螺母 | |
| 35 | 207S30001 | 螺钉 | |
| 36 | 20728003 | 蝶形垫片 | |
| 37 | 207S16002 | 螺母 | |
| 38 | 207S11011 | 螺钉M4×5 | |
| 39 | 30228009 | 垫片 | |
| 40 | 20702007 | 调节杆 | |
| 41 | 20737001 | 标签 | |
| 42 | H05018 | 卡簧3.5 | |
| 43 | 20727005 | 弹簧 | |
| 44 | 20709007 | 螺母 | |
| 45 | 2070500400 | 送料连杆组件 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Tube | |
| 2 | 2 | Clip | |
| 3 | 3 | Plug | |
| 4 | 4 | Washer | |
| 5 | 5 | Screw | |
| 6 | 6 | Lever | |
| 7 | 7 | Screw | |
| 8 | 8 | Bracket | |
| 9 | 9 | Lever | |
| 10 | 10 | Screw | |
| 11 | 11 | Screw | |
| 12 | 12 | Washer | |
| 13 | 13 | Nut | |
| 14 | 14 | Tube | |
| 15 | 15 | Washer | |
| 16 | 16 | Screw | |
| 17 | 17 | Washer | |
| 18 | 18 | Washer | |
| 19 | 19 | Block | |
| 20 | 20 | Washer | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Washer | |
| 24 | 24 | Screw | |
| 25 | 25 | Washer | |
| 26 | 26 | Shaft | |
| 27 | 27 | Screw | |
| 28 | 28 | Washer | |
| 29 | 29 | Nut | |
| 30 | 30 | Screw | |
| 31 | 31 | Screw | |
| 32 | 32 | Bracket | |
| 33 | 33 | Screw | |
| 34 | 34 | Screw | |
| 35 | 35 | Block | |
| 36 | 36 | Bracket | |
| 37 | 37 | Screw | |
| 38 | 38 | Screw | |
| 39 | 39 | Screw | |
| 40 | 40 | Bracket | |
| 41 | 41 | Bracket | |
| 42 | 42 | Screw | |
| 43 | 43 | Shaft | |
| 44 | 44 | Bracket | |
| 45 | 45 | Screw | |
| 46 | 46 | Bracket |
Page 36 — 十九、送布机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20702008 | 送布轴 | ||
| H05009 | 开口挡圈7 | ||
| 20628023 | 送布油封 | ||
| 20628011 | 送料垫圈 | ||
| 2070400900 | 送料曲柄组件 | ||
| 207S13005 | 螺钉M6×14 | ||
| 207S11029 | 螺钉M3×6 | ||
| 20709010 | 滑块 | ||
| 20704011 | 送料曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20710005 | 偏心销 | ||
| N01004 | 螺母M5 | ||
| 20628010 | 送布曲柄垫圈 | ||
| 20710006 | 偏心轴 | ||
| 207S13001 | 螺钉 | ||
| 20722006 | 0型圈 | ||
| 20729002 | 卡簧 | ||
| 001026 | 0型圈11.5×1.5 | ||
| 20709011 | 滑柱 | ||
| 20708008 | 挡圈 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20705008 | 连杆 | ||
| 20703016 | 连杆套 | ||
| 207S12003 | 螺钉M5×13 | ||
| 30228008 | 垫圈 | ||
| 20706001 | 主送齿牙架 | ||
| XXXXXXXXXX | (三、四线)牙齿组件 | ||
| XXXXXXXXXX | 主送齿 | ||
| XXXXXXXXXX | 辅助齿 | ||
| 207S11029 | 螺钉M3×6 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| 20706002 | 差动齿牙架 | ||
| XXXXXXXXXX | 差动齿 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| 20709012 | 滑块 | ||
| 20701011 | 牙架挡块(左) | ||
| 207S13006 | 螺钉M4×9 | ||
| 20701012 | 牙架挡块(右) | ||
| 207S13006 | 螺钉M4×9 | ||
| 20701013 | 挡油板 | ||
| 20722007 | 牙架油封 | ||
| 207S13007 | 螺钉M4×5 | ||
| 20721009 | 牙架吸油管 | ||
| 20712055 | 油管夹 | ||
| 20712062 | 油管夹 | ||
| 207S11011 | 螺钉M4×5 | ||
| 2070600100 | 牙架组件 |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | JK-798-3,4 Series | ||
| 4 | JK-798-5(H) Series | ||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 13 | |||
| 14 | JK-798-3,4 Series | ||
| 15 | JK-798-5 Series | ||
| 16 | |||
| 17 | |||
| 18 | |||
| 20 | JK-798-5(H) Series | ||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | JK-798-5(II) Series | ||
| 27 | |||
| 28 | JK-798-3,4 Series | ||
| 29 | JK-798-5 Series | ||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 39 | JK-798-5(H) Series |
Page 38 — 二十、剪布机构/Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400041 | 上刀连杆 | ||
| 207S11016 | 螺钉M4×16 | ||
| 20704012 | 上刀曲柄 | ||
| 20704030 | 上刀曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20626003 | 曲柄销 | ||
| 207S14007 | 螺钉M4×6 | ||
| 30208001 | 挡块 | ||
| S10003 | 螺钉M6×0.75×12 | ||
| 20702009 | 上刀架轴 | ||
| 20726005 | 导向销 | ||
| 20701014 | 上刀座 | ||
| 20701036 | 上刀座 | ||
| 207S11012 | 螺钉M4×10 | ||
| XXXXXXXX | 上刀 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| 2070150 | 绞刀安装板 | ||
| XXXXXXXX | 切刀 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20712053 | 上刀凹角切 | ||
| 20712051 | 挡板 | ||
| S11025 | 螺钉M4×20 | ||
| W01011 | 垫圈 | ||
| 20701015 | 下刀架 | ||
| 20701037 | 下刀架 | ||
| S01010 | 螺钉M4×7.5 | ||
| 20712021 | 挡板 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20727006 | 弹簧 | ||
| 20712022 | 挡板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| XXXXXXXX | 下刀 | ||
| 20709013 | 压板 | ||
| 207S12004 | 螺钉M5×8 | ||
| 20701052 | 上刀座(H) |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | JK-798-4-514-43P2 | Except | |
| 20 | JK-798-4-514-43P2 | Except | |
| 21 | JK-798-4-514-43P2 | Except | |
| 27 | JK-798-5-516-A04 | Except | |
| 27 | JK-798-5-516-A04 | Except | |
| 22 | JK-798-3,4 Series | Series |
Page 40 — 二十一、拾压脚机构/Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20712023 | 拾压脚杠杆 | |
| 2 | 207S20008 | 拾压脚螺钉M10 | |
| 3 | 20727007 | 扭簧 | |
| 4 | 20712024 | 角板 | |
| 5 | 207S11012 | 螺钉M4×10 | |
| 6 | 207S11031 | 螺钉M4×24 | |
| 7 | N01004 | 螺母M5 | |
| 8 | 20712025 | 弯钩 | |
| 9 | 20612030 | 拾压脚小杠杆 | |
| 10 | 20608004 | 拾压脚复位圈 | |
| 11 | S05017 | 螺钉M6×0.75×13.5 | |
| 12 | 20627009 | 小杠杆扭簧 | |
| 13 | 20703014 | 压脚轴套 | |
| 14 | 207S11016 | 螺钉M4×16 | |
| 15 | 20702010 | 压脚轴 | |
| 16 | 20701016 | 压脚臂 | |
| 17 | 20626016 | 压脚臂连杆销 | |
| 18 | S10011 | 螺钉M4×0.5×4 | |
| 19 | XXXXXXXXXX | 压脚组件 | |
| 20 | 207S11030 | 螺钉M3.5×7.5 | |
| 21 | 20712026 | 压脚护手 | |
| 22 | 20712048 | 板簧 | |
| 23 | 207S11009 | 螺钉M3×4 | |
| 24 | 207S11020 | 螺钉M3×4 | |
| 25 | 20712027 | 垫片 | |
| 26 | 207S11032 | 螺钉M3.5×5.5 | |
| 27 | 20719054 | 压簧 | |
| 28 | 20702014 | 调节螺柱 | |
| 29 | 207S16003 | 螺母 | |
| 30 | 20612034 | 压杆扳手 | |
| 31 | 207S20009 | 螺钉 | |
| 32 | 20627010 | 压杆扳手扭簧 | |
| 33 | 20712030 | 挡板 | |
| 34 | 207S11007 | 螺钉M4×7.5 | |
| 35 | 20619005 | 割线刀 | |
| 36 | 207S11020 | 螺钉M3×4 |
Jack JK-798D (73 pages) — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-798 Parts Manual, featuring an image of the sewing machine and company branding.
- Page 2 (toc): This page contains the table of contents for the parts catalog, listing sections from "Machine Bed Frame" to "Standard measurement part list" with corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of machine components with reference numbers, part numbers, and model information for JK-798-5H Series and JK-798-3,4 Series.
- Page 4 (parts_list): This page lists parts for the Machine Bed Frame, including part numbers, descriptions, and quantities for different machine types (three-thread, four-thread, five-thread).
- Page 5 (diagram): This page displays a diagram of various components and hardware for the JK-798-5(H) and JK-798-3,4 Series sewing machines, including screws, covers, and internal parts, with reference numbers for identification.
- Page 6 (parts_list): This page lists parts for the machine cover, including part numbers, descriptions, and quantities for different models.
- Page 7 (diagram): This page displays a diagram of various machine parts, including screws, covers, and series-specific components, with reference numbers and part numbers for identification.
- Page 8 (parts_list): This page lists parts for the machine cover, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 9 (diagram): This page displays a diagram of various components for JK-798-5(H) Series and JK-798-3,4 Series sewing machines, with numbered parts and their corresponding series information.
- Page 10 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 11 (diagram): This page displays diagrams of sewing machine parts, specifically detailing components for 1-needle and 2-needle configurations, with numbered references for each part.
- Page 12 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 13 (diagram): This page displays diagrams of JK-798-5 and JK-798-5H series parts, with numbered callouts for individual components.
- Page 14 (parts_list): This page lists parts for the thread guide and thread takeup mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 15 (diagram): This page displays diagrams of parts for the JK-798-3,4 Series, with numbered callouts and corresponding part numbers and names.
- Page 16 (parts_list): This page lists parts for the Thread Guide and Thread Takeup (2) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 17 (diagram): This page displays a diagram of various sewing machine components, including lift mechanisms and associated hardware, with reference numbers and descriptions for standard, high, and extra-high lift configurations.
- Page 18 (parts_list): This page lists parts for the "Thread Guide and Thread Takeup (3)" section, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 19 (diagram): This page displays a diagram of various components for the JK-798-5(H) Series and JK-798-3,4 Series sewing machines, with numbered parts indicated.
- Page 20 (parts_list): This page lists parts for the Needle Drive Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities for different thread types.
- Page 21 (diagram): This page contains diagrams and parts lists for the JK-798-5(H) Series and JK-798-3,4 Series sewing machines, detailing components for 2-needle and 1-needle configurations.
- Page 22 (parts_list): This page lists parts for the Needle Drive Mechanism (3) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 23 (diagram): This page displays diagrams of parts for the JK-798-5(H) Series and JK-798-3,4 Series sewing machines, with numbered components indicated for reference.
- Page 24 (parts_list): This page lists parts for the Needle Drive Mechanism (4) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 25 (diagram): This page displays a diagram of various components for the JK-700-500 Series and JK-700-3,4 Series machines, with numbered parts and their corresponding part numbers and descriptions.
- Page 26 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 27 (diagram): This page displays a diagram of various machine parts, with reference numbers and some part numbers indicated. It includes labels for 'JK-798-3,4 Series' and 'JK-798-5(H) Series'.
- Page 28 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 29 (diagram): This page displays a diagram of various machine parts for the JK-798-5(H) Series, with numbered components indicating their positions.
- Page 30 (parts_list): This page lists parts for the Chainstitch Looper Drive Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 31 (diagram): This page displays a diagram of various machine parts for the JK-798-5(H) Series, with numbered components and their corresponding references.
- Page 32 (parts_list): This page lists parts for the Chainstitch Looper Drive Mechanism (2), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 33 (diagram): This page displays a diagram of various machine components, including a crankshaft assembly, levers, springs, and fasteners, with reference numbers for each part.
- Page 34 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for different machine thread configurations.
- Page 35 (diagram): This page contains a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as tubes, screws, brackets, and other hardware, with labels from 1 to 46.
- Page 36 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 37 (diagram): This page displays a diagram of various machine parts, with numbered references for components like screws, brackets, and series-specific parts for JK-798-3,4, JK-798-5(H), and JK-798-5(II) series machines.
- Page 38 (parts_list): This page lists parts for the Knife Drive mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 39 (diagram): This page displays a diagram of various machine parts, including screws, springs, levers, and brackets, with corresponding reference numbers and part numbers for identification.
- Page 40 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
Page 2 — CONTENTS
目录 CONTENTS 页码 一、机壳部分 Machine Bed Frame 1 二、机壳机罩部件(1) Cover(1) 3 三、机壳机罩部件(2) Cover(2) 5 四、主轴部件 Crankshaft Drive Mechanism 7 五、夹线部件 Thread Tension Mechanism 9 六、过线机构(1) Thread Guide and Thread Takeup(1) 11 七、过线机构(2) Thread Guide and Thread Takeup(2) 13 八、过线机构(3) Thread Guide and Thread Takeup(3) 15 九、针杆部件(1) Needle Drive Mechanism(1) 17 十一、针杆部件(3) Needle Drive Mechanism(3) 19 十二、针杆部件(4) Needle Drive Mechanism(4) 21 十三、上弯针部件 Upper Looper Drive Mechanism 23 十五、下弯针部件 Lower Looper Drive Mechanism 25 十六、二重环弯针机构(1) Chainstitch Looper Drive Mechanism(1) 27 十七、二重环弯针机构(2) Chainstitch Looper Drive Mechanism(2) 29 十八、差动调节机构 Feed Mechanism 31 十九、送布机构 Feed Mechanism 33 二十、剪布机构 Knife Drive Mechanism 35 二十一、抬压脚机构 Presser Foot Mechanism 37 二十二、供油机构(1) Lubrication Mechanism(1) 39 二十三、供油机构(2) Lubrication Mechanism(2) 41 二十四、HR装置机构部件 H.R.Device 43 二十五、线架部件 Thread Stand 45 二十六、托盘部件 Part For Semi-Submerged Installation 47 二十七、专用零件 Specific Parts 49 二十八、专用零件 Specific Parts 51 二十九、专用零件 Specific Parts 53 三十、专用零件 Specific Parts 55 三十一、专用零件 Specific Parts 57 三十二、专用零件 Specific Parts 59 三十三、倒回缝部件 Back Latch Components 61 三十四、798D I直驱部件/798D I Direct Drive Assemblies 63 三十五、随机附件部分 Accessories Assemblies 65 标准度量零件表Standard measurement part list 67
Page 3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 JK-798-5H Series JK-798-3,4 Series -1- jintex.in
Page 4 — 一、机壳部分/Machine Bed Frame
一、机壳部分/Machine Bed Frame 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 P03010 240333 销5×16 Pin 1 1 1 2 P03017 201002 销5×10 Pin 1 1 1 3 20711001 210194 导向套 Indicator guide 2 2 2 4 20713027 240325 过线管 Pipe 2 2 2 5 P03018 240299 销4×40 Pin 1 1 1 6 20628023 208173 送布油封 Plug 1 1 0 7 20701002 270008-91 下刀座 Bracket Assembly 1 1 1 8 207S13003 4511 螺钉M6×25 Screw 4 4 4 9 206S30001 270047 支柱 Bed pin 4 4 4 10 P03019 240342 销5×14 Pin 1 1 1 11 20126001 --- 工艺孔销 Pin 1 1 1 12 20726009 --- 厚料摇杆定位销 Pin 0 0 1(厚料) 13 20701001 270001-9S 机壳 Machine Bed Complete 1 1 1 14 20703001 --- 上轴右套 Sleeve 1 1 1 15 20703002 --- 上轴左套 Sleeve 1 1 1 16 20703003 --- 送布右轴套 Sleeve 1 1 1 17 20703004 --- 上刀轴左套 Sleeve 1 1 1 18 20703009 --- 上刀轴右套 Sleeve 1 1 1 19 20703006 --- 上弯针后轴套 Sleeve 1 1 1 20 20703007 --- 主轴轴套 Sleeve 1 1 1 21 20703008 --- 差动轴套 Sleeve 1 1 1 22 20703009 --- 上刀轴右套 Sleeve 4 4 6 注: 798D I 机型代号为13的机壳换成63页的798D I 直驱部件,其他零件同本页。 Note: Parts for 798DI with No. 13 should be read on Page 63, others are the same. -2- jintex.in
Page 5
JK-798-5(H) Series 11 JK-798-3,4 Series 32 一 嚴 jintex.in
Page 6 — 二、机壳机罩部件(1)/Cover (1)
二、机壳机罩部件(1)/Cover (1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 300164 270020-SD 上罩 Top Cover 1 1 1 2 207S11012 7020 螺钉M4×10 Screw 4 4 4 3 20722001 270021 密封垫 Gasket 1 1 1 4 20622003 240305 减震垫 Cushion Rubber 3 3 3 5 30111022 179107-05 油标盖 Oil sight window 1 1 1 6 20722002 240110 油塞 Plug 1 1 1 7 300165 270010-UD 侧盖 Side Cover 1 1 1 8 207S11012 7020 螺钉M4×10 Screw 2 2 2 9 207S11008 7021 螺钉M4×12 Screw 2 2 2 10 2070201100 274011-91 压脚杆组件 Presser Bar 1 1 1 11 20712043 270013 左前盖 Front Cover (left) 0 0 1 12 207S17001 7044 螺钉M4×10 Screw 1 1 1 13 20711003 270024-9U 皮带罩 Belt Cover Assembly 1 1 1 14 20622003 2403050 防震垫 Rubber Cute 1 1 1 15 S01013 7176 螺钉M6×14 Screw 3 3 3 16 20712001 270025 风扇罩 Fan Cover 1 1 1 17 207S11007 7019 螺钉M4×7.5 Screw 1 1 1 18 300166 270011-UD 右前盖 Front Cover (right) 1 1 1 19 20701006 270014 铰链 Hinge 1 1 1 20 207S11008 7021 螺钉M4×12 Screw 3 3 3 21 20626001 240043 铰链销 Pin 1 1 1 22 207S14001 4543 螺钉M4×4 Screw 2 2 2 23 20627001 240301 锁紧弹簧 Spring 1 1 1 24 20712002 270018 锁紧板 Latch 1 1 1 25 207S11009 7009 螺钉M3×2.5 Screw 1 1 1 26 207S14002 4574 螺钉M3×12 Screw 1 1 1 27 207S14003 4535 螺钉M3×4 Screw 1 1 1 28 20712003 270017 锁紧板 Latch 1 1 1 29 S01031 7017 螺钉M4×4.7 Screw 1 1 1 30 20612004 210044 前罩板卡簧1 Flat Spring 1 1 1 31 S01031 7017 螺钉M4×4.7 Screw 1 1 1 32 20712004 270012 左前盖 Front Cover (left) 2 2 0 33 207S11011 7018 螺钉M4×5 Screw 1 1 2 34 20712005 270028 前盖板 Side Cover 1 1 1 35 XXXXXXXXXX --- 穿线图 Threading diagram 0 0 1 36 XXXXXXXXXX --- 穿线图 Threading diagram 0 0 1 -4- jintex.in
Page 7
1 JK-798-4-514-43P2 除外 Except JK-798-4-514-43P2 37 36 34 33 35 24 25 38 40 31 32 30 27 JK-798-5(H) Series 26 JK-798-3,4 Series 29 28 23 8 17 16 18 19 4 3 5 6 7 14 13 15 22 21 20 宽(Wide) 窄(Narrow) 9 10 12 11 -5- jintex.in
Page 8 — 三、机壳机罩部件(2)/Cover (2)
三、机壳机罩部件(2)/Cover (2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量(Number) three-thread 三线 0 四线 four-thread 1 五线 five-thread 1 1 2071204400 270035 缝台组件(宽) Cloth Plate 1 2 2071200600 270037 缝台组件(窄) Cloth Plate 1 1 0 3 20603016 270042 套筒 Bushing 1 1 1 4 207S14007 4543 螺钉M4×4 Screw 1 1 1 5 W02004 止动垫圈6 Washer 1 1 1 6 30228008 204115 垫圈 Washer 1 1 1 7 207S11011 7018 螺钉M4×5 Screw 1 1 1 8 20622003 240305 减震垫 Cushion Rubber 1 1 1 9 20711018 270030-UB 侧盖组件(宽) Side Cover(Wide) 0 1 1 10 20711004 270031-UB 侧盖(窄) Side Cover(Narrow) 1 1 0 11 207S11013 7025 螺钉M4×17.5 Screw 1 1 1 12 W02002 201252 弹簧垫 Spring Washer 1 1 1 13 S01002 7018 螺钉M4×5 Screw 2 2 2 14 20528017 240343 垫片 Washer 2 2 2 15 20622003 240305 减震垫 Cushion Rubber 1 1 1 16 20612016 270049 下刀座前垫护板 Latch 1 1 1 17 207S11014 7180 螺钉M3.5×4.5 Screw 1 1 1 18 20712008 270015 挡板 Plate 1 1 1 19 207S17003 7170 螺钉M4×7.5 Screw 2 2 2 20 20627002 270043 连杆 Lever 1 1 1 21 206520006 7172 螺钉M4 Screw 1 1 1 22 20627003 270044 扭簧 Spring 1 1 1 23 20612009 270045 托架 Bracket 1 1 1 24 20712010 270019 布料挡板 Fabric Guide 1 1 1 25 207S11007 7019 螺钉M4×7.5 Screw 2 2 2 26 20711005 270032 防护罩 Eye Guide 1 1 0 27 20711019 270033 防护罩 Eye Guide 0 0 1 28 207S11015 7062 螺钉M3×6 Screw 2 2 2 29 W01011 垫圈3 Washer 2 2 2 30 20712011 270034 托架 Bracket 1 1 1 31 207S20002 7066 螺钉M4 Screw 1 1 1 32 20128015 210307 垫圈 Washer 2 2 2 33 20701084 270022 上盖 Bed Cover Plate Assy. 1 1 1 34 207S12001 7084 螺钉M4×8 Screw 5 5 5 35 20722003 270023 密封垫 Gasket 1 1 1 36 2071201200 270026 后窗板 Cover Plate 1 1 1 37 S01005 7020 螺钉M4×10 Screw 4 4 4 38 207S11016 7023 螺钉M4×16 Screw 1 1 1 39 N01001 4821 螺母 Nut 1 1 1 40 10122020 油盘垫 Oil Reservoir Cushion 1 1 1 一 裁 jintex.in
Page 9
JK-798-5(H) Series 28 1 標準・高 Standard lift High lift 2 超高 Extra-high lift JK-798-3,4 Series 7 JK-798-3,4 Series JK-798-5(H) Series 10 34 35 12 11 13 9 8 6 3 4 5 16 15 14 32 17 18 19 26 33 27 24 25 23 22 21 20 一 數 jintex.in
Page 10 — 四、主轴部件/Crankshaft Drive Mechanism
四、主轴部件/Crankshaft Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400046 270500A 主轴 Crankshaft 1 1 0 2 400045 270500C 主轴 Crankshaft 0 0 1 3 20712066 - 连杆垫片 Washer 2 2 2 4 20701008 270502 平衡块 Blance Weight 2 2 2 5 207S11017 7011 螺钉M3×8 Screw 4 4 4 6 20726002 270503 销 Pin 1 1 1 7 S10009 4541 螺钉M6×8 Screw 1 1 1 8 20712013 270508 前轴承盖 Cover 1 1 1 9 207S11007 7019 螺钉M4×7.5 Screw 3 3 3 10 001024 240340 0型圈40×1.8 O Ring 1 1 1 11 B04004 270507-91 轴承6202LB Ball Bearing 1 1 1 12 207S11018 4572 螺钉M5×10 Screw 1 1 1 13 207S14012 4514 螺钉M5×5 Screw 1 1 1 14 20729001 240335 卡簧 Ring 1 1 1 15 B04005 211526 轴承6203LLU Ball Bearing 1 1 1 16 B04005 211526 轴承6203LLU Ball Bearing 1 1 1 17 W03003 240306 垫圈32 Washer 4 4 4 18 20103002 - 主轴中轴套 Oil Seal 1 1 1 19 001025 210057 0型圈17×1.8 O Ring 1 1 1 20 001028 240307 0型圈41×1.8 O Ring 1 1 1 21 20708015 211528 后轴承盖 Right Cover 1 1 1 22 207S11012 7020 螺钉M4×10 Screw 3 3 3 23 2071100600 270505 风扇组合件 Fan Assy. 1 1 1 24 300167 270504-UD 皮带轮(刻好字) Machine Pulley 1 1 1 25 S10009 4541 螺钉M6×8 Screw 2 2 2 26 207S13004 4523 螺钉M6×35 Screw 1 1 1 27 W02004 204293 垫圈6 Spring Washer 1 1 1 28 20602002 270510 主轴接轴 Pin 0 0 0 29 20712046 270509 前轴承盖 Cover 0 0 0 30 207S17001 7044 螺钉M4×10 Screw 1 1 1 31 207S11012 7020 螺钉M4×10 Screw 0 0 0 32 20708003 272523A0 轴套 Spacer 1 1 1 33 20701009 270526 皮带轮罩 Cover 1 1 1 34 001037 - 0型圈30×1.2 O Ring 2 2 2 35 20725001 - 棘轮 Ratchet 1 1 1 注:798DI机型代号为23、24、25、26、27、33的零件换成63页的798DI直部零件,其他零件同本页。 Note: Parts for 798DI with No. 23, 24, 25, 26, 27, 33 should be read on Page63, others are the same. -8- jintex.in
Page 11
1 针 (1-needle) 2 针 (2-needle) 一叭 jintex.in
Page 12 — 五、夹线部件/Thread Tension Mechanism
五、夹线部件/Thread Tension Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400662 210529-9U 夹线器组件(红点) Tension Spring Assembly (Red) 1 1 1 2 301S16006 208447-UA 调压螺母 Knob 1 1 1 3 30111006 208448 调压止动套 Rachet 1 1 1 4 30111005 208450-UA 调压止动盖 Cup 1 1 1 5 400161 210319 夹线片 Tension Disc 2 2 2 6 20623008 208449 夹线片垫 Felt 1 1 1 7 201S30016 5082A 夹线螺钉 Screw Stud 1 1 1 8 20727011 20137 调压簧 Spring 1 1 1 9 400663 210531-9U 夹线器组件(蓝点) Tension Spring Assembly (Bule) 1 1 1 10 30127013 201086 调压簧(弱) Spring 1 1 1 11 20713001 27500 过线板 Thread Guide 1 1 1 12 207S11007 7019 螺钉M4×7.5 Screw 2 2 2 13 20712015 275001 过线板 Thread Guide 1 1 1 14 20612052 202849 前过线板 Tension Guide 3 4 4 15 206S11005 4009-HC 螺钉SM11/64×40 Screw 1 0 0 16 400661 210530-9U 夹线器组件(黄点) Tension Spring Assembly (Yellow) 0 1 1 17 400668 210532-9U 夹线器组件(绿点) Tension Spring Assembly (Green) 1 1 1 -10- jintex.in
Page 13 — JK-798-5(H) Series
JK-798-5(H) Series JK-798-5 10 JK-798-5H 12 14 JK-798-5 15 JK-798-5H 3 JK-798-5H 6 5 7 8 13 16 17 18 20 19 JK-798-5 Series 22 21 JK-798-5 JK-798-5H Series 4 11 一變 jintex.in
Page 14 — 六、过线机构(1)/Thread Guide and Thread Takeup (1)
六、过线机构(1)/Thread Guide and Thread Takeup (1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701029 275021 托架 Bracket 0 0 1 2 207S11019 7082 螺钉M4×7.5 Screw 0 0 2 3 20713020 275024 过线 Thread Guide 0 0 1 4 20713052 275049 挑线杆 Thread Takeup 0 0 1 5 207S14001 4543 螺钉M4×4 Screw 0 0 1 6 20701030 275026 托架 Bracket 0 0 1 7 S01031 7017 螺钉M4×4.7 Screw 0 0 1 8 20713021 275022 过线 Thread Guide 0 0 1 9 207S14001 4543 螺钉M4×4 Screw 0 0 1 10 20713022 275029 过线 Thread Guide 0 0 1 11 207S11015 7062 螺钉M3×6 Screw 0 0 2 12 20713050 275052 过线 Thread Guide 0 0 1 13 S01031 7017 螺钉M4×4.7 Screw 0 0 1 14 20713023 275028 过线 Thread Guide 0 0 1 15 20713051 275057 过线 Thread Guide 0 0 1 16 S01031 7017 螺钉M4×4.7 Screw 0 0 1 17 20713006 275011 托架 Bracket 0 0 1 18 20713007 275012 压线板 Thread Retainer 0 0 1 19 207S20003 7163 螺钉 Screw 0 0 1 20 20727002 240326 压簧 Spring 0 0 1 21 20713024 275027 挑线杆 Thread Takeup 0 0 1 22 207S11015 7062 螺钉M3×6 Screw 0 0 2 jintex.in
Page 15 — JK-798-3,4 Series
JK-798-3,4 Series JK-798-3 6 JK-798-4 7 1 JK-798-3 2 JK-798-4 3 4 5 9 10 11 13 12 JK-798-3,4 Series 8 14 JK-798-3 15 JK-798-4 一安联 jintex.in
Page 16 — 七、过线机构(2)/Thread Guide and Thread Takeup (2)
七、过线机构(2)/Thread Guide and Thread Takeup (2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) three-thread 三线 four-thread 四线 five-thread 五线 1 20713002 275013A 过线 Thread Guide 1 0 0 2 20713003 275013 过线 Thread Guide 0 1 0 3 207S14001 4543 螺钉M4×4 Screw 1 1 0 4 20701010 275015 托架 Bracket 1 1 0 5 207S11019 7082 螺钉M4×4.7 Screw 1 1 0 6 20713004 275018 过线 Thread Guide 1 0 0 7 20713005 275018A 过线 Thread Guide 0 1 0 8 207S11015 7062 螺钉M3×6 Screw 1 2 0 9 207S11019 7082 螺钉M4×4.7 Screw 1 1 0 10 20713006 275011 托架 Bracket Retainer 1 1 0 11 20713007 275012 压线板 Thread Retainer 1 1 0 12 207S20003 7163 螺钉 Screw 1 1 0 13 20727002 240326 压簧 Spring 1 1 0 14 20713008 275016 挑线杆 Thread Takeup 1 0 0 15 20713009 275017 挑线杆 Thread Takeup 0 1 0 -辅 jintex.in
Page 17
Standard lift.High lift Extra-high lift (11) Ultra-high lift (15) Standard lift High lift JK-798-4-514-M53 除外 Except JK-798-4-514-M53 (12) (14) (13) Extra-high lift Ultra-high lift (10) Extra-high lift Ultra-high lift (9) Standard lift High lift (2) (1) (4) (3) (5) (6) (7) (8) -雙 jintex.in
Page 18 — 八、过线机构(3)/Thread Guide and Thread Takeup (3)
八、过线机构(3)/Thread Guide and Thread Takeup (3) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) three-thread 三线 four-thread 四线 five-thread 五线 1 20712016 275004 托架 Bracket 1 1 1 2 20113015 275047 过线 Thread Guide 2 2 2 3 W01011006 螺钉 Screw 2 2 2 4 W01011 垫圈 Washer 2 2 2 5 20713010 275005 挑线架 Thread Takeup 1 1 1 6 207S11007 7019 螺钉M4×7.5 Screw 1 1 1 7 20713011 275006 过线 Thread Guide 1 1 1 8 207S11020 7008 螺钉M3×4 Screw 1 1 1 9 20713012 275007 过线 Thread Guide 1 1 0 10 20713053 275055 过线 Thread Guide 0 0 1 11 20713054 275056 过线 Thread Guide 0 0 1 12 20713015 275009 挑线架 Thread Takeup 1 1 0 13 20713055 275054 挑线架 Thread Takeup 0 0 1 14 207S11021 7012 螺钉M3.5×6 Screw 1 1 1 15 20713013 275010 过线 Thread Guide 1 1 1 jintex.in
Page 19
JK-798-5(H) Series JK-798-3,4 Series -17- jintex.in
Page 20 — 九、针杆部件(1)/Needle Drive Mechanism (1)
九、针杆部件(1)/Needle Drive Mechanism (1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量(Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400039 271000-92 针杆连杆 Connection 1 1 1 2 207S11016 7023 螺钉M4×16 Screw 2 2 2 3 20626003 271001 曲柄销 Pin 1 1 1 4 207S14007 4538 螺钉M4×6 Screw 1 1 1 5 20704001 271002-92 上轴曲柄 Crank 1 1 1 6 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 7 20702002 271003 上轴 Shaft 1 1 1 8 20708004 240308 挡圈 Collar 1 1 1 9 207S14001 4543 螺钉M4×4 Screw 2 2 2 10 20628014 208235 上刀架垫片 Washer 1 1 1 11 H05008 202577 挡圈8 Ring 1 1 1 12 20704002 271004-92 针杆曲柄组件 Lever 1 1 1 13 207S12002 7150 螺钉 Screw 1 1 1 14 2072600300 271022-91 曲柄销组件 Shaft Assembly 1 1 1 15 20726003 271008-T 曲柄销 Shaft 1 1 1 16 20523005 --- 油线 Oil wick 1 1 1 18 20702003 271006-T 针杆 Needle Bar 1 1 1 19 20703012 271007 针杆套 Bushing 1 1 1 20 207S14008 4546 螺钉M4×5 Screw 1 1 1 21 001026 201022 0型圈11.5×1.5 O Ring 1 1 1 22 20723003 179009-05 毛毡 Oil Felt 1 1 1 23 20708005 271009-92 挡圈 Ring 1 1 1 24 207S11023 7035 螺钉M3×6 Screw 1 1 1 25 20722004 240310 油塞 Plug 1 1 1 -18- jintex.in
Page 21
JK-798-5(H) Series 2 針 (2-needle) JK-798-5 3 JK-798-5-516-A04 Except JK-798-5-516-A04 1 2 5 JK-798-3,4 Series 1 針 (1-needle) JK-798-3 11 12 15 13 14 2 針 (2-needle) JK-798-4 7 6 8 9 10 一曳九 jintex.in
Page 22 — 十一、针杆部件(3)/Needle Drive Mechanism (3)
十一、针杆部件(3)/Needle Drive Mechanism (3) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 XXXXXXXXX XXXXXXXXX 针夹头 Needle Holder Assembly 0 0 1 2 207S14014 4554 螺钉M3×3 Screw 0 0 2 3 20713017 275030 过线 Thread Guide 0 0 1 4 207S11024 7120 螺钉M2×3 Screw 0 0 1 5 XXXXXXXXX XXXXXXXXX 机针 Needle 0 0 2 6 XXXXXXXXX XXXXXXXXX 机针 Needle 0 2 0 7 XXXXXXXXX XXXXXXXXX (四线)针夹头 Needle Holder 0 1 0 8 207S14014 4554 螺钉M3×3 Screw 0 2 0 9 20713018 275019C 过线 Thread Guide 0 1 0 10 207S11024 7120 螺钉M2×3 Screw 0 1 0 11 XXXXXXXXX XXXXXXXXX (三线)针夹头 Needle Holder Assembly 1 0 0 12 207S14014 4554 螺钉M3×3 Screw 1 0 0 13 20713038 275019A 过线(一针) Thread Guide 1 0 0 14 207S11024 7120 螺钉M2×3 Screw 1 0 0 15 XXXXXXXXX XXXXXXXXX 机针 Needle 1 0 0 jintex.in
Page 23
JK-798-5(H) Series JK-798-3,4 Series 一變 jintex.in
Page 24 — 十二、针杆部件(4)/Needle Drive Mechanism (4)
十二、针杆部件(4)/Needle Drive Mechanism (4) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 XXXXXXXX XXXXXXXX 针板 Needle Plate 0 0 1 2 207S17006 7170 螺钉M4×7.5 Screw 0 0 2 3 20709002 271010 针板垫块(前) Bracket 0 0 1 4 207S11007 7019 螺钉M4×7.5 Screw 0 0 2 5 20622003 240305 防震垫 Cushion Rubber 0 0 2 6 20709003 271011 针板垫块(后) Bracket 0 0 1 7 207S11007 7019 螺钉M4×7.5 Screw 0 0 2 8 XXXXXXXX XXXXXXXX 链套针护针 Needle Guard 0 0 1 9 S01027 7010 螺钉M3×6 Screw 0 0 2 10 XXXXXXXX XXXXXXXX 护针(后) Needle Guard 0 0 1 11 207S12005 7259 螺钉 Screw 0 0 1 12 W03004 240222 垫圈3 Spring 0 0 1 13 207S11002 7165 螺钉M3 Screw 0 0 1 14 XXXXXXXX XXXXXXXX 机针护针(前) Needle Guard 0 0 1 15 207S11007 7019 螺钉M4×7.5 Screw 0 0 1 16 XXXXXXXX XXXXXXXX 机针护针(后) Needle Guard 0 0 1 17 S01027 7010 螺钉M3×6 Screw 0 0 2 18 20701033 271013 托架 Bracket 0 0 1 19 207S11003 7114 螺钉M4×10 Screw 0 0 2 20 XXXXXXXX XXXXXXXX 针板 Needle Plate 0 0 1 21 207S17006 7170 螺钉M4×7.5 Screw 2 2 0 22 20709002 271010 针板垫块(前) Bracket 1 1 0 23 207S11007 7019 螺钉M4×7.5 Screw 2 2 0 24 20622003 240305 防震垫 Cushion Rubber 2 2 0 25 20709003 271011 针板垫块(后) Bracket 1 1 0 26 207S11007 7019 螺钉M4×7.5 Screw 2 2 0 27 XXXXXXXX XXXXXXXX 护针(前) Needle Guard 1 1 0 28 207S11007 7019 螺钉M4×7.5 Screw 1 1 0 29 XXXXXXXX XXXXXXXX 护针(后) Needle Guard 1 1 0 30 207S12005 7259 螺钉 Screw 1 1 0 31 W03004 240222 垫圈3 Spring 1 1 0 32 207S11002 7165 螺钉M3 Screw 1 1 0 - 蔓 jintex.in
Page 25 — JK-700-500 Series JK-700-3,4 Series
JK-700-500 Series JK-700-3,4 Series 11 13 JK-798-5-516-A04 JK-798-4-514-M03,43P2,M53,M54 除外 Except JK-798-5-516 JK-798-4-514-M03,43P2,M53,M54 Standard lift High lift Extra-high lift 4 5 6 1 2 3 12 29 33 25 30 31 32 26 28 27 22 20 19 33 21 15 14 16 18 17 -23- jintex.in
Page 26 — 十三、上弯针部件/Upper Looper Drive Mechanism
十三、上弯针部件/Upper Looper Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400043 271500-92 弯针连杆 Connection 1 1 1 2 207S11016 7023 螺钉M4×16 Screw 2 2 2 3 207S11005 7022 螺钉M4×17.5 Screw 2 2 2 4 20704003 271502-92 上弯针球柄 Crank 1 0 0 5 400037 271503-92 上弯针球柄 Crank 1 1 1 6 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 7 20702004 271504 下弯针轴 Shaft 1 1 1 8 20628006 240338 垫圈 Washer 1 1 1 9 207S11004 7174 螺钉M4×10 Screw 1 1 1 10 W02001 303067 上弯针垫圈 Spring Washer 1 1 0 11 20708006 210122 衬套 Spacer 0 1 0 12 20622019 210586A 油封 Oil Seal 1 1 1 13 20708007 210122A 衬套A Spacer 1 0 1 14 20705003 271505-92 连杆 Lever 1 1 1 15 207S12002 7150 螺钉 Screw 1 1 1 16 20726004 179137-05 销钉销 Pin Assy. 1 1 1 17 20523005 JK788油线 Oil Weak 1 1 1 18 207S14010 4545 螺钉M3×4 Screw 1 1 1 19 2070403400 271517-91 上弯针滑杆组件 Upper Looper Holder Assy. 1 1 1 20 20623005 179130-05 上弯针滑杆套油毡 Felt 1 1 1 21 207S11025 7054 螺钉M3.5×6.7 Screw 1 1 1 22 XXXXXXXX XXXXXXXX 上弯针 Upper Looper 1 1 1 23 -- -- -- -- -- -- 24 -- -- -- -- -- -- 25 207S11026 4510 螺钉M6×16 Screw 2 2 2 26 400040 271511 盖板 Cover 1 1 1 27 207S17004 7039 螺钉M2.5×6 Screw 1 1 1 28 207S11027 7033 螺钉M2.5×8 Screw 1 1 1 29 20123021 JK795油线 Oil Wick 1 1 1 30 20723005 2745890 吸油棉 Felt 1 1 1 31 20712017 2745880 压板 Bracket 1 1 1 32 207S11020 7008 螺钉M3×4 Screw 1 1 1 33 20701051 271510B 上弯针滑块座 Upper Looper Bracket 1 1 1 -24- jintex.in
Page 27
JK-798-3,4 Series 4 5 JK-798-5(H) Series 17 12 18 1 2 3 10 11 13 15 14 16 8 9 7 6 - 雙 jinttex.in
Page 28 — 十五、下弯针部件/Lower Looper Drive Mechanism
十五、下弯针部件/Lower Looper Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400043 271500-92 弯针连杆 Connection 1 1 1 2 207S11016 7023 螺钉M4×16 Screw 2 2 2 3 207S11005 7022 螺钉M4×17.5 Screw 2 2 2 4 400329 27200-92 下弯针球齿曲柄 Crank 1 1 0 5 S05018 4533 螺钉M6×0.75×12 Screw 1 1 0 6 20702004 271504 下弯针轴 Shaft 1 1 1 7 20628006 240338 垫圈 Washer 1 1 1 8 207S11004 7174 螺钉M4×10 Screw 1 1 1 9 W02001 303067 上弯针垫圈 Spring Washer 1 1 1 10 20622019 210586A 油封 Oil Seal 1 1 1 11 XXXXXXXX XXXXXXXX 下弯针 Lower Looper 1 1 1 12 207S14006 4514 螺钉M5×5 Screw 0 0 1 13 207S11028 7168 螺钉M3.5×6.5 Screw 1 1 1 14 20704007 272001-92 下弯针架 Lower Looper Holder 1 1 1 15 207S20004 7055 螺钉M4×13 Screw 1 1 1 16 207S15001 7169 螺钉M4×7 Screw 1 1 1 17 400388 273511-92 下弯针球齿曲柄 Crank 0 0 1 18 S05018 4533 螺钉M6×0.75×12 Screw 0 0 1 jintex.in
Page 29
JK-798-5(H) Series 一 覽 jintex.in
Page 30 — 十六、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism (1)
十六、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism (1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20705006 273500 连杆 Connection 0 0 1 2 B08002 205015 滚针k22×18×8 Needle Bearing 0 0 1 3 20704014 273501 曲柄 Crank 0 0 1 4 20703016 179160-05 连杆套 Bushing 0 0 1 5 207S12003 7056 螺钉M5×13 Screw 0 0 1 6 30228008 204115 垫圈 Washer 0 0 1 7 20709017 273502 滑块座 Slider 0 0 1 8 207S13009 4531 螺钉M5×12 Screw 0 0 1 9 20628010 240062 送布柄曲柄垫圈 Washer 0 0 1 10 W02001 303067 上弯针垫圈 Spring Washer 0 0 1 11 20710008 252515 偏心销 Pin 0 0 1 12 001027 208949 O型圈4×1.3 O Ring 0 0 1 13 20626017 273504 五线销 Shaft 0 0 1 14 20701034 273505-92 支架 Holder 0 0 1 15 S05018 4533 螺钉M6×0.75×12 Screw 0 0 1 16 20704015 273509-92 链线曲柄 Crank 0 0 1 17 S05018 4533 螺钉M6×0.75×12 Screw 0 0 1 18 20705008 272517 连杆 Link 0 0 1 19 20703016 179160-05 连杆套 Bushing 0 0 1 20 207S12003 7056 螺钉M5×13 Screw 0 0 1 21 30228008 204115 垫圈 Washer 0 0 1 22 20702018 273506 链线轴 Shaft 0 0 1 23 3052201700 204052A 油封 Oil Seal 0 0 1 24 XXXXXX XXXXXX 弯针 Double Chainstitch Looper 0 0 1 25 207S11028 7168 螺钉M3.5×6.5 Screw 0 0 1 26 20701035 273510-92 弯针架 Looper Holder 0 0 1 27 207S20004 7055 螺钉M5×13 Screw 0 0 1 28 20728002 240337 垫片 Spacer 0 0 1 29 207S15001 7169 螺钉M4×7 Screw 0 0 1 jintex.in
Page 31
JK-798-5(H) Series -29- jintex.in
Page 32 — 十七、二重环弯针机构 (2) /Chainstitch Looper Drive Mechanism (2)
十七、二重环弯针机构 (2) /Chainstitch Looper Drive Mechanism (2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20713039 1921200 过线管 Thread Guide 0 0 1 2 207S11007 7019 螺钉M4×7.5 Screw 0 0 1 3 20713040 275032 过线管 Thread Guide 0 0 1 4 20629003 206115 过线管夹 Holder 0 0 1 5 2061205700 275033 打线凸轮组件 Looper Thread Takeup Assy 0 0 1 6 207S20002 7066 螺钉M4 Screw 0 0 1 7 20128015 210307 垫圈 Washer 0 0 1 8 206S30015 7167 螺钉M3 Screw 0 0 1 9 20612055 137108 夹线片 Tension Disc 0 0 2 10 30127016 211388 弹簧 Spring 0 0 1 11 206S16004 275034 紧线手柄 Knob 0 0 1 12 20612056 275035 分线板 Thread Guide 0 0 1 13 S01031 7017 螺钉M4×7.5 Screw 0 0 1 14 20629004 275036 过线 Thread Guide 0 0 1 15 207S11020 7008 螺钉M3×4 Screw 0 0 1 16 20613017 275039 过线 Thread Guide 0 0 1 17 207S11020 7008 螺钉M3×4 Screw 0 0 1 18 20612058 179498-92 打线凸轮 Looper Thread Takeup 0 0 1 19 207S14009 4554 螺钉M3×3 Screw 0 0 2 20 20629005 275037 卡簧 Spring 0 0 1 21 20713026 275038 过线 Tread Guide 0 0 1 22 207S11007 7019 螺钉M4×7.5 Screw 0 0 1 23 2061205700 275033 打线凸轮组件 Looper Thread Takeup Assy 0 0 1 -30- jintex.in
Page 33
一 吊 臂 jintex.in
Page 34 — 十八、差动调节机构/Feed Mechanism
十八、差动调节机构/Feed Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20705004 272500 送料连杆 Connection 1 1 1 2 20626003 271001 曲柄销 Pin 1 1 1 3 207S14007 4538 螺钉M4×6 Screw 1 1 1 4 B08001 240012 滚针轴承26×22×10 Needle Bearing 1 1 1 5 20710001 272501 偏心轮 Eccent 1 1 1 6 20710002 210129 小偏心轮 Feed Eccent 1 1 1 7 20712018 210130 弹簧板 Flat Spring 1 1 1 8 207S14003 4535 螺钉M3×4 Screw 2 2 2 9 20710003 272506-91 送布偏心 Regulator 1 1 1 10 207S14012 4514 螺钉M5×5 Screw 2 2 2 11 20710004 272504-91 开针偏心凸轮 Eccent Assembly 1 1 1 12 20727003 272503 弹簧 Spring 1 1 1 13 207S20005 7038 螺钉M2 Screw 1 1 1 14 20709006 272502 滑块 Ratchet 1 1 1 15 20702005 272509 开针掀钮轴 Push Button 1 1 1 16 20722005 240315 油封 Gaket 1 1 1 17 001027 208949 0型圈4×1.3 0 Ring 1 1 1 18 20728001 240314 垫片 Washer 1 1 1 19 20727004 240317 弹簧 Spring 1 1 1 20 H05018 200555 卡簧3.5 Ring 1 1 1 21 20705005 272529 差动连杆 Link 1 1 1 22 207S20006 7058 螺钉M5×5 Screw 1 1 1 23 20629006 202522 卡簧 Ring 1 1 1 24 20704008 272530A92 差动曲柄 Lever 1 1 1 25 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 26 20712019 272532 差动杆 Lever 1 1 1 27 207S20007 7161 螺钉 Screw 1 1 1 28 20702006 272533A 差动轴 Shaft 1 1 1 29 20622010 204185 差动轴O型圈 0 Ring 1 1 1 30 20627004 272534 差动扳手定位簧 Spring 1 1 1 31 20712020 272535 调节板 Regulator Plate 1 1 1 32 207S11008 7021 螺钉M4×12 Screw 2 2 2 33 20711007 240321 垫圈 Spacer 2 2 2 34 2071600100 179202-25 调节螺母 Nut 1 1 1 35 207S30001 179202-25-02 螺钉 Screw 1 1 1 36 20728003 7059 蝶形垫片 Spring Washer 1 1 1 37 207S16002 211301 螺母 Stopper 2 2 2 38 207S11011 252658 螺钉M4×5 Screw 2 2 2 39 30228009 7018 垫片 Washer 2 2 2 40 20702007 303448 调节杆 Adjusting Bar 1 1 1 41 20737001 272538A 标签 Seal 1 1 1 42 H05018 240322 卡簧3.5 Ring 1 1 1 43 20727005 210533 弹簧 Spring 1 1 1 44 20709007 272539A 螺母 Pin 1 1 1 45 2070500400 - 送料连杆组件 Connection 1 1 1 一吊麦 jintex.in
Page 35
一吊联 jintex.in
Page 36 — 十九、送布机构/Feed Mechanism
十九、送布机构/Feed Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20702008 272516 送布轴 Shaft 1 1 1 2 H05009 205061 开口挡圈7 Ring 1 1 1 3 20628023 208173 送布油封 Plug 1 1 1 4 20628011 240311 送料垫圈 Washer 2 2 2 5 2070400900 272510-91 送料曲柄组件 Crank 1 1 1 6 207S13005 4534 螺钉M6×14 Screw 1 1 1 7 207S11029 7010 螺钉M3×6 Screw 2 2 2 8 20709010 272518 滑块 Block 1 1 1 9 20704011 272514-92 送料曲柄 Crank 1 1 1 10 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 11 20710005 272515 偏心销 Pin 1 1 1 12 N01004 4805 螺母M5 Nut 1 1 1 13 20628010 240062 送布曲柄垫圈 Washer 1 1 1 14 20710006 272525 偏心轴 Pin 1 1 1 15 207S13001 7238 螺钉 Screw 1 1 1 16 20722006 240318 0型圈 Gasket 1 1 1 17 20729002 240319 卡簧 Ring 1 1 1 18 001026 201022 0型圈11.5×1.5 O Ring 1 1 1 19 20709011 272526 滑柱 Block 1 1 1 20 20708008 240303 挡圈 Collar 1 1 1 21 207S14001 4543 螺钉M4×4 Screw 2 2 2 22 20705008 272517 连杆 Link 1 1 1 23 20703016 179160-05 连杆套 Bushing 1 1 1 24 207S12003 7056 螺钉M5×13 Screw 1 1 1 25 30228008 204115 垫圈 Washer 1 1 1 26 20706001 主送齿牙架 Main Feed Bar 1 1 1 27 XXXXXXXXXX XXXXXXXXXX (三、四线)牙齿组件 Main Feed Dog Complete 1 1 1 28 XXXXXXXXXX XXXXXXXXXX 主送齿 Main Feed Dog 1 1 1 29 XXXXXXXXXX XXXXXXXXXX 辅助齿 Auxiliary 1 1 1 30 207S11029 7010 螺钉M3×6 Screw 1 1 1 31 S01029 7013 螺钉M3.5×7.5 Screw 1 1 1 32 20706002 272528 差动齿牙架 Differential Feed Bar 1 1 1 33 XXXXXXXXXX XXXXXXXXXX 差动齿 Differential Feed Dog 1 1 1 34 S01029 7013 螺钉M3.5×7.5 Screw 1 1 1 35 20709012 272524 滑块 Block 1 1 1 36 20701011 272519 牙架挡块(左) Feed Bar 1 1 1 37 207S13006 7110 螺钉M4×9 Screw 2 2 2 38 20701012 272520 牙架挡块(右) Feed Bar 1 1 1 39 207S13006 7110 螺钉M4×9 Screw 2 2 2 40 20701013 272522 挡油板 Feed Bar Oil Seal 1 1 1 41 20722007 272521 牙架油封 Oil Seal 2 2 2 42 207S13007 4573 螺钉M4×5 Screw 2 2 2 43 20721009 牙架吸油管 Tube 1 1 0 44 20712055 油管夹 Clamp 1 1 0 44 20712062 油管夹 Clamp 0 0 1 45 207S11011 7018 螺钉M4×5 Screw 1 1 1 46 2070600100 牙架组件 Feed Bar Assy. 1 1 1 一吊踏 jintex.in
Page 37
3 JK-798-3,4 Series 4 JK-798-5(H) Series 5 6 7 8 9 10 13 14 JK-798-3,4 Series 15 JK-798-5 Series 16 17 18 20 JK-798-5(H) Series 21 22 23 24 25 26 JK-798-5(II) Series 27 28 JK-798-3,4 Series 29 JK-798-5 Series 30 31 32 33 34 35 36 37 38 39 JK-798-5(H) Series -35- jintex.in
Page 38 — 二十、剪布机构/Knife Drive Mechanism
二十、剪布机构/Knife Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400041 273000-92 上刀连杆 Connection 1 1 1 2 207S11016 7023 螺钉M4×16 Screw 2 2 2 3 20704012 273001-92 上刀曲柄 Crank 1 1 0 4 20704030 273002-92 上刀曲柄 Crank 0 0 1 5 S05018 4533 螺钉M6×0.75×12 Screw 1 1 1 6 20626003 271001 曲柄销 Pin 1 1 1 7 207S14007 4538 螺钉M4×6 Screw 1 1 1 8 30208001 240235-92 挡块 Collar 2 2 2 9 S10003 4547 螺钉M6×0.75×12 Screw 2 2 2 10 20702009 273003 上刀架轴 Upper Knife Lever 1 1 1 11 -- -- -- -- -- -- 12 -- -- -- -- -- -- 13 20726005 273006 导向销 Pin 1 1 1 14 20701014 179712-05 上刀座 Upper Knife Clamp 1 1 0 15 20701036 179713-05 上刀座 Upper Knife Clamp 0 0 1 16 207S11012 7020 螺钉M4×10 Screw 1 1 1 17 XXXXXXXX XXXXXXXX 上刀 Upper Knife 1 1 1 18 S01029 7013 螺钉M3.5×7.5 Screw 1 1 1 19 2070150 210757 绞刀安装板 Angled Upper Knife Clamp 0 0 1 20 XXXXXXXX XXXXXXXX 切刀 Angled Upper 0 0 1 21 207S11020 7008 螺钉M3×4 Screw 0 0 1 22 20712053 210758 上刀凹角切 Angled Upper Knife Gib 0 0 1 23 20712051 179341-15 挡板 Waste Guard 0 0 1 24 -- -- -- -- -- -- 25 -- -- -- -- -- -- 26 S11025 -- 螺钉M4×20 Screw 0 0 1 27 W01011 -- 垫圈 Washer 0 0 1 28 20701015 273008 下刀架 Lower Knife Holder 1 1 0 29 20701037 273009 下刀架 Lower Knife Holder 0 0 1 30 S01010 7019 螺钉M4×7.5 Screw 1 1 1 31 20712021 273010 挡板 Lower Knife Holder Guard 1 1 1 32 207S11019 7082 螺钉M4×7.5 Screw 2 2 2 33 20727006 240324 弹簧 Spring 1 1 1 34 20712022 273007 挡板 Plate 1 1 1 35 207S11007 7019 螺钉M4×7.5 Screw 1 1 1 36 XXXXXXXX XXXXXXXX 下刀 Lower Knife 1 1 1 37 20709013 273012 压板 Lower Knife Clamp 1 1 1 38 207S12004 7173 螺钉M5×8 Screw 1 1 1 39 20701052 179712-05 上刀座(H) Upper Knife Clamp (H) 0 0 1 -36- jintex.in
Page 39
JK-798-4-514-43P2 除外 Except JK-798-4-514-43P2 JK-798-5-516-A04 除外 Except JK-798-5-516-A04 JK-798-3,4 Series 一吊載 jintex.in
Page 40 — 二十一、拾压脚机构/Presser Foot Mechanism
二十一、拾压脚机构/Presser Foot Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20712023 274007 拾压脚杠杆 Lever 1 1 1 2 207S20008 7060 拾压脚螺钉M10 Screw 1 1 1 3 20727007 274008 扭簧 Spring 1 1 1 4 20712024 274009 角板 Stopper 1 1 1 5 207S11012 7020 螺钉M4×10 Screw 2 2 2 6 207S11031 7175 螺钉M4×24 Screw 1 1 1 7 N01004 4805 螺母M5 Nut 1 1 1 8 20712025 274006 弯钩 Link 1 1 1 9 20612030 274004 拾压脚小杠杆 Lever 1 1 1 10 20608004 274003-92 拾压脚复位圈 Collar 1 1 1 11 S05017 4554 螺钉M6×0.75×13.5 Screw 1 1 1 12 20627009 274005 小杠杆扭簧 Spring 1 1 1 13 20703014 274002 压脚轴套 Bushing 1 1 1 14 207S11016 7023 螺钉M4×16 Screw 1 1 1 15 20702010 274001 压脚轴 Shaft 1 1 1 16 20701016 274000-B 压脚臂 Presser Arm 1 1 1 17 20626016 208549 压脚臂连杆销 Pin 1 1 1 18 S10011 4594 螺钉M4×0.5×4 Screw 1 1 1 19 XXXXXXXXXX XXXXXXXXXX 压脚组件 Presser Foot Assy. 20 207S11030 7013 螺钉M3.5×7.5 Screw 1 1 1 21 20712026 274033 压脚护手 Finge Guard 1 1 1 22 20712048 274020 板簧 Stopper 1 1 1 23 207S11009 7009 螺钉M3×4 Screw 1 1 1 24 207S11020 7008 螺钉M3×4 Screw 1 1 1 25 20712027 274019 垫片 Flat Spring 1 1 1 26 207S11032 5089 螺钉M3.5×5.5 Screw 1 1 1 27 20719054 208773A 压簧 Spring 1 1 1 28 20702014 274014 调节螺柱 Adjusting Screw 1 1 1 29 207S16003 274015 螺母 Nut 1 1 1 30 20612034 274016 压杆扳手 Lever 1 1 1 31 207S20009 7171 螺钉 Screw 1 1 1 32 20627010 274017 压杆扳手扭簧 Spring 1 1 1 33 20712030 274010 挡板 Stopper 1 1 1 34 207S11007 7019 螺钉M4×7.5 Screw 1 1 1 35 20619005 202451 割线刀 Chain Cutter 1 1 1 36 207S11020 7008 螺钉M3×4 Screw 1 1 1 jintex.in
