| Ref | Part number | Part name | Qty |
|---|---|---|---|

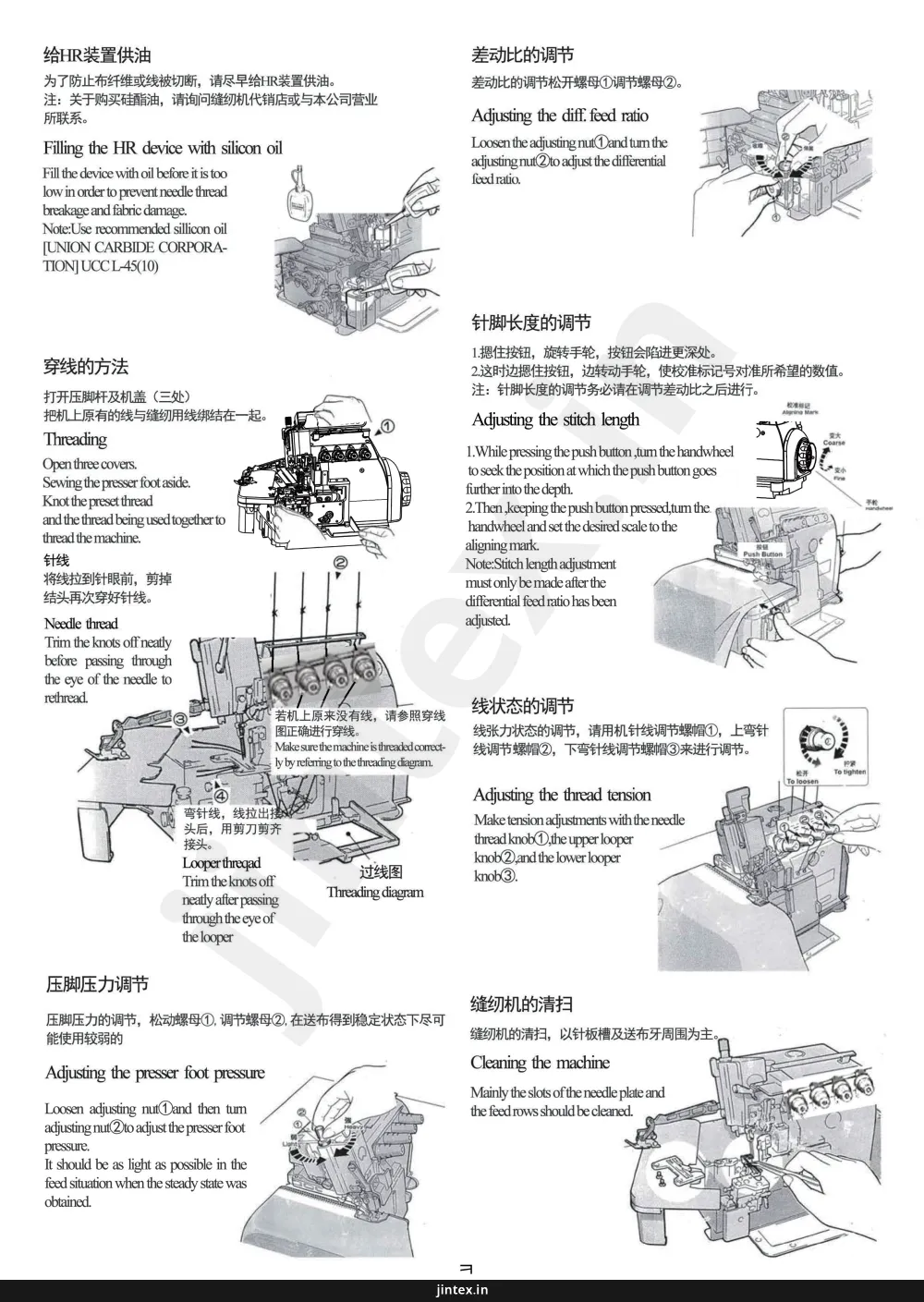

| UCCL-45(10) | sillicon oil |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC×27 | Standard needle:Organ | ||
| DC×5 | Safety, overlock series:Organ |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 3/4 Series | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P03017 | 销5×10 | ||
| 20703006 | 上弯针后轴套 | ||
| 20703009 | 上刀轴右套 | ||
| 20628023 | 送布轴油封 | ||
| 20701002 | 下刀座 | ||
| 207S13003 | 螺钉M6×25 | ||
| P03018 | 销4×40 | ||
| 20703004 | 上刀轴左套 | ||
| 206S30001 | 支柱 | ||
| 20126001 | 工艺孔销 | ||
| 20703008 | 差动轴套 | ||
| 20703007 | 主轴轴套 | ||
| 20703003 | 送布右轴套 | ||
| 20703002 | 上轴左套 | ||
| 20703001 | 上轴右套 | ||
| P03010 | 销5×16 | ||
| 302742 | 机壳(喷漆) | ||
| 20713027 | 过线管 | ||
| 20737003 | 机型牌 | ||
| R03001 | 铆钉 | ||
| P03019 | 开口销 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BRACKET | |
| 3 | 3 | COVER | |
| 4 | 4 | COVER | |
| 5 | 5 | CAP | |
| 6 | 6 | CAP | |
| 7 | 7 | GASKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | COVER | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SCREW | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | PLATE | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 17 | 17 | SHAFT | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 20 | 20 | SHAFT | |
| 21 | 21 | SPRING | |
| 22 | 22 | 3/4 Series | |
| 23 | 23 | 5 Series | |
| 24 | 24 | COVER | |
| 25 | 25 | SCREW | |
| 26 | 26 | BRACKET | |
| 27 | 27 | PLATE | |
| 28 | 28 | BRACKET | |
| 29 | 29 | BRACKET | |
| 30 | 30 | SCREW | |
| 31 | 31 | SCREW | |
| 32 | 32 | WASHER | |
| 33 | 33 | SCREW | |
| 34 | 34 | GASKET | |
| 35 | 35 | GEAR |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20702017 | 压脚杆 | ||
| 207S17005 | 螺钉M4×10 | ||
| 300165 | 侧盖 | ||
| 20722202 | 密封垫 | ||
| 20722002 | 油塞 | ||
| 20711055 | 油标盖 | ||
| 21022003 | 油标盖垫 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20701040 | 上盖 | ||
| 20612004 | 前罩板卡簧 | ||
| 207S11008 | 螺钉M4×12 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20712003 | 锁紧板 | ||
| 20712005 | 前盖板 | ||
| 20712002 | 锁紧板 | ||
| 207S11009 | 螺钉M3×2.5 | ||
| 20626001 | 铰链销 | ||
| 300166 | 右前盖 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20701006 | 铰链 | ||
| 20627001 | 铰链销弹簧 | ||
| 20712004 | 左前盖 | ||
| 20712043 | 左前盖 | ||
| 207S11011 | 螺钉M4×5 | ||
| 207S14003 | 螺钉M3×4 | ||
| 207S14002 | 螺钉M3×12 | ||
| XXXXXXXX | 穿线图 | ||
| XXXXXXXX | 穿线图 | ||
| 2013001000 | LED灯组件 | ||
| 20628012 | 大垫片 | ||
| 207S11007 | 螺钉 | ||
| 20711210 | R型线夹 | ||
| 20612062 | 小垫片 | ||
| 21022007 | 油封 | ||
| 21012018 | 油封垫 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | COVER | |
| 3 | 3 | BRACKET | |
| 4 | 4 | SCREW | |
| 5 | 5 | COVER | |
| 6 | 6 | BRACKET | |
| 7 | 7 | WASHER | |
| 8 | 8 | BRACKET | |
| 9 | 9 | 3/4 Series | |
| 10 | 10 | 5 Series | |
| 11 | 11 | SCREW | |
| 12 | 12 | WASHER | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SCREW | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | SPRING | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | COVER | |
| 22 | 22 | BRACKET | |
| 23 | 23 | COVER | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SPRING | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SPRING | |
| 28 | 28 | BRACKET | |
| 29 | 29 | WASHER | |
| 30 | 30 | SPRING | |
| 31 | 31 | WASHER | |
| 32 | 32 | SCREW | |
| 33 | 33 | COVER | |
| 34 | 34 | WASHER | |
| 35 | 35 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S12001 | 螺钉M4×8 | ||
| 20701007 | 左上盖 | ||
| 20722003 | 密封垫 | ||
| S01005 | 螺钉M4×10 | ||
| 2071208600 | 后窗板 | ||
| 207S20002 | 螺钉M4 | ||
| 20128015 | 垫圈 | ||
| 20712011 | 托架 | ||
| 20711005 | 防护罩 | ||
| 20711019 | 防护罩 | ||
| W01011 | 垫圈3 | ||
| 207S11015 | 螺钉M3×6 | ||
| 20712008 | 挡板 | ||
| 207S17003 | 螺钉M4×7.5 | ||
| 20612016 | 下刀座前垫护板 | ||
| 207S11014 | 螺钉M3.5×4.5 | ||
| 207S11016 | 螺钉M4×16 | ||
| N01001 | 螺母M4 | ||
| 20712022 | 挡板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20722016 | 支撑垫 | ||
| 20712010 | 布料挡板 | ||
| 2071204400 | 缝台组件 | ||
| 20612009 | 前盖板固定块 | ||
| 20622003 | 减震垫 | ||
| 20627002 | 缝台簧 | ||
| 20627003 | 挡簧 | ||
| 206S20006 | 螺钉M4 | ||
| 207S14007 | 螺钉M4×6 | ||
| 20603016 | 套筒 | ||
| W02004 | 止动垫圈6 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20711018 | 侧盖组件 | ||
| 20528017 | 垫片 | ||
| 207S11013 | 螺钉M4×17.5 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3/4 Series | ||
| 2 | 3/4 Series | ||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | 3/4 Series | ||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | 3/4/5 Series | ||
| 15 | 4-H/M Series | ||
| 16 | 5-A04 Series | ||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | 5 Series | ||
| 33 | 5 Series | ||
| 34 | 5 Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S11007 | 螺钉M4×7.5 | ||
| 20712013 | 前轴承盖 | ||
| 001024 | 0型圈40×1.8 | ||
| 207S11041 | 螺钉M5×10 | ||
| 207S11042 | 螺钉M5×5 | ||
| 001037 | 0型圈30×1.2 | ||
| B04004 | 轴承6202LB | ||
| 20725001 | 棘轮 | ||
| S10009 | 螺钉M6×8 | ||
| 20726002 | 销 | ||
| 20701008 | 平衡块 | ||
| 207S11017 | 螺钉M3×8 | ||
| 20729001 | 卡簧 | ||
| 400046 | 主轴 | ||
| 20702054 | 主轴 | ||
| 400045 | 主轴 | ||
| B01005 | 轴承6203Z | ||
| 20708003 | 轴套 | ||
| 20725003 | 蜗杆 | ||
| 20103002 | 主轴中轴套 | ||
| W03003 | 垫圈32 | ||
| 001025 | 0型圈17×1.8 | ||
| 001028 | 0型圈41×1.8 | ||
| 20708015 | 后轴承盖 | ||
| 207S11012 | 螺钉M4×10 | ||
| 2073301000 | 直驱电机 | ||
| S01011 | 螺钉 | ||
| W02004 | 垫片 | ||
| 207S13003 | 螺钉M6×25 | ||
| 20711056 | 电机罩 | ||
| 207S11026 | 螺钉M6×16 | ||
| 207S17001 | 螺钉M4×10 | ||
| 20712046 | 前轴承盖 | ||
| 20602002 | 主轴接轴 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Shaft | |
| 2 | 2 | Shaft | |
| 3 | 3 | Washer | |
| 4 | 4 | Washer | |
| 5 | 5 | Cap | |
| 6 | 6 | Cone | |
| 7 | 7 | Washer | |
| 8 | 8 | Cap | |
| 9 | 9 | Cone | |
| 10 | 10 | Cone | |
| 11 | 11 | Cap | |
| 12 | 12 | Washer | |
| 13 | 13 | Bracket | |
| 14 | 14 | 4/5 series | |
| 15 | 15 | 3 series | |
| 16 | 16 | Bracket | |
| 17 | 17 | Screw | |
| 18 | 18 | Bracket |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400662 | 夹线器组件(红点) | ||
| 201S30016 | 夹线螺钉 | ||
| 20623008 | 夹线片垫 | ||
| 400161 | 夹线片 | ||
| 30111005 | 调压止动盖 | ||
| 30127011 | 调压簧 | ||
| 30111006 | 调压止动套 | ||
| 301S16006 | 调压螺母 | ||
| 400663 | 夹线器组件(蓝点) | ||
| 30127012 | 调压簧(中) | ||
| 400668 | 夹线器组件(绿点) | ||
| 30127013 | 调压簧(弱) | ||
| 20113002 | 前过线板 | ||
| 400661 | 夹线器组件(黄点) | ||
| 206S11005 | 螺钉SM11/64×40 | ||
| 20712032 | 过线板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20713001 | 过线板 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 5 Series | |
| 2 | 2 | 5 Series | |
| 3 | 3 | 5 Series | |
| 4 | 4 | 5 Series | |
| 5 | 5 | 5 Series | |
| 6 | 6 | 5 Series | |
| 7 | 7 | 5 Series | |
| 8 | 8 | 5-A04 Series | |
| 9 | 9 | 5 Series | |
| 10 | 10 | 5 Series | |
| 11 | 11 | 5-A04 Series | |
| 12 | 12 | 5 Series | |
| 13 | 13 | 5 Series | |
| 14 | 14 | 5 Series | |
| 15 | 15 | 5 Series | |
| 16 | 16 | 5 Series | |
| 17 | 17 | 5 Series | |
| 18 | 18 | 5-A04 Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20701029 | 托架 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20701030 | 托架 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20713020 | 过线 | ||
| 20713023 | 过线 | ||
| 20713051 | 过线 | ||
| 20713021 | 过线 | ||
| 20713022 | 过线 | ||
| 20713050 | 过线 | ||
| 20713006 | 托架 | ||
| 20713007 | 压线板 | ||
| 20727002 | 压簧 | ||
| 207S20003 | 螺钉 | ||
| 207S11015 | 螺钉M3×6 | ||
| 20713024 | 挑线杆 | ||
| 20713052 | 挑线杆 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Part 1 | ||
| 2 | Part 2 | ||
| 3 | Part 3 | ||
| 4 | 3 Series | ||
| 5 | 4 Series | ||
| 6 | 3 Series | ||
| 7 | 4 Series | ||
| 8 | Part 8 | ||
| 9 | Part 9 | ||
| 10 | Part 10 | ||
| 11 | Part 11 | ||
| 12 | Part 12 | ||
| 13 | 3 Series | ||
| 14 | 4 Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20701010 | 托架 | ||
| 207S11019 | 螺钉M4×4.7 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20713002 | 过线 | ||
| 20713003 | 过线 | ||
| 20713004 | 过线 | ||
| 20713005 | 过线 | ||
| 20713006 | 托架 | ||
| 20713007 | 压线板 | ||
| 20727002 | 压簧 | ||
| 207S20003 | 螺钉 | ||
| 207S11015 | 螺钉M3×6 | ||
| 20713008 | 挑线杆 | ||
| 20713009 | 挑线杆 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | 5 Series | |
| 3 | 3 | 3/4 Series | |
| 4 | 4 | Bracket | |
| 5 | 5 | Plate | |
| 6 | 6 | Washer | |
| 7 | 7 | Screw | |
| 8 | 8 | Screw | |
| 9 | 9 | Screw | |
| 10 | 10 | Bracket | |
| 11 | 11 | Bracket | |
| 12 | 12 | Screw | |
| 13 | 13 | 3/4 Series | |
| 14 | 14 | 5 Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20713054 | 过线 | ||
| 20713053 | 过线 | ||
| 20713012 | 过线 | ||
| 20113015 | 过线 | ||
| 20712016 | 托架 | ||
| W01011 | 垫圈 | ||
| 201S11006 | 螺钉 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20713011 | 过线 | ||
| 20713010 | 挑线架 | ||
| 207S11021 | 螺钉M3.5×6 | ||
| 20713015 | 挑线架 | ||
| 20713055 | 挑线架 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | LINKAGE | |
| 2 | 2 | BOLT | |
| 3 | 3 | BOLT | |
| 4 | 4 | CIRCLIP | |
| 5 | 5 | O-RING | |
| 6 | 6 | BEARING | |
| 7 | 7 | SPRING | |
| 8 | 8 | SHAFT | |
| 9 | 9 | YOKE | |
| 10 | 10 | BOLT | |
| 11 | 11 | TUBE | |
| 12 | 12 | CAP | |
| 13 | 13 | BOLT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | SHAFT | |
| 16 | 16 | COLLAR | |
| 17 | 17 | BOLT | |
| 18 | 18 | BOLT | |
| 19 | 19 | CYLINDER | |
| 20 | 20 | BOLT | |
| 21 | 21 | O-RING | |
| 22 | 22 | SLEEVE | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BOLT |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400039 | 针杆连杆 | ||
| 207S11016 | 螺钉M4×16 | ||
| 207S14007 | 螺钉M4×6 | ||
| H05008 | 挡圈8 | ||
| 20628014 | 上刀架垫片 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20708004 | 上轴挡圈 | ||
| 20626003 | 曲柄销 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20704001 | 上轴曲柄 | ||
| 20702002 | 上轴 | ||
| 20722004 | 油塞 | ||
| 207S11043 | 螺钉 | ||
| 20704002 | 针杆曲柄 | ||
| 2060303100 | 针杆组件 | ||
| 20702003 | 针杆 | ||
| 20726003 | 曲柄销 | ||
| 20523005 | 油线 | ||
| 20703012 | 针杆套 | ||
| 207S14008 | 螺钉M4×5 | ||
| 001026 | 0型圈11.5×1.5 | ||
| 20723003 | 毛毡 | ||
| 20708005 | 挡圈 | ||
| 207S11023 | 螺钉M3×6 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 5-03/333 | Series | |
| 2 | 5-03/233 | Series | |
| 3 | 5-A04 | Series | |
| 5 | 5 | Series | |
| 6 | 5-A04 | Series | |
| 4 | 4 | Series | |
| 7 | 7 | Series | |
| 8 | 8 | Series | |
| 9 | 9 | Series | |
| 10 | 10 | Series | |
| 11 | 11 | Series | |
| 12 | 12 | Series | |
| 13 | 13 | Series | |
| 14 | 14 | Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20734003 | 针夹头 | ||
| 20734004 | 针夹头 | ||
| 20719056 | 针夹头 | ||
| 207S14014 | 螺钉M3×3 | ||
| 20713017 | 过线 | ||
| 20713056 | 过线 | ||
| 207S11024 | 螺钉M2×3 | ||
| XXXXXXXX | 机针 | ||
| 20713038 | 过线(一针) | ||
| 20734001 | 针夹头(三线) | ||
| XXXXXXXX | 机针 | ||
| 20713018 | 过线 | ||
| 20734002 | 针夹头(四线) | ||
| XXXXXXXX | 机针 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Plate | |
| 3 | 3 | Screw | |
| 4 | 4 | Bracket | |
| 5 | 5 | Base | |
| 6 | 6 | Screw | |
| 7 | 7 | Bracket | |
| 8 | 8 | Screw | |
| 9 | 9 | Screw | |
| 10 | 10 | Screw | |
| 11 | 11 | Screw | |
| 12 | 12 | Washer | |
| 13 | 13 | Bracket | |
| 14 | 14 | Screw | |
| 15 | 15 | Screw | |
| 16 | 16 | Screw | |
| 17 | 17 | Lever |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S17006 | 螺钉M4×7.5 | 2 | |
| XXXXXXXX | 针板 | 1 | |
| 207S11007 | 螺钉M4×7.5 | 5 | |
| 20709003 | 针板垫块(后) | 1 | |
| 20709002 | 针板垫块(前) | 1 | |
| 20622003 | 防震垫 | 2 | |
| 20701033 | 托架 | ||
| 207S11003 | 螺钉M4×10 | ||
| XXXXXXXX | 机针护针(后) | ||
| S01027 | 螺钉M3×6 | ||
| XXXXXXXX | 链弯护针 | ||
| 20128019 | W07垫圈 | 1 | |
| XXXXXXXX | 机针护针(前) | 1 | |
| 207S12005 | 螺钉 | 1 | |
| 207S11002 | 螺钉M3 | 1 | |
| W03004 | 垫圈3 | 1 | |
| XXXXXXXX | 护针(后) | 1 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Bolt | |
| 2 | 2 | Washer | |
| 3 | 3 | Nut | |
| 4 | 4 | Shaft | |
| 5 | 3/5 Series | ||
| 6 | 4 Series | ||
| 7 | 5-A04, 4-H/M Series | ||
| 8 | 3 Series | ||
| 9 | 4/5 Series | ||
| 10 | 10 | Bolt | |
| 11 | 11 | Screw | |
| 12 | 12 | Bracket | |
| 13 | 13 | Connecting Rod Assembly | |
| 14 | 14 | Bolt | |
| 15 | 15 | Bolt | |
| 16 | 16 | Washer | |
| 17 | 17 | Bolt | |
| 18 | 18 | Connecting Rod | |
| 19 | 19 | Screw | |
| 20 | 20 | Pin | |
| 21 | 21 | Link | |
| 22 | 22 | Screw | |
| 23 | 3/4/5 Series | ||
| 24 | 5-A04, 4-H/M Series | ||
| 25 | 25 | Shaft | |
| 26 | 26 | Shaft | |
| 27 | 27 | Washer | |
| 28 | 28 | Lever | |
| 29 | 29 | Pin | |
| 30 | 30 | Screw | |
| 31 | 31 | Plate | |
| 32 | 32 | Screw | |
| 33 | 3/4/5 Series | ||
| 34 | 5-A04, 4-H/M Series | ||
| 35 | 35 | Housing | |
| 36 | 36 | Bracket | |
| 37 | 37 | Screw | |
| 38 | 38 | Spring |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S11004 | 螺钉M5×9.5 | ||
| W02001 | 上弯针垫圈 | ||
| 20628006 | 垫圈 | ||
| 20702004 | 下弯针轴 | ||
| 20708007 | 衬套A | ||
| 20708006 | 衬套 | ||
| 20703060 | 衬套 | ||
| 400036 | 上弯针球柄 | ||
| 400037 | 上弯针球柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| S02007 | 螺钉 | ||
| 20712066 | 连杆垫片 | ||
| 400043 | 弯针连杆 | ||
| 207S11016 | 螺钉M4×16 | ||
| 207S11005 | 螺钉M4×17.5 | ||
| 20622019 | 油封 | ||
| 207S11043 | 螺钉 | ||
| 20705003 | 连杆 | ||
| 207S14010 | 螺钉M3×4 | ||
| 20523005 | JK788油线 | ||
| 20726004 | 曲柄柄 | ||
| 207S11025 | 螺钉M3.5×6.7 | ||
| 2070400500 | 上弯针滑杆组件 | ||
| 2070403600 | 上弯针滑杆组件 | ||
| 20704005 | 上弯针滑杆 | ||
| 20709004 | 上弯针滑块 | ||
| 20623005 | 上弯针滑杆套油毡 | ||
| XXXXXXXX | 上弯针 | ||
| 207S17004 | 螺钉M2.5×6 | ||
| 207S11027 | 螺钉M2.5×8 | ||
| 400040 | 盖板 | ||
| 207S11026 | 螺钉M6×16 | ||
| 20701051 | 上弯滑块座 | ||
| 20701088 | 上弯滑块座 | ||
| 20123021 | JK795油线 | ||
| 20723005 | 吸油棉 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20712017 | 压板 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Bolt | |
| 2 | 2 | Washer | |
| 3 | 3 | Washer | |
| 4 | 4 | Tube | |
| 5 | 5 | Shaft | |
| 6 | 6 | Pin | |
| 7 | 7 | Screw | |
| 8 | 8 | Lever | |
| 9 | 9 | Shaft | |
| 10 | 10 | Lever | |
| 11 | 11 | Screw | |
| 12 | 12 | Shaft | |
| 13 | 13 | Screw | |
| 14 | 14 | Lever | |
| 15 | 15 | Screw | |
| 16 | 16 | Lever | |
| 17 | 17 | Screw | |
| 18 | 18 | Lever | |
| 19 | 19 | Pin |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S11004 | 螺钉M4×10 | ||
| W02001 | 上弯针垫圈 | ||
| 20628006 | 垫圈 | ||
| 20702004 | 下弯针轴 | ||
| 400329 | 下弯针球曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| S02007 | 螺钉 | ||
| 20712066 | 连杆垫片 | ||
| 400043 | 弯针连杆 | ||
| 207S11016 | 螺钉M4×16 | ||
| 207S11005 | 螺钉M4×17.5 | ||
| 20622019 | 油封 | ||
| 207S20004 | 螺钉M5×13 | ||
| 20704007 | 下弯针架 | ||
| 207S15001 | 螺钉M4×7 | ||
| XXXXXXXXXX | 下弯针 | ||
| 207S11028 | 螺钉M3.5×6.5 | ||
| 400388 | 下弯针球曲柄 | ||
| 207S11042 | 螺钉M5×8 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BRACKET | |
| 4 | 4 | BRACKET | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | WASHER | |
| 11 | 11 | SCREW | |
| 12 | 12 | GEAR | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | WASHER | |
| 19 | 19 | SHAFT | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | SCREW | |
| 25 | 25 | BRACKET | |
| 26 | 26 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S13009 | 螺钉M5×12 | ||
| W02001 | 上弯针垫圈 | ||
| 20628010 | 送布曲柄垫圈 | ||
| 20710008 | 偏心销 | ||
| 001027 | 0型圈4×1.3 | ||
| 401031 | 滑块座 | ||
| 401030 | 曲柄 | ||
| 20705006 | 连杆 | ||
| 20703016 | 连杆套 | ||
| 30228008 | 垫圈 | ||
| 207S11044 | 螺钉M5×13 | ||
| B08002 | 滚针k22×18×8 | ||
| 20626017 | 五线销 | ||
| 20701034 | 支架 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20704015 | 链线曲柄 | ||
| 20705009 | 连杆 | ||
| 20703013 | 连杆套 | ||
| 20702018 | 链线轴 | ||
| 3052201700 | 油封 | ||
| 20701035 | 弯针架 | ||
| 207S15001 | 螺钉M4×7 | ||
| 20728002 | 垫片 | ||
| 207S20004 | 螺钉M5×13 | ||
| XXXXXXXXX | 弯针 | ||
| 207S11028 | 螺钉M3.5×6.5 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Screw | |
| 3 | 3 | Washer | |
| 4 | 4 | Screw | |
| 5 | 5 | Shaft | |
| 6 | 6 | Bracket | |
| 7 | 7 | Gear | |
| 8 | 8 | Spring | |
| 9 | 9 | Washer | |
| 10 | 10 | Handle | |
| 11 | 11 | Lever | |
| 12 | 12 | Pin | |
| 13 | 13 | Screw | |
| 14 | 14 | Bracket | |
| 15 | 15 | Screw | |
| 16 | 16 | Lever | |
| 17 | 17 | Screw | |
| 18 | 18 | Washer | |
| 19 | 19 | Screw | |
| 20 | 20 | Disc | |
| 21 | 21 | Spring | |
| 22 | 22 | Plate |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20713039 | 过线管 | ||
| 20629003 | 过线管夹 | ||
| 20628012 | 垫片 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20713040 | 过线管 | ||
| 2061205700 | 打线内轮组件 | ||
| 206S16004 | 紧线手柄 | ||
| 30127016 | 弹簧 | ||
| 20612055 | 夹线片 | ||
| 206S30015 | 螺钉M3 | ||
| 20612057 | 打线内轮架 | ||
| 20613017 | 过线 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20629004 | 过线 | ||
| S01031 | 螺钉M4×7.5 | ||
| 20612056 | 分线板 | ||
| 207S20002 | 螺钉M4 | ||
| 20128015 | 垫圈 | ||
| 20612058 | 打线内轮 | ||
| 207S14009 | 螺钉M3×3 | ||
| 20713026 | 过线 | ||
| 20629005 | 卡簧 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | COVER | |
| 2 | 2 | COVER | |
| 3 | 3 | SPRING | |
| 4 | 4 | SCREW | |
| 5 | 5 | WASHER | |
| 6 | 6 | SCREW | |
| 7 | 7 | SCREW | |
| 8 | 8 | PIN | |
| 9 | 9 | CLIP | |
| 10 | 10 | CONNECTING ROD | |
| 11 | 11 | SCREW | |
| 12 | 12 | GEAR | |
| 13 | 13 | COVER | |
| 14 | 14 | SPRING | |
| 15 | 15 | WASHER | |
| 16 | 16 | LEVER | |
| 17 | 17 | WASHER | |
| 18 | 18 | WASHER | |
| 19 | 19 | SPRING | |
| 20 | 20 | SPRING | |
| 21 | 21 | WASHER | |
| 22 | 22 | SHAFT | |
| 23 | 23 | SCREW | |
| 24 | 24 | LEVER | |
| 25 | 25 | SCREW | |
| 26 | 26 | LEVER | |
| 27 | 27 | WASHER | |
| 28 | 28 | SHAFT | |
| 29 | 29 | SPRING | |
| 30 | 30 | SPRING | |
| 31 | 31 | LEVER | |
| 32 | 32 | SCREW | |
| 33 | 33 | COVER | |
| 34 | 34 | SCREW | |
| 35 | 35 | COVER | |
| 36 | 36 | SCREW | |
| 37 | 37 | SCREW | |
| 38 | 38 | WASHER | |
| 39 | 39 | COVER | |
| 40 | 40 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2070500400 | 送料连杆组件 | ||
| 20710003 | 送布偏心 | ||
| 207S11042 | 螺钉M5×5 | ||
| 20710002 | 小偏心轮 | ||
| 207S14003 | 螺钉M3×4 | ||
| 20710001 | 偏心轮 | ||
| 20712018 | 弹簧板 | ||
| 20626003 | 曲柄销 | ||
| 20629006 | 卡簧 | ||
| 20705004 | 送料连杆 | ||
| 207S14007 | 螺钉M4×6 | ||
| B08001 | 滚针轴承26×22×10 | ||
| 20710004 | 开针偏心凸轮 | ||
| 20727003 | 弹簧 | ||
| 207S20005 | 螺钉M2 | ||
| 20709006 | 滑块 | ||
| 20722005 | 油封 | ||
| 001027 | O型圈4×1.3 | ||
| 20728001 | 垫片 | ||
| 20727004 | 弹簧 | ||
| H05018 | 卡簧3.5 | ||
| 20702005 | 开针掀扭轴 | ||
| 207S20006 | 螺钉M5×5 | ||
| 20705005 | 差动连片 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20704008 | 差动曲柄 | ||
| 20622010 | 差动O型圈 | ||
| 20702006 | 差动轴 | ||
| 20712019 | 差动杆 | ||
| 20627006 | 差动扳手定位簧 | ||
| 207S20007 | 螺钉 | ||
| 207S11008 | 螺钉M4×12 | ||
| 20712033 | 调节板 | ||
| 20711007 | 垫圈 | ||
| 207S16002 | 螺母 | ||
| 30228009 | 垫片 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20728003 | 蝶形垫片 | ||
| 2071600100 | 调节螺母 | ||
| 207S30001 | 螺钉 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20628023 | 送布油封 | ||
| H05009 | 开口挡圈7 | ||
| 20702008 | 送布轴 | ||
| 20628011 | 送布垫圈 | ||
| 2070400900 | 送料曲柄组件 | ||
| 20704010 | 送料曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 207S11029 | 螺钉M5×6 | ||
| 20709008 | 曲柄 | ||
| 20709009 | 曲柄销 | ||
| 20709010 | 滑块 | ||
| 20710005 | 偏心销 | ||
| 20704011 | 送料曲柄 | ||
| 20628010 | 送布曲柄垫圈 | ||
| N01004 | 螺母M5 | ||
| 20729002 | 卡簧 | ||
| 20722006 | 0型圈 | ||
| 207S13001 | 螺钉 | ||
| 20708008 | 挡圈 | ||
| 001026 | 0型圈11.5×1.5 | ||
| 20710006 | 偏心轴 | ||
| 207S14001 | 螺钉M4×4 | ||
| 2070600100 | 牙架组件 | ||
| 20706002 | 差动牙架 | ||
| 20709011 | 滑柱 | ||
| 20706001 | 主送牙架 | ||
| 20709012 | 滑块 | ||
| 20705008 | 连杆 | ||
| 20703016 | 连杆套 | ||
| 30228008 | 垫圈 | ||
| 207S11044 | 螺钉M5×13 | ||
| XXXXXXXXXX | 牙齿组件 | ||
| XXXXXXXXXX | 辅助齿 | ||
| XXXXXXXXXX | 主送齿 | ||
| 207S11039 | 螺钉M3×6 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| XXXXXXXXXX | 差动齿 | ||
| 20701049 | 牙架挡板 | ||
| 20701048 | 牙架挡块(一体) | ||
| 207S13006 | 螺钉M4×9 | ||
| 20701013 | 挡油板 | ||
| 207S13007 | 螺钉M4×5 | ||
| 20712062 | 油管夹 | ||
| S01031 | 螺钉M4×4.7 | ||
| 20721009 | 牙架吸油管 | ||
| 20722007 | 牙架油封 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 3/4 Series | ||
| 10 | 5 Series | ||
| 11 | |||
| 12 | |||
| 16 | 3/4 Series | ||
| 17 | 5 Series | ||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | 3/4 Series | ||
| 30 | |||
| 31 | 5 Series | ||
| 32 | 5-A04 Series | ||
| 33 | |||
| 34 | |||
| 35 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20726005 | 导向销 | ||
| 20702009 | 上刀架轴 | ||
| 3052201700 | 油封 | ||
| 30208001 | 挡块 | ||
| S10003 | 螺钉M6×0.75×12 | ||
| 207S11016 | 螺钉M4×16 | ||
| 400041 | 上刀连杆 | ||
| 207S14013 | 螺钉M4×6 | ||
| 20704012 | 上刀曲柄 | ||
| 20704030 | 上刀曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20626003 | 曲柄销 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| 20128020 | 垫片 | ||
| XXXXXXXX | 上刀 | ||
| 20701014 | 上刀座 | ||
| 20701036 | 上刀座 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20701050 | 绞刀安装板 | ||
| XXXXXXXX | 切刀 | ||
| W01011 | 垫圈 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20712053 | 上刀凹角切 | ||
| 20712051 | 挡板 | ||
| S11025 | 螺钉M4×20 | ||
| 207S12004 | 螺钉M5×8 | ||
| 20709013 | 压板 | ||
| XXXXXXXX | 下刀 | ||
| 20701015 | 下刀架 | ||
| 20707006 | 弹簧 | ||
| 20701037 | 下刀架 | ||
| 20701052 | 下刀架 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20712021 | 挡板 | ||
| S01010 | 螺钉M4×7.5 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Shaft | |
| 3 | 3 | Lever | |
| 4 | 4 | Spring | |
| 5 | 5 | Nut | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Cover | |
| 9 | 9 | Lever | |
| 10 | 10 | Shaft | |
| 11 | 11 | Lever | |
| 12 | 12 | Spring | |
| 13 | 13 | Bush | |
| 14 | 14 | Screw | |
| 15 | 15 | Cylinder | |
| 16 | 16 | Spring | |
| 17 | 17 | Screw | |
| 18 | 18 | Pin | |
| 19 | 19 | Lever | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Washer | |
| 24 | 24 | Spring | |
| 25 | 25 | Lever | |
| 26 | 26 | Screw | |
| 27 | 27 | Screw | |
| 28 | 28 | Lever | |
| 29 | 29 | Screw | |
| 30 | 30 | Screw | |
| 31 | 31 | Washer | |
| 32 | 32 | Plate | |
| 33 | 33 | Screw | |
| 34 | 34 | Lever | |
| 35 | 35 | Presser Foot | |
| 36 | 36 | Lever | |
| 37 | 37 | Lever | |
| 38 | 38 | Screw | |
| 39 | 39 | Screw | |
| 40 | 40 | Lever | |
| 41 | 41 | Lever | |
| 42 | 42 | Screw | |
| 43 | 43 | Screw |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S20008 | 抬压脚螺钉M10 | ||
| 20712023 | 抬压脚杠杆 | ||
| 20727007 | 扭簧 | ||
| 20712025 | 弯钩 | ||
| N01004 | 螺母M5 | ||
| 207S11031 | 螺钉M5×24 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20712024 | 角板 | ||
| S05017 | 螺钉M6×0.75×13.5 | ||
| 20608004 | 抬压脚复位圈 | ||
| 20612030 | 抬压脚小杠杆 | ||
| 20727013 | 小杠杆扭簧 | ||
| 20703031 | 滑动轴承 | ||
| 207S11042 | 螺钉M5×5 | ||
| 20703030 | 压脚轴套筒 | ||
| 20702010 | 压脚轴 | ||
| S10011 | 螺钉M4×0.5×4 | ||
| 20626016 | 压脚臂连杆销 | ||
| 20701016 | 压脚臂 | ||
| 20619005 | 割线刀 | ||
| 207S11020 | 螺钉3×4 | ||
| 20702014 | 调节螺柱 | ||
| 207S16003 | 螺母 | ||
| 20719054 | 压簧 | ||
| 20712030 | 挡板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20612034 | 压杆扳手 | ||
| 20627010 | 压杆扳手扭簧 | ||
| 207S20009 | 螺钉 | ||
| 207S11036 | 螺钉 | ||
| 20407210 | 弹簧片 | ||
| 20616004 | 压脚爪 | ||
| 206S10004 | 螺钉 | ||
| 20701023 | 辅助压脚 | ||
| 20616022 | 压脚底板 | ||
| 20712023 | 压脚架 | ||
| 207S11030 | 螺钉 | ||
| 207S11034 | 螺钉 | ||
| 20616016 | 压脚辅助板 | ||
| 207160200 | 压脚组件 | ||
| 20712026 | 压脚护手 | ||
| 20712048 | 板簧 | ||
| 207S11009 | 螺钉3×4.5 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DRIVE MECHANISM | ||
| 2 | SHAFT | ||
| 3 | SCREW | ||
| 4 | SCREW | ||
| 5 | FLANGE | ||
| 6 | O-RING | ||
| 7 | SEAL | ||
| 8 | SHAFT | ||
| 9 | SCREW | ||
| 10 | COVER | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | BOLT | ||
| 14 | WASHER | ||
| 15 | BRACKET | ||
| 16 | NUT | ||
| 17 | SCREW | ||
| 18 | PUMP ASSEMBLY | ||
| 19 | SCREW | ||
| 20 | BRACKET | ||
| 21 | BRACKET |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2072000200 | 油泵组件 | ||
| 20725002 | 蜗轮 | ||
| 207S14006 | 螺钉M5×5 | ||
| 207S11008 | 螺钉M4×12 | ||
| 300140 | 滤油器盖 | ||
| 001010 | 密封圈 | ||
| 20136001 | 滤油器 | ||
| 20736001 | 滤油器接头 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20712110 | 接油盘 | ||
| 207S11012 | 螺钉M4×10 | ||
| 20701098 | 接油盘固定块 | ||
| 206S30009 | 过油螺钉 | ||
| 20122033 | 垫片 | ||
| 20721013 | 上喷油器 | ||
| 20636001 | 油管接头 | ||
| 20729005 | 油管卡簧 | ||
| 12921003 | 油管Φ5×Φ8 | ||
| 207S13008 | 螺钉M4×10 | ||
| 12921003 | 油管Φ5×Φ8 | ||
| 20437009 | 油标 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever | |
| 2 | 2 | Lever | |
| 3 | 3 | Screw | |
| 4 | 4 | Screw | |
| 5 | 5 | Lever | |
| 6 | 6 | Lever | |
| 7 | 7 | Shaft | |
| 8 | 8 | Shaft | |
| 9 | 9 | Screw | |
| 10 | 10 | Shaft | |
| 11 | 11 | Lever | |
| 12 | 12 | Shaft | |
| 13 | 13 | Shaft | |
| 14 | 14 | Shaft | |
| 15 | 15 | Housing | |
| 16 | 16 | Gasket | |
| 17 | 17 | Screw | |
| 18 | 18 | Screw | |
| 19 | 19 | Screw | |
| 20 | 20 | Screw |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20721010 | 过油管 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20709016 | 橡胶塞 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20723007 | 油毡 | ||
| 2071203800 | 吸油嘴组件 | ||
| 20622010 | 差动轴O型圈 | ||
| 20721011 | 油管Φ2×Φ4 | ||
| 207S14006 | 螺钉M5×5 | ||
| 20709015 | 滚珠 | ||
| 20123021 | JK795油线 | ||
| 20626007 | 上弯针滑杆油器 | ||
| 207S14007 | 螺钉M4×4 | ||
| 20521009 | 铜油嘴 | ||
| 20722008 | 油盘垫 | ||
| 20701026 | 油盘 | ||
| 20528014 | 油盘放油垫圈 | ||
| 207S13002 | 放油螺钉 | ||
| 20628018 | 垫片 | ||
| 207S13009 | 螺钉M5×12 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Cover | ||
| 2 | Cover | ||
| 3 | Cover | ||
| 4 | Cover | ||
| 5 | Cover | ||
| 6 | Cover | ||
| 7 | Cover | ||
| 8 | Cover | ||
| 9 | Cover | ||
| 10 | Cover | ||
| 11 | Cover | ||
| 12 | Cover | ||
| 13 | Cover | ||
| 14 | Cover | ||
| 15 | Cover | ||
| 16 | Cover | ||
| 17 | Cover | ||
| 18 | Cover | ||
| 19 | Cover | ||
| 20 | Cover | ||
| 21 | Cover | ||
| 22 | Cover | ||
| 23 | Cover |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20712042 | 挡油板 | ||
| 20723008 | 毛毡 | ||
| 20719051 | 毛毡 | ||
| 20711015 | 上硅油盒盖 | ||
| 20711014 | 上硅油盒 | ||
| 20712040 | 过线架 | ||
| 20713019 | 过线架 | ||
| 207S11012 | 螺钉M4×10 | ||
| 2071101600 | 下硅油盒组件 | ||
| 20723009 | 油毡 | ||
| 207S11008 | 螺钉M4×10 | ||
| 20701027 | 针线冷却器 | ||
| 20709014 | 滚珠 | ||
| 20712041 | 油管夹 | ||
| 40123013 | 油线 | ||
| 40121002 | 油管 | ||
| 20711017 | 下硅油盒盖 | ||
| 20711016 | 下硅油盒 | ||
| 207S30003 | 组合螺钉M4×12 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20701038 | 针线冷却器 | ||
| 2070103000 | 下硅油盒组件A |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20631020 | 过线棒 | ||
| 20131036 | 过线棒 | ||
| 20131014 | 过线棒 | ||
| 20131050 | 过线棒 | ||
| 206S16008 | 螺钉 | ||
| N01004 | 螺母M5 | ||
| 30101028 | 长线架 | ||
| 20631026 | 短线架 | ||
| 206S30025 | 螺钉 | ||
| 20631032 | 垫片 | ||
| 206S30024 | 螺钉 | ||
| 20131006 | 线棒 | ||
| 20631031 | 垫片 | ||
| 206S16006 | 螺母 | ||
| 20631025 | 线托盘 | ||
| 20631024 | 托盘垫 | ||
| 20131008 | 线固定套 | ||
| 30111008 | 棒架 | ||
| 206S30027 | 螺钉 | ||
| 206S16006 | 螺母 | ||
| 30113018 | 导线棒 | ||
| 206S30023 | 螺钉 | ||
| 206S16006 | 螺母 | ||
| 20631017 | 固定器 | ||
| 206S30023 | 螺钉 | ||
| 206S16006 | 螺母 | ||
| 30102034 | 线上棒 | ||
| 30102032 | 线下棒 | ||
| 30129005 | 锁紧卡固 | ||
| 206S30023 | 螺钉 | ||
| 206S16006 | 螺母 | ||
| 30101030 | 长过线架 | ||
| 30101031 | 短过线架 | ||
| 206S16008 | 螺钉 | ||
| N01004 | 螺母M5 | ||
| 30103045 | 过线套 | ||
| 30122027 | 棒帽 | ||
| 30128062 | 垫片 | ||
| 206S16007 | 螺母 | ||
| 2063101400 | 线架组件(三线) | ||
| 2053102900 | 线架组件(四线) | ||
| 3013102700 | 线架组件(五线) | ||
| 2053103100 | 线架组件(六线) | ||
| 20131090 | 过线管 | ||
| 20131112 | 胶套 | ||
| 20128038 | 垫片 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Screw | |
| 3 | 3 | Screw | |
| 4 | 4 | Bracket | |
| 5 | 5 | Screw | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Screw | |
| 10 | 10 | Screw | |
| 11 | 11 | Bracket | |
| 10 | 10 | Screw | |
| 12 | 12 | Support Arm | |
| 13 | 13 | Support Arm |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20131028 | 托盘固定螺母 | ||
| 20722009 | 托盘防震连接垫 | ||
| 20711052 | 托盘接油盘 | ||
| 20711054 | 托盘架 | ||
| 30122031 | 减震垫圈 | ||
| 20131030 | 防震套 | ||
| 20131029 | 大垫圈 | ||
| 20131027 | 托盘内六角螺钉 | ||
| 20131058 | 落料斗组件 | ||
| 20131034 | 排料槽座螺钉 | ||
| 20131031 | 排料槽座 | ||
| 20131032 | 排料槽I | ||
| 20131033 | 排料槽II |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16 | 03-233 | 5-A04 Series | |
| 17 | 03-333 | 5-A04 Series | |
| 25 | 03-233 | 5-03 Series | |
| 26 | 03-333 | 5-03 Series | |
| 27 | 03-233 | 5-03 Series | |
| 28 | 03-333 | 5-03 Series | |
| 20 | 03-233 | 5-03 Series | |
| 21 | 03-333 | 5-03 Series |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Needle | |
| 2 | 2 | Needle | |
| 3 | 3 | Needle | |
| 4 | 4 | Needle | |
| 5 | 5 | Oil can | |
| 6 | 6 | Oil can | |
| 7 | 7 | Funnel | |
| 8 | 8 | Screwdriver | |
| 9 | 9 | Wrench | |
| 10 | 10 | Wrench | |
| 11 | 11 | Allen wrench | |
| 12 | 12 | Allen wrench | |
| 13 | 13 | Allen wrench | |
| 14 | 14 | Allen wrench | |
| 15 | 15 | Allen wrench | |
| 16 | 16 | Machine head | |
| 17 | 17 | Presser foot | |
| 18 | 18 | Chain | |
| 19 | 19 | Thread guide | |
| 20 | 20 | Dust cover | |
| 21 | 21 | Bobbin | |
| 22 | 22 | Bobbin case | |
| 23 | 23 | Machine cover |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20131044 | 直柄内六角螺丝刀 | ||
| 10131004 | 螺丝刀(小) | ||
| 10131003 | 螺丝刀(中) | ||
| 10131002 | 螺丝刀(大) | ||
| 20131037 | 油壶 | ||
| 20131038 | 小油壶(尖嘴) | ||
| 20131039 | 漏斗 | ||
| 20131051 | 镊子(JACK) | ||
| 20131043 | JK795-1908扳手 | ||
| 20131042 | JK795-1907扳手 | ||
| 20131046 | 内六角扳手(2mm) | ||
| 30131012 | 内六角扳手(3mm) | ||
| 20131047 | 内六角扳手(4mm) | ||
| 20131056 | 内六角扳手(5mm) | ||
| 30131026 | 内六角扳手(6mm) | ||
| 2073000500 | DI直驱专用部件 | ||
| 20131055 | 附件盒 | ||
| 20131054 | JK795-1919脚踏板链 | ||
| 20131052 | 线勾 | ||
| 20131062 | 机头塑料袋 | ||
| S10005 | 螺钉 | ||
| 见标准零件表 | 机针 | ||
| 10131005 | 机头罩 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20111052 | 零件导轨 | ||
| 201S30001 | 螺钉 | ||
| 20111054 | 零件盒 | ||
| 20112110 | 机架上节左 | ||
| S15001 | M8*11螺栓垫圈组合件 | ||
| 20112115 | 机架下节左 | ||
| 20122052 | 支撑护罩 | ||
| 20112118 | 支座 | ||
| 20122056 | 脚踏板垫 (大) | ||
| 20112122 | 踏板连接件 (大) | ||
| 20112120 | 脚踏板 (大) | ||
| S15002 | M6x11螺栓垫圈组合件 | ||
| 20112123 | 踏板固定件 | ||
| 20112133 | 踏板安装板 | ||
| 20112117 | 踏板安装板固定板 | ||
| 20112124 | 脚踏板 (小) | ||
| 20112126 | 踏板连接件 (小) | ||
| N01008 | 螺母 | ||
| 20112131 | 机架下节右 | ||
| 20112130 | 机架连接板 | ||
| 20112132 | 机架上节右 | ||
| 201S30002 | 螺钉 | ||
| XXXXXXXX | 台板 | ||
| XXXXXXXX | 变速器 | ||
| 2011111300 | 拉杆组件 | ||
| 2013105400 | 脚踏板链组件 | ||
| 20112114 | 机架固定板 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2071400100 | 20715005 | NEEDLE PLATE | 4 |
| 20714008 | 20715010 | NEEDLE PLATE | 2 |
| 2071402000 | 20715019 | NEEDLE PLATE | 4 |
| 20714006 | 20715009 | NEEDLE PLATE | 4.5 |
| 20714702200 | 20715020 | NEEDLE PLATE | 4 |
| 2071400100 | 20715002 | NEEDLE PLATE | 4 |
| 20717004 | 2071600500 | PRESSER FOOT ASS | |
| 20717004 | 2071601000 | PRESSER FOOT ASS | |
| 20717004 | 2071601700 | PRESSER FOOT ASS | |
| 20717004 | 2071600800 | PRESSER FOOT ASS | |
| 20717004 | 2071601800 | PRESSER FOOT ASS | |
| 20717004 | 2071600200 | PRESSER FOOT ASS | |
| 20734001 | 20717006 | LOWER LOOPER | |
| 20734001 | 20717006 | LOWER LOOPER | |
| 20734001 | 20717006 | LOWER LOOPER | |
| 20734001 | 20717005 | LOWER LOOPER | |
| 20734002 | 20717005 | LOWER LOOPER | |
| 20734002 | 20717005 | LOWER LOOPER | |
| 20715005 | DCX27#9 | NEEDLE | |
| 20715010 | DCX27#9 | NEEDLE | |
| 20715019 | DCX27#9 | NEEDLE | |
| 20715009 | DCX27#9 | NEEDLE | |
| 20715020 | DCX27#9 | NEEDLE | |
| 20715002 | DCX27#9 | NEEDLE | |
| 20619003 | 20619002 | UPPER KNIFE | |
| 20119002 | 20619002 | UPPER KNIFE | 2 |
| 20119002 | 20619002 | UPPER KNIFE | 4 |
| 20119002 | 20619002 | UPPER KNIFE | 6.5 |
| 20119002 | 20619002 | UPPER KNIFE | 4 |
| 20619003 | 20619002 | UPPER KNIFE | 4 |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE | |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE | |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE | |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE | |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE | |
| 20717002 | 20717001 | FRONT CHAINSTITCH NEEDLE |
JACK JK-798D Type: 4-M03/333 CE Mfg.No. 警告 不准随意拆修零件 在穿线、换底线、装针及 清洁时之锁光及盖体盖停 止操作 CAUTION Moving parts may cause injury. Operate with safety devices. Do not remove guards when threading, changing bobbin and needle, cleaning etc. JK-798D Parts Manual 零件手册 K 杰克缝纫机 JACK SEWING MACHINE HTTP://WWW.CHINAAJACK.COM jintex.in
jintex.in jintex.in
目录/CONTENTS 使用说明/Use Manual 一、机壳部分/Machine Bed Frame 二、机壳机罩部件(1)/Cover (1) 三、机壳机罩部件(2)/Cover (2) 四、主轴部件/Crankshaft Drive Mechanism 五、夹线部件/Thread Tension Mechanism 六、过线机构(1)/Thread Guide and Thread Takeup (1) 七、过线机构(2)/Thread Guide and Thread Takeup (2) 八、过线机构(3)/Thread Guide and Thread Takeup (3) 九、针杆部件(1)/Needle Drive Mechanism (1) 十、针杆部件(2)/Needle Drive Mechanism (2) 十一、针杆部件(3)/Needle Drive Mechanism (3) 十二、上弯针部件/Upper Looper Drive Mechanism 十三、下弯针部件/Lower Looper Drive Mechanism 十四、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism (1) 十五、二重环弯针机构(2)/Chainstitch Looper Drive Mechanism (2) 十六、差动调节机构/Feed Mechanism 十七、送布机构/Feed Mechanism 十八、剪布机构/Knife Drive Mechanism 十九、抬压脚机构/Presser Foot Mechanism 二十、供油机构(1)/Lubrication Mechanism (1) 二十一、供油机构(2)/Lubrication Mechanism (2) 二十二、HR装置机构部件/H.R.Device 二十三、线架部件/Thread Stand 二十四、托盘部件/Part For Semi-Submerged Installation 二十五、专用零件/Specific Parts 二十六、随机附件部分/Accessories Assemblies 二十七、机架部件/The Chassis Parts 标准零件度量表/Standard measurement part list 1 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 jintex.in
jintex.in jintex.in
为了安全 对于缝纫机本身各种装置,我们充分考虑到它的安全性。请 遵照基本的 操作方法,安全的进行工作。 ●拆除为保证安全所设置的装置,零件的情况下使用,是非常 危险的,请绝对不要拆除后使用。 ●缝纫机在使用时,请不要在缝纫机台板上放置工具及缝纫时 不用的物品。 ●在对缝纫机进行检修、调节、清扫、穿线、换针等工作时, 为防止发生事故,务必请切断电源,在确认即使踩下缝纫机 踏板,缝纫机也不转动之后,再进行操作。 1、关闭电源停止缝纫。 2、打开缝纫台装置。 3、打开压脚装置。 在对缝纫机进行检修、调节、清扫、穿线、换针等工作 完成后结束后,请按以下步骤操作。 1、压脚装置复位。 2、关上缝纫台装置。 3、开启电源进行缝纫。 OBSERVE THESE SAFETY PRECAUTIONS Though we takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safetyrules. ●To prevent accidents,do not remove safety devices or parts while operating the machine. ●Do not leave tools or other unnecessary objects on the machine table while operating the machine. ●Before maintenance,adjusting,cleaning,threading or replacing the needle,and to prevent accidents,be sure the power is turned off.Check when the pedal is pressed. 1.turn off power and stop sewing. 2.open the sewing plate. 3.remove the foot presser. After maintenance, adjusting, cleaning, threading or replacing the needle, and toprevent accidents, please click the following steps operation. 1.move back the foot presser. 2.close the sewing plate. 3.turn on the power and start sewing. ●在离开缝纫机台时,务必请关掉电源。 ●停电时也请务必关掉电源。 ●为了总是安全地,运转良好的使用缝纫机, 可缺少的,请予以注意。 ●Turn the power off before leaving the machine table. ●In the event of a power failure,be sure to turn the machine off. ●To guarantee the machine always works well and safety,pay more attention to the daily spot check. 台板加工图 Schematic diagram of the machine 请参照下图进行台板加工 Cut the table refering to the diagram 台板安装示意图 Installation diagram of the machine table 请参照下图安装零件 Refer to the drawing installation parts 供油 加油量是使油面处于H线与L线之间为好。当油面低于L线时, 就要及时补充机油。 Lubrication After filling the oil pan, the oil surface should lie between (H) and (L)lines. Add oil,when the oil surface reaches or goes below(L). 手动供油 手动供油是在缝纫机最初开始使用时或相当一段时间没使用 时,请供给2-3滴油。 Manual Lubrication Apply 2 or 3 of by hand when the machine is used for the first time or has been left unused for some time. jintex.in
给HR装置供油 为了防止布纤维或线被切断，请尽早给HR装置供油。 注:关于购买硅脂油，请询问缝纫机代销店或与本公司联系。 Filling the HR device with silicon oil Fill the device with oil before it is too low in order to prevent needle thread breakage and fabric damage. Note:Use recommended sillicon oil [UNION CARBIDE CORPORATON] UCCL-45(10) 穿线的 方法 打开压脚杆及机盖(三处) 把机上原有的线与缝纫用线绑在一起。 Threading Open three covers. Sewing the presser foot aside. Knot the preset thread and the thread being used together to thread the machine. 针线 将线拉到针眼前,剪掉 结头再次穿好针线。 Needle thread Trim the knots off neatly before passing through the eye of the needle to rethread. 若机上原来没有线,请参照穿线 图正确进行穿线。 Make sure the machine is threaded correct- ly by referring to the threading diagram. 弯针线,线拉出接 头后,用剪刀剪齐 接头。 Looper thread Trim the knots off neatly after passing through the eye of the looper 过线图 Threading diagram 差动比的调节 差动比的调节松开螺母①调整螺母②。 Adjusting the diff. feed ratio Loosen the adjusting nut ①and turn the adjusting nut ②to adjust the differential feed ratio. 针脚长度的调节 1.握住按钮,旋转手轮,按针尖会到进更深处。 2.这时边握住按钮,边转动手轮,使校准标记对准所希望的数值。 注:针脚长度的调节务必请在调节差动比之后进行。 Adjusting the stitch length 1.While pressing the push button, turn the handwheel to seek the position at which the push button goes further into the depth. 2.Then,keeping the push button pressed,turn the handwheel and set the desired scale to the aligning mark. Note:Stitch length adjustment must only be made after the differential feed ratio has been adjusted. 线状态的调节 线张力状态的调节,请用机针线调节螺帽①,上弯针 线调节螺帽②,下弯针线调节螺帽③来进行调节。 Adjusting the thread tension Make tension adjustments with the needle thread knob ①,the upper looper knob ②,and the lower looper knob ③. 压脚压力调节 压脚压力的调节,松动螺母①,调节螺母②,在送布得到稳定状态下尽可 能使用较弱的 Adjusting the presser foot pressure Loosen adjusting nut ①and then turn adjusting nut ②to adjust the presser foot pressure. It should be as light as possible in the feed situation when the steady state was obtained. 缝纫机的清扫 缝纫机的清扫,以针板槽及送布牙周围为主。 Cleaning the machine Mainly the slots of the needle plate and the feed rows should be cleaned. ㅋ jintex.in
换针 1.准确辨认针的前后,请将针尖向着后方,即背向操作者 进行安装。 2.针要牢固的插到孔的最深处。 标准使用针:风琴DC×27 安全、包缝系列:风琴DC×5 Replacing the needle 1.Check the needle carefully to see that the scarf is turded to the rear of the machine. 2.Insert the needle to the proper depth, and fasten securely. Standard needle:Organ DC×27 下刀片的更换 卸下下刀片 把下刀架推向左边,用螺丝①暂时固定。 Temporarily screw ①after sliding the lower knife holder to the left. 松开螺丝 Loosen the screw 取下下刀片 Remove the lower knife 下刀片的正确研磨角度 Correct angles to resharpen the lower knife 75° 62° 检查机油的循环 Checking the oil circulation OK 运转中 In operation 安装下刀片 Install the lower knife 转动手轮将上刀片转动到如图所示位置 Turn the handwheel as the drawing on the right figure 下刀刀片B Cutting edge of the lower knife B 上刀片 Upper knife 针板表面A Top surface of the needle A Plate 下刀片 Lower knife 松开螺丝 Loosen the screw 下刀刀片B Cutting edge of the lower knife B 将针板表面A与下刀刀片B处 于相同水平位置 Make the needle plate A and the lower knife B at the same level. 拧紧螺丝 Tighten the screw 装入下刀片。(右图参照) Insert the lower knife (See the right figure) 装好下刀片后进行剪线,确 认剪切状况 Checking cutting action of knife 检查油质量,更换油 机油每6个月检查并更换。 Checking and replacing the oil filter Check and replace the oil filter every six months. 换机油 机油的更换,请在使用开始1个月后更换 一次,然后,每6个月更换一次。供油请 参见第1页。 Replacing the oil Replacing the oil one month after the first use and every six months there after.(See p1.) 调整基准表 机型 针板高度下弯针引量 出量 高度 寄针架 左右位置 上弯针架 安装方向 二重环引量 送齿 转速 送齿梳斜度 送齿梳高度 送齿梳高度差 默认送齿梳高度 最高转速 JK-798D-3-02/233 10.5 3.8 4.4-4.7 左 4900 5500 JK-798D-3-32R2/233 10.5 3.8 4.4-4.7 左 4900 5500 JK-798D-3-02/233 10.5 3.8 4.4-4.7 左 4900 5500 JK-798D-3-12/233 10.5 3.8 4.4-4.7 左 4900 5500 JK-798D-4-83/323 10.5 3.8 5.4-5.7 右 4900 5500 JK-798D-4-M03/333 10.5 3.8 5.4-5.7 右 4900 5500 JK-798D-4-M03/233/H/M 11.5 3.8 3.7-3.9 1 左 0.8 0.5 4900 5500 JK-798D-5-03/233 10.5 3.8 4.4-4.7 左 0.8 0.5 4900 5500 JK-798D-5-03/333 10.5 3.8 4.4-4.7 左 1.5 4900 5500 JK-798D-5-A04/435 10.5 3.8 5.0-5.3 左 1.7 4900 5500 JK-798D-5-02A/223 12 10.8 14.5 左 1.5 0.8 0.5 4900 5500 3 jintex.in
I jintex.in 4 3/4 Series
一、机壳部分/Machine Bed Frame 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 P03017 销5×10 Pin 1 1 1 2 20703006 上弯针后轴套 Sleeve 1 1 1 3 20703009 上刀轴右套 Sleeve 5 5 7 4 20628023 送布轴油封 Plug 1 1 0 5 20701002 下刀座 Bracket Assembly 1 1 1 6 207S13003 螺钉M6×25 Screw 2 2 2 7 P03018 销4×40 Pin 1 1 1 8 20703004 上刀轴左套 Sleeve 1 1 1 9 206S30001 支柱 Bed pin 4 4 4 10 20126001 工艺孔销 Pin 1 1 1 11 20703008 差动轴套 Sleeve 1 1 1 12 20703007 主轴轴套 Sleeve 1 1 1 13 20703003 送布右轴套 Sleeve 1 1 1 14 20703002 上轴左套 Sleeve 1 1 1 15 20703001 上轴右套 Sleeve 1 1 1 16 P03010 销5×16 Pin 1 1 1 17 302742 机壳(喷漆) Machine Bed Complete 1 1 1 18 20713027 过线管 Pipe 2 2 2 19 20737003 机型牌 Machine Model Plate 1 1 1 20 R03001 铆钉 Screw 2 2 2 21 P03019 开口销 Pin 1 1 1 2 jintex.in
L jintex.in 5 Series 3/4 Series
二、机壳机罩部件(1)/Cover (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20702017 压脚杆 Presser Bar 1 1 1 2 207S17005 螺钉M4×10 Screw 4 4 4 3 300165 侧盖 Side Cover 1 1 1 4 20722202 密封垫 Gasket 1 1 1 5 20722002 油塞 Plug 1 1 1 6 20711055 油标盖 Oil sight window 1 1 1 7 21022003 油标盖垫 Washer 1 1 1 8 207S11012 螺钉M4×10 Screw 6 6 6 9 20701040 上盖 Top Cover 1 1 1 10 20612004 前罩板卡簧 Flat Spring 1 1 1 11 207S11008 螺钉M4×12 Screw 5 5 5 12 S01031 螺钉M4×4.7 Screw 2 2 2 13 20712003 锁紧板 Latch 1 1 1 14 20712005 前盖板 Side Cover 1 1 1 15 20712002 锁紧板 Latch 1 1 1 16 207S11009 螺钉M3×2.5 Screw 1 1 1 17 20626001 铰链销 Pin 1 1 1 18 300166 右前盖 Front Cover(right) 1 1 1 19 207S14001 螺钉M4×4 Screw 2 2 2 20 20701006 铰链 Hinge 1 1 1 21 20627001 铰链销弹簧 Spring 1 1 1 22 20712004 左前盖 Front Cover(left) 1 1 0 23 20712043 左前盖 Front Cover(left) 0 0 1 24 207S11011 螺钉M4×5 Screw 2 2 2 25 207S14003 螺钉M3×4 Screw 1 1 1 26 207S14002 螺钉M3×12 Screw 1 1 1 27 XXXXXXXX 穿线图 Threading diagram 1 1 1 28 XXXXXXXX 穿线图 Threading diagram 0 0 1 29 2013001000 LED灯组件 LED ASSY 1 1 1 30 20628012 大垫片 Washer 1 1 1 31 207S11007 螺钉 Screw 2 2 2 32 20711210 R型线夹 R thread clamp 3 3 2 33 20612062 小垫片 Washer 3 3 2 34 21022007 油封 Oil seal 1 1 1 35 21012018 油封垫 Oil seal washer 1 1 1 L jintex.in
1 2 3 4 5 6 7 8 9 3/4 Series 10 5 Series 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 jintex.in
三、机壳机罩部件(2)/Cover (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量(Number) three-thread three-thread four-thread five-thread 1 207S12001 螺钉M4×8 Screw 5 5 5 2 20701007 左上盖 Bed Cover Plate Assy. 1 1 1 3 20722003 密封垫 Gasket 1 1 1 4 S01005 螺钉M4×10 Screw 4 4 4 5 2071208600 后窗板 Cover Plate 1 1 1 6 207S20002 螺钉M4 Screw 1 1 1 7 20128015 垫圈 Washer 1 1 1 8 20712011 托架 Bracket 1 1 1 9 20711005 防护罩 Eye Guide 1 1 0 10 20711019 防护罩 Eye Guide 0 0 1 11 W01011 垫圈3 Washer 2 2 2 12 207S11015 螺钉M3×6 Screw 2 2 2 13 20712008 挡板 Plate 1 1 1 14 207S17003 螺钉M4×7.5 Screw 2 2 2 15 20612016 下刀座前垫护板 Latch 1 1 1 16 207S11014 螺钉M3.5×4.5 Screw 1 1 1 17 207S11016 螺钉M4×16 Screw 1 1 1 18 N01001 螺母M4 Nut 1 1 1 19 20712022 挡板 Plate 1 1 1 20 207S11007 螺钉M4×7.5 Screw 5 5 5 21 20722016 支撑垫 Cushion 1 1 1 22 20712010 布料挡板 Fabric Guide 1 1 1 23 2071204400 缝台组件 Cloth Plate 1 1 1 24 20612009 前盖板固定块 Bracket 1 1 1 25 20622003 减震垫 Cushion Rubber 2 2 2 26 20627002 缝台簧 Lever 1 1 1 27 20627003 挡簧 Spring 1 1 1 28 206S20006 螺钉M4 Screw 1 1 1 29 207S14007 螺钉M4×6 Screw 1 1 1 30 20603016 套筒 Bushing 1 1 1 31 W02004 止动垫圈6 Washer 1 1 1 32 207S11011 螺钉M4×5 Screw 1 1 1 33 20711018 侧盖组件 Side Cover (Wide) 1 1 1 34 20528017 垫片 Washer 2 2 2 35 207S11013 螺钉M4×17.5 Screw 1 1 1 jintex.in
3/4 Series 1 2 5 Series 32 25 33 3 4 5 6 7 8 3/4 Series 9 5 Series 34 10 11 12 13 14 3/4/5 Series 15 4-H/M Series 16 5-A04 Series 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 jintex.in
四、主轴部件/Crankshaft Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S11007 螺钉M4×7.5 Screw 3 3 0 2 20712013 前轴承盖 Cover 1 1 0 3 001024 0型圈40×1.8 0 Ring 1 1 1 4 207S11041 螺钉M5×10 Screw 1 1 1 5 207S11042 螺钉M5×5 Screw 1 1 1 6 001037 0型圈30×1.2 0 Ring 2 2 2 7 B04004 轴承6202LB Ball Bearing 1 1 1 8 20725001 棘轮 Ratchet 1 1 1 9 S10009 螺钉M6×8 Screw 1 1 0 10 20726002 销 Pin 1 1 1 11 20701008 平衡块 Blance Weight 2 2 2 12 207S11017 螺钉M3×8 Screw 4 4 4 13 20729001 卡簧 Ring 1 1 1 14 400046 主轴 Crankshaft 1 1 1 15 20702054 主轴 Crankshaft 0 1 0 16 400045 主轴 Crankshaft 0 0 1 17 B01005 轴承6203Z Ball Bearing 2 2 2 18 20708003 轴套 Spacer 1 1 1 19 20725003 蜗杆 Worm 1 1 1 20 20103002 主轴中轴套 Oil Seal 1 1 1 21 W03003 垫圈32 Washer 1 1 1 22 001025 0型圈17×1.8 0 Ring 1 1 1 23 001028 0型圈41×1.8 0 Ring 1 1 1 24 20708015 后轴承盖 Rigth Cover 1 1 1 25 207S11012 螺钉M4×10 0 Ring 3 3 4 26 2073301000 直驱电机 Direct drive moter 1 1 1 27 S01011 螺钉 Screw 3 3 3 28 W02004 垫片 Washer 1 1 1 29 207S13003 螺钉M6×25 Screw 1 1 1 30 20711056 电机罩 Cover 1 1 1 31 207S11026 螺钉M6×16 Screw 2 2 2 32 207S17001 螺钉M4×10 Screw 0 0 2 33 20712046 前轴承盖 Cover 0 0 1 34 20602002 主轴接轴 Pin 0 0 1 天 jintex.in
2 3 4 5 6 7 8 2 3 4 5 12 7 8 9 10 11 13 14 4/5 series 15 3 series 16 17 18 jintex.in
五、夹线部件/Thread Tension Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400662 夹线器组件(红点) Tension Spring Assembly 1 1 1 2 201S30016 夹线螺钉 Screw Stud 3 4 4 3 20623008 夹线片垫 Felt 3 4 4 4 400161 夹线片 Tension Disc 6 8 8 5 30111005 调压止动盖 Cup 3 4 4 6 30127011 调压簧 Spring 1 2 2 7 30111006 调压止动套 Rachet 3 4 4 8 301S16006 调压螺母 Knob 3 4 4 9 400663 夹线器组件(蓝点) Tension Spring Assembly 1 1 1 10 30127012 调压簧(中) Spring 1 1 1 11 400668 夹线器组件(绿点) Tension Spring Assembly 1 1 1 12 30127013 调压簧(弱) Spring 1 1 1 13 20113002 前过线板 Tension Guide 2 3 3 14 400661 夹线器组件(黄点) Tension Spring Assembly 0 1 1 15 206S11005 螺钉SM11/64×40 Screw 1 0 0 16 20712032 过线板 Thread Guide 1 1 1 17 207S11007 螺钉M4×7.5 Screw 2 2 2 18 20713001 过线板 Thread Guide 1 1 1 定 jintex.in
5 Series 1 2 3 4 5 6 9 5 Series 10 5-A04 Series 11 7 5 Series 8 5-A04 Series 12 13 14 15 5 Series 5-A04 Series 16 17 16 18 天 jintex.in
六、过线机构(1)/Thread Guide and Thread Takeup (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701029 托架 Bracket 0 0 1 2 207S11019 螺钉M4×7.5 Screw 0 0 2 3 207S14001 螺钉M4×4 Screw 0 0 2 4 20701030 托架 Bracket 0 0 1 5 S01031 螺钉M4×4.7 Screw 0 0 3 6 20713020 过线 Thread Guide 0 0 1 7 20713023 过线 Thread Guide 0 0 1 8 20713051 过线 Thread Guide 0 0 1 9 20713021 过线 Thread Guide 0 0 1 10 20713022 过线 Thread Guide 0 0 1 11 20713050 过线 Thread Guide 0 0 1 12 20713006 托架 Bracket 0 0 1 13 20713007 压线板 Thread Retainer 0 0 1 14 20727002 压簧 Spring 0 0 1 15 207S20003 螺钉 Screw 0 0 1 16 207S11015 螺钉M3×6 Screw 0 0 2 17 20713024 挑线杆 Thread Takeup 0 0 1 18 20713052 挑线杆 Thread Takeup 0 0 1 jintex.in
3/4 Series 1 2 3 4 3 Series 5 4 Series 6 3 Series 7 4 Series 8 9 10 11 12 13 3 Series 14 4 Series jintex.in
七、过线机构(2)/Thread Guide and Thread Takeup (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701010 托架 Bracket 1 1 0 2 207S11019 螺钉M4×4.7 Screw 2 2 0 3 207S14001 螺钉M4×4 Screw 1 1 0 4 20713002 过线 Thread Guide 1 0 0 5 20713003 过线 Thread Guide 0 1 0 6 20713004 过线 Thread Guide 1 0 0 7 20713005 过线 Thread Guide 0 1 0 8 20713006 托架 Bracket 1 1 0 9 20713007 压线板 Thread Retainer 1 1 0 10 20727002 压簧 Spring 1 1 0 11 207S20003 螺钉 Screw 1 1 0 12 207S11015 螺钉M3×6 Screw 2 2 0 13 20713008 挑线杆 Thread Takeup 1 0 0 14 20713009 挑线杆 Thread Takeup 0 1 0 jintex.in
2) 5 Series 3) 3/4 Series 3/4 Series 13) 5 Series 14)
八、过线机构(3)/Thread Guide and Thread Takeup (3) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) three-thread 三线 four-thread 四线 five-thread 五线 1 20713054 过线 Thread Guide 1 1 1 2 20713053 过线 Thread Guide 0 0 1 3 20713012 过线 Thread Guide 1 1 0 4 20113015 过线 Thread Guide 2 2 2 5 20712016 托架 Bracket 1 1 1 6 W01011 垫圈 Washer 2 2 2 7 201S11006 螺钉 Screw 2 2 2 8 207S11007 螺钉M4×7.5 Screw 1 1 1 9 207S11020 螺钉M3×4 Screw 1 1 1 10 20713011 过线 Thread Guide 1 1 1 11 20713010 挑线架 Thread Takeup 1 1 1 12 207S11021 螺钉M3.5×6 Screw 1 1 1 13 20713015 挑线架 Thread Takeup 1 1 0 14 20713055 挑线架 Thread Takeup 0 0 1 夹 jintex.in
jinttex.in
九、针杆部件(1)/Needle Drive Mechanism(1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) three-thread 三线 four-thread 四线 five-thread 五线 1 400039 针杆连杆 Connection 1 1 1 2 207S11016 螺钉M4×16 Screw 2 2 2 3 207S14007 螺钉M4×6 Screw 1 1 1 4 H05008 挡圈8 Ring 1 1 1 5 20628014 上刀架垫片 Washer 1 1 1 6 207S14001 螺钉M4×4 Screw 2 2 2 7 20708004 上轴挡圈 Collar 1 1 1 8 20626003 曲柄销 Pin 1 1 1 9 S05018 螺钉M6×0.75×12 Screw 1 1 1 10 20704001 上轴曲柄 Crank 1 1 1 11 20702002 上轴 Shaft 1 1 1 12 20722004 油塞 Plug 1 1 1 13 207S11043 螺钉 Screw 1 1 1 14 20704002 针杆曲柄 Lever 1 1 1 15 2060303100 针杆组件 Needle Bar Assembly 1 1 1 16 20702003 针杆 Needle Bar 1 1 1 17 20726003 曲柄销 Shaft 1 1 1 18 20523005 油线 Oil wick 1 1 1 19 20703012 针杆套 Bushing 1 1 1 20 207S14008 螺钉M4×5 Screw 1 1 1 21 001026 0型圈11.5×1.5 O Ring 1 1 1 22 20723003 毛毡 Oil Felt 1 1 1 23 20708005 挡圈 Ring 1 1 1 24 207S11023 螺钉M3×6 Screw 1 1 1 jintex.in
2针 ( 2-needle) 5 Series 1 5-03/333 Series 2 5-03/233 Series 3 5-A04 Series 5 5 Series 6 5-A04 Series 1针 ( 1-needle) 3 Series 2针 ( 2-needle) 4 Series 7 4 8 7 9 10 4 11 7 12 13 4 14 7
十、针杆部件(2)/Needle Drive Mechanism (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20734003 针夹头 Needle Holder Assembly 0 0 1 2 20734004 针夹头 Needle Holder Assembly 0 0 1 3 20719056 针夹头 Needle Holder Assembly 0 0 1 4 207S14014 螺钉M3×3 Screw 1 2 2 5 20713017 过线 Thread Guide 0 0 1 6 20713056 过线 Thread Guide 0 0 1 7 207S11024 螺钉M2×3 Screw 1 1 1 8 XXXXXXXX 机针 Needle 0 0 2 9 20713038 过线(一针) Thread Guide 1 0 0 10 20734001 针夹头(三线) Needle Holder Assembly 1 0 0 11 XXXXXXXX 机针 Needle 1 0 0 12 20713018 过线 Thread Guide 0 1 0 13 20734002 针夹头(四线) Needle Holder 0 1 0 14 XXXXXXXX 机针 Needle 0 2 0 工 jintex.in
5 Series
十一、针杆部件(3) Needle Drive Mechanism (3) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S17006 螺钉M4×7.5 Screw 2 1 2 2 XXXXXXXX 针板 Needle Plate 1 1 1 3 207S11007 螺钉M4×7.5 Screw 5 5 5 4 20709003 针板垫块(后) Bracket 1 1 1 5 20709002 针板垫块(前) Bracket 1 1 1 6 20622003 防震垫 Cushion Rubber 2 2 2 7 20701033 托架 Bracket 0 0 1 8 207S11003 螺钉M4×10 Screw 0 0 2 9 XXXXXXXX 机针护针(后) Needle Guard 0 0 1 10 S01027 螺钉M3×6 Screw 0 0 4 11 XXXXXXXX 链弯护针 Needle Guard 0 0 1 12 20128019 W07垫圈 Spring 1 1 1 13 XXXXXXXX 机针护针(前) Needle Guard 1 1 1 14 207S12005 螺钉 Screw 1 1 1 15 207S11002 螺钉M3 Screw 1 1 1 16 W03004 垫圈3 Spring 1 1 1 17 XXXXXXXX 护针(后) Needle Guard 1 1 1
1 2 3 4 5 6 7 33 34 35 32 31 29 30 28 27 26 25 33 34 23 24 12 11 13 14 15 16 17 18 19 21 20 3/5 Series 4 Series 5-A04, 4-H/M Series 3/4/5 Series 5-A04, 4-H/M Series 3 Series 4/5 Series 8 9 jintex.in
十二、上弯针部件/Upper Looper Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S11004 螺钉M5×9.5 Screw 1 1 1 2 W02001 上弯针垫圈 Spring Washer 1 1 1 3 20628006 垫圈 Washer 1 1 1 4 20702004 下弯针轴 Shaft 1 1 1 5 20708007 衬套A Spacer 1 0 1 6 20708006 衬套 Spacer 0 1 0 7 20703060 衬套 Spacer 0 1 1 8 400036 上弯针球柄 Crank 1 0 0 9 400037 上弯针球柄 Crank 0 1 1 10 S05018 螺钉M6×0.75×12 Screw 1 1 1 11 S02007 螺钉 Screw 2 2 2 12 20712066 连杆垫片 Washer 1 1 1 13 400043 弯针连杆 Connection 1 1 1 14 207S11016 螺钉M4×16 Screw 2 2 2 15 207S11005 螺钉M4×17.5 Screw 2 2 2 16 20622019 油封 Oil Seal 1 1 1 17 207S11043 螺钉 Screw 1 1 1 18 20705003 连杆 Lever 1 1 1 19 207S14010 螺钉M3×4 Screw 1 1 1 20 20523005 JK788油线 Oil Weak 1 1 1 21 20726004 曲柄柄 Pin Assy. 1 1 1 22 207S11025 螺钉M3.5×6.7 Screw 1 1 1 23 2070400500 上弯针滑杆组件 Upper Looper Holder Assy 1 1 1 24 2070403600 上弯针滑杆组件 Upper Looper Holder Assy 0 1 1 25 20704005 上弯针滑杆 Upper Looper Slider 1 1 1 26 20709004 上弯针滑块 Upper Looper Slider 1 1 1 27 20623005 上弯针滑杆套油毡 Felt 1 1 1 28 XXXXXXXX 上弯针 Upper Looper 1 1 1 29 207S17004 螺钉M2.5×6 Screw 1 1 1 30 207S11027 螺钉M2.5×8 Screw 1 1 1 31 400040 盖板 Cover 1 1 1 32 207S11026 螺钉M6×16 Screw 2 2 2 33 20701051 上弯滑块座 Upper Looper Bracket 1 1 1 34 20701088 上弯滑块座 Upper Looper Bracket 0 1 1 35 20123021 JK795油线 Oil Wick 1 1 1 36 20723005 吸油棉 Felt 1 1 1 37 207S11020 螺钉M3×4 Screw 1 1 1 38 20712017 压板 Bracket 1 1 1 jintex.in
3/4 Series 5 Series jintex.in
十三、下弯针部件/Lower Looper Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S11004 螺钉M4×10 Screw 1 1 1 2 W02001 上弯针垫圈 Spring Washer 1 1 1 3 20628006 垫圈 Washer 1 1 1 4 20702004 下弯针轴 Shaft 1 1 1 5 400329 下弯针球曲柄 Crank 1 1 0 6 S05018 螺钉M6×0.75×12 Screw 1 1 1 7 S02007 螺钉 Screw 2 2 2 8 20712066 连杆垫片 Washer 1 1 1 9 400043 弯针连杆 Connection 1 1 1 10 207S11016 螺钉M4×16 Screw 2 2 2 11 207S11005 螺钉M4×17.5 Screw 2 2 2 12 20622019 油封 Oil Seal 1 1 1 13 207S20004 螺钉M5×13 Screw 1 1 1 14 20704007 下弯针架 Lower Looper Holder 1 1 1 15 207S15001 螺钉M4×7 Screw 1 1 1 16 XXXXXXXXXX 下弯针 Lower Looper 1 1 1 17 207S11028 螺钉M3.5×6.5 Screw 1 1 1 18 400388 下弯针球曲柄 Crank 0 0 1 19 207S11042 螺钉M5×8 Screw 0 0 1 jintex.in
5 Series jintex.in
十四、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism(1) 序号 NO. 公司件号 Part NO. 名称 Description 数量(Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S13009 螺钉M5×12 Screw 0 0 1 2 W02001 上弯针垫圈 Spring Washer 0 0 1 3 20628010 送布曲柄垫圈 Washer 0 0 1 4 20710008 偏心销 Pin 0 0 1 5 001027 0型圈4×1.3 O Ring 0 0 1 6 401031 滑块座 Slider 0 0 1 7 401030 曲柄 Crank 0 0 1 8 20705006 连杆 Connection 0 0 1 9 20703016 连杆套 Bushing 0 0 1 10 30228008 垫圈 Washer 0 0 2 11 207S11044 螺钉M5×13 Screw 0 0 2 12 B08002 滚针k22×18×8 Needle Bearing 0 0 1 13 20626017 五线销 Shaft 0 0 1 14 20701034 支架 Holder 0 0 1 15 S05018 螺钉M6×0.75×12 Screw 0 0 2 16 20704015 链线曲柄 Crank 0 0 1 17 20705009 连杆 Link 0 0 1 18 20703013 连杆套 Bushing 0 0 1 19 20702018 链线轴 Shaft 0 0 1 20 3052201700 油封 Oil Seal 0 0 1 21 20701035 弯针架 Looper Holder 0 0 1 22 207S15001 螺钉M4×7 Screw 0 0 1 23 20728002 垫片 Spacer 0 0 1 24 207S20004 螺钉M5×13 Screw 0 0 1 25 XXXXXXXXX 弯针 Double Chainstith Loop 0 0 1 26 207S11028 螺钉M3.5×6.5 Screw 0 0 1 jintex.in
5 Series
十五、二重环弯针机构 (2) /Chainstitch Looper Drive Mechanism (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20713039 过线管 Thread Guide 0 0 1 2 20629003 过线管夹 Holder 0 0 3 3 20628012 垫片 Washer 0 0 1 4 207S11007 螺钉M4×7.5 Screw 0 0 2 5 20713040 过线管 Thread Guide 0 0 1 6 2061205700 打线内轮组件 Looper Thread Takeup A 0 0 1 7 206S16004 紧线手柄 Knob 0 0 1 8 30127016 弹簧 Spring 0 0 1 9 20612055 夹线片 Tension Disc 0 0 2 10 206S30015 螺钉M3 Screw 0 0 1 11 20612057 打线内轮架 Looper Thread Takeup A 0 0 1 12 20613017 过线 Thread Guide 0 0 1 13 207S11020 螺钉M3×4 Screw 0 0 2 14 20629004 过线 Thread Guide 0 0 1 15 S01031 螺钉M4×7.5 Screw 0 0 1 16 20612056 分线板 Thread Guide 0 0 1 17 207S20002 螺钉M4 Screw 0 0 1 18 20128015 垫圈 Washer 0 0 1 19 20612058 打线内轮 Looper Thread Takeup 0 0 1 20 207S14009 螺钉M3×3 Screw 0 0 2 21 20713026 过线 Tread Guide 0 0 1 22 20629005 卡簧 Spring 0 0 1 jintex.in
jintex.in
十六、差动调节机构/Feed Mechanism 序号 NO. 公司件号 Part NO. 名称 Name Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2070500400 送料连杆组件 Connection 1 1 1 2 20710003 送布偏心 Regulator 1 1 1 3 207S11042 螺钉M5×5 Screw 2 2 2 4 20710002 小偏心轮 Feed Eccent 1 1 1 5 207S14003 螺钉M3×4 Screw 2 2 2 6 20710001 偏心轮 Eccent 1 1 1 7 20712018 弹簧板 Flat Spring 1 1 1 8 20626003 曲柄销 Pin 1 1 1 9 20629006 卡簧 Ring 1 1 1 10 20705004 送料连杆 Connection 1 1 1 11 207S14007 螺钉M4×6 Screw 1 1 1 12 B08001 滚针轴承26×22×10 Needle Bearing 1 1 1 13 20710004 开针偏心凸轮 Eccent Assembly 1 1 1 14 20727003 弹簧 Spring 1 1 1 15 207S20005 螺钉M2 Screw 1 1 1 16 20709006 滑块 Ratchet 1 1 1 17 20722005 油封 Gaket 1 1 1 18 001027 O型圈4×1.3 O Ring 1 1 1 19 20728001 垫片 Washer 1 1 1 20 20727004 弹簧 Spring 1 1 1 21 H05018 卡簧3.5 Ring 1 1 1 22 20702005 开针掀扭轴 Push Button 1 1 1 23 207S20006 螺钉M5×5 Screw 1 1 1 24 20705005 差动连片 Link 1 1 1 25 S05018 螺钉M6×0.75×12 Screw 1 1 1 26 20704008 差动曲柄 Lever 1 1 1 27 20622010 差动O型圈 O Ring 1 1 1 28 20702006 差动轴 Shaft 1 1 1 29 20712019 差动杆 Lever 1 1 1 30 20627006 差动扳手定位簧 Spring 1 1 1 31 207S20007 螺钉 Screw 1 1 1 32 207S11008 螺钉M4×12 Screw 2 2 2 33 20712033 调节板 Regulator Plate 1 1 1 34 20711007 垫圈 Spacer 2 2 2 35 207S16002 螺母 Stopper 2 2 2 36 30228009 垫片 Washer 2 2 2 37 207S11011 螺钉M4×5 Screw 2 2 2 38 20728003 蝶形垫片 Spring Washer 1 1 1 39 2071600100 调节螺母 Nut 1 1 1 40 207S30001 螺钉 Screw 1 1 1 jintex.in
EL jintex.in
十七、送布机构/Feed Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20628023 送布油封 Plug 1 1 1 2 H05009 开口挡圈7 Ring 1 1 1 3 20702008 送布轴 Shaft 1 1 1 4 20628011 送布垫圈 Washer 2 2 2 5 2070400900 送料曲柄组件 Crank 1 1 1 6 20704010 送料曲柄 Crank 1 1 1 7 S05018 螺钉M6×0.75×12 Screw 2 2 2 8 207S11029 螺钉M5×6 Screw 2 2 2 9 20709008 曲柄 Crank 1 1 1 10 20709009 曲柄销 Crank Pin 1 1 1 11 20709010 滑块 Block 1 1 1 12 20710005 偏心销 Pin 1 1 1 13 20704011 送料曲柄 Crank 1 1 1 14 20628010 送布曲柄垫圈 Washer 1 1 1 15 N01004 螺母M5 Nut 1 1 1 16 20729002 卡簧 Ring 1 1 1 17 20722006 0型圈 Gsket 1 1 1 18 207S13001 螺钉 Screw 1 1 1 19 20708008 挡圈 Collar 2 2 2 20 001026 0型圈11.5×1.5 0 Ring 1 1 1 21 20710006 偏心轴 Pin 1 1 1 22 207S14001 螺钉M4×4 Screw 2 2 2 23 2070600100 牙架组件 Feed Bar Assy. 1 1 1 24 20706002 差动牙架 Differential Feed Bar 1 1 1 25 20709011 滑柱 Block 1 1 1 26 20706001 主送牙架 Main Feed Bar 1 1 1 27 20709012 滑块 Block 1 1 1 28 20705008 连杆 Link 1 1 1 29 20703016 连杆套 Bushing 1 1 1 30 30228008 垫圈 Washer 1 1 1 31 207S11044 螺钉M5×13 Screw 1 1 1 32 XXXXXXXXXX 牙齿组件 Main Feed Dog Complete 1 1 1 33 XXXXXXXXXX 辅助齿 Auxiliary 1 1 1 34 XXXXXXXXXX 主送齿 Main Feed Dog 1 1 1 35 207S11039 螺钉M3×6 Screw 1 1 1 36 S01029 螺钉M3.5×7.5 Screw 2 2 2 37 XXXXXXXXXX 差动齿 Differential Feed Dog 1 1 1 38 20701049 牙架挡板 Feed Bar Oil Seal 1 1 1 39 20701048 牙架挡块(一体) Feed Bar 1 1 1 40 207S13006 螺钉M4×9 Screw 4 4 4 41 20701013 挡油板 Feed Bar Oil Seal 1 1 1 42 207S13007 螺钉M4×5 Screw 2 2 2 43 20712062 油管夹 Clamp 1 1 1 44 S01031 螺钉M4×4.7 Screw 1 1 1 45 20721009 牙架吸油管 Tube 1 1 1 46 20722007 牙架油封 Oil Seal 2 2 2 王 jintex.in
9 3/4 Series 10 5 Series 11 12 5-A04 Series 16 3/4 Series 17 5 Series 18 19 20 21 22 23 24 25 26 27 28 29 3/4 Series 30 31 5 Series 32 5-A04 Series 33 34 35 21 jintex.in
十八、剪布机构/Knife Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20726005 导向销 Pin 1 1 1 2 20702009 上刀架轴 Upper Knife Lever 1 1 1 3 3052201700 油封 Oil Seal 1 1 1 4 30208001 挡块 Collar 2 2 2 5 S10003 螺钉M6×0.75×12 Screw 2 2 2 6 207S11016 螺钉M4×16 Screw 2 2 2 7 400041 上刀连杆 Connection 1 1 1 8 207S14013 螺钉M4×6 Screw 1 1 1 9 20704012 上刀曲柄 Crank 1 1 0 10 20704030 上刀曲柄 Crank 0 0 1 11 S05018 螺钉M6×0.75×12 Screw 1 1 1 12 20626003 曲柄销 Pin 1 1 1 13 S01029 螺钉M3.5×7.5 Screw 1 1 1 14 20128020 垫片 Washer 1 1 1 15 XXXXXXXX 上刀 Upper Knife 1 1 1 16 20701014 上刀座 Upper Knife Clamp 1 1 0 17 20701036 上刀座 Upper Knife Clamp 0 0 1 18 207S11012 螺钉M4×10 Screw 1 1 1 19 20701050 绞刀安装板 Angled Upper Knife Clamp 0 0 1 20 XXXXXXXX 切刀 Angled Upper 0 0 1 21 W01011 垫圈 Washer 0 0 1 22 207S11020 螺钉M3×4 Screw 0 0 1 23 20712053 上刀凹角切 Angled Upper Knife Gib 0 0 1 24 20712051 挡板 Waste Guard 0 0 1 25 S11025 螺钉M4×20 Screw 0 0 1 26 207S12004 螺钉M5×8 Screw 1 1 1 27 20709013 压板 Lower Knife Clamp 1 1 1 28 XXXXXXXX 下刀 Lower Knife 1 1 1 29 20701015 下刀架 Lower Knife Holder 1 1 0 30 20707006 弹簧 Spring 1 1 1 31 20701037 下刀架 Lower Knife Holder 0 0 1 32 20701052 下刀架 Upper Knife Clamp 0 0 1 33 207S11019 螺钉M4×7.5 Screw 2 2 2 34 20712021 挡板 Lower Knife Holder Guard 1 1 1 35 S01010 螺钉M4×7.5 Screw 1 1 1 jintex.in
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 IE jintex.in
十九、抬压脚机构/Presser Foot Mechanism 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 207S20008 抬压脚螺钉M10 Screw 1 1 1 2 20712023 抬压脚杠杆 Lever 1 1 1 3 20727007 扭簧 Spring 1 1 1 4 20712025 弯钩 Link 1 1 1 5 N01004 螺母M5 Nut 1 1 1 6 207S11031 螺钉M5×24 Screw 1 1 1 7 207S11012 螺钉M4×10 Screw 2 2 2 8 20712024 角板 Stopper 1 1 1 9 S05017 螺钉M6×0.75×13.5 Screw 1 1 1 10 20608004 抬压脚复位圈 Collar 1 1 1 11 20612030 抬压脚小杠杆 Lever 1 1 1 12 20727013 小杠杆扭簧 Spring 1 1 1 13 20703031 滑动轴承 Bearing 2 2 2 14 207S11042 螺钉M5×5 Screw 1 1 1 15 20703030 压脚轴套筒 Bushing 1 1 1 16 20702010 压脚轴 Shaft 1 1 1 17 S10011 螺钉M4×0.5×4 Screw 1 1 1 18 20626016 压脚臂连杆销 Pin 1 1 1 19 20701016 压脚臂 Presser Arm 1 1 1 20 20619005 割线刀 Thread Cutter 1 1 1 21 207S11020 螺钉3×4 Screw 2 2 2 22 20702014 调节螺柱 Adjusting Screw 1 1 1 23 207S16003 螺母 Nut 1 1 1 24 20719054 压簧 Spring 1 1 1 25 20712030 挡板 Stopper 1 1 1 26 207S11007 螺钉M4×7.5 Screw 1 1 1 27 20612034 压杆扳手 Lever 1 1 1 28 20627010 压杆扳手扭簧 Spring 1 1 1 29 207S20009 螺钉 Screw 1 1 1 30 207S11036 螺钉 Screw 0 1 0 31 20407210 弹簧片 Spring 0 1 0 32 20616004 压脚爪 Paw Pressur 0 1 0 33 206S10004 螺钉 Screw 0 1 0 34 20701023 辅助压脚 Auxiliary Presser Foot 0 1 0 35 20616022 压脚底板 Baseboard 0 1 0 36 20712023 压脚架 Rack 0 1 0 37 207S11030 螺钉 Screw 0 1 0 38 207S11034 螺钉 Screw 0 1 0 39 20616016 压脚辅助板 Auxiliary Plank 0 1 0 40 207160200 压脚组件 Presser Foot Assy 0 1 0 41 20712026 压脚护手 Finger Guard 0 1 0 42 20712048 板簧 Stopper 0 1 0 43 207S11009 螺钉3×4.5 Screw 0 1 0 jintex.in
正 jintex.in
二十、供油机构(1)/Lubrication Mechanism (1) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2072000200 油泵组件 Pump 1 1 1 2 20725002 蜗轮 Worm Wheel 1 1 1 3 207S14006 螺钉M5×5 Screw 2 2 2 4 207S11008 螺钉M4×12 Screw 3 3 3 5 300140 滤油器盖 Oil clearer 1 1 1 6 001010 密封圈 Seal ring 1 1 1 7 20136001 滤油器 Filter Element 1 1 1 8 20736001 滤油器接头 Oil cljernier joint 1 1 1 9 207S11019 螺钉M4×7.5 Screw 2 2 2 10 20712110 接油盘 Oil guard 1 1 1 11 207S11012 螺钉M4×10 Screw 2 2 2 12 20701098 接油盘固定块 oil-receiver fixing bl 1 1 1 13 206S30009 过油螺钉 Joint Screw 4 4 4 14 20122033 垫片 Washer 10 10 10 15 20721013 上喷油器 Upper screem 1 1 1 16 20636001 油管接头 Joint 4 4 4 17 20729005 油管卡簧 Clamp 4 4 4 18 12921003 油管Φ5×Φ8 Tube 0.15m 0.15m 0.15m 19 207S13008 螺钉M4×10 Screw 2 2 2 20 12921003 油管Φ5×Φ8 Tube 0.19m 0.19m 0.19m 21 20437009 油标 Oil sight 1 1 1 IE jintex.in
III jintex.in
二十一、供油机构(2)/Lubrication Mechanism (2) 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20721010 过油管 Pipe 1 1 1 2 207S14001 螺钉M4×4 Screw 1 1 1 3 20709016 橡胶塞 Rubber plug 2 2 2 4 207S11011 螺钉M4×5 Screw 1 1 1 5 20723007 油毡 Felt 1 1 1 6 2071203800 吸油嘴组件 Joint 1 1 1 7 20622010 差动轴O型圈 O Ring 1 1 1 8 20721011 油管Φ2×Φ4 Tube 1 1 1 9 207S14006 螺钉M5×5 Screw 1 1 1 10 20709015 滚珠 Rubber plug 1 1 1 12 20123021 JK795油线 Oil Wick 1 1 1 11 20626007 上弯针滑杆油器 Pipe Assy. 1 1 1 13 207S14007 螺钉M4×4 Screw 1 1 1 14 20521009 铜油嘴 Joint 2 2 2 15 20722008 油盘垫 Gasket 1 1 1 16 20701026 油盘 Oil Reservoir 1 1 1 17 20528014 油盘放油垫圈 Washer 1 1 1 18 207S13002 放油螺钉 Screw 1 1 1 19 20628018 垫片 Washer 4 4 4 20 207S13009 螺钉M5×12 Bolt 4 4 4 jintex.in
3/4 Series 2 5 Series 3 3/4 Series 6 3/4 Series 7 5 Series 5 Series 3/4 Series 5 Series 10 11 12 13 14 15 16 18 17 19 20 10 11 12 13 14 15 16 18 17 19 20 21 22 23 II jintex.in
二十二、HR装置机构部件/H. R. Device 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20712042 挡油板 Cover 1 1 1 2 20723008 毛毡 Felt 1 1 0 3 20719051 毛毡 Felt 0 0 1 4 20711015 上硅油盒盖 Cover 1 1 1 5 20711014 上硅油盒 Silicone Oil Reservoir 1 1 1 6 20712040 过线架 Thread Guide 1 1 0 7 20713019 过线架 Thread Guide 0 0 1 8 207S11012 螺钉M4×10 Screw 1 1 1 9 2071101600 下硅油盒组件 Silicone Oil Reservoir 1 1 0 10 20723009 油毡 Oil Felt 1 1 1 11 / 别针 Pin 1 1 1 12 207S11008 螺钉M4×10 Screw 2 2 0 13 20701027 针线冷却器 Needle Thread Lubricator 1 1 0 14 20709014 滚珠 Plug 1 1 1 15 20712041 油管夹 Clamp 2 2 2 16 40123013 油线 Oil Wick 1 1 1 17 40121002 油管 Tube 1 1 1 18 20711017 下硅油盒盖 Cover 1 1 1 19 20711016 下硅油盒 Silicone Oil Reservoir 1 1 1 20 207S30003 组合螺钉M4×12 Screw 1 1 1 21 207S11007 螺钉M4×7.5 Screw 0 0 2 22 20701038 针线冷却器 Needle Thread Lubricator 0 0 1 23 2070103000 下硅油盒组件A Silicone Oil Reservoir 0 0 1
二十三、线架部件/Thread Stand 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20631020 过线棒 Thread guide (6-spool) 0 0 1 (六线) 2 20131036 过线棒 Thread Guide (5-spool) 0 0 1 3 20131014 过线棒 Thread Guide (4-spool) 0 1 0 4 20131050 过线棒 Thread Guide (3-spool) 1 0 0 5 206S16008 螺钉 Screw 2 2 2 6 N01004 螺母M5 Nut 2 2 2 7 30101028 长线架 Thread Hanger 1 0 1 8 20631026 短线架 Thread Hanger 0 2 1 9 206S30025 螺钉 Screw 1 2 2 10 20631032 垫片 Washer 1 2 2 11 206S30024 螺钉 Screw 1 2 2 12 20131006 线棒 Spool Pin 3 4 5 13 20631031 垫片 Spring Washer 3 4 5 14 206S16006 螺母 Nut 3 4 5 15 20631025 线托盘 Spool Seat Disc 3 4 5 16 20631024 托盘垫 Spool Mat 3 4 5 17 20131008 线固定套 Spool Cushion 3 4 5 18 30111008 棒架 Holder 1 1 1 19 206S30027 螺钉 Screw 1 1 1 20 206S16006 螺母 Nut 1 1 1 21 30113018 导线棒 Thread Guide Arm 1 1 1 22 206S30023 螺钉 Screw 1 1 1 23 206S16006 螺母 Nut 1 1 1 24 20631017 固定器 Holder 1 1 1 25 206S30023 螺钉 Screw 1 1 1 26 206S16006 螺母 Nut 1 1 1 27 30102034 线上棒 Column Pipe (upper) 1 1 1 28 30102032 线下棒 Column Pipe (lower) 1 1 1 29 30129005 锁紧卡固 Joint 1 1 1 30 206S30023 螺钉 Screw 1 1 1 31 206S16006 螺母 Nut 1 1 1 32 30101030 长过线架 Thread Hanger 1 0 1 33 30101031 短过线架 Thread Hanger 0 2 1 34 206S16008 螺钉 Screw 2 2 2 35 N01004 螺母M5 Nut 2 2 2 36 30103045 过线套 Thread Eyelet 3 4 5 37 30122027 棒帽 Rod Cap 1 1 1 38 30128062 垫片 Washer 2 2 2 39 206S16007 螺母 Nut 1 1 1 40 2063101400 线架组件(三线) Thread Hanger Assy. 1 0 0 2053102900 线架组件(四线) Thread Hanger Assy. 0 1 0 3013102700 线架组件(五线) Thread Hanger Assy. 0 0 1 2053103100 线架组件(六线) Thread Hanger Assy. 0 0 1(六线) 41 20131090 过线管 Thread guide pipe 3 4 5 42 20131112 胶套 Plastic Cover 3 4 5 43 20128038 垫片 Washer 2 2 2 页 jintex.in
JACK 1 2 3 4 5 6 7 8 10 11 10 12 13
二十四、托盘部件/Part For Semi-Submerged Installation 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20131028 托盘固定螺母 Nut 4 4 4 2 20722009 托盘防震连接垫 Cushion Rubber 4 4 4 3 20711052 托盘接油盘 oil pan 1 1 1 4 20711054 托盘架 Rest Board 1 1 1 5 30122031 减震垫圈 Spring Washer 8 8 8 6 20131030 防震套 Washer 4 4 4 7 20131029 大垫圈 Spacer 8 8 8 8 20131027 托盘内六角螺钉 Screw 4 4 4 9 20131058 落料斗组件 Waste Chute Assy. 1 1 1 10 20131034 排料槽座螺钉 Screw 7 7 7 11 20131031 排料槽座 Screw 1 1 1 12 20131032 排料槽I Waste Chute 1 1 1 13 20131033 排料槽II Waste Chute 1 1 1 jintex.in
5-A04 Series 5-03 Series 16 03-233 17 03-333 25 03-233 26 03-333 27 03-233 28 03-333 20 03-233 21 03-333 5-A02 Series jintex.in
jintex.in
二十六、随机附件部分 Accessories Assemblies 序号 No. 公司件号Part No. 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20131044 直柄内六角螺丝刀 Hexagonal 1 1 1 2 10131004 螺丝刀(小) Screwdriver (S) 1 1 1 3 10131003 螺丝刀(中) screwdriver (M) 1 1 1 4 10131002 螺丝刀(大) screw driver (L) 1 1 1 5 20131037 油壶 Oil container 1 1 1 6 20131038 小油壶(尖嘴) Oil container 2 2 2 7 20131039 漏斗 Tundish 1 1 1 8 20131051 镊子(JACK) Tweezers 1 1 1 9 20131043 JK795-1908扳手 Wrench/8mm 1 1 1 10 20131042 JK795-1907扳手 Wrench/7mm 1 1 1 11 20131046 内六角扳手(2mm) Hexagonal 1 1 1 12 30131012 内六角扳手(3mm) Hexagonal 1 1 1 13 20131047 内六角扳手(4mm) Hexagonal 1 1 1 14 20131056 内六角扳手(5mm) Hexagonal 1 1 1 15 30131026 内六角扳手(6mm) Hexagonal 1 1 1 16 2073000500 DI直驱专用部件 DI Special Parts 1 1 1 17 20131055 附件盒 Attachment box 1 1 1 18 20131054 JK795-1919脚踏板链 Chain 1 1 1 19 20131052 线勾 Needle threader 0 0 1 20 20131062 机头塑料袋 Plastic machine 1 1 1 21 S10005 螺钉 Screw 4 4 4 22 见标准零件表 机针 Needle 4 4 4 23 10131005 机头罩 Machine head cover 1 1 1 jintex.in
二十七、机架部件/machine stand table assy 序号 NO. 公司件号 Part NO. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20111052 零件导轨 Drawer slider 2 2 2 2 201S30001 螺钉 Screw 6 6 6 3 20111054 零件盒 Plastic drawer 1 1 1 4 20112110 机架上节左 Upper stand (left) 1 1 1 5 S15001 M8*11螺栓垫圈组合件 Bolt washer assembly M8*11 12 12 12 6 20112115 机架下节左 Lower stand (left) 1 1 1 7 20122052 支撑护罩 Rubber cover 4 4 4 8 20112118 支座 Stand height adjusting base 4 4 4 9 20122056 脚踏板垫 (大) Large pedal pad cushion 1 1 1 10 20112122 踏板连接件 (大) Large pedal bracket 1 1 1 11 20112120 脚踏板 (大) Large pedal pad 1 1 1 12 S15002 M6x11螺栓垫圈组合件 Bolt washer assembly M6*11 2 2 2 13 20112123 踏板固定件 Pedal bracket 4 4 4 14 20112133 踏板安装板 Lower bar 1 1 1 15 20112117 踏板安装板固定板 Bolt plate 2 2 2 16 20112124 脚踏板 (小) Small pedal 1 1 1 17 20112126 踏板连接件 (小) Small pedal bracket 1 1 1 18 N01008 螺母 Nut M8 10 10 10 19 20112131 机架下节右 Lower stand (right) 1 1 1 20 20112130 机架连接板 Front bar 1 1 1 21 20112132 机架上节右 Upper stand (right) 1 1 1 22 201S30002 螺钉 Screw 6 6 6 23 XXXXXXXX 台板 Table 1 1 1 24 XXXXXXXX 变速器 Transmission 1 1 1 25 2011111300 拉杆组件 Motor connecting rod 1 1 1 26 2013105400 脚踏板链组件 Pedal chain components 1 1 1 27 20112114 机架固定板 Bolt plate 2 2 2 jintex.in
JK-798D标准度零件表 JK-798D GAUGE PARTS LIST 型号 间距 针板 压脚组件 上弯针 下弯针 连线弯针 针夹 机针 MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASS PRESSER FOOT ASS UPPER LOOPER LOWER LOOPER CHAINSTITCH LOOPER NEEDLE HOLDER NEEDLE JK-798D-3-02/233 4 20715005 2071400100 2071600500 20717004 20717006 20734001 DCX27#9 JK-798D-3-32R2/223 2 20715010 20714008 2071601000 20717004 20717006 20734001 DCX27#9 JK-798D-3-82/233 4 20715019 2071402000 2071601700 20717004 20717006 20734001 DCX27#9 JK-798D-3-12/233 4.5 20715009 20714006 2071600800 20717004 20717005 20734001 DCX27#9 JK-798D-4-83/323 2 4 20715020 20714702200 2071601800 20717004 20717005 20734002 DCX27#9 JK-798D-4-M03/333 2 4 20715002 2071400100 2071600200 20717004 20717005 20734002 DCX27#9 型号 上刀 下刀 弯针护针 机针护针 MACHINE TYPE /SPEC GAUGE UPPER KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD FRONT REAR FRONT REAR JK-798D-3-02/233 20619002 20619003 20717001 20717002 JK-798D-3-32R2/223 2 20619002 20119002 20717001 20717002 JK-798D-3-82/233 4 20619002 20119002 20717001 20717002 JK-798D-3-12/233 6.5 20619002 20119002 20717001 20717002 JK-798D-4-83/323 2 4 20619002 20119002 20717001 20717002 JK-798D-4-M03/333 2 4 20619002 20619003 20717001 20717002 jintex.in
jintex.in jintex.in
产品标准代号: QB/T2504-2000 Standard code of the products: QB/T2504-2000 K 杰克缝纫机 JACK SEWING MACHINE | HTTP://WWW.CHINAAJACK.COM 杰克缝纫机股份有限公司 JACK SEWING MACHINE CO.,LTD. 公司地址(Address of Company): 台州市椒江区机场路15号 No. 15 Rd Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C 国内销售部(Domestic Trade Department): 电话(TEL): 0086-576-88177788 88177789 传真(FAX): 0086-576-88177758 国贸部(International Trade Department): 电话(TEL): 0086-576-88177774 传真(FAX): 0086-576-88177787 零件部 (Spare Part Department): 电话(TEL): 0086-576-8817798 88177785 传真(FAX): 0086-576-88177775 免费售后服务电话(Aftersale Service TEL): 4008876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实样为准。 You will be not informed if the file has been revised. Please set sample as standard. 2015.11 jintex.in
