Parts index — Jack JK-8670tap a row to open its page

Page 3 — 目录/CONTENTS

Jack JK-8670 parts on page 3

Ref	Part number	Part name	Qty
	4	套筒部件/Bushing assembly.
	6	车壳部件/Frane assembly.
	8	缝合部件/Cloth plate assemblies.
	10	下轴部件/Hook. shaft assemblies.
	12	上轴部件/Main shaft assemblies.
	14	针杆部件/Needle bar assemblies.
	16	弯针部件/Looper drive mechanism
	18	送布部件(1)/Need mechanism(1)
	22	送布部件(2)/Need mechanism(2)
	26	送布部件(3)/Need mechanism(3)
	28	压布部件/Presser foot mechanism.

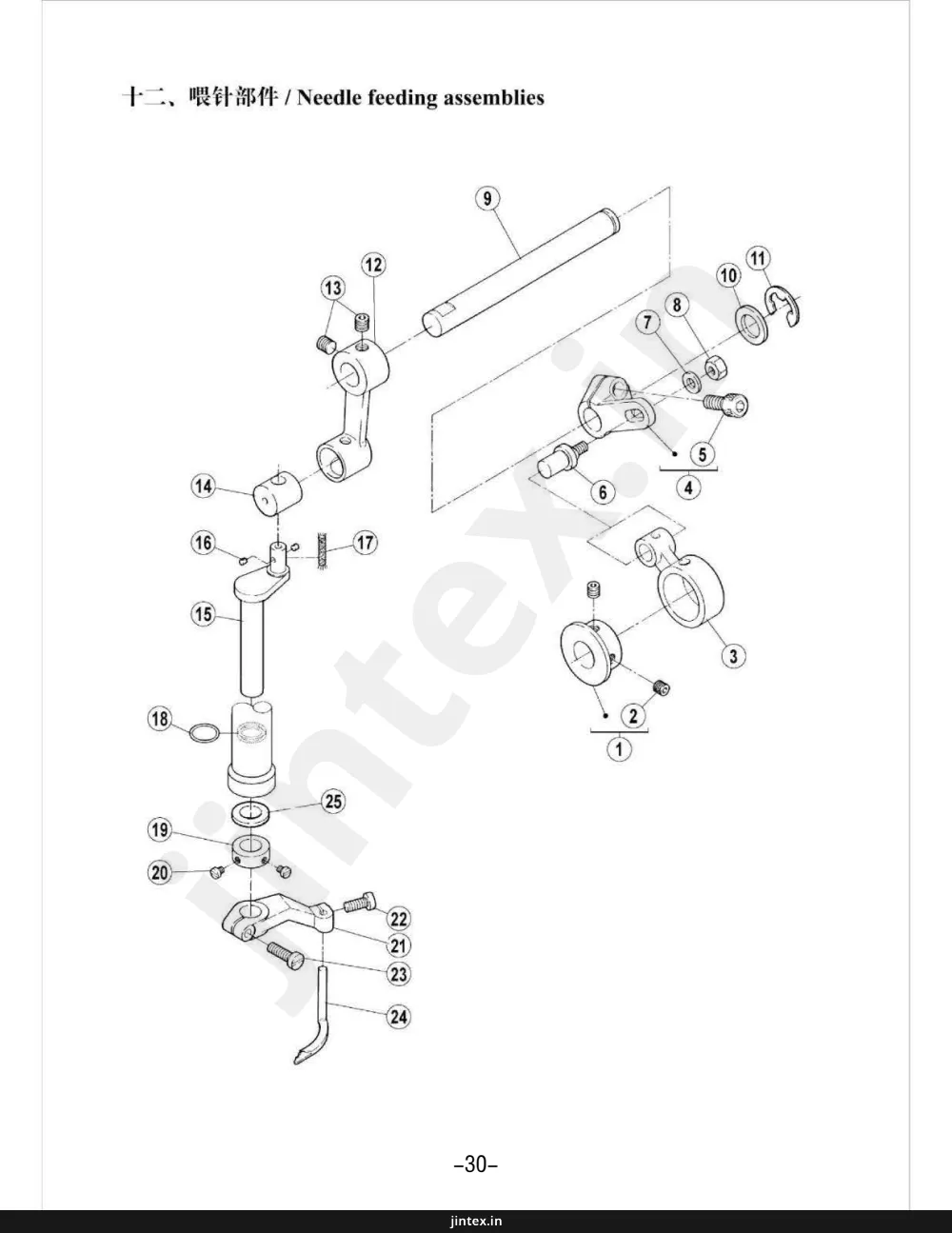

	30	喂针部件/Needle feeding assemblies.
	32	松线部件/Thread loosing assemblies.
	34	过线部件/Thread guide assemblies.
	36	打线凸轮部件/Looper thread handling.
	40	润滑部件/Lubricatrion assemblies.
	42	油泵部件/oil pump assemblies.
	44	硅油盒装置部件/Silicon oil delice assemblies.
	46	油盘托板部件/Oil plate assemblies.
	48	线架部件/Thread apool assemblies.
	50	专用部件(1)/Specific parts(1)
	52	专用部件(2)/Specific parts(2)
	54	专用部件(3)/Specific parts(3)
	56	附件部件/Accessories assemblies.

Page 4 — 套筒部件 / Bushing Assembly

Jack JK-8670 parts on page 4

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28

Page 6 — 一、车壳部件 / Frane Assembly

Jack JK-8670 parts on page 6

Ref	Part number	Part name	Qty
3	3	Screw
19	19	Screw
13	13	Screw
29	29	Screw
22	22	Screw
16	16	Screw
9	9	Screw
14	14	Screw
24	24	Screw
1	1	Shaft
7	7	Screw
15	15	Pin
11	11	Screw
10	10	Screw
12	12	Screw
2	2	Pin
26	26	Screw
20	20	Screw
27	27	Screw
28	28	Screw
5	5	Screw
4	4	Screw
6	6	Screw
8	8	Screw
23	23	Screw
17	17	Screw
18	18	Screw
25	25	Screw
21	21	Screw

Page 7 — 一、车壳部件/Frame Assembly

Jack JK-8670 parts on page 7

Ref	Part number	Part name	Qty
1	3011001	油标
2	301S30001	机针螺钉
3	30122004	油封
4	30122006	油封
5	S12001	螺钉M6×10
6	30122005	油封
7	20122009	油封11
8	30222002	油封
9	S05001	螺钉M10×27.5
10	30112002	盖板
11	30223001	盖板垫
12	S01002	螺钉M4×6.5
13	30122010	油堵
14	R03001	销钉2.5×4
15	P02001	销A8X35
16	W02003	垫圈10
17	S01001	螺钉M4×5.5
18	W01001	垫圈1
19	S12004	螺钉M6×10
20	S10006	螺钉M5×6
21	30737002	JK-8670商标牌(长条)
22	20131063	警示牌
23	30137003	标牌
24	30737001	型号牌
25	20622019	油封
26	S05003	螺钉M5×10
27	S01011	螺钉M5×10
28	301231	缝头(喷漆)
29	301451	机壳(喷漆)

Page 8 — 二、罩壳部件 / Cover Assemblies

Jack JK-8670 parts on page 8

Ref	Part number	Part name	Qty
	1	Cover Assemblies
	2	Cap
	3	Cap
	4	Packed in accessory
	5	Screw
	6	Screw
	7	Screw
	8	Screw
	9	Screw
	10	Screw
	11	Screw
	12	Screw
	13	Screw
	14	Screw
	15	Screw
	16	Screw
	17	Screw
	18	Screw
	19	Screw
	20	Screw
	21	Screw
	22	Screw
	23	Screw
	24	Screw
	25	Screw
	26	Screw
	27	JK8670-01N, 08M Outside JK8670-01N, 08M
	28	Screw
	29	Screw
	30	Screw
	31	Screw
	32	Screw
	33	Screw
	34	Screw
	35	Screw
	36	Screw
	37	Screw
	38	Screw
	39	Screw
	40	Screw
	41	Screw
	42	Screw
	43	Screw
	44	Roller
	45	Switch
	46	Screw
	47	Packed in accessory
	48	Screw
	49	Screw
	50	Screw
	51	Screw
	52	Screw
	53	Screw
	54	Screw
	55	Screw
	56	Screw

Page 9 — 二、罩壳部件/Cover Assemblies

Jack JK-8670 parts on page 9

Ref	Part number	Part name	Qty
	301433	arm cover(top)	1
	30122012	密封盖
	20711002	油窗
	30122013	上盖密封圈
	S04019	螺钉M4×12
	30212004	防护板
	301432	机头左盖(喷漆)
	30112102	针杆护罩
	30222019	机头左盖密封圈
	301S11001	机头左盖螺钉
	30128001	垫圈
	30111003	有机玻璃罩
	S01006	螺钉M3×4.5
	W01002	垫圈3
	30112005	护罩架
	W03001	波形垫圈6
	301S20001	护罩座固定螺钉
	30112004	护罩座
	S01004	螺钉M4×7.8
	W01001	垫圈4
	30212002	后盖板
	30222004	后盖垫板
	S01060	螺钉M6×10
	S01065	螺钉M5×6
	S01004	螺钉M4×7.8
	3011208300	过线防护罩组件
	30112083	过线防护罩
	30112084	手指防护罩
	S01001	螺钉M4×7
	W01001	垫圈4
	30112085	托架
	S01001	螺钉M4×7
	W01001	垫圈4
	301S11002	护罩螺钉
	30711001	皮带罩
	301S11003	带轮护罩螺钉
	301243	前门上盖
	S02001	螺钉M4×8
	301S20002	螺钉
	30228011	垫片
	30226013	销
	S10026	螺钉M3×3
	S01017	螺钉M4×14
	307S30001	前门支柱
	30727001	夹簧
	S01055	螺钉M4×6
	30701017	前辅助盖板
	W01004	垫圈5
	S01011	螺钉M5×10
	30112006	过线护罩
	W02004	Φ6.1弹垫
	301S11002	护罩螺钉
	30337001	商标牌
	301244	前面板(喷漆)
	301245	合销块(喷漆)
	30722005	前辅助盖板橡胶垫

Page 10 — 三、缝台部件 / Cloth plate Assemblies

Jack JK-8670 parts on page 10

Ref	Part number	Part name	Qty
7	7	Screw
6	6	Screw
5	5	Cloth plate
3	3	Screw
1	1	Cloth plate
2	2	Cloth plate
12	12	Screw
11	11	Screw
9	9	Cloth plate
10	10	Cloth plate
13	13	Cloth plate
14	14	Screw
15	15	Screw
20	20	Screw
19	19	Screw
21	21	Cloth plate
16	16	Cloth plate
17	17	Screw
18	18	Screw

Page 11 — 三、缝台部件/Cloth plate Assemblies

Jack JK-8670 parts on page 11

Ref	Part number	Part name	Qty
1	30712002	盖板(右)
2	30722001	盖板垫(右)
3	1.02001	螺钉M4×8
4	S02004	螺钉M4×8
5	3012142	平台板(喷漆)
6	S01085	螺钉M4×10.2
7	S01085	螺钉M4×10.2
8	30722002	防振垫
9	30712001	盖板(左)
10	30722003	盖板垫(左)
11	1.02001	螺钉M4×8
12	30722002	防振垫
13	30701012	左上盖
14	30727002	热盖
15	207S11024	螺钉M2×3
16	30712005	左盖板
17	30726001	销
18	403S13011	螺钉
19	307150100	针板织件
20	S01010	螺钉M4×8
21	301211	前盖板(喷漆)

Page 12 — 四、下轴部件 Hookshaft Assemblies

Jack JK-8670 parts on page 12

Ref	Part number	Part name	Qty
	1	Hookshaft Assemblies
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28

Page 13 — 四、下轴部件/Hook, shaft Assemblies

Jack JK-8670 parts on page 13

Ref	Part number	Part name	Qty
	3070200100	下轴组件
	400079	下轴后轴
	S10029	螺钉M6×0.75×5
	30702002	下轴(前)
	P03033	销1.5×1.5
	400070	球连杆组件
	400228	球曲柄
	S05002	螺钉M6×0.75×15.2
	3012400100	油封轴承
	S10029	螺钉M6×0.75×5
	30103012	轴承套
	30103008	螺杆
	3012400300	油封轴承
	30235002	下同步带轮
	30103009	轴承套
	S12003	螺钉M6×0.75×7
	B01003	轴承6304Z
	30108001	轴承挡圈
	S04010	螺钉M4×5.5
	30735001	小同步带轮
	S10013	螺钉M6×6
	30735005	皮带轮
	S10009	螺钉M6×8
	S12001	螺钉M6×8
	30128005	垫圈
	S05003	螺钉M5×10
	30135002	同步带
	S01008	螺钉M4×13

Page 14 — 五、上轴部件 / Main shaft Assemblies

Jack JK-8670 parts on page 14

Ref	Part number	Part name	Qty
4	4	4
5	5	5
2	2	2
3	3	3
24	24	24
6	6	6
25	25	25
7	7	7
10	10	10
8	8	8
9	9	9
23	23	23
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
11	11	11
12	12	12
21	21	21
19	19	19
17	17	17
20	20	20
18	18	18
17	17	17
19	19	19
16	16	16
22	22	22
27	27	27
29	29	29
30	30	30
26	26	26
28	28	28

Page 15 — 五、上轴部件 / Main shaft Assemblies

Jack JK-8670 parts on page 15

Ref	Part number	Part name	Qty
7028	S01011	螺钉 M5 × 10
4592	S10004	螺钉 M8 × 1 × 12(进口)
7152	S11001	螺钉 M6 × 0.75 × 6
7153	S08001	螺钉 M6 × 0.75 × 3.5
4592	S10004	螺钉 M8 × 1 × 12(进口)
250560A	400065	上轴
253500-92	400061	连接杆组件
007015A	S01003	螺钉 M4 × 12
007021A	S01008	螺钉 M3.5 × 13
253501A	400225	球齿柄
4534	S05002	螺钉 M6 × 0.75 × 15.2
250524	30109003	上轴平衡块
4514	S10027	螺钉 M5 × 5(进口)
250506	30103004	接轴套
4555	S12003	螺钉 M6 × 0.75 × 7(进口)
4547	S10029	螺钉 M6 × 0.75 × 5(进口)
250552	30202004	后轴
250529-91	3012400400	油封轴承
250529	30103012	轴承套
250547A	30235004	上轴同步带轮
250528	30103014	轴承套
	B01005	轴承 6203Z
250516B92	400308	针杆曲柄(21/23)
250526	30103015	轴承套
250566-YD	301434	手轮(喷漆)
4556	S12001	螺钉 M6 × 8
4541	S10009	螺钉 M6 × 8
204585	W01004	垫圈5
4501	S05004	螺钉 M5 × 14

Page 16

Jack JK-8670 parts on page 16

Ref	Part number	Part name	Qty
	1	Needle bar Assemblies
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15	2枚針(2-needle)
	16
	17
	18
	19
	20	3枚針(3-needle)
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38

Page 17 — 六、针杆部件 / Needle bar Assemblies

Jack JK-8670 parts on page 17

Ref	Part number	Part name	Qty
1	30202024	针杆
2	30102009	针杆轧头
3	301S11009	针杆轧头螺钉
4	30205002	针杆连杆
5	30102010	针杆连杆销
6	B07001	轴承 8×12×12(0,-0.002)
7	30128006	垫圈
8	30109004	针杆滑块
9	30209002	滑块导座
10	S01003	螺钉M4×12
11	30227003	毛毡弹簧
12	30123002	毛毡
13	20523003	油线
14	30112009	油线托
15	30117001	机针(UY128GAS11#)
16	30134006	240针古
17	S10026	螺钉M3×3(进口)
18	302S17001	螺钉(进口)
19	30715003	针板
20	30117001	机针(UY128GAS11#)
21	30134001	356针古
22	S10026	螺钉M3×3(进口)
23	400420	连杆
24	30126009	销
25	30223009	油 the
26	30702003	护针轴(后)
27	20523003	油线
28	30708002	挡块
29	30708001	连接套
30	20523005	油线
31	S10007	螺钉M4×4
32	30717001	后护针
33	30702004	护针轴(前)
34	30717002	前护针
35	S01063	螺钉M2.5×6
36	S10007	螺钉M4×4
37	30710001	偏心套
38	20523005	油线

Page 18 — 七、弯针部件 / Looper drive mechanism

Jack JK-8670 parts on page 18

Ref	Part number	Part name	Qty
35	JK8670-01N, 08M	Outside JK8670-01N, 08M

Page 19 — 七、弯针部件 / Looper drive mechanism

Jack JK-8670 parts on page 19

Ref	Part number	Part name	Qty
1	30210002	偏心套
2	S10015	螺钉 M6×0.75×4
3	B07009	轴承 K26×30×12
4	30205003	连杆
5	30226005	滑杆销
6	N01004	螺母M5
7	W01004	垫圈5
8	30201010	滑杆架
9	30109001	比叉
10	W02001	垫圈5
11	301S11004	比叉螺钉
12	30202007	下弯针连杆轴
13	30228006	垫片
14	S05048	螺钉M4×10
15	W02002	垫圈4
16	30228005	垫片
17	30204004	下弯针曲柄
18	S05002	螺钉 M6×0.75×15.2
19	30201011	前挡块
20	S04019	螺钉M4×12
21	30228003	垫片
22	30209003	滑块
23	30209004	油塔
24	S10007	螺钉M4×4
25	30201012	后挡块
26	30228004	挡块垫片
27	30703001	下弯针轴前轴套
28	S10013	螺钉M6×6
29	30203007	后套(后轴)
30	30202006	滑杆
31	30701007	弯针头
32	S05046	螺钉M3.5×9.5
33	30217003	垫片
34	S10016	螺钉M4×5
35	30728001	垫片
36	30226017	弹性圆柱销

Page 20 — 八、送布部件(1)/Need mechanism(1)

Jack JK-8670 parts on page 20

Ref	Part number	Part name	Qty
	1	SCREW
	2	COLLAR
	3	BEARING
	4	COLLAR
	5	CIRCLIP
	6	COLLAR
	7	BRACKET
	8	BRACKET
	9	BRACKET
	10	SCREW
	11	PIN
	12	SPRING
	13	PIN
	14	SHAFT
	15	COLLAR
	16	SCREW
	17	BRACKET
	18	SHAFT
	19	BRACKET
	20	SCREW
	21	BRACKET
	22	SCREW
	23	BRACKET
	24	SPRING
	25	BRACKET
	26	BRACKET
	27	BRACKET
	28	SCREW
	29	SCREW
	30	SCREW
	31	PLATE
	32	SHAFT
	33	PIN
	34	BRACKET
	35	SCREW
	36	SPRING
	37	SPRING
	38	PIN
	39	BRACKET
	40	SCREW
	41	SHAFT
	42	PIN
	43	PIN
	44	SCREW
	45	WASHER
	46	SCREW
	47	BRACKET
	48	SHAFT
	49	SHAFT
	50	BRACKET
	51	BRACKET
	52	BRACKET
	53	BRACKET
	54	BRACKET
	55	BRACKET
	56	BRACKET
	57	BRACKET
	58	SCREW
	59	BRACKET
	60	BRACKET
	61	BRACKET
	62	BRACKET
	63	BRACKET
	64	BRACKET
	65	BRACKET
	66	SCREW
	67	BRACKET
	68	BRACKET
	69	BRACKET

Page 21 — 八、送布部件(1) / Need mechanism(1)

Jack JK-8670 parts on page 21

Ref	Part number	Part name	Qty
1	30210003	送布偏心轮
2	S10006	螺钉M5×6
3	B07007	轴承22×26×10
4	30224001	轴承28×24×13
5	30229001	卡簧
6	30229002	卡簧
7	30205005	偏心连杆
8	30205007	针距轴杆
9	30205006	连杆
10	S10007	螺钉M4×4
11	30226007	连杆销
12	20123021	油线
13	30223009	油毛毡
14	30226008	曲柄销
15	20123021	油线
16	30223009	油毛毡
17	30704001	曲柄
18	S10013	螺钉M6×6
19	30204007	调节曲柄
20	S10029	螺钉M6×0.75×5
21	30202008	针距调节挡板
22	S10006	螺钉M5×6
23	30227005	拉簧
24	302S30001	螺钉
25	30202009	针距指示轴
26	001022	O型圈7×1.5
27	30712006	差动指示板
28	S01011	螺钉M5×10
29	30712007	刻度板
30	S02008	螺钉M4×10
31	30711002	垫圈
32	30202010	针距调节轴
33	H05012	挡圈5
34	H05006	挡圈5
35	001023	O型圈5×1.5
36	S09015	螺钉M4×10
37	S10007	螺钉M4×4
38	30209006	垫块

Page 22 — 八、送布部件(1)/ Need mechanism(1)

Jack JK-8670 parts on page 22

Ref	Part number	Part name	Qty
	1	BEARING
	2	SCREW
	3	BEARING
	4	SHAFT
	5	CIRCLIP
	6	CIRCLIP
	7	SHAFT
	8	SHAFT
	9	BRACKET
	10	SCREW
	11	SHAFT
	12	SCREW
	13	SCREW
	14	SHAFT
	15	SCREW
	16	SCREW
	17	SHAFT
	18	SHAFT
	19	BRACKET
	20	SCREW
	21	SHAFT
	22	SCREW
	23	SHAFT
	24	SPRING
	25	SHAFT
	26	BRACKET
	27	LEVER
	28	SCREW
	29	SCREW
	30	SCREW
	31	PLATE
	32	SHAFT
	33	SCREW
	34	CIRCLIP
	35	SHAFT
	36	SPRING
	37	SPRING
	38	SCREW
	39	SHAFT
	40	SHAFT
	41	SHAFT
	42	PIN
	43	PIN
	44	SCREW
	45	WASHER
	46	SCREW
	47	SHAFT
	48	SHAFT
	49	SHAFT
	50	SHAFT
	51	SHAFT
	52	SHAFT
	53	SHAFT
	54	SHAFT
	55	SHAFT
	56	SHAFT
	57	SHAFT
	58	SHAFT
	59	SHAFT
	60	SHAFT
	61	SHAFT
	62	SHAFT
	63	SHAFT
	64	SHAFT
	65	LEVER
	66	SHAFT
	67	SHAFT
	68	SHAFT
	69	SHAFT

Page 23 — 八、送布部件/Need mechanism (1)

Jack JK-8670 parts on page 23

Ref	Part number	Part name	Qty
39	302S16001	调节螺母
40	30237001	指示板
41	30702005	送料轴(前)
42	400119	连杆
43	20123021	油线
44	30126009	销
45	30228007	垫圈
46	S02013	螺钉M3×6
47	30702006	送料轴
48	30223009	油毛毡
49	20123021	油线
50	30708003	挡块
51	S10007	螺钉M4×4
52	30704002	曲柄
53	S10007	螺钉M4×4
54	30726001	销
55	30705003	连杆
56	20123021	油线
57	20123021	油线
58	30126009	销
59	30726008	轴承内套
60	20628012	垫圈5
61	302S20001	锥位螺钉
62	400397/400407	牙架组件
63	30714001	主送布齿
64	S01005	螺钉M4×10
65	30712008	挡板
66	403S13011	螺钉
67	400487	挡板
68	S01055	螺钉M4×5.5
69	3021000300	送布偏心轮组件

Page 24

Jack JK-8670 parts on page 24

Ref	Part number	Part name	Qty
	1	Lever
	2	Lever
	3	Screw
	4	Spring
	5	Shaft
	6	Shaft
	7	Shaft
	8	Screw
	9	Screw
	10	Screw
	11	Shaft
	12	Shaft
	13	Spring
	14	Shaft
	15	Washer
	16	Lever
	17	Lever
	18	Screw
	19	Shaft
	20	Shaft
	21	Shaft
	22	Shaft
	23	Screw
	24	Shaft
	25	Shaft
	26	Shaft
	27	Shaft
	28	Shaft
	29	Screw
	30	Shaft
	31	Screw
	32	Shaft
	33	Shaft
	34	Lever
	35	Shaft
	36	Shaft
	37	Lever
	38	Lever
	39	Shaft
	40	Shaft
	41	Shaft
	42	Shaft
	43	Shaft
	44	Lever
	45	Shaft
	46	Shaft
	47	Screw
	48	Shaft
	49	Spring
	50	Shaft
	51	Shaft
	52	Screw
	53	Lever
	54	Shaft
	55	Shaft
	56	Screw
	57	Lever
	58	Shaft
	59	Screw
	60	Shaft
	61	Screw
	62	Washer
	63	Screw
	64	Shaft
	65	Lever
	66	Shaft
	67	Screw
	68	Shaft
	69	Screw
	70	Screw
	71	Screw

Page 25 — 九、送布部件(2)/Need mechanism (2)

Jack JK-8670 parts on page 25

Ref	Part number	Part name	Qty
1	30705004	连杆
2	S10007	螺钉M1×4
3	30226008	曲柄销
4	20123021	油线
5	30223009	油毛毡
6	30204006	曲柄
7	S10029	螺钉M6×0.75×5
8	3070200700	送料轴附件
9	S02013	螺钉M3×6
10	S01063	螺钉M2.5×6
11	20123021	油线
12	30223009	油毛毡
13	30705005	连杆
14	30712010	油线压板
15	30126009	销
16	20123021	油线
17	30228007	垫片
18	S02013	螺钉M3×6
19	30705006	送料轴
20	20123021	油线
21	30223009	油毛毡
22	30708001	连接套
23	S10007	螺钉M4×4
24	30702009	送料调节轴
25	20123021	油线
26	30223009	油毛毡
27	30723006	油塞
28	30708003	挡块
29	S10007	螺钉M4×4
30	30703002	滚套
31	30628012	垫圈5
32	307S20002	轴位螺钉
33	30705007	连杆
34	30712011	油线爪杆
35	20123021	油线
36	30126009	销
37	30714002	差动送料齿
38	30726006	固定销

Page 26 — 九、送布部件(2)/ Need mechanism(2)

Jack JK-8670 parts on page 26

Ref	Part number	Part name	Qty
	1	Lever
	2	Lever
	3	Shaft
	4	Spring
	5	Shaft
	6	Shaft
	7	Shaft
	8	Shaft
	9	Screw
	10	Screw
	11	Shaft
	12	Shaft
	13	Spring
	14	Shaft
	15	Screw
	16	Lever
	17	Lever
	18	Screw
	19	Shaft
	20	Shaft
	21	Shaft
	22	Shaft
	23	Screw
	24	Shaft
	25	Shaft
	26	Shaft
	27	Shaft
	28	Shaft
	29	Shaft
	30	Shaft
	31	Screw
	32	Shaft
	33	Shaft
	34	Shaft
	35	Shaft
	36	Shaft
	37	Shaft
	38	Shaft
	39	Shaft
	40	Shaft
	41	Shaft
	42	Shaft
	43	Shaft
	44	Shaft
	45	Shaft
	46	Shaft
	47	Shaft
	48	Shaft
	49	Shaft
	50	Shaft
	51	Shaft
	52	Screw
	53	Shaft
	54	Shaft
	55	Shaft
	56	Screw
	57	Shaft
	58	Shaft
	59	Shaft
	60	Shaft
	61	Screw
	62	Screw
	63	Screw
	64	Shaft
	65	Shaft
	66	Shaft
	67	Screw
	68	Shaft
	69	Screw
	70	Screw
	71	Screw

Page 27 — 九、送布部件(2)/Need mechanism (2)

Jack JK-8670 parts on page 27

Ref	Part number	Part name	Qty
39	30726007	曲柄销
40	001041	0型圈7.5×1.8
41	S10006	螺钉M5×8
42	30709001	滑块
43	30709002	滑块座
44	30704003	滑块座曲柄
45	30702010	轴
46	30704004	曲柄
17	S01011	螺钉M5×10
18	30727003	扭簧
49	H05008	开11挡圈8
50	30728003	垫片
51	30704005	曲柄
52	S05013	螺钉M5×12
53	400367	连杆(成品)
54	307S20003	轴位螺钉
55	30704006	曲柄
56	S05013	螺钉M5×12
57	3073100100	差动板手组件
58	30208001	挡块
59	S10029	螺钉M6×0.75×5
60	30227007	扭簧
61	302S16003	调节螺母
62	30128014	挡圈
63	302S30003	调节扳手螺钉
64	30222017	油封
65	30712012	刻度尺
66	30703003	管套
67	S01055	螺钉M4×6
68	207S16002	差动限位螺钉
69	W01001	垫圈4
70	208L15001	螺钉M4×35
71	30726009	曲柄销

Page 28 — 十、送布部件(3) / Need mechanism(3)

Jack JK-8670 parts on page 28

Ref	Part number	Part name	Qty
31	31	SCREW
32	32	SCREW
33	33	PIN
34	34	BRACKET
35	35	SCREW
36	36	FEED DOG
37	37	BRACKET
38	38	SCREW
39	39	SCREW
40	40	SCREW
41	41	BRACKET
1	1	SHAFT
2	2	BRACKET
3	3	SCREW
4	4	WASHER
5	5	SCREW
6	6	SHAFT
7	7	PIN
8	8	BRACKET
9	9	BRACKET
10	10	SHAFT
11	11	PIN
12	12	PIN
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	SCREW
17	17	SHAFT
18	18	SCREW
19	19	FEED DOG
20	20	BRACKET
21	21	PIN
22	22	BRACKET
23	23	SCREW
24	24	BRACKET
25	25	WASHER
26	26	BEARING
27	27	BEARING
28	28	SCREW
29	29	BRACKET
30	30	BRACKET

Page 29 — Need mechanism(3)

Jack JK-8670 parts on page 29

Ref	Part number	Part name	Qty
1	30205004	连杆
2	30204005	曲柄
3	S05005	螺钉M5 × 12
4	30228007	垫圈
5	S02016	螺钉M3 × 3.2
6	30702011	拾牙轴(成品)
7	30208001	挡圈
8	S10029	螺钉M6 × 0.75 × 5
9	30709004	滑块
10	30702012	差动轴
11	20123021	油线
12	20123021	油线
13	30223009	油毛毡
14	30223009	油毛毡
15	30708004	连接套
16	S10007	螺钉M4 × 4
17	30702013	送料轴
18	30223009	油毛毡
19	20123021	油线
20	20123021	油线
21	30708003	挡块
22	S10007	螺钉M4 × 4
23	30709005	滑块
24	30223009	油毛毡
25	400517	开育环
26	30705009	开育环
27	30724001	滚针K8 × 11 × 7.5
28	30128019	垫片
29	207S11009	螺钉M4 × 7.5
30	30704007	曲柄
31	S05003	螺钉M5 × 10
32	30223009	油毛毡
33	20123021	油线
34	30702014	送料轴
35	30223009	油毛毡
36	20123021	油线
37	20123021	油线
38	30708003	挡块
39	S10007	螺钉M4 × 4
40	30709005	滑块
41	30223009	油毛毡

Page 30

Jack JK-8670 parts on page 30

Ref	Part number	Part name	Qty
	1	Presser bar
	2	Presser bar spring guide
	3	Presser bar spring
	4	Presser bar spring collar
	5	Presser bar holder
	6	Presser bar holder screw
	7	Presser bar holder screw
	8	Presser bar holder screw
	9	Presser bar support
	10	Support screw
	11	Presser foot bar
	12	Presser foot bar screw
	14	Presser foot
	15	Presser foot screw
	16	Presser bar lifter lever
	17	Lever pivot screw
	18	Lever pivot screw
	19	Lever pivot screw
	20	Lever pivot screw
	21	Spring
	22	Spring guide
	23	Spring guide screw
	24	Presser bar lifter arm
	25	Arm pivot screw
	26	Arm pivot screw
	27	Arm pivot screw
	28	Arm pivot screw
	29	Arm pivot screw
	30	Presser bar lifter shaft
	31	Shaft screw
	32	Shaft screw
	33	Shaft screw
	34	Shaft screw
	35	Shaft screw
	36	Shaft screw
	37	Presser bar holder screw

Page 31 — 十一、压布部件 / Presser foot mechanism

Jack JK-8670 parts on page 31

Ref	Part number	Part name	Qty
1	3013002500	调压螺杆
2	301S16005	调节母
3	30227008	调压簧
4	30227009	压脚轴小弹簧
5	30202017	压脚转轴
6	30722004	橡胶封
7	30104017	压脚头
8	301S11009	压脚头螺钉
9	3010901700	导块销组件
10	S11025	螺钉 M4×20
11	30112017	压脚护罩
12	S01006	螺钉M3×4.5
14	3011601300	压脚
15	301S11010	压脚固定螺钉
16	3010206400	拾压轴柄组件
17	30108006	挡圈
18	30122023	拾压轴油封
19	30112016	压脚头连接板
20	301S20007	台螺钉
21	30127009	拾压轴簧
22	30108005	挡圈
23	301S12001	曲柄螺钉
24	30104019	拾压柄I
25	301S11011	拾压柄螺钉
26	3012018	拾压柄连接板
27	301S20008	连接板螺钉
28	30104020	拾压柄II
29	301S20013	拾压柄II固定螺钉
30	30102022	拾压轴
31	30112019	拾压脚扳手
32	S01011	螺钉 M5×10
33	30112020	拾压柄座
34	S01004	螺钉 M4×7.8
35	S01016	螺钉M5×17
36	N01004	螺母M5
37	001006	O型圈8.5×1.8

Page 32 — Needle feeding assemblies

Jack JK-8670 parts on page 32

Ref	Part number	Part name	Qty
	9	Needle feeding assemblies
	12	Needle feeding assemblies
	13	Needle feeding assemblies
	14	Needle feeding assemblies
	16	Needle feeding assemblies
	15	Needle feeding assemblies
	17	Needle feeding assemblies
	18	Needle feeding assemblies
	19	Needle feeding assemblies
	20	Needle feeding assemblies
	25	Needle feeding assemblies
	21	Needle feeding assemblies
	22	Needle feeding assemblies
	23	Needle feeding assemblies
	24	Needle feeding assemblies
	8	Needle feeding assemblies
	10	Needle feeding assemblies
	11	Needle feeding assemblies
	7	Needle feeding assemblies
	6	Needle feeding assemblies
	5	Needle feeding assemblies
	4	Needle feeding assemblies
	1	Needle feeding assemblies
	2	Needle feeding assemblies
	3	Needle feeding assemblies

Page 33 — 十二、 喂针部件/Needle feeding assemblies

Jack JK-8670 parts on page 33

Ref	Part number	Part name	Qty
1	30110007	喂针凸轮
2	S10002	螺钉 M5×5
3	400059	喂针连杆
4	30104021	喂针摆动曲柄
5	S05002	螺钉 M6×0.75×15.2
6	30126006	连杆销
7	30128032	垫片
8	N01001	螺母 M5
9	30102021	摆动连杆轴
10	30128015	摆动连杆轴垫圈
11	H05004	挡圈 12
12	30105013	喂针摆动连杆
13	S10029	螺钉 M6×0.75×5(进口)
14	30126005	喂针摆动销
15	30202018	喂针摆动架
16	30223009	油毛毡
17	20123021	油线
18	001008	0型圈9×1.8
19	20108006	挡圈
20	S10026	螺钉
21	30104022	喂针架
22	S01005	螺钉M4×10
23	S01017	螺钉M4×14
24	30117005	眼针
25	30128018	喂针摆动轴套垫圈

Page 34 — 十三、松线部件/Thread loosing assemblies

Jack JK-8670 parts on page 34

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	2枚针 2-Needle. With top cover thread.
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	3枚针 3-Needle. With top cover thread.
	34	34
	35	35
	36	3枚针 3-Needle
	16	2枚針 2-Needle

Page 35 — 十三、松线部件/Thread loosing assemblies

Jack JK-8670 parts on page 35

Ref	Part number	Part name	Qty
254008	30113001	过线架
7019	S01004	螺钉M4×7.8
Jan-26	30102026	夹线柱
254009	30112021	压板
7019	S01004	螺钉M4×7.8
33448	W01004	垫圈4
254003B91	3010403100	松线曲柄I
4531	S05005	螺钉M5×12
202868	W01010	垫圈8
254000-91	3010403200	松线曲柄II
254022	30103040	轴套
002133-1	301S11013	轴套紧固定螺钉
	3011300300	二针过线组件
254019	30113003	过线板
254021	30112022	过线调节板
254010C9U	3011300500	调线组件(强)
254010B9U	3011300500	调线组件(中)
254010A9U	3011300400	调线组件(弱)
254020	30113007	二孔过线板I
206203	30113008	二孔过线板II
306301	30127010	调节板簧
5447	301S30009	调节板螺钉
206202	30103041	调节套
206203	30113008	二孔过线板II
001817-2A	301S30010	夹线延
210319	30128016	夹线片
208450-UA	30111005	调压止动盖
201037	30127011	调压簧(强)
206448	30111006	调压止动套
206447-UA	301S16006	调压螺母
201086	30127012	调压簧(中)
201068	30127013	调压簧(弱)
254023E9U	3011304200	三针过线组件
254020	30113007	二孔过线板I
206202	30103041	调节套
254010A9U	3011300600	调线组件(强)

Page 36 — 十四、过线部件 / Thread guide assemblies

Jack JK-8670 parts on page 36

Ref	Part number	Part name	Qty
	19	2	2
	19	3	3
	20	2	2
	20	3	3
	01N,08M 零件外	Outside 01N, 08M
	JK8670-01N, 08M	Packed in accessory for JK8670-01N, 08M

Page 37 — 十四、过线部件/Thread guide assemblies

Jack JK-8670 parts on page 37

Ref	Part number	Part name	Qty
1	30102028	过线座(中轴)
2	30128019	垫片
3	W02002	塔圈4
4	S05048	螺钉M4×10
5	301S20009	调线螺钉
6	20608003	挡圈
7	301S12001	曲柄螺钉
8	30101018	过线座
9	S05001	螺钉M5×14
10	W02001	挡圈
11	30113009	长过线板
12	S01001	螺钉 M1×7.8
13	W01001	垫圈4
14	30112027	定位角固定架
15	S01004	螺钉 M1×7.8
16	W01001	垫圈4
17	30113012	针杆过线座
18	S01006	螺钉M3X1.5
19	30113013	过线杆
20	S10001	螺钉M3×4(进口)
21	30113010	过线杆
22	S01006	螺钉M3×1.5
23	30113011	过线板
24	206S30016	螺钉M3×1.5
25	30112023	护线罩
26	S01006	螺钉M3×1.5
27	30128034	垫圈
28	30112025	夹线座
29	S01001	螺钉 M1×7.8
30	30112025	压线板
31	30112025	夹线板
32	30127014	调压簧
33	S10026	螺钉M3×3(进口)
34	30112028	长过线压板
35	30112030	过线板
36	S01004	螺钉 M1×7.8
37	30112029	喂线过线
38	S01004	螺钉 M1×7.8
39	30112031	喂线过线板
40	301S11024	滑块导座螺钉
41	W01001	垫圈4
42	30112032	喂线一眼过线
43	20112033	夹线簧
44	30127016	夹线簧
45	301S30011	调压螺钉
46	301S16007	夹线带
47	30112033	喂针小过线
48	3011203200	喂针二眼过线组件
49	30128008	挡圈

Page 38

Jack JK-8670 parts on page 38

Ref	Part number	Part name	Qty
51	51	Screw
50	50	Lever
53	53	Screw
52	52	Lever
48	48	Screw
49	49	Lever
54	54	Roller
55	55	Shaft
56	56	Lever
58	58	Screw
57	57	Washer
7	7	Screw
6	6	Washer
4	4	Lever
1	1	Base Plate
5	5	Needle Plate
45	45	Cover
44	44	Screw
42	42	Cover
43	43	Screw
46	46	Pulley
47	47	Belt
34	34	Screw
33	33	Screw
32	32	Screw
36	36	Pulley
35	35	Washer
37	37	Shaft
38	38	Screw
31	31	Shaft
27	27	Shaft
59	59	Shaft
60	60	Pin
21	21	Screw
20	20	Lever
22	22	Lever
23	23	Screw
24	24	Lever
39	39	Pin
40	40	Pin
41	41	Screw
13	13	Lever
14	14	Screw
15	15	Washer
16	16	Lever
17	17	Screw
18	18	Lever
19	19	Screw
12	12	Lever
11	11	Screw
8	8	Lever
9	9	Screw
10	10	Lever
2	2	Screw
3	3	Screw
25	25	Cover
26	26	Screw
28	28	Screw
29	29	Lever
30	30	Screw
62	62	Pin

Page 39 — 十五、打线凸轮部件/Looper thread handling

Jack JK-8670 parts on page 39

Ref	Part number	Part name	Qty
1	30712014	过线座
2	20128015	波形垫圈6
3	301S20001	护罩固定螺钉
4	30213002	过线板(右)
5	30213001	过线板(左)
6	W01012	垫片2.5
7	S01063	螺钉M2.5×6
8	30712015	小过线座
9	S01031	螺钉M4×4.7
10	30713003	打线片
11	W01001	垫圈4
12	L02025	螺钉M4×6
13	400488	压线板
14	S01010	螺钉M4×8
15	30712016	下压板
16	30712017	上压板
17	30703004	垫圈
18	20127006	弹簧
19	S01010	螺钉M4×8
20	30713004	外过线板
21	L02025	螺钉M4×6
22	30727006	过线簧
23	W01001	垫圈4
24	S01028	螺钉M3.5×6
25	30713005	打线凸轮
26	S10007	螺钉M4×4
27	301246	打线座(喷漆)
28	S05031	螺钉M6×20
29	30712018	压板
30	S01010	螺钉M4×8
31	30702015	轴
32	30735002	小同步带
33	S09007	螺钉M6×8
34	S12001	螺钉M6×8
35	400538	垫片
36	400539	垫片
37	20708004	挡圈
38	S10007	螺钉M4×4

Page 40 — 十五、打线凸轮部件 / Looper thread handling

Jack JK-8670 parts on page 40

Ref	Part number	Part name	Qty
51	51	Screw
50	50	Lever
53	53	Screw
52	52	Shaft
48	48	Screw
49	49	Lever
54	54	Shaft
55	55	Shaft
56	56	Lever
58	58	Screw
57	57	Lever
7	7	Screw
6	6	Washer
4	4	Lever
5	5	Lever
1	1	Needle Plate
2	2	Screw
3	3	Screw
45	45	Bracket
44	44	Screw
42	42	Cover
43	43	Screw
46	46	Screw
47	47	Belt
19	19	Screw
17	17	Lever
18	18	Lever
16	16	Lever
15	15	Screw
14	14	Lever
13	13	Lever
41	41	Screw
40	40	Shaft
39	39	Lever
24	24	Lever
23	23	Lever
22	22	Lever
21	21	Screw
20	20	Lever
60	60	Pin
27	27	Shaft
61	61	Screw
36	36	Screw
35	35	Washer
33	33	Screw
32	32	Lever
37	37	Shaft
38	38	Screw
28	28	Screw
29	29	Lever
30	30	Screw
31	31	Shaft
25	25	Lever
26	26	Screw
59	59	Lever
62	62	Pin
8	8	Lever
9	9	Screw
10	10	Lever
11	11	Screw
12	12	Lever

Page 41 — 十五、打线凸轮部件/ Looper thread handling

Jack JK-8670 parts on page 41

Ref	Part number	Part name	Qty
39	30712019	打线座盖
40	30703005	管套
41	S01076	螺钉M4×22
42	30712020	带轮罩
43	30711002	垫圈
44	S01003	螺钉M4×12
45	30711003	垫圈
46	S05077	螺钉M4×18
47	30735003	同步带
48	30713006	过线管组件
49	S01055	螺钉M4×6
50	30713007	过线压板组件
51	S01010	螺钉M4×8
52	30713008	过线板
53	S01010	螺钉M4×8
54	30703005	管套
55	30713009	过线管
56	30127020	压板
57	S01033	螺钉M4×20.5
58	W01001	垫圈4
59	B08007	滚针轴承
60	P01007	销4×8
61	P01010	销1.5×17.5
62	P03008	销2×6

Page 42 — 十六、润滑部件 / Lubrication mechanism

Jack JK-8670 parts on page 42

Ref	Part number	Part name	Qty
	1	油杯
	2	油杯
	3	油管
	4	油管
	5	油管接头
	6	油管接头
	7	油管
	8	油管
	9	油管
	10	油管接头
	11	油管
	12	油管
	13	油管
	14	油管接头
	15	油管接头
	18	油管
	19	油管接头
	20	螺钉
	21	垫圈
	22	螺钉
	23	垫圈
	24	油管接头
	25	油管接头
	26	油管
	27	油管接头
	28	油管接头
	29	油管接头
	30	油管
	31	油管
	32	油管
	33	油管
	34	油管
	35	油管
	36	油管接头

Page 43 — 十六、润滑部件 / Lubrication mechanism

Jack JK-8670 parts on page 43

Ref	Part number	Part name	Qty
1	30136003	铜油管接头
2	301S30012	油管螺钉
3	30121021	JK-8568Φ5×Φ7油管
4	20636001	油管接头
5	30129006	油管卡簧(大)
6	301S30013	过油螺钉
7	30121012	油管螺钉
8	30123010	油毡
9	30126009	销
10	S10002	螺钉M5×5
11	30123009	油毡
12	3012101400	细油管
13	30127019	压簧
14	S04010	螺钉M4×5.5
15	30121007	油管
18	30121022	JK-8568Φ4×Φ6油管
19	20129002	油管卡簧
20	30212023	接油盘
21	S01002	螺钉M4×7
22	3022100200	喷油管
23	N01001	螺母M4
24	30121022	JK-8568Φ4×Φ6油管
25	30121022	JK-8568Φ4×Φ6油管
26	3022100800	油管组件
27	S01001	螺钉M4×7
28	30121021	JK-8568Φ5×Φ7油管
29	30236005	双头油管接头
30	30723007	油毡
31	20123021	油线
32	30736001	油管
33	30736002	油管Φ2.5×Φ4.5
34	30711004	油管卡簧
35	30736003	油管接头
36	201S30004	过油螺钉

Page 44 — Oil pump assemblies

Jack JK-8670 parts on page 44

Ref	Part number	Part name	Qty
	1	Screw
	2	Washer
	3	Oil plug
	4	Screw
	5	Oil pump body
	6	Shaft
	7	Shaft
	8	Gear
	9	Gear
	10	Gear
	11	Cover
	12	Screw
	13	Screw
	14	Shaft
	15	Screw
	16	Screw
	17	Screw
	18	Shaft
	19	Shaft
	20	Shaft
	21	Shaft
	22	Screw
	23	Screw

Page 45 — 十七、油泵部件 / Oil pump assemblies

Jack JK-8670 parts on page 45

Ref	Part number	Part name	Qty
1	30201029	油盘
2	20528014	垫圈
3	301S11015	塔油螺钉
4	S05007	螺钉M8×20
5	30222014	油盘密封圈
6	3022000100	油泵组件
7	30102031	油泵轴
8	30120004	五星轮
9	30120007	五星轮
10	30120005	五星套
11	30120008	油泵盖
12	S05006	螺钉M4×25
13	301S20011	油泵螺钉
14	30125003	油泵蜗轮
15	S10002	螺钉M5×5
16	S05005	螺钉M5×12
17	301S30014	过油螺钉
18	20136001	滤油器
19	301S30016	螺钉
20	001010	O型圈38.7×3.55
21	300140	滤油器盖
22	S01003	螺钉M4×12
23	30131004	提示说明

Page 46 — 十八、硅油盒装置部件 / Silicon oil delice assemblies

Jack JK-8670 parts on page 46

Ref	Part number	Part name	Qty
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6

Page 47 — 十八、硅油盒装置部件/Silicon oil delice assemblies

Jack JK-8670 parts on page 47

Ref	Part number	Part name	Qty
2	300111	上硅油盒(喷漆)
3	30112010	硅油盒盖
4	P03008	销2×6
5	S01006	螺钉3×4.5
6	30123011	硅油棉

Page 48 — 十九、油盘托部件 / Oil plate assemblies

Jack JK-8670 parts on page 48

Ref	Part number	Part name	Qty
2	2	Put in accessory
9	9	Put in accessory
11	11	Put in accessory
10	10	Put in accessory
4	4	Put in accessory
3	3	Put in accessory
12	12	Put in accessory
6	6	Put in accessory
8	8	Put in accessory
7	7	Put in accessory
6	6	Put in accessory
5	5	Put in accessory
2	2	Put in accessory
15	15	Put in accessory
16	16	Put in accessory
17	17	Put in accessory
18	18	Put in accessory

Page 49 — 十九、油盘托板部件/Oil plate assemblies

Jack JK-8670 parts on page 49

Ref	Part number	Part name	Qty
2	30122029	油盘减振垫
3	301S16008	托盘固定螺母
4	30101032	油盘托板
5	301S30017	托板内六角螺钉
6	20131029	大垫圈
7	20131030	防振套
8	30103078	防振垫支撑套
9	301S30018	螺钉
10	30112041	链条挡板
11	S01011	螺钉M5×10
12	30122031	减震垫圈
15	305S11018	安装螺钉(一套)
16	S10005	螺钉
17	W01001	垫片
18	30211006	皮带护罩

Page 50 — 二十、线架部件 / Thread apool assemblies

Jack JK-8670 parts on page 50

Ref	Part number	Part name	Qty
1	1	Bolt
2	2	Washer
3	3	Nut
4	4	Screw
5	5	Screw
6	6	Shaft
7	7	Screw
8	8	Screw
9	9	Base
10	10	Base
11	11	Spool Holder
12	12	Screw
13	13	Screw
14	14	Screw
15	15	Shaft
16	16	Screw
17	17	Screw
18	18	Screw
19	19	Screw
20	20	Shaft
21	21	Screw
22	22	Shaft
23	23	Screw
24	24	Screw
25	25	Screw
26	26	Screw
27	27	Shaft
28	28	Shaft
29	29	Cap
30	30	Cap

Page 51 — 二十、线架部件/Thread apool assemblies

Jack JK-8670 parts on page 51

Ref	Part number	Part name	Qty
	30102032	线架下挂
	30128021	挡圈
	N02001	螺母 M6×0.75
	30101028	长线架
	30101029	短线架
	30102033	线夹
	W02002	垫圈4
	30101030	长过线架
	30111007	托盘垫
	30123011	衬套
	30103044	线固定套
	1.02004	螺钉 M6×34
	W01003	垫圈6
	S04001	螺钉 M6×10
	30102034	线架上捧
	30129005	锁紧卡圈
	S04002	螺钉 M5×16
	N01001	螺母 M5
	30111008	棒架
	30113018	过线捧
	S04003	螺钉 M4×25
	30101031	短过线架
	30111009	固定器
	S04004	螺钉 M4×15
	N01005	螺母 M4
	30113019	过线捧
	30113034	过线捧
	30103045	过线套
	30122027	棒帽
	3013102700	线架组件

Page 52 — 二十一、专用部件(1) / Specific parts (1)

Jack JK-8670 parts on page 52

Ref	Part number	Part name	Qty
1	JK8670-01E	Specific parts (1)
2	JK8670-01E	Specific parts (1)
3	JK8670-01E	Specific parts (1)
4	JK8670-01E	Specific parts (1)
5	JK8670-01E	Specific parts (1)
6	JK8670-01E	Specific parts (1)
7	JK8670-01E	Specific parts (1)
5	JK8670-03F	Specific parts (1)
8	JK8670-03F	Specific parts (1)
9	JK8670-03F	Specific parts (1)
7	JK8670-03F	Specific parts (1)
10	JK8670-03G	Specific parts (1)
11	JK8670-03G	Specific parts (1)
12	JK8670-03G	Specific parts (1)
13	JK8670-03G	Specific parts (1)
14	JK8670-03G	Specific parts (1)
15	JK8670-03G	Specific parts (1)
16	JK8670-03G	Specific parts (1)
17	JK8670-03G	Specific parts (1)

Page 53 — 二十一、专用部件(1) / Specific parts (1)

Jack JK-8670 parts on page 53

Ref	Part number	Part name	Qty
1	30701025	缝料挡块(右)
2	W01012	垫片2.5
3	S01012	螺钉M2.5×3.4
4	------	缝料导规(右)
5	S01036	螺钉M3×3
6	------	缝料导规(左)
7	S01036	螺钉M3×3
8	30701018	缝料导规(右)
9	30701019	缝料导规(左)
10	30701020	支架
11	S01036	螺钉M3×3
12	30701021	支架
13	S01026	螺钉M3×4
14	30202998	缝料导规(左)
15	S01036	螺钉M3×3
16	30202999	缝料导规(右)
17	207S11017	螺钉M3×8

Page 54 — 二十二、专用部件(2) / Specific parts(2)

Jack JK-8670 parts on page 54

Ref	Part number	Part name	Qty
1	1	Packed in accessory
2	2	Packed in accessory
3	3	放入附件中 Packed in accessory
4	4	薄料 For light weight fabric
5	5	厚料 For heavy weight fabric 放入附件中 Packed in accessory
6	6	6
7	7	狭(Narrow)
8	8	8
9	9	宽(Wide) 放入附件中 Packed in accessory

Page 55 — 二十二、专用部件(2) / Specific parts(2)

Jack JK-8670 parts on page 55

Ref	Part number	Part name	Qty
1	30701025	缝料挡块(右)
2	W01012	垫片2.5
3	S01012	螺钉M2.5×3.4
4	3070102200	缝料导块(左)
5	3070102300	缝料导块(左)
6	S01036	螺钉M3×3.5
7	30212026	压脚辅助板(窄)
8	S01063	螺钉M2.5×6
9	30212025	压脚辅助板(宽)

Page 56 — JK861701N08M, 08M

Jack JK-8670 parts on page 56

Ref	Part number	Part name	Qty
1	1	SWITCH BOX
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	BRACKET
9	9	BRACKET

Page 57 — 二十三、专用部件(3) / Specific parts(3)

Jack JK-8670 parts on page 57

Ref	Part number	Part name	Qty
1	2536780	硅油盒固定架
2	2536770	过线架
3	2536840	过线板
4	2536830	支架
5	2536820	过线板
6	7154	螺钉M3×3.5
7	202875	垫片3
8	2504340	过线防护罩
9	2504350	针杆护罩

Page 58 — Accessories assemblies

Jack JK-8670 parts on page 58

Ref	Part number	Part name	Qty
	1	Oil Can
	2	Oil Can
	3	Funnel
	4	Oil Can
	5	Belt
	6	Wrench
	7	Wrench
	8	Wrench
	9	Wrench
	10	Wrench
	11	Wrench
	12	Wrench
	13	Needle Bar
	14	Screw Driver
	15	Screw Driver
	16	Screw Driver
	17	Chain
	18	Cloth
	19	Cloth
	20	Bobbin Case
	21	Wrench
	22	Wrench
	23	Needles
	24	Belt

Page 59 — 二十四、附件部件 / Accessories asscemblies

Jack JK-8670 parts on page 59

Ref	Part number	Part name	Qty
	20131037	油壶(大)
	20131038	硅油壶
	20131039	漏斗
	20131039	硅油
	20131038	镊子
	30131007	内六角扳手(1.5mm)
	20131046	内六角扳手(2mm)
	30131010	内六角扳手(3mm)
	30131012	内六角扳手(4mm)
	20131047	内六角扳手(5mm)
	20131056	内六角扳手(6mm)
	30131009	内六角扳手(8mm)
	10131002	螺丝刀(大)
	10131003	螺丝刀(中)
	10131004	螺丝刀(小)
	20131044	内六角扳手(1.5mm直柄)
	30131018	链条
	10131005	机头罩
	30117001	机针
	20136001	滤油器
	30131005	扳手(7mm~9mm)
	30131006	扳手(8mm~10mm)
	S01005	螺钉 M3x3
	30135004	皮带

Page 60 — JK8670 GAUGE PARTS LIST(1)

Jack JK-8670 parts on page 60

Ref	Part number	Part name	Qty
	30134001	30715004	356
	30134002	30715006	364
	3011601300	30217003	356
	30117005	30717001(11#)/ 30717011(14#)	356
	3011601400	30217003	364
	30117005	30717001(11#)/ 30717011(14#)	364
	30134001	30715003	356
	30134002	30715005	364
	3011601300	30217003	356
	30117005	30717001(11#)/ 30717011(14#)	356
	3011601400	30217003	364
	30117005	30717001(11#)/ 30717011(14#)	364
	30134001	30715003	356
	30134002	30715005	364
	3011600300	30217003	356
	30117005	30717001(11#)/ 30717011(14#)	356
	3011600400	30217003	364
	30117005	30717001(11#)/ 30717011(14#)	364
	30134001	30715004	356
	30134002	30715006	364
	3011601300	30217003	356
	30117005	30717001(11#)/ 30717011(14#)	356
	3011601400	30217003	364
	30117005	30717001(11#)/ 30717011(14#)	364

Part BooksPartsSearchNotes

Part Books

×

Search

×

Jack JK-8670 — parts catalog

• Page 1 (cover): This is the cover page for the JACK JK-8670 Parts Manual, featuring an image of the sewing machine and its model number.
• Page 2 (cover): This is the cover page for the JK8670 small head high-speed sewing machine parts book.
• Page 3 (toc): This page is a table of contents for a sewing machine parts catalog, listing various assemblies and their corresponding page numbers.
• Page 4 (diagram): This page displays a diagram of the Bushing Assembly with numbered parts, illustrating the components of the sewing machine.
• Page 6 (diagram): This page displays a diagram of the frame assembly and its associated components, with numbered references for each part.
• Page 7 (parts_list): This page lists parts for the Frame Assembly, including part numbers, descriptions, and quantities. It details items such as oil sight gauges, bed pins, plugs, screws, washers, and stickers.
• Page 8 (diagram): This page displays a diagram of cover assemblies and related components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 9 (parts_list): This page lists parts for the cover assemblies, including part numbers, descriptions, and quantities. It contains 56 items.
• Page 10 (diagram): This page displays a diagram of cloth plate assemblies with numbered parts, including screws and plates, for an industrial sewing machine.
• Page 11 (parts_list): This page lists parts for the "Cover Assemblies/Cloth Plate Assemblies" section, including part numbers, descriptions, and quantities.
• Page 12 (diagram): This page displays a diagram of Hookshaft Assemblies, with various parts numbered for identification.
• Page 13 (parts_list): This page lists parts for the Hook, shaft Assemblies, including part numbers, descriptions, and quantities.
• Page 14 (diagram): This page displays a diagram of main shaft assemblies, with numbered parts indicated for reference.
• Page 15 (parts_list): This page lists parts for Main Shaft Assemblies, including screws, shafts, bearings, and other components with their corresponding part numbers, descriptions, and quantities.
• Page 16 (diagram): This page displays a diagram of needle bar assemblies, with various components numbered for identification. It includes sub-diagrams for 2-needle and 3-needle configurations.
• Page 17 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays a diagram of the Looper drive mechanism, with numbered parts indicated for identification and replacement.
• Page 19 (parts_list): This page lists parts for the looper drive mechanism, including part numbers, descriptions, and quantities.
• Page 20 (diagram): This page displays a diagram of the feed mechanism (1) with numbered parts for an industrial sewing machine.
• Page 21 (parts_list): This page lists parts for the "Need mechanism (1)" section, including part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of the feed mechanism (1) with numbered parts, including screws, shafts, levers, and bearings.
• Page 23 (parts_list): This page lists parts for the Need mechanism (1) with reference numbers, part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of the feed mechanism (2) for an industrial sewing machine, with numbered parts indicated.
• Page 25 (parts_list): This page contains a parts list for sewing machine components, including part numbers, descriptions, quantities, and remarks.
• Page 26 (diagram): This page displays a diagram of the feed mechanism (2) of an industrial sewing machine, with various parts numbered for identification.
• Page 27 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, quantities, and reference numbers. It covers items from reference number 39 to 71.
• Page 28 (diagram): This page contains a diagram of the feed mechanism (3) with numbered parts.
• Page 29 (parts_list): This page lists parts for the Need mechanism (3) with part numbers, descriptions, and quantities.
• Page 30 (diagram): This page displays a diagram of the presser foot mechanism, with numbered parts indicated for reference.
• Page 31 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of needle feeding assemblies, with numbered parts indicated for identification.
• Page 33 (parts_list): This page lists parts for needle feeding assemblies, including part numbers, names, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of thread loosening assemblies for industrial sewing machines, detailing various components with reference numbers and descriptions.
• Page 35 (parts_list): This page lists parts for thread loosening assemblies, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of thread guide assemblies, with numbered parts and a table indicating quantities for 2-needle and 3-needle configurations.
• Page 37 (parts_list): This page lists thread guide assemblies with part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of the looper thread handling components of an industrial sewing machine, with various parts numbered for identification.
• Page 39 (parts_list): This page lists parts for the Looper thread handling section, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of looper thread handling components, with numbered parts indicated for identification.
• Page 41 (parts_list): This page lists parts for Looper thread handling, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of the lubrication mechanism for an industrial sewing machine, with numbered parts indicated for reference.
• Page 43 (parts_list): This page lists lubrication mechanism parts with their reference numbers, part numbers, descriptions, and quantities. It includes parts like pipes, screws, tubes, and joints.
• Page 44 (diagram): This page displays a diagram of oil pump assemblies with numbered parts.
• Page 45 (parts_list): This page lists parts for oil pump assemblies, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays a diagram of the Silicon oil device assemblies, with numbered parts indicated.
• Page 47 (parts_list): This page lists parts for the silicone oil device assemblies, including part numbers, descriptions, and quantities.
• Page 48 (diagram): This page displays diagrams of oil plate assemblies, with numbered parts indicated for reference.
• Page 49 (parts_list): This page lists oil plate assemblies with part numbers, descriptions, and quantities.
• Page 50 (diagram): This page displays a diagram of thread spool assemblies, with various parts numbered for identification.
• Page 51 (parts_list): This page lists parts for thread apool assemblies, including part numbers, descriptions, and quantities.
• Page 52 (diagram): This page displays diagrams of specific parts for sewing machine models JK8670-01E, JK8670-03F, and JK8670-03G, with numbered components indicated in each diagram.
• Page 53 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities. It details items like fabric guides, washers, screws, and brackets.
• Page 54 (diagram): This page displays a diagram of specific parts for the JK8670-08 and JK8670-08B models, detailing components for light and heavy weight fabrics, as well as narrow and wide options.
• Page 55 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
• Page 56 (diagram): This page displays a diagram of specific parts for the JK861701N08M, 08M model, with numbered components.
• Page 57 (parts_list): This page contains a parts list for specific parts (3) of an industrial sewing machine, including reference numbers, part numbers, descriptions, and quantities.
• Page 58 (diagram): This page displays a diagram of accessories and assemblies for an industrial sewing machine, with numbered parts including oil cans, tools, a belt, and a chain.
• Page 59 (parts_list): This page lists accessories and parts for an industrial sewing machine, including oilers, wrenches, screws, and a leather belt, with their corresponding part numbers and quantities.
• Page 60 (parts_list): This page lists gauge parts for the JK8670 sewing machine, including part numbers and descriptions for various components like needle holders, plates, feed dogs, and needles.
• Page 61 (cover): This is the cover page for the Zhejiang New Jack Sewing Machine Co., Ltd. catalog, featuring the standard code QB/T2044-2010 and contact information for the company.

Page 1

JACK JK-8670 Parts Manual 零件手册 ISO9001认证 国家高新技术企业 清洁生产 JACK SEWING MACHINE HTTP://WWW.CHINAAJACK.COM From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2 — JK8670小头式高速绗缝机 零件样本 PARTS BOOK

JK8670小头式高速绗缝机 零件样本 PARTS BOOK From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — 目录/CONTENTS

目录/CONTENTS 套筒部件/Bushing assembly. 4 车壳部件/Frane assembly. 6 缝合部件/Cloth plate assemblies. 8 下轴部件/Hook. shaft assemblies. 10 上轴部件/Main shaft assemblies. 12 针杆部件/Needle bar assemblies. 14 弯针部件/Looper drive mechanism 16 送布部件(1)/Need mechanism(1) 18 送布部件(2)/Need mechanism(2) 22 送布部件(3)/Need mechanism(3) 26 压布部件/Presser foot mechanism. 28 喂针部件/Needle feeding assemblies. 30 松线部件/Thread loosing assemblies. 32 过线部件/Thread guide assemblies. 34 打线凸轮部件/Looper thread handling. 36 润滑部件/Lubricatrion assemblies. 40 油泵部件/oil pump assemblies. 42 硅油盒装置部件/Silicon oil delice assemblies. 44 油盘托板部件/Oil plate assemblies. 46 线架部件/Thread apool assemblies. 48 专用部件(1)/Specific parts(1) 50 专用部件(2)/Specific parts(2) 52 专用部件(3)/Specific parts(3) 54 附件部件/Accessories assemblies. 56 -1- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — 套筒部件 / Bushing Assembly

套筒部件 / Bushing Assembly -2- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — 一、车壳部件 / Frane Assembly

一、车壳部件 / Frane Assembly -4- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — 一、车壳部件/Frame Assembly

一、车壳部件/Frame Assembly Ref. No. 序号 Part. No. 件号 参考件号 Ref. No. 名称 Description 数量 Amt. 1 3011001 206590 油标 oil sight gauge 1 2 301S30001 250117 机针螺钉 bed pin 1 3 30122004 240058 油封 plug 1 4 30122006 240052 油封 plug 2 5 S12001 1556 螺钉M6×10 screw 1 6 30122005 241010 油封 plug 1 7 20122009 210586 油封11 plug 1 8 30222002 209084 油封 plug 1 9 S05001 ... 螺钉M10×27.5 screw 1 10 30112002 250020 盖板 cover 1 11 30223001 250157 盖板垫 sponge 1 12 S01002 7017 螺钉M4×6.5 screw 2 13 30122010 241127 油堵 oil plug 1 14 R03001 210679 销钉2.5×4 pin 2 15 P02001 ... 销A8X35 pin 1 16 W02003 ... 垫圈10 washer 4 17 S01001 7018A 螺钉M4×5.5 screw 1 18 W01001 303448 垫圈1 washer 1 19 S12004 4556 螺钉M6×10 screw 1 20 S10006 4559 螺钉M5×6 screw 1 21 30737002 250020 JK-8670商标牌(长条) name plate 1 22 20131063 630670 警示牌 sticker 1 23 30137003 ... 标牌 sticker 1 24 30737001 ... 型号牌 sticker 1 25 20622019 ... 油封 plug 1 26 S05003 ... 螺钉M5×10 screw 4 27 S01011 ... 螺钉M5×10 screw 1 28 301231 ... 缝头(喷漆) sewingmachine head 1 29 301451 ... 机壳(喷漆) main case 1 注:「--」点划线表示暂时不用或已改进的零部件。 -5- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8 — 二、罩壳部件 / Cover Assemblies

二、罩壳部件 / Cover Assemblies Packed in accessory JK8670-01N, 08M 除外 Outside JK8670-01N, 08M -6- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9 — 二、罩壳部件/Cover Assemblies

二、罩壳部件/Cover Assemblies 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part 名称 Description 数量 Amt. 1 301433 ... arm cover(top) 1 2 30122012 240226 密封盖 plug 1 3 20711002 179107-05 油窗 oil sight window 1 4 30122013 250019 上盖密封圈 0 ring 1 5 S04019 7021 螺钉M4×12 screw 11 6 30212004 250159 防护板 air guide 1 7 301432 250151DYD 机头左盖(喷漆) arm cover(left) 1 8 30112102 250012 针杆护罩 needle bar guard 1 9 30222019 250153 机头左盖密封圈 0 ring 1 10 301S11001 5242 机头左盖螺钉 screw 1 11 30128001 240263 垫圈 washer 1 12 30111003 250257 有机玻璃罩 eye guard 1 13 S01006 7009 螺钉M3×4.5 screw 2 14 W01002 202875 垫圈3 washer 2 15 30112005 250256 护罩架 bracket 1 16 W03001 210307 波形垫圈6 washer 1 17 301S20001 7066 护罩座固定螺钉 screw 2 18 30112004 250255 护罩座 bracket 1 19 S01004 7019 螺钉M4×7.8 screw 1 20 W01001 303448 垫圈4 washer 2 21 30212002 250154 后盖板 arm cover(rear) 1 22 30222004 250155 后盖垫板 gasket 2 23 S01060 7052 螺钉M6×10 screw 6 24 S01065 7079 螺钉M5×6 screw 2 25 S01004 7019 螺钉M4×7.8 screw 2 26 3011208300 250231A91 过线防护罩组件 thread take-up guard assy 1 27 30112083 250225 过线防护罩 thread take-up guard 1 28 30112084 250226 手指防护罩 finger guard 1 29 S01001 7017 螺钉M4×7 screw 2 30 W01001 303448 垫圈4 washer 2 31 30112085 250227A 托架 bracket 1 32 S01001 7017 螺钉M4×7 screw 2 33 W01001 303448 垫圈4 washer 2 34 301S11002 7052 护罩螺钉 screw 2 35 30711001 250022ETB0 皮带罩 pulley cover 1 36 301S11003 7075 带轮护罩螺钉 screw 2 37 301243 250397 前门上盖 The front cover 1 38 S02001 7043 螺钉M4×8 screw 1 39 301S20002 250013 螺钉 screw 1 40 30228011 201191 垫片 washer 2 41 30226013 240198 销 pin 1 42 S10026 4554 螺钉M3×3 screw 4 43 S01017 7022 螺钉M4×14 screw 1 44 307S30001 2503010 前门支柱 screw 2 45 30727001 2503000 夹簧 flat spring 1 46 S01055 7143 螺钉M4×6 screw 1 47 30701017 2504250 前辅助盖板 auxiliary cover(front) 1 48 W01004 204585 垫圈5 washer 3 49 S01011 45800 螺钉M5×10 screw 3 50 30112006 25082 过线护罩 thread take-up guard 1 51 W02004 30335 Φ6.1弹垫 washer 1 52 301S11002 7052 护罩螺钉 screw 1 53 30337001 ... 商标牌 sticker 1 54 301244 ... 前面板(喷漆) The front panel 1 55 301245 ... 合销块(喷漆) Dowel pin block 1 56 30722005 ... 前辅助盖板橡胶垫 Front auxiliary cover rubber pad 1 注:口点划线框表示暂时不用或已改进的零部件。 -7- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10 — 三、缝台部件 / Cloth plate Assemblies

三、缝台部件 / Cloth plate Assemblies 7 6 5 3 1 2 12 11 9 10 13 14 15 20 19 21 16 17 18 -8- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11 — 三、缝台部件/Cloth plate Assemblies

三、缝台部件/Cloth plate Assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref. Part No. 名称 Name Description 数量 Amt. 1 30712002 2504010 盖板(右) top cover(right) 1 2 30722001 2504020 盖板垫(右) gasket 1 3 1.02001 7019 螺钉M4×8 screw 5 4 S02004 7043 螺钉M4×8 screw 2 5 3012142 240411-PDO 平台板(喷漆) bed cover 1 6 S01085 1524 螺钉M4×10.2 screw 1 7 S01085 7143 螺钉M4×10.2 screw 1 8 30722002 25040210 防振垫 cushion rubber 3 9 30712001 2504030 盖板(左) top cover(left) 1 10 30722003 24040 盖板垫(左) gasket 1 11 1.02001 7019 螺钉M4×8 screw 1 12 30722002 2504210 防振垫 cushion rubber 2 13 30701012 2504160 左上盖 cylinder cover 1 14 30727002 2504170 热盖 flat spring 1 15 207S11024 螺钉M2×3 screw 2 16 30712005 250413 9P0 左盖板 side cover 1 17 30726001 2501730 销 pin 1 18 403S13011 1527 螺钉 screw 2 19 307150100 250430 910 针板织件 needle plate bracket assembly 1 20 S01010 7019 螺钉M4×8 screw 2 21 301211 前盖板(喷漆) The front cover. 1 注:「一」点划线框表示暂不用或已改进的零部件。 -9- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12 — 四、下轴部件 Hookshaft Assemblies

四、下轴部件 Hookshaft Assemblies 1 9 10 12 5 2 4 3 27 13 14 10 28 6 11 10 7 28 24 8 25 26 22 23 21 20 19 18 17 16 15 10 -10- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — 四、下轴部件/Hook, shaft Assemblies

四、下轴部件/Hook, shaft Assemblies 序号 NO. 公司件号 Part. NO. 参考件号 Ref. Part No. 名称 Name Description 数量 Amt. 1 3070200100 250572-910 下轴组件 crankshaft assembly 1 2 400079 250554-92 下轴后轴 crankshaft 1 3 S10029 7128 螺钉M6×0.75×5 crew 2 4 30702002 250573-910 下轴(前) crankshaft 1 5 P03033 ... 销1.5×1.5 pin 1 6 400070 210091-92 球连杆组件 connection 1 7 400228 252026-92 球曲柄 crank 1 8 S05002 1534 螺钉M6×0.75×15.2 crew 1 9 3012400100 250557-91 油封轴承 bearing 1 10 S10029 4547 螺钉M6×0.75×5 crew 9 11 30103012 250529 轴承套 bushing 1 12 30103008 250513 螺杆 bushing 1 13 3012400300 250529A91 油封轴承 bearing(lower) 1 14 30235002 250545-91 下同步带轮 gear(lower) 1 15 30103009 250530-91 轴承套 bushing 1 16 S12003 1555 螺钉M6×0.75×7 crew 1 17 B01003 轴承6304Z bearing 1 18 30108001 250514 轴承挡圈 set plate 1 19 S04010 7018A 螺钉M4×5.5 crew 2 20 30735001 250565-910 小同步带轮 gear 1 21 S10013 1518 螺钉M6×6 crew 2 22 30735005 250561A0 皮带轮 machine pulley 1 23 S10009 1656 螺钉M6×8 crew 1 24 S12001 1511 螺钉M6×8 crew 1 25 30128005 240126 垫圈 washer 1 26 S05003 4500 螺钉M5×10 bolt 1 27 30135002 206050C 同步带 timing belt 1 28 S01008 5376 螺钉M4×13 crew 1 注:□点划线表示暂用或已改进的零部件。 -11- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14 — 五、上轴部件 / Main shaft Assemblies

五、上轴部件 / Main shaft Assemblies -12- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15 — 五、上轴部件 / Main shaft Assemblies

五、上轴部件 / Main shaft Assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part No. 名 称 Description 数量 Amt. 2 S01011 7028 螺钉 M5 × 10 Screw 2 3 S10004 4592 螺钉 M8 × 1 × 12(进口) Screw 1 4 S11001 7152 螺钉 M6 × 0.75 × 6 Screw 1 5 S08001 7153 螺钉 M6 × 0.75 × 3.5 Screw 1 6 S10004 4592 螺钉 M8 × 1 × 12(进口) Screw 1 7 400065 250560A 上轴 Crankshaft 1 8 400061 253500-92 连接杆组件 Connection assembly 1 9 S01003 007015A 螺钉 M4 × 12 Screw 2 10 S01008 007021A 螺钉 M3.5 × 13 Screw 2 11 400225 253501A 球齿柄 Crank assembly 1 12 S05002 4534 螺钉 M6 × 0.75 × 15.2 Screw 1 13 30109003 250524 上轴平衡块 Balance weight 1 14 S10027 4514 螺钉 M5 × 5(进口) Screw 2 15 30103004 250506 接轴套 Bushing 1 16 S12003 4555 螺钉 M6 × 0.75 × 7(进口) Screw 2 17 S10029 4547 螺钉 M6 × 0.75 × 5(进口) Screw 10 18 30202004 250552 后轴 Shaft 1 19 3012400400 250529-91 油封轴承 Bearing 2 20 30103012 250529 轴承套 Bushing 1 21 30235004 250547A 上轴同步带轮 Gear (upper) 1 22 30103014 250528 轴承套 Bushing 1 23 B01005 轴承 6203Z Bearing 2 24 400308 250516B92 针杆曲柄(21/23) Motion assy 1 25 30103015 250526 轴承套 Bushing 1 26 301434 250566-YD 手轮(喷漆) Handwheel 1 27 S12001 4556 螺钉 M6 × 8 Screw 1 28 S10009 4541 螺钉 M6 × 8 Screw 1 29 W01004 204585 垫圈5 Washer 1 30 S05004 4501 螺钉 M5 × 14 Screw 1 注:---点划线表示暂时不用或已改进的零部件。 -13- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16

六、针杆部件 / Needle bar Assemblies 2枚針(2-needle) 3枚針(3-needle) -14- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — 六、针杆部件 / Needle bar Assemblies

六、针杆部件 / Needle bar Assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 30202024 251014-91 针杆 Needle bar 1 2 30102009 206061 针杆轧头 Needle bar clamp 1 3 301S11009 5325 针杆轧头螺钉 Screw 1 4 30205002 251016 针杆连杆 Link 1 5 30102010 206053 针杆连杆销 Pin 1 6 B07001 --- 轴承 8×12×12(0,-0.002) Bearing 1 7 30128006 240101 垫圈 Washer 1 8 30109004 206053 针杆滑块 Guide block 1 9 30209002 251017 滑块导座 Guide 1 10 S01003 7021 螺钉M4×12 Screw 3 11 30227003 251018 毛毡弹簧 Latch 1 12 30123002 179040-05 毛毡 Sponge 1 13 20523003 212186 油线 Oil string 0.1M 14 30112009 206524 油线托 Oil string retainer 1 15 30117001 --- 机针(UY128GAS11#) Needle 2 16 30134006 --- 240针古 Needle holder 1 17 S10026 4554 螺钉M3×3(进口) Screw 2 18 302S17001 005511-HC 螺钉(进口) Screw 2 19 30715003 --- 针板 Needle plate 1 20 30117001 --- 机针(UY128GAS11#) Needle 3 21 30134001 --- 356针古 Needle holder 1 22 S10026 4554 螺钉M3×3(进口) Screw 3 23 400420 2515340 连杆 Rod 1 24 30126009 210766 销 Pin 2 25 30223009 207925 油 the Felt 6 26 30702003 251565 护针轴(后) Crankshaft 1 27 20523003 212186 油线 Oil string 0.13M 28 30708002 240548-920 挡块 Collar 1 29 30708001 2515370 连接套 Joint 1 30 20523005 212186 油线 Oil string 0.09M 31 S10007 4543 螺钉M4×4 Screw 5 32 30717001 --- 后护针 Needle guard (rear) 1 33 30702004 2515360 护针轴(前) Needle guard (rear) 1 34 30717002 --- 前护针 Needle guard (front) 1 35 S01063 7031 螺钉M2.5×6 Screw 1 36 S10007 4543 螺钉M4×4 Screw 2 37 30710001 251533-920 偏心套 Eccentric 1 38 20523005 212186 油线 Oil string 0.07M 注:---点划线框表示暂时不用或已改进的零部件。 From the library of: Superior Sewing Machine & Supply LLC -15- jintex.in

Page 18 — 七、弯针部件 / Looper drive mechanism

七、弯针部件 / Looper drive mechanism JK8670-01N, 08M Outside JK8670-01N, 08M -16= From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19 — 七、弯针部件 / Looper drive mechanism

七、弯针部件 / Looper drive mechanism 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 30210002 252036-92 偏心套 Eccentric 1 2 S10015 7128 螺钉 M6×0.75×4 Screw 1 3 B07009 206172 轴承 K26×30×12 Needle bearing 1 4 30205003 252035 连杆 Rod 1 5 30226005 252037-91 滑杆销 Pin assembly 1 6 N01004 4805 螺母M5 Nut 1 7 W01004 240062 垫圈5 Washer 1 8 30201010 252039 滑杆架 Looper shaft guide 1 9 30109001 201074 比叉 Guide 1 10 W02001 202286 垫圈5 Washer 1 11 301S11004 4019 比叉螺钉 Screw 1 12 30202007 252044 下弯针连杆轴 Shaft 1 13 30228006 240232 垫片 Washer 1 14 S05048 4524/7110 螺钉M4×10 Bolt 1 15 W02002 201252 垫圈4 Washer 1 16 30228005 240231 垫片 Washer 1 17 30204004 252046-92 下弯针曲柄 Lever 1 18 S05002 4534 螺钉 M6×0.75×15.2 Screw 1 19 30201011 252040-92 前挡块 Holder 1 20 S04019 7021A 螺钉M4×12 Screw 2 21 30228003 252041 垫片 Washer 2 22 30209003 252042 滑块 Slider 1 23 30209004 252043 油塔 Pin 1 24 S10007 4543 螺钉M4×4 Screw 1 25 30201012 252045-92 后挡块 Holder 1 26 30228004 252047 挡块垫片 Washer 2 27 30703001 2520770 下弯针轴前轴套 Bushing 1 28 S10013 4522 螺钉M6×6 Screw 2 29 30203007 252052 后套(后轴) Bushing 1 30 30202006 252048 滑杆 Shaft 1 31 30701007 252075-910 弯针头 Looper holder 1 32 S05046 7145 螺钉M3.5×9.5 Screw 1 33 30217003 257566 垫片 Washer 1 34 S10016 7129 螺钉M4×5 Screw 1 35 30728001 2405060 垫片 Washer 1 36 30226017 弹性圆柱销 Pin 2 注:□□点划线表示暂时不用或已改进的零部件。 -17- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — 八、送布部件(1)/Need mechanism(1)

八、送布部件(1)/Need mechanism(1) -18- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — 八、送布部件(1) / Need mechanism(1)

八、送布部件(1) / Need mechanism(1) 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 30210003 252607-92 送布偏心轮 Eccentric 1 2 S10006 4539 螺钉M5×6 Screw 2 3 B07007 204084 轴承22×26×10 Needle bearing 1 4 30224001 240236 轴承28×24×13 Needle bearing 1 5 30229001 240234 卡簧 Ring 1 6 30229002 240237 卡簧 Ring 1 7 30205005 252612 偏心连杆 Rod 1 8 30205007 252614 针距轴杆 Link 1 9 30205006 202176 连杆 Link 1 10 S10007 4537 螺钉M4×4 Screw 2 11 30226007 252613 连杆销 Pin 2 12 20123021 202176 油线 Oil string 0.06M×2 13 30223009 207925 油毛毡 Felt 6 14 30226008 252616 曲柄销 Pin 1 15 20123021 202176 油线 Oil string 0.06M 16 30223009 207925 油毛毡 Felt 4 17 30704001 2526770 曲柄 Crank 1 18 S10013 4547 螺钉M6×6 Screw 2 19 30204007 25218-91 调节曲柄 Link 1 20 S10029 4547 螺钉M6×0.75×5 Screw 2 21 30202008 252622 针距调节挡板 Guide 1 22 S10006 4539 螺钉M5×6 Screw 1 23 30227005 252620 拉簧 Spring 1 24 302S30001 7131 螺钉 Screw 1 25 30202009 252621 针距指示轴 Shaft 1 26 001022 240017 O型圈7×1.5 O ring 1 27 30712006 2527020 差动指示板 Lever 1 28 S01011 7028 螺钉M5×10 Screw 1 29 30712007 2527010 刻度板 Indicator plate 1 30 S02008 7083 螺钉M4×10 Screw 1 31 30711002 2403210 垫圈 Spacer 2 32 30202010 252625 针距调节轴 Screw 2 33 H05012 201629 挡圈5 Ring 1 34 H05006 200983 挡圈5 Ring 1 35 001023 240251 O型圈5×1.5 O ring 1 36 S09015 4550 螺钉M4×10 Screw 1 37 S10007 4537 螺钉M4×4 Screw 1 38 30209006 252626 垫块 Liner 1 注:二二点划线框表示暂时不用或已改进的零部件。 -19- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — 八、送布部件(1)/ Need mechanism(1)

八、送布部件(1)/ Need mechanism(1) 62 64 57 56 59 55 60 61 58 53 54 52 66 65 69 13 12 33 38 25 26 23 24 28 27 30 29 49 48 47 17 18 16 15 14 51 50 67 68 42 43 44 45 46 7 19 20 11 13 11 12 8 39 34 35 32 36 37 31 -20- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — 八、送布部件/Need mechanism (1)

八、送布部件/Need mechanism (1) 序号 Ref. No. 件号 Part. No. 参考件号 Rcf. Part No. 名称 Description 数量 Amt. 39 302S16001 252660 调节螺母 nut 1 40 30237001 252671 指示板 seal 1 41 30702005 2526780 送料轴(前) crankshaft 1 42 400119 2526790 连杆 link 1 43 20123021 202176 油线 oil string 0.07M 44 30126009 … 销 pin 1 45 30228007 240055 垫圈 washer 1 46 S02013 7011 螺钉M3×6 screw 1 47 30702006 2526800 送料轴 crankshaft 1 48 30223009 2527925 油毛毡 oil string 4 49 20123021 202176 油线 oil string 0.65M 50 30708003 240549-920 挡块 collar 2 51 S10007 4537 螺钉M4×4 screw 2 52 30704002 2527060 曲柄 crank 1 53 S10007 4537 螺钉M4×4 screw 2 54 30726001 2527080 销 pin 1 55 30705003 2527090 连杆 link 1 56 20123021 202176 油线 oil string 0.2M 57 20123021 202176 油线 oil string 0.07M 58 30126009 2107660 销 pin 1 59 30726008 2527270 轴承内套 spacer 1 60 20628012 2041150 垫圈5 washer 1 61 302S20001 7314 锥位螺钉 screw 1 62 400397/400407 252731-910 牙架组件 feed bar assembly 1 63 30714001 … 主送布齿 main feed dog 1 64 S01005 7020 螺钉M4×10 screw 1 65 30712008 2526950 挡板 guide 1 66 403S13011 4527 螺钉 screw 2 67 400487 252729 910 挡板 guide assembly 1 68 S01055 7143 螺钉M4×5.5 screw 2 69 3021000300 252607 送布偏心轮组件 feed eccentric wheel assem 1 注:□□点划线框表示暂时不构成已改进的零部件。

Page 24

九、送布部件(2)/ Need mechanism(2) -22- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — 九、送布部件(2)/Need mechanism (2)

九、送布部件(2)/Need mechanism (2) 序号 Ref. No. 件号 Part No. 参考件号 Rcf. No. 名称 Description 数量 Amt. 1 30705004 2556810 连杆 link 1 2 S10007 4543 螺钉M1×4 scrcw 2 3 30226008 20216 曲柄销 pin 1 4 20123021 202176 油线 oil string 0.06M 5 30223009 207925 油毛毡 felt 8 6 30204006 2526517 曲柄 crank 1 7 S10029 7142 螺钉M6×0.75×5 scr ew 2 8 3070200700 25285 910 送料轴附件 crankshaft 1 9 S02013 7011 螺钉M3×6 scr ew 2 10 S01063 7031 螺钉M2.5×6 scr ew 1 11 20123021 202176 油线 oil string 0.13M 12 30223009 207925 油毛毡 felt 4 13 30705005 2526870 连杆 link 1 14 30712010 2527260 油线压板 latch 2 15 30126009 210766 销 pin 2 16 20123021 202176 油线 oil string 0.03M 17 30228007 240055 垫片 washer 1 18 S02013 7011 螺钉M3×6 scr ew 1 19 30705006 2528880 送料轴 crankshaft 1 20 20123021 202176 油线 oil string 0.07M 21 30223009 207925 油毛毡 felt 2 22 30708001 2527160 连接套 joint 1 23 S10007 4543 螺钉M4×4 scr ew 4 24 30702009 2527100 送料调节轴 crankshaft 1 25 20123021 202176 油线 oil string 0.13M 26 30223009 207925 油毛毡 felt 2 27 30723006 2067480 油塞 felt 1 28 30708003 10549-920 挡块 collar 1 29 S10007 4543 螺钉M4×4 scr ew 1 30 30703002 2527250 滚套 spacer 1 31 30628012 204115 垫圈5 washer 1 32 307S20002 7815 轴位螺钉 scr ew 1 33 30705007 2527110 连杆 link 1 34 30712011 2527200 油线爪杆 latch 1 35 20123021 202176 油线 oil string 0.1M 36 30126009 210766 销 pin 2 37 30714002 --- 差动送料齿 differential feed dog 1 38 30726006 2527120 固定销 scr ew 1 注:□□点划线框表示暂时不用或已改进的零部件。

Page 26 — 九、送布部件(2)/ Need mechanism(2)

九、送布部件(2)/ Need mechanism(2) -24- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — 九、送布部件(2)/Need mechanism (2)

九、送布部件(2)/Need mechanism (2) 序号 Ref. No. 件号 Part No. 参考件号 Ref. Part No. 名称 Name Description 数量 Amt. 39 30726007 2526990 曲柄销 guide 1 40 001041 2401290 0型圈7.5×1.8 0 ring 1 41 S10006 454070 螺钉M5×8 Screw 1 42 30709001 2528410 滑块 block 1 43 30709002 2528660 滑块座 guide 1 44 30704003 2526990 滑块座曲柄 feed bar pin 1 45 30702010 2528610 轴 shaft 1 46 30704004 2528930 曲柄 lever 1 17 S01011 7027 螺钉M5×10 screw 1 18 30727003 2526920 扭簧 spring 1 49 H05008 2025770 开11挡圈8 ring 1 50 30728003 2401020 垫片 washer 1 51 30704005 212035SB920 曲柄 crank 1 52 S05013 1531 螺钉M5×12 screw 1 53 400367 2526600 连杆(成品) link 2 54 307S20003 70587 轴位螺钉 screw 1 55 30704006 25289-920 曲柄 crank 1 56 S05013 1531 螺钉M5×12 screw 1 57 3073100100 252721 910 差动板手组件 lever assembly 1 58 30208001 24035 92 挡块 collar 1 59 S10029 1517 螺钉M6×0.75×5 screw 1 60 30227007 252657 扭簧 spring 1 61 302S16003 252089 调节螺母 nut 1 62 30128014 211301 挡圈 spring washer 1 63 302S30003 7059 调节扳手螺钉 screw 1 64 30222017 240063 油封 oil seal 1 65 30712012 2527300 刻度尺 guide plate 1 66 30703003 2527190 管套 spacer 2 67 S01055 70183 螺钉M4×6 screw 2 68 207S16002 2526580 差动限位螺钉 stopper 2 69 W01001 303448 垫圈4 washer 2 70 208L15001 SA3401001 螺钉M4×35 screw 2 71 30726009 ...... 曲柄销 pin 1 注:「」点划线表示暂时不用或已改进的零部件。 -25- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — 十、送布部件(3) / Need mechanism(3)

十、送布部件(3) / Need mechanism(3) -26- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29 — Need mechanism(3)

十、送布部件(3) / Need mechanism(3) 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名称 Description 数量 Amt. 1 30205004 252608 连杆 Rod 1 2 30204005 252609-92 曲柄 Crank 1 3 S05005 4531 螺钉M5 × 12 Screw 1 4 30228007 240055 垫圈 Washer 1 5 S02016 7041 螺钉M3 × 3.2 Screw 1 6 30702011 252610D0 拾牙轴(成品) Crankshaft 1 7 30208001 240235-92 挡圈 Collar 2 8 S10029 4547 螺钉M6 × 0.75 × 5 Screw 2 9 30709004 2526970 滑块 Block 1 10 30702012 2526980 差动轴 Crankshaft 1 11 20123021 202176 油线 Oil string 0.08M 12 20123021 202176 油线 Oil string 0.03M 13 30223009 207925 油毛毡 Felt 2 14 30223009 207925 油毛毡 Felt 2 15 30708004 2527160 连接套 Joint 1 16 S10007 4543 螺钉M4 × 4 Screw 4 17 30702013 2527130 送料轴 Crankshaft 1 18 30223009 207925 油毛毡 Felt 2 19 20123021 202176 油线 Oil string 0.10M 20 20123021 202176 油线 Oil string 0.04M 21 30708003 240549-92 挡块 Collar 1 22 S10007 4543 螺钉M4 × 4 Screw 1 23 30709005 2527150 滑块 Block 1 24 30223009 207925 油毛毡 Felt 2 25 400517 2527000 开育环 Washer 1 26 30705009 2527030 开育环 Rod 1 27 30724001 240544-20 滚针K8 × 11 × 7.5 Needle bearing 1 28 30128019 204107 垫片 Washer 1 29 207S11009 7143 螺钉M4 × 7.5 Screw 1 30 30704007 252694-920 曲柄 Crank 1 31 S05003 4500 螺钉M5 × 10 Bolt 1 32 30223009 207925 油毛毡 Felt 2 33 20123021 202176 油线 Oil string 0.04M 34 30702014 2527140 送料轴 Crankshaft 1 35 30223009 207925 油毛毡 Felt 2 36 20123021 202176 油线 Oil string 0.18M 37 20123021 202176 油线 Oil string 0.04M 38 30708003 240549-92 挡块 Collar 2 39 S10007 4543 螺钉M4 × 4 Screw 2 40 30709005 2527150 滑块 Block 1 41 30223009 207358 油毛毡 Felt 4 注: --点划线框表示暂时不用或已改进的零部件。 -27- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30

I-, 压布部件 / Presser foot mechanism -28- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — 十一、压布部件 / Presser foot mechanism

十一、压布部件 / Presser foot mechanism 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 3013002500 301S16005 253003 调压螺杆 调节母 Adjusting bar Nut 1 1 3 30227008 240252 调压簧 Spring 1 4 30227009 240253 压脚轴小弹簧 Spring 1 5 30202017 253026 压脚转轴 Presser bar 1 6 30722004 253050 橡胶封 Oil guard 1 7 30104017 206139 压脚头 Presser bar clamp 1 8 301S11009 5118 压脚头螺钉 Screw 1 9 3010901700 253005-91 导块销组件 Guide 1 10 S11025 7025 螺钉 M4×20 Screw 2 11 30112017 253028 压脚护罩 Finger guard 1 12 S01006 7010 螺钉M3×4.5 Screw 1 14 3011601300 257468-560 压脚 Presser foot assembly 1 15 301S11010 001170-3 压脚固定螺钉 Screw 1 16 3010206400 253008-91 挡圈 拾压轴柄组件 Collar Lever 1 1 17 30108006 192024 18 30122023 253008-4 拾压轴油封 Plug 1 19 30112016 206157 压脚头连接板 Link 1 20 301S20007 5386 台螺钉 Screw 2 21 30127009 253010 拾压轴簧 Spring 1 22 30108005 206156 挡圈 Collar 1 23 301S12001 5084 曲柄螺钉 Screw 3 24 30104019 206149 拾压柄I Bell cran (upper) 1 25 301S11011 5187 拾压柄螺钉 Screw 1 26 3012018 253027 拾压柄连接板 Link 1 27 301S20008 5184 连接板螺钉 Screw 2 28 30104020 206148 拾压柄II Bell cran (lower) 1 29 301S20013 002022-4 拾压柄II固定螺钉 Screw 1 30 30102022 253013 拾压轴 Shaft 1 31 30112019 263060 拾压脚扳手 Lever 1 32 S01011 7028 螺钉 M5×10 Screw 1 33 30112020 253015 拾压柄座 Bracket 1 34 S01004 7019 螺钉 M4×7.8 Screw 2 35 S01016 4549 螺钉M5×17 Screw 1 36 N01004 4805 螺母M5 Nut 1 37 001006 240095 O型圈8.5×1.8 O ring 1 注: --点划线表示暂时不用或已改进的零部件。 -29- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32 — Needle feeding assemblies

十二、喂针部件 / Needle feeding assemblies -30- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33 — 十二、 喂针部件/Needle feeding assemblies

十二、 喂针部件/Needle feeding assemblies 序号 Ref. No. 件号 Part. No. 参考件 Ref. Part. No. 名称 Name Description 数量/Amt. 1 30110007 254501A 喂针凸轮 eccentric assembly 1 2 S10002 4514 螺钉 M5×5 screw 2 3 400059 254511 喂针连杆 connection 1 4 30104021 254503 喂针摆动曲柄 crank 1 5 S05002 4531 螺钉 M6×0.75×15.2 screw 1 6 30126006 254504 连杆销 link 1 7 30128032 240062 垫片 washer 1 8 N01001 4805 螺母 M5 nut 1 9 30102021 254519 摆动连杆轴 shaft 1 10 30128015 206180 摆动连杆轴垫圈 washer 1 11 H05004 306671 挡圈 12 ring 1 12 30105013 254506B 喂针摆动连杆 crank 1 13 S10029 4545 螺钉 M6×0.75×5(进口) screw 2 14 30126005 254507 喂针摆动销 block 1 15 30202018 254518 喂针摆动架 crankshaft 1 16 30223009 207925 油毛毡 felt 2 17 20123021 202176 油线 oil string 0.08M 18 001008 233020 0型圈9×1.8 O ring 1 19 20108006 212039 挡圈 collar 1 20 S10026 S071 螺钉 screw 2 21 30104022 254516 喂针架 level assembly 1 22 S01005 7020 螺钉M4×10 screw 1 23 S01017 7022 螺钉M4×14 screw 1 24 30117005 257565 眼针 spreader 1 25 30128018 ... 喂针摆动轴套垫圈 washer 1 注:---点划线表示暂时不用或已改进的零部件。

Page 34 — 十三、松线部件/Thread loosing assemblies

十三、松线部件/Thread loosing assemblies 13 2枚针 2-Needle. With top cover thread. 14 21 22 2 33 3枚针 3-Needle. With top cover thread. 21 22 14 24 34 15 35 2 -32- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35 — 十三、松线部件/Thread loosing assemblies

十三、松线部件/Thread loosing assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No. 名称 Description 数量 Number 1 30113001 254008 过线架 thread guide 1 2 S01004 7019 螺钉M4×7.8 screw 4 3 30102026 Jan-26 夹线柱 pipe 2 4 30112021 254009 压板 holder 1 5 S01004 7019 螺钉M4×7.8 screw 1 6 W01004 33448 垫圈4 washer 1 7 3010403100 254003B91 松线曲柄I crank 1 8 S05005 4531 螺钉M5×12 bolt 1 9 W01010 202868 垫圈8 washer 1 10 3010403200 254000-91 松线曲柄II lever 1 11 30103040 254022 轴套 collar 1 12 301S11013 002133-1 轴套紧固定螺钉 screw 1 13 3011300300 二针过线组件 tension control mechanism 1 14 30113003 254019 过线板 bracket 1 15 30112022 254021 过线调节板 thread releaser 1 16 3011300500 254010C9U 调线组件(强) tension spring assembly(heavy) 2 17 3011300500 254010B9U 调线组件(中) tension spring assembly 1 18 3011300400 254010A9U 调线组件(弱) tension spring assembly(light) 1 19 30113007 254020 二孔过线板I thread guide 4 20 30113008 206203 二孔过线板II thread guide 4 21 30127010 306301 调节板簧 spring 1 22 301S30009 5447 调节板螺钉 screw 1 23 30103041 206202 调节套 spacer 4 24 30113008 206203 二孔过线板II thread guide 5 25 301S30010 001817-2A 夹线延 screw stud 1 26 30128016 210319 夹线片 tension disc 2 27 30111005 208450-UA 调压止动盖 cup 1 28 30127011 201037 调压簧(强) spring(heavy) 3 29 30111006 206448 调压止动套 ratchet 1 30 301S16006 206447-UA 调压螺母 nut 1 31 30127012 201086 调压簧(中) spring(medium) 1 32 30127013 201068 调压簧(弱) spring(light) 1 33 3011304200 254023E9U 三针过线组件 tension control mechanism 1 34 30113007 254020 二孔过线板I thread guide 5 35 30103041 206202 调节套 spacer 5 36 3011300600 254010A9U 调线组件(强) tension spring 3 注:点划线框表示暂时不用或已改进的零部件 -33- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 36 — 十四、过线部件 / Thread guide assemblies

十四、过线部件 / Thread guide assemblies 2枚针 3枚针 2-Needle 3-Needle 19 2 3 20 2 3 01N,08M 零件外 Outside 01N, 08M 14 Packed in accessory for JK8670-01N, 08M -34- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 37 — 十四、过线部件/Thread guide assemblies

十四、过线部件/Thread guide assemblies 序号 Ref. No. 件号 Part. No. 参考件号 Ref. Part No. 名称 Description 数量 Amt. 1 30102028 253503 过线座(中轴) shaft 1 2 30128019 204107 垫片 washer 1 3 W02002 201252 塔圈4 spring washer 1 4 S05048 7110 螺钉M4×10 bolt 1 5 301S20009 0W09070 2 调线螺钉 screw 1 6 20608003 240201 挡圈 collar 1 7 301S12001 2193 曲柄螺钉 screw 2 8 30101018 253504 过线座 lever 1 9 S05001 4501 螺钉M5×14 bolt 1 10 W02001 303067 挡圈 spring washer 1 11 30113009 253505A 长过线板 thread take up 1 12 S01001 7019 螺钉 M1×7.8 screw 2 13 W01001 303448 垫圈4 washer 2 14 30112027 253544 定位角固定架 thread guide 1 15 S01004 7019 螺钉 M1×7.8 screw 1 16 W01001 303448 垫圈4 washer 1 17 30113012 253545 针杆过线座 holder 1 18 S01006 7009 螺钉M3X1.5 screw 2 19 30113013 234521 过线杆 thread guide 3 20 S10001 4535 螺钉M3×4(进口) screw 3 21 30113010 253507 过线杆 thread guide 1 22 S01006 7009 螺钉M3×1.5 screw 1 23 30113011 253508A 过线板 thread guide 1 24 206S30016 7170 螺钉M3×1.5 screw 1 25 30112023 253509A 护线罩 thread support 1 26 S01006 7009 螺钉M3×1.5 screw 1 27 30128034 240474 垫圈 washer 1 28 30112025 253516 夹线座 thread tension bracket 1 29 S01001 7019 螺钉 M1×7.8 screw 1 30 30112025 253593 压线板 tension disc 1 31 30112025 234561 夹线板 thread guide 1 32 30127014 253517 调压簧 spring 1 33 S10026 4554 螺钉M3×3(进口) screw 1 34 30112028 253506 长过线压板 thread take up 1 35 30112030 253515 过线板 thread guide 1 36 S01004 7019 螺钉 M1×7.8 screw 1 37 30112029 253514 喂线过线 thread guide 1 38 S01004 7019 螺钉 M1×7.8 screw 1 39 30112031 253518 喂线过线板 thread guide 1 40 301S11024 ... 滑块导座螺钉 screw 2 41 W01001 303448 垫圈4 washer 2 42 30112032 253517 喂线一眼过线 thread guide 1 43 20112033 137108 夹线簧 tension disc 2 44 30127016 211388 夹线簧 spring 1 45 301S30011 5387 调压螺钉 screw 1 46 301S16007 5526 夹线带 knob 1 47 30112033 253668 喂针小过线 thread guide 1 48 3011203200 喂针二眼过线组件 thread guide 1 49 30128008 挡圈 collar 1 注:口点划线表示暂时不用或已改进的零部件。 -35- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 38

十五、打线凸轮部件 / Looper thread handling -36- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 39 — 十五、打线凸轮部件/Looper thread handling

十五、打线凸轮部件/Looper thread handling 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名称 Description 数量 Amt. 1 30712014 2536810 过线座 Bracket 1 2 20128015 210307 波形垫圈6 Washer 1 3 301S20001 7066 护罩固定螺钉 Screw 1 4 30213002 253534A 过线板(右) Looper thread guide(right) 1 5 30213001 253533D 过线板(左) Thread guide 1 6 W01012 210585 垫片2.5 Washer 2 7 S01063 7031 螺钉M2.5×6 Screw 2 8 30712015 2536320 小过线座 Set plate 1 9 S01031 7196 螺钉M4×4.7 Screw 1 10 30713003 2536800 打线片 Thread guide 1 11 W01001 303448 垫圈4 Washer 1 12 L02025 4325 螺钉M4×6 Screw 1 13 400488 2536760 压线板 Thread retainer bracket 1 14 S01010 7018A 螺钉M4×8 Screw 1 15 30712016 2125030 下压板 Thread retainer bracket 1 16 30712017 2125040 上压板 Tension disc 1 17 30703004 2107200 垫圈 Guide 1 18 20127006 2107510 弹簧 Spring 1 19 S01010 7082 螺钉M4×8 Screw 1 20 30713004 2536351 外过线板 Set plate 1 21 L02025 4325 螺钉M4×6 Bolt 1 22 30727006 2103060 过线簧 Spring 1 23 W01001 137906 垫圈4 Washer 1 24 S01028 7012 螺钉M3.5×6 Screw 1 25 30713005 253689-910 打线凸轮 Thread take-up assembly 1 26 S10007 4543 螺钉M4×4 Screw 2 27 301246 253625-9P0 打线座(喷漆) Bracket assembly 1 28 S05031 4503 螺钉M6×20 Bolt 2 29 30712018 2536360 压板 Set plate 1 30 S01010 7019 螺钉M4×8 Screw 1 31 30702015 2536710 轴 Shaft 1 32 30735002 2536230 小同步带 Gear 1 33 S09007 4548 螺钉M6×8 Screw 1 34 S12001 4555 螺钉M6×8 Screw 1 35 400538 2402790 垫片 Washer 1 36 400539 2402780 垫片 Washer 2 37 20708004 240308 挡圈 Collar 1 38 S10007 4543 螺钉M4×4 Screw 2 注:---点划线框表示暂时不用或已改进的零部件。 -37- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 40 — 十五、打线凸轮部件 / Looper thread handling

十五、打线凸轮部件 / Looper thread handling -38- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — 十五、打线凸轮部件/ Looper thread handling

十五、打线凸轮部件/ Looper thread handling 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 39 30712019 2536401 打线座盖 Cover 1 40 30703005 2403320 管套 Spacer 1 41 S01076 7213 螺钉M4×22 Screw 1 42 30712020 2536740 带轮罩 Belt cover 1 43 30711002 2403210 垫圈 Spacer 1 44 S01003 7021 螺钉M4×12 Screw 1 45 30711003 2405600 垫圈 Spacer 1 46 S05077 4529 螺钉M4×18 Bolt 1 47 30735003 253641A0 同步带 Timing belt 1 48 30713006 253685-910 过线管组件 Thread tube 1 49 S01055 7143 螺钉M4×6 Screw 2 50 30713007 253687-910 过线压板组件 Thread tube 1 51 S01010 7082 螺钉M4×8 Screw 1 52 30713008 2536750 过线板 Thread guide 1 53 S01010 7082 螺钉M4×8 Screw 1 54 30703005 2403320 管套 Spacer 1 55 30713009 2536790 过线管 Pipe 1 56 30127020 206115 压板 Bracket 1 57 S01033 7025A 螺钉M4×20.5 Screw 1 58 W01001 303448 垫圈4 Washer 1 59 B08007 --- 滚针轴承 Needle bearing 2 60 P01007 --- 销4×8 Pin 2 61 P01010 --- 销1.5×17.5 Pin 1 62 P03008 --- 销2×6 Pin 1 注:---点划线表示暂时不用或已改进的零部件。 -39- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 42 — 十六、润滑部件 / Lubrication mechanism

十六、润滑部件 / Lubrication mechanism -40- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — 十六、润滑部件 / Lubrication mechanism

十六、润滑部件 / Lubrication mechanism 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 30136003 255035-91 铜油管接头 Pipe 1 2 301S30012 255037 油管螺钉 Joint screw 1 3 30121021 240135 JK-8568Φ5×Φ7油管 Tube 0.26M 4 20636001 200136 油管接头 Joint 2 5 30129006 202199 油管卡簧(大) Clamp 4 6 301S30013 200152 过油螺钉 Joint screw 2 7 30121012 255003 油管螺钉 Pipe 1 8 30123010 240136 油毡 Felt 1 9 30126009 210766 销 Pin 1 10 S10002 4514 螺钉M5×5 Screw 1 11 30123009 255021 油毡 Felt 1 12 3012101400 255039 细油管 Pipe 1 13 30127019 255005 压簧 Latch 1 14 S04010 7018A 螺钉M4×5.5 Screw 1 15 30121007 240143 油管 Tube 1 18 30121022 240006 JK-8568Φ4×Φ6油管 Tube 0.36M 19 20129002 202199 油管卡簧 Clamp 6 20 30212023 255099 接油盘 Oil release plate 1 21 S01002 7017 螺钉M4×7 Screw 2 22 3022100200 255097-91 喷油管 Oil splash pipe 1 23 N01001 4821 螺母M4 Nut 1 24 30121022 240006 JK-8568Φ4×Φ6油管 Tube 0.42M 25 30121022 240006 JK-8568Φ4×Φ6油管 Tube 0.3M 26 3022100800 255094-91 油管组件 Oil splash pipe 1 27 S01001 7018 螺钉M4×7 Screw 1 28 30121021 240135 JK-8568Φ5×Φ7油管 Tube 0.15M 29 30236005 255123 双头油管接头 Joint 1 30 30723007 255140 油毡 Felt 1 31 20123021 202176 油线 Oil string 0.05M 32 30736001 255139 油管 Pipe 1 33 30736002 240568 油管Φ2.5×Φ4.5 Tube 1 34 30711004 255170 油管卡簧 Clamp 1 35 30736003 2550380 油管接头 Joint 1 36 201S30004 200152 过油螺钉 Screw 1 注:□□点划线框表示暂时不用或已改进的零部件。 -41- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 44 — Oil pump assemblies

十七、油泵部件 / Oil pump assemblies -42- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — 十七、油泵部件 / Oil pump assemblies

十七、油泵部件 / Oil pump assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 30201029 255000 油盘 Oil reservoir 1 2 20528014 202287A 垫圈 Washer 1 3 301S11015 5138B 塔油螺钉 Screw 1 4 S05007 4504 螺钉M8×20 Screw 4 5 30222014 255001 油盘密封圈 O ring 1 6 3022000100 255040-91 油泵组件 Oil pump assy 1 7 30102031 255024 油泵轴 Shaft 1 8 30120004 255025 五星轮 Rotor 1 9 30120007 255026 五星轮 Rotor 1 10 30120005 255027 五星套 Rotor 2 11 30120008 255028 油泵盖 Cover 1 12 S05006 7026 螺钉M4×25 Screw 2 13 301S20011 7105 油泵螺钉 Screw 1 14 30125003 255019 油泵蜗轮 Worm wheel 1 15 S10002 4514 螺钉M5×5 Screw 2 16 S05005 4501 螺钉M5×12 Screw 2 17 301S30014 过油螺钉 Joint screw 2 18 20136001 206233 滤油器 Filter element 1 19 301S30016 210200 螺钉 Screw 1 20 001010 206431 O型圈38.7×3.55 O ring 1 21 300140 210201-SD 滤油器盖 Cover 1 22 S01003 7021 螺钉M4×12 Screw 3 23 30131004 9A3002 提示说明 Filter seal 1 注:□□点划线框表示暂时不用或已改进的零部件。 -43- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 46 — 十八、硅油盒装置部件 / Silicon oil delice assemblies

十八、硅油盒装置部件 / Silicon oil delice assemblies -44- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47 — 十八、硅油盒装置部件/Silicon oil delice assemblies

十八、硅油盒装置部件/Silicon oil delice assemblies 序号 件号 参考件号 名称 Description 数量 Ref. No. Part No. Ref. Part No. Amt. 2 300111 207066-UD 上硅油盒(喷漆) silicone oil reservoir (upper) 1 3 30112010 207067-UD 硅油盒盖 cap 1 4 P03008 206781 销2×6 pin 2 5 S01006 7009 螺钉3×4.5 screw 2 6 30123011 207068 硅油棉 felt 1 注:□□□点划线表示暂时或已改进的零部件。 -45- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 48 — 十九、油盘托部件 / Oil plate assemblies

十九、油盘托部件 / Oil plate assemblies 放入附件中 Put in accessory 2 9 11 10 4 3 12 6 8 7 6 5 放入附件中 Put in accessory 16 17 2 15 18 -46- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 49 — 十九、油盘托板部件/Oil plate assemblies

十九、油盘托板部件/Oil plate assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref. P. No. 名称 Name Description 数量 Amt. 2 30122029 206338 油盘减振垫 rubber cushion 4 3 301S16008 206336 托盘固定螺母 nut 4 4 30101032 259000 油盘托板 rest board 2 5 301S30017 1512 托板内六角螺钉 bolt 4 6 20131029 206334 大垫圈 washer 12 7 20131030 205764 防振套 cushion rubber 4 8 30103078 205785 防振垫支撑套 liner 4 9 301S30018 7093 螺钉 screw 4 10 30112041 206329 链条挡板 treadle chain guide 1 11 S01011 7028 螺钉M5×10 screw 2 12 30122031 205467 减震垫圈 spacer 4 15 305S11018 安装螺钉(一套) screw(set) 1 16 S10005 螺钉 screw 3 17 W01001 垫片 ring 3 18 30211006 皮带护罩 The bolt cover 1 注:□□点划线表示暂时不用或已改进的零部件。

Page 50 — 二十、线架部件 / Thread apool assemblies

二十、线架部件 / Thread apool assemblies -48- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 51 — 二十、线架部件/Thread apool assemblies

二十、线架部件/Thread apool assemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref. Part No. 名 称 Description 数量 Amt. 1 30102032 508-SA 线架下挂 Thread bar (loer) 1 2 30128021 509 挡圈 washer 2 3 N02001 5476 螺母 M6×0.75 screw 1 4 30101028 505SA 长线架 bracket (3 spool) 1 5 30101029 505SA 短线架 bracket (3-spool) 1 6 30102033 380A 线夹 spool pin 5 7 W02002 201252 垫圈4 washer 5 8 30101030 527 SA 长过线架 bracket (3 spool) 1 9 30111007 381-SA 托盘垫 spool tray 5 10 30123011 507 衬套 cushion 5 11 30103044 382 SA 线固定套 spool retaining fin 1 12 1.02004 7102 螺钉 M6×34 screw 2 13 W01003 512 垫圈6 washer 2 14 S04001 4022 螺钉 M6×10 screw 2 15 30102034 502 SA 线架上捧 thread bar (upper) 1 16 30129005 504 SA 锁紧卡圈 joint 1 17 S04002 4021 螺钉 M5×16 screw 4 18 N01001 4805 螺母 M5 nut 1 19 30111008 383 SA 棒架 bracket 1 20 30113018 384 过线捧 thread guide bar 1 21 S04003 4014 螺钉 M4×25 screw 1 22 30101031 527ASA 短过线架 bracket 1 23 30111009 233 SA 固定器 holder 1 24 S04004 4012 螺钉 M4×15 screw 9 25 N01005 4803 螺母 M4 nut 9 26 30113019 293A 过线捧 thread guide bar (5 spool) 1 27 30113034 2931 过线捧 thread guide bar (6 spool) 1 28 30103045 506 过线套 thread guide 5 29 30122027 386 棒帽 End cap 1 30 3013102700 线架组件 Wire frame component 1 注:「---」点划线表示暂时不用或已改进的零部件。 -49- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 52 — 二十一、专用部件(1) / Specific parts (1)

二十一、专用部件(1) / Specific parts (1) JK8670-01E 3 2 1 Packd in accessory JK8670-03F 9 8 5 7 JK8670-03G 10 11 12 13 14 15 16 17 -50- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 53 — 二十一、专用部件(1) / Specific parts (1)

二十一、专用部件(1) / Specific parts (1) 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名称 Description 数量 Amt. 1 30701025 2581670 缝料挡块(右) Fabric guide (right) 1 2 W01012 210585 垫片2.5 Washer 2 3 S01012 0071560 螺钉M2.5×3.4 Screw 2 4 --- 2581760 缝料导规(右) Fabric guide (right) 1 5 S01036 7154 螺钉M3×3 Screw 1 6 --- 2581770 缝料导规(左) Fabric guide (left) 1 7 S01036 7154 螺钉M3×3 Screw 1 8 30701018 2581690 缝料导规(右) Fabric guide (right) 1 9 30701019 2581700 缝料导规(左) Fabric guide (left) 1 10 30701020 2581740 支架 Bracket 1 11 S01036 7154 螺钉M3×3 Screw 2 12 30701021 2581750 支架 Bracket 1 13 S01026 70400 螺钉M3×4 Screw 1 14 30202998 2575750 缝料导规(左) Fabric guide (left) 1 15 S01036 7154 螺钉M3×3 Screw 1 16 30202999 2575760 缝料导规(右) Fabric guide (right) 1 17 207S11017 0070110 螺钉M3×8 Screw 1 注:□□点划线表示暂时不用或已改进的零部件。 -51- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 54 — 二十二、专用部件(2) / Specific parts(2)

二十二、专用部件(2) / Specific parts(2) JK8670-08 3 放入附件中 Packed in accessory 4 薄料 For light weight fabric 6 5 厚料 For heavy weight fabric 放入附件中 Packed in accessory 6 JK8670-08B 8 7 狭(Narrow) 9 宽(Wide) 放入附件中 Packed in accessory -52- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 55 — 二十二、专用部件(2) / Specific parts(2)

二十二、专用部件(2) / Specific parts(2) 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名称 Description 数量 Amt. 1 30701025 2581670 缝料挡块(右) Fabric guide (right) 1 2 W01012 210585 垫片2.5 Washer 2 3 S01012 0071560 螺钉M2.5×3.4 Screw 2 4 3070102200 2581780 缝料导块(左) Fabric guide (left) 1 5 3070102300 2581790 缝料导块(左) Fabric guide (left) 1 6 S01036 7154 螺钉M3×3.5 Screw 1 7 30212026 257761A 压脚辅助板(窄) Fabric guide 1 8 S01063 7031 螺钉M2.5×6 Screw 2 9 30212025 257761 压脚辅助板(宽) Fabric guide 1 注:□□点划线表示暂时不用或已改进的零部件。 -53- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 56 — JK861701N08M, 08M

二十三、专用部件(3) / Specific parts(3) JK861701N08M, 08M -54- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 57 — 二十三、专用部件(3) / Specific parts(3)

二十三、专用部件(3) / Specific parts(3) 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part.No. 名 称 Description 数量 Amt. 1 2536780 硅油盒固定架 Bracket 1 2 2536770 过线架 Thread guide 1 3 2536840 过线板 Thread guide 1 4 2536830 支架 Bracket 1 5 2536820 过线板 Needle thread cam 1 6 208S15001 7154 螺钉M3×3.5 Screw 2 7 W01002 202875 垫片3 Washer 2 8 2504340 过线防护罩 Thread take-up guard 1 9 2504350 针杆护罩 Needle bar guard 1 注:□□□点划线表示暂时不用或已改进的零部件。 -55- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 58 — Accessories assemblies

二十四、附件部件 / Accessories asscemblies -56- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — 二十四、附件部件 / Accessories asscemblies

二十四、附件部件 / Accessories asscemblies 序号 Ref. No. 件号 Part No. 参考件号 Ref.Part No. 名称 Description 数量 Amt. 1 20131037 --- 油壶(大) Oil container 1 2 20131038 --- 硅油壶 Oiler 1 3 20131039 --- 漏斗 Oil funnel 1 4 20131039 --- 硅油 Container silicone 1 5 20131038 --- 镊子 Tweezers 1 6 30131007 --- 内六角扳手(1.5mm) Allen key/1.5mm 1 7 20131046 --- 内六角扳手(2mm) Allen key/2mm 1 8 30131010 --- 内六角扳手(3mm) Allen key/3mm 1 9 30131012 --- 内六角扳手(4mm) Allen key/4mm 1 10 20131047 --- 内六角扳手(5mm) Allen key/5mm 1 11 20131056 --- 内六角扳手(6mm) Allen key/6mm 1 12 30131009 --- 内六角扳手(8mm) Allen key/8mm 1 13 10131002 --- 螺丝刀(大) Screw driver (large) 1 14 10131003 --- 螺丝刀(中) Screw driver (medium) 1 15 10131004 --- 螺丝刀(小) Screw driver (small) 1 16 20131044 --- 内六角扳手(1.5mm直柄) Allen key driver (1.5mm) 1 17 30131018 --- 链条 Chain 1 18 10131005 --- 机头罩 Dust cover 1 19 30117001 --- 机针 Needle 4 20 20136001 --- 滤油器 Filter element 1 21 30131005 --- 扳手(7mm~9mm) Wrench/(7mm-9mm) 1 22 30131006 --- 扳手(8mm~10mm) Wrench/(8mm-10mm) 1 23 S01005 --- 螺钉 M3x3 Screw 1 24 30135004 --- 皮带 Leather belt 1 注: ---点划线表示暂时不用或已改进的零部件。 -57- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 60 — JK8670 GAUGE PARTS LIST(1)

JK8670 缝纫组合件表 (1) JK8670 GAUGE PARTS LIST (1) 机型 缝样 针古 针板 主送布牙 差动送布牙 压脚 弯针 护针 (前) 护针 (后) 喂针 机针 MACHINE TYPE /SPEC. GAUGE NEEDLE HOLDER NEEDLE PLATE MAIN FEED DOG DIFF FEED DOG PRESSER FOOT LOOPER NEEDLE GUARD FRONT REAR 8670-01CB 356 30134001 30715004 30714003 30714004 3011601300 30217003 30717002 30717001 30117005 30717001(11#)/ 30717011(14#) 364 30134002 30715006 3011601400 8670-03FB 356 30134001 30715003 30714001 30714002 3011601300 30217003 30717002 30717001 30117005 30717001(11#)/ 30717011(14#) 364 30134002 30715005 3011601400 8670-03GB 356 30134001 30715003 30714001 30714002 3011600300 30217003 30717002 30717001 30117005 30717001(11#)/ 30717011(14#) 364 30134002 30715005 3011600400 8670-08AC 356 30134001 30715004 30714003 30714004 3011601300 30217003 30717002 30717001 30117005 30717001(11#)/ 30717011(14#) 364 30134002 30715006 3011601400 -58- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61

产品标准代号: QB/T2044-2010 Standard code of the products: QB/T2044-2010 K 杰克缝纫机 JACK SEWING MACHINE HTTP://WWW.CHINAAJACK.COM 浙江新杰克缝纫机股份有限公司 ZHEJIANG NEW JACK SEWING MACHINE CO.,LTD. ● 公司地址(Address of Company): 台州市椒江区机场南路15号 No. 15 Rd Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C ● 国内销售部(Domestic Trade Dept): 电话(TEL): 0086-576-88177788 88177789 传真(FAX): 0086-576-88177758 ● 国贸部(International Trade Dept): 电话(TEL): 0086-576-88177774 传真(FAX): 0086-576-88177787 ● 零件部(Spare Part Department): 电话(TEL): 0086-576-88177782 88177775 传真(FAX): 0086-576-88177775 ● 免费售后服务电话(Aftersale Service TEL): 4008876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实样为准。 You will be not informed if the file has been revised. Please set sample as standard. 2013.9 From the library of: Superior Sewing Machine & Supply LLC jintex.in
