Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301282 | UPPER COVER | 1 |
| 2 | 413S11002 | SCREW | 7 |
| 3 | 301283 | LEFT COVER | 1 |
| 4 | 413S11002 | SCREW | 2 |
| 5 | 30284 | LEFT COVER B | 1 |
| 6 | 413S11002 | SCREW | 4 |
| 7 | 301285 | THREAD TAKE UP LEVER COVER | 1 |
| 8 | 413S11002 | SCREW | 1 |
| 9 | 301286 | FRONT COVER | 1 |
| 10 | 413S11002 | SCREW | 3 |
| 11 | 301287 | MOTOR COVER | 1 |
| 12 | 413S11003 | SCREW M5 L=16 | 4 |
| 13 | 41312003 | LUBRICATING OIL WICK STOPPER | 1 |
| 14 | 413S13003 | SCREW M4 L=6 | 5 |
| 15 | 301288 | REAR COVER | 1 |
| 16 | 413S11002 | SCREW | 4 |
| 17 | 4130100500 | HOOK OIL SHIELD COVER COMPL | 1 |
| 18 | 413S13001 | HEXAGON SOCKET HEAD SCREW M5×6 | 2 |
| 19 | 413S30007 | STUD | 4 |
| 20 | 413S13008 | SCREW | 4 |
| 21 | 41330001 | INT PCB ASS'Y | 1 |
| 22 | 41330002 | HEAD FAN MOTOR A ASS'Y | 1 |
| 23 | 413S13025 | SCREW | 2 |
| 24 | 41312007 | FAN FITTING PLATE | 1 |
| 25 | 413S13003 | SCREW M4 L=6 | 2 |
| 26 | 41337001 | SAFETY LABEL | 1 |
| 27 | 41337002 | ATTENTION SEAL | 2 |
| 28 | 41322008 | RUBBER PLUG | 1 |
| 29 | 41322009 | PLUG D=7.5 L=3.5 | 2 |
| 30 | 413S13003 | SCREW M=4 L=6 | 6 |
| 31 | 41322010 | RUBBER PLUG | 1 |
| 32 | 41322012 | RUBBER PLUG | 2 |
| 33 | 41322013 | RUBBER PLUG | 1 |
| 34 | 41322014 | RUBBER PLUG D=12.5 L=4 | 3 |
| 35 | 41322015 | PLUG | 2 |
| 36 | 413S13005 | SCREW M=6 L=10 | 4 |
| 37 | 413S13006 | HEXAGON BOLT | 4 |
| 38 | 413S14001 | SCREW M=6 L=6 | 2 |
| 39 | 4133000300 | SWITCH ASM | 1 |
| 40 | 413S13008 | SCREW | 2 |
| 41 | 4131301400 | PRE-TENSION CONTROLLER ASM | 1 |
| 42 | 41313013 | THREAD GUIDE BAR | 1 |
| 43 | 41301006 | BED BASE | 1 |
| 44 | 301290 | BED REAR COVER | 1 |
| 45 | 41311001 | CABLE CLAMP | 1 |
| 46 | 41330004 | HEAD FAN MOTOR B ASS'Y | 1 |
| 47 | 41311002 | FILTER | 1 |
| 48 | 41312011 | FINGER GUARD | 2 |
| 49 | 41303001 | HINGE BUSH | 1 |
| 50 | 41326002 | HINGE PIN | 2 |
| 51 | 41312012 | HINGE PLATE, A | 1 |
| 52 | 41312013 | HINGE PLATE, B | 1 |
| 53 | 413S16005 | NUT M=6 | 8 |
| 54 | 413S16010 | NUT M3×0.5 | 1 |
| 55 | 41328001 | WASHER 6.1×18.5×2 | 4 |
| 56 | 41311003 | OIL SHIELD | 1 |
| 57 | 41322001 | RUBBER C | 3 |
| 58 | 41322002 | RUBBER D | 1 |
| 59 | 413S14012 | SCREW | 1 |
| 60 | 41322017 | Z STOPPER RUBBER | 1 |
| 61 | 41322003 | RUBBER CUSHION (B) | 4 |
| 62 | 41322004 | RUBBER HINGE | 1 |
| 63 | 413S13008 | SCREW | 1 |
| 64 | 413S13009 | SCREW M4×0.7 L=30 | 2 |
| 65 | 41328002 | CLOTH PLATE WASHER | 2 |
| 66 | 413S30025 | VCS STUD A | 1 |
| 67 | 41322011 | RUBBER PLUG | 1 |
| 68 | 41322018 | RUBBER PLUG | 1 |
| 69 | 41313001 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 41313002 | TAKE-UP THREAD GUIDE B | 1 |
| 71 | 413S13010 | SCREW M5×0.8 L=8 | 2 |
| 72 | 41313003 | TAKE-UP THREAD GUIDE A | 1 |
| 73 | 413S13003 | SCREW M=4 L=6 | 1 |
| 74 | 4133000400 | SAFETY SWITCH ASS'Y | 1 |
| 75 | 41312084 | SAFETY SW BASE | 1 |
| 76 | 41330021 | SAFETY SWITCH CORD ASS'Y | 1 |
| 77 | 41312085 | SAFETY SWITCH COVER | 1 |
| 78 | 40312132 | SAFETY SWITCH ARM | 1 |
| 79 | 413S20011 | SAFETY SWITCH ARM SHAFT | 1 |
| 80 | 40327024 | SAFETY SWITCH SPRING | 1 |
| 81 | 40312133 | SAFETY SWITCH NUT | 1 |
| 82 | 403S11050 | SCREW M=2 L=12 | 2 |
| 83 | 413S15004 | SCREW 9/64-40 L=4.5 | 2 |
| 84 | 40111005 | CABLE BAND | 1 |
| 85 | 41337002 | ATTENTION LABEL | 1 |
| 86 | 413S12005 | BOLT | 4 |
| 87 | 41330029 | LED FITTING PLATE | 1 |
| 88 | 41330033 | LED | 1 |
| 89 | N01013 | NUT | 4 |
| 90 | 407S04056 | SCREW M3×40 | 4 |
| 91 | 41330071 | FAN MOTOR | 1 |
| 92 | 41311019 | CABLE CLAMP | 1 |
| 407S01056 |
Page 6 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41330005 | ASSY AT SOLENOID | 1 |
| 2 | 41312014 | AT SHAFT | 1 |
| 3 | 41312015 | AT SHAFT HOLDER | 1 |
| 4 | 40329004 | RETAINING RING | 1 |
| 5 | 40312123 | DISK STOPPER | 1 |
| 6 | 40303024 | DISK STOPPER HOLDER CAP | 1 |
| 7 | 41330022 | EARTH CABLE ASM | 1 |
| 8 | 413S16001 | NUT | 2 |
| 9 | 403S11048 | SCREW | 3 |
| 10 | 413S30006 | SCREW M=4 L=8 | 1 |
| 11 | 413S13010 | SCREW M5×0.8 L=8 | 3 |
| 12 | 413S14004 | SCREW | 2 |
| 13 | 403S14015 | SCREW M3 L=4 | 1 |
| 14 | 413S14001 | SCREW M6 L=6 | 1 |
| 15 | 413S11023 | SCREW | 1 |
| 16 | W02002 | SPRING WASHER | 1 |
| 17 | 41330023 | INT CORD A ASS'Y | 1 |
| 18 | 40327019 | TAKE-UP SPRING | 1 |
| 19 | 40303025 | THREAD TENSION POST BASE | 1 |
| 20 | 41329002 | THREAD TENSION SHAFT COLLAR | 2 |
| 21 | 41303002 | THRUST COLLAR | 1 |
| 22 | 413S30009 | UTT SUSPENSION SCREW 9 | 1 |
| 23 | 4131300400 | ASSY THREAD TENSION POST | 1 |
| 24 | 41311004 | GUIDE PLATE | 1 |
| 25 | 41328005 | BUSHING | 1 |
| 26 | 41312018 | THREAD BREAK DETECTOR A | 1 |
| 27 | 4131300600 | ASSY BTW | 1 |
| 28 | 40301026 | BTW BASE | 1 |
| 29 | 40312125 | BTW CAM PLATE | 1 |
| 30 | 40302014 | BTW BASE SHAFT | 1 |
| 31 | 40304013 | BTW SHAFT BASE | 1 |
| 32 | 40310008 | BTW CAM LEVER | 1 |
| 33 | 40303026 | BTW WHEEL | 1 |
| 34 | 40327023 | BTW TORSION SPRING | 1 |
| 35 | 40308012 | BTW BEARING SPACER | 1 |
| 36 | 41302012 | BTW SHAFT | 1 |
| 37 | 41302013 | BTW LEVER SHAFT | 1 |
| 38 | 41312087 | BTW LEVER | 1 |
| 39 | 41328021 | BTW SPACER | 1 |
| 40 | 40324015 | BTW BEARING | 2 |
| 41 | 40322030 | BTW WHEEL RUBBER | 1 |
| 42 | 40327021 | BOBBIN SPRING | 1 |
| 43 | 40327022 | BTW SPRING | 1 |
| 44 | 40329005 | RETAINING RING | 1 |
| 45 | 40329006 | E-RING 4 | 1 |
| 46 | 40328038 | WASHER 4.5×10×0.8 | 1 |
| 47 | 403S11052 | SCREW | 1 |
| 48 | 403S14022 | SCREW M5 L=5 | 1 |
| 49 | 403S14023 | SCREW M4×8 | 2 |
| 50 | 41330024 | INT CORD D ASS'Y | 1 |
| 51 | 41330025 | INT CORD C ASS'Y | 1 |
| 52 | 11419001 | THREAD CUTTER | 1 |
| 53 | 413S11027 | COMBINATION SCREW M3×5 | 2 |
| 54 | 41313007 | THREAD GUIDE | 1 |
| 55 | 413S11008 | SCREW 11/64-40 L=7.8 | 1 |
| 56 | 40111005 | CABLE BAND | 10 |
| 57 | 40311023 | CABLE BAND | 2 |
| 58 | 41312003 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | 413S13003 | SCREW M4 L=6 | 3 |
| 60 | 413S11004 | SCREW M4 L=10 | 3 |
| 61 | 4131300700 | BOBBIN THREAD TENSION ASM | 1 |
| 62 | 413S16013 | THREAD TESION NUT | 1 |
| 63 | 41327017 | THREAD TESION SPRING | 1 |
| 64 | 41313015 | BOBBIN WINDER TENSION DISC | 2 |
| 65 | 4131301800 | BOBBIN THREAD TENSION ROD ASM | 1 |
| 66 | 413S16012 | NUT 11/64-40 | 1 |
| 67 | 41312021 | THREAD GUIDE | 1 |
| 68 | 41312089 | CLAMP | 1 |
| 69 | 413S13010 | SCREW M5 L=8 | 1 |
| 70 | 4131301900 | THREAD TENSION ASM | 1 |
| 71 | 403S11013 | SCREW | 1 |
| 72 | 41330039 | INT CORD B ASS'Y | 1 |
Page 8 — 3. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133800100 | THREAD_TAKE_UP_ASM | 1 |
| 2 | 41324001 | BEARING | 1 |
| 3 | 41324002 | BEARING | 1 |
| 4 | 41338001 | THREAD_TAKE_UP_CRANNK | 1 |
| 5 | 41324003 | BUSHING | 1 |
| 6 | 41303004 | BUSH | 1 |
| 7 | 41313009 | THREAD PASS BUSH | 1 |
| 8 | 4133800200 | LINK_TAKE_UP | 1 |
| 9 | 41338003 | NEEDLE_BAR_CRANK | 1 |
| 10 | 4130500100 | NEEDLE_BAR_CRANK_ROD | 1 |
| 11 | 403S30011 | LEFT SCREW | 1 |
| 12 | 413S14006 | SET SCREW M4 L=4 | 1 |
| 13 | 41324004 | BEARING | 1 |
| 14 | 41324005 | BEARING | 1 |
| 15 | 41324006 | BEARING | 2 |
| 16 | 40322025 | BEARING SUPPORT | 2 |
| 17 | 41303005 | BEARING HOLDER | 1 |
| 18 | 40335002 | BOBBIN WINDER DRIVING WHEEL | 1 |
| 19 | 413S30011 | COUNTER_WEIGHT_SCREW | 1 |
| 20 | 41304001 | COUNTER_WEIGHT | 1 |
| 21-1 | 40301023 | COUPLING 1 | 1 |
| 21-2 | 40301024 | COUPLING 2 | 1 |
| 21-3 | 40322028 | DAMPING RUBBER | 1 |
| 22 | 41330006 | AC SERVO MOTOR | 1 |
| 23 | 41302001 | MAIN_SHAFT | 1 |
| 24 | 41326003 | NEEDLE_CRANK_SHAFT | 1 |
| 25 | 413S30012 | SCREW M8 L=16 | 1 |
| 26 | 413S13011 | SCREW M4×0.7 L=12 | 2 |
| 27 | 413S13012 | SCREW M5 L=20 | 4 |
| 28 | 413S13013 | SCREW M6 L=25 | 3 |
| 29 | -------- | THRUST_COLLAR_ASM | 1 |
| 30 | 114S14001 | SCREW | 2 |
| 31 | 40308006 | THRUST_COLLAR | 1 |
| 32 | 403S14005 | SCREW M6 L=8 | 6 |
| 33 | 4133500100 | SPROCKET_A | 1 |
| 34 | 41309001 | SQUARE_BLOCK | 1 |
| 35 | 41309002 | SQUARE_BLOCK | 1 |
| 36 | 41309003 | SQUARE_BLOCK_GUIDE | 1 |
| 37 | 41309004 | SQUARE_BLOCK_GUIDE_B | 1 |
| 38 | 41326004 | THREAD_TAKE_UP_CRANNK_SHAFT | 1 |
| 39 | 403S14008 | SCREW M5 L=8 | 2 |
| 40 | 41335002 | TIMING_BELT | 1 |
| 41 | 4133500300 | IDLER_ASM | 1 |
| 42 | 41329003 | RETAINING RING | 2 |
| 43 | 413S12001 | HINGE_SCREW | 1 |
| 44 | 41312022 | IDLER_FIXED_PLATE | 1 |
| 45 | 41303008 | IDLER_PULLEY | 1 |
| 46 | 41303009 | INTERMEDIATE SPROCKET WASHER | 1 |
| 47 | 413S16009 | NUT M10 | 1 |
| 48 | 41326005 | FEED LEVER SPRING HOOK | 1 |
| 49 | 413S13014 | SCREW M10 L=42.5 | 1 |
| 50 | 41324007 | BALL BEARING | 2 |
| 51 | 41328008 | WASHER | 1 |
| 52 | 413S12002 | SCREW M6 L=14 | 1 |
| 53 | 41327003 | ADJUSTING_SPRING | 1 |
| 54 | 413S30013 | SUSPENSION_SCREW | 1 |
| 55 | 41323001 | NEEDLE_BAR_CRANK_FELT | 1 |
| 56 | 41328022 | WASHER | 1 |
| 57 | 413S14001 | SCREW M6 L=6 | 6 |
| 58 | 40311302 | FAN | 1 |
| 59 | 413S13016 | SCREW | 3 |
| 403S000100 | |||
| 41328007 |

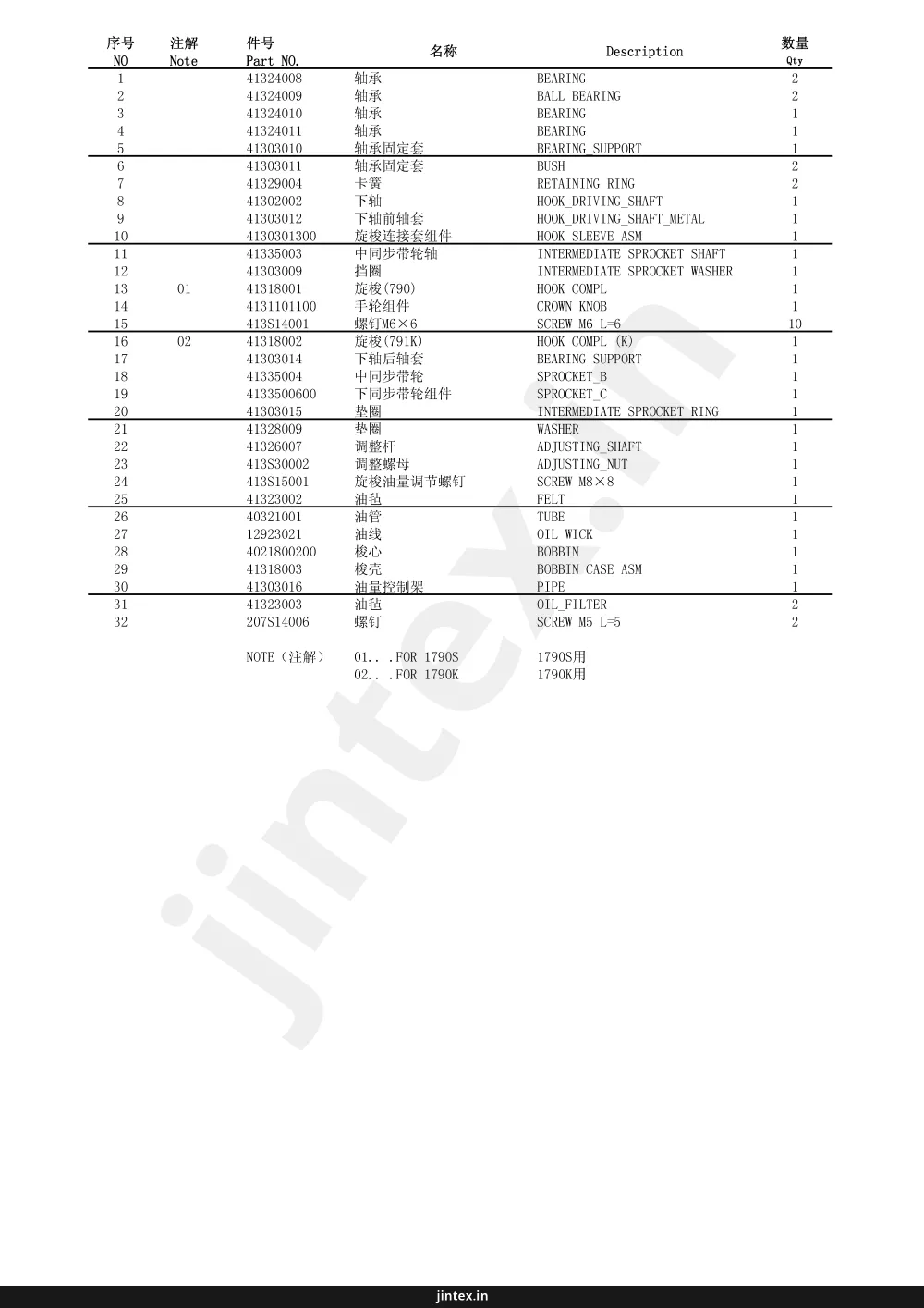

Page 10 — 4. HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41324008 | BEARING | 2 |
| 2 | 41324009 | BALL BEARING | 2 |
| 3 | 41324010 | BEARING | 1 |
| 4 | 41324011 | BEARING | 1 |
| 5 | 41303010 | BEARING_SUPPORT | 1 |
| 6 | 41303011 | BUSH | 2 |
| 7 | 41329004 | RETAINING RING | 2 |
| 8 | 41302002 | HOOK_DRIVING_SHAFT | 1 |
| 9 | 41303012 | HOOK_DRIVING_SHAFT_METAL | 1 |
| 10 | 4130301300 | HOOK SLEEVE ASM | 1 |
| 11 | 41335003 | INTERMEDIATE SPROCKET SHAFT | 1 |
| 12 | 41303009 | INTERMEDIATE SPROCKET WASHER | 1 |
| 13 | 41318001 | HOOK COMPL | 1 |
| 14 | 4131101100 | CROWN KNOB | 1 |
| 15 | 413S14001 | SCREW M6 L=6 | 10 |
| 16 | 41318002 | HOOK COMPL (K) | 1 |
| 17 | 41303014 | BEARING SUPPORT | 1 |
| 18 | 41335004 | SPROCKET_B | 1 |
| 19 | 4133500600 | SPROCKET_C | 1 |
| 20 | 41303015 | INTERMEDIATE SPROCKET RING | 1 |
| 21 | 41328009 | WASHER | 1 |
| 22 | 41326007 | ADJUSTING_SHAFT | 1 |
| 23 | 413S30002 | ADJUSTING_NUT | 1 |
| 24 | 413S15001 | SCREW M8×8 | 1 |
| 25 | 41323002 | FELT | 1 |
| 26 | 40321001 | TUBE | 1 |
| 27 | 12923021 | OIL WICK | 1 |
| 28 | 4021800200 | BOBBIN | 1 |
| 29 | 41318003 | BOBBIN CASE ASM | 1 |
| 30 | 41303016 | PIPE | 1 |
| 31 | 41323003 | OIL_FILTER | 2 |
| 32 | 207S14006 | SCREW M5 L=5 | 2 |
Page 12 — 5. PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41330007 | FEED MOTOR ASS'Y | 1 |
| 2 | 41330008 | FEED SENSOR ASS'Y | 1 |
| 3 | 40322025 | BEARING SUPPORT | 2 |
| 4 | 41312023 | THROAT PLATE BASE COVER | 2 |
| 5 | 41312024 | MOTOR BRACKET | 1 |
| 6 | 4133500700 | PULLEY B | 1 |
| 7 | 4133500900 | PULLEY C | 1 |
| 8 | 41326008 | SUPPORT SHAFT | 1 |
| 9 | 401012 | TIMING BELT HOLDER | 1 |
| 10 | 41302003 | FEED SHAFT | 1 |
| 11 | 41302004 | FEED GUIDE SHAFT | 1 |
| 12 | 4130400100 | FEED BASE ASM | 1 |
| 13 | 401013 | FEED BASE | 1 |
| 14 | 41324014 | SLIDE BEARING | 3 |
| 15 | -------- | THRUST COLLAR ASM | 1 |
| 16 | 40308006 | THRUST COLLAR | 1 |
| 17 | 114S14001 | SCREW | 2 |
| 18 | 41312026 | WORK CLAMP CARRIER | 1 |
| 19 | 413S13026 | SCREW M3×10 | 1 |
| 20 | 413S13016 | SCREW M4 L=6 | 4 |
| 21 | 413S13016 | SCREW M4×0.7 L=8 | 2 |
| 22 | 413S13017 | SCREW M4 L=10 | 6 |
| 23 | 413S13005 | SCREW M6 L=10 | 3 |
| 24 | 413S13018 | SCREW M6 L=18 | 1 |
| 25 | 207S14006 | SCREW M5 L=5 | 3 |
| 26 | 413S14001 | SCREW M6 L=6 | 2 |
| 27 | 41335007 | TIMING BELT | 1 |
| 28 | 413S11009 | SCREW M4 L=5 | 4 |
| 29 | 4133001200 | ASSY PBL GEAR MODULE | 1 |
| 30 | 41330009 | CLAMP MOTOR ASS'Y | 1 |
| 31 | 41312028 | PBL FRONT LINK | 1 |
| 32 | 41325001 | PBL GEAR S | 1 |
| 33 | 41326009 | PBL GEAR SHAFT | 1 |
| 34 | 41312029 | PBL L LINK | 1 |
| 35 | 41305002 | PBL LONG ROD | 1 |
| 36 | 41312030 | PBL SENSOR PLATE | 1 |
| 37 | 413S13003 | SCREW M4 L=6 | 2 |
| 38 | 413S13017 | SCREW M4 L=10 | 4 |
| 39 | 413S14003 | SCREW M6 L=5 | 5 |
| 40 | 413S20001 | SHUOULDER SCREW D8 H3.2 | 4 |
| 41 | 4132500200 | ASSY PBL GEAR L | 1 |
| 42 | 4131203500 | ASSY PBL MOTOR BASE | 1 |
| 43 | 41326010 | PIN,SHORT | 1 |
| 44 | 41330010 | CLAMP SENSOR ASS'Y | 1 |
| 45 | 41309005 | SLIDE ROLLER | 1 |
| 46 | 41303018 | COLLAR | 1 |
| 47 | 41327004 | PBL COLL SPRING | 1 |
| 48 | 41327005 | PBL FINGER GUARD | 1 |
| 49 | 41312032 | PBL GUIDE | 1 |
| 50 | 41312033 | PBL LIFTING PLATE | 1 |
| 51 | 41303019 | PBL METAL | 1 |
| 52 | 41304003 | PBL POSITION BRACKET | 1 |
| 53 | 41302005 | PBLPRESSER BASE | 1 |
| 54 | 401015 | PBL ROLLER BASE | 1 |
| 55 | 41326011 | PBL ROLLER SHAFT | 1 |
| 56 | 41312034 | PBL SENSOR BASE | 1 |
| 57 | 413S30003 | PBL SPRING REGULATOR | 1 |
| 58 | 41316001 | PBL WORK CLAMP ARM | 1 |
| 59 | 41326012 | PBL WORK CLAMP ARM SHAFT | 1 |
| 60 | 413S13026 | SCREW M3×10 | 1 |
| 61 | 413S13016 | SCREW M4×0.7 L=8 | 1 |
| 62 | 413S13020 | SCREW M4×0.7 L=16 | 1 |
| 63 | 413S11018 | SCREW M5 L=8 | 2 |
| 64 | 413S11019 | SCREW M5×0.8 L=10 | 4 |
| 65 | 413S13019 | SCREW M5×0.8 L=12 | 4 |
| 66 | 413S14013 | SCREW M5 L=6 | 2 |
| 67 | 41312035 | UTT CLOSE CAM B | 1 |
| 68 | 413S20001 | SHUOULDER SCREW D8 H3.2 | 1 |
| 69 | 413S14003 | SCREW M5 L=6 | 1 |
| 70 | 4131602000 | WORK CLAMP CHECK HOLDER | 1 |
| 71 | 41316018 | WORK CLAMP CHECK HOLDER | 1 |
| 72 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 73 | 41326035 | WORK CLAMP CHECK SPRING SET PI | 2 |
| 74 | 41327020 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 75 | 413S11029 | SCREW 3/32-56 L=1.9 | 2 |
| 76 | 41316022 00 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 77 | 41316023 | PRESSER FOOT | 1 |
| 78 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 79 | 41326035 | WORK CLAMP CHECK SPRING SET PI | 2 |
| 80 | 41327020 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 81 | 413S11029 | SCREW 3/32-56 L=1.9 | 2 |
| 82 | 41316024 | PRESSER | 1 |
| 83 | 402S20002 | HINGE SCREW D=7.94 H=2 | 1 |
| 84 | 41316019 | WORK CLAMP CHECK (2K) | 1 |
| 85 | 207S14006 | SCREW M5 L=5 | 1 |
| 86 | 41312027 | SENSOR PLATE | 1 |
| 87 | 41324006 | BEARING | 2 |
| 88 | 41324013 | BEARING | 1 |
| 89 | 41328026 | WASHER | 2 |
| 90 | 4131602100 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 91 | 4131602600 | WORK CLAMP CHECK HOLDER ASM | 1 |
| 41330000 | |||
| 413S11003 | 螺钉M5×6 | ||
| 41304005 |
Page 14 — 6. NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133001500 | ZIGZAG DRIVE FULL ASSY | 1 |
| 4130500300 | |||
| 41305003 | |||
| 41303020 | |||
| 41326013 | 连接轴A | ||
| 41326014 | 连接轴B | ||
| 41326015 | 连接轴C | ||
| 41326016 | 连接轴D | ||
| 413S13026 | 螺钉M3×10 | ||
| 413S13017 | 螺钉M4×10 | ||
| 413S11003 | 螺钉M5×16 | ||
| 413S13018 | 螺钉M6×18 | ||
| 207S14006 | |||
| 41312036 | |||
| 41330011 | |||
| 41304005 | |||
| 41301007 | |||
| 41304006 | |||
| 41330012 | |||
| 413S13005 | 螺钉M6×10 | ||
| 4130200600 | |||
| 413S16004 | 螺母 M5 | ||
| 41302006 | |||
| 41326017 | |||
| 41304007 | |||
| 413S11010 | |||
| 41305004 | |||
| 41309006 | |||
| 4130100900 | |||
| 401016 | |||
| 41303021 | |||
| 41326018 | |||
| 401017 | |||
| 41303022 | |||
| 41303023 | |||
| 40217002 | |||
| 41313010 | |||
| 413S11011 | 螺钉M3×5 | ||
| 41308003 | |||
| 413S14001 | 螺钉M6×6 |
Page 16 — 7. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4131900100 | ASSY_UTT_MODULE_B | 1 |
| 2 | H05002 | E-RING 3 | 1 |
| 3 | 40111005 | CABLE BAND | 1 |
| 4 | 413S16002 | NUT M4 | 2 |
| 5 | 413S16004 | NUT M5 | 4 |
| 6 | 41328010 | WASHER 4.3×9×0.8 | 1 |
| 7 | 413S13026 | SCREW M3×10 | 1 |
| 8 | 413S20003 | SHUOULDER SCREW D6 H2.6 | 1 |
| 9 | 413S11017 | SCREW M4 L=6 | 2 |
| 10 | 413S13003 | SCREW M4 L=6 | 2 |
| 11 | 413S30006 | SCREW M4 L=8 | 1 |
| 12 | 413S13016 | SCREW M4×0.7 L=8 | 4 |
| 13 | 413S12003 | SCREW M4 L=12 | 2 |
| 14 | 413S13001 | HEXAGON SOCKET HEAD SCREW M5×6 | 2 |
| 15 | 413S11018 | SCREW M5 L=8 | 2 |
| 16 | 413S13010 | SCREW M5×0.8 L=8 | 2 |
| 17 | 4131204400 | ASSY UTT RELEASE ARM B | 1 |
| 18 | 413S13003 | SCREW M4 L=6 | 2 |
| 19 | 207S14006 | SCREW M5 L=4 | 2 |
| 20 | 207S14006 | SCREW M5 L=5 | 4 |
| 21 | 413S30014 | SHOULDER SCREW D6 H3.2 | 4 |
| 22 | 413S20004 | SHOULDER SCREW D8 H4 | 1 |
| 23 | 413S20005 | SHOULDER SCREW D8 15 | 3 |
| 24 | 41327006 | SPRING | 1 |
| 25 | 41308004 | THRUST COLLAR D=8 W=9 | 1 |
| 26 | 41312039 | UTT ARM A | 1 |
| 27 | 41312040 | UTT_ARM_B | 1 |
| 28 | 41312041 | UTT BASE PLATE | 1 |
| 29 | 41303024 | UTT CAM ROLLER | 2 |
| 30 | 413S30015 | UTT CAM ROLLER SHAFT | 2 |
| 31 | 41312091 | UTT_RATCH_PLATE_B | 1 |
| 32 | 41312043 | UTT RELEASE ARM A | 1 |
| 33 | 41304008 | UTT RELEASE LEVER BASE | 1 |
| 34 | 41303025 | UTT RELEASE LEVER SHAFT | 1 |
| 35 | 41312044 | UTT SENSOR BASE | 1 |
| 36 | 41327007 | UTT_SUPPORT_ARM_SPRING | 1 |
| 37 | 41326021 | UTTSUPPORT SHAFT | 1 |
| 38 | 413S30016 | UTT SUSPENSION SCREW 4 | 2 |
| 39 | 413S30009 | UTT SUSPENSION SCREW 9 | 1 |
| 40 | 413S30018 | UTT SUSPENSION SHOULDER SCREW | 1 |
| 41 | 41312045 | UTT THREAD PULLING LINK A | 1 |
| 42 | 41312046 | UTT THREAD PULLING LINK B | 1 |
| 43 | 41312047 | UTT X-CAM | 1 |
| 44 | 41303026 | UTT Y-DRIVE ROLLER | 1 |
| 45 | 41326032 | UTT Y-DRIVE SHAFT | 1 |
| 46 | 41330013 | UT TRIM MOTOR ASS'Y | 1 |
| 47 | 41330014 | UT TRIM SENSOR ASS'Y | 1 |
| 48 | 4131205500 | ASSY_UTT_RELEASE_LEVER_B | 1 |
| 49 | 4131205700 | ASSY UTT CAM | 1 |
| 50 | 4130401100 | ASSY UTT THREAD PULLING ARM | 1 |
| 51 | 4130401200 | ASSY UTT CAM ARM | 2 |
| 52 | 4130401300 | ASSY UTT SUPPORT ARM | 1 |
| 53 | 41328012 | PLAIN WASHER 4.3×12×1 | 2 |
| 54 | 41312088 | UTT_RATCH_STOPPER | 1 |
| 55 | 413S13003 | SCREW M4 L=6 | 2 |
| 56 | H05002 | E-RING 3 | 1 |
| 57 | 413S16004 | NUT M5 | 1 |
| 58 | 413S13003 | SCREW M4 L=6 | 1 |
| 59 | 413S13003 | SCREW M4 L=6 | 1 |
| 60 | 413S13010 | SCREW M5×0.8 L=8 | 1 |
| 61 | 41326034 | UTT_GUIDE_SHAFT_B | 1 |
| 62 | 41312053 | UTT SUSPENSION PLATE | 1 |
| 63 | 41313011 | UTT THREAD PULLING LEVER | 1 |
| 64 | 41302008 | UTT THREAD PULLING SHAFT | 1 |
| 65 | 41327009 | UTT TRIMMER CLOSE SPRING | 1 |
| 66 | 41303026 | UTT Y-DRIVE ROLLER | 1 |
| 67 | 41326032 | UTT Y-DRIVE SHAFT | 1 |
| 68 | 413S13019 | SCREW M5×0.8 L=12 | 3 |
| 69 | 41327008 | BUTTON SUPPORT LEVER SPRING | 1 |
| 70 | 4131900200 | ASSY UTT TRIMMER | 1 |
| 10111005 | |||
| 413120400 |
Page 18 — 8. BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133002000 | BTT DRIVE UNIT | 1 |
| 2 | 4131206300 | ASSY BTT DRIVE CAM | 1 |
| 3 | 4130500600 | ASSY BTT DRIVE LEVER | 1 |
| 4 | 41312056 | BTT DRIVE LINK | 1 |
| 5 | 41312057 | BTT DRIVE UNIT BASE | 1 |
| 6 | 4130401400 | ASSY BTT RELEASE LEVER | 1 |
| 7 | 41312059 | BTT RELEASE LINK F | 1 |
| 8 | 41312060 | BTT RELEASE LINK R | 1 |
| 9 | 41326023 | LINK ROD | 1 |
| 10 | 413S16003 | NUT M4 | 1 |
| 41330015 | |||
| 41312061 | |||
| 41330016 | |||
| 41303024 | |||
| 413S11017 | |||
| 41328010 | |||
| 4131500100 | |||
| 41312062 | |||
| 41312063 | |||
| 41312064 | |||
| 41312066 | |||
| 41327010 | |||
| 41328011 | |||
| 41308005 | |||
| 4131900300 | |||
| 41328013 | |||
| 41328014 | |||
| 41312070 | |||
| 4131206800 | |||
| 41312067 | |||
| 41315001 | |||
| 41315002 | |||
| 41328023 | |||
| 41304009 | |||
| 41312072 | |||
| 41312073 | |||
| 41304010 | |||
| 41327011 | |||
| 41330017 | |||
| 4131101400 | |||
| 41312074 | |||
| 41312075 | |||
| 41313012 | |||
| 41312076 | |||
| 41312003 | |||
| 41312071 |
Page 20 — 9. CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4131900400 | KNIFE SOL ASM | 1 |
| 2 | 41322006 | CUSION | 1 |
| 3 | 41330018 | SOLENOID | 1 |
| 4 | 41309007 | KNIFE HOLDER | 1 |
| 5 | 413S16007 | NUT M8 | 2 |
| 6 | 41312077 | PLATE A | 1 |
| 7 | 413S13022 | SCREW M3X0.5 L=8 | 2 |
| 8 | 413S13019 | SCREW M5X0.8 L=12 | 1 |
| 9 | 413S13005 | SCREW M6 L=10 | 3 |
| 10 | 41312078 | SENSOR SLIT PLATE | 1 |
| 11 | 41301009 | SOLENOID BASE | 1 |
| 12 | 40330005 | PHOTO SENSOR | 1 |
| 13 | 41312079 | SENSOR PLATE | 1 |
| 14 | 413S13026 | SCREW M3X10 | 1 |
| 15 | 41330020 | CUTTER SENSOR JOINT CORD | 1 |
| 16 | 40219009 | KNIFE 1/2 | 1 |
| 17 | 41302009 | KNIFE BAR | 1 |
| 18 | 401018 | KNIFE BAR BASE | 1 |
| 19 | 41304012 | KNIFE BAR BRACKET | 1 |
| 20 | 41303039 | KNIFE BAR BUSH | 1 |
| 21 | 41305005 | KNIFE BAR CONNECTING LINK | 2 |
| 22 | 41304013 | KNIFE BAR DRIVING LEVER | 1 |
| 23 | 4132201200 | KNIFE BAR DRIVING STOPPER ASM. | 1 |
| 24 | 413S30005 | KNIFE BAR DRIVING STOP SCREW | 1 |
| 25 | 41322007 | KNIFE DRIVING LEVER STOPPER | 1 |
| 26 | 41326030 | KNIFE BAR SUPPORT SHAFT | 1 |
| 27 | 41303040 | KNIFE BAR LOWER BUSHING | 1 |
| 28 | 41304014 | KNIFE FITTING BASE | 1 |
| 29 | 41302010 | KNIFE LEVER SHAFT | 1 |
| 30 | 413S16006 | NUT M6 | 1 |
| 31 | 41328010 | WASHER 4.3X9X0.8 | 1 |
| 32 | 41328016 | WASHER 5X10.5X1 | 1 |
| 33 | 41326031 | BELL CRANK SHAFT | 4 |
| 34 | 413S13016 | SCREW M4X0.7 L=8 | 2 |
| 35 | 413S13023 | SCREW M6 L=12 | 1 |
| 36 | 413S13023 | SCREW | 1 |
| 37 | 413S14001 | SCREW M6 L=6 | 4 |
| 38 | 413S12004 | HEXAGONAL BOLT | 1 |
| 39 | 413S20010 | SHOULDER SCREW D4 H5 | 1 |
| 40 | 413S13019 | SCREW M5X0.8 L=12 | 5 |
| 41 | 207S14006 | SCREW M5 L=5 | 5 |
| 42 | 41327012 | SPRING | 1 |
| 43 | 41309008 | SQUARE BLOCK | 1 |
| 44 | 41312080 | SUPPORT GUIDE | 1 |
| 45 | 41326033 | SUSPENSION SCREW | 1 |
| 46 | 413S30013 | SUSPENSION SCREW | 1 |
| 47 | 41303041 | THRUST COLLAR D=12 W=11 | 1 |
| 48 | 41303042 | COLLAR | 1 |
| 40101009 |

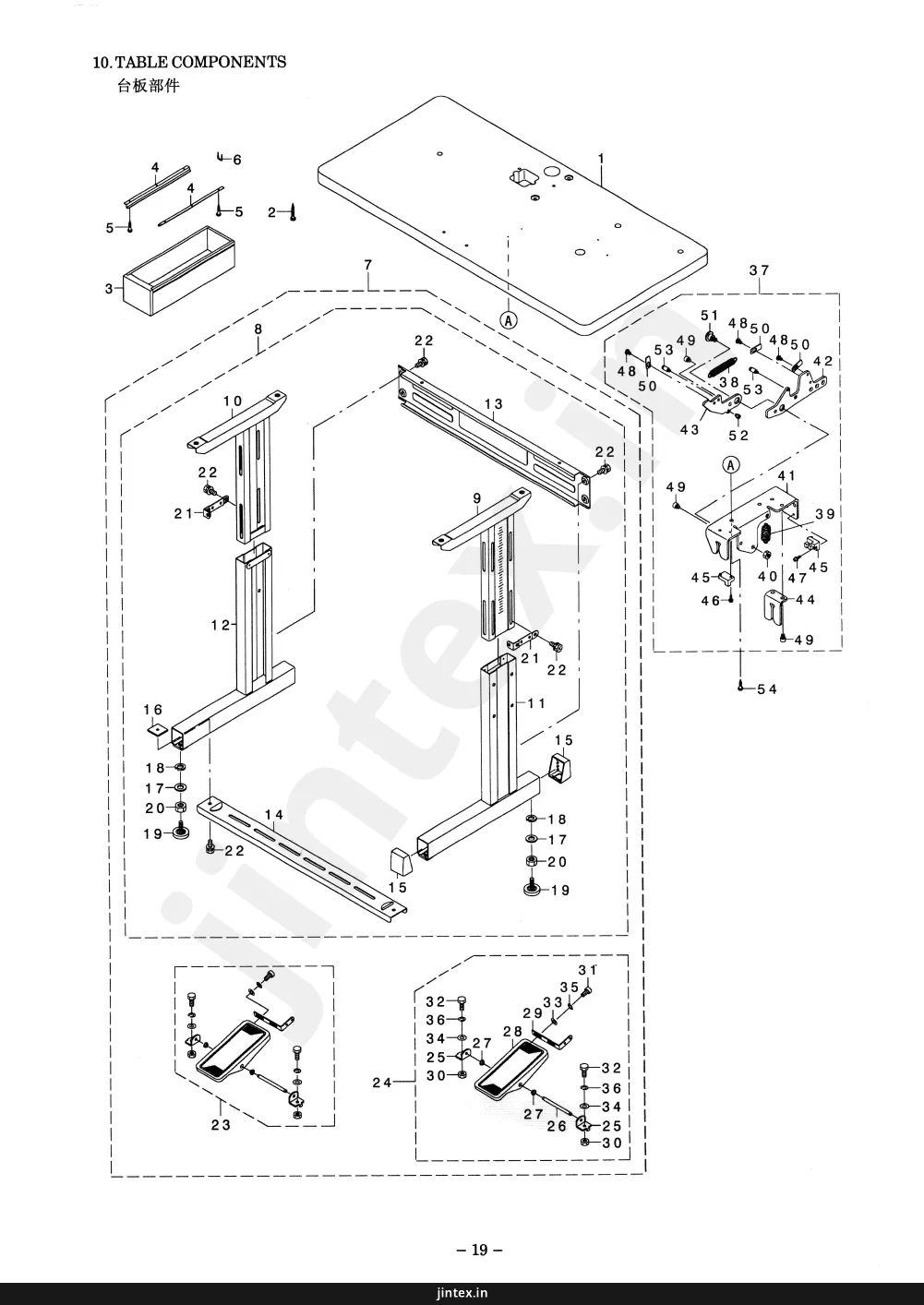

Page 22 — 10. TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 702054 | TABLE | 1 |
| 7 | 702052 | T-STAND COMPL | 1 |
| 37 | 4133002800 | ASSY 4 POSITION PEDAL | 1 |
| 38 | 41327013 | SPRING | 1 |
| 39 | 41327014 | SPRING | 1 |
| 40 | 413S16005 | NUT M6 | 1 |
| 41 | 41312092 | PEDAL FRAME | 1 |
| 42 | 41312093 | PEDAL FRAME A | 1 |
| 43 | 41312094 | PEDAL FRAME B | 1 |
| 44 | 41312095 | PEDAL FRAME GUIDE | 1 |
| 45 | 40330005 | PHOTO SENSOR | 2 |
| 46 | 403S11041 | SCREW M3×10 | 1 |
| 47 | 413S13027 | SCREW | 1 |
| 48 | S04010 | SCREW | 3 |
| 49 | 413S13001 | HEXAGON SOCKET HEAD SCREW M5×6 | 4 |
| 50 | 41312096 | SENSOR DETECTING PLATE | 3 |
| 51 | 413S20012 | SHOULDER SCREW D10 H6.4 | 1 |
| 52 | 413S30019 | STOPPER PIN | 1 |
| 53 | 413S30020 | SUSPENSION SCREW | 2 |
| 54 | S05035 | WOOD SCREW D=4.8 L=20 | 2 |
Page 24 — 11. CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41312116 | CONTROL BOX | 1 |
| 2 | 41312117 | CONTROL BOX FRONT COVER | 1 |
| 3 | 413S11031 | SCREW | 4 |
| 4 | 41312118 | CONTROL BOX FITTING PLATE | 1 |
| 5 | 413S11032 | SCREW | 4 |
| 6 | 41330034 | STEP DRIVER | 1 |
| 7 | 413S11033 | SCREW | 6 |
| 8 | 41330035 | POWER BOARD | 1 |
| 9 | 413S11033 | SCREW | 6 |
| 10 | 41330036 | MAIN AXIS DRIVER | 1 |
| 11 | 413S11033 | SCREW | 6 |
| 12 | 41333037 | SYSTEM BOARD | 1 |
| 13 | 413S11033 | SCREW | 4 |
| 14 | 41330040 | FAN MOTOR ASS'Y | 1 |
| 15 | 41312119 | FINGER GUIDE | 1 |
| 16 | 413S11034 | SCREW | 4 |
| 17 | 413S16014 | NUT | 4 |
| 18 | 41312120 | CORD FITTING PLATE | 1 |
| 19 | 41312121 | FITTING PLATE | 1 |
| 20 | 413S11035 | SCREW | 2 |
| 21 | 4133005800 | PEDAL SENSOR ASM | 1 |
| 22 | 41330041 | PEDAL INTERFACE BOARD | 1 |
| 23 | 413S11036 | SCREW | 3 |
| 24 | 41311016 | PEDAL SENSOR BASE | 1 |
| 25 | 413S11037 | SCREW | 3 |
| 26 | 41301028 | PEDAL LEVER | 1 |
| 27 | 41327022 | FRONT SPRING | 1 |
| 28 | 41330042 | SYSTEM POWER CABEL | 1 |
| 29 | 41330043 | STEPPER MOTOR SIGNAL CABEL | 1 |
| 30 | 41330044 | MAIN AXIS SIGNAL CABEL | 1 |
| 31 | 41330045 | MAIN AXIS POWER CABEL | 1 |
| 32 | 41330046 | PEDAL CABEL | 1 |
| 33 | 41330047 | STEPPER MOTOR POWER CABEL | 1 |
| 34 | 41330048 | EARTH CABLE ASM | 1 |
| 35 | 41337004 | VOLTAGE WARING LABEL | 1 |
| 36 | 41337005 | VOLTAGE CAUTION LABEL | 1 |
| 37 | 41337006 | RATING LABEL | 1 |
| 38 | 4133102000 | CONNECTING ROD ASM | 1 |
| 39 | 401S30019 | BOLT | 2 |
| 40 | W01018 | WASHER | 4 |
| 41 | 401S16018 | NUT | 2 |
| 42 | 403S13020 | SCREW | 3 |
| 43 | 40311016 | CABLE CLAMP | 3 |
| 44 | S05035 | WOOD SCREW | 5 |
| 45 | 41330049 | SWITCH | 1 |
| 46 | 4133003000 | CONTROL BOX ASSY | 1 |
Page 26 — 12. OPERATION BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4133003100 | OPERATION PANEL ASS'Y | 1 |
| 2 | 41330059 | PANEL PCB ASS'Y | 1 |
| 3 | 41330060 | LCD | 1 |
| 4 | 41330061 | OPERATION_PANEL_F | 1 |
| 5 | 41330062 | LCD CABEL | |
| 6 | 413S11039 | SCREW | 4 |
| 7 | 41330064 | OPERATION_PANEL_R | 1 |
| 8 | 413S11040 | SCREW | 4 |
| 9 | 41330066 | USB_COVER | 1 |
| 10 | 41311017 | OPERATION BOX FIXED BASE | 1 |
| 11 | 41312122 | FIXED PLATE | 1 |
| 12 | 413S11038 | SCREW | 4 |
| 13 | S05035 | WOOD SCREW | 2 |
| 14 | 4133006700 | OPERATION BOX FIXED PLATE ASM. | 1 |
Page 28 — 13. WIRING DLAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41312116 | CONTROL BOX ASM | 1 |
| 2 | 41330035 | POWER BOARD | 1 |
| 3 | 41330036 | SERVO BOARD | 1 |
| 4 | 41330037 | SYSTEM BOARD | 1 |
| 5 | 41330034 | STEP BOARD | 1 |
| 6 | 41330041 | PEDAL INTERFACE BOARD | 1 |
| 7 | 41330047 | STEPPER MOTOR POWER CABEL | 1 |
| 8 | 41330042 | SYSTEM POWER CABEL | 1 |
| 9 | 41330045 | SERVO POWER CABEL | 1 |
| 10 | 41330068 | SYSTEM SIGNAL CABEL | 1 |
| 11 | 41330040 | FAN MOTOR ASS'Y | 1 |
| 12 | 41330043 | STEPPER MOTOR SIGNAL CABEL | 1 |
| 13 | 41330046 | PEDAL CABEL | 1 |
| 14 | 41330049 | SWITCH | 1 |
| 15 | 41330006 | SERVO MOTOR | 1 |
| 16 | 41330033 | LED | 1 |
| 17 | 41330039 | INT CORD B ASS'Y | 1 |
| 18 | 41330023 | INT CORD A ASS'Y | 1 |
| 19 | 41330024 | INT CORD D ASS'Y | 1 |
| 20 | 41330020 | INT CORD C ASS'Y | 1 |
| 21 | 4133003100 | LCD | 1 |
| 22 | 41330004 | HEAD FAN MOROR | 1 |
| 23 | 4133002800 | STARTUP PEDAL | 1 |
| 24 | 41330002 | HEAD FAN MOROR | 1 |
| 25 | 41330005 | ASSY-AT-SOLENOID | 1 |
| 26 | 41330018 | SOLENOID | 1 |
| 27 | 41330012 | NEEDLE SWING MOTOR | 1 |
| 28 | 41330007 | FEED MOTOR | 1 |
| 29 | 41330013 | UT TRIM MOTOR | 1 |
| 30 | 41330015 | LT TRIM MOTOR | 1 |
| 31 | 41330009 | CLAMP MOTOR | 1 |
| 32 | 41330011 | NEEDLE SWING SENSOR ASSY | 1 |
| 33 | 41330008 | FEED SENSOR ASS'Y | 1 |
| 34 | 41300014 | UT TRIM SENSOR ASS'Y | 1 |
| 35 | 41330016 | LT TRIM SENSOR ASS'Y | 1 |
| 36 | 41330010 | CLAMP SENSOR ASS'Y | 1 |
| 37 | 40330005 | PHOTO SENSOR | 1 |
| 38 | 4133000300 | SWITCH ASM | 1 |
| 39 | 4133000400 | SAFETY SWITCH ASS'Y | 1 |
| 40 | 41330069 | SWITCH CORD ASS'Y | 1 |
| 41 | 41330021 | SAFETY SWITCH CORD ASS'Y | 1 |
| 42 | 41312018 | THREAD BREAK DETECTOR A | 1 |
Page 30 — 14. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40131017 | ACCESSORIE BAG | 1 |
| 2 | 10131004 | SCREW DRIVER,SMALL | 1 |
| 3 | 10131003 | SCREW DRIVER,MIDDLE | 1 |
| 4 | 4021800200 | BOBBIN | 1 |
| 5 | 40217002 | NEEDLE DP×5 #12 J-2 | 1 |
| 6 | 20131056 | HEXAGONAL WRENCH KEY | 1 |
| 7 | 41312097 | HOOK TIMING GAUGE, K | 1 |
| 10 | 41313013 | THREAD GUIDE BAR | 1 |
| 11 | 41322003 | RUBBER CUSHION(B) | 4 |
| 12 | 4133100600 | CONNECTING ROD COMPL. | 1 |
| 13 | 4130101200 | AUXILIARY TABLE ASM. | 1 |
| 14 | 301651 | AUXILIARY TABLE | 1 |
| 15 | 41312090 | INSTALLING PLATE | 2 |
| 16 | 413S11025 | SCREW 11/64-40 L=4.8 | 4 |
| 17 | 413S13005 | SCREW M6 L=10 | 2 |
| 18 | 40219012 | KNIFE 1 | 1 |
| 19 | 20131038 | OILER | 1 |
| 20 | 20131037 | DEFRIX OIL NO.1 | 1 |
| 21 | 40219010 | KNIFE 5/8 | 1 |
| 22 | 40219009 | KNIFE 1/2 | 1 |
| 24 | 4133100700 | ASSY SAFETY PLATE B | 1 |
| 25 | 41312099 | SAFETY PLATE BESE | 1 |
| 26 | 40911006 | SAFETY PLATE | 1 |
| 27 | 413S11028 | SCREW M4 L=8 | 2 |
| 28 | 413S13003 | SCREW M4 L=6 | 1 |
| 29 | 41328001 | WASHER 6.1×18.5×2 | 4 |
| 30 | 413S16005 | NUT M6 | 4 |
| 32 | 41312100 | TIMING GAUGE,DMESTIC USE. | 1 |
| 33 | 40219011 | KNIFE 3/8 | 1 |
| 34 | 413S13008 | BOLT | 1 |
| 36 | 11411029 | GREASE A TUBE | 1 |
| 38 | 30131012 | HEXAGONAL SPANNER | 1 |
| 39 | 10131002 | SCREW DRIVER,LARGE | 1 |
| 40 | 41313014 | EC PRODUCTION DECLARATION | 1 |
| 41 | 40311002 | HEAD SUPPORT BAR | 1 |
| 42 | 413S13006 | HEXAGON BOLT | 4 |
| 43 | 41312123 | FIXED PLATE | 1 |
| 44 | 41312124 | ADJUSTING PLATE | 1 |
| 45 | 41312125 | BAFFLE PLATE 1 | 1 |
| 46 | 41312126 | BAFFLE PLATE 2 | 1 |
| 47 | 403S20016 | SHOULDER SCREW | 2 |
| 48 | 413S13011 | SCREW | 2 |
| 49 | 401S11003 | SCREW | 5 |
Page 31 — 15. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1013100700 | THREAD STAND ASM. | 1 |
Page 32 — 16. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ------- | KNIFE 1/4" | 1 |
| 2 | 40219011 | KNIFE 3/8 | 1 |
| 3 | ------- | KNIFE (7/16) | 1 |
| 4 | 40219009 | KNIFE 1/2 | 1 |
| 5 | ------- | KNIFE 9/16" | 1 |
| 6 | 40219010 | KNIFE 5/8 | 1 |
| 7 | ------- | KNIFE 11/16 | 1 |
| 8 | ------- | KNIFE 3/4" | 1 |
| 9 | ------- | KNIFE 7/8" | 1 |
| 10 | 40219012 | KNIFE 1 | 1 |
| 11 | 40219013 | KNIFE 1-1/4" | 1 |
| 12 | ------- | PRESSER | 1 |
| 13 | ------- | WORK CLAMP CHECK, 2 | 1 |
| 14 | ------- | WORK CLAMP CHECK, 3 | 1 |
| 15 | ------- | LATCH WORK CLAMP CHECK | 1 |
| 16 | ------- | WORK CLAMP CHECK (2K) | 1 |
| 17 | ------- | WORK CLAMP CHECK (3K) | 1 |
| 18 | ------- | WORK CLAMP CHECK | 1 |
| 19 | ------- | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 20 | ------- | WORK CLAMP CHECK HOLDER | 1 |
| 21 | ------- | WORK CLAMP CHECK HOLDER | 1 |
Page 34 — 17. SPECIAL SPECIFICATIONS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41318004 | RP_HOOK_ASM | 1 |
| 2 | 41318005 | RP_BOBBLN_CASE | 1 |
| 3 | 4130304300 | HOOK SLEEVS | 1 |
| 4 | 413S14011 | SCREW 1/4-40 L=6 | 4 |
| 5 | 41312103 | WORK_CLAMP_HOLDER_SPACE | 1 |
| 6 | 413S11013 | SCREW M4 L=4 | 3 |
| 7 | 41312104 | UTT_CLOSE_CAM_120B | 1 |
| 8 | 41312105 | LIFTING_PLATE_120 | 1 |
| 9 | 413S11018 | SCREW M5 L=8 | 2 |
| 10 | 41316007 | WORK_CLAMP_ARM_120 | 1 |
| 11 | 401218 | WORK_CLAMP_CARRIER_120 | 1 |
| 12 | 4131600200 | PRESSER FOOT 70 ASM. | 1 |
| 13 | 40212018 | PRESSER FITTING PLATE SPING | 2 |
| 14 | 40227003 | PRESSER FOOT HOLDER SPRING | 1 |
| 15 | 41316003 | PRESSER FOOT 70 | 1 |
| 16 | 40226008 | BRESSER FOOT PIN B | 2 |
| 17 | 41316004 | URETHANE PRESSER 70 | 1 |
| 18 | 41316005 | PRESSER 70 (FLAT) | 1 |
| 19 | 41316006 | PRESSER70 | 1 |
| 20 | 413S11029 | SCREW 3/32-56 L=1.9 | 6 |
| 21 | 402S20002 | HINGE SCREW D=7.94 H=2 | 3 |
| 22 | 41316008 | PRESSER 6MM | 1 |
| 23 | 41315003 | THROAT_PLATE(S6) | 1 |
| 24 | 41315004 | THROAT_PLATE(K6) | 1 |
| 25 | 4131600900 | ASSY_WORK_CLAMP_CHECH_HOLDER_I | 1 |
| 26 | 41327018 | WORK_CLAMP_CHECK_HOLDER_SPRING | 1 |
| 27 | 41326035 | WORK_CLAMP _CHECK SPRING SET PI | 2 |
| 28 | 41312109 | WORK CLAMP CHECK SPRING | 2 |
| 29 | 41316010 | WORK_CLAMP_CHECK_HOLDER_120 | 1 |
| 30 | 41316011 | WORK_CLAMP_120 | 1 |
| 31 | 41315005 | THROAT_PLATE(S10) | 1 |
| 32 | 41312107 | OIL_SHIELD_10 | 1 |
| 33 | 4131601200 | WORK_CLAMP_HOLDER(3-10_ASSY) | 1 |
| 34 | 41316013 | WORK_CLAMP_HOLDER(3-10)_ASSY | 1 |
| 35 | 41327018 | WORK_CLAMP_CHECK_HOLDER_SPRING | 1 |
| 36 | 40226008 | WORK_CLAMP CHECK SPRING SET PI | 2 |
| 37 | 40212018 | WORK CLAMP CHECK SPRING | 2 |
| 38 | 41316014 | WORK CLAMP(3S-10) | 1 |
| 39 | -------- | WORK CLAMP CRRIER(10×41) CL | 1 |
| 40 | 41312108 | WORK CLAMP CARRIER(10×41) | 1 |
| 41 | 41337002 | ATTENTION SEAL | 1 |
| 42 | 41316015 | WORK CLAMP ARM(10×41) | 1 |
| 43 | 4131601000 | WORK CLAMP CHECK HOLDER ASM | |
| 44 | 4131602800 | WORK CLAMP CHECK HOLDER ASM |
Jack JK-T1790 — parts catalog
- Page 1 (cover): This is the cover page for the JK-T1790 Parts Book for the New JACK Sewing Machine, revised edition in April 2013.
- Page 4 (parts_list): This page lists parts for an industrial sewing machine, including various screws, covers, plates, and other components with their corresponding part numbers and quantities.
- Page 5 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 6 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It contains items such as solenoids, shafts, holders, rings, screws, nuts, and various assemblies.
- Page 7 (diagram): This page displays a diagram of main shaft components, including various gears, bearings, shafts, and a motor, with corresponding reference numbers for identification.
- Page 8 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from number 1 to 59.
- Page 9 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts and their corresponding references.
- Page 10 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It details various components like bearings, shafts, screws, and filters.
- Page 11 (diagram): This page displays a diagram of presser and feed components, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers components like feed motor assemblies, sensors, bearings, screws, and various plates and shafts.
- Page 13 (diagram): This page displays a diagram of needle bar rocking components, with numbered parts and their corresponding references.
- Page 14 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like zigzag drive assemblies, shafts, screws, and needle bars.
- Page 15 (diagram): This page displays a diagram of needle thread trimmer components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page contains a parts list for various components of the machine, including screws, washers, and assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 18 (parts_list): This page lists parts for the BTT DRIVE UNIT, including part numbers, descriptions, and quantities. It details various screws, nuts, plates, and assemblies.
- Page 19 (diagram): This page displays a diagram of cloth cutting knife components, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like knives, screws, nuts, washers, and various plates and shafts.
- Page 21 (diagram): This page displays a diagram of table components, including various brackets, supports, and fasteners, with reference numbers for each part.
- Page 22 (parts_list): This page contains a parts list for various components of a machine, including tables, drawers, screws, washers, and sensors, with corresponding part numbers and quantities.
- Page 23 (diagram): This page displays a diagram of control box components, with numbered parts and their corresponding references.
- Page 24 (parts_list): This page lists parts for a sewing machine, including control boxes, screws, boards, drivers, sensors, cables, and other components, with their corresponding part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of operation box components, with numbered parts including screws, a cover, a circuit board, and a wire harness.
- Page 26 (parts_list): This page lists parts for the operation panel, including panel assemblies, PCBs, LCDs, cables, screws, and covers, with their corresponding part numbers and quantities.
- Page 28 (parts_list): This page lists parts for a sewing machine, including control boxes, power boards, motors, sensors, and switches, with their corresponding part numbers and descriptions.
- Page 29 (diagram): This page displays a diagram of accessory part components, with numbered parts and their corresponding references.
- Page 30 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It covers items from number 1 to 49.
- Page 31 (parts_list): This page lists the components of the thread stand, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page lists exchanging parts for the sewing machine, including cloth cutting knives and presser feet, with their corresponding part numbers and descriptions.
- Page 33 (diagram): This page displays diagrams of special specification components for sewing machines, including large size types for 70mm and 120mm swing widths, and non-lubricating hook types.
- Page 34 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It also provides notes explaining different part codes.
