Jack K4-UT / K5 — Part Book

Jack K4-UT / K5 — parts catalog

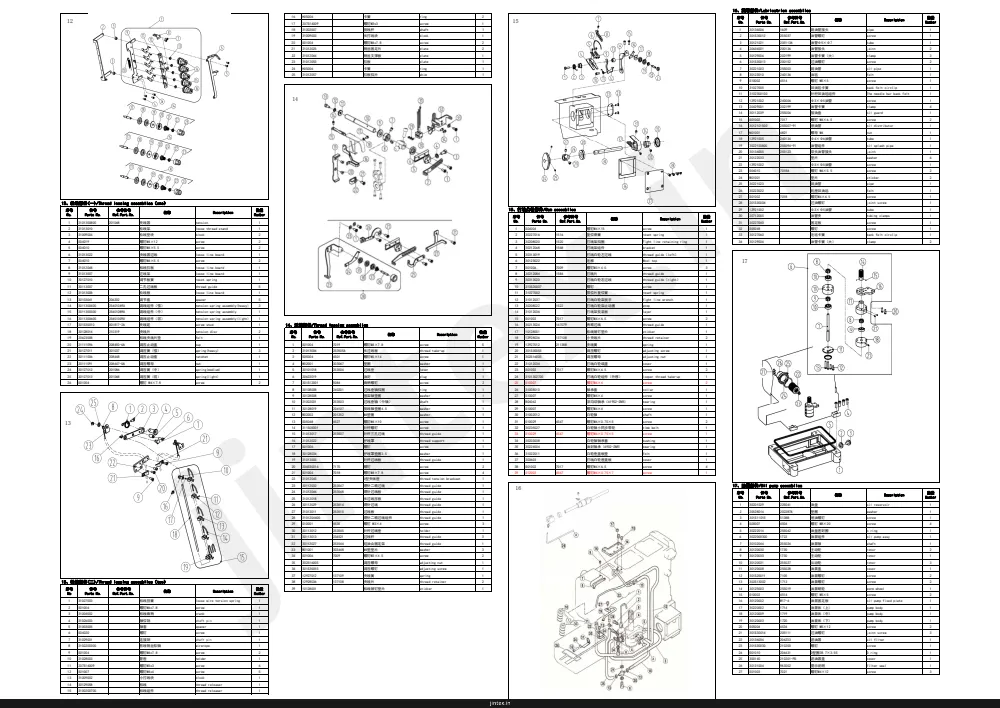

Page 1 (parts_list): This page contains a parts list for the K4-UT series sewing machine, detailing frame assemblies with part numbers, descriptions, and quantities.
Page 2 (parts_list): This page lists parts for the Needle bar assemblies, including part numbers, descriptions, and quantities.
Page 3 (parts_list): This page lists parts for the "Thread loosing assemblies (one)" section, including part numbers, descriptions, and quantities.
Page 4 (parts_list): This page contains parts lists and diagrams for the silicone oil delice assemblies, knife holder assemblies, gauge set specific parts, and solenoid assemblies.
Page 5 (parts_list): This page contains a parts list for the "24. 电控部件/Electronic control assemblies" section, detailing various electronic control components with their part numbers, descriptions, and quantities.

Page 1

Jack K4-UT / K5 parts on page 1
Ref	Part number	Part name
1	30122006	油堵
2	21022007	油封
3	21012018	油封
4	20622019	油堵
5	21022007	油堵
6	H01001	孔用垫圈
7	30112001	滤油网
8	30123014	油线
9	301S3001	机壳螺钉
10	20122009	油堵
11	30111001	油标
12	W02003	弹性垫圈
13	S05001	螺钉M10×27.5
14	30112002	盖板
15	S01002	螺钉M4×6.5
16	100886	机壳上节
17	100887	机壳下节
18	30226004	针夹固定销
19	30122007	油堵
20	30122008	油堵
21	30222003	油堵
22	001001	O型圈15×2.65
23	30221016	铜油管
24	P02002	铜销4×32
25	21012018	油封
1	S01005	螺钉M4×10
2	303607	后缝台组件(防绣)
1	250551	前轴销
2	S010015	螺钉M6×0.75×4
3	21012008	下前轴销
4	201S20015	铜连接杆螺丝3.5×13
5	400070	连接杆
6	45002	螺钉M6×0.75×15.2
7	400228	曲柄销
8	3012400300	油封轴承
9	30103008	轴承
10	S010029	螺钉M6×0.75×5
11	3012400400	油封轴承
12	30135021	同步带
13	3023502500	下同步带轮组件
14	S012003	螺钉M6×0.75×7
15	3023502600	下同步带小同步带轮组件
16	3010003	油封轴承
17	30108001	轴承挡圈
18	S01004	螺钉M4×7.8
19	30103004	下轴承套
20	30109001	比叉
21	W02001	垫圈
22	301S11004	比叉螺钉
23	30223009	毛粘
1	31003002	下夹针轴套后套
2	30103042	过线座轴前后套
3	30103042	过线座轴前套
4	26103026	送布牙套
5	20103020	送布牙套
6	30203004	针杆套上套
7	30203005	针杆下套
8	30203024	压脚轴套套
9	30203025	螺钉挑动套套
10	20122019	油封
11	30122039	压脚轴套油封
12	30203002	下主轴套
13	30203003	下主轴套后套
14	30203006	护针轴套
15	30203039	护针轴套
16	30203011	针距轴套
17	30203017	差动轴前套
18	30223011	差动轴套
19	30203018	差动轴后套
20	30203014	拾牙轴套
21	30222010	拾牙油封
22	30203015	牙轴中套
23	30203016	牙轴后套
24	30203012	调节座套
25	30203009	下弯针轴前套
26	30203010	下弯针轴套后套
27	P03005	弹性圆柱销3×12
28	20122029	油封
29	30122029	油封
1	S04060	螺钉M4×10
2	303600	上盖(防绣)
3	20722007	油堵
4	21071055	油冒
5	21022003	油窗垫
6	31022010	上盖垫
7	S01060	螺钉M6×10
8	303605	后盖板
9	31022013	后盖板
10	301S11007	螺钉
11	31012020	针杆护盖
12	30227030	卡簧
13	S010007	螺钉M4×4
14	30202004	前盖板
15	31012081	前罩盖接头
16	S010007	螺钉M4×4
17	31012029	护罩架
18	30111003	有机玻璃罩
19	W01002	垫圈
20	S01006	螺钉M3×4.5
21	S01060	护罩螺钉
22	W02004	垫圈
23	31012012	过线护罩
24	301S20001	螺钉
25	W03001	波形垫圈
26	20131063	护罩警示牌
27	S01055	螺钉
28	20711218	R型线夹8.6
29	21012018	油封
30	31001014	套销块
31	207S11016	螺钉M4×16
32	30128002	垫片
33	310S20006	套销块螺钉
34	S10005	螺钉M3×3
35	400065	上前轴
36	S01008	前轮连接杆
37	301004006	螺钉M3.5×13
38	253501A	针齿曲柄
39	S050002	螺钉M6×0.75×15.2
40	30109003	上轴平衡块
41	S010002	螺钉M5×5
42	30103004	接轴套
43	S12003	螺钉M6×0.75×7
44	3012400400	油封轴承
45	30103012	轴承
46	301035022	上同步带轮
47	30100400	轴承
48	S010029	螺钉M6×0.75×5
49	30102011	后轴
50	S1035001	手轮
51	S010009	螺钉M6×8
52	S050004	螺钉
53	W01004	垫片
54	S010004	螺钉M8×1×12
55	S02003	螺钉
56	30109001	针杆曲柄平衡块

JACK 杰克快速服务 100% K4-UT系列 ( K4-UT series) 1、车壳部件/Frame assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30122006 240052 油堵 plug 2 21022007 油封 washer 1 3 21012018 油封 washer 1 4 20622019 油堵 plug 1 5 21022007 油堵 plug 1 6 H01001 240001 孔用垫圈 ring 1 7 30112001 255002 滤油网 filter 1 8 30123014 油线 pin 1 9 301S3001 250117 机壳螺钉 bed pin 4 10 20122009 210003 油堵 plug 1 11 30111001 206590 油标 oil sight gauge 1 12 W02003 弹性垫圈 washer 4 13 S05001 螺钉M10×27.5 screw 4 14 30112002 250020 盖板 cover 1 15 S01002 螺钉M4×6.5 cscrew 2 16 100886 机壳上节 chassis 1 17 100887 机壳下节 Casing under section 1 18 30226004 针夹固定销 pin 2 19 30122007 油堵 plug 1 20 30122008 油堵 plug 1 21 30222003 油堵 plug 1 22 001001 O型圈15×2.65 oring 1 23 30221016 铜油管 oil pipe 1 24 P02002 铜销4×32 pin 2 25 21012018 油封 washer 1 2 3、缝台部件/Cloth plate assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 S01005 螺钉M4×10 screw 3 2 303607 后缝台组件(防绣) bed cover 1 4、下轴部件/Shaft assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 250551 前轴销 crankshaft 1 2 S010015 螺钉M6×0.75×4 screw 2 3 21012008 250554-92 下前轴销 crankshaft 1 4 201S20015 铜连接杆螺丝3.5×13 screw 4 5 400070 210091-92 连接杆 connection 4 6 45002 螺钉M6×0.75×15.2 screw 1 7 400228 曲柄销 crank 1 8 3012400300 250529-91 油封轴承 bearing 1 9 30103008 250544 轴承 bushing 1 10 S010029 4547 螺钉M6×0.75×5 screw 6 11 3012400400 250557-91 油封轴承 bearing 1 12 30135021 同步带 timing belt 1 13 3023502500 401 下同步带轮组件 gear (lower) 1 14 S012003 4555 螺钉M6×0.75×7 screw 2 15 3023502600 402 下同步带小同步带轮组件 gear (lower) 1 16 3010003 油封轴承 bearing 1 17 30108001 250514 轴承挡圈 ring 1 18 S01004 螺钉M4×7.8 screw 2 19 30103004 下轴承套 bushing 1 20 30109001 201074 比叉 guide 1 21 W02001 202286 垫圈 washer 1 22 301S11004 4019 比叉螺钉 screw 1 23 30223009 毛粘 sponge 2 5、上轴部件/Main shaft assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 31003002 250144 下夹针轴套后套 sleeve 3 2 30103042 210297 过线座轴前后套 sleeve 1 3 30103042 210297 过线座轴前套 sleeve 1 4 26103026 250141 送布牙套 sleeve 1 5 20103020 250141 送布牙套 sleeve 1 6 30203004 250146 针杆套上套 sleeve 1 7 30203005 251003 针杆下套 sleeve 1 8 30203024 250147 压脚轴套套 sleeve 1 9 30203025 250136 螺钉挑动套套 sleeve 1 10 20122019 油封 plug 1 11 30122039 压脚轴套油封 plug 1 12 30203002 250137 下主轴套 sleeve 1 13 30203003 250138 下主轴套后套 sleeve 1 14 30203006 0628 护针轴套 sleeve 1 15 30203039 0628 护针轴套 sleeve 1 16 30203011 250139 针距轴套 sleeve 1 17 30203017 250140 差动轴前套 sleeve 1 18 30223011 差动轴套 plug 1 19 30203018 250141 差动轴后套 sleeve 1 20 30203014 拾牙轴套 sleeve 1 21 30222010 拾牙油封 plug 1 22 30203015 牙轴中套 sleeve 1 23 30203016 204089 牙轴后套 sleeve 1 24 30203012 调节座套 sleeve 1 25 30203009 250191 下弯针轴前套 sleeve 1 26 30203010 250144 下弯针轴套后套 sleeve 1 27 P03005 弹性圆柱销3×12 pin 2 28 20122029 油封 plug 1 29 30122029 油封 plug 1 2、覆盖件/Cover assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 S04060 7021 螺钉M4×10 screw 9 2 303600 上盖(防绣) arm cover (top) 1 3 20722007 油堵 plug 1 4 21071055 油冒 Oil Sight Window 1 5 21022003 油窗垫 o ring 1 6 31022010 7052 上盖垫 The head gasket 1 7 S01060 螺钉M6×10 screw 6 8 303605 250154 后盖板 arm cover (rear) 1 9 31022013 250155 后盖板 gasket 2 10 301S11007 螺钉 screw 2 11 31012020 针杆护盖 bared cover 1 12 30227030 卡簧 circlip 1 13 S010007 螺钉M4×4 screw 2 14 30202004 前盖板 Front cover 1 15 31012081 前罩盖接头 Front cover joint 1 16 S010007 螺钉M4×4 screw 2 17 31012029 护罩架 Shield frame 1 18 30111003 250257 有机玻璃罩 eye guard 1 19 W01002 202875 垫圈 sticker 2 20 S01006 7009 螺钉M3×4.5 screw 2 21 S01060 7052 护罩螺钉 screw 2 22 W02004 303335 垫圈 sticker 2 23 31012012 过线护罩 threan takeup cover 1 24 301S20001 螺钉 screw 2 25 W03001 210307 波形垫圈 washer 2 26 20131063 护罩警示牌 sticker 1 27 S01055 螺钉 screw 1 28 20711218 R型线夹8.6 Card line piece 1 29 21012018 油封 oil seal 1 30 31001014 套销块 Closing pin 1 31 207S11016 007022A 螺钉M4×16 screw 2 32 30128002 垫片 bracket assembly 2 33 310S20006 250013 套销块螺钉 screw 1 34 S10005 螺钉M3×3 screw 10 35 400065 250560A 上前轴 crankshaft 1 36 S01008 253500-92 前轮连接杆 connection assembly 4 37 301004006 螺钉M3.5×13 screw 1 38 253501A 针齿曲柄 motion assy 1 39 S050002 4534 螺钉M6×0.75×15.2 crank assembly 1 40 30109003 250529-91 上轴平衡块 balance weight 1 41 S010002 4506 螺钉M5×5 screw 2 42 30103004 接轴套 joint 1 43 S12003 4555 螺钉M6×0.75×7 screw 3 44 3012400400 250529-91 油封轴承 bearing 1 45 30103012 轴承 bushing 1 46 301035022 上同步带轮 gear (upper) 1 47 30100400 轴承 bearing 1 48 S010029 4547 螺钉M6×0.75×5 screw 1 49 30102011 后轴 shaft 1 50 S1035001 4556 手轮 pulley 1 51 S010009 4541 螺钉M6×8 screw 1 52 S050004 4501 螺钉 screw 1 53 W01004 204585 垫片 washer 1 54 S010004 4592 螺钉M8×1×12 screw 2 55 S02003 螺钉 screw 2 56 30109001 针杆曲柄平衡块 Balance weight 1

Page 2

Jack K4-UT / K5 parts on page 2
Ref	Part number	Part name
251014-91	30202024	针杆
206061	30102009	针杆轧头
5325	301511005	针杆轧头螺钉
251016	30205002	针杆连杆
	30102010	针杆连杆销
240098	B07001	轴承K8×12×12
	30128006	针杆连杆轴垫圈
206063	30109004	针杆滑块
251017	31009006	滑块导座
240231	30228005	垫片
252046-92	30204004	下压针杆曲柄
4534	S05002	螺钉M6×0.75×15.2
252040-92	30102011	前挡块
7021A	S04019	螺钉M4×12
252041	30228003	下压针杆曲柄垫片
252042	30209003	滑块
252043	30209004	螺钉滑块
4543	S10007	螺钉M4×4
252045-92	30101012	下压针杆曲柄后挡块
	30201101	旋针固定架
	30221018	铜油嘴
	30130500	螺杆过线
4543	S10007	螺钉M4×4
257566	30217003	旋针
252047	30228004	下压针杆曲柄挡块垫片
252052	30203007	滑杆后套
	S10013	螺钉
252049-91	30203044	滑杆前套
231011	001021	0型圈12.2×2.4
252055	30228002	螺钉固定架垫片
252048	30202006	滑杆
	S05046	螺钉M3.5×10.5
	S01006	螺钉
	30226017	弹性圈枉销
252607-92	30100096	送布偏心轮组件
4539	S10006	螺钉
204084	B07007	轴承K26×26×10
240236	30224001	送布牙齿曲柄
240234	30202004	卡簧
240237	30229002	送布牙
252608	30205004	连杆
252609-92	30204005	曲柄
4535	S05005	螺钉M5×12
240555	30228007	垫片
7041	30120016	螺钉M3×3.2
252612	30205005	偏心连杆
252614	30205007	针距连杆
252176	30205006	连杆
4537	S10007	螺钉M4×4
252613	30226007	JK795油线
202176	30123021	油线
252616	30226008	曲柄销
252617	30204006	曲柄
7142	S10029	螺钉M5×6
252618-91	30204007	调节曲柄
2547	S10029	螺钉M4×5
252622	30202008	针距调节挡板
4539	S10006	螺钉M5×6
252620	30227005	拉簧
7131	30233001	螺钉
252621	30202009	针杆指示轴
	20122038	0型圈
252523	30123013	指示板
	S01011	螺钉M5×10
252624-92	31011007	划线架
	S01004	螺钉M4×8
252625	30202010	针距调节轴
201629	H05012	挡圈4
200983	H05006	0型圈
240251	001023	橡胶密封圈5×1.6
4550	S09015	螺钉M4×5
	30209006	挡块
	P03011	弹性圈枉销3×12
252660	302S1001	针距调节销紧螺母
4543	S10007	螺钉M4×4
0935	30202035	差动轴
	30123009	油孔毛毡
	S01004	螺钉M5×10
	N01004	螺母M5
254501A	30110007	喂针凸轮
4514	S10002	螺钉M5×5
254511	4000059	喂针连杆
254503	30104024	喂针摆动曲柄
4534	S05002	螺钉M6×0.75×15.2
254504	30126006	喂针摆动曲柄连杆销
240062	30128032	摇动曲柄垫圈5.5
4805	N01004	螺母M5
254519	30102024	摆动连杆轴
206180	30128015	摆动连杆轴垫圈
306671	H050064	挡圈12
254506B	30105013	喂针摆动曲柄
4547	S10029	螺钉M6×0.75×5
254507	30126005	喂针摆动销
254518	30202018	喂针摆动架
202176	30123021	JK795油线
233020	001008	0型橡胶密封圈9×1.8
	30208010	挡圈
	S10026	螺钉架
254516	30104022	喂针架
7020	S01005	螺钉M4×14
257565	30117005	喂针
	30128018	喂针曲柄轴垫圈10

6 6、针杆部件/Needle bar assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30202024 251014-91 针杆 needle bar 1 2 30102009 206061 针杆轧头 needlebar clamp 1 3 301511005 5325 针杆轧头螺钉 screw 1 4 30205002 251016 针杆连杆 link 1 5 30102010 针杆连杆销 eccentric pin 1 6 B07001 240098 轴承K8×12×12 needle baearing 1 7 30128006 针杆连杆轴垫圈 washer 1 8 30109004 206063 针杆滑块 guide block 1 9 31009006 251017 滑块导座 guide 1 16 30228005 240231 垫片 washer 1 17 30204004 252046-92 下压针杆曲柄 lever 1 18 S05002 4534 螺钉M6×0.75×15.2 screw 1 19 30102011 252040-92 前挡块 holder 1 20 S04019 7021A 螺钉M4×12 screw 2 21 30228003 252041 下压针杆曲柄垫片 washer 2 22 30209003 252042 滑块 slider 1 23 30209004 252043 螺钉滑块 pin 1 24 S10007 4543 螺钉M4×4 screw 1 25 30101012 252045-92 下压针杆曲柄后挡块 holder 1 26 30201101 旋针固定架 looper holder 1 27 30221018 铜油嘴 joint screw 1 28 30130500 螺杆过线 threadguide 1 29 S10007 4543 螺钉M4×4 screw 1 30 30217003 257566 旋针 looper 1 31 30228004 252047 下压针杆曲柄挡块垫片 washer 2 32 30203007 252052 滑杆后套 bushing 1 33 S10013 螺钉 screw 2 34 30203044 252049-91 滑杆前套 bushing 1 35 001021 231011 0型圈12.2×2.4 o r ing 1 36 30228002 252055 螺钉固定架垫片 washer 1 37 30202006 252048 滑杆 shaft 1 38 S05046 螺钉M3.5×10.5 screw 1 39 S01006 螺钉 screw 1 40 30226017 弹性圈枉销 pin 1 8 8、护针部件/Feed mechanism 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30100096 252607-92 送布偏心轮组件 eccentric 1 2 S10006 4539 螺钉 screw 2 3 B07007 204084 轴承K26×26×10 needle bearing 1 4 30224001 240236 送布牙齿曲柄 needle bearing 1 5 30202004 240234 卡簧 ring 1 6 30229002 240237 送布牙 rod 1 7 30205004 252608 连杆 rod 1 8 30204005 252609-92 曲柄 crank 1 9 S05005 4535 螺钉M5×12 screw 1 10 30228007 240555 垫片 washer 1 11 30120016 7041 螺钉M3×3.2 screw 1 12 30205005 252612 偏心连杆 rod 1 13 30205007 252614 针距连杆 link 1 14 30205006 252176 连杆 link 2 15 S10007 4537 螺钉M4×4 screw 2 16 30226007 252613 JK795油线 pin 1 17 30123021 202176 油线 oil wick 1 18 30226008 252616 曲柄销 pin 1 19 30204006 252617 曲柄 crank 1 20 S10029 7142 螺钉M5×6 screw 2 21 30204007 252618-91 调节曲柄 link 1 22 S10029 2547 螺钉M4×5 screw 2 23 30202008 252622 针距调节挡板 guide 1 24 S10006 4539 螺钉M5×6 screw 1 25 30227005 252620 拉簧 spring 1 26 30233001 7131 螺钉 screw 1 27 30202009 252621 针杆指示轴 shaft 1 28 20122038 0型圈 o r ing 1 29 30123013 252523 指示板 lever 1 30 S01011 螺钉M5×10 screw 1 31 31011007 252624-92 划线架 indication plate 1 32 S01004 螺钉M4×8 screw 1 33 30202010 252625 针距调节轴 screw 1 34 H05012 201629 挡圈4 ring 1 35 H05006 200983 0型圈 o r ing 1 36 001023 240251 橡胶密封圈5×1.6 o r ing 1 37 S09015 4550 螺钉M4×5 screw 1 38 30209006 挡块 block 1 39 P03011 弹性圈枉销3×12 pin 1 40 302S1001 252660 针距调节销紧螺母 nut 1 41 S10007 4543 螺钉M4×4 screw 1 42 30202035 0935 差动轴 crankshaft 1 43 30123009 油孔毛毡 sponge 6 44 S01004 螺钉M5×10 screw 1 45 N01004 螺母M5 nut 1 11 11、喂针部件/Needle feeding assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30110007 254501A 喂针凸轮 eccentric assembly 1 2 S10002 4514 螺钉M5×5 screw 2 3 4000059 254511 喂针连杆 connection 1 4 30104024 254503 喂针摆动曲柄 crank 1 5 S05002 4534 螺钉M6×0.75×15.2 screw 1 6 30126006 254504 喂针摆动曲柄连杆销 screw 1 7 30128032 240062 摇动曲柄垫圈5.5 washer 1 8 N01004 4805 螺母M5 nut 1 9 30102024 254519 摆动连杆轴 shaft 1 10 30128015 206180 摆动连杆轴垫圈 washer 1 11 H050064 306671 挡圈12 ring 1 12 30105013 254506B 喂针摆动曲柄 crank 1 13 S10029 4547 螺钉M6×0.75×5 screw 2 14 30126005 254507 喂针摆动销 block 1 15 30202018 254518 喂针摆动架 crankshaft 1 16 30123021 202176 JK795油线 oil wick 1 17 001008 233020 0型橡胶密封圈9×1.8 o r ing 1 18 30208010 挡圈 collar 1 19 S10026 螺钉架 screw 2 20 30104022 254516 喂针架 lever assembly 1 21 S01005 7020 螺钉M4×14 screw 1 22 30117005 257565 喂针 spreader 1 23 30128018 喂针曲柄轴垫圈10 washer 1

Page 3 — 12、松线部件(一)/Thread loosing assemblies (one)

Jack K4-UT / K5 parts on page 3
Ref	Part number	Part name	Qty
	310130800	夹线器
	31013010	松线架
	31009004	松线垫块
	S04019	螺钉M4×12
	S04010	螺钉M4×5.5
	31013022	松线过线板
	S04010	螺钉M4×5.5
	31012048	松线拉板
	31013007	过线架
	30127010	调节点簧
	310113007	二孔过线板
	31013008	松线线板
	310103041	调节套
	311300400	调线组件(强)
	3011300500	调线组件(中)
	3011300600	调线组件(弱)
	301S30010	夹线螺钉
	30128016	夹线片
	20423008	松线夹线片垫
	2111096	调压止动盖
	30127011	调线簧(强)
	30111006	调压止动套
	20111091	调压螺母
	30127012	调压簧(中)
	30127013	调压簧(弱)
	S01004	螺钉M4×7.8

12 12、松线部件(一)/Thread loosing assemblies (one) 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 310130800 夹线器 tension 1 2 31013010 松线架 loose thread stand 1 3 31009004 松线垫块 block 1 4 S04019 螺钉M4×12 screw 2 5 S04010 螺钉M4×5.5 screw 1 6 31013022 松线过线板 loose line board 1 7 S04010 螺钉M4×5.5 screw 1 8 31012048 松线拉板 loose line board 1 9 31013007 过线架 loose line board 1 10 30127010 调节点簧 reset spring 1 11 310113007 二孔过线板 thread guide 1 12 31013008 松线线板 loose line board 1 13 310103041 调节套 spacer 1 14 311300400 254010A9U 调线组件(强) tension spring assembly (heavy) 1 15 3011300500 254010B9U 调线组件(中) tension spring assembly (medium) 1 16 3011300600 254010R9U 调线组件(弱) tension spring assembly (light) 1 17 301S30010 001817-2A 夹线螺钉 screw stud 1 18 30128016 210319 夹线片 tension disc 1 19 20423008 松线夹线片垫 felt 1 20 2111096 208450-UA 调压止动盖 cup 1 21 30127011 调线簧(强) spring (heavy) 1 22 30111006 208448 调压止动套 ratchet 1 23 20111091 208447-UA 调压螺母 nut 1 24 30127012 201086 调压簧(中) spring (medium) 1 25 30127013 201068 调压簧(弱) spring (light) 1 26 S01004 螺钉M4×7.8 screw 1

Page 4

Jack K4-UT / K5 parts on page 4
Ref	Part number	Part name
	30111070	上硅油盒
207067-PD	30112040	上硅油盒盖
206781	P03008	销
7009	S14002	自攻螺钉 ST3.5×8
207068	30123011	硅油棉
1075	30201075	下硅油盒
7019	S01004	螺钉 M4×7.8
255107	30201014	固定架
240247	30223005	硅油棉
210766	30126009	销
240246	12921002	推尼龙油管
202175	20123021	JK8568油线
2666	30212666	硅油盒挡板
2028	30222028	下硅油盒盖
	30134001	356针齿
	30134002	364针齿
4554	S10026	螺钉 M3×3
234561	30112026	刀架线
253593	30127014	压线板
OW09070-2	301520009	调绕线钉
253511	30112033	调线钉
	S01004	螺钉 M4×7.8
1170-3	3011010	压脚固定螺钉
	30121116	压脚(01GB)
	30116005	压脚(02BB*356)
	30116006	压脚(02BB*364)
	302517001	螺钉(进口)
	30115068	356针板(01GB)
	30115067	364针板(01GB)
	30115006	356针板(02BB)
	30115007	364针板(02BB)
	301214001	送布牙(01GB)
	301214002	送布牙(01GB)
	3012140100	送布牙组件(01GB)
	301214008	送布牙(02BB)
	301214009	送布牙(02BB)
	S01011	螺钉SM3×5
	3012083	缝纫盘
	31012083	螺钉SM4×4
	3012085	接头
	S04021	螺钉M4×4
	3012087	接料头
	S01006	螺钉M3×4.5
	30121204	前罩单边缝纫接块(02BB专用)
	3011010	缝纫盘
	S01011	螺钉SM3×5
	3012085	接头
	30121156	接头
	30122240	弹簧片
	S01091	螺钉M2×2.3
	20851007	螺钉
	20613008	过线
	S01004	螺钉M4×7.8
	30251001	刀盘定位螺钉
	301511024	滑块螺钉
	31022016	减震垫
	L02001	螺钉M4×8
	302520014	螺钉
	3021900700	下切刀组件
	30212156	刀盘底板
	30212246	摆杆
	30212116	垫片
	302530022	螺钉
	S01091	螺钉
	30121046	UT推线片
	30203112	刀架固定套
	S14002	内六角头螺钉M4×4
	30203113	刀架转动套
	30212225	接头连接销
	30212255	上刀架
	30212256	下刀架
	S01197	开槽圆头螺钉M2×6
	S01198	开槽圆头螺钉M2×10
	30219009	定刀
	S01196	开槽圆头螺钉M3×3
	30219008	动刀
	30212328	压力固定块
	30212327	压板(二)
	S01199	开槽圆头螺钉M2×3
	30212165	开槽圆头螺钉M2×3
	30212329	垫板
	30212326	压板(一)
	30212324	垫板
	30212325	垫板
	302512002	外六角螺钉M4×4
	302520015	螺钉M3×2.5
	30227124	复位弹簧
	30112026	开槽圆头螺钉M4×3
	30121257	限位板
	30122245	上刀架挡板
	L02001	螺钉M4×8
	30251001	刀盘定位螺钉
	301511024	保持座螺钉
	3012161	支撑板
	30122240	弹簧片
	S01091	螺钉M2×2.3
	20851007	螺钉
	20613008	过线
	S01004	螺钉M4×7.8
	30251001	刀盘定位螺钉
	301511024	滑块螺钉
	31022016	减震垫
	L02001	螺钉M4×8
	302520014	螺钉
	3101900100	上切刀组件
	31030005	电磁铁组件
	W030025	垫圈
	N01013	螺母
	30112118	刀座安装底板
	30112251	刀座安装板
	N01013	螺母
	S051114	螺钉
	30127039	弹簧
	301530036	螺钉
	301530037	螺钉
	301520021	刀架滑槽
	301520021	螺钉
	30112121	刀架连接垫片
	30112122	限位板
	S01087	螺钉M3.5×4
	30112123	上切刀压力片一
	30112124	上切刀压力片二
	W01005	垫片
	301530038	螺钉
	301530039	螺钉
	301516014	螺母
	301520022	螺钉
	30119008	刀切动力
	30119009	上切刀动力
	S01088	开槽圆柱头螺钉M2×3.5
	30112125	安装板
	S01089	螺钉M4×5.5
	31012014	安装板
	W01006	垫片
	S05304	螺钉
	30153041	螺钉
	W01006	垫片
	3101900200	接线器组件
	31030005	电磁铁组件
	30109088	安装板
	42428008	弹簧垫圈
	N01006	螺母
	505032	内六角平圆头螺钉M3
	30104070	曲柄
	301520055	螺钉
	30104066	选杆
	N01013	螺母M4
	417515007	螺钉
	30109088	挡块
	30126034	转动销
	30104076	曲柄
	30104076	曲柄
	W01048	垫片
	301520056	螺钉
	W01049	垫片
	30112203	卸线口
	W01050	垫圈
	S050047	螺钉M3×4
	S01097	螺钉
	30112204	弹簧片
	301501005	螺钉
	30127061	接线器复位簧
	421513005	螺钉
	301212025	螺钉
	301012070	死板
	30112108	安全开关铜片
	30130017	磁铁
	301151040	螺钉M4×3
	303959	电磁铁盖板
	114520005	螺钉
	30112185	防尘压板
	30122105	防尘罩
	N01006	螺母
	W01006	垫片
	30130046	电磁铁芯
	11322008	减震垫
	301030007	剪线电磁铁组件
	13822010	电磁铁下垫片
	302516010	螺母M8
	301212184	支架
	S01004	螺钉M4×7.8
	30112108	防尘罩
	30112188	防尘压板
	S04019	螺钉M4×12
	3025019	下安装板
	W02004	螺钉
	3011010	弹性垫片
	W01001	垫片
	W01004	垫片
	S05005	螺钉M5×12
	3011134	0型橡胶密封圈18×2.5
	N01027	螺母M8

18 18、硅油盒装置部件/Silicon oil delice assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30111070 上硅油盒 silicone oil reservoir (upper) 1 2 30112040 207067-PD 上硅油盒盖 cap 1 3 P03008 206781 销 2×6 pin 2 4 S14002 7009 自攻螺钉 ST3.5×8 screw 4 5 30123011 207068 硅油棉 felt 1 6 30201075 1075 下硅油盒 silicone oil box 1 7 S01004 7019 螺钉 M4×7.8 screw 2 8 30201014 255107 固定架 needle cooler (lower) 1 9 30223005 240247 硅油棉 felt 3 10 30126009 210766 销 pin 1 11 12921002 240246 推尼龙油管 tube 1 12 20123021 202175 JK8568油线 oil wick 1 13 30212666 2666 硅油盒挡板 silicone oil box baffle 1 14 30222028 2028 下硅油盒盖 silicone oil box cover 1 19 19、针位组部件/Gauge set specific parts 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 30134001 356针齿 needle holder 1 2 30134002 364针齿 needle holder 1 3 S10026 4554 螺钉 M3×3 screw 2 4 30112026 234561 刀架线 thread guide 1 5 30127014 253593 压线板 tension disc 1 6 301520009 OW09070-2 调绕线钉 screw 1 7 30112033 253511 调线钉 thread guide 1 8 S01004 螺钉 M4×7.8 screw 2 9 3011010 1170-3 压脚固定螺钉 screw 1 10 30121116 压脚(01GB) presser foot (01GB) 1 11 30116005 压脚(02BB*356) presser foot assy (02BB*356) 1 12 30116006 压脚(02BB*364) presser foot assy (02BB*364) 1 13 302517001 螺钉(进口) screw 1 14 30115068 356针板(01GB) needle plate (01GB*356) 1 15 30115067 364针板(01GB) needle plate (01GB*364) 1 16 30115006 356针板(02BB) needle plate (02BB*356) 1 17 30115007 364针板(02BB) needle plate (02BB*364) 1 18 301214001 送布牙(01GB) main feed dog (01GB) 1 19 301214002 送布牙(01GB) diff feed dog (01GB) 1 20 3012140100 送布牙组件(01GB) main feed dog and diff feed dog (01GB) 1 21 301214008 送布牙(02BB) main feed dog (02BB) 1 22 301214009 送布牙(02BB) diff feed dog (02BB) 1 23 S01011 螺钉SM3×5 screw 2 24 3012083 缝纫盘 sewing block 1 25 31012083 螺钉SM4×4 screw 2 26 3012085 接头 Head pad 1 27 S04021 螺钉M4×4 screw 2 28 3012087 接料头 Leading frame 1 29 S01006 螺钉M3×4.5 screw 2 30 30121204 前罩单边缝纫接块(02BB专用) front cover joint 1 31 3011010 缝纫盘 front cover joint 1 32 S01011 螺钉SM3×5 screw 2 33 3012085 接头 Head pad 1 34 30121156 接头 Head pad 1 35 30121240 弹簧片 leaf spring 1 36 S01091 螺钉M2×2.3 screw 1 37 20851007 螺钉 screw 2 38 20613008 过线 thread guide 1 39 S01004 螺钉M4×7.8 screw 2 40 30251001 刀盘定位螺钉 screw 1 41 301511024 滑块螺钉 screw 1 42 31022016 减震垫 cushioning 1 43 L02001 螺钉M4×8 screw 1 44 302520014 螺钉 screw 1 20 20、下切刀部件/Knife holder assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 3021900700 下切刀组件 slice knife components 1 2 30212156 刀盘底板 the knife dish plate 1 3 30212246 摆杆 swinging rod 1 4 30212116 垫片 washer 1 5 302530022 螺钉 screw 2 6 S01091 螺钉 screw 2 7 30121046 UT推线片 UT pine line piece 1 8 30203112 刀架固定套 rest a fixed set 1 9 S14002 内六角头螺钉M4×4 screw 2 10 30203113 刀架转动套 head rotating sleeve 1 11 30212225 接头连接销 head connecting rod 1 12 30212255 上刀架 on the rest 1 13 30212256 下刀架 under the rest 1 14 S01197 开槽圆头螺钉M2×6 screw 1 15 S01198 开槽圆头螺钉M2×10 screw 1 16 30219009 定刀 stationary knife 1 17 S01196 开槽圆头螺钉M3×3 screw 1 18 30219008 动刀 dynamic knife 1 19 30212328 压力固定块 stationary knife fixed block 1 20 30212327 压板(二) bracket 1 21 S01199 开槽圆头螺钉M2×3 screw 1 22 30212165 开槽圆头螺钉M2×3 screw 1 23 30212329 垫板 plat 1 24 30212326 压板(一) bracket 1 25 30212324 垫板 block 1 26 30212325 垫板 block 1 27 302512002 外六角螺钉M4×4 screw 2 28 302520015 螺钉M3×2.5 screw 1 29 30227124 复位弹簧 reset spring 1 30 30112026 开槽圆头螺钉M4×3 screw 3 31 30121257 限位板 the limit board 1 32 30122245 上刀架挡板 the rest on the baffle 1 33 L02001 螺钉M4×8 screw 1 34 30251001 刀盘定位螺钉 screw 1 35 301511024 保持座螺钉 screw 1 36 3012161 支撑板 support plate 1 37 30122240 弹簧片 leaf spring 1 38 S01091 螺钉M2×2.3 screw 1 39 20851007 螺钉 screw 2 40 20613008 过线 thread guide 1 41 S01004 螺钉M4×7.8 screw 2 42 30251001 刀盘定位螺钉 screw 1 43 301511024 滑块螺钉 screw 1 44 31022016 减震垫 cushioning 1 45 L02001 螺钉M4×8 screw 1 46 302520014 螺钉 screw 1 21 21、上剪线部件/Knife Holder Assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 3101900100 上切刀组件 knife holder assembly 1 2 31030005 电磁铁组件 solenoid assembly 1 3 W030025 垫圈 washer 2 4 N01013 螺母 nut 2 5 30112118 刀座安装底板 install plate 1 6 30112251 刀座安装板 plat 1 7 N01013 螺母 nut 1 8 S051114 螺钉 screw 1 9 30127039 弹簧 spring 1 10 301530036 螺钉 screw 1 11 301530037 螺钉 screw 1 12 301520021 刀架滑槽 plat 1 13 301520021 螺钉 screw 2 14 30112121 刀架连接垫片 washer 2 15 30112122 限位板 plat 1 16 S01087 螺钉M3.5×4 screw 2 17 30112123 上切刀压力片一 presser plat 1 18 30112124 上切刀压力片二 presser plat 1 19 W01005 垫片 washer 2 20 301530038 螺钉 screw 1 21 301530039 螺钉 screw 1 22 301516014 螺母 nut 1 23 301520022 螺钉 screw 1 24 30119008 刀切动力 plat 1 25 30119009 上切刀动力 thread wiper 1 26 S01088 开槽圆柱头螺钉M2×3.5 screw 4 27 30112125 安装板 install plat 1 28 S01089 螺钉M4×5.5 screw 2 29 31012014 安装板 install plat 1 30 W01006 垫片 washer 2 31 S05304 螺钉 screw 2 32 30153041 螺钉 screw 2 33 W01006 垫片 washer 2 22 22、接线器部件/Top wiper assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 3101900200 接线器组件 cable assembly 1 2 31030005 电磁铁组件 electromagnet assembly 1 3 30109088 安装板 mounting plate 1 4 42428008 弹簧垫圈 spring washer 2 5 N01006 螺母 nut 3 6 505032 内六角平圆头螺钉M3 screw 1 7 30104070 曲柄 crank 1 8 301520055 螺钉 screw 3 9 30104066 选杆 fixed block 1 10 N01013 螺母M4 nut 4 11 417515007 螺钉 screw 2 12 30109088 挡块 block 1 13 30126034 转动销 rotating pin 1 14 30104076 曲柄 crank 1 15 30104076 曲柄 crank 1 16 W01048 垫片 washer 2 17 301520056 螺钉 screw 1 18 W01049 垫片 washer 1 19 30112203 卸线口 cancel the piece 1 20 W01050 垫圈 washer 1 21 S050047 螺钉M3×4 screw 1 22 S01097 螺钉 screw 1 23 30112204 弹簧片 leaf spring 1 24 301501005 螺钉 screw 1 25 30127061 接线器复位簧 spring 1 26 421513005 螺钉 screw 4 27 301212025 螺钉 screw 2 28 301012070 死板 dead plate 1 29 30112108 安全开关铜片 sheet copper 1 30 30130017 磁铁 magnetic iron 1 31 301151040 螺钉M4×3 screw 2 32 303959 电磁铁盖板 cover 1 33 114520005 螺钉 screw 4 34 30112185 防尘压板 dust depressor 1 35 30122105 防尘罩 dust cover 1 36 N01006 螺母 nut 2 37 W01006 垫片 gasket 1 38 30130046 电磁铁芯 electromagnetic iron core 1 39 11322008 减震垫 cushioning 1 40 301030007 剪线电磁铁组件 electromagnet box shear line 1 41 13822010 电磁铁下垫片 gasket 1 42 302516010 螺母M8 nut 1 43 301212184 支架 stents 1 44 S01004 螺钉M4×7.8 screw 2 45 30112108 防尘罩 dust cover 1 46 30112188 防尘压板 dust depressor 1 47 S04019 螺钉M4×12 screw 1 48 3025019 下安装板 dead plate 1 49 W02004 螺钉 screw 2 50 3011010 弹性垫片 gasket 2 51 W01001 垫片 gasket 3 52 W01004 垫片 gasket 3 53 S05005 螺钉M5×12 screw 3 54 3011134 0型橡胶密封圈18×2.5 o-type ring 2 55 N01027 螺母M8 nut 1 23 23、剪线部件/Slit wiper assemblies 序号 No. 件号 Parts No. 参考件号 Ref. Part. No. 名称 Description 数量 Number 1 301212025 螺钉 screw 2 2 301012070 死板 dead plate 1 3 30112108 安全开关铜片 sheet copper 1 4 30130017 磁铁 magnetic iron 1 5 301151040 螺钉M4×3 screw 2 6 303959 电磁铁盖板 cover 1 7 30112185 防尘压板 dust depressor 1 8 30122105 防尘罩 dust cover 1 9 N01006 螺母 nut 2 10 W01006 垫片 gasket 1 11 30130046 电磁铁芯 electromagnetic iron core 1 12 11322008 减震垫 cushioning 1 13 301030007 剪线电磁铁组件 electromagnet box shear line 1 14 13822010 电磁铁下垫片 gasket 1 15 302516010 螺母M8 nut 1 16 301212184 支架 stents 1 17 S01004 螺钉M4×7.8 screw 2 18 30112108 防尘罩 dust cover 1 19 30112188 防尘压板 dust depressor 1 20 S04019 螺钉M4×12 screw 1 21 3025019 下安装板 dead plate 1 22 W02004 螺钉 screw 2 23 3011010 弹性垫片 gasket 2 24 W01001 垫片 gasket 3 25 W01004 垫片 gasket 3 26 S05005 螺钉M5×12 screw 3 27 3011134 0型橡胶密封圈18×2.5 o-type ring 2 28 N01027 螺母M8 nut 1

Page 5 — 24. 电控部件/Electronic control assemblies

Jack K4-UT / K5 parts on page 5
Ref	Part number	Part name	Qty
	3103001000	LED灯
	310300100	蝶线光电编码器电机
	S05068	螺钉M5×20
	95500018	光缆组件
	21110007	塑料
	207S11007	螺钉M4×7.5
	20711210	线夹
	310517001	螺钉
	3103000500	电控组件
	S05068	螺钉M5×20
	31011002	电控
	302S13001	螺钉M5×35
	S050004	螺钉M5×14
	S050003	螺钉M5×10
	S14002	自攻螺钉ST3.5×8
	S05190	螺钉M3×6
	3103001100	指压脚电磁铁组件
	30112241	支架
	413S13005	螺钉
	W02004	弹性垫片
	W01001	垫片

24 序号 No. 公司件号 Parts No. 参考件号 Ref. Part. No. 名称 Name Description 数量 Number 1 3103001000 LED灯 LED light 1 2 310300100 蝶线光电编码器电机 electrical machine 1 3 S05068 螺钉M5×20 screw 4 4 95500018 光缆组件 plug 1 5 21110007 塑料 logo 1 6 207S11007 螺钉M4×7.5 screw 1 7 20711210 线夹 clip 1 8 310517001 螺钉 screw 1 9 3103000500 电控组件 electrically controlled 1 10 S05068 螺钉M5×20 screw 4 11 31011002 电控 housing electrically controlled 1 12 302S13001 螺钉M5×35 screw 1 13 S050004 螺钉M5×14 screw 1 14 S050003 螺钉M5×10 screw 1 15 S14002 自攻螺钉ST3.5×8 screw 1 16 S05190 螺钉M3×6 screw 1 17 3103001100 指压脚电磁铁组件 electromagnet assembly 1 18 30112241 支架 stents 1 19 413S13005 螺钉 screw 1 20 W02004 弹性垫片 washer 1 21 W01001 垫片 washer 1 24. 电控部件/Electronic control assemblies 25 27 28 26 2019.1 www.chinajack.com 杰克缝纫机股份有限公司 JACK SEWING MACHINE CO.,LTD. 全球销量遥遥领先公司地址:台州市椒江区机场路海十五号邮编:318000 小商品商贸部电话:0086-0576-88177788 88177789 传真:0086-0576-8817778 总部电话:0086-0576-88177782 88177774 传真:0086-0576-8817777 免费服务电话:400-8876858 http://www.chinajack.com 材料如需更改,恕不另行通知,以实物为准。工业缝纫机安全使用注意事项: 遵守基本措施; 经过专业培训、对缝纫机设备性能、前应检查所有安全装置; 装针、更换机针、压脚、针板、送布牙、弯针、旋梭或修理时,应立即关闭电源。缝纫机或工作场所时应关闭电源。离合马达时,要等待马达完全停止后再进行; 机及附属装置使用的机油,润滑油等液体流入眼睛或沾到皮肤上应立即清洗; 用手触摸缝纫机通电时的零件或装置; 工业用平缝机与包缝机的修理、改造、主要机构的调整由专门技术人员来进行; 气方面的修理应在电气技术员的监督和指导下进行; 机使用期间应定期清扫; 正常安全运转,应安装地线,同时应在不承受高频焊接机等强噪声源影响的环境下插头应由专人安装; 工业用平缝机、包缝机在指定用途以外不能使用。要求: 过程中产生的废油及废弃物请根据当地环保的要求进行合理的处置。使用完毕后及时关闭电源,减少电能的消耗。说明书的要求的电压及环境条件下,已延长产品的使用寿命,减少废弃物的产生。报废后请勿将本机器及其附件作为普通的生活垃圾处理。请遵守本设备及其附件本地法令,并支持回收行动。 For safe use of industrial sewing machines: 1. Basic safety measures must be observed. 2. Pass the specialized training and master sewing machine equipment performance. 3. All safety devices should be checked before use. 4. When installing needle, and changing needle, presser foot, plate, feed dog, bent needle, hook or looming, the power supply should be turned off immediately. 5. Power should be turned off when leaving the sewing machine or workplace. 6. When using the clutch motor, please wait until the motor stops completely. 7. The machine oil and other liquids used in sewing machines and ancillary devices should be cleaned immediately when they are put into eyes or touch skin. 8. Do not touch the parts or devices when the machine is powered by hand. 9. The repair, renovation and adjustment of the main mechanisms of the relevant industrial sewing machines and overseers shall be carried out by specialized technicians. 10. General maintenance is carried out by specially-assigned persons. 11. Electrical repairs should be performed under the supervision and direction of the electrical technician. 12. The sewing machine should be cleaned regularly during operation. 13. In order to operate normally and safely, ground lines should be installed, and they should be used in an environment free from strong noise sources such as high frequency welding machine. 14. Power plug should be installed by specially-assigned person. 15. Industrial lockstitch sewing machine and overlock sewing machine can not be used except the intended use. Environmental requirements: 1. Please dispose the waste oil and other waste products properly according to local environmental protection requirements. 2. Please turn off the power after use to reduce power consumption. 3. Please use under the voltage and environment required in the manual to extend the service life of product and reduce waste generation. 4. Do not treat the machine and its accessories as ordinary household garbage after being scrapped. Comply with local laws governing the disposal of the equipment and its accessories and support recycling operations.
