Jack K5-UT Parts Book (PDF)
Text index — Jack K5-UT
Page 2 — 套筒部件/Bushing assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131103007 | sleeve | 1 |
| 2 | 30103042 | sleeve | 1 |
| 3 | 131103006 | sleeve | 1 |
| 4 | 20103020 | sleeve | 1 |
| 5 | 20103020 | sleeve | 1 |
| 6 | 30203004 | sleeve | 1 |
| 7 | 30203005 | sleeve | 1 |
| 8 | 30203024 | sleeve | 1 |
| 9 | 30203025 | sleeve | 1 |
| 10 | 20622019 | plug | 1 |
| 11 | 30122039 | plug | 1 |
| 12 | 30203002 | sleeve | 1 |
| 13 | 30203003 | sleeve | 1 |
| 14 | 30203006 | sleeve | 1 |
| 15 | 30203039 | sleeve | 1 |
| 16 | 30203011 | sleeve | 1 |
| 17 | 30203017 | sleeve | 1 |
| 18 | 30222011 | plug | 1 |
| 19 | 30203018 | sleeve | 1 |
| 20 | 30203014 | sleeve | 1 |
| 21 | 30222010 | plug | 1 |
| 22 | 30203015 | sleeve | 1 |
| 23 | 30203016 | sleeve | 1 |
| 24 | 30203012 | sleeve | 1 |
| 25 | 30203009 | sleeve | 1 |
| 26 | 30203010 | sleeve | 1 |
| 27 | P03005 | pin | 1 |
| 28 | 20122029 | plug | 1 |
| 29 | 20122029 | plug | 1 |
Page 4 — 一、车壳部件/Frame assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 240052 | plug | 1 |
| 2 | 21022007 | plug | 2 |
| 3 | 21012018 | washer | 2 |
| 4 | 20622019 | plug | 1 |
| 5 | 209084 | plug | 1 |
| 6 | 240001 | ring | 1 |
| 7 | 255002 | filter | 1 |
| 8 | 255108 | pin | 1 |
| 9 | 250117 | bed pin | 4 |
| 10 | 210003 | plug | 1 |
| 11 | 206590 | oil sight gauge | 1 |
| 12 | W02003 | washer | 4 |
| 13 | S05001 | screw | 4 |
| 14 | 250020 | cover | 1 |
| 15 | 7017 | cscrew | 2 |
| 16 | 910000022 | chassis | 1 |
| 17 | 910000023 | Casing under section | 1 |
| 18 | 30226004 | pin | 2 |
| 19 | 30122007 | plug | 1 |
| 20 | 30122008 | plug | 1 |
| 21 | 30222003 | plug | 1 |
| 22 | 001001 | o ring | 1 |
| 23 | 30221016 | oil pipe | 1 |
| 24 | P02002 | pin | 2 |
| 25 | 30222031 | plug | 1 |
Page 6 — 二、罩壳部件/Cover assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S04060 | screw | 9 |
| 2 | 303600 | arm cover(top) | 1 |
| 3 | 21022007 | plug | 1 |
| 4 | 20711055 | Oil Sight Window | 1 |
| 5 | 21022003 | o ring | 1 |
| 6 | 31022010 | The head gasket | 1 |
| 7 | S01060 | screw | 6 |
| 8 | 303605 | arm cover(rear) | 1 |
| 9 | 31022013 | gasket | 1 |
| 10 | 207S11007 | screw | 2 |
| 11 | 131412001 | needle bar cover | 1 |
| 12 | 31022006 | o ring | 1 |
| 13 | 13837002 | plug | 1 |
| 14 | 10122003 | plug | 1 |
| 15 | 303599 | arm cover(rear) | 1 |
| 16 | 31012042 | glass plate | 1 |
| 17 | 31012029 | Shield frame | 1 |
| 18 | 30111003 | eye guard | 1 |
| 19 | W01002 | sticker | 2 |
| 20 | S01006 | screw | 2 |
| 21 | S01060 | screw | 2 |
| 22 | W02004 | sticker | 2 |
| 23 | 31012012 | threan takeup cover | 1 |
| 24 | 301S20001 | screw | 1 |
| 25 | W03001 | washer | 1 |
| 26 | 20131063 | sticker | 1 |
| 27 | 207S11011 | screw | 1 |
| 28 | 20711212 | Card line piece | 1 |
| 29 | 21012018 | o ring | 1 |
| 30 | 30122012 | plug | 1 |
Page 8 — 三、缝台部件/Cloth plate assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01005 | screw | 4 |
| 2 | 3121200300 | bed cover | 1 |
| 3 | 301S20019 | screw | 1 |
| 4 | 31212001 | screw | 1 |
| 5 | 20728003 | spring washer | 1 |
| 6 | 20528006 | washer | 1 |
| 7 | 205S16004 | nut | 1 |
| 8 | S01005 | screw | 1 |
| 9 | 31001005 | needle plate | 1 |
| 10 | 31201001 | plate | 1 |
| 11 | 207S11007 | screw | 1 |
| 12 | 31022004 | needle town after boards | 1 |
| 13 | 31012023 | cover plate assembly | 1 |
| 14 | 303604 | left cover plate rack | 1 |
| 15 | S10007 | screw | 2 |
| 16 | S04060 | screw | 2 |
| 17 | 301S11024 | screw | 1 |
| 18 | 31026004 | pin | 1 |
| 19 | S02003 | screw | 2 |
| 20 | 31212004 | Front cover panel | 1 |
| 21 | 31201002 | Front hood | 1 |
| 22 | 31009005 | bracket | 1 |
| 23 | S01009 | screw | 2 |
| 24 | 310S20011 | screw | 1 |
| 25 | 30227030 | circlip | 1 |
| 26 | 31026006 | pin | 1 |
| 27 | 31001014 | Closing pin | 1 |
| 28 | 207S11016 | screw | 2 |
| 29 | S10005 | screw | 2 |
| 30 | 30128002 | bracket assembly | 2 |
| 31 | 310S20006 | screw | 1 |
| 32 | 30222027 | Flat mat | 1 |
| 33 | 930000013 | bed cover | 1 |
| 34 | 30213009 | threadguide | 1 |
| 35 | S01055 | screw | 1 |
| 36 | S01055 | screw | 1 |
| 37 | 30212288 | Cover plate | 1 |
| 38 | L02001 | screw | 7 |
Page 10 — 四、下轴部件/Hook shaft assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400082 | crankshaft | 1 |
| 2 | S10015 | screw | 2 |
| 3 | 31002008 | crankshaft | 1 |
| 4 | 201S20015 | screw | 4 |
| 5 | 400070 | connection | 1 |
| 6 | S05002 | bolt | 1 |
| 7 | 400228 | crank | 1 |
| 8 | 13122400100 | bearing | 1 |
| 9 | 30103008 | bushing | 1 |
| 10 | S10029 | screw | 8 |
| 11 | 13122400200 | bearing | 1 |
| 12 | 30135021 | timing belt | 1 |
| 13 | 3023502500 | gear(lower) | 1 |
| 14 | S12003 | screw | 2 |
| 15 | 3023502600 | gear(lower) | 1 |
| 16 | 13122400400 | bearing | 1 |
| 17 | 30108001 | ring | 1 |
| 18 | 207S11007 | screw | 1 |
| 19 | 207S11007 | bushing | 1 |
| 20 | 30109001 | guide | 1 |
| 21 | W02001 | washer | 1 |
| 22 | 301S11004 | screw | 1 |
| 23 | 30223009 | sponge | 2 |
Page 12 — 五、上轴部件/Main shaft assem
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 7028 | screw | 2 |
| 2 | 4592 | screw | 1 |
| 3 | 7153 | screw | 1 |
| 4 | 7152 | screw | 1 |
| 5 | 30224005 | bearing | 1 |
| 6 | 30102005 | crankshaft | 1 |
| 7 | 30105004 | connection assembly | 1 |
| 8 | 007021A | screw | 4 |
| 9 | 31004004 | motion assy | 1 |
| 10 | 253501A | crank assembly | 1 |
| 11 | 4534 | bolt | 1 |
| 12 | 250524 | balance weight | 2 |
| 13 | 4514 | screw | 2 |
| 14 | 250506 | joint | 1 |
| 15 | 4555 | screw | 3 |
| 16 | 4547 | screw | 5 |
| 17 | 250529-91 | bearing | 1 |
| 18 | S10029 | screw | 1 |
| 19 | 31035022 | gear(upper) | 1 |
| 20 | S10029 | screw | 2 |
| 21 | 250528-91 | bearing | 1 |
| 22 | 4547 | screw | 1 |
| 23 | 31002011 | shaft | 1 |
| 24 | 31035002 | pulley | 1 |
| 25 | 4556 | screw | 1 |
| 26 | 4541 | screw | 1 |
| 27 | 4592 | screw | 1 |
| 28 | 31009001 | Balance weight | 1 |
| 29 | S02003 | screw | 2 |
Page 14 — 六、针杆部件/Needle bar assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30202024 | needle bar | 1 |
| 2 | 30102009 | needlebar clamp | 1 |
| 3 | 301S11005 | screw | 1 |
| 4 | 30205002 | link | 1 |
| 5 | 30102050 | eccentric pin | 1 |
| 6 | B07001 | needle baearing | 1 |
| 7 | 30128006 | washer | |
| 8 | 30109004 | guide block | 1 |
| 9 | 31009006 | guide | 1 |
| 10 | 30227003 | latch | 1 |
| 11 | 207S11008 | screw | 2 |
| 12 | 30123002 | sponge | 1 |
| 13 | 30112009 | oil wick retainer | 1 |
| 14 | 30123014 | oil wick | 1 |
| 15 | 207S11007 | screw | 1 |
| 16 | 30203056 | sleeve | 1 |
| 17 | 30217001 | needle guard(front) | 1 |
| 18 | 30210005 | sponge | 1 |
| 19 | S10007 | screw | 2 |
| 20 | 30204035 | oil wick | 1 |
| 21 | 301S11025 | screw | 1 |
| 22 | 30201008 | needle guard(rear) | 1 |
| 23 | 31017002 | needle guard(rear) | 1 |
| 24 | S10007 | screw | 2 |
| 25 | 30204003 | lever | 1 |
| 26 | S01029 | screw | 1 |
| 27 | 30201007 | needle guard(front) | 1 |

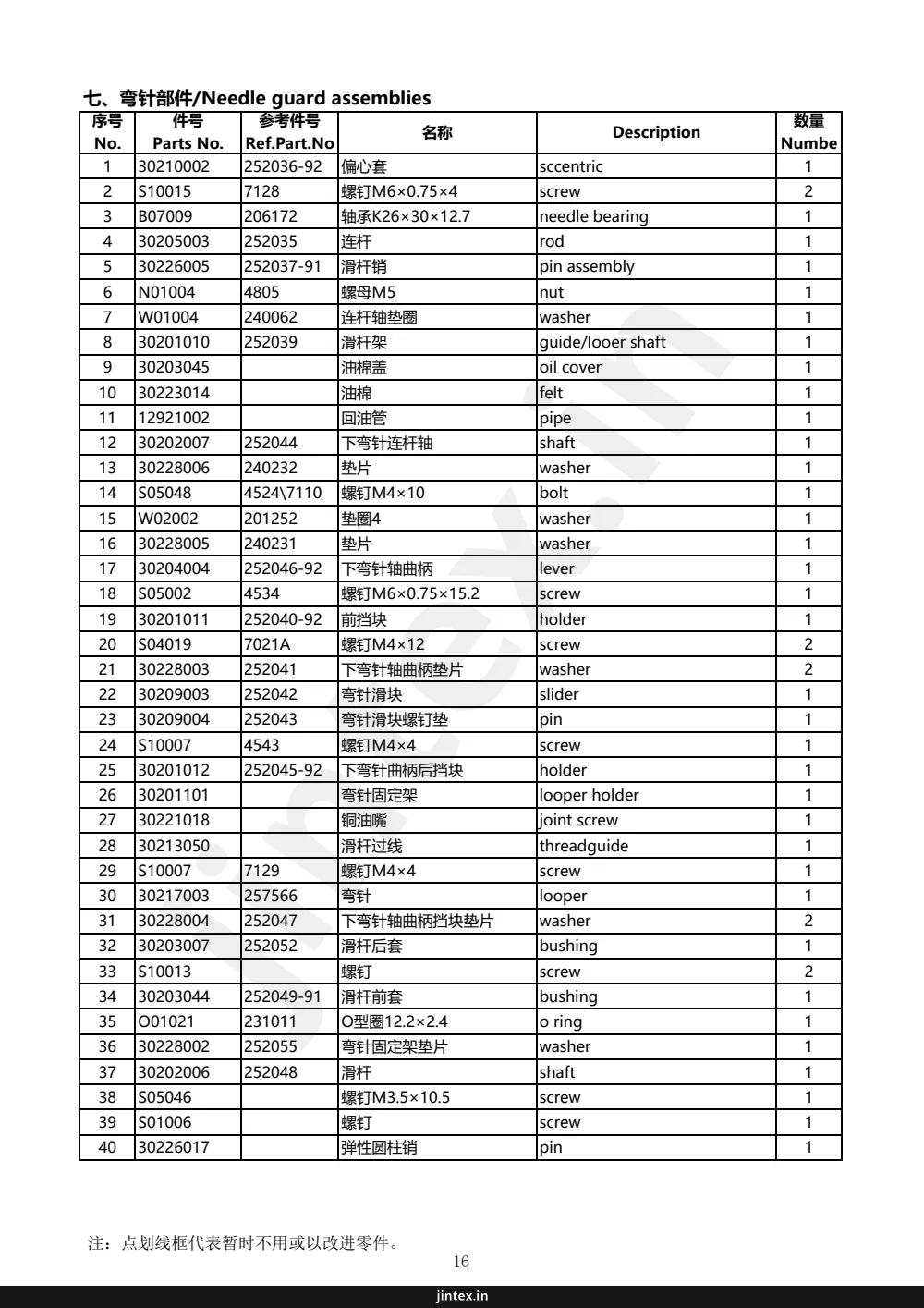

Page 16 — 七、弯针部件/Needle guard assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252036-92 | sccentric | 1 |
| 2 | 7128 | screw | 2 |
| 3 | 206172 | needle bearing | 1 |
| 4 | 252035 | rod | 1 |
| 5 | 252037-91 | pin assembly | 1 |
| 6 | 4805 | nut | 1 |
| 7 | 240062 | washer | 1 |
| 8 | 252039 | guide/looer shaft | 1 |
| 9 | 30203045 | oil cover | 1 |
| 10 | 30223014 | felt | 1 |
| 11 | 12921002 | pipe | 1 |
| 12 | 252044 | shaft | 1 |
| 13 | 240232 | washer | 1 |
| 14 | 4524\7110 | bolt | 1 |
| 15 | 201252 | washer | 1 |
| 16 | 240231 | washer | 1 |
| 17 | 252046-92 | lever | 1 |
| 18 | 4534 | screw | 1 |
| 19 | 252040-92 | holder | 1 |
| 20 | 7021A | screw | 2 |
| 21 | 252041 | washer | 2 |
| 22 | 252042 | slider | 1 |
| 23 | 252043 | pin | 1 |
| 24 | 4543 | screw | 1 |
| 25 | 252045-92 | holder | 1 |
| 26 | 30201101 | looper holder | 1 |
| 27 | 30221018 | joint screw | 1 |
| 28 | 30213050 | threadguide | 1 |
| 29 | 7129 | screw | 1 |
| 30 | 257566 | looper | 1 |
| 31 | 252047 | washer | 2 |
| 32 | 252052 | bushing | 1 |
| 33 | S10013 | screw | 2 |
| 34 | 252049-91 | bushing | 1 |
| 35 | 231011 | o ring | 1 |
| 36 | 252055 | washer | 1 |
| 37 | 252048 | shaft | 1 |
| 38 | S05046 | screw | 1 |
| 39 | S01006 | screw | 1 |
| 40 | 30226017 | pin | 1 |
Page 18 — 八、护针部件/Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13121000100 | eccentric | 1 |
| 2 | S10006 | screw | 2 |
| 3 | B07007 | needle bearing | 1 |
| 4 | 30224001 | needle bearing | 1 |
| 5 | 30229001 | ring | 1 |
| 6 | 30229002 | ring | 1 |
| 7 | 131205001 | rod | 1 |
| 8 | 131204001 | crank | 1 |
| 9 | S05005 | screw | 1 |
| 10 | 30228007 | washer | 1 |
| 11 | S02016 | screw | 1 |
| 12 | 30205005 | rod | 1 |
| 13 | 30205007 | link | 1 |
| 14 | 30205006 | link | 1 |
| 15 | S10007 | screw | 2 |
| 16 | 30226007 | pin | 2 |
| 17 | 20123021 | oil wick | 1 |
| 18 | 30226008 | pin | 1 |
| 19 | 30204006 | crank | 1 |
| 20 | S10029 | screw | 2 |
| 21 | 30204007 | link | 1 |
| 22 | S10029 | screw | 2 |
| 23 | 30202008 | guide | 1 |
| 24 | S10006 | screw | 1 |
| 25 | 30227005 | spring | 1 |
| 26 | 302S30001 | screw | 1 |
| 27 | 30202009 | shaft | 1 |
| 28 | 001022 | oring | 1 |
| 29 | 30212013 | lever | 1 |
| 30 | S01011 | screw | 1 |
| 31 | 31011007 | indication plate | 1 |
| 32 | S02004 | screw | 1 |
| 33 | 30202010 | screw | 1 |
| 34 | H05012 | ring | 1 |
| 35 | H05006 | ring | 1 |
| 36 | 001023 | o ring | 1 |
| 37 | S09015 | screw | 1 |
| 38 | 30209006 | block | 1 |
| 39 | P03011 | pin | 1 |
| 40 | 302S16001 | nut | 1 |
| 41 | S10007 | screw | 1 |
Page 20 — 九、送布部件/Need mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S10013 | screw | 1 |
| 2 | 30204008 | guide (right) | 1 |
| 3 | B07008 | needle bearing | 1 |
| 4 | 30209008 | block | 1 |
| 5 | 30206004 | feed dog stand | 1 |
| 6 | 301S11024 | screw | 1 |
| 7 | 30206003 | differential braces | 1 |
| 8 | 207S11007 | screw | 1 |
| 9 | S01002 | screw | 2 |
| 10 | 30209050 | differential crank | 1 |
| 11 | S05048 | screw | 1 |
| 12 | 30203013 | bushing | 1 |
| 13 | 30228008 | washer | 1 |
| 14 | L01004 | screw | 1 |
| 15 | 30209080 | slider | 1 |
| 16 | 30212099 | guide（left） | 1 |
| 17 | 30226032 | pin | 1 |
| 18 | 20123021 | screw | 1 |
| 19 | 30202036 | crankshaft | 1 |
| 20 | S10029 | screw | 2 |
| 21 | 30208001 | collar | 2 |
| 22 | 20123021 | oil wick | 1 |
| 23 | S10026 | collar | 1 |
| 24 | 30205081 | link | 1 |
| 25 | S05003 | screw | 1 |
| 26 | 30204077 | link | 1 |
| 27 | 30203041 | bushing | 1 |
| 28 | 302S09010 | screw | 1 |
| 29 | S05003 | screw | 1 |
| 30 | 30204321 | link | 1 |
| 31 | 302S17005 | screw | 1 |
| 32 | 30228020 | washer | 1 |
| 33 | 30204322 | pin | 1 |
| 34 | 30205008 | link | 1 |
| 35 | 30123014 | oil wick | 1 |
| 36 | 30126009 | pin | 1 |
| 37 | 20123021 | screw | 1 |
| 38 | 30226040 | pin | 1 |
| 39 | 20123021 | oil wick | 1 |
| 40 | S10029 | screw | 1 |
| 41 | 30208026 | collar | 1 |
| 42 | 30202035 | crankshaft | 1 |
Page 21 — 九、送布部件/Need mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 30223009 | sponge | 6 |
| 44 | S01011 | screw | 1 |
| 45 | N01004 | nut | 1 |
Page 23 — 十、压布部件/Presser form assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253000-91 | adjusting bar | 1 |
| 2 | 253003 | nut | 1 |
| 3 | 240252 | spring | 1 |
| 4 | 253005-91 | guide | 1 |
| 5 | 7025 | screw | 2 |
| 6 | 5386 | screw | 2 |
| 7 | 206157 | link | 1 |
| 8 | 301S11009 | screw | 1 |
| 9 | 206139 | presser bar clamp | 1 |
| 10 | 240253 | spring | 1 |
| 11 | 30122023 | oil guard. | 1 |
| 12 | 240095 | o ring | 1 |
| 13 | 240095 | presser shaft | 1 |
| 14 | 3100201000 | adjusting bar assembly | 1 |
| 15 | 253010 | shaft | 1 |
| 16 | 30122023 | oil guard. | 1 |
| 17 | 253010 | spring | 1 |
| 18 | 206156 | ring | 1 |
| 19 | 5084 | screw | 2 |
| 20 | 206149 | bell crank(upper) | 1 |
| 21 | 5187 | screw | 1 |
| 22 | 253011 | link | 1 |
| 23 | 5184 | screw | 1 |
| 24 | 5084 | screw | 1 |
| 25 | 192024 | ring | 1 |
| 26 | 5184 | screw | 1 |
| 27 | 002022-4 | screw | 1 |
| 28 | 206148 | bell crank(lower) | 1 |
| 29 | 31002006 | shaft | 1 |
| 30 | 31012109 | lever | 1 |
| 31 | 4531 | screw | 1 |
Page 25 — 十一、喂针部件/Needle feeding assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30110007 | eccentric assembly | 1 |
| 2 | S10002 | screw | 2 |
| 3 | 400059 | connection | 1 |
| 4 | 30104024 | crank | 1 |
| 5 | S05002 | screw | 1 |
| 6 | 30126006 | screw | 1 |
| 7 | 30128032 | washer | 1 |
| 8 | N01004 | nut | 1 |
| 9 | 30102024 | shaft | 1 |
| 10 | 30128015 | washer | 1 |
| 11 | H05004 | ring | 1 |
| 12 | 30105013 | crank | 1 |
| 13 | S10029 | screw | 2 |
| 14 | 30126005 | block | 1 |
| 15 | 30202018 | crankshaft | 1 |
| 16 | 20123021 | oil wick | 1 |
| 17 | 001008 | o ring | 1 |
| 18 | 30208010 | collar | 1 |
| 19 | S10026 | screw | 2 |
| 20 | 30104022 | lever assembly | 1 |
| 21 | S01005 | screw | 1 |
| 22 | S01017 | screw | 1 |
| 23 | 30117005 | spreader | 1 |
| 24 | 30128018 | washer | 1 |
Page 27 — 十二、松线部件(一)/Thread loosing assemblies (one)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3101300700 | tension | 1 |
| 2 | 31013010 | loose thread stand | 1 |
| 3 | 31009004 | block | 2 |
| 4 | S04019 | screw | 2 |
| 5 | 207S11011 | screw | 2 |
| 6 | 31013022 | loose line board | 1 |
| 9 | 31013007 | loose line board | 1 |
| 10 | 30127010 | reset spring | 1 |
| 11 | 30113007 | thread guide | 5 |
| 12 | 31013008 | loose line board | 1 |
| 13 | 30103041 | spacer | 5 |
| 14 | 3011300400 | tension spring assembly(heavy) | 3 |
| 15 | 3011300500 | tension spring assembly | 1 |
| 16 | 3011300600 | tension spring assembly(light) | 1 |
| 17 | 301S30010 | screw stud | 1 |
| 18 | 30128016 | tension disc | 2 |
| 19 | 20623008 | felt | 1 |
| 20 | 21111096 | cup | 1 |
| 21 | 30127011 | spring(heavy) | 3 |
| 22 | 30111006 | ratchet | 1 |
| 23 | 20111091 | nut | 1 |
| 24 | 30127012 | spring(medium) | 1 |
| 25 | 30127013 | spring(light) | 1 |
| 26 | 207S11007 | screw | 2 |
Page 29 — 十三、松线部件(二)/Thread loosing assemblies (two)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131412006 | crank | 1 |
| 2 | 30502018 | shaft | 1 |
| 3 | 131412004 | thread | 1 |
| 4 | 131404002 | crank | 1 |
| 5 | 30129058 | thread releaser | 6 |
| 6 | H05006 | ring | 2 |
| 7 | 31028003 | holder | 1 |
| 8 | 31002007 | shaft | 1 |
| 9 | S10026 | screw | 6 |
| 10 | S01007 | screw | 5 |
| 11 | 31009003 | block | 1 |
| 12 | 31009002 | block | 1 |
| 13 | S04020 | screw | 1 |
| 14 | 31003005 | spacer | 1 |
| 15 | 423S20004 | screw | 1 |
| 16 | 131404002 | crank | 2 |
| 17 | 31026003 | shaft pin | 1 |
| 18 | 301S20030 | screw | 2 |
| 19 | 131512002 | plate | 1 |
| 20 | 423S20004 | screw | 1 |
| 21 | S05005 | screw | 1 |
Page 31 — 十四、过线部件/Thread loosing assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S01004 | screw | 5 |
| 2 | 31013006 | thread take-up | 1 |
| 3 | S05004 | screw | 1 |
| 4 | W02001 | washer | 1 |
| 5 | 30101018 | lever | 1 |
| 6 | 20622019 | plug | 1 |
| 7 | 301S12001 | screw | 2 |
| 8 | 30108008 | ring | 1 |
| 9 | 30128008 | washer | 1 |
| 10 | 31002001 | shaft | 1 |
| 11 | 30128019 | washer | 1 |
| 12 | W02002 | washer | 1 |
| 13 | S05048 | screw | 1 |
| 14 | S01027 | screw | 1 |
| 15 | 31013017 | thread guide | 1 |
| 16 | 131412002 | thread support | 1 |
| 17 | S01027 | screw | 2 |
| 18 | 30128034 | washer | 2 |
| 19 | 131213001 | thread guide | 1 |
| 20 | 206S30016 | screw | 2 |
| 21 | S01004 | screw | 4 |
| 22 | 31012045 | thread tension brackeat | 1 |
| 23 | 30112032 | thread guide | 1 |
| 24 | 31012046 | thread guide | 1 |
| 25 | 31012018 | thread guide | 1 |
| 26 | 30112029 | thread guide | 1 |
| 27 | 31013011 | thread guide | 1 |
| 28 | 3101204600 | thread guide | 1 |
| 29 | S10001 | screw | 3 |
| 30 | 30113012 | holder | 1 |
| 31 | 30113013 | thread guide | 3 |
| 32 | 30112027 | thread guide | 1 |
| 33 | W01001 | washer | 3 |
| 34 | S01006 | screw | 2 |
| 35 | 302S16005 | adjusting nut | 1 |
| 36 | 301S30055 | adjusting screw | 1 |
| 37 | 12927012 | spring | 1 |
| 38 | 12928036 | thread retainer | 2 |
| 39 | 10128001 | sticker | 1 |
| 37 | 12927012 | spring | 1 |
| 38 | 12928036 | thread retainer | 2 |
| 39 | 10128001 | sticker | 1 |
Page 33 — 十五、打线凸轮部件/Cam asssemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S04004 | screw | 1 |
| 2 | 30227016 | reset spring | 1 |
| 3 | 1520 | Fight line retaining ring | 1 |
| 4 | 1568 | bracket | 1 |
| 5 | 30313019 | thread guide（left) | 1 |
| 6 | 30123022 | Wool top | 1 |
| 7 | 7009 | screw | 3 |
| 8 | 1584 | thread guide | 1 |
| 9 | 30313020 | thread guide（right) | 1 |
| 10 | 310S20007 | screw | 1 |
| 11 | 31027002 | reset spring | 1 |
| 12 | 31012037 | fight line wrench | 1 |
| 13 | 1522 | stop | 1 |
| 14 | 31012036 | layer | 1 |
| 15 | 7017 | screw | 2 |
| 16 | 167079 | thread guide | 1 |
| 17 | 10128001 | sticker | 1 |
| 18 | 137108 | thread retainer | 2 |
| 19 | 211388 | spring | 1 |
| 20 | 301S30055 | adjusting screw | 1 |
| 21 | 1311NS1600 2 | adjusting nut | 1 |
| 22 | 31012034 | cover | 1 |
| 23 | S01002 | screw | 2 |
| 24 | 3121300100 | looper thread take-up | 1 |
| 25 | S10007 | screw | 2 |
| 26 | 31008010 | collar | 1 |
| 27 | S10007 | screw | 1 |
| 28 | B04042 | bearing | 1 |
| 29 | S10007 | screw | 1 |
| 30 | 31002012 | shaft | 1 |
| 31 | 4547 | screw | 2 |
| 32 | 30235027 | time belt | 1 |
| 33 | 4547 | screw | 1 |
| 34 | 30203038 | bushing | 1 |
| 35 | 30224004 | bearing | 1 |
| 36 | 31022011 | felt | 1 |
| 37 | 303603 | cover | 1 |
| 38 | 7017 | screw | 4 |
| 39 | 4547 | timing belt | 1 |
Page 35 — 十六、润滑部件/Lubrication assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12921002 | tube | 1 |
| 2 | 30221003 | oil pipe | 1 |
| 3 | 30123010 | felt | 1 |
| 4 | S10002 | screw | 1 |
| 5 | 3012101500 | oil distributor | 1 |
| 6 | 30112039 | oil guard | 1 |
| 7 | N01001 | nut | 1 |
| 8 | S01002 | screw | 2 |
| 9 | 20429001 | clamp | 2 |
| 10 | 20429001 | clamp | 1 |
| 11 | 12921002 | screw | 1 |
| 12 | 12921005 | tube | 1 |
| 13 | S01002 | screw | 1 |
| 14 | 30112039 | oil guard | 1 |
| 15 | 3102100100 | oil splash pipe | 1 |
| 16 | 301S30013 | screw | 2 |
| 17 | 30136001 | joint | 2 |
| 18 | 30136006 | pipe | 1 |
| 19 | 20429001 | clamp | 1 |
| 20 | 20729005 | clamp | 2 |
| 21 | 30122013 | screw | 1 |
| 22 | 12921003 | tube | 1 |
| 23 | 12921002 | screw | 1 |
| 24 | 301S30013 | screw | 2 |
| 25 | 20429001 | clamp | 2 |
| 26 | 20122033 | washer | 6 |
| 27 | 30136005 | joint | 1 |
| 28 | 12921002 | tube | 1 |
| 29 | 207S13007 | screw | 1 |
| 30 | W01001 | sticker | 1 |
| 31 | 30227040 | screw | 1 |
| 32 | 30223022 | felt | 1 |
| 33 | 31027005 | back felt circlip | 1 |
| 34 | 3102300100 | The needle bar back felt | 1 |
| 35 | 12921002 | screw | 1 |
Page 37 — 十七、油泵部件/Oil pump assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30201029 | oil reservoir | 1 |
| 2 | 20528014 | washer | 1 |
| 3 | 301S11015 | screw | 1 |
| 4 | S05007 | screw | 4 |
| 5 | 30222014 | o ring | 1 |
| 6 | 3022000300 | oil pump assy | 1 |
| 7 | 30102044 | shaft | 1 |
| 8 | 30120030 | rotor | 2 |
| 9 | 30120030 | rotor | 1 |
| 10 | 30120031 | rotor | 3 |
| 11 | 30120008 | cover | 1 |
| 12 | 301S20011 | screw | 2 |
| 13 | 302S13002 | screw | 2 |
| 14 | 30125003 | worm wheel | 1 |
| 15 | S10002 | screw | 2 |
| 16 | 30120002 | oil pump fixed plate | 1 |
| 17 | 30220002 | pump body | 1 |
| 18 | 30120009 | pump body | 1 |
| 19 | 30120003 | pump body | 1 |
| 20 | S05004 | screw | 2 |
| 21 | 301S30014 | joint screw | 3 |
| 22 | 20136004 | oil filter | 1 |
| 23 | 201S30030 | screw | 1 |
| 24 | 001010 | O ring | 1 |
| 25 | 300140 | cover | 1 |
| 26 | 30131004 | filter seal | 1 |
| 27 | 207S11008 | screw | 3 |
Page 39 — 十八、硅油盒部件/Silicon oil delice assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30111070 | silicone oil reservoir(upper) | 1 |
| 2 | 30112040 | cap | 1 |
| 3 | P03008 | pin | 2 |
| 4 | S16002 | screw | 2 |
| 5 | 30123011 | felt | 1 |
| 6 | 30201075 | silicone oil box | 1 |
| 7 | 207S11007 | screw | 3 |
| 8 | 30201014 | needle cooler(lower) | 1 |
| 9 | 30223005 | felt | 1 |
| 10 | 30126009 | pin | 1 |
| 11 | 12921002 | tube | 1 |
| 12 | 20123021 | oil wick | 1 |
| 13 | 30212666 | silicone oil box baffle | 1 |
| 14 | 30222028 | silicone oil box cover | 1 |
Page 41 — 十九、针位组专用零件/Gauge set specific parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30134001 | needle holder | 1 |
| 30134002 | needle holder | 1 | |
| 2 | 4554 | screw | 4 |
| 3 | 234561 | thread guide | 1 |
| 4 | 253593 | tension disc | 1 |
| 5 | 253517 | spring | 1 |
| 6 | OW09070-2 | screw | 1 |
| 7 | 253511 | thread guide | 1 |
| 8 | 302S17001 | screw | 1 |
| 9 | 1170-3 | screw | 1 |
| 10 | 3021601000 | presser foot assy(01GB) | 1 |
| 30116005 | presser foot assy(02BB*356) | 1 | |
| 30116006 | presser foot assy(02BB*364) | 1 | |
| 11 | 302S17001 | screw | 1 |
| 12 | 30115067 | needle plate(01GB*356) | 1 |
| 30115068 | needle plate(01GB*364) | 1 | |
| 30115006 | needle plate(02BB*356) | 1 | |
| 30115007 | needle plate(02BB*364) | 1 | |
| 13 | 30214001 | main feed dog(01GB) | 1 |
| 14 | 30214002 | diff feed dog(01GB) | 1 |
| 15 | 3021400100 | main feed dog and diff feed dog(01GB) | 1 |
| 30214008 | main feed dog(02BB) | 1 | |
| 30214009 | diff feed dog(02BB) | 1 | |
| 16 | S01011 | screw | 1 |
| 17 | 31012083 | sewing block | 1 |
| 18 | S04021 | screw | 1 |
| 19 | 31012082 | front cover joint | 1 |
| 20 | 3011206800 | Faucet assembly | 1 |
| 21 | S01011 | screw | 1 |
| 22 | 30112063 | Head pad | 1 |
| 23 | 31012085 | Leading frame | 1 |
| 24 | S04021 | screw | 1 |
| 25 | 31012086 | Front baffle | 1 |
| 26 | S01027 | screw | 2 |
| 27 | 303929 | mounting seat | 1 |
| 28 | 31012087 | Slit baffle | 1 |
| 29 | S04021 | screw | 2 |
Page 43 — 二十、下剪线部件/Knife holder assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3121900100 | slice knife components | 1 |
| 2 | 30212156 | the knife dish plate | 1 |
| 3 | 30212246 | swinging rod | 1 |
| 4 | 30212116 | washer | 1 |
| 5 | 302S30022 | screw | 2 |
| 6 | 31212005 | bracket | 1 |
| 7 | 30213046 | UT pine line piece | 1 |
| 8 | 30203112 | rest a fixed set | 2 |
| 9 | S14002 | screw | 2 |
| 10 | 30203113 | head rotating sleeve | 2 |
| 11 | 30212225 | head connecting rod | 2 |
| 12 | 30212255 | on the rest | 1 |
| 13 | 30212256 | under the rest | 1 |
| 14 | S01197 | screw | 2 |
| 15 | S01198 | screw | 1 |
| 16 | 30219009 | stationary knife | 1 |
| 17 | S01196 | screw | 2 |
| 18 | 30219008 | dynamic knife | 1 |
| 19 | 30212328 | stationary knife fixed block | 1 |
| 20 | 30212327 | bracket | 1 |
| 21 | S01199 | screw | 1 |
| 22 | S02165 | screw | 2 |
| 23 | 30212329 | plat | 1 |
| 24 | 30212326 | bracket | 1 |
| 25 | 30212324 | block | 1 |
| 26 | 30212325 | block | 1 |
| 27 | 302S12002 | screw | 2 |
| 28 | 302S20015 | screw | 1 |
| 29 | 30227124 | reset spring | 1 |
| 30 | S01195 | screw | 3 |
| 31 | 30212257 | the limit board | 1 |
| 32 | 31212006 | rest on the baffle | 1 |
| 33 | L02001 | screw | 1 |
| 34 | 302S10011 | screw | 1 |
| 35 | 301S11024 | screw | 2 |
| 36 | 31212007 | support plate | 1 |
| 37 | 30212240 | leaf spring | 1 |
| 38 | S01091 | screw | 2 |
| 39 | 208S11007 | screw | 1 |
| 40 | 20613008 | thread guide | 1 |
| 41 | 207S11007 | screw | 2 |
| 42 | 302S10011 | screw | 1 |
Page 44 — 二十一、上剪线部件/Knife Holder Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 301S11024 | screw | 1 |
| 44 | 31022016 | cushioning | 1 |
| 45 | L02001 | screw | 1 |
| 46 | 302S20014 | screw | 1 |
Page 46 — 二十一、上剪线部件/Knife Holder Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3101900100 | knife holder assembly | 1 |
| 2 | 31030005 | solenoid assembly | 1 |
| 3 | W02025 | washer | 2 |
| 4 | N01013 | nut | 2 |
| 5 | 30112118 | install plat | 1 |
| 6 | 30112251 | plat | 1 |
| 7 | N01013 | nut | 1 |
| 8 | S05114 | screw | 1 |
| 9 | 30127039 | spring | 1 |
| 10 | 301S30036 | screw | 1 |
| 11 | 301S30037 | screw | 1 |
| 12 | 30112120 | plat | 1 |
| 13 | 301S20021 | screw | 2 |
| 14 | 30112121 | washer | 2 |
| 15 | 30112122 | plat | 1 |
| 16 | S01087 | screw | 2 |
| 17 | 30112123 | presser plat | 1 |
| 18 | 30112124 | presser plat | 1 |
| 19 | W01005 | washer | 1 |
| 20 | 301S30038 | screw | 1 |
| 21 | 301S30039 | screw | 1 |
| 22 | 301S16014 | nut | 1 |
| 23 | 301S20022 | screw | 1 |
| 24 | 30119008 | plat | 1 |
| 25 | 30119009 | thread wiper | 1 |
| 26 | S01088 | screw | 4 |
| 27 | 30112125 | install plat | 1 |
| 28 | S01089 | screw | 2 |
| 29 | 31012014 | install plat | 1 |
| 30 | W01006 | washer | 2 |
| 31 | S05304 | screw | 2 |
| 32 | 301S30041 | screw | 2 |
| 33 | W01006 | washer | 2 |
| 34 | S05304 | screw | 2 |
Page 48 — 二十二、 拨线器部件/Top wiper assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3101900200 | cable assembly | 1 |
| 2 | 31030005 | electromagnet assembly | 1 |
| 3 | 30109088 | mounting plate | 1 |
| 4 | 42428008 | spring washer | 2 |
| 5 | N01013 | nut | 3 |
| 6 | S05032 | screw | 1 |
| 7 | 30104070 | crank | 1 |
| 8 | 301S20055 | screw | 3 |
| 9 | 30105066 | connecting rod | 1 |
| 10 | N01006 | nut | 4 |
| 11 | 417S15007 | screw | 2 |
| 12 | 30109088 | block | 1 |
| 13 | 30126034 | rotating pin | 1 |
| 14 | 30102156 | crank | 1 |
| 15 | 30104076 | crank | 1 |
| 16 | W01048 | washer | 2 |
| 17 | 301S20056 | screw | 1 |
| 18 | W01049 | washer | 1 |
| 19 | 30112203 | cancel the piece | 1 |
| 20 | W01050 | washer | 1 |
| 21 | S05047 | screw | 1 |
| 22 | S01097 | screw | 1 |
| 23 | 30112204 | leaf spring | 1 |
| 24 | 301S01005 | screw | 1 |
| 25 | 30127061 | spring | 1 |
| 26 | 421S13005 | screw | 4 |
| 27 | W01051 | washer | 4 |
| 28 | 30112261 | fixed plate | 1 |
| 29 | 31012049 | fixed plate | 1 |
Page 50 — 二十三、剪线电磁铁部件/Solenoid assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30212183 | bed pin | 1 |
| 2 | N01012 | pin | 2 |
| 3 | 206S200004 | screw | 1 |
| 4 | 30212190 | bed pin | 1 |
| 5 | 301S20030 | screw | 1 |
| 6 | 30104066 | fixed block | 1 |
| 7 | 30108004 | plug | 1 |
| 8 | 30102111 | washer | 1 |
| 9 | 301S11023 | screw | 2 |
| 10 | 30108006 | retaining ring | 1 |
| 11 | 201S14002 | screw | 1 |
| 12 | S05068 | screw | 1 |
| 13 | 131512002 | dead plate | 1 |
| 14 | 30127058 | cscrew | 1 |
| 15 | 30104066 | sticker | 1 |
| 16 | 207S11007 | screw | 2 |
| 17 | 207S11007 | screw | 1 |
| 18 | 131412006 | the reversing lever | 1 |
| 19 | S04019 | screw | 1 |
| 20 | 30122108 | dust cover | 1 |
| 21 | 207S11007 | screw | 2 |
| 22 | 30212184 | stents | 1 |
| 23 | 302S16010 | nut | 2 |
| 24 | 13822010 | gasket | 1 |
| 25 | 31030007 | electromagnet box shear line | 1 |
| 26 | 11322008 | cushioning | 1 |
| 27 | 30130046 | electromagnetic iron core | 1 |
| 28 | 114S20005 | screw | 1 |
| 29 | W02002 | gasket | 1 |
| 30 | W01006 | gasket | 1 |
| 31 | 114S16008 | nut | 2 |
| 32 | 30122105 | dust cover | 1 |
| 33 | 30112185 | dust depressor | 1 |
| 34 | S04010 | screw | 4 |
| 35 | 3103000700 | connect the wire | 1 |
| 36 | 31030013 | safety switch | 1 |
| 37 | S01055 | screw | 2 |
| 38 | 30212182 | dead plate | 1 |
| 39 | 305S13004 | screw | 2 |
| 40 | 31011010 | cover | 1 |
| 41 | 207S11007 | screw | 3 |
| 42 | S05003 | screw | 2 |

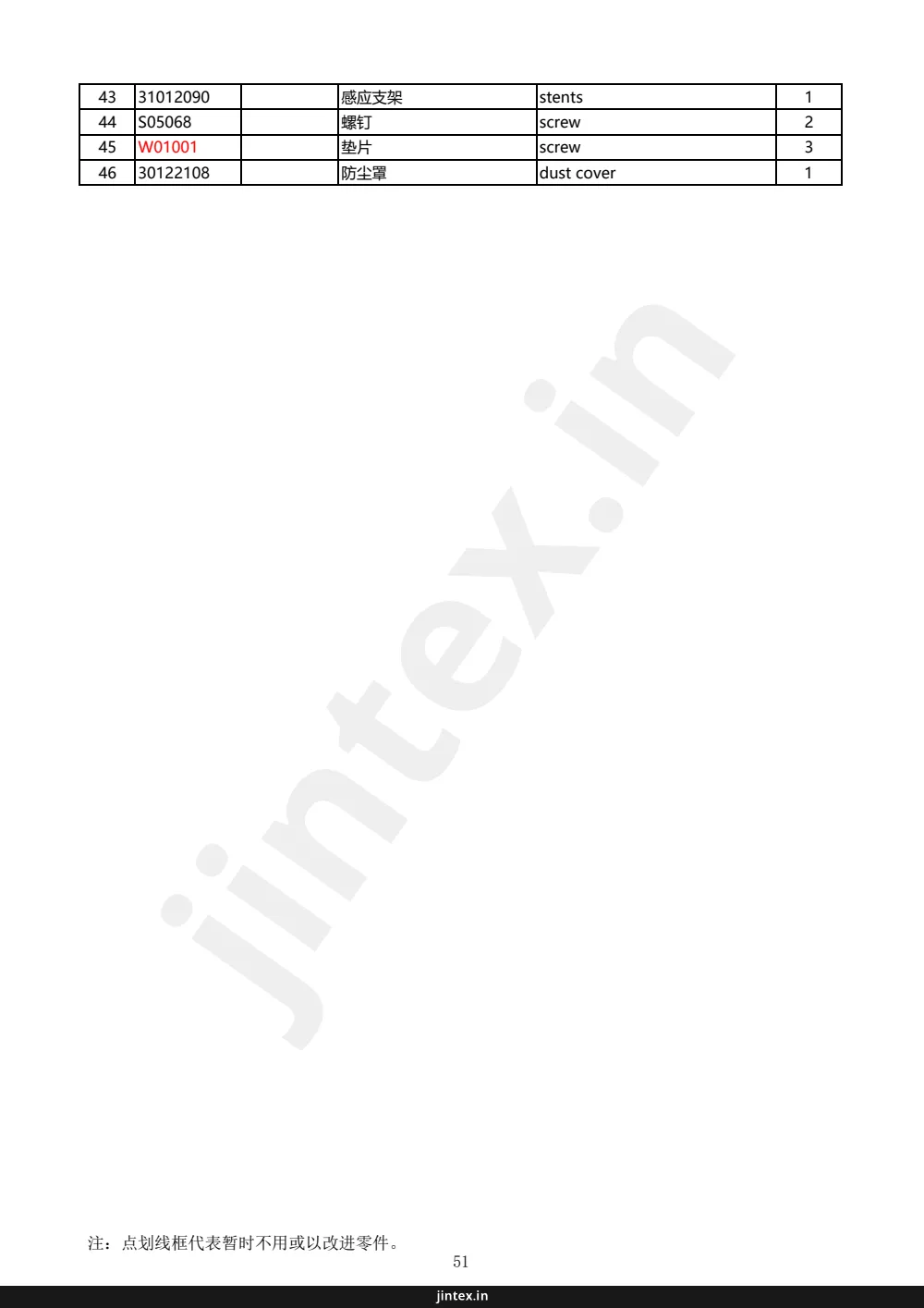

Page 51 — 二十三、剪线电磁铁部件/Solenoid assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 31012090 | stents | 1 |
| 44 | S05068 | screw | 2 |
| 45 | W01001 | screw | 3 |
| 46 | 30122108 | dust cover | 1 |
Page 53 — 二十四、电控部件/Electronic control assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13121100100 | LED light | 1 |
| 2 | 3103300100 | electrical machine | 1 |
| 3 | S05068 | screw | 4 |
| 4 | 95300018 | plug | 1 |
| 5 | 930000072 | 1 | |
| 6 | 207S11007 | screw | 2 |
| 7 | 20711210 | clip | 2 |
| 8 | 310S17001 | screw | 2 |
| 9 | 3123000200 | electrically controlled | 1 |
| 10 | S05068 | screw | 1 |
| 11 | 31211001 | electrically controlled housing | 1 |
| 12 | 302S13001 | screw | 1 |
| 13 | S05004 | screw | 2 |
| 14 | S05003 | screw | 1 |
| 15 | S16002 | screw | 2 |
| 16 | S05190 | screw | 1 |
| 17 | 3103001100 | electromagnet assembly | 1 |
| 18 | 30112241 | stents | 1 |
| 19 | 305S13004 | screw | 4 |
| 20 | W02004 | washer | 4 |
| 21 | W01001 | washer | 2 |
Page 55 — 二十五、后拖轮部件/After cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 31175 | finger screw | 1 |
| 2 | 305S16006 | nut | 1 |
| 3 | 305S30006 | screw | 1 |
| 4 | S05031 | screw | 2 |
| 5 | 305S11014 | screw | 1 |
| 6 | 3051205100 | plate | 1 |
| 7 | 30226050 | pin | 1 |
| 8 | 305S20013 | screw | 1 |
| 9 | 30528012 | washer | 1 |
| 10 | N01001 | nut | 1 |
| 11 | 30526023 | pin | 1 |
| 12 | 30503031 | sleeve | 1 |
| 13 | 30527011 | spring | 1 |
| 14 | S01018 | screw | 1 |
| 15 | 30502022 | shaft | 1 |
| 16 | N01001 | nut | 1 |
| 17 | S05031 | screw | 1 |
| 18 | 30212102 | plate | 1 |
| 19 | 30212104 | plate | 1 |
| 20 | H05010 | ring | 1 |
| 21 | L02012 | screw | 2 |
| 22 | 30526020 | pin | 1 |
| 23 | 30201100 | roller frame | 1 |
| 24 | S05031 | screw | 1 |
| 25 | S09008 | screw | 3 |
| 26 | S01065 | screw | 4 |
| 27 | 30512054 | plate | 1 |
| 28 | 305S11012 | screw | 1 |
| 29 | H05011 | ring | 1 |
| 30 | W01026 | washer | 1 |
| 31 | 31003010 | sleeve | 1 |
| 32 | 305S11002 | screw | 3 |
| 33 | 30512057 | plate | 1 |
| 34 | 30503063 | bushing | 2 |
| 35 | B07048 | needle bearing | 2 |
| 36 | 30202101 | shaft | 1 |
| 37 | 30203103 | sleeve | 1 |
| 38 | 30225103 | gear wheel | 1 |
| 39 | 207S13007 | screw | 3 |
| 40 | 30202100 | U shaft | 1 |
| 41 | 30225101 | gear wheel | 1 |
| 42 | S10027 | screw | 2 |
Page 56 — 二十五、后拖轮部件/After cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | S01060 | screw | 2 |
| 44 | 30226004 | pin | 2 |
| 45 | 30512055 | stamping Tiebi | 1 |
| 46 | 305S11002 | screw | 3 |
| 47 | 30512056 | butterfly spring | 1 |
| 48 | 31003011 | sleeve | 1 |
| 49 | 30503036 | sleeve | 1 |
| 50 | W01010 | washer | 1 |
| 51 | N01008 | nut | 2 |
| 52 | 305S20012 | screw | 1 |
| 53 | 30212103 | plate | 1 |
| 54 | 3050501700 | connecting rod assembly | 1 |
| 55 | 30505018 | connecting rod | 1 |
| 56 | 305S30007 | screw | 1 |
| 57 | 30505019 | connecting rod | 1 |
| 58 | 305S16008 | nut | 1 |
| 59 | 30505020 | connecting rod | 1 |
| 60 | 305S20014 | screw | 1 |
| 61 | 30503034 | sleeve | 1 |
| 62 | W01004 | washer | 1 |
| 63 | 30504015 | link | 1 |
| 64 | 305S30009 | screw | 1 |
| 65 | B07011 | needle bearing | 1 |
| 66 | W01004 | washer | 1 |
| 67 | N01004 | nut | 1 |
| 68 | 30208001 | rod | 1 |
| 69 | S10029 | screw | 1 |
| 70 | S05037 | screw | 1 |
| 71 | 302S20014 | screw | 2 |
| 72 | S01065 | screw | 1 |
| 73 | 31012114 | plate | 1 |
| 74 | 31012115 | plate | 1 |
| 75 | 31012116 | plate | 1 |
| 76 | 310S20015 | screw | 1 |
| 77 | 30226004 | pin | 2 |
Page 58 — 二十六、后拖轮架部件/After fight cam assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S13004 | screw | 4 |
| 2 | 30522069 | plug | 1 |
| 3 | 301175 | rear cover | 1 |
| 4 | 30212023 | oil guard | 1 |
| 5 | P03002 | pin | 2 |
| 6 | 30522070 | o ring | 1 |
| 7 | 20122021 | plug | 1 |
| 8 | 20103047 | sleeve | 2 |
| 9 | 30502045 | shaft | 1 |
| 10 | 30508001 | ring | 1 |
| 11 | 30128015 | washer | 1 |
| 12 | H03006 | ring | 1 |
| 13 | 30522019 | plug | 1 |
| 14 | N01004 | nut | 1 |
| 15 | S10029 | screw | 6 |
| 16 | W01004 | washer | 1 |
| 17 | 30504035 | crank | 1 |
| 18 | 30126006 | pin | 1 |
| 19 | 30503060 | sleeve | 1 |
| 20 | 3050502600 | connecting rod assembly | 1 |
| 21 | 30224001 | needle bearing | 1 |
| 22 | 30505025 | connecting rod | 1 |
| 23 | 30503061 | sleeve | 1 |
| 24 | S12003 | screw | 2 |
Page 60 — 二十七、线架部件/Thread Apol Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131019 | Rod cap | 1 |
| 2 | 21131008 | Upper thread column | 1 |
| 3 | 21131009 | Thread spool tray bracket | 1 |
| 4 | 20131011 | Thread guide hook | 1 |
| 5 | 201S16006 | Thread guide hook nut | 4 |
| 6 | 201S12008 | Screw | 4 |
| 7 | 20131018 | Thread guide hook | 5 |
| 8 | 201S16004 | Nut | 9 |
| 9 | 21131010 | Clamp plate | 1 |
| 10 | 20131021 | Screw | 3 |
| 11 | 20131022 | Screw | 1 |
| 12 | 20131011 | Thread guide bar | 1 |
| 13 | 21131013 | Clamp plate | 1 |
| 14 | 20131036 | Thread guide | 2 |
| 15 | 21131014 | Bushing | 1 |
| 16 | N01030 | Nut | 2 |
| 17 | S04050 | screw | 2 |
| 18 | 21131018 | Lower thread cloumn | 1 |
| 19 | 20131006 | Spool pin | 5 |
| 20 | 21131015 | Spool Cushion | 5 |
| 21 | 20131010 | Spool tray cushing | 5 |
| 22 | 21131018 | Upper thread column | 1 |
| 23 | 20128018 | Washer | 5 |
| 24 | 20122049 | Plate dog link washer | 2 |
| 25 | 20128025 | Lower Washer | 2 |
| 26 | 201S16005 | Nut | 1 |
| 27 | 21131012 | screw | 2 |
| 28 | 2113100500 | thread stand component | 1 |
Page 62 — 二十八、35ACFT切刀专用件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 30202043 | shaft | 1 |
| 2 | 30204011 | crank | 1 |
| 3 | S10013 | screw | 2 |
| 4 | 302S12001 | screw | 1 |
| 5 | 30228008 | washer | 1 |
| 6 | 30203027 | bushing | 1 |
| 7 | 302S02001 | nut | 1 |
| 8 | 30204012 | crank | 1 |
| 9 | S10013 | screw | 1 |
| 10 | 30226016 | key | 1 |
| 11 | 400080 | link | 1 |
| 12 | 30223005 | oil wick | 1 |
| 13 | 20123021 | oil wick | 1 |
| 14 | 30201044 | latch | 1 |
| 15 | 205S30008 | screw | 1 |
| 16 | 30202023 | shaft | 1 |
| 17 | 30708003 | washer | 1 |
| 18 | 30227012 | spring | 1 |
| 19 | 302S01001 | nut | 1 |
| 20 | 300704 | lower knife holder | 1 |
| 21 | S05004 | screw | 2 |
| 22 | 302S13001 | screw | 1 |
| 23 | 30222015 | oil seal | 1 |
| 24 | 30201046 | upper knife stand | 1 |
| 25 | S01011 | screw | 1 |
| 26 | 30219001 | upper knife | 1 |
| 27 | S01027 | screw | 1 |
| 28 | 30201047 | lower knife stand | 1 |
| 29 | S11015 | screw | 1 |
| 30 | 30219002 | lower knife | 1 |
| 31 | 30201048 | lower knife clamp | 1 |
| 32 | 101S11008 | screw | 1 |
| 33 | 31001020 | waste chute top | 1 |
| 34 | S01006 | screw | 2 |
| 35 | 3021101000 | suction pipe | 1 |
| 36 | 30211005 | hose band | 1 |
| 37 | 30212059 | latch | 1 |
| 38 | S01002 | screw | 2 |
| 39 | 302S09001 | screw | 1 |
| 40 | 30226004 | pin | 2 |
| 41 | 30203028 | sleeve | 1 |
| 42 | 30203029 | sleeve | 1 |
Page 63 — K4-35AC专用件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 30226021 | pin | 1 |
| 44 | S10007 | screw | 1 |
Page 65 — 二十九、35AC专用件/35ACFT device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 304347 | front cover assy | 1 |
| 2 | 31001022 | front cover | 1 |
| 3 | 30201016 | hinge | 1 |
| 4 | 301S20002 | screw | 1 |
| 5 | 30128002 | washer | 2 |
| 6 | 31026006 | pin | 1 |
| 7 | S10005 | screw | 2 |
| 8 | 207S11016 | screw | 2 |
| 9 | 30214017 | diff feed dog | 1 |
| 10 | 30214016 | main feed dog | 1 |
| 11 | 30212155 | fabric guide | 1 |
| 12 | 30212052 | fabric guide | 1 |
| 13 | 30216005 | presser foot assy | 1 |
| 13 | 30216008 | presser foot assy | 1 |
| 14 | 31015001 | needle plate | 1 |
| 14 | 31015002 | needle plate | 1 |
| 15 | 31012100 | spring washer | 1 |
| 16 | 310S11002 | screw | 2 |
| 17 | 304348 | cover piate | 1 |
| 18 | 310S11003 | screw | 2 |
| 19 | 31012092 | colth plate | 1 |
| 20 | 31004031 | needle plate holder | 1 |
| 21 | 30201020 | hemming guide（right） | 1 |
| 22 | 30201019 | hemming guide（left） | 1 |
Page 67 — 三十、附件/Accessories assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131037 | oil container | 1 |
| 2 | 20131038 | oiler | 1 |
| 3 | 20131039 | oil funnel | 1 |
| 4 | 131212004 | machine table | 1 |
| 5 | 20131051 | tweezers | 1 |
| 6 | 30131007 | allen key driver/1.5mm | 1 |
| 7 | 20131046 | allen key driver/2mm | 1 |
| 8 | 30131010 | allen key driver/2.5mm | 1 |
| 9 | 30131012 | allen key driver/3mm | 1 |
| 10 | 20131047 | allen key driver/4mm | 1 |
| 11 | 20131056 | allen key driver/5mm | 1 |
| 12 | 30131026 | allen key driver6mm | 1 |
| 13 | 20731047 | screwdriver(large) | 1 |
| 14 | 10131004 | screwdriver(small) | 1 |
| 15 | S10005 | screw | 3 |
| 16 | 20131044 | allen key driver/1.5mm | 1 |
| 17 | 30131018 | chain | 1 |
| 18 | 10131005 | dust cover | 1 |
| 19 | 30117001 | needle | 4 |
| 20 | 20136001 | filter element | 1 |
| 21 | 30131005 | wrench/(7mm-9mm) | 1 |
| 22 | 30131006 | wrench/(8mm-10mm) | 1 |
| 23 | 3103000500 | dI Special Part | 1 |
| 24 | S01060 | screw | 4 |
| 25 | 31012054 | machine table(left) | 1 |
| 26 | 30201020 | fabric guide(left) | 1 |
| 27 | 30201019 | fabric guide(right) | 1 |
| 28 | S01009 | screw | 2 |
| 29 | 1312NS11001 | screw | 2 |
| 30 | 3120100700 | Broder Kit | 1 |
Page 69 — 三十一、台板部件/Bedplate assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131028 | Oil pan screw fixing head | 4 |
| 2 | 30122029 | Oil pan damping pad | 4 |
| 3 | 301S30018 | Oil pan bracket screw | 4 |
| 4 | 30112198 | Oil pan tray | 2 |
| 5 | 131222003 | Pubber sleeve of anti vibration | 8 |
| 6 | 20131027 | screw | 4 |
| 7 | 20131029 | Washer | 4 |
| 8 | 30112041 | Chain baffie | 2 |
| 9 | 131038001 | Anti vibration pad steel sleeve | 4 |
| 10 | S01011 | screw | 4 |
| 11 | \ | Bedplate | 1 |
Jack K5-UT — parts catalog
- Page 1 (diagram): This page displays a diagram of bushing assemblies with numbered parts, including a note about dashed lines representing parts not currently in use or improved.
- Page 2 (parts_list): This page lists parts for Bushing assemblies, including part numbers, descriptions, and quantities.
- Page 3 (diagram): This page displays a diagram of frame assemblies for an industrial sewing machine, with numbered parts indicated.
- Page 4 (parts_list): This page lists parts for the frame assembly, including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of cover assemblies for an industrial sewing machine, with numbered parts indicated.
- Page 6 (parts_list): This page lists cover assembly parts, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of cloth plate assemblies with numbered parts, including references to part numbers and descriptions.
- Page 8 (parts_list): This page lists parts for cloth plate assemblies, including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of hook shaft assemblies, with numbered parts indicated for reference.
- Page 10 (parts_list): This page lists parts for Hook shaft assemblies, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the main shaft assemblies, with numbered parts indicated for reference.
- Page 12 (parts_list): This page lists main shaft assemblies and their components, including part numbers, descriptions, and quantities.
- Page 13 (diagram): This page contains a diagram of needle bar assemblies, with numbered parts indicated.
- Page 14 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of needle guard assemblies, with numbered parts indicated for reference.
- Page 16 (parts_list): This page lists parts for needle guard assemblies, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts indicated.
- Page 18 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of the need mechanism components for an industrial sewing machine, with numbered parts indicated.
- Page 20 (parts_list): This page lists parts for the "Need mechanism" section of an industrial sewing machine, including screws, guides, bearings, and more, with their corresponding part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page contains a parts list for items 43 through 45, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of presser form assemblies with numbered parts.
- Page 23 (parts_list): This page lists parts for the Presser form assemblies, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of needle feeding assemblies with numbered parts.
- Page 25 (parts_list): This page lists parts for needle feeding assemblies, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of thread loosing assemblies (one) with numbered parts, including components like brackets, springs, and tension discs.
- Page 27 (parts_list): This page lists thread loosening assemblies (one) with part numbers, reference numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of thread loosening assemblies (two) with numbered parts, including screws, brackets, and rods.
- Page 29 (parts_list): This page lists parts for thread loosing assemblies (two), including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of thread loosening assemblies with numbered parts.
- Page 31 (parts_list): This page lists thread looping assemblies with part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of cam assemblies and related components, with numbered parts for identification.
- Page 33 (parts_list): This page lists parts for the Cam assemblies, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of lubrication assemblies with numbered parts.
- Page 35 (parts_list): This page lists lubrication parts for the industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of oil pump assemblies, with numbered parts indicated for reference.
- Page 37 (parts_list): This page lists parts for oil pump assemblies, including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of silicon oil delice assemblies with numbered parts.
- Page 39 (parts_list): This page lists parts for silicone oil delice assemblies, including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays a diagram of gauge set specific parts for an industrial sewing machine, with numbered components indicated.
- Page 41 (parts_list): This page lists specific parts for a gauge set, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of knife holder assemblies, with numbered parts indicated by reference numbers.
- Page 43 (parts_list): This page lists parts for the knife holder assemblies, including part numbers, descriptions, and quantities.
- Page 44 (parts_list): This page lists parts with reference numbers 43 through 46, including part numbers like 301S11024 and 302S20014, with descriptions such as 'screw' and 'cushioning'.
- Page 45 (diagram): This page displays a diagram of the Knife Holder Assemblies, with numbered parts indicated for reference.
- Page 46 (parts_list): This page lists parts for the Knife Holder Assemblies, including part numbers, descriptions, and quantities.
- Page 47 (diagram): This page displays a diagram of top wiper assemblies with numbered parts, including part numbers and descriptions.
- Page 48 (parts_list): This page lists parts for the Top wiper assemblies, including part numbers, descriptions, and quantities.
- Page 49 (diagram): This page displays a diagram of solenoid assemblies, with numbered parts indicated for identification and reference.
- Page 50 (parts_list): This page lists parts for Solenoid assemblies, including part numbers, descriptions, and quantities.
- Page 51 (parts_list): This page contains a parts list for items 43 through 46, including part numbers, descriptions in Chinese and English, and quantities.
- Page 52 (diagram): This page displays a diagram of electronic control assemblies for a sewing machine, with various components labeled with reference numbers.
- Page 53 (parts_list): Parts list for the electronic control assemblies section (item 24), giving item numbers, part numbers, Chinese and English names, and quantities for 21 items including LED light, motor, screws, electromagnet assembly and washers.
- Page 54 (diagram): This page displays a diagram of the after cam assemblies for an industrial sewing machine, with numbered parts indicated.
- Page 55 (parts_list): This page lists parts for the rear wheel cam assemblies, including part numbers, descriptions, and quantities.
- Page 56 (parts_list): This page lists parts for an industrial sewing machine, including screws, nuts, plates, and other components with their corresponding part numbers, descriptions, and quantities.
- Page 57 (diagram): This page displays a diagram of after fight cam assemblies, with numbered parts indicated.
- Page 58 (parts_list): This page lists parts for the rear fight cam assemblies, including part numbers, descriptions, and quantities.
- Page 59 (diagram): This page displays a diagram of thread spool assemblies, with numbered parts indicated for reference.
- Page 60 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities. It includes items like rod caps, upper tubes, thread guides, screws, nuts, and washers.
- Page 61 (diagram): This page displays a diagram of the 35ACFT device, with various parts numbered for identification.
- Page 62 (parts_list): This page lists parts for the 35ACFT device, including part numbers, descriptions, and quantities.
- Page 63 (parts_list): This page contains a parts list for items 43 and 44, including part numbers, descriptions in Chinese and English, and quantities.
- Page 64 (diagram): This page contains a diagram of parts for the K4-35AC device, with numbered components and labels for wide and narrow parts.
- Page 65 (parts_list): This page lists parts for the 35ACFT device, including part numbers, descriptions, and quantities. It details components like front covers, hinges, screws, washers, pins, feed dogs, fabric guides, presser feet, needle plates, spring washers, and hemming guides.
- Page 66 (diagram): This page displays a diagram of accessories and assemblies for an industrial sewing machine, with numbered parts indicated for reference.
- Page 67 (parts_list): This page lists accessories and parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page displays a diagram of bedplate assemblies with numbered parts, including screws, brackets, and the main bedplate component.
- Page 69 (parts_list): This page lists parts for Bedplate assemblies, including part numbers, descriptions, and quantities.
- Page 70 (text): This page contains safety precautions for industrial sewing machines, environmental requirements, company contact information, and a note about revisions.
- Page 71 (text): This page contains a note about dashed lines in diagrams and the page number 71.
