Parts index — Jack K5-UTtap a row to open its page

Page 1

Jack K5-UT parts on page 1

Ref	Part number	Part name	Qty
	1	Bushing assemblies
	2	Bushing assemblies
	3	Bushing assemblies
	4	Bushing assemblies
	5	Bushing assemblies
	6	Bushing assemblies
	7	Bushing assemblies
	8	Bushing assemblies
	9	Bushing assemblies
	10	Bushing assemblies
	11	Bushing assemblies
	12	Bushing assemblies
	13	Bushing assemblies
	14	Bushing assemblies
	15	Bushing assemblies
	16	Bushing assemblies
	17	Bushing assemblies
	18	Bushing assemblies
	19	Bushing assemblies
	20	Bushing assemblies
	21	Bushing assemblies
	22	Bushing assemblies
	23	Bushing assemblies
	24	Bushing assemblies
	25	Bushing assemblies
	26	Bushing assemblies
	27	Bushing assemblies

Page 2 — 套筒部件/Bushing assemblies

Jack K5-UT parts on page 2

Ref	Part number	Part name	Qty
	131103007	扳手轴套筒
210297	30103042	过线座轴后套筒
210297	131103006	挑线轴前套
250141	20103020	送布轴右套
250141	20103020	送布轴右套
250146	30203004	针杆上套筒
251003	30203005	针杆下套筒
250147	30203024	压脚轴套筒
250136	30203025	喂针摆动轴套筒
	20622019	油封
	30122039	压脚轴套油封
250137	30203002	下主轴前套
250138	30203003	下主轴后套
0628	30203006	护针轴套
0628	30203039	护针轴套
250139	30203011	针距轴套
250140	30203017	差动轴前套
	30222011	差动油封
250141	30203018	差动轴后套
	30203014	抬牙轴前套
	30222010	抬牙油封
	30203015	抬牙轴中套
204089	30203016	抬牙轴后套
	30203012	调节座套
250191	30203009	下弯针轴前套
250144	30203010	下弯针轴后套
	P03005	GB/T879-1986销4×8
	20122029	油封
	20122029	油封

Page 3 — 一、车壳部件/Frame assemblies

Jack K5-UT parts on page 3

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Page 4 — 一、车壳部件/Frame assemblies

Jack K5-UT parts on page 4

Ref	Part number	Part name	Qty
240052	30122006	油堵
	21022007	油封
	21012018	油封垫
	20622019	油封
209084	30222007	密封盖
240001	H01001	孔用弹性挡圈18
255002	30112001	滤油网
255108	20123021	限油芯
250117	301S30001	机壳螺钉
210003	20122009	油封
206590	30111001	油标
	W02003	垫圈10
	S05001	螺钉M10×27.5
250020	30112002	盖板
7017	S01002	螺钉M4×6.5
	910000022	机壳上节毛坯
	910000023	机壳下节毛坯
	30226004	定位销
	30122007	油封
	30122008	油封
	30222003	油堵
	001001	O型圈15×2.65
	30221016	铜油管
	P02002	销6×32
	30222031	油封

Page 5 — 二、罩壳部件/Cover assemblies

Jack K5-UT parts on page 5

Ref	Part number	Part name	Qty
1	1	Spring
2	2	Cover
3	3	Screw
4	4	Screw
5	5	Washer
6	6	Cover
7	7	Screw
8	8	Plate
9	9	Plate
10	10	Screw
11	11	Cover
12	12	Cover
13	13	Screw
14	14	Screw
15	15	Cover
16	16	Bracket
17	17	Screw
18	18	Screw
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Bracket
23	23	Bracket
24	24	Screw
25	25	Screw
26	26	Bracket
27	27	Screw
28	28	Screw
30	30	Washer

Page 6 — 二、罩壳部件/Cover assemblies

Jack K5-UT parts on page 6

Ref	Part number	Part name	Qty
7021	S04060	螺钉M4×10
	303600	上盖(喷漆)
	21022007	油脂
	20711055	油窗
	21022003	油窗垫
	31022010	上盖垫
7052	S01060	螺钉M6×10
250154	303605	后窗板
250155	31022013	后盖板
	207S11007	螺钉
	131412001	针杆护罩
	31022006	机头左盖垫
	13837002	商标牌
	10122003	面板调节孔塞
	303599	机头左盖(喷漆)
	31012042	玻璃罩安装板
	31012029	护罩架
250257	30111003	有机玻璃罩
202875	W01002	垫圈
7009	S01006	螺钉M3×4.5
7052	S01060	护罩螺钉
303335	W02004	垫圈6
	31012012	过线护罩
	301S20001	螺钉
210307	W03001	波形垫圈
	20131063	护罩警示牌
	207S11011	螺钉
	20711212	R型线夹8.6
	31012018	油窗垫
	30122012	密封垫

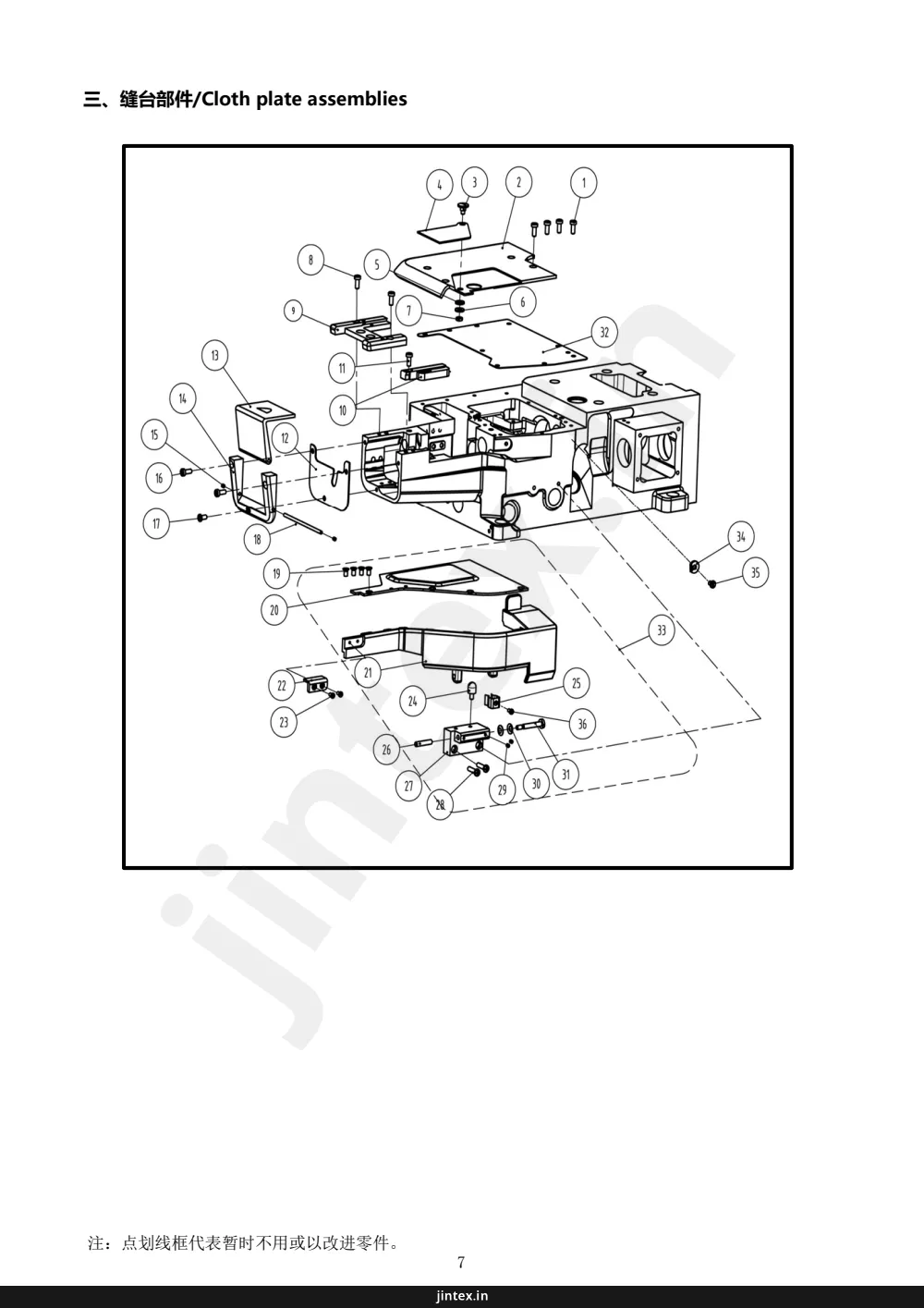

Page 7 — 三、 缝台部件/Cloth plate assemblies

Jack K5-UT parts on page 7

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	PLATE
3	3	SCREW
4	4	COVER
5	5	SCREW
6	6	BRACKET
7	7	SCREW
8	8	SCREW
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	SCREW
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	SCREW
30	30	BRACKET
31	31	SCREW
32	32	BASE
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	SCREW

Page 8 — 三、缝台部件/Cloth plate assemblies

Jack K5-UT parts on page 8

Ref	Part number	Part name	Qty
7021	S01005	螺钉M4×10	4
	3121200300	后缝台组件(喷漆)	1
	301S20019	螺钉	1
	31212001	旋转缝台	1
	20728003	蝶形垫片	1
	20528006	垫片	1
	205S16004	螺母	1
	S01005	螺钉M4×10	1
	31001005	针板架	1
	31201001	缝台块安装座	1
	207S11007	螺钉	1
	31022004	左盖密封垫	1
	31012023	左盖板	1
	303604	U型盖(喷漆)	1
	S10007	螺钉M4×4	2
	S04060	螺钉M4×10	2
	301S11024	螺钉M4×8	1
	31026004	下节左盖板销	1
	S02003	螺钉M4×6	2
	31212004	前罩缝台面板	1
	31012002	前罩缝台安装座	1
	31009005	针板架接块	1
	S01009	螺钉M3×7.5	2
	310S20011	四合一缝台卡簧螺钉	1
	30227030	卡簧	1
	31026006	销	1
	31001014	合销块	1
	207S11016	螺钉M4×16	2
	S10005	螺钉M3×3	2
	30128002	垫片	2
250013	310S20006	合销块螺钉	1
	30222027	盖板垫	1
	930000013	前缝台组件(喷漆)	1
	30213009	过线环	1
	S01055	螺钉M4×6	1
	S01055	螺钉M4×6	1
	30212288	盖板	1
	L02001	开槽六角头螺栓M4×8	7

Page 9 — 四、下轴部件/Hook shaft assemblies

Jack K5-UT parts on page 9

Ref	Part number	Part name	Qty
	1	Hook shaft assemblies
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23

Page 10 — 四、下轴部件/Hook shaft assemblies

Jack K5-UT parts on page 10

Ref	Part number	Part name	Qty
	400082	下轴前轴
	S10015	螺钉J M6×0.75×4
	31002008	下轴后轴
	201S20015	铜连杆螺丝M3.5×13
	400070	球连杆
	S05002	螺钉T M6×0.75×15.2
	400228	球曲柄
	13122400100	油封轴承
	30103008	蜗杆
	S10029	螺钉M6×0.75×5
	13122400200	油封轴承
	30135021	同步带
	3023502500	下轴同步带轮组件
	S12003	螺钉M6×0.75×7
	3023502600	下轴小同步带轮组件
	13122400400	油封轴承
	30108001	轴承挡圈
	207S11007	螺钉T M4×7.5
	207S11007	下轴轴承套
	30109001	比叉
	W02001	垫圈5
	301S11004	比叉螺钉
	30223009	毛毡

Page 11 — 五、上轴部件/Main shaft assesmblies

Jack K5-UT parts on page 11

Ref	Part number	Part name	Qty
	1	Screw
	2	Screw
	3	Shaft
	4	Shaft
	5	Shaft
	6	Shaft
	7	Shaft
	8	Shaft
	9	Shaft
	10	Shaft
	11	Shaft
	12	Shaft
	13	Shaft
	14	Shaft
	15	Shaft
	16	Shaft
	17	Shaft
	18	Shaft
	19	Shaft
	20	Shaft
	21	Shaft
	22	Shaft
	23	Shaft
	24	Shaft
	25	Shaft
	26	Shaft
	27	Screw
	28	Screw
	29	Screw

Page 12 — 五、上轴部件/Main shaft assem

Jack K5-UT parts on page 12

Ref	Part number	Part name	Qty
7028	S01011	螺钉M5×10
4592	301S10004	针杆曲柄螺钉
7153	S08001	螺钉M6×0.75×3.5
7152	S11001	螺钉M6×0.75×6
	30224005	针杆曲柄轴承
30102005	400065	上前轴
30105004	400061	弯针连杆
007021A	S01008	螺钉M3.5×13
	31004004	针杆曲柄
253501A	30104006	弯针曲柄
4534	S05002	螺钉M6×0.75×15.2
250524	30109003	上轴平衡块
4514	S10002	螺钉M5×5
250506	30103004	接轴套
4555	S12003	螺钉M6×0.75×7
4547	S10029	螺钉M6×0.75×5
250529-91	13122400300	油封轴承
	S10029	螺钉M6×0.75×5
	31035022	上同步带轮
	S10029	螺钉M6×0.75×5
250528-91	13122400300	油封轴承
4547	S10029	螺钉M6×0.75×5
	31002011	上后轴
	31035002	手轮
4556	S12001	螺钉M6×8
4541	S10009	螺钉M6×8
4592	S10004	螺钉M8×1×12
	31009001	针杆曲柄平衡块
	S02003	螺钉

Page 13 — 六、针杆部件/Needle bar assemblies

Jack K5-UT parts on page 13

Ref	Part number	Part name	Qty
1	1	Needle bar
2	2	Needle bar connecting rod
3	3	Needle bar connecting rod pin
4	4	Needle bar connecting rod pin
5	5	Needle bar connecting rod pin
6	6	Needle bar connecting rod pin
7	7	Needle bar connecting rod pin
8	8	Needle bar connecting rod pin
9	9	Needle bar connecting rod pin
10	10	Needle bar connecting rod pin
11	11	Needle bar connecting rod pin
12	12	Needle bar connecting rod pin
13	13	Needle bar connecting rod pin
14	14	Needle bar connecting rod pin
15	15	Needle bar connecting rod pin
16	16	Needle bar connecting rod pin
17	17	Needle bar connecting rod pin
18	18	Needle bar connecting rod pin
19	19	Needle bar connecting rod pin
20	20	Needle bar connecting rod pin
21	21	Needle bar connecting rod pin
22	22	Needle bar connecting rod pin
23	23	Needle bar connecting rod pin
24	24	Needle bar connecting rod pin
25	25	Needle bar connecting rod pin
26	26	Needle bar connecting rod pin
27	27	Needle bar connecting rod pin

Page 14 — 六、针杆部件/Needle bar assemblies

Jack K5-UT parts on page 14

Ref	Part number	Part name	Qty
251014-91	30202024	针杆
206061	30102009	针杆轧头
5325	301S11005	针杆轧头螺钉
251016	30205002	针杆连杆
206053	30102050	连杆轴
240098	B07001	轴承K8×12×12
	30128006	针杆连杆轴垫圈
206063	30109004	针杆滑块
251017	31009006	滑块导座
251018	30227003	毛毡弹簧
7021	207S11008	螺钉TM4×12
179040-05	30123002	毛毡
206524	30112009	油毡托
212186	30123014	油线
	207S11007	螺钉M3×5
	30203056	护针套筒
257568	30217001	前护针
	30210005	后护针偏心凸轮
4546	S10007	螺钉TM4×4
4035	30204035	护针曲柄
7086	301S11025	护针曲柄螺钉
251512	30201008	后护针架
257567	31017002	后护针
4543	S10007	螺钉TM4×4
251513-92	30204003	护线曲柄
7013	S01029	螺钉M3.5×7.5
251514	30201007	前护针架

Page 15 — 七、 零件/Needle guard assemblies

Jack K5-UT parts on page 15

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41

Page 16 — 七、弯针部件/Needle guard assemblies

Jack K5-UT parts on page 16

Ref	Part number	Part name	Qty
	30210002	偏心套
	S10015	螺钉M6×0.75×4
	B07009	轴承K26×30×12.7
	30205003	连杆
	30226005	滑杆销
	N01004	螺母M5
	W01004	连杆轴垫圈
	30201010	滑杆架
	30203045	油棉盖
	30223014	油棉
	12921002	回油管
	30202007	下弯针连杆轴
	30228006	垫片
	S05048	螺钉M4×10
	W02002	垫圈4
	30228005	垫片
	30204004	下弯针轴柄
	S05002	螺钉M6×0.75×15.2
	30201011	前挡块
	S04019	螺钉M4×12
	30228003	下弯针轴柄垫片
	30209003	弯针滑块
	30209004	弯针滑块螺钉垫
	S10007	螺钉M4×4
	30201012	下弯针轴柄后挡块
	30201101	弯针固定架
	30221018	铜油嘴
	30213050	滑杆过线
	S10007	螺钉M4×4
	30217003	弯针
	30228004	下弯针轴柄挡块垫片
	30203007	滑杆后套
	S10013	螺钉
	30203044	滑杆前套
	001021	O型圈12.2×2.4
	30228002	弯针固定架垫片
	30202006	滑杆
	S05046	螺钉M3.5×10.5
	S01006	螺钉
	30226017	弹性圆柱销

Page 17 — 八、护针部件/Feed mechanism

Jack K5-UT parts on page 17

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41

Page 18 — 八、护针部件/Feed mechanism

Jack K5-UT parts on page 18

Ref	Part number	Part name	Qty
252607-92	13121000100	送布偏心轮组件
	S10006	螺钉M5×6
204084	B07007	轴承22×26×10
240236	30224001	轴承28×24×13
240234	30229001	卡簧
240237	30229002	卡簧
252608	131205001	连杆
252609-92	131204001	曲柄
4531	S05005	螺钉TM5×12
240055	30228007	垫片
7041	S02016	螺钉TM3×3.2
252612	30205005	偏心连杆
252614	30205007	针距轴杆
202176	30205006	连杆
4537	S10007	螺钉M4×4
252613	30226007	连杆销
202176	20123021	JK795油线
252616	30226008	曲柄销
252617	30204006	曲柄
7142	S10029	螺钉M6×5
252618-91	30204007	调节曲柄
2547	S10029	螺钉M6×5
252622	30202008	针距调节挡板
4539	S10006	螺钉M5×6
252620	30227005	拉簧
7131	302S30001	螺钉
252621	30202009	针距指示轴
240017	001022	O型橡胶密封圈6.9×1.5
252523	30212013	指示板
	S01011	螺钉M5×10
252624-VB	31011007	刻度板
4537	S02004	螺钉M4×8
252625	30202010	针距调节轴
201629	H05012	挡圈4
200983	H05006	挡圈5
240251	001023	O型橡胶密封圈5×1.5
4550	S09015	螺钉M4×10
	30209006	垫块
	P03011	弹性圆柱销3×12
252660	302S16001	针距调节轴锁紧螺母
4543	S10007	螺钉M4×4

Page 19 — 九、送布部件/Need mechanism

Jack K5-UT parts on page 19

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

Page 20 — 九、送布部件/Need mechanism

Jack K5-UT parts on page 20

Ref	Part number	Part name	Qty
	S10013	螺钉M6×6
	30204008	送布架右挡板
	B07008	轴承K9×12×13
	30209008	挡牙滑块
	30206004	送布牙架
	301S11024	螺钉
	30206003	差动牙架
	207S11007	螺钉
	S01002	螺钉M4×6.5
	30209050	差动曲柄挡板
	S05048	螺钉M4×10
	30203013	差动小连杆衬套衬套
	30228008	差动小连杆衬套垫圈
	L01004	螺栓M5×0.5×13
	30209080	挡牙小滑块
	30212099	牙架挡板
	30226032	定位销
	20123021	油线
	30202036	拾牙轴
	S10029	螺钉
	30208001	挡块
	20123021	油线
	S10026	螺钉M3×3(进口)
	30205081	差动曲柄连杆
	S05003	螺钉M5×10
	30204077	差动曲柄
	30203041	衬套
	302S09010	螺钉M4×18
	S05003	螺钉M5×10
	30204321	差动摆动连杆
	302S17005	内六角沉头螺钉
	30228020	锥形垫圈
	30204322	差动摆动连杆连接销
	30205008	差动小连杆
	30123014	油线
	30126009	大头针
	20123021	油线
	30226040	差动曲柄销
	20123021	JK795油线
	S10029	螺钉
	30208026	差动挡圈
	30202035	差动轴

Page 21

Jack K5-UT parts on page 21

Ref	Part number	Part name	Qty
	30223009	油孔毛毡
	S01011	螺钉M5×10
	N01004	螺母M5

Page 22 — 十、压布部件/Presser form assemblies

Jack K5-UT parts on page 22

Ref	Part number	Part name	Qty
	1	Presser form assemblies
	2
	3
	4
	5
	6
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31

Page 23 — 十、压布部件/Presser form assemblies

Jack K5-UT parts on page 23

Ref	Part number	Part name	Qty
253000-91	310S30002	调压螺杆
253003	301S16005	调压螺母
240252	30227008	调压簧
253005-91	3010901700	导块销组件
7025	S11025	螺钉M4×20
5386	301S20007	螺钉
206157	30112016	压脚头连接板
	301S11009	螺钉M4×12
206139	30104017	压脚头
240253	30227009	压脚轴小弹簧
	30122023	抬压轴油封
240095	001006	O型圈8.5×1.8
240095	30202017	压脚轴
	3100201000	调压螺杆组件
253010	3010206400	抬牙曲柄组件
	30122023	抬压轴油封
253010	30127009	抬压弹簧
206156	30108005	挡圈
5084	301S12001	曲柄螺钉
206149	30104019	抬压曲柄后曲柄
5187	301S11011	抬压曲柄螺钉
253011	3012018	抬压曲柄连接板
5184	301S20008	连接板螺钉
5084	301S12001	曲柄螺钉
192024	30108006	挡圈
5184	301S20008	连接板螺钉
002022-4	301S20013	抬压曲柄II固定螺钉
206148	30104020	抬压扳手曲柄
	31002006	抬压扳手轴
	31012109	压脚扳手
4531	S01011	螺钉M5×10

Page 24 — 十一、喂针部件/Needle feeding assemblies

Jack K5-UT parts on page 24

Ref	Part number	Part name	Qty
1	1	BASE
2	2	SCREW
3	3	CONNECTING ROD
4	4	SHAFT
5	5	SCREW
6	6	BRACKET
7	7	SCREW
8	8	WASHER
9	9	NEEDLE BAR
10	10	WASHER
11	11	SPRING
12	12	BRACKET
13	13	SCREW
14	14	BRACKET
15	15	NEEDLE BAR GUIDE
16	16	NEEDLE BAR
17	17	WASHER
18	18	SPRING
19	19	SCREW
20	20	BRACKET
21	21	SCREW
22	22	NEEDLE BAR
23	23	NEEDLE BAR
24	24	NEEDLE BAR

Page 25 — 十一、喂针部件/Needle feeding assemblies

Jack K5-UT parts on page 25

Ref	Part number	Part name	Qty
	30110007	喂针凸轮
	S10002	螺钉M5×5
	400059	喂针连杆
	30104024	喂针摆动曲柄
	S05002	螺钉M6×0.75×15.2
	30126006	喂针摆动曲柄连杆销
	30128032	摆动曲柄垫圈5.5
	N01004	螺母M5
	30102024	摆动连杆轴
	30128015	摆动连杆轴垫圈
	H05004	挡圈12
	30105013	喂针摆动连杆
	S10029	螺钉M6×0.75×5
	30126005	喂针摆动销
	30202018	喂针摆动架
	20123021	JK795油线
	001008	O型橡胶密封圈9×1.8
	30208010	挡圈
	S10026	挡圈螺钉
	30104022	喂针架
	S01005	螺钉M4×10
	S01017	螺钉M4×14
	30117005	喂针
	30128018	喂针摆动轴套圈10

Page 26

Jack K5-UT parts on page 26

Ref	Part number	Part name	Qty
	1	Thread loosing assemblies (one)
	2	Bracket
	3	Shaft sleeve
	4	Screw
	5	Screw
	6	Bracket
	7	Screw
	8	Spring seat
	9	Thread loosening bracket
	10	Spring
	11	Thread loosening bracket
	12	Thread loosening bracket
	13	Thread loosening bracket
	14	Thread loosening disc
	15	Thread loosening disc
	16	Thread loosening disc
	17	Thread loosening pin
	18	Thread loosening disc
	19	Thread loosening disc
	20	Thread loosening disc
	21	Thread loosening disc
	22	Thread loosening disc
	23	Thread loosening disc
	24	Thread loosening disc
	25	Thread loosening disc
	26	Screw

Page 27 — 十二、松线部件(一)/Thread loosing assemblies (one)

Jack K5-UT parts on page 27

Ref	Part number	Part name	Qty
201068	3101300700	夹线器
	31013010	松线架
	31009004	松线垫块
	S04019	螺钉M4×12
	207S11011	螺钉M4×5.5
	31013022	夹线器过线
	31013007	过线架
	30127010	调节板簧
	30113007	二孔过线板
	31013008	松线板
206202	30103041	调节点套
254010A9U	3011300400	调线组件(强)
254010B9U	3011300500	调线组件(中)
254010C9U	3011300600	调线组件(弱)
001817-2A	301S30010	夹线延
210319	30128016	夹线片
	20623008	松线夹线片垫
208450-UA	21111096	调压止动盖
301037	30127011	调压簧(强)
208448	30111006	调压止动套
208447-UA	20111091	调压螺母
201086	30127012	调压簧(中)
201068	30127013	调压簧(弱)
	207S11007	螺钉M4×7.5

Page 28 — 十三、松线部件(二)/Thread loosing assemblies (two)

Jack K5-UT parts on page 28

Ref	Part number	Part name	Qty
1	1	SCREW
21	1	SCREW
2	2	BRACKET
3	3	SPRING
4	4	SPRING
5	5	SPRING
6	6	SPRING
7	7	SPRING
8	8	ROD
9	9	BRACKET
10	10	SPRING
11	11	SPRING
12	12	SPRING
13	13	SCREW
14	14	BRACKET
15	15	BRACKET
16	16	SHAFT
17	17	SHAFT
18	18	SHAFT
19	19	BRACKET
20	20	NUT

Page 29 — 十三、松线部件(二)/Thread loosing assemblies (two)

Jack K5-UT parts on page 29

Ref	Part number	Part name	Qty
	131412006	松线曲柄
	30502018	松线轴
	131412004	转接板
	131404002	松线轴前曲柄
	30129058	松线
	H05006	卡簧
	31028003	管座
	31002007	挑线杆
	S10026	螺钉M3x3
	S01007	螺钉M4x4
	31009003	长打线块
	31009002	小打线块
	S04020	螺钉
	31003005	轴套
	423S20004	轴位螺钉
	131404002	松线曲柄
	31026003	轴位销
	301S20030	螺钉
	131512002	松线摆杆
	423S20004	轴位螺钉
	S05005	螺钉M5×12

Page 30 — 十四、过线部件/Thread loosing assemblies

Jack K5-UT parts on page 30

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	BRACKET
3	3	SCREW
4	4	WASHER
5	5	SCREW
6	6	BRACKET
7	7	SCREW
8	8	WASHER
9	9	WASHER
10	10	SHAFT
11	11	WASHER
12	12	SCREW
13	13	SCREW
14	14	SCREW
15	15	SHAFT
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	SHAFT
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	SCREW
31	31	SHAFT
32	32	BRACKET
33	33	SCREW
34	34	SCREW
35	35	BRACKET
36	36	SCREW
37	37	WASHER
38	38	WASHER
39	39	WASHER

Page 31 — 十四、过线部件/Thread loosing assemblies

Jack K5-UT parts on page 31

Ref	Part number	Part name	Qty
7019	S01004	螺钉M4×7.8	5
253505A	31013006	长过线板	1
4501	S05004	螺钉M5×14	1
303067	W02001	垫圈	1
253504	30101018	过线座	1
	20622019	油封	1
5084	301S12001	曲柄螺钉	2
240201	30108008	过线座轴挡圈	1
	30128008	摆架轴垫圈	1
253503	31002001	过线座轴(中轴)	1
204107	30128019	挡线垫圈4.5	1
201252	W02002	M4垫圈	1
4527	S05048	螺钉M4×10	1
7009	S01027	螺钉M3×6	1
253507	31013017	针杆三孔过线	1
	131412002	护线罩	1
	S01027	螺钉	2
	30128034	护线罩垫圈3.5	2
	131213001	针杆过线板	1
7170	206S30016	螺钉	2
7018	S01004	螺钉M4×7.8	4
	31012045	U型夹线座	1
253547	30112032	眼针二眼过线	1
253548	31012046	眼针过线板	1
	31012018	长过线压板	1
253514	30112029	眼针过线	1
253515	31013011	过线板	1
	3101204600	眼针二眼过线组件	1
4535	S10001	螺钉M3×4	3
253545	30113012	针杆过线座	1
234521	30113013	过线杆	3
253544	30112027	硅油合固定架	1
303448	W01001	M4垫片	3
7009	S01006	螺钉M3×4.5	2
	302S16005	调压螺母	1
	301S30055	调压螺钉	1
137109	12927012	夹线簧	1
137108	12928036	夹线片	2
	10128001	松线铺垫片	1
137109	12927012	夹线簧	1
137108	12928036	夹线片	2
	10128001	松线铺垫片	1

Page 32 — 十五、打线凸轮部件/Cam assesmblies

Jack K5-UT parts on page 32

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39

Page 33 — 十五、打线凸轮部件/Cam asssemblies

Jack K5-UT parts on page 33

Ref	Part number	Part name	Qty
	S04004	螺钉M4×15
1516	30227016	复位弹簧
1520	30208020	打线挡圈
1568	30212068	打线架组件
	30313019	打线凸轮左过线
	30123022	毛根
7009	S01006	螺钉M3×4.5
1584	30212084	打线片
	30313020	打线凸轮右过线
	310S20007	螺钉
	31027002	限位片复位簧
	31012037	打线凸轮架扳手
1522	30208022	打线凸轮架止动圈
	31012036	打线架安装板
7017	S01002	螺钉M4×6.5
167079	30213024	两眼过线
	10128001	松线铺衬垫片
137108	12928036	小夹线片
211388	12927012	夹线簧
	301S30055	调压螺钉
	301N31000	自锁调压螺母
	31012034	打线凸轮端盖
	S01002	螺钉M4×4
	3121300100	打线凸轮组件(外移)
	S10007	螺钉M4×4
	31008010	轴承套
	S10007	螺钉M4×4
	B04042	深沟球轴承(61902-ZNR)
	S10007	螺钉M4×4
	31002012	凸轮轴
4547	S10029	螺钉M6×0.75×5
	30235027	凸轮轴小同步带轮
4547	S10029	螺钉M6×0.75×5
	30203038	凸轮轴轴承套
	30224004	油封轴承(6902-ZNR)
	31022011	凸轮座盖板垫
	303603	打线凸轮座盖板
7017	S01005	螺钉M4×10
4547	30235045	小同步带

Page 34 — 十六、润滑部件/Lubricatrion assemblies

Jack K5-UT parts on page 34

Ref	Part number	Part name	Qty
	1	A
	2	A
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	B

Page 35 — 十六、润滑部件/Lubrication assemblies

Jack K5-UT parts on page 35

Ref	Part number	Part name	Qty
	12921002	Φ3×Φ5油管	1
255003	30221003	铜油管
240136	30123010	油毡
4514	S10002	螺钉 M5×5
255007-91	3012101500	喷油管
255006	30112039	接油盘
4821	N01001	螺母 M4
7017	S01002	螺钉 M4×6.5
202199	20429001	油管卡簧
202199	20429001	油管卡簧
240006	12921002	Φ3×Φ5油管
240134	12921005	Φ4×Φ6油管
7018	S01002	螺钉 M4×6.5
255006	30112039	接油盘
255094-91	3102100100	油管组件
200152	301S30013	过油螺钉
	30136001	油管接头
1609	30136006	铜油管接头
202199	20429001	油管卡簧
202199	20729005	油管卡簧(大)
	30122013	Φ4×Φ6油管
205113A	12921003	油管Φ5×Φ7
	12921002	Φ3×Φ5油管
200152	301S30013	过油螺钉
202199	20429001	油管卡簧
	20122033	垫片
255123	30136005	双头油管接头
	12921002	Φ3×Φ5油管
	207S13007	螺钉
	W01001	垫片
	30227040	固定板
	30223022	机座回油毡
	31027005	回油毡卡簧
	3102300100	针杆回油毡组件
	12921002	Φ3×Φ5油管

Page 36 — 十七、油泵部件/Oil pump assemblies

Jack K5-UT parts on page 36

Ref	Part number	Part name	Qty
	6	6
	8	8
	10	10
	19	19
	9	9
	7	7
	11	11
	13	13
	12	12
	27	27
	26	26
	25	25
	22	22
	24	24
	23	23
	14	14
	15	15
	16	16
	17	17
	8	8
	10	10
	21	21
	18	18
	21	21
	20	20
	5	5
	4	4
	7	7
	3	3
	2	2
	1	1

Page 37 — 十七、油泵部件/Oil pump assemblies

Jack K5-UT parts on page 37

Ref	Part number	Part name	Qty
	30201029	油盘
	20528014	垫圈
	301S11015	堵油螺钉
	S05007	螺钉 M8×20
	30222014	油盘密封圈
	3022000300	油泵组件
	30102044	油泵轴
	30120030	主动轮
	30120030	主动轮
	30120031	从动轮
	30120008	油泵盖
	301S20011	油泵螺钉
	302S13002	油泵螺钉
	30125003	油泵蜗轮
	S10002	螺钉 M5×5
	30120002	油泵固定板
	30220002	油泵体(上)
	30120009	油泵体(中)
	30120003	油泵体(下)
	S05004	螺钉 M5×12
	301S30014	过油螺钉
	20136004	滤油器
	201S30030	螺钉
	001010	O型圈38.7×3.55
	300140	滤油器盖
	30131004	提示说明
	207S11008	螺钉M4×12

Page 38 — 十八、硅油盒装置部件/Silicon oil delice assemblies

Jack K5-UT parts on page 38

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Cover
3	3	Screw
4	4	Screw
5	5	Bracket
6	6	Screw
7	7	Screw
8	8	Bracket
9	9	Bracket
10	10	Spring
11	11	Bracket
12	12	Shaft
13	13	Lever
14	14	Cover

Page 39 — 十八、硅油盒部件/Silicon oil delice assemblies

Jack K5-UT parts on page 39

Ref	Part number	Part name	Qty
	30111070	上硅油盒
207067-PD	30112040	上硅油盒盖
206781	P03008	销 2×6
7009	S16002	自攻螺钉 ST3.5×8
207068	30123011	硅油棉
1075	30201075	下硅油盒
7019	207S11007	螺钉 M4×7.5
255107	30201014	固定架
240247	30223005	硅油棉
210766	30126009	销
240246	12921002	维尼龙油管
202175	20123021	JK8568油线
2666	30212666	硅油盒挡板
2028	30222028	下硅油盒盖

Page 40 — 十九、针位组专用部件/Gauge set specific parts

Jack K5-UT parts on page 40

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29

Page 41 — 十九、针位组专用零件/Gauge set specific parts

Jack K5-UT parts on page 41

Ref	Part number	Part name	Qty
	30134001	356针古	1
	30134002	364针古	1
2	S10026	螺钉M3X3
3	30112025	夹线板
4	30112026	压线板
5	30127014	调压簧
6	301S20009	调线螺钉
7	30112033	螺钉小过线
8	302S17001	螺钉(进口)
9	301S11010	压脚固定螺钉
10	3021601000	压脚(01GB)
	30116005	压脚(02BB*356)
	30116006	压脚(02BB*364)
11	302S17001	螺钉(进口)
12	30115067	356针板(01GB)
	30115068	364针板(01GB)
	30115006	356针板(02BB)
	30115007	364针板(02BB)
13	30214001	送布牙(01GB)
14	30214002	差动牙(01GB)
15	3021400100	送布差动牙组件(01GB)
	30214008	送布牙(02BB)
	30214009	差动牙(02BB)
16	S01011	螺钉M5×10
17	31012083	缝台板(02BB专用)
18	S04021	螺钉M4×4
19	31012082	前罩缝台盖拼接块(02BB专用)
20	3011206800	龙头组件
21	S01011	螺钉M5×10
22	30112063	龙头架
23	31012085	龙头架
24	S04021	螺钉M4×4
25	31012086	前缝台挡板
26	S01027	螺钉M3×4.5
27	303929	前缝台挡板座
28	31012087	缝料挡板
29	S04021	螺钉M4×4

Page 42 — 二十、下剪线部件/Knife holder assemblies

Jack K5-UT parts on page 42

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46

Page 43 — 二十、下剪线部件/Knife holder assemblies

Jack K5-UT parts on page 43

Ref	Part number	Part name	Qty
	3121900100	下切刀组件
	30212156	刀盘底板
	30212246	摆杆
	30212116	垫片
	302S30022	螺钉M4x4
	31212005	刀盘压片
	30213046	UT松线片
	30203112	刀架固定套
	S14002	内六角沉头螺钉M4x4
	30203113	刀架转动套
	30212225	刀架连杆
	30212255	上刀架
	30212256	下刀架
	S01197	开槽圆柱头螺钉M2x6
	S01198	开槽圆柱头螺钉M2x10
	30219009	定刀
	S01196	开槽圆柱头螺钉M3x3
	30219008	动刀
	30212328	定刀固定块
	30212327	压板(二)
	S01199	开槽圆柱头螺钉M2x3
	S02165	开槽沉头螺钉M2x3
	30212329	垫板
	30212326	压板(一)
	30212324	垫块(一)
	30212325	垫块(二)
	302S12002	外六角螺钉M4x4
	302S20015	螺钉M4x2.5
	30227124	复位弹簧
	S01195	开槽圆柱头螺钉M4x3
	30212257	限位板
	31212006	挡板
	L02001	螺栓M4x8
	302S10011	刀盘定位螺钉
	301S11024	滑块导座螺钉
	31212007	支撑板
	30212240	弹簧片
	S01091	螺钉M2x2.3
	208S11007	螺钉
	20613008	过线
	207S11007	螺钉M4x7.8
	302S10011	刀盘定位螺钉

Page 44

Jack K5-UT parts on page 44

Ref	Part number	Part name	Qty
43	301S11024	滑块导座螺钉	1
44	31022016	减震垫	1
45	L02001	螺栓M4X8	1
46	302S20014	螺钉	1

Page 45 — 二十一、上剪线部件/Knife Holder Assemblies

Jack K5-UT parts on page 45

Ref	Part number	Part name	Qty
	1	KNIFE HOLDER ASSEMBLY
	2	UPPER KNIFE
	3	SPRING
	4	PIN
	5	SPRING
	6	SPRING
	7	SPRING
	8	SPRING
	9	SPRING
	10	SCREW
	11	SCREW
	12	SCREW
	13	SCREW
	14	SCREW
	15	SCREW
	16	SCREW
	17	SCREW
	18	SCREW
	19	SCREW
	20	SCREW
	21	SCREW
	22	SCREW
	23	SCREW
	24	SCREW
	25	SCREW
	26	SCREW
	27	SCREW
	28	SCREW
	29	SCREW
	30	SCREW
	31	SCREW
	32	SCREW
	33	SCREW
	34	SCREW

Page 46 — 二十一、上剪线部件/Knife Holder Assemblies

Jack K5-UT parts on page 46

Ref	Part number	Part name	Qty
	3101900100	上切刀组件
	31030005	电磁铁组件
	W02025	弹性垫圈	2
	N01013	螺母	2
	30112118	刀座安装底板	1
	30112251	刀座锁紧板	1
	N01013	螺母	1
	S05114	螺钉	1
	30127039	弹簧	1
	301S30036	螺钉	1
	301S30037	螺钉	1
	30112120	刀架滑板	1
	301S20021	螺钉	2
	30112121	刀架刀座连接垫片	2
	30112122	限位板	1
	S01087	螺钉M3.5X4	2
	30112123	上切刀动刀压片一	1
	30112124	上切刀动刀压片二	1
	W01005	垫片	1
	301S30038	螺钉	1
	301S30039	螺钉	1
	301S16014	上切刀动刀调节螺母	1
	301S20022	螺钉	1
	30119008	上切刀动刀	1
	30119009	上切刀定刀	1
	S01088	开槽圆柱头螺钉M2X3.5	4
	30112125	刀盘安装连接板	1
	S01089	螺钉M4X5.5	2
	31012014	安装板	1
	W01006	垫片	2
	S05304	开槽平端紧定螺钉SM1/8"x4	2
	301S30041	螺钉	2
	W01006	垫片	2
	S05304	螺钉	2

Page 47 — 二十二、拨线器部件/Top wiper assemblies

Jack K5-UT parts on page 47

Ref	Part number	Part name	Qty
	1	Top wiper assemblies
	2	Wiper motor
	3	Wiper arm
	4	Wiper blade
	5	Washer
	6	Nut
	7	Bracket
	8	Screw
	9	Spring washer
	10	Nut
	11	Screw
	12	Washer
	13	Shaft
	14	Wire harness
	15	Bracket
	16	Screw
	17	Screw
	18	Washer
	19	Lever
	20	Spring
	21	Screw
	22	Screw
	23	Lever
	24	Spring
	25	Spring
	26	Nut
	27	Washer
	28	Bracket
	29	Bracket

Page 48 — 二十二、 拨线器部件/Top wiper assemblies

Jack K5-UT parts on page 48

Ref	Part number	Part name	Qty
	3101900200	拨线器组件
	31030005	电磁铁组件
	30109088	安装板
	42428008	弹簧垫圈
	N01013	螺母M3
	S05032	内六角平圆头螺钉M3x12
	30104070	曲柄
	301S20055	拨线器转动曲柄轴位螺钉
	30105066	连杆
	N01006	螺母M4
	417S15007	螺钉
	30109088	挡块
	30126034	转动销
	30102156	曲柄
	30104076	曲柄
	W01048	垫片
	301S20056	拨线器连杆轴位螺钉
	W01049	垫片
	30112203	勾线片
	W01050	垫圈3
	S05047	螺钉M3x4
	S01097	螺钉M2x2
	30112204	弹簧片
	301S01005	螺钉
	30127061	拨线器复位簧
	421S13005	螺钉
	W01051	垫圈4
	30112261	固定板
	31012049	安装板

Page 49 — 二十三、剪线电磁铁部件/Solenoid assemblies

Jack K5-UT parts on page 49

Ref	Part number	Part name	Qty
1	1	支架
2	2	螺钉
3	3	螺钉
4	4	支架
5	5	螺钉
6	6	支架
7	7	螺钉
8	8	连杆
9	9	螺钉
10	10	螺钉
11	11	弹簧
12	12	支架
13	13	支架
14	14	螺钉
15	15	螺钉
16	16	支架
17	17	螺钉
18	18	支架
19	19	螺钉
20	20	支架
21	21	螺钉
22	22	螺钉
23	23	螺钉
24	24	支架
25	25	支架
26	26	螺钉
27	27	螺钉
28	28	螺钉
29	29	螺钉
30	30	支架
31	31	螺钉
32	32	支架
33	33	螺钉
34	34	支架
35	35	支架
36	36	支架
37	37	螺钉
38	38	支架
39	39	螺钉
40	40	支架
41	41	螺钉
42	42	螺钉
43	43	弹簧
44	44	螺钉

Page 50 — 二十三、剪线电磁铁部件/Solenoid assemblies

Jack K5-UT parts on page 50

Ref	Part number	Part name	Qty
	30212183	连接板
	N01012	螺钉M6
	206S200004	螺钉
	30212190	连杆
	301S20030	螺钉
	30104066	曲柄块
	30108004	挡圈
	30102111	导向轴
	301S11023	螺钉
	30108006	挡圈
	201S14002	螺钉
	S05068	螺钉
	131512002	推板组件
	30127058	弹簧
	30104066	曲柄块
	207S11007	螺钉M4X7.5
	207S11007	螺钉M4X7.5
	131412006	松线曲柄
	S04019	螺钉M4×12
	30122108	防尘罩
	207S11007	螺钉M4X7.5
	30212184	支架
	302S16010	螺母M8
	13822010	电磁铁下垫片
	31030007	剪线电磁铁框
	11322008	减震垫
	30130046	电磁铁铁芯
	114S20005	螺钉
	W02002	弹性垫片
	W01006	垫片
	114S16008	螺母
	30122105	防尘罩
	30112185	防尘压板
	S04010	螺钉M4X5.5
	3103000700	剪线电磁铁组件
	31030013	安全开关
	S01055	螺钉M4X5.5
	30212182	下安装板
	305S13004	螺钉
	31011010	电磁铁罩壳
	207S11007	螺钉M4X7.5
	S05003	螺钉M5X12

Page 51

Jack K5-UT parts on page 51

Ref	Part number	Part name	Qty
43	31012090	感应支架 stents
44	S05068	螺钉 screw
45	W01001	垫片 screw
46	30122108	防尘罩 dust cover

Page 52 — Electronic control assemblies

Jack K5-UT parts on page 52

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Motor
3	3	Control Box
4	4	Bearing
5	5	Motor Pulley
6	6	Switch
7	7	Indicator Light
8	8	Button
9	9	Control Panel
10	10	Display Screen
11	11	Wire Harness
12	12	Wire Harness
13	13	Screw
14	14	Screw
15	15	Screw
16	16	Bracket
17	17	Capacitor
18	18	Power Supply Unit
19	19	Terminal Block
20	20	Fuse Holder
21	21	Cable Clamp

Page 54 — 二十五、后拖轮部件/After cam assemblies

Jack K5-UT parts on page 54

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	WASHER
3	3	PIN
4	4	SCREW
5	5	SPRING
6	6	PIN
7	7	SPRING
8	8	PIN
9	9	SPRING
10	10	BRACKET
11	11	SHAFT
12	12	CYLINDER
13	13	SPRING
14	14	SHAFT
15	15	SHAFT
16	16	SPRING
17	17	SCREW
18	18	BASE
19	19	BRACKET
20	20	SCREW
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	SCREW
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	BRACKET
31	31	BRACKET
32	32	SCREW
33	33	SCREW
34	34	BRACKET
35	35	BRACKET
36	36	SHAFT
37	37	SHAFT
38	38	SHAFT
39	39	SCREW
40	40	BRACKET
41	41	GEAR
42	42	BRACKET
43	43	SCREW
44	44	PIN
45	45	BRACKET
46	46	SCREW
47	47	SCREW
48	48	SCREW
49	49	BRACKET
50	50	BRACKET
51	51	BRACKET
52	52	SCREW
53	53	SCREW
54	54	SCREW
55	55	BRACKET
56	56	BRACKET
57	57	GEAR
58	58	BRACKET
59	59	SCREW
60	60	BRACKET
61	61	BRACKET
62	62	SCREW
63	63	SCREW
64	64	SCREW
65	65	BRACKET
66	66	BRACKET
67	67	BRACKET
68	68	SCREW
69	69	SCREW
70	70	SCREW
71	71	SCREW
72	72	BRACKET
73	73	BRACKET
74	74	BRACKET
75	75	BRACKET
76	76	BRACKET
77	77	BRACKET
78	78	SCREW

Page 55 — 二十五、后拖轮部件/After cam assemblies

Jack K5-UT parts on page 55

Ref	Part number	Part name	Qty
	31175	压脚架
	305S16006	螺母M20
	305S30006	调节螺钉
	S05031	螺钉M6×20
	305S11014	螺钉
	3051205100	调节板
	30226050	曲柄销钉
	305S20013	螺钉
	30528012	波形垫片
	N01001	螺母
	30526023	销
	30503031	铜套
	30527011	弹簧
	S01018	螺钉M4×20
	30502022	轴
	N01001	螺母M4
	S05031	螺钉M6×20
	30212102	压板
	30212104	调节板
	H05010	挡圈12
	L02012	螺栓M5×12
	30526020	销
	30201100	压轮架
	S05031	螺钉M6×20
	S09008	螺钉M5×5
	S01065	螺钉M5×6
	30512054	挡板
	305S11012	螺钉
	H05011	挡圈9
	W01026	垫片
	31003010	轴套(左)
	305S11002	螺钉
	30512057	压板
	30503063	轴承套
	B07048	滚针轴承K26×20×16
	30202101	轴
	30203103	齿轮套
	30225103	齿轮
	207S13007	螺钉
	30202100	U型轴
	30225101	齿轮
	S10027	螺钉M5×5

Page 56

Jack K5-UT parts on page 56

Ref	Part number	Part name	Qty
	S01060	螺钉M6×10
	30226004	销
	30512055	冲压件铁霄
	305S11002	螺钉
	30512056	蝶形卡簧
	31003011	轴套 (右)
	30503036	铁套
	W01010	平垫圈8
	N01008	螺母M8
	305S20012	螺钉
	30212103	连接板
	3050501700	连接组件
	30505018	连杆
	305S30007	球曲柄螺钉
	30505019	连杆
	305S16008	螺母M6
	30505020	连杆
	305S20014	螺钉
	30503034	铁套
	W01004	平垫圈5
	30504015	曲柄
	305S30009	螺钉
	B07011	滚针轴承K8×11×10
	W01004	平垫圈5
	N01004	螺母M5
	30208001	挡块
	S10029	螺钉M6×0.75×5
	S05037	螺钉M6×15
	302S20014	螺钉
	S01065	螺钉M5×6
	31012114	后拖轮驱动板
	31012115	拉板
	31012116	后拖轮拉板
	310S20015	轴位螺钉M8
	30226004	销子

Page 57 — 二十六、后拖轮部件/After fight cam assemblies

Jack K5-UT parts on page 57

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Bearing
3	3	Bearing
4	4	Housing
5	5	Screw
6	6	Screw
7	7	Screw
8	8	Cam
9	9	Shaft
10	10	Bearing
11	11	Washer
12	12	Spring
13	13	Pin
14	14	Screw
15	15	Screw
16	16	Screw
17	17	Shaft
18	18	Cam
19	19	Cam
20	20	Screw
21	21	Bearing
22	22	Shaft
23	23	Cam
24	24	Screw

Page 58 — 二十六、后拖轮架部件/After fight cam assemblies

Jack K5-UT parts on page 58

Ref	Part number	Part name	Qty
1	207S13004	螺钉M6×35	4
2	30522069	油封	1
3	301175	后盖(喷漆)	1
4	30212023	接油盘	1
5	P03002	弹性圆柱销	2
6	30522070	后盖密封圈	1
7	20122021	油封	1
8	20103047	送布轴右套(粉末)	2
9	30502045	拖轮轴	1
10	30508001	挡圈	1
11	30128015	垫圈	1
12	H03006	挡圈10	1
13	30522019	油封	1
14	N01004	螺母M5	1
15	S10029	螺钉M6×0.75×5	6
16	W01004	垫圈	1
17	30504035	曲柄	1
18	30126006	连杆销	1
19	30503060	轴套	1
20	3050502600	连杆组件	1
21	30224001	滚针轴承28×24×13	1
22	30505025	连杆	1
23	30503061	连杆轴套	1
24	S12003	螺钉M6×0.75×7	2

Page 59 — 二十七、线架部件/Thread Apool Assemblies

Jack K5-UT parts on page 59

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28

Page 60 — 二十七、线架部件/Thread Apol Assemblies

Jack K5-UT parts on page 60

Ref	Part number	Part name	Qty
	20131019	棒帽
	21131008	上管
	21131009	导线架(短)
	20131011	导线环
	201S16006	导线环螺母
	201S12008	导线环螺钉
	20131018	过线环
	201S16004	螺母
	21131010	导线棒固定块
	20131021	棒架螺钉
	20131022	棒架螺钉
	20131011	导线棒
	21131013	导线棒固定块
	20131036	过线棒
	21131014	套
	N01030	套螺母
	S04050	螺钉 M5×19
	21131018	下管
	20131006	线托棒
	21131015	线圈定位套
	20131010	线盘垫
	21131018	下管
	20128018	线盘垫圈
	20122049	橡胶垫圈
	20128025	下管垫圈
	201S16005	下管固定螺母
	21131012	导线架(长)
	2113100500	C4-2340线架组件(五线)

Page 61 — 二十八、35AC切刀专用件/35ACFT device

Jack K5-UT parts on page 61

Ref	Part number	Part name	Qty
	1	杆
	2	座
	3	螺钉
	4	螺钉
	5	垫圈
	6	螺母
	7	螺钉
	8	座
	9	螺钉
	10	杆
	11	螺钉
	12	垫圈
	13	螺钉
	14	垫圈
	15	螺母
	16	杆
	17	垫圈
	18	弹簧
	19	螺母
	20	杆
	21	螺钉
	22	螺钉
	23	杆
	24	座
	25	螺钉
	26	座
	27	螺钉
	28	刀片
	29	螺钉
	30	刀片
	31	刀片
	32	螺钉
	33	座
	34	螺钉
	35	座
	36	座
	37	螺钉
	38	螺钉
	39	螺钉
	40	杆
	41	螺钉
	42	杆
	43	座
	44	弹簧

Page 62 — 二十八、35ACFT切刀专用件

Jack K5-UT parts on page 62

Ref	Part number	Part name	Qty
	30202043	曲柄轴
255552	30204011	曲柄
	S10013	螺钉 M6×6
7057	302S12001	六角螺钉
	30228008	垫圈
179160-05	30203027	轴衬
255553	302S02001	螺母
255554	30204012	曲柄
	S10013	螺钉 M6×6
240008	30226016	键
252557A	400080	连杆
202174	30223005	油线
202175	20123021	油线
255077	30201044	油线架
	205S30008	压刀板螺钉
255555	30202023	自动剪切轴
230030	30708003	挡圈
255548	30227012	弹簧
255546	302S01001	螺母
255549-9P	300704	下刀架座
	S05004	螺钉 M5×14
	302S13001	螺钉 M5×10
255557	30222015	油封
255564-91	30201046	上刀架
	S01011	螺钉 M5×12
257574	30219001	上刀
	S01027	螺钉 M3
255560	30201047	下刀架
	S11015	螺钉 M4×16
204161A	30219002	下刀
255558-91	30201048	下刀压板
	101S11008	滑块导轨螺钉
	31001020	吸管背口
	S01006	螺钉 M3
255567-91	3021101000	排料管组件
608005	30211005	携管带
255562	30212059	挡板
	S01002	螺钉 M4×6
601115	302S09001	连接螺钉
	30226004	销 4×16
	30203028	左轴套
	30203029	右轴套

Page 63

Jack K5-UT parts on page 63

Ref	Part number	Part name	Qty
	30226021	销子 pin	1
	S10007	螺钉M4x4 screw	1

Page 64 — K4-35AC专用件

Jack K5-UT parts on page 64

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Lever
3	3	Screw
4	4	Screw
5	5	Screw
6	6	Base
7	7	Screw
8	8	Screw
9	9	Feed Dog
10	10	Feed Dog
	11	Narrow
	12	Wide
13	13	Part
14	14	Part
15	15	Part
16	16	Part
17	17	Part
18	18	Screw
19	19	Part
20	20	Part
21	21	Part
22	22	Part

Page 65 — 二十九、35AC专用件/35ACFT device

Jack K5-UT parts on page 65

Ref	Part number	Part name	Qty
	304347	前罩缝合组件(喷漆)
	31001022	前罩缝台
	30201016	合销块
	301S20002	前罩缝台座螺钉
	30128002	弹簧垫片
	31026006	销
	S10005	螺钉M3×3
	207S11016	螺钉M4×16
	30214017	差动牙(35AC)
	30214016	送布牙(35AC)
	30212155	辅助板窄(35AC)
	30212052	辅助板宽(35AC)
	30216005	压脚356
	30216008	压脚364
	31015001	针板356
	31015002	针板364
	31012100	垫布板
	310S11002	缝料板螺钉
	304348	缝台盖板(喷漆)
	310S11003	缝台板螺钉
	31012092	左盖板(35AC)
	31004031	针板架(35AC)
	30201020	缝料左挡块
	30201019	缝料右挡块

Page 66

Jack K5-UT parts on page 66

Ref	Part number	Part name	Qty
	1	Bottle
	2	Cap
	3	Funnel
	4	Bracket
	5	Cloth
	6	Spring
	7	Spring
	8	Spring
	9	Spring
	10	Spring
	11	Spring
	12	Spring
	13	Rod
	14	Screwdriver
	15	Screw
	16	Screwdriver
	17	Chain
	18	Cloth
	19	Cloth
	20	Roller
	21	Pin
	22	Pin
	23	Bracket
	24	Screw
	25	Bracket
	26	Screw
	27	Screw
	28	Screw
	29	Screw
	30	Bracket

Page 67 — 三十、附件/Accessories assemblies

Jack K5-UT parts on page 67

Ref	Part number	Part name	Qty
	20131037	油壶 (大)
	20131038	小油壶 (尖嘴)
	20131039	漏斗
	131212004	前辅助缝台
	20131051	镊子
	30131007	内六角扳手 (1.5mm)
	20131046	内六角扳手 (2mm)
	30131010	内六角扳手 (2.5mm)
	30131012	内六角扳手 (3mm)
	20131047	内六角扳手 (4mm)
	20131056	内六角扳手 (5mm)
	30131026	内六角扳手 (6mm)
	20731047	螺丝刀 (大)
	10131004	螺丝刀 (小)
	S10005	螺钉 M3×3
	20131044	内六角扳手 (1.5mm直柄)
	30131018	链条 (非直驱、DI专用)
	10131005	机头罩
	30117001	机针
	20136001	滤油器
	30131005	扳手 (6mm-7mm)
	30131006	扳手 (8mm-10mm)
	3103000500	直驱控制器配件
	S01060	螺钉 M6×10
	31012054	缝台板 (左)
	30201020	缝料左挡块
	30201019	缝料右挡块
	S01009	螺钉 M3×7.5
	1312NS11001	开槽平面圆柱头带垫螺钉M3
	3120100700	08AC折边器组件

Page 68 — 三十一、台板部件/Bedplate assemblies

Jack K5-UT parts on page 68

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Screw
3	3	Bedplate
4	4	Screw
5	5	Screw
6	6	Screw
7	7	Screw
8	8	Screw
9	9	Screw
10	10	Screw
11	11	Screw

Page 69 — 三十一、台板部件/Bedplate assemblies

Jack K5-UT parts on page 69

Ref	Part number	Part name	Qty
1	20131028	油盘螺钉固定头
2	30122029	油盘减振垫
3	301S30018	油盘托板螺钉
4	30112198	油盘托盘
5	131222003	防振橡胶套
6	20131027	托盘螺钉
7	20131029	大垫圈
8	30112041	链条挡板
9	131038001	防振垫钢套
10	S01011	螺钉M5×10
11	\	台板

Part BooksPartsSearchNotes

Part Books

×

Search

×

Jack K5-UT — parts catalog

• Page 1 (diagram): This page displays a diagram of bushing assemblies with numbered parts, including a note about dashed lines representing parts not currently in use or improved.
• Page 2 (parts_list): This page lists parts for Bushing assemblies, including part numbers, descriptions, and quantities.
• Page 3 (diagram): This page displays a diagram of frame assemblies for an industrial sewing machine, with numbered parts indicated.
• Page 4 (parts_list): This page lists parts for the frame assembly, including part numbers, descriptions, and quantities.
• Page 5 (diagram): This page displays a diagram of cover assemblies for an industrial sewing machine, with numbered parts indicated.
• Page 6 (parts_list): This page lists cover assembly parts, including part numbers, descriptions, and quantities.
• Page 7 (diagram): This page displays a diagram of cloth plate assemblies with numbered parts, including references to part numbers and descriptions.
• Page 8 (parts_list): This page lists parts for cloth plate assemblies, including part numbers, descriptions, and quantities.
• Page 9 (diagram): This page displays a diagram of hook shaft assemblies, with numbered parts indicated for reference.
• Page 10 (parts_list): This page lists parts for Hook shaft assemblies, including part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of the main shaft assemblies, with numbered parts indicated for reference.
• Page 12 (parts_list): This page lists main shaft assemblies and their components, including part numbers, descriptions, and quantities.
• Page 13 (diagram): This page contains a diagram of needle bar assemblies, with numbered parts indicated.
• Page 14 (parts_list): This page lists needle bar assemblies with part numbers, descriptions, and quantities.
• Page 15 (diagram): This page displays a diagram of needle guard assemblies, with numbered parts indicated for reference.
• Page 16 (parts_list): This page lists parts for needle guard assemblies, including part numbers, descriptions, and quantities.
• Page 17 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts indicated.
• Page 18 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
• Page 19 (diagram): This page displays a diagram of the need mechanism components for an industrial sewing machine, with numbered parts indicated.
• Page 20 (parts_list): This page lists parts for the "Need mechanism" section of an industrial sewing machine, including screws, guides, bearings, and more, with their corresponding part numbers, descriptions, and quantities.
• Page 21 (parts_list): This page contains a parts list for items 43 through 45, including part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of presser form assemblies with numbered parts.
• Page 23 (parts_list): This page lists parts for the Presser form assemblies, including part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of needle feeding assemblies with numbered parts.
• Page 25 (parts_list): This page lists parts for needle feeding assemblies, including part numbers, descriptions, and quantities.
• Page 26 (diagram): This page displays a diagram of thread loosing assemblies (one) with numbered parts, including components like brackets, springs, and tension discs.
• Page 27 (parts_list): This page lists thread loosening assemblies (one) with part numbers, reference numbers, descriptions, and quantities.
• Page 28 (diagram): This page displays a diagram of thread loosening assemblies (two) with numbered parts, including screws, brackets, and rods.
• Page 29 (parts_list): This page lists parts for thread loosing assemblies (two), including part numbers, descriptions, and quantities.
• Page 30 (diagram): This page displays a diagram of thread loosening assemblies with numbered parts.
• Page 31 (parts_list): This page lists thread looping assemblies with part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of cam assemblies and related components, with numbered parts for identification.
• Page 33 (parts_list): This page lists parts for the Cam assemblies, including part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of lubrication assemblies with numbered parts.
• Page 35 (parts_list): This page lists lubrication parts for the industrial sewing machine, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of oil pump assemblies, with numbered parts indicated for reference.
• Page 37 (parts_list): This page lists parts for oil pump assemblies, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of silicon oil delice assemblies with numbered parts.
• Page 39 (parts_list): This page lists parts for silicone oil delice assemblies, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of gauge set specific parts for an industrial sewing machine, with numbered components indicated.
• Page 41 (parts_list): This page lists specific parts for a gauge set, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of knife holder assemblies, with numbered parts indicated by reference numbers.
• Page 43 (parts_list): This page lists parts for the knife holder assemblies, including part numbers, descriptions, and quantities.
• Page 44 (parts_list): This page lists parts with reference numbers 43 through 46, including part numbers like 301S11024 and 302S20014, with descriptions such as 'screw' and 'cushioning'.
• Page 45 (diagram): This page displays a diagram of the Knife Holder Assemblies, with numbered parts indicated for reference.
• Page 46 (parts_list): This page lists parts for the Knife Holder Assemblies, including part numbers, descriptions, and quantities.
• Page 47 (diagram): This page displays a diagram of top wiper assemblies with numbered parts, including part numbers and descriptions.
• Page 48 (parts_list): This page lists parts for the Top wiper assemblies, including part numbers, descriptions, and quantities.
• Page 49 (diagram): This page displays a diagram of solenoid assemblies, with numbered parts indicated for identification and reference.
• Page 50 (parts_list): This page lists parts for Solenoid assemblies, including part numbers, descriptions, and quantities.
• Page 51 (parts_list): This page contains a parts list for items 43 through 46, including part numbers, descriptions in Chinese and English, and quantities.
• Page 52 (diagram): This page displays a diagram of electronic control assemblies for a sewing machine, with various components labeled with reference numbers.
• Page 54 (diagram): This page displays a diagram of the after cam assemblies for an industrial sewing machine, with numbered parts indicated.
• Page 55 (parts_list): This page lists parts for the rear wheel cam assemblies, including part numbers, descriptions, and quantities.
• Page 56 (parts_list): This page lists parts for an industrial sewing machine, including screws, nuts, plates, and other components with their corresponding part numbers, descriptions, and quantities.
• Page 57 (diagram): This page displays a diagram of after fight cam assemblies, with numbered parts indicated.
• Page 58 (parts_list): This page lists parts for the rear fight cam assemblies, including part numbers, descriptions, and quantities.
• Page 59 (diagram): This page displays a diagram of thread spool assemblies, with numbered parts indicated for reference.
• Page 60 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities. It includes items like rod caps, upper tubes, thread guides, screws, nuts, and washers.
• Page 61 (diagram): This page displays a diagram of the 35ACFT device, with various parts numbered for identification.
• Page 62 (parts_list): This page lists parts for the 35ACFT device, including part numbers, descriptions, and quantities.
• Page 63 (parts_list): This page contains a parts list for items 43 and 44, including part numbers, descriptions in Chinese and English, and quantities.
• Page 64 (diagram): This page contains a diagram of parts for the K4-35AC device, with numbered components and labels for wide and narrow parts.
• Page 65 (parts_list): This page lists parts for the 35ACFT device, including part numbers, descriptions, and quantities. It details components like front covers, hinges, screws, washers, pins, feed dogs, fabric guides, presser feet, needle plates, spring washers, and hemming guides.
• Page 66 (diagram): This page displays a diagram of accessories and assemblies for an industrial sewing machine, with numbered parts indicated for reference.
• Page 67 (parts_list): This page lists accessories and parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
• Page 68 (diagram): This page displays a diagram of bedplate assemblies with numbered parts, including screws, brackets, and the main bedplate component.
• Page 69 (parts_list): This page lists parts for Bedplate assemblies, including part numbers, descriptions, and quantities.
• Page 70 (text): This page contains safety precautions for industrial sewing machines, environmental requirements, company contact information, and a note about revisions.
• Page 71 (text): This page contains a note about dashed lines in diagrams and the page number 71.

Page 1

套筒部件/Bushing assemblies 注：点划线框表示暂时不用或已改进零件。 1

Page 2 — 套筒部件/Bushing assemblies

套筒部件/Bushing assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.NO 名称 Description 数量 Numbe 1 131103007 扳手轴套筒 sleeve 1 2 30103042 210297 过线座轴后套筒 sleeve 1 3 131103006 210297 挑线轴前套 sleeve 1 4 20103020 250141 送布轴右套 sleeve 1 5 20103020 250141 送布轴右套 sleeve 1 6 30203004 250146 针杆上套筒 sleeve 1 7 30203005 251003 针杆下套筒 sleeve 1 8 30203024 250147 压脚轴套筒 sleeve 1 9 30203025 250136 喂针摆动轴套筒 sleeve 1 10 20622019 油封 plug 1 11 30122039 压脚轴套油封 plug 1 12 30203002 250137 下主轴前套 sleeve 1 13 30203003 250138 下主轴后套 sleeve 1 14 30203006 0628 护针轴套 sleeve 1 15 30203039 0628 护针轴套 sleeve 1 16 30203011 250139 针距轴套 sleeve 1 17 30203017 250140 差动轴前套 sleeve 1 18 30222011 差动油封 plug 1 19 30203018 250141 差动轴后套 sleeve 1 20 30203014 抬牙轴前套 sleeve 1 21 30222010 抬牙油封 plug 1 22 30203015 抬牙轴中套 sleeve 1 23 30203016 204089 抬牙轴后套 sleeve 1 24 30203012 调节座套 sleeve 1 25 30203009 250191 下弯针轴前套 sleeve 1 26 30203010 250144 下弯针轴后套 sleeve 1 27 P03005 GB/T879-1986销4×8 pin 1 28 20122029 油封 plug 1 29 20122029 油封 plug 1 注:点划线框代表暂时不用或以改进零件。 2 jintex.in

Page 3 — 一、车壳部件/Frame assemblies

一、车壳部件/Frame assemblies 注：点划线框表示暂时不用或以改进零件。 3 jintex.in

Page 4 — 一、车壳部件/Frame assemblies

一、车壳部件/Frame assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30122006 240052 油堵 plug 1 2 21022007 油封 plug 2 3 21012018 油封垫 washer 2 4 20622019 油封 plug 1 5 30222007 209084 密封盖 plug 1 6 H01001 240001 孔用弹性挡圈18 ring 1 7 30112001 255002 滤油网 filter 1 8 20123021 255108 限油芯 pin 1 9 301S30001 250117 机壳螺钉 bed pin 4 10 20122009 210003 油封 plug 1 11 30111001 206590 油标 oil sight gauge 1 12 W02003 垫圈10 washer 4 13 S05001 螺钉M10×27.5 screw 4 14 30112002 250020 盖板 cover 1 15 S01002 7017 螺钉M4×6.5 cscrew 2 16 910000022 机壳上节毛坯 chassis 1 17 910000023 机壳下节毛坯 casing under section 1 18 30226004 定位销 pin 2 19 30122007 油封 plug 1 20 30122008 油封 plug 1 21 30222003 油堵 plug 1 22 001001 O型圈15×2.65 o ring 1 23 30221016 铜油管 oil pipe 1 24 P02002 销6×32 pin 2 25 30222031 油封 plug 1 注:点划线框代表暂时不用或以改进零件。 4 jintex.in

Page 5 — 二、罩壳部件/Cover assemblies

二、罩壳部件/Cover assemblies 5 jintex.in 注:点划线框表示暂时不用或已改进零件。

Page 6 — 二、罩壳部件/Cover assemblies

二、罩壳部件/Cover assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.NO 名称 Description 数量 Numbe 1 S04060 7021 螺钉M4×10 screw 9 2 303600 上盖(喷漆) arm cover(top) 1 3 21022007 油脂 plug 1 4 20711055 油窗 Oil Sight Window 1 5 21022003 油窗垫 o ring 1 6 31022010 上盖垫 The head gasket 1 7 S01060 7052 螺钉M6×10 screw 6 8 303605 250154 后窗板 arm cover(rear) 1 9 31022013 250155 后盖板 gasket 1 10 207S11007 螺钉 screw 2 11 131412001 针杆护罩 needle bar cover 1 12 31022006 机头左盖垫 o ring 1 13 13837002 商标牌 plug 1 14 10122003 面板调节孔塞 plug 1 15 303599 机头左盖(喷漆) arm cover(rear) 1 16 31012042 玻璃罩安装板 glass plate 1 17 31012029 护罩架 Shield frame 1 18 30111003 250257 有机玻璃罩 eye guard 1 19 W01002 202875 垫圈 sticker 2 20 S01006 7009 螺钉M3×4.5 screw 2 21 S01060 7052 护罩螺钉 screw 2 22 W02004 303335 垫圈6 sticker 2 23 31012012 过线护罩 threan takeup cover 1 24 301S20001 螺钉 screw 1 25 W03001 210307 波形垫圈 washer 1 26 20131063 护罩警示牌 sticker 1 27 207S11011 螺钉 screw 1 28 20711212 R型线夹8.6 Card line piece 1 29 31012018 油窗垫 o ring 1 30 30122012 密封垫 plug 1 注:点划线框暂时不用或以改进零件。 6 jintex.in

Page 7 — 三、 缝台部件/Cloth plate assemblies

三、 缝台部件/Cloth plate assemblies 注：点划线框表示暂时不用或已改进零件。 7 jintex.in

Page 8 — 三、缝台部件/Cloth plate assemblies

三、缝台部件/Cloth plate assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 S01005 7021 螺钉M4×10 screw 4 2 3121200300 后缝台组件(喷漆) bed cover 1 3 301S20019 螺钉 screw 1 4 31212001 旋转缝台 screw 1 5 20728003 蝶形垫片 spring washer 1 6 20528006 垫片 washer 1 7 205S16004 螺母 nut 1 8 S01005 螺钉M4×10 screw 1 9 31001005 针板架 needle plate 1 10 31201001 缝台块安装座 plate 1 11 207S11007 螺钉 screw 1 12 31022004 左盖密封垫 needle town after boards 1 13 31012023 左盖板 cover plate assembly 1 14 303604 U型盖(喷漆) left cover plate rack 1 15 S10007 螺钉M4×4 screw 2 16 S04060 螺钉M4×10 screw 2 17 301S11024 螺钉M4×8 screw 1 18 31026004 下节左盖板销 pin 1 19 S02003 螺钉M4×6 screw 2 20 31212004 前罩缝台面板 Front cover panel 1 21 31012002 前罩缝台安装座 Front hood 1 22 31009005 针板架接块 bracket 1 23 S01009 螺钉M3×7.5 screw 2 24 310S20011 四合一缝台卡簧螺钉 screw 1 25 30227030 卡簧 circlip 1 26 31026006 销 pin 1 27 31001014 合销块 Closing pin 1 28 207S11016 螺钉M4×16 screw 2 29 S10005 螺钉M3×3 screw 2 30 30128002 垫片 bracket assembly 2 31 310S20006 250013 合销块螺钉 screw 1 32 30222027 盖板垫 Flat mat 1 33 930000013 前缝台组件(喷漆) bed cover 1 34 30213009 过线环 threadguide 1 35 S01055 螺钉M4×6 screw 1 36 S01055 螺钉M4×6 screw 1 37 30212288 盖板 Cover plate 1 38 L02001 开槽六角头螺栓M4×8 screw 7 注:点划线框代表暂时不用或已改进零件。 8 jintex.in

Page 9 — 四、下轴部件/Hook shaft assemblies

四、下轴部件/Hook shaft assemblies 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 注:点划线框表示暂时不用或以改进零件。 9 jintex.in

Page 10 — 四、下轴部件/Hook shaft assemblies

四、下轴部件/Hook shaft assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 400082 250551 下轴前轴 crankshaft 1 2 S10015 7128 螺钉J M6×0.75×4 screw 2 3 31002008 250554-92 下轴后轴 crankshaft 1 4 201S20015 5376 铜连杆螺丝M3.5×13 screw 4 5 400070 3020500100 球连杆 connection 1 6 S05002 4534 螺钉T M6×0.75×15.2 bolt 1 7 400228 30204001 球曲柄 crank 1 8 13122400100 250529A91 油封轴承 bearing 1 9 30103008 250544 蜗杆 bushing 1 10 S10029 4547 螺钉M6×0.75×5 screw 8 11 13122400200 250557-91 油封轴承 bearing 1 12 30135021 同步带 timing belt 1 13 3023502500 401 下轴同步带轮组件 gear(lower) 1 14 S12003 4555 螺钉M6×0.75×7 screw 2 15 3023502600 402 下轴小同步带轮组件 gear(lower) 1 16 13122400400 油封轴承 bearing 1 17 30108001 250514 轴承挡圈 ring 1 18 207S11007 7018A 螺钉T M4×7.5 screw 1 19 207S11007 下轴轴承套 bushing 1 20 30109001 201074 比叉 guide 1 21 W02001 202286 垫圈5 washer 1 22 301S11004 4019 比叉螺钉 screw 1 23 30223009 毛毡 spong 2 注:点划线框暂时不用或以改进零件。 10 jintex.in

Page 11 — 五、上轴部件/Main shaft assesmblies

五、上轴部件/Main shaft assesmblies 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 注：点划线框表示暂时不用或以改进零件。 11 jintex.in

Page 12 — 五、上轴部件/Main shaft assem

五、上轴部件/Main shaft assem 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 S01011 7028 螺钉M5×10 screw 2 2 301S10004 4592 针杆曲柄螺钉 screw 1 3 S08001 7153 螺钉M6×0.75×3.5 screw 1 4 S11001 7152 螺钉M6×0.75×6 screw 1 5 30224005 针杆曲柄轴承 bearing 1 6 400065 30102005 上前轴 crankshaft 1 7 400061 30105004 弯针连杆 connection assembly 1 8 S01008 007021A 螺钉M3.5×13 screw 4 9 31004004 针杆曲柄 motion assy 1 10 30104006 253501A 弯针曲柄 crank assembly 1 11 S05002 4534 螺钉M6×0.75×15.2 bolt 1 12 30109003 250524 上轴平衡块 balance weight 2 13 S10002 4514 螺钉M5×5 screw 2 14 30103004 250506 接轴套 joint 1 15 S12003 4555 螺钉M6×0.75×7 screw 3 16 S10029 4547 螺钉M6×0.75×5 screw 5 17 13122400300 250529-91 油封轴承 bearing 1 18 S10029 螺钉M6×0.75×5 screw 1 19 31035022 上同步带轮 gear(upper) 1 20 S10029 螺钉M6×0.75×5 screw 2 21 13122400300 250528-91 油封轴承 bearing 1 22 S10029 4547 螺钉M6×0.75×5 screw 1 23 31002011 上后轴 shaft 1 24 31035002 手轮 pulley 1 25 S12001 4556 螺钉M6×8 screw 1 26 S10009 4541 螺钉M6×8 screw 1 27 S10004 4592 螺钉M8×1×12 screw 1 28 31009001 针杆曲柄平衡块 Balance wei 1 29 S02003 螺钉 screw 2 注:点划线框暂时不用或以改进零件。 12 jintex.in

Page 13 — 六、针杆部件/Needle bar assemblies

六、针杆部件/Needle bar assemblies 注：点划线框代表暂时不用或以改进零件。 13 jintex.in

Page 14 — 六、针杆部件/Needle bar assemblies

六、针杆部件/Needle bar assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30202024 251014-91 针杆 needle bar 1 2 30102009 206061 针杆轧头 needlebar clamp 1 3 301S11005 5325 针杆轧头螺钉 screw 1 4 30205002 251016 针杆连杆 link 1 5 30102050 206053 连杆轴 eccentric pin 1 6 B07001 240098 轴承K8×12×12 needle baearing 1 7 30128006 针杆连杆轴垫圈 washer 8 30109004 206063 针杆滑块 guide block 1 9 31009006 251017 滑块导座 guide 1 10 30227003 251018 毛毡弹簧 latch 1 11 207S11008 7021 螺钉TM4×12 screw 2 12 30123002 179040-05 毛毡 sponge 1 13 30112009 206524 油毡托 oil wick retainer 1 14 30123014 212186 油线 oil wick 1 15 207S11007 螺钉M3×5 screw 1 16 30203056 护针套筒 sleeve 1 17 30217001 257568 前护针 needle guard(front) 1 18 30210005 后护针偏心凸轮 spong 1 19 S10007 4546 螺钉TM4×4 screw 2 20 30204035 4035 护针曲柄 oil wick 1 21 301S11025 7086 护针曲柄螺钉 screw 1 22 30201008 251512 后护针架 needle guard(rear) 1 23 31017002 257567 后护针 needle guard(rear) 1 24 S10007 4543 螺钉TM4×4 screw 2 25 30204003 251513-92 护线曲柄 lever 1 26 S01029 7013 螺钉M3.5×7.5 screw 1 27 30201007 251514 前护针架 needle guard(front) 1 注:点划线框暂时不用或以改进零件。 14 jintex.in

Page 15 — 七、 零件/Needle guard assemblies

七、 零件/Needle guard assemblies 注：点划线框表示暂时不用或以改进零件。 15 jintex.in

Page 16 — 七、弯针部件/Needle guard assemblies

七、弯针部件/Needle guard assemblies 序号 No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 部件号 Parts No. 30210002 S10015 B07009 30205003 30226005 N01004 W01004 30201010 30203045 30223014 12921002 30202007 30228006 S05048 W02002 30228005 30204004 S05002 30201011 S04019 30228003 30209003 30209004 S10007 30201012 30201101 30221018 30213050 S10007 30217003 30228004 30203007 S10013 30203044 001021 30228002 30202006 S05046 S01006 30226017 参考件号 Ref.Part.No. 252036-92 7128 206172 252035 252037-91 4805 240062 252039 252044 240232 4524\7110 201252 240231 252046-92 4534 252040-92 7021A 252041 252042 252043 4543 252045-92 7129 257566 252047 252052 252049-91 231011 252055 252048 名称 Description 偏心套 螺钉M6×0.75×4 轴承K26×30×12.7 连杆 滑杆销 螺母M5 连杆轴垫圈 滑杆架 油棉盖 油棉 回油管 下弯针连杆轴 垫片 螺钉M4×10 垫圈4 垫片 下弯针轴柄 螺钉M6×0.75×15.2 前挡块 螺钉M4×12 下弯针轴柄垫片 弯针滑块 弯针滑块螺钉垫 螺钉M4×4 下弯针轴柄后挡块 弯针固定架 铜油嘴 滑杆过线 螺钉M4×4 弯针 下弯针轴柄挡块垫片 滑杆后套 螺钉 滑杆前套 O型圈12.2×2.4 弯针固定架垫片 滑杆 螺钉M3.5×10.5 螺钉 弹性圆柱销 sccentric screw needle bearing rod pin assembly nut washer guide/looper shaft oil cover felt pipe shaft washer bolt washer washer lever screw holder screw washer slider pin screw holder looper holder joint screw threadguide screw looper washer bushing screw bushing o ring washer shaft screw screw pin 数量 Numbe 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 2 1 2 1 1 1 1 1 1 1 注:点划线框代表暂时不用或以改进零件。 16 jintex.in

Page 17 — 八、护针部件/Feed mechanism

八、护针部件/Feed mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 注:点划线框不时或以改进零件。 17 jintex.in

Page 18 — 八、护针部件/Feed mechanism

八、护针部件/Feed mechanism 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 1 13121000100 252607-92 送布偏心轮组件 eccentric 1 2 S10006 4539 螺钉M5×6 screw 2 3 B07007 204084 轴承22×26×10 needle bearing 1 4 30224001 240236 轴承28×24×13 needle bearing 1 5 30229001 240234 卡簧 ring 1 6 30229002 240237 卡簧 ring 1 7 131205001 252608 连杆 rod 1 8 131204001 252609-92 曲柄 crank 1 9 S05005 4531 螺钉TM5×12 screw 1 10 30228007 240055 垫片 washer 1 11 S02016 7041 螺钉TM3×3.2 screw 1 12 30205005 252612 偏心连杆 rod 1 13 30205007 252614 针距轴杆 link 1 14 30205006 202176 连杆 link 1 15 S10007 4537 螺钉M4×4 screw 2 16 30226007 252613 连杆销 pin 2 17 20123021 202176 JK795油线 oil wick 1 18 30226008 252616 曲柄销 pin 1 19 30204006 252617 曲柄 crank 1 20 S10029 7142 螺钉M6×5 screw 2 21 30204007 252618-91 调节曲柄 link 1 22 S10029 2547 螺钉M6×5 screw 2 23 30202008 252622 针距调节挡板 guide 1 24 S10006 4539 螺钉M5×6 screw 1 25 30227005 252620 拉簧 spring 1 26 302S30001 7131 螺钉 screw 1 27 30202009 252621 针距指示轴 shaft 1 28 001022 240017 O型橡胶密封圈6.9×1.5 oring 1 29 30212013 252523 指示板 lever 1 30 S01011 螺钉M5×10 screw 1 31 31011007 252624-VB 刻度板 indication plate 1 32 S02004 4537 螺钉M4×8 screw 1 33 30202010 252625 针距调节轴 screw 1 34 H05012 201629 挡圈4 ring 1 35 H05006 200983 挡圈5 ring 1 36 001023 240251 O型橡胶密封圈5×1.5 o ring 1 37 S09015 4550 螺钉M4×10 screw 1 38 30209006 垫块 block 1 39 P03011 弹性圆柱销3×12 pin 1 40 302S16001 252660 针距调节轴锁紧螺母 nut 1 41 S10007 4543 螺钉M4×4 screw 1 注:点划线框代表暂时不用或以改进零件。 18 jintex.in

Page 19 — 九、送布部件/Need mechanism

九、送布部件/Need mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 注:点划线框表示暂时不用或以改进零件。 19 jintex.in

Page 20 — 九、送布部件/Need mechanism

九、送布部件/Need mechanism 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 S10013 7152 螺钉M6×6 screw 1 2 30204008 252628 送布架右挡板 guide (right) 1 3 B07008 210238 轴承K9×12×13 needle bearing 1 4 30209008 252632 挡牙滑块 block 1 5 30206004 0904 送布牙架 feed dog stand 1 6 301S11024 螺钉 screw 1 7 30206003 0903 差动牙架 differential braces 1 8 207S11007 螺钉 screw 1 9 S01002 7017 螺钉M4×6.5 screw 2 10 30209050 0950 差动曲柄挡板 differential crank 1 11 S05048 S7028 螺钉M4×10 screw 1 12 30203013 252637 差动小连杆衬套衬套 bushing 1 13 30228008 240039 差动小连杆衬套垫圈 washer 1 14 L01004 7056 螺栓M5×0.5×13 screw 1 15 30209080 0980 挡牙小滑块 slider 1 16 30212099 252629 牙架挡板 guide (left) 1 17 30226032 0932 定位销 pin 1 18 20123021 油线 screw 1 19 30202036 0936 拾牙轴 crankshaft 1 20 S10029 螺钉 screw 2 21 30208001 挡块 collar 2 22 20123021 油线 oil wick 1 23 S10026 螺钉M3×3(进口) collar 1 24 30205081 0981 差动曲柄连杆 link 1 25 S05003 4531 螺钉M5×10 screw 1 26 30204077 0977 差动曲柄 link 1 27 30203041 0941 衬套 bushing 1 28 302S09010 0910 螺钉M4×18 screw 1 29 S05003 4531 螺钉M5×10 screw 1 30 30204321 1026 差动摆动连杆 link 1 31 302S17005 0905 内六角沉头螺钉 screw 1 32 30228020 1045 锥形垫圈 washer 1 33 30204322 1027 差动摆动连杆连接销 pin 1 34 30205008 252636 差动小连杆 link 1 35 30123014 202175 油线 oil wick 1 36 30126009 210766 大头针 pin 1 37 20123021 油线 screw 1 38 30226040 0940 差动曲柄销 pin 1 39 20123021 202176 JK795油线 oil wick 1 40 S10029 螺钉 screw 1 41 30208026 差动挡圈 collar 1 42 30202035 0935 差动轴 crankshaft 1 注:点划线代表暂时不用或以改进零件。 20 jintex.in

Page 21

43 30223009 油孔毛毡 sponge 6 44 S01011 螺钉M5×10 screw 1 45 N01004 螺母M5 nut 1 注:点划线框代表暂时不用或以改进零件。 21 jintex.in

Page 22 — 十、压布部件/Presser form assemblies

十、压布部件/Presser form assemblies 1 2 3 4 5 6 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 注:点划线框 时不 用或 以改进零件。 22 jintex.in

Page 23 — 十、压布部件/Presser form assemblies

十、压布部件/Presser form assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 310S30002 253000-91 调压螺杆 adjusting bar 1 2 301S16005 253003 调压螺母 nut 1 3 30227008 240252 调压簧 spring 1 4 3010901700 253005-91 导块销组件 guide 1 5 S11025 7025 螺钉M4×20 screw 2 6 301S20007 5386 螺钉 screw 2 7 30112016 206157 压脚头连接板 link 1 8 301S11009 螺钉M4×12 screw 1 9 30104017 206139 压脚头 presser bar clamp 1 10 30227009 240253 压脚轴小弹簧 spring 1 11 30122023 抬压轴油封 oil guard. 1 12 001006 240095 O型圈8.5×1.8 o ring 1 13 30202017 240095 压脚轴 presser shaft 1 14 3100201000 调压螺杆组件 adjusting bar assembly 1 15 3010206400 253010 抬牙曲柄组件 shaft 1 16 30122023 抬压轴油封 oil guard. 1 17 30127009 253010 抬压弹簧 spring 1 18 30108005 206156 挡圈 ring 1 19 301S12001 5084 曲柄螺钉 screw 2 20 30104019 206149 抬压曲柄后曲柄 bell crank(upper) 1 21 301S11011 5187 抬压曲柄螺钉 screw 1 22 3012018 253011 抬压曲柄连接板 link 1 23 301S20008 5184 连接板螺钉 screw 1 24 301S12001 5084 曲柄螺钉 screw 1 25 30108006 192024 挡圈 ring 1 26 301S20008 5184 连接板螺钉 screw 1 27 301S20013 002022-4 抬压曲柄II固定螺钉 screw 1 28 30104020 206148 抬压扳手曲柄 bell crank(lower) 1 29 31002006 抬压扳手轴 shaft 1 30 31012109 压脚扳手 lever 1 31 S01011 4531 螺钉M5×10 screw 1 注:点划线框暂时不用或以改进零件。 23 jintex.in

Page 24 — 十一、喂针部件/Needle feeding assemblies

十一、喂针部件/Needle feeding assemblies 24 jintex.in 注:点划线框表示暂时不用或以改进零件。

Page 25 — 十一、喂针部件/Needle feeding assemblies

十一、喂针部件/Needle feeding assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30110007 254501A 喂针凸轮 eccentric assembly 1 2 S10002 4514 螺钉M5×5 screw 2 3 400059 254511 喂针连杆 connection 1 4 30104024 254503 喂针摆动曲柄 crank 1 5 S05002 4534 螺钉M6×0.75×15.2 screw 1 6 30126006 254504 喂针摆动曲柄连杆销 screw 1 7 30128032 240062 摆动曲柄垫圈5.5 washer 1 8 N01004 4805 螺母M5 nut 1 9 30102024 254519 摆动连杆轴 shaft 1 10 30128015 206180 摆动连杆轴垫圈 washer 1 11 H05004 306671 挡圈12 ring 1 12 30105013 254506B 喂针摆动连杆 crank 1 13 S10029 4547 螺钉M6×0.75×5 screw 2 14 30126005 254507 喂针摆动销 block 1 15 30202018 254518 喂针摆动架 crankshaft 1 16 20123021 202176 JK795油线 oil wick 1 17 001008 233020 O型橡胶密封圈9×1.8 O ring 1 18 30208010 挡圈 collar 1 19 S10026 挡圈螺钉 screw 2 20 30104022 254516 喂针架 lever assem 1 21 S01005 7020 螺钉M4×10 screw 1 22 S01017 7022 螺钉M4×14 screw 1 23 30117005 257565 喂针 spreader 1 24 30128018 喂针摆动轴套圈10 washer 1 注:点划线框暂时不用或以改进零件。 25 jintex.in

Page 26

十二、松线部件(一)/Thread loosing assemblies (one) 注：点划线框表示暂时不用或以改进零件。 26 jintex.in

Page 27 — 十二、松线部件(一)/Thread loosing assemblies (one)

十二、松线部件(一)/Thread loosing assemblies (one) 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 3101300700 201068 夹线器 tension 1 2 31013010 松线架 loose thread stand 1 3 31009004 松线垫块 block 2 4 S04019 螺钉M4×12 screw 2 5 207S11011 螺钉M4×5.5 screw 2 6 31013022 夹线器过线 loose line board 1 7 8 9 31013007 过线架 loose line board 1 10 310127010 调节板簧 reset spring 1 11 30113007 二孔过线板 thread guide 5 12 31013008 松线板 loose line board 1 13 30103041 206202 调节点套 spacer 5 14 3011300400 254010A9U 调线组件(强) tension spring assembly(heavy) 3 15 3011300500 254010B9U 调线组件(中) tension spring assembly 1 16 3011300600 254010C9U 调线组件(弱) tension spring assembly(light) 1 17 301S30010 001817-2A 夹线延 screw stud 1 18 30128016 210319 夹线片 tension disc 2 19 20623008 松线夹线片垫 felt 1 20 21111096 208450-UA 调压止动盖 cup 1 21 30127011 301037 调压簧(强) spring(heavy) 3 22 30111006 208448 调压止动套 ratchet 1 23 20111091 208447-UA 调压螺母 nut 1 24 30127012 201086 调压簧(中) spring(medium) 1 25 30127013 201068 调压簧(弱) spring(light) 1 26 207S11007 螺钉M4×7.5 screw 2 注:点划线框暂时不用或以改进零件。 27 jintex.in

Page 28 — 十三、松线部件(二)/Thread loosing assemblies (two)

十三、松线部件(二)/Thread loosing assemblies (two) 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 注:点划线框暂时不用或以改进零件。 28 jintex.in

Page 29 — 十三、松线部件(二)/Thread loosing assemblies (two)

十三、松线部件(二)/Thread loosing assemblies (two) 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 131412006 松线曲柄 crank 1 2 30502018 松线轴 shaft 1 3 131412004 转接板 thread 1 4 131404002 松线轴前曲柄 crank 1 5 30129058 松线 thread releaser 6 6 H05006 卡簧 ring 2 7 31028003 管座 holder 1 8 31002007 挑线杆 shaft 1 9 S10026 螺钉M3x3 screw 6 10 S01007 螺钉M4x4 screw 5 11 31009003 长打线块 block 1 12 31009002 小打线块 block 1 13 S04020 螺钉 screw 1 14 31003005 轴套 spacer 1 15 423S20004 轴位螺钉 screw 1 16 131404002 松线曲柄 crank 2 17 31026003 轴位销 shaft pin 1 18 301S20030 螺钉 screw 2 19 131512002 松线摆杆 plate 1 20 423S20004 轴位螺钉 screw 1 21 S05005 螺钉M5×12 screw 1 注:点划线框代表暂时不用或以改进零件。 29 jintex.in

Page 30 — 十四、过线部件/Thread loosing assemblies

十四、过线部件/Thread loosing assemblies 注：点划线框表示暂时不用或以改进零件。 30 jintex.in

Page 31 — 十四、过线部件/Thread loosing assemblies

十四、过线部件/Thread loosing assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 S01004 7019 螺钉M4×7.8 screw 5 2 31013006 253505A 长过线板 thread take-up 1 3 S05004 4501 螺钉M5×14 screw 1 4 W02001 303067 垫圈 washer 1 5 30101018 253504 过线座 lever 1 6 20622019 油封 plug 1 7 301S12001 5084 曲柄螺钉 screw 2 8 30108008 240201 过线座轴挡圈 ring 1 9 30128008 摆架轴垫圈 washer 1 10 31002001 253503 过线座轴(中轴) shaft 1 11 30128019 204107 挡线垫圈4.5 washer 1 12 W02002 201252 M4垫圈 washer 1 13 S05048 4527 螺钉M4×10 screw 1 14 S01027 7009 螺钉M3×6 screw 1 15 31013017 253507 针杆三孔过线 thread guide 1 16 131412002 护线罩 thread support 1 17 S01027 螺钉 screw 2 18 30128034 护线罩垫圈3.5 washer 2 19 131213001 针杆过线板 thread guide 1 20 206S30016 7170 螺钉 screw 2 21 S01004 7018 螺钉M4×7.8 screw 4 22 31012045 U型夹线座 thread tension braceat 1 23 30112032 253547 眼针二眼过线 thread guide 1 24 31012046 253548 眼针过线板 thread guide 1 25 31012018 长过线压板 thread guide 1 26 30112029 253514 眼针过线 thread guide 1 27 31013011 253515 过线板 thread guide 1 28 3101204600 眼针二眼过线组件 thread guide 1 29 S10001 4535 螺钉M3×4 screw 3 30 30113012 253545 针杆过线座 holder 1 31 30113013 234521 过线杆 thread guide 3 32 30112027 253544 硅油合固定架 thread guide 1 33 W01001 303448 M4垫片 washer 3 34 S01006 7009 螺钉M3×4.5 screw 2 35 302S16005 调压螺母 adjusting nut 1 36 301S30055 调压螺钉 adjusting screw 1 37 12927012 137109 夹线簧 spring 1 38 12928036 137108 夹线片 thread retainer 2 39 10128001 松线铺垫片 sticker 1 37 12927012 137109 夹线簧 spring 1 38 12928036 137108 夹线片 thread retainer 2 39 10128001 松线铺垫片 sticker 1 注:点划线框代表暂时不用或已改进零件。 31 jintex.in

Page 32 — 十五、打线凸轮部件/Cam assesmblies

十五、打线凸轮部件/Cam assesmblies 7 6 5 8 4 1 2 3 10 11 12 9 13 14 15 16 17 18 19 20 21 22 23 27 28 26 29 24 25 30 32 39 31 33 34 35 36 37 38 注:点划线框表示暂时不用或已改进零件。 32 jintex.in

Page 33 — 十五、打线凸轮部件/Cam asssemblies

十五、打线凸轮部件/Cam asssemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 S04004 螺钉M4×15 screw 1 2 30227016 1516 复位弹簧 reset spring 1 3 30208020 1520 打线挡圈 Fight line retaining ring 1 4 30212068 1568 打线架组件 bracket 1 5 30313019 打线凸轮左过线 thread guide (left) 1 6 30123022 毛根 Wool top 1 7 S01006 7009 螺钉M3×4.5 screw 3 8 30212084 1584 打线片 thread guide 1 9 30313020 打线凸轮右过线 thread guide (right) 1 10 310S20007 螺钉 screw 1 11 31027002 限位片复位簧 reset spring 1 12 31012037 打线凸轮架扳手 fight line wrench 1 13 30208022 1522 打线凸轮架止动圈 stop 1 14 31012036 打线架安装板 layer 1 15 S01002 7017 螺钉M4×6.5 screw 2 16 30213024 167079 两眼过线 thread guide 1 17 10128001 松线铺衬垫片 sticker 1 18 12928036 137108 小夹线片 thread retainer 2 19 12927012 211388 夹线簧 spring 1 20 301S30055 调压螺钉 adjusting screw 1 21 301N31000 自锁调压螺母 adjusting nut 1 22 31012034 打线凸轮端盖 cover 1 23 S01002 螺钉M4×4 screw 2 24 3121300100 打线凸轮组件(外移) looper thread take-up 1 25 S10007 螺钉M4×4 screw 2 26 31008010 轴承套 collar 1 27 S10007 螺钉M4×4 screw 1 28 B04042 深沟球轴承(61902-ZNR) bearing 1 29 S10007 螺钉M4×4 screw 1 30 31002012 凸轮轴 shaft 1 31 S10029 4547 螺钉M6×0.75×5 screw 2 32 30235027 凸轮轴小同步带轮 time belt 1 33 S10029 4547 螺钉M6×0.75×5 screw 1 34 30203038 凸轮轴轴承套 bushing 1 35 30224004 油封轴承(6902-ZNR) bearing 1 36 31022011 凸轮座盖板垫 felt 1 37 303603 打线凸轮座盖板 cover 1 38 S01005 7017 螺钉M4×10 screw 4 39 30235045 4547 小同步带 timing belt 1 注:点划线框不时不用或以改进零件。 33 jintex.in

Page 34 — 十六、润滑部件/Lubricatrion assemblies

十六、润滑部件/Lubricatrion assemblies 注：点划线框表示暂时不用或已改进零件。 34 jintex.in

Page 35 — 十六、润滑部件/Lubrication assemblies

十六、润滑部件/Lubrication assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 12921002 Φ3×Φ5油管 tube 1 2 30221003 255003 铜油管 oil pipe 1 3 30123010 240136 油毡 felt 1 4 S10002 4514 螺钉 M5×5 screw 1 5 3012101500 255007-91 喷油管 oil distributor 1 6 30112039 255006 接油盘 oil guard 1 7 N01001 4821 螺母 M4 nut 1 8 S01002 7017 螺钉 M4×6.5 screw 2 9 20429001 202199 油管卡簧 clamp 2 10 20429001 202199 油管卡簧 clamp 1 11 12921002 240006 Φ3×Φ5油管 screw 1 12 12921005 240134 Φ4×Φ6油管 tube 1 13 S01002 7018 螺钉 M4×6.5 screw 1 14 30112039 255006 接油盘 oil guard 1 15 3102100100 255094-91 油管组件 oil splash pipe 1 16 301S30013 200152 过油螺钉 screw 2 17 30136001 油管接头 joint 2 18 30136006 1609 铜油管接头 pipe 1 19 20429001 202199 油管卡簧 clamp 1 20 20729005 202199 油管卡簧(大) clamp 2 21 30122013 Φ4×Φ6油管 screw 1 22 12921003 205113A 油管Φ5×Φ7 tube 1 23 12921002 Φ3×Φ5油管 screw 1 24 301S30013 200152 过油螺钉 screw 2 25 20429001 202199 油管卡簧 clamp 2 26 20122033 垫片 washer 6 27 30136005 255123 双头油管接头 joint 1 28 12921002 Φ3×Φ5油管 tube 1 29 207S13007 螺钉 screw 1 30 W01001 垫片 sticker 1 31 30227040 固定板 screw 1 32 30223022 机座回油毡 felt 1 33 31027005 回油毡卡簧 back felt circlip 1 34 3102300100 针杆回油毡组件 The needle bar back felt 1 35 12921002 Φ3×Φ5油管 screw 1 注:点划线框代表暂时不用或以改进零件。 35 jintex.in

Page 36 — 十七、油泵部件/Oil pump assemblies

十七、油泵部件/Oil pump assemblies 36 jintex.in 注:点划线框代表暂时不用或已改进零件。

Page 37 — 十七、油泵部件/Oil pump assemblies

十七、油泵部件/Oil pump assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30201029 225041 油盘 oil reservoir 1 2 20528014 202287A 垫圈 washer 1 3 301S11015 5138B 堵油螺钉 screw 1 4 S05007 4504 螺钉 M8×20 screw 4 5 30222014 255042 油盘密封圈 o ring 1 6 3022000300 1722 油泵组件 oil pump assy 1 7 30102044 255024 油泵轴 shaft 1 8 30120030 1730 主动轮 rotor 2 9 30120030 1730 主动轮 rotor 1 10 30120031 255027 从动轮 rotor 3 11 30120008 255028 油泵盖 cover 1 12 301S20011 7105 油泵螺钉 screw 2 13 302S13002 1713 油泵螺钉 screw 2 14 30125003 255019 油泵蜗轮 worm wheel 1 15 S10002 4514 螺钉 M5×5 screw 2 16 30120002 W17-4 油泵固定板 oil pump fixed plate 1 17 30220002 1714 油泵体(上) pump body 1 18 30120009 1719 油泵体(中) pump body 1 19 30120003 1720 油泵体(下) pump body 1 20 S05004 4534 螺钉 M5×12 screw 2 21 301S30014 205111 过油螺钉 joint screw 3 22 20136004 206233 滤油器 oil filter 1 23 201S30030 210200 螺钉 screw 1 24 001010 206431 O型圈38.7×3.55 O ring 1 25 300140 210201-PD 滤油器盖 cover 1 26 30131004 9A3002 提示说明 filter seal 1 27 207S11008 7021 螺钉M4×12 screw 3 注:点划线框暂时不用或以改进零件。 37 jintex.in

Page 38 — 十八、硅油盒装置部件/Silicon oil delice assemblies

十八、硅油盒装置部件/Silicon oil delice assemblies 1 2 3 4 5 6 7 8 9 10 11 12 13 14 注：点划线框表示暂时不用或已改进零件。 38 jintex.in

Page 39 — 十八、硅油盒部件/Silicon oil delice assemblies

十八、硅油盒部件/Silicon oil delice assemblies 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30111070 上硅油盒 silicone oil reservoir(upper) 1 2 30112040 207067-PD 上硅油盒盖 cap 1 3 P03008 206781 销 2×6 pin 2 4 S16002 7009 自攻螺钉 ST3.5×8 screw 2 5 30123011 207068 硅油棉 felt 1 6 30201075 1075 下硅油盒 silicone oil box 1 7 207S11007 7019 螺钉 M4×7.5 screw 3 8 30201014 255107 固定架 needle cooler(lower) 1 9 30223005 240247 硅油棉 felt 1 10 30126009 210766 销 pin 1 11 12921002 240246 维尼龙油管 tube 1 12 20123021 202175 JK8568油线 oil wick 1 13 30212666 2666 硅油盒挡板 silicone oil box baffle 1 14 30222028 2028 下硅油盒盖 silicone oil box cover 1 注:点划线框代表暂时不用或以改进零件。 39 jintex.in

Page 40 — 十九、针位组专用部件/Gauge set specific parts

十九、针位组专用部件/Gauge set specific parts 1 2 3 4 5 6 7 2 9 10 11 17 16 20 21 12 8 19 22 13 15 23 14 29 27 26 25 24 18 注:点划线框表示暂时不用或以改进零件。 40 jintex.in

Page 41 — 十九、针位组专用零件/Gauge set specific parts

十九、针位组专用零件/Gauge set specific parts 序号 Ref.N 公司件号 Part No 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30134001 356针古 needle holder 1 30134002 364针古 needle holder 1 2 S10026 4554 螺钉M3X3 screw 4 3 30112025 234561 夹线板 thread guide 1 4 30112026 253593 压线板 tension disc 1 5 30127014 253517 调压簧 spring 1 6 301S20009 OW09070-2 调线螺钉 screw 1 7 30112033 253511 螺钉小过线 thread guide 1 8 302S17001 螺钉(进口) screw 1 9 301S11010 1170-3 压脚固定螺钉 screw 1 10 3021601000 压脚(01GB) presser foot assy(01GB) 1 30116005 压脚(02BB*356) presser foot assy(02BB*356) 1 30116006 压脚(02BB*364) presser foot assy(02BB*364) 1 11 302S17001 螺钉(进口) screw 1 12 30115067 356针板(01GB) needle plate(01GB*356) 1 30115068 364针板(01GB) needle plate(01GB*364) 1 30115006 356针板(02BB) needle plate(02BB*356) 1 30115007 364针板(02BB) needle plate(02BB*364) 1 13 30214001 送布牙(01GB) main feed dog(01GB) 1 14 30214002 差动牙(01GB) diff feed dog(01GB) 1 15 3021400100 送布差动牙组件(01GB) main feed dog and diff feed dog(01GB) 1 30214008 送布牙(02BB) main feed dog(02BB) 1 30214009 差动牙(02BB) diff feed dog(02BB) 1 16 S01011 螺钉M5×10 screw 1 17 31012083 缝台板(02BB专用) sewing block 1 18 S04021 螺钉M4×4 screw 1 19 31012082 前罩缝台盖拼接块(02BB专用)front cover joint 1 20 3011206800 龙头组件 Faucet assembly 1 21 S01011 螺钉M5×10 screw 1 22 30112063 龙头架 Head pad 1 23 31012085 龙头架 Leading frame 1 24 S04021 螺钉M4×4 screw 1 25 31012086 前缝台挡板 Front baffle 1 26 S01027 螺钉M3×4.5 screw 2 27 303929 前缝台挡板座 mounting seat 1 28 31012087 缝料挡板 Slit baffle 1 29 S04021 螺钉M4×4 screw 2 注:点划线框代表暂时不用或以改进零件。 41 jintex.in

Page 42 — 二十、下剪线部件/Knife holder assemblies

二十、下剪线部件/Knife holder assemblies 注：点划线框表示暂时不用或已改进零件。 42 jintex.in

Page 43 — 二十、下剪线部件/Knife holder assemblies

二十、下剪线部件/Knife holder assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 3121900100 下切刀组件 slice knife components 1 2 30212156 刀盘底板 the knife dish plate 1 3 30212246 摆杆 swinging rod 1 4 30212116 垫片 washer 1 5 302S30022 螺钉M4x4 screw 2 6 31212005 刀盘压片 bracket 1 7 30213046 UT松线片 UT pine line piece 1 8 30203112 刀架固定套 rest a fixed set 2 9 S14002 内六角沉头螺钉M4x4 screw 2 10 30203113 刀架转动套 head rotating sleeve 2 11 30212225 刀架连杆 head connecting rod 2 12 30212255 上刀架 on the rest 1 13 30212256 下刀架 under the rest 1 14 S01197 开槽圆柱头螺钉M2x6 screw 2 15 S01198 开槽圆柱头螺钉M2x10 screw 1 16 30219009 定刀 stationary knife 1 17 S01196 开槽圆柱头螺钉M3x3 screw 2 18 30219008 动刀 dynamic knife 1 19 30212328 定刀固定块 stationary knife fixed block 1 20 30212327 压板(二) bracket 1 21 S01199 开槽圆柱头螺钉M2x3 screw 1 22 S02165 开槽沉头螺钉M2x3 screw 2 23 30212329 垫板 plat 1 24 30212326 压板(一) bracket 1 25 30212324 垫块(一) block 1 26 30212325 垫块(二) block 1 27 302S12002 外六角螺钉M4x4 screw 2 28 302S20015 螺钉M4x2.5 screw 1 29 30227124 复位弹簧 reset spring 1 30 S01195 开槽圆柱头螺钉M4x3 screw 3 31 30212257 限位板 the limit board 1 32 31212006 挡板 rest on the baffle 1 33 L02001 螺栓M4x8 screw 1 34 302S10011 刀盘定位螺钉 screw 1 35 301S11024 滑块导座螺钉 screw 2 36 31212007 支撑板 support plate 1 37 30212240 弹簧片 leaf spring 1 38 S01091 螺钉M2x2.3 screw 2 39 208S11007 螺钉 screw 1 40 20613008 过线 thread guide 1 41 207S11007 螺钉M4x7.8 screw 2 42 302S10011 刀盘定位螺钉 screw 1 注:点划线框代表暂时不用或以改进零件。 43 jintex.in

Page 44

43 301S11024 滑块导座螺钉 screw 1 44 31022016 减震垫 cushioning 1 45 L02001 螺栓M4X8 screw 1 46 302S20014 螺钉 screw 1 注:点划线框代表暂时不用或以改进零件。 44 jintex.in

Page 45 — 二十一、上剪线部件/Knife Holder Assemblies

二十一、上剪线部件/Knife Holder Assemblies 注：点划线框表示暂时不用或以改进零件。 45 jintex.in

Page 46 — 二十一、上剪线部件/Knife Holder Assemblies

二十一、上剪线部件/Knife Holder Assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 3101900100 上切刀组件 knife holder assembly 1 2 31030005 电磁铁组件 solenoid assembly 1 3 W02025 弹性垫圈 washer 2 4 N01013 螺母 nut 2 5 30112118 刀座安装底板 install plat 1 6 30112251 刀座锁紧板 plat 1 7 N01013 螺母 nut 1 8 S05114 螺钉 screw 1 9 30127039 弹簧 spring 1 10 301S30036 螺钉 screw 1 11 301S30037 螺钉 screw 1 12 30112120 刀架滑板 plat 1 13 301S20021 螺钉 screw 2 14 30112121 刀架刀座连接垫片 washer 2 15 30112122 限位板 plat 1 16 S01087 螺钉M3.5X4 screw 2 17 30112123 上切刀动刀压片一 presser plat 1 18 30112124 上切刀动刀压片二 presser plat 1 19 W01005 垫片 washer 1 20 301S30038 螺钉 screw 1 21 301S30039 螺钉 screw 1 22 301S16014 上切刀动刀调节螺母 nut 1 23 301S20022 螺钉 screw 1 24 30119008 上切刀动刀 plat 1 25 30119009 上切刀定刀 thread wiper 1 26 S01088 开槽圆柱头螺钉M2X3.5 screw 4 27 30112125 刀盘安装连接板 install plat 1 28 S01089 螺钉M4X5.5 screw 2 29 31012014 安装板 install plat 1 30 W01006 垫片 washer 2 31 S05304 开槽平端紧定螺钉SM1/8"x4 screw 2 32 301S30041 螺钉 screw 2 33 W01006 垫片 washer 2 34 S05304 螺钉 screw 2 注:点划线框代表暂时不用或以改进零件。 46 jintex.in

Page 47 — 二十二、拨线器部件/Top wiper assemblies

二十二、拨线器部件/Top wiper assemblies 1 5 4 3 2 6 7 8 9 10 11 12 13 14 15 16 17 10 25 24 10 21 20 19 22 23 26 27 28 29 注:点划线框表示暂时不用或以改进零件。 47 jintex.in

Page 48 — 二十二、 拨线器部件/Top wiper assemblies

二十二、 拨线器部件/Top wiper assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 3101900200 拨线器组件 cable assembly 1 2 31030005 电磁铁组件 electromagnet assembly 1 3 30109088 安装板 mounting plate 1 4 42428008 弹簧垫圈 spring washer 2 5 N01013 螺母M3 nut 3 6 S05032 内六角平圆头螺钉M3x12 screw 1 7 30104070 曲柄 crank 1 8 301S20055 拨线器转动曲柄轴位螺钉 screw 3 9 30105066 连杆 connecting rod 1 10 N01006 螺母M4 nut 4 11 417S15007 螺钉 screw 2 12 30109088 挡块 block 1 13 30126034 转动销 rotating pin 1 14 30102156 曲柄 crank 1 15 30104076 曲柄 crank 1 16 W01048 垫片 washer 2 17 301S20056 拨线器连杆轴位螺钉 screw 1 18 W01049 垫片 washer 1 19 30112203 勾线片 cancel the piece 1 20 W01050 垫圈3 washer 1 21 S05047 螺钉M3x4 screw 1 22 S01097 螺钉M2x2 screw 1 23 30112204 弹簧片 leaf spring 1 24 301S01005 螺钉 screw 1 25 30127061 拨线器复位簧 spring 1 26 421S13005 螺钉 screw 4 27 W01051 垫圈4 washer 4 28 30112261 固定板 fixed plate 1 29 31012049 安装板 fixed plate 1 注:点划线框代表暂时不用或以改进零件。 48 jintex.in

Page 49 — 二十三、剪线电磁铁部件/Solenoid assemblies

二十三、剪线电磁铁部件/Solenoid assemblies 注：点划线框表示暂时不用或已改进零件。 49 jintex.in

Page 50 — 二十三、剪线电磁铁部件/Solenoid assemblies

二十三、剪线电磁铁部件/Solenoid assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30212183 连接板 bed pin 1 2 N01012 螺钉M6 pin 2 3 206S200004 螺钉 screw 1 4 30212190 连杆 bed pin 1 5 301S20030 螺钉 screw 1 6 30104066 曲柄块 fixed block 1 7 30108004 挡圈 plug 1 8 30102111 导向轴 washer 1 9 301S11023 螺钉 screw 2 10 30108006 挡圈 retaining ring 1 11 201S14002 螺钉 screw 1 12 S05068 螺钉 screw 1 13 131512002 推板组件 dead plate 1 14 30127058 弹簧 cscrew 1 15 30104066 曲柄块 sticker 1 16 207S11007 螺钉M4X7.5 screw 2 17 207S11007 螺钉M4X7.5 screw 1 18 131412006 松线曲柄 the reversing lever 1 19 S04019 螺钉M4×12 screw 1 20 30122108 防尘罩 dust cover 1 21 207S11007 螺钉M4X7.5 screw 2 22 30212184 支架 stents 1 23 302S16010 螺母M8 nut 2 24 13822010 电磁铁下垫片 gasket 1 25 31030007 剪线电磁铁框 electromagnet box shear line 1 26 11322008 减震垫 cushioning 1 27 30130046 电磁铁铁芯 electromagnetic iron core 1 28 114S20005 螺钉 screw 1 29 W02002 弹性垫片 gasket 1 30 W01006 垫片 gasket 1 31 114S16008 螺母 nut 2 32 30122105 防尘罩 dust cover 1 33 30112185 防尘压板 dust depressor 1 34 S04010 螺钉M4X5.5 screw 4 35 3103000700 剪线电磁铁组件 connect the wire 1 36 31030013 安全开关 safety switch 1 37 S01055 螺钉M4X5.5 screw 2 38 30212182 下安装板 dead plate 1 39 305S13004 螺钉 screw 2 40 31011010 电磁铁罩壳 cover 1 41 207S11007 螺钉M4X7.5 screw 3 42 S05003 螺钉M5X12 screw 2 注:点划线框代表暂时不用或以改进零件。 50 jintex.in

Page 51

43 31012090 感应支架 stents 1 44 S05068 螺钉 screw 2 45 W01001 垫片 screw 3 46 30122108 防尘罩 dust cover 1 注:点划线框代表暂时不用或以改进零件。 51 jintex.in

Page 52 — Electronic control assemblies

二十四、电控部件/Electronic control assemblies 52 jintex.in 注：点划线框表示暂时不用或已改进零件。

Page 54 — 二十五、后拖轮部件/After cam assemblies

二十五、后拖轮部件/After cam assemblies 注：点划线框表示暂时不用或以改进零件。 54 jintex.in

Page 55 — 二十五、后拖轮部件/After cam assemblies

二十五、后拖轮部件/After cam assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 31175 压脚架 finger screw 1 2 305S16006 螺母M20 nut 1 3 305S30006 调节螺钉 screw 1 4 S05031 螺钉M6×20 screw 2 5 305S11014 螺钉 screw 1 6 3051205100 调节板 plate 1 7 30226050 曲柄销钉 pin 1 8 305S20013 螺钉 screw 1 9 30528012 波形垫片 washer 1 10 N01001 螺母 nut 1 11 30526023 销 pin 1 12 30503031 铜套 sleeve 1 13 30527011 弹簧 spring 1 14 S01018 螺钉M4×20 screw 1 15 30502022 轴 shaft 1 16 N01001 螺母M4 nut 1 17 S05031 螺钉M6×20 screw 1 18 30212102 压板 plate 1 19 30212104 调节板 plate 1 20 H05010 挡圈12 ring 1 21 L02012 螺栓M5×12 screw 2 22 30526020 销 pin 1 23 30201100 压轮架 roller frame 1 24 S05031 螺钉M6×20 screw 1 25 S09008 螺钉M5×5 screw 3 26 S01065 螺钉M5×6 screw 4 27 30512054 挡板 plate 1 28 305S11012 螺钉 screw 1 29 H05011 挡圈9 ring 1 30 W01026 垫片 washer 1 31 31003010 轴套(左) sleeve 1 32 305S11002 螺钉 screw 3 33 30512057 压板 plate 1 34 30503063 轴承套 bushing 2 35 B07048 滚针轴承K26×20×16 needle bearing 2 36 30202101 轴 shaft 1 37 30203103 齿轮套 sleeve 1 38 30225103 齿轮 gear wheel 1 39 207S13007 螺钉 screw 3 40 30202100 U型轴 U shaft 1 41 30225101 齿轮 gear wheel 1 42 S10027 螺钉M5×5 screw 2 注:点划线框代表暂时不用或以改进零件。 55 jintex.in

Page 56

43 S01060 螺钉M6×10 screw 2 44 30226004 销 pin 2 45 30512055 冲压件铁霄 stamping Tiebi 1 46 305S11002 螺钉 screw 3 47 30512056 蝶形卡簧 butterfly spring 1 48 31003011 轴套 (右) sleeve 1 49 30503036 铁套 sleeve 1 50 W01010 平垫圈8 washer 1 51 N01008 螺母M8 nut 2 52 305S20012 螺钉 screw 1 53 30212103 连接板 plate 1 54 3050501700 连接组件 connecting rod assembly 1 55 30505018 连杆 connecting rod 1 56 305S30007 球曲柄螺钉 screw 1 57 30505019 连杆 connecting rod 1 58 305S16008 螺母M6 nut 1 59 30505020 连杆 connecting rod 1 60 305S20014 螺钉 screw 1 61 30503034 铁套 sleeve 1 62 W01004 平垫圈5 washer 1 63 30504015 曲柄 link 1 64 305S30009 螺钉 screw 1 65 B07011 滚针轴承K8×11×10 needle bearing 1 66 W01004 平垫圈5 washer 1 67 N01004 螺母M5 nut 1 68 30208001 挡块 rod 1 69 S10029 螺钉M6×0.75×5 screw 1 70 S05037 螺钉M6×15 screw 1 71 302S20014 螺钉 screw 2 72 S01065 螺钉M5×6 screw 1 73 31012114 后拖轮驱动板 plate 1 74 31012115 拉板 plate 1 75 31012116 后拖轮拉板 plate 1 76 310S20015 轴位螺钉M8 screw 1 77 30226004 销 pin 2 注:点划线框暂时不用或以改进零件。 56 jintex.in

Page 57 — 二十六、后拖轮部件/After fight cam assemblies

二十六、后拖轮部件/After fight cam assemblies 注：点划线框表示暂时不用或以改进零件。 57 jintex.in

Page 58 — 二十六、后拖轮架部件/After fight cam assemblies

二十六、后拖轮架部件/After fight cam assemblies 序号 No 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 207S13004 螺钉M6×35 screw 4 2 30522069 油封 plug 1 3 301175 后盖(喷漆) rear cover 1 4 30212023 接油盘 oil guard 1 5 P03002 弹性圆柱销 pin 2 6 30522070 后盖密封圈 o ring 1 7 20122021 油封 plug 1 8 20103047 送布轴右套(粉末) sleeve 2 9 30502045 拖轮轴 shaft 1 10 30508001 挡圈 ring 1 11 30128015 垫圈 washer 1 12 H03006 挡圈10 ring 1 13 30522019 油封 plug 1 14 N01004 螺母M5 nut 1 15 S10029 螺钉M6×0.75×5 screw 6 16 W01004 垫圈 washer 1 17 30504035 曲柄 crank 1 18 30126006 连杆销 pin 1 19 30503060 轴套 sleeve 1 20 3050502600 连杆组件 connecting rod assembly 1 21 30224001 滚针轴承28×24×13 needle bearing 1 22 30505025 连杆 connecting rod 1 23 30503061 连杆轴套 sleeve 1 24 S12003 螺钉M6×0.75×7 screw 2 注:点划线框代表暂时不用或以改进零件。 58 jintex.in

Page 59 — 二十七、线架部件/Thread Apool Assemblies

二十七、线架部件/Thread Apool Assemblies 1 2 3 4 5 6 7 28 11 10 9 8 15 16 17 18 19 20 21 22 23 12 13 14 27 24 25 26 注:点划线框不代表暂时不用或以改进零件。 59 jintex.in

Page 60 — 二十七、线架部件/Thread Apol Assemblies

二十七、线架部件/Thread Apol Assemblies 序号 Ref.N 公司件号 Part No 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 20131019 棒帽 Rod cap 1 2 21131008 上管 Upper thread column 1 3 21131009 导线架(短) Thread spool tray bracket 1 4 20131011 导线环 Thread guide hook 1 5 201S16006 导线环螺母 Thread guide hook nut 4 6 201S12008 导线环螺钉 Screw 4 7 20131018 过线环 Thread guide hook 5 8 201S16004 螺母 Nut 9 9 21131010 导线棒固定块 Clamp plate 1 10 20131021 棒架螺钉 Screw 3 11 20131022 棒架螺钉 Screw 1 12 20131011 导线棒 Thread guide bar 1 13 21131013 导线棒固定块 Clamp plate 1 14 20131036 过线棒 Thread guide 2 15 21131014 套 Bushing 1 16 N01030 套螺母 Nut 2 17 S04050 螺钉 M5×19 screw 2 18 21131018 下管 Lower thread cloumn 1 19 20131006 线托棒 Spool pin 5 20 21131015 线圈定位套 Spool Cushion 5 21 20131010 线盘垫 Spool tray cushing 5 22 21131018 下管 Upper thread column 1 23 20128018 线盘垫圈 Washer 5 24 20122049 橡胶垫圈 Plate dog link washer 2 25 20128025 下管垫圈 Lower Washer 2 26 201S16005 下管固定螺母 Nut 1 27 21131012 导线架(长) screw 2 28 2113100500 C4-2340线架组件(五线) thread stand component 1 注:点划线框代表暂时不用或以改进零件。 60 jintex.in

Page 61 — 二十八、35AC切刀专用件/35ACFT device

二十八、35AC切刀专用件/35ACFT device 61 jintex.in

Page 62 — 二十八、35ACFT切刀专用件

二十八、35ACFT切刀专用件 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 30202043 曲柄轴 shaft 1 2 30204011 255552 曲柄 crank 1 3 S10013 螺钉 M6×6 screw 2 4 302S12001 7057 六角螺钉 screw 1 5 30228008 垫圈 washer 1 6 30203027 179160-05 轴衬 bushing 1 7 302S02001 255553 螺母 nut 1 8 30204012 255554 曲柄 crank 1 9 S10013 螺钉 M6×6 screw 1 10 30226016 240008 键 key 1 11 400080 252557A 连杆 link 1 12 30223005 202174 油线 oil wick 1 13 20123021 202175 油线 oil wick 1 14 30201044 255077 油线架 latch 1 15 205S30008 压刀板螺钉 screw 1 16 30202023 255555 自动剪切轴 shaft 1 17 30708003 230030 挡圈 washer 1 18 30227012 255548 弹簧 spring 1 19 302S01001 255546 螺母 nut 1 20 300704 255549-9P 下刀架座 lower knife holder 1 21 S05004 螺钉 M5×14 screw 2 22 302S13001 螺钉 M5×10 screw 1 23 30222015 255557 油封 oil seal 1 24 30201046 255564-91 上刀架 upper knife stand 1 25 S01011 螺钉 M5×12 screw 1 26 30219001 257574 上刀 upper knife 1 27 S01027 螺钉 M3 screw 1 28 30201047 255560 下刀架 lower knife stand 1 29 S11015 螺钉 M4×16 screw 1 30 30219002 204161A 下刀 lower knife 1 31 30201048 255558-91 下刀压板 lower knife clamp 1 32 101S11008 滑块导轨螺钉 screw 1 33 31001020 吸管背口 waste chute top 1 34 S01006 螺钉 M3 screw 2 35 3021101000 255567-91 排料管组件 suction pipe 1 36 30211005 608005 携管带 hose band 1 37 30212059 255562 挡板 latch 1 38 S01002 螺钉 M4×6 screw 2 39 302S09001 601115 连接螺钉 screw 1 40 30226004 销 4×16 pin 2 41 30203028 左轴套 sleeve 1 42 30203029 右轴套 sleeve 1 注:点划线框暂时不用或以改进零件。 62 jintex.in

Page 63

43 30226021 销子 pin 1 44 S10007 螺钉M4x4 screw 1 注:点划线框代表暂时不用或以改进零件。 63 jintex.in

Page 64 — K4-35AC专用件

二十九、35AC专用件/35ACFT device K4-35AC专用件 注：点划线框表示暂时不用或已改进零件。 64 jintex.in

Page 65 — 二十九、35AC专用件/35ACFT device

二十九、35AC专用件/35ACFT device 序号 No. 件号 Parts No. 参考件号 Ref.Part.No 名称 Name Description 数量 Numbe 1 304347 前罩缝合组件(喷漆) front cover assy 1 2 31001022 前罩缝台 front cover 1 3 30201016 合销块 hinge 1 4 301S20002 前罩缝台座螺钉 screw 1 5 30128002 弹簧垫片 washer 2 6 31026006 销 pin 1 7 S10005 螺钉M3×3 screw 2 8 207S11016 螺钉M4×16 screw 2 9 30214017 差动牙(35AC) diff feed dog 1 10 30214016 送布牙(35AC) main feed dog 1 11 30212155 辅助板窄(35AC) fabric guide 1 12 30212052 辅助板宽(35AC) fabric guide 1 13 30216005 压脚356 presser foot assy 1 30216008 压脚364 presser foot assy 1 14 31015001 针板356 needle plate 1 31015002 针板364 needle plate 1 15 31012100 垫布板 spring washer 1 16 310S11002 缝料板螺钉 screw 2 17 304348 缝台盖板(喷漆) cover plate 1 18 310S11003 缝台板螺钉 screw 2 19 31012092 左盖板(35AC) colth plate 1 20 31004031 针板架(35AC) needle plate holder 1 21 30201020 缝料左挡块 hemming guide (right) 1 22 30201019 缝料右挡块 hemming guide (left) 1 注:点划线框表示暂时不用或以改进零件。 65 jintex.in

Page 66

三十、附件/Accessories assemblies 注：点划线框表示暂时不用或以改进零件。 66 jintex.in

Page 67 — 三十、附件/Accessories assemblies

三十、附件/Accessories assemblies 序号 Ref.N 公司件号 Part No 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 20131037 油壶 (大) oil container 1 2 20131038 小油壶 (尖嘴) oiler 1 3 20131039 漏斗 oil funnel 1 4 131212004 前辅助缝台 machine table 1 5 20131051 镊子 tweezers 1 6 30131007 内六角扳手 (1.5mm) allen key driver/1.5mm 1 7 20131046 内六角扳手 (2mm) allen key driver/2mm 1 8 30131010 内六角扳手 (2.5mm) allen key driver/2.5mm 1 9 30131012 内六角扳手 (3mm) allen key driver/3mm 1 10 20131047 内六角扳手 (4mm) allen key driver/4mm 1 11 20131056 内六角扳手 (5mm) allen key driver/5mm 1 12 30131026 内六角扳手 (6mm) allen key driver6mm 1 13 20731047 螺丝刀 (大) screwdriver(large) 1 14 10131004 螺丝刀 (小) screwdriver(small) 1 15 S10005 螺钉 M3×3 screw 3 16 20131044 内六角扳手 (1.5mm直柄) allen key driver/1.5mm 1 17 30131018 链条 (非直驱、DI专用) chain 1 18 10131005 机头罩 dust cover 1 19 30117001 机针 needle 4 20 20136001 滤油器 filter element 1 21 30131005 扳手 (6mm-7mm) wrench/(7mm-9mm) 1 22 30131006 扳手 (8mm-10mm) wrench/(8mm-10mm) 1 23 3103000500 直驱控制器配件 dl Special Part 1 24 S01060 螺钉 M6×10 screw 4 25 31012054 缝台板 (左) machine table(left) 1 26 30201020 缝料左挡块 fabric guide(left) 1 27 30201019 缝料右挡块 fabric guide(right) 1 28 S01009 螺钉 M3×7.5 screw 2 29 1312NS11001 开槽平面圆柱头带垫螺钉M3 screw 2 30 3120100700 08AC折边器组件 Broder Kit 1 注:点划线框代表暂时不用或以改进零件。 67 jintex.in

Page 68 — 三十一、台板部件/Bedplate assemblies

三十一、台板部件/Bedplate assemblies 1 2 3 4 5 6 7 8 9 10 11 注:点划线框代表暂时不用或已改进零件。 68 jintex.in

Page 69 — 三十一、台板部件/Bedplate assemblies

三十一、台板部件/Bedplate assemblies 序号 Ref.N 公司件号 Part No 参考件号 Ref.Part.No 名称 Description 数量 Numbe 1 20131028 油盘螺钉固定头 Oil pan screw fixing head 4 2 30122029 油盘减振垫 Oil pan damping pad 4 3 301S30018 油盘托板螺钉 Oil pan bracket screw 4 4 30112198 油盘托盘 Oil pan tray 2 5 131222003 防振橡胶套 Pubber sleeve of anti vibration 8 6 20131027 托盘螺钉 screw 4 7 20131029 大垫圈 Washer 4 8 30112041 链条挡板 Chain baffle 2 9 131038001 防振垫钢套 Anti vibration pad steel sleeve 4 10 S01011 螺钉M5×10 screw 4 11 1 台板 Bedplate 1 注:点划线框代表暂时不用或以改进零件。 69 jintex.in

Page 70

工业缝纫机安全使用注意事项: 1.必须遵守基本措施; 2.必须经过专业培训,对缝纫机设备性能, 3.使用前应检查所有安全装置; 4.在安装缝针、更换缝针、压脚、针板、送布牙、弯针、旋梭或修理时,应立即关闭电源; 5.离开缝纫机或工作场所时应关闭电源; 6.使用离合马达时,要等待马达完全停止后再进行; 7.缝纫机及附属装置使用的机油,润滑油等液体流入眼睛或沾到皮肤上应立即清洗; 8.禁止用手触摸缝纫机通电时的零件或装置; 9.有关工业用平缝机与包缝机的修理、改造、主要机构的调整由专门技术人员来进行; 10.一般的维修保养由专人进行; 11.在电气方面的修理应在电气技术员的监督和指导下进行; 12.缝纫机使用期间应定期清扫; 13.为了正常安全运转,应安装地线,同时应在不受高频焊接机等强噪声源影响的环境下使用; 14.电源插头应由专人安装; 15.工业用平缝机、包缝机在指定用途以外不能使用。 环保要求: 1.使用过程中产生的废油及其他废弃物请根据当地环保的要求进行合理的处置。 2.请在使用完后及时关闭电源,减少电能的消耗。 3.请在说明书要求的电压及环境条件下使用,已延长产品的 使用寿命,减少废弃物的产生。 4.机器报废后请勿将本机器及其附件作为普通的生活垃圾处理。请遵守本设备及其附件处理的本地法令,并支持回收行动。 Notes for safe use of industrial sewing machines: 1. Basic measures must be observed. 2. Pass the specialized training and master sewing machine equipment performance. 3. All safety devices should be checked before use. 4. When installing needle, and changing needle, presser foot, plate, feed dog, bent needle, hook or repairing, the power supply should be turned off immediately. 5. Power should be turned off when leaving the sewing machine or workplace. 6. When using the clutch motor, please wait until the motor stops completely. 7. The machine oil and other liquids used in sewing machines and ancillary devices should be cleaned immediately when they are put into eyes or touch skin. 8. Do not touch the parts or devices when the machine is powered by hand. 9. The repair, renovation and adjustment of the main mechanisms of the relevant industrial sewing machines and overseers shall be carried out by specialized technicians. 10. General maintenance is carried out by specially-assigned persons. 11. Electrical repairs should be performed under the supervision and direction of the electrical technician. 12. The machine should be cleaned regularly during operation. 13. In order to operate normally and safely, ground lines should be installed, and they should be used in an environment free from strong noise sources such as high frequency welding machine. 14. Power plug should be installed by specially-assigned person. 15. Industrial lockstitch sewing machine and overlock sewing machine can not be used except the designated use. Environmental requirements: 1. Please dispose the waste oil and other waste products properly according to local environmental protection requirements. 2. Please turn off the power after use to reduce power consumption. 3. Please use under the voltage and environment required in the manual to extend the service life of the product and reduce waste generation. 4. Do not treat the machine and its accessories as ordinary household garbage after being scrapped. Please comply with local laws governing the disposal of the equipment and its accessories and support recycling operations. 公司地址(Address of Company): 中国浙江省台州市椒江区三甲街道东海大道东段1008号 邮编(Zip Code): 318000 国内销售部(Domestic Trade Department): 电话(TEL): 0086-0576-88177780 88177789 传真(FAX): 0086-0576-88177758 国贸部(International Trade Department): 电话(TEL): 0086-0576-88177767 88177782 服务热线: 400-8890100 http://www.chinabruce.cn 资料如有更改,恕不另行通知,以实物为准。 You will be not informed if the file has been revised. Please set sample as standard .2020年6月版 注:点划线框代表暂时不用或已改进零件。 70 jintex.in

Page 71

注:点划线框表示暂时不用或以改进零件。 71 jintex.in
