Page 2 — A1、机体部分 / Machine body
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142022001 | Panel gasket | 1 |
| 2 | 930000297 | panel | 1 |
| 3 | S04029 | Screw M5×12 | 2 |
| 4 | 14437001 | Panel trademark | 1 |
| 4 | 114437002 | Panel trademark B | 1 |
| 5 | 41722004 | Rubber plug 15.5 | 3 |
| 6 | 41722009 | Rubber plug 13 | 3 |
| 7 | 10122005 | Connecting rod pin screw hole plug | 3 |
| 8 | 40622014 | Oil seal | 1 |
| 9 | S04078 | Screw the M4×8 | 1 |
| 10 | 930000686 | Wire rod protection cover | 1 |
| 11 | 930000345 | Wound cover assembly | 1 |
| 12 | S04028 | Screw the M5×8 | 8 |
| 13 | 14222007 | Top cover rubber plug | 1 |
| 14 | 930000346 | Nose back cover | 1 |
| 15 | 142511013 | After the cover | 1 |
| 16 | S05087 | Screw M5×12 | 4 |
| 17 | 417S30025 | Screw (with pad) M4×10DB | 1 |
| 18 | 142512059 | Tracheal plate | 1 |
| 19 | 141837006 | Model plate | 1 |
| 19 | 141837008 | Model plate B | 1 |
| 20 | 20131063 | Warning signs | 1 |
| 21 | 930000339 | Head (hook) | 1 |
| 21 | 930000340 | Head (large hook) | 1 |
| 22 | S05138 | Bolts M16×75 | 4 |
| 23 | 41828013 | The big washer | 4 |
| 24 | 41803018 | Locating sleeve | 4 |
| 25 | 41803019 | Pipe sleeve | 8 |
| 26 | 41822014 | Cushioning rubber pad | 4 |
| 27 | 417S13301 | Bolt M5×12 | 8 |
| 28 | N04003 | Flange nut M16 | 4 |
| 29 | P02011 | Pin 12×50 | 2 |
| 30 | S05993 | Hexagon socket head screw M16×55 | 4 |
| 31 | 930000343 | Large base (hook) | 1 |
| 31 | 930000344 | Large base (large hook) | 1 |
| 32 | 142012094 | Dust cover | 1 |
| 33 | S04028 | Screw M5×8 | 2 |

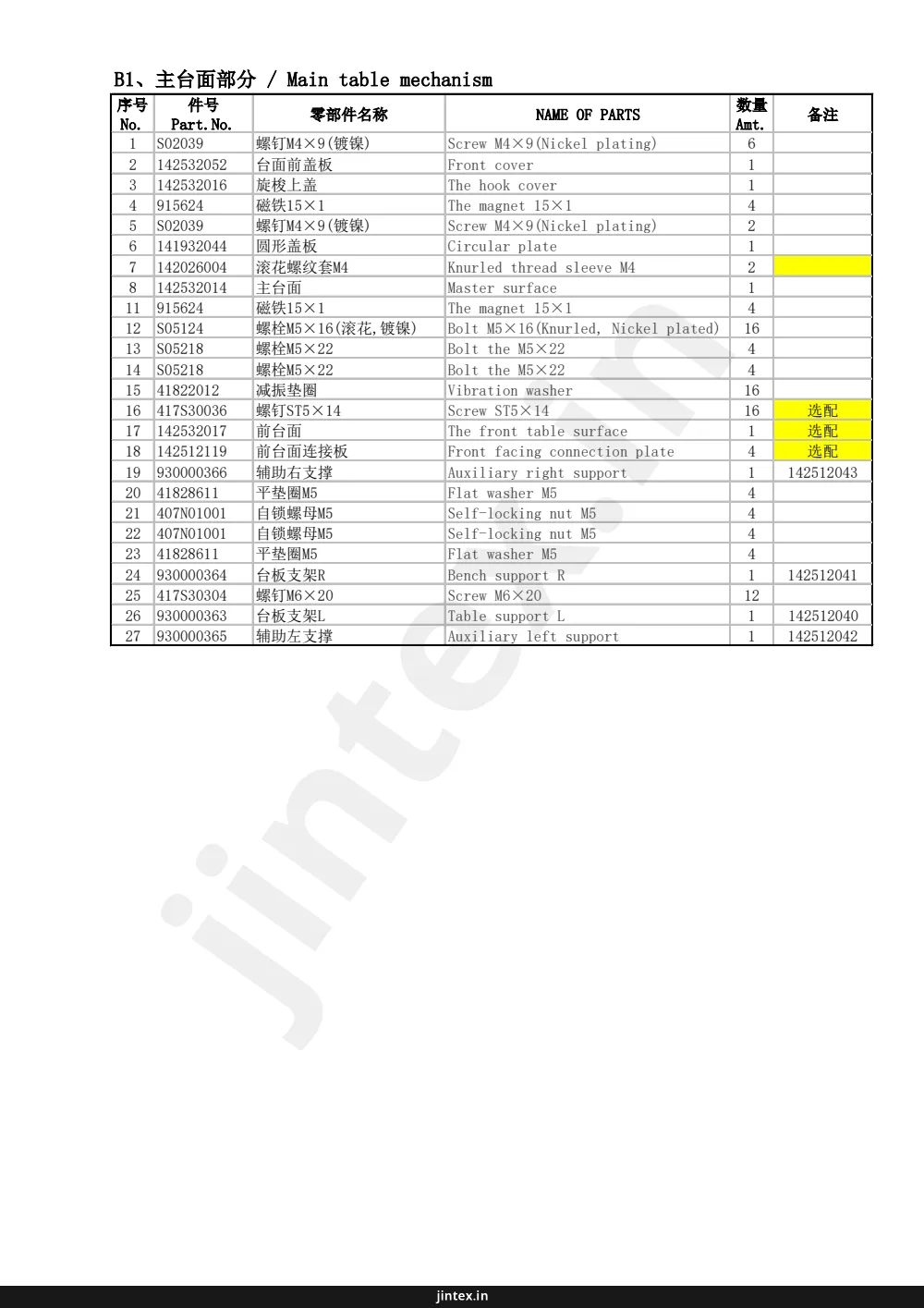

Page 3 — B1、主台面部分 / Main table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02039 | Screw M4×9(Nickel plating) | 6 |
| 2 | 142532052 | Front cover | 1 |
| 3 | 142532016 | The hook cover | 1 |
| 4 | 915624 | The magnet 15×1 | 4 |
| 5 | S02039 | Screw M4×9(Nickel plating) | 2 |
| 6 | 141932044 | Circular plate | 1 |
| 7 | 142026004 | Knurled thread sleeve M4 | 2 |
| 8 | 142532014 | Master surface | 1 |
| 11 | 915624 | The magnet 15×1 | 4 |
| 12 | S05124 | Bolt M5×16(Knurled, Nickel plated) | 16 |
| 13 | S05218 | Bolt the M5×22 | 4 |
| 14 | S05218 | Bolt the M5×22 | 4 |
| 15 | 41822012 | Vibration washer | 16 |
| 16 | 417S30036 | Screw ST5×14 | 16 |
| 17 | 142532017 | The front table surface | 1 |
| 18 | 142512119 | Front facing connection plate | 4 |
| 19 | 930000366 | Auxiliary right support | 1 |
| 20 | 41828611 | Flat washer M5 | 4 |
| 21 | 407N01001 | Self-locking nut M5 | 4 |
| 22 | 407N01001 | Self-locking nut M5 | 4 |
| 23 | 41828611 | Flat washer M5 | 4 |
| 24 | 930000364 | Bench support R | 1 |
| 25 | 417S30304 | Screw M6×20 | 12 |
| 26 | 930000363 | Table support L | 1 |
| 27 | 930000365 | Auxiliary left support | 1 |
Page 4 — B2、辅助台面部分 / Auxiliary table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142532018 | Left auxiliary table | 1 |
| 2 | S05026 | Screw M5×20 | 4 |
| 3 | 417S30036 | Bolt (with washer)M5×12 | 24 |
| 5 | 142031002 | Hinge A. | 6 |
| 6 | 930000306 | Folding rod bracket B | 2 |
| 7 | 1420NS20003 | Shaft screw M5B | 4 |
| 8 | 1420NS20002 | Axial screw M5A | 2 |
| 9 | 930000349 | Folding rod B | 2 |
| 10 | 930000348 | Folding rod A | 2 |
| 11 | 41728028 | Washer 5 | 6 |
| 12 | 407N01001 | Self-locking nut M5 | 6 |
| 13 | 930000304 | Folding rod bracket A | 2 |
| 14 | 142532019 | Right auxiliary table | 1 |
| 15 | 417S30036 | Bolt (with washer)M5×12 | 4 |
| 16 | 142012031 | The M5 thread board | 2 |
Page 5 — C1、上轴装置 / Upper shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142502006 | Upper shaft | 1 |
| 2 | B10014 | GB / 279 6904 ddunr bearing | 1 |
| 3 | B06005 | GB/T279 ddu bearing R - 6904 | 1 |
| 4 | 41703002 | Bearing sleeve | 1 |
| 5 | 403S14006 | Screw M6×6 | 2 |
| 6 | 41803219 | Reel drive wheel | 1 |
| 6 | 41704002 | Reel drive wheel | 1 |
| 7 | S09019 | Screw M5×5 | 2 |
| 7 | 403S14006 | Setting screw M6×0.75×6 | 2 |
| 8 | 142535004 | Winder drive wheel | 1 |
| 9 | S09019 | Screw M5×5 | 4 |
| 10 | 40325010 | Turn the gear on the upper shaft | 1 |
| 11 | B01024 | GB/T276 bearing 6804 z | 1 |
| 12 | 41803212 | Bearing sleeve | 1 |
| 13 | 41803212 | Bearing sleeve | 1 |
| 14 | B01029 | GB/T276 bearing 6204 | 1 |
| 15 | 41835021 | Synchronous belt S5M | 1 |
| 16 | 4183502000 | Upper shaft synchronous wheel assembly | 1 |
| 17 | S10019 | Screw M6×6 | 8 |
| 18 | B02016 | GB/T277 bearing 6305 nr | 1 |
| 19 | 41803214 | Coupling hoop A | 1 |
| 20 | S10024 | Screw M6×10 | 4 |
| 21 | 40322028 | Damping rubber | 1 |
| 22 | 41803215 | Coupling hoop B | 1 |
| 23 | S05124 | Bolt the M5×16 | 4 |
| 24 | 41833212 | Spindle motor | 1 |
| 25 | 40325011 | Hand shaft gear | 1 |
| 26 | 41803020 | Handwheel shaft sleeve B | 1 |
| 27 | 40327004 | spring | 1 |
| 28 | 142002003 | The hand wheel | 1 |
| 29 | P03002 | Elastic cylindrical pin A4×16 | 1 |
| 30 | 14201100200 | The handwheel components | 1 |
| 30 | 14201101200 | Handwheel kit B | 1 |
| 31 | 403S11003 | Slotted large cylindrical head screw | 1 |
| 32 | S10019 | Screw M6×6 | 1 |
| 33 | S09019 | Screw M5×5 | 2 |
Page 6 — D1、挑线装置（P） / Take up mechanism （P）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41804011 | Needle bar crank A | 1 |
| 2 | 135S11002 | Needle bar crank setting screw | 1 |
| 3 | 101S15004 | Needle bar crank fastening screw | 1 |
| 4 | 409S14001 | Inner hexagonal plane end setting screw | 2 |
| 5 | 141828001 | Pin crank washer | 1 |
| 6 | 14203800100 | Connecting rod assembly E | 1 |
| 7 | S10019 | Screw M6×6 | 2 |
| 8 | S09019 | Screw M5×5 | 1 |
| 9 | 142009004 | Needle bar slider guide | 1 |
| 10 | 207S11008 | Slotted cylindrical head screw M4×12 | 2 |
| 11 | 41709001 | The slider | 1 |
| 12 | 41704100 | The needle bar joint | 1 |
| 13 | S04078 | Screw M4×8 | 1 |
| 14 | 141802008 | Needle bar 2.0 | 1 |
| 14 | 141802009 | Needle bar 1.6 | 1 |
| 15 | 417S15002 | Screw SM9-64 x 40×4.5 | 1 |
| 16 | 142003012 | Pin and rod shaft sleeve E | 1 |
| 17 | S09019 | Screw M5 x5 | 1 |
| 18 | 42217503 | DP x5 9 # machine needle | 1 |
| 19 | 142003020 | Put A on the pin | 1 |
| 20 | 142527004 | Oil line hook | 1 |
| 21 | 142001010 | Transfer oil box | 1 |
| 22 | 142012079 | Oil transfer box mounting plate | 1 |
| 23 | S04076 | Screw M3×8 | 4 |
| 24 | S02039 | Slotted countersunk head screw M4×9 | 2 |
| 25 | 41711025 | Wire clip 23 | 1 |
| 26 | 417S30025 | Screw (with washer)M4×10DB | 1 |
| 27 | 40322027 | Rubber plug | 2 |
| 28 | 41836015 | The line M5 | 1 |
| 29 | 11412055 | 5.7 tubing circlip Φ | 2 |
| 30 | 12921002 | Vinylon tubing (3×5) | 3.5 |
| 31 | 12923018 | Line 4×4 | 1.5 |
| 32 | 142012125 | Tubing stent | 1 |
| 33 | S01591 | Screw M3 by 18 | 2 |
| 34 | 41712070 | Oil line support | 1 |
| 35 | 142020001 | Diaphragm pump | 1 |
| 36 | 417S30025 | Screw (with washer)M4×10DB | 1 |
| 37 | 41711026 | Wire clip 23 | 1 |
| 38 | 12921005 | Vinylon tubing (4×6) | 2 |
| 39 | 20429001 | tubing circlip | 1 |
| 40 | 40122007 | Rubber plug | 1 |
Page 7 — D2、挑线装置 / Take up mechanism （H）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142004003 | Needle bar crank H | 1 |
| 2 | 135S11002 | Needle bar crank setting screw | 1 |
| 3 | 101S15004 | Needle bar crank fastening screw | 1 |
| 4 | 409S14001 | Inner hexagonal plane end setting screw | 2 |
| 5 | 142028002 | Pin crank washer | 1 |
| 6 | 14203800500 | Connecting rod assembly J | 1 |
| 7 | S10019 | Screw M6×6 | 3 |
| 8 | 142009004 | Needle bar slider guide | 1 |
| 9 | 207S11008 | Slotted cylindrical head screw M4×12 | 2 |
| 10 | 41709001 | The slider | 1 |
| 11 | 41704100 | The needle bar joint | 1 |
| 12 | S04078 | Screw M4×8 | 1 |
| 13 | 141802008 | Needle bar 2.0 | 1 |
| 13 | 141802009 | Needle bar 1.6 | 1 |
| 14 | 417S15002 | Screw SM3.57-40×4.5 | 1 |
| 15 | 142003012 | Pin and rod shaft sleeve E | 1 |
| 16 | S09019 | Screw M5×5 | 1 |
| 17 | 42217503 | DP x5 9 # machine needle | 1 |
| 18 | 142003020 | Put A on the pin | 1 |
| 19 | 142527004 | Oil line hook | 1 |
| 20 | 142001010 | Transfer oil box | 1 |
| 21 | 142012079 | Oil transfer box mounting plate | 1 |
| 22 | S04076 | Screw M3×8 | 4 |
| 23 | S02039 | Slotted countersunk head screw M4×9 | 2 |
| 24 | 41711025 | Wire clip 19 | 1 |
| 25 | 417S30025 | Screw (with washer)M4×10DB | 1 |
| 26 | 40322027 | Rubber plug | 2 |
| 27 | 41836015 | The line M5 | 1 |
| 28 | 11412055 | 5.7 tubing circlip Φ | 2 |
| 29 | 12921002 | Vinylon tubing (3×5) | 3.5 |
| 30 | 12923018 | Line 4×4 | 1.5 |
| 31 | 142012091 | Linoleum bracket B | 1 |
| 32 | 421S13035 | Screw M4×8 | 2 |
| 33 | 41712070 | Oil line support | 1 |
| 34 | 142020001 | Diaphragm pump | 1 |
| 35 | 417S30025 | Screw (with washer)M4×10DB | 1 |
| 36 | 142012109 | Linoleum bracket C | 1 |
| 37 | 142023002 | linoleum | 1 |
| 38 | S09019 | screw | 1 |
| 39 | 41711026 | Wire clip 23 | 1 |
| 40 | 12921005 | Vinylon tubing (4×6) | 2 |
| 41 | 20429001 | tubing circlip | 1 |
| 42 | 40122007 | Rubber plug | 1 |
Page 8 — E、X送料装置 / X Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S05115 | Screw M4×6 | 2 |
| 2 | W01001 | Flat washer 4 | 2 |
| 3 | 142511010 | 4030 1200 slot | 1 |
| 4 | 425S10001 | Square nut block | 17 |
| 5 | N08008 | Nut M3 | 2 |
| 6 | 417S15008 | Screw M4×8 | 2 |
| 7 | 41728028 | Washer 5 | 2 |
| 8 | 142542003 | Small tank chain baffle | 1 |
| 9 | S02127 | Countersunk head screw M3×10 | 2 |
| 10 | 41837614 | Mechanical anti-collision labeling | 2 |
| 11 | 14254200400 | Synchronous belt feeding module | 1 |
| 12 | 141831028 | 3M200 series anti-skid tape 50 | 0.6 |
| 13 | 407N01002 | Self-locking nut M4 | 2 |
| 14 | 41812141 | Y drag chain front bracket | 1 |
| 15 | 41728028 | Washer 5 | 2 |
| 16 | 417S15008 | Screw M4×8 | 2 |
| 17 | 417S30034 | Screw (with washer) M4×14 | 2 |
| 18 | S05115 | ScrewM4×6 | 2 |
| 19 | 142011014 | Y to drag chain | 1 |
| 20 | 417S30034 | Screw (with washer) M4×14 | 2 |
| 21 | 41812134 | Drag chain mounting plate | 1 |
| 22 | S05035 | Screw M5×25 | 2 |
| 23 | S05124 | Bolt M5×16 | 2 |
| 24 | 142533004 | Module, motor | 1 |
| 25 | 10122005 | plug | 1 |
| 26 | 141842001 | X sensor mounting plate | 1 |
| 27 | W01001 | Flat washer 4 | 2 |
| 28 | S05133 | Screw M4×12 | 2 |
| 29 | 41730851 | The sensor | 1 |
| 30 | S04076 | Screw M3×8 | 1 |
| 31 | 417S30034 | Bolt M4×14(with washer) | 8 |
| 32 | 141801052 | Feed coupling seat | 2 |
| 33 | 41728033 | Gasket M6 | 4 |
| 34 | S05040 | Bolt M6×16 | 4 |
Page 9 — F1、Y丝杆润滑 / Y Screw rod lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S04125 | Cross recessed pan head screw M4X50 | 1 |
| 2 | N01024 | Hexagonal screw M4 | 1 |
| 3 | S04076 | Screw M3X8 | 4 |
| 4 | 41812145 | Grease storage box cover | 1 |
| 5 | 41842042 | Piston core | 1 |
| 6 | 41822016 | Ring 17X2.65 | 2 |
| 7 | 41842041 | Screw grease storage box | 1 |
| 8 | 41836011 | Copper ferrule type straight tubing joint M6 | 1 |
| 9 | 141822015 | Combined washer | 1 |
| 10 | S04038 | Screw M6X10 | 1 |
| 11 | 421S13035 | Screw M4X8 | 2 |
| 12 | 141812035 | Grease storage box mounting plate | 1 |
| 13 | 425S10001 | Square nut block | 2 |
| 14 | S02032 | Screw M3X6 | 4 |
| 15 | 41837102 | Rail oiling label | 1 |
| 16 | 14254200400 | Synchronous belt feeding module | 1 |
Page 10 — F2、Y送料装置 / Y Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S05119 | Screw M4×20 | 1 |
| 2 | S05133 | Screw M4×12 | 2 |
| 3 | N01024 | Hex nut M4 | 2 |
| 4 | 141812169 | Beam regulating plate | 1 |
| 5 | 41826011 | The cylindrical pin 6×15 | 5 |
| 6 | 142542009 | Y drives the right portrait | 1 |
| 7 | S05040 | Bolt M6×16 | 6 |
| 8 | S05049 | Bolt M4×14 | 16 |
| 9 | 142501016 | Y drive beam | 1 |
| 10 | 12912326 | Wire clip | 1 |
| 11 | 417S30025 | Bolt (with washer) M4×10DB | 3 |
| 12 | 41812667 | Tubing stent | 1 |
| 13 | 142542010 | Y drives the left vertical | 1 |
| 14 | B01033 | Deep groove ball bearing 6203 | 1 |
| 15 | 41801042 | Y screw support end bearing block | 1 |
| 16 | 41808011 | Retaining ring | 1 |
| 17 | S05133 | Screw M4×12 | 1 |
| 18 | S05040 | Bolt M6×16 | 4 |
| 19 | 141821006 | The tubing | 0.5 |
| 20 | 41836011 | Copper clamped through tubing connector M6 | 1 |
| 21 | 421S13059 | Bolt M5×20 | 4 |
| 22 | 142524002 | Y lead component | 1 |
| 23 | 142501018 | Y-screw fixed end bearing assembly | 1 |
| 24 | 1425NS13001 | Bolt M8×45 | 4 |
| 25 | 4180301200 | Club coupling assembly | 1 |
| 26 | 142033006 | Y servo motor | 1 |
| 27 | S05124 | Bolt M5×16 | 4 |
| 28 | S04076 | Screw M3×8 | 1 |
| 29 | 41730851 | Y sensors | 1 |
| 30 | 142512070 | Y sensor mounting plate | 1 |
| 31 | 421S13012 | Screw M4×10 | 2 |
| 32 | 142524001 | Y guide assembly | 2 |
| 33 | 42522031 | Guide rail plug | 26 |
| 34 | S05133 | Screw M4×12 | 16 |
| 35 | 141822009 | Rubber head screw M6×65 | 4 |
| 36 | 205S16005 | Nut M6 | 4 |
| 37 | 142512101 | Small bottom cover | 1 |
| 38 | 421S13012 | Screw (with washer) M4×10 | 3 |
Page 11 — G1、压紧夹具装置 / Pressing fixture mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845224 | Trachea 4×2.5 black | 2 |
| 2 | 41845223 | Trachea 4×2.5 transparent blue | 2 |
| 3 | 41836501 | Pipe joint PU4 | 2 |
| 4 | 142511015 | A small tank chain | 1 |
| 5 | S02127 | Countersunk head screw M3×10 | 2 |
| 6 | 407S17001 | Countersunk head screw M4×10 | 4 |
| 7 | 141831029 | Teflon tape 0.13×25 | 0.6 |
| 8 | 142542007 | Drag chain guide | 1 |
| 9 | N08008 | Self-locking nut M3 | 2 |
| 10 | 42536004 | Tracheal joint | 2 |
| 11 | S05124 | Screw the M5×16 | 16 |
| 12 | 41842503 | Drag chain guide pad | 4 |
| 13 | 41845223 | Trachea 4×2.5 transparent blue | 2 |
| 14 | 41845224 | Trachea 4×2.5 black | 2 |
| 15 | 42536003 | Tracheal joint | 6 |
| 16 | 142542008 | Pressure framework | 1 |
| 17 | 4254500400 | cylinder | 4 |
| 18 | S09019 | Screw the M5×5 | 1 |
| 19 | 42512028 | Limit position bearing | 1 |
| 20 | 42526008 | Limit position pin | 1 |
| 21 | 417S30034 | Screw (with washer) M4×14 | 4 |
| 22 | S05124 | Screw the M5×16 | 4 |
| 23 | 41728028 | Washer 5 | 4 |
| 24 | S05026 | Hexagon socket countersunk head screw M5×20 | 4 |
| 25 | 407S04001 | Cross countersunk head screw M4×16 | 8 |
| 26 | 41842038 | support columns | 2 |
| 27 | 41842037 | Top cylinder mounting plate | 2 |
| 28 | 41845017 | cylinder | 2 |
| 29 | 42230519 | Miniature connector M-5HLH-4 | 2 |
Page 12 — G2、夹扣夹具装置 / Clamping fixture mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845224 | Trachea 4×2.5 black | 1 |
| 2 | 41845223 | Trachea 4×2.5 transparent blue | 1 |
| 3 | 41836501 | Pipe joint PU4 | 4 |
| 4 | 142511015 | A small tank chain | 1 |
| 5 | S02127 | Countersunk head screw M3×10 | 2 |
| 6 | N08008 | Self-locking nut M3 | 2 |
| 7 | 42536003 | Tracheal joint | 2 |
| 8 | S05121 | Bolt the M5×10 | 12 |
| 9 | 41842218 | Fixture connection plate B | 2 |
| 10 | W01009 | Washer 5 | 8 |
| 11 | S05087 | Bolt the M5×12 | 8 |
| 12 | 42212813 | The clamping lever | 2 |
| 13 | 42228811 | Turn the washer | 6 |
| 14 | 42212538 | Fixture mounting plate L | 2 |
| 15 | 42212607 | Clamp lever baffle | 2 |
| 16 | S05087 | Bolt the M5×12 | 6 |
| 17 | 42226811 | The joint pin | 2 |
| 18 | 401727 | joint | 2 |
| 19 | 41730441 | Cylinder CU16-15 d | 2 |
| 20 | 42536004 | Tracheal joint | 4 |
| 21 | 42128003 | washer | 4 |
| 22 | W02008 | Spring washer 2-4 | 4 |
| 23 | S05065 | Screw the M4×40 | 4 |
| 24 | 41711014 | Wire clip 6.4 | 2 |
| 25 | 417S30025 | Bolt (with washer)M4×10 | 2 |
| 26 | 41842510 | Special pad for clamp | 3 |
| 27 | 142542007 | Drag chain guide | 1 |
| 28 | 407S04001 | Countersunk head screw M4×16 | 3 |
| 29 | 141831029 | Teflon tape 0.13×25 | 0.6 |
| 30 | 41845224 | Trachea 4×2.5 black | 1 |
| 31 | 41845223 | Trachea 4×2.5 transparent blue | 1 |
| 32 | 142509006 | Clip connecting plate | 1 |
| 33 | 42212800 | Plastic plate | 15 |
| 34 | 42226812 | The clamping pin | 30 |
| 35 | 417S17852 | Screw the M5×15 | 30 |
| 36 | 42212820 | Transparent plate | 3 |
Page 13 — H1、电子中压脚装置 / Electronic presser foot mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142533001 | Medium pressure foot motor | 1 |
| 2 | S05087 | Screw the M5×12 | 4 |
| 3 | 142012010 | Medium pressure foot motor mounting plate | 1 |
| 4 | S05124 | Screw the M5×16 | 4 |
| 5 | 142003011 | Bearing block | 1 |
| 6 | B04036 | Ball bearing 61900 | 1 |
| 7 | 142004001 | Middle pressure foot rocker | 1 |
| 8 | 14200500100 | Medium pressure foot connecting rod assembly | 1 |
| 9 | 142026002 | The connecting rod pin | 1 |
| 10 | 1420NS20001 | Axial screw M6×0.75 | 1 |
| 11 | 142003006 | Engineering plastic shaft sleeve GLW-0709-05 | 2 |
| 12 | 142005001 | Medium pressure foot link | 1 |
| 13 | 421S13035 | Screw the M4×8 | 1 |
| 14 | S09019 | Screw the M5×5 | 1 |
| 15 | S05004 | Screw the M5×14 | 1 |
| 16 | 41709020 | Tighten rod joint | 1 |
| 17 | 41822101 | Rubber sleeve | 1 |
| 18 | 41803031 | Middle pressure rod sleeve | 1 |
| 19 | 41822612 | Oil seal 9-15-4 | 1 |
| 20 | 142002004 | Presser bar F | 1 |
| 21 | 141916003 | Medium pressure foot | 1 |
| 22 | 41712009 | finger guard | 1 |
| 23 | 41728025 | Flat washer L3.5 | 1 |
| 24 | 417S15011 | Screw SM3.57 | 1 |
Page 14 — H2、机械中压脚装置 / Mechanical presser foot mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 403S14006 | Screw M6×0.75-6 | 2 |
| 2 | 41710001 | CAM | 1 |
| 3 | B06008 | Bearing 6805 v. v. | 1 |
| 4 | 205S16005 | Nut M6 | 1 |
| 5 | 41728004 | washer | 1 |
| 6 | 142003001 | Plastic shaft sleeve ZSM-0810-06 | 1 |
| 7 | 142005004 | Connecting rod S | 1 |
| 8 | 41703010 | roller | 1 |
| 9 | 41728004 | washer | 1 |
| 10 | L02032 | Screw M6×12 | 1 |
| 11 | 41709017 | The pressure arm R | 1 |
| 12 | 41726003 | Roller shaft | 1 |
| 13 | S04035 | Screw the M4×6 | 2 |
| 14 | 41728003 | washer | 1 |
| 15 | S10019 | Screw M6×6 | 1 |
| 16 | 41703012 | Press arm sleeve R | 1 |
| 17 | 41703011 | Pressure arm shaft sleeve F | 1 |
| 18 | 142002005 | The pressure arm F | 1 |
| 19 | 403S14006 | Screw M6×0.75×6 | 1 |
| 20 | 142003002 | Engineering plastic shaft sleeve JSM-0810-03 | 5 |
| 21 | 417S30007 | Section of the screw (6) | 4 |
| 22 | 142012001 | Intermittent connecting rod MA | 1 |
| 23 | 142012003 | Intermittent link M | 1 |
| 24 | 142026001 | The connecting rod pin | 1 |
| 25 | S10019 | Screw M6×6 | 1 |
| 26 | H03006 | Retaining ring 8 | 1 |
| 27 | S09013 | Screw the M4×4 | 1 |
| 28 | 41728031 | washer | 1 |
| 29 | 41702014 | The connecting plate shaft | 1 |
| 30 | 41709018 | The connecting plate | 1 |
| 31 | S10019 | Screw M6×6 | 1 |
| 32 | S04036 | Screw M3×4 | 4 |
| 33 | 142012002 | Intermittent connecting rod MB | 1 |
| 34 | 421S13035 | Screw the M4×8 | 1 |
| 35 | 41709020 | Tighten rod joint | 1 |
| 36 | 41822101 | Rubber sleeve | 1 |
| 37 | 41803031 | Middle pressure rod sleeve | 1 |
| 38 | 41822612 | Oil seal 9-15-4 | 1 |
| 39 | 142002004 | Presser bar F | 1 |
| 40 | 42216505 | Medium pressure foot | 1 |
| 41 | 41712009 | finger guard | 1 |
| 42 | 41728025 | Flat washer L3.5 | 1 |
| 43 | 417S15011 | Screw SM3.57 | 1 |
Page 15 — H3、机械中压脚驱动装置 / Mechanical presser foot mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142045003 | cylinder | 1 |
| 2 | 41845231 | Joint ASL4 - M5 | 2 |
| 3 | 142012005 | Medium pressure foot cylinder mounting plate | 1 |
| 4 | 417S15008 | Screw the M4×8 | 2 |
| 5 | S05087 | Screw the M5×12 | 2 |
| 6 | S01014 | Screw M6×0.75×9.6 | 1 |
| 7 | 14200500500 | Joint components | 1 |
| 8 | 142003003 | Engineering plastic bushing 0810-05 | 1 |
| 9 | 142012004 | Mechanical foot connecting rod | 1 |
| 10 | 41728031 | washer | 1 |
| 11 | 418S30218 | Screw the M4×7 | 1 |
| 12 | 41845223 | Trachea 4×2.5 transparent blue | 0.5 |
| 13 | 41845224 | Trachea 4×2.5 black | 0.5 |
| 14 | 40736036 | Air pipe connector APY4(Y-type tee) | 2 |
Page 16 — I、大压脚装置 / External work clamp mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 42230519 | Miniature connector M-5HLH-4 | 2 |
| 2 | 142012092 | Pressure regulator mounting plate | 1 |
| 3 | S02039 | Slotted countersunk head screw M4X9 | 2 |
| 4 | 142045013 | Pressure regulator | 1 |
| 5 | S05330 | Screw M3X45 | 4 |
| 6 | 142045004 | Stroke adjustable cylinder 12-15d | 1 |
| 7 | S05133 | Screw the M4X12 | 2 |
| 8 | 41845231 | Joint ASL4 - M5 | 2 |
| 9 | 142001006 | Large pin cylinder mounting plate | 1 |
| 10 | 4250400600 | Floating joint | 1 |
| 11 | 142009005 | High pressure foot pressure rod guide | 1 |
| 12 | 421S13035 | Screw the M4X8 | 1 |
| 13 | 142002007 | Big presser foot pole | 1 |
| 14 | 142003008 | Dustproof shaft sleeve for high pressure rod | 1 |
| 15 | 11522001 | Oil seal | 1 |
| 16 | S05192 | Screw M3X6 | 2 |
| 17 | S05115 | Screw the M4X6 | 2 |
| 18 | 14201600100 | big pressure foot H component | 1 |
| 19 | S05115 | Screw the M4X6 | 2 |
| 20 | 142012021 | Copper tube mounting plate | 1 |
| 21 | 141845007 | Hose TUS0425N | 0.2 |
| 22 | 142021001 | The brass U | 1 |
| 23 | 41801064 | Copper pipe clamp | 1 |
| 24 | 42509004 | Guide chute | 1 |
| 25 | S05133 | Screw the M4X12 | 2 |
| 26 | 407N01001 | Self-locking nut M5 | 2 |
Page 17 — J、下轴装置 / Lower shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S10019 | Screw M6×6 | 2 |
| 2 | B10012 | Deep groove ball bearing | 1 |
| 3 | B10022 | Deep groove ball bearing | 1 |
| 4 | 101S15002 | Feed shaft retainer screw | 4 |
| 5 | B02015 | Deep groove ball bearing 6003 | 1 |
| 6 | 13722022 | Oil seal for lifting tooth shaft | 1 |
| 7 | 13703034 | Lower drive shaft oil seal sleeve | 1 |
| 8 | S10019 | Screw M6×6 | 2 |
| 9 | B01058 | Deep groove ball bearing 6001-Z | 1 |
| 10 | 142503009 | Synchronous shaft sleeve | 1 |
| 11 | 41722004 | Rubber plug 15.5 | 1 |
| 12 | 14202500100 | Large gear assembly | 1 |
| 13 | 11403013 | Bearing sleeve | 2 |
| 14 | 41835018 | The synchronous wheel | 1 |
| 15 | 142502008 | Lower synchronous axle B | 1 |
| 16 | S10019 | Screw M6×6 | 2 |
| 17 | 142003017 | Shaft sleeve in lower shaft | 1 |
| 18 | B01060 | Bearing 6901ZZ | 1 |
| 19 | 113S14002 | Screw SM11/64×40 | 2 |
| 20 | 421S13012 | Screw the M4×10 | 1 |
| 21 | 42218002 | Bobbin sleeve assembly | 1 |
| 21 | 13818003 | 1.3 times the bobbin case | 1 |
| 22 | 10818501 | Big bobbin | 1 |
| 22 | 13818002 | Robbin 1.3 times | 1 |
| 23 | 142018003 | Hook HSM-BIHTR(1Q) | 1 |
| 142518002 | Hook 1.3 times | 1 | |
| 142018004 | Hook | 1 | |
| 24 | 11522001 | Oil seal | 1 |
| 41822011 | Oil seal | 1 | |
| 25 | S09013 | Screw the M4×4 | 1 |
| 26 | 142003014 | Lower shaft plunger sleeve | 1 |
| 142003026 | Lower shaft plunger sleeve | 1 | |
| 27 | 11522001 | Oil seal | 1 |
| 28 | 141803006 | Lower shaft oil mandrel | 1 |
| 29 | 141822002 | o-ring | 1 |
| 30 | 141823001 | Lower shaft limiting oil core | 1 |
| 31 | 142002011 | The axis C | 1 |
| 32 | 41803028 | Lower shaft bearing sleeve | 1 |
| 33 | 142025002 | Helical gear | 1 |
| 34 | 41728001 | Flat washer 10 | 2 |
| 35 | B06006 | Deep groove ball bearing 6000VV | 2 |
| 36 | H01009 | Retaining ring 26 | 2 |
| 37 | 41803013 | Tension wheel | 1 |
| 38 | 41826017 | Tensioning shaft | 1 |
| 39 | S10019 | Screw M6×6 | 4 |
| 40 | 417S30306 | Bolt the M5×15 | 2 |
| 41 | 41801043 | Tensioning wheel bracket | 1 |
| 42 | W01003 | M6 gasket | 1 |
| 43 | 205S16005 | Nut M6 | 1 |
| 44 | S07020 | Screw M6×20 | 1 |
| 45 | 001016 | o-ring 6×1.8 | 1 |
| 46 | S10078 | Screw M5×4 | 1 |
| 47 | 42508003 | Tight ring | 1 |
| 48 | S10007 | Screw M4×4 | 2 |
Page 18 — K1、供油润滑装置 / Lubrication mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02039 | Screw the M4×9 | 2 |
| 2 | 142512074 | Small oil cover | 1 |
| 3 | 142522007 | Small oil pad | 1 |
| 4 | S02039 | Screw the M4×9 | 8 |
| 5 | 4181203600 | Gearbox cover assembly | 1 |
| 6 | 41812035 | Gear box cover plate | 1 |
| 7 | 41736303 | The line B | 1 |
| 8 | 12921005 | The tubing from 4×6 | 0.05 |
| 9 | 417S15008 | Screw the M4×8 | 2 |
| 10 | 142512072 | Tubing Joe | 2 |
| 11 | 41711004 | Oil window | 1 |
| 12 | 41711022 | Block slice | 1 |
| 13 | 41722031 | Rubber ring | 1 |
| 14 | 142522008 | Rubber plug 38 | 1 |
| 15 | 417S15008 | Screw the M4×8 | 3 |
| 16 | 142012089 | Oil baffle plate | 1 |
| 17 | S02039 | Screw the M4×9 | 1 |
| 18 | 142047002 | Round the magnet | 1 |
| 19 | 12936004 | The line | 1 |
| 20 | 12912038 | Tubing clamps | 1 |
| 21 | 12921006 | Vinylon tubing (6×8) | 0.3 |
| 22 | 41812014 | Waste oil pot mounting plate | 1 |
| 23 | 40311010 | The oil can joint | 1 |
| 24 | S05192 | Bolt M3×6 | 4 |
| 25 | 40311011 | After oil can | 1 |
| 26 | 417S30036 | Bolt the M5×10 | 2 |
| 27 | 418S30014 | Knob screw M4 | 1 |
| 28 | 930000407 | Hook front cover assembly | 1 |
| 28 | 930000744 | Hook front cover assembly | 1 |
| 29 | 421S11009 | Screw M4×6 (cross) | 1 |
| 30 | N01013 | Hexagon nut M3 | 4 |
| 31 | 41831012 | Copper hinge 1.5" | 2 |
| 32 | S02032 | Screw M3×6(Nickel plating) | 8 |
| 33 | 41831019 | Powerful magnet | 2 |
| 34 | S09019 | Screw the M5×5 | 2 |
| 35 | 12923018 | Line 4×4 | 0.2 |
| 36 | 10127015 | Oil felt presser | 1 |
| 37 | 142023003 | Oil supply felt | 1 |
| 38 | 12923018 | Line 4×4 | 2.5 |
| 39 | 12921005 | Vinylon tubing (4×6) | 2.5 |
| 41 | 41712085 | gasket | 1 |
| 42 | 421S13035 | Screw the M4×8 | 1 |
| 43 | 41711017 | Wire clip 16 | 6 |
| 44 | 417S30025 | Bolt (with washer)M4×10DB | 4 |
Page 19 — K2、旋梭供油装置 / Hook oil supply mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142527002 | Return tubing spring | 2 |
| 2 | 12921002 | Vinylon tubing (3×5) | 0.6 |
| 3 | 11412055 | 5.7 tubing circlip Φ | 5 |
| 4 | 41836015 | The line M5 | 3 |
| 5 | 10526003 | plunger | 1 |
| 6 | 11427021 | Plunger spring | 1 |
| 7 | 41812093 | Plunger spring pressure plate | 1 |
| 8 | S05094 | Screw M3 x 8 | 2 |
| 9 | 12921002 | Vinylon tubing (3×5) | 0.7 |
| 13 | 12921002 | Vinylon tubing (3×5) | 0.2 |
| 14 | 417S30302 | Bolt M4X12 | 2 |
| 15 | 12921002 | Vinylon tubing (3×5) | 0.5 |
| 16 | 417S30036 | Bolt the M5×12 | 2 |
| 17 | 40322027 | Rubber plug | 5 |
| 18 | 142512071 | Oil pot mounting plate | 1 |
| 19 | 41722003 | Rubber plug 10.5 | 2 |
| 20 | 4183601700 | Filter elements | 2 |
| 21 | 41811228 | Oil cup | 1 |
| 22 | 915624 | Round the magnet 15 | 1 |
| 23 | S05120 | Bolt the M5×8 | 4 |
| 24 | S01065 | Screw the M5×6 | 1 |
| 25 | 142036001 | Nozzle extension | 2 |
| 26 | 001004 | o-rings | 1 |
| 27 | 418S30612 | Adjust the screw | 1 |
| 28 | 142009002 | Adjust the seat | 1 |
| 29 | 417S30025 | Bolt (with washer) M4×10DB | 1 |
| 30 | 41711014 | Wire clip 6.4 | 1 |
| 31 | S02039 | Screw the M4×9 | 1 |
| 32 | 142047002 | Round the magnet 15 | 1 |
| 33 | 41836015 | The line M5 | 1 |
| 34 | 12921002 | Vinylon tubing (3×5) | 0.1 |
Page 20 — L、穿线装置 / Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41313013 | The pin thread | 1 |
| 2 | S09019 | Screw M5×5 | 1 |
| 3 | S10007 | Recessed setting screw M4×4 | 1 |
| 4 | 41726014 | Needle set | 1 |
| 5 | 41712078 | Cross line guide B | 1 |
| 6 | S04028 | Screw M5×8 | 1 |
| 7 | 142012012 | Line direction F | 1 |
| 8 | 413S13008 | Screw (with washer)M4×8 | 1 |
| 9 | 14253000300 | Electronic clamp assembly | 1 |
| 10 | 14201300100 | Wire hook component | 1 |
| 11 | S05133 | Screw M4×12 | 1 |
| 12 | 4181361200 | Main clamp assembly | 1 |
| 13 | S10019 | Screw M6×6 | 1 |
| 14 | 41702031 | Loose thread pin | 1 |
| 15 | 41712079 | A line C | 1 |
| 16 | S04028 | Screw M5×8 | 1 |
| 17 | 1381300400 | Small clamp assembly | 1 |
| 18 | S04028 | Screw M5×8 | 1 |
| 19 | 41712077 | Cross line to guide A | 1 |
| 20 | S09019 | Screw M5×5 | 1 |
Page 21 — M、卷线装置 / Bobbin winder mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14253103700 | Winding assembly | 1 |
| 2 | 1411300600 | Baseline clamp | 1 |
| 3 | 114S11003 | Screw SM3/16 "×28 L = 10 | 3 |
| 4 | 114S11008 | Composite grooved disc head screw M4×6 | 1 |
| 5 | W02863 | Spring washer 4 | 1 |
| 6 | W01142 | Flat washer 4 | 1 |
| 7 | 14113002 | Line control panel | 1 |
| 8 | 14112020 | The gasket | 1 |
| 9 | 1411000300 | Winding CAM assembly | 1 |
| 10 | 13812110 | Adjustment plate | 1 |
| 11 | 13827103 | Full line reset spring | 1 |
| 12 | S04090 | Cross grooved disc head screw M2×4 | 1 |
| 13 | 14119003 | Secant knife | 1 |
| 14 | 14111002 | Winding gasket | 1 |
| 15 | 14131001 | The main seat of the winding device | 1 |
| 16 | 10127061 | Reset plate tension spring | 1 |
| 17 | 14127060 | spring | 1 |
| 18 | 142502007 | Main shaft of bobbin | 1 |
| 19 | 1410510600 | Winding rod assembly | 1 |
| 20 | 11329020 | Open retainer 5 | 2 |
| 21 | 14111006 | Check pulley | 1 |
| 22 | N07008 | Slotted round nut SM9/64 x 40 | 1 |
| 23 | S09103 | Hexagon socket set screw M4×4 | 1 |
| 24 | 14111004 | reel | 1 |
| 25 | 1141NS10001 | Composite grooved disc head screw SM9/64 ×40 | 1 |
| 26 | W02865 | Spring washer 3 | 1 |
| 27 | 14111004 | reel | 1 |
| 28 | 141S16019 | Collet nut | 1 |
| 29 | 11427006 | Clip wire spring | 1 |
| 30 | 14112015 | Thread clamp plate | 2 |
| 31 | 11413022 | Clamp wire over wire plate | 1 |
| 32 | 112S13004 | Thread clamp screw | 1 |
| 33 | 114S16001 | Nut SM11/64×40. | 1 |
Page 22 — N、切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 114S11009 | Screw SM11/64×40 | 1 |
| 2 | 13112007 | To protect the needle pieces | 1 |
| 2 | 11312003 | To protect the needle pieces | 1 |
| 3 | S05218 | Screw the M5×22 | 3 |
| 4 | 142001008 | Locating hook assembly mounting seat | 1 |
| 4 | 142001011 | Locating hook assembly mounting seat | 1 |
| 5 | 101S11011 | Hook screw with rotary hook | 1 |
| 6 | 409S16025 | nut | 1 |
| 7 | 422S30514 | Screw the SM1/8×44 | 1 |
| 8 | 141909001 | Set the knife holder | 1 |
| 9 | 13119001 | On the blade | 1 |
| 9 | 13119002 | On the blade | 1 |
| 10 | 142012085 | Constant dao gasket | 1 |
| 11 | S05004 | Hook screw with rotary hook | 1 |
| 12 | 41728028 | gasket | 1 |
| 13 | 141812022 | Positioning hook | 1 |
| 14 | 417S15008 | Screw the M4×8 | 4 |
| 15 | 417S17001 | Screw SM2.38 | 2 |
| 16 | 41815011 | 1.8 T2.0 pinhole plate phi | 1 |
| 17 | 142015001 | The needle plate | 1 |
| 18 | 116S14005 | Screw the SM1/4×40 | 2 |
| 19 | 11309030 | CAM needle | 2 |
| 20 | 11510001 | CAM | 1 |
| 20 | 11310011 | CAM | 1 |
| 21 | 141909005 | Line cutting tool holder | 1 |
| 22 | S05133 | Screw the M4×12 | 2 |
| 23 | 13119004 | The knife | 1 |
| 23 | 13119003 | The knife | 1 |
| 24 | 113S17002 | Movable knife fixing screw | 2 |
| 25 | 42212668 | Special-shaped tool holder pressure plate | 1 |
| 26 | S02031 | Screw M3×5 | 3 |
| 27 | 13107002 | The scissors tool rest | 1 |
| 27 | 11501001 | The scissors tool rest | 1 |
| 28 | 141912040 | Line cutting tool holder gasket | 1 |
| 29 | 11503004 | Cutter drive shaft sleeve | 1 |
| 30 | 11322002 | Torsional spring end cover | 1 |
| 31 | 11327002 | spring | 1 |
| 32 | 142502009 | Tangential drive shaft | 1 |
| 33 | 409S14003 | Needle bar crank pin setting screw | 1 |
| 34 | H05031 | Open ring | 1 |
| 35 | 10112003 | Needle bar crank guard | 1 |
| 36 | 11322003 | Electromagnet cushion | 1 |
| 37 | 142503010 | Bobbin retainer | 1 |
| 38 | 41830501 | Wire cutting electromagnet | 1 |
| 39 | 417S30306 | Bolt (with washer)M5×16 | 2 |
| 40 | 142512084 | Tangent electromagnet mounting plate (large shuttle) | 1 |
| 41 | 421S13012 | Screw the M4×8 | 2 |
| 42 | 1150400200 | Tangential CAM crank assembly | 1 |
| 43 | 11527001 | spring | 1 |
| 44 | 417S30302 | Screw the M4×12 | 2 |
| 45 | 41812508 | Spring hook plate | 1 |
| 46 | S05069 | Screw the M5×40 | 1 |
| 47 | 11511001 | Drive crank stop block | 1 |
| 48 | 13104006 | Tangent to the crank | 1 |
| 49 | 11505001 | Connecting rod | 1 |
| 50 | 418S20214 | Axis of a screw | 1 |
Page 23 — N、切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | S05004 | Screw the M5×14 | 1 |
| 52 | 142003009 | Tangent collar | 1 |
| 53 | 42203517 | Tangent crank shaft stub sleeve | 1 |
| 54 | 42201526 | Tangential CAM crank shaft | 1 |
| 55 | 417S30025 | Bolt (with washer) M4×10DB | 3 |
| 56 | 41711014 | Wire clip 6.4 | 3 |
| 57 | 41828611 | Gasket 5 | 1 |
| 58 | 113S20001 | Connecting rodscrew | 1 |
| 58 | 418S20214 | Axis of a screw | 1 |
| 59 | 13128003 | Connecting rodgasket | 1 |
| 60 | 417S15008 | Screw the M4×8 | 1 |
Page 24 — N3、切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 42230534 | TANGENT MOTOR | 1 |
| 2 | 413S13011 | Screw M4×12 | 4 |
| 3 | 142512111 | Cutting motor mounting plate | 1 |
| 4 | 417S30306 | screw M5×15 | 4 |
| 5 | 41804021 | Tangent drive oscillating bar | 1 |
| 6 | 413S13011 | Screw M4×12 | 1 |
| 7 | 417S12005 | Screw M6 | 2 |
| 8 | 4170500300 | Adapter assembly | 2 |
| 9 | 205S16005 | Nut M6 | 2 |
| 10 | 41802021 | Tangent connenting bar | 1 |
| 11 | 41804022 | Tangent oscillating bar | 1 |
| 12 | 413S13011 | Screw M4×12 | 1 |
| 13 | 41803017 | Shaft sleeve 0508 | 1 |
| 14 | S10078 | Screw M5×4 | 1 |
| 15 | 41826011 | The cylindrical pin 6×15 | 1 |
| 16 | 4181901100 | Kinfe components | 1 |
| 17 | 413S13011 | Screw M4×12 | 2 |
| 18 | S05026 | Screw M5×20 | 2 |
| 19 | 142509007 | Fixed kinfe holder | 1 |
| 20 | 142001018 | Locating hook support | 1 |
| 21 | 413S13017 | Screw M4×10 | 2 |
| 22 | 42212555 | Positioning hook | 1 |
| 23 | 116S11005 | Screw | 1 |
| 24 | 41722010 | Rubber xushion | 1 |
| 25 | 417S15008 | Screw M4×8 | 4 |
| 26 | 417S17001 | Screw SM2.38 | 2 |
| 27 | 41815011 | 1.8 T2.0 pinhole plate phi | 1 |
| 28 | 142015001 | The needle plate | 1 |
| 29 | 41819020 | Moving blade rod | 1 |
| 30 | 41819015 | Moving blade | 1 |
| 31 | 407S04002 | Screw m3×8 | 1 |
| 32 | 4181901100-03 | Screw m3×4 | 2 |
| 33 | 141812099 | Wire sheet | 1 |
| 34 | 4181901100-01 | Screw m1.6×1.5 | 2 |
| 35 | 4181901100-02 | Washer | 2 |
| 36 | S09042 | Screw m3×4 | 2 |
| 37 | S05047 | Screw m3×4 | 2 |
| 38 | 41819016 | Stationary knife | 1 |
| 39 | 41812518 | Wire sheet mounting plate | 1 |
| 40 | 41812517 | Stationary knife mounting plate | 1 |
Page 25 — P、扫线装置 / Thread wiper mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141711002 | Electromagnet cover | 1 |
| 2 | 41730002 | Sweep line electromagnet assembly | 1 |
| 3 | 142012049 | Sweep electromagnet mounting plate | 1 |
| 4 | 417S30306 | Screw (with washer)M5×15 | 2 |
| 5 | 421S10005 | Screw M3×6 | 4 |
| 6 | 421S10005 | Screw M3×6 | 2 |
| 7 | 41726007 | The piston pin | 1 |
| 9 | 41727011 | Sweep line spring | 1 |
| 10 | 41728011 | Flat washer | 1 |
| 11 | H05002 | Open retainer 3 | 1 |
| 12 | W01024 | Washer 4 | 1 |
| 13 | 141712016 | Sweep pole | 1 |
| 14 | 4170204400 | Sweep crank assembly | 1 |
| 15 | 41712096 | Sweep reel bracket | 1 |
| 16 | H05029 | Open retainer E4 | 1 |
| 17 | 41727012 | Torsional spring | 1 |
| 18 | 417S15005 | Screw M3.5×5 | 1 |
| 19 | 41708007 | Threaded ring | 1 |
| 20 | 417S30302 | Screw the M4×12 | 1 |
| 21 | 41728034 | The gasket | 1 |
| 22 | 142527003 | Sweep line wire | 1 |
| 23 | 41708008 | Spool retainer | 1 |
| 24 | 417S15013 | Screw the M4×5 | 1 |
| 25 | 41730022 | Two conductor | 2.5 |
| 26 | 41722012 | The rubber gasket | 1 |
Page 26 — Q、松线装置 / Tension release mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | H05029 | Retaining ring E4 | 1 |
| 2 | W01009 | Washer 5 | 2 |
| 3 | 41727013 | spring | 1 |
| 4 | 41702045 | Pine pole | 1 |
| 5 | 417S30012 | 7-3 section of the screw | 2 |
| 6 | 41722021 | O-ring P7 | 2 |
| 7 | 41711211 | Electromagnet cover | 1 |
| 8 | 41730004 | Loose wire electromagnet HV | 1 |
| 9 | 41722020 | Buffer washer | 1 |
| 10 | W01001 | Washer 4 | 1 |
| 11 | N01024 | Hex nut M4 | 1 |
| 12 | L02071 | The M4 screw by 18 | 1 |
| 13 | 41712099 | Electromagnet mounting plate | 1 |
| 14 | W01001 | Washer 4 | 2 |
| 15 | W02008 | Spring washer 2-4 | 2 |
| 16 | L02031 | Screw the M4×8 | 2 |
Page 27 — R1、电控柜装置 / Electric control box mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S30025 | Bolt (with washer)M4×10DB | 4 |
| 2 | 41812131 | Fixed plate B for rear cover of the rack | 2 |
| 3 | 417S30025 | Bolt (with washer)M4×10DB | 4 |
| 4 | 41812616 | Card board | 2 |
| 5 | 930000350 | Electric control cabinet components | 1 |
| 6 | 407N01002 | Since the lock nut | 4 |
| 7 | 41830012 | fan | 1 |
| 8 | 41811013 | Fan dust screen hood assembly | 1 |
| 9 | S02117 | Cross grooved countersunk head screw M4×50 | 4 |
| 10 | 142511007 | 4050 1400 slot | 1 |
| 11 | 417S30025 | Bolt (with washer)M4×10DB | 5 |
| 12 | 142011008 | Trough. 5040-320 | 1 |
| 13 | 930000352 | Right door of electric control cabinet | 1 |
| 14 | 41831014 | Electric control cabinet lock | 1 |
| 15 | 417S17852 | Screw the M5×15 | 16 |
| 16 | 41831016 | Electronic control cabinet hinge | 4 |
| 17 | 930000351 | Left door of electric control cabinet | 1 |
| 18 | 41728028 | Washer 5 | 16 |
| 19 | 407N01001 | Self-locking nut M5 | 16 |
| 20 | S02039 | Slotted countersunk head screw M4×9 | 2 |
| 21 | 142047002 | Round the magnet 15 | 2 |
| 22 | 417S30306 | Screw M5×15 (with washer) | 4 |
| 23 | 41845022 | The air pipe joint goes through PM8 | 1 |
| 24 | 41811215 | outlet | 1 |
| 25 | 407N01002 | Since the lock nut | 4 |
| 26 | 41811013 | Fan dust screen hood assembly | 1 |
| 27 | S02039 | Slotted countersunk head screw M4×9 | 4 |
Page 28 — R2、控制箱装置(X) / Control box mechanism (X)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142533001 | Medium pressure foot motor | 1 |
| 2 | 142533004 | Module, motor | 1 |
| 3 | 142033006 | Y servo motor | 1 |
| 4 | 41833212 | Spindle motor | 1 |
| 5 | 417S30025 | Bolt (with washer)M4×10DB | 4 |
| 6 | 14253002400 | Spark electric control module | 1 |
| 7 | 141812090 | Control box V2BP | 1 |
| 8 | 141830022 | Fan V2BP | 1 |
| 9 | 141830024 | Power panel V2BP | 1 |
| 10 | 141830021 | Single-board Y servo driver V2BP | 1 |
| 11 | 141812091 | Control box cover V2BP | 1 |
| 12 | 417S30025 | Bolt (with washer)M4×10DB | 6 |
| 13 | 141830020 | Cutting line stepper drive V2BP | 1 |
| 14 | 141830023 | The mainboard V2BP | 1 |
| 15 | 41830641 | Display the V2 | 1 |
| 16 | S02039 | Screw the M4×9 | 2 |
| 17 | 142530025 | Rf module | 1 |
| 18 | 42230512 | Main power switching wire (5M) | 1 |
| 19 | 41830213 | And button switch | 1 |
Page 29 — S、空压装置 / Air pressure mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845214 | Muffler PAL02 | 2 |
| 2 | 41845021 | Double pass busbar 100M6F | 1 |
| 3 | 41845219 | Hexagonal socket head ABP02 | 3 |
| 4 | 142545002 | Joint PL802 | 1 |
| 5 | 41845212 | Electromagnetic valve 4 v110-06 - B | 3 |
| 6 | 41845222 | Straight threaded APC4-01 | 6 |
| 7 | 42122001 | Quickly change plug KQ2P-04 | 1 |
| 8 | 417S30024 | Bolt the M4×30 | 4 |
| 9 | 41845213 | Blind cover 100 m | 3 |
| 10 | 42130096 | Manually switch VHK3 | 1 |
| 11 | 417S30025 | Bolt (with washer)M4×10DB | 2 |
| 12 | 42236512 | Air pipe joint APC8-02 | 1 |
| 13 | 141845004 | Air source handling element AW20 | 1 |
| 14 | 41845220 | Air gun AG - B | 1 |
| 15 | 40736018 | Threaded through APC6-02 | 1 |
| 16 | 42211540 | Spiral trachea 6×4 | 1 |
| 17 | 40736022 | Air pipe connector APG6 | 1 |
| 18 | 41845223 | Trachea 4×2.5 transparent blue | 2.2 |
| 19 | 40736036 | Air pipe connector APY4(Y-type tee) | 2 |
| 20 | 41845223 | Trachea 4×2.5 transparent blue | 0.2 |
| 21 | 41845223 | Trachea 4×2.5 transparent blue | 0.4 |
| 22 | 41845223 | Trachea 4×2.5 transparent blue | 2.8 |
| 23 | 41845223 | Trachea 4×2.5 transparent blue | 2 |
| 24 | 41845224 | Trachea 4×2.5 black | 0.4 |
| 25 | 41845224 | Trachea 4×2.5 black | 2.4 |
| 26 | 142045009 | Trachea 6 black | 1.5 |
| 27 | 142045009 | Trachea 6 black | 0.6 |
| 28 | 41845224 | Trachea 4×2.5 black | 0.4 |
| 29 | 41845224 | Trachea 4×2.5 black | 2 |
| 30 | 41845223 | Trachea 4×2.5 transparent blue | 2.4 |
| 31 | 41845224 | Trachea 4×2.5 black | 2.8 |
| 32 | 42221503 | 8 tracheal phi | 0.2 |
| 33 | 42221503 | 8 tracheal phi | 2.1 |
| 34 | 42221503 | 8 tracheal phi | 2.7 |
| 35 | 14254500500 | Electromagnetic valve | 1 |
| 35 | 14254500600 | Electromagnetic valve | 1 |
| 36 | 14204501200 | Air source handling element | 1 |
| 37 | 142045007 | Air pipe connector | 1 |
| 38 | 140736004 | Air pipe connector | 1 |
Page 30 — T、电器部品装置 / Power supply equipment mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 407N01002 | Self-locking nut M4 | 3 |
| 2 | 41812060 | Power switch bracket | 1 |
| 3 | S16022 | Screw the ST5×14 | 2 |
| 4 | 41728028 | Flat washer M5 | 1 |
| 5 | 42212620 | hook | 1 |
| 6 | S05118 | Bolt the M4×16 | 1 |
| 7 | 417S30025 | Bolt (with washer)M4×10DB | 2 |
| 8 | 61910001 | Large cable tie | 10 |
| 9 | 61910003 | A small cable tie | 40 |
| 10 | 41730022 | Solenoid valve connection | 2 |
| 11 | 142511012 | 4030 1800 slot | 2 |
| 12 | 417S30025 | Bolt (with washer)M4×10DB | 10 |
| 13 | 142511010 | 4030 1200 slot | 1 |
| 14 | 142511011 | 4030 1100 slot | 1 |
| 15 | 41711026 | Clamp 23 | 1 |
| 16 | 417S30025 | Bolt (with washer)M4×10DB | 9 |
| 17 | 41711015 | Wire clip 13.2 | 5 |
| 18 | 41711014 | Wire clip 6.4 | 3 |
| 19 | 61910026 | Adhesive wiring fixator HC-101WP | 1 |
| 20 | 41730070 | LED lights | 2 |
Page 31 — U、操作界面装置 / Operation interface mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41830641 | Display the V2 | 1 |
| 2 | 304058 | Operate the screen V2 bracket | 1 |
| 3 | 417S30302 | Bolt M4X10 | 4 |
| 4 | 417S30025 | Bolt (with washer)M4X10DB | 4 |
| 5 | 417S30306 | Bolt (with washer)M5X15 | 4 |
| 6 | 930000347 | Operate the screen bracket assembly | 1 |
| 8 | 41830215 | The abrupt stop switch | 1 |
| 7 | 41830214 | Push button switch | 2 |
| 9 | 41811216 | Switch label frame assembly | 2 |
| 10 | 41811214 | Button switch box | 1 |
| 11 | 41811215 | outlet | 1 |
| 12 | 41812061 | Switch box mounting plate A | 1 |
| 13 | 417S30302 | Bolt (with washer)M4X12 | 4 |
| 14 | W01001 | Washer 4 | 3 |
| 15 | 142012031 | The M5 thread board | 1 |
| 16 | 421S13035 | Bolt the M4X8 | 3 |
| 17 | 41812062 | Switch box mounting plate B | 1 |
| 18 | S05026 | Screw the M5X20 | 2 |
| 19 | 41711208 | Screw the M5Q | 2 |
Page 32 — V、机架部分 / Table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1420NS10001 | Screw the M5×10 | 6 |
| 2 | 930000353 | Dust cover for electric control box | 1 |
| 3 | 1425NS12001 | Before the stud | 2 |
| 4 | 142512066 | Front dust cover fixing plate | 1 |
| 5 | 417S30035 | Screw the M5×10 | 2 |
| 6 | 1420NS10001 | Screw the M5×10 | 6 |
| 7 | 930000355 | Front left dust cover | 1 |
| 8 | 930000356 | Front right dust cover | 1 |
| 8 | 930000745 | Front right dust cover | 1 |
| 9 | 930000354 | Rack components | 1 |
| 10 | 42232502 | castor | 4 |
| 11 | S05193 | Screw the M8×16 | 16 |
| 12 | 141831042 | MATS M20 | 4 |
| 13 | 1420NS10001 | Screw the M5×10 | 1 |
| 14 | 930000357 | Front left dust cover | 1 |
| 15 | 930000358 | Front dust cover | 1 |
| 16 | 1425NS12001 | Before the stud | 1 |
Page 33 — W1、断线感应装置 / Thread breakage detector mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41711054 | Sensor internal insulation sheet | 1 |
| 2 | 42212837 | Induction of copper | 1 |
| 3 | 141830008 | Single conductor | 2 |
| 4 | 41711053 | Sensor outer insulation sheet | 1 |
| 5 | S04078 | Screw the M4×8 | 1 |
| 6 | W01001 | M4 gasket (ordinary) | 1 |
| 7 | 417S30025 | Screw (with washer)M4×10DB | 1 |
Page 34 — W2、吹气装置 / Blow mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41821621 | Blow brass left | 1 |
| 2 | 41821622 | Blow brass right | 1 |
| 3 | 418S30218 | Spherical cap screw M4×7 | 2 |
| 4 | 41845224 | Trachea 4×2.5 transparent black | 3 |
| 5 | 40736036 | Air pipe connector APY4(Y-type tee) | 1 |
| 6 | 41845232 | T-junction KJT04 | 1 |
| 7 | W01002 | The M3 gasket | 1 |
| 8 | S01591 | Screw M3 by 18 | 1 |
Page 35 — X1、扣线装置 / Catch string mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41842036 | Line baffle mounting plate | 1 |
| 2 | S05119 | Screw the M4×20 | 1 |
| 3 | 41811014 | Eccentric limit sleeve | 2 |
| 4 | S05215 | Screw M3×26 | 1 |
| 5 | 41830013 | Wire retaining electromagnet | 1 |
| 6 | S05133 | Screw the M4×12 | 2 |
| 7 | 418S30015 | Screw pin | 1 |
| 8 | 418S20012 | Axis of a screw | 1 |
| 9 | 41812087 | Stop the line drive the connecting rod | 1 |
| 10 | 41804014 | In line of crank | 1 |
| 11 | 41803021 | Long sleeve 0508 | 1 |
| 12 | 421S13035 | Screw the M4×8 | 1 |
| 13 | 41804015 | Stop line support | 1 |
| 14 | 142009006 | Buckle line block | 1 |
| 15 | 142509009 | A narrow line fork | 1 |
| 16 | 421S11013 | Screw M4×35(with washer) | 2 |
Page 36 — X2、底线检测装置 / Bottom thread detection mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14183000400 | Bottom line detection sensor | 1 |
| 2 | 413S14012 | Hexagon socket cylindrical head screw | 1 |
| 3 | 417S30302 | Screw M4×12(with pad) | 2 |
| 4 | 41812693 | Sensor bracket B | 1 |
| 4 | 141812028 | Sensor bracket C | 1 |
| 5 | N08008 | Hex lock nut M3 with non-metallic insert | 1 |
| 6 | 413S14012 | Hexagon socket cylindrical head screw | 2 |
| 7 | 142016002 | The brass G | 1 |
| 7 | 141821004 | The brass F | 1 |
| 8 | 418S30218 | Spherical cap screw M4×7 | 1 |
| 9 | 41845224 | Trachea 4×2.5 transparent black | 0.5 |
| 10 | 40736036 | Air pipe connector APY4(Y-type tee) | 1 |
| 11 | 42130028 | Reflection paper | 20 |
| 12 | 41818621 | Double bobbin A | 5 |
| 12 | 141818009 | 1.3 times the bobbin | 5 |
Page 37 — X3-点笔装置 / Marking device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41708002 | Ring B | 1 |
| 2 | S10019 | Screw M6×6 | 2 |
| 3 | 41722020 | Electromagnet buffer washer | 1 |
| 4 | S05119 | Screw the M4×20 | 2 |
| 5 | 41845231 | Joint ASL4 - M5 | 2 |
| 6 | 41811302 | Point pen ink | 1 |
| 7 | NO2030 | Thin nut M8×1 | 1 |
| 8 | 41827302 | Point pen spring | 1 |
| 9 | 418S16304 | Tap the penholder to lock the cap | 1 |
| 10 | 141812215 | Cylinder regulating plate | 1 |
| 11 | 142012009 | Pen cylinder mounting plate | 1 |
| 12 | S05133 | Screw the M4×12 | 2 |
| 13 | 142045001 | Cylinder CMDD16×25 | 1 |
| 14 | 41730022 | Solenoid valve connection | 1 |
| 15 | 41845222 | Straight threaded APC4-01 | 2 |
| 16 | 142045011 | Electromagnetic valve 4 v110-06 - B | 1 |
| 17 | 41845224 | Trachea 4×2.5 black | 3 |
| 18 | 41845223 | Trachea 4×2.5 transparent blue | 3 |
Page 38 — X4、激光切割装置 / Laser cutting mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41822701 | Water pipe | 9 |
| 2 | 142032075 | Upper suction duct A | 1 |
| 3 | 142030020 | Laser tube A2S | 1 |
| 4 | 930000536 | Upper cover of shell C | 1 |
| 5 | 421S10022 | Screw M4×6 | 26 |
| 6 | 930000538 | Upper cover of shell B | 1 |
| 7 | 142042008 | Chamber rear cover plate | 1 |
| 8 | S05118 | Screw M4×16 | 4 |
| 9 | 142042019 | Shell bottom plate 100W | 1 |
| 10 | 421S13059 | Screw (with washer) M5×20 | 4 |
| 11 | 142042016 | Shell panel A | 1 |
| 12 | S05026 | Screw M5×20 | 2 |
| 13 | S05026 | Screw M5×20 | 4 |
| 14 | S05124 | Screw M5×16 | 4 |
| 15 | 142009008 | Cylinder mounting base | 1 |
| 16 | 142030019 | Cylinder | 1 |
| 17 | 41845231 | Connector ASL4-M5 | 2 |
| 18 | 142036002 | Floating joint | 1 |
| 19 | 142042005 | Floating joint connector | 1 |
| 20 | 421S17005 | Screw M5×16 | 2 |
| 21 | 142008001 | Guide | 2 |
| 22 | S05094 | Screw M3×8 | 8 |
| 23 | 142042007 | Guide rail linkage plate | 1 |
| 24 | 421S11001 | Screw M3×12 | 8 |
| 25 | 1420NS20004 | Screw | 3 |
| 26 | 142009007 | Reflector mounting plate | 1 |
| 27 | 142008004 | Mirror fixing ring | 1 |
| 28 | 41811631 | Silicon mirror | 1 |
| 29 | S05064 | Screw M4×30 | 3 |
| 30 | 142027002 | Mirror spring | 3 |
| 31 | 142001017 | Reflector mounting base | 1 |
| 32 | 142042009 | Fixing seat of light output cylinder | 1 |
| 33 | S05124 | Screw M5×16 | 2 |
| 34 | S05124 | Screw M5×16 | 1 |
| 35 | S10019 | Screw M6×6 | 3 |
| 36 | 142042010 | Smoking hood A | 1 |
| 37 | 142002015 | Lens barrel A | 1 |
| 38 | 41830701 | Focusing lens | 1 |
| 39 | 42230519 | Mini connector | 1 |
| 40 | 142002014 | Light outlet A | 1 |
| 41 | 142008003 | Fixed ring of focusing lens | 1 |
| 42 | 142042011 | Smoking pipe connection | 1 |
| 43 | 41831409 | Hoop 25-38 | 2 |
| 44 | 142011017 | Hose 32 | 0.5 |
| 45 | 421S13059 | Screw (with washer) M5×20 | 8 |
| 46 | 142011015 | Laser tube bracket 80 | 2 |
| 47 | S05133 | Screw M4×12 | 8 |
| 48 | 142042014 | Smoking pipe mounting base B | 2 |
| 49 | 142042013 | Smoking pipe mounting base A | 2 |
| 50 | 142012105 | Mounting plate for smoking socket | 2 |
| 51 | 41828611 | Flat washer M5 | 4 |
| 52 | 417S30306 | Screw (with washer) M5×15 | 4 |
| 53 | 142042017 | Shell panel B | 1 |
| 54 | S05133 | Screw M4×12 | 3 |
| 55 | 142030011 | Integrated potentiometer | 1 |
| 56 | 142030014 | Inching switch | 1 |
Page 39 — X5、激光切割控制装置 / Laser cutting suction device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 930000323 | Cavity rear bracket | 1 |
| 2 | 417S30306 | Screw (with washer) M5×15 | 14 |
| 3 | 930000322 | Cavity front bracket | 1 |
| 4 | 142030017 | Network cable | 1 |
| 5 | 417S30302 | Screw (with washer) M4×12 | 5 |
| 6 | 41711025 | Wire clip 19 | 5 |
| 7 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 8 | 142011016 | Cable tie holder | 4 |
| 9 | 41845232 | T-junction KJT04 | 1 |
| 10 | S01591 | Screw M3×18 | 2 |
| 11 | 141830013 | Bull plug 3 jack | 1 |
| 12 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 13 | 42230512 | Main power switch line (5M) | 2 |
| 14 | 41830302 | Intermediate relay | 2 |
| 16 | 141830037 | Card | 2 |
| 17 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 18 | 142012052 | Electrical mounting plate | 1 |
| 19 | 41830303 | Intermediate relay seat | 2 |
| 20 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 21 | 930000043 | Laser power supply shield | 1 |
| 22 | 142030016 | Laser power supply 120W | 1 |
| 23 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 24 | 417S30306 | Screw (with washer) M5×15 | 4 |
| 25 | 930000576 | Water tank mounting plate assembly | 1 |
| 26 | 41830703 | 3000 type water tank | 1 |
| 27 | 41711026 | Wire clip 23 | 2 |
| 28 | 417S30025 | Screw (with pad) M4×10DB | 2 |
| 29 | 41711017 | Wire clip 16 | 2 |
| 30 | 417S30302 | Screw (with washer) M4×12 | 2 |
Page 40 — X6、激光切割吸烟装置 / Laser cutting smoke exhaust part
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141812017 | Suction port plate-medium thick material | 1 |
| 2 | 41831019 | Powerful magnet 6×12 | 4 |
| 3 | S05087 | Screw M5×12 | 4 |
| 4 | 930000327 | Dust box assembly M | 1 |
| 5 | 42230519 | Mini connector M-5HLH-4 | 1 |
| 6 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 7 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 8 | 142012070 | Dust box fixing plate | 1 |
| 9 | 930000328 | Dust collector | 1 |
| 10 | 141822006 | Rubber stopper 31 | 1 |
| 11 | 41831408 | Hoop 25-38 | 1.4 |
| 12 | 41831408 | Hoop 25-38 | 0.6 |
| 13 | 41831409 | Hoop 25-38 | 6 |
| 14 | 41831408 | Steel wire hose Φ32 | 2.5 |
| 15 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 16 | 930000045 | Centrifugal fan air inlet assembly | 1 |
| 17 | 41830705 | Centrifugal fan 650W | 1 |
| 18 | 407N01001 | Self-locking nut M5 | 4 |
| 19 | 417S30037 | Screw (with washer) M6×14 | 4 |
| 20 | 41828611 | Flat washer M5 | 12 |
| 21 | S05087 | Screw M5×12 | 4 |
| 22 | 141831039 | Hoop 40-63 | 1 |
| 23 | 141831038 | Hose 50 | 5M |
| 24 | 930000046 | Centrifugal fan outlet assembly | 1 |
| 25 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 26 | 41830021 | Wiring board | 1 |
| 27 | 930000577 | Fan mounting plate | 1 |
| 28 | 417S30306 | Screw (with washer) M5×15 | 4 |
| 29 | 142022005 | Filter box plastic box | 1 |
| 30 | 417S30302 | Screw (with washer) M4×12 | 8 |
| 31 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 32 | 930000562 | Smoke Filter Box | 1 |
| 33 | 14201213300 | Smoke Filter screen 60 mesh assembly | 1 |
| 34 | S02039 | Screw M4×9 | 4 |
| 35 | 142047002 | Round the magnet | 4 |
| 36 | 142012136 | Magnet mounting plate | 4 |
| 37 | 142022004 | Sealing strip D type | 1M |
| 38 | 930000563 | Smoke filter panel | 1 |
| 39 | 41831012 | Copper hinge 1.5" | 2 |
| 40 | S02032 | Screw M3×6(Nickel plating) | 8 |
| 41 | 1420NS30002 | Torx screw M5×15 | 1 |
| 42 | 41730022 | Solenoid valve wire | 6M |
| 43 | 62800019 | Single core wire | 4.5M |
| 44 | 41845223 | Trachea Φ4×2.5 transparent blue | 2.5M |
| 45 | 41845224 | Trachea Φ4×2.5 black | 2.5M |
| 46 | 41845224 | Trachea Φ4×2.5 black | 5M |
| 47 | 40736036 | Trachea joint APY4 (Y type tee) | 1 |
| 48 | 41845212 | Solenoid valve 4V110-06-B | 2 |
| 49 | 41845222 | Tube joints APC4-01 | 4 |
| 50 | 42122001 | Quick change plug KQ2P-04 | 1 |
| 52 | 41812551 | Suction board | 1 |
Page 41 — X6、激光切割吸烟装置 / Laser cutting smoke exhaust part
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 53 | 142037003 | Laser label | 1 |
| 54 | 141823002 | Mirror cleaning paper | 5 |
| 55 | 41837617 | Precautions for laser equipment | 1 |
| 56 | 41837616 | Triangular high-pressure hazard label | 3 |
| 57 | 141837004 | In label | 2 |
| 58 | 141837005 | Out label | 2 |
| 59 | 41837615 | Wire warning label | 1 |
| 60 | 140237002 | Warning signs | 1 |
| 61 | 142012173 | Light shield of dust box | 1 |
| 62 | 142530031 | Two core shielded wire | 3.2M |
Page 42 — X6、物联网 / IOT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 61807032 | 16 mm copper column (10 mm + 6 mm) | 2 |
| 2 | 141830042 | Internet of Things circuit board | 1 |
| 3 | S04075 | Screw M3×5 | 2 |
| 4 | 141830043 | Signal line (Schematic diagram) | 1 |
| 5 | 141830044 | Power cord (Schematic Diagram) | 1 |
Page 43 — Z、附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10131004 | Screwdriver (small) | 1 |
| 2 | 10131003 | Screwdriver (Center) | 1 |
| 3 | 10131002 | Screwdriver (large) | 1 |
| 4 | 30131007 | Inner hexagon wrench (1.5mm) | 1 |
| 5 | 20131046 | Hexagon socket wrench (2mm) | 1 |
| 6 | 30131010 | Inner hexagon wrench (2.5mm) | 1 |
| 7 | 30131012 | Inner hexagon wrench (3mm) | 1 |
| 8 | 20131047 | Inner hexagon wrench (4mm) | 1 |
| 9 | 20131056 | Inner hexagon wrench (5mm) | 1 |
| 10 | 41712355 | Screwdriver for needle plate | 1 |
| 11 | 30131005 | Spanner (6mm ~ 7mm) | 1 |
| 12 | 30131006 | Spanner (8mm ~ 10mm) | 1 |
| 13 | 20131051 | tweezers | 1 |
| 14 | 40730010 | Spiral tube | 6 |
| 15 | 40736001 | Threaded sleeve joint | 1 |
| 16 | 41712009 | Refers to the guard | 1 |
| 17 | 11411029 | syringe | 1 |
| 18 | 42217504 | DP×5 8 # machine needle | 4 |
| 19 | 10818501 | Spindle 605.609 | 3 |
| 19 | 41818621 | Double Bobbin A(Baseline detection) | 3 |
| 19 | 13818002 | Bobbin (1.3 times) | 3 |
| 19 | 141818009 | 1.3 fold bobbin (baseline detection) | 3 |
| 20 | 41830017 | Electronic tag card | 30 |
| 21 | 11631008 | Oil can | 1 |
| 21 | 915305 | Industrial white oil | 0.5 |
| 22 | 42230854 | U disk | 1 |
| 23 | 1011101200 | Tank components | 1 |
| 24 | 20131076 | 15×9 bags | 4 |
| 25 | 20131077 | 20×15 bags | 1 |
| 26 | 41731015 | Flower prototype accessory box B | 1 |
| 27 | 41831622 | Electric control instruction V2CP | 1 |
| 28 | 14183106000 | Wire frame component | 1 |
| 28 | 14183106100 | Wire rack assembly B | 1 |
| 29 | 40317011 | DP×5 11# machine needle | 5 |
| 30 | 42215502 | φ1.8 T1.3 pinhole plate phi | 1 |
Jack MG-80A — parts catalog
- Page 2 (parts_list): Parts list for the machine body section (A1) of an industrial sewing machine, giving numbered part numbers, Chinese and English names, quantities and remarks.
- Page 3 (parts_list): Parts list for the main table mechanism (B1) of the machine, giving item numbers, part numbers, Chinese and English names, quantities and remarks for 27 items.
- Page 4 (parts_list): Parts table for the B2 auxiliary table mechanism listing 16 items with part numbers, Chinese and English names, quantities and remarks.
- Page 5 (parts_list): Parts list for the upper shaft mechanism (C1) showing item numbers, part numbers, Chinese and English names, quantities and remarks.
- Page 6 (parts_list): Parts table D1 for the take-up mechanism (P) listing 40 numbered components with part numbers, Chinese and English names, and quantities.
- Page 7 (parts_list): Parts list for the D2 take-up mechanism (H) showing 42 reference items with part numbers, bilingual names, quantities and remarks.
- Page 8 (parts_list): Parts list for the X feed mechanism, giving reference numbers, part numbers, Chinese and English names, quantities and remarks for 34 items.
- Page 9 (parts_list): Parts list for the Y screw rod lubrication assembly, giving reference numbers, part numbers, Chinese and English names, quantities and remarks for 16 items.
- Page 10 (parts_list): Parts table for the Y feed mechanism (F2) listing part numbers, Chinese and English names, and quantities for 38 items.
- Page 11 (parts_list): Parts list for the G1 pressing fixture mechanism with 29 numbered items including tubes, screws, cylinders, drag chain guides and connectors, with Chinese and English names and quantities.
- Page 12 (parts_list): Parts list for the G2 clamping fixture mechanism, giving part numbers, Chinese and English names, and quantities for 36 items.
- Page 13 (parts_list): Parts list for the H1 electronic presser foot mechanism, giving 24 items with part numbers, Chinese and English names, quantities and remarks.
- Page 14 (parts_list): Parts list for the H2 mechanical presser foot mechanism, giving reference numbers, part numbers, Chinese and English names, and quantities for 43 items.
- Page 15 (parts_list): Parts table for the H3 mechanical presser foot drive mechanism, listing 14 numbered components with part numbers, Chinese and English names, and quantities.
- Page 16 (parts_list): Parts list for the external work clamp mechanism (大压脚装置) giving numbered part numbers, Chinese and English names, and quantities for 26 items.
- Page 17 (parts_list): Parts list for the lower shaft mechanism (J section), giving reference numbers, Chinese and English part names, part numbers, quantities and remarks for 48 items.
- Page 18 (parts_list): Parts list for the K1 lubrication mechanism section, giving reference numbers, part numbers, Chinese and English names, quantities and remarks for 44 items.
- Page 19 (parts_list): Parts list for the K2 hook oil supply mechanism, giving reference numbers, part numbers, Chinese and English names, and quantities for 34 items.
- Page 20 (parts_list): Parts list for the threading mechanism (section L) with 20 numbered rows giving part numbers, Chinese and English names, quantities and remarks.
- Page 21 (parts_list): Parts list for the M section, bobbin winder mechanism, giving item numbers, part numbers, Chinese and English names, quantities and remarks for 33 items.
- Page 22 (parts_list): Parts list for the thread trimmer mechanism (section N), giving part numbers, English and Chinese names, quantities and L/P remarks for items 1 to 50.
- Page 23 (parts_list): Parts table for the N thread trimmer mechanism listing reference numbers 51 to 60 with part numbers, Chinese and English names, quantities and remarks.
- Page 24 (parts_list): Parts list for the N3 thread trimmer mechanism with 40 numbered items, part numbers, Chinese and English names, and quantities.
- Page 25 (parts_list): Parts list for the thread wiper mechanism (P、扫线装置 / Thread wiper mechanism), giving 26 items with part numbers, bilingual names and quantities.
- Page 26 (parts_list): Parts list for the tension release mechanism, giving reference numbers, part numbers, Chinese and English names, quantities and remarks for 16 items.
- Page 27 (parts_list): Parts list for the R1 electric control box mechanism with item numbers, part numbers, Chinese and English names, quantities and remarks.
- Page 28 (parts_list): Parts list for the control box mechanism (X) with 19 numbered items including motors, bolts, control box, fan, power panel, mainboard, and display.
- Page 29 (parts_list): Parts table for the air pressure mechanism (S section) listing item numbers, part numbers, Chinese and English names, quantities, and remarks.
- Page 30 (parts_list): Parts table for the power supply equipment mechanism listing 20 items with part numbers, Chinese and English names, and quantities.
- Page 31 (parts_list): Parts table for the operation interface mechanism section listing display, screen bracket, switches, outlet, bolts, washers and screws with quantities and remarks.
- Page 32 (parts_list): Parts list for the table mechanism section (V), listing 16 items with part numbers, Chinese and English names, quantities and remarks, including laser-version parts.
- Page 33 (parts_list): Parts table for the W1 thread breakage detector mechanism listing sensor insulation sheets, induction copper plate, conductor, and M4 screws and gaskets with quantities.
- Page 34 (parts_list): Parts list for the W2 blow mechanism, giving part numbers, Chinese and English names, quantities and remarks for eight items including brass blow pipes, screws, air tubing, connector and gasket.
- Page 35 (parts_list): Parts list for the X1 catch string mechanism with 16 numbered items, giving part numbers, Chinese and English names, and quantities.
- Page 36 (parts_list): Parts table for the X2 bottom thread detection mechanism listing part numbers, Chinese and English names, quantities and remarks.
- Page 37 (parts_list): Parts list for the X3 marking device (点笔装置) giving item numbers, part numbers, Chinese and English names, quantities and remarks for 18 components.
- Page 38 (parts_list): Parts list for the X4 laser cutting mechanism, giving item numbers, part numbers, Chinese and English names, quantities and remarks for 56 items.
- Page 39 (parts_list): Parts list for the X5 laser cutting suction device, giving part numbers, Chinese and English names, quantities and remarks for 30 items.
- Page 40 (parts_list): Parts list for the X6 laser cutting smoke exhaust device, giving part numbers, Chinese and English names, quantities and remarks for items 1 to 52.
- Page 41 (parts_list): Parts list for the X6 laser cutting smoke exhaust device, giving reference numbers 53 to 62 with part numbers, Chinese and English names, and quantities such as laser labels, mirror cleaning paper, warning labels and shielded wire.
- Page 42 (parts_list): Parts list for section X6 (IOT / Internet of Things) giving five items with part numbers, Chinese and English names, and quantities.
- Page 43 (parts_list): Accessories parts list of an industrial sewing machine giving item numbers, part numbers, Chinese and English names, quantities and remarks for tools, tubes, bobbins, needles and manuals.
