Page 1 — W4-UT Parts Manual

Jack W4-UT parts on page 1
RefPart numberPart nameQty
31003002拍压轴套筒
21029730103106过线座轴套筒
25014120103047送布轴套
25014630203004衬钉上套
25100330203005针杆下套
25100330203024压脚轴套
25013630203025喂布套
20622019油封
30103105油封
30103105前弯针轴套后套筒
25013530103021主弯针轴套后套筒
30103010主轴套筒
30103019护针轴套筒
25502030221016铜油管
P03005销4×8
250215-2100906机壳

Page 2 — 11

Jack W4-UT parts on page 2
RefPart numberPart nameQty
130102008针杆
1251000-91针杆
230102009针杆头
2206061针杆头
3301S11005针杆轧头螺钉
35325针杆轧头螺钉
430105005针杆连杆
452652针杆连杆
530128030轴心,轴垫
5205097轴心,轴垫
6B07001轴承
6240098轴承
730102050连杆偏心轴
7251010A连杆偏心轴
830109004针杆滑块
8206063针杆滑块
930109005导块/连杆
9206062导块/连杆
10301S11024螺钉 M4×12
107082螺钉 M4×12
11S01003螺钉 M4×12
117021螺钉 M4×12
1230127003毛弹簧
12251009毛弹簧
1330123002毛毡
13179040-05毛毡
1430134001针杆哲古
14257518-56针杆哲古
15S10026螺钉 M3×3
154554螺钉 M3×3
1630115002356针板
17301S17001针板螺钉
175373-HC针板螺钉
1830109006针板座
18251007针板座
19S010004螺钉 M4×7.8
197019螺钉 M4×7.8
2030122018防振垫
20240123防振垫
2130123014油线
21202176油线
2230112009油线托
22206524油线托
2330117001机针
24S02007螺钉 M3×5
1B01001轴承
16004Z轴承
2S10028螺钉 M5×6
24539螺钉 M5×6
3400062连杆组件
3255501-92连杆组件
4S01039螺钉 M4×15
47015螺钉 M4×15
5301S11024滑块座螺钉
57082滑块座螺钉
1301140700差动送布牙组件
1257550-91差动送布牙组件
230114001差动送布牙
3301S30003差动送布牙螺钉
35590差动送布牙螺钉
4400066差动送布牙组件
4252500-91差动送布牙组件
530114002差动送布牙
630123021油线
6202175油线
730103022套筒
7204129A套筒
8S10006螺钉 M5×6
84539螺钉 M5×6
930102016偏心轴
9204128A偏心轴
10301S12001曲柄轴
105084曲柄轴
1130109008滑块
11205857滑块
1230128011垫块
12204439A垫块
13301S17002偏心轴心螺钉
135317偏心轴心螺钉
1430109009牙架挡板
14252504牙架挡板
1530103031差动后套筒
15206571差动后套筒
1630109010左挡板
16252507左挡板
17L02003螺钉 M4×7
177019螺钉 M4×7
1830122020油封垫
18206133油封垫
1930109011油封挡板
19252509油封挡板
2030109012挡板
20252508挡板
21S01005螺钉 M4×10
217020螺钉 M4×10
22B07002轴承
22206128轴承
2330109013挡牙滑块
23252519挡牙滑块
2430108003轴承挡圈
24252520轴承挡圈
2530104013差动送布
25206562差动送布
26B07003轴承
26206125轴承
2730103023偏心轴心
27252521偏心轴心
2830103024送布调节器
28252522送布调节器
293010306500调节器套组
29252523-91调节器套组
30301S30004调节器螺钉
30252516调节器螺钉
3130128012垫圈
31240125垫圈
3230103026垫圈
32252525垫圈
33S10002调节器螺母
33252543调节器螺母
34S10002螺钉 M5×5
344546螺钉 M5×5
35301S30005牙架螺钉
35206120牙架螺钉
3630103027差动牙架
36206119差动牙架
3730109014差动牙架滑块
372056563差动牙架滑块
3830128013垫片
38200098垫片
39201S16003N03 螺母
4030103028差动牙架螺钉
40206123差动牙架螺钉
4130103028差动送布牙套
41206566差动送布牙套
4230129001开口挡圈
4220565开口挡圈
4330105010差动送布连杆
43206564差动送布连杆
4430109015牙架挡板
44251520牙架挡板
45S01004螺钉 M4×7.8
457019螺钉 M4×7.8
4630102017针距调节按扭
46252526针距调节按扭
4730127004开口调节簧
47240122开口调节簧
480010040型圈4×1.8
482063660型圈4×1.8
4930128032垫圈
49204585垫圈
50H05002挡圈
50200555挡圈
5130103029差动送布套
512056569差动送布套
52S12005螺钉 M4×4
524546螺钉 M4×4
533010401500差动调整套组件
53252527-91差动调整套组件
54S01012螺钉 M2.5×4
547031螺钉 M2.5×4
5530102018差动轴
55252510差动轴
56S10002螺钉 M5×5
564514螺钉 M5×5
5730123008喂纱针油毛毡
57207925喂纱针油毛毡
5830103030差动轴前套筒
58240119差动轴前套筒
5930126016针距调节按扭
6030127026针距调节簧
1310S30002调压螺钉
1253000-91调压螺钉
2301S16005调压
2253003调压
330109016比叉
3252532比叉
430105012连杆
4252533连杆
5S05005螺钉 M5×12
54531螺钉 M5×12
6301S20006连杆连接螺钉
65316连杆连接螺钉
730108004挡圈
7240271挡圈
8301S11007护罩固定螺钉
835827护罩固定螺钉
930127005弹簧
9252536弹簧
100010050型圈7.5×1.8
102401290型圈7.5×1.8
113011201100左板组件
11252539A91左板组件
12S01004螺钉 M4×7.8
127019螺钉 M4×7.8
1330122021油封
13240162油封
143011201300调压扳手组件
14252664-91调压扳手组件
1530115005调节板
15252538调节板
16S01003螺钉 M4×12
167021螺钉 M4×12
1730203019调节套
17240124调节套
1820109005调节滑块
18210171调节滑块
19S011008螺钉
192905螺钉
20W01006垫圈4
20201185垫圈4
21301S16004螺母
21210167螺母
22301S30007调节扳手螺钉
225486调节扳手螺钉
2330128014垫圈
23211301垫圈
24301S11023螺钉(短)
25310S30002调压螺钉
25253000-91调压螺钉
26301S16005调压
26253003调压
2730109016比叉
27252532比叉
2830105012连杆
28252533连杆
293012075拍压板
30S01011螺钉
313.1003E+10电磁铁组件
32W02004垫圈
33S05019螺钉
3431012074拍压扳手
3531012077垫片
3631012065连接板
37310S20010螺钉
37253028螺钉
38302S20014螺钉
385386螺钉
39302S20014螺钉
395386螺钉
4031012072拉板
41S01004螺钉 M4×7.8
417019螺钉 M4×7.8
4231012032压板
433102200200钢丝绳
443100201000调压杆组件
4531012044支撑板
4631012025固定片
47S01002螺钉 M4×6.5
477017螺钉 M4×6.5
48S01004螺钉
4931012091线卡
50S05003螺钉
13011700900缝针组
1257550-91缝针组
230104012缝针架组件
2252007缝针架组件
3S01004螺钉 M4×7.8
37019螺钉 M4×7.8
4S05004螺钉 M5×14
44501螺钉 M5×14
5W02001弹簧垫
5303067弹簧垫
6S01014螺钉 M6×0.75×9.6
67085螺钉 M6×0.75×9.6
72062219油封
830102014缝针架轴
8252006缝针架轴
930110005缝针架偏心组件
9252000缝针架偏心组件
10S10006螺钉 M5×6
104539螺钉 M5×6
11400063连杆组件
11252001-92连杆组件
12S01039螺钉 M4×15
127015螺钉 M4×15
1330109007平衡块
13252010平衡块
14L01003螺钉 M3×7.5
147011螺钉 M3×7.5
1530104010缝针架动架
15252002缝针架动架
1630128008缝针架轴垫圈
16240102缝针架轴垫圈
1730102013连杆销
17179399-05连杆销
1830128032垫片
18240062垫片
194805螺母 M5
2030102015缝针轴头
20252003缝针轴头
2130128010垫圈
21208028垫圈
2230108002偏心轴挡圈
22208029偏心轴挡圈
23301S12001曲柄轴螺钉
235084曲柄轴螺钉
24N01001螺母 M4
244802螺母 M4
2530102012缝针架轴
25252004缝针架轴
26H050001挡圈
26205061挡圈
130103032方套
1252531方套
230105012比叉
2252533比叉
3400062连杆组件
3255501-92连杆组件
4S01039螺钉 M4×15
47015螺钉 M4×15
5301S11024滑块座螺钉
57082滑块座螺钉
630104007曲柄轴
67082曲柄轴
730102014油封
7252006油封
830102014油封
8252006油封
930110005偏心轴组件
9252000偏心轴组件
10S10006螺钉 M5×6
104539螺钉 M5×6
11400063连杆组件
11252001-92连杆组件
12S01039螺钉 M4×15
127015螺钉 M4×15
1330109007平衡块
13252010平衡块
14L02003螺钉 M4×7
147019螺钉 M4×7
1530104010缝针架动架
15252002缝针架动架
1630128008缝针架轴垫圈
16240102缝针架轴垫圈
1730102013连杆销
17179399-05连杆销
1830128032垫片
18240062垫片
194805螺母 M5
2030102015缝针轴头
20252003缝针轴头
2130128010垫圈
21208028垫圈
2230108002偏心轴挡圈
22208029偏心轴挡圈
23301S12001曲柄轴螺钉
235084曲柄轴螺钉
24N01001螺母 M4
244802螺母 M4
2530102012缝针架轴
25252004缝针架轴
26H050001挡圈
26205061挡圈

Page 3

Jack W4-UT parts on page 3
RefPart numberPart nameQty
30117005喂针
30104022喂针架
S01005螺钉 M4×10
31013010松线架
30102065打线凸轮
H03004挡圈6001Z
B04017挡圈6001Z
H01011挡圈 28
30125004小同步带轮1
30122100油缸
S10029螺钉 M6×0.75×5
B0135005小同步带
S10002螺钉 M5×5
30103071打线凸轮组件
201515003挡圈螺钉
H01016挡圈21
30103033油管套
30112231打线架
B06004轴承 6801RS
30108011挡圈
30113045过线件
S01001螺钉 M4×7
30113016过线件
30213045过线件
30153055调压螺钉
10128001毛毡垫
12928036小夹线垫片
12927012夹线弹簧
129530012夹线螺母
L02001螺钉 M4×8
30112230打线座
30227031卡簧片
S04021螺钉
207511020螺钉 M3×4
30112233过线件
3013019过线片(左)
30130020过线片(右)
W03007垫圈
301520020螺钉
31013010松线架
31013006长过线板
S05004螺钉 M5×14
W02001垫圈
30101018压线座
20622019油封
S01001曲柄销
30108005挡圈
30128008垫圈
31002001过线座(中轴)
30128019垫片
W02002M4垫圈
S05048螺钉 M4×10
S10027螺钉 M3×6
301013017三孔过线
31112009护线罩
S01006螺钉
30128034垫圈
31013005过线板
206530016螺钉
S01004螺钉 M4×7.8
30120045U型夹线锁
30112033螺钉小过线
S10026螺钉 M3×3
30112025夹线板
30127014调压簧
30112026压线簧
30152009调线螺钉
S10001螺钉 M3×4
30113012针杆过线板
30113013过线板
30112027油盘合固定架
W01001垫圈
S01006螺钉 M3×4.5
30121012铜油壶
30123010油缸
30123025针杆毛毡
S10002螺钉 M5×5
30123009毛毡
301511024滑块导座螺钉
30127045回油缸卡簧
S01004螺钉 M4×7.8
30127060毛毡卡簧
30112186油管固定架
12921002维尼龙油管
20429001油管卡簧
30112039接油盘
S01002螺钉 M4×6.5
3012101500油管油嘴
N01001螺母 M4
30121022油管卡簧
W01001垫圈 4
20122033油管油嘴
30121022油管接头
30136004双头油管接头
301530013过油螺钉
30136003铜油管接头
301530012油管螺钉
30121022油管接头
30136001油管接头
30136001油管接头
201530004过油螺钉
3012000100油泵组件
30102031油泵轴
30120004主动轮2
30120007主动轮1
30120005从动轮
30120008油泵盖
301520011油泵螺钉
S05006螺钉 M4×25
30125003油泵解轮
S10002螺钉 M5×5
S05004螺钉 M5×14
301530014过油螺钉
30101023油盘
301511015堵油泵螺钉
20528014垫圈
S05007螺钉 M8×20
30122025油盘密封圈
20136001滤油器盖
201530030滤油器接头
30120010O型圈 28.7×3.55
30101025滤油器盖
S01003螺钉 M4×12
30131004提示说明
301220002油泵固定板
30120006油泵体(上)
30120006油泵体(下)

Page 4

Jack W4-UT parts on page 4
RefPart numberPart nameQty
30101027机针冷却器
S01027螺钉 M3×6
30123012油箱
30126009销
30121021管
30127020油管接簧片
S01004螺钉 M4×7.8
30123021油线
20429001油管卡簧 (小)
30101026硅油盖
30122026盖
S01005螺钉 M4×10
30111070上硅油盒 (塑料)
30112040硅油盒
P03008销
30123011毡
S01006螺钉 M3×4.5
W01001垫圈
20131019Rod Cap
30131001Upper thread column
20131010Screw
30131020Thread spool tray
20131016Thread spool tray
201516006Thread guide hook nut
20131017Thread guide hook
20131021Screw
20131009Clamp plate
201516004Nut
20131011Thread guide bar
30113019Thread guide
20131017Thread spool tray
20122049Plate Dog link washer
20128025Lower washer
201516005Nut
20131004Thread spool tray
20128018Washer
201516004Nut
20131007Spool tray
20131010Spool tray
20131006Spool Pin
20131008Spool Cushion
20131004Thread spool tray
S04050Screw
20131003Bushing
N01030Nut
20131022Screw
201516004Nut
20131015Threadspooltray bracket
20131074Thread stand component
300471左缝台盖
400068右曲轴总成
3012400300油封轴承
30103003前轴套
30109002下轴平衡块
S01009螺钉 M3×7.5
S10006螺钉 M5×6
001001O型螺钉 M5×2.65
S01001螺钉 M4×7
30112045前盖小
30112046定位板
30126010平行销
S10002螺钉 M5×5
30127001前弹簧
S01002螺钉 M4×6.5
30122015前防震垫
30102110前挡板
30112160挡板
30103160套筒
301520002前缝台螺钉
30128002弹簧垫圈
S10006螺钉 M5×6
W01002垫片
S10026螺钉 M3×3
11727007弹簧
301520003前缝台牌螺钉
S01011螺钉 M5×10
30101161前缝台
3011S1020螺钉
30112044左挡板
30101034侧盖
301520005销
300793侧盖
S10001螺钉 M3×4
S01005螺钉
301520004侧盖
30117002后护针挡
30117007护针架组件
S05003螺钉 M5×10
W02001垫圈
S01002螺钉 M4×6.5
30102037护针轴
W01021垫片
H05013挡圈
400064挡架
S10002螺钉 M5×5
30101036护针座
3011S1016螺钉
S01004螺钉 M4×7.8
30117003前护针挡
S01012螺钉 M2.5×4
30111013挡料斗
3015S30019木螺钉
30112048托板
套筒bushing
301010400排料盒组件
30111014排料筒
30111015排料筒
30128036垫片
S01005螺钉 M4×10
3103000300LED灯
3103300100电器机
20131063警示牌
953000018插头
21111018塑料logo
W01001垫片
30110009凸轮
S10006螺钉 M6×6
400062曲轴
S01008螺钉 M3×5
S01010螺钉 M4×8
30104007弯曲柄
3015S12001螺钉
30126003销
400063弯曲柄连杆
S01008螺钉 M3.5×13
30102038曲柄轴
30128008护轴垫圈
H05001挡圈
30209009差动滚珠
30123014油线
30123014毛毡
30122019油封
30104028摆动曲柄
S05004螺钉 M5×14
30112049挡板
S10006螺钉
30123015油线
30102039摆轴
30123008毛毡
30101040刀挡
S12002螺钉 M3×4
3010104000刀挡组件
3011203085刀座轴套
30102040下刀轴
S05019螺钉 M6×16.3
30127022弹簧
30108006挡圈
209S14008螺钉
H05013挡圈
30128026垫片
30101037上刀架
S12003螺钉 M6×0.75×5
30119001上刀
301511017螺钉
30101039下刀架
3011S1025螺钉
20619004下刀
30101038下刀挡板
301511017螺钉
301530021调节螺钉
30112051挡片
30112050清除盖

Page 5

Jack W4-UT parts on page 5
RefPart numberPart nameQty
3010204100带子插销组件
306469A9S带子插销组件
30103047支柱盘
306468-SA支柱盘
30102042支柱
306466-SA支柱
N02001螺母SM3/4×16
30111008捧架
383-SA捧架
S04003螺钉M4×25
N01005螺母M4
S04004螺钉M4×15
30122027捧帽
386捧帽
30102043带架直轴
306464带架直轴
30103048轴舌
306463轴舌
S01068螺钉M4×8
30103064捧锥架
306462捧锥架
30111009固定器
233-SA固定器
30113020带架棒
306467带架棒
301530022木螺钉
4913木螺钉
300144压带架座
30103055套筒
30112058压带连接板
301511020压带轴螺钉
255515压带轴螺钉
300143压带架支座
S05019螺钉M6×16.3
3010305700压带轮组件
S10005螺钉M3×3
30103059压带轮II
30102045夹带短轴
30109018夹带轴螺钉
255502夹带轴螺钉
S10002螺钉M5×5
240102螺钉M5×5
30102046夹带长轴
30113021带子架
30112059手柄
S01027螺钉M3×5
301530027调节螺钉
301516011调节螺母
255503调节螺母
30127024弹簧
30126013销轴
255504销轴
H05002挡圈
7009挡圈
30112055压带板
30113022压带架
255505压带架
S01002螺钉M4×6.5
301516010位置挡块
301151018螺钉
S01004螺钉M4×7.8
30128028偏心座
S01004螺钉M4×7.8
3011205600夹带架组件
255508-2夹带架组件
30128020垫片
306105垫片
S05048螺钉M4×10
192024螺钉M4×10
N01001螺母M4
W00024-1螺母M4
30105017夹带连杆I
202522夹带连杆I
W01004垫圈
207045垫圈
30105018夹带连杆II
255507-91夹带连杆II
301530025台螺钉
4547台螺钉
30103044压带轴
255513压带轴
30128008挡架轴圈
255511挡架轴圈
H05001挡圈
255506挡圈
300953左线台盖(喷
S01003螺钉M4×6
7021螺钉M4×6
S02001螺钉M4×12
7043螺钉M4×12
300952侧盖组件(喷漆)
30101111侧盖
30101112侧盖
301520005铜螺钉
S01005螺钉M4×10
7020螺钉M4×10
S10001螺钉M3×4
30128002弹簧垫圈
201191弹簧垫圈
301520004侧盖隔热销
30127030平垫圈
30122015前盖防振垫
S01002螺钉M4×6.5
7017螺钉M4×6.5
300951前盖架组件
30101063前盖缘台座
30101110前盖板
301520003前盖基座螺钉
250014前盖基座螺钉
S01009螺钉M3×4.5
30209018针板接块
30112097加宽前门接板板
S01065螺钉M5×6
7079螺钉M5×6
30112098加宽前门接板
301520002前盖缘台座螺钉
250013前盖缘台座螺钉
S01007螺钉M4×13.5
7023螺钉M4×13.5
30112095侧前锁紧舌
302525加宽前门接板板
300955盖板
302109机壳
30126016针距调节按钮
30127026针距调节簧
12928008平垫圈
30101162下节盖
3010308900调节器套组(大针距)
30103150送布调节器
B07043轴承19×23×10
30104060差动送布架(大针距)
30109025左挡板
30109026挡板
30114028送布牙(356/364)
30114029差动牙(356/364)
3011504123GB针板(356)
3011504223GB针板(364)
30114030送布牙(356/364)
30114031差动牙(356/364)
301150452302BB针板(356)
301150462302BB针板(364)
30102051摆轴
400308针杆曲柄
30102051摆轴
252004A摆轴
30122008油封
30102050连杆偏心轴
251010A连杆偏心轴
30128030偏心轴垫
205097偏心轴垫
S02007螺钉M3×5
400308针杆曲柄
3011900300下切刀组件
30109035下切刀盘
301530044螺钉
301212128垫片
S05047螺钉M3×4
208s11009螺钉M3.5×4
30127053弹簧
S01031螺钉M4×4.7
W01090垫片
30112111摆杆
3015s20018螺钉M5
30105025连接板
301121156压板
30112157压板
30112158压板
30112159压板
30109037上切刀台
30112091缓冲挡板
P01031销3×5
S05217内六角头螺钉
30128041垫片
30119010上切刀

Page 6

Jack W4-UT parts on page 6
RefPart numberPart nameQty
30212183连接板
N01012螺母M6
302S20014螺钉
30212190连接杆
301S20030螺钉
30104066固定块
30108004挡圈
30102111导向轴
301S11023螺钉
30108006挡圈
201S14002螺钉
30112108铜片
30130017磁铁
30112182感应安装板
3111200200推板组件
30127058弹簧
30104006曲柄
30101217换向红杆
310S20008轴位螺钉
S05068螺钉M5X20
31012072拉板
31012077换向垫片
S01004螺钉M4X7.8
S01004螺钉M4X7.8
301012025钢丝固定套
31012070安装板
S04010螺钉M4X5.5
114S20005螺钉
30112185防尘压板
30122105防尘罩
114S16008螺母
W01006垫片
W02002弹性垫片
30130046电磁铁芯
11322008减震器
31030007剪线电磁铁组件
310300700电磁铁下垫片
13822010电磁铁下垫片
302S20014螺母M8
30212184支架
S01004螺钉M4X7.8
30122108防尘罩
30112188防尘压板
S01004螺钉M4X7.8
31030013安全开关
S04010螺钉M4X5.5
30112180下安装板
S05019螺钉
30111047电磁铁罩壳
W01001垫片
S01004螺钉M4X7.8
S05005螺钉M5X12
0型圈0型圈
N01027螺母M8

Page 8 — W4 Operation Manual

Jack W4-UT parts on page 8
RefPart numberPart nameQty
P00language selection0-2
P01the maximum speed of free sewing0-1000
P02Needle stop position selection0/1
P03Start encryption sewing speed0-1000
P04End encryption sewing speed200-3000
P05Start encryption sewing speed200-3000
P06Start encryption sewing speed0-100
P07Start encryption sewing speed0-100
P08End encryption sewing speed0-100
P09End encryption sewing speed0/1
P10Quantity of meter to adjust0-4
P11Soft start of switch0-9999
P16Adjust the lift foot response time1-3000
P17Automatic induction presser foot0-99
P24Value of the G2C parameter display0-1024
P27Trimming point of pedal0-3
P30Presser foot trimming mode setting0-31
P32Trimming electromagnet cycle1-500
P33Run up to needle position after trimming0-100
P34Presser foot lifting electromagnet0/1
P37Presser foot lifting electromagnet0-600
P40The maximum speed of constant speed200-5500
P41Blowing duration (ms)0-9999
P42Blowing duration (ms)1-9999
P43Triming electromagnet per cycle0-25
P45Trimming electromagnet per cycle0-100
P46Trimming speed100-500
P49Presser foot lifting electromagnet1-500
P50Presser foot lifting electromagnet1-500
P51Running delay time when presser foot is lifted0-100
P52Presser foot lifting selection function1-100
P53Presser foot lifting electromagnet0/1
P56Presser foot lifting electromagnet0-100
P57Run up to needle position after trimming0/1
P58Presser foot lifting electromagnet0/1
P60Presser foot lifting electromagnet0-600
010Stitch counter
011Counter for sewing pieces
012The head of real speed
013State of encoder
014DC voltage
015Machine speed
021Phase current
022The initial electrical angle
023Machine angle
Err-01Motor circuit failure
Err-02Hardware overcurrent
Err-02Software flow
Err-03Under-voltage
Err-04Over-voltage when the machine is off
Err-05Over-voltage in operation
Err-06Solenoid circuit fault
Err-07Motor current measuring failure
Err-08Motor speed over-protection
Err-09Brake-circuit fault
Err-10Communication failure
Err-11Machine head needle positioning failure
Err-12Initial motor electrical angle failure
Err-13Motor HALL failure
Err-14DSP Read/Write EEPROM failure
Err-15Motor over-speed protection
Err-16Motor reversion
Err-17HMI Read Write
Err-18EEPROM failure
Err-19Motor overhead

Jack W4-UT — parts catalog

Page 1 — W4-UT Parts Manual

一、套筒部件 (Bushing assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 31003002 拍压轴套筒 sleeve 1 2 30103106 210297 过线座轴套筒 sleeve 2 3 20103047 250141 送布轴套 sleeve 2 4 30203004 250146 衬钉上套 sleeve 1 5 30203005 251003 针杆下套 sleeve 1 6 30203024 251003 压脚轴套 sleeve 1 7 30203025 250136 喂布套 sleeve 1 8 20622019 油封 plug 1 9 30103105 油封 plug 1 10 30103105 前弯针轴套后套筒 bushing 3 11 30103021 250135 主弯针轴套后套筒 plug 1 12 30103010 主轴套筒 bushing 1 13 30103019 护针轴套筒 bushing 1 14 30221016 255020 铜油管 pipe 1 15 P03005 销4×8 pin 1 16 100906 250215-2 机壳 machine frame 1

Page 2 — 11

七、针杆部件 (Needle bar assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102008 251000-91 针杆 needle bar 1 2 30102009 206061 针杆头 needle bar pin 1 3 301S11005 5325 针杆轧头螺钉 screw 1 4 30105005 52652 针杆连杆 link/needle bar drive 1 5 30128030 205097 轴心,轴垫 washer 1 6 B07001 240098 轴承 needle bearing 1 7 30102050 251010A 连杆偏心轴 eccentric pin 1 8 30109004 206063 针杆滑块 block 1 9 30109005 206062 导块/连杆 guide block/needle bar 1 10 301S11024 7082 螺钉 M4×12 screw 2 11 S01003 7021 螺钉 M4×12 screw 2 12 30127003 251009 毛弹簧 spring 1 13 30123002 179040-05 毛毡 felt 1 14 30134001 257518-56 针杆哲古 needle holder 1 15 S10026 4554 螺钉 M3×3 screw 3 16 30115002 356针板 needle plate 1 17 301S17001 5373-HC 针板螺钉 screw 2 18 30109006 251007 针板座 bracket 1 19 S010004 7019 螺钉 M4×7.8 screw 3 20 30122018 240123 防振垫 cushion rubber 1 21 30123014 202176 油线 oil wick 1 22 30112009 206524 油线托 oil wick retainer 1 23 30117001 机针 needle 3 24 S02007 螺钉 M3×5 screw 1 八、护针部件 (Needle guard assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 B01001 6004Z 轴承 bearing 1 2 S10028 4539 螺钉 M5×6 screw 2 3 400062 255501-92 连杆组件 connection assy 1 4 S01039 7015 螺钉 M4×15 screw 2 5 301S11024 7082 滑块座螺钉 screw 1 十、差动部件 (Feed dog assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 301140700 257550-91 差动送布牙组件 main feed dog assembly 1 2 30114001 差动送布牙 main feed dog assembly 1 3 301S30003 5590 差动送布牙螺钉 screw 1 4 400066 252500-91 差动送布牙组件 main feed bar assembly 1 5 30114002 差动送布牙 differential feed dog 1 6 30123021 202175 油线 oil wick 1 7 30103022 204129A 套筒 bushing 1 8 S10006 4539 螺钉 M5×6 screw 1 9 30102016 204128A 偏心轴 eccentric pin 1 10 301S12001 5084 曲柄轴 crank 1 11 30109008 205857 滑块 block/feed bar guide 1 12 30128011 204439A 垫块 washer 1 13 301S17002 5317 偏心轴心螺钉 screw 1 14 30109009 252504 牙架挡板 guide (right) 1 15 30103031 206571 差动后套筒 bushing 1 16 30109010 252507 左挡板 guide (left) 1 17 L02003 7019 螺钉 M4×7 screw 1 18 30122020 206133 油封垫 oilshield 1 19 30109011 252509 油封挡板 cover 1 20 30109012 252508 挡板 guide (lower) 1 21 S01005 7020 螺钉 M4×10 screw 2 22 B07002 206128 轴承 needle bearing 1 23 30109013 252519 挡牙滑块 block 1 24 30108003 252520 轴承挡圈 washer 1 25 30104013 206562 差动送布 link/main feed 1 26 B07003 206125 轴承 needle bearing 1 27 30103023 252521 偏心轴心 eccentric 1 28 30103024 252522 送布调节器 regulator 1 29 3010306500 252523-91 调节器套组 eccentric retainer 1 30 301S30004 252516 调节器螺钉 screw 1 31 30128012 240125 垫圈 spring 1 32 30103026 252525 垫圈 spacer 1 33 S10002 252543 调节器螺母 screw 1 34 S10002 4546 螺钉 M5×5 screw 1 35 301S30005 206120 牙架螺钉 screw 1 36 30103027 206119 差动牙架 bushing 1 37 30109014 2056563 差动牙架滑块 guide block 1 38 30128013 200098 垫片 washer 1 39 201S16003 N03 螺母 nut 1 40 30103028 206123 差动牙架螺钉 screw 1 41 30103028 206566 差动送布牙套 bushing 1 42 30129001 20565 开口挡圈 ring 1 43 30105010 206564 差动送布连杆 link/differential feed 1 44 30109015 251520 牙架挡板 bracket 1 45 S01004 7019 螺钉 M4×7.8 screw 1 46 30102017 252526 针距调节按扭 pin 1 47 30127004 240122 开口调节簧 spring 1 48 001004 206366 0型圈4×1.8 o ring 1 49 30128032 204585 垫圈 washer 1 50 H05002 200555 挡圈 ring 1 51 30103029 2056569 差动送布套 pin 1 52 S12005 4546 螺钉 M4×4 screw 1 53 3010401500 252527-91 差动调整套组件 crank 1 54 S01012 7031 螺钉 M2.5×4 screw 1 55 30102018 252510 差动轴 shaft 1 56 S10002 4514 螺钉 M5×5 screw 1 57 30123008 207925 喂纱针油毛毡 felt 1 58 30103030 240119 差动轴前套筒 spacer 1 59 30126016 针距调节按扭 pin 1 60 30127026 针距调节簧 spring 1 十二、压脚部件 (Presser form assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 310S30002 253000-91 调压螺钉 adjusting bar 1 2 301S16005 253003 调压 mt 1 3 30109016 252532 比叉 guide/block 1 4 30105012 252533 连杆 lever 1 5 S05005 4531 螺钉 M5×12 screw 1 6 301S20006 5316 连杆连接螺钉 screw 1 7 30108004 240271 挡圈 ring 1 8 301S11007 35827 护罩固定螺钉 screw 1 9 30127005 252536 弹簧 spring 1 10 001005 240129 0型圈7.5×1.8 o ring 1 11 3011201100 252539A91 左板组件 bracket 1 12 S01004 7019 螺钉 M4×7.8 screw 5 13 30122021 240162 油封 plug 1 14 3011201300 252664-91 调压扳手组件 lever assy 1 15 30115005 252538 调节板 scale plate 1 16 S01003 7021 螺钉 M4×12 screw 2 17 30203019 240124 调节套 spacer 2 18 20109005 210171 调节滑块 stopper 2 19 S011008 2905 螺钉 screw 2 20 W01006 201185 垫圈4 washer 2 21 301S16004 210167 螺母 nut 1 22 301S30007 5486 调节扳手螺钉 screw 1 23 30128014 211301 垫圈 washer 1 24 301S11023 螺钉(短) screw 1 九、缝针部件 (Looper assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3011700900 257550-91 缝针组 looper 1 2 30104012 252007 缝针架组件 looper holder assy 1 3 S01004 7019 螺钉 M4×7.8 screw 1 4 S05004 4501 螺钉 M5×14 screw 1 5 W02001 303067 弹簧垫 sring washer 1 6 S01014 7085 螺钉 M6×0.75×9.6 screw 1 7 2062219 油封 oil seal 1 8 30102014 252006 缝针架轴 shaft 1 9 30110005 252000 缝针架偏心组件 eccentric assy 1 10 S10006 4539 螺钉 M5×6 screw 3 11 400063 252001-92 连杆组件 connection assy 1 12 S01039 7015 螺钉 M4×15 screw 2 13 30109007 252010 平衡块 balance weight 1 14 L01003 7011 螺钉 M3×7.5 screw 2 15 30104010 252002 缝针架动架 crank 1 16 30128008 240102 缝针架轴垫圈 washer 1 17 30102013 179399-05 连杆销 pin 1 18 30128032 240062 垫片 washer 1 19 4805 螺母 M5 nut 1 20 30102015 252003 缝针轴头 block pin 1 21 30128010 208028 垫圈 washer 1 22 30108002 208029 偏心轴挡圈 collar 1 23 301S12001 5084 曲柄轴螺钉 screw 1 24 N01001 4802 螺母 M4 nut 1 25 30102012 252004 缝针架轴 shaft 1 26 H050001 205061 挡圈 ring 1 11 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30103032 252531 方套 block 1 2 30105012 252533 比叉 guide/block 1 3 400062 255501-92 连杆组件 connection assy 1 4 S01039 7015 螺钉 M4×15 screw 1 5 301S11024 7082 滑块座螺钉 screw 1 6 30104007 7082 曲柄轴 crank 1 7 30102014 252006 油封 oil seal 1 8 30102014 252006 油封 oil seal 1 9 30110005 252000 偏心轴组件 eccentric assy 1 10 S10006 4539 螺钉 M5×6 screw 3 11 400063 252001-92 连杆组件 connection assy 1 12 S01039 7015 螺钉 M4×15 screw 2 13 30109007 252010 平衡块 balance weight 1 14 L02003 7019 螺钉 M4×7 screw 1 15 30104010 252002 缝针架动架 crank 1 16 30128008 240102 缝针架轴垫圈 washer 1 17 30102013 179399-05 连杆销 pin 1 18 30128032 240062 垫片 washer 1 19 4805 螺母 M5 nut 1 20 30102015 252003 缝针轴头 block pin 1 21 30128010 208028 垫圈 washer 1 22 30108002 208029 偏心轴挡圈 collar 1 23 301S12001 5084 曲柄轴螺钉 screw 1 24 N01001 4802 螺母 M4 nut 1 25 30102012 252004 缝针架轴 shaft 1 26 H050001 205061 挡圈 ring 1 12 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 310S30002 253000-91 调压螺钉 adjusting bar 1 2 301S16005 253003 调压 mt 1 3 30109016 252532 比叉 guide/block 1 4 30105012 252533 连杆 lever 1 5 S05005 4531 螺钉 M5×12 screw 1 6 301S20006 5316 连杆连接螺钉 screw 1 7 30108004 240271 挡圈 ring 1 8 301S11007 35827 护罩固定螺钉 screw 1 9 30127005 252536 弹簧 spring 1 10 001005 240129 0型圈7.5×1.8 o ring 1 11 3011201100 252539A91 左板组件 bracket 1 12 S01004 7019 螺钉 M4×7.8 screw 5 13 30122021 240162 油封 plug 1 14 3011201300 252664-91 调压扳手组件 lever assy 1 15 30115005 252538 调节板 scale plate 1 16 S01003 7021 螺钉 M4×12 screw 2 17 30203019 240124 调节套 spacer 2 18 20109005 210171 调节滑块 stopper 2 19 S011008 2905 螺钉 screw 2 20 W01006 201185 垫圈4 washer 2 21 301S16004 210167 螺母 nut 1 22 301S30007 5486 调节扳手螺钉 screw 1 23 30128014 211301 垫圈 washer 1 24 301S11023 螺钉(短) screw 1 25 310S30002 253000-91 调压螺钉 adjusting bar 1 26 301S16005 253003 调压 mt 1 27 30109016 252532 比叉 guide/block 1 28 30105012 252533 连杆 lever 1 29 3012075 拍压板 lever 1 30 S01011 螺钉 screw 1 31 3.1003E+10 电磁铁组件 solenoid 1 32 W02004 垫圈 washer 2 33 S05019 螺钉 screw 2 34 31012074 拍压扳手 lever 1 35 31012077 垫片 washer 1 36 31012065 连接板 link 1 37 310S20010 253028 螺钉 screw 2 38 302S20014 5386 螺钉 screw 1 39 302S20014 5386 螺钉 screw 1 40 31012072 拉板 Pulling plate 1 41 S01004 7019 螺钉 M4×7.8 screw 2 42 31012032 压板 clamp 1 43 3102200200 钢丝绳 Steel wire rope 1 44 3100201000 调压杆组件 Adjusting bar 1 45 31012044 支撑板 Support plate 1 46 31012025 固定片 stator 1 47 S01002 7017 螺钉 M4×6.5 screw 1 48 S01004 螺钉 screw 2 49 31012091 线卡 ply-yarn drill 1 50 S05003 螺钉 screw 1

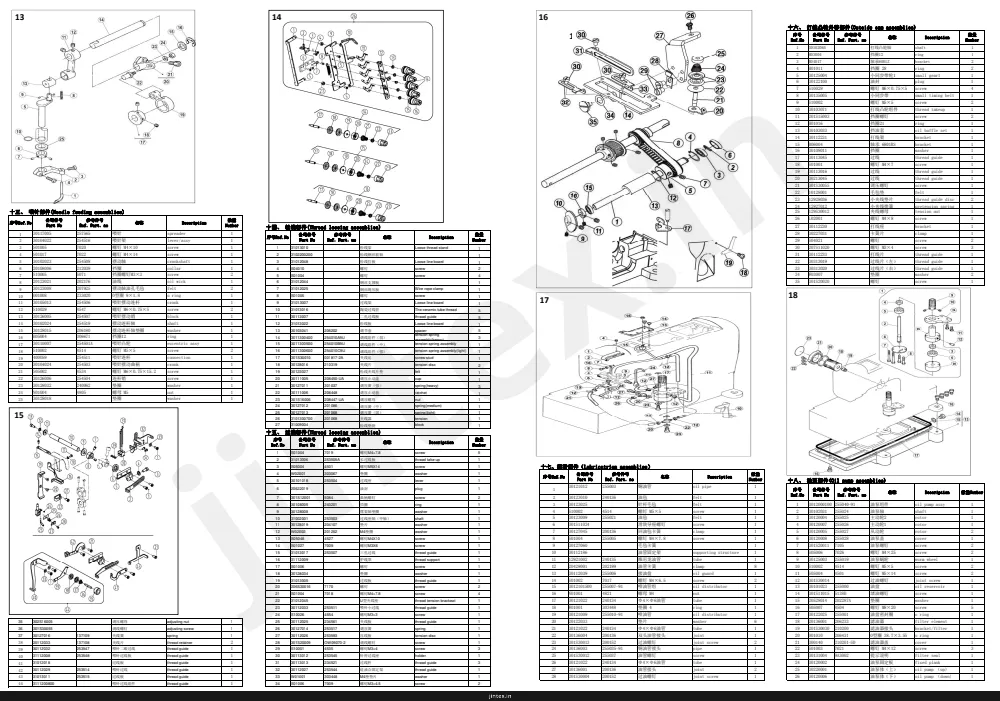

Page 3

13 十三、喂针部件(Needle feeding assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30117005 257565 喂针 spreader 1 2 30104022 254516 喂针架 lever/assy 1 3 S01005 7020 螺钉 M4×10 screw 1 14 十四、松线部件(Thread loosing assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 31013010 松线架 Loose thread stand 1 16 十六、打线凸轮外移部件(Outside cam assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102065 打线凸轮 shaft 1 2 H03004 挡圈6001Z ring 1 3 B04017 挡圈6001Z bracket 2 4 H01011 挡圈 28 ring 2 5 30125004 小同步带轮1 small gear1 1 6 30122100 油缸 plug 1 7 S10029 螺钉 M6×0.75×5 screw 4 8 B0135005 小同步带 small timing belt 1 9 S10002 螺钉 M5×5 screw 2 10 30103071 打线凸轮组件 thread takeup 1 11 201515003 挡圈螺钉 screw 2 12 H01016 挡圈21 ring 1 13 30103033 油管套 oil baffle set 1 14 30112231 打线架 bracket 1 15 B06004 轴承 6801RS bracket 1 16 30108011 挡圈 washer 1 17 30113045 过线件 thread guide 1 18 S01001 螺钉 M4×7 screw 1 19 30113016 过线件 thread guide 1 20 30213045 过线件 thread guide 1 21 30153055 调压螺钉 tension screw 1 22 10128001 毛毡垫 felt 2 23 12928036 小夹线垫片 thread guide disc 2 24 12927012 夹线弹簧 pretension spring 1 25 129530012 夹线螺母 tension nut 1 26 L02001 螺钉 M4×8 screw 1 27 30112230 打线座 bracket 1 28 30227031 卡簧片 clamp 1 29 S04021 螺钉 screw 2 30 207511020 螺钉 M3×4 screw 3 31 30112233 过线件 thread guide 1 32 3013019 过线片(左) thread guide 1 33 30130020 过线片(右) thread guide 1 34 W03007 垫圈 washer 2 35 301520020 螺钉 screw 1 15 十五、过线部件(Thread loosing assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 31013010 松线架 Loose thread stand 1 2 31013006 长过线板 thread take-up 1 3 S05004 螺钉 M5×14 screw 1 4 W02001 垫圈 washer 1 5 30101018 压线座 lever 1 6 20622019 油封 plug 1 7 S01001 曲柄销 screw 2 8 30108005 挡圈 ring 1 9 30128008 垫圈 washer 1 10 31002001 过线座(中轴) shaft 1 11 30128019 垫片 washer 1 12 W02002 M4垫圈 washer 1 13 S05048 螺钉 M4×10 screw 1 14 S10027 螺钉 M3×6 screw 1 15 301013017 三孔过线 thread guide 1 16 31112009 护线罩 thread support 1 17 S01006 螺钉 screw 1 18 30128034 垫圈 washer 1 19 31013005 过线板 thread guide 1 20 206530016 螺钉 screw 2 21 S01004 螺钉 M4×7.8 screw 4 22 30120045 U型夹线锁 thread tension bracket 1 23 30112033 螺钉小过线 thread guide 1 24 S10026 螺钉 M3×3 screw 1 25 30112025 夹线板 thread guide 1 26 30127014 调压簧 spring 1 27 30112026 压线簧 tension disc 1 28 30152009 调线螺钉 thread guide 1 29 S10001 螺钉 M3×4 screw 3 30 30113012 针杆过线板 thread guide 1 31 30113013 过线板 thread guide 3 32 30112027 油盘合固定架 washer 1 33 W01001 垫圈 washer 2 34 S01006 螺钉 M3×4.5 screw 2 17 十七、润滑部件(Lubrication assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30121012 铜油壶 oil pipe 1 2 30123010 油缸 felt 1 3 30123025 针杆毛毡 felt 1 4 S10002 螺钉 M5×5 screw 2 5 30123009 毛毡 felt 2 6 301511024 滑块导座螺钉 screw 1 7 30127045 回油缸卡簧 clamp 1 8 S01004 螺钉 M4×7.8 screw 6 9 30127060 毛毡卡簧 clamp 1 10 30112186 油管固定架 supporting structure 1 11 12921002 维尼龙油管 tube 1 12 20429001 油管卡簧 clamp 1 13 30112039 接油盘 oil guard 1 14 S01002 螺钉 M4×6.5 screw 2 15 3012101500 油管油嘴 oil distributor 1 16 N01001 螺母 M4 nut 1 17 30121022 油管卡簧 tube 1 18 W01001 垫圈 4 ring 1 19 20122033 油管油嘴 oil distributor 1 20 30121022 油管接头 tube 2 21 30136004 双头油管接头 joint 1 22 301530013 过油螺钉 joint screw 1 23 30136003 铜油管接头 pipe 1 24 301530012 油管螺钉 screw 1 25 30121022 油管接头 tube 1 26 30136001 油管接头 joint 1 27 30136001 油管接头 joint screw 1 28 201530004 过油螺钉 joint screw 1 18 十八、油泵部件(Oil pump assemblies) 序号Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3012000100 255040-91 油泵组件 oil pump assy 1 2 30102031 255024 油泵轴 shaft 1 3 30120004 255025 主动轮2 rotor 1 4 30120007 255026 主动轮1 rotor 1 5 30120005 255027 从动轮 cover 2 6 30120008 255028 油泵盖 cover 1 7 301520011 油泵螺钉 screw 2 8 S05006 螺钉 M4×25 screw 2 9 30125003 油泵解轮 worm wheel 1 10 S10002 螺钉 M5×5 screw 2 11 S05004 螺钉 M5×14 screw 2 12 301530014 过油螺钉 joint screw 1 13 30101023 255000 油盘 oil reservoir 1 14 301511015 5138B 堵油泵螺钉 screw 1 15 20528014 202287A 垫圈 washer 1 16 S05007 螺钉 M8×20 screw 5 17 30122025 255001 油盘密封圈 o ring 1 18 20136001 206233 滤油器盖 filter element 1 19 201530030 210200 滤油器接头 bracket/filter 1 20 30120010 206431 O型圈 28.7×3.55 o ring 1 21 30101025 210201-SD 滤油器盖 cover 1 22 S01003 螺钉 M4×12 screw 3 23 30131004 9A3002 提示说明 filter seal 1 24 301220002 油泵固定板 fixed plank 1 25 30120006 油泵体(上) oil pump (up) 1 26 30120006 油泵体(下) oil pump (down) 1

Page 4

19 十九、硅油盒装置部件 (Silicon oil-delive assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30101027 7010 机针冷却器 needle cooler (lower) 1 2 S01027 7010 螺钉 M3×6 screw 2 3 30123012 255014 油箱 reservoir 1 4 30126009 210766 销 pin 1 5 30121021 240117 tube 1 6 30127020 206115 bracket 1 7 S01004 7019 螺钉 M4×7.8 screw 1 8 30123021 202175 油线 oil wick 1 9 20429001 202199 clamp 2 10 30101026 255015 硅油盖 silicone oil 1 11 30122026 255016 cap 1 12 S01005 7020 螺钉 M4×10 screw 1 13 30111070 207066-UD 硅油盒 (塑料) silicone oil 1 14 30112040 207067-UD 硅油盒 reservoir 1 15 P03008 206781 pin 2 16 30123011 207068 felt 1 17 S01006 7009 螺钉 M3×4.5 screw 2 18 W01001 303448 垫圈 washer 1 20 十八、线架部件 (Thread spool assemblies) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 20131019 Rod Cap 1 2 30131001 Upper thread column 1 3 20131010 Screw 4 4 30131020 Thread spool tray 1 5 20131016 Thread spool tray 1 6 201516006 Thread guide hook nut 4 7 20131017 Thread guide hook 5 8 20131021 Screw 2 9 20131009 Clamp plate 1 10 201516004 Nut 4 11 20131011 Thread guide bar 1 12 30113019 Thread guide 1 13 20131017 Thread spool tray 1 14 20122049 Plate Dog link washer 2 15 20128025 Lower washer 2 16 201516005 Nut 1 17 20131004 Thread spool tray 1 18 20128018 Washer 1 19 201516004 Nut 4 20 20131007 Spool tray 5 21 20131010 Spool tray 5 22 20131006 Spool Pin 5 23 20131008 Spool Cushion 1 24 20131004 Thread spool tray 1 25 S04050 Screw 2 26 20131003 Bushing 1 27 N01030 Nut 2 28 20131022 Screw 2 29 201516004 Nut 4 30 20131015 Threadspooltray bracket 1 31 20131074 Thread stand component 1 23 W4-05 盖板 COVER 23 二十、05专用部件 (05 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300471 250052 左缝台盖 bed cover 1 2 400068 250501-91 right crankshaft assy 1 3 3012400300 250504 bushing 1 4 30103003 250504 bushing 1 5 30109002 250534 balance weight 1 6 S01009 螺钉 M3×7.5 screw 3 7 S10006 4539 螺钉 M5×6 screw 2 8 001001 O型螺钉 M5×2.65 O ring 1 9 S01001 7018 螺钉 M4×7 screw 2 10 30112045 250025-ME font cover(small) 1 11 30112046 250026 bracket 1 12 30126010 306920 pin 1 13 S10002 4514 螺钉 M5×5 screw 1 14 30127001 250051 flat spring 1 15 S01002 7017 螺钉 M4×6.5 screw 2 16 30122015 cushion 1 17 30102110 250027 shaft 1 18 30112160 250028 stopper 1 19 30103160 bushing 1 20 301520002 250013 screw 1 21 30128002 201191 spring 5 22 S10006 4539 screw 2 23 W01002 washer 1 24 S10026 4554 screw 1 25 11727007 spring 1 26 301520003 250014 pin 1 27 S01011 7028 screw 1 28 30101161 arm cover (top) 1 29 3011S1020 7074 screw 2 30 30112044 255517 fabric guide 1 31 30101034 250035A side cover assy 1 32 301520005 pin 1 33 300793 cover 1 34 S10001 screw 2 35 S01005 7020 screw 3 36 301520004 screw 1 24 护针部件 NEEDLE GUARD MECHANISM W4-05 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30117002 357551B 后护针挡 needle guard (rear) 1 2 30117007 251505-92 lever assy 1 3 S05003 4500 bolt 1 4 W02001 303067 washer 1 5 S01002 7017 螺钉 M4×6.5 screw 1 6 30102037 251503 shaft 1 7 W01021 垫片 washer 1 8 H05013 202522 ring 1 9 400064 251504 lever 1 10 S10002 4514 screw 1 11 30101036 251500-91 bracket 1 12 3011S1016 7081 screw 1 13 S01004 7019 screw 1 14 30117003 front needle guard 1 15 S01012 螺钉 M2.5×4 screw 1 16 30111013 306473-UA waste chute top(C) 1 17 3015S30019 4905 木螺钉 screw 1 18 30112048 306474A bracket 1 19 套筒 bushing 1 20 301010400 waste chute assy 1 21 30111014 205468-UA waste chute top(A) 1 22 30111015 205469-UA waste chute top(B) 1 23 30128036 washer 1 24 S01005 7020 screw 1 25 二十二、DI部件专用件 (DI specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3103000300 LED灯 LED light 1 2 3103300100 electrical machine 1 3 20131063 警示牌 warning plate 1 4 953000018 plug 1 5 21111018 logo 1 6 W01001 垫片 washer 2 22 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30101027 7010 机针冷却器 needle cooler (lower) 1 2 S01027 7010 螺钉 M3×6 screw 2 3 30123012 255014 油箱 reservoir 1 4 30126009 210766 销 pin 1 5 30121021 240117 tube 1 6 30127020 206115 bracket 1 7 S01004 7019 螺钉 M4×7.8 screw 1 8 30123021 202175 油线 oil wick 1 9 20429001 202199 clamp 2 10 30101026 255015 硅油盖 silicone oil 1 11 30122026 255016 cap 1 12 S01005 7020 螺钉 M4×10 screw 1 13 30111070 207066-UD 硅油盒 (塑料) silicone oil 1 14 30112040 207067-UD 硅油盒 reservoir 1 15 P03008 206781 pin 2 16 30123011 207068 felt 1 17 S01006 7009 螺钉 M3×4.5 screw 2 18 W01001 303448 垫圈 washer 1 25 二十五、05专用部件 (05 specific parts) 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30110009 255500 凸轮 eccentric assy 1 2 S10006 4539 螺钉 M6×6 screw 1 3 400062 255500 eccentric assy 1 4 S01008 螺钉 M3×5 screw 1 5 S01010 螺钉 M4×8 screw 1 6 30104007 crank 1 7 3015S12001 螺钉 screw 1 8 30126003 pin 1 9 3010400063 connection assy 1 10 S01008 螺钉 M3.5×13 screw 1 11 30102038 255502 shaft 1 12 30128008 240102 washer 1 13 H05001 ring 1 14 30209009 ball 1 15 30123014 oil wick 1 16 30123014 felt 1 17 30122019 oil seal 1 18 30104028 255503 lever assy 1 19 S05004 螺钉 M5×14 screw 1 20 30112049 255504 latch 1 21 S10006 7009 screw 1 22 30123015 oil wick 1 23 30102039 255505 shaft 1 24 30123008 felt 1 25 30101040 bracket assy 1 26 S12002 screw 1 27 3010104000 bracket assy 1 28 3011203085 needle bearing 1 29 30102040 255508-2 shaft 1 30 S05019 螺钉 M6×16.3 screw 2 31 30127022 306105 spring 1 32 30108006 192024 ring 1 33 209S14008 W00024-1 screw 1 34 H05013 202522 ring 1 35 30128026 207045 washer 1 36 30101037 255507-91 upper knife holder 1 37 S12003 螺钉 M6×0.75×5 screw 1 38 30119001 upper knife 1 39 301511017 screw 1 40 30101039 255509 lower knife holder 1 41 3011S1025 7036 screw 1 42 20619004 204161 lower knife 1 43 30101038 255510 lower knife clamp 1 44 301511017 screw 1 45 301530021 255513 screw 1 46 30112051 255511 guide 1 47 30112050 255515 chip guard 1 2017.7

Page 5

26 8569A-05, 07 (LR10) 27 二十六、05、07专用部件(05, 07 specific parts) 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3010204100 306469A9S 带子插销组件 reel stand assy 1 2 30103047 306468-SA 支柱盘 bracket 1 3 30102042 306466-SA 支柱 rod 1 4 N02001 螺母SM3/4×16 nut 1 5 30111008 383-SA 捧架 bracket 1 6 S04003 螺钉M4×25 screw 4 7 N01005 螺母M4 nut 1 8 S04004 螺钉M4×15 screw 1 9 30122027 386 捧帽 rod cap 1 10 30102043 306464 带架直轴 shaft 1 11 30103048 306463 轴舌 collar 2 12 S01068 螺钉M4×8 screw 2 13 30103064 306462 捧锥架 reel guide 2 14 30111009 233-SA 固定器 bracket 1 15 30113020 306467 带架棒 rod 1 16 301530022 4913 木螺钉 screw 3 二十七、05、07专用部件(05, 07 specific parts) 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300144 压带架座 bracket assy 1 2 30103055 套筒 bushing 2 3 30112058 压带连接板 bracket 1 4 301511020 255515 压带轴螺钉 screw 2 5 300143 压带架支座 bracket 1 6 S05019 螺钉M6×16.3 screw 4 7 3010305700 压带轮组件 roller assy 1 8 S10005 螺钉M3×3 screw 6 9 30103059 压带轮II rooler 1 10 30102045 夹带短轴 shaft 1 11 30109018 255502 夹带轴螺钉 screw 2 12 S10002 240102 螺钉M5×5 screw 4 13 30102046 夹带长轴 shaft 1 14 30113021 带子架 lace guide 1 15 30112059 手柄 lever 1 16 S01027 螺钉M3×5 screw 2 17 301530027 调节螺钉 screw 1 18 301516011 255503 调节螺母 nut 1 19 30127024 弹簧 spring 1 20 30126013 255504 销轴 shaft 1 21 H05002 7009 挡圈 ring 5 22 30112055 压带板 guide 1 23 30113022 255505 压带架 lace guide 1 24 S01002 螺钉M4×6.5 screw 2 25 301516010 位置挡块 guide 2 26 301151018 螺钉 screw 2 27 S01004 螺钉M4×7.8 screw 2 28 30128028 偏心座 stopper 1 29 S01004 螺钉M4×7.8 screw 2 30 3011205600 255508-2 夹带架组件 bracket assy 1 31 30128020 306105 垫片 spring 1 32 S05048 192024 螺钉M4×10 screw 1 33 N01001 W00024-1 螺母M4 nut 1 34 30105017 202522 夹带连杆I lace guide 1 35 W01004 207045 垫圈 washer 2 36 30105018 255507-91 夹带连杆II lace guide 1 37 301530025 4547 台螺钉 screw 2 38 30103044 255513 压带轴 shaft 1 39 30128008 255511 挡架轴圈 washer 1 40 H05001 255506 挡圈 ring 1 29 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 300953 左线台盖(喷 bed cover (left) 1 2 S01003 7021 螺钉M4×6 screw 2 3 S02001 7043 螺钉M4×12 screw 1 4 300952 侧盖组件(喷漆) side cover assy 1 5 30101111 侧盖 side cover 1 6 30101112 侧盖 cover 1 7 301520005 铜螺钉 pin 1 8 S01005 7020 螺钉M4×10 screw 4 9 S10001 螺钉M3×4 screw 2 10 30128002 201191 弹簧垫圈 spring 5 11 301520004 侧盖隔热销 screw 1 12 30127030 平垫圈 flat spring 1 13 30122015 前盖防振垫 cushion 1 14 S01002 7017 螺钉M4×6.5 screw 2 15 300951 前盖架组件 front cover assy 1 16 30101063 前盖缘台座 bracket 1 17 30101110 前盖板 front cover 1 18 301520003 250014 前盖基座螺钉 pin 1 19 S01009 螺钉M3×4.5 screw 2 20 30209018 针板接块 block 1 21 30112097 加宽前门接板板 block 1 22 S01065 7079 螺钉M5×6 screw 2 23 30112098 加宽前门接板 baseplate 1 24 301520002 250013 前盖缘台座螺钉 screw 1 25 S01007 7023 螺钉M4×13.5 screw 2 26 30112095 侧前锁紧舌 flat spring 1 27 302525 加宽前门接板板 front coverasy 1 28 300955 盖板 cover 1 29 302109 机壳 machine frame 1 30 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30126016 针距调节按钮 pin 1 2 30127026 针距调节簧 spring 1 3 12928008 平垫圈 washer 1 4 30101162 下节盖 cover 1 5 3010308900 调节器套组(大针距) eccentric retainer 1 6 30103150 送布调节器 regulator 1 7 B07043 轴承19×23×10 needle bearing 1 8 30104060 差动送布架(大针距) Link/main feed 1 9 30109025 左挡板 guide (left) 1 10 挡板 guide (lower) 1 11 30114028 送布牙(356/364) main feed dog 1 12 30114029 差动牙(356/364) differntial feed 1 13 30115041 23GB针板(356) needle plate 1 14 30115042 23GB针板(364) needle plate 1 15 30114030 送布牙(356/364) main feed dog 1 16 30114031 差动牙(356/364) differntial feed 1 17 30115045 2302BB针板(356) needle plate 1 18 30115046 2302BB针板(364) needle plate 1 19 30102051 摆轴 shaft 1 20 400308 针杆曲柄 motion assy 1 31 二十八、21、22专用部件(21, 22 specific parts) 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 30102051 252004A 摆轴 shaft 1 2 30122008 油封 oil seal 1 3 30102050 251010A 连杆偏心轴 eccentric pin 1 4 30128030 205097 偏心轴垫 washer 1 5 S02007 螺钉M3×5 screw 1 6 400308 针杆曲柄 motion assy 1 三十一、下剪线部件(knife holder assemblies) 序号 Ref. No. 公司件号 Part No 参考件号 Ref. Part. no 名称 Description 数量 Number 1 3011900300 下切刀组件 knife holder assembly 1 2 30109035 下切刀盘 bracket 1 3 301530044 螺钉 screw 4 4 301212128 垫片 washer 1 5 S05047 螺钉M3×4 screw 1 6 208s11009 螺钉M3.5×4 screw 1 7 30127053 弹簧 spring 1 8 S01031 螺钉M4×4.7 screw 1 9 W01090 垫片 washer 1 10 30112111 摆杆 lever 1 11 3015s20018 螺钉M5 screw 2 12 30105025 连接板 link 1 13 301121156 压板 flat spring 1 14 30112157 压板 washer 1 15 30112158 压板 flat spring 1 16 30112159 压板 flat spring 1 17 30109037 上切刀台 upper knife lever 1 18 30112091 缓冲挡板 screw 1 19 P01031 销3×5 screw 1 20 S05217 内六角头螺钉 screw 1 21 30128041 垫片 washer 1 22 30119010 上切刀 upper knife 1

Page 6

三十四、剪线电磁铁部件 (solenoid assemblies) 序号 Parts No. 公司件号 Ref. Part. No. 名称 Description 数量 Number 1 30212183 连接板 bed pin 1 2 N01012 螺母M6 pin 2 3 302S20014 螺钉 screw 1 4 30212190 连接杆 bed pin 1 5 301S20030 螺钉 screw 1 6 30104066 固定块 Fixed block 1 7 30108004 挡圈 plug 1 8 30102111 导向轴 washer 1 9 301S11023 螺钉 screw 2 10 30108006 挡圈 Retaining ring 1 11 201S14002 螺钉 screw 1 12 30112108 铜片 sheet copper 1 13 30130017 磁铁 magnetic iron 1 14 30112182 感应安装板 bracket 1 15 3111200200 推板组件 dead plate 1 16 30127058 弹簧 escrew 1 17 30104006 曲柄 1 18 30101217 换向红杆 The reversing lever 1 19 310S20008 轴位螺钉 screw 1 20 S05068 螺钉M5X20 screw 1 21 31012072 拉板 Pull 1 22 31012077 换向垫片 spacer 1 23 S01004 螺钉M4X7.8 screw 2 24 S01004 螺钉M4X7.8 screw 1 25 301012025 钢丝固定套 stator 1 26 31012070 安装板 dead plate 1 27 S04010 螺钉M4X5.5 screw 4 28 114S20005 螺钉 screw 1 29 30112185 防尘压板 Dust depressor 1 30 30122105 防尘罩 Dust cover 1 31 114S16008 螺母 nut 2 32 W01006 垫片 gasket 1 33 W02002 弹性垫片 gasket 1 34 30130046 电磁铁芯 Electromagnetic iron 1 35 11322008 减震器 cushioning 1 36 31030007 剪线电磁铁组件 Electromagnet box shear 1 37 310300700 电磁铁下垫片 Connect the wire 1 38 13822010 电磁铁下垫片 gasket 1 39 302S20014 螺母M8 nut 1 40 30212184 支架 stents 1 41 S01004 螺钉M4X7.8 screw 2 42 30122108 防尘罩 Dust cover 1 43 30112188 防尘压板 Dust depressor 1 44 S01004 螺钉M4X7.8 screw 2 45 31030013 安全开关 Safety switch 1 46 S04010 螺钉M4X5.5 screw 2 47 30112180 下安装板 the mounting plate 1 48 S05019 螺钉 screw 2 49 30111047 电磁铁罩壳 cover 1 50 W01001 垫片 gasket 3 51 S01004 螺钉M4X7.8 screw 3 52 S05005 螺钉M5X12 screw 3 53 0型圈 o-type ring 2 54 N01027 螺母M8 nut 1

Page 8 — W4 Operation Manual

W4 Operation Manual 3.1 System parameter setting 1. In the standby state, press key to enter the parameter modes. 2. Press corresponding key and key to adjust the corresponding parameters. When the parameter values have increased and decreased, press corresponding parameters. Long press key to exit parameter interface, return to standby state. No. Parameter Range Default Description P00 0-2 1 language selection 0: off, 1: Chinese P01 0-1000 4000 the maximum speed of free sewing P02 0/1 0 Needle stop position selection P03 0-1000 1800 Start encryption sewing speed P04 200-3000 1000 End encryption sewing speed P05 200-3000 1000 Start encryption sewing speed P06 0-100 0 Start encryption sewing speed P07 0-100 0 Start encryption sewing speed P08 0-100 0 End encryption sewing speed P09 0/1 0 End encryption sewing speed P10 0-4 1 Quantity of meter to adjust P11 0-9999 30 Soft start of switch (0: off) P16 1-3000 50 Adjust the lift foot response time P17 0-99 0 Automatic induction presser foot P24 0-1024 150 Value of the G2C parameter display P27 0-3 1 Trimming point of pedal P30 0-31 0 Presser foot trimming mode setting P32 1-500 60 Trimming electromagnet cycle P33 0-100 6 Run up to needle position after trimming P34 0/1 1 0: no action; 1: action P37 0-600 200 Presser foot lifting electromagnet P40 200-5500 4000 The maximum speed of constant speed Special mode: 0: normal mode 1: simply sewing mode 2: automatic sewing mode 3: automatic setting the pulse of the 4: Automatically get the pulse of the (stopping 50) P41 0-9999 120 Blowing duration (ms) P42 1-9999 300 Blowing duration (ms) P43 0-25 0 Triming electromagnet per cycle P45 0-100 2 Trimming electromagnet per cycle P46 100-500 300 Trimming speed P49 1-500 100 Presser foot lifting electromagnet P50 1-500 150 Presser foot lifting electromagnet P51 0-100 15 Running delay time when presser foot is lifted P52 1-100 60 Presser foot lifting selection function P53 0/1 0 0: off, 1: on P56 0-100 35 Presser foot lifting electromagnet P57 0/1 1 Run up to needle position after trimming P58 0/1 1 0: no action; 1: action P60 0-600 200 Presser foot lifting electromagnet 3.2 Monitor mode No. Description No. Description 010 Stitch counter 025 011 Counter for sewing pieces 026 012 The head of real speed 027 013 State of encoder 028 014 DC voltage 029 015 Machine speed 02A 021 Phase current 02B 022 The initial electrical angle 02C 023 Machine angle 030-037 3.3 The warning message Alarm code Description Corrective Err-01 Motor circuit failure Turn off the power switch, restart after 30 seconds. If the controller still does not work, please replace the controller and inform the manufacturer. Err-02 Hardware overcurrent Software flow Err-03 Under-voltage Disconnect the power to check the input power supply voltage is low or not less than 176V. If the power supply voltage is low, please start the controller after recovers the voltage. If the controller still does not work, please inform the manufacturer and replace the controller. Err-04 Over-voltage when the machine is off Disconnect the power, check and if the input voltage is too high (higher than 264V). If yes, please restart the controller when the normal voltage is resumed. If the controller still does not work, when the voltage is at normal level, please replace the controller and inform the manufacturer. Err-05 Over-voltage in operation Turn off the power. Check carefully, if the solenoid connection is loose or damaged, please change it in time. Then restart the system after confirmation, if it still does not work, please inform the manufacturer and replace the controller. Err-06 Solenoid circuit fault Err-07 Motor current measuring failure Turn off the power switch, restart after 30 seconds to see if it works well. If such failure happens frequently, seek technical support. Err-08 Motor speed over-protection Turn off the system power, check whether the motor power input plug is loose, off or broken, or there is something tangled on the machine head. Please make them correct then restart the system. If it still does not work, please inform the manufacturer and replace the controller. Err-09 Brake-circuit fault Turn off the system power. Check carefully, if white braking resistor connector on the power board is loose or fell off, please plug it tight then restart the system. If it still does not work, please inform the manufacturer and replace the controller. Err-10 Communication failure Check carefully, if the connection between the control panel and controller is off, loose, or broken, please make it correct then restart the system. If it still does not work, please inform the manufacturer and replace the controller. Err-11 Machine head needle positioning failure Check if the connection line between machine head synchronizer and controller is loose or not, restore and restart the system. If it still does not work, please replace the controller and inform the manufacturer. Err-12 Initial motor electrical angle failure Try 2 to 3 more times after power down If it still does not work, please replace the controller and inform the manufacturer. Err-13 Motor HALL failure Turn off the system power. Check if the motor sensor plug is loose or dropped off, restore and restart the system. If it still does not work, please replace the controller and inform the manufacturer. Err-14 DSP Read/Write EEPROM failure Err-15 Motor over-speed protection Err-16 Motor reversion Err-17 HMI Read Write Err-18 EEPROM failure Err-19 Motor overhead 杰克缝纫机股份有限公司 全球销量领先 地址: 浙江省台州市椒江区模具城十五号 邮编: 318000 邮箱: china@jacksewing.com http://www.chinajack.com 电话: 0086-0576-65777788 6577799 传真: 0086-0576-65777758 国际事业部 电话: 0086-0576-65777782 65777774 传真: 0086-0576-65777787 海外销售电话: 400-8976858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实物为准。 2017.7
