Juki DDL-5550-6 Parts Book (PDF)
Text index — Juki DDL-5550-6
Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-00254 | FACE PLATE ASM. | 1 |
| 2 | 110-00304 | FACE PLATE GASKET | 1 |
| 3 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 4 | 110-00858 | ARM OIL SHIELD ASM. | 1 |
| 5 | TA-0850604-RO | RUBBER PLUG | 2 |
| 6 | TA-1250705-RO | RUBBER PLUG | 1 |
| 7 | B1114-012-000 | THREAD GUIDE PIN | 1 |
| 8 | SS-4120915-SP | SCREW 12/64-28 L=9 | 8 |
| 9 | 111-02605 | CORD HOLDER | 1 |
| 10 | 110-00510 | SIDE PLATE | 1 |
| 11 | 110-00619 | GASKET | 1 |
| 12 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 13 | D2112-555-B00 | CORD HOLDER, LARGE | 1 |
| 14 | 110-30301 | CABLE HOLDER | 1 |
| 15 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 16 | TA-2000502-RO | RUBBER PLUG | 1 |
| 17 | SS-6121840-SP | SCREW 3/16-28 L=18.0 | 1 |
| 18 | 111-00500 | REVERSE FEED LEVER STOPPER | 1 |
| 19 | TA-2101002-RO | RUBBER PLUG | 1 |
| 20 | 110-30202 | RUBBER BUSHING | 1 |
| 21 | 110-45051 | THREAD TENSION ASM. | 1 |
| 22 | 110-45002 | FIRST TENSION POST | (1) |
| 23 | 110-45200 | THREAD TENSION GUIDE | (1) |
| 24 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 25 | 110-45101 | THREAD TENSION SPRING | (1) |
| 26 | 110-45309 | THREAD TENSION NUT | (1) |
| 27 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 110-00700 | THREAD TAKE-UP LEVER COVER | 1 |
| 29 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 30 | 110-18504 | ARM THREAD GUIDE A | 1 |
| 31 | 110-01500 | SCREW | 1 |
| 32 | 110-46158 | THREAD TENSION ASM. | 1 |
| 33 | 110-18900 | TENSION NUT | (1) |
| 34 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3132-552-000 | TENSION DISC HOLDER | (1) |
| 37 | B3126-012-000 | TENSION DISC | (2) |
| 38 | B3115-552-000 | TENSION POST | (1) |
| 39 | B3128-012-000 | TAKE-UP SPRING | (1) |
| 40 | B3111-126-000 | TENSION POST SOCKET | (1) |
| 41 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 42 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 43 | B3118-552-E00 | THREAD RELEASE PIN | 1 |
| 44 | B1109-012-IOB | THROAT PLATE (I) | 1 |
| 45 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 1 |
| 46 | SS-2110915-SP | SCREW 11/64-40 L=6.8 | 1 |
| 47 | 110-18603 | ARM THREAD GUIDE B | 1 |
| 48 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 49 | TA-1250406-RO | RUBBER PLUG | 2 |
| 50 | SS-4120915-SP | SCREW 12/64-28 L=9 | 3 |
| 51 | 110-01658 | BED SLIDE ASM. | 1 |
| 52 | B1110-012-000 | SLIDE PLATE | (1) |
| 53 | 110-01609 | BRED SLIDE SPRING | (1) |
| 54 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 55 | 110-01104 | BED SCREW STUD | 4 |
Page 7 — 2. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 110-17209 | THREAD TAKE-UP CRANK SHAFT | 1 |
| 3 | CQ-3500000-FO | OIL FELT | 0.1 |
| 4 | 110-39070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 110-39062 | THREAD TAKE-UP LEVER ASM. | (1) |
| 6 | B1905-541-B00 | NEEDLE BEARING, B | (2) |
| 7 | 110-05204 | NEEDLE BAR CRANK | (1) |
| 8 | B1408-552-000 | NEEDLE BAR CRANK ROD | (1) |
| 9 | B1903-552-000 | END SCREW LEFT | (1) |
| 10 | SS-8681650-TP | SCREW 9/32-28 L=16 | 1 |
| 11 | 110-02102 | COUNTERWEIGHT | 1 |
| 12 | 110-02201 | MAIN SHAFT BUSHING, FRONT | 1 |
| 13 | SS-8150912-TH | SCREW | 1 |
| 14 | 110-02300 | BUSHING, INTERMEDIATE | 1 |
| 15 | 110-08059 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 16 | SS-6661110-SP | SCREW 1/4-40 L=11 | (2) |
| 17 | 110-08000 | FEED DRIVE ECCENTRIC CAM | (1) |
| 18 | 110-08109 | THRUST COLLAR | (1) |
| 19 | SS-6090670-TP | SCREW 9/64-40 L=6 | (2) |
| 20 | 110-02805 | MAIN SHAFT BUSHING, REAR | 1 |
| 21 | 110-02508 | OIL SEAL | 1 |
| 22 | RC-1850001-KP | SNAP RING 18.5 | 1 |
| 23 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 24 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 25 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 26 | RO-0442401-00 | RUBBER RING | 1 |
| 27 | SS-7681650-TP | SCREW 9/32-28 L=16 | 1 |
| 28 | B1212-552-A00 | COUNTERWEIGHT PROTECTING PLATE | 1 |
| 29 | 110-32166 | HAND WHEEL ASM. | 1 |
| 30 | SS-6111210-SP | SCREW 11/64-40 L=12 | (2) |
| 31 | WP-0450801-SD | WASHER 4.5X10.0X0.8 | (2) |
| 32 | SS-8151550-SP | SCREW 15/64-28 L=15 | (2) |
| 33 | 110-32166 | HAND WHEEL ASM. | (1) |
| 34 | M4007-110-0AA | MAGNET BASE ASM. A | (1) |
| 35 | M4007-110-0AB | MAGNET BASE ASM. B | (1) |
| 36 | 110-32265 | DYNAMO STATOR | 1 |
| 37 | HX-0004300-00 | CLIP | (2) |
| 38 | SL-4051001-MZ | SCREW | 2 |
| 39 | B1213-552-0A0-A | OIL AMOUNT ADJUSTING PIN ASM. | 1 |
| 40 | RO-0291801-00 | RUBBER RING | (1) |
| 41 | B1226-552-000 | ROLLER FELT | 1 |
| 42 | 110-02003 | MAIN SHAFT | 1 |
Page 9 — 3. NEEDLE BAR & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1405-012-000 | CAP | 1 |
| 2 | B1402-552-000-A | NEEDLE BAR BUSHING, UPPER | 1 |
| 3 | 110-35003 | NEEDLE BAR | 1 |
| 4 | B1411-552-0A0 | NEEDLE BAR CONNECTION ASM. | 1 |
| 5 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 6 | B1414-555-000 | SLIDE BLOCK | 1 |
| 7 | 110-18801 | NEEDLE BAR THREAD GUIDE | 1 |
| 8 | B1403-115-000 | NEEDLE BAR BUSHING (LOWER) | 1 |
| 9 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 10 | 110-35300 | NEEDLE BAR THREAD GUIDE | 1 |
| 11 | MDB-100B1400 | NEEDLE DBX1 #14 | 1 |
| 12 | B1306-155-0C0 | GEAR & PINION ASM. | 1 |
| 13 | B1306-155-0B0 | GEAR & PINION ASM., UPPER | (1) |
| 14 | B1305-012-0A0 | GEAR ASM. | (1) |
| 15 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 16 | B1306-155-0A0 | PINION ASM. | (1) |
| 17 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 18 | B1307-155-0B0 | GEAR & PINION ASM., LOWER | (1) |
| 19 | B1307-155-0A0 | GEAR ASM. LARGE | (1) |
| 20 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 21 | B1308-155-0A0 | PINION ASM. | (1) |
| 22 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 23 | 110-04009 | UPRIGHT SHAFT | 1 |
| 24 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 25 | 110-04108 | BUSHING, UPPER | 1 |
| 26 | 110-04207 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 27 | 110-15203 | BUSHING, REAR | 1 |
| 28 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 29 | CS-079101A-SH | THRUST COLLAR ASM. D=7.94 W=10 | 1 |
| 30 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | (2) |
| 31 | 110-15005 | HOOK DRIVING SHAFT | 1 |
| 32 | 110-38809 | BOBBIN CASE HOLDER | 1 |
| 33 | SS-6111010-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 34 | SS-8150432-TH | SCREW | 1 |
| 35 | 110-15104 | BUSHING ASM., FRONT | 1 |
| 36 | CS-079073A-SH | THRUST COLLAR | 1 |
| 37 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 38 | B1808-552-0A0 | OIL SEAL SCREW ASM. | 1 |
| 39 | B1810-552-000 | OIL WICK | (1) |
| 40 | 111-41355 | LUBRICATING BOBBIN ASM. | 1 |
| 41 | B9117-012-000 | BOBBIN | 1 |
| 42 | 110-38759 | BOBBIN CASE ASM. | 1 |
Page 11 — 4. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1520-552-000-A | HAND LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | R0-0371801-00 | RUBBER RING | 1 |
| 4 | 110-06756 | HAND LIFTER CAM ASM. | 1 |
| 5 | 110-06350 | HAND LIFTER LINK | 1 |
| 6 | RE-0500000-KO | SNAP RING 5 | 1 |
| 7 | 110-06509 | LINK SHAFT | 2 |
| 8 | 110-06608 | GASKET | 3 |
| 9 | RE-0500000-KO | SNAP RING 5 | 3 |
| 10 | 110-06202 | LIFTING LEVER | 1 |
| 11 | 110-07309 | LIFTING LEVER RING | 1 |
| 12 | 110-07101 | HINGE SCREW | 1 |
| 13 | SD-0720332-SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 14 | 110-07200 | CONNECTING ROD VERTICAL | 1 |
| 15 | 110-07002 | LIFTING LEVER LINK | 1 |
| 16 | 110-06905 | LIFTING LEVER CONNECTING ROD | 1 |
| 17 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 18 | 110-45507 | WIRE HOLDER B | 1 |
| 19 | 110-45408 | WIRE HOLDER A | 1 |
| 20 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 21 | 110-45606 | WIRE HOLDER BRACKET (UPPER) | 1 |
| 22 | 110-45804 | WIRE TUBE | 1 |
| 23 | RE-0500000-KO | SNAP RING 5 | 2 |
| 24 | 110-18207 | TENSION RELEASE RETURN SPRING | 1 |
| 25 | 110-18405 | TENSION RELEASE PIN SPRING | 1 |
| 26 | RE-0400000-KO | SNAP RING 4 | 1 |
| 27 | 110-18306 | TENSION RELEASE SUPPORTING PIN | 1 |
| 28 | 110-18009 | TENSION RELEASE PLATE | 1 |
| 29 | 110-45903 | WIRE CABLE | 1 |
| 30 | 110-18108 | TENSION RELEASE SHAFT | 1 |
| 31 | B1509-555-000 | PRESSER SPRING REGULATOR | 1 |
| 32 | B1511-555-000 | NUT 1/2-28 | 1 |
| 33 | B1510-227-000 | PRESSER GUIDE BAR | 1 |
| 34 | B1505-227-000-A | PRESSER SPRING | 1 |
| 35 | 110-06004 | NEEDLE BAR GUIDE BRACKET | 1 |
| 36 | B1501-127-000 | PRESSER BAR | 1 |
| 37 | 110-06103 | PRESSER BAR THREAD GUIDE | 1 |
| 38 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 39 | SS-7090910-SP | SCREW 9/64-40 L= 8.5 | 2 |
| 40 | B1502-541-000 | PRESSER BAR BUSHING, LOWER | 1 |
| 41 | SS-7091110-SP | SCREW 9/64-40 L=10.5 | 1 |
| 42 | B1524-012-0BA | PRESSER FOOT ASM. | 1 |
| 43 | 110-45705 | WIRE HOLDER BRACKET (LOWER) | 1 |
| 44 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 45 | D3159-555-B00 | SET SCREW | 1 |
| 46 | NS-6620310-SP | NUT 3/16-32 | 2 |
| 47 | 110-45408 | WIRE HOLDER A | 1 |
| 48 | SS-7110410-SP | SCREW 11/64-40 L=4 | 1 |
| 49 | 110-46000 | WIRE CABLE HOLDER | 1 |
| 50 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 51 | 110-19007 | WASHER PLATE | 1 |
Page 13 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111-00401 | FEED ADJUST ROD | 1 |
| 2 | 110-09602 | FEED REGULATOR PIN | 1 |
| 3 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 4 | 110-09701 | FEED REGULATOR | 1 |
| 5 | 110-09800 | FEED REGULATOR BUSHING | 1 |
| 6 | SS-7120770-SH | SCREW | 1 |
| 7 | 110-09909 | FEED REGULATOR SCREW | 1 |
| 8 | B1148-555-000 | SPRING | 1 |
| 9 | 110-52701 | PIN | 1 |
| 10 | 110-37009 | FEED DIAL | 1 |
| 11 | SS-6120930-TP | SCREW 3/16-28 L=9.0 | 1 |
| 12 | 110-08208 | ROCKER SHAFT CONNECTING ROD | 1 |
| 13 | 110-09206 | WALKING FOOT PIN C | 1 |
| 14 | SS-6090620-SP | SCREW 9/64-40 L=6 | 1 |
| 15 | 110-14008 | CONNECTING ROD | 1 |
| 16 | RO-0922702-00 | RUBBER RING | 1 |
| 17 | 110-10303 | FEED REVERSE SPRING | 1 |
| 18 | RE-0500000-K0 | SNAP RING 5 | 1 |
| 19 | 110-10154 | FEED REVERSE ARM ASM. | 1 |
| 20 | 110-10402 | FEED REVERSE ARM SCREW | 1 |
| 21 | RE-0500000-K0 | SNAP RING 5 | 1 |
| 22 | 110-09404 | ADGUSTING LINK SPRING | 1 |
| 23 | 110-08901 | ADGUSTING LINK FULCRUM SHAFT B | 1 |
| 24 | 110-09008 | WALKING FOOT PIN A | 2 |
| 25 | 110-08703 | WALKING FOOT LINK | 2 |
| 26 | 110-08604 | CONNECTING LINK A | 2 |
| 27 | 111-00252 | FEED ADJUST LINK ASM. | 1 |
| 28 | 110-08802 | ADGUSTING LINK FULCRUM SHAFT A | 1 |
| 29 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 30 | SS-6090620-SP | SCREW 9/64-40 L=6 | 2 |
| 31 | 110-37207 | FEED BAR SHAFT | 1 |
| 32 | RC-1381001-KP | RETAINING RING | 1 |
| 33 | B1613-012-100 | FEED DOG I | 1 |
| 34 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 35 | 110-37355 | FEED BAR ASM. | 1 |
| 36 | 110-09305 | ADGUSTING LINK SPRING GUIDE | 1 |
| 37 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 38 | 110-11301 | FEED SPRING HOOK | 1 |
| 39 | 110-10808 | FEED ROCKER SHAFT | 1 |
| 40 | 110-09107 | WALKING FOOT PIN B | 1 |
| 41 | SS-6090620-SP | SCREW 9/64-40 L=6 | 1 |
| 42 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 43 | 110-08356 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 44 | SS-7121410-SP | SCREW 3/16-28 L=14 | (1) |
| 45 | 110-14156 | REAR CRANK ASM. | 1 |
| 46 | SS-6121210-SP | SCREW 3/16-28 L=12 | (1) |
| 47 | SD-1000801-SH | HINGE SCREW | 1 |
| 48 | 110-14206 | FEED DRIVING SHAFT | 1 |
| 49 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 50 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 51 | 110-10907 | FEED ROCKER SHAFT BUSHING | 1 |
| 52 | SS-8150432-TH | SCREW | 1 |
| 53 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC-1381001-KP | RETAINING RING | 1 |
| 55 | 110-37157 | FEED BAR CRANK ASM. | 1 |
| 56 | SS-7121410-SP | SCREW 3/16-28 L=14 | (1) |
| 57 | 110-14354 | DRIVING SHAFT CRANK ASM.,FRONT | 1 |
| 58 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | (1) |
| 59 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 60 | 110-10907 | FEED ROCKER SHAFT BUSHING | 1 |
| 61 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 62 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 63 | RO-0781901-00 | RUBBER RING | 1 |
| 64 | 110-10501 | FEED REVERSE SHAFT | 1 |
| 65 | 110-10709 | FEED LEVER METAL | 1 |
| 66 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 67 | SS-8661040-TP | SCREW 1/4-40 L=10 | 1 |
| 68 | 110-10600 | REVERSE FEED CONTROL LEVER | 1 |
| 69 | 110-09503 | FEED REGULATOR CONNCTING ROD | 1 |
| 70 | 110-08455 | WALKING FOOT ADJUSTING LINK | 1 |
Page 15 — 6. THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-40359 | KNIFE UNIT | 1 |
| 2 | SD-0460702-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 3 | 110-40508 | FORKED BASE FOR KNIFE | (1) |
| 4 | 110-40409 | MOVING KNIFE HINGE SCREW | (1) |
| 5 | 110-40052 | MOVING KNIFE ASM. | (1) |
| 6 | 110-40300 | KNIFE MOUNTING BASE | (1) |
| 7 | 110-40201 | THREAD GUIDE FOR KNIFE | (1) |
| 8 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 9 | D2404-555-BOO | COUNTER KNIFE SPACER | (1) |
| 10 | D2406-555-DOH | COUNTER KNIFE | (1) |
| 11 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 12 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 13 | 110-42553 | PICKER ARM ASM. | 1 |
| 14 | 110-42504 | PICKER ARM | (1) |
| 15 | 110-42652 | THREAD TAKE-UP PICKER ASM. | (1) |
| 16 | SS-6090510-SP | SCREW 9/64-40 L=5 | (2) |
| 17 | SD-0641451-SP | HINGE SCREW D= 6.35 H=14.5 | 1 |
| 18 | SD-0630275-SP | HINGE SCREW D= 6.35 H= 2.7 | 1 |
| 19 | 110-42850 | THREAD TRIMMER CAM ASM. | 1 |
| 20 | SS-6660610-TP | SCREW 1/4-40 L=6 | (2) |
| 21 | 110-42959 | CAM COLLAR ASM. | 1 |
| 22 | SS-8110520-TP | SCREW 11/64-40 L= 4.5 | (1) |
| 23 | 110-42264 | THREAD TRIMMER DRIVING UNIT | 1 |
| 24 | 110-42058 | BASE PLATE ASM. | (1) |
| 25 | 110-42751 | DRIVING ARM STOPPER ASM. | (1) |
| 26 | 110-42306 | PICKER LINK PIN | (1) |
| 27 | RE-0800000-KO | SNAP RING 8 | (1) |
| 28 | SS-4110715-SP | SCREW 11/64-40 L=7 | (2) |
| 29 | 110-41704 | CLUTCH SPRING | (1) |
| 30 | 110-41852 | CLUTCH PLATE ASM. | (1) |
| 31 | 110-42405 | PICKER LINK | (1) |
| 32 | WP-0621016-SH | WASHER | (2) |
| 33 | NS-6150430-SP | NUT 15/64-28 | (2) |
| 34 | RE-0600000-KO | SNAP RING 6 | (1) |
| 35 | 110-40607 | MOVING KNIFE LINK | (1) |
| 36 | RE-0500000-KO | SNAP RING 5 | (1) |
| 37 | 110-40706 | MOVING KNIFE LINK PIN | (1) |
| 38 | 110-43700 | KNIFE RETURN SPRING, B | (1) |
| 39 | RE-0400000-KO | SNAP RING 4 | (2) |
| 40 | 110-41407 | ROLLER FULCRUM SHAFT | (1) |
| 41 | 110-41506 | ROLLER RETURN SPRING | (1) |
| 42 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 43 | 110-41308 | ROLLER ARM BRACKET | (1) |
| 44 | 110-40953 | ROLLER ARM ASM. | (1) |
| 45 | 110-40854 | KNIFE DRIVING ARM ASM. | (1) |
| 46 | RE-0800000-KO | SNAP RING 6 | (1) |
| 47 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 48 | SD-0640702-TH | HINGE SCREW | 1 |
| 49 | 110-43353 | SOLENOID UNIT | 1 |
| 50 | 110-42207 | CLUTCH LINK | (1) |
| 51 | RE-0500000-KO | SNAP RING 5 | (1) |
| 52 | 110-43205 | SOLENOID RUBBER A | (1) |
| 53 | 110-43106 | THREAD TRIMMER SOLENOID | (1) |
| 54 | 110-43403 | SOLENOID BASE | (1) |
| 55 | WP-0450000-SD | WASHER 4.5X8X0.5 | (2) |
| 56 | NM-6040000-SN | NUT M4 | (2) |
| 57 | 110-43304 | SOLENOID RUBBER B | (1) |
| 58 | NS-6660410-SH | NUT | (1) |
| 59 | NS-6660430-SP | NUT 1/4-40 | (1) |
| 60 | 110-43007 | SOLENOID PIN | (1) |
| 61 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 62 | SD-0600361-SP | HINGE SCREW | 1 |
| 63 | SS-4151215-SP | SCREW | 2 |
| 64 | 110-21706 | TUBE HOLDER (LOWER) | 1 |
| 65 | 110-43551 | GROUND WIRE ASM. | 1 |
| 66 | D6043-555-BOO | PIN TERMINAL, MALE | 2 |
| 67 | M9637-110-000 | 12-POLE PLUG COVER | 1 |
| 68 | M9640-110-000 | 12-POLE PLUG | 1 |
Page 16 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111-02050 | REVERSE FEED SWITCH ASM. | 1 |
| 2 | 111-02506 | REVERSE FEED SWITCH LEVER | (1) |
| 3 | SS-4110615-SP | SCREW 11/64-40 L=6 | (1) |
| 4 | 111-02001 | REVERSE FEED SWITCH BASE | (1) |
| 5 | 111-02100 | REVERSE FEED SWITCH SHAFT | (1) |
| 6 | 111-02209 | REVERSE FEED SWITCH SPRING | (1) |
| 7 | SS-4111815-SP | SCREW | (1) |
| 8 | SM-4031501-SC | SCREW | (2) |
| 9 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.5) |
| 10 | D6043-555-B00 | PIN TERMINAL, MALE | (2) |
| 11 | HA-0017000-00 | REVERSE FEED SWITCH | (1) |
| 12 | 111-02308 | REVERSE FEED SWITCH PLATE | (1) |
| 13 | 111-02407 | REVERSE FEED SWITCH LEVER | (1) |
| 14 | RE-0500000-KO | SNAP RING 5 | 2 |
| 15 | 111-01300 | REVERSE FEED CONNECTING SHAFT | 1 |
| 16 | RE-0900000-KO | SNAP RING 9.0 | 1 |
| 17 | 111-01151 | CONNECTING ARM ASM. | 1 |
| 18 | RE-0400000-KO | SNAP RING 4 | 1 |
| 19 | 111-01409 | REVERSE FEED CONNECTING LINK | 1 |
| 20 | RE-1200000-KO | SNAP RING 12 | 1 |
| 21 | WP-1602616-SZ | WASHER 16X24X2.6 | 1 |
| 22 | D2468-555-B00 | RUBBER PLUNGER | 1 |
| 23 | RE-0400000-KO | SNAP RING 4 | 2 |
| 24 | 111-01003 | PLUNGER ARM PIN | 1 |
| 25 | 111-00757 | REVERSE FEED MAGNET ASM. | 1 |
| 26 | SS-4151215-SP | SCREW | 2 |
| 27 | SS-4120915-SP | SCREW 12/64-28 L=9 | 2 |
Page 17 — ワイパー関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111-10053 | WIPER SOLENOID ASM. | 1 |
| 2 | 111-11408 | WIPER COVER | (1) |
| 3 | SM-4030601-SN | SCREW M3X0.5 L=6 | (1) |
| 4 | SD-0650321-TP | HINGE SCREW | (1) |
| 5 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 6 | 111-10608 | WIPER LINK A | (1) |
| 7 | 111-10905 | CONNECTING LINK | (1) |
| 8 | RE-0250000-KO | SNAP RING 2.5 | (1) |
| 9 | 111-11507 | WIPER LINK B, HINGE SCREW | (1) |
| 10 | 111-10707 | WIPER HINGE SCREW COLLAR | (1) |
| 11 | 111-10806 | WIPER SPRING | (1) |
| 12 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 13 | 111-10400 | WIPER RUBBER A | (1) |
| 14 | 111-10509 | WIPER RUBBER B | (1) |
| 15 | 111-10301 | WIPER SOLENOID | (1) |
| 16 | 111-11705 | WIPER SOLENOID PIN | (2) |
| 17 | HA-0005900-00 | POWER SOURCE SWITCH ASM. | (1) |
| 18 | HW-2003900-00 | ELECTRIC WIRE | (1) |
| 19 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.5) |
| 20 | 111-10152 | WIPER BASE ASM. | (1) |
| 21 | WS-0310002-KN | SPRING WASHER 3.1X5.9X0.7 | (1) |
| 22 | SM-4030601-SN | SCREW M3X0.5 L=6 | (3) |
| 23 | D6043-555-B00 | PIN TERMINAL, MALE | (2) |
| 24 | 111-11606 | WIPER | (1) |
| 25 | SS-6090540-SP | SCREW 9/64-40 L= 5.0 | (1) |
| 26 | 111-11309 | BRACKET INSTALLING COLLAR | (1) |
| 27 | RE-0500000-KO | SNAP RING 5 | (1) |
| 28 | 111-11051 | WIPER DRIVING SHAFT ASM. | (1) |
| 29 | 111-11804 | WIPER LINK COLLAR | (2) |
| 30 | CS-030071A-SP | THRUST COLLAR ASM. | (1) |
| 31 | SS-6080310-SP | SCREW 1/8-44 L= 2.5 | (2) |
| 32 | SS-4120915-SP | SCREW 12/64-28 L=9 | 2 |
| 33 | WP-0482086-SD | WASHER 4.8X11.5X2.0 | 1 |
Page 19 — 9. OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-46505 | OIL SIGHT WINDOW | 1 |
| 2 | RO-1952401-00 | RUBBER RING | 1 |
| 3 | 110-21201 | MAIN SHAFT OIL TUBE | 1 |
| 4 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 5 | B3529-226-000 | OIL FELT PRESSER | 1 |
| 6 | 110-21151 | OIL RETURN TUBE ASM. | 1 |
| 7 | 110-21805 | OIL RETURN TUBE HOLDER | (1) |
| 8 | CQ-2520000-00 | OIL WICK | 0.3 |
| 9 | B3514-412-000 | OIL ADJUSTING SCREW | 1 |
| 10 | B2616-372-000 | SPRING | 1 |
| 11 | 110-21300 | OIL TUBE | 1 |
| 12 | 110-20054 | LUBRICATING OIL PUMP ASM. | 1 |
| 13 | 110-20302 | OIL PUMP INSTALLING BASE | (1) |
| 14 | 110-20005 | OIL PUMP | (1) |
| 15 | 110-20708 | OIL PUMP IMPELLER | (1) |
| 16 | SE-4301041-SR | SCREW | (3) |
| 17 | 110-20203 | LUBRICATING OIL PUMP COVER | (1) |
| 18 | 110-20807 | OIL PUMP IMPELLER COVER | (1) |
| 19 | 110-20401 | PLUNGER | (1) |
| 20 | 110-20609 | PLUNGER SPRING | (1) |
| 21 | 110-20500 | PLUNGER SCREW | (1) |
| 22 | 110-20906 | HOOK DRIVING SHAFT OIL TUBE | (1) |
| 23 | SL-4030851-SF | SCREW | (3) |
| 24 | SS-6111010-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 25 | 111-00609 | OIL PUMP SUPPORT | 1 |
| 26 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 27 | 110-21409 | RUBBER JOINT | 1 |
| 28 | 110-21003 | OIL PUMP SUPPORT | 1 |
Page 21 — 10. OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-47057 | OIL RESERVOIR ASM. | 1 |
| 2 | 110-23009 | OIL RESERVOIR | (1) |
| 3 | 110-23108 | GASKET | (1) |
| 4 | 110-47107 | RUBBER CUSHION | (4) |
| 5 | SS-6700710-SH | SCREW | (1) |
| 6 | RO-0982401-00 | RUBBER RING | (1) |
| 7 | 110-24007 | CONNECTING ROD, VERTICAL | (1) |
| 8 | 110-24106 | SPRING | (1) |
| 9 | RE-1000000-KO | SNAP RING 10.0 | (1) |
| 10 | 110-24502 | KNEE PRESS LOD BEARING BRACKET | (1) |
| 11 | SS-9182010-SN | SCREW 9/32-20 L=20 | (2) |
| 12 | NS-6150430-SR | NUT 15/64-28 | (2) |
| 13 | SS-8153010-SR | SCREW 15/64-28 L=30 | (2) |
| 14 | SS-9151610-SR | SCREW 15/64-28 L=16 | (1) |
| 15 | 110-24205 | KNEE PRESS ROD | (1) |
| 16 | 110-23751 | KNEE PRESS PLATE ASM. | 1 |
| 17 | B3431-552-000-A | KNEE PRESS PLATE COVER | (1) |
| 18 | B3419-122-000 | KNEE LIFTER PLATE ROD | (1) |
| 19 | 110-24403 | RUBBER | (1) |
| 20 | 110-23702 | KNEE PRESS PLATE | (1) |
| 21 | 110-23801 | KNEE PRESS PLATE HOLDER | (1) |
| 22 | SS-9151540-SR | SCREW 15/64-28 L=15 | (1) |
| 23 | 110-24304 | KNEE PRESS LIFTER ROD | 1 |
Page 22 — 11. BELT COVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-23363 | BELT COVER ASM. | 1 |
| 2 | 110-23355 | BELT COVER ASM. | (1) |
| 3 | 110-23306 | BELT COVER A | (1) |
| 4 | 110-47354 | BELT COVER SET SCREW ASM. | (2) |
| 5 | WP-0820526-SD | WASHER 8.2X14X0.5 | (2) |
| 6 | 110-47305 | BELT COVER RUBBER CUSHION | (2) |
| 7 | 110-23405 | BELT COVER B | (1) |
| 8 | 110-23504 | BELT COVER SUPPORT | (1) |
| 9 | SS-7120640-SP | SCREW 3/16-28 L=6 | (1) |
| 10 | 110-47255 | BELT COVER COLLAR ASM. | (2) |
| 11 | D3201-555-DAO | BOBBIN WINDER ASM. | (1) |
| 12 | D3213-555-DAO | THREAD TENSION BRACKET ASM. | (1) |
| 13 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 14 | B3126-012-000 | TENSION DISC | (2) |
| 15 | B3129-012-B00 | TENSION SPRING B | (1) |
| 16 | B3125-012-000 | THREAD TENSION STUD NUT | (1) |
| 17 | SS-7110350-SP | SCREW 11/64-40 L=3 | (1) |
| 18 | B3212-555-000 | PRESSER PLATE | (1) |
| 19 | B3211-555-000 | RUBBER BRAKE | (1) |
| 20 | B3209-555-000 | POSITIONING FINGER | (1) |
| 21 | SD-0490261-SP | HINGE SCREW D=4.9 H=2.6 | (1) |
| 22 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 23 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 24 | SK-3482500-SC | WOOD SCREW D=4.8 L=25 | (2) |

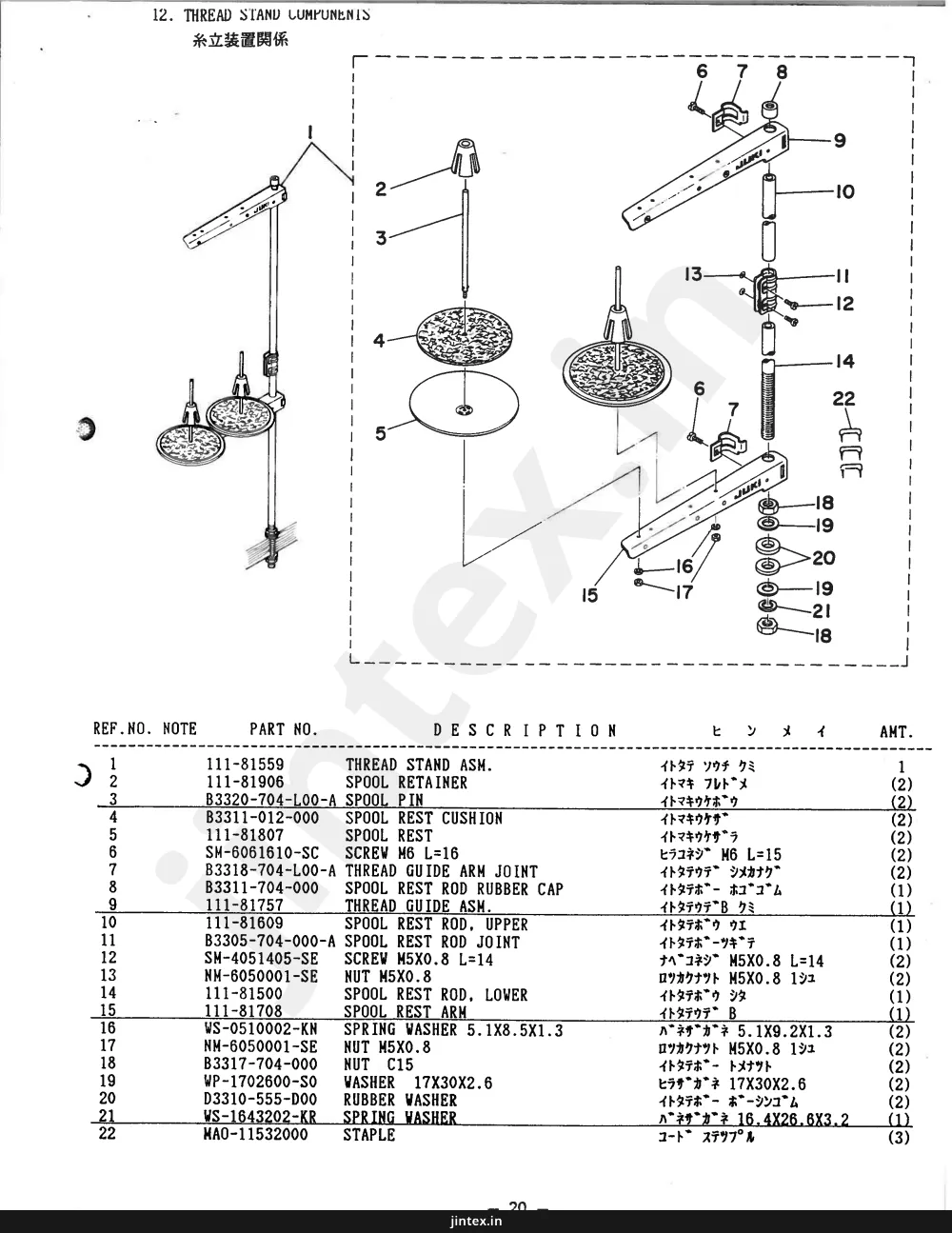

Page 23 — 12. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111-81559 | THREAD STAND ASM. | 1 |
| 2 | 111-81906 | SPOOL RETAINER | (2) |
| 3 | B3320-704-L00-A | SPOOL PIN | (2) |
| 4 | B3311-012-000 | SPOOL REST CUSHION | (2) |
| 5 | 111-81807 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | B3318-704-L00-A | THREAD GUIDE ARM JOINT | (2) |
| 8 | B3311-704-000 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 111-81757 | THREAD GUIDE ASM. | (1) |
| 10 | 111-81609 | SPOOL REST ROD, UPPER | (1) |
| 11 | B3305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5X0.8 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5X0.8 | (2) |
| 14 | 111-81500 | SPOOL REST ROD, LOWER | (1) |
| 15 | 111-81708 | SPOOL REST ARM | (1) |
| 16 | WS-0510002-KN | SPRING WASHER 5.1X8.5X1.3 | (2) |
| 17 | NM-6050001-SE | NUT M5X0.8 | (2) |
| 18 | B3317-704-000 | NUT C15 | (2) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
| 20 | D3310-555-D00 | RUBBER WASHER | (2) |
| 21 | WS-1643202-KR | SPRING WASHER | (1) |
| 22 | MAO-11532000 | STAPLE | (3) |
Page 25 — 13. AK-30 (PRESSER LIFTING SOLENOID COMPONENTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | GAK-300060D0 | PRESSER LIFTING SOLENOID ASM. | 1 |
| 2 | GAK-300060B0 | OIL RESERVOIR ASM. | (1) |
| 3 | GAK-300070B0 | PRESSER LIFTING SOLENOID ASM. | (1) |
| 4 | GAK-01019000 | KNUCLE | (1) |
| 5 | NM-6100663-SE | NUT M10 | (1) |
| 6 | RE-1200000-KO | SNAP RING 12 | (1) |
| 7 | GAK-01018000 | THRUST WASHER | (2) |
| 8 | GAK-30013000 | SPRING | (1) |
| 9 | GAK-30012000 | SOLENOID INSTALLING BRACKET B | (1) |
| 10 | GAK-300070A0 | PRESSER LIFTING SOLENOID ASM. | (1) |
| 11 | GAK-30011000 | SOLENOID INSTALLING BRACKET A | (1) |
| 12 | SM-4051001-SB | SCREW M5X0.8 L=10 | (4) |
| 13 | WS-0511302-KB | SPRING WASHER M5 | (4) |
| 14 | SM-4030801-SB | SCREW M3 L=8 | (1) |
| 15 | WS-0310702-KS | SPRING WASHER | (1) |
| 16 | GAK-01016000 | CORD HOLDER | (1) |
| 17 | GAK-020210A0 | PRESSER LIFTING CORD ASM. | (1) |
| 18 | SM-4030801-SB | SCREW M3 L=8 | (2) |
| 19 | WS-0310702-KS | SPRING WASHER | (2) |
| 20 | GAK-01014000 | 2POLE RECEPTACLE INSTALLING BASE | (1) |
| 21 | WS-0511302-KB | SPRING WASHER M5 | (4) |
| 22 | SM-4051001-SB | SCREW M5X0.8 L=10 | (4) |
| 23 | HG-2674014-7P | DIODE IN5625 | (1) |
| 24 | SM-4030801-SB | SCREW M3 L=8 | (2) |
| 25 | WS-0310702-KS | SPRING WASHER | (2) |
| 26 | HR-0036010-00 | RESISTOR 10 OHM 20W | (1) |
| 27 | HW-2F18S12-12 | STRANDED WIRE, RED | (0.1) |
| 28 | GAK-01015000 | 2POLE TERMINAL BLOCK | (1) |
| 29 | GAK-30016000 | COVER | (1) |
| 30 | WP-0330501-SB | WASHER M3 | (2) |
| 31 | WS-0310702-KS | SPRING WASHER | (2) |
| 32 | SM-4031401-SB | SCREW M3 L=14 | (2) |
| 33 | WP-0330500-MB | WASHER 3.3X6X0.5 | (2) |
| 34 | WS-0310702-KS | SPRING WASHER | (2) |
| 35 | SM-4030801-SB | SCREW M3 L=8 | (2) |
| 36 | GAK-300060A0 | OIL RESERVOIR ASM. | (1) |
| 37 | 110-47107 | RUBBER CUSHION | (4) |
| 38 | 110-23108 | GASKET | (1) |
| 39 | GAK-30006000 | OIL RESERVOIR | (1) |
| 40 | SS-6700710-SH | SCREW | (1) |
| 41 | RO-0982401-00 | RUBBER RING | (1) |
| 42 | MAO-12002000 | PEDAL SWITCH FRAME STUD | (2) |
| 43 | GAK-01004000 | LEVER CONNECTING ROD | (1) |
| 44 | GAK-01003B00 | PRESSER LIFTER STOPPER B | (2) |
| 45 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | (2) |
| 46 | CS-1111019-SH | THRUST COLLAR D=11.11 W=10 | (1) |
| 47 | GAK-30015000 | PRESSER LIFTING LEVER | (1) |
| 48 | SS-7151210-SP | SCREW 15/64-28 L=12 | (1) |
| 49 | NM-6060003-SC | NUT M6 | (2) |
| 50 | RE-0320000-K0 | SNAP RING 3.2 | (4) |
| 51 | RE-1000000-KO | SNAP RING 10.0 | (3) |
| 52 | GAK-30014000 | PRESSER LIFTING SHAFT | (1) |
| 53 | WP-0621016-SD | WASHER 6.2X13X1 | (2) |
| 54 | GAK-30005000 | SPRING | (1) |
| 55 | GAK-300010B0 | KNEE PRESS LIFTER ROD ASM. | (1) |
| 56 | GAK-30004000 | KNEE PRESS LIFTER ROD | (1) |
| 57 | RE-0400000-KO | SNAP RING 4 | (1) |
| 58 | SK-3514000-SC | WOOD SCREW D=5.1 L=40 | (2) |
| 59 | WP-0570716-SE | WASHER | (2) |
| 60 | GAK-010220B0 | LIFTER KNEE SWITCH ASM. B | (1) |
| 61 | MAT-80230T00 | KNEE SWITCH SUPPORT BASE | (2) |
| 62 | MAT-80231T00 | DRIVING BAR, T002 | (1) |
| 63 | GAK-010220A0 | KNEE SWITCH ASM. | (1) |
| 64 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | (4) |
| 65 | SS-7111410-SP | SCREW 11/64-40 L=14 | (2) |
| 66 | SK-3514000-SC | WOOD SCREW D=5.1 L=40 | (2) |
Page 27 — 14. EXCLUSIVE PARTS FOR DDL-5550H-6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-93366 | THREAD TRIMMER DRIVING ASM. | 1 |
| 2 | 110-93556 | DRIVING ARM STOPPER ASM. | (1) |
| 3 | 110-93358 | ROLLER ARM ASM. | (1) |
| 4 | 110-93408 | ROLLER ARM HOLDER | (1) |
| 5 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) |
| 6 | 110-93168 | KNIFE MOUNTING BASE ASM. | 1 |
| 7 | 110-93259 | MOVING KNIFE ASM. | (1) |
| 8 | 110-93101 | KNIFE MOUNTING BASE | (1) |
| 9 | D2407-415-D00 | THREAD GUIDE, LOWER | (1) |
| 10 | 110-93655 | THREAD TENSION ASM. | 1 |
| 11 | 110-93606 | THREAD TENSION SPRING | (1) |
| 12 | 110-93754 | THREAD TENSION ASM. | 1 |
| 13 | B3114-232-000 | TENSION SPRING, NO.2 | (1) |
| 14 | 110-91659 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 15 | 110-91600 | NEEDLE BAR CRANK H | (1) |
| 16 | B1511-543-0A0 | PRESSER FOOT ASM. | 1 |
| 17 | B1511-543-BA0 | PRESSER FOOT ASM. | 1 |
| 18 | B1511-543-BB0 | PRESSER FOOT ASM. | 1 |
| 19 | B1109-555-H0B | THROAT PLATE (H) | 1 |
| 20 | B1613-555-H00 | FEED DOG (H) | 1 |
| 21 | D1830-415-BAH | SEWING HOOK ASM. | 1 |
| 22 | 110-93804 | POSITIONING FINGER H | 1 |
| 23 | MDB-100B2200 | NEEDLE DBX1 #22 | 1 |
| 24 | 110-91501 | NEEDLE BAR THREAD GUIDE H | 1 |
| 25 | 110-91402 | NEEDLE BAR LOWER BUSHING | 1 |
| 26 | B1419-553-000 | NEEDLE BAR THREAD GUIDE | 1 |
| 27 | 110-91303 | NEEDLE BAR | 1 |
| 28 | B1505-552-000-A | PRESSER SPRING | 1 |
| 29 | 110-91105 | ARM THREAD GUIDE (HB) | 1 |
| 30 | 110-91006 | ARM THREAD GUIDE (HA) | 1 |
| 31 | 110-10006 | FEED DIAL | 1 |
| 32 | 110-91204 | ADJUST LINK SPRING | 1 |
| 33 | 110-91907 | FEED SPRING HOOK | 1 |
| 34 | B1808-560-000 | OIL WICK | 1 |
| 35 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 36 | 110-93903 | FEED LEVER SHAFT | 1 |
Page 28 — 15. EXCLUSIVE PARTS FOR DDL-5550A-6 専用部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-91857 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 2 | 110-91808 | NEEDLE BAR CRANK A | (1) |
| 3 | D1524-555-DAO | PRESSER FOOT ASM. | 1 |
| 4 | D1109-555-DOI | THROAT PLATE I D=1.6 | 1 |
| 5 | B1613-012-I00 | FEED DOG I | 1 |
| 6 | B9117-552-A00 | BOBBIN | 1 |
| 7 | B1837-012-0A0 | BOBBIN CASE ASM. | 1 |
| 8 | B1505-227-T00-A | PRESSER SPRING T | 1 |
| 9 | MDA-100B1100 | NEEDLE DAX1 #11 | 1 |
| 10 | MDA-100B0900 | NEEDLE DAX1 #9 | 1 |
| 11 | 110-92053 | THREAD TENSION ASM. | 1 |
| 12 | D3128-555-D00 | TAKE-UP SPRING | (1) |
| 13 | D3129-555-D00 | THREAD TENSION SPRING | 1 |
Page 31 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | 110-47305 | 6 | |
| 19 | 110-47354 | 4 | |
| 10 | 110-52701 | 9 | |
| 24 | 110-91006 | 30 | |
| 24 | 110-91105 | 29 | |
| 24 | 110-91204 | 32 | |
| 24 | 110-91303 | 27 | |
| 24 | 110-91402 | 25 | |
| 24 | 110-91501 | 26 | |
| 24 | 110-91600 | 15 | |
| 24 | 110-91659 | 14 | |
| 25 | 110-91808 | 2 | |
| 25 | 110-91857 | 1 | |
| 24 | 110-91907 | 33 | |
| 25 | 110-92053 | 11 | |
| 24 | 110-93101 | 8 | |
| 24 | 110-93168 | 7 | |
| 24 | 110-93259 | 7 | |
| 24 | 110-93358 | 3 | |
| 24 | 110-93366 | 1 | |
| 24 | 110-93408 | 4 | |
| 24 | 110-93556 | 8 | |
| 24 | 110-93606 | 11 | |
| 24 | 110-93655 | 10 | |
| 24 | 110-93754 | 12 | |
| 24 | 110-93804 | 22 | |
| 24 | 110-93903 | 30 | |
| 10 | 111-00252 | 27 | |
| 10 | 111-00401 | 11 | |
| 2 | 111-00500 | 18 | |
| 16 | 111-00609 | 25 | |
| 13 | 111-00757 | 25 | |
| 13 | 111-01003 | 24 | |
| 13 | 111-01151 | 17 | |
| 13 | 111-01300 | 19 | |
| 13 | 111-01409 | 19 | |
| 13 | 111-02001 | 4 | |
| 13 | 111-02050 | 1 | |
| 13 | 111-02100 | 5 | |
| 13 | 111-02209 | 6 | |
| 13 | 111-02308 | 12 | |
| 13 | 111-02407 | 13 | |
| 13 | 111-02506 | 2 | |
| 2 | 111-02605 | 9 | |
| 14 | 111-10053 | 1 | |
| 14 | 111-10152 | 20 | |
| 14 | 111-10301 | 15 | |
| 14 | 111-10400 | 13 | |
| 14 | 111-10509 | 14 | |
| 14 | 111-10608 | 6 | |
| 14 | 111-10707 | 10 | |
| 14 | 111-10806 | 4 | |
| 14 | 111-10905 | 1 | |
| 14 | 111-11051 | 28 | |
| 14 | 111-11309 | 26 | |
| 14 | 111-11408 | 2 | |
| 14 | 111-11507 | 9 | |
| 14 | 111-11606 | 24 | |
| 14 | 111-11705 | 16 | |
| 14 | 111-11804 | 29 | |
| 6 | 111-41355 | 40 | |
| 20 | 111-81500 | 14 | |
| 20 | 111-81559 | 1 | |
| 20 | 111-81609 | 10 | |
| 20 | 111-81708 | 15 | |
| 20 | 111-81757 | 9 | |
| 20 | 111-81807 | 5 | |
| 20 | 111-81906 | 2 |
Juki DDL-5550-6 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI 1-Needle Lockstitch Industrial Sewing Machine, model DDL-5550-6 Series, equipped with an Automatic Thread Trimmer. It is a parts list.
- Page 2 (text): This page explains how to use the parts list, including codes for part changes and how to order spare parts.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing sections like 'MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS' and 'MAIN SHAFT COMPONENTS' with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for identification.
- Page 5 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It also contains notes regarding specific models.
- Page 6 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for an industrial sewing machine, including screws, bearings, shafts, and other components, with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of needle bar and hook driving shaft components, with numbered parts for identification.
- Page 9 (parts_list): This page contains a parts list for a sewing machine, detailing various components with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of hand lifter components, illustrating various parts with reference numbers.
- Page 11 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, and quantities for various components. It includes a note regarding compatibility with DDL-5550-6 and 5550-6-W0 models.
- Page 12 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for DDL-5550-6-0B, 5550-6-WB, and 5550-6-W0 models, including feed adjust rods, regulator pins, screws, springs, and various connecting rods and links.
- Page 14 (diagram): This page displays a diagram of thread trimmer components, including various screws, brackets, levers, and springs, with reference numbers for each part.
- Page 15 (parts_list): This page lists parts for a sewing machine, including various screws, nuts, springs, and specialized components like knife units and solenoids, with their corresponding part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of automatic reverse feed components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of wiper components, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts indicated for reference.
- Page 19 (parts_list): This page contains a parts list for oil sight window, rubber ring, main shaft oil tube, screws, oil felt presser, oil return tube assembly, oil return tube holder, oil wick, oil adjusting screw, spring, oil tube, lubricating oil pump assembly, oil pump installing base, oil pump, oil pump impeller, screw, lubricating oil pump cover, oil pump impeller cover, plunger, plunger spring, plunger screw, hook driving shaft oil tube, screw, oil pump support, screw, rubber joint, and oil pump support.
- Page 20 (diagram): This page displays a diagram of oil reservoir components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for an industrial sewing machine, including oil reservoir assemblies, gaskets, rubber cushions, screws, rings, connecting rods, springs, snap rings, bearing brackets, nuts, and plates. It provides part numbers, descriptions, and quantities.
- Page 22 (parts_list): This page lists belt cover and bobbin winder components, including part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page lists components for the thread stand, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of AK-30 (Presser Lifting Solenoid Components) with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities, with entries ranging from GAK-300060D0 to SK-3514000-SC.
- Page 26 (diagram): This page displays a diagram of exclusive parts for the DDL-5550H-6 sewing machine, with various components numbered for identification.
- Page 27 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities, with notes for export and domestic use.
- Page 28 (parts_list): This page lists exclusive parts for the DDL-5550A-6 sewing machine, including part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 32 (unknown): This page contains a watermark and a page number, but no other discernible content.
