Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211061 | AK COVER 8A | 1 |
| 2 | SM4051055SP | SCREW | 6 |
| 3 | 40211078 | FACE_COVER | 1 |
| 4 | 22902506 | PLATE | 1 |
| 5 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 6 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 7 | SL4041491SC | SCREW 4 X 14 | 3 |
| 8 | 40172376 | THREAD_TAKE_UP_COVER | 1 |
| 9 | SM4051055SP | SCREW | 1 |
| 10 | SL4052591SC | SCREW | 1 |
| 11 | 40099083 | RULER STOP SEAT | 1 |
| 12 | SS7110720SP | SCREW 11/64-40 L=7 | 1 |
| 13 | 40214746 | BED BRACKET A | 1 |
| 14 | SM6060802TP | SCREW M6 L=8 | 2 |
| 15 | 40211076 | BED BRACKET B | 1 |
| 16 | SM6061002TP | SCREW M6 L=10 | 2 |
| 17 | SS2110920TP | SCREW 11/64-40 L=8.5 | 2 |
| 18 | 40213295 | SAFETY LABEL S N | 1 |
| 19 | CM300200001 | FINGER INJURY CAUTION LABLE (16) | 2 |
| 20 | 22901250 | SLIDE PLATE ASM. | 1 |
| 21 | 22901201 | SLIDE PLATE | 1 |
| 22 | 22901300 | SLIDE PLATE SPRING | 1 |
| 23 | SS6060210SP | SCREW 3/32-56 L=1.9 | 2 |
| 24 | NM6040001SC | NUT M4X0.7 TYPE1 | 1 |
| 25 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 26 | SM5040655SN | SCREW | 1 |
| 27 | 23626104 | ARM THREAD GUIDE A | 1 |
| 28 | 22945463 | THREAD TENSION ASM. ,NO.1 | 1 |
| 29 | 22945414 | THREAD TENSION POST | 1 |
| 30 | 22945505 | THREAD TENSION SPRING | 1 |
| 31 | 22945604 | THREAD TENSION GUIDE | 1 |
| 32 | 22945703 | THREAD TENSION NUT | 1 |
| 33 | 22945802 | THREAD TENSION DISK | 2 |
| 34 | 40174373 | THREAD NIPPER SOLENOID | 1 |
| 35 | 40174392 | ARM_CAP | 1 |
| 36 | SM8040612TP | SCREW M4 L=6 | 1 |
| 37 | 40052933 | ARM THREAD GUIDE C | 1 |
| 38 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 39 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 40 | 22945356 | THREAD TENSION ASM. | 1 |
| 41 | 22945307 | THREAD TENSION POST BASE | 1 |
| 42 | 22921209 | THREAD TENSION POST | 1 |
| 43 | 22921308 | THREAD TENSION NUT | 1 |
| 44 | 22921407 | ROTATION STOPPER | 1 |
| 45 | 22921506 | THREAD TENSION DISK | 2 |
| 46 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 47 | 22921704 | THREAD TENSION SPRING | 1 |
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22921803 | DISK STOPPER | 1 |
| 49 | SS8090670SP | SCREW 9/64-40 L=5.5 | 1 |
| 50 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 1 |
| 51 | 40009037 | TAKE-UP THREAD GUIDE | 1 |
| 52 | SL4041281SC | SCREW M4X0.7 L=12 | 1 |
| 53 | NM6040001SC | NUT M4X0.7 TYPE1 | 1 |
| 54 | B1109552000 | THROAT PLATE | 1 |
| 55 | SL4051691SC | SCREW M5X0.8 L=16 | 3 |
| 56 | 40136258 | CORD_HOLDER | 1 |
| 57 | 40091461 | FEED_LEVER_SPRING_HOOK | 1 |
| 58 | 40174322 | CORD_CLAMP_BUSH | 1 |
| 59 | 22901805 | GROUND MARK | 1 |
| 60 | SM4050855SP | SCREW | 1 |
| 61 | WT0530002KS | TOOTHED WASHER D=5.3 | 1 |
Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40191107 | BOBBIN_WINDER_UNIT_N | 1 |
| 2 | 22891204 | BEARING SUPPORT | 1 |
| 3 | 40166870 | WASHER | 1 |
| 4 | 40166872 | BOBBIN_SUPPORT | 1 |
| 5 | 40166881 | BOBBIN_FIXED_SPRING | 1 |
| 6 | 40166885 | BOBBIN_PRESSER_CAM | 1 |
| 7 | 40166886 | BOBBIN_WINDER_LEVER | 1 |
| 8 | 40166887 | BOBBIN_WINDER_LEVER_SPRING | 1 |
| 9 | 40166888 | SPRING | 1 |
| 10 | 40166893 | STOPPER_RUBBER | 1 |
| 11 | 40166894 | O_RING | 1 |
| 12 | 40191108 | BTW_BASE_N | 1 |
| 13 | 40191109 | BOBBIN_WINDER_SHAFT_N | 1 |
| 14 | 40191111 | BOBBIN_WINDER_ARM_SHAFT_N | 1 |
| 15 | 40191113 | BOBBIN_WINDER_WHEEL_N | 1 |
| 16 | 40191114 | BTW_WHEEL_RUBBER_N | 1 |
| 17 | 40191115 | BOBBIN_PRESSER_N | 1 |
| 18 | 40191116 | BOBBIN_WINDER_SUPPORT_N_ASM. | 1 |
| 19 | RE0500000K0 | E-RING | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040412TP | SET SCREW M4 L=4 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | ST4030651SN | SCREW M3 X 6 | 1 |
| 24 | SM0050801SC | SCREW | 2 |
| 25 | 40088958 | BOBBIN THREAD TENSION ASM. | 1 |
| 26 | 40088959 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 27 | 22921308 | THREAD TENSION NUT | 1 |
| 28 | 22921407 | ROTATION STOPPER | 1 |
| 29 | 22921506 | THREAD TENSION DISK | 2 |
| 30 | 22921704 | THREAD TENSION SPRING | 1 |
| 31 | SM4051055SP | SCREW | 1 |
| 32 | 40037008 | THREAD_CUTTER | 1 |
| 33 | SM0050801SC | SCREW | 1 |
Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23608003 | NEEDLE BAR METAL,UPPER | 1 |
| 2 | 22901409 | NEEDLE BAR UPPER BUSH CAP | 1 |
| 3 | 22906457 | NEEDLE BAR HOLDER ASM. | 1 |
| 4 | 22906408 | NEEDLE ROD HOLDER | 1 |
| 5 | SS6090670TP | SCREW 9/64-40 L=6 | 1 |
| 6 | 40090058 | SLIDE BLOCK | 1 |
| 7 | 22887004 | NEEDLE BAR (B) | 1 |
| 8 | 22886907 | NEEDLE BAR (A) | 1 |
| 9 | 40086605 | NEEDLE_BAR_LOWER_METAL_MD | 1 |
| 10 | 40136292 | BTW_DRIVING_WHEEL_ASM. | 1 |
| 11 | 40136293 | BTW_DRIVING_WHEEL | 1 |
| 12 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 13 | 40150011 | FRONT_BEARING | 1 |
| 14 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 15 | 40135904 | ASSY_COUNTER WEIGHT | 1 |
| 16 | 40135916 | COUNTER WEIGHT | 1 |
| 17 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 18 | SM8081652TP | SCREW M8 L=16 | 1 |
| 19 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 20 | 40086597 | MAIN_SHAFT | 1 |
| 21 | 40172398 | COUPLING_ASM. | 1 |
| 22 | 40172393 | COUPLING | 1 |
| 23 | SM80608A2TP | SCREW M6 L=8 | 4 |
| 24 | SB120002700 | BEARING | 1 |
| 25 | 40215866 | HAND_WHEEL | 1 |
| 26 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 27 | 40211082 | AC SERVO MOTOR | 1 |
| 28 | SL6052592TN | BOLT | 4 |
| 29 | EA9500B0100 | CABLE BAND | 1 |
| 30 | 40174341 | THREAD_TAKE_UP_COMP. | 1 |
| 31 | 40135905 | THREAD_TAKE_UP_ASM._C | 1 |
| 32 | 40174342 | TAKE_UP_CRANK_ASM. | 1 |
| 33 | 40174343 | TAKE_UP_CRANK | 1 |
| 34 | 40174344 | TAKE_UP_CRANK_SHAFT | 1 |
| 35 | 40135907 | THREAD_TAKE_UP_PIN | 1 |
| 36 | RE0300000K0 | E-RING 3 | 2 |
| 37 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 38 | 40032269 | THRUST COLLAR | 1 |
| 39 | CS1000881TP | THRUST COLLAR | 1 |
| 40 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 41 | SM4050855SP | SCREW | 1 |
| 42 | MC200500750 | NEEDLE 134 NM75 | 1 |
| 43 | MDB100B1100 | NEEDLE DBX1 #11 | 1 |
| 44 | 40141440 | UPPER SPROCKET ASM. | 1 |
| 45 | SM6042000SP | SCREW | 3 |
| 46 | 40086731 | TIMING_BELT_550 | 1 |
| 47 | 22906309 | NEEDLE BAR THREAD GUIDE | 1 |
Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 49 | 40174349 | NEEDLE BAR THREAD GUIDE | 1 |
| 50 | 40215263 | MOTOR CABLE GUIDE | 1 |

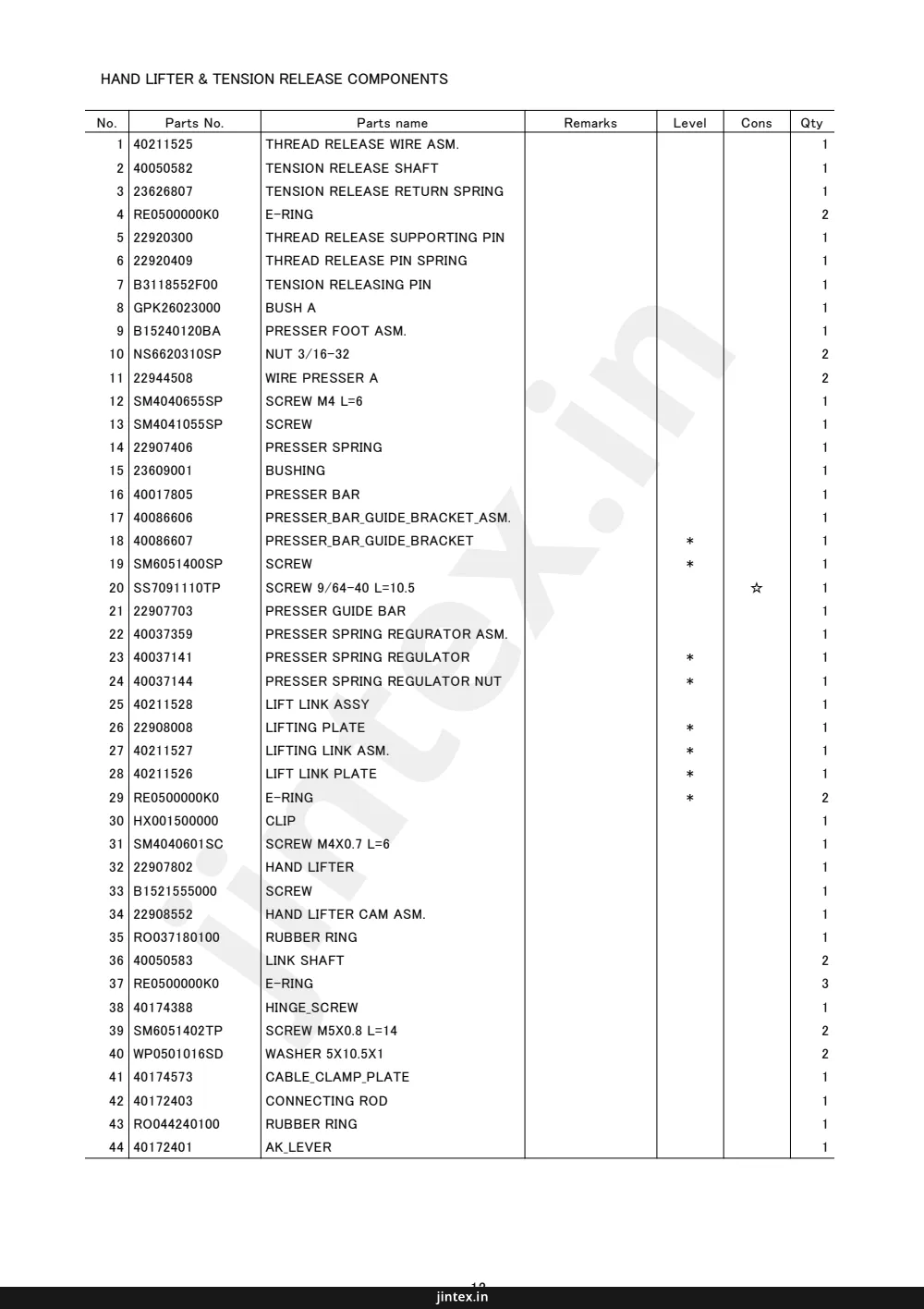

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211525 | THREAD RELEASE WIRE ASM. | 1 |
| 2 | 40050582 | TENSION RELEASE SHAFT | 1 |
| 3 | 23626807 | TENSION RELEASE RETURN SPRING | 1 |
| 4 | RE0500000K0 | E-RING | 2 |
| 5 | 22920300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 6 | 22920409 | THREAD RELEASE PIN SPRING | 1 |
| 7 | B3118552F00 | TENSION RELEASING PIN | 1 |
| 8 | GPK26023000 | BUSH A | 1 |
| 9 | B15240120BA | PRESSER FOOT ASM. | 1 |
| 10 | NS6620310SP | NUT 3/16-32 | 2 |
| 11 | 22944508 | WIRE PRESSER A | 2 |
| 12 | SM4040655SP | SCREW M4 L=6 | 1 |
| 13 | SM4041055SP | SCREW | 1 |
| 14 | 22907406 | PRESSER SPRING | 1 |
| 15 | 23609001 | BUSHING | 1 |
| 16 | 40017805 | PRESSER BAR | 1 |
| 17 | 40086606 | PRESSER_BAR_GUIDE_BRACKET_ASM. | 1 |
| 18 | 40086607 | PRESSER_BAR_GUIDE_BRACKET | 1 |
| 19 | SM6051400SP | SCREW | 1 |
| 20 | SS7091110TP | SCREW 9/64-40 L=10.5 | 1 |
| 21 | 22907703 | PRESSER GUIDE BAR | 1 |
| 22 | 40037359 | PRESSER SPRING REGURATOR ASM. | 1 |
| 23 | 40037141 | PRESSER SPRING REGULATOR | 1 |
| 24 | 40037144 | PRESSER SPRING REGULATOR NUT | 1 |
| 25 | 40211528 | LIFT LINK ASSY | 1 |
| 26 | 22908008 | LIFTING PLATE | 1 |
| 27 | 40211527 | LIFTING LINK ASM. | 1 |
| 28 | 40211526 | LIFT LINK PLATE | 1 |
| 29 | RE0500000K0 | E-RING | 2 |
| 30 | HX001500000 | CLIP | 1 |
| 31 | SM4040601SC | SCREW M4X0.7 L=6 | 1 |
| 32 | 22907802 | HAND LIFTER | 1 |
| 33 | B1521555000 | SCREW | 1 |
| 34 | 22908552 | HAND LIFTER CAM ASM. | 1 |
| 35 | RO037180100 | RUBBER RING | 1 |
| 36 | 40050583 | LINK SHAFT | 2 |
| 37 | RE0500000K0 | E-RING | 3 |
| 38 | 40174388 | HINGE_SCREW | 1 |
| 39 | SM6051402TP | SCREW M5X0.8 L=14 | 2 |
| 40 | WP0501016SD | WASHER 5X10.5X1 | 2 |
| 41 | 40174573 | CABLE_CLAMP_PLATE | 1 |
| 42 | 40172403 | CONNECTING ROD | 1 |
| 43 | RO044240100 | RUBBER RING | 1 |
| 44 | 40172401 | AK_LEVER | 1 |
Page 16 — HAND LIFTER COMPONENTS (AK)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211512 | MOTOR RELAY CABLE ASSY | 1 |
| 2 | 40174388 | HINGE_SCREW | 1 |
| 3 | 40172401 | AK_LEVER | 1 |
| 4 | 40172402 | PRESSER_LEVER_SHAFT | 1 |
| 5 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 6 | 40211442 | PRESSER MOTOR | 1 |
| 7 | SM6040802TP | SCREW M4X0.7 L=8 | 4 |
| 8 | 40212095 | MOTOR BASE | 1 |
| 9 | SM6060802TP | SCREW M6 L=8 | 3 |
| 10 | 40174375 | CAM | 1 |
| 11 | SM8050852TP | SCREW M5X8 | 2 |
| 12 | 40040256 | CAM_ROLLER_SHAFT | 1 |
| 13 | 40004254 | UTT_CAM_ROLLER | 1 |
| 14 | NM6040001SP | NUT M4X0.7 | 2 |
| 15 | 40212098 | PBL SENSOR BKT | 1 |
| 16 | SM4040655SP | SCREW M4 L=6 | 2 |
| 17 | HD002230000 | PHOTO SENSOR | 1 |
| 18 | SL4041291SC | SCREW M4 L=12 | 1 |
| 19 | 40211777 | PBL SENSOR PLATE | 1 |
| 20 | SM4040655SP | SCREW M4 L=6 | 1 |
Page 18 — FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 2 | 40086695 | FEED_ADJUSTING_LINK | 1 |
| 3 | 40086696 | FEED_ADJUSTING_LINK_PIN | 2 |
| 4 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 5 | 40172467 | ADJUSTING_LINK_FULCRUM_SHAFT | 1 |
| 6 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 7 | 40172508 | FEED_CHANGING_SHAFT_METAL_A | 1 |
| 8 | 40086704 | FEED_CHANGING_SHAFT_ARM_ASM. | 1 |
| 9 | 40086705 | FEED_CHANGING_SHAFT_ARM | 1 |
| 10 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 11 | 22910509 | FEED ADJUSTING LINK PIN | 1 |
| 12 | 40086706 | FEED_CHANGING_SPRING_PIN | 1 |
| 13 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 14 | 40172460 | FEED_CHANGING_SHAFT | 1 |
| 15 | 40211523 | REVERSE FEED LEVER | 1 |
| 16 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 17 | 40086674 | FEED_LEVER_ARM_ASM. | 1 |
| 18 | 40086675 | FEED_LEVER_ARM | 1 |
| 19 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 20 | 22912307 | PIN | 1 |
| 21 | 40086739 | FEED LEVER SPRING | 1 |
| 22 | 40086737 | FEED ADJUSTING SPRING | 1 |
| 23 | 23630007 | TUBE | 0.1 |
| 24 | RE0500000K0 | E-RING | 1 |
| 25 | 40211502 | FEED ADJUSTING ROD | 1 |
| 26 | 40211449 | FEED_LEVER_SHAFT | 1 |
| 27 | 22952501 | BACK LEVER STOPPER | 1 |
| 28 | SM6051850TP | SCREW M5 L=18 | 1 |
| 29 | 40141842 | FEED_REGULATOR_SCREW | 1 |
| 30 | 22912109 | FEED REGULATOR PIN SPRING | 1 |
| 31 | 40161440 | FEED_REGULATOR_PIN | 1 |
| 32 | 40141840 | REGULATOR STOPPER SPRING | 1 |
| 33 | RO092270200 | RUBBER RING | 1 |
| 34 | 40211459 | REGULATOR PIN DIAL | 1 |
| 35 | SS6121860SP | SCREW 3/16-28 L=18 | 1 |
| 36 | 40161441 | REGULATOR_PIN_STOPPER | 1 |
| 37 | 40211953 | FEED REVER SHAFT METAL | 1 |
| 38 | 40086616 | FEED_CHANGING_SHAFT_METAL_B | 1 |
| 39 | 23613409 | FEED ADJUSTING PIN | 1 |
| 40 | 40095847 | FEED REGULATOR ASM. | 1 |
| 41 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 42 | 40122891 | FEED_REGULATOR | 1 |
| 43 | 40006716 | THREAD_TRIMMER_SHAFT | 1 |
Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40174296 | ASSY_FEED_ROCKER_CAM | 1 |
| 2 | 40174297 | FEED_ROCKER_CAM | 1 |
| 3 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 4 | 40037365 | FEED ROCKER ROD ASM. | 1 |
| 5 | 40026277 | FEED ROCKER ROD | 1 |
| 6 | 22911101 | WALKING FOOT PIN C | 1 |
| 7 | SS6090620TP | SCREW | 1 |
| 8 | 40061246 | FEED ROCKER ARM ALL ASM. | 1 |
| 9 | 40058504 | FEED ROCKER ARM ASM. | 1 |
| 10 | 40042079 | FEED ROCKER ARM | 1 |
| 11 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 12 | SS6090620TP | SCREW | 1 |
| 13 | 22911002 | WALKING FOOT PIN B | 1 |
| 14 | 40213205 | FEED ROCKER SHAFT BUSHING | 1 |
| 15 | 40037005 | ASSY_FEED_ROCKER_BASE_ARM | 1 |
| 16 | 40026281 | FEED ROCKER BASE ARM | 1 |
| 17 | SM6051400SP | SCREW | 1 |
| 18 | WP0531000SD | WASHER M5 | 1 |
| 19 | SM4050855SP | SCREW | 1 |
| 20 | 40174298 | FEED_ROCKER_CAM_TOP | 1 |
| 21 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 22 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 23 | 22904106 | MAIN SHAFT THRUST COLLAR | 1 |
| 24 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 25 | 40133950 | FEED DOG M | 1 |
| 26 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 27 | 11038759 | BOBBIN CASE ASM. | 1 |
| 28 | B412352200A | NEEDLE BEARING | 1 |
| 29 | B412352200B | NEEDLE ROLLAR | 1 |
| 30 | B412352200C | NEEDLE ROLLAR | 1 |
| 31 | 40174300 | FEED_CONNECTING_LINK_A | 2 |
| 32 | 40174302 | FEED_CONNECTING_LINK_B | 2 |
| 33 | 40211085 | FEED ROCKER SHAFT | 1 |
| 34 | 40191133 | HOOK SHAFT REAR BEARING | 1 |
| 35 | SS6110710TP | SCREW 11/64-40 L=6.5 | 2 |
| 36 | 40026282 | FEED ROCKER BASE SHAFT | 1 |
| 37 | 40000391 | VERTICAL FEED CAM ASM. 5 | 1 |
| 38 | 40000392 | VERTICAL FEED CAM 5 | 1 |
| 39 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 40 | 40053720 | FEED DRIVING BASE ARM ASM. | 1 |
| 41 | 40026287 | FEED DRIVING BASE ARM | 1 |
| 42 | SM4040655SP | SCREW M4 L=6 | 1 |
| 43 | 40026288 | FEED DRIVING BASE SHAFT | 1 |
| 44 | 40211086 | FEED DRIVING SHAFT | 1 |
| 45 | 40086690 | FEED_DRIVING_BEARING_SUPPORT | 1 |
| 46 | SS8661012TP | SCREW | 2 |
| 47 | 23618101 | FEED DRIVING CAM THRUST BUSH | 2 |
Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SB32000060A | BEARING | 1 |
| 49 | SB32000060B | BEARING | 1 |
| 50 | SB32000060C | BEARING | 1 |
| 51 | SB117001200 | BEARING | 1 |
| 52 | 23618309 | FEED DRIVING CAM PLATE | 1 |
| 53 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 54 | 40174334 | GEAR_LARGE | 1 |
| 55 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 56 | 40174328 | HOOK_SHAFT | 1 |
| 57 | 40174331 | HOOK_SHAFT_METAL_ASM. | 1 |
| 58 | 40145927 | OIL SEAL | 1 |
| 59 | RC0150001KP | C-RING 15(13.8) | 1 |
| 60 | 22916506 | SET SCREW | 1 |
| 61 | 11015906 | OIL WICK | 1 |
| 62 | 40174335 | GEAR_SMALL_A | 1 |
| 63 | 40174336 | GEAR_SMALL_B | 1 |
| 64 | 40174337 | GEAR_SMALL_C | 1 |
| 65 | 40174338 | GEAR_SMALL_D | 1 |
| 66 | 40174369 | GEAR_SMALL_E | 1 |
| 67 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 68 | 11141355 | HOOK ASM. | 1 |
| 69 | 11038650 | HOOK ASM. | 1 |
| 70 | RO036080200 | RUBBER RING | 1 |
| 71 | 40030786 | FEED BASE COMPL. | 1 |
| 72 | 22932909 | BOBBIN | 1 |
| 73 | RO036080200 | RUBBER RING | 1 |
| 74 | 40174333 | HOOK SHAFT REAR METAL | 1 |
| 75 | 40089607 | INNER_HOOK_HOLDER | 1 |
| 76 | SM4051055SP | SCREW | 1 |
| 77 | 22913008 | FEED ROCKER SHAFT BUSHING | 1 |
| 78 | 40010805 | OIL SEAL RING | 1 |
| 79 | SB108000100 | BEARING | 1 |
| 80 | SB120001800 | BEARING | 1 |
| 81 | 40174577 | UNDER_SPROCKET_ASM. | 1 |
| 82 | SM6042000SP | SCREW | 3 |
| 83 | RC1200001KP | C-SHAPED SNAP RING | 1 |
| 84 | 11079506 | FRONT SCREW | 1 |
Page 24 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211087 | KNIFE UNIT | 1 |
| 2 | 40195289 | MOVING_KNIFE | 1 |
| 3 | 40195552 | THREAD_TRIMMER_KNIFE_H | 1 |
| 4 | 40174318 | THREAD_TRIMMER_BASE | 1 |
| 5 | 40211713 | MOVING KNIFE BASE | 1 |
| 6 | 11420601 | SCREW | 4 |
| 7 | 40211778 | TRIMMER BACK SPRING | 1 |
| 8 | B1116210D00 | FRAME SUPPORT RUBBER | 1 |
| 9 | 40172498 | RUBBER_STOPPER_PLATE | 1 |
| 10 | SM4050655SP | SCREW M5 L=6 | 2 |
| 11 | 40214565 | THREAD TRIMMER CAM A | 1 |
| 12 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 13 | 40174323 | CONNECTING_ROD_ASM_R | 1 |
| 14 | 40136701 | ROD_END | 2 |
| 15 | 40174324 | CONNECTING_BAR | 1 |
| 16 | NM6050001SC | NUT M5X0.8 TYPE1 | 2 |
| 17 | 40174315 | TRIMMER_MOVING_ARM | 1 |
| 18 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 19 | RC2651218KP | RETAINING RING | 1 |
| 20 | 40213952 | TRIMMER MOVING SHAFT | 1 |
| 21 | 40172482 | THREAD_TRIMMER_METAL_A | 1 |
| 22 | CS0800881TP | THRUST COLLAR | 1 |
| 23 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 24 | 40215691 | THREAD TRIMMER ROD | 1 |
| 25 | SD0500403TP | SCREW | 1 |
| 26 | 40174600 | THREAD_TRIMMER_ARM_ASM. | 1 |
| 27 | 40174314 | THREAD_TRIMMER_ARM | 1 |
| 28 | 40172479 | THREAD_TRIMMER_ARM_PIN | 1 |
| 29 | SM8480652TP | SCREW | 1 |
| 30 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 31 | 40215688 | TRIMMER ADJUSTING PIN | 1 |
| 32 | 22912307 | PIN | 1 |
| 33 | 11419504 | THRUST COLLAR A | 1 |
| 34 | 11419603 | THRUST COLLAR B | 1 |
| 35 | 11419702 | THRUST COLLAR C | 1 |
| 36 | 11419801 | THRUST COLLAR D | 1 |
| 37 | 11419900 | THRUST COLLAR E | 1 |
| 38 | 40174612 | SPACER | 1 |
| 39 | 40211510 | THREAD TRIMMER SOLENOID D ASM. | 1 |
| 40 | 40211511 | THREAD TRIMMER SOLENOID | 1 |
| 41 | 40174583 | SOLENOID_INSTALLING_BASE | 1 |
| 42 | NM6040001SE | NUT M4 | 2 |
| 43 | WS0410002KR | SPRING WASHER M4 | 2 |
| 44 | 40174584 | SPRING | 1 |
| 45 | WP0621016SD | WASHER 6.2X13X1 | 2 |
| 46 | 40086711 | SORENOID_PIN | 1 |
| 47 | SS6110710TP | SCREW 11/64-40 L=6.5 | 1 |
Page 26 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | RE0500000K0 | E-RING | 1 |
| 49 | 10618304 | VERTICAL ROLLER WASHER | 2 |
| 50 | 40172495 | CLUTCH_PLATE | 1 |
| 51 | 40086635 | CLUTCH_SHAFT | 1 |
| 52 | SM8060812TP | SCREW M6 L=8 | 1 |
| 53 | SD0500701TP | SHOULDER SCREW | 2 |
| 54 | NS6110310SP | HEXAGONAL NUT 11/64-40 | 2 |
| 55 | 40086712 | CONNECTING ROD FELT | 2 |
| 56 | 40172496 | THREAD_TRIMMER_SHAFT | 1 |
| 57 | 40172504 | THREAD_TRIMMER_SPRING_D | 1 |
| 58 | NM6060001SC | NUT M6X1 TYPE1 | 2 |
| 59 | WP0621016SH | WASHER | 1 |
| 60 | B1116804000 | CLOTH PLATE WASHER | 1 |
| 61 | 40090099 | WASHER | 1 |
| 62 | 40182053 | ASSY_CAM_FOLLOWER | 1 |
| 63 | 40181990 | CAM_FOLLOWER_ASM. | 1 |
| 64 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 65 | 40086748 | ROLLER SHAFT | 1 |
| 66 | 40015671 | CAM_ROLLER | 1 |
| 67 | 40174610 | CAM_ROLLER_B | 1 |
| 68 | NM6040001SP | NUT M4X0.7 | 2 |
| 69 | 40086623 | STOPPER_SCREW | 1 |
| 70 | SM8061050TP | SCREW | 1 |
| 71 | SM8061010TP | SCREW | 1 |
| 72 | SM6061002TP | SCREW M6 L=10 | 2 |
| 73 | HK034610040 | HOUSING | 1 |
| 74 | 40211454 | LOWER THREAD FINGER | 1 |
| 75 | 40211898 | LOWER THREAD FINGER PLATE | 1 |
| 76 | SM4050855SP | SCREW | 1 |
| 77 | 40214745 | CAM FOLLOWER STOPPER | 1 |
| 78 | SM4050855SP | SCREW | 2 |
Page 28 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM8050402TP | SCREW | 1 |
| 2 | SM8050402TP | SCREW | 1 |
| 3 | 40174358 | GEAR_BOX_COVER | 1 |
| 4 | SL4051091SC | SCREW M5X0.8 L=10 | 3 |
| 5 | SM4051055SP | SCREW | 7 |
| 6 | 23629256 | OIL WICK SUPPORT ASM. | 1 |
| 7 | 23629207 | OIL WICK SUPPORT | 1 |
| 8 | CQ250000001 | OIL WICK | 0.25 |
| 9 | SM5040655SN | SCREW | 1 |
| 10 | 22925101 | OIL FELT PRESSER | 1 |
| 11 | 40075404 | FACE FELT ASM. | 1 |
| 12 | 40174365 | OIL ADJUSTING SCREW | 1 |
| 13 | RO037180100 | RUBBER RING | 1 |
| 14 | 23628803 | PLUNGER | 1 |
| 15 | 23628902 | PLUNGER SPRING | 1 |
| 16 | 40038328 | PLUNGER SCREW | 1 |
| 17 | RO068190100 | RUBBER RING | 1 |
| 18 | 40215311 | PIPE STOPPER | 2 |
| 19 | EA9500B0100 | CABLE BAND | 1 |
| 20 | HX00150000K | CABLE CLIP | 1 |
| 21 | 40000344 | LUBRICATING INLET CAP | 1 |
| 22 | 40029075 | LUBRICATING_INLET | 1 |
| 23 | RO048190100 | RUBBER RING | 1 |
| 24 | 23540305 | FLOATER CASE CAP | 1 |
| 25 | 23630106 | TUBE B | 0.296 |
| 26 | 23630007 | TUBE | 0.117 |
| 27 | 23629405 | PIPE STOPPER B | 1 |
| 28 | 23629306 | PIPE STOPPER A | 3 |
| 29 | CQ200000001 | OIL WICK | 0.9 |
| 30 | 40221269 | OIL TANK | 1 |
| 31 | 40221271 | O-RING | 1 |
| 32 | 40221270 | OIL LEVEL SWITCH CAP | 1 |
| 33 | WP0560860SE | WASHER 5.6X12X0.8 | 1 |
| 34 | 40209293 | FLOATER SENSOR | 1 |
| 35 | 40221273 | OIL TANK STAY | 1 |
| 36 | RO118180100 | O-RING | 1 |
| 37 | 40178658 | PIPE | 0.155 |
| 38 | 23630403 | OIL FILTER | 1 |
| 39 | 23630502 | OIL FILTER STOPPER | 1 |
| 40 | 40174356 | CONNECTING SCREW | 1 |
| 41 | SQ2050453MZ | CONNECTING SCREW | 1 |
| 42 | 23630007 | TUBE | 0.6 |
Page 30 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211518 | REVERSE FEED SOLENOID ASM. | 1 |
| 2 | HK03464000B | PIN CONTACT | 2 |
| 3 | 40086753 | REVERSE FEED SOLENOID PLUNGER | 1 |
| 4 | RE1200000K0 | E-RING 12 | 1 |
| 5 | D2468555B00 | RUBBER PLUNGER | 1 |
| 6 | WP1602616SZ | WASHER 16X24X2.6 | 1 |
| 7 | WP0550800SP | WASHER 5.5X10X0.8 | 3 |
| 8 | SM4051055SP | SCREW | 3 |
| 9 | WP0551016SH | WASHER 5.5X13X1 | 1 |
| 10 | NM6050001SP | NUT M5 | 2 |
| 11 | WS0610002KN | SPRING WASHER 6.1X12.2X1.5 | 1 |
| 12 | 40095844 | REVERSE FEED ARM ASM. | 1 |
| 13 | 40086698 | REVERSE_FEED_ARM | 1 |
| 14 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 15 | 40214010 | LED TB SWITCH | 1 |
| 16 | SM4050855SP | SCREW | 1 |
| 17 | 40086655 | REVERSE_FEED_CONNECTION_LINK | 1 |
| 18 | 40086699 | REVERSE_FEED_LINK_PIN | 1 |
| 19 | SM8480652TP | SCREW | 1 |
| 20 | 40086759 | BACK_SOLENOID_PLUNGER_PIN | 1 |
Page 32 — OPERATION PANEL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211456 | PANEL 8A ASSY | 1 |
| 2 | 40214743 | PANEL COVER 8A F ASSY | 1 |
| 3 | 40172422 | INDICATOR | 1 |
| 4 | 40172423 | USB_COVER | 1 |
| 5 | SV4030802SN | TAPPING SCREW WITH FLANGE M3X8 | 4 |
| 6 | 40173459 | PANEL COVER R ASM | 1 |
| 7 | 40172386 | PANEL_COVER_R | 1 |
| 8 | 40172420 | FIX_PLATE | 3 |
| 9 | 40174580 | PNL_CABLE_CLAMP_PLATE | 1 |
| 10 | SV4030802SN | TAPPING SCREW WITH FLANGE M3X8 | 1 |
| 11 | 40214742 | PNL 8A PCB ASSY | 1 |
| 12 | SM8050852TP | SCREW M5 L=8 | 3 |
| 13 | 40174408 | PANEL_CSHION_RUBBER | 2 |
| 14 | 40215704 | MAIN-PNL CORD 8A ASSY | 1 |
| 15 | 40224345 | PANEL 8A CE ASSY | 1 |
Page 34 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40211954 | CONTROL BOX | 1 |
| 2 | 40215706 | PEDAL SENSOR BASE ASSY | 1 |
| 3 | 40131478 | CONNECTING_ROD_ASSY | 1 |
| 4 | 40215705 | ACCESSORIES PARTS ASSY | 1 |
| 5 | 40212265 | CONTROL_BOX_1P_220_240V_CE | 1 |
| 6 | 40221831 | ACCESSORIES PARTS ASSY CE | 1 |
Page 36 — UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40062323 | UNDER COVER B ASM. | 1 |
| 2 | 23639008 | UNDER COVER | 1 |
| 3 | B1116210D00 | FRAME SUPPORT RUBBER | 4 |
| 4 | 40223144 | UNDER COVER C ASM. | 1 |
| 5 | 40218924 | CE_BLOCK | 4 |
Page 38 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40108402 | THRED_STAND_B | 1 |
| 2 | 40085786 | SPOOL REST ARM (LOWER) | 1 |
| 3 | 40085787 | SPOOL REST ARM (UPPER) | 1 |
| 4 | 40085788 | SPOOL REST | 2 |
| 5 | 40085789 | SPOOL REST CUSHION | 2 |
| 6 | 40085790 | SPOOL PIN | 2 |
| 7 | 40085791 | SPOOL RETAINER | 2 |
| 8 | 40085794 | THREAD GUIDE | 2 |
| 9 | 40085795 | THREAD GUIDE BUSHING | 2 |
| 10 | 40096326 | SPOOL REST ARM LOWER SCREW | 1 |
| 11 | NM6050001SE | NUT M5 | 2 |
| 12 | 40096327 | SPOOL REST ARM UPPER SCREW | 1 |
| 13 | NM6050001SE | NUT M5 | 2 |
| 14 | WS0510002KN | SPRING WASHER M5 | 2 |
| 15 | WP0531001SC | WASHER M5 | 2 |
| 16 | 40108401 | THREAD_STAND_A | 1 |
| 17 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 18 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 19 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 20 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 21 | 40096325 | SPOOL REST ROD NUT | 1 |
| 22 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 23 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 24 | SM4051405SE | SCREW M5 L=14 | 2 |
| 25 | NM6050001SE | NUT M5 | 2 |
Page 40 — ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40135803 | HEAD COVER | 1 |
| 2 | 22958052 | RUBBER HINGE ASM. | 1 |
| 3 | 22926505 | WASHER | 2 |
| 4 | 22926000 | RUBBER CUSHION | 2 |
| 5 | 22958003 | FRAME BUBBER CUSHION | 2 |
| 6 | 22926208 | NAIL | 8 |
| 7 | 22926356 | HINGE COMPL. | 2 |
| 8 | 40212472 | ACCESSORIE BAG ASM. | 1 |
| 9 | 40037484 | ACCESSORIE BAG ASM. | 1 |
| 10 | 22932800 | ACCESSORIE BAG | 1 |
| 11 | 22958300 | NEEDLE THREAD GUIDE PIN | 1 |
| 12 | 40055591 | HEXAGONAL WRENCH KYE | 1 |
| 13 | 22933105 | SCREW DRIVER (MIDDLE) | 1 |
| 14 | 22933204 | SCREW DRIVER (SMALL) | 1 |
| 15 | 22931604 | FRAME SUPPORT BAR | 1 |
| 16 | 23639701 | KNEE LIFTER PRESSER ROD | 1 |
| 17 | EA9500B0100 | CABLE BAND | 1 |
| 18 | MDB100B1102 | NEEDLE DBX1#11-2 | 1 |
| 19 | MDB100B2102 | NEEDLE DBX1#21-2 | 1 |
| 20 | MC200500752 | 1 | |
| 21 | MC200501302 | NEEDLE 134 #130-2 | 1 |
| 22 | MDB100B1402 | NEEDLE DBX1#14-2 | 1 |
| 23 | 40214221 | NEW DEFRIX OIL 1 100CC COMP. | 1 |
| 24 | 22932909 | BOBBIN | 1 |
| 25 | 40179371 | REACTOR BOX ASSY 1P | 1 |
Page 42 — EXCLUSIVE PARTS DDL-8000A-SSH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40089605 | THROAT_PLATE_J | 1 |
| 2 | 40107708 | NEEDLE_BAR_METAL_LOWER_H | 1 |
| 3 | 40061767 | NEEDLE BAR H | 1 |
| 4 | MDB100B2100 | NEEDLE DBX1 #21 | 1 |
| 5 | 40172373 | FACE_COVER_PACKING | 1 |
| 6 | B1505552000A | PRESSER SPRING | 1 |
| 7 | D1524555EBL | PRESSER FOOT ASM. | 1 |
| 8 | 40064839 | PRESSER FOOT ASM. | 1 |
| 9 | 40089610 | INNER_HOOK_HOLDER_H | 1 |
| 10 | 11092251 | LUBRICATING BOBBIN ASM. | 1 |
| 11 | 40191118 | THREAD_TAKE_UP_COMP_H | 1 |
| 12 | 40000264 | BOBBIN CASE ASM. | 1 |
| 13 | 22962054 | THREAD TENSION ASM. | 1 |
| 14 | 22921308 | THREAD TENSION NUT | 1 |
| 15 | 22921209 | THREAD TENSION POST | 1 |
| 16 | 22921407 | ROTATION STOPPER | 1 |
| 17 | 22921506 | THREAD TENSION DISK | 2 |
| 18 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 19 | 22921803 | DISK STOPPER | 1 |
| 20 | 22945307 | THREAD TENSION POST BASE | 1 |
| 21 | 22962005 | THREAD TENSION SPRING | 1 |
| 22 | SS8090670SP | SCREW 9/64-40 L=5.5 | 1 |
| 23 | 40024124 | NEEDLE BAR THREAD GUIDE | 1 |
| 24 | 40191126 | ASSY_COUNTER WEIGHT_H | 1 |
| 25 | 40191127 | COUNTER_WEIGHT_H | 1 |
| 26 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 27 | SM8081652TP | SCREW M8 L=16 | 1 |
| 28 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 29 | 40063697 | ARM THREAD GUIDE A H | 1 |
| 30 | 11062601 | FEED DOG | 1 |
| 31 | 11062007 | THROAT PLATE A | 1 |
| 32 | 11403003 | FEED J | 1 |
| 33 | 40023223 | NEEDLE BAR THREAD GUIDE | 1 |
| 34 | MC200501300 | NEEDLE 134 NM130 | 1 |
| 35 | 23619059 | VERTICAL FEED CAM H ASM. | 1 |
| 36 | 23619000 | VERTICAL FEED CAM H | 1 |
| 37 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 38 | 22963458 | THREAD TENSION ASM. | 1 |
| 39 | 22945414 | THREAD TENSION POST | 1 |
| 40 | 22963409 | THREAD TENSION SPRING | 1 |
| 41 | 22945604 | THREAD TENSION GUIDE | 1 |
| 42 | 22945703 | THREAD TENSION NUT | 1 |
| 43 | 22945802 | THREAD TENSION DISK | 2 |
Page 43 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 400-37484 | ||
| 16 | 236-39701 | ||
| 17 | EA-9500B01-00 |
Page 45 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49 | 10618304 | ||
| 61 | 11015906 | ||
| 68-69 | 11038650 | ||
| 27 | 11038759 | ||
| 31 | 11062007 | ||
| 30 | 11062601 | ||
| 84 | 11079506 | ||
| 10 | 11092251 | ||
| 68-69 | 11141355 | ||
| 32 | 11403003 | ||
| 33-38 | 11419504 | ||
| 33-38 | 11419603 | ||
| 33-38 | 11419702 | ||
| 33-38 | 11419801 | ||
| 33-38 | 11419900 | ||
| 6 | 11420601 | ||
| 7-8 | 22886907 | ||
| 7-8 | 22887004 | ||
| 2 | 22891204 | ||
| 21 | 22901201 | ||
| 20 | 22901250 | ||
| 22 | 22901300 | ||
| 2 | 22901409 | ||
| 59 | 22901805 | ||
| 4 | 22902506 | ||
| 23 | 22904106 | ||
| 22 | 22904155 | ||
| 47 | 22906309 | ||
| 4 | 22906408 | ||
| 3 | 22906457 | ||
| 14 | 22907406 | ||
| 21 | 22907703 | ||
| 32 | 22907802 | ||
| 26 | 22908008 | ||
| 34 | 22908552 | ||
| 11 | 22910509 | ||
| 13 | 22911002 | ||
| 6 | 22911101 | ||
| 30 | 22912109 | ||
| 20 | 22912307 | ||
| 22 | 22912307 | ||
| 77 | 22913008 | ||
| 60 | 22916506 | ||
| 5 | 22920300 | ||
| 6 | 22920409 | INDEX - 1 | |
| 42 | 22921209 | ||
| 15 | 22921209 | ||
| 43 | 22921308 | ||
| 27 | 22921308 | ||
| 14 | 22921308 | ||
| 44 | 22921407 | ||
| 28 | 22921407 | ||
| 16 | 22921407 | ||
| 45 | 22921506 | ||
| 29 | 22921506 | ||
| 17 | 22921506 | ||
| 46 | 22921605 | ||
| 18 | 22921605 | ||
| 47 | 22921704 | ||
| 30 | 22921704 | ||
| 48 | 22921803 | ||
| 19 | 22921803 | ||
| 10 | 22925101 | ||
| 4 | 22926000 | ||
| 6 | 22926208 | ||
| 7 | 22926356 | ||
| 3 | 22926505 | ||
| 15 | 22931604 | ||
| 10 | 22932800 | ||
| 72 | 22932909 | ||
| 24 | 22932909 | ||
| 13 | 22933105 | ||
| 14 | 22933204 | ||
| 11 | 22944508 | ||
| 41 | 22945307 | ||
| 20 | 22945307 | ||
| 40 | 22945356 | ||
| 29 | 22945414 | ||
| 39 | 22945414 | ||
| 28 | 22945463 | ||
| 30 | 22945505 | ||
| 31 | 22945604 | ||
| 41 | 22945604 | ||
| 32 | 22945703 | ||
| 42 | 22945703 | ||
| 33 | 22945802 | ||
| 43 | 22945802 | ||
| 27 | 22952501 | ||
| 5 | 22958003 | ||
| 2 | 22958052 | ||
| 11 | 22958300 | ||
| 21 | 22962005 | ||
| 13 | 22962054 | ||
| 40 | 22963409 | ||
| 38 | 22963458 | ||
| 24 | 23540305 | ||
| 1 | 23608003 | ||
| 15 | 23609001 | ||
| 39 | 23613409 | ||
| 47 | 23618101 | ||
| 52 | 23618309 | ||
| 36 | 23619000 | ||
| 35 | 23619059 | ||
| 27 | 23626104 | ||
| 3 | 23626807 | ||
| 14 | 23628803 | ||
| 15 | 23628902 | ||
| 7 | 23629207 | ||
| 6 | 23629256 | ||
| 28 | 23629306 | ||
| 27 | 23629405 | ||
| 23 | 23630007 | ||
| 42 | 23630007 | ||
| 25 | 23630106 | ||
| 38 | 23630403 | ||
| 39 | 23630502 | ||
| 2 | 23639008 | ||
| 16 | 23639701 | ||
| 12 | 40000264 | ||
| 21 | 40000344 | ||
| 37 | 40000391 | ||
| 38 | 40000392 | ||
| 17 | 40004171 | ||
| 26 | 40004171 | ||
| 13 | 40004254 | ||
| 43 | 40006716 | ||
| 51 | 40009037 | ||
| 78 | 40010805 | ||
| 66-67 | 40015671 | ||
| 16 | 40017805 | ||
| 33 | 40023223 | ||
| 23 | 40024124 | ||
| 5 | 40026277 | ||
| 16 | 40026281 | ||
| 36 | 40026282 |
Page 46 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 40026287 | ||
| 43 | 40026288 | ||
| 22 | 40029075 | ||
| 71 | 40030786 | ||
| 38 | 40032269 | ||
| 15 | 40037005 | ||
| 32 | 40037008 | ||
| 23 | 40037141 | ||
| 24 | 40037144 | ||
| 22 | 40037359 | ||
| 4 | 40037365 | ||
| 8-9 | 40037484 | ||
| 16 | 40038328 | ||
| 10 | 40040256 | ||
| 18 | 40042079 | ||
| 2 | 40050582 | ||
| 36 | 40050583 | ||
| 37 | 40052933 | ||
| 40 | 40053720 | ||
| 12 | 40055591 | ||
| 9 | 40058504 | ||
| 8 | 40061246 | ||
| 3 | 40061767 | ||
| 1-4 | 40062323 | ||
| 29 | 40063697 | ||
| 8 | 40064839 | ||
| 11 | 40075404 | ||
| 17 | 40085784 | ||
| 18 | 40085785 | ||
| 2 | 40085786 | ||
| 3 | 40085787 | ||
| 4 | 40085788 | ||
| 5 | 40085789 | ||
| 6 | 40085790 | ||
| 7 | 40085791 | ||
| 19 | 40085792 | ||
| 20 | 40085793 | ||
| 8 | 40085794 | ||
| 9 | 40085795 | ||
| 23 | 40085796 | ||
| 20 | 40086597 | ||
| 15 | 40086605 | ||
| 17 | 40086606 | ||
| 18 | 40086607 | ||
| 38 | 40086616 | ||
| 69 | 40086623 | ||
| 51 | 40086635 | ||
| 17 | 40086655 | ||
| 17 | 40086674 | ||
| 18 | 40086675 | ||
| 45 | 40086690 | ||
| 2 | 40086695 | ||
| 3 | 40086696 | ||
| 13 | 40086698 | ||
| 18 | 40086699 | ||
| 8 | 40086704 | ||
| 9 | 40086705 | ||
| 12 | 40086706 | ||
| 46 | 40086711 | ||
| 55 | 40086712 | ||
| 46 | 40086731 | ||
| 22 | 40086737 | ||
| 21 | 40086739 | ||
| 65 | 40086748 | ||
| 3 | 40086753 | ||
| 20 | 40086759 | ||
| 25 | 40088958 | ||
| 26 | 40088959 | ||
| 1 | 40089605 | ||
| 75 | 40089607 | ||
| 9 | 40089610 | ||
| 6 | 40090058 | ||
| 61 | 40090099 | ||
| 57 | 40091461 | ||
| 12 | 40095844 | ||
| 40 | 40095847 | ||
| 21 | 40096325 | ||
| 10 | 40096326 | ||
| 12 | 40096327 | ||
| 11 | 40099083 | ||
| 2 | 40107708 | ||
| 16 | 40108401 | ||
| 1 | 40108402 | ||
| 42 | 40122891 | ||
| 3 | 40131478 | ||
| 25 | 40133950 | ||
| 1 | 40135803 | ||
| 15 | 40135904 | ||
| 31 | 40135905 | ||
| 35 | 40135907 | ||
| 16 | 40135916 | ||
| 56 | 40136258 | ||
| 10 | 40136292 | ||
| 11 | 40136293 | ||
| 14 | 40136701 | ||
| 44 | 40141440 | ||
| 29 | 40141840 | ||
| 29 | 40141842 | ||
| 58 | 40145927 | ||
| 13 | 40150011 | ||
| 31 | 40161440 | ||
| 36 | 40161441 | ||
| 3 | 40166870 | ||
| 4 | 40166872 | ||
| 5 | 40166881 | ||
| 6 | 40166885 | ||
| 7 | 40166886 | ||
| 8 | 40166887 | ||
| 9 | 40166888 | ||
| 10 | 40166893 | ||
| 11 | 40166894 | ||
| 5 | 40172373 | ||
| 8 | 40172376 | ||
| 7 | 40172386 | ||
| 22 | 40172393 | ||
| 21 | 40172398 | ||
| 44 | 40172401 | ||
| 3 | 40172401 | ||
| 4 | 40172402 | ||
| 42 | 40172403 | ||
| 8 | 40172420 | ||
| 3 | 40172422 | ||
| 4 | 40172423 | ||
| 14 | 40172460 | ||
| 5 | 40172467 | ||
| 28 | 40172479 | ||
| 21 | 40172482 | ||
| 50 | 40172495 | ||
| 56 | 40172496 | ||
| 9 | 40172498 | ||
| 57 | 40172504 | ||
| 7 | 40172508 | ||
| 6 | 40173459 | ||
| 1 | 40174296 | ||
| 2 | 40174297 |
Page 47 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | 40174298 | ||
| 31 | 40174300 | ||
| 32 | 40174302 | ||
| 27 | 40174314 | ||
| 17 | 40174315 | ||
| 4 | 40174318 | ||
| 58 | 40174321 | ||
| 13 | 40174323 | ||
| 15 | 40174324 | ||
| 56 | 40174328 | ||
| 57 | 40174331 | ||
| 74 | 40174333 | ||
| 54 | 40174334 | ||
| 62~66 | 40174335 | ||
| 62~66 | 40174336 | ||
| 62~66 | 40174337 | ||
| 62~66 | 40174338 | ||
| 30 | 40174341 | ||
| 32 | 40174342 | ||
| 33 | 40174343 | ||
| 34 | 40174344 | ||
| 10 | 40174349 | ||
| 26 | 40174356 | ||
| 26 | 40174358 | ||
| 26 | 40174365 | ||
| 20 | 40174369 | ||
| 2 | 40174373 | ||
| 14 | 40174375 | ||
| 12 | 40174388 | ||
| 14 | 40174388 | ||
| 2 | 40174392 | ||
| 30 | 40174408 | ||
| 12 | 40174573 | ||
| 20 | 40174577 | ||
| 30 | 40174580 | ||
| 22 | 40174583 | ||
| 22 | 40174584 | ||
| 22 | 40174600 | ||
| 24 | 40174610 | ||
| 22 | 40174612 | ||
| 26 | 40178658 | ||
| 38 | 40179371 | ||
| 24 | 40181990 | ||
| 24 | 40182053 | ||
| 6 | 40191107 | ||
| 38 | 40212472 | ||
| 18 | 40213205 | ||
| 2 | 40213295 | ||
| 22 | 40213952 | ||
| 28 | 40214010 | ||
| 38 | 40214221 | ||
| 22 | 40214565 | ||
| 30 | 40214742 | ||
| 30 | 40214743 | ||
| 24 | 40214745 | ||
| 2 | 40214746 | ||
| 10 | 40215263 | ||
| 26 | 40215311 | ||
| 22 | 40215688 | ||
| 22 | 40215691 | ||
| 30 | 40215704 | ||
| 32 | 40215705 | ||
| 32 | 40215706 | ||
| 8 | 40215866 | ||
| 34 | 40218924 | ||
| 26 | 40221269 | ||
| 26 | 40221270 | ||
| 26 | 40221271 | ||
| 26 | 40221273 | ||
| 32 | 40221831 | ||
| 34 | 40223144 | B1109552000 | |
| 30 | 40224345 | B1116210D00 | |
| 4 | B1109552000 | B1116210D00 | |
| 22 | B1116210D00 | B1116804000 | |
| 34 | B1116210D00 | B150552000A | |
| 24 | B1116804000 | B152155000 | |
| 40 | B150552000A | B15240120BA | |
| 12 | B152155000 | B3118552F00 | |
| 12 | B15240120BA | B412352200A | |
| 12 | B3118552F00 | B412352200B | |
| 18 | B412352200A | B412352200C | |
| 18 | B412352200B | CM300200001 | |
| 18 | B412352200C | CQ200000001 | |
| 2 | CM300200001 | CQ250000001 | |
| 26 | CQ200000001 | CS0800881TP | |
| 26 | CQ250000001 | CS1000881TP | |
| 22 | CS0800881TP | D1524555EBL | |
| 8 | CS1000881TP | D2468555B00 | |
| 40 | D1524555EBL | ||
| 28 | D2468555B00 |
Page 48 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29 | EA9500B0100 | EA9500B0100 | |
| 19 | EA9500B0100 | EA9500B0100 | |
| 17 | EA9500B0100 | EA9500B0100 | |
| 8 | GPK26023000 | GPK26023000 | |
| 17 | HD00223000 | HD00223000 | |
| 73 | HK034610040 | HK034610040 | |
| 2 | HK03464000B | HK03464000B | |
| 30 | HX001500000 | HX001500000 | |
| 20 | HX00150000K | HX00150000K | |
| 42-43 | MC200500750 | MC200500750 | |
| 18-22 | MC200500752 | MC200500752 | |
| 4-34 | MC200501300 | MC200501300 | |
| 18-22 | MC200501302 | MC200501302 | |
| 42-43 | MDB100B1100 | MDB100B1100 | |
| 18-22 | MDB100B1102 | MDB100B1102 | |
| 18-22 | MDB100B1402 | MDB100B1402 | |
| 4-34 | MDB100B2100 | MDB100B2100 | |
| 18-22 | MDB100B2102 | MDB100B2102 | |
| 53 | NM6040001SC | NM6040001SC | |
| 53 | NM6040001SE | NM6040001SE | |
| 42 | NM6040001SP | NM6040001SP | |
| 14 | NM6040001SP | NM6040001SP | |
| 68 | NM6040001SP | NM6040001SP | |
| 16 | NM6050001SC | NM6050001SC | |
| 25 | NM6050001SE | NM6050001SE | |
| 10 | NM6050001SP | NM6050001SP | |
| 58 | NM6060001SC | NM6060001SC | |
| 54 | NS6110310SP | NS6110310SP | |
| 59 | NS6620310SP | NS6620310SP | |
| 59 | RC0150001KP | RC0150001KP | |
| 83 | RC1200001KP | RC1200001KP | |
| 19 | RC2651218KP | RC2651218KP | |
| 36 | RE0300000K0 | RE0300000K0 | |
| 37 | RE0500000K0 | RE0500000K0 | |
| 24 | RE0500000K0 | RE0500000K0 | |
| 48 | RE0500000K0 | RE0500000K0 | |
| 4 | RE1200000K0 | RE1200000K0 | |
| 73 | RO036080200 | RO036080200 | |
| 35 | RO037180100 | RO037180100 | |
| 43 | RO037180100 | RO037180100 | |
| 23 | RO044240100 | RO044240100 | |
| 17 | RO048190100 | RO048190100 | |
| 33 | RO068190100 | RO068190100 | |
| 11 | RO092270200 | RO092270200 | |
| 36 | RO118180100 | RO118180100 | |
| 79 | SB108000100 | SB108000100 | |
| 51 | SB117001200 | SB117001200 | |
| 80 | SB120001800 | SB120001800 | |
| 24 | SB120002700 | SB120002700 | |
| 48-50 | SB32000060A | SB32000060A | |
| 48-50 | SB32000060B | SB32000060B | |
| 48-50 | SB32000060C | SB32000060C | |
| 25 | SD0500403TP | SD0500403TP | |
| 53 | SD0500701TP | SD0500701TP | |
| 52 | SL4041281SC | SL4041281SC | |
| 18 | SL4041291SC | SL4041291SC | |
| 7 | SL4041401SC | SL4041401SC | |
| 4 | SL4051091SC | SL4051091SC | |
| 55 | SL4051691SC | SL4051691SC | |
| 10 | SL4052591SC | SL4052591SC | |
| 28 | SL6052592TN | SL6052592TN | |
| 33 | SM0050801SC | SM0050801SC | |
| 31 | SM4040601SC | SM4040601SC | |
| 12 | SM4040655SP | SM4040655SP | |
| 20 | SM4040655SP | SM4040655SP | |
| 42 | SM4040655SP | SM4040655SP | |
| 13 | SM4041055SP | SM4041055SP | |
| 10 | SM4050655SP | SM4050655SP | |
| 60 | SM4050855SP | SM4050855SP | |
| 41 | SM4050855SP | SM4050855SP | |
| 19 | SM4050855SP | SM4050855SP | |
| 78 | SM4050855SP | SM4050855SP | |
| 16 | SM4051055SP | SM4051055SP | |
| 9 | SM4051055SP | SM4051055SP | |
| 31 | SM4051055SP | SM4051055SP | |
| 76 | SM4051055SP | SM4051055SP | |
| 5 | SM4051055SP | SM4051055SP | |
| 8 | SM4051055SP | SM4051055SP | |
| 24 | SM4051405SE | SM4051405SE | |
| 26 | SM5040655SN | SM5040655SN | |
| 20 | SM5040655SN | SM5040655SN | |
| 9 | SM5040655SN | SM5040655SN | |
| 7 | SM6040802TP | SM6040802TP | |
| 45 | SM6042000SP | SM6042000SP | |
| 82 | SM6042000SP | SM6042000SP | |
| 19 | SM6051400SP | SM6051400SP | |
| 17 | SM6051400SP | SM6051400SP | |
| 39 | SM6051402TP | SM6051402TP | |
| 18 | SM6051402TP | SM6051402TP | |
| 19 | SM6051602TP | SM6051602TP | |
| 14 | SM6051602TP | SM6051602TP | |
| 28 | SM6051850TP | SM6051850TP | |
| 14 | SM6060802TP | SM6060802TP | |
| 9 | SM6060802TP | SM6060802TP | |
| 16 | SM6061002TP | SM6061002TP | |
| 72 | SM6061002TP | SM6061002TP | |
| 21 | SM8040412TP | SM8040412TP | |
| 36 | SM8040612TP | SM8040612TP | |
| 2 | SM8050402TP | SM8050402TP | |
| 22 | SM8050502TP | SM8050502TP | |
| 40 | SM80506A2TP | SM80506A2TP | |
| 4 | SM80506A2TP | SM80506A2TP | |
| 30 | SM80506A2TP | SM80506A2TP | |
| 11 | SM8050852TP | SM8050852TP | |
| 12 | SM8050852TP | SM8050852TP | |
| 19 | SM80606A2TP | SM80606A2TP | |
| 41 | SM80606A2TP | SM80606A2TP | |
| 64 | SM80606A2TP | SM80606A2TP | |
| 28 | SM80606A2TP | SM80606A2TP | |
| 39 | SM80608A2TP | SM80608A2TP | |
| 37 | SM80608A2TP | SM80608A2TP | |
| 5 | SM80608A2TP | SM80608A2TP | |
| 1 | SM80608A2TP | SM80608A2TP | |
| 67 | SM80608A2TP | SM80608A2TP | |
| 12 | SM80608A2TP | SM80608A2TP | |
| 71 | SM8061010TP | SM8061010TP | |
| 70 | SM8061050TP | SM8061050TP | |
| 18 | SM8081652TP | SM8081652TP | |
| 27 | SM8081652TP | SM8081652TP | |
| 29 | SM8480652TP | SM8480652TP | |
| 19 | SM8480652TP | SM8480652TP | |
| 41 | SS0210920TP | SS0210920TP | |
| 23 | SS06060210SP | SS06060210SP | |
| 12 | SS6090620TP | SS6090620TP | |
| 5 | SS6090670TP | SS6090670TP | |
| 53 | SS6090670TP | SS6090670TP | |
| 53 | SS6090670TP | SS6090670TP | |
| 35 | SS6110710TP | SS6110710TP | |
| 47 | SS6110710TP | SS6110710TP | |
| 11 | SS6121610SP | SS6121610SP | |
| 35 | SS6121860SP | SS6121860SP |
Page 49 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS7080510TP | SS7080510TP | |
| 20 | SS7091110TP | SS7091110TP | |
| 12 | SS7110720SP | SS7110720SP | |
| 49 | SS8090670SP | SS8090670SP | |
| 22 | SS8090670SP | SS8090670SP | |
| 3 | SS8150822TP | SS8150822TP | |
| 39 | SS8151150TP | SS8151150TP | |
| 37 | SS8660610TP | SS8660610TP | |
| 24 | SS8661012TP | SS8661012TP | |
| 46 | ST4030651SN | ST4030651SN | |
| 23 | SV4030802SN | SV4030802SN | |
| 10 | TA1250406R0 | TA1250406R0 | |
| 50 | TA1250406R0 | TA1250406R0 | |
| 50 | WP0501016SD | WP0501016SD | |
| 40 | WP0531000SD | WP0531000SD | |
| 18 | WP0531001SC | WP0531001SC | |
| 15 | WP0550800SP | WP0550800SP | |
| 7 | WP0551016SH | WP0551016SH | |
| 9 | WP0560860SE | WP0560860SE | |
| 33 | WP0621016SD | WP0621016SD | |
| 45 | WP0621016SH | WP0621016SH | |
| 59 | WP1602616SZ | WP1602616SZ | |
| 6 | WP1612616SE | WP1612616SE | |
| 22 | WS0410002KR | WS0410002KR | |
| 43 | WS0510002KN | WS0510002KN | |
| 14 | WS0610002KN | WS0610002KN | |
| 61 | WT0530002KS | WT0530002KS |
Juki DDL-8000A — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the DDL-8000A model, list number 1728-02, published on 10/01/2020.
- Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of bobbin winder components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 8 (parts_list): This page lists components for a bobbin winder, including part numbers, names, and quantities.
- Page 9 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 10 (parts_list): This page lists components for the main shaft and needle bar, including part numbers, names, remarks, and quantities.
- Page 11 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page lists components for the main shaft and needle bar, including screws, thread guides, and motor cable guides, with their respective part numbers and quantities.
- Page 13 (diagram): This page displays a diagram of hand lifter and tension release components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 14 (parts_list): Parts list table for hand lifter and tension release components, giving part numbers, names, levels, cons markers and quantities for items 1 to 44.
- Page 15 (diagram): This page displays a diagram of hand lifter components, with numbered parts indicated by reference numbers.
- Page 16 (parts_list): This page lists components for the HAND LIFTER COMPONENTS (AK), including part numbers, names, and quantities.
- Page 17 (diagram): This page displays a diagram of the feed adjust mechanism components, with numbered parts and their corresponding references.
- Page 18 (parts_list): Parts list table for the feed adjust mechanism components, giving numbers, part numbers, names, levels and quantities for 43 items.
- Page 19 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with various parts numbered for identification.
- Page 20 (parts_list): This page lists components for HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with various parts numbered for identification.
- Page 22 (parts_list): This page lists components for the HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS, including part numbers, descriptions, and quantities.
- Page 23 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 24 (parts_list): This page lists components for thread trimmer components, including part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of thread trimmer components, with various parts numbered for identification.
- Page 26 (parts_list): This page lists thread trimmer components with part numbers, descriptions, and quantities.
- Page 27 (diagram): This page displays a diagram of oil lubrication components, with numbered parts indicated for identification.
- Page 28 (parts_list): This page lists oil lubrication components including screws, oil wicks, rubber rings, plungers, and tubes, with their corresponding part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of automatic reverse feed components, illustrating various parts with reference numbers for identification.
- Page 30 (parts_list): This page lists automatic reverse feed components with part numbers, descriptions, and quantities.
- Page 31 (diagram): This page displays a diagram of operation panel components, with numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists operation panel components with their part numbers, descriptions, remarks, and quantities. It includes parts like panel assemblies, covers, screws, and plates.
- Page 33 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers 1 through 6.
- Page 34 (parts_list): This page lists parts for the PSC UNIT, including control boxes, sensor bases, connecting rods, and accessories, with their respective part numbers and remarks.
- Page 35 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts indicated by reference numbers 1.4, 2, 3, and 5.
- Page 36 (parts_list): This page lists components for the under cover, including part numbers, names, remarks, and quantities.
- Page 37 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 38 (parts_list): This page lists components for thread stands, including part numbers, names, remarks, and quantities.
- Page 39 (diagram): This page displays a diagram of accessory part components for a JUKI sewing machine, with numbered illustrations of various tools and accessories.
- Page 40 (parts_list): This page lists accessory part components with their part numbers, names, remarks, and quantities.
- Page 41 (diagram): This page displays a diagram of exclusive parts for the DDL-8000A-SSH sewing machine, with various components labeled with reference numbers.
- Page 42 (parts_list): This page lists exclusive parts for the DDL-8000A-SSH sewing machine, including part numbers, descriptions, remarks, and quantities.
- Page 43 (text): This page contains information about changed parts, including obsolete and added parts, and lists specific part numbers with their corresponding revision numbers, page numbers, and reference numbers.
- Page 44 (text): This page provides explanations for codes and symbols used in the parts list, including how to interpret marks, quantity codes, and destination codes.
- Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
- Page 46 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers within diagrams.
- Page 47 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.
- Page 48 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 49 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
