Parts index — Juki DDL-8000Atap a row to open its page

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-8000A parts on page 3

Ref	Part number	Part name	Qty
1	1	MACHINE FRAME
2	2	SPRING
3	3	COVER
4	4	NAME PLATE
5	5	GROMMET
6	6	SCREW
7	7	SCREW
8	8	BRACKET
9	9	SCREW
10	10	COVER
11	11	BRACKET
12	12	SPRING
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	SCREW
17	17	COVER
18	18	COVER
19	19	BRACKET
20	20	BASE PLATE
21	21	PLATE
22	22	BLADE
23	23	SCREW
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	SPRING
28	28	BRACKET
29	29	SCREW
30	30	WASHER
31	31	BRACKET
32	32	NUT
33	33	WASHER
34	34	BRACKET
35	35	BRACKET
36	36	SCREW
37	37	ROD
38	38	BRACKET
39	39	SPRING
40	40	BRACKET
41	41	COLLAR
42	42	SPRING
43	43	NUT
44	44	WASHER
45	45	SPRING
46	46	SPRING
47	47	WASHER
48	48	WASHER
49	49	COLLAR
50	50	BEARING
51	51	BRACKET
52	52	SCREW
53	53	NUT
54	54	COVER
55	55	SCREW
56	56	BRACKET
57	57	SCREW
58	58	COLLAR
59	59	SPRING
60	60	SPRING
61	61	SPRING

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-8000A parts on page 4

Ref	Part number	Part name	Qty
	40211061	AK COVER 8A	1
	SM4051055SP	SCREW	6
	40211078	FACE COVER	1
	22902506	PLATE	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	SM80608A2TP	SCREW M6 L=8	1
	SL4041491SC	SCREW 4 X 14	3
	40172376	THREAD_TAKE_UP_COVER	1
	SM4051055SP	SCREW	1
	SM4051055SP	SCREW	1
	SL4052591SC	SCREW	1
	40099083	RULER STOP SEAT	1
	SS7110720SP	SCREW 11/64-40 L=7	1
	40214746	BED BRACKET A	1
	SM6060802TP	SCREW M6 L=8	2
	40211076	BED BRACKET B	1
	SM6061002TP	SCREW M6 L=10	2
	SS2110920TP	SCREW 11/64-40 L=8.5	2
	40213295	SAFETY LABEL S N	1
	CM300200001	FINGER INJURY CAUTION LABLE (16)	2
	22901250	SLIDE PLATE ASM.	1
	22901201	SLIDE PLATE	1
	22901300	SLIDE PLATE SPRING	1
	SS6060210SP	SCREW 3/32-56 L=1.9	2
	NM6040001SC	NUT M4X0.7 TYPE1	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	SM5040655SN	SCREW	1
	23626104	ARM THREAD GUIDE A	1
	22945463	THREAD TENSION ASM.,NO.1	1
	22945414	THREAD TENSION POST	1
	22945505	THREAD TENSION SPRING	1
	22945604	THREAD TENSION GUIDE	1
	22945703	THREAD TENSION NUT	1
	22945802	THREAD TENSION DISK	2
	40174373	THREAD NIPPER SOLENOID
	40174392	ARM_CAP
	SM8040612TP	SCREW M4 L=6	1
	40052933	ARM THREAD GUIDE C	1
	SM80608A2TP	SCREW M6 L=8	1
	SM80608A2TP	SCREW M6 L=8	1
	22945356	THREAD TENSION ASM.	1
	22945307	THREAD TENSION POST BASE	1
	22921209	THREAD TENSION POST	1
	22921308	THREAD TENSION NUT	1
	22921407	ROTATION STOPPER	1
	22921506	THREAD TENSION DISK	2
	22921605	THREAD TAKE-UP SPRING	1
	22921704	THREAD TENSION SPRING	1

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-8000A parts on page 5

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SPRING
3	3	COVER
4	4	DECAL
5	5	BUMPER
6	6	SCREW
7	7	SCREW
8	8	BRACKET
9	9	SCREW
10	10	COVER
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	SCREW
15	15	BRACKET
16	16	SCREW
17	17	SCREW
18	18	COVER
19	19	BRACKET
20	20	BASE
21	21	PLATE
22	22	BLADE
23	23	SCREW
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	WASHER
31	31	BRACKET
32	32	NUT
33	33	WASHER
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	ROD
38	38	BRACKET
39	39	SCREW
40	40	BRACKET
41	41	BRACKET
42	42	SPRING
43	43	BRACKET
44	44	WASHER
45	45	SPRING
46	46	SPRING
47	47	WASHER
48	48	WASHER
49	49	BRACKET
50	50	BUSHING
51	51	BRACKET
52	52	SCREW
53	53	NUT
54	54	PLATE
55	55	SCREW
56	56	BRACKET
57	57	SCREW
58	58	BUSHING
59	59	BRACKET
60	60	SPRING
61	61	SCREW

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-8000A parts on page 6

Ref	Part number	Part name	Qty
	22921803	DISK STOPPER	1
	SS8090670SP	SCREW 9/64-40 L=5.5	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	1
	40009037	TAKE-UP THREAD GUIDE	1
	SL4041281SC	SCREW M4X0.7 L=12	1
	NM6040001SC	NUT M4X0.7 TYPE1	1
	B1109552000	THROAT PLATE	1
	SL4051691SC	SCREW M5X0.8 L=16	3
	40136258	CORD HOLDER	1
	40091461	FEED LEVER SPRING HOOK	1
	40174322	CORD CLAMP BUSH	1
	22901805	GROUND MARK	1
	SM4050855SP	SCREW	1
	WT0530002KS	TOOTHED WASHER D=5.3	1

Page 7 — BOBBIN WINDER COMPONENTS

Juki DDL-8000A parts on page 7

Ref	Part number	Part name	Qty
20	20	Screw
3	3	Spring
17	17	Guide
14	14	Shaft
4	4	Washer
12	12	Base
11	11	Screw
6	6	Shaft
22	22	Screw
7	7	Lever
10	10	Washer
9	9	Spring
5	5	Shaft
13	13	Shaft
18	18	Shaft
19	19	Washer
21	21	Screw
15	15	Bobbin
21	21	Screw
16	16	Washer
24	24	Screw
25	25	Shaft
27	27	Knob
28	28	Washer
29	29	Bobbin
30	30	Spring
26	26	Shaft
33	33	Screw
32	32	Lever
31	31	Screw

Page 8

Juki DDL-8000A parts on page 8

Ref	Part number	Part name	Qty
	40191107	BOBBIN_WINDER_UNIT_N	1
	22891204	BEARING_SUPPORT	1
	40166870	WASHER	1
	40166872	BOBBIN_SUPPORT	1
	40166881	BOBBIN_FIXED_SPRING	1
	40166885	BOBBIN_PRESSER_CAM	1
	40166886	BOBBIN_WINDER_LEVER	1
	40166887	BOBBIN_WINDER_LEVER_SPRING	1
	40166888	SPRING	1
	40166893	STOPPER_RUBBER	1
	40166894	O_RING	1
	40191108	BTW_BASE_N
	40191109	BOBBIN_WINDER_SHAFT_N
	40191111	BOBBIN_WINDER_ARM_SHAFT_N	1
	40191113	BOBBIN_WINDER_WHEEL_N	1
	40191114	BTW_WHEEL_RUBBER_N	1
	40191115	BOBBIN_PRESSER_N	1
	40191116	BOBBIN_WINDER_SUPPORT_N_ASM.	1
	RE0500000K0	E-RING	1
	SM5040655SN	SCREW	1
	SM8040412TP	SET_SCREW_M4_L=4	2
	SM8050502TP	SCREW_M5_L=5	1
	ST4030651SN	SCREW_M3_X_6	1
	SM0050801SC	SCREW	2
	40088958	BOBBIN_THREAD_TENSION_ASM.	1
	40088959	BOBBIN_THREAD_TENSION_ROD_ASM.	1
	22921308	THREAD_TENSION_NUT	1
	22921407	ROTATION_STOPPER	1
	22921506	THREAD_TENSION_DISK	2
	22921704	THREAD_TENSION_SPRING	1
	SM4051055SP	SCREW	1
	40037008	THREAD_CUTTER	1
	SM0050801SC	SCREW	1

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-8000A parts on page 9

Ref	Part number	Part name	Qty
	1	MAIN SHAFT
	2	COLLAR
	3	BRACKET
	4	PIN
	5	SCREW
	6	NUT
	7.8	NEEDLE BAR
	9	SLEEVE
	10	WASHER
	11	WASHER
	12	SCREW
	13	PULLEY
	14	SCREW
	15	BRACKET
	16	BRACKET
	17	SCREW
	18	COLLAR
	19	SCREW
	20	SHAFT
	21	SCREW
	22	COLLAR
	23	SCREW
	24	PULLEY
	25	FLY WHEEL
	26	SCREW
	27	MOTOR
	28	SCREW
	29	BELT
	30	BRACKET
	31	BRACKET
	32	BRACKET
	33	BRACKET
	34	BRACKET
	35	BRACKET
	36	SCREW
	37	SCREW
	38	BRACKET
	39	COLLAR
	40	SCREW
	41	BRACKET
	42.43	NEEDLE BAR GUIDE
	44	PULLEY
	45	SCREW
	46	BELT
	47	COLLAR
	48	SCREW
	49	SPRING
	50	BRACKET

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-8000A parts on page 10

Ref	Part number	Part name	Qty
	23608003	NEEDLE BAR METAL,UPPER	1
	22901409	NEEDLE BAR UPPER BUSH CAP	1
	22906457	NEEDLE BAR HOLDER ASM.	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6	1
	40090058	SLIDE BLOCK	1
	22887004	NEEDLE BAR (B)	1
	22886907	NEEDLE BAR (A)	1
	40086605	NEEDLE BAR,LOWER METAL,MD	1
	40136292	BTW DRIVING WHEEL ASM.	1
	40136293	BTW DRIVING WHEEL	1
	SM80506A2TP	SCREW M5 L=6	2
	40150011	FRONT,BEARING	1
	SM80608A2TP	SCREW M6 L=8	2
	40135904	ASSY,COUNTER WEIGHT	1
	40135916	COUNTER WEIGHT	1
	40004171	COUNTER WEIGHT,SCREW	1
	SM8081652TP	SCREW M8 L=16	1
	SM80606A2TP	SCREW M6 L=6	1
	40086597	MAIN SHAFT	1
	40172398	COUPLING,ASM.	1
	40172393	COUPLING	4
	SM80608A2TP	SCREW M6 L=8	1
	SB120002700	BEARING	1
	40215866	HAND WHEEL	1
	SM80608A2TP	SCREW M6 L=8	2
	40211082	AC SERVO MOTOR	1
	SL6052592TN	BOLT	4
	EA9500B0100	CABLE BAND	1
	40174341	THREAD,TAKE UP,COMP.	1
	40135905	THREAD,TAKE UP,ASM.,C	1
	40174342	TAKE UP CRANK ASM.	1
	40174343	TAKE UP CRANK	1
	40174344	TAKE UP CRANK SHAFT	1
	40135907	THREAD,TAKE UP,PIN	1
	RE0300000K0	E-RING 3	2
	SM80608A2TP	SCREW M6 L=8	2
	40032269	THRUST COLLAR	1
	CS1000881TP	THRUST COLLAR	1
	SM80506A2TP	SCREW M5 L=6	2
	SM4050855SP	SCREW	1
	MC200500750	NEEDLE 134 NM75	1
	MDB100B1100	NEEDLE DBX1 #11	1
	40141440	UPPER SPROCKET ASM.	1
	SM6042000SP	SCREW	3
	40086731	TIMING BELT 550	1
	22906309	NEEDLE BAR THREAD GUIDE	1

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-8000A parts on page 11

Ref	Part number	Part name	Qty
1	1	MAIN SHAFT
2	2	COLLAR
3	3	NEEDLE BAR BUSH
4	4	NEEDLE BAR BUSH
5	5	SCREW
6	6	PIN
7.8	7.8	NEEDLE BAR
9	9	NEEDLE BAR GUIDE
10	10	WASHER
11	11	WASHER
12	12	SCREW
13	13	PULLEY
14	14	SCREW
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	COLLAR
19	19	SCREW
20	20	SHAFT
21	21	SCREW
22	22	COLLAR
23	23	COLLAR
24	24	PULLEY
25	25	FLYWHEEL
26	26	SCREW
27	27	MOTOR
28	28	SCREW
29	29	BELT
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	SCREW
37	37	SCREW
38	38	BRACKET
39	39	COLLAR
40	40	SCREW
41	41	BRACKET
42.43	42.43	NEEDLE BAR
44	44	PULLEY
45	45	SCREW
46	46	BELT
47	47	COLLAR
48	48	SCREW
49	49	SPRING
50	50	BRACKET

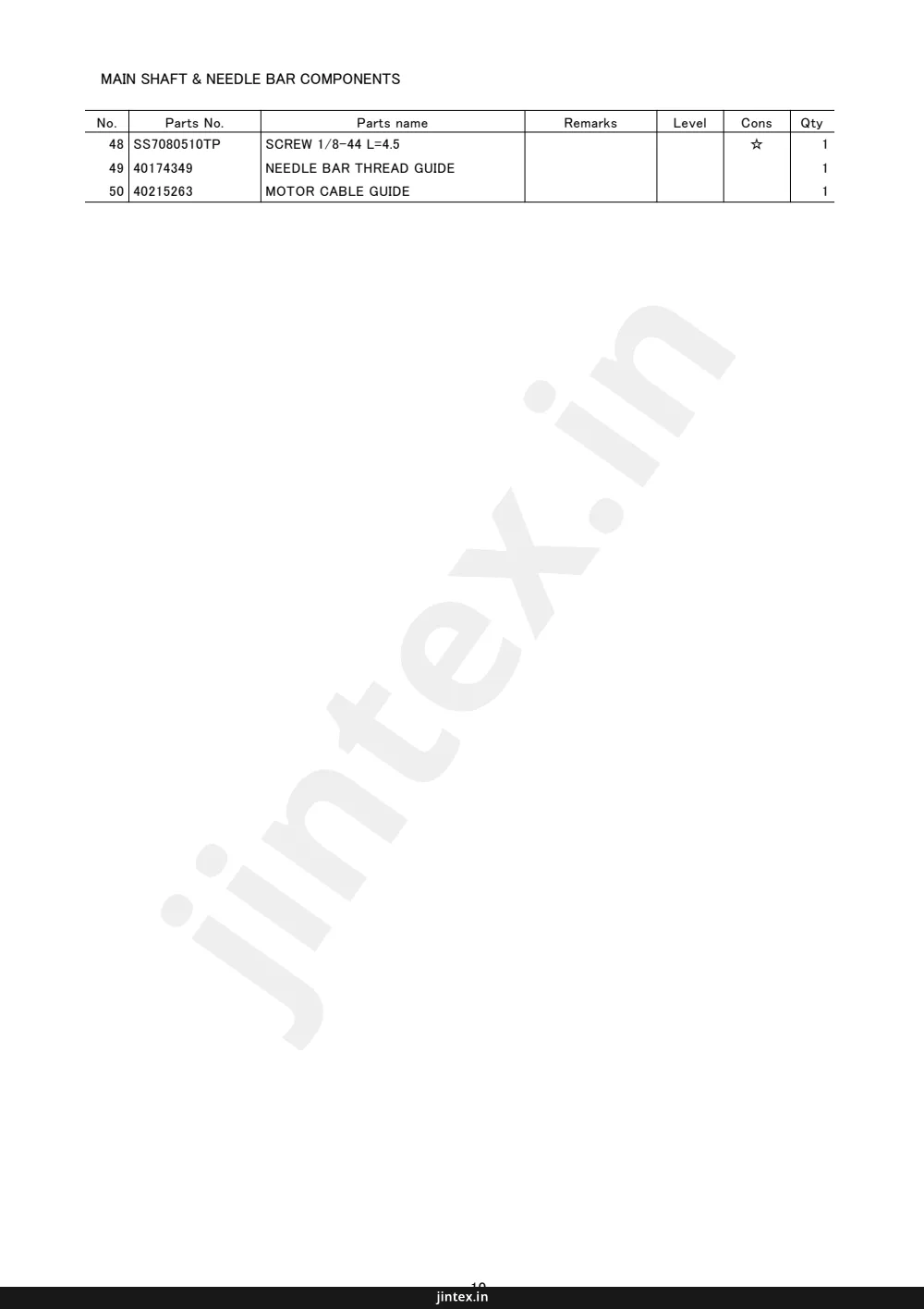

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-8000A parts on page 12

Ref	Part number	Part name	Qty
	SS7080510TP	SCREW 1/8-44 L=4.5	1
	40174349	NEEDLE BAR THREAD GUIDE	1
	40215263	MOTOR CABLE GUIDE	1

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-8000A parts on page 13

Ref	Part number	Part name	Qty
33	33	Screw
35	35	Washer
32	32	Lever
34	34	Shaft
36	36	Spring
22	22	Tube
23	23	Scale
24	24	Nut
21	21	Ball
14	14	Spring
19	19	Screw
18	18	Holder
17	17	Shaft
15	15	Rod
16	16	Groove
20	20	Screw
9	9	Presser Foot
25	25	Lever
28	28	Rod
29	29	Clip
27	27	Lever
26	26	Bracket
37	37	Clip
38	38	Screw
1	1	Lever
2	2	Shaft
3	3	Shaft
4	4	Spring
5	5	Shaft
6	6	Spring
7	7	Pin
8	8	Lever
11	11	Lever
12	12	Screw
13	13	Screw
30	30	Lever
31	31	Screw
39	39	Screw
40	40	Washer
41	41	Bracket
42	42	Rod
43	43	Screw
44	44	Lever
10	10	Nut

Page 15

Juki DDL-8000A parts on page 15

Ref	Part number	Part name	Qty
1	1	WIRE HARNESS
2	2	SHAFT
3	3	BRACKET
4	4	WASHER
5	5	BEARING
6	6	MOTOR
7	7	SCREW
8	8	BRACKET
9	9	SCREW
10	10	PULLEY
11	11	SCREW
12	12	SCREW
13	13	BUSHING
14	14	NUT
15	15	BRACKET
16	16	SCREW
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
20	20	SCREW

Page 16 — HAND LIFTER COMPONENTS (AK)

Juki DDL-8000A parts on page 16

Ref	Part number	Part name	Qty
	40211512	MOTOR RELAY CABLE ASSY	1
	40174388	HINGE SCREW	1
	40172401	AK_LEVER	1
	40172402	PRESSER_LEVER_SHAFT	1
	SM80608A2TP	SCREW M6 L=8	1
	40211442	PRESSER MOTOR	1
	SM6040802TP	SCREW M4X0.7 L=8	4
	40212095	MOTOR BASE	1
	SM6060802TP	SCREW M6 L=8	3
	40174375	CAM	1
	SM8050852TP	SCREW M5X8	2
	40040256	CAM_ROLLER_SHAFT	1
	40004254	UTT_CAM_ROLLER	1
	NM6040001SP	NUT M4X0.7	2
	40212098	PBL SENSOR BKT	1
	SM4040655SP	SCREW M4 L=6	2
	HD002230000	PHOTO SENSOR	1
	SL4041291SC	SCREW M4 L=12	1
	40211777	PBL SENSOR PLATE	1
	SM4040655SP	SCREW M4 L=6	1

Page 17

Juki DDL-8000A parts on page 17

Ref	Part number	Part name	Qty
	1	FEED ADJUST MECHANISM COMPONENTS
	2	FEED ADJUST MECHANISM COMPONENTS
	3	FEED ADJUST MECHANISM COMPONENTS
	4	FEED ADJUST MECHANISM COMPONENTS
	5	FEED ADJUST MECHANISM COMPONENTS
	6	FEED ADJUST MECHANISM COMPONENTS
	7	FEED ADJUST MECHANISM COMPONENTS
	8	FEED ADJUST MECHANISM COMPONENTS
	9	FEED ADJUST MECHANISM COMPONENTS
	10	FEED ADJUST MECHANISM COMPONENTS
	11	FEED ADJUST MECHANISM COMPONENTS
	12	FEED ADJUST MECHANISM COMPONENTS
	13	FEED ADJUST MECHANISM COMPONENTS
	14	FEED ADJUST MECHANISM COMPONENTS
	15	FEED ADJUST MECHANISM COMPONENTS
	16	FEED ADJUST MECHANISM COMPONENTS
	17	FEED ADJUST MECHANISM COMPONENTS
	18	FEED ADJUST MECHANISM COMPONENTS
	19	FEED ADJUST MECHANISM COMPONENTS
	20	FEED ADJUST MECHANISM COMPONENTS
	21	FEED ADJUST MECHANISM COMPONENTS
	22	FEED ADJUST MECHANISM COMPONENTS
	23	FEED ADJUST MECHANISM COMPONENTS
	24	FEED ADJUST MECHANISM COMPONENTS
	25	FEED ADJUST MECHANISM COMPONENTS
	26	FEED ADJUST MECHANISM COMPONENTS
	27	FEED ADJUST MECHANISM COMPONENTS
	28	FEED ADJUST MECHANISM COMPONENTS
	29	FEED ADJUST MECHANISM COMPONENTS
	30	FEED ADJUST MECHANISM COMPONENTS
	31	FEED ADJUST MECHANISM COMPONENTS
	32	FEED ADJUST MECHANISM COMPONENTS
	33	FEED ADJUST MECHANISM COMPONENTS
	34	FEED ADJUST MECHANISM COMPONENTS
	35	FEED ADJUST MECHANISM COMPONENTS
	36	FEED ADJUST MECHANISM COMPONENTS
	37	FEED ADJUST MECHANISM COMPONENTS
	38	FEED ADJUST MECHANISM COMPONENTS
	39	FEED ADJUST MECHANISM COMPONENTS
	40	FEED ADJUST MECHANISM COMPONENTS
	41	FEED ADJUST MECHANISM COMPONENTS
	42	FEED ADJUST MECHANISM COMPONENTS
	43	FEED ADJUST MECHANISM COMPONENTS

Page 19

Juki DDL-8000A parts on page 19

Ref	Part number	Part name	Qty
71	71	SHAFT
26	26	SCREW
25	25	BRACKET
77	77	COLLAR
33	33	SHAFT
12	12	SCREW
11	11	BRACKET
13	13	PIN
9	9	BRACKET
10	10	BRACKET
8	8	BRACKET
22	22	SHAFT
14	14	COLLAR
23	23	COLLAR
59	59	RING
19	19	SCREW
15	15	BRACKET
18	18	BRACKET
17	17	SPRING
16	16	BRACKET
36	36	COLLAR
35	35	SCREW
34	34	BRACKET
62~66	66	BEARING
61	61	PIN
60	60	COLLAR
79	79	BEARING
67	67	PIN
74	74	COLLAR
70	70	SCREW
84	84	PIN
56	56	SHAFT
44	44	SHAFT
57	57	COLLAR
58	58	COLLAR
68~69	68	BEARING
68~69	69	BEARING
78	78	COLLAR
27	27	BRACKET
72	72	COLLAR
75	75	BRACKET
76	76	SCREW
51	51	COLLAR
45	45	COLLAR
37	37	BRACKET
46	46	SCREW
38	38	BRACKET
39	39	SCREW
43	43	COLLAR
42	42	RING
41	41	BRACKET
40	40	BRACKET
47	47	RING
48~50	48	BEARING
48~50	49	BEARING
48~50	50	BEARING
52	52	RING
53	53	COLLAR
31	31	BRACKET
32	32	SCREW
4	4	RING
7	7	SCREW
6	6	PIN
5	5	COLLAR
21	21	COLLAR
20	20	COLLAR
80	80	COLLAR
81	81	COLLAR
82	82	SCREW
83	83	RING
1	1	BRACKET
2	2	COLLAR
3	3	SCREW
28~30	28	BEARING
28~30	29	BEARING
28~30	30	BEARING
55	55	SCREW
54	54	WHEEL

Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-8000A parts on page 20

Ref	Part number	Part name	Qty
	40174296	ASSY FEED ROCKER CAM
	40174297	FEED ROCKER CAM
	SS8150822TP	SCREW 15/64-27 L=8
	40037365	FEED ROCKER ROD ASM.
	40026277	FEED ROCKER ROD
	2291101	WALKING FOOT PIN C
	SS6090620TP	SCREW
	40061246	FEED ROCKER ARM ALL ASM.
	40065504	FEED ROCKER ARM ASM.
	40042079	FEED ROCKER ARM
	SS6121610SP	SCREW 3/16-28 L=15.5
	SS6090620TP	SCREW
	22911002	WALKING FOOT PIN B
	40213205	FEED ROCKER SHAFT BUSHING
	40037005	ASSY FEED ROCKER BASE ARM
	40026281	FEED ROCKER BASE ARM
	SM6051400SP	SCREW
	WP0531000SD	WASHER M5
	SM4050855SP	SCREW
	40174298	FEED ROCKER CAM TOP
	SS6090670TP	SCREW 9/64-40 L=6	2
	22904155	MAIN SHAFT THRUST COLLAR ASM.
	22904106	MAIN SHAFT THRUST COLLAR
	SS8660610TP	SCREW 1/4-40 L=8
	40133950	FEED DOG M	2
	SS4080620TP	SCREW 1/8-44 L=6	1
	11038759	BOBBIN CASE ASM.
	B412352200A	NEEDLE BEARING
	B412352200B	NEEDLE ROLLLR
	B412352200C	NEEDLE ROLLLR
	40174300	FEED CONNECTING LINK A	2
	40174302	FEED CONNECTING LINK B	2
	40211085	FEED ROCKER SHAFT
	40191133	HOOK SHAFT REAR BEARING
	SS6110710TP	SCREW 11/64-40 L=6.5
	40026282	FEED ROCKER BASE SHAFT
	40000391	VERTICAL FEED CAM ASM. 5
	40000392	VERTICAL FEED CAM 5
	SS8151150TP	SCREW 15/64-28 L=10.5
	40053720	FEED DRIVING BASE ARM ASM.
	40026287	FEED DRIVING BASE ARM
	SM4040655SP	SCREW M4 L=6
	40026288	FEED DRIVING BASE SHAFT
	40211086	FEED DRIVING SHAFT
	40086690	FEED DRIVING BEARING SUPPORT	2
	SS8661012TP	SCREW	2
	23618101	FEED DRIVING CAM THRUST BUSH	2

Page 21

Juki DDL-8000A parts on page 21

Ref	Part number	Part name	Qty
	71	71
	26	26
	25	25
	77	77
	33	33
	11	11
	12	12
	13	13
	9	9
	10	10
	8	8
	7	7
	6	6
	5	5
	4	4
	3	3
	2	2
	1	1
	28~30	28~30
	55	55
	54	54
	31	31
	32	32
	20	20
	21	21
	80	80
	81	81
	82	82
	83	83
	56	56
	44	44
	51	51
	45	45
	46	46
	37	37
	38	38
	39	39
	41	41
	42	42
	40	40
	43	43
	76	76
	75	75
	27	27
	72	72
	68~69	68~69
	78	78
	57	57
	58	58
	74	74
	62~66	62~66
	79	79
	67	67
	60	60
	61	61
	73	73
	84	84
	70	70
	36	36
	16	16
	17	17
	18	18
	19	19
	15	15
	34	34
	35	35
	23	23
	24	24
	22	22
	59	59
	14	14
	47	47
	48~50	48~50
	47	47
	53	53
	52	52
	B	B
	A	A

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-8000A parts on page 22

Ref	Part number	Part name	Qty
	SB32000060A	BEARING
	SB32000060B	BEARING
	SB32000060C	BEARING
	SB117001200	BEARING
	23618309	FEED DRIVING CAM PLATE
	SS6090670TP	SCREW 9/64-40 L=6
	40174334	GEAR LARGE
	SM80608A2TP	SCREW M6 L=8
	40174328	HOOK SHAFT
	40174331	HOOK SHAFT METAL ASM.
	40145927	OIL SEAL
	RC0150001KP	C-RING 15(13.8)
	22916506	SET SCREW
	11015906	OIL WICK
	40174335	GEAR SMALL A
	40174336	GEAR SMALL B
	40174337	GEAR SMALL C
	40174338	GEAR SMALL D
	40174369	GEAR SMALL E
	SM80608A2TP	SCREW M6 L=8
	11141355	HOOK ASM.
	11038650	HOOK ASM.
	RO036080200	RUBBER RING
	40030786	FEED BASE COMPL.
	22932909	BOBBIN
	RO036080200	RUBBER RING
	40174333	HOOK SHAFT REAR METAL
	40089607	INNER HOOK HOLDER
	SM4051055SP	SCREW
	22913008	FEED ROCKER SHAFT BUSHING
	40010805	OIL SEAL RING
	SB108000100	BEARING
	SB120001800	BEARING
	40174577	UNDER SPROCKET ASM.
	SM6042000SP	SCREW
	RC1200001KP	C-SHAPED SNAP RING
	11079506	FRONT SCREW

Page 23

Juki DDL-8000A parts on page 23

Ref	Part number	Part name	Qty
48	48	49
49	49	49
50	50	50
46	46	46
47	47	47
51	51	51
52	52	52
39	39	39
40	40	40
41	41	41
44	44	44
43	43	43
42	42	42
45	45	45
72	72	72
73	73	73
13	13	13
14	14	14
15	15	15
16	16	16
53	53	53
55	55	55
17	17	17
18	18	18
20	20	20
54	54	54
70	70	70
71	71	71
19	19	19
21	21	21
22	22	22
23	23	23
26	26	26
28	28	28
27	27	27
7	7	7
32	32	32
11	11	11
12	12	12
30	30	30
24	24	24
25	25	25
29	29	29
31	31	31
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
33~38	33~38	33~38
74	74	74
75	75	75
76	76	76
56	56	56
57	57	57
58	58	58
59	59	59
77	77	77
78	78	78
8	8	8
9	9	9
10	10	10
62	62	62
68	68	68
61	61	61
60	60	60
69	69	69
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67

Page 24 — THREAD TRIMMER COMPONENTS

Juki DDL-8000A parts on page 24

Ref	Part number	Part name	Qty
	40211087	KNIFE UNIT	1
	40195289	MOVING KNIFE	1
	40195552	THREAD_TRIMMER_KNIFE_H	1
	40174318	THREAD_TRIMMER_BASE	1
	40211713	MOVING KNIFE BASE	1
	11420601	SCREW	4
	40211778	TRIMMER BACK SPRING	1
	B1116210D00	FRAME SUPPORT RUBBER	1
	40172498	RUBBER_STOPPER_PLATE	2
	SM4050655SP	SCREW M5 L=6	1
	40214565	THREAD TRIMMER CAM A	2
	SM80608A2TP	SCREW M6 L=8	1
	40174323	CONNECTING_ROD_ASM_R	1
	40136701	ROD_END	2
	40174324	CONNECTING_BAR	1
	NM6050001SC	NUT M5X0.8 TYPE1	2
	40174315	TRIMMER_MOVING_ARM	1
	SM6051402TP	SCREW M5X0.8 L=14	2
	RC2651218KP	RETAINING RING	1
	40213952	TRIMMER MOVING SHAFT	1
	40172482	THREAD_TRIMMER_METAL_A	1
	CS0800881TP	THRUST COLLAR	1
	SM80506A2TP	SCREW M5 L=6	2
	40215691	THREAD TRIMMER ROD	1
	SD0500403TP	SCREW	1
	40174600	THREAD_TRIMMER_ARM_ASM.	1
	40174314	THREAD_TRIMMER_ARM	1
	40172479	THREAD_TRIMMER_ARM_PIN	1
	SM8480652TP	SCREW	1
	SM80506A2TP	SCREW M5 L=6	2
	40215688	TRIMMER ADJUSTING PIN	1
	22912307	PIN	1
	11419504	THRUST COLLAR A
	11419603	THRUST COLLAR B
	11419702	THRUST COLLAR C
	11419801	THRUST COLLAR D
	11419900	THRUST COLLAR E
	40174612	SPACER
	40211510	THREAD TRIMMER SOLENOID D ASM.	1
	40211511	THREAD TRIMMER SOLENOID	1
	40174583	SOLENOID_INSTALLING_BASE	1
	NM6040001SE	NUT M4	2
	WS0410002KR	SPRING WASHER M4	2
	40174584	SPRING	1
	WP0621016SD	WASHER 6.2X13X1	2
	40086711	SORENOID_PIN	1
	SS6110710TP	SCREW 11/64-40 L=6.5	1

Page 25

Juki DDL-8000A parts on page 25

Ref	Part number	Part name	Qty
48	48	SPRING
49	49	SCREW
50	50	BRACKET
49	49	SCREW
46	46	PIN
47	47	WASHER
51	51	SHAFT
52	52	COLLAR
39	39	COVER
40	40	MOTOR
41	41	BRACKET
44	44	SPRING
43	43	WASHER
42	42	NUT
45	45	WASHER
72	72	COLLAR
73	73	CONNECTOR
13	13	BRACKET
14	14	EYE BOLT
15	15	LINK
16	16	WASHER
16	16	WASHER
14	14	EYE BOLT
53	53	SCREW
53	53	SCREW
70	70	SPRING
71	71	SPRING
55	55	WASHER
55	55	WASHER
54	54	PIN
17	17	LEVER
18	18	SPRING
20	20	SHAFT
33~38	33~38	THREAD CUTTER ASSEMBLY
2	2	SPRING
4	4	BRACKET
3	3	SPRING
6	6	SCREW
5	5	CLAMP
1	1	BASE
19	19	RING
74	74	LEVER
75	75	PLATE
76	76	NUT
21	21	SLEEVE
22	22	COLLAR
23	23	WASHER
26	26	BRACKET
27	27	LEVER
28	28	PIN
29	29	WASHER
30	30	SCREW
7	7	SPRING
32	32	PIN
11	11	SHAFT
12	12	COLLAR
25	25	LEVER
24	24	BRACKET
31	31	SCREW
56	56	SHAFT
57	57	SPRING
58	58	NUT
59	59	WASHER
62	62	LEVER
68	68	WASHER
61	61	SPRING
60	60	PIN
69	69	SCREW
63	63	BRACKET
64	64	NUT
65	65	SCREW
66	66	WASHER
67	67	WASHER
77	77	LEVER
78	78	ROLLER
78	78	ROLLER
8	8	BRACKET
9	9	BRACKET
10	10	SCREW

Page 27 — OIL LUBRICATION COMPONENTS

Juki DDL-8000A parts on page 27

Ref	Part number	Part name	Qty
	1	SCREW
	2	WASHER
	3	PLATE
	4	SCREW
	5	SCREW
	6	BRACKET
	7	BRACKET
	8	SPRING
	9	PIN
	10	CLIP
	11	PLATE
	12	NIPPLE
	13	WASHER
	14	SPRING
	15	SPRING
	16	SPRING
	17	WASHER
	18	CLIP
	19	CABLE TIE
	20	CLAMP
	21	PLUG
	22	WASHER
	23	SEAL
	24	SPRING
	25	TUBE
	26	TUBE
	27	CLIP
	28	CLIP
	29	SPRING
	30	COVER
	31	GASKET
	32	FILTER
	33	WASHER
	34	BODY
	35	BRACKET
	36	BODY
	37	TUBE
	38	CLIP
	39	CLIP
	40	NIPPLE
	41	NIPPLE
	42	SPRING

Page 28

Juki DDL-8000A parts on page 28

Ref	Part number	Part name	Qty
	SM8050402TP	SCREW	1
	SM8050402TP	SCREW	1
	40174358	GEAR BOX COVER	1
	SL4051091SC	SCREW M5X0.8 L=10	3
	SM4051055SP	SCREW	7
	23629256	OIL WICK SUPPORT ASM.
	23629207	OIL WICK SUPPORT
	CQ250000001	OIL WICK
	SM5040655SN	SCREW
	22925101	OIL FELT PRESSER
	40075404	FACE FELT ASM.
	40174365	OIL ADJUSTING SCREW	1
	RO037180100	RUBBER RING	1
	23628803	PLUNGER	1
	23628902	PLUNGER SPRING	1
	23628328	PLUNGER SCREW	1
	RO068190100	RUBBER RING	1
	40215311	PIPE STOPPER	2
	EA9500B0100	CABLE BAND	1
	HX00150000K	CABLE CLIP	1
	40000344	LUBRICATING INLET CAP	1
	40029075	LUBRICATING INLET	1
	RO048190100	RUBBER RING	1
	23540305	FLOATER CASE CAP
	23630106	TUBE B	0.296
	23630007	TUBE	0.117
	23629405	PIPE STOPPER B	1
	23629306	PIPE STOPPER A	3
	CQ200000001	OIL WICK
	40221269	OIL TANK	1
	40221271	O-RING	1
	40221270	OIL LEVEL SWITCH CAP	1
	WP0560860SE	WASHER 5.6X12X0.8	1
	40209293	FLOATER SENSOR	1
	40221273	OIL TANK STAY	1
	RO118180100	O-RING	1
	40178658	PIPE	0.155
	23630403	OIL FILTER	1
	23630502	OIL FILTER STOPPER	1
	40174356	CONNECTING SCREW	1
	SQ2050453MZ	CONNECTING SCREW	1
	23630007	TUBE

Page 29 — AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-8000A parts on page 29

Ref	Part number	Part name	Qty
	1	BRACKET
	2	WIRE
	3	SOLENOID
	4	SPRING
	5	WASHER
	6	COLLAR
	7	WASHER
	8	SCREW
	9	WASHER
	10	NUT
	11	WASHER
	12	BRACKET
	13	BRACKET
	14	SPRING
	15	BRACKET
	16	SCREW
	17	LEVER
	18	PIN
	19	BUSHING
	20	SCREW

Page 31 — OPERATION PANEL COMPONENTS

Juki DDL-8000A parts on page 31

Ref	Part number	Part name	Qty
2	1	OPERATION PANEL
3	3	DISPLAY
4	4	BRACKET
5	5	SCREW
6	6	PANEL
7	7	PANEL
8	8	SCREW
9	9	BRACKET
10	10	SCREW
11	11	CONNECTOR
12	12	BRACKET
13	13	BRACKET
14	14	CABLE
1.15	15	PANEL

Page 32 — OPERATION PANEL COMPONENTS

Juki DDL-8000A parts on page 32

Ref	Part number	Part name	Qty
	40211456	PANEL 8A ASSY
	40214743	PANEL COVER 8A F ASSY
	40172422	INDICATOR
	40172423	USB COVER
	SV4030802SN	TAPPING SCREW WITH FLANGE M3X8
	40173459	PANEL COVER R ASM
	40172386	PANEL_COVER_R
	40172420	FIX_PLATE
	40174580	PNL_CABLE_CLAMP_PLATE
	SV4030802SN	TAPPING SCREW WITH FLANGE M3X8
	40214742	PNL 8A PCB ASSY
	SM8050852TP	SCREW M5 L=8
	40174408	PANEL_CSHION_RUBBER
	40215704	MAIN-PNL CORD 8A ASSY
	40224345	PANEL 8A CE ASSY

Page 33 — PSC UNIT

Juki DDL-8000A parts on page 33

Ref	Part number	Part name	Qty
1	1	PSC UNIT
5	5	PSC UNIT
3	3	Assembly
2	2	Assembly
4.6	4.6	Assembly

Page 34 — PSC UNIT

Juki DDL-8000A parts on page 34

Ref	Part number	Part name	Qty
	40211954	CONTROL BOX
	40215706	PEDAL SENSOR BASE ASSY
	40131478	CONNECTING ROD ASSY
	40215705	ACCESSORIES PARTS ASSY
	40212265	CONTROL BOX,1P,220,240V,CE
	40221831	ACCESSORIES PARTS ASSY CE

Page 35 — UNDER COVER COMPONENTS

Juki DDL-8000A parts on page 35

Ref	Part number	Part name	Qty
3	3	Washer
5	5	Nut
3	3	Washer
5	5	Nut
3	3	Washer
5	5	Nut

Page 36 — UNDER COVER COMPONENTS

Juki DDL-8000A parts on page 36

Ref	Part number	Part name	Qty
	40062323	UNDER COVER B ASM.
	23639008	UNDER COVER
	B1116210D00	FRAME SUPPORT RUBBER
	40223144	UNDER COVER C ASM.
	40218924	CE_BLOCK

Page 37 — THREAD STAND COMPONENTS

Juki DDL-8000A parts on page 37

Ref	Part number	Part name	Qty
1	1	BASE
2	2	BRACKET
3	3	BRACKET
4	4	BASE PLATE
5	5	BASE PLATE
6	6	POST
7	7	CAP
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	NUT
12	12	SCREW
13	13	NUT
14	14	WASHER
15	15	SCREW
16	16	ADJUSTING SCREW
17	17	ADJUSTING SCREW
18	18	TUBE
19	19	HOLDER
20	20	RING
21	21	NUT
22	22	WASHER
23	23	WASHER
24	24	SCREW
25	25	SCREW

Page 38 — THREAD STAND COMPONENTS

Juki DDL-8000A parts on page 38

Ref	Part number	Part name	Qty
	40108402	THRED_STAND_B	1
	40085786	SPOOL REST ARM (LOWER)
	40085787	SPOOL REST ARM (UPPER)
	40085788	SPOOL REST
	40085789	SPOOL REST CUSHION
	40085790	SPOOL PIN
	40085791	SPOOL RETAINER
	40085794	THREAD GUIDE
	40085795	THREAD GUIDE BUSHING
	40096326	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5
	40096327	SPOOL REST ARM UPPER SCREW
	NM6050001SE	NUT M5
	WS0510002KN	SPRING WASHER M5
	WP0531001SC	WASHER M5
	40108401	THREAD_STAND_A
	40085784	SPOOL REST ROD LOWER
	40085785	SPOOL REST ROD UPPER
	40085792	SPOOL REST ROD JOINT
	40085793	SPOOL REST ROD RUBBER CAP
	40096325	SPOOL REST ROD NUT
	WP1612616SE	WASHER 16X30X2.6
	40085796	SPOOL REST ROD RUBBER CUSHION
	SM4051405SE	SCREW M5 L=14
	NM6050001SE	NUT M5

Page 39 — ACCESSORIE PART COMPONENTS

Juki DDL-8000A parts on page 39

Ref	Part number	Part name	Qty
1	1	JUKI
2	2	Part 2
3	3	Part 3
4	4	Part 4
5	5	Part 5
6	6	Part 6
7	7	Part 7
8.9	8.9	Parts 8.9
10	10	Part 10
11	11	Part 11
12	12	Part 12
13	13	Part 13
14	14	Part 14
15	15	Part 15
16	16	Part 16
17	17	Part 17
18~22	18~22	Parts 18-22
23	23	Part 23
24	24	Part 24
25	25	Part 25

Page 40 — ACCESSORIE PART COMPONENTS

Juki DDL-8000A parts on page 40

Ref	Part number	Part name	Qty
	40135803	HEAD COVER	1
	22958052	RUBBER HINGE ASM.	1
	22926505	WASHER	2
	22926000	RUBBER CUSHION	2
	22958003	FRAME BUBBER CUSHION	2
	22926208	NAIL	8
	22926356	HINGE COMPL.	2
	40212472	ACCESSORIE BAG ASM.
	40037484	ACCESSORIE BAG	1
	22932800	ACCESSORIE BAG	1
	22958300	NEEDLE THREAD GUIDE PIN	1
	40055591	HEXAGONAL WRENCH KYE	1
	22933105	SCREW DRIVER (MIDDLE)	1
	22933204	SCREW DRIVER (SMALL)	1
	22931604	FRAME SUPPORT BAR	1
	23639701	KNEE LIFTER PRESSER ROD
	EA9500B0100	CABLE BAND
	MDB100B1102	NEEDLE DBX1#11-2
	MDB100B2102	NEEDLE DBX1#21-2
	MC200500752	134 #75-2
	MC200501302	NEEDLE 134 #130-2
	MDB100B1402	NEEDLE DBX1#14-2
	40214221	NEW DEFRIX OIL 1 100CC COMP.
	22932909	BOBBIN
	40179371	REACTOR BOX ASSY 1P

Page 41

Juki DDL-8000A parts on page 41

Ref	Part number	Part name	Qty
1	1	NEEDLE PLATE
2	2	BASE
3	3	POST
4	4	NEEDLE BAR
5	5	SIDE COVER
6	6	SPRING
7	7	PRESSER FOOT
8	8	PRESSER FOOT
9	9	FEED DOG
10	10	BOBBIN CASE
11	11	UPPER SHAFT
12	12	BOBBIN CASE
13	13	ARM SHAFT
14	14	GEAR
15	15	ECCENTRIC WHEEL
16	16	WORM WHEEL
17	17	WASHER
18	18	ECCENTRIC WHEEL
19	19	WASHER
20	20	ECCENTRIC WHEEL
21	21	SPRING
22	22	PIN
23	23	BRACKET
24	24	POST
25	25	ARM
26	26	SPRING
27	27	SPRING
28	28	PIN
29	29	THREAD LOOPER
30	30	FEED DOG
31	31	NEEDLE PLATE
32	32	FEED DOG
33	33	NEEDLE CLAMP
34	34	NEEDLE
35	35	BOBBIN WINDER
36	36	SHAFT
37	37	SPRING
38	38	BRACKET
39	39	SCREW
40	40	SPRING
41	41	BRACKET
42	42	GEAR
43	43	WASHER

Page 42 — EXCLUSIVE PARTS DDL-8000A-SSH

Juki DDL-8000A parts on page 42

Ref	Part number	Part name	Qty
	40089605	THROAT PLATE_J
	40107708	NEEDLE BAR METAL,LOWER,H
	40061767	NEEDLE BAR H
	MDB100B2100	NEEDLE DBX1 #21
	40172373	FACE COVER PACKING
	B1505552000A	PRESSER SPRING
	D1524555EBL	PRESSER FOOT ASM.
	40064839	PRESSER FOOT ASM.
	40089610	INNER HOOK HOLDER H
	11092251	LUBRICATING BOBBIN ASM.
	40191118	THREAD TAKE UP COMP. H
	40000264	BOBBIN CASE ASM.
	22962054	THREAD TENSION ASM.
	22921308	THREAD TENSION NUT
	22921209	THREAD TENSION POST
	22921407	ROTATION STOPPER
	22921506	THREAD TENSION DISK
	22921605	THREAD TAKE-UP SPRING
	22921803	DISK STOPPER
	22945307	THREAD TENSION POST BASE
	22962005	THREAD TENSION SPRING
	SS8090670SP	SCREW 9/64-40 L=5.5	2
	40024124	NEEDLE BAR THREAD GUIDE
	40191126	ASSY_COUNTER WEIGHT H
	40191127	COUNTER WEIGHT H
	40004171	COUNTER WEIGHT SCREW
	SM8081652TP	SCREW M8 L=16
	SM80806A2TP	SCREW M6 L=6
	40063697	ARM THREAD GUIDE A H
	11062601	FEED DOG
	11062007	THROAT PLATE A
	11403003	FEED J
	40023223	NEEDLE BAR THREAD GUIDE
	MC200501300	NEEDLE 134 NM130
	23619059	VERTICAL FEED CAM H ASM.
	23619000	VERTICAL FEED CAM H
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	22963458	THREAD TENSION ASM.
	22945414	THREAD TENSION POST
	22963409	THREAD TENSION SPRING
	22945604	THREAD TENSION GUIDE
	22945703	THREAD TENSION NUT
	22945802	THREAD TENSION DISK	2

Page 43 — LIST FOR INFORMATION OF CHANGE

Juki DDL-8000A parts on page 43

Ref	Part number	Part name	Qty
9	400-37484
16	236-39701
17	EA-9500B01-00

Page 44

Juki DDL-8000A parts on page 44

Ref	Part number	Part name	Qty
	GG	China
	BB	Europe
	EE	Japan
	AA	excludes China,Europe and Japan
	GG	中国
	BB	ヨーロッパ
	EE	日本
	AA	中国、ヨーロッパ、日本を除く

Page 45 — NUMERICAL INDEX OF PARTS

Juki DDL-8000A parts on page 45

Ref	Part number	Part name	Qty
49	10618304	22921209
61	11015906	22921209
68-69	11038650	22921308
27	11038759	22921308
31	11062007	22921308
30	11062601	22921407
84	11079506	22921407
10	11092251	22921407
68-69	11141355	22921506
32	11403003	22921506
33-38	11419504	22921605
33-38	11419603	22921605
33-38	11419702	22921704
33-38	11419801	22921704
33-38	11419900	22921803
6	11420601	22921803
7-8	22886907	22925101
7-8	22887004	22926000
2	22891204	22926208
21	22901201	22926356
20	22901250	22926505
22	22901300	22931604
2	22901409	22932800
59	22901805	22932909
4	22902506	22932909
23	22904106	22933105
22	22904155	22944508
47	22906309	22945307
4	22906408	22945307
3	22906457	22945356
14	22907406	22945414
21	22907703	22945414
32	22907802	22945463
26	22908008	22945505
34	22908552	22945505
11	22910509	22945604
13	22911002	22945604
6	22911101	22945703
30	22912109	22945703
20	22912307	22945802
22	22912307	22945802
77	22913008	22952501
60	22916506	22958003
5	22920300	22958052
6	22920409	INDEX - 1
42	22921209	2
15	22921209	40
43	22921308	2
27	22921308	6
14	22921308	40
44	22921407	2
28	22921407	6
16	22921407	40
45	22921506	2
29	22921506	6
17	22921506	40
46	22921605	2
18	22921605	40
47	22921704	2
30	22921704	6
48	22921803	4
19	22921803	40
10	22925101	26
4	22926000	38
6	22926208	38
7	22926356	38
3	22926505	38
15	22931604	38
10	22932800	38
72	22932909	20
24	22932909	38
13	22933105	38
14	22933204	38
11	22944508	12
41	22945307	2
20	22945307	40
40	22945356	2
29	22945414	2
39	22945414	40
28	22945463	2
30	22945505	2
31	22945604	2
41	22945604	40
32	22945703	2
42	22945703	40
33	22945802	2
43	22945802	40
27	22952501	16
5	22958003	38
2	22958052	38
11	22958300	38
21	22962005	40
13	22962054	40
40	22963409	40
38	22963458	40
24	23540305	26
1	23608003	8
15	23609001	12
39	23613409	16
47	23618101	18
52	23618309	20
36	23619000	40
35	23619059	40
27	23626104	2
3	23626807	12
14	23628803	26
15	23628902	26
7	23629207	26
6	23629256	26
28	23629306	26
27	23629405	26
23	23630007	16
42	23630007	26
25	23630106	26
38	23630403	26
39	23630502	26
2	23639008	34
16	23639701	38
12	40000264	40
21	40000344	26
37	40000391	18
38	40000392	18
17	40004171	8
26	40004171	40
13	40004254	14
43	40006716	16
51	40009037	4
78	40010805	20
66-67	40015671	24
16	40017805	12
33	40023223	40
23	40024124	40
5	40026277	18
16	40026281	18
36	40026282	18

Page 46 — NUMERICAL INDEX OF PARTS

Juki DDL-8000A parts on page 46

Ref	Part number	Part name	Qty
41	40026287
43	40026288
22	40029075
71	40030786
38	40032269
15	40037005
32	40037008
23	40037141
24	40037144
22	40037359
4	40037365
8-9	40037484
16	40038328
10	40040256
18	40042079
2	40050582
36	40050583
37	40052933
40	40053720
12	40055591
9	40058504
8	40061246
3	40061767
1-4	40062323
29	40063697
8	40064839
11	40075404
17	40085784
18	40085785
2	40085786
3	40085787
4	40085788
5	40085789
6	40085790
7	40085791
19	40085792
20	40085793
8	40085794
9	40085795
23	40085796
20	40086597
15	40086605
17	40086606
18	40086607
38	40086616
69	40086623
51	40086635
17	40086655
17	40086674
18	40086675
45	40086690
2	40086695
3	40086696
13	40086698
18	40086699
8	40086704
9	40086705
12	40086706
46	40086711
55	40086712
46	40086731
22	40086737
21	40086739
65	40086748
3	40086753
20	40086759
25	40088958
26	40088959
1	40089605
75	40089607
9	40089610
6	40090058
61	40090099
57	40091461
12	40095844
40	40095847
21	40096325
10	40096326
12	40096327
11	40099083
2	40107708
16	40108401
1	40108402
42	40122891
3	40131478
25	40133950
1	40135803
15	40135904
31	40135905
35	40135907
16	40135916
56	40136258
10	40136292
11	40136293
14	40136701
44	40141440
29	40141840
29	40141842
58	40145927
13	40150011
31	40161440
36	40161441
3	40166870
4	40166872
5	40166881
6	40166885
7	40166886
8	40166887
9	40166888
10	40166893
11	40166894
5	40172373
8	40172376
7	40172386
22	40172393
21	40172398
44	40172401
3	40172401
4	40172402
42	40172403
8	40172420
3	40172422
4	40172423
14	40172460
5	40172467
28	40172479
21	40172482
50	40172495
56	40172496
9	40172498
57	40172504
7	40172508
6	40173459
1	40174296
2	40174297

Page 47 — NUMERICAL INDEX OF PARTS

Juki DDL-8000A parts on page 47

Ref	Part number	Part name	Qty
20	40174298	40191108
31	40174300	40191109
32	40174302	40191111
27	40174314	40191113
17	40174315	40191114
4	40174318	40191115
58	40174321	40191116
13	40174323	40191118
15	40174324	40191126
56	40174328	40191127
57	40174331	40191133
74	40174333	40195289
54	40174334	40195552
62~66	40174335	40209293
62~66	40174336	40211061
62~66	40174337	40211076
62~66	40174338	40211078
30	40174341	40211082
32	40174342	40211085
33	40174343	40211086
34	40174344	40211087
10	40174349	40211442
26	40174356	40211449
26	40174358	40211454
26	40174365	40211456
20	40174369	40211459
2	40174373	40211502
14	40174375	40211510
12	40174388	40211511
14	40174388	40211512
2	40174392	40211518
30	40174408	40211523
12	40174573	40211525
20	40174577	40211526
30	40174580	40211527
22	40174583	40211528
22	40174584	40211713
22	40174600	40211777
24	40174610	40211778
22	40174612	40211898
26	40178658	40211953
38	40179371	40211954
24	40181990	40212095
24	40182053	40212098
6	40191107	40212265
38	40212472	40211037
18	40213205	40211442
2	40213295	40211449
22	40213952	40211454
28	40214010	40211456
38	40214221	40211459
22	40214565	40211502
30	40214742	40211510
30	40214743	40211511
24	40214745	40211512
2	40214746	40211518
10	40215263	40211523
26	40215311	40211525
22	40215688	40211526
22	40215691	40211527
30	40215704	40211528
32	40215705	40211713
32	40215706	40211777
8	40215866	40211778
34	40218924	40211898
26	40221269	40211953
26	40221270	40211954
26	40221271	40212095
26	40221273	40212098
32	40221831	40212265
34	40223144	B1109552000
30	40224345	B1116210D00
4	B1109552000	B1116210D00
22	B1116210D00	B1116804000
34	B1116210D00	B150552000A
24	B1116804000	B152155000
40	B150552000A	B15240120BA
12	B152155000	B3118552F00
12	B15240120BA	B412352200A
12	B3118552F00	B412352200B
18	B412352200A	B412352200C
18	B412352200B	CM300200001
18	B412352200C	CQ200000001
2	CM300200001	CQ250000001
26	CQ200000001	CS0800881TP
26	CQ250000001	CS1000881TP
22	CS0800881TP	D1524555EBL
8	CS1000881TP	D2468555B00
40	D1524555EBL	40211527
28	D2468555B00	40211528

Page 48 — NUMERICAL INDEX OF PARTS

Juki DDL-8000A parts on page 48

Ref	Part number	Part name	Qty
29	EA9500B0100	EA9500B0100
19	EA9500B0100	EA9500B0100
17	EA9500B0100	EA9500B0100
8	GPK26023000	GPK26023000
17	HD00223000	HD00223000
73	HK034610040	HK034610040
2	HK03464000B	HK03464000B
30	HX001500000	HX001500000
20	HX00150000K	HX00150000K
42-43	MC200500750	MC200500750
18-22	MC200500752	MC200500752
4-34	MC200501300	MC200501300
18-22	MC200501302	MC200501302
42-43	MDB100B1100	MDB100B1100
18-22	MDB100B1102	MDB100B1102
18-22	MDB100B1402	MDB100B1402
4-34	MDB100B2100	MDB100B2100
18-22	MDB100B2102	MDB100B2102
53	NM6040001SC	NM6040001SC
53	NM6040001SE	NM6040001SE
42	NM6040001SP	NM6040001SP
14	NM6040001SP	NM6040001SP
68	NM6040001SP	NM6040001SP
16	NM6050001SC	NM6050001SC
25	NM6050001SE	NM6050001SE
10	NM6050001SP	NM6050001SP
58	NM6060001SC	NM6060001SC
54	NS6110310SP	NS6110310SP
59	NS6620310SP	NS6620310SP
59	RC0150001KP	RC0150001KP
83	RC1200001KP	RC1200001KP
19	RC2651218KP	RC2651218KP
36	RE0300000K0	RE0300000K0
37	RE0500000K0	RE0500000K0
24	RE0500000K0	RE0500000K0
48	RE0500000K0	RE0500000K0
4	RE1200000K0	RE1200000K0
73	RO036080200	RO036080200
35	RO037180100	RO037180100
43	RO037180100	RO037180100
23	RO044240100	RO044240100
17	RO048190100	RO048190100
33	RO068190100	RO068190100
11	RO092270200	RO092270200
36	RO118180100	RO118180100
79	SB108000100	SB108000100
51	SB117001200	SB117001200
80	SB120001800	SB120001800
24	SB120002700	SB120002700
48-50	SB32000060A	SB32000060A
48-50	SB32000060B	SB32000060B
48-50	SB32000060C	SB32000060C
25	SD0500403TP	SD0500403TP
53	SD0500701TP	SD0500701TP
52	SL4041281SC	SL4041281SC
18	SL4041291SC	SL4041291SC
7	SL4041401SC	SL4041401SC
4	SL4051091SC	SL4051091SC
55	SL4051691SC	SL4051691SC
10	SL4052591SC	SL4052591SC
28	SL6052592TN	SL6052592TN
33	SM0050801SC	SM0050801SC
31	SM4040601SC	SM4040601SC
12	SM4040655SP	SM4040655SP
20	SM4040655SP	SM4040655SP
42	SM4040655SP	SM4040655SP
13	SM4041055SP	SM4041055SP
10	SM4050655SP	SM4050655SP
60	SM4050855SP	SM4050855SP
41	SM4050855SP	SM4050855SP
19	SM4050855SP	SM4050855SP
78	SM4050855SP	SM4050855SP
16	SM4051055SP	SM4051055SP
9	SM4051055SP	SM4051055SP
31	SM4051055SP	SM4051055SP
76	SM4051055SP	SM4051055SP
5	SM4051055SP	SM4051055SP
8	SM4051055SP	SM4051055SP
24	SM4051405SE	SM4051405SE
26	SM5040655SN	SM5040655SN
20	SM5040655SN	SM5040655SN
9	SM5040655SN	SM5040655SN
7	SM6040802TP	SM6040802TP
45	SM6042000SP	SM6042000SP
82	SM6042000SP	SM6042000SP
19	SM6051400SP	SM6051400SP
17	SM6051400SP	SM6051400SP
39	SM6051402TP	SM6051402TP
18	SM6051402TP	SM6051402TP
19	SM6051602TP	SM6051602TP
14	SM6051602TP	SM6051602TP
28	SM6051850TP	SM6051850TP
14	SM6060802TP	SM6060802TP
9	SM6060802TP	SM6060802TP
16	SM6061002TP	SM6061002TP
72	SM6061002TP	SM6061002TP
21	SM8040412TP	SM8040412TP
36	SM8040612TP	SM8040612TP
2	SM8050402TP	SM8050402TP
22	SM8050502TP	SM8050502TP
40	SM80506A2TP	SM80506A2TP
4	SM80506A2TP	SM80506A2TP
30	SM80506A2TP	SM80506A2TP
11	SM8050852TP	SM8050852TP
12	SM8050852TP	SM8050852TP
19	SM80606A2TP	SM80606A2TP
41	SM80606A2TP	SM80606A2TP
64	SM80606A2TP	SM80606A2TP
28	SM80606A2TP	SM80606A2TP
39	SM80608A2TP	SM80608A2TP
37	SM80608A2TP	SM80608A2TP
5	SM80608A2TP	SM80608A2TP
1	SM80608A2TP	SM80608A2TP
67	SM80608A2TP	SM80608A2TP
12	SM80608A2TP	SM80608A2TP
71	SM8061010TP	SM8061010TP
70	SM8061050TP	SM8061050TP
18	SM8081652TP	SM8081652TP
27	SM8081652TP	SM8081652TP
29	SM8480652TP	SM8480652TP
19	SM8480652TP	SM8480652TP
41	SS0210920TP	SS0210920TP
23	SS06060210SP	SS06060210SP
12	SS6090620TP	SS6090620TP
5	SS6090670TP	SS6090670TP
53	SS6090670TP	SS6090670TP
53	SS6090670TP	SS6090670TP
35	SS6110710TP	SS6110710TP
47	SS6110710TP	SS6110710TP
11	SS6121610SP	SS6121610SP
35	SS6121860SP	SS6121860SP

Page 49 — NUMERICAL INDEX OF PARTS

Juki DDL-8000A parts on page 49

Ref	Part number	Part name	Qty
48	SS7080510TP	SS7080510TP
20	SS7091110TP	SS7091110TP
12	SS7110720SP	SS7110720SP
49	SS8090670SP	SS8090670SP
22	SS8090670SP	SS8090670SP
3	SS8150822TP	SS8150822TP
39	SS8151150TP	SS8151150TP
37	SS8660610TP	SS8660610TP
24	SS8661012TP	SS8661012TP
46	ST4030651SN	ST4030651SN
23	SV4030802SN	SV4030802SN
10	TA1250406R0	TA1250406R0
50	TA1250406R0	TA1250406R0
50	WP0501016SD	WP0501016SD
40	WP0531000SD	WP0531000SD
18	WP0531001SC	WP0531001SC
15	WP0550800SP	WP0550800SP
7	WP0551016SH	WP0551016SH
9	WP0560860SE	WP0560860SE
33	WP0621016SD	WP0621016SD
45	WP0621016SH	WP0621016SH
59	WP1602616SZ	WP1602616SZ
6	WP1612616SE	WP1612616SE
22	WS0410002KR	WS0410002KR
43	WS0510002KN	WS0510002KN
14	WS0610002KN	WS0610002KN
61	WT0530002KS	WT0530002KS

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-8000A — parts catalog

• Page 1 (cover): This is the cover page for the parts list of the DDL-8000A model, list number 1728-02, published on 10/01/2020.
• Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
• Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
• Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
• Page 7 (diagram): This page displays a diagram of bobbin winder components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 8 (parts_list): This page lists components for a bobbin winder, including part numbers, names, and quantities.
• Page 9 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
• Page 10 (parts_list): This page lists components for the main shaft and needle bar, including part numbers, names, remarks, and quantities.
• Page 11 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
• Page 12 (parts_list): This page lists components for the main shaft and needle bar, including screws, thread guides, and motor cable guides, with their respective part numbers and quantities.
• Page 13 (diagram): This page displays a diagram of hand lifter and tension release components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 15 (diagram): This page displays a diagram of hand lifter components, with numbered parts indicated by reference numbers.
• Page 16 (parts_list): This page lists components for the HAND LIFTER COMPONENTS (AK), including part numbers, names, and quantities.
• Page 17 (diagram): This page displays a diagram of the feed adjust mechanism components, with numbered parts and their corresponding references.
• Page 19 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with various parts numbered for identification.
• Page 20 (parts_list): This page lists components for HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS, including part numbers, descriptions, and quantities.
• Page 21 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with various parts numbered for identification.
• Page 22 (parts_list): This page lists components for the HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS, including part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
• Page 24 (parts_list): This page lists components for thread trimmer components, including part numbers, descriptions, and quantities.
• Page 25 (diagram): This page displays a diagram of thread trimmer components, with various parts numbered for identification.
• Page 27 (diagram): This page displays a diagram of oil lubrication components, with numbered parts indicated for identification.
• Page 28 (parts_list): This page lists oil lubrication components including screws, oil wicks, rubber rings, plungers, and tubes, with their corresponding part numbers, descriptions, and quantities.
• Page 29 (diagram): This page displays a diagram of automatic reverse feed components, illustrating various parts with reference numbers for identification.
• Page 31 (diagram): This page displays a diagram of operation panel components, with numbered parts and their corresponding references.
• Page 32 (parts_list): This page lists operation panel components with their part numbers, descriptions, remarks, and quantities. It includes parts like panel assemblies, covers, screws, and plates.
• Page 33 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers 1 through 6.
• Page 34 (parts_list): This page lists parts for the PSC UNIT, including control boxes, sensor bases, connecting rods, and accessories, with their respective part numbers and remarks.
• Page 35 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts indicated by reference numbers 1.4, 2, 3, and 5.
• Page 36 (parts_list): This page lists components for the under cover, including part numbers, names, remarks, and quantities.
• Page 37 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
• Page 38 (parts_list): This page lists components for thread stands, including part numbers, names, remarks, and quantities.
• Page 39 (diagram): This page displays a diagram of accessory part components for a JUKI sewing machine, with numbered illustrations of various tools and accessories.
• Page 40 (parts_list): This page lists accessory part components with their part numbers, names, remarks, and quantities.
• Page 41 (diagram): This page displays a diagram of exclusive parts for the DDL-8000A-SSH sewing machine, with various components labeled with reference numbers.
• Page 42 (parts_list): This page lists exclusive parts for the DDL-8000A-SSH sewing machine, including part numbers, descriptions, remarks, and quantities.
• Page 43 (text): This page contains information about changed parts, including obsolete and added parts, and lists specific part numbers with their corresponding revision numbers, page numbers, and reference numbers.
• Page 44 (text): This page provides explanations for codes and symbols used in the parts list, including how to interpret marks, quantity codes, and destination codes.
• Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
• Page 46 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers within diagrams.
• Page 47 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.
• Page 48 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 49 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.

Page 1 — PARTS LIST

MODEL : DDL-8000A List No : 1728-02 PARTS LIST Published:10/01/2020 jintex.in

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 2 1 10 60 61 59 9 2 8 25 55 58 6 55 50 A 19 18 55 38 27 26 24 39 12 56 37 11 19 34 15 17 54 57 16 21 13 22 20 23 28 31 29 33 30 32 49 41 46 42 45 48 47 44 43 40 3 A 7 53 4 5 5 7 51 52 jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40211061 AK COVER 8A SCREW 6 2 SM4051055SP FACE COVER 1 3 40211078 PLATE 1 4 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 5 SM80608A2TP SCREW M6 L=8 1 6 SL4041491SC SCREW 4 X 14 3 7 40172376 THREAD_TAKE_UP_COVER 1 8 SM4051055SP SCREW 1 9 SM4051055SP SCREW 1 10 SL4052591SC SCREW 1 11 40099083 RULER STOP SEAT 1 12 SS7110720SP SCREW 11/64-40 L=7 1 13 40214746 BED BRACKET A 1 14 SM6060802TP SCREW M6 L=8 2 15 40211076 BED BRACKET B 1 16 SM6061002TP SCREW M6 L=10 2 17 SS2110920TP SCREW 11/64-40 L=8.5 2 18 40213295 SAFETY LABEL S N 1 19 CM300200001 FINGER INJURY CAUTION LABLE (16) 2 20 22901250 SLIDE PLATE ASM. 1 21 22901201 SLIDE PLATE 1 22 22901300 SLIDE PLATE SPRING 1 23 SS6060210SP SCREW 3/32-56 L=1.9 2 24 NM6040001SC NUT M4X0.7 TYPE1 1 25 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 26 SM5040655SN SCREW 1 27 23626104 ARM THREAD GUIDE A 1 28 22945463 THREAD TENSION ASM.,NO.1 1 29 22945414 THREAD TENSION POST 1 30 22945505 THREAD TENSION SPRING 1 31 22945604 THREAD TENSION GUIDE 1 32 22945703 THREAD TENSION NUT 1 33 22945802 THREAD TENSION DISK 2 34 40174373 THREAD NIPPER SOLENOID FOR NB 1 35 40174392 ARM_CAP FOR OB 1 36 SM8040612TP SCREW M4 L=6 1 37 40052933 ARM THREAD GUIDE C 1 38 SM80608A2TP SCREW M6 L=8 1 39 SM80608A2TP SCREW M6 L=8 1 40 22945356 THREAD TENSION ASM. 1 41 22945307 THREAD TENSION POST BASE 1 42 22921209 THREAD TENSION POST 1 43 22921308 THREAD TENSION NUT 1 44 22921407 ROTATION STOPPER 1 45 22921506 THREAD TENSION DISK 2 46 22921605 THREAD TAKE-UP SPRING 1 47 22921704 THREAD TENSION SPRING 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS JIN텍.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 22921803 DISK STOPPER * 1 49 SS8090670SP SCREW 9/64-40 L=5.5 * 1 50 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 51 40009037 TAKE-UP THREAD GUIDE 1 52 SL4041281SC SCREW M4X0.7 L=12 1 53 NM6040001SC NUT M4X0.7 TYPE1 1 54 B1109552000 THROAT PLATE 1 55 SL4051691SC SCREW M5X0.8 L=16 3 56 40136258 CORD HOLDER 1 57 40091461 FEED LEVER SPRING HOOK 1 58 40174322 CORD CLAMP BUSH 1 59 22901805 GROUND MARK 1 60 SM4050855SP SCREW 1 61 WT0530002KS TOOTHED WASHER D=5.3 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 1 20 3 17 14 4 12 11 6 7 9 5 13 18 19 21 15 21 16 24 25 27 28 29 30 26 33 32 31 Jinttex.in

Page 8

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40191107 BOBBIN_WINDER_UNIT_N * 1 2 22891204 BEARING_SUPPORT * 1 3 40166870 WASHER * 1 4 40166872 BOBBIN_SUPPORT * 1 5 40166881 BOBBIN_FIXED_SPRING * 1 6 40166885 BOBBIN_PRESSER_CAM * 1 7 40166886 BOBBIN_WINDER_LEVER * 1 8 40166887 BOBBIN_WINDER_LEVER_SPRING * 1 9 40166888 SPRING * 1 10 40166893 STOPPER_RUBBER * 1 11 40166894 O_RING * 1 12 40191108 BTW_BASE_N ☆ 1 13 40191109 BOBBIN_WINDER_SHAFT_N ☆ 1 14 40191111 BOBBIN_WINDER_ARM_SHAFT_N * 1 15 40191113 BOBBIN_WINDER_WHEEL_N * 1 16 40191114 BTW_WHEEL_RUBBER_N * 1 17 40191115 BOBBIN_PRESSER_N * 1 18 40191116 BOBBIN_WINDER_SUPPORT_N_ASM. * 1 19 RE0500000K0 E-RING * 1 20 SM5040655SN SCREW * 1 21 SM8040412TP SET_SCREW_M4_L=4 * 2 22 SM8050502TP SCREW_M5_L=5 * 1 23 ST4030651SN SCREW_M3_X_6 * 1 24 SM0050801SC SCREW 2 25 40088958 BOBBIN_THREAD_TENSION_ASM. 1 26 40088959 BOBBIN_THREAD_TENSION_ROD_ASM. * 1 27 22921308 THREAD_TENSION_NUT * 1 28 22921407 ROTATION_STOPPER * 1 29 22921506 THREAD_TENSION_DISK * 2 30 22921704 THREAD_TENSION_SPRING * 1 31 SM4051055SP SCREW 1 32 40037008 THREAD_CUTTER 1 33 SM0050801SC SCREW 1 jintex.in

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 1 2 3 4 5 9 7.8 47 42.43 30 39 37 32 33 34 36 31 6 49 48 15 16 19 18 17 14 13 12 11 10 20 29 27 41 50 46 24 44 45 21 22 23 26 25 38 40 jintex.in

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23608003 NEEDLE BAR METAL,UPPER 1 2 22901409 NEEDLE BAR UPPER BUSH CAP 1 3 22906457 NEEDLE BAR HOLDER ASM. 1 4 22906408 NEEDLE ROD HOLDER 1 5 SS6090670TP SCREW 9/64-40 L=6 * 1 6 40090058 SLIDE BLOCK 1 7 22887004 NEEDLE BAR (B) FOR BB 1 8 22886907 NEEDLE BAR (A) FOR AA,GG 1 9 40086605 NEEDLE BAR,LOWER METAL,MD 1 10 40136292 BTW DRIVING WHEEL ASM. 1 11 40136293 BTW DRIVING WHEEL 1 12 SM80506A2TP SCREW M5 L=6 * 2 13 40150011 FRONT,BEARING 1 14 SM80608A2TP SCREW M6 L=8 2 15 40135904 ASSY,COUNTER WEIGHT 1 16 40135916 COUNTER WEIGHT * 1 17 40004171 COUNTER WEIGHT,SCREW * 1 18 SM8081652TP SCREW M8 L=16 * 1 19 SM80606A2TP SCREW M6 L=6 * 1 20 40086597 MAIN SHAFT 1 21 40172398 COUPLING,ASM. 1 22 40172393 COUPLING * 4 23 SM80608A2TP SCREW M6 L=8 1 24 SB120002700 BEARING 1 25 40215866 HAND WHEEL 1 26 SM80608A2TP SCREW M6 L=8 2 27 40211082 AC SERVO MOTOR 1 28 SL6052592TN BOLT 4 29 EA9500B0100 CABLE BAND 1 30 40174341 THREAD,TAKE UP,COMP. 1 31 40135905 THREAD,TAKE UP,ASM.,C * 1 32 40174342 TAKE UP CRANK ASM. * 1 33 40174343 TAKE UP CRANK * 1 34 40174344 TAKE UP CRANK SHAFT * 1 35 40135907 THREAD,TAKE UP,PIN * 1 36 RE0300000K0 E-RING 3 * 2 37 SM80608A2TP SCREW M6 L=8 2 38 40032269 THRUST COLLAR 1 39 CS1000881TP THRUST COLLAR * 1 40 SM80506A2TP SCREW M5 L=6 * 2 41 SM4050855SP SCREW 1 42 MC200500750 NEEDLE 134 NM75 FOR BB 1 43 MDB100B1100 NEEDLE DBX1 #11 FOR AA,GG 1 44 40141440 UPPER SPROCKET ASM. 1 45 SM6042000SP SCREW * 3 46 40086731 TIMING BELT 550 1 47 22906309 NEEDLE BAR THREAD GUIDE 1 jintex.in

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 1 2 3 4 5 9 7.8 47 42.43 30 37 37 32 33 34 36 31 6 39 38 40 29 27 25 26 28 41 50 46 24 12 11 10 14 13 15 19 16 18 17 20 23 22 21 44 45 49 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SS7080510TP SCREW 1/8-44 L=4.5 1 49 40174349 NEEDLE BAR THREAD GUIDE 1 50 40215263 MOTOR CABLE GUIDE 1 jintex.in

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 15

HAND LIFTER COMPONENTS (AK) jintex.in

Page 16 — HAND LIFTER COMPONENTS (AK)

HAND LIFTER COMPONENTS (AK) No. Parts No. Parts name Remarks Level Cons Qty 1 40211512 MOTOR RELAY CABLE ASSY 1 2 40174388 HINGE SCREW 1 3 40172401 AK_LEVER 1 4 40172402 PRESSER_LEVER_SHAFT 1 5 SM80608A2TP SCREW M6 L=8 1 6 40211442 PRESSER MOTOR 1 7 SM6040802TP SCREW M4X0.7 L=8 4 8 40212095 MOTOR BASE 1 9 SM6060802TP SCREW M6 L=8 3 10 40174375 CAM 1 11 SM8050852TP SCREW M5X8 2 12 40040256 CAM_ROLLER_SHAFT 1 13 40004254 UTT_CAM_ROLLER 1 14 NM6040001SP NUT M4X0.7 2 15 40212098 PBL SENSOR BKT 1 16 SM4040655SP SCREW M4 L=6 2 17 HD002230000 PHOTO SENSOR 1 18 SL4041291SC SCREW M4 L=12 1 19 40211777 PBL SENSOR PLATE 1 20 SM4040655SP SCREW M4 L=6 1

Page 17

FEED ADJUST MECHANISM COMPONENTS 39 25 16 15 24 37 26 43 27 28 29 30 31 36 33 32 34 35 21 23 22 8 11 9 12 10 14 13 7 2 3 4 5 6 A 38 Jinte.in

Page 19

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 20 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40174296 ASSY FEED ROCKER CAM * 1 2 40174297 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-27 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40065504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B 1 14 40213205 FEED ROCKER SHAFT BUSHING 1 15 40037005 ASSY FEED ROCKER BASE ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0531000SD WASHER M5 1 19 SM4050855SP SCREW * 1 20 40174298 FEED ROCKER CAM TOP 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 23 22904106 MAIN SHAFT THRUST COLLAR * 2 24 SS8660610TP SCREW 1/4-40 L=8 * 1 25 40133950 FEED DOG M 2 26 SS4080620TP SCREW 1/8-44 L=6 1 27 11038759 BOBBIN CASE ASM. 1 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLLR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLLR SELECTIVE PARTS 1 31 40174300 FEED CONNECTING LINK A 2 32 40174302 FEED CONNECTING LINK B 2 33 40211085 FEED ROCKER SHAFT 1 34 40191133 HOOK SHAFT REAR BEARING 1 35 SS6110710TP SCREW 11/64-40 L=6.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 40000391 VERTICAL FEED CAM ASM. 5 1 38 40000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40211086 FEED DRIVING SHAFT 1 45 40086690 FEED DRIVING BEARING SUPPORT 2 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 jintex.in

Page 21

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS Jinte.in

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PARTS 1 49 SB32000060B BEARING SELECTIVE PARTS 1 50 SB32000060C BEARING SELECTIVE PARTS 1 51 SB117001200 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 40174334 GEAR LARGE 1 55 SM80608A2TP SCREW M6 L=8 2 56 40174328 HOOK SHAFT 1 57 40174331 HOOK SHAFT METAL ASM. 1 58 40145927 OIL SEAL 1 59 RC0150001KP C-RING 15(13.8) 1 60 22916506 SET SCREW 1 61 11015906 OIL WICK 1 62 40174335 GEAR SMALL A SELECTIVE PARTS 1 63 40174336 GEAR SMALL B SELECTIVE PARTS 1 64 40174337 GEAR SMALL C SELECTIVE PARTS 1 65 40174338 GEAR SMALL D SELECTIVE PARTS 1 66 40174369 GEAR SMALL E SELECTIVE PARTS 1 67 SM80608A2TP SCREW M6 L=8 ☆ 2 68 11141355 HOOK ASM. FOR BB ☆ 1 69 11038650 HOOK ASM. FOR AA,GG 1 70 RO036080200 RUBBER RING OPTIONAL PARTS 1 71 40030786 FEED BASE COMPL. 1 72 22932909 BOBBIN 1 73 RO036080200 RUBBER RING 1 74 40174333 HOOK SHAFT REAR METAL 1 75 40089607 INNER HOOK HOLDER 1 76 SM4051055SP SCREW 1 77 22913008 FEED ROCKER SHAFT BUSHING 1 78 40010805 OIL SEAL RING 1 79 SB108000100 BEARING 1 80 SB120001800 BEARING 1 81 40174577 UNDER SPROCKET ASM. 3 82 SM6042000SP SCREW * 1 83 RC1200001KP C-SHAPED SNAP RING OPTIONAL PARTS 1 84 11079506 FRONT SCREW 1 jintex.in

Page 23

THREAD TRIMMER COMPONENTS jintex.in

Page 24 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40211087 KNIFE UNIT 1 2 40195289 MOVING KNIFE * 1 3 40195552 THREAD_TRIMMER_KNIFE_H * 1 4 40174318 THREAD_TRIMMER_BASE * 1 5 40211713 MOVING KNIFE BASE * 1 6 11420601 SCREW * 4 7 40211778 TRIMMER BACK SPRING 1 8 B1116210D00 FRAME SUPPORT RUBBER 1 9 40172498 RUBBER_STOPPER_PLATE 2 10 SM4050655SP SCREW M5 L=6 1 11 40214565 THREAD TRIMMER CAM A 2 12 SM80608A2TP SCREW M6 L=8 1 13 40174323 CONNECTING_ROD_ASM_R 1 14 40136701 ROD_END 2 15 40174324 CONNECTING_BAR 1 16 NM6050001SC NUT M5X0.8 TYPE1 2 17 40174315 TRIMMER_MOVING_ARM 1 18 SM6051402TP SCREW M5X0.8 L=14 2 19 RC2651218KP RETAINING RING 1 20 40213952 TRIMMER MOVING SHAFT 1 21 40172482 THREAD_TRIMMER_METAL_A 1 22 CS0800881TP THRUST COLLAR 1 23 SM80506A2TP SCREW M5 L=6 2 24 40215691 THREAD TRIMMER ROD 1 25 SD0500403TP SCREW 1 26 40174600 THREAD_TRIMMER_ARM_ASM. 1 27 40174314 THREAD_TRIMMER_ARM * 1 28 40172479 THREAD_TRIMMER_ARM_PIN * 1 29 SM8480652TP SCREW 1 30 SM80506A2TP SCREW M5 L=6 2 31 40215688 TRIMMER ADJUSTING PIN 1 32 22912307 PIN 1 33 11419504 THRUST COLLAR A SELECTIVE PARTS 1 34 11419603 THRUST COLLAR B SELECTIVE PARTS 1 35 11419702 THRUST COLLAR C SELECTIVE PARTS 1 36 11419801 THRUST COLLAR D SELECTIVE PARTS 1 37 11419900 THRUST COLLAR E SELECTIVE PARTS 1 38 40174612 SPACER SELECTIVE PARTS 1 39 40211510 THREAD TRIMMER SOLENOID D ASM. 1 40 40211511 THREAD TRIMMER SOLENOID * 1 41 40174583 SOLENOID_INSTALLING_BASE * 1 42 NM6040001SE NUT M4 * 2 43 WS0410002KR SPRING WASHER M4 * 2 44 40174584 SPRING * 1 45 WP0621016SD WASHER 6.2X13X1 2 46 40086711 SORENOID_PIN 1 47 SS6110710TP SCREW 11/64-40 L=6.5 1 jintex.in 22

Page 25

THREAD TRIMMER COMPONENTS jintex.in

Page 27 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 jintex.in

Page 28

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM8050402TP SCREW 1 2 SM8050402TP SCREW 1 3 40174358 GEAR BOX COVER 1 4 SL4051091SC SCREW M5X0.8 L=10 3 5 SM4051055SP SCREW 7 6 23629256 OIL WICK SUPPORT ASM. DDL-8000A-SSH ONLY 1 7 23629207 OIL WICK SUPPORT DDL-8000A-SSH ONLY * 1 8 CQ250000001 OIL WICK DDL-8000A-SSH ONLY * 0.25 9 SM5040655SN SCREW DDL-8000A-SSH ONLY 1 10 22925101 OIL FELT PRESSER DDL-8000A-SSH ONLY 1 11 40075404 FACE FELT ASM. DDL-8000A-SSH ONLY 1 12 40174365 OIL ADJUSTING SCREW 1 13 RO037180100 RUBBER RING 1 14 23628803 PLUNGER 1 15 23628902 PLUNGER SPRING 1 16 23628328 PLUNGER SCREW 1 17 RO068190100 RUBBER RING 1 18 40215311 PIPE STOPPER 2 19 EA9500B0100 CABLE BAND 1 20 HX00150000K CABLE CLIP 1 21 40000344 LUBRICATING INLET CAP 1 22 40029075 LUBRICATING INLET 1 23 RO048190100 RUBBER RING 1 24 23540305 FLOATER CASE CAP DDL-8000A-MS ONLY 1 25 23630106 TUBE B 0.296 26 23630007 TUBE 0.117 27 23629405 PIPE STOPPER B 1 28 23629306 PIPE STOPPER A 3 29 CQ200000001 OIL WICK DDL-8000A-SSH ONLY 0.9 30 40221269 OIL TANK 1 31 40221271 O-RING 1 32 40221270 OIL LEVEL SWITCH CAP 1 33 WP0560860SE WASHER 5.6X12X0.8 1 34 40209293 FLOATER SENSOR 1 35 40221273 OIL TANK STAY 1 36 RO118180100 O-RING 1 37 40178658 PIPE 0.155 38 23630403 OIL FILTER 1 39 23630502 OIL FILTER STOPPER 1 40 40174356 CONNECTING SCREW 1 41 SQ2050453MZ CONNECTING SCREW 1 42 23630007 TUBE DDL-8000A-SSH ONLY 0.6 jintex.in

Page 29 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS 12 13 14 17 18 19 10 11 9 4 5 6 3 1 2 7 8 7 8 7 8 16 15 jintex.in

Page 31 — OPERATION PANEL COMPONENTS

OPERATION PANEL COMPONENTS 1.15 14 13 12 13 10 9 8 8 7 6 11 5 2 jintex.in

Page 32 — OPERATION PANEL COMPONENTS

OPERATION PANEL COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40211456 PANEL 8A ASSY OTHER THAN DDL-8000A-BB 1 2 40214743 PANEL COVER 8A F ASSY * 1 3 40172422 INDICATOR * 1 4 40172423 USB COVER * 1 5 SV4030802SN TAPPING SCREW WITH FLANGE M3X8 * 4 6 40173459 PANEL COVER R ASM * 1 7 40172386 PANEL_COVER_R * 1 8 40172420 FIX_PLATE * 3 9 40174580 PNL_CABLE_CLAMP_PLATE * 1 10 SV4030802SN TAPPING SCREW WITH FLANGE M3X8 * 1 11 40214742 PNL 8A PCB ASSY * 1 12 SM8050852TP SCREW M5 L=8 3 13 40174408 PANEL_CSHION_RUBBER 2 14 40215704 MAIN-PNL CORD 8A ASSY 1 15 40224345 PANEL 8A CE ASSY DDL-8000A-BB ONLY 1

Page 33 — PSC UNIT

PSC UNIT 1 5 3 2 4.6 jintex.in

Page 34 — PSC UNIT

PSC UNIT No. Parts No. Parts name Remarks Level Cons Qty 1 40211954 CONTROL BOX OTHER THAN DDL-8000A-BB 1 2 40215706 PEDAL SENSOR BASE ASSY 1 3 40131478 CONNECTING ROD ASSY 1 4 40215705 ACCESSORIES PARTS ASSY OTHER THAN DDL-8000A-BB 1 5 40212265 CONTROL BOX,1P,220,240V,CE DDL-8000A-BB ONLY 1 6 40221831 ACCESSORIES PARTS ASSY CE DDL-8000A-BB ONLY 1 jintex.in

Page 35 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS 1.4 2 3 5 3 5 3 5 jintex.in

Page 36 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40062323 UNDER COVER B ASM. OTHER THAN DDL-8000A-BB 1 2 23639008 UNDER COVER * 1 3 B1116210D00 FRAME SUPPORT RUBBER * 4 4 40223144 UNDER COVER C ASM. DDL-8000A-BB ONLY * 1 5 40218924 CE_BLOCK DDL-8000A-BB ONLY * 4

Page 37 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 38 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40108402 THRED_STAND_B 1 2 40085786 SPOOL REST ARM (LOWER) * 1 3 40085787 SPOOL REST ARM (UPPER) * 1 4 40085788 SPOOL REST * 2 5 40085789 SPOOL REST CUSHION * 2 6 40085790 SPOOL PIN * 2 7 40085791 SPOOL RETAINER * 2 8 40085794 THREAD GUIDE * 2 9 40085795 THREAD GUIDE BUSHING * 2 10 40096326 SPOOL REST ARM LOWER SCREW 1 11 NM6050001SE NUT M5 * 2 12 40096327 SPOOL REST ARM UPPER SCREW * 1 13 NM6050001SE NUT M5 * 2 14 WS0510002KN SPRING WASHER M5 * 2 15 WP0531001SC WASHER M5 * 2 16 40108401 THREAD_STAND_A * 1 17 40085784 SPOOL REST ROD LOWER * 1 18 40085785 SPOOL REST ROD UPPER * 1 19 40085792 SPOOL REST ROD JOINT * 1 20 40085793 SPOOL REST ROD RUBBER CAP * 1 21 40096325 SPOOL REST ROD NUT * 1 22 WP1612616SE WASHER 16X30X2.6 * 1 23 40085796 SPOOL REST ROD RUBBER CUSHION * 2 24 SM4051405SE SCREW M5 L=14 * 2 25 NM6050001SE NUT M5 * 2

Page 39 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS 8.9 10 18~22 12 17 16 15 11 14 13 2 23 4 7 5 6 3 24 1 25 JUKI

Page 40 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40135803 HEAD COVER 1 2 22958052 RUBBER HINGE ASM. 1 2 3 22926505 WASHER 2 4 22926000 RUBBER CUSHION 2 5 22958003 FRAME BUBBER CUSHION 8 6 22926208 NAIL 2 7 22926356 HINGE COMPL. 1 8 40212472 ACCESSORIE BAG ASM. WITHOUT AK DEVICE 1 9 40037484 ACCESSORIE BAG 1 10 22932800 ACCESSORIE BAG 1 11 22958300 NEEDLE THREAD GUIDE PIN 1 12 40055591 HEXAGONAL WRENCH KYE 1 13 22933105 SCREW DRIVER (MIDDLE) 1 14 22933204 SCREW DRIVER (SMALL) 1 15 22931604 FRAME SUPPORT BAR 1 16 23639701 KNEE LIFTER PRESSER ROD WITH AK DEVICE 1 17 EA9500B0100 CABLE BAND WITH AK DEVICE 1 18 MDB100B1102 NEEDLE DBX1#11-2 FOR AA 1 19 MDB100B2102 NEEDLE DBX1#21-2 FOR DDL-8000A-SSH-AA 1 20 MC200500752 134 #75-2 FOR BB 1 21 MC200501302 NEEDLE 134 #130-2 FOR DDL-8000A-SSH-BB 1 22 MDB100B1402 NEEDLE DBX1#14-2 FOR GG 1 23 40214221 NEW DEFRIX OIL 1 100CC COMP. 1 24 22932909 BOBBIN 1 25 40179371 REACTOR BOX ASSY 1P FOR BB 1 jintex.in

Page 41

EXCLUSIVE PARTS DDL-8000A-SSH jintex.in

Page 42 — EXCLUSIVE PARTS DDL-8000A-SSH

EXCLUSIVE PARTS DDL-8000A-SSH No. Parts No. Parts name Remarks Level Cons Qty 1 40089605 THROAT PLATE_J FOR AA/BB 1 2 40107708 NEEDLE BAR METAL,LOWER,H FOR AA/GG 1 3 40061767 NEEDLE BAR H 1 4 MDB100B2100 NEEDLE DBX1 #21 FOR AA/GG 1 5 40172373 FACE COVER PACKING 1 6 B1505552000A PRESSER SPRING 1 7 D1524555EBL PRESSER FOOT ASM. FOR AA/BB 1 8 40064839 PRESSER FOOT ASM. FOR GG 1 9 40089610 INNER HOOK HOLDER H 1 10 11092251 LUBRICATING BOBBIN ASM. 1 11 40191118 THREAD TAKE UP COMP. H 1 12 40000264 BOBBIN CASE ASM. 1 13 22962054 THREAD TENSION ASM. 1 14 22921308 THREAD TENSION NUT 1 15 22921209 THREAD TENSION POST 1 16 22921407 ROTATION STOPPER 1 17 22921506 THREAD TENSION DISK 1 18 22921605 THREAD TAKE-UP SPRING 1 19 22921803 DISK STOPPER 1 20 22945307 THREAD TENSION POST BASE 1 21 22962005 THREAD TENSION SPRING 1 22 SS8090670SP SCREW 9/64-40 L=5.5 2 23 40024124 NEEDLE BAR THREAD GUIDE 1 24 40191126 ASSY_COUNTER WEIGHT H 1 25 40191127 COUNTER WEIGHT H 1 26 40004171 COUNTER WEIGHT SCREW 1 27 SM8081652TP SCREW M8 L=16 1 28 SM80806A2TP SCREW M6 L=6 1 29 40063697 ARM THREAD GUIDE A H FOR GG 1 30 11062601 FEED DOG FOR GG 1 31 11062007 THROAT PLATE A FOR AA/BB 1 32 11403003 FEED J FOR BB 1 33 40023223 NEEDLE BAR THREAD GUIDE 1 34 MC200501300 NEEDLE 134 NM130 1 35 23619059 VERTICAL FEED CAM H ASM. 1 36 23619000 VERTICAL FEED CAM H 1 37 SS8151150TP SCREW 15/64-28 L=10.5 2 38 22963458 THREAD TENSION ASM. 1 39 22945414 THREAD TENSION POST 1 40 22963409 THREAD TENSION SPRING 1 41 22945604 THREAD TENSION GUIDE 1 42 22945703 THREAD TENSION NUT 1 43 22945802 THREAD TENSION DISK 2 jintex.in

Page 43 — LIST FOR INFORMATION OF CHANGE

LIST FOR INFORMATION OF CHANGE As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsolete parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 No.1728-02 Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. 頁 No. Parts No. 品 番 Rev. Page Ref. No. 頁 No. Parts No. 品 番 A 02 30 9 400-37484 A 02 30 16 236-39701 A 02 30 17 EA-9500B01-00 jintex.in

Page 44

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)"*"mark...means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. Sign Place of destination GG China BB Europe EE Japan AA excludes China,Europe and Japan 1."注記"欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ (単位メート ル)を表します。 3.数量欄の ( ) は、組部品を構成している子部品であることを意味します。 4.イラストページのー－－－枠は、組構成であることを意味します。 5.リストページの"☆" (消耗部品)、"◎" (オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 記号 仕向地 GG 中国 BB ヨーロッパ EE 日本 AA 中国、ヨーロッパ、日本を除く jintex.in

Page 45 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10618304 24 49 22921209 2 42 22958300 38 11 11015906 20 61 22921209 40 15 22962005 40 21 11038650 20 68-69 22921308 2 43 22962054 40 13 11038759 18 27 22921308 6 27 22963409 40 40 11062007 40 31 22921308 40 14 22963458 40 38 11062601 40 30 22921407 2 44 23540305 26 24 11079506 20 84 22921407 6 28 23608003 8 1 11092251 40 10 22921407 40 16 23609001 12 15 11141355 20 68-69 22921506 2 45 23613409 16 39 11403003 40 32 22921506 6 29 23618101 18 47 11419504 22 33-38 22921506 40 17 23618309 20 52 11419603 22 33-38 22921605 2 46 23619000 40 36 11419702 22 33-38 22921605 40 18 23619059 40 35 11419801 22 33-38 22921704 2 47 23626104 2 27 11419900 22 33-38 22921704 6 30 23626807 12 3 11420601 22 6 22921803 4 48 23628803 26 14 22886907 8 7-8 22921803 40 19 23628902 26 15 22887004 8 7-8 22925101 26 10 23629207 26 7 22891204 6 2 22926000 38 4 23629256 26 6 22901201 2 21 22926208 38 6 23629306 26 28 22901250 2 20 22926356 38 7 23629405 26 27 22901300 2 22 22926505 38 3 23630007 16 23 22901409 8 2 22931604 38 15 23630007 26 42 22901805 4 59 22932800 38 10 23630106 26 25 22902506 2 4 22932909 20 72 23630403 26 38 22904106 18 23 22932909 38 24 23630502 26 39 22904155 18 22 22933105 38 13 23639008 34 2 22906309 8 47 22944508 12 11 23639701 38 16 22906408 8 4 22945307 2 41 40000264 40 12 22906457 8 3 22945307 40 20 40000344 26 21 22907406 12 14 22945356 2 40 40000391 18 37 22907703 12 21 22945414 2 29 40000392 18 38 22907802 12 32 22945414 40 39 40004171 8 17 22908008 12 26 22945463 2 28 40004171 40 26 22908552 12 34 22945505 2 30 40006716 16 43 22910509 16 11 22945505 40 41 40009037 4 51 22911002 18 13 22945604 2 31 40010805 20 78 22911101 18 6 22945604 40 42 40015671 24 66-67 22912109 16 30 22945703 2 32 40017805 12 16 22912307 16 20 22945703 40 42 40023223 40 33 22912307 22 22 22945802 2 33 40024124 40 23 22913008 20 77 22945802 40 43 40026277 18 5 22916506 20 60 22952501 16 27 40026281 18 5 22920300 12 5 22958003 38 5 40026282 18 16 22920409 12 6 22958052 38 2 40026282 18 36 INDEX - 1 jintex.in

Page 46 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40026287 18 41 40086623 24 69 40135916 8 16 40026288 18 43 40086635 24 51 40136258 4 56 40029075 26 22 40086655 28 17 40136292 8 10 40030786 20 71 40086674 16 17 40136293 8 11 40032269 8 38 40086675 16 18 40136701 22 14 40037005 18 15 40086690 18 45 40141440 8 44 40037008 6 32 40086695 16 2 40141840 16 29 40037141 12 23 40086696 16 3 40141842 16 29 40037144 12 24 40086698 28 13 40145927 20 58 40037359 12 22 40086699 28 18 40150011 8 13 40037365 18 4 40086704 16 8 40161440 16 31 40037484 38 8-9 40086705 16 9 40161441 16 36 40038328 26 16 40086706 16 12 40166870 6 3 40040256 14 10 40086711 22 46 40166872 6 4 40042079 18 10 40086712 24 55 40166881 6 5 40050582 12 2 40086731 8 46 40166885 6 6 40050583 12 36 40086737 16 22 40166886 6 7 40052933 2 37 40086739 16 21 40166887 6 8 40053720 18 40 40086748 24 65 40166888 6 9 40055591 38 12 40086753 28 3 40166893 6 10 40058504 18 9 40086759 28 20 40166894 6 11 40061246 18 8 40088958 6 25 40172373 40 5 40061767 40 3 40088959 6 26 40172376 2 8 40062323 34 1-4 40089605 40 1 40172386 30 7 40063697 40 29 40089607 20 75 40172393 8 22 40064839 40 8 40089610 40 9 40172398 8 21 40075404 26 11 40090058 8 6 40172401 12 44 40085784 36 17 40090099 24 61 40172401 14 3 40085785 36 18 40091461 4 57 40172402 14 4 40085786 36 2 40095844 28 12 40172403 12 42 40085787 36 3 40095847 16 40 40172420 30 8 40085788 36 4 40096325 36 21 40172422 30 3 40085789 36 5 40096326 36 10 40172460 16 14 40085790 36 6 40096327 36 12 40172467 16 5 40085791 36 7 40099083 2 11 40172479 22 28 40085792 36 19 40107708 40 2 40172482 22 21 40085793 36 20 40108401 36 16 40172495 24 50 40085794 36 8 40108402 36 1 40172496 24 56 40085795 36 9 40122891 16 42 40172498 22 9 40085796 36 23 40131478 32 3 40172504 24 57 40086597 8 20 40133950 18 25 40172508 16 7 40086605 8 15 40135803 38 1 40173459 30 6 40086606 12 17 40135904 8 15 40174296 18 1 40086607 12 18 40135905 8 31 40174297 18 2 40086616 16 38 40135907 8 35 INDEX - 2 jintex.in

Page 47 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. 40174298 18 20 40191108 6 12 40212472 38 8-9 40174300 18 31 40191109 6 13 40213205 18 14 40174302 18 32 40191111 6 14 40213295 2 18 40174314 22 27 40191113 6 15 40213952 22 20 40174315 22 17 40191114 6 16 40214010 28 15 40174318 22 4 40191115 6 17 40214221 38 23 40174321 4 58 40191116 6 18 40214565 22 11 40174323 22 13 40191118 40 11 40214742 30 11 40174324 22 15 40191126 40 24 40214743 30 2 40174328 20 56 40191127 40 25 40214745 24 77 40174331 20 57 40191133 18 34 40214746 2 13 40174333 20 74 40195289 22 2 40215263 10 50 40174334 20 54 40195552 22 3 40215311 26 18 40174335 20 62~66 40209293 26 34 40215688 22 31 40174336 20 62~66 40211061 2 1 40215691 22 24 40174337 20 62~66 40211076 2 15 40215704 30 14 40174338 20 62~66 40211078 2 3 40215705 32 4-6 40174341 8 30 40211082 8 27 40215706 32 2 40174342 8 32 40211085 18 33 40215866 8 25 40174343 8 33 40211086 18 44 40218924 34 5 40174344 8 34 40211087 22 1 40221269 26 30 40174349 10 49 40211442 14 6 40221270 26 32 40174356 26 40 40211449 16 26 40221271 26 31 40174358 26 3 40211454 24 74 40221273 26 35 40174365 26 12 40211456 30 1-15 40221831 32 4-6 40174369 20 62~66 40211459 16 34 40223144 34 1-4 40174373 2 34 40211502 16 25 40224345 30 1-15 40174375 14 10 40211510 22 39 B1109552000 4 54 40174388 12 38 40211511 22 40 B1116210D00 22 8 40174388 14 2 40211512 14 1 B1116210D00 34 3 40174392 2 35 40211518 28 1 B1116804000 24 60 40174408 30 13 40211523 16 15 B150552000A 40 6 40174573 12 41 40211525 12 1 B152155000 12 33 40174577 20 81 40211526 12 28 B15240120BA 12 9 40174580 30 9 40211527 12 27 B3118552F00 12 7 40174583 22 41 40211528 12 25 B412352200A 18 28~30 40174584 22 44 40211713 22 5 B412352200B 18 28~30 40174600 22 26 40211777 14 19 B412352200C 18 28~30 40174610 24 66-67 40211778 22 7 CM300200001 2 19 40174612 22 33~38 40211898 24 75 CQ200000001 26 29 40178658 26 37 40211953 16 37 CQ250000001 26 8 40179371 38 25 40211954 32 1 CS0800881TP 22 22 40181990 24 63 40212095 14 8 CS1000881TP 8 39 40182053 24 62 40212098 14 15 D1524555EBL 40 7 40191107 6 1 40212265 32 5 D2468555B00 28 5 INDEX - 3 jintex.in

Page 48 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. EA9500B0100 8 29 EA9500B0100 26 19 EA9500B0100 38 17 GPK26023000 12 8 HD00223000 14 17 HK034610040 24 73 HK03464000B 28 2 HX001500000 12 30 HX00150000K 26 20 MC200500750 8 42-43 MC200500752 38 18-22 MC200501300 40 4-34 MC200501302 38 18-22 MDB100B1100 8 42-43 MDB100B1102 38 18-22 MDB100B1402 38 18-22 MDB100B2100 40 4-34 MDB100B2102 38 18-22 NM6040001SC 2 53 NM6040001SE 4 53 NM6040001SP 22 42 NM6040001SP 14 14 NM6040001SP 24 68 NM6050001SC 22 16 NM6050001SE 36 25 NM6050001SP 28 10 NM6060001SC 24 58 NS6110310SP 24 54 NS6620310SP 12 59 RC0150001KP 20 59 RC1200001KP 20 83 RC2651218KP 22 19 RE0300000K0 8 36 RE0500000K0 12 37 RE0500000K0 16 24 RE0500000K0 24 48 RE1200000K0 28 4 RO036080200 20 73 RO037180100 12 35 RO037180100 26 43 RO044240100 12 23 RO048190100 26 17 RO068190100 26 33 RO092270200 16 11 PART NO PAGE REF NO. RO118180100 26 36 SB108000100 20 79 SB117001200 20 51 SB120001800 20 80 SB120002700 8 24 SB32000060A 20 48-50 SB32000060B 20 48-50 SB32000060C 20 48-50 SD0500403TP 22 25 SD0500701TP 24 53 SL4041281SC 4 52 SL4041291SC 14 18 SL4041401SC 2 7 SL4051091SC 26 4 SL4051691SC 4 55 SL4052591SC 2 10 SL6052592TN 8 28 SM0050801SC 6 33 SM4040601SC 12 31 SM4040655SP 12 12 SM4040655SP 14 20 SM4040655SP 18 42 SM4041055SP 12 13 SM4050655SP 22 10 SM4050855SP 4 60 SM4050855SP 8 41 SM4050855SP 18 19 SM4050855SP 24 78 SM4051055SP 28 16 SM4051055SP 2 9 SM4051055SP 6 31 SM4051055SP 20 76 SM4051055SP 26 5 SM4051055SP 28 8 SM4051405SE 36 24 SM5040655SN 2 26 SM5040655SN 6 20 SM5040655SN 26 9 SM6040802TP 14 7 SM6042000SP 8 45 SM6042000SP 20 82 SM6051400SP 12 19 SM6051400SP 18 17 SM6051402TP 12 39 SM6051402TP 22 18 PART NO PAGE REF NO. SM6051602TP 16 19 SM6051602TP 28 14 SM6051850TP 16 28 SM6060802TP 2 14 SM6060802TP 14 9 SM6061002TP 2 16 SM6061002TP 24 72 SM8040412TP 6 21 SM8040612TP 2 36 SM8050402TP 26 2 SM8050502TP 6 22 SM80506A2TP 8 40 SM80506A2TP 16 4 SM80506A2TP 22 30 SM8050852TP 14 11 SM8050852TP 30 12 SM80606A2TP 8 19 SM80606A2TP 16 41 SM80606A2TP 24 64 SM80606A2TP 40 28 SM80608A2TP 2 39 SM80608A2TP 8 37 SM80608A2TP 14 5 SM80608A2TP 16 1 SM80608A2TP 20 67 SM80608A2TP 22 12 SM8061010TP 24 71 SM8061050TP 24 70 SM8081652TP 8 18 SM8081652TP 40 27 SM8480652TP 22 29 SM8480652TP 28 19 SS0210920TP 2 17 SS06060210SP 2 23 SS6090620TP 18 12 SS6090670TP 8 5 SS6090670TP 18 53 SS6090670TP 20 53 SS6110710TP 18 35 SS6110710TP 22 47 SS6121610SP 18 11 SS6121860SP 16 35 INDEX - 4 jintex.in

Page 49 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO SS7080510TP SS7091110TP SS7110720SP SS8090670SP SS8090670SP SS8150822TP SS8151150TP SS8660610TP SS8661012TP ST4030651SN SV4030802SN TA1250406R0 TA1250406R0 WP0501016SD WP0531000SD WP0531001SC WP0550800SP WP0551016SH WP0560860SE WP0621016SD WP0621016SH WP1602616SZ WP1612616SE WS0410002KR WS0510002KN WS0610002KN WT0530002KS PAGE 10 12 2 4 40 18 18 18 18 6 30 2 4 12 18 36 28 28 26 24 28 36 22 36 28 4 REF NO. 48 20 12 49 22 3 39 37 24 46 23 10 50 50 40 18 15 7 9 33 45 59 6 22 43 14 11 61 INDEX - 5 jintex.in
